Air Purifiers
Product Guide
Trusted Solutions for a Healthy Home®
One-inch filters have been the standard
on system installs for years but they cause
a variety of equipment problems: frozen
coils, low airflow, inecient cooling and
even flood-back of refrigerant into the
compressor. HVAC contractors know that
better filtration prevents these problems —
homeowners don’t.
When you use Aprilaire air purifiers and high-performance
filters, you ensure that the HVAC systems you install will
last a long time and require fewer unscheduled service
trips to homes. This saves your customers money and
saves you and your sta valuable time.
A high performance
filter for better
indoor air and
system protection
1

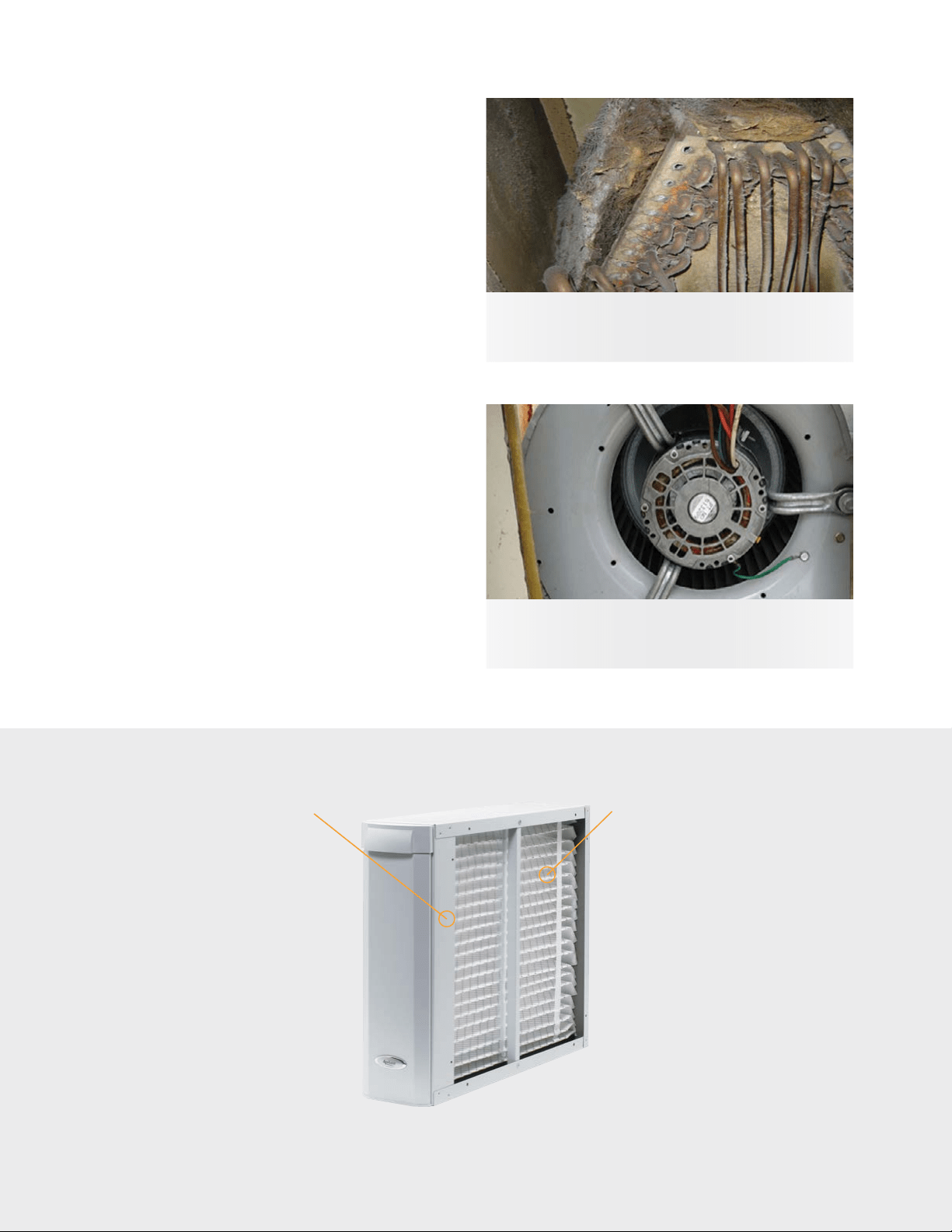

A dirty and frozen AC coil caused by a sub-par one-inch filter
and an irregular filter replacement schedule.
A clean furnace blower protected for years by an Aprilaire
air purifier.
HIGH PERFORMANCE AIR FILTERS
+ Superior performance to 1" filters in
terms of particulate removal, static
pressure and system protection
+ Self-Seal® filter design minimizes
air bypass
+ Collapsible filters for easy
transportation, storage and
reduced damage
+ Oer the right replacement filter
for homeowner needs
- Clean air
- Healthy home
-Odor reduction
- Allergy and asthma relief
AIR PURIFIER CABINETS
+ 5-year warranty on corrosion-
resistant, heavy gauge steel
cabinets
+ Load rated up to 400 lbs.
+ Well-suited for all applications,
installation types and
orientations: attics, basements,
upflow, downflow, etc.
+ A wide variety of cabinet sizes
including our 31" x 28" low-
resistance model and 16" x 25"
and 20" x 25" Easy Install models
+ UL listed
Choose filters designed for HVAC performance
Aprilaire’s air purifiers are designed for years of trouble-free performance.
Our filters fit securely in our cabinets with our Interlock Rail System, and our
Self-Seal® technology assures no air bypass.

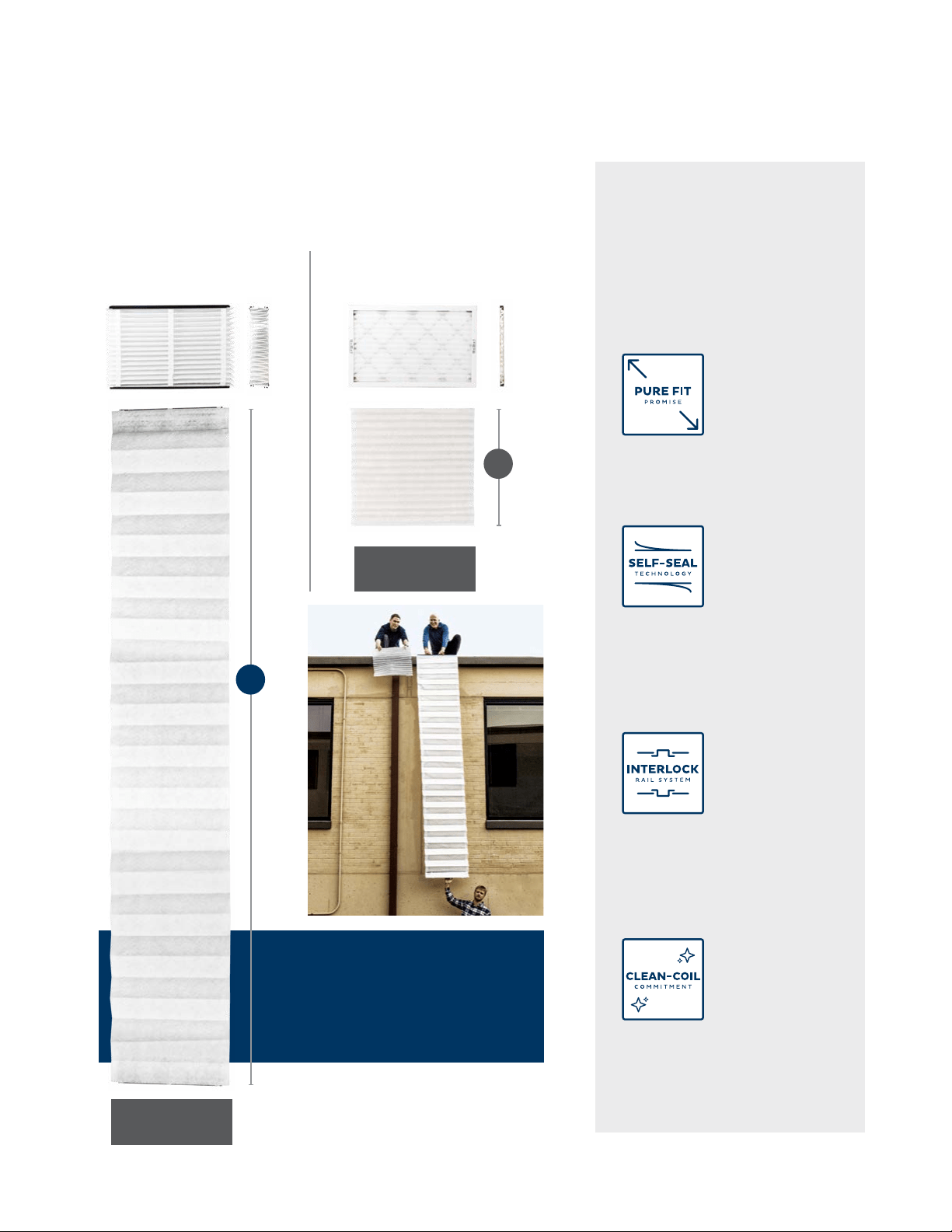

APRILAIRE FILTER
LASTS 6 TO 12 MONTHS
TRADITIONAL 1" FILTER
LASTS 1 TO 3 MONTHS
2
24"
259"
3.4 Sq. Ft.
MORE FILTER AREA for
removing harmful particles
Over 14x
As the leader in IAQ and whole-home
filtration, Aprilaire oers homeowners
and installers peace-of-mind and
assurance that all aspects of our filters
come together to provide you with the
best air purifier on the market today.
PURE FIT PROMISE
The Aprilaire Pure Fit
Promise guarantees a
filter that is not only
made to fit flawlessly
into an Aprilaire air purifier, but one that
also provides purer, healthier air.
SELF-SEAL FILTER
Our Patented Self-Seal
technology works like
this: the excess filter
on either side of the
Interlock Rails collect at the back and
front of the air purifier in order to create
a seal that allows no air to pass
by unfiltered.
INTERLOCK RAILS
The Aprilaire Interlock
Rail System allows our
high-performance air
filter to work without
unnecessary cardboard framing, or
plastic or metal reinforcements. It also
ensures that no air bypass occurs over or
under the filter.
CLEAN-COIL
GUARANTEE
Should a homeowner’s
indoor air conditioner
coil require a
professional cleaning at any time up to 10
years after being installed with an Aprilaire
air purifier, we will pay $100 toward that
cleaning by an HVAC contractor.
47.8 Sq. Ft.*
*Area of a 20" x 25" Model 216 filter
Growing your business with Aprilaire
APRILAIRE FILTER PROFITS ON AN ANNUAL
AND FIVE-YEAR CUMULATIVE BASIS
$100,000
$80,000
$60,000
$40,000
$20,000
$0
YEARLY PROFIT
YEAR 1
0 Filters
YEAR 2
500 Filters
YEAR 3
1,000 Filters
YEAR 4
1,500 Filters
YEAR 5
2,000 Filters
$
0
$
10,000
$
40,000
$
30,000
$
20,000
$30,000
$60,000
$
100,000
CUMULATIVE PROFIT
Assuming one filter per year
with a profit of $20 per filter
In addition to the system protection and improved indoor
air quality that comes with adding an Aprilaire air purifier
on every job, annual filter replacement with system
check-ups and service agreements earn you additional
revenue. The addition of MERV 16 Allergy & Asthma and
MERV 13 Odor Reduction filters to our lineup gives you even
more replacement filter options to oer your customers.
If you’re serious about the need for putting an Aprilaire
air purifier on every job, we can help keep your name
on top of your customers’ minds by imprinting our air
purifier doors with your logo and contact information.
Every time your customers need a new filter, they’ll
know exactly who to contact. Contact your District Sales
Manager for more information.

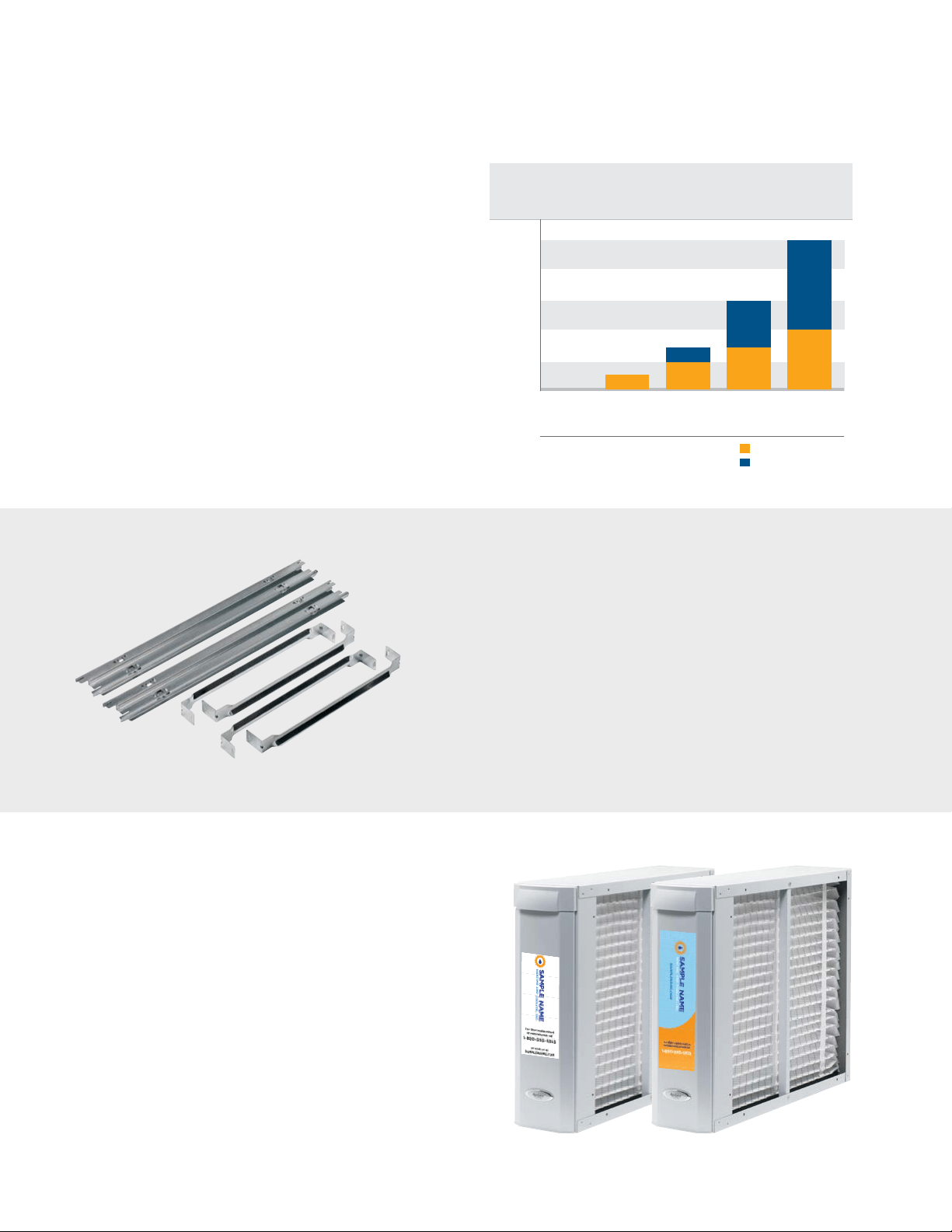

Aprilaire oers upgrade rail kits that fit into our older Aprilaire
and Space-Gard cabinets (Models 2200 and 2400). We also
oer competitive upgrade rails that fit into a variety of air
cleaners made by other manufacturers. Both types of rails
allow you to use the same high-performance filters that fit
into the air purifiers we oer today. This means you can earn
even more revenue from Aprilaire replacement filters on every
air purifier you’ve installed—past, present and future.
3
PROTECTS YOUR HVAC SYSTEM

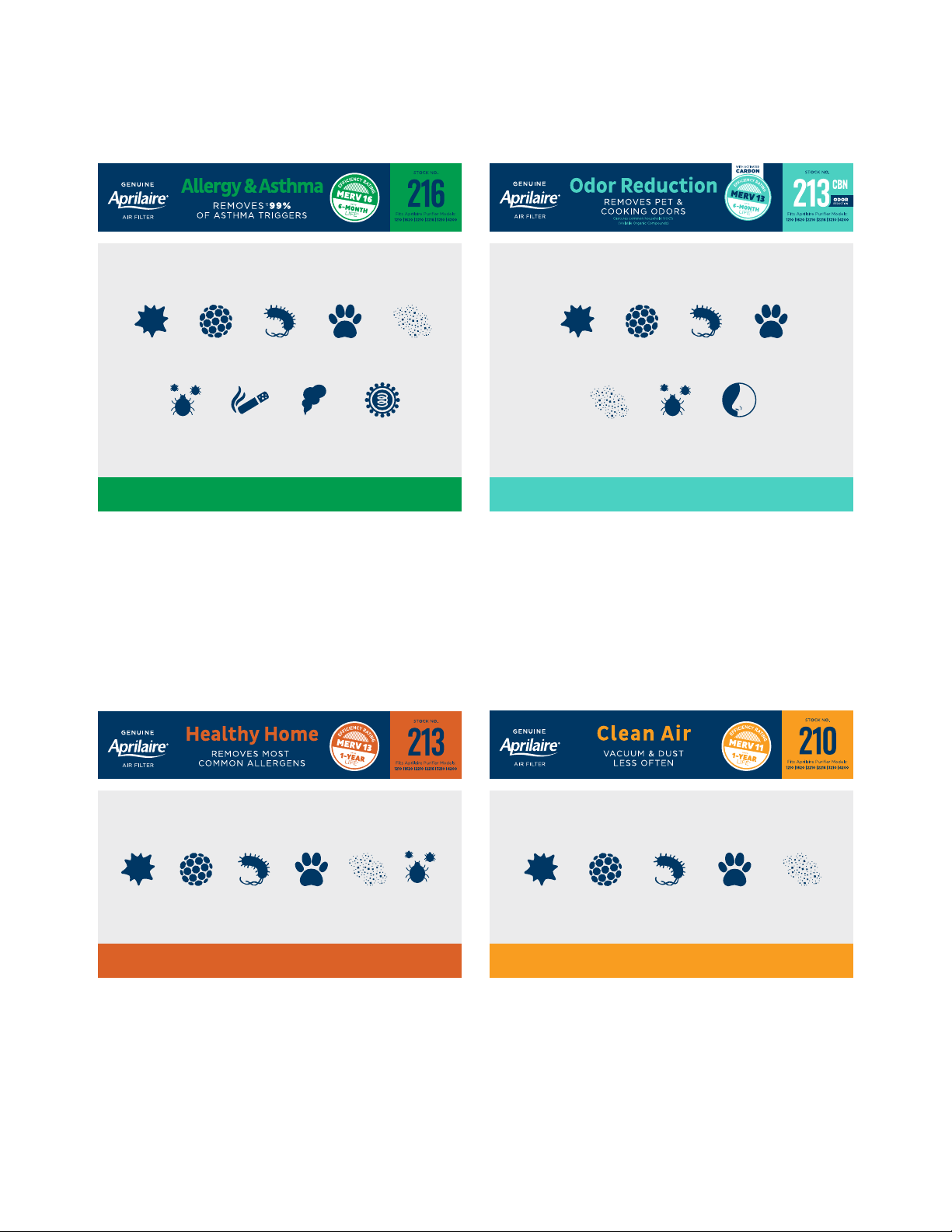

The right filter for every home
4
+ MERV 16 performance
+ Low resistance
+ Removes up to 99% of allergy & asthma triggers
+ Superior system protection
+ Up to 6-month filter life
+ MERV 13 performance
+ Designed for homeowners with low-to-moderate
allergy problems
+ Low resistance
+ Up to 1-year filter life
+ MERV 13 performance plus odor reduction
+ The most activated carbon added to any air filter
+ Reduces noticeable orders caused by pets, cooking
and common household VOCs
+ Up to 6-month filter life
+ MERV 11 performance
+ Particulate removal, system protection and static
pressure superior to 1" filters
+ Vacuum and dust less often
+ Up to 1-year filter life
PROTECTS YOUR HVAC SYSTEM
REMOVES UP TO 99% OF ASTHMA TRIGGERS
REMOVES MOST COMMON ALLERGENS
PROTECTS YOUR HVAC SYSTEM
Odor
Pollen Mold
Spores
Pet
Dander
Dust
Dust
Tobacco
Smoke
Pollution
(Smog)
Bacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
Bacteria
Dust
Mite
Dust
Mite
Dust
Mite
Virus
Odor
Pollen Mold
Spores
Pet
Dander
Dust
Dust
Tobacco
Smoke
Pollution
(Smog)
Bacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
Bacteria
Dust
Mite
Dust
Mite
Dust
Mite
Virus
Odor
Pollen Mold
Spores
Pet
Dander
Dust
Dust
Tobacco
Smoke
Pollution
(Smog)
Bacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
Bacteria
Dust
Mite
Dust
Mite
Dust
Mite
Virus
Odor
Pollen Mold
Spores
Pet
Dander
Dust
Dust
Tobacco
Smoke
Pollution
(Smog)
Bacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
DustBacteria
Pollen
Mold
Spores
Pet
Dander
Bacteria
Dust
Mite
Dust
Mite
Dust
Mite
Virus
PROTECTS YOUR HVAC SYSTEM
REMOVES PET & COOKING ODORS, VOCS & PARTICULATE
VACUUM AND DUST LESS OFTEN
5
Features and benefits
+ Offers the best performance in terms of particulate removal,
system protection and relief for allergy and asthma sufferers
+ Model 2516 air purifier offers the lowest resistance with a MERV 16
filter in the industry designed for higher tonnage systems
+ Also compatible with our Odor Reduction, MERV 13 and MERV 11 filters
+ Minimal maintenance required – simply replace filters once every
6 months or more
+ 216 and 416 filters not recommended for use with 5-ton systems
+ Made of corrosion-resistant heavy-gauge pre-painted steel
2000 Series with Allergy & Asthma
MERV 16 filters
+ Also compatible with MERV 16, Odor Reduction, or MERV 11 filters
+ Minimal maintenance required — simply replace filter annually
+ Made of corrosion-resistant heavy-gauge pre-painted steel
+ Low resistance
2000 Series with Healthy Home
MERV 13 filters
+ Can be upgraded to MERV 16, Odor Reduction, or MERV 13 filter
with simple filter change
+ Minimal maintenance required — simply replace filter annually
+ Model 1510 is designed for low static pressure on higher tonnage
residential HVAC installations including geothermal systems,
eliminating the need for multiple air purifiers on one system
+ Made of corrosion-resistant heavy-gauge galvanized steel
1000 Series with Clean Air
MERV 11 filters
3000 Series air purifiers include our model 8476
thermostat with Event-Based™
Air Purification,
which gives homeowners on-demand control.
9
Air purifier and
filter specifications
6

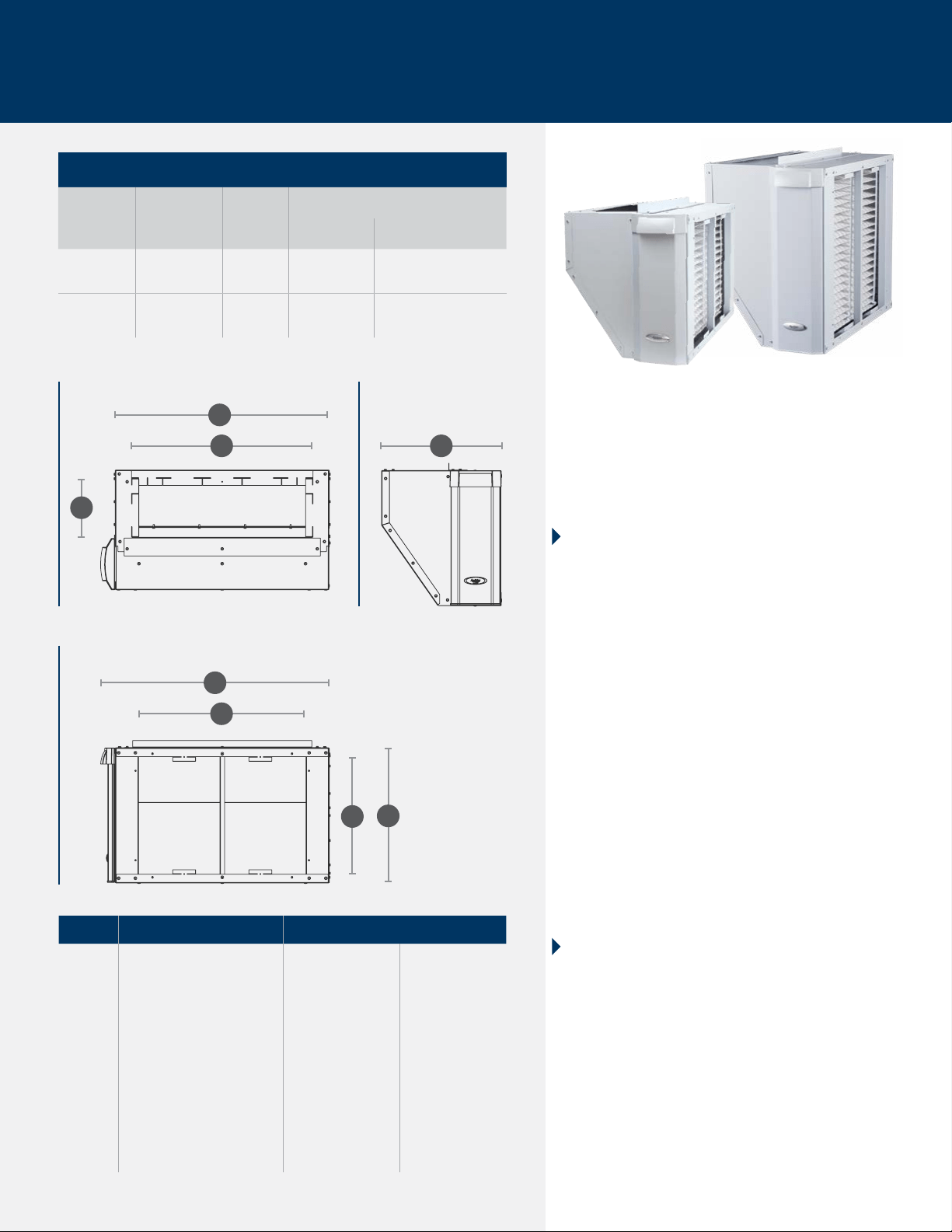

Cabinet specifications
Dim. Description
16x20 20x25 20x20 16x25 31x28 25x20
A Inlet Opening Height
15⁄" (392mm) 19¾" (502mm) 18⁄" (459mm) 15⁄" (392mm)
28⁄" (730mm)
22¾" (459mm)
B
Outer Housing Depth
without Door
20⁄" (510mm) 25⅜" (645mm) 20⁄" (510mm) 28⁄" (713mm)
28⁄" (712mm)
20⁄" (510mm)
C Inlet Opening Width
17⅜" (441mm) 21⁄" (538mm) 15⅞" (403mm) 23⅞" (606mm)
23⅞" (607mm)
15⅞" (403mm)
D Unit Width
6¾" (171mm) 6¾" (171mm) 6¾" (171mm) 6¾" (171mm) 6¾" (171mm) 6¾" (171mm)
E
Outer Housing Depth
with Door
22⁄" (560mm) 27⅜" (695mm) 22⁄" (560mm) 30⁄" (763mm)
30⁄" (763mm)
22⁄" (560mm)
F Outlet Opening Width
17⅜" (441mm) 21⁄" (538mm) 15⅞" (403mm) 23⅞" (606mm)
23⅞" (606mm)
15⅞" (403mm)
G Outlet Opening Height
15⁄" (392mm) 19¾" (502mm) 18⁄" (459mm) 15⁄" (392mm)
28⁄" (730mm)
22¾" (578mm)
H Unit Height
17¾" (451mm) 22⁄" (560mm) 20⅜" (518mm) 17¾" (451mm)
31" (788mm)
25⁄" (637mm)
FrontInlet Side Return Duct Connection
without door
with door
Outlet Side Furnace Connection
B
E
C
F
D
A
H
G

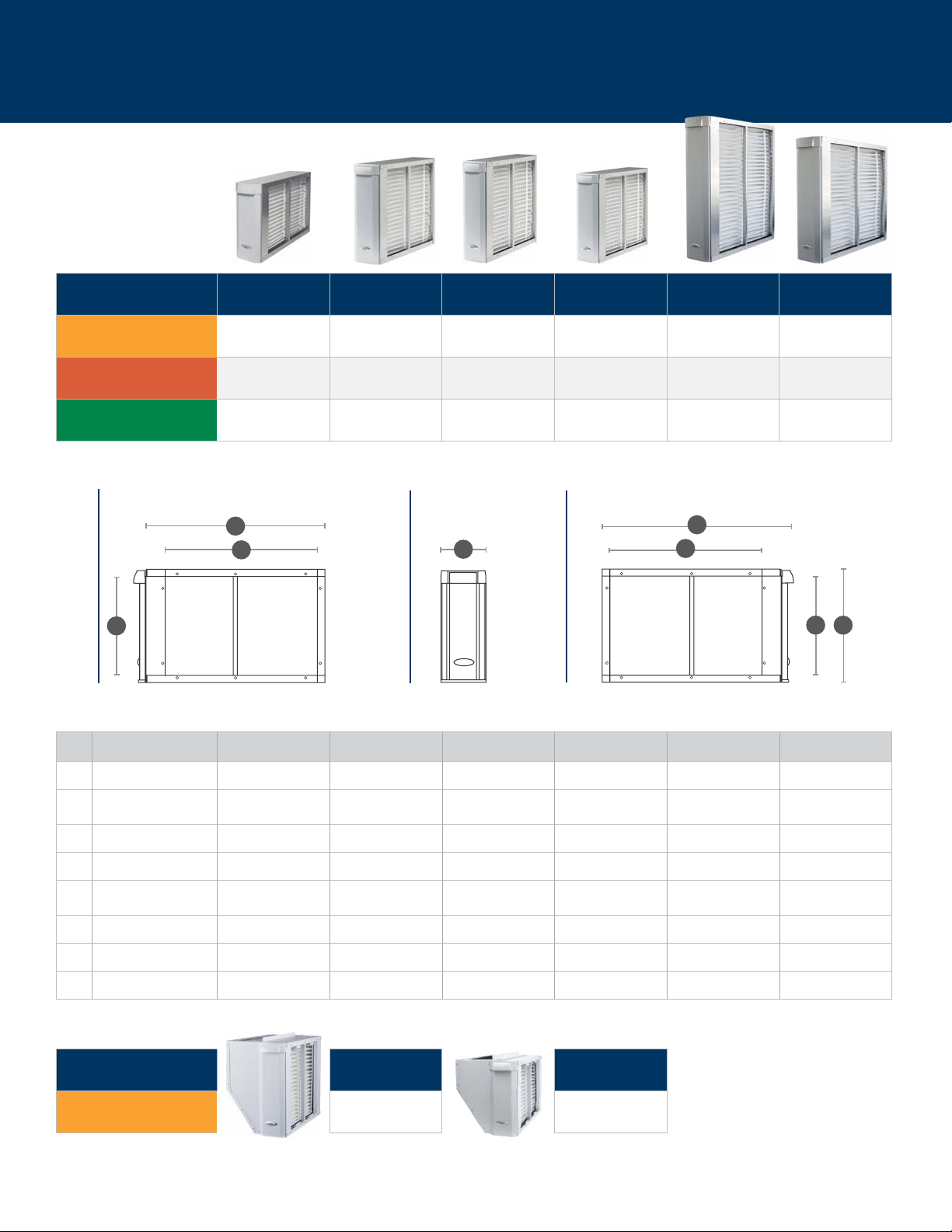

Air Purifier Series 20x25* 16x25*
EASY INSTALL
Ships with MERV 11
1620 1610
Air Purifier Series 16x20 20x25 20x20 16x25 31x28 25x20
1000 SERIES
Ships with MERV 11
1110 1210 1310 1410 1510 1910
2000 SERIES
Ships with MERV 13
– 2210 2310 2410 – –
2000 SERIES
Ships with MERV 16
– 2216 – 2416 2516 –
*See full dimensions on page 12
7

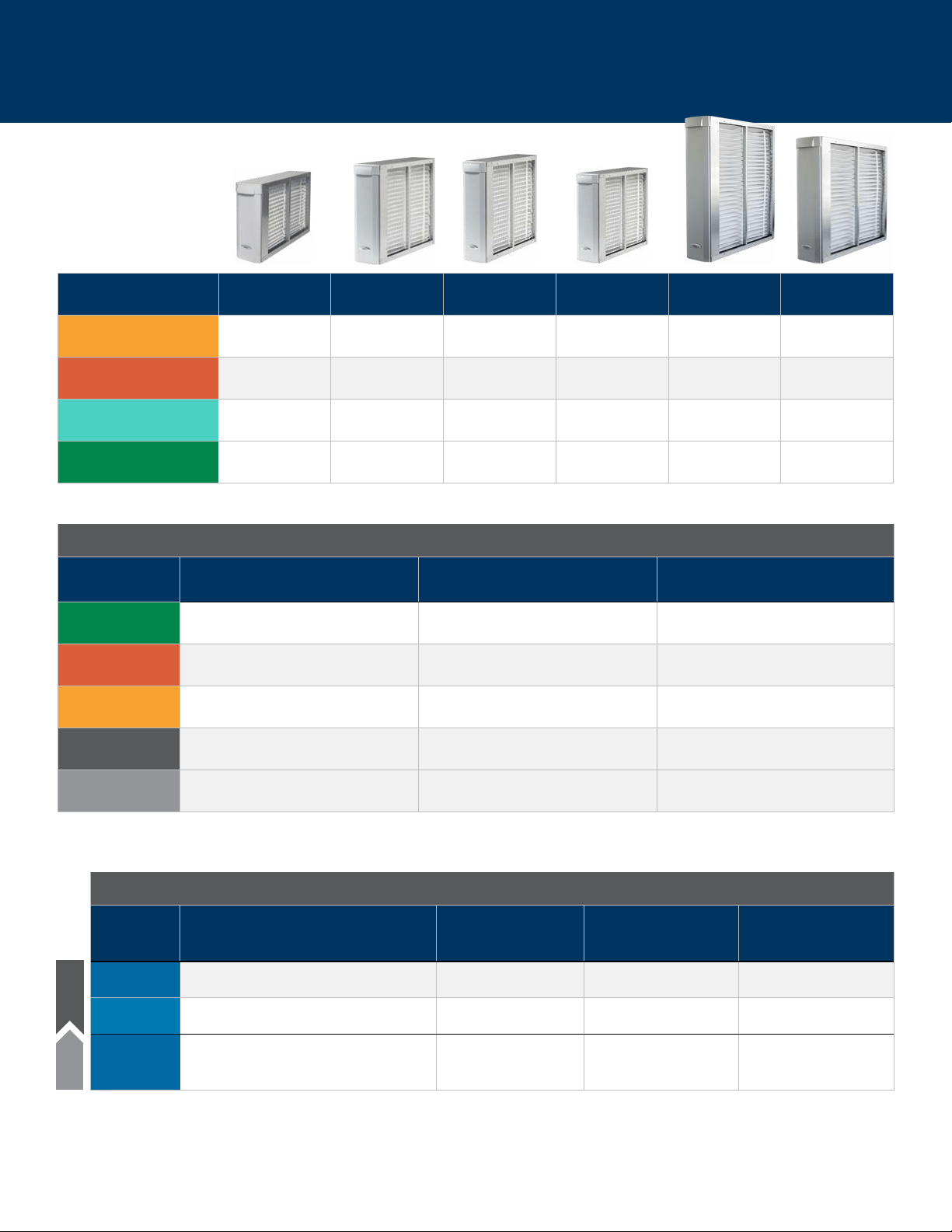

Filter specifications
Filter Series 16x20 20x25 20x20 16x25 31x28 25x20
CLEAN AIR
MERV 11
110 210 310 410 510 910
HEALTHY HOME
MERV 13
113 213 313 413 513 913
ODOR REDUCTION
MERV 13
– 213CBN – 413CBN 513CBN –
ALLERGY & ASTHMA
MERV 16
– 216 – 416 516 –
REMOVAL EFFICIENCY (Based on Particle Size)
0.3–1.0 Microns 1.0–3.0 Microns
3.0
–10.0 Microns
MERV 16
95% 98% 99%
MERV 13 63% 88% 93%
MERV 11 37% 67% 92%
MERV 10 22% 56% 92%
EAP
(Model 5000)
89% 95% 98%
Test Method – MERV 10-16 –ASHRAE 52.2.2012, EAP – AHRI 680-2009
8
* Air purifier models no longer available.

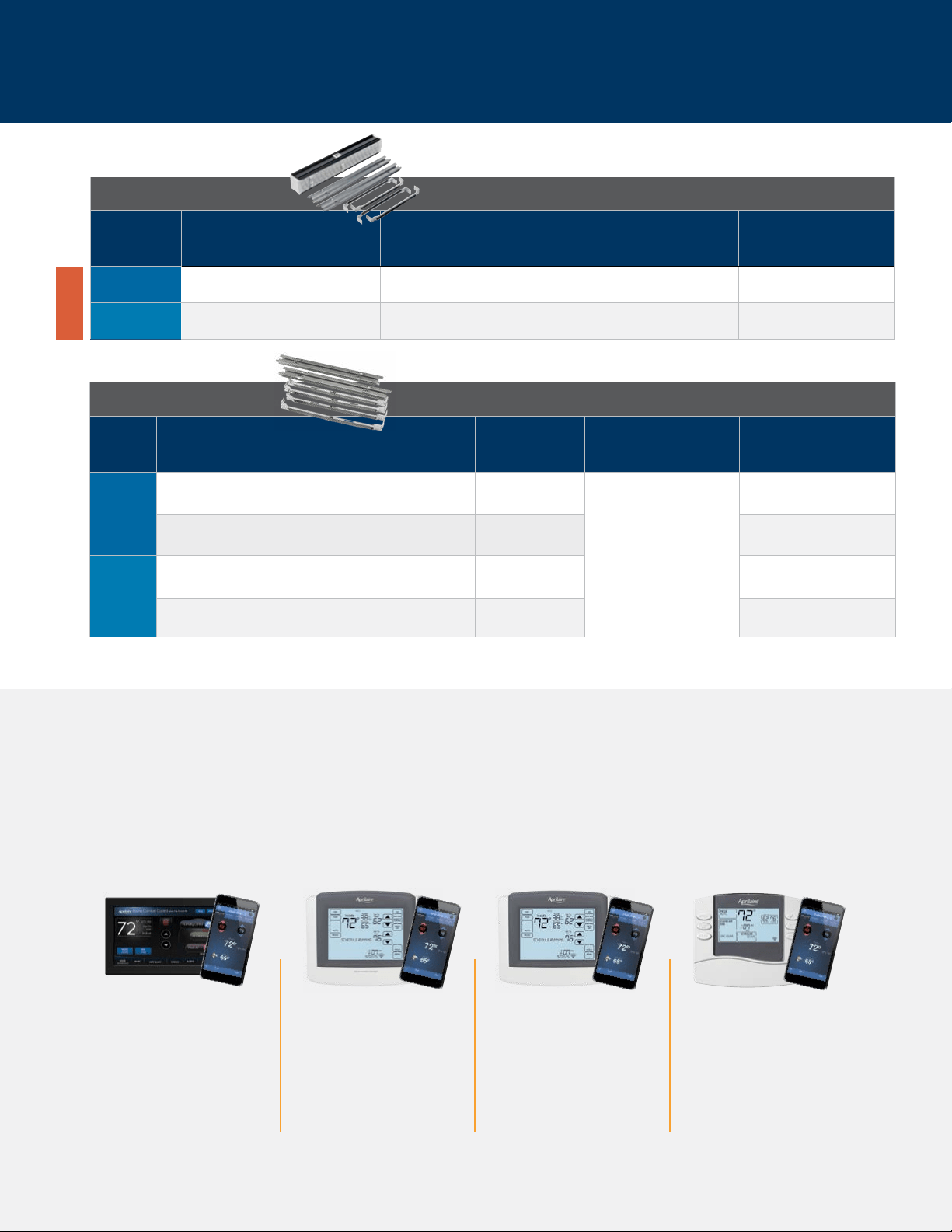

REPLACEMENT FILTERS
Filter No. Used with Aprilaire Air Purifier Models Nominal Size
(in inches)
Static Pressure Drop
(in. w.c.) @ 1200 CFM
Maximum Airflow Capacity
(in CFM)
201 2200 Space-Gard*, 2200 Aprilaire* 20" x 25" 0.14 2000
401 2400 Space-Gard*, 2400 Aprilaire* 16" x 25" 0.14 2000
501 5000 16" x 25" 0.14 2000
MERV 10EAP
Model 8920W
+ Universal 3H/3C or 4H/2C HP
+ Event-Based™ Air Purification
+ Humidity and ventilation
+ Two Part - Three-Wire design
+ Full-color Wi-Fi touchscreen
Model 8910W/8910
+ Universal 3H/3C or 4H/2C HP
+ Event-Based™ Air Purification
+ Humidity and ventilation
+ Two Part - Three-Wire design
+ Touchscreen display
+ Wi-Fi (8910W)
Model 8620W/8620
+ Universal 2H/2C or 4H/2C HP
+ Event-Based™ Air Purification
+ Humidity or ventilation
+ Touchscreen display
+ Wi-Fi (8620W)
Model 8476W/8476
+ Universal 2H/2C or 4H/2C HP
+ Event-Based™ Air Purification
+ Wi-Fi (8476W)
Our Wi-Fi thermostats and mobile device apps are designed to give homeowners complete control over their installed
Aprilaire products and improve the quality of their home’s indoor air. The Event-Based™ Air Purifying feature on both
the thermostat and app turns on the HVAC fan for a period of time so the air purifier can remove dust and particles after
vacuuming, for example. The feature can be selected for longer periods of time to provide relief for allergy suerers in the
home as well. Whatever the problem, Aprilaire’s Event-Based™ Air Purifying is the solution.
COMPETITIVE UPGRADE RAILS
Upgrade
Kit
Fits Air Purifier Size Filters Fits Air Purifier Models By:
Maximum Airflow Capacity
(in CFM)
Model
4897
16" x 25" 610, 613
Carrier
General
Honeywell
Lennox
Trion
Ultravation
2000
20" x 25" 810, 813
2000
Model
4898
16" x 20" 110, 113
1200
20" x 20" 310, 313
1200
UPGRADE KITS
Filter No.
Used With Space-Gard &
Aprilaire Air Purifier Models
Nominal Size
(in inches)
Included
Filter
Static Pressure Drop
(in. w.c.) @ 1200 CFM
Maximum Airflow Capacity
(in CFM)
1213
2200* 20" x 25" 213 0.15 2000
1413 2400* 16" x 25" 413 0.17 2000
MERV 13
Upgrade kit specifications
9
MERV 16
ALLERGY & ASTHMA
* Highest value shown is maximum recommended airflow capacity.
Filter specifications
PRESSURE DROP CHART
Filter
No.
Static Pressures at Variable CFM
(in. w.c.)*
200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
216
- 0.06 0.09 0.13 0.17 0.23 0.29 0.36 - - - - - - -
416
- 0.07 0.11 0.15 0.21 0.28 0.36 - - - - - - - -
516
- 0.04 0.05 0.07 0.10 0.12 0.15 0.17 0.21 0.24 0.28 0.32 0.36 - -
113
0.03 0.07 0.11 0.16 0.22 0.29 - - - - - - - - -
213
0.02 0.04 0.06 0.09 0.12 0.15 0.19 0.23 0.27 0.31 - - - - -
313
0.03 0.05 0.09 0.13 0.17 0.23 - - - - - - - - -
413
0.02 0.05 0.07 0.10 0.14 0.17 0.22 0.26 0.31 0.37 - - - - -
513
0.01 0.02 0.04 0.05 0.05 0.07 0.08 0.10 0.11 0.13 0.15 0.17 0.18 0.20 0.23
613
0.02 0.05 0.07 0.10 0.14 0.17 0.22 0.26 0.31 0.37 - - - - -
813
0.02 0.04 0.06 0.09 0.12 0.15 0.19 0.23 0.27 0.31 - - - - -
913
- 0.04 0.07 0.10 0.13 0.17 0.22 0.25 0.30 0.35 - - - - -
213CBN
- 0.04 0.07 0.10 0.13 0.17 0.21 0.25 0.30 0.35 - - - - -
413CBN
- 0.04 0.07 0.10 0.14 0.19 0.24 0.29 0.36 0.43 - - - - -
513CBN
- 0.03 0.04 0.05 0.07 0.08 0.10 0.12 0.15 0.17 0.20 0.22 0.25 0.29 0.32
110
0.02 0.05 0.06 0.10 0.14 0.20 - - - - - - - - -
210
0.02 0.03 0.04 0.06 0.08 0.11 0.13 0.16 0.19 0.22 - - - - -
310
0.02 0.04 0.06 0.10 0.14 0.19 - - - - - - - - -
410
0.02 0.03 0.05 0.07 0.09 0.12 0.15 0.19 0.22 0.27 - - - - -
510
0.02 0.02 0.03 0.04 0.04 0.05 0.06 0.07 0.09 0.10 0.12 0.14 0.15 0.17 0.19
610
0.02 0.03 0.05 0.07 0.09 0.12 0.15 0.19 0.22 0.27 - - - - -
810
0.02 0.03 0.04 0.06 0.08 0.11 0.13 0.16 0.19 0.22 - - - - -
910
- 0.03 0.05 0.07 0.09 0.12 0.15 0.18 0.22 0.27 - - - - -
201
0.02 0.04 0.05 0.08 0.10 0.14 0.17 0.21 0.25 0.29 - - - - -
401
0.02 0.04 0.05 0.08 0.10 0.14 0.17 0.21 0.25 0.29 - - - - -
501
0.02 0.04 0.05 0.08 0.10 0.14 0.17 0.21 0.25 0.29 - - - - -
10
MERV 13
HEALTHY HOME
MERV 13
ODOR REDUCTION
MERV 11
CLEAN AIR
MERV 10
EAP
The Models 1610 and 1620 are designed for easy
installation in upflow HVAC systems with right
or left returns. They feature built-in ductwork for
applications that require a 90° duct adapter and
an 8–10" adjustable return opening.
FEATURES
+ Ships with MERV 11 filter
+ Can be upgraded to MERV 16, Odor Reduction, or
MERV 13 filter with simple filter change
+ Easily converts to right or left side by reversing door
and back plate
+ Includes metal tabs for securing the air purifier
frame to the furnace or air handler
+ Simple annual filter replacement
+ Made of corrosion-resistant heavy gauge
pre-painted steel
+ Proprietary door design and Self-Seal® design
virtually eliminates air bypass for optimal
performance
+ UL classified filters
+ Five-year warranty on cabinet from date of
installation
BENEFITS
+ Reduces installation time — no need for
field-formed transitions — requires little or no
cold air return repositioning
+ Protects HVAC equipment from dust buildup
+ Protects equipment performance
+ Superior performance over one-inch panel filters
and four-inch cartridge filters
Dimension Description Model 1610 Model 1620
A Inlet Opening Width
8⁄" to 10⁄"
(206-257mm)
8⁄" to 10⁄"
(206-257mm)
B Outer Housing Depth without Door 28⁄" (716mm) 25⅜" (645mm)
C Inlet Opening Depth 24⁄" (612mm) 24⁄" (612mm)
D Unit Width 15⁄" (399mm) 15⁄" (399mm)
E Outer Housing Depth with Door 30⁄" (765mm) 27⅜" (695mm)
F Outlet Opening Width 22" (559mm) 19⁄" (490.5mm)
G Outlet Opening Height 15½" (394mm) 19¾" (502mm)
H Unit Height 17⁄" (452mm) 22⅛" (562mm)
1610/1620
EASY INSTALL WHOLE-HOME AIR PURIFIER
MODEL 1610 SPECIFICATIONS AND SIZING SUMMARY
Model Nominal Size
Shipping
Weight
Replacement Filter
Ships With Upgrade To
1610 16" x 25" 22 lbs. Model 410 Model 416, 413CBN, 413
1620 20" x 25" 31 lbs. Model 210 Model 216, 213CBN, 213
FrontInlet Return Duct Connection (Top View)
B
C D
A
without door
E
F
H
G
Outlet Side Furnace Connection
with door
11
The Model 5000 greatly minimizes airborne
contaminants that can aggravate allergies
as well as asthma, cold and flu symptoms.
Captures 89% of particles 0.3–1.0 micron in size
and 98% of particles 3.0–10.0 microns in size.
Comes with Model 8476 Universal Programmable
(4H/2C) Thermostat with Event-Based™ Air Purification
FEATURES
+ Silent operation — none of the “snapping” or
“popping” that’s common with plate-type EAPs
+ Minimal maintenance required — simply replace
filter annually and wipe off internal components
+ Made of corrosion-resistant heavy gauge
galvanized steel
+ UL listed cabinet
+ UL classified filters
+ Load rated up to 400 lbs.
+ Five-year warranty on cabinet from date
of installation
+ Unit is equipped with six ft. grounded cord with plug
+ Consumes less than 50 watts with high voltage active
BENEFITS
+ Captures 89% of particles 0.3–1.0 micron in size
and 98% of particles 3.0–10.0 microns in size
+ Offers equipment protection from dust buildup
+ Protects equipment performance
+ Filter revenue — HVAC channel only
+ Superior performance over one-inch panel filters
and four-inch cartridge filters

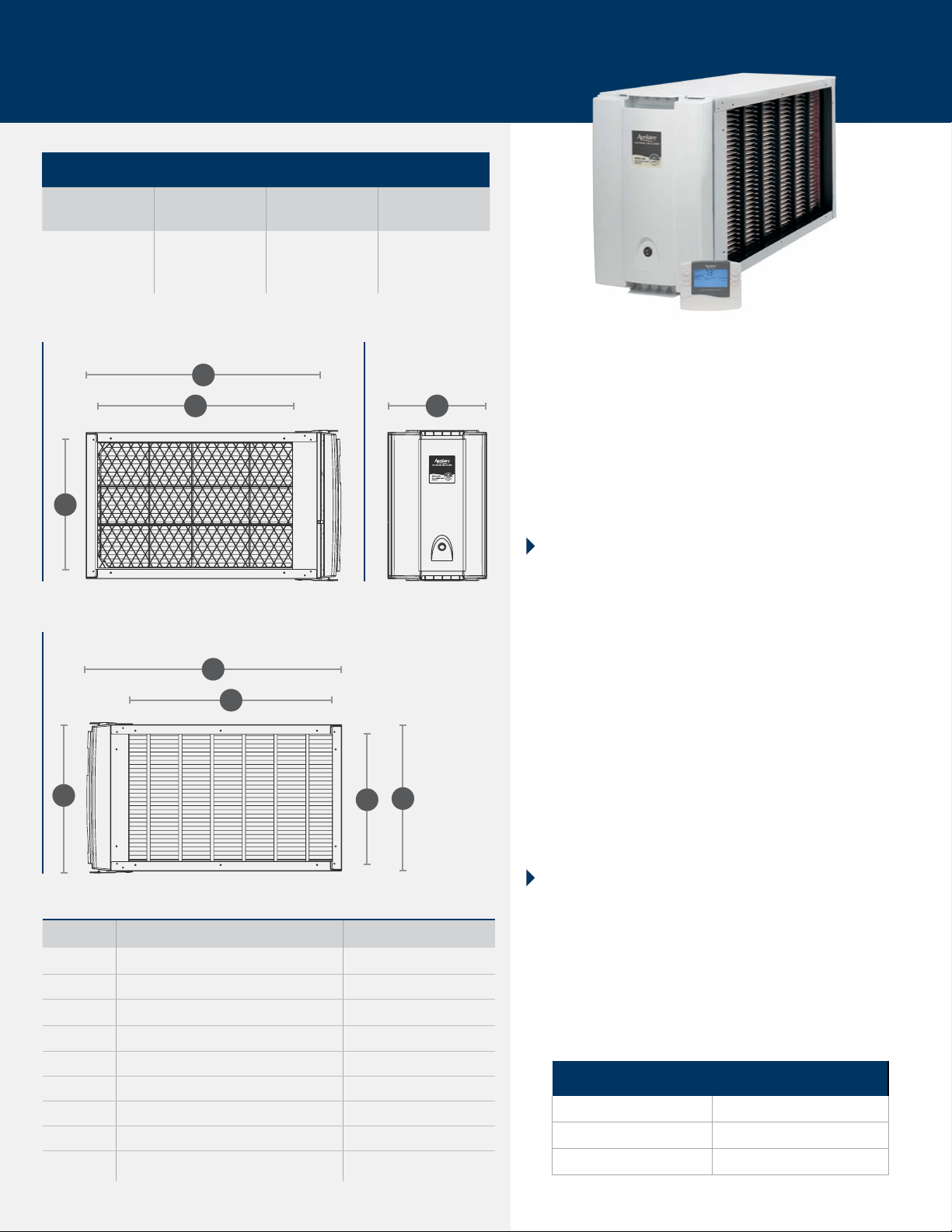

Dimension Description Model 5000
A
Inlet Opening Height 15½"
(394mm)
B Outer Housing Depth without Door & Clips 28⅛" (714mm)
C
Inlet Opening Width 23⅞"
(606mm)
D
Unit Width 12"
(305mm)
E Outer Housing Depth with Door & Clips 31" (787mm)
F Outlet Opening Width 24⅝" (625mm)
G Outlet Opening Height 15½" (394mm)
H Unit Height at Back 17¾" (451mm)
I
Unit Height at Front 18⅜"
(467mm)
MODEL 5000 SPECIFICATIONS AND SIZING SUMMARY
Nominal Size
Shipping
Weight
Replacement
Filter
Filtering
Filter Area
16" x 25" 38 lbs. Model 501 72.3 ft
2
FrontInlet Side Return Duct Connection
without door
B
with door
E
C
F
D
A
I
H
G
Outlet Side Furnace Connection
ELECTRICAL SPECIFICATIONS
Voltage 120 VAC ± 15%
Frequency 60Hz
Current 0.3 A
5000
ELECTRONIC AIR PURIFIER
12

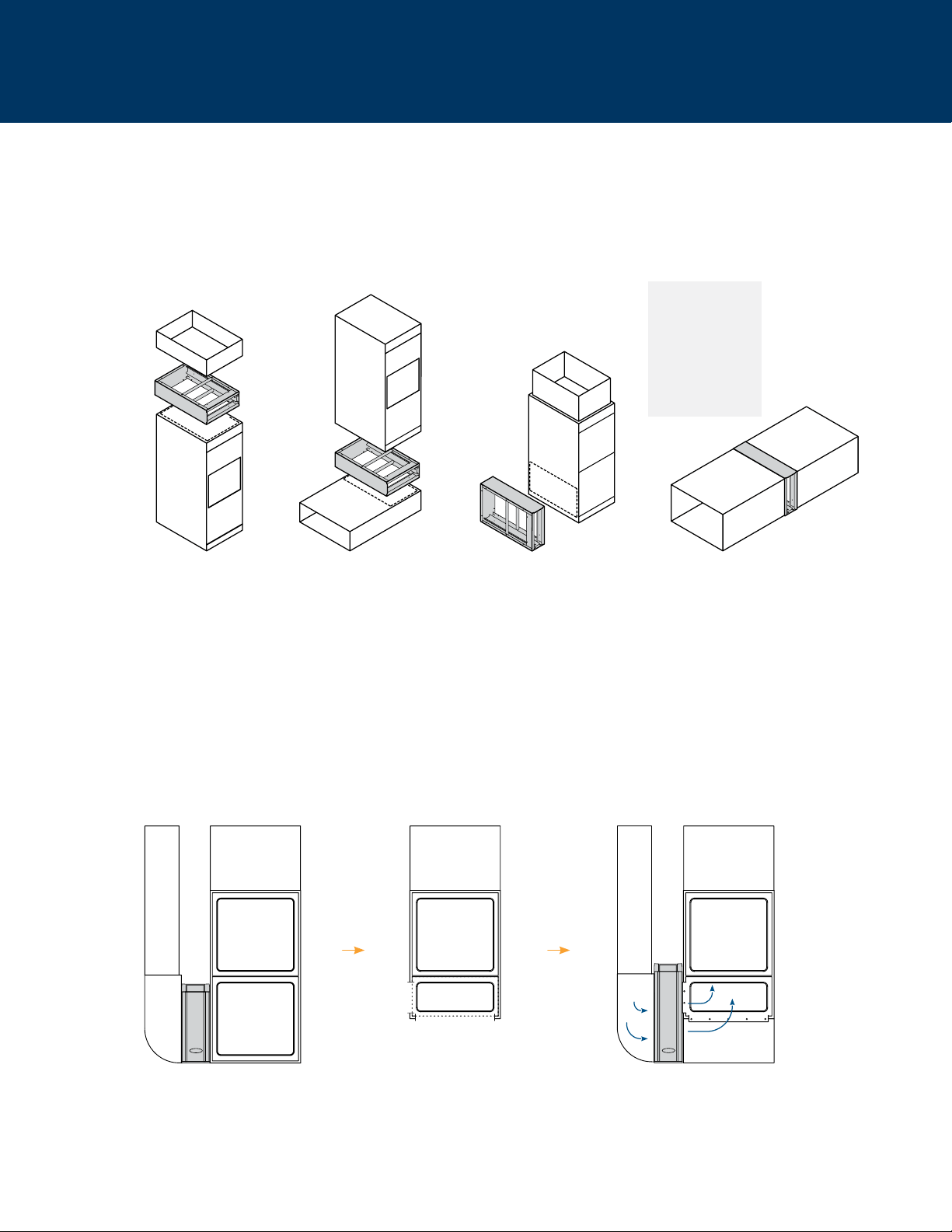

Application guidance
Aprilaire's award-winning lineup of air purifiers are configured based upon the many
dierent air handler cabinet sizes. No matter if it's a downflow, upflow, horizontal,
two-, three- or five-ton system, Aprilaire has the size to make installation easy.
Equipment cabinet sizes are getting smaller. Use the smaller size cabinet as an
opportunity to increase airflow and ensure the best system protection by installing
a Model 2516 cabinet with MERV 16 filter. The lower static pressure and higher
removal eciency will optimize the HVAC system for years to come.
Top Mount
Old Furnace Cabinet New, Shorter Cabinet
Cut out top and bottom
air discharge
Adjusted Cabinet
Insert return air box below
cabinet for increased airflow
Sizes
16" x 20"
16" x 25"
20" x 20"
20" x 25"
25" x 20"
Bottom Mount Side Mount Horizontal Mount
It's all about airflow
13
Application guidance
Contractors have done the math. Using the Model 1610/1620 with its integrated
transition is a cost eective solution. There is no need to purchase a separate transition.
The system pressures of these applications require very low resistance. Historically,
contractors stack air purifiers. The Aprilaire Models 2516 and 1510 are specifically
designed for these applications.
BENEFITS
+ Minimizes distance from the air handler for tight
install (water heater)
+ Perfect when return is close to air handler, when
replacing 1" or 2" panel filter slots
+ Converts easily to right or left side
+ Unique air inlet tab adjusts to multiple duct sizes

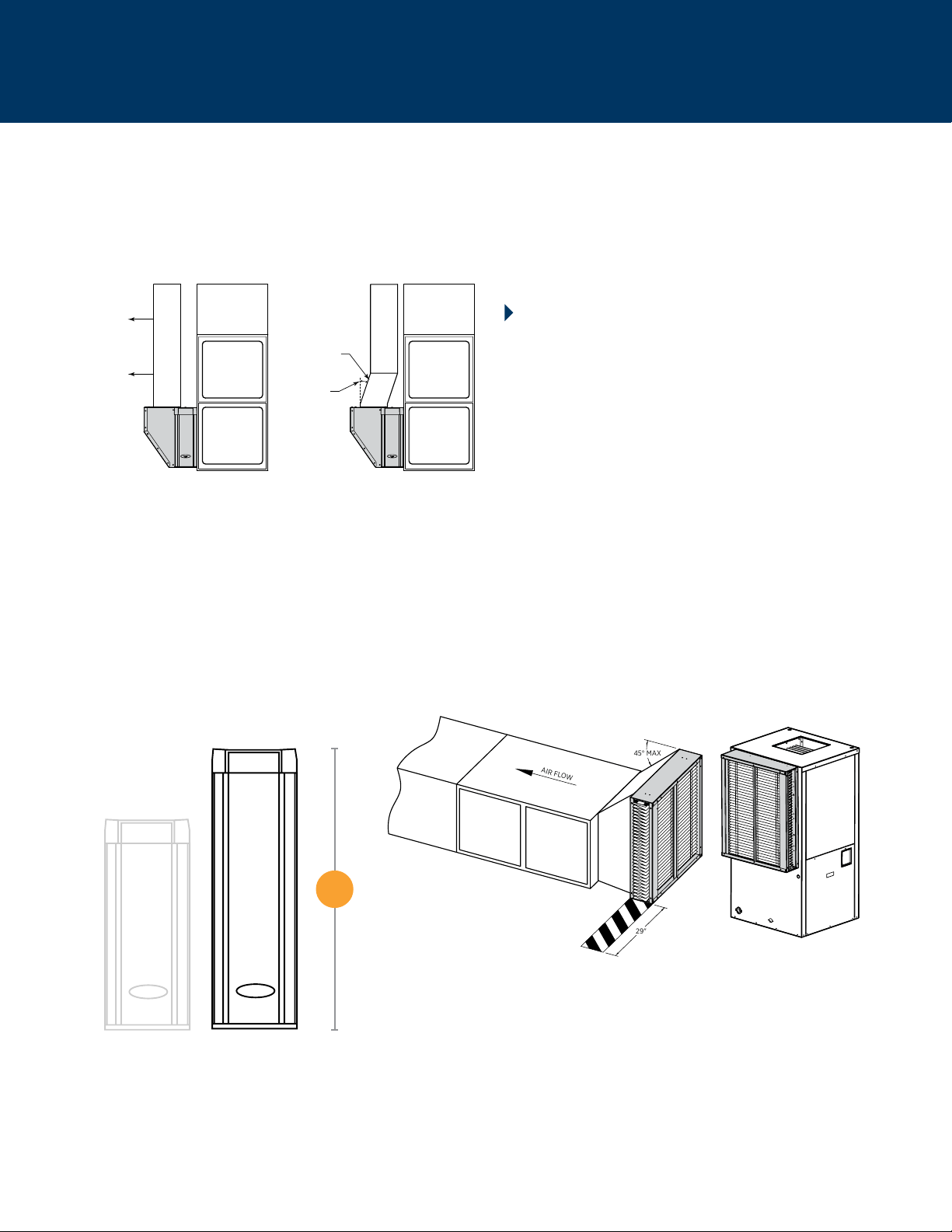

For larger installations
The height allows for a
large amount of filter,
lowering resistance.
High tonnage and geothermal systems
31"
29"
45° MAX
AIR FLOW
FIELD
FABRICATED
TRANSITION
COLD AIR
RETURN DROP
MOVED
30° MAX
ANGLE
FIELD
FABRICATED
TRANSITION
COLD AIR
RETURN DROP
MOVED
30° MAX
ANGLE
14
P.O. Box 1467
Madison, WI 53701-1467
800.334.6011 F: 608.257.4357
AprilairePartners.com
Form No. 2360 • 278044 1.18
©2018 Aprilaire – Division of Research Products Corporation
