2021 Nikon Corporation
SB1I01(11)
7MMA7411-01
En
• Read this document thoroughly before using the product.
• To ensure proper use of the product, be sure to read “For Your Safety” (page 4).
• After reading this document, keep it readily accessible for future reference.
Reference Guide
NIKKOR Z 24-120mm f/4 S
Table of Contents
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For Your Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Using the Lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts of the Lens: Names and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attachment and Removal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching and Removing the Lens Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Precautions for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Lens Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cameras with AF-Assist Illuminators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Using the Lens on Cameras with a Built-in Flash. . . . . . . . . . . . . . . . . . . . . . . . . . 21
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Table of Contents
2
Introduction
Before Y
ou Begin
Before using this product, please read these instructions carefully. You will also
need to consult the documentation provided with the camera.
• This lens is intended exclusively for use with mirrorless cameras featuring a
Nikon Z mount.
• Updat
e the camera firmware to the latest version. With earlier versions, the
camera may fail to detect the lens correctly and some features may not be
available. The latest version of the camera firmware can be downloaded from
the Nikon Download Center at the URL below.
https://downloadcenter.nikonimglib.com/
No repr
oduction in any form of this document, in whole or in part (except for
brief quotation in critical articles or reviews), may be made without written
authorization from NIKON CORPORATION.
3
Before You Begin
For Your Safety
To pr
event damage to property or injury to yourself or to others, read “For Your
Safety” in its entirety before using this product.
After reading these safety instructions, keep them readily accessible for future
reference.
WARNING: Failure to observe the precautions marked with this icon
could r
esult in death or severe injury.
CAUTION: Failure to observe the precautions marked with this icon
could r
esult in injury or property damage.
WARNING
Do not disassemble or modify this product. Do not touch internal parts
that become exposed as the result o
f a fall or other accident.
Failure to observe these precautions could result in electric shock or other
injury.
Should you notice any abnormalities such as the product producing
smoke, heat, or unusual odors, immediately disconnect the camera power
source.
Continued operation could result in fire, burns or other injury.
4
For Your Safety
WARNING
Keep dry. Do not handle with wet hands.
Failur
e to observe these precautions could result in fire or electric shock.
Do not use this product in the presence of flammable dust or gas such as
propane, gasoline or aerosols.
Failure to observe this precaution could result in explosion or fire.
Do not directly view the sun or other bright light source through the lens.
Failure to observe this precaution could result in visual impairment.
Keep this product out of reach of children.
Failure to observe this precaution could result in injury or product malfunction.
In addition, note that small parts constitute a choking hazard.
Should a child
swallow any part of this product, seek immediate medical attention.
Do not handle with bare hands in locations exposed to extremely high or
low temperatur
es.
Failure to observe this precaution could result in burns or frostbite.
For Your Safety
5
CAUTION
Do not leave the lens pointed at the sun or other strong light sources.
Light focused by the lens could cause fire or damage t
o product’s internal
parts. When shooting backlit subjects, keep the sun well out of the frame.
Sunlight focused into the camera when the sun is close to the frame could
cause fire.
Do not leave the product where it will be exposed to extremely high
temperatures, for an extended period such as in an enclosed automobile
or in direct sunlight.
Failure to observe this precaution could result in fire or product malfunction.
Do not transport cameras or lenses with tripods or similar accessories
attached.
Failure to observe this precaution could result in injury or product malfunction.
For Your Safety
6
Using the Lens

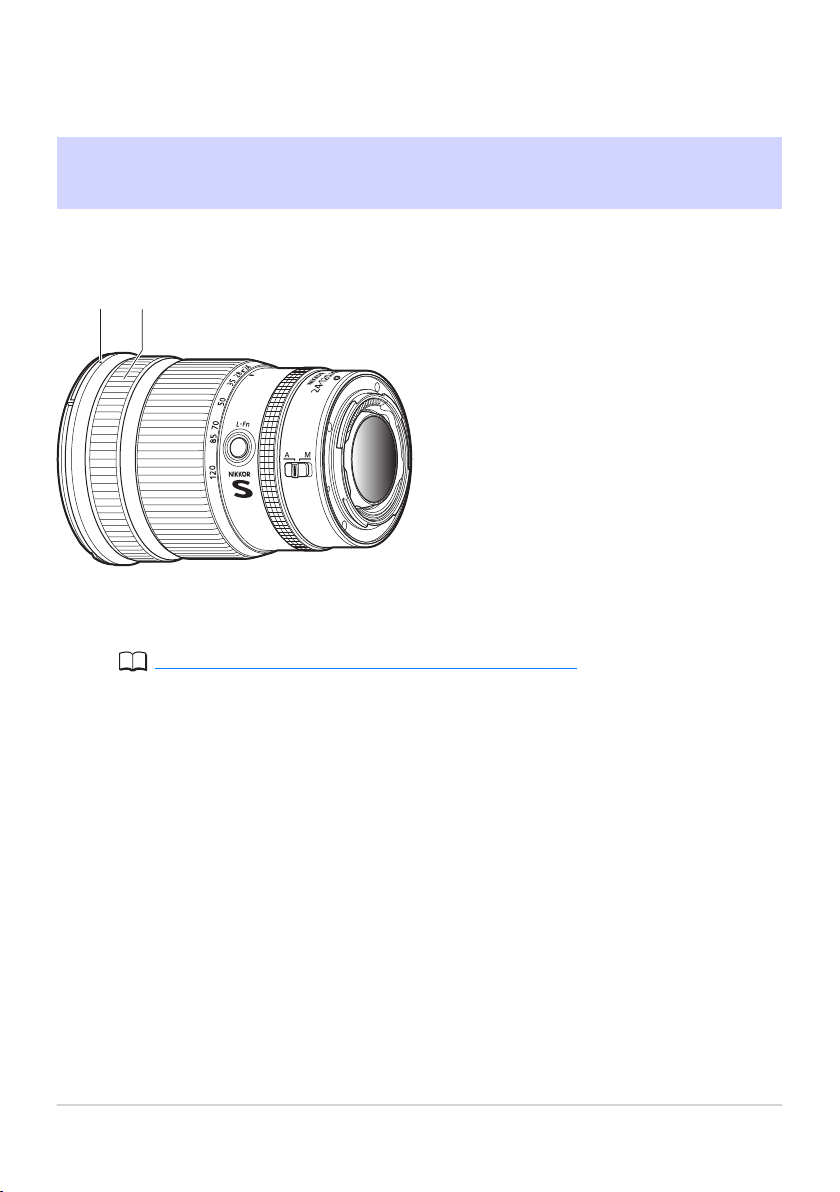

Par
ts of the Lens: Names and Functions
The parts of the lens are listed below.
1 2
Lens hood mounting mark
Use when attaching the lens hood.
“Attaching and Removing the Lens Hood” (p.16)
Focus ring
Use for manual focus.
• When focusing using aut
ofocus, you can adjust focus manually by
rotating the ring while the shutter-release button is pressed halfway;
after focusing, press the shutter-release button the rest of the way down
to shoot.
7
Parts of the Lens: Names and Functions
1
2
4 5 63
Zoom ring
Rotat
e the ring to zoom in or out.
Focal length scale
Determine the approximate focal length when zooming the lens in or out.
Focal length mark
Determine the approximate focal length when zooming the lens in or out.
Control ring
Rotate to adjust a setting such as [Aperture] or [Exposure compensation]
assigned using the camera. For more information, see the description of
[Custom control assignment], [Custom controls], or [Custom controls
(shooting)] in the documentation provided with the camera.
Parts of the Lens: Names and Functions
8
3
4
5
6
7 98

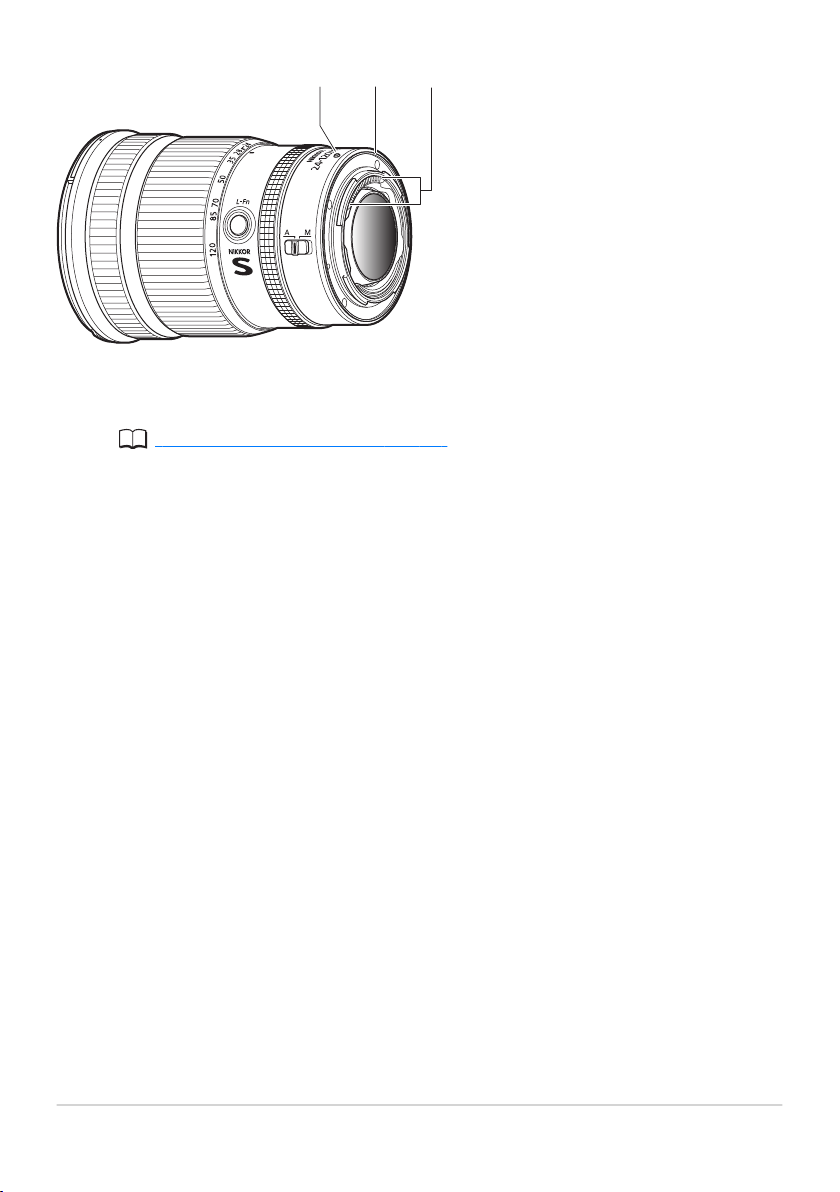

Lens mounting mark
Use when mounting the lens on the camera.
“Attachment and Removal” (p.13)
Rubber lens-mount gasket
Helps pr
event the ingress of water droplets or dust along the surfaces
where the lens and camera meet when the lens is mounted on the
camera.
*
There is no guarantee that the gasket is completely proof against the
ingress of water droplets or dust in all circumstances.
CPU contacts
Used to transfer data to and from the camera.
Parts of the Lens: Names and Functions
9
7
8
*
9
10
11

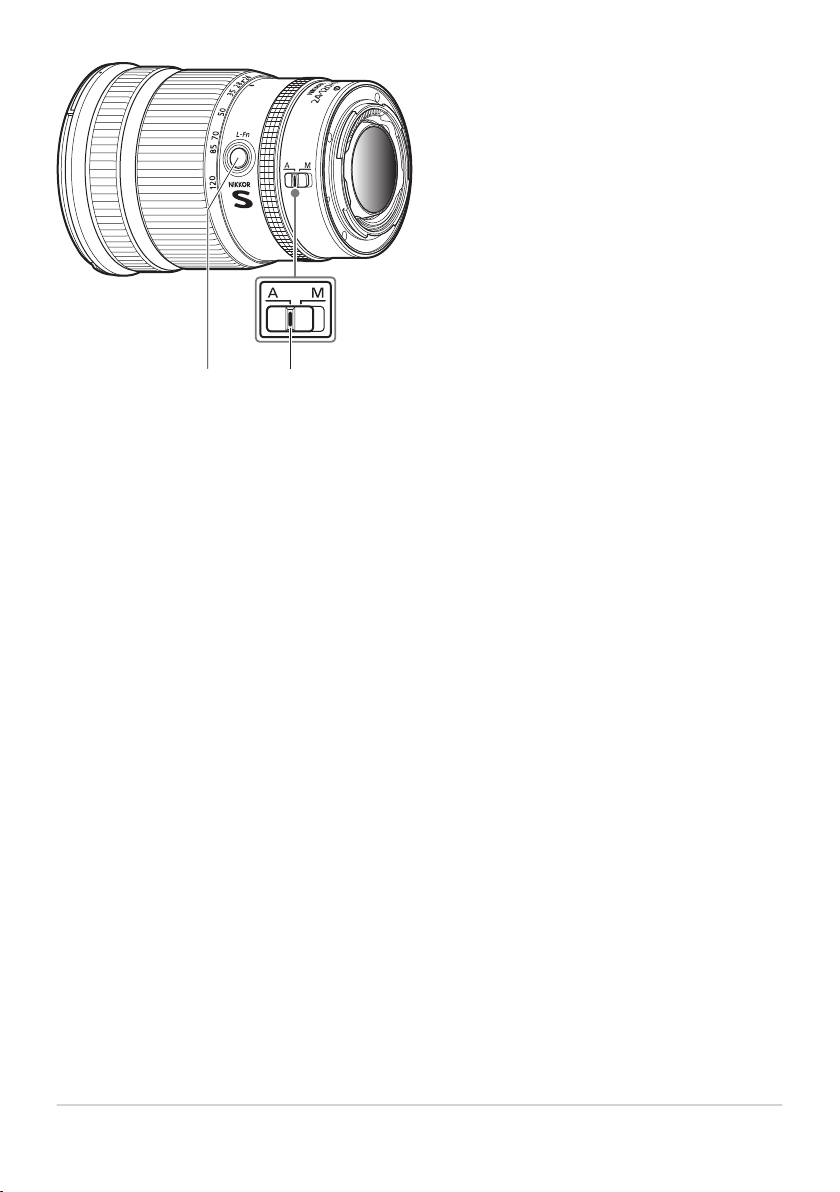

L-Fn button
Press t
o perform a function assigned using the camera. For more
information, see the description of [Custom control assignment],
[Custom controls], or [Custom controls (shooting)] in the documentation
provided with the camera.
Focus-mode switch
Choose a focus mode.
• A: Autofocus
• M: Manual focus
Note that regardless of the setting chosen, focus must be adjusted
manually when manual focus mode is selected using camera controls.
Parts of the Lens: Names and Functions
10
10
11
12 13
14
Lens hood
Lens hoods block stray light that would other
wise cause flare or ghosting.
They also serve to protect the lens.
“Attaching and Removing the Lens Hood” (p.16)
Lens hood lock mark
Use when attaching the lens hood.
“Attaching and Removing the Lens Hood” (p.16)
Lens hood alignment mark
Use when attaching the lens hood.
“Attaching and Removing the Lens Hood” (p.16)
Parts of the Lens: Names and Functions
11
12
13
14
15

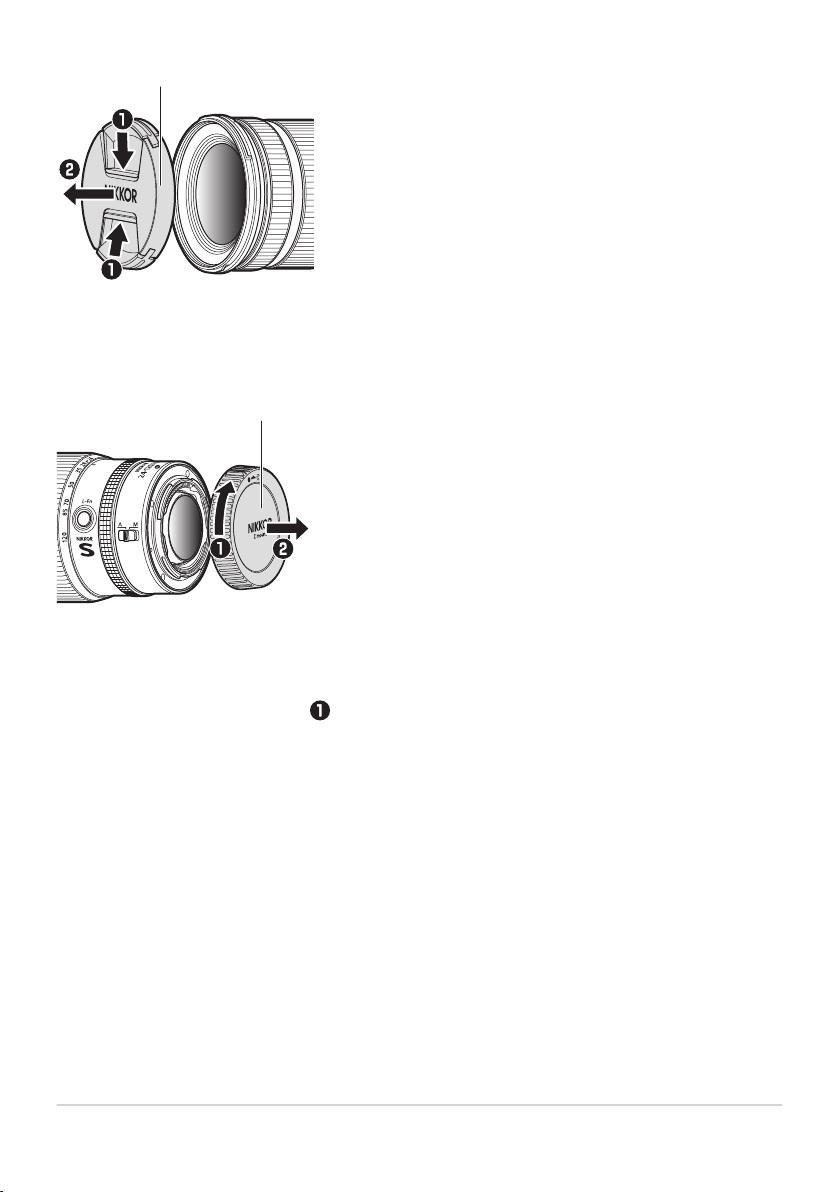

Lens cap (front cap)
16
Lens cap (rear cap)
• The rear lens caps supplied with lens kits may differ from that shown
here, in which case is not required.
Parts of the Lens: Names and Functions
12
15
16
Attachment and Removal

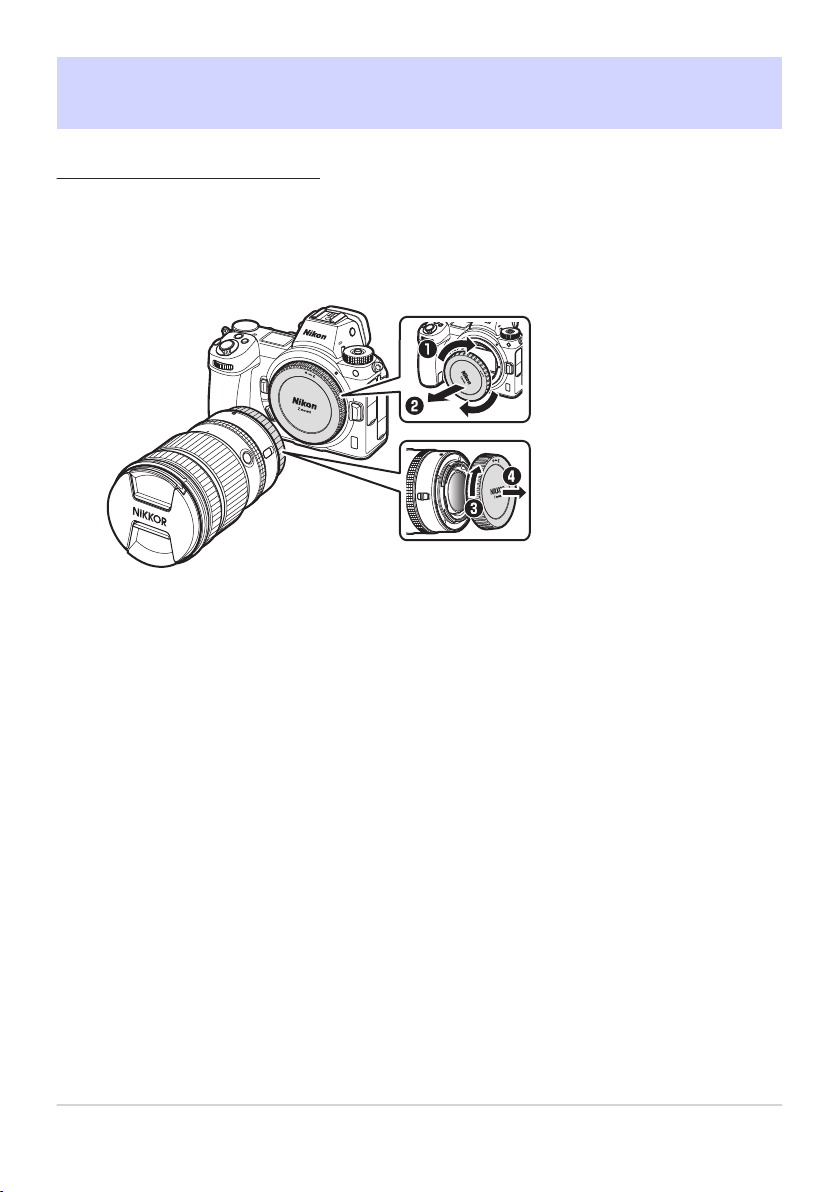

Attaching the Lens
Tur
n the camera off, remove the body cap, and detach
the rear lens cap.
13
Attachment and Removal

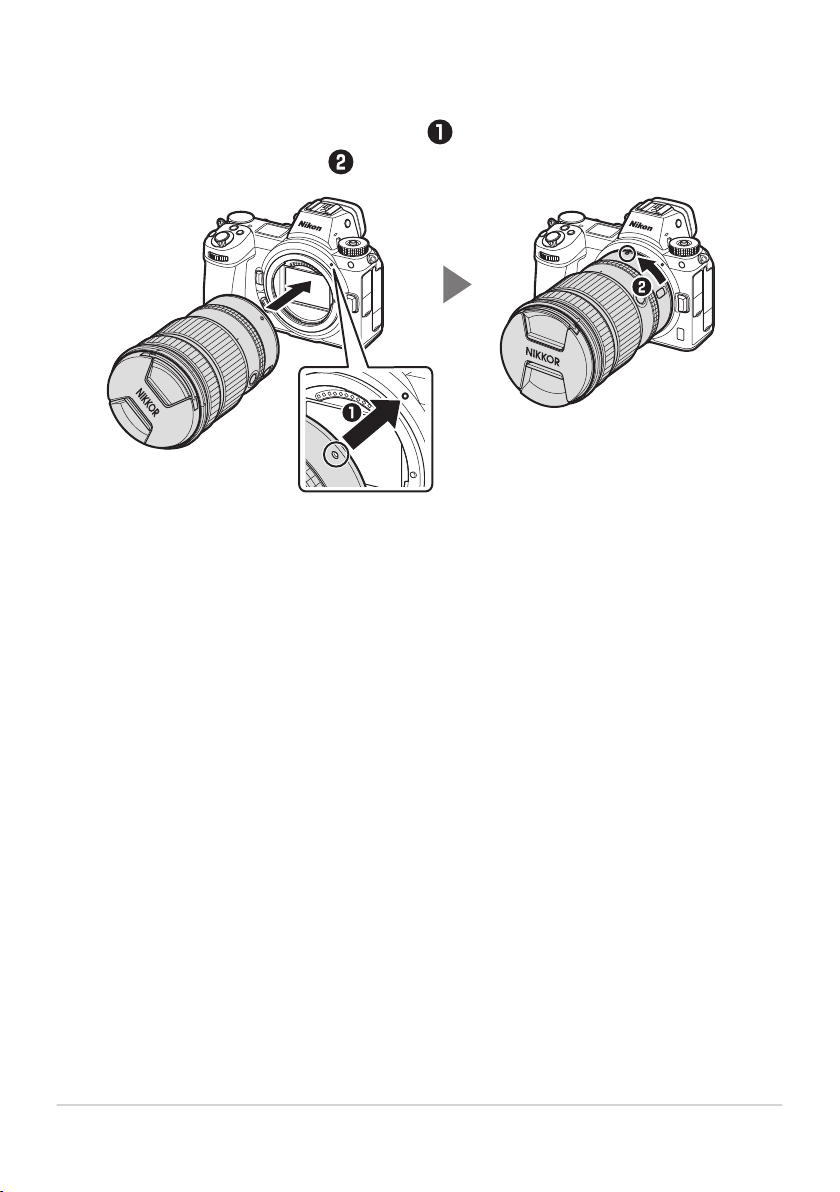

1.
Position the lens on the camera body, keeping the
mounting mark on the lens aligned with the mounting
mark on the camera body ( ), and then rotate the lens
counter
clockwise (
) until it clicks into place.
Attachment and Removal
14
2.

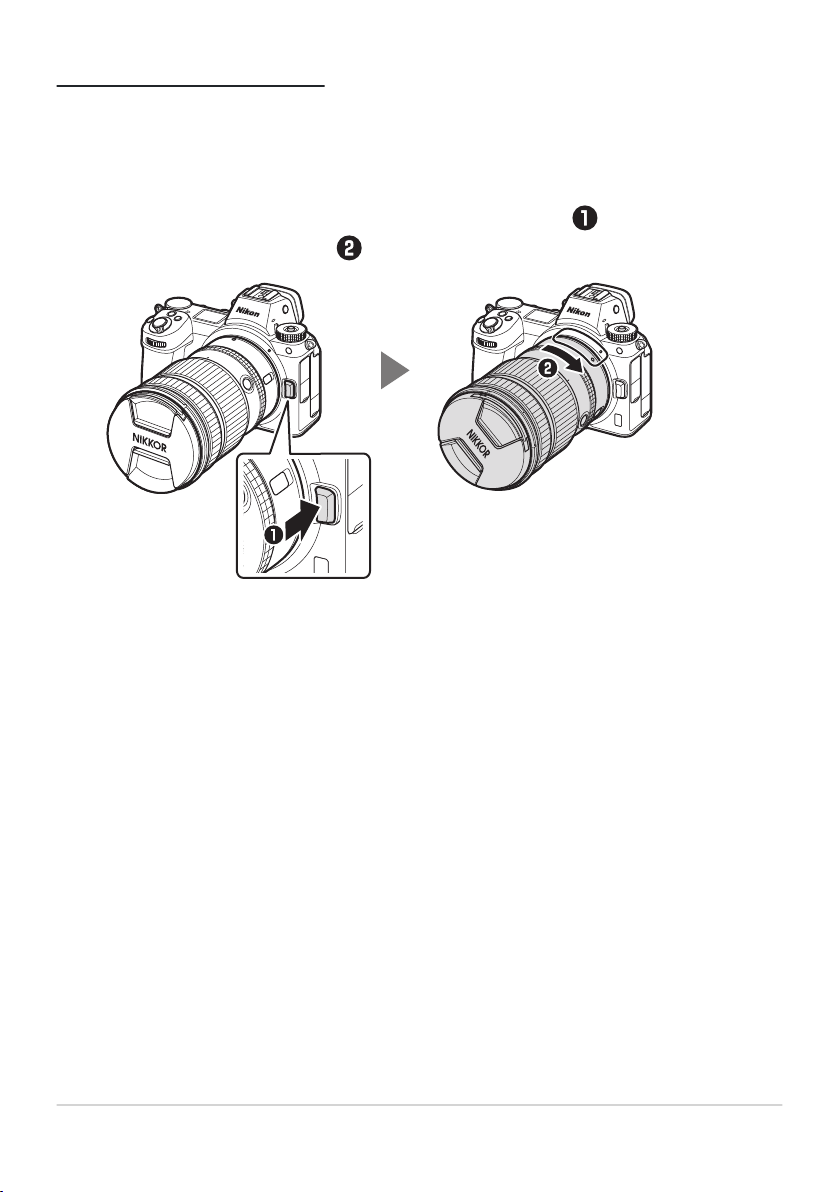

Removing the Lens
Tur
n the camera off.
Press and hold the lens release button (
) while turning
the lens clockwise ( ).
Attachment and Removal
15
1.
2.

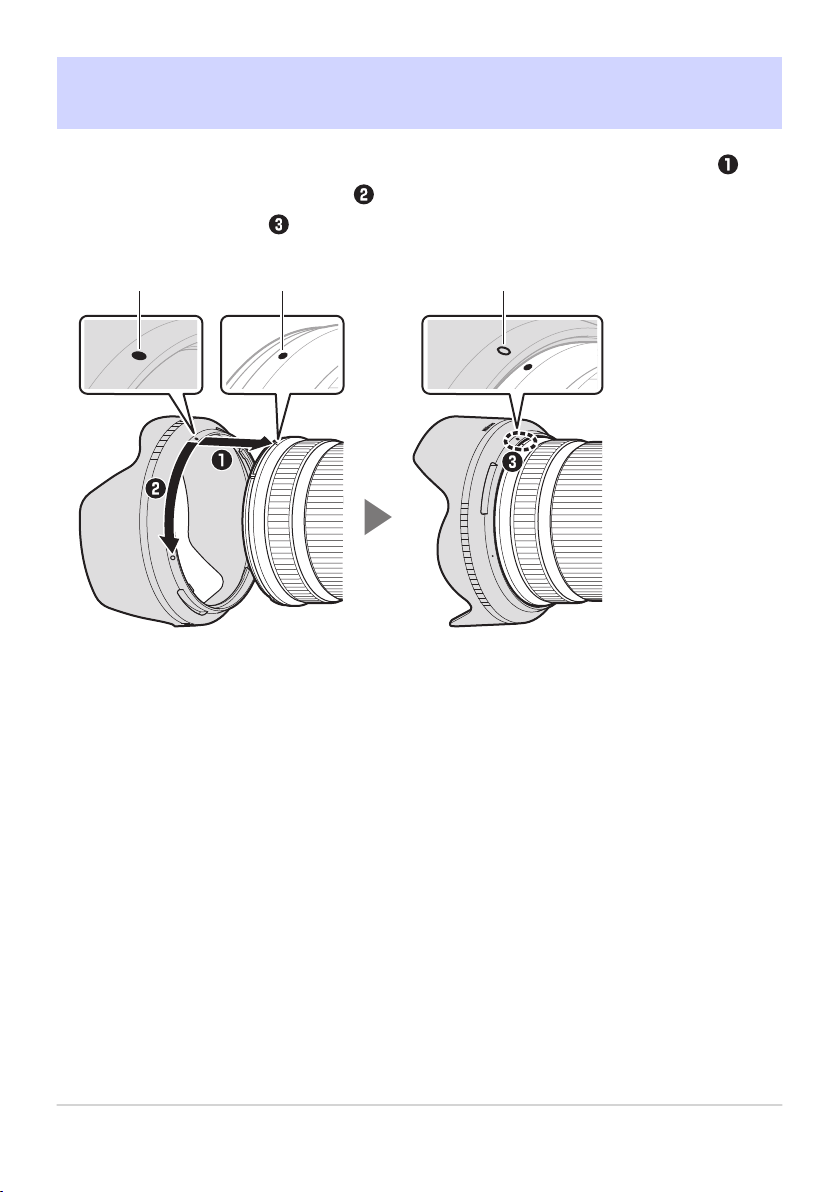

Attaching and Removing the Lens Hood
• Align the lens hood mounting mark with the lens hood alignment mark ( )
and then rotat
e the lens hood (
) until the mounting mark is aligned with the
lens hood lock mark ( ).
1 2 3
Lens hood alignment mark
Lens hood mounting mark
L
ens hood lock mark
16
Attaching and Removing the Lens Hood
1
2
3
• Gripping the front too tightly makes the lens hood difficult to attach or remove.
When rotating the lens hood, hold it near the lens hood alignment mark ( ).
• To remove the lens hood, reverse the above steps.

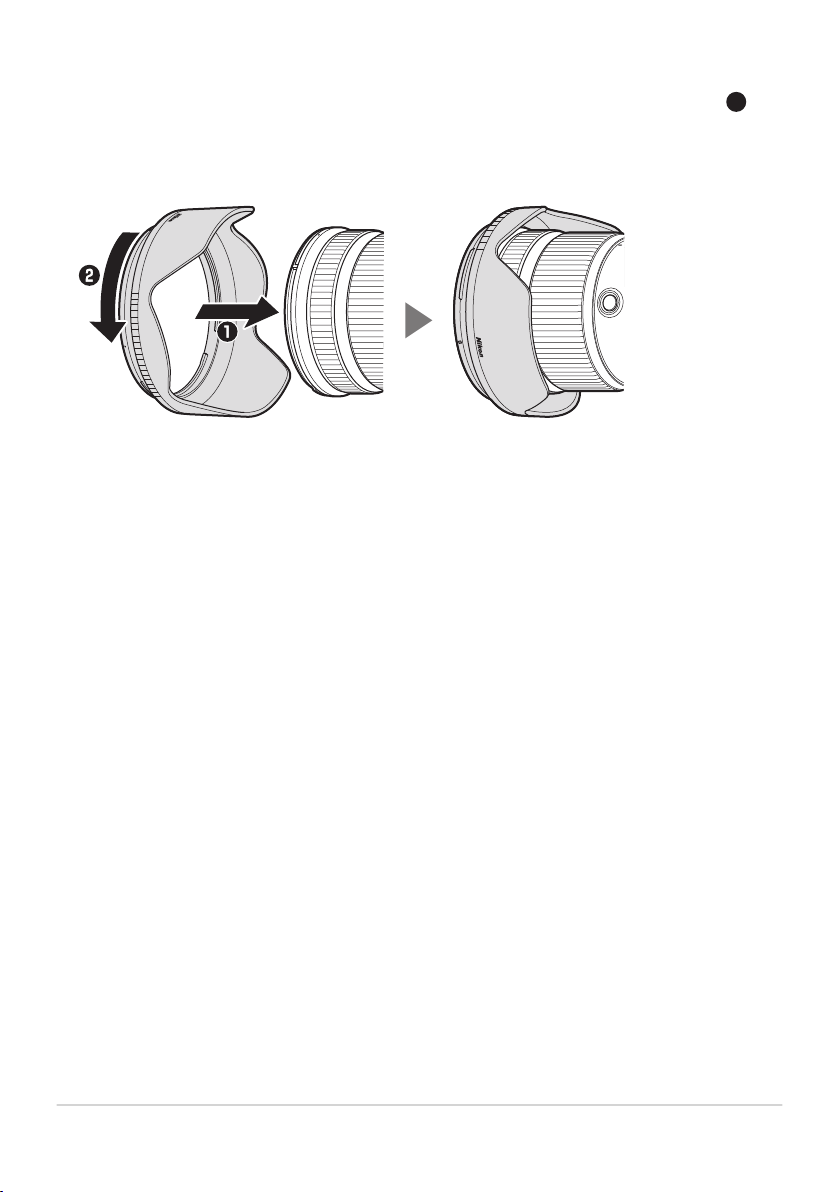

• The lens hood can be reversed and mounted on the lens when not in use.
Attaching and Removing the Lens Hood
17
Precautions for Use
• Do not pick up or hold the lens or camera using only the lens caps or lens
hood.
• Keep the CPU contacts clean.
• Should the rubber lens-mount gasket be damaged, cease use immediately and
take the lens t
o a Nikon-authorized service center for repair.
• Reattach the lens caps when the lens is not in use.
• Do not leave the lens in humid locations or in locations in which it may be
exposed to moisture. Rusting of the internal mechanism can cause irreparable
damage.
• Do not leave the lens next to open flames or in other extremely hot locations.
Extreme heat could damage or warp the lens.
• Taking the lens from a warm to a cold environment or vice versa may cause
damaging condensation inside and outside the lens. Place the lens in a sealed
bag or plastic case before taking it across a temperature boundary. The lens can
be taken from the bag or case once it has had time to adjust to the new
temperature.
• We recommend that you place the lens in its case to protect it from scratches
during transport.
18
Precautions for Use
Lens Maintenance
• Removing dust is normally sufficient to clean the glass surfaces of the lens.
• When cleaning the fluorine-coated front lens element:
Smudges, fingerprints, and other oily stains can be remov
ed using a soft,
clean cotton cloth or third-party lens cleaning tissue; clean from the center
outwards using a circular motion.
To remove stubborn stains, wipe gently using a soft cloth lightly dampened
with a small amount of distilled water, ethanol, or third-party lens cleaner.
Drop-shaped marks may form on fluorine-coated surfaces, which are highly
water- and oil-repellent. Such marks can be removed with a dry cloth.
• When cleaning the rear lens element, which is not fluorine-coated:
Smudges, fingerprints, and other oily stains can be removed using a soft,
clean cotton cloth or third-party lens cleaning tissue lightly dampened with a
small amount of ethanol or third-party lens cleaner; clean from the center
outwards in a circular motion. Be sure to clean evenly and thoroughly without
leaving smears.
• Never use organic solvents such as paint thinner or benzene to clean the lens.
• Neutral Color (NC) filters (available separately) and the like can be used to
protect the front lens element.
• Do not store the lens in direct sunlight or with naphtha or camphor moth balls.
If the lens will not be used for an extended period, store it in a cool, dry location
to prevent mold and rust.
19
Lens Maintenance
-
-
-
-
Technical Notes
Cameras with AF-Assist Illuminator
s
The lens or lens hood may block the light from the camera AF-assist illuminator.
• For the information on using the lens with cameras that have built-in AF-assist
illuminator
s, visit the site below.
https://downloadcenter.nikonimglib.com/
20
Cameras with AF-Assist Illuminators
Using the Lens on Cameras with a Built-in
Flash
Shadows will be visible in photos wher
e light from the built-in flash is obscured by
the lens or lens hood. Remove the lens hood before shooting. Note, however, that
depending on the distance to the subject, and in the case of zoom lenses also on
the lens focal length, shadows may appear even when the lens hood is removed.
• For the information on focal lengths and subject distances at which shadows
will not appear in photos tak
en with a built-in flash, visit the site below.
https://downloadcenter.nikonimglib.com/
21
Using the Lens on Cameras with a Built-in Flash
Accessories
Supplied Accessories
• LC-77B Lens Cap (front cap)
• LF-N1 Lens Cap (rear cap)
*
• HB-102 Lens Hood
• CL-C2 Lens Case
Dif
ferent rear caps may be supplied with lens kits.
Using the Lens Case
• The case is intended to protect the lens from scratches, not from falls or
other physical shocks.
• The case is not water resistant.
• The material used in the case may fade, bleed, stretch, shrink, or change
color when rubbed or wet.
• R
emove dust with a soft brush.
• Water and stains can be removed from the surface with a soft, dry cloth. Do
not use alcohol, benzene, thinner, or other volatile chemicals.
• Do not store in locations exposed to direct sunlight or to high temperatures
or humidity.
• Do not use the case to clean the monitor or lens elements.
• Be careful that the lens does not fall from the case during transport.
Material: Polyester
22
Accessories
*
Other Compatible Accessories
77 mm filter
s
Filters
• Use only one filter at a time.
• Remove the lens hood before attaching filters. You will also need to remove
the lens hood before r
otating circular polarizing filters.
Accessories
23
Specifications
Mount Nikon Z mount
Focal length 24 – 120 mm
Maximum aperture f/4
Lens construction
16 elements in 13 groups (including 3 ED elements, 1
aspherical ED element, 3 aspherical elements,
elements with Nano Crystal and ARNEO co
ats, and a
fluorine-coated front lens element)
Angle of view
FX format: 84° – 20°20′
DX format: 61° – 13°20′
Focal length scale Graduated in millimeters (24, 28, 35, 50, 70, 85, 120)
Focusing system Internal focusing system
Minimum focus
distance (measured
from focal plane)
0.35 m (1.15 ft) at all zoom positions
Maximum
reproduction ratio
0.39×
Diaphragm blades 9 (rounded diaphragm opening)
Aperture range f/4 – 22
Filter-attachment size 77 mm (P = 0.75 mm）
24
Specifications
Dimensions
(maximum diameter ×
distance t
o end of
lens from camera lens
mount flange)
Approx. 84 mm × 118 mm (3.4 in. × 4.7 in.)
Weight Approx. 630 g (1 lb 6.3 oz)
Nikon reserves the right to change the appearance, specifications, and
performance of this product at any time and without prior notice.
Specifications
25
Notices
Notices for Customers in the U.S.A.
This device complies with par
t 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Federal Communications Commission (FCC) Radio
Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
26
Notices
This symbol indicates that electrical and electronic
equipment is to be collect
ed separately.
CAUTIONS
●Modifications
The FC
C requires the user to be notified that any changes or modifications made
to this device that are not expressly approved by Nikon Corporation may void the
user’s authority to operate the equipment.
Nikon Inc., 1300 Walt Whitman Road,Melville, New York 11747-3064, U.S.A.
Tel.: 631-547-4200
Notices for Customers in Canada
CAN ICES-3 B / NMB-3 B
Notices for Customers in Europe
The following apply only to user
s in European countries:
• This product is designated for separate collection at an appropriate collection
point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and prevent
negative consequences for human health and the environment that might result
from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge of
waste management.
Notices
27
