USER GUIDE & SERVICE MANUAL
Model: UACP115-IS01A
USER GUIDE & SERVICE MANUAL
Table of Contents
Click on any section below to jump directly there
Service

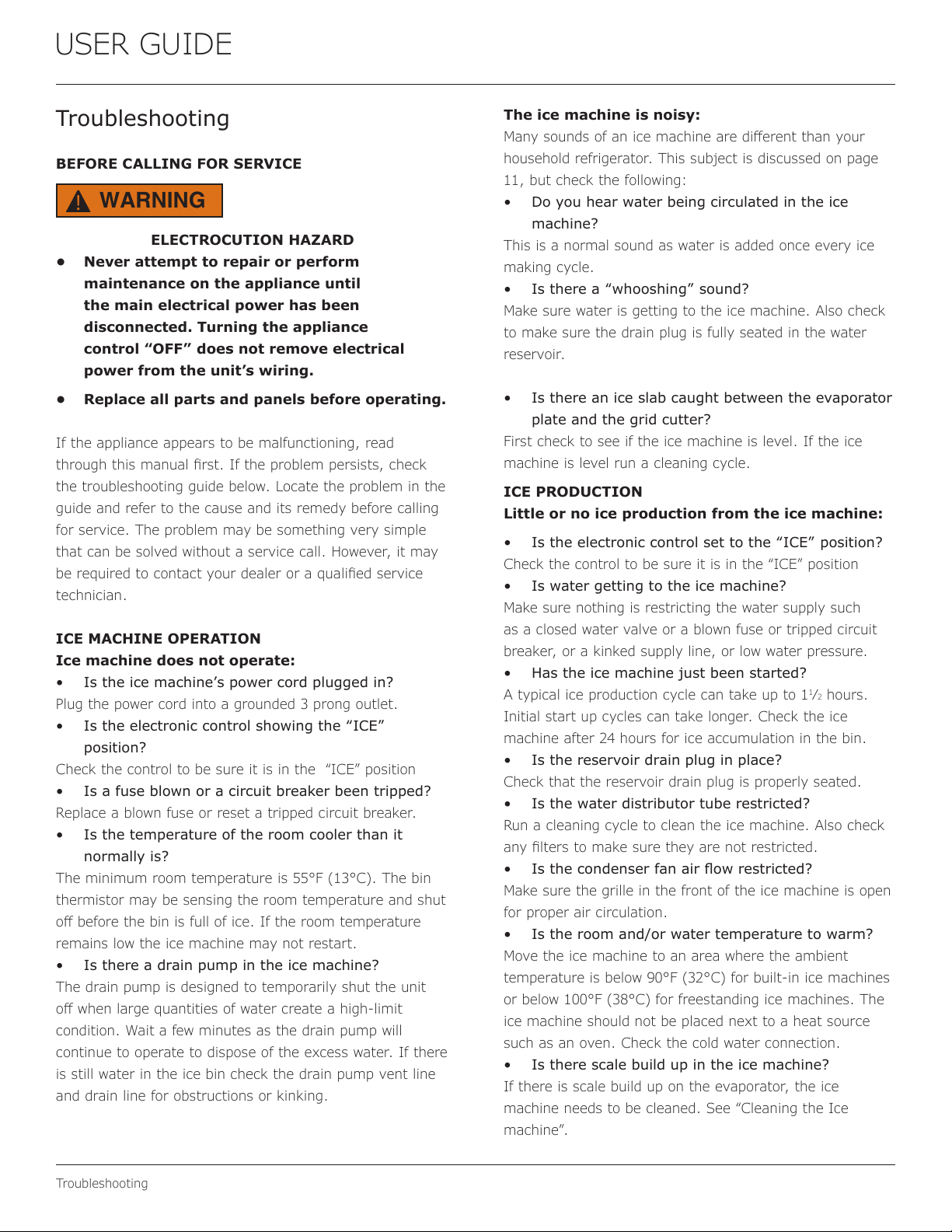

Troubleshooting
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Side by Side Installation
Water Hookup

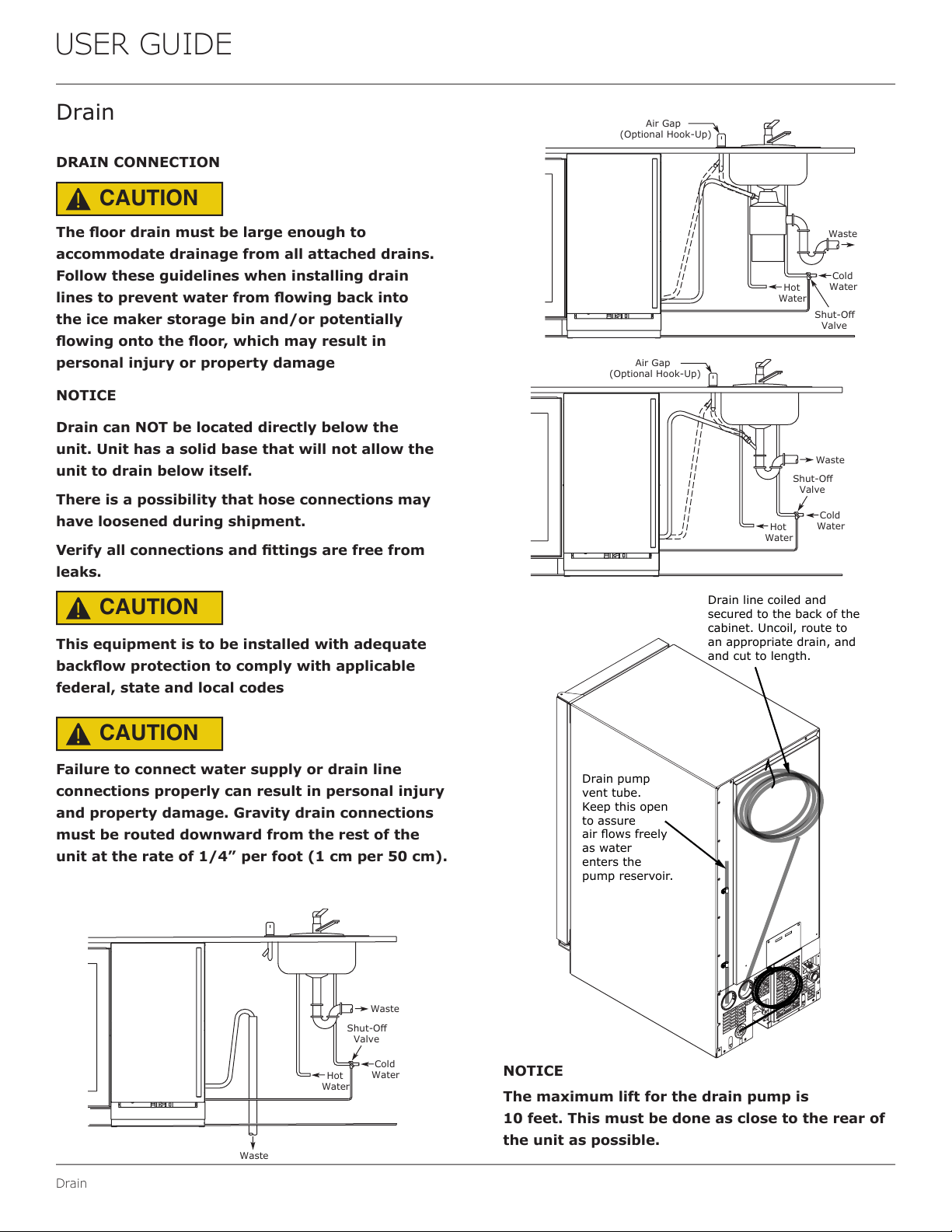

Drain

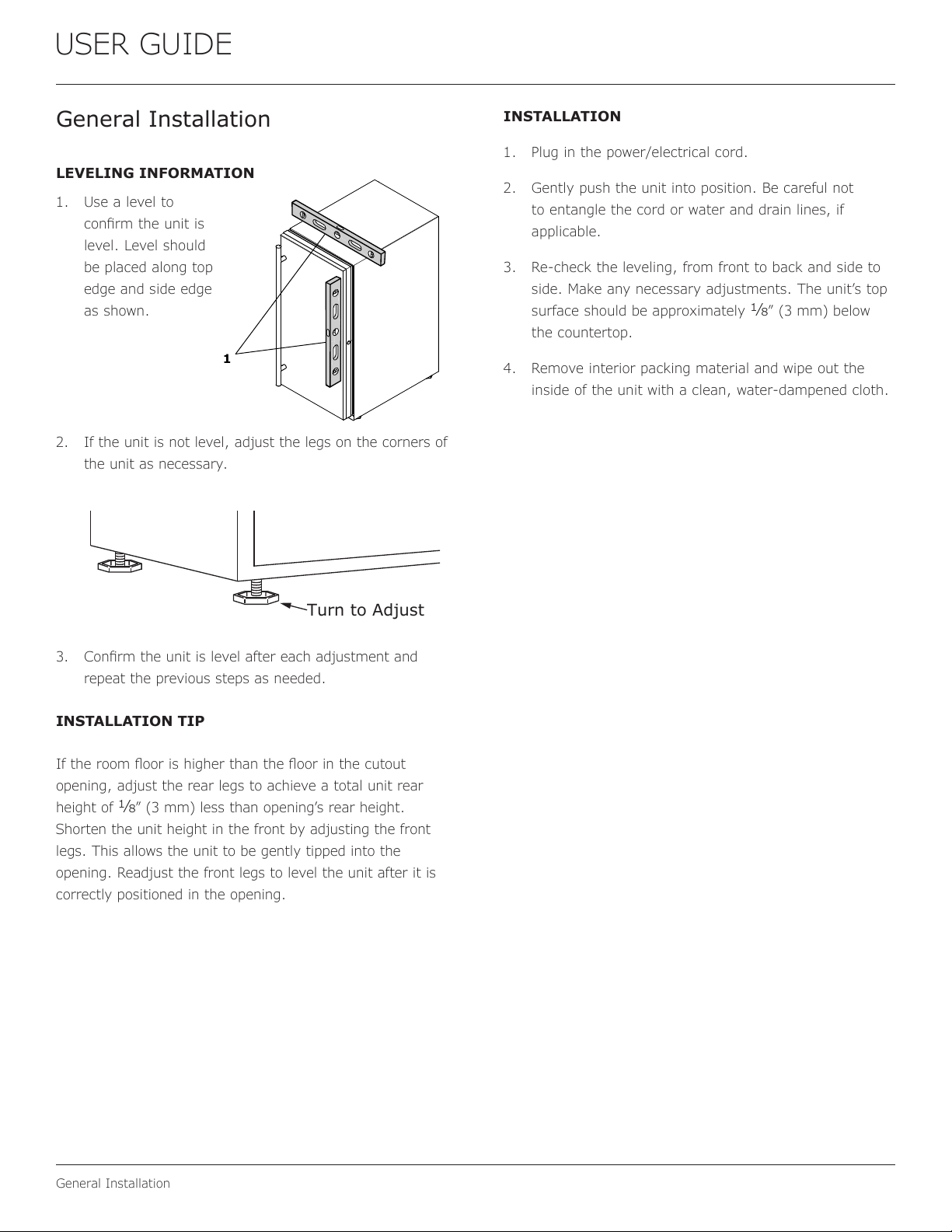

General Installation

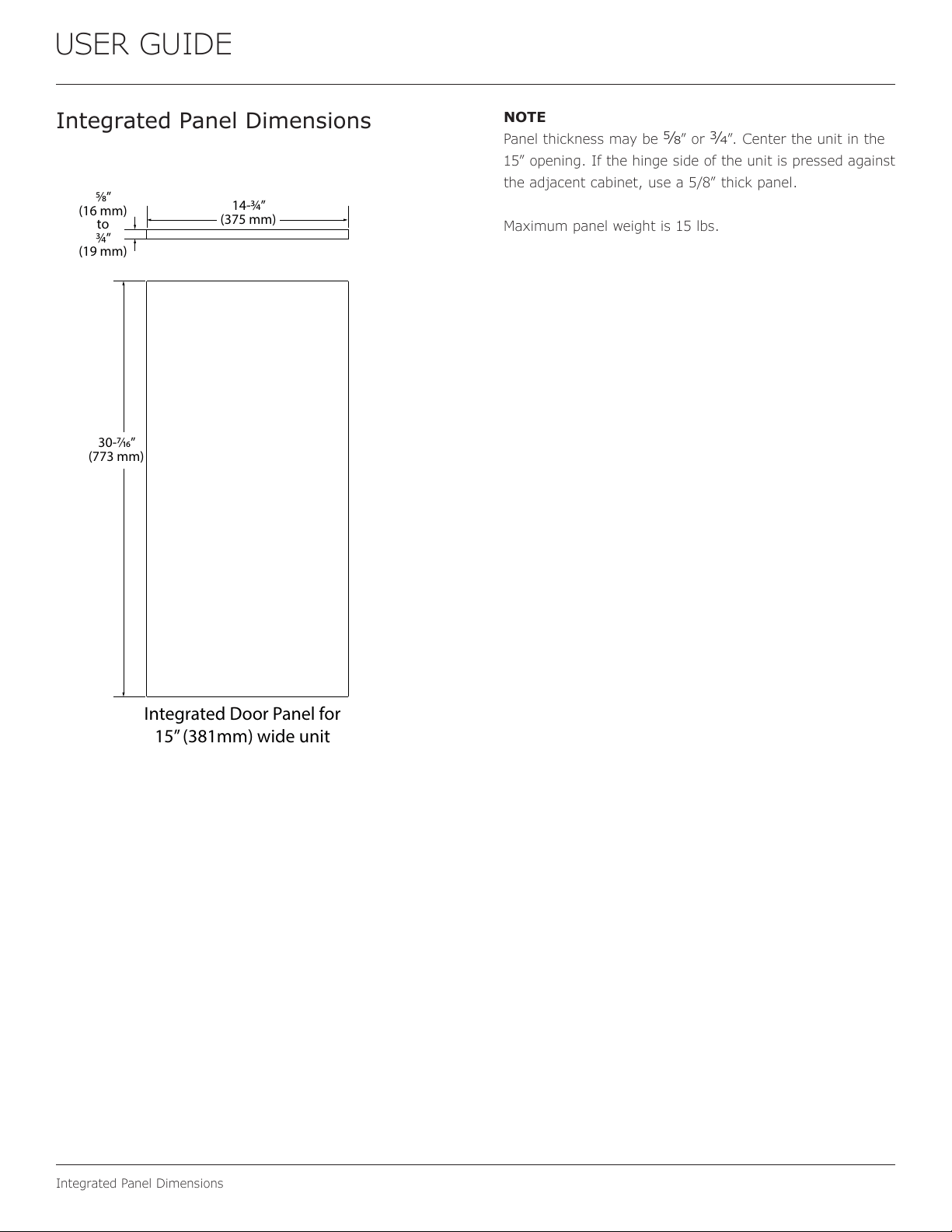

Integrated Panel Dimensions
Integrated Panel Installation

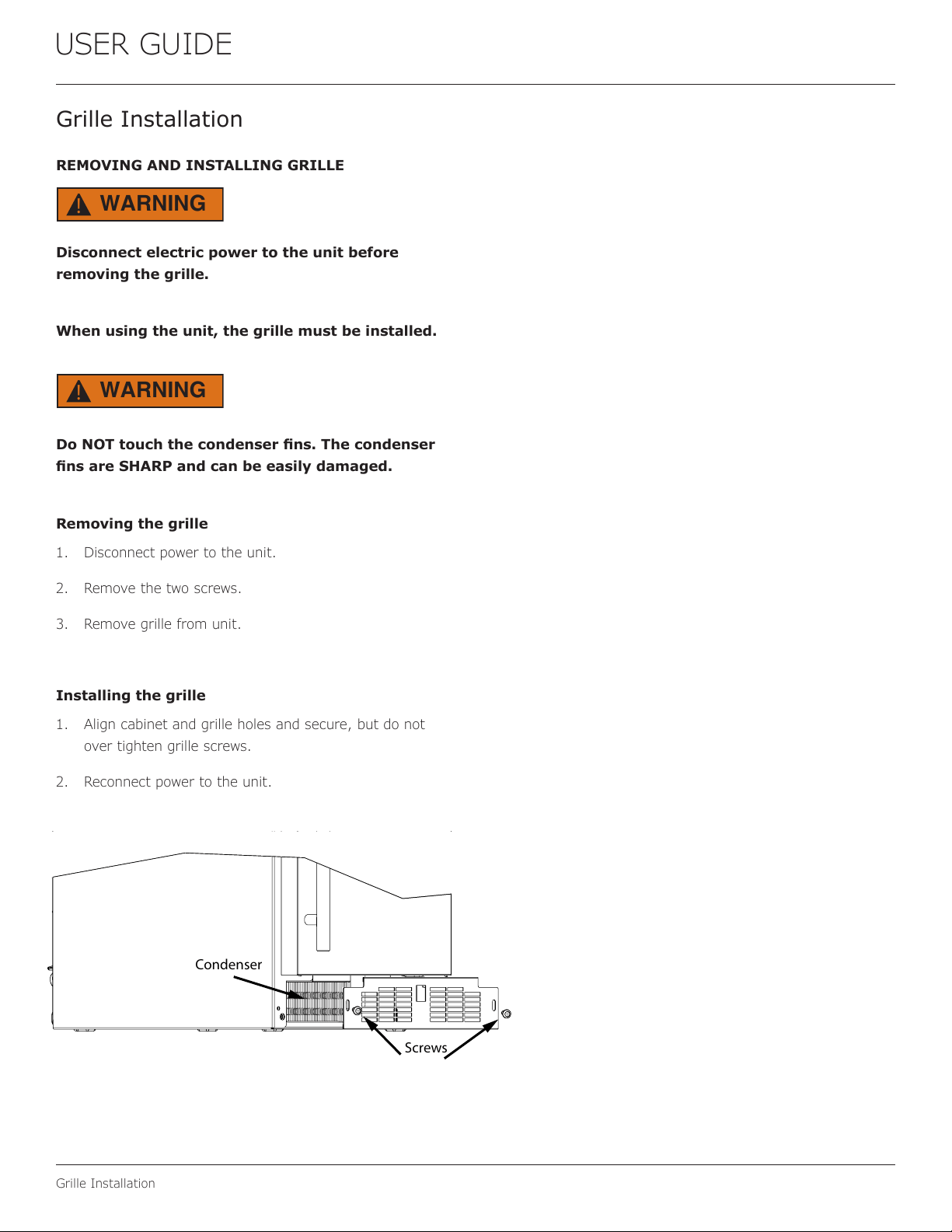

Grille Installation

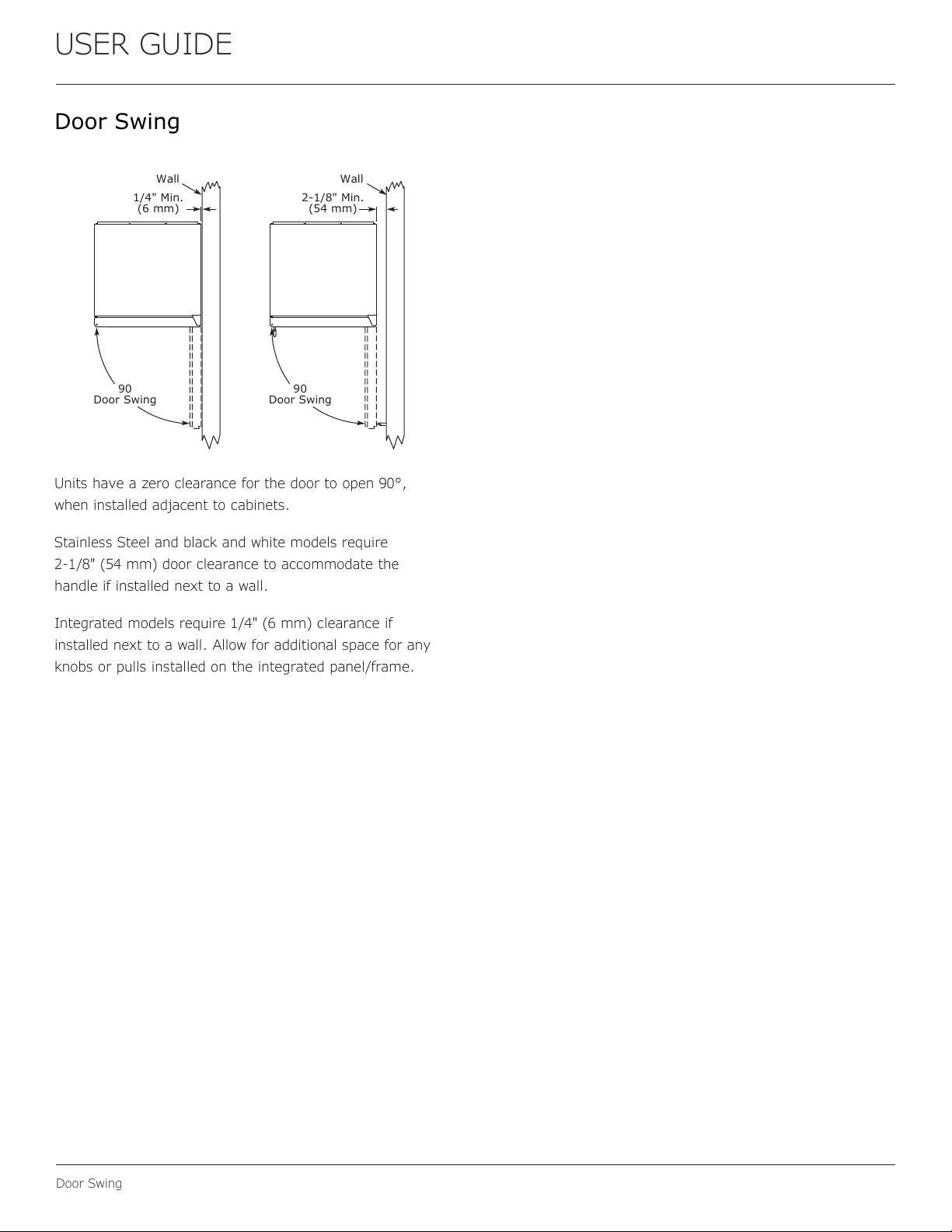

Door Swing

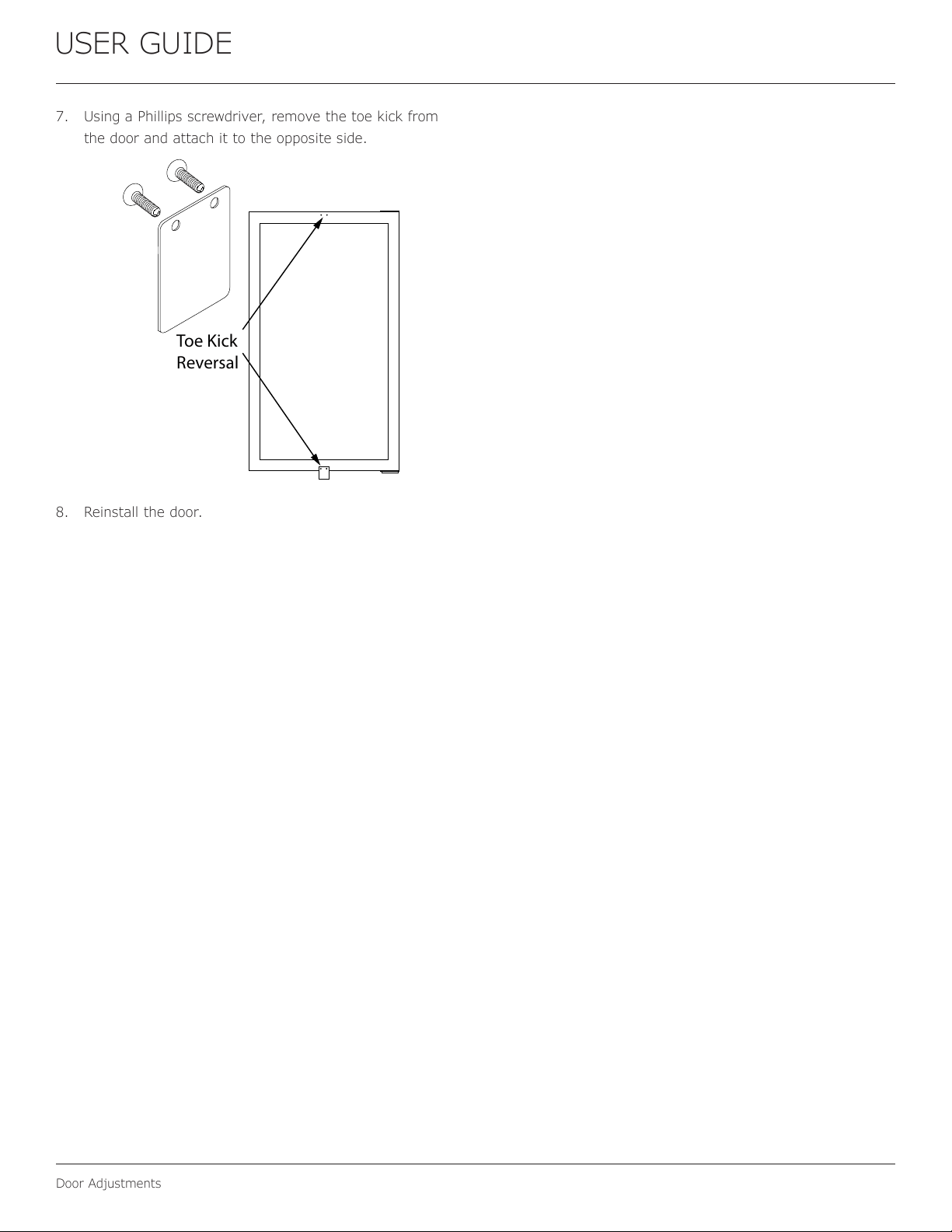

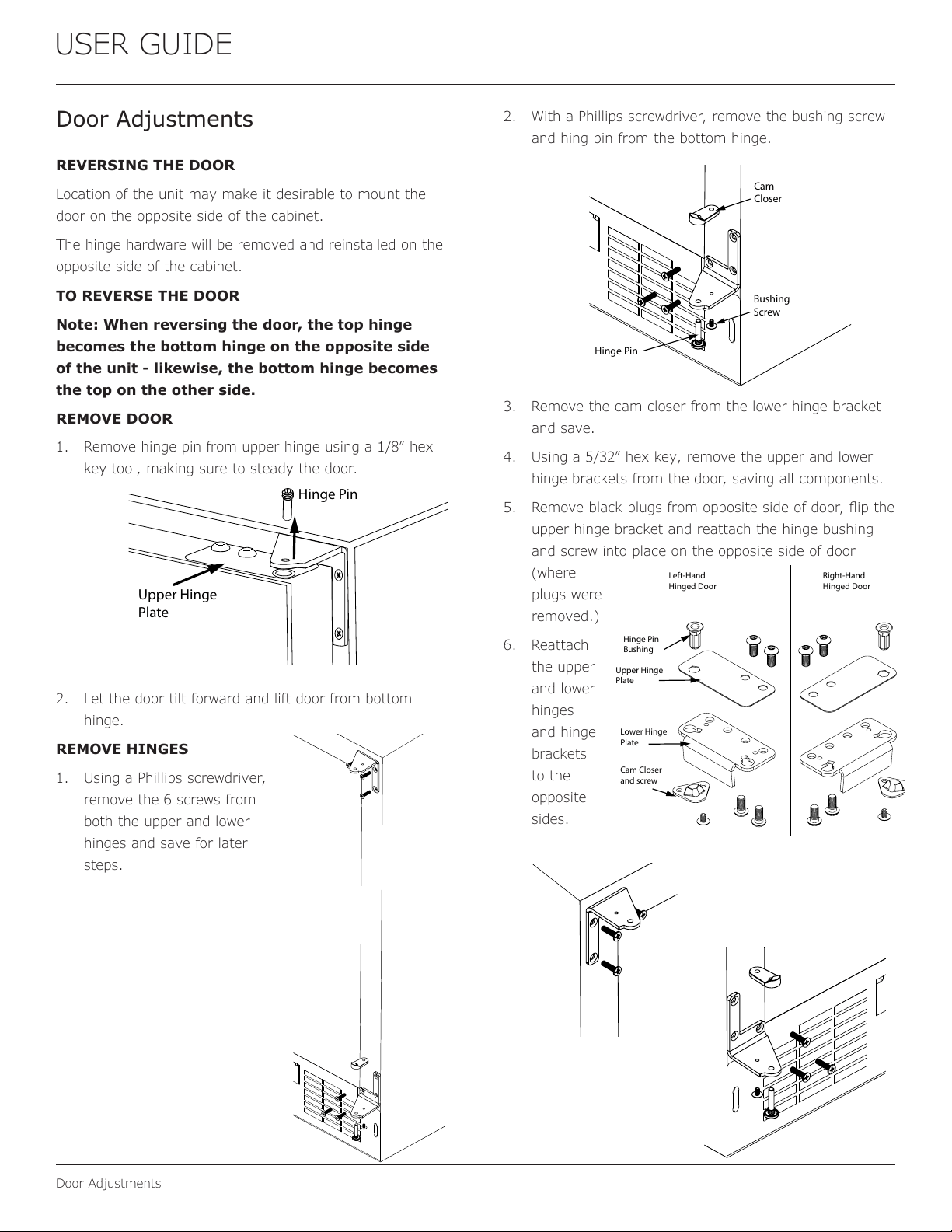

Door Adjust
Maintenance

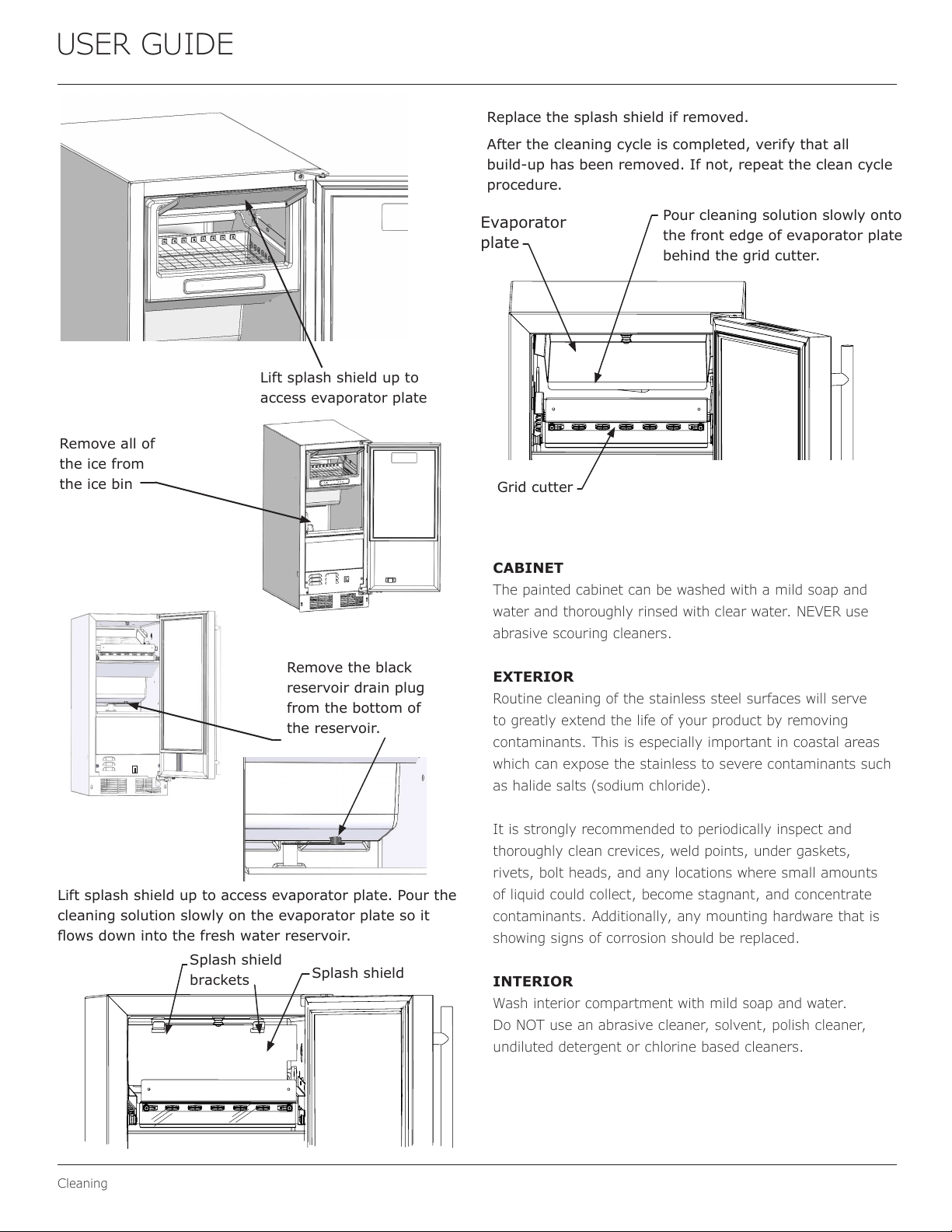

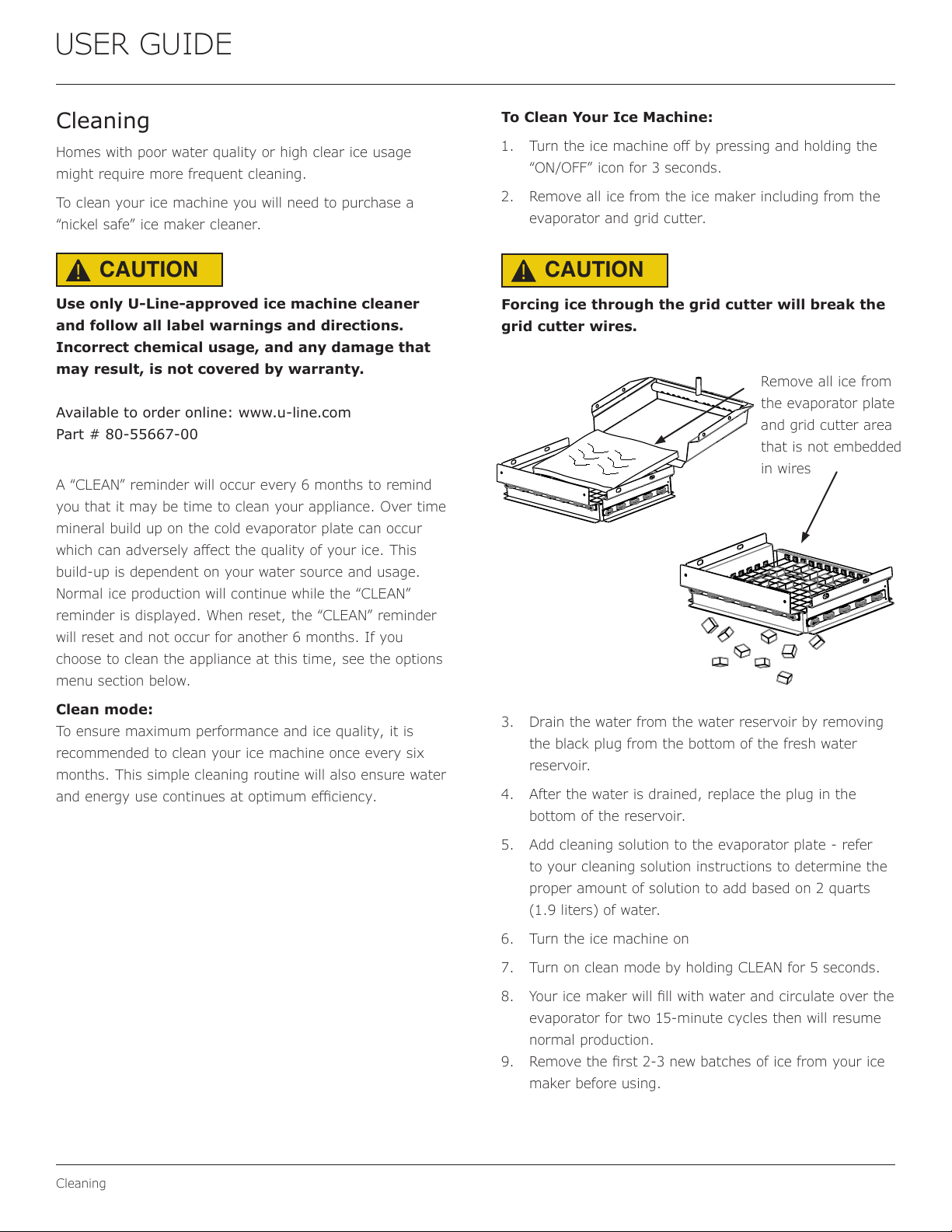

Cleaning
Cleaning Condenser

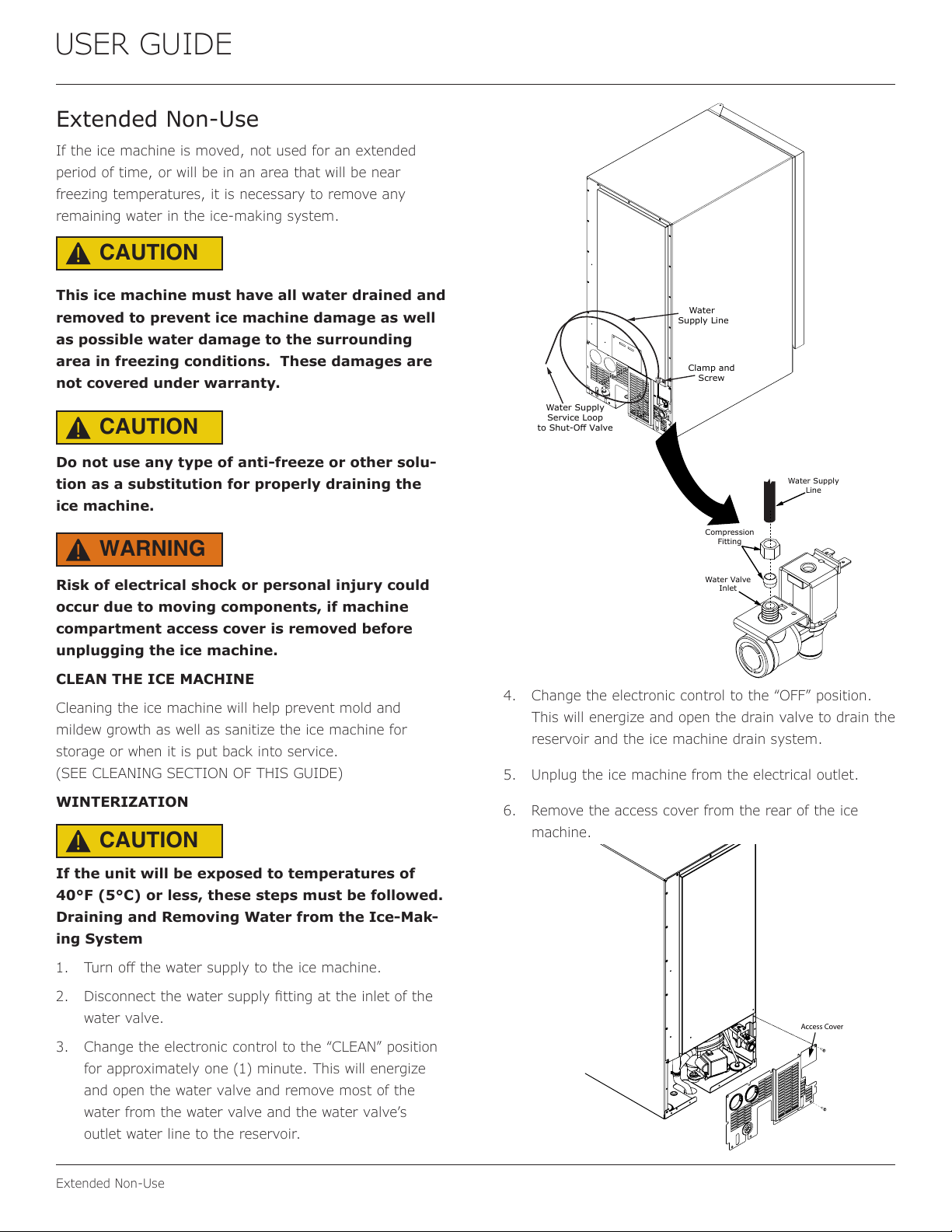

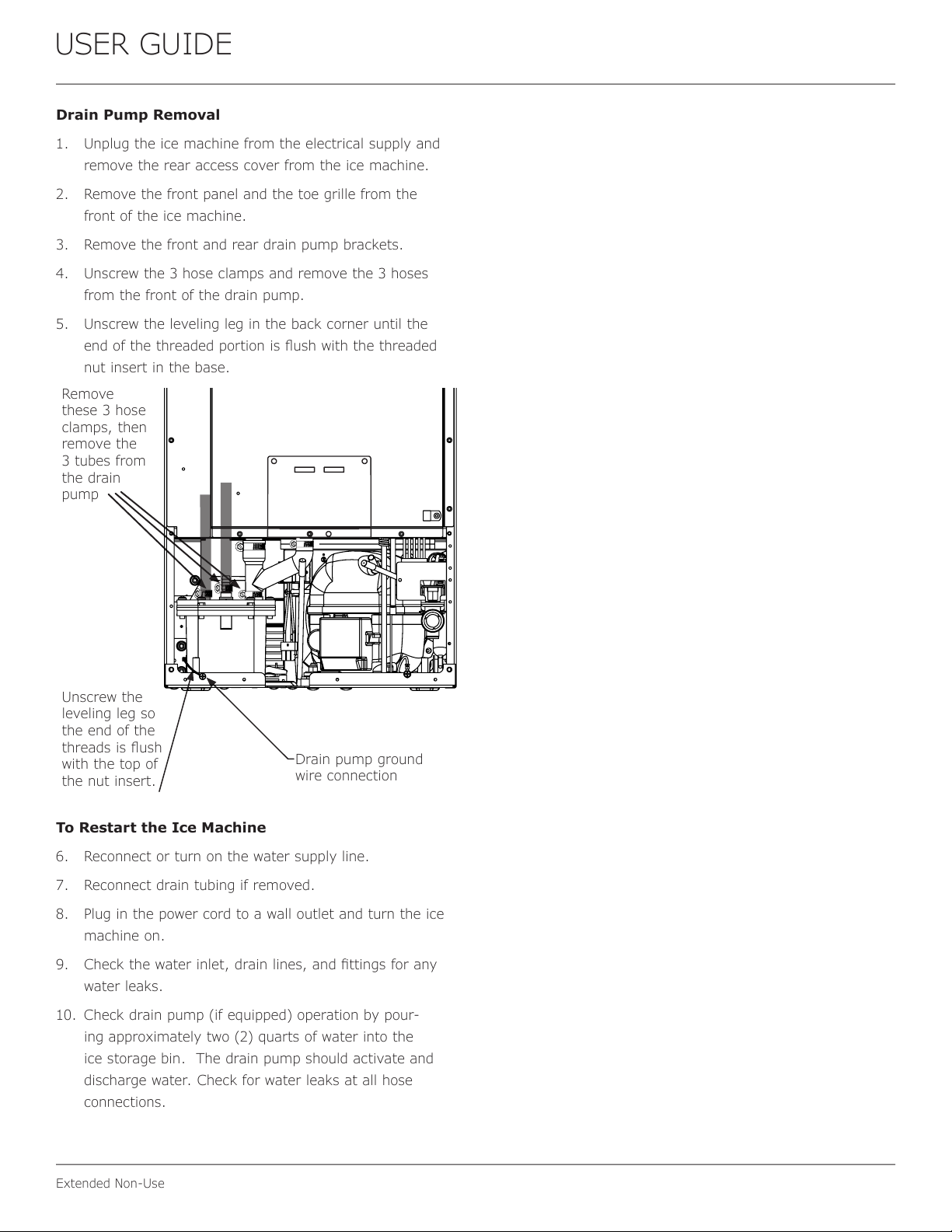

Extended Non-Use
Operating Instructions
First Use

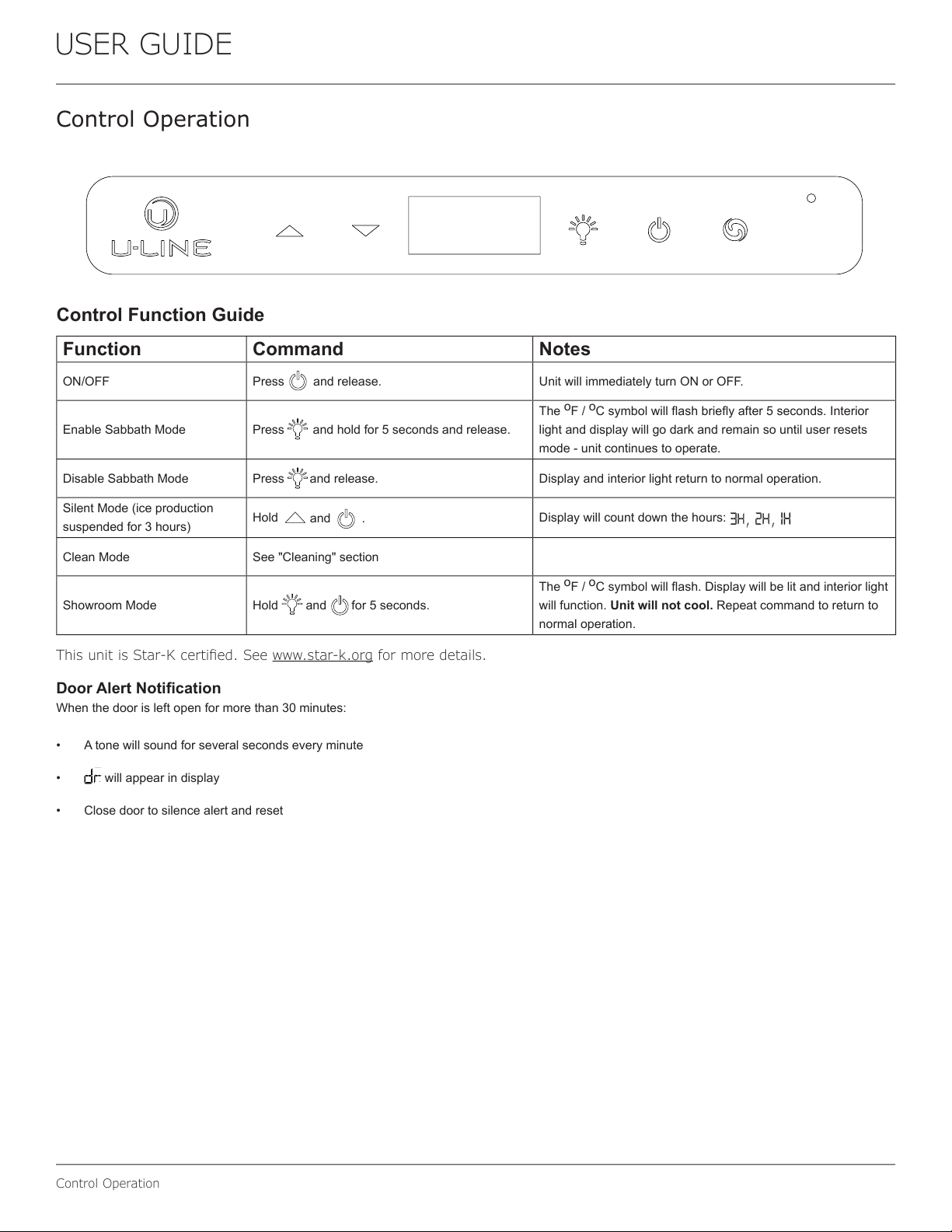

Control Operation

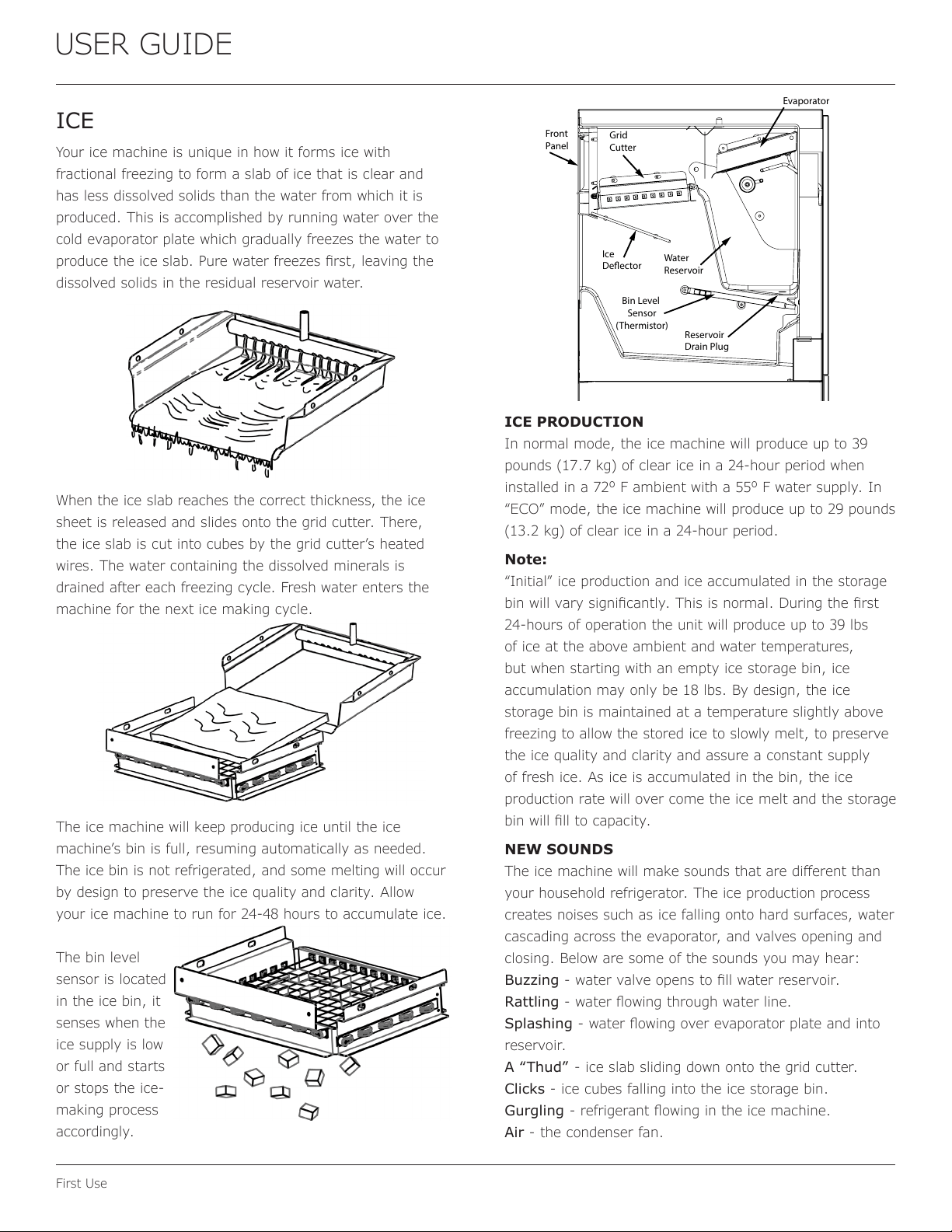

Ice

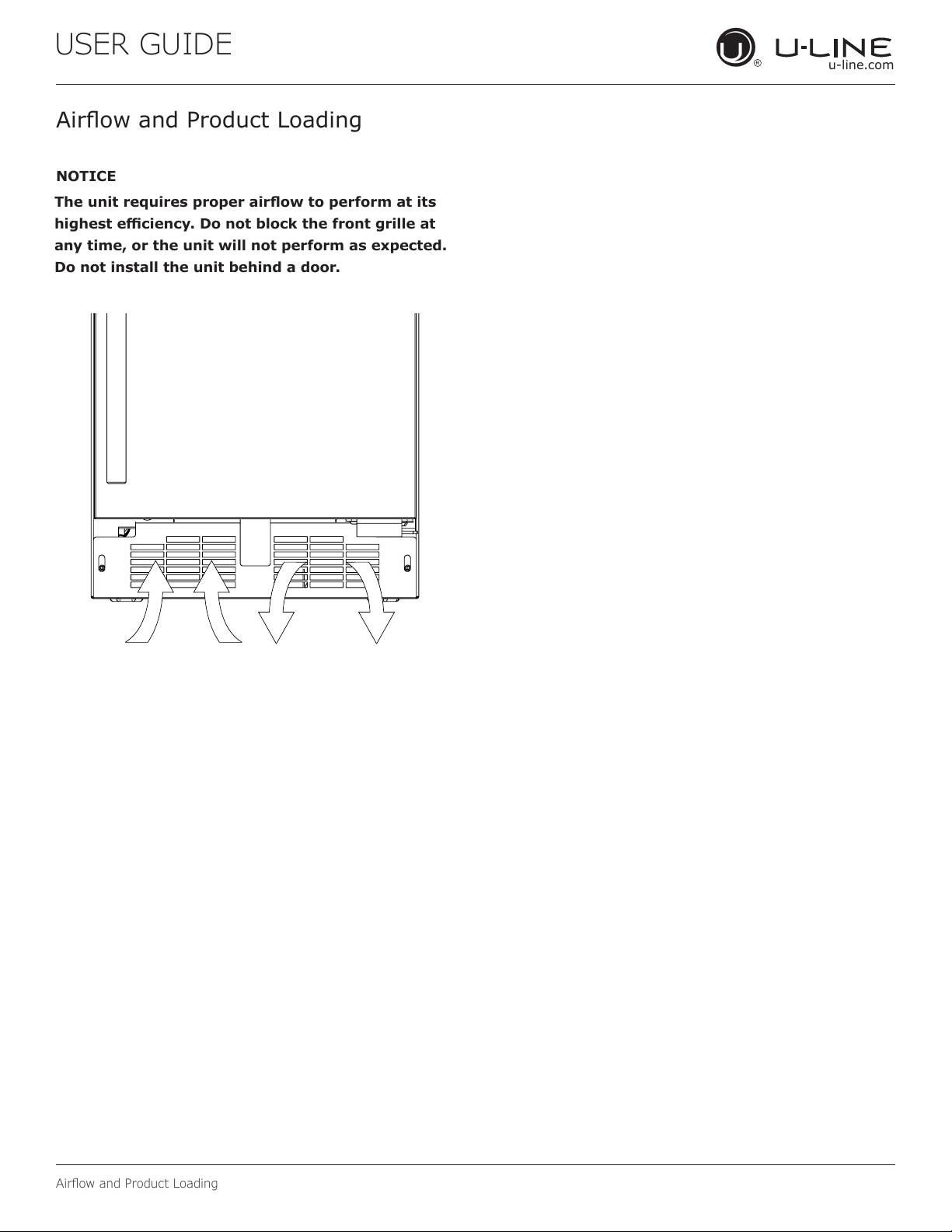

Airflow and Product Loading
Service

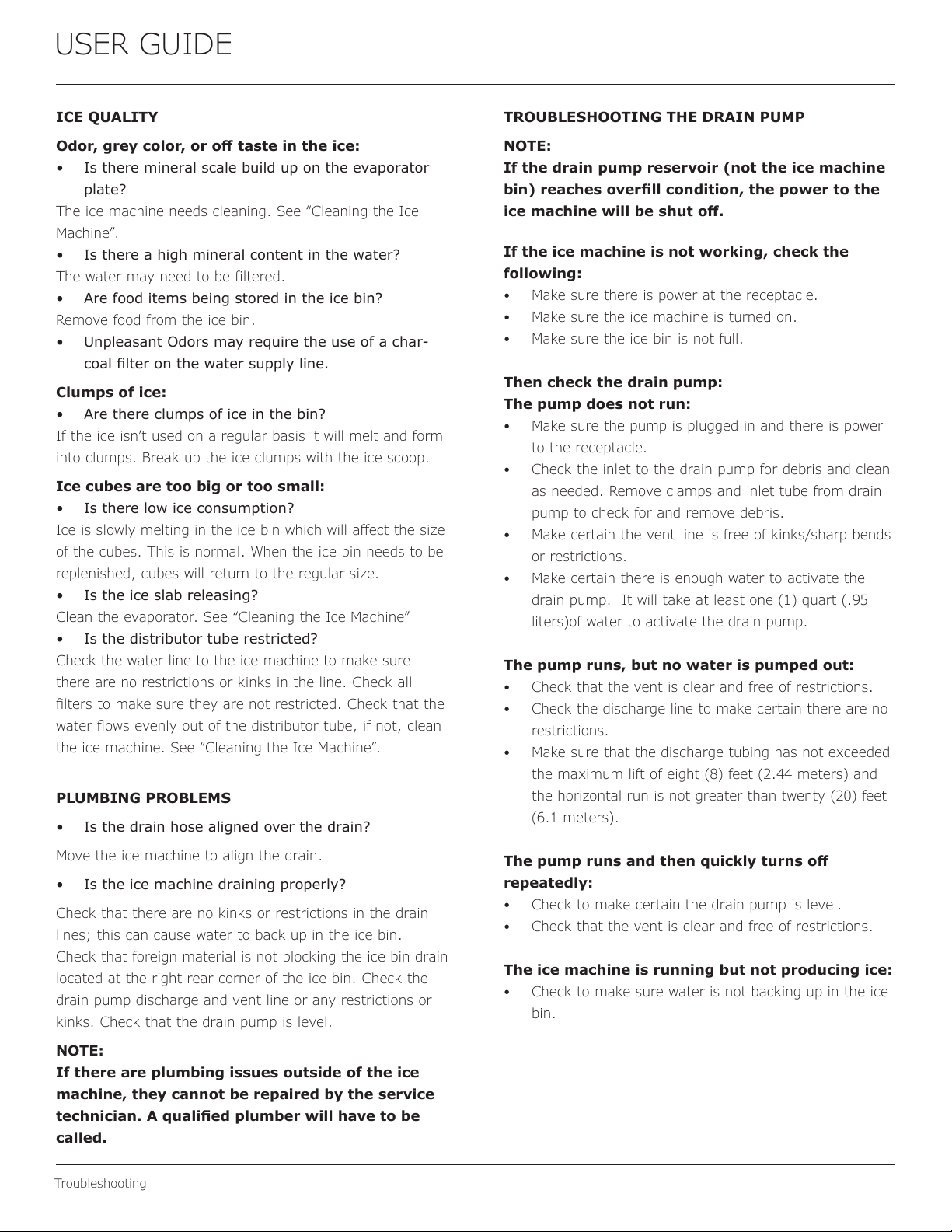

Troubleshooting

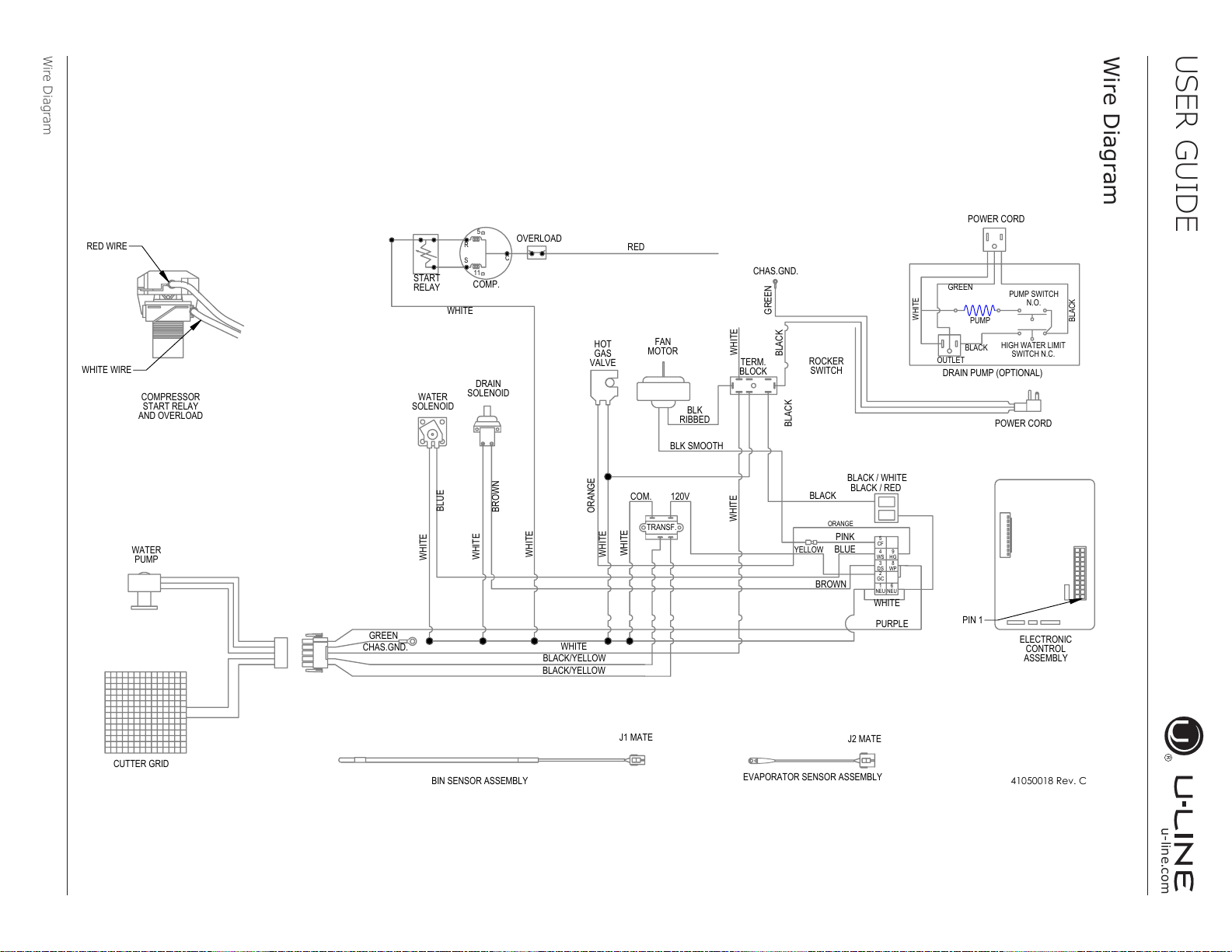

Wire Diagram

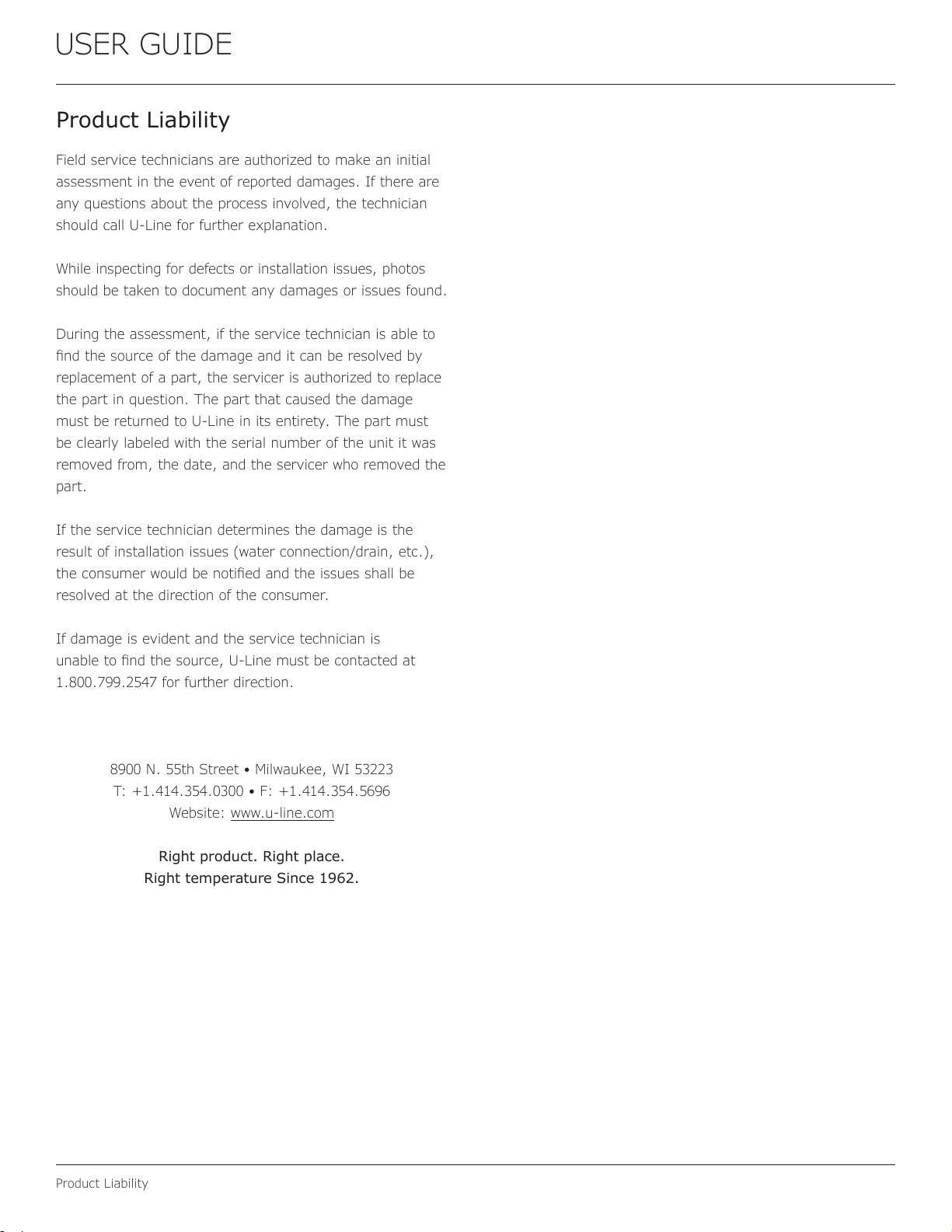

Product Liability

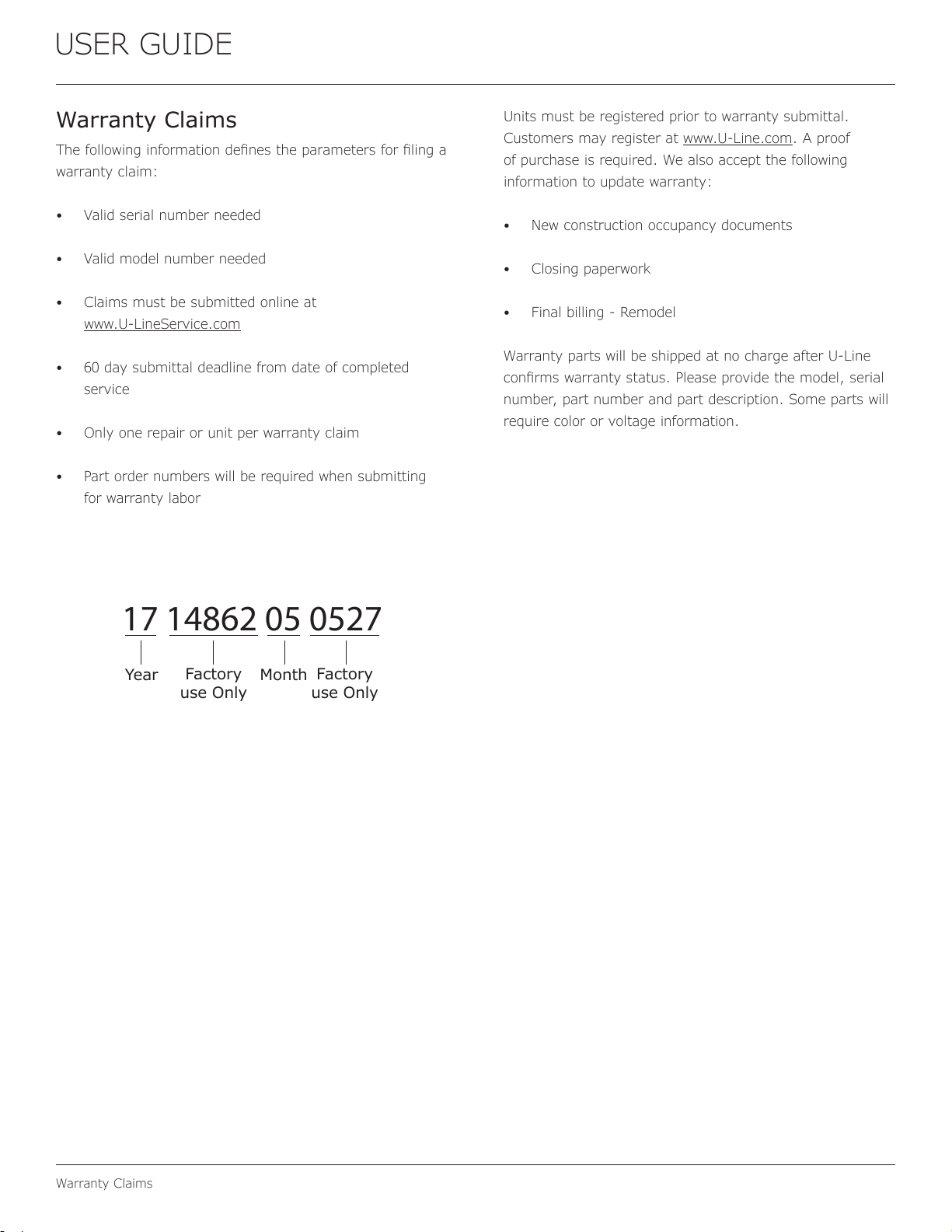

Warranty Claims

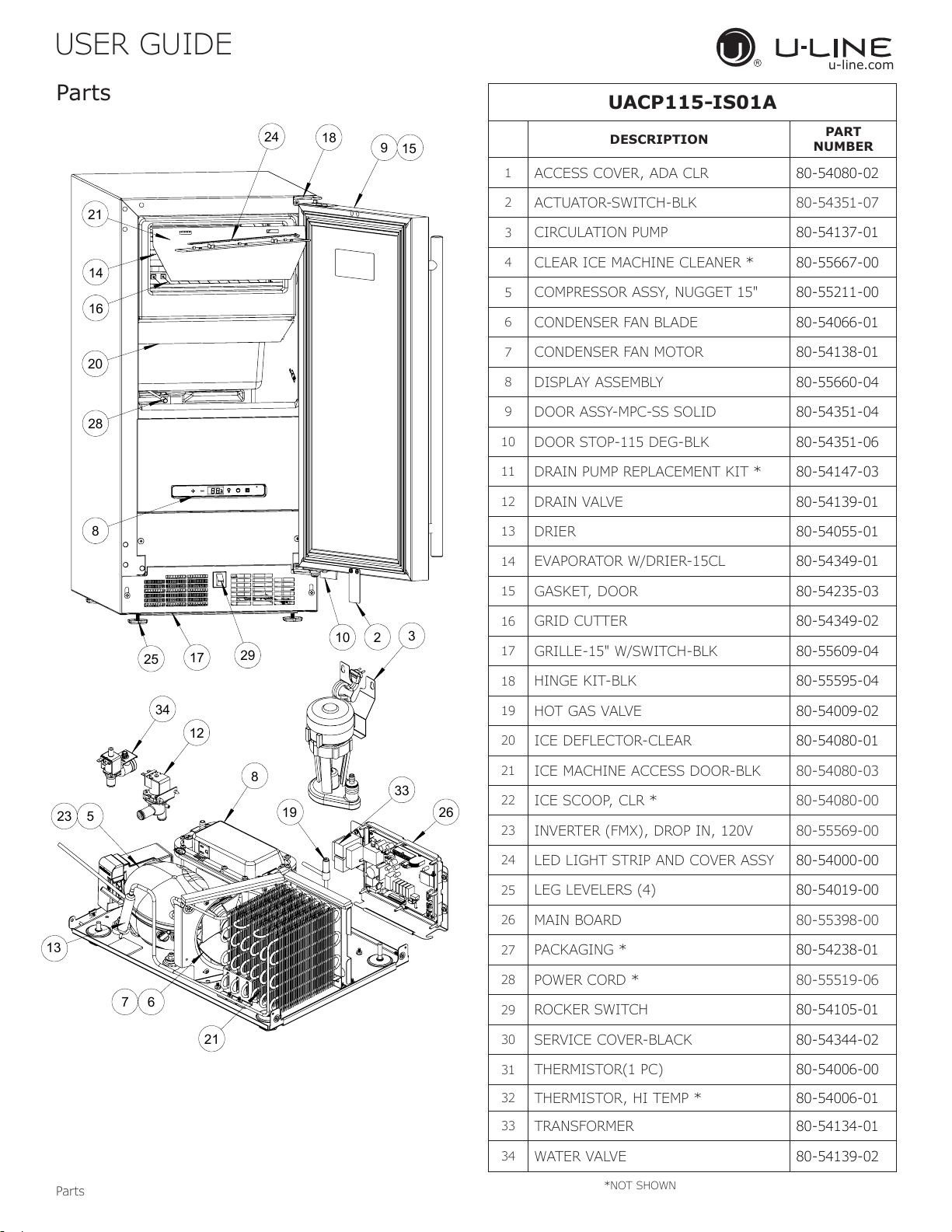

Parts

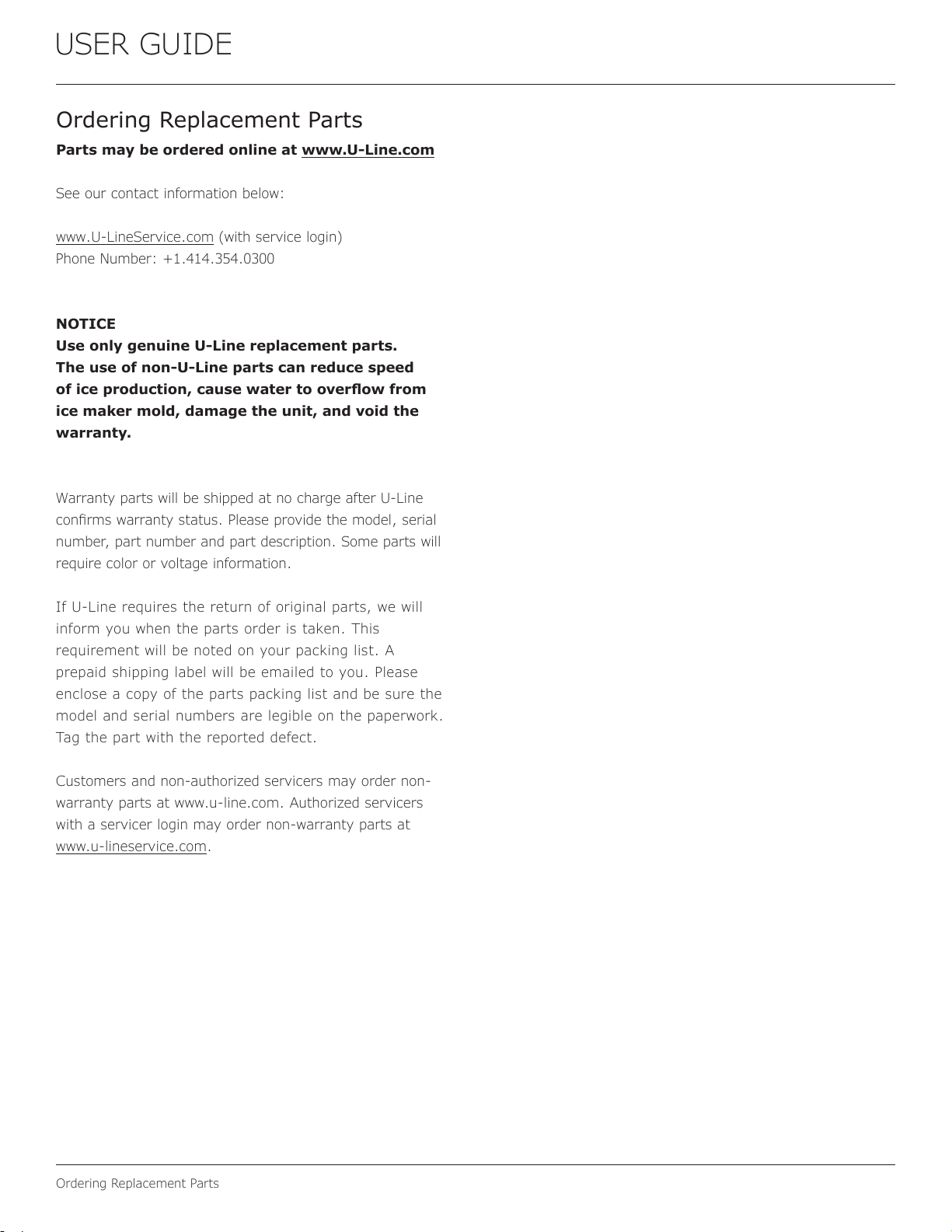

Ordering Replacement Parts
R600a Specifications
System Diagnosis Guide

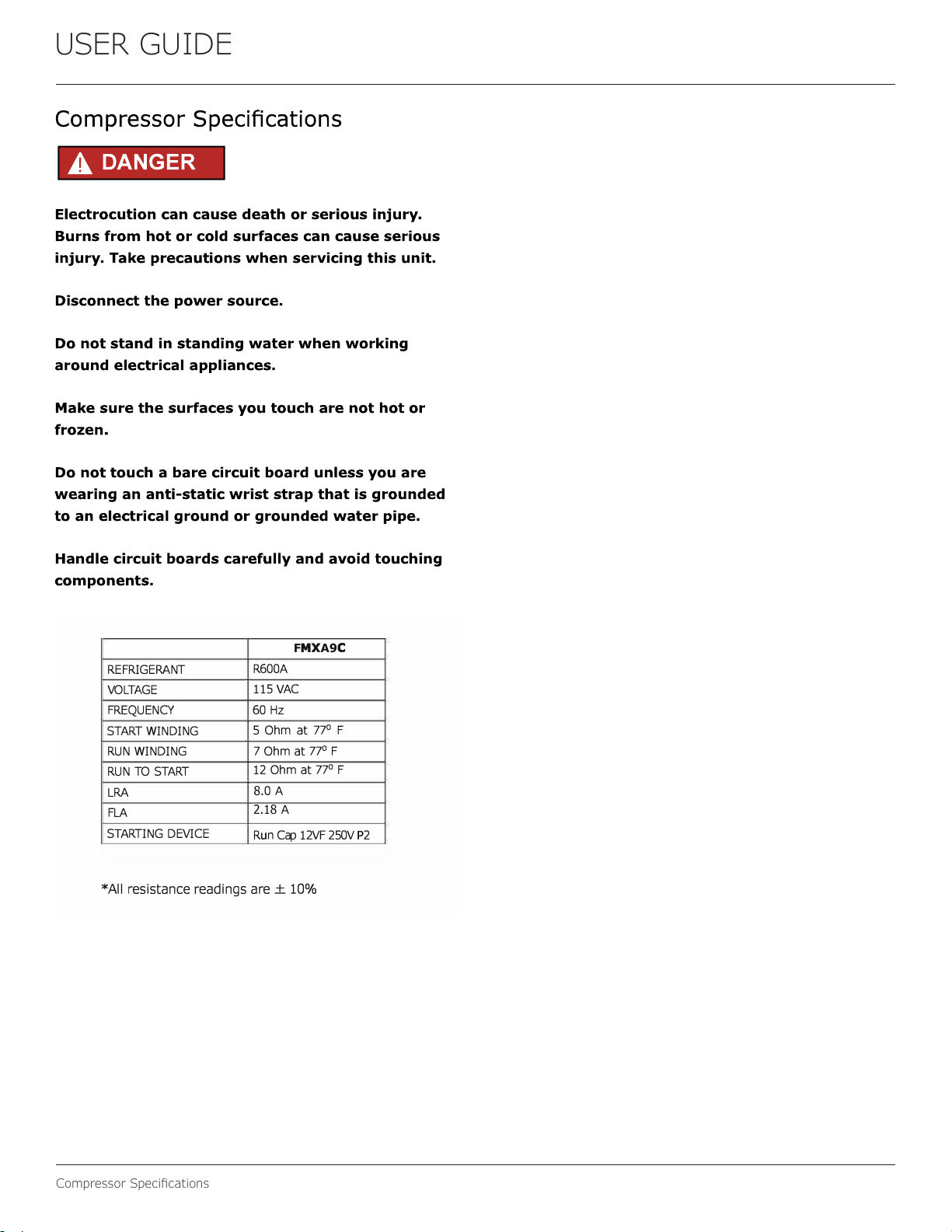

Compressor Specifications

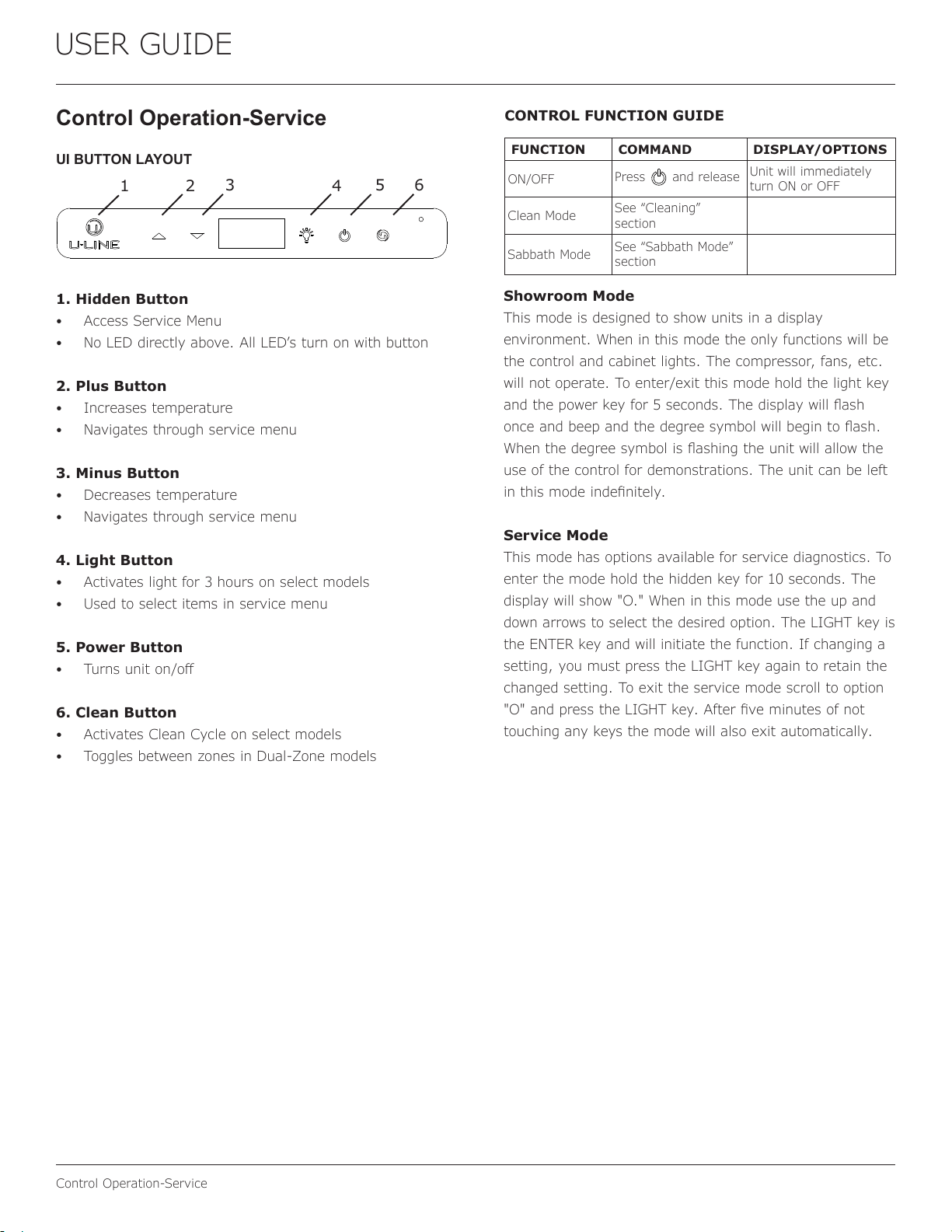

Control Operation - Service

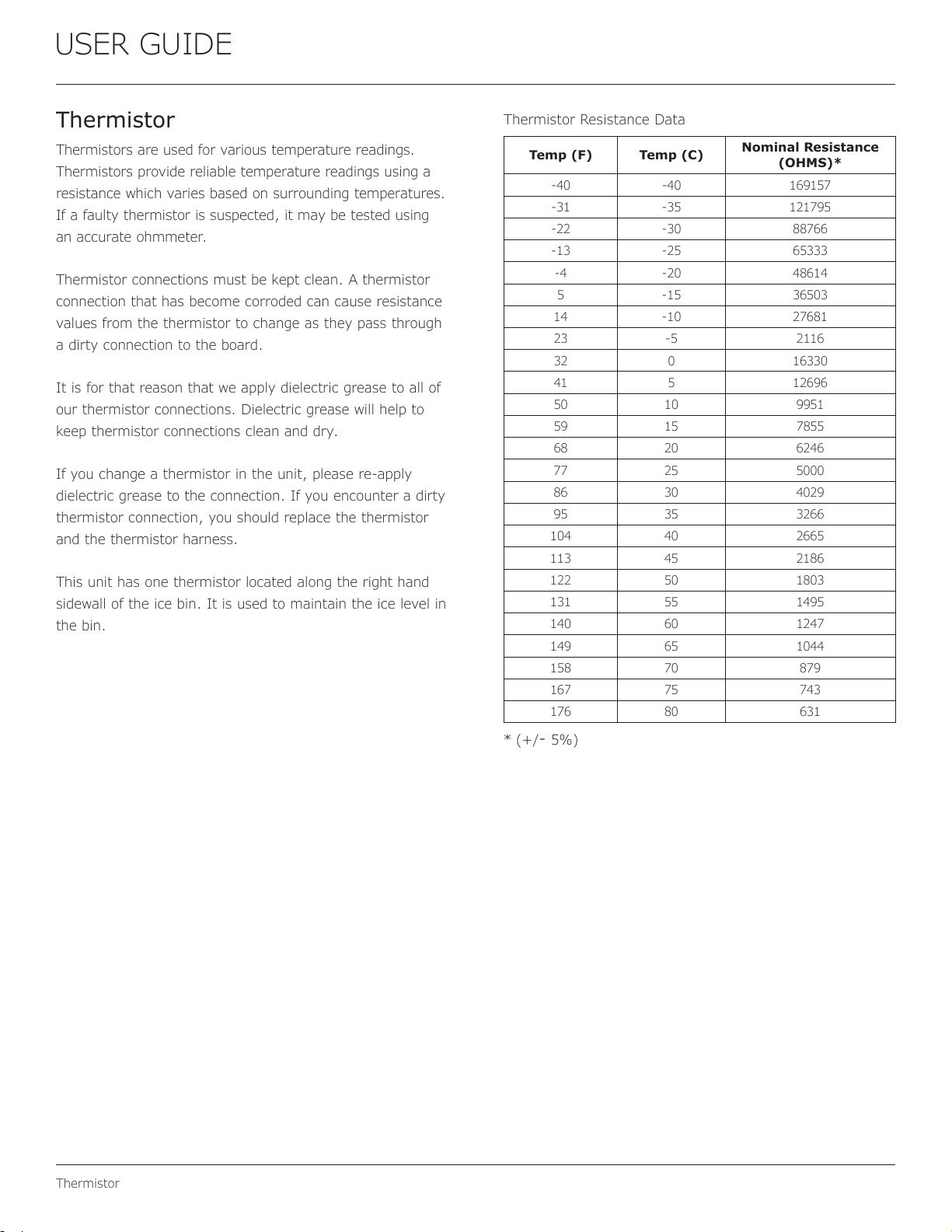

Thermistor

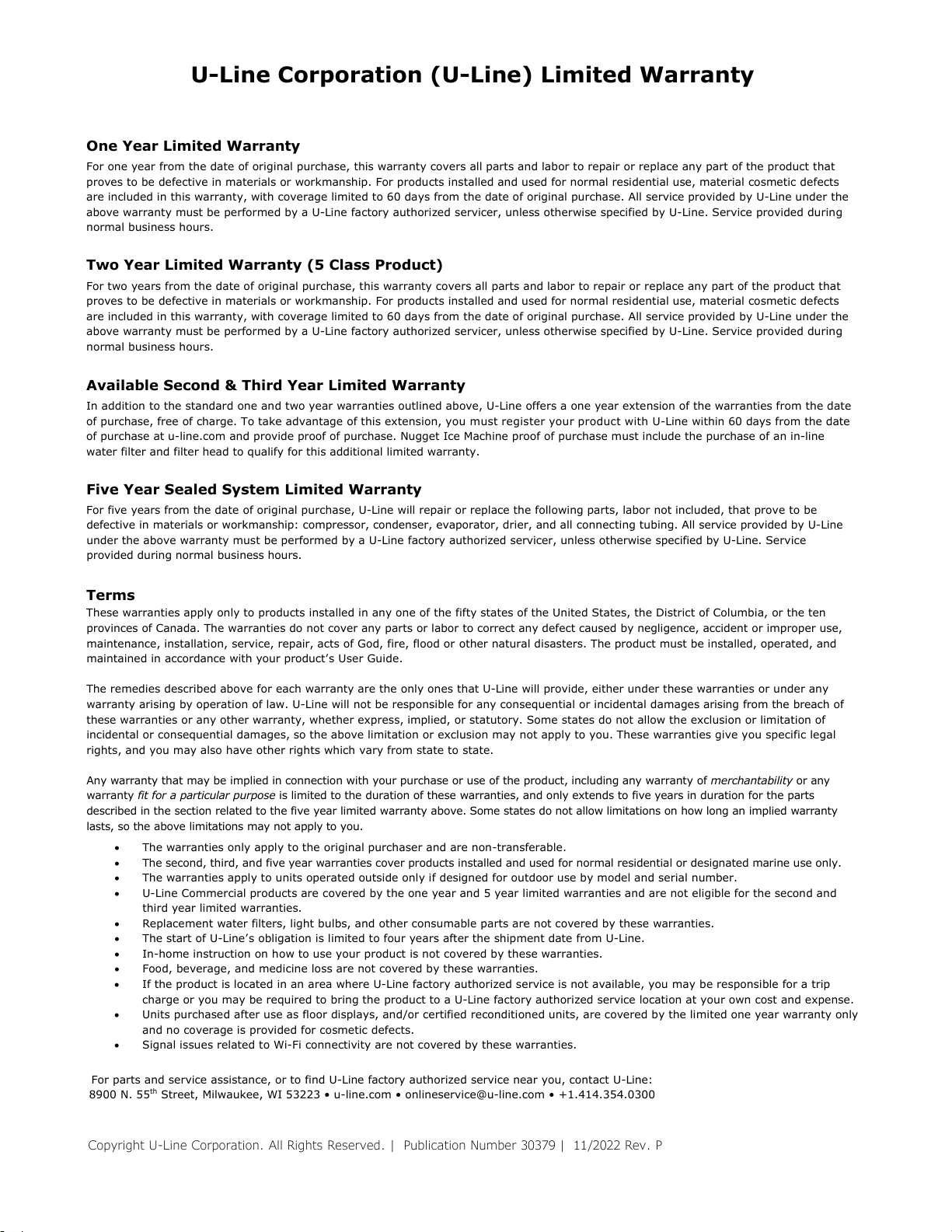

Warranty
USER GUIDE
Introduction

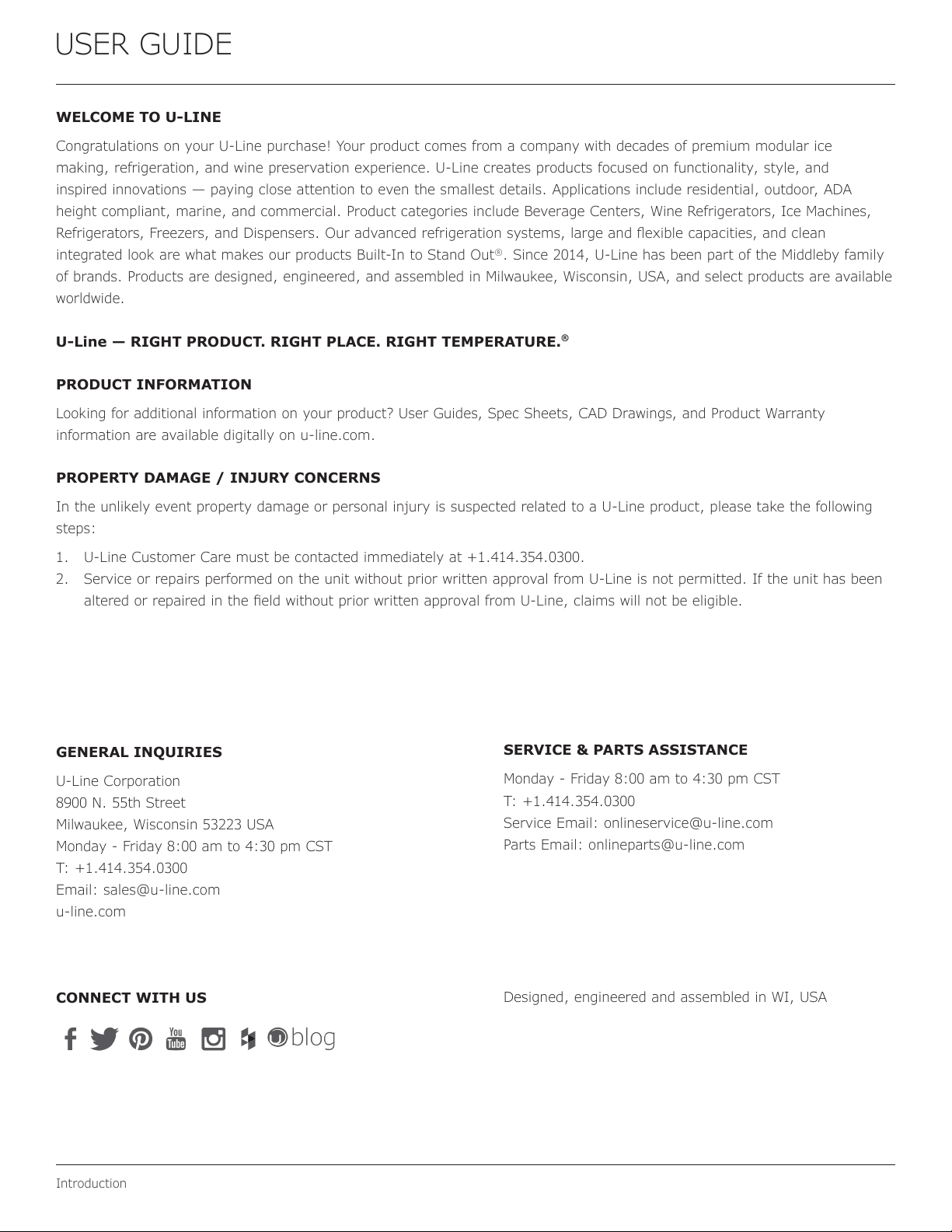

WELCOME TO U-LINE
Congratulations on your U-Line purchase! Your product comes from a company with decades of premium modular ice
making, refrigeration, and wine preservation experience. U-Line creates products focused on functionality, style, and
inspired innovations — paying close attention to even the smallest details. Applications include residential, outdoor, ADA
height compliant, marine, and commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines,
Refrigerators, Freezers, and Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean
integrated look are what makes our products Built-In to Stand Out
®
. Since 2014, U-Line has been part of the Middleby family
of brands. Products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available
worldwide.
U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.
®
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty
information are available digitally on u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
Designed, engineered and assembled in WI, USA
3
USER GUIDE

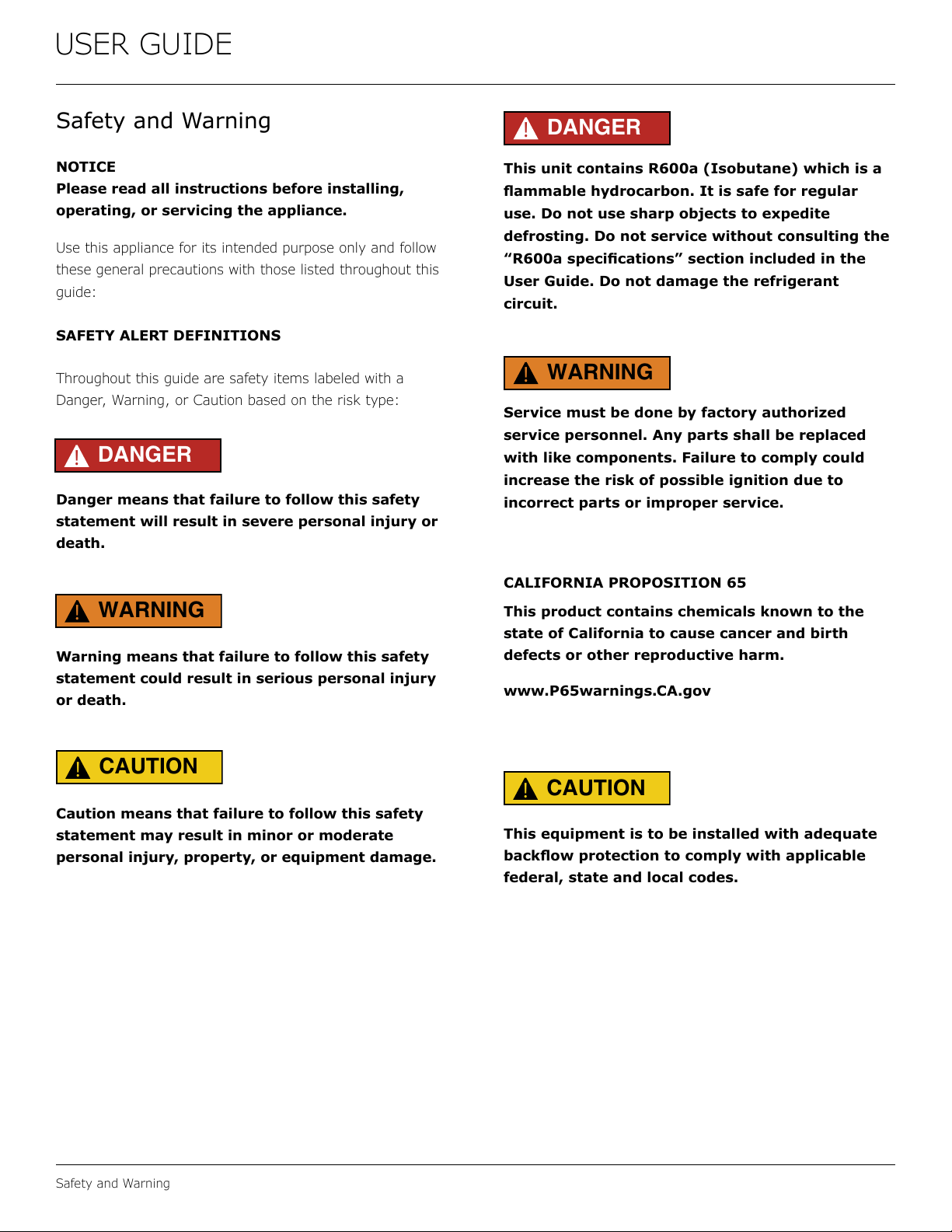

Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.

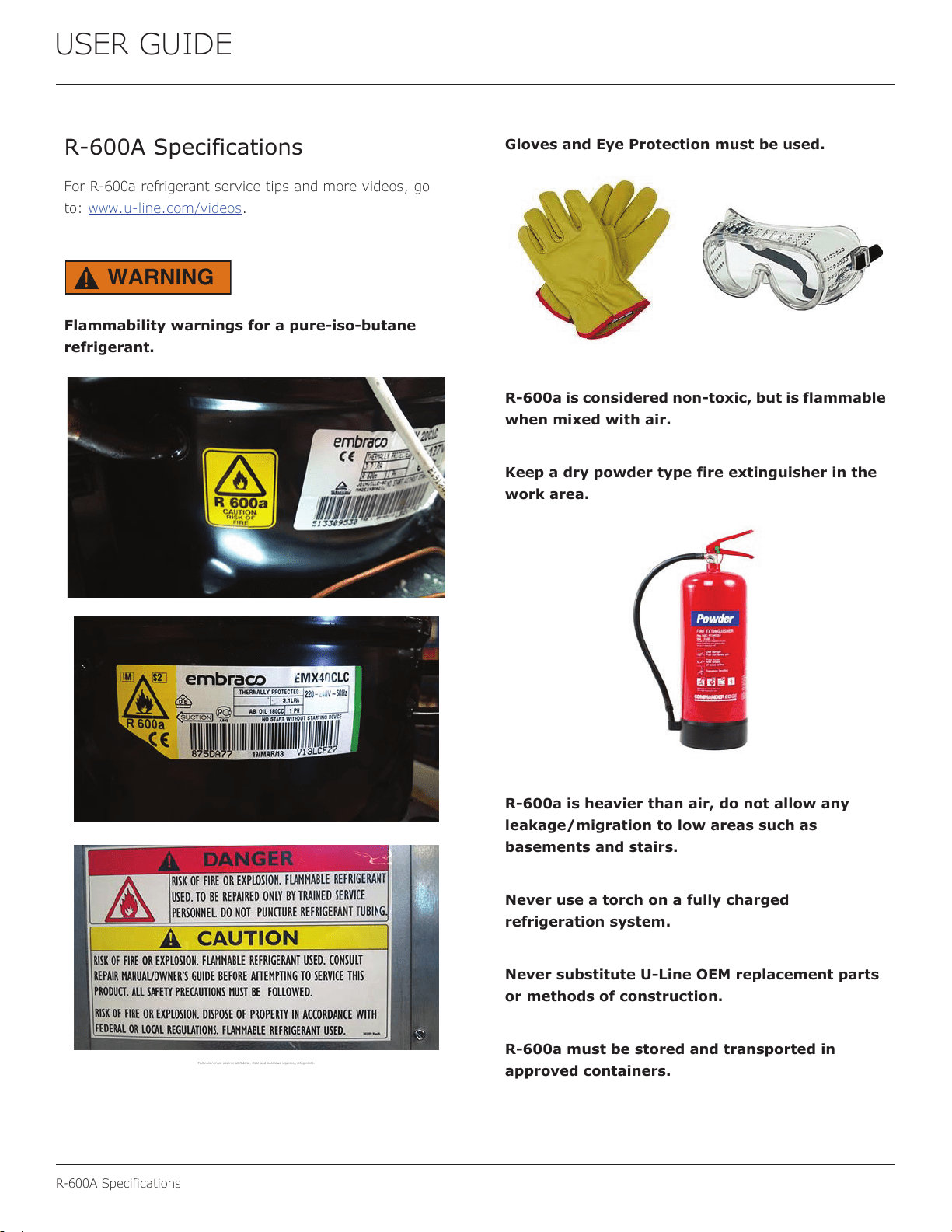

This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE

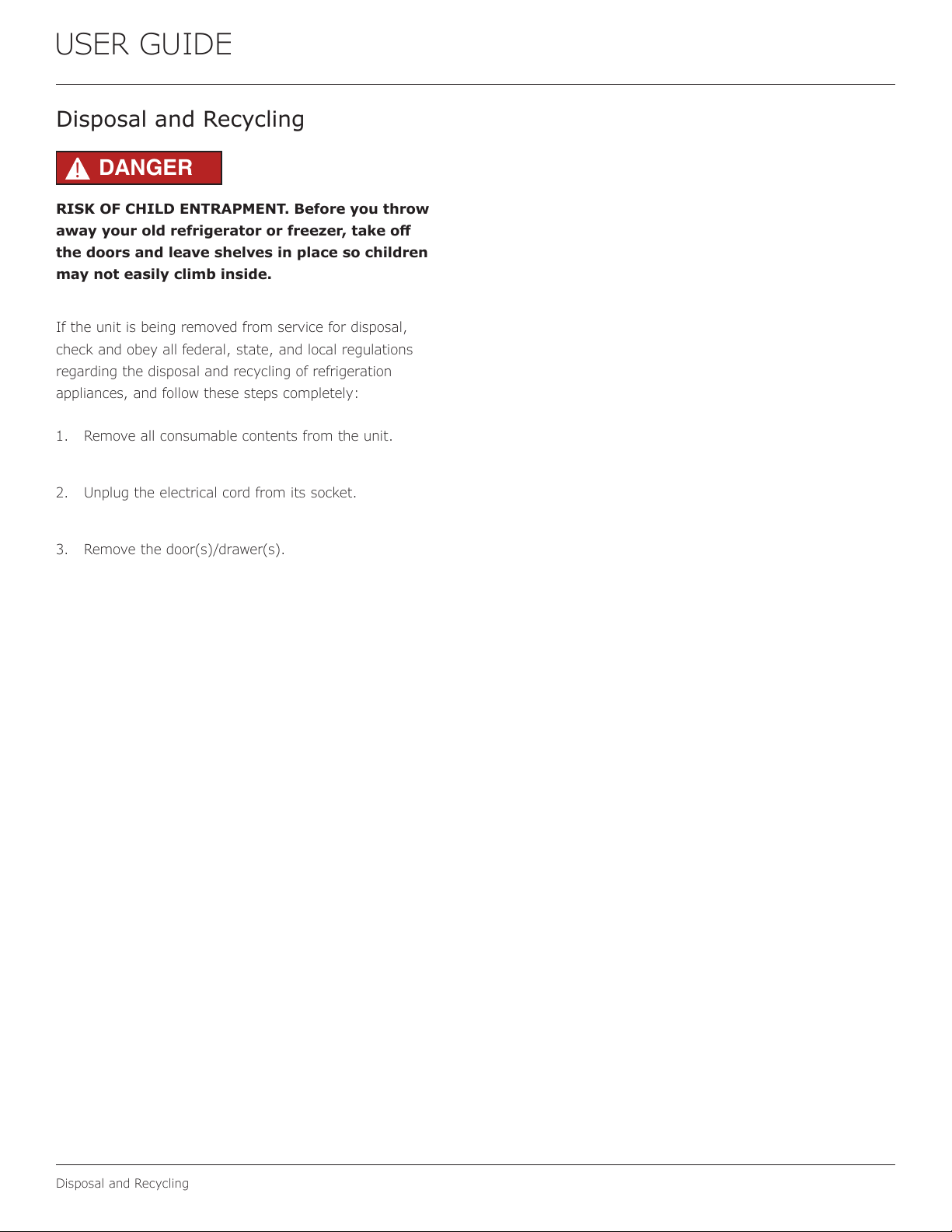

Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE

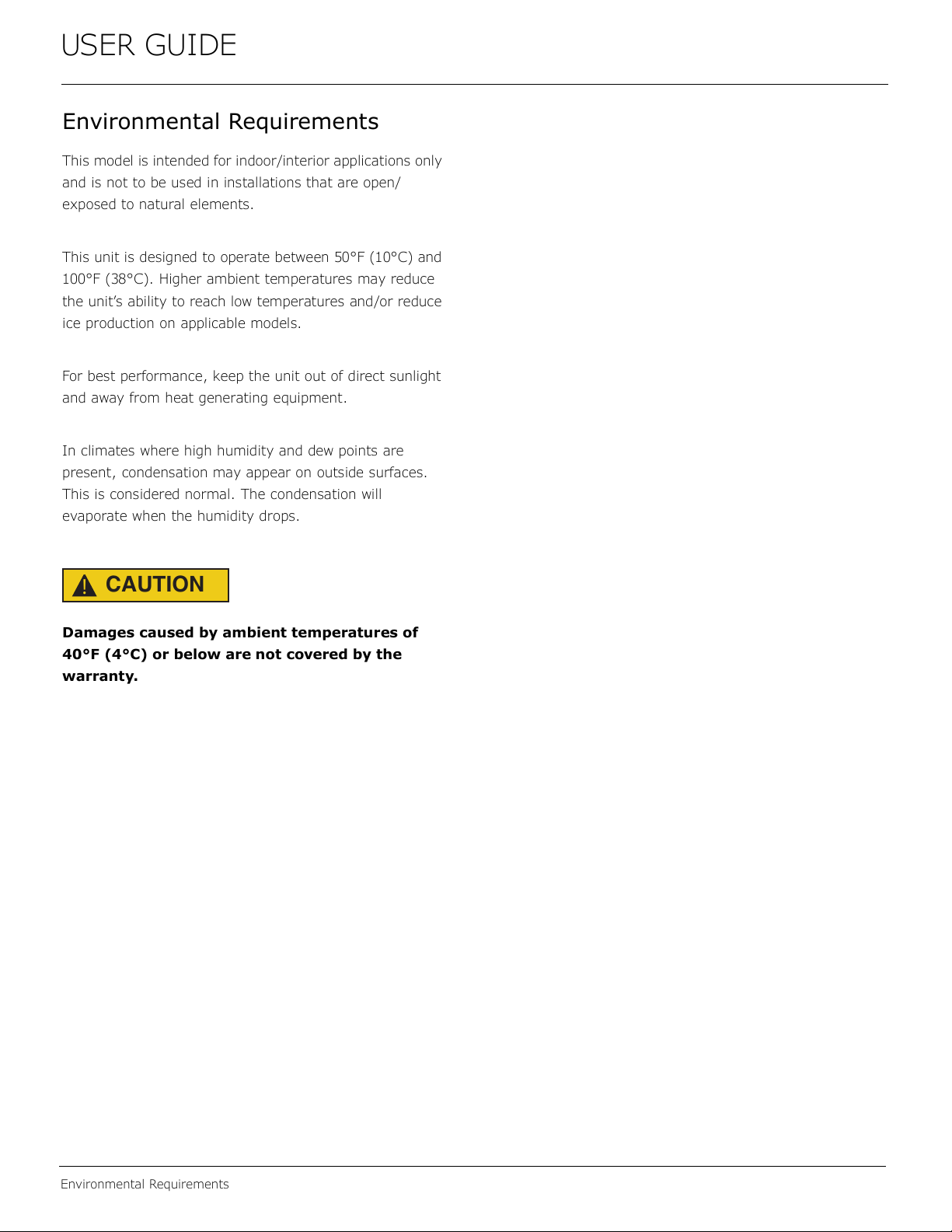

Environmental Requirements
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE

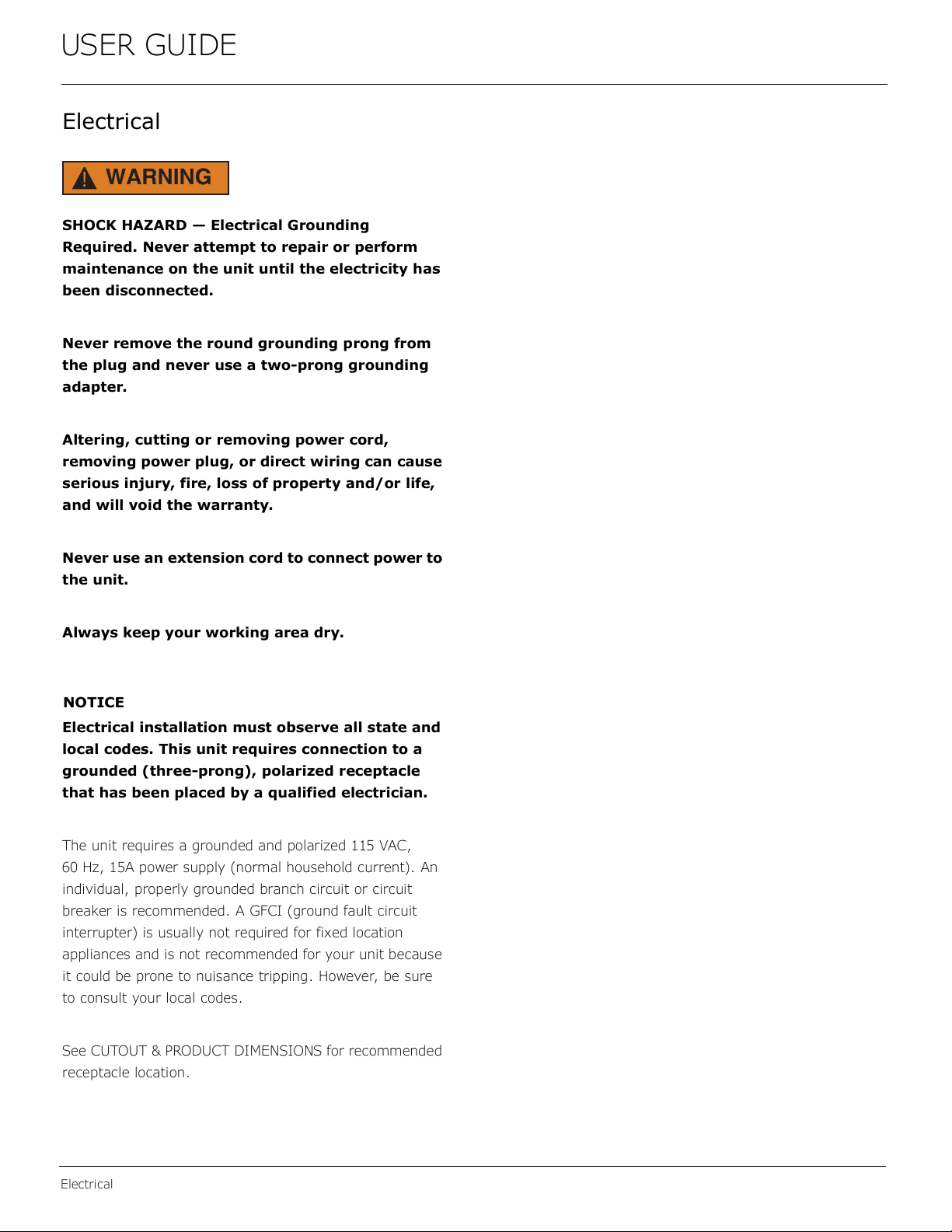

Electrical
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7
USER GUIDE

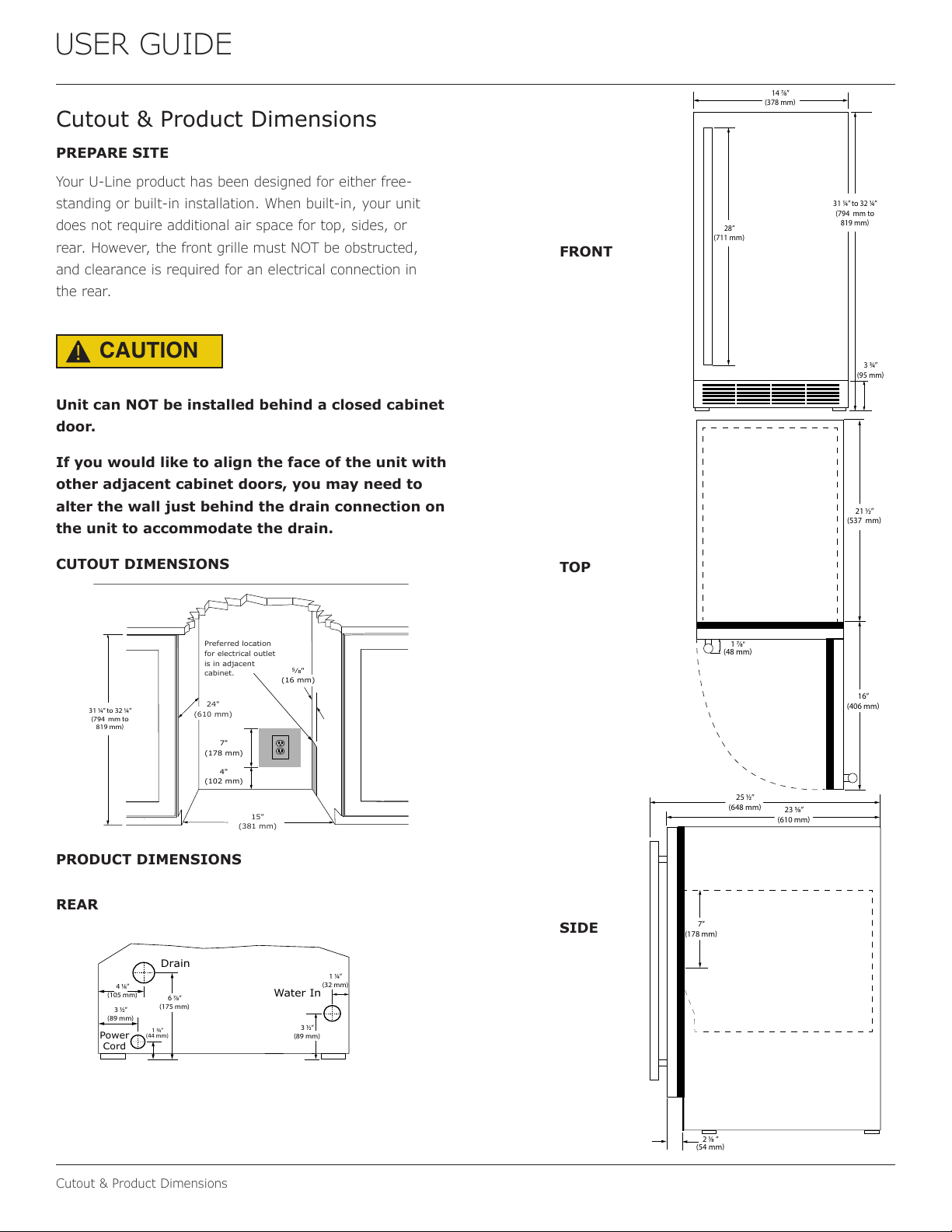

Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
If you would like to align the face of the unit with
other adjacent cabinet doors, you may need to
alter the wall just behind the drain connection on
the unit to accommodate the drain.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
4"
(102 mm)
7"
(178 mm)
15"
(381 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5⁄8"
(16 mm)
31 ⁄” to 32 ⁄”
(794 mm to
819 mm
3 ⁄”
(89 mm)
1 ⁄”
(32 mm)
Drain
Water In
Power
Cord
6 ⁄”
(175 mm)
3 ⁄”
(89 mm)
1 ⁄”
(44 mm)
4 ⁄”
(105 mm)
14 ⁄”
(378 mm
31 ⁄” to 32 ⁄”
(794 mm to
819 mm
3 ⁄”
(95 mm
28”
(711 mm)
21 ⁄”
(537 mm
16”
(406 mm
1 ⁄
”
(48 mm
25 ⁄”
(648 mm
7”
(178 mm
23 ⁄”
(610 mm
2 ⁄ ”
(54 mm
8
USER GUIDE

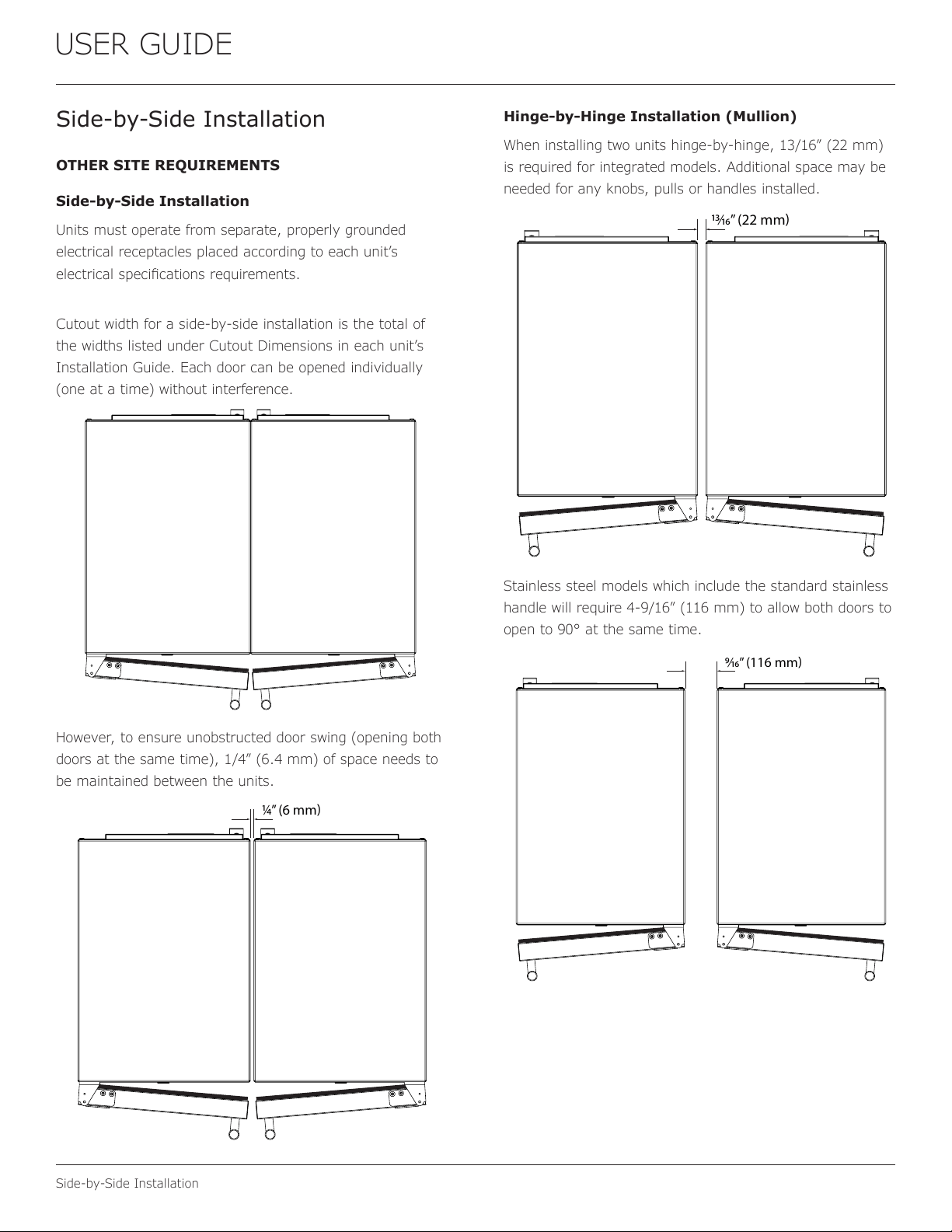

Side-by-Side Installation
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specications requirements.
Cutout width for a side-by-side installation is the total of
the widths listed under Cutout Dimensions in each unit’s
Installation Guide. Each door can be opened individually
(one at a time) without interference.
However, to ensure unobstructed door swing (opening both
doors at the same time), 1/4” (6.4 mm) of space needs to
be maintained between the units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16” (22 mm)
is required for integrated models. Additional space may be
needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless
handle will require 4-9/16” (116 mm) to allow both doors to
open to 90° at the same time.
1⁄4” (6 mm)
⁄” (22 mm
⁄” (116 mm
9
USER GUIDE

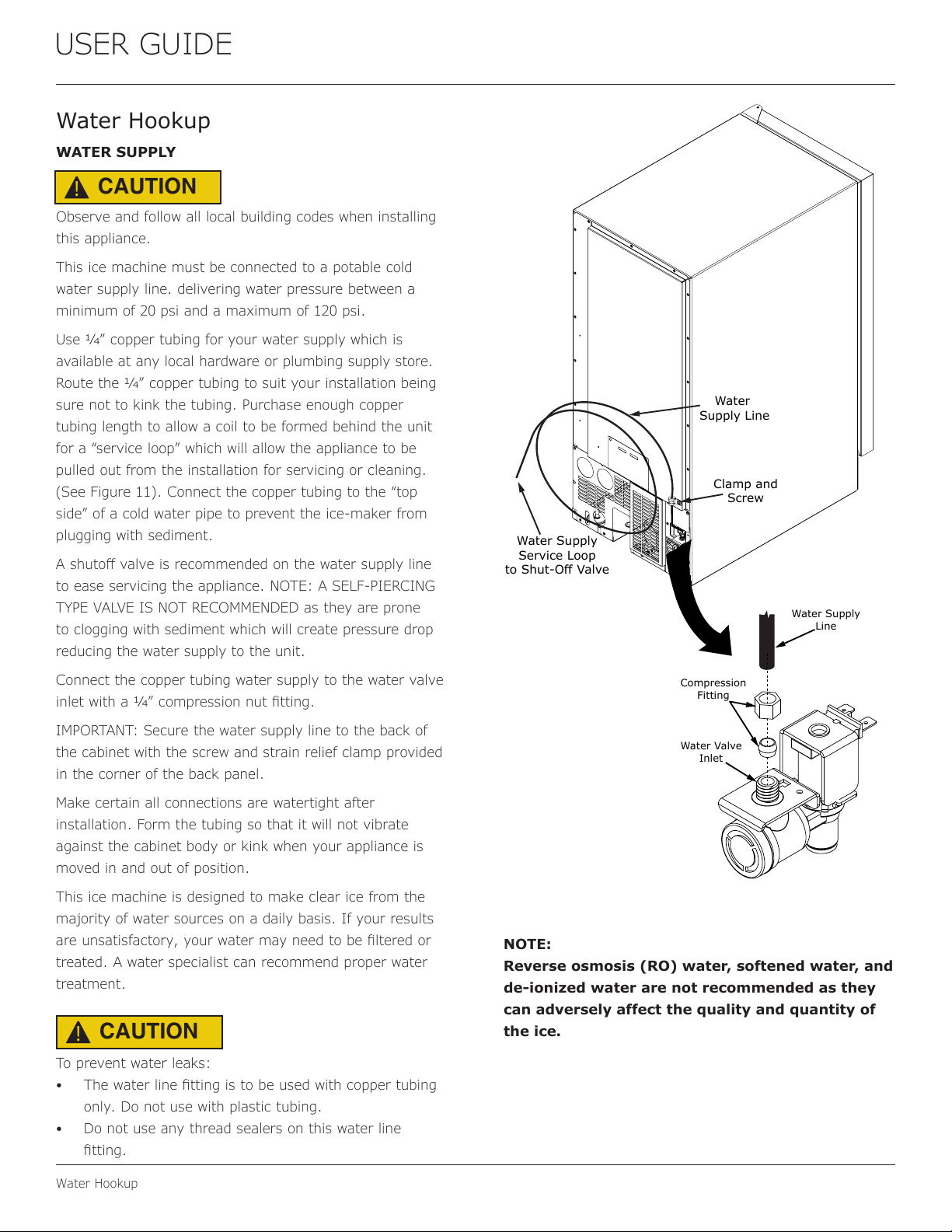

Water Hookup
Water Hookup
WATER SUPPLY
Observe and follow all local building codes when installing
this appliance.
This ice machine must be connected to a potable cold
water supply line. delivering water pressure between a
minimum of 20 psi and a maximum of 120 psi.
Use 1⁄4” copper tubing for your water supply which is
available at any local hardware or plumbing supply store.
Route the 1⁄4” copper tubing to suit your installation being
sure not to kink the tubing. Purchase enough copper
tubing length to allow a coil to be formed behind the unit
for a “service loop” which will allow the appliance to be
pulled out from the installation for servicing or cleaning.
(See Figure 11). Connect the copper tubing to the “top
side” of a cold water pipe to prevent the ice-maker from
plugging with sediment.
A shuto valve is recommended on the water supply line
to ease servicing the appliance. NOTE: A SELF-PIERCING
TYPE VALVE IS NOT RECOMMENDED as they are prone
to clogging with sediment which will create pressure drop
reducing the water supply to the unit.
Connect the copper tubing water supply to the water valve
inlet with a 1⁄4” compression nut tting.
IMPORTANT: Secure the water supply line to the back of
the cabinet with the screw and strain relief clamp provided
in the corner of the back panel.
Make certain all connections are watertight after
installation. Form the tubing so that it will not vibrate
against the cabinet body or kink when your appliance is
moved in and out of position.
This ice machine is designed to make clear ice from the
majority of water sources on a daily basis. If your results
are unsatisfactory, your water may need to be ltered or
treated. A water specialist can recommend proper water
treatment.
To prevent water leaks:
• The water line tting is to be used with copper tubing
only. Do not use with plastic tubing.
• Do not use any thread sealers on this water line
tting.
NOTE:
Reverse osmosis (RO) water, softened water, and
de-ionized water are not recommended as they
can adversely affect the quality and quantity of
the ice.
CAUTION
!
CAUTION
!
Water
Supply Line
Clamp and
Screw
Water Supply
Service Loop
to Shut-Off Valve
Water Valve
Inlet
Compression
Fitting
Water Supply
Line
10
USER GUIDE
Drain
The oor drain must be large enough to
accommodate drainage from all attached drains.
Follow these guidelines when installing drain
lines to prevent water from owing back into
the ice maker storage bin and/or potentially
owing onto the oor, which may result in
personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
DRAIN CONNECTION
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
NOTICE
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Drain pump
vent tube.
Keep this open
to assure
air flows freely
as water
enters the
pump reservoir.
Drain line coiled and
secured to the back of the
cabinet. Uncoil, route to
an appropriate drain, and
and cut to length.
11
USER GUIDE
General Installation
General Installation
LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of
1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately
1⁄8” (3 mm) below
the countertop.
4. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
1
Turn to Adjust
12
USER GUIDE
Integrated Panel Dimensions
Integrated Panel Dimensions
Integrated Door Panel for
15” (381mm) wide unit
14-⁄”
(375 mm)
⁄”
(16 mm)
to
⁄”
(19 mm)
30-⁄”
(773 mm)
NOTE
Panel thickness may be
5⁄8” or 3⁄4”. Center the unit in the
15” opening. If the hinge side of the unit is pressed against
the adjacent cabinet, use a 5/8” thick panel.
Maximum panel weight is 15 lbs.
13
USER GUIDE

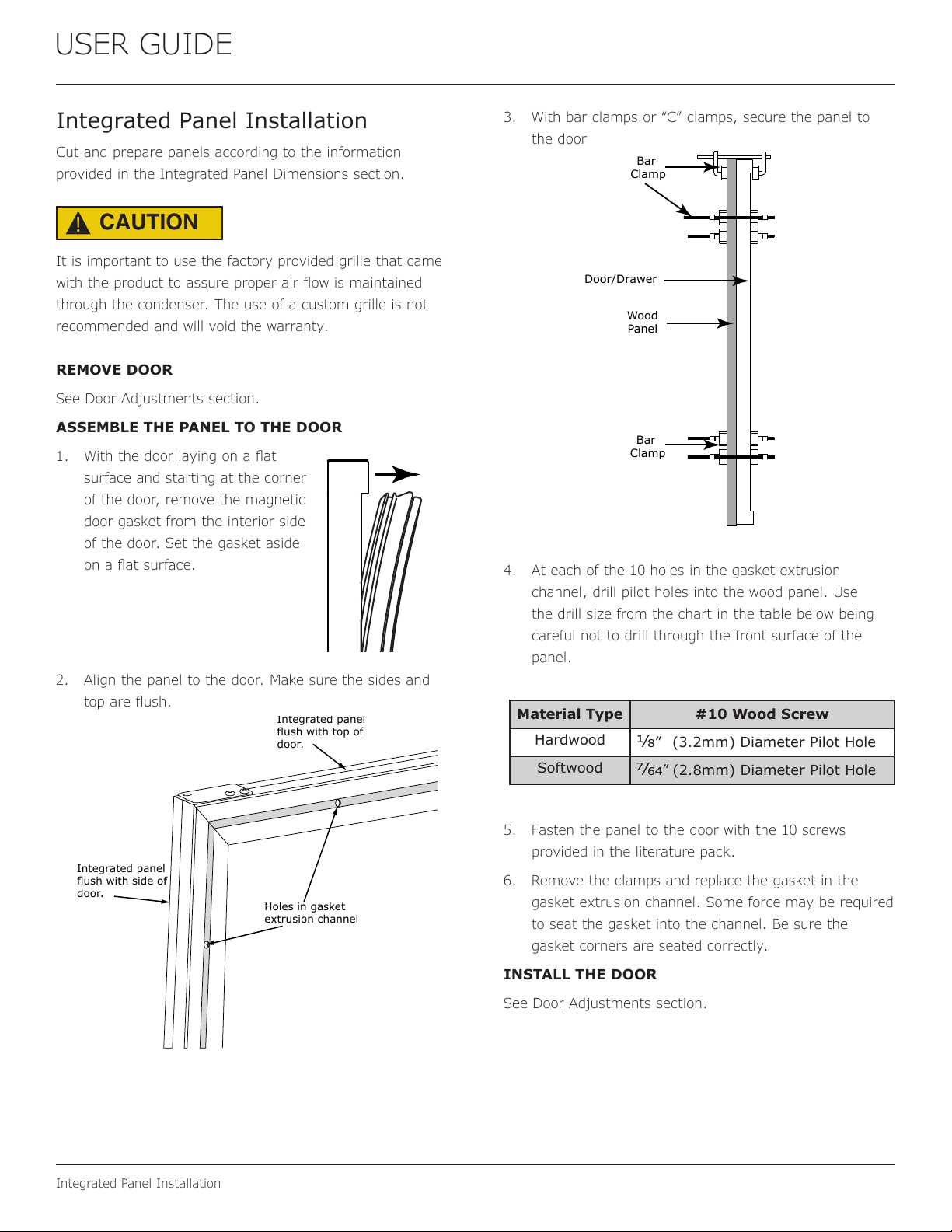

Integrated Panel Installation
Integrated Panel Installation
Cut and prepare panels according to the information
provided in the Integrated Panel Dimensions section.
It is important to use the factory provided grille that came
with the product to assure proper air ow is maintained
through the condenser. The use of a custom grille is not
recommended and will void the warranty.
REMOVE DOOR
See Door Adjustments section.
ASSEMBLE THE PANEL TO THE DOOR
1. With the door laying on a at
surface and starting at the corner
of the door, remove the magnetic
door gasket from the interior side
of the door. Set the gasket aside
on a at surface.
2. Align the panel to the door. Make sure the sides and
top are ush.
3. With bar clamps or “C” clamps, secure the panel to
the door
4. At each of the 10 holes in the gasket extrusion
channel, drill pilot holes into the wood panel. Use
the drill size from the chart in the table below being
careful not to drill through the front surface of the
panel.
5. Fasten the panel to the door with the 10 screws
provided in the literature pack.
6. Remove the clamps and replace the gasket in the
gasket extrusion channel. Some force may be required
to seat the gasket into the channel. Be sure the
gasket corners are seated correctly.
INSTALL THE DOOR
See Door Adjustments section.
CAUTION
!
Wood
Panel
Door/Drawer
Bar
Clamp
Bar
Clamp
Integrated panel
flush with top of
door.
Integrated panel
flush with side of
door.
Holes in gasket
extrusion channel
Material Type #10 Wood Screw
Hardwood
1⁄8” (3.2mm) Diameter Pilot Hole
Softwood
7⁄64”
(2.8mm) Diameter Pilot Hole
14
USER GUIDE
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Do NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Remove the two screws.
3. Remove grille from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws.
2. Reconnect power to the unit.
WARNING
!
WARNING
!
Condenser
Screws
15
USER GUIDE
Door Swing
u-line.com
Door Swing
Wall Wall
90
Door Swing
90
Door Swing
2-1/8" Min.
(54 mm)
1/4" Min.
(6 mm)
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require
2-1/8" (54 mm) door clearance to accommodate the
handle if installed next to a wall.
Integrated models require 1/4" (6 mm) clearance if
installed next to a wall. Allow for additional space for any
knobs or pulls installed on the integrated panel/frame.
16
USER GUIDE
Door Adjustments
2. With a Phillips screwdriver, remove the bushing screw
and hing pin from the bottom hinge.
3. Remove the cam closer from the lower hinge bracket
and save.
4. Using a 5/32” hex key, remove the upper and lower
hinge brackets from the door, saving all components.
5. Remove black plugs from opposite side of door, ip the
upper hinge bracket and reattach the hinge bushing
and screw into place on the opposite side of door
(where
plugs were
removed.)
6. Reattach
the upper
and lower
hinges
and hinge
brackets
to the
opposite
sides.
Door Adjustments
REVERSING THE DOOR
Location of the unit may make it desirable to mount the
door on the opposite side of the cabinet.
The hinge hardware will be removed and reinstalled on the
opposite side of the cabinet.
TO REVERSE THE DOOR
Note: When reversing the door, the top hinge
becomes the bottom hinge on the opposite side
of the unit - likewise, the bottom hinge becomes
the top on the other side.
REMOVE DOOR
1. Remove hinge pin from upper hinge using a 1/8” hex
key tool, making sure to steady the door.
2. Let the door tilt forward and lift door from bottom
hinge.
REMOVE HINGES
1. Using a Phillips screwdriver,
remove the 6 screws from
both the upper and lower
hinges and save for later
steps.
Hinge Pin
Upper Hinge
Plate
Hinge Pin
Bushing
Screw
Cam
Closer
Left-Hand
Hinged Door
Right-Hand
Hinged Door
Hinge Pin
Bushing
Upper Hinge
Plate
Lower Hinge
Plate
Cam Closer
and screw
17
USER GUIDE
Door Adjustments
7. Using a Phillips screwdriver, remove the toe kick from
the door and attach it to the opposite side.
8. Reinstall the door.
Toe Kick
Reversal
18
USER GUIDE

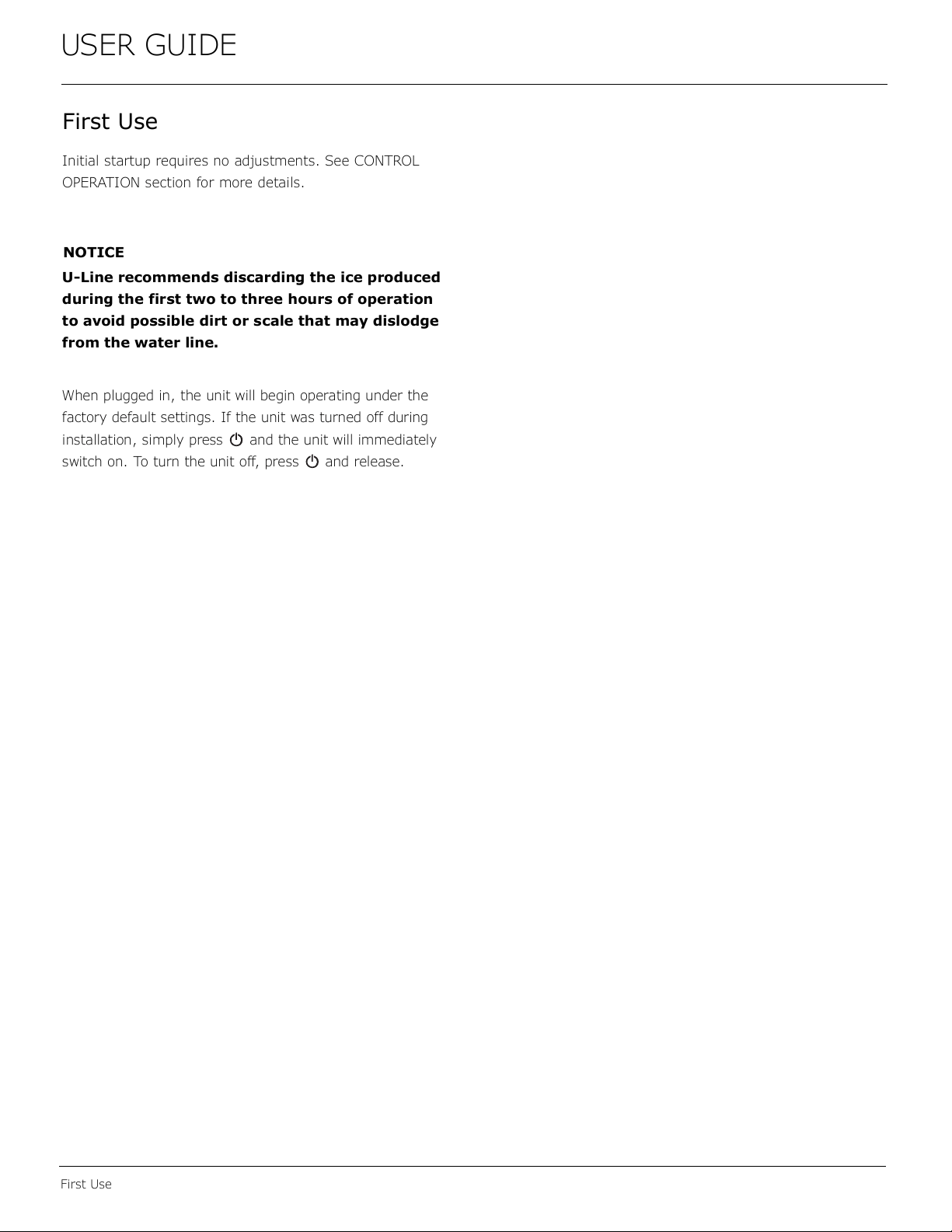

First Use
First Use
Initial startup requires no adjustments. See CONTROL
OPERATION section for more details.
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
When plugged in, the unit will begin operating under the
factory default settings. If the unit was turned off during
installation, simply press and the unit will immediately
switch on. To turn the unit off, press and release.
19
USER GUIDE
Control Operation
Control Operation
This unit is Star-K certied. See www.star-k.org for more details.
Control Function Guide
Function Command Notes
ON/OFF Press and release. Unit will immediately turn ON or OFF.
Enable Sabbath Mode Press and hold for 5 seconds and release.
The
o
F /
o
C symbol will ash briey after 5 seconds. Interior
light and display will go dark and remain so until user resets
mode - unit continues to operate.
Disable Sabbath Mode Press and release. Display and interior light return to normal operation.
Silent Mode (ice production
suspended for 3 hours)
Hold
and .
Display will count down the hours:
Clean Mode See "Cleaning" section
Showroom Mode
Hold and for 5 seconds.
The
o
F /
o
C symbol will ash. Display will be lit and interior light
will function. Unit will not cool. Repeat command to return to
normal operation.
Door Alert Notication First Use
Initial startup requires no adjustments. When plugged in, the unit will
begin operating under the factory default settings. If the unit was turned o
during installation, simply press and the unit will immediately switch on.
To turn the unit o, press .
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is dierent than selected, the unit is progressing
upon ambient temperature, temperature of product loaded, door openings,
C symbol will ash briey after 5 seconds. Interior
C symbol will ash. Display will be lit and interior light
Door Alert Notication
When the door is left open for more than 30 minutes:
• A tone will sound for several seconds every minute
• will appear in display
• Close door to silence alert and reset
Initial startup requires no adjustments. When plugged in, the unit will
begin operating under the factory default settings. If the unit was turned o
during installation, simply press and the unit will immediately switch on.
To turn the unit o, press .
Temperature displayed reects actual temperature inside unit. If the
temperature displayed is dierent than selected, the unit is progressing
upon ambient temperature, temperature of product loaded, door openings,
20
USER GUIDE
First Use
ICE
Your ice machine is unique in how it forms ice with
fractional freezing to form a slab of ice that is clear and
has less dissolved solids than the water from which it is
produced. This is accomplished by running water over the
cold evaporator plate which gradually freezes the water to
produce the ice slab. Pure water freezes rst, leaving the
dissolved solids in the residual reservoir water.
When the ice slab reaches the correct thickness, the ice
sheet is released and slides onto the grid cutter. There,
the ice slab is cut into cubes by the grid cutter’s heated
wires. The water containing the dissolved minerals is
drained after each freezing cycle. Fresh water enters the
machine for the next ice making cycle.
The ice machine will keep producing ice until the ice
machine’s bin is full, resuming automatically as needed.
The ice bin is not refrigerated, and some melting will occur
by design to preserve the ice quality and clarity. Allow
your ice machine to run for 24-48 hours to accumulate ice.
The bin level
sensor is located
in the ice bin, it
senses when the
ice supply is low
or full and starts
or stops the ice-
making process
accordingly.
ICE PRODUCTION
In normal mode, the ice machine will produce up to 39
pounds (17.7 kg) of clear ice in a 24-hour period when
installed in a 72
º
F ambient with a 55
º
F water supply. In
“ECO” mode, the ice machine will produce up to 29 pounds
(13.2 kg) of clear ice in a 24-hour period.
Note:
“Initial” ice production and ice accumulated in the storage
bin will vary signicantly. This is normal. During the rst
24-hours of operation the unit will produce up to 39 lbs
of ice at the above ambient and water temperatures,
but when starting with an empty ice storage bin, ice
accumulation may only be 18 lbs. By design, the ice
storage bin is maintained at a temperature slightly above
freezing to allow the stored ice to slowly melt, to preserve
the ice quality and clarity and assure a constant supply
of fresh ice. As ice is accumulated in the bin, the ice
production rate will over come the ice melt and the storage
bin will ll to capacity.
NEW SOUNDS
The ice machine will make sounds that are dierent than
your household refrigerator. The ice production process
creates noises such as ice falling onto hard surfaces, water
cascading across the evaporator, and valves opening and
closing. Below are some of the sounds you may hear:
Buzzing - water valve opens to ll water reservoir.
Rattling - water owing through water line.
Splashing
- water owing over evaporator plate and into
reservoir.
A “Thud” - ice slab sliding down onto the grid cutter.
Clicks - ice cubes falling into the ice storage bin.
Gurgling - refrigerant owing in the ice machine.
Air - the condenser fan.
Bin Level
Sensor
(Thermistor)
Water
Reservoir
Reservoir
Drain Plug
Front
Panel
Ice
Deflector
Grid
Cutter
Evaporator
21
USER GUIDE
u-line.com
Airow and Product Loading
The unit requires proper airow to perform at its
highest eciency. Do not block the front grille at
any time, or the unit will not perform as expected.
Do not install the unit behind a door.
NOTICE
Airow and Product Loading
22
USER GUIDE
Cleaning
Cleaning
Homes with poor water quality or high clear ice usage
might require more frequent cleaning.
To clean your ice machine you will need to purchase a
“nickel safe” ice maker cleaner.
Use only U-Line-approved ice machine cleaner
and follow all label warnings and directions.
Incorrect chemical usage, and any damage that
may result, is not covered by warranty.
Available to order online: www.u-line.com
Part # 80-55667-00
A “CLEAN” reminder will occur every 6 months to remind
you that it may be time to clean your appliance. Over time
mineral build up on the cold evaporator plate can occur
which can adversely aect the quality of your ice. This
build-up is dependent on your water source and usage.
Normal ice production will continue while the “CLEAN”
reminder is displayed. When reset, the “CLEAN” reminder
will reset and not occur for another 6 months. If you
choose to clean the appliance at this time, see the options
menu section below.
Clean mode:
To ensure maximum performance and ice quality, it is
recommended to clean your ice machine once every six
months. This simple cleaning routine will also ensure water
and energy use continues at optimum eciency.
To Clean Your Ice Machine:
1. Turn the ice machine o by pressing and holding the
“ON/OFF” icon for 3 seconds.
2. Remove all ice from the ice maker including from the
evaporator and grid cutter.
Forcing ice through the grid cutter will break the
grid cutter wires.
3. Drain the water from the water reservoir by removing
the black plug from the bottom of the fresh water
reservoir.
4. After the water is drained, replace the plug in the
bottom of the reservoir.
5. Add cleaning solution to the evaporator plate - refer
to your cleaning solution instructions to determine the
proper amount of solution to add based on 2 quarts
(1.9 liters) of water.
6. Turn the ice machine on
7. Turn on clean mode by holding CLEAN for 5 seconds.
8. Your ice maker will ll with water and circulate over the
evaporator for two 15-minute cycles then will resume
normal production.
9. Remove the rst 2-3 new batches of ice from your ice
maker before using.
CAUTION
!
CAUTION
!
Remove all ice from
the evaporator plate
and grid cutter area
that is not embedded
in wires
23
USER GUIDE
Cleaning
Remove all of
the ice from
the ice bin
Remove the black
reservoir drain plug
from the bottom of
the reservoir.
Lift splash shield up to access evaporator plate. Pour the
cleaning solution slowly on the evaporator plate so it
ows down into the fresh water reservoir.
Splash shield
brackets
Replace the splash shield if removed.
After the cleaning cycle is completed, verify that all
build-up has been removed. If not, repeat the clean cycle
procedure.
Pour cleaning solution slowly onto
the front edge of evaporator plate
behind the grid cutter.
Evaporator
plate
Grid cutter
Splash shield
Lift splash shield up to
access evaporator plate
CABINET
The painted cabinet can be washed with a mild soap and
water and thoroughly rinsed with clear water. NEVER use
abrasive scouring cleaners.
EXTERIOR
Routine cleaning of the stainless steel surfaces will serve
to greatly extend the life of your product by removing
contaminants. This is especially important in coastal areas
which can expose the stainless to severe contaminants such
as halide salts (sodium chloride).
It is strongly recommended to periodically inspect and
thoroughly clean crevices, weld points, under gaskets,
rivets, bolt heads, and any locations where small amounts
of liquid could collect, become stagnant, and concentrate
contaminants. Additionally, any mounting hardware that is
showing signs of corrosion should be replaced.
INTERIOR
Wash interior compartment with mild soap and water.
Do NOT use an abrasive cleaner, solvent, polish cleaner,
undiluted detergent or chlorine based cleaners.
24
USER GUIDE

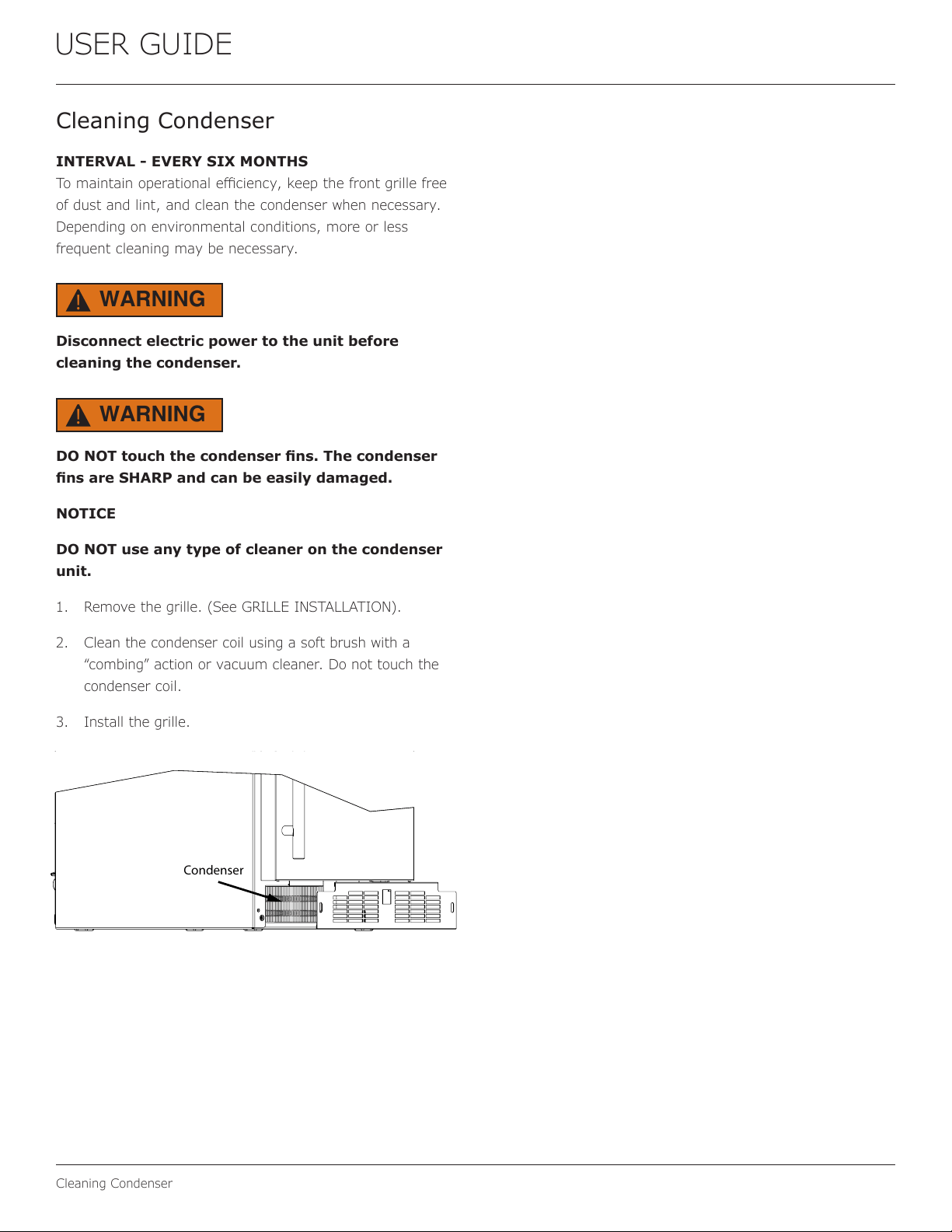

Cleaning Condenser
Condenser
Cleaning Condenser
INTERVAL - EVERY SIX MONTHS
To maintain operational eciency, keep the front grille free
of dust and lint, and clean the condenser when necessary.
Depending on environmental conditions, more or less
frequent cleaning may be necessary.
Disconnect electric power to the unit before
cleaning the condenser.
DO NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
NOTICE
DO NOT use any type of cleaner on the condenser
unit.
1. Remove the grille. (See GRILLE INSTALLATION).
2. Clean the condenser coil using a soft brush with a
“combing” action or vacuum cleaner. Do not touch the
condenser coil.
3. Install the grille.
WARNING
!
WARNING
!
25
USER GUIDE
Extended Non-Use
Extended Non-Use
If the ice machine is moved, not used for an extended
period of time, or will be in an area that will be near
freezing temperatures, it is necessary to remove any
remaining water in the ice-making system.
This ice machine must have all water drained and
removed to prevent ice machine damage as well
as possible water damage to the surrounding
area in freezing conditions. These damages are
not covered under warranty.
Do not use any type of anti-freeze or other solu-
tion as a substitution for properly draining the
ice machine.
Risk of electrical shock or personal injury could
occur due to moving components, if machine
compartment access cover is removed before
unplugging the ice machine.
CLEAN THE ICE MACHINE
Cleaning the ice machine will help prevent mold and
mildew growth as well as sanitize the ice machine for
storage or when it is put back into service.
(SEE CLEANING SECTION OF THIS GUIDE)
WINTERIZATION
If the unit will be exposed to temperatures of
40°F (5°C) or less, these steps must be followed.
Draining and Removing Water from the Ice-Mak-
ing System
1. Turn o the water supply to the ice machine.
2. Disconnect the water supply tting at the inlet of the
water valve.
3. Change the electronic control to the “CLEAN” position
for approximately one (1) minute. This will energize
and open the water valve and remove most of the
water from the water valve and the water valve’s
outlet water line to the reservoir.
4. Change the electronic control to the “OFF” position.
This will energize and open the drain valve to drain the
reservoir and the ice machine drain system.
5. Unplug the ice machine from the electrical outlet.
6. Remove the access cover from the rear of the ice
machine.
CAUTION
!
CAUTION
!
CAUTION
!
WARNING
!
Water
Supply Line
Clamp and
Screw
Water Supply
Service Loop
to Shut-Off Valve
Water Valve
Inlet
Compression
Fitting
Water Supply
Line
Access Cover
26
USER GUIDE

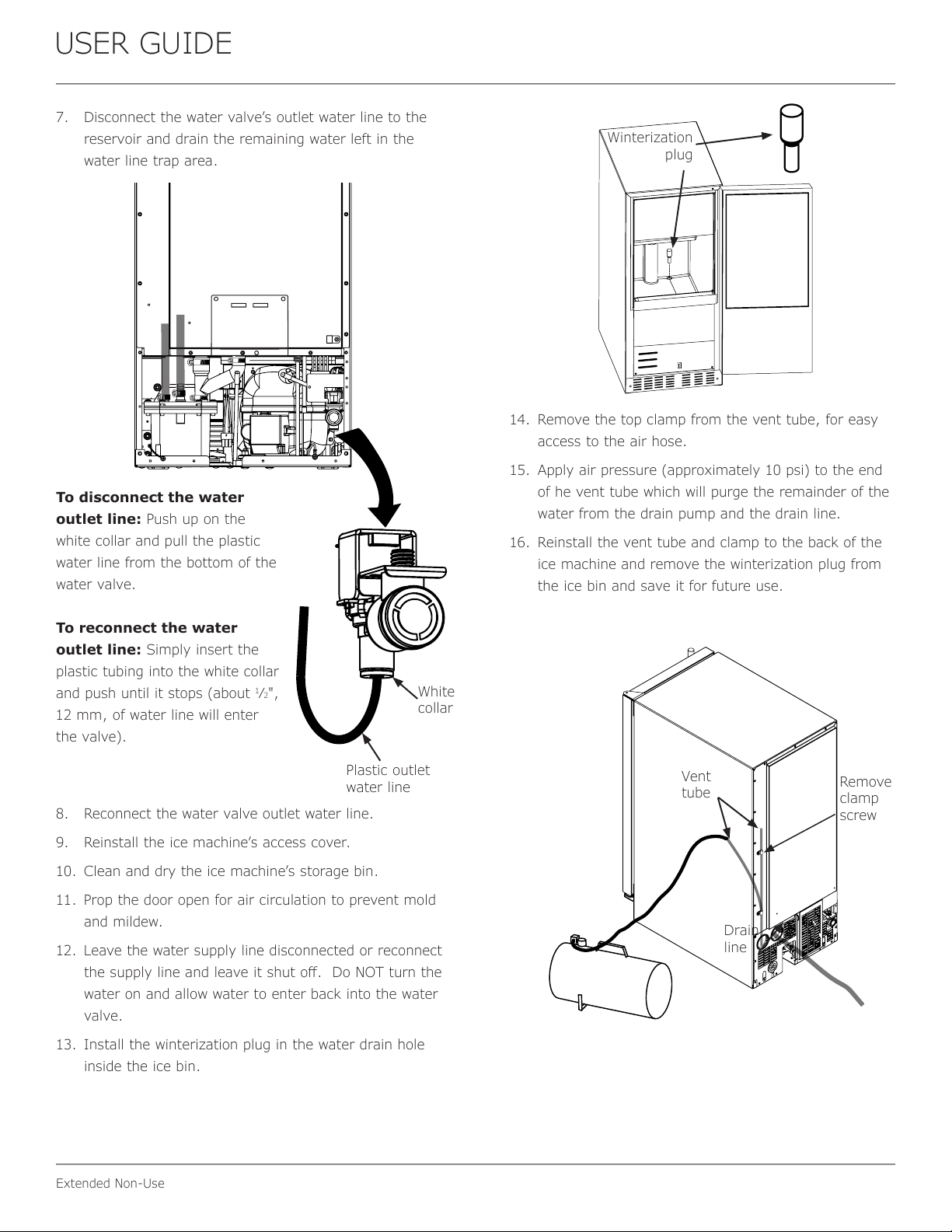

Extended Non-Use
7. Disconnect the water valve’s outlet water line to the
reservoir and drain the remaining water left in the
water line trap area.
8. Reconnect the water valve outlet water line.
9. Reinstall the ice machine’s access cover.
10. Clean and dry the ice machine’s storage bin.
11. Prop the door open for air circulation to prevent mold
and mildew.
12. Leave the water supply line disconnected or reconnect
the supply line and leave it shut o. Do NOT turn the
water on and allow water to enter back into the water
valve.
13. Install the winterization plug in the water drain hole
inside the ice bin.
14. Remove the top clamp from the vent tube, for easy
access to the air hose.
15. Apply air pressure (approximately 10 psi) to the end
of he vent tube which will purge the remainder of the
water from the drain pump and the drain line.
16. Reinstall the vent tube and clamp to the back of the
ice machine and remove the winterization plug from
the ice bin and save it for future use.
To disconnect the water
outlet line: Push up on the
white collar and pull the plastic
water line from the bottom of the
water valve.
To reconnect the water
outlet line: Simply insert the
plastic tubing into the white collar
and push until it stops (about
1
⁄2",
12 mm, of water line will enter
the valve).
White
collar
Plastic outlet
water line
Winterization
plug
Vent
tube
Remove
clamp
screw
Drain
line
27
USER GUIDE
Extended Non-Use
Drain Pump Removal
1. Unplug the ice machine from the electrical supply and
remove the rear access cover from the ice machine.
2. Remove the front panel and the toe grille from the
front of the ice machine.
3. Remove the front and rear drain pump brackets.
4. Unscrew the 3 hose clamps and remove the 3 hoses
from the front of the drain pump.
5. Unscrew the leveling leg in the back corner until the
end of the threaded portion is ush with the threaded
nut insert in the base.
To Restart the Ice Machine
6. Reconnect or turn on the water supply line.
7. Reconnect drain tubing if removed.
8. Plug in the power cord to a wall outlet and turn the ice
machine on.
9. Check the water inlet, drain lines, and ttings for any
water leaks.
10. Check drain pump (if equipped) operation by pour-
ing approximately two (2) quarts of water into the
ice storage bin. The drain pump should activate and
discharge water. Check for water leaks at all hose
connections.
Unscrew the
leveling leg so
the end of the
threads is ush
with the top of
the nut insert.
Remove
these 3 hose
clamps, then
remove the
3 tubes from
the drain
pump
Drain pump ground
wire connection
28
USER GUIDE
Troubleshooting
ELECTROCUTION HAZARD
• Never attempt to repair or perform
maintenance on the appliance until
the main electrical power has been
disconnected. Turning the appliance
control “OFF” does not remove electrical
power from the unit’s wiring.
• Replace all parts and panels before operating.
If the appliance appears to be malfunctioning, read
through this manual rst. If the problem persists, check
the troubleshooting guide below. Locate the problem in the
guide and refer to the cause and its remedy before calling
for service. The problem may be something very simple
that can be solved without a service call. However, it may
be required to contact your dealer or a qualied service
technician.
ICE MACHINE OPERATION
Ice machine does not operate:
• Is the ice machine’s power cord plugged in?
Plug the power cord into a grounded 3 prong outlet.
• Is the electronic control showing the “ICE”
position?
Check the control to be sure it is in the “ICE” position
• Is a fuse blown or a circuit breaker been tripped?
Replace a blown fuse or reset a tripped circuit breaker.
• Is the temperature of the room cooler than it
normally is?
The minimum room temperature is 55°F (13°C). The bin
thermistor may be sensing the room temperature and shut
o before the bin is full of ice. If the room temperature
remains low the ice machine may not restart.
• Is there a drain pump in the ice machine?
The drain pump is designed to temporarily shut the unit
o when large quantities of water create a high-limit
condition. Wait a few minutes as the drain pump will
continue to operate to dispose of the excess water. If there
is still water in the ice bin check the drain pump vent line
and drain line for obstructions or kinking.
BEFORE CALLING FOR SERVICE
Troubleshooting
The ice machine is noisy:
Many sounds of an ice machine are dierent than your
household refrigerator. This subject is discussed on page
11, but check the following:
• Do you hear water being circulated in the ice
machine?
This is a normal sound as water is added once every ice
making cycle.
• Is there a “whooshing” sound?
Make sure water is getting to the ice machine. Also check
to make sure the drain plug is fully seated in the water
reservoir.
• Is there an ice slab caught between the evaporator
plate and the grid cutter?
First check to see if the ice machine is level. If the ice
machine is level run a cleaning cycle.
ICE PRODUCTION
Little or no ice production from the ice machine:
• Is the electronic control set to the “ICE” position?
Check the control to be sure it is in the “ICE” position
• Is water getting to the ice machine?
Make sure nothing is restricting the water supply such
as a closed water valve or a blown fuse or tripped circuit
breaker, or a kinked supply line, or low water pressure.
• Has the ice machine just been started?
A typical ice production cycle can take up to 1
1
⁄2 hours.
Initial start up cycles can take longer. Check the ice
machine after 24 hours for ice accumulation in the bin.
• Is the reservoir drain plug in place?
Check that the reservoir drain plug is properly seated.
• Is the water distributor tube restricted?
Run a cleaning cycle to clean the ice machine. Also check
any lters to make sure they are not restricted.
• Is the condenser fan air ow restricted?
Make sure the grille in the front of the ice machine is open
for proper air circulation.
• Is the room and/or water temperature to warm?
Move the ice machine to an area where the ambient
temperature is below 90°F (32°C) for built-in ice machines
or below 100°F (38°C) for freestanding ice machines. The
ice machine should not be placed next to a heat source
such as an oven. Check the cold water connection.
• Is there scale build up in the ice machine?
If there is scale build up on the evaporator, the ice
machine needs to be cleaned. See “Cleaning the Ice
machine”.
WARNING
!
29
USER GUIDE
Troubleshooting
ICE QUALITY
Odor, grey color, or o taste in the ice:
• Is there mineral scale build up on the evaporator
plate?
The ice machine needs cleaning. See “Cleaning the Ice
Machine”.
• Is there a high mineral content in the water?
The water may need to be ltered.
• Are food items being stored in the ice bin?
Remove food from the ice bin.
• Unpleasant Odors may require the use of a char-
coal lter on the water supply line.
Clumps of ice:
• Are there clumps of ice in the bin?
If the ice isn’t used on a regular basis it will melt and form
into clumps. Break up the ice clumps with the ice scoop.
Ice cubes are too big or too small:
• Is there low ice consumption?
Ice is slowly melting in the ice bin which will aect the size
of the cubes. This is normal. When the ice bin needs to be
replenished, cubes will return to the regular size.
• Is the ice slab releasing?
Clean the evaporator. See “Cleaning the Ice Machine”
• Is the distributor tube restricted?
Check the water line to the ice machine to make sure
there are no restrictions or kinks in the line. Check all
lters to make sure they are not restricted. Check that the
water ows evenly out of the distributor tube, if not, clean
the ice machine. See “Cleaning the Ice Machine”.
PLUMBING PROBLEMS
• Is the drain hose aligned over the drain?
Move the ice machine to align the drain.
• Is the ice machine draining properly?
Check that there are no kinks or restrictions in the drain
lines; this can cause water to back up in the ice bin.
Check that foreign material is not blocking the ice bin drain
located at the right rear corner of the ice bin. Check the
drain pump discharge and vent line or any restrictions or
kinks. Check that the drain pump is level.
NOTE:
If there are plumbing issues outside of the ice
machine, they cannot be repaired by the service
technician. A qualied plumber will have to be
called.
TROUBLESHOOTING THE DRAIN PUMP
NOTE:
If the drain pump reservoir (not the ice machine
bin) reaches overll condition, the power to the
ice machine will be shut o.
If the ice machine is not working, check the
following:
• Make sure there is power at the receptacle.
• Make sure the ice machine is turned on.
• Make sure the ice bin is not full.
Then check the drain pump:
The pump does not run:
• Make sure the pump is plugged in and there is power
to the receptacle.
• Check the inlet to the drain pump for debris and clean
as needed. Remove clamps and inlet tube from drain
pump to check for and remove debris.
• Make certain the vent line is free of kinks/sharp bends
or restrictions.
• Make certain there is enough water to activate the
drain pump. It will take at least one (1) quart (.95
liters)of water to activate the drain pump.
The pump runs, but no water is pumped out:
• Check that the vent is clear and free of restrictions.
• Check the discharge line to make certain there are no
restrictions.
• Make sure that the discharge tubing has not exceeded
the maximum lift of eight (8) feet (2.44 meters) and
the horizontal run is not greater than twenty (20) feet
(6.1 meters).
The pump runs and then quickly turns o
repeatedly:
• Check to make certain the drain pump is level.
• Check that the vent is clear and free of restrictions.
The ice machine is running but not producing ice:
• Check to make sure water is not backing up in the ice
bin.
30
USER GUIDE
u-line.com
Wire Diagram
Wire Diagram
COMPRESSOR
START RELAY
AND OVERLOAD
RED WIRE
WHITE WIRE
START
RELAY
COMP.
OVERLOAD
WHITE
5
11
C
S
R
ELECTRONIC
CONTROL
ASSEMBLY
PIN 1
CHAS.GND.
COM.
120V
41050018 Rev. C
DRAIN PUMP (OPTIONAL)
POWER CORD
OUTLET
PUMP
PUMP SWITCH
N.O.
HIGH WATER LIMIT
SWITCH N.C.
GREEN
BLACK
BLACK
WHITE
BIN SENSOR ASSEMBLY
J1 MATE
EVAPORATOR SENSOR ASSEMBLY
J2 MATE
BLACK/YELLOW
BLACK/YELLOW
WHITE
CHAS.GND.
GREEN
CUTTER GRID
WATER
PUMP
WATER
SOLENOID
DRAIN
SOLENOID
HOT
GAS
VALVE
FAN
MOTOR
WHITE
BLUE
WHITE
BROWN
WHITE
ORANGE
WHITE
WHITE
TRANSF.
WHITE
BLK
RIBBED
BLK SMOOTH
TERM.
BLOCK
WHITE
BLACK
ROCKER
SWITCH
BLACK
BLACK / WHITE
BLACK / RED
GREEN
PINK
YELLOW
ORANGE
BLUE
BROWN
BLACK
RED
PURPLE
WHITE
8
WP
3
DS
4
WS
9
HG
1
NEU
2
GC
5
CF
POWER CORD
6
NEU
31
USER GUIDE
Product Liability
Product Liability
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call U-Line for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues found.
During the assessment, if the service technician is able to
nd the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to replace
the part in question. The part that caused the damage
must be returned to U-Line in its entirety. The part must
be clearly labeled with the serial number of the unit it was
removed from, the date, and the servicer who removed the
part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notied and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is
unable to nd the source, U-Line must be contacted at
1.800.799.2547 for further direction.
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
32
USER GUIDE
Warranty Claims
The following information denes the parameters for ling a
warranty claim:
• Valid serial number needed
• Valid model number needed
• Claims must be submitted online at
www.U-LineService.com
• 60 day submittal deadline from date of completed
service
• Only one repair or unit per warranty claim
• Part order numbers will be required when submitting
for warranty labor
Units must be registered prior to warranty submittal.
Customers may register at www.U-Line.com. A proof
of purchase is required. We also accept the following
information to update warranty:
• New construction occupancy documents
• Closing paperwork
• Final billing - Remodel
Warranty parts will be shipped at no charge after U-Line
conrms warranty status. Please provide the model, serial
number, part number and part description. Some parts will
require color or voltage information.
Warranty Claims
17 14862 05 0527
Year
Factory
use Only
Factory
use Only
Month
33
USER GUIDE
u-line.com
Parts
Parts
UACP115-IS01A
DESCRIPTION
PART
NUMBER
1
ACCESS COVER, ADA CLR
80-54080-02
2
ACTUATOR-SWITCH-BLK 80-54351-07
3
CIRCULATION PUMP
80-54137-01
4
CLEAR ICE MACHINE CLEANER *
80-55667-00
5
COMPRESSOR ASSY, NUGGET 15"
80-55211-00
6
CONDENSER FAN BLADE
80-54066-01
7
CONDENSER FAN MOTOR
80-54138-01
8
DISPLAY ASSEMBLY
80-55660-04
9
DOOR ASSY-MPC-SS SOLID
80-54351-04
10
DOOR STOP-115 DEG-BLK
80-54351-06
11
DRAIN PUMP REPLACEMENT KIT *
80-54147-03
12
DRAIN VALVE
80-54139-01
13
DRIER
80-54055-01
14
EVAPORATOR W/DRIER-15CL
80-54349-01
15
GASKET, DOOR
80-54235-03
16
GRID CUTTER
80-54349-02
17
GRILLE-15" W/SWITCH-BLK
80-55609-04
18
HINGE KIT-BLK
80-55595-04
19
HOT GAS VALVE
80-54009-02
20
ICE DEFLECTOR-CLEAR
80-54080-01
21
ICE MACHINE ACCESS DOOR-BLK 80-54080-03
22
ICE SCOOP, CLR * 80-54080-00
23
INVERTER (FMX), DROP IN, 120V 80-55569-00
24
LED LIGHT STRIP AND COVER ASSY
80-54000-00
25
LEG LEVELERS (4)
80-54019-00
26
MAIN BOARD 80-55398-00
27
PACKAGING *
80-54238-01
28
POWER CORD * 80-55519-06
29
ROCKER SWITCH
80-54105-01
30
SERVICE COVER-BLACK
80-54344-02
31
THERMISTOR(1 PC)
80-54006-00
32
THERMISTOR, HI TEMP *
80-54006-01
33
TRANSFORMER
80-54134-01
34
WATER VALVE
80-54139-02
29
16
14
20
21
18
15
2
17
9
24
8
28
25
6
7
12
8
21
13
10
23 5
19 26
33
3
34
*NOT SHOWN
34
USER GUIDE
Ordering Replacement Parts
Ordering Replacement Parts
Parts may be ordered online at www.U-Line.com
See our contact information below:
www.U-LineService.com (with service login)
Phone Number: +1.414.354.0300
NOTICE
Use only genuine U-Line replacement parts.
The use of non-U-Line parts can reduce speed
of ice production, cause water to overow from
ice maker mold, damage the unit, and void the
warranty.
Warranty parts will be shipped at no charge after U-Line
conrms warranty status. Please provide the model, serial
number, part number and part description. Some parts will
require color or voltage information.
If U-Line requires the return of original parts, we will
inform you when the parts order is taken. This
requirement will be noted on your packing list. A
prepaid shipping label will be emailed to you. Please
enclose a copy of the parts packing list and be sure the
model and serial numbers are legible on the paperwork.
Tag the part with the reported defect.
Customers and non-authorized servicers may order non-
warranty parts at www.u-line.com. Authorized servicers
with a servicer login may order non-warranty parts at
www.u-lineservice.com.
35
USER GUIDE
R-600A Specications
R-600A Specifications
For R-600a refrigerant service tips and more videos, go
to: www.u-line.com/videos
.
WARNING
!
Flammability warnings for a pure-iso-butane
refrigerant.
Technician m ust observe al l federal, st ate and local la ws regarding r efrigerants .
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is flammable
when mixed with air.
Keep a dry powder type fire extinguisher in the
work area.
R-600a is heavier than air, do not allow any
leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged
refrigeration system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R-600a must be stored and transported in
approved containers.
36
R-600A Specications
USER GUIDE
WARNING
!
Only skilled and well trained service technicians
permitted to service R-600a equipped products.
All tools and equipment must be approved for
use with R-600a refrigerant.
Local, state and federal laws, standards must be
observed along with proper certification and
licensing.
Ventilation is required during servicing.
No conversions to R-600a from any other
refrigerants. OEM R-600a equipped unit only.
Service area must be free of ignition sources.
No smoking is allowed in the service area.
All replacement electrical components must be
OEM and installed properly (sealed and
covered).
If the evaporator is cold prior to service, it must
be thawed prior to service.
When using a vacuum pump, start pump before
opening refrigeration system.
Vacuum pump and recovery equipment should
be at least 10 feet from the work area.
It is recommended that a simple LPG gas
detector is on site during service.
Ensure that all R-600a is removed from the
system prior to brazing any part of the sealed
system.
Only a clean, dry leak free system should be
charged with R-600a.
R-600A SPECIFICATIONS/LABELING
R-600a equipped products are labeled (both the unit and
the compressor).
R-600a is colorless and odorless.
R-600a is considered non-toxic, but is flammable when
mixed with air.
Do not remove or alter any R-600a labeling on the
product.
Use only a refrigerant grade R-600a from a properly
labeled container.
RECOVERING/RECLAIMING R-600A
(R-600a has been exempted from recovery/reclaiming
requirements by the US EPA)
Recovery/Reclaiming equipment must be approved for use
with R-600a.
Ensure the evaporator is at room temperature prior to
recovery/reclaiming R-600a.
Use a common piercing pliers or piercing valve to remove
R-600a from the compressor process tube. (Note: Piercing
devices must not be left on the system and must be
replaced with a Schrader type valve.)
37
USER GUIDE
R-600A Specications

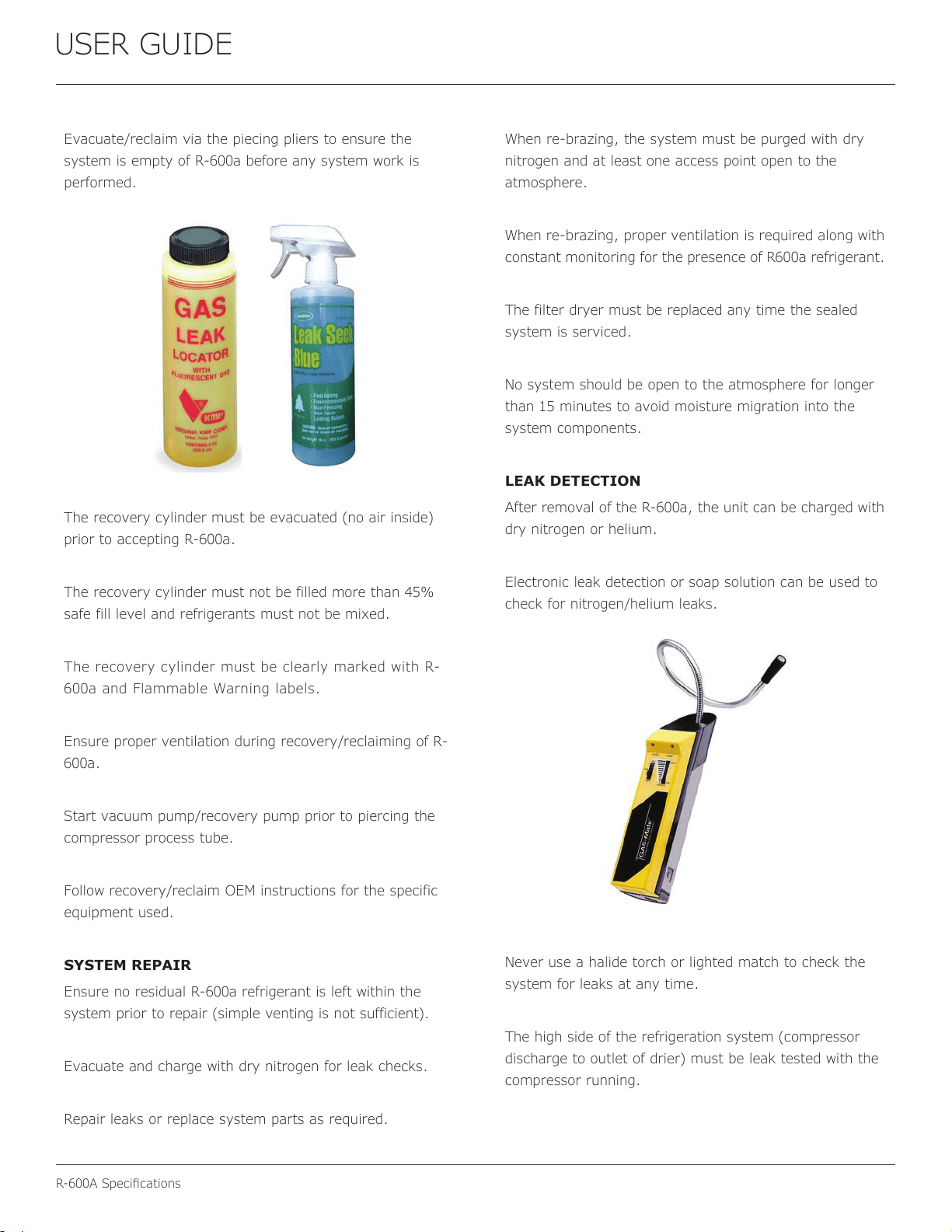

Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R-600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R-600a.
The recovery cylinder must not be filled more than 45%
safe fill level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R-
600a and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of R-
600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specific
equipment used.
SYSTEM REPAIR
Ensure no residual R-600a refrigerant is left within the
system prior to repair (simple venting is not sufficient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with dry
nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along with
constant monitoring for the presence of R600a refrigerant.
The filter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R-600a, the unit can be charged with
dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.
Never use a halide torch or lighted match to check the
system for leaks at any time.
The high side of the refrigeration system (compressor
discharge to outlet of drier) must be leak tested with the
compressor running.
38
R-600A Specications
USER GUIDE
The low side of the refrigeration system (evaporator,
compressor and suction line) must be leak tested with the
compressor off (equalized pressure).
RECHARGING
No air is ever to be allowed inside the refrigeration system
(R-600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
Evacuate the system to 100 microns prior to charging.
Weigh in the R-600a charge using a refrigerant scale. (run
compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
SUMMARY
Safely handling R-600a requires proper procedures and
training.
R-600a approved service tools must be used.
R-600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R-600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
39
USER GUIDE

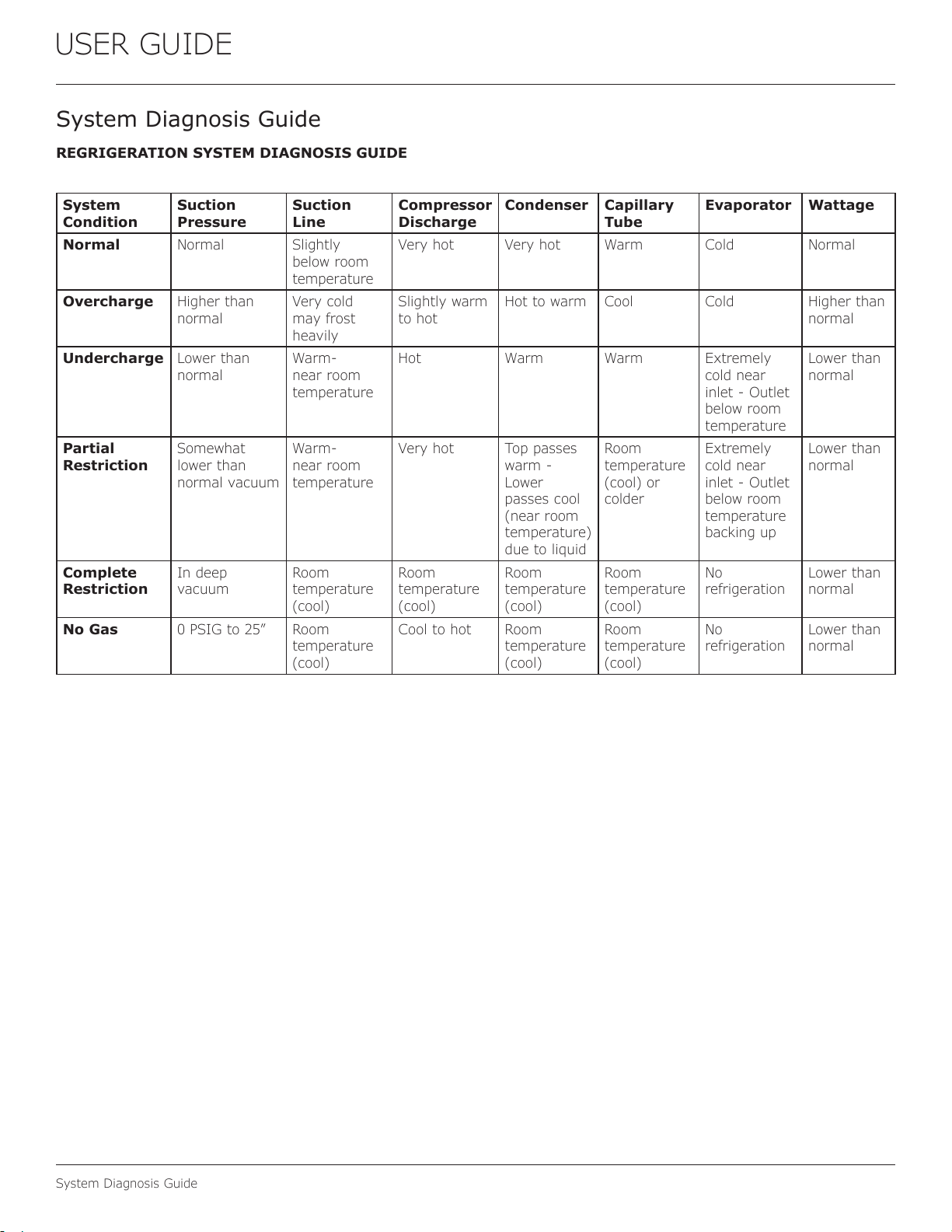

System Diagnosis Guide
System Diagnosis Guide
REGRIGERATION SYSTEM DIAGNOSIS GUIDE
System
Condition
Suction
Pressure
Suction
Line
Compressor
Discharge
Condenser Capillary
Tube
Evaporator Wattage
Normal Normal Slightly
below room
temperature
Very hot Very hot Warm Cold Normal
Overcharge Higher than
normal
Very cold
may frost
heavily
Slightly warm
to hot
Hot to warm Cool Cold Higher than
normal
Undercharge Lower than
normal
Warm-
near room
temperature
Hot Warm Warm Extremely
cold near
inlet - Outlet
below room
temperature
Lower than
normal
Partial
Restriction
Somewhat
lower than
normal vacuum
Warm-
near room
temperature
Very hot Top passes
warm -
Lower
passes cool
(near room
temperature)
due to liquid
Room
temperature
(cool) or
colder
Extremely
cold near
inlet - Outlet
below room
temperature
backing up
Lower than
normal
Complete
Restriction
In deep
vacuum
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
No Gas 0 PSIG to 25” Room
temperature
(cool)
Cool to hot Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
40
USER GUIDE
Compressor Specications
Compressor Specifications
A DANGER
F
MX
A9
C
°
°
°
8
2.18
c�
41
USER GUIDE
Control Operation-Service
Control Operation-Service
UI BUTTON LAYOUT
CONTROL FUNCTION GUIDE
FUNCTION COMMAND DISPLAY/OPTIONS
ON/OFF
Press
and release
Unit will immediately
turn ON or OFF
Clean Mode
See “Cleaning”
section
Sabbath Mode
See “Sabbath Mode”
section
4
2 1
5 3 6
Showroom Mode
This mode is designed to show units in a display
environment. When in this mode the only functions will be
the control and cabinet lights. The compressor, fans, etc.
will not operate. To enter/exit this mode hold the light key
and the power key for 5 seconds. The display will ash
once and beep and the degree symbol will begin to ash.
When the degree symbol is ashing the unit will allow the
use of the control for demonstrations. The unit can be left
in this mode indenitely.
Service Mode
This mode has options available for service diagnostics. To
enter the mode hold the hidden key for 10 seconds. The
display will show "O." When in this mode use the up and
down arrows to select the desired option. The LIGHT key is
the ENTER key and will initiate the function. If changing a
setting, you must press the LIGHT key again to retain the
changed setting. To exit the service mode scroll to option
"O" and press the LIGHT key. After ve minutes of not
touching any keys the mode will also exit automatically.
1. Hidden Button
• Access Service Menu
• No LED directly above. All LED’s turn on with button
2. Plus Button
• Increases temperature
• Navigates through service menu
3. Minus Button
• Decreases temperature
• Navigates through service menu
4. Light Button
• Activates light for 3 hours on select models
• Used to select items in service menu
5. Power Button
• Turns unit on/o
6. Clean Button
• Activates Clean Cycle on select models
• Toggles between zones in Dual-Zone models
42
USER GUIDE
Thermistor
Thermistors are used for various temperature readings.
Thermistors provide reliable temperature readings using a
resistance which varies based on surrounding temperatures.
If a faulty thermistor is suspected, it may be tested using
an accurate ohmmeter.
Thermistor connections must be kept clean. A thermistor
connection that has become corroded can cause resistance
values from the thermistor to change as they pass through
a dirty connection to the board.
It is for that reason that we apply dielectric grease to all of
our thermistor connections. Dielectric grease will help to
keep thermistor connections clean and dry.
If you change a thermistor in the unit, please re-apply
dielectric grease to the connection. If you encounter a dirty
thermistor connection, you should replace the thermistor
and the thermistor harness.
This unit has one thermistor located along the right hand
sidewall of the ice bin. It is used to maintain the ice level in
the bin.
Thermistor Resistance Data
* (+/
- 5%)
Thermistor
Temp (F) Temp (C)
Nominal Resistance
(OHMS)*
-40 -40 169157
-31 -35 121795
-22 -30 88766
-13 -25 65333
-4 -20 48614
5 -15 36503
14 -10 27681
23 -5 2116
32 0 16330
41 5 12696
50 10 9951
59 15 7855
68 20 6246
77 25 5000
86 30 4029
95 35 3266
104 40 2665
113 45 2186
122 50 1803
131 55 1495
140 60 1247
149 65 1044
158 70 879
167 75 743
176 80 631
43
Copyright U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 11/2022 Rev. P
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase. Nugget Ice Machine proof of purchase must include the purchase of an in-line
water filter and filter head to qualify for this additional limited warranty.
Five Year Sealed System Limited Wa
rranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414.354.0300
44
