USER GUIDE & SERVICE MANUAL
Model: U-3018CLRS-40C
USER GUIDE & SERVICE MANUAL
Table of Contents
Click on any section below to jump directly there
Intro
Safety
Safety and Warning
Disposal And Recycling
Installation
Environmental Requirements
Electrical
Cutout & Product Dimensions
Side by Side Installation
Water Hookup

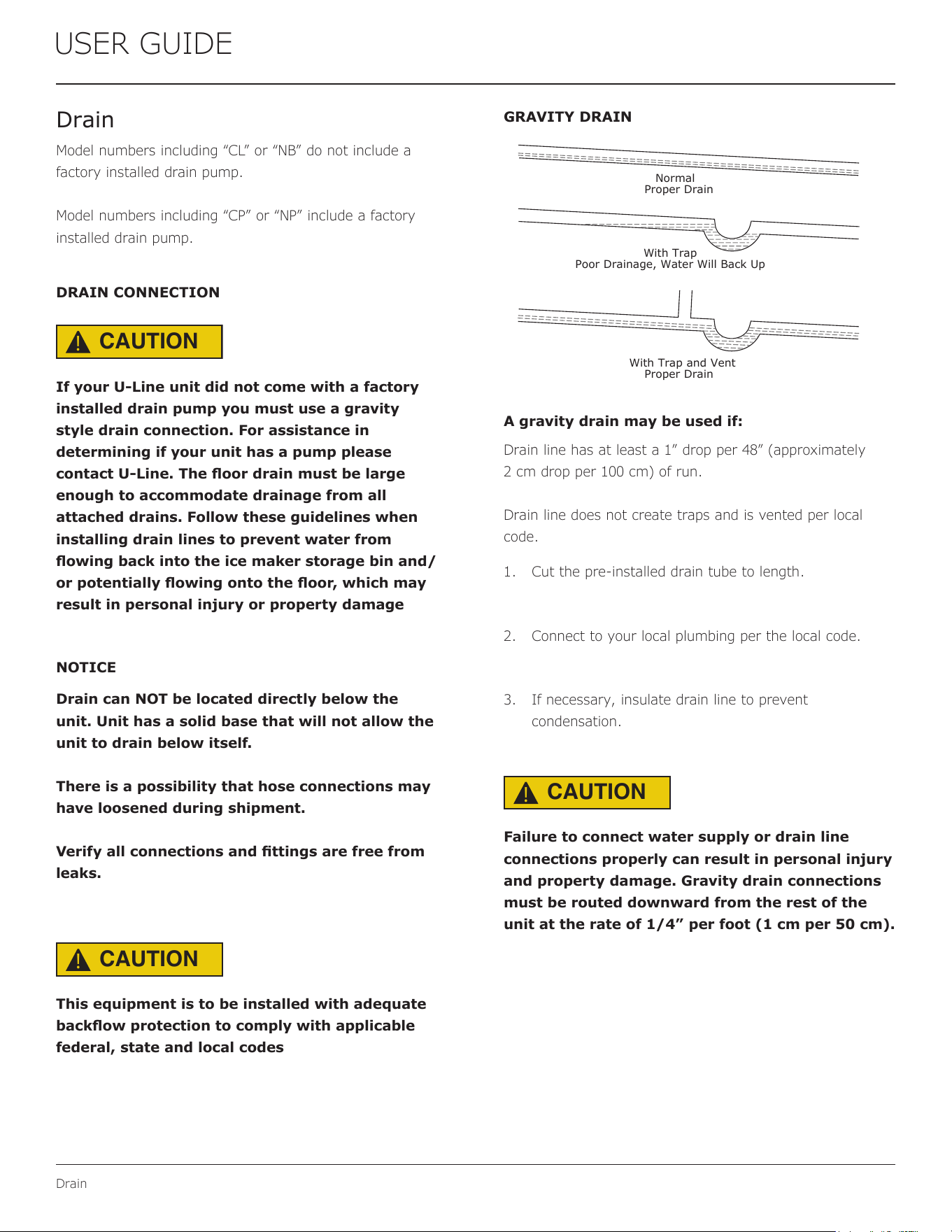

Drain

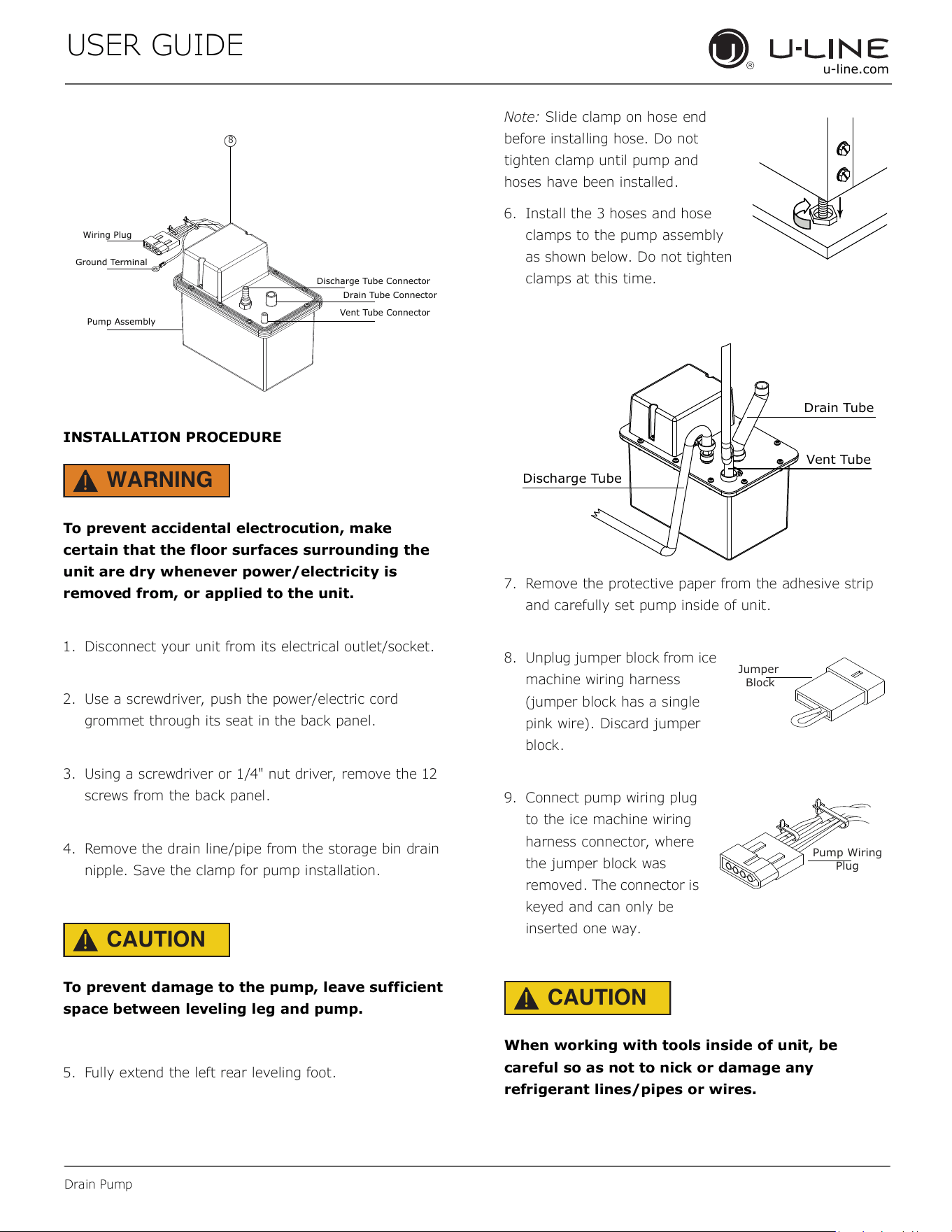

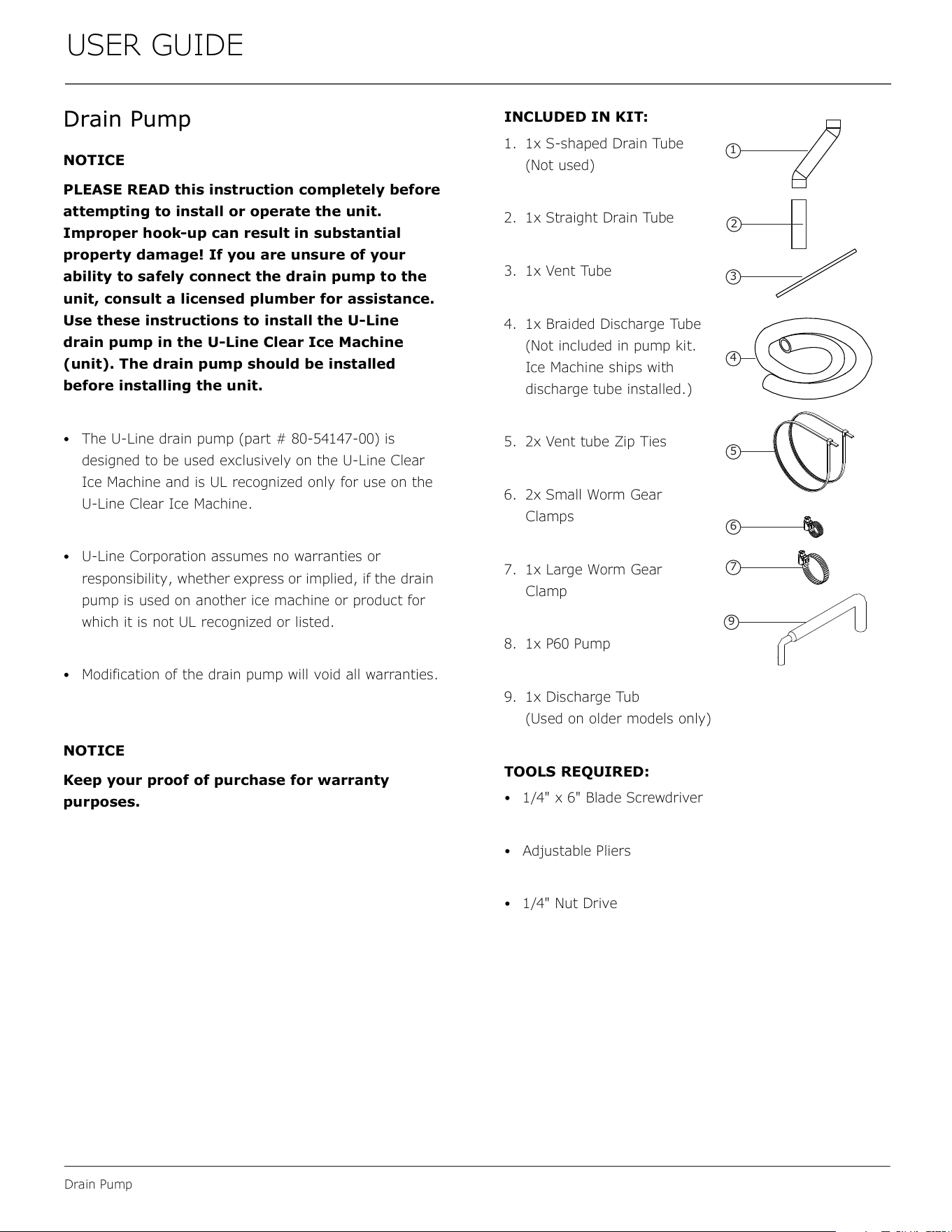

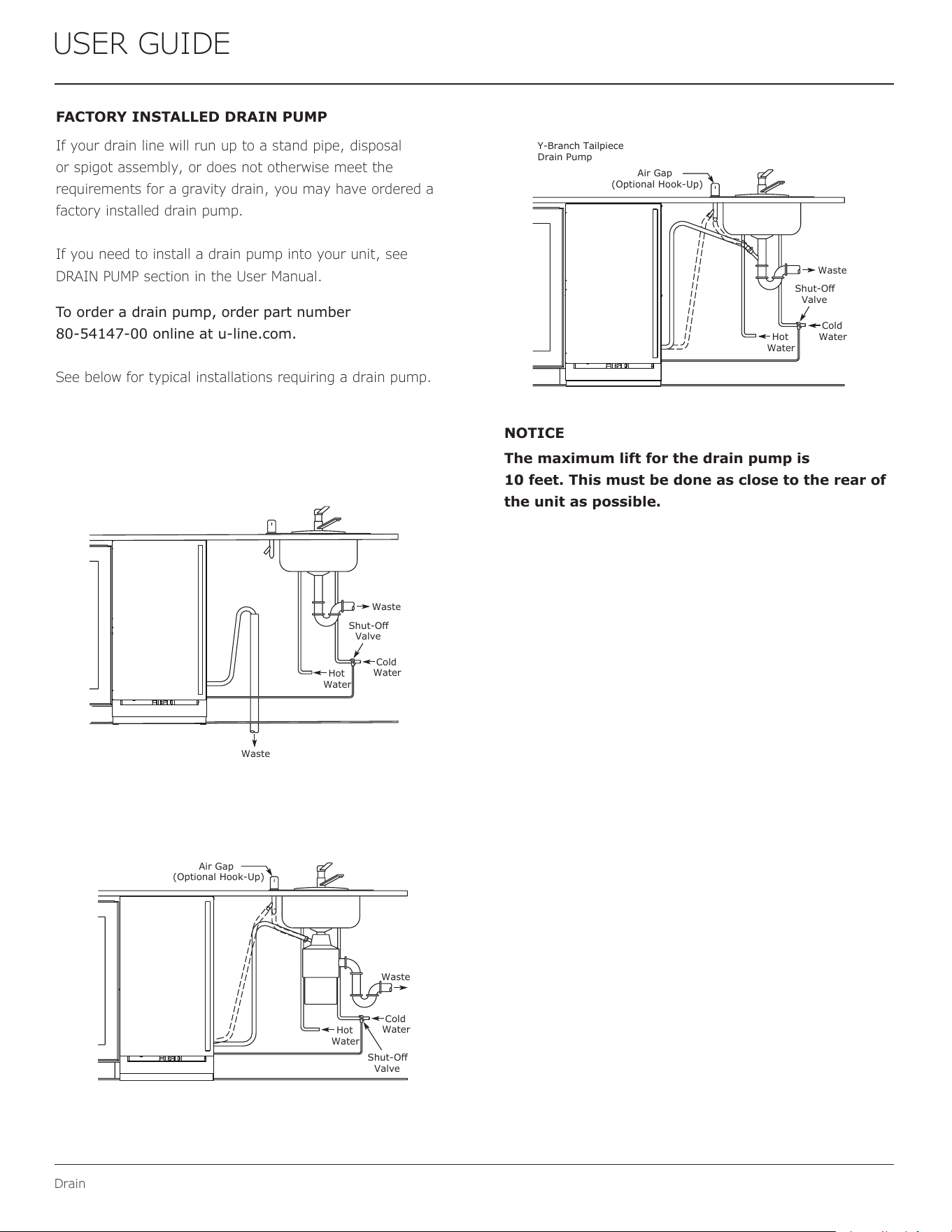

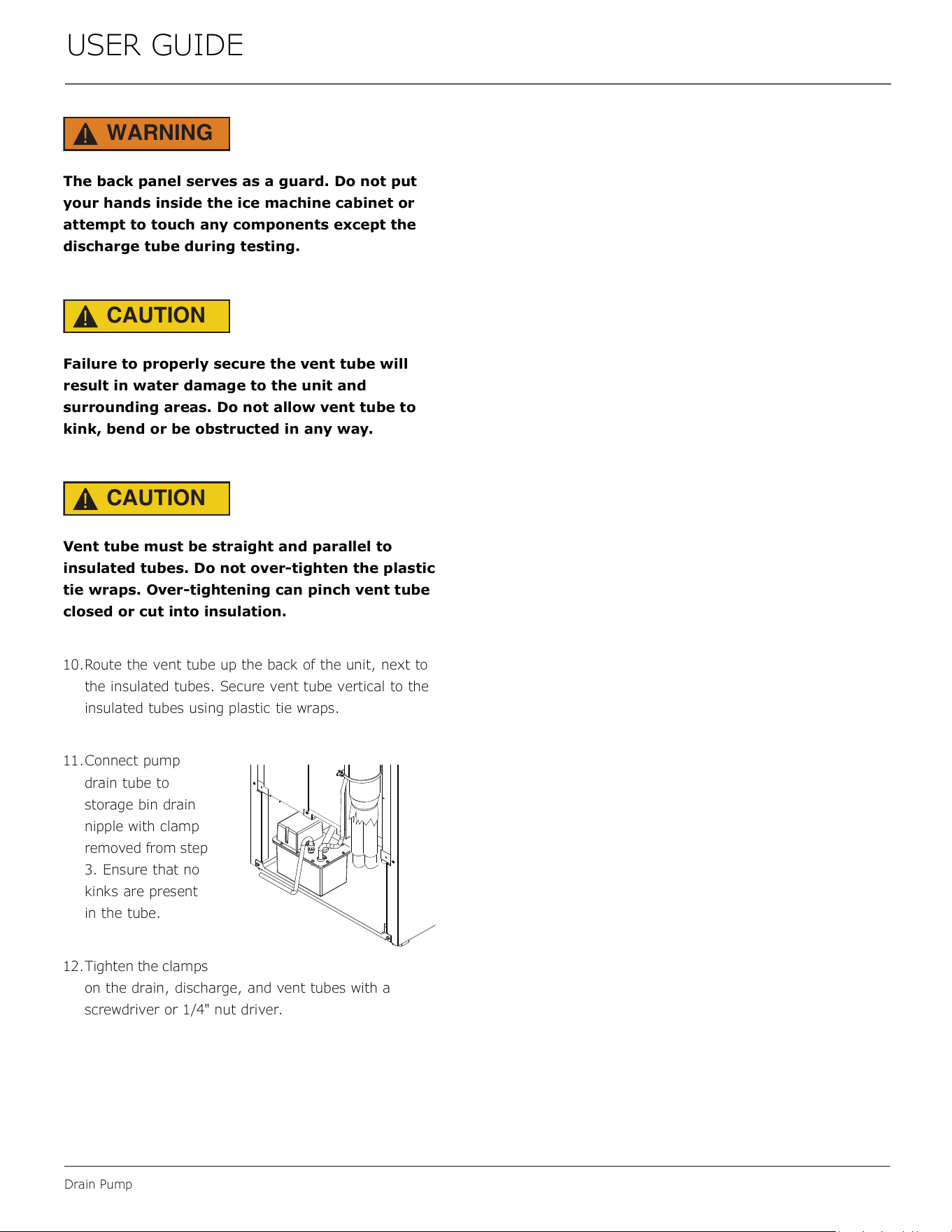

Drain Pump

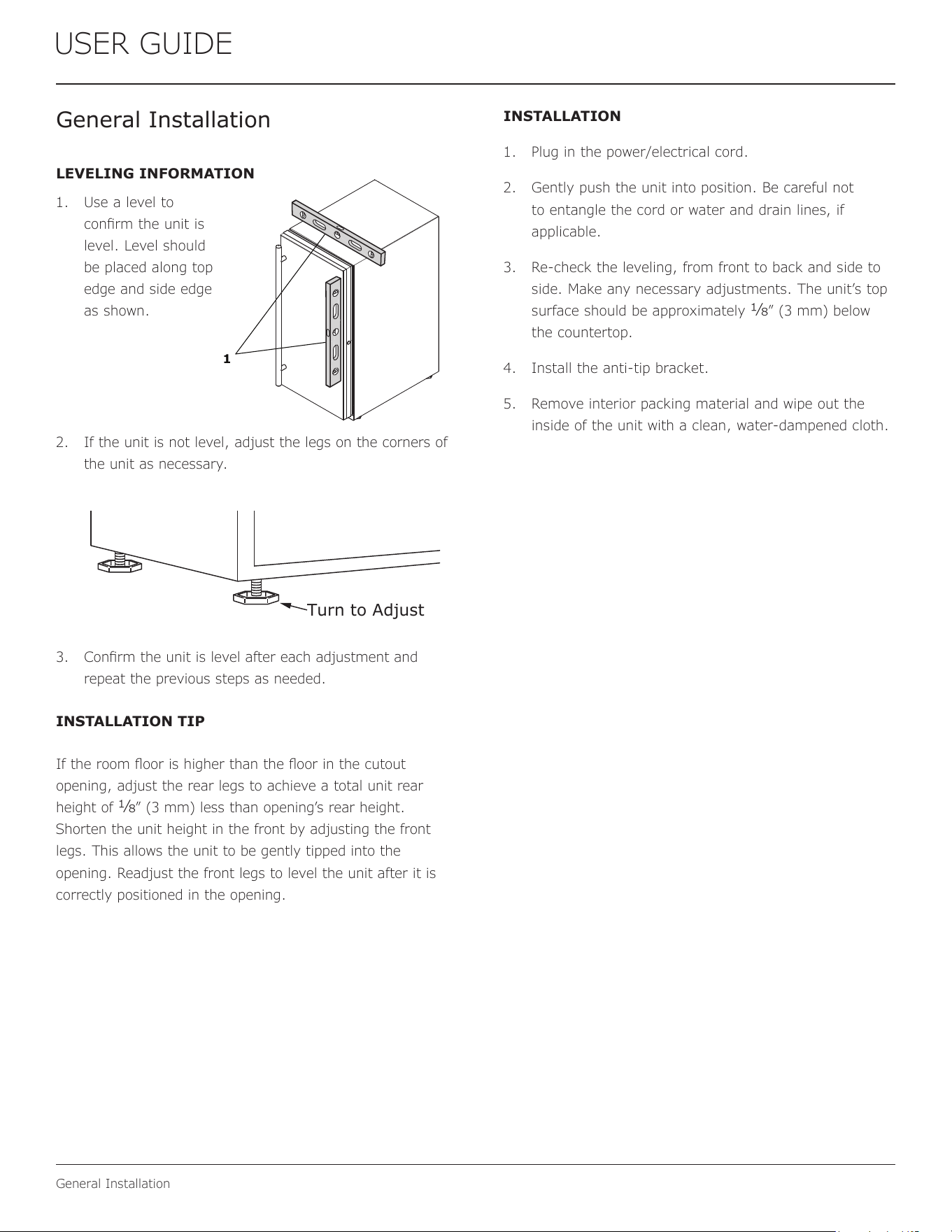

General Installation

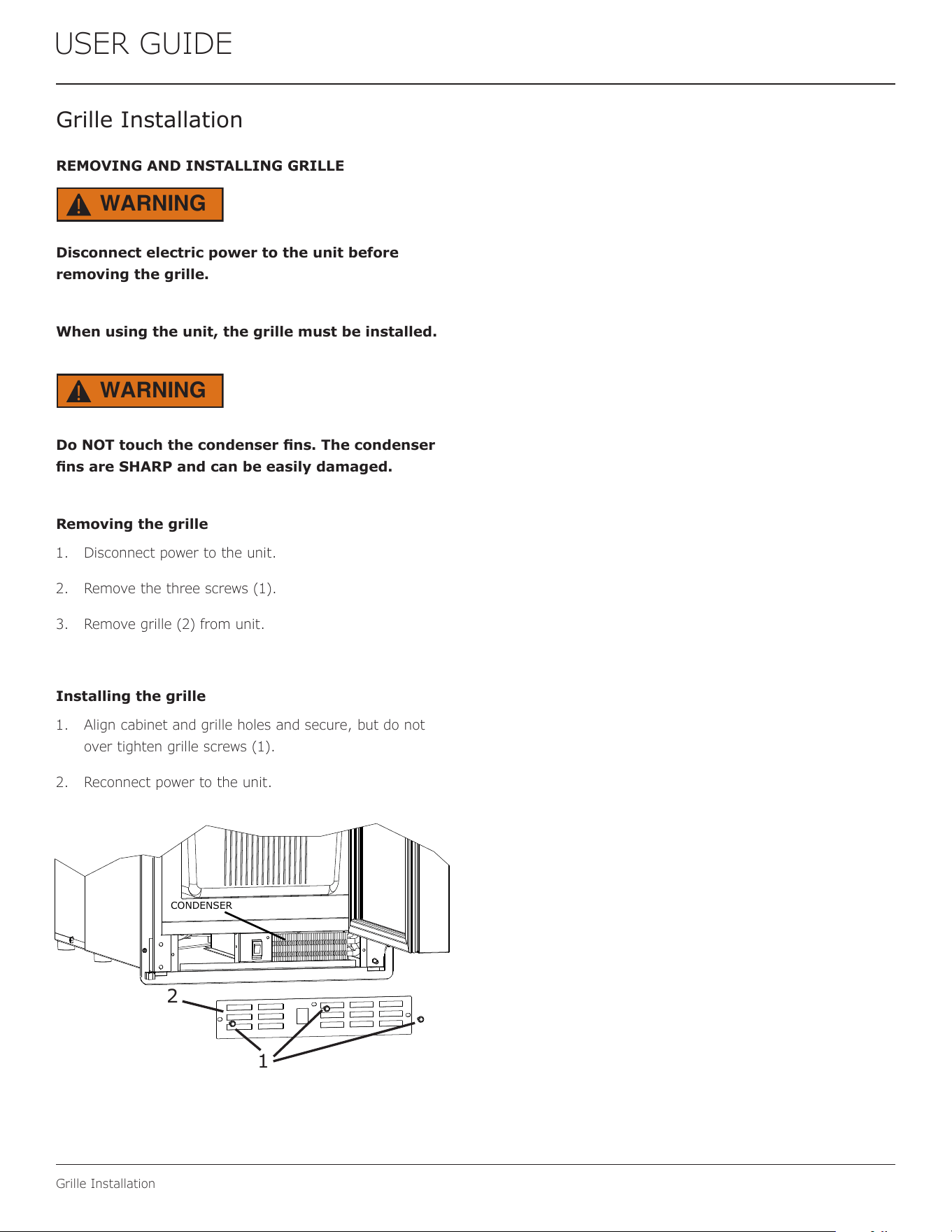

Grille Installation

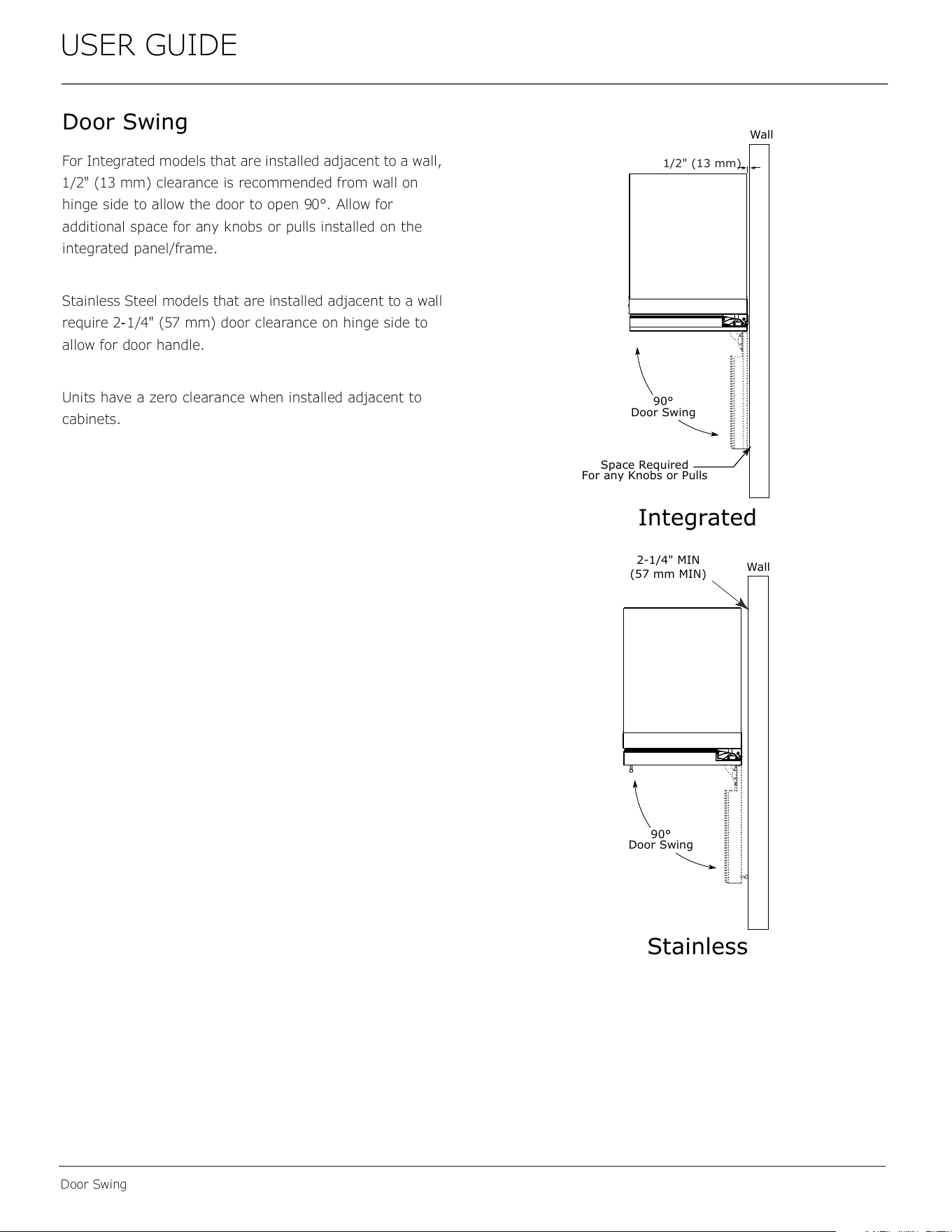

Door Swing

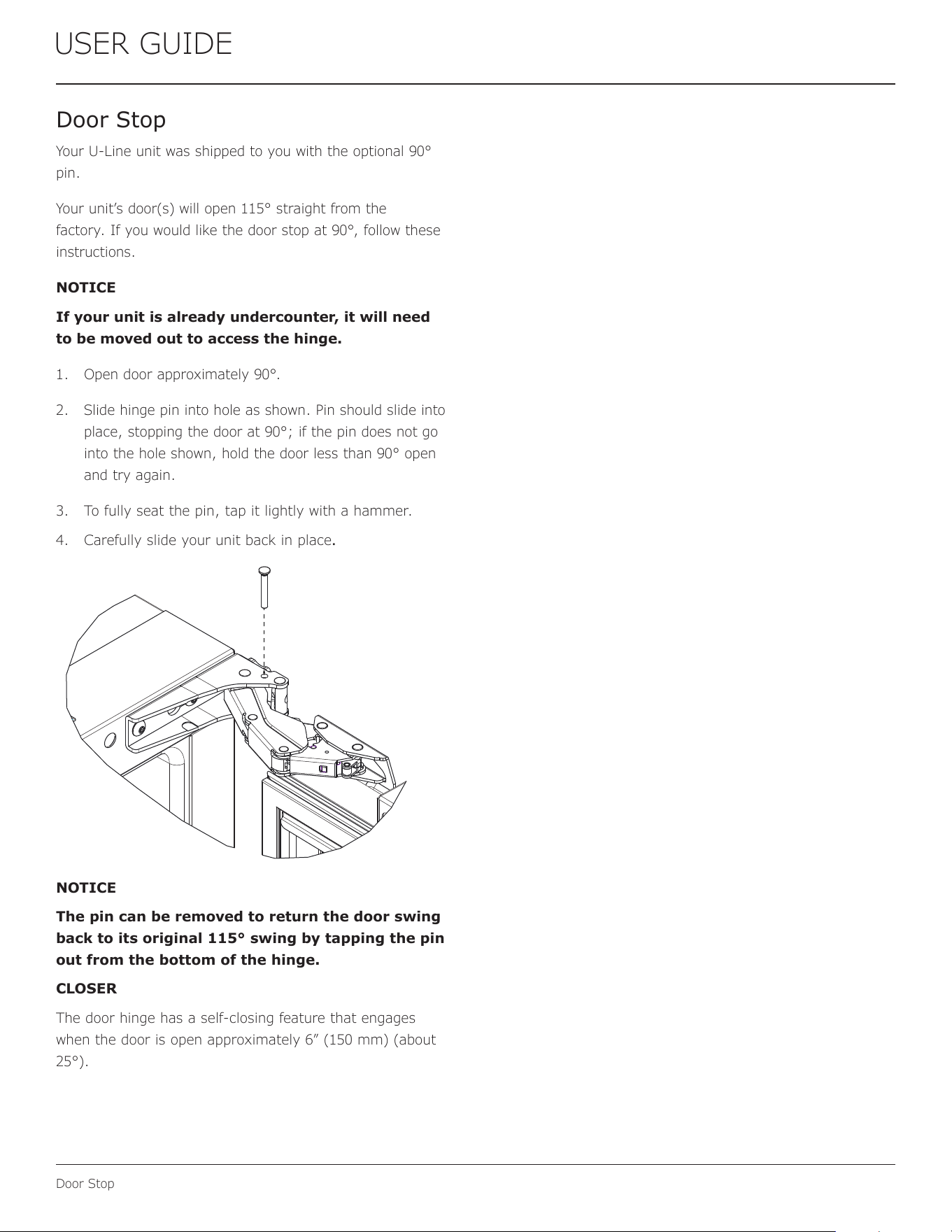

Door Stop

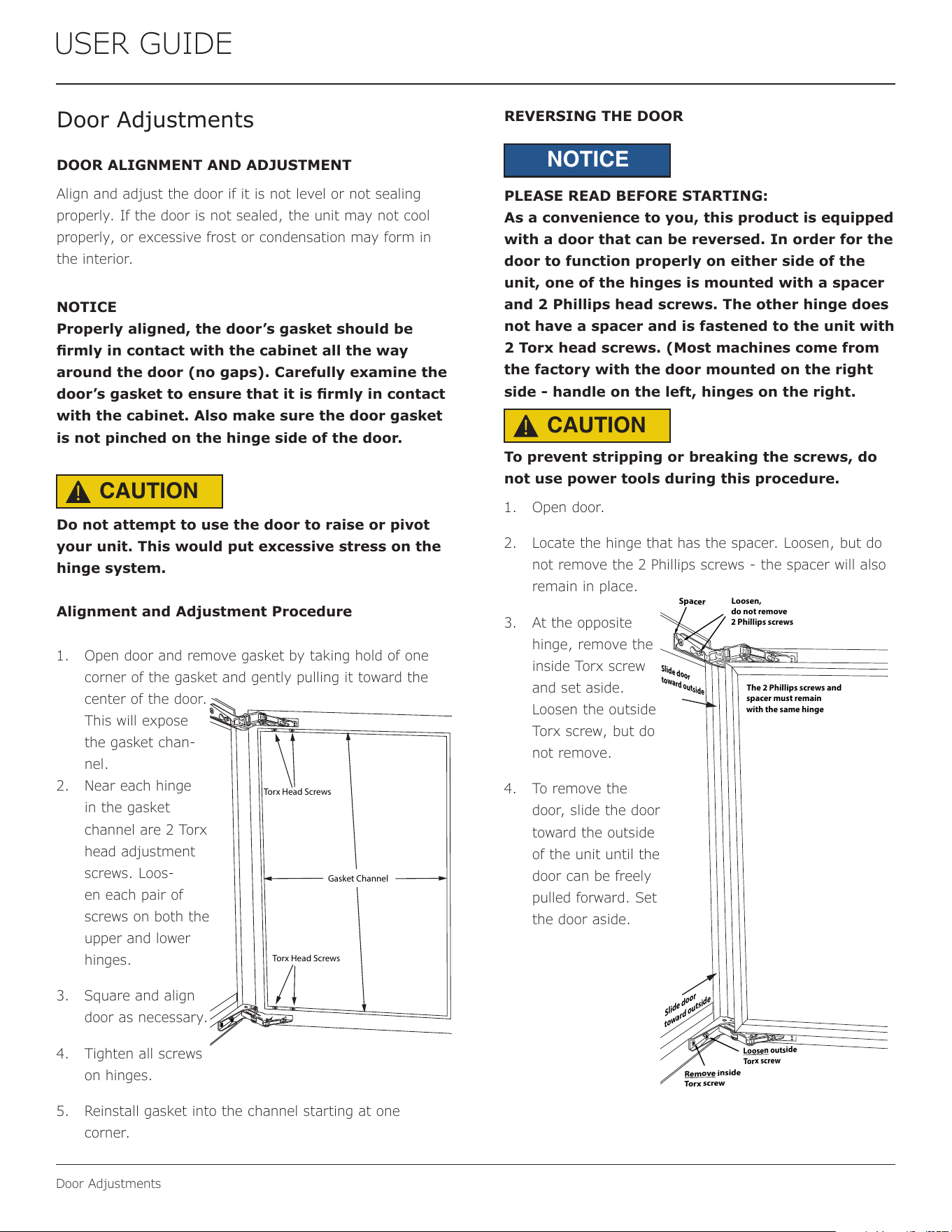

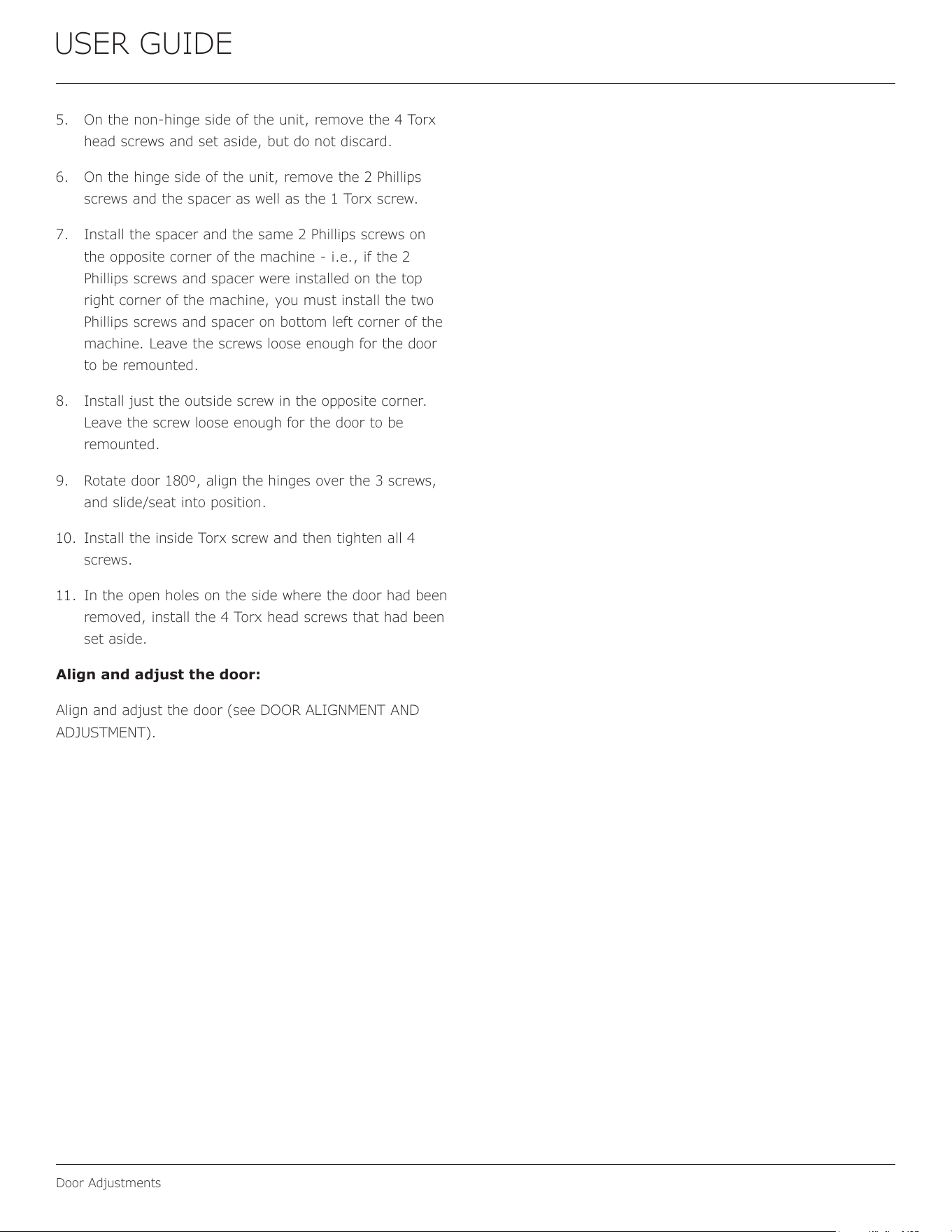

Door Adjust
Maintenance

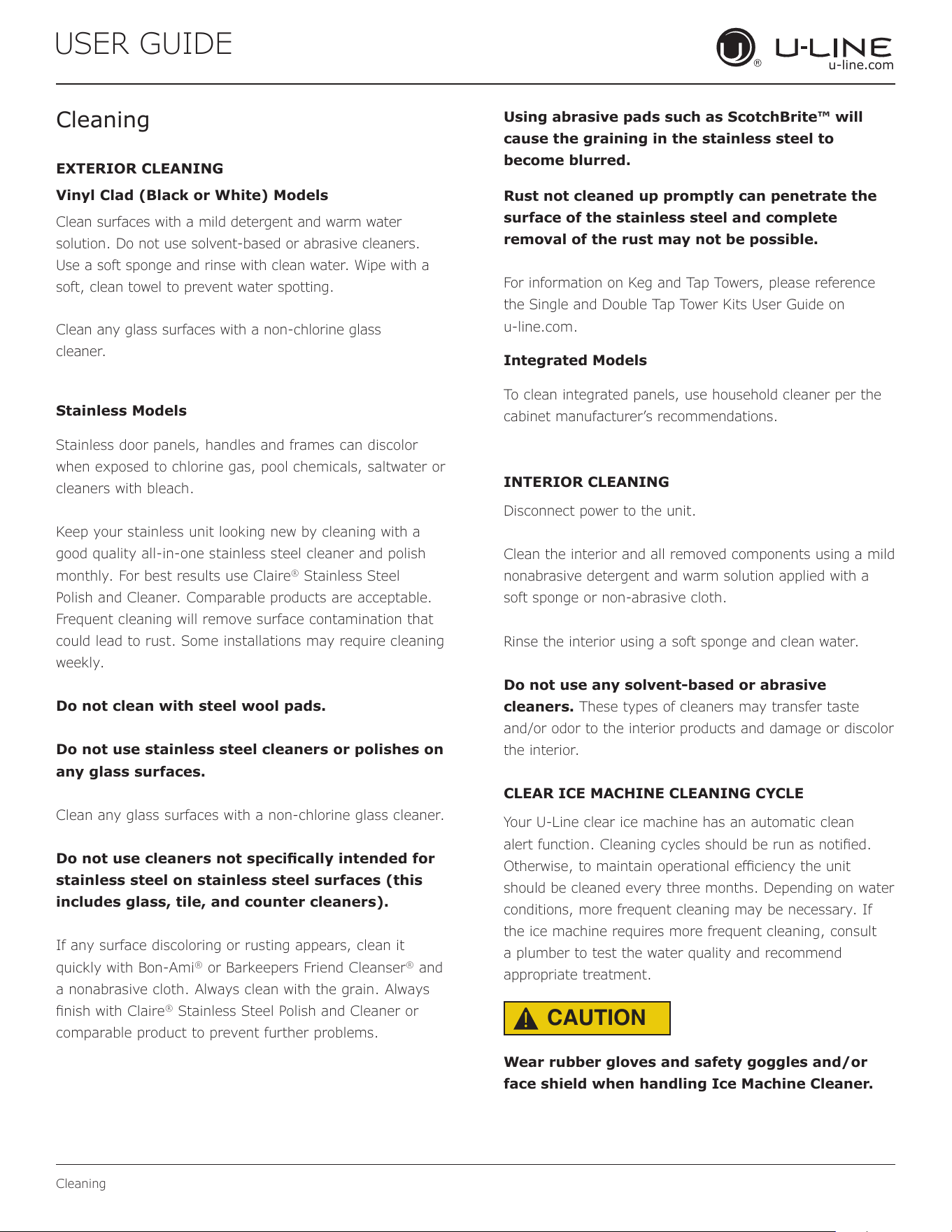

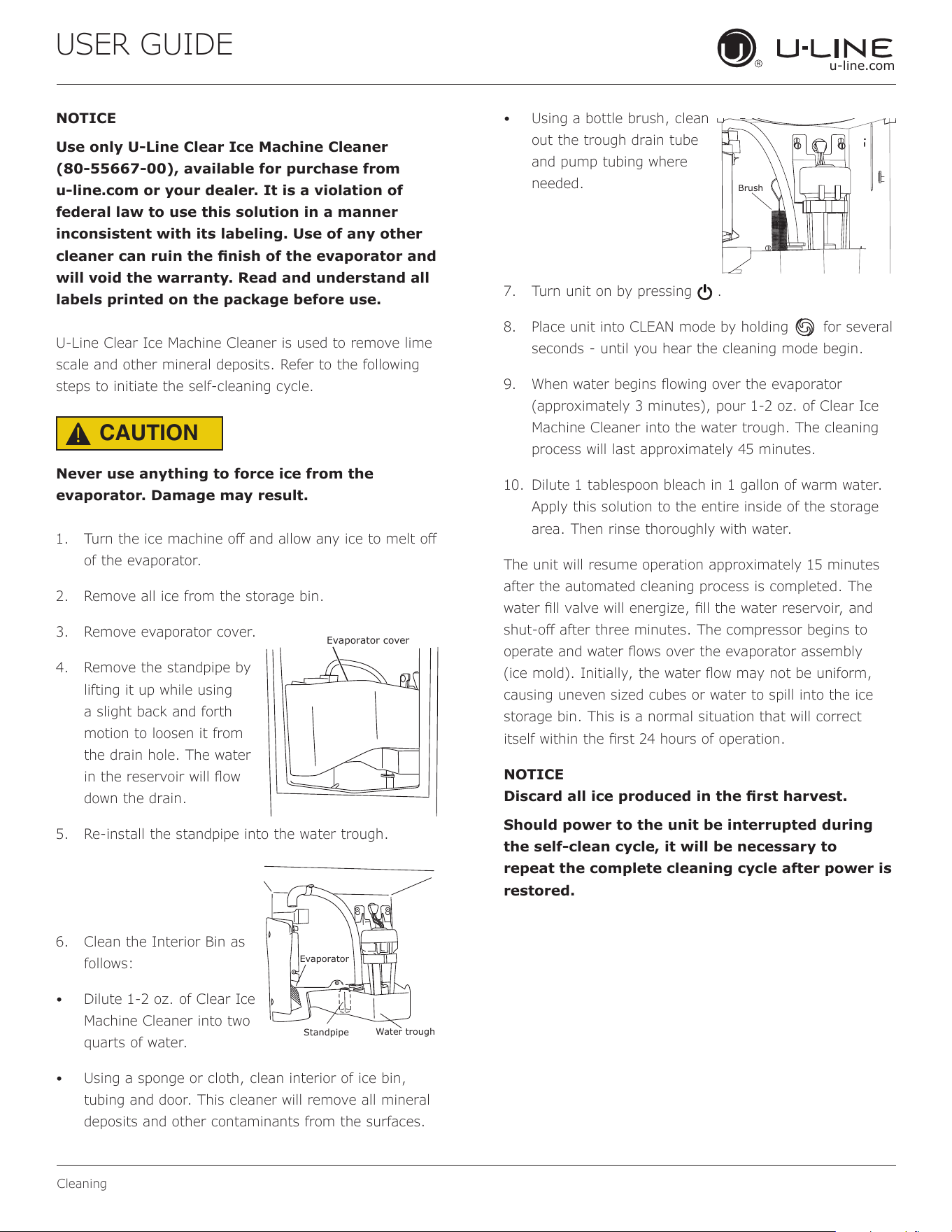

Cleaning

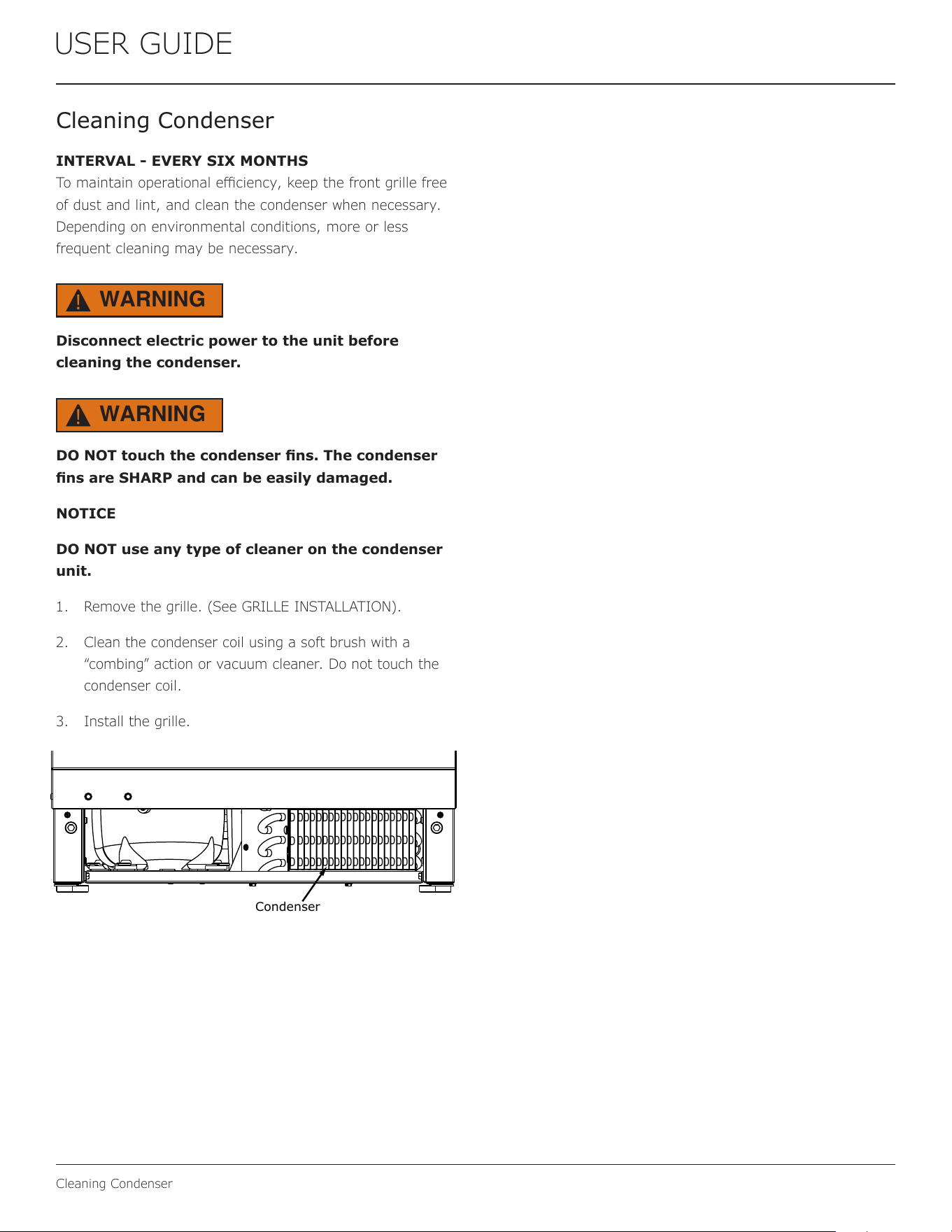

Cleaning Condenser

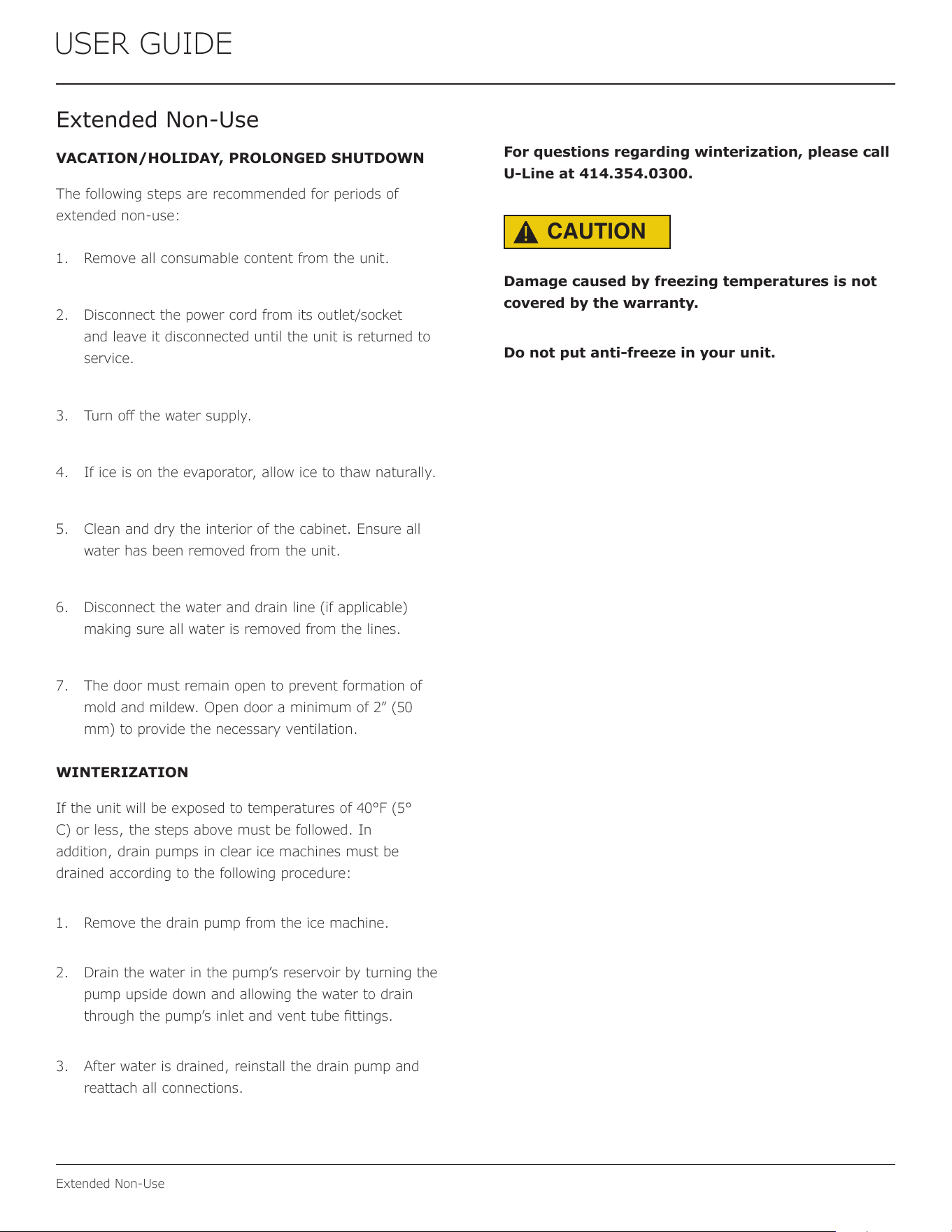

Extended Non-Use
Operating Instructions

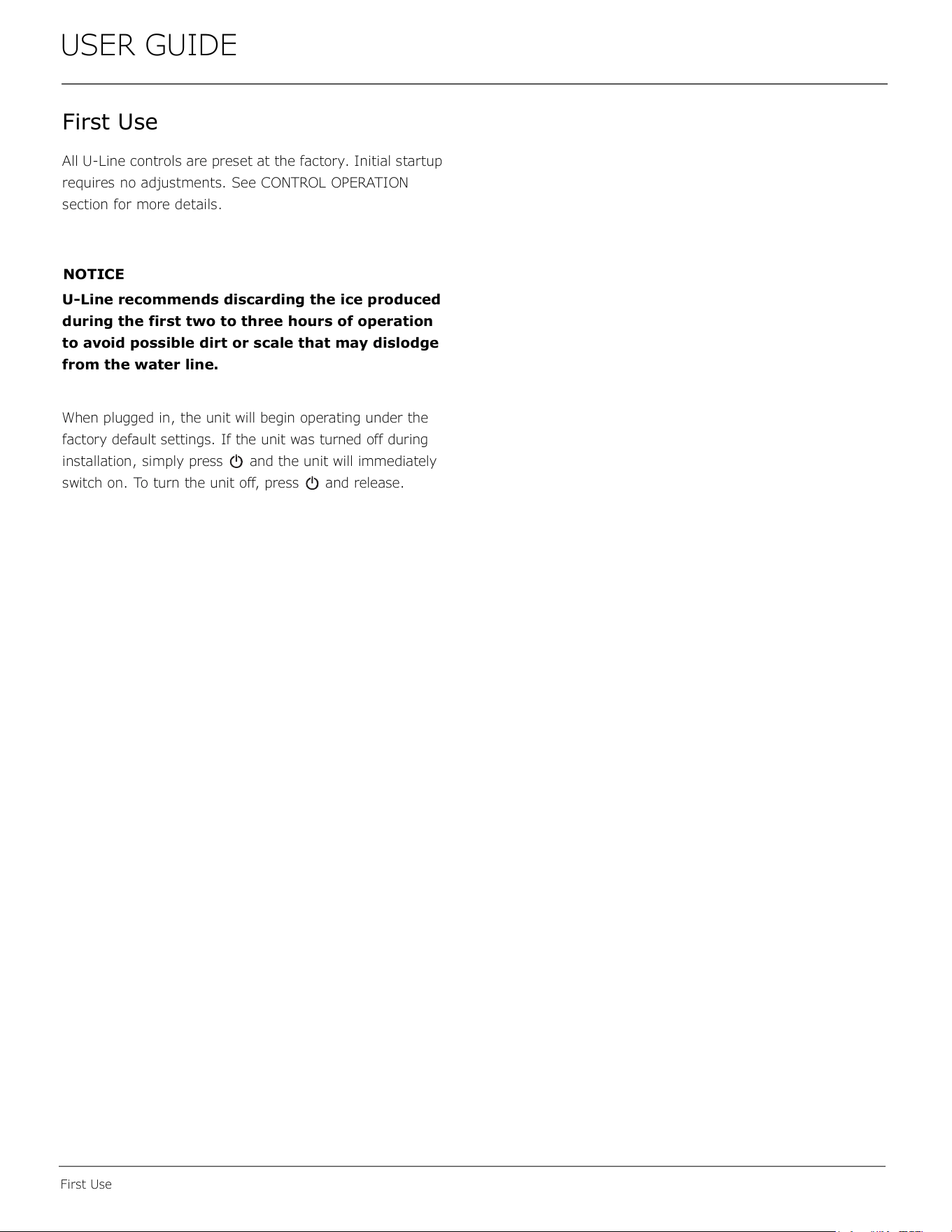

First Use

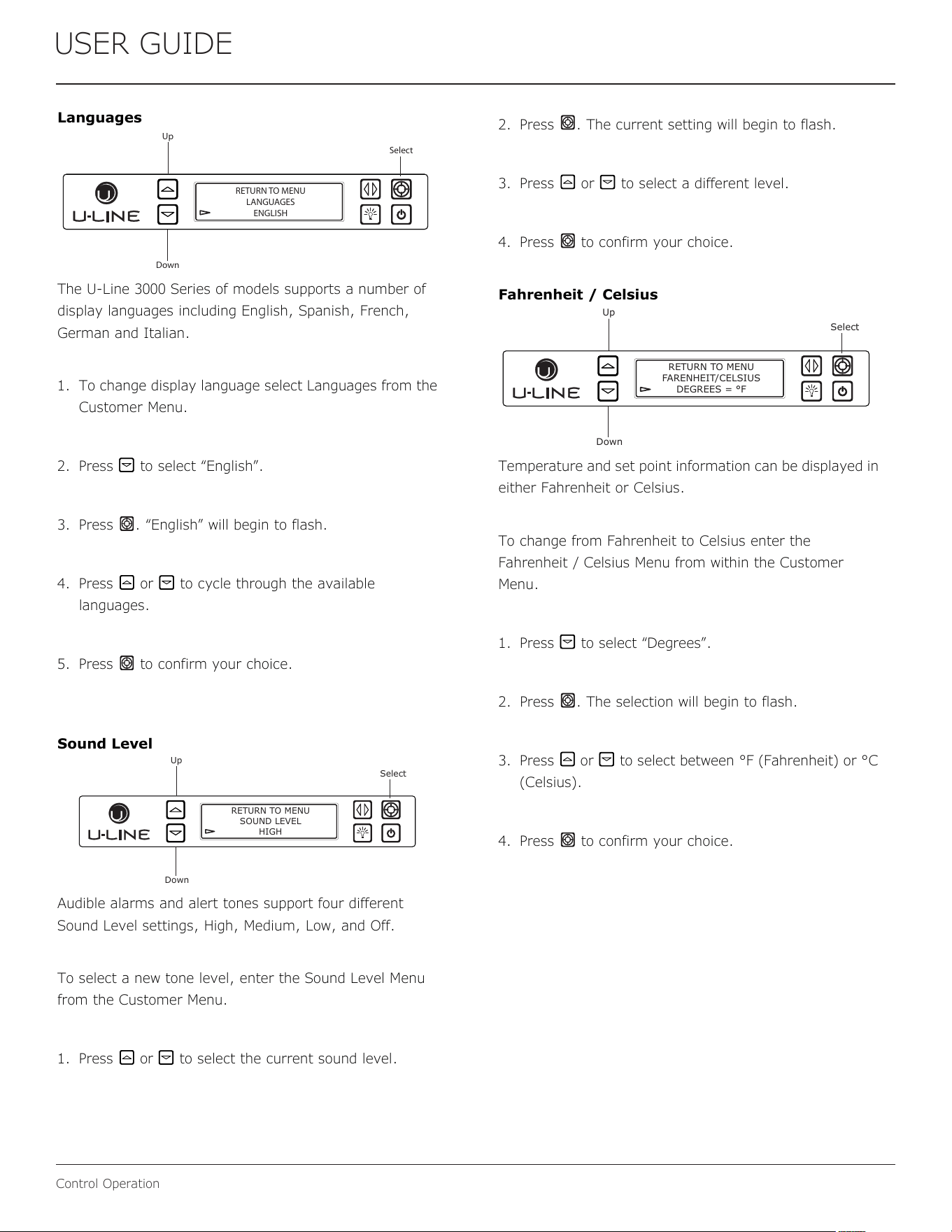

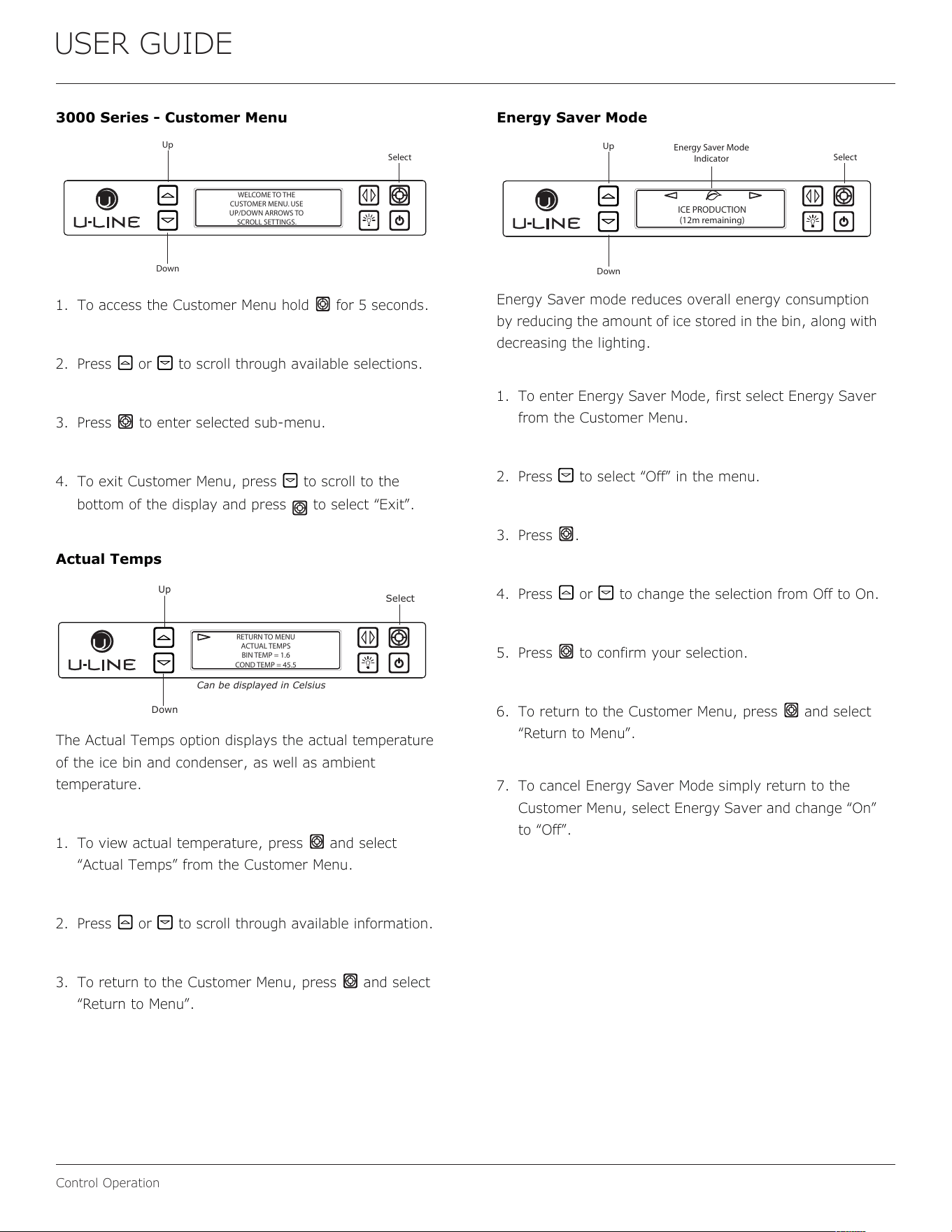

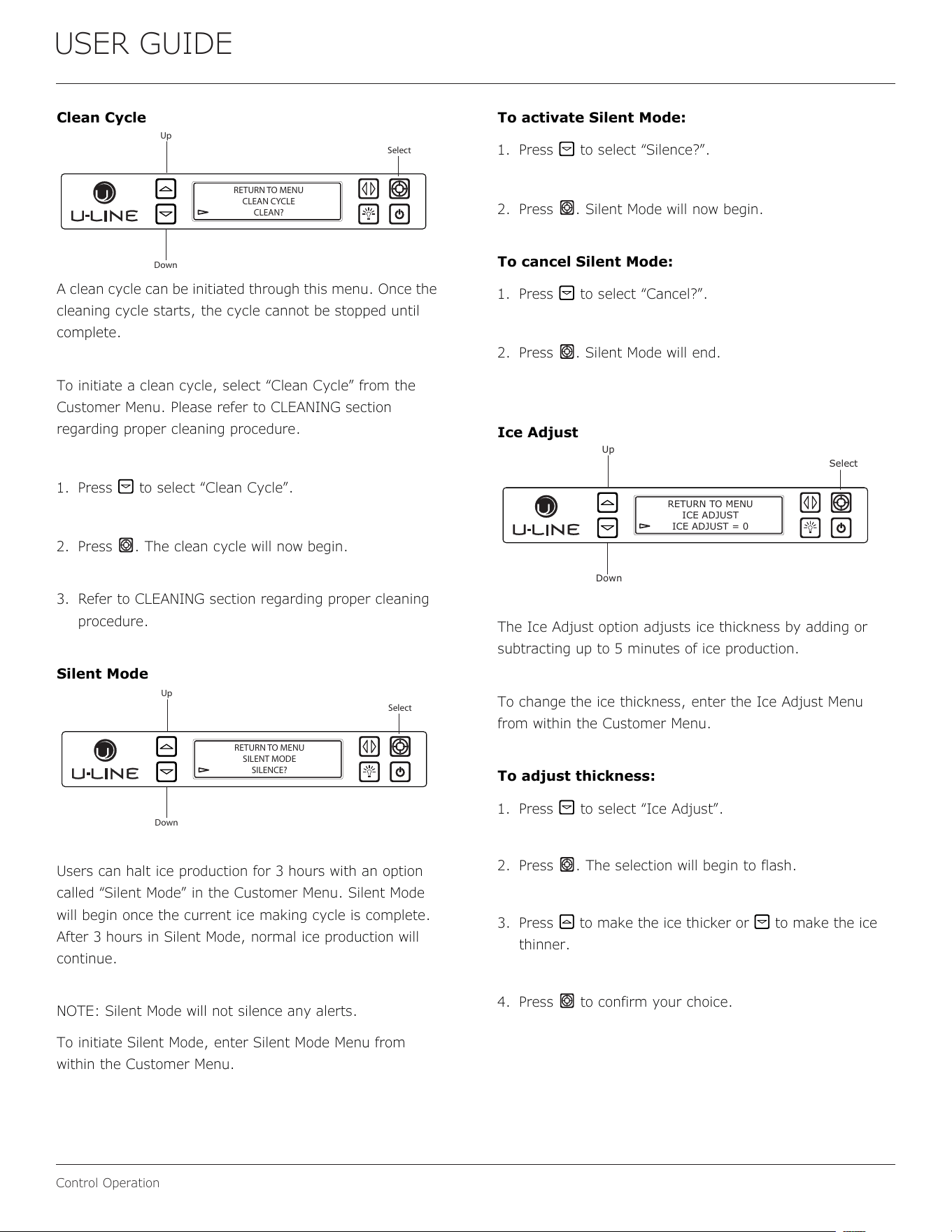

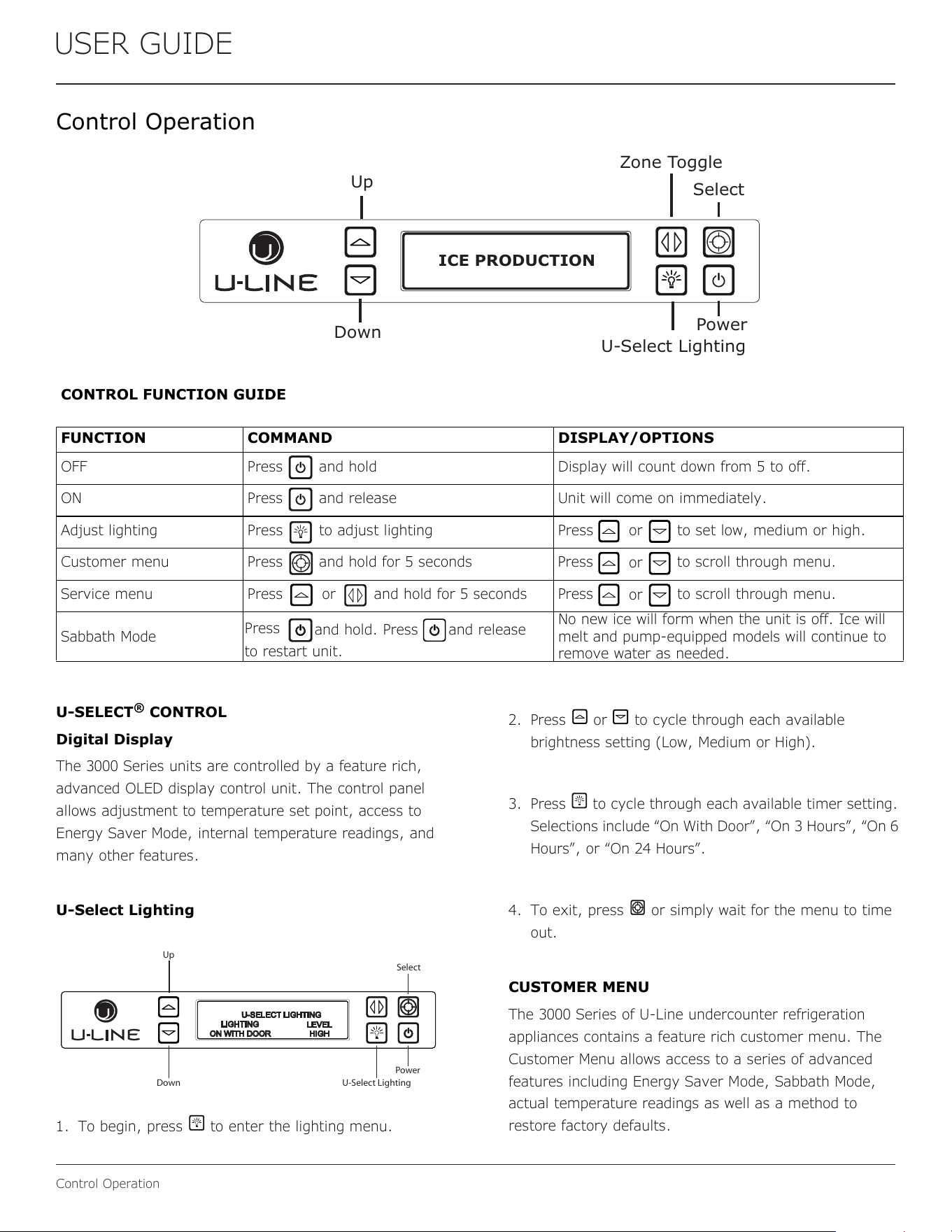

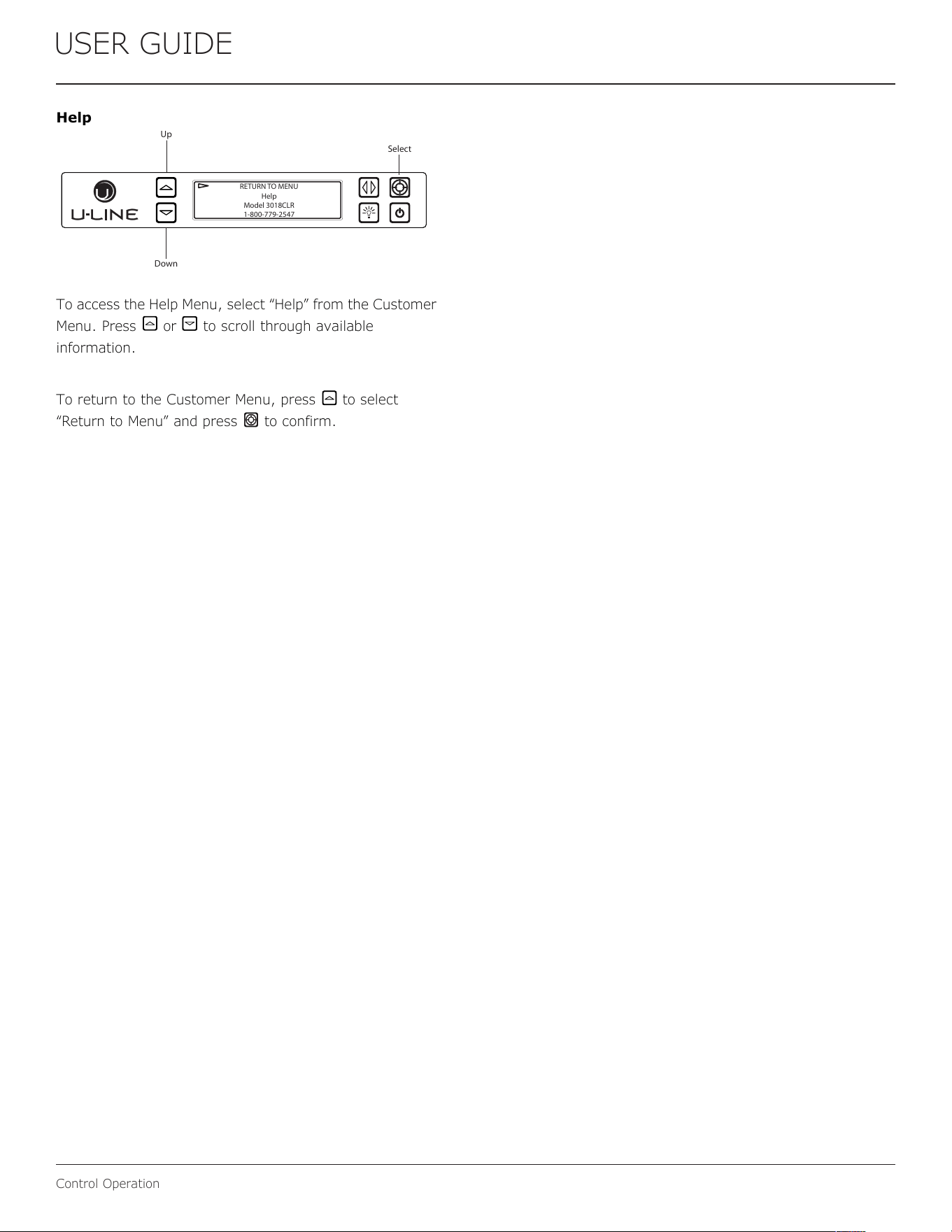

Control Operation

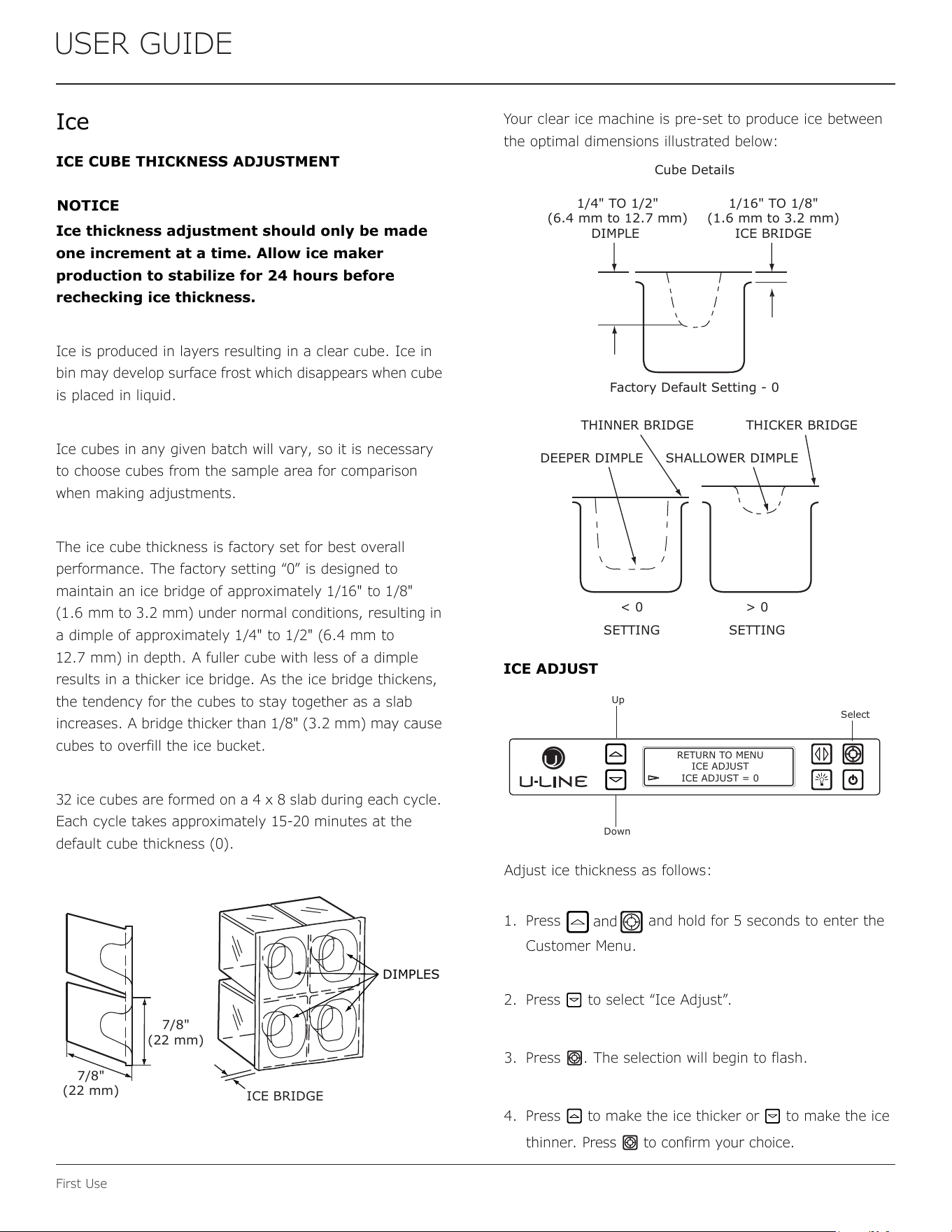

Ice

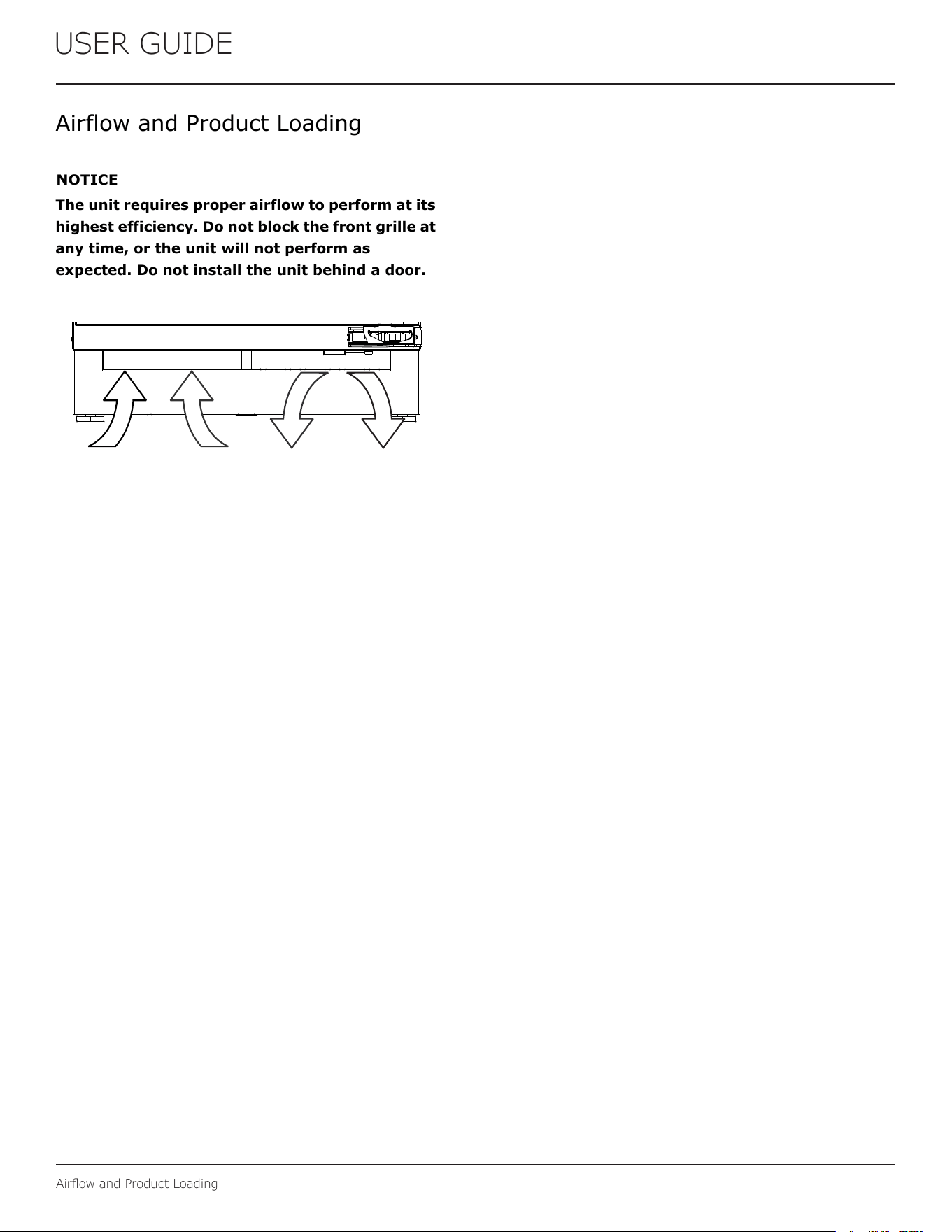

Airflow and Product Loading
Service

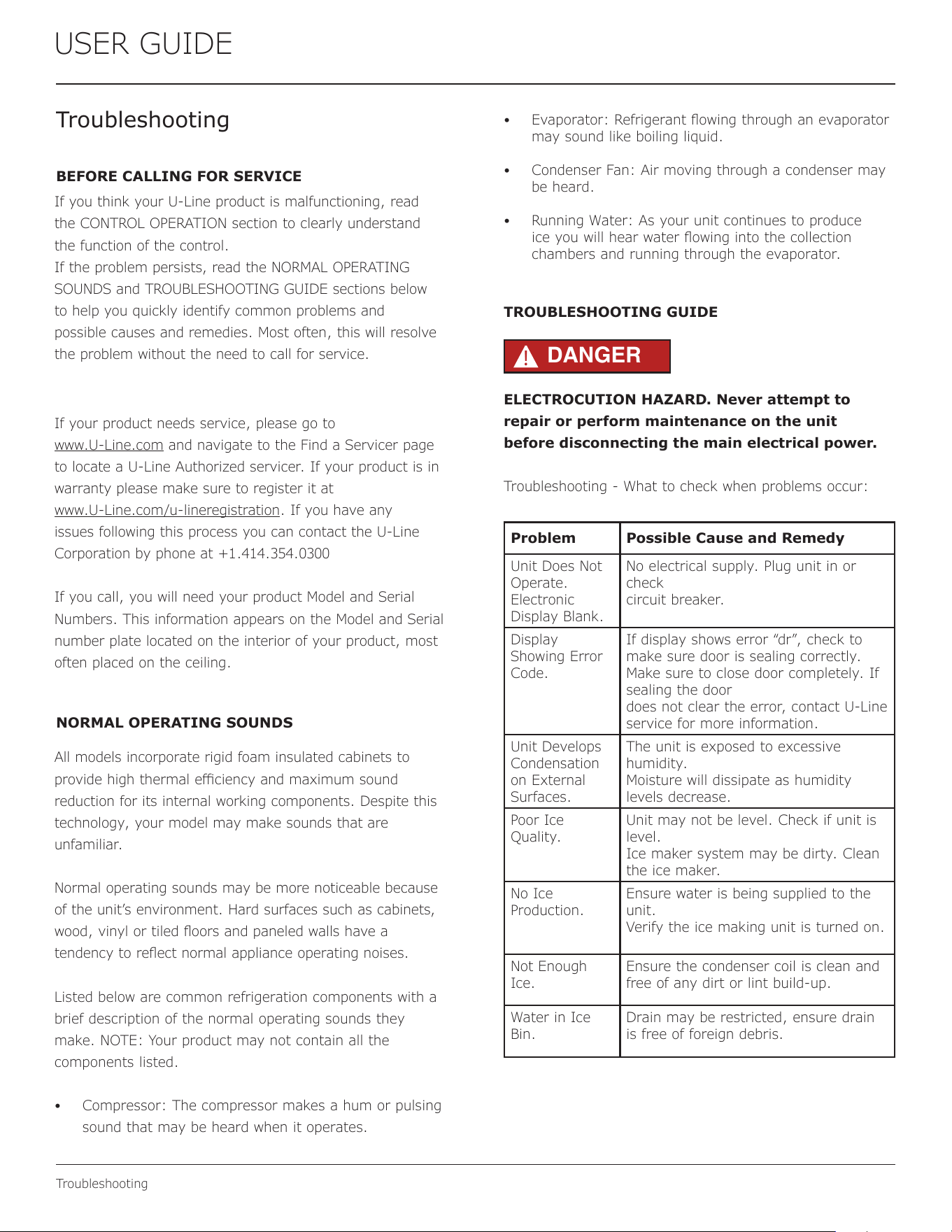

Troubleshooting

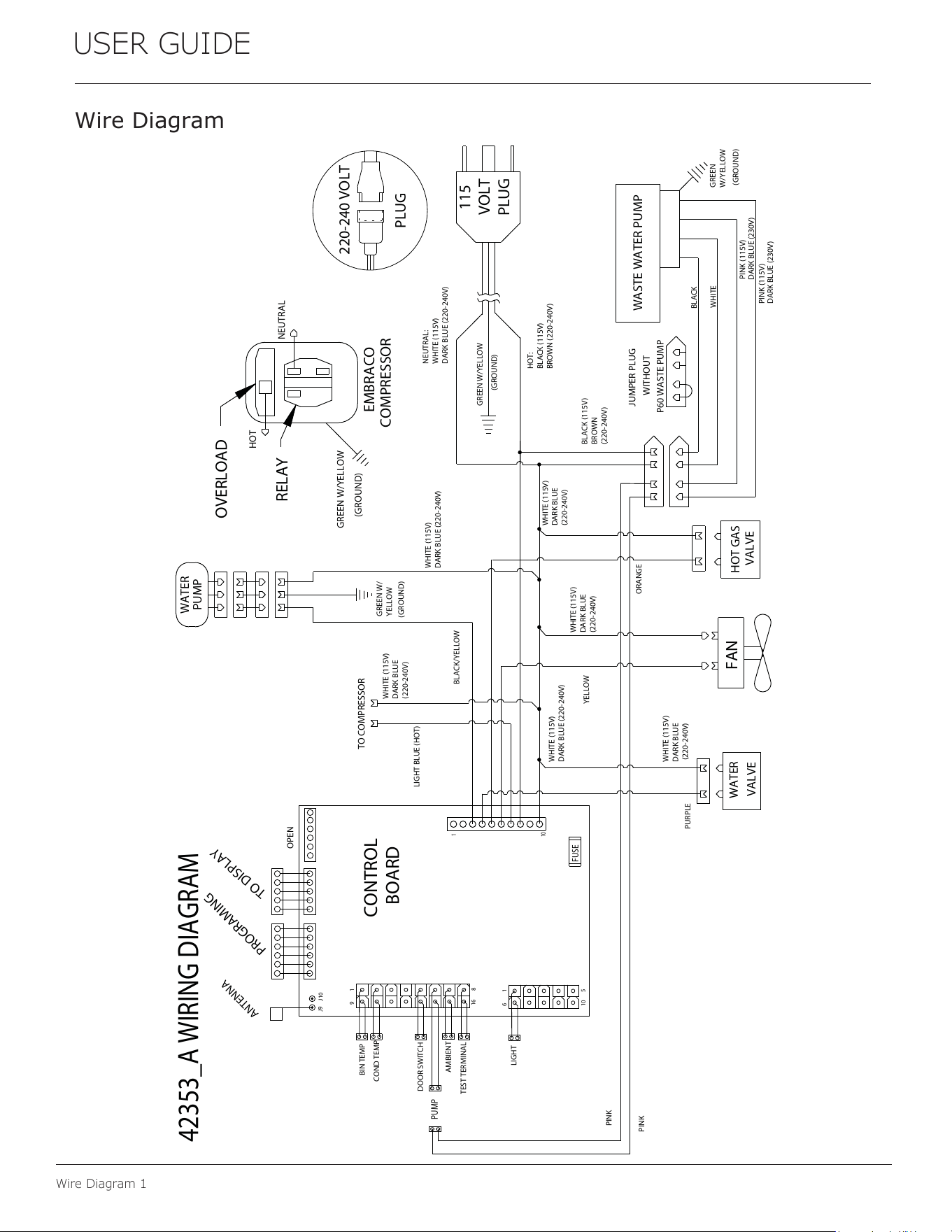

Wire Diagram

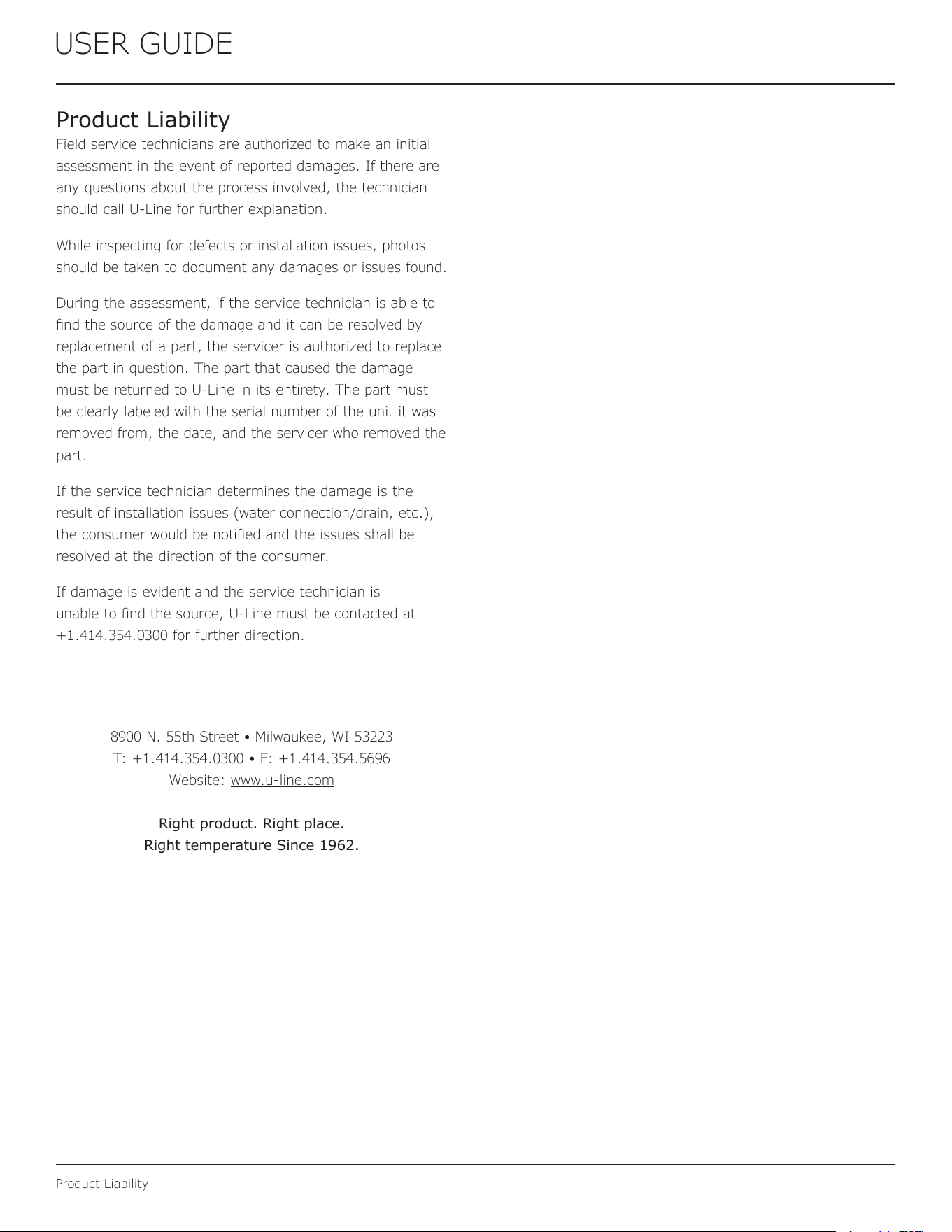

Product Liability

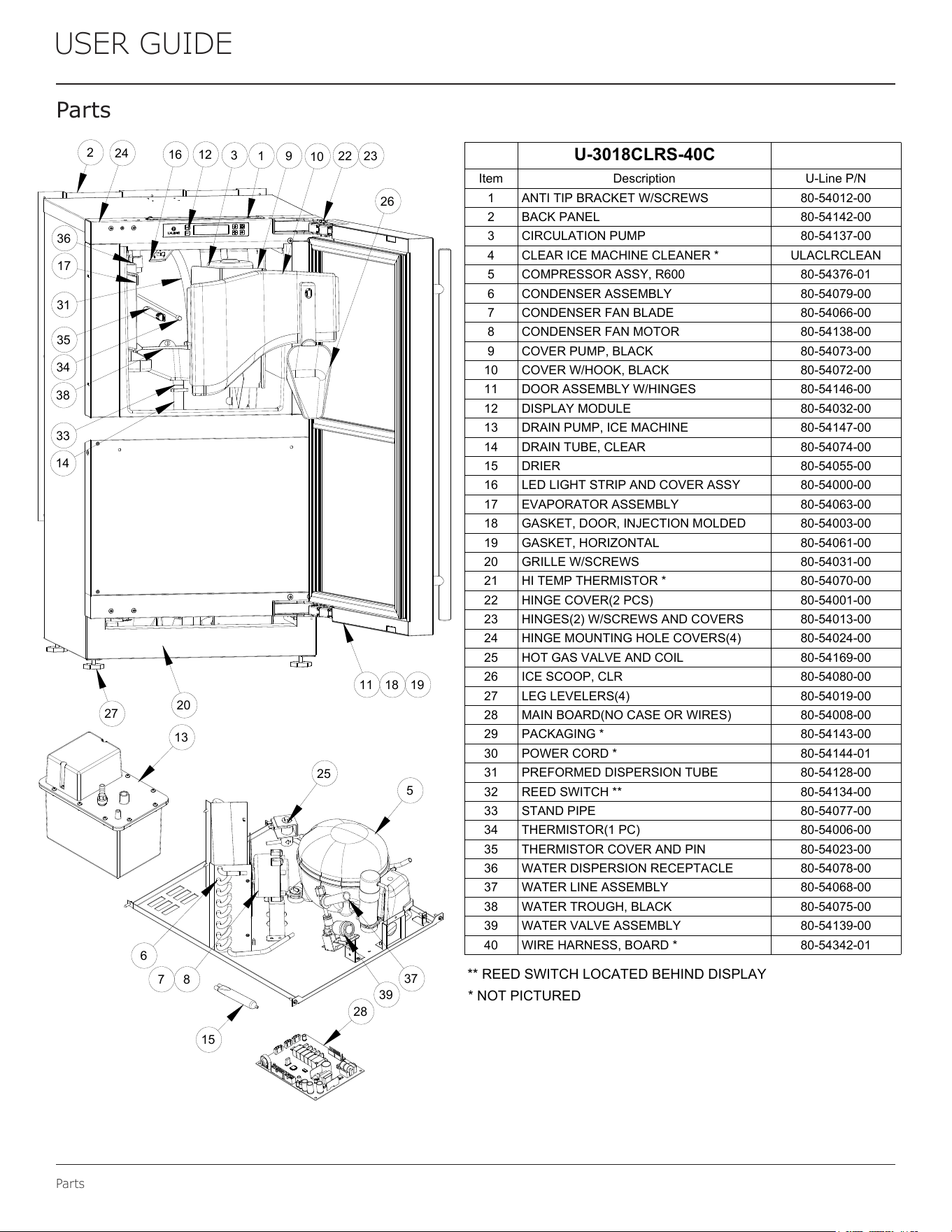

Parts

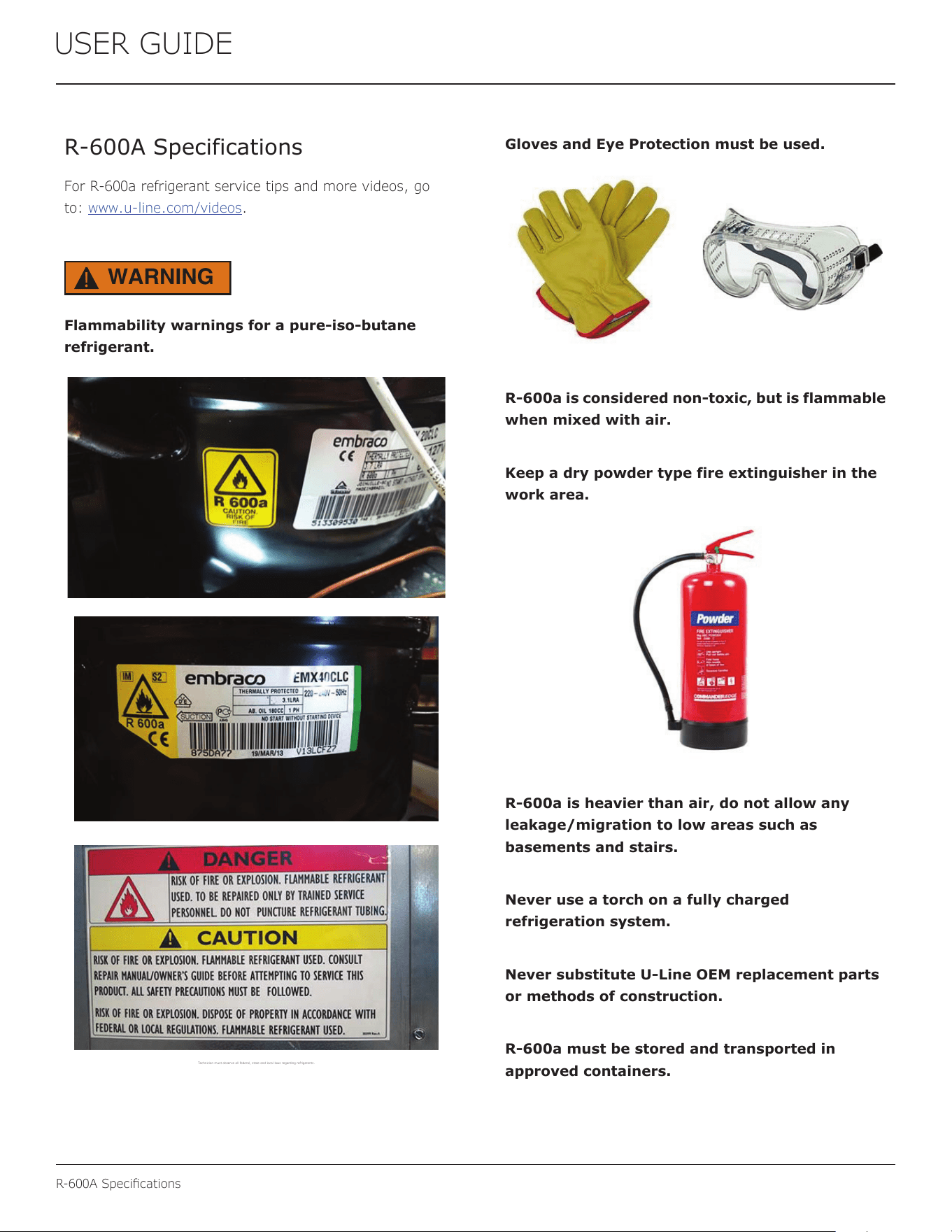

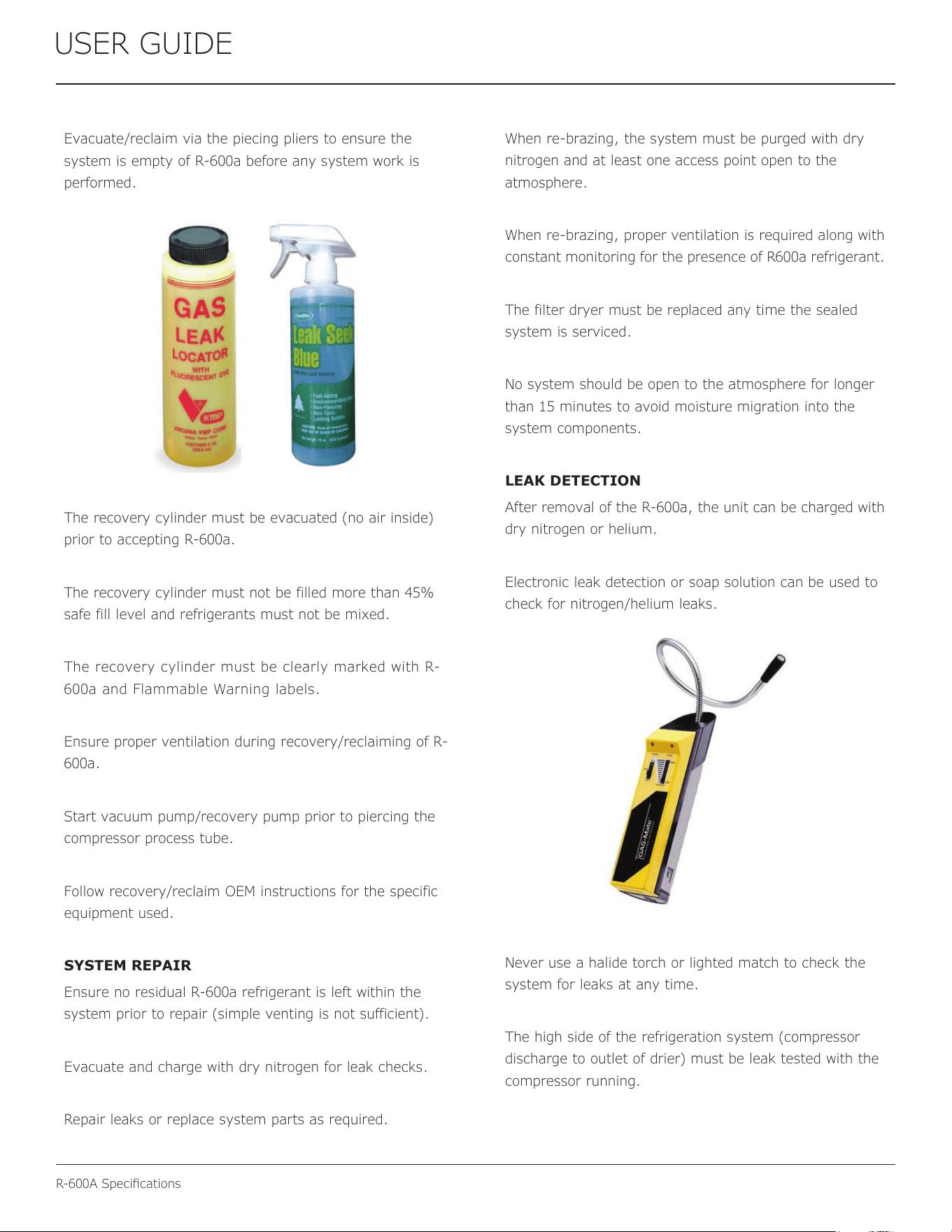

R600a Specifications

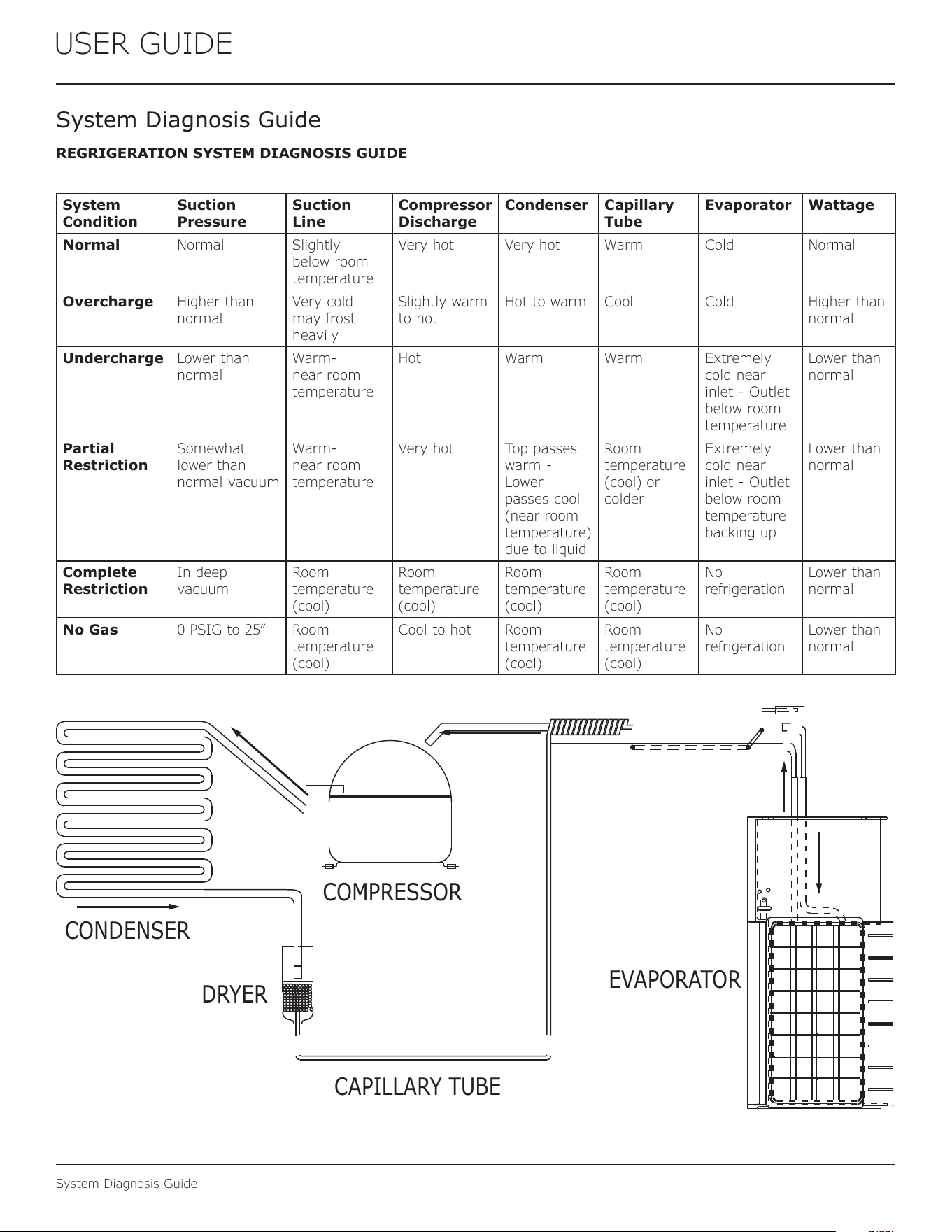

System Diagnosis Guide

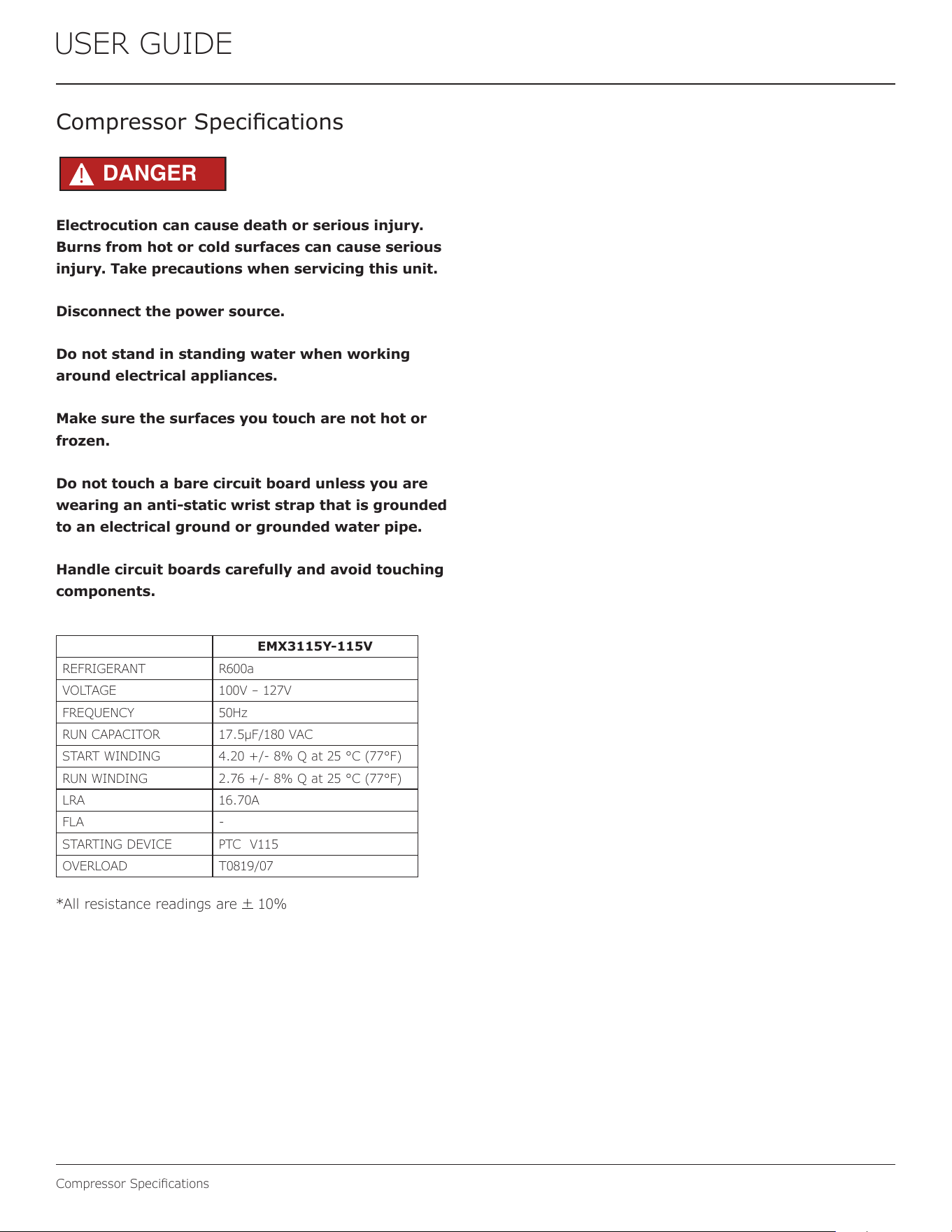

Compressor Specifications
Warranty
USER GUIDE
u-line.com

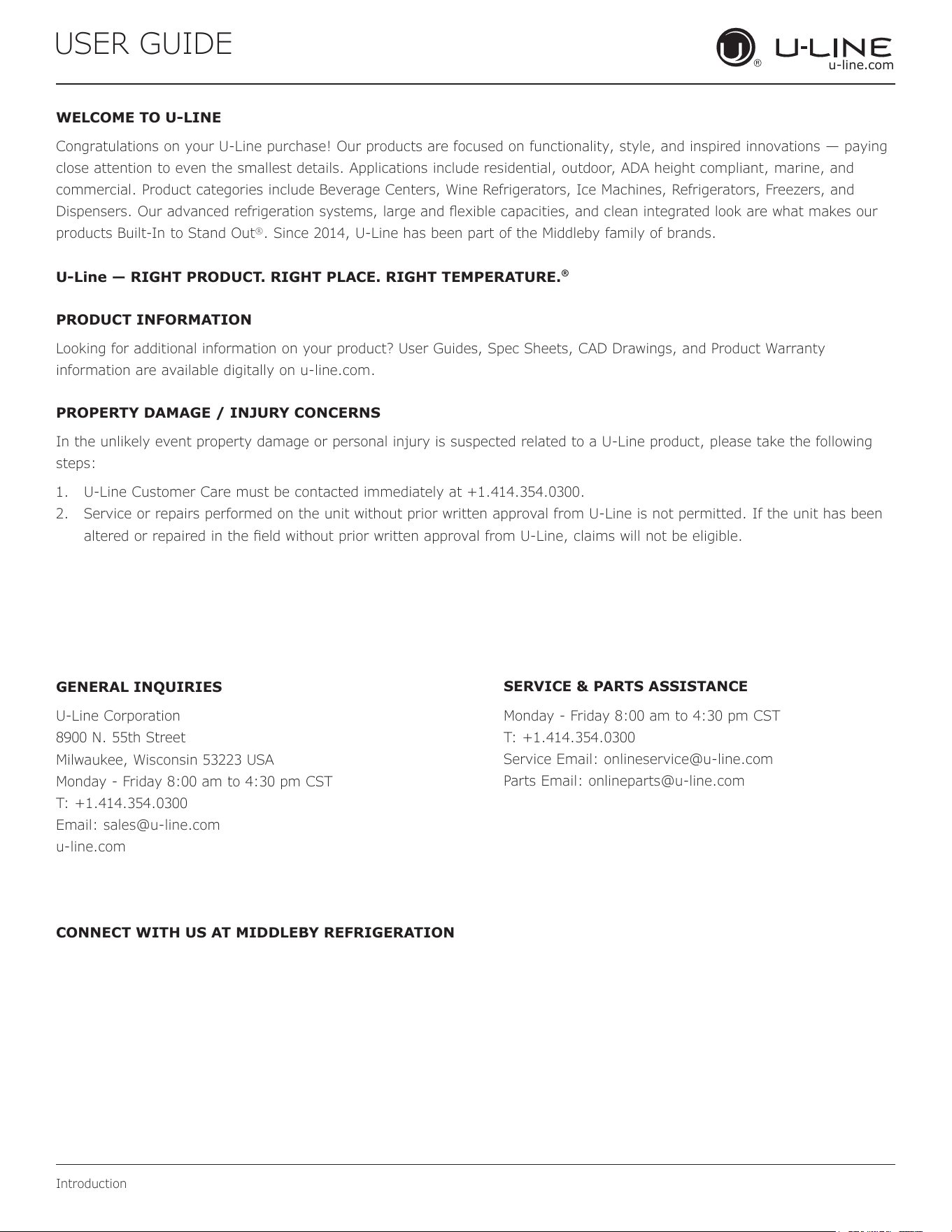

Introduction
WELCOME TO U-LINE
Congratulations on your U-Line purchase! Our products are focused on functionality, style, and inspired innovations — paying
close attention to even the smallest details. Applications include residential, outdoor, ADA height compliant, marine, and
commercial. Product categories include Beverage Centers, Wine Refrigerators, Ice Machines, Refrigerators, Freezers, and
Dispensers. Our advanced refrigeration systems, large and exible capacities, and clean integrated look are what makes our
products Built-In to Stand Out
®
. Since 2014, U-Line has been part of the Middleby family of brands.
U-Line — RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE.
®
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, and Product Warranty
information are available digitally on u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the following
steps:
1. U-Line Customer Care must be contacted immediately at +1.414.354.0300.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit has been
altered or repaired in the eld without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Email: sales@u-line.com
u-line.com
CONNECT WITH US AT MIDDLEBY REFRIGERATION
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm CST
T: +1.414.354.0300
Service Email: onlineservice@u-line.com
Parts Email: onlineparts@u-line.com
3
USER GUIDE

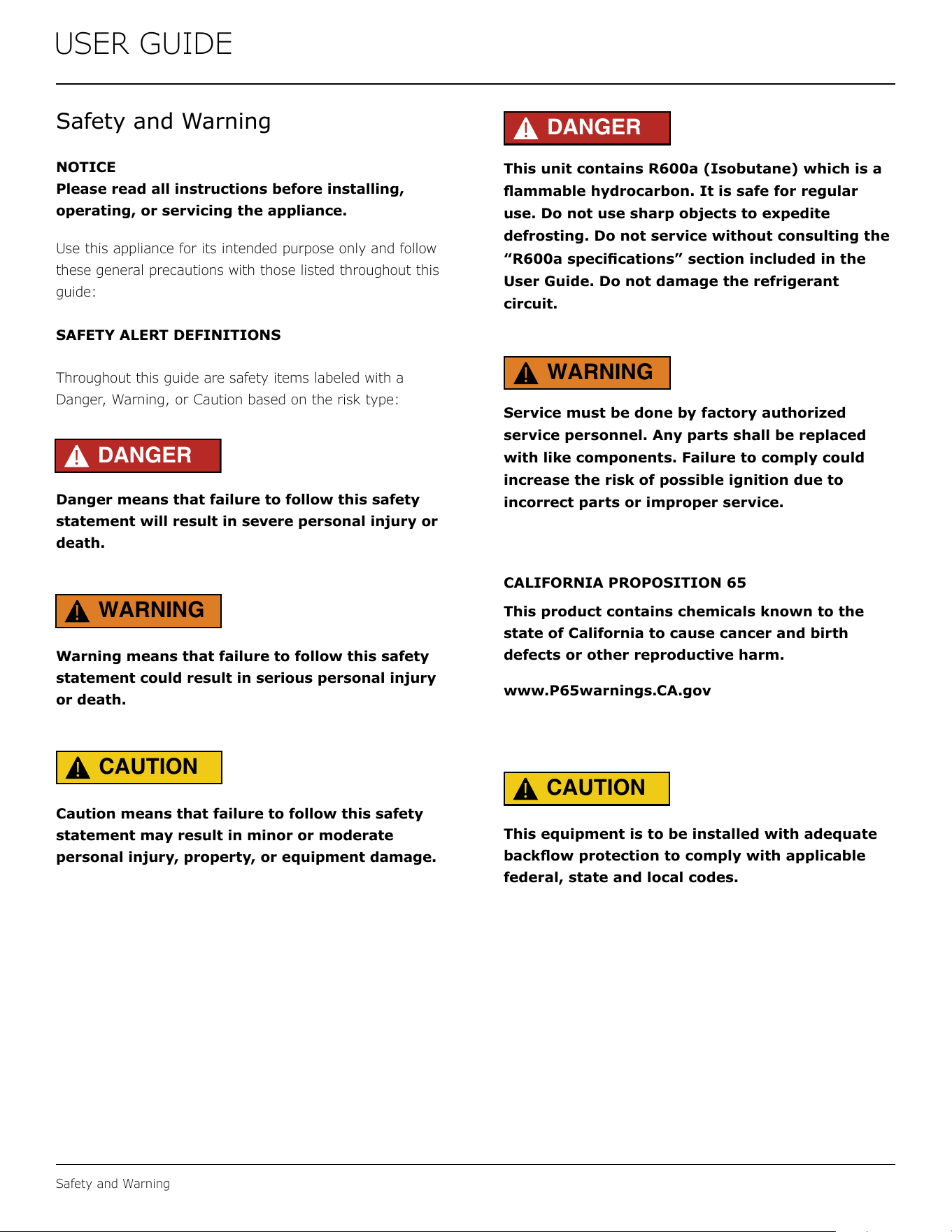

Safety and Warning
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and follow
these general precautions with those listed throughout this
guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning, or Caution based on the risk type:
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property, or equipment damage.
This unit contains R600a (Isobutane) which is a
ammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specications” section included in the
User Guide. Do not damage the refrigerant
circuit.
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
CALIFORNIA PROPOSITION 65
This product contains chemicals known to the
state of California to cause cancer and birth
defects or other reproductive harm.
www.P65warnings.CA.gov
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes.
DANGER
!
DANGER
!
WARNING
!
CAUTION
!
CAUTION
!
WARNING
!
4
USER GUIDE

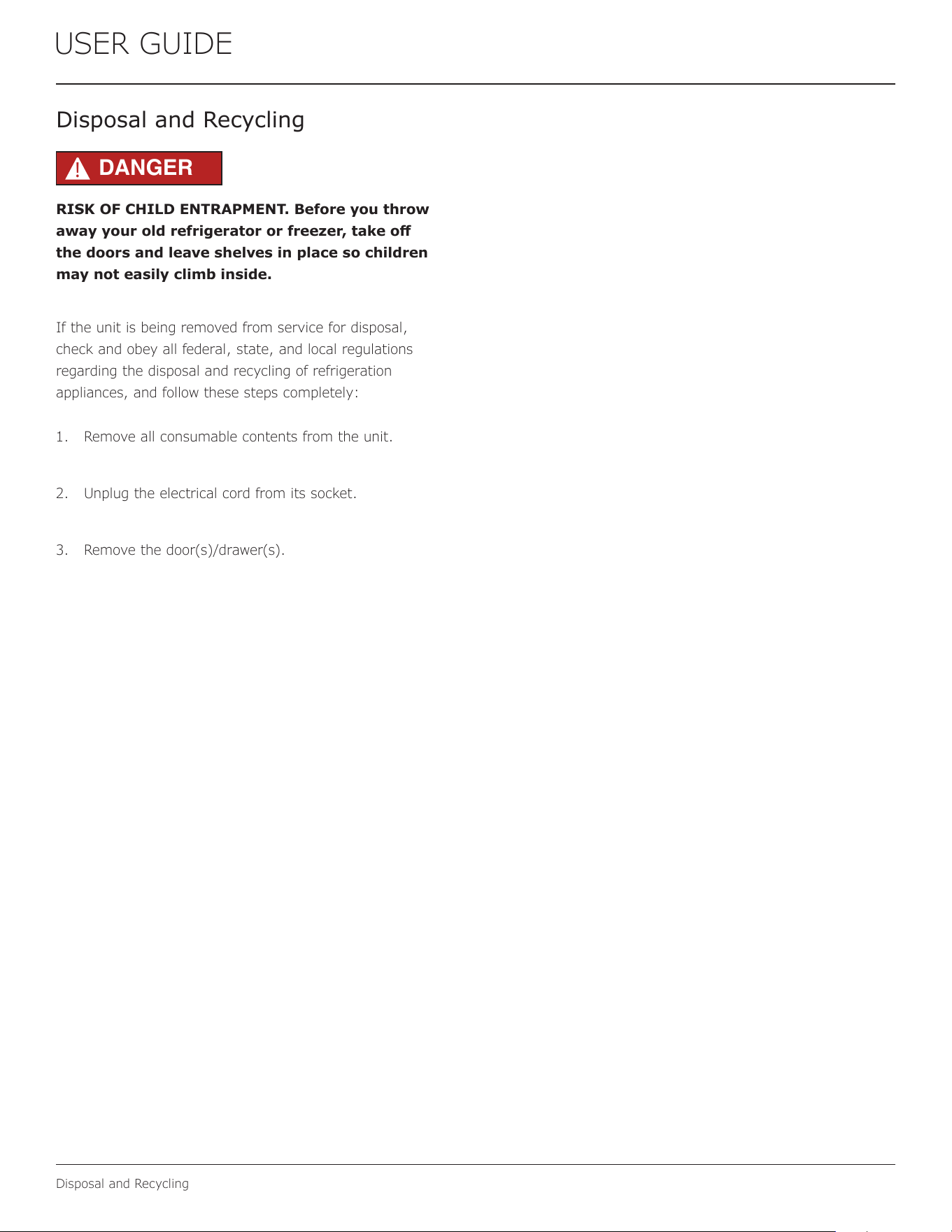

Disposal and Recycling
Disposal and Recycling
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take o
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state, and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
DANGER
!
5
USER GUIDE

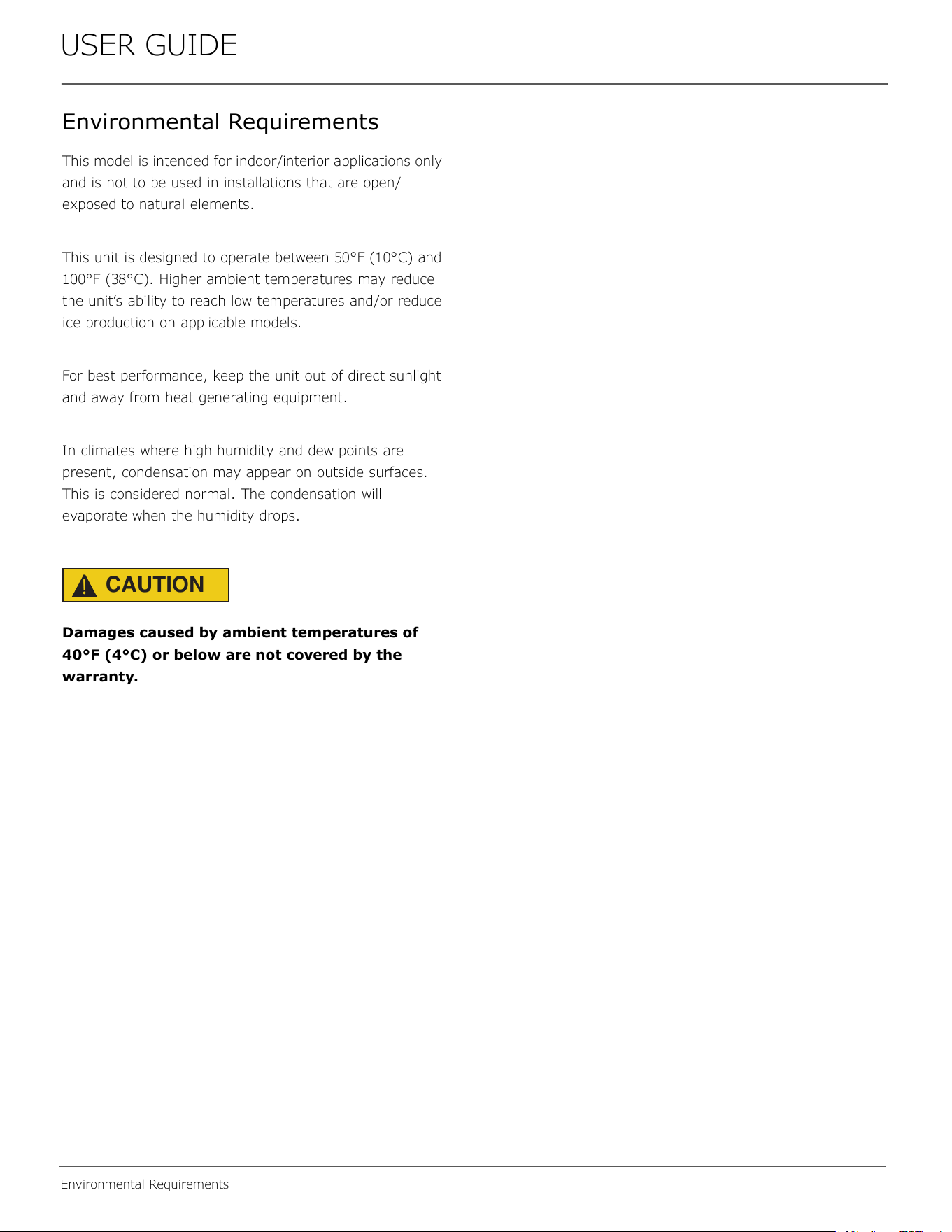

Environmental Requirements
Environmental Requirements
This model is intended for indoor/interior applications only
and is not to be used in installations that are open/
exposed to natural elements.
This unit is designed to operate between 50°F (10°C) and
100°F (38°C). Higher ambient temperatures may reduce
the unit’s ability to reach low temperatures and/or reduce
ice production on applicable models.
For best performance, keep the unit out of direct sunlight
and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside surfaces.
This is considered normal. The condensation will
evaporate when the humidity drops.
CAUTION
!
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
6
USER GUIDE

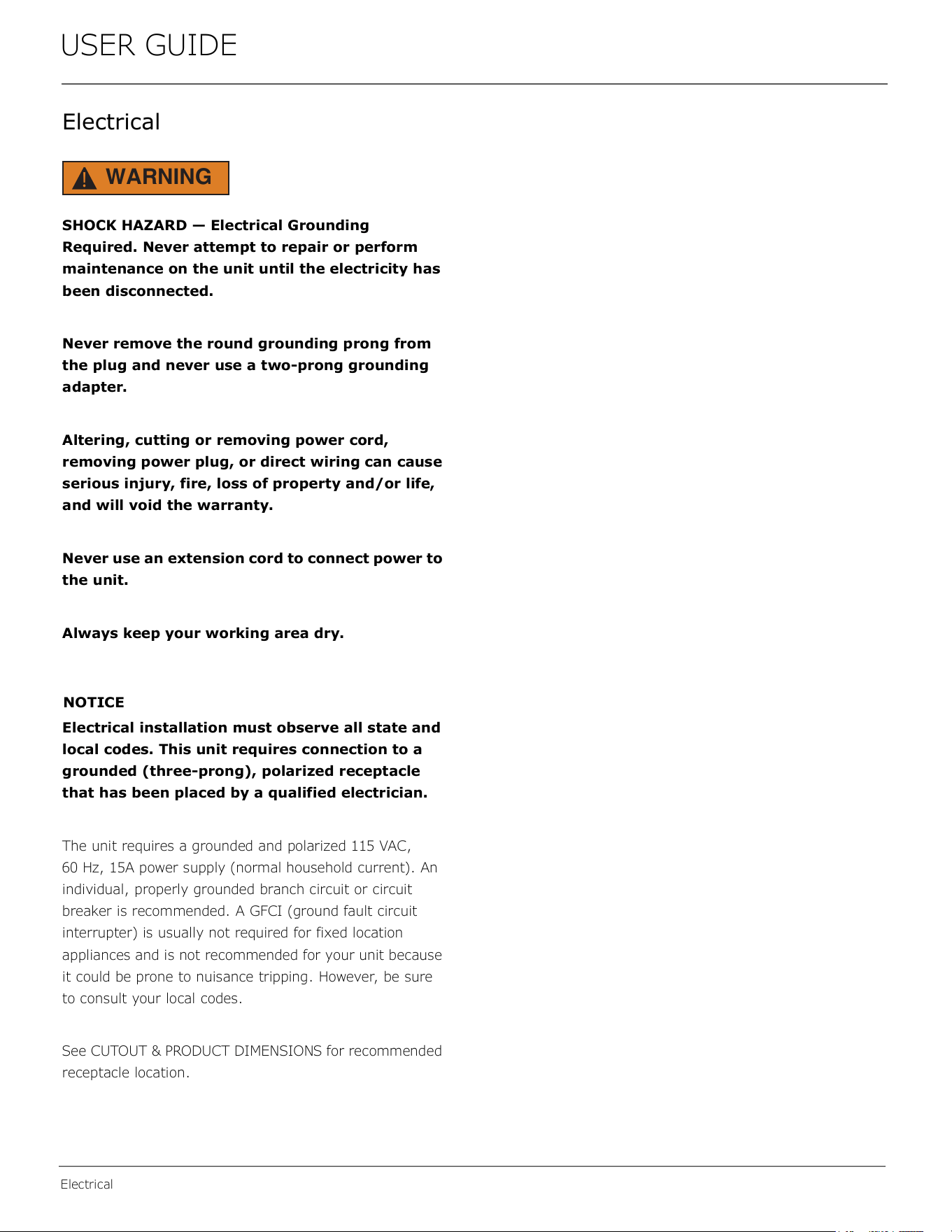

Electrical
Electrical
WARNING
!
SHOCK HAZARD — Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current). An
individual, properly grounded branch circuit or circuit
breaker is recommended. A GFCI (ground fault circuit
interrupter) is usually not required for fixed location
appliances and is not recommended for your unit because
it could be prone to nuisance tripping. However, be sure
to consult your local codes.
See CUTOUT & PRODUCT DIMENSIONS for recommended
receptacle location.
7
USER GUIDE

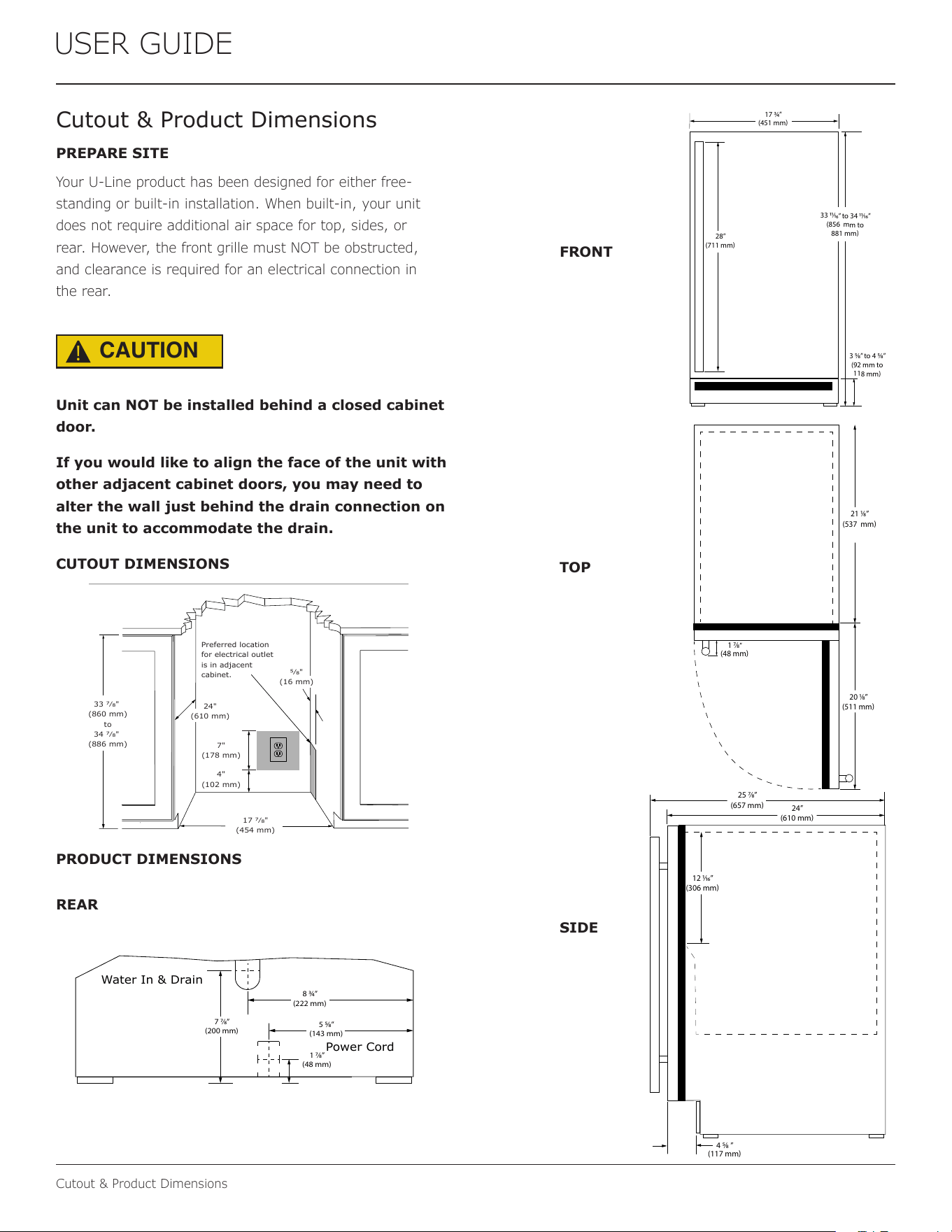

Cutout & Product Dimensions
Cutout & Product Dimensions
PREPARE SITE
Your U-Line product has been designed for either free-
standing or built-in installation. When built-in, your unit
does not require additional air space for top, sides, or
rear. However, the front grille must NOT be obstructed,
and clearance is required for an electrical connection in
the rear.
CAUTION
!
Unit can NOT be installed behind a closed cabinet
door.
If you would like to align the face of the unit with
other adjacent cabinet doors, you may need to
alter the wall just behind the drain connection on
the unit to accommodate the drain.
CUTOUT DIMENSIONS
PRODUCT DIMENSIONS
REAR
FRONT
TOP
SIDE
4"
(102 mm)
7"
(178 mm)
17 7⁄8"
(454 mm)
33 7⁄8"
(860 mm)
to
34 7⁄8"
(886 mm)
Preferred location
for electrical outlet
is in adjacent
cabinet.
24"
(610 mm)
5⁄8"
(16 mm)
8 3⁄4”
(222 mm)
5 5⁄8”
(143 mm)
1 7⁄8”
(48 mm)
Water In & Drain
Power Cord
7 7⁄8”
(200 mm)
28”
(711 mm)
17 3⁄4”
(451 mm)
33 11⁄16” to 34 11⁄16”
(856 mm to
881 mm)
3 5⁄8” to 4 5⁄8”
(92 mm to
118 mm)
21 1⁄8”
(537 mm)
20 1⁄8”
(511 mm)
1 7⁄8
”
(48 mm)
25 7⁄8”
(657 mm)
12 1⁄16”
(306 mm)
24”
(610 mm)
4 5⁄8 ”
(117 mm)
8
USER GUIDE

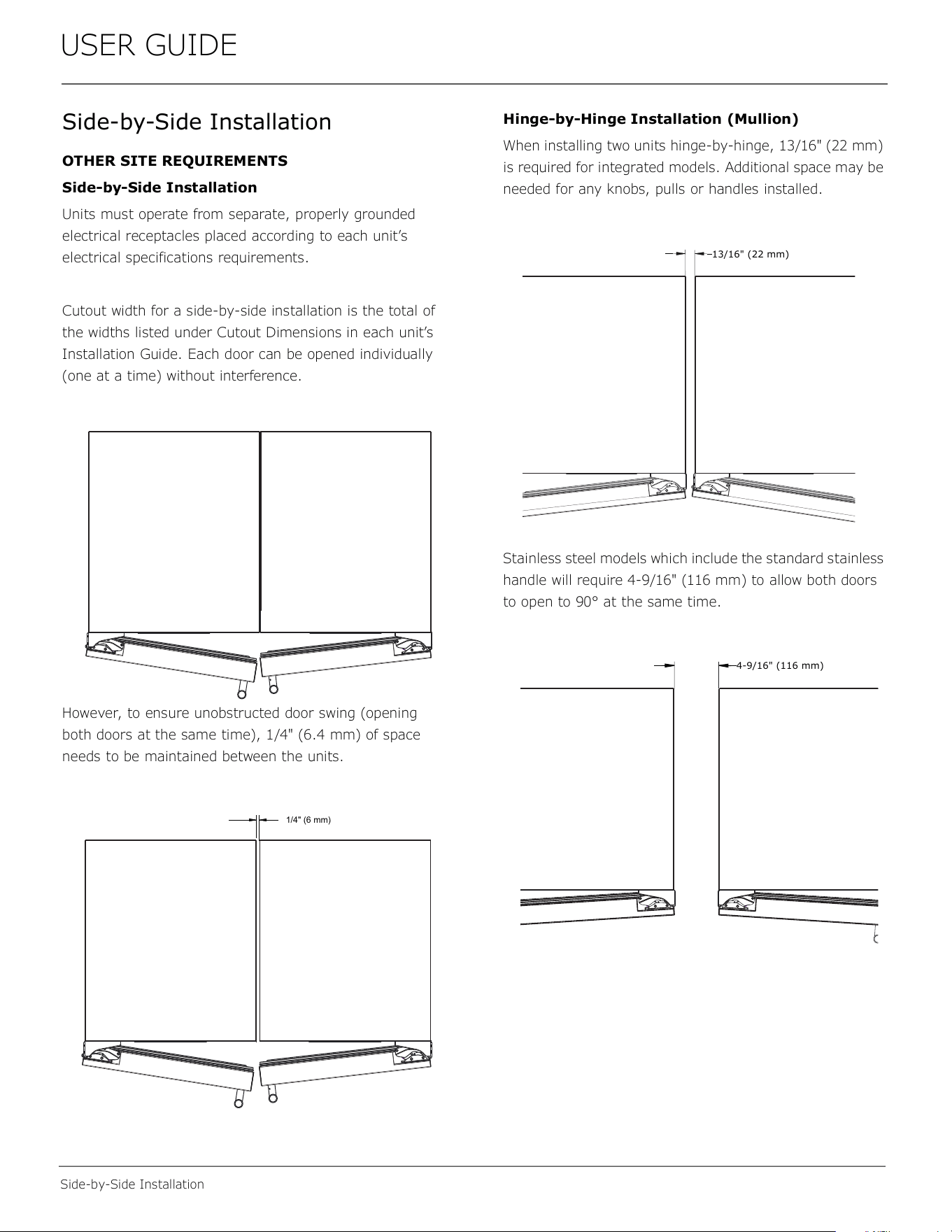

Side-by-Side Installation
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Cutout width for a side-by-side installation is the total of
the widths listed under Cutout Dimensions in each unit’s
Installation Guide. Each door can be opened individually
(one at a time) without interference.
However, to ensure unobstructed door swing (opening
both doors at the same time), 1/4" (6.4 mm) of space
needs to be maintained between the units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16" (22 mm)
is required for integrated models. Additional space may be
needed for any knobs, pulls or handles installed.
Stainless steel models which include the standard stainless
handle will require 4-9/16" (116 mm) to allow both doors
to open to 90° at the same time.
1/4" (6 mm)
13/16" (22 mm)
4-9/16" (116 mm)
9
USER GUIDE
Water Hookup
USER GUIDE
Door Swing 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

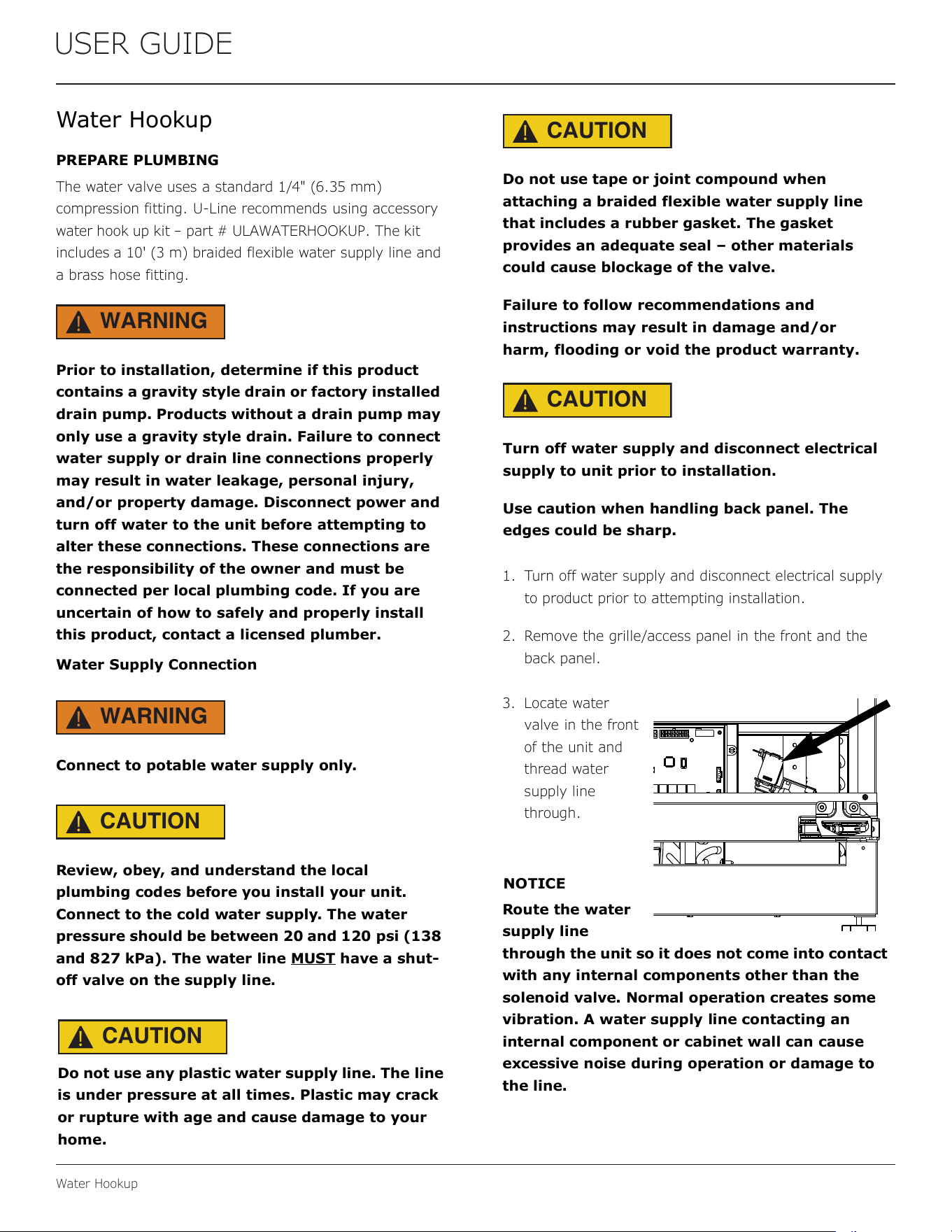

Water Hookup
PREPARE PLUMBING
The water valve uses a standard 1/4" (6.35 mm)
compression fitting. U-Line recommends using accessory
water hook up kit – part # ULAWATERHOOKUP. The kit
includes a 10' (3 m) braided flexible water supply line and
a brass hose fitting.
WARNING
!
Prior to installation, determine if this product
contains a gravity style drain or factory installed
drain pump. Products without a drain pump may
only use a gravity style drain. Failure to connect
water supply or drain line connections properly
may result in water leakage, personal injury,
and/or property damage. Disconnect power and
turn off water to the unit before attempting to
alter these connections. These connections are
the responsibility of the owner and must be
connected per local plumbing code. If you are
uncertain of how to safely and properly install
this product, contact a licensed plumber.
Water Supply Connection
WARNING
!
Connect to potable water supply only.
CAUTION
!
Review, obey, and understand the local
plumbing codes before you install your unit.
Connect to the cold water supply. The water
pressure should be between 20 and 120 psi (138
and 827 kPa). The water line MUST
have a shut-
off valve on the supply line.
CAUTION
!
Do not use tape or joint compound when
attaching a braided flexible water supply line
that includes a rubber gasket. The gasket
provides an adequate seal – other materials
could cause blockage of the valve.
Failure to follow recommendations and
instructions may result in damage and/or
harm, flooding or void the product warranty.
CAUTION
!
Turn off water supply and disconnect electrical
supply to unit prior to installation.
Use caution when handling back panel. The
edges could be sharp.
1. Turn off water supply and disconnect electrical supply
to product prior to attempting installation.
2. Remove the grille/access panel in the front and the
back panel.
Do not use any plastic water supply line. The line
is under pressure at all times. Plastic may crack
or rupture with age and cause damage to your
home.
!
CAUTION

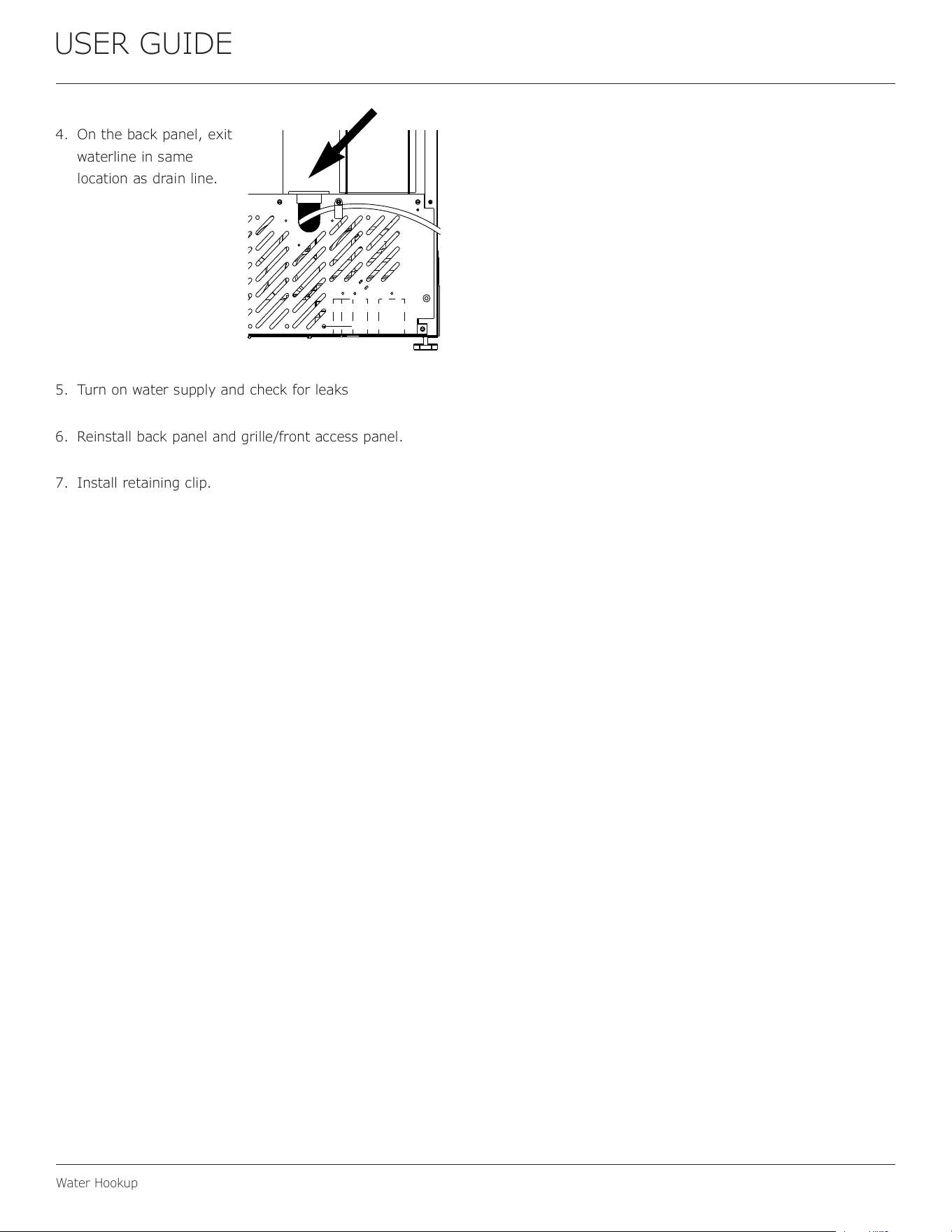

3. Locate water
valve in the front
of the unit and
thread water
supply line
through.
NOTICE
Route the water
supply line
through the unit so it does not come into contact
with any internal components other than the
solenoid valve. Normal operation creates some
vibration. A water supply line contacting an
internal component or cabinet wall can cause
excessive noise during operation or damage to
the line.
10
USER GUIDE
Water Hookup
USER GUIDE
Door Swing 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
4. On the back panel, exit
waterline in same
location as drain line.
5. Turn on water supply and check for leaks
6. Reinstall back panel and grille/front access panel.
7. Install retaining clip.
11
USER GUIDE
Drain
If your U-Line unit did not come with a factory
installed drain pump you must use a gravity
style drain connection. For assistance in
determining if your unit has a pump please
contact U-Line. The oor drain must be large
enough to accommodate drainage from all
attached drains. Follow these guidelines when
installing drain lines to prevent water from
owing back into the ice maker storage bin and/
or potentially owing onto the oor, which may
result in personal injury or property damage
Failure to connect water supply or drain line
connections properly can result in personal injury
and property damage. Gravity drain connections
must be routed downward from the rest of the
unit at the rate of 1/4” per foot (1 cm per 50 cm).
Drain can NOT be located directly below the
unit. Unit has a solid base that will not allow the
unit to drain below itself.
There is a possibility that hose connections may
have loosened during shipment.
Verify all connections and ttings are free from
leaks.
This equipment is to be installed with adequate
backow protection to comply with applicable
federal, state and local codes
Model numbers including “CL” or “NB” do not include a
factory installed drain pump.
Model numbers including “CP” or “NP” include a factory
installed drain pump.
A gravity drain may be used if:
Drain line has at least a 1” drop per 48” (approximately
2 cm drop per 100 cm) of run.
Drain line does not create traps and is vented per local
code.
1. Cut the pre-installed drain tube to length.
2. Connect to your local plumbing per the local code.
3. If necessary, insulate drain line to prevent
condensation.
DRAIN CONNECTION
GRAVITY DRAIN
NOTICE
Drain
CAUTION
!
CAUTION
!
CAUTION
!
Normal
Proper Drain
With Trap
Poor Drainage, Water Will Back Up
With Trap and Vent
Proper Drain
12
USER GUIDE
Drain
The maximum lift for the drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
factory installed drain pump.
If you need to install a drain pump into your unit, see
DRAIN PUMP section in the User Manual.
To order a drain pump, order part number
80-54147-00 online at u-line.com.
See below for typical installations requiring a drain pump.
FACTORY INSTALLED DRAIN PUMP
NOTICE
Cold
Water
Hot
Water
Waste
Waste
Shut-Off
Valve
Air Gap
(Optional Hook-Up)
Cold
Water
Hot
Water
Waste
Shut-Off
Valve
Waste
Cold
Water
Shut-Off
Valve
Hot
Water
Air Gap
(Optional Hook-Up)
Y-Branch Tailpiece
Drain Pump
13
USER GUIDE
Drain Pump
Drain Pump
NOTICE
PLEASE READ this instruction completely before
attempting to install or operate the unit.
Improper hook-up can result in substantial
property damage! If you are unsure of your
ability to safely connect the drain pump to the
unit, consult a licensed plumber for assistance.
Use these instructions to install the U-Line
drain pump in the U-Line Clear Ice Machine
(unit). The drain pump should be installed
before installing the unit.
• The U-Line drain pump (part # 80-54147-00) is
designed to be used exclusively on the U-Line Clear
Ice Machine and is UL recognized only for use on the
U-Line Clear Ice Machine.
• U-Line Corporation assumes no warranties or
responsibility, whether express or implied, if the drain
pump is used on another ice machine or product for
which it is not UL recognized or listed.
• Modification of the drain pump will void all warranties.
NOTICE
Keep your proof of purchase for warranty
purposes.
INCLUDED IN KIT:
1. 1x S-shaped Drain Tube
(Not used)
2. 1x Straight Drain Tube
3. 1x Vent Tube
4. 1x Braided Discharge Tube
(Not included in pump kit.
Ice Machine ships with
discharge tube installed.)
5. 2x Vent tube Zip Ties
6. 2x Small Worm Gear
Clamps
7. 1x Large Worm Gear
Clamp
8. 1x P60 Pump
9. 1x Discharge Tub
(Used on older models only)
TOOLS REQUIRED:
• 1/4" x 6" Blade Screwdriver
• Adjustable Pliers
• 1/4" Nut Drive
1
3
4
5
6
7
2
9
14
USER GUIDE
Drain Pump
u-line.com
INSTALLATION PROCEDURE
WARNING
!
To prevent accidental electrocution, make
certain that the floor surfaces surrounding the
unit are dry whenever power/electricity is
removed from, or applied to the unit.
1. Disconnect your unit from its electrical outlet/socket.
2. Use a screwdriver, push the power/electric cord
grommet through its seat in the back panel.
3. Using a screwdriver or 1/4" nut driver, remove the 12
screws from the back panel.
4. Remove the drain line/pipe from the storage bin drain
nipple. Save the clamp for pump installation.
CAUTION
!
To prevent damage to the pump, leave sufficient
space between leveling leg and pump.
5. Fully extend the left rear leveling foot.
Note: Slide clamp on hose end
before installing hose. Do not
tighten clamp until pump and
hoses have been installed.
6. Install the 3 hoses and hose
clamps to the pump assembly
as shown below. Do not tighten
clamps at this time.
7. Remove the protective paper from the adhesive strip
and carefully set pump inside of unit.
8. Unplug jumper block from ice
machine wiring harness
(jumper block has a single
pink wire). Discard jumper
block.
9. Connect pump wiring plug
to the ice machine wiring
harness connector, where
the jumper block was
removed. The connector is
keyed and can only be
inserted one way.
CAUTION
!
When working with tools inside of unit, be
careful so as not to nick or damage any
refrigerant lines/pipes or wires.
Discharge Tube Connector
Drain Tube Connector
Vent Tube Connector
Pump Assembly
Ground Terminal
Wiring Plug
8
Drain Tube
Vent Tube
Discharge Tube
Jumper
Block
Pump Wiring
Plug
15
USER GUIDE
Drain Pump
WARNING
!
The back panel serves as a guard. Do not put
your hands inside the ice machine cabinet or
attempt to touch any components except the
discharge tube during testing.
CAUTION
!
Failure to properly secure the vent tube will
result in water damage to the unit and
surrounding areas. Do not allow vent tube to
kink, bend or be obstructed in any way.
CAUTION
!
Vent tube must be straight and parallel to
insulated tubes. Do not over-tighten the plastic
tie wraps. Over-tightening can pinch vent tube
closed or cut into insulation.
10.Route the vent tube up the back of the unit, next to
the insulated tubes. Secure vent tube vertical to the
insulated tubes using plastic tie wraps.
11.Connect pump
drain tube to
storage bin drain
nipple with clamp
removed from step
3. Ensure that no
kinks are present
in the tube.
12.Tighten the clamps
on the drain, discharge, and vent tubes with a
screwdriver or 1/4" nut driver.
16
USER GUIDE
General Installation
General Installation
LEVELING INFORMATION
1. Use a level to
conrm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
2. If the unit is not level, adjust the legs on the corners of
the unit as necessary.
3. Conrm the unit is level after each adjustment and
repeat the previous steps as needed.
INSTALLATION TIP
If the room oor is higher than the oor in the cutout
opening, adjust the rear legs to achieve a total unit rear
height of
1⁄8” (3 mm) less than opening’s rear height.
Shorten the unit height in the front by adjusting the front
legs. This allows the unit to be gently tipped into the
opening. Readjust the front legs to level the unit after it is
correctly positioned in the opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord or water and drain lines, if
applicable.
3. Re-check the leveling, from front to back and side to
side. Make any necessary adjustments. The unit’s top
surface should be approximately
1⁄8” (3 mm) below
the countertop.
4. Install the anti-tip bracket.
5. Remove interior packing material and wipe out the
inside of the unit with a clean, water-dampened cloth.
1
Turn to Adjust
17
USER GUIDE
Grille Installation
Grille Installation
REMOVING AND INSTALLING GRILLE
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille must be installed.
Do NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Remove the three screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
2. Reconnect power to the unit.
WARNING
!
WARNING
!
CONDENSER
2
1
18
USER GUIDE
Door Swing
Door Swing
For Integrated models that are installed adjacent to a wall,
1/2" (13 mm) clearance is recommended from wall on
hinge side to allow the door to open 90°. Allow for
additional space for any knobs or pulls installed on the
integrated panel/frame.
Stainless Steel models that are installed adjacent to a wall
require 2-1/4" (57 mm) door clearance on hinge side to
allow for door handle.
Units have a zero clearance when installed adjacent to
cabinets.
Wall
Wall
90°
Door Swing
90°
Door Swing
Space Required
For any Knobs or Pulls
2-1/4" MIN
(57 mm MIN)
Integrated
Stainless
1/2" (13 mm)
19
USER GUIDE
Door Stop
Door Stop
Your U-Line unit was shipped to you with the optional 90°
pin.
Your unit’s door(s) will open 115° straight from the
factory. If you would like the door stop at 90°, follow these
instructions.
NOTICE
If your unit is already undercounter, it will need
to be moved out to access the hinge.
1. Open door approximately 90°.
2. Slide hinge pin into hole as shown. Pin should slide into
place, stopping the door at 90°; if the pin does not go
into the hole shown, hold the door less than 90° open
and try again.
3. To fully seat the pin, tap it lightly with a hammer.
4. Carefully slide your unit back in place.
NOTICE
The pin can be removed to return the door swing
back to its original 115° swing by tapping the pin
out from the bottom of the hinge.
CLOSER
The door hinge has a self-closing feature that engages
when the door is open approximately 6” (150 mm) (about
25°).
20
USER GUIDE
Door Adjustments
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or not sealing
properly. If the door is not sealed, the unit may not cool
properly, or excessive frost or condensation may form in
the interior.
NOTICE
Properly aligned, the door’s gasket should be
rmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is rmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
Do not attempt to use the door to raise or pivot
your unit. This would put excessive stress on the
hinge system.
Alignment and Adjustment Procedure
1. Open door and remove gasket by taking hold of one
corner of the gasket and gently pulling it toward the
center of the door.
This will expose
the gasket chan-
nel.
2. Near each hinge
in the gasket
channel are 2 Torx
head adjustment
screws. Loos-
en each pair of
screws on both the
upper and lower
hinges.
3. Square and align
door as necessary.
4. Tighten all screws
on hinges.
5. Reinstall gasket into the channel starting at one
corner.
REVERSING THE DOOR
PLEASE READ BEFORE STARTING:
As a convenience to you, this product is equipped
with a door that can be reversed. In order for the
door to function properly on either side of the
unit, one of the hinges is mounted with a spacer
and 2 Phillips head screws. The other hinge does
not have a spacer and is fastened to the unit with
2 Torx head screws. (Most machines come from
the factory with the door mounted on the right
side - handle on the left, hinges on the right.
To prevent stripping or breaking the screws, do
not use power tools during this procedure.
1. Open door.
2. Locate the hinge that has the spacer. Loosen, but do
not remove the 2 Phillips screws - the spacer will also
remain in place.
3. At the opposite
hinge, remove the
inside Torx screw
and set aside.
Loosen the outside
Torx screw, but do
not remove.
4. To remove the
door, slide the door
toward the outside
of the unit until the
door can be freely
pulled forward. Set
the door aside.
Torx Head Screws
Gasket Channel
Torx Head Screws
CAUTION
!
CAUTION
!
NOTICE
Loosen,
do not remove
2 Phillips screws
The 2 Phillips screws and
spacer must remain
with the same hinge
Loosen outside
Torx screw
Remove inside
Torx screw
Slide door
toward outside
Slide door
toward outside
Spacer
21
USER GUIDE
Door Adjustments
5. On the non-hinge side of the unit, remove the 4 Torx
head screws and set aside, but do not discard.
6. On the hinge side of the unit, remove the 2 Phillips
screws and the spacer as well as the 1 Torx screw.
7. Install the spacer and the same 2 Phillips screws on
the opposite corner of the machine - i.e., if the 2
Phillips screws and spacer were installed on the top
right corner of the machine, you must install the two
Phillips screws and spacer on bottom left corner of the
machine. Leave the screws loose enough for the door
to be remounted.
8. Install just the outside screw in the opposite corner.
Leave the screw loose enough for the door to be
remounted.
9. Rotate door 180º, align the hinges over the 3 screws,
and slide/seat into position.
10. Install the inside Torx screw and then tighten all 4
screws.
11. In the open holes on the side where the door had been
removed, install the 4 Torx head screws that had been
set aside.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT AND
ADJUSTMENT).
22
USER GUIDE
First Use
First Use
All U-Line controls are preset at the factory. Initial startup
requires no adjustments. See CONTROL OPERATION
section for more details.
NOTICE
U-Line recommends discarding the ice produced
during the first two to three hours of operation
to avoid possible dirt or scale that may dislodge
from the water line.
When plugged in, the unit will begin operating under the
factory default settings. If the unit was turned off during
installation, simply press and the unit will immediately
switch on. To turn the unit off, press and release.
23
USER GUIDE
Control Operation
USER GUIDE
Control Operation 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Control Operation
U-SELECT
®
CONTROL
Digital Display
The 3000 Series units are controlled by a feature rich,
advanced OLED display control unit. The control panel
allows adjustment to temperature set point, access to
Energy Saver Mode, internal temperature readings, and
many other features.
U-Select Lighting
1. To begin, press to enter the lighting menu.
2. Press or to cycle through each available
brightness setting (Low, Medium or High).
3. Press to cycle through each available timer setting.
Selections include “On With Door”, “On 3 Hours”, “On 6
Hours”, or “On 24 Hours”.
4. To exit, press or simply wait for the menu to time
out.
CUSTOMER MENU
The 3000 Series of U-Line undercounter refrigeration
appliances contains a feature rich customer menu. The
Customer Menu allows access to a series of advanced
features including Energy Saver Mode, Sabbath Mode,
actual temperature readings as well as a method to
restore factory defaults.
Up
Select
Zone Toggle
Down
Power
ICE PRODUCTION
U-Select Lighting
CONTROL FUNCTION GUIDE
FUNCTION COMMAND DISPLAY/OPTIONS
OFF Press and hold Display will count down from 5 to off.
ON Press and release Unit will come on immediately.
Adjust lighting Press to adjust lighting Press to set low, medium or high.
Customer menu Press and hold for 5 seconds Press to scroll through menu.
Service menu Press and hold for 5 seconds Press to scroll through menu.
or
or
or
or
Up
Select
Down
U-Select Lighting
Power
Sabbath Mode
Press
and hold. Press and release
No new ice will form when the unit is off. Ice will
melt and pump-equipped models will continue to
remove water as needed.
to restart unit.
24
USER GUIDE
Control Operation
USER GUIDE
Control Operation 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
3000 Series - Customer Menu
1. To access the Customer Menu hold for 5 seconds.
2. Press or to scroll through available selections.
3. Press to enter selected sub-menu.
4. To exit Customer Menu, press to scroll to the
bottom of the display and press to select “Exit”.
Actual Temps
The Actual Temps option displays the actual temperature
of the ice bin and condenser, as well as ambient
temperature.
1. To view actual temperature, press and select
“Actual Temps” from the Customer Menu.
2. Press or to scroll through available information.
3. To return to the Customer Menu, press and select
“Return to Menu”.
Energy Saver Mode
Energy Saver mode reduces overall energy consumption
by reducing the amount of ice stored in the bin, along with
decreasing the lighting.
1. To enter Energy Saver Mode, first select Energy Saver
from the Customer Menu.
2. Press to select “Off” in the menu.
3. Press .
4. Press or to change the selection from Off to On.
5. Press to confirm your selection.
6. To return to the Customer Menu, press and select
“Return to Menu”.
7. To cancel Energy Saver Mode simply return to the
Customer Menu, select Energy Saver and change “On”
to “Off”.
Up
Select
Down
WELCOME TO THE
CUSTOMER MENU. USE
UP/DOWN ARROWS TO
SCROLL SETTINGS.
Up
Select
Down
RETURN TO MENU
ACTUAL TEMPS
BIN TEMP = 1.6
COND TEMP = 45.5
Can be displayed in Celsius
Up
Select
Down
Energy Saver Mode
Indicator
ICE PRODUCTION
(12m remaining)
25
USER GUIDE
Control Operation
USER GUIDE
Control Operation 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Languages
The U-Line 3000 Series of models supports a number of
display languages including English, Spanish, French,
German and Italian.
1. To change display language select Languages from the
Customer Menu.
2. Press to select “English”.
3. Press . “English” will begin to flash.
4. Press or to cycle through the available
languages.
5. Press to confirm your choice.
Sound Level
Audible alarms and alert tones support four different
Sound Level settings, High, Medium, Low, and Off.
To select a new tone level, enter the Sound Level Menu
from the Customer Menu.
1. Press
or
to select the current sound level.
2. Press . The current setting will begin to flash.
3. Press or to select a different level.
4. Press to confirm your choice.
Fahrenheit / Celsius
Temperature and set point information can be displayed in
either Fahrenheit or Celsius.
To change from Fahrenheit to Celsius enter the
Fahrenheit / Celsius Menu from within the Customer
Menu.
1. Press to select “Degrees”.
2. Press . The selection will begin to flash.
3. Press or to select between °F (Fahrenheit) or °C
(Celsius).
4. Press to confirm your choice.
Up
Select
Down
RETURN TO MENU
LANGUAGES
ENGLISH
Up
Select
Down
RETURN TO MENU
SOUND LEVEL
HIGH
Up
Select
Down
RETURN TO MENU
FARENHEIT/CELSIUS
DEGREES = °F
26
USER GUIDE
Control Operation
USER GUIDE
Control Operation 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Clean Cycle
A clean cycle can be initiated through this menu. Once the
cleaning cycle starts, the cycle cannot be stopped until
complete.
To initiate a clean cycle, select “Clean Cycle” from the
Customer Menu. Please refer to CLEANING section
regarding proper cleaning procedure.
1. Press to select “Clean Cycle”.
2. Press . The clean cycle will now begin.
3. Refer to CLEANING section regarding proper cleaning
procedure.
Silent Mode
Users can halt ice production for 3 hours with an option
called “Silent Mode” in the Customer Menu. Silent Mode
will begin once the current ice making cycle is complete.
After 3 hours in Silent Mode, normal ice production will
continue.
NOTE: Silent Mode will not silence any alerts.
To initiate Silent Mode, enter Silent Mode Menu from
within the Customer Menu.
To activate Silent Mode:
1. Press to select “Silence?”.
2. Press . Silent Mode will now begin.
To cancel Silent Mode:
1. Press to select “Cancel?”.
2. Press . Silent Mode will end.
Ice Adjust
The Ice Adjust option adjusts ice thickness by adding or
subtracting up to 5 minutes of ice production.
To change the ice thickness, enter the Ice Adjust Menu
from within the Customer Menu.
To adjust thickness:
1. Press to select “Ice Adjust”.
2. Press . The selection will begin to flash.
3. Press to make the ice thicker or to make the ice
thinner.
4. Press to confirm your choice.
Up
Select
Down
RETURN TO MENU
CLEAN CYCLE
CLEAN?
Up
Select
Down
RETURN TO MENU
SILENT MODE
SILENCE?
Up
Select
Down
RETURN TO MENU
ICE ADJUST
ICE ADJUST = 0
27
USER GUIDE
Control Operation
USER GUIDE
Control Operation 5
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Help
To access the Help Menu, select “Help” from the Customer
Menu. Press or to scroll through available
information.
To return to the Customer Menu, press to select
“Return to Menu” and press to confirm.
Up
Select
Down
RETURN TO MENU
Help
Model 3018CLR
1-800-779-2547
28
USER GUIDE
First Use
USER GUIDE
Ice 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Ice
ICE CUBE THICKNESS ADJUSTMENT
NOTICE
Ice thickness adjustment should only be made
one increment at a time. Allow ice maker
production to stabilize for 24 hours before
rechecking ice thickness.
Ice is produced in layers resulting in a clear cube. Ice in
bin may develop surface frost which disappears when cube
is placed in liquid.
Ice cubes in any given batch will vary, so it is necessary
to choose cubes from the sample area for comparison
when making adjustments.
The ice cube thickness is factory set for best overall
performance. The factory setting “0” is designed to
maintain an ice bridge of approximately 1/16" to 1/8"
(1.6 mm to 3.2 mm) under normal conditions, resulting in
a dimple of approximately 1/4" to 1/2" (6.4 mm to
12.7 mm) in depth. A fuller cube with less of a dimple
results in a thicker ice bridge. As the ice bridge thickens,
the tendency for the cubes to stay together as a slab
increases. A bridge thicker than 1/8" (3.2 mm) may cause
cubes to overfill the ice bucket.
32 ice cubes are formed on a 4 x 8 slab during each cycle.
Each cycle takes approximately 15-20 minutes at the
default cube thickness (0).
Your clear ice machine is pre-set to produce ice between
the optimal dimensions illustrated below:
DIMPLES
ICE BRIDGE
7/8"
(22 mm)
7/8"
(22 mm)
1/4" TO 1/2"
(6.4 mm to 12.7 mm)
DIMPLE
1/16" TO 1/8"
(1.6 mm to 3.2 mm)
ICE BRIDGE
Cube Details
Factory Default Setting - 0
THINNER BRIDGE THICKER BRIDGE
DEEPER DIMPLE SHALLOWER DIMPLE
< 0
SETTING
> 0
SETTING
Adjust ice thickness as follows:
and hold for 5 seconds to enter the
Customer Menu.
2. Press to select “Ice Adjust”.
3. Press . The selection will begin to flash.
4. Press to make the ice thicker or
to make the ice
thinner.
Press to confirm your choice.
Up
Select
Down
RETURN TO MENU
ICE ADJUST
ICE ADJUST = 0
1. Press
and
ICE ADJUST
29
USER GUIDE
Airow and Product Loading
USER GUIDE
Airflow and Product Loading 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Airflow and Product Loading
NOTICE
The unit requires proper airflow to perform at its
highest efficiency. Do not block the front grille at
any time, or the unit will not perform as
expected. Do not install the unit behind a door.
30
USER GUIDE
u-line.com
Cleaning
Using abrasive pads such as ScotchBrite™ will
cause the graining in the stainless steel to
become blurred.
Rust not cleaned up promptly can penetrate the
surface of the stainless steel and complete
removal of the rust may not be possible.
For information on Keg and Tap Towers, please reference
the Single and Double Tap Tower Kits User Guide on
u-line.com.
Integrated Models
To clean integrated panels, use household cleaner per the
cabinet manufacturer’s recommendations.
INTERIOR CLEANING
Disconnect power to the unit.
Clean the interior and all removed components using a mild
nonabrasive detergent and warm solution applied with a
soft sponge or non-abrasive cloth.
Rinse the interior using a soft sponge and clean water.
Do not use any solvent-based or abrasive
cleaners. These types of cleaners may transfer taste
and/or odor to the interior products and damage or discolor
the interior.
CLEAR ICE MACHINE CLEANING CYCLE
Your U-Line clear ice machine has an automatic clean
alert function. Cleaning cycles should be run as notied.
Otherwise, to maintain operational eciency the unit
should be cleaned every three months. Depending on water
conditions, more frequent cleaning may be necessary. If
the ice machine requires more frequent cleaning, consult
a plumber to test the water quality and recommend
appropriate treatment.
Wear rubber gloves and safety goggles and/or
face shield when handling Ice Machine Cleaner.
Clean surfaces with a mild detergent and warm water
solution. Do not use solvent-based or abrasive cleaners.
Use a soft sponge and rinse with clean water. Wipe with a
soft, clean towel to prevent water spotting.
Clean any glass surfaces with a non-chlorine glass
cleaner.
EXTERIOR CLEANING
Vinyl Clad (Black or White) Models
Stainless Models
Stainless door panels, handles and frames can discolor
when exposed to chlorine gas, pool chemicals, saltwater or
cleaners with bleach.
Keep your stainless unit looking new by cleaning with a
good quality all-in-one stainless steel cleaner and polish
monthly. For best results use Claire
®
Stainless Steel
Polish and Cleaner. Comparable products are acceptable.
Frequent cleaning will remove surface contamination that
could lead to rust. Some installations may require cleaning
weekly.
Do not clean with steel wool pads.
Do not use stainless steel cleaners or polishes on
any glass surfaces.
Clean any glass surfaces with a non-chlorine glass cleaner.
Do not use cleaners not specically intended for
stainless steel on stainless steel surfaces (this
includes glass, tile, and counter cleaners).
If any surface discoloring or rusting appears, clean it
quickly with Bon-Ami
®
or Barkeepers Friend Cleanser
®
and
a nonabrasive cloth. Always clean with the grain. Always
nish with Claire
®
Stainless Steel Polish and Cleaner or
comparable product to prevent further problems.
Cleaning
CAUTION
!
31
USER GUIDE
u-line.com
Cleaning
NOTICE
Use only U-Line Clear Ice Machine Cleaner
(80-55667-00), available for purchase from
u-line.com or your dealer. It is a violation of
federal law to use this solution in a manner
inconsistent with its labeling. Use of any other
cleaner can ruin the nish of the evaporator and
will void the warranty. Read and understand all
labels printed on the package before use.
U-Line Clear Ice Machine Cleaner is used to remove lime
scale and other mineral deposits. Refer to the following
steps to initiate the self-cleaning cycle.
Never use anything to force ice from the
evaporator. Damage may result.
1. Turn the ice machine o and allow any ice to melt o
of the evaporator.
2. Remove all ice from the storage bin.
3. Remove evaporator cover.
4. Remove the standpipe by
lifting it up while using
a slight back and forth
motion to loosen it from
the drain hole. The water
in the reservoir will ow
down the drain.
5. Re-install the standpipe into the water trough.
6. Clean the Interior Bin as
follows:
• Dilute 1-2 oz. of Clear Ice
Machine Cleaner into two
quarts of water.
• Using a sponge or cloth, clean interior of ice bin,
tubing and door. This cleaner will remove all mineral
deposits and other contaminants from the surfaces.
CAUTION
!
• Using a bottle brush, clean
out the trough drain tube
and pump tubing where
needed.
7. Turn unit on by pressing .
8. Place unit into CLEAN mode by holding for several
seconds - until you hear the cleaning mode begin.
9. When water begins owing over the evaporator
(approximately 3 minutes), pour 1-2 oz. of Clear Ice
Machine Cleaner into the water trough. The cleaning
process will last approximately 45 minutes.
10. Dilute 1 tablespoon bleach in 1 gallon of warm water.
Apply this solution to the entire inside of the storage
area. Then rinse thoroughly with water.
The unit will resume operation approximately 15 minutes
after the automated cleaning process is completed. The
water ll valve will energize, ll the water reservoir, and
shut-o after three minutes. The compressor begins to
operate and water ows over the evaporator assembly
(ice mold). Initially, the water ow may not be uniform,
causing uneven sized cubes or water to spill into the ice
storage bin. This is a normal situation that will correct
itself within the rst 24 hours of operation.
NOTICE
Discard all ice produced in the rst harvest.
Should power to the unit be interrupted during
the self-clean cycle, it will be necessary to
repeat the complete cleaning cycle after power is
restored.
Evaporator cover
Standpipe
Evaporator
Water trough
ULIN_0060_A
Brush
32
USER GUIDE
Cleaning Condenser
Condenser
Cleaning Condenser
INTERVAL - EVERY SIX MONTHS
To maintain operational eciency, keep the front grille free
of dust and lint, and clean the condenser when necessary.
Depending on environmental conditions, more or less
frequent cleaning may be necessary.
Disconnect electric power to the unit before
cleaning the condenser.
DO NOT touch the condenser ns. The condenser
ns are SHARP and can be easily damaged.
NOTICE
DO NOT use any type of cleaner on the condenser
unit.
1. Remove the grille. (See GRILLE INSTALLATION).
2. Clean the condenser coil using a soft brush with a
“combing” action or vacuum cleaner. Do not touch the
condenser coil.
3. Install the grille.
WARNING
!
WARNING
!
33
USER GUIDE
Extended Non-Use
Extended Non-Use
VACATION/HOLIDAY, PROLONGED SHUTDOWN
The following steps are recommended for periods of
extended non-use:
1. Remove all consumable content from the unit.
2. Disconnect the power cord from its outlet/socket
and leave it disconnected until the unit is returned to
service.
3. Turn o the water supply.
4. If ice is on the evaporator, allow ice to thaw naturally.
5. Clean and dry the interior of the cabinet. Ensure all
water has been removed from the unit.
6. Disconnect the water and drain line (if applicable)
making sure all water is removed from the lines.
7. The door must remain open to prevent formation of
mold and mildew. Open door a minimum of 2” (50
mm) to provide the necessary ventilation.
WINTERIZATION
If the unit will be exposed to temperatures of 40°F (5°
C) or less, the steps above must be followed. In
addition, drain pumps in clear ice machines must be
drained according to the following procedure:
1. Remove the drain pump from the ice machine.
2. Drain the water in the pump’s reservoir by turning the
pump upside down and allowing the water to drain
through the pump’s inlet and vent tube ttings.
3. After water is drained, reinstall the drain pump and
reattach all connections.
For questions regarding winterization, please call
U-Line at 414.354.0300.
CAUTION
!
Damage caused by freezing temperatures is not
covered by the warranty.
Do not put anti-freeze in your unit.
34
USER GUIDE
Troubleshooting
If you think your U-Line product is malfunctioning, read
the CONTROL OPERATION section to clearly understand
the function of the control.
If the problem persists, read the NORMAL OPERATING
SOUNDS and TROUBLESHOOTING GUIDE sections below
to help you quickly identify common problems and
possible causes and remedies. Most often, this will resolve
the problem without the need to call for service.
If your product needs service, please go to
www.U-Line.com and navigate to the Find a Servicer page
to locate a U-Line Authorized servicer. If your product is in
warranty please make sure to register it at
www.U-Line.com/u-lineregistration. If you have any
issues following this process you can contact the U-Line
Corporation by phone at +1.414.354.0300
If you call, you will need your product Model and Serial
Numbers. This information appears on the Model and Serial
number plate located on the interior of your product, most
often placed on the ceiling.
All models incorporate rigid foam insulated cabinets to
provide high thermal eciency and maximum sound
reduction for its internal working components. Despite this
technology, your model may make sounds that are
unfamiliar.
Normal operating sounds may be more noticeable because
of the unit’s environment. Hard surfaces such as cabinets,
wood, vinyl or tiled oors and paneled walls have a
tendency to reect normal appliance operating noises.
Listed below are common refrigeration components with a
brief description of the normal operating sounds they
make. NOTE: Your product may not contain all the
components listed.
• Compressor: The compressor makes a hum or pulsing
sound that may be heard when it operates.
BEFORE CALLING FOR SERVICE
TROUBLESHOOTING GUIDE
ELECTROCUTION HAZARD. Never attempt to
repair or perform maintenance on the unit
before disconnecting the main electrical power.
Troubleshooting - What to check when problems occur:
NORMAL OPERATING SOUNDS
Troubleshooting
• Evaporator: Refrigerant owing through an evaporator
may sound like boiling liquid.
• Condenser Fan: Air moving through a condenser may
be heard.
• Running Water: As your unit continues to produce
ice you will hear water owing into the collection
chambers and running through the evaporator.
DANGER
!
Problem Possible Cause and Remedy
Unit Does Not
Operate.
Electronic
Display Blank.
No electrical supply. Plug unit in or
check
circuit breaker.
Display
Showing Error
Code.
If display shows error “dr”, check to
make sure door is sealing correctly.
Make sure to close door completely. If
sealing the door
does not clear the error, contact U-Line
service for more information.
Unit Develops
Condensation
on External
Surfaces.
The unit is exposed to excessive
humidity.
Moisture will dissipate as humidity
levels decrease.
Poor Ice
Quality.
Unit may not be level. Check if unit is
level.
Ice maker system may be dirty. Clean
the ice maker.
No Ice
Production.
Ensure water is being supplied to the
unit.
Verify the ice making unit is turned on.
Not Enough
Ice.
Ensure the condenser coil is clean and
free of any dirt or lint build-up.
Water in Ice
Bin.
Drain may be restricted, ensure drain
is free of foreign debris.
35
USER GUIDE
Wire Diagram 1
USER GUIDE
Wire Diagram 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Wire Diagram
42353_A WIRING DIAGRAM
GREEN W/YELLOW
(GROUND)
WASTE WATER PUMP
JUMPER PLUG
WITHOUT
P60 WASTE PUMP
GREEN
W/YELLOW
(GROUND)
BLACK
WHITE
PINK (115V)
PINK (115V)
PINK
HOT GAS
VALVE
WATER
VALVE
GREEN W/
YELLOW
(GROUND)
TO COMPRESSOR
BLACK/YELLOW
ORANGE
WATER
PUMP
OVERLOAD
NEUTRAL
HOT
RELAY
EMBRACO
COMPRESSOR
GREEN W/YELLOW
(GROUND)
PINK
LIGHT BLUE (HOT)
WHITE (115V)
DARK BLUE
(220-240V)
WHITE (115V)
DARK BLUE
(220-240V)
PURPLE
PUMP
BLACK (115V)
BROWN
(220-240V)
FAN
115
VOLT
PLUG
CONTROL
BOARD
BIN TEMP
FUSE
16
8
9
1
6
1
10
5
COND TEMP
TEST TERMINAL
LIGHT
PROGRAMING
TO DISPLAY
DOOR SWITCH
OPEN
J9
J10
ANTENNA
1
10
220-240 VOLT
PLUG
DARK BLUE (230V)
DARK BLUE (230V)
YELLOW
WHITE (115V)
DARK BLUE
(220-240V)
WHITE (115V)
DARK BLUE (220-240V)
WHITE (115V)
DARK BLUE (220-240V)
WHITE (115V)
DARK BLUE
(220-240V)
HOT:
BLACK (115V)
BROWN (220-240V)
NEUTRAL:
WHITE (115V)
DARK BLUE (220-240V)
AMBIENT
Wire Diagram
36
USER GUIDE
Product Liability
Product Liability
Field service technicians are authorized to make an initial
assessment in the event of reported damages. If there are
any questions about the process involved, the technician
should call U-Line for further explanation.
While inspecting for defects or installation issues, photos
should be taken to document any damages or issues found.
During the assessment, if the service technician is able to
nd the source of the damage and it can be resolved by
replacement of a part, the servicer is authorized to replace
the part in question. The part that caused the damage
must be returned to U-Line in its entirety. The part must
be clearly labeled with the serial number of the unit it was
removed from, the date, and the servicer who removed the
part.
If the service technician determines the damage is the
result of installation issues (water connection/drain, etc.),
the consumer would be notied and the issues shall be
resolved at the direction of the consumer.
If damage is evident and the service technician is
unable to nd the source, U-Line must be contacted at
+1.414.354.0300 for further direction.
8900 N. 55th Street • Milwaukee, WI 53223
T: +1.414.354.0300 • F: +1.414.354.5696
Website: www.u-line.com
Right product. Right place.
Right temperature Since 1962.
37
USER GUIDE
Parts
Pa rts
U-3018CLRS-40C
Item Description U-Line P/N
1 ANTI TIP BRACKET W/SCREWS 80-54012-00
2 BACK PANEL 80-54142-00
3 CIRCULATION PUMP 80-54137-00
4 CLEAR ICE MACHINE CLEANER * ULACLRCLEAN
5 COMPRESSOR ASSY, R600 80-54376-01
6 CONDENSER ASSEMBLY 80-54079-00
7 CONDENSER FAN BLADE 80-54066-00
8 CONDENSER FAN MOTOR 80-54138-00
9 COVER PUMP, BLACK 80-54073-00
10 COVER W/HOOK, BLACK 80-54072-00
11 DOOR ASSEMBLY W/HINGES 80-54146-00
12 DISPLAY MODULE 80-54032-00
13 DRAIN PUMP, ICE MACHINE 80-54147-00
14 DRAIN TUBE, CLEAR 80-54074-00
15 DRIER 80-54055-00
16 LED LIGHT STRIP AND COVER ASSY 80-54000-00
17 EVAPORATOR ASSEMBLY 80-54063-00
18 GASKET, DOOR, INJECTION MOLDED 80-54003-00
19 GASKET, HORIZONTAL 80-54061-00
20 GRILLE W/SCREWS 80-54031-00
21 HI TEMP THERMISTOR * 80-54070-00
22 HINGE COVER(2 PCS) 80-54001-00
23 HINGES(2) W/SCREWS AND COVERS 80-54013-00
24 HINGE MOUNTING HOLE COVERS(4) 80-54024-00
25 HOT GAS VALVE AND COIL 80-54169-00
26 ICE SCOOP, CLR 80-54080-00
27 LEG LEVELERS(4) 80-54019-00
28 MAIN BOARD(NO CASE OR WIRES) 80-54008-00
29 PACKAGING * 80-54143-00
30 POWER CORD * 80-54144-01
31 PREFORMED DISPERSION TUBE 80-54128-00
32 REED SWITCH ** 80-54134-00
33 STAND PIPE 80-54077-00
34 THERMISTOR(1 PC) 80-54006-00
35 THERMISTOR COVER AND PIN 80-54023-00
36 WATER DISPERSION RECEPTACLE 80-54078-00
37 WATER LINE ASSEMBLY 80-54068-00
38 WATER TROUGH, BLACK 80-54075-00
39 WATER VALVE ASSEMBLY 80-54139-00
40 WIRE HARNESS, BOARD * 80-54342-01
* NOT PICTURED
** REED SWITCH LOCATED BEHIND DISPLAY
5
6
78
15
25
37
39
28
1
2
3
9
10
11 18 19
12
14
16
17
20
22 23
24
26
27
31
33
34
35
36
38
13
38
USER GUIDE
R-600A Specications
USER GUIDE
R-600A Specifications 1
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
R-600A Specifications
For R-600a refrigerant service tips and more videos, go
to: www.u-line.com/videos
.
WARNING
!
Flammability warnings for a pure-iso-butane
refrigerant.
Technician m ust observe all fe deral, state an d local laws regard ing refrigerant s.
Gloves and Eye Protection must be used.
R-600a is considered non-toxic, but is flammable
when mixed with air.
Keep a dry powder type fire extinguisher in the
work area.
R-600a is heavier than air, do not allow any
leakage/migration to low areas such as
basements and stairs.
Never use a torch on a fully charged
refrigeration system.
Never substitute U-Line OEM replacement parts
or methods of construction.
R-600a must be stored and transported in
approved containers.
39
R-600A Specications
USER GUIDE
USER GUIDE
R-600A Specifications 2
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
WARNING
!
Only skilled and well trained service technicians
permitted to service R-600a equipped products.
All tools and equipment must be approved for
use with R-600a refrigerant.
Local, state and federal laws, standards must be
observed along with proper certification and
licensing.
Ventilation is required during servicing.
No conversions to R-600a from any other
refrigerants. OEM R-600a equipped unit only.
Service area must be free of ignition sources.
No smoking is allowed in the service area.
All replacement electrical components must be
OEM and installed properly (sealed and
covered).
If the evaporator is cold prior to service, it must
be thawed prior to service.
When using a vacuum pump, start pump before
opening refrigeration system.
Vacuum pump and recovery equipment should
be at least 10 feet from the work area.
It is recommended that a simple LPG gas
detector is on site during service.
Ensure that all R-600a is removed from the
system prior to brazing any part of the sealed
system.
Only a clean, dry leak free system should be
charged with R-600a.
R-600A SPECIFICATIONS/LABELING
R-600a equipped products are labeled (both the unit and
the compressor).
R-600a is colorless and odorless.
R-600a is considered non-toxic, but is flammable when
mixed with air.
Do not remove or alter any R-600a labeling on the
product.
Use only a refrigerant grade R-600a from a properly
labeled container.
RECOVERING/RECLAIMING R-600A
(R-600a has been exempted from recovery/reclaiming
requirements by the US EPA)
Recovery/Reclaiming equipment must be approved for use
with R-600a.
Ensure the evaporator is at room temperature prior to
recovery/reclaiming R-600a.
Use a common piercing pliers or piercing valve to remove
R-600a from the compressor process tube. (Note: Piercing
devices must not be left on the system and must be
replaced with a Schrader type valve.)
40
USER GUIDE
R-600A Specications
USER GUIDE
R-600A Specifications 3
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Evacuate/reclaim via the piecing pliers to ensure the
system is empty of R-600a before any system work is
performed.
The recovery cylinder must be evacuated (no air inside)
prior to accepting R-600a.
The recovery cylinder must not be filled more than 45%
safe fill level and refrigerants must not be mixed.
The recovery cylinder must be clearly marked with R-
600a and Flammable Warning labels.
Ensure proper ventilation during recovery/reclaiming of R-
600a.
Start vacuum pump/recovery pump prior to piercing the
compressor process tube.
Follow recovery/reclaim OEM instructions for the specific
equipment used.
SYSTEM REPAIR
Ensure no residual R-600a refrigerant is left within the
system prior to repair (simple venting is not sufficient).
Evacuate and charge with dry nitrogen for leak checks.
Repair leaks or replace system parts as required.
When re-brazing, the system must be purged with dry
nitrogen and at least one access point open to the
atmosphere.
When re-brazing, proper ventilation is required along with
constant monitoring for the presence of R600a refrigerant.
The filter dryer must be replaced any time the sealed
system is serviced.
No system should be open to the atmosphere for longer
than 15 minutes to avoid moisture migration into the
system components.
LEAK DETECTION
After removal of the R-600a, the unit can be charged with
dry nitrogen or helium.
Electronic leak detection or soap solution can be used to
check for nitrogen/helium leaks.
Never use a halide torch or lighted match to check the
system for leaks at any time.
The high side of the refrigeration system (compressor
discharge to outlet of drier) must be leak tested with the
compressor running.
41
R-600A Specications
USER GUIDE
USER GUIDE
R-600A Specifications 4
u-line.com
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
The low side of the refrigeration system (evaporator,
compressor and suction line) must be leak tested with the
compressor off (equalized pressure).
RECHARGING
No air is ever to be allowed inside the refrigeration system
(R-600a refrigerant or dry nitrogen only).
Never use a torch on a fully charged refrigeration system.
Install a Schrader Type access port on the compressor
process stub.
Evacuate the system to 100 microns prior to charging.
Weigh in the R-600a charge using a refrigerant scale. (run
compressor an extra two minutes to clear the charging
hoses).
Seal the Schrader Type access port, a proper cap and seal
must be used to close the system.
SUMMARY
Safely handling R-600a requires proper procedures and
training.
R-600a approved service tools must be used.
R-600a labeling must not be removed or altered.
Proper ventilation during service is required.
Never apply a torch to a charged R-600a refrigeration
system.
Use OEM replacement service parts and do not alter the
construction of the unit.
42
USER GUIDE
System Diagnosis Guide
System Diagnosis Guide
REGRIGERATION SYSTEM DIAGNOSIS GUIDE
System
Condition
Suction
Pressure
Suction
Line
Compressor
Discharge
Condenser Capillary
Tube
Evaporator Wattage
Normal Normal Slightly
below room
temperature
Very hot Very hot Warm Cold Normal
Overcharge Higher than
normal
Very cold
may frost
heavily
Slightly warm
to hot
Hot to warm Cool Cold Higher than
normal
Undercharge Lower than
normal
Warm-
near room
temperature
Hot Warm Warm Extremely
cold near
inlet - Outlet
below room
temperature
Lower than
normal
Partial
Restriction
Somewhat
lower than
normal vacuum
Warm-
near room
temperature
Very hot Top passes
warm -
Lower
passes cool
(near room
temperature)
due to liquid
Room
temperature
(cool) or
colder
Extremely
cold near
inlet - Outlet
below room
temperature
backing up
Lower than
normal
Complete
Restriction
In deep
vacuum
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
No Gas 0 PSIG to 25” Room
temperature
(cool)
Cool to hot Room
temperature
(cool)
Room
temperature
(cool)
No
refrigeration
Lower than
normal
CAPILLARY TUBE
DRYER
CONDENSER
COMPRESSOR
EVAPORATOR
43
USER GUIDE
Compressor Specications
Electrocution can cause death or serious injury.
Burns from hot or cold surfaces can cause serious
injury. Take precautions when servicing this unit.
Disconnect the power source.
Do not stand in standing water when working
around electrical appliances.
Make sure the surfaces you touch are not hot or
frozen.
Do not touch a bare circuit board unless you are
wearing an anti-static wrist strap that is grounded
to an electrical ground or grounded water pipe.
Handle circuit boards carefully and avoid touching
components.
Compressor Specications
EMX3115Y-115V
REFRIGERANT R600a
VOLTAGE 100V – 127V
FREQUENCY 50Hz
RUN CAPACITOR 17.5μF/180 VAC
START WINDING 4.20 +/- 8% Q at 25 °C (77°F)
RUN WINDING 2.76 +/- 8% Q at 25 °C (77°F)
LRA 16.70A
FLA -
STARTING DEVICE PTC V115
OVERLOAD T0819/07
*All resistance readings are
+
10%
DANGER
!
44
Copyright U-Line Corporation. All Rights Reserved. | Publication Number 30379 | 3/2024 Rev. Q
U-Line Corporation (U-Line) Limited Warranty
One Year Limited Warranty
For one year from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Two Year Limited Warranty (5 Class Product)
For two years from the date of original purchase, this warranty covers all parts and labor to repair or replace any part of the product that
proves to be defective in materials or workmanship. For products installed and used for normal residential use, material cosmetic defects
are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the
above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service provided during
normal business hours.
Available Second & Third Year Limited Warranty
In addition to the standard one and two year warranties outlined above, U-Line offers a one year extension of the warranties from the date
of purchase, free of charge. To take advantage of this extension, you must register your product with U-Line within 60 days from the date
of purchase at u-line.com and provide proof of purchase.
Five Year Sealed System Limited Warranty
For five years from the date of original purchase, U-Line will repair or replace the following parts, labor not included, that prove to be
defective in materials or workmanship: compressor, condenser, evaporator, drier, and all connecting tubing. All service provided by U-Line
under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line. Service
provided during normal business hours.
Terms
These warranties apply only to products installed in any one of the fifty states of the United States, the District of Columbia, or the ten
provinces of Canada. The warranties do not cover any parts or labor to correct any defect caused by negligence, accident or improper use,
maintenance, installation, service, repair, acts of God, fire, flood or other natural disasters. The product must be installed, operated, and
maintained in accordance with your product’s User Guide.
The remedies described above for each warranty are the only ones that U-Line will provide, either under these warranties or under any
warranty arising by operation of law. U-Line will not be responsible for any consequential or incidental damages arising from the breach of
these warranties or any other warranty, whether express, implied, or statutory. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you. These warranties give you specific legal
rights, and you may also have other rights which vary from state to state.
Any warranty that may be implied in connection with your purchase or use of the product, including any warranty of merchantability or any
warranty fit for a particular purpose is limited to the duration of these warranties, and only extends to five years in duration for the parts
described in the section related to the five year limited warranty above. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitations may not apply to you.
• The warranties only apply to the original purchaser and are non-transferable.
• The second, third, and five year warranties cover products installed and used for normal residential or designated marine use only.
• The warranties apply to units operated outside only if designed for outdoor use by model and serial number.
• U-Line Commercial products are covered by the one year and 5 year limited warranties and are not eligible for the second and
third year limited warranties.
• Replacement water filters, light bulbs, and other consumable parts are not covered by these warranties.
• The start of U-Line’s obligation is limited to four years after the shipment date from U-Line.
• In-home instruction on how to use your product is not covered by these warranties.
• Food, beverage, and medicine loss are not covered by these warranties.
• If the product is located in an area where U-Line factory authorized service is not available, you may be responsible for a trip
charge or you may be required to bring the product to a U-Line factory authorized service location at your own cost and expense.
• Units purchased after use as floor displays, and/or certified reconditioned units, are covered by the limited one year warranty only
and no coverage is provided for cosmetic defects.
• Signal issues related to Wi-Fi connectivity are not covered by these warranties.
For parts and service assistance, or to find U-Line factory authorized service near you, contact U-Line:
8900 N. 55
th
Street, Milwaukee, WI 53223 • u-line.com • onlineservice@u-line.com • +1.414
.354.0300
45
