CU900 FITNESS BIKE
OWNER’S MANUAL
Spirit Fitness
www.spirittness.com
2
Spirit Fitness

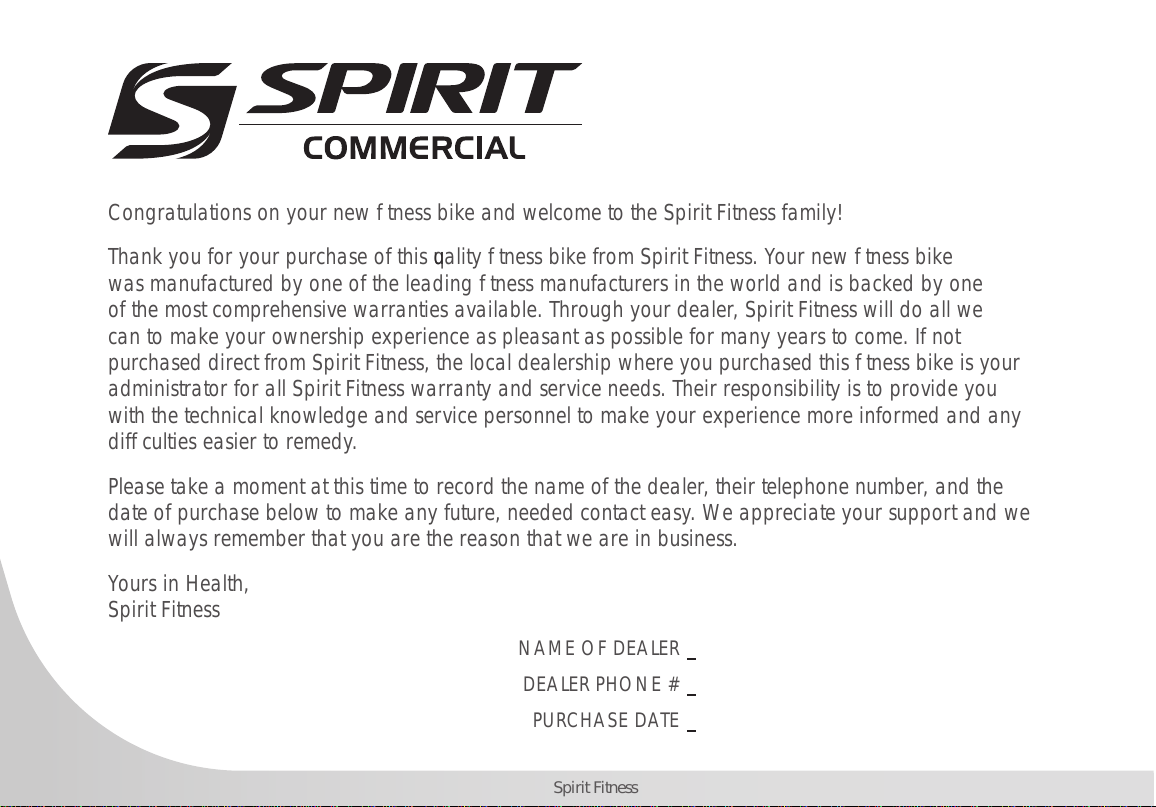

Congratulations on your new tness bike and welcome to the Spirit Fitness family!
Thank you for your purchase of this quality tness bike from Spirit Fitness. Your new tness bike
was manufactured by one of the leading tness manufacturers in the world and is backed by one
of the most comprehensive warranties available. Through your dealer, Spirit Fitness will do all we
can to make your ownership experience as pleasant as possible for many years to come. If not
purchased direct from Spirit Fitness, the local dealership where you purchased this tness bike is your
administrator for all Spirit Fitness warranty and service needs. Their responsibility is to provide you
with the technical knowledge and service personnel to make your experience more informed and any
difculties easier to remedy.
Please take a moment at this time to record the name of the dealer, their telephone number, and the
date of purchase below to make any future, needed contact easy. We appreciate your support and we
will always remember that you are the reason that we are in business.
Yours in Health,
Spirit Fitness
NAME OF DEALER _____________________________________
DEALER PHONE # _____________________________________
PURCHASE DATE _____________________________________
3
www.spirittness.com
IMPORTANT SAFETY
INSTRUCTIONS
WARNING
• Before beginning this or any exercise program,
consult a physician. This is especially important for
persons over the age of 35 or persons with pre-
existing health conditions.
• Keep children away from the tness bike. There are
obvious pinch points and other
caution areas that can cause harm.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not attempt to use your tness bike for any
purpose other than for the purpose it is intended.
• The hand pulse sensors are not medical devices.
Various factors, including the user’s movement, may
affect the accuracy of heart rate readings. The
pulse sensors are intended only as exercise aids in
determining heart rate trends in general.
• Wear proper shoes. High heels, dress shoes, sandals
or bare feet are not suitable for use on your tness
bike. Quality athletic shoes are recommended to
avoid leg fatigue.
• Maximum User Weight: 450 lbs
• This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Keep children under the age of 13 away from this
machine.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
IMPORTANT ELECTRICAL
INSTRUCTIONS
WARNING
Be aware that the generator is producing A.C. power
while the tness bike is being used. Do not service
the tness bike while the generator is spinning; serious
electric shock could occur.
NEVER expose this tness bike to rain or moisture. This
product is NOT designed for use outdoors, near a
pool or spa, or in any other high humidity environment.
The operating temperature specication is 40 to 120
degrees Fahrenheit, and humidity is 95% non-condensing
(no water drops forming on surfaces).
4
Spirit Fitness
RECORD YOUR SERIAL NUMBER
Please record the serial number of this tness
product in the space provided below. The serial
number is located at the front of the tness bike.
SERIAL NUMBER:
REGISTER YOUR
PURCHASE
The self-addressed product registration card
must be completed in full and returned to Spirit
Fitness. You can also go to www.spirittness.com/
commercialwarrantyregistration.html under the
Support tab to register online.
IMPORTANT OPERATION
INSTRUCTIONS
• NEVER operate this tness bike without reading
and completely understanding the results of any
operational change you request from the computer
console.
• Understand that changes in resistance do not occur
immediately. Set your desired resistance level on the
computer console and release the adjustment key. The
computer will obey the command gradually.
• Use caution while participating in other activities
while pedaling on your tness bike; such as watching
television, reading, etc. These distractions may cause
you to lose balance which may result in serious injury.
• Do not use excessive pressure on console control
keys. They are precision set to function properly with
little nger pressure.
WARNING
This product can expose you to chemicals including
Toluene and Acrylamide which are known to the
State of California to cause Cancer and birth
defects or other reproductive harm. For more
information, go to www.P65Warnings.ca.gov
5
www.spirittness.com
PRE-ASSEMBLY
TOOLS INCLUDED:
13/15mm Wrench
Phillips Screwdriver
5mm Allen Wrench
6mm Allen Wrench
PARTS INCLUDED:
1 Main Frame
1 Rear Stabilizer
1 Seat
2 Seat Bracket Covers
1 Console
1 Console Mast
1 Front Handle Bar
1 Handle Bar Cover
2 Console Mast Covers
2 Pedals
1 Cup Holder
1 Hardware Kit
UNPACKING
1. Cut the straps, then along the dotted line on the bottom of the box; lift the box over
the unit and unpack.
2. Locate the hardware package. The hardware is separated into four steps. Remove
the tools rst. Remove the hardware for each step as needed to avoid confusion.
The numbers in the instructions that are in parenthesis (#) are the item number from
the assembly drawing for reference.
6
Spirit Fitness
STEP ONE
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
52 BOLT
M8XP1.25X20L
4
53 FLAT WASHER
8.5X18X1.5T
4
59 SCREW
M5XP0.8X12L
4
60 FLAT WASHER
13X23X2.0T
3
61 BOLT
M10X55L
3
1. Install REAR STABILIZER (4) to MAIN
FRAME (1) with 3 BOLTS (61) and 3
WASHERS (60).
2. Install SEAT (28) to SEAT POST (8) with
4 BOLTS (52) and 4 WASHERS (53).
3. Attach SEAT BRACKET COVERS (43
& 44) to SEAT POST (8) with 4 round
head SCREWS (59).
7
www.spirittness.com
STEP TWO
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
52 BOLT
M8XP1.25X20L
6
112 FLAT WASHER
8.5X18X1.5T
6
54 SCREW
M5XP0.8X12L
4
1. Run the WIRING HARNESS through the
CONSOLE MAST (2) and out the top.
2. Install CONSOLE MAST (2) to MAIN
FRAME (1) with 6 BOLTS (52) and 6
WASHERS (112). Do not pinch any
wires.
3. Connect HGP CONNECTOR CABLES
(87 & 102) to CONSOLE (48). Run
cables through center of console bracket
and out the back.
4. Connect WIRING HARNESS to
CONSOLE (48).
5. Attach CONSOLE (48) to CONSOLE
MAST (2) using 4 SCREWS (54). Be
careful not to pinch any wires.
8
Spirit Fitness
STEP THREE
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
53 FLAT WASHER
8.5x18x1.5T
8
56 BOLT
M8xP1.25x65L
4
57 LOCK WASHER
8x1.5T
4
58 NYLOCK NUT
M8xP1.25x7T
4
66 SCREW M5xP0.8x6L 2
1. Install HANDLEBARS (3) to CONSOLE
MAST (2) with 4 BOLTS (56), 4 LOCK
WASHERS (57), 8 WASHERS (53), and
4 NUTS (58). 4 WASHERS (53) should
be installed on each side of the
handlebars (3).
2. Connect HGP CONNECTOR CABLES
(87 & 102) to HGP cables coming out of
HANDLEBARS (3).
3. Attach CONSOLE BRACKET COVER (35)
to HANDLEBARS (3) using 2 SCREWS
(66).
9
www.spirittness.com
STEP FOUR
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
54 SCREW
M5xP0.8x12L
2
55 SELF-TAPPING SCREW
3.5x12L
4
1. Attach CUP HOLDER (36) to CONSOLE
MAST (2) using 2 SCREWS (54).
2. Attach CONSOLE MAST COVERS (37
& 38) over CONSOLE MAST (2) using
4 SELF-TAPPING SCREWS (55).
3. Install PEDALS (11) into CRANK
ARMS (9 & 10).The left pedal has a
reverse thread and will be screwed in
counterclockwise. Tighten to 300 in-lb
(34 Nm) of torque.
10
Spirit Fitness

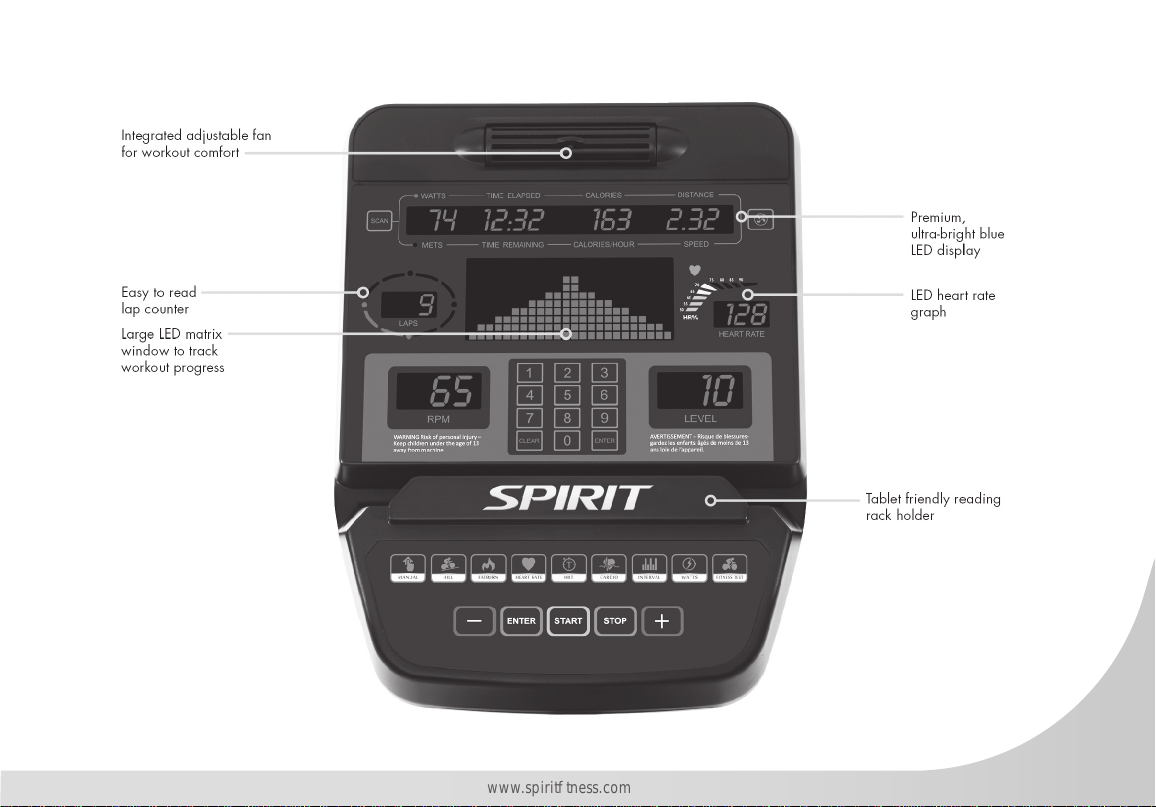

CU900 CONSOLE OPERATION
11
www.spirittness.com
12
Spirit Fitness
POWER
Spirit Fitness commercial tness bikes have a built-in generator for power and do not need to be plugged
into an AC outlet. To power up the tness bike simply start to pedal, the console will turn on automatically.
When initially powered on the console will perform an internal self-test. During this time the display may
not light up for a few seconds. Continue pedaling and the display will light up. Once powered on the
Message Window will be scrolling the start up message. You may now begin your workout program.
C-SAFE FEATURE
Your console is equipped with a C-SAFE feature. The Power (POWER) port can be
used for powering a remote controlled audio-visual system by connecting a cable
from the remote to the Power port at the back of the console. The Communication
port (COMM) can be used to interact with tness software applications.
13
www.spirittness.com
QUICK START
This is the quickest way to start a workout. After the console powers up you just press the Start key
to begin. This will initiate the Quick Start mode. In Quick Start the Time will count up from zero, all
workout data will start to accrue and the workload may be adjusted manually by pressing the Up and
Down buttons. The dot matrix display will show just the bottom row lit. As you increase the workload
more rows will light indicating a harder workout. The tness bike will get harder to pedal as the rows
increase. The dot matrix has 24 columns of lights and each column represents 1 minute. At the end
of the 24th column (or 24 minutes of work) the display will wrap around and start at the rst
column again.
There are 40 levels of resistance – displayed as 10 rows of lights - available for plenty of variety.
The rst 10 levels are very easy workloads, and the changes between levels are set to a good
progression for de-conditioned users. Levels 10-20 are more challenging but the increases from one
level to the next remain small. Levels 20-30 start getting tough as the levels jump more dramatically.
Levels 30-40 are extremely hard and are good for short interval peaks and elite athletic training.
BASIC INFORMATION
The Dot Matrix, or Prole Window, will display the workout Prole. The Message Window displays
pertinent exercise data. There is an RPM Window for pedal speed and a Level window indicating
machine resistance. A Heart Rate data window and bar graph show how hard you are working and
a lap counter provides distance information. The Message Window will initially be displaying Watts,
Time Elapsed, Calories and Distance information. On the left of the Message Window is a button
labeled Scan. When the Scan button is pressed the next set of information will appear: METs, Time
Remaining, Calories/Hour and Speed. Pressing the Scan button, the Scan mode is activated and the
Message Window will show each set of data for four seconds then switch to the next set of data in a
14
Spirit Fitness
continuous loop. Pressing the Scan button again will bring you back to the beginning. To the right of the
Prole Window is a Heart Icon, Heart Rate number display and a Bar Graph. The tness bike has a built
in heart rate monitoring system. Simply grasping the hand pulse sensors, or wearing a heart rate chest
belt transmitter, will start the Heart Icon blinking (this may take a few seconds). The Heart Rate window
will display your heart rate, or Pulse, in beats per minute. The Bar Graph represents the percentage of
your maximum heart rate you are currently achieving.
NOTE: You must enter your age during program setup for the Bar Graph to be accurate.
15
www.spirittness.com
The Stop key actually has several functions. Pressing the Stop key once during a program will Pause
the program for 5 minutes (when you stop pedaling without AC power the display will turn off but the
memory will be saved for 5 minutes just like the pause mode). If you need to get a drink, answer the
phone, or any of the many things that could interrupt your workout, this is a great feature. To resume
your workout during Pause just press the Start key or start pedaling. If the Stop key is pressed twice
during a workout, the program will end and the console will return to the start-up screen. If the Stop
key is held down for 3 seconds, the console will perform a complete Reset. During data entry for a
program the Stop key performs a Previous Screen function. This allows you to go back one step in the
programming each time you press the Stop key.
The Program Keys are used to preview each program. When you rst turn the console on, you may
press each program key to preview what the program prole looks like. If you decide that you want
to try a program, press the corresponding program key and then press the Enter key to select the
program and enter into the data set-up mode.
16
Spirit Fitness
NUMBER KEY PAD
When you are in the data set-up mode setting new data such as age, weight etc., you can use these keys to
enter the numbers quickly. The console includes a built-in fan to help keep you cool. To turn the fan on, press
the key on the upper right side of the console. This is a 3-speed fan and each time you press the key the
airow will increase accordingly. After the third setting the fan will turn off when the key is pressed again.
PROGRAMMING THE CONSOLE
Each of the programs can be customized with your personal information and changed to suit your needs.
Some of the information asked for is necessary to ensure the readouts are correct. You will be asked for your
Age and Weight. Entering your Age ensures that the Heart Rate bar graph shows the correct number. Your
Age is also necessary during the Heart Rate control program to ensure the correct settings are in the program
for your Age. Otherwise the work settings could be too high or low for you; entering your Weight aides in
calculating a more correct Calorie reading. Although we cannot provide an exact calorie count we do want
to be as close as possible.
CALORIE NOTE: Calorie readings on every piece of exercise equipment, whether it is in a gym or at home,
are not accurate and tend to vary widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn accurately is in a clinical setting connected
to a host of machines. This is because every person is different and burns calories at a different rate. Some
good news is that you will continue to burn calories at an accelerated rate for at least an hour after you have
nished exercising!
17
www.spirittness.com
ENTERING A PROGRAM & CHANGING SETTINGS
When you enter a program (by pressing a program key then Enter key) you have the option of
entering your own personal settings. If you want to work out without entering new settings, then just
press the Start key. This will bypass the programming of data and take you directly to the start of your
workout. If you want to change the personal settings, then just follow the instructions in the Message
Window. If you start a program without changing the settings, the default, or pre-saved settings will
be used.
MANUAL
The Manual program works as the name implies, manually. This means that you control the workload
yourself and not the computer. To start the Manual program, follow the instructions below or just press the
Manual button then the Enter button and follow the directions in the Message Window.
1. Press the Manual key then press the Enter key.
2. The Message Window will ask you to enter your workout time. Adjust the time and press enter.
3. The Message Window will ask you to enter your Age. You may enter your Age, using the Up and Down keys or
the numeric key pad, then press the Enter key to accept the new number and proceed on to the next screen.
4. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys, or
the numeric key pad, then press enter to continue.
5. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also go
back and modify your settings by pressing the Enter key. NOTE: At any time during the editing of data you can
press the Stop key to go back one level, or screen.
6. The program automatically starts you at level one. This is the easiest level and it is a good idea to stay at level
one for a while to warm up. If you want to increase the work load at any time press the Up key; the Down key
will decrease the workload.
7. When the program ends you may press Start to begin the same program again or Stop to exit the program.
18
Spirit Fitness
PRESET PROGRAMS
The tness bike has four different programs that have been designed for a variety of workouts. These
four programs have factory preset work level proles for achieving different goals.
HILL
This program follows a triangle or pyramid type of gradual progression
from approximately 10% of maximum effort (the level that you chose
before starting this program) up to a maximum effort which lasts for
10% of the total workout time, then a gradual regression of resistance
back to approximately 10% of maximum effort.
FAT BURN
This program follows a quick progression up to the maximum
resistance level (default or user input level) that is sustained for 2/3 of
the workout. This program will challenge your ability to sustain your
energy output for an extended period of time.
CARDIO
This program presents a quick progression up to near maximum
resistance level (default or user input level). It has slight uctuations
up and down to allow your heart rate to elevate, and then recover
repeatedly, before beginning a quick cool down. This will build up
your heart muscle and increase blood ow and lung capacity.
19
www.spirittness.com
INTERVAL
This program takes you through high levels of intensity followed
by recovery periods of low intensity. This program utilizes and
develops your “Fast Twitch” muscle bers which are used when
performing tasks that are intense and short in duration. These
deplete your oxygen level and spike your heart rate, followed
by periods of recovery and heart rate drop to replenish oxygen. Your cardiovascular system gets
programmed to use oxygen more efciently.
PROGRAMMING PRESET PROGRAMS
1. Select the desired program button then press the Enter key.
2. The Message Window will ask you to enter your Age. You may adjust the age setting, using the Up and
Down keys,then press the Enter key to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the weight number using the Up and Down keys,
then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust the Max Level. This is the peak exertion level you will experience during the
program (at the top of the hill). Adjust the level and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can
also go back and modify your settings by pressing the Stop key to go back one level, or screen.
7. If you want to increase or decrease the workload at any time during the program press the Up or Down
key. This will change the workload settings of the entire prole, although the prole picture on the screen
will not change. The reason for this is so that you can see the entire prole at all times. If the prole picture is
changed it will look distorted and not a true representation of the actual prole. When you make a change to
the workload, the Message Window will show both the current column and program maximum levels of work.
20
Spirit Fitness
8. During the program you will be able to scroll through the data in the Message Window by pressing the
Scan key next to the Message Window.
9. When the program ends the Message Window and data windows will show a summary of your workout.
The summary will be displayed for a short time then the console will return to the start-up display
HIIT PROGRAM
The HIIT, or High Intensity Interval Training, program takes
advantage of the latest trend in tness. During the program you will
perform short bursts of high intensity sprinting followed by short rest
periods. HIIT is a fully customizable interval training program. You
can enter the number of intervals, time of each interval Sprint and
Rest periods and the work intensity of the levels.
1. Press the HIIT key then Enter. The Message Window will ask you to enter your Age. You may enter your Age,
using the Up and Down keys or the numeric key pad, then press the Enter key to accept the new number and
proceed on to the next screen.
2. You are now asked to enter your Weight. You may adjust the Weight number using the Up and Down keys or the
numeric key pad then press enter to continue.
3. Next you are asked for the number of intervals you want to do. The default is 10 and the range available is 3 to
15. One interval equals 1 Sprint and 1 Rest segment.
4. Now you are asked to adjust the Sprint Level. This is the resistance level you will experience during the Sprint
segments of the program. Adjust the level and then press Enter.
5. Now you are asked to adjust the Rest Level. This is the resistance level you will experience during the Rest
segments of the program. Adjust the level and then press Enter.
6. Next is entering the Interval time. The Message window shows: Sprint :30 | Rest :30. The Sprint time will be
blinking. You may use the + - keys to adjust the Sprint time from 20 to 60 seconds then press Enter. The time for
the Rest period will blink and you can adjust the time using the +- keys and press Enter.
21
www.spirittness.com
7. The Message window will now display the total time for the HIIT workout; now press Start to begin. There is a
3-minute warm-up period before the rst Sprint begins. The resistance level during warm-up is set to 5 but can be
adjusted manually.
8. The dot matrix display in the HIIT program is a speed indication display, not a power or resistance display.
During the Sprint the dot matrix display will show a blinking LED at the rst Sprint segment. That is the target
speed LED and indicates 90 pedal rpm. As you pedal faster the lights below the target speed LED light up the
faster you go. When you exceed 90 rpm the target LED will move up showing you are past the target speed.
You should maintain at least 90 rpm throughout the Sprint segments. The rest segments of the HIIT program are set
to resistance level 5 and you can pedal at any speed you choose as your heart rate recovers. You can manually
adjust the resistance levels during the Sprint and Rest segments.
9. At the end of the last Sprint there is a 3-minute cool-down period. You can bypass this by pressing the Stop key
and the workout summary will be displayed.
22
Spirit Fitness
FIT TEST PROGRAM
The tness test is based on the YMCA protocol and is a sub-maximal test that uses pre-determined,
xed work levels that are based on your heart rate readings as the test progresses. The test will take
anywhere between 6 to 15 minutes to complete, depending on your level of tness. The test ends
when your heart rate reaches 85% of maximum at any time during the test or your heart rate is between
110 bpm and 85% at the end of two consecutive stages. At the end of the test a VO2max score will
be given. VO2max stands for Volume of Oxygen uptake which is a measurement of how much oxygen
you need to perform a known amount of work. The YMCA protocol uses two to four, 3-minute stages
of continuous exercise. You will be asked to choose either, Male or Female at the beginning of the test.
This choice determines which test parameters will be used during the test. The only caveats are that if
you are a very de-conditioned Male you need to choose option Female. If you are a very conditioned
female, you need to choose option Male.
FITNESS TEST PROGRAMMING
1. Press the Fit Test button and press Enter.
2. The message window will display Gender Male. The word Male will be blinking. Use the Up and Down
arrows if you need to change to Female, then press Enter. The choice of Gender determines which workload
chartwillbeused for the test.
3. The Message Window will ask you to enter your Age. You may adjust the age setting, using the Up and Down
keys then press the Enter key to accept the new number and proceed on to the next screen.
4. You are now asked to enter your Weight. You may adjust the weight number using the Up and Down keys then
press Enter to continue.
5. Now press Start to begin the test or Enter to modify your settings.
23
www.spirittness.com
Before The Test:
• Make sure you are in good health; check with your physician before performing any exercise if you are over the
age of 35 or persons with pre-existing health conditions.
• Make sure you have warmed up and stretched before taking the test.
• Do not take in caffeine before the test.
• Hold the hand grips gently, do not tense up.
During The Test:
• The console must be receiving a steady heart rate for the test to begin. You may use the hand pulse sensors or
wear a heart rate chest strap transmitter.
• You must maintain a steady 50 RPM pedal speed. If your pedal speed drops below 48 RPM or goes above
52 RPM the console will emit a steady beeping sound until you are within this range.
• You may scroll through the various data readings in the Message Window by pressing the Display button under
the Message Window.
• The Message Window will always display your pedal speed on the right side to help you maintain 50RPM.
• The data shown during the test is:
1. Work in KGM is actually an abbreviated form of kg-m/min. which is a work measurement of kilogram-force
meter/minute
2. Work in Watts (1 watt is equal to 6.11829727787 kg-m/min.)
3. HR is your actual heart rate; TGT is the target heart rate to reach to end the test.
4. Time is the total elapsed time of the test.
After The Test:
Cool down for about one to three minutes.
Take note of your score because the console will automatically return to the start-up mode after a few minutes.
24
Spirit Fitness

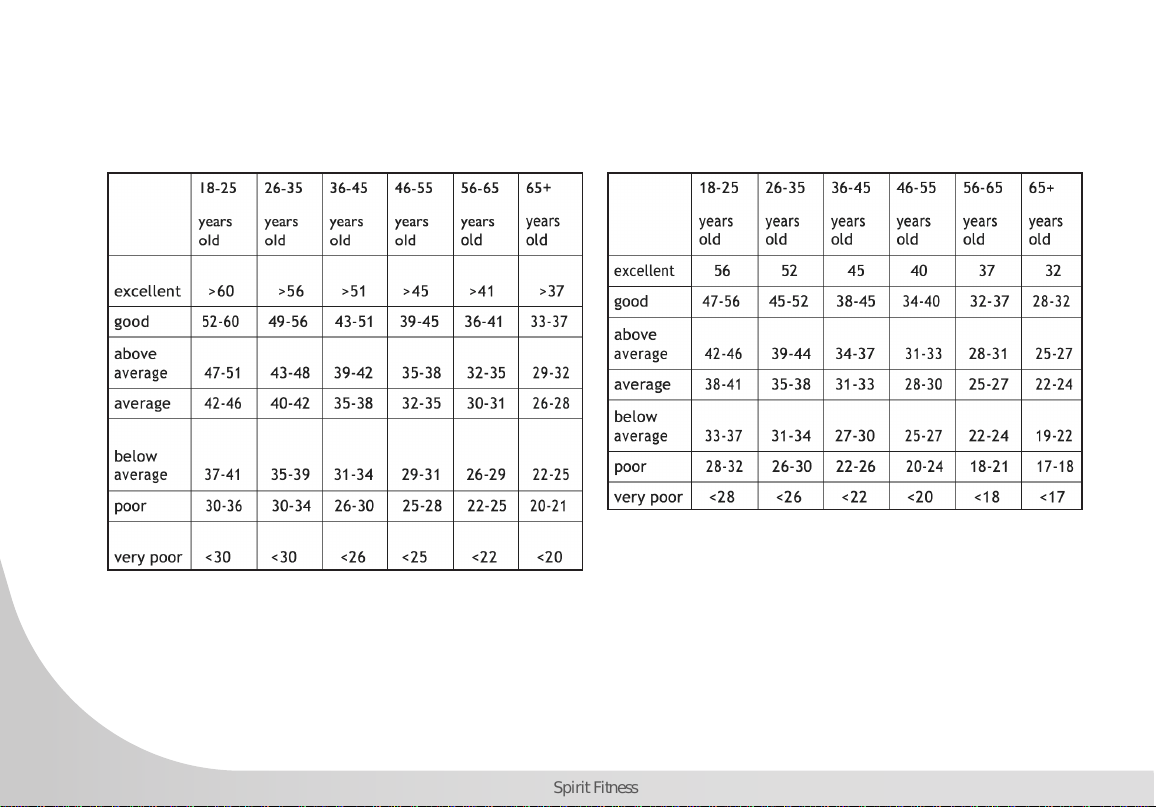

WHAT YOUR SCORE MEANS
VO2MAX CHART FOR FEMALES AND DECONDITIONED MALESVO2MAX CHART FOR MALES AND VERY FIT FEMALES
25
www.spirittness.com
HEART RATE PROGRAM OPERATION
Heart rate information is read via pulse grips or a wireless chest strap. To start the HR program,
follow the instructions below or just press the HR key then the Enter button and follow the directions
in the Message Window.
1. Press the HR key then press the Enter key.
2. The message window will ask you to enter your Age. You may enter your Age, using the Up/Down keys or
the numeric key pad, then press the Enter key to accept the new number and proceed on to the next screen.
3. You are now asked to enter your Weight. You may adjust the Weight number using the Up/Down keys or
the numeric key pad, then press Enter to continue.
4. Next is Time. You may adjust the Time and press Enter to continue.
5. Now you are asked to adjust your target Heart Rate. This is the heart rate level you will try to maintain
during the program. Adjust the value and then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can
also go back and modify your settings by pressing the Enter key. Note: At any time during the editing of
data you can press the Stop key to go back one level, or screen.
7. If you want to increase or decrease the resistance at any time during the program press the Up/Down key.
This will allow you to change your target heart rate at any time during the program.
8. The program will automatically increase or decrease the amount of resistance, depending on whether your
heart rate is above or below your target.
9. During the HR program you will be able to scroll through the data in the Message Window by pressing the
adjacent Display key.
26
Spirit Fitness
CONSTANT WATT PROGRAM
The Watts program maintains a constant work load. The resistance Level adjusts when the speed is
changed. To start the Constant Watt program, follow the instructions below or just press the Watt key
then the Enter button and follow the directions in the Message Window.
1. Press the Watt key then press the Enter key.
2. The Message Window will ask you to enter your Age. Input your Age, using the Up/Down keys or the numeric
key pad, then press the Enter key to accept the new age and proceed on to the next screen.
3. You are now asked to enter your Weight. Adjust Weight using the Up/Down keys or the numeric key pad, then
press Enter to continue.
4. Next is Time. Adjust the Time then press Enter to continue.
5. Now you are asked to adjust the Target Watt Level. This is the constant power you will experience during the
program. Adjust using the Up/Down keys, then press Enter.
6. Now you are nished editing the settings and can begin your workout by pressing the Start key. You can also go
back and modify your settings by pressing the Enter key. Note: At any time during the editing of data, you can
press the Stop key to go back one level, or screen.
7. If you want to increase or decrease the workload at any time during the program, press the Up/Down key. This
will allow you to change your target Watt level at any time during the program.
8. During the Constant Power program you will be able to scroll through the data in the Message Window by
pressing the adjacent Scan key.
9. When the program ends, you may press Start to begin the same program again or Stop to exit the program.
27
www.spirittness.com
GENERAL MAINTENANCE
Wipe down all areas in the sweat path with a damp cloth after each workout. If a squeak, thump, clicking or
rough feeling develops the main cause is most likely one of two reasons:
1. The hardware was not sufciently tightened during assembly. All bolts that were installed during assembly need to
be tightened as much as possible. It may be necessary to use a larger wrench than the one provided if you cannot
tighten the bolts sufciently. It is important to note that 90% of calls to the service department for noise issues can be
traced to loose hardware.
2. The crank arm nut needs to be retightened. If squeaks or other noises persist, check that the unit is properly leveled.
There are 2 leveling pads on the bottom of the rear stabilizer, use a 14mm wrench (or adjustable wrench) to adjust
the levelers.
SANITIZING YOUR SPIRIT FITNESS EQUIPMENT
• Unupholstered high-contact surfaces (hard plastics) can be sanitized using a 75% isopropyl alcohol solution and a
clean, dry cloth.Spray surfaces to be sanitized, and use the dry cloth to wipe clean. Allow surfaces to dry before
using.
• For upholstered or soft-plastic surfaces, use a conditioner after sanitizing.Be sure to follow the instructions provided
by the conditioner manufacturer to ensure proper use of the conditioner.
• Alternatively, you can make your own spray by mixing the proper ratio of isopropyl alcohol and distilled water to
reach a 75% solution.
• For more details on sanitization, or to learn how to make your own spray solution, please visit https://support.
spirittness.com/hc/en-us/articles/4406787148564 .
28
Spirit Fitness
MAINTENANCE MODE MENU
The console has built-in maintenance/diagnostic software. The software will allow you to change the
console settings from English to Metric and turn off the beeping of the speaker when a key is pressed
for example. To enter the Maintenance Mode, pedal the bike and press and hold down the Start, Stop
and Enter keys. Keep holding the keys down for about 5 seconds and the Message Center will display
Maintenance Mode. Press the Enter key to access the menu below:
1. Key Test (Will allow you to test all the keys to make sure they are functioning)
2. Display Test (Tests all the display functions)
3. Sleep Mode (Turn on to have the console power down automatically after 20 minutes of inactivity)
4. Odometer Reset (Resets the odometer)
5. Units (Sets the display to read out in English or Metric display measurements)
6. Speaker (Turns off the speaker so no beeping sound is heard)
7. Brake Test (Tests the brake resistance)
8. Sensor Test (Tests the speed sensor function)
9. Unit Type (Sets machine type; Bike or Elliptical)
29
www.spirittness.com
FITNESS BIKE WARRANTY EFFECTIVE NOVEMBER 19, 2021
Spirit Fitness warrants this tness bike for a period of time listed below from the date of sale, as determined by
sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date.
Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’ option, and technical
support to our independent dealers and servicing organizations. In the absence of a dealer or service organization,
these warranties will be administered by Spirit Fitness directly. The warranty period applies to the following
components:
NORMAL RESPONSIBILITIES OF THE FACILITY OWNER
The facility is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of
the original purchase, or completed online to validate the manufacturer’s limited warranty.
2. Proper use of the tness equipment in accordance with the instructions provided in this manual
3. Proper installation in accordance with instructions provided with the tness equipment and with all local electric codes.
4. Expenses for making the tness equipment accessible for servicing, including any item that was not part of the tness
equipment at the time it was shipped from the factory.
5. Damages to the tness equipment nish during shipping, installation or following installation.
6. Routine maintenance of this unit as specied in this manual.
WARRANTY
Commercial
FRAME
Lifetime
GENERATOR BRAKE
5 Years
PARTS
3 Year
LABOR
3 Years
*Prisons and correctional facilities are excluded from warranty coverage.
30
Spirit Fitness
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service call reimbursement to the faciltiy. Service call reimbursement to the dealer that does not involve malfunction or
defects in workmanship or material, for units that are beyond the warranty period, for units that are beyond the service
call reimbursement period, for tness equipment not requiring component replacement, or tness equipment not in non-
dues paying facility or household use.
3. Damages caused by services performed by persons other than authorized Spirit Fitness service companies; use of
parts other than original Spirit Fitness parts; or external causes such as corrosion, discoloration of paint or plastic,
alterations, modications, abuse, misuse, accident, improper maintenance, inadequate power supply, or acts of God.
4. Products with original serial numbers that have been removed or altered.
5. Products that have been: sold, transferred, bartered, or given to a third party.
6. Products that do not have a warranty registration card on le at Spirit Fitness. Spirit Fitness reserves the right to request
proof of purchase if no warranty record exists for the product.
7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
8. Product used in prisons and correctional facilities
Warranties outside of the United States may vary. Please contact your local dealer for details.
31
www.spirittness.com
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the
date of factory shipping as determined by the serial number establishes the labor warranty period should
service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specic legal rights. You may also have other rights that vary from state to state.
Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized Spirit Fitness dealer. OR
2. Contact your local authorized Spirit Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107.
4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product
through one of our authorized service centers. All repairs must be preauthorized by Spirit Fitness.
5. The owner is responsible for adequate packaging upon return to Spirit Fitness. Spirit Fitness is not responsible for
damages in shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY
UNIT TO OUR FACTORY WITHOUT A RETURN
AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
6. For any further information, or to contact our service department by mail, send your correspondence to:
SPIRIT FITNESS, INC.
P.O. Box 2037
Jonesboro, AR 72402-2037
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by Spirit Manufacturing, Inc.
This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
32
Spirit Fitness
NOTES
33
www.spirittness.com
NOTES
800.258.4555
spiritservice@spirittness.com
www.spirittness.com
Spirit Fitness
3000 Nestle Road
Jonesboro, AR 72401

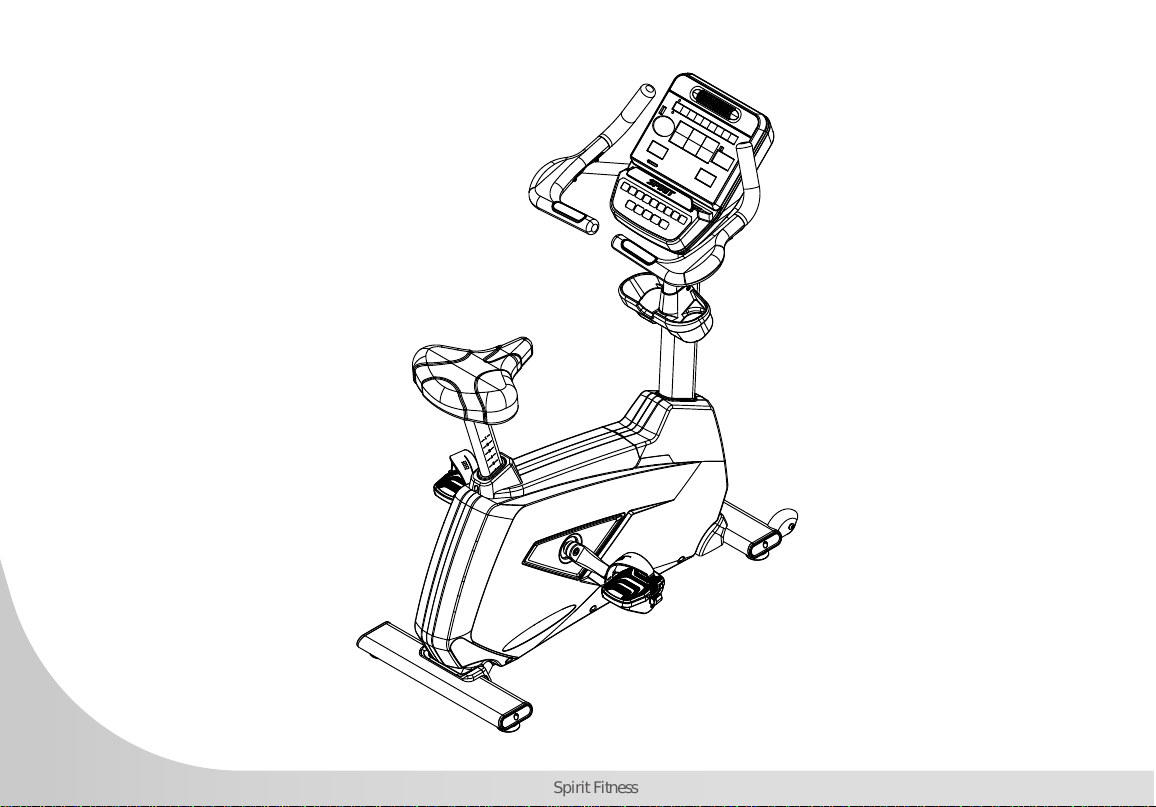

CU900 Owners Manual
© 2018 All Rights Reserved
Revision: 08.08.2018
