Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
To protect your investment, we urge you to
take responsibility for keeping your vehicle
well-serviced and maintained. Also, observe
the break-in guidelines and always perform
the pre-ride inspection and other periodic
checks in this manual.
When service is required, remember that
your Honda dealer knows your vehicle best.
If you have the required mechanical “know-
how” and tools, you can purchase an official
Honda Service Manual to help you perform
many maintenance and repair tasks. 2 P. 101
Read the warranty information thoroughly so
that you understand the warranty coverage
and are aware of your rights and
responsibilities. 2 P. 102
You may also want to visit our website at
www.powersports.honda.com.
Canada
www.honda.ca.
Happy riding!
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgment.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Safety Guidelines................................................. P. 3
Safety Labels......................................................... P. 7
Safety Precautions...............................................P. 9
Riding Precautions ............................................ P. 10
Accessories & Modifications...........................P. 14
Loading ................................................................ P. 15
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Vehicle Safety
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flames
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 9
Before Riding
Make sure that you are physically fit, mentally
focused, and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
grab rail or your waist, leaning with you in turns,
and keeping their feet on the footpegs, even
when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Safety Guidelines
Vehicle Safety
3
Continued
We recommend that all riders take a certified
course approved by the Motorcycle Safety
Foundation (MSF) or a state approved training
course. New riders should start with the basic
course, and even experienced riders will find the
advanced course beneficial.
For information about the MSF training course
nearest you, call the national toll-free number:
(800) 446-9227.
USA
Other riding tips can be found in the You
and Your Motorcycle Riding Tips booklet that
came with your vehicle.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Make Yourself Easy to See
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgment and ride safely.
Safety Guidelines
Vehicle Safety
4
Don't Drink or Use Drugs and Ride
Alcohol or drugs and riding don't mix. Even one
alcoholic drink can reduce your ability to
respond to changing conditions, and your
reaction time gets worse with every additional
drink. The same is true for drug use. Don't drink
or use and ride, and don't let your friends do it
either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 15), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 14).
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the OFF position, and evaluate
the condition of your vehicle. Inspect for fluid
leaks, check the tightness of critical nuts and
bolts, and check the handlebar, control levers,
brakes, and wheels. Ride slowly and cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Safety Guidelines
Vehicle Safety
5
Continued
Carbon Monoxide Hazard
Exhaust contains poisonous carbon monoxide, a
colorless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in a confined or even
partly enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid build-
up of toxic carbon monoxide gas.
Breathing this colorless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Safety Guidelines
Vehicle Safety
6
Safety Labels
Safety and information labels on your vehicle
provide important safety information and may
warn you of potential hazards that could cause
serious injury. Read these labels carefully and
don't remove them.
If a label comes off or becomes hard to read,
contact your dealer for a replacement.
Safety Labels
Vehicle Safety
7
Continued

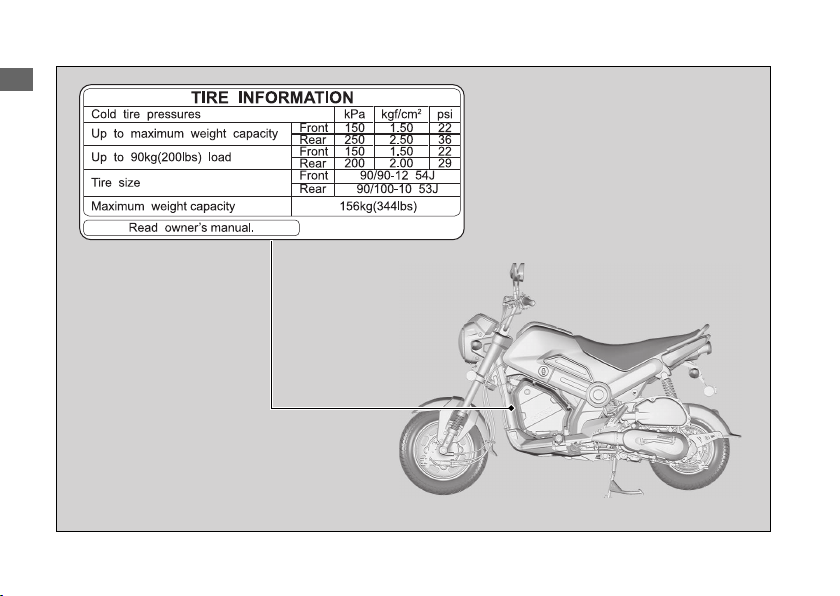

Safety Labels
Vehicle Safety
8
Safety Precautions
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Instruct your passenger to keep their hands
on the grab rail or your waist and their feet
on the footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Avoid
wearing loose clothes that could get caught on
any part of the vehicle. Ride defensively in
response to weather and road conditions.
#
Helmet
Should be safety-standard certified, high-
visibility, and the correct size for your head.
● Must fit comfortably but securely, with the
chin strap fastened
● Face shield with unobstructed field of vision
or other approved eye protection
USA
Look for a DOT (Department of
Transportation) certification label on any helmet
you buy.
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Safety Precautions
Vehicle Safety
9
Continued
#
Gloves
Full-finger leather gloves with high abrasion
resistance
#
Boots or Riding Shoes
Sturdy boots with non-slip soles and ankle
protection
#
Jacket and Pants
Protective, highly visible, long-sleeved jacket
and durable long pants for riding (or a
protective suit)
Riding Precautions
Break-in Period
During the first 300 miles (500 km) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Riding Precautions
Vehicle Safety
10
● Exercise caution on low traction surfaces.
u The tires slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness.
● For full braking effectiveness, operate both
the front and rear brakes together.
#

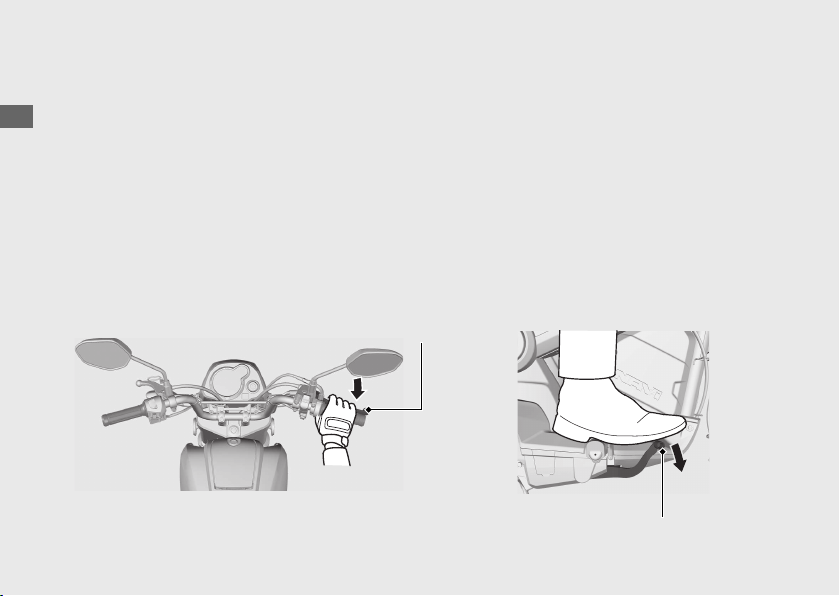

Combined Braking System (CBS)
Your vehicle's rear brake system is linked to the
front brake. This means that operating the rear
brake pedal applies the rear brake and a
portion of the front brake.
Operating the front brake lever applies only the
front brake.
For full braking effectiveness, operate both the
front and rear brakes together.
#
Wet or Rainy Conditions
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Riding Precautions
Vehicle Safety
11
Continued
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
#
Parking with the Side Stand or Center
Stand
1.
Stop the engine.
2.
Using the side stand
Push the side stand down.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
Using the center stand

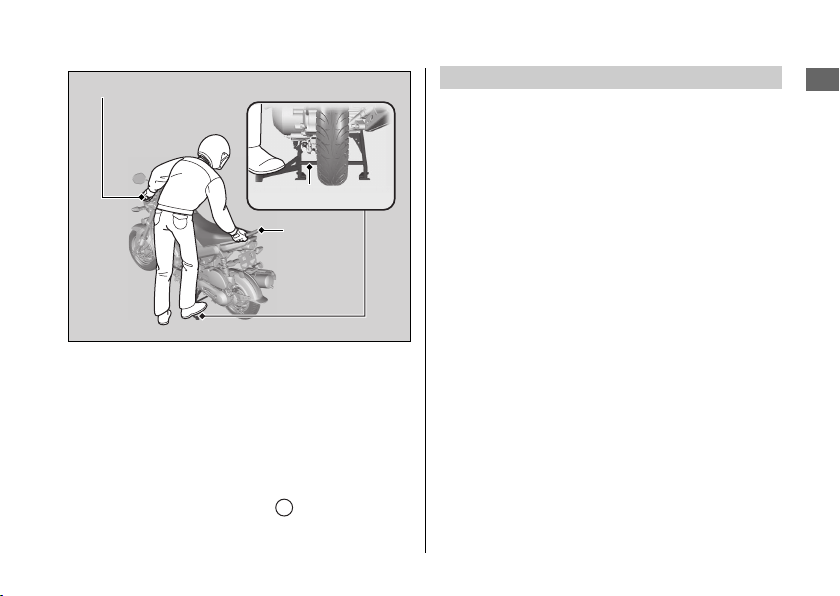

To lower the center stand, stand on the left
side of the vehicle.
Hold the left handle grip and the grab rail.
Press down on the tip of the center stand
with your right foot and, simultaneously, pull
up and back.
Riding Precautions
Vehicle Safety
12
3.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
4.
Turn the ignition switch to the OFF position
and remove the key.
5.
Lock the steering. 2 P. 24
6.
Turn the fuel valve to the (Off) position.
Refueling and Fuel Guidelines
Follow these guidelines to protect the engine
and fuel system:
● Use only unleaded gasoline.
● Use the recommended octane number.
Using lower octane gasoline will result in
decreased engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 100
● Do not use stale or contaminated gasoline
or an oil/gasoline mixture.
● Avoid getting dirt or water in the fuel tank.
Riding Precautions
Vehicle Safety
13
Left handle grip
Center stand
Grab rail
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
or approved for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle, be certain
the modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Accessories & Modifications
Vehicle Safety
14
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity 2 P. 109
● Tie all luggage securely, evenly balanced,
and close to the center of the vehicle.
● Do not place objects near the lights or the
muffler.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Loading
Vehicle Safety
15
Basic Operation Flow
Operation Guide
16
#
Pre-ride Inspection (P.48)
Carefully inspect your vehicle to
make sure that it is safe to ride.
#
Acceleration (P.33)
Apply throttle gradually.
Obey the speed limit.
How to use basic features.
• Instruments (P.20)
• Indicators (P.21)
• Switches (P.22)
• Steering Lock (P.24)
#
Starting the Engine (P.27)
Start and warm the engine.
Avoid revving the engine.
#
Starting the
Vehicle
(P.33)
Before pulling away, indicate
your direction with the turn
signal switch, and check for
oncoming traffic.
•
Rear Brake Lock (P.25)
Operation Guide
17
#
Braking (P.34)
Close the throttle and apply the
front and rear brakes together.
u The brake light will indicate
that you have applied the
brakes.
#
Parking (P.12)
#
Stopping
If pulling off the road, signal early
enough to show traffic that you are
pulling over, and pull over smoothly.
#
Turning Corners
Do your braking
before entering
corners.
Gradually reapply throttle
when exiting turn.
#
Refueling (P.35)
Park on a firm, level surface.
Use the stand, lock the
steering.

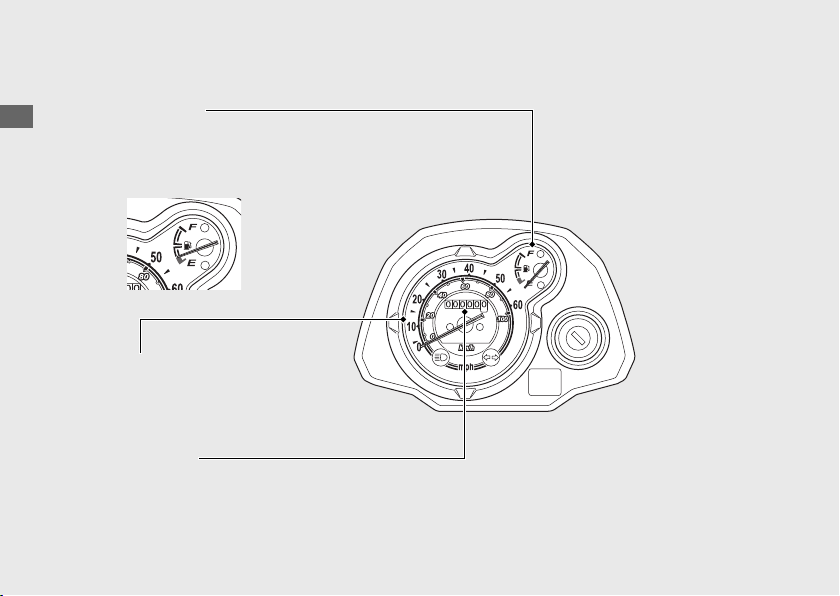

Instruments
Operation Guide
20
Speedometer
Fuel gauge
Remaining fuel when the gauge needle first
points to the red:
approximately 0.24 US gal (0.9 L)
Shows riding speed in miles
(USA) or kilometers (Canada) per
hour.
Odometer
Shows the total miles (USA) or kilometers
(Canada) ridden.
Indicators
Operation Guide
21
If one of these indicators does not come on when it should, have your dealer check for
problems.
Turn signal indicator High beam indicator
Switches
Operation Guide
22
Headlight dimmer switch
• : High beam
• : Low beam
Start button
Turn signal switch
u Pressing the switch turns the
turn signal off.
Horn button
Engine stop switch
u In an emergency,
switch to the (Stop)
position (the starter
motor will not operate)
to stop the engine.
Should normally remain
in the
(Run) position.
Operation Guide
23
Continued
Ignition switch
Switches the electrical system on/off.
u Key can be removed when in the
OFF position.
Turns engine
off.
OFF
Turns electrical
system on for
starting/riding.
ON

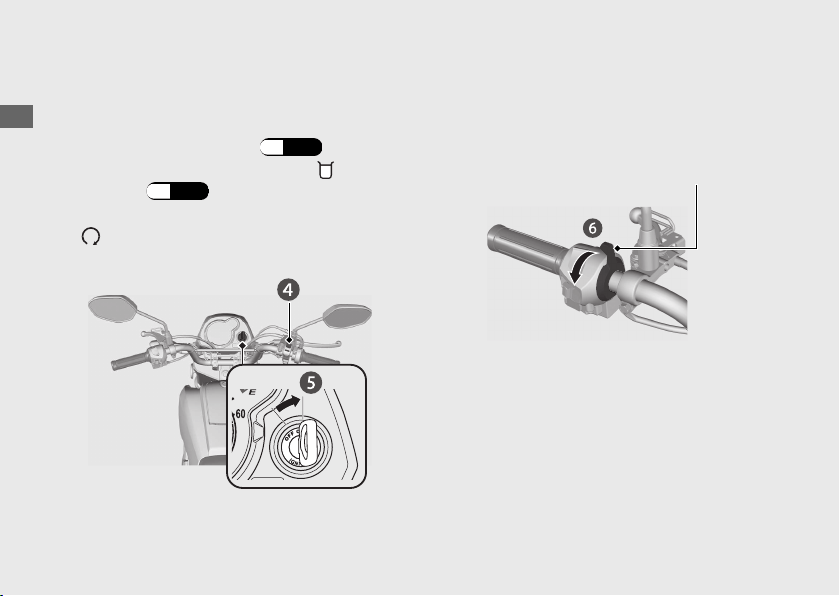

Steering Lock
Lock the steering when parking to help
prevent theft.
A U-shaped wheel lock or similar device is
also recommended.
#
Locking
a
Turn the handlebar all the way to the left.
b
Insert the ignition key in the lock and turn it
180 degrees clockwise.
u Jiggle the handlebar if the lock is difficult
to engage.
c
Remove the key.
#
Unlocking
Insert the ignition key in the lock and turn it
180 degrees counterclockwise.
Operation Guide
24
Switches (Continued)
Turn
Ignition key
Rear Brake Lock
Be sure the rear brake lock is applied while
starting and warming up the engine.
u Make sure the rear brake lock lever is
released before riding.
#
Locking
Squeeze the rear brake lock lever and set the
rear brake lock.
u
The rear brake lock will not function if the
rear brake is not adjusted properly.
(P.66)
u
If it is difficult to squeeze the rear brake lock
lever, depress the rear brake pedal together.
#
Unlocking
Squeeze the rear brake lock lever.
u
Before riding, make sure that the rear brake
lock is fully released so there is no drag on
the rear wheel.
Operation Guide
25

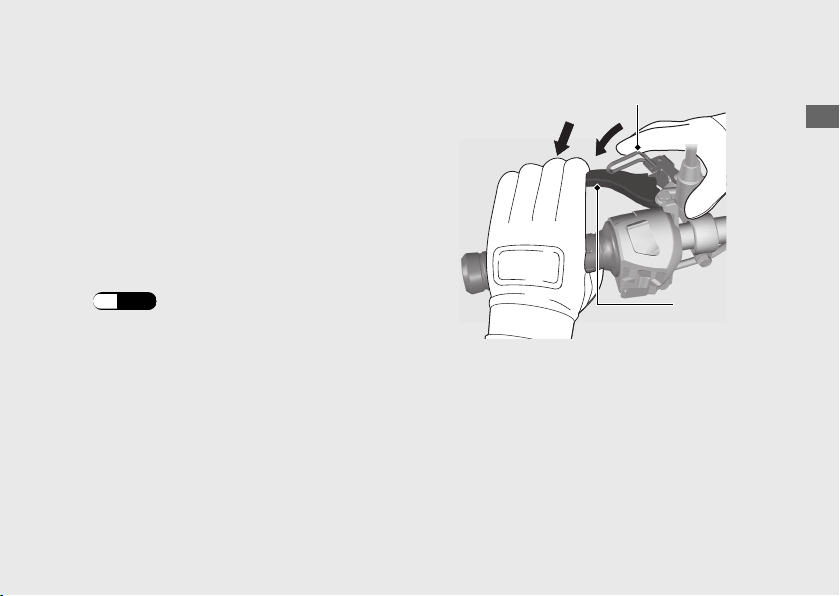

Rear brake lock
Rear brake
lock lever
Fuel Valve
The three-way fuel valve is used to control
the flow of fuel from the fuel tank to the
carburetor.
(On): normal position for riding.
(Off): for parking, storing, or
transportation.
(Res): for extra fuel to get to a gas station
for refueling.
Operation Guide
26
(On) (Off) (Res)
Starting the Engine
Start your engine using the following
procedure.
This vehicle is equipped with a side stand
ignition cut-off system.
u If the side stand is down, the engine cannot
be started.
u If you lower the side stand with the engine
running, it will automatically shut off.
To restart a warm engine, follow the
procedure for “High Air Temperature.”
To start a cold engine , follow the procedure
for “Normal Air Temperature.”
NOTICE
• If the engine does not start within 5 seconds,
turn the ignition switch to the OFF position
and wait 10 seconds before trying to start
the engine again to recover battery voltage.
• Extended fast idling and revving the engine
can damage the engine and the exhaust
system.
•
Do not operate the kickstarter while the
engine is running as engine damage could
result. Do not apply excessive force on the
kickstarter.
•
Fold up the kickstarter after the kickstarter is
returned to the pedal stop.
Operation Guide
27
Continued
Normal Air Temperature 10 - 35ºC (50 -
95ºF):
a
Place the vehicle on its center stand.
b
Lock the rear brake lock. (P.25)
c
Make sure the fuel valve is in the (On)
position. (P.26)
d
Make sure the engine stop switch is in the
(Run) position.
e
Turn the ignition switch to the ON position.
f
Pull the choke lever back all the way to fully
on.
Operation Guide
28
Starting the Engine (Continued)
Choke lever
g
Squeeze the front brake lever.
u The starter motor will only work when
the front brake lever is squeezed and the
side stand is up.
h
Using the start button
Press the start button with the throttle
completely closed. Release the start
button as soon as the engine starts.
Release the front brake lever.
Operation Guide
29
Continued
Front brake lever
Using the kickstarter
Lightly depress the kickstarter until
resistance is felt. Then, let the kickstarter
return to the top of its stroke.
With the throttle completely closed,
operate the kickstarter. Kick from the top
of the stroke through to the bottom with
a rapid, continuous motion. Allowing the
kickstarter to snap back freely against the
pedal stop can damage the engine case.
Release the front brake lever.
i
Immediately after the engine starts, push the
choke lever forward to the halfway position.
j
About a quarter minute after the engine
starts, push the choke lever forward all the
way to fully off.
k
If idling is unstable, open the throttle slightly.
Operation Guide
30
Starting the Engine (Continued)
High Air Temperature 35ºC (95ºF) or
Above:
a
Follow steps a - e under “Normal Air
Temperature.”
b
Do not use the choke.
c
Using the start button
Press the start button with the throttle
1/8 - 1/4 open. Release the start button as
soon as the engine starts.
Using the kickstarter
Lightly depress the kickstarter until
resistance is felt. Then, let the kickstarter
return to the top of its stroke.
With the throttle completely closed,
operate the kickstarter. Kick from the top
of the stroke through to the bottom with
a rapid, continuous motion. Allowing the
kickstarter to snap back freely against the
pedal stop can damage the engine case.
Low Air Temperature 10ºC (50ºF) or
Below:
a
Follow steps a - i under “Normal Air
Temperature.”
b
Warm up the engine by opening and
closing the throttle slightly.
c
Continue warming up the engine until it will
idle smoothly with the choke lever pushed
forward all the way to fully off.
Operation Guide
31
Continued
If the engine does not start:
Using the start button
a
Open the throttle fully and press the start
button for 5 seconds.
b
Follow steps “Normal Air Temperature.”
c
If the engine starts with unstable idle, open
the throttle slightly.
d
If the engine does not start, wait 10 seconds,
then follow steps a - c again.
Using the kickstarter
a
Turn the ignition switch to the OFF position.
b
Open the throttle fully and crank the engine
several times with the kickstarter.
c
Turn the ignition switch to the ON position.
d
Follow steps “Normal Air Temperature.”
e
If the engine starts with unstable idle, open
the throttle slightly.
#
If Engine Will Not Start (P.78)
Operation Guide
32
Starting the Engine (Continued)
Riding
Starting the Vehicle
a
Push the vehicle forward off the center
stand.
u Lock the rear brake lock.
u Keep throttle closed.
Make sure the side stand and center stand
are up.
b
Get on the vehicle.
u Mount the vehicle from the left side,
keeping at least one foot on the ground.
c
Release the rear brake lock.
u
To prevent unexpected movement,
squeeze the brake lever and depress the
brake pedal.
d
Acceleration and deceleration
To accelerate: Open the throttle slowly.
To decelerate: Close the throttle.
Operation Guide
33
Continued
Close
(Decelerate)
Open
(Accelerate)
Braking
Close the throttle and apply the front brake
lever and rear brake pedal together.
Do not apply the brake lock while riding.
It may cause the wheel to lock, reducing
control of the vehicle.
Operation Guide
34
Riding (Continued)
Rear brake pedal
Front brake lever
Refueling
Do not fill with fuel above the lower edge of
the filler neck.
Fuel type: Unleaded gasoline only
Recommended fuel octane number:
Pump Octane Number (PON) 86 or higher.
Tank capacity including the reserve:
0.92 US gal (3.5 L)
Reserve capacity: 0.24 US gal (0.9 L)
The tank should be refilled as soon as
possible after switching to reserve, and the
fuel valve should be returned to the
(On)
position after refueling to avoid running out
of fuel with no reserve.
(P.26)
#
Refueling and Fuel Guidelines (P.13
)
Operation Guide
35
Continued
Fuel fill cap
5 marks
Lower edge
of filler neck
Ignition key
Fuel tank lid
Fuel tank cover
Opening the Fuel Fill Cap
a
Insert the ignition key and turn it clockwise
to unlock the fuel tank lid.
b
Turn the fuel fill cap counterclockwise until it
stops and remove the fuel fill cap.
c
Set the fuel fill cap upside down on the fuel
tank cover.
Closing the Fuel Fill Cap
a
Install and tighten the fuel fill cap by turning
it clockwise.
u Make sure that the 5 marks on the cap
and fuel tank cover are aligned.
b
Close the fuel tank lid.
c
Turn the ignition key counterclockwise to
lock the fuel tank lid.
d
Remove the ignition key.
3WARNING
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling fuel.
• Stop the engine, and keep heat,
sparks, and flames away.
•
Only handle fuel outdoors.
• Wipe up spills immediately.
Operation Guide
36
Refueling (Continued)
Storage Equipment

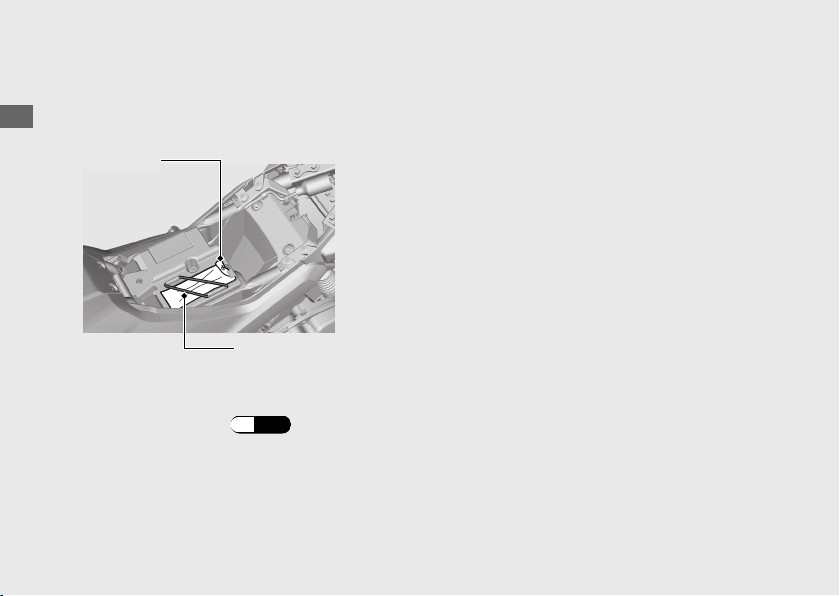

Helmet Holders
The helmet holders are located under the
seat.
u Use the helmet holders only when parked.
#
Removing the seat
(P.61
)
3WARNING
Riding with a helmet attached to the
holder can interfere with the rear wheel
or suspension and could cause a crash
in which you can be seriously hurt or
killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
Operation Guide
37
Continued
Helmet D-ring
Helmet holders
Luggage box
The luggage box is below the fuel tank.
Never exceed the maximum weight limit.
Maximum Weight: 6.6 lb (3.0 kg)
u Do not store valuables or fragile articles.
u Wipe away any water that accumulates in
the luggage box with a soft, clean cloth. The
luggage box is not equipped with a
drainage hole.
Open
a
Insert the ignition key and turn it clockwise
to unlock luggage box lid.
b
Open the luggage box lid.
Close
a
Close the luggage box lid.
b
Turn the ignition key counterclockwise to
lock the luggage box lid.
c
Remove the ignition key.
Operation Guide
38
Storage Equipment (Continued)
Luggage box lid
Ignition key

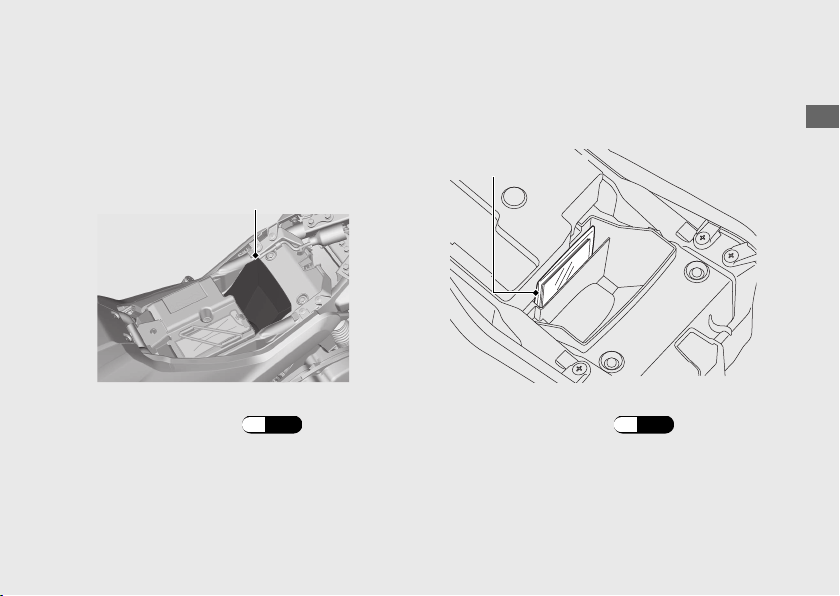

Document compartment
The document compartment is below the
seat. This compartment is for lightweight
items.
u Do not store valuables or fragile articles.
#
Removing the seat (P.61)
Document Bag
The document bag is in the document
compartment.
#
Removing the seat (P.61
)
Operation Guide
39
Continued
Document compartment
Document bag
Importance of Maintenance ........................... P. 42
Maintenance Schedule..................................... P. 44
Maintenance Record......................................... P. 47
Maintenance Fundamentals ...........................P. 48
Tools ..................................................................... P. 59
Removing & Installing Body Components.. P. 60
Battery.................................................................... P. 60
Seat ......................................................................... P. 61
Engine Oil ............................................................ P. 62
Brakes................................................................... P. 64
Side Stand ........................................................... P. 75
Throttle ................................................................ P. 76
Please read “Importance of Maintenance” and “Maintenance Fundamentals” carefully
before attempting any maintenance. Refer to “Specifications” for service data.
Maintenance
Importance of Maintenance
Importance of Maintenance
Keeping your vehicle well-maintained is
absolutely essential to your safety and to
protect your investment, obtain maximum
performance, avoid breakdowns, and reduce air
pollution. Maintenance is the owner's
responsibility. Be sure to inspect your vehicle
before each ride and perform the periodic
checks specified in the Maintenance Schedule.
2 P. 44
3WARNING
Improperly maintaining your vehicle or
failing to correct a problem before you
ride can cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner's manual.
For information about the exhaust emission and
noise emission requirements of the U.S.
Environmental Protection Agency (EPA), the
California Air Resources Board (CARB), and the
Environment and Climate Change Canada
(ECCC). 2 P. 95
USA
Maintenance, replacement or repair of the
emission control devices and systems may
be performed by any vehicle repair
establishment or individual using parts
that are “certified” to EPA standards.
Maintenance
42
Maintenance Safety
Always read the maintenance instructions
before you begin each task and make sure that
you have the tools, parts, and skills required.
We cannot warn you of every conceivable
hazard that can arise in performing
maintenance. Only you can decide whether or
not you should perform a given task.
Follow these guidelines when performing
maintenance.
● Stop the engine and remove the key.
● Place your vehicle on a firm, level surface
using the side stand, center stand, or a
maintenance stand to provide support.
● Allow the engine, muffler, brakes, and other
high-temperature parts to cool before
servicing as you can get burned.
● Run the engine only when instructed, and
do so in a well-ventilated area.
Importance of Maintenance
Maintenance
43
Maintenance Schedule
The maintenance schedule specifies the
maintenance requirements necessary to ensure
safe, dependable performance, and proper
emission control.
Maintenance work should be performed in
accordance with Honda's standards and
specifications by properly trained and equipped
technicians. Your dealer meets all of these
requirements. All scheduled maintenance is
considered a normal owner operating cost and
will be charged to you by your dealer. Keeping
an accurate maintenance record will help
ensure your vehicle is properly maintained.
2 P. 47
Make sure whoever performs the scheduled
maintenance completes the maintenance
record. Retain all service documents. If you sell
your vehicle, these service documents should
be transferred with the vehicle to the new
owner.
Maintenance
44
Items
Frequency
*1
× 1,000 mi 0.6 2.5 5 7.5 10 12.5 15
Refer to
page
× 1,000 km 1 4 8 12 16 20 24
Emission-Related Items
Fuel Line –
Fuel strainer screen –
Throttle Operation 76
Choke Operation –
Air Cleaner
*2
–
Crankcase Breather
*3
–
Spark Plug –
Valve Clearance –
Engine Oil
Initial = 600 mi (1,000 km) or 1 month:
Regular = Every 2,500 mi (4,000 km) or 6 months:
62
Engine Oil Strainer Screen
–
Engine Idle Speed –
Secondary Air Supply System –
Secondary Air Supply System Air Filter
*2
–
Evaporative Emission Control System
*4
–
Maintenance Level Maintenance Legend
: Intermediate. We recommend service by your
dealer, unless you have the necessary tools and are
mechanically skilled.
Procedures are provided in an official Honda Service
Manual (2 P. 101).
:
:
:
Inspect (clean, adjust, lubricate, or replace, if necessary)
Replace
Clean
: Technical. In the interest of safety, have your vehicle
serviced by your dealer.
Maintenance Schedule
Maintenance
45
Continued
Items
Frequency
*1
× 1,000 mi 0.6 2.5 5 7.5 10 12.5 15
Refer to
page
× 1,000 km 1 4 8 12 16 20 24
Non-Emission-Related Items
Drive Belt –
Final Drive Oil
*5
–
Brake Shoes Wear 73
Brake System 64
Brake Light Switch 74
Brake Lock Operation 70
Headlight Aim –
Clutch Shoes Wear –
Side Stand 75
Suspension –
Nuts, Bolts, Fasteners –
Wheels/Tires 55
Steering Head Bearings –
Notes:
*
1 : At higher odometer reading, repeat at the frequency interval established here.
*
2 : Service more frequently when riding in unusually wet or dusty areas.
*
3 : Service more frequently when riding in rain or at full throttle.
*
4 : 50 STATE (meets California).
*
5 : Replace every 2 years. Replacement requires mechanical skill.
Maintenance Schedule
Maintenance
46
Maintenance Record
Distance Odometer Date Performed By: Notes
600 miles (1,000 km)
2,500 miles (4,000 km)
5,000 miles (8,000 km)
7,500 miles (12,000 km)
10,000 miles (16,000 km)
12,500 miles (20,000 km)
15,000 miles (24,000 km)
17,500 miles (28,000 km)
20,000 miles (32,000 km)
22,500 miles (36,000 km)
25,000 miles (40,000 km)
27,500 miles (44,000 km)
30,000 miles (48,000 km)
Maintenance
47
Maintenance Fundamentals
Pre-ride Inspection
To ensure safety, it is your responsibility to
perform a pre-ride inspection and make sure
that any problem you find is corrected. A pre-
ride inspection is a must, not only for safety, but
because having a breakdown, or even a flat tire,
can be a major inconvenience.
Check the following items before you get on
your vehicle:
● Tire tread wear and air pressures are within
limits 2 P. 55
●
Lights, horn, and turn signals operate
normally
Check the following items if you are carrying a
passenger or cargo:
●
Combined weight is within load limits
2 P. 109
●
Cargo is secured properly
Check the following items after you get on your
vehicle:
● Throttle action moves smoothly without
binding 2 P. 76
● Brake lever and pedal operate normally
● Check the fuel level and refuel when needed
2 P. 13, 2 P. 35
● Engine stop switch functions properly
2 P. 22
Check the following items at regular intervals:
● Oil level is between the upper and lower
level marks 2 P. 62
●
Side stand functions properly 2 P. 75
●
Rear brake lock works properly 2 P. 25
Maintenance
48
Tires and wheels
Check the air pressure (2 P. 55), examine tread for wear and damage
(2 P. 55), and check the wheels for damage.
Fluid levels Check the engine oil level (2 P. 62).
Lights
Check that the headlight, brake light, taillight, and turn signals are
working properly.
Controls
Check the freeplay of the front brake lever (2 P. 64), freeplay of the
rear brake pedal (2 P. 65), throttle grip (2 P. 76) and rear brake lock
(2 P. 25) operate properly.
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.
Periodic Checks
You should also perform other periodic
maintenance checks at least once a month
regardless of how often you ride, or more often
if you ride frequently.
Also, check the odometer reading against the
Maintenance Schedule and perform all
maintenance that is due. 2 P. 44
Maintenance Fundamentals
Maintenance
49
Replacing Parts
Always use Honda Genuine Parts or their
equivalents to ensure reliability and safety.
When ordering colored components, specify
the model name, color, and code mentioned on
the color label.
The color label is attached to the document
compartment. 2 P. 39
3WARNING
Installing non-Honda parts may make
your vehicle unsafe and cause a crash in
which you can be seriously hurt or
killed.
Always use Honda Genuine Parts or
equivalents that have been designed
and approved for your vehicle.
Maintenance Fundamentals
Maintenance
50

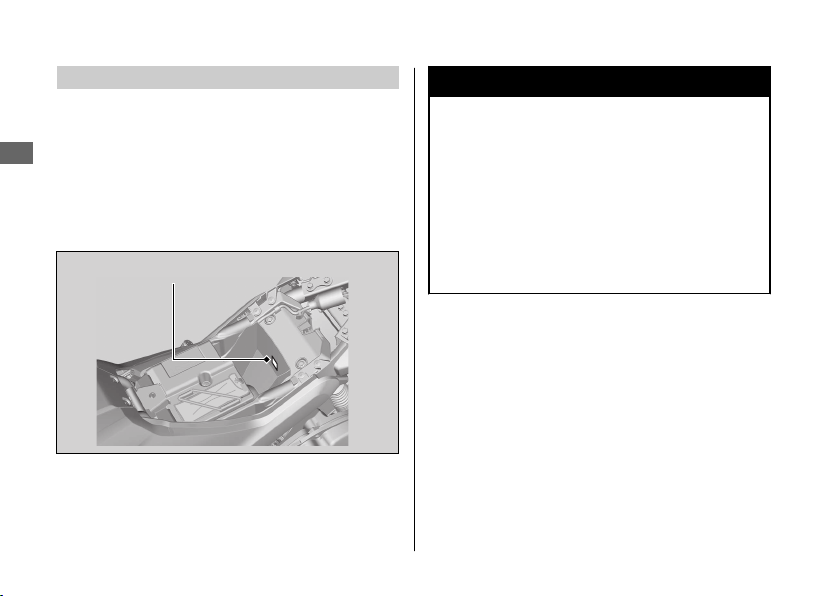

Color Label
Battery
Your vehicle has a maintenance-free type
battery. You do not have to check the battery
electrolyte level or add distilled water. Clean the
battery terminals if they become dirty or
corroded.
Do not remove the battery cap seals. There is
no need to remove the cap when charging.
NOTICE
An improperly disposed of battery can be
harmful to the environment and human health.
Always confirm local regulations for proper
battery disposal instruction.
#
What to do in an emergency
If any of the following occur, immediately see
your doctor.
●
Electrolyte splashes into your eyes:
u
Wash your eyes repeatedly with cool
water for at least 15 minutes. Using water
under pressure can damage your eyes.
●
Electrolyte splashes onto your skin:
u Remove affected clothing and wash your
skin thoroughly using water.
● Electrolyte splashes into your mouth:
u Rinse mouth thoroughly with water, and
do not swallow.
3WARNING
The battery gives off explosive
hydrogen gas during normal operation.
A spark or flame can cause the battery
to explode with enough force to kill or
seriously hurt you.
Wear protective clothing and a face
shield, or have a skilled mechanic do
the battery servicing.
WARNING: Battery posts, terminals, and
related accessories contain lead and lead
compounds.
Wash your hands after handling.
Maintenance Fundamentals
Maintenance
51
Continued
#
Cleaning the Battery Terminals
1.
Remove the battery. 2 P. 60
2.
If the terminals are starting to corrode and
are coated with a white substance, wash
with warm water and wipe clean.
3.
If the terminals are heavily corroded, clean
and polish the terminals with a wire brush or
sandpaper. Wear safety glasses.
4.
After cleaning, reinstall the battery.
The battery has a limited life span. Consult your
dealer about when you should replace the
battery. Always replace the battery with another
maintenance-free battery of the same type.
#
Charging
If you use electrical accessories that drain the
battery or you do not ride frequently, we
recommend that you charge the battery every
30 days using a charger designed specifically for
your Honda, which can be purchased from your
dealer. Read the information that came with
your battery charger and follow the instructions
on the battery. Avoid using an automobile-type
battery charger, as these can overheat a
motorcycle battery and cause permanent
damage.
Make sure the ignition switch is in the OFF
position before charging the battery.
NOTICE
Improper charging can damage the battery. If
you can’t charge the battery or it appears unable
to hold a charge, contact your dealer.
Maintenance Fundamentals
Maintenance
52
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended. Bump starting is also not
recommended.
NOTICE
Installing non-Honda electrical accessories can
overload the electrical system, discharging the
battery and possibly damaging the system.
Fuses
Fuses protect the electrical circuits on your
vehicle. If something electrical on your vehicle
stops working, check for and replace any blown
fuses. 2 P. 84
#
Inspecting and Replacing Fuses
Turn the ignition switch to the OFF position to
remove and inspect fuses. If a fuse is blown,
replace with a fuse of the same rating. For fuse
ratings, see “Specifications.” 2 P. 110
NOTICE
Replacing a fuse with one that has a higher
rating greatly increases the chance of damage to
the electrical system.
If a fuse fails repeatedly, you likely have an
electrical fault. Have your vehicle inspected by
your dealer.
Maintenance Fundamentals
Maintenance
53
Blown fuse
MB
Engine Oil
Engine oil consumption varies and oil quality
deteriorates according to riding conditions and
time elapsed.
Check the engine oil level regularly, and add the
recommended engine oil if necessary. Dirty oil
or old oil should be changed as soon as
possible.
#
Selecting the Engine Oil
For recommended engine oil, see
“Specifications.” 2 P. 110
If you use non-Honda engine oil, check the
label to make sure that the oil satisfies all of the
following standards:
● JASO T 903 standard
*1
: MB
● SAE standard
*2
: 10W-30
●
API classification
*3
: SJ or higher
*1.
The JASO T 903 standard is an index for engine
oils for 4-stroke motorcycle engines. There are
two classes: MA and MB. For example, the
following label shows the MB classification.
*2.
The SAE standard grades oils by their viscosity.
*3.
The API classification specifies the quality and
performance rating of engine oils. Use SJ or higher
oils, excluding oils marked as “Energy Conserving”
or “Resource Conserving” on the circular API
service symbol.
Maintenance Fundamentals
Maintenance
54
Oil code
Oil classification
Not recommended Recommended

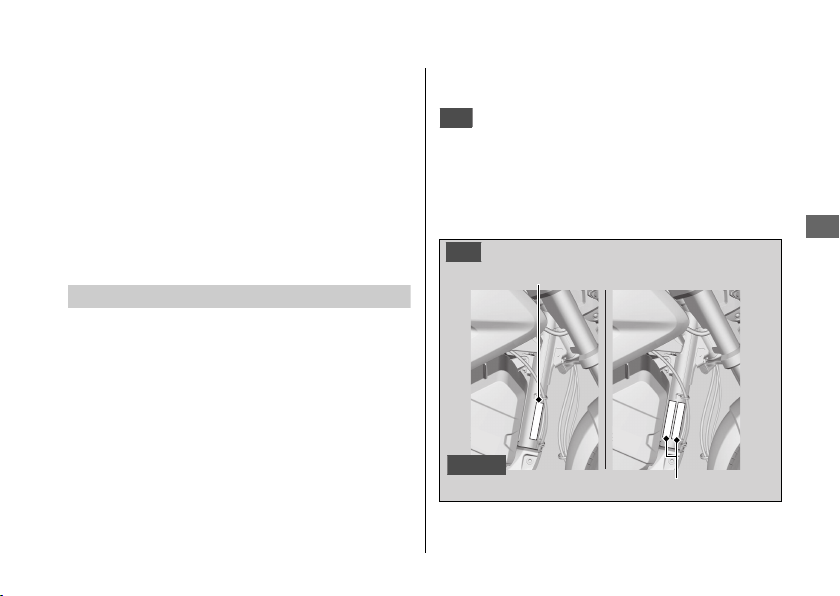

Crankcase Breather
Service more frequently when riding in rain, at
full throttle, or after the vehicle is washed or
overturned. Service if the deposit level can be
seen in the transparent section of the drain
tube.
If the drain tube overflows, the air filter may
become contaminated with engine oil, causing
poor engine performance.
Tires (Inspecting/Replacing)
#
Checking the Air Pressure
Visually inspect your tires and use an air
pressure gauge to measure the air pressure at
least once a month or any time you think the
tires look low. Always check air pressure when
your tires are cold.
#
Inspecting for Damage
Inspect the tires for
cuts, slits, or cracks that
expose fabric or cords,
or nails or other
foreign objects
embedded in the side
of the tire or the tread.
Also inspect for any unusual bumps or bulges in
the side walls of the tires.
Maintenance Fundamentals
Maintenance
55
Continued
#

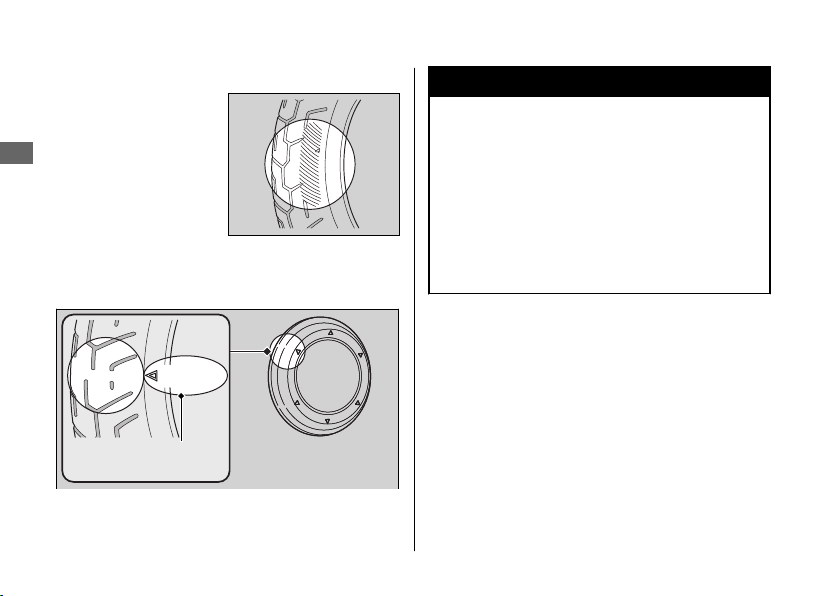

Inspecting for Abnormal Wear
Inspect the tires for
signs of abnormal wear
on the contact surface.
#
Inspecting Tread Depth
Inspect the tread wear indicators. If they
become visible, replace the tires immediately.
3WARNING
Riding on tires that are excessively worn
or improperly inflated can cause a crash
in which you can be seriously hurt or
killed.
Follow all instructions in this owner's
manual regarding tire inflation and
maintenance.
Maintenance Fundamentals
Maintenance
56
Wear indicator
location mark
or TWI
Have your tires replaced by your dealer.
For recommended tires and air pressure, see
“Specifications.” 2 P. 110
Follow these guidelines whenever you replace
tires:
● Use the recommended tires or their
equivalents of the same size, construction,
speed rating, and load range.
● Do not install a tube inside a tubeless tire on
this vehicle. Excessive heat build-up can
cause the tube to burst.
● Use only tubeless tires on this vehicle.
The rims are designed for tubeless tires, and
during hard acceleration or braking, a tube-
type tire could slip on the rim and cause the
tire to rapidly deflate.
3WARNING
Installing improper tires on your vehicle
can adversely affect handling and
stability, and can cause a crash in which
you can be seriously hurt or killed.
Always use the size and type of tires
recommended in this owner's manual.
Maintenance Fundamentals
Maintenance
57
Tire Service Life
The service life of your tires is dependent on
many factors, including, but not limited to,
riding habits, road conditions, vehicle loading,
tire air pressure, maintenance history, speed,
and environmental conditions (even when the
tires are not in use).
In addition to your regular inspections and
maintenance, it is recommended that you have
annual inspections performed once the tires
reach 5 years old. It is also recommended that
all tires be removed from service after 10 years
from the date of manufacture, regardless of
their condition or state of wear.
The last four digits of the TIN (tire identification
number) indicate the date of manufacture.
#
Tire Identification Number (TIN)
The tire identification number (TIN) is a group of
numbers and letters located on the sidewall of the
tire.
a b c
DOT XXXX XXXX 22 09
DOT: This indicates that the tire meets all
requirements of the U.S. Department
of Transportation.
a XXXX:
Factory code
b XXXX:
Tire type code
c 22 09: Date of manufacture (week & year).
Example: week 22 in year 09.
Maintenance Fundamentals
Maintenance
58
Tire Labeling Example
Tire identification
number (TIN)
Removing & Installing Body Components

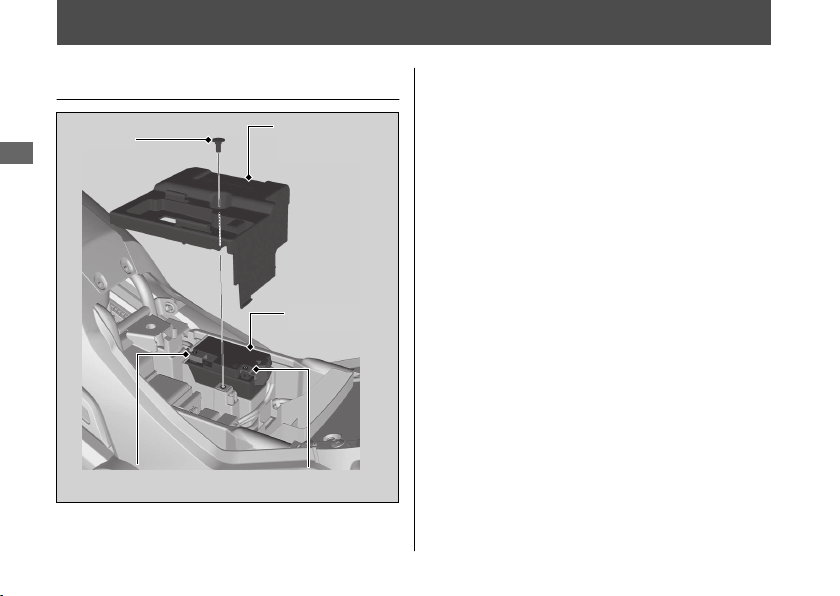

Battery
#
Removal
Make sure the ignition switch is in the
OFF position.
1.
Remove the seat. 2 P. 61
2.
Remove the battery cover by removing the
screw.
3.
Disconnect the negative - terminal from
the battery.
4.
Disconnect the positive + terminal from
the battery.
5.
Remove the battery, taking care not to
drop the terminal nuts.
#
Installation
Install the parts in the reverse order of removal.
Always connect the positive + terminal first.
Make sure bolts and nuts are tight.
For proper handling of the battery, see
“Maintenance Fundamentals.” 2 P. 51
“Battery Goes Dead.” 2 P. 80
Maintenance
60
Positive terminal
Screw
Battery
cover
Negative terminal
Battery
Seat
#
Removal
1.
Insert the ignition key into the seat lock.
2.
Turn it clockwise, then pull the seat up
and back.
#
Installation
1.
Insert the prong into the recess.
2.
Push forward and down on the rear of the
seat until it locks in place.
3.
Make sure that the seat is locked securely
in position to pull it up lightly.
The seat locks automatically when closed.
Take care not to lock your key in the
compartment under the rear seat.
Removing & Installing Body Components u Seat
Maintenance
61
Prong
Seat
Recess
Seat lock
Ignition
key
Engine Oil
Checking the Engine Oil
1.
If the engine is cold, idle the engine for 3
to 5 minutes.
2.
Turn the ignition switch to the OFF
position and wait for 2 to 3 minutes.
3.
Place your vehicle on its center stand on a
firm, level surface.
4.
Remove the oil fill cap/dipstick and wipe it
clean.
5.
Insert the oil fill cap/dipstick until it seats,
but don't screw it in.
6.
Check that the oil level is between the
upper level and lower level marks on the
oil fill cap/dipstick.
7.
Securely install the oil fill cap/dipstick.
Maintenance
62
Upper
level
Lower
level
Oil fill cap/dipstick
Adding Engine Oil
If the engine oil is below or near the lower
level mark, add the recommended engine oil.
2 P. 54, 2 P. 110
1.
Remove the oil fill cap/dipstick. Add the
recommended oil until it reaches the
upper level mark.
u Place your vehicle on its center stand
on a firm, level surface when checking
the oil level.
u
Do not overfill above the upper level
mark.
u
Make sure no foreign objects enter the
oil filler opening.
u
Wipe up any spills immediately.
2.
Securely reinstall the oil fill cap/dipstick.
NOTICE
Overfilling with oil or operating with insufficient
oil can cause damage to your engine. Do not mix
different brands and grades of oil.
For the recommended oil and oil selection
guidelines, see “Maintenance Fundamentals.”
2 P. 54
Engine Oil u Adding Engine Oil
Maintenance
63
Brakes
Inspecting the Front Brake
Lever Freeplay
1.
Place your vehicle on its center stand on a
firm, level surface.
2.
Confirm there is a gap between the front
brake arm and No.2 brake arm pin.
u
If there is no gap, adjust the Brake
Lever/Pedal Freeplay. 2 P. 66
3.
Measure the distance the front brake lever
moves before the brake takes hold.
Freeplay at the tip of the brake lever:
3/8 - 13/16 in (10 - 20 mm)
Check the brake cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the brake cable with a commercially
available cable lubricant to prevent premature
wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.
Maintenance
64
Gap of No.2
Front
brake arm
No.2 Brake
arm pin
Freeplay
Inspecting the Rear Brake
Pedal Freeplay
1.
Place your vehicle on its center stand on a
firm, level surface.
2.
Confirm that the gap between the rear
brake arm and rear brake arm pin for rear
brake lock.
u
If there is no gap, adjust the Brake
Lever/Pedal Freeplay. 2 P. 66
3.
Measure the distance the rear brake pedal
moves before the brake takes hold.
Freeplay at the tip of the brake pedal:
13/16 - 1 3/16 in (20 - 30 mm)
Check the brake cable for kinks or signs of
wear. If necessary, have it replaced by your
dealer.
Lubricate the brake cable with a commercially
available cable lubricant to prevent premature
wear and corrosion.
Make sure the brake arm, spring and fastener
are in good condition.
Brakes u Inspecting the Rear Brake Pedal Freeplay
Maintenance
65
Rear brake
arm pin
Gap of rear
brake lock
Rear
brake arm
Freeplay
Adjusting the Brake Lever/
Pedal Freeplay
Adjust the freeplay of the brake lever/pedal
with the front wheel pointed straight ahead
in the order of front brake followed by rear
brake then rear brake lock.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
1.
Confirm that the gap is 0.04 in (1 mm) or
more between the brake arm and No.2
brake arm pin.
u If there is no gap or small gap, adjust
the No. 2 adjusting nut to increase the
gap.
Brakes u Adjusting the Brake Lever/Pedal Freeplay
Maintenance
66
Brake arm pin
Adjusting nut
Gap of No.2
No.2 Brake arm pin
No.2 adjusting nut
Increase
Gap
Brake arm
2.
Adjust the freeplay of the front brake
lever is 3/8 - 13/16 in (10 - 20 mm) by
turning the No.1 adjusting nut a half-turn
at a time.
u If there is no gap between the brake
arm and No.2 brake arm pin after
adjustment, adjust the No. 2 adjusting
nut to increase the gap. Then adjust
the freeplay again.
3.
Adjust No.2 adjusting nut so that the gap
between the brake arm and No.2 brake
arm pin as follows.
Gap of No.2 :
approximately 0.04 in (1 mm)
Brakes u Adjusting the Brake Lever/Pedal Freeplay
Maintenance
67
Continued
No.1 adjusting nut
Decrease
Freeplay
Increase
Freeplay
Gap of No.2
Brake arm
No.2
adjusting nut
Increase
Gap
Decrease
Gap
No.2 Brake arm pin

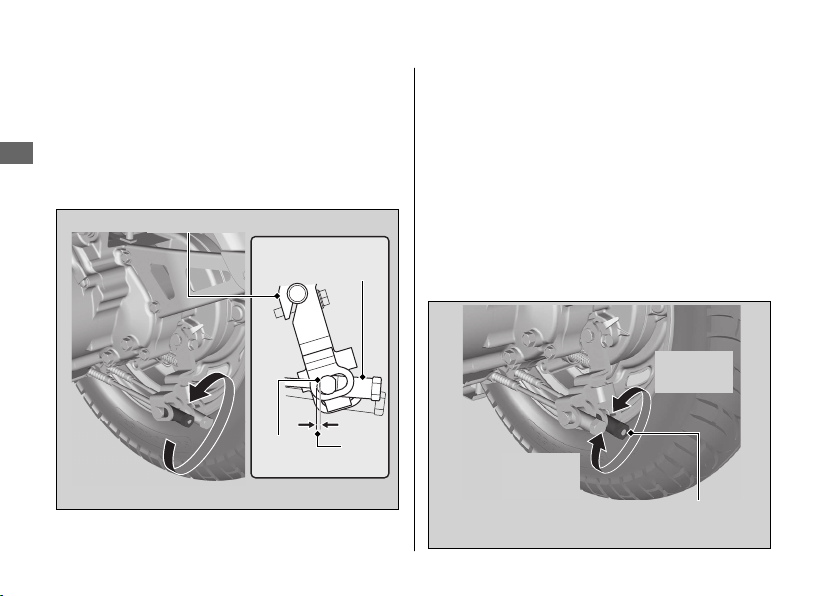

4.
Confirm that the gap is 0.04 in (1 mm) or
more between the brake arm and brake
arm pin for rear brake lock.
u If there is no gap or small gap, adjust
the rear brake lock adjusting nut to
increase the gap.
5.
Adjust the freeplay of the rear brake
pedal is 13/16 - 1 3/16 in (20 - 30 mm) by
turning the rear brake pedal adjusting nut
a half-turn at a time.
u If there is no gap between the brake
arm and brake arm pin for rear brake
lock after adjustment, adjust the rear
brake lock adjusting nut to increase
the gap. Then adjust the freeplay
again.
Brakes u Adjusting the Brake Lever/Pedal Freeplay
Maintenance
68
Gap
Brake
arm pin
Rear brake lock
adjusting nut
Brake arm
Increase
Freeplay
Rear brake pedal
adjusting nut
Decrease
Freeplay
Increase
Freeplay
6.
Adjust rear brake lock adjusting nut so
that the gap between the brake arm and
brake arm pin for rear brake lock as
follows.
Gap of rear brake lock :
approximately 0.04 in (1 mm)
7.
Apply the brakes several times and check
for free wheel rotation after the front
brake lever and rear brake pedal are
released.
After adjustment, confirm the freeplay of the
brake lever/pedal.
NOTICE
Do not turn the adjusters beyond its natural
limits.
Make sure the brake arm, spring, and
fastener are in good condition.
Brakes u Adjusting the Brake Lever/Pedal Freeplay
Maintenance
69

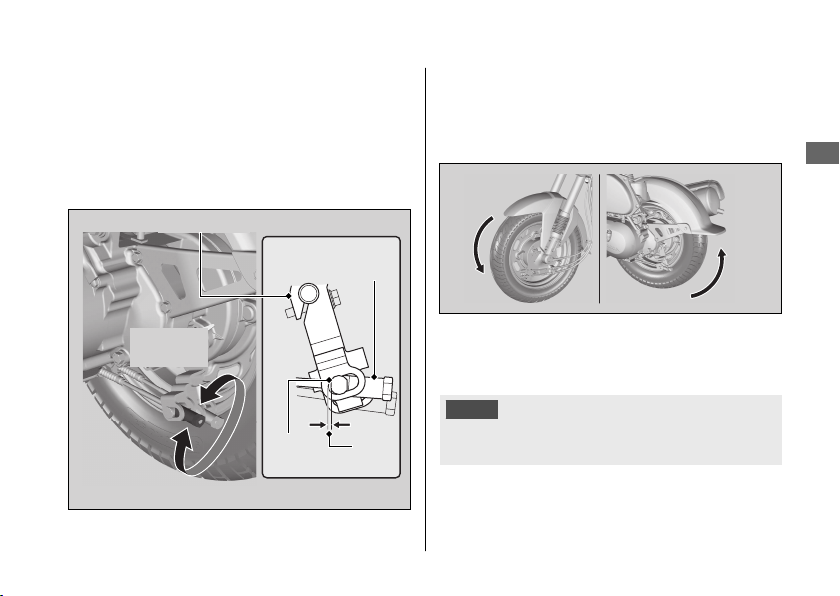

Gap
Brake
arm pin
Rear brake lock
adjusting nut
Brake arm
Increase
Freeplay
Decrease
Freeplay

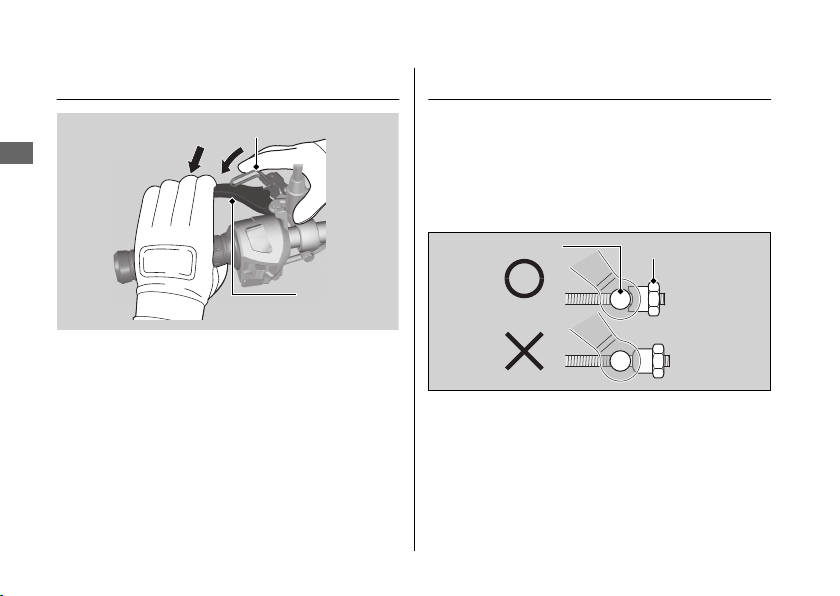

Checking the Rear Brake Lock
Place your vehicle on a firm, level surface.
Stop the engine.
Squeeze the rear brake lock lever and set the
rear brake lock.
Check the efficacy of the rear brake lock.
If the efficacy of the rear brake lock becomes
weak, adjust the rear brake lock. 2 P. 70
Adjusting the Rear Brake Lock
Adjust the rear brake lock with the front
wheel pointed straight ahead.
Make sure the cut-out on the adjusting nut is
seated on the brake arm pin when adjusting
the freeplay.
If proper adjustment cannot be obtained by
this method, see your dealer.
Brakes u Checking the Rear Brake Lock
Maintenance
70
Rear brake lock
Rear brake
lock lever
Brake arm pin
Adjusting nut
1.
Inspect the Front Brake Lever/Rear Brake
Pedal Freeplay. 2 P. 64, 2 P. 65
u If the freeplay is out of specification,
adjust the Brake Lever/Pedal Freeplay.
2 P. 66
2.
Adjust rear brake lock adjusting nut so
that the gap between the brake arm and
brake arm pin for rear brake lock as
follows.
Gap of rear brake lock :
approximately 0.04 in (1 mm)
Brakes u Adjusting the Rear Brake Lock
Maintenance
71
Continued
Gap
Brake
arm pin
Rear brake lock
adjusting nut
Brake arm
Increase
Freeplay
Decrease
Freeplay
3.
Apply the rear brake lock lever several
times and check for free rear wheel
rotation after the rear brake lock lever is
released.
After adjustment, confirm the efficacy of the
rear brake lock.
NOTICE
Do not turn the adjusters beyond its natural limits.
Make sure the brake arm, spring, and fastener
are in good condition.
Brakes u Adjusting the Rear Brake Lock
Maintenance
72

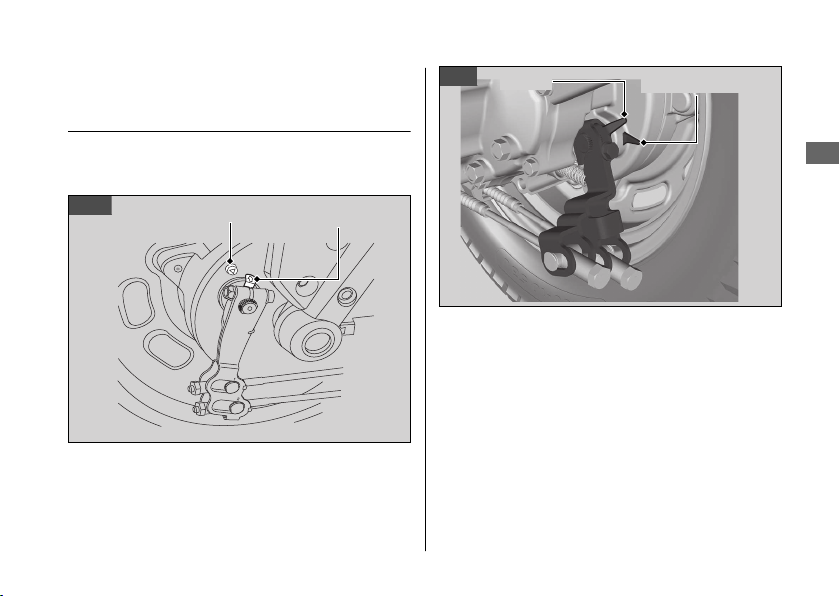

Inspecting the Brake Shoe
Wear
The front and rear brake are equipped with a
brake wear indicator.
When the brake is applied, an arrow attached
to the brake arm moves toward a reference
mark on the brake panel. If the arrow aligns
with the reference mark on full application of
the brake, the brake shoes must be replaced.
See your dealer for this service.
When brake service is necessary, see your
dealer. Use only Honda Genuine Parts or
their equivalent.
Brakes u Inspecting the Brake Shoe Wear
Maintenance
73
Arrow
Reference mark
Front
Rear
Arrow
Reference mark
Adjusting the Brake Light
Switch
1.
Remove the rear brake light switch
maintenance lid.
2.
Check the operation of the brake light
switch.
Hold the brake light switch and turn the
adjusting nut in the direction A if the
switch operates too late, or turn the nut in
the direction B if the switch operates too
soon.
3.
Install the rear brake light switch
maintenance lid.
Brakes u Adjusting the Brake Light Switch
Maintenance
74

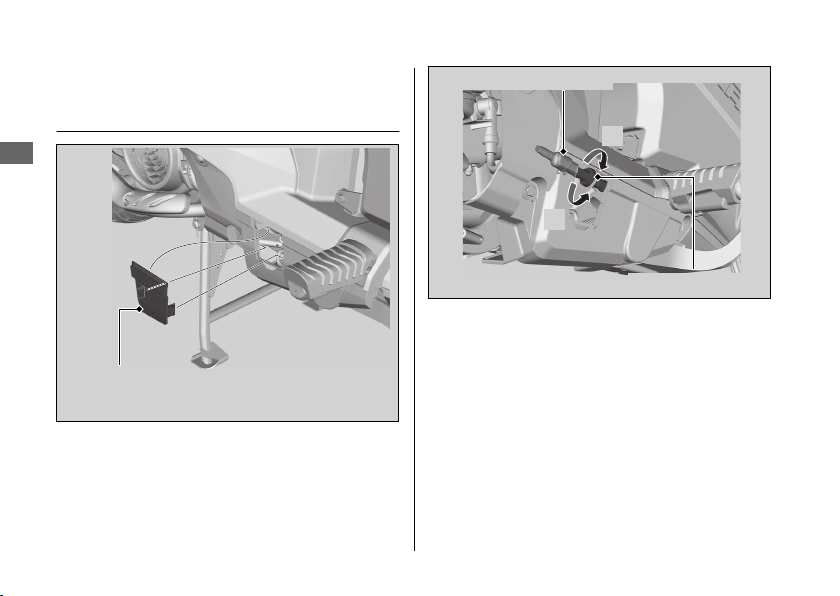

Brake light switch
maintenance lid
Brake light switch
Adjusting nut
B
A
Side Stand
Checking the Side Stand
1.
Place your vehicle on its center stand on a
firm, level surface.
2.
Check that the side stand operates
smoothly. If the side stand is stiff or
squeaky, clean the pivot area and
lubricate the pivot bolt with clean grease.
3.
Check the spring for damage or loss of
tension.
4.
Sit on the vehicle and raise the side stand.
5.
Start the engine.
6.
Lower the side stand all the way. The
engine should stop as you lower the side
stand. If the engine doesn't stop, have
your vehicle inspected by your dealer.
Maintenance
75
Side stand
spring

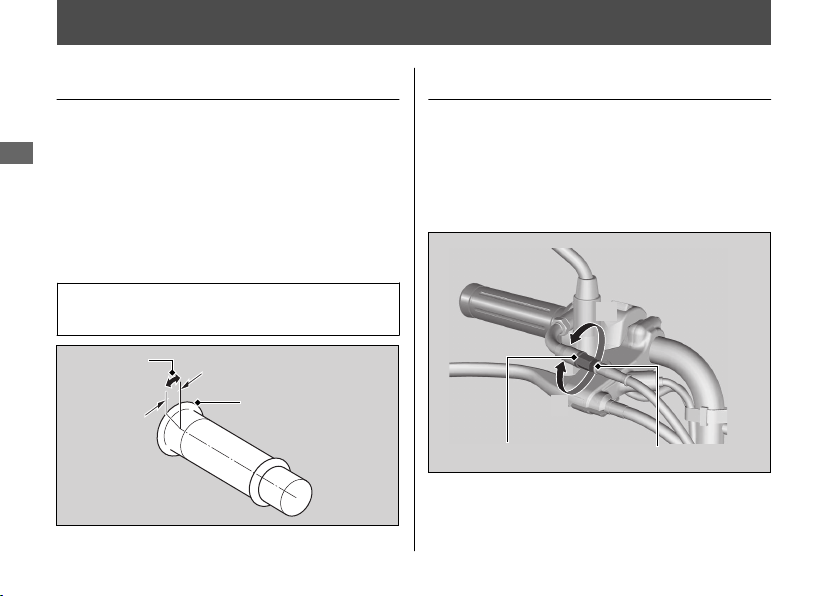

Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly or close automatically, or if
the cable is damaged, have the vehicle
inspected by your dealer.
Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1.
Loosen the lock nut.
2.
Turn the adjuster until the freeplay is
1/16 - 1/4 in (2 - 6 mm).
3.
Tighten the lock nut, and inspect the
throttle action again.
Maintenance
76
Freeplay
Flange
Adjuster Lock nut
+
–
Engine Will Not Start........................................ P. 78
Tire Puncture ...................................................... P. 79
Electrical Trouble............................................... P. 80
Battery Goes Dead .............................................. P. 80
Burned-out Light Bulb........................................ P. 80
Blown Fuse ............................................................ P. 84
Troubleshooting
Engine Will Not Start
Starter Motor Operates But
Engine Does Not Start
Check the following items:
● Check the correct engine starting
sequence. 2 P. 27
●
Check that there is gasoline in the fuel
tank.
Starter Motor Does Not
Operate
Check the following items:
●
Check the correct engine starting
sequence. 2 P. 27
● Make sure engine stop switch is in the
(Run) position. 2 P. 22
●
Check for a blown fuse. 2 P. 84
● Check for a loose battery connection
(2 P. 60) or battery terminal corrosion
(2 P. 51).
● Check the condition of the battery.
2 P. 80
If the problem continues, have your vehicle
inspected by your dealer.
3WARNING
Do not ride a vehicle after kickstarting
the engine due to a dead battery.
Until the battery is fully charged, the
lighting system may not operate
properly.
As a result, other vehicles may not be
able to see you or you may not be able
to see other vehicles or road hazards,
increasing the risk of a crash resulting
in injury or death.
Troubleshooting
78
Tire Puncture
Repairing a puncture or removing a wheel
requires special tools and technical expertise.
We recommend you have this type of service
performed by your dealer.
After an emergency repair, always have the
tire inspected/replaced by your dealer.
Emergency Repair Using a Tire
Repair Kit
If your tire has a minor puncture, you can
make an emergency repair using a tubeless
tire repair kit.
Follow the instructions provided with the
emergency tire repair kit.
Riding your vehicle with a temporary tire
repair is very risky. Do not exceed 30 mph
(50 km/h). Have the tire replaced by your
dealer as soon as possible.
3WARNING
Riding your vehicle with a temporary
tire repair can be risky. If the temporary
repair fails, you can crash and be
seriously injured or killed.
If you must ride with a temporary tire
repair, ride slowly and carefully and do
not exceed 30 mph (50 km/h) until the
tire is replaced.
Troubleshooting
79
Electrical Trouble
Battery Goes Dead
Charge the battery using a motorcycle
battery charger.
Remove the battery from the vehicle before
charging.
Do not use an automobile-type battery
charger, as these can overheat a motorcycle
battery and cause permanent damage. If the
battery does not recover after recharging,
contact your dealer.
NOTICE
Jump starting using an automobile battery can
damage your vehicle's electrical system and is
not recommended.
Bump starting is also not recommended.
Burned-out Light Bulb
Follow the procedure below to replace a
burned-out light bulb.
Turn the ignition switch to the OFF position.
Allow the bulb to cool before replacing it.
Do not use bulbs other than those specified.
Check the replacement bulb for correct
operation before riding.
For the light bulb wattage, see
“Specifications.” 2 P. 110
Troubleshooting
80
#

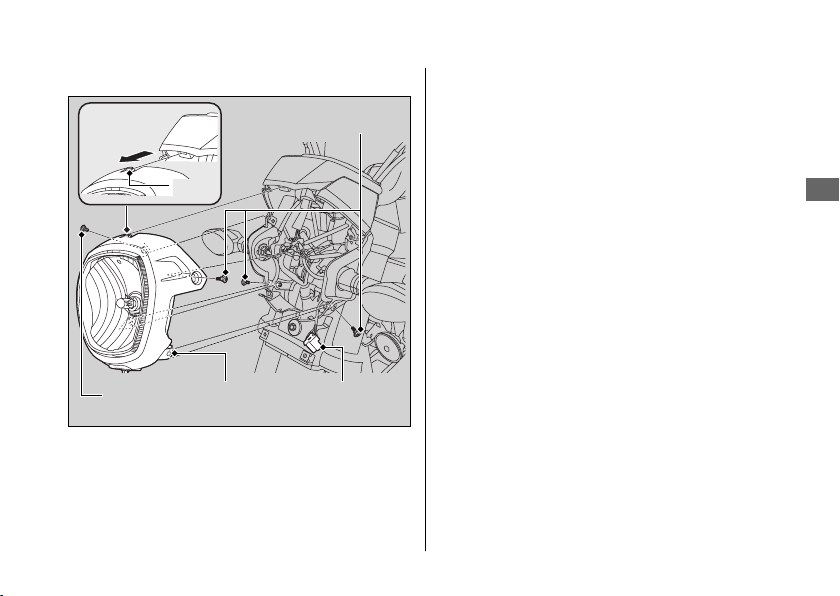

Headlight Bulb
1.
Remove the screws.
2.
Carefully release the tab of the headlight
by pulling it straight out.
u Do not rotate the headlight to release
the tab, the tab and the meter cover
may be damaged.
3.
Carefully remove the headlight assembly.
4.
Disconnect the connector.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
81
Continued
Screws
Connector
Headlight
assembly
Screw
Pull it
straight
out
Tab

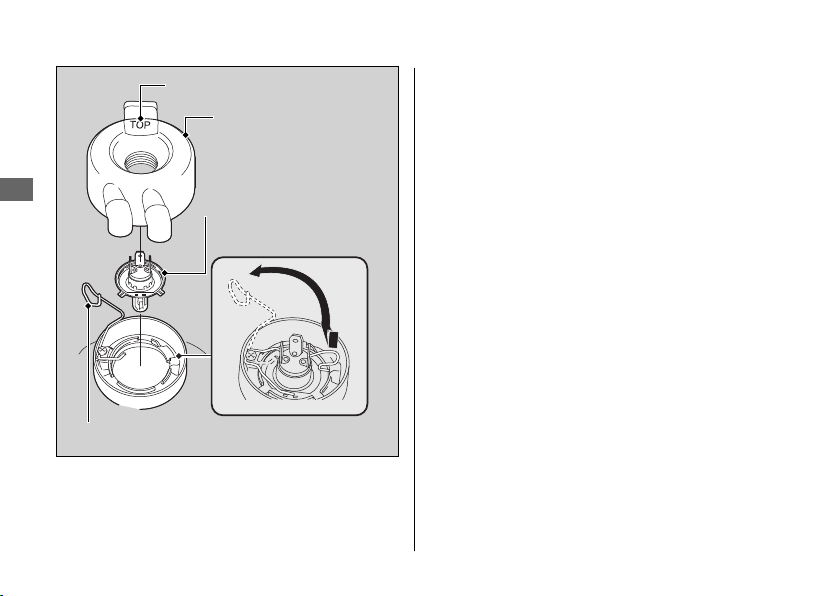

5.
Remove the dust cover.
6.
Press the pin down and pull out the bulb
without turning it.
7.
Install a new bulb and parts in the reverse
order of removal.
u Install the dust cover with its “TOP”
mark facing up.
Do not touch the glass surface with your
fingers. If you touch the bulb with your bare
hands, clean it with a cloth moistened with
isopropyl (rubbing) alcohol.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
82
Headlight bulb
Pin
Dust cover
“TOP” mark
#
Brake light/Taillight Bulb
1.
Remove the seat. 2 P. 61
2.
Turn the socket counterclockwise, and
remove it.
3.
Slightly press the bulb in and turn it
counterclockwise.
4.
Install a new bulb and parts in the reverse
order of removal.
#
Front/Rear Turn Signal Bulb
1.
Remove the turn signal lens by removing
the screws.
2.
Slightly press the bulb in and turn it
counterclockwise.
3.
Install a new bulb and parts in the reverse
order of removal.
u
Only use amber bulbs.
Electrical Trouble u Burned-out Light Bulb
Troubleshooting
83
Socket
Bulb
Turn signal lens
Screw
Bulb
Screw
Blown Fuse
Before handling fuses, see “Inspecting and
Replacing Fuses.” 2 P. 53
#
Fuse Box Fuses
1.
Remove the battery cover. 2 P. 60
2.
Open the fuse box cover.
3.
Pull out the fuses one by one to check for
a blown fuse. Always replace a blown fuse
with a spare of the same rating.
4.
Close the fuse box cover.
5.
Install the battery cover.
6.
Install the seat.
NOTICE
If a fuse fails repeatedly, you likely have an
electrical problem. Have your vehicle inspected
by your dealer.
Electrical Trouble u Blown Fuse
Troubleshooting
84

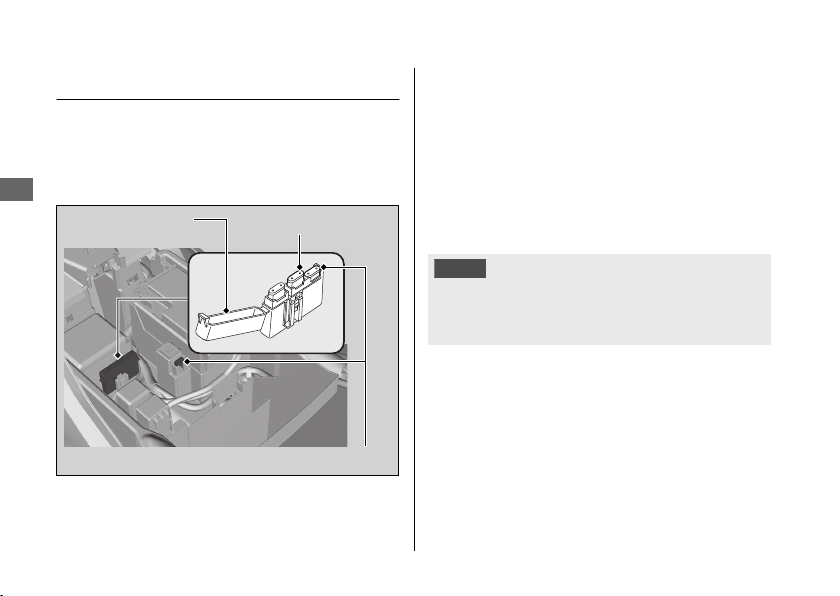

Fuse box cover
Spare fuses
Main fuse
Keys....................................................................... P. 86
Instruments, Controls, & Other Features..... P. 87
Caring for Your Vehicle.................................... P. 88
Storing Your Vehicle......................................... P. 91
Transporting Your Vehicle .............................. P. 92
You & the Environment.................................... P. 93
Vehicle Identification Number....................... P. 94
Emission Control Systems ............................... P. 95
High Altitude Carburetor Adjustment ......... P. 99
Oxygenated Fuels............................................ P. 100
Authorized Manuals ....................................... P. 101
Warranty Coverage and Service .................. P. 102
Honda Contacts ............................................... P. 105
Reporting Safety Defects .............................. P. 107
Information
Keys
Ignition Key/Steering Lock Key
Be sure to record the key number provided with
the key number plate. Store the spare key and
key number in a safe location.
To make a duplicate, take the spare key or the
key number to your dealer.
If you lose all ignition keys and the key number,
the ignition switch assembly will probably have
to be removed by your dealer to determine the
key number.
A metal key holder may cause damage to the
area surrounding the ignition switch.
Keys
Information
86
Instruments, Controls, &
Other Features
Ignition Switch
Leaving the ignition switch in the ON position
with the engine stopped will drain the battery.
Do not turn the key while riding.
Engine Stop Switch
Do not use the engine stop switch except in an
emergency. Doing so when riding will cause the
engine to suddenly turn off, making riding
unsafe.
If you stop the engine using the engine stop
switch, turn the ignition switch to the OFF
position. Failing to do so will drain the battery.
Odometer
The odometer returns to 0 when the read-out
exceeds 99,999.9.
Document Bag
The owner’s manual, registration, and insurance
information can be stored in the plastic
document bag located in the document
compartment. 2 P. 39
Instruments, Controls, & Other Features
Information
87
Caring for Your Vehicle
Frequent cleaning and polishing is important to
ensure the life of your Honda. A clean vehicle
makes it easier to spot potential problems.
In particular, seawater and salts used to prevent
ice on roads promote the formation of
corrosion. Always wash your vehicle thoroughly
after riding on coastal or treated roads.
Washing
Allow the engine, muffler, brakes, and other
high-temperature parts to cool before washing.
1.
Rinse your vehicle thoroughly using a low
pressure garden hose to remove loose dirt.
2.
If necessary, use a sponge or a soft towel
with mild cleaner to remove road grime.
u Clean the headlight lens, panels, and
other plastic components with extra care
to avoid scratching them. Avoid directing
water into the air cleaner, muffler, and
electrical parts.
3.
Thoroughly rinse your vehicle with plenty of
clean water and dry with a soft, clean cloth.
4.
After the vehicle dries, lubricate any moving
parts.
u Make sure that no lubricant spills onto
the brakes or tires. Brake discs, pads,
drum or shoes contaminated with oil will
suffer greatly reduced braking
effectiveness and can lead to a crash.
5.
Apply a coat of wax to prevent corrosion.
u
Avoid products that contain harsh
detergents or chemical solvents. These
can damage the metal, paint, and plastic
on your vehicle.
Keep the wax clear of the tires and
brakes.
u If your vehicle has any matte painted
parts, do not apply a coat of wax to the
matte painted surface.
Caring for Your Vehicle
Information
88
#
Washing Precautions
Follow these guidelines when washing:
● Do not use high-pressure washers:
u High-pressure water cleaners can
damage moving parts and electrical
parts, rendering them inoperable.
u Water in the air intake can be drawn into
the carburetor and/or enter the air
cleaner.
● Do not direct water at the muffler:
u Water in the muffler can prevent starting
and causes rust in the muffler.
● Dry the brakes:
u Water adversely affects braking
effectiveness. After washing, apply the
brakes intermittently at low speed to
help dry them.
● Do not direct water under the seat:
u Water in the under seat compartment
can damage your documents and other
belongings.
● Do not direct water at the air cleaner:
u Water in the air cleaner can prevent the
engine from starting.
● Do not direct water near the headlight:
u The headlight's inside lens may fog
temporarily after washing or while riding
in the rain. This does not impact the
headlight function.
u
Any condensation inside the headlight
should dissipate after a few minutes of
running the engine with the headlight(s)
on.
However, if you see a large amount of
water or ice accumulated inside the
lens(es), have your vehicle inspected by
your dealer.
●
Do not use wax or polishing compounds on
matte painted surfaces:
u Use a soft cloth or sponge, plenty of
water, and a mild detergent to clean
matte painted surfaces. Dry with a soft
clean cloth.
Caring for Your Vehicle
Information
89
Continued
Aluminum Components
Aluminum will corrode from contact with dirt,
mud, or road salt. Clean aluminum parts
regularly and follow these guidelines to avoid
scratches:
● Do not use stiff brushes, steel wool, or
cleaners containing abrasives.
● Avoid riding over or scraping against curbs.
Panels
Follow these guidelines to prevent scratches
and blemishes:
● Wash gently using a soft sponge and plenty
of water.
● To remove stubborn stains, use diluted
detergent and rinse thoroughly with plenty
of water.
● Avoid getting gasoline or detergents on the
instruments, panels, or headlight.
Exhaust Pipe and Muffler
If the exhaust pipe and muffler are painted, do
not use a commercially available abrasive
kitchen cleaning compound. Use a neutral
detergent to clean the painted surface on the
exhaust pipe and muffler. If you are not sure if
your exhaust pipe and muffler are painted,
contact your dealer.
Caring for Your Vehicle
Information
90
Storing Your Vehicle
If you store your vehicle outdoors, you should
consider using a full-body cover.
If you won't be riding for an extended period,
follow these guidelines:
● Wash your vehicle and wax all painted
surfaces (except matte painted surfaces).
Coat chrome pieces with rust-inhibiting oil.
● Place your vehicle on its center stand and
position a block so that both tires are off the
ground.
●
After rain, remove the body cover and allow
the vehicle to dry.
●
Remove the battery (2 P. 60) to prevent
discharge. Fully charge the battery and then
place it in a shaded, well-ventilated area.
u If you leave the battery in place,
disconnect the negative - terminal to
prevent discharge.
After removing your vehicle from storage,
inspect all maintenance items required by the
Maintenance Schedule.
USA
For more information about storage, refer
to the Honda Winter Storage Guide, available
from your dealer.
Canada
For more information about storage,
visit our website at www.honda.ca and look up
“Storage Tips” under the “Honda Warranty” in
the Warranty tab for your Model.
Storing Your Vehicle
Information
91
Transporting Your Vehicle
If your vehicle needs to be transported, it
should be carried on a motorcycle trailer or a
flatbed truck or trailer that has a loading ramp
or lifting platform and motorcycle tie-down
straps. Never try to tow your vehicle with a
wheel or wheels on the ground.
NOTICE
Towing your vehicle with a wheel or wheels on
the ground can cause serious damage to the
transmission.
Transporting Your Vehicle
Information
92
You & the Environment
Owning and riding a vehicle can be enjoyable,
but you must do your part to protect the
environment.
Choose Sensible Cleaners
Use a biodegradable detergent when you wash
your vehicle. Avoid aerosol spray cleaners that
contain chlorofluorocarbons (CFCs) which
damage the atmosphere's protective ozone
layer.
Recycle Wastes
Put oil and other toxic wastes in approved
containers and take them to a recycling center.
Call your local or state office of public works or
environmental services to find a recycling center
in your area and to get instructions on how to
dispose of non-recyclable wastes. Do not place
used engine oil in the trash or pour it down a
drain or on the ground. Used oil, gasoline, and
cleaning solvents contain poisons that can hurt
refuse workers and contaminate drinking water,
lakes, rivers, and oceans.
You & the Environment
Information
93
Vehicle Identification
Number
The VIN and engine serial number uniquely
identify your vehicle and are required in order
to register your vehicle. They may also be
required when ordering replacement parts.
You should record these numbers and keep
them in a safe place.
Vehicle Identification Number
Information
94
VIN
VIN
Engine number
Emission Control Systems
Your vehicle engine emits combustion
byproducts, including carbon monoxide (CO),
oxides of nitrogen (NOx), and hydrocarbons
(HC). Gasoline evaporation also emits
hydrocarbons. Controlling the production of
NOx, CO, and HC is important for the
environment.
Exhaust Emission Requirements
The U.S. Environmental Protection Agency
(EPA), the California Air Resources Board
(CARB), and Environment and Climate Change
Canada (ECCC) require that your vehicle comply
with applicable exhaust, crankcase, and fuel
permeation emission standards during its useful
life, when operated and maintained according
to the instructions provided.
CARB also requires that your vehicle comply
with applicable evaporative emission
requirements during its useful life, when
operated and maintained according to the
instructions provided.
USA
Compliance with the terms of the
Distributor's Warranties for Honda Scooter
Emission Control Systems is necessary in order
to maintain a valid emissions system warranty.
The Vehicle Emission Control Information label
is attached to the right side of the frame body.
Emission Control Systems
Information
95
Continued
Vehicle emission control information label
Canada
Vehicle emission control information label
USA
Noise Emission Requirements
The EPA requires that vehicles built after
January 1, 1983 comply with applicable noise
emission standards for one year or 3,730 miles
(6,000 km) after the time of purchase when
operated and maintained according to the
instructions provided.
Exhaust Emission Control System
The exhaust emission control system consists of
appropriate carburetor settings, and no
adjustment should be made except idle speed
adjustment with the throttle stop screw.
#
Secondary Air Injection System
The secondary air injection system adds filtered
air into the exhaust gas to help improve
emission control performance.
Evaporative Emission Control System
50 STATE (meets California)
An evaporative emissions control system uses a
canister filled with charcoal to adsorb fuel vapor
from the fuel tank and carburetor while the
engine is off. The vapor is drawn into the
engine and burned while riding.
Crankcase Emissions Control System
The engine is equipped with a closed crankcase
system to prevent discharging crankcase
emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the crankcase breather hose,
air cleaner housing and carburetor.
Emission Control Systems
Information
96
Fuel Permeation Emission Control
The fuel tank, fuel hoses, and fuel vapor charge
hoses use fuel permeation control technologies
to prevent fuel vapor emissions. Tampering with
these components to reduce or defeat the
effectiveness of the fuel permeation
technologies is prohibited.
Noise Emission Control System
#
TAMPERING WITH THE NOISE CONTROL
SYSTEM IS PROHIBITED:
U. S. federal law prohibits, and Canadian
provincial laws may prohibit, the following acts
or the causing thereof: (1) The removal or
rendering inoperative by any person, other than
for purposes of maintenance, repair or
replacement, of any device or element of
design incorporated into any new vehicle for
the purpose of noise control prior to its sale or
delivery to the ultimate purchaser or while it is
in use; or (2) the use of the vehicle after such
device or element of design has been removed
or rendered inoperative by any person.
Emission Control Systems
Information
97
Continued
#
AMONG THOSE ACTS PRESUMED TO
CONSTITUTE TAMPERING ARE THE
FOLLOWING ACTS:
● Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust gases.
● Removal of, or puncturing of any part of the
intake system.
● Lack of proper maintenance.
● Removing or disabling any emissions
compliance component, or replacing any
compliance component with a noncompliant
component.
Problems Affecting Vehicle Exhaust
Emissions
Have your vehicle inspected and repaired by
your dealer if you experience any of the
following symptoms:
● Hard starting or stalling after starting
● Rough idling
● Misfiring or backfiring during acceleration
● Poor engine performance and poor fuel
economy
Emission Control Systems
Information
98
High Altitude Carburetor
Adjustment
Your engine's air-fuel mixture becomes overly
rich when operated at high altitudes.
Above 6,500 ft (2,000 m), a rich mixture can
cause driveability problems, reduce engine
performance, and increase fuel consumption.
To compensate, you can have the carburetor
adjusted for high altitude riding. See your
dealer.
However, the carburetor must be returned to
standard factory specifications before riding
again at lower altitudes (below 5,000 ft (1,500
m)). See your dealer.
Sustained riding at lower altitudes with the lean
high-altitude setting may cause rough idling,
stalling, or engine damage from overheating.
High Altitude Carburetor Adjustment
Information
99
Oxygenated Fuels
Some conventional fuels blended with alcohol
or an ether compound are available in some
locales to help reduce emissions to meet clean
air standards. These gasolines are collectively
referred to as oxygenated fuels. If you plan to
use oxygenated fuel, check that it is unleaded
and meets the minimum octane rating and
blend requirement.
The following fuel blends have been approved
for use in your vehicle:
●
Ethanol (ethyl alcohol) up to 10% by volume.
u Gasoline containing ethanol may be
marketed under the name Gasohol.
●
Do not use gasoline containing methanol
(methyl alcohol).
If you accidentally fill your fuel tank with an
oxygenated fuel containing higher percentages,
you may experience performance problems. To
resolve the problem, have your dealer drain the
fuel tank and replace with the correct fuel. Fuel
system or performance problems resulting from
the use of an oxygenated fuel containing higher
percentages are not covered by your warranty.
NOTICE
Improper use of oxygenated fuels can damage
metal, rubber, and plastic parts of your fuel
system.
Oxygenated fuel can also damage paint.
Damage caused by spilled fuel is not covered by
warranty.
If you notice any undesirable operating
symptoms or performance problems, try a
different brand of gasoline.
Oxygenated Fuels
Information
100
Description
2022-2023 NAVi Service Manual
Common Service Manual (61CSM00)
USA
Winter Storage Guide (S9507)
2023 NAVi Owner’s Manual
Authorized Manuals
USA
The Service Manual used by your
authorized dealer is available from your Honda
dealer or Helm, Inc.
Canada
See your dealer to order authorized
manuals.
Also available, but not necessary to service your
model, is the Honda Common Service Manual,
which explains basic service information for
various systems on Honda motorcycles,
scooters, ATV, and SxS.
USA
The Winter Storage Guide in conjunction
with the Owner's Manual and Service Manual
can help you prepare your Honda motorcycle,
scooter, ATV, and SxS for winter storage.
These Honda manuals are written for the
professional technician. However, if you possess
the proper tools, observe the safety standards,
and are mechanically capable, you should find
them easy to use.
Special Honda tools are necessary for some
procedures.
USA
Order online: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(1-888-292-5393)
(NOTE: For Credit Card Orders Only)
Monday - Friday 8:00 AM - 6:00 PM ET
Authorized Manuals
Information
101
Warranty Coverage and
Service
Coverage
Your new Honda is covered by the following
warranties:
● Vehicle Limited Warranty
● Emission Control System Warranty
●
USA
Noise Control Warranty
The responsibilities, restrictions, and exclusions
that apply to these warranties are explained in
the Warranties Booklet given to you by your
Honda dealer at the time of purchase. Always
keep your Honda owner's card with your
Warranties Booklet.
Canada
Please refer to the Warranty Booklet
posted on our website at www.honda.ca.
It is important to realize that your warranty
applies only to defects in material or
workmanship of your Honda. Your warranty
coverage does not apply to the normal wear
and deterioration associated with use of the
vehicle.
Your warranty coverage is not voided if you
perform your own maintenance. However,
failures that occur due directly to improper
maintenance are not covered by these
warranties.
USA
You can extend almost all of your warranty
coverage through the HondaCare
®
Protection
Plan. For more information, see your Honda
dealer.
Warranty Coverage and Service
Information
102
Statement on Warranty Coverage for
Aftermarket and Recycled Parts
The Magnuson-Moss Warranty Act, 15 U.S.C. s.
2301 et seq., makes it illegal for motor vehicle
manufacturers to void a motor vehicle warranty
or deny warranty coverage solely because an
aftermarket or recycled part has been used to
repair the vehicle or someone other than the
authorized service provider performed service
on the vehicle. This provision does not apply to
a new motor vehicle purchased solely for
commercial or industrial use.
Under federal law, a manufacturer may deny
warranty coverage and charge for repairs to a
vehicle if it is discovered that an aftermarket or
recycled part installed on the vehicle is defective
or was installed incorrectly and caused damage
to another part of the vehicle otherwise covered
under warranty. The Federal Trade Commission
requires that a manufacturer demonstrate that
an aftermarket or recycled part or service
performed by a person other than an
authorized service provider caused damage to
another part of the vehicle otherwise covered
under warranty before denying warranty
coverage. Additionally, federal law allows a
manufacturer to void a motor vehicle warranty
or deny warranty coverage if the manufacturer
provides the article or service to consumers free
of charge under the warranty or the
manufacturer has secured a waiver from the
Federal Trade Commission.
Warranty Coverage and Service
Information
103
Continued
Service
Please remember that maintenance
recommended in the Maintenance Schedule is
not included in your warranty coverage.
If you believe you have a problem with your
vehicle, call the service department of your
Honda dealer. Make an appointment for an
inspection and diagnosis. You will be asked to
authorize that inspection, and your dealer will
return the results of the inspection. If a problem
exists and is covered under warranty, your
dealer will perform the warranty repairs. If you
have any questions about your warranty
coverage or the nature of the repair, talk to the
Service Manager of your Honda dealer.
If a misunderstanding occurs and you aren't
satisfied with your dealer's handling of the
situation, we suggest you discuss your problem
with the appropriate member of the
dealership's management team. If you are still
not satisfied, contact the owner of the
dealership or their designated representative.
Warranty Coverage and Service
Information
104
Honda Contacts
American Honda Motor Co., Inc.
If you wish to contact Honda directly to
comment on your experiences with your vehicle
or with your dealer, please send your comments
using one of the following methods:
Powersports Customer Relations
American Honda Motor Co., Inc.
P.O. Box 2200, Torrance, CA 90509-2200
Mailstop: 100-4W-5F
Telephone: (866) 784-1870
Website: https://powersports.honda.com/
contact-us
Canada
Honda Canada Inc.
Customer Relations Department,
180 Honda Boulevard
Markham, Ontario
L6C 0H9
Telephone: (888) 946-6329
Fax: (877) 939-0909
E-mail: [email protected]
Please include the following information in your
letter:
● Name, address, and telephone number
●
Product model, year, and VIN
●
Date of purchase
●
Dealer name and address
We will likely ask your Honda dealer to respond,
or possibly acknowledge your comments
directly.
Honda Contacts
Information
105
Continued
Your Honda Dealer
The service department of your Honda dealer
offers trained personnel to perform regular
maintenance and unexpected repairs. It has the
latest available service information from Honda
and also handles warranty inspections and
repairs.
The parts department offers Honda Genuine
Parts, Pro Honda products, Honda Accessories
(USA only), and Honda accessories and
products (Canada only) that provide the same
quality that went into your vehicle.
USA
The sales department offers the
HondaCare
®
Protection Plan to extend almost
all of your warranty coverage.
Your Honda dealer can also supply information
about riding events and information about
safety training available in your local area.
Honda Contacts
Information
106
Reporting Safety Defects
USA
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it
may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at:
1-888-327-4236
(TTY: 1-800-424-9153); go to
https://www.safercar.gov;
or write to:
Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from:
https://www.safercar.gov.
Reporting Safety Defects
Information
107
Continued
Canada
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform Honda Canada Inc.
and you may also inform Transport
Canada.
If Transport Canada receives similar
complaints, it may open an
investigation, and if it finds that a safety
defect exists in a group of vehicles, it
may lead to a recall and remedy
campaign. However, Transport Canada
cannot become involved in individual
problems between you, your dealer, or
Honda Canada Inc.
To contact Transport Canada’s Defect
Investigations and Recalls Division,
Mailing Address:
Transport Canada - ASFAD
330 Sparks Street
Ottawa, ON
K1A 0N5
Telephone: 819-994-3328 (Ottawa-
Gatineau area or internationally)
Toll free: 1-800-333-0510 (in Canada)
Online:
(English Link:) www.tc.canada.ca/recalls
(French Link:) www.tc.canada.ca/rappels
For more information on reporting
safety defects or about motor vehicle
safety, go to
https://www.tc.gc.ca/roadsafety.
Reporting Safety Defects
Information
108
Specifications
■ Main Components
Overall length 71.1 in (1,805 mm)
Overall width 28.9 in (735 mm)
Overall height 41.1 in (1,045 mm)
Wheelbase 50.6 in (1,285 mm)
Minimum ground
clearance
5.9 in (150 mm)
Caster angle 27.5º
Trail 3.1 in (79 mm)
Curb weight 234 lb (106 kg)
Maximum weight
capacity
*1
344 lb (156 kg)
Maximum luggage
weight
*2
Luggage box 6.6 lb (3.0 kg)
Passenger capacity Rider and 1 passenger
Minimum turning radius 6.2 ft (1.90 m)
*1 : Including rider, passenger, all luggage, and accessories.
*2 : Includes the weight of the luggage and added accessories
Displacement
*1
6.6 cu-in (109 cm
3
)
Bore x stroke 1.97 x 2.19 in (50.0 x 55.6 mm)
Compression ratio 9.5:1
Fuel
Unleaded gasoline
Recommended: 86 PON or higher
Tank capacity 0.92 US gal (3.5 L)
Battery
YTX5L-BS
12 V- 4 Ah (10 HR)
Primary reduction V-Matic (2.55:1-0.80:1)
Final reduction 10.117
*1 : Displacement less than 9.2 cu-in (150 cm
3
) may have highway
operating restrictions depending on state laws.
Specifications
109
■ Service Data
Tire size
Front 90/90-12 54J
Rear 90/100-10 53J
Tire type Bias-ply, tubeless
Recommended
Tire
Front MRF NYLOGRIP ZAPPER-FG
Rear MRF NYLOGRIP ZAPPER
Tire air pressure
(Up to 90 kg (200
lb) load)
Front 22 psi (150 kPa, 1.50 kgf/cm
2
)
Rear 29 psi (200 kPa, 2.00 kgf/cm
2
)
Tire air pressure
(Up to maximum
weight capacity)
Front 22 psi (150 kPa, 1.50 kgf/cm
2
)
Rear 36 psi (250 kPa, 2.50 kgf/cm
2
)
Spark plug (standard)
MR7C- 9N (NGK)
UR6DE0 (BOSCH)
Spark plug gap
0.03 - 0.04 in (0.8 - 0.9 mm)
Idle speed 1,700 ± 100 rpm
Recommended
engine oil
API Service Classification SJ or higher except
oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MB, Pro Honda HP4M 4-stroke oil
(USA & Canada) or Honda 4-stroke oil, or an
equivalent motorcycle oil
Engine oil
capacity
After draining 0.74 US qt (0.70 L)
After draining
& cleaning
strainer screen
0.85 US qt (0.80 L)
After
disassembly
0.85 US qt (0.80 L)
Transmission
oil capacity
After draining
0.11 US qt (0.10 L)
After
disassembly
0.13 US qt (0.12 L)
■ Bulbs
Headlight 12 V-35/35 W
Brake light/Taillight 12 V-21/5 W
Front turn signal 12 V-21 W × 2
Rear turn signal 12 V-21 W × 2
■ Fuses
Main fuse 10 A
Other fuse 7.5 A
Specifications
Specifications
110
Information Record
VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager
111
California Proposition 65 Warning
WARNING: Operating, servicing and maintaining a passenger
vehicle or off-highway motor vehicle can expose you to chemicals
including engine exhaust, carbon monoxide, phthalates, and lead,
which are known to the State of California to cause cancer and
birth defects or other reproductive harm. To minimize exposure,
avoid breathing exhaust, do not idle the engine except as
necessary, service your vehicle in a well-ventilated area and wear
gloves or wash your hands frequently when servicing your vehicle.
For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
© 2022 Honda Motor Co., Ltd.
All Rights Reserved
Printed in the U.S.A.
31K74A10
00X31-K74-A100
