Features:
•
Ring Light R8 with Wired Control
• Three Colors: Warm, Cold, Natural
• 10-Level Brightness
• LED Ring Light
• Durable and Adjustable Tripod Stand
• Compatible with Phones, Cameras & Webcams
• Upgraded Phone Clamp
• Holds Smartphone with Widths of 2.3'' to 4.5'' -in.
• USB Plug and Wire Control
• Electric Panoramic Head has a Remote Control Plate with a Button Battery
• Perfect for Video Recording, Zoom Meeting, YouTube, Tiktok, and more
What's in the Box:
•
8'' Ring Light
• Table Tripod
• Mobile Holder
Technical Specs:
•
Construction Material: ABS
• Power Supply Mode: USB Power Supply
• Voltage: 5V
• Power Supply: 14W
• Light Source: LED SMD
• LED Bulbs: 72pcs
• Color Temperature: 3000K--4500k-6000K
• CRI (Color Rendering Index): 85RA
• USB Cable Length: 78.74'' -inches
• Battery Type: 3.7 V Lithium-ion
• Current: 65mA
• Max Battery Capacity: 750 mAh
www.squatz.com

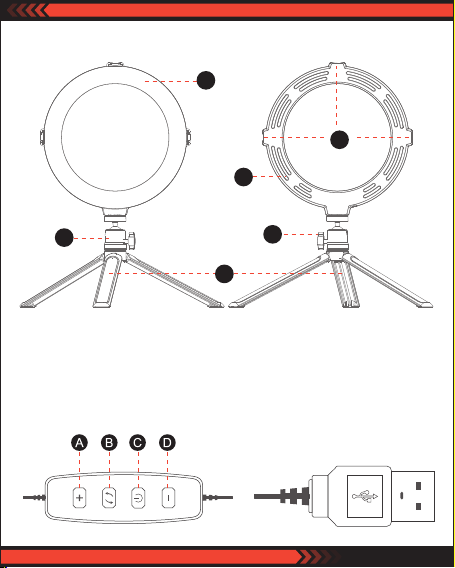

STRUCTURE
INSTALLATION
www.squatz.com
Controller
A. Power ON ring light, short press the “+”, to increase 10% brightness until you
reach 100% brightness, press and hold to increase automatically.
B. While powered ON, short press the “exchange” button, to switch between warm
light, natural light and daylight in turn.
C. Connect the USB port to the power supply, power button lights on.
Short press the power button, power light turns o, the ring light works;
press the power button again, the ring light stops working.
D. While powered ON, short press the “-”, decrease 10% brightness until you reach
10% brightness, press and hold to decrease automatically.
USB port
This USB standard voltage is DC 5V.
Attention: Please make sure the voltage connected is correct and stable, if higher
or lower than DC 5V, the ring light may work abnormally, stop working it may
damage the ring light.
NOTICE
1. Any unauthorized modication or adjustments made to this product is prohibited.
2. The device is not to be considered as a lighting equipment.
DO NOT continuously operate over six hours.
3. Wet handling is not allowed.
4. Keep the device away from children under 12 years of age.
Do not stare at the strong light for a long time.
5. Exposure to rain is prohibited.
6. Turning on/o the device frequently is not appropriate.
7. Before cleaning the device, pIease turn it o and use a dry or slightly dry for
cleaning. Any kind of chemicals or corrosives must not be used.
• Hot Shoe Adapter
• USB Cable
• Electric Panorama Head with Phone Holder
• Wire Length: 78.8'' -in.
• Inner Ring Size: 5.91'' -in.
• Outer Ring Size: 8'' -in.
• Mini Tripod Stand Length: 7.76'' -in.
A
B
C
D
E
F
D. Hot shoe adapter Interface
E. Ventilation Hole
F. Ball lock knob
A. Diuser
B. Ballhead
C. Tripod
