Toro 13RL60RG044 1L107H10100 AND UP lawn tractor User Manual

Count on it.

LX426 Lawn Tractor

Model No. 13RL60RG044

Model No. 13RL60RG244

Model No. 13AL60RG048

Form No 3359-793 Rev A

769-03479 (11/27/07)

California Proposition 65 Warning:

WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or

emit chemicals known to the State of California to cause cancer and birth defects or other

reproductive harm.

TABLEOFCONTENTS

Content Page

Important Safe Operation Practices 3

Slope Gauge 9

Tractor Set-up 10

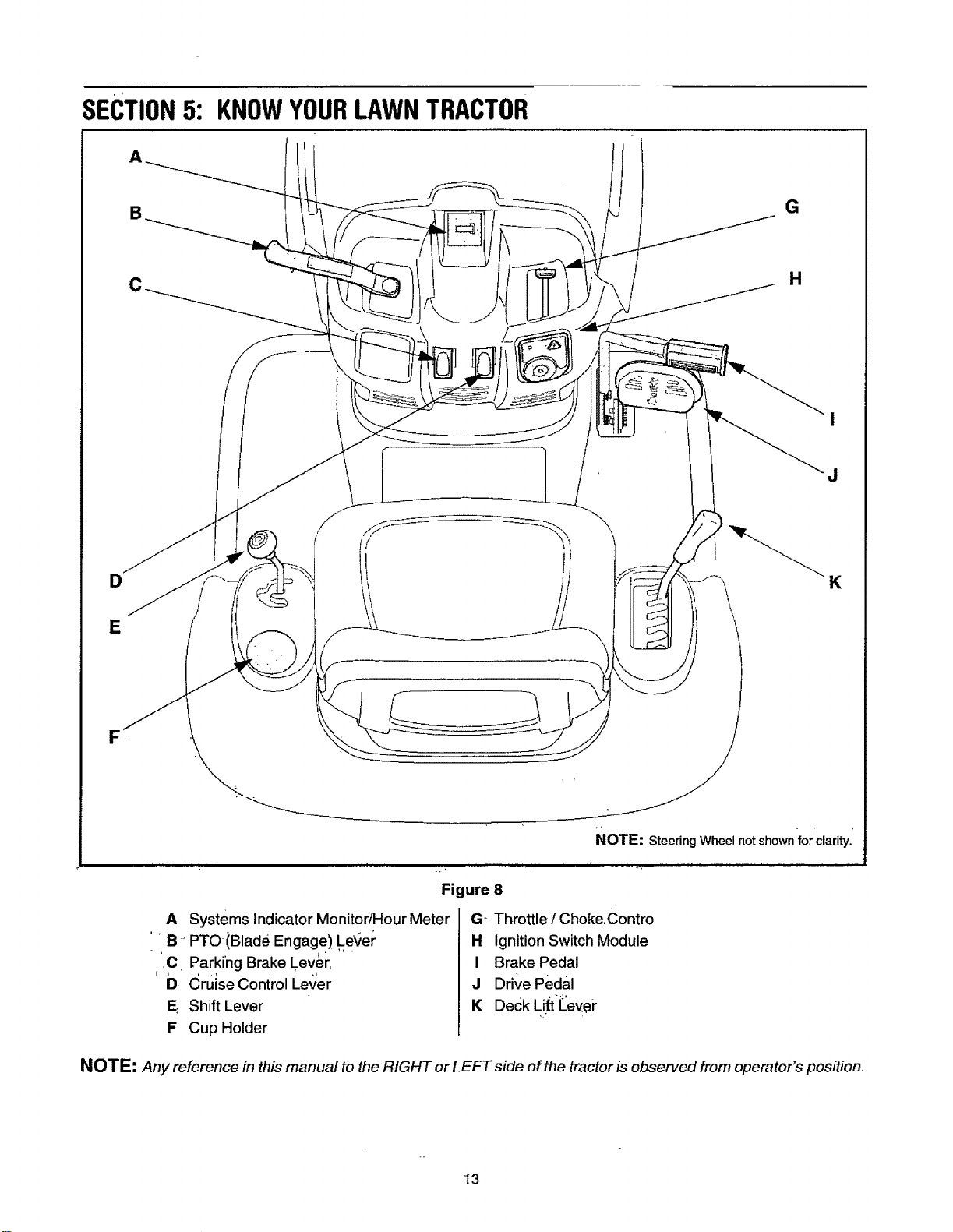

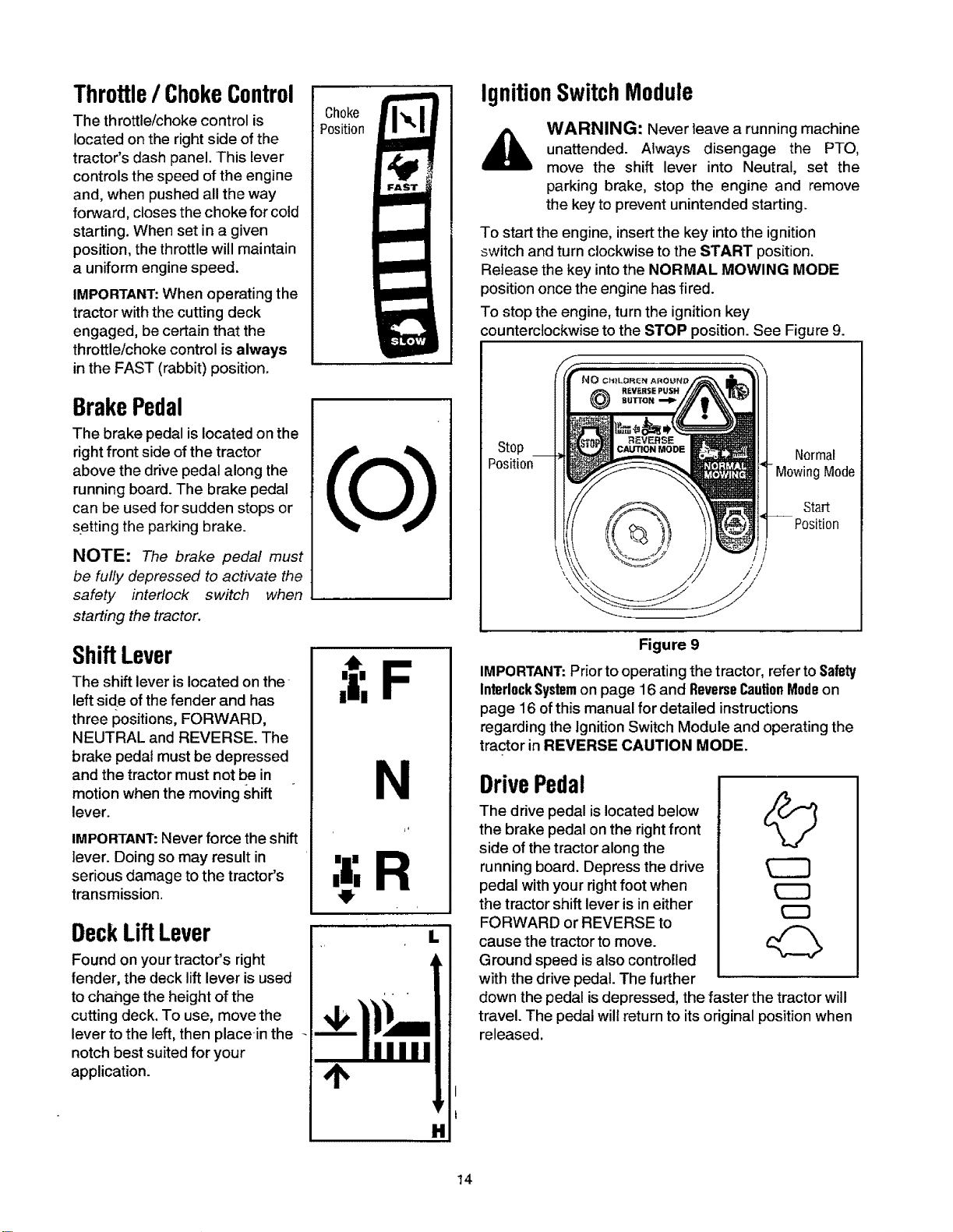

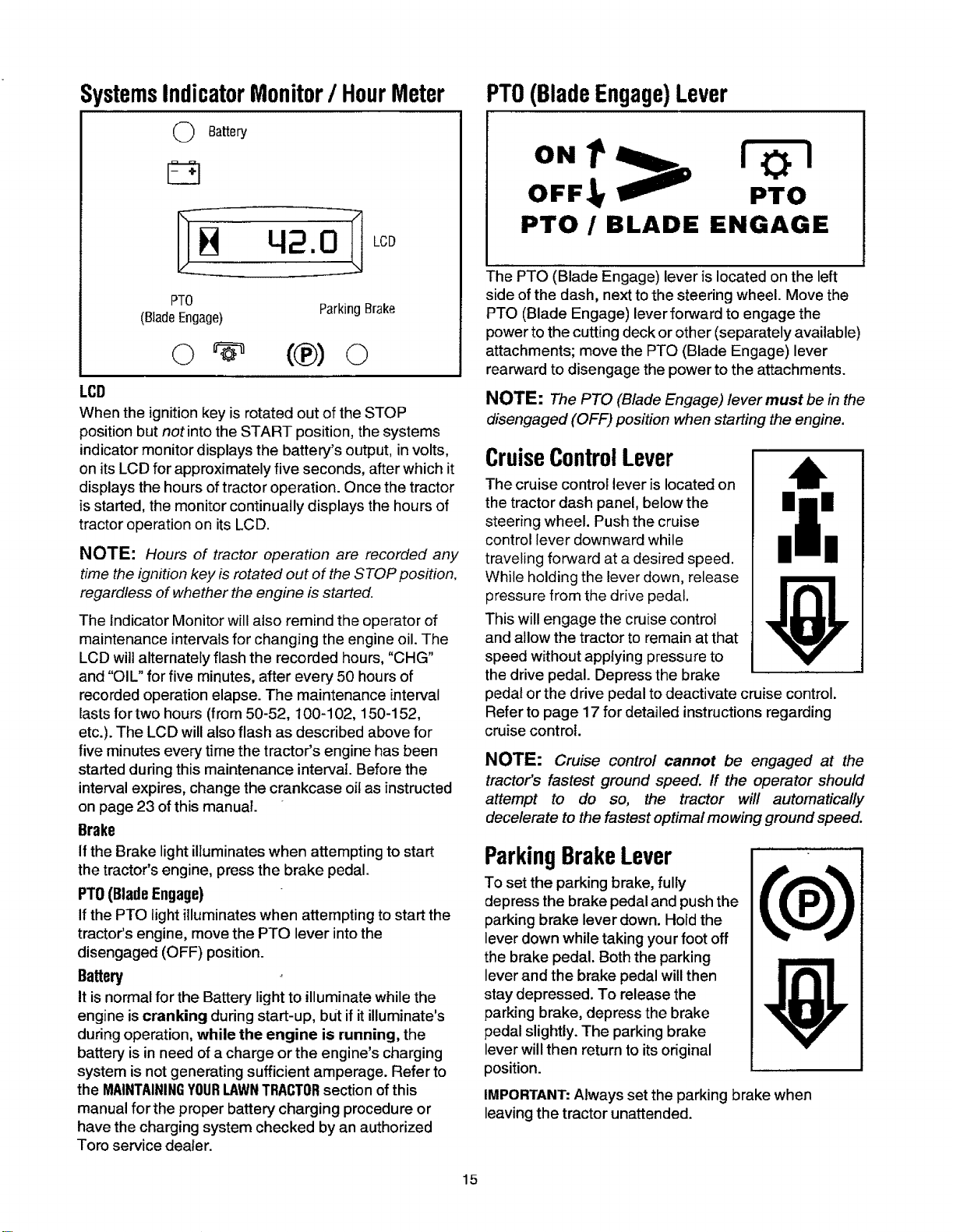

Know Your Lawn Tractor 13

Operating Your Lawn Tractor 16

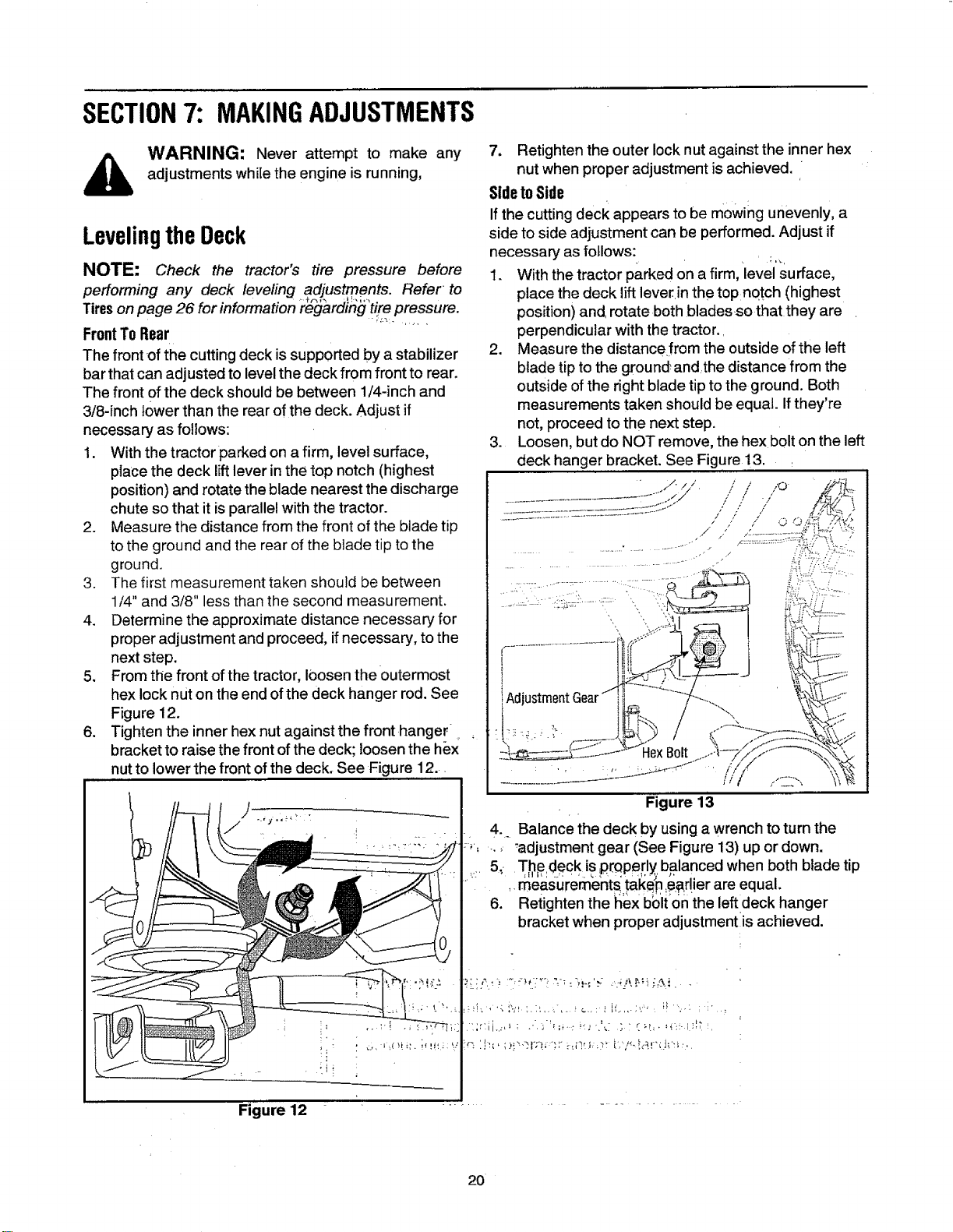

Making Adjustments 20

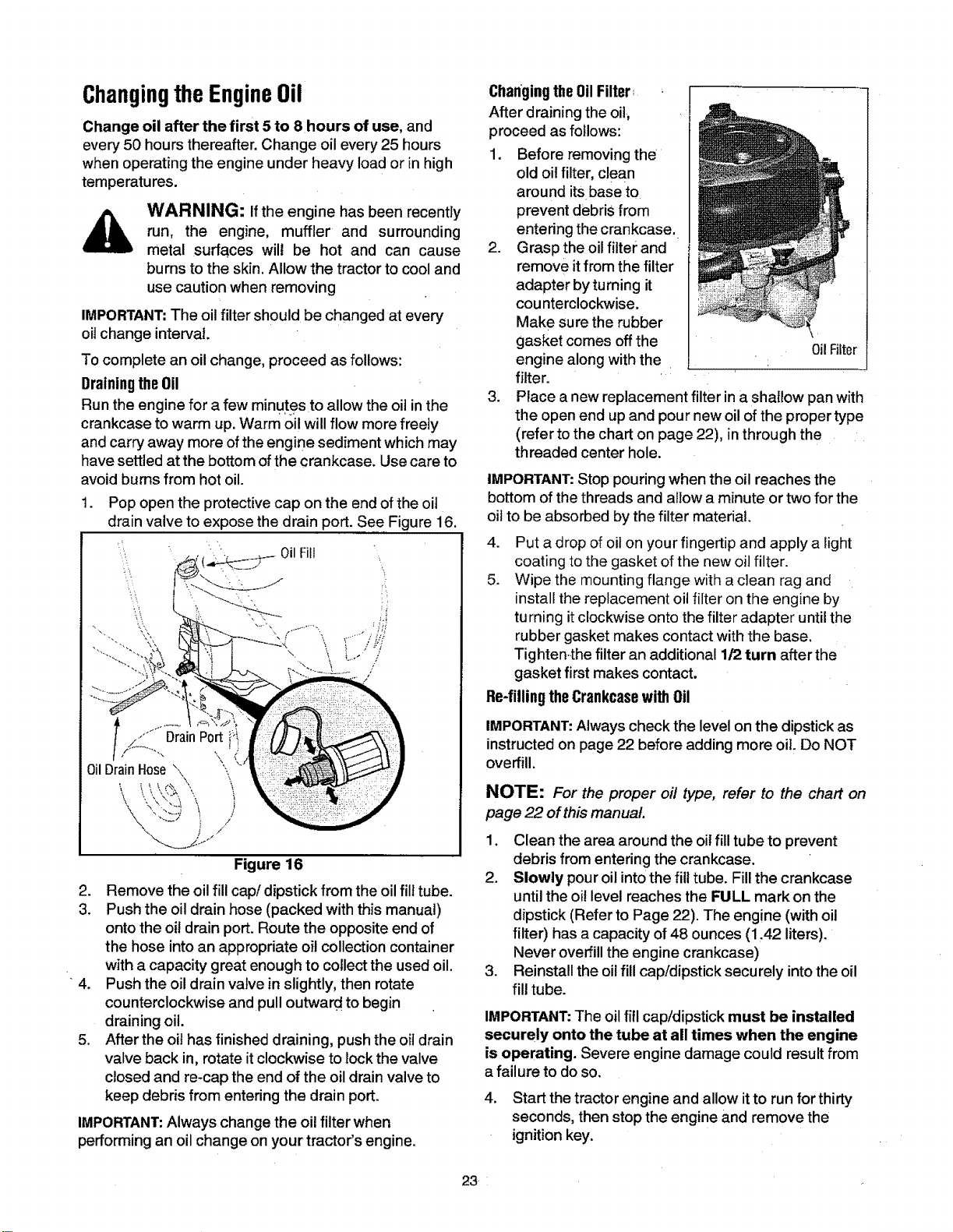

Maintaining Your Lawn Tractor 22

Content Page

Service 26

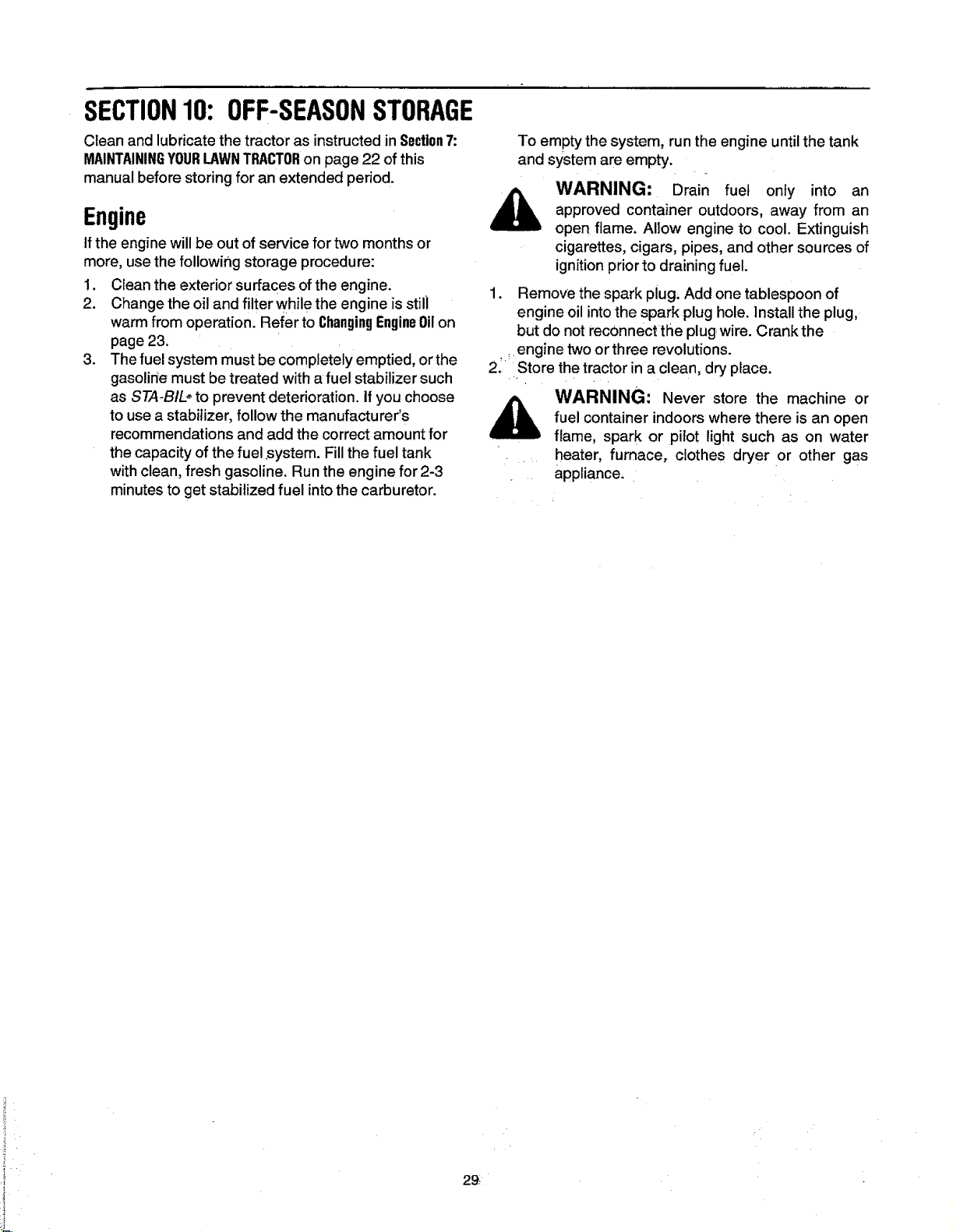

Off-season Storage 29

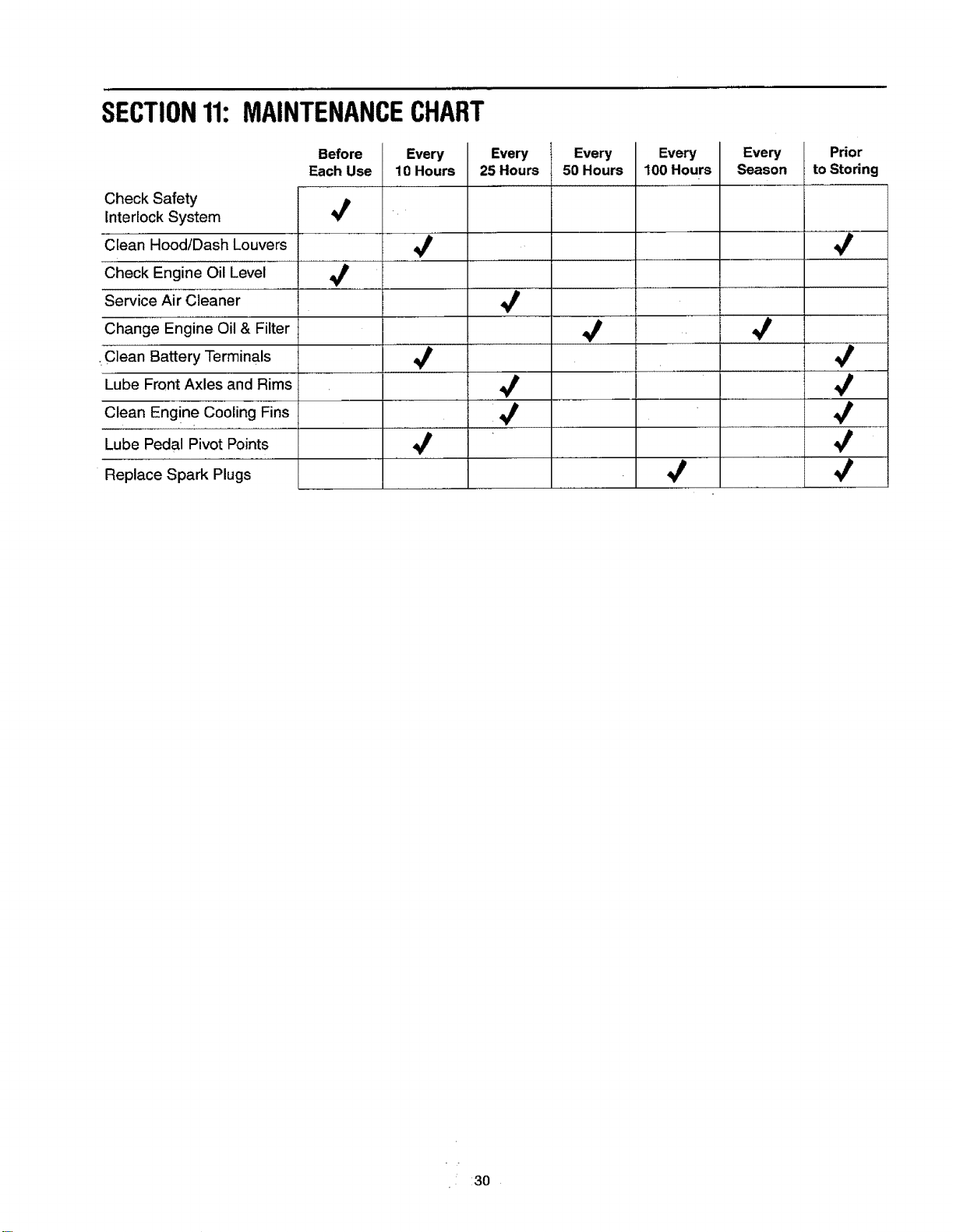

Maintenance Chart 30

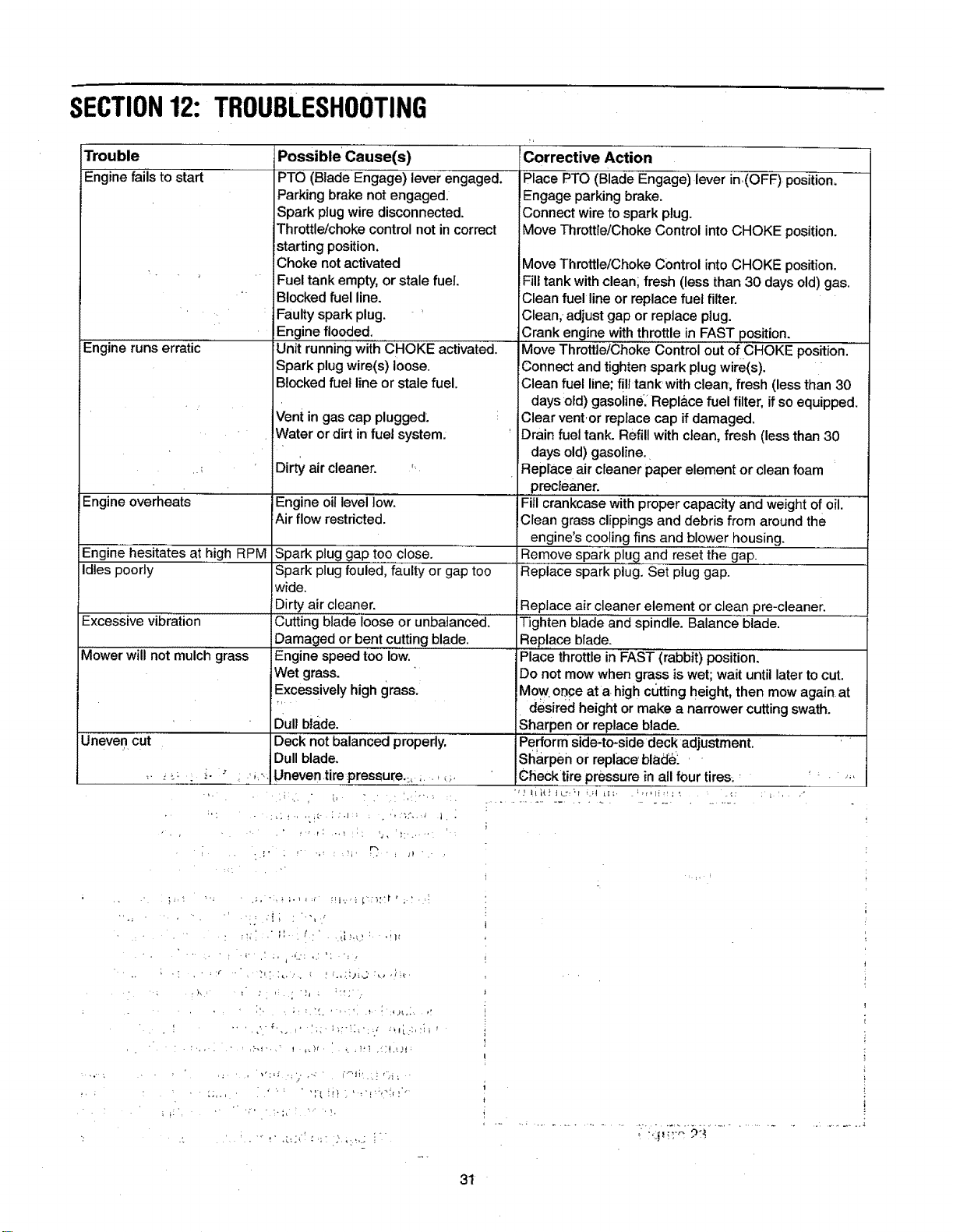

Troubleshooting 31

Specifications 32

Warranty Information 35

FINDINGMODELNUMBER

This Operator's Manual isan important part of your new lawn tractor. It will help you assemble, prepare and maintain the

unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment and

copy the information from it in the space provided below. A sample model plate is also illustrated below. You

can locate the model plate by looking at the underside of the tractor's seat. This information will be necessary

to use the manufacturer's web site and!or help from an authorized Toro service dealer.

MODEL NUMBER SERIAL NUM£ER DOM

THE TORO COMPANY

8111 LYNDALE AVE, SOUTH

BLOOMINGTON, M[NNESOTA 55420-1196

lOLL FREEPHONENt_MBER 1-888=3_ USA

TOLL FREE PHONE NBMBER' 1-888-848_O73 Canad_

Copy the model number here:

Copy the serial number here:

CUSTOMERSUPPORT

Please do NOT return the unit to the retailer without first contacting Customer Support. If you have difficulty

assembling this product or have any questions regarding the controls, operation or maintenance ofthis unit, you can

seek help from the experts. Choose from the optionsbeiow:

Visit www.toro.com for many useful suggestions. Click on Customer Care inthe Homeowners section of the Toro

Solutions Center and help is immediately available.

Ce,tmdl_ It, Site Search: t.... ' 0 _,o

Tore Solutions Center

Toro offers a va rJety _)f online t_)ls to customcr_ wl)o currently {)wn

or are interested in purchasing a Toro prodilct. Refer to the list heh)w

for the lotfis available to tlomeowi_er customers.

If you have questions concerning your tractor, please call us at 1-888-384-9942 (U.S.)

or 1-888-848-4073 (Canada).

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could endanger

the personal safety and/or property of yourself and others. Read and follow all instructions in this manual

before attempting to operate this machine. Failure to comply with these instructions may result in personal

injury. When you see this symbol-heed its warning.

DANGER: This machine was built to be operated according to the rules for safe operation in this man-

ual. As with any type of power equipment, carelessness or error on the part of the operator can result in

serious injury.This machine is capable of amputating hands and feet and throwing objects. Failure to

observe the following safety instructions could result in serious injury or death.

WARNING: This unit is equipped with an internal combustion engine and should not be used on or near

any unimproved forest-covered, brush-covered or grass-covered land unless the engine's exhaust system

is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used,

it should be maintained in effective working order by the operator, in the State of California the above is

required by law (Section 4442 of the California Public Resources Code). Other states may have similar

laws. Federal laws apply on federal lands.

GENERAL OPERATION

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage PTOiblades quickly.

3. Never allow children under 14 years old to operate

this machine. Children 14 years old and over

should read and understand the operation

instructions and safety rules in this manual and

should be trained and supervised by a parent or

responsible adult.

4. Never allow adults to operate this machine without

proper instruction.

5. To help avoid blade contact or a thrown object

injury, keep bystanders, helpers, children and pets

at least 75 feet from the machine while itis in

operation. Stop machine if anyone enters the 'area.

6. Thoroughly inspect the area where the'equipment

is to be used. Remove all stones, sticks, wire,

bones, toys, and other foreign objects which could

be picked up and thrown by the blade(s)'.l-Thrown

objects can cause serious personal injury.

7. Plan your mowing pattern to avoid discharge of

material toward roads, sidewalks, bystanders and

the like. AIso,'avoid discharging material against a

wall or obstruction which may cause discharged

materialto ricochet backtoward the operator. _

8. Always wear safety glasses or safety goggles

during operation and while performing an ,

adjustment or'repair to protect.your eyes. Thrown

objects which ricoche{ can cause serious injury to

the eyes.

9. Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Loose fitting clothes and -

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

!0. Be aware of the mower and attachment discharge

direction and do not point it at anyone. Do not

operate the mower without the d_scharge cover or

entire grass catcher in its proper place.

11. Do not put hands or feet near rotating parts or

under the cutting deck. Contact with the blade(s)

can amputate hands and feet.

12. A missing or damaged discharge cover can cause

blade contact or thrown object injuries.

13. Stop the blade(s) when crossing gravel drives,

walks, or roadsandwhile not cutting grass.

14. Watch for traffic when operating near or crossing

roadways. This machine is not intended for use on

any public roadway.

!5. Do not operate.the machine while under the

influence ofalcohol ordrugs.

16. Mow only in daylight or good artificial light:

17. Never carry passengers:,

18. Disengage blade(s).b6for'e shiftihg intoreverse.

Back up slowly_ Always look down and behind

before and while backing'to.avoid a back-0ver

accident:

19. Slow down,before turning.. Operatethe machine _

smoothly. Avoid eri'atic operation and excessive

speed.,=-.;' ..

20. Disengage bla'de(s);setparking brake, stop engine

and wait Lfntilthe blade(s) come to a complete stop

before removing grass catcher, emptying grass,

unclogging chute, removing any grass or debris, or

making any adjustments. '.

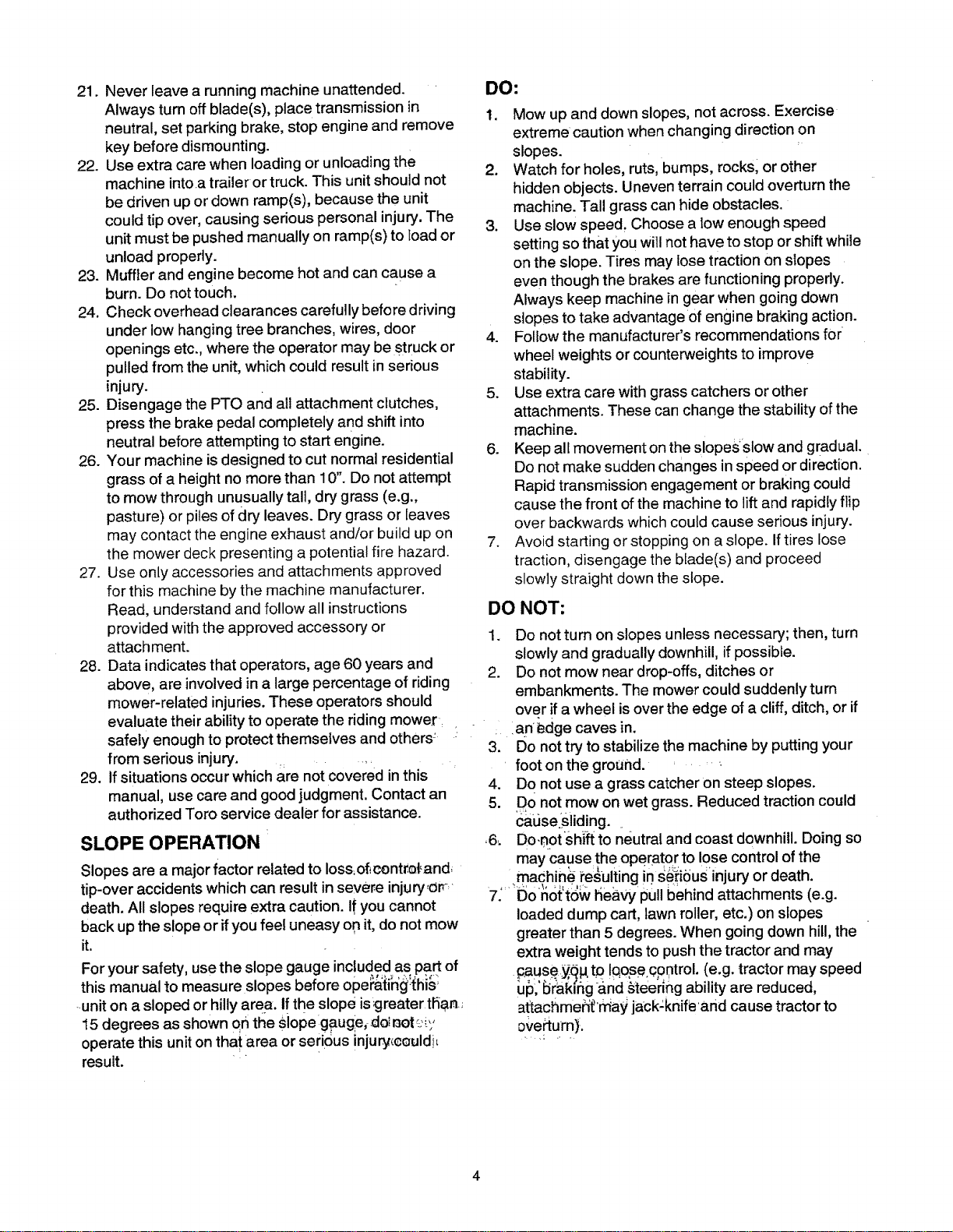

21.Neverleavearunningmachineunattended.

Alwaysturnoffblade(s),placetransmissionin

neutral,setparkingbrake,stopengineandremove

keybeforedismounting.

22.Useextracarewhenloadingorunloadingthe

machineintoatrailerortruck.Thisunitshouldnot

bedrivenupordownramp(s),becausetheunit

couldtipover,causingseriouspersonalinjury.The

unitmustbepushedmanuallyonramp(s)toloador

unloadproperly.

23.Mufflerandenginebecomehotandcancausea

burn.Donottouch.

24.Checkoverheadclearancescarefullybeforedriving

underlowhangingtreebranches,wires,door

openingsetc.,wheretheoperatormaybestruckor

pulledfromtheunit,whichcouldresultinserious

injury.

25.DisengagethePTOandallattachmentclutches,

pressthebrakepedalcompletelyandshiftinto

neutralbeforeattemptingtostartengine.

26.Yourmachineisdesignedtocutnormalresidential

grassofaheightnomorethan10".Donotattempt

tomowthroughunusuallytall,drygrass(e.g.,

pasture)orpilesofdryleaves.Drygrassorleaves

maycontacttheengineexhaustand/or build up on

the mower deck presenting a potential fire hazard.

27. Use only accessories and attachments approved

for this machine by the machine manufacturer.

Read, understand and follow all instructions

provided with the approved accessory or

attachment.

28. Data indicates that operators, age 60 years and

above, are involved in a large percentage of riding

mower-related injuries. These operators should

evaluate their ability to operate the riding mower

safely enough to protect themselves and others'

from serious injury ....

29. If situations occur which are not covered in this

manual, use care and good judgment. Contact an

authorized Toro service dealer for assistance.

SLOPE OPERATION

Slopes are a majorfactor related to Ios&of_contr_ot_and_

tip-over accidents which can result in severe injury,Or_

death. Allslopes require extra caution. Ifyou cannot

back up the slope or ifyou feel uneasy on it, do not mow

it.

For your safety, use the slope gauge included as part of

th s manual to measure slopes before opei_{i_g!{hi_:

unit on a sloped or hilly area. If the slope is _jreater tl_am

15 degrees as shown on the Slope gauge,-doi r_t _J.i,;

operate this unit on that area or serious injury_¢ouldi_

result.

DO:

1. Mow up and down slopes, not across. Exercise

extreme caution when changing direction on

slopes.

2. Watch for holes, ruts, bumps, rocksl or other

hidden objects. Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

3. Use slow speed, Choose a low enough speed

setting so that you will not have to stop or shift while

on the slope. Tires may lose traction on slopes

even though the brakes are functioning properly.

Always keep machine in gear when going down

slopes to take advantage of engine braking action.

4. Follow the manufacturer's recommendations for

wheel weights or counterweights to improve

stability.

5. Use extra care with grass catchers or other

attachments. These can change the stability of the

machine.

6. Keep all movement on the slopesslow and gradual.

Do not make sudden changes in speed or direction.

Rapid transmission engagement or braking could

cause the front of the machine to lift and rapidly flip

over backwards which could cause serious injury.

7. Avoid starting or stopping on a slope. If tires lose

traction, disengage the blade(s) and proceed

slowly straight down the slope.

DO NOT:

1. Do not turn on slopes unless necessary; then, turn

slowly and gradually downhill, if possible.

2. Do not mow near drop-offs, ditches or

embankments. The mower could suddenly turn

over if a wheel is over the edge of a cliff, ditch, or if

an i_dgecaves in.

3. Do not try to stabilize the machine by putting your

foot on the ground. ....

4. DOnot use a grass catcher on steep slopes.

5. Dono t mow on wet grass. Reduced traction could

cause.sliding.

,6; Do.hotshinto neutral and coast downhill. Doing so

may cause the operator to lose control of the

machine resulting Rnserious njury or death.

7. Do not tow I_e_vy pull behind attachments (e.g.

loaded dump cart, lawn roller, etc.) on slopes

greater than 5 degrees. When going down hill, the

extra weight tends to push the tractor and may

cause _q_ to IQose ¢pntrol. (e.g. tractor may speed

up, braking and steenng abdlty are reduced,

attachmebt_'nlay jack:knife'and cause tractor to

0veffurn):.

CHILDREN

1. Tragic accidents can occur if the operator is not

alert to the presence of children. Children are often

attracted to the machine and the mowing activity.

They do not understand the dangers. Never

assume that children will remain where you last

saw them.

a. Keep children out of the mowing area and in

watchful care of a responsible adult other

than the operator.

b. Be alert and turn machine off ifa child enters

the area.

c. Before and while backing, look behind and

down for small children.

d. Never carry children, even with the blade(s)

shut off. They may fall off and be seriously

injured or interfere with safe machine

operation.

e. Use extreme care when approaching blind

corners, doorways, shrubs, trees or other

objects that may block your vision of a child

who may run into the machine.

f. To avoid back-over accidents, always

disengage the cutting blade(s) before

shifting into reverse. The "Reverse

Caution Mode" should not be used when

children or others are around.

g. Keep children away from hot or running

engines. They can suffer burns from a hot

muffler.

h. Remove key when machine is unattended to

prevent unauthorized operation.

2. Never allow children under 14 years old to operate

the machine. Children 14 years old and over should

read and understand the operation instructions and

safety rules in this manual and should be trained

and supervised by a parent or responsible adult.

TOWING

Tow only with a machine that has a hitch designed

for towing. Do not attach towed equipment except

at the hitch point.

Follow the manufacturer's recommendation for

weight limits for towed equipment and towing on

slopes.

Never allowchildren or others in or on towed

equipment.

Do not tow heavy pull behind attachments (e.g.

loaded dump cart, lawn roller, etc.) on slopes

greater than 5 degrees. When going down hill, the

extra weight tends to push the tractor and may

cause you to loose control. (e.g. tractor may speed

up, braking and steering ability are reduced,

attachment may jack-knife and cause tractor to

overturn).

5. Travel slowly and allow extra distance to stop.

6. On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

7. Do not shift to neutral and coast downhill.

SAFE HANDLING OF GASOLINE:

1. To avoid personal injury or property damage

use extreme care in handlinggasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injurycan occur when gasoline is

spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

a. Use onlyan approved gasoline container.

b. Never fill containers inside a vehicle or on a

truck or trailer bed with a plastic liner.Always

place containers on the ground away from

your vehicle before filling.

c. When practical, remove gas-powered

equipment from the truck or trailer and refuel

it on the ground. Ifthis is not possible, then

refuel such equipment on a trailer witha

portable container, rather than from a

gasoline dispenser nozzle.

d. Keep the nozzle in contact with the rim of the

fuel tank or container opening at all times

until fueling is complete. Do not use a nozzle

lock-open device.

e. Extinguish all cigarettes, cigars, pipes and

other sources of ignition.

f. Neverfuel machine indoors.

g. Never remove gas cap or add fuel while the

engine is hot or running. Allow engine to cool

at least two minutes before refueling.

h. Never over fill fuel tank. Filltank to no more

thanl/2-inch below the bottom of the filler

neck to allow space for fuel expansion.

i. Replace gasoline cap and tighten securely.

j. If gasoline is spilled, wipe it off the engine

and equipment. Move unit to another area.

Wait 5 minutes before starting the engine.

k. To reduce fire hazards, keep machine free of

grass, leaves, or other debris build-up. Clean

up oil or fuel spillage and remove any fuel

soaked debris.

I. Never store the machine or fuel container

inside where there is an open flame, spark or

pilot lightas on a water heater, space heater,

furnace, clothes dryer or other:gas

appliances.

m. Allow a machine to cool at least 5 minutes

before storing.

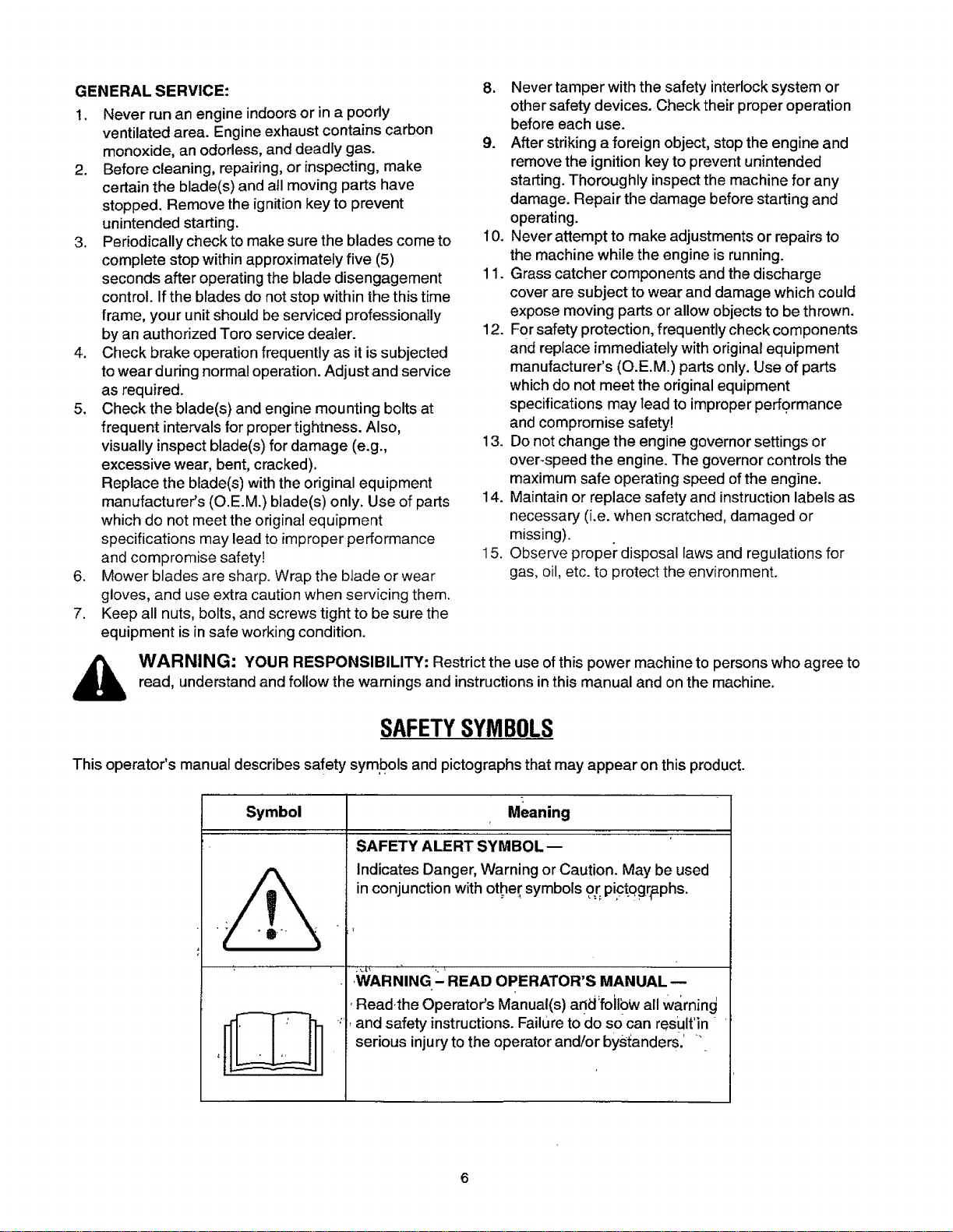

GENERAL SERVICE:

!. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless, and deadly gas.

2. Before cleaning, repairing, or inspecting, make

certain the blade(s) and atl moving parts have

stopped. Remove the ignition key to prevent

unintended starting.

3. Periodically check to make sure the blades come to

complete stop within approximately five (5)

seconds after operating the blade disengagement

control. If the btades do not stop within the this time

frame, your unit should be serviced professionally

by an authorized Toro service dealer.

4. Check brake operation frequently as it is subjected

to wear during normal operation. Adjust and service

as required.

5. Check the blade(s) and engine mounting bolts at

frequent intervals for proper tightness. Also,

visually inspect blade(s) for damage (e.g.,

excessive wear, bent, cracked).

Replace the blade(s) with the original equipment

manufacturer's (O.E.M.) blade(s) only. Use of parts

which do not meet the original equipment

specifications may lead to improper performance

and compromise safety!

6. Mower blades are sharp. Wrap the blade or wear

gloves, and use extra caution when servicing them.

7. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

8. Never tamper with the safety interlock system or

other safety devices. Check their proper operation

before each use.

9. After striking a foreign object, stop the engine and

remove the ignition key to prevent unintended

starting. Thoroughly inspect the machine for any

damage. Repair the damage before starting and

operating.

10. Never attempt to make adjustments or repairs to

the machine while the engine is running.

11. Grass catcher components and the discharge

cover are subject to wear and damage which could

expose moving parts or allow objects to be thrown.

12. For safety protection, frequently check components

and replace immediately with original equipment

manufacturer's (O.E.M.) parts only. Use of parts

which do not meet the original equipment

specifications may lead to improper perfo,rmance

and compromise safety!

13. Do not change the engine governor settings or

over-speed the engine. The governor controls the

maximum safe operating speed of the engine.

14. Maintain or replace safety and instruction labels as

necessary (i.e. when scratched, damaged or

missing).

15. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

WARNING: YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who agree to

read, understand and follow the warnings and instructions in this manual and on the machine.

SAFETYSYMBOLS

This operator's manual describes safety symbols and pictographs that may appear on this product.

Symbol Meaning

SAFETY ALERT'SY_IBOL--

Indicates Danger, Warning or Caution. May be used

in conjunction with other symbols or p!ct0gr_phs.

,WARNING "' READ OPERATOR'S MANUAL m

,Read,the Operator's Manual(s) aridfoJlbWall Warning

,and safety instructions. Failure to do so can result'in k

serious injury to the operator and/or bystanders. ' -'

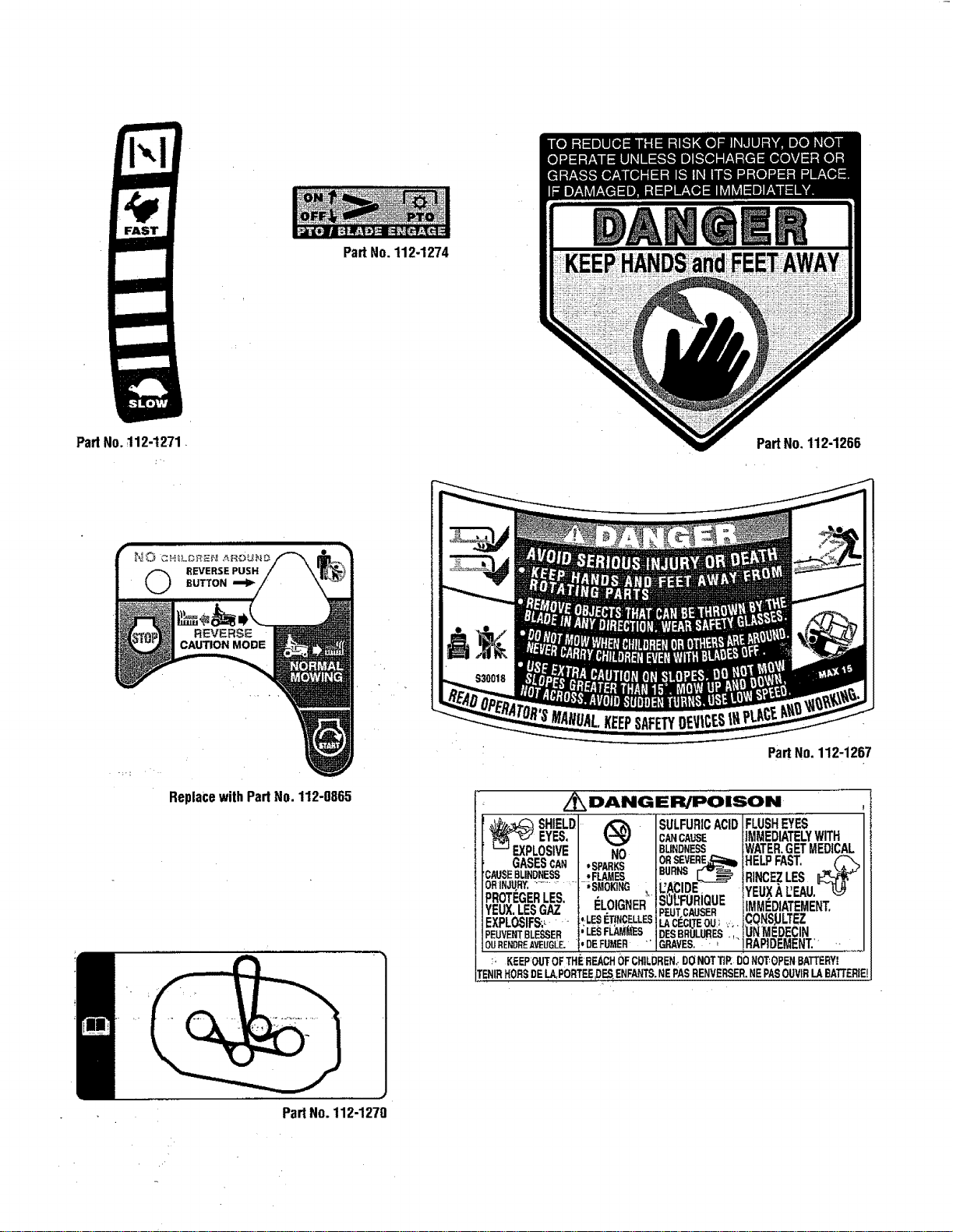

SECTION2: SAFETYANDINSTRUCTIONALLABELS

Safety and instructional labels found on your lawn tractor are illustrated below (3/4 actual size). Always follow their

instructions and heed their warnings. Ifyou discover a safety label is scratched, damaged or missing, order a replacement

immediately.

ROTATING BLADES CAUSE

SERIOUS INJURY OR DEATH

• DONOTMOWWHENCHILDRENOROTHERS

AREAROUND

• NEVERCARRYCHILDRENEVENWITHBLADE(S)

OFF.

• LOOKDOWNANDBEHINDBEFOREANDWHILE

BACKING.

• MOWINGINREVERSEISNOTRECOMMENDED.

|. DISENGAGEBLADES/PTO,(POWERTAKEOFF)

2. ENGAGETHSTRACTOR'SPARKINGBRAKE,

3, ACTIVATETHECHOKECONTROL,

4. TURNKEYTOSTARTENGINE.AFTERSTARTRELEASEKEY&DEACTIVATECHOKE

BYPLACINGTHROI"IrI.ETOFASTfllIABBtT"POSITION,

REVERSE CAUTIOHMODE ........ -:

i. TURN KEY:TOREVERSECAUTIONMODEPOSITION.

2.-DEPRESSREVERSEPUSHBUTTON,{REDiNDICATORLIGHT"OW')

WHENREDLIGHTIS !'ON"MACHINECANBEOPERATEDiN REVERSE

WITHMOWERBLADESENGAGED_ _ _ ..........

IMPORTAH_ MOWIHG::INREVERSE:ISHOT RECOMMENDED,

3,_AFTERRESUMINGFORWARDOPERATION,RETURNKEYTO

"NORMAL MOWING"POSITION.

PartNo. 112-1274

PartNo. t12-t271.

PartNo. 112-1266

Replacewith PartNo. 112-0865

Pad No.112-1270

PartNo. 112-1267

_DANGER/POISON

_.. SHIELD N(_O SULFURICACID

EYES. CANCAUSE

EXPLOSIVE BLINDNESS

ORSEVEREJ_:_Ib

GASESCAN ,SPARKS eURNS_'_-

CAUSEBLINDNESS * FLAMES

ORINJUtW;........... ;SMOKING:L'ACIDE--

PROTEGERLES.

YEUX.LESGAZ '_^_'LOI_NER_'

SQ_FURIQUE

-- _rLESETINCELLESPEUT,CAUSER

EXPLOSIFS_.... ,'LESFLA_ESLACECLTEOUI_.-,.

PEUYENT8LESSER _ DES8RI,/LURSS.r.

OUSENDREAVEUGLE,DEFUMER ' GRAVES, ",

;_ KEEPOUTOFTHi: REACHOFCHILDREN,DONOTTiP, DONOT:OPENBATTERYZ

TENIRHORSDELA,PORTEEDESE/_FA_'_rT$NEPASRENV_RSER.NEPA$OUVIR/.ABATTES_E_

FLUSHEYES

iMMEDIATELYWITH

WATER.GETMED(CAL

HELPFAST. _ ('_-_

NCEZLES

YE{JXA_EAU.

IMMEDIATEMENT.

CO[_SULTEZ

UNI_IEDECIN

FIAPIDEMENTi,_

Sight and hold this levelwith avertical tree...

15°

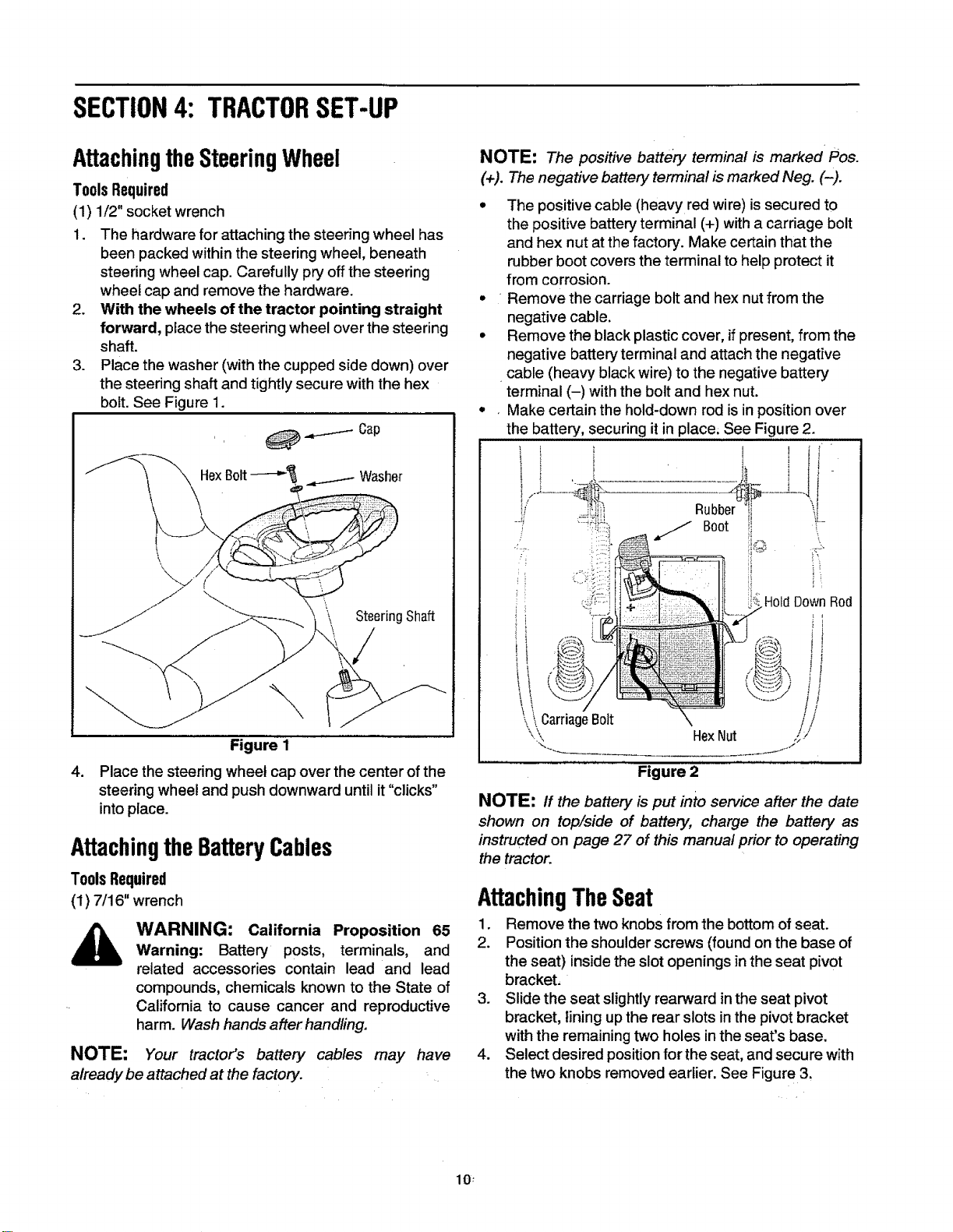

SECTION4: TRACTORSET-UP

AttachingtheSteeringWheel

Tools Required

(1) 1/2" socket wrench

1. The hardware for attaching the steering wheel has

been packed within the steering wheel, beneath

steering wheel cap. Carefully pry off the steering

wheel cap and remove the hardware.

2. With the wheels of the tractor pointing straight

forward, peacethe steering wheel over the steering

shaft.

3. Place the washer (with the cupped side down) over

the steering shaft and tightly secure with the hex

bolt. See Figure 1.

_ Gap

Washer

SteeringShaft

Figure 1

Place the steering wheel cap over the center of the

steering wheet and push downward until it "clicks"

into place.

AttachingtheBatteryCables

ToolsRequired

(1) 7/16" wrench

WARNING: California Proposition 65

Warning: Battery posts, terminals, and

related accessories contain lead and lead

compounds, chemicals known to the State of

California to cause cancer and reproductive

harm. Wash hands after handling.

NOTE: Your tractor's battery cables may have

already be attached at the factory.

NOTE: The positive battery terminal is marked Pos.

(+). The negative battery terminal is marked Neg. (-).

The positive cable (heavy red wire) is secured to

the positive battery terminal (+) with a carriage bolt

and hex nut at the factory. Make certain that the

rubber boot covers the terminal to help protect it

from corrosion.

Remove the carriage bolt and hex nut from the

negative cable.

Remove the black plastic cover, if present, from the

negative battery terminal and attach the negative

cable (heavy black wire) to the negative battery

terminal (-) with the bolt and hex nut.

Make certain the hold-down rod is in position over

the battery, securing it in place; See Figure 2.

i i i

J i i _ i

i!' _lltii! Rubber"!i

--1 ':::!;f!i_i:i Boot !! _i.

; :

\ _ CarriageB01t

H01dDownRod

HexNut ,,_

Figure 2

NOTE: if the battery is put into service after the date

shown on top/side of battery, charge the battery as

instructed on page 27 of this manual prior to operating

the tractor.

AttachingTheSeat

1. Remove the two knobs from the bottom of seat.

2. Position the shoulder screws (found on the base of

the seat) inside the slot openings in the seat pivot

bracket,

3. Slide the seat slightly rearward in the seat pivot

bracket, lining up the rear slots in the pivot bracket

with the remaining two holes in the seat's base.

4. Select desired position for the seat, and secure with

the two knobs removed earlier. See Figure 3.

10:

Figure 3

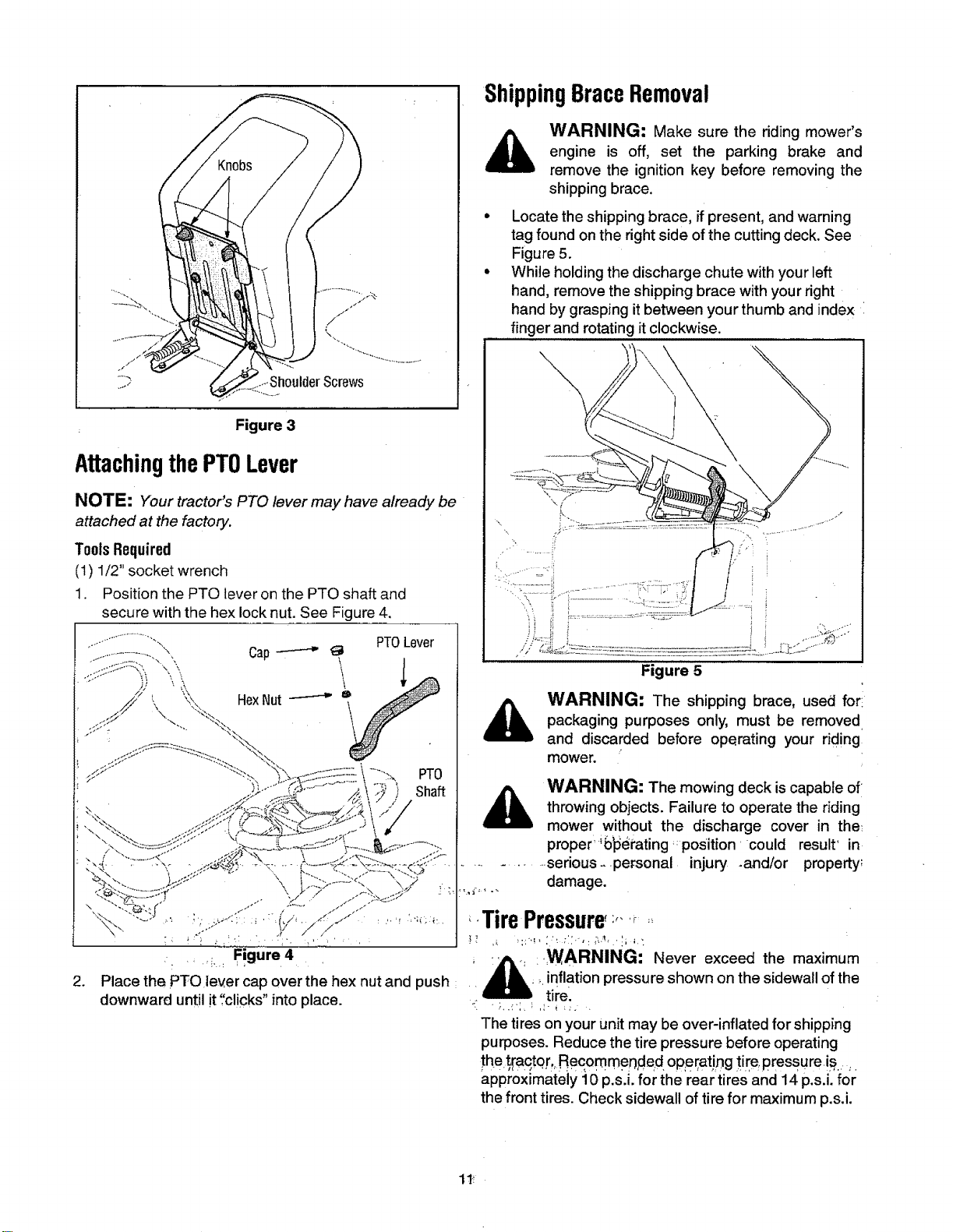

AttachingthePTOLever

NOTE: Your tractor's PTO lever may have already be

attached at the factory.

ToolsRequired

(1) 1/2" socket wrench

1. Position the PTO lever on the PTO shaft and

secure with the hex lock nut. See Figure 4.

Cap_

HexNut _ o

PT0 Lever

PT0

) Shaft

' ,;"..... _' 'I I

-- -' ,i .... F!gure

Place the .PTOlever cap over the hex nut and push

downward until jt '_'clicks"into place.

ShippingBraceRemoval

WARNING: Make sure the riding mower's

engine is off, set the parking brake and

remove the ignition key before removing the

shipping brace.

• Locate the shipping brace, if present, and warning

tag found on the right side of the cutting deck. See

Figure 5.

° While holding the discharge chute with your left

hand, remove the shipping brace with your right

hand by grasping it between your thumb and index

finger and rotating it clockwise.

WARNING: The shipping brace, used for

packaging purposes only, must be removed

and discarded before operating your riding

mower.

WARNING: The mowing deck is capable of

throwing objects. Failure to operate the riding

mower without the discharge cover in the

proper_ii_lSerating':positioncould result' in

-serious-. personal injury-and/or properly',

damage.

<.TirePressure:" :,

, ,,:.WARNING: Never exceed the maximum

.inflation pressure shown on the sidewall of the

' tire.

<i "L._'I, i ,!- i ._. .

The tires on your unit may be over-inflated for shipping

purposes. Reduce the tire pressure before operating

!he.tractor.,Recomm.e0_!e.doncerat!ng tire:!0ressure.is..<.

approximately 10 p.s.i, for the rear tires and 14 p.s.i, for

the front tires. Check sidewall of tire for maximum p.s.i.

11!

SettingtheGaugeWheels

ToolsRequired

(2) 9/16" wrenches

Select the height position of the cutting deck by pla_ng.

the deck lift lever in any of the six different cutting he_ht

notches on the right fender. ;,:i__1

Adjust the deck wheels so that they are between 1/4-inclI

and Y2-inchabove the ground as follows.

WARNING" Keep hands and feet away

from the discharge of the

opening cutting

deck.

Place the tractor on a firm and level surface, preferably

pavement, refer to Figure 6, and proceed as follows:

• Place the tractor's deck lift handle in the desired

mowing height setting, then check the gauge

wheels for contact or excessive clearance with the

surface below. There should be approximately 1/2"

clearance.

° If the wheels contact the surface adjust as follows:

a. Raise the deck lift handle to its highest

setting.

b. Remove the rear gauge wheels by removing

the lock nuts and shoulder screws which

secure them to the deck.

c. Place the deck lift handle in the desired

mowing height setting.

d. Insert the shoulder screw with the rear gauge

wheel into the index hole that leaves

approximately 1/2" between the bottom of the

wheel and thepavement. See Figure 6.

LockNut!:,

GaugiWhe ,'

Figure6

e. Note the position ofthe index hole used; then

install the other rear gauge wheel into the

corresponding index hole of the other gauge

wheel brackets.

° If the gauge wheels have excessive clearance with

the surface below, lower the wheels to the index

hole that provides the approximate 1/2" clearance

as described above.

Refer to LevelingtheDeckon page 21 of this manual for

_4#oredetailed instructionsregarding various deck

a_llt_sfments:

GasandOilFill-up.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel machine indoors or while the

engine is hot or running. Extinguish

cigarettes, cigars, pipes, and other sources of

ignition before filling the fuel tank. .

Use only clean, fresh (under 30 days old), unleaded

gasoline. Fill tank to no more than 1/2 inch below the

top of the filler neck to allow space for fuel expansion.

See Figure 7.

FuelTank'

FillerNeck

engine. However, you MUST check the oil level before

operating. Refer to Checkingthe,0il Levelon page 22 for

-detailed instructions: :, _ .: _-_ -.............

SECTION5: KNOWYOURLAWNTRACTOR

Figure 8

A Systems Indicator Monitor/Hour Meter

" B _PTO iBlade Engage) Lever

'C • Parki'ng Brake Lev_, "

b CrL_iseCont_'ol Lever

E: Shift Lever

F Cup Holder

NOTE: Steering Wheel not shown for clarity.

G- Throttle / Choke, Contro

H Ignition Switch Module

I Brake Pedal

J Drive Pedal

K Deck Li_-i_ev:er

NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position.

Throttle/ ChokeControl

The throttle/choke control is

located on the right side of the

tractor's dash panel. This lever

controls the speed of the engine

and, when pushed all the way

forward, closes the choke for cold

starting. When set in a given

position, the throttle will maintain

a uniform engine speed.

IMPORTANT:When operating the

tractor with the cutting deck

engaged, be certain that the

throttle/choke control isalways

inthe FAST (rabbit) position,

BrakePedal

The brake pedal is located on the

right front side of the tractor

above the drive pedal along the

running board. The brake pedal

can be used for sudden stops or

setting the parking brake.

NOTE: The brake pedal must

be fully depressed to activate the

safety interlock switch when

starting the tractor.

ShiftLever

The shift lever is located on the

left side of the fender and has

three positions, FORWARD,

NEUTRAL and REVERSE. The

brake pedal must be depressed

and the tractor must not be in

motion when the moving shift

lever.

IMPORTANT:Never force the shift

lever. Doing so may result in

serious damage to the tractor's

transmission.

DeckLift Lever

Found on your tractor's right

fender, the deck lift lever is used

to change the height of the

cutting deck. To use, move the

lever to the left, then placein the

notch best suited for your

application.

Choke

Position

;=;F

IgnitionSwitchModule

WARNING: Never]eave a running machine

unattended. Always disengage the PTO,

move the shift lever into Neutral, set the

parking brake, stop the engine and remove

the key to prevent unintended starting.

To start the engine, insert the key into the ignition

switch and turn clockwise to the START position.

Release the key into the NORMAL MOWING MODE

position once the engine has fired.

To stop the engine, turn the ignition key

counterclockwise to the STOP position. See Figure 9.

Stop

Position

/,'

Normal

-Mowing Mode

Start

Position

Figure 9

IMPORTANT:Priorto operating the tractor, refer toSafety

InterlockSystemon page 16 and ReverseCautionModeon

page 16 ofthis manual for detailed instructions

regarding the IgnitionSwitch Module and operating the

tractor in REVERSE CAUTION MODE.

DrivePedal

The drive pedal is located below

the brake pedal on the right front

side of the tractor along the

running board. Depress the drive

pedal with your right foot when

the tractor shift lever is in either

FORWARD or REVERSE to

cause the tractor to move.

Ground speed is also controlled

with the drive pedal. The further

down the pedal is depressed, the faster the tractor will

travel. The pedal wilt return to its original position when

released.

SystemsIndicatorMonitor/ HourMeter

Battery

42.0 ,co

PTO

(BladeEngage) ParkingBrake

o (®) o

LCD

When the ignition key is rotated out of the STOP

position but not into the START position, the systems

indicator monitor displays the battery's output, in volts,

on its LCD for approximately five seconds, after which it

displays the hours of tractor operation. Once the tractor

is started, the monitor continually displays the hours of

tractor operation on its LCD.

NOTE: Hours of tractor operation are recorded any

time the ignition key is rotated out of the STOP position.

regardless of whether the engine is started.

The Indicator Monitor will also remind the operator of

maintenance intervals for changing the engine oil. The

LCD will alternately flash the recorded hours, "CHG"

and "OIL" for five minutes, after every 50 hours of

recorded operation elapse. The maintenance interval

lasts for two hours (from 50-52, 100-102, 150-152,

etc.). The LCD will also flash as described above for

five minutes every time the tractor's engine has been

started during this maintenance interval. Before the

interval expires, change the crankcase oil as instructed

on page 23 of this manual.

Brake

If the Brake light illuminates when attempting to start

the tractor's engine, press the brake pedal.

PTO(Blade Engage)

If the PTO light illuminates when attempting to start the

tractor's engine, move the PTO lever into the

disengaged (OFF) position.

Battery

It is normal for the Battery light to illuminate while the

engine is cranking during start-up, but if it illuminate's

during operation, while the engine is running, the

battery is in need of a charge or the engine's charging

system is not generating sufficient amperage. Refer to

the MAINTAIHINGYOURLAWNTRACTORsection of this

manual for the proper battery charging procedure or

have the charging system checked by an authorized

Toro service dealer.

PTO(BladeEngage)Lever

ON ,it I

OFF !

PTO

PTO /BLADE ENGAGE

The PTO (Blacle Engage) lever is located on the left

side of the dash, next to the steering wheel. Move the

PTO (Blade Engage)lever forward to engage the

power to the cutting deck or other (separately available)

attachments; move the PTO (Blade Engage) lever

rearward to disengage the power to the attachments.

NOTE: The PTO (Blade Engage) lever must be in the

disengaged (OFF) position when starting the engine.

CruiseControlLever

The cruise control lever is located on

the tractordashpanel, belowthe ;ill I

steering wheel. Push the cruise

control lever downward while

traveling forward at a desired speed.

While holding the lever down, release

pressure from the drive pedal.

This will engage the cruise control

and allow the tractor to remain at that

speed without applying pressure to

the drive pedal. Depress the brake

pedal or the drive pedal to deactivate cruise control.

Refer to page 17 for detailed instructions regarding

cruise control.

NOTE: Cruise control cannot be engaged at the

tractor's fastest ground speed. If the operator should

attempt to do so, the tractor will automatically

decelerate to the fastest optimal mowing ground speed.

ParkingBrakeLever

To set the parking brake, fully

depress the brake pedal and push the

parking brake lever down. Hold the

lever down while taking your foot off

the brake pedal. Both the parking

lever and the brake pedal will then

stay depressed. To release the

parking brake, depress the brake

pedal slightly. The parking brake

lever will then return to its original

position.

IMPORTANT:Always set the parking brake when

leaving the tractor unattended.

SECTION6: OPERATINGYOURLAWNTRACTOR

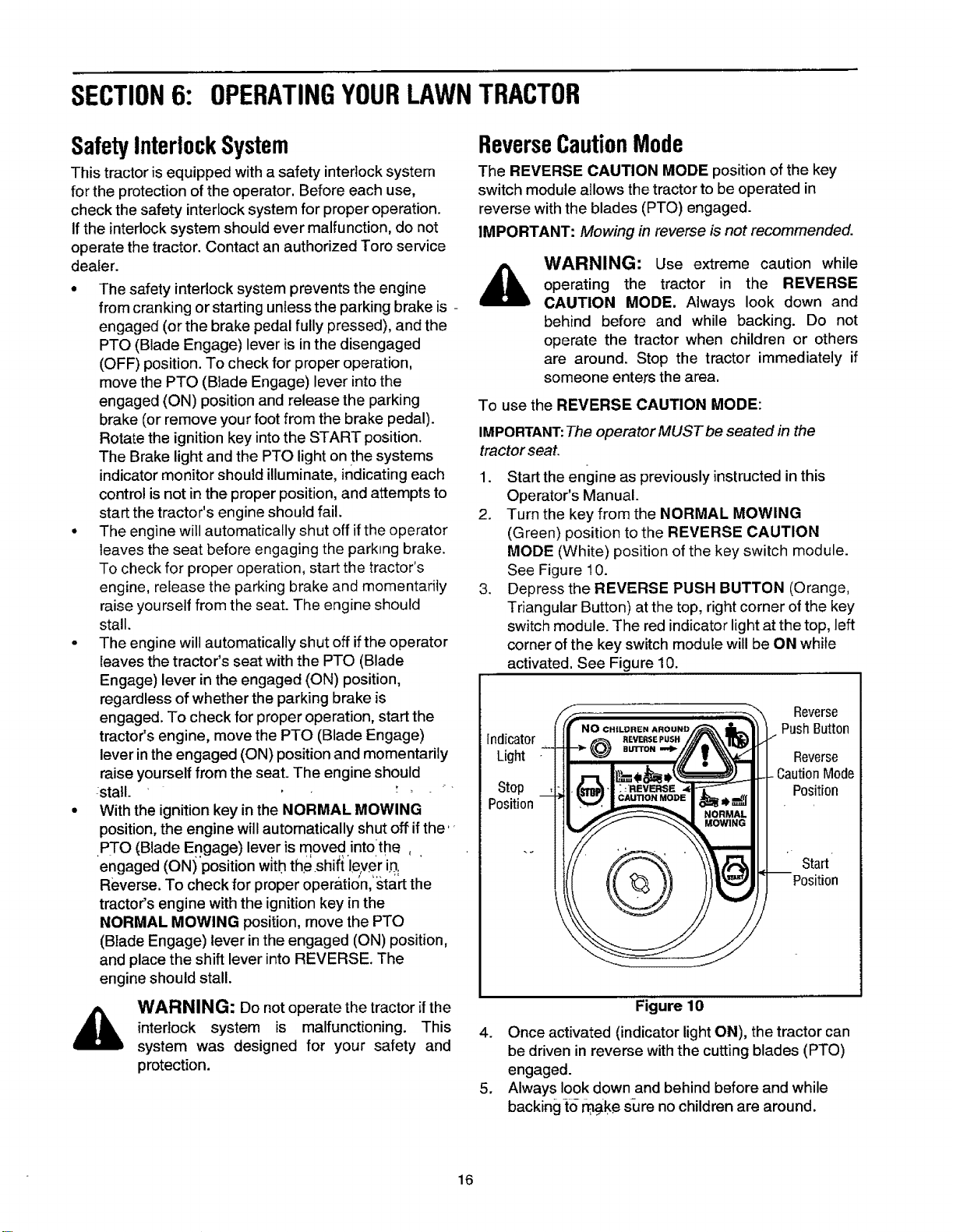

SafetyInterlockSystem

This tractor is equipped with a safety interlock system

for the protection of the operator. Before each use,

check the safety interlock system for proper operation.

If the interlock system should ever malfunction, do not

operate the tractor. Contact an authorized Toro service

dealer.

• The safety interlock system prevents the engine

from cranking or starting unless the parking brake is -

engaged (or the brake pedal fully pressed), and the

PTO (Blade Engage) lever is in the disengaged

(OFF) position. To check for proper operation,

move the PTO (Blade Engage) lever into the

engaged (ON) position and release the parking

brake (or remove your foot from the brake pedal).

Rotate the ignition key into the START position.

The Brake light and the PTO light on the systems

indicator monitor should illuminate, indicating each

control is not in the proper position, and attempts to

start the tractor's engine should fail.

° The engine will automatically shut off if the operator

leaves the seat before engaging the parking brake.

To check for proper operation, start the tractor's

engine, release the parking brake and momentarily

raise yourself from the seat. The engine should

stall.

• The engine will automatically shut off ifthe operator

leaves the tractor's seat with the PTO (Blade

Engage) lever in the engaged (ON) position,

regardless of whether the parking brake is

engaged. To check for proper operation, start the

tractor's engine, move the PTO (Blade Engage)

lever in the engaged (ON) position and momentarily

raise yourself from the seat. The engine should

stall. _ _ _

• With the ignition key in the NORMAL MOWING

position, the engine will automatically shut off if the,

PTO (Blade Engage) lever is moved intothe ,

engaged (ONiposition wltb the shif_ ever in_

Reverse. To check for proper operation,'start the

tractor's engine with the ignition key in the

NORMAL MOWING position, move the PTO

(Blade Engage) lever in the engaged (ON) position,

and place the shift lever into REVERSE. The

engine should stall.

WARNING: Do not operate the tractor if the

interlock system is malfunctioning. This

system was designed for your safety and

protection.

ReverseCautionMode

The REVERSE CAUTION MODE position of the key

switch module allows the tractor to be operated in

reverse with the blades (PTO) engaged.

IMPORTANT: Mowing in reverse isnot recommended.

WARNING: Use extreme caution while

operating the tractor in the REVERSE

CAUTION MODE. Always look down and

behind before and while backing. Do not

operate the tractor when children or others

are around. Stop the tractor immediately if

someone enters the area.

To use the REVERSE CAUTION MODE:

IMPORTANT:The operator MUST be seated in the

tractor seat.

1. Start the engine as previously instructed in this

Operator's Manual.

2. Turn the key from the NORMAL MOWING

(Green) position to the REVERSE CAUTION

MODE (White) position of the key switch module.

See Figure 10.

3. Depress the REVERSE PUSH BUTTON (Orange,

Triangular Button) at the top, right corner of the key

switch module. The red indicator light at the top, left

corner of the key switch module will be ON while

activated. See Figure 10.

Indicator

Light

Stop

Position

" 1I 1 Reverse

Figure 10

4. Once activated (indicator lightON), the tractor can

be driven in reverse with the cutting blades (PTO)

engaged.

5. Always look down and behind before and while

backing-to m_k.es=ureno children are around.

6. After resuming forward motion, return the key to the

-NORMAL MOWING position.

IMPORTANT:The REVERSE CAUTION MODE will

remain activated until: _..... ;

a. The key isplaced ineither the NORMAL

MOWING position or STOP position.

b. The operator teaves the seat.

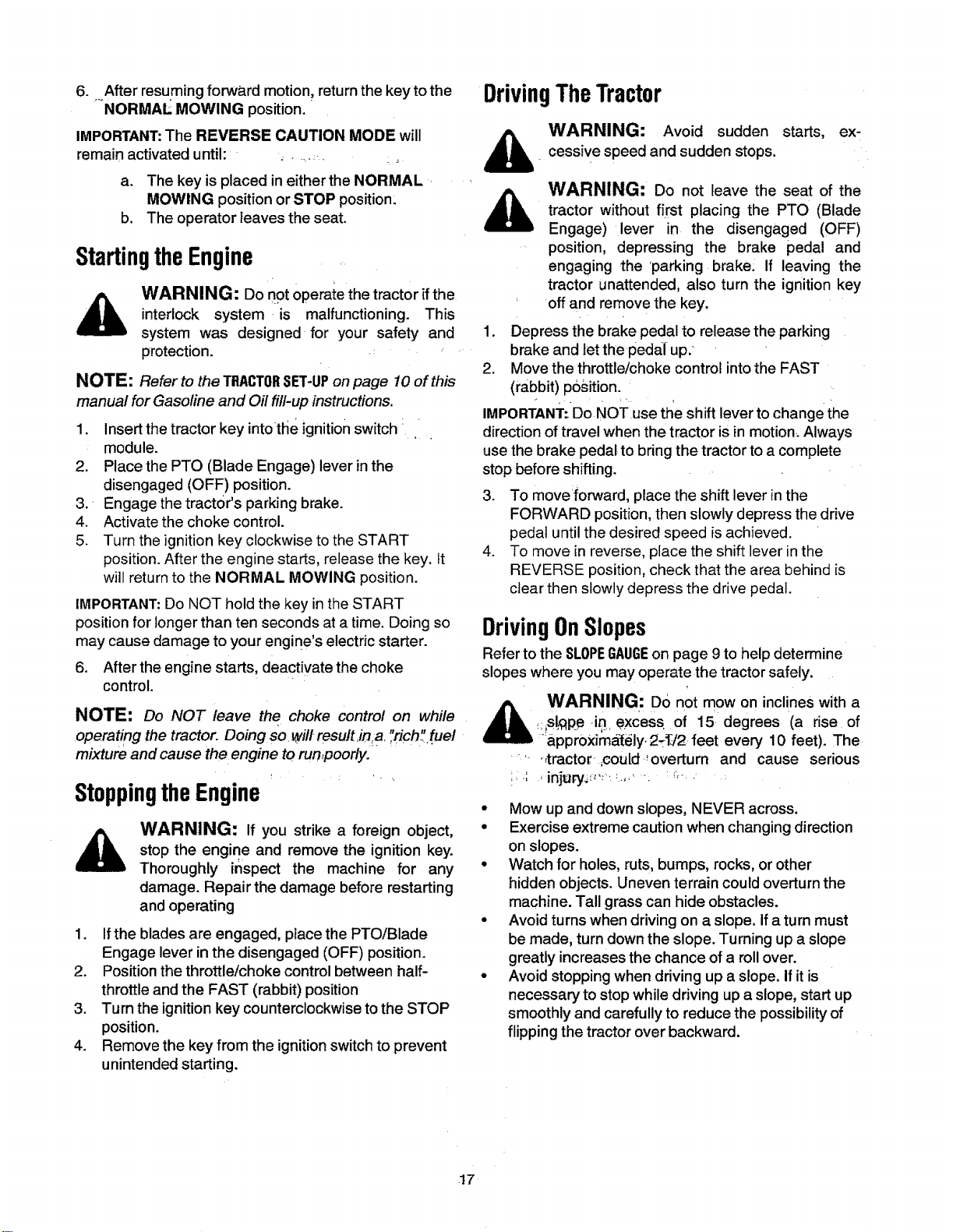

StartingtheEngine

WARNING: Do not 0peraie the tractor if the

interlock system is malfunctioning. This

system was designed _for your safety and

protection. ,

NOTE: Refer to the TRACTORSET-UPon page 10 of this

manual for Gasoline and Oil fill-up instructions.

1. Insert the tractor key intothe ignition switch :....

module.

2. Place the PTO (Blade Engage) lever in the

disengaged (OFF) position.

3. _ Engage the tractor's parking brake.

4. Activate the choke control.

5. Turn the ignition key clockwise to the START

position.After the engine starts, release the key. tt

will return to the NORMAL MOWING position.

IMPORTANT: Do NOT hold the key in the START

position for longer than ten seconds at a time. Doing so

may cause damage to your engine's electric starter.

6. After the engine starts, deactivate the choke

control.

NOTE: Do NOT leave the choke control on while

operating the tractor. Doing so wilt result in.a,'_[ich'/fuel

mixture and cause the engine to run,poorly.

StoppingtheEngine

WARNING: If you strike a foreign object,

stop the engine and remove the ignition key.

Thoroughly inspect the machine for any

damage. Repair the damage before restarting

and operating

1. Ifthe blades are engaged, place the PTOiBlade

Engage lever in the disengaged (OFF) position.

2. Position the throttle/choke control between half-

throttle and the FAST (rabbit) position

3. Turn the ignition key counterclockwise to the STOP

position.

4. Remove the key from the ignition switch to prevent

unintended starting.

DrivingTheTractor

WARNING: Avoid sudden

cessive speed and sudden stops.

starts, ex-

,_ WARNING: Do not leave the seat of the

tractor without first placing the PTO (Blade

Engage) lever in the disengaged (OFF)

position, depressing the brake pedal and

engaging the 'parking brake_ If leaving the

tractor unattended, also turn the ignition key

off and remove the key.

1. Depress the brake pedal to release the parking

brake and let the peda_iup.

2. Move the throttle/choke control into the FAST

(rabbit) p0sition.

IMPORTANT:Do NOTuse the shift lever to change the

direction of travel when the tractor is in motion, Always

use the brake pedal to bring the tractor to a complete

stop before shifting.

3. To move forward, place the shift lever in the

FORWARD position, then slowly depress the ddve

pedal until the desired speed is achieved.

4. To move in reverse, place the shift lever in the

REVERSE position, check that the area behind is

clear then slowly depress the drive pedal.

DrivingOnSlopes

Refer to the SLOPEGAUGEon page 9 to help determine

slopes where you may operate the tractorsafely.

WARNING.: Do not mow on inclines with a

_:isl_pe-in excess, of 15 degrees (a rise of

approxima_tely. 2-$J2 feet every 10 feet). The

'- .,tractor.,could ,overturn and cause serious

;=.=,,injury_':" ...." _ ;_,, . :

• Mow up and down slopes, NEVER across.

• Exercise extreme caution when changing direction

on slopes.

• Watch for holes, ruts, bumps, rocks, or other

hidden objects. Uneven terrain could overturnthe

machine. Tall grass can hide obstacles.

= Avoid turns when driving on a slope. Ifa turn must

be made, turn down the slope. Turning up a slope

greatly increases the chance of a rollover.

• Avoid stopping when driving up a slope. Ifit is

necessary to stop while driving up a slope, start up

smoothly and carefully to reduce the possibility of

flipping the tractor over backward.

17 ¸

SettingTheCruiseControl

WARNING: Never engage cruise control

while traveling in Reverse.

1. Slowly depress the drive pedal until the desired

speed is achieved.

2. Lightly depress the cruise control lever.

3. While continuing to hold the cruise lever down, lift

your foot from the drive pedal (you should feel the

cruise latch engage).

4. Once engaged, the cruise control lever and the

drive pedal will lock in the "down" position, and the

tractor will maintain the same forward speed.

NOTE: Cruise control can not be set at the tractor's

fastest ground speed, ff the operator should attempt to

do so, the tractor will automatically decelerate to the

fastest optimal mowing ground speed.

Disengage the cruise control using one'of the following

methods:

• Depress the brake pedal to disengage the cruise

control and stop the tractor.

• Lightly depress the drive pedal.

To change to the REVERSE direction when operating

with cruise control, depress the brake pedal to

disengage the cruise control and bring the tractor to a

complete stop. Place the shift lever in the REVERSE

position and depress the drive pedal.

Usingthe DeckLiftLever

To raise the cutting deck, move the deck lift lever to the

left, then place it in the notch best suited for your

application.

EngagingtheParkingBrake

To engage the parking brake:

1. Fully depress tl_ebrake pedal and hold it while

gently pushing the parking brake lever downward.

2. Hold the parking'blake lever down while removing

your foot f¢om the brake pedal.

3. Once engaged,,the 15arkingbrake leverand the

brake pedal will lock in the "down" position.

To disengage the parking brake, slightly depress the

brake pedal.

NOTE: The .parking brake must be engaged if the

operator leaves the seat with the etTgine runningor the

engine will automatically shut off.,-c' '

EngagingtheBlades

Engaging the PTO (Blade Engage) transfers power to

the cutting deck or other (separately available)

attachments. To engage the blades, proceed as

follows:

1. Move the throttle/choke control to the FAST (rabbit)

position.

2. Grasp the PTO (Blade Engage) lever and pivot itall

the way forward into the engaged (ON) position.

See Figure 11.

PT0

Lever

Engaged

Disengaged'

NOTE:Steenng wheel not shown for clarity.

Figure 11

3. Keep the throttle/choke control in the FAST (rabbit)

position for the most efficient use of the cutting

deck or other (separately available) attachments

IMPORTANT:The engine will automatically shut off if the

PTO is engaged with the shift lever in position for

reverse travel and the ignition key in the NORMAL

MOWING position. Refer to SafetyInterlockSystemon

page 16.

Mowing,:

WARNING: To help avoid blade contact or

a thrown object injury, keep bystanders,.

helpers, children and pets at least 75 feet

from the machine while it is in operation. Stop

machine if anyone enters the area,

The following information will be helpful when using the

cutting deck with your tractor.

WARNING: Plan your mowing pattern to

avoid discharge of materials toward roads,

sidewalks, bystanders and the like. Also,:

avoid discharging material against a wall or

obstruction which may cause discharged

material to ricochet back toward the operator.

Do not mow at high ground speed, especially if a

mulch kit or grass collector is installed. , ,.

For best results it is recommended that the first two

laps becut with the dis'charge throwntowards the

center. After the first two laps, reverse the d{rection

to throw the dlscharge to the outside for the

balance of cutting. This will give a better

appearance to the lawn.

° Do not cut the grass too short. Short grass invites

weed growth and yellows quickly in dry weather.

° Mowing should always be done with the throttle

control in the FAST (rabbit) position.

* Under heavy conditions it may be necessary to go

over the cut area a second time to get a clean Cut.

*: Do NOT attempt to mow heavy:brush and weeds

and extremely tall grass; Your tractor is designed to

mow lawns, NOT clear brush:_ _...... . ,

° Keep the blades sharp and replace theblades

when worn. Refer to CuttingBladeson page 26 of this

manual for proper blade sharpening instructions.

....... : , .,.

,,[

.- _, :'::.:, :,r[ _' itt': {._i i_r_."

i.:_ ;_ _i"::_",L_.":-i

•j _ i

SECTION7: MAKINGADJUSTMENTS

WARNING: Never attempt to make any

adjustments while the engine is running,

Levelingthe Deck

NOTE: Check the tractor's tire pressure before

performing any deck leveling adjustments. Referto

Tireson page 26 for information r_arding_tire pressure.

FrontTo Rear

The front of the cutting deck is supported by a stabilizer

bar that can adjusted to level the deck from front to rear.

The front of the deck should be between 1/4-inch and

3!8-inch lower than the rear of the deck. Adjust if

necessary as follows:

1. With the tractor parked on a firm, level surface,

place the deck lift lever in the top notch (highest

position) and rotate the blade nearest the discharge

chute so that it is parallel with the tractor.

2. Measure the distance from the front of the blade tip

to the ground and the rear of the b]ade tip to the

ground.

3. The first measurement taken should be between

1/4" and 3/8" less than the second measurement.

4. Determine the approximate distance necessary for

proper adjustment and proceed, if necessary, to the

next step.

5. From the front of the tractor, loosen the outermost

hex lock nut on the end of the deck hanger rod. See

Figure 12.

6. Tighten the inner hex nut againstthe front hanger ,

bracket to raise the front of the deck; loosen the hex

nut to lower the front of the deck. See Figure 12..

7. Retighten the outer lock nut against the inner hex

nut when proper adjustment is achieved. "

SidetoSide

Ifthe cutting deck appears to be mowing unevenly, a

side to side adjustment can be performed. Adjust if

necessary as follows:

1. With the tractor parked on a firm, level surface,

place the deck lift leverin the topnotch (highest

position) and, rotate both b ades so that they are

perpendicular with the tractor. _

2. Measure the distance from the outside of the left

blade tip to the ground_and the distance from the

outside of the right blade tip to the ground. Both

measurements taken should be equal. If they're

not, proceed to the next step.

3. Loosen, but do NOT remove, the hex bolt on the left

deck hanger bracket. See Figure 13.

• / /,,' _ - iY_f7

• ". . t ! ,,O _ ,_.

................................... .i/ .." / .,, ._'v._:;

_'_'i: .................:.................. : :.ii _ _, '.'". '

iAdjustmentGear _

Figure 13

4. Balance the deck by using a wrench to turn the

"-adjustmentgear (See Figure 13) up or down.

_.:.5.- T..h,edeck s p.roper y ba anced when both blade tip

measurements takeD,e .a,rher are equal.

6. Retighten the }lex b01t0nthe leftdeck hanger

bracket when proper adjustment is achieved.

Figure 12

20¸

SteeringAdjustment

If the tractor turns tighter in one direction than the other,

or if the bail joints are being replaced due to damage or

wear, the steering drag links may need to be adjusted.

Adjust the drag links so that equal _engths are threaded

into the ball joint on the left side and the ball joint on the

right side:

1. Remove the hex nut on the top of ball joint. See

Figure 14.

Figure 14

2. Thread the ball joint toward the jam nut to shorten

the drag link. Thread the ball joint away from the

jam nut to lengthen the drag link.

3. Replace hex nut after proper adjustment is

achieved.

NOTE: Threading the ball joints too far onto the drag

finks will cause the front tires to "toe-in" too far. Proper

toe-in is between 1/16" and 5/16 ".

Front tire toe-in can be measured as follows:

1. Place the steering wheel in position for straight

ahead travel.

2. in front of the axle, measure the distance

horizontally from the inside of the left rim to the

inside of the right rim. Note the distance.

3. Behind the axle, measure the distance horizontally

from the inside of the left rim to the inside of the

right rim. Note the distance.

4. The measurement taken in front of the axle should

be between 1/16" and 5/16" less than the

measurement taken behind the axle.

5. Adjust if necessary.

SeatAdjustment

To adjust the position of the seat, loosen the two knobs

on the bottom of the seat. See Figure 15. Slide the seat

forward or rearward as desired. Retighten the two

knobs.

Figure 15

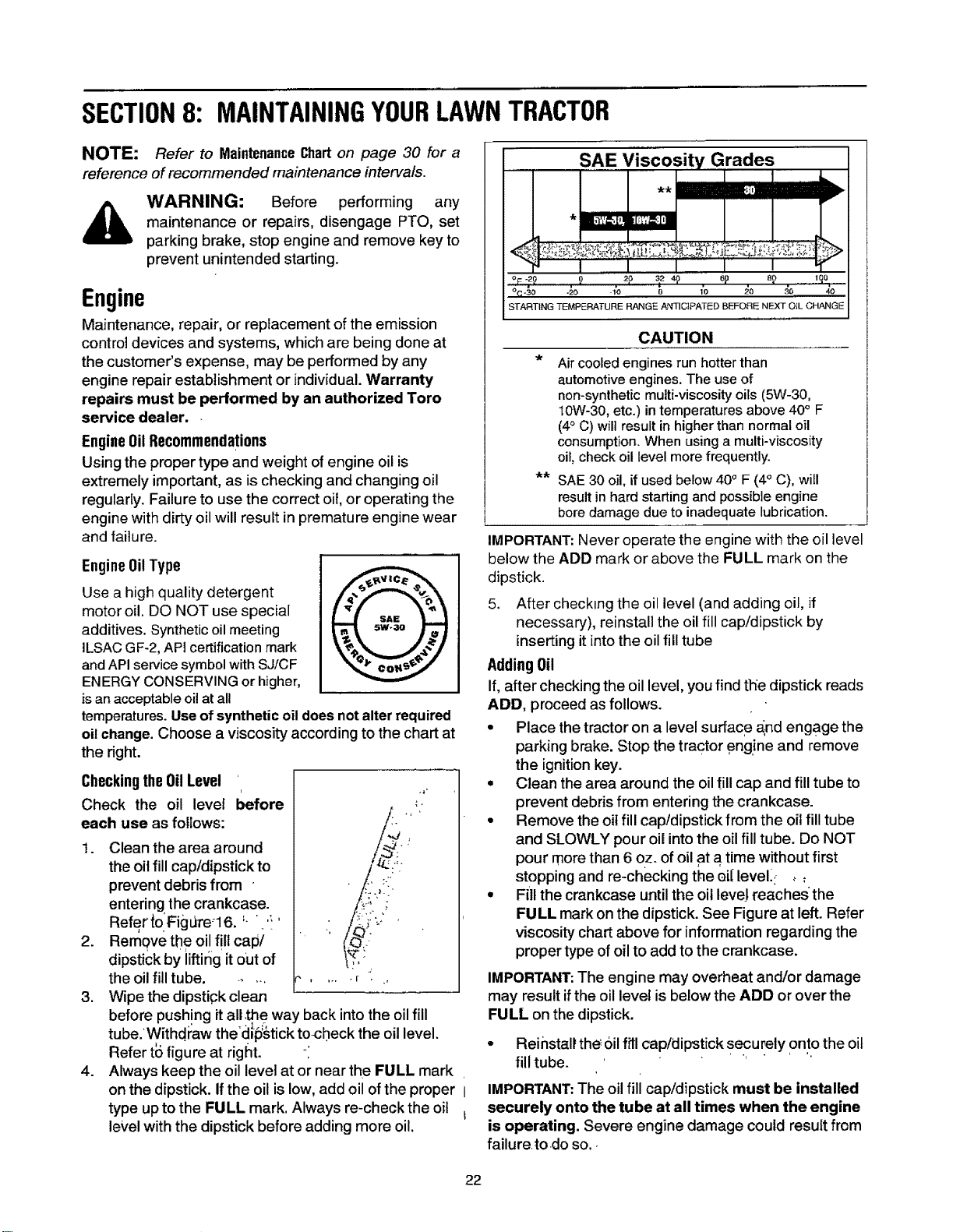

SECTION8: MAINTAININGYOURLAWNTRACTOR

NOTE: Refer to MaintenanceCharton page 30 for a

reference of recommended maintenance intervals.

WARNING: Before performing any

maintenance or repairs, disengage PTO, set

parking brake, stop engine and remove key to

prevent unintended starting.

Engine

Maintenance, repair, or replacement of the emission

control devices and systems, which are being done at

the customer's expense, may be performed by any

engine repair establishment or individual. Warranty

repairs must be performed by an authorized Toro

service dealer.

EngineOil Recommendations

Using the proper type and weight of engine oil is

extremely important, as is checking and changing oil

regularly. Failure to use the correct oil, or operating the

engine with dirty oil will result in premature engine wear

and failure.

EngineOilType

Use a high quality detergent

motor oil. DO NOT use special

additives. Synthetic oil meeting

ILSAC GF-2, APIcertification mark

and APIservice symbol with SJ/CF

ENERGY CONSERVING or higher,

is anacceptable oil at all

temperatures.Use ofsynthetic oildoes not alter required

oil change. Choose a viscosityaccording to the chart at

the right.

CheckingtheOil Level

Check the oil level before

each use as follows:

1. Clean the area around

the oil fill cap/dipstick to

prevent debris from

entering the crankcase.

Refer_olFigLire:16" ,. ,,.,

Remove the oil fill cap;

dipstick by iiftir_g it out of

the oil fill tube. ....

Wipe the dipstick clean

.i.

before push!ng itall _e way back into the oil fill

tube.'Withdi'aw theldi{5'_;tickto-check the oillevel.

Refer t_ figure at right. -'

Always keep the oil level at or near the FULL mark

on the dipstick. If the oil is low, add oil of the proper I

type up to the FULL mark. Always re-check the oil

level with the dipstick before adding more oil.

SAE Viscosity Grades

** _ _I_

_J J J_ I

STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT O;L CHANGE

CAUTION

* Air cooled engines run hotter than

automotive engines. The use of

non-synthetic multi-viscosity oils (5W-30,

IOW-30, etc.) in temperatures above 40 ° F

(4° C) will result in higher than normal oil

consumption. When using a multi-viscosity

oil, check oil level more frequently.

** SAE 30 oil, if used below 40° F (4° C), will

result in hard starting and possible engine

bore damage due to inadequate lubrication.

IMPORTANT: Never operate the engine with the oil level

below the ADD mark or above the FULL mark on the

dipstick.

5. After checking the oil level (and adding oil, if

necessary), reinstall the oil fill cap!dipstick by

inserting it into the oil fill tube

AddingOil

If, after checking the oil level, you find the dipstick reads

ADD, proceed as follows.

• Place the tractor on a level surfac e a_ndengage the

parking brake. Stop the tractor engine and remove

the ignition key.

• Clean the area around the oil fill cap and fill tube to

prevent debris from entering the crankcase.

• Remove the oil fill cap/dipstick from the oil fill tube

and SLOWLY pour oil into the oil fill tube. Do NOT

pour more than 6 oz. of oil at a time without first

stopping and re-checking the eli leveE, ,.

• Fiil the crankcase until the oil level reaches the

FULL mark on the dipstick. See Figure at left. Refer

viscosity chart above for information regarding the

proper type of oil to add to the crankcase.

IMPORTANT:The engine may overheat and/or damage

may result if the oil levet is below the ADD or over the

FULL on the dipstick.

• Reihstall the"oil fill cap/dipstick securely onto the oil

• , , . . , ,.

fill tube.

IMPORTANT:The oil fillcap/dipstick must be installed

securely onto the tube at all times when the engine

is operating. Severe engine damage could result from

failure todo so.,

ChangingtheEngineOil

Change oil after the first 5 to 8 hours of use, and

every 50 hours thereafter. Change oil every 25 hours

when operating the engine under heavy load or in high

temperatures.

WARNING: If the engine has been recently

run, the engine, muffler and surrounding

metal surfaces wilt be hot and can cause

burns to the skin. Allow the tractorto cooland

use caution when removing

IMPORTANT'The oil filter should be changed at every

oilchange interval.

To complete an oil change, proceed as follows:

Drainingthe0il

Run the engine for a few minutes to allow the oilin the

crankcase to warm up. Warm oilwill flow more freely

and carry away more ofthe engine sediment which may

have settled at the bottomofthe crankcase. Use care to

avoid burns from hot oil.

1. Pop open the protective cap on the end of the oil

drain valve to expose the drain port. See Figure 16.

f .......

z..".......DrainPorti'_

0iiDrainHose\ ',.

\ ,.?._;; \ )

Figure 16

2. Remove the oilfill cap/dipstick from the oilfill tube.

3. Push the oil drain hose (packed with this manual)

onto the oildrain port. Route the opposite end of

the hose intoan appropriate oil collection container

with a capacity great enough to collectthe used oil.

Push the oildrain valve in slightly, then rotate

counterclockwise and pull outwar?!to begin

draining oil.

5. After the oil has finished draining, push the oitdrain

valve back in, rotate it clockwise to lock the valve

closed and re-cap the end of the oildrain valve to

keep debris from enteringthe drain port.

IMPORTANT:Always change the oil filter when

performingan oilchange on your tractor's engine.

Changingthe0il Filter

After draining the oil,

proceed as follows:

Before removing the

old oil filter, clean

around its base to

prevent debris from

entering the crankcase.

Grasp the oil filter and

remove it from the filter

adapter by turning it

counterclockwise.

Make sure the rubber

gasket comes off the

0il Filter

engine along with the

filter. :

Place a new replacement filter in a shallow pan with

the open end up and pour new oil of the proper type

(refer to the chart on page 22), in through the

threaded center hole.

IMPORTANT:Stop pouring when the oil reaches the

bottom of the threads and allow a minute or two for the

oil to be absorbed by the filter material.

4. Put a drop of oil on your fingertip and apply a light

coating to the gasket of the new oil filter.

5. Wipe the mounting flange with a clean rag and

install the replacement oil filter on the engine by

turning it clockwise onto the filter adapter until the

rubber gasket makes contact with the base.

Tighten.the filter an additional 1/2 turn after the

gasket first makes contact.

Re-fillingthe Crankcasewith Oil

IMPORTANT:Always check the level on the dipstick as

instructed on page 22 before adding more oil. Do NOT

overfill.

NOTE: For the proper off type, refer to the chart on

page 22 of thismanual

1, Clean the area around the oilfill tube to prevent

debris from entering the crankcase.

2. Slowly pour oil into the fill tube. Fill the crankcase

until the oil level reaches the FULL mark on the

dipstick (Refer to Page 22). The engine (with oil

filter) has a capacity of 48 ounces (1.42 liters).

Never overfill the engine crankcase)

3. Reinstall the oil fill cap/dipstick securely into the oil

fill tube.

IMPORTANT:The oil fill cap/dipstick must be installed

securely onto the tube at all times when the engine

is operating. Severe engine damage could resultfrom

a failure to do so.

4. Start the tractor engine and allow it to run forthirty

seconds, then stop the engine and remove the

ignition key.

23•

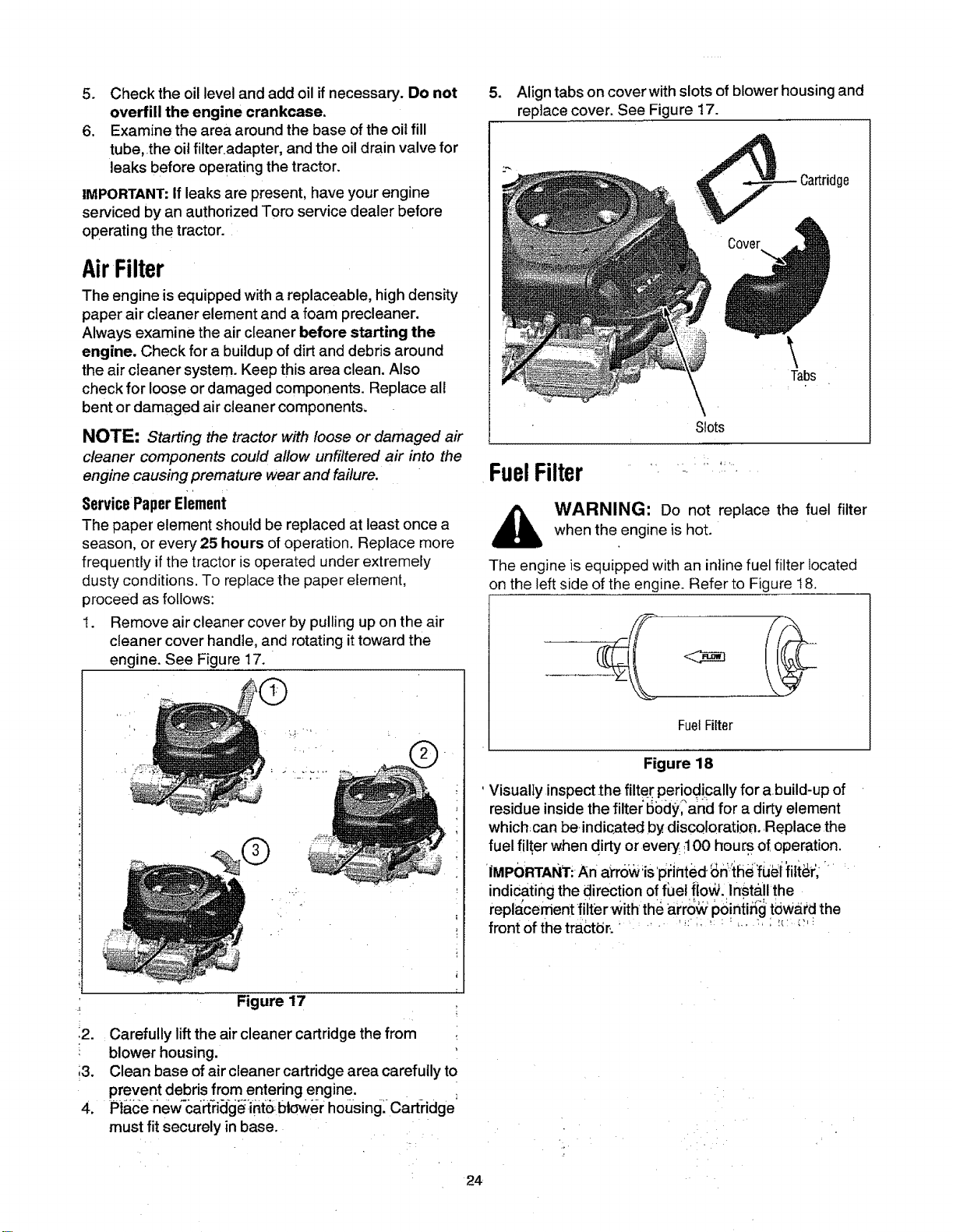

5. Checktheoillevelandaddoilifnecessary.Do not

overfill the engine crankcase.

6. Examine the area around the base of the oil fill

tube, the oil filter.adapter, and the oil drain valve for

leaks before operating the tractor.

IMPORTANT: If leaks are present, have your engine

serviced by an authorized Toro service dealer before

operating the tractor.

AirFilter

The engine is equipped with a replaceable, high density

paper air cleaner element and a foam precleaner.

Always examine the air cleaner before starting the

engine. Check for a buildup of dirt and debris around

the air cleaner system. Keep this area clean. Also

check for loose or damaged components. Replace all

bent or damaged air cleaner components,

NOTE: Starting the tractor with loose or damaged air

cleaner components could allow unfiltered air into the

engine causing premature wear and failure.

ServicePaper Element

The paper element should be replaced at least once a

season, or every 25 hours of operation. Replace more

frequently if the tractor is operated under extremely

dusty conditions. To replace the paper element,

proceed as follows:

1. Remove air cleaner cover by pulling up on the air

cleaner cover handle, and rotating it toward the

engine. See Figure 17.

Figure 17

Carefully lift the air cleaner cartridge the from

blower housing.

i3. Clean base of air cleaner cartridge area carefully to

prevent debris from entering engine.

4. Pta_;enew-(:artridg_:intobto-wer housing_-Cartfidge'

must fit securely in base.

5. Align tabs on coverwith slots of blower housing and

replace cover. See Figure 17.

Cartridge

Tabs

Slots

FuelFilter

WARNING: Do not replace the fuel filter

when the engine is hot.

The engine is equipped with an iniine fuel filter located

on the left side of the engine. Refer to Figure 18.

FuelFilter

Figure 18

' Visualty inspectthe filter,periodically for abuild-up of

residue inside the filter'bbdyi_and for a dirty element

which can be indicated by discoloration. Replace the

fuel filter when dirtyor every :10o hours o4operation.

iMPORTANT:An a_'r0w'is'piinted hr,:tiffs;fuel"iitt_, '

indicating the direction of fuel fio_i, install the

repla'cement filter With the arroW/poin{iil_'gtdwa!d the

front of the tra(;t_r; ; : .... '_:;: _ __" "' : _": _

24 ¸

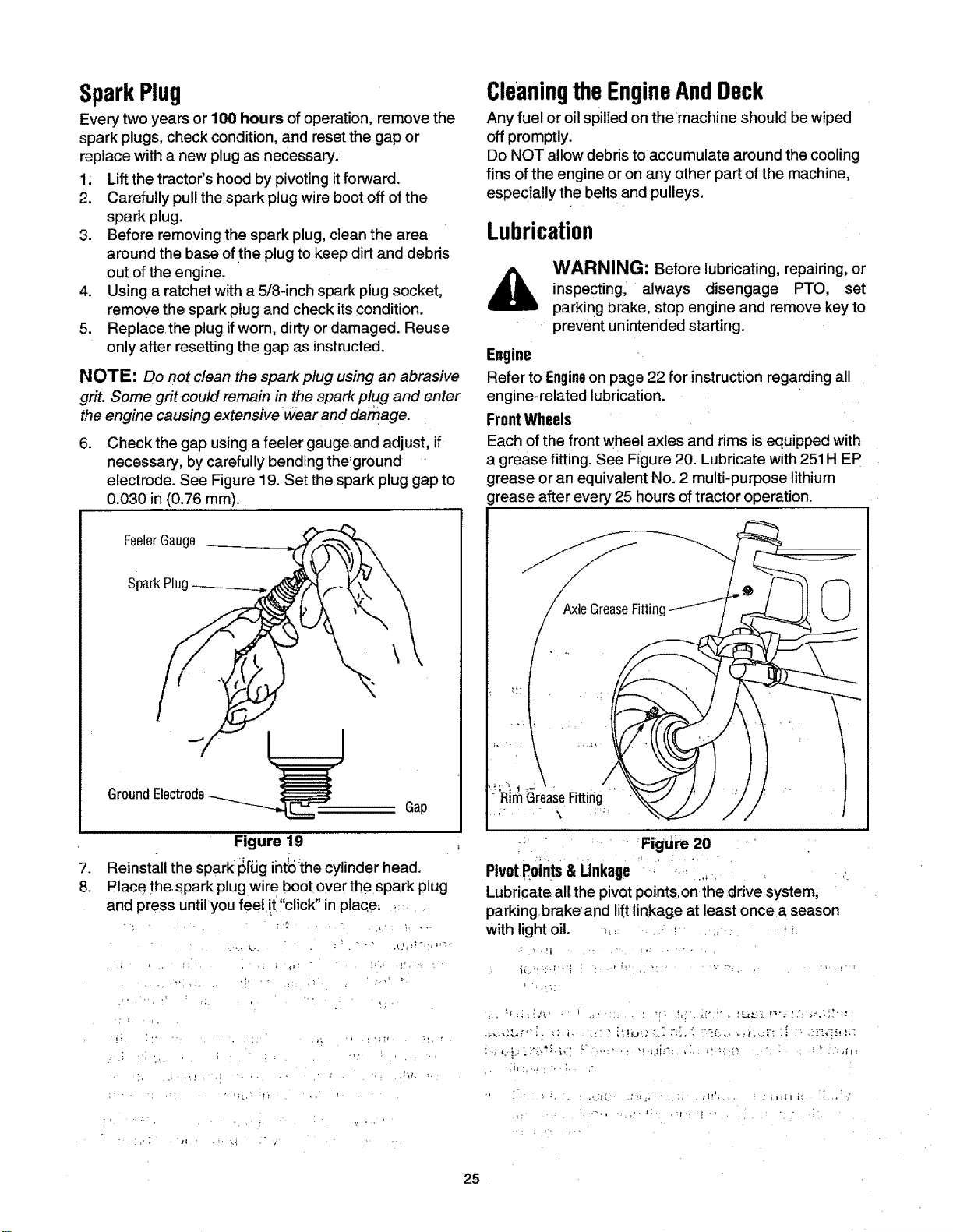

SparkPlug

Every two years or 100 hours ofoperation, remove the

spark plugs, check condition, and resetthe gap or

replace with a new plug as necessary.

1: Liftthe tractor's hood by pivoting itforward.

2. Carefully pullthe spark plug wire boot off ofthe

spark plug.

3. Before removing the spark plug, clean the area

around the base ofthe plug to keep dirt and debris

out ofthe engine.

4. Using a ratchet with a 5/8-inch spark plug socket,

remove the spark plug and check itscondition.

5. Replace the plug if worn, dirty or damaged. Reuse

only after resetting the gap as instructed.

NOTE: Do not clean the spark ptug using an abrasive

grit. Some grit could remain in the spark plug and enter

the engine causing extensive Wear and darnage.

6. Check the gap using a feeler gaugeand adjust, if

necessary, by carefully bending theground •

electrode. See Figure 19. Set the spark plug gap to

0.030 in (0.76 ram).

CleaningtheEngineAndDeck

Any fuel or oil spilled on the'machine should be wiped

offpromptly.

Do NOT allow debris to accumulate around the cooling

fins ofthe engine or on any other part of the machine,

especially the belts and pulleys.

Lubrication

WARNING: Before lubricating, repairing, or

inspecting, always disengage PTO, set

parking brake, stop engine and remove key to

• prevent unintended starting.

Engine •

Refer to Engineon page 22 for instruction regarding all

engine-related lubrication.

FrontWheels

Each of the front wheel axles and rims is equipped with

a grease fitting. See Figure 20. Lubricate with 251H EP

grease or an equivalent No. 2 multi-purpose lithium

grease after every 25 hours of tractor operation.

FeelerGauge

Spark Plug

GroundElectrode

Gap

Figure 19

Reinstall the spark I_[dgiht_the cylinder head.

Place the spark plugwire bootover the spark plug

and press untilyou feelit "click" inplace, .

':'RrnGreaseFitting

.... Figure 20

PivotPoints& Linkage ' _,.-

Lubricate all the pivotpoJnt_,onthe drive system,

parking brakeand liftlinkage at leastonce aseason

with light oil. ,, ,,

_,.;_(.. ,;_ , - tit',

: ut iL

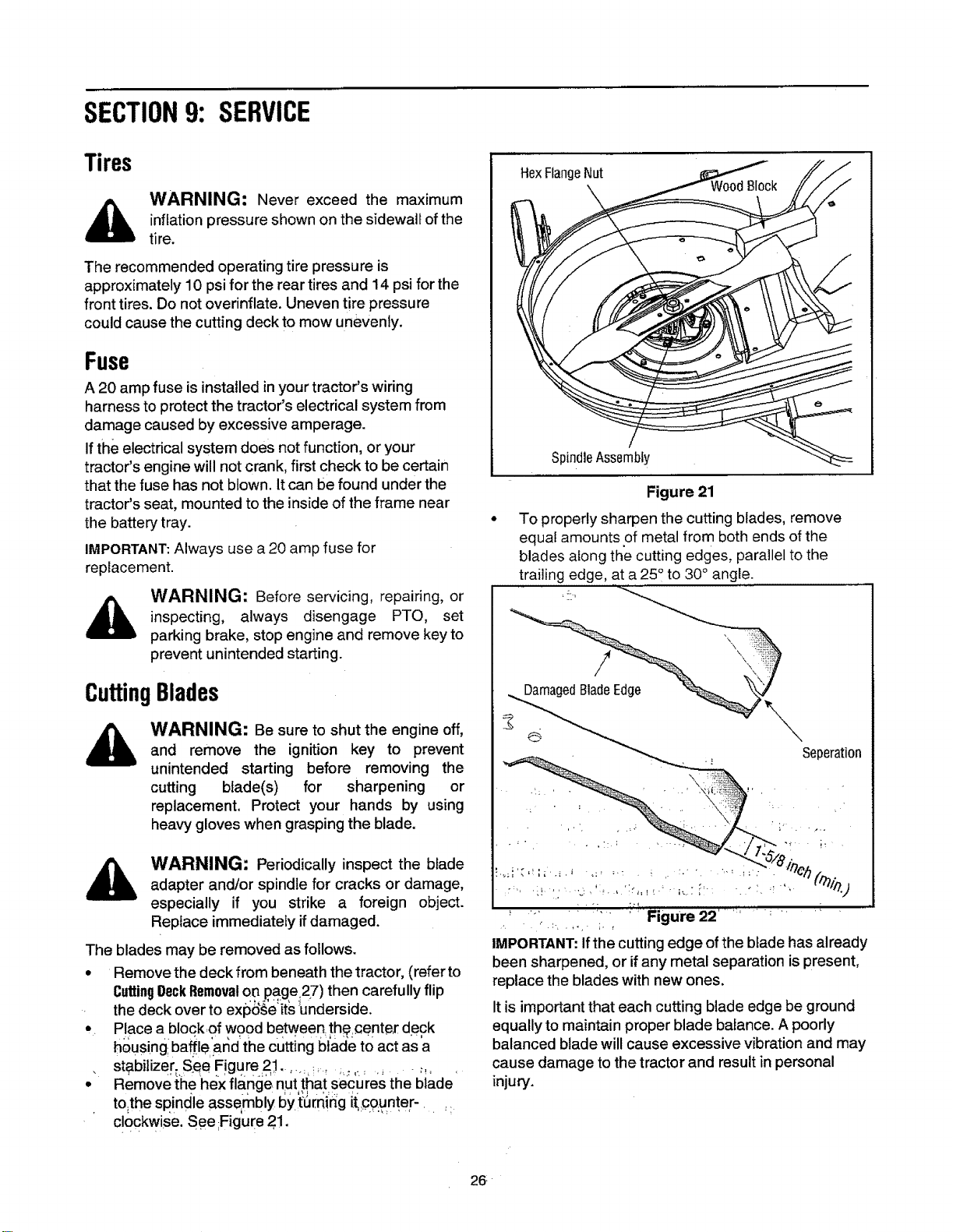

SECTION9: SERVICE

Tires

WARNING: Never exceed the maximum

inflation shown the sidewall of the

pressure

tire.

The recommended operating tire pressure is

approximately 10 psi for the rear tires and 14 psi for the

front tires. Do not overinflate. Uneven tire pressure

could cause the cutting deck to mow unevenly.

Fuse

A 20 amp fuse is installed in your tractor's wiring

harness to protect the tractor's electrical system from

damage caused by excessive amperage.

If the electrical system does not function, or your

tractor's engine will not crank, first check to be certain

that the fuse has not blown. It can be found under the

tractor's seat, mounted to the inside of the frame near

the battery tray.

IMPORTANT:Always use a 20 amp fuse for

replacement.

WARNING: Before servicing, repairing, or

inspecting, always disengage PTO, set

parking brake, stop engine and remove key to

prevent unintended starting.

CuttingBlades

WARNING: Be sure to shut the engine off,

and remove the ignition key to prevent

unintended starting before removing the

cutting blade(s) for sharpening or

replacement, Protect your hands by using

heavy gloves when grasping the blade.

WARNING: Periodically inspect the bladeadapter and/or spindle for cracks or damage,

especially if you strike a foreign object.

Replace immediately ifdamaged.

The blades may be removed as follows.

• Remove the deck from beneath the tractor, (refer to

CuttingDeckRemovalo_,page27) then carefully flip

the deck over to exl_,'e'its _underside.

° Place a block of wood between th_ .centerdeck

housing: baff!e, and the cutting blade to act as a

stabilizer_ See Figure 2!., ..... ..... ,.... ..

• " Remove {he he_Xflange, nut that secures the I_iade'

to.the spindle assernbly I:;ytumi=r_git counter-

clockwise. See ;Figure21.

Hex FlangeNut

Spindle Assembly

Figure 21

To properly sharpen the cutting blades, remove

equal amounts of metal from both ends of the

blades along the cutting edges, parallel to the

trailing edge, at a 250 to 30 ° angle.

Seperation

Figu 22 "

' '"........ re

IMPORTANT:Ifthe cutting edge ofthe blade has already

been sharpened, or ifany metal separation is present,

replace the blades with new ones.

Itis important that each cutting blade edge be ground

equally to maintain proper blade balance. A poorly

balanced blade will cause excessive vibration and may

cause damage to the tractor and result in personal

injury.

26:

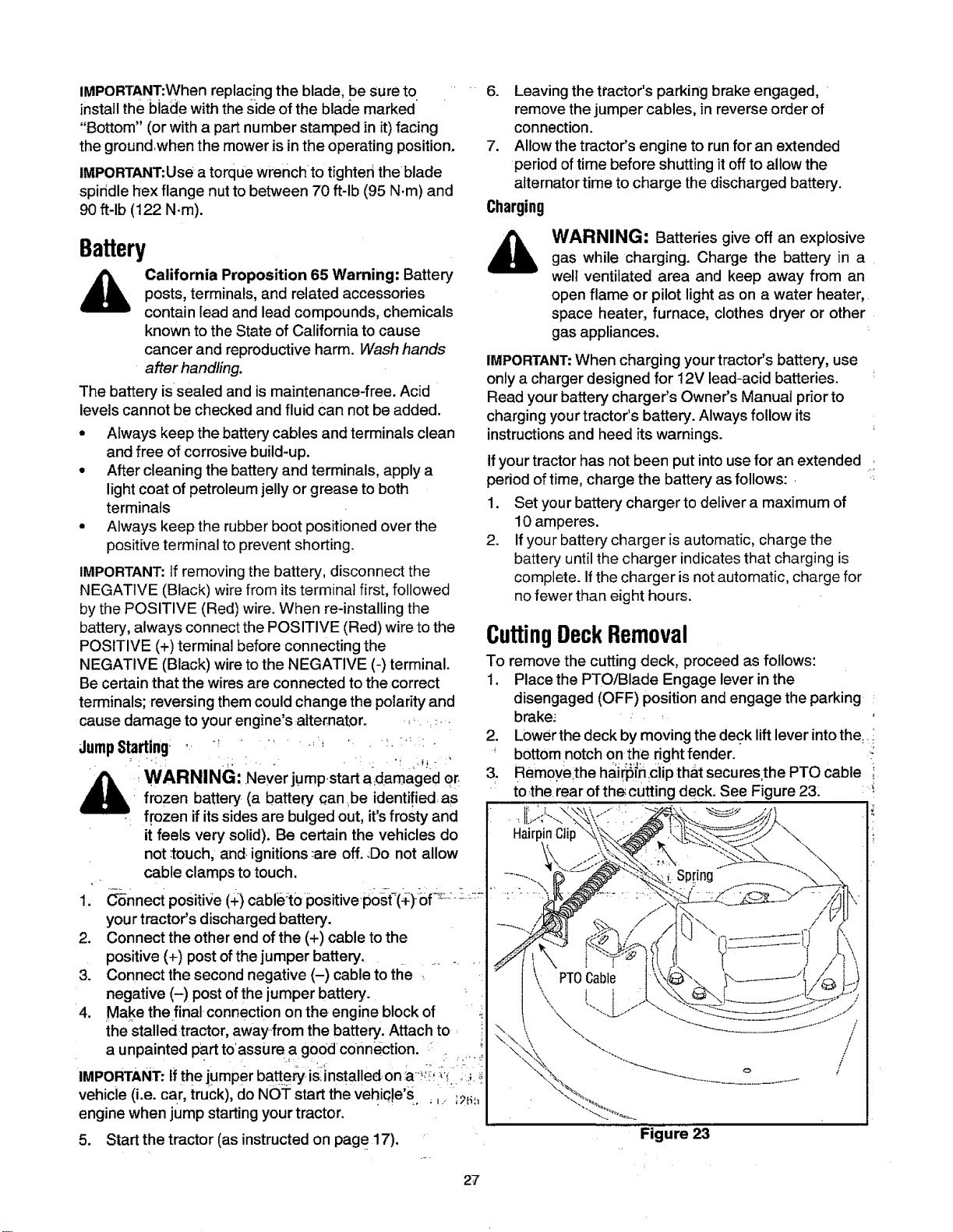

IMPORTANT:When replacing the blade, be sure to

install the bJade with the Sideof the blacte marked

"Bottom" (or with a part number stamped in it) facing

the ground,when the mower is inthe operating position,

IMPORTANT-Use a torque wrenchto tighteri therblade

spindle hex flange nut to between 70 ft-lb (95 N.m) and

90 ft-lb (122 N-m).

Battery

California Proposition 65 Warning: Battery

posts, terminals, and related accessories

contain lead and lead compounds, chemicals

known to the State of California tocause

cancer and reproductive harm. Wash hands

after hand/ing.

The battery issealed and is maintenance-free. Acid

levels cannot be checked and fluid can not be added.

* Always keep the battery cables and terminals clean

and free of corrosivebuild-up.

. After cleaning the battery and terminals, apply a

light coat of petroleum jelly or grease to both

terminals

° Always keep the rubber boot positioned over the

positive terminal to prevent shorting.

IMPORTANT:]f removing the battery, disconnect the

NEGATIVE (Black) wire from its terminal first, followed

by the POSITIVE (Red) wire. When re-installing the

battery, always connect the POSITIVE (Red) wire to the

POSITIVE (+) terminal before connecting the

NEGATIVE (Black) wire to the NEGATIVE (-) terminal.

Be certain that the wires are connected to the correct

terminals; reversing them could change the polarity and

cause damage to yourengine's alternator. -,.. _:..

JumpStarting ' "_ ..... "'_ !' _" :

:WARNING: .Never jUmpstart a,damaged er:

i frozen battery (a battery canbe identified as

frozen if its sides are bulged out, it's frosty and

it feels very solid). Be certain the vehicles do

not :touch, and: ignitions .-areoff..Do not allow

cable clamps to touch.

1. _nnect positive (_) cable_to positivepo§r(¥}:6f 4=: L-:_-

your tractor's discharged battery.

2. Connect the other end of the (+) cable to the

positive (+) post ofthe jumper battery. . .......

3. Connect the second negative (-) cable to the ,

negative (-) post of the jumper battery.

4. Make the final connection on the engine block of ' _::

the_stalledtractor, awayfrom the battery. Attach to. i

a unpainted part to'assure a g0odconnection. :: ';

IMPORTANT: If the jumper battew: islinstalled on :a!ii! i._"i-i._i_i

vehicle (i.e. car, truck), do NOT start the vehicle's . ,,. ;2_,

engine when jump starting your tractor.

5. Start the tractor (as instructed on page 17).

Leaving the tractor's parking brake engaged,

remove the jumper cables, in reverse order of

connection.

Allow the tractor's engine to run for an extended

period of time before shutting it off to allow the

alternator time to charge the discharged battery.

Charging

WARNING: Batteries give off an explosive

gas while charging. Charge the battery in a

well ventilated area and keep away from an

open flame or pilot light as on a water heater,

space heater, furnace, clothes dryer or other

gas appliances.

IMPORTANT:When charging your tractor's battery, use

onlya charger designed for 12V lead-acid batteries.

Read yourbattery charger's Owner's Manual priorto

charging yourtractor!s battery. Always follow its

instructionsand heed its warnings.

Ifyour tractor has not been put intouse for an extended :

period of time, charge the battery as follows: •

1. Set your battery charger to deliver a maximum of

10 amperes.

2. Ifyour battery charger is automatic, charge the

battery until the charger indicates that charging is

complete. If the charger is not automatic, charge for

no fewer than eight hours.

CuttingDeckRemoval

To remove the cutting deck, proceed as foJlows:

1. Place the PTO/Blade Engage lever in the

disengaged (OFF) position and engage the parking :

brake _ _

2. Lower the deck by moving the deck lift lever into the.. i

' bottom notch on the right fender.

3. Remove the hair_fJ_clip th&t secures.the PTO cable i

tothe.rear ofth_cutting deck. See Figure 23: .i

HairpinClip

\\ /

Figure 23

10.

11.

Remove the PTO cable and accompanying spring

from the cutting deck.

Remove the deck belt from around the tractor's

engine pulley.

Looking at the cutting deck from the left side of the

tractor, locate the deck support pin on the rear left

side of the deck.

Pull the deck support pin outward to release the

deck from the deck lift arm. See Figure 24.

Changingthe DeckBelt

WARNING: Be sure to shut the engine off,

engage the parking brake and remove the

ignition key to prevent unintended starting

before removing the belt.

WARNING: Avoid the possibility of a

pinching injury. Do not place your fingers on

the idler spring or between the belt and a

Figure 24

pulley while removing the belt.

All belts on Your tractor are subject to wear and should

be replaced'if anysigns of wear are present.

IMPORTANT:The V-belts found on your tractor are

specially designed to engage and disengage safely. A

substitute (non-OEM) V-belt can be dangerous by not

disengaging completely. For a proper working machine,

use factory approved belts.

To change or replace the deck belt on your tractor,

proceed as follows:

1. Remove the cutting deck.

2. Remove the belt covers by removing the screws

that fasten them to the deck. Refer to the figure

below.

3. Loosen, but do not remove the deck idler pulleys.

4. Remove the deck belt from around all pulleys,

Repeat the above steps on the tractor's right side.

Move the deck lift lever into the top notch to raise

the deck lift arms up and out of the way.

Gently slide the cutting deck toward the front of the

tractor allowing the hooks on the deck to release

themselves from the deck stabilizer rod.

Gently slide the cutting deck (from the right side)

out from underneath the tractor.

including the deck idler pulleys.

5. Route the new belt as shown inthe figure below

and retighten the deck idler pulleys.

6. Reinstall the belt guards removed earlier and

remount the deck to the tractor.

SECTION10: OFF-SEASONSTORAGE

Clean and lubricate the tractor as instructed in Section7:

MAINTAININGYOURLAWNTRACTORon page 22 of this

manual before storing for an extended period.

Engine

If the engine will be out of service for two months or

more, use the following storage procedure:

1. Clean the exterior surfaces of the engine.

2. Change the oil and filter while the engine is still

warm from operation. Refer to ChangingEngine0il on

page 23.

3. Thefuel system must be completely emptied, orthe

gasoline must be treated with a fuel stabilizer such

as STA-BIL, to prevent deterioration. If you choose

to use a stabilizer, follow the manufacturer's

recommendations and add the correct amount for

the capacity of the fuel ,system. Fill the fuel tank

with clean, fresh gasoline. Run the engine for 2-3

minutes to get stabilized fuel into the carburetor.

To empty the system, run the engine until the tank

and system are empty.

WARNING; Drain fuel only into an

approved container outdoors, away from an

open flame. Allow engine to cool. Extinguish

cigarettes, cigars, pipes, and other sources of

ignition prior to draining fuel.

1. Remove the spark plug, Add one tablespoon of

engine oil into the spark plug hole. Install the plug,

but do not rec0nnect the plugwire. Crank the

. engine two or three revolutions.

2. Store the tractor in a clean, dry place.

WARNING: Never store the machine or

container indoors where there is an open

fuel

flame, spark or pilot light such as on water

• heater, furnace, clothes dryer or other gas

appliance.

29-

SECTION11:MAINTENANCECHART

Check Safety

Interlock System

Clean Hood/Dash Louvers

Check Engine Oil Level

Service Air Cleaner

Change Engine Oil & Filter

Clean Battery Terminals

Lube Front Axles and Rims

Clean Engine Cooling Fins

Lube Pedal Pivot Points

Replace Spark Plugs

Before

Each Use

Every

10 Hours

Every

25 Hours

Every

50 Hours

Every

100 Hours

Every

Season

Prior

to Storing

:30

SECTION12: TROUBLESHOOTING

Trouble

Engine fails to start

Engine runs erratic

,kl

Engine overheats

Engine hesitates at high RPM

Idles poorly

Excessive vibration

Mower will not mulch grass

Uneven cut

Possible Cause(s)

PTO (Blade Engage) lever engaged.

Parking brake not engaged.

Spark plug wire disconnected.

Throttle/choke control not in correct

starting position.

Choke not activated

Fuel tank empty, or stale fuel

Blocked fuel line.

Faulty spark plug.

Engine flooded.

Unit running with CHOKE activated.

Spark plug wire(s) loose.

Blocked fuel line or stale fuel.

Vent in gas cap plugged:

Water or dirt in fuel system.

Dirty air cleaner. *'L

Engine oil level tow.

Air flow restricted.

Spark plug gap !.o.o...close.

Spark plug fouled, faulty or gap too

wide.

Dirty air cleaner.

Cutting blade loose or unbalanced.

Damaged or bent cu,tting blade.

Engine speed too low.

Wet grass.

Excessively high grass.

Dull blade.

Deck not balanced pr(_perly,

Dull blade.

Uneven.tire pressure.:_ _, ;.

E' --" ". _p

Corrective Action

Place PTO (Blade Engage)lever in,(OFF) position.

Engage parking brake.

Connect wire to spark plug.

Move Throttle/Choke Control into CHOKE position.

Fill tank with clean; fresh (less than 30 days old) gas.

Clean fuel line or replace fuel filter.

Clean,. adjust gap or replace plug.

Crank engine with throttle in FAST position.

Move Throttle/Choke'Control out of CHOKE position."

Connect and tighten spark p!ug wire(s).

Clean fuel line; fill tank with clean; fresh (less than 30

days :old) gasoline. Replace fuel filter, if so equipped.

i Clear vent.or replace cap if damaged.

' Drain fuel tank. Refill with clean, fresh (less than 30

days old) gasoline.

Replace air cleaner paper element or clean foam

precteaner.

"Fiil crankcase with proper capacity and w_,ight of oil.

Clean grass clippings and debris from around the

engine's cooling fins and blower housing.

Remove spark plug and reset the gap.

Replace spark plug. Set plug gap.

Replace air cleaner.......... element or clean• pre-cleaner. .......

Tighten blade and spindle. Balance blade.

Rep!ace blade.

Place throttle in FAST'"irabbit ) position.

Do not mow when grass is wet; wait until later to cut.

Mow.o_e at a high cutting height, then mow again at

desired height or make a narrower cutting swath.

SharPen or replace blade.

Perform side-to-side deck adjustment. ; '

sharpen or replace' blad:e'.

C!iecktire pressure in all four tires_ " ' . ,,,

T............. .....

. *.=

-!j

. _11,_ ,!|t

i( •*_ •

SECTION13: SPECIFICATIONS*

LX426

Capacities

Fuel Tank

Engine Crankcase (w/filter)

Transmission

Forward Speed

Reverse Speed

Engine (Air-cooled, 4-cycle)

Make

Model

Cylinders

Bore

Stroke

Displacement

Spark Plug Gap

Electrical System

System Voltage

Battery

Alternator

Fuse (automotive type)

Headlights

Brakes

Turf Tires

Front (inches)

Rear (ini;hes)

Dimensions

. Cutting Width, Deck

Wheelbase

Length, over all

Width, over all

Height, over all

Ground Clearance

Turning Radius

Weight (approximate)

3.0 gal. (11.4 liters)

48 oz. (1.42 liters)

0 - 5.5 mph (8.9 kin/h)

0- 2.3 mph (3.7 km/h)

Briggs & Stratton

intek 331777

Sing[e

3.56 in. (90.60 ram)

3.06 in. (77.78 ram)

30.59 cu. in. (501 cc)

.030 in. (.76 rnm)

12-volt Negative Ground

190 CCA (sealed)

15 Amp Regulated

20 Amp

Incandescent

Single Disc (Dry)

15x6x6

20x8x8

42 in. (106.7 cm)

46 in. (116.8 cm)

68 in. (172.7 cm)

45 in. (114.3 cm)

43 in. (109.2 cm)

4.5 in. (11.4 cm)

18 in. (46 cm)

498 lb. (225.9 kg)

Toro reserves the right to change product specifications, design, and standard equipment without notice and without incurring obligation

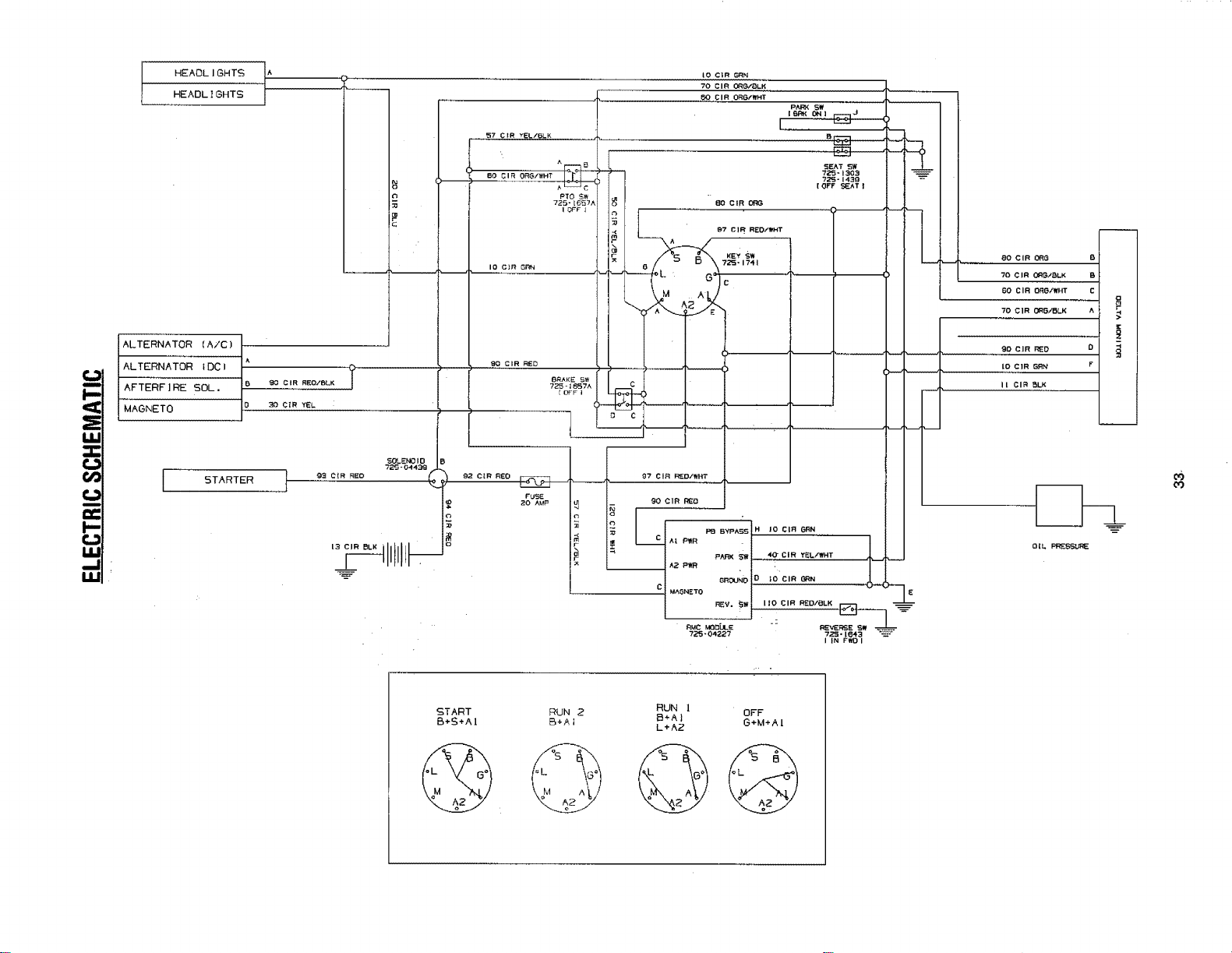

I,JU

Orj

¢J

I-

¢J

..J

U.I

HEADL I GHTS

HEADL IGHTS

IMAGNEToALTERNAToRALTERNATORAFTERFIRE SOL"IDCI{AIc)I_^

STARTER }

SOLENO I0

725-04439

.... 57 CfR YEL/6Lk .....

A B

60 C I R ORG/WHT

PTO SW

72.5- E_57^

I IDFF

I0 C}R GF_

@0 CtR RED

BR,_KE SW

92 CIR REO

tO CIR GIRN

70 CIIR IO_G/QLK

_0 CIR ORG/WHT

" @0 CIR

97 CIR_ REO/WHT

^ •

KEY I_@,

9"/ CIR REDIWHT

90 CIR _0

SEAT 5W

7L;_3- 1so 3

725 = 143Q

[ OFF SEAT |

PB BYPASS H I0 CIR GRN

C AI PWR

p.AJRK_;W 40" C I R YEL fWHT

^2 P_ . .

_€_JND O lO CIR GRN

MAGNETO REV, _W I I0 CIR RED/t_LK

RMC MO_L_ REVE_

725 -04227 725 • 1643

I IN FeD I

eo CIR OR@

70 ¢IR OR_iBLK

60 CIR ORe/WHT

70 C1R ORG/'_LK

gO CIR F_O

|O CIR P-._N

I I CIR '_LK

START

6+S+AI

RUN 2

B+A I

RUN 1 OFF

B*AIL+AZ G+M+AI

I I I . _ IIIIIIIIIIIII

CALIFORNIA EMISSION CONTROLWARRANTY.STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

TheCaliforniaAirResourcesBoardand MTDConsumerGroupIncare pleasedto explaintheevaporativeemissioncontrolsystemwarrantyonyour2007 lawn

mower,InCalifornia,newlawnmowermustbedesigned,builtand equippedtomeettheState'sstringentanti-smogstandards.MTDConsumerGroupIncmust

warrantthe EECSonyourlawnmowerforthe periodoftime listedbelow p_ovidedtherehasbeenno abuse,neglector impropermaintenanceotyourlawnmower.

YourEECSmayincludepartssuchas the carburetor,fuel-injectionsystem,the ignitionsystem,catalyticconverter,fueltanks,fuel lines,fuelcaps,valves,

canisters,filters,vaporhoses,clamps,connectors,andother associatedemission-relatedcomponents.

Whereawarrantableconditionexists,MTD ConsumerGroupInc willrepairyourlawnmowerat nocost toyouincluding diagnosis,parts and labor.

MANUFACTURER'S WARRANTY COVERAGE:

Thisevaporativeemissioncontrolsystemiswarrantedfor twoyears.Ifany evaporativeemission-relatedparton yourequipmentisdefective,thepartwill be

repairedor replacedbyMTDConsumerGroup Inc.

OWNER'S WARRANTY RESPONSIBILITIES:

Asthe fawnmowerowner,youareresponsiblefor performanceoftherequiredmaintenancelistedin yourowner'smanual. MTDConsumerGroupInc recom-

mendsthat youretainallreceiptscoveringmaintenanceon yourlawnmower,but MTDConsumerGroupInccannotdenywarrantysolelytor thelack ofreceipts.

Asthelawn mowerowner,youshouldhoweverbeawarethat MTDConsumerGroupIncmaydenyyouwarrantycoverageif yourlawnmowerora parthasfaired

dueto abuse,neglect,orimpropermaintenanceor unapprovedmodifications.

Youareresponsiblefor presentingyourlawnmowerto MTDConsumerGroupInc'sdistributioncenteror servicecenterassoonasthe problemexists.The

warrantyrepairsshouldbecompletedin areasonableamountoftime,not toexceed30days.If youhaveaquestionregardingyourwarrantycoverage,youshould

contacttheMTDConsumerGroupIncServiceDepartmentat 1-800-800-7310.

GENERAL EMISSIONS WARRANTY COVERAGE:

MTDConsumerGrouptncwarrantsto theultimatepurchaserand eachsubsequentpurchaserthat the I_n moweris:Designed,builtand equippedso asto

conformwith all applicableregulations;andfreefromdefectsin materialsand workmanshipthat causethe failureofawarrantedpartto beidenticalin allmaterial

respectstothat partasdescribedinMTDConsumerGroupInc'sapplicationforcertification.

Thewarrantyperiodbeginson thedatethe lawn mowerisdeliveredto an ultimatepurchaseror first placedintoservice.The warrantyperiodistwoyears.

Subjecttocertainconditionsand exclusionsas statedbelow,the warrantyon emission-relatedpartsisasfollows:

1. Anywarrantedpartthat isnotscheduledfor replacementas requiredmaintenancein thewritteninstructionssupplied,iswarrantedforthe warrantyperiod

statedabove,tfthe partfailsduringthe periodofwarrantycoverage,the partwillbe repairedor replacedbyMTDConsumerGroup Incaccordingtosubsection

(4) below.Anysuchpartrepairedor ;eplaced underwarrantywill bewarrantedfor the remainderofthe period.

2. Anywarrantedpartthatis scheduledonlyforregularinspectioninthewritteninstructionssuppliediswarrantedfor thewarrantyperiodstatedabove.Anysuch

part repairedor replacedunderwarrantywill be warrantedfor the remainingwarrantyperiod.

3. Anywarrantedpartthatisscheduledforreplacementas requiredmaintenancein thewritteninstructionssuppliedis warrantedforthe periodoftime beforethe

first scheduledreplacementdatefor that part. Ifthe partfailsbeforethe firstscheduledreplacement,the partwiltberepairedorreplacedbyMTDConsumer

Group lnc accordingto subsection(4)below.Anysuchpartrepairedor replacedunderwarrantywill bewarrantedforthe remainderofthe periodpriorto the

first scheduledreplacementpointfor the part.

4. Repairor replacementofanywarrantedpartunderthe warrantyprovisionshereinmustbe performedatawarrantystationat nochargetothe owner.

5. Notwithstandingthe provisionsherein,warrantyservicesor repairswiltbeprovidedatail ofourdistributioncentersthat arefranchisedtoservicethe subject

enginesor equipment.

6. The lawnmowerownerwillnotbechargedfor diagnosticlaborthat is directlyassociatedwithdiagnosisof adefective,emission-relatedwarrantedpart,

providedthat suchdiagnosticworkis performedata warrantystation.

7. MTD ConsumerGroupIncis liablefor damagestootherengineor equipmentcomponentsproximatelycausedbya failureunderwarrantyofanywarranted

part.

8. Throughoutthe lawnmowerwarrantyperiodstatedabove,MTDConsumerGroup Incwillmaintaina supplyofwarrantedpartssufficienttomeetthe expected

demandforsuchparts.

9. Any replacementpartmaybeusedin the performanceof anywarrantymaintenanceor repairsand mustbe providedwithoutchargetothe owner.Such use will

not reducethe warrantyobligationsofMTD ConsumerGroupInc. : .....

10.Add-onor modifiedpartsthat arenotexemptedby theAir ResourcesBoardmaynot beused.The useof anynon-exemptedadd-onormodifiedpartsbythe

ultimatepurchaserwiltbegroundsfor disallowingawarrantyclaims.MTDConsumerGroupIncwillnot beliableto warrantfailuresofwarrantedpartscaused

bythe useof anon-exemptedadd-onor modifiedpart.

WARRANTED PARTS;

Therepairor replacementofanywarrantedpartotherwiseeligiblefor warrantycoveragemaybe excludediromsuchwarrantycoverageif MTDConsumerGroup

tncdemonstratesthatthe lawnmowerhasbeen abused,neglected,or improperlymaintained,andthat suchabuse,neglect,or impropermaintenancewasthe

directcause of the needfor repairor replacementofthe part.Thatnotwithstanding,anyadjustmentof a componentthathas afactory installed,and properly

operating,adjustmentlimitingdeviceisstilleligiblefor warrantycoverage.The followingemissionwarrantypartslistarecovered:FuelLine,FuelLineClamps

The Tore Company

MANUFACTURER'S LIMITED WARRANTY FOR

LAWN & GARDEN TRACTORS

IMPORTANT:Toobtainwarrantycoverageownermustpresentan a.

originalproofofpurchaseandapplicablemaintenancerecordstothe

servicingdealer.PleaseseetheOperator'sManualfor information

onrequiredmaintenanceandserviceintervals, b.

ThelimitedwarrantysetforthbelowisgivenbyThe TomCompany

("Toro")and TheToroWarrantyCompany,pursuanttoan

agreementbetweenthem,withrespecttonewmerchandise

purchasedorleasedandusedintheUnitedStatesand/orits

territoriesandpossessions,andbyTorowithrespecttonew

merchandisepurchasedorleasedandusedinCanadaandlorits

territoriesandpossessionfor residentialuse*.

Torowarrantsthisproduct(excludingitsNormalWearPartsand

Batteriesasdescdbedbelow)againstdefectsinmaterialand e.

workmanshipfor aperiodoftwo(2)yearscommencingonthe

dateoforiginalretailpurchaseorleaseandwill,at itsoption,repair f.

or replace,freeof charge,any partfoundto bedefectivein materials g.

orworkmanship.

NormalWearPartsarewarrantedto befreefrom defectsinmaterial

andworkmanshipfor a periodof thirty(30)daysfromthe dateof

originalpurchaseorlease.Normalwear partsinclude,butarenot

limitedlo itemssuchas: belts,blades,bladeadapters,grassbags,

r_derdeckwheels,seats,andtires.

Batterieshavea one-yearproratedlimitedwarrantyagainstdefects

inmaterialandworkmanship,with 100%replacementduringthe first

threemonths.Afterthreemonths,thebatteryreplacementcreditis

basedon themonthsremaininginthetwelve(t2) monthperiod

datingbacktothe originaldateoforiginalsaleor lease.Any

replacementbatterywillbewarrantedonlyfor theremainderofthe

originalwarrantyperiod.

Thislimitedwarrantyshallonlyapplyifthisproducthasbeen

operatedandmaintainedin accordancewith theOperator'sManual

furnishedwiththe product,andhasnotbeensubjecttomisuse,

abuse,commercialuse,neglect,accident,impropermaintenance,

alteration,vandalism,theft,fire,water,.or_damagebecauseofother

perilor naturaldisaster.'Damageresultingfromthe installationor

useofanypart,accessoryor attachmentnotapprovedbyToro for

usewiththeproduct(s)coveredbythismanualwillvoidyour

warrantyastoanyresultingdamage.Inaddition,Toromaydeny

warrantycoverageifthehourmeter,orany partthereof,isaltered,

modified,disconnectedorotherwisetamperedwith.

HOWTOOBTAINSERVICE:Warrantyserviceis available,WITH

PROOFOFPURCHASEANDAPPLICABLEMAINTAINCE

RECORDS,throughyourlocalauthorizedservicedealer.To locate

thedealerin yourareacheckyourYellowPages,or contact;

CustomerCareDepartment,-ConsumerDivision

Tom WarrantyCompany

8111LyndaleAvenueSouth

BloornmgtonMN55420,1196..

Inthe US1-888-384-9942_I(JnCanada1-888-848-4073)

orlogontoourWebsiteatwww.toro.com.

Withoutlimitingtheforegoing,thislimitedwarrantydoesnot provide

coverageinthefollowingcases::

Theengineorcomponentpartsthereof. Theseitemsmay

carrya separatemanufacturer'swarranty.Referto

applicablemanufacturer'swarrantyfortermsandc0ndifions.

Routinemaintenanceitemssuchaslubricants,filters,blade :

sharpening,tune-ups,brakeadjustments,clutch

adjustments,deckadjustments,andnormaldeteriorationof

theexteriorfinishduetouseor exposure.

Servicecompletedbysomeoneotherthananauthorized

servicedealer.

Torodoesnotextendanywarrantyfor productssoldor

exportedoutsideofthe UnitedStatesand/orCanada,and

theirrespectivepossessionsandterritories,exceptthose

soldthroughToro'sauthorizedchannelsof export

distribution.

Replacementpartsand\oraccessoriesthat arenot genuine

Toroparts.

Transportationchargesandservicecalls.

Torodoesnotwarrantthisproductfor commercialuse*.

Thereareno impliedwarranties,includingwithout

limitationanyimpliedwarrantyof merchantabilityor

fitnessfora particularpurpose.Nowarrantiesshallapply

aftertheapplicableperiodofexpresswrittenwarranty

above.Nootherexpresswarrantiesbeyondthose

mentionedabove,givenby anypersonorentity,

includinga dealeror retailer,with respectto anyproduct,

shallbindToro. Theexclusiveremedyisrepairor

replacementoftheproductassetforth above.Theterms

ofthiswarrantyprovidethesoleandexclusiveremedy

arisingfrom thesaleand/orleaseoftheproducts

coveredhereby.Toroshallnotbeliablefor anyincidental

orconsequentiallossor damageincluding,without

limitation,expensesincurredforsubstituteor

replacementlawncareservicesorfor rentalexpensesto

temporarilyreplacea warrantedproduct.....

Somejurisdictionsdo notallowtheexclusionorlimitationof

incidentalor consequentialdamages,or limitationsonhowlongan

impliedwarrantylasts,so theaboveexclusionsorlimitationsmay

notapplytoyou. ...'=

Innoeventshallrecoveryof anykindbegreaterthantheamountof

thepurchasepriceofthe productsold.AlterationOfsafety

featuresoftheproductshallvoidthiswarranty:You assumethe

riskandliabilityfor loss,damage,orinjurytoyouandyourproperty

and/ortoothersandtheirpropertyarisingoutofthemisuseor

inabilityto usetheproduct. _

Thistimited,warranf[yshallnotextendto anyoneotherthanthe

originalpurchaserortothe personfor whomit waspurchasedasa

gift.

HOWLOCALLAWSRELATETO THISWARRANTY:Thislimited

warrantygivesyouspecificlegalrights,andyou mayalsohaveother

rightsthatvaryindifferentjurisdictions.

CustomerCareDepartmentoftheTomWarrantyCompany,8111LyndaleAve.South,

Bloomington,MN 55420-1196or call(US)1-888-384-9942,(Canada)1-888-848-4073;www.toro.com

374-0100Rev, C

Toro 13RL60RG044 1L107H10100 AND UP lawn tractor

Product's Documents

User Manual

Specifications

Toro 13RL60RG044 Questions and Answers
