en Instruction Manual and Installation Instructions
Washing machine
Your new washing machine
GB standard:
Display rules
: Warning!
Caution!
Note/tip
1. 2. 3. / a) b) c)
■ / -
Contentsen Instruction Manual and Installation Instructions
8 Intended use 4
( Safety instructions 5
7 Environmental protection 12
5 Positioning and connecting 14
* Getting to know the appliance 24
Z Laundry 27
P Overview of programmes 28
0 Programme default settings 32
\ Additional programme settings 33
1 Operating the appliance 34
Q Appliance settings 38
H Sensors 38
2 Cleaning and maintenance 39
3 Faults and what to do about them 43
4 After-sales service 48
[ Consumption values 49
J Technical data 50
8 Intended use
Intended use
■ This appliance is intended for private domestic use only.
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand- washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and...
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
Before you switch on the appliance:
Check that there is no visible damage to the appliance. Do not operate the appliance if it is damaged. Should you have any problems, please contact your specialist dealer or our customer service.
Read and follow the operating and installation instructions and all other information provided with this appliance.
Retain the documents for subsequent use or for subsequent owners.
( Safety instructions
Safety instructions
The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings.
It is nevertheless important to take the necessary precautions and to proceed with care when installing, maintaining, cleaning and operating the appliance.
Children/people/pets
: Warning
Risk of death!
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
■ Children must not play with this appliance.
■ Do not allow children to clean or maintain this appliance unsupervised.
■ Keep children under 3 years and pets away from this appliance.
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
: Warning
Risk of death!
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
: Warning
Risk of suffocation!
: Warning
Risk of poisoning!
: Warning
Risk of burns!
: Warning
Eye/skin irritation!
Installation
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
■ The installation must have an adequate cross section.
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
: Warning
Risk of electric shock/fire/ material damage/damage to the appliance!
: Warning
Risk of fire/material damage/ damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
: Warning
Risk of injury!
Caution!
Material damage/damage to the appliance
Operation
: Warning
Risk of explosions/fire!
: Warning
Risk of poisoning!
: Warning
Risk of injury!
: Warning
Risk of scalding!
: Warning
Eye/skin irritation!
Caution!
Material damage/damage to the appliance
Cleaning/Maintenance
: Warning
Risk of death!
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
■ Never take hold of the mains plug with wet hands.
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
■ Do not make any technical modifications to the appliance or its features.
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
■ Spare mains cables can be ordered from our customer service.
: Warning
Risk of poisoning!
: Warning
Risk of electric shock/material damage/damage to the appliance!
: Warning
Risk of injury/material damage/damage to the appliance!
Caution!
Material damage/damage to the appliance
■ Do not allow these agents to come into contact with the surfaces of the appliance.
■ Clean the appliance with nothing but water and a soft, damp cloth.
■ Remove any detergent, spray or other residues immediately.
7 Environmental protection
Environmental protection
Packaging/used appliance
Dispose of packaging in an environmentally-responsible manner.
Keep children away from the packaging materials and packaging materials are not toys.
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
All packaging materials used are in line with environmental protection requirements and reusable.
Name and content of hazardous substances in products
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
Û
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
x
Û
Û
Û
Û
Û
Note:
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
Tips on economical use
■ Always fill the appliance with the maximum amount of laundry for each programme.
■ Wash normally soiled laundry without pretreating.
■ For light and normal soiling in laundry, you can save energy and detergent.
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
■ Low power mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the display panel lighting goes out before the programme starts and after the programme has ended, ~ (indicator lamp of 开始/添衣 (Start/Reload) A bu...
■ If the laundry will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
5 Positioning and connecting
Positioning and connecting

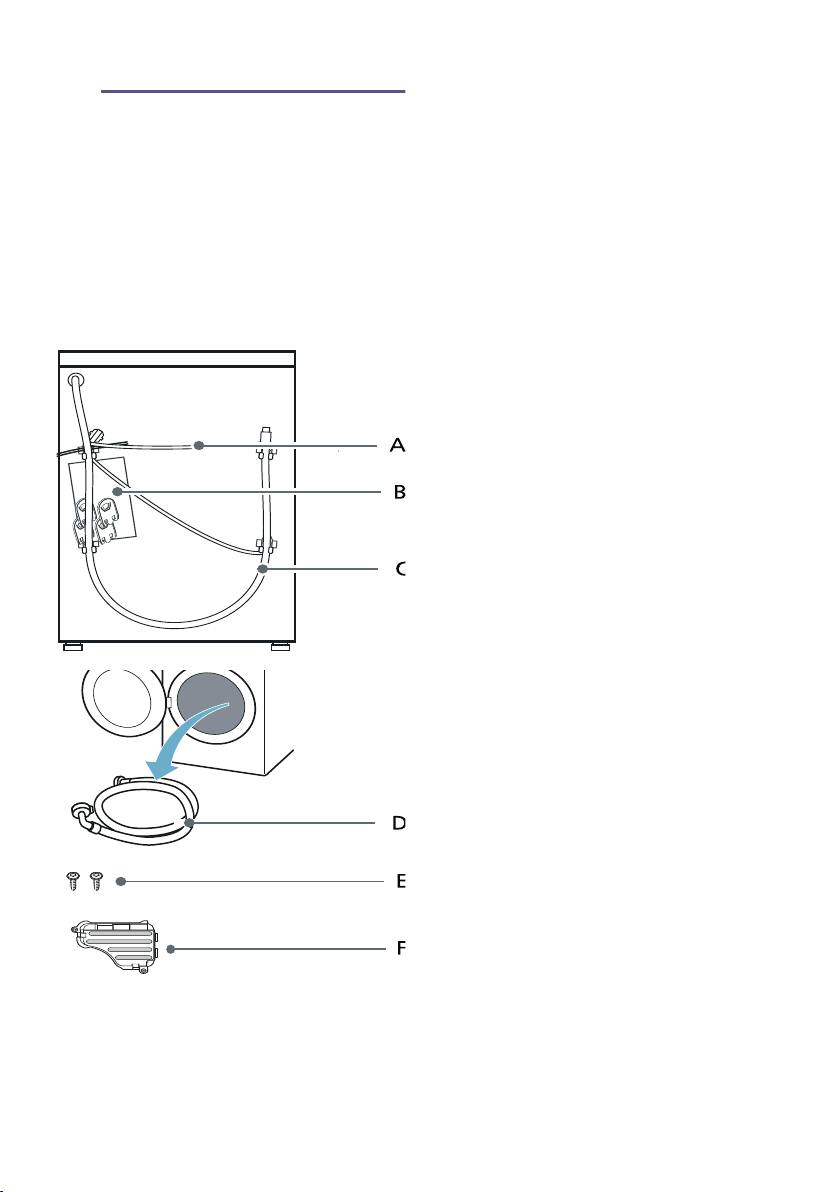

Included with the appliance
Note:
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
Bag:
■ Operating and installation instructions
■ Warranty
■ Supplementary sheet for the operating and installation instructions*
■ Bottom cover instruction*
■ Home Connect Installation Guides*
■ Cover caps for openings after the transport braces have been removed
* Depending on the model
In addition
a hose clamp (24 - 40 mm diameter, available from specialist dealers) is required to connect the water drain hose to a siphon.
Useful tools
■ Spirit level for aligning
■ Wrench with:
Installation
Note:
Humidity in the drum is caused by the final inspection.
Safety instructions
: Warning
Risk of injury!
Caution!
Damage to the appliance
Caution!
Water damage
Notes

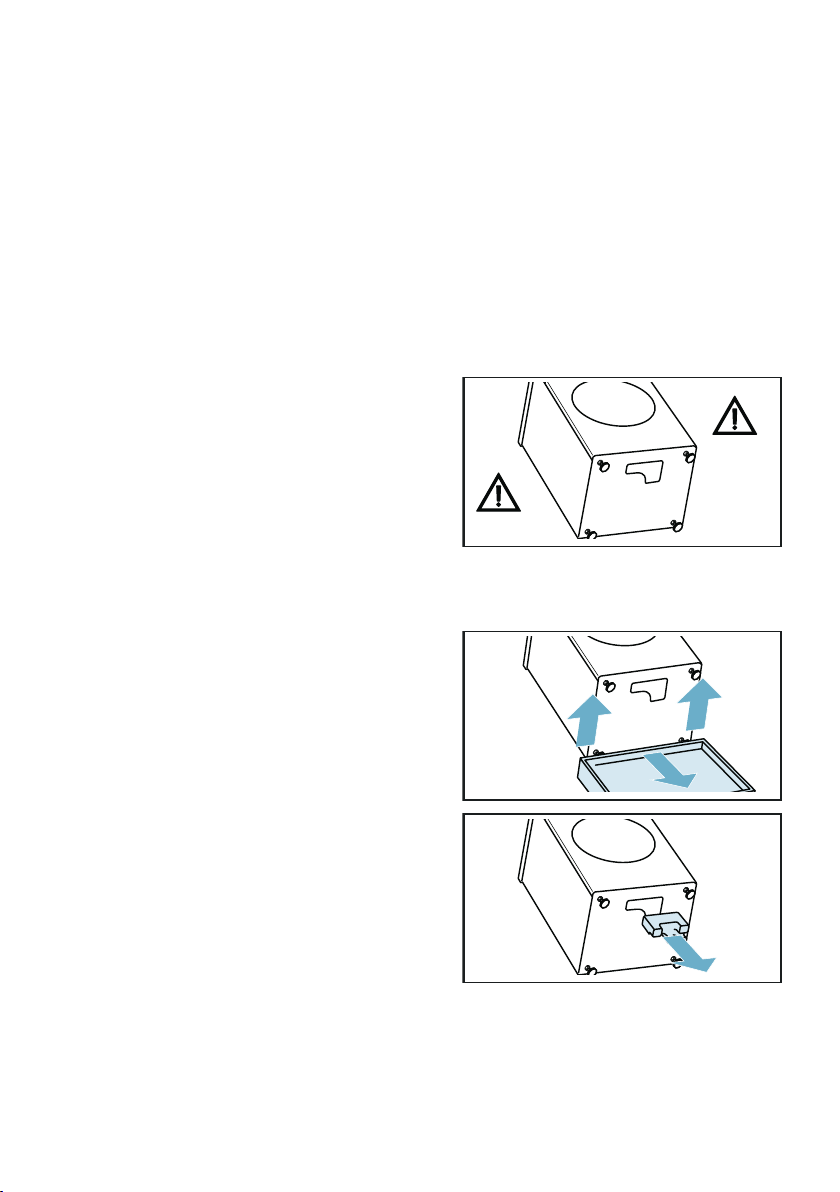

Removing the foam block
This appliance is secured with a foam block, which has to be removed before using the appliance for the first time. If in doubt, please contact specialist.
Caution!
Damage to the appliance
: Warning
Risk of injury/damage to the appliance!
Note:
Remove the foam block first before you remove the transport locks.
1. Remove the foam block.
a) Tilt the appliance to the rear.
b) Remove the foam block and bottom pad.
2. Fit the bottom cover. (You can find it in the drum)
Note:
Installation surface
Note:
The appliance must be stable aligned so that it does not move around.
Installation on a base or a wooden joist floor
Caution!
Damage to the appliance
Note:
On wooden joist floors, install the appliance:
Installing the appliance in a kitchenette
: Warning
Risk of death!
Notes

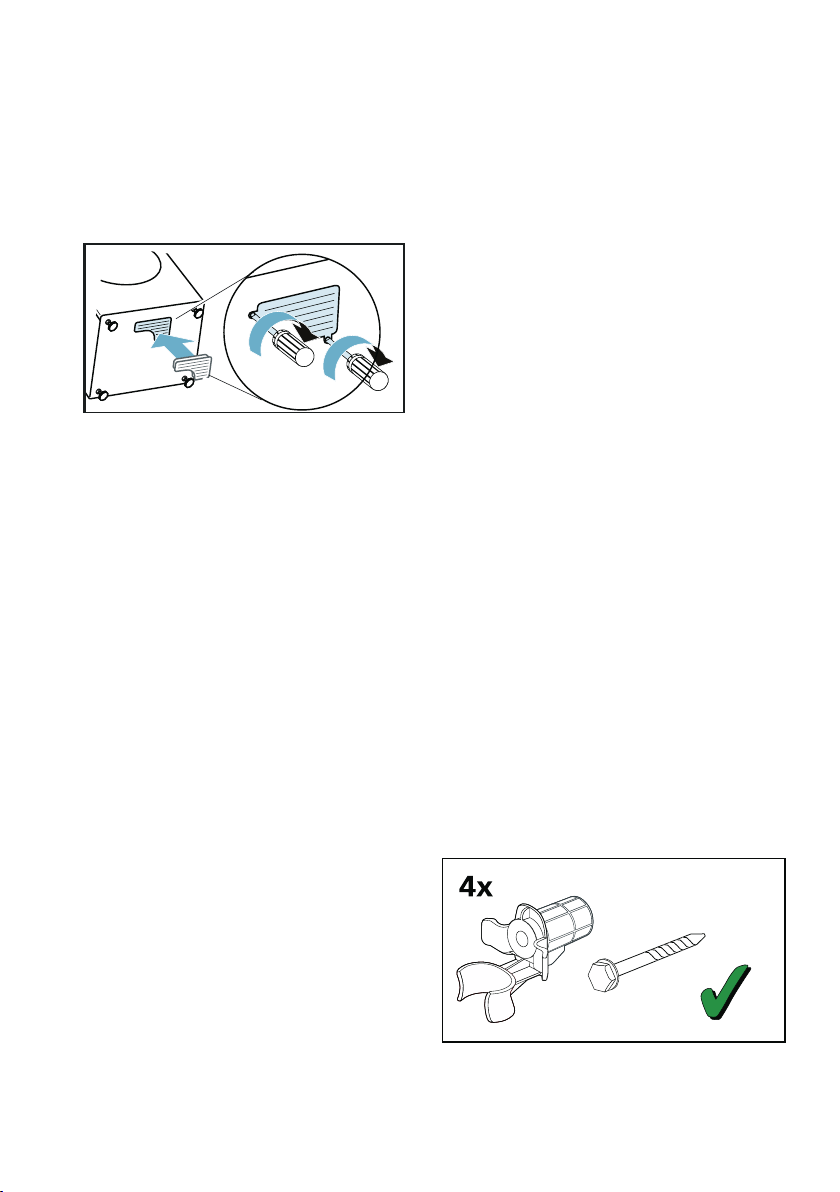

Removing the transport locks
Caution!
Damage to the appliance
Note:
Keep the screws and sleeves in a safe place.

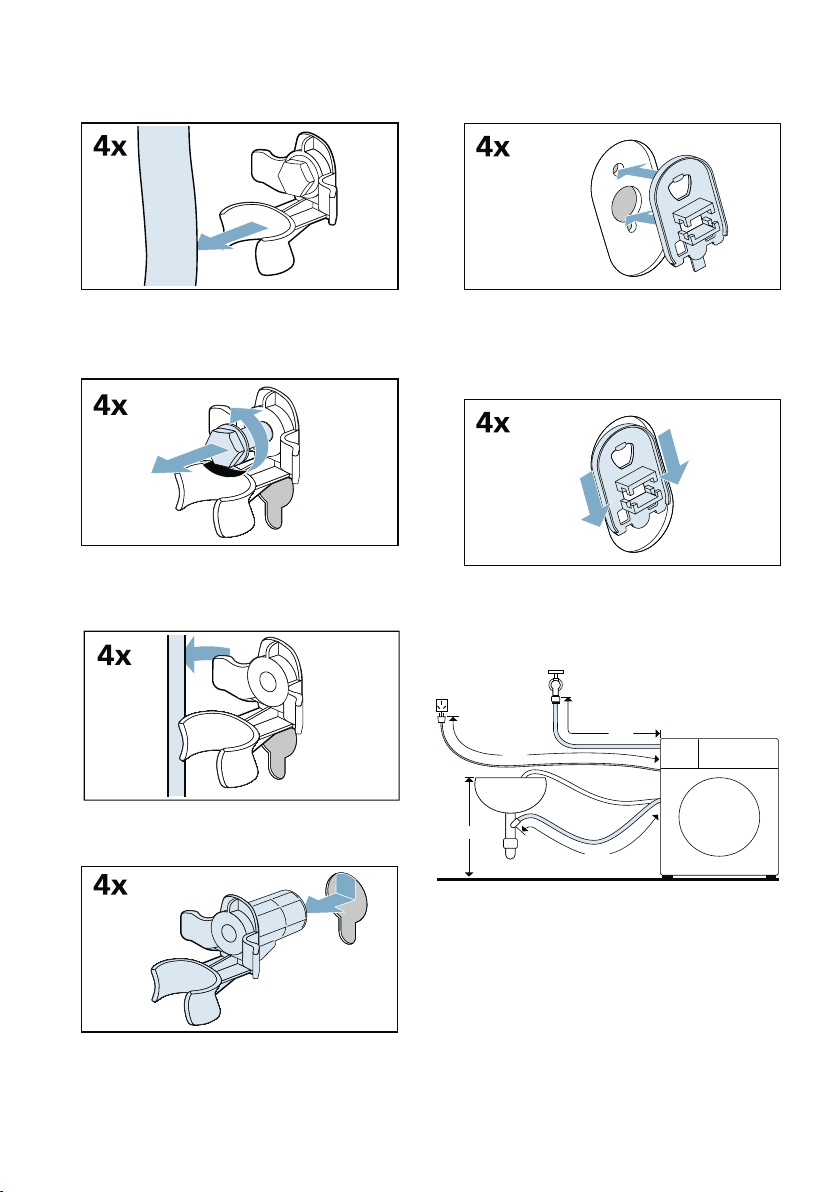

1. Take the hoses out of the holders.
2. Unscrew and remove all four transport brace screws.
a) Remove the mains cable from the holders.
b) Remove the sleeves.
3. Fit the covers.
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.

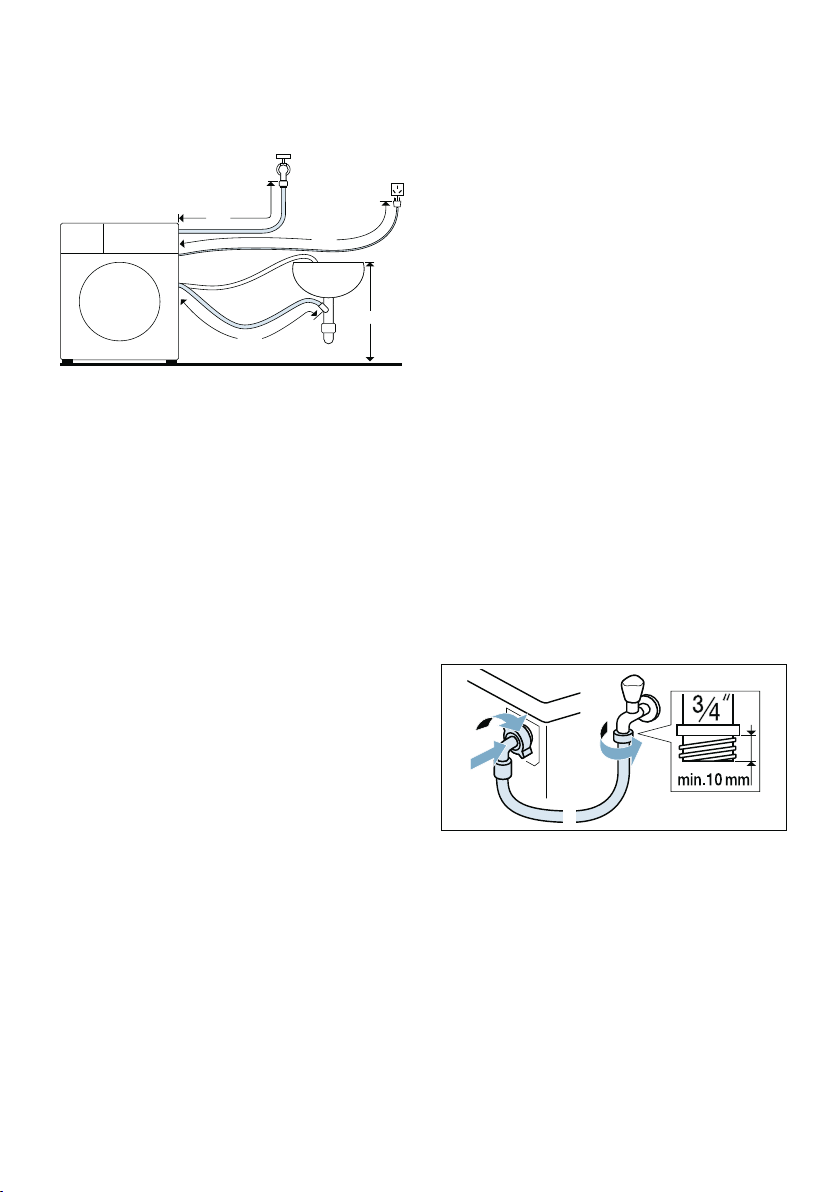

Hose and cable lengths
Connection on left side
or
Connection on right side
Note:
If the hose holders are used, the possible hose lengths are reduced!
Available from dealer/customer service:
■ Longer supply hose (approx. 2.20 m).
■ Appliance’s tap.
Water inlet
: Warning
Risk of death!
Observe the following when connecting the appliance:
Notes
Optimum water pressure in the supply network
At least 0.1 MPa (1 bar)
Maximum 1 MPa (10 bar)
When the tap is open, the water flow is at least 8 l/min.
If the water pressure is higher than this, a pressure-reducing valve must be installed.
Connection

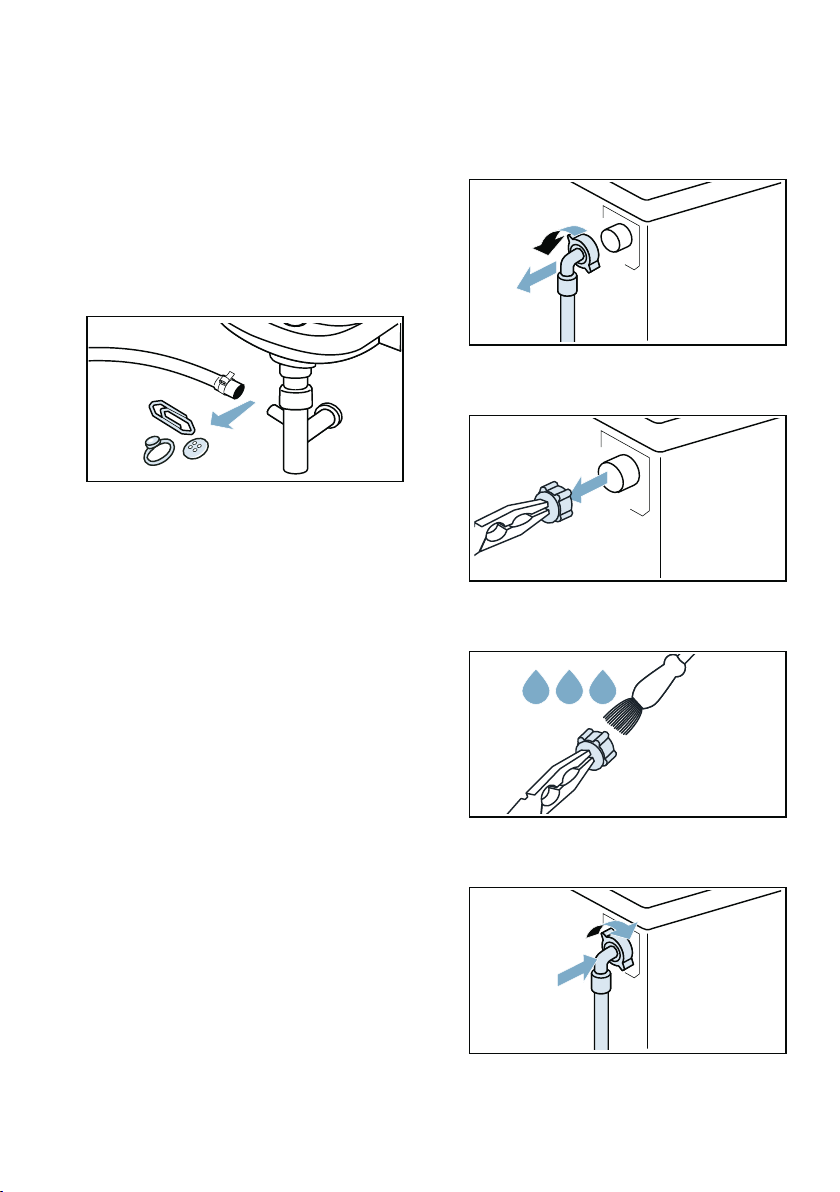

Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
Note:
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
Water outlet
: Warning
Risk of scalding!
Caution!
Water damage
Caution!
Damage to the appliance/fabrics
Notes
Connection

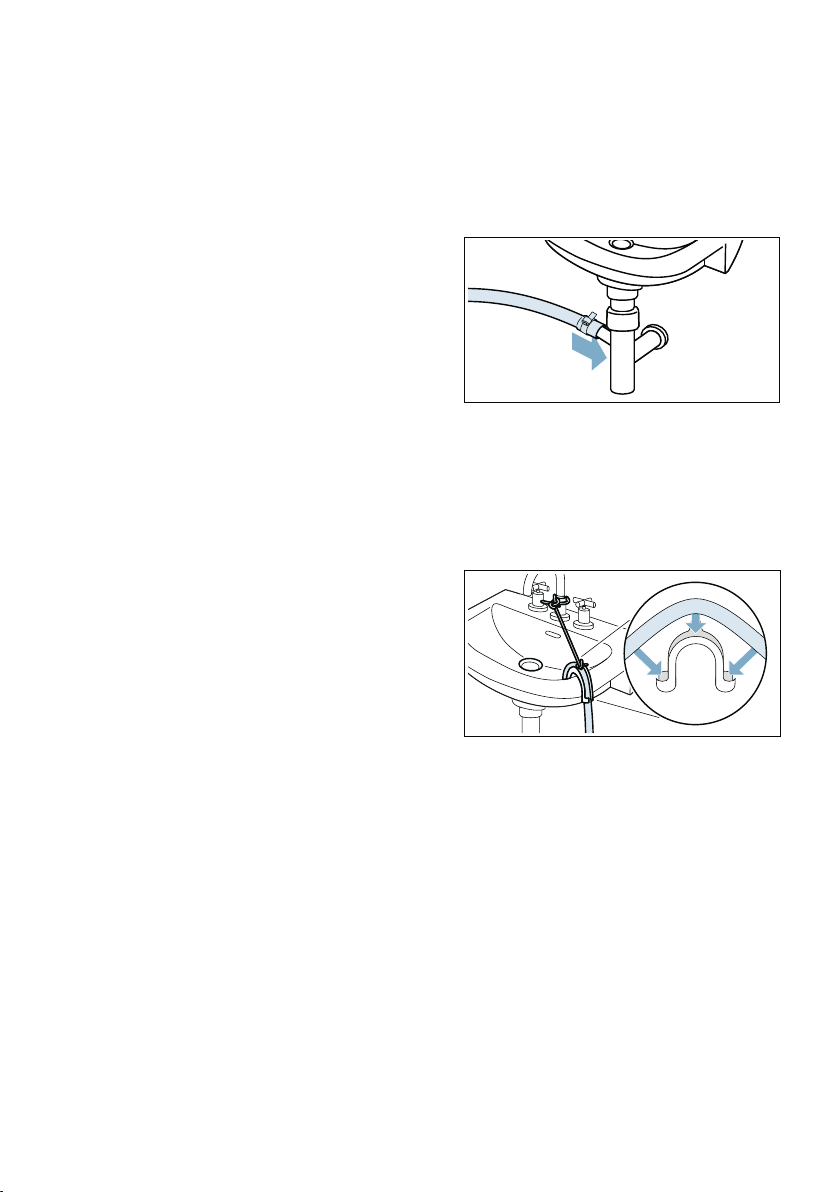

■ Drainage into a siphon
■ Drainage into a washbasin
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
Note:

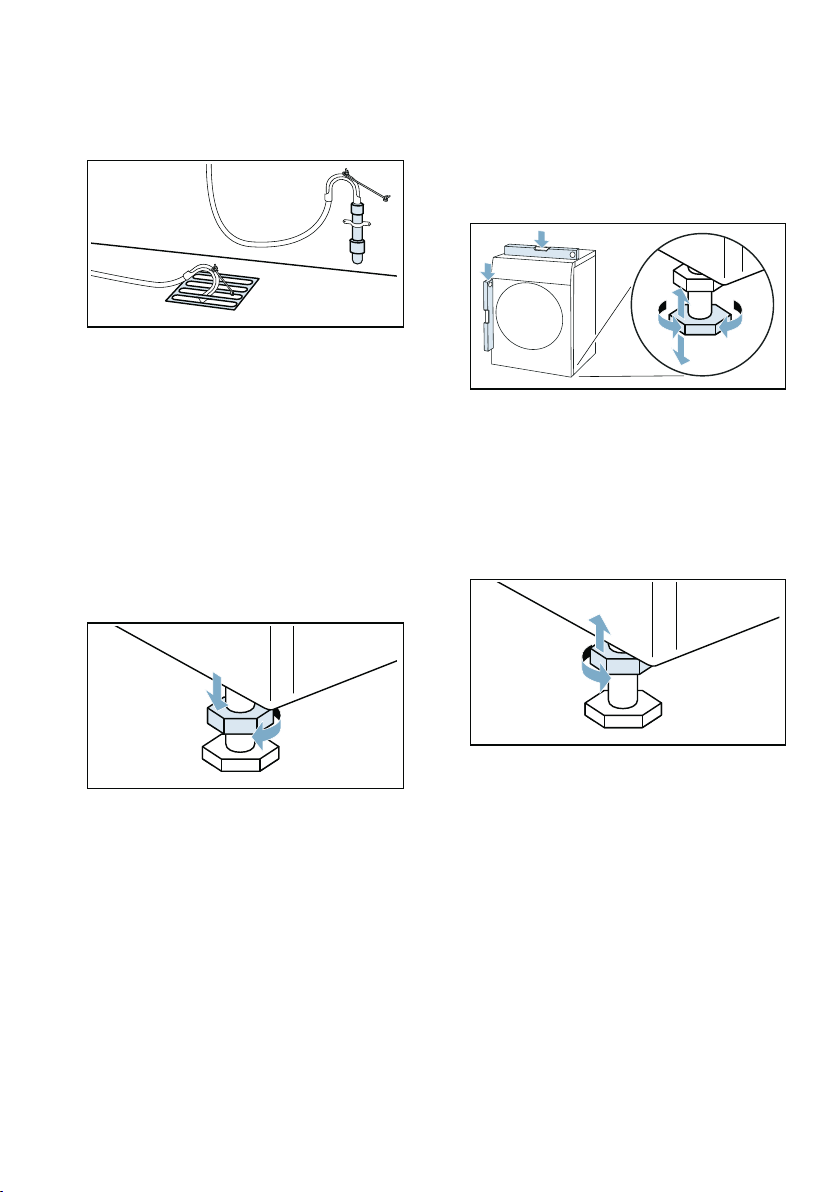

Alignment
Level the appliance using a spirit level.
Incorrect levelling may result in intense noise, vibrations and "wandering".
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
3. Tighten the lock nut against the housing.
Electrical connection
: Warning
Risk of death!
Observe the following information and ensure that:
Notes
Before washing for the first time
The appliance was inspected thoroughly before leaving the factory. To remove any residual test water, run the Drum Clean programme the first time without laundry.
Note:
1. Insert mains plug.
2. Turn the water tap on.
3. Close the door. Do not load any laundry.
4. Select the Drum Clean 90°C programme.
5. Open the detergent drawer.
6. Pour approx. 1 litre of water into dispenser II.
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
Note:
8. Close the detergent drawer.
9. Select A 开始/添衣 (Start/Reload).
10. When the programme ends, turn the programme selector to Off.
Transportation
e.g. when moving home
1. Turn off the water tap.
2. Reduce the water pressure in the supply hose. ~ Page 42
3. Drain any residual water. ~ Page 41
4. Disconnect the appliance from the mains.
5. Remove the hoses.
6. Empty the dispensers.
Caution!
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers

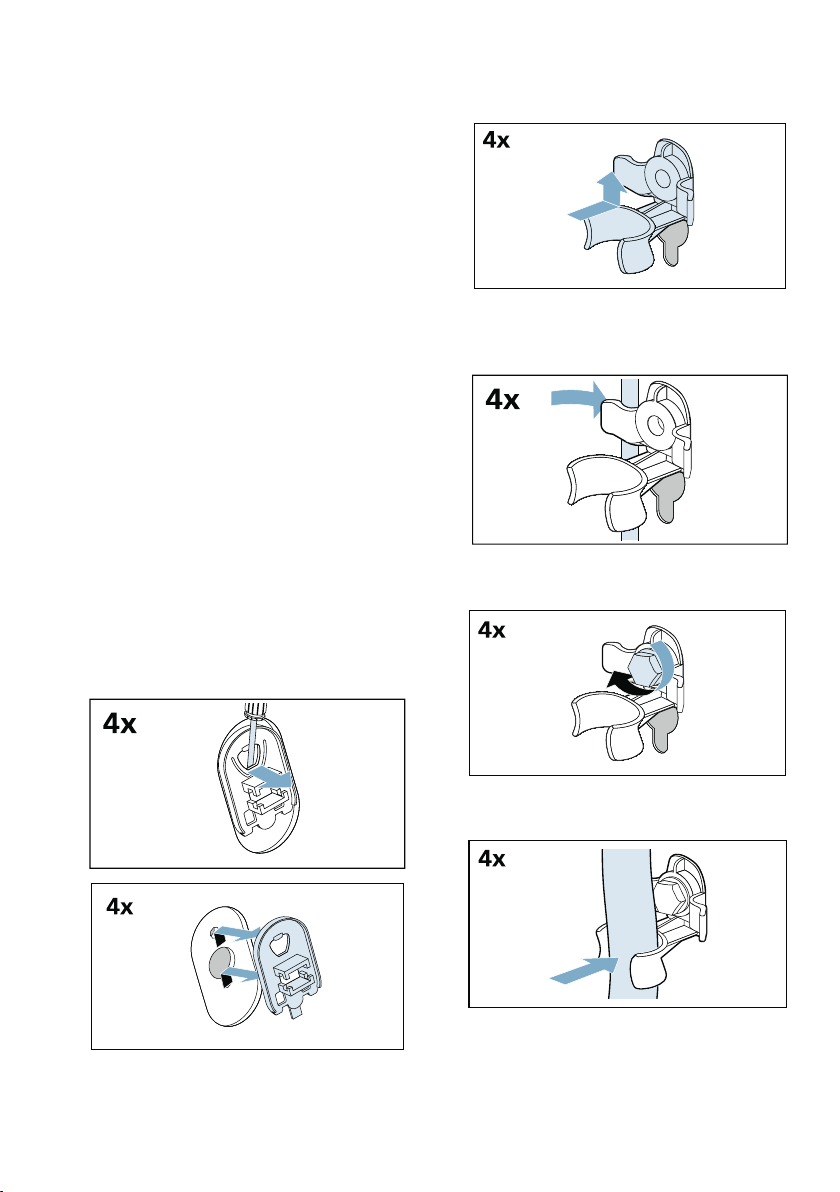

1. Remove the covers and keep them in a safe place.
Note:
2. Insert all four sleeves.
a) Clip the mains cable securely in the holders.
b) Insert and tighten the screws.
c) Clip the hoses securely in the holders.
Before switching on the appliance again:
Notes
* Getting to know the appliance
Getting to know the appliance

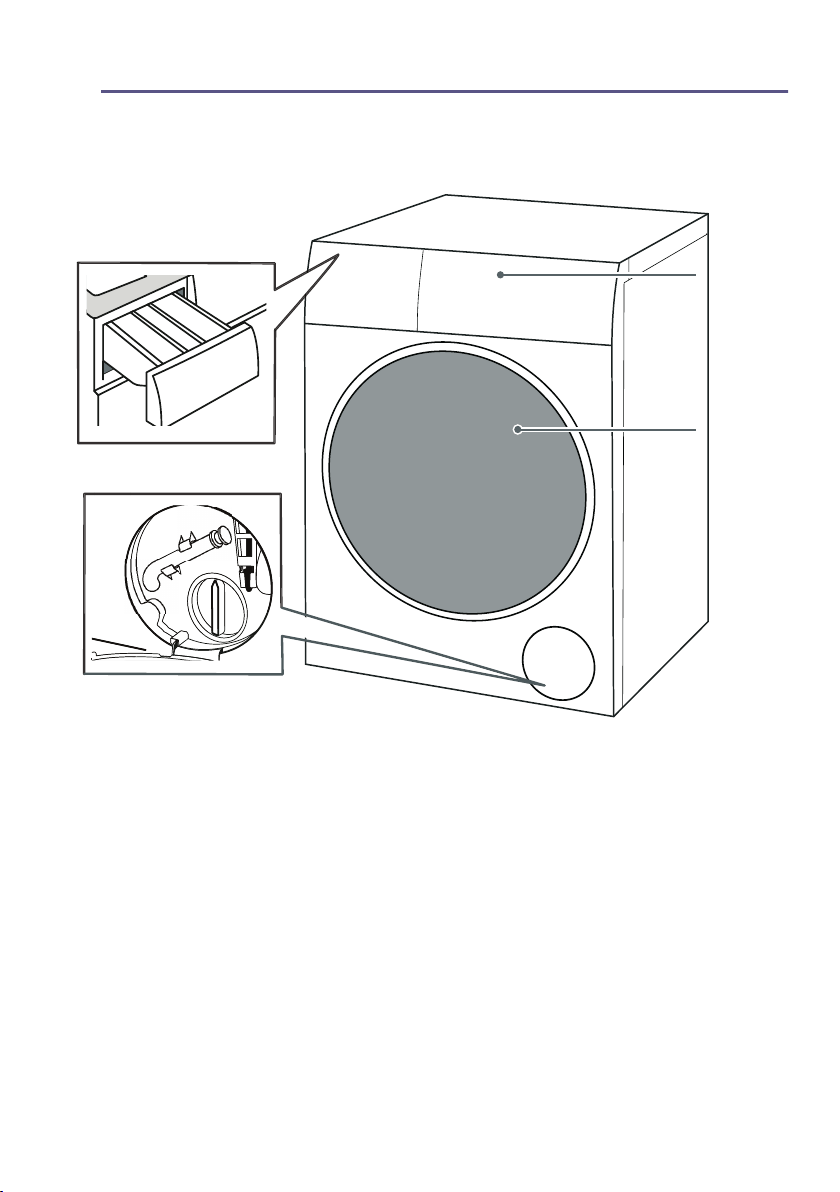

Appliance
Control panel
Display panel
Programme default settings
Display
Setting
Description
Additional programme settings
Display
Setting
Status indicators for the programme progress (programme sequence)
Display
Setting
Z Laundry
Laundry
Protecting your laundry and appliance
Caution!
Damage to the appliance/textiles
The following instructions must be observed when preparing your laundry:
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
■ Do not exceed maximum load. Overfilling will impair the washing result.
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
■ Empty any pockets. Remove any foreign objects.
■ Remove metal parts (paper clips, etc.).
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
■ Ensure that underwired bras are appliance-washable.
■ Wash delicates in a net or bag (tights, underwired bras, etc).
■ Close zips, button up covers.
■ Brush sand out of pockets and collars.
■ Remove curtain fittings or include in the net/bag.
Sorting laundry
Sort your laundry according to the care instructions and manufacturer's information on the care labels, depending on:
■ Type of fabric/fibre
■ Colour
Note:
■ Soiling Wash laundry with the same level of soiling together.
■ Symbols on the care labels
P Overview of programmes
Overview of programmes
Selectable programme
Programme/Type of washing
Options/Information
Notes
Note:
0 Programme default settings
Programme default settings
You can change the default settings for selected programmes. The settings can be changed even while the selected programme is running. The effects depending on the progress of the programme.
6 温度 (Temperature)
Before and after the programme starts, you can change the set temperature depending on how far through the programme the appliance is.
The maximum temperature that can be set depends on the programme that has been selected.
0 转速 (Spin speed)
Depending on what stage the programme is in, you can change the spin speed (in rpm; revolutions per minute) before and during the programme.
setting 2: 2 =”No spin”. The rinsing water is drained but there is no final spin. The laundry stays wet inside the drum, e.g. for items that should not be spun.
You can select “No spin” to prevent creasing if the laundry will not be taken out of the appliance immediately after the programme has ended.
The maximum speed that can be set depending on the model and the programme that has been selected.
ñ 预约 (Finish in time)
Before starting the programme, you can preselect the programme end ("Finish in" time) in 0.5h (h = hour) increments (between “minimum selectable ending time” and 9.5h) or 1 hour increments (between 10h and 24h) up to a maximum of 24 hours.
1. Select a programme (except myTime programme).
2. Select the ñ 预约 (Finish in time) button repeatedly until the required number of hours is displayed.
3. Select the A 开始/添衣 (Start/ Reload) button.
Note:
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or additional programme settings may also change the programme duration.
1. Select the A 开始/添衣 (Start/ Reload) button.
2. Select the ñ 预约 (Finish in time) button repeatedly to change the number of hours.
3. Select the A 开始/添衣 (Start/ Reload) button.
\ Additional programme settings
Additional programme settings
Note:
You can find possible additional programme settings in the overview; these differ depending on the model.
By selecting additional programme settings, you can better adapt the washing process to your items of laundry.
The settings can be selected or deselected depending on the progress of the programme.
The button indicator lamps light up if a setting is activated.
The settings are not retained after the appliance is switched off.
x 除渍 (Stains)
Types of stain that can be selected:
Do not let stains dry. Remove solid substances beforehand.
Select a programme with a stain type:
1. Arrange items of washing as usual.
2. Select a programme.
3. Select a stain type (depending on the selected programme).
4. Start the programme.
Ï 加漂洗 (Rinse plus)
Settings that can be selected:
Additional rinse cycles for particularly sensitive skin and/or for areas with very soft water.
Longer programme duration.
The number of rinse cycles that the appliance actually runs depends on the number that is set as a basic setting for the programme in question.
ç 除菌液 (Disinfectant)
For washing with special disinfectants in order to kill bacteria and thereby meet high standards of hygiene.
Note:
Add disinfectant to dispenser I.
G 提速 (SpeedPerfect)
Washing in a shorter time while achieving a washing result that is consistent with the normal performance.
Touch G 提速 (SpeedPerfect) to activate or deactivate it.
Note:
With the G 提速 (SpeedPerfect) additional programme setting activated, the maximum load of washing will be reduced.
1 Operating the appliance
Operating the appliance
Preparing the appliance
The appliance was tested before delivery. To remove residual water from the test procedure, the first wash cycle should be run without laundry using the Drum Clean programme. ~ "Before washing for the first time" on page 21
Notes

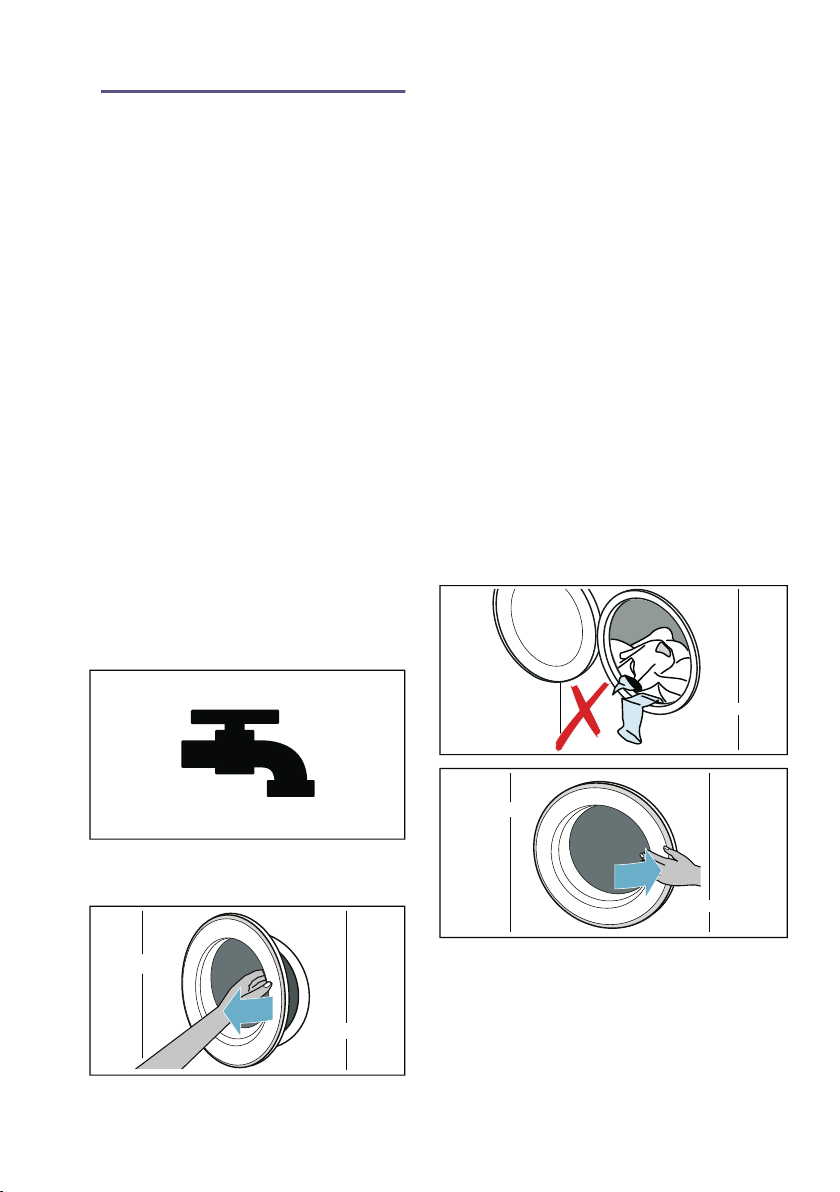

1. Insert mains plug.
: Warning
Risk of death from electric shock!
2. Turn the water tap on.
3. Open the appliance door.
Select programme/switch on the appliance
Note:
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
Use the programme selector to select the required programme. The programme selector can be rotated in either direction.
The appliance is switched on.
The programme default settings for the selected programme alternately appear in the display panel:
■ The maximum load and
■ the duration of the programme and
■ ...
Placing laundry into the drum
Insert the laundry.
Close the door.
Notes
Measure and add detergent and care products
Caution!
Damage to the appliance
Dosing
Dose the detergents and care products according to:
■ water hardness (ask your water supply company),
■ the manufacturer’s specifications on the packaging,
■ the amount of laundry,
■ soiling.
Filling the dispensers

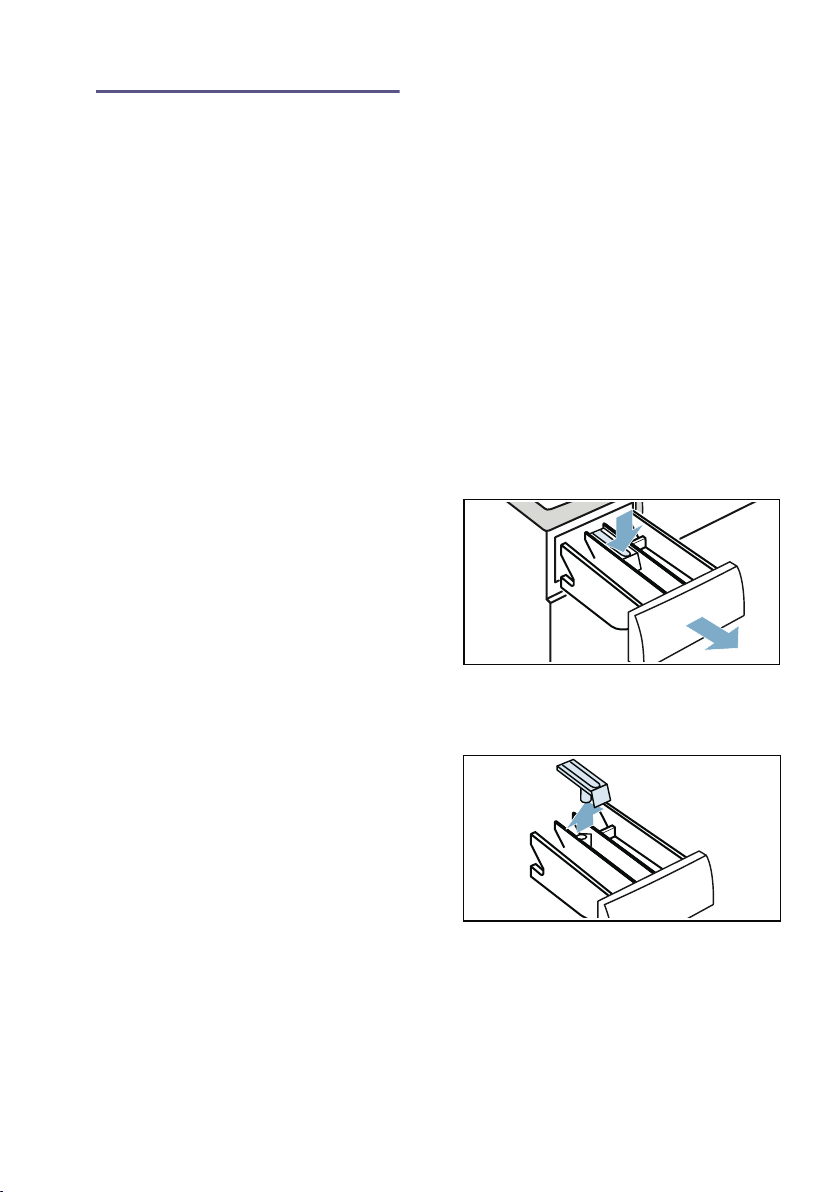

1. Pull out the detergent drawer.
: Warning
Eye / skin irritation!
2. Pour in detergent and/or cleaning product.
Notes
Measuring aid A* for liquid detergent
*depending on the model
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximum mark.
3. Close the detergent drawer.
Note:
Do not use the viscous liquid detergent.
Starting the programme
Touch and hold A 开始/添衣 (Start/ Reload) button for 1~2 seconds, then release the button. The programme starts and the appliance door is locked.
The ñ 预约 (Finish in time) is shown in the display panel and counts down until the programme starts. After the programme has started, the programme duration is displayed. And the displays for the programme's progress light up.
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock.
Childproof lock
You can lock the appliance to prevent the settings you have set from being changed inadvertently. To do this, activate the childproof lock.
To activate the childproof lock:
After the programme starts, Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons for 3 seconds. The symbol E lights up in the display panel.
■ E lights up: The childproof lock is activated.
■ E flashes: If the programme and programme settings are adjusted while childproof lock is activated.
Note:
When the programme ends, End is displayed. The door is unlocked. E symbol remain on to remind you to deactivate the childproof lock.
To deactivate the childproof lock:
Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons until the symbol E disappears.
Adding/removing laundry
After starting the programme, you can add or remove laundry if necessary.
Touch the A 开始/添衣 (Start/Reload) button. The appliance checks whether reloading is possible.
If the following appears on the display panel:
■ The symbol Õ disappears, reloading is possible.
■ The symbol Õ lights up, reloading is not possible.
To continue the programme, touch the A 开始/添衣 (Start/Reload) button. The programme continues automatically.
Notes
Changing the programme
1. Touch the A 开始/添衣 (Start/ Reload) button.
2. Select another programme.
3. And touch the A 开始/添衣 (Start/ Reload) button again. The new programme starts from the beginning.
Cancel the programme
1. Touch the A 开始/添衣 (Start/ Reload) button.
2. To cool down laundry: Select Rinse.
3. And touch the A 开始/添衣 (Start/ Reload) button again.
1. Touch the A 开始/添衣 (Start/ Reload) button.
2. Select Spin.
3. And touch the A 开始/添衣 (Start/ Reload) button again.
Programme end
End lights up on the display panel and ~ and Õ displays are off.
If you have selected 2, the water is only drained after rinse process, no spin cycle.
Removing laundry/switching off the appliance
1. Set programme selector to Off.
2. Open the door and remove the laundry.
3. Turn off the water tap.
Note:
Notes
Q Appliance settings
Appliance settings
You can change the following settings:
■ The volume of the end signal.
■ The volume of the button signal.
■ Switching the drum care information signal on/off.
You will need to activate the setting mode in order to change these settings.
Activate setting mode:
1. Set the programme selector to position 1. The appliance is switched on.
2. Touch and hold the 0 转速 (Spin speed) button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 转速 (Spin speed) button.
Changing the volume and drum care information
Use the ñ 预约 (Finish in time) button to change the following settings at the corresponding programme selector positions:
■ 2: The volume of the end signal.
■ 3: The volume of the button signals.
■ 4: Switching the drum care information signal on/off.
Exiting setting mode You can now end the process and set the programme selector to the Off position. The settings are saved.
H Sensors
Sensors
Unbalanced load detection system
The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning.
If the laundry is extremely unevenly distributed, the spin speed is reduced or the spin cycle is not performed for safety reasons.
Note:
Place large and small items of laundry evenly in the drum.
2 Cleaning and maintenance
Cleaning and maintenance
: Warning
Risk of death!
Caution!
Fire and explosion hazard!
Caution!
The appliance may be damaged!
Appliance housing/control panel
■ Remove the detergent residue immediately.
■ Wipe the housing and the control panel with a soft, damp cloth.
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
■ Do not clean the appliance with a water jet.
Drum
Use chlorine-free cleaning agents, do not use steel wool.
If there are odours in the appliance, or to clean the drum, run the Drum Clean 90°C programme without laundry.
Descaling
Descaling should not be necessary if the detergent is measured out correctly. However, if it is required, follow the manufacturer's instructions for the descaling agent. Suitable descalers can be obtained via our website or from customer services.
Emptying the detergent draw, cleaning the detergent drawer and its housing

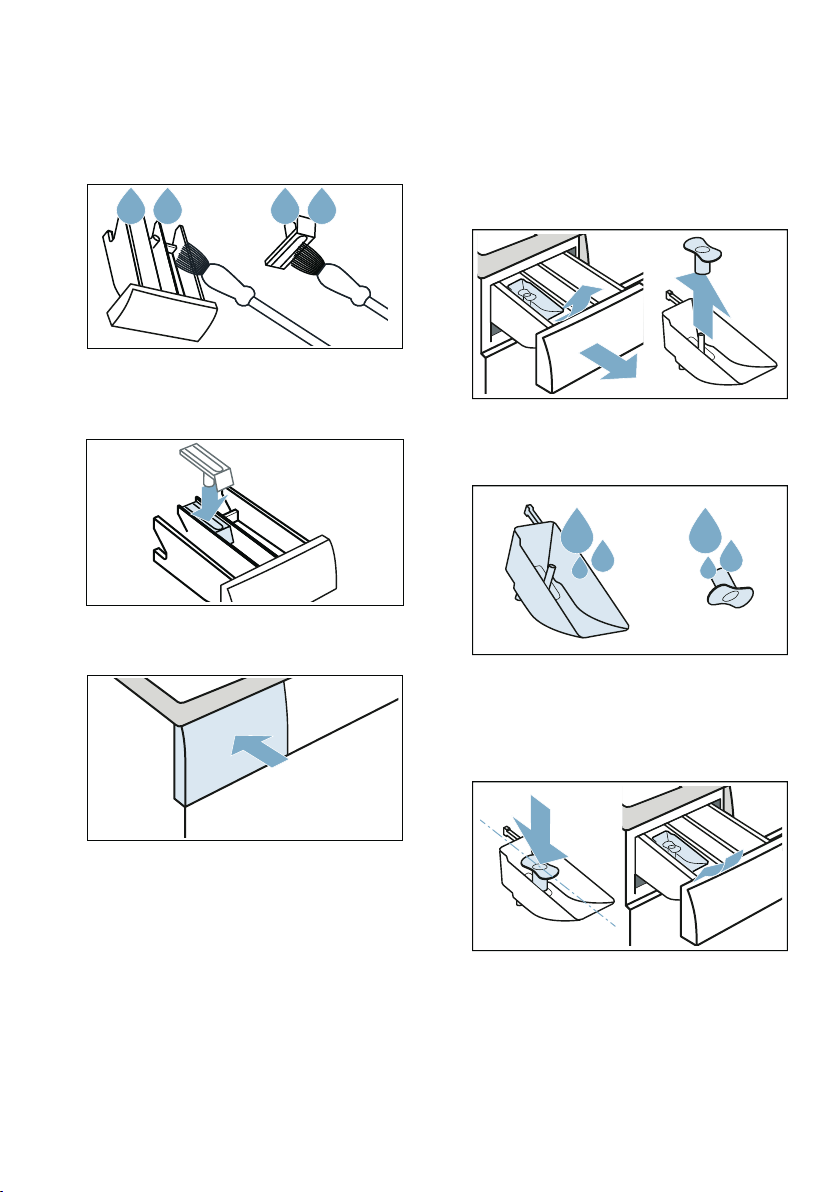

1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
2. To remove the insert: Push the insert upwards from below with your finger.
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
5. Push in the detergent drawer.
Note:
Leave the detergent drawer open so that any residual water can evaporate.
Cleaning the measuring aid A for liquid detergent
1. Hold the measuring aid, pull the cover upward and disconnect them.
2. Clean the measuring aid and cover with water and brush.
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.
Note:
Drain pump is blocked
Note:
Turn the water tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
: Warning
Risk of scalding!

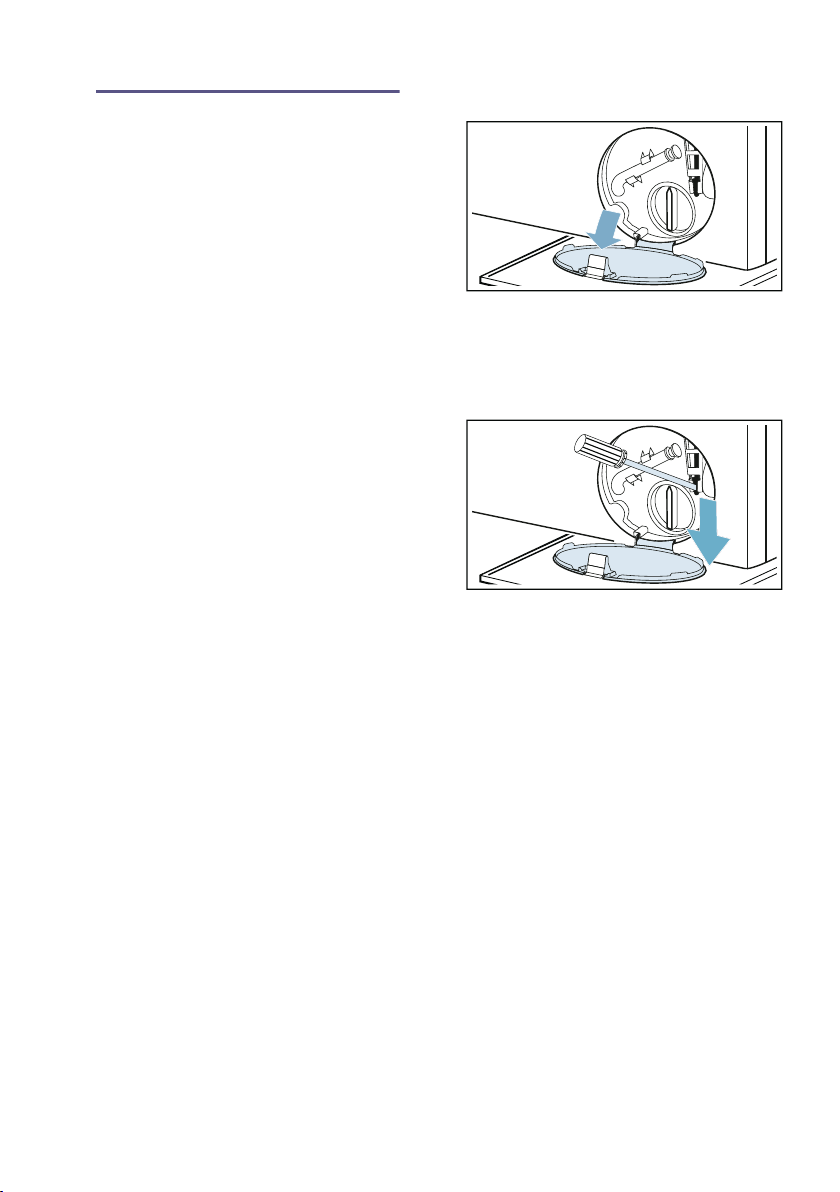

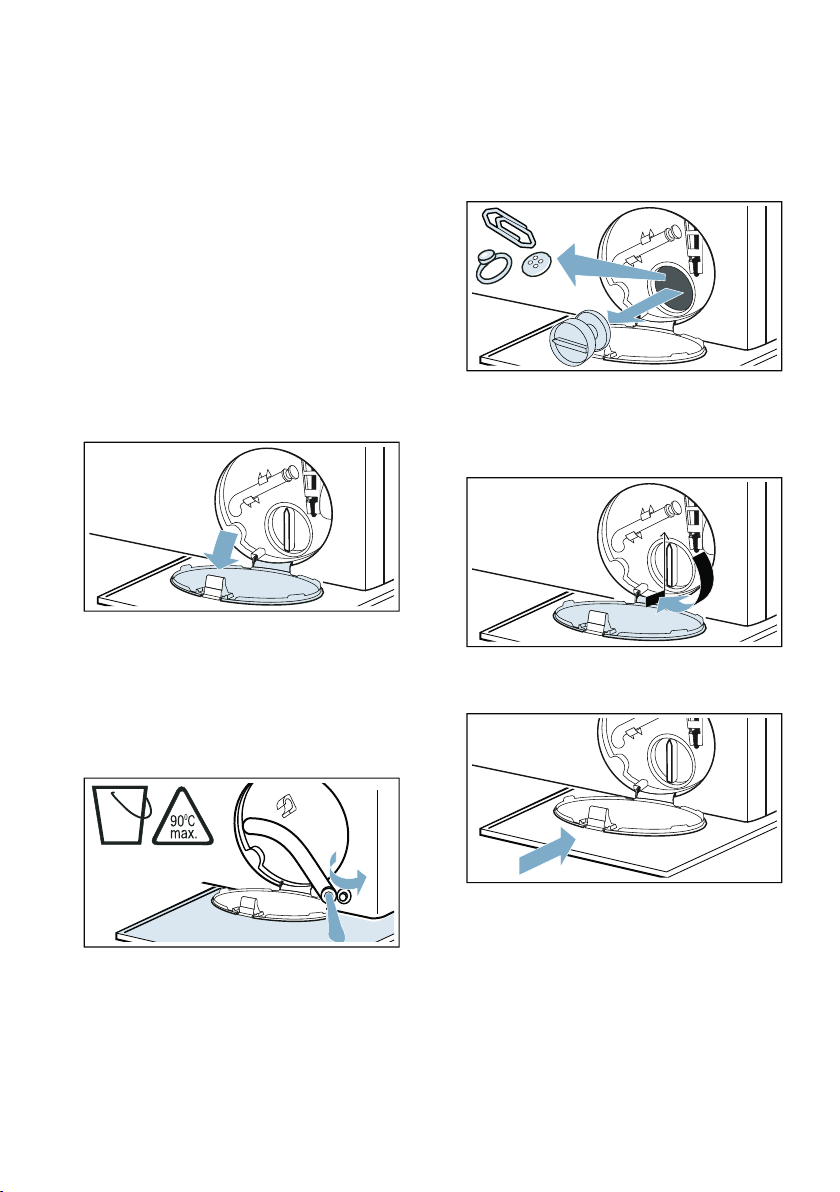

1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Take the drain hose out of the retainer.
4. Carefully unscrew the pump cover; residual water may leak out.
5. Refit and screw on the pump cover. The handle must be in a vertical position.
6. Close the service flap.
Note:
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into dispenser II and start the Spin programme.
The drain hose at the siphon is blocked
1. Turn the programme selector to Off. Pull out the mains plug.
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
3. Clean the drain hose and siphon connecting piece.
4. Re-attach the drain hose and secure the connection point using the hose clamp.
Filter in the water supply is blocked
Release water pressure in the supply hose:
1. Turn off the water tap.
2. Select the Cottons (activate G 提速 (SpeedPerfect) setting) programme.
Note:
3. Select the A 开始/添衣 (Start/ Reload) button. Allow the programme to run for approx. 40 seconds.
4. Turn the programme selector to Off.
5. Pull out the mains plug.
Clean the filters:
1. Disconnect the hose from the rear of the appliance.
2. Use pliers to remove the filter.
3. Clean the filter with a small brush.
4. Connect the hose and check for leaks.
3 Faults and what to do about them
Faults and what to do about them
Emergency release
E.g. power outage or in the event of a loss of power
The programme continues when the power supply is restored.
: Warning
Risk of scalding!
: Warning
Risk of injury!
Caution!
Water damage!
1. Turn the programme selector to Off. Pull out the mains plug.
2. Open the service flap.
3. Drain the water. ~ Page 41
4. Pull the emergency release downwards with a tool and release.
Information on the display panel
Display
Cause/Remedy
Notes
Faults and what to do about them
Faults
Cause/Remedy
Note:
Note:
4 After-sales service
After-sales service
If you cannot rectify a fault yourself, (~ "Faults and what to do about them" on page 43), please contact our after- sales service.
We will always find an appropriate solution to avoid unnecessary visits by engineers.
Please provide the after-sales service with the product number (E-Nr.) and the production number (FD) of the appliance.
You can find this information (depending on the model):
■ On the inside of the loading door
■ On the back of the appliance
Trust the expertise of the manufacturer. Contact us. By doing so, you can be sure that the repairs are carried out by trained service personnel using genuine spare parts.
Advice and repair order in the event of faults
[ Consumption values
Consumption values
J Technical data
Technical data
*9001410674*
Thank you for buying a Bosch Home Appliance!
Looking for help? You´ll find it here.
Page 1/52
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32
Page 33
Page 34
Page 35
Page 36
Page 37
Page 38
Page 39
Page 40
Page 41
Page 42
Page 43
Page 44
Page 45
Page 46
Page 47
Page 48
Page 49
Page 50
Page 51
Page 52
Contents
Table of Contents
Search
Previous
Next
Bookmarks
Register
your
new
device
on
MyBosch
now
and
get
free
benefits:
bosch-home.com/
welcome
W
a
s
h
i
n
g
m
a
c
h
i
n
e
XQG80-
WHA132X80W
[en]
User manual and installation
instructions
Loading ...
Loading ...
Loading ...
File type: PDF
File name: 64770223_wha132x80w-01.pdf
File size: 1.63 MB
File Language: English
Pages: 52
Author: Bosch
File created: 2019-04-03
Published: 2023-12-24
Updated: 2023-12-23
Download File
Other documents for Bosch WHA132X80W/01
The following documents are available:
User Manual
User Manual - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
Specifications
Brand:
Bosch
Model: WHA132X80W/01
Category:
Washers & Dryers
View in the file:
Full Specifications
See other models:
B1EIT00009(00)
SHV09A03/16
SPU25CS03E/45
PCI6A5B90A/01
B18IF70NSP/02
Related Products
GE - General Electric WH49X301
Hotpoint NM11965GCAUKN
LG Electronics F2V308WSWH
Samsung WW10T684DLN/S1
Hotpoint EU NTDG83 WK IT
Samsung WA75T4262VS/TC
Samsung WA19R6380BV/TC
Russell Hobbs RH612WM1B
Samsung WW10T684DLH
Samsung WW10T684DLH/S1
Kenmore 11028837700
Samsung WW11K6800AW/CX
Samsung WW11K6800AW/ED
Samsung WA90T6250BW
Bosch WHA234X00W/01
Table of Contents
×
en Instruction Manual and Installation Instructions
1
Washing machine
1
Your new washing machine
2
GB standard:
2
Display rules
2
: Warning!
2
Caution!
2
Note/tip
2
1. 2. 3. / a) b) c)
2
■ / -
2
Contentsen Instruction Manual and Installation Instructions
3
8 Intended use 4
3
( Safety instructions 5
3
7 Environmental protection 12
3
5 Positioning and connecting 14
3
* Getting to know the appliance 24
3
Z Laundry 27
3
P Overview of programmes 28
3
0 Programme default settings 32
3
\ Additional programme settings 33
3
1 Operating the appliance 34
3
Q Appliance settings 38
3
H Sensors 38
3
2 Cleaning and maintenance 39
3
3 Faults and what to do about them 43
4
4 After-sales service 48
4
[ Consumption values 49
4
J Technical data 50
4
8 Intended use
4
Intended use
4
■ This appliance is intended for private domestic use only.
4
■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.
4
■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand- washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and...
4
■ This appliance is suitable for operation with mains water and commercially available detergents and care products (must be suitable for use in washing machines).
4
■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.
4
Before you switch on the appliance:
4
Check that there is no visible damage to the appliance. Do not operate the appliance if it is damaged. Should you have any problems, please contact your specialist dealer or our customer service.
4
Read and follow the operating and installation instructions and all other information provided with this appliance.
4
Retain the documents for subsequent use or for subsequent owners.
4
( Safety instructions
5
Safety instructions
5
The following safety information and warnings are provided to protect you from injury and to prevent material damage to your surroundings.
5
It is nevertheless important to take the necessary precautions and to proceed with care when installing, maintaining, cleaning and operating the appliance.
5
Children/people/pets
5
: Warning
5
Risk of death!
5
■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...
5
■ Children must not play with this appliance.
5
■ Do not allow children to clean or maintain this appliance unsupervised.
5
■ Keep children under 3 years and pets away from this appliance.
5
■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.
5
: Warning
5
Risk of death!
5
■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.
5
■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.
5
: Warning
6
Risk of suffocation!
6
: Warning
6
Risk of poisoning!
6
: Warning
6
Risk of burns!
6
: Warning
6
Eye/skin irritation!
6
Installation
6
: Warning
6
Risk of electric shock/fire/ material damage/damage to the appliance!
6
■ The mains voltage on your power socket must match the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.
6
■ The mains plug and the protective contact socket must match and the earthing system must be correctly installed.
6
■ The installation must have an adequate cross section.
6
■ The mains plug must be freely accessible at all times. If this is not possible, in order to comply with the relevant safety regulations, a switch (all pole disconnection) must be built into the permanent installation in accordance with electrical...
6
■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.
7
: Warning
7
Risk of electric shock/fire/ material damage/damage to the appliance!
7
: Warning
7
Risk of fire/material damage/ damage to the appliance!
7
: Warning
7
Risk of injury/material damage/damage to the appliance!
7
: Warning
7
Risk of injury!
7
Caution!
8
Material damage/damage to the appliance
8
Operation
8
: Warning
8
Risk of explosions/fire!
8
: Warning
9
Risk of poisoning!
9
: Warning
9
Risk of injury!
9
: Warning
9
Risk of scalding!
9
: Warning
9
Eye/skin irritation!
9
Caution!
9
Material damage/damage to the appliance
9
Cleaning/Maintenance
10
: Warning
10
Risk of death!
10
■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).
10
■ Never take hold of the mains plug with wet hands.
10
■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.
10
■ Do not make any technical modifications to the appliance or its features.
10
■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).
10
■ Spare mains cables can be ordered from our customer service.
10
: Warning
10
Risk of poisoning!
10
: Warning
10
Risk of electric shock/material damage/damage to the appliance!
10
: Warning
10
Risk of injury/material damage/damage to the appliance!
10
Caution!
11
Material damage/damage to the appliance
11
■ Do not allow these agents to come into contact with the surfaces of the appliance.
11
■ Clean the appliance with nothing but water and a soft, damp cloth.
11
■ Remove any detergent, spray or other residues immediately.
11
7 Environmental protection
12
Environmental protection
12
Packaging/used appliance
12
Dispose of packaging in an environmentally-responsible manner.
12
Keep children away from the packaging materials and packaging materials are not toys.
12
Reprocessing and reuse of packaging material saves raw materials, reducing waste.
12
All packaging materials used are in line with environmental protection requirements and reusable.
12
Name and content of hazardous substances in products
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
x
12
Û
12
Û
12
Û
12
Û
12
Û
12
Note:
12
All of component parts in the BSH products that fall into the same category are covered in the table above, the component parts of this product depend on the actual situation. If you have any questions, please contact us by dialling the customer serv...
12
Tips on economical use
13
■ Always fill the appliance with the maximum amount of laundry for each programme.
13
■ Wash normally soiled laundry without pretreating.
13
■ For light and normal soiling in laundry, you can save energy and detergent.
13
■ The selectable temperatures apply to the care labels on the textiles. The temperatures in the appliance may deviate from this so that you get the optimum mix of energy-saving and washing results.
13
■ Low power mode: If the appliance is not operated for a prolonged period (approx. 5 minutes), the display panel lighting goes out before the programme starts and after the programme has ended, ~ (indicator lamp of 开始/添衣 (Start/Reload) A bu...
13
■ If the laundry will be dried in a dryer, select the spin speed according to the dryer manufacturer's instructions.
13
5 Positioning and connecting
14
Positioning and connecting
14
Included with the appliance
14
Note:
14
Check the appliance for transport damage. Never use a damaged appliance. If you have any complaints, contact the dealer from whom you purchased the appliance or our customer services.
14
Bag:
14
■ Operating and installation instructions
14
■ Warranty
14
■ Supplementary sheet for the operating and installation instructions*
14
■ Bottom cover instruction*
14
■ Home Connect Installation Guides*
14
■ Cover caps for openings after the transport braces have been removed
14
* Depending on the model
14
In addition
14
a hose clamp (24 - 40 mm diameter, available from specialist dealers) is required to connect the water drain hose to a siphon.
14
Useful tools
14
■ Spirit level for aligning
14
■ Wrench with:
14
Installation
14
Note:
14
Humidity in the drum is caused by the final inspection.
14
Safety instructions
14
: Warning
14
Risk of injury!
14
Caution!
15
Damage to the appliance
15
Caution!
15
Water damage
15
Notes
15
Removing the foam block
15
This appliance is secured with a foam block, which has to be removed before using the appliance for the first time. If in doubt, please contact specialist.
15
Caution!
15
Damage to the appliance
15
: Warning
15
Risk of injury/damage to the appliance!
15
Note:
15
Remove the foam block first before you remove the transport locks.
15
1. Remove the foam block.
15
a) Tilt the appliance to the rear.
15
b) Remove the foam block and bottom pad.
15
2. Fit the bottom cover. (You can find it in the drum)
16
Note:
16
Installation surface
16
Note:
16
The appliance must be stable aligned so that it does not move around.
16
Installation on a base or a wooden joist floor
16
Caution!
16
Damage to the appliance
16
Note:
16
On wooden joist floors, install the appliance:
16
Installing the appliance in a kitchenette
16
: Warning
16
Risk of death!
16
Notes
16
Removing the transport locks
16
Caution!
16
Damage to the appliance
16
Note:
16
Keep the screws and sleeves in a safe place.
16
1. Take the hoses out of the holders.
17
2. Unscrew and remove all four transport brace screws.
17
a) Remove the mains cable from the holders.
17
b) Remove the sleeves.
17
3. Fit the covers.
17
4. Lock the covers firmly in place by applying pressure to the snap-in hooks.
17
Hose and cable lengths
17
Connection on left side
17
or
18
Connection on right side
18
Note:
18
If the hose holders are used, the possible hose lengths are reduced!
18
Available from dealer/customer service:
18
■ Longer supply hose (approx. 2.20 m).
18
■ Appliance’s tap.
18
Water inlet
18
: Warning
18
Risk of death!
18
Observe the following when connecting the appliance:
18
Notes
18
Optimum water pressure in the supply network
18
At least 0.1 MPa (1 bar)
18
Maximum 1 MPa (10 bar)
18
When the tap is open, the water flow is at least 8 l/min.
18
If the water pressure is higher than this, a pressure-reducing valve must be installed.
18
Connection
18
Connect the water supply hose to the water tap (¾" = 26.4 mm) and to the appliance:
18
Note:
18
Turn on the tap carefully, checking the leak tightness of the connection points. The screw connection is under mains water pressure.
18
Water outlet
19
: Warning
19
Risk of scalding!
19
Caution!
19
Water damage
19
Caution!
19
Damage to the appliance/fabrics
19
Notes
19
Connection
19
■ Drainage into a siphon
19
■ Drainage into a washbasin
19
■ Drainage into a plastic pipe with rubber bushing or into a drainage pit
20
Note:
20
Alignment
20
Level the appliance using a spirit level.
20
Incorrect levelling may result in intense noise, vibrations and "wandering".
20
1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.
20
2. Check the alignment of the appliance with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.
20
3. Tighten the lock nut against the housing.
20
Electrical connection
21
: Warning
21
Risk of death!
21
Observe the following information and ensure that:
21
Notes
21
Before washing for the first time
21
The appliance was inspected thoroughly before leaving the factory. To remove any residual test water, run the Drum Clean programme the first time without laundry.
21
Note:
21
1. Insert mains plug.
21
2. Turn the water tap on.
21
3. Close the door. Do not load any laundry.
21
4. Select the Drum Clean 90°C programme.
21
5. Open the detergent drawer.
21
6. Pour approx. 1 litre of water into dispenser II.
21
7. Add standard detergent to dispenser II according to manufacturer’s instructions for light soiling.
21
Note:
21
8. Close the detergent drawer.
21
9. Select A 开始/添衣 (Start/Reload).
21
10. When the programme ends, turn the programme selector to Off.
21
Transportation
22
e.g. when moving home
22
1. Turn off the water tap.
22
2. Reduce the water pressure in the supply hose. ~ Page 42
22
3. Drain any residual water. ~ Page 41
22
4. Disconnect the appliance from the mains.
22
5. Remove the hoses.
22
6. Empty the dispensers.
22
Caution!
22
Risk of damage to the appliance caused by detergent/fabric softener leaking from the dispensers
22
1. Remove the covers and keep them in a safe place.
22
Note:
22
2. Insert all four sleeves.
22
a) Clip the mains cable securely in the holders.
22
b) Insert and tighten the screws.
22
c) Clip the hoses securely in the holders.
22
Before switching on the appliance again:
23
Notes
23
* Getting to know the appliance
24
Getting to know the appliance
24
Appliance
24
Control panel
25
Display panel
26
Programme default settings
26
Display
26
Setting
26
Description
26
Additional programme settings
26
Display
26
Setting
26
Status indicators for the programme progress (programme sequence)
26
Display
26
Setting
26
Z Laundry
27
Laundry
27
Protecting your laundry and appliance
27
Caution!
27
Damage to the appliance/textiles
27
The following instructions must be observed when preparing your laundry:
27
■ Always follow the manufacturer's instructions when dosing all detergents, cleaning aids, care products and cleaning agents.
27
■ Do not exceed maximum load. Overfilling will impair the washing result.
27
■ Keep detergents and agents for the pretreatment of laundry (e.g. stain remover, prewash sprays, etc.) away from the surfaces of the appliance. Using a damp cloth, immediately remove any fine spray residue and other residue or droplets.
27
■ Empty any pockets. Remove any foreign objects.
27
■ Remove metal parts (paper clips, etc.).
27
■ Trousers, knitwear and knitted textiles, e.g. jersey garments, T-shirts or sweatshirts, should be turned inside out.
27
■ Ensure that underwired bras are appliance-washable.
27
■ Wash delicates in a net or bag (tights, underwired bras, etc).
27
■ Close zips, button up covers.
27
■ Brush sand out of pockets and collars.
27
■ Remove curtain fittings or include in the net/bag.
27
Sorting laundry
27
Sort your laundry according to the care instructions and manufacturer's information on the care labels, depending on:
27
■ Type of fabric/fibre
27
■ Colour
27
Note:
27
■ Soiling Wash laundry with the same level of soiling together.
27
■ Symbols on the care labels
27
P Overview of programmes
28
Overview of programmes
28
Selectable programme
28
Programme/Type of washing
28
Options/Information
28
Notes
30
Note:
31
0 Programme default settings
32
Programme default settings
32
You can change the default settings for selected programmes. The settings can be changed even while the selected programme is running. The effects depending on the progress of the programme.
32
6 温度 (Temperature)
32
Before and after the programme starts, you can change the set temperature depending on how far through the programme the appliance is.
32
The maximum temperature that can be set depends on the programme that has been selected.
32
0 转速 (Spin speed)
32
Depending on what stage the programme is in, you can change the spin speed (in rpm; revolutions per minute) before and during the programme.
32
setting 2: 2 =”No spin”. The rinsing water is drained but there is no final spin. The laundry stays wet inside the drum, e.g. for items that should not be spun.
32
You can select “No spin” to prevent creasing if the laundry will not be taken out of the appliance immediately after the programme has ended.
32
The maximum speed that can be set depending on the model and the programme that has been selected.
32
ñ 预约 (Finish in time)
32
Before starting the programme, you can preselect the programme end ("Finish in" time) in 0.5h (h = hour) increments (between “minimum selectable ending time” and 9.5h) or 1 hour increments (between 10h and 24h) up to a maximum of 24 hours.
32
1. Select a programme (except myTime programme).
32
2. Select the ñ 预约 (Finish in time) button repeatedly until the required number of hours is displayed.
32
3. Select the A 开始/添衣 (Start/ Reload) button.
32
Note:
32
The length of the programme is automatically adjusted when the programme is running. Changes to the programme default settings or additional programme settings may also change the programme duration.
32
1. Select the A 开始/添衣 (Start/ Reload) button.
32
2. Select the ñ 预约 (Finish in time) button repeatedly to change the number of hours.
32
3. Select the A 开始/添衣 (Start/ Reload) button.
32
\ Additional programme settings
33
Additional programme settings
33
Note:
33
You can find possible additional programme settings in the overview; these differ depending on the model.
33
By selecting additional programme settings, you can better adapt the washing process to your items of laundry.
33
The settings can be selected or deselected depending on the progress of the programme.
33
The button indicator lamps light up if a setting is activated.
33
The settings are not retained after the appliance is switched off.
33
x 除渍 (Stains)
33
Types of stain that can be selected:
33
Do not let stains dry. Remove solid substances beforehand.
33
Select a programme with a stain type:
33
1. Arrange items of washing as usual.
33
2. Select a programme.
33
3. Select a stain type (depending on the selected programme).
33
4. Start the programme.
33
Ï 加漂洗 (Rinse plus)
33
Settings that can be selected:
33
Additional rinse cycles for particularly sensitive skin and/or for areas with very soft water.
33
Longer programme duration.
33
The number of rinse cycles that the appliance actually runs depends on the number that is set as a basic setting for the programme in question.
33
ç 除菌液 (Disinfectant)
33
For washing with special disinfectants in order to kill bacteria and thereby meet high standards of hygiene.
33
Note:
33
Add disinfectant to dispenser I.
33
G 提速 (SpeedPerfect)
33
Washing in a shorter time while achieving a washing result that is consistent with the normal performance.
33
Touch G 提速 (SpeedPerfect) to activate or deactivate it.
33
Note:
33
With the G 提速 (SpeedPerfect) additional programme setting activated, the maximum load of washing will be reduced.
33
1 Operating the appliance
34
Operating the appliance
34
Preparing the appliance
34
The appliance was tested before delivery. To remove residual water from the test procedure, the first wash cycle should be run without laundry using the Drum Clean programme. ~ "Before washing for the first time" on page 21
34
Notes
34
1. Insert mains plug.
34
: Warning
34
Risk of death from electric shock!
34
2. Turn the water tap on.
34
3. Open the appliance door.
34
Select programme/switch on the appliance
34
Note:
34
If you have activated the childproof lock, you must first deactivate it before you can set a programme.
34
Use the programme selector to select the required programme. The programme selector can be rotated in either direction.
34
The appliance is switched on.
34
The programme default settings for the selected programme alternately appear in the display panel:
34
■ The maximum load and
34
■ the duration of the programme and
34
■ ...
34
Placing laundry into the drum
34
Insert the laundry.
34
Close the door.
34
Notes
35
Measure and add detergent and care products
35
Caution!
35
Damage to the appliance
35
Dosing
35
Dose the detergents and care products according to:
35
■ water hardness (ask your water supply company),
35
■ the manufacturer’s specifications on the packaging,
35
■ the amount of laundry,
35
■ soiling.
35
Filling the dispensers
35
1. Pull out the detergent drawer.
35
: Warning
35
Eye / skin irritation!
35
2. Pour in detergent and/or cleaning product.
35
Notes
35
Measuring aid A* for liquid detergent
36
*depending on the model
36
1. Pull out the detergent drawer. Insert the liquid detergent container into dispenser II for main wash.
36
2. Pour liquid detergent into liquid detergent container and do not exceed the Maximum mark.
36
3. Close the detergent drawer.
36
Note:
36
Do not use the viscous liquid detergent.
36
Starting the programme
36
Touch and hold A 开始/添衣 (Start/ Reload) button for 1~2 seconds, then release the button. The programme starts and the appliance door is locked.
36
The ñ 预约 (Finish in time) is shown in the display panel and counts down until the programme starts. After the programme has started, the programme duration is displayed. And the displays for the programme's progress light up.
36
If you want to lock the programme to prevent it from being adjusted inadvertently, you can select the childproof lock.
36
Childproof lock
36
You can lock the appliance to prevent the settings you have set from being changed inadvertently. To do this, activate the childproof lock.
36
To activate the childproof lock:
36
After the programme starts, Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons for 3 seconds. The symbol E lights up in the display panel.
36
■ E lights up: The childproof lock is activated.
36
■ E flashes: If the programme and programme settings are adjusted while childproof lock is activated.
36
Note:
36
When the programme ends, End is displayed. The door is unlocked. E symbol remain on to remind you to deactivate the childproof lock.
36
To deactivate the childproof lock:
36
Touch and hold the G 提速 (SpeedPerfect) and ñ 预约 (Finish in time) buttons until the symbol E disappears.
36
Adding/removing laundry
36
After starting the programme, you can add or remove laundry if necessary.
36
Touch the A 开始/添衣 (Start/Reload) button. The appliance checks whether reloading is possible.
36
If the following appears on the display panel:
37
■ The symbol Õ disappears, reloading is possible.
37
■ The symbol Õ lights up, reloading is not possible.
37
To continue the programme, touch the A 开始/添衣 (Start/Reload) button. The programme continues automatically.
37
Notes
37
Changing the programme
37
1. Touch the A 开始/添衣 (Start/ Reload) button.
37
2. Select another programme.
37
3. And touch the A 开始/添衣 (Start/ Reload) button again. The new programme starts from the beginning.
37
Cancel the programme
37
1. Touch the A 开始/添衣 (Start/ Reload) button.
37
2. To cool down laundry: Select Rinse.
37
3. And touch the A 开始/添衣 (Start/ Reload) button again.
37
1. Touch the A 开始/添衣 (Start/ Reload) button.
37
2. Select Spin.
37
3. And touch the A 开始/添衣 (Start/ Reload) button again.
37
Programme end
37
End lights up on the display panel and ~ and Õ displays are off.
37
If you have selected 2, the water is only drained after rinse process, no spin cycle.
37
Removing laundry/switching off the appliance
37
1. Set programme selector to Off.
37
2. Open the door and remove the laundry.
37
3. Turn off the water tap.
37
Note:
37
Notes
37
Q Appliance settings
38
Appliance settings
38
You can change the following settings:
38
■ The volume of the end signal.
38
■ The volume of the button signal.
38
■ Switching the drum care information signal on/off.
38
You will need to activate the setting mode in order to change these settings.
38
Activate setting mode:
38
1. Set the programme selector to position 1. The appliance is switched on.
38
2. Touch and hold the 0 转速 (Spin speed) button and, at the same time, turn the programme selector clockwise to position 2. Release the 0 转速 (Spin speed) button.
38
Changing the volume and drum care information
38
Use the ñ 预约 (Finish in time) button to change the following settings at the corresponding programme selector positions:
38
■ 2: The volume of the end signal.
38
■ 3: The volume of the button signals.
38
■ 4: Switching the drum care information signal on/off.
38
Exiting setting mode You can now end the process and set the programme selector to the Off position. The settings are saved.
38
H Sensors
38
Sensors
38
Unbalanced load detection system
38
The automatic unbalanced load detection system detects imbalances and ensures even distribution of the laundry by repeatedly starting and stopping drum spinning.
38
If the laundry is extremely unevenly distributed, the spin speed is reduced or the spin cycle is not performed for safety reasons.
38
Note:
38
Place large and small items of laundry evenly in the drum.
38
2 Cleaning and maintenance
39
Cleaning and maintenance
39
: Warning
39
Risk of death!
39
Caution!
39
Fire and explosion hazard!
39
Caution!
39
The appliance may be damaged!
39
Appliance housing/control panel
39
■ Remove the detergent residue immediately.
39
■ Wipe the housing and the control panel with a soft, damp cloth.
39
■ Do not use abrasive cloths, sponges or detergents (stainless steel cleaner).
39
■ Do not clean the appliance with a water jet.
39
Drum
39
Use chlorine-free cleaning agents, do not use steel wool.
39
If there are odours in the appliance, or to clean the drum, run the Drum Clean 90°C programme without laundry.
39
Descaling
39
Descaling should not be necessary if the detergent is measured out correctly. However, if it is required, follow the manufacturer's instructions for the descaling agent. Suitable descalers can be obtained via our website or from customer services.
39
Emptying the detergent draw, cleaning the detergent drawer and its housing
39
1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.
39
2. To remove the insert: Push the insert upwards from below with your finger.
39
3. Clean the detergent dispenser tray and insert with water and a brush, and dry it. Clean the inside of the housing as well.
40
4. Fit the insert and lock it in place (push the cylinder onto the guide pin).
40
5. Push in the detergent drawer.
40
Note:
40
Leave the detergent drawer open so that any residual water can evaporate.
40
Cleaning the measuring aid A for liquid detergent
40
1. Hold the measuring aid, pull the cover upward and disconnect them.
40
2. Clean the measuring aid and cover with water and brush.
40
3. Install the cover back to the measuring aid. Pay attention to the assemble mark, and press the cover until click sounds.
40
Note:
40
Drain pump is blocked
41
Note:
41
Turn the water tap off to prevent more water from flowing in and to ensure that it is drained via the pump.
41
: Warning
41
Risk of scalding!
41
1. Turn the programme selector to Off. Pull out the mains plug.
41
2. Open the service flap.
41
3. Take the drain hose out of the retainer.
41
4. Carefully unscrew the pump cover; residual water may leak out.
41
5. Refit and screw on the pump cover. The handle must be in a vertical position.
41
6. Close the service flap.
41
Note:
41
To prevent unused detergent from flowing straight into the drain during the next wash: Pour 1 litre of water into dispenser II and start the Spin programme.
41
The drain hose at the siphon is blocked
42
1. Turn the programme selector to Off. Pull out the mains plug.
42
2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.
42
3. Clean the drain hose and siphon connecting piece.
42
4. Re-attach the drain hose and secure the connection point using the hose clamp.
42
Filter in the water supply is blocked
42
Release water pressure in the supply hose:
42
1. Turn off the water tap.
42
2. Select the Cottons (activate G 提速 (SpeedPerfect) setting) programme.
42
Note:
42
3. Select the A 开始/添衣 (Start/ Reload) button. Allow the programme to run for approx. 40 seconds.
42
4. Turn the programme selector to Off.
42
5. Pull out the mains plug.
42
Clean the filters:
42
1. Disconnect the hose from the rear of the appliance.
42
2. Use pliers to remove the filter.
42
3. Clean the filter with a small brush.
42
4. Connect the hose and check for leaks.
42
3 Faults and what to do about them
43
Faults and what to do about them
43
Emergency release
43
E.g. power outage or in the event of a loss of power
43
The programme continues when the power supply is restored.
43
: Warning
43
Risk of scalding!
43
: Warning
43
Risk of injury!
43
Caution!
43
Water damage!
43
1. Turn the programme selector to Off. Pull out the mains plug.
43
2. Open the service flap.
43
3. Drain the water. ~ Page 41
43
4. Pull the emergency release downwards with a tool and release.
43
Information on the display panel
44
Display
44
Cause/Remedy
44
Notes
44
Faults and what to do about them
45
Faults
45
Cause/Remedy
45
Note:
45
Note:
47
4 After-sales service
48
After-sales service
48
If you cannot rectify a fault yourself, (~ "Faults and what to do about them" on page 43), please contact our after- sales service.
48
We will always find an appropriate solution to avoid unnecessary visits by engineers.
48
Please provide the after-sales service with the product number (E-Nr.) and the production number (FD) of the appliance.
48
You can find this information (depending on the model):
48
■ On the inside of the loading door
48
■ On the back of the appliance
48
Trust the expertise of the manufacturer. Contact us. By doing so, you can be sure that the repairs are carried out by trained service personnel using genuine spare parts.
48
Advice and repair order in the event of faults
48
[ Consumption values
49
Consumption values
49
J Technical data
50
Technical data
50
*9001410674*
52
Thank you for buying a Bosch Home Appliance!
52
Looking for help? You´ll find it here.
52
Search:
×
Search
