Warranty
This KOOLATRON product is warranted to the retail customer for 90 days from date of retail purchase,
against defects in material and workmanship.
WHAT IS COVERED
• Replacement parts and labour.
• Transportation charges to customer for the repaired product.
WHAT IS NOT COVERED
• Damage caused by abuse, accident, misuse, or neglect.
• Transportation of the unit or component from the customer to Koolatron.
IMPLIED WARRANTIES
Any implied warranties, including the implied warranty of merchantability are also limited to the
duration of 90 days from the date of retail purchase.
WARRANTY REGISTRATION
Register on-line at www.koolatron.com AND keep the original, dated, sales receipt with this manual.
WARRANTY AND SERVICE PROCEDURE
If you have a problem with your UNIT, or require replacement parts, please telephone the following
number for assistance:
North America 1-800-265-8456
Koolatron has Master Service Centres at these locations:
U.S.A.
4330 Commerce Dr.
Batavia, NY 14020-4102 U.S.A.
Canada
139 Copernicus Blvd.
Brantford, ON N3P1N4 Canada
A Koolatron Master Service Centre must perform all warranty work.
www.koolatron.com
©2014 Koolatron, Inc. All rights reserved.
All specification are subject to change without notice.
04/2014-v2H1S157

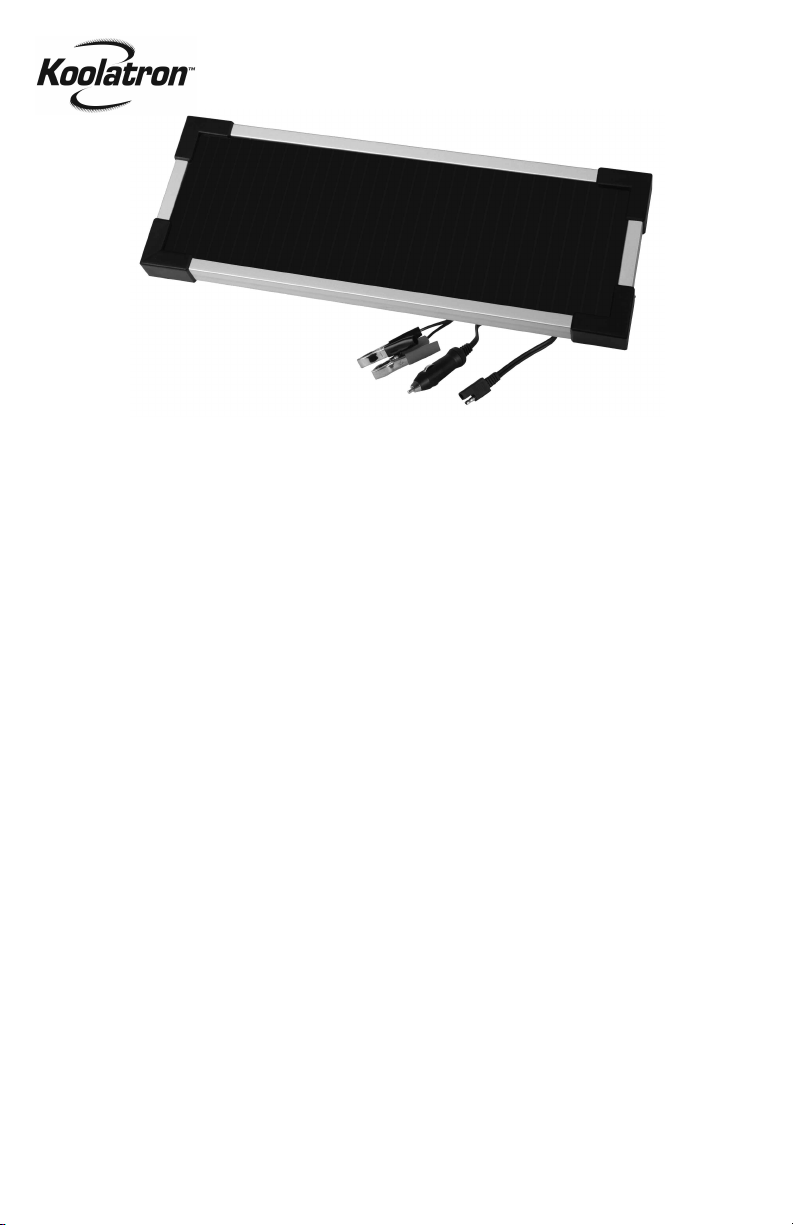

12V Solar Trickle Charger - 1.9W
40233
12V Solar Trickle Charger - 1.9W
40233
WAYS TO INSTALL
1. 12V DC POWER ADAPTER PLUG
Using the included 12V DC power adapter plug connect J-plug to panel J-plug. Then plug 12V
DC power adapter into your vehicle’s 12V power socket.
Confirm that both connections are tight and secure. Confirm that the lighter socket is active
when vehicle is off, otherwise use battery clamp connectors.
2. BATTERY CLAMP CONNECTOR
Using the included battery clamps connect J-plug to panel J-plug. Then connect the red,
Positive clamp to the Positive battery terminal. Finally connect the black, Negative clamp to
the negative battery terminal.
Confirm that both connections are tight and secure.
WARNINGS
1. Observe manufacturer’s safety procedures when working around batteries and other
electrical equipment.
2. Product is designed to be used on 12V . Configurations in parallel ONLY Positive (+) to
Positive (+), Negative (-) to Negative(-). Ensure that the positive matches the positive and
the negative matches the negative. Wrong connections may cause damage to part of all of
the system.
3. Products should be placed in a well ventilated area. Free from flammable gases.
4. Make sure panel secured while vehicle is in motion to prevent physical damage or harm to
personal property.
Battery clamps
12V DC plug
J-plug
