User Manual

This is the main product document for model LC200BUNDLER30W.

The file format is pdf, 30 pages, you can download this manual here .

background
To download the latest version of Quick Start
Guide, multilingual user manual, software, or
driver, etc., please visit Lumens
https://www.MyLumens.com/support
VC-R30
HD Camera
(PTZ Video Camera)
User Manual - English
Version VXF100
[Important]
background
English-1
Table of Contents
Chapter 1 Package Contents ...........................................................................................2
Chapter 2 Version Description ........................................................................................3
Chapter 3 Product Overview and Interface ....................................................................4
3.1 I/O functions Introduction ...................................................................................... 4
3.2 Description of LED indicator .................................................................................. 5
Chapter 4 Instruction for installation ..............................................................................6
4.1 Preparation before installation.............................................................................. 6
4.2 Instruction for installation ...................................................................................... 6
4.3 Connecting devices ................................................................................................... 8
Chapter 5 Introduction of Remote Control and Setting Menu .................................... 10
5.1 Remote Control ....................................................................................................... 10
5.2 Setting Menu ........................................................................................................... 11
Chapter 6 Network Function Settings Description ...................................................... 14
6.1 Web System Requirements ................................................................................. 14
6.2 Connecting Camera to Network ........................................................................ 14
6.3 Web Page Menu Function Description ............................................................ 16
Chapter 7 Troubleshooting ............................................................................................ 26
Chapter 8 Safety Instructions ........................................................................................ 27
Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information ..... 28
Copyright Information ................................................................................................... 29
background
English-2
Chapter 1 Package Contents
VC-R30
Quick Installation
Guide
Remote Control
Power Cord
Power Adapter
3-PIN to 2-PIN
connector
Appearance may vary
depending on country/
region
(For Japan only)
USB 3.0 Cable
(2m)
HDMI cable
(1.5m)
background
English-3
Chapter 2 Version Description
This chapter specifies the identification method of VC-R30 and VC-R30,V1. Some functions may
vary due to different versions.
Model
VC-R30
Label
SN
Black
VC1xxxxxx
White
VCYxxxxxx
FW
VWWxxx
background
English-4
Chapter 3 Product Overview and Interface
3.1 I/O functions Introduction
NO.
Item
Function Descriptions
1.
Camera lens
12X HD camera lens
2.
Power/Standby LED
indicator
Display the status of the camera
3.
USB3.0 Port
The USB port is for connecting to the USB port of the computer
and providing USB signal images
4.
HDMI output
HDMI output
<Remark> Audio output is only applicable to VC-R30,V1
5.
3G-SDI output
3G-SDI output
<Remark> Audio output is only applicable to VC-R30,V1
6.
Audio In
3.5 mm LINE IN
7.
Network port
Network cable port, supporting PoE (IEEE802.3af) power supply
8.
RS-232 input
RS-232 input port, at most 7 cameras can be connected in a
serial connection
9.
RS-232 output
RS-232 output port, at most 7 cameras can be connected in a
serial connection
10.
DC 12 V power Port
DC supply connecting port
NO.
Item
Function Descriptions
11.
Tripod lock hole
The camera is mounted on a (specification) 1/4” - -20 UNC tripod
○
1
○
2
Front View
Back View
Bottom
○
11
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
background
English-5
3.2 Description of LED indicator
3.2.1 VC-R30
Status
Standby
Power
Powered off
No indicator
No indicator
In use
Green light
Red light
In standby mode
No indicator
Red light
Privacy Mode
Green light (slow flickering)
Red light
3.2.2 VC-R30,V1
Status
Standby
Power
Powered off
No indicator
No indicator
In use
No indicator
Green light
In standby mode
Red light
No indicator
Privacy Mode
No indicator
Green light (flickering)
background
English-6
Chapter 4 Instruction for installation
4.1 Preparation before installation
Installation and connection of HD camera requires special skills. To install by yourself, please follow
necessary steps, ensure steady and tight installation of the device, and pay attention to your safety
to avoid any accident.
4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling
or in a place where the device is in danger of falling to avoid any accident.
4.1.2 Please check whether accessories in the box are complete or not. Please contact the
supplier for any shortage, and make sure to keep the accessories in the box intact.
4.1.3 Please choose a proper place for installation of camera in advance. Please determine an
installation place according to the following requirements
4.1.3.1 Confirm the position for the object to be captured.
4.1.3.2 Confirm whether the camera is set at a proper distance from other light sources.
4.2 Instruction for installation
4.2.1 I would like to install camera on the desk
4.2.1.1 Precautions for installation
Please install the machine on a flat desk
Do not grab the camera head by hand when handling the device
Do not rotate the camera head by hand. Improper rotation may result in breakdown of the camera
4.2.2 I would like to install the camera on the ceiling/wall/TV stand
Available with VC-WM14 3-in-1 sheet metal, please refer to VC-WM14 Quick Installation Guide
Install on the TV
background
English-7
Install on the ceiling
Install on the wall
4.2.3 Camera Size
Length x Width x Height: 190 x 138 x 185 mm
Weight: 1.3 Kg
background
English-8
4.2.4 Precautions for installation
Before installation, please confirm the orientation of the machine relative to the object to be
captured
It is recommended that the machine should be set at a distance of more than 1.5 meter
away from the object to be captured. Please adjust for a best distance according to the
magnification of the lens
4.3 Connecting devices
<Remark> Network cable port, supporting PoE (IEEE802.3af) power supply
4.3.1 USB Image Output
Connect to computer with a USB3.0 cable, and use Lumens USB PTZ Camera Controller
software to view images and control VC-R30. You can also view images with video software,
such as, Skype, Zoom and Microsoft Teams
<Remark> Please visit Lumens website and go to Service Support > Download Area to download
USB PTZ Camera Controller software
4.3.2 RS-232 Connection
With RS-232 in/out, at most 7 Lumens cameras can be connected.
background
English-9
RS-232 pins definition instructions
background
English-10
Chapter 5 Introduction of Remote Control and Setting Menu
5.1 Remote Control
The below functions are listed alphabetically
Item
Description
,,,
Move the lens
Back Light
Turn on/off back light compensation
Camera select
Choose Camera ID 1 ~ 3
Focus-Manual/
Far/ Near
Enable Manual Focus, adjust the focal length in
Manual
Focus-Auto
Auto focus
Freeze
Freeze the screen
Home-Enter
Go back to the main page / Execute
Info
Status information
L/R Direction Set
L/R Direction / Normal
Menu
Display OSD menu
Mirror
Rotate the image (OFF / Mirror / Flip / Rotate)
Pan/Tilt Reset
Clear the Pan/Tilt setting
Reserve
Power
Power Switch
Preset
Appoint an ID (0 ~ 9) to save the current position
data
Reset
Appoint an ID (0 ~ 9) to delete the current position
data
Zoom-Fast
Adjust image size
Zoom-Slow
Fine-tune image size
background
English-11
5.2 Setting Menu
<Remark> Press [MENU] on the remote control to enter the setting menu; the bold
underlined values in the following table are defaults.
1st Level
Major Items
2nd Level
Minor Items
Function Descriptions
Exposure
Mode
Exposure mode setting
Exposure Comp.
Turn on/off Exposure Comp.
Exposure Comp.
Level
Adjustable after Exposure Comp. is
activated
Spot Light
Turn on/off Spot Light
Spot Light
Position
Adjustable after Spot Light is activated
Shutter Speed
60/30mode
50/25mode
Adjustable when the Exposure mode
is set to Shutter Pri or Manual
Iris Level
Adjustable when the Exposure mode
is set to IRIS Pri or Manual
Gain Limit
Max. limit value of electron gain
Gain Level
Adjustable when the Exposure mode
is set to Manual
WDR
WDR settings
White
Balance
Mode
Select the color temperature mode
1. 4000k ~ 7000k
2. 3200k
3. 5800k
4. 1700k ~ 10000k
5. 1700k ~ 10000k
6. Custom
7. 2800k
One Push Trigger
One push trigger
Manual Red
Adjustable when the white balance
mode is set to Manual
Manual Blue
Adjustable when the white balance
mode is set to Manual
2D NR
2D noise reduction
3D NR
3D noise reduction
Image Mode
The user may customize his/her
desired image mode
background
English-12
1st Level
Major Items
2nd Level
Minor Items
Function Descriptions
Brightness
Adjustable when the Image Mode is
set to Custom
Hue
Adjustable when the Image Mode is
set to Custom
Saturation
Adjustable when the Image Mode is
set to Custom
Gamma
Adjustable when the Image Mode is
set to Custom
Sharpness
Adjustable when the Image Mode is
set to Custom
Pan Tilt
Zoom)
Pan/Tilt Limit
Turn on/off the angle limit setting
Pan Right Limit
Limit the right angle
Pan Left Limit
Limit the left angle
Tilt UP Limit
Limit the upward angle
Tilt Down Limit
Limit the downward angle
Pan Flip
After it is activated, the Pan command
will be reverse
Tilt Flip
After it is activated, the Tilt command
will be reverse
Preset Speed
Set the rotation speed of the cradle
head when Preset is executed
PTZ Speed Comp
After it is activated, the Pan/Tilt moving
speed will vary from the zoom position
D-Zoom Limit
Set the D-zoom limit
D-Effect
Mirror
Set the mode at which the image is
turned
Auto Focus
AF Sensitivity
For AF triggering speed, the higher the
sensitivity is, the faster AF is triggered
AF Frame
AF frame setting, when Center was set
as AF frame, focusing will be on the
center of the screen. When Full Frame
was set as AF frame, focusing will be
calculated based on the full screen
Ethernet
DHCP
Enable/Disable the dynamic host
configuration
IP Address
Configurable when DHCP is set to Off
Subnet mask
Gateway
Audio
Audio Enable
Turn on/off audio output
Audio In
<Remark> Only applicable to VC-R30,V1
Audio Volume
Volume Setting
background
English-13
1st Level
Major Items
2nd Level
Minor Items
Function Descriptions
Audio Delay
When the audio is not synchronized
with the video, enable this function to
set the audio delay time
Audio Delay
Time(ms)
Set audio delay time
Encode Sample
Rate
Set the encode type and sample rate
<Remark> 44.1/16 KHz is only
applicable to VC-R30
System
Prompt
Turn on/off the prompt information on
the display
IR Receive
Turn on/off the infrared reception
When it is Off, the remote control will
not be able to control the camera. At
this moment, turn off and then turn on
the power to restore control of the
remote control.
IR Select
Camera IR Select setting must be the
same setting as the Camera Select of
the remote control to control the
camera
Language
Initial Position
After turning on the camera, you can
select the lens to be returned to Last
MEM or 1st Preset
<Remark> 1st Preset =Preset 0
Motionless Preset
When the function is enabled, the
screen will Freeze when Preset is
executed. Freeze will be released after
Preset is completed
Privacy Mode
Enable/Cancel Privacy Mode
After the function is enabled, when the
camera is turned off via the remote
control or software, the lens will
automatically turn to the bottom right to
ensure the user’s privacy
Protocol
Baud Rate
Choose the transmission speed of the
control signal
VISCA Address
The camera ID address can be
assigned. Select 0 for automation.
Output Mode
Choose the output resolution
<Remark> 1080i 60/50 is only
applicable to VC-R30
Factory Reset)
Resume the factory default setting
Status
Display the current setting status
background
English-14
Chapter 6 Network Function Settings Description
6.1 Web System Requirements
Operating
System
Version
Browser
Windows
7 (64 bits) and above
FireFox
Chrome
10 (64 bits) and
above
Edge
FireFox
Chrome
Mac
10.14 and above
Safari
Chrome
FireFox
6.2 Connecting Camera to Network
6.2.1 Connecting to Internet
Two common connection methods are shown below
1. Connecting via switch or router
2. To connect directly through network cable, the IP address of the computer should be changed so
that it is on the same network segment as the camera
E.g.: The factory-preset default IP address of the camera is 192.168.100.100. The computer IP
address must be set with the same network segment, such as 192.168.100.101, so that the
computer can be connected correctly with the camera
Change network settings
Switch or router
Network cable
Network cable
Camera
Computer
Camera
Computer
Network cable
background
English-15
6.2.2 Using the Browser to View the Images
Open the browser, and enter the IP address of the camera in the address bar
E.g.: http://192.168.100.100 (default IP address)
Enter administrator’s account and password
<Remark> For the first-time login, please refer to 6.3.9 System Settings - User to change the default
password
6.2.3 Using RTSP Player to View the Images
Free software can be used for RTSP connection, such as VLC, Quick Time and PotPlayer
RTSP connection address formats are as follows:
RTSP Sub1 Streaming => rtsp://camera IP:8557/h264
RTSP Sub2 Streaming => rtsp://camera IP:8556/h264
If password authentication is enabled, the RTSP connection address is as follows:
rtsp://Username:Password@VC IP address:port/h264
To enable password authentication function, please refer to 6.3.5 Streaming
Example:
Open the VLC software, click [Open Network Streaming], and enter the URL:
rtsp://192.168.100.150:8557/h264
Lumens Network Camera
Account: admin
Password: 9999 (Default)
background
English-16
6.3 Web Page Menu Function Description
6.3.1 Login Screen
No
Item
Function Descriptions
1
User Login Account
Enter user login account (default: admin)
2
User Password
Enter user password (default: 9999)
<Remark> For the first-time login, please refer to 6.3.9 System
Settings - User to change the default password
3
Remember user
account and password
Save user login account and password to the browser. When you log in
next time, there is no need to re-enter them
4
Language
Supporting English/Traditional Chinese/Simplified Chinese
5
Login
Log into the administrator screen on the website
6.3.2 Live Video – PTZ Control
No
Item
Function Descriptions
1
Camera ID/location
Display camera ID/location
Please refer to 6.3.6 System Settings - Output Setting
2
Preview window
Display the screen currently captured by the camera
○
1
○
2
○
3
○
4
○
5
○
1
○
3
○
5
○
4
○
6
○
2
○
6
○
7
○7
○8
○8
○
7
○7
○
9
○
10
○
11
background
English-17
3
Preset setting
Select the number first and then select SAVE or LOAD
4
Pan/Tilt setting
Adjust the Pan/Tilt position of the camera screen
5
Zoom
Zoom In/Zoom Out ratio
6
AF/MF
Switch AF/MF
7
Zoom speed
Adjust the zoom speed
8
Pan/ Tilt Speed
Adjust the horizontal/vertical moving speed of the lens
9
Auto Framing
<Remark> Auto Framing is only applicable to VC-R30,V1
Enable smart viewfinder setting
1. Enable/Disable Smart viewfinder
2. Correction: If the image is not zoomed according to the actual number
of people, please click to perform viewfinder correction
3. Sensitivity: Set tracking sensitivity
10
Camera Setting
Please refer to 6.3.3 Live Video - Camera Setting for related settings
11
Enlarge the
preview window
Zooming in/out the preview image
6.3.3 Live Video - Camera Setting
No
Item
Function Descriptions
1
Exposure
Mode: Select exposure mode (Full Auto/Shutter Pri/Iris Pri/Manual/
White Board)
Gain Level: Adjust the gain level (adjustable only under the “Manual”)
Gain Limit: Adjust he gain limit (adjustable only under the “Manual”)
Exposure Comp. Level: Select exposure compensation level
WDR: Set the level of wide dynamic range (WDR) in order to obtain
better images
Iris Level: Adjust the size of aperture (adjustable only under the
“Manual” or “Aperture Priority”
Shutter Speed: Adjust the shutter speed (adjustable only under the
“Manual” or “Shutter Priority”
○
1
○
1
○
2
○
3
○
2
○
3
○
4
○
5
○
6
○
7
○7
background
English-18
2
White Balance
Mode: Select the color temperature mode
Open Push WB: Single color temperature execution adjustment
(adjustable only under the “One Push WB”
Manual Red/Blue: Manually adjust blue/red color temperature
3
Focus
AF Sensitivity: Set automatic focus sensitivity
AF Frame: Set automatic focus range
4
Mirror
Mirror: Set image mirroring
Flip: Set image flip
5
Pan Tilt Zoom
Pan/Tilt limit: Enable, and set the pan/tilt limit
Preset Speed: Set the rotation speed of the cradle head when Preset
is executed
PTZ Speed Comp: After it is activated, the Pan/Tilt moving speed will
vary from the zoom position
Initial Position: Set the camera lens to return to Last MEM or 1st
Preset after POWER ON
<Remark> 1st Preset = Preset 0
Motionless Preset: When the function is enabled, the screen will
Freeze when Preset is executed. Freeze will be released after Preset
is completed
D-Zoom Limit: Set the D-Zoom Limit
background
English-19

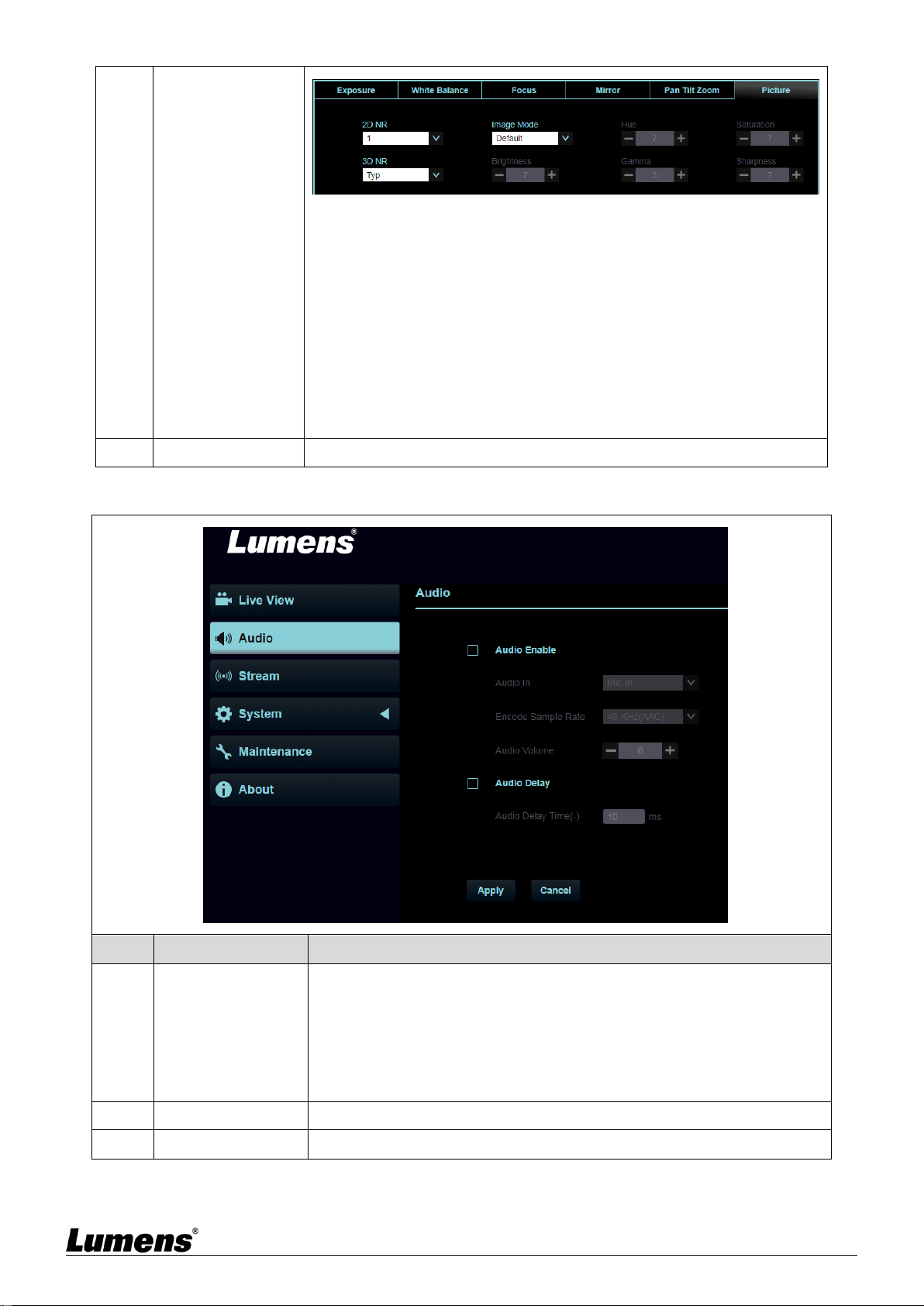

6
2D noise reduction: 2D noise reduction settings
3D noise reduction: 3D noise reduction settings
Image Mode: The user may customize his/her desired image mode
Brightness: Brightness adjustment of the image; Adjustable when the
image mode is set to Custom
Hue: Hue adjustment of the image; Adjustable when the image mode is
set to Custom
Gamma: Gamma Level adjustment; Adjustable when the image mode
is set to Custom
Saturation: Saturation adjustment of the image; Adjustable when the
image mode is set to Custom
Sharpness: Sharpness adjustment of the image; Adjustable when the
image mode is set to Custom
7
PTZ Control
Go back to PTZ Control page
6.3.4 Audio
No
Item
Function Descriptions
1
Audio Enable
Select to enable Audio function
Audio In: Set Line In / Mic In
<Remark> Only applicable to VC-R30,V1
Encode sample rate: Set the encode type and sample rate
<Remark> 44.1/16 KHz is only applicable to VC-R30
Volume: Adjust Audio Volume
2
Audio Delay
After checking the box, set the audio delay time (10 ~ -500 ms)
3
Apply/Cancel
Apply/Cancel Audio Setting
○
1
○
2
○
3
background
English-20
6.3.5 Streaming
No
Item
Function Descriptions
1
Streaming 1/
Streaming 2
Supporting 2-way streaming output
2
Streaming
parameter setting
Please refer to 6.3.5.1 Streaming Parameter Setting for relevant settings
3
RTSP
Select to enable RTSP
Enable/Disable Multicast
It is suggested to enable Multicast when the number of users online
watching the live image simultaneously is more than 4
Enable/Disable Password Authentication
RTSP connection format can be found in 6.2.3 Using RTSP Player
to View the Images
4
RTMP/ RTMPS
Select to enable RTMP/RTMPS
Enable/Cancel Password Authentication
5
SRT
<Remark> Only applicable to VC-R30,V1; Streaming 1 supports SRT
Transmission
Select to enable SRT
The port number must be set in the range above 1024 with a maximum
value of 9999
<Remark> The following port is to be used by the camera. Setting of
the said port may not connect correctly 8554, 8556, 8557,
8080, 9090, 1935
Delay time is for 20 to 8000 microseconds. The default value is 120
microseconds
○
1
○
2
○
3
○
4
○
5
background
English-21
6.3.5.1 Streaming parameter setting
Function
Streaming 1
Streaming 2
Encode Format
H.264
Resolution
1080p / 720p
720p
Bit rate
Range
2,000~20,000
2,000~20,000
Factory
Default
7,000
3,000
Rate Control
CBR / VBR
Frame Rate
Setting according to the supported resolution
Group of Pictures
Setting according to the supported resolution
6.3.6 System Settings – Output Setting
No
Item
Function Descriptions
1
Camera name
Change camera name here
Supporting 1 - 12 characters for the camera name
Please mix uppercase and lowercase letters or numbers for
characters. Special symbols such as “/” and “space” cannot be used
2
Camera Location
Modify the location of the camera, such as Room 1
Supporting 1 - 12 characters for the camera location
Please mix uppercase and lowercase letters or numbers for
characters. Special symbols such as “/” and “space” cannot be used
3
Resolution
Set the resolution of the camera
After switching the resolution, the camera will restart. Please refresh the
browser
4
HDMI format
Select YUV422/ RGB
5
Privacy Mode
Enable/Cancel Privacy Mode
○
1
○
2
○
3
○
4
○
5
○
6
background
English-22
(UVC)
After the function is enabled, when the camera is turned off via the
remote control or software, the lens will automatically turn to the bottom
right to ensure the user’s privacy
6
Apply/Cancel
Apply/Cancel Setting
6.3.7 System Settings – Network
No
Item
Function Descriptions
1
DHCP
Network setting of camera. Change of setting is available when DHCP
function is closed
2
HTTP port number
Set HTTP port. The default Port value is 80
3
HTTPS port number
Set HTTPS port. The default Port value is 81
4
Apply/Cancel
Apply/Cancel Setting
○
1
○
2
○
3
○
4
background
English-23
6.3.8 System Settings - Date & Time
Function Descriptions
Display the current camera/PC date and time, and set the display format and synchronization way
When Manually Set is selected for [Time Settings], Date & Time can be customized
6.3.9 System Settings – User
Function Descriptions
Add/Modify/Delete user account
Supporting 4 - 32 characters for user name and password
Please mix uppercase and lowercase letters or numbers for characters. Special symbols or the
underlined cannot be used
Authentication Mode: Set the new account management permissions
User Type
Administrator
(Admin)
Operator
(Operator)
Viewer
(Viewer)
View images
V
V
V
Settings
V
V
X
Account
management
V
X
X
background
English-24
6.3.10 System Settings – Control
No
Item
Function Descriptions
1
Protocol
Supporting VISCA protocol
2
Baud Rate
Choose the transmission speed of the control signal as 9600/38400
3
VISCA address
The camera ID address 1~7 can be assigned.
4
Apply/Cancel
Apply/Cancel Setting
6.3.11 Maintenance
No
Item
Function Descriptions
1
Firmware Upgrade
Select the firmware file, and click [Upgrade] to update the firmware.
<Remark> Update takes about 2-3 minutes.
<Remark> Please do not operate o-r turn off the power of the device
during the update to avoid firmware update failure.
2
Factory Reset
Reset all configurations to factory default settings.
3
Configuration
Save setup parameters as a Profile, and users can download and upload
camera setup parameters
4
Event Log
If the machine operates abnormally, the event log can be exported for
reference of Lumens technicians
○
1
○
2
○
3
○4
○
1
○
2
○
3
○
4
background
English-25
6.3.12 About
Function Descriptions
Display the firmware version, serial number, and other related information of the camera
For technical support, please scan the QRcode at the bottom right.
background
English-26
Chapter 7 Troubleshooting
This chapter describes problems you may encounter while using VC-R30. If you have questions,
please refer to related chapters and follow all the suggested solutions. If the problem still
occurred, please contact your distributors or the service center.
No.
Problems
Solutions
1.
Boot without power signal
1. Make sure you have plugged in the power cord.
2. When using a PoE connection, ensure that the power
supply supports PoE (IEEE802.3af) hubs
2.
There is no image output
from camera
1. Check the power supply or PoE supply functions.
2. Confirm the output signals are in streaming output.
3. Confirm whether the camera resolution can be used
together with the monitor equipment
4. Replace the cables and make sure they are not faulty.
3.
Camera image is severely
delayed
Please use 1080p or 720p 60/50 fps rather than 25/30 fps
signals.
4.
RS-232 cannot be
controlled
1. Confirm the connection is correct (RS-232 In/ Out)
2. Please make sure the Baud rate setting is the same as the
control equipment
5.
Whether the Internet can be
used for operation
Please refer to Chapter 6 Network Function Settings
Description for the Internet usage
6.
The camera does not save
the relevant parameters
(PTZ, AWB …) after reboot
Please make sure if the Initial Position is set to Last
Operated Position from the setting menu or web page
Setting Menu: System-Initial Position
Web page: Live Video - Camera - Pan Tilt Zoom
7.
VC-R30 cannot be operated
by remote control
1. Please make sure the IR Select setting in the camera
menu is the same setting as the Camera Select of the
remote control
2. Please try to replace the batteries of the remote control
3. Please prevent VC-R30 from direct sunshine
4. Make sure the energy-saving bulb and the IR touch screen
are as far as possible in order to avoid interference
5. When several VC-R30 are connected in the same area,
the operation of two remote controls at the same time may
result in signal interference. It is recommended to use one
remote control only
background
English-27
Chapter 8 Safety Instructions
Always follow these safety instructions when setting up and using VC-R30 PTZ Video Camera:
1 Operation
1.1 Please use the product in the recommended operating environment, away from water or source of heat
1.2 Do not place the product on a tilted or unstable trolley, stand or table.
1.3 Please clean the dust on the power plug prior to usage. Do not insert the product’s power plug into a
multiplug to prevent sparks or a fire.
1.4 Do not block the slots and openings in the case of the product. They provide ventilation and prevent the
product from overheating.
1.5 Do not open or remove covers, otherwise it may expose you to dangerous voltages and other hazards.
Refer all servicing to licensed service personnel.
1.6 Unplug the product from the wall outlet and refer servicing to licensed service personnel when the following
situations happen:
If the USB port becomes damaged or frayed.
If liquid is spilled into the product or the product has been exposed to rain or water.
2 Installation
2.1 For security considerations, please make sure the standard mount you use is in line with UL or CE safety
approbations and installed by technician personnel approved by agents.
3 Storage
3.1 Do not place the product where the cord can be stepped on as this may result in fraying or damage to the
lead or the plug.
3.2 Unplug this product during thunderstorms or if it is not going to be used for an extended period.
3.3 Do not place this product or accessories on top of vibrating equipment or heated objects.
4 Cleaning
4.1 Disconnect all the cables prior to cleaning and wipe the surface with a dry cloth. Do not use alcohol or
volatile solvents for cleaning.
5 Batteries (for products or accessories with batteries)
5.1 When replacing batteries, please only use similar or the same type of batteries.
5.2 When disposing of batteries or products, please adhere to the relevant instructions in your country or region
for disposing of batteries or products.
Precautions
This symbol indicates that this equipment may
contain dangerous voltage which could cause
electric shock. Do not remove the cover (or
back). No user-serviceable parts inside. Refer
servicing to licensed service personnel.
This symbol indicates that there are
important operating and
maintenance instructions in this
User Manual with this unit.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
Notice :
The changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
IC Warning
This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus,” ICES-003 of Industry Canada.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils numeriques de
Classe A prescrites dans la norme sur le material brouilleur: “Appareils Numeriques,” NMB-003 edictee par
l'Industrie.
EN55032 CE Warning
Operation of this equipment in a residential environment could cause radio interference.
Warning: Operation of this equipment in a residential environment may cause radio interference
background
English-28
Supplier's Declaration of Conformity
47 CFR § 2.1077 Compliance Information
Manufacturer：Lumens Digital Optics Inc.
Product Name：VC-R30
Model Number：PTZ Video Camera
Responsible Party – U.S. Contact Information
Supplier：Lumens Integration, Inc.
4116 Clipper Court, Fremont, CA 94538, United States
e-mail ：[email protected]om
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
background
English-29
Copyright Information
Copyrights © Lumens Digital Optics Inc. All rights reserved.
Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc.
Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics
Inc. unless copying this file is for the purpose of backup after purchasing this product.
In order to keep improving the product, the information in this file is subject to change without prior notice.
To fully explain or describe how this product should be used, this manual may refer to names of other products or
companies without any intention of infringement.
Disclaimer of warranties: Lumens Digital Optics Inc. is neither responsible for any possible technological,
editorial errors or omissions, nor responsible for any incidental or related damages arising from providing this file,
using, or operating this product.

Specifications

Lumens LC200BUNDLER30W Questions and Answers

Find answers or ask new question.
See other models: LC200BUNDLER30B LC100BUNDLER30W
Questions and Answers
