EN, English
Operator's manual
HUSQVARNA AUTOMOWER
®
550 EPOS
Read the operator's manual carefully and make sure that you
understand the instructions before you use the product.
Contents
1 Safety
1.1 Safety definitions...................................................3
1.2 General safety instructions....................................3
1.3 Safety instructions for installation..........................4
1.4 Safety instructions for operation............................4
1.5 Safety instructions for maintenance...................... 4
1.6 Battery safety........................................................ 4
1.7 To lift and move the product..................................5
2 Introduction
2.1 Support..................................................................6
2.2 System description................................................6
2.3 Product description............................................... 6
2.4 System overview................................................... 7
2.5 Product overview...................................................8
2.6 Symbols on the product........................................ 8
2.7 Symbols on the battery......................................... 9
2.8 Symbols in the app................................................9
2.9 General manual instructions............................... 10
3 Installation
3.1 Introduction - Installation..................................... 11
3.2 Primary components for installation.................... 11
3.3 To prepare for installation................................... 11
3.4 To examine where to put the reference station...11
3.5 To examine where to put the charging station.... 11
3.6 To examine where to put the power supply........ 12
3.7 To examine where to install the objects on
the map..................................................................... 13
3.8 Installation of the product.................................... 15
4 Settings
4.1 Schedule............................................................. 21
4.2 Cutting height...................................................... 22
4.3 Pattern.................................................................22
4.4 Operation............................................................ 22
4.5 Accessories.........................................................23
4.6 General (Bluetooth
®
only)................................... 23
4.7 Security (Bluetooth
®
only)...................................23
4.8 Automower
®
Connect (Bluetooth
®
only)............. 24
4.9 Messages............................................................24
4.10 Download firmware over the air (Firmware
over the air FOTA).................................................... 24
5 Operation
5.1 Main switch......................................................... 25
5.2 To start the product............................................. 25
5.3 To select operation mode Start........................... 25
5.4 Operating mode - Park........................................25
5.5 To stop the product............................................. 26
5.6 To set the product to OFF................................... 26
5.7 To charge the battery.......................................... 26
6 Maintenance
6.1 Introduction - maintenance..................................27
6.2 Maintenance schedule........................................ 27
6.3 Clean the product................................................28
6.4 Replacement of the blades................................. 29
6.5 Replace the wheel brushes.................................29
6.6 Battery.................................................................29
6.7 Winter service..................................................... 29
7 Troubleshooting
7.1 Introduction - troubleshooting..............................31
7.2 Fault messages...................................................31
7.3 Information and warning messages.................... 37
7.4 LED indicator lamp on the charging station........ 38
7.5 LED indicator on the product...............................38
7.6 Symptoms........................................................... 39
8 Transportation, storage and disposal
8.1 Transportation..................................................... 41
8.2 Storage................................................................41
8.3 Disposal.............................................................. 41
9 Technical data
9.1 Technical data.....................................................42
9.2 Registered trademarks........................................44
10 Declaration of Conformity
10.1 Original EU Declaration of Conformity.............. 45
10.2 Translated EU Declaration of Conformity..........46
10.3 Original UK Declaration of Conformity.............. 47
2 1576 - 006 - 27.01.2023
1 Safety
1.1 Safety definitions
Warnings, cautions and notes are used to point out
specially important parts of the manual.
WARNING: Used if there is a risk of
injury or death for the operator or bystanders
if the instructions in the manual are not
obeyed.
CAUTION: Used if there is a risk of
damage to the product, other materials or
the adjacent area if the instructions in the
manual are not obeyed.
Note: Used to give more information that is necessary
in a given situation.
1.2 General safety instructions
WARNING: Read the warning
instructions that follow before you use the
product.
• Read the Operator’s manual carefully and make
sure you understand the instructions before you
use the product. Keep for future reference.
• This appliance is not intended for use by children
or persons with reduced physical, sensory or
mental capabilities (that could affect a safe
handling of the product), or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• The product must only be used with the equipment
recommended Husqvarna. All other types of use
are incorrect.
• Do not use the product when persons, especially
children, or animals are in the work area.
• To prevent damage to the product and accidents to
vehicles and persons, do not install work areas and
transport paths across public pathways.
• Do not use the product in areas where persons are
not aware of the product.
• Warning signs must be put around the work area
of the product if it operates in public areas. The
signs must have the text that follows: Warning!
Automatic lawn mower! Keep away from the
machine! Supervise children!
• Do not run when you operate the product manually
with appDrive. Always walk, be sure on footing
on slopes and make sure to have balance at
all times. Always wear substantial footwear and
long trousers when you operate the product with
appDrive.
• Do not touch moving hazardous parts, such as the
blade disc, before it has come to a complete stop.
• Set the product to OFF before you clear a
blockage, do maintenance or examine the product,
and if the product starts to vibrate abnormally.
Examine the product for damage before you start
the product again. Do not use the product to it is
defective.
• If an injury or accident occur get medical aid.
• Do not install the mains cable in an area where
the product cuts. Follow the instructions to install
the mains cable, refer to
Installation on page 11
.
Installation must be done by service personnel.
• Do not connect a damaged cable or plug, or touch
a damaged cable, before it is disconnected from
the power outlet. Disconnect the plug from the
power outlet if the cable becomes damaged while
in operation. A worn or damaged cable increases
the risk of electrical shock. A damaged cable must
be replaced by service personnel.
• When you connect the mains cable to the power
outlet, use a residual-current device (RCD) with a
tripping current of maximum 30 mA.
• Only charge the product in the included charging
station. For safe disposal of the battery, refer to
Disposal on page 41
. Incorrect use may result in
electric shock, overheating or leaking of corrosive
liquid from the battery. In the event of leakage of
electrolyte, flush with water/neutralizing agent. Get
medical aid if corrosive liquid comes in your eyes.
• Use only original batteries recommended by
Husqvarna. Product safety cannot be guaranteed
with other than original batteries. Do not use non-
rechargeable batteries.
• Follow the installation instructions that includes to
specify the work area, refer to
Installation on page
11
.
• Follow the instructions about to start and operate
the product, refer to
Operation on page 25
.
• If there is a risk of thunderstorm, Husqvarna
recommends that the mains cable to the charging
station and the power supply unit to the reference
station are disconnected to decrease the risk of
damage to electrical components. Connect the
mains cable and the power supply again if there
is no longer a risk of thunderstorm.
• Follow the maintenance instructions and if
necessary use Husqvarna original spare parts,
refer to
Maintenance on page 27
.
• For technical data such as weight, dimensions and
noise emission values, refer to
Technical data on
page 42
.
1576 - 006 - 27.01.2023 Safety - 3
• The operator is responsible for accidents or
dangers that occurs to other persons or property.
• The product must only be operated, maintained
and repaired by persons that are fully conversant
with its special characteristics and safety
regulations.
• It is not permitted to change the initial design of the
product.
• Obey national regulations about electrical safety.
• Husqvarna does not guarantee full compatibility
between the product and other types of
wireless systems such as remote controls, radio
transmitters or equivalent.
• The built-in alarm is very loud. Be careful,
especially if the product is handled indoors.
• Operation and storage temperature is 0-50 °C /
32-122 °F. Temperature range for charging is 0-45
°C / 32-113 °F. Too high temperatures might cause
damage to the product.
1.3 Safety instructions for installation
WARNING: Read the warning
instructions that follow before you use the
product.
• Do not install the charging station in an area where
there is a risk that persons trip on it.
• Do not install the charging station, including any
accessory, at a location that is below, or within 60
cm / 24 in. from, any combustible material. In case
of malfunction, heating of the charging station and
the power supply may occur and create a potential
risk of fire.
• Applicable to USA/Canada. If power supply is
installed outdoors: Risk of Electric Shock. Install
only to a covered Class A GFCI receptacle (RCD)
that has an enclosure that is weatherproof with the
attachment plug cap inserted or removed.
• Do not install the charging station where there is a
risk of standing water.
1.4 Safety instructions for operation
WARNING: Read the warning
instructions that follow before you use the
product.
• Keep your hands and feet away from the rotating
blades. Do not put your hands or feet near or
below the product when it is set to ON.
• Use the park mode or set the product to OFF when
persons, especially children or animals are in the
work area. Refer to
To set the product to OFF
on page 26
. Husqvarna recommends to set the
product to operate when the work area has no
activity. The product can cause injury to animals at
night in work area, for example hedgehogs. Refer
to
Schedule on page 21
.
• Make sure that there are no objects such as
stones, branches, tools or toys on the lawn. The
blades can be damaged if it hits an object.
• Do not lift the product or move it when it is set to
ON.
• Do not to let the product collide with persons or
animals. If a person or animal comes in the way of
the product, stop the product immediately. Refer to
To stop the product on page 26
.
• Do not put objects on top of the product, the
charging station or the reference station.
• Do not use the product if the STOP button does
not work.
• Always set the product to OFF when it is not in
operation. The product can only start when you
enter the correct PIN code.
• Do not use the product at the same time as a
pop-up sprinkler. Use the
Schedule
function so the
product and pop-up sprinkler do not operate at the
same time. Refer to
Schedule on page 21
.
• Do not put a transport path where pop-up
sprinklers are installed.
• Do not let the product operate when there is
standing water in the work area. For example when
heavy rain forms pools of water.
1.5 Safety instructions for maintenance
WARNING: Read the warning
instructions that follow before you do
maintenance on the product.
• Set the product to OFF when you do maintenance
on the product.
• Do not use a high-pressure washer to clean the
product. Do not use solvents to clean the product.
• Disconnect the plug to the charging station before
you clean or do maintenance of the charging
station.
1.6 Battery safety
WARNING: Read the warning
instructions that follow before you use the
product.
• Lithium-ion batteries can explode or cause fire if
disassembled, short-circuited, exposed to water,
fire, or high temperatures. Handle carefully, do
not dismantle, open the battery or use any type
of electrical/mechanical abuse. Avoid storage in
direct sunlight.
4 - Safety 1576 - 006 - 27.01.2023
1.7 To lift and move the product
To safely move the product from or in the work area the
product can be lifted or operated with appDrive. Refer to
appDrive on page 25
.
WARNING: The product must be set to
OFF before you lift the product. The product
is disabled when the
Main switch is set to
the
0
position.
CAUTION: Do not lift the product when
it is parked in the charging station. It can
cause damage to the charging station and/or
the product. Push the
STOP button and
pull the product out of the charging station
before you lift it.

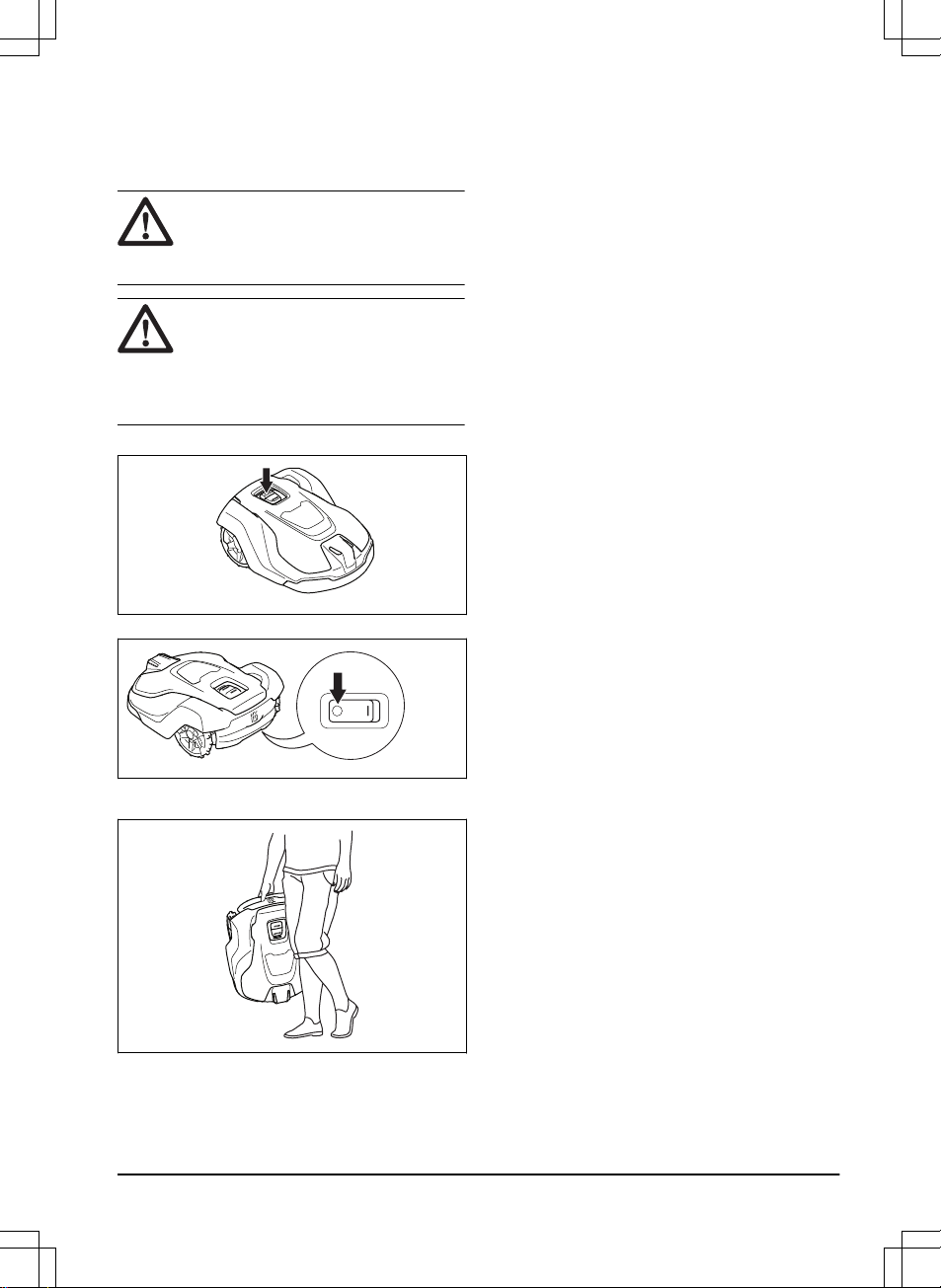

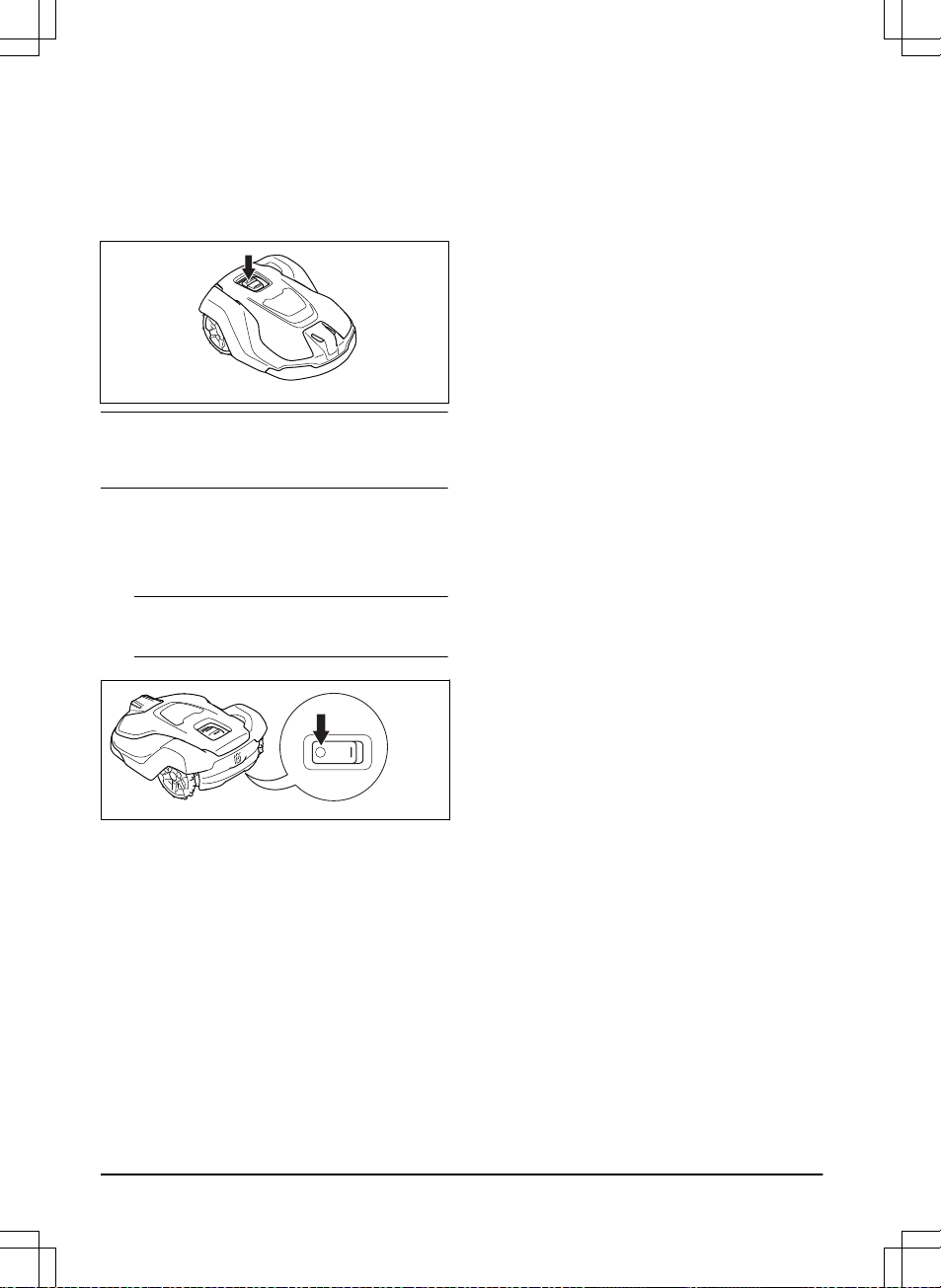

1. Push the STOP button to stop the product.
2. Set the Main switch to the
0
position.
3. Lift the product by the handle with the blade disc
away from your body.
1576 - 006 - 27.01.2023 Safety - 5
2 Introduction
Serial number:
Product number:
PIN code:
The serial number and the product number are on the product rating plate and on the product carton.
• Register your product on www.husqvarna.com. Enter the serial number of the product, the product number and
the date of purchase to register your product.
2.1 Support
For support about the product, speak to your Husqvarna
servicing dealer.
2.2 System description
The system contains a robotic lawn mower, a charging
station and a reference station. The robotic lawn mower
and reference station uses the technology with satellite
signals to position the robotic lawn mower correctly,
this means that boundary wires are not necessary. The
reference station is stationary and sends correction data
to the robotic lawn mower to get an accurate position
of the robotic lawn mower. The virtual work area for the
product is made in the Automower
®
Connect app. The
product is operated and waypoints are added to make a
map in the app. Refer to
System overview on page 7
.
2.3 Product description
Note: Husqvarna regularly updates the appearance
and function of the products. Refer to
Support on page
6
.
The product is a robotic lawn mower. The product has
a battery power source and cuts grass automatically. It
continuously alternates between mowing and charging.
The movement pattern of the product can be set to
irregular or systematic. The virtual boundary specifies
the work area where the product is allowed to operate.
The satellite receiver in the product senses when it
is approaching the virtual boundary. When the product
hits an obstacle or approaches the virtual boundary the
product selects a new direction.
The operator selects the operation settings in the
Automower
®
Connect app. The app shows the selected
and possible operation settings, and the operation mode
of the product.
2.3.1 Mowing technique
The frequent cutting technique improves the grass
quality and decreases the use of fertilizers. Collection
of grass is not necessary.
2.3.2 Find the charging station
The product operates until the battery state of charge
is low or until the work area is cut, then the product
starts to go to the charging station. The product uses
EPOS guidance with satellite signals to find a path to the
charging station. This decreases the wear on the lawn
and the time to find the charging station.
2.3.3 Connectivity
Husqvarna Fleet Services
™
is a cloud solution
that is available as an app and on the web on
www.husqvarna.com. You can add all your products
to Husqvarna Fleet Services
™
to get an overview
and control the products. Refer to
Husqvarna Fleet
Services
™
on page 16
.
Automower
®
Connect is an app that you can use to
install the product and to select the operation settings
of the product. Refer to
Automower
®
Connect on page
17
.
6 - Introduction 1576 - 006 - 27.01.2023

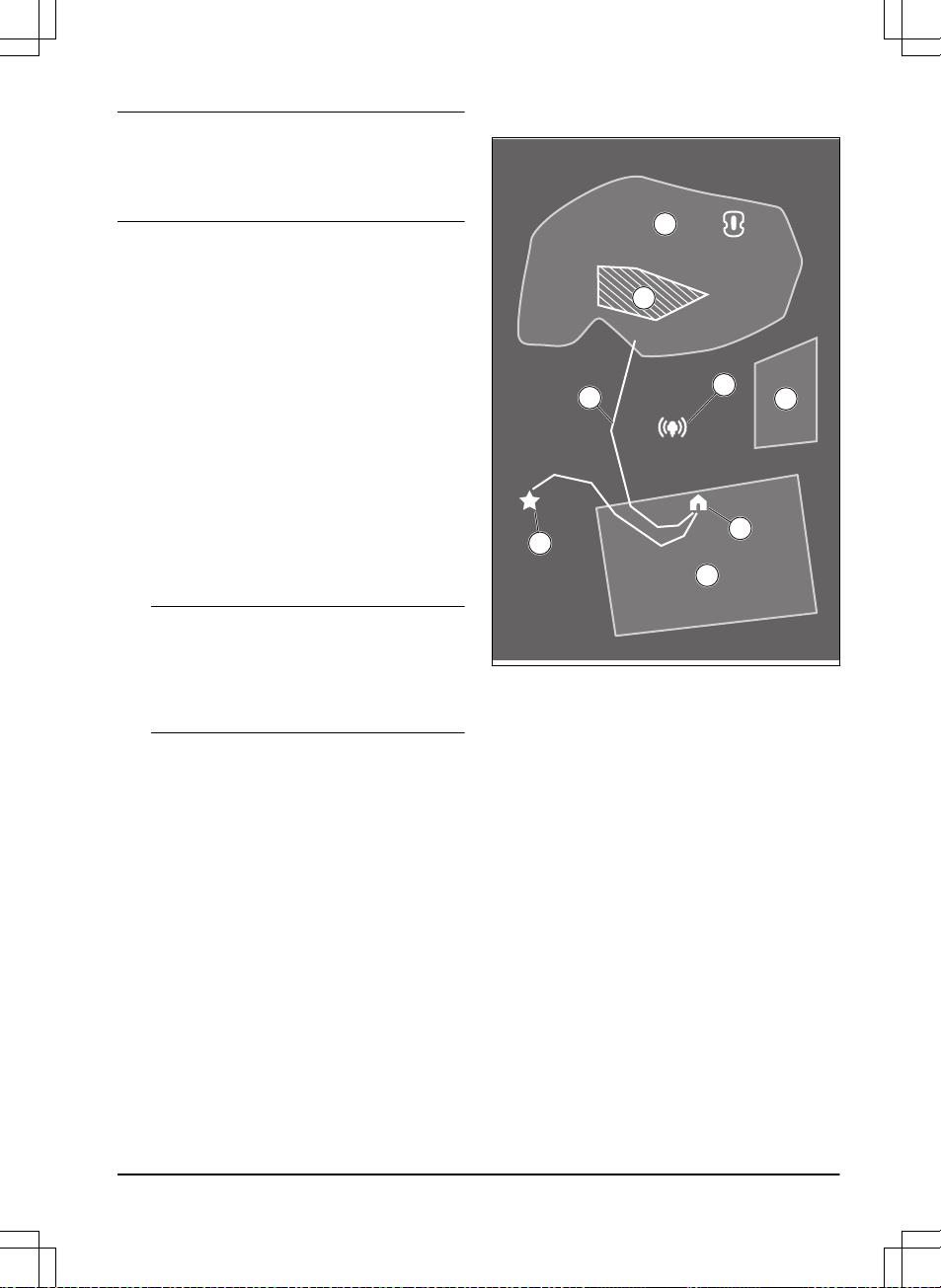

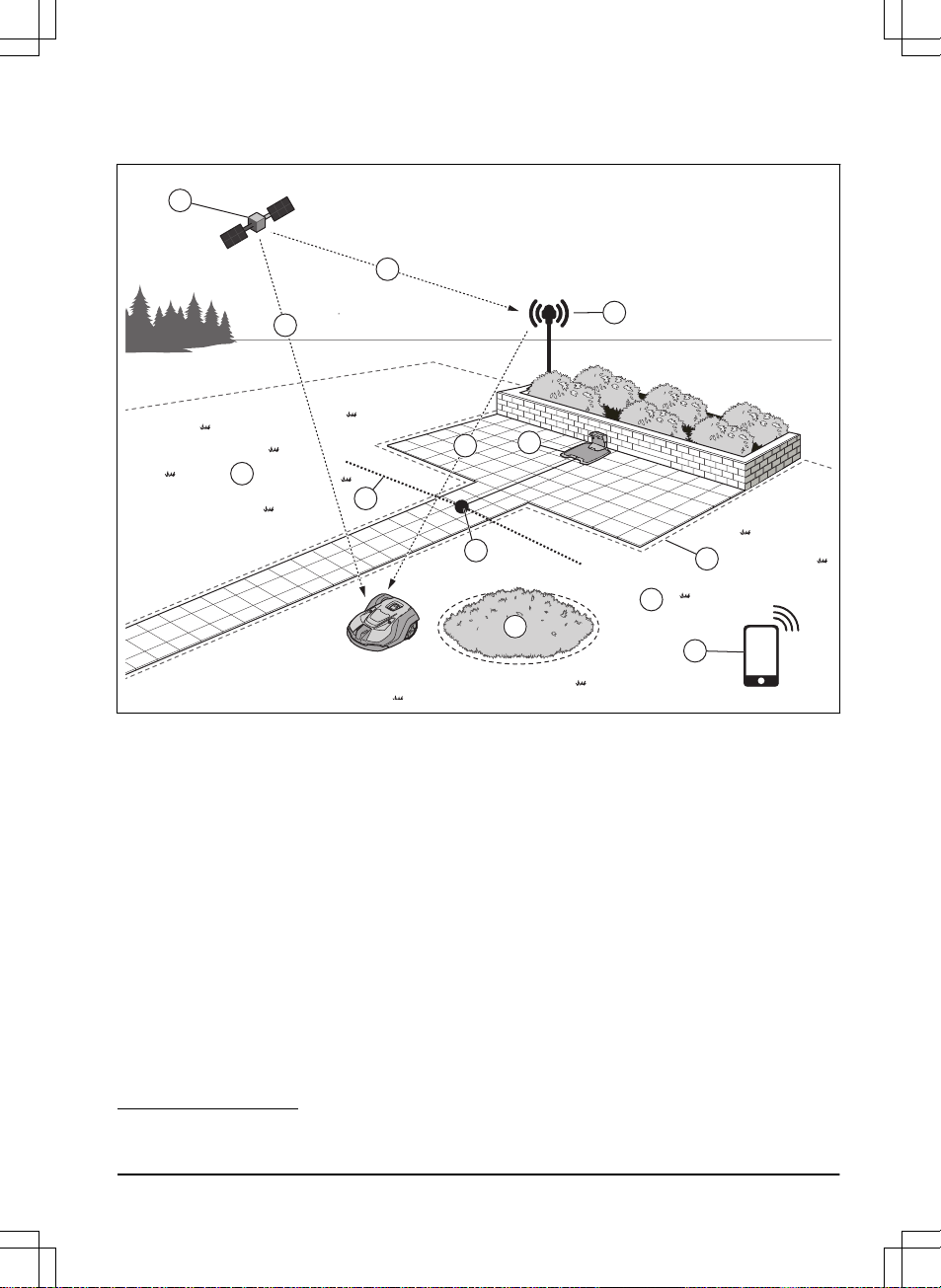

2.4 System overview
5
3
1
2
8
8
2
4
9
6
11
7
10
1. Satellites
2. Satellite signals
3. Reference station
1
4. Correction data
5. Charging station
6. Virtual boundary
7. Stay-out zone
8. Work area
9. Mobile device
2
10. Docking point
11. Transport path
1
Not included.
2
Not included.
1576 - 006 - 27.01.2023 Introduction -
7

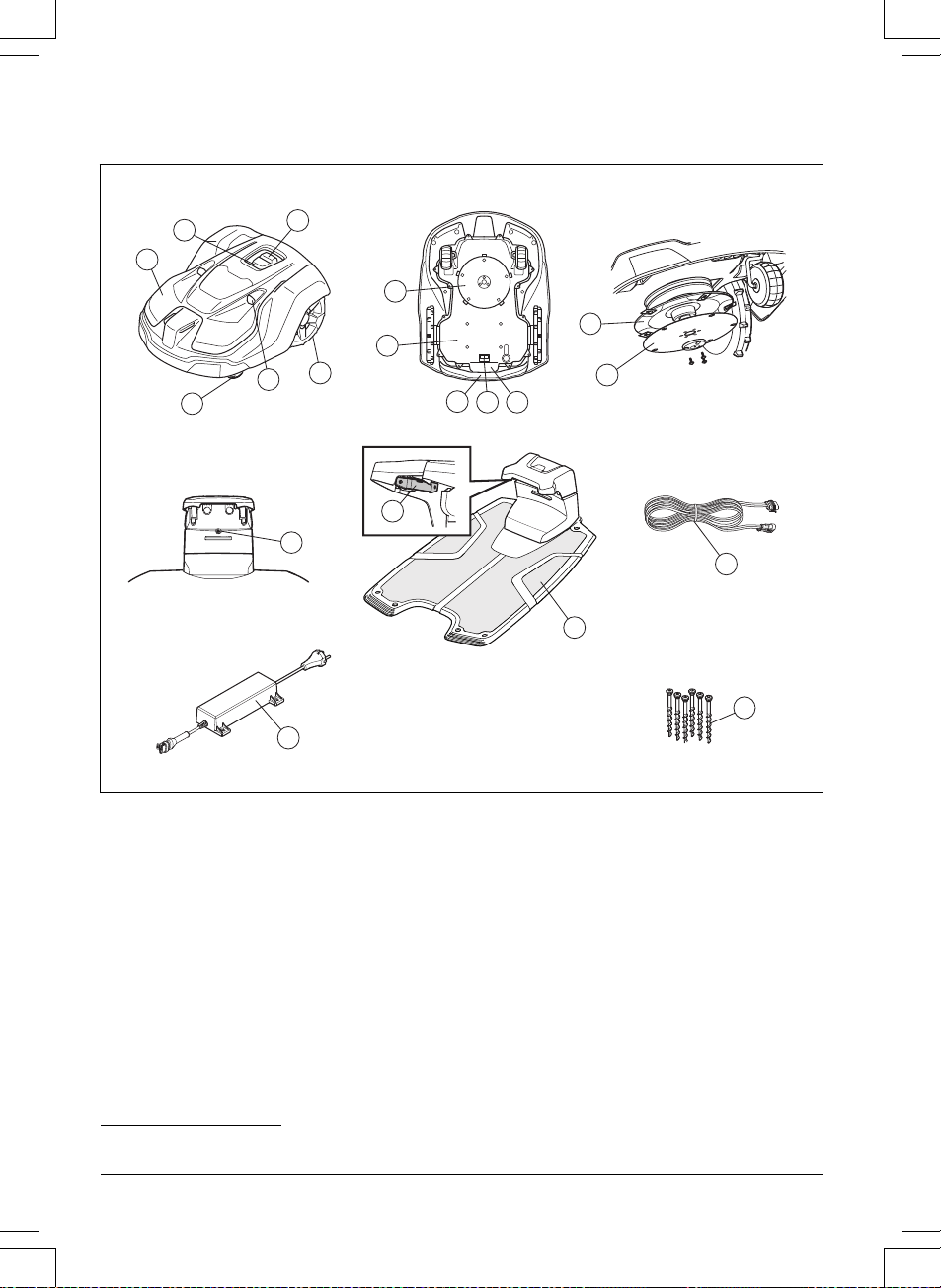

2.5 Product overview
13
1
4
6
10
15
9
12
20
14
5
7
8
2
3
17
16
18
11
1. Body
2. LED indicator lamp of the product
3. STOP/START button
4. Ultrasonic sensors
5. Front wheels
6. Rear wheels
7. Cutting system
8. Chassis box with electronics, battery and motors
9. Handle
10. Main switch
11. Rating plate (including product identification code)
12. Blade disc
13. LED indicator lamp of the charging station
14. Contact plates
15. Charging station
16. Low-voltage cable
17. Power supply
3
18. Screws to attach the charging station

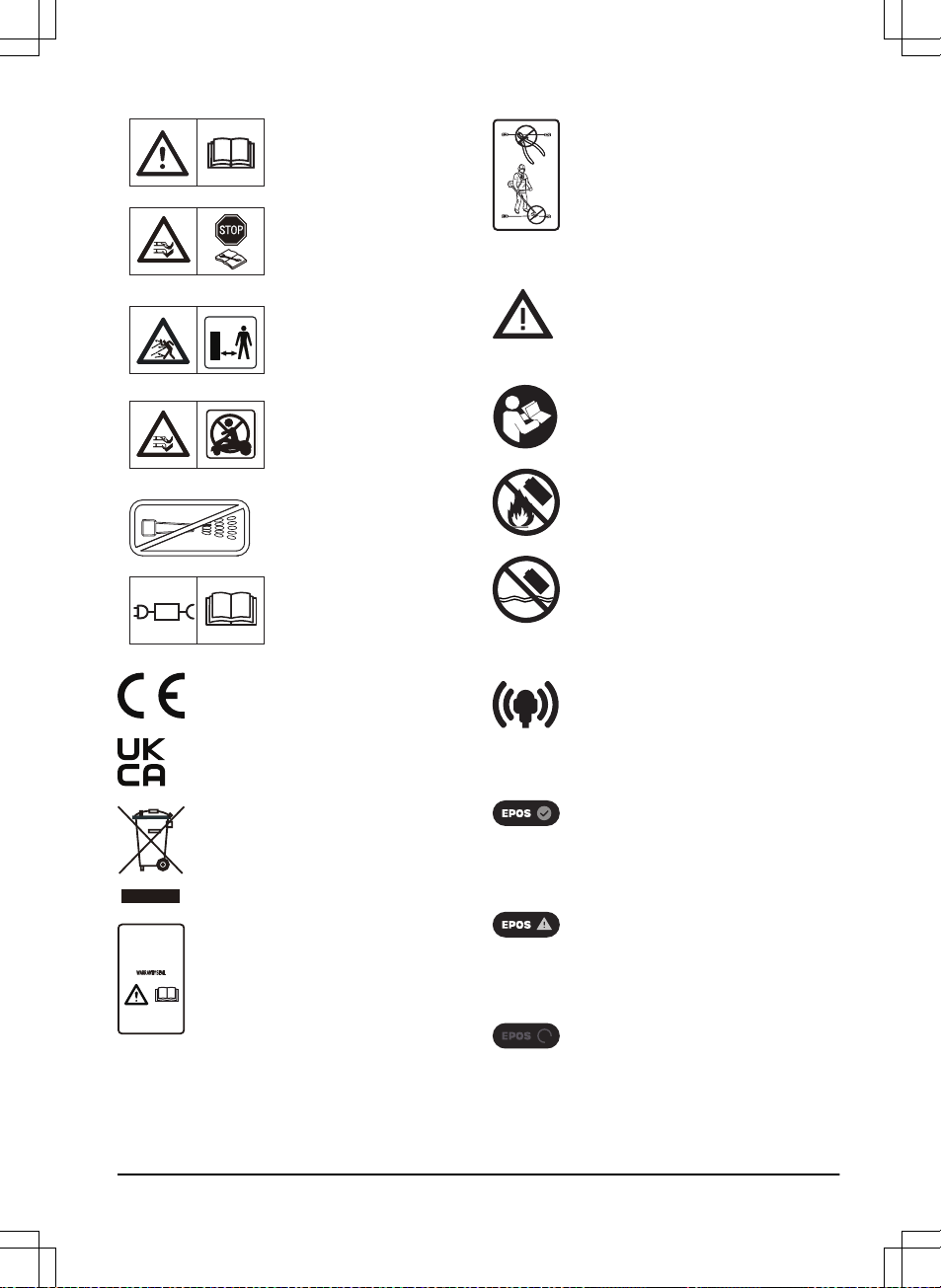

2.6 Symbols on the product
These symbols can be found on the product. Study them
carefully.
3
The appearance can be different for different markets.
8 - Introduction 1576 - 006 - 27.01.2023
WARNING: Read the user
instructions before operating
the product.
WARNING: Disable the prod-
uct before working on or lift-
ing the product.
WARNING: Keep a safe dis-
tance from the product when
operating. Keep your hands
and feet away from the rotat-
ing blades.
WARNING: Do not ride on
the product. Do not put your
hands or feet close to or un-
der the product.
Do not use a high-pressure
washer or even running water
to clean the product.
Use a detachable power sup-
ply as defined on the rating
label next to the symbol.
This product complies with the applicable
EU Directives.
This product complies with the applicable
UK Directives.
It is not permitted to dispose this product
as normal household waste. Ensure that
the product is recycled in accordance with
local legal requirements.
The chassis contains components which
are sensitive to electrostatic discharge
(ESD). The chassis must also be resealed
in a professional manner. For these
reasons the chassis shall only be opened
by authorized service technicians. A
broken seal can result in the entire or
parts of the guarantee no longer being
valid.
The low-voltage cable must not be
shortened, extended or spliced.
Do not use a trimmer nearby the low-
voltage cable. Be careful when trimming
edges where the cables are placed.
2.7 Symbols on the battery
WARNING: Lithium-ion batteries can
explode or cause fire if disassembled,
short-circuited or handled roughly. Do not
expose to water, fire or high temperature.
Read the user instructions.
Do not discard the battery into fire and do
not expose the battery to a heat source.
Do not immerse the battery into water.
2.8 Symbols in the app
Shows the strength of the radio signal that
the product receives from the reference
station.
The status is
EPOS confirmed
. The
product has an accurate position and
direction. This is necessary to operate
the product automatically and for the
installation of map objects.
The status is
EPOS action is necessary
.
The product has an accurate position but
it is necessary to operate the product,
manually or automatically, to get an
accurate direction.
The status is
EPOS searching
. The
product does not have an accurate
position and is searching for the satellite
signals and the correction data to get an
accurate position.
1576 - 006 - 27.01.2023 Introduction -
9
2.9 General manual instructions
The following system is used in the Operator’s Manual
to make it easier to use:
• Text written in
italics
is a text that is in the
Automower
®
Connect app, or is a reference to
another section in the Operator’s manual.
• Text written in bold is one of the buttons on the
product or in appDrive.
10 - Introduction 1576 - 006 - 27.01.2023
3 Installation
3.1 Introduction - Installation
WARNING: Read and understand the
safety chapter before you install the product.
CAUTION: Use original spare parts and
installation material.
Note: Refer to www.husqvarna.com for more
information about installation.
3.2 Primary components for installation
The installation includes the components that follow:
• Robotic lawn mower, that cuts the lawn
automatically.
• Charging station, that charges the product.
• Power supply, which is connected to the charging
station and a 100-240V power outlet.
• Reference station
4
, that receives satellite signals
and sends correction data to the robotic lawn
mower.
• Mobile device with the Automower
®
Connect app
to do the installation and the settings for the
product.
3.3 To prepare for installation
CAUTION: Holes with water in the lawn
can cause damage to the product.
CAUTION: Read the installation
chapter before you start the installation.
• Make a blueprint of the work area and include all
obstacles. This makes it easier to examine where
to put the charging station, the reference station,
and the virtual boundaries.
• Make a mark on the blueprint where to put
the charging station, the reference station, the
maintenance point, the transport paths and the
virtual boundaries for the work areas and stay-out
zones.

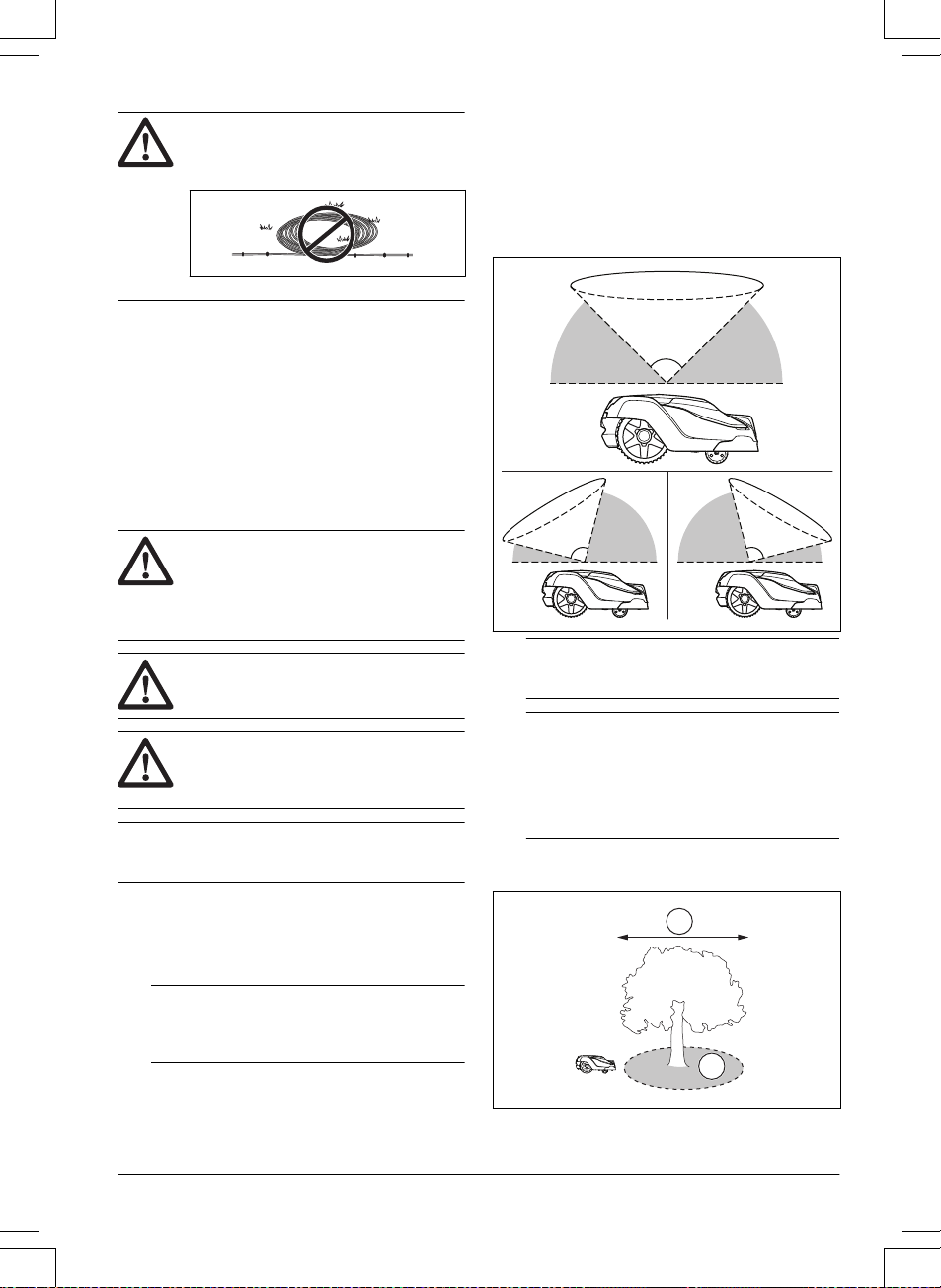

• Make sure that the work area where the product
operates has unimpeded sky view.
• Fill in holes in the lawn to make it level.
• Cut the grass before you install the product. Make
sure that the grass is maximum 10 cm / 4 in.
Note: The first weeks after installation the sound level
when the product cuts the grass can be higher than
usual. The sound level decreases after some time.
3.4 To examine where to put the
reference station
Read and understand the instructions about where to
put the reference station. Refer to the Operator's manual
for the reference station.
3.5 To examine where to put the
charging station
• You can put the charging station in the work
area or not in the work area. No transport path
is necessary if the charging station is put in the
work area (A). No transport path is necessary if
the product is fully in the work area when it is at
the charging station docking point. If the charging
station and docking point (B) are not in the work
area, you must install a transport path (C).
A
B
C
Note: Short reversing distance decreases the
risk of track marks. A long reversing distance can
be necessary to have good satellite signals at the
docking point.
• You can put the charging station in an
Automower
®
house.
• Put the charging station (A) where the docking
point (B) has unimpeded sky view. The charging
station docking point (B) is where the product
stops after reversing from the charging station. The
reversing distance can be set to 70-250 cm / 28-98
in. Make sure that there is minimum 6 m / 19.6 ft.
(C) between objects that are higher than 1 m / 3.3
ft. around the docking point (B).
4
Purchased separately.
1576 - 006 - 27.01.2023 Installation -
11

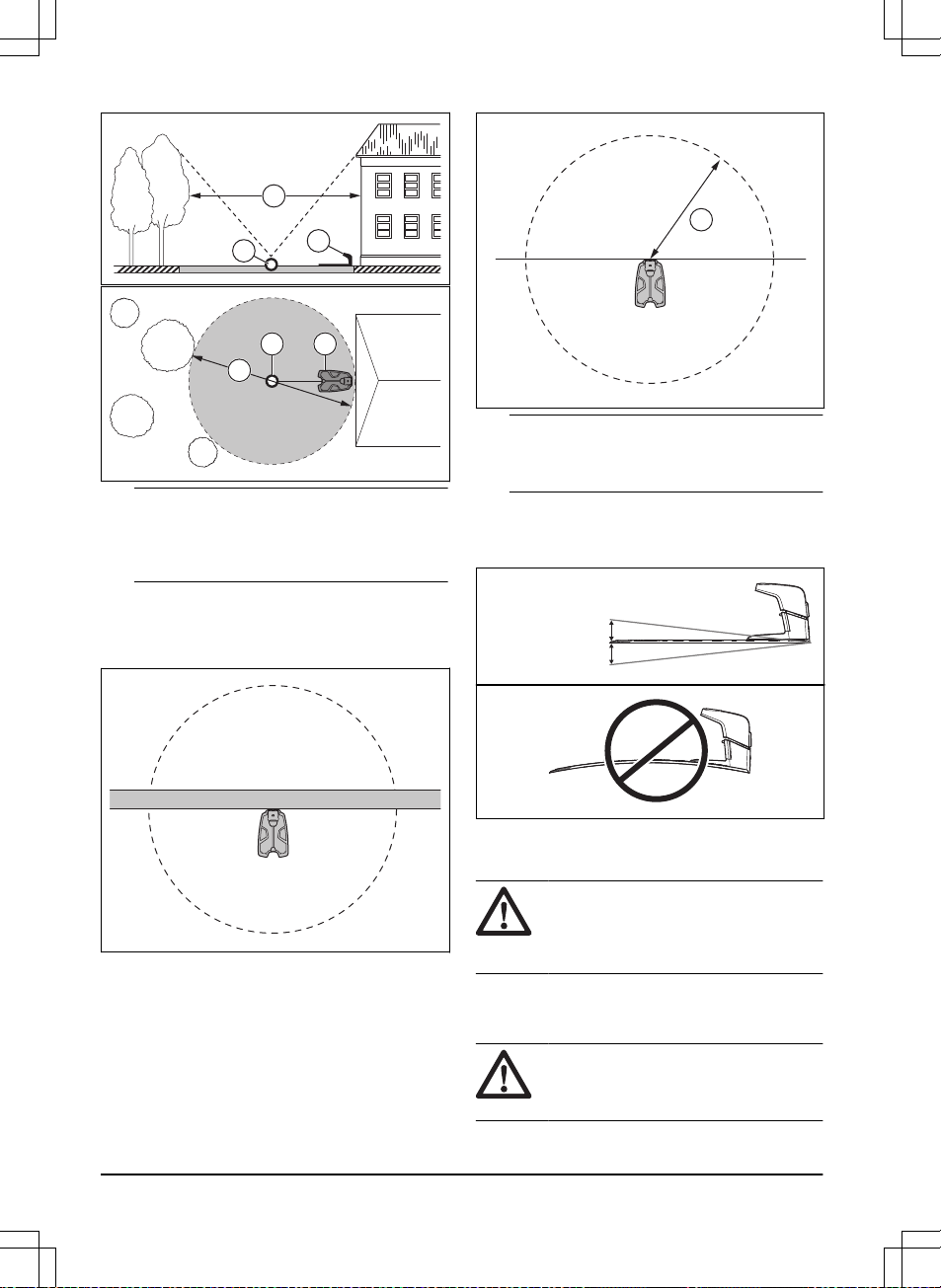

B
C
A
AB
C
Note: Short reversing distance decreases the
risk of track marks. A long reversing distance can
be necessary to have good satellite signals at the
docking point.
• If the product must not operate in a part of the
docking area, put a protective wall that is minimum
15 cm / 6 in. in height. The docking area (A) is
a circular area around the charging station with a
radius of 3 m / 9.8 ft.
A
Note: The product uses the charging station
signal to search for the charging station when it
is in the docking area.
• Put the charging station near a power outlet.
• Put the charging station on a level surface.
• The baseplate of the charging station must not be
bent.
max. 5 cm / 2"
max. 5 cm / 2"
• If the work area has 2 parts separated with a steep
slope, Husqvarna recommends to put the charging
station in the lower section.
CAUTION: Do not install the charging
station where there are metal objects
in the ground. Metal objects can cause
interference with the charging station signal.
3.6 To examine where to put the power
supply
CAUTION: Make sure that the blades
on the product do not cut the low-voltage
cable.
12 - Installation 1576 - 006 - 27.01.2023
CAUTION: Do not put the low-voltage
cable in a coil or below the charging station
plate. The coil causes interference with the
signal from the charging station.
• Put the power supply in an area with a roof and
protection from the sun and rain.
• Put the power supply in an area with good airflow.
• Use a residual-current device (RCD) with a tripping
current of maximum 30 mA when you connect the
power supply to the power outlet.
Low-voltage cables of different lengths are available as
accessories.
3.7 To examine where to install the
objects on the map
CAUTION: If the work area is adjacent
to water bodies, slopes, precipices or a
public road, the virtual boundary must have
a protective wall. The wall must be minimum
15 cm / 6 in. in height.
CAUTION: Do not let the product
operate on gravel.
CAUTION: For careful operation
without noise, isolate all obstacles such as
trees, roots and stones.
Note: Make a blueprint of the work area before you
install the virtual boundaries.
• Make sure that the product can receive radio
signals from the reference station in all parts of the
work area. Make sure that the maximum distance
between the reference station and the product is
500 m / 1640 ft.
Note: The maximum distance decreases if there
are objects between the reference station and
product.
3.7.1 To examine where to install the
objects on the map for good satellite
coverage
When the product operates it must have unimpeded sky
view to use the satellite signals for navigation.
• Make sure that 90° section of the sky is
unimpeded.
90°
Note: Objects that are less than 1 m / 3.3 ft. in
height (A) does not impede the satellite signals.
Note: Tree canopies that are less than 4 m /
13 ft. in diameter does not impede the satellite
signals. If there are many small trees put together
in an area, if the diameter of their canopies put
together is less than 4 m / 13 ft. they do not
impede the satellite signals.
• For trees with tree canopies that is more than 4
m / 13 ft. in diameter (A), make a stay-out zone (B)
around the trees.
B
A
1576 - 006 - 27.01.2023 Installation - 13

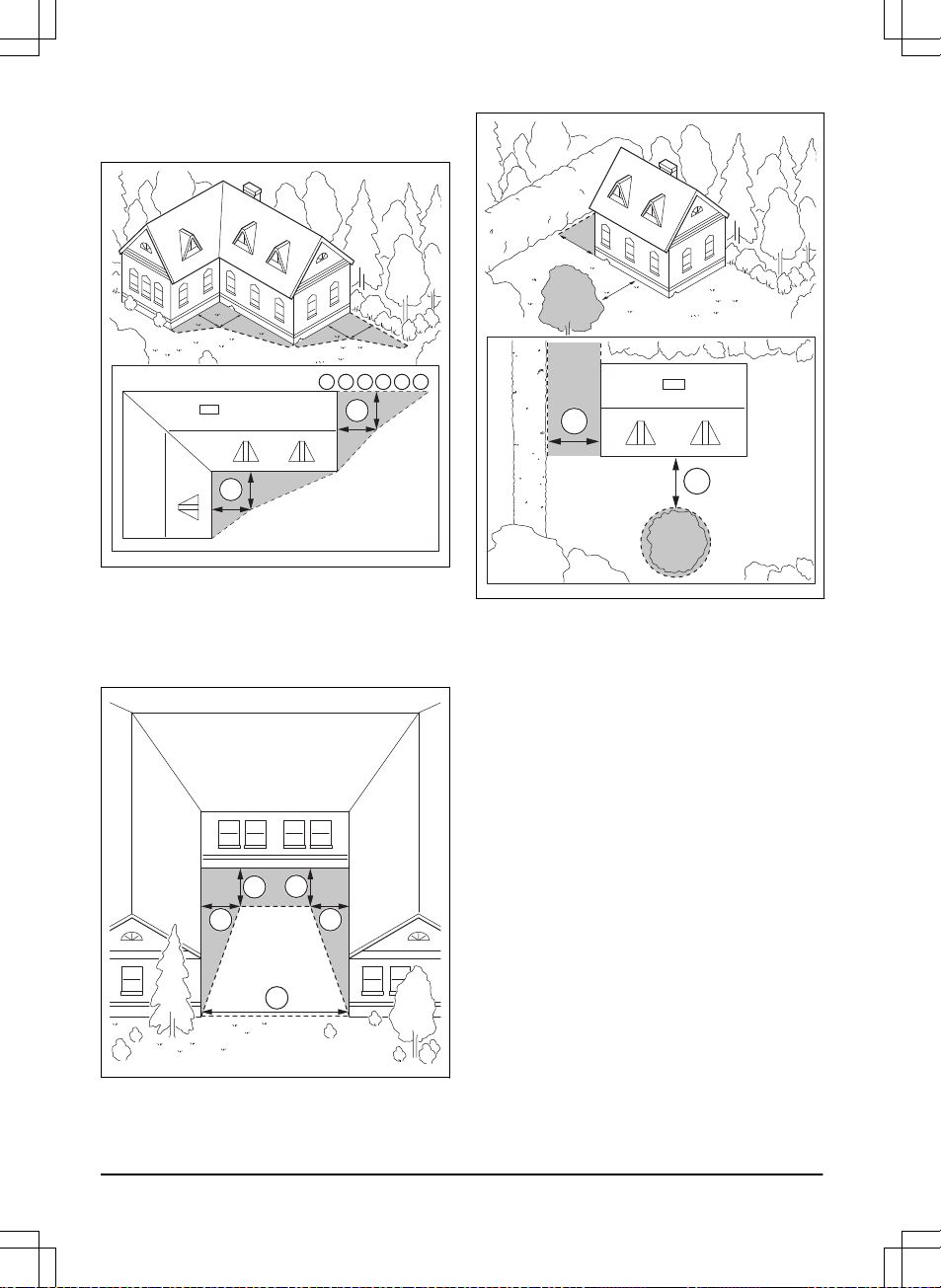

• For L-shaped objects higher than 1 m / 3.3 ft,
install the virtual boundary at a minimum distance
(C) of 1.5 m / 5 ft. from it.
C
C
• To install virtual boundaries in an area with an U-
shaped object higher than 1 m / 3.3 ft, make sure
that the distance (E) is minimum 6 m / 20 ft. If the
object is higher than 3 m / 10 ft., make sure that
the distance (E) is twice the height of the highest
object. Install the virtual boundary at a minimum
distance (D) of 1.5 m / 5 ft. from the object.
D
D
D
D
E
• Make sure that the width of the passage (F)
between objects that are higher than 1 m / 3.3 ft. is
minimum 4 m / 13.1 ft.
F
F

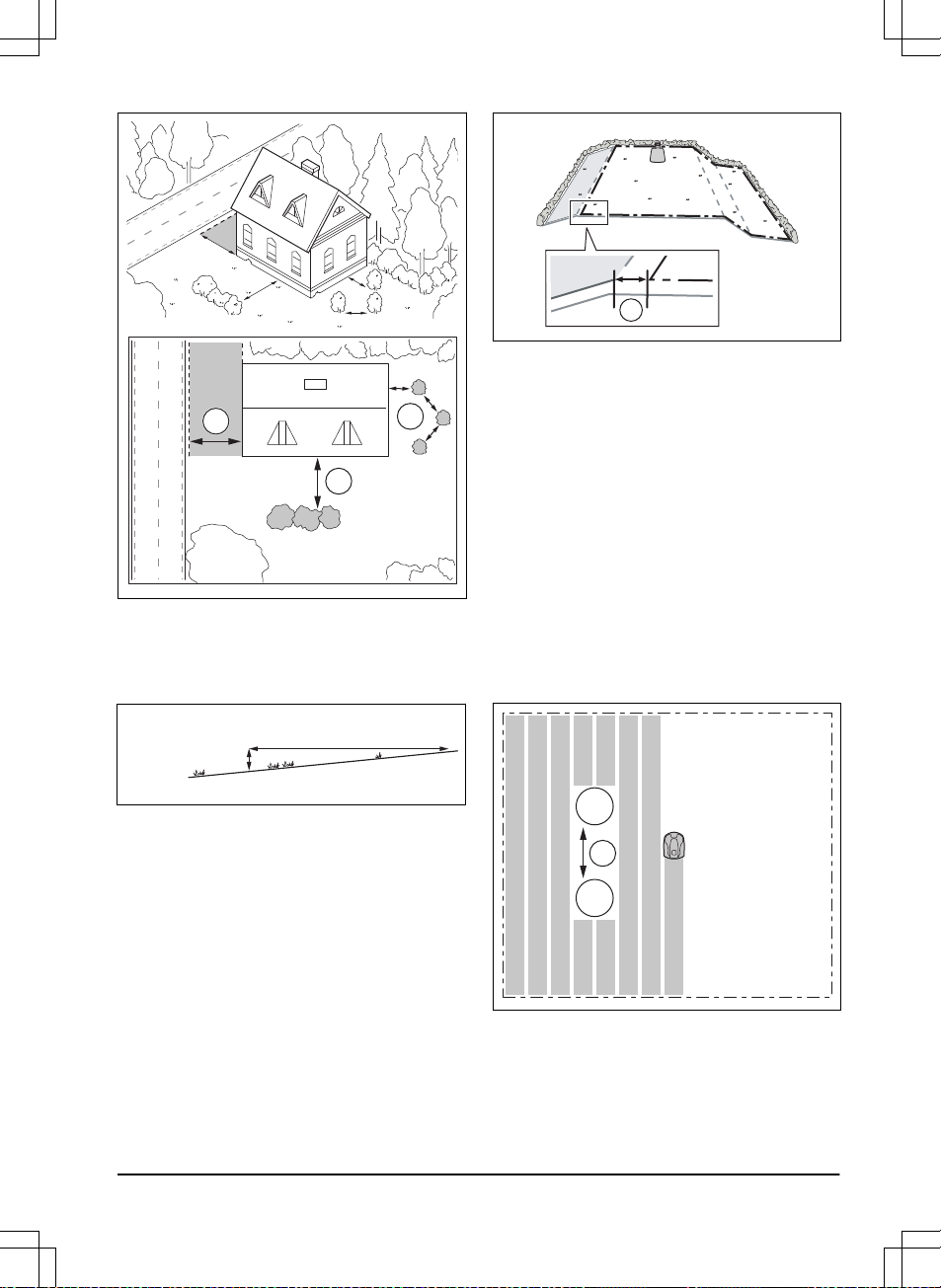

3.7.2 To examine where to install objects on
the map in narrow passages
• Make sure that a passage between objects lower
than 1 m / 3.3 ft. has a minimum width of 2 m / 6.6
ft.
• Make sure that a passage between one object
lower than 1 m / 3.3 ft. and one object higher than
1 m / 3.3 ft. has a minimum width (A) of 2 m / 6.6 ft.
• Make sure that the distance between objects (B)
lower than 1 m / 3.3 ft. is minimum 1 m / 3.3 ft.
14 - Installation 1576 - 006 - 27.01.2023
A
A
B
3.7.3 To install the map objects in a slope
The product can operate in 45% slopes. Virtual
boundaries can be installed in maximum 15% slopes.
The slope (%) is calculated as height for each m.
Example: 10 cm / 100 cm = 10%.
10 cm/ 4"
100 cm/ 40"
10%
• For slopes more than 45% in the work area, isolate
the slope with a stay-out zone.
• For slopes that are more than 15% along the outer
edge of the lawn. For installation of the virtual
boundary, operate the product with the rear wheel
5 cm / 2 in. (A) from the edge.
A
• For slopes adjacent to a public road, put a fence or
a protective wall along the outer edge of the slope.
• For systematic pattern, Husqvarna recommends
that the direction of the systematic pattern is
straight up the slope and not parallel to it.
• Install the virtual boundaries in slopes that are
maximum 15%.
3.7.4 To examine where to install the
objects on the map for work areas with
systematic pattern
• Make stay-out zones around objects that are larger
than 2 x 2 m / 6.6 x 6.6 ft.
• If you have objects along the systematic pattern,
make sure that the distance (A) between the
objects is minimum 3 m / 9.8 ft.
• Select a different direction and pattern if the
distance (A) between objects along the systematic
pattern is less than 3 m / 9.8 ft. Refer to
Pattern on
page 22
.
A
3.8 Installation of the product
3.8.1 To install the product
Do the general steps that follow to install the product:
1576 - 006 - 27.01.2023 Installation -
15
1. Install the reference station. Refer to the
Operator's manual for the reference station.
2. Install the charging station. Refer to
To install the
charging station on page 16
.
3. Install the Automower
®
Connect app on your
mobile device. Refer to
Automower
®
Connect on
page 17
.
4. Do a pairing operation of the product and the
Automower
®
Connect app. Do the basic settings in
the start up sequence in the Automower
®
Connect
app. Refer to
Automower
®
Connect on page 17
.
5. Make a map with work areas, stay-out zones,
transport paths and maintenance points. Refer to
To install objects on the map on page 18
.
6. Use Automower
®
Connect app to do settings for
the product. Refer to
Settings on page 21
.
3.8.2 Installation tools
• Hex key, 8 mm. Included in the carton.
3.8.3 Installation of the charging station
Read and understand the instructions about the
charging station. Refer to
To examine where to put the
charging station on page 11
.
CAUTION: Do not make new holes in
the charging station plate.
CAUTION: Do not put your feet on the
baseplate of the charging station.
WARNING: Make sure that the plugs of
the low-voltage cable and the power supply
unit are clean and dry before you connect
them.
When you connect the power supply, only use a power
outlet that is connected to a residual-current device
(RCD).

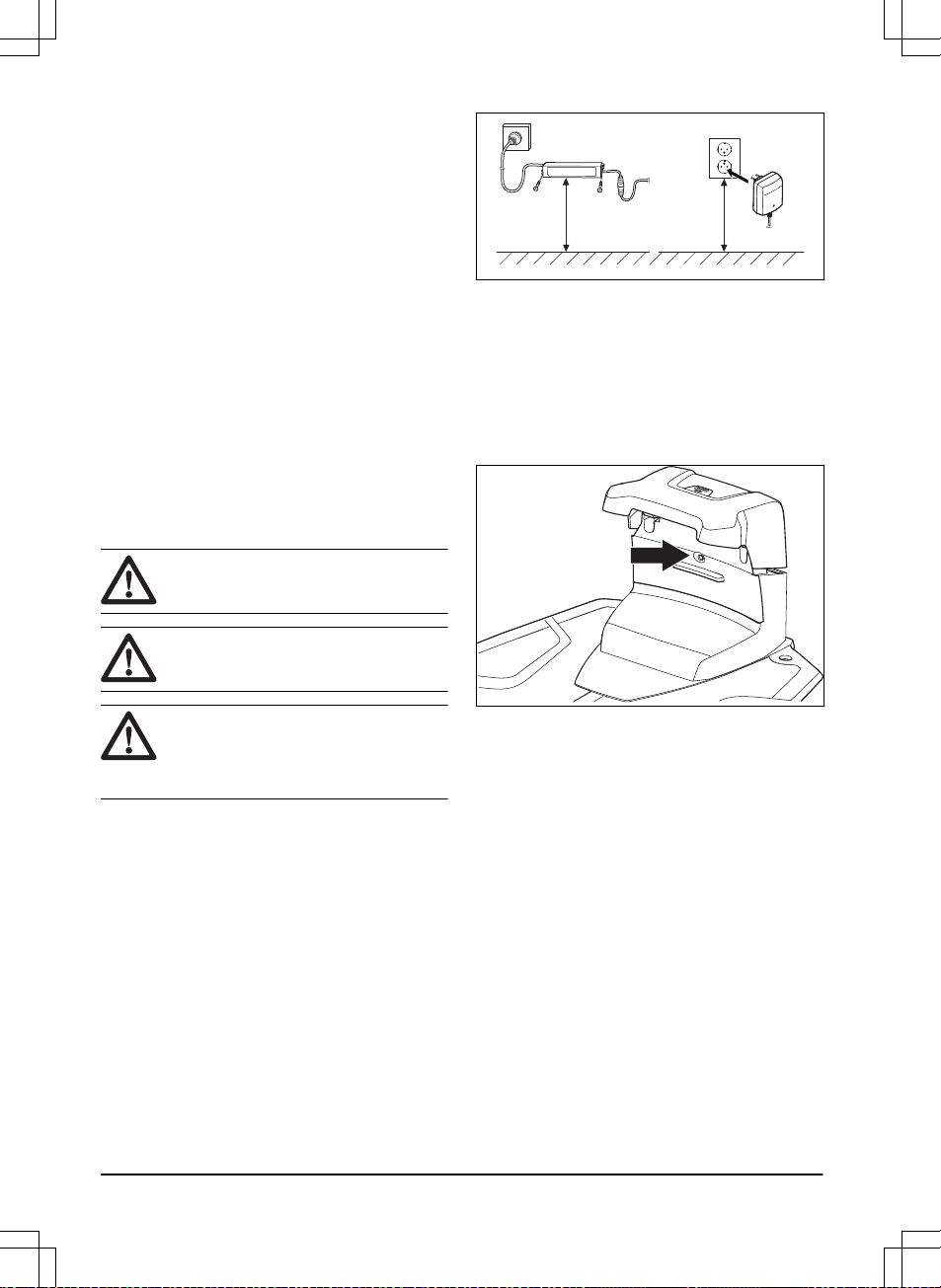

3.8.3.1 To install the charging station
1. Put the charging station in the selected area.
2. Attach the charging station to the ground with the
supplied screws.
3. Connect the low-voltage cable to the charging
station.
4. Put the power supply at a minimum height of 30
cm / 12 in. Refer to
To examine where to put the
power supply on page 12
.
min 30 cm / 12”
5. Connect the power supply cable to a 100-240V
power outlet.
6. Put the low-voltage cable in the ground outside the
work area. Use stakes or bury the cable.
7. Put the product in the charging station to charge
the product.
3.8.3.2 To do a visual check of the charging station
1. Make sure that the indicator LED lamp on the
charging station has a green light.
2. If the indicator LED lamp does not have a green
light, do a check of the installation. Refer to
To
install the charging station on page 16
and
LED
indicator lamp on the charging station on page
38
.
3.8.4 Installation of the reference station
Install the reference station according to the instructions
in the Operator's manual for the reference station.
3.8.5 Husqvarna Fleet Services
™
Husqvarna Fleet Services
™
is a cloud solution that
gives the commercial fleet manager an overview of
all products. It also gives the fleet manager the
possibility to control all products remotely. Husqvarna
Fleet Services
™
is available as a web service and as an
app. When you use the Husqvarna Fleet Services
™
app
you will be redirected to the Automower
®
Connect app.
For more information about Husqvarna Fleet Services
™
,
refer to www.husqvarna.com.
16 - Installation 1576 - 006 - 27.01.2023
Note: All countries do not support cellular connection
because of regional specified cellular systems. The
included lifetime service only applies if there is a third
part sub-supplier of 2G/4G available in the operational
area.
3.8.6 Automower
®
Connect
Automower
®
Connect is a free app for your mobile
device. Use the app for installation, settings and
operation of your product. You can also find more
information for example about alarm and statistics in the
Automower
®
Connect app.
The app gives 2 modes of connectivity: Long-
range cellular connectivity and Short-range Bluetooth
®
connectivity.
3.8.7 To do the basic settings
When the product is set to ON for the first time, there
are some basic settings to do before the product can
start to operate.
1. Download the Husqvarna Fleet Services
™
app and
Automower
®
Connect app to your mobile device.
2. Log on to the Husqvarna Fleet Services
™
app.
3. Set the product to ON.
4. Start Bluetooth
®
on your mobile device.
Note: The Bluetooth
®
pairing operation mode
of the product is enabled for 3 minutes. If the
pairing operation between the product and the
mobile device is not completed correctly, push
the Bluetooth
®
button on the product to enable
Bluetooth
®
again.
5. Select
Add robotic mower
in the app to add your
product and follow the instructions in the app.
6. Do a pairing operation of the product and the
reference station.
7. Do a pairing operation of the product and the
charging station. Select to enable GeoFence or not
and set the reversing distance.
3.8.8 Installation of the map objects
Read and understand the instructions about where to
install the map objects. Refer to
To examine where to
install the objects on the map on page 13
.
On the map you can install the objects that follow in the
app:
•
Work areas
(A)
•
Stay-out zones
(B)
•
Transport path
(C)
•
Charging station
(D)
•
Maintenance point
(E)
•
Reference station
(F)
•
Work area (Secondary area)
(G)
A
G
B
A
F
D
E
C
For a complete map installation, you must install a work
area and a charging station on the map.
A work area is specified by virtual boundaries. Maximum
20 work areas and secondary areas can be installed on
a map.
There are two types of work areas:
• A work area that has a charging station in it or
connected to it with a transport path where the
product operates automatically.
• A secondary area is a work area with no charging
station and no transport path. The product must be
moved manually to and from the work area.
A transport path is a specified path between the docking
point in front of the charging station and a work area.
The product can operate automatically in this path, but
does not cut grass. A transport path can temporarily be
enabled and disabled in the app.
Stay-out zones can be made if there are areas where
the product must not operate. A stay-out zone is
specified by virtual boundaries. Stay-out zones can
temporarily be enabled and disabled in the app.
A maintenance point is a specified position where the
product can be parked at. This can for example be used
for a service point where maintenance of the product
1576 - 006 - 27.01.2023 Installation -
17
is done. The maintenance point is connected to the
docking point with a path.
To install objects on the map, operate the product with
the appDrive installation to add waypoints on the map.
Refer to
To install objects on the map on page 18
.
3.8.8.1 To install objects on the map

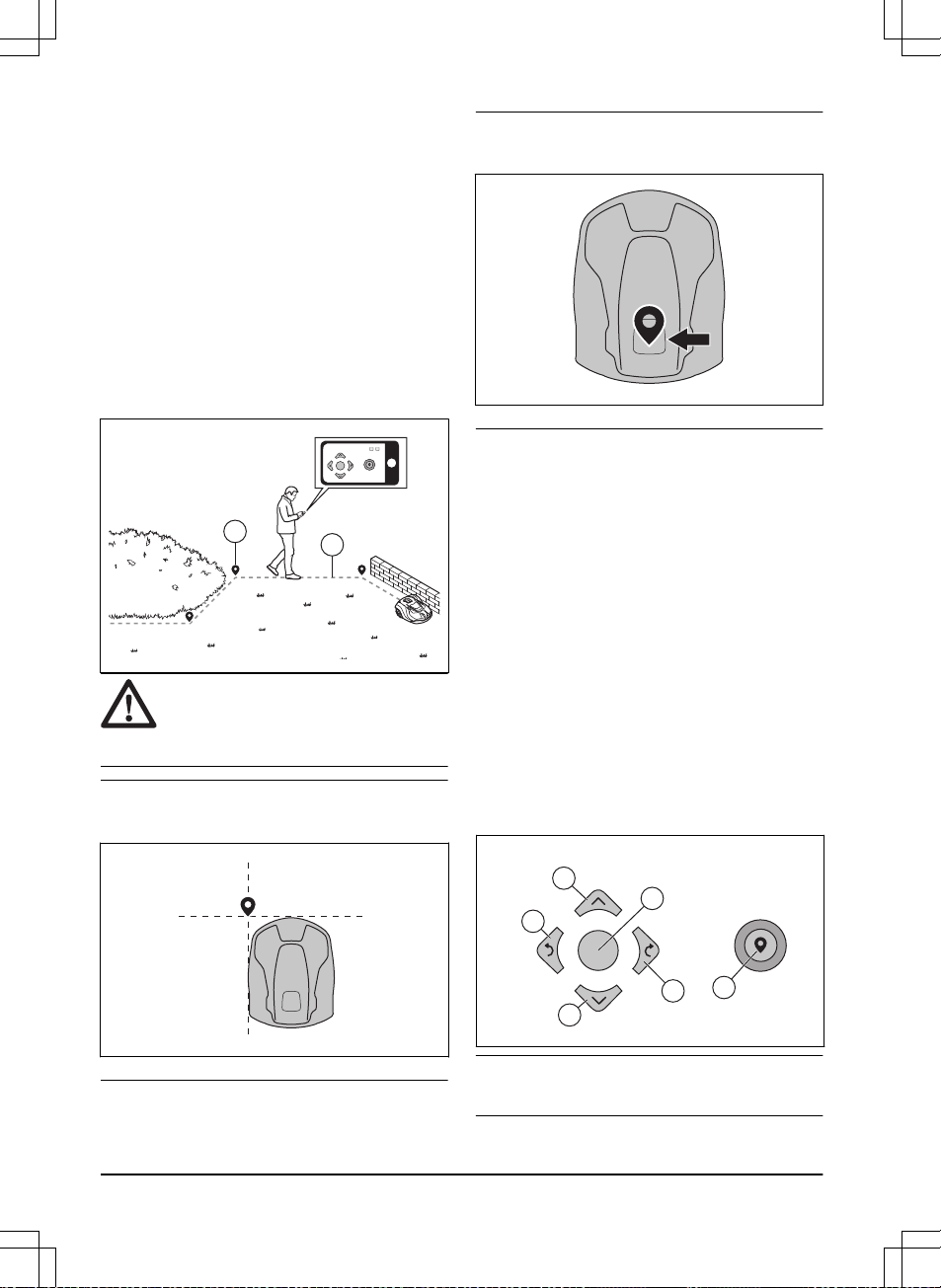

The waypoints (A) are positions that makes the virtual
boundaries and paths (B). The lines are straight
between the waypoints. Add a number of waypoints
to make smooth curves. It is recommended to use
as few waypoints as possible. For each work area
and the related stay-out zones and transport path the
total maximum number of waypoints are . Husqvarna
recommends to add maximum waypoints for the
complete installation of the map. You can adjust the
positions of the waypoints in the app after the installation
of the map.
B
A
CAUTION: Do not lift and move the
product between the waypoints when you
install the map objects. Use appDrive for a
correct installation.
Note: The position of the waypoint when you install a
work area or a stay-out zone is in the front left corner of
the product.
Note: The position of the waypoint when you install a
transport path or a path to a maintenance point is in the
middle of the product between the drive wheels.
• Make sure that you are near the product and
connected to the product with the app with
Bluetooth
®
.
• Make sure that the status is
EPOS confirmed
in the
appDrive.
• Make sure that the radio signal strength from
the reference station is good. The symbol for the
strength of the radio signal must be fully filled.
• Select the object you want to install and use the
buttons in the appDrive installation to operate the
product.

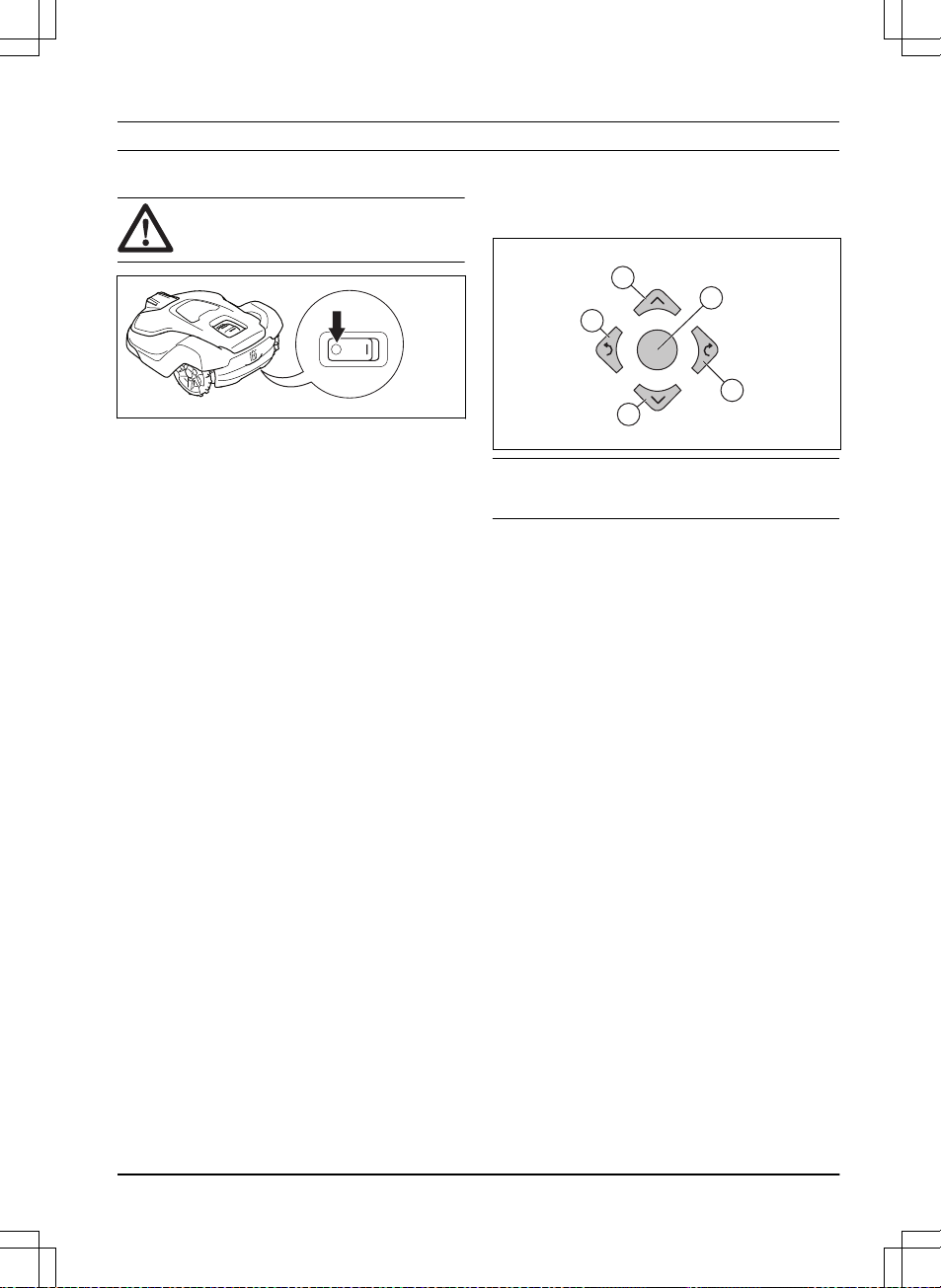

• Use the up button (A) to move the product forward.
• Use the down button (B) to move the product
rearward.
• Use the left arrow button (C) to rotate the product
to the left.
• Use the right
arrow button (D) to rotate the product
to the right.
• Use the center button (E) as a joystick to move and
rotate the product in any direction.
• Use the waypoint button (F) to add a waypoint in
the map.
A
D
F
B
C
E
Note: Walk 2-3 m / 6.5-9.8 ft. behind the product
when you operate the product with appDrive.
18 - Installation 1576 - 006 - 27.01.2023

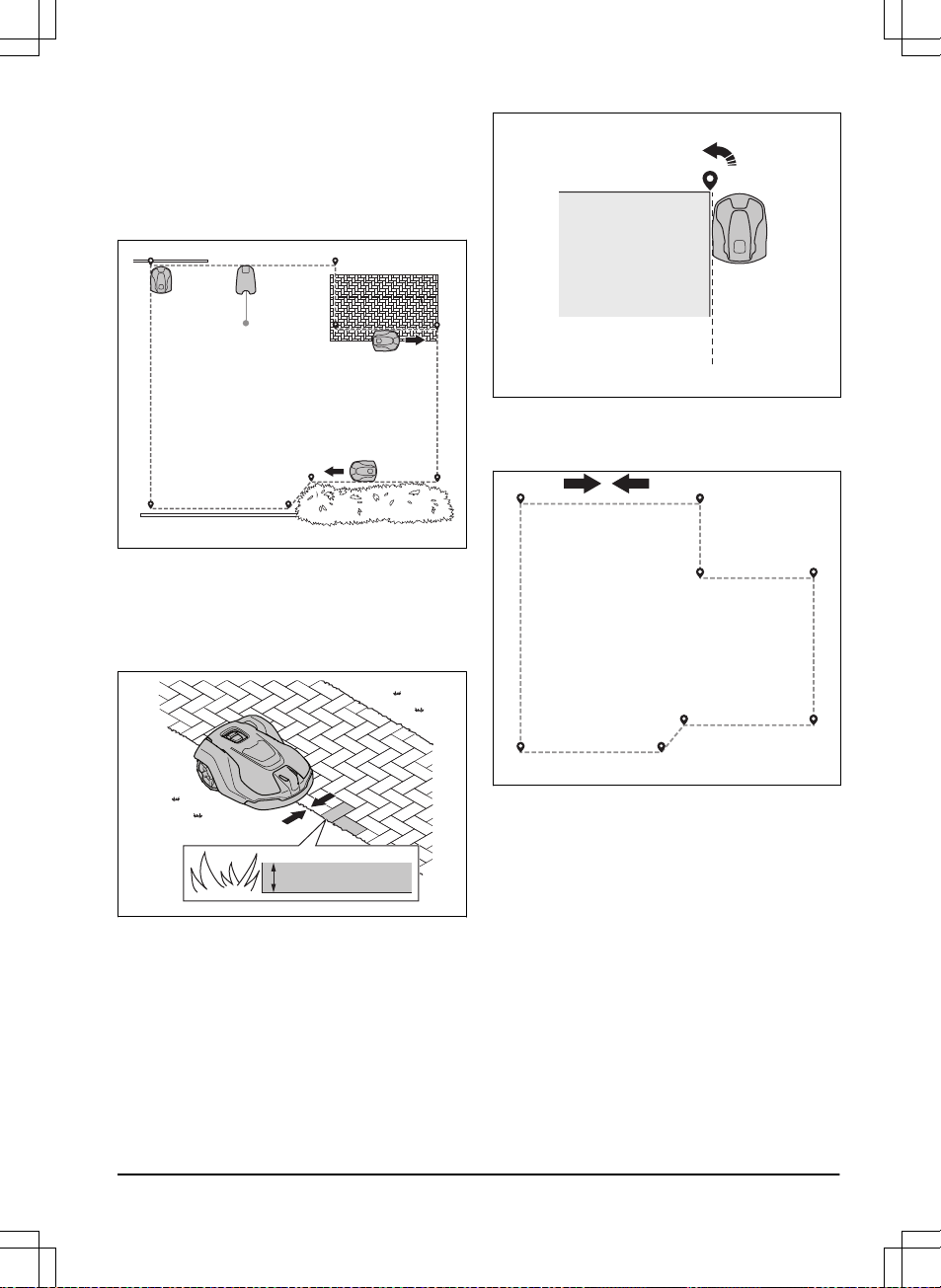

To make a work area
Minimum 3 waypoints are necessary to make a work
area.
• Operate the product clockwise around the
boundary of the work area.
• Add waypoints on the map. Add the waypoints
minimum 3 cm / 1 in. from obstacles.
• Add a waypoint to make the product cut the grass
at the edge between the lawn and the stone path.
Make sure that you straddel the edge of the lawn
and the stone path when you add a waypoint. The
product can straddel the edge if the height of the
stone path is maximum 1 cm / 0.4 in. in relation to
the lawn.
•
max 1 cm / 0.4”
• Add the waypoint at the outer corner to install the
virtual boundary around a corner.
• Do not set waypoints that make a virtual boundary
go across itself in the same work area.
• Save the work area to automatically connect the
first and last waypoint with a virtual boundary.
1
2
3
4
5
6
7
8
To make a stay-out zone
Minimum 3 waypoints are necessary to make a stay-out
zone.
• Operate the product counterclockwise around the
boundary of the stay-out zone.
• Add waypoints on the map. Add the waypoints
minimum 3 cm / 1 in. from obstacles.
• Do not set waypoints that make a virtual boundary
go across itself in the same stay-out zone.
• Save the stay-out zone to automatically connect
the first and last waypoint with a virtual boundary.
1576 - 006 - 27.01.2023 Installation -
19

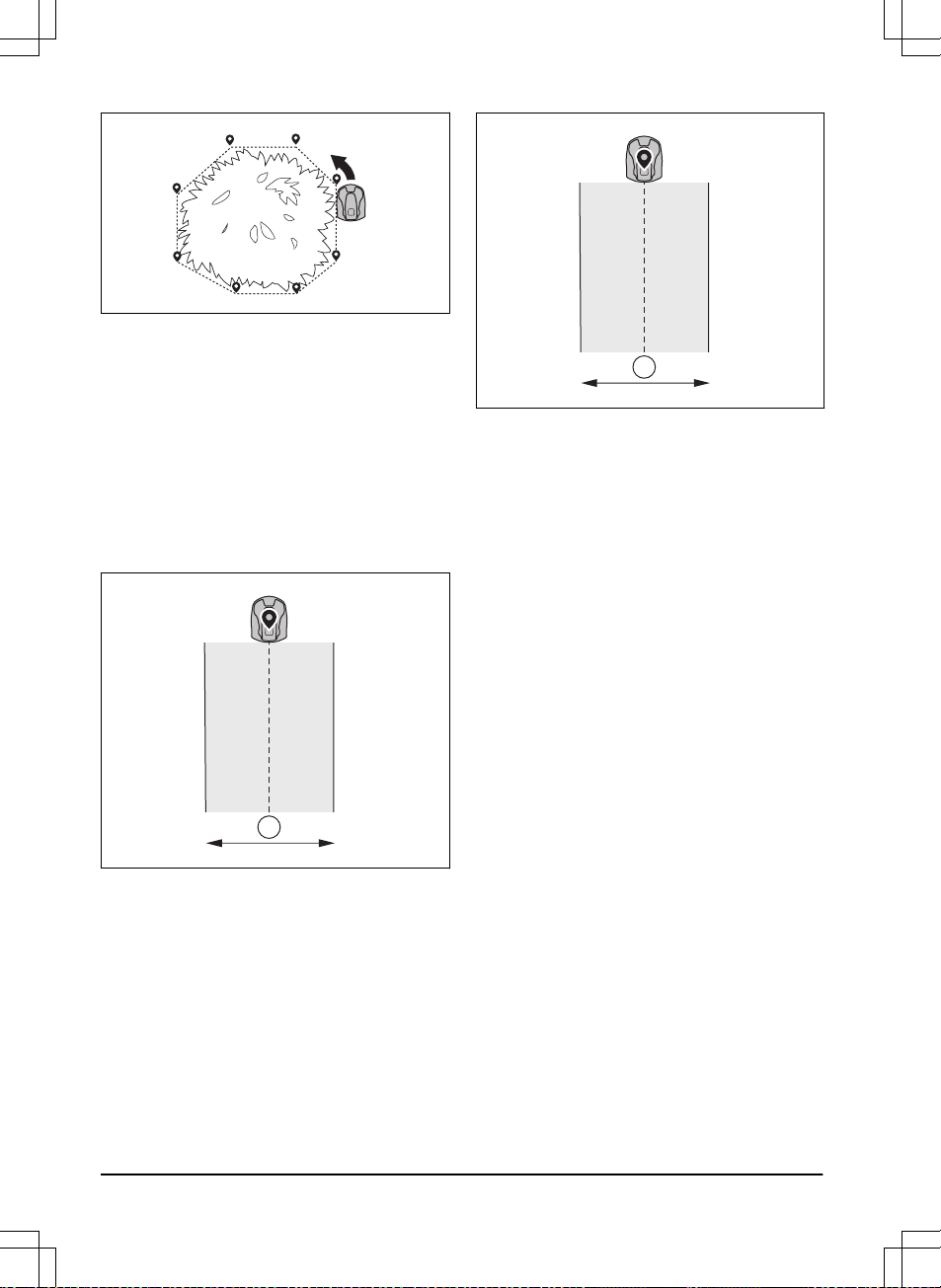

To make a transport path
• Operate the product and add waypoints on the
map to install a transport path. Start in a work area
minimum 1 m / 3.3 ft. from the virtual boundary.
• Do not install a transport path across a stay-out
zone.
• Do not set waypoints that make the transport path
go across the same transport path.
• Operate the product and add waypoints to connect
the transport path to the docking point.
• Save the transport path to automatically connect
the last waypoint to the docking point.
• Set the corridor width (A) for the transport path.
The corridor width can be set to 2-5 m / 6.6-16.4 ft.
A
To make a maintenance point
• Operate the product and add waypoints on the
map. Start to add waypoints at the position
where you install the maintenance point. The first
waypoint specifies the maintenance point.
• Operate the product and add waypoints to make a
path to the charging station.
• Save the maintenance point to automatically
connect the last waypoint to the docking point.
• Set the corridor width (A) for the maintenance
point. The corridor width can be set to 2-5 m /
6.6-16.4 ft.
A
20 - Installation 1576 - 006 - 27.01.2023
4 Settings
The product has factory settings but the settings can be
adapted to each work area.
4.1 Schedule
In
Schedule
menu you can change the schedule
settings for the product. You can set separate schedule
settings for each work area.
Secondary areas
cannot be
scheduled.
The schedule function controls which hours the product
is permitted to operate. When the product does not
operate, it is parked in the charging station. You can
see which hours and days the product operates in the
schedule overview in the app.
Quality Operation frequency
Pro sport quality Each day
Pro quality Each second day
Regular quality Each third day
There are 3 different quality levels that you can select
which decides the cutting frequency:
• Pro sport quality: Used for everyday care of sports
fields or golf courses at low cutting height. For a
well managed, lush and dense turf.
• Pro quality: For facilities with high demands on
grass quality. Medium grass height and normal
dense quality of turf. The grass is cut every second
day.
• Regular quality: For turf with low level of grass
growth. High cutting height and normal to low
dense quality of turf. The grass is cut two times
per week.
The table shows the approximate number of hours the
product must operate each day for a specified area
dimension.
Systematic pattern
Pro sport
quality
Pro quality Regular
quality
1000 m
2
/
0.25 acre
5 h 2.5 h 2 h
2500 m
2
/
0.6 acre
12 h 6 h 4 h
5000 m
2
/
1.25 acre
24 h 12 h 8 h
7500 m
2
/
1.85 acre
- 18 h 12 h
10000 m
2
/
2.5 acre
- 24 h 18 h
15000 m
2
/
3.7 acre
- - 24 h
Irregular pattern
Pro sport
quality
Pro quality Regular
quality
1000 m
2
/
0.25 acre
7 h 5 h 4 h
2000 m
2
/
0.5 acre
14 h 10 h 8 h
3500 m
2
/
0.9 acre
24 h 17 h 14 h
5000 m
2
/
1.25 acre
- 24 h 20 h
6000 m
2
/
1.5 acre
- - 24 h
If you have work areas with systematic pattern and
works areas with irregular pattern, set different hours
for each work area. Husqvarna recommends to set the
product to each day start to cut the work areas that
has systematic pattern. Set the product to cut the work
areas that has irregular pattern after the work areas with
systematic pattern are cut. The product cuts the work
area with systematic pattern until all of the work area is
cut. The product cuts the work area with irregular pattern
until the schedule is complete.
1576 - 006 - 27.01.2023 Settings -
21
4.2 Cutting height
The cutting height is set individually for each work area.
The cutting height can be set to 20-60 mm / 0.8-2.4 in.
4.3 Pattern
The settings for the pattern is set for each work area.
You can do these settings:
• Set the pattern for how the product operates.
• Set the direction of the pattern.
• Set the type of the
Border mowing
. With
Fixed
border mowing
the product always operates in
the same paths to keep a sharp border around
the work area. With
Variable border mowing
, the
product operates in different paths to decrease the
risk of track marks along the virtual boundary.
• Set a pattern that includes a number of directions
in work areas that includes many obstacles and
stay-out zones.
Husqvarna recommends to use systematic pattern on
large and open work areas. The systematic pattern can
make track marks on the lawn. If you use systematic
pattern on a work area with obstacles, make stay-out
zones around obstacles and use a pattern with many
directions for a satisfactory cutting result.
Husqvarna recommends to use irregular pattern if the
work area is complex and has many obstacles.
4.4 Operation
In the Operation's menu it is possible to change the
settings of the
Weather timer, ECO mode
and
Spiral
cutting
.
4.4.1 Spiral cutting
If the product enters an area where it senses the grass
is longer than average, it can change the movement
pattern to
Spiral cutting
. This means that the product
mows in a spiral pattern to faster cut the area with
longer grass. It is possible to set the intensity of the
Spiral cutting
.
Very low / Low
intensity means that
Spiral
cutting
begins less often.
High / Very high
intensity
means that
Spiral cutting
begins more often.
Note:
Spiral Cutting
does not start in slopes steeper
than 15%.
4.4.2 Weather timer
Weather timer
automatically adjust the cutting time to
the growth of the grass. The product is not permitted to
operate more than the schedule settings.
Note: When using
Weather timer
, it is recommended
to make as much operating time as possible available
for
Weather timer
. Do not restrict the schedule more
than necessary.
The first operation of the day is set by the schedule
settings. The product always complete 1 mowing cycle,
and then
Weather timer
selects if the product will
continue to operate or not.
Note:
Weather timer
is reset if the product does not
operate for more than 50 hours, or if a
Reset of all user
settings
is done.
Weather timer
is not changed if a
Reset
of schedule settings
is done.
4.4.3 ECO mode
If
ECO mode
is enabled, it switches off the signal in
the charging station, when the product is parked or is
charging.
Note: Use
ECO mode
to save energy and prevent
interference with other equipment, for example hearing
loops or garage doors.
Note: To start the product manually in the work area,
push the
STOP button before you remove the product
from the charging station. If not, the product cannot park
at the charging station.
22 - Settings 1576 - 006 - 27.01.2023
4.5 Accessories
Settings for accessories mounted on the product can be
made in this menu.
4.5.1 Headlights
There are 4 different headlight settings that control when
the headlights are on:
•
Always on
•
Evening only (19:00-00:00)
•
Evening and night (19:00-07:00)
•
Always off
The headlights can be set to
Strobe amber light
or to
Amber light
. The headlights can also be set to flash if
there is an error.
Note: Husqvarna recommends to use the headlights
at night time.
4.5.2 To avoid collisions with the
Automower
®
house
When this option is enabled, the wear on the product
and the Automower
®
house is reduced, but it can result
in more uncut grass around the charging station.
4.6 General (Bluetooth
®
only)
This function is used to set time and date, or to reset to
default settings.
4.6.1 Time & date
The time and date can be changed manually, or by
using the time and date from the mobile device.
4.6.2 Reset to factory settings
The user settings can be reset to factory settings. All
map objects and the schedules will be deleted.
Note:
PIN code, Loop signal, Messages
and
Date &
Time
will not be reset.
4.7 Security (Bluetooth
®
only)
The security settings controls the PIN code, the
GeoFence and other security functions. The correct PIN-
code must be entered to get access to the
Security
menu.
4.7.1 New loop signal
The loop signal is randomly selected to create a unique
link between the product and the charging station. In
rare cases, there may be a need to generate a new
signal, for instance if 2 adjacent installations have a very
similar signal.
4.7.2 Change PIN code
You can change the PIN code. Make a note of the new
PIN code in Memo. Refer to
Introduction on page 6
.
4.7.3 Theft protection
In the
Theft protection
menu it is possible to set the
alarm duration and also what events should trigger the
alarm. The factory setting is to require PIN code and the
alarm duration is 1 min.
4.7.3.1 Require PIN code
This function means that the product cannot be operated
or controlled after the
STOP button has been pushed
without first entering the correct PIN code. If the
incorrect PIN code is entered 5 times, the product is
locked for a time. The lock is extended for each new
incorrect try.
4.7.3.2 Alarm duration
There is a possibility to set how long the alarm signal
should last. A setting between 1 and 10 minutes is
possible.
4.7.3.3 STOP button pressed
If the alarm
"STOP button pressed"
is enabled, the
alarm goes off if someone presses the STOP button and
the PIN code is not entered within 30 seconds.
4.7.3.4 Carried away
If the alarm
Carried away
is enabled, the product senses
unexpected motions, and the alarm goes off.
4.7.4 GeoFence
GeoFence is a GPS-based theft protection that makes
a virtual fence for the product. If the product is more
than a set distance away from the center position the
product will be disabled and an alarm will start. The
center position sets to the current position of the product
when GeoFence is enabled. The PIN code is necessary
to stop the alarm and to start the product again. The
1576 - 006 - 27.01.2023 Settings -
23
GeoFence is only enabled when the product is set to
ON.
4.8 Automower
®
Connect (Bluetooth
®
only)
In
Automower
®
Connect
you can enable or disable the
Automower
®
Connect module. You can also see the
signal strength, connectivity status, initiate new pairing
or remove the product from the paired accounts.
4.9 Messages
In this menu the previous fault and information
messages can be found. For some of the messages,
there are tips and advice to help to rectify the fault.
If the product is disrupted in any way, for example it
is trapped or the battery is low, a message is saved
relating to the disruption and the time it happened.
If the same message is repeated several times, this
may indicate that an adjustment to the installation or the
product is required. Refer to
Installation on page 11
.
4.10 Download firmware over the air
(Firmware over the air FOTA)
The product has a function that automatically downloads
new firmware. When a new firmware is available, a
notification shows in the app where you can select
to install the new firmware. In the factory setting this
function is enabled.
24 - Settings 1576 - 006 - 27.01.2023
5 Operation
5.1 Main switch
WARNING: Read and understand the
safety chapter before you use the product.
• Set the Main switch to the
1
position to start the
product.
• Set the Main switch to the
0
position to set the
product to OFF.
5.2 To start the product
1. Push the STOP button on the product.
2. Set the Main switch to the
1
position.
3. Open the Automower
®
Connect app.
4. Enter the PIN code.
5. Select an operating mode in the app. Refer to
To
select operation mode Start on page 25
.
6. Push the START button on the product.
7. Select an operating mode in the app.
5.3 To select operation mode Start
1. Open the app on your mobile device.
2. Select
Start
and select an operation mode:
Resume Schedule
,
appDrive
or
Select work area
.
5.3.1 Resume Schedule
The product will continue to operate on the scheduled
work area where it cuts the grass and charges
automatically.
5.3.2 appDrive
Use the appDrive to operate the product manually.
5.3.2.1 To operate the product with appDrive
Use the buttons to operate the product:
• Use the
up button (A) to move the product forward.
• Use the down button (B) to move the product
rearward.
• Use the left arrow button (C) to rotate the product
to the left.
• Use the right arrow button (D) to rotate the product
to the right.
• Use the center button (E) as a joystick to move and
rotate the product in any direction.
A
D
B
C
E
Note: Walk 2-3 m / 6.5-9.8 ft. behind the product
when you operate the product with appDrive.
5.3.3 Select work area
This function lets the product temporarily operate in a
selected work area. You can select a time limit for this
function. After that time period, the product continues to
operate as set in the schedule.
5.3.3.1 Secondary area
For the product to operate in a secondary area, you
must move the product manually to and from the
secondary area. The product cuts for a selected period
of time or until the battery is empty.
5.4 Operating mode - Park
When you select
Park
in the app you can select the
operation selections that follow:
•
Park until further notice
•
Select duration
5.4.1 Park until further notice
The operation mode
Park
means that the product goes
back to the charging station where it stays until a new
operation mode is selected and the START button is
pushed.
5.4.2 Select duration
The product goes back to the charging station and
stays for the selected park duration. Use the operation
selection to temporary stop an ongoing mowing cycle
and let the product to stay in the charging station.
5.4.3 Operating mode - Pause
When selecting
Pause
in the Automower
®
Connect app,
the product stop the current activity and pause. The
1576 - 006 - 27.01.2023 Operation - 25
product is paused until either
Park
or
Start
is selected
in the Automower
®
Connect app.
5.5 To stop the product
1. Push the
STOP button on top of the product.
The product stops and the cutting motor stops.
Note: When you push the START button again, the
product continues to operate in the same operating
mode as before.
5.6 To set the product to OFF
1. Push the STOP button.
2. Connect the product with Bluetooth
®
short-range in
the app.
Note: The product cannot be set to OFF if it is
not connected to the app with Bluetooth
®
.
3. Set the Main switch to the
0
position.
5.7 To charge the battery
When the product is new or after long-term storage, the
battery can be empty. Charge the battery before you
start the product.
1. Set the
Main switch to the
1
position.
2. Put the product into the charging station until the
charging plates touch the contact plates.
3. Do a check that the product charges in the
Automower
®
Connect app.
26 - Operation 1576 - 006 - 27.01.2023
6 Maintenance
6.1 Introduction - maintenance
WARNING: Set the product to OFF
before you do maintenance on the product.
WARNING: Use protective gloves.
For better operation and lifetime of the product, make
sure to clean the product regularly and replace worn
parts.
When the product is new, examine the blade discs and
blades each week. If the wear is low, you can increase
the interval for the next time you examine the blade
discs and blades. Examine the blade discs and the
blades more regularly if there is much wear.
It is important that the blade disc rotates easily and that
the edges of the blades are not damaged. The usual
lifetime of the blades are 2 to 5 weeks. The conditions
that follow can increase or decrease the lifetime of the
blades:
• Operation time and dimension of the work area.
• Length and thickness of the grass.
• Soil, sand and use of fertilizers.
• Objects such as cones, tools, stones and roots in
the work area.
Note: The cut result can be unsatisfactory if the
blades are blunt. Refer to
Replacement of the blades
on page 29
on how to replace the blades.
6.2 Maintenance schedule
The maintenance schedule shows how to do
servicing and maintenance on the product. Follow the
maintenance schedule for a better operation and to
increase the lifetime of the product.
X = The instructions are given in this operator's manual.
O = The instructions are not given in this operator's
manual. Speak to your approved servicing dealer.
To prepare Weekly Every
year
Every
third year
Clean the product. Refer to
Clean the product on page 28
. X
Examine the product for damage and wear. X
Do an update of the firmware. O
Do a check of the servicing messages for recommended upgrades. O
Servicing
Examine the blades and replace the blades and blade screws if it is necessary.
Refer to
Replacement of the blades on page 29
.
X
Examine and polish the contact plates on the charging station. X
Examine and polish the charging plates on the product. X
Charge the battery fully before you put the product into storage. Refer to
To
charge the battery on page 26
.
X
Examine the wheels for wear. O
Examine and clean the collision columns. Do a check of the tightening torque on
the front and rear collision columns.
O
Make sure that the product is docking and charging correctly. O
Examine the cable and connector to the charging plates on the body of the
product.
O
1576 - 006 - 27.01.2023 Maintenance - 27
To prepare Weekly Every
year
Every
third year
Examine the rubber grommets on the chassis to make sure that it is sealed
correctly.
O
Examine the skid plate and skid plate bearing. O
Examine the rubber bellows in the cutting height adjustment system. O
Examine the rubber bellows for the collision columns. O
Replace the rubber bellows for the collision columns. O
Examine and clean the airflow filter. O
Replace the airflow filter. O
Do a check of the tightening torque of chassis screws. O
Open the chassis and replace all sealing strips. O
Last step
Use a software service tool to do a function test of the functions of the product. O
6.3 Clean the product
Husqvarna recommends to use a special cleaning and
maintenance kit, available as an accessory. Speak to
your Husqvarna representative for more information.
CAUTION: Do not use a high-pressure
washer to clean the product and the
charging station. Do not use solvents for
cleaning.

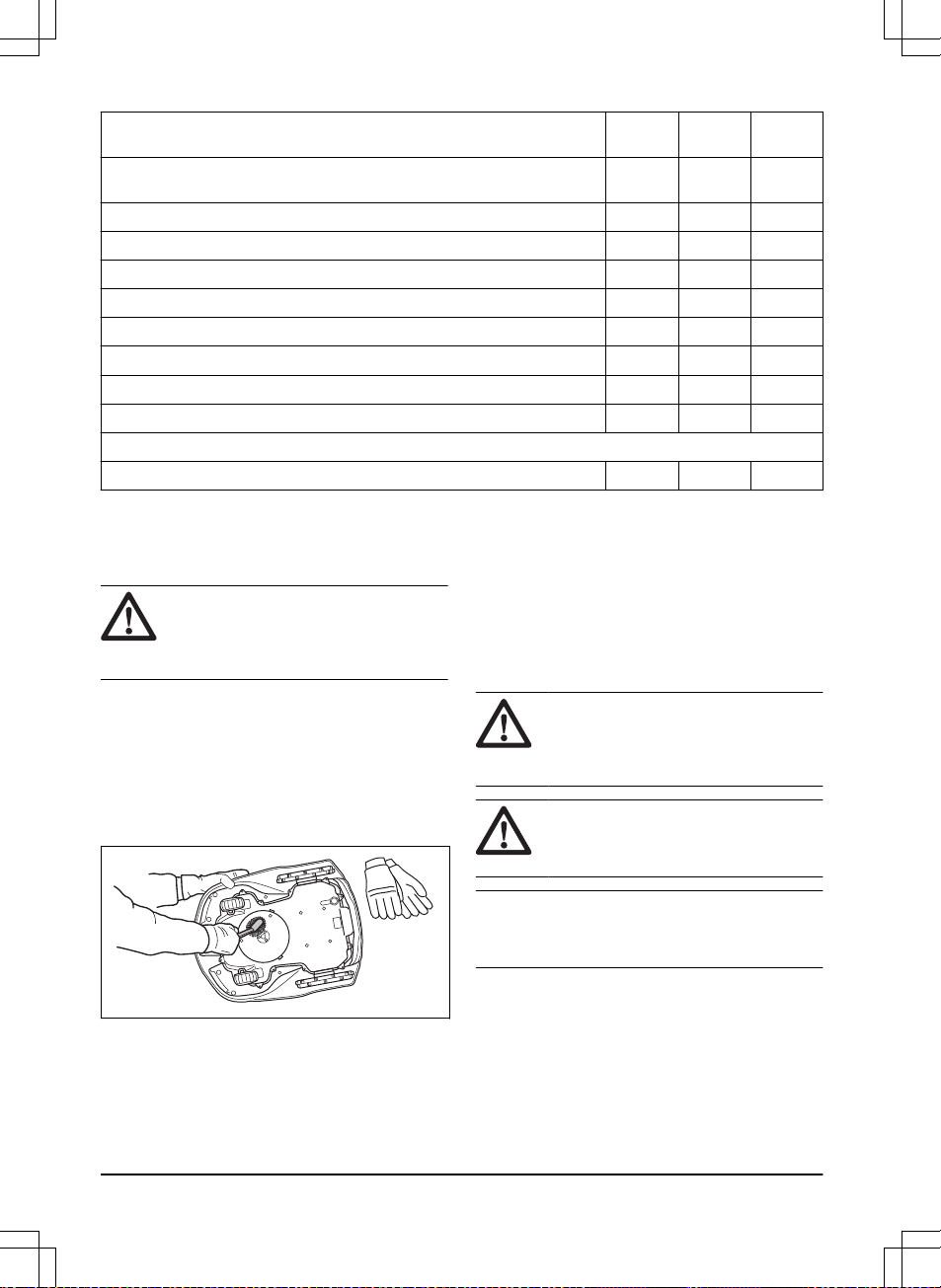

6.3.1 To clean the chassis and blade disc
Examine the blade disc and blades weekly.
1. Set the
Main switch to the
0
position.
2. Put the product onto its side.
3. Make sure that the blades are not damaged and
that the blades and blade disc can rotate freely.
4. Clean the blade disc and chassis with a brush.
6.3.2 To clean the chassis
• Clean the bottom of the chassis with a brush or a
moist cloth.
6.3.3 To clean the wheels
The product does not operate satisfactorily in slopes if
the wheels are blocked with grass.
• Use a soft brush to clean the wheels.
6.3.4 To clean the body of the product
• Use a moist cloth and a weak soap solution to
clean the body of the product.
6.3.5 To clean the charging station
WARNING: Disconnect the power
supply from the power outlet before
maintenance, or when you clean the
charging station or power supply.
CAUTION: Do not use a high-pressure
washer or running water to clean the
charging station.
Note: The product cannot enter the charging station
if there are objects in the charging station. Clean the
charging station regularly.
• Remove grass, twigs and other objects from the
charging station.
28 - Maintenance 1576 - 006 - 27.01.2023

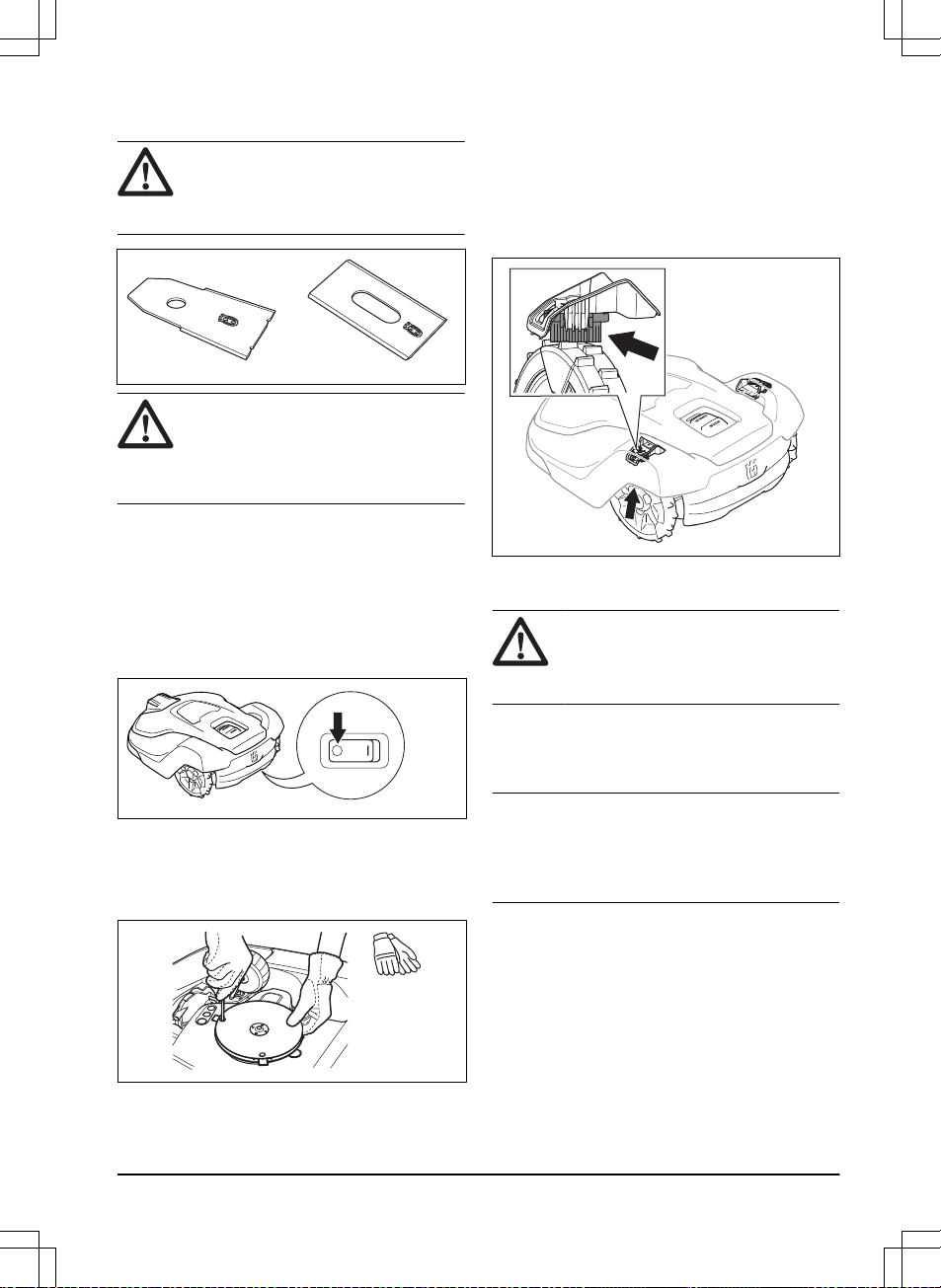

6.4 Replacement of the blades
WARNING: Husqvarna can only
guarantee safety if you use Husqvarna
original blades with the embossed crowned
H-mark logotype.
WARNING: You must replace the
screws when you replace the blades. The
used screws can wear quickly and make the
blade come loose, this can cause serious
injury.
Replace worn or damaged blades for a safe operation.
Replace the blades regularly for a satisfactory cut result
and a low energy use. All 5 blades and screws must
be replaced at the same time to get a balanced cutting
system.
6.4.1 To replace the blades
1. Push the STOP button.
2. Set the Main switch to the
0
position.
3. Put the product with the blade disc up on a soft
and clean surface.
4. Rotate the skid plate until its holes align with the
screws for the blade.
5. Remove the 5 screws with a screwdriver.
6. Remove the 5 blades.
7. Attach 5 new blades and screws.
8. Make sure that the blades can pivot freely.
6.5 Replace the wheel brushes
The wheel brushes on the product removes grass
from the wheels of the product. Examine the wheel
brushes regularly and replace them when they are worn.
Husqvarna recommends to replace the wheel brushes
each 5-10 weeks.
6.6 Battery
CAUTION: Charge the battery fully
before you put the product into storage. If
the battery is not fully charged it can cause
damage to the battery.
If the operating time of the product is shorter than usual
between charges, this means that the battery is at the
end of its life cycle. Replace the battery to extend the
operating time.
Note: The battery life is related to the length of
the season and how many hours a day the product
operates. A long season or many hours of operation
a day means that the battery must be replaced more
regularly.
6.7 Winter service
Take your product to your Husqvarna central service for
service prior to winter storage. Regular winter service
will maintain the product in good condition and create
the best conditions for a new season without any
disruptions.
Service usually includes the following:
• Thorough cleaning of the body, the chassis, the
blade disc and all other moving parts.
• Testing of the product’s function and components.
1576 - 006 - 27.01.2023 Maintenance - 29
• Checking and, if required, replacing wear items
such as blades and bearings.
• Testing the product’s battery capacity as well as a
recommendation to replace battery if necessary.
• If new firmware is available, the product is
updated.
30 - Maintenance 1576 - 006 - 27.01.2023
7 Troubleshooting
7.1 Introduction - troubleshooting
All messages can be found in the
Messages
menu in Automower
®
Connect. More suggestions for steps to take in the
event of malfunction or symptoms can be found on www.husqvarna.com.
Note: The
Messages
menu is only available for short-range connectivity (Bluetooth
®
).
7.2 Fault messages
The fault messages in the table below are shown in the Automower
®
Connect app. Speak to your Husqvarna
representative if the same message shows frequently.
Message Cause Action
Cutting system blocked
The blade disc is blocked by grass or
other objects.
Examine the blade disc and remove the
grass or other object.
The blade disc is in water. Move the product and prevent the collec-
tion of water in the work area.
The grass is high and thick. Adjust the cutting height to the height of
the grass.
Adjust the schedule settings to increase
the operation time.
Trapped
The product is behind a number of obsta-
cles in a small area.
Examine the area and remove the obsta-
cles which make it hard for the product to
move away from this location.
1576 - 006 - 27.01.2023 Troubleshooting - 31
Message Cause Action
No loop signal
The power supply or the low-voltage ca-
ble for the charging station is not connec-
ted.
If the LED indicator on the charging sta-
tion is out, it shows that there is no pow-
er. Examine the power outlet connection
and the residual-current device. Make
sure that the low-voltage cable is con-
nected to the charging station.
The power supply or the low-voltage ca-
ble for the charging station is damaged.
Replace the power supply or low-voltage
cable.
ECO mode
is enabled and the LED in-
dicator of the charging station flashes
green. The product was started manually
in the work area but the STOP button
was not pushed before the product was
moved from the charging station. The
charging station signal is disabled and
the product cannot enter the charging
station. Refer to
ECO mode on page 22
.
Put the product in the charging station.
Start the product. Refer to
To start the
product on page 25
.
The product does not find the loop signal
from the charging station.
Put the product in the charging station
and make a new loop signal. Refer to
New loop signal on page 23
.
The charging station in not installed cor-
rectly.
Install the charging station according to
the instruction. Refer to
To install the
charging station on page 16
.
Interference from metal objects such as
fences, reinforcement steel or buried ca-
bles near the charging station.
Change the position of the charging sta-
tion.
Outside work area
The work area slopes too much by the
virtual boundary.
Make sure that the virtual boundary is
installed correctly. Refer to
Installation of
the map objects on page 17
.
The transport path or the path to the
maintenance point slopes too much.
Make sure that the transport path is in-
stalled correctly. Refer to
To make a
transport path on page 20
.
The product can not find the correct
charging station signal because of inter-
ference with a loop signal from a different
product installation nearby.
Put the product in the charging station
and make a new loop signal. Refer to
New loop signal on page 23
.
Interference from metal objects such as
fences, reinforcement steel or buried ca-
bles near the charging station.
Change the position of the charging sta-
tion.
32 - Troubleshooting 1576 - 006 - 27.01.2023
Message Cause Action
Empty battery
The product cannot find the charging sta-
tion.
The product has no accurate position
and cannot find the charging station.
There is an obstacle that prevents the
product to find the charging station.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 29
.
The antenna of the charging station is
defective.
If the LED indicator on the charging
station flashes red, the antenna of the
charging station is defective. Speak to
your approved servicing dealer.
Slipped
The product has hit an obstacle and
stopped or the wheels cannot move on
the wet grass.
Move the product and correct the cause
of problem. If it is because of wet grass,
wait until the lawn is dry before you use
the product.
The work area includes a steep slope. Maximum guaranteed slope is 45%.
Steeper slopes should be isolated. Refer
to
To install the map objects in a slope
on page 15
.
Wheel motor overloaded
right, left
Grass or other objects is wound around
the drive wheel.
Examine the drive wheel and remove
grass or other objects.
Charging station blocked
The connection between the charging
plates on the product and the contact
plates on the charging station is not
good. The product made a number of
tries to charge.
Put the product in the charging station
and make sure that the charging plates
and contact plates are connected.
An object prevents the product to enter
the charging station.
Remove the object.
The charging station tilts or is bent. Put the baseplate on level ground.
Stuck in charging station
An object prevents the product to move
out from the charging station.
Remove the object.
The baseplate has a wet or dirty surface
that prevents the product to move out
from the charging station.
Clean the baseplate of the charging sta-
tion.
Upside down
The product tilts or is with the top down. Put the product in the correct position.
Mower tilted
The product tilts more than the maximum
angle.
Move the product to an area that has lev-
el ground.
Lifted
The lift sensor was enabled because the
product was lifted.
Move the product. If the problem stays,
speak to your approved servicing dealer.
Collision
The body of the product cannot move
freely around its chassis.
Remove dirt or object between the chas-
sis and the body of the product. Make
sure that the body of the product can
move freely around its chassis.
The product cannot move forward or
rearward.
Remove the object that prevents the
product from operation.
1576 - 006 - 27.01.2023 Troubleshooting - 33
Message Cause Action
Wheel motor blocked right/
left
The wheel is blocked by grass or other
objects.
Examine the wheel and remove grass or
other objects.
Alarm! Mower stopped
The alarm was started because the prod-
uct was stopped.
Adjust the security settings in the
Secur-
ity
menu. Refer to
Security (Bluetooth
®
only) on page 23
.
Alarm! Mower outside Geo-
fence
Alarm was started because the product
was moved out of the GeoFence area.
Alarm! Mower was moved
The alarm was started because the prod-
uct was moved.
Electronic problem
Temporary electronic or firmware prob-
lem in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Loop sensor problem
Tilt sensor problem
Temporary problem
Invalid sub-device combina-
tion
Temporary battery problem
Faulty mix of batteries
Collision sensor problem
Lift sensor problem
Charging system problem
There is corrosion or dirt on the charging
plates and contact plates.
Restart the product. Clean the charging
plates on the product and the contact
plates on the charging station.
Temporary electronic or firmware prob-
lem in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Battery problem
Temporary battery or firmware problem
in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Incorrect type of battery. Use only original batteries recommended
by the manufacturer.
Battery temperature outside
limits
The product cannot start because the
temperature in the battery is too high or
too low.
The product will start to operate when
the temperature of the battery has de-
creased. Make sure that the charging
station is put in an area with protection
from the sun.
Charging current too high
Incorrect or defective power supply unit. Examine that the power supply unit and
charging station are not defective. Make
sure that you use the correct power sup-
ply unit and charging station. Restart the
product. If the problem stays, speak to
your approved servicing dealer.
34 - Troubleshooting 1576 - 006 - 27.01.2023
Message Cause Action
Map problem
There is no specified work area. Make a work area in the Automower
®
Connect app. Refer to
To make a work
area on page 19
.
The map object file is incorrect. Do a check of the map in the app. Adjust
the map and save it.
Delete the map and do a new installation.
Work area tampered
The charging station or the reference sta-
tion was moved.
Move the charging station or the refer-
ence station to their initial positions.
Do a new installation of the map.
Wheel drive problem, right/
left
The wheel is blocked by grass or other
objects.
Examine the drive wheel and remove
grass or other objects.
Searching for position
Weak satellite signal to the reference sta-
tion.
The satellite signal is temporary weak.
The product will start to operate when the
satellite signals are good.
Examine the installation of the reference
station. Refer to the Operator's manual
for the Reference station.
Weak satellite signal to the product. The satellite signal is temporary weak.
The product will start to operate when the
satellite signal are good.
Examine if there is an object between
the product and the sky that cause inter-
ference with the satellite signal. Remove
the object or do a new installation to not
include these parts in the work area. Re-
fer to
Installation of the map objects on
page 17
No accurate position from
satellites
Weak satellite signal to the reference sta-
tion.
Examine the installation of the reference
station. Refer to the Operator's manual
for the Reference station.
Weak satellite signal to the product. Examine if there is an object between
the product and the sky that cause inter-
ference with the satellite signal. Remove
the object or do a new installation to not
include these parts in the work area. Re-
fer to
To make a work area on page 19
1576 - 006 - 27.01.2023 Troubleshooting - 35
Message Cause Action
Reference station communi-
cation problem
The product is not connected to the refer-
ence station.
Do a pairing operation between the prod-
uct and the reference station.
The reference station is not installed cor-
rectly.
Examine the installation of the reference
station. Refer to the Operator's manual
for the Reference station.
The product does not receive the radio
signal from the reference station in all
areas where the product operates.
Test if the product has radio signal from
the reference station in all of the work
area. If not, make a new installation of
the reference station or a new installation
of the map. Refer to
Installation of the
map objects on page 17
.
Power failure. Examine and correct the cause for the
power failure of the reference station.
There is an error in the reference station
and the LED indicator flashes red.
Disconnect the power to the reference
station and connect it again to restart the
reference station. If the problem stays,
speak to your approved servicing dealer.
There is interference with another refer-
ence station or other radio systems in the
area.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
Unexpected cutting height adj
The cutting height adjustment cannot
move.
Examine the cutting height adjustment
and remove grass or other objects. If the
problem stays, speak to your approved
servicing dealer.
Limited cutting height range
Cutting height problem
Cutting height blocked
Cutting system major imbal-
ance
The product senses vibrations in the
blade disc.
Make sure that the blades and screws
are not damaged or worn. Make sure that
all blades are correctly attached. Make
sure that there is only one blade attached
on each position in the blade disc.
Too many waypoints
There are too many waypoints in the cur-
rent work area.
Do a new installation of the work area,
stay-out zone and transport paths. Make
less waypoints. Divide the current work
area into more work areas.
Destination not reachable
There is no transport path between the
charging station and the work area or
maintenance point.
Make a transport path between the
charging station and the work area or
maintenance point.
The transport path is blocked and the
product cannot go to the work area,
charging station or maintenance point.
Make sure that the transport path is not
blocked, or delete the transport path and
make a new transport path.
36 - Troubleshooting 1576 - 006 - 27.01.2023
Message Cause Action
No power in charging station
Incorrect or damaged power supply. Examine the power supply. If it is neces-
sary, replace the power supply.
Power failure. Examine and correct the cause for the
power failure of the reference station.
The connection between the charging
plates on the product and the contact
plates on the charging station is not
good.
Make sure that the charging plates and
contact plates are connected.
Multiple reference stations
There is more than one reference station
near the work area. This can cause inter-
ference for the product from a different
reference station.
Speak to your approved servicing dealer
if the same problem occurs frequently.
7.3 Information and warning messages
The information messages in the table below are shown in the
Messages
menu in the Automower
®
Connect app.
Speak to your Husqvarna representative if the same message shows frequently.
Message Cause Action
Cutting system imbalance
The product senses vibrations in the
blade disc.
Examine the blades and screws for dam-
ages and wear. Make sure that all blades
are correctly installed and that there is
only one blade attached in each position
on the blade disc.
Connectivity problem
Problem with the Automower
®
Connect
module.
Restart the product. If the connection
problem stays, disconnect the product
from Automower
®
Connect and do a new
pairing operation. If the problem stays,
speak to your local Husqvarna represen-
tative.
Wrong PIN code
An incorrect PIN code has been entered.
5 tries are permitted, and the product is
then blocked for a period of time.
Enter the correct PIN code. If the PIN
code is incorrect, use the link in the
app to send the PIN code to your regis-
tered e-mail address. If you have not reg-
istered the e-mail address, speak to your
local Husqvarna representative.
Ultrasonic problem
Temporary electronic or firmware related
problem in the product.
Restart the product. If the problem stays,
speak to your approved servicing dealer.
GPS navigation problem
1576 - 006 - 27.01.2023 Troubleshooting - 37
7.4 LED indicator lamp on the charging station
For a fully functional installation, the indicator lamp in the charging station must show a solid or flashing green light. If
another color shows, follow the troubleshooting guide below.
There is more help on www.husqvarna.com. If you still need help, speak to your local Husqvarna representative.
Light Status
Green solid light Good signals.
Green flashing light The signals are good and
ECO mode
is activated. Refer to
ECO mode on page 22
.
Red flashing light Interruption in the charging station’s antenna. Speak to your local Husqvarna repre-
sentative.
Red solid light Fault in the circuit board or incorrect power supply in the charging station. The fault
must be correct by an authorized service technician. Speak to your local Husqvarna
representative.
7.5 LED indicator on the product
The LED indicator on the control panel of the product shows the current product status:
LED indicator light Product status
Constant green The product cuts the lawn or moves out of the charging station.
Flashes green The product is in
Pause
mode.
Flashes red The product stopped because of an error.
Constant yellow The
STOP button was pushed.
Flashes yellow The PIN code must be entered to start the product.
Constant blue The product moves to the charging station or a maintenance point.
An app is connected to the product with Bluetooth
®
, the LED indicator is constant blue for 3
seconds.
Pulsates blue The product charges in the charging station.
Flashes blue The product is parked in charging station.
The product can at this time find Bluetooth
®
and connect with Bluetooth
®
.
Constant white The product is in appDrive mode.
Pulsates white The product sets to OFF.
Firmware installation is in progress.
Flashes white New firmware must be installed.
There is more information on www.husqvarna.com. Speak to your approved servicing dealer for more information.
38 - Troubleshooting 1576 - 006 - 27.01.2023
7.6 Symptoms
If the product does not operate correctly, refer to the symptoms table below.
Symptoms Cause Action
The
Main switch is set to the
0
position but the product is
not set to OFF.
The Main switch is set to the
0
posi-
tion but the product is not connected to
the Automower
®
Connect app with Blue-
tooth
®
. The product is disabled but not
set to OFF.
Set the Main switch to the
1
position,
connect the product to the Automower
®
Connect app with Bluetooth
®
and set the
Main switch to the
0
position.
The product cannot go into
the charging station.
The charging station is not on a level sur-
face.
Put the charging station on a level sur-
face. Refer to
To examine where to put
the charging station on page 11
.
The charging station is put too far from
the work area.
Make a new work area or move the
charging station.
The product operates at the
incorrect time.
The time and date of the product must be
set.
Set the time and date. Refer to
Time &
date on page 23
.
The start and stop time for operation are
incorrect.
Change the schedule settings. Refer to
Schedule on page 21
.
There is vibration in the prod-
uct.
The cutting system is not in balance be-
cause of damaged blades.
Examine the blades and screws and re-
place them if necessary. Refer to
Re-
placement of the blades on page 29
.
The cutting system is not in balance be-
cause of too many blades in the same
position.
Do a check that only one blade is attach-
ed to each screw.
Blades of different thickness are installed
on the product.
Examine if the blades are of different
thickness and replace the blades if nec-
essary.
The product operates, but the
blade disc does not rotate.
The product goes to the charging station. Usual operation of the product. The
blade disc does not rotate when the
product goes to the charging station.
The product operates for
shorter periods than usual
between charges.
Grass or other object causes a blockage
to the blade disc.
Remove and clean the blade disc. Refer
to
To clean the chassis and blade disc on
page 28
.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 29
.
The grass is high and thick. Increase the cutting height and then de-
crease it when the grass is shorter.
Operation and charging times
are shorter than usual.
The battery is at the end of its life cycle. Replace the battery. Refer to
Battery on
page 29
.
1576 - 006 - 27.01.2023 Troubleshooting - 39
Symptoms Cause Action
The product is parked for
hours in the charging station.
The product is parked because of the set
Schedule
setting, or because
Park until
further notice
is selected.
Change the
Schedule
settings, or start
the product.
The product does not operate if the bat-
tery temperature is too high or too low.
The product starts to operate again when
the temperature is between the set limits
and the schedule settings lets the prod-
uct operate. Make sure that the charging
station is put in an area with protection
from the sun.
The product moves in circles
or spirals.
The product operates frequently in
Spiral
cutting
.
Adjust the intensity of the
Spiral cutting
or disable it if it is necessary. Refer to
Spiral cutting on page 22
.
The product operates on a
small area for a number of
minutes.
The product follows the GPS assisted
navigation.
Usual operation of the product.
The product cannot connect
to the mobile device.
The product is connected to a different
mobile device or app.
Disable the app in all other connected
devices.
The cut result is not satisfac-
tory.
The product operates for a short period. Increase the cutting time. Refer to
Schedule on page 21
.
Increase the intensity level in the
Weath-
er timer
or disable the
Weather timer
.
The work area is too large. Set a limit to the work area, or extend
the operation time. Refer to
Schedule on
page 21
.
Blunt blades. Replace all the blades. Refer to
Replace-
ment of the blades on page 29
.
Long grass in relation to the set cutting
height.
Increase the cutting height and then low-
er it when the grass is shorter.
Collection of grass by the blade disc or
around the motor shaft.
Remove the collection of grass and clean
the product. Refer to
To clean the chas-
sis and blade disc on page 28
.
The pattern or the direction of the pattern
is unsatisfactory for the work area.
Select a different direction of the pattern
or a different pattern.
Worn out grass in slopes. The slope is too steep. The maximum
guaranteed slope is 45%.
Isolate the slope with a stay-out zone.
The pattern or the direction of the pattern
is unsatisfactory for the slope.
Select a different direction of the pat-
tern or a different pattern. For systemat-
ic pattern, Husqvarna recommends that
the direction of the systematic pattern is
straight up the slope and not parallel to it.
40 - Troubleshooting 1576 - 006 - 27.01.2023
8 Transportation, storage and disposal
8.1 Transportation
The supplied Li-ion batteries obey the Dangerous Goods
Legislation requirements.
• Obey all applicable national regulations.
• Obey the special requirement on package and
labels for commercial transportations, including by
third parties and forwarding agents.
8.2 Storage
• Fully charge the product. Refer to
To charge the
battery on page 26
.
• Disconnect the product with the Main switch. Refer
to
To set the product to OFF on page 26
.
• Clean the product. Refer to
Clean the product on
page 28
.
• Keep the product in a dry, frost free space.
• Keep the product with all wheels on level ground
during storage, or use a Husqvarna wall hanger.
• If you keep the charging station indoors,
disconnect and remove the power supply from the
charging station.
Note: If you keep the charging station outdoors, do
not disconnect the power supply and the connectors.
8.3 Disposal
• Obey the local recycling requirements and
applicable regulations.
• For questions about how to remove the battery,
refer to
To remove the batteries on page 41
.

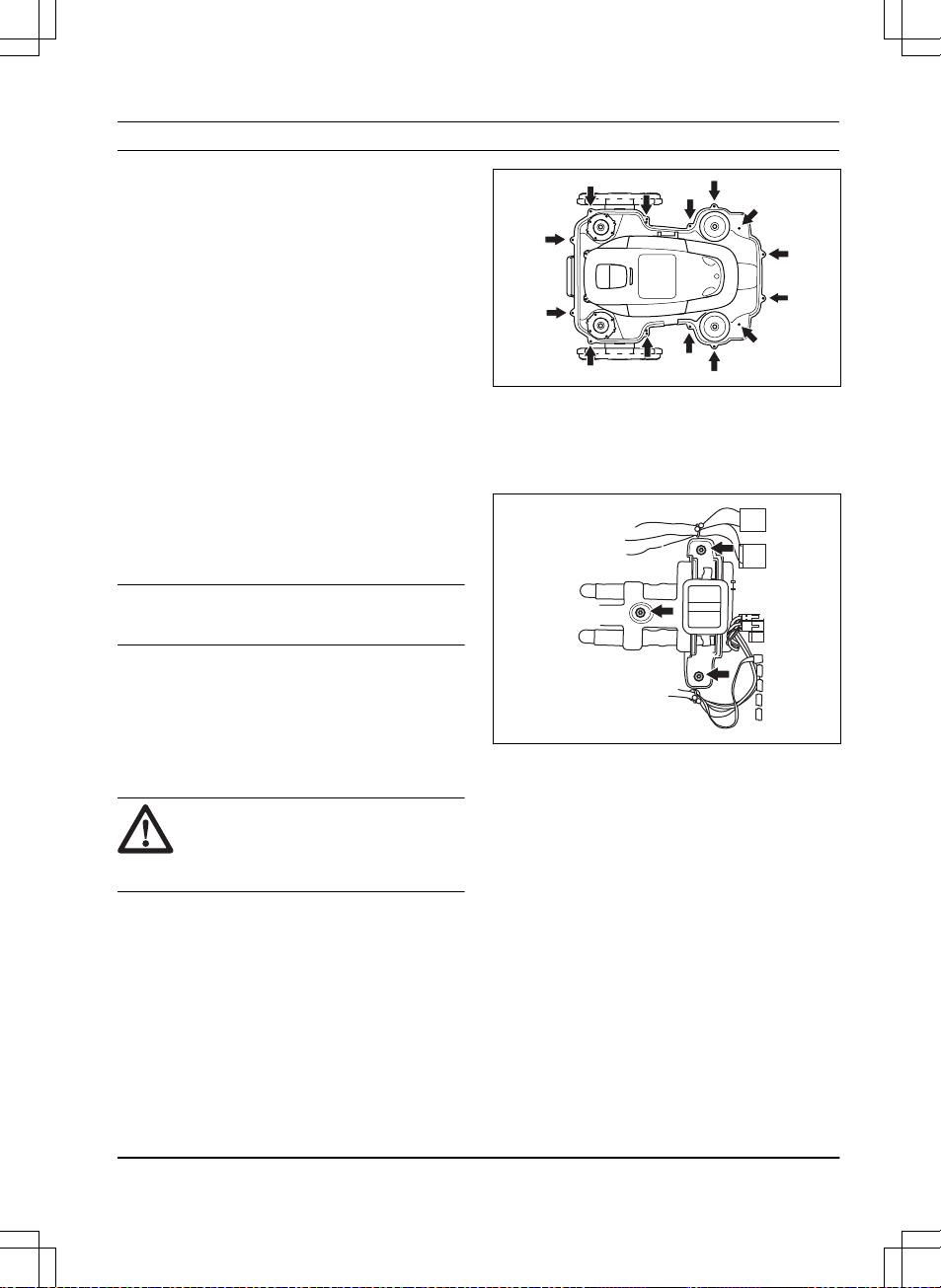

8.3.1 To remove the batteries
CAUTION: Only remove the batteries
when you dispose the product. When you
remove the warranty seal, the Husqvarna
warranty is no longer applicable.
1. Disconnect the product with the Main switch. Refer
to
To set the product to OFF on page 26
.
2. Pull out the grommet on the charging cable at the
very front of the product, and carefully remove the
connector.
3. Lift the cover, one corner at a time.
4. Remove the 14 screws with a Torx 20.
5. Lift the rear edge of the top section of the chassis.
6. Disconnect the cable from the main circuit board.
7. Remove the top section of the chassis.
8. Remove the 3 screws that holds the batteries with
a Torx 20.
9. Disconnect the batteries connection from the main
circuit board.
1576 - 006 - 27.01.2023 Transportation, storage
and disposal -
41
9 Technical data
9.1 Technical data
Dimensions Automower
®
550 EPOS
Length, cm / in. 72 / 28.3
Width, cm / in. 56 / 22.0
Height, cm / in. 32 / 12.6
Weight, kg / lbs 13.8 / 30.4
Electrical system Automower
®
550 EPOS
Battery, Lithium-Ion 18V, 5.0 Ah, Art. No 593 11 84-01, 593 11 85-01, 593 11 84-03, 593 11
84-04, 593 11 84-05, 593 11 84-06 (2 pcs.) 5.0 Ah/
battery
Battery, Lithium-Ion 18V, 4.9 Ah, Art. No 593 11 84-02, 593 11 85-02 (2 pcs.) 4.9 Ah/battery
Power supply (28V DC), V AC 100-240
Low-voltage cable for charging station, length m/ft. 10 / 33
Mean energy consumption at maximum use 23 kWh/month in a 5000 m
2
work area
Charging current, A DC 7
Type of Power Supply Unit for charging station
5
FW7458/28/D/XX/Y, ADP-200MR XX
Average mowing time, min 210
Average charging time, min 60
Charging station wire antenna Automower
®
550 EPOS
Operating Frequency Band, Hz 100-80000
Maximum magnetic field, dBuA/m 82
Maximum Radio-frequency power
6
, mW @60m <25 mW @60m
Noise emissions measured in the environment as sound
power
7
Automower
®
550 EPOS
Sound level, perceived, dB (A) 68
Measured sound power noise level, dB (A) 68
Noise emissions uncertainties K
WA
, dB (A) 2
Sound pressure noise level at the operator’s ear, dB (A)
8
60
5
XX, YY can be any alphanumeric characters or blank for marketing purpose only, no technical differences.
6
Maximum active output power to antennas in the frequency band in which the radio equipment operates.
7
Determined according to Directive 2006/42/EC and standard EN 50636-2-107. Except Sound level, perceived
that is measured according to ISO 11094:1991.
8
Sound pressure noise uncertainties K
pA
, 2-4 dB (A).
42 - Technical data 1576 - 006 - 27.01.2023
Mowing Automower
®
550 EPOS
Cutting system 5 pivoted cutting blades
Maximum cutting motor speed, rpm 2500
Power consumption during cutting, W +/- 20 % 35
Cutting height, cm / in. 2-6 / 0.8-2.4
Cutting width, cm / in. 24 / 9.4
Narrowest possible passage, m / ft. 2 / 6.5
Maximum angle for cutting area, % 45
Maximum angle for virtual boundary, % 15
Working area capacity, m
2
/ acre(s), pro sports quality with
irregular cutting
3500 / 0.9
Working area capacity, m
2
/ acre(s), pro quality with irregu-
lar cutting
5000 / 1.25
Working area capacity, m
2
/ acre(s), regular quality with
irregular cutting
6000 / 1.5
Working area capacity, m
2
/ acre(s), pro sports quality with
systematic cutting
5000 / 1.25
Working area capacity, m
2
/ acre(s), pro quality with sys-
tematic cutting
10000 / 2.5
Working area capacity, m
2
/ acre(s), regular quality with
systematic cutting
15000 / 3.7
IP-code Automower
®
550 EPOS
Robotic lawn mower IPX4
Charging station IPX1
Power supply charging station IP44
Frequency Band Support
Bluetooth
®
Frequency range 2400.0-2483.5 MHz
Automower
®
Connect 2G GSM 850 MHz, E-GSM 900 MHz, DCS 1800 MHz, PCS 1900 MHz
Automower
®
Connect 4G Band 12 (700 MHz), Band 17 (700 MHz), Band 28 (700 MHz), Band 13 (700 MHz),
Band 20 (800 MHz), Band 26 (850 MHz), Band 5 (850 MHz), Band 19 (850 MHz),
Band 8 (900 MHz), Band 4 (1700 MHz), Band 3 (1800 MHz), Band 2 (1900 MHz)
SRD868 (Europe) 863-870 MHz
SRD915 (North America) 902-928 MHz
SRD915 (Australia) 915-928 MHz
SRD915 (New Zealand) 915-928 MHz
1576 - 006 - 27.01.2023 Technical data - 43
Power Class
Bluetooth
®
Output power 8 dBm
Automower
®
Connect 2G Power Class 4 (GSM/E-GSM) 33 dBm
Power Class 1 (DCS/PCS) 30 dBm
Power Class E2 (GSM/E-GSM) 27 dBm
Power Class E2 (DCS/PCS) 26 dBm
Automower
®
Connect 4G Power Class 3 23 dBm
SRD868 (Europe) 13 dBm
SRD915 (North America) 13 dBm
SRD915 (Australia) 13 dBm
SRD915 (New Zealand) 13 dBm
Full compatibility cannot be guaranteed between the product and other types of wireless systems such as remote
controls, radio transmitters, hearing loops, buried electric animal fencing or similar.
The products are made in England or the Czech Republic. See information on the rating plate. Refer to
Product
overview on page 8
.
9.2 Registered trademarks
The
Bluetooth
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, inc.
and any use of such
marks by Husqvarna is under license.
44 - Technical data 1576 - 006 - 27.01.2023
10 Declaration of Conformity
10.1 Original EU Declaration of Conformity
1576 - 006 - 27.01.2023 Declaration of Conformity -
45
10.2 Translated EU Declaration of Conformity
We, Husqvarna AB, SE 561 82 Huskvarna, SWEDEN,
Tel. +46 36 146500 declare on our sole responsibility
that the product:
Description Robotic lawn mower
Brand Husqvarna
Type/Model HUSQVARNA AUTOMOWER
®
550 EPOS
Identification Serial numbers dating from 2023 week 6
complies fully with the following EU directives and
regulations:
Directive/Regulation Description
2006/42/EC "Relating to machinery"
2014/53/EU "Relating to radio equipment"
2011/65/EU "Restriction of use of certain hazardous substances"
and that the following standards and/or technical
specifications are applied;
• EC 60335-1:2010+A1:2013+A2:2016 (EN
60335-1:2012+AC:2014+A11:2014+A13:2017)
• IEC 60335-2-107:2017+A1:2020 (EN
50636-2-107:2015+A1:2018+A2:2020)
• EN ISO 12100:2010
• EN IEC 63000:2018
• EN 61000-6-1:2007
• EN 61000-6-3:2007+A1:2011+AC:2012
• ETSI EN 301 489-1 V2.2.3
• ETSI EN 301 489-3 V2.1.1
• ETSI EN 301 489-17 V3.1.1
• ETSI EN 301 489-19 V2.1.1
• ETSI EN 301 489-52 V1.1.0
• ETSI EN 303 447 V1.3.0
• ETSI EN 300 328 V2.2.2
• ETSI EN 300 220-1 V3.1.1
• ETSI EN 300 220-2 V3.2.1
• ETSI EN 301 908-1 V15.1.1
• ETSI EN 301 908-13 V13.1.1
• ETSI EN 301 511 V.12.5.1
• ETSI EN 303 413 V1.2.1
The notified body CETECOM GmbH, No. 0680,
has issued a type examination certificate with no.
M22-1047-01-TEC covering Art. 3.2 of 2014/53/EU.
Manne Alzén
Huskvarna
Director Pro Robotics R&D. Husqvarna AB, Husqvarna
Forest and Garden. Responsible for technical
documentation.
46 - Declaration of Conformity 1576 - 006 - 27.01.2023
10.3 Original UK Declaration of Conformity
1576 - 006 - 27.01.2023 Declaration of Conformity -
47
www.husqvarna.com
AUTOMOWER
®
is a trademark owned by Husqvarna AB.
Copyright
©
2023 HUSQVARNA. All rights reserved.
Original instructions
1143075-26
2023-02-02
