Laugh & Learn®
Smart Learning Home™
ASSEMBLY GUIDE
Scan it. Watch it.
Build it.
fisher-price.com/assembly/FJP89
EASY
ASSEMBLY
VIDEO
2
BEFORE YOU BEGIN
Four C (LR14) alkaline
batteries are required
(not included).
For longer life, use
alkaline batteries.
Adult assembly is
required. You’ll need
a Phillips screwdriver
(not included) for
assembly and battery
installation.
Keep these
instructions for future
reference as they
contain important
information.
Clean with
a damp cloth.
Do not immerse.
Set aside 45 minutes
for assembly.
45
x4
1,5V
C
(LR14)
GOOD TO KNOW!
This product includes a lot
of factory assembled screws
and some that you’ll need to
assemble
i
23 to be exact!
Do not over-tighten assembled
screws or the screws in the
battery door.
When sound or lights become
faint or stop, it’s time for an
adult to change the batteries.
The Laugh & Learn® Smart
Learning Home™ interacts
with the Laugh & Learn® 3-in-1
Smart Car (not included and
sold separately). Be sure the
car is no further than 4 feet
(1,2 meters) from the home.
Bright sunlight or fluorescent
light may affect the range
between the car and the home.
Try dimming room lights.
ASSEMBLY
VIDEO
Questions?
Scan this code!
fisher-price.com/assembly/FJP89
Insert screws into holes that
have rings around them.
Factory assembled screw holes
do not have rings around them.
3

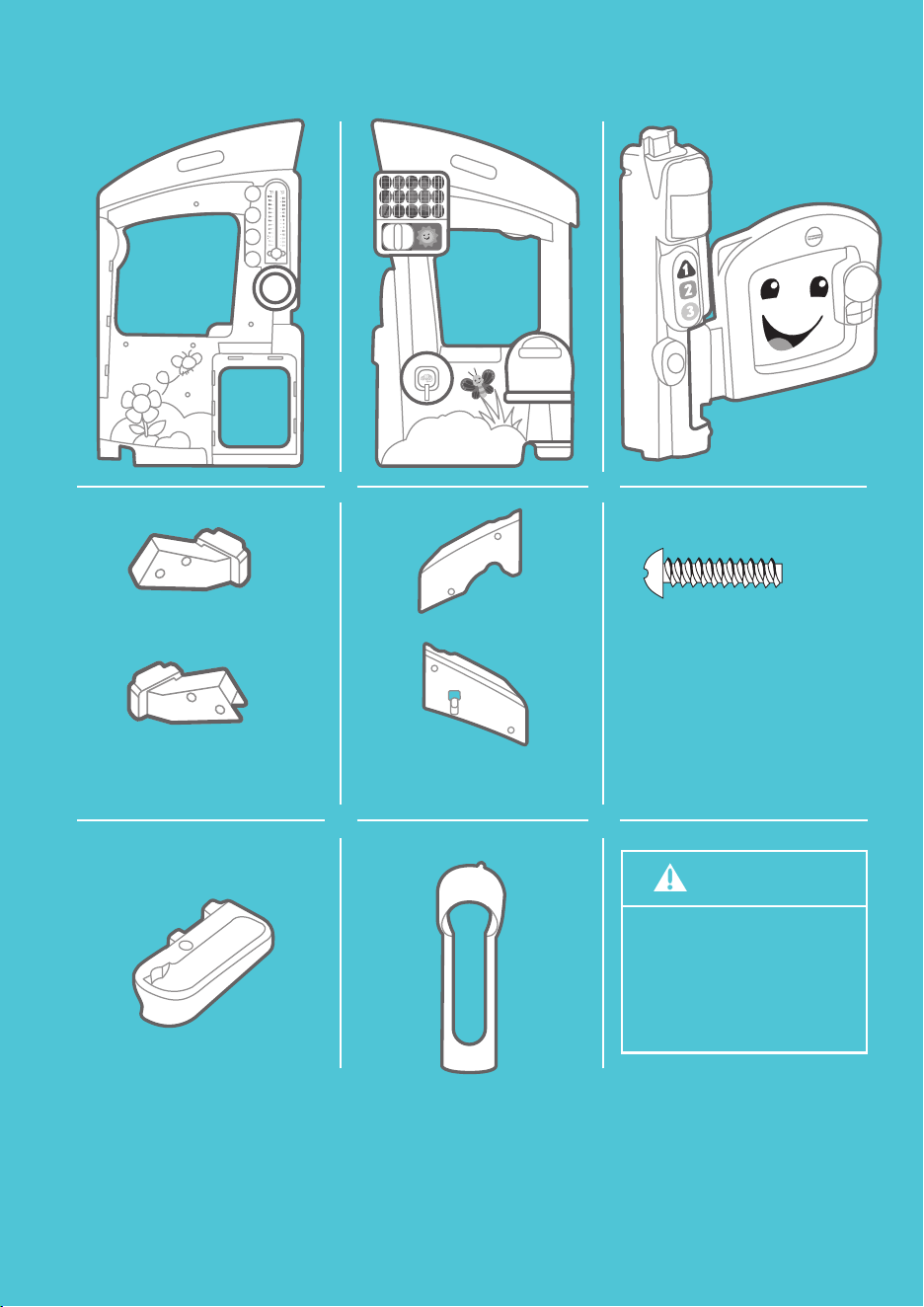

ASSEMBLED PARTS
4

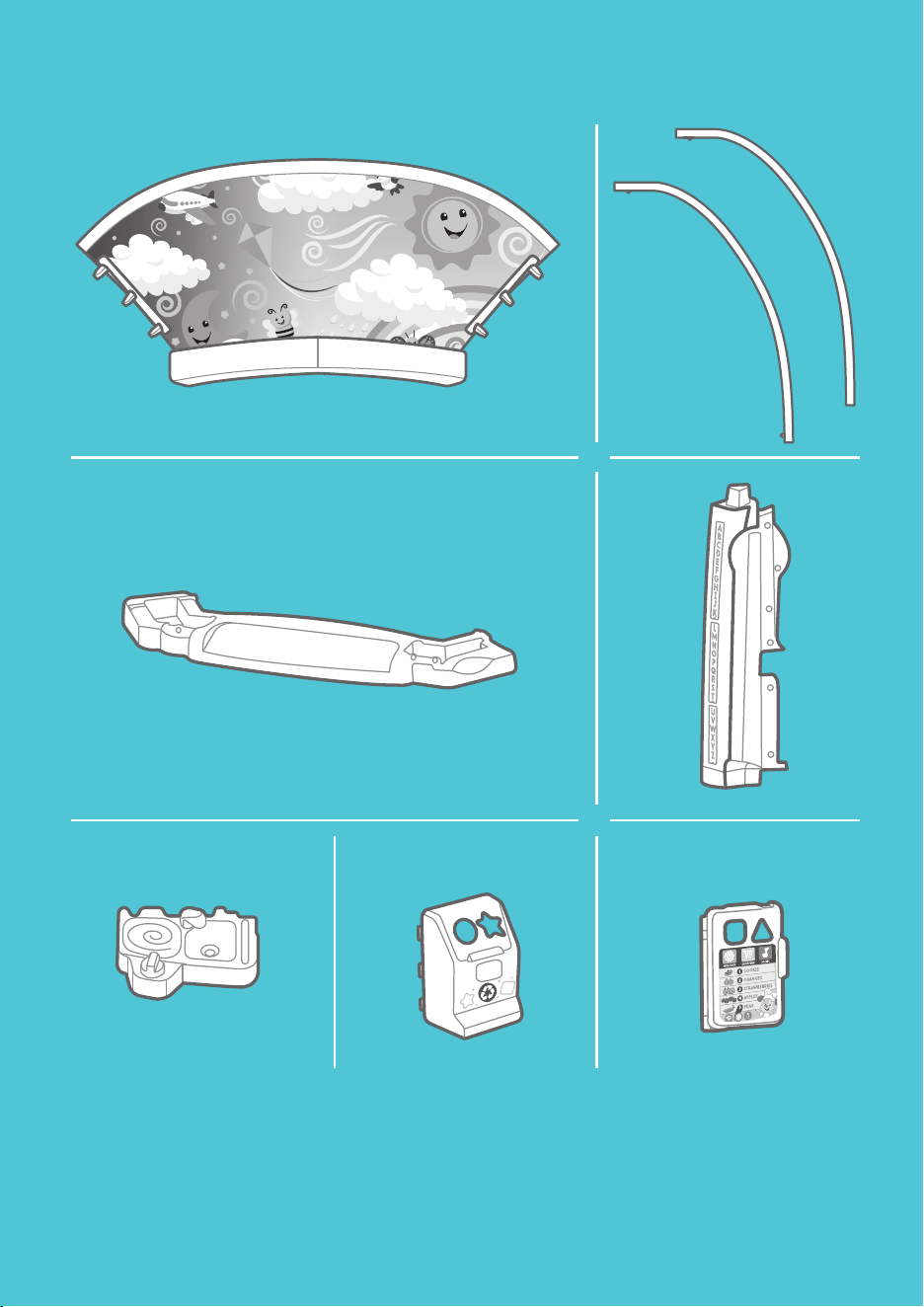

ASSEMBLED PARTS
CAUTION
This package
contains small
parts. For adult
assembly only.
x 23
M3,5 x 19 mm
We included
an extra screw
just in case
you lose one!
Left & Right Left & Right
5

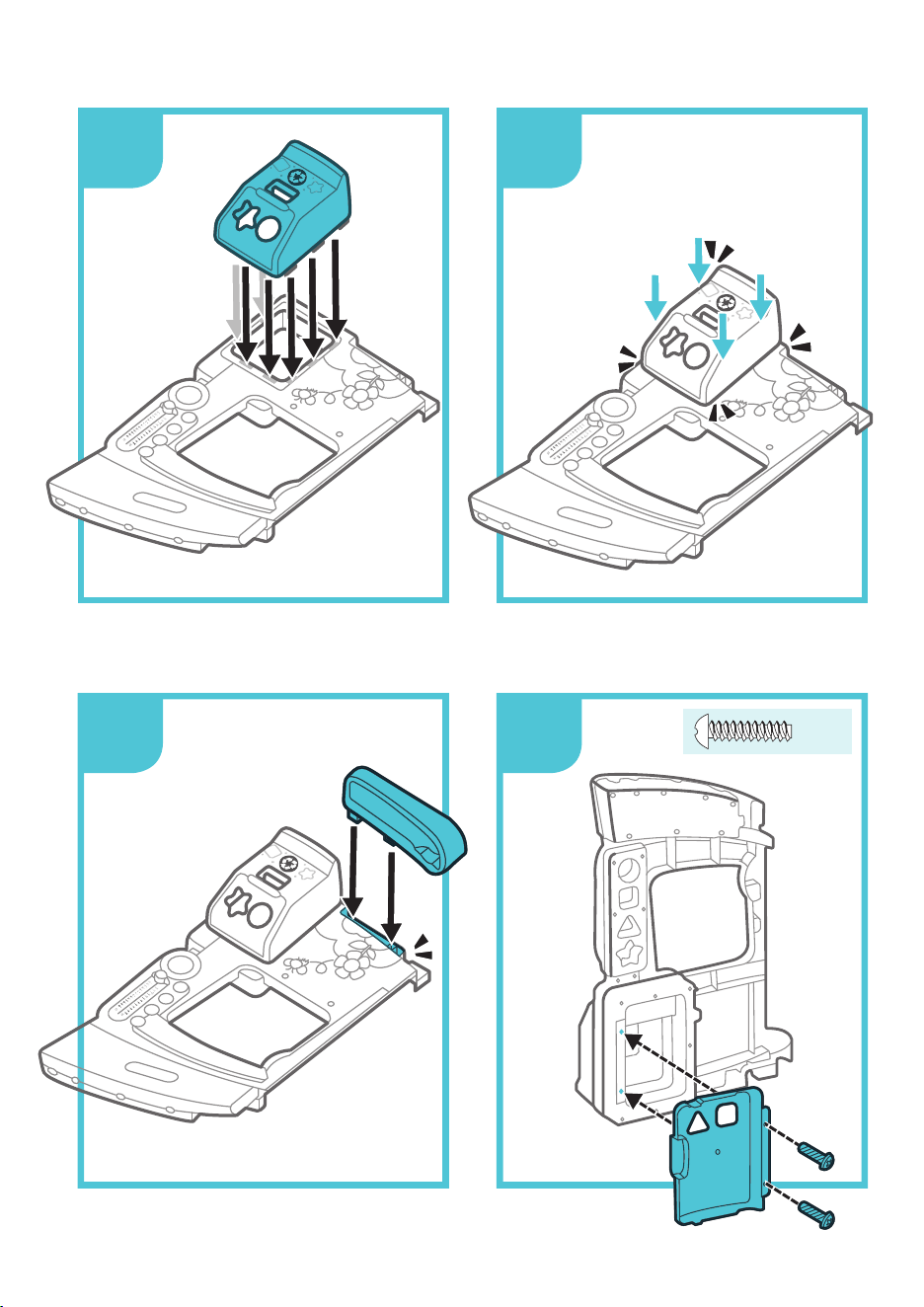

1
3
2
4

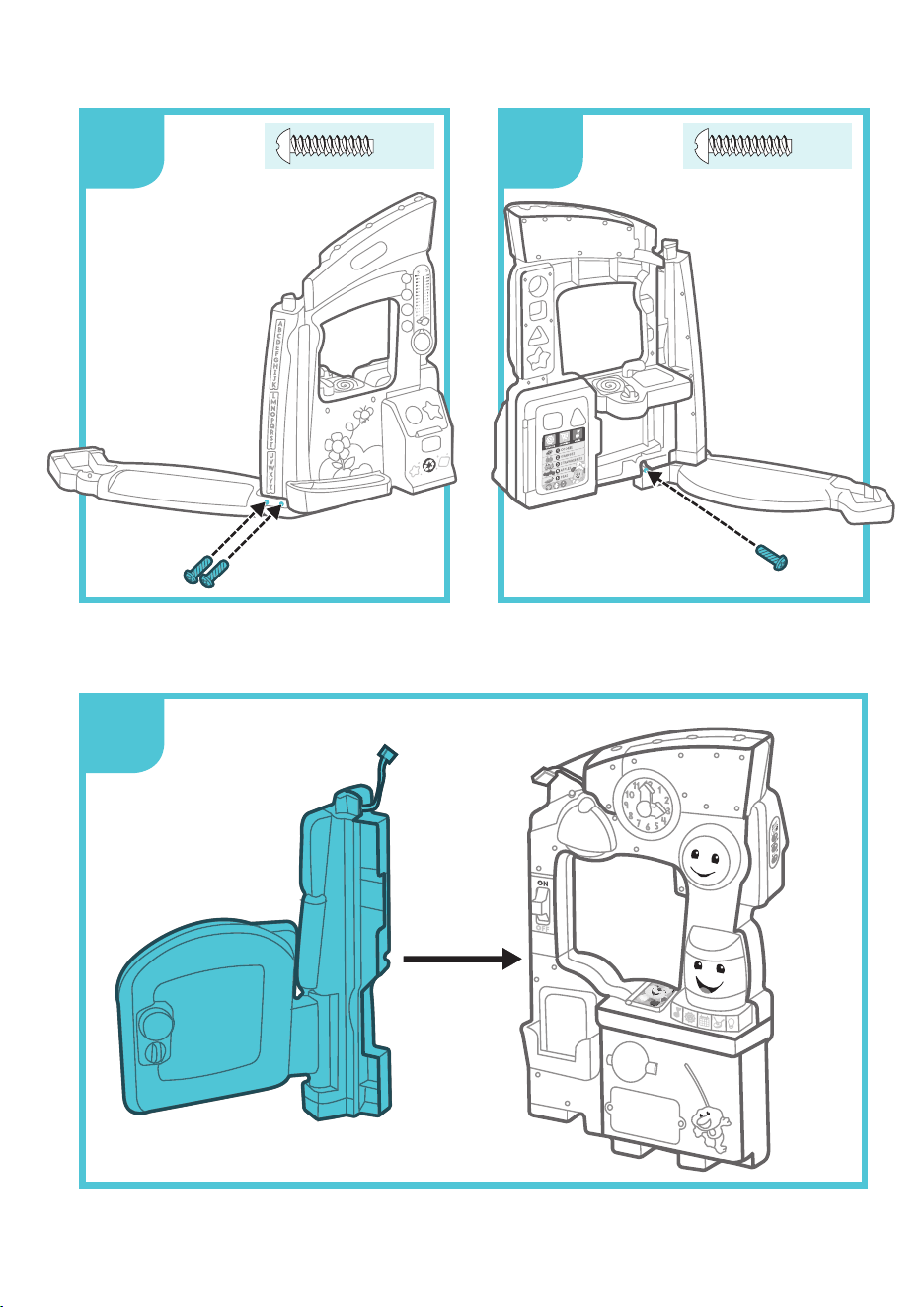

ASSEMBLY

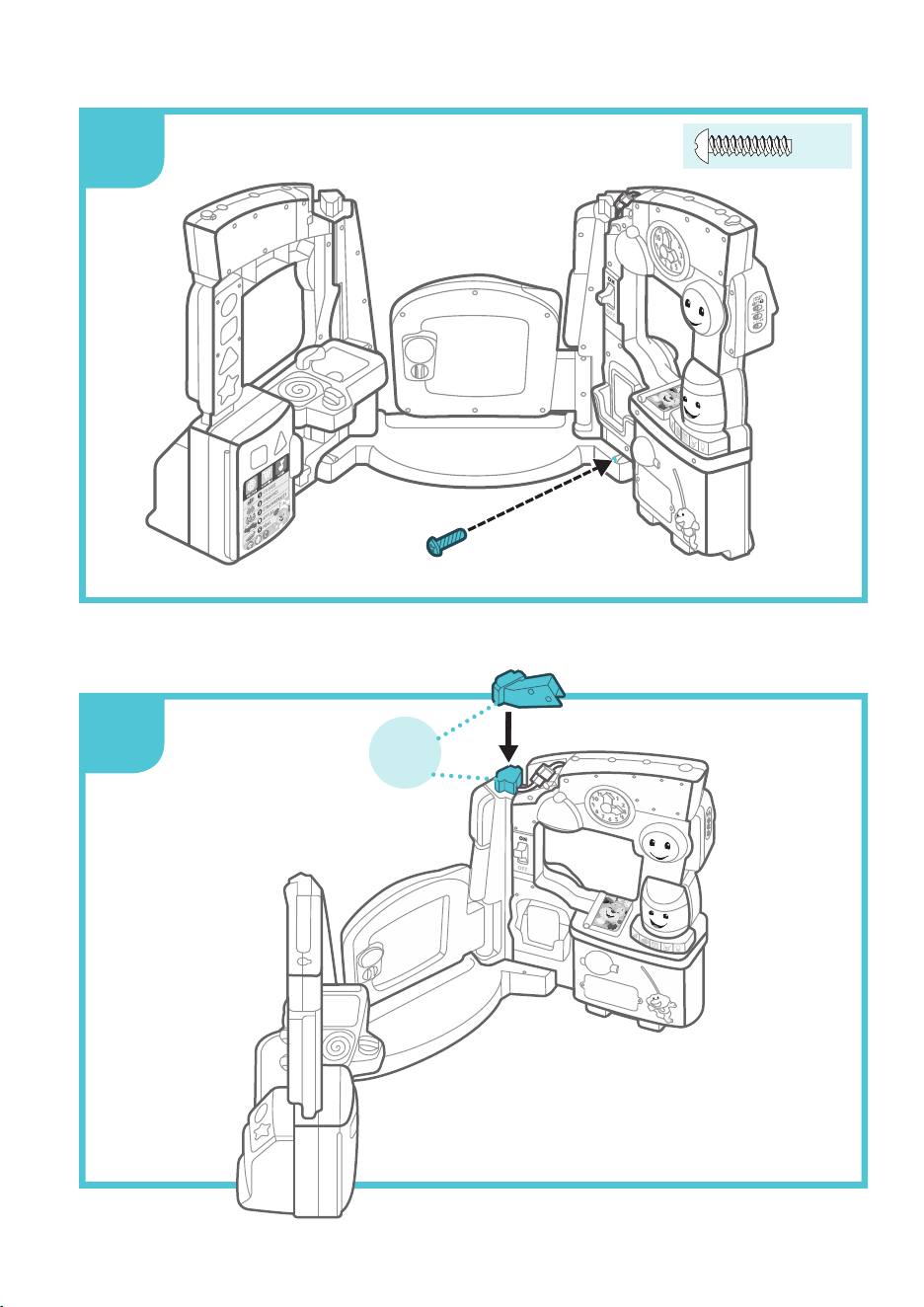

x 2
Push to “snap” the
recycle bin to the
house panel. This may
take a lot of force.
6
5
7
6
8
ASSEMBLY

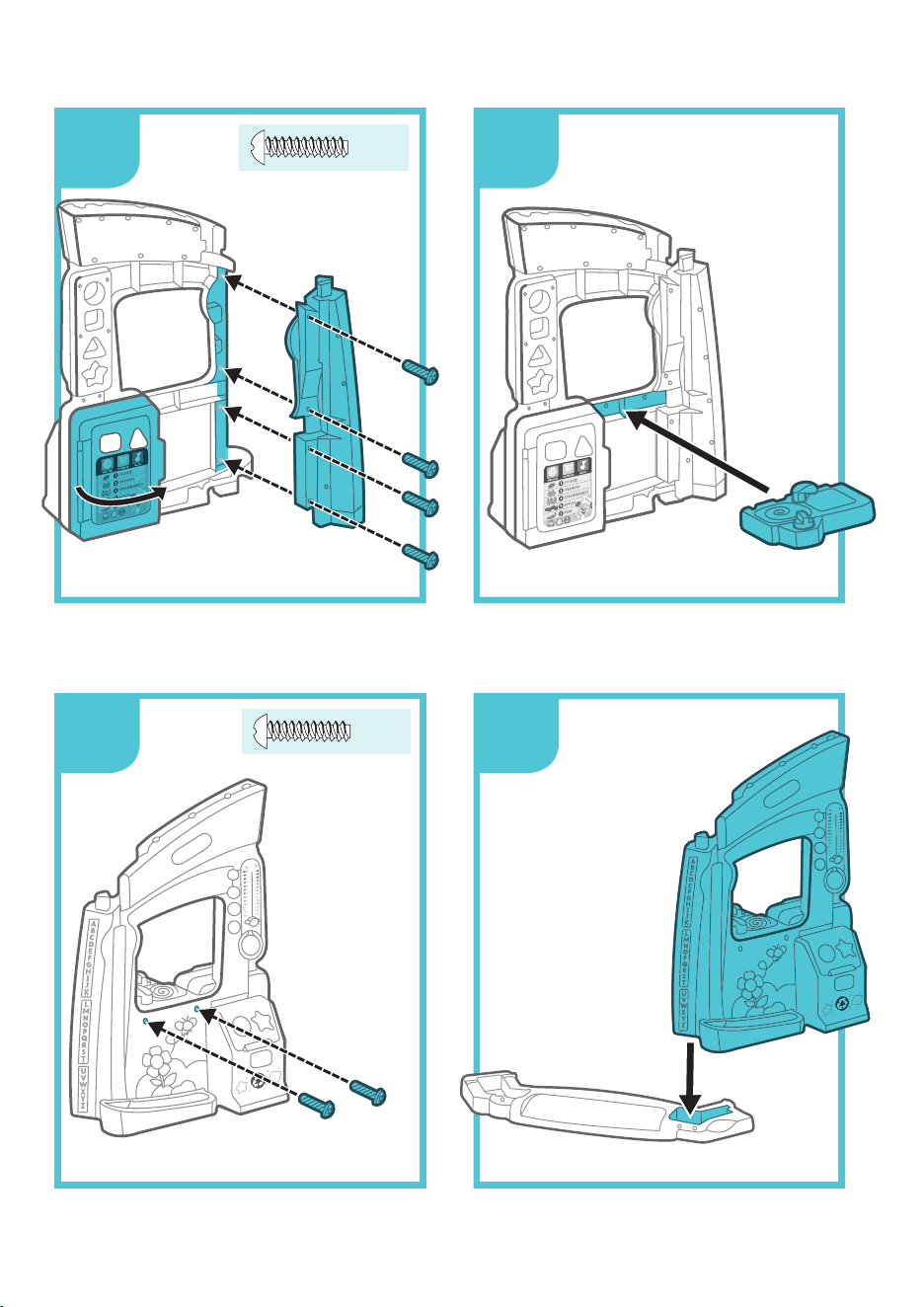

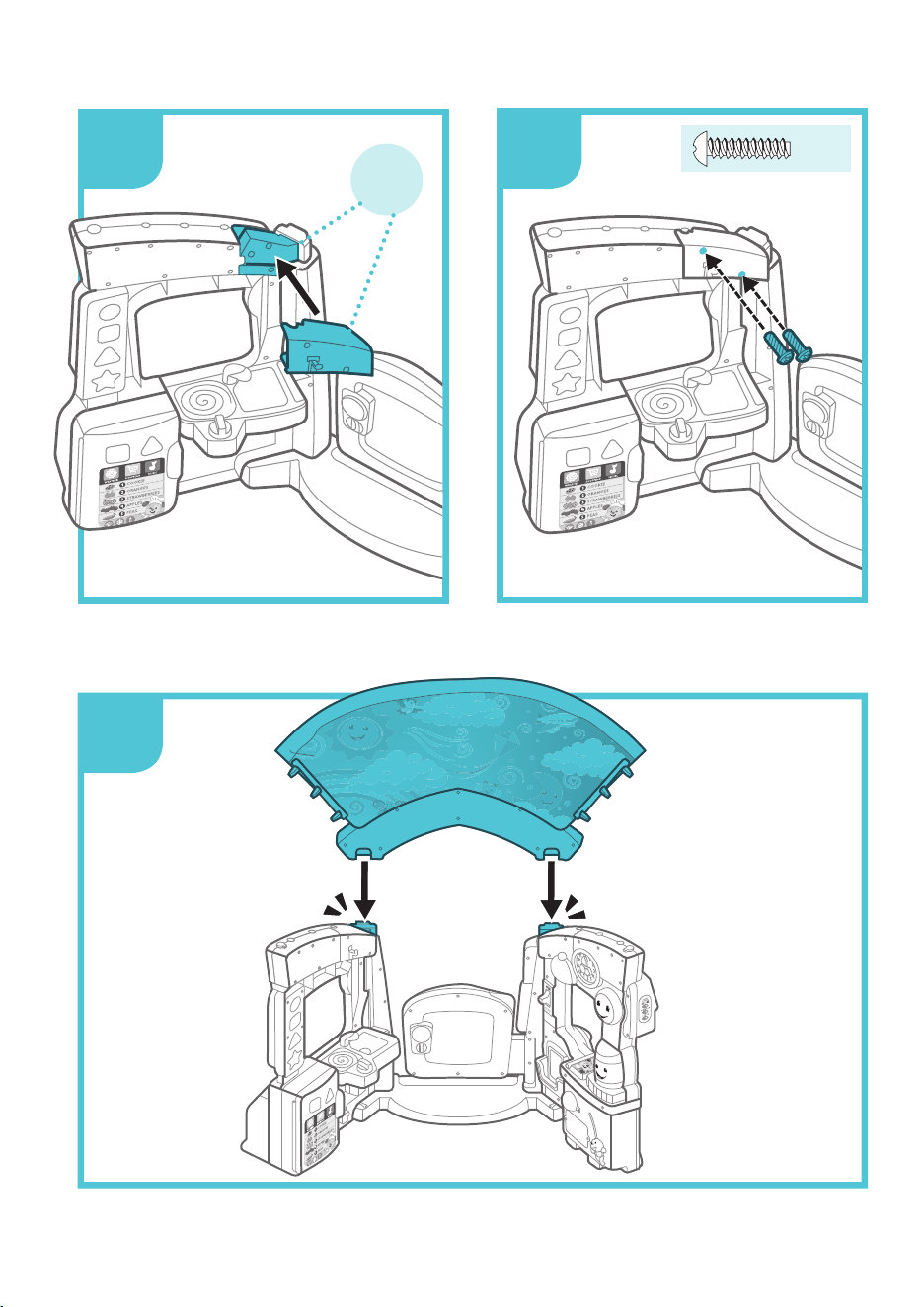

x 4
x 2
Insert
screws on
this side
of the
assembly.
7
9
11
10
ASSEMBLY
x 2 x 1
Insert a screw
on this side of
the assembly.
8
12
13
ASSEMBLY
x 4

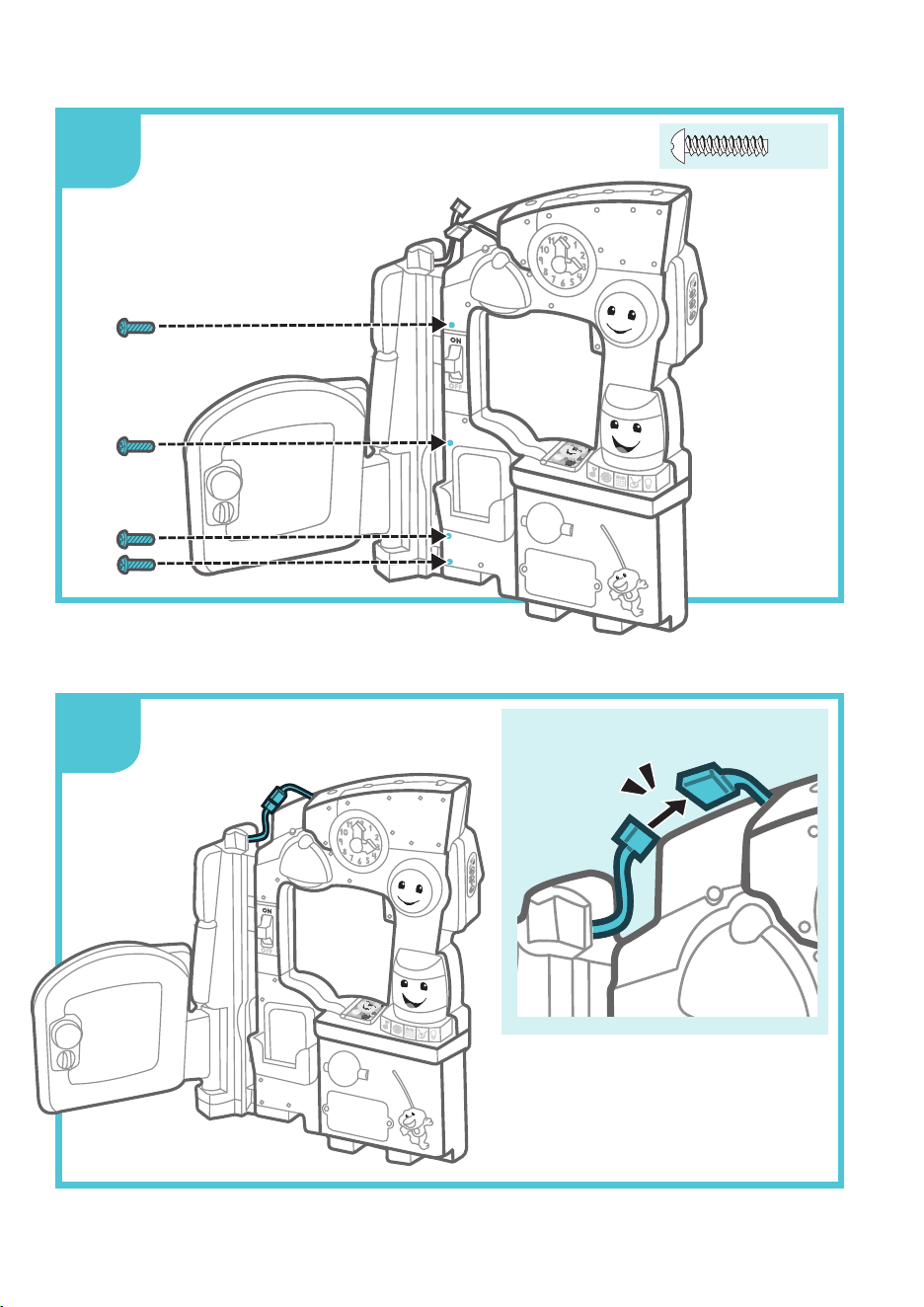

Be sure to make
this connection!
Make sure wires
are not twisted.
9
14
15
ASSEMBLY

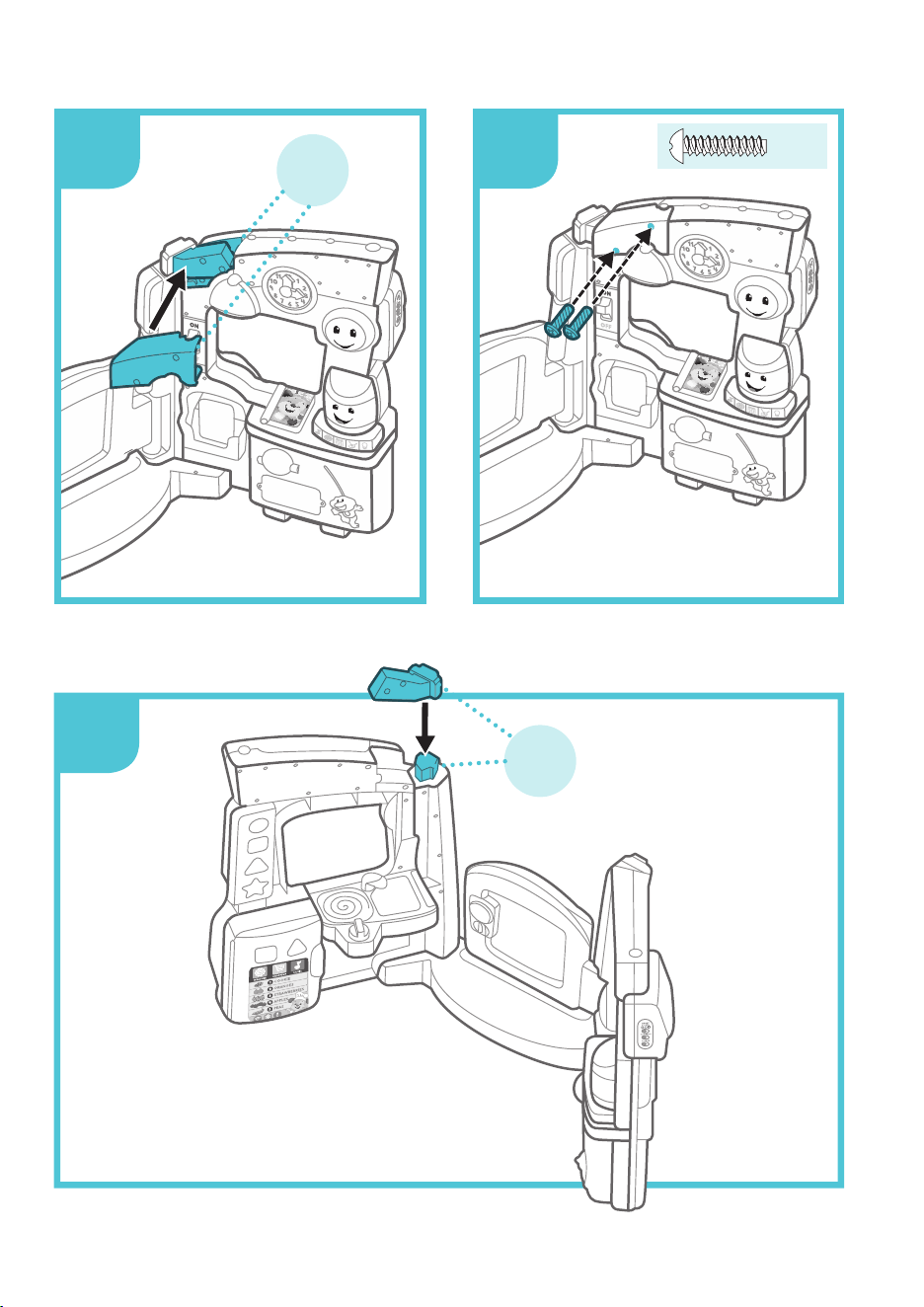

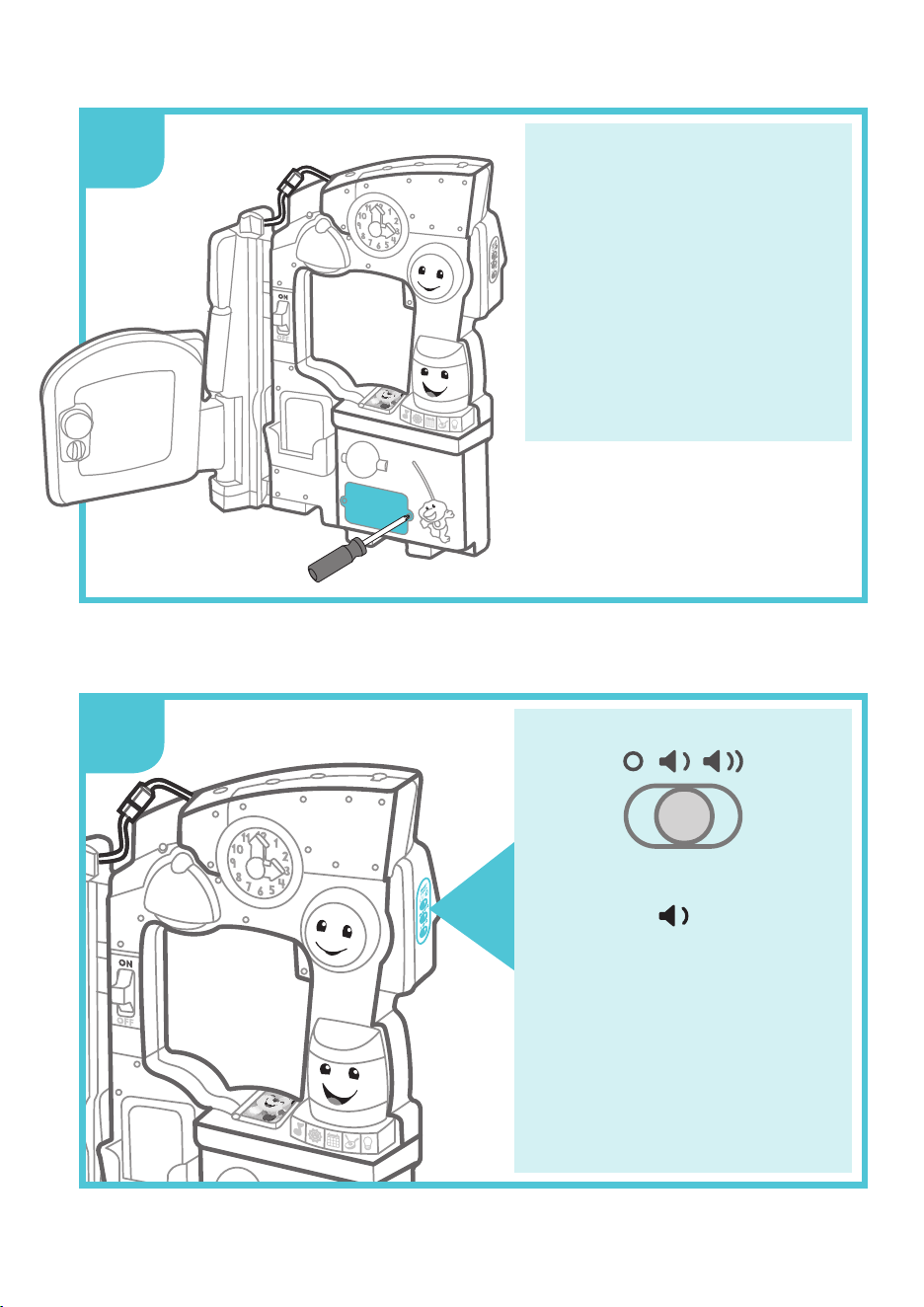

Locate the battery door
next to the froggy slider.
Loosen the screws in the
battery door and remove
the door.
Insert four, new C (LR14)
alkaline batteries. Make
sure you insert the
batteries correctly!
Replace the battery door
and tighten the screws.
Slide the power-volume
switch ON
and open
and close the door.
You should hear sound
and see lights. If you do
not, you may not have
connected the wires in
step 13. Go back and be
sure you’ve connected
the wires in step 13.
10

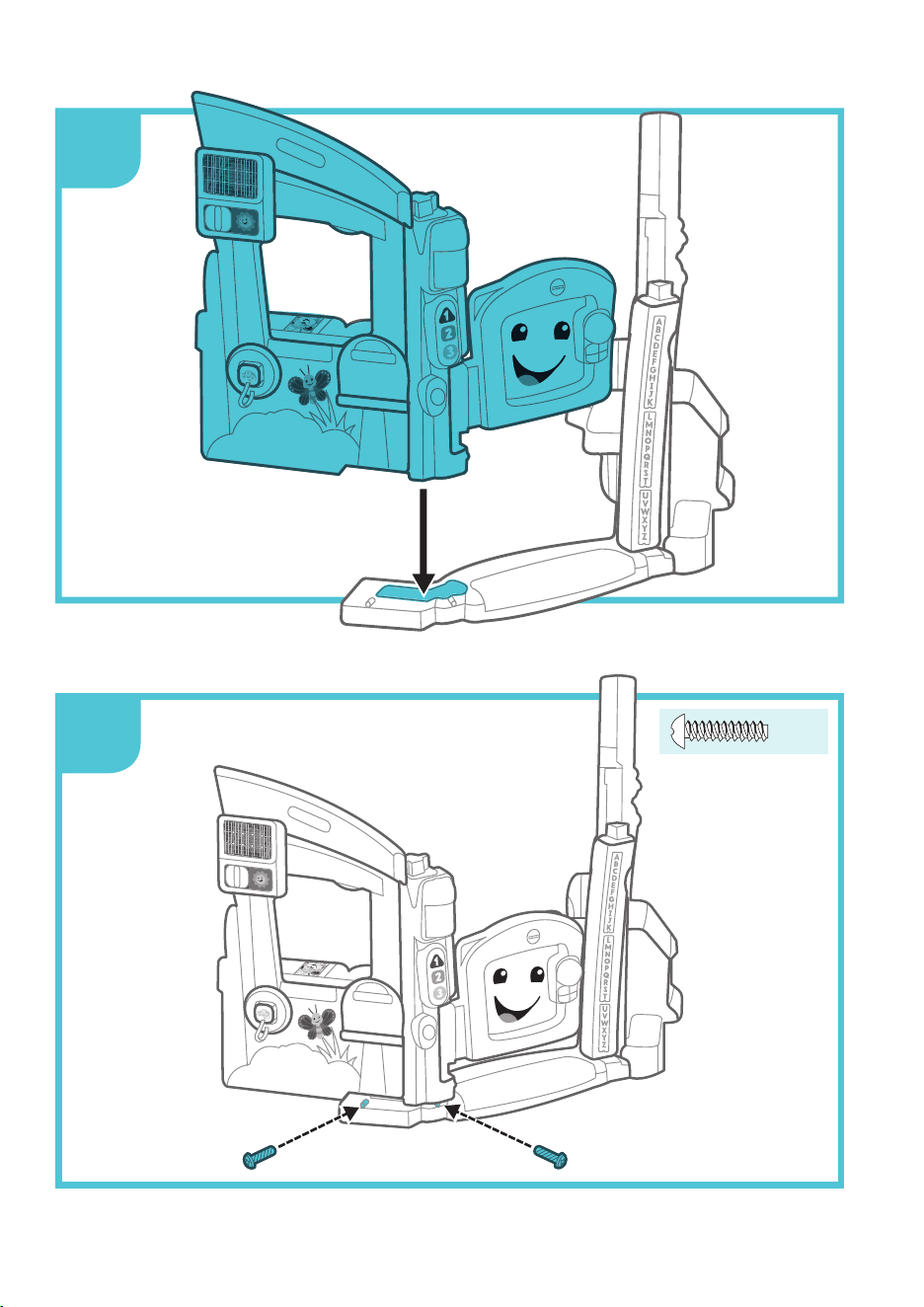

16
17
ASSEMBLY
x 2
11
18
19
ASSEMBLY
x 1
1
1
Insert a screw on the inside of
the assembly.
1
12
22
2
2
20
21
ASSEMBLY
x 2
3
3
2
3
13
25
23
24
ASSEMBLY
x 2
4
4
4
14
26
27
ASSEMBLY

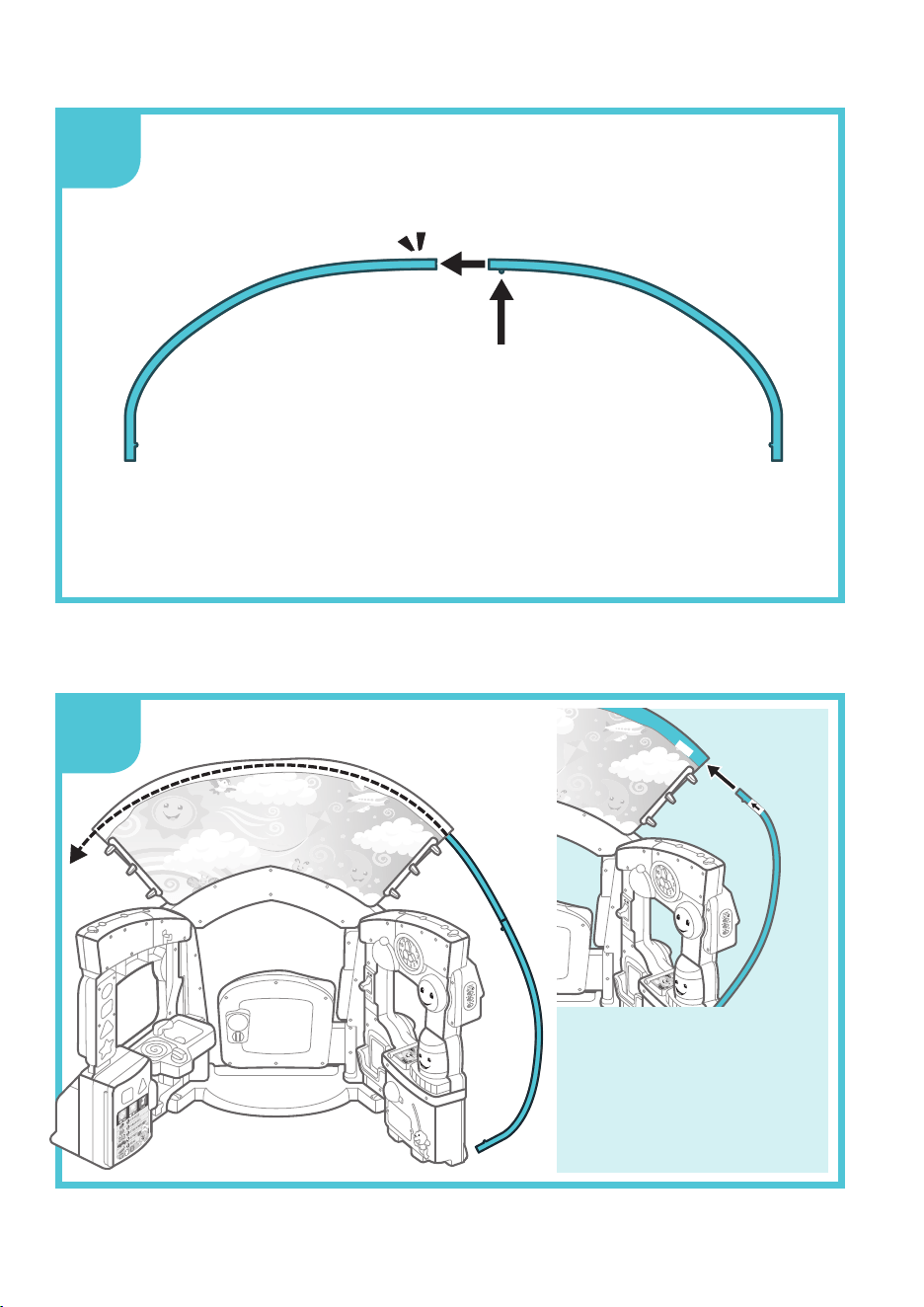

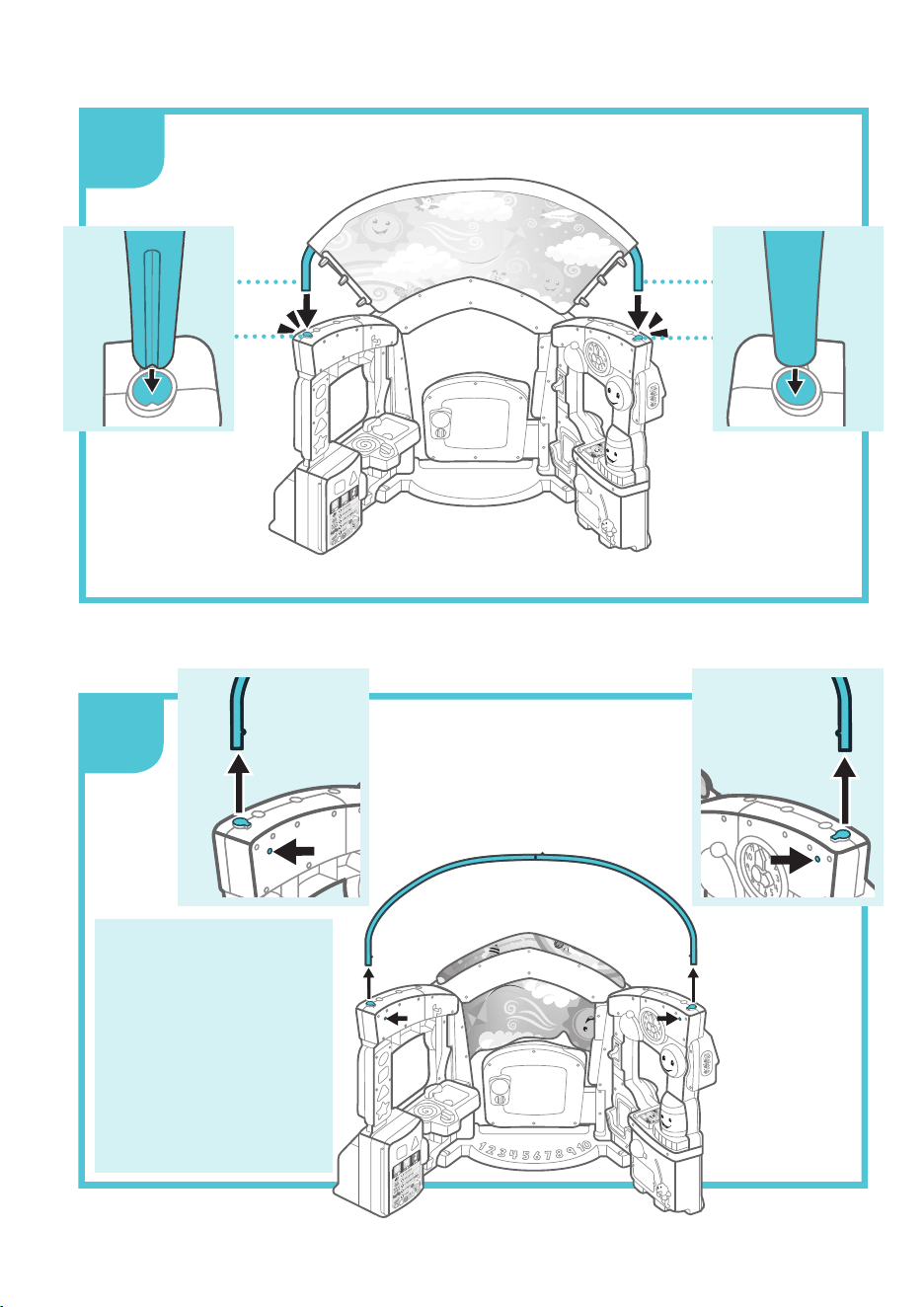

Start with the end
of the tube marked
with a yellow label.
Insert it into the roof
sleeve marked with
a yellow tag.
15
29
28
ASSEMBLY
Oh no! Did you
forget to fit the
tube through the
fabric roof sleeve?
Simply press the
release buttons
and pull to remove
the tube.
Go back to step 27.
16

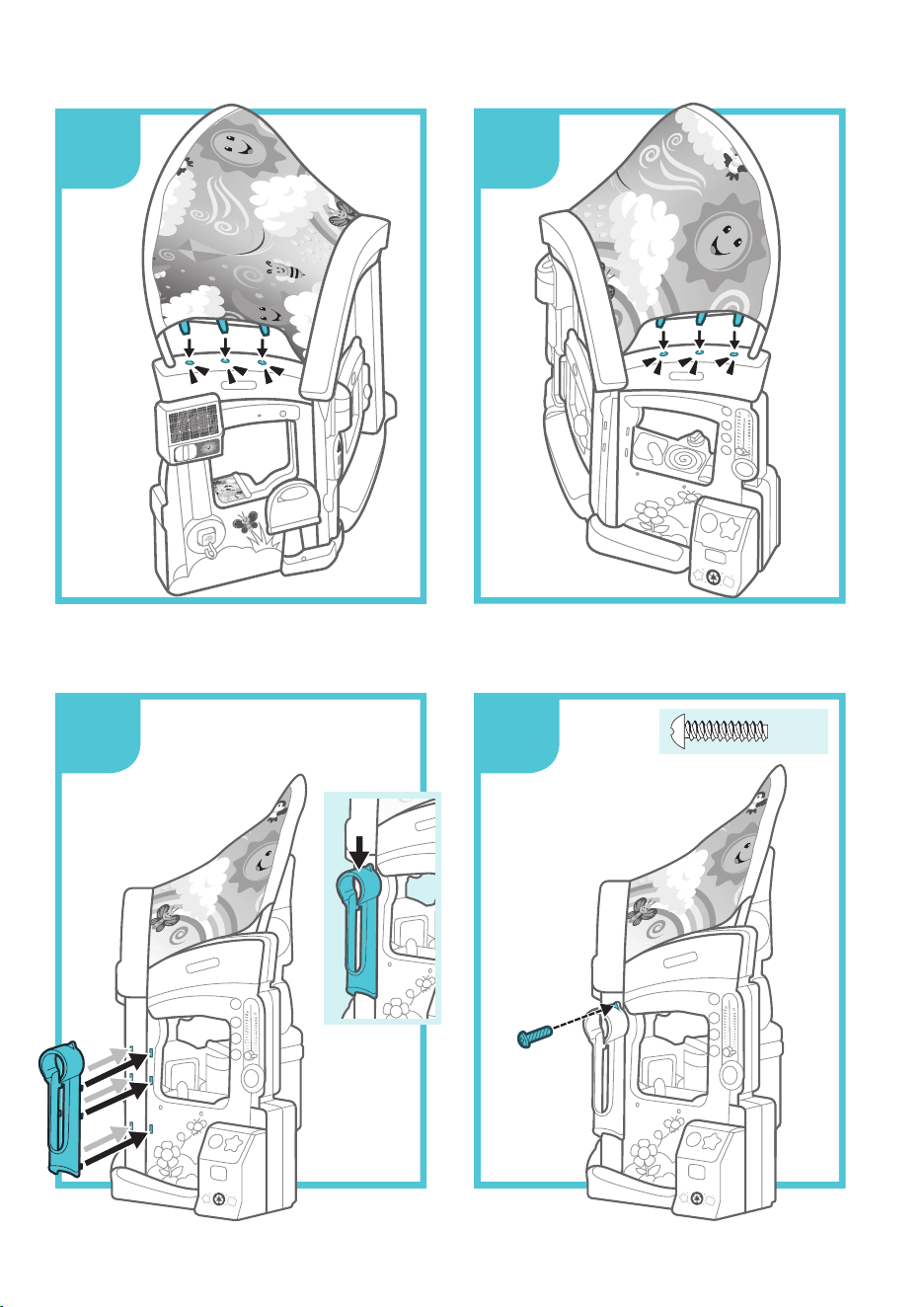

32
30
33
31
ASSEMBLY
x 1
17

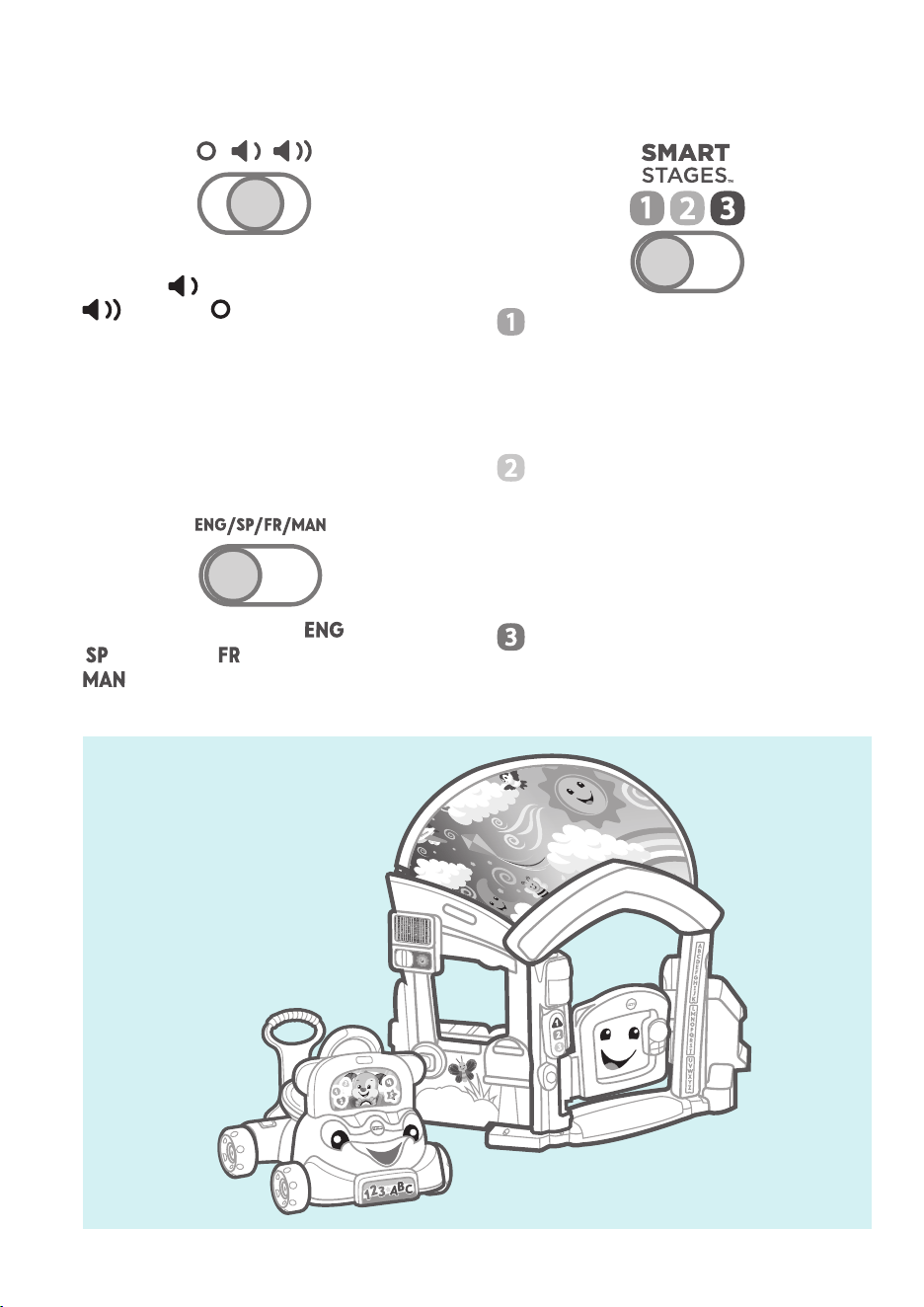

POWER-VOLUME
SWITCH
SMART STAGES™
MODE SWITCH
Slide to turn power ON with low
volume , ON with high volume
or OFF when finished
playing.
You may need to reset the
electronics if this toy begins
to operate erratically. Slide the
power-volume switch off and
back on.

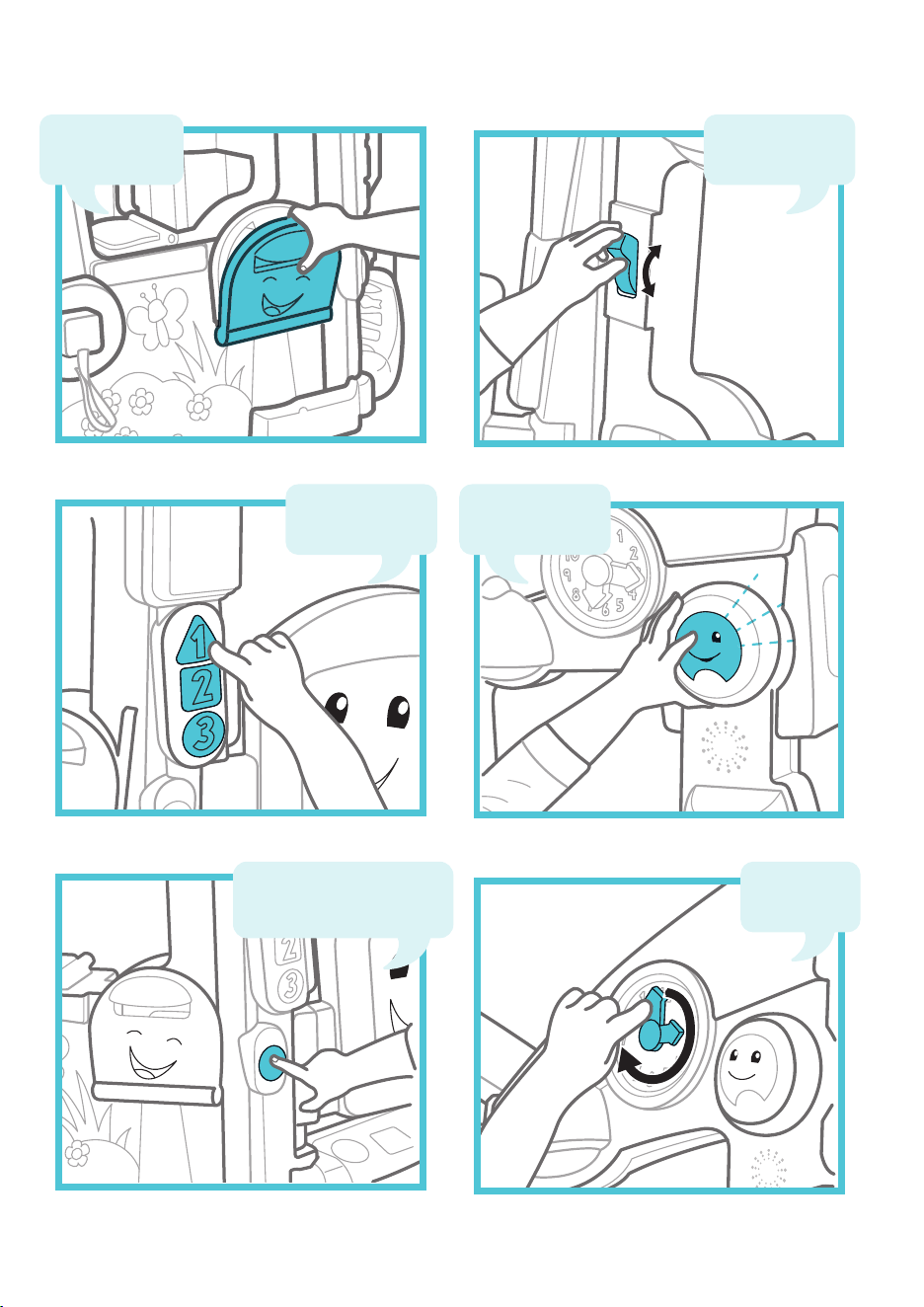

Choose a language:
English,
Spanish, French or
Mandarin.
Explore – Baby enjoys fun
sounds, music, songs, first
words and phrases that
introduce opposites, colors,
shapes, the alphabet and
counting!
Encourage – In this mode,
hear sounds, phrases and
songs that contain colors,
numbers, greetings and the
days of the week! Listen for
a fun prompt followed by an
encouraging reward!
Pretend – Listen to engaging
songs and phrases that inspire
imaginative play!
We saved you
a parking
spot, baby!
Drive your 3-in-1
Smart Car right
up to the Smart
Learning Home
and phone home.
Laugh and Learn® 3-in-1 Smart Car
not included and sold separately.
ON...OFF!
It’s COLD
in here!
18
Triangle!
WELCOME HOME!
Mail time!
DING-DONG!
1,2,3...
Hi there!
19

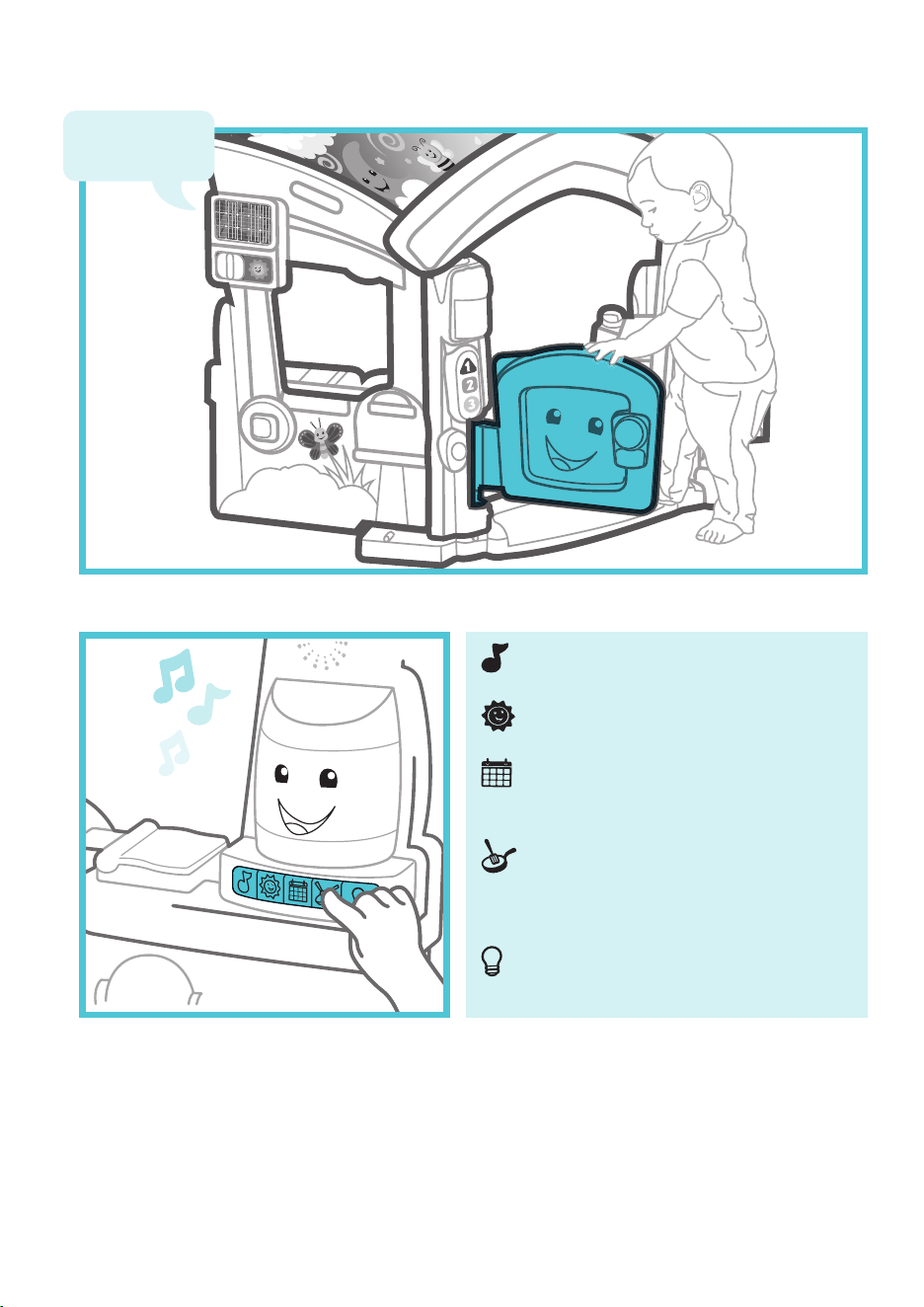

WELCOME HOME!
Press again and again to cycle
through different types of music.
Listen to weather related
music, sounds and phrases.
Count to 7 in mode 1 or switch
to mode 2 and hear the days of
the week!
Check baby’s “to-do” list and
sing along to the ABC’s in mode 1.
Then switch to mode 2 for colors
and counting!
Enjoy a colorful light show and
songs that identify colors.
©2018 Mattel.
PRINTED IN MEXICO
FJP89-0970
1101853770-DOM
You did it!
Raise the roof...
oh wait you just did!
P.S. sorry about all the screws...
we promise your little one will
appreciate the hard work!
