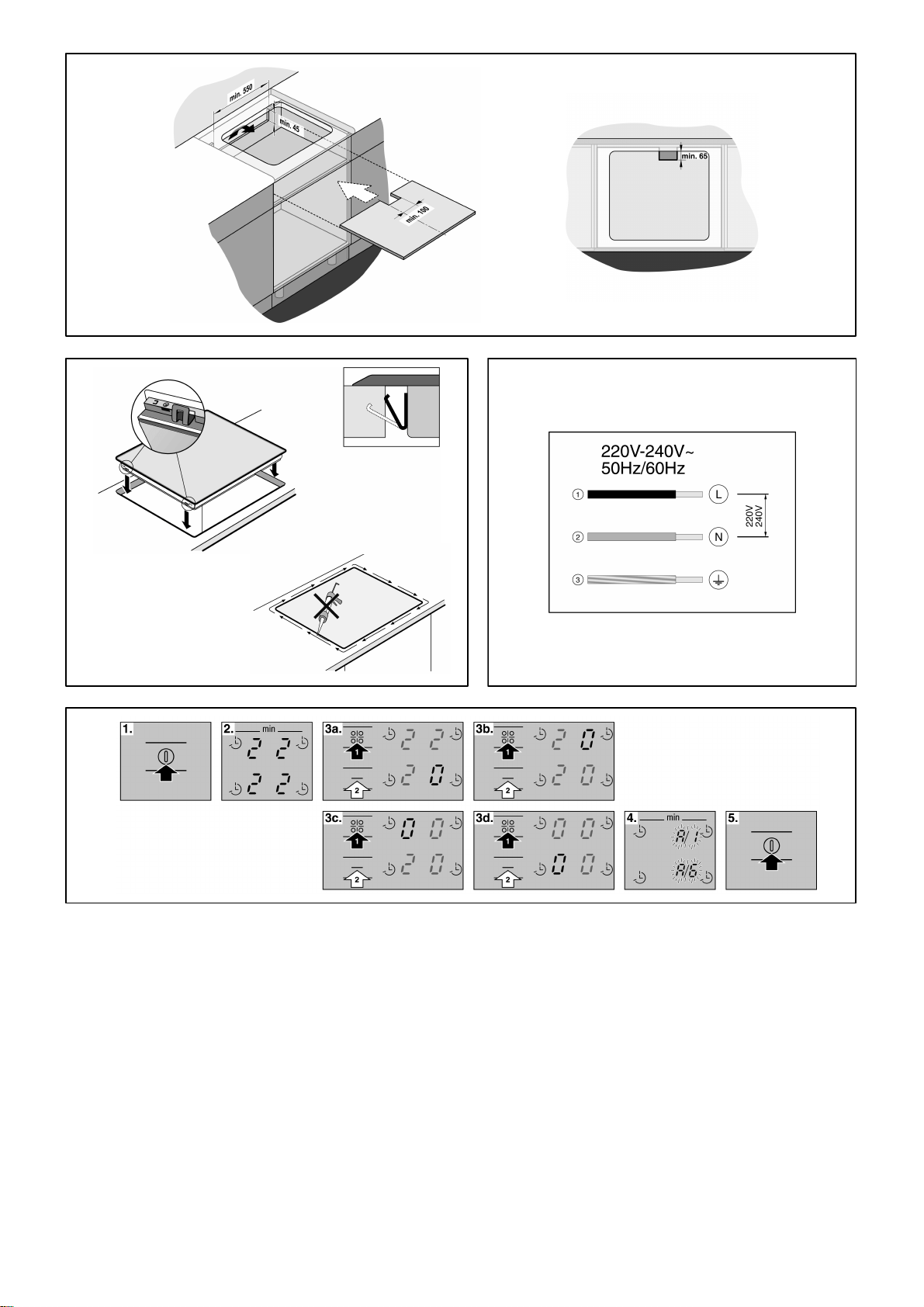

[en] Instructions for installation and use 2
Ú Table of contents
Protecting the environment 4
Induction cooking 4
Familiarise yourself with the appliance 5
Programming the hob 5
Childproof lock 7
Powerboost function 7
Time program function 7
Basic settings 8
Care and cleaning 9
Fixing malfunctions 9
After-sales service 10
Produktinfo
Additional information on products, accessories, replacement parts and services can be found at www.bosch-home.com and in the online shop www.bosch-eshop.com
m Safety warnings and advice
Please read these instructions carefully. We advise you not to use the appliance until you have read them.
Keep the operation and installation instructions. If the appliance is passed on to another user, please ensure that the documentation is also passed on with it.
Safety instructions
Safe operation
To use this appliance safely, adults and children who, as a result of
are not capable of using this appliance, should not do so without the supervision of a responsible adult.
Children must be supervised to ensure that they do not play with the appliance.
Oil and fat too hot
Risk of fire!!
Cooking food using the bain-marie method
The bain-marie method allows you to cook food in a saucepan submerged in a larger pan containing water. The water cooks the food with a gentle and constant heat, rather than directly from the heat of the hotplate. When cooking food in bain-marie, you...
Hot hob
Risk of burns!!
Risk of fire!!
Wet hotplates and pan bases
Risk of injury!!
Cracks in the hob
Risk of electric shock!!
The hotplate heats up, but the display does not work
Risk of burns!!
The hob switches off
Risk of fire!!
Do not place metal objects on the induction hotplate
Risk of burns!!
Fan care
Malfunction risk!
Caution!
Incorrect repairs
Risk of electric shock!!
Caution!
Switching off the hob
Elements that may damage the appliance
Caution!
Overview
The following table presents the most common damage caused:
Protecting the environment
Environmentally-friendly disposal of waste products
Energy-saving advice
Induction cooking
Advantages of induction cooking
Induction cooking represents a radical change from the traditional method of heating; the heat is generated directly in the pan. It therefore offers a number of advantages:
Suitable pans
Ferromagnetic pans
Only ferromagnetic pans are suitable for induction cooking, these may be made from:
Special induction pans
Unsuitable pans
Never use pans made from:
Characteristics of the pan base
Absence of pan or unsuitable size
Empty pans or those with a thin base
Pan detection
Double or triple hotplate
Familiarise yourself with the appliance
The control panel
The hotplates
Residual heat indicator
The hob has a residual heat indicator • on each hotplate, which lights up when they are hot. Avoid touching them when this indicator is lit.
The • light will remain on while the hotplate is hot, even after the hob has been turned off.
Programming the hob
Switching the hotplate on and off
The range is turned on and off using the main switch.
To switch on: press the % symbol. The indicator next to the main switch and the ‹ indicators light up. The range is ready for use.
To switch off: press the % symbol until the indicators go out. All hotplates are turned off. The residual heat indicator will remain lit until the hotplates have cooled down sufficiently.
Note
Set the hotplate
Select the required power level with the + and - symbols.
Power level 1 = minimum power.
Power level 9 = maximum power.
Setting the power level
The range should be switched on.
1. Press the µ symbol several times until the ‹ indicator of the required hotplate lights up.
2. Within the next 5 seconds, press the + or - symbol.The basic setting appears:
3. To change the power level: select the hotplate and press the + or - symbol until the required power level appears.
To switch off the hotplate
Select the hotplate and then press the + or - symbol until ‹ symbol appears.
Note
Cooking guidelines table
The table below contains some examples.
Childproof lock
Turning on and off the childproof lock.
The range should be turned off.
To turn on: press the D symbol for approx. 4 seconds. The indicator next to the D symbol lights up for 10 seconds. The range is locked.
To turn off: press the D symbol for approx. 4 seconds. The range is unlocked.
Note
Activating and deactivating the childproof lock
Activating and deactivating
Powerboost function
The Powerboost function can be used to heat food more quickly than using the power level Š.
To activate
The hob must be switched on, but no hotplate should be working.
1. Select the required hotplate.
2. Select the power level Š.
3. Then press the + symbol.
Note
To turn off
Note
Time program function
How to rogram
The hob should be switched on.
1. Select the required hotplate and power level.
2. Set the time using the + or - symbols.
Once the time has elapsed
To cancel or change the time
Note
Basic settings
The device has several basic settings. These settings may be adapted to the user's individual needs.
To access the basic settings
The range should be turned off.
1. Turn on the range with the main switch.
2. Within the next 10 seconds, press the D symbol and hold for 4 seconds.
3. Press the D several times until the required setting indicator appears.
4. Then select the required setting using the + and - symbols. The setting appears on the upper right of the display.
5. Press the D symbol again and hold it for 4 seconds. The settings have been properly saved.
Quit
Care and cleaning
Hob
Cleaning
Clean the hob after each use. This prevents food remains left on the surface from burning. Wait until the hob is cold enough before attempting to clean it.
Only use cleaning products specifically designed for glass- ceramic hobs. Follow the instructions provided on the packaging.
Do not use:
Glass scraper
Remove dried-on food remains using a glass scraper.
1. Release the scraper safety catch
2. Use the blade to clean the hob surface
m Risk of injury!!
Care of the appliance
Hob frame
In order to avoid damage to the hob frame, follow the indications below:
Fixing malfunctions
Malfunctions are commonly due to small details. Before calling the Technical Assistance Service, you should consider the following advice and warnings.
Normal noise while the appliance is working
Induction heating technology is based on the creation of electromagnetic fields that generate heat directly at the base of the pan. Depending on how the pan has been manufactured, certain noises or vibrations may be produced such as those described b...
A deep humming sound as in a transformer
This noise is produced when cooking on a high power level. It is caused by the amount of energy transferred from the hob to the pan. The noise disappears or becomes faint when the power level is lowered.
A low whistling sound
This noise is produced when the pan is empty. It disappears when water or food is added to the pan.
A crackling sound
This noise occurs in pans which are made from different materials superimposed on one another. It is caused by the vibrations that occur in the ajoining surfaces of the different superimposed materials. The noise comes from the pan. The amount of foo...
A high-pitched whistling sound
This noise is produced mainly in pans made from different materials superimposed on one another, and it occurs when such pans are heated at maximum power on two hotplates at the same time. The whistling disappears or becomes fainter as soon as the po...
Noise from the fan
For proper use of the electronic system, the temperature of the hob must be controlled. For this purpose, the hob has a fan that starts working when detecting excess temperatures at different power levels. The fan may also work due to inertia after t...
Rhythmic sounds similar to a clock's hands
This noise is only produced when 3 or more hotplates are working and disappears or is reduced when one of the hotplates is switched off.
After-sales service
Our after-sales service is there for you if your appliance should need to be repaired. We are committed fo find the best solution also in order to avoid an unnecessary call-out.
E number and FD number:
Please quote the E number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate.
Please note that a visit from an after-sales service engineer is not free of charge, even during the warranty period.
Please find the contact data of all countries in the enclosed customer service list.
To book an engineer visit and product advice
Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance.
