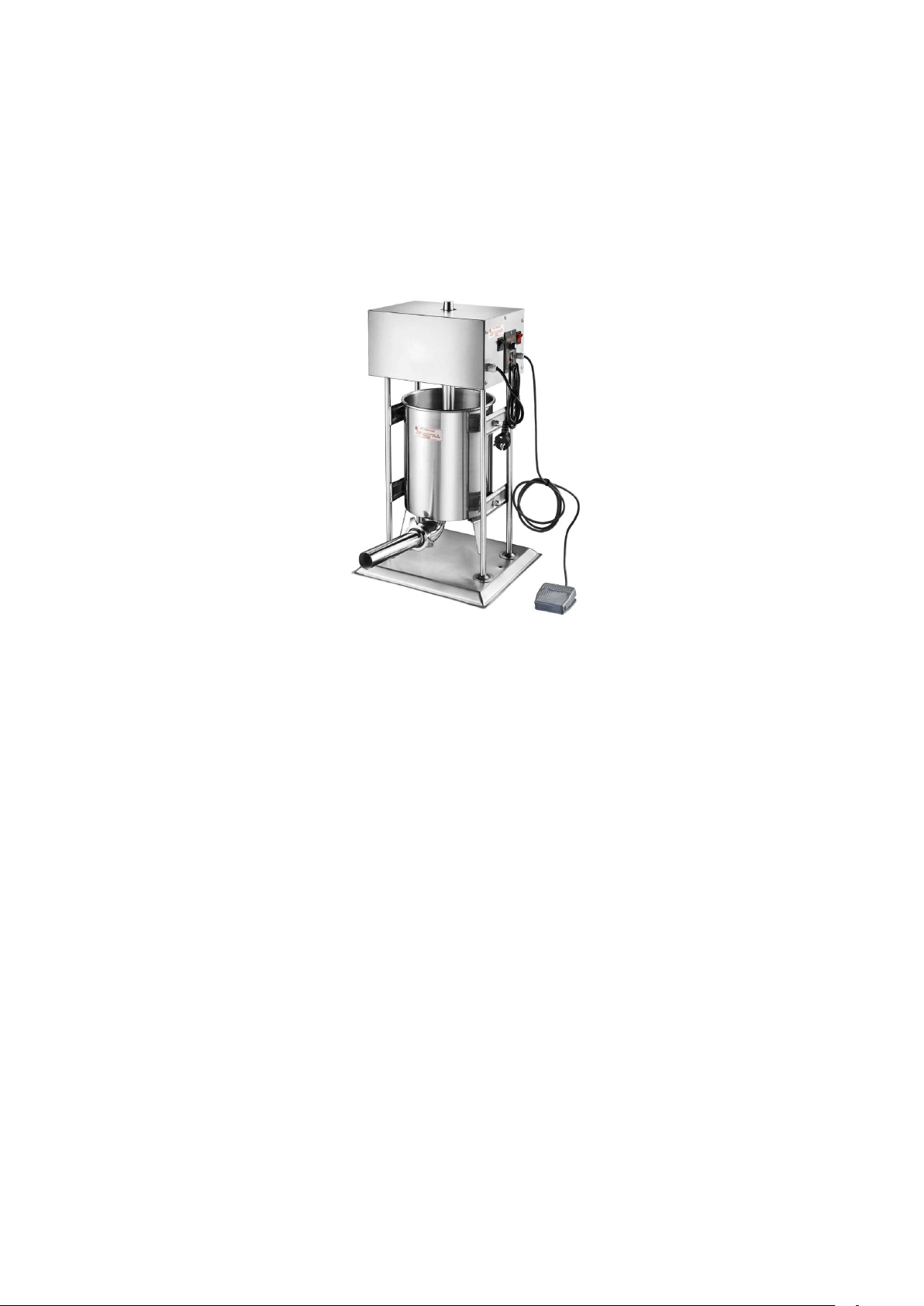

ELECTRIC SAUSAGE STUFFER
INSTRUCTION
Important:
When using electrical appliances, basic safety precautions should always be
followed as below:
1. Read all instruction before using this appliance.
2. Do not operate this appliance with a damaged cord, plug or malfunctions.
3. To protect against electrical shock, do not immerse foot switch, cord, plug
or stuffer in water or other liquids.
4. This appliance is not intended for use by children.
5. Keep fingers and hands clear of all moving parts.
6. Unplug this appliance when not in use or before cleaning.
2
Technical specification:
Model
Volume
L
Voltage
V
Frequency
HZ
Power
W
ETV10L
10L
110v/220v
50~60HZ
40W
ETV12L
12L
110v/220v
50~60HZ
40W
ETV15L
15L
110v/220v
50~60HZ
40W
ETV20L
20L
110v/220v
50~60HZ
120W
ETV25L
25L
110v/220v
50~60HZ
120W
ETV30L
30L
110v/220v
50~60HZ
120W
How to use:
1. Place the foot pad in a dry position.
2. Connect electrical power, and then turn “ O-I “ switch (red) to “O”.
3. Turn SPEED switch (black) to
small white spot .
4. Turn switch (RED) to “二”. Let the piston move to the top.
5. Tilt the cylinder and place meat in the cylinder.
6. Place the cylinder back on to the frame.
7. Adjust speed switch (knob) on the side of the motorized box to speed
70~80 .
8. Turn switch (RED) to “一” and then push the down side of the foot
pad, so the piston will start to come down.
9. Use the speed switch (knob) to adjust to appropriate speed 80 .
10.While filling the casing, remove your foot from the foot pad and the piston
will stop.
11. When the piston moves down on the bottom of the cylinder, the appliance
will stop automatically.
12. Repeat above process starting at No. 4 if necessary.
How to clean:
1. Unplug this machine before cleaning.
2. Remove the cylinder, piston and stuffing tube. Hand wash with soapy water
and dry thoroughly.
3. Clean this appliance with a damp cloth.
3
Motorized box diagram:
SPEED KNOB
-----
↑
O
O
10- -90
===
low- -high
I
UP-DOWN SWITCH
ON-OFF SWITCH
ON-OFF SPEED SWITCH
PLUG OF FOOT PAD
POWER CORD
Circuit diagram:
