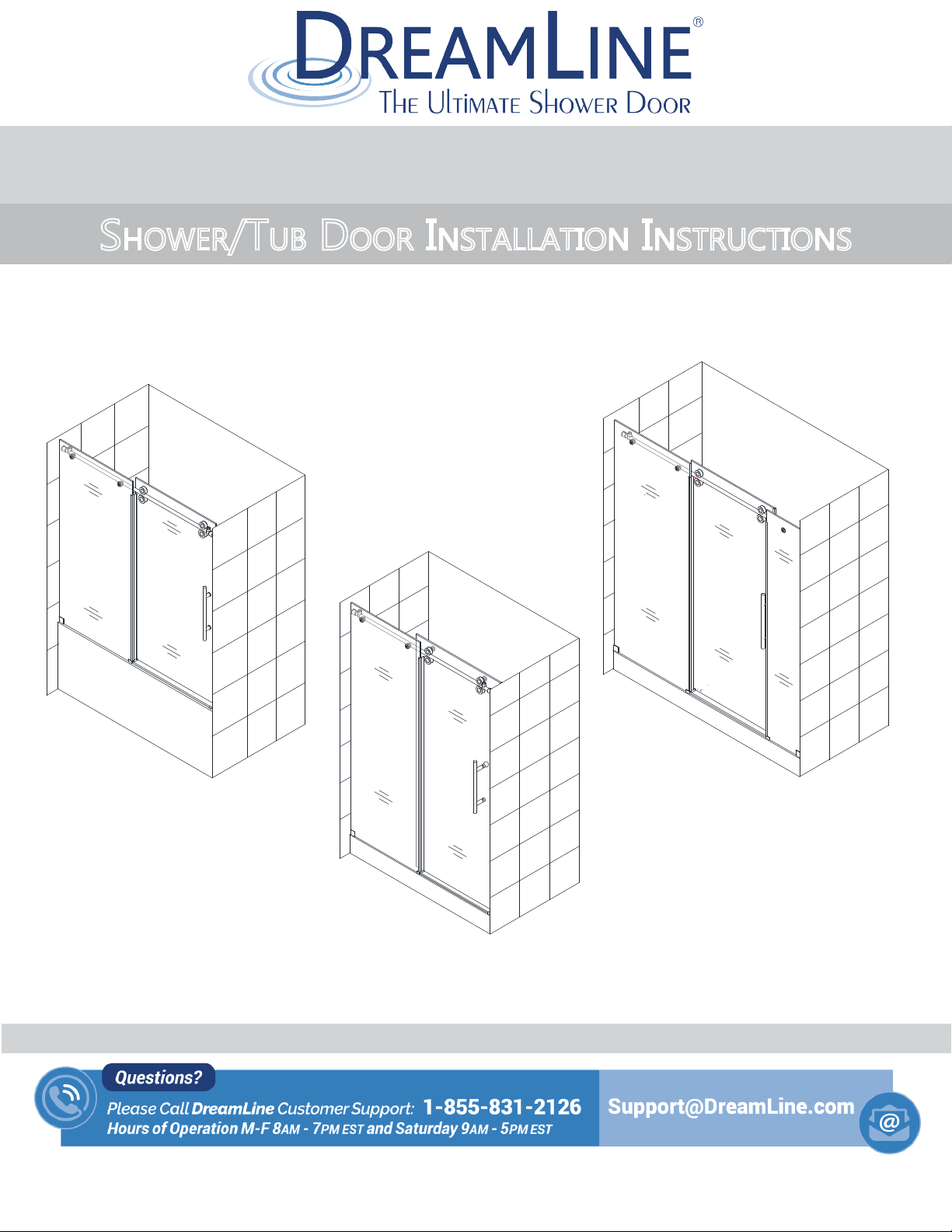

DreamLine SHDR6160622007 User Manual

For more information about DreamLine

Shower Doors & Tub Doors please visit DreamLine.com

Please review this entire manual prior to installation.

ENIGMA-XO

SHOWER/TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

##=finish

06- Oil Rubbed Bronze

07- Brushed Stainless Steel

08- Polished Stainless Steel

ENIGMA-XO manual Ver 1 Rev 2 03/2018

SHDR-61727620-##

SHDR-61606220-##

SHDR-61487620-##

SHDR-61547620-##

SHDR-61607620-##

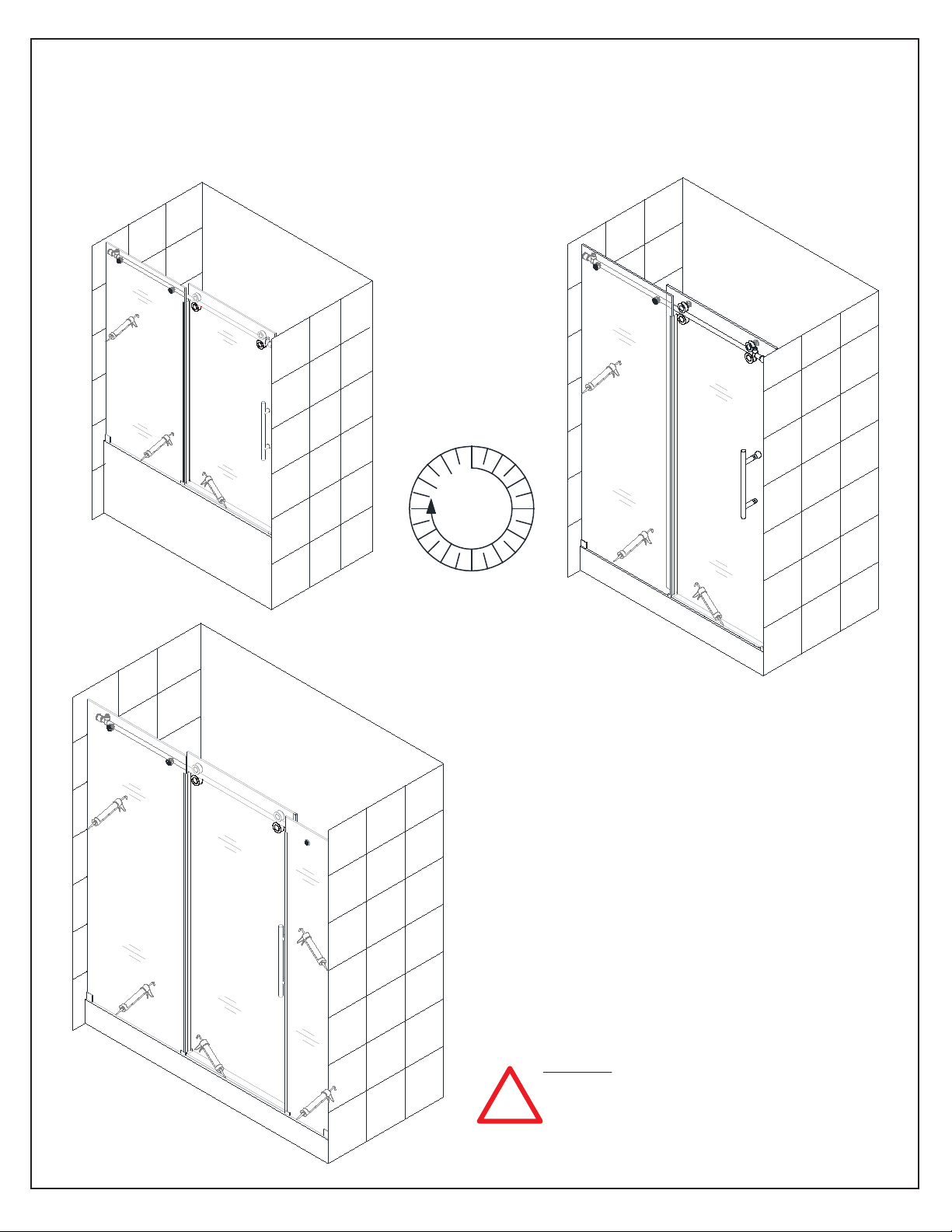

Right Hand door installation shown

This model is treated with DreamLine’s

exclusive ClearMax

Glass technology.

This is a specially formulated coating

that prevents the build up of soap and

water spots.

Install the surface with the ClearMax

label towards the inside of the shower.

Please note that depending on the

model, the glass may be coated on

either one or both surfaces.

For best results, squeegee the glass after

each use and dry with a soft cloth.

ENIGMA-XO manual Ver 1 Rev 2 03/2018

Table of Contents

ENIGMA-XO manual Ver 1 Rev 2 03/2018

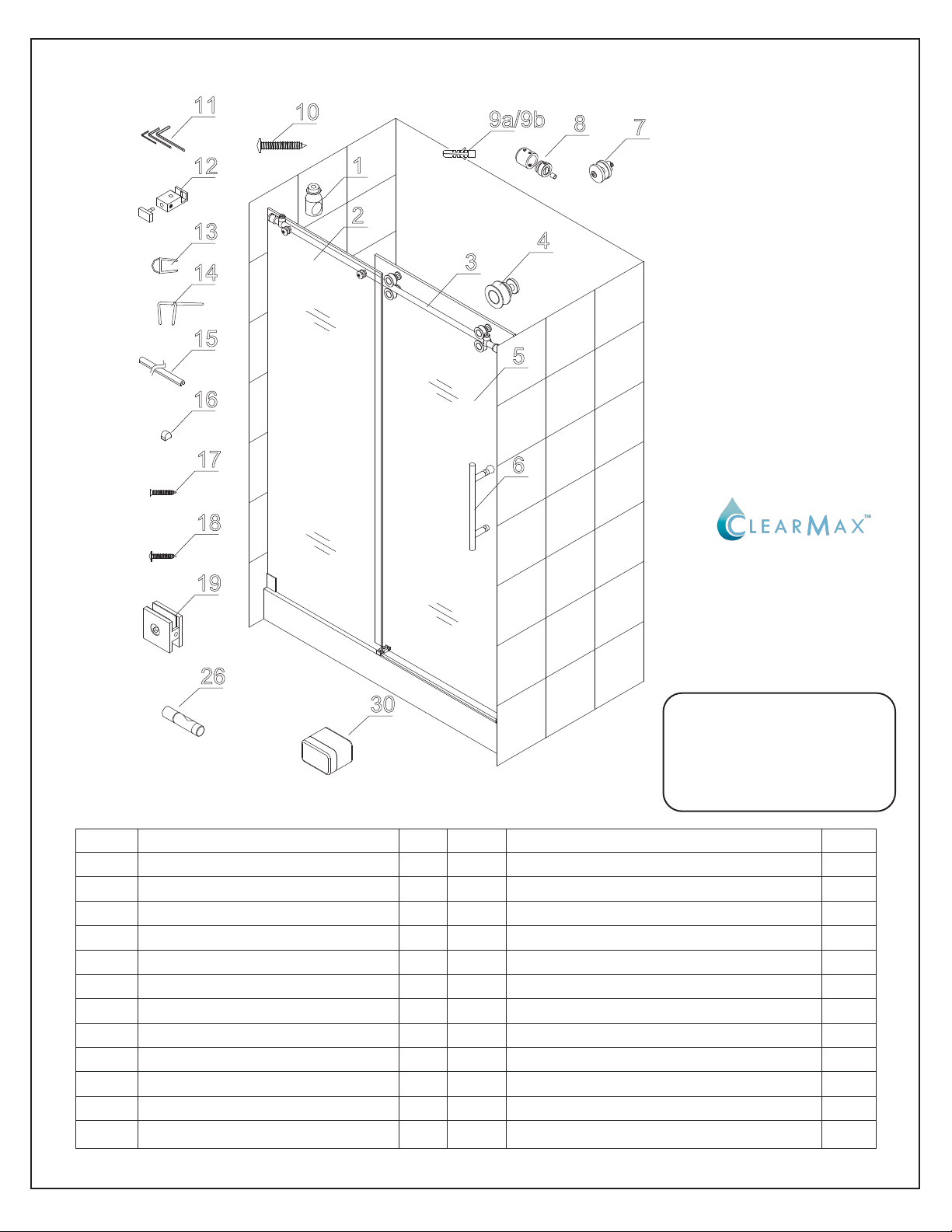

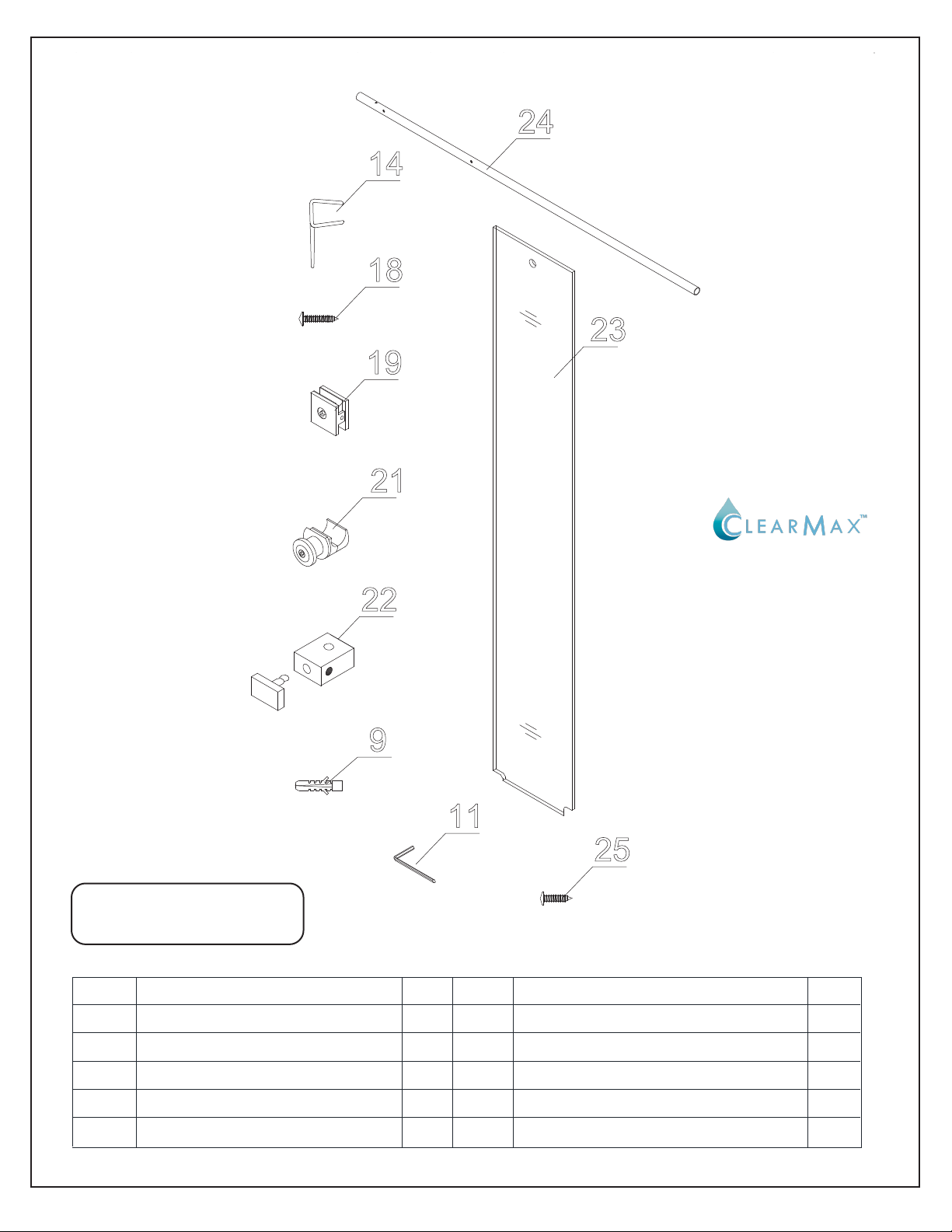

Parts List

Section title

Page #

Tools

Preparation

Installation

Stoppers

SafeStop™ Bumper

Vinyl Seals

Product maintenance

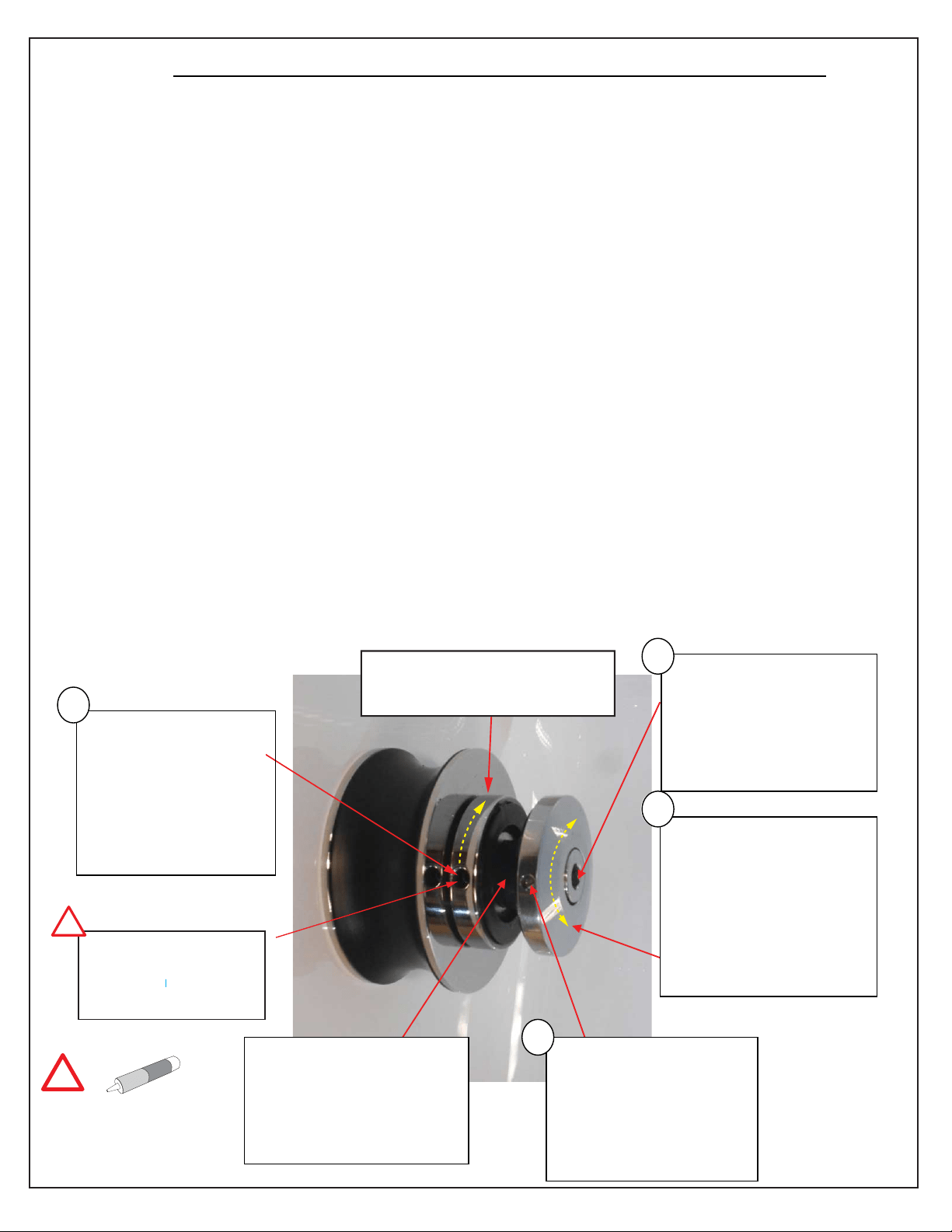

Wheel Adjustments

9-27

7-8

Model Information

Reinforcement Information

25-26

ENIGMA-XO

Enclosure MODEL #s

SHEN-6132482-##

SHEN-6132602-##

SHEN-6134482-##

SHEN-6134542-##

SHEN-6134602-##

ENIGMA-XO

Enclosure MODEL #s

SHEN-6132722-##

SHEN-6134722-##

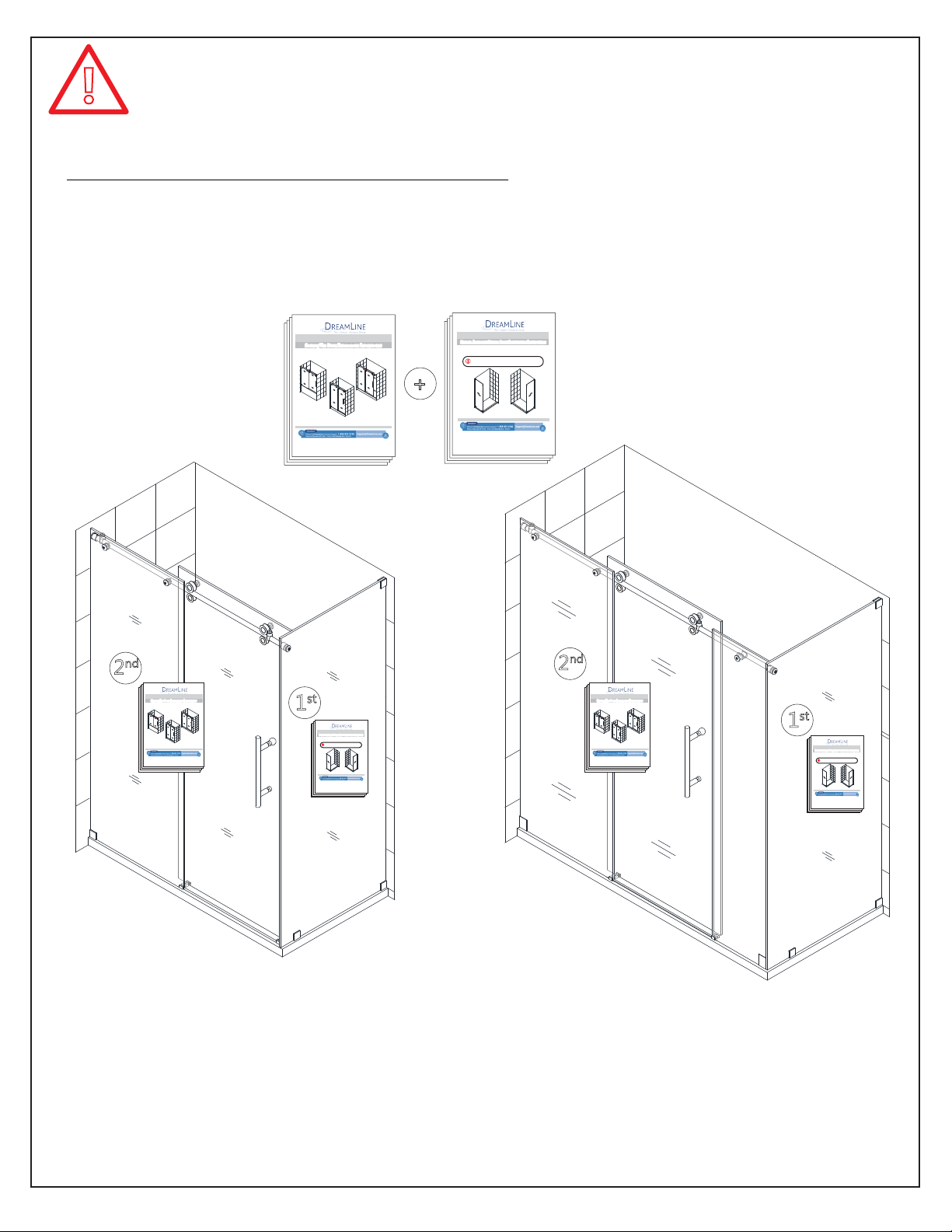

For the ENIGMA-XO Enclosure installation:

Start with the Enigma-X/Enigma-XO Enclosure Return Panel manual that is

packaged with the return panel glass first

for the installation of the return panel glass, then use this manual for the

installation of the door section.

IMPORTANT! This manual will describe the installation of the single threshold

model of the Enigma-XO.

Use this manual when installing the Enigma-XO single threshold model.

ENIGMA-XO manual Ver 1 Rev 2 03/2018

Please review this entire manual prior to installation.

ENIGMA-X/ENIGMA-XO Enclosure Return Panel

SHOWER ENCLOSURE RETURN PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

For more information about DreamLine

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

ENIGMA-X / ENIGMA-XO Shower Enclosure Return Panel manual Ver 1 01/2018

Right-Hand Return panel installation

Left-Hand Return panel installation

NOTE: Use this manual FIRST to install the Return Panel Glass.

Then use the manual packaged with the door glass box to continue

with the installation of the shower door section of the enclosure.

Please review this entire manual prior to installation.

ENIGMA-X/ENIGMA-XO Enclosure Return Panel

SHOWER ENCLOSURE RETURN PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

For more information about DreamLine

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

ENIGMA-X / ENIGMA-XO Shower Enclosure Return Panel manual Ver 1 01/2018

Right-Hand Return panel installation

Left-Hand Return panel installation

NOTE: Use this manual FIRST to install the Return Panel Glass.

Then use the manual packaged with the door glass box to continue

with the installation of the shower door section of the enclosure.

For more information about DreamLine

Shower Doors & Tub Doors please visit DreamLine.com

Please review this entire manual prior to installation.

ENIGMA-XO

SHOWER/TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

##=finish

06- Oil Rubbed Bronze

07- Brushed Stainless Steel

08- Polished Stainless Steel

ENIGMA-XO manual Ver 1 Rev 2 03/2018

SHDR-61727620-##

SHDR-61606220-##

SHDR-61487620-##

SHDR-61547620-##

SHDR-61607620-##

Right Hand door installation shown

For more information about DreamLine

Shower Doors & Tub Doors please visit DreamLine.com

Please review this entire manual prior to installation.

ENIGMA-XO

SHOWER/TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

##=finish

06- Oil Rubbed Bronze

07- Brushed Stainless Steel

08- Polished Stainless Steel

ENIGMA-XO manual Ver 1 Rev 2 03/2018

SHDR-61727620-##

SHDR-61606220-##

SHDR-61487620-##

SHDR-61547620-##

SHDR-61607620-##

Right Hand door installation shown

For more information about DreamLine

Shower Doors & Tub Doors please visit DreamLine.com

Please review this entire manual prior to installation.

ENIGMA-XO

SHOWER/TUB DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

##=finish

06- Oil Rubbed Bronze

07- Brushed Stainless Steel

08- Polished Stainless Steel

ENIGMA-XO manual Ver 1 Rev 2 03/2018

SHDR-61727620-##

SHDR-61606220-##

SHDR-61487620-##

SHDR-61547620-##

SHDR-61607620-##

Right Hand door installation shown

Please review this entire manual prior to installation.

ENIGMA-X/ENIGMA-XO Enclosure Return Panel

SHOWER ENCLOSURE RETURN PANEL INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice.

For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer

to your model’s web page on DreamLine.com

For more information about DreamLine

Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com

ENIGMA-X / ENIGMA-XO Shower Enclosure Return Panel manual Ver 1 01/2018

Right-Hand Return panel installation

Left-Hand Return panel installation

NOTE: Use this manual FIRST to install the Return Panel Glass.

Then use the manual packaged with the door glass box to continue

with the installation of the shower door section of the enclosure.

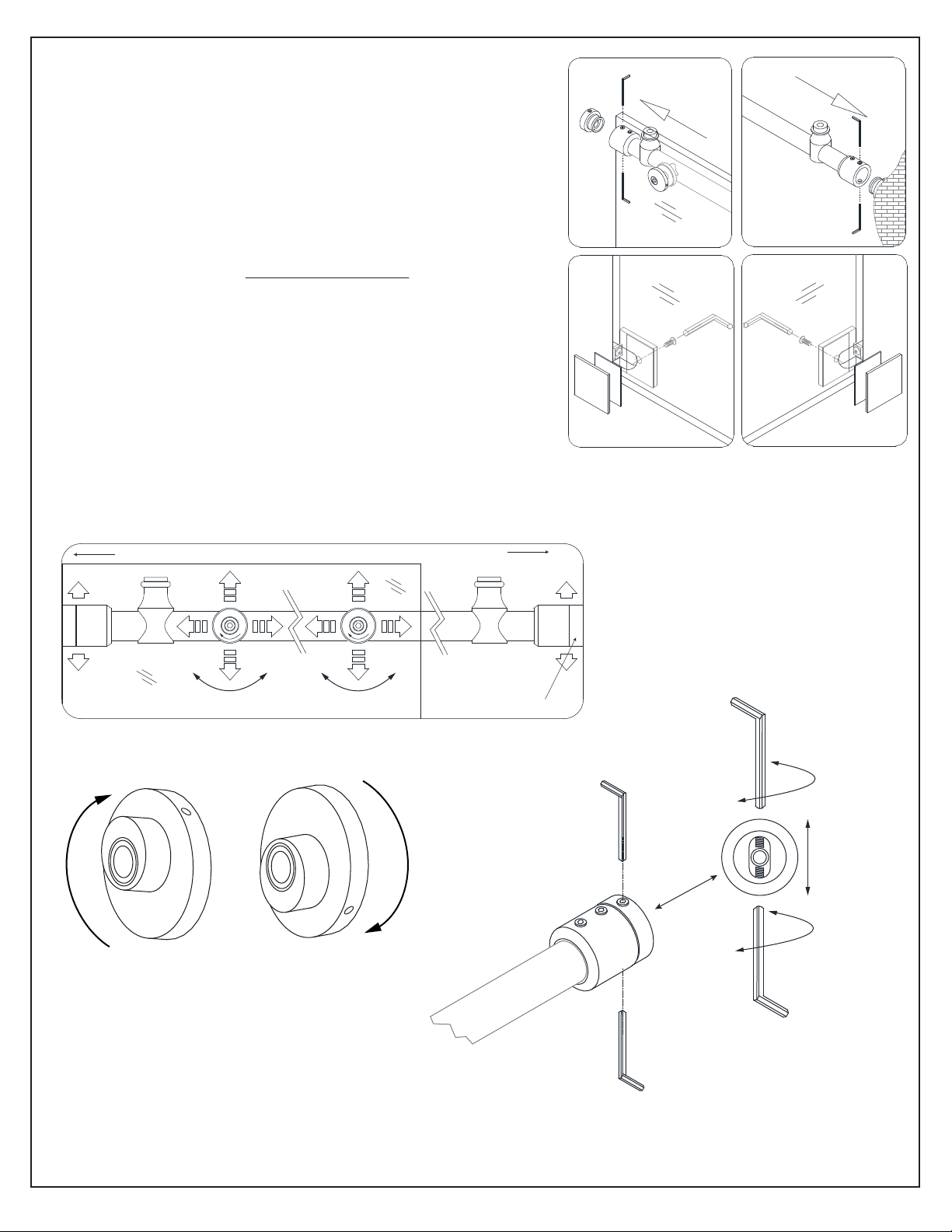

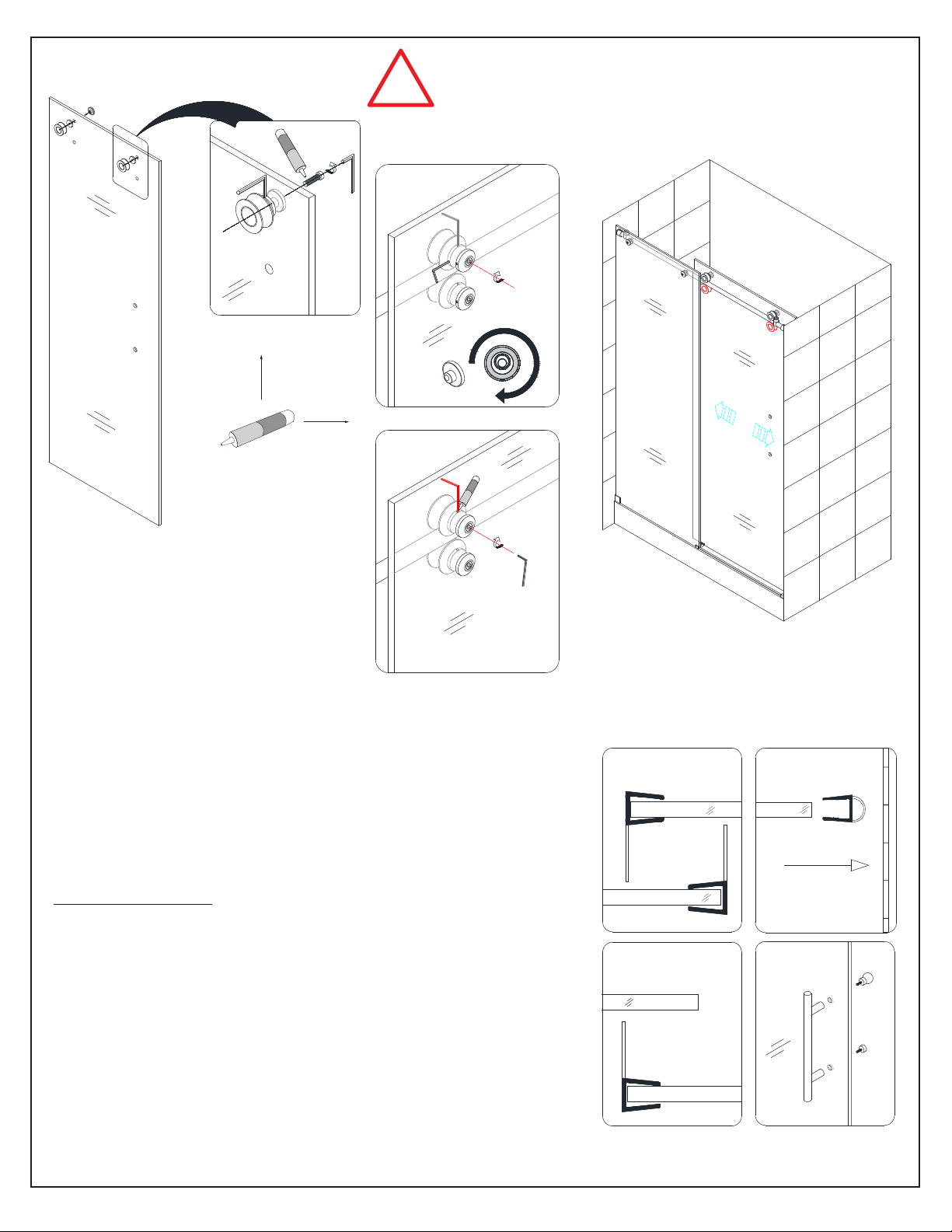

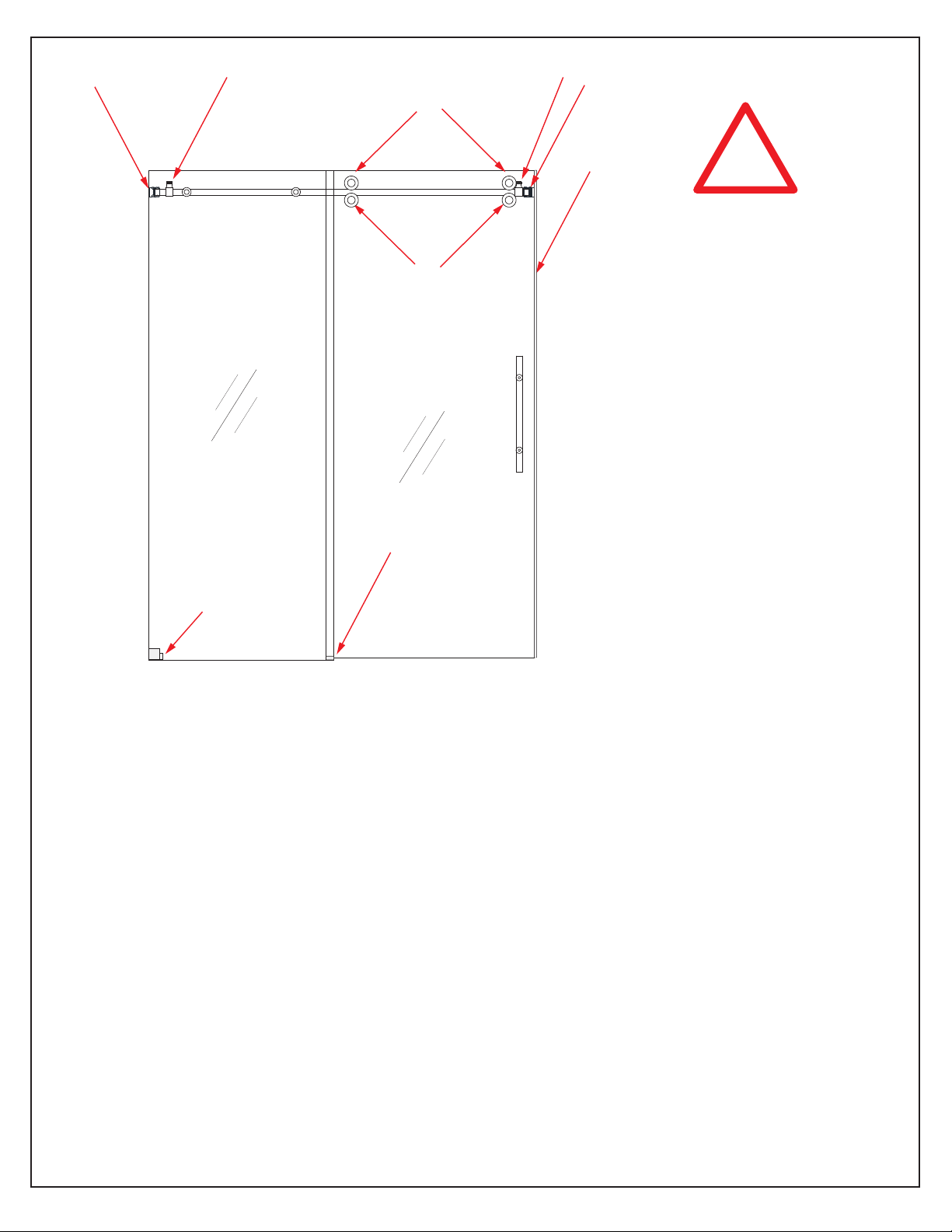

Guide Rail Brackets must be firmly

attached to the wall. Installation into a

stud is strongly recommended.

All of the guide rail bracket set

screws must be tightened.

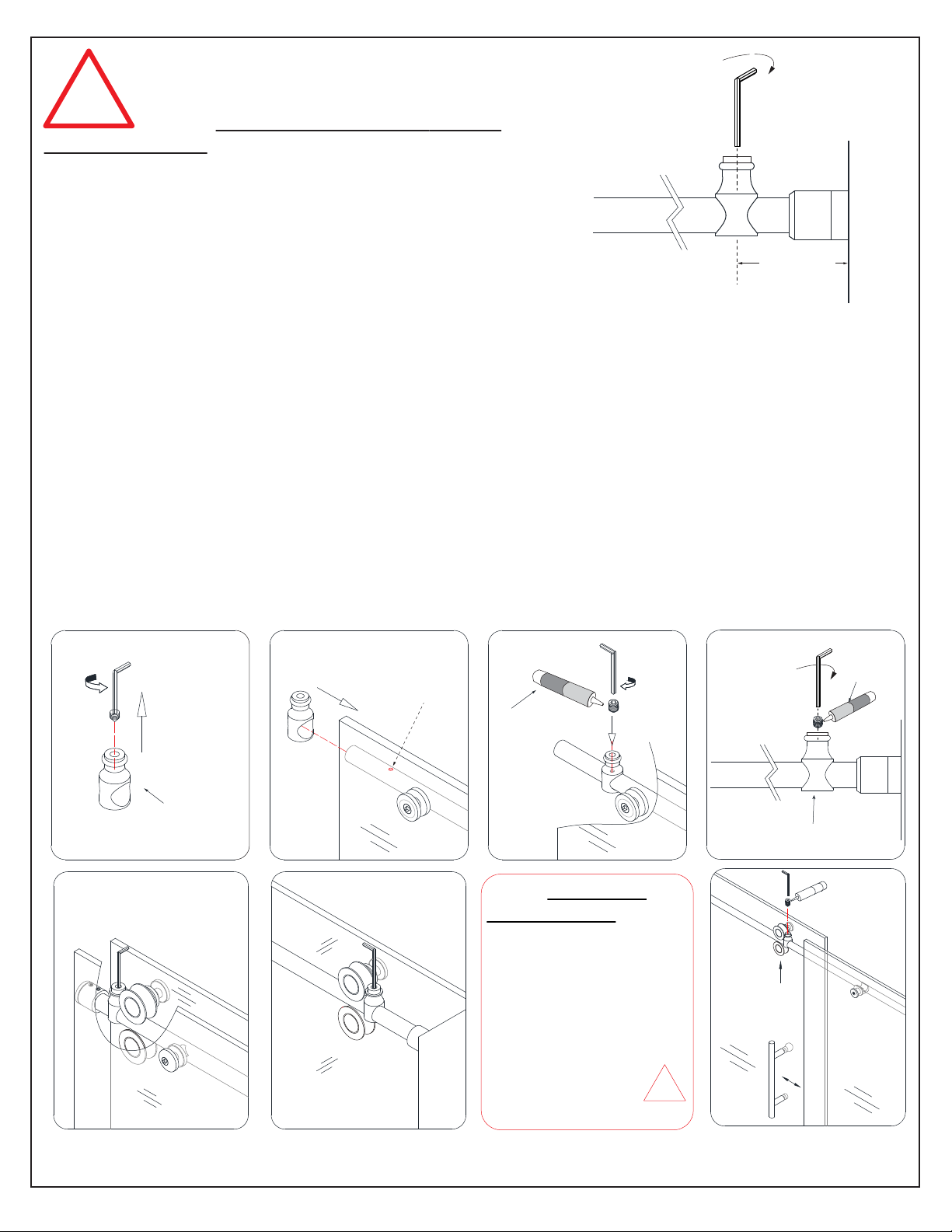

Thread Lock must be applied to both

stopper set screws.

Panel-side stopper must be installed

into the pre-drilled stopper hole in

the upper guide rail.

Door-side stopper must be installed

at the proper position to stop the

door from contacting the wall.

Bumper Vinyl Seal must be installed on

the closing edge of the door glass

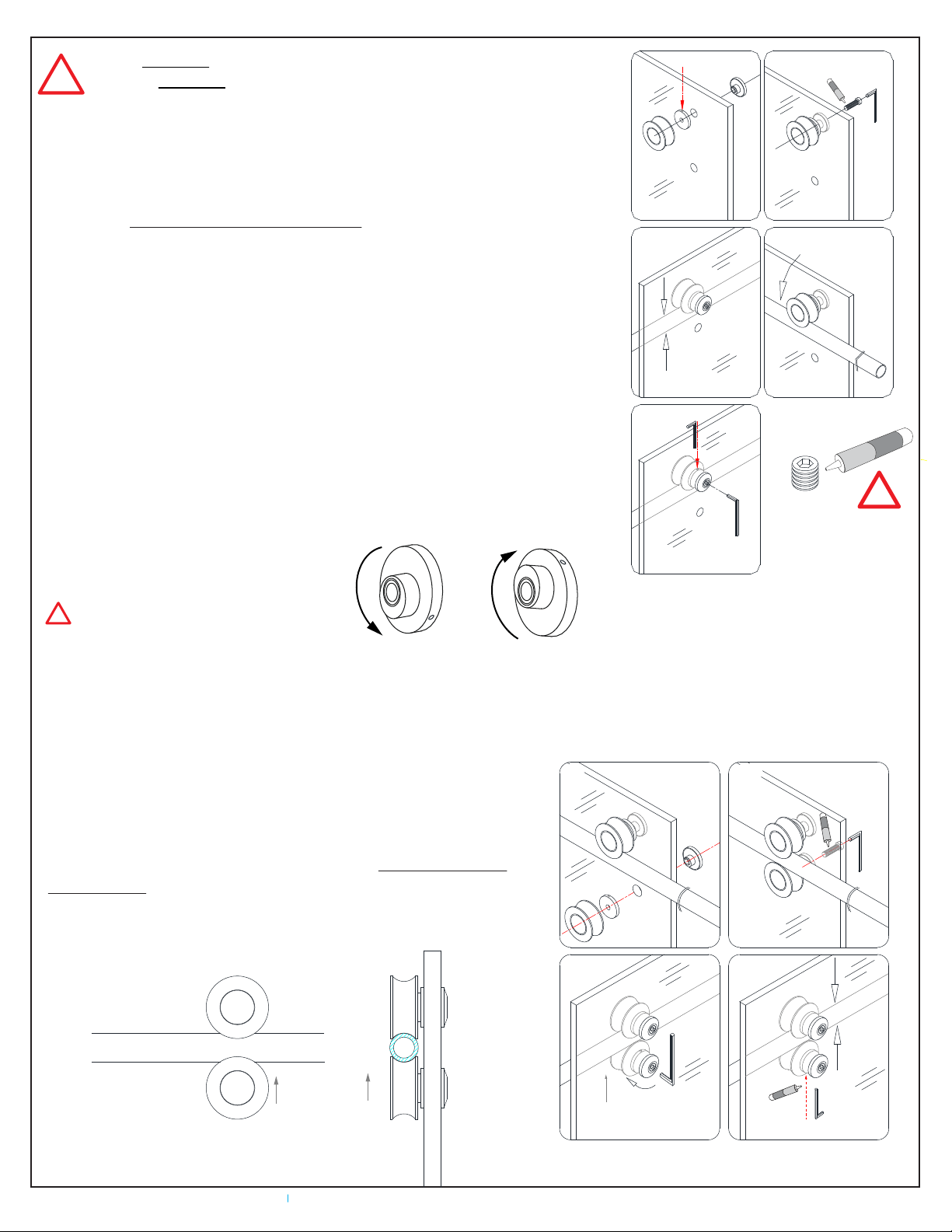

Lower Roller wheels must be adjusted

during installation to make contact with

the Upper Guide Rail. Tighten Safety set

screws. Apply thread lock.

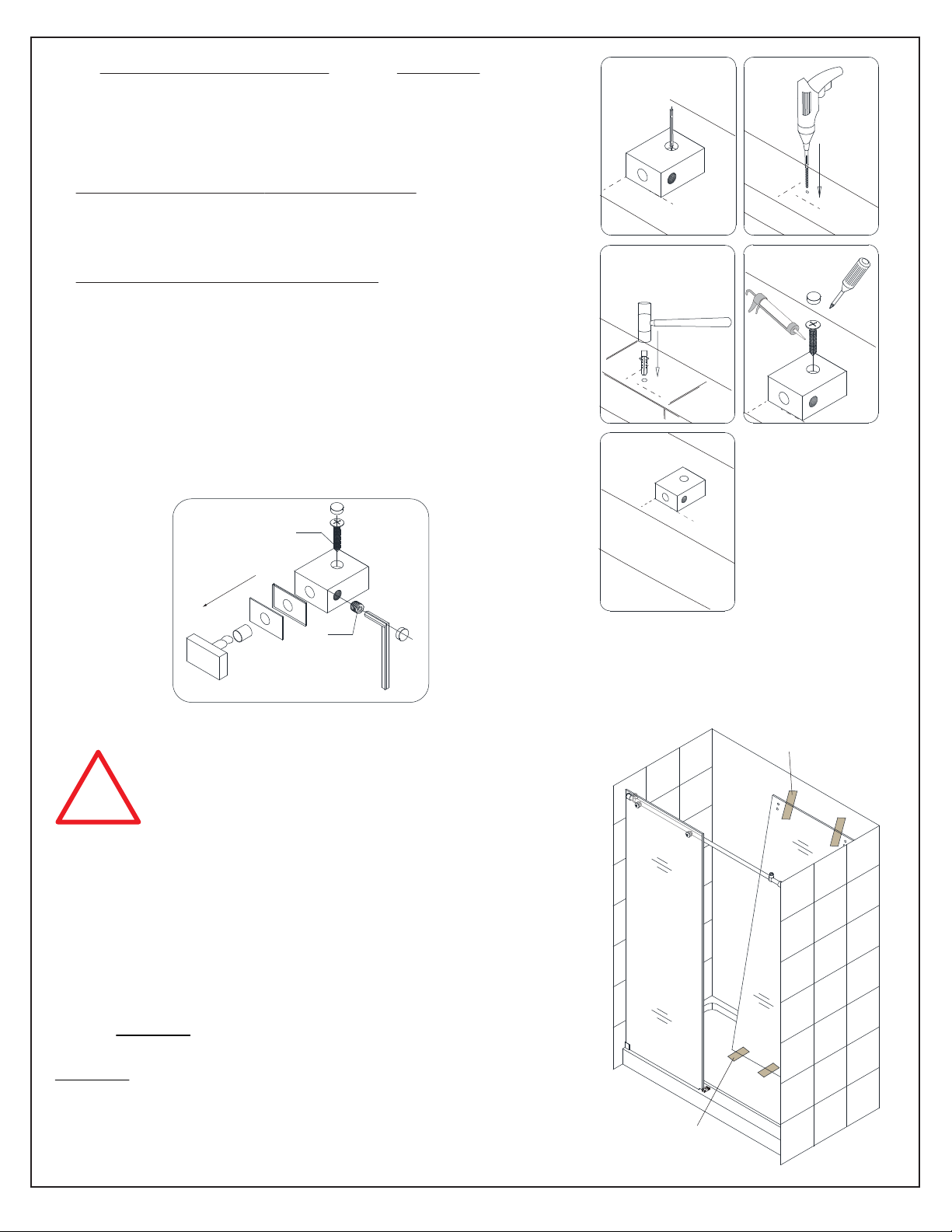

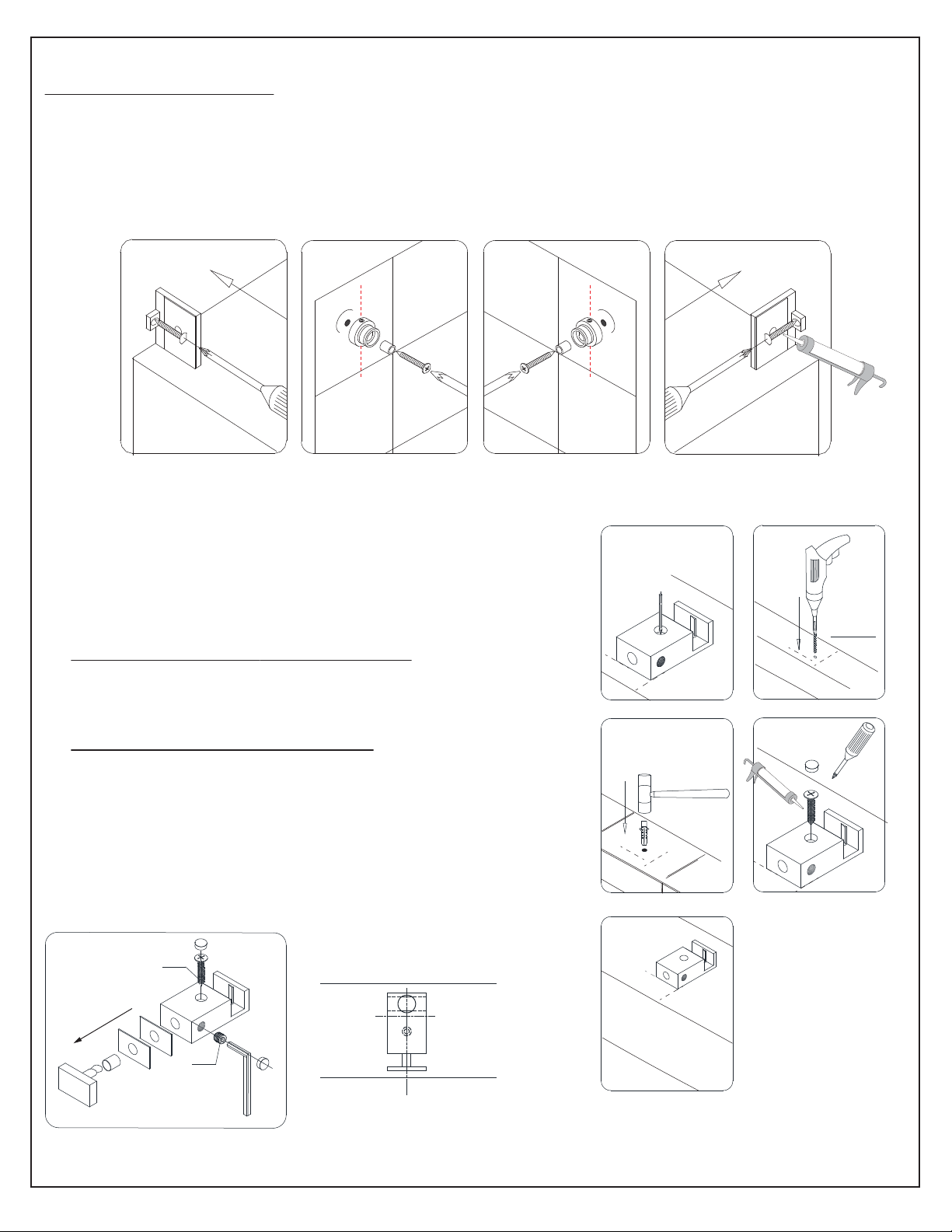

The Guide Block must be screwed to the

threshold and installed square to the

panel glass and door glass. Installing the

guide block crooked may damage the

bottom edge of the door glass and lead to

breakage.

Roller Wheel Safety Set Screws must

be re-tightened after installation.

Apply thread lock.

DOOR

PANEL

Right hand door installation shown as an example

PLEASE READ THE ENCLOSED INSTALLATION

MANUAL FOR DETAILS REGARDING PROPER

INSTALLATION.

THE LATEST VERSION OF THE INSTALLATION

MANUAL IS AVAILABLE TO VIEW OR PRINT

ON DREAMLINE.COM

IMPORTANT INFORMATION

REGARDING THE INSTALLATION

OF THIS SHOWER DOOR

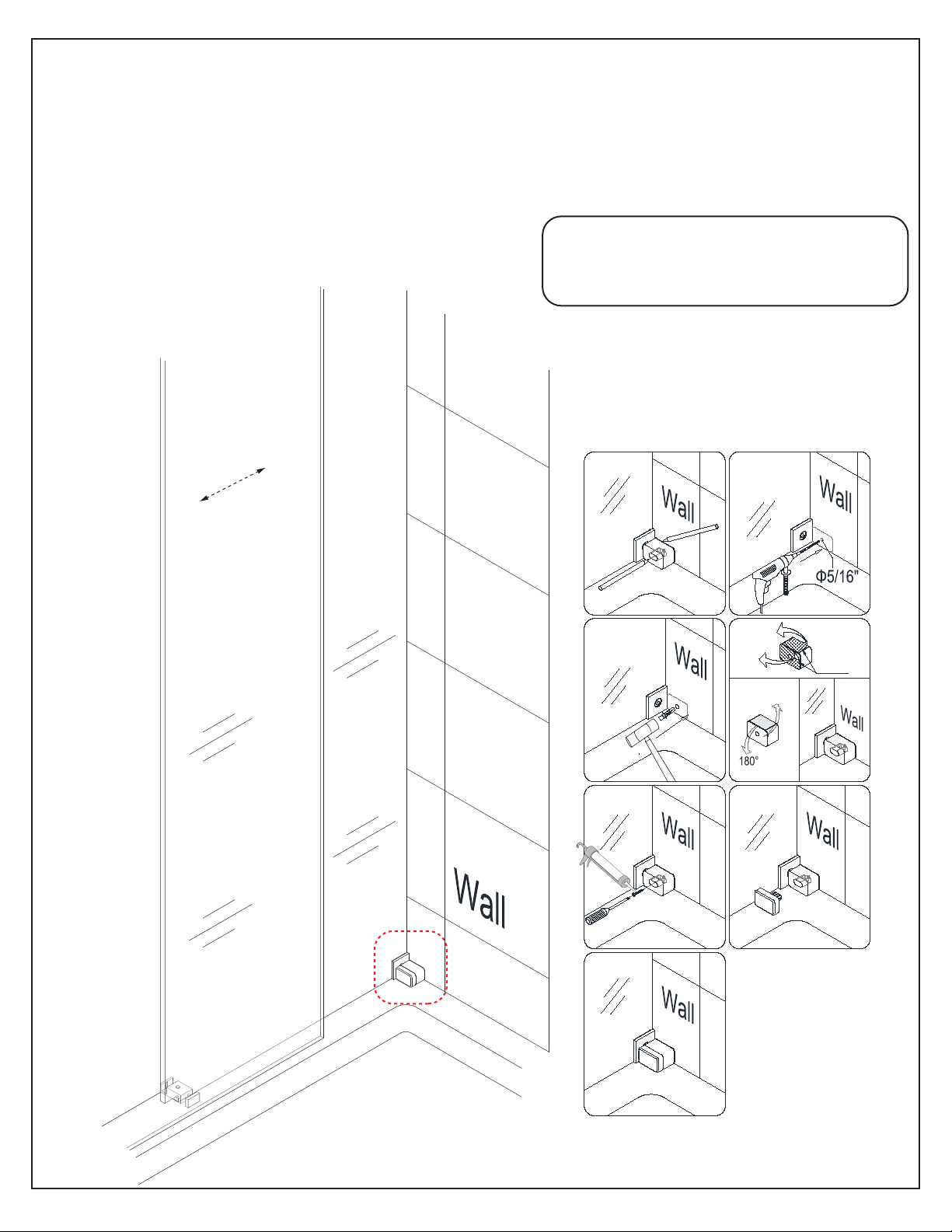

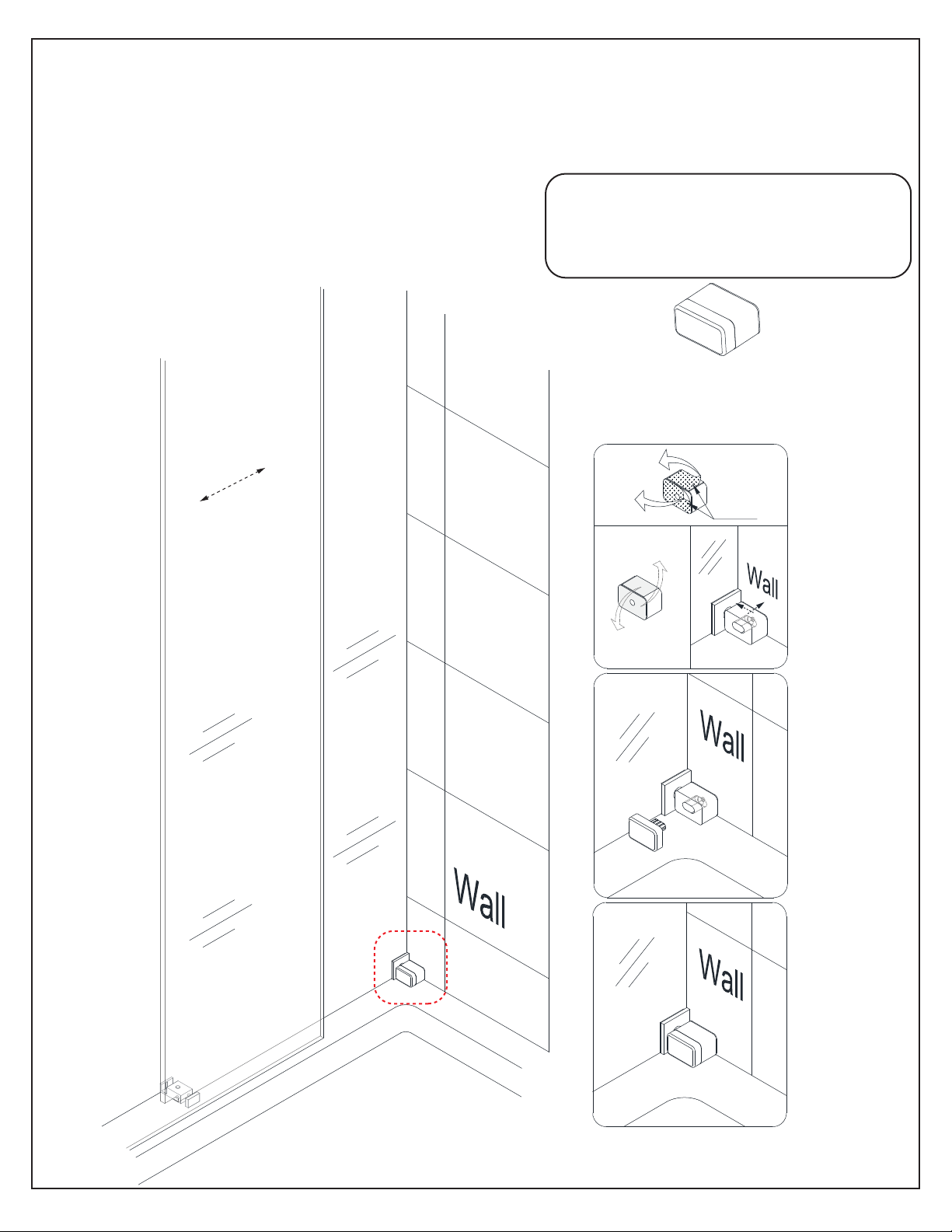

Bumper is secured in position with 3M tape or

screwed to the wall.

ENIGMA-XO manual Ver 1 Rev 2 03/2018

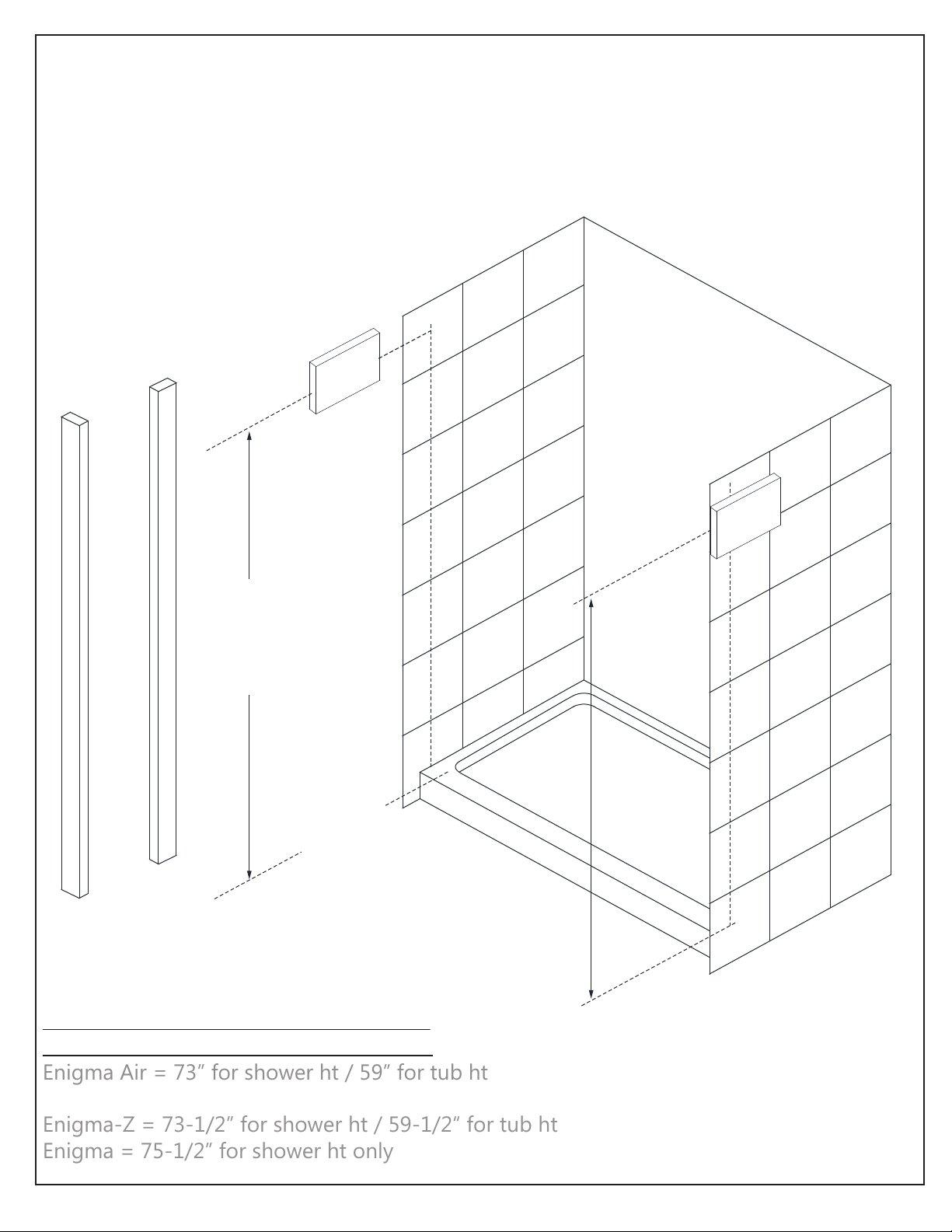

Install studs OR install 2”x 6” wood blocking between the studs where the

Guide Rail Brackets will attach to the wall

Reinforcement for Enigma Series

Heavy Glass frameless sliding shower door

2” X 6”

Stud

threshold

or tub deck

measured

from threshold*

(see list below)

2” X 6”

*Blocking height requirement (to center)

as measured from threshold or tub deck:

Enigma Air = 73” for shower ht / 59” for tub ht

Enigma-X, Enigma-XO = 72-1/2“ for shower ht / 58-1/2” for tub ht

Enigma-Z = 73-1/2” for shower ht / 59-1/2“ for tub ht

Enigma = 75-1/2” for shower ht only

threshold

or tub deck

Preparation

Do Not hang or drape a towel or wash cloth over the Enigma series guide rail as this

may cause the roller wheels to get stuck and possibly cause serious damage or injury.

Attention: This door is extremely heavy and requires professional installation.

Two installers recommended.

NOTE: This door is reversible for right or left-hand door installation. The right-hand door

installation is shown as an example throughout this manual. For the left-hand door installation,

simply begin on the opposite wall and reverse the orientation of the steps shown.

1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed

parts are included in the package by marking all the components on the “Detailed Diagram of Shower

Door Components”. Examine boxes and packages for shipping damage. If the unit has been damaged,

has a finishing defect, or is missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine

will not replace any damaged

products or missing parts free of charge after 3 business days or if the product has been installed.

Please contact DreamLine

if you have any questions.

2. Please note that you should consult your local building codes with questions on installation

compliance standards. Building and plumbing codes may vary by location, and DreamLine

is not

responsible for code compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and

drainage before installing the shower. Use a competent and licensed (if required by local code)

plumber for all plumbing installation.

4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to

support the total weight of the unit. Also make sure the walls are at right angles. Irregular

installation surface level, radius corners or improper angle of side walls will result in serious problems for

your installation. Please note that some adjustments and drilling might be necessary during the

installation process.

5. Protect all primary surfaces of the product during installation. Never set your glass down directly onto

a tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood

or cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. NOTE! This door does not have out-of-plumb adjustment. Make sure your walls are at right angles.

8. This door requires a minimum 2-3/4”of flat threshold space for installation.

9. Note: The installation of this unit requires that you drill down into the threshold.

10. Please note that Step #11 has an option for installing the guide rail brackets to the wall using

anchors. However, the manufacturer strongly recommends installing these heavy doors to the

studs or to pre-installed 2”x 6” wood reinforcements behind the wall in the area where the guide

rail brackets will be attached to the wall.

5ENIGMA-XO manual Ver 1 Rev 2 03/2018

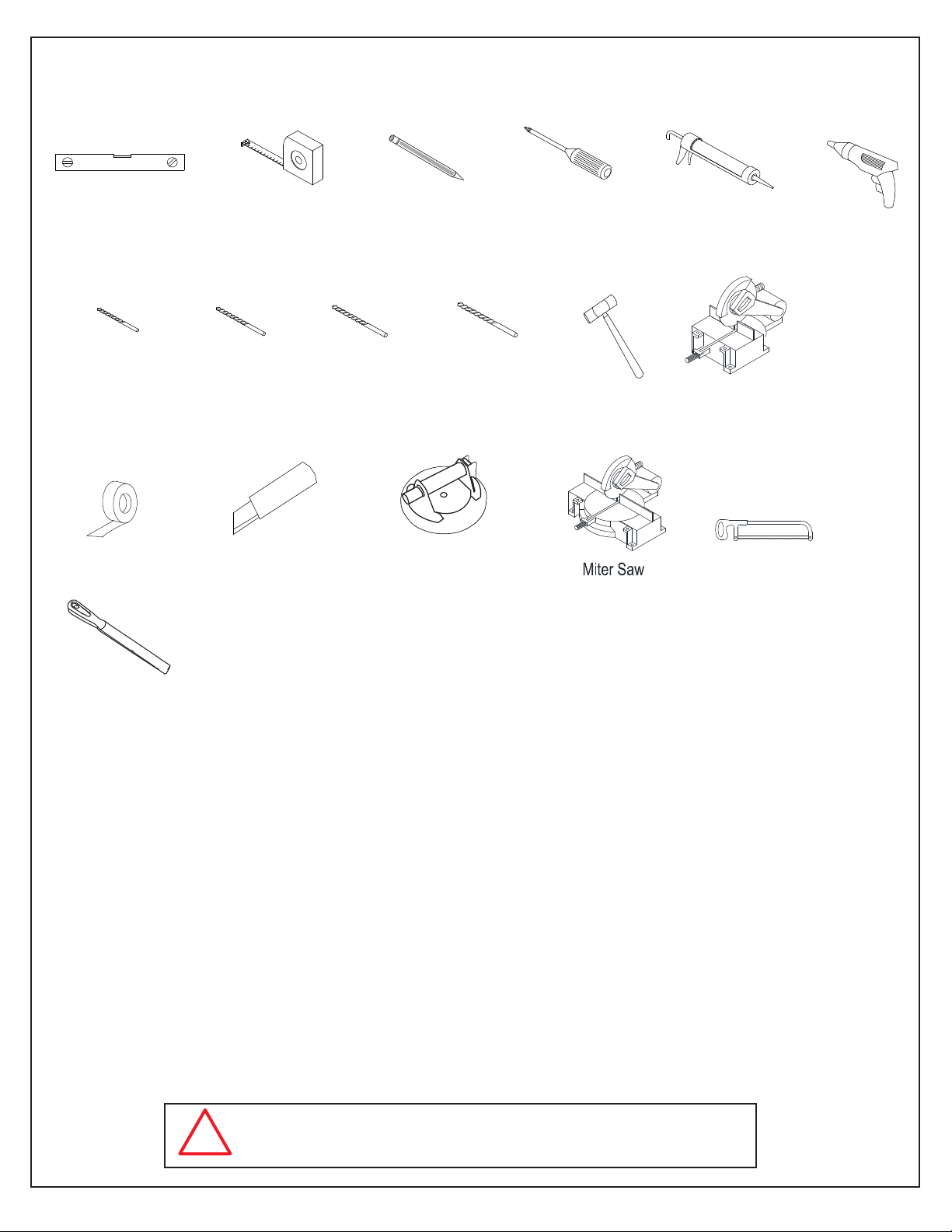

Tools

NOTE: Unpack

your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small

hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine

for replacement. The shipping boxes may contain extra parts not used in

your model configuration.

NOTE: Retain these installation instructions for future reference.

Tip: Measure the finished opening before proceeding with the installation to be sure that the

correct model size has been ordered.

Be sure to cover the shower drain to prevent losing small parts.

6ENIGMA-XO manual Ver 1 Rev 2 03/2018

These instructions will show the installation of the shower door.

Please follow the same steps for the installation of the tub door.

Silicone

Tape

Phillips

Measure

Drill

Pencil

Level

Power

Screwdriver

Hammer

(Ø=1/8")

(3mm)

Drill bit

(Ø=5/16")

(8mm)

(Ø=1/4")

(6mm)

Drill bit

(Ø=3/8")

(10mm)

Painter’s Tape

Razor Knife

Chop saw

Professional-grade

Glass suction cup

Hacksaw

Metal File

Detailed Diagram ‘A’of Shower Door Components

7ENIGMA-XO manual Ver 1 Rev 2 03/2018

9a/9b

** not used with the 72” configuration

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

1pc

PART#

DESCRIPTION

QTY

Bumper strip

1pc

Anti-water strip

2pcs

Anti-splash threshold

(for 48" or 54” or 60")

1pc

Threshold cap

1pc

ST4.2x40 Countersunk screw

2pcs

ST4.2x55 Truss Head screw

1pcs

Wall bracket

1pc

Thread Lock adhesive

1pc

Bumper

1pc

Packing List A

PART#

DESCRIPTION

QTY

01 Door stopper

2pcs

Stationary glass

Upper guide rail

(for 48" or 54” or 60")

9a Wall anchor Ø3/8" (10mm)

Guide rail bracket

Glass bracket

Handle

Door Glass

Roller

10 Large Truss Head Screw ST6x55

Wall anchor Ø5/16" (8mm)

1pc

4pcs

1pc

2pcs

1pc

2pcs

3pcs

2pcs

Allen Wrench 3,4,5 mm

1set

Guide block (with caps)

model #s

SHDR-61606220-##

SHDR-61487620-##

SHDR-61547620-##

SHDR-61607620-##

Detailed Diagram ‘B’ of Shower Door Components (for 72” model width only)

8ENIGMA-XO manual Ver 1 Rev 2 03/2018

Packing List B

Wall anchor Ø5/16"(8mm)

Allen Wrench 3,4,5 mm 1set

2pcs

Anti-water strip 1pc

Wall bracket

1pc

ST4.2x55 Truss Head screw 1pc

Small stationary glass bracket

1pc

Upper guide rail (for 72")

1pc

Small stationary glass Bottom bracket

1pc

Small stationary glass

1pc

ST4.2x40 Countersunk screw

1pc

PART#

DESCRIPTION

QTY PART#

DESCRIPTION

QTY

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

model #s (for 72” )

SHDR-61727620-##

Installation steps

9ENIGMA-XO manual Ver 1 Rev 2 03/2018

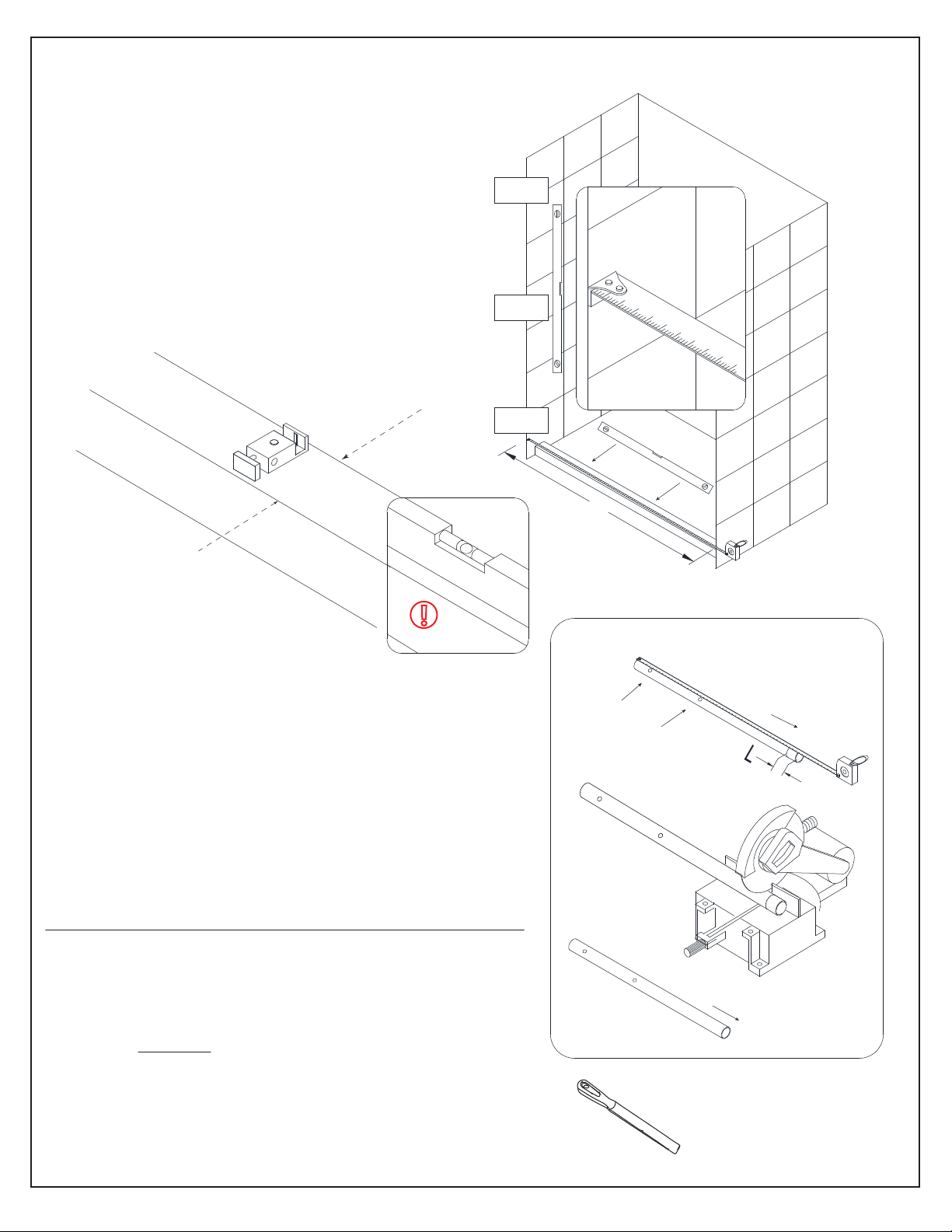

Threshold must be level.

Note: The minimum threshold requirement for

the ENIGMA-XO is 2-3/4” of flat threshold

space.

Fig 2

Use a metal file to

deburr the cut end

Fig 1

Top

Middle

Bottom

2-3/4”

minimum

door end

glass bracket

holes

2. The Upper Guide Rail (#03) has been pre-cut

for the model width of: 48”, 60” or 72”.

(Note: The actual rail is shorter than the model

width by design).

Cut the Upper Guide Rail (#03) from the door end only,

which is the end that is farther from the Glass

Bracket (#07) holes. (Fig 2)

The length to cut off will be (L) :

Model Width – finished opening W = cut off length (L)

*FOR EXAMPLE:

If the model width is 48” and the finished opening is 46”,

then you will need to cut 2” off from the door end of the

Guide Rail: Example: 48” – 46” = 2” cut off

*Note that this is only an example and the actual

cut-off length will vary based on the actual finished

opening dimension.

1. Measure the distance between the two finished

walls at the top, middle and bottom. Measure the

width at the model height (62” or 76”).

This top measurement will be the “W” dimension

used to cut the guide rail to the correct size for the

finished opening.

Also, check the threshold for level and the walls for

plumb. (Fig 1)

10ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 3

Fig 4

Door end of guide rail

High spot of disk bushing

measure

glass bracket

disk

TIP: Mark the location of the high spot on the outer surface of the

adjustment disk with a felt tip pen to make adjustment easier to see.

outside

stationary

panel-end

thread

lock

door-end

stopper hole

panel end

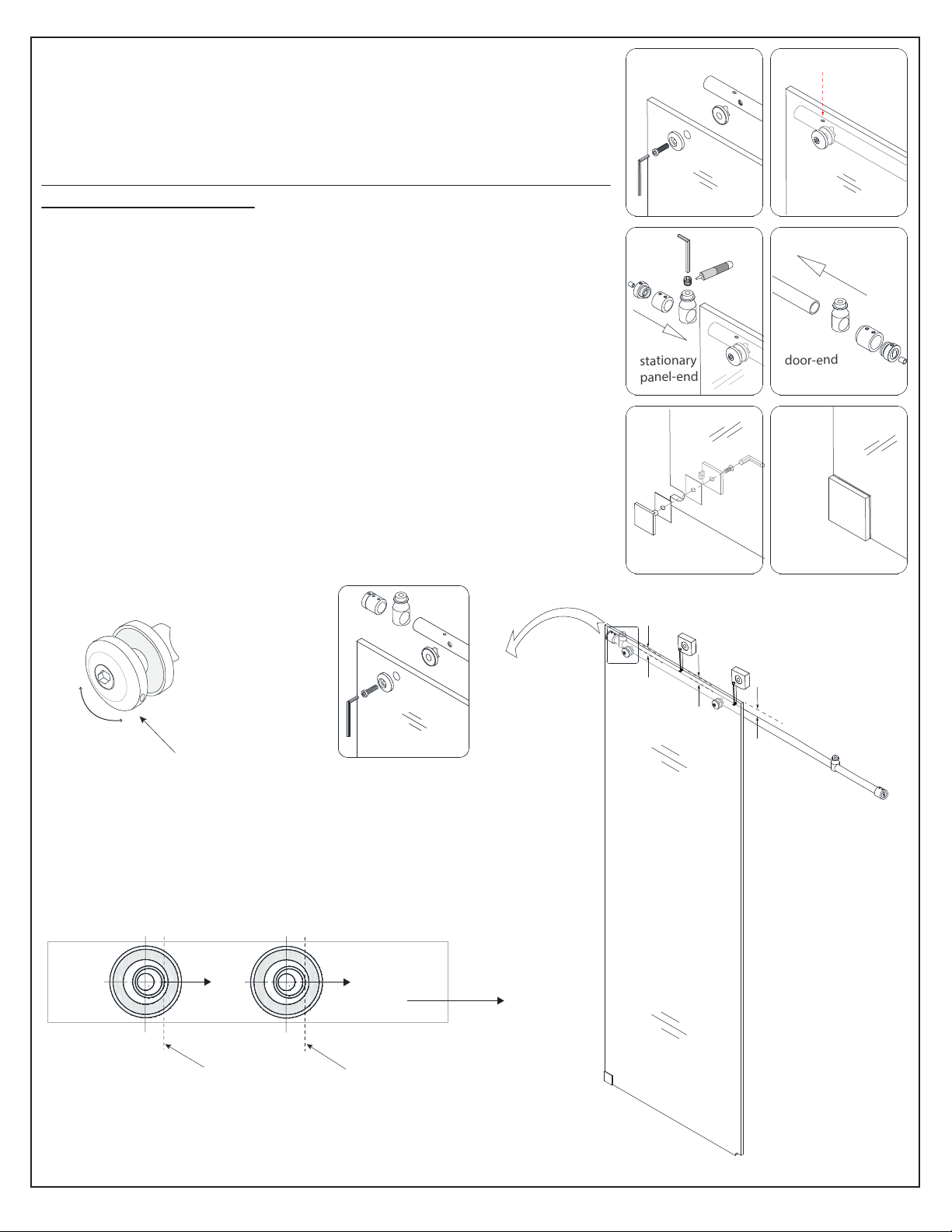

3a. Attach the Upper Guide Rail (#03) to the Stationary Glass (#02)

with the Glass Brackets (#07) and tighten the bolts into the holes in

the Upper Guide Rail (#03). Make sure both adjustment disks are

installed in the same direction with the high spot towards the door

end. (see *Note below)

Make sure that the guide rail is attached parallel with the top edge of

the stationary panel glass.

*NOTE: The outer glass bracket disk has an eccentric bushing

for adjustment. Be sure to install both glass bracket disks with

the high spot of the bushing pointed towards the door end of

the guide rail.

3b. Slide the Door Stoppers (#01) onto each end of the Upper

Guide Rail (#03). Secure them using the 4mm Allen Wrench (#11).

Install the panel-end stopper into the pre-drilled stopper hole in

the Upper Guide Rail and apply thread lock to the set screw.

(Fig 3.3) Install the door-end stopper approximately 4” from the end

of the guide rail. (The door-end stopper position will be adjusted

after the door glass is installed).

3c. Slide the Guide Rail Brackets (#08) onto each end of the

Upper Guide Rail (#03) and secure them. Next, assemble the

Wall Bracket (#19) onto the bottom corner of the Stationary

Glass (#02) with the bolt facing into the shower as shown in

Fig 3.5. Use the supplied gaskets to protect the glass.

(Fig. 3 and Fig. 4)

11ENIGMA-XO manual Ver 1 Rev 2 03/2018

NOTE: For single threshold installation (shown), this bracket will be installed to the wall.

For an enclosure installation, this bracket will need to be installed into the threshold.

Fig 6

Fig 5

disk

outside

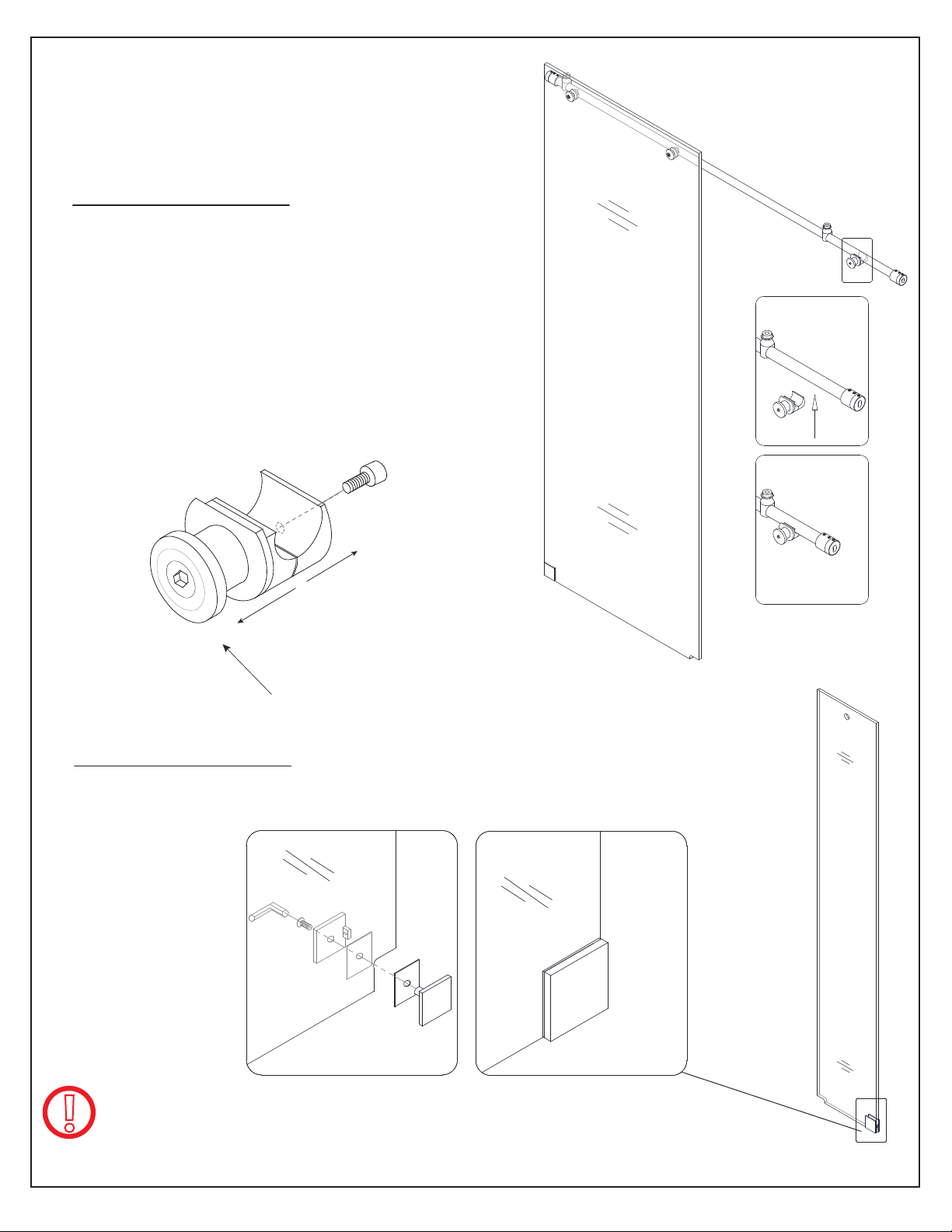

4. If the model width is 72” and includes the Small

Stationary Glass (#23), attach the Small Stationary Glass

Bracket (#21) to the Upper Guide Rail for 72” (#24)

between the Door Stopper (#01) and the Guide Rail

Bracket (#08) as shown in Fig. 5.

This bracket will be repositioned during the installation

of the Small Stationary Glass (#23). (Fig 5)

5. If the model width is 72” and includes the Small Stationary Glass (#23),

assemble the Wall Bracket (#19) onto the larger notch at the bottom corner of the

Small Stationary Glass (#23). Use the provided gaskets to protect the glass. (Fig 6)

ATTENTION:

This step shows the Small Stationary Glass

Bracket (#21)

installation for the 72” model only

(not included with the 48“ or 60” model).

12ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 7

rotate disk(s) to level rail

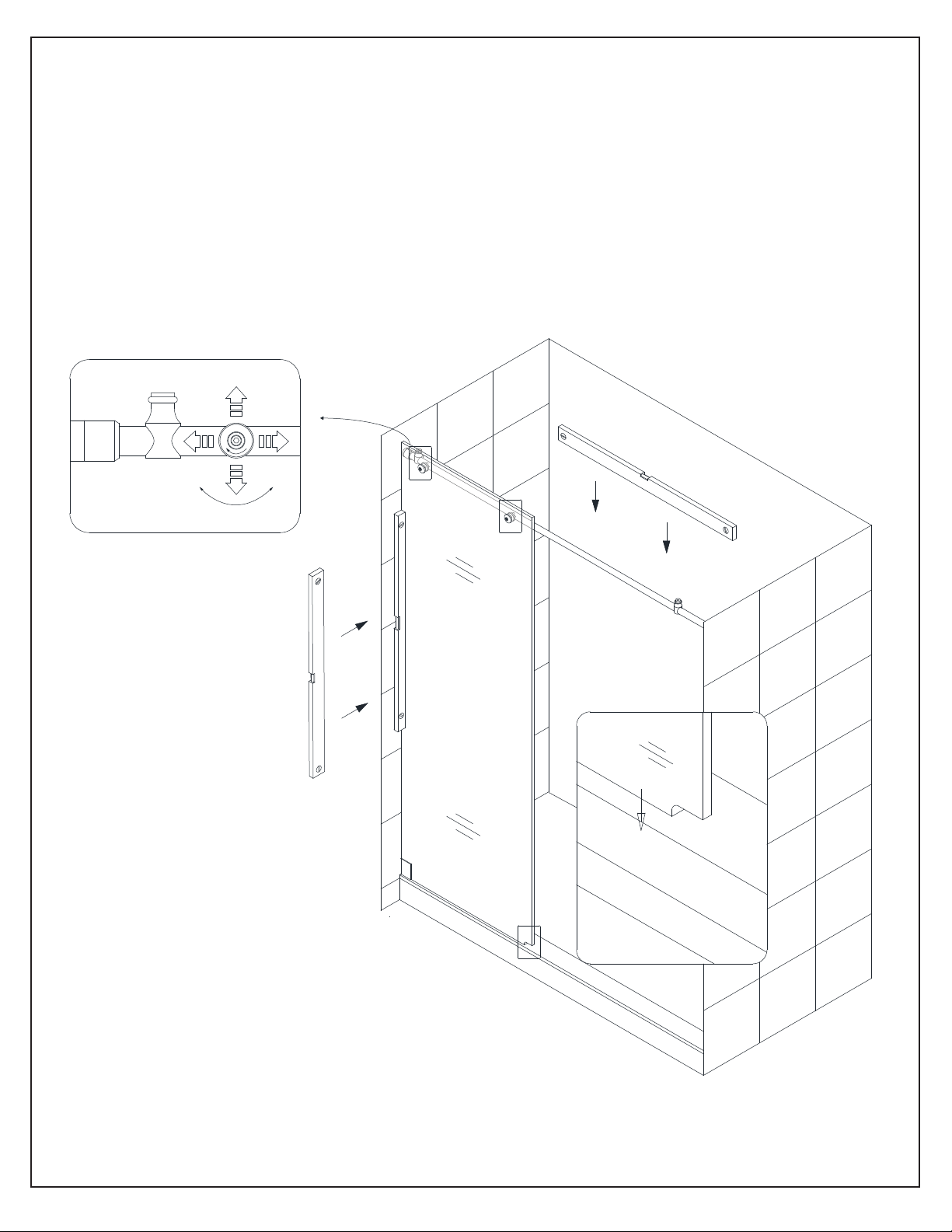

6. Place the Stationary Glass (#02) with the Upper Guide Rail (#03) onto the threshold and position it

against the wall. (Note that the Stationary Glass (#02) installs to the outside of the Upper Guide Rail

(#03))

Make sure the Stationary Glass (#02) and the Upper Guide Rail (#03) are level. If a horizontal

adjustment is required, loosen, rotate and re-tighten the disks on the Glass Brackets (#07). (Fig 7)

13ENIGMA-XO manual Ver 1 Rev 2 03/2018

rotate disk(s) to level rail

Fig 8a

Fig 8b

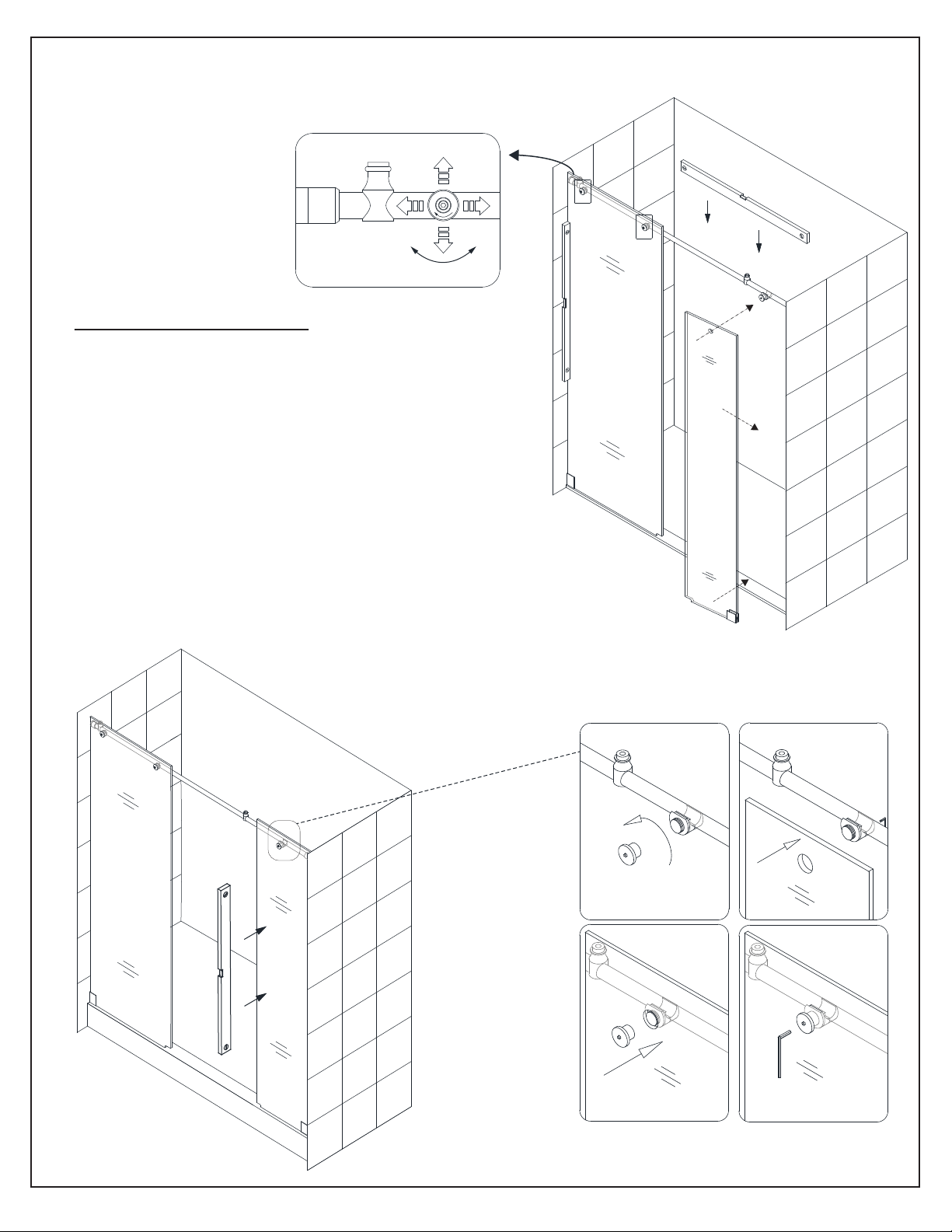

7. If installing the 72” model:

Unscrew the disk from the Small Stationary Glass

Bracket (#21) and loosen the set screw that secures

the bracket to the Guide Rail. If necessary, slide the

Door Stopper (#01) away from the area so that it

will not interfere with the placement of the Small

Stationary Glass (#23).

Position the Small Stationary Glass (#23) onto the

threshold and butt it up against the wall.

Align the Small Stationary Glass Bracket (#21) with

the hole in the

Small Stationary Glass (#23),

re-attach the outer disk and secure the Small

Stationary Glass Bracket (#21) to the Upper Guide

Rail for 72” (#24). (Fig 8a and 8b)

ATTENTION:

This step shows the Small Stationary Glass (#23) installation for the 72” model only

(not included with the 60” model).

14ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 9

inside

1 2 3

Fig 10a

Fig 10b

for 72” model

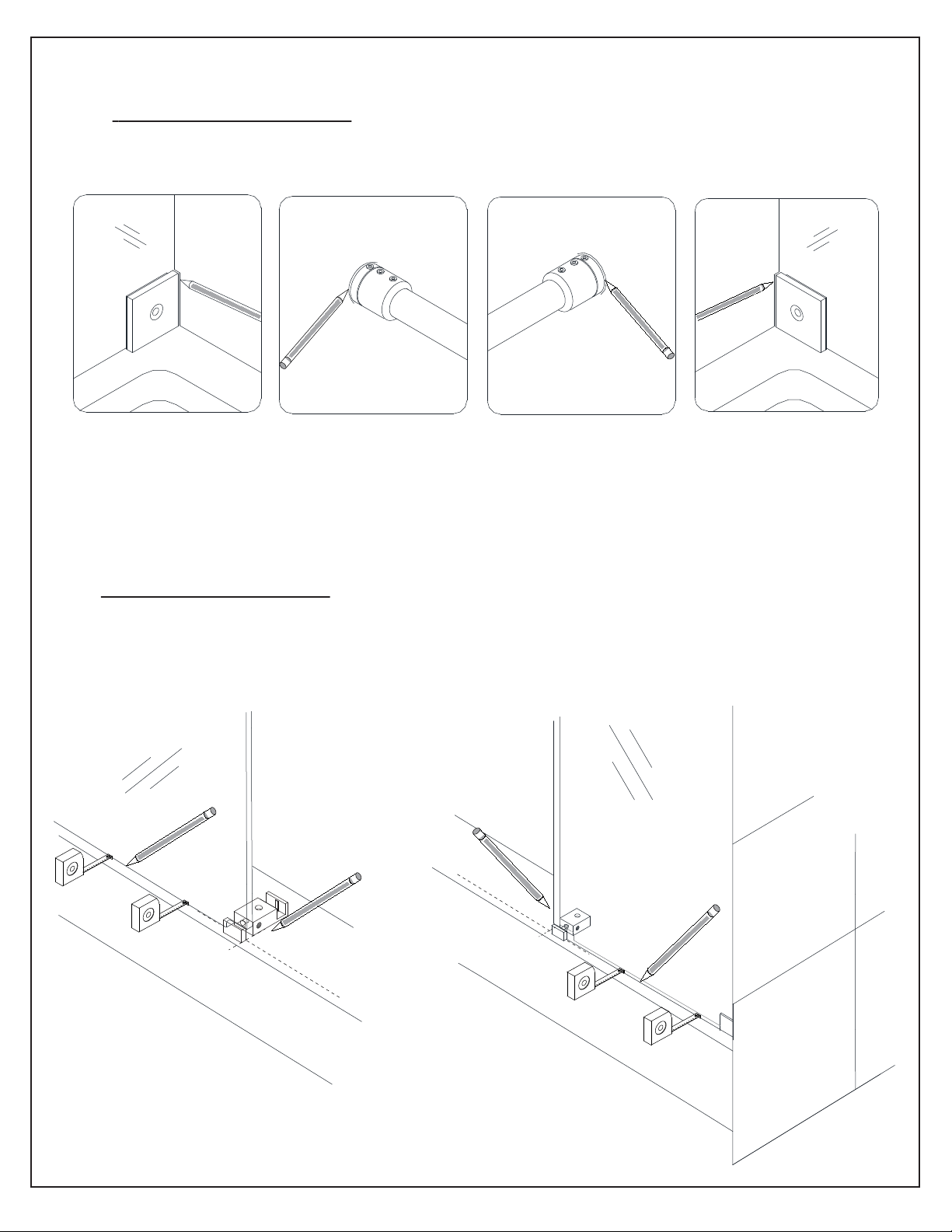

8. Once the Upper Guide Rail (#03) is level, mark the position of the Wall Bracket (#19) and Guide

Rail Brackets (#08) on the wall.

*NOTE: If installing the 72” model, also mark the position of the Wall Bracket (#19) on the opposite

wall for the Small Stationary Panel Glass (#23) (see Fig 9.4*). (Fig 9)

9. Make sure that the Stationary Glass (#02) is parallel to the front edge of the threshold and mark it.

Slide the Guide Block (#12) into the notch of the Stationary Glass (#02), and align flush with the edge

(Fig 10a). Mark its position and also mark the hole for drilling using a pencil (or center punch.)

Note: If installing the 72” model, also position the Small Stationary Glass Bottom Bracket (#22) with

the edge of the Small Stationary Glass (#23) (Fig 10b) and mark its position and the hole for drilling.

(Fig 10a and 10b)

15ENIGMA-XO manual Ver 1 Rev 2 03/2018

1 2

Ø5/16”

(8mm)

1 2

4**

3**

Ø3/8”

(10mm)

see Note

Fig 11

Fig 12

Ø3/8”

(10mm)

see Note

5** 6**

Separate the Guide Rail Bracket (#08)

sleeve from the base by loosening the set

screws (leave the sleeves on both ends of

the upper guide rail)

base

sleeve

Ø5/16”

(8mm)

7 8

for 72” modelfor 72” model

for 72” model

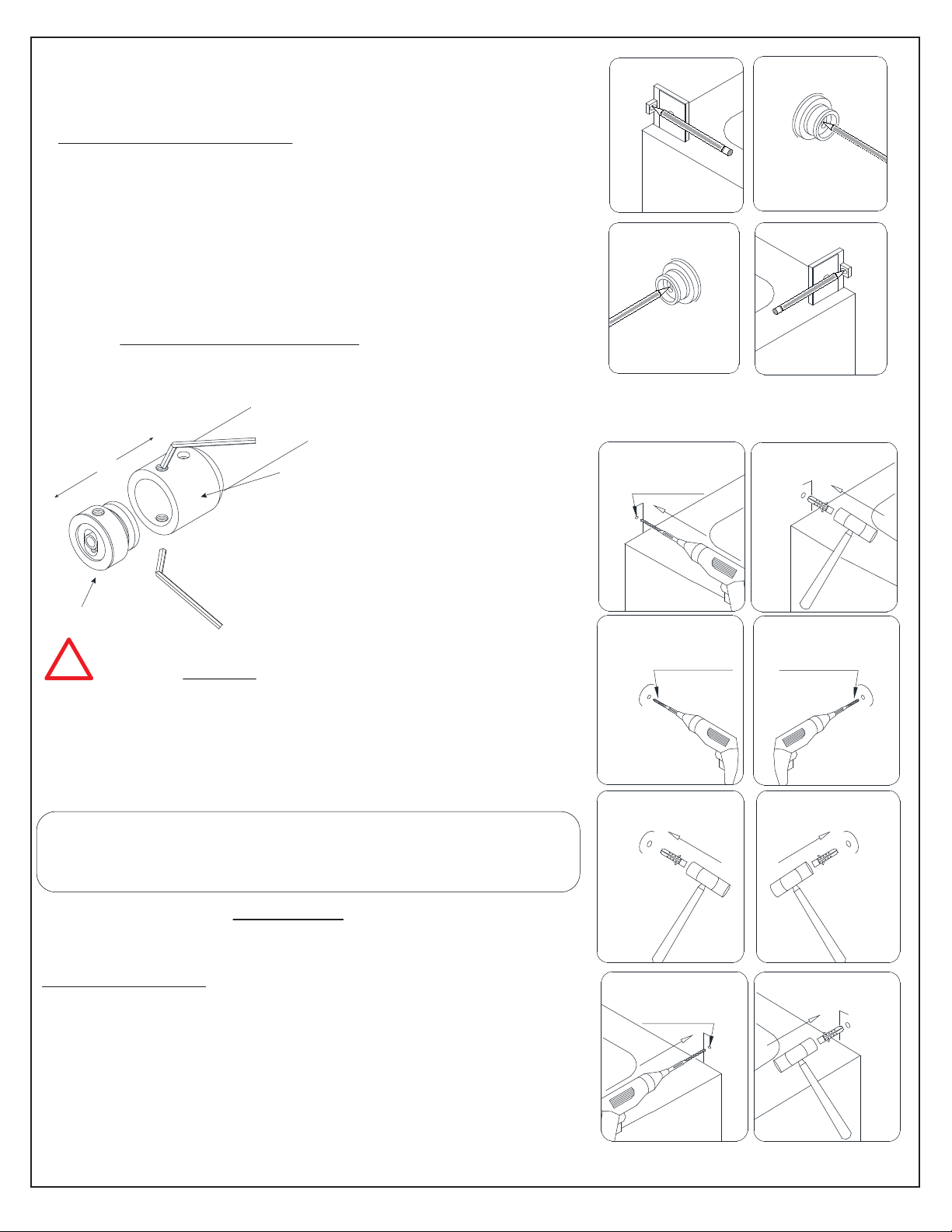

11. Drill a hole for the Wall Bracket (#19) using a Ø5/16”

(8mm) drill bit and insert the Wall Anchor (#9b)

(see Fig. 12.1 and 12.2).

For the 72“ model, repeat this step for the Wall Bracket (#19)

for the Small Stationary Panel Glass (#23). (Fig 12.7 and 12.8)

Drill the holes for the Guide Rail Brackets (#08) using a

Ø3/8” (10mm) drill bit and insert the Wall Anchors (#9a).

(see Fig. 12.3**~ 12.6**).

**If installing into a stud (recommended), drill a Ø1/4” hole

and do not use the wall anchors (see note above). (Fig 12)

10. After marking the positions of all the hardware, set the

Stationary Glass (#02) with the Upper Guide Rail (#03) aside.

(If installing the 72” model, also remove the Small Stationary

Panel Glass (#23) from the Upper Guide Rail (#03)).

Remove the Guide Rail Brackets (#08) from the Upper Guide

Rail (#03) and the Wall Bracket (#19) from the Stationary

Glass (#02). Place the Wall Bracket (#19) and Guide Rail

Brackets (#08) back to the outlined positions and mark the

holes for drilling.

*NOTE: If installing the 72” model, perform the same

procedure on the opposite wall to mark the Wall Bracket (#19)

for the Small Stationary Panel Glass (#23) (see Fig 11.4*).

(Fig 11)

**NOTE: Step #11 has an option for installing the guide

rail brackets to the wall using anchors. However, the

manufacturer strongly recommends installing these heavy

doors to the studs or to pre-installed 2”x 6“ wood

reinforcements behind the wall in the area where the guide

rail brackets will be attached to the wall.

**For the recommended installation into a stud, drill a Ø1/4”

hole up to the stud, do not use wall anchors, and let the

screw bore into the wood.

16ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 14a

Fig 13

M5 X 10

ST4.2 X 40

Part#12 - Guide Block (with caps)

*see

note

use a pencil or

a center-punch

to mark the hole

only use anchor

with tile threshold

overhead view of threshold & guide block

Guide Block must be installed

square to the plane of the glass

1 2 3 4*

for 72” model

12. Fasten the Wall Bracket (#19) to the wall using the ST4.2×55 Truss Head Screw (#18). (Fig 13.1)

If installing the 72” model, repeat this step to install the Wall Bracket (#19) for the Small Stationary

Panel Glass (#23) (Fig 13.4).

Install the base parts of the Guide Rail Brackets (#08) onto both walls using the ST6×55 Large Truss

Head Screw (#10). Note that the adjustment set screws must be aligned vertically for easier access to

adjust for level if necessary after the glass is installed. Align the set screws vertically and tighten. (Fig 13)

13a. To install Guide Block (#12): Loosen the set screw and

remove the guide block face plate (Fig 14a.5). Apply silicone

to the underside of the Guide Block (#12) and screw the Guide

Block (#12) to the threshold as described below:

*NOTE:

◾For installation into an Acrylic Threshold:

drill a Ø1/8”(3mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17)

◾For installation into a Tile Threshold:

drill a Ø5/16”(8mm) hole, install a Wall Anchor 5/16” (#09b)

and use the ST4.2 x 40mm Countersunk Screw (#17).

The Guide Block (#12) must be screwed down. (Fig 14a)

17ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 14b

use a pencil or a

center-punch to

mark the hole

*see note

** use anchor

with tile threshold

protective

padding

protective

padding

M5 X 10

Part#22 - Small Stationary Glass Bottom Bracket

ST4.2 X 40

NOTE: Before you install the Stationary Glass (#02), take

the Door Glass (#05) into the shower area and lean it

against the wall with the handle holes on the correct side.

After the Stationary Glass (#02) is installed, it may not be

possible to easily get the door glass into the shower.

Always use padding to protect the glass and shower

surfaces.

NOTE: DO NOT attach the handle to the door glass until

instructed to do so.

DO NOT attempt to lift the door glass with the handle as

this may result in damage to the glass and/or serious

personal injury. Use a professional grade glass suction cup

and an assistant.

13b. If installing the 72” model, repeat Step #13a for the

Small Stationary Glass Bottom Bracket (#22). Loosen the

set screw and remove the Guide Block Face Plate.

*NOTE:

◾For installation into an Acrylic Threshold:

drill an Ø1/8”(3mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17)

◾For installation into a Tile Threshold:

drill a Ø5/16”(8mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17) (with Anchor (#09b) for tile)

Apply silicone to the underside of the Guide Block (#12) and

screw the Guide Block (#12) to the threshold. (Fig 14b)

The Small Stationary Glass Bottom Bracket (#22) must be

screwed down.

18ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 15

(Right hand door installation shown as example)

NOTE: Use the Guide Rail Bracket (#08)

set screws to adjust the Guide Rail (#03)

to level.

Lower guide rail Raise guide rail

To lower the rail:

Loosen the top set screw and

tighten the bottom set screw.

To raise the rail:

Loosen the bottom set screw and

tighten the top set screw.

Glass Bracket adjustments

outside

for 72” model

Panel end

Door end

Glass bracket

Guide Rail Bracket

TIP: Adjust the installed Upper Guide Rail (#03) to level as

necessary using the Guide Rail Brackets (#08) first and

then the Glass Brackets (#07). Start adjustments from the

door end.

14. Re-position the Stationary Glass (#02) and Upper Guide

Rail (#03) onto the threshold and fasten both sleeves of the

Guide Rail Brackets (#08) to the brackets on the walls.

Tighten the set screws on the Guide Rail Brackets (#08) to

secure the Upper Guide Rail (#03). Position the bracket set

screws so that they are accessible from the top and bottom

(Fig 15.1 and 15.2).

Assemble the Wall Bracket (#19) at the bottom corner of the

Stationary Glass (#02). For the 72“ model, repeat this step

for the Wall Bracket (#19) for the Small Stationary Panel

Glass (#23) (Fig 15.4)

Use the clear vinyl gasket between the glass and the metal

parts to avoid contact with the glass, then tighten the bolt

with the supplied allen wrench. (Fig 15)

19 ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 15a Fig 15b

X + 3/8”

for 48”or 60“

model

measure the distance ‘X’ from the guide block to the

wall and add 3/8”

for 72” model

L + 3/4 ”

measure the distance ‘L’ between the guide blocks

and add 3/4”

Fig 16

1 42 3

only use cap

when installing

up to a wall

for 48” & 60”

model

for 72” model

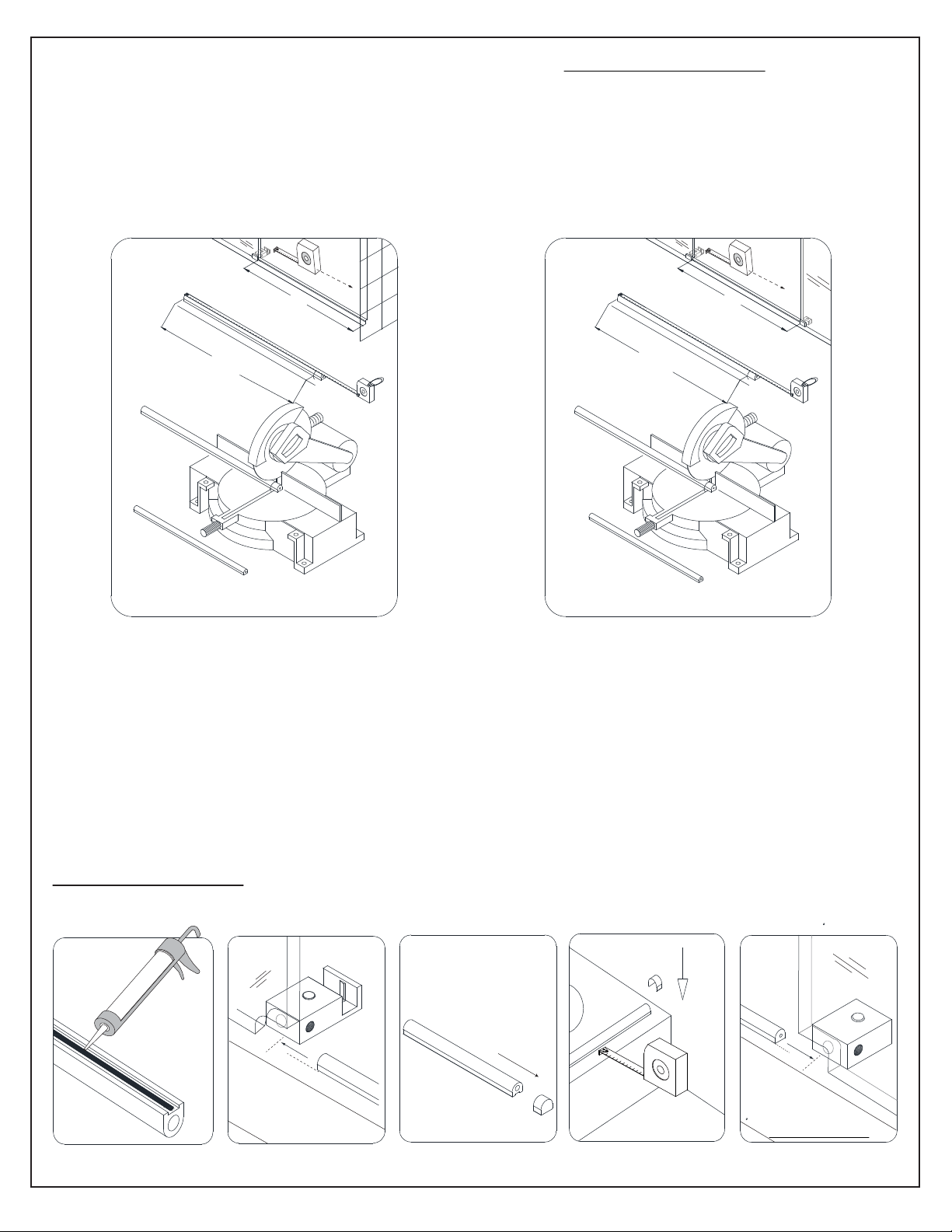

15a. For the 48”or 60“ model size: Measure the

distance from the edge of the Guide Block (#12)

to the wall. This distance will be “X”.

Use a miter saw or a hacksaw to cut the

Anti-Splash Guard (#15) to the size of:

(X) + 3/8”. (Fig 15a)

16. Apply silicone to the bottom of the Anti-Splash Guard (#15). Insert one end of the

Anti-Splash Guard (#15) into the Guide Block (#12).

Align the Anti-Splash Guard (#15) parallel with the front edge of the shower base or threshold.

Cover the other end of the Anti-Splash Guard (#15) with the Anti-Splash Guard Cap (#16)

against the wall (48” and 60” models) (see Fig 16.4). (Fig 16)

15b. For the 72” model size: Measure the

distance between the edge of the Guide Block

(#12) to the Small Stationary Glass Bottom

Bracket (#22). This distance will be “L”.

Use a miter saw or a hacksaw to cut the

Anti-Splash Guard (#15) to the size of:

(L) + 3/4”. (Fig 15b)

For the 72” model: Insert the Anti-Splash Guard (#15) into the Small Stationary Glass

Bottom Bracket (#22). (Fig 16.5)

20ENIGMA-XO manual Ver 1 Rev 2 03/2018

face plate

Fig 18

Fig 17

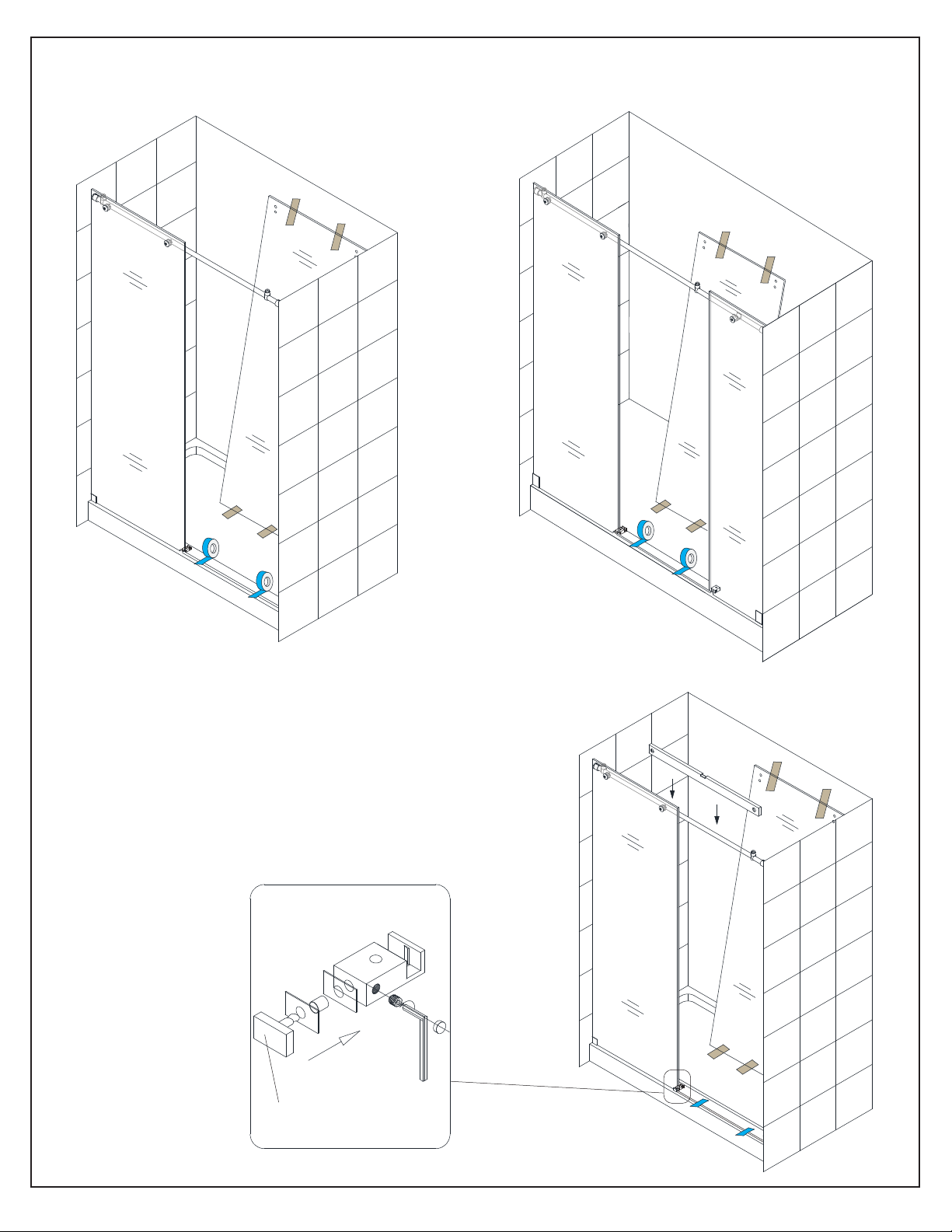

17. Secure the Anti-Splash Guard (#15) to the threshold with several pieces of painter’s tape to hold it

in position and tight to the threshold until the silicone fully cures. (Fig 17)

18. Attach the Guide block face plate to the installed

Guide Block (#12) and tighten the set screw with the

supplied allen wrench. Use the supplied Decorative caps

to cover the screw holes. (Fig 18)

21ENIGMA-XO manual Ver 1 Rev 2 03/2018

1 2

outside

Fig 19

Fig 20

face plate

clear

gasket

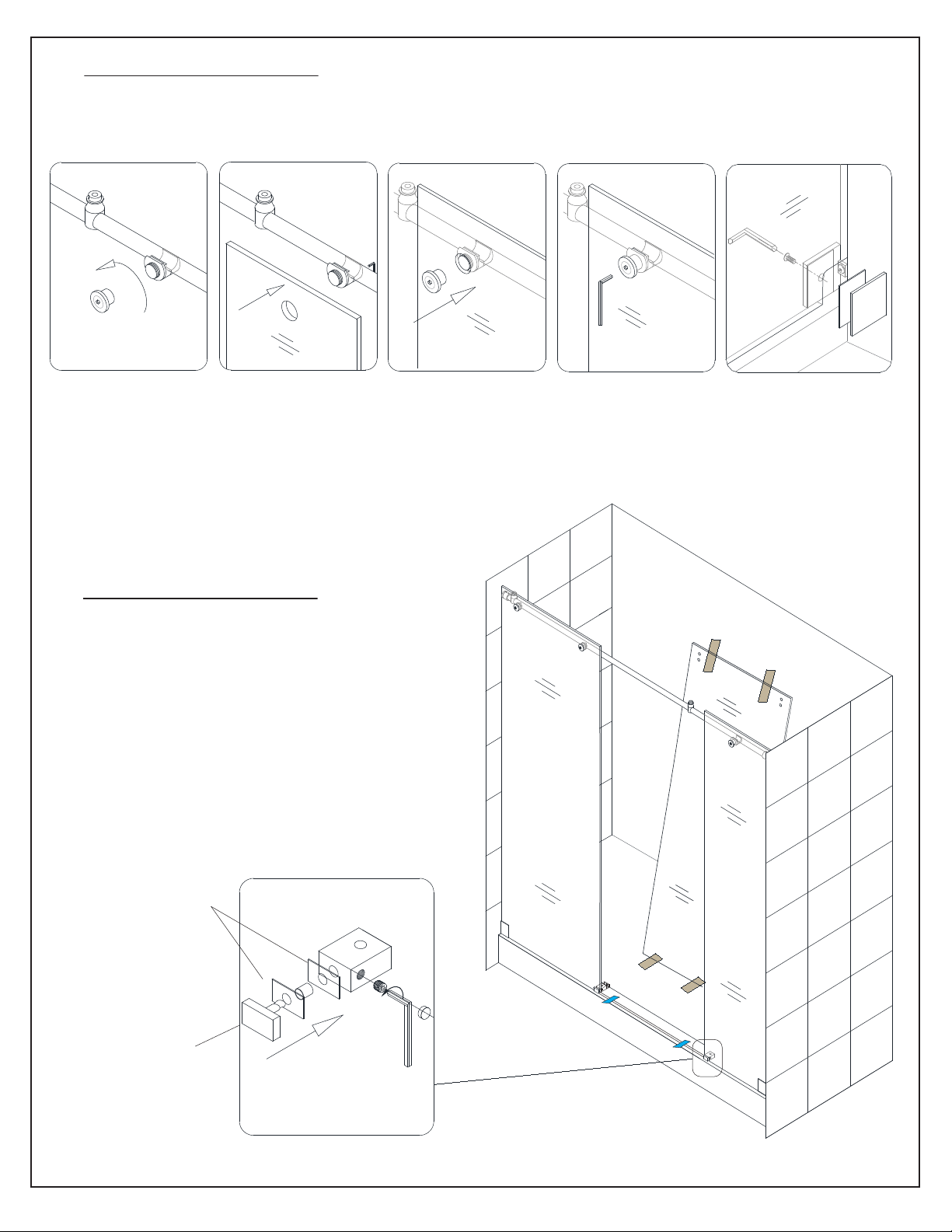

19. If installing the 72” model: attach the Small Stationary Panel Glass (#23) to the Upper Guide

Rail (#03) using the Small Stationary Glass Bracket (#21).

Attach the face plate to the Wall Bracket (#19) on the threshold (see Fig 19.5). (Fig 19)

20. If installing the 72” model: Attach the

Guide block face plate to the installed Small

Stationary Glass Bottom Bracket (#22) and

tighten the set screw with the supplied allen

wrench. Make sure that the clear gaskets are in

place to protect the glass. Use the supplied

Decorative caps to cover the screw holes. (Fig 20)

22ENIGMA-XO manual Ver 1 Rev 2 03/2018

Note: The adjustment disks in

the wheels are the same as the

disks in the Glass brackets and

can be rotated to adjust the

door glass to create a seal with

the wall.

See detailed

description on page 28.

TIP: Use a 3/16” shim beneath the

door glass when adjusting the level of

the door so that the glass does not

make contact with the guide block.

Fig 21

Fig 22

add threadlock to

the safety set screw

and wheel bolt

TIP: Mark the location of the

high spot on the outer surface of the

adjustment disk with a felt tip pen to

make adjustment easier to see.

Raise Door glassLower Door glass

Roller wheel adjustment disks

safety set screw

1 2

outside

safety set screw

inside

front view

Upper Guide Rail

side view

safety set screw

1 2

21. Attach two of the Rollers (#04) into the top holes on the

Door Glass (#05) with the wheels facing outside of the shower.

Apply Thread Lock Adhesive (#26) to the bolts and safety set

screws. Align the safety set screw towards the top for easier

access to retighten after installation. (See Fig 21 and page 30

for details)

Lift the door and position the Rollers (#04) onto the Upper

Guide Rail (#03) while carefully sliding the bottom edge of the

Door Glass (#05) into the groove of the Guide Block (#12).

If necessary, adjust the disks on both Rollers (#04) to ensure that

the bottom edge of the Door Glass (#05) does not touch the

bottom of the Guide Block (#12) (see details regarding

adjustment on page 28). (Fig 21 and 22)

NOTE: DO NOT attach the handle to the door glass until instructed

to do so. DO NOT attempt to lift the door glass with the handle as

this may result in damage to the glass and/or serious personal injury.

22. Attach two Rollers (#04) into the holes in the Door

Glass (#05) beneath the Upper Guide Rail (#03). Adjust

these Rollers (#04) to make conatct with the Upper Guide

Rail (#03). Apply Thread Lock Adhesive (#26) to the

bolts and safety set screws. Align the safety set screw

towards the bottom for easier access to retighten after

installation. (Fig 22)

23ENIGMA-XO manual Ver 1 Rev 2 03/2018

48”or 60”

model

NOTE: The Safety set screw on both wheels MUST BE

re-tightened after installation to prevent the large bolt

from coming loose. Apply thread lock during installation.

(See details Fig 23 and also on Page 28)

door

small panel

Fig 23

Fig 24

door

wall

(Right hand door installation shown as an example)

outside

door

inline panel

inside

add threadlock to

the safety set screw

and wheel bolt

72” model

23. Press the Anti-Water Strip (#14) onto the vertical edge

of the Stationary Glass (#02) and the Door Glass (#05)

(Fig 24.1).

Press the Bumper Strip (#13) onto the vertical edge of the

Door Glass (#05) (48” and 60“ model). (Fig 24.2)

For the 72” model: Attach Anti-Water Strip (#14) to the

edge of the Small Stationary Glass (#23). The Bumper

Strip (#13) is not necessary with the 72” model (Fig 24.3*).

Attach the Handle (#06) to the Door Glass (#05). (Fig 24)

Note: Use a razor knife to trim the Anti-Water Strip (#14) at

the top to avoid interfering with the lower Rollers (#04).

24ENIGMA-XO manual Ver 1 Rev 2 03/2018

Note: If installing

the 72” model,

position the door-side

stopper so that the

handle cannot make

contact with the small

inline panel glass

when the door is in

the closed position.

Fig 24a

3”

wall

(+/- 1/8”)

Fig 24b

Stopper

hole

Stopper

Thread Lock

Panel side

Stopper (#01)

Door side

Thread

Lock

72” model with Right hand

door installation

door side of opening

48” and 60” models

approximately

(ENIGMA-XO Right hand door

installation shown as an example)

small

panel

position stopper

to allow enough

clearance for the

handle

Door Stopper Installation:

1. Remove the set screw

2. Slide the Door Stopper (#01) onto the Upper Guide Rail (#03)

3. Align with stopper hole (stationary panel side only)

4. Apply Thread Lock Adhesive (#26) to the set screw threads

5. Tighten screw into the stopper hole (stationary panel side only)

6. Correctly position the door side stopper and tighten the set screw with Thread Lock Adhesive (#26)

(Fig. 24b)

24. Position the Door Stoppers (#01) and screw

them tightly to the Upper Guide Rail (#03).

NOTE: The Door Stoppers (#01) must be

positioned correctly to prevent the handle from contacting the

Stationary Glass (#02) (48”, 60” & 72“ models) and to stop the

Door Glass (#05) in a position that allows the bumper strip to

create a seal with the wall, but does not allow the door glass to

bang into the wall during normal operation (48” & 60” models).

(Fig 24a 24b)

*For the 72” model: Install the door side stopper in a position to

prevent the handle from making contact with the small inline

panel glass when the door is in the closed position. (Fig

24b.7)

ENIGMA-XO manual Ver 1 Rev 2 03/2018

Fig 25

180

3M Tape

Inside

NOTE: The surfaces need to be clean and free of

construction debris before installing the bumper.

Wipe the area with an alcohol swab before installation

The Bumper (#30) is reversible for

Left (as shown below from inside the

shower) or Right wall installation

Door

Panel

TIP: Install the Bumper (#30) using the 3M

tape. Screwing the bumper to the wall

using a 5/16” hole and anchor is optional

(see step #26).

25. Install the Bumper (#30) with the 3M tape: postion the Bumper (#30) onto the threshold and

against the wall on the stationary panel side of the installation. (For 72” model, this will be the side of

the opening with the large stationary panel). Remove the 3M Tape backing and position the Bumper

(#30) onto the threshold against the Wall Bracket (#19). (Fig 25)

ENIGMA-XO manual Ver 1 Rev 2 03/2018

3M TAPE

1 2

3 4

Fig 26

Inside

NOTE: The surfaces need to be clean and free of

construction debris before installing the bumper.

Wipe the area with an alcohol swab before installation

The Bumper (#30) is reversible for

Left (as shown below from inside the

shower) or Right wall installation

Door

Panel

TIP: Use caution if using the screw method

to not crack the wall/tile and to avoid any

plumbing behind the wall.

26. To install the Bumper (#30) with the screw method, position the bumper (#30) onto the

threshold and against the wall on the stationary panel side of the installation. (For 72” model, this will be

the side of the opening with the large stationary panel). and mark the position of the hole onto the wall.

Drill a 5/16” hole and insert the anchor (###). Remove the 3M Tape and position the Bumper (#30) onto

the threshold against the Wall Bracket (#19) and attach using the ST4.2 x 40 Countersunk screw.

(Fig 26)

ENIGMA-XO manual Ver 1 Rev 2 03/2018

Do Not hang or drape a towel or wash

cloth over the guide rail as this may cause

the roller wheels to get stuck and possibly

cause serious damage or injury.

Hours

Fig 27

27. Apply a good quality mildew-resistant silicone along the interior perimeter where the glass meets

the wall and threshold and also along the Anti-Splash Guard (#15). (Fig 26)

Please allow 24 hours for the silicone to fully cure before using the shower.

ENIGMA-XO manual Ver 1 Rev 2 03/2018

Roller adjustment procedure for Enigma, Enigma-X and Enigma-XO

To achieve minimal clearance beneath the door glass without making contact with the boom

guide block and creang a good seal with the wall.

Have at least two 3/16” shims or wedge shims (to maintain space beneath the door glass) and an assistant

available to help with this procedure.

Adjust only one wheel at a me and you may need to perform these steps more than once to

get the desired results.

Cauon: The door glass is heavy and may require two people to safely accomplish these steps.

1. the -X) orFirst, loosen and lower either Roller Guards (Enigma Boom Rollers (Enigma, Enigma-XO) to allow

enough room to adjust the upper rollers. (If you have not installed these yet, you will be instructed to in

step #7 aer these adjustments are made)

2. Loosen the safety set screw on the roller. (See note 2 below)

3. Loos

en the big bolt just enough so that you can rotate the adjustment disk. (See note 3 below)

4. Rotate the adjustment disk to raise or lower the door slightly with help from an assistant. You can use a

small tool (like an allen wrench) to aid in turning this disk by inserng it into the small hole on the edge of

the adjustment disk. (see note 4 & 4a below)

5. While holding the adjustment disk in p

lace, reghten the big bolt. Use a shim or have an assistant hold

the door glass in place while you reghten the big bolt.

6. Re-ghten the safety set screw to hold the big bolt in place (see note 5). Test the operaon of the door.

7. For the Enigma-X:Reposion the rollerguards approximately 1/16” beneath the guide rail and

reghten. For the Enigma/Enigma-XO: adjust the lower rollers to make contact with the rail in the same

manner as th

e upper rollers.

Loosen this safety set screw

ﬁrst. This holds the big

bolt in place and must

be re-ghtened aer

the roller is adjusted.

Posion this set screw at

the top for easier access.

The bushing that goes through

the glass is ellipcal and

allows you to raise or lower

the glass when you rotate the

adjustment disk.

Insert a small tool (like an

allen wrench) into this hole

to help rotate this

adjustment disk and also to

hold the disk in place when

you reghten the big bolt.

Once you have loosened the

set screw, you will be able to

loosen this big bolt just

enough to allow you to

rotate the adjustment disk.

This is the adjustment disk.

Once the big bolt is loosened,

rotate this disk to raise or

lower the door glass slightly.

Use cauon so that the door

glass does not make contact

with the guide block.

It is extremely important

that the safety set screw

is re-tightened to secure

the big bolt.

During installaon onto the glass,

rotate this disk so that the safety set

screw is at the top for easier access

add threadlock to

the safety set screw

and wheel bolt

Enigma-XO Maintenance checklist

◻ Guide rail level and tight

◻ Guide rail brackets tight to the walls

o All set screws tight

◻ Panel glass secure

◻ Panel glass brackets tight

◻ Guide block square to the threshold and glass

◻ Proper clearance beneath the door glass between the threshold and within the guide block

◻ Door Glass adjusted so that the Bulb vinyl seal makes even contact with the wall

◻ Wheel assemblies tight

o Wheel roller bolts tight

o Wheel assembly safety set screws tight and accessible

◻ Stoppers tight and positioned correctly

o Panel-side stopper installed into the pre-drilled hole in the guide rail

o Adequate Handle clearance when the door is fully open

o Door-side stopper positioned at approximately 3” (+/- 1/8”) (as measured from the

wall to the center of the stopper)

◻ Stopper stops the door and bulb vinyl seals to the wall

◻ SafeStop bumper secure to the wall

◻ Bottom Rollers should make contact with the guide rail.

◻ Remove vinyl seals to inspect the edges of the door glass for concealed damage

o Damaged glass must be replaced!

◻ Replace damaged or missing vinyl seals

Product Maintenance

BASES and BACKWALLS: To ensure long lasting life for your acrylic back walls: wipe them off after each

use with a soft cloth. To clean the acrylic back walls use non-abrasive sprays or cream based cleaners.

Avoid the use of aerosol spray cleaners. Never use abrasive cleansers, metal brushes or scrapers that

could scratch or dull the surface.

GLASS: To ensure long lasting life for your glass shower products: wipe them off after each use with a

soft cloth. Rinse and wipe off the glass using either a soft cloth or a squeegee to prevent soap buildup

and water spots (Hard water can etch the surface of the glass over time if left to dry). To prevent

scratching the surface: never use abrasive cleaners or cleaning products that contain scouring agents.

Never use bristle brushes or abrasive sponges that may scratch the surface.

HARDWARE: To ensure a long lasting finish: wipe off the metal parts after each use with a soft cloth.

Do not use abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally

used, rinse the surface as soon as possible to prevent damage to the finish (peeling or corrosion).

After cleaning the polished finishes, rinse thoroughly and wipe dry with a soft cloth.

Clean stainless steel surfaces at least once a week. When applying stainless steel cleaner or polish to

stainless steel hardware, work with (not across) the grain. Never use an abrasive sponge or cloth, steel

wool or wired brush as these may permanently scratch the surfaces.

NOTE: To maximize the life of your door, it is important to regularly inspect the

glass and other hardware for misalignment, proper attachment, and/or damage.

Contact DreamLine

with any questions or concerns.

29ENIGMA-XO manual Ver 1 Rev 2 03/2018

TEL: 866-731-2244

FAX: 866-857-3638

DREAMLINE.COM

For more information on DreamLine

Shower Doors and Enclosures please visit DreamLine.com

DreamLine SHDR6160622007

Product's Documents

User Manual

Specifications

DreamLine SHDR6160622007 Questions and Answers
