ZICSD373
Installation & Instruction Manual
en
Please read these instructions first before using your
appliance
Thank you for choosing a zenith appliance.
Please take some time to read this user manual before using your appliance,
to ensure you know how to safely operate the controls and functions.
Carefully follow all unpacking and installation instructions to ensure the
appliance is correctly connected and fitted prior to use.
Please write your product model and serial number on the last page of this
user manual, and store in a safe location close to the appliance for easy
future reference.
This user manual may also be applicable for several other models.
Differences between models will be listed.
Explanation of symbols used throughout this user manual
C
- The earth/ground terminal in the plug is marked with the symbol.
- The freezer compartment is marked with the symbol.
- Some installation steps in furniture are marked with the symbol of
attention.
- Important information or useful usage tips.
- Symbol for waste electrical and electronic equipment.
WARNING!
In order to ensure a normal operation of your refrigerating appliance, which uses
a completely environmentally friendly refrigerant the R600a (flammable only
under certain conditions) you must observe the following rules:
•
•
•
•
Do not hinder the free circulation of the air around the appliance.
Do not use mechanical devices in order to accelerate the defrosting, other
than the ones recommended by the manufacturer.
Do not damage the refrigerating circuit.
Do not use electric appliances inside the food keeping compartment, other
than those that might have been recommended by the manufacturer.
EN
2
CONTENTS
1 Your refrigerator
3
2 Warnings
4
Electrical requirements .......................5
Warning! This appliance must be
earthed ..............................................5
Energy saving tips .............................6
Compliance with WEEE Directive and
Disposing of the Waste Product: .......6
Compliance with RoHS directive: .......6
Package information ..........................6
3 Installation
7
Disposing of the packaging ...............7
Disposing of your old refrigerator .......7
Placing and Installation ......................7
Transportation instructions .................8
Installation instructions ......................9
Replacing the interior light bulb ..........9
Reversing the doors .........................10
4 Before operating
18
Final Check .....................................18
5 Using your refrigerator 19
Temperature control and adjustment...19
Suggested arrangement of food
in the fridge/freezer .........................20
Storing frozen food .........................21
Freezing fresh food .........................21
Making ice cubes .... ........................21
Defrosting ...... ..................................22
6 Maintenance and
cleaning
23
7 Do’s and Don’ts 24
Installation instructions
detailed step by step ........................11
Problem solving ...............................25
Guarantee .....................................26
How to obtain service ..................29
EN
3
1 Your refrigerator
C Figures that take place in this instruction manual are schematic and may not
correspond exactly with your product. If the subject parts are not included in
the product you have purchased, then it is valid for other models.

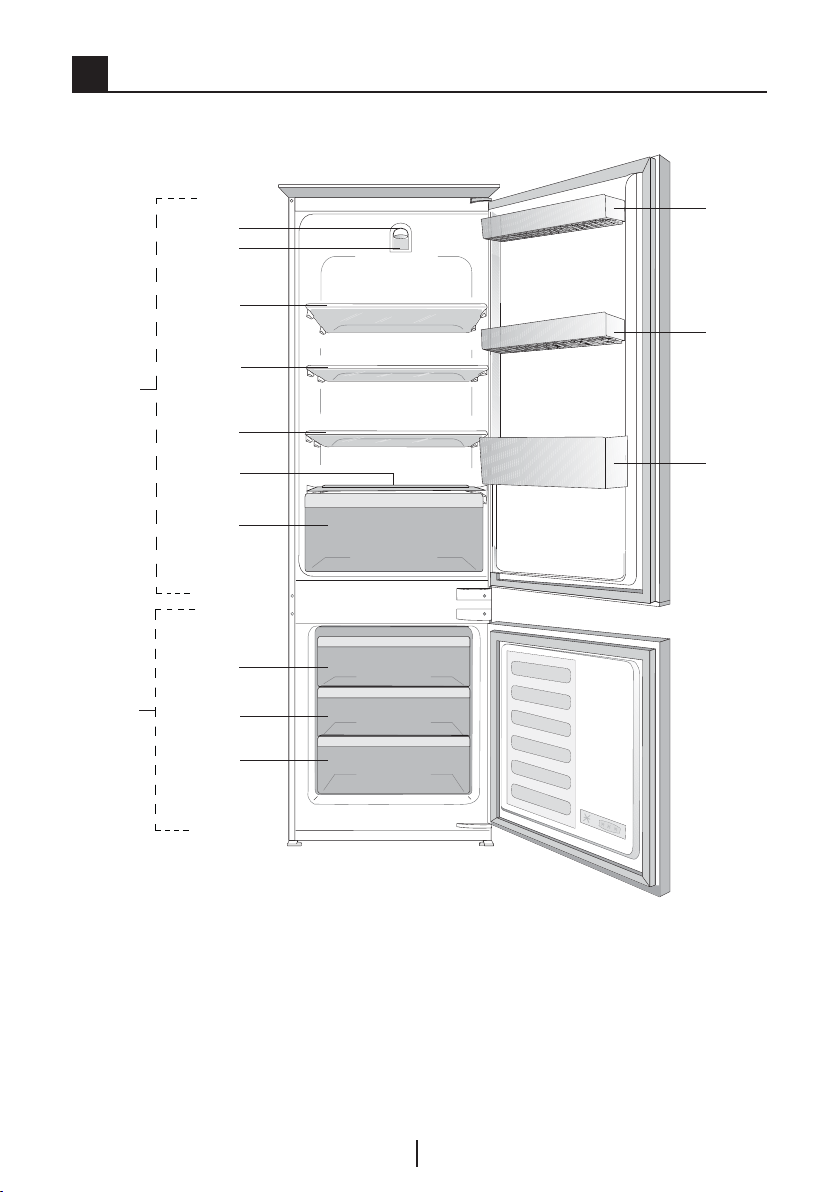

1. Fridge compartment door shelves
2. Bottle Shelf
3. Deep-freeze compartment
4. Fast-freeze compartment
5. Crisper
6. Defrost water collection channel
7. Adjustable body shelves
8. Interior light
9. Thermostat control
10. Fridge compartment
11. Freezer compartment
Congratulations on your choice of a zenith
quality a
ppliance which has been
designed to give you service for many years.
10
11
1
1
2
4
3
5
6
7
8
9
7
7
3
4
EN
2 Warnings
•
Do not connect your appliance to the
electricity supply until all packing and
transit protectors have been removed.
•
If transported horizontally leave
to stand upright for at least 4 hours
before switching on to allow
compressor oil to settle.
•
If you are discarding an old refrigerator
with a lock or latch fitted to the door,
disable the lock/latch, ensure that it is
left in a safe condition to prevent the
entrapment of young children.
•
This fridge/freezer must only be used
for its intended purpose i.e. the storing
and freezing of edible foodstuff.
•
Do not dispose of the appliance
on a fire. At zenith, the care and
protection of our environment is an
ongoing commitment. This appliance
which is among the latest range
introduced is particularly environment
friendly. Your appliance contains non
CFC / HFC natural substances in the
cooling system (Called R600a) and in
the insulation (Called cyclopentane)
which are potentially flammable
if exposed to fire. Therefore, take care
not to damage, the cooling circuit /
pipes of the appliance in transportation
and in use. In case of damage do not
expose the appliance to fire or
potential ignition source and
immediately ventilate the room where
the appliance is situated.
•
We suggest you contact your local
authority for disposal information and
facilities available.
•

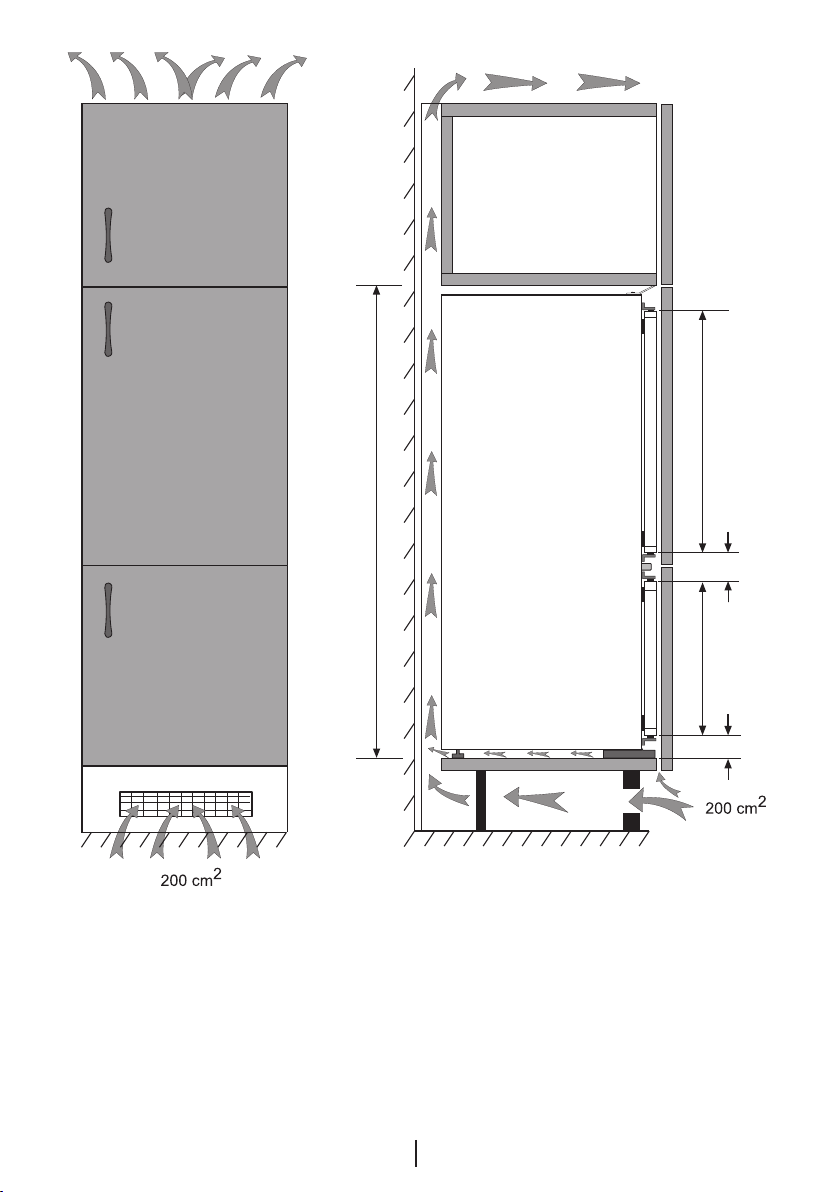

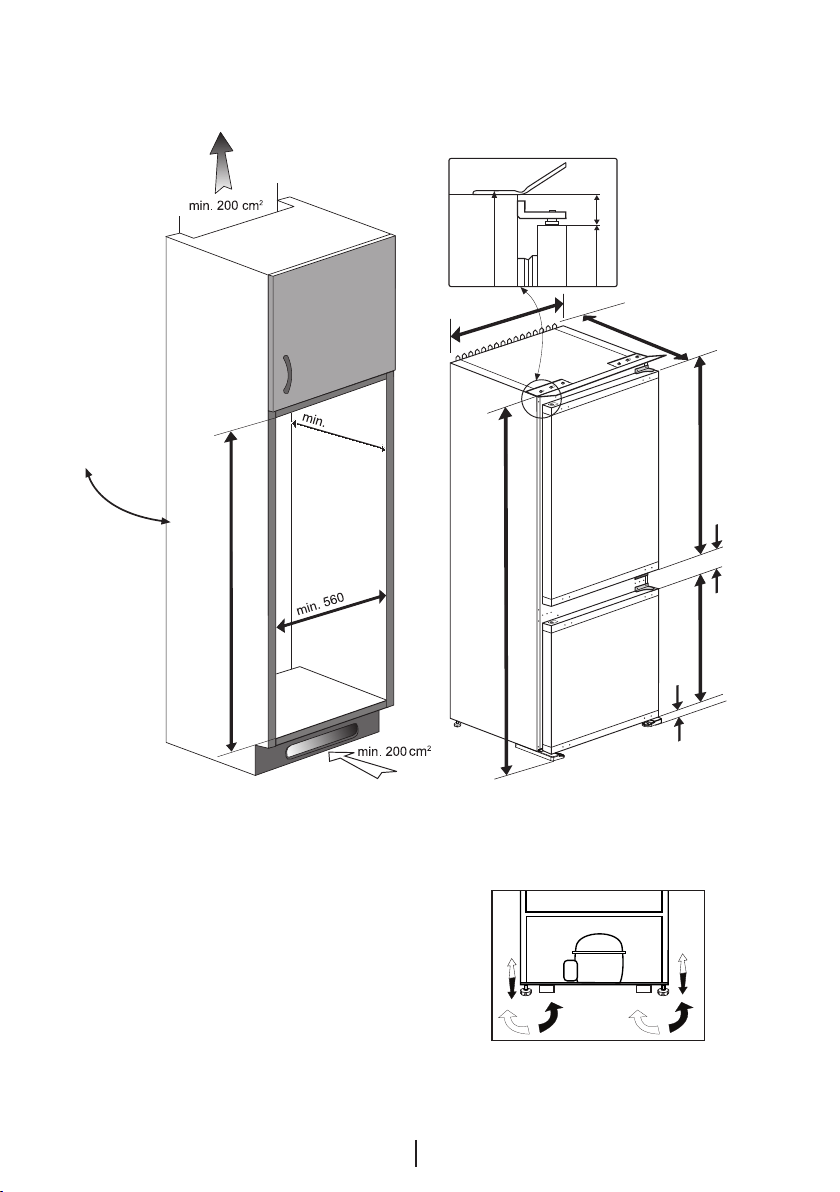

See Installation Instructions on page 9
for information on suitable location.
• To obtain the best possible
performance and trouble free
operation from your appliance it is
very important to carefully read these
instructions.
• On delivery, check to make sure that
the product is not damaged and that
all the parts and accessories are in
perfect condition.
• Ensure that the plug remains readily
accessible. Do not use multiple
adapter or extension cable.
• Failure to observe these instructions
may invalidate your right to free
service during the guarantee period.
• Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
• Do not use mechanical devices
or other means to accelerate the
defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant
circuit.
• Do not use electrical appliances
inside the food storage
compartments of the appliance,
unless they are of the type
recommended by the manufacturer.
• We suggest you keep these
instructions in a safe place for easy
reference.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision
or instruction
concerning use of the appliance in a
safe way and understand the
hazards involved.
EN
5
FITTED WITH
BS 1362 13A FUSE ALWAYS
FIT BS 1362 REPLACEMENT
CARTRIDGE FUSE
GREEN &
YELLOW
OR
GREEN
N
BLUE
OR
BLACK
L
BROWN
OR
RED
22mm.
6mm.
6mm.
6mm.
32mm.
12mm.
FUSE
CORD GRIP
• Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
• Children should be supervised to
ensu
re that they do not play with the
appliance.
Electrical requirements
Before you insert the plug into the wall
socket make sure that the voltage and
the frequency shown on the rating
plate inside the appliance corresponds
to your electricity supply.
Rating label is on the left hand side of
fridge inner liner.
We recommend that this appliance be
connected to the mains supply via a
Suitable switched and fused socket.
The appliance must be positioned so
that the plug is accessible.
WARNING: When positioning the
appliance ensure the supply cord is not
trapped or damaged.
Should the mains lead of the appliance
become damaged or should it need
Replacing at any time, it must be
replaced by a special purpose made
mains lead which can only be obtained
from a zenith authorised service agent.
Warning! This appliance must
be earthed
If the fitted moulded plug is not suitable
for your socket, then the plug should
be cut off and an appropriate plug
fitted. Destroy the old plug which is cut
off as a plug with bared cord could
cause a shock hazard if inserted into a
socket elsewhere in the house. The
moulded plug on this appliance
incorporates a 13 A fuse. Should
the fuse needs to be replaced an
ASTABEAB approved BS 1362 fuse of
the same rating must be used. Do not
forget to refit the fuse cover. In the
event of losing the fuse cover the plug
must not be used until a replacement
fuse cover has been fitted.
Colour of the replacement fuse cover
must be the same colour as that visible
on the pin face of the plug. Fuse covers
are available from any good electrical
store.
Important! Fitting A Different Plug
As the colours of the wires in the mains
lead of this appliance may not
correspond with the coloured markings
identifying the terminals in your plug
proceed as follows: (see diagram).
1. Connect the green-yellow or green
(Earth) wire to the terminal in the plug
marked ‘E’ or with the symbol
or
coloured green and yellow or green.
2. Connect the blue (Neutral) wire to
the terminal in the plug marked ‘N’ or
coloured black.
3. Connect the brown (Live) wire to the
terminal in the plug marked ‘L’ or
coloured red.
With alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor
or in the main fuse box. If in doubt
contact a qualified electrician.
Energy saving tips
1. Ensure your appliance is installed in a
well ventilated area.
2. Ensure the time between buying
chilled/frozen food and placing them
in your appliance is kept at minimum,
particularly in summer. We
recommend you use a cool bag or a
special carrier bag to carry perishable
food.
3. Do not leave the door (s) of your
appliance open longer than
necessary and ensure they are
closed properly after each opening.
4. Defrost frozen food in the fridge
compartment, so that frozen food
acts as an ice pack to assist cooling
in the fridge.
5. Energy consumption of this
appliance is measured while freezer
compartment is loaded without use
of top shelf lid and the drawers
except the bottom drawer. It is
advised that freezer compartment is
loaded without use of drawers
except the bottom drawer in order to
achieve maximum loading capacity.
Compliance with WEEE
Directive and Disposing of
the Waste Product:
This product complies with EU WEEE
Directive (2012/19/EU). This
product bears a
classification symbol for
waste electrical and
electronic equipment
(WEEE). This product has
been manufactured with
high quality parts and materials which
can be reused and are suitable for
recycling. Do not dispose of the
waste product with normal domestic
and other wastes at the end of its
service life.
Take it to the collection center for the
recycling of electrical and electronic
equipment. Please consult your local
authorities to learn about these
collection centers.
Compliance with RoHS
directive:
The product you have purchased
complies with EU RoHS Directive
(2011/65/EU). It does not contain
harmful and prohibited materials
specified in the Directive.
Package information
Packaging materials of the product are
manufactured from recyclable
materials in accordance with our
National Environment Regulations. Do
not dispose of the packaging materials
together with the domestic or other
wastes. Take them to the packaging
material collection points designated
by the local authorities.
EN
6
EN
7
3 Installation
Disposing of the packaging
The packing materials may be
dangerous for children. Keep the
packing materials out of the reach
of children or dispose of them by
classifying them in accordance
with the waste instructions. Do not
dispose of them along with the normal
household waste.
The packing of your refrigerator is
produced from recyclable materials.
Disposing of your old
refrigerator
Dispose of your old refrigerator without
giving any harm to the envir
onment.
• You may consult your authorised dealer
or waste collection center of your
municipali
ty about the disposal of
your refrigerator.
Before disposing of your
refrigerator, cut
off the electric plug and, if th
ere are
any locks on the door, make them
inoperable in order to protect children
against any
danger.
Placing and Installation
1. Install your refr
igerator to a place that
allows ease of use.
2. Keep your refrigerator away from heat
sources,
humid places and direct
sunlight.
3.
There must be appropriate air
ventilation around your refrigerator in
order to achieve an efficient operation.
4. Place your refrigerator on an even floor
surface to prevent jolts.
5. Do not keep your refrigerator in
ambient temperatures under 10°C.
WARNING: Do not
locate extension
sockets or charging transformers /
power supplies or Lithium-Iron battery
operated products adjacent to the
compressor as they could overheat.
Transportation instructions
1. The appliance should be transported
only in a vertical upright position. The
packing as supplied must be intact
during transportation.
2. If during the course of transport, the
appliance has to be transported
horizontally, it must only be laid on its
right hand side when standing in the
front of the appliance. After bringing
it to upright position, it must not be
operated for at least 4 hours to allow
the system to settle.
3.
Failure to comply with the
above instructions could result in
damage occurring to the appliance. The
manufacturer will not be held responsible
if these instructions are disregarded.
4. The appliance must be protected
against rain, moisture and other
atmospheric influences.
5. When positioning your appliance
take care not to damage your flooring,
pipes, wall coverings etc. Do not move
the appliance by pulling by the door or
handle.
6. Empty any water in the drain
tray before moving. See section
‘Defrosting’ and ‘Maintenance and
cleaning’ for further information.
7. Make sure that the defrost water
pipe at the back of the product is fixed
to the plastic evaporating pan on the
top of the compressor, to avoid defrost
water spillage on the floor.
IMPORTANT: Care must be taken
while cleaning / carrying the appliance
to avoid touching the bottom of the
condenser metal wires at the back of
the appliance as you might injure your
fingers and hands.
Do not attempt to sit or stand on top
of your appliance as it is not designed
for such use. You could injure yourself
or damage the appliance.
IMPORTANT: Make sure that mains
cable is not caught under the
appliance during and after carrying
/ moving the appliance, to avoid
the mains cable becoming cut or
damaged.
Do not allow children to play with the
appliance or tamper with the controls.
Zenith declines to accept any liability
should the instructions not be followed.
EN
8
EN
9
Installation instructions
1. The space in the room where the
appliance is installed must not be
smaller than 10 cubic meters.
Minimum ambient temperature is 5°C,
if used in colder conditions the freezer
may not operate effectively.
2. Do not place the appliance near
cookers, radiators or in direct sunlight
as this will cause your appliance to
work harder. If installed next to a
source of heat or freezer, maintain the
following minimum side clearances:
From Cookers 50 mm (2”)
From Radiators 300 mm (12”)
From Freezers 25 mm (1”)
3. Refer to "Maintenance and
cleaning" section to prepare your
appliance for use.
4. A special receptacle is supplied to
store the mains plug during transit.
The receptacle is fixed at the back of
the cabinet, on the side of the
compressor (see diagram). Gently
remove the plug from the receptacle.
Never pull the mains cord, you may
damage the appliance. In the case of
transportation, ensure you locate the
plug in the receptacle provided to
avoid transit damage.
Replacing the interior light
bulb
To change the Bulb/LED used for
illumination of your refrigerator, call
your Authorised Service. The lamp(s)
used in this appliance is not suitable
for household room illumination. The
intended purpose of this lamp is to
assist the user to place foodstuffs in
the refrigerator/freezer in a safe and
comfortable way. The lamps used in
this appliance have to withstand
extreme physical conditions such as
temperatures below -20°C.

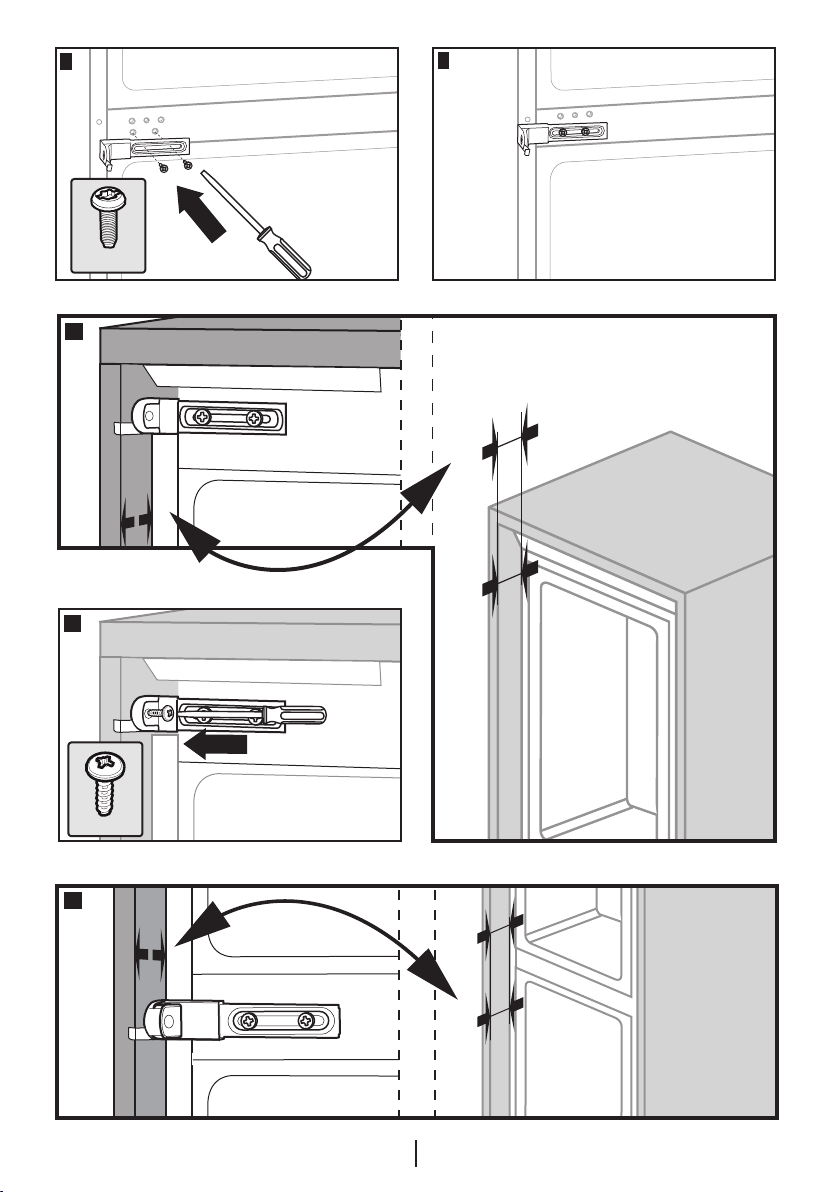

Reversing the doors
Proceed in numerical order.
Top Door
1.
Unscrew top hinge (1).
2.
Carefully remove the top door (2).
3.
Unscrew lower hinge (3).
4.
Remove plastic plugs (7 & 8).
5.
Refit top hinge (1) as lower hinge
(16) on the left hand side.
6.
Replace top door (17).
7.
Refit lower hinge (3) as top hinge
(18) on the left hand side.
Lower door
1.
Unscrew top hinge (4).
2.
Carefully remove the lower door (5).
3.
Unscrew lower hinge (6).
4.
Remove plastic plugs (9 &10).
5.
Refit hinge (4) as lower hinge (11)
on the left hand side.
6.
Replace lower door (12).
7.
Refit lower hinge (6) as top hinge
(13) on the left hand side.
Refit plastic plugs (7, 8, 9 & 10) into
the screw holes on the right hand
side (14, 15, 19 & 20).
EN
10
1
4
3
6
2
5
7
8
9
10
16
18
19
20
14
15
17
12
13
11
EN
11
The back wall of the wooden cabinet must be left open completely to kitchen wall in order to allow
sufficient air circulation to cool down the condenser unit for energy efficiency.
1778-1788 mm
No wooden
back wall

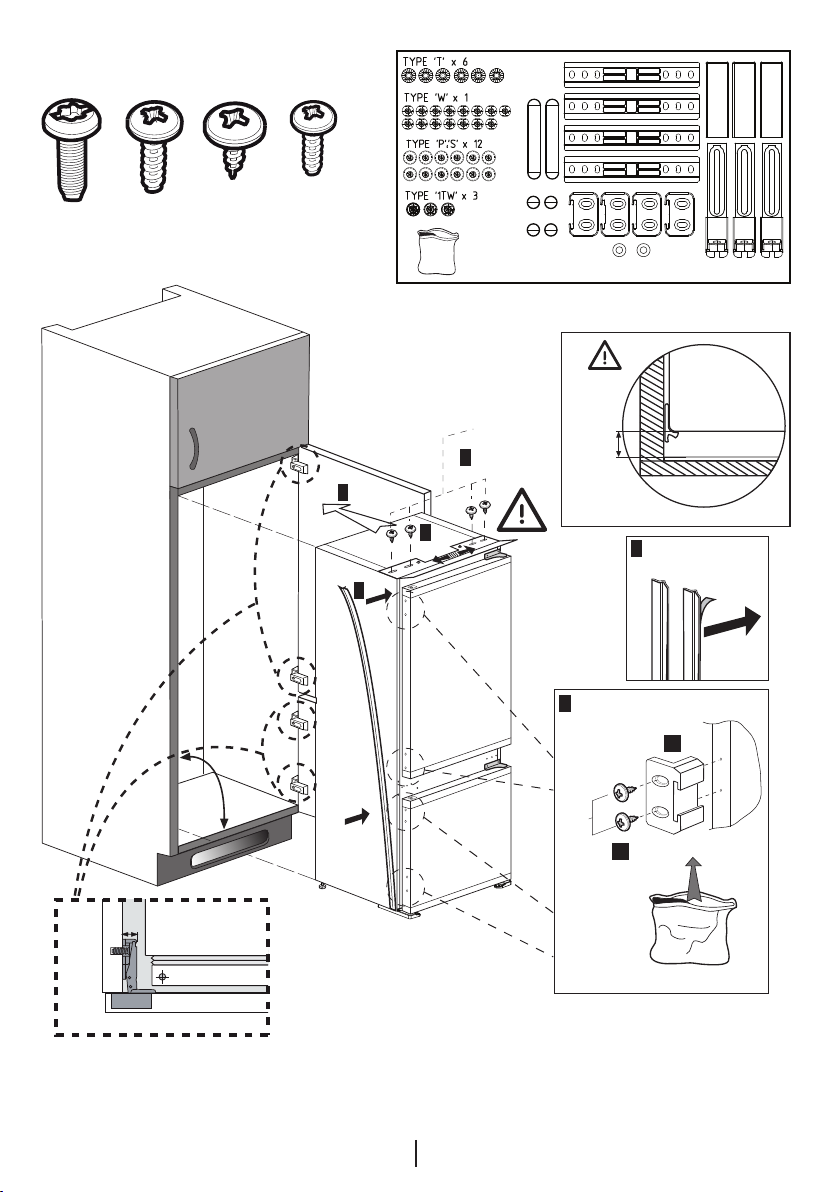

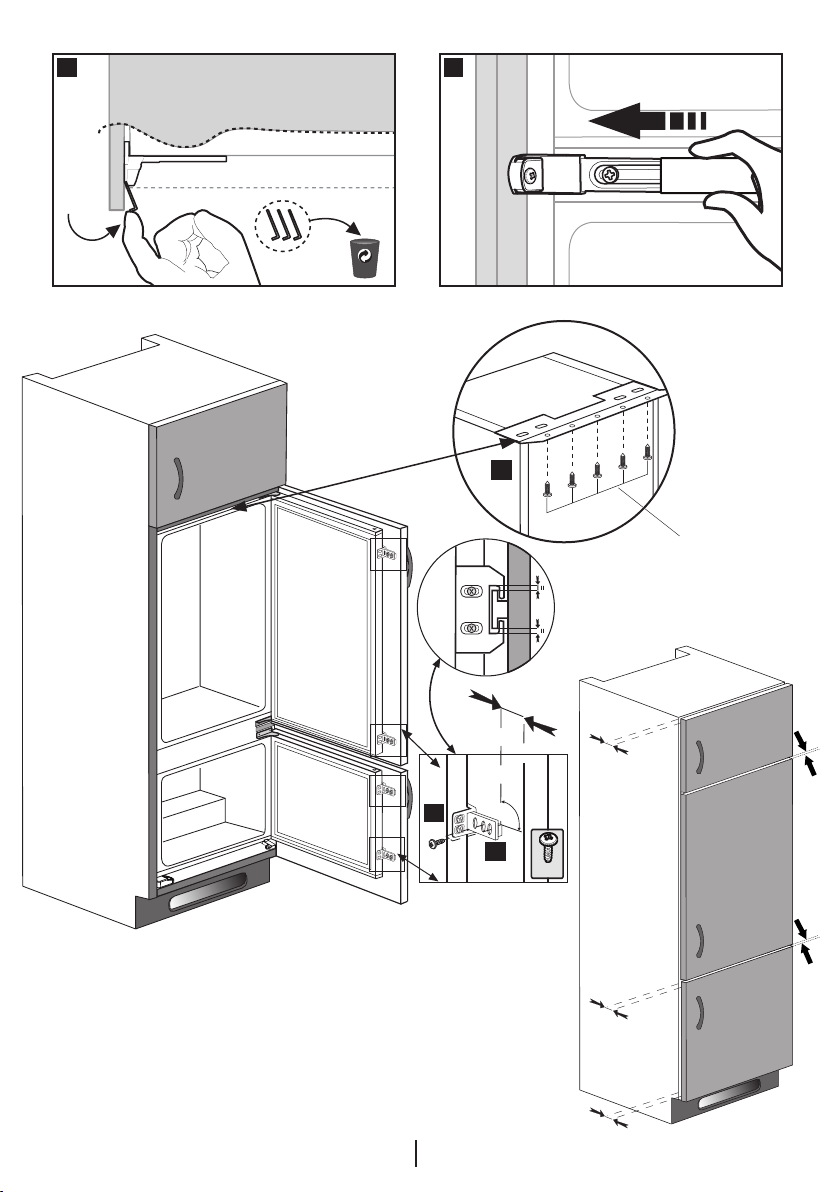

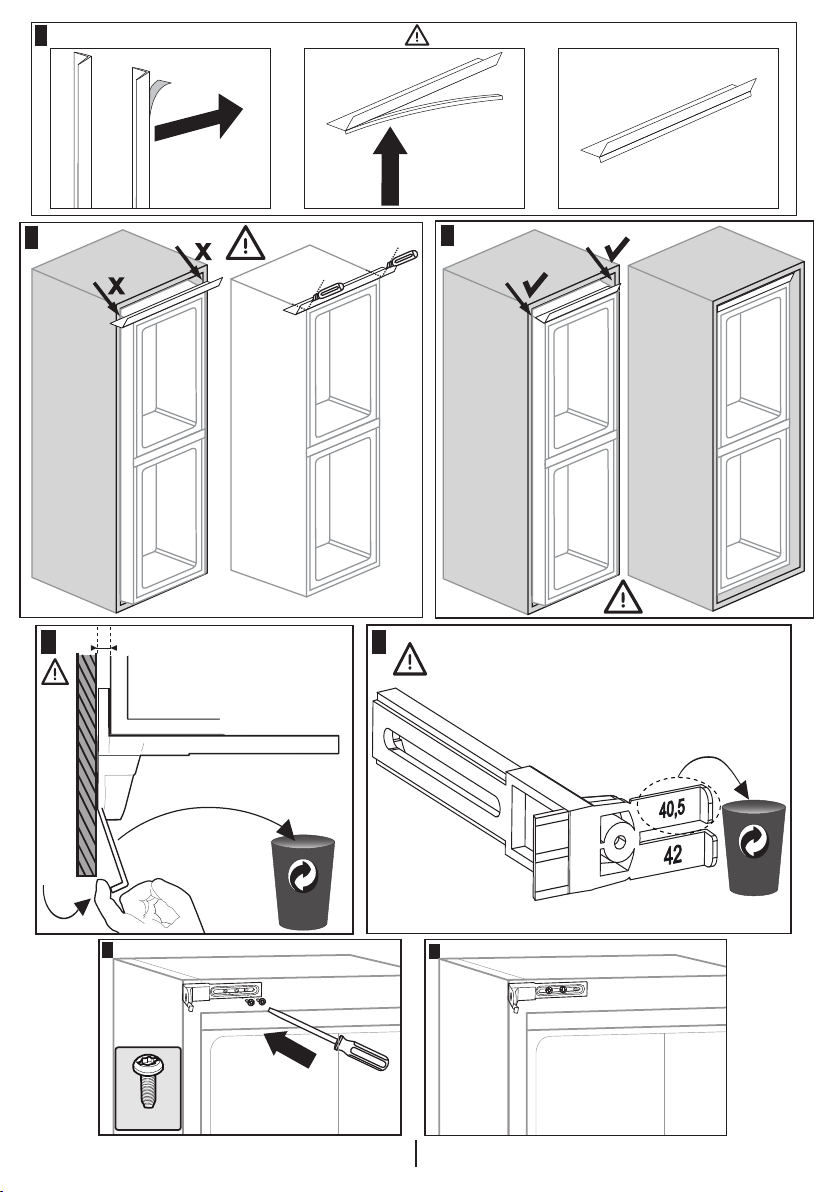

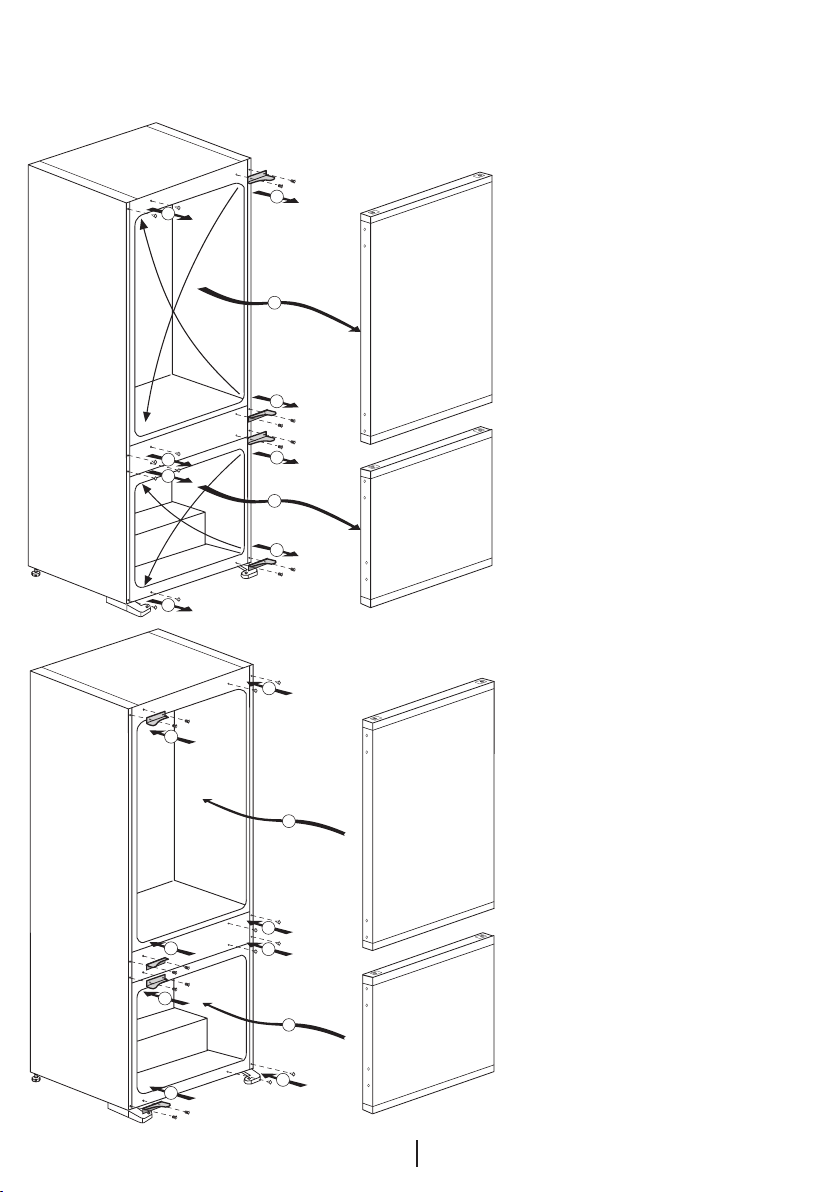

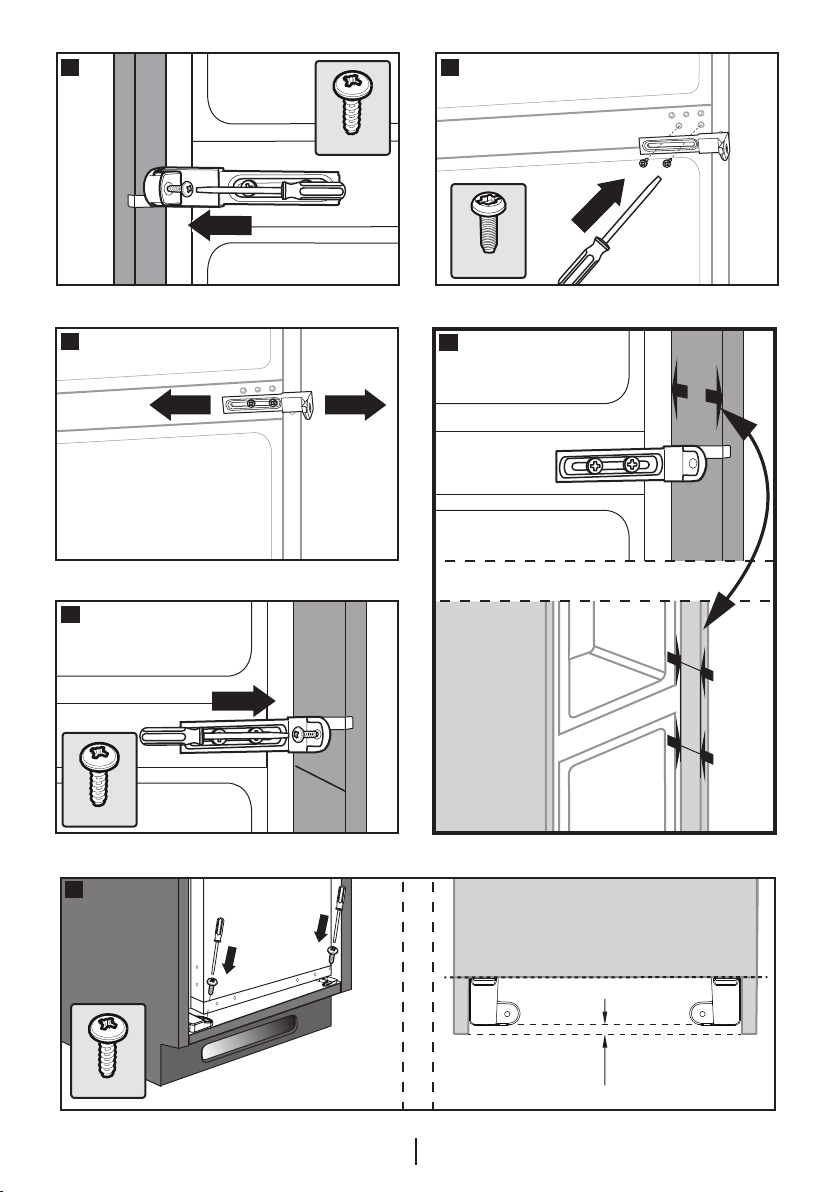

Installation instructions
detailed step by step
555 mm
mm
Adjusting the legs
If your refrigerator is unbalanced:
You can balance your refrigerator by turning the legs of it as illustrated in the figure. The corner where
the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the
opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.
545 mm
540 mm
1775 mm
1001 mm
32
mm
71 mm
40 mm
629 mm
1775 mm
1001 mm
EN
12
629 mm
40 mm
71 mm
1001 mm
1778-1788 mm
EN
13
Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because
of moving the plastic part easily left or right side.
1
a
4
b
PS
≤ 17
Torx
(T)
x6
Wood
(W)
x15
Plastic Sheet
(PS)
x12
Wood
(1TW)
x3
* Spares included
42 mm
T
op
view
5
90
o
2
1
3
5
PS
*
* If the subject parts are not included in the product
you have purchased, then it is valid for other models.
EN
14
2
3
6
(T)
7
1
5
4
4 mm
EN
15
8
10
9
11
(T)
42.0 mm
42.0 mm
(1TW)
12
42
.
0 mm
42.0
m
m
EN
16
14
13
(T)
(1TW)
15
17
16
(1TW)
42
.
0 mm
42.0 mm
(W)
2.0 mm
18
EN
17
20
19
22
90
o
21 mm
(W)
21
W
2 mm
2 mm
2 mm
23
4 mm
4 mm
EN
18
4 Before operating
Final Check
Before you start using the fridge/
freezer check that:
1. The feet have been adjusted for
perfect levelling.
2. The interior is dry and air can
circulate freely at the rear of the
cabinet.
3. Clean the interior as recommended
under “Maintenance and cleaning.”
4. Insert the plug into the wall socket
and switch on the electricity supply.
• When the door is open, the fridge
interior light will come on.
5. You will hear a noise as the
compressor starts up. The liquid and
gases sealed within the refrigeration
system may also give rise to noise,
whether the compressor is running or
not which is quite normal.
6. Set the thermostat knob half way
between 1 and 5.
7. Front edges of the cabinet may feel
warm. This is normal. These areas are
designed to be warm to avoid
condensation.
8. Do not load the appliance
immediately it is switched on. Wait until
the correct storage temperature has
been reached. We recommend that
you check the temperature
with an accurate thermometer (see
Temperature control and adjustment).
EN
19
5 Using your refrigerator
Temperature control and
adjustment
Operating temperatures are controlled
by the thermostat knob (see diagram)
located on the ceiling of fridge
compartment. Settings may be made
from 1 to 5, 5 being the coldest
position.
When the appliance is switched
on for the first time, the thermostat
should be adjusted so that after 24
hours, the average fridge temperature
is no higher than +5°C (+41°F). We
recommend you set the thermostat
half way between the 1 and 5 setting
and monitor to obtain the desired
temperature i.e. towards 5 you will
obtain a colder fridge temperature and
vice versa. Some sections of the fridge
may be cooler or warmer (such as the
salad crisper and the top part of the
cabinet) which is quite normal.
The normal storage temperature of the
freezer should be -18°C (0°F). Lower
temperatures may be obtained by
adjusting thermostat knob towards 5
position.
We recommend that you check
the temperature with an accurate
thermometer to ensure that the
storage compartments are kept to the
desired temperature.
Remember you must take your reading
very quickly since the thermometer
temperature will rise very rapidly after
you remove it from the freezer.
Please remember each time the door
is opened cold air escapes and the
internal temperature rises. Therefore,
never leave the door open and ensure
it is closed immediately after food is
put in or removed.
In case of a temporary ice build up in
the fridge compartment, reduce the
thermostat setting to 1, monitoring
at the same time that the fridge
temperature is maximum +5 degrees
C [41 degrees F]. Once the ice builds
up disappears and the appliance
starts auto defrosting again as normal,
then you may increase the thermostat
setting, if required.
0
EN
20

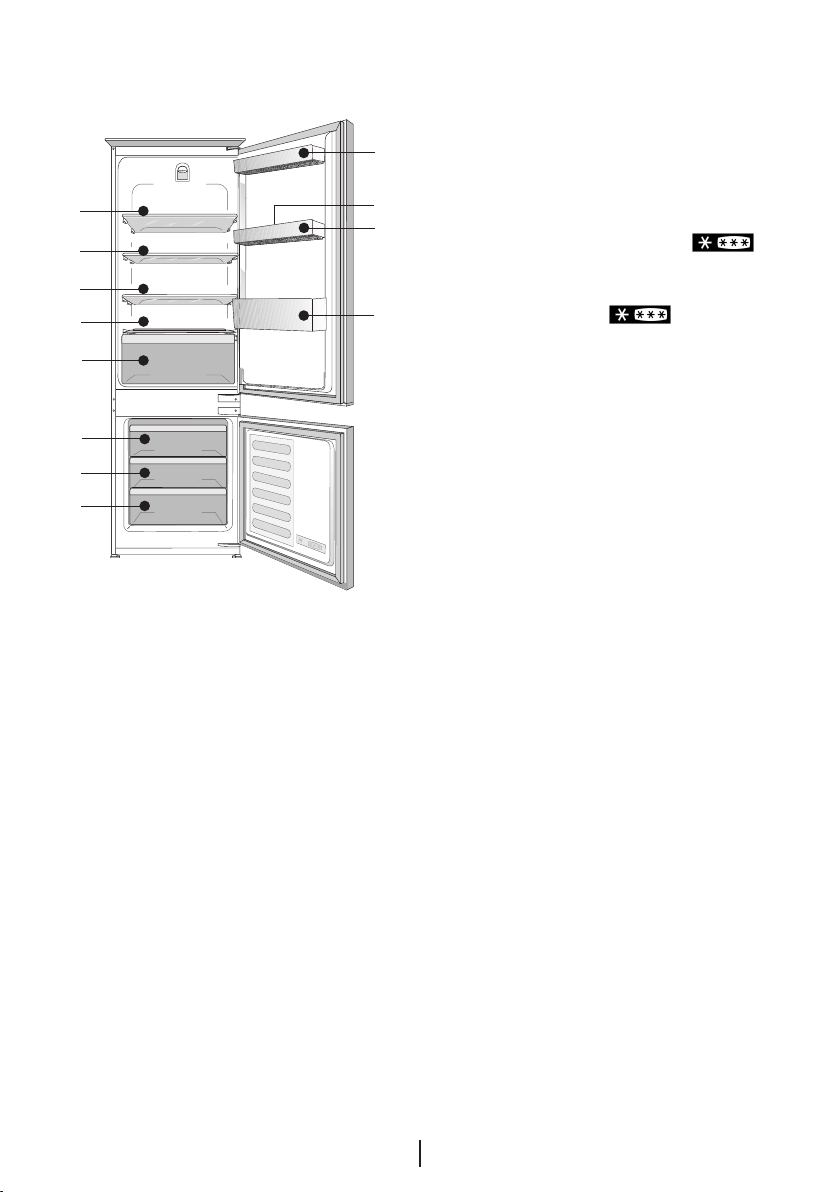

Suggested arrangement of
food in the fridge/freezer
Arrangement Examples (see diagram):
1.
Baked, chilled cooked food, dairy
products, cans.
2.
Meat, sausages, cold cuts.
3.
Fruit, vegetables, salads.
4.
Making and storing ice cubes,
frozen food and freezing of fresh food.
5.
Frozen food.
6.
Butter, cheese, small bottles, cans,
tubes.
7.
Eggs.
8.
Tall, large bottles, beverages.
The following guidelines and
recommendations are suggested
to obtain the best results and
storage hygiene.
1. The fridge compartment is for the
short term storage of fresh food and
drinks.
2. The freezer compartment is
rated and suitable for the freezing
and storage of pre frozen food. The
recommendation for
storage
as stated on the food packaging
should be observed at all times.
3. Cooked dishes must be stored in
airtight covered containers.
4. Fresh wrapped produce can be
placed on the shelf. Fresh fruit and
vegetables should be cleaned and
stored in the crisper bins.
5. Bottles can be placed in the door
section.
6. To store raw meat, wrap in
polythene bags and place on the
lowest shelf. Do not allow to come into
contact with cooked food to avoid
contamination. For safety, only store
raw meat for two to three days.
7. Keep the food packed wrapped
or covered. Allow hot food and
beverages to cool before placing them
in the fridge. Do not store explosive
substances. High proof alcohol must
be stored upright in sealed containers.
Left over canned food should not be
stored in the can.
8. Fizzy drinks should not be frozen
and products such as flavoured water
ices should not be consumed too cold.
9. Some fruit and vegetables suffer
damage if kept at temperatures near
0°C. Therefore, wrap pineapples,
melons, cucumbers, tomatoes and
similar produce in polythene bags.
6
1
1
1
2
4
5
5
7
3
6
8
EN
21
10.
Place chilled cooked food and
similar food near the rear of the fridge
inner liner where the cold wall is located.
11.
Shelves, racks, crisper bins,
drawers, flaps, bottle grippers are all
removable.
12.
Do not leave frozen food at room
temperature to thaw; the best way to
defrost food is to put it in the fridge to
thaw slowly. Make sure you avoid
defrosting food or food juices drip onto
other food.
13.
For hygiene reasons, always wrap
food using a suitable packaging material
before storing in your appliance to avoid
contact with the appliance surface.
Storing frozen food
Pre packed commercially frozen food
should be stored in accordance with
the frozen food manufacturer’s
instructions for a frozen food
storage compartment.
To ensure that the high quality
achieved by the frozen food
manufacturer and the food retailer is
maintained, the following should be
remembered:
1. Put packets in the freezer as quickly
as possible after purchase.
2. Ensure that contents are labelled
and dated.
3. Do not exceed “Use By”, “Best
Before” dates on the packaging. If
there is a power failure do not open
the door. Frozen food should not
be affected if the failure lasts for
less than 20 hrs. If the failure is longer,
then the food should be checked and
either eaten immediately or cooked
and then re-frozen.
Freezing fresh food
Please observe the following
instructions to obtain the best results.
Do not freeze too large a quantity at
any one time. The quality of the food
is best preserved when it is frozen
right through to the core as quickly as
possible.
Placing warm food into the freezer
compartment causes the refrigeration
compressor to operate continuously
until the food is frozen solid. This can
temporarily lead to excessive cooling
of the refrigeration compartment.
When freezing fresh food turn the
setting knob towards max. Small
quantities of food up to 1/2 kg. (1 lb.)
can be frozen without having to rotate
the temperature control knob.
You may place fresh food to be frozen
in any part of the freezer.
Take special care not to mix already
frozen food and fresh food.
Making ice cubes
Fill the ice - cube tray 3/4 full with
water and place it in the Ice Bank.
Loosen frozen trays with the handle of
a spoon, never use sharp edged
objects such as knives, forks. Store
ice-cubes in the Ice Bank.
Note: If freshly made ice cubes are not
consumed for several weeks
and stored in Ice Bank, they will slowly
reduce in size and eventually
disappear completely.
EN
22
Defrosting
A) fridge compartment
The fridge compartment defrosts
automatically.

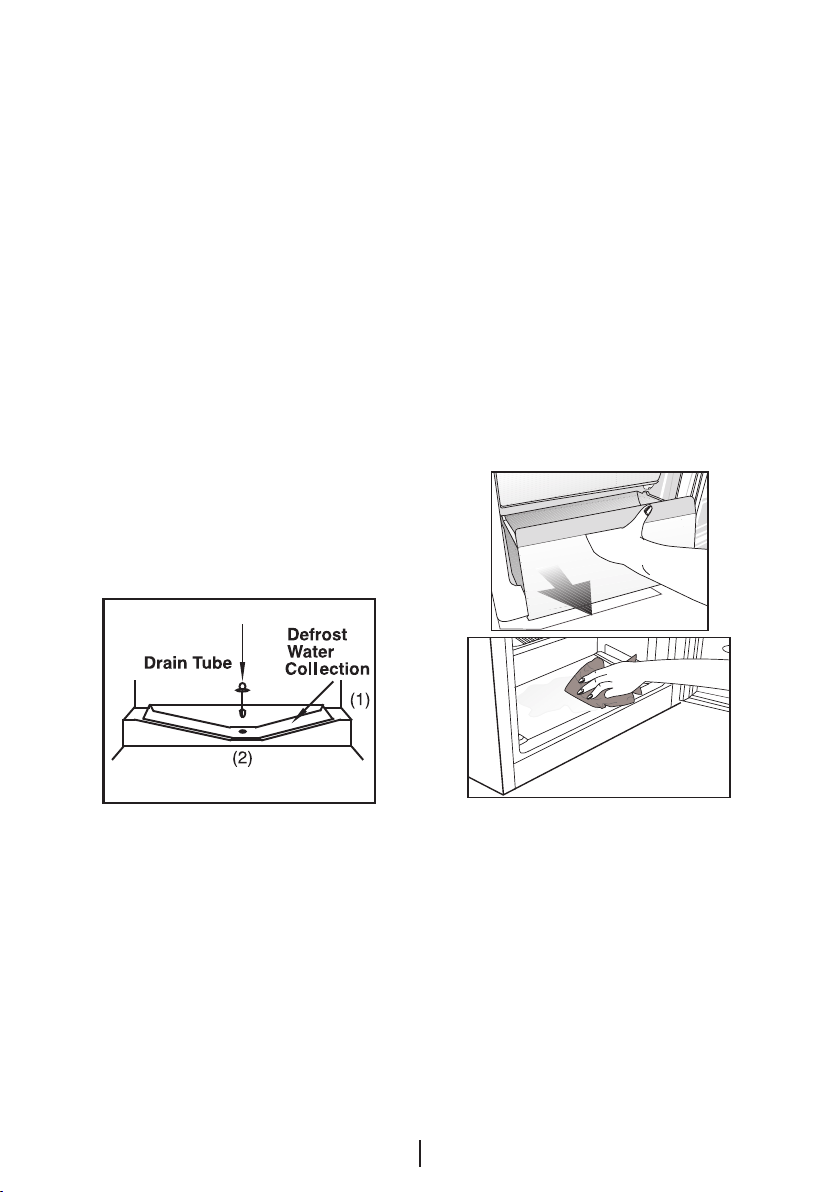

The defrosting water runs to the drain
tube via a collection container at the
back of the appliance (1) (see diagram).
During defrosting water droplets may
form at the back of the fridge
compartment where concealed
evaporator is located. Some droplets
may remain on the liner and refreeze
when defrosting is completed. Do not
use pointed or sharp edged objects
such as knives, forks to remove the
droplets which have frozen.
If at any time the defrost water does not
drain from the collection channel, check
to ensure that no food particles have
blocked the drain tube. The drain tube
can be cleared by pushing the special
plastic plunger provided down the drain
tube (2). If the frost layer reaches about
1/4” (7 mm), reduce the setting (i.e. from
4 to 1) to restart automatic defrosting.
B) freezer compartment
Deep freezer compartment does not
perform automatic defrosting in order to
prevent decaying of the frozen food.
Defrosting is very easy and without mess
thanks to a special defrost collection well.
Defrost twic
e a year or when a frost layer
of around 7 mm (1/4”) has formed. To
start the defrosting procedure, switch off
the appliance at the socket outlet and pull
out the mains plug.
All
food should be wrapped in several
la
yers of newspape
r and stored in a cool
place (e.g. fridge or larder).
Remove all
freezer drawers. Containers
full of warm water may be placed
carefully in the freezer to speed up the
defrosting.
Do not use pointed or sharp edged
objects such as knives, forks to
remove the frost.
Never use hairdryers, electrical
heaters and other similar electrical
appliances for defrosting.
When defrosting has finished, sponge
out any defrost water which collects at
the bottom of the freezer well and dry the
interior thoroughly. Insert the plug
in to the wall socket and switch on the
electricity supply.
Warnings!
Never store products that contain
inflammable propellant ga
s
(e.g. dispensers, spray cans etc.) or
explosive substances.
Don’t cover the shelves with any
protective materials, which may
obstruct air circulation.
Do not allow children to play with the
appliance or tamper with the controls.
Warning:
Do not use any copper pot, dish inside
the cabinet!
Do not load any food without package!
EN
23
6 Maintenance and cleaning
**
We recommend that you switch off
the appliance at the socket outlet and
pull out the mains plug before cleaning.
** Never use any sharp abrasive
instrument, soap, household cleaner,
detergent and wax polish for cleaning.
** Use lukewarm water to clean the
cabinet of the appliance and wipe it
dry.
** Use a damp cloth wrung out
in a solution of one teaspoon of
bicarbonate of soda to one pint of
water to clean the interior and wipe it
dry.
** Make sure that no water enters the
lamp housing.
** If the appliance is not going to be
used for a long period of time switch it
off, remove all food, clean it and leave
the door ajar.
** Any dust that gathers on the
condenser, which is located at the
back of the appliance, should be
removed once a year with a vacuum
cleaner.
** Check door seals regularly to ensure
they are clean and free from food
particles.
** Removal of door tray
• To remove door racks, remove
all the contents and then simply push
the door rack upwards from the base.
** To remove a freezer drawer, pull
it as far as possible, and then tilt
it upwards, and then pull it out
completely.
** Make sure that the special plastic
container (drain tray) at the back of the
appliance which collects defrost water
is clean at all times. If you want to
remove the tray to clean it follow the
instructions below:
• Switch off at the socket outlet and
pull out the mains plug.
• Push the lug down with the tip of a
screw driver & pull out with a jerk
movement
• Clean the drain tray and wipe it dry.
• Reassemble reversing the sequence
and operations.
** Avoid spillage of food particularly
small items like rice, peas, beans
through the fan guard as they may
cause the cooling system to block and
therefore operate less efficiently.
EN
24
7 Do’s and Don’ts
Do- Clean your appliance regularly
(see “Maintenance and cleaning”).
Do- Keep raw meat and poultry below
cooked food and dairy products.
Do- Take off any unusable leaves on
vegetables and wipe off any soil.
Do- Leave lettuce, cabbage, parsley
and cauliflower on the stem.
Do- Wrap cheese firstly in greaseproof
paper and then in a polythene bag
excluding as much air as possible.
For best results take out of the
fridge compartment an hour before
eating.
Do- Wrap raw meat and poultry
loosely in polythene or aluminium
foil. This prevents drying.
Do- Wrap fish and o
ffal in polythene
bags.
Do- Wrap food which have a strong
odour or can dry out in polythene
bags, aluminium foil or place in an
airtight container.
Do- Wrap bread well to keep it fresh.
Do- Chill white wines, beer, lager and
mineral water before serving.
Do- Check contents of the freezer
every so often.
Do- Keep food for as short a time
as possible and adhere to “Best
Before”, “Use by” etc. dates.
Do- Store commercially frozen food in
accordance with the instructions
given on the packets that you buy.
Do- Always choose high quality fresh
food and be sure it is thoroughly
clean before you freeze it.
Do- Prepare fresh food for freezing
in small portions to ensure rapid
freezing.
Do- Wrap all food in aluminium foil or
freezer quality polythene bags and
make sure any air is excluded.
Do- Wrap frozen food when you buy it
and put it in to the freezer as soon
as possible.
Do- Defrost food in the fridge
compartment.
Do- Remove ice cream from the
freezer 10-20 minutes before
serving.
Don’t- Store bananas in your fridge
compartment.
Don’t- Store melon in your fridge. It
can be chilled for short periods as
long as it is wrapped to avoid it
flavouring other food
.
Don’t- Store poisonous or any
dangerous substances in your
appliance. It has been designed
for the storage of edible foodstuffs
only.
Don’t- Consume food which has been
stored for an excessive time in the
fridge.
Don’t- Store cooked and fresh food
together in the same container.
They should be packaged and
stored separately
.
Don’t- Let defrosting food or food
juices drip onto food.
Don’t- Leave the door open for long
periods as this will make the
appliance more costly to run and
cause excessive ice formation.
Don’t- Put hot food into the appliance.
Let it cool down first.
Don’t- Put liquid-filled bottles or sealed
cans containing carbonated liquids
into the freezer as they may burst.
Don’t- Exceed the maximum freezing
loads (4 kg in any 24 hours) when
freezing fresh food.
Don’t- Give children ice-cream and
water ices direct from the freezer.
The low temperature may cause
‘freezer burns’ on lips.
Don’t- Freeze fizzy drinks.
Don’t- Try to keep frozen food which
has thawed, it should be eaten
within 24 hours or cooked and
refrozen.
Don’t- Remove items from the freezer
with wet hands.
Don’t- Close the freezer door before
placing the compartment cover in
its place.
Don’t- Leave frozen food at room
temperature to thaw; the best way
to defrost food is to put it in the
fridge to thaw slowly. Make sure
you avoid defrosting food or food
juices drip onto other food.
Problem solving
If the appliance does not operate when
switched on, check whether:
• The plug is inserted properly in the
socket and that the power supply is on.
(To check the power supply to the
socket, plug in another appliance).
• The fuse has blown/circuit breaker has
tripped/main distribution switch has
been turned off.
• The temperature control has been set
correctly and not to “0” (OFF).
• New plug is wired correctly if you have
changed the fitted moulded plug If the
appliance is still not operating after the
above checks, please refer service.
Please ensure that above checks have
been made as a charge will be made if
no fault is found.
EN
25
Your new Zenith product is guaranteed against faulty materials, defective
components or manufacturing defects. The guarantee starts from the date
of original purchase of the product for a period of one (1) year, unless Beko
plc (the “Manufacturer”) agrees to extend the guarantee for the product in
writing. If you have any questions about the guarantee on your product
(including how long it is valid), please contact your retailer or our Call
Centre on 0333 207 2028.
This guarantee does not in any way diminish or affect your statutory rights
in connection with the product. This guarantee is in addition to your
statutory rights as a consumer. If you have any questions about these
rights, please contact the retailer from which you purchased the product. In
certain circumstances, it is possible that your statutory rights may offer
additional or higher levels of protection than those offered under the terms
of this guarantee.
What is covered by this guarantee?
x Repairs to the product required as a result of faulty materials, defective
components or manufacturing defects.
x Functional replacement parts to repair a product.
x The costs of a Zenith Approved Engineer to carry out the repair.
What is not covered?
x Transit and delivery damage.
x Cabinet or appearance parts, including but not limited to control knobs, flaps and
handles.
x Accessories and/or consumable items including but not limited to ice trays,
scrapers, cutlery baskets, filters and light bulbs.
x Repairs necessary as a direct or indirect result of:
o Accidental damage, misuse or abuse of a product.
o An attempted repair of a product by anyone other than a Zenith Approved
Engineer (the “Engineer”).
o Installation or use of a product where such installation or use fails to meet
the requirements contained in this guarantee or the product manual.
x Repairs to a product operated at any time on commercial or non-residential
household premises (unless we have previously agreed to the installation
environment).
This guarantee is limited to the cost of repairing the product. To the extent
permitted by law, Beko plc (the “Manufacturer”) does not accept and will
EN
26
not be held liable for any financial loss incurred in connection with the
failure of any product to operate in accordance with the expected
standards. Such financial loss includes but is not limited to loss arising from:
x Time taken off work.
x Damaged food, clothing or other items.
x Meals taken at restaurants or from takeaways.
x General compensation for inconvenience.
Important Notes
x Your product is designed and built for domestic household use only.
x The guarantee will automatically be void if the product is installed or is used in
commercial or non-residential domestic household premises, unless we have
previously agreed to the installation environment.
x The product must be correctly installed, located and operated in accordance with
the instructions contained in the product manual provided with your product.
x Professional installation by a qualified electrical domestic appliance installer is
recommended for all washing machines, dishwashers and electric cookers (as
incorrect installation may result in you having to pay for the cost of repairing the
product).
x Gas Cookers must be professionally installed by a Gas Safe (or Gas Networks
Ireland for Republic of Ireland) registered gas installer.
x This guarantee is given in respect of products purchased and used within the
United Kingdom.
x This guarantee is effective from the initial date of purchase of a new product from
an authorised retailer and will be void if the product is resold.
x This guarantee does not apply to graded sales (where the product is purchased as
a second”).
x Possession of a copy of these terms and conditions does not necessarily mean that
a product has the benefit of this guarantee. If you have any questions, please call
our Call Centre on the number set out above.
x The Manufacturer reserves the right to terminate the guarantee if its staff or
representatives are subjected to physical or verbal abuse in the course of carrying
out their duties.
x Optional extras, where available (i.e. extendable feet) are supplied on a chargeable
basis only.
Does Zenith offer replacements?
This is a repair-only guarantee. On occasion the Manufacturer may at its
sole discretion, replace your product with a new product instead of carrying
out a repair. Where a replacement is offered, this would normally be an
EN
27
identical model, but when this is not possible, a model of similar
specification will be provided. The Manufacturer will cover the costs and
arrange for the delivery of the new product and for the return of the old
product. Any costs related to disconnecting the faulty product and
installing the replacement product will not be borne by the Manufacturer
unless previously agreed to in writing. The original guarantee will continue
to apply to the replacement product; the new product will not come with a
new guarantee.
When will the repair take place?
Our engineers work Monday to Friday 9.00am to 5.00pm. Appointments
outside these hours may be possible at the sole discretion of the
Manufacturer but cannot be guaranteed. Whilst our Engineers will
endeavour to minimize inconvenience and to meet requests for specific
timed appointments, this cannot be guaranteed. The Manufacturer will not
be liable for delays or if it is unable to carry out a repair because a
convenient appointment cannot be arranged.
Will there be any charge for the repairs?
It is your responsibility to provide evidence to the Engineer that your
product is covered by this guarantee with a proof of purchase. The
Manufacturer reserves the right to charge for the reasonable cost of any
service call if:
x You cannot provide evidence that your product is covered by this guarantee.
x Where a service call has been made and the engineer finds that there is no fault
with your product.
x That your product has not been installed or operated in accordance with the User
Instructions Booklet.
x That the fault was caused by something other than faulty materials, defective
components or manufacturing defects.
x For missed appointments.
Payment of these costs are due immediately upon the Engineer providing
you with an invoice. If you fail to pay the costs for the service call in a timely
manner, the Manufacturer reserves the right to terminate the guarantee.
If you are a resident of the United Kingdom, this guarantee will be
governed by English law and subject to the English Courts, save where you
live in another part of the United Kingdom, in which case the law and courts
of that location will apply.
EN
28
HOW TO OBTAIN SERVICE
Please keep your purchase receipt or other proof of purchase in a safe
place; you will need to have it should the product require attention under
guarantee.
It will be useful if you complete the details below, as it will help us assist
you when requesting service. (The model number is printed on the
Instruction Booklet and the serial number is printed on the Rating Label
affixed to the appliance). Recording of these details alone will not count as
proof of purchase. A valid proof of purchase is required for under
guarantee service.
The area around the product must be easily accessible to the Engineer
without the need for cabinets or furniture being removed.
It is your responsibility to ensure our Engineers have a clean and safe
environment to carry out any repairs.
Model No:
Serial No:
Retailer:
Date of purchase:
For service under guarantee simply telephone the appropriate number
below
UK Mainland & Northern Ireland: 0333 207 2028.
Register your appliance at https://www.zenithappliance.co.uk
Before requesting service please check the troubleshooting guide in the
Operating Instructions as a charge may be levied where no fault is found
even though your product may still be under guarantee.
Service once the manufacturer's guarantee has expired.
If you have purchased an extended guarantee please refer to the
instructions contained within the extended guarantee agreement
EN
29
document, otherwise please call the appropriate number above where
service can be obtained at a charge.
Should you experience any difficulty in obtaining service contact the Zenith
Customer Helpline on Tel: 0333 207 2028 or email:
This guarantee is provided by Beko plc. Beko House, 1 Greenhill Crescent,
Watford, Herts, WD18 8QU. Beko plc is registered in England and Wales
with company registration number 02415578.
EN
30
4578337782_AB
EN
