USER GUIDE
30" Square Fire Table -
Black
NS-PFT30BK03
www.insigniaproducts.com
2
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

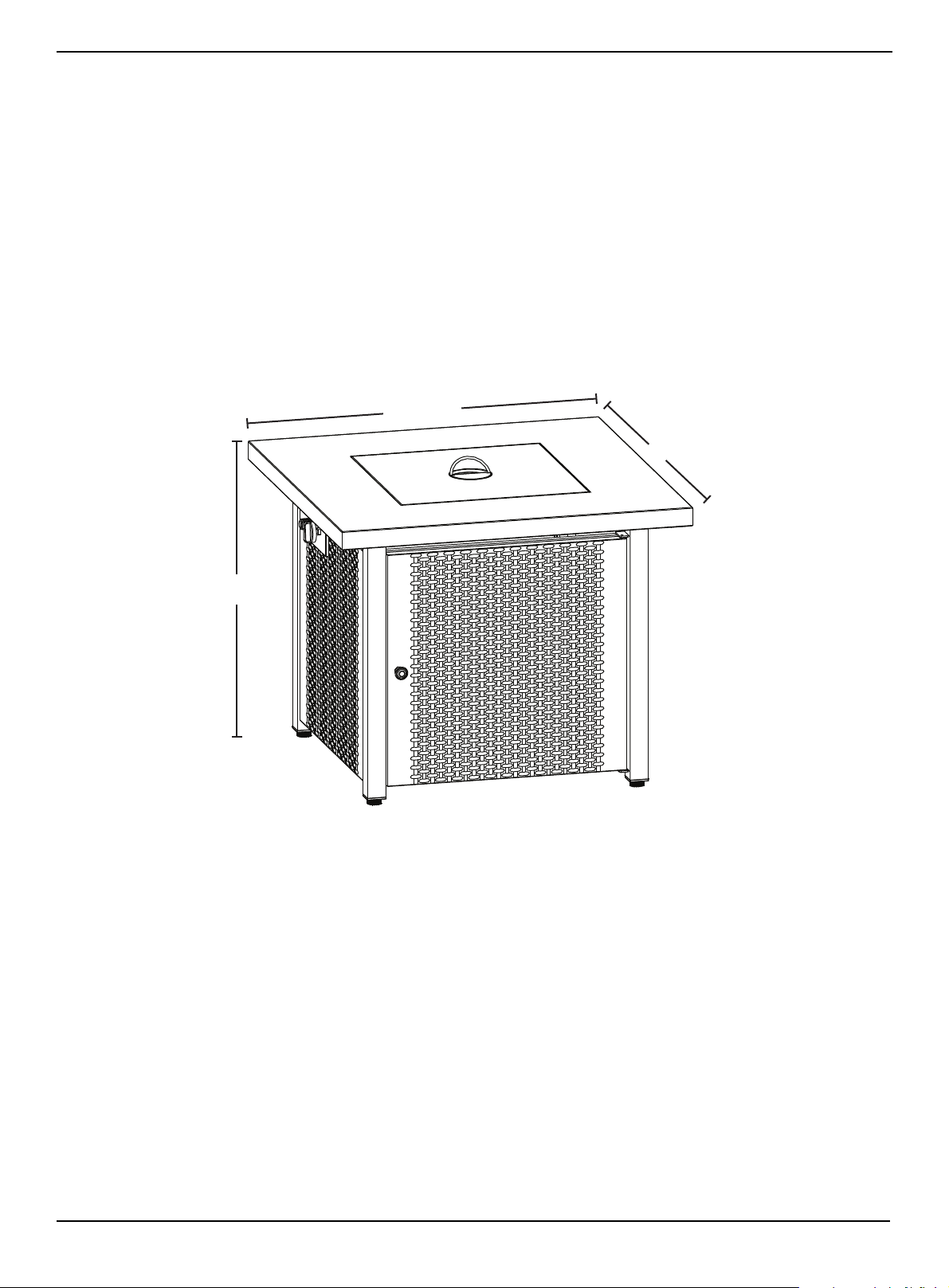

Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Assembling your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
STEP 1: Attaching the bracket posts to the table top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
STEP 2: Installing the bottom plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STEP 3: Installing the gas cylinder block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
STEP 4: Installing the left side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEP 5: Installing the door pane assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STEP 6: Installing the side panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
STEP 7: Preparing and installing the burner assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
STEP 8: Adding the lava rocks and table lid (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
STEP 9: Installing the propane tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
STEP 10: Testing for gas leaks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Before you begin using your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Operation checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Before turning on the gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Before lighting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lighting your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the flame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Turning off your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Maintaining your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Cleaning your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Inspecting your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Storing your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Transporting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ONE-YEAR LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
www.insigniaproducts.com
3
30" Square Fire Table - Black
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
This manual contains important information about the assembly, operation, and maintenance of this fire table. General
safety information is presented in these first few pages and is also located throughout the manual. Keep this manual for
future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on
the product. Safety precautions are essential when any mechanical or propane fueled equipment is involved. These
precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution
demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they
are essential when using any mechanical or fueled equipment.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
DANGER
If you smell gas:
1 Shut off gas to the appliance.
2 Extinguish any open flame.
3 If odor continues, keep away from the appliance and immediately call your gas
supplier or fire department.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this, or any other appliance. An LP-tank not connected for use shall not be
stored in the vicinity of this, or any other appliance.
WARNING: For Outdoor Use Only
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent,
car, or home.
WARNING
Improper installation, adjustment, alteration, service, or maintenance can cause
property damage, injury, or death. Read the installation, operation, and
maintenance instructions thoroughly before installing or servicing this
equipment.
R
R
R
ANS Z21.97-2017 • CSA 2.41-2017 Outdoor Decorative Gas Appliances
www.insigniaproducts.com
4
DANGER
Failure to comply with the precautions and instructions provided with this fire table can result in death, serious bodily
injury, and property loss or damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon monoxide
poisoning. Only persons who can understand and follow the instructions should use or service this fire table.
EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials, paper, or cardboard, a safe distance away from the fire table as
recommended by the instructions.
• Provide adequate clearances around air openings into the combustion chamber.
• Never use the fire table in spaces which do or may contain volatile or airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles, or unknown chemicals.
• During operation, this product can be a source of ignition. Keep fire table area clear and free from combustible
materials, gasoline, paint thinner, cleaning solvents, and other flammable vapors and liquids. Do not use fire table in
areas with high dust content.
Minimum fire table clearances from combustible materials: three (3) feet (one (1) meter) from the sides and three (3)
feet (one (1) meter) from the top.
• Never store propane near high heat, open flames, direct sunlight, other ignition sources, or where temperatures exceed
120 degrees F (49° C).
• Propane vapors are heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Never install or remove propane tank while the fire table is lit, near flame, other ignition sources, or while the fire table
is hot to touch.
• This fire table is red hot during use and can ignite flammables too close to the burner. Keep flammables at least three
(3) feet (one (1) meter) from sides and three (3) feet (one (1) meter) from top. Keep gasoline and other flammable
liquids and vapors well away from the fire table.
• Store the propane tank outdoors in a well ventilated space out of reach of children. Never store the propane tank in an
enclosed area (house, garage, etc.). If the fire table is to be stored indoors, disconnect the propane tank for outdoor
storage.
CARBON MONOXIDE HAZARD
• This fire table is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO, if used and
maintained in accordance with all warnings and instructions. Do not block air flow into or out of the fire table.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue, and possibly
death. You can't see it and you can't smell it. It's an invisible killer. If these symptoms are present during operation of
this product get fresh air immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or enclosed areas.
• This fire table consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
WARNING
WARNING indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
We cannot foresee every use which may be made of our fire tables.
Check with your local fire safety authority if you have questions about fire table use.
Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can
advise you about these.
If no local codes exist, follow National Fuel Gas Code, ANS Z223.1. In Canada, installation must conform to local codes. If no
local codes exist, follow the current National standards of CANADA CAN/CGA-B 149.2.
WARNING
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
An LP-tank not connected for use shall not be stored in the vicinity of this or any other appliance.
www.insigniaproducts.com
5
30" Square Fire Table - Black
WARNING: For Outdoor Use Only
WARNING
Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read
the installation, operation, and maintenance instructions thoroughly before installing or servicing this equipment.
WARNING
California Proposition 65
Combustion by-products produced when using this product contain chemicals known to the State of California to cause
cancer, birth defects, and other reproductive harm.
WARNING
BURN HAZARD
• Never leave the fire table unattended when hot or in use.
• Keep out of reach of children.
WARNING
Certain materials or items, when stored under the fire table, will be subjected to radiant heat and could be seriously
damaged.
CAUTION
CAUTION indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate personal
injury, or property damage.
CAUTION
SERVICE SAFETY
• Keep all connections and fittings clean. Make sure propane tank valve outlet is clean.
• During set up, check all connections and fittings for leaks using soapy water. Never use a flame.
• Use as a heating appliance only. Never alter in any way or use with any device.
WARNING
• This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally added
to help detect leaks and can be described as a “rotten egg” smell. The odorant can fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by ignition
sources including matches, lighters, sparks, or open flames of any kind many feet away from the original leak. Use only
propane gas set up for vapor withdrawal.
• Store or use propane gas in compliance with local ordinances and codes or with ANS/NFPA 58. Turn off propane when
not in use.
WARNING
• Alert children and adults to the hazards of high surface temperatures. Stay away from these surfaces to avoid burning
skin or igniting clothing.
• Carefully supervise young children when in the vicinity of the fire table.
• Do not hang clothing or any other flammable materials from the fire table, or place on or near the fire table.
• Replace any guard or protective device removed for servicing the appliance prior to placing back in service.
• Installation and repair should be done by a qualified service person. The fire table should be inspected before use and
annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the
control compartment, burners, and circulating air passageway of the appliance be kept clean.
www.insigniaproducts.com
6
IMPORTANT PROPANE TANK INFORMATION
The propane gas and tank are sold separately. The fire table should be securely assembled and shall be constructed to
maintain a fixed relationship between essential parts under normal and reasonable conditions of handling and usage.
Parts not permanently secured shall be designed so they cannot be incorrectly assembled and cannot be improperly
located or misaligned in removing or replacing during cleaning or other servicing.
Use a standard 20 lb. (9 kg) propane tank only (approximately 12.2 in. (31cm) in diameter and 17.9 in. (45.5cm high)).
Use this fire table only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and
handling of liquefied petroleum gas, ANS/NFPA 58. Your local library or fire department should have this book.
Storage of an appliance indoors is permissible only if the tank is disconnected and removed from the appliance. A tank
must be stored outdoors in a well-ventilated area out of the reach of children.
A disconnected tank must have dust caps tightly installed and must not be stored in a building, garage, or any other
enclosed area. The maximum inlet gas supply pressure: 250 psi/1750 kPa. The minimum inlet gas supply pressure:
25 psi/172 kPa. Manifold pressure with regulator provided: 11 inch W.C/ 2.74 kPa. The minimum hourly of 19500 Btu /
5.71 kW is required input rating for an appliance for automatic operation at ratings less than full input rating. The pressure
regulator and hose assembly supplied with the appliance must be used. The installation must conform with local codes, or
in the absence of local codes, with national fuel gas code, ANS Z223.1/NFPA54, natural gas and propane Installation Code,
CSA B149.1, or propane storage and handling code, B149.2.
The propane tank must be constructed and marked in accordance with the specifications for LP gas tanks of the U.S.
Department of Transportation (DOT) or the standard for tanks, spheres, and tubes for transportation of dangerous goods
and commission, CAN/CSA-B339.
• The tank must have a listed overfilling prevention device.
• The tank must have a connection device compatible with the connection for the appliance.
• The tank used must include a collar to protect the tank valve.
• Never connect an unregulated propane tank to the fire table.
Standard 20 lb. tank size
WARNING
A dented, rusted or damaged propane tank may be hazardous and should be checked by your local tank supplier. Never
use a propane tank with a damaged valve connection.
17.9 in. (45.5 cm)
12.2 in.(31 cm)
www.insigniaproducts.com
7
30" Square Fire Table - Black
Features
• 50,000 BTU creates a heat radius of 16.4 ft. (5 m) to keep everyone warm
• Propane fuel source with 20 lb. (9 kg) capacity burns clean and avoids releasing harmful emissions
• Adjustable power control lets you choose a higher or lower level of heat
• Lava rocks efficiently trap heat while adding a decorative touch
• Fence-style steel tabletop with lid holds up to 441 lbs. (200 kg)
• Electric igniter turns your fire table on or off at the push of a button
• Auto-shutoff detects when there is no gas in the tank and turns your fire table off
• 13.7 in. (35 cm) hose gives you flexible placement options
Package contents
•Fire table
•Lava rocks
•User Guide
Dimensions
24.4 in. (62 cm)
30 in. (76.2 cm)
30 in. (76.2 cm)
www.insigniaproducts.com
8

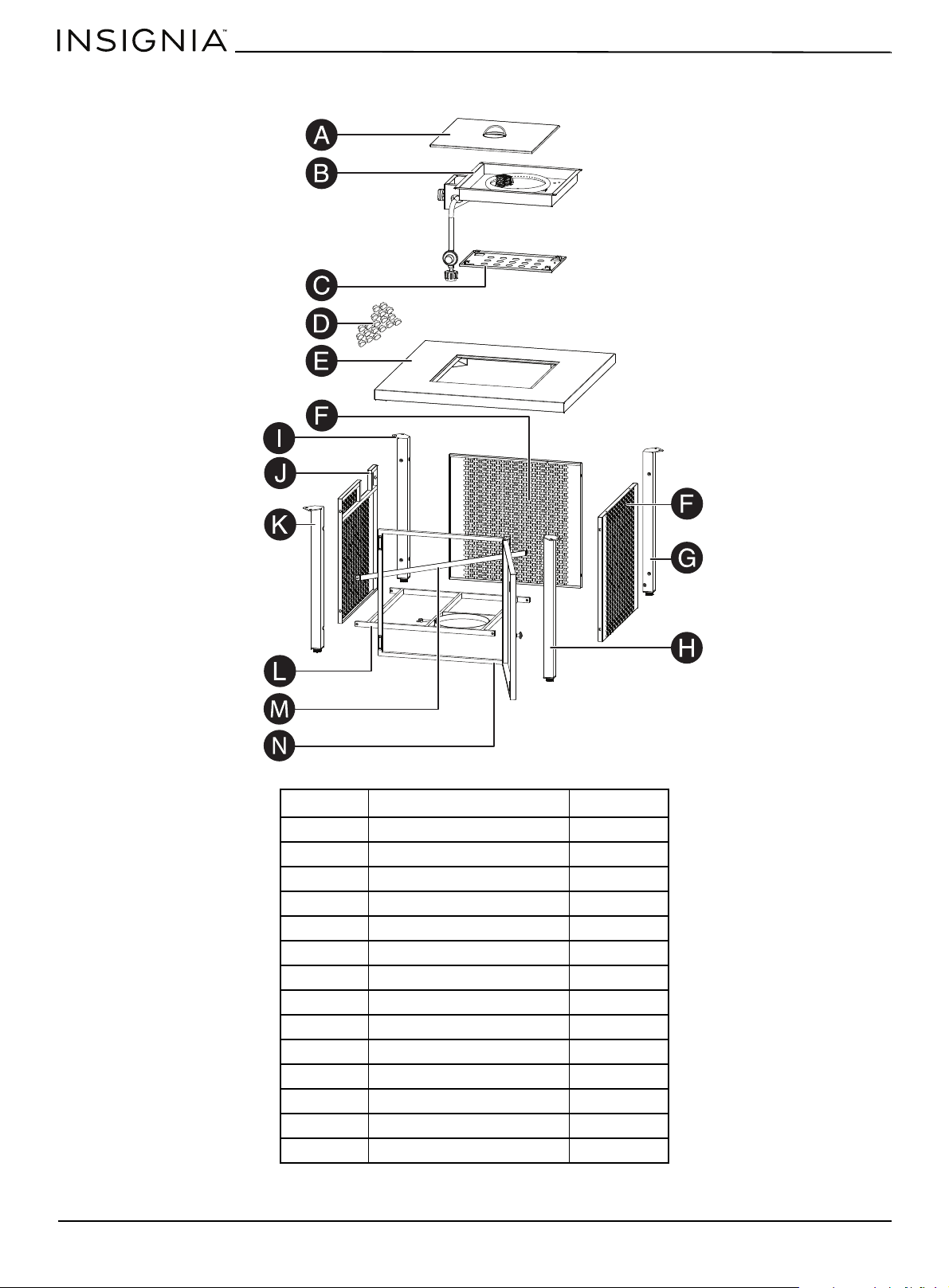

Parts
Make sure that you have all the hardware necessary to assemble your new fire table:
PART DESCRIPTION QUANTITY
A Table Lid 1
B Burner Assembly 1
C Thermal Baffle 1
D Lava Rocks 1 bag
E Table Top 1
F Back and Side Panels 2
G Back Bracket Post (Right) 1
H Front Bracket Post (Right) 1
I Back Bracket Post (Left) 1
J Side Panel (Left) 1
K Front Bracket Post (Left) 1
L Bottom Plate 1
M Gas Cylinder Block 1
N Front Door Assembly 1
www.insigniaproducts.com
9
30" Square Fire Table - Black

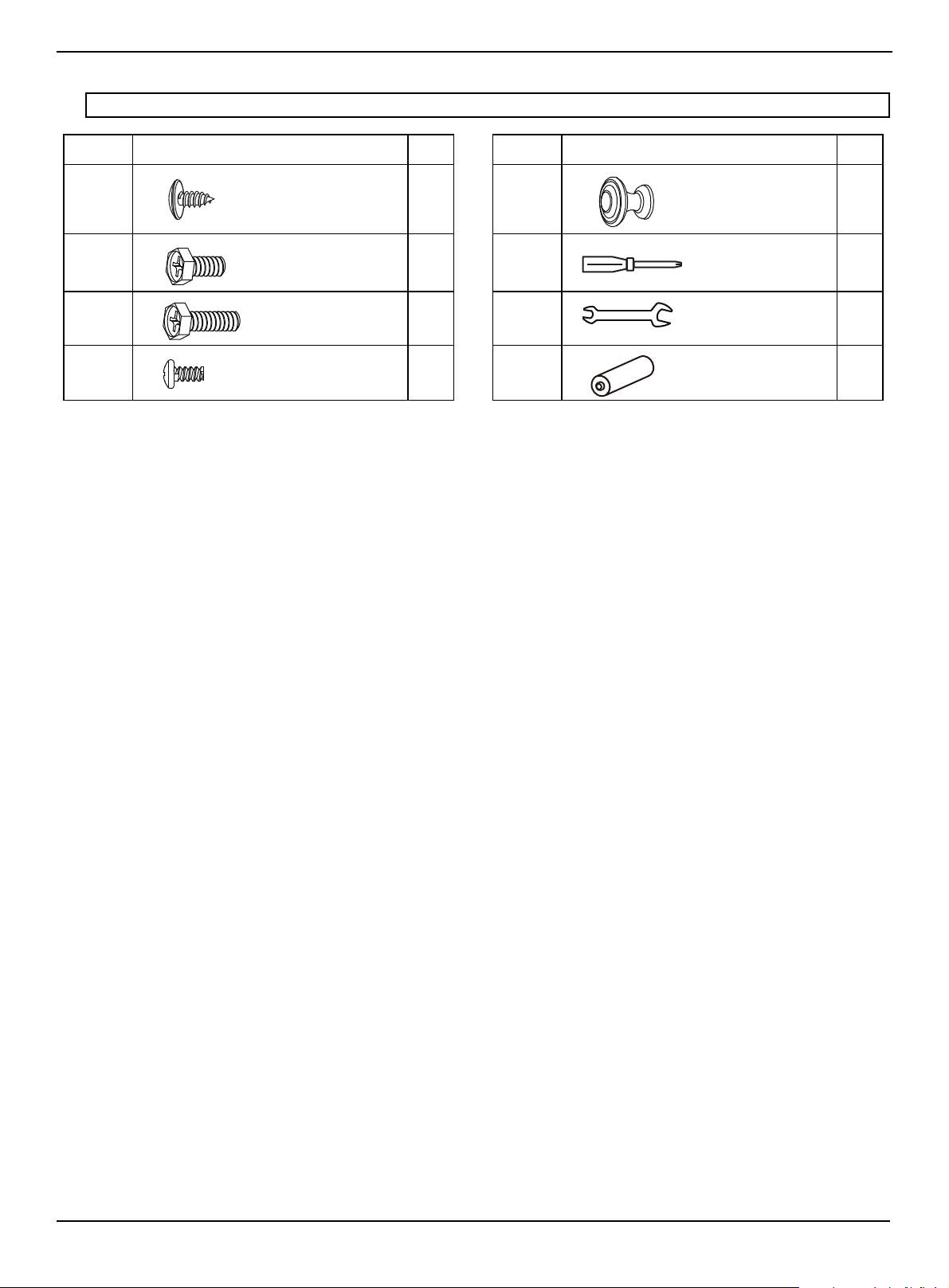

Hardware
Note: You may not use all the included hardware.
LABEL HARDWARE QTY.
LABEL HARDWARE QTY.
AA
8
EE
1
BB 22 FF
1
CC
8
GG
1
DD
1
HH
1
ST4.2 x 9.5 mm Screw
Knob
M6 x12 mm Bolt
Phillips screwdriver
M6 x 25 mm Bolt
Wrench
M4 x 5 mm Screw
AA Battery (1.5 V)
www.insigniaproducts.com
10
Assembly
Fire Table
Assembling your fire table. . . . . . . . . . . . . . . . . . . . . . . . . 11
STEP 1: Attaching the bracket posts to the table top . . . . . . . . . . 11
STEP 2: Installing the bottom plate. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STEP 3: Installing the gas cylinder block . . . . . . . . . . . . . . . . . . . . . . 13
STEP 4: Installing the left side panel. . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEP 5: Installing the door pane assembly. . . . . . . . . . . . . . . . . . . . 15
STEP 6: Installing the side panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
STEP 7: Preparing and installing the burner assembly. . . . . . . . . 17
STEP 8: Adding the lava rocks and table lid (optional). . . . . . . . . 19
STEP 9: Installing the propane tank . . . . . . . . . . . . . . . . . . . . . . . . . . 20
STEP 10: Testing for gas leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
www.insigniaproducts.com
11
30" Square Fire Table - Black
Assembling your fire table

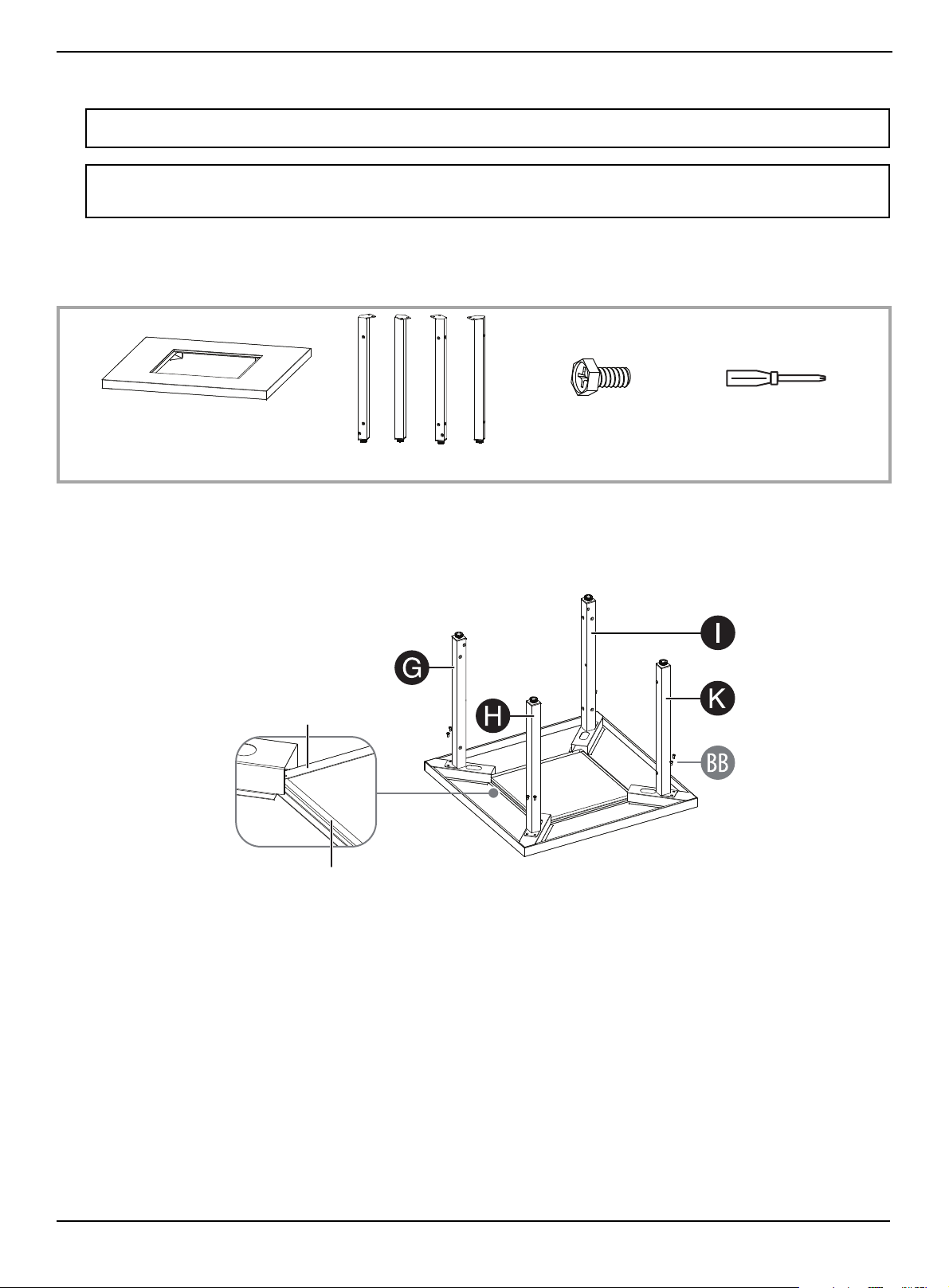

STEP 1: Attaching the bracket posts to the table top
You n e e d :
1 Lay the table top (E) on the floor, face down, on a soft cloth or piece of cardboard (to prevent scratches).
2 Secure the support posts (G, H, I, and K) to the table top with eight M6 x 12 mm bolts (BB) using the Phillips
screwdriver (FF). Note the direction of the table top and position the support posts as indicated. Do not tighten the
bolts yet.
CAUTION: Assembling your fire table involves moving heavy and awkward parts and assemblies. We recommend that you get
assistance during the assembly process to avoid strains or injury, or damage to the fire table parts.
Note: Before you begin to assemble your fire table, make sure that all parts are present. Compare the parts with the package contents
list and hardware contents above. If any part is missing or damaged, do not attempt to assemble your fire table. Contact customer
service for replacement parts.
BB M6 × 12 mm bolt (8)
FF Phillips screwdriver (1)
E Table top
G H I K Support posts
Broad edge
Narrow edge
www.insigniaproducts.com
12

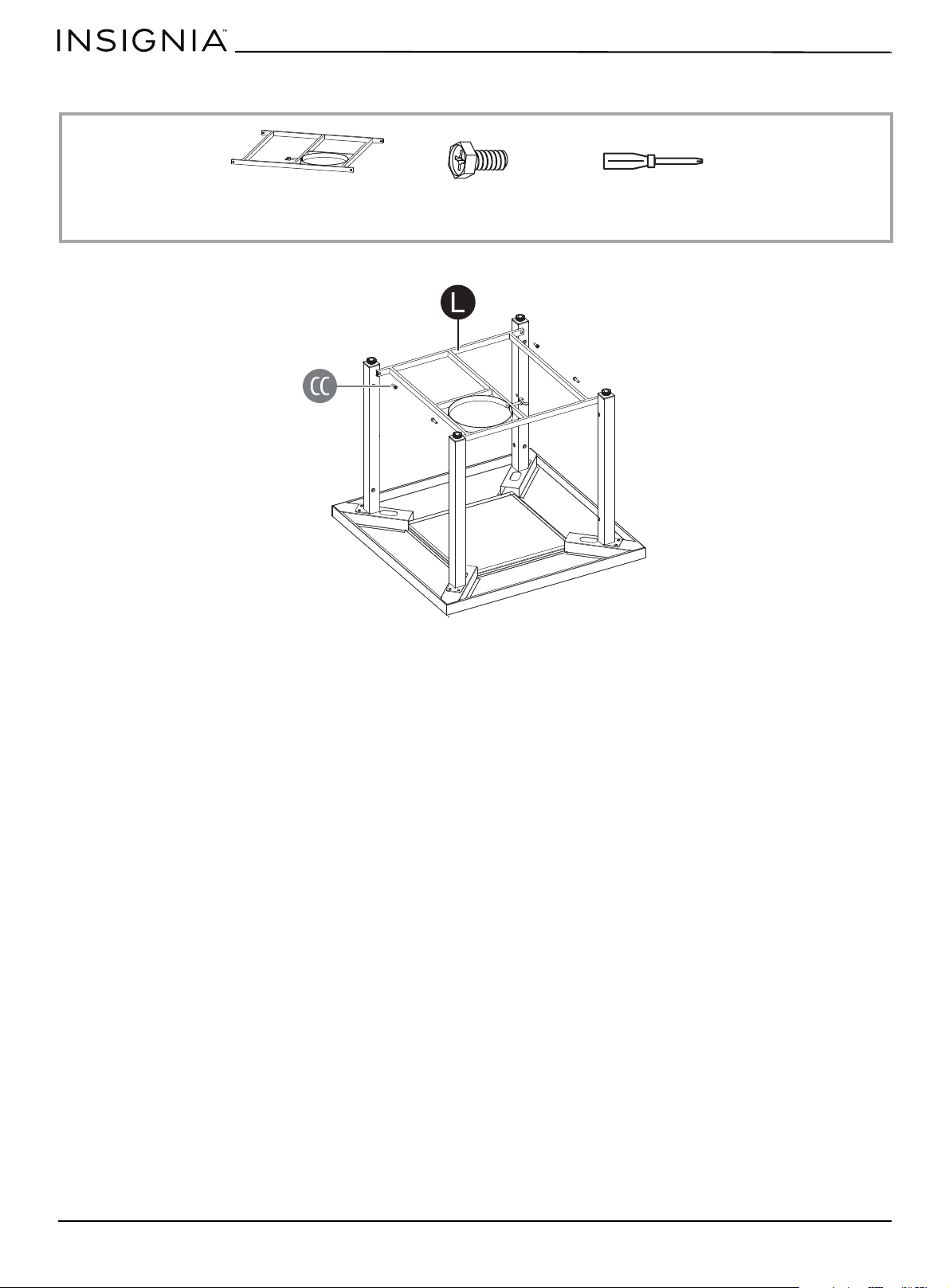

STEP 2: Installing the bottom plate
You n e e d :
1 Install the bottom plate (L) with four M6 x 25 mm bolts (CC) using the Phillips screwdriver (FF), then tighten the bolts.
2 Tighten the bolts securing the support posts to the table top with the Phillips screwdriver (FF).
CC M6 × 25 mm bolt (4)
FF Phillips screwdriver (1)
L Bottom plate
www.insigniaproducts.com
13
30" Square Fire Table - Black

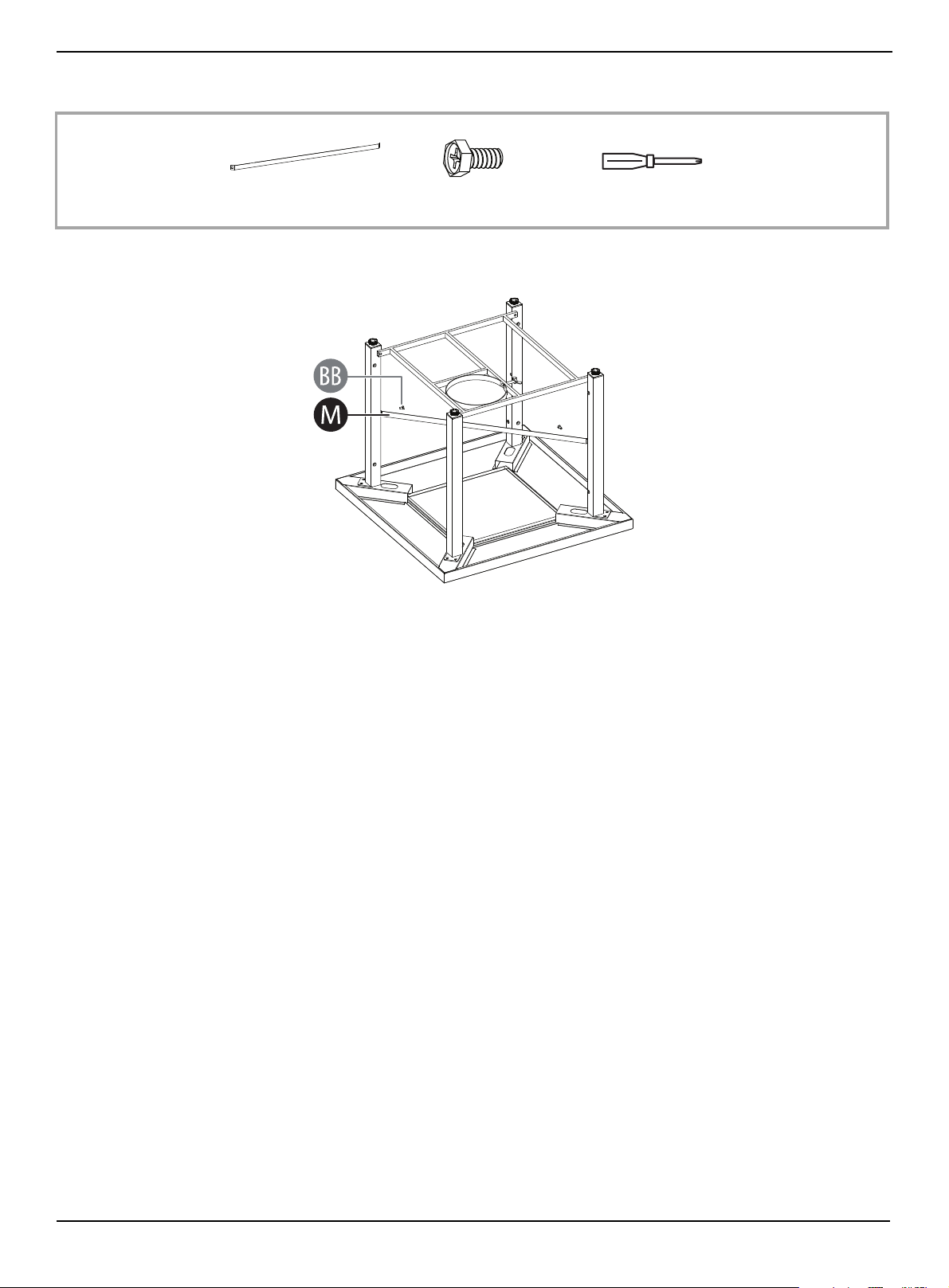

STEP 3: Installing the gas cylinder block
You n e e d :
• Install the gas cylinder block (M) with two M6 x 12 mm bolts (BB) using the Phillips screwdriver (FF), then tighten the
bolts.
FF Phillips screwdriver (1)
M Gas cylinder block
BB M6 × 12 mm bolt (2)
www.insigniaproducts.com
14

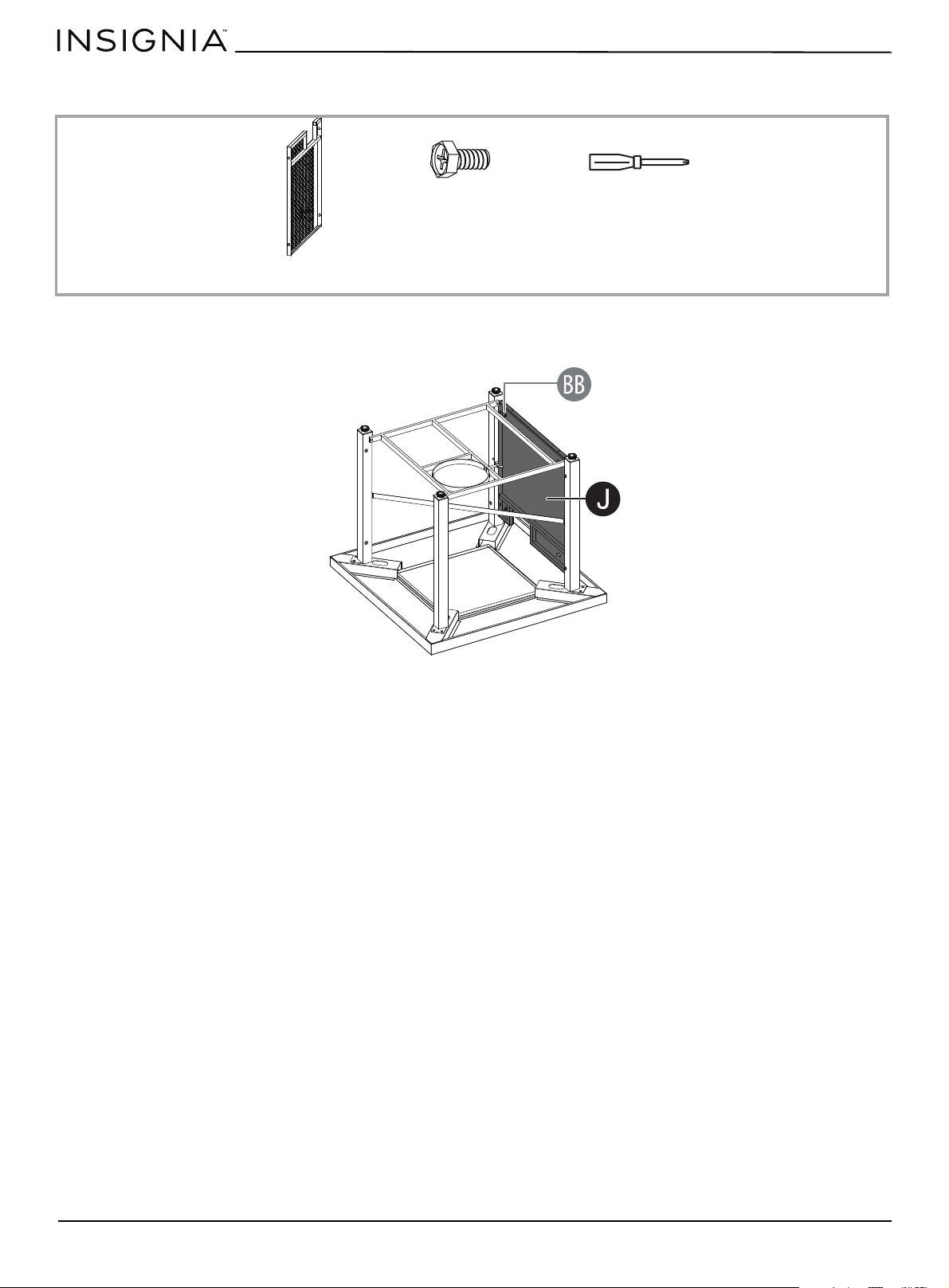

STEP 4: Installing the left side panel
You n e e d :
• Install the left side panel (J) on the side support posts (I and K) with four M6 x 12 mm bolts (BB) using the Phillips
screwdriver (FF), then tighten the bolts.
FF Phillips screwdriver (1)
J Left side panel
BB M6 × 12 mm bolt (4)
www.insigniaproducts.com
15
30" Square Fire Table - Black

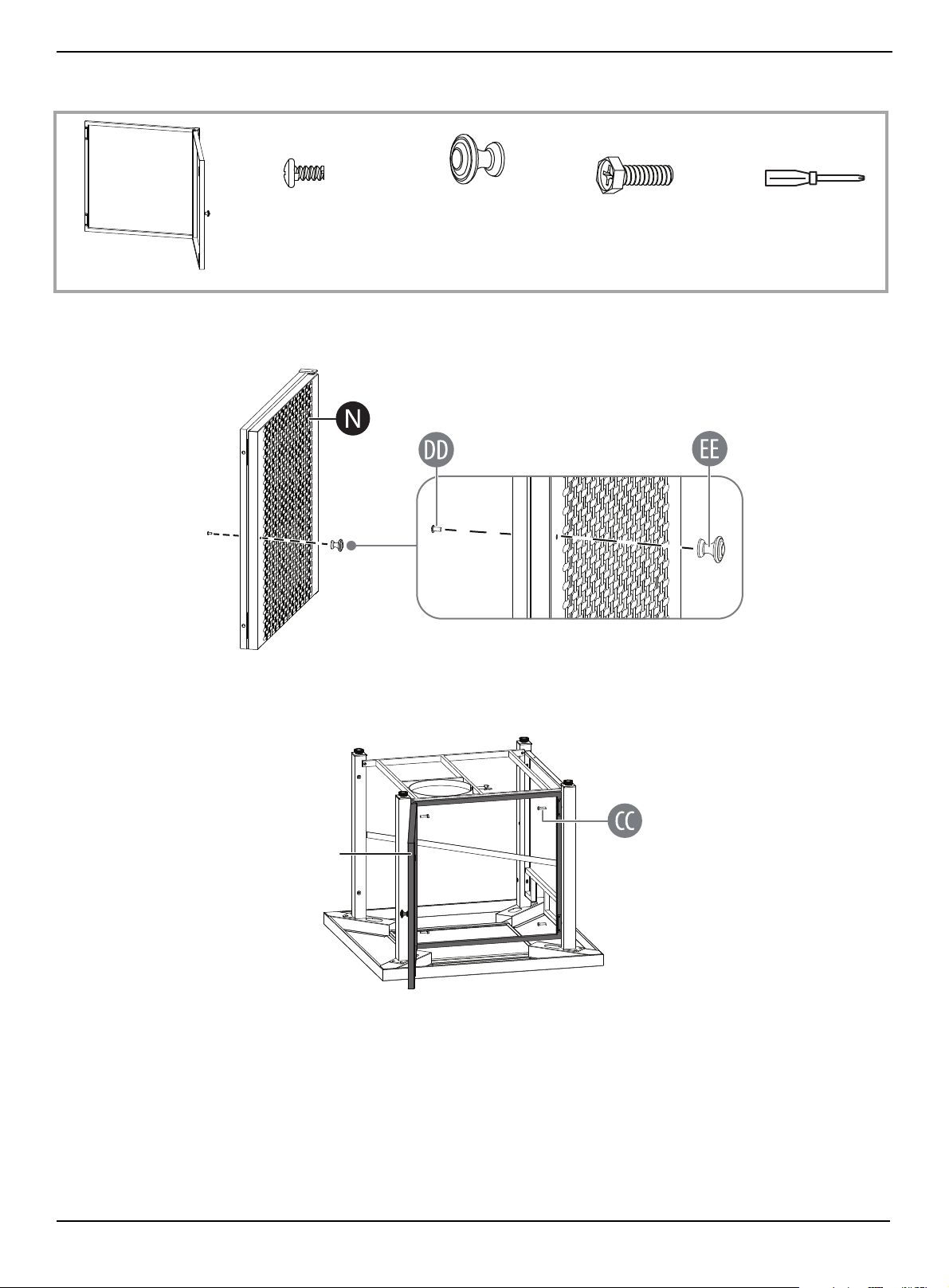

STEP 5: Installing the door pane assembly
You n e e d :
1 Place the M4 x 5 mm screw (DD) through the hole in the right-center of the door, then screw the knob (EE) onto the
screw until tight.
2 Using four M6 x 25 mm bolts (CC), install the front door panel assembly (N) to the support posts on the front of the
table with the Phillips screwdriver (FF), then tighten the bolts.
FF Phillips screwdriver (1)
N Front door panel assembly
CC M6 × 25 mm bolt (4)
DD M4 × 5 mm bolt (1)
EE Knob (1)
Door frame
www.insigniaproducts.com
16

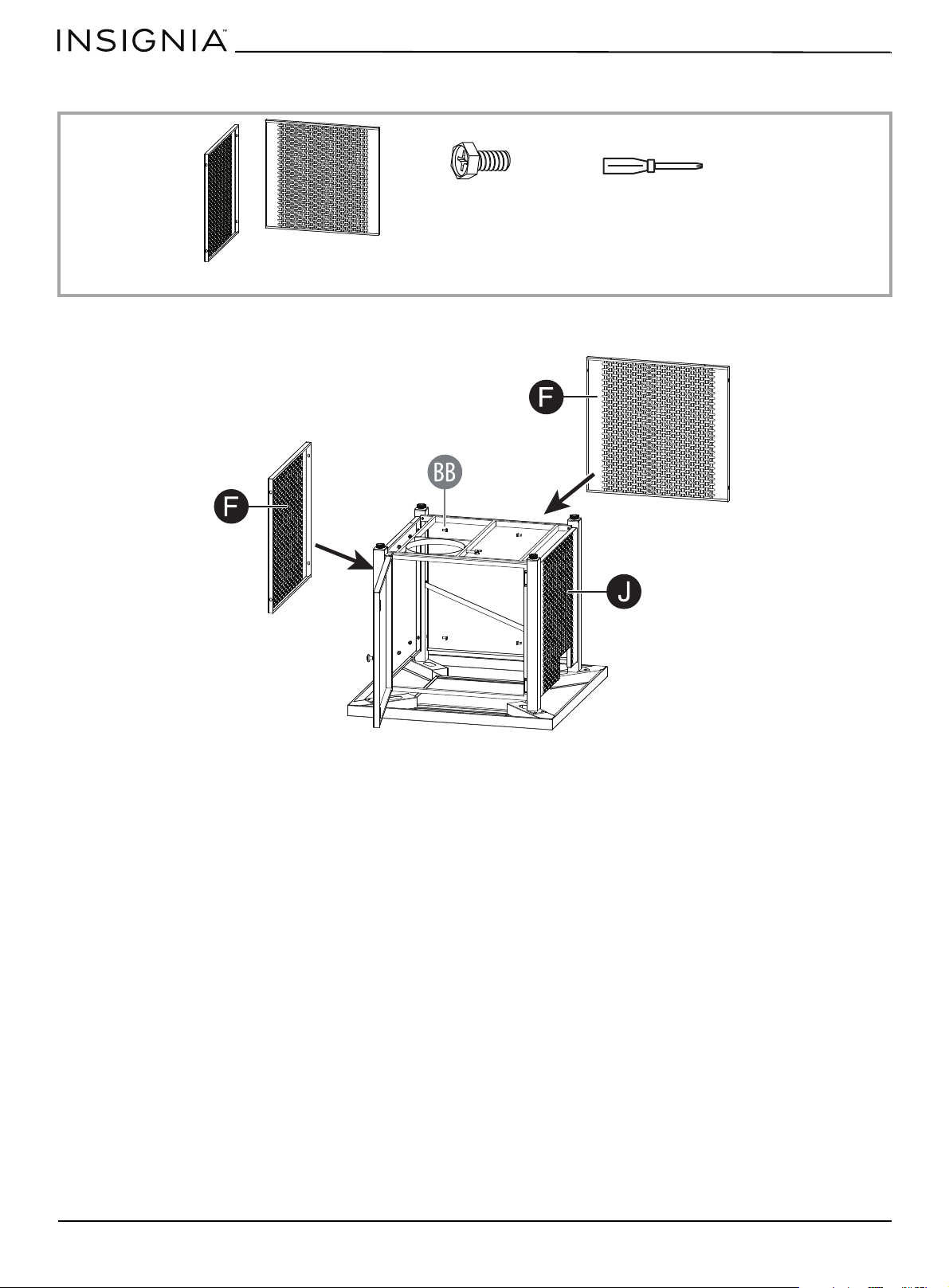

STEP 6: Installing the side panels
You n e e d :
• Using eight M6 x 12 mm bolts (BB), install the side and back panels (F) to the support brackets on the right and back
sides of the table with the Phillips screwdriver (FF), then tighten the bolts.
BB M6 × 12 mm bolt (8)
F Side and Back panels (2)
FF Phillips screwdriver (1)
www.insigniaproducts.com
17
30" Square Fire Table - Black

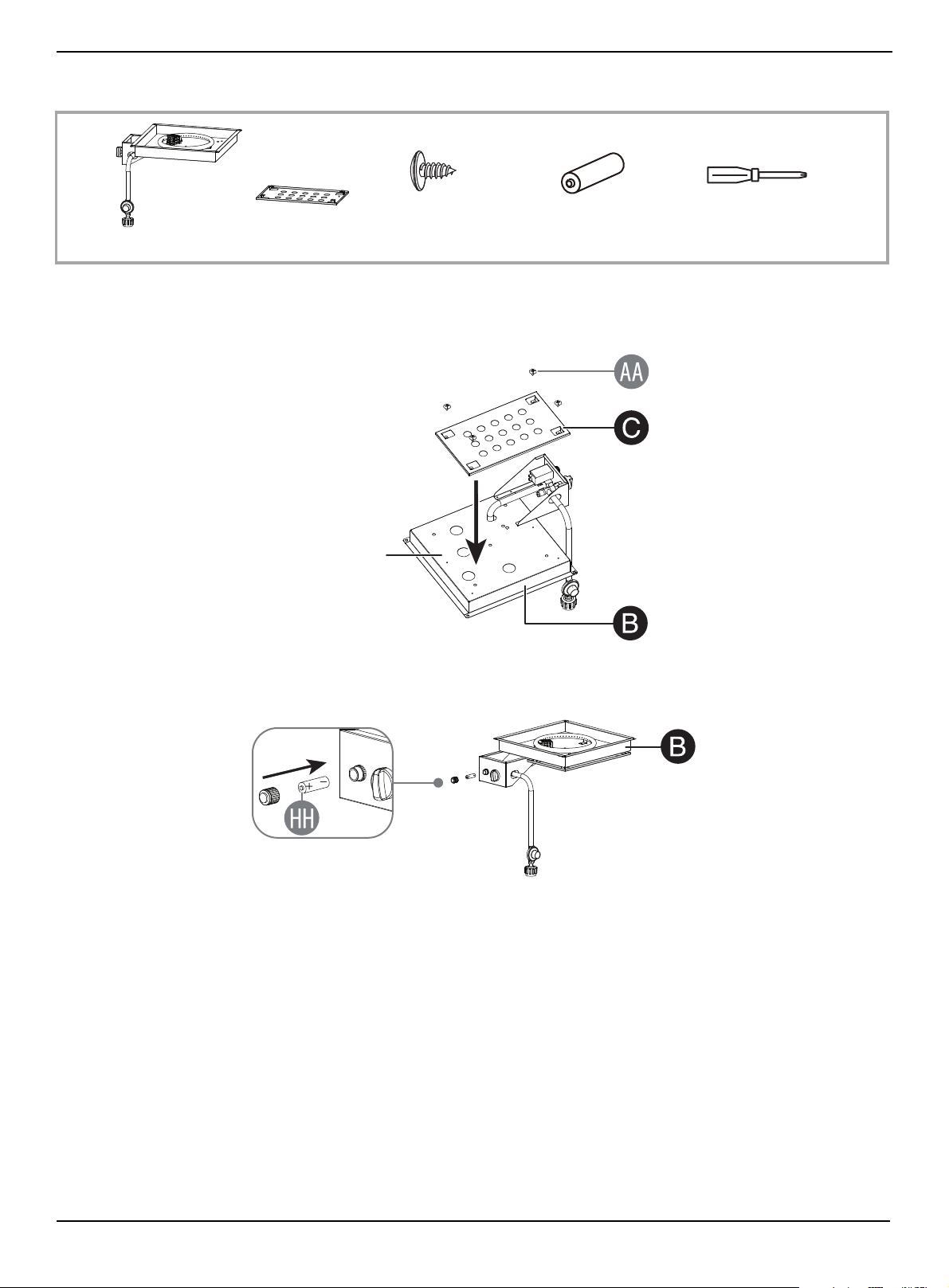

STEP 7: Preparing and installing the burner assembly
You n e e d :
1 Turn the table assembly upright.
2 Using four STA4.2 x 9.5 mm screws (AA), attach the thermal baffle (C) to the bottom of the burner assembly (B) with the
Phillips screwdriver (FF), then tighten the screws.
3 Unscrew the switch button on the control panel of the burner assembly, then insert the AA battery (HH) into the switch
(- end first), then screw the switch button back into the control panel.
AA STA4.2 × 9.5 mm
screw (8)
HH AA battery (1)
B Burner assembly
C Thermal baffle
FF Phillips screwdriver (1)
Burner assembly
bottom
www.insigniaproducts.com
18

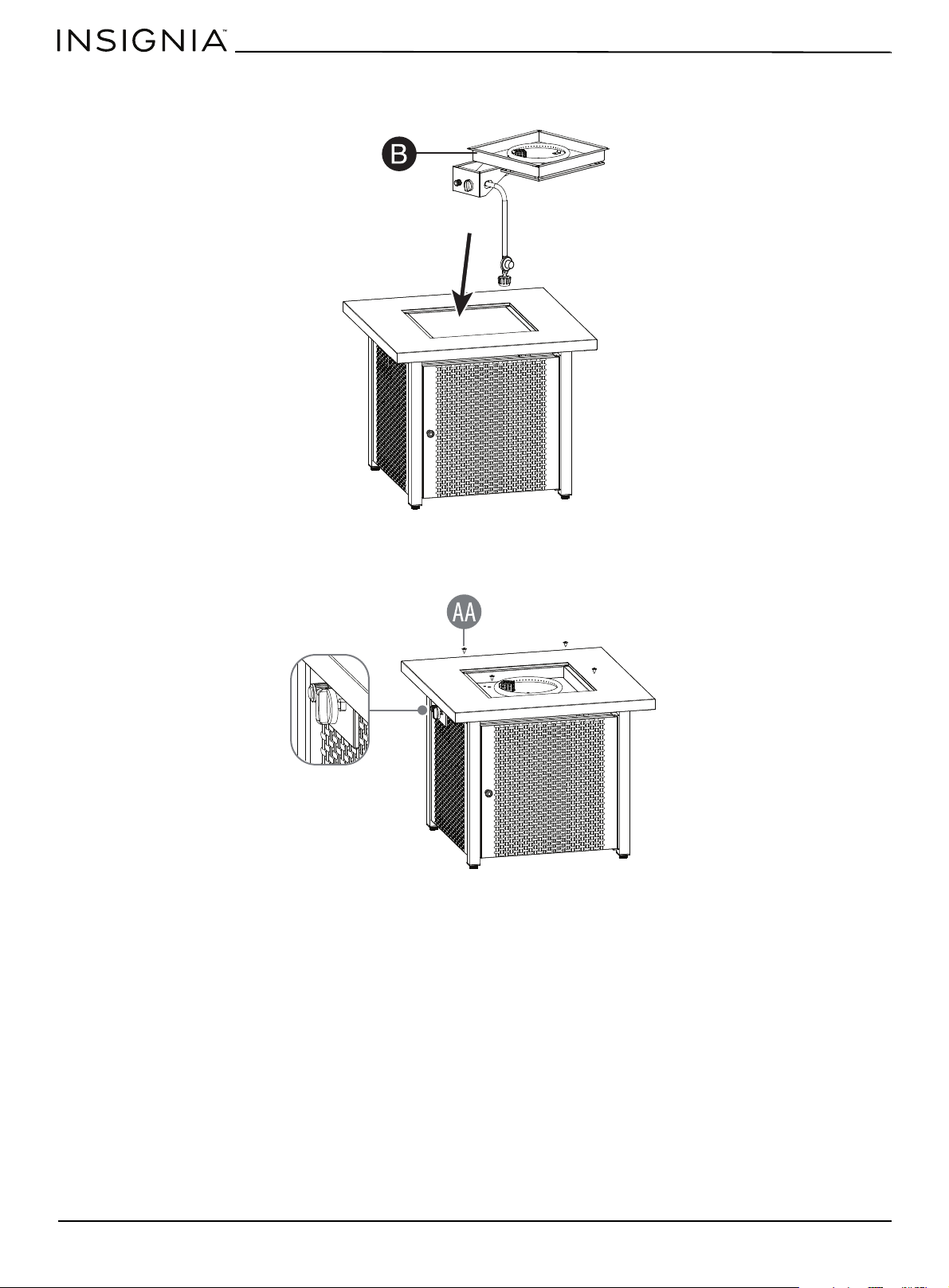

4 Place the burner assembly (B) into the square cutout in the table so that the four screw holes in the burner assembly
align with the holes in the square cutout in the table and the control panel fits in the square opening in the side of the
table.
5 Secure the burner assembly (B) to the table with four STA4.2 x 9.5 mm screws (AA), then tighten the screws with the
Phillips screwdriver (FF).
www.insigniaproducts.com
19
30" Square Fire Table - Black

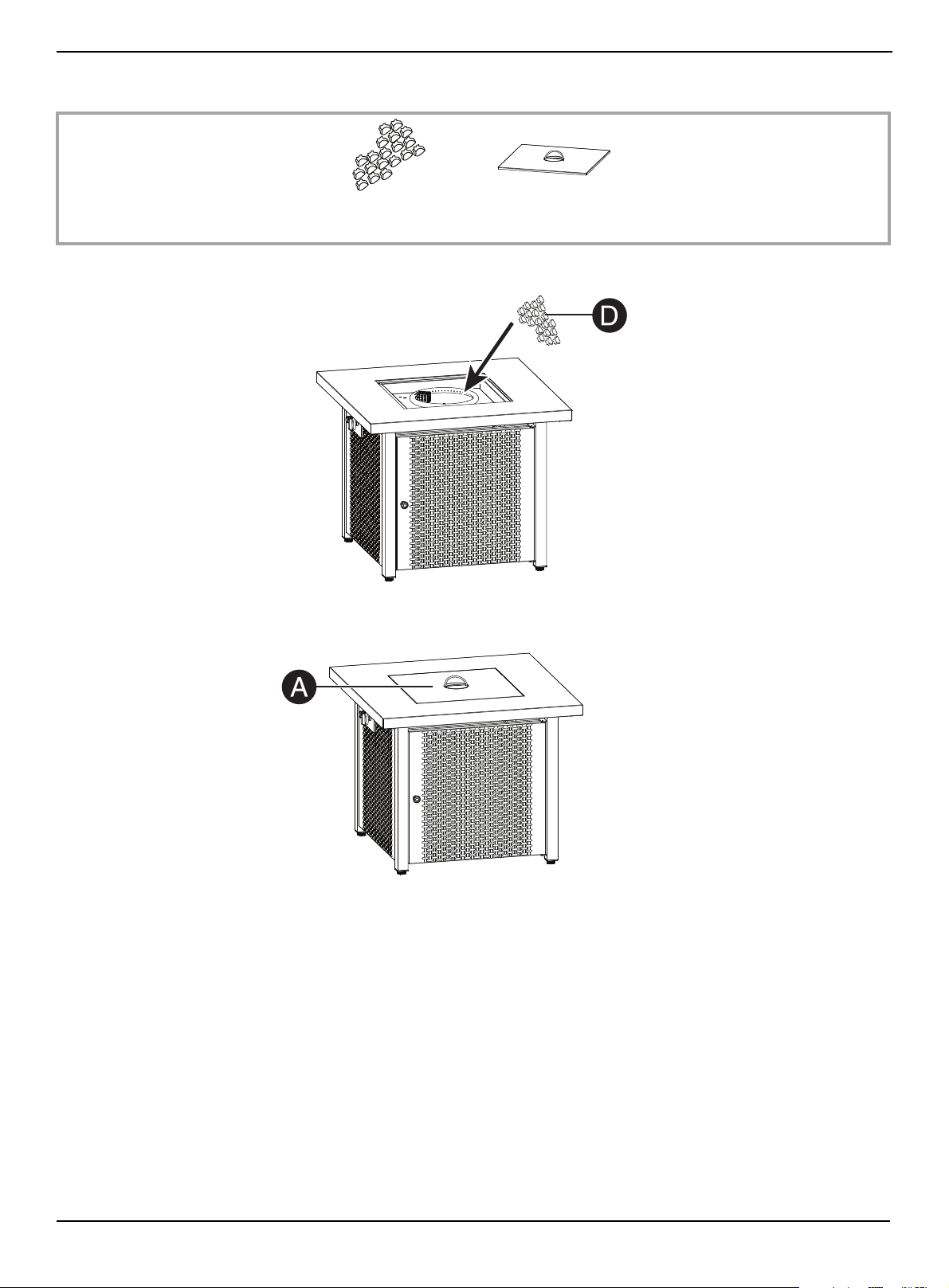

STEP 8: Adding the lava rocks and table lid (optional)
You n e e d :
1 Add one bag of lava rocks (D) evenly to the burner tray. Do not cover the ignition parts.
2 (Optional) put the table lid (A) on the burner assembly to keep the burner assembly clean.
D Lava Rocks
A Table Lid
www.insigniaproducts.com
20

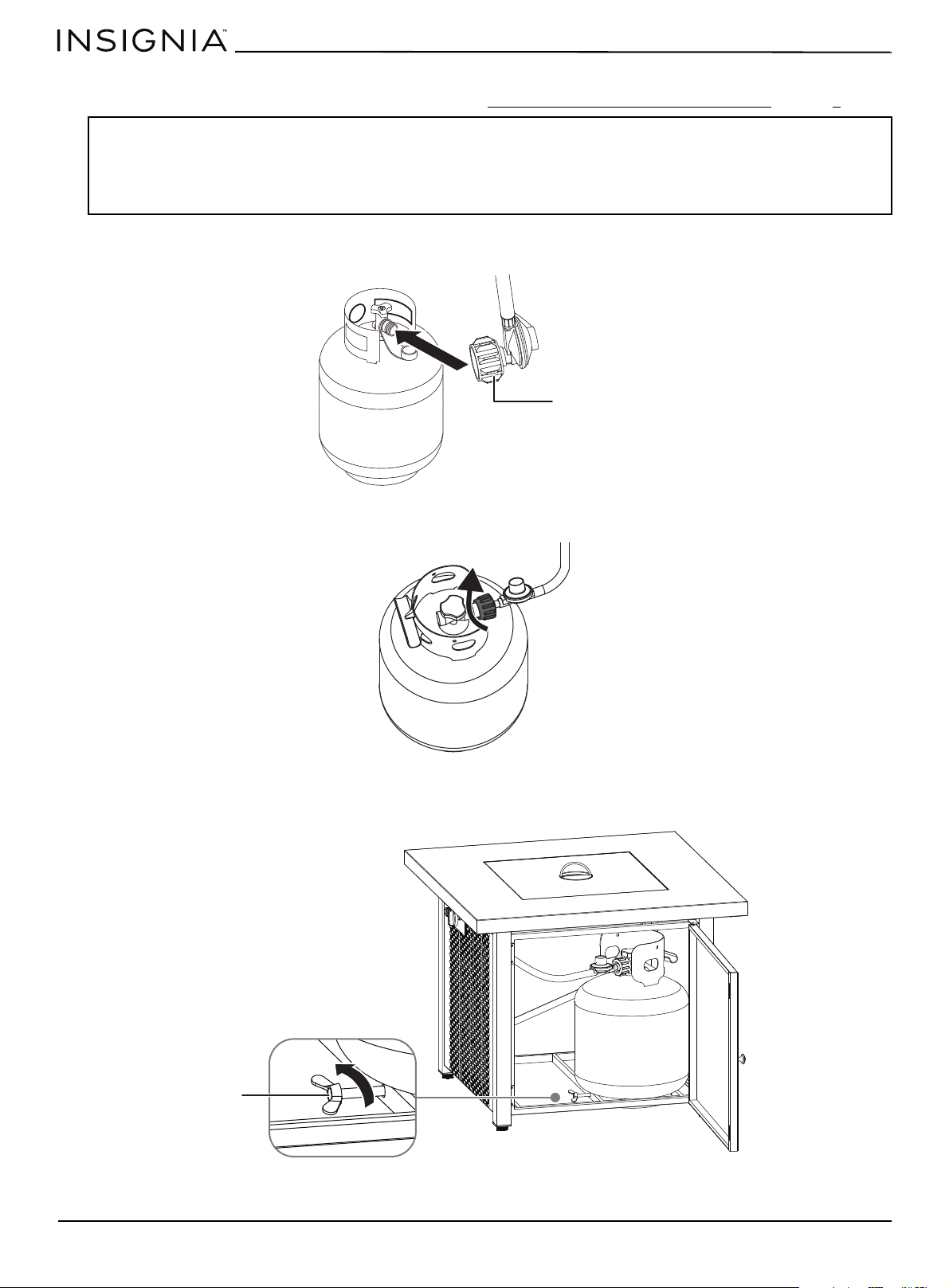

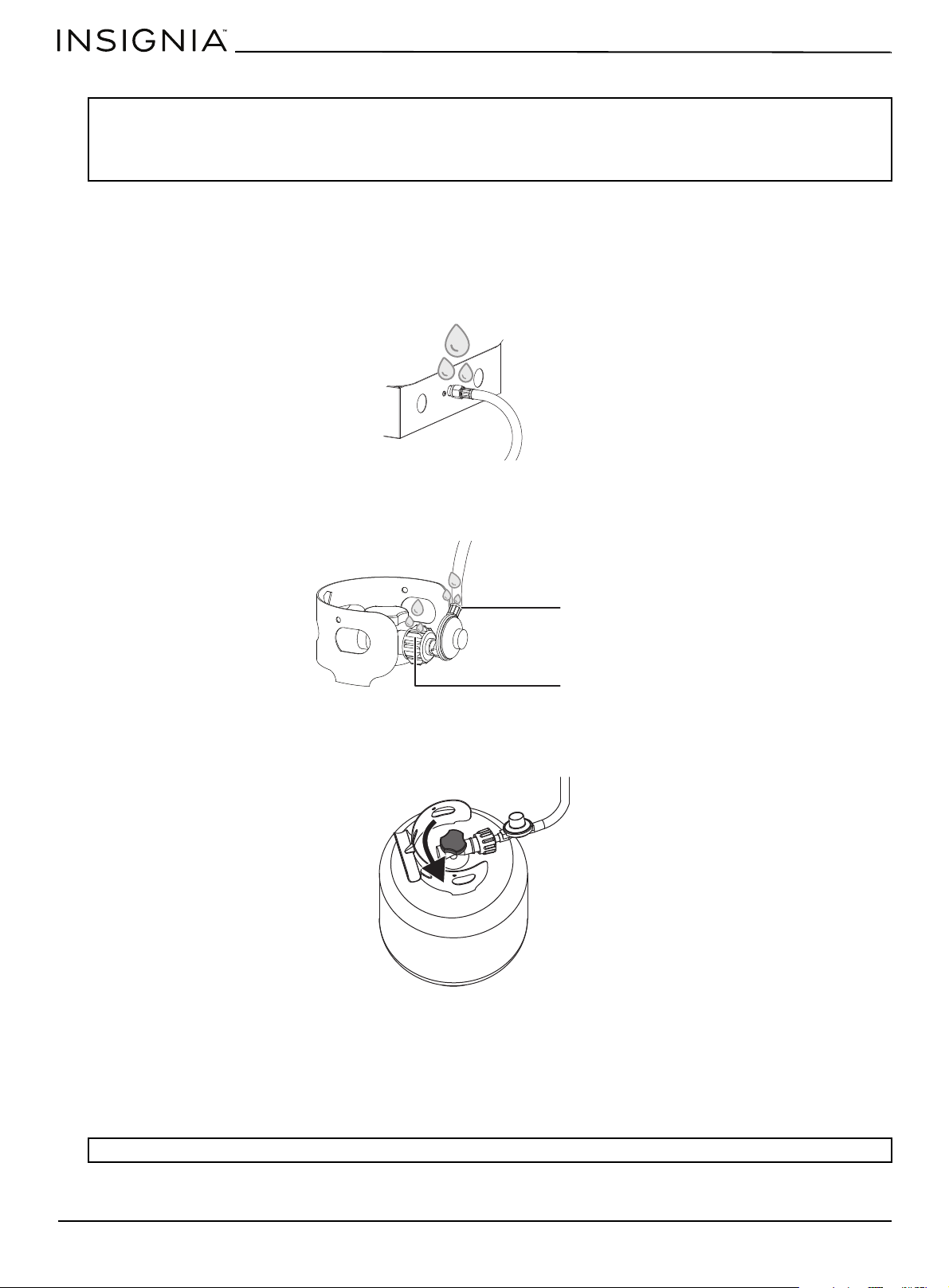

STEP 9: Installing the propane tank
To make sure that the propane tank is installed correctly, see IMPORTANT PROPANE TANK INFORMATION
on page 6.
1 Hold the regulator in one hand and insert the nipple into the valve outlet. Make sure that the nipple is centered in the
valve outlet. The coupling nut connects to the large outside threads on the valve outlet.
2 Hand-tighten the coupling nut clockwise until it comes to a full stop. Firmly tighten by hand only.
3 Slide the propane tank into your fire table and position it in the round tray in the base, then tighten the wing nut that
secures the tank in the tray.
4 Close the door.
WARNING:
• Do not store a spare LP-gas tank under or near this appliance.
• Never fill the tank beyond 80 percent full.
• Place the dust cap on the tank valve outlet whenever the tank is not in use. Use the dust cap that is provided with the tank valve.
Other types of caps or plugs may result in leakage of propane.
• Turn the cylinder valve OFF and replace the cylinder when the gas pressure is low.
Propane supply hose
and regulator assembly
Wing nut
www.insigniaproducts.com
21
30" Square Fire Table - Black

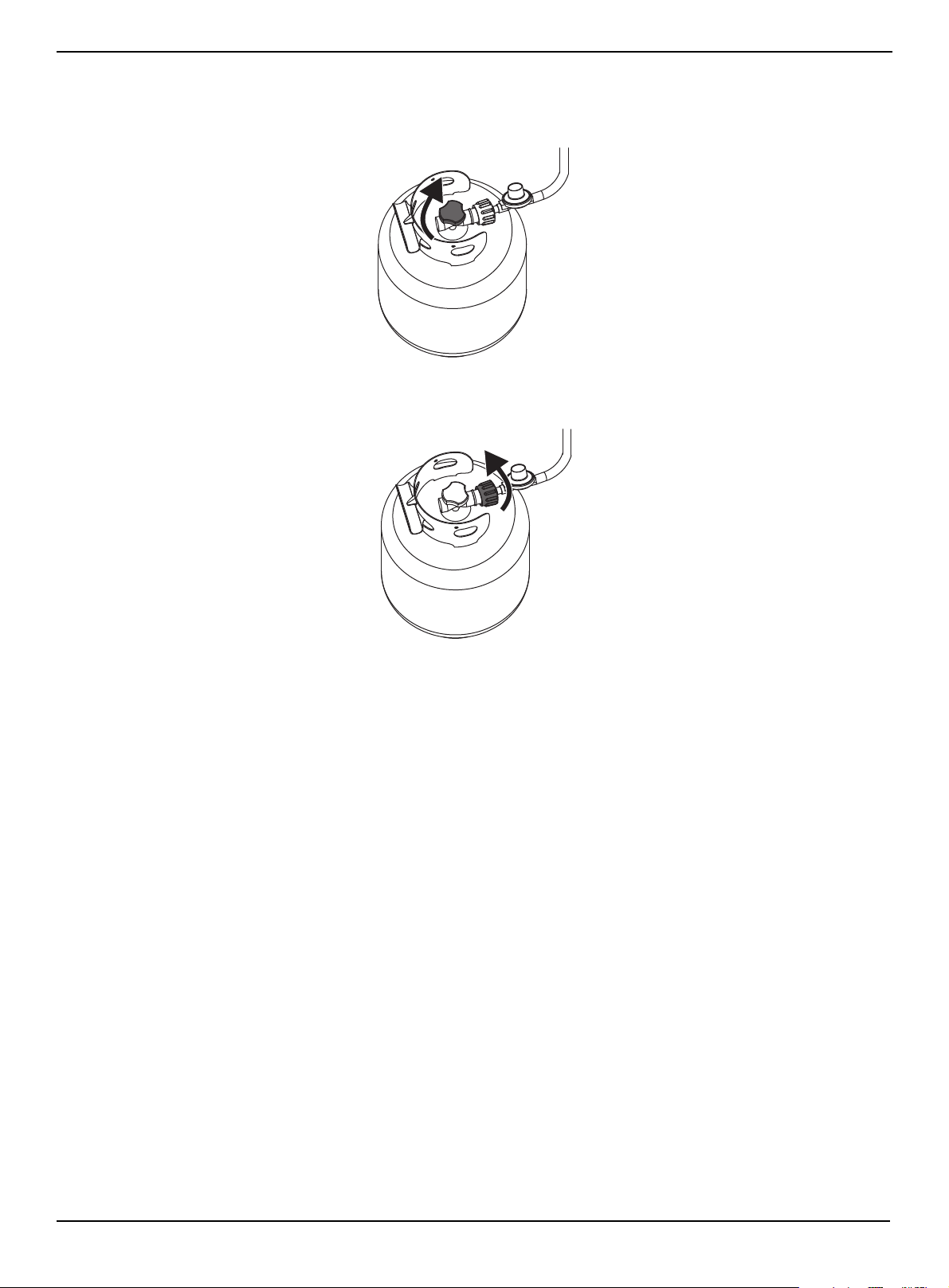

To disconnect the tank
1 Open the door in the front of your fire table, then loosen the wing nut that secures the tank in the tray.
2 Fully close the tank valve by turning it clockwise.
3 Turn the coupling nut counterclockwise until the regulator assembly detaches, then remove the tank.
www.insigniaproducts.com
22
STEP 10: Testing for gas leaks
1 Use a leak detection solution.
OR
Make a two to three ounce leak detection solution (one part liquid dish washing detergent and three parts water).
2 Make sure that your fire table valve is OFF.
3 Apply several drops of the solution where the hose attaches to your fire table.
4 Apply several drops of the solution where the hose attaches to the regulator and where the regulator connects to the
tank.
5 Turn the tank valve ON.
6 If bubbles occur, turn OFF the tank valve, then:
• If the leak is at the hose/regulator connection, tighten the connection and perform another leak test. If you continue to
see bubbles, the hose should be returned to the place of purchase.
• If the leak is at the regulator/tank valve connection, disconnect, reconnect, and perform another leak check. If you
continue to see bubbles after several attempts, the tank valve is defective and should be returned to the tank’s place of
purchase.
WARNING:
• Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use your fire table until all connections have been leak tested and do not leak.
WARNING: Whenever gas connections are loosened or removed, you must perform a complete leak test.
Hose attachment
to the regulator
Regulator attachment
to the tank
www.insigniaproducts.com
23
30" Square Fire Table - Black
Usage
Fire Table
Before you begin using your fire table . . . . . . . . . . . . . 24
Operation checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Before turning on the gas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Before lighting your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lighting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the flame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Turning off your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
www.insigniaproducts.com
24
Before you begin using your fire table
Operation checklist
For a safe and pleasant experience with your fire table, we suggest that you review this checklist whenever you use it.
1 I am familiar with this entire User Guide and understand all precautions noted.
2 All components are properly assembled, intact, and operate normally.
3 No alterations have been made to your fire table.
4 All gas connections are secure and leak free.
5 There is no excessive wind in the area of your fire table.
6 Your fire table is outdoors (outside any enclosure) and stable, on a hard and level surface.
7 There is adequate fresh air ventilation.
8 There is no gasoline or other flammable liquids or vapors in close proximity to your fire table.
9 Your fire table is located away from windows, air intake openings, sprinklers, and other water sources.
10 The sides, back, and front of your fire table are at least 24 in. (61 cm) from any combustible materials.
11 All persons in the area have been alerted to the hazards of high surface temperatures and to stay away from your fire
table to avoid burns or clothing ignition.
12 Young children should be carefully supervised when they are close to your fire table.
13 Any guard or other protective device removed for servicing has been replaced prior to operating your fire table.
14 The control compartment, burner, and circulating air passageways of your fire table are clean and free of spider webs,
insect nests, and other debris.
Before turning on the gas
• Make sure that the surrounding areas are free of combustible materials, gasoline, and other flammable vapors or
liquids.
• Make sure that there are no obstructions to air ventilation.
• Make sure that all gas connections are tight and there are no leaks.
• Make sure that the gas tank cover is clear of debris.
• Make sure that any component removed during assembly or servicing is replaced and fastened prior to starting.
Before lighting your fire table
• Inspect your fire table before each use and have a qualified service person check at least annually.
• If you are relighting a hot fire table, always wait at least five minutes.
• Inspect the visible portion of the hose before each use. If the hose leaks, you must replace it prior to operation. Only use
the replacement hose assembly specified by the manufacturer.
• You must use the pressure regulator and hose assembly supplied with your fire table. Only use replacement pressure
regulators and hose assemblies specified by the manufacturer.
WARNING: CARBON MONOXIDE HAZARD
For outdoor use only. Never use inside a house, or other unventilated or enclosed areas. Your fire table consumes air (oxygen). Do not
use in unventilated or enclosed areas to avoid endangering your life.
WARNINGS:
• Very hot while in operation!
• Never lean over your fire table while in use.
• Do not touch the tile of the spark guard while your fire table is in operation. Wait until your fire table has cooled down after use.
• Failure to comply with these instructions may result in serious bodily injury.
CAUTION:
• Do not attempt to operate until you have read and understand all Important Safety Information in this manual, all assembly is
complete, and leak checks have been performed.
• This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage, or any other enclosed area.
• An appliance may be installed with shelter no more inclusive than:
• With walls on all sides, but with no overhead cover.
• Within a partial enclosure which includes an overhead cover and no more than two side walls. These side walls may be parallel, as
in a breezeway, or at right angles to each other.
• Within a partial enclosure which includes an overhead cover and three side walls, as long as 30% or more of the horizontal
periphery of the enclosure is permanently open.
www.insigniaproducts.com
25
30" Square Fire Table - Black

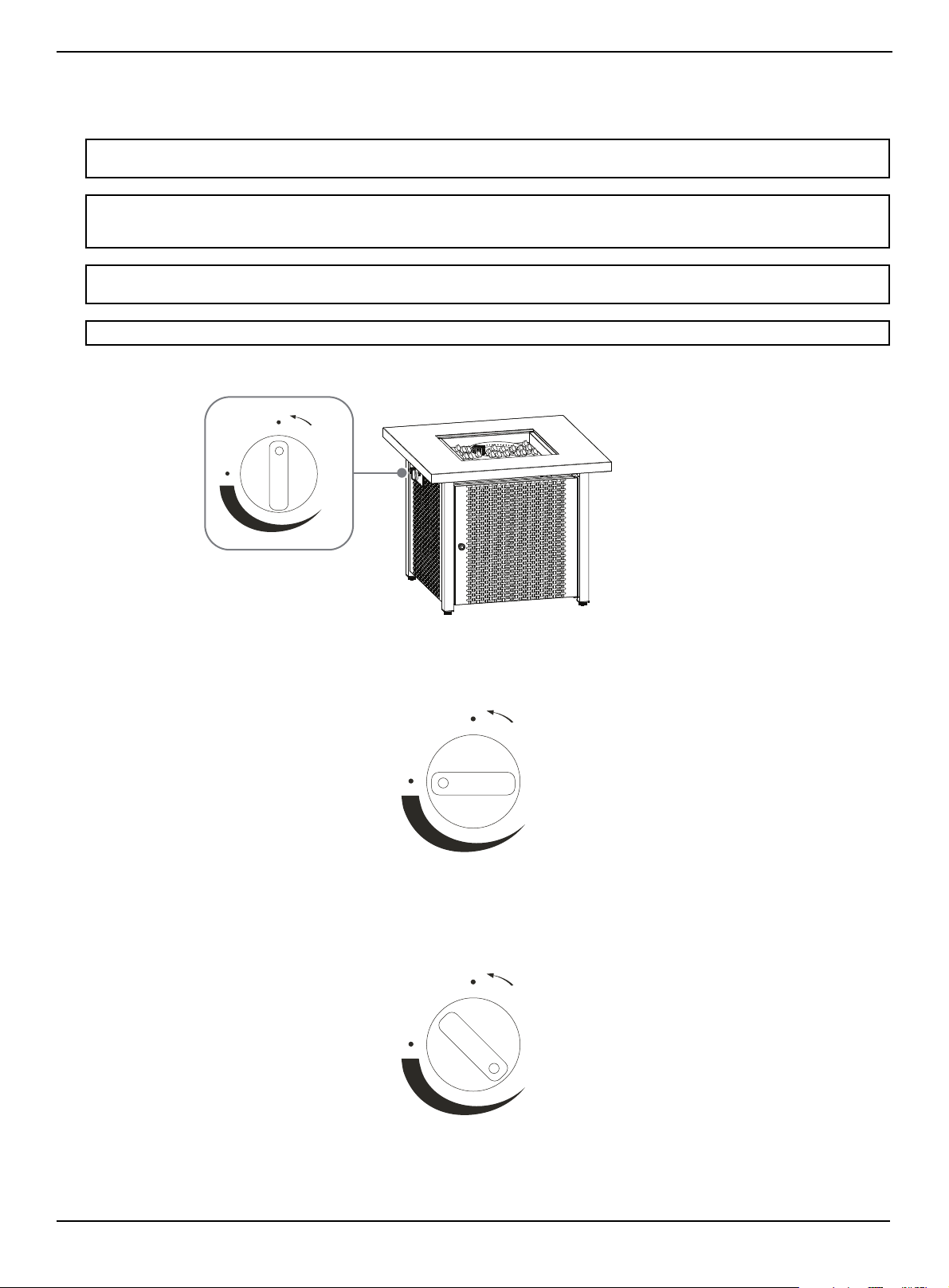

Using your fire table
Lighting your fire table
1 Turn the control knob to the OFF position.
2 Turn on the valve on the gas tank.
3 Push in and turn the control knob to the HIGH position (counter-clockwise 90º).
4 Holding in the control knob, press the igniter button several times (you should hear a clicking sound) until the flame is
ignited. Release the control knob 10 seconds after ignition.
5 Turn the control knob to the LOW position and leave it there for five minutes before adjusting the flame to the level you
want.
6 If the burner flame goes out, turn off your fire table. Wait at least five minutes or more to let the gas dissipate, then
repeat steps 3 to 5.
WARNING: Be careful when attempting to manually ignite your fire table. Pressing the control knob for more than 10 seconds before
igniting the gas can cause a ball of flame upon ignition.
WARNING: Avoid inhaling fumes emitted from your fire table’s first use. Smoke and odor from the burning of oils used in
manufacturing will appear. Both the smoke and odor dissipates after approximately 30 minutes. Your fire table should NOT produce
thick black smoke.
WARNING: Incorrect operation can cause injury or property damage. If the burner fails to remain lit, close all the valves and wait at
least five minutes before attempting to relight the burner.
Note: The burner may be noisy when initially turned on.
O
F
F
P
u
s
h
t
o
t
u
H
r
G
n
I
H
L
OW
O
F
F
P
u
s
h
t
o
t
u
H
r
G
n
I
H
LOW
O
F
F
P
u
s
h
t
o
t
u
H
r
G
n
I
H
LOW
www.insigniaproducts.com
26
Adjusting the flame
The burner flame should be blue with straight yellow tops. The flames should not be all yellow or produce thick black
smoke, indicating an obstruction of airflow through the burners. If your fire table has an all yellow flame, turn it off and
consult Troubleshooting your fire table
on page 29.
• Turn the control knob clockwise to increase the flame or counter-clockwise to decrease the flame.
Turning off your fire table
1 Push in the control knob and turn it clockwise to the OFF position.
2 Turn the gas tank valve clockwise until it stops.
2 in.
1 in.
0 in.
2 in.
1 in.
0 in.
Normal flame Abnormal flame
www.insigniaproducts.com
27
30" Square Fire Table - Black
Maintenance
Fire Table
Maintaining your fire table . . . . . . . . . . . . . . . . . . . . . . . . 28
Cleaning your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Inspecting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Storing your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Transporting your fire table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Troubleshooting your fire table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
www.insigniaproducts.com
28
Maintaining your fire table
Cleaning your fire table
Periodically clean the exterior surfaces of your fire table with warm soapy water. Never use flammable or corrosive cleaning
agents.
Inspecting your fire table
• Check the entire hose assembly at least annually. Look for evidence of excessive abrasion, cuts, or wear. Suspected
areas should be leak-tested.
• Look for spiders and insects which can nest in the burner or orifices. This condition can be dangerous and can damage
your fire table and render it unsafe for use. Clean the burner holes by using a heavy-duty pipe cleaner. Compressed air
may help clear away smaller particles.
• Look for excessive carbon deposits which may create a fire hazard. Clean the dome and burner screen with warm soapy
water if any carbon deposits develop.
Storing your fire table
Between uses:
• Turn the Control Knob OFF.
• Disconnect the LP source.
• Store your fire table upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail,
snow, dust, and debris).
• If desired, cover your fire table to protect the exterior surfaces and to help prevent debris build-up in air passages.
Transporting your fire table
When transporting:
• Turn the Control Knob OFF.
• Disconnect the LP source and move it to a secure, well-ventilated location, outdoors.
WARNING: Do NOT touch or move your fire table for at least 45 minutes after use.
Notes:
• While cleaning your fire table, be sure to keep the area around the burner dry at all times.
• Do not submerge the control valve assembly in water. If the gas control has been submerged in water, do NOT use it. It must be
replaced.
• Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
• Do not obstruct the flow of air for combustion and ventilation.
• Keep the ventilation opening(s) of the tank enclosure free and clear of debris.
• Keep controls, burner, and circulating air passageways clean.
Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal. Frequently check for corroded
areas and repair them promptly.
Tip: Use a high-quality automobile wax to help maintain the appearance of your fire table. Apply to exterior surfaces only. Do not
apply to burner.
Note: Wait until your fire table is cool before covering.
www.insigniaproducts.com
29
30" Square Fire Table - Black
Troubleshooting your fire table
Only a qualified service person should repair gas passages and associated components.
CAUTION: Always allow your fire table to cool before attempting service.
PROBLEM POSSIBLE CAUSE SOLUTION
Burner won’t light using
igniter
The propane tank valve is
closed
Make sure that the regulator is securely attached to the
propane tank, see STEP 9: Installing the propane tank
on
page 20
. Open the propane tank valve.
The propane tank is low or
empty
Replace the propane tank.
The propane tank is leaking
• Turn the propane tank valve to “CLOSED.”
• Wait 5 minutes for gas to clear.
• Follow “Checking for Leaks” section.
The igniter battery needs to
be changed
Replace the AA battery in the igniter.
The igniter electrode and
burners are wet
Wipe the igniter and burners dry with a cloth.
The igniter electrode is
cracked or broken
Replace the igniter - contact Customer Service where you
purchased your fire table.
A wire is loose on the igniter Reconnect the loose wire.
A wire on the igniter is
shorting
Replace the igniter - contact Customer Service where you
purchased your fire table.
Bad igniter Replace the igniter - contact Customer Service where you
purchased your fire table.
The propane tank is frosted Wait until the propane tank warms up and becomes
unfrosted.
Blockage in an orifice Clear blockage.
The control knob is not in the
ON position
Turn the control knob to the ON position.
Burner won’t light using a
match
The propane tank valve is
closed
Make sure that the regulator is securely attached to the
propane tank, see STEP 9: Installing the propane tank
on
page 20
. Open the propane tank valve.
The propane tank is low or
empty
Replace the propane tank.
The propane tank is leaking
• Turn the propane tank valve to “CLOSED.”
• Wait 5 minutes for gas to clear.
• Follow the steps in STEP 10: Testing for gas leaks
on
page 22
.
Coupling nut and regulator
are not securely connected
Turn the coupling nut about one-half to three-quarters
additional turn until the connection is solid. Tighten by
hand only - do NOT use tools.
There is an obstruction in the
gas flow
•Clear burner/valve.
• Check for bent or kinked hose.
The propane tank is frosted Wait until the propane tank warms up and becomes
unfrosted.
The control knob is not in the
ON position
Turn the control knob to the ON position.
The burner flame is low
The gas pressure is low Turn the tank valve OFF and replace the tank.
The outdoor temperature is
less than 40º F (4º C) and the
tank is less than 1/4 full
Use a full tank.
Control knob not fully ON Push the knob in and rotate it to your desired heat level.
www.insigniaproducts.com
30
Specifications
Carbon build-up or thick
black smoke
Dirt or film on burner Clean the burner.
Blockage in the burner Remove any blockage and clean the burner inside and
out.
Gas odor with extreme
yellow/orange tipping of
flame
A new burner may have
residual oil/solvent from
manufacturing
Burn for 15 minutes, then try again.
Spider webs or insect nest in
the burner/valve
Clean burner/valve and try again.
Poor alignment of valve to
burner/valve tube
Make sure that the burner/valve is properly aligned.
Your fire table does not reach
the desired temperature
Ice has built up on the
outside of the propane tank
Turn off the propane tank valve and replace the tank.
Your fire table flame is
irregular or uneven
The burner ports are blocked
or clogged
Clean the burner ports.
There is a sudden drop in gas
flow or flame height
The overfill prevention
device on the propane tank
may have been activated
1. Turn control knob to OFF.
2. Wait 30 seconds and relight your fire table.
3. If the flames are still too low, reset the overfill
prevention device by:
a. Turning control knob OFF
b. Turning LP gas tank valve to CLOSED
c. Disconnecting the regulator
d. Turning control knob to HIGH
e. Waiting one minute
f. Turning control knob to OFF
g. Reconnecting the regulator and leak check
connections, being careful not to fully open the valve
h. Lighting your fire table
The flame goes out
High or gusting winds Do not use outdoor fire table in high winds.
Low on LP gas Exchange, refill, or replace propane tank.
Excess flow valve tripped Refer to “Sudden drop in gas flow or reduced flame
height” above
Dimensions (WxHxD) 30 × 30 × 24.4 in.
(76.2 × 76.2 × 62 cm)
Weight 56.87 lbs. (25.8 kg)
Fuel type Propane
Compatible propane tank
(height × diameter)
Standard 20 lbs.
17.9 in. (45.5 cm) × 12.2 in. (31 cm)
PROBLEM POSSIBLE CAUSE SOLUTION
www.insigniaproducts.com
31
30" Square Fire Table - Black
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the
Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase
of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at
www.bestbuy.com
or www.bestbuy.ca and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received
with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized
Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at
no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and
are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This
warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the
Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com
or www.bestbuy.ca), please take
your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides
the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the
country where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Food, beverage, and or medicine loss/spoilage.
• Customer instruction/education
•Installation
•Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
•Misuse
•Abuse
•Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth
(1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that
may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO
OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A
©2022 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2022 Best Buy. All rights reserved.
V2 ENGLISH
22-0442
