AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 1 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION

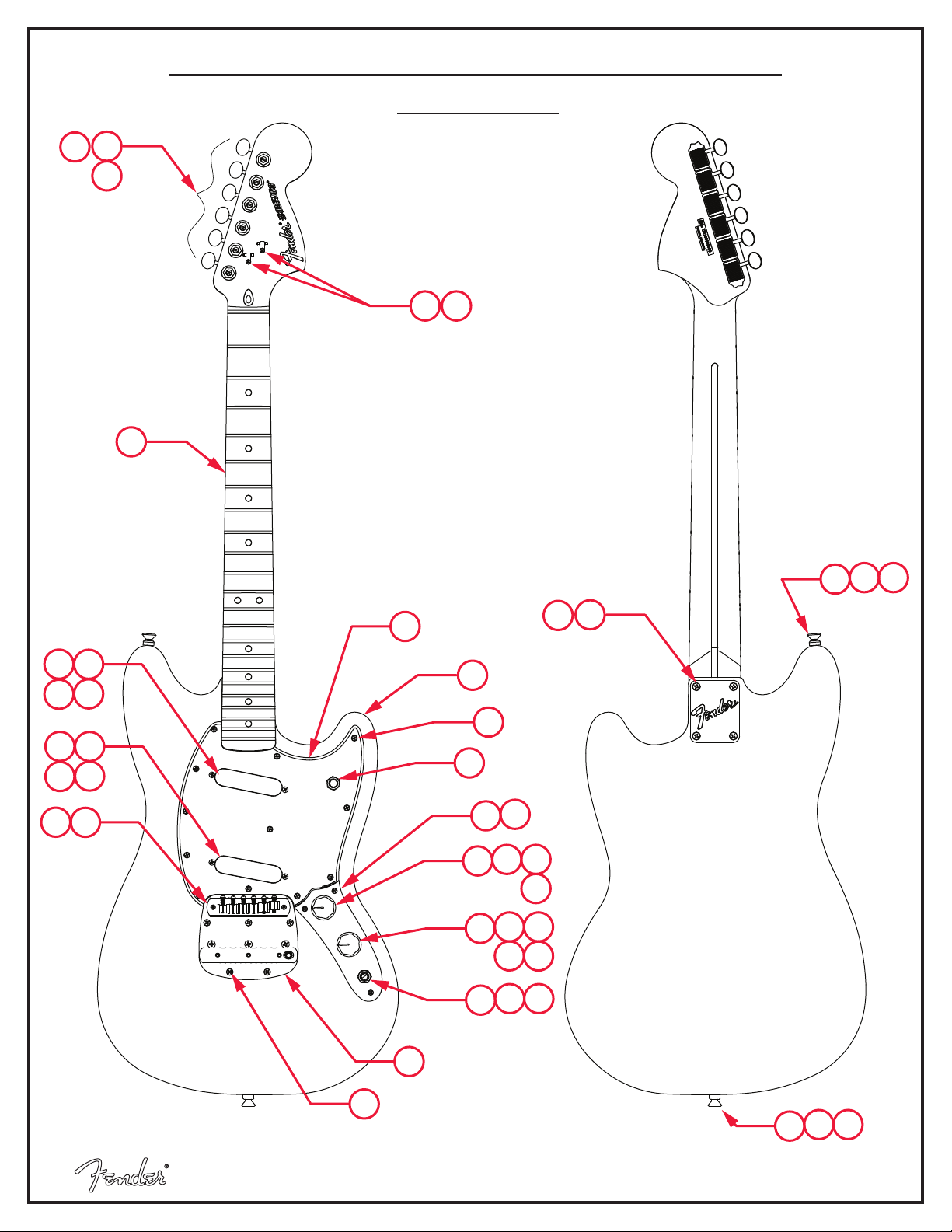

PARTS LAYOUT
11
11
12
10
2
1
8 9
7
4
3
6
5
13
16
17
14
15
16
18
17
14
15
19
16
20
21
17
23
22
26
29
25
24
28
29
27
26
32
30
31
32
30
31
AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 2 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION
REF# DESCRIPTION PART
NUMBER
1 BODY AM PERFORMER MUSTANG SATIN SNB 7713301572
1 BODY AM PERFORMER MUSTANG GLOSS 3TSB 7713277500
1 BODY AM PERFORMER MUSTANG GLOSS VWT 7713277541
1 BODY AM PERFORMER MUSTANG GLOSS PENNY 7713277584
2 NECK ASSY AM PERFORMER MUSTANG RW 7713278000
3 NECK PLATE STD SERIES LOGO NO TILT 0048691000
4 SCREW SMA 8 X 1-3/4 OHP NI 0015636049
5 TUNING KEYS MODERN VINTAGE SET W/HDWR 0990802100
6 WASHER KEY SET 0053106049
7 BUSHING KEY SET 0058820049
8 STRING GUIDE TREE AM STD SET W/HDWR 0994911000
9 SCREW SMAB 3 X 2/8 RHP STL NI 0011357049
10 PICKGUARD AM PERFORMER MUSTANG WHT PEARL 7713316000
11 SCREW SMAB 4 X 1/2 OHP NI 0015578049
12 3 POSITION RIGHT ANGLE TOGGLE SWITCH BLACK W/HDWR 0078433000
13 PLATE CONTROL CYCLONE 0053718000
14 KNOB LARGE SKIRTED BLACK SET 0019455049
15 CONTROL 250K 10% AUDIO METAL W/HDWR 0990831000
16 WASHER LOCK INTL 3/8 X .687 0016436049
17 NUT HEX 3/8-32 X 3/32 TK NI 0016352049
18 PCB ASSY GREASE BUCKET TONE CIRCUIT 7713546000
19 JACK PHONE OPEN CIRCUIT 11 0021956049
20 TREMOLO AM PERFORMER MUSTANG MODIFIED 7713264000
21 SCREW SMAB 5 X 1 OHP NI 0015610049
22 BRIDGE ASSY AM PERFORMER MUSTANG 7713209000
23 THIMBLE BRIDGE (2) 0054447049
24 PICKUP ASSY AM PERFORMER MUSTANG BRIDGE BLACK 7713566000
25 PICKUP COVER MUSTANG BLACK 0058198020
26 TUBING LATEX CUT .250 .O.D .125 .I.D. X .250 L 0055172000
27 PICKUP ASSY AM PERFORMER MUSTANG NECK BLACK 7713565000
28 TUBING LATEX CUT .250 O.D. X .125 I.D. X .375 L 0036878000
29 SCREW TF 6-32 X 3/4 RHP STL NI (12) 0048631049
NOT PICTURED IN DIAGRAM
*
=
AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 3 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION
REF# DESCRIPTION PART
NUMBER
30 STRAP BUTTONS NICKEL PLATED SET 0994915000
31 SCREW WOOD 6 X 1 OHP NI 0016188049
32 WASHER FELT BLACK 0994929000
32 WASHER FELT WHITE 0994930000
* GIG BAG AM SPCL MUSTANG 7700948000
* ARM TREMOLO LEVER MUSTANG MOD 7713256000
* KNOB TREMOLO ARM BLK 0994934000
* WRENCH HEX 1/8 (TRUSS ROD ADJUSTMENT) 0023811049
* WRENCH HEX 1.5MM (BRIDGE POST HEIGHT ADJUSTMENT) 0050919000
* WRENCH HEX 2.5MM (TREMOLO POST ADJUSTMENT/TREM ARM SET SCREW) 0054151000
NOT PICTURED IN DIAGRAM
*
=
AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 4 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION

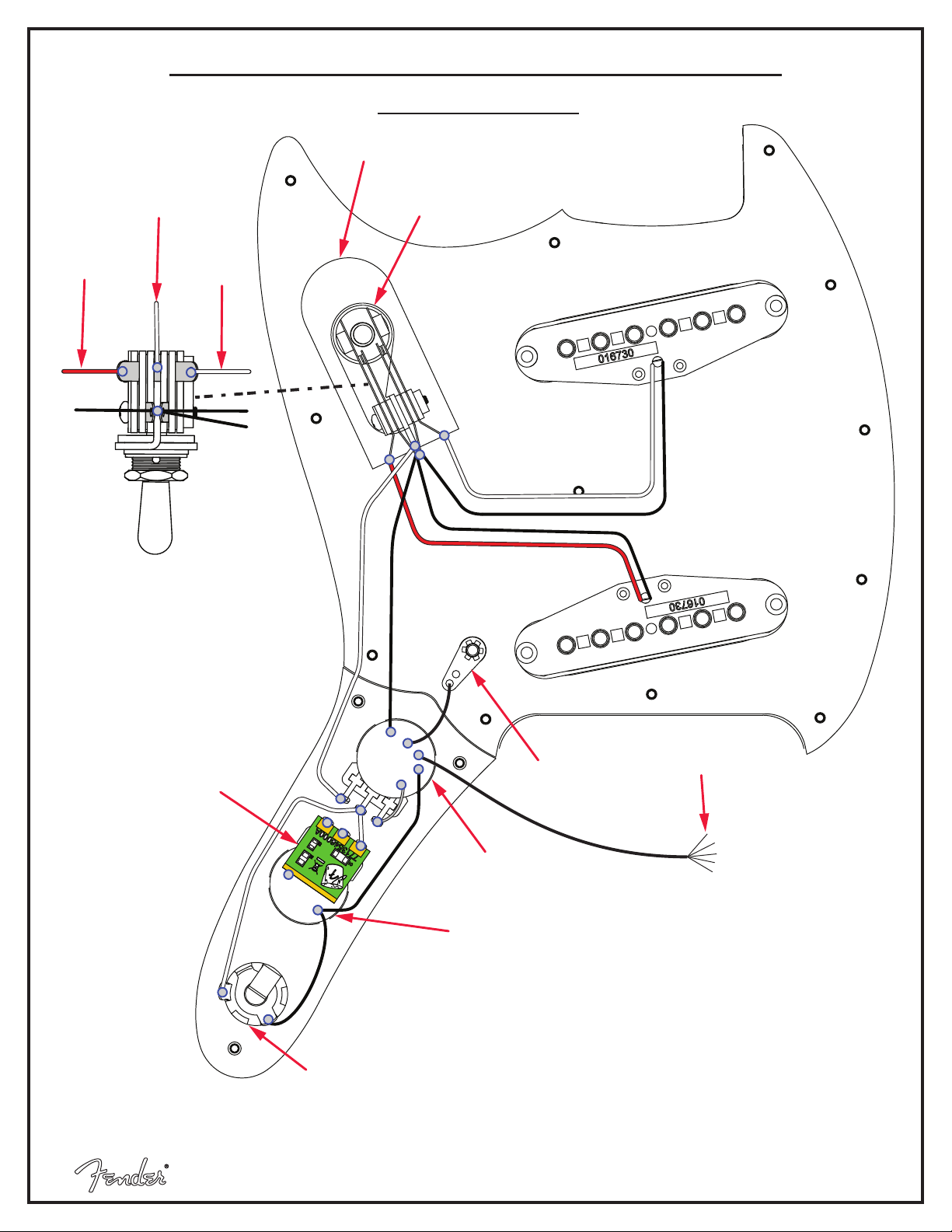

WIRING ASSEMBLY
3-WAY
SWITCH
SHIELD
WHITE WIRE
TO VOLUME POT
BRIDGE
PICKUP
NECK
PICKUP
NECK PICKUP
BRIDGE PICKUP
VOLUME
CONTROL
GROUND LUG
TO BODY CAVITY
BLACK WIRE TO
UNDERNEATH TREMOLO
PLATE
TONE
CONTROL
TREBLE BLEED
PCB
OUTPUT
JACK
AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 5 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION

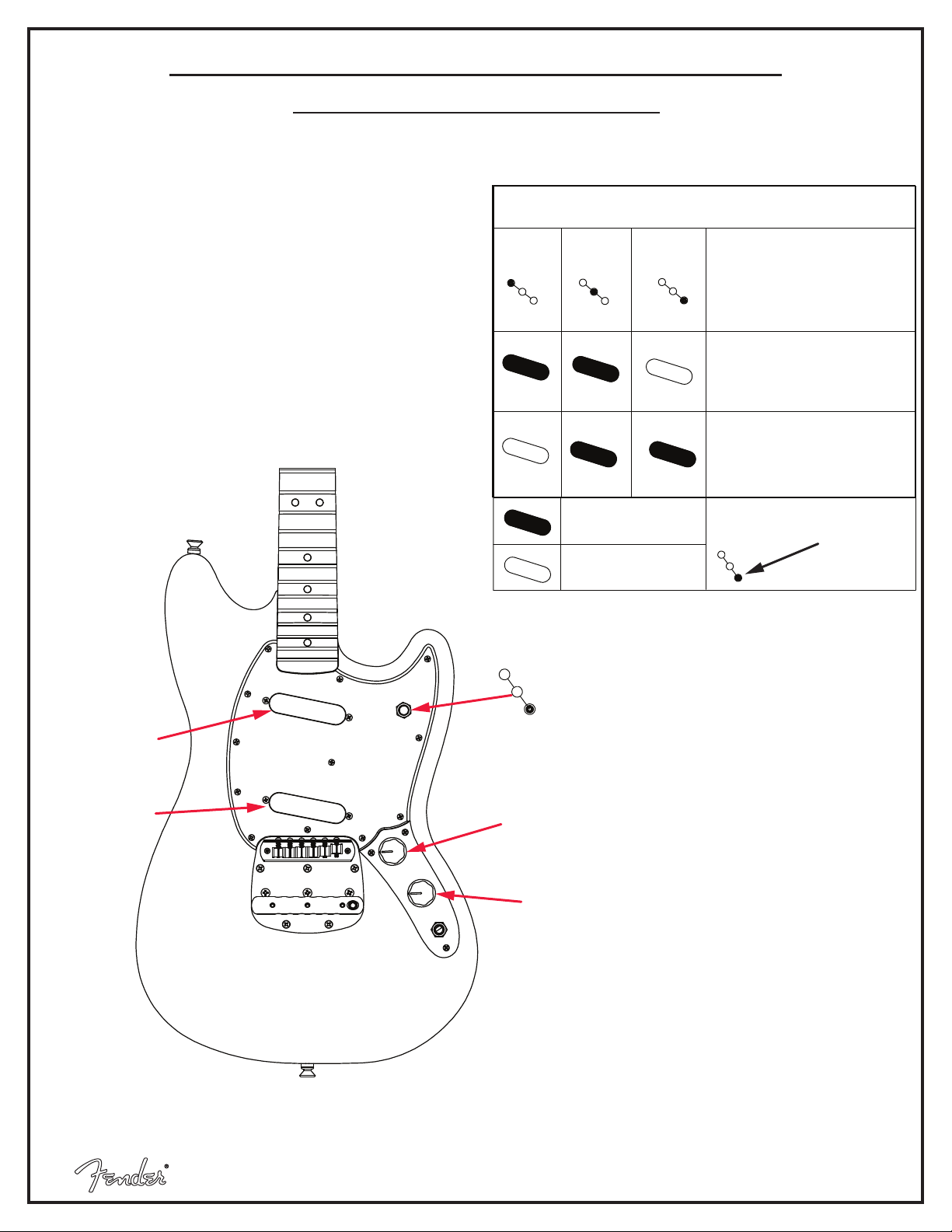

SWITCH AND CONTROL FUNCTION
3-WAY SWITCH FUNCTION
3-WAY SWITCH
POSITION
NECK PICKUP
BRIDGE PICKUP
PICKUP IS ON
PICKUP IS OFF
NECK PICKUP
MASTER VOLUME
1
2
3
3-WAY SWITCH
MASTER TONE
BRIDGE PICKUP
INDICATES POSITION
OF 3-WAY SWITCH
AMERICAN PERFORMER MUSTANG® (0115510XXX)
Page 6 of 6
Oct 15, 2018 - PR5239 - Rev. A
COPYRIGHT - 2018 - FENDER MUSICAL INSTRUMENTS CORPORATION

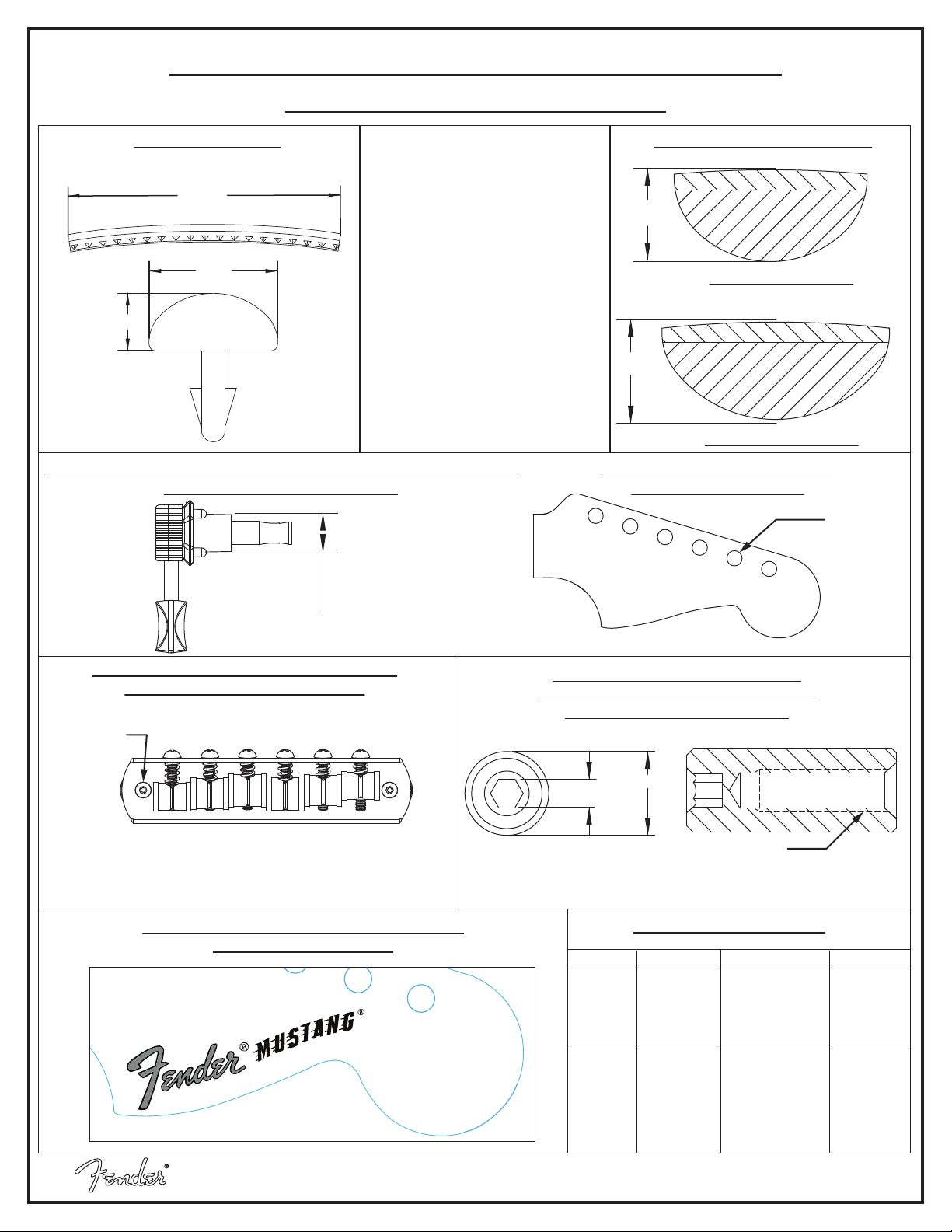

ADDITIONAL SPECIFICATION DETAIL
.055”
.110”
2-7/16”
.820”
.870”
10-32
THREAD
1.5MM HEX
Ø
.375”
1/8” HEX
STAGGERED TUNING MACHINE SET W/HDWR P/N 0990802100
OUTER SHAFT DIAMETER .394”
TUNING MACHINE THRU-HOLE
INNER DIAMETER .404”
LOGO: AMERICAN PERFORMER MUSTANG
APPLIED UNDER FINISH
TRUSS ROD NUT P/N 0994943000
TRUSS ROD ADJUSTMENT WRENCH:
1/8” HEX KEY P/N 0023811049
BRIDGE HEIGHT ADJUSMENT WRENCH:
1.5MM HEX KEY P/N 0050919000
1ST FRET PROFILE
12TH FRET PROFILE
NECK PROFILE: MODERN “C”FRET SIZE: JUMBO
(FRET DIMENSIONS ARE BEFORE INSTALLATION)
Ø
.404”
Ø
.394”.394”
PLEASE NOTE: AS EACH NECK
IS SANDED & FINISHED BY
HAND, THICKNESS DIMENSIONS
MAY VARY SLIGHTLY FROM
THOSE SHOWN.
PICKUP SPECIFICATIONS
NECK
BRIDGE
DC RESISTANCE
8.2 - 8.8KΩ
8.5 - 10.5KΩ
MAGNETS
ALNICO 4
BEVELED
ALNICO 2
BEVELED
POLARITY
SOUTH
NORTH
POSITION
