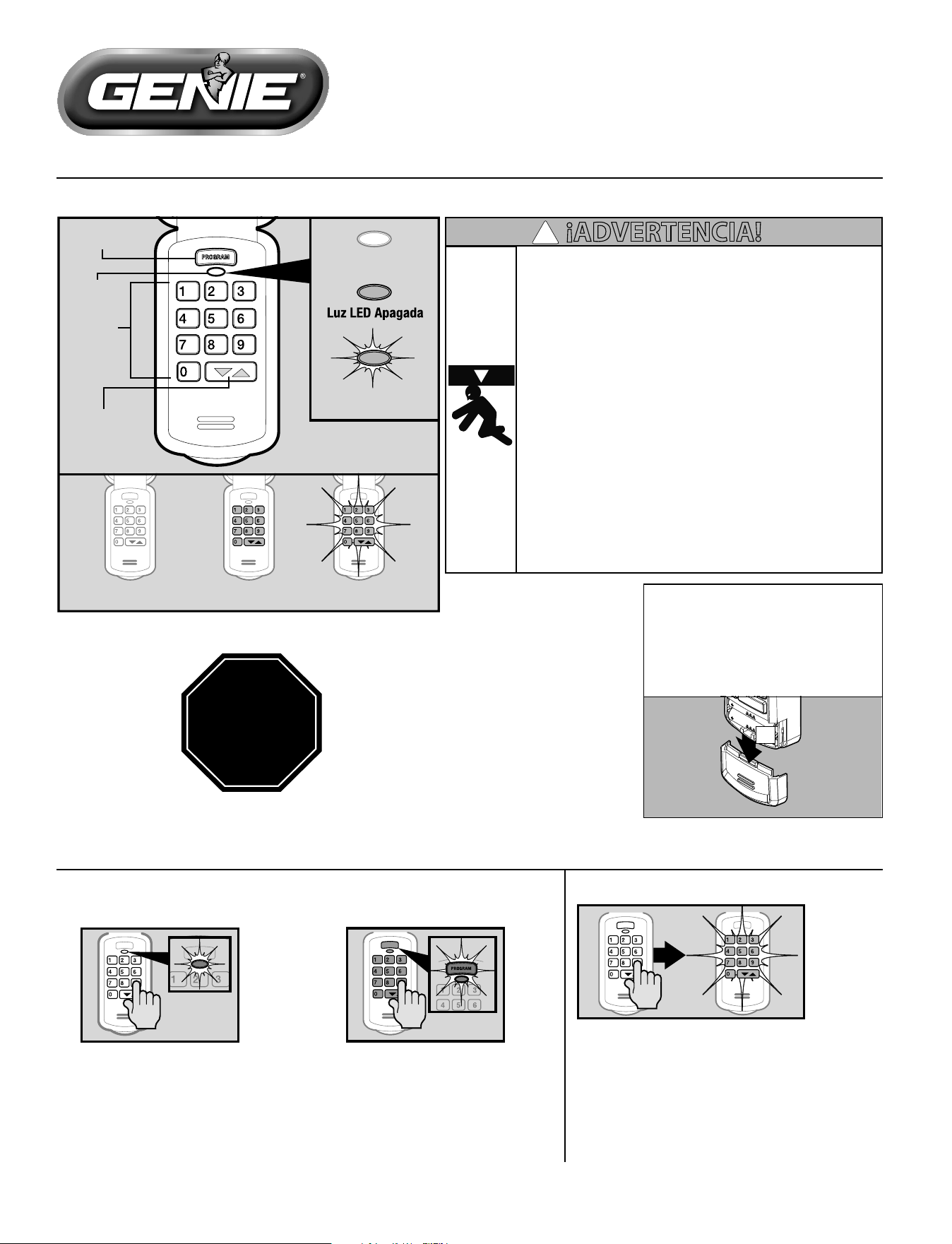

Wireless Keypad Instructions
It is recommended to complete programming before mounting keypad
Keypad
Up/DownKey
(enter)
ProgramKey
LED
LEDO
LEDOn
LEDFlashing
KeypadO
KeypadOn KeypadFlashing
Keypad LED’s
Successful Entries Failed Entries
SAVE THESE
INSTRUCTIONS
FOR FUTURE
USE
WARNING
!
MOVING DOOR CAN CAUSE SERIOUS
INJURY OR DEATH.
•DO NOT install transmitter (keypad) unless the door operator’s
safety device works as required by the door operator’s manual.
•Wall Console must be mounted in sight of door, at least 5 feet
above oor and clear of moving door parts.
•Keep people clear of opening while door is moving.
•DO NOT allow children to play with the transmitter or door
operator.
If safety reverse does not work properly:
•Close door then disconnect opener using the manual release
handle.
•DO NOT use transmitter or door operator.
•Refer to Door and Door Opener Owner’s Manuals before
attempting any repairs.
AVERTISSEMENT
!
DÉMÉNAGEMENT PORTE PEUT CAUSER DES
BLESSURES GRAVES OU LA MORT.
•NE PAS installer le transmetteur (clavier) à moins que le dispositif
de sécurité de l’opérateur de porte ne fonctionne comme l’exige le
manuel d’utilisation de la porte.
•Console murale doit être monté en vue de la porte d’au moins 5
pieds au-dessus-de-chaussée et claire des pièces mobiles de la
porte.
•Garder les personnes clair de l’ouverture lorsque la porte est en
mouvement.
•Ne pas laisser les enfants jouer le premier match à distance ou la
porte.
Si la sécurité inverse ne fonctionne pas correctement:
•Fermer la porte, puis débranchez moteur à l’aide de la poignée de
déverrouillage manuel.
•Ne pas utiliser d’ouverture à distance ou la porte.
•Reportez-vous à la porte et ouvre-porte de propriétaires manuels
avant de tenter toute réparation.
Keypad LED will ash each time
a key is pressed and entry is
accepted.
Keypad LED and PROGRAM key
will ash slowly and number pad
back light will remain on for 15
seconds indicating a successful
program or valid PIN has been
entered.
Keypad LED, PROGRAM key and
number pad back light will ash
rapidly indicating a problem with
programming or an invalid PIN entry.
• Wait 15 seconds until back lighting
shuts o and enter a valid PIN or
reset keypad to reprogram.
FCC Part 15.21 Statement:
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
FCC / IC Statement:
This device complies with FCC Part 15 and Industry Canada licence-
exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Single Door Operation:
1. Ensure number pad back lighting is o.
2. Enter PIN number.
3. Press the UP/DOWN key.
4. Opener will operate.
Multi-Door Operation:
1. Ensure number pad back lighting is o.
2. Enter PIN number.
3. Press the UP/DOWN key.
4. Press number key corresponding with desired door
(1, 2, or 3).
5. Desired opener will operate.
Changing an Existing PIN:
1. Enter current PIN
2. Press PROGRAM key once.
3. Enter new PIN.
4. Press PROGRAM key once.
• Original PIN will no longer operate keypad or opener.
ADDITIONAL (OPTIONAL) PROGRAMMING:
Setting a Temporary PIN:
A temporary PIN allows temporary access to the garage by,
normally unauthorized, personnel such as repairmen or
neighbor.
1. Enter current PIN.
2. Press PROGRAM key 3 times.
3. Enter a temporary PIN (3 to 8 digits)
4. Press PROGRAM key once.
• The Temporary PIN will operate garage door opener until
the original PIN is used. Use of the original PIN will delete
temporary PIN.
For questions, comments or troubleshooting, contact The
Genie Company at:
1 Door Drive, Mount Hope Ohio, 44660
or call 1-800-354-3643 or visit our website at:
www.GenieCompany.com
Keypad MUST be mounted within sight of the garage
door(s) at least 5 feet above oor and clear of any moving
door parts.
• Programming will not be lost during battery removal.
1. Remove battery cover and batteries.
2. Drill a 3/32” pilot hole for the top mounting screw.
3. Install included screw into pilot hole, leaving 1/8” gap
between the screw head and wall.
4. Hook the slotted mount on back of keypad over the
screw.
Wall
1/8"
Screw
head gap
5. Mark and drill a 3/32” pilot hole for the bottom screw
and secure keypad to the wall. (Do not over-tighten).
6. Reinstall batteries.
If the keypad back-lighting fails to operate, Batteries may
require replacement.
• Programming will not be lost during battery change.
1. Remove battery cover and batteries.
2. Replace batteries with same type alkaline (AAA) and check
for proper direction of (+) and (-) terminals.
Rechargeable batteries are NOT recommended.
01/2017
STEP 3) OPERATING THE KEYPAD WITH THE OPENER(S)

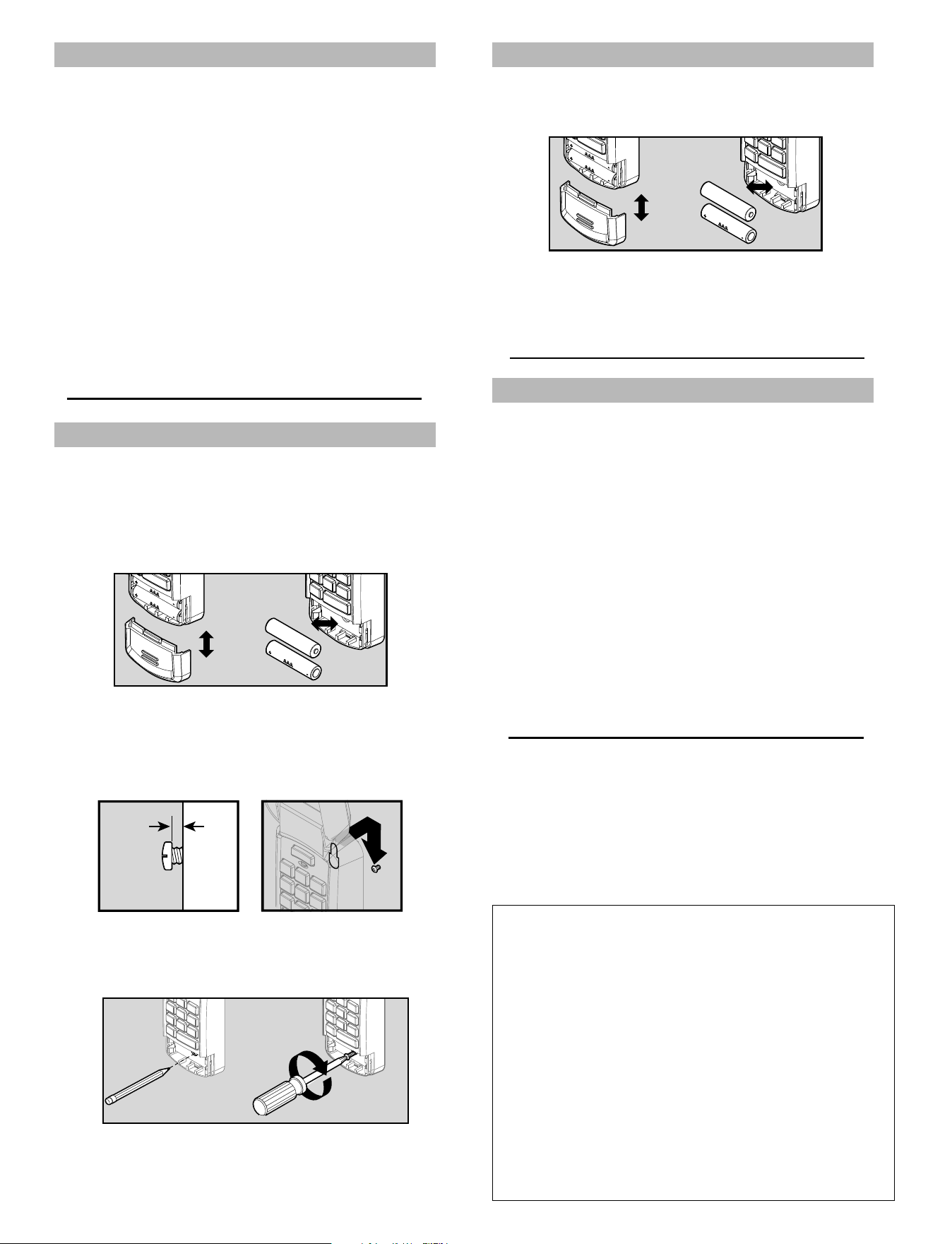

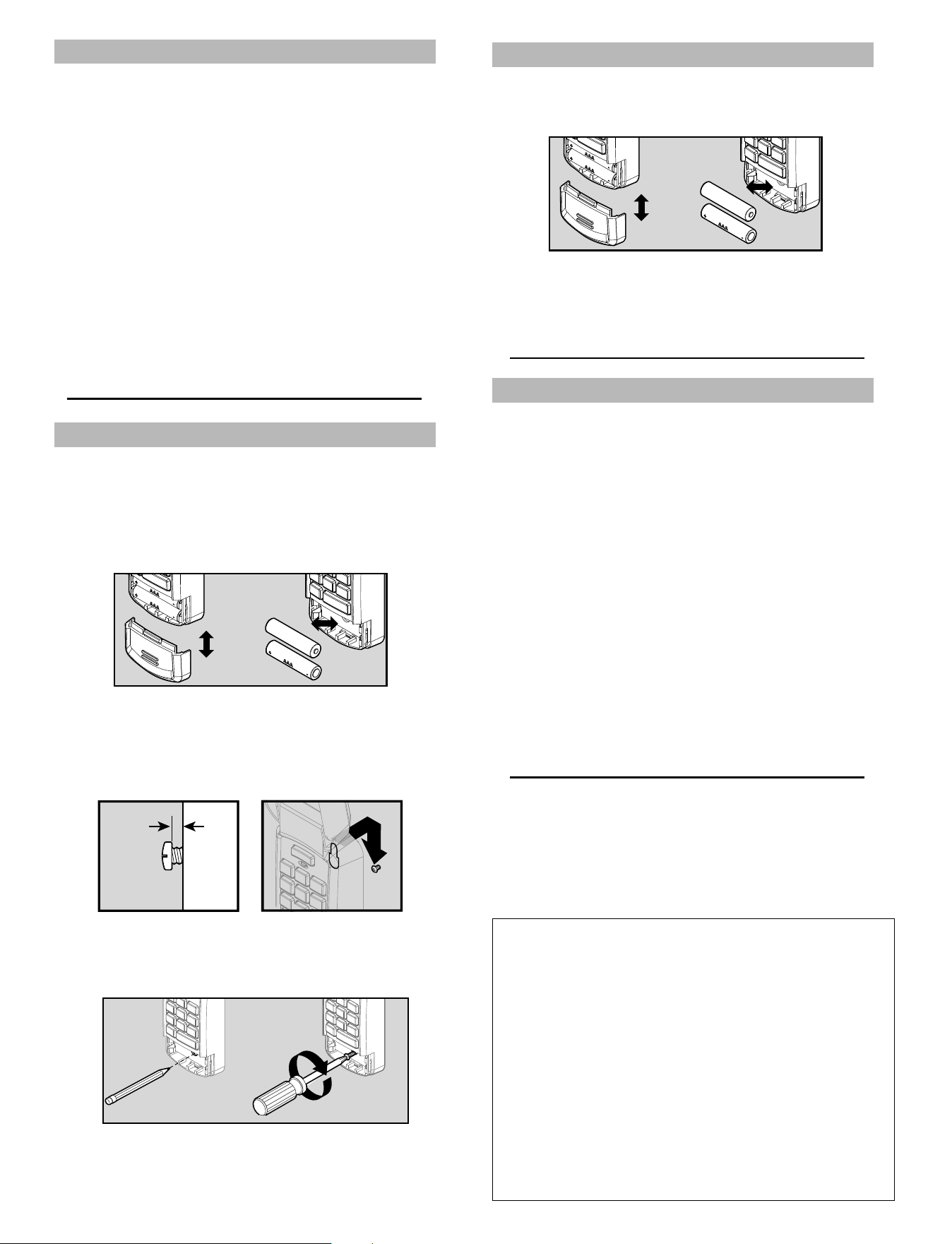

STEP 4) MOUNTING THE KEYPAD
* RESETTING THE KEYPAD (FACTORY DEFAULT):
If the keypad has already been programmed or at any
time the programming should be erased and started from
the factory default, follow these steps.
1. Ensure that number pad back lighting is o.
2. Press and hold the PROGRAM and UP/DOWN Keys
together for approximately 5 seconds.
3. The LED will ash twice and all lights will go out
indicating the keypad has been reset.
4. Start at STEP 1 to program a new PIN number.
Program the keypad for the rst time* with a Personal
Identication Number (PIN). This PIN must be 3 to 8 digits.
1. Ensure number pad back lighting is o.
2. Press 3-5-7 in sequence.
3. Press PROGRAM key. LED will blink once per second.
4. Enter a PIN number (3-8 digits).
5. Press PROGRAM key. LED will blink twice and shut o.
• The keypad is now programmed with a PIN number and
ready to program to the garage door opener(s).
• See STEP 2A to program 1 Opener.
• See STEP 2B PROGRAMMING FOR MULTIPLE OPENERS if
using keypad to operate up to 3 doors.
• If LED did not blink twice and shut o, please see
RESETTING THE KEYPAD (FACTORY DEFAULT) section.
STEP 1) PROGRAMMING A PIN NUMBER
1. Place garage door opener into PROGRAMMING MODE
as illustrated in the column to the right.
2. Ensure number pad back lighting is o.
3. Enter the PIN number on keypad.
4. Press the UP/DOWN key 3 to 4 times slowly until
garage door opener operates.
• This completes the programming of a single door. See
STEP 3 SINGLE DOOR OPERATION for further instruction.
STEP 2A) PROGRAMMING THE KEYPAD TO 1 OPENER
-OR-
Program the keypad with a Personal Identication
Number (PIN) as described in step 1. Then follow these
additional steps.
1. Ensure number pad back lighting is o.
2. Enter PIN as programmed in STEP 1.
3. Press PROGRAM key twice. LED will blink once per
second.
4. Enter total number of openers that keypad will be
operating. (2 or 3).
5. Press PROGRAM key once. LED will blink twice and shut
o.
• NOTE: Only one PIN number can be used.
• The keypad is now programmed with a PIN number and
set up for multi opener operation. Keypad is now ready
to program to multiple garage door openers.
• If LED did not blink twice and shut o, please see
RESETTING THE KEYPAD (FACTORY DEFAULT) section.
STEP 2B) PROGRAMMING THE KEYPAD FOR MULTIPLE
OPENERS (UP TO 3)
1. Place desired garage door opener (1, 2, or 3) into
PROGRAMMING MODE.
2. Ensure number pad back lighting is o.
3. Enter the PIN number on keypad.
4. Press the UP/DOWN key once.
5. Press the number of the desired door (1, 2 or 3).
6. Press the UP/DOWN key 3-4 times slowly until garage
door opener operates.
• Repeat steps 1 through 6 to program second and third
openers.
• This completes programming of multiple doors. See STEP 3
MULTI-DOOR OPERATION for further instruction.
PROGRAMMING THE KEYPAD TO MULTIPLE OPENERS (UP TO 3)
For use with Intellicode® garage door openers
Keypad Overview
Activate keypad by opening battery
compartment and pull protective
tab. Reinstall compartment door to
begin programming.
TAB
NOTE: Keypad will remain active for 15 seconds after a
successful entry is made. During this 15 seconds ANY key will
operate the opener.

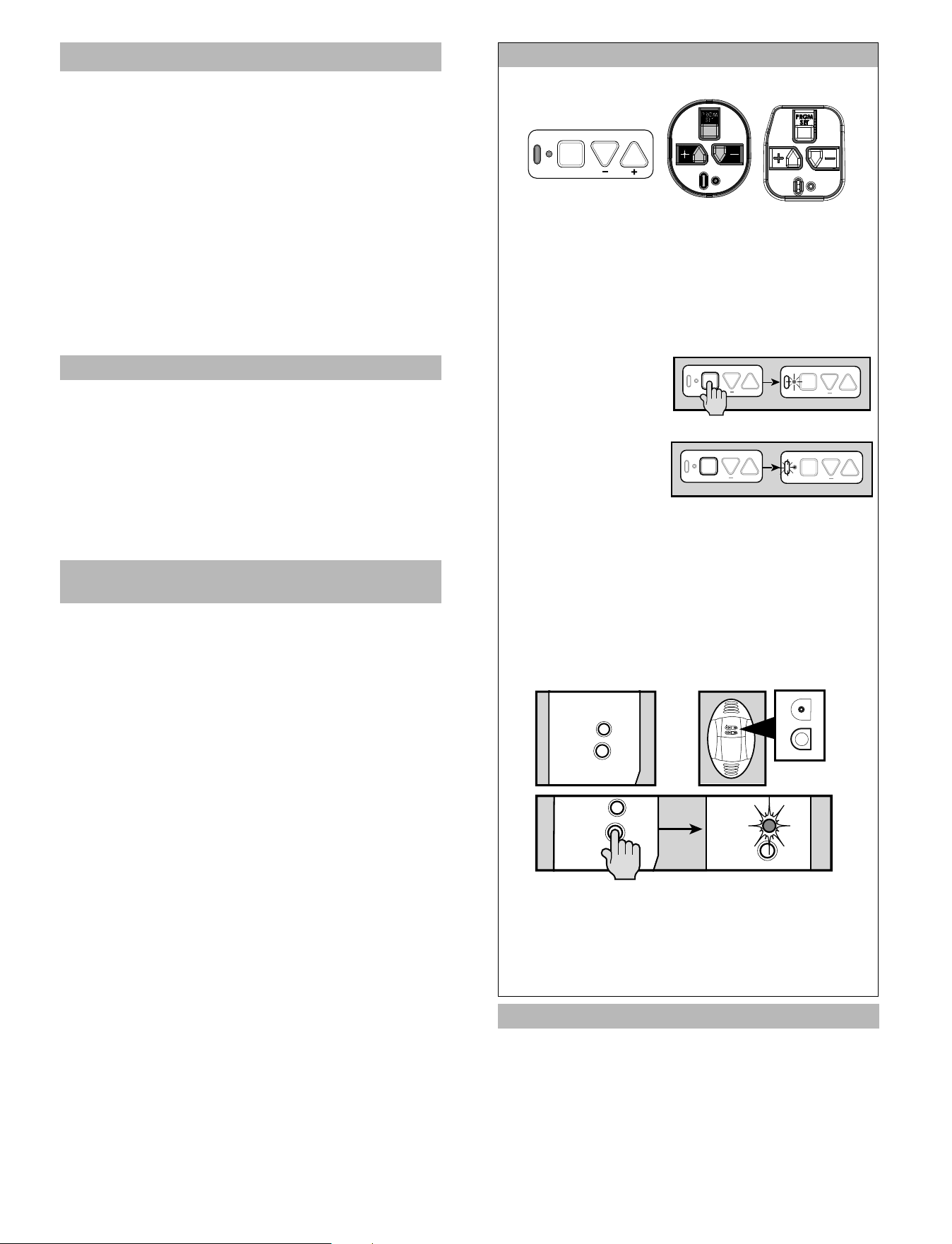

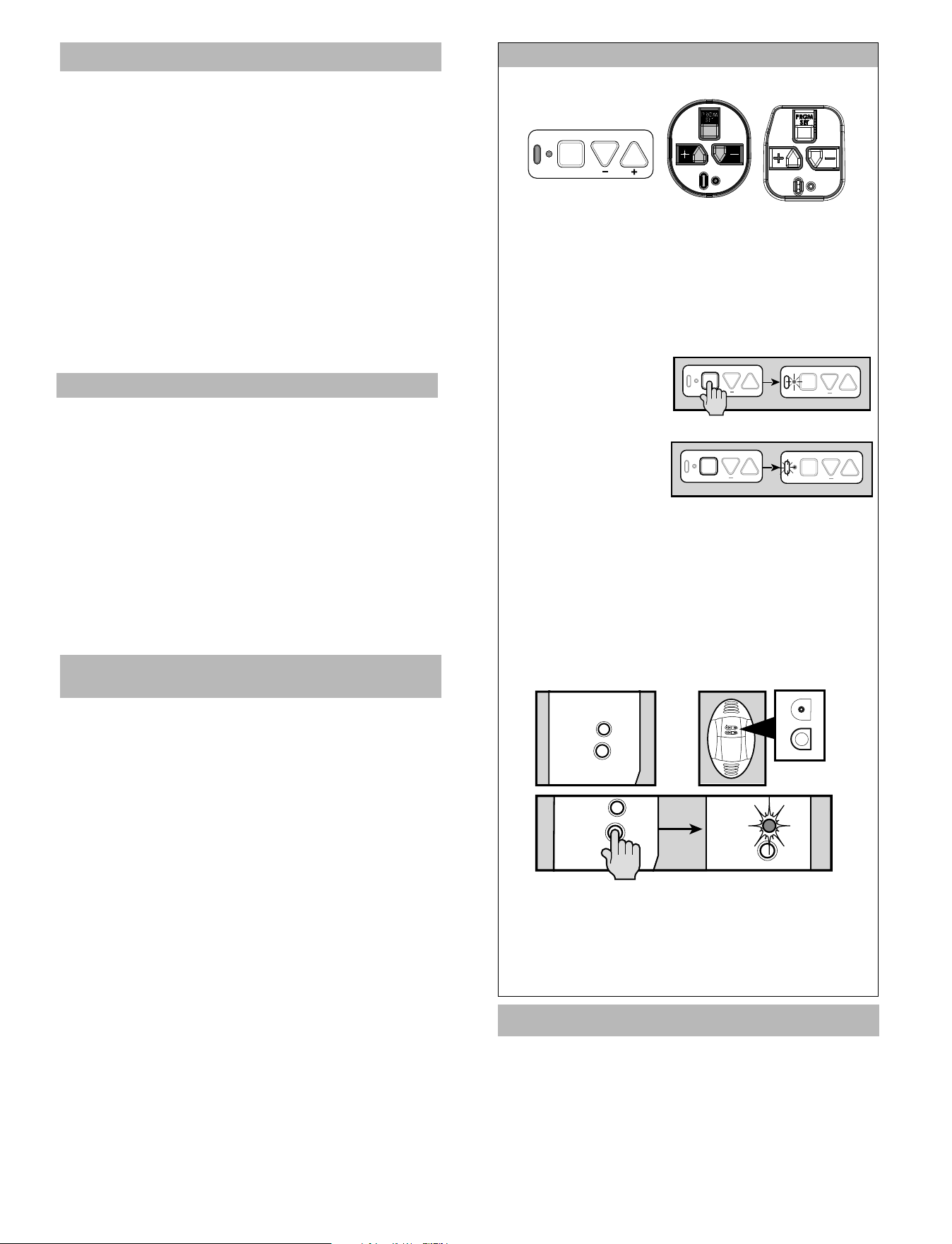

Current Production Openers
1. Press and hold the program button until the round
LED turns blue, then
release.
PROGRAM
SET
+
PROGRAM
SET
+
2. The round LED will go out and the long LED will begin
ashing purple.
3. Return to STEP 2A
or 2B.
PRGM
SET
TYPE 1 TYPE 2 TYPE 3
There are 3 types of programming button pads. Type 1
is shown in these steps. All buttons perform the same
function and programming is the same for all types shown
above.
Place operator into programming mode: TYPE 1-2-3
Openers manufactured between 1995 to
2011 and all external receivers
RADIO
SIGNAL
LEARN
CODE
CODE
LEARN
SET
SET
OPEN
FORCE
CLOSECODE
LEARN LIMITMANUAL
or
RADIO
SIGNAL
LEARN
CODE
RADIO
SIGNAL
LEARN
CODE
1. Press & release Learn Code button once. The red LED
will begin to ash.
Place operator into programming mode:
NOTE: Learn Code Buttons are normally located under lens
covers on earlier models.
PUTTING OPENER INTO PROGRAMMING MODE:
NOTE: The openers LEARN LED will time
out in 30 seconds. Programming must be
completed within 30 seconds.
-OR-
PROGRAM
SET
+
PROGRAM
SET
+
2. Return to STEP 2A or 2B.
REPLACING BATTERIES
Scan this code with a QR code reader app
on a smart device to view a video of these
instructions. Or visit www.GenieComany.com
