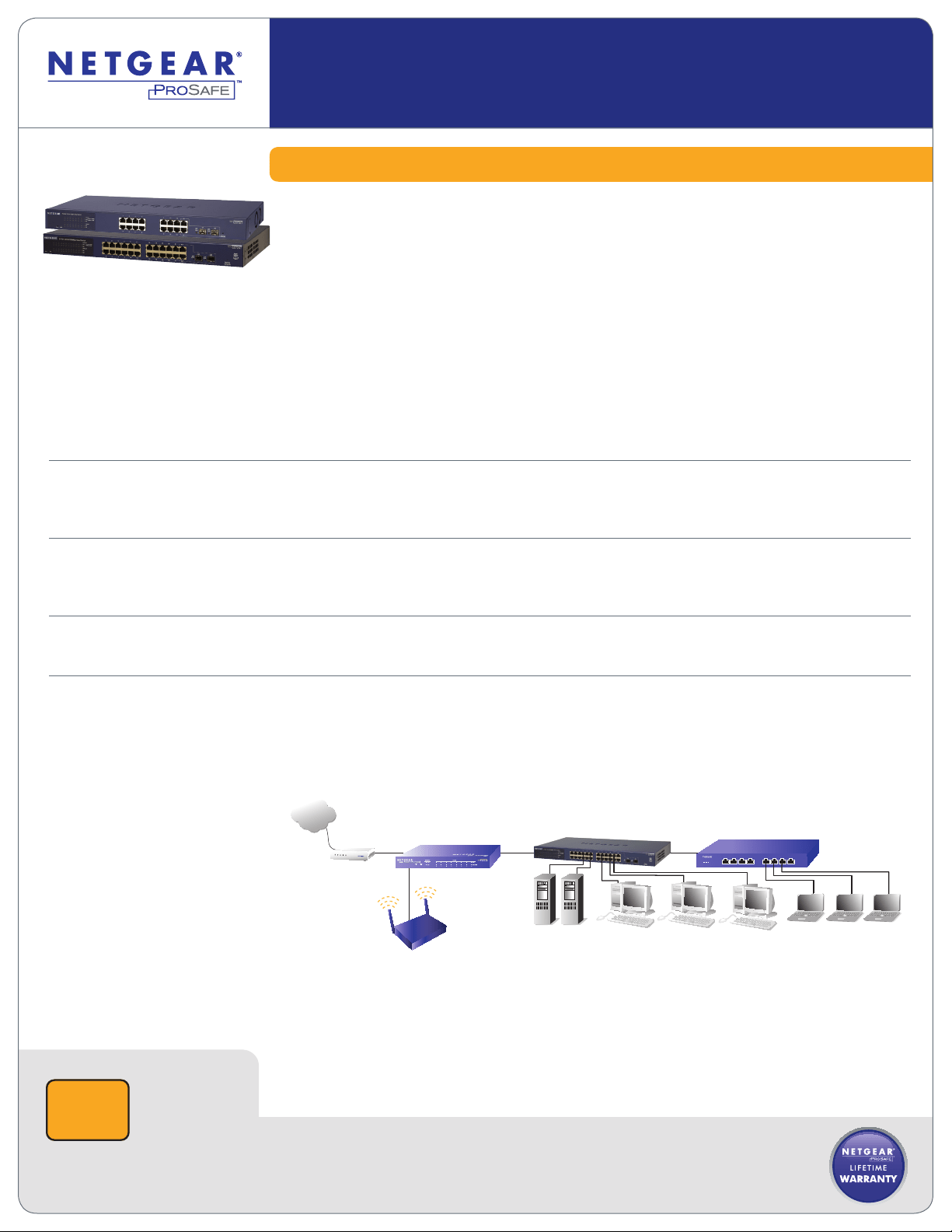

ProSafe™ 16- and 24-Port Gigabit
Smart Switches Data Sheet
GS716T, GS724T
Management at an Unmanaged Price
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra
cost, these 16- and 24-port Gigabit switches are high on value and capability. With 16 or 24
10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-
duplex mode, plus two optional fiber ports, it provides fast backbone and connects servers or
power users, delivering large amounts of multimedia, image, and video information in no time
at all. Ideal for combining 10, 100, and 1000 Mbps devices it delivers 10/100/1000 automatic
speed and full/half-duplex sensing plus Auto Uplink™ on every port. Two hot-swappable Small
Form factor Pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance.
In addition, an intuitive, Web-browser interface offers the simple Smart Switch management,
making it a snap to monitor switch performance, configure ports, even set up port trunks,
VLANs, and traffic prioritization. Alternatively, use SNMP-based software to manage your Smart
Switch. Shipped ready for use straight out of the box, it delivers switching that’s easy to set up
and use. NETGEAR ProSafe Smart Switches are ideal for adding basic management to your
unmanaged networks and extending your managed networks.
High Powered
Sixteen or 24 10/100/1000 ports deliver non-blocking, full-speed packet forwarding with
48 Gbps bandwidth migrates your network to future-proof functionality. Two SFP GBIC fiber
slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged
switch. Included are performance monitoring, port configuration, VLAN for traffic control, port
trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost and
complexity of traditional managed switches.
Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made
to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack mounting kit.
**Use with NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC module, ProSafe AGM732F 1000BASE-LX SFP GBIC
module or ProSafe AGM733 1000BASE-ZX SFP GBIC.
Desktop PCs
Notebook PCs
FVS328 ProSafe VPN Firewall
with Dial Back-up and 50
VPN Tunnels
WG302 ProSafe 802.11g
Wireless Access Point
GS724T 24-port Gigabit
Smart Switch
GS108 8-port
Gigabit Switch
Broadband
Modem
POWER
CABLE
STATUS
ETHERNET
USB
B
r
oadband Ca ble Mo dem
Internet
Servers
ProSafe™ 16- and 24-Port Gigabit Smart Switches GS716T, GS724T
Technical Specifications
Network Protocol and Standards
Compatibility
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit
Ethernet
IEEE 802.3x full-duplex flow control
Interfaces
GS724T: 24 RJ-45 connectors for
10BASE-T, 100BASE-TX, and 1000BASE-T
(Auto Uplink on all ports)
GS716T: 16 RJ-45 connectors for
10BASE-T, 100BASE-TX and 1000BASE-T
(Auto Uplink on all ports)
2 SFP slots for fiber Gigabit
Ethernet modules
Administrative Switch Management
IEEE 802.1D Spanning Tree Protocol
RFC 1157 SNMP v1, v2c
RFC 1213 MIB II
RFC 1643 Ethernet Interface MIB
RFC1493 Bridge MIB
Private Enterprise MIB
Jumbo Frame Support
(up to 9216 bytes)
IEEE 802.1Q Tag VLAN
(up to 64 Static VLAN groups)
Port-based VLAN (up to 24 groups)
IEEE 802.1p (Class of Service)
Diffserv
Port-based QoS (options High/Normal)
Port Trunking - Manual as per
IEEE802.3ad Link Aggregation
DHCP client function
Port mirroring (many to one)
Port setting
Web-based configuration, anywhere
on the network
Smartwizard Discovery Utility
program auto discovers devices (up
to 254 agents/switches); set system
configuration to each agent
Configuration Backup/Restore (easy to
configure more than one switch)
Password access control and Restricted
IP Access List
Firmware upgradeable
Active Flow Control
Full-duplex IEEE 802.3x pause frame
flow control
Half-duplex back-pressure control
•
–
–
–
–
•
–
–
–
•
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
•
–
–
Performance Specifications
Forwarding modes: Store-and-forward
Bandwidth: GS724T = 48 Gbps,
GS716T = 32 Gbps
Network latency: Less than 20 µs for 64-
byte frames in store-and-forward mode
for100 Mbps to 100 Mbps transmission
Buffer memory: 256 KB embedded
memory per unit
Priority Queues: 4
Priority Queuing: Weighted Round
Robin (WRR)
Address database size: 8,000 media
access control (MAC) addresses
per system
Addressing: 48-bit MAC address
Mean Time Between Failure (MTBF):
GS724T = 115,221 hours (~ 13 years),
GS716T = 65,789 (~7.5 years)
Acoustic Noise:
- GS724T = 41 dBA
- GS716T = 42.5 dBA
LEDs
Unit: power
Per port: link, activity, speed, duplex
Power Supply
Power Consumption: 29 W maximum
100-240VAC/50-60 Hz universal input
Physical Specifications
Dimensions (h x w x d):
1.7 x 17.3 x 8.1 in
(43 x 440 x 205 mm)
Weight: 5.9 lb (2.7 kg)
Environmental Specifications
Operating temperature:
32° to 104°F (0° to 40° C)
Storage temperature:
-4° to 158°F (-20° to 70° C)
Operating humidity: 90% maximum
relative humidity, non-condensing
Storage humidity: 95% maximum
relative humidity, non-condensing
Operating altitude: 10,000 ft
(3,000 m) maximum
Storage altitude: 10,000 ft
(3,000 m) maximum
•
–
–
–
–
–
–
–
–
–
–
•
–
–
•
–
–
•
–
–
•
–
–
–
–
–
–
Electromagnetic Compliance
CE mark, commercial
FCC Part 15 Class A
VCCI Class A
EN 55022 (CISPR 22)
EN 55024 (CISPR 24)
C-Tick
Safety Agency Approvals
UL listed (UL 1950)/cUL
IEC950/EN60950
CE mark, commercial
CUL 60950 (Listed)/EN60950
(Low Voltage Directive)
System Requirements
Category 5 network cables
Network card for each PC
Network software (e.g., Windows
®
)
Modules
NETGEAR ProSafe AGM731F
1000BASE-SX SFP GBIC Module with
LC connectors for 50um or 62.5um
multi-mode fiber cable
NETGEAR ProSafe AGM732F Fiber
1000BASE-LX SFP GBIC Module with
LC connectors for 9um single-mode
fiber cable
NETGEAR ProSafe AGM733 Fiber
1000BASE-ZX SFP GBIC Module with
LC connectors for 9um single-mode
fiber cable
Warranty
NETGEAR Lifetime Warranty
†
ProSupport™ Service Packs
Available
On Call 24 x 7
PMB0331-100 (US)
PMB0331 (non-US)
Xpress HW
PRR0331
Package Contents
24-port Gigabit Smart Switch (GS724T)
Rubber footpads
Power cord
Rack-mount kit
Smart Switch resource CD
Smart Switch installation guide
Warranty/support information card
•
–
–
–
–
–
–
•
–
–
–
–
–
–
–
–
–
–
–
•
–
–
•
–
–
–
–
–
–
–
–
4500 Great America Parkway
Santa Clara, CA 95054 USA
1-888-NETGEAR (638-4327)
E-mail: [email protected]
www.NETGEAR.com
Ordering Information
GS716T
North America: GS716TNA
Europe: GS716TEU
Asia: GS716TAU
Japan: GS716TJP
GS724T
North America: GS724TNA
Europe: GS724TEU
Asia: GS724TAU
Japan: GS724TJP
•
–
–
–
–
•
–
–
–
–
