Accessories
6
Inserting the batteries
7
Operating range of the remote control unit
7
Features
8
High quality sound
8
High performance
8
Easy operation
10
Part names and functions
11
Front panel
11
Display
14

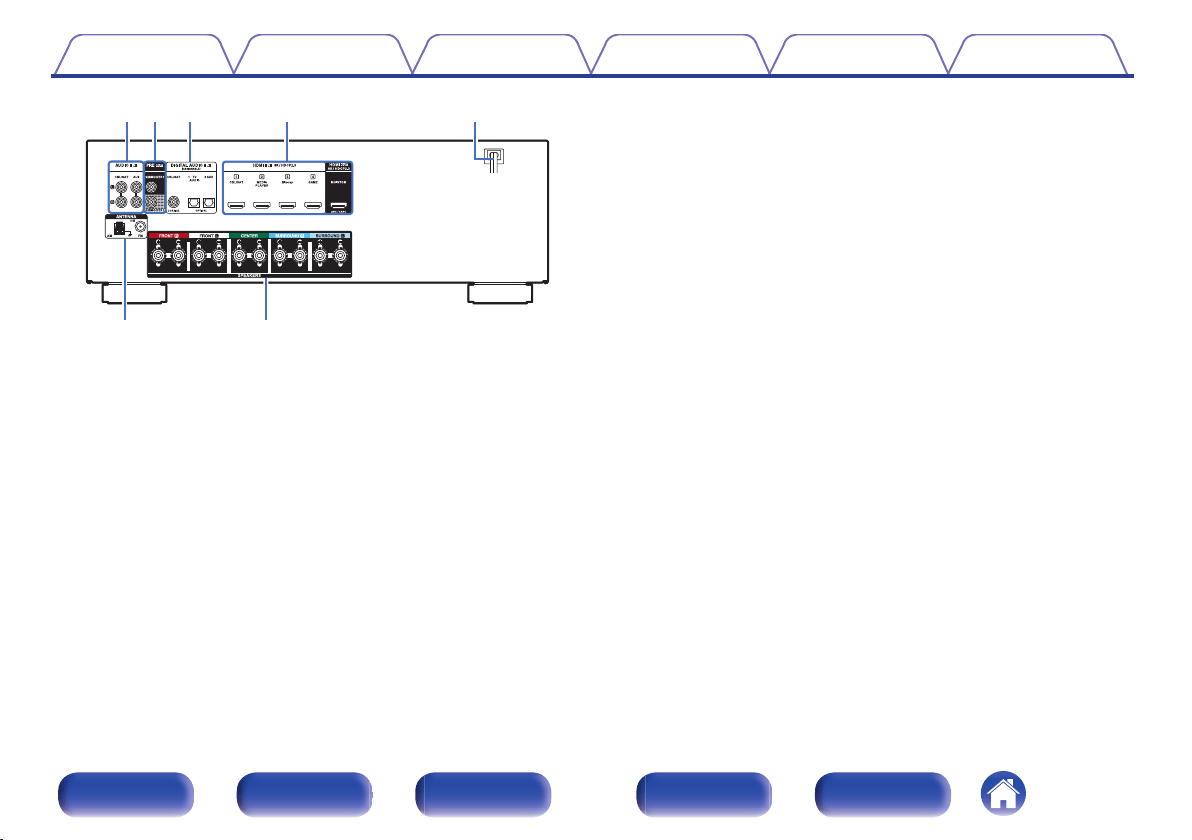

Rear panel
15

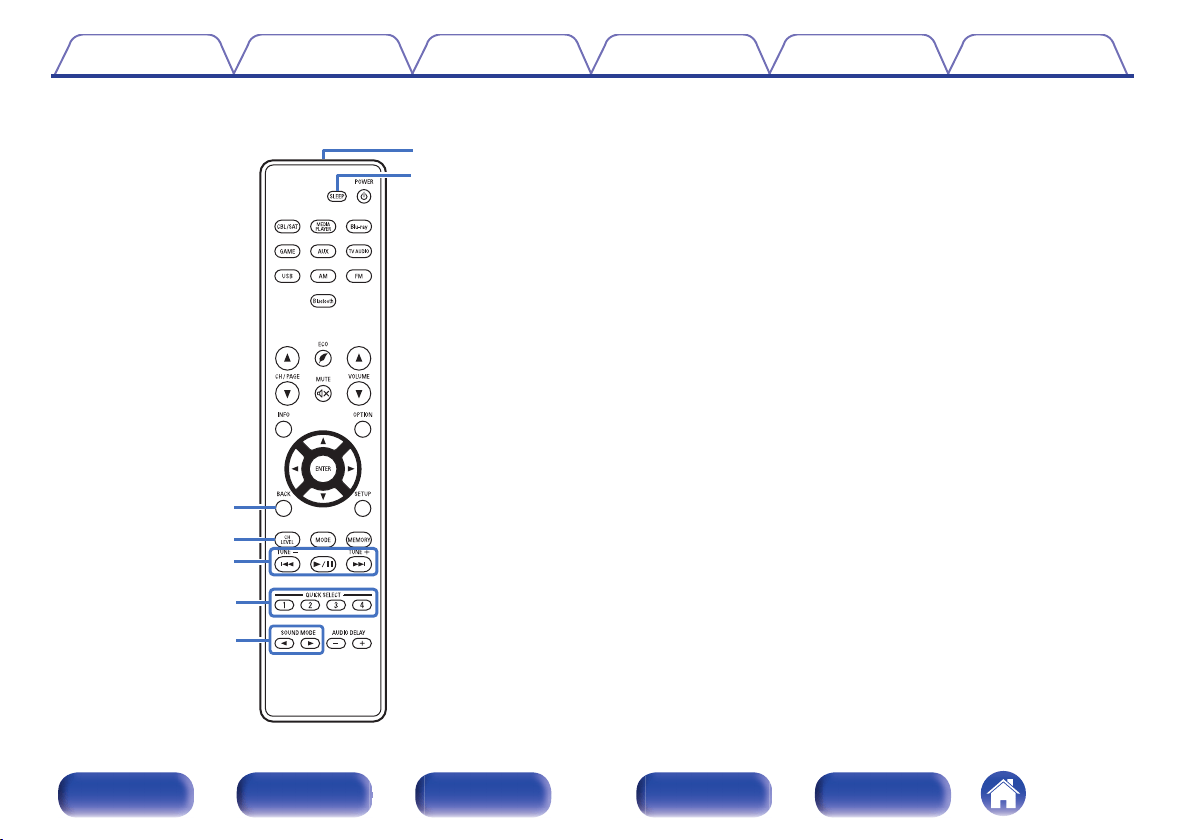

Remote control unit
17
Connections
Speaker installation
21
Connecting speakers
23

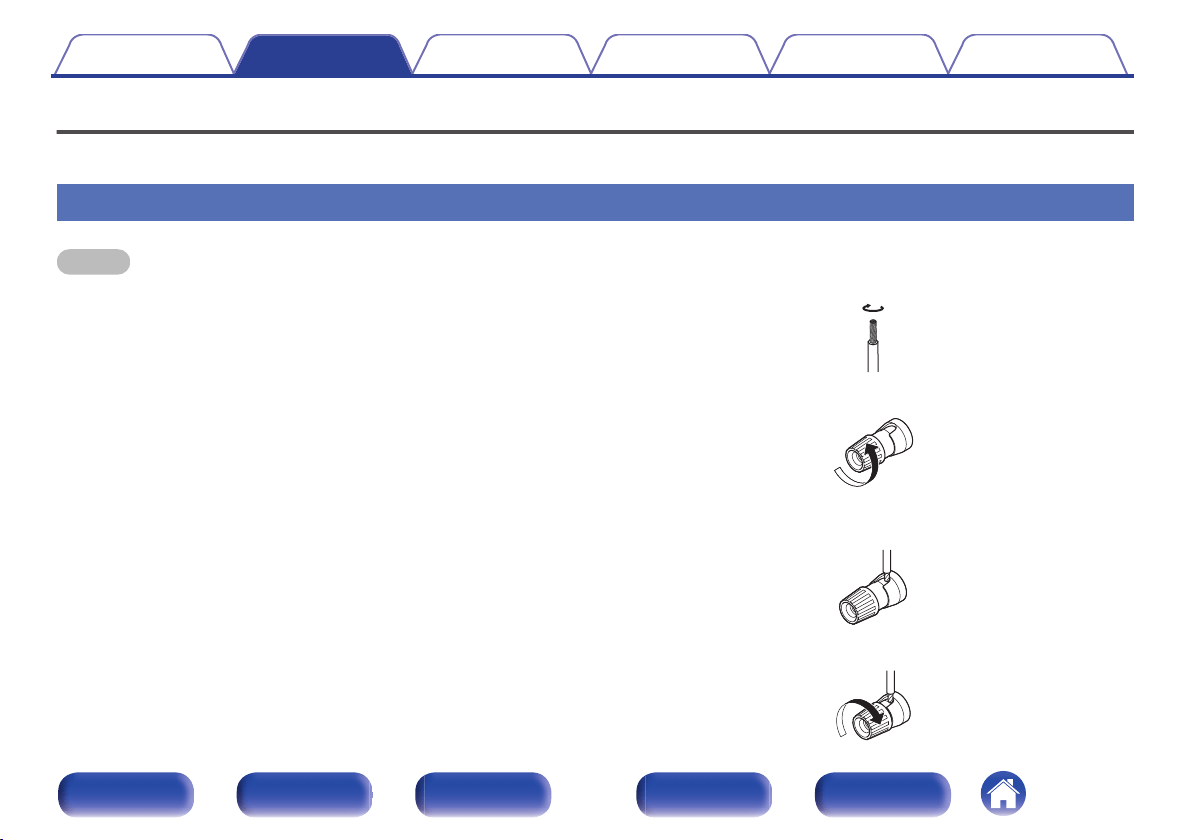

Before connecting speakers
23

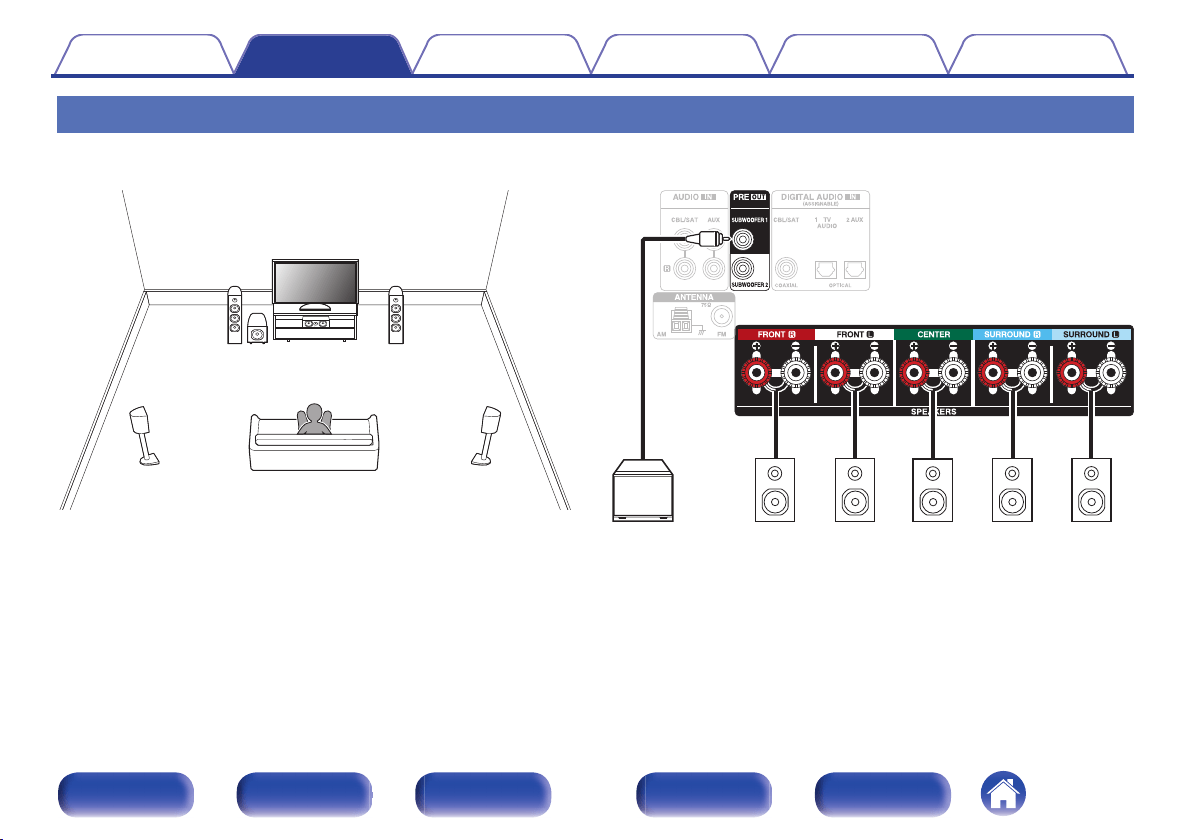

Standard connection
26
Connecting a TV
27

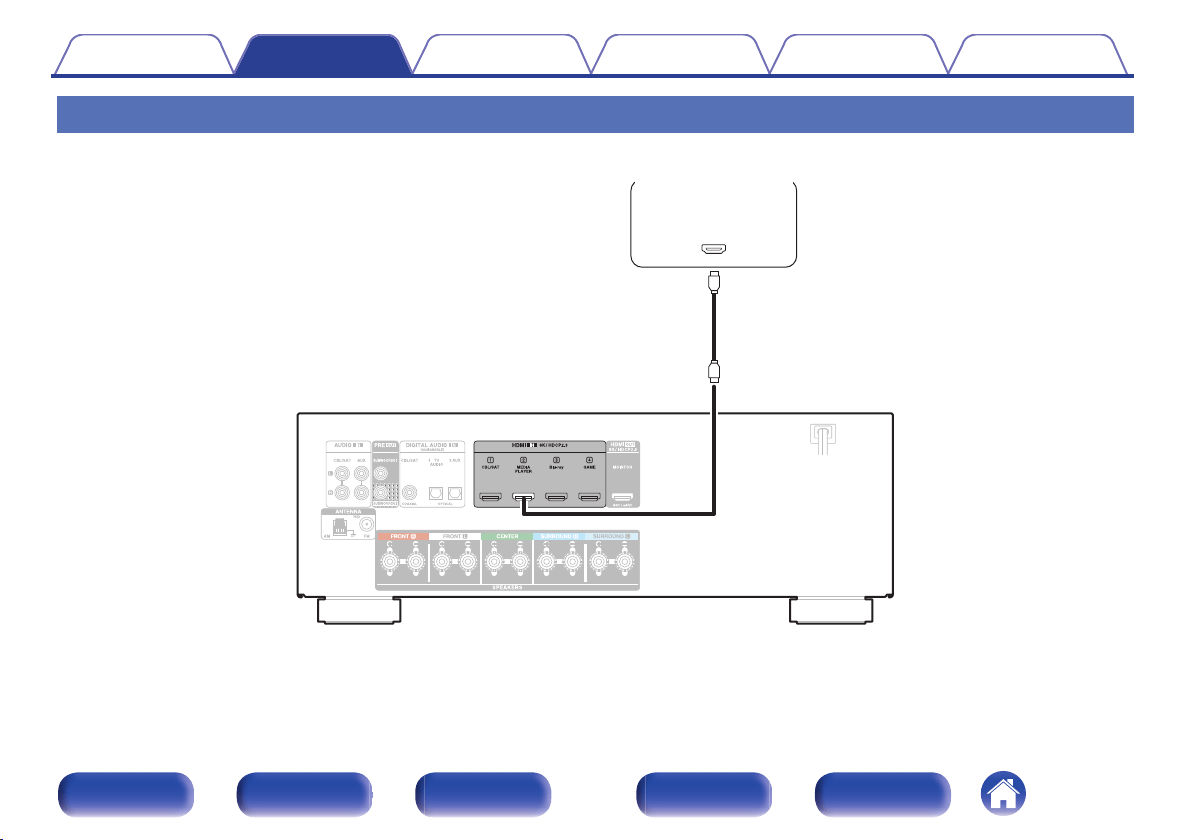

Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC
28
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC
29
Connecting a playback device
30
Connecting a set-top box (Satellite tuner/cable TV)
31
Connecting a media player
32
Connecting a Blu-ray Disc player or DVD player
33
Connecting a game console
34
Connecting a USB memory device to the USB port
35

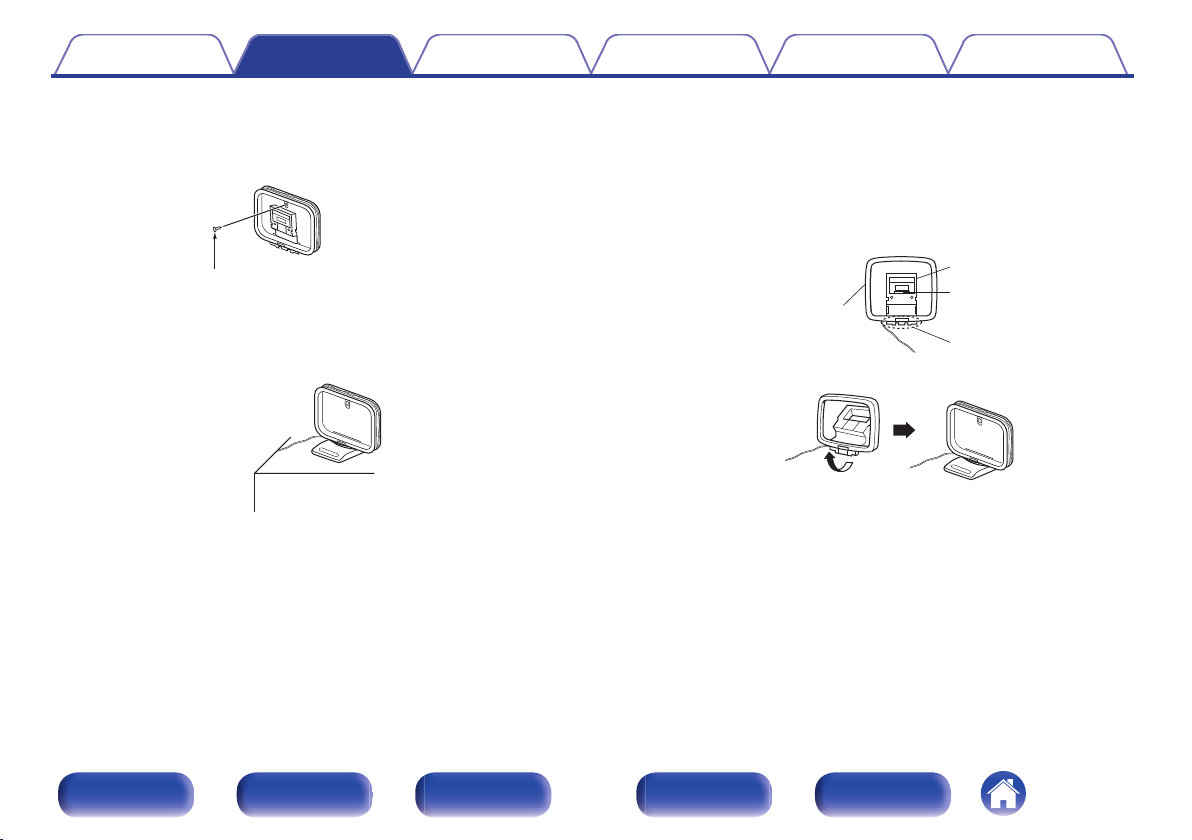

Connecting an FM/AM antenna
36
Connecting the power cord
38
Playback
Basic operation
40
Turning the power on
40
Selecting the input source
40
Adjusting the volume
41
Turning off the sound temporarily (Muting)
41
Playback a Blu-ray Disc player/DVD player
41
Playing a USB memory device
42
Playing files stored on USB memory devices
43
Listening to music on a Bluetooth device
44
Playing music from Bluetooth device
45
Pairing with other Bluetooth devices
47
Reconnecting to this unit from a Bluetooth device
48
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index
Listening to FM/AM broadcasts
49
Listening to FM/AM broadcasts
50
Tuning in to stations and presetting them automatically (Auto
Preset)
51
Presetting the current broadcast station (Preset Memory)
52
Listening to preset stations
52
Skipping preset broadcast stations (Preset Skip)
53
Cancelling Preset Skip
53
Compatible with the “Denon 500 Series Remote” app
54
Convenience functions
55
Performing repeat playback (Repeat)
56
Performing random playback (Random)
56
Adjusting the tone (Tone)
57
Adjusting audio delay (Audio Delay)
58
Optimizing the night time listening volume (Night Mode)
58
Displaying your desired video during audio playback (Video
Select)
59

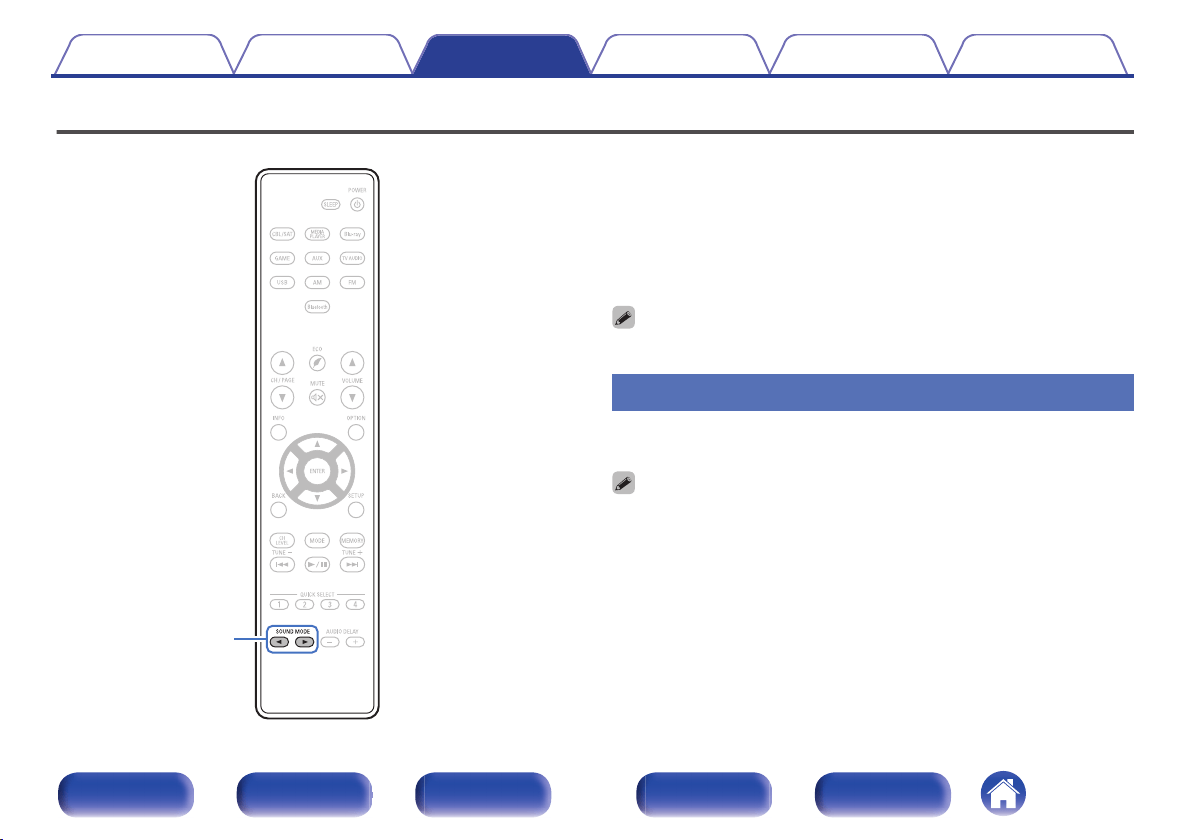

Selecting a sound mode
60
Selecting a sound mode
60
HDMI control function
64
Setting procedure
64
Adjusting the volume of each channel to match the input source
(Channel Level Adjust)
65
Sleep timer function
66
Using the sleep timer
67
Quick select plus function
68

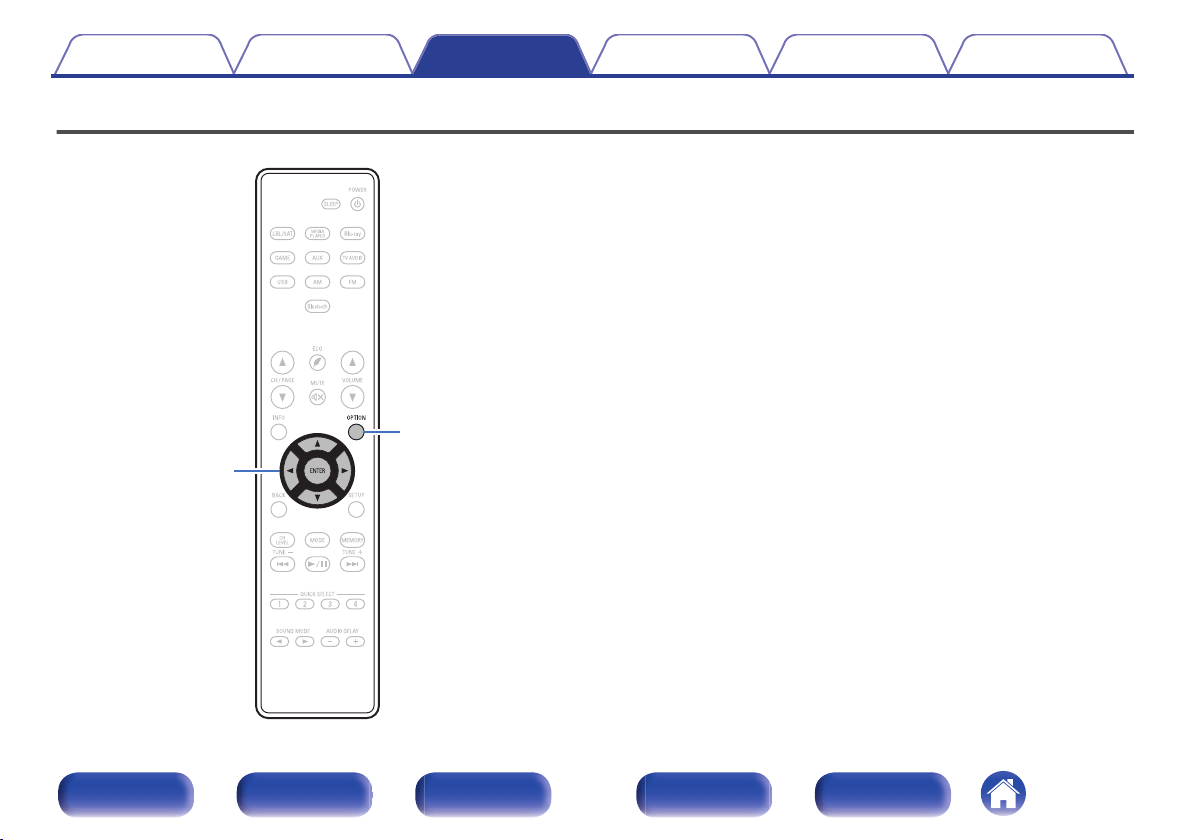

Calling up the settings
69
Changing the settings
69
Settings
Menu map
70
Menu operations
73
Audio
74
Surround Parameter
74
Restorer
77
Volume
78
Room EQ
79
Video
80
HDMI Setup
80
HDMI Upscaler
83
Screen Saver
84
4K/8K Signal Format
84
HDCP Setup
86
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index
Inputs
87
Input Assign
87
Source Level
87
Input Select
88
Speakers
89

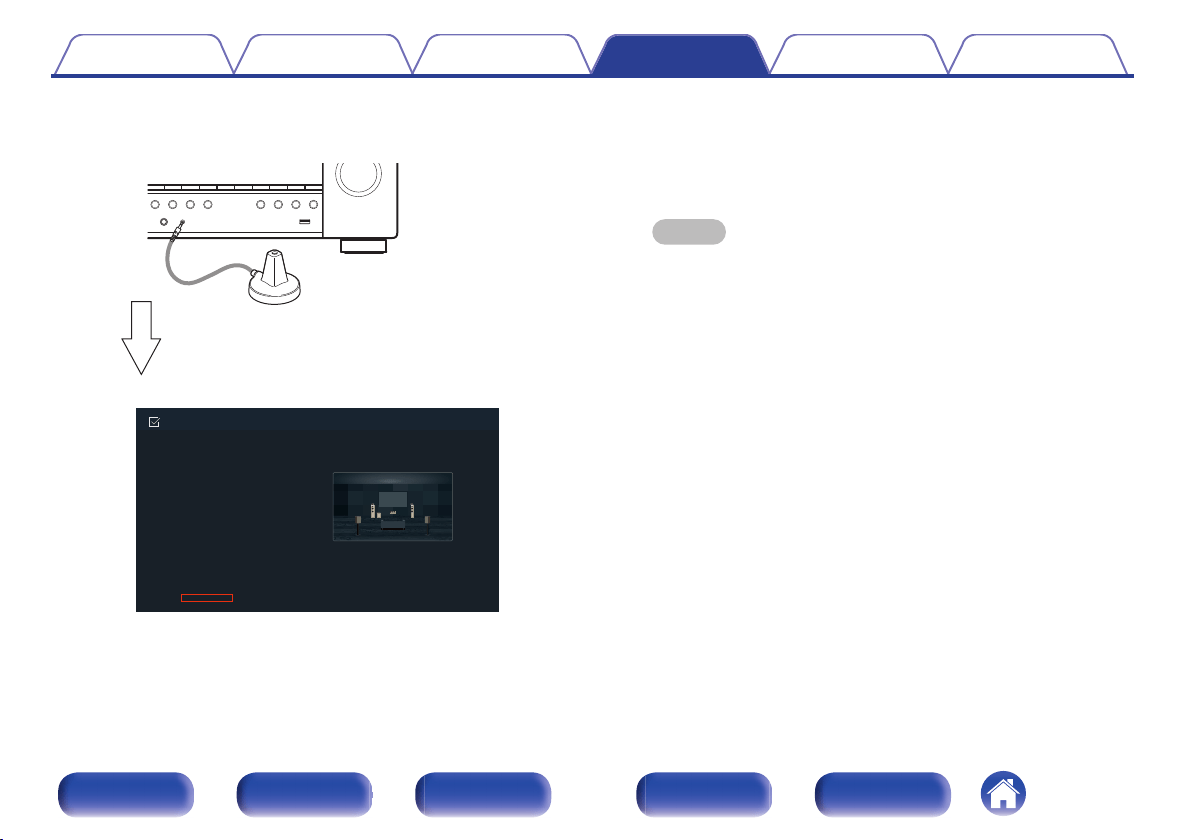

Auto Setup
89
Procedure for speaker settings (Auto Setup)
91
Error messages
93
Manual Setup
94
Speaker Layout
94
Distances
95
Levels
95
Crossovers
96
Advanced Setup
97
General
98
Language
98
ECO
98
Bluetooth
100
Quick Select Options
101
Front Display
102
Firmware
102
Setup Lock
103
Reset
103
Checking the information
104
Tips
Tips
107
Troubleshooting
108
Power does not turn on / Power is turned off
109
Operations cannot be performed through the remote control unit
110
Display on this unit shows nothing
110
No sound comes out
111
Desired sound does not come out
112
Sound is interrupted or noise occurs
114
No video is shown on the TV
115
The menu screen is not displayed on the TV
117
The color of the menu screen and operations content displayed
on the television is different from normal
117
USB memory devices cannot be played back
118
File names on the USB memory device are not displayed properly
119
Bluetooth cannot be played back
119
The HDMI control function does not work
120
Resetting factory settings
121
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index
Appendix
About HDMI
122

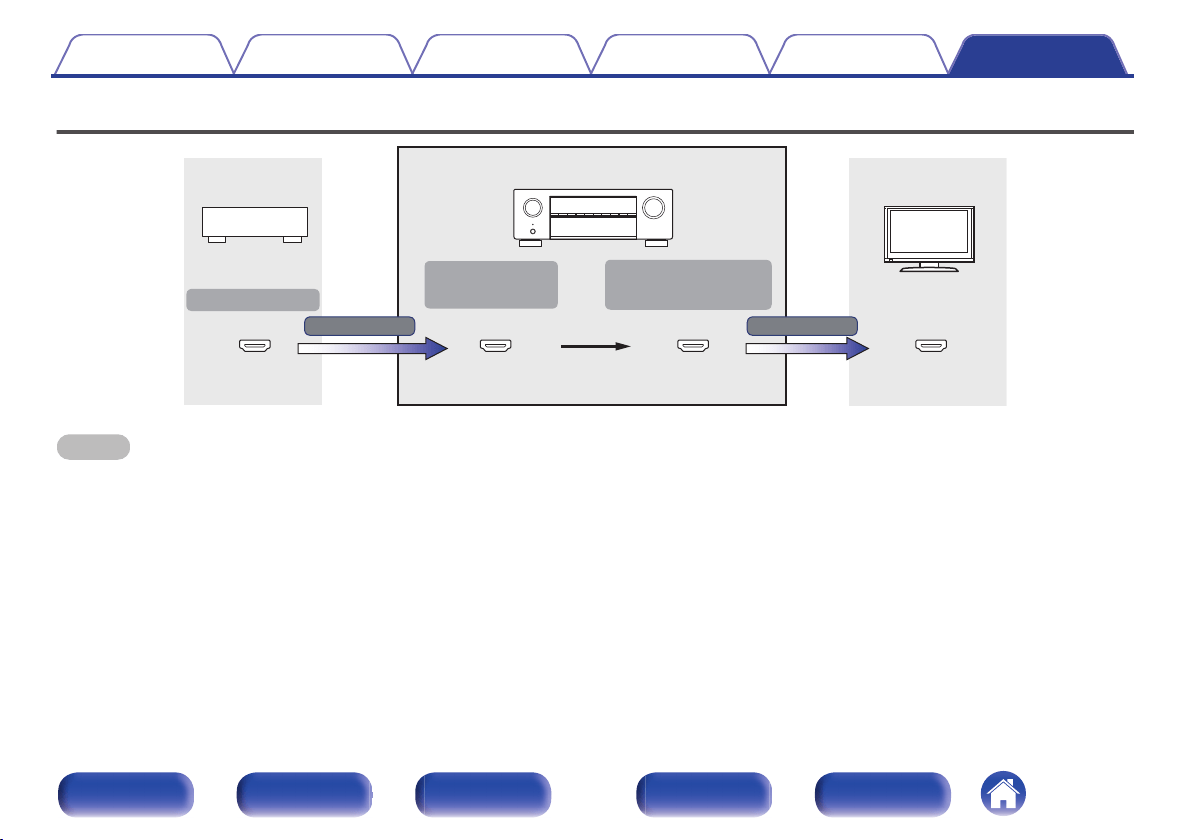

Relationship between video signals and monitor output
126
Playing back a USB memory devices
128
Playing back a Bluetooth device
129
Personal memory plus function
130
Last function memory
130
Sound modes and channel output
131
Sound modes and surround parameters
132
Types of input signals, and corresponding sound modes
133
Explanation of terms
134
Trademark information
139
Specifications
141
Index
145
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
Thank you for purchasing this Denon product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
Cable labelsNotes on radioSafety InstructionsQuick Start Guide
Sound calibration
microphone
AM loop antennaFM indoor antenna
R03/AAA batteries
Remote control unit
(RC-1254)
Warranty
(for North America
model only)
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
2
Insert two batteries correctly into the battery
compartment as indicated.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
Approx. 23 ft/7 m
30°
30°
Contents
Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index
Features
High quality sound
0
With discrete circuit technology, the power amplifier provides
identical quality for all 5-channels (90 Watts x 5-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
High performance
0
8K 60Hz input/output supported
8K,
4K 120Hz
8K,
4K 120Hz
When 8K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 8K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit supports a wide range of HDR content, delivering even higher
definition video.
0
HDCP 2.3
This unit is compatible with HDCP 2.3 copyright protection standard.
Contents
Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
0

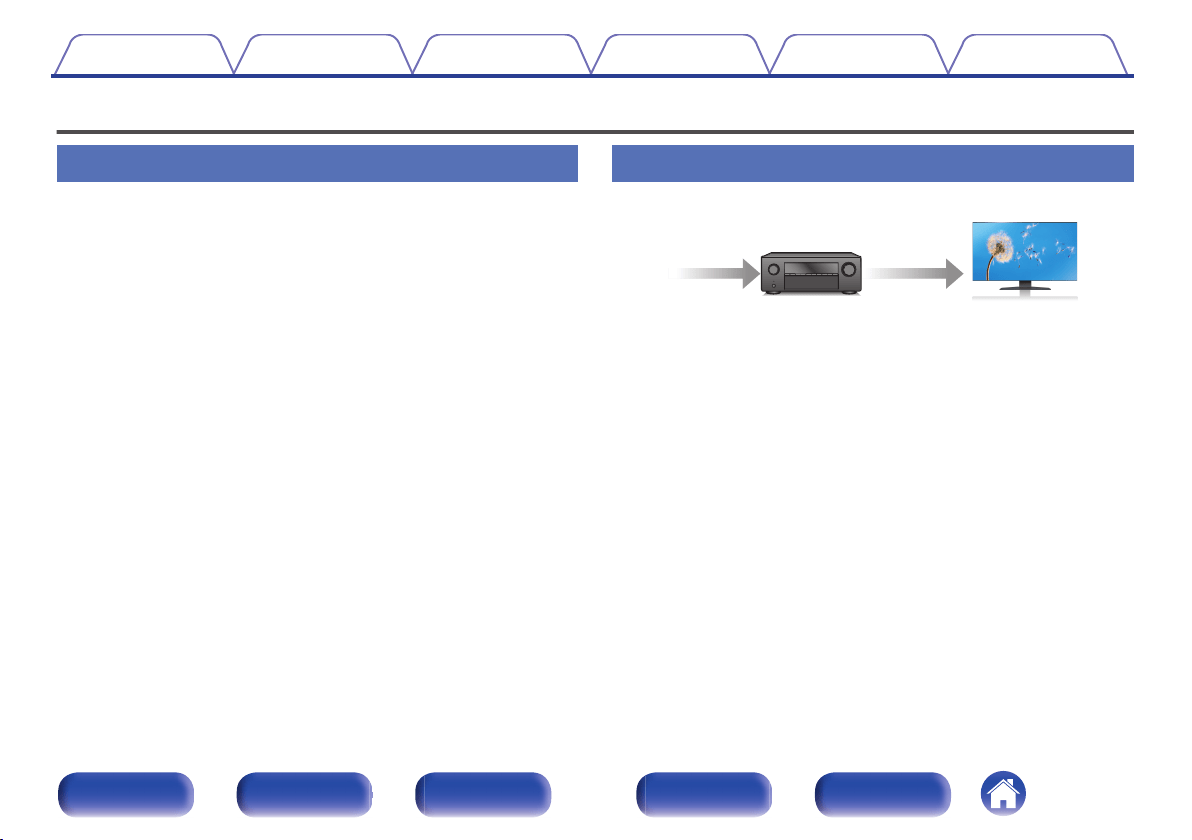

Digital video processor upscales 1080p / 4K to 8K
8K Ultra HD
8K 8K
1080p/4K 60Hz
8K
up scaling
This unit is equipped with a 8K video upscaling function that allows
1080p/4K video to be output via HDMI at 8K (7680 × 4320 pixels)
resolution. This function enables the device to be connected to a TV
using a single HDMI cable, and produces high definition images for any
video source.
0
eARC (Enhanced Audio Return Channel) function compatibility
The eARC function is compatible with conventional ARC function-
compatible audio formats in addition to multichannel linear PCM, Dolby
TrueHD, DTS-HD and other audio formats a conventional ARC function
cannot transmit.
Additionally, connecting to an eARC function-compatible television
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
0
HDMI connections enable connection to various digital AV
devices (4 inputs, 1 output)
41
OutIn
This unit is equipped with 4 HDMI inputs and 1 HDMI output enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders.
Contents
Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
0

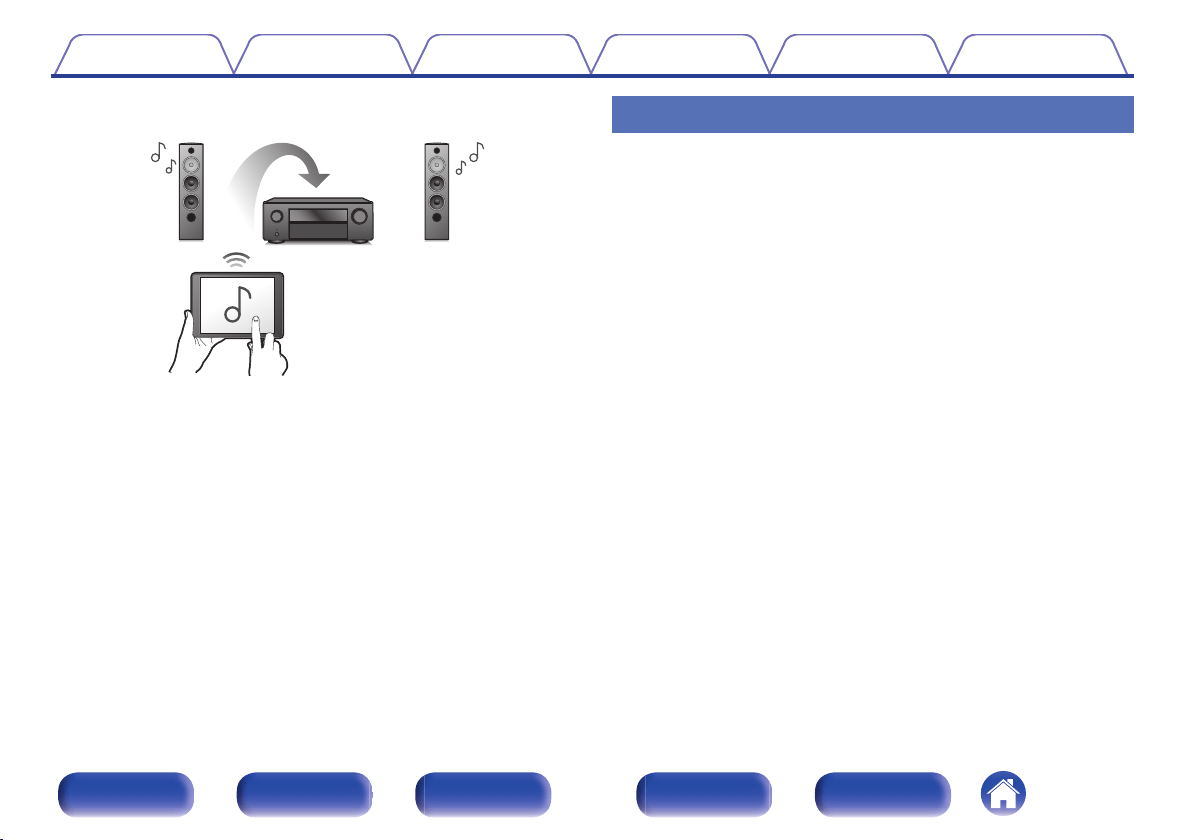

Wireless connection with Bluetooth devices can be carried out
easily (v p. 44)
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0
Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Easy operation
0
“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers etc.
0
Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
0
Compatible with the “Denon 500 Series Remote” app performing
basic operations of the unit with an iPad, iPhone or Android™
devices (Google, Amazon Kindle Fire)
The “Denon 500 Series Remote”
z
application allows you to wireless
control this unit from an iPhone, iPad, Android smartphone or tablet
when paired and connected via Bluetooth. Basic functions include:
Power ON/OFF, volume, mute, and source selection.
z
Download the appropriate “Denon 500 Series Remote” for your iOS or Android
devices. In order to use “Denon 500 Series Remote”, your iOS or Android device
needs to be paired with this unit in advance.
Contents
Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

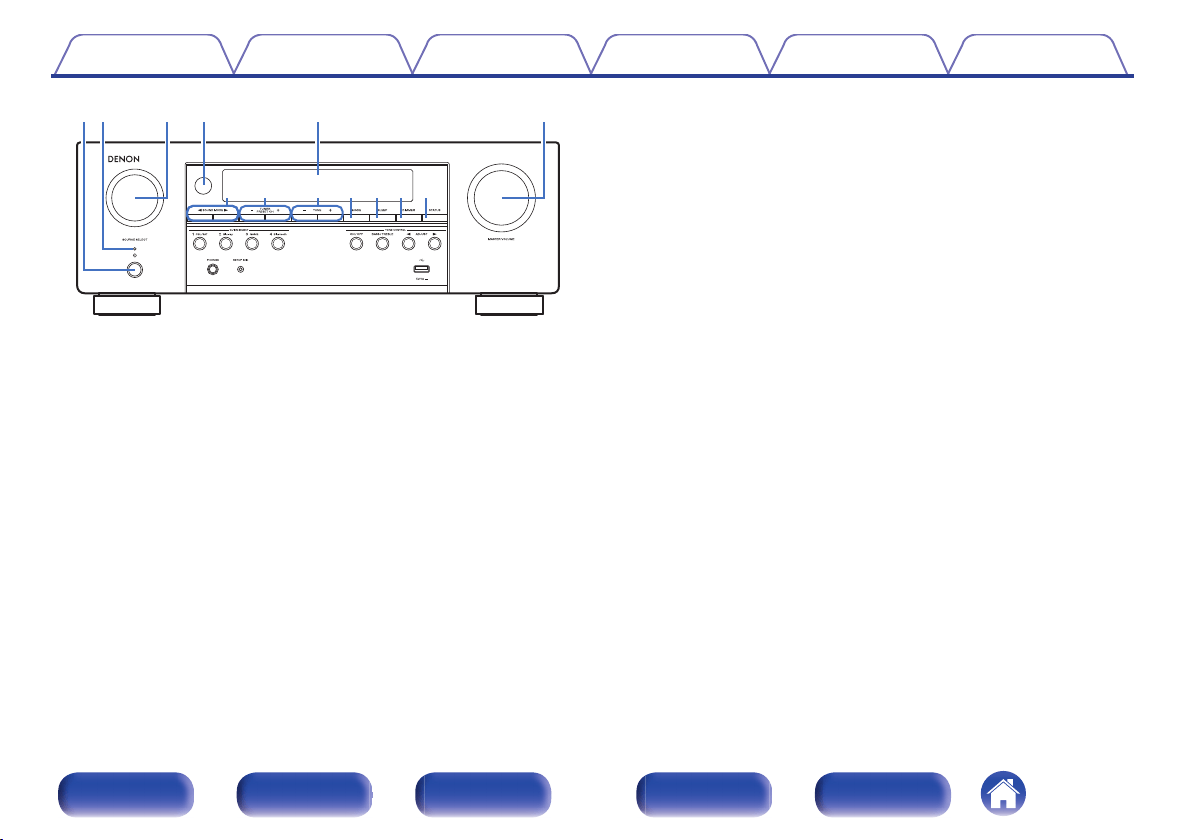

retqw y
Q2Q1Q0 Q3oiu
A
Power operation button (X)
Used to turn the power on/off (standby). (v p. 40)
B
Power indicator
This is lit as follows according to the power status:
0
Green: Power on
0
Off: Normal standby
0
Red:
0
When “HDMI Pass Through” is set to “On” (v p. 81)
0
When “HDMI Control” is set to “On” (v p. 81)
0
When “Bluetooth Standby” is set to “On” (v p. 100)
C
SOURCE SELECT knob
This selects the input source. (v p. 40)
D
Remote control sensor
This receives signals from the remote control unit. (v p. 7)
E
Display
This displays various pieces of information. (v p. 14)
F
MASTER VOLUME knob
This adjusts the volume level. (v p. 41)
G
SOUND MODE buttons (0 1)
These select the sound mode. (v p. 60)
H
Tuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 52)
I
Tuning buttons (TUNE +, –)
Select either FM broadcast or AM broadcast. (v p. 50)
J
Tuning mode select button (MODE)
This switches the tuning mode. (v p. 50)
K
SLEEP button
This sets the sleep timer. (v p. 66)
L
DIMMER button
Each press of this switches the brightness of the display. (v p. 102)
M
STATUS button
Each press of this switches the status information that is shown on the
display.
Contents
Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
Q
9
Q
6
Q
7
Q
8
W
0
Q
5
Q
4
N
Headphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the SUBWOOFER
connectors.
NOTE
0
To prevent hearing loss, do not raise the volume level excessively when using
headphones.
O
SETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 92)
P
QUICK SELECT buttons
With a single press of any of these buttons, you can call up various
settings you’ve registered to each button such as the input source,
volume level and sound mode settings. (v p. 68)
Q
TONE CONTROL ON/OFF button
Set the tone control function to on/off. (v p. 57)
R
BASS/TREBLE button
Selects the range for which to adjust the tone. (v p. 57)
S
USB port (T)
This is used to connect USB storages (such as USB memory devices)
and the USB cable supplied. (v p. 35)
T
Tone adjustment buttons (ADJUST 0 1)
Adjusts the tonal quality of the sound. (v p. 57)
0
BASS/TREBLE button and ADJUST 0 1 buttons can be operated when the
“Tone” setting is “On”. (v p. 57)
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
Display
tyreqw
ui
A
Input mode indicators
These light according to the audio input mode settings of each input
source. (v p. 88)
B
Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby or
DTS decoder is running.
C
Tuner reception mode indicators
These light up according to the reception conditions when the input
source is set to “Tuner”.
TUNED: Lights up when the broadcast is properly tuned in.
STEREO: Lights up when receiving FM stereo broadcasts.
D
Sleep timer indicator
This lights when the sleep mode is selected. (v p. 66)
E
Volume indicator
F
MUTE indicator
This blinks while the sound is muted. (v p. 41)
G
Information display
The input source name, sound mode, setting values and other
information are displayed here.
H
Input signal indicators
The respective indicator will light corresponding to the input signal.
(v p. 88)
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
t
rw eq
uy
A
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
(v p. 31)
B
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v p. 24)
C
Digital audio connectors (DIGITAL AUDIO)
Used to connect devices equipped with digital audio connectors.
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 29)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 31)
D
HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC / eARC” (v p. 28)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC / eARC” (v p. 29)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 31)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 33)
0
“Connecting a game console” (v p. 34)
E
Power cord (v p. 38)
F
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 36)
G
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 23)
Contents
Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

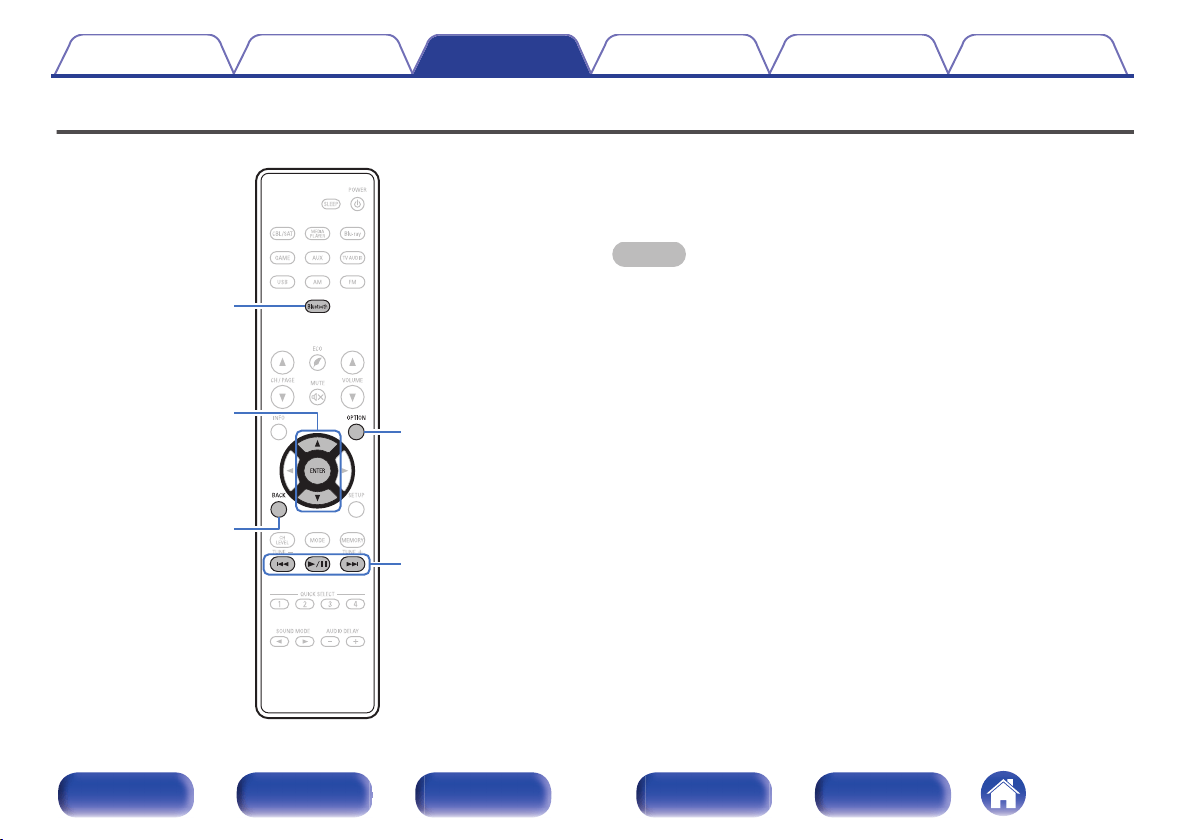

Remote control unit
A
Input source select buttons
These select the input source. (v p. 40)
B
Channel/page search buttons (CH/PAGE df)
These select radio stations registered to presets or switch pages.
(v p. 52)
C
MUTE button (:)
This mutes the output audio. (v p. 41)
D
Information button (INFO)
This displays the status information on the TV screen. (v p. 104)
E
Cursor buttons (uio p)
These select items.
w
r
e
t
q
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index
F
BACK button
This returns to the previous screen.
G
Channel level button (CH LEVEL)
Adjusting the volume of the speakers. (v p. 65)
H
System buttons
These perform playback related operations.
Tuning up / Tuning down buttons (TUNE +, –)
These select either FM broadcast or AM broadcast. (v p. 50)
I
QUICK SELECT buttons (1 – 4)
These call up settings registered to each button, such as input source,
volume level and sound mode settings. (v p. 68)
J
SOUND MODE buttons (0 1)
These select the sound mode. (v p. 60)
K
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 7)
L
SLEEP button
This sets the sleep timer. (v p. 66)
Q2
Q1
Q0
o
i
u
y
Contents
Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index
M
POWER button (X)
This turns the power on/off. (v p. 40)
N
ECO Mode button (G)
This switches to ECO Mode. (v p. 98)
O
VOLUME buttons (df)
These adjust the volume level. (v p. 41)
P
OPTION button
This displays the option menu on the TV screen.
Q
ENTER button
This determines the selection.
R
SETUP button
This displays the menu on the TV screen. (v p. 73)
S
Preset memory button (MEMORY)
The current broadcast station that is preset. (v p. 52)
T
Tuning mode select button (MODE)
This switches the tune mode. (v p. 50)
U
AUDIO DELAY buttons (+, –)
Compensates for incorrect timing between video and audio. (v p. 58)
Q3
Q5
Q4
Q8
Q9
W0
Q6
Q7
W1
Contents
Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index
o
Contents
Speaker installation 21
Connecting speakers 23
Connecting a TV 27
Connecting a playback device 30
Connecting a USB memory device to the USB port 35
Connecting an FM/AM antenna 36
Connecting the power cord 38
NOTE
0
Do not plug in the power cord until all connections have been completed.
However, when the “Setup Assistant”is running, follow the instructions in the
“Setup Assistant” (page 7 in the separate “Quick Start Guide”) screen for making
connections. (During “Setup Assistant” operation, the input/output connectors do
not conduct current.)
0
Do not bundle power cords together with connection cables. Doing so can result in
noise.
o

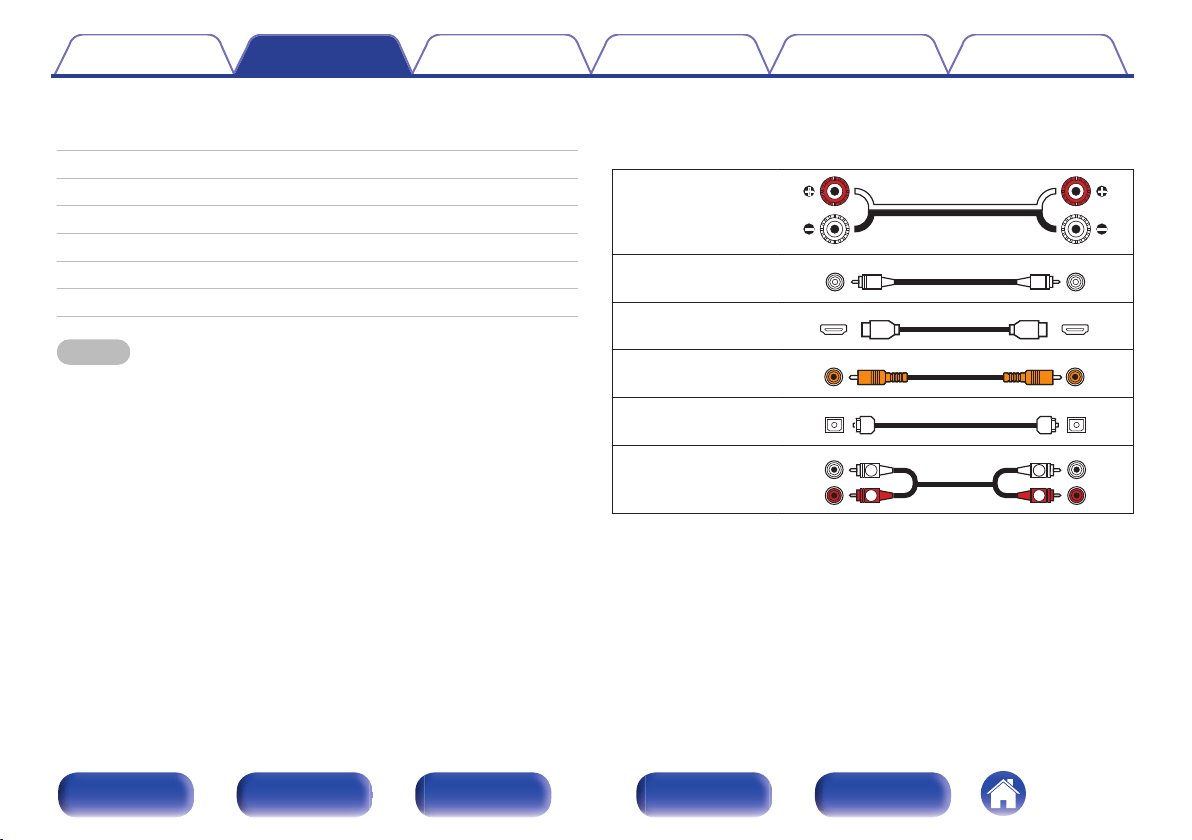

Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Speaker cable
Subwoofer cable
HDMI cable
Coaxial digital cable
Optical cable
Audio cable
R
L
R
L
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index

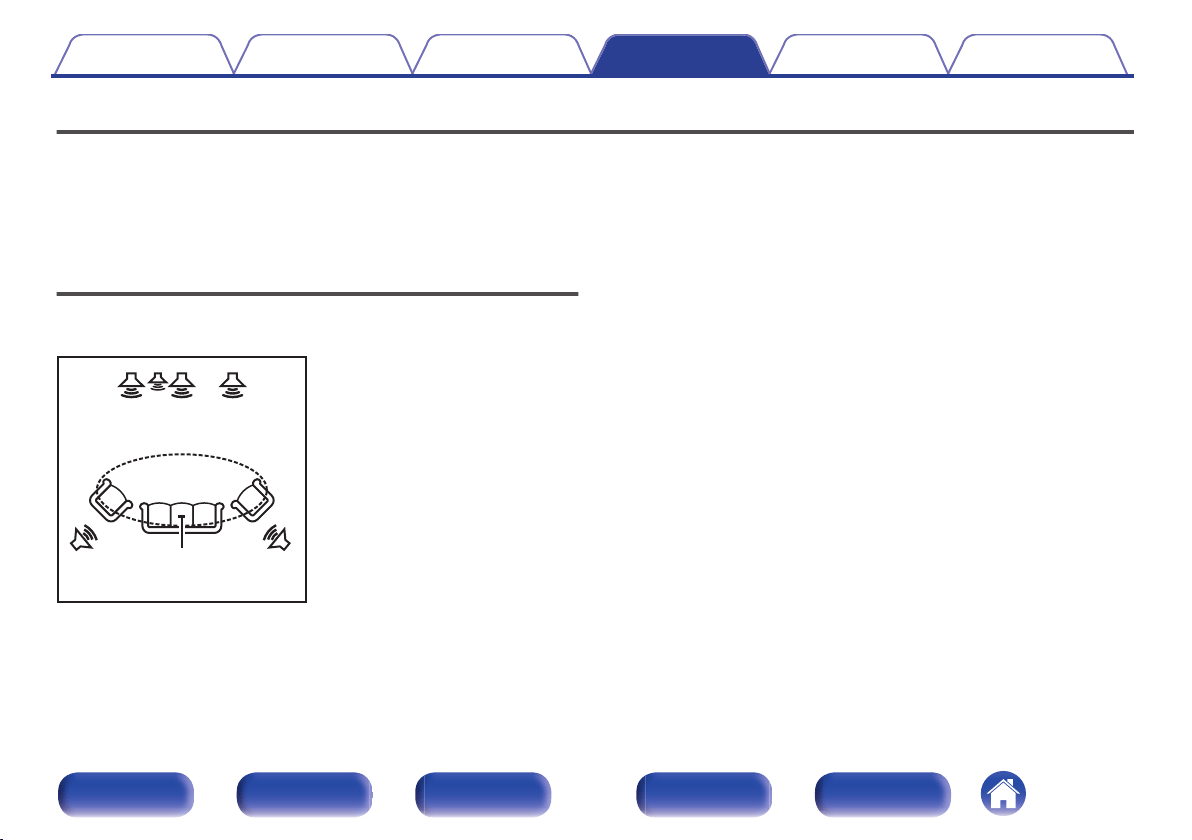

Speaker installation
Determine the speaker system depending on the number of speakers you
are using and install each speaker and subwoofer in the room.
Speaker installation is explained using this example of a typical
installation.
FL
SW1
C
SL
FR
SR
SW2
FL/FR
(Front speaker left/
right):
Place the FRONT left and right speakers an
equal distance from the main listening position.
The distance between each speaker and your TV
should also be the same.
C
(Center speaker):
Place the CENTER speaker in between the front
speakers and above or below your TV.
SL/SR
(Surround speaker left/
right):
Place the SURROUND left and right speakers an
equal distance to the left and right sides of the
main listening position.
SW 1/2
(Subwoofer) :
Place the SUBWOOFER at a convenient location
near the front speakers. If you have two
subwoofers, place them asymmetrically across
the front of your room.
Contents Connections Playback Settings Tips Appendix
21
Front panel Display Rear panel Remote Index
0
Use the illustration below as a guide for how high each speaker should be
installed. The height does not need to be exactly the same.
GViewed from the sideH
Surround
speaker
Front speaker
o
When 5.1-channel speakers are installed
z1
z2
FL
SW
C
SL
FR
SR
z
1 22° - 30°
z
2 120°
Contents
Connections Playback Settings Tips Appendix
22
Front panel Display Rear panel Remote Index
Connecting speakers
Here we connect the speakers in the room to this unit.
Before connecting speakers
NOTE
0
Disconnect this unit’s power plug from the power outlet before connecting the
speakers. Also, turn off the subwoofer.
0
Connect so that the speaker cable core wires do not protrude from the speaker
terminal. The protection circuit may be activated if the core wires touch the rear
panel or if the + and - sides touch each other. (“Protection circuit” (v p. 138))
0
Never touch the speaker terminals while the power cord is connected. Doing so
could result in electric shock. When the “Setup Assistant” (page 7 in the separate
“Quick Start Guide”) is running, follow the instructions in the “Setup Assistant”
screen for making connections. (Power is not supplied to the speaker terminals
while the “Setup Assistant” is running.)
0
Use speakers with an impedance of 6 – 16 Ω/ohms.
o
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and –
(black) polarities on the speakers being connected to this unit, and be
sure to connect the channels and polarities correctly.
1
Peel off about 3/8 inch (10 mm) of sheathing from the
tip of the speaker cable, then either twist the core wire
tightly or terminate it.
2
Turn the speaker terminal counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to the hilt into the
speaker terminal.
4
Turn the speaker terminal clockwise to tighten it.
Contents Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
o
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer. Two subwoofers can
be connected to this unit.
The same signal is output from the respective subwoofer terminals.
SW1 SW2
o
About the cable labels (supplied) for channel
identification
The channel display section for speaker terminals on the rear panel is
color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker
cable.
This makes it easy to connect the correct cable to the speaker
terminals on the rear panel.
Speaker Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light blue
SURROUND R Blue
SUBWOOFER 1 Black
SUBWOOFER 2 Black
Contents Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index
The supplied cable labels include labels for the speaker and HDMI
cables. Attach a cable label to each cable that matches the speakers
and HDMI devices being connected, as shown below. This makes it
easy to identify and properly connect the cables between your
components.
G How to attach the cable labels H
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Connecting a TV
Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit.
How to connect a TV depends on the connectors and functions equipped on the TV.
No
Yes
Is the TV equipped with an HDMI connector?
Yes No
Is the TV compatible with the ARC / eARC?
z
“Connection 1 : TV equipped with an HDMI
connector and compatible with the ARC /
eARC” (v p. 28)
“Connection 2 : TV equipped with an HDMI
connector and incompatible with the ARC /
eARC” (v p. 29)
You cannot connect the TV to this
unit.
z
What is ARC and eARC?
ARC (Audio Return Channel) sends audio back to this unit using the same HDMI cable that sends video from this unit to your TV.
This allows this unit to process the sound from your TV’s built-in tuner and apps.
TVs with eARC(Enhanced Audio Return Channel) port will provide additional support for high bitrate multichannel audio (Dolby TrueHD and DTS-HD).
Please refer to your TV Owner’s Manual for details about eARC support for your particular model.
NOTE
0
Use a TV with a 2 prong power plug for this unit. Do not connect a TV with a 3 prong power plug, as this may cause noise.
Contents Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index
Connection 1 : TV equipped with an HDMI connector and compatible with the ARC /
eARC
Using a high quality HDMI cable
z
, connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other end to the HDMI OUT
MONITOR port on this unit.
When a TV with eARC support is connected, the eARC function of this unit is enabled automatically and the television audio is played back. When a TV
with ARC support is connected, set “ARC” in the menu to “On”. (v p. 82)
z
For 4K TVs we recommend using an HDMI cable labeled “High Speed”
and “with Ethernet” .
z
For 8K TVs we recommend using an HDMI cable labeled “Ultra High
Speed”.
0
eARC function settings may be required depending on the eARC
function-compatible television you are using. Make sure eARC is set to
on if this setting exists on your television. For more information, check
your television’s owner’s manual.
0
Set “4K/8K Signal Format” to “8K Enhanced”: in the menu to enjoy 8K
video. (v p. 84)
(ARC / eARC)
IN
HDMI
TV
Contents
Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
Connection 2 : TV equipped with an HDMI connector and incompatible with the
ARC / eARC
Use an HDMI cable to connect the TV to this unit.
To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit.
OUT
OPTICAL
OUT IN
IN
HDMI
TV
Contents Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
Connecting a playback device
This unit is equipped with HDMI video input connectors and three types of audio input connectors (HDMI, digital audio and audio).
Select input connectors on this unit according to the connectors equipped on the device you want to connect.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.
In the HDMI connection, audio and video signals can be transmitted through a single HDMI cable.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 31)
0
“Connecting a Blu-ray Disc player or DVD player” (v p. 33)
0
“Connecting a game console” (v p. 34)
0
Connect devices to this unit as indicated by the input sources printed on the audio/video input connectors of this unit.
0
The source that is assigned to the OPTICAL 1, OPTICAL 2 and COAXIAL connectors can be changed. See “Input Assign” on how to change the input source assigned to the
input connectors. (v p. 87)
0
To play back audio signals that are input to this unit on a TV connected via HDMI, set “HDMI Audio Out” to “TV”. (v p. 80)
0
To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.
Contents Connections Playback Settings Tips Appendix
30
Front panel Display Rear panel Remote Index
Connecting a set-top box (Satellite tuner/cable TV)
This explanation uses the connection with a satellite tuner/cable TV STB as an example.
Select the input connectors on this unit to match the connectors on the device that you want to connect to.
R
L
R
L
OUT
HDMI
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
or
Satellite tuner /
Cable TV
Satellite tuner /
Cable TV
(HDMI incompatible device)
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
Connecting a USB memory device to the USB port
For operating instructions see “Playing a USB memory device” (v p. 42).
MASTER VOLUME
USB memory
device
0
Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter,
use that device’s supplied AC adapter.
NOTE
0
USB memory devices will not work via a USB hub.
0
It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
0
Do not use an extension cable when connecting a USB memory device. This may cause radio interference with other devices.
Contents Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Connecting an FM/AM antenna
Connect the antenna, tune in to a broadcast and then move the antenna to
the location where there is least noise. Then use tape, etc. to fix the
antenna in this location. (“Listening to FM/AM broadcasts” (v p. 49))
0
If you are unable to receive a good broadcast signal, we recommend installing an
outdoor antenna. For details, inquire at the retail store where you purchased the
unit.
NOTE
0
Make sure the AM loop antenna lead terminals do not touch metal parts of the
panel.
wqe
Black
AM loop antenna
(supplied)
FM indoor antenna
(supplied)
White
Contents Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
o
Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown above to assemble.
When assembling, refer to “AM loop antenna assembly”.
o
AM loop antenna assembly
1
Put the stand section through the bottom of the loop
antenna from the rear and bend it forward.
2
Insert the projecting part into the square hole in the
stand.
Projecting part
Square hole
Stand
Loop antenna
Contents Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
o
Contents
Basic operation
Turning the power on 40
Selecting the input source 40
Adjusting the volume 41
Turning off the sound temporarily (Muting) 41
Selecting a sound mode 60
Playback a device
Playing a DVD player/Blu-ray Disc player 41
Playing a USB memory device 42
Listening to music on a Bluetooth device 44
Listening to FM/AM broadcasts 49
Convenience functions
Compatible with the “Denon 500 Series Remote” app 54
Convenience functions 55
HDMI control function 64
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 65
Sleep timer function 66
Quick select plus function 68
Contents Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
Basic operation
MUTE
POWER
VOLUME
df
X
:
Input source
select
buttons
Turning the power on
1
Press POWER X to turn on power to the unit.
0
You can press the input source select button when the unit is in standby mode to
turn on the power.
0
You can also switch the power to standby by pressing X on the main unit.
Selecting the input source
1
Press the input source select button to be played back.
The desired input source can be selected directly.
0
You can also select the input source by turning SOURCE SELECT on the main
unit.
Contents Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
Adjusting the volume
1
Use VOLUME df to adjust the volume.
0
The variable range differs according to the input signal and channel level setting.
0
You can also adjust the master volume by turning MASTER VOLUME on the main
unit.
Turning off the sound temporarily
(Muting)
1
Press MUTE :.
0
“MUTE” appears on the display.
0
appears on the TV screen.
0
The sound is reduced to the level set at “Mute Level” in the menu. (v p. 79)
0
To cancel mute, either adjust the sound volume or press MUTE : again.
0
If
is displayed on the TV screen for more than 5 minutes when the “Screen
Saver” is set to “On”, the symbol moves randomly over the TV screen.
(v p. 84)
Playback a Blu-ray Disc player/DVD
player
The following describes the procedure for playing Blu-ray Disc player/DVD
player.
1
Prepare for playback.
A
Turn on the power of the TV, subwoofer and player.
B
Change the TV input to the input of this unit.
2
Press POWER X to turn on power to the unit.
3
Press Blu-ray to switch the input source of the player
to be played back.
4
Play the Blu-ray Disc player or DVD player.
o
Surround playback (v p. 60)
Contents Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
Playing a USB memory device
1
/
3
8
9
USB
ui
p
ENTER
BACK
OPTION
CH/PAGE
df
0
Playing back music files stored on a USB memory device.
0
Only USB memory devices conforming to mass storage class standards
can be played on this unit.
0
This unit is compatible with USB memory devices in “FAT16” or
“FAT32” format.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playing back a USB memory devices” for details. (v p. 128)
0
WMA
0
MP3
0
WAV
0
MPEG-4 AAC
0
FLAC
0
Apple Lossless
0
AIFF
Contents
Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
Playing files stored on USB memory
devices
1
Connect the USB memory device to the USB port.
(v p. 35)
2
Press USB to switch the input source to “USB”.
OPTION
[1/2]
USB
Option
Folder
Music
3
Use ui p to select the file to be played, then press
ENTER.
Playback starts.
Operation buttons
Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
ENTER
Playback / Pause
(Press and hold) Stop
u i
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
CH/PAGE d f
Switch to the previous page/next page in
the list display
NOTE
0
Note that Denon will accept no responsibility whatsoever for any problems arising
with the data on a USB memory device when using this unit in conjunction with the
USB memory device.
o
Operations accessible through the option
menu
0
“Performing repeat playback (Repeat)” (v p. 56)
0
“Performing random playback (Random)” (v p. 56)
0
“Adjusting the tone (Tone)” (v p. 57)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 59)
Contents
Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
Listening to music on a Bluetooth device
Bluetooth
8
9
OPTION
1
/
3
BACK
ui
ENTER
Music files stored on Bluetooth devices such as smartphones, digital
music players, etc. can be enjoyed on this unit by pairing and connecting
this unit with the Bluetooth device.
Communication is possible up to a range of about 32.8 ft/10 m.
NOTE
0
To play back music from a Bluetooth device, the Bluetooth device needs to
support the A2DP profile.
Contents Connections Playback Settings Tips Appendix
44
Front panel Display Rear panel Remote Index
Playing music from Bluetooth device
In order to enjoy music from a Bluetooth device on this unit, the Bluetooth
device must first be paired with this unit.
Once the Bluetooth device has been paired, it does not need to be paired
again.
1
Press Bluetooth to switch the input source to
“Bluetooth”.
Pairing Mode
Cancel
Turn on Bluetootn from your mobile device’s
settings menu, then select"Denon AVR-S570BT"
when it appears in the device list.
When using for the first time, the unit will go into the pairing mode
automatically and “Pairing...” will appear on the display of the unit.
2
Activate the Bluetooth settings on your mobile device.
3
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
Connect to the Bluetooth device while “Pairing” is being displayed
on the display of the unit.
Perform the connection with the Bluetooth device close to the unit
(about 3.3 ft/1 m).
4
When a number appears on the display of this unit,
check that it is the same number as that shown on the
screen of the Bluetooth device and then select “Pair”
for both the Bluetooth device and the unit.
At the end of the pairing, the device name appears on the display of
this unit.
5
Play music using any app on your Bluetooth device.
0
The Bluetooth device can also be operated with the remote
control of this unit.
0
The next time the input source is switched to Bluetooth, this unit
automatically connects to the last Bluetooth device that was
connected.
0
Enter “0000” when the password is requested on the screen of the Bluetooth
device.
Contents Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
Operation buttons Function
1/3
Playback / Pause
8 9
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
ENTER
Playback / Pause
(Press and hold) Stop
u i
Skip to previous track / Skip to next track
(Press and hold) Fast-reverse / Fast-
forward
0
English letters, numbers and certain symbols are displayed. Incompatible
characters are displayed as “.” (period).
NOTE
0
To operate the Bluetooth device with the remote control of this unit, the Bluetooth
device needs to support the AVRCP profile.
0
The remote control of this unit is not guaranteed to work with all Bluetooth devices.
0
Depending on the type of Bluetooth device, this unit outputs audio that is coupled
to the volume setting on the Bluetooth device.
o
Operations accessible through the option
menu
0
“Pairing with other Bluetooth devices” (v p. 47)
0
“Performing repeat playback (Repeat)” (v p. 56)
0
“Performing random playback (Random)” (v p. 56)
0
“Adjusting the tone (Tone)” (v p. 57)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 59)
Contents
Connections Playback Settings Tips Appendix
46
Front panel Display Rear panel Remote Index
Pairing with other Bluetooth devices
Pair a Bluetooth device with this unit.
1
Activate the Bluetooth settings on your mobile device.
2
Press OPTION when the input source is “Bluetooth”.
The option menu screen is displayed.
3
Use ui to select “Pairing Mode”, then press ENTER.
The device will go into the pairing mode.
4
Select this unit when its name appears in the list of
devices displayed on the screen of the Bluetooth
device.
5
When a number appears on the display of this unit,
check that it is the same number as that shown on the
screen of the Bluetooth device and then select “Pair”
for both the Bluetooth device and the unit.
At the end of the pairing, the device name appears on the display of
this unit.
0
This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th
Bluetooth device is paired, it will be registered in place of the oldest registered
device.
0
Enter “0000” when the password is requested on the screen of the Bluetooth
device.
0
Press and hold the Bluetooth on the remote control for at least 3 seconds to go
into pairing mode.
Contents Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index
Reconnecting to this unit from a
Bluetooth device
After pairing is completed, the Bluetooth device can be connected without
performing any operations on this unit.
This operation also needs to be performed when switching the Bluetooth
device for playback.
1
If a Bluetooth device is currently connected, deactivate
the Bluetooth setting of that device to disconnect it.
2
Activate the Bluetooth setting of the Bluetooth device
to be connected.
3
Select this unit from the Bluetooth device list on your
Bluetooth device.
4
Play music using any app on your Bluetooth device.
0
When the power of this unit is turned on, the input source will be automatically
switched to “Bluetooth” if a Bluetooth device is connected.
0
When the “Bluetooth Standby” setting of this unit is set to “On”, “Auto-Select”
setting of this unit is set to “On”, and a Bluetooth device is connected with the unit
in the standby state, the power of the unit will be turned on automatically.
(v p. 100)
Contents Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
Listening to FM/AM broadcasts
FM
CH/PAGE
df
AM
MODE
TUNE +, –
MEMORY
uio
p
ENTER
OPTION
You can use the built-in tuner of this unit to listen to FM broadcasts and
AM broadcasts.
Make sure the FM antenna and AM loop antenna are connected to this
unit first.
Contents Connections Playback Settings Tips Appendix
49
Front panel Display Rear panel Remote Index
Listening to FM/AM broadcasts
1
Connect the antenna. (“Connecting an FM/AM
antenna” (v p. 36))
2
Press FM or AM to switch the input source to “FM” or
“AM”.
G TV screen H
OPTION
STEREO
AUTO
CH /TUNE +/-
Tuner
CH 1
FM 92.1
MHz
Tune Preset Option
01 FM 92.10MHz
GDisplay of this unitH
3
Press MODE to select the tune mode.
AUTO
(Default) :
Automatically search for and tune to a
receivable radio station.
MANUAL:
Manually change the frequency one
step at a time each time the button is
pressed.
4
Press TUNE + or TUNE - to select the station you want
listen to.
Scanning is performed until it finds an available radio station. When
it finds a radio station, it stops the scan automatically and tunes in.
0
The modes for receiving FM broadcasts consists of “AUTO” mode that
automatically searches available broadcast stations and “MANUAL” mode that lets
you tune in using buttons to change the frequency. The default setting is “AUTO”.
In “AUTO” mode, you cannot tune in to radio stations if the reception is not good.
If this is the case, then use the “MANUAL” mode to tune in.
Operation buttons Function
CH/PAGE d f
Selects preset radio stations
MODE Switching tune mode
MEMORY Register presets
TUNE +, - Selects the radio station (up/down)
Contents Connections Playback Settings Tips Appendix
50
Front panel Display Rear panel Remote Index
o
Operations accessible through the option
menu
0
“Tuning in to stations and presetting them automatically (Auto
Preset)” (v p. 51)
0
“Skipping preset broadcast stations (Preset Skip)” (v p. 53)
0
“Adjusting the tone (Tone)” (v p. 57)
0
“Displaying your desired video during audio playback (Video
Select)” (v p. 59)
Tuning in to stations and presetting
them automatically (Auto Preset)
A maximum of 56 radio stations can be automatically preset.
1
Press OPTION when the input source is “FM”.
The option menu screen is displayed.
2
Use ui to select “Auto Preset”, then press ENTER.
The unit starts to tune in to radio stations automatically and preset
them.
0
When presetting is completed, “Completed” is displayed for about
5 seconds and the option menu screen turns off.
0
The preset memory is overwritten.
Contents Connections Playback Settings Tips Appendix
51
Front panel Display Rear panel Remote Index
Presetting the current broadcast
station (Preset Memory)
Your favorite broadcast stations can be preset so that you can tune them
in easily.
Up to 56 stations can be preset.
1
Tune in the broadcast station you want to preset.
(“Listening to FM/AM broadcasts” (v p. 50))
2
Press MEMORY.
3
Use ui to select the channel you want to preset.
4
Press MEMORY.
The current broadcast station that is preset.
0
To preset other stations, repeat steps 1 to 4.
Channel Default settings
1 – 8
92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10
MHz
9 – 16
94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70
MHz
17 – 24
98.10 / 98.30 / 98.50 / 98.70 / 98.90 / 99.10 / 100.10 /
100.30 MHz
25 – 32
100.50 / 100.70 / 100.90 / 101.10 / 101.30 / 101.50 /
101.70 / 101.90 MHz
33 – 40
103.10 / 103.30 / 103.50 / 103.70 / 103.90 / 104.10 /
104.30 / 104.50 MHz
41 – 48
104.70 / 104.90 / 105.10 / 105.30 / 105.50 / 105.70 /
105.90 / 106.10 MHz
49 – 56
106.30 / 106.50 / 106.70 / 106.90 / 107.10 / 107.30 /
107.50 / 107.90 MHz
Listening to preset stations
1
Use CH/PAGE df to select the desired preset channel.
0
You can also select preset broadcast stations by pressing TUNER PRESET CH +
or TUNER PRESET CH - on the main unit.
Contents Connections Playback Settings Tips Appendix
52
Front panel Display Rear panel Remote Index
Skipping preset broadcast stations
(Preset Skip)
Perform auto preset memory to save all the broadcasting stations that can
be received in the memory. Selecting a broadcast station becomes easier
by skipping unnecessary memories.
1
Press OPTION when the input source is “FM” or “AM”.
The option menu screen is displayed.
2
Use ui to select “Preset Skip”, then press ENTER.
The “Preset Skip” screen is displayed.
3
Use ui to select the group of broadcast stations you
want to skip.
Skip all the broadcast stations that are included in the selected
group “CH z-z”.
(z is the selected group number.)
4
Use o p to select “Skip”.
The station you selected is not displayed.
Cancelling Preset Skip
1
While the “Preset Skip” screen is displayed, use ui to
select a group of a broadcast stations to cancel the
skip for.
2
Use o p to select “On”.
The skip is cancelled.
Contents Connections Playback Settings Tips Appendix
53
Front panel Display Rear panel Remote Index
Compatible with the “Denon 500 Series Remote” app
The “Denon 500 Series Remote” app allows you to remotely control the AVR-S570BT from your mobile device when connected via Bluetooth. It is
available for free in the Apple App Store, Google Play or the Amazon Appstore. Make sure you search for “DENON 500 SERIES”.
Contents Connections Playback Settings Tips Appendix
54
Front panel Display Rear panel Remote Index
Performing repeat playback (Repeat)
n
Supported input sources : USB / Bluetooth
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Repeat”, then press ENTER.
3
Use o p to select repeat playback mode.
Off
(Default):
Repeat playback mode is canceled.
One: A file being played is played repeatedly.
All:
All files in the folder currently being
played are played repeatedly. (When
the input source is set to “Bluetooth”)
Folder:
All files in the folder currently being
played are played repeatedly. (When
the input source is set to “USB”)
4
Press ENTER.
The display returns to the playback screen.
0
“Repeat” settings are stored for each input source.
Performing random playback
(Random)
n
Supported input sources : USB / Bluetooth
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Random”, then press ENTER.
3
Use o p to select random playback mode.
Off
(Default):
Disable random playback.
On:
Randomly play back all tracks in the
current playback folder.
4
Press ENTER.
The display returns to the playback screen.
0
During random playback, each time playback of a track is completed, another
track is randomly selected for playback from tracks in the folder. Therefore, it’s
possible that you may hear a track played back more than once during random
playback.
0
“Random” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
56
Front panel Display Rear panel Remote Index
Adjusting the tone (Tone)
Adjusts the tonal quality of the front speakers.
1
Press OPTION.
The option menu screen is displayed.
2
Use ui to select “Tone”, then press ENTER.
The “Tone” screen is displayed.
3
Use o p to set the tone control function to on/off.
On: Allow tone adjustment (bass, treble).
Off
(Default):
Playback without tone adjustment.
4
Select “On” in step 3 and press i to select the sound
range to be adjusted.
Bass: Adjust bass.
Treble: Adjust treble.
5
Use o p to adjust the tone, then press ENTER.
-6 dB – +6 dB (Default : 0 dB)
o
Operating the unit
n
Setting the tone control function
Press TONE CONTROL ON/OFF.
n
Select the range for which to adjust the tone
Press BASS/TREBLE.
n
Adjusting the tone
Press ADJUST 0 or ADJUST 1.
0
“Tone” settings are stored for each input source.
0
This cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
0
You cannot set this when no audio signal is input or in the menu “HDMI Audio Out”
is set to “TV”. (v p. 80)
Contents
Connections Playback Settings Tips Appendix
57
Front panel Display Rear panel Remote Index
Adjusting audio delay (Audio Delay)
Compensates for incorrect timing between video and audio.
1
Press OPTION.
The option menu screen is displayed.
2
Use ui to select “Audio Delay”, then press ENTER.
The “Audio Delay” screen is displayed.
3
Use o p to adjust the timing.
0 ms – 200 ms (Default : 0 ms)
0
“Audio Delay” settings are stored for each input source.
0
The “Audio Delay” settings can be set even if AUDIO DELAY + or AUDIO DELAY -
is pressed on the remote control unit.
Optimizing the night time listening
volume (Night Mode)
Compress dynamic range (difference between loud and soft sounds).
This can be set when a Dolby Digital signal is input.
1
Press OPTION.
The option menu screen is displayed.
2
Use ui to select “Night Mode”, then press ENTER.
The Night Mode setting screen is displayed.
3
Use o p to select “Night Mode”, then press ENTER.
Low : Set the adjusted value to low.
Medium : Set the adjusted value to middle.
High : Set the adjusted value to high.
Auto :
Automatic dynamic range compression
on/off control according to the source.
Off
(Default):
Do not set.
0
“Auto” can be set when a Dolby TrueHD signal is input.
0
The default setting is “Off”.
Contents Connections Playback Settings Tips Appendix
58
Front panel Display Rear panel Remote Index
Displaying your desired video during
audio playback (Video Select)
This unit can display video from a different source on TV during audio
playback. You can set this for each input source.
n
Supported input sources :
USB / FM / AM / Bluetooth
1
Press OPTION during audio playback.
The option menu screen is displayed.
2
Use ui to select “Video Select”, then press ENTER.
3
Use o p to select the Video Select mode.
Off
(Default):
Disable Video Select mode.
On: Enable Video Select mode.
4
Use o p to select the input source for video you want
to play back, then press ENTER.
0
“Video Select” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
59
Front panel Display Rear panel Remote Index
Selecting a sound mode
SOUND MODE
0
1
This unit allows you to enjoy various kinds of surround and stereo
playback modes.
Multi-channel audio formats are provided on popular movie and music
disc formats such as Blu-ray and DVD, as well as being supported by
digital broadcasting, and even by streaming movies.
This unit supports playback of almost all of these multi-channel audio
formats. It also supports surround playback of audio formats other than
multi-channel audio such as 2-channel stereo audio.
0
For audio formats recorded on a disc, see the disc jacket or label.
Selecting a sound mode
1
Press SOUND MODE 0 1 to select a sound mode.
0
If the content played back does not support the previously selected sound mode,
the most appropriate sound mode for the content is automatically selected.
0
You can also select the sound mode by pressing SOUND MODE on the main unit.
Contents
Connections Playback Settings Tips Appendix
60
Front panel Display Rear panel Remote Index
o
Description of sound mode types
Dolby sound mode
Sound mode type Description
Dolby PLg This mode can be selected when the Dolby PLg decoder is used to play back 2-channel sources in 5.1-channel surround
sound with an enveloping surround sound experience.
Dolby Digital This mode can be selected when playing sources recorded in Dolby Digital.
Dolby TrueHD This mode can be selected when playing sources recorded in Dolby TrueHD.
Dolby Digital Plus This mode can be selected when playing sources recorded in Dolby Digital Plus.
DTS sound mode
Sound mode type Description
DTS Neo:6 This mode can be selected when a DTS Neo:6 decoder is used to play back 2-channel source in 5.1-channel surround
sound.
DTS Surround This mode can be selected when playing sources recorded in DTS.
DTS-HD This mode can be selected when playing sources recorded in DTS-HD.
PCM multi-channel sound mode
Sound mode type Description
Multi Ch In This mode can be selected when playing multi-channel PCM sources.
Contents Connections Playback Settings Tips Appendix
61
Front panel Display Rear panel Remote Index
Original sound mode
Sound mode type Description
Multi Ch Stereo This mode is for enjoying stereo sound from all speakers.
Virtual This mode lets you experience an expansive surround sound effect when playing back through just the front (L/R)
speakers only, and when listening with stereo headphones.
Stereo sound mode
Sound mode type Description
Stereo This mode plays 2-channel stereo audio with no additional surround sound processing.
0
Sound is output from the front left and right speakers, and subwoofer if connected.
0
When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no
additional surround sound processing.
Direct sound mode
Sound mode type Description
Direct This mode plays back audio as recorded in the source.
Pure Direct This mode plays back an even higher quality sound than the “Direct” mode.
The following circuits are stopped in order to further improve sound quality.
0
Display indicator circuit of the main body (display will go off.)
0
In Direct and Pure Direct sound modes, the following items cannot be adjusted.
0
Tone (v p. 57)
0
Restorer (v p. 77)
0
Room EQ (v p. 79)
NOTE
0
When the Pure Direct mode has been selected, the display turns off after about 5 seconds.
Contents Connections Playback Settings Tips Appendix
62
Front panel Display Rear panel Remote Index
o
Views on the display
q w
A
Shows a decoder to be used.
0
In the case of the Dolby Digital decoder, “
” is displayed.
0
In the case of the Dolby Digital Plus decoder, “ ” is
displayed.
B
Shows the name of the input source being played back.
Contents
Connections Playback Settings Tips Appendix
63
Front panel Display Rear panel Remote Index
HDMI control function
A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with
another device via the HDMI cable connection.
Setting procedure
1
Enable the HDMI control function of this unit.
Set “HDMI Control” to “On”. (v p. 81)
2
Turn the power on for all the devices connected by
HDMI cable.
3
Set the HDMI control function for all devices connected
by HDMI cable.
0
Please consult the operating instructions for the connected
devices to check the settings.
0
Carry out steps 2 and 3 should any of the devices be unplugged.
4
Switch the television input to the HDMI input connected
to this unit.
5
Switch the input source of this unit to check that video
from the player connected by HDMI is played back
correctly.
6
When you turn the TV’s power to standby, check that
the power of this unit also goes to standby.
NOTE
0
Some functions may not operate depending on the connected TV or player. Check
the owner’s manual of each device for details beforehand.
Contents Connections Playback Settings Tips Appendix
64
Front panel Display Rear panel Remote Index
Adjusting the volume of each channel to match the input source (Channel
Level Adjust)
CH LEVEL
uio
p
The volume of each channel can be changed while listening to music. You
can set this for each input source.
1
Press CH LEVEL.
The “Channel Level Adjust” screen is displayed.
2
Use ui to select the channel that you wish to adjust.
3
Use o p to adjust the volume.
–12.0 dB – +12.0 dB (Default : 0.0 dB)
0
Select “Reset” and press ENTER if you want to restore the adjustment values of
the various channels to “0.0 dB” (default).
0
Headphone volume can be adjusted when a headphone is connected.
0
“Channel Level Adjust” settings are stored for each input source.
0
You can only set this for speakers that output audio. In addition, you cannot set
this when in the menu “HDMI Audio Out” is set to “TV”. (v p. 80)
Contents Connections Playback Settings Tips Appendix
65
Front panel Display Rear panel Remote Index
Using the sleep timer
1
Press SLEEP and display the time you want to set.
0
The SLEEP indicator lights up on the display and the sleep timer
starts.
0
You can set the sleep timer in the range from 10 to 120 minutes in
steps of 10 minutes.
o
Checking the remaining time
Press SLEEP when the sleep timer is in operation.
The remaining time appears on the display.
o
To cancel the sleep timer
Press SLEEP to select “Off”.
The SLEEP indicator on the display turns off.
0
You can also set the sleep timer by pressing SLEEP on the main unit.
0
The sleep timer setting is canceled when the unit switches to standby mode.
NOTE
0
The sleep timer function cannot turn off the power of devices connected to this
unit. To turn off the power of those connected devices, set up sleep timers on the
connected devices themselves.
Contents Connections Playback Settings Tips Appendix
67
Front panel Display Rear panel Remote Index
Quick select plus function
QUICK
SELECT
1 – 4
Settings such as the input source, volume level and sound mode can be
registered to the QUICK SELECT 1 - 4 buttons.
You can simply press one of the registered QUICK SELECT buttons in
subsequent playbacks to switch to the group of saved settings in a batch.
By saving frequently used settings at the QUICK SELECT 1 – 4 buttons,
you will always be able to easily call up the same playback environment.
Contents Connections Playback Settings Tips Appendix
68
Front panel Display Rear panel Remote Index
Calling up the settings
1
Press QUICK SELECT.
The Quick Select settings registered to the button you pressed are
called up.
0
The default settings for the input source are as shown below.
Button Input source
QUICK SELECT 1 CBL/SAT
QUICK SELECT 2 Blu-ray
QUICK SELECT 3 Game
QUICK SELECT 4 Bluetooth
0
Volume is not registered to Quick Select Plus in the factory default settings.
See “Changing the settings” to register volume to Quick Select Plus.
(v p. 69)
Changing the settings
1
Set the items below to the settings you want to
register.
A
Input source (v p. 40)
B
Volume (v p. 41)
C
Sound mode (v p. 60)
D
Room EQ (v p. 79)
E
Restorer (v p. 77)
F
Video Select (v p. 59)
2
Press and hold the desired QUICK SELECT until
“Quickz Memory” appears on the display.
The current settings will be memorized.
z is displayed the number for the QUICK SELECT button you
pressed.
0
Press and hold QUICK SELECT while a radio station is being received is
being played back with any of the following sources, the current radio
station is memorized.
0
Tuner
0
The items registered to Quick Select can be selected. (“Quick Select
Options” (v p. 101))
Contents Connections Playback Settings Tips Appendix
69
Front panel Display Rear panel Remote Index
Menu map
When using menu operations, connect this unit to a TV and operate this unit while viewing the TV.
The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences.
Setting items Detailed items Description Page
Audio
Surround Parameter Adjusts surround sound parameters. 74
Restorer Expands the low and high frequency components of compressed audio content such as
MP3 files to enable richer audio playback.
77
Volume Make volume settings. 78
Room EQ Set whether to use the equalizer or not. 79
Video
HDMI Setup Makes settings for HDMI Audio Out, HDMI Pass Through and HDMI Control settings. 80
HDMI Upscaler Sets the mode for upscaling 1080p and 4K HDMI content to 8K. 83
Screen Saver Sets the screen saver setting. 84
4K/8K Signal Format Sets signal format options for your 4K or 8K video equipment. 84
HDCP Setup Sets the HDCP version for each HDMI input source. 86
Contents Connections Playback Settings Tips Appendix
70
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
Inputs
Input Assign Changes input connector assignment. 87
Source Level Adjusts the playback level of the audio input. 87
Input Select Sets the audio input mode and decode mode. 88
Speakers
Auto Setup The acoustic characteristics of the connected speakers and listening room are
measured and the optimum settings are made automatically.
89
Manual Setup Sets up the speakers manually or changes the “Auto Setup” settings. 94
Contents Connections Playback Settings Tips Appendix
71
Front panel Display Rear panel Remote Index
Setting items Detailed items Description Page
General
Language Changes the language of the display on the TV screen. 98
ECO Configures the ECO Mode and Auto Standby energy-saving functions. 98
Bluetooth Configures the Bluetooth settings. 100
Quick Select Options Sets the items registered to Quick Select. 101
Front Display Makes settings related to the display on this unit. 102
Firmware Update the firmware of this unit. 102
Setup Lock Protects settings from inadvertent changes. 103
Reset Various settings are reset to the factory default values. 103
Setup Assistant
Begin Setup... Performs basic installation/connections/settings from the beginning according to the
guidance indicated on the TV screen.
Page 7 of
the separate
manual
“Quick Start
Guide”
Contents Connections Playback Settings Tips Appendix
72
Front panel Display Rear panel Remote Index
uio
p
ENTER
SETUP
BACK
Menu operations
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated, then
press ENTER.
3
Use o p to change to desired setting.
4
Press ENTER to enter the setting.
0
To return to the previous item, press BACK.
0
Exiting the menu, press SETUP while the menu is displayed. The
menu display disappears.
Contents Connections Playback Settings Tips Appendix
73
Front panel Display Rear panel Remote Index
Audio
Make audio-related settings.
Surround Parameter
You can adjust the surround audio sound field effects to match your
preferences.
The items (parameters) that can be adjusted depend on the signal being
input and the currently set sound mode. For details on the adjustable
parameters, see “Sound modes and surround parameters” (v p. 132).
0
Some setting items cannot be set while playback is stopped. Make the settings
during playback.
0
“Surround Parameter” settings are stored for each sound mode.
o
Mode
Set the sound mode according to the input signal.
n
Dolby PLg Mode
Movie :
Switches to the sound mode suitable for
enjoying movies and TV programs.
Music :
Switches to the sound mode suitable for
enjoying music.
Game :
Switches to the sound mode suitable for
enjoying games.
Pro Logic : Dolby Pro Logic playback mode.
n
DTS Neo: 6 mode
Cinema :
Switches to the sound mode suitable for
enjoying movies and TV programs.
Music :
Switches to the sound mode suitable for
enjoying music.
0
“Music” mode is also effective for video sources that contain a lot of stereo
music.
Contents Connections Playback Settings Tips Appendix
74
Front panel Display Rear panel Remote Index
o
Dynamic Compression
Compress dynamic range (difference between loud and soft sounds).
Auto:
Automatic dynamic range compression
on/off control according to source.
Low / Medium / High: These set the compression level.
Off
(Default):
Dynamic range compression is always
off.
0
“Auto” can only be set when Dolby TrueHD signals are input.
o
Low Frequency Effects
Adjust the low frequency effects level (LFE).
-10 dB – 0 dB (Default : 0 dB)
0
For proper playback of the different sources, we recommend setting to the
values below.
0
Dolby Digital sources : 0 dB
0
DTS movie sources : 0 dB
0
DTS music sources: -10 dB
o
Center Image
Distributes the dialogue output from the center channel to the front left
and right channels and widens the sound image in the front.
0.0 – 1.0 (Default : 0.3)
0
You can set this when the sound mode is DTS Neo:6 in the “Music” mode.
0
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front left and
right channels, and the more the sound image widens in the front.
Contents Connections Playback Settings Tips Appendix
75
Front panel Display Rear panel Remote Index
o
Panorama
The front sound field is expanded further towards the back to create a
seamlessly inclusive sound impression.
On: Use “Panorama”.
Off
(Default):
Do not use “Panorama”.
0
You can set this when the sound mode is Dolby PLg in the “Music” mode.
o
Dimension
Shift sound image center to front or rear to adjust playback balance.
0 – 6 (Default : 3)
0
You can set this when the sound mode is Dolby PLg in the “Music” mode.
0
As you set a smaller number, the surround sound field shifts backward; as you
set a larger number, the surround sound field shifts forward.
o
Center Width
Distributes the dialogue output from the center channel to left and right
channels and widens the sound image in the front.
0 – 7 (Default : 3)
0
You can set this when the sound mode is Dolby PLg in the “Music” mode.
0
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front left and
right channels, and the more the sound image widens in the front.
Contents Connections Playback Settings Tips Appendix
76
Front panel Display Rear panel Remote Index
o
Subwoofer
Turn subwoofer output on and off.
On
(Default):
The subwoofer is used.
Off: The subwoofer is not used.
0
You can set this when the sound mode is “Direct” or “Stereo” and in the menu
“Subwoofer Output” is set to “LFE+Main”. (v p. 97)
o
Set Defaults
The “Surround Parameter” settings are returned to the default settings.
Restorer
Compressed audio formats such as MP3 and WMA (Windows Media
Audio) reduce the amount of data by eliminating signal components that
are hard for the human ear to hear. The “Restorer” function generates the
signals eliminated upon compression, restoring the sound to conditions
near those of the original sound before compression. It also restores the
original bass characteristics for a rich and expanded tonal range.
On: Use “Restorer”.
Off
(Default):
Do not use “Restorer”.
0
This item can be set with analog signals or PCM signal (Sample Rate = 44.1/48
kHz) is input.
0
This cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
0
“Restorer” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
77
Front panel Display Rear panel Remote Index
Volume
Make volume settings.
o
Scale
Set how volume is displayed.
0 - 98
(Default):
Display in the range 0 (Min) to 98.
–79.5 dB – 18.0 dB:
Display ---dB (Min), in the range –79.5 dB
to 18.0 dB.
o
Limit
Make a setting for maximum volume.
60 – 80 (–20 dB – 0 dB)
Off (Default)
0
The dB value is displayed when the “Scale” setting is “ –79.5 dB – 18.0 dB”.
(v p. 78)
o
Power On Level
Define the volume setting that is active when the power is turned on.
Last
(Default):
Use the memorized setting from the last
session.
Mute:
Always use the muting on condition when
power is turned on.
1 – 98 (–79 dB – 18 dB) : The volume is adjusted to the set level.
0
The dB value is displayed when the “Scale” setting is “ –79.5 dB – 18.0 dB”.
(v p. 78)
Contents Connections Playback Settings Tips Appendix
78
Front panel Display Rear panel Remote Index
o
Mute Level
Set the amount of attenuation when muting is on.
Full
(Default):
The sound is muted entirely.
–40 dB : The sound is attenuated by 40 dB down.
–20 dB : The sound is attenuated by 20 dB down.
Room EQ
Set whether to use the equalizer or not.
On: Use “Room EQ”.
Off
(Default):
Do not use “Room EQ”.
0
This item can be selected after Auto Setup has been performed.
0
This cannot be set when the sound mode is set to “Direct” or “Pure Direct”.
Contents Connections Playback Settings Tips Appendix
79
Front panel Display Rear panel Remote Index
Video
Make video-related settings.
HDMI Setup
Make settings for HDMI Audio Out, HDMI Pass Through and HDMI
Control settings.
NOTE
0
When “HDMI Pass Through” and “HDMI Control” is set to “On”, it consumes more
standby power. (“HDMI Pass Through” (v p. 81), “HDMI Control” (v p. 81))
If you are not using this unit for an extended period, it is recommended that you
unplug the power cord from the power outlet.
o
HDMI Audio Out
Select HDMI audio output device.
AVR
(Default):
Play back through speakers connected to
the unit.
TV:
Play back through TV connected to the
unit.
0
When the HDMI Control function is activated, priority is given to the TV audio
setting. (v p. 64)
0
When the power of this unit is on and “HDMI Audio Out” is set to “TV”, audio is
output as 2-channel from the HDMI OUT connector.
Contents
Connections Playback Settings Tips Appendix
80
Front panel Display Rear panel Remote Index
o
HDMI Pass Through
Selects how this unit will transmit HDMI signals to the HDMI output in
standby power mode.
On
(Default):
Transmits the selected HDMI input
through this unit’s HDMI output when this
unit is in standby power mode.
Off:
No HDMI signals are transmitted through
this unit’s HDMI output in standby power
mode.
o
Pass Through Source
Sets the HDMI connector that inputs HDMI signals when in standby.
Last:
The most recently used input source will
go into standby mode.
CBL/SAT / Media Player /
Blu-ray / Game
(Default: CBL/SAT):
Pass through the selected input source.
0
“Pass Through Source” can be set when “HDMI Pass Through” is set to “On”
or “HDMI Control” is set to “On”. (“HDMI Pass Through” (v p. 81), “HDMI
Control” (v p. 81))
o
HDMI Control
You can link operations with devices connected to HDMI and
compatible with HDMI Control.
On: Use HDMI Control function.
Off
(Default):
Do not use HDMI Control function.
0
Please consult the operating instructions for each connected device to check
the settings.
0
When “HDMI Control” is set to “On”, this unit’s power status can be linked to
that of the TV and this unit’s volume can be controlled using the TV remote
control.
0
Refer to “HDMI Control function” for more information about the HDMI Control
function. (v p. 64)
NOTE
0
If the “HDMI Control” settings have been changed, always reset the power to
connected devices after the change.
Contents Connections Playback Settings Tips Appendix
81
Front panel Display Rear panel Remote Index
o
ARC
On the TV connected to the HDMI MONITOR connector, set whether
to receive sound from the TV via HDMI.
On: Use ARC function.
Off
(Default):
Do not use ARC function.
0
If using this function, use a TV compatible with ARC (Audio Return Channel)
and enable the HDMI Control function of the TV.
0
When “ARC” is set to “On”, this unit’s volume can be controlled using the TV
remote control, even when “HDMI Control” is set to “Off” for this unit.
NOTE
0
If the “ARC” settings have been changed, always reset the power to
connected devices after the change.
0
Using an eARC function-compatible television enables audio playback from
the speaker connected to this unit, regardless of “ARC” settings in the menu.
o
TV Audio Switching
Sets automatic switching to the “TV Audio” input when a TV connected
via HDMI sends an appropriate CEC control command to this unit.
On
(Default):
Select the “TV Audio” input automatically
when receiving a command from the TV.
Off:
Do not select the “TV Audio” input
automatically when receiving a command
from the TV.
0
“TV Audio Switching” can be set when “HDMI Control” is set to “On”.
(v p. 81)
Contents Connections Playback Settings Tips Appendix
82
Front panel Display Rear panel Remote Index
o
Power Off Control
Links the power standby of this unit to external devices.
All
(Default):
If power to a connected TV is turned off
independently of the input source, power
to this unit is automatically set to standby.
Video:
With an input source being selected that
is assigned either “HDMI” or “VIDEO”,
when you turn the power of the TV off,
power to this unit is automatically set to
standby. (v p. 87)
Off: This unit does not link with power to a TV.
0
“Power Off Control” can be set when “HDMI Control” is set to “On”. (v p. 81)
HDMI Upscaler
Sets the mode for upscaling 1080p and 4K HDMI content to 8K.
Auto:
Upscale 1080p and 4K HDMI video to 8K
based on the monitor’s capabilities.
Off
(Default):
8K upscaler is disabled.
0
This item can be set when “HDMI” is assigned for each input source.
0
This function is not effective when the input signal is “x.v.Color”, 3D, sYCC601
color, Adobe RGB color, Adobe YCC601 color, computer resolutions, compressed
video or HDR.
Contents Connections Playback Settings Tips Appendix
83
Front panel Display Rear panel Remote Index
Screen Saver
Select the screen saver setting.
A screen saver is activated if no operation is performed for more than 5
minutes when no video signal is input or when the same screen (e.g. the
setup menu) is displayed.
Use uio p to clear the screen saver.
On: Turns screen saver on.
Off
(Default):
Turns screen saver off.
0
The screen saver is activated in the following cases.
0
When the setup menu is displayed
0
When no video signal is input
0
When the USB, Bluetooth or Tuner playback screen is displayed
4K/8K Signal Format
Set the format of 4K and 8K signal to be played back by this unit when the
TV or playback device connected to this unit is HDMI 4K or 8K signal
compatible.
o
4K/8K Signal Format
Sets the signal format options for devices connected to each input on
this unit.
Standard:
Select if your TV and the source device
support 4K 60Hz 4:2:0 8 bit video signals.
Enhanced
(Default):
Select if your TV, the source device, and
cables support high quality 4K 60Hz
4:4:4 8 bit, 4:2:2 or 4:2:0 10 bit video
signals.
8K Enhanced:
Select if your TV, the source device, and
cables support high quality 8K 60Hz or
4K 120Hz video signals.
Contents Connections Playback Settings Tips Appendix
84
Front panel Display Rear panel Remote Index
GRelation between the “4K/8K Signal Format” setting and supported
resolutionsH
Support
Resolution
Color
Space
Pixel
Depth
4K/8K Signal Format
Standard Enhanced
8K
Enhanced
4K 24Hz,
4K 30Hz,
4K 25Hz
RGB /
YCbCr 4:4:4
8 bit
P P P
10,12 bit –
P P
YCbCr 4:2:2 12 bit
P P P
4K 60Hz,
4K 50Hz
YCbCr 4:2:0
8 bit
P P P
10,12 bit –
P P
RGB /
YCbCr 4:4:4
8 bit –
P P
10,12 bit – –
P
YCbCr 4:2:2 12 bit –
P P
4K 120Hz,
4K 100Hz
YCbCr 4:2:0
8,10,12
bit
– –
P
RGB /
YCbCr 4:4:4
8,10 bit – –
P
YCbCr 4:2:2 12 bit – –
P
8K 24Hz,
8K 30Hz,
8K 25Hz
YCbCr 4:2:0
8,10,12
bit
– –
P
RGB /
YCbCr 4:4:4
8,10 bit – –
P
YCbCr 4:2:2 12 bit – –
P
8K 60Hz,
8K 50Hz
YCbCr 4:2:0 8, 10 bit – –
P
0
When setting this to “Enhanced”, we recommend using a “Premium High
Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that
has an “HDMI Premium Certified Cable” label attached to the product
package.
0
When setting this to “8K Enhanced”, we recommend using a certified “Ultra
High Speed HDMI cable”.
0
When this setting is “8K Enhanced”, configure the television or playback
device settings to match this setting.
0
When this setting is “8K Enhanced”, video may not be output correctly
depending on the connected playback device or HDMI cable. In this case,
change this setting to “Enhanced” or “Standard”.
Contents Connections Playback Settings Tips Appendix
85
Front panel Display Rear panel Remote Index
HDCP Setup
Sets the HDCP version for each HDMI input source.
Video may not be output depending on the HDCP version of your player
and the TV.
If this issue occurs, use this setting to set one version of HDCP. This may
be able to output video.
Auto
(Default):
Automatically applies the HDCP version of
this unit according to TV.
1.4: Fixes the HDCP version of this unit to 1.4.
2.3: Fixes the HDCP version of this unit to 2.3.
Contents Connections Playback Settings Tips Appendix
86
Front panel Display Rear panel Remote Index
Inputs
Perform settings related to input source playback.
You do not have to change the settings to use the unit. Make settings when needed.
Input Assign
By making connections as indicated by the input sources printed on the
audio/video input connectors of this unit, you can just press one of the
input source select buttons to easily play back audio or video from a
connected device.
Please change the assignment of the digital audio input connector when
connecting an input source that differs from that printed to the digital audio
input terminals of this unit.
OPTICAL1
OPTICAL2
COAXIAL
TV Audio
AUX
CBL/SAT
Input Assign
Set Defaults
0
By default, each item is set as follows.
Input source
Input connector
CBL/
SAT
Media
Player
Blu-
ray
Game AUX
TV
Audio
OPTICAL1
S
OPTICAL2
S
COAXIAL
S
o
Set Defaults
The “Input Assign” settings are returned to the default settings.
Source Level
This function corrects the playback level of the selected input source’s
audio input.
Make this setting if there are differences in the input volume levels
between the different sources.
-12 dB – +12 dB (Default : 0 dB)
0
“Source Level” settings are stored for each input source.
Contents Connections Playback Settings Tips Appendix
87
Front panel Display Rear panel Remote Index
Input Select
Set the audio input mode and decode mode of each input source.
The input modes available for selection may vary depending on the input
source.
0
“Input Select” settings are stored for each input source.
o
Input Mode
Set the audio input modes for the different input sources.
It is normally recommended to set the audio input mode to “Auto”.
Auto
(Default):
Automatically detect input signal and
perform playback.
HDMI: Play only signals from HDMI input.
Digital: Play only signals from digital audio input.
Analog: Play only signals from analog audio input.
0
When digital signals are properly input, the ~ indicator lights on the display.
If the ~ indicator does not light, check “Input Assign” and the connections.
(v p. 87)
0
If “ARC” is set to “On” and a TV compatible with the ARC is connected via the
HDMI MONITOR connectors, the input mode whose input source is “TV
Audio” is fixed to ARC.
0
When an eARC function-compatible television is connected to the HDMI
MONITOR connector, the input mode whose input source is “TV Audio” is
fixed to eARC.
o
Decode Mode
Set the audio decode mode for input source.
It is normally recommended to set the audio input mode to “Auto”. But
we recommend changing it to “PCM” or “DTS” if the start of the source
is clipped or noise occurs.
Auto
(Default):
Detect type of digital audio input signal
and decode and play automatically.
PCM: Decode and play only PCM input signals.
DTS: Decode and play only DTS input signals.
0
This item can be set for input sources for which the HDMI input connector is
assigned or for which “COAXIAL”, “OPTICAL1” or “OPTICAL2” is assigned
under “Input Assign” in the menu. (v p. 87)
Contents Connections Playback Settings Tips Appendix
88
Front panel Display Rear panel Remote Index
Speakers
The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called
“Auto Setup”.
You do not have to perform “Auto Setup” when you have already performed “Speaker Setup” in “Setup Assistant”.
To set up the speakers manually, use “Manual Setup” on the menu. (v p. 94)
Auto Setup
To perform measurement, place the Sound calibration microphone in the
main listening position.
FL SW C FR
SRSL
Surround speaker (R)
Surround speaker (L)
Subwoofer
Center speaker
Front speaker (R)
Front speaker (L)
Main listening position
FL
FR
C
SW
SL
SR
o
About the main listening position
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting “Auto Setup”, place the Sound calibration
microphone in the main listening position.
Contents Connections Playback Settings Tips Appendix
89
Front panel Display Rear panel Remote Index
NOTE
0
Make the room as quiet as possible. Background noise can disrupt the room
measurements. Close windows and turn off the power on electronic devices
(radios, air conditioners, fluorescent lights, etc.). The measurements could be
affected by the sounds emitted by such devices.
0
During the measurement process, place cell phones outside the listening room.
Cell phone signals could disrupt the measurements.
0
Do not stand between the speakers and Sound calibration microphone or allow
obstacles in the path while the measurements are being made. Also, install the
Sound calibration microphone at least 20 inches (50 cm) away from the wall.
Failure to do so will result in inaccurate readings.
0
During the measurement process, audible test tones will come from the speakers
and subwoofer(s), but this is part of normal operation. If there is background noise
in the room, these test signals will increase in volume.
0
Measurement cannot be performed when headphones are connected. Unplug the
headphones before performing “Auto Setup”.
Contents
Connections Playback Settings Tips Appendix
90
Front panel Display Rear panel Remote Index
Procedure for speaker settings (Auto
Setup)
Finish
Measurement
Preparation
1
Mount the Sound calibration microphone on a tripod
and place it in the main listening position.
When installing the Sound calibration microphone, point the tip of
the microphone toward the ceiling and adjust the height to match the
height of the ears of a listener in a seated position.
2
If using a subwoofer capable of the following
adjustments, set up the subwoofer as shown below.
n
When using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment
and crossover frequency setting.
n
When using a subwoofer without a direct mode
Make the following settings:
0
Volume : 12 o’clock position
0
Crossover frequency : Maximum/Highest Frequency
0
Low pass filter : Off
0
Standby mode : Off
Contents Connections Playback Settings Tips Appendix
91
Front panel Display Rear panel Remote Index
3
Connect the Sound calibration microphone to the
SETUP MIC jack of this unit.
When the Sound calibration microphone is
connected, the following screen is displayed.
Auto Setup
Start
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
4
Select “Start”, then press ENTER.
5
Select “Next”, then press ENTER.
6
Select “Begin Test”, then press ENTER.
0
Measurement requires several minutes.
NOTE
0
If “CAUTION” is displayed on TV screen:
0
Go to “Error messages” (v p. 93). Check any related items,
and perform the necessary procedures.
n
To cancel Auto Setup
A
Press BACK to display the popup screen.
B
Press o to select “Yes”, then press ENTER.
7
Unplug the Setup and measurement microphone from
the unit’s SETUP MIC jack.
Do not change the speaker connection or subwoofer volume after
“Auto Setup”. If these are changed, run “Auto Setup” again in order
to configure the optimum equalizer settings.
Contents
Connections Playback Settings Tips Appendix
92
Front panel Display Rear panel Remote Index
Error messages
An error message is displayed if “Auto Setup” could not be completed due to speaker placement, the measurement environment, etc. If an error message
is displayed, perform the necessary measures. Be sure to turn off the power before checking speaker connections.
Examples Error details Measures
Front L: None
0
The displayed speaker could not be detected.
0
Check the connections of the displayed speaker.
Contents Connections Playback Settings Tips Appendix
93
Front panel Display Rear panel Remote Index
Manual Setup
Perform when setting the speakers manually or when changing settings made in “Auto Setup”.
0
This unit can be used without changing “Manual Setup” settings. Please set if necessary.
Speaker Layout
Set the speakers to be used.
o
Front
Front is fixed to Yes.
o
Center
Set the Center Speaker.
Yes
(Default):
The Center Speaker is used.
No: The Center Speaker is not used.
o
Surround
Set the Surround Speakers.
Yes
(Default):
The Surround Speakers are used.
No: The Surround Speakers are not used.
o
Subwoofer
Set the presence of a subwoofer.
Yes
(Default):
A subwoofer is used.
No: No subwoofer is used.
Contents Connections Playback Settings Tips Appendix
94
Front panel Display Rear panel Remote Index
Distances
Set distance from listening position to speakers.
Measure beforehand the distance from the listening position to each
speaker.
o
Step
Set the unit of distance.
1 ft / 0.1 ft (Default : 1 ft)
o
Set Defaults
The “Distances” settings are returned to the default settings.
o
Set the distance
0.0 ft – 60.0 ft
0
The speakers that can be selected differ depending on the “Speaker Layout”
settings. (v p. 94)
0
Default settings :
Front L / Front R / Center / Subwoofer:12.0 ft
Surround L / Surround R:10.0 ft
0
Set the difference in the distance between the speakers to less than 20.0 ft.
Levels
Set the volume of the test tone to be the same at the listening position
when it is output from each speaker.
o
Test Tone Start
A test tone is output from the selected speaker.
While listening to the test tone, adjust the volume output from the
selected speaker.
–12.0 dB – +12.0 dB (Default : 0.0 dB)
0
The set “Levels” are reflected in all sound modes.
0
When headphones are connected to the PHONES connector on this unit, you
cannot set “Levels”.
o
Set Defaults
The “Levels” settings are returned to the default settings.
Contents
Connections Playback Settings Tips Appendix
95
Front panel Display Rear panel Remote Index
Crossovers
Set in accordance with the lower limit frequency of the base frequencies
that can be played back through each speaker.
o
Set the crossover frequency
Full Band / 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz /
120 Hz / 150 Hz / 200 Hz / 250 Hz (Default : 80 Hz)
0
The default crossover frequency is “80 Hz”, which will work best with the
widest variety of speakers. We recommend setting to a higher frequency that
the crossover frequency when small speakers are used. For example, set to
“250 Hz” when the frequency range of the speakers is 250 Hz – 20 kHz.
0
Sounds below crossover frequency is cut off in the output from the speaker.
The cut off bass frequencies is output from the sub-woofer or front speaker.
0
When no subwoofer is used, “Front” is fixed to “Full Band”.
Contents Connections Playback Settings Tips Appendix
96
Front panel Display Rear panel Remote Index
Advanced Setup
Set advanced settings relating to speakers.
o
Subwoofer Output
n
Subwoofer Output
Selects which low frequency signals are sent to the subwoofer outputs.
LFE
(Default):
The subwoofer outputs receive the LFE
track, plus any redirected bass from
speakers with crossovers set. Use this
setting as the default for home theater
bass management in a typical room.
LFE+Main:
The subwoofer outputs receive the LFE
track, plus redirected bass, and a copy of
the low frequency signals from all full
band speakers.
0
“Subwoofer Output” can be set when “Speaker Layout” - “Subwoofer” in the
menu is set to “Yes”. (v p. 94)
0
Play music or a movie source and select the mode offering the strongest bass.
0
If “Crossovers” - “Front” and “Center” are set to “Full Band”, and “Subwoofer
Output” is set to “LFE”, no sound may be output from the subwoofers,
depending on the input signal or selected sound mode. (v p. 94)
Select “LFE+Main” if you want the bass signals to always be produced from
the subwoofer.
n
Bass Extraction LPF
Set the low pass filter for the bass to be copied from the Full Band
Speaker for each speaker when “Subwoofer Output” is “LFE+Main”.
40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz /
180 Hz / 200 Hz / 250 Hz (Default : 80 Hz)
0
Setting can only be performed for speakers for which “Crossovers” is set to
“Full Band”.
o
LPF for LFE
Selects the crossover point for the LFE channel. Set this when you
want to change the playback frequency (low pass filter point) of the
subwoofer.
80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz/ 150 Hz / 180 Hz /
200 Hz / 250 Hz (Default: 100 Hz)
Contents Connections Playback Settings Tips Appendix
97
Front panel Display Rear panel Remote Index
General
Make various other settings.
Language
Set the language for display the menu on the TV screen.
English / Français / Español (Default : English)
0
“Language” can also be set up by the following operation. However, the menu
screen is not displayed. Watch the display while configuring the settings.
1. Press and hold the main unit’s TUNER PRESET CH +, TUNER PRESET CH -
and TUNE - for at least 3 seconds.
“V.Format:< NTSC>” appears on the display.
2. Press the main unit’s TUNE +.
“Lang.:<ENGLISH >” appears on the display.
3. Use the main unit’s TUNER PRESET CH + or TUNE - and set the language.
4. Press TUNER PRESET CH - to enter the setting.
ECO
Configure the settings of the ECO Mode and auto standby mode.
o
ECO Mode
This mode can reduce the power consumption when the power of the
unit is on.
On:
Power savings are always active,
regardless of volume or input signal.
Auto
(Default):
Gives you the best balance between
power savings and maximum power
output:
For low volume levels, the power savings
are active. If you increase the volume
level, the power savings are switched off
automatically, so you can enjoy
maximum output power without
distortion.
Off: No power savings.
0
When the unit is switching between the different power saving states in “ECO
Mode: Auto”, you may notice a click noise from the inside of this unit, this is
normal.
0
Eco mode can also be switched by pressing ECO G on the remote control
unit.
Contents
Connections Playback Settings Tips Appendix
98
Front panel Display Rear panel Remote Index
o
Power On Default
Set the mode to ECO when the power is on.
Last
(Default):
The ECO Mode will be set to the previous
setting before the power was switched
off.
On:
When power is turned on, the mode will
always be switched to the “ECO Mode” in
“On”.
Auto:
When power is turned on, the mode will
always be switched to the “ECO Mode” in
“Auto”.
Off:
When power is turned on, the mode will
always be switched to the “ECO Mode” in
“Off”.
o
Auto Standby
Set so the unit power automatically switches to standby.
Sets the time for switching to auto standby when there are no audio or
video signals input into this unit.
Before the unit enters standby mode, “Auto Standby” is displayed on
the unit display and the menu screen.
60 min:
The unit goes into standby after 60 minutes.
30 min:
The unit goes into standby after 30 minutes.
15 min:
The unit goes into standby after 15 minutes.
Off
(Default):
The unit does not go into standby
automatically.
Contents Connections Playback Settings Tips Appendix
99
Front panel Display Rear panel Remote Index
Bluetooth
Configures the Bluetooth settings.
o
Bluetooth Standby
Set whether or not to turn the unit’s power on when a Bluetooth device
is operated.
On
(Default):
Turns the Bluetooth standby function on.
Off: Turns the Bluetooth standby function off.
0
When the “Bluetooth Standby” setting is “On” and the connection operation is
performed on a Bluetooth device when this unit is in the standby state, this
unit’s power automatically switches on. In order to use this operation, the
device needs to be paired with this unit in advance.
NOTE
0
When using the “Denon 500 Series Remote” app, use with the “Bluetooth
Standby” setting set to “On”.
o
Auto-Select
Set whether to automatically switch the source input to “Bluetooth”
when performing the connection operation from a Bluetooth device.
On
(Default):
Select the “Bluetooth” source input
automatically when a Bluetooth device
connects to this unit.
Off:
Do not select to the “Bluetooth” source
input when a Bluetooth device connects
to this unit.
0
Set “Auto-Select” to “Off” if you do not want the source input of this unit to
automatically switch to “Bluetooth” when connecting the “Denon 500 Series
Remote” app to this unit.
0
Some Bluetooth devices may automatically connect to this unit when they
enter this unit’s communication range. If this happens, setting “Auto-Select” to
“Off” will prevent unintended actions such as turning on this unit or switching
the source input to “Bluetooth”.
Contents Connections Playback Settings Tips Appendix
100
Front panel Display Rear panel Remote Index
Quick Select Options
Set the items to be registered or called up in each Quick Select.
o
Input Source/Master Volume/Sound Mode/
Channel Level/Restorer/Playback Contents/
Room EQ
Enabled
(Default):
The current settings are registered when
Quick Select is registered. In addition,
when Quick Select is called up, the
content of the registered settings is called
up.
Disabled:
Settings are not registered when Quick
Select is registered. In addition, when
Quick Select is called up, the content of
the registered settings is not called up.
0
“Quick Select Options” can be set for each Quick Select.
0
When “Input Source” is “Disabled”, Video Select information is not registered/
called up either.
0
“Playback Contents” can be set when “Input Source” is “Enabled”.
o
Set Defaults
The “Quick Select Options” settings are returned to the default
settings.
Contents Connections Playback Settings Tips Appendix
101
Front panel Display Rear panel Remote Index
Front Display
Adjusts the brightness of the front panel display.
o
Brightness
Bright
(Default):
Normal display brightness.
Dim: Reduced display brightness.
Dark: Very low display brightness.
Off: Turns the display off.
0
When the display brightness is set to “Off”, the display turns off as in the
standby state.
0
You can also adjust the display by pressing DIMMER on the main unit.
Firmware
When new firmware is supplied, update this unit using the USB port.
Use a USB memory device to update the firmware.
o
Update Start
Start the firmware update.
To update the firmware, connect the USB memory device to the USB
port on this unit.
Contents Connections Playback Settings Tips Appendix
102
Front panel Display Rear panel Remote Index
Setup Lock
Protect settings from inadvertent changes.
o
Lock
On: Turn protection on.
Off
(Default):
Turn protection off.
0
Perform the following operations to set “Lock” to “Off”.
1. Press and hold SETUP for more than 3 seconds.
“Setup Lock:0On1” appears on the display.
2.
Use o p to select “Off”, then press ENTER.
NOTE
0
When “Lock” is set to “On”, no setting items are displayed except for “Setup
Lock”.
Reset
All settings are reset to the factory default values.
Contents Connections Playback Settings Tips Appendix
103
Front panel Display Rear panel Remote Index
Checking the information
INFO
Pressing INFO on the remote control switches the display to show
information such as the input source name, the volume, the sound mode
name, the video input/output signals, and other information. The FRL Rate
is displayed when the “4K/8K Signal Format” setting of this unit is “8K
Enhanced” and the connected TV supports FRL transmission mode.
1
Press INFO.
The information screen is displayed.
o
Source information
Input Source / Video Select / Volume
o
Audio information
Input Signal / Sound Mode / Active Speakers / Room EQ
o
Video information
Resolution / HDR / Color Space / Pixel Depth / FRL Rate /
ALLM / QFT
Contents Connections Playback Settings Tips Appendix
104
Front panel Display Rear panel Remote Index
0
The displayed information changes each time INFO is pressed.
0
A or B may be displayed at the end of resolution. A represents uncompressed
video and B represents compressed video.
0
Refer to “About HDMI” for more information about ALLM, QFT, and FRL.
(v p. 122)
EXT
LFE
SB
SBR
SBL
C
FR
FWR
FHR
FL
FHL
FWL
SR
SL
SW
C
FR
FL
SR
SL
40.0
SOURCE
CBL/SAT
SIGNAL
DTS-HD
SOUND
DTS-HD
INPUT
SIGNAL
ACTIVE
SPEAKERS
40.0
SOURCE
CBL/SAT
SIGNAL
DTS-HD
SOUND
DTS-HD
Room EQ : On
:8K24A
:Dynamic HDR
:YCbCr
4:2:2/BT.2020
:12bits
:40Gbps
=
>8K24A
=
>Dynamic HDR
=
>YCbCr
4:2:2/BT.2020
=
>12bits
=
>40Gbps
ALLM
SOURCE
CBL/SAT
SIGNAL
DTS-HD
SOUND
DTS-HD
Resolution
HDR
Color Space
Pixel Depth
FRL Rate
Contents
Connections Playback Settings Tips Appendix
105
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want the volume not to become too loud by mistake 107
I want to keep the volume at the same level when I turn the power
on 107
I want to have the subwoofer always output audio 107
I want to set the optimized listening environment after changing the
configuration/position of the speakers or changing a speaker to a
new one 107
I want to combine a desired video with the current music 107
Troubleshooting
Power does not turn on / Power is turned off 109
Operations cannot be performed through the remote control unit 110
Display on this unit shows nothing 110
No sound comes out 111
Desired sound does not come out 112
Sound is interrupted or noise occurs 114
No video is shown on the TV 115
The menu screen is not displayed on the TV 117
The color of the menu screen and operations content displayed on
the television is different from normal 117
USB memory devices cannot be played back 118
File names on the USB memory device are not displayed properly 119
Bluetooth cannot be played back 119
The HDMI control function does not work 120
Contents Connections Playback Settings Tips Appendix
106
Front panel Display Rear panel Remote Index
Tips
I want the volume not to become too loud by mistake
0
Set the volume upper limit for “Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake.
(v p. 78)
I want to keep the volume at the same level when I turn the power on
0
By default, the volume setting when power was previously set to standby on this unit is applied at next power on with no change. To use a fixed volume
level, set the volume level at power on for “Power On Level” in the menu. (v p. 78)
I want to have the subwoofer always output audio
0
Depending on the input signals and sound mode, the subwoofer may not output audio. When “Subwoofer Output” in the menu is set to “LFE+Main”, you
can have the subwoofer always output audio. (v p. 97)
I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new
one
0
Perform “Auto Setup”. This automatically makes the optimized speaker settings for the new listening environment. (v p. 89)
I want to combine a desired video with the current music
0
Set “Video Select” in the option menu to “On”. You can combine the current music with your desired video source from a Set-top Box or Blu-ray, etc.
while listening to music from Tuner. (v p. 59)
Contents
Connections Playback Settings Tips Appendix
107
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
0
If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Continue pressing the X button on the unit until “Restart” appears in the display, or remove and re-insert the power cord of the unit.
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
108
Front panel Display Rear panel Remote Index
Power does not turn on / Power is turned off
Power does not turn on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 38)
Power automatically turns off.
0
The sleep timer is set. Turn on the power again. (v p. 66)
0
“Auto Standby” is set. “Auto Standby” is triggered when there is no operation for a set amount of time. To disable “Auto Standby”, set “Auto Standby” on
the menu to “Off”. (v p. 99)
Power turns off and the power indicator flashes in red approx. every 2 seconds.
0
The protection circuit has been activated due to a rise in temperature within this unit. Turn the power off, wait about an hour until this unit cools down
sufficiently, and then turn the power on again. (v p. 138)
0
Please re-install this unit in a place having good ventilation.
Power turns off and the power indicator flashes in red approx. every 0.5 seconds.
0
Check the speaker connections. The protection circuit may have been activated because speaker cable core wires came in contact with each other or a
core wire was disconnected from the connector and came in contact with the rear panel of this unit. After unplugging the power cord, take corrective
action such as firmly re-twisting the core wire or taking care of the connector, and then reconnect the wire. (v p. 23)
0
Turn down the volume and turn on the power again. (v p. 40)
0
This unit’s amplifier circuit has failed. Unplug the power cord and contact our customer service center.
Contents
Connections Playback Settings Tips Appendix
109
Front panel Display Rear panel Remote Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 7)
0
Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within 30°. (v p. 7)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 7)
0
The set’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
Display on this unit shows nothing
Display is off.
0
Press the DIMMER button on this unit or remote control unit to set the display brightness to a setting other than “Off”. (v p. 102)
0
When the sound mode is set to “Pure Direct”, the display is off. (v p. 62)
Contents
Connections Playback Settings Tips Appendix
110
Front panel Display Rear panel Remote Index
No sound comes out
No sound comes out of speakers.
0
Check the connections for all devices. (v p. 23)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check that speaker cables are properly connected. Check that cable core wires come in contact with the metal part on speaker terminals. (v p. 23)
0
Securely tighten the speaker terminals. Check speaker terminals for looseness. (v p. 23)
0
Check that a proper input source is selected. (v p. 40)
0
Adjust the volume. (v p. 41)
0
Cancel the mute mode. (v p. 41)
0
Check the digital audio input connector setting. (v p. 87)
0
Check the digital audio output setting on the connected device. On some devices, the digital audio output is set to off by default.
0
When a headphone is plugged into the PHONES jack on the main unit, sound is not output from the speaker terminal and SUBWOOFER connector.
(v p. 13)
No sound comes out when using the DVI-D connection.
0
When this unit is connected to a device equipped with a DVI-D connector, no sound is output. Make a separate audio connection.
Contents
Connections Playback Settings Tips Appendix
111
Front panel Display Rear panel Remote Index
Desired sound does not come out
The volume does not increase.
0
The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 78)
0
Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit.
No sound comes out with the HDMI connection.
0
Check the connection of the HDMI connectors. (v p. 28)
0
When outputting HDMI audio from the speakers, set “HDMI Audio Out” on the menu to “AVR”. To output from the TV, set “TV”. (v p. 80)
0
When using the HDMI Control function, check that the audio output is set to the AV amplifier on the TV. (v p. 64)
When an eARC function-compatible television is connected, television audio is not output from the speaker connected to this unit.
0
eARC function settings may be required depending on the eARC function-compatible television you are using. Make sure eARC is set to on if this
setting exists on your television. For more information, check your television’s owner’s manual.
0
Make sure the input source of this unit is “TV Audio”.
0
The eARC function does not operate when the HDMI input connector is set to the “TV Audio” input source. To enable eARC function operation, remove
the HDMI input connector setting, then restart this unit and the television. (v p. 87)
No sound comes out of a specific speaker.
0
Check that speaker cables are properly connected. (v p. 23)
0
Check that a selection other than “No” is set for the “Speaker Layout” setting in menu. (v p. 94)
0
When the sound mode is “Stereo” and “Virtual”, audio is only output from the front speakers and subwoofer.
Contents
Connections Playback Settings Tips Appendix
112
Front panel Display Rear panel Remote Index
No sound is produced from subwoofer.
0
Check the subwoofer connections. (v p. 24)
0
Turn on the subwoofer’s power.
0
Set “Speaker Layout” - “Subwoofer” on the menu to “Yes”. (v p. 94)
0
When “Crossovers” - “Front” in the menu is set to “Full Band”, depending on the input signal and the sound mode, no sound may be output from the
subwoofer. (v p. 96)
0
When no subwoofer audio signal (LFE) is included in the input signals, no sound may be output from the subwoofer. (v p. 97)
0
You can make the subwoofer always output sound by setting the “Subwoofer Output” to “LFE+Main”. (v p. 97)
DTS sound is not output.
0
Check that the digital audio output setting on the connected device is set to “DTS”.
0
Set “Decode Mode” on the menu to “Auto” or “DTS”. (v p. 88)
Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output.
0
Make HDMI connections. (v p. 31)
0
Check the digital audio output setting on the connected device. On some devices, “PCM” is set by default.
Dolby PLg mode or DTS Neo:6 mode cannot be selected.
0
It cannot be selected when “No” is set for “Speaker Layout” - “Center” and “Surround”. (v p. 94)
0
Dolby PLg or DTS Neo:6 cannot be selected when using headphones.
“Restorer” cannot be selected.
0
Check that an analog signal or PCM signal (Sample Rate = 44.1/48 kHz) is input. For playback of multichannel signals such as Dolby Digital or DTS
surround, “Restorer” cannot be used. (v p. 77)
0
Switch to a sound mode other than “Direct” or “Pure Direct”. (v p. 60)
Contents
Connections Playback Settings Tips Appendix
113
Front panel Display Rear panel Remote Index
Sound is interrupted or noise occurs
During playback from the USB memory device, sound is occasionally interrupted.
0
When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted.
Noise often occurs in FM/AM broadcasting.
0
Change the antenna orientation or position. (v p. 36)
0
Separate the AM loop antenna from the unit.
0
Use an outdoor antenna. (v p. 36)
0
Separate the antenna from other connection cables. (v p. 36)
The sounds appear to be distorted.
0
Lower the volume. (v p. 41)
0
Set “Off” to the ECO Mode. When “On” or “Auto” is in the ECO Mode, the audio may by distorted when the playback volume is high. (v p. 98)
Contents
Connections Playback Settings Tips Appendix
114
Front panel Display Rear panel Remote Index
No video is shown on the TV
No picture appears.
0
Check the connections for all devices. (v p. 28)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Match the input settings to the input connector of the TV connected to this unit. (v p. 87)
0
Check that the proper input source is selected. (v p. 40)
0
Check the video input connector setting. (v p. 87)
0
Check that the resolution of the player corresponds to that of the TV.
0
Check whether the TV is compatible with copyright protection (HDCP). If connected to a device not compatible with HDCP, video will not be output
correctly. (v p. 125)
0
To enjoy content that is copyright protected by HDCP 2.2 or HDCP 2.3, use a playback device and TV compatible with HDCP 2.2 or HDCP 2.3.
0
To play back a 4K video, use a “High Speed HDMI Cable” or an “High Speed HDMI Cable with Ethernet”. In order to achieve a higher fidelity for 4K
videos, it is recommended to use a “Premium High Speed HDMI Cables” or an “Premium High Speed HDMI Cables with Ethernet” that has an HDMI
Premium Certified Cable label on the product package.
0
Use a certified “Ultra High Speed HDMI cable” to enjoy 8K or 4K 120Hz video. If you use a different HDMI cable, the video may not be displayed or
other problems may occur.
No video is shown on the TV with the DVI-D connection.
0
With the DVI-D connection, on some device combinations, devices may not function properly due to the copy guard copyright protection (HDCP).
(v p. 125)
Contents
Connections Playback Settings Tips Appendix
115
Front panel Display Rear panel Remote Index
While the menu is being displayed, no video is shown on the TV.
0
The video being played will not appear in the background of the menu when the menu is operated during playback of the following video signals.
- Some images of 3D video contents
- Computer resolution images (example: VGA)
- Video with an aspect ratio other than 16:9 or 4:3
- Some kind of HDR signals
- Some kind of game contents
- Compressed video
Contents Connections Playback Settings Tips Appendix
116
Front panel Display Rear panel Remote Index
The menu screen is not displayed on the TV
The menu screen or status information screen is not displayed on the TV.
0
The menu screen is only displayed on this unit and a TV connected with an HDMI cable.
0
The status information will not appear on the TV when the following video signals are being played. (v p. 104)
- Some images of 3D video content
- Computer resolution images (example: VGA)
- Video with an aspect ratio other than 16:9 or 4:3
- Some kind of HDR signals
- Some kind of game contents
- Compressed video
0
When a 2D video is converted to a 3D video on the TV, the menu screen or status information screen is not properly displayed.
0
Set the TV Format in accordance with the TV you are using.
1. Press and hold the main unit’s TUNER PRESET CH +, TUNER PRESET CH - and TUNE - for at least 3 seconds.
“V.Format:< NTSC>” appears on the display.
2. Use the main unit’s TUNER PRESET CH + or TUNE - and set the TV Format.
3. Press TUNER PRESET CH - to enter the setting.
The color of the menu screen and operations content displayed on the television is
different from normal
The color of the menu screen and operations content displayed on the television is different.
0
Performing operations on this unit during playback of a Dolby Vision signal may cause variance in the color display of the menu screen and operations
content. This is a characteristic of the Dolby Vision signal and is not a malfunction.
Contents
Connections Playback Settings Tips Appendix
117
Front panel Display Rear panel Remote Index
USB memory devices cannot be played back
“No connection” is displayed.
0
This unit cannot recognize the USB memory device. Disconnect and reconnect the USB memory device. (v p. 35)
0
Mass storage class compatible USB memory devices are supported.
0
This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port.
0
The USB memory device must be formatted to FAT16 or FAT32.
0
Not all USB memory devices are guaranteed to work. Some USB memory devices are not recognized. When using a type of portable hard disc drive
compatible with the USB connection that requires power from an AC adapter, use the AC adapter that came with the drive.
Files on the USB memory device are not displayed.
0
Files of a type not supported by this unit are not displayed. (v p. 42)
0
This unit is able to display files within a maximum of 16 folder layers and up to 10000 files (folders). Modify the folder structure of the USB memory
device.
0
When multiple partitions exist on the USB memory device, only files on the first partition are displayed.
iOS and Android devices are not supported.
0
The USB port of this unit does not support playback from iOS and Android devices.
Files on a USB memory device cannot be played.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 128)
0
You are attempting to play a file that is copyright protected. Files that are copyright protected cannot be played on this unit.
Contents
Connections Playback Settings Tips Appendix
118
Front panel Display Rear panel Remote Index
File names on the USB memory device are not displayed properly
The file names are not displayed properly (“...”, etc.).
0
Characters that cannot be displayed have been used. On this unit, characters that cannot be displayed are replaced with a “. (period)”.
Bluetooth cannot be played back
Bluetooth devices cannot be connected to this unit.
0
The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function.
0
Bring the Bluetooth device near to this unit.
0
The Bluetooth device cannot connect with this unit if it is not compatible with the A2DP profile.
0
Turn the power of the Bluetooth device off and on again, and then try again.
The sound is cut off.
0
Bring the Bluetooth device near to this unit.
0
Remove obstructions between the Bluetooth device and this unit.
0
To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices.
0
Reconnect the Bluetooth device.
Contents
Connections Playback Settings Tips Appendix
119
Front panel Display Rear panel Remote Index
The HDMI control function does not work
The HDMI control function does not work.
0
Check that “HDMI Control” in the menu is set to “On”. (v p. 81)
0
You cannot operate devices that are not compatible with the HDMI control function. In addition, depending on the connected device or the settings, the
HDMI control function may not work. In this case, operate the external device directly. (v p. 64)
0
Check that the HDMI control function setting is enabled on all devices connected to this unit. (v p. 64)
0
When you make connection related changes such as connecting an additional HDMI device, the link operation settings may be initialized. Turn off this
unit and devices connected via HDMI, and turn them on again. (v p. 64)
Contents Connections Playback Settings Tips Appendix
120
Front panel Display Rear panel Remote Index

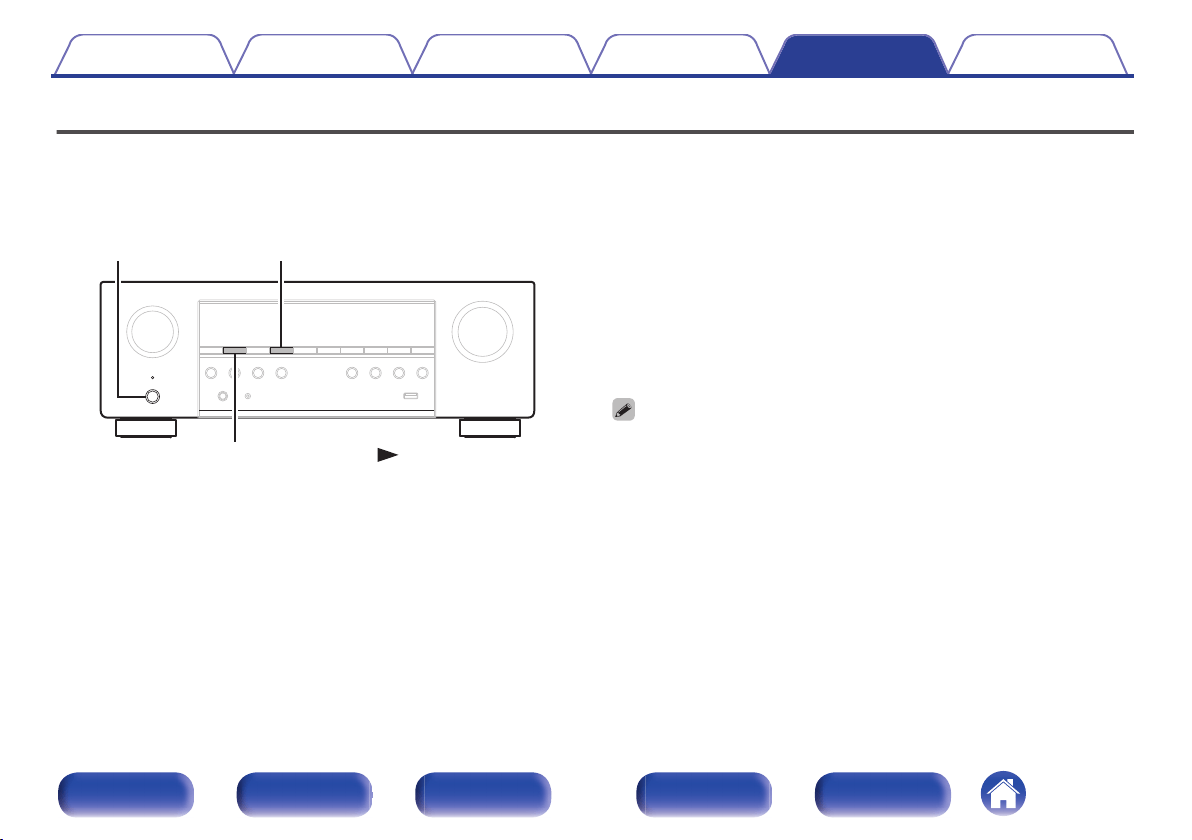

Resetting factory settings
If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before
returning the settings to the default settings. (v p. 108)
If the operations are not improved by restarting the unit, follow the steps below.
Various settings are reset to the factory default values. Make settings again.
X
SOUND MODE
TUNER PRESET CH +
1
Turn off the power using X.
2
Press X while simultaneously pressing SOUND
MODE 1 and TUNER PRESET CH +.
3
Release the two buttons when the display starts
flashing at intervals of about 1 second.
0
You can also reset all settings to the factory defaults using “Reset” in the menu.
(v p. 103)
Contents Connections Playback Settings Tips Appendix
121
Front panel Display Rear panel Remote Index
About HDMI
HDMI is an abbreviation of High-Definition Multimedia Interface, which is
an AV digital interface that can be connected to a TV or amplifier.
With the HDMI connection, high definition video and high quality audio
formats adopted by Blu-ray Disc players (Dolby Digital Plus, Dolby
TrueHD, DTS-HD) can be transmitted, which is not possible with the
analog video transmission.
Furthermore, in the HDMI connection, audio and video signals can be
transmitted through a single HDMI cable, while in conventional
connections it is necessary to provide audio and video cables separately
for connection between devices. This allows you to simplify the wiring
configuration that tends to be quite complex in a home theater system.
This unit supports the following HDMI functions.
0
Deep Color
An imaging technology supported by HDMI. Unlike RGB or YCbCr,
which uses 8 bits (256 shades) per color, it can use 10 bits (1024
shades), 12 bits (4096 shades), or 16 bits (65536 shades) to produce
colors in higher definition.
Both devices linked via HDMI must support Deep Color.
0
x.v.Color
This function lets HDTVs display colors more accurately. It enables
display with natural, vivid colors.
“x.v.Color” is trademark of Sony Corporation.
0
3D
This unit supports input and output of 3D (3 dimensional) video signals
of HDMI. To play back 3D video, you need a TV and player that
provide support for the HDMI 3D function and a pair of 3D glasses.
0
4K / 8K
This unit supports input and output of 4K (3840 x 2160 pixels) and 8K
(7680 x 4320 pixels) video signals of HDMI.
0
Content Type
It automatically makes settings suitable for the video output type
(content information).
0
Adobe RGB color, Adobe YCC601 color
The color space defined by Adobe Systems Inc. Because it is a wider
color space than RGB, it can produce more vivid and natural images.
0
sYCC601 color
Each of these color spaces defines a palette of available colors that is
larger than the traditional RGB color model.
0
HDMI Pass Through
Even when the power to this unit is set to standby, signals input from
the HDMI input connector are output to a TV or other device that is
connected to the HDMI output connector.
Contents
Connections Playback Settings Tips Appendix
122
Front panel Display Rear panel Remote Index
0
HDMI Control
If you connect the unit and an HDMI control function compatible TV or
player with an HDMI cable and then enable the HDMI control function
setting on each device, the devices will be able to control each other.
0
Power off link
This unit power off can be linked to the TV power off step.
0
Audio output destination switching
From the TV, you can switch whether to output audio from the TV or
the AV amplifier.
0
Volume adjustment
You can adjust this unit’s volume in the TV volume adjustment
operation.
0
Input source switching
You can switch this unit input sources through linkage to TV input
switching.
When playing the player, this unit input source switches to the
source for that player.
0
ARC (Audio Return Channel)
This function transmits audio signals from the TV to this unit through
the HDMI cable and plays back the audio from the TV on this unit
based on the HDMI control function.
If a TV without the ARC function is connected via HDMI connections,
video signals of the playback device connected to this unit are
transmitted to the TV, but this unit can not play back the audio from the
TV. If you want to enjoy surround audio for TV program, a separate
audio cable connection is required.
In contrast, if a TV with the ARC function is connected via HDMI
connections, no audio cable connection is required. Audio signals from
the TV can be input to this unit through the HDMI cable between this
unit and the TV. This function allows you to enjoy surround playback
on this unit for the TV.
0
eARC (Enhanced Audio Return Channel)
The eARC function is an extension of the conventional ARC function. It
utilizes dedicated eARC function control to play back television audio
from this unit without passing through HDMI control. Furthermore, the
eARC function can transmit multichannel linear PCM, Dolby TrueHD,
DTS-HD and other audio formats not compatible with conventional
ARC. Connecting to an eARC function-compatible television also
enables enjoyment of higher-quality surround playback of the audio
content played from your television.
Contents
Connections Playback Settings Tips Appendix
123
Front panel Display Rear panel Remote Index
0
ALLM (Auto Low Latency Mode)
This unit automatically switches to low latency mode depending on
playback contents when using a combination of television and game
console compatible with the ALLM function.
0
VRR (Variable Refresh Rate):
VRR reduces or eliminates lag, stutter and frame tearing for more fluid
and better detailed gameplay.
0
QFT (Quick Frame Transport):
QFT reduces latency for smoother no-lag gaming, and real-time
interactive virtual reality.
0
FRL (Fixed Rate Link):
FRL (Fixed Rate Link) is transmission technology that is required to
provide higher resolutions such as ultra high speed bandwidths of 4K
60Hz or higher.
NOTE
0
Some functions may not operate depending on the connected TV or player.
Check the owner’s manual of each device for details beforehand.
o
Supported audio formats
2-channel Linear PCM 2-channel, 32 kHz – 192 kHz, 16/20/24 bit
Multi-channel Linear PCM 7.1-channel, 32 kHz – 192 kHz, 16/20/24 bit
Bitstream
Dolby Digital / DTS / Dolby TrueHD /
Dolby Digital Plus / DTS-HD
o
Supported video signals
0
480i
0
480p
0
576i
0
576p
0
720p 60/50Hz
0
1080i 60/50Hz
0
1080p
120/100/60/50/30/25/24Hz
0
4K 120/100/60/50/30/25/24Hz
0
8K 60/50/30/25/24Hz
Contents Connections Playback Settings Tips Appendix
124
Front panel Display Rear panel Remote Index
Copyright protection system
In order to play back digital video and audio such as BD video or DVD
video via HDMI connection, both this unit and the TV or player must to
support the copyright protection system known as HDCP (High-
bandwidth Digital Content Protection System). HDCP is copyright
protection technology comprised of data encryption and authentication of
the connected AV devices. This unit supports HDCP.
0
If a device that does not support HDCP is connected, video and audio
are not output correctly. Read the owner’s manual of your television or
player for more information.
0
When connecting this unit to a device that is compatible with the Deep Color, 4K
and ARC functions, use a “High Speed HDMI cable with Ethernet” that bears the
HDMI logo.
Contents Connections Playback Settings Tips Appendix
125
Front panel Display Rear panel Remote Index
Relationship between video signals and monitor output
HDMI-compatible TV
Output
(MONITOR OUT)
Input (IN)
HDMI signal
Output
Video device
HDMI signal
HDMI connector HDMI connector HDMI connector HDMI connector
This unit
NOTE
0
Only HDMI connections are available for the video input/output of this unit.
Contents Connections Playback Settings Tips Appendix
126
Front panel Display Rear panel Remote Index
When “HDMI Upscaler” in the menu is set to “Auto”, this unit upscales the input HDMI video signal and then outputs it to the TV. (v p. 83)
HDMI
480i/576i
480p/576p
720p 1080i
1080p
30/25/24Hz
1080p
60/50Hz
1080p
120/100Hz
4K
30/25/24Hz
4K
60/50Hz
4K
120/100Hz
8K
30/25/24Hz
8K
60/50Hz
HDMI
480i/576i
480p/576p
720p
1080i
1080p 30/25/24Hz
1080p 60/50Hz
1080p 120/100Hz
4K 30/25/24Hz
4K 60/50Hz
4K 120/100Hz
8K 30/25/24Hz
8K 60/50Hz
Output signal
Input signal
Contents Connections Playback Settings Tips Appendix
127
Front panel Display Rear panel Remote Index
Playing back a USB memory devices
0
This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
0
This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
0
This unit is compatible with WMA META tags.
0
If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3) or 349 × 349 (MPEG-4 AAC), then music may not be played back
properly.
o
Compatible formats
Sampling frequency Channel Bit rate
Extension
WMA 32/44.1/48 kHz 2-channel 48 – 192 kbps .wma
MP3 32/44.1/48 kHz 2-channel 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/
96/176.4/192 kHz
2-channel – .wav
MPEG-4 AAC
z
1
32/44.1/48 kHz 2-channel 48 – 320 kbps .aac/.m4a
FLAC
32/44.1/48/88.2/
96/176.4/192 kHz
2-channel – .flac
Apple Lossless
z
2
32/44.1/48/88.2/
96 kHz
2-channel – .m4a
AIFF
32/44.1/48/88.2/
96/176.4/192 kHz
2-channel – .aiff
z1
Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in WMA format when ripped from a CD, etc. on a computer may be
copyright protected, depending on the computer’s settings.
z2
The Apple Lossless Audio Codec (ALAC) decoder is distributed under the Apache License, Version 2.0 (http://www.apache.org/licenses/LICENSE-2.0).
Contents
Connections Playback Settings Tips Appendix
128
Front panel Display Rear panel Remote Index
o
Maximum number of playable files and folder
The limits on the number of folders and files that can be displayed by
this unit are as follows.
Media
Item
USB memory device
Memory capacity FAT16 : 2 GB, FAT32 : 32 GB
Number of folder directory levels
z
1
16 levels
Number of folders 255
Number of files
z
2
10000
z1
The limited number includes the root folder.
z2
The allowable number of files may differ according to the USB memory device
capacity and the file size.
Playing back a Bluetooth device
This unit supports the following Bluetooth profile.
0
A2DP (Advanced Audio Distribution Profile):
When a Bluetooth device that supports this standard is connected,
monaural and stereo sound data can be streamed at a high quality.
0
AVRCP (Audio/Video Remote Control Profile):
When a Bluetooth device that supports this standard is connected, the
Bluetooth device can be operated from this unit.
o
About Bluetooth communications
Radio waves broadcast from this unit may interfere with the operation
of medical devices. Make sure you turn off the power of this unit and
Bluetooth device in the following locations as radio wave interference
may cause malfunctions.
0
Hospitals, trains, aircraft, petrol kiosks and places where flammable
gases are generated
0
Near automatic doors and fire alarms
Contents
Connections Playback Settings Tips Appendix
129
Front panel Display Rear panel Remote Index
Personal memory plus function
The most recently used settings (input mode, sound mode, tone control,
channel level, Restorer and audio delay, etc.) are saved for each input
source.
0
“Surround Parameter” settings are stored for each sound mode.
Last function memory
This function stores the settings which were made before going into the
standby mode.
Contents Connections Playback Settings Tips Appendix
130
Front panel Display Rear panel Remote Index
Sound modes and channel output
S This indicates the audio output channels or surround parameters that can be set.
D This indicates the audio output channels. The output channels depend on the settings of “Speaker Layout”. (v p. 94)
S Dz
SDDD
Stereo
S D
Multi Ch In
SDDD
Dolby Pro Logic g SDDD
DTS Neo:6
SDDD
Dolby Digital
SDDD
Dolby Digital Plus
SDDD
Dolby TrueHD
SDDD
DTS Surround
SDDD
DTS-HD
SDDD
Multi Ch Stereo
SDDD
Virtual
S D
Direct/Pure Direct (2-channel)
Direct/Pure Direct (Multi-channel)
Sound mode
Front L/R Center Surround L/R Subwoofer
Channel output
z Audio is output when “Subwoofer Output” in the menu is set to “LFE+Main”. (v p. 97)
Contents
Connections Playback Settings Tips Appendix
131
Front panel Display Rear panel Remote Index
Sound modes and surround parameters
Restorer
z3
z1
z2
SSz4
S
Stereo
SSS
S
SS
Multi Ch In
S S
Dolby Pro Logic g SS SSS SS
DTS Neo:6
SS SSS
Dolby Digital
SS S
Dolby Digital Plus
SS S
Dolby TrueHD
SS
DTS Surround
SS S
DTS-HD
SS
Multi Ch Stereo
SS SS
Virtual
SS SS
Subwoofer
Direct/Pure Direct (2-channel)
Direct/Pure Direct (Multi-channel)
Sound mode
Surround Parameter
Dynamic
Compression
Low Frequency
Eects
Tone
Pro Logic g Music mode only
Neo:6 Music
mode only
Panorama Dimension Center Width Center Image
Mode
z1
This item can be selected when Dolby Digital or DTS signal is played.
z2
This item can be selected when Dolby Digital or DTS signal or DVD-Audio is played.
z3
This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
z4 This setting is available when “Subwoofer Output” in the menu is set to “LFE+Main”. (v p. 97)
Contents
Connections Playback Settings Tips Appendix
132
Front panel Display Rear panel Remote Index
Types of input signals, and corresponding sound modes
F This indicates the default sound mode.
S This indicates the selectable sound mode.
DTS-HD DTS
SS
SS
SS
Dolby
TrueHD
Dolby
Digital Plus
Dolby
Digital
DTS-HD DTS
Dolby
TrueHD
Dolby
Digital Plus
Dolby
Digital
DTS Surround
DTS-HD
DTS Surround
DTS Neo:6 Cinema
DTS Neo:6 Music
Dolby Surround
Dolby TrueHD
Dolby Digital Plus
Dolby Digital
Dolby Pro Logic g Movie F
Dolby Pro Logic g Music S
Dolby Pro Logic g Game S
Dolby Pro Logic
S
Multi Ch In
Multi Ch In
Direct
Direct
SSS
Pure Direct
Pure Direct
SSS
Stereo
Stereo
SSS
Multi Ch Stereo
S
Virtual
S
S
S
S
S
S
S
F
S
S
S
S
S
S
S
S
S
S
S
S
F
S
F
F
SS
SS
SS
F
F
F
SSS
SSS
SSS
S
S
S
S
S
S
S
S
F
S
Original sound mode
Sound mode
Analog /
PCM
PCM
multi-
channel
2-channel signal Multi-channel signal
Contents Connections Playback Settings Tips Appendix
133
Front panel Display Rear panel Remote Index
Explanation of terms
o
Dolby
Dolby Digital
Dolby Digital is a multi-channel digital signal format developed by Dolby
Laboratories.
A total of 5.1-channels are played: 3 front channels (“FL”, “FR” and “C”), 2
surround channels (“SL” and “SR”) and the “LFE” channel for low
frequency effects.
Because of this, there is no crosstalk between channels and a realistic
sound field with a “three-dimensional” feeling (sense of distance,
movement and positioning) is achieved. This delivers a thrilling surround
sound experience in the home.
Dolby Digital Plus
Dolby Digital Plus is an improved Dolby Digital signal format that is
compatible with up to 7.1-channels of discrete digital sound and also
improves sound quality thanks to extra data bit rate performance. It is
upwardly compatible with conventional Dolby Digital, so it offers greater
flexibility in response to the source signal and the conditions of the
playback device.
Dolby Pro Logic g
Dolby Pro Logic g is a matrix decoding technology developed by Dolby
Laboratories.
Regular music such as that on CDs is encoded into 5-channels to achieve
an excellent surround effect.
The surround channel signals are converted into stereo and full band
signals (with a frequency response of 20 Hz to 20 kHz or greater) to create
an “immersive” sound image offering a rich sense of presence for all
stereo sources.
Dolby TrueHD
Dolby TrueHD is a high definition audio technology developed by Dolby
Laboratories, using lossless coding technology to faithfully reproduce the
sound of the studio master.
This format provides the facility to support up to 8 audio channels with a
sampling frequency of 96 kHz/24 bit resolution and up to 6 audio channels
with a sampling frequency of 192 kHz/24 bit resolution.
Contents
Connections Playback Settings Tips Appendix
134
Front panel Display Rear panel Remote Index
o
DTS
DTS
This is an abbreviation of Digital Theater System, which is a digital audio
system developed by DTS. DTS delivers a powerful and dynamic
surround sound experience, and is found in the world’s finest movie
theaters and screening rooms.
DTS 96/24
DTS 96/24 is a digital audio format enabling high sound quality playback in
5.1-channels with a sampling frequency of 96 kHz and 24 bit quantization
on DVD-Video.
DTS Digital Surround
DTS™ Digital Surround is the standard digital surround format of DTS,
Inc., compatible with a sampling frequency of 44.1 or 48 kHz and up to
5.1-channels of digital discrete surround sound.
DTS-HD
This audio technology provides higher sound quality and enhanced
functionality than the conventional DTS and is adopted as an optional
audio for Blu-ray Disc.
This technology supports multi-channel, high data transfer speed, high
sampling frequency, and lossless audio playback. Maximum 7.1-channels
are supported in Blu-ray Disc.
DTS-HD High Resolution Audio
DTS-HD High Resolution Audio is an improved version of the conventional
DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling
frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital
sound. High data bit rate performance provides high quality sound. This
format is fully compatible with conventional products, including
conventional DTS digital surround 5.1-channel data.
DTS-HD Master Audio
DTS-HD Master Audio is a lossless audio format created by Digital
Theater System (DTS). This format provides the facility to support up to 8
audio channels with a sampling frequency of 96 kHz/24 bit resolution and
up to 6 audio channels with a sampling frequency of 192 kHz/24 bit
resolution. It is fully compatible with conventional products, including
conventional DTS digital surround 5.1-channel data.
DTS Neo:6™ Surround
DTS Neo:6™ is a matrix decoding technology for achieving 6.1-channel
surround playback with 2-channel sources. It includes “DTS Neo:6
Cinema” suite for playing movies and “DTS Neo:6 Music” suited for
playing music.
Contents
Connections Playback Settings Tips Appendix
135
Front panel Display Rear panel Remote Index
o
Audio
Apple Lossless Audio Codec
This is a codec for lossless audio compression method developed by
Apple Inc. This codec can be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be decompressed to exactly
the same original data.
FLAC (Free Lossless Audio Codec)
FLAC stands for Free lossless Audio Codec, and is a lossless free audio
file format. Lossless means that the audio is compressed without any loss
in quality.
The FLAC license is as shown below.
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008,
2009 Josh Coalson
Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:
0
Redistributions of source code must retain the above copyright notice,
this list of conditions and the following disclaimer.
0
Redistributions in binary form must reproduce the above copyright
notice, this list of conditions and the following disclaimer in the
documentation and/or other materials provided with the distribution.
0
Neither the name of the Xiph.org Foundation nor the names of its
contributors may be used to endorse or promote products derived from
this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN
CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
LFE
This is an abbreviation of Low Frequency Effect, which is an output
channel that emphasizes low frequency effect sound. Surround audio is
intensified by outputting 20 Hz to 120 Hz deep bass to the system
subwoofer(s).
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
Contents
Connections Playback Settings Tips Appendix
136
Front panel Display Rear panel Remote Index
MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4
These are the names for digital compression format standards used for
the encoding of video and audio. Video standards include “MPEG-1
Video”, “MPEG-2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2 Audio”, “MPEG-4 AAC”.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω (ohms).
Greater power can be obtained when this value is smaller.
Dialogue normalization function
This function operates automatically during playback of Dolby Digital,
Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD sources.
It automatically corrects the standard signal level for individual program
sources.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Downmix
This function converts the number of channels of surround audio to a
lower number of channels and plays back according to the system’s
configuration.
Contents
Connections Playback Settings Tips Appendix
137
Front panel Display Rear panel Remote Index
o
Others
HDCP
When transmitting digital signals between devices, this copyright
protection technology encrypts the signals to prevent content from being
copied without authorization.
Pairing
Pairing (registration) is an operation that is required in order to connect a
Bluetooth device to this unit using Bluetooth. When paired, the devices
authenticate each other and can connect without mistaken connections
occurring.
When using Bluetooth connection for the first time, you need to pair this
unit and the Bluetooth device to be connected.
Protection circuit
This is a function to prevent damage to devices within the power supply
when an abnormality such as an overload, excess voltage occurs or over
temperature for any reason.
Contents Connections Playback Settings Tips Appendix
138
Front panel Display Rear panel Remote Index
Trademark information
Use of the Made for Apple badge means that an accessory has been
designed to connect specifically to the Apple product(s) identified in the
badge and has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards.
Apple, iPad, iPhone, and iPod are trademarks of Apple Inc., registered in
the U.S. and other countries.
The Bluetooth
®
word mark and logos are registered trademarks owned
by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc.
is under license. Other trademarks and trade names are those of their
respective owners.
Manufactured under license from Dolby Laboratories. Dolby, Dolby
Audio, Pro Logic, Dolby Vision, and the double-D symbol are trademarks
of Dolby Laboratories.
Contents Connections Playback Settings Tips Appendix
139
Front panel Display Rear panel Remote Index
For DTS patents, see http://patents.dts.com. Manufactured under
license from DTS, Inc. DTS, DTS-HD, and the DTS-HD logo are
registered trademarks or trademarks of DTS, Inc. in the United States
and other countries. ©DTS, Inc. ALL RIGHTS RESERVED.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
App Store
®
is registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google LLC.
Contents Connections Playback Settings Tips Appendix
140
Front panel Display Rear panel Remote Index
Specifications
o
Audio section
0
Power amplifier
Rated output: Front:
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center:
70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
90 W + 90 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors: 6 – 16 Ω/ohms
0
Analog
Input sensitivity/Input impedance: 200 mV/47 kΩ/kohms
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode)
S/N: 98 dB (IHF–A weighted, Direct mode)
Contents Connections Playback Settings Tips Appendix
141
Front panel Display Rear panel Remote Index
o
Tuner section
[FM] [AM]
(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10
–15
W)
Reception frequency range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Effective sensitivity: 1.2 μV (12.8 dBf) 18 μV
50 dB sensitivity: MONO ― 2.8 μV (20.2 dBf)
S/N ratio: MONO ― 70 dB (IHF–A weighted, Direct mode)
STEREO ― 67 dB (IHF–A weighted, Direct mode)
Distortion: MONO ― 0.7 % (1 kHz)
STEREO ― 1.0 % (1 kHz)
o
Bluetooth section
Communications system: Bluetooth Version 4.2
Transmission power: 0.25 - 10 mW (Class 1)
Maximum communication range:
Approx. 32.8 ft/10 m in line of sight
z
Frequency band: 2.4 GHz
Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles: A2DP (Advanced Audio Distribution Profile) 1.3
AVRCP (Audio Video Remote Control Profile) 1.6
Corresponding codec: SBC, AAC
Transmission range (A2DP): 20 Hz - 20,000 Hz
z
The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from
microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
Contents
Connections Playback Settings Tips Appendix
142
Front panel Display Rear panel Remote Index
o
General
Operating temperature: 41 °F - 95 °F (5 °C - 35 °C)
Power supply: AC 120 V, 60 Hz
Power consumption: 310 W
Power consumption in standby mode:
0.1 W
z
Power consumption in CEC standby
mode:
0.5 W
Power consumption when Bluetooth
standby is used:
1 W
z When “Bluetooth Standby” in the menu is set to “Off” and “HDMI Pass Through” is set to “Off”.
For purposes of improvement, specifications and design are subject to change without notice.
Contents Connections Playback Settings Tips Appendix
143
Front panel Display Rear panel Remote Index
Index
v Numerics
3D ................................................................ 122
4K/8K ........................................................... 122
5.1-channel .............................................. 22, 26
v A
Audio formats ....................................... 124, 128
Audio settings ........................................... 70, 74
Auto Standby ................................................. 99
v B
Bluetooth device ............................................ 45
Blu-ray Disc player ................................... 33, 41
v C
Cable TV ........................................................ 31
v D
Direct sound mode ......................................... 62
Display ........................................................... 14
Dolby sound mode ................................. 61, 134
DTS sound mode ................................... 61, 135
DVD player ............................................... 33, 41
v E
ECO Mode ..................................................... 98
v F
FM/AM antenna ........................................ 36, 50
Front panel ..................................................... 11
v G
Game console ................................................ 34
General settings ....................................... 72, 98
v H
HDCP ........................................................... 125
HDMI Control ........................................... 64, 81
v I
Input Assign ................................................... 87
Input settings ............................................ 71, 87
Input signal ................................................... 133
Input source ................................................... 40
v L
Listening position ........................................... 89
v M
Menu map ...................................................... 70
Muting ............................................................ 41
Contents
Connections Playback Settings Tips Appendix
145
Front panel Display Rear panel Remote Index
v O
Original sound mode ...................................... 62
v P
Pairing ...................................................... 45, 47
PCM multi-channel sound mode .................... 61
Protection circuit .......................................... 138
v Q
Quick select plus ............................................ 68
v R
Random playback .......................................... 56
Rear panel ...................................................... 15
Remote control unit ........................................ 17
Repeat playback ............................................ 56
Resetting factory settings ............................. 121
Restorer ......................................................... 77
v S
Satellite tuner ................................................. 31
Set-top box ..................................................... 31
Setup Assistant .............................................. 72
Sleep timer ..................................................... 66
Sound mode ................................... 60, 131, 132
Speaker connection ....................................... 23
Speaker settings ...................................... 71, 89
Stereo sound mode ........................................ 62
v T
Tips .............................................................. 107
Tone Control .................................................. 57
Troubleshooting ........................................... 108
TV ............................................................ 28, 29
v U
USB memory device ................................ 35, 42
v V
Video camcorder ............................................ 34
Video Select ................................................... 59
Video settings ........................................... 70, 80
Volume ..................................................... 41, 65
Contents Connections Playback Settings Tips Appendix
146
Front panel Display Rear panel Remote Index
www.denon.com
3520 10870 00ADA
©2022 Sound United. All Rights Reserved.
147
