User Manual
60 cm Ceramic Cooktop, Model Code: TRC605
Please read this manual carefully before using, and keep it for future reference.
P a g e | 2
INSTRUCTION MANUAL
60cm Ceramic Cooktop
MODEL TRC605
Congratulations on the purchase of your new Ceramic Hob!
We recommend that you spend some time to read this Instruction / Installation
Manual in order to fully understand how to install and operate it correctly. For
installation, please read the installation section. Read all the safety instructions
carefully before use and keep this Instruction / Installation Manual for future
reference.
ONLINE: TRINITYAPPLIANCES.COM.AU
P a g e | 3
ONLINE: TRINITYAPPLIANCES.COM.AU
CONTENTS
1. PACKAGE
.................................................................................................................................................................
4
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
.........................................................................
4
1.2 BEFORE USING YOUR NEW CERAMIC HOB
.............................................................................................
4
2. SAFETY WARNINGS
................................................................................................................................................
5
2.1 IMPORTANT INFORMATION
.........................................................................................................................
5
2.2 WARNING!
.......................................................................................................................................................
5
2.3 USAGE CONDITIONS AND RESTRICTIONS
................................................................................................
5
3. PRODUCT OVERVIEW
............................................................................................................................................
8
3.1 TOP VIEW
.........................................................................................................................................................
8
3.2 CONTROL PANEL/USER INTERFACE
...........................................................................................................
9
3.3 PRODUCT FUNCTIONS
................................................................................................................................
10
4. INSTALLATION
.......................................................................................................................................................
11
4.1 SELECTION OF INSTALLATION EQUIPMENT
............................................................................................
11
4.2 INSTALLATION
...............................................................................................................................................
13
4.3
CAUTIONS
......................................................................................................................................................
14
4.4
CONNECTING THE HOB TO THE MAIN POWER SUPPLY
......................................................................
15
5.
USING YOUR COOKTOP
.....................................................................................................................................
16
5.1
CHOOSING THE RIGHT COOKWARE
......................................................................................................
16
5.2
USING TOUCH CONTROLS
........................................................................................................................
17
5.3
START OPERATION
.......................................................................................................................................
17
5.4
CHILD LOCK FUNCTION
.............................................................................................................................
18
5.5
USING THE TIMER
..........................................................................................................................................
19
5.6
USING THE DOUBLE RING ZONE
...............................................................................................................
19
6.
CARE AND MAINTENANCE
................................................................................................................................
20
6.1
CARE
...............................................................................................................................................................
20
6.2
APPLIANCE CLEANLINESS
..........................................................................................................................
21
7.
TROUBLESHOOTING
.............................................................................................................................................
22
8.
TECHNICAL SPECIFICATIONS
............................................................................................................................
23
9.
DISPOSAL
...............................................................................................................................................................
23
10.
CUSTOMER CARE
..................................................................................................................................................
24
5.7
Using The pause function: Stop & Go
....................................................................................................
19
5.8
Using the Keep Warm Function
...............................................................................................................
19
P a g e | 4
ONLINE: TRINITYAPPLIANCES.COM.AU
1. PACKAGE
When unpacking the appliance, please check that the following
items are contained within the package:
• 1 Hob
• 1 Instruction manual
• 4 Fixing screws
• 4 Fixing brackets
• 1 Sealing strip
1.1 IMPORTANT - CHECK FOR ANY DAMAGE OR MARKS
Please thoroughly inspect your goods at the delivery time, if you notice
any damage to your goods:
− please notify the delivery team at the time of delivery and
DO NOT accept
damaged product;
− please notify us immediately, as the problem can be solved,
and damaged
product can be returned to the courier.
When you open the package and find the appliance is damaged or
marked, you must report it within 24 hours. Do not install or connect
the item and keep the package as it was originally if you wish to
claim for damage/marks under the manufacturer’s warranty. This does
not affect your statutory rights.
Evidence of damage will be required.
1.2 BEFORE USING YOUR NEW CERAMIC HOB
• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove any protective film that may still be on your ceramic hob.
P a g e | 5
ONLINE: TRINITYAPPLIANCES.COM.AU
2. SAFETY WARNINGS
2.1 IMPORTANT INFORMATION
Your safety is important to us. Please read this manual thoroughly before
you start using the Ceramic Cooktop.
The safety precautions instructions reduce the risk of fire, electric shock and
injury when correctly complied to.
Please follow all instructions and take notice of all warnings.
2.2 WARNING!
INSTALLATION: This Cooktop must be installed by a licensed electrician.
• Make sure to have this appliance connected to a well-placed earth
wiring system. Before carrying out any work, repairs or maintenance on this
appliance, it has to be disconnected from the mains. If possible, switch of
the cooktop from the wall before cleaning, failure to do so may result in
electric shock or death.
• During use be sure to avoid any direct contact with the surface as you may get
burned. Always use this appliance with caution. Do not touch any
components of the cooktop as it will be hot. It is highly recommended that
you use cooktop gloves when handling cookware.
• Do not leave any items on the cooktop as this is a fire hazard. In the case of
a fire do not use a fire extinguisher with water. It is highly recommended that
you switch off the cooktop and cover the flames with a fire blanket.
• Supervision over children is to ensure that they do not play with the
appliance. Never allow them to use, play with or crawl inside the appliance.
• Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless under responsible supervision and instruction to ensure
appliance hazards are understood.
• Make sure to read all rules and regulations in this manual. Anyone who is
not familiar with this appliance is not to operate it. These instructions do not
cover every possible situation or condition as with any appliance. Use
extreme caution when installing, operating and maintaining this appliance.
• Never leave the cooktop unattended while in use.
2.3 USAGE CONDITIONS AND RESTRICTIONS
P a g e | 6
ONLINE: TRINITYAPPLIANCES.COM.AU
• Only for indoor domestic use only. It is not to be used for industrial or commercial
use.
• Do not use this product for anything other than its intended purpose, and only
use it as described in this manual. Do not attempt to alter or modify this
appliance.
• This appliance can become extremely hot and therefore children and pets
are to be kept away. If younger family members are in the kitchen, be
sure to keep close supervision at all times. Do not allow children to operate or
play with this appliance.
• Do not use the cooktop for heating up the area.
• Make sure you do not use the appliance if any part has been damaged. It
must only be repaired by a qualified technician. Incorrect repair could
expose you to risk of electric shock, fire or injury. If you continue to use the
product in such condition it could cause fire or electrocution.
• The appliance is not intended to be operated by means of an external
timer or separate remote-control system.
• Do not store items on the cooking surfaces
• Caution: The cooking process has to be supervised; a short-term cooking process
has to be supervised continuously.
• Warning: Unattended cooking on a hob with fat or oil can be dangerous
and may result in a fire.
• Do not use any unstable or plastic cookware products or aluminium foil
containers. No large cookware is to overlap bench as this can deflect heat
back onto the cooktop and damage the surface. Cookware products can
become hot while in use with this appliance. Be sure to position handles away
from reach of children.
• Make sure not to switch on hotplate without anything on it, do not use
cooktop to warm up plates.
• Do not place anything heavier then 20kgs on the cooktop.
• Checking constantly when frying food to ensure that oil is not
overheating and becomes a fire hazard. Do not overfill deep fry pans with oil
(more than one third) and be sure not to leave unattended.
• Make sure to switch off all controls when not in use and allow surface to cool
before cleaning.
• If accessible, disconnect the appliance from the mains before cleaning.
• Do not cover the appliance or power cord in water or other liquids.
• Do not use any steam cleaning products for the cleaning of this appliance.
• Do not disconnect the appliance by using wet hands, gripping end of plug or
forcefully pulling cord to disconnect. Grip end of plug, and do not pull cord to
disconnect.
• Do not use appliance if there is a technical fault. All faults must be
fixed by a qualified/authorised person.
• Incorrect use can result in property damage, injury or death. We assume no
liability for misuse of the appliance or noncompliance with these instructions.
• WARNING! If the surface cracks, switch of the appliance immediately to
avoid the possibility of electric shock and call our customer support.
P a g e | 7
ONLINE: TRINITYAPPLIANCES.COM.AU
• Be careful when using this cooktop, as the cooktop complies with all safety
regulations, we do not wish for customers to burn themselves as the surface will
become extremely hot during use and will retain heat after use.
• Please remember to allow for the cooktop to cooldown before attempting to
clean.
• Young children should be kept away from this appliance at all times! Take
extreme caution when using the appliance to ensure they do not come
anywhere close the cooktop.
• Do not leave any items on top of the cooktop as these can become a fire
hazard.
• This appliance is not intended to be operated by means of an
external timer or separated remote control system.
P a g e | 8
ONLINE: TRINITYAPPLIANCES.COM.AU
3. PRODUCT OVERVIEW
3.1 TOP VIEW
Heating Zone Power
Heating Zone
Max. Power
(220-240V~50/60Hz)
2200W/1100W(230V~)
(Double Ring)
1200W(230V~)
2000W/1100W(230V~)
(Double Ring)
1200W(230V~)
6600W(230V~)
Total Rating Power
P a g e | 9
ONLINE: TRINITYAPPLIANCES.COM.AU
3.2 CONTROL PANEL/USER INTERFACE
Reference
Description
A
Zone select key
B
ON/OFF key
C
Power regulating key
(reduce)
D
Power regulating key
(increase)
E
Power slider regulating key
F
Child lock key
G
Timer key
H
Double ring control key
I
Keep
warm key
J
Pause key
P a g e |10
ONLINE: TRINITYAPPLIANCES.COM.AU
3.3 PRODUCT FUNCTIONS
The ceramic hob caters for all kinds of cooking with its radiant heat
cooking zones, electronic touch controls, and multiple functions making it
the ideal choice for the modern family. The ceramic hob is extremely user-
friendly, durable and safe.
Special Functions
Protection from over-heating
A sensor monitors the temperature in the cooking zones. When the
temperature exceeds the safe level, the cooking zone is automatically
switched off.
Residual heat indicator
When the hob has been operating for some time, there will be some
residual heat. The letter “H” appears to warn you that it is too hot to
touch the surface.
Auto shutdown protection
Auto shutdown is a safety protection function for your ceramic
hob. It shuts down automatically if you ever forget to turn it off. The
default working times for various power levels are shown in the table
below:
Power level 1~2 3~4 5 6~9
Default working timer (min) 360 300 240 90
Protection against unintended operation
If the electronic control detects a button being held down for approx
10 seconds it will switch off automatically.The control sends out an
audible error signal to warn the sensors have detected the presence of
an object. The display will indicate an error code “ER03”.If the hob is still
hot,the display "H" and "0" flash alternatively.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
P a g e |11
ONLINE: TRINITYAPPLIANCES.COM.AU
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
Before using your New Ceramic Hob:
Read this guide, taking special note of the 'Safety Warnings' section.
Remove any protective film that may still be on your Ceramic hob.
4. INSTALLATION
4.1 SELECTION OF INSTALLATION EQUIPMENT
Cut out the work surface according to the sizes shown in the drawing.
For the purpose of installation and use, a minimum of 5 cm space
shall be preserved around the hole.
Be sure the thickness of the work surface is at least 30 mm. Please
select heat-resistant work surface material to avoid larger deformation
caused by the heat radiation from the hotplate. As shown below:
H
SEAL
W
D
L
X
B
X
X
A
X
L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
590
520
47 43
560
490
50 minimum
Under any circumstances, make sure the ceramic cooker hob is well
ventilated and the air inlet and outlet are not blocked. Ensure the
ceramic cooker hob is in a good work state. As shown below:
Note: The safety distance between the hotplate and the
cupboard above the hotplate should be at least 650 mm.
P a g e |12
ONLINE: TRINITYAPPLIANCES.COM.AU
A (mm) B (mm) C (mm) D E
650 50 minimum 20 minimum Air intake Air exit 5 mm
D
C
B
E
A
Before you install the hob, make sure that:
the work surface is square and level and no structural members interfere
with the space requirements;
the work surface is made of a heat-resistant material;
if the hob is installed above an oven, the oven has a built-in cooling fan;
the installation will comply with all clearance requirements and
applicable standards and regulations;
a suitable isolating switch providing full disconnection from the main
power supply is incorporated in the permanent wiring, mounted and
positioned to comply with the local wiring rules and regulations. The
isolation switch must be of an approved type and provide a 3 mm
air gap contact separation in all poles (or in all active [phase]
conductors if the local wiring rules allow for this variation of the
requirements);
the isolating switch will be easily accessible to the customer with the hob
installed;
you consult with the local building authorities and by-laws if in
doubt regarding the installation;
you use heat-resistant and easy-to-clean finishes (such as ceramic
tiles) for the wall surfaces surrounding the hob.
P a g e |13
ONLINE: TRINITYAPPLIANCES.COM.AU
When you have installed the hob, make sure that:
SILICONE
SILICONE
fig.1
Cut out worktop to supplied dimensions shown(fig.1) with suitable
equipment. Seal the cut edge of the worktop using silicone PTFE and
allow to dry prior to fitting the hob.
the power supply cable is not accessible through cupboard doors or
drawers;
there is adequate flow of fresh air from outside the cabinetry to the
base of the hob;
if the hob is installed above a drawer or cupboard space, a thermal
protection barrier is installed below the base of the hob;
the isolating switch is easily accessible.
fig.2
Stretch out the supplied seal along the underside edge of the
hob,ensuring the ends overlap.
4.2 INSTALLATION
P a g e |14
ONLINE: TRINITYAPPLIANCES.COM.AU
fig.3
fig.4
Do not use adhesive to fix the hob into the worktop.Once the seal is fitted
position the hob into the cutout in the worktop. Spply gentle downwards
pressure onto the hob to push it into the worktop ensuring a good seal
around the outer edge(fig.4)
4.3 CAUTIONS
1. The ceramic cooker hob must be installed by qualified personnel or
technicians. We have professionals at your service. Please never
conduct the operation by yourself.
2. The ceramic cooker hob must not be mounted to cooling
equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob must be installed
in a way for better
heat radiation in order to ensure and enhance its reliability.
4. The wall and induced heating zone above the work surface shall
withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be
resistant to heat.
6. A steam cleaner is not to be used.
7. This ceramic hob can be connected only to a supply with system
impedance no more than 0.427 ohm. In case if necessary, please
consult your supply authority for system impedance information.
4.4 CONNECTING THE HOB TO THE MAIN POWER
SUPPLY
All installation work must be carried out by a competent
person or qualified electrician. Before connecting the
main supply, ensure that the mains voltage
corresponds to the voltage on the rating plate inside
the cooker hood.
P a g e |15
ONLINE: TRINITYAPPLIANCES.COM.AU
This hob must be connected to the mains power supply only by a
suitably qualified person. Before connecting the hob to the mains power
supply,
check that:
1. The domestic wiring system is suitable for the power drawn by the hob.
2. The voltage corresponds to the value given in the rating plate.
3. The power supply cable sections can withstand the load specified on
the rating plate.
To connect the hob to the mains power supply, do not use adapters,
reducers, or branching devices, as they can cause overheating and fire.
The power supply cable must not touch any hot parts and must be
positioned so that its temperature will not exceed 180°C at any point.
Check with an electrician whether the domestic wiring system is
suitable without alterations. Any alterations must only be made by a
qualified electrician.
This appliance is supplied with 3 core mains cables coloured
as
follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or
Earth
This appliance
requires a 32 Amp Miniature Circuit Breaker.
Warning: THIS APPLIANCE MUST BE EARTHED.
IMPORTANT:
• If the cable is damaged or needs replacing, the operation must be
carried out by the after-sale agent with dedicated tools to avoid any
accidents.
• If the appliance is being connected directly to the mains supply, an
omni polar circuit breaker must be installed with a minimum gap of
3 mm between the contacts.
• The installer must ensure that the correct electrical connection has been
made and that it complies with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorised
technicians only.
5. USING YOUR COOKTOP
Before using your new
Ceramic Hob
P a g e |16
ONLINE: TRINITYAPPLIANCES.COM.AU
• Read this guide taking special note of the “Safety Warnings” section.
• Remove any protective film that may still be on your Ceramic Hob.
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth,sits flat against the glass,and is
the same size as the cooking zone.Use pans whose diameter is as large as the
graphic of the zone selected.Using a pot a slightly wider energy will be used at
its maximum efficiency.If you use smaller pot efficiency could be less than
expected. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
5.1 CHOOSING THE RIGHT COOKWARE
86,1*728&+&21752/6
• The
controls respond to touch, so you don’t need to apply any
pressure.
• Use the ball of your finger, not the tip.
• You will hear a “beep” buzzer sound each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is
no object (e.g. a utensil or a cloth) covering them. Even a thin
film of water may make the controls
difficult to operate.
P a g e |17
ONLINE: TRINITYAPPLIANCES.COM.AU
67$5723(5$7,21
7RVWDUWFRRNLQJ
1. Place a suitable pan on the cooking zone that you wish
to use.Make sure the bottom of the pan and the surface of
the cooking zone is clean and dry.
2. Touch the ON/OFF key for 2 seconds.After power is on,
the buzzer beeps once, all displays show “0”indicating that
the ceramic hob has entered the state of standby mode.
3. According to the heating zone where the pan is
placed, press a relevant zone selection key (A). The symbol
0 will be flashing.
• If you do not choose a heat setting within 20 seconds, the ceramic hob will
automatically switch off. You will need to start again at step 2.
• You can modify the heat setting at any time during cooking.
5.4 CHILD
LOCK FUNCTION
• You can lock the controls to prevent unintended use (for example children
accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control
are disabled.
To lock the
controls
Touch the
child lock key
for 3 seconds. The indicator above the child lock
key will be on and timer indicator will show
“Lo”.
To unlock
the controls
P a g e |18
ONLINE: TRINITYAPPLIANCES.COM.AU
1. Touch and hold the child lock key for a while.
2. You can now start using your ceramic hob.
When the hob is in the lock mode, all the controls are
disabled, except the ON/OFF. You can always turn the ceramic hob
off with the ON/OFF control in an emergency, but you shall unlock the
hob first in the next operation
5.
5 USING THE
TIMER
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.
1. Select the relevant cooking zone by touching the zone selection key (A).
2. Press
the timer key
3. Using the
or
timer key indicators will show “00”.
buttons you can set
the timer from 1 to 99
minutes.
4. When the time
is set,
it
will begin
to
count down immediately.
The indicator will return to show power level after 10 seconds.
The red dot
next to power level indicator will illuminate
indicating that the zone has set timer.
5. If you need to check the remaining time, you can repeat step 1 and step 2
again.
6. When the cooking timer expires, the corresponding cooking zone will be
switched off automatically. Other cooking zones will keep operating if
they were turned on previously.
The timer function only work when at least one cooking is turned on.
If you do not select any zone and touch the timer directly to active the
timer function,it only work as a Minute Minder.Buzzer will only bips for seconds
and the timer indicator will turn off when the setting time finished,but cooking
zones will not be switch off and still working .
5.6 USING THE DOUBLE RING ZONE
P a g e |19
ONLINE: TRINITYAPPLIANCES.COM.AU
You can set the double ring zone after the zone is working.
You can set the zone working by double ring or single ring.
1.Turn on,the double ring work by default.
2.Select the relevant cooking zone which is working by touching the zone
select key (A).
3.Press the double ring control key , adjust double ring or single ring.
The pause function can be used at any time during cooking. Allows
Stop the hob and restore cooking without losing any adjustments.
• Make Sure the cooking zone is running.
• Press the Stop & Go button. The Cooking zone indicators will show “= “.
The hob Will Be deactivated, except for the Stop & Go , ON/OFF and Safe
.
button. The Cooking Zones • To Cancel the pause, press the Stop & Go
will return to the power level you previously set.
5.8 Using the Keep Warm Function
> When using keep warm function, all previous multi-ring setting will be
recognized automatically.
>
>
1.
Touch the cooking zone selection button that you wish to use keep warm.
Touch key “ ”and the cooking zone indicator will show below icon:
Showing "
" " " "
" alternatively, which means the selected
heating zone is under level A / b / c warm keeping and with only inner
ring is on.
2. Showing" " " " " " alternatively, which means the
selected heating zone is under level A / b / c warm keeping and with
both middle and inner ring is on.
3. Showing " " " " "
" alternatively, which means the selected
heating zone is under level A / b / c warm keeping and with all rings
working.
5.7 Using The pause function: Stop & Go
P a g e |20
ONLINE: TRINITYAPPLIANCES.COM.AU

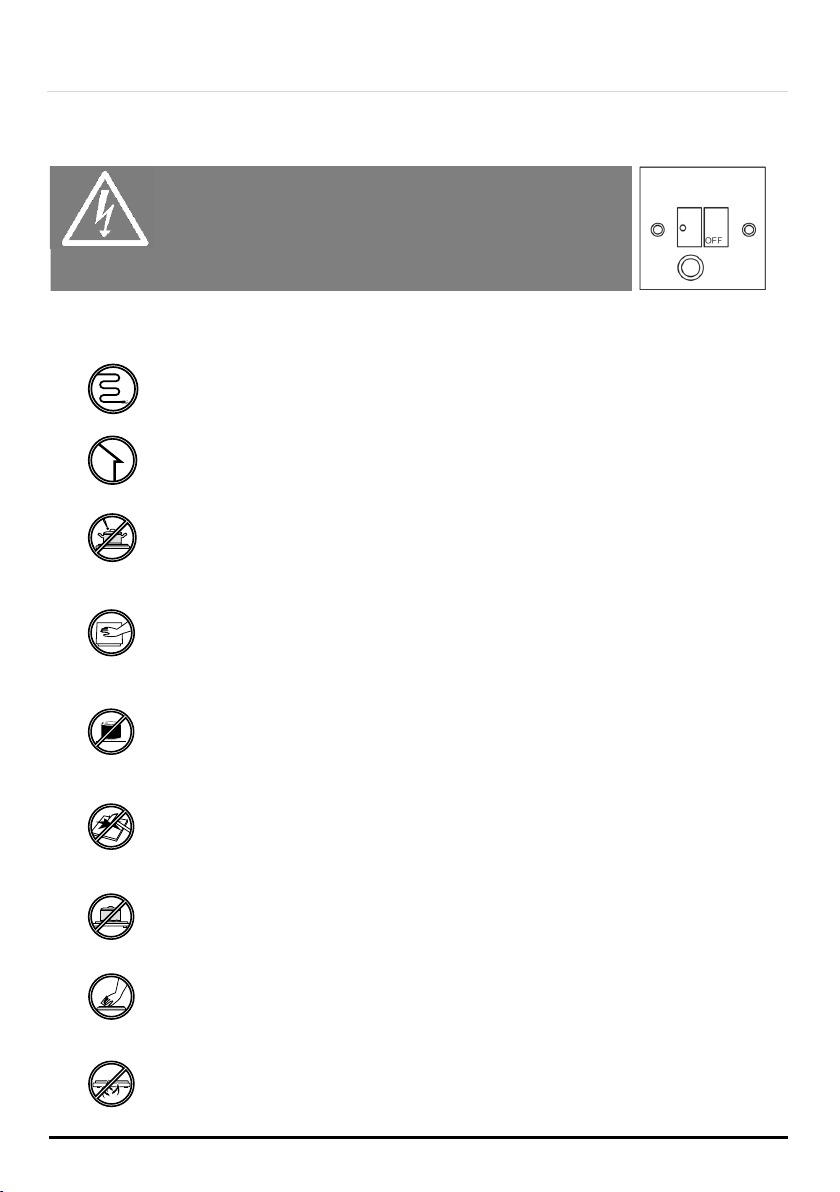

6. CARE AND MAINTENANCE
Warning!
Always switch off the electricity supply
before performing maintenance work. In
the event of a fault, contact customer
service.
6.1 CARE
DAMAGED POWER CABLES SHOULD BE REPLACED BY A
COMPETENT PERSON OR QUALIFIED ELECTRICIAN.
FOR DOMESTIC USE ONLY.
NEVER PLACE AN EMPTY PAN ON THE HOB AS THIS WILL CAUSE
AN ERROR MESSAGE TO APPEAR ON THE CONTROL PANEL.
WHEN A COOKING ZONE HAS BEEN ON FOR A LONG TIME, THE
SURFACE REMAINS HOT FOR SOME TIME AFTERWARDS SO, DO NOT
TOUCH THE CERAMIC SURFACE.
FOR SEALED FOODS, PLEASE DO NOT HEAT THEM BEFORE
OPENING REMOVING THE LID SO AS TO AVOID ANY DANGERS OF
EXPLOSION DUE TO HEATING EXPANSION.
IF THE SURFACE OF THE HOB IS CRACKED, DISCONNECT FROM
POWER SUPPLY TO AVOID ANY POSSIBILITY OF ELECTRIC SHOCKS.
DO NOT PLACE ROUGH OR UNEVEN PANS ON THE HOB, AS THEY
COULD DAMAGE THE CERAMIC SURFACE.
AVOID BANGING POTS AND PANS DOWN ON THE HOB. THE
CERAMIC SURFACE IS TOUGH BUT NOT UNBREAKABLE.
DO NOT PUT DETERGENTS OR FLAMMABLE MATERIALS BENEATH
THE HOB.
P a g e |21
ONLINE: TRINITYAPPLIANCES.COM.AU

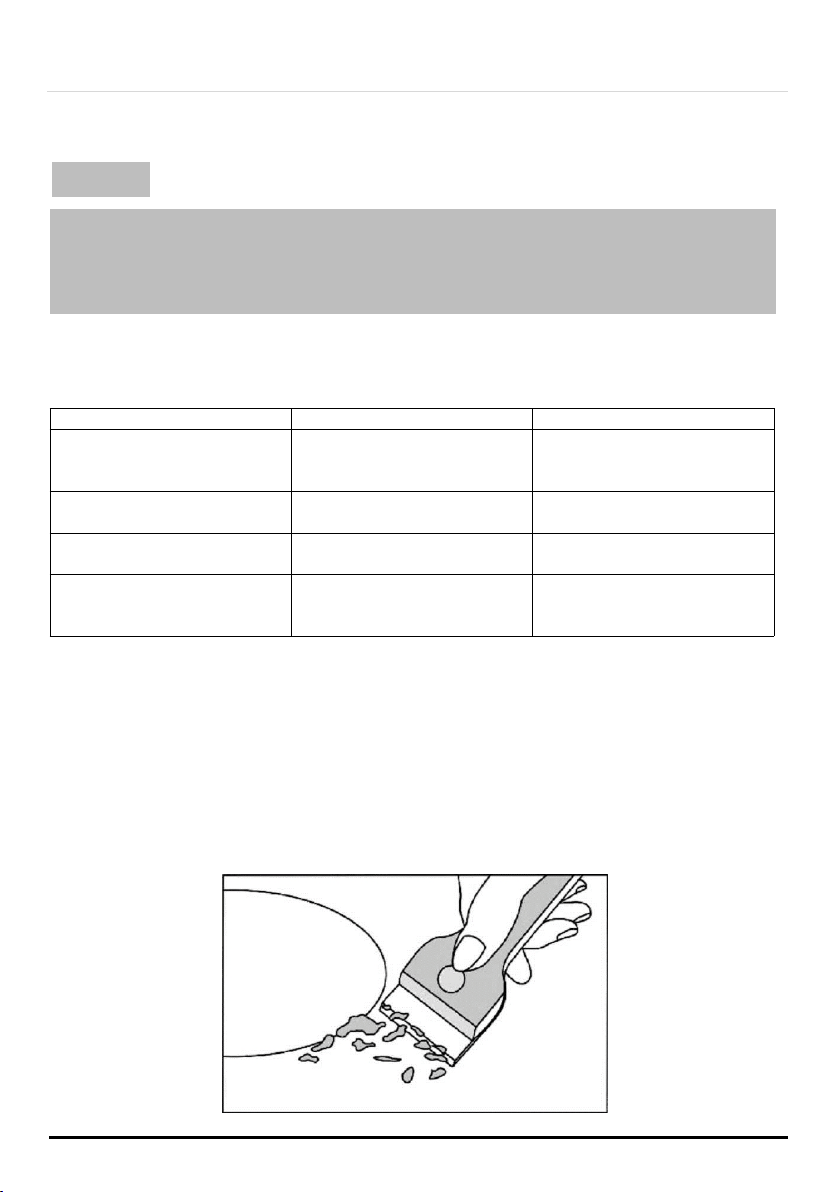

6.2 APPLIANCE CLEANLINESS
Caution
• Avoid rubbing with any abrasive or with the base of the pans, etc., as this
will wear the markings on the top of the ceramic hob over time.
• Clean the ceramic hob on a regular basis to prevent the build-up of food
residue.
The appliance should be cleaned after use.
The surface of the ceramic hob may be easily cleaned in the following way:
Type of dirt Cleaning method Cleaning materials
Lime scale
Apply white vinegar to the
surface, then wipe it dry
with soft cloth
Special ceramic cleaner
Burnt-on stains
Clean with damp cloth and
dry it with a soft cloth
Special ceramic cleaner
Light stains
Clean with damp cloth and
dry it with a soft cloth
Cleaning sponge
Melted plastics
Use a scraper suitable for
ceramic glass to remove
residue
Special ceramic cleaner
Use a scraper to immediately remove any aluminium foil bits, food spills,
grease splashes, sugar marks and other high sugar content food from
the surface in order to avoid damaging the hob. Subsequently, clean
the surface with towel and appropriate product and proceed to rinse with
water and dry with a clean cloth. Under no circumstance should
sponges or abrasive cloths be used; also avoid using aggressive chemical
detergents such as oven sprays and spot removers.
P a g e |22
ONLINE: TRINITYAPPLIANCES.COM.AU
7. TROUBLESHOOTING
Before calling the customer services, please check that the appliance is
correctly connected, any of the following cases are not covered by the
warranty:
Damage caused by improper use, storage or maintenance
Damage caused by unauthorised disassembly and repair
Damage caused by misuse.
Using the ceramic hob for commercial purposes.
If an abnormality occurs, the ceramic hob will enter the protective
state automatically and display corresponding protective codes:
The above are the judgment and inspection of common failures.
Please do not disassemble the unit by yourself to avoid any dangers
and damages to the ceramic hob and please contact the supplier.
Error Message
Possible Cause What to do
ER03
Water or pot on the glass over
the control
Clean the user interface
ER21
The temperature inside the
produce was too high.
The produce must be stopped
and cooling.
E2
The NTC open circuit
Need to repair
E3
The NTC short circuit
Need to repair
P a g e |23
ONLINE: TRINITYAPPLIANCES.COM.AU
8. TECHNICAL SPECIFICATIONS
Cooktop model
TRC605
Cooking Zones
4 Zones
Supply Voltage 220-240V~
Installed Electric Power
6600W(230V~)
Product Size L×W×H (mm)
590X520X47
Building-in Dimensions A×B (mm)
560X490
Weight and Dimensions are approximate. Because we continually strive to improve
our products, we may change specifications and designs without prior notice.
9. DISPOSAL
This appliance requires special waste disposal. For further
information regarding the treatment, recovery and
recycling of this product please contact your local
council household waste disposal service or the store of
purchase.
The packaging materials are recyclable.
P a g e |24
ONLINE: TRINITYAPPLIANCES.COM.AU
10. CUSTOMER CARE
• Please be advised that without the proof of purchase, your
warranty may not be valid, keep the receipt.
For your convenience, please record:
STORE NAME/CONTACT DETAILS: ..............
...............................…
PURCHASE DATE: ..........................................................................
PRODUCT MODEL N: …...............................................................….
PRODUCT SERIAL N: .......................................................................
• The warranty will be voided, if not installed by a licensed professional.
For your own protection, please record installer’s details:
Installer’s Trade Name: ..................................................................
Trade Licence N: .........................................................................….
Date of Installation: ….................................................................….
Installation Receipt: .......................................................................
For further information on the appliance, service, spare parts or to obtain dimension
and installation information, please contact our customer service or visit website.
Please have above information and documents on hands before contacting
customer service
Phone: 1300 615 001
Web: trinityappliances.com.au
