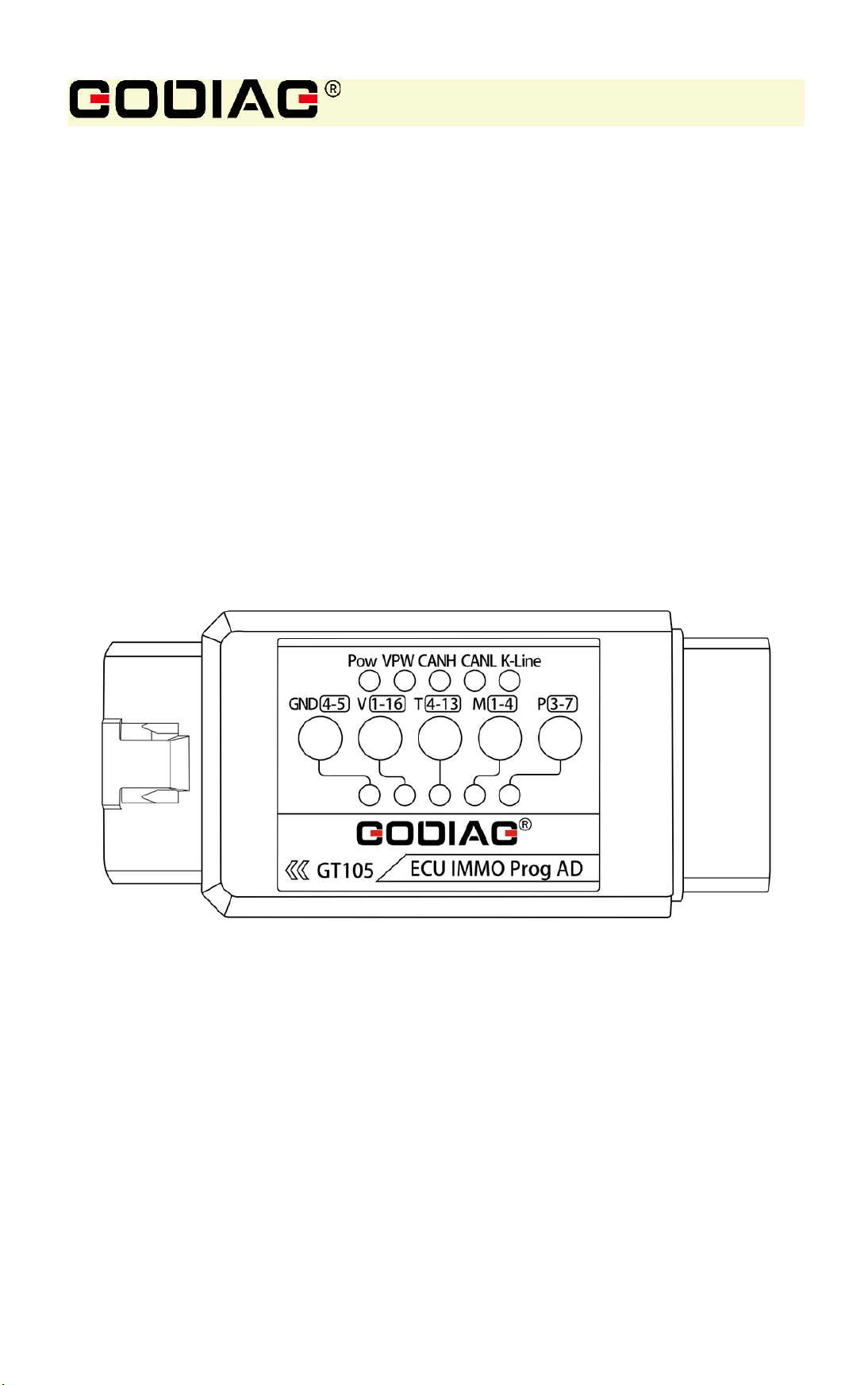

GODIAG ECU IMMO Prog AD GT105
OBD II Breakout Box ECU Connector
Used to short-circuit car OBD2 for IMMO activation matching,
ECU programming connection
Instructions
2.2022
2
1. Product Introduction
GODIAG ECU IMMO Prog AD GT105 is a dedicated connection adapter developed
for automotive service technicians, IMMO matching technicians and ECU
programming engineers. The product is suitable for outdoor work, taking power from
the car battery and converting it into a DC12V power supply for 12V charging,
programming power, or independent power supply for diagnostic equipment.
The device provides OBD2 independent PIN4 body GND, PIN5 signal GND, which
is convenient for some modules to be used for special programming. In addition, with
the OBD2 full protocol ECU programming cable, users can also connect the ECU in the
studio to adjust the ECU programming power.
The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal
communication indicators. When there is data communication, the corresponding
protocol indicator will flash. Users can judge the communication status, and also can
judge whether the diagnostic programming device can communicate.

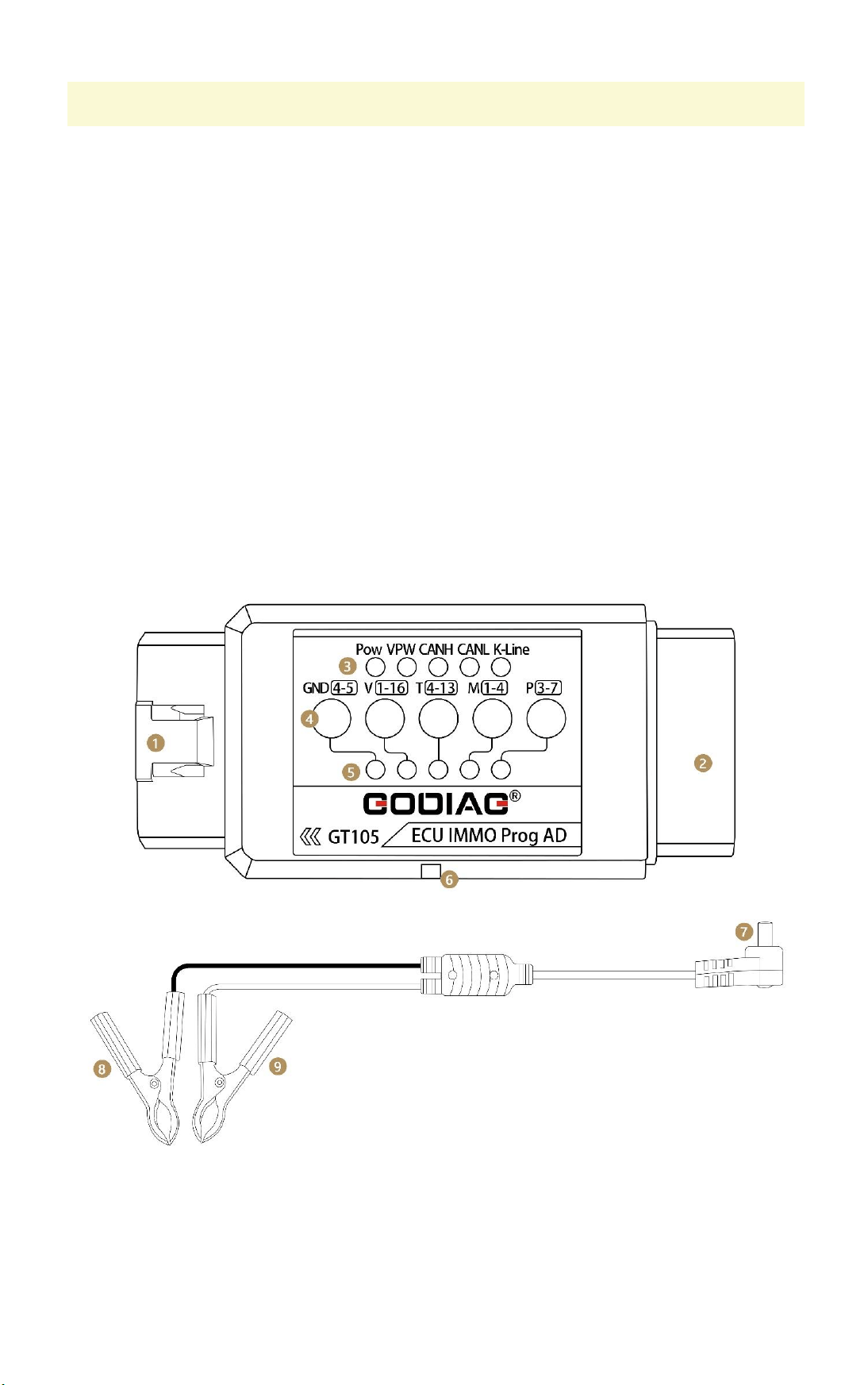

Product Structure
(1) OBD2 male connector- used to connect the car OBD2 diagnostic interface.
(2) OBD2 female connector - used to connect diagnostic programming equipment.
(3) Pow power indicator VPW CANH CANL K-Line protocol indicator. Used to
determine whether the device or vehicle is communicating.
3
(4) GND4-5, V1-16, T4-13, M1-4, P3-7 function keys.
(5) GND4-5, V1-16, T4-13, M1-4, P3-7 function keys, corresponding indicator
lights.
(6) DC power input interface.
(7) Battery to DC output jack
(8) Battery negative clip
(9) Battery positive clip
Function Introduction
1. IMMO AD Ford all smart keys lost, VVDI equipment (OBDSTAR, AUTEL) and other
IMMO matching equipment. For all-loss matching, you need to disconnect the car
battery, connect it to the negative pole of the battery through OBD5, and connect the
16 pin to the positive pole of the 12v battery.
For example: use the Xhorse key tool plus pad to match the new Ford models after
2017. When all the keys are lost, the vehicle is in the alarm state, and the tablet cannot
be used to match. If you want to match the keys, you must release the IMMO state.
The steps to release the IMMO status are as follows:
Steps:
1. Xhorse key tool plus pad enters the IMMO matching option, and prepares 2 VVDI
smart card keys. Enter all keys lost options for Ford New Mondeo after 2016
2. Confirm whether the car is IMMO activated, and do it directly without IMMO (no
need to power off the battery, etc.) If the vehicle has entered IMMO state, follow the
steps below.

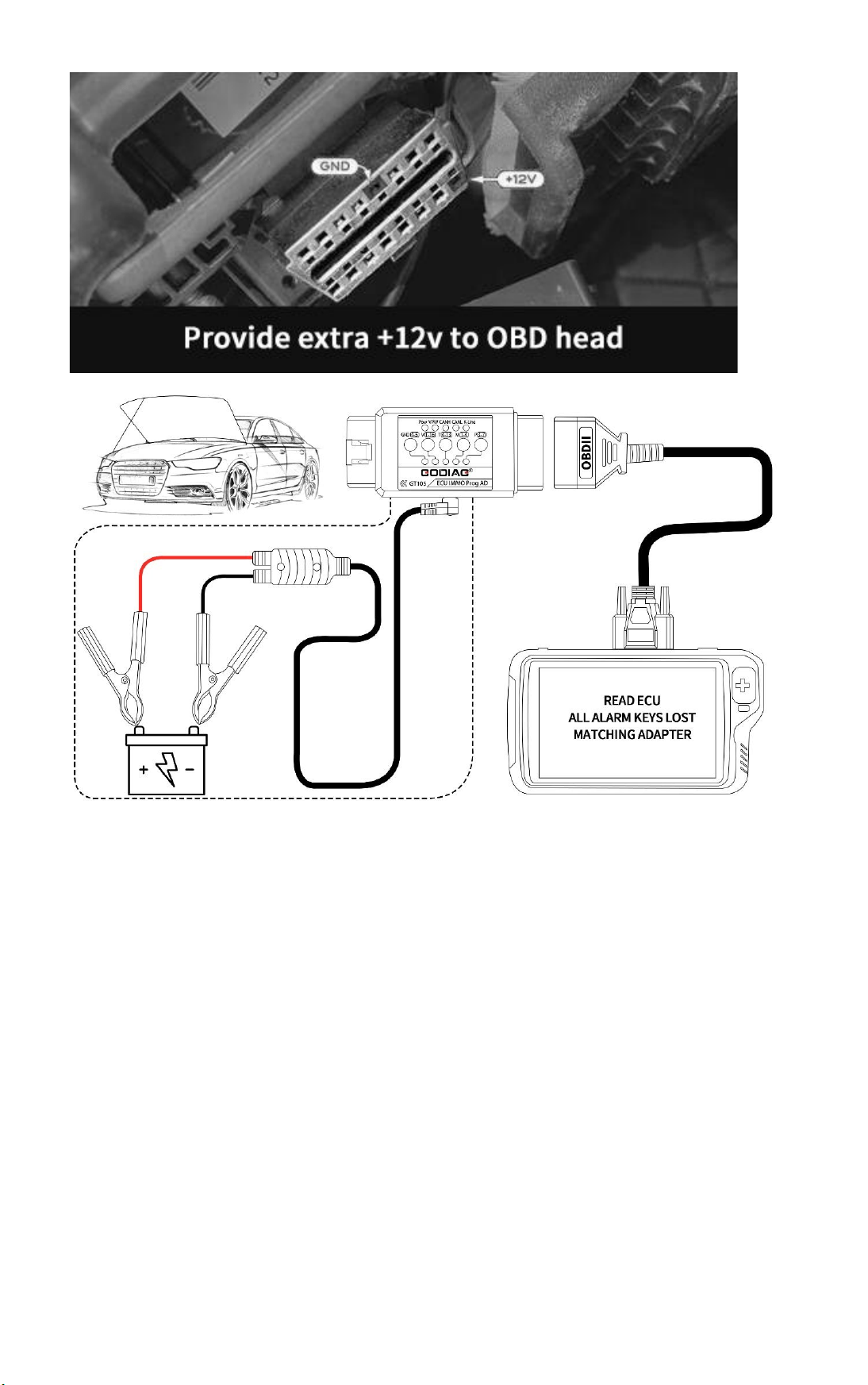

Disconnect the positive pole of the battery as prompted by the device, and then
connect the vehicle battery with the GT105 power adapter cable, as shown in the
figure below.
Warning: The positive wire harness should not be short-circuited with the car
body.(GT105 internally implements PIN5 grounding, and PIN16 provides 12V power
supply)
(Note: In the process of key matching, the external 12V power supply is always
maintained, no need to disconnect) .
4
Follow the instructions on the Xhorse key tool plus pad to match the keys.
1. All car keys lost matching---wake up the meter or wake up the IMMO ECU.
A. Porsche and VW 4th-generation smart, 5th-generation card keys (models
such as the new A6L Touareg A4, Q5, A7) light up the instrument, and the key
matching tool is connected for data collection. Some vehicle instruments do not
light up, but data collection can also be performed, such as: A6L, Q7(as the
picture below shows).
5

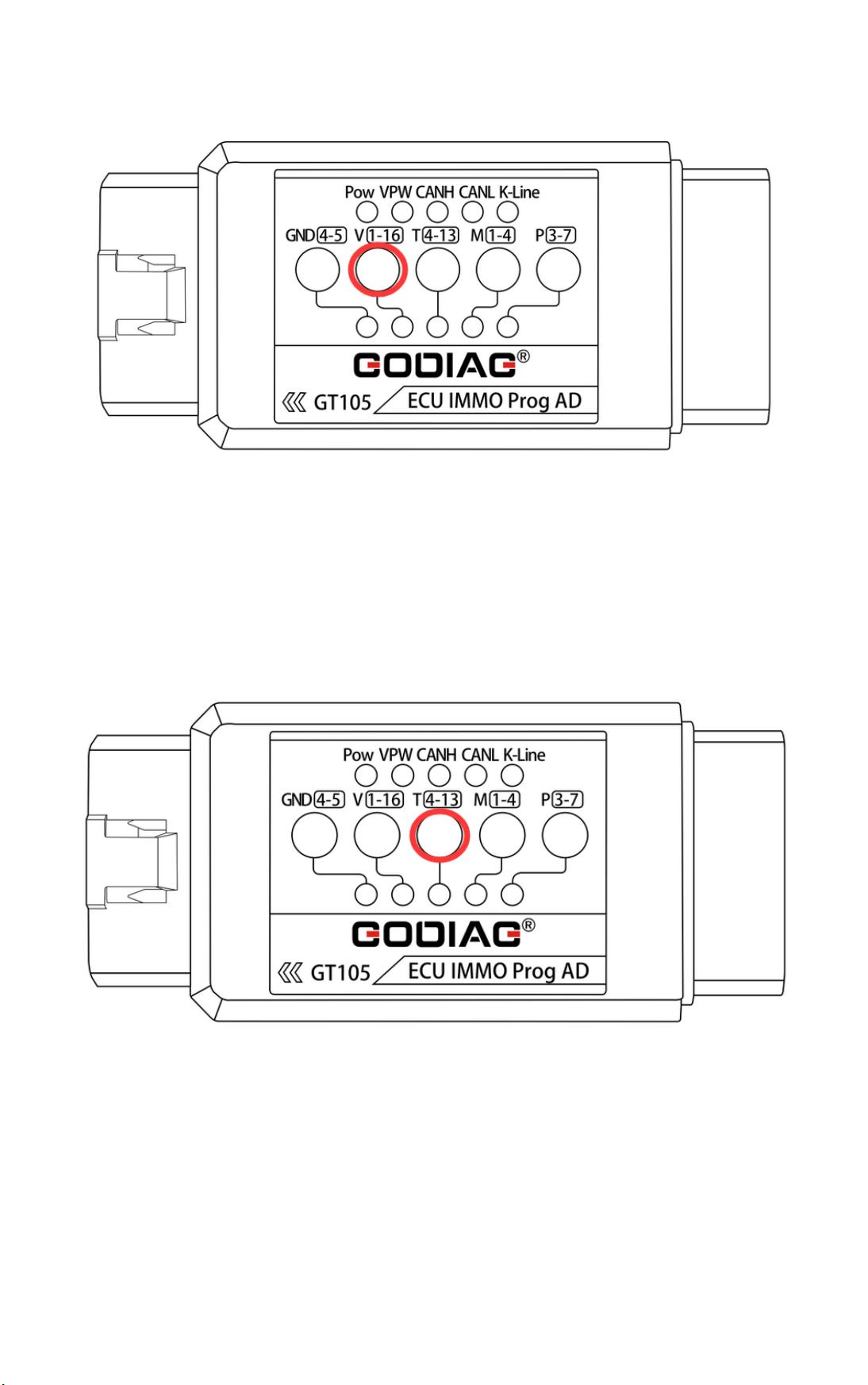

B. Toyota replaces the engine ECU, the IMMO ECU needs to be synchronized, or
some key matching devices need to short-circuit PIN4-PIN13 to match the Toyota car
all keys lost. Please press T4-13, the corresponding LED lights are on as shown below.
(Note: Please keep the other buttons up.) Then insert the car OBD2 to complete the
matching.

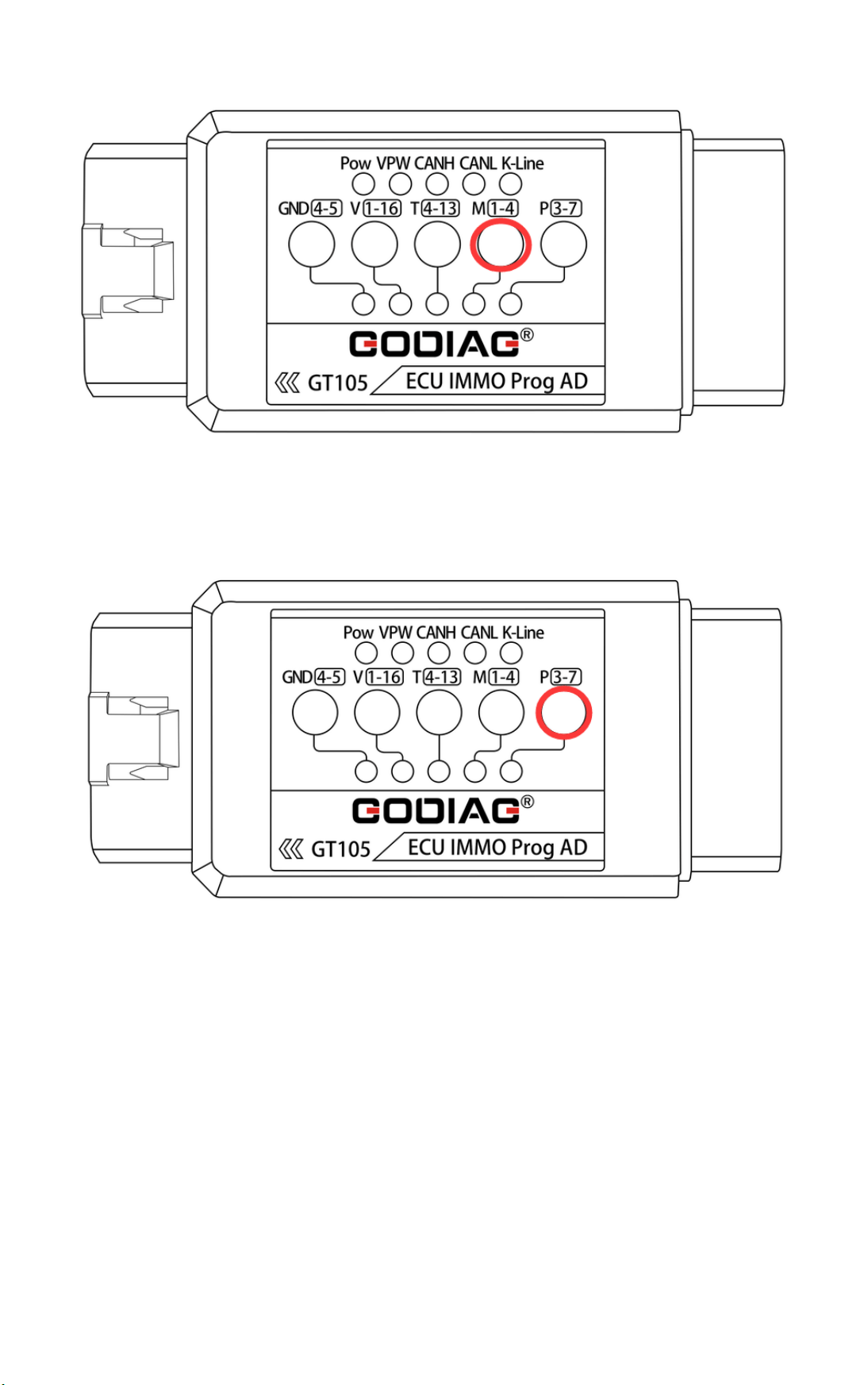

C. For all Mitsubishi key lost matching or remote matching, it is necessary to short-
circuit PIN1-PIN4. Please press the M1-4 button, as shown in the figure below. (Note:
Please keep the other buttons up.) Complete the remote control synchronization
through other remote control matching devices.
6
D. For the IMMO key learning of the old Porsche Cayenne, you need to short-circuit
PIN3-PIN7 of the OBD2 diagnostic interface. Please press the M3-7 button, as shown
in the figure below. (Note: Please keep the other buttons up.

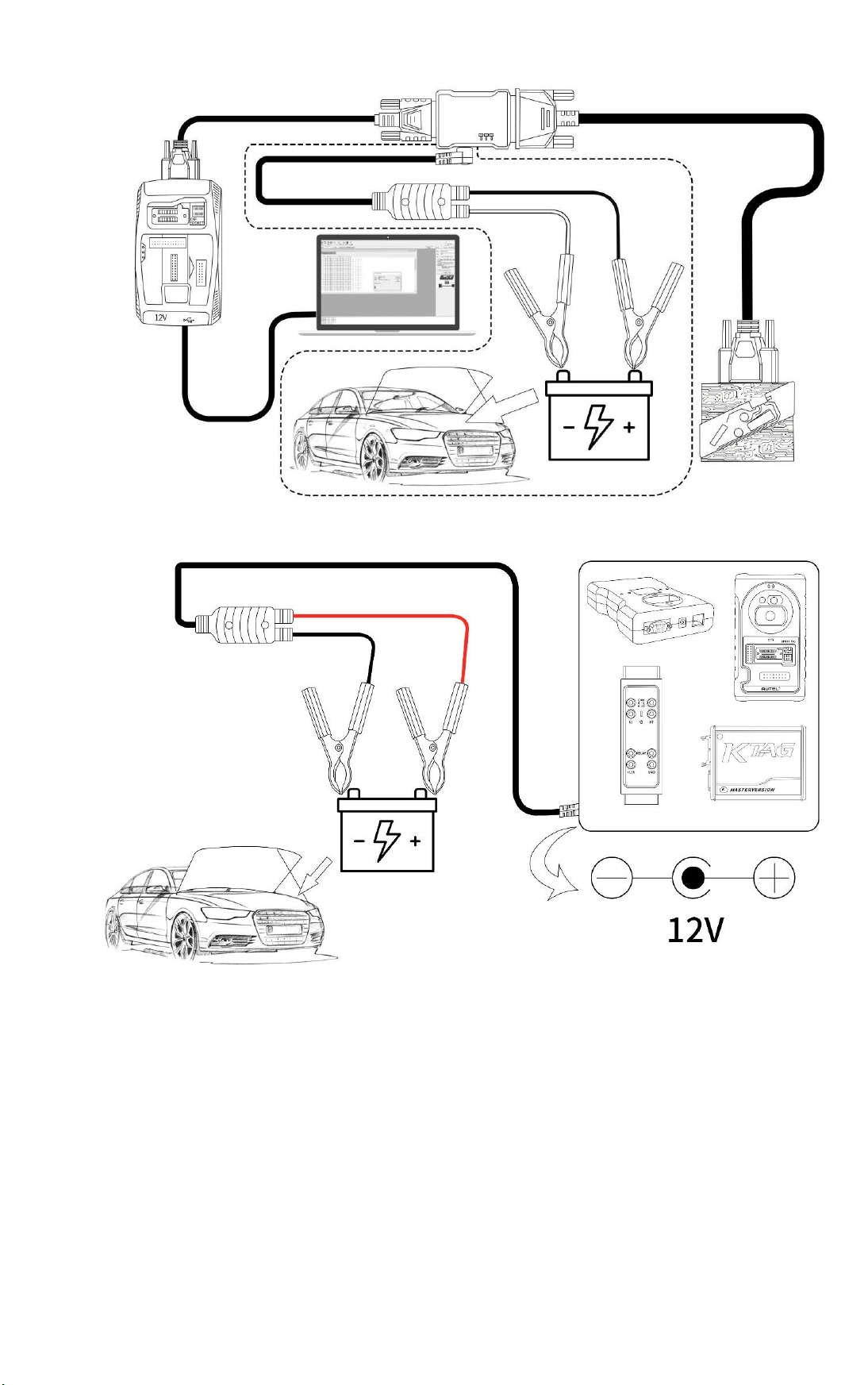

1. Outdoor operating power collection
When the locksmith ECU engineer cannot get 12V power supply in outdoor
operation, he can use the GT105 power adapter cable to obtain 12V power supply
from the car battery. (Realize on-site maintenance of outdoor faulty vehicles)
E.g:
7
It can also be used with other programming tools for outdoor operation.

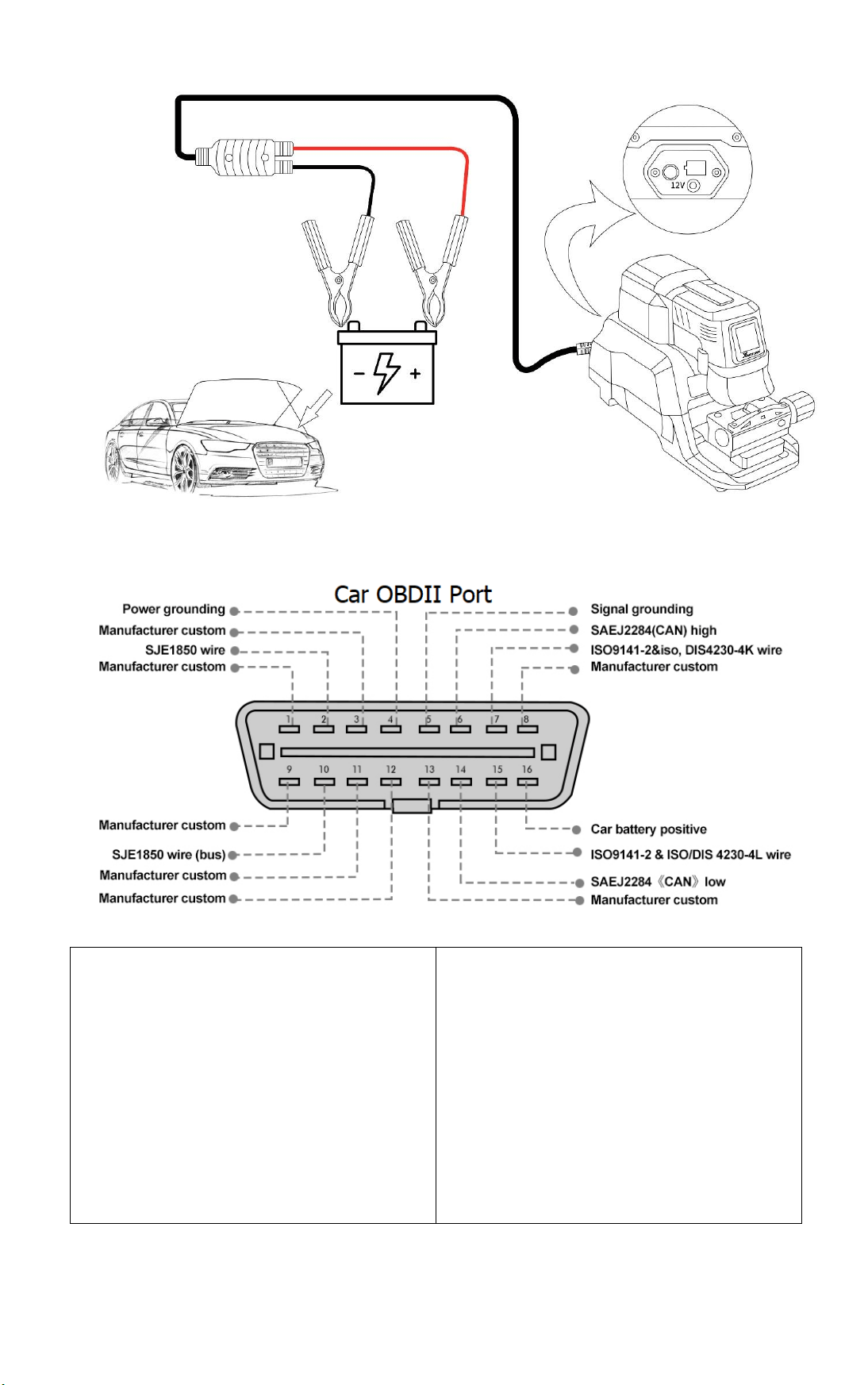

It can also supply power for 12V powered key cutters.
8
Indicator Light Meaning
1. Manufactory custom
2. SJE1850 wire<bus+>
3. Manufactory custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufactory custom
9. Manufactory custom
10. SJE1850 wire《bus->
11. Manufactory custom
12. Manufactory custom
13. Manufactory custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive
9

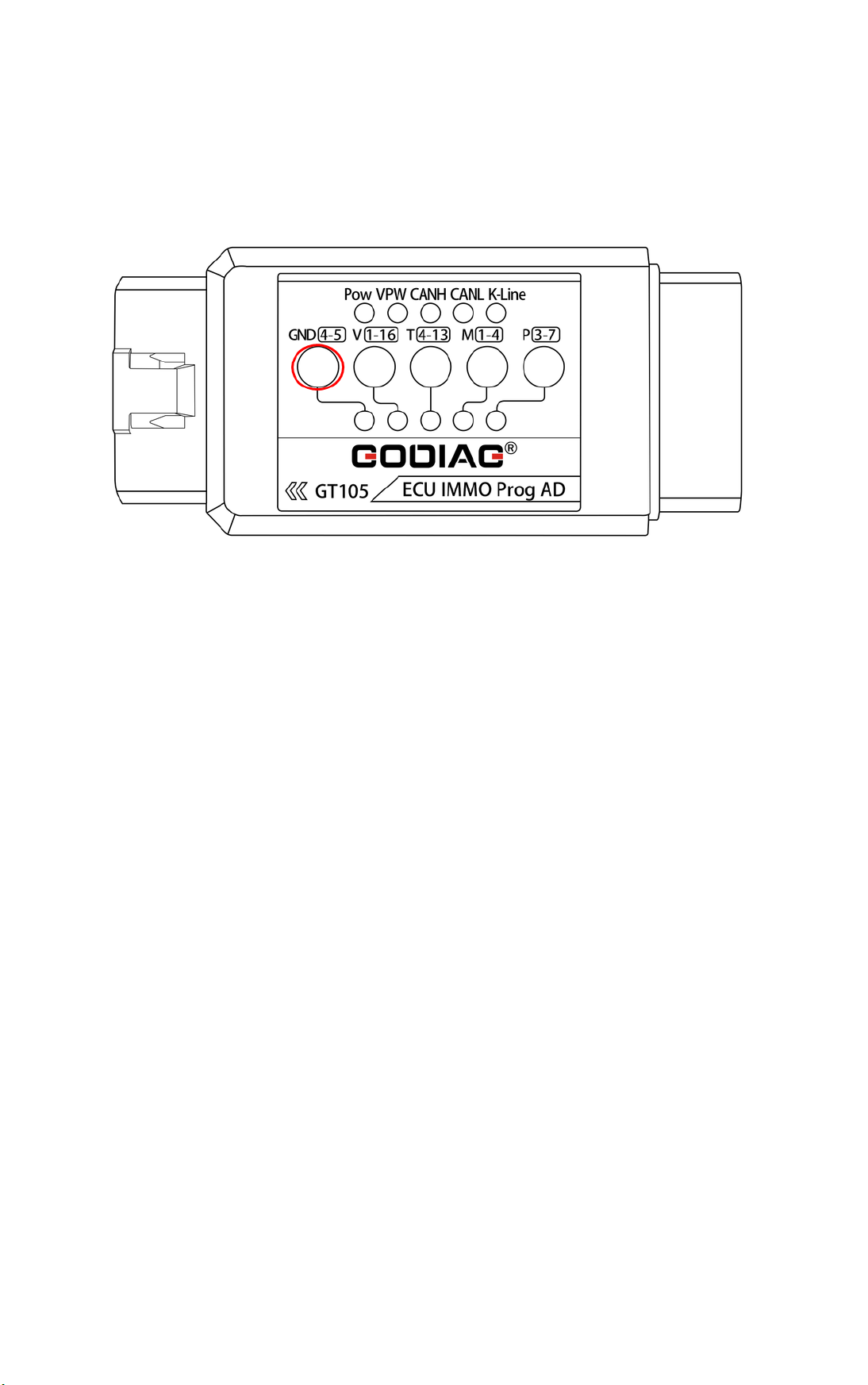

A. The device provides a switch for independent OBD2 PIN4 PIN5. As shown in the
figure, press the GND4-5 button and the corresponding LED light will light up to
realize the short circuit between PIN4 and PIN5.
B. VPW, CANH, CANL, K-Line indicators on the device can provide data
communication. These indicators above flashes when the diagnostic programming
device sends a communication signal, which can be used to check if the device is
sending a communication signal.
C. Equipped with ECU programming full protocol cable.
(needs to be purchased separately)
10

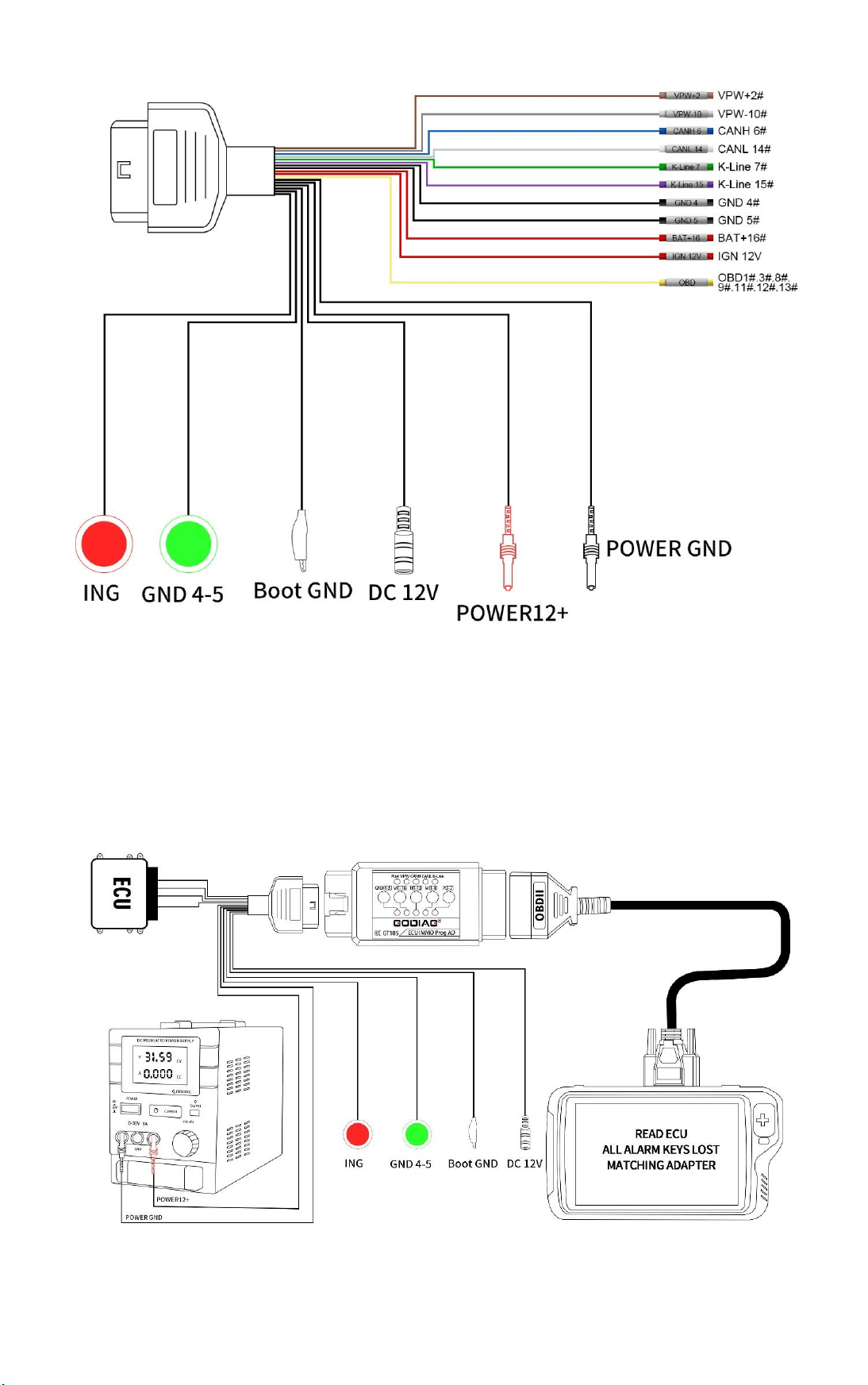

Standard OBD2 Independent Pin4, Pin5.
Press the GDN4-5 short-circuit button, the green light is on (press it down for normal
use, and disconnect it when there is special need). With DC power interface,
dedicated power plug. The BOOT GND connection clip is required to read the ECU.
Equipped with ING ignition switch.
Standard OBD2, independent Pin4, Pin5, can cooperate with the device to obtain
ECU data.

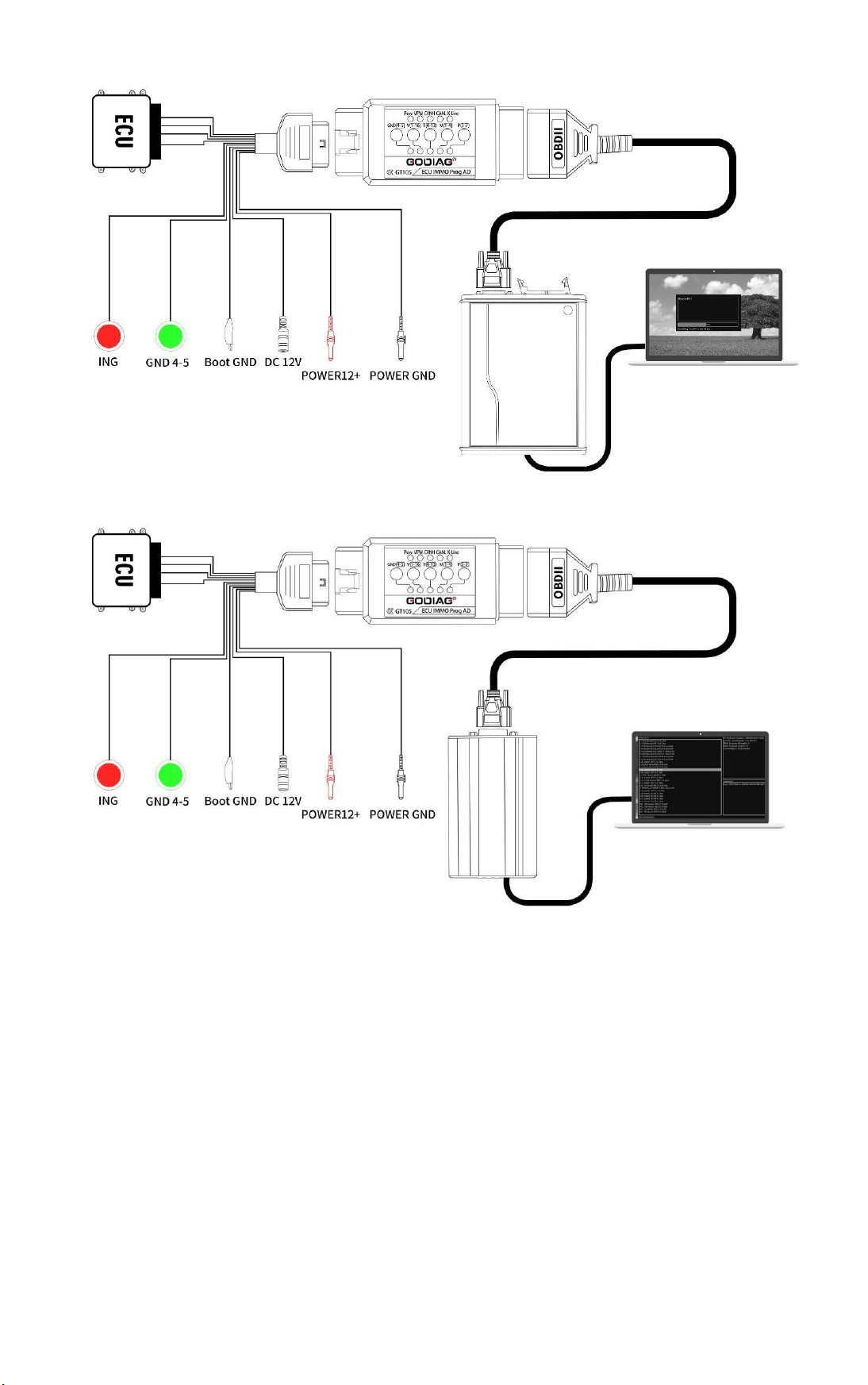

Use with ECU data reading and writing equipment
11
Cooperate with power adjustment equipment for data processing.
Accessories Features:
OBD2 pure copper female socket supports repeated insertion and removal, and has a
long service life.
DC connector has a resettable 7A fuse.
Battery clip is treated with environmentally friendly salt spray with a thickness of 0.5
mm.
DC cable adopts 0.75m² 2-core sheathed cable and supports DC5.5*2.5/ DC5.5*2.1
interface.
