FAN HEATER
Introduction
Please read this guidance carefully before using your fan heater, so that you can use it correctly.
Please keep well with this guidance.
Model
Rated Power
Rated Voltage
Frequency
KPT-1609F
1500W
120V
60Hz
IMPORTANT SAFETY INSTRUCTIONS
WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO. When using electrical appliances,
basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to
persons,
including the following:
1. This heater must be plugged into a 120 V, 15 amp (or more) circuit of its own. Do not plug anything
else into the same circuit. If unsure if your home meets this specification, consult a certified electrician
before use. Risk of fire, overheating, malfunction, property damage, injury, or even death may result if
not adhered to!
2. Connect to a properly grounded outlet only. Do not connect the heater to extension cords, surge
protectors, timers, direct breakers, or an outlet with other appliances connected to the same outlet. Risk
of fire, overheating, malfunction, property damage, injury, or even death may result if not adhered to!
3. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
4. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least
3 ft. (0.9 m) from the front of the heater and keep them away from the sides and rear of the heater.
5. Extreme caution is necessary when any heater is used by or near children, invalids, pets, or when the
heater is left operating unattended.
6. Always unplug the heater when not in use.
7. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been
dropped, or is damaged in any manner. Contact the manufacturer for resolution options.
8. Do not use outdoors. Exposure to outdoor elements such as rain, snow, sun, wind, or extreme
temperatures may cause the heater to become a safety hazard.
9. This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations, nor any
locations that use GFCI outlets.
10. Never place the heater where it may fall into a bathtub or other water receptacles.
11. Do not run the cord under carpet. Do not cover the cord with throw rugs, runners, or similar
coverings. Arrange the cord away from traffic areas and where it will not be tripped over.
12. The heater must be plugged into a wall outlet that is a dedicated circuit with a minimum 10amp
rating on that individual circuit.
13. To disconnect the heater, first turn the power button to the OFF position and then remove the plug
from the wall outlet.
14. Do not allow foreign objects to enter or block any ventilation or exhaust opening as this may cause
electric shock, fire, or to damage the heater.
15. Allow at least 3 ft. of unobstructed space to the front and rear of the heater to allow for maximum
heat, air, and ventilation flow.
16. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or
flammable liquids are used or stored, nor use flammable solvents to clean the heater. Keep the heater
dry at all times.
17. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons.
18. Do not use abrasive solvents to clean the heater as it may cause damage to the finish or casing.
19. To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft
surfaces, like a bed, where opening may become blocked.
20. Always plug heaters directly into a wall outlet/receptacle. Never use an extension cord or relocatable
power tap (outlet/power strip).
21. Do not unplug the heater when the unit is still ON, as the vent grill will be hot.
22. Shut off the heater and wait 10 minutes before unplugging from the wall.
SAVE THESE INSTRUCTIONS
Overheat Safety Feature
This heater is equipped with an overheat safety feature. When the internal components of the heater
reach a certain temperature that could cause overheating or possible fire, the heater will automatically
shut off.
If the unit has been overheated, you will need to unplug the unit from the wall and replug it in to use the
heater again.
WARNING: TO PREVENT ELECTRICAL
SHOCK, MATCH THE WIDE BLADE OF THE
PLUG INTO THE WIDE SLOT OF THE RECEPTACLE
AND FULLY INSERT.
WARNING: It is normal for the power cord to feel warm to the touch. However, a loose fit between the
outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a
different outlet. Contact a qualified electrician to inspect the original outlet for damage.
Usage:
1. Please check before you use:
A: The heating element and electric wire cannot be broken.
B: Please do not use the socket lower than 15A for fear of any accident.
2. Use the fan heater in the flat place to avoid being toppled.
3. Method of use：
Please install the base before using it.，See the following figure.
1
1、Take out the package accessories.
2、Fixed connect the base, 2 half into 1.
2
1、Put the bottom of the appliance up.
2、Put the power cord through the center hole of the
base and cover the base onto the appliance.
3
1、Fix the base and appliance together with 4pcs
ST3×8 screw.
2、After fixing the screws, clip the power cord into the
card slot of the base.
Note: after base installation, check whether the base
is installed in place and whether the appliance shakes
before use!
Screws cannot be replaced arbitrarily!
Turn on the power switch first， “O”= OFF，“—”ON.
1、Turn on the power switch, LED display “--”; See picture 1.1
2、Press “ ” as follows：ON(standby), LED display Environment
temperature(default is ℉ after the power cut off), OFF(Fan keep
working for 30 seconds when shutdown the appliance after heating,
LED display “--” ), see picture 2.1；
Note: only press “ ” to ON(standby), then can start heating,
setting temperature, flaming.
3、Press “ ”as follows：FAN working, Low heat(1000W), High
heat(1500W), Stop heating(Fan keep working for 30 seconds, LED
display Environment temperature, standby)；see picture 3.1-3.3
4、Press “ ”as follows：Flame ON, Flame OFF；see picture 4.1
5、Press “ ”：to set timer as follows: 1H,2H,3H.....12H；See picture
5.1-5.3
6、Press “ ”：to set SWING ON, SWING OFF；see picture 6.1
Note: In set temperature mode, when the setting
temperature≤Environment temperature, the appliance stops
swinging, the swing light is flashing.(if the flame is ON, then keep
swing).
7、Press “ ” to set temperature, Temperature range: 50-95℉；see
picture 7.1-7.2
7.1Press “ ” over 3s, switch to ℃, Temperature range: 10-35℃,
See picture 7.3-7.4.
Press “ ” over 3s again, switch to ℉.
When the power supply is not cut off, keep the Temperature mode
the same.
7.2When using remote control to set temperature,
7.2.1Press “ ” on remote control first,
7.2.2Then press “+” “-” to set temperature.
7.2.3The remote control can not switch the Temperature mode,
only can switch on the machine.
8、For example, Environment temperature is 25 ℃(77℉). See picture
8.1
Set temperature is equal to or lower than Environment temperature,
appliance will stop heating. See picture 8.2-8.3
Set temperature is 1-2℃(1-4℉ or 5℉) higher than Environment
temperature, appliance will have low heat. See picture 8.4-8.5
Set temperature is higher or equal to Environment
temperature+3℃(5℉ or 6℉), appliance will high heat. See picture 8.6
Note:1、 ℉ display will be ±1℉ deviation.
2、When the setting temperature≤Environment temperature,
the appliance stop heating, and the fan stops working after 30s, the
Set temperature light is flashing.
9、When the appliance is tilted or the base is off the ground, then
the power is cut off automatically.
10、The operation method of the remote control is the same
Note: The indicator lights when corresponding function is working.
1.1
2.1
3.1
3.2
3.3
4.1
5.1
5.2
5.3
6.1
7.1
7.2
7.3
7.4
8.1
8.2
8.3
8.4
8.5
8.6
Maintenance:
1. Please make sure the plug should be put off before cleaning the heater.
2. Strictly prohibit to use of water to wash the radiator, it can be cleaned by a piece of soft damp cloth
with a little neutral detergent. Please do not use another solvent like gasoline.
3. The fan heater must be used or stored after cooling and drying completely.
4. If stop using heater, please put off the plug from the socket, and store it in the dry place with a
rust-proof poly bag, original packing is favored.

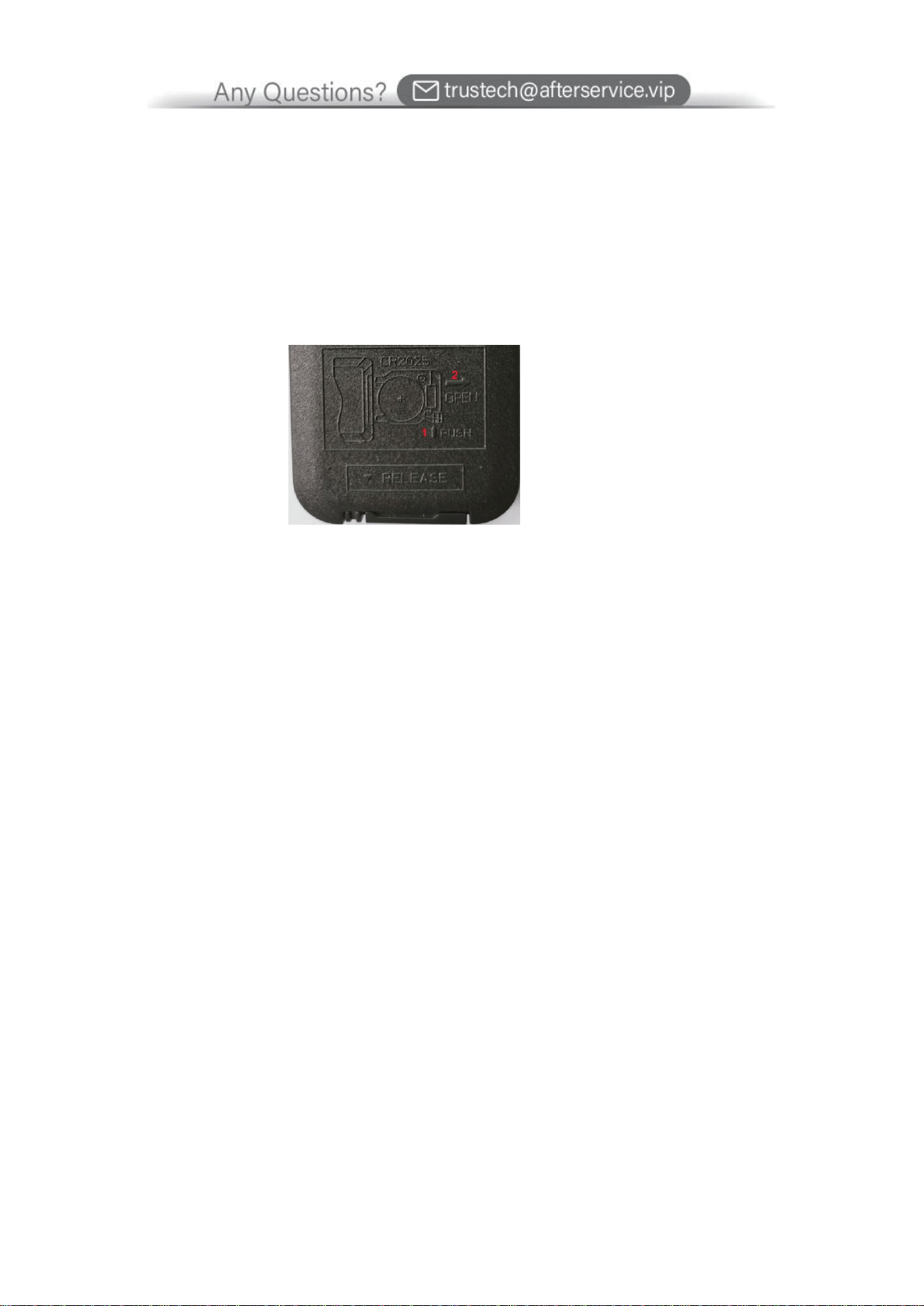

5. Battery change
6. If you stop using heater, turn off all of the power switches, then put off the plug.
7. If you want to move the heater, please turn off the switches, then put off the plug.
WARRANTY:
TRUSTECH warrants this appliance against defects in materials and/or workmanship under normal use
for a period of ONE (1) YEAR from the date of purchase by the original purchaser (“Warranty Period”). If
a defect arises and a valid claim is received within the Warranty Period, at its option, TRUSTECH will
either 1) repair the defect at no charge, using new or refurbished replacement parts, or 2) replace the
product with a new appliance that is at least functionally equivalent to the original appliance, or provide
a store credit in the amount of the purchase price of the original appliance. A replacement appliance or
part, including a user-installable part installed in accordance with instructions provided by TRUSTECH,
assumes the remaining warranty of the original appliance. When a appliance or part is exchanged, any
replacement item becomes your property and the replaced item becomes TRUSTECH’ s property. When
a store credit is given, the original appliance must be returned to TRUSTECH and becomes TRUSTECH’ s
property. To obtain warranty service, e-mail TRUSTECH Limited Warranty Service at
[email protected]. Please be prepared to describe the appliance that needs service and the
nature of the problem.
This warranty does not apply to:
a)damage caused by failure to follow instructions relating to appliance’s use or the installation of
components; b) damage caused by accident, abuse, misuse, fire, floods, earthquake or other external
causes; c) damage caused by service performed by anyone who is not a representative of TRUSTECH; d)
accessories used in conjunction with a covered appliance; e) a product or part that has been modified to
alter functionality or capability; f) items intended to be periodically replaced by the purchaser during the
normal life of the appliance including, without limitation, batteries or light bulbs; g) any appliance sold
“as is” including, without limitation, floor demonstration models and refurbished items; or h) a
appliance that is used commercially or for a commercial purpose.

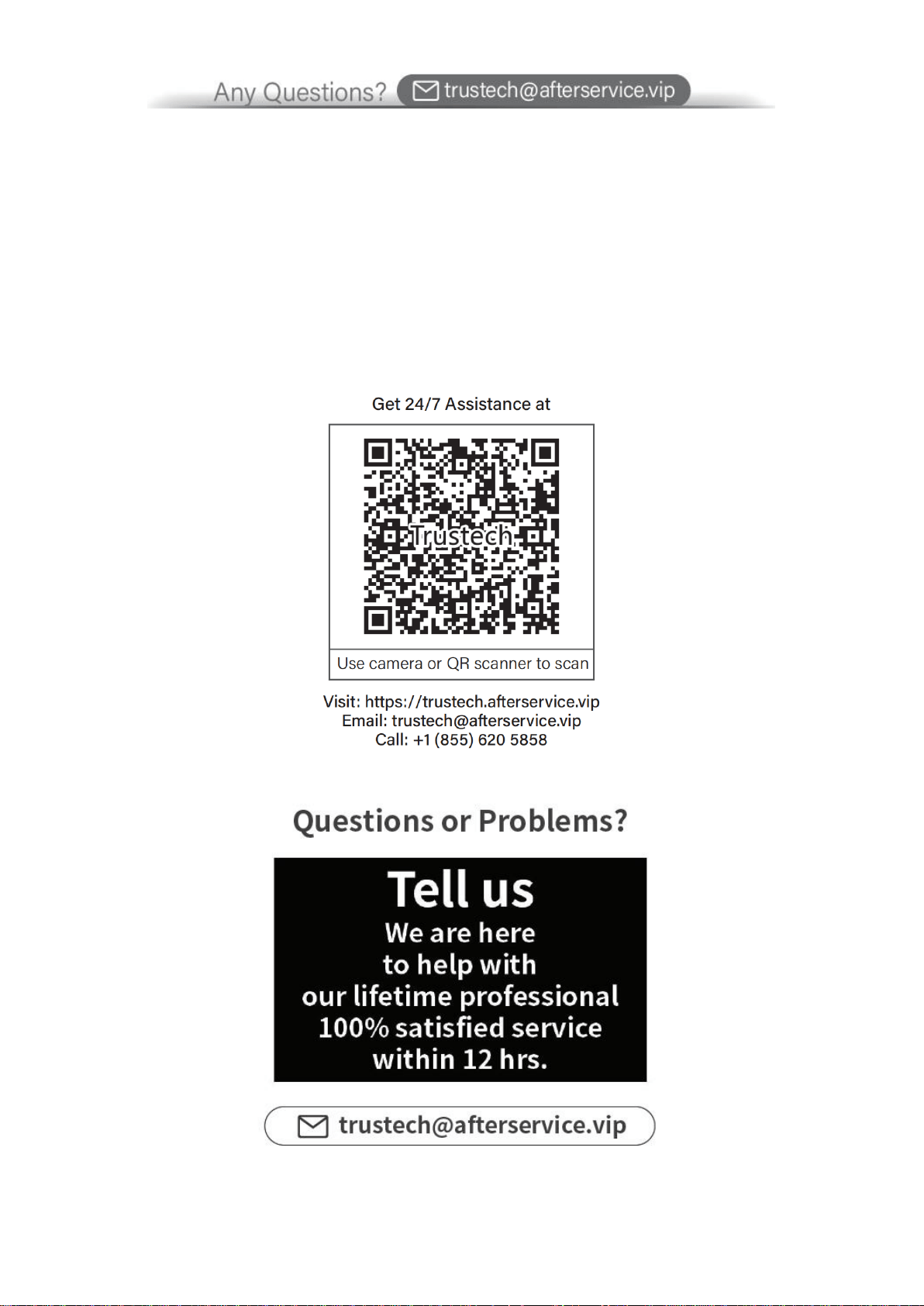

CONTACT US:
Thank you for choosing TRUSTECH product.
For any questions about your product or honor your warranty, please try the following methods to get in
touch with us:
1. Scan the QR code below;
2. Write us at [trustech@afterservice.vip];
3. Call us at +1 (855) 620 5858.
Our customer service time will respond ASAP within 24 hours!
