As you read this manual, you will find Information that is preceded
by a symbol . This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
Symbols or on labels attached to your vehicle are
to remind you to read this owner’s manual for proper and safe
operation of your vehicle.
or is colour-coded to indicate “danger” (red), “warning”
(orange), or “caution” (amber).
2 Safety Labels P. 102
A Few Words About Safety
Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.
Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgement.
NOTICE
You will find this important safety information in a variety of forms,
including:
●
Safety Labels - on the vehicle.
●
Safety Messages - preceded by a safety alert symbol 3 and
one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
●
Safety Headings - such as Important Safety Precautions.
●
Safety Section - such as Safe Driving.
●
Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please
read it carefully.
3DANGER
You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
4 3WARNING
You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
21 JAZZ HYBRID SSS-32TZA6000.book 0 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Event Data Recorders
Your vehicle is equipped with several devices commonly referred to
as Event Data Recorders. They record various types of real time
vehicle data such as SRS airbag deployment and SRS system
components failure.
This data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.
However this data may be accessed by Honda, its authorised
dealers and authorised repairers, employees, representatives and
contractors only for the purpose of the technical diagnosis,
research and development of the vehicle.
Service Diagnostic Recorders
Your vehicle is equipped with service-related devices that record
information about powertrain performance and driving conditions.
The data can be used to help technicians diagnose, repair and
maintain the vehicle. This data may not be accessed by anyone else
except as legally required or with the permission of the vehicle
owner.
However this data may be accessed by Honda, its authorised
dealers and authorised repairers, employees, representatives and
contractors only for the purpose of the technical diagnosis,
research and development of the vehicle.
Vehicle Data Recordings
This vehicle records the following information as data when the
Collision Mitigation Braking System (CMBS) is operated.
●
Images of objects in front of the vehicle when the CMBS is
activated
●
Operational status of each function of the CMBS
●
Accelerator / brake pedal operation
●
Vehicle speed
●
Information such as distance and relative speed of the target
identified by the CMBS activated
Honda may obtain and use the recorded data for the purpose of
technical diagnosis and research and development of Honda
vehicles.
The CMBS does not record images or audio inside the vehicle.
Special tools are required to review or remove data (including
images) recorded by CMBS.
The CMBS image recording function can be turned off so that no
images are recorded when CMBS is activated.
Disclosure of data
Honda will not disclose or provide the acquired data to third parties
with data recorded by CMBS except in the following cases:
●
When the owner of the vehicle consents
●
When required by law, court order, or similar legally enforceable
request
●
When the data has been processed to de-identify/anonymise the
vehicles/users, such as when aggregate data is provided to
research institutions
21 JAZZ HYBRID SSS-32TZA6000.book 1 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Owner's Manual Application Terms and Conditions
General
This application allows your Display Audio to automatically search
for owner's manual updates that are specific to your vehicle and
Display Audio every time the power mode of the vehicle is set to
ON. This application periodically transmits a limited amount of
vehicle and device information to our servers: Vehicle Identification
Number (VIN), Display Audio hardware serial number, preferred
language, Internet Protocol (IP) address, transaction log (alerts for
or views of updates, update downloads and installation, usage of
the owner's manual application), etc. When the application finds
an update from the server, it prompts you to download and install.
When your Display Audio searches our servers for updates, we will
automatically provide you with the opportunity to update the
owner's manual. We will also maintain a log of the updates that are
installed on our servers.
Your Personal Data
Should the aforementioned information transmitted to Honda
constitute personal information in your region, please note that this
information will be treated in strict accordance with the rules and
regulations outlined in this notice as well as applicable data
protection law.
The terms of our privacy policy are incorporated into these terms by
reference and your use of system updates will be subject to the
privacy policy. Our privacy policy sets out information about how we
and any named third parties will process any personal data we collect
from you or that you provide to us, via the utility. (See the Honda
website (https://www.privacynotice.honda.eu) for further details.)
Honda collects, uses, and stores your personal data for the reasons
set out below:
Where necessary for Honda's legitimate interests, as listed below,
and where our interests are not overridden by your data protection
rights.
to deliver owner's manual updates to you;
to allow us to improve and optimize the owner's manual
application and services;
to respond to user questions and complaints; and for internal
record keeping.
Protecting our legitimate business interests and legal rights. This
includes, but is not limited to, use in connection with compliance,
regulatory, auditing, legal claims (including disclosure of such
information in connection with legal process or litigation) and other
ethics and compliance reporting requirements
Honda will also convert personal data into anonymous data and
use it (normally on an aggregated statistical basis) for uses such as
market research and analysis, to improve the owner's manual, to
analyze trends, and to assess the success of software update
releases. Aggregated personal information does not personally
identify you or any other use of the owner's manual.
Honda may share this data with Honda's world wide support
organization or affiliated Honda companies or other third parties
engaged by Honda for the purposes of rendering support services
in connection with system support.
21 JAZZ HYBRID SSS-32TZA6000.book 2 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
System Updates Terms and Conditions
General
This application allows your Display Audio to automatically search
for Honda software updates that are specific to your Display Audio
and its connected devices (initially every one (1) week via Wi-Fi or
every four (4) weeks via Telematics Control Unit (TCU), queries may
occur more or less frequently due to internet outages, retries, direct
user action, WAP push from the server or a change in query policy
on the Honda servers). This application periodically transmits to our
servers a limited amount of vehicle and device information (Vehicle
Identification Number (VIN), the Model Type (MT) Identification
Number, Hardware and Software Part Number, Serial Number,
Software Version, preferred language, Internet Protocol (IP)
address, Transaction Log (alert or update viewing, update
download and installation, Software status), etc.). When the
application finds an update from the server, the application initially
asks for the download and install. The download and install
functions can be configured automatic through the setting and can
change the setting to manual in the later time.
When your Display Audio searches our servers for updates or alerts,
we will automatically provide you with the opportunity to update
your devices or transmit the update or alert directly to your Display
Audio. We will also maintain a log of the updates or alerts that are
installed on our servers.
Your Personal Data
Should the aforementioned information transmitted to Honda
constitute personal information in your region, please note that this
information will be treated in strict accordance with the rules and
regulations outlined in this notice as well as applicable data
protection law.
The terms of our privacy policy are incorporated into these terms by
reference and your use of system update will be subject to the
privacy policy. Our privacy policy sets out information about how we
and any named third parties will process any personal data we collect
from you or that you provide to us, via the utility. (See the Honda
website (https://www.privacynotice.honda.eu) for further details.)
Honda collects, uses and stores your personal data for the reasons
set out below:
Where necessary for Honda's legitimate interests, as listed below, and
where our interests are not overridden by your data protection rights.
to deliver the system update and related services to you;
to allow us to improve and optimize the system update products
and services;
to respond to user questions and complaints; and for internal
record keeping.
Protecting our legitimate business interests and legal rights. This
includes, but is not limited to, use in connection with compliance,
regulatory, auditing, legal claims (including disclosure of such
information in connection with legal process or litigation) and other
ethics and compliance reporting requirements
Honda will also convert personal data into anonymous data and
use it (normally on an aggregated statistical basis) for uses such as
market research and analysis, to improve the system update, to
analyze trends and to assess the success of software update
releases. Aggregated personal information does not personally
identify you or any other use of the system update.
Honda may share this data with Honda's world wide support
organization or affiliated Honda companies or other third parties
engaged by Honda for the purposes of rendering support services
in connection with system support.
21 JAZZ HYBRID SSS-32TZA6000.book 3 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual represent features and
equipment that are available on some, but not all, models. Your
particular model may not have some of these features.
The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.
Although this manual is applicable to both right-hand and left-hand
drive models, the illustrations contained in this manual mainly refer
to the left-hand drive models.
2 Safe Driving P. 37
For Safe Driving P. 38 Seat Belts P. 42 Airbags P. 56
2 Instrument Panel P. 105
Indicators P. 106 Gauges and Displays P. 137
2 Controls P. 165
Clock P. 166 Locking and Unlocking the Doors P. 167
Operating the Switches Around the Steering Wheel P. 188
Interior Convenience Items P. 222
2 Features P. 237
Audio System P. 238 Colour Audio P. 241
General Information on the Audio System P. 379
2 Driving P. 391
Before Driving P. 392 Towing a Trailer P. 396 When Driving P. 397
Multi-View Rear Camera
*
P. 518 Refueling P. 520
2 Maintenance P. 525
Before Performing Maintenance P. 526 Service Reminder System
*
P. 530
Checking and Maintaining Wiper Blades P. 563
Climate Control System Maintenance P. 580 Cleaning P. 584

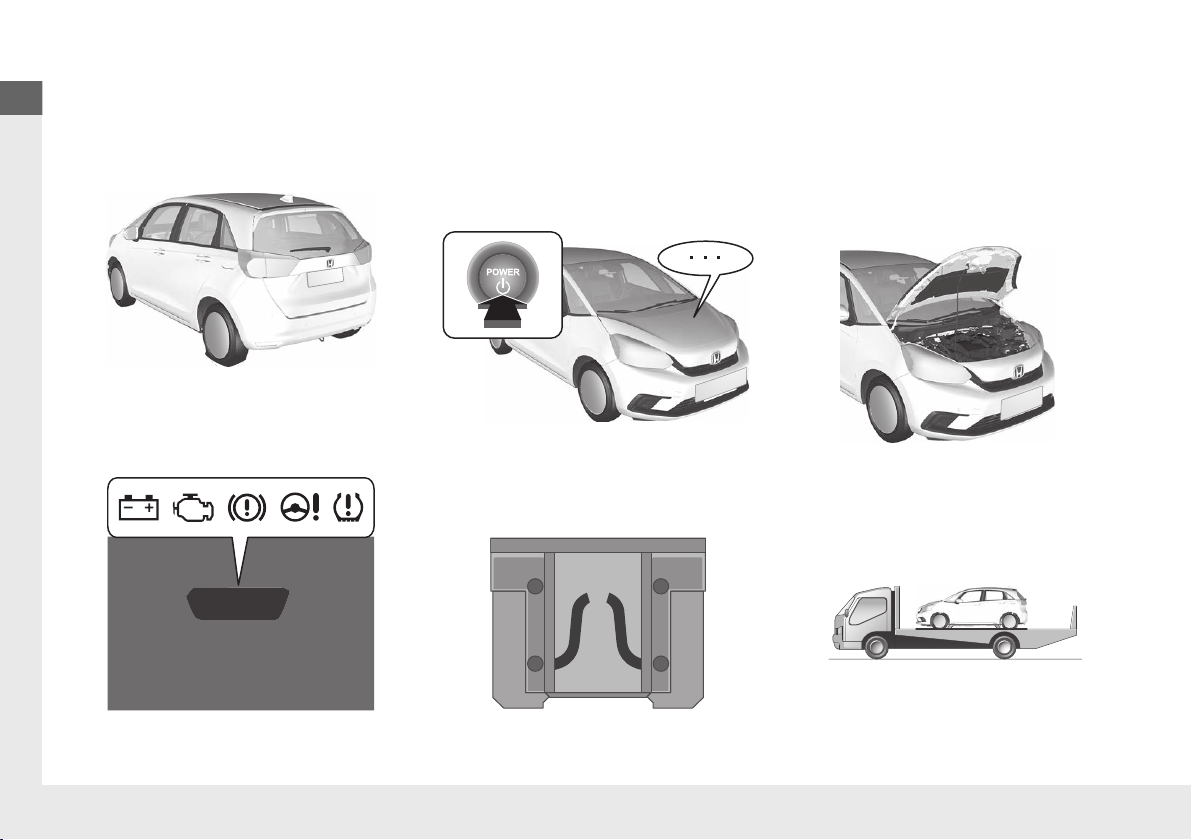

2 Handling the Unexpected P. 591
Tools P. 592 If a Tyre Goes Flat P. 593
Overheating P. 614 Indicator, Coming On/Blinking P. 616
When You Cannot Open the Tailgate P. 632
2 Information P. 633
Specifications P. 634 Identification Numbers P. 637
21 JAZZ HYBRID SSS-32TZA6000.book 4 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Contents
Child Safety P. 76 Exhaust Gas Hazard P. 101 Safety Labels P. 102
Tailgate P. 179 Security System P. 181 Opening and Closing the Windows P. 184
Adjusting the Mirrors P. 208 Adjusting the Seats P. 211
Climate Control System P. 233
Display Audio P. 285 Audio Error Messages P. 377
Emergency Call (eCall) P. 386
Honda Sensing P. 432 Braking P. 496 Parking Your Vehicle P. 506
Fuel Economy and CO
2
Emissions P. 523
Maintenance Schedule
*
P. 535 Maintenance Under the Bonnet P. 543 Replacing Light Bulbs P. 558
Checking and Maintaining Tyres P. 568 12-Volt Battery P. 573 Remote Transmitter Care P. 579
Accessories and Modifications P. 589
Power System Won’t Start P. 607 Jump Starting P. 610 Shift Lever Does Not Move P. 613
Fuses P. 623 Emergency Towing P. 629 When You Cannot Unlock the Fuel Fill Door P. 630
Devices that Emit Radio Waves
*
P. 638
Quick Reference Guide
P. 6
Safe Driving
P. 37
Instrument Panel
P. 105
Controls
P. 165
Features
P. 237
Driving
P. 391
Maintenance
P. 525
Handling the Unexpected
P. 591
Information
P. 633
Index
P. 671
21 JAZZ HYBRID SSS-32TZA6000.book 5 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
6
Quick Reference Guide
Quick Reference Guide
Visual Index
a
System Indicators (P106)
Gauges (P137)
Driver Information Interface (P140)
b
POWER Button (P188)
c
Audio System (P238)
Navigation System
*
() See the Navigation System Manual
d
Hazard Warning Button
e
Seat Heater Buttons (P232)
f
Rear Demister (P205)
Heated Door Mirror Button (P205)
g
Climate Control System (P233)
h
Steering Wheel Adjustments (P207)
i
(Vehicle Stability Assist (VSA) System
OFF) Button
(P421)
Safety Support Switch (P430, 439, 482)
Parking Sensor System Button
*
(P509)
Headlight Adjuster (P198)
j
Brightness Control (P206)
Left-hand Drive Type
21 JAZZ HYBRID SSS-32TZA6000.book 6 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
7
Quick Reference Guide
a
System Indicators (P106)
Gauges (P137)
Driver Information Interface (P140)
b
POWER Button (P188)
c
(Vehicle Stability Assist (VSA) System
OFF) Button
(P421)
Safety Support Switch (P430, 439, 482)
Parking Sensor System Button
*
(P509)
Headlight Adjuster (P198)
d
Steering Wheel Adjustments (P207)
e
Seat Heater Buttons
*
(P232)
f
Climate Control System (P233)
g
Rear Demister (P205)
Heated Door Mirror Button (P205)
h
Hazard Warning Button
i
Audio System (P238)
Navigation System
*
() See the Navigation System Manual
j
Brightness Control (P206)
Right-hand Drive Type
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 7 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Visual Index
8
Quick Reference Guide
a
Headlights/Turn Signals (P191, 193)
Front Fog Lights
*
(P195)
Rear Fog Light (P195)
b
Wipers/Washers (P202)
c
Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P447)
d
Lane Keeping Assist System (LKAS) Button
(P467)
Interval Button (P462)
e
Heated Steering Wheel Button
*
(P231)
f
Horn (Press an area around .)
g
(Home) Button (P140, 289)
h
Left Selector Wheel (P140, 289)
i
Audio Remote Controls (P243, 289)
j
Hands-Free Telephone System Buttons
(P269, 359)
Voice Control Buttons
*
(P293)
21 JAZZ HYBRID SSS-32TZA6000.book 8 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
9
Quick Reference Guide
Left-hand Drive Type
a
Driver’s Front Airbag (P58)
b
Passenger's Front Airbag OFF Indicator
(P74)
c
USB Port(s) (P242, 288)
d
Accessory Power Socket (P231)
e
Upper Glove Box (P224)
f
Passenger's Front Airbag (P58)
g
Glove Box (P224)
h
Electric Parking Brake Switch (P496)
Automatic Brake Hold Button (P500)
i
ECON Button (P405)
j
Shift Lever (P403)
k
Driver's Side Interior Fuse Box (P625)
l
Driver's Knee Airbag (P64)
m
Bonnet Release Handle (P544)
n
Door Mirror Controls (P209)
Master Door Lock Switch (P177)
Power Window Switches (P184)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 9 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Visual Index
10
Quick Reference Guide
Right-hand Drive Type
a
Driver's Front Airbag (P58)
b
Door Mirror Controls (P209)
Master Door Lock Switch (P177)
Power Window Switches (P184)
c
Bonnet Release Handle (P544)
d
Driver's Side Interior Fuse Box (P625)
e
Driver's Knee Airbag (P64)
f
Shift Lever (P403)
g
ECON Button (P405)
h
Electric Parking Brake Switch (P496)
Automatic Brake Hold Button (P500)
i
Glove Box (P224)
j
Passenger's Side Interior Fuse Box
(P627)
k
Passenger's Front Airbag (P58)
l
Upper Glove Box (P224)
m
Accessory Power Socket (P231)
n
USB Port(s) (P242, 288)
o
Passenger's Front Airbag OFF Indicator
(P74)
21 JAZZ HYBRID SSS-32TZA6000.book 10 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
11
Quick Reference Guide
a
Side Curtain Airbags (P71)
b
Ceiling Light (P222)
c
Seat Belts (P42)
d
Sun Visors
Vanity Mirrors
e
Map Lights (P223)
SOS Button (P388)
f
Rearview Mirror (P208)
g
Front Seat (P211)
h
Centre Airbag (P66)
i
USB Ports
*
(P288)
j
Front Side Airbags (P68)
k
Rear Seat (P214)
l
Lower Anchorage Points to Secure a Child
Restraint Systems
(P90)
m
Luggage Area Light (P223)
n
Rear Side Airbags (P68)
o
Seat Belt with Detachable Anchor (P51)
p
Seat Belt (Installing a Child Restraint
System)
(P94)
Seat Belt to Secure a Child Restraint System
(P96)
q
Grab Handle
Coat Hook
(P227)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 11 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Visual Index
12
Quick Reference Guide
a
Maintenance Under the Bonnet (P543)
b
Windscreen Wipers (P202, 563)
c
Power Door Mirrors (P209)
Side Turn Signal Lights (P193, 558)
d
Door Lock/Unlock Control (P170)
e
Tyres (P568, 593)
f
Headlights (P191, 558)
Position/Daytime Running Lights
(P191, 197, 558)
Front Turn Signal Lights (P193, 558)
g
Front Fog Lights
*
(P195, 558)
a
How to Refuel (P521)
b
High-Mount Brake Light (P561)
c
Rear Wiper (P204, 566)
d
Opening/Closing the Tailgate (P179)
Tailgate Outer Handle (P180)
Rear Licence Plate Light (P191, 561)
e
Multi-View Rear Camera
*
(P518)
f
Taillights (P191, 560)
Back-Up Lights (P560)
Rear Fog Light (P195, 561)
g
Brake/Taillights (P191, 559)
Rear Turn Signal Lights (P193, 559)
21 JAZZ HYBRID SSS-32TZA6000.book 12 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
13
Quick Reference Guide
e:HEV
Your e:HEV vehicle uses both an electric motor and a petrol engine as propulsion sources, with the electric motor receiving electricity from
an internal High Voltage battery or internal generator. The High Voltage battery can be charged from the generator driven by the engine
or regenerative braking.
When driving, your vehicle is propelled exclusively by the electric motor, exclusively by the petrol engine, or by a combination of the two.
The system selects which propulsion source is most appropriate and automatically switches to it.
●
Energy efficiency
As with a petrol-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the petrol-powered engine.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.
●
Battery types
There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights,
and other standard 12-volt systems; and a High Voltage battery that is used to power the propulsion motor and recharge the 12-volt
battery.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 13 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
14
Quick Reference Guide
e:HEV MAIN COMPONENTS
Petrol Engine– Provides propulsion to drive the wheels under
certain driving conditions, and turns the generator.
Generator– Starts the engine and generates electric power
when driven by the petrol engine to supply electricity to power
the electric motor and/or to charge the High Voltage battery.
Electric Motor– Provides propulsion to drive the wheels in
conjunction with the petrol engine in certain conditions, and
provides electricity to the High Voltage battery through
regenerative braking.
High Voltage Battery– Provides electrical storage and serves
as a power source for the electric motor.
Learning about the High Voltage battery’s characteristics will
help you get the best handling and maximise the range of your
electric vehicle. (P431)
High Voltage Battery Charge Level Indicator– Displays
battery state of charge.
When the indicator:
• Displays two or less segments, EV mode is no longer available.
• Displays ten segments, battery charge level is full.
High
Voltage
Battery
Generator & Electric Motor
Petrol Engine
21 JAZZ HYBRID SSS-32TZA6000.book 14 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
15
Quick Reference Guide
Operating
mode
Electric Vehicle (EV) Hybrid (HV) Engine (Direct Drive) Regeneration
Driving state
Stopped or driven at low speeds:
• Only the electric motor
provides propulsion to the
wheels.
Driven in high-load conditions
(e.g., when accelerating, going
uphill):
• The Electric Motor provides
propulsion to the wheels.
•
The petrol engine drives the
generator, supplying electricity
to the electric motor for added
propulsion or to the High
Voltage battery for charging.
Driven in high-speed, low-load
conditions:
• The petrol engine provides
propulsion to the wheels.
• The High Voltage battery
supplies electricity to the electric
motor for added propulsion.
•
The electric motor provides electricity
to the High Voltage battery through
regenerative braking.
The accelerator pedal is released
and the vehicle is decelerating.
• The electric motor provides
electricity to the High Voltage
battery through regenerative
braking.
Power Flow
Monitor
Electric motor Stopped/Running Running Generating/Running Regenerating
Generator Stopped Generating No Output Stopped/No Output
Engine Stopped Running Running Stopped/No Output
High Voltage
battery
Discharge Charging/Discharge Charging/Discharge Charging
Vehicle
Speed
Time
21 JAZZ HYBRID SSS-32TZA6000.book 15 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
16
Quick Reference Guide
●
Regenerative Energy and Regenerative Braking
When decelerating without the accelerator being depressed or the brake pedal being applied, or
while driving downhill, the electric motor acts as a generator that recovers a portion of the
electrical energy that was used to accelerate the vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a petrol-powered vehicle. This function is
enhanced when the shift lever is moved to .
●
Auto Engine Stop/Start
Your vehicle’s petrol engine automatically stops running during vehicle operation or restarts while the vehicle is stationary when it is
appropriate.
In the following cases, however, auto engine stop may not activate.
• The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.
• The climate control system is in heavy use.
• The High Voltage battery temperature is high or low.
●
Sounds Unique to the e:HEV
When you first start driving this vehicle, you will likely hear some unfamiliar sounds, particularly when you turn on the power system, or
while you are driving or accelerating from a stop. Some of these sounds are unique to this vehicle's powertrain, fuel, and climate control,
and High Voltage battery cooling systems; others are similar to sounds generated by conventional automobiles that typically are masked by
louder noises absent from a vehicle of this design. These sounds are not a cause for concern, and you will soon recognise them as normal
and thus be able to detect any new or unusual noise should one develop.
When regenerative braking is in
operation
Motor
High Voltage Battery
B
21 JAZZ HYBRID SSS-32TZA6000.book 16 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
17
Quick Reference Guide
Safety Precautions
Do not touch the High Voltage system
Attempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. Make sure that any maintenance or repairs to the High
Voltage system is performed by a Honda dealer.
If a crash occurs
●
Be careful of electric shock hazard.
uIf a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical
shock due to exposed High Voltage components or wires. If this happens, do not touch any of
the High Voltage system components or any of its orange wires.
●
Avoid contact with High Voltage battery fluid.
uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a
severe crash. Avoid skin or eye contact with the electrolyte as it is corrosive. If you accidentally
come into contact with the electrolyte, rinse the exposed skin or flush your eyes with copious
amounts of water for at least five minutes, and seek medical attention immediately.
●
Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with even a small quantity of water, from a garden
hose for instance, can be dangerous.
●
Anytime the vehicle is damaged in a crash, have it repaired by a dealer.
Emergency Shutdown System for the High Voltage System
If the vehicle is involved in a crash, the emergency shutdown system will activate depending
on the severity of the impact. When the system activates, the High Voltage system
automatically shuts down, and the vehicle can no longer move under its own power. To
return the High Voltage system back to normal operation, consult a dealer.
When the vehicle is disposed
●
The High Voltage battery is a Lithium ion battery. Honda collects and recycles used High
Voltage batteries – consult with your dealer for proper battery disposal in the event your
vehicle is not repairable.
Do not cover the air intake
Air Intake
If the air intake is obstructed
during vehicle operation, the High
Voltage battery can become too
hot. To protect the battery, the
system may start to limit the
battery's output and cause the
power system and 12-volt battery
charging system indicators to
come on.
21 JAZZ HYBRID SSS-32TZA6000.book 17 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
18
Quick Reference Guide
Safe Driving (P37)
Airbags (P56)
●
Your vehicle is fitted with airbags to help to protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P76)
●
All children 12 and younger should be seated in the rear seat.
●
Small children should be properly restrained in a front facing child restraint
system.
●
Infants must be properly restrained in a rear-facing child restraint system on a
rear seat.
Exhaust Gas Hazard (P101)
●
Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P41)
●
Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P42)
●
Fasten your seat belt and sit upright well
back in the seat.
●
Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
21 JAZZ HYBRID SSS-32TZA6000.book 18 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
19
Quick Reference Guide
Instrument Panel (P105)
Indicators (P106)/Driver Information Interface (P140)/Gauges (P137)
Shift Position Indicator (P111) /
Transmission System Indicator (P111)
Speedometer (P137)
Traffic Sign Recognition System (P139)
Fuel Gauge (P137)
Driver Information Interface (P140)
High Voltage Battery Charge
Level Gauge (P138)
21 JAZZ HYBRID SSS-32TZA6000.book 19 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
20
Quick Reference Guide
Controls (P165)
Clock (P166)
You can adjust the clock and customize the
clock display.
(P304)
a Press and hold the MENU/CLOCK
button.
b Rotate to change hour, then press
.
c Rotate to change minute, then
press .
d Select SET, then press .
These indications are used to show how to
operate the selector knob.
• Rotate to select.
• Press to enter.
Models with Display Audio
Models with colour audio
POWER Button (P188)
Press the button to change the vehicle’s
power mode.
Turn Signals (P193)
Lights (P191)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam
High Beam
Flashing the high beams
21 JAZZ HYBRID SSS-32TZA6000.book 20 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
21
Quick Reference Guide
Wipers and Washers
(P202)
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
• Cleaning the windscreen
• Driving through a car wash
• No rain present
Wiper/Washer Control Lever
MIST
OFF
AUTO: Wiper speed varies
automatically
LO: Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
(-: Low Sensitivity
(+: High Sensitivity
Steering Wheel (P207)
●
To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Unlocking the Front
Doors from the Inside
(P176)
●
Pull either front door inner handle to
unlock and open it at the same time.
To adjust
To lock
Lever
Tailgate (P179)
●
With all the doors unlocked, press the
tailgate outer handle and lift open the
tailgate.
●
Press the outer handle to unlock and
open the tailgate when you carry the
keyless remote on you.
Models without keyless access system
Models with keyless access system
21 JAZZ HYBRID SSS-32TZA6000.book 21 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
22
Quick Reference Guide
Power Door Mirrors
(P209)
●
With the power mode in ON, move the
selector switch to L or R.
●
Push the appropriate edge of the
adjustment switch to adjust the mirror.
●
Press the folding button
*
to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button
*
Power Windows (P184)
●
With the power mode in ON, open and
close the power windows.
●
If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●
If the power window lock button is in the
on position (indicator on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switch
Indicator
21 JAZZ HYBRID SSS-32TZA6000.book 22 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
23
Quick Reference Guide
Climate Control System (P233)
●
Press the AUTO button to activate the climate control system.
●
Press the button to turn the system on or off.
●
Press the button to defrost the windscreen.
Air flows
from
dashboard
vents.
Air flows from
floor and
dashboard
vents.
Air flows
from
floor
vents.
Air flows from
floor and
windscreen
demister vents.
AUTO Button
Temperature Control Dial
Fan Control Dial
MODE Control Dial
(Windscreen Demister) Button
(On/Off) Button
A/C (Air Conditioning) Button
(Recirculation) Button
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 23 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
24
Quick Reference Guide
Features (P237)
Audio System (P238)
TA Button
(P 241)
Models with colour audio
Audio/Information Screen
VOL/ (Volume/Power) Knob
(Seek/Skip) Button
Selector Knob
MEDIA Button
MENU/CLOCK Button
(Back) Button
(Phone) Button
Preset Button (1-6)
(Day/Night) Button
RADIO Button
(Seek/Skip) Button
21 JAZZ HYBRID SSS-32TZA6000.book 24 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
25
Quick Reference Guide
(P285)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
Audio/Information Screen
(Home) Button
(Back) Button
VOL/ AUDIO
(Volume/Power) Knob
(Seek/Skip) Button
(Seek/Skip) Button
Display Mode Icon
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 25 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
26
Quick Reference Guide
Audio Remote Controls
(P243)
●
VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
●
SOURCE Button
Press to change the audio mode:
FM1FM2DAB1DAB2LW
AM (MW)USB/iPodBluetoot h® Audio.
●
/ (Seek/Skip) Buttons
Radio:
Press / to change the
preset radio station.
iPod, USB device, or Bluetooth® Audio:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
Models with colour audio
/ (Seek/Skip) Buttons
SOURCE Button
VOL(+/VOL(- (Volume) Buttons
(P289)
●
VOL(+/VOL(- (Volume) Buttons
Press to adjust the volume up/down.
●
Left Selector Wheel
When selecting the audio mode
Press the (home) button, then roll up
or down to select (audio) on the
driver information interface, and then
press the left selector wheel.
Radio:Press and hold / to
change the strong station.
USB device or Bluetooth® Audio:
Press and hold / to
change a folder/group.
Models with Display Audio
/ (Seek/Skip) Buttons
Left
Selector
Wheel
VOL(+/VOL(- (Volume) Buttons
(Home)
Button
(Back) Button
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
FM/AM/DAB/iPod/USB/Apple CarPlay/
Android Auto/Bluetooth® Audio
Depending on a connected device, the
displayed modes may be changed.
●
/ (Seek/Skip) Buttons
Depending on a connected device,
operations may be changed.
Radio:
Press / to change the
preset radio station.
iPod, USB device, Bluetooth® Audio or
Smartphone Connection:
Press / to skip to the
beginning of the next song or
return to the beginning of the
current song.
Radio:Press and hold / to
change the strong station.
USB device:
Press and hold / to
change a folder.
iPod: Press and hold / to
change a song.
21 JAZZ HYBRID SSS-32TZA6000.book 26 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
27
Quick Reference Guide
Driving (P391)
Transmission (P403)
●
Select (P and depress the brake pedal when turning on the power.
Depress the brake pedal and press the shift
lever release button to shift.
Shift without pressing the shift lever
release button.
Press the shift lever release button and
shift.
Park
Used when parking or starting the engine.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Drive
Used:
For normal driving.
Drive (B)
Used when driving down a long hill and to
increase regenerative braking.
Release Button
Shift Lever
Shift selection
POWER Button
Safety Support Switch
(VSA OFF) Button
21 JAZZ HYBRID SSS-32TZA6000.book 27 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
28
Quick Reference Guide
CMBS On and Off (P439)
●
When a possible collision is likely
unavoidable, the CMBS can help you to
reduce the vehicle speed and the severity
of the collision.
●
The CMBS is turned on every time you
start the power system.
●
To turn the CMBS on or off, use the safety
support switch.
VSA On and Off (P421)
●
The Vehicle Stability Assist (VSA) system
helps to stabilise the vehicle during
cornering, and helps to maintain traction
while accelerating on loose or slippery
road surfaces.
●
VSA comes on automatically every time
you start the power system.
●
To partially disable or fully restore VSA
function, press and hold the button until
you hear a beep.
Deflation Warning
System
(P423)
●
Detects a change in tyre conditions and
overall dimensions due to decrease in tyre
pressures.
●
The Deflation Warning System is turned
on automatically every time you turn on
the power system.
●
An initialisation procedure must be
performed when certain conditions arise.
Adjustable Speed Limiter
(P407)
This system enables you to set a maximum
speed that cannot be exceeded even if you
are depressing the accelerator pedal.
●
To use the adjustable speed limiter, press
the button. Select the adjustable
speed limiter by pressing the LIM button,
then press the SET/− button when your
vehicle reaches the desired speed.
●
The vehicle speed limit can be set from 30
km/h (18 mph) to 250 km/h (156 mph).
21 JAZZ HYBRID SSS-32TZA6000.book 28 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
29
Quick Reference Guide
Refueling (P520)
a Unlock the driver's door. (P176)
b Press on the edge of the fuel fill door to make it
pop up slightly.
c Turn the fuel fill cap slowly to remove the cap.
d Place the cap in the holder on the fuel fill door.
e After refueling, screw the cap back on until it
clicks at least once.
Fuel recommendation:
EN 228 standards petrol/gasohol fuel
Unleaded premium petrol/gasohol up to E10 (90% petrol and 10% ethanol), research octane
number 95 or higher
Unleaded premium petrol, research octane number 95 or higher
Fuel tank capacity: 40 L (8.8 Imp gal)
Except Jordanian, Lebanese, Moroccan and Tunisian models
Jordanian, Lebanese, Moroccan and Tunisian models
21 JAZZ HYBRID SSS-32TZA6000.book 29 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
30
Quick Reference Guide
Honda Sensing (P432)
Honda Sensing is a driver support system
which employs the use of a front wide view
camera mounted to the interior side of the
windscreen, behind the rearview mirror.
Front Wide
View Camera
The camera is located
behind the rearview
mirror.
Collision Mitigation
Braking System (CMBS)
(P 435)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle ahead
from behind, an oncoming vehicle in front,
pedestrians, or riding a bicycle (moving
bicycle). The CMBS is designed to alert you
when a potential collision is determined, as
well as assist in reducing speed, avoiding
collisions, and reducing collision severity.
Adaptive Cruise Control
(ACC) with Low Speed
Follow
(P 447)
Helps to maintain a constant vehicle speed
and a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P 467)
Provides steering input to help to keep the
vehicle in the middle of a detected lane and
provides tactile, audible and visual alerts if
the vehicle is detected drifting out of its
lane.
Road Departure
Mitigation System
(P 478)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
crossing over detected lane markings, or
approaching the outer edge of the
pavement (into grass or gravel border) or an
oncoming vehicle.
Traffic Sign Recognition
System
(P 487)
Reminds you of road sign information, such
as the current speed limit and that
overtaking is prohibited, your vehicle has
just passed through, showing it on the
gauge.
21 JAZZ HYBRID SSS-32TZA6000.book 30 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
31
Quick Reference Guide
Maintenance (P525)
Under the Bonnet (P543)
●
Check engine oil, engine coolant, and windscreen washer
fluid. Add when necessary.
●
Check brake fluid.
●
Check the 12-volt battery condition monthly.
a Pull the bonnet release handle under the corner of the
dashboard.
b Locate the bonnet latch lever, push it to the side, and
then raise the bonnet. Once you have raised the
bonnet slightly, you can release the lever.
c When finished, close the bonnet and make sure it is
firmly locked in place.
Lights (P558)
●
Inspect all lights regularly.
Wiper Blades (P563)
●
Replace blades if they leave streaks
across the windscreen.
Tyres (P568)
●
Inspect tyres and wheels regularly.
●
Check tyre pressures regularly.
●
Install winter tyres for winter
driving.
21 JAZZ HYBRID SSS-32TZA6000.book 31 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
32
Quick Reference Guide
Handling the Unexpected (P591)
Flat Tyre (P593)
●
Park in a safe location and repair the flat
tyre using the tyre repair kit.
Indicators Come On (P616)
●
Identify the indicator and consult the
owner's manual.
Power System Won't
Start
(P607)
●
If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse (P623)
●
Check for a blown fuse if an electrical
device does not operate.
Overheating (P614)
●
Park in a safe location. If you do not see
steam under the bonnet, open the
bonnet, and let the power system cool
down.
Emergency Towing (P629)
●
Call a professional towing service if you
need to tow your vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 32 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
33
Quick Reference Guide
What to Do If
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
●
The steering wheel may be locked.
●
Move the steering wheel left and right
after pressing the POWER button.
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?
This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P503)
21 JAZZ HYBRID SSS-32TZA6000.book 33 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
34
Quick Reference Guide
The rear door cannot be
opened from inside the
vehicle. Why?
Check if the childproof lock is in the lock
position. If so, open the rear door with
the outside door handle.
To cancel this function, slide the lever up
to the unlock position.
Why do the doors lock
after I unlocked the doors?
If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver's door?
The beeper sounds when:
●
The power mode is in ACCESSORY.
●
The exterior lights are left on.
Why does the beeper
sound when I start driving?
The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?
Press the electric parking brake switch with the brake pedal
depressed.
21 JAZZ HYBRID SSS-32TZA6000.book 34 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
35
Quick Reference Guide
I’m seeing an amber
indicator of a tyre with an
exclamation point. What is
that?
The Deflation Warning System needs attention. If you recently
inflated or changed a tyre, you have to recalibrate the system.
2 Deflation Warning System (P423)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?
• Fasten the driver’s seat belt.
• Check if the transmission is in (P or (N. If so, select any other
position.
Why do I hear a screeching
sound when I apply the
brake pedal?
The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
Is it possible to use
unleaded petrol with a
Research Octane Number
(RON) of 91 or higher on
this vehicle?
Your vehicle is designed to operate on premium unleaded
petrol with a research octane of 95 or higher. If this octane
grade is unavailable, regular unleaded petrol with a research
octane of 91 or higher may be used temporarily.
The use of regular unleaded petrol can cause metallic knocking
noises in the engine and will result in decreased engine
performance. The long-term use of regular-grade petrol can
lead to engine damage.
21 JAZZ HYBRID SSS-32TZA6000.book 35 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
36
21 JAZZ HYBRID SSS-32TZA6000.book 36 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
37
Safe Driving
You can find many safety recommendations throughout this chapter, and throughout this manual.
For Safe Driving
Important Safety Precautions.............. 38
Your Vehicle’s Safety Features............ 40
Seat Belts
About Your Seat Belts........................ 42
Fastening a Seat Belt.......................... 48
Seat Belt Inspection............................ 54
Airbags
Airbag System Components............... 56
Types of Airbags ................................ 58
Front Airbags (SRS) ............................ 58
Driver’s Knee Airbag .......................... 64
Centre Airbag.................................... 66
Side Airbags....................................... 68
Side Curtain Airbags .......................... 71
Airbag System Indicators.................... 73
Airbag Care ....................................... 75
Child Safety
Protecting Child Passengers ............... 76
Safety of Infants and Small Children... 79
Safety of Larger Children ................... 98
Exhaust Gas Hazard
Carbon Monoxide Gas..................... 101
Safety Labels
Label Locations ................................ 102
21 JAZZ HYBRID SSS-32TZA6000.book 37 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
38
Safe Driving
For Safe Driving
The following pages explain your vehicle's safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.
Important Safety Precautions
■
Always wear your seat belt
A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.
■
Restrain all children
Children aged 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child restraint system.
Larger children should use a booster seat and a lap/shoulder seat belt until they can
use the belt properly without a booster seat.
■
Be aware of airbag hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not properly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.
■
Don't drink and drive
Alcohol and driving don't mix. Even one drink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don't drink and drive, and don't let your friends drink and drive, either.
1Important Safety Precautions
Some countries prohibit the use of mobile phones
other than hands-free devices by the driver while
driving.
21 JAZZ HYBRID SSS-32TZA6000.book 38 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
39
uuFor Safe DrivinguImportant Safety Precautions
Safe Driving
■
Pay appropriate attention to the task of driving safely
Engaging in mobile phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.
■
Control your speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.
■
Keep your vehicle in safe condition
Having a tyre blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tyre pressures and condition
frequently, and perform all regularly scheduled maintenance.
■
Do not leave children unattended in the vehicle
Children, pets and people needing assistance left unattended in the vehicle may be
injured if they activate one or more of the vehicle controls. They may also cause the
vehicle to move, resulting in a crash in which they and/or another person(s) can be
injured or killed. Also, depending on the ambient temperature, the temperature of
the interior may reach extreme levels, which can result in harm or death. Even if the
climate control system is on, never leave them in the vehicle unattended as the
climate control system can shut off at any time.
21 JAZZ HYBRID SSS-32TZA6000.book 39 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
40
uuFor Safe DrivinguYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1Your Vehicle’s Safety Features
Your vehicle is equipped with many features that
work together to help to protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zones, a collapsible steering
column, and tensioners that tighten the front and
rear outer seat belts in a sufficient crash.
However, you and your passengers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
a Crush Zones
b Safety Cage
c Front Airbags
d Side Curtain Airbags
e Seat Belts
f Side Airbags
g Seats and Seat-Backs
h Head Restraints
i Automatic Seat Belt Tensioners
j Centre Airbag
k Collapsible Steering Column
21 JAZZ HYBRID SSS-32TZA6000.book 40 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
41
uuFor Safe DrivinguSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passengers, make a habit of checking these items
each time before you drive.
• Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 211
• Adjust head restraints to the proper position. Head restraints are most effective
when the centre of the head restraint aligns with the centre of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front Head Restraints P. 218
• Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 48
• Protect children by using seat belts or child restraint systems according to a child's
age, height and weight.
2 Child Safety P. 76
1Safety Checklist
If the door and/or tailgate open message appears on
the driver information interface, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly until the message disappears.
2 Driver Information Interface Warning and
Information Messages P. 124
21 JAZZ HYBRID SSS-32TZA6000.book 41 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
42
Safe Driving
Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help to keep you from being thrown against the inside of the
vehicle, against any passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.
In addition, seat belts help to protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
1About Your Seat Belts
WARNING: Seat belts are designed to bear upon the
bony structure of the body, and should be worn low
across the front of the pelvis or the pelvis, chest and
shoulders, as applicable; wearing the lap section of
the belt across the abdominal area must be avoided.
WARNING: Seat belts should be adjusted as firmly as
possible, consistent with comfort, to provide the
protection for which they have been designed. A
slack belt will greatly reduce the protection afforded
to the wearer.
WARNING: Belts should not be worn with straps
twisted.
WARNING: Each belt assembly must only be used by
one occupant; it is dangerous to put a belt around a
child being carried on the occupant’s lap.
3
WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
21 JAZZ HYBRID SSS-32TZA6000.book 42 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
43
uuSeat BeltsuAbout Your Seat Belts
Safe Driving
■
Lap/shoulder seat belts
All five seating positions are equipped with lap/shoulder seat belts with emergency
locking retractors. In normal driving the retractor lets you move freely while keeping
some tension on the belt. During a collision or sudden stop the retractor locks to
restrain your body.
The seat belt must be properly secured when using a front-facing child restraint
system.
2 Child Safety P. 76
1About Your Seat Belts
If you extend the seat belt too quickly, it will lock in
place. If this happens, slightly retract the seat belt,
then extend it slowly.
Seat belts cannot completely protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most countries require you to wear seat belts. Take
time to familiarise with the legal requirements of the
countries in which you will drive.
21 JAZZ HYBRID SSS-32TZA6000.book 43 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
44
uuSeat BeltsuAbout Your Seat Belts
Safe Driving
■
Proper use of seat belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduce the effectiveness of the
belt and can increase the chance of serious injury in a crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
• Do not put any accessories on the seat belts. Devices intended to improve comfort
or reposition the shoulder part of a seat belt can reduce the protective capability
and increase the chance of serious injury in a crash.
21 JAZZ HYBRID SSS-32TZA6000.book 44 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
45
uuSeat BeltsuAbout Your Seat Belts
Safe Driving
■
Front seats
The seat belt system includes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If you set the power mode to ON and a seat
belt is not fastened, the indicator will come
on.
The beeper will periodically sound and the
indicator will blink if you start driving without
fastening a seat belt.
■
Seat Belt Reminder
1Seat Belt Reminder
The indicator will also come on if a front passenger
does not fasten their seat belt within six seconds after
the power mode is set to ON.
When no one is sitting in the front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
If the indicator comes on or the beeper sounds with
no one sitting in the front passenger’s seat. Check if:
• There is nothing heavy placed on the front
passenger seat.
• The driver’s seat belt is fastened.
If the indicator does not light when the passenger is
seated and is not fastened, something may be
interfering with the occupant detection sensor.
Check if:
• A cushion is placed on the seat.
• The front passenger is not sitting properly.
If none of these conditions exist, have your vehicle
checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 45 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
46
uuSeat BeltsuAbout Your Seat Belts
Safe Driving
■
Rear seats
Your vehicle monitors rear seat belt use. A
driver information interface notifies you if any
of the rear seat belts are not used.
The display appears when:
• A rear door is opened and closed.
• Any of the rear passengers fastened or
unfastened their seat belt.
The beeper sounds if any rear passenger’s seat
belt is unfastened while driving.
a Fastened
b Unfastened
21 JAZZ HYBRID SSS-32TZA6000.book 46 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
47
uuSeat BeltsuAbout Your Seat Belts
Safe Driving
The front seats and the outer rear seats are
equipped with automatic seat belt tensioners
to enhance safety.
The tensioners automatically tighten the front
seat belts and the outer rear seat belts during
a moderate-to-severe frontal collision,
sometimes even if the collision is not severe
enough to inflate the front airbags or the
driver's knee airbag.
■
Automatic Seat Belt Tensioners
1Automatic Seat Belt Tensioners
The seat belt tensioners can only operate once.
If a tensioner is activated, the SRS indicator will come
on. Have a dealer replace the tensioner and
thoroughly inspect the seat belt system as it may not
offer protection in a subsequent crash.
During a moderate-to-severe side impact, the
tensioner on that side of the vehicle also activates.
Driver seat
Front passenger and outer rear seats
21 JAZZ HYBRID SSS-32TZA6000.book 47 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
48
uuSeat BeltsuFastening a Seat Belt
Safe Driving
Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat (see illustrations for correct seating posture):
2 Adjusting the Seats P. 211
1. Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
u Make sure that the belt is not twisted or
caught on anything.
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat belt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
If the seat belt appears to be locked in a fully
retracted position, firmly pull out on the shoulder belt
once, then push it back in.
Then smoothly pull it out of the retractor and fasten.
If you are unable to release the seat belt from a fully
retracted position, do not allow anyone to sit in the
seat, and take your vehicle to a dealer for repair.
2 About Your Seat Belts P. 42
2 Seat Belt Inspection P. 54
a Latch Plate
b Buckle
21 JAZZ HYBRID SSS-32TZA6000.book 48 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
49
uuSeat BeltsuFastening a Seat Belt
Safe Driving
3. Position the lap part of the belt as low as
possible across your hips (see illustration),
then pull up on the shoulder part of the belt
so the lap part fits snugly. This lets your
strong pelvic bones take the force of a crash
and reduces the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the centre of your chest and
over your shoulder. This spreads the forces
of a crash over the strongest bones in your
upper body.
1Fastening a Seat Belt
To release the belt, push the red PRESS button and
then guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is properly
stowed so that it will not get caught in the closing
door.
Never insert any foreign objects into the buckle or
retractor mechanism.
3
WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.
21 JAZZ HYBRID SSS-32TZA6000.book 49 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuSeat BeltsuFastening a Seat Belt
50
Safe Driving
The front seats have adjustable shoulder anchors to accommodate taller and shorter
occupants.
1. Move the anchor up and down while
pulling the shoulder anchor outward.
2. Position the anchor so that the belt rests
across the centre of your chest and over
your shoulder.
■
Adjusting the Shoulder Anchor
1Adjusting the Shoulder Anchor
After an adjustment, make sure that the shoulder
anchor position is secure.
The shoulder anchor height can be adjusted to four
levels. If the belt contacts your neck, lower the height
one level at a time.
21 JAZZ HYBRID SSS-32TZA6000.book 50 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
51
uuSeat BeltsuFastening a Seat Belt
Safe Driving
1. Pull out the seat belt’s small latch plate and
the latch plate from each holding slot in the
ceiling.
2. Line up the triangle marks on the small
latch plate and anchor buckle. Make sure
the seat belt is not twisted. Attach the belt
to the anchor buckle.
■
Seat Belt with Detachable Anchor
1Seat Belt with Detachable Anchor
To unlatch the detachable anchor, insert the latch
plate into the slot on the side of the anchor buckle.
3
WARNING
Using the seat belt with the detachable
anchor unlatched increases the chance of
serious injury or death in a crash.
Before using the seat belt, make sure the
detachable anchor is correctly latched.
a Anchor Buckle
b Latch Plate
a Latch Plate
b Small Latch Plate
a Anchor Buckle
21 JAZZ HYBRID SSS-32TZA6000.book 51 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
52
uuSeat BeltsuFastening a Seat Belt
Safe Driving
3. Insert the latch plate into the buckle.
Properly fasten the seat belt the same way
you fasten the lap/shoulder seat belt.
a Latch Plate
b Buckle
21 JAZZ HYBRID SSS-32TZA6000.book 52 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
53
uuSeat BeltsuFastening a Seat Belt
Safe Driving
Consider alternative:
If you are pregnant, the best way to protect yourself and your unborn child when
driving or riding in a vehicle is to always wear a seat belt. When positioning the seat
belt, wear the shoulder belt section across the chest, avoiding the abdomen, and
keep the lap belt portion as low as possible across the hips. (See illustration.)
■
Advice for Pregnant Women
1Advice for Pregnant Women
Each time you have a checkup, ask your doctor if it is
okay for you to drive.
To reduce the risk of injuries to both you and your
unborn child that can be caused by an inflating front
airbag:
• When driving, sit upright and adjust the seat as far
back as possible while allowing full control of the
vehicle.
• When sitting in the front passenger's seat, adjust
the seat as far back as possible.
21 JAZZ HYBRID SSS-32TZA6000.book 53 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
54
uuSeat BeltsuSeat Belt Inspection
Safe Driving
Seat Belt Inspection
Regularly check the condition of your seat belts as follows:
• Pull each belt out fully, and look for frays, cuts, burns, and wear.
• Check that the latch plates and buckles work smoothly and the belts retract
easily.
u If a belt does not retract easily, cleaning the belt may correct the problem. Only
use a mild soap and warm water. Do not use bleach or cleaning solvents. Make
sure the belt is completely dry before allowing it to retract.
Any belt that is not in good condition or working properly will not provide proper
protection and should be replaced as soon as possible.
A belt that has been worn during a crash may not provide the same level of
protection in a subsequent crash. Have your seat belts inspected by a dealer after
any collision.
1Seat Belt Inspection
WARNING: No modifications or additions should be
made by the user which will either prevent the seat
belt adjusting devices from operating to remove
slack, or prevent the seat belt assembly from being
adjusted to remove slack.
WARNING: It is essential to replace the entire
assembly after it has been worn in a severe impact
even if damage to the assembly is not obvious.
WARNING: Care should be taken to avoid
contamination of the webbing with polishes, oils and
chemicals, and particularly battery acid. Cleaning
may safely be carried out using mild soap and water.
The belt should be replaced if webbing becomes
frayed, contaminated or damaged.
3
WARNING
Not checking or maintaining seat belts can
result in serious injury or death if the seat
belts do not work properly when needed.
Check your seat belts regularly and have
any problem corrected as soon as possible.
21 JAZZ HYBRID SSS-32TZA6000.book 54 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
55
uuSeat BeltsuAnchorage Points
Safe Driving
Anchorage Points
When replacing the seat belts, use the
anchorage points shown in the images.
The front seat has a lap/shoulder belt.
The rear seat has three lap/shoulder belts.
Front Seat
Rear Seat
21 JAZZ HYBRID SSS-32TZA6000.book 55 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
56
Safe Driving
Airbags
Airbag System Components
The front, driver's knee, front side, rear side,
front centre and side curtain airbags are
deployed according to the direction and
severity of impact. The airbag system
includes:
• Two SRS (Supplemental Restraint System)
front airbags. The driver's airbag is stored
in the centre of the steering wheel; the
front passenger's airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
• Four side airbags, one for the driver, one
for the front passenger and two for the
rear outboard.
The airbags are stored in the outer edges
of the seat-backs.
All are marked SIDE AIRBAG.
• Two side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
• One centre airbag. The airbag is stored in
the centre side of driver's seat-back. It is
marked CENTER AIRBAG.
• Driver's knee airbag. The knee airbag is
stored under the steering column. It is
marked SRS AIRBAG.
• An electronic control unit that, when the
power mode is in ON, continually
monitors information about the various
impact sensors, seat and buckle sensors,
airbag activators, seat belt tensioners,
and other vehicle information. During a
crash event the unit can record such
information.
• Automatic seat belt tensioners for the
front seats and outer rear seats.
• Impact sensors that can detect a
moderate-to-severe front or side impact.
• An indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
• An indicator on the console panel that
alerts you that the front passenger’s front
airbag has been turned off.
21 JAZZ HYBRID SSS-32TZA6000.book 56 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
57
uuAirbagsuAirbag System Components
Safe Driving
Airbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help to save lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properly and sitting correctly.
What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possible while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.
Remember, however, that no safety system can prevent all injuries or deaths that
can occur in a severe crash, even when seat belts are properly worn and the airbags
deploy.
Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in injuries if your front airbag inflates.
Do not attach or place objects on the front and driver's knee airbag covers.
Objects on the covers marked SRS AIRBAG could interfere with the proper
operation of the airbags or be propelled inside the vehicle and hurt someone if the
airbags inflate.
■
Important Facts About Your Airbags
1Important Facts About Your Airbags
Do not attempt to deactivate your airbags. Together,
airbags and seat belts provide the best protection.
When driving, keep hands and arms out of the
deployment path of the front airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.
21 JAZZ HYBRID SSS-32TZA6000.book 57 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
58
uuAirbagsuTypes of Airbags
Safe Driving
Types of Airbags
Your vehicle is equipped with five types of airbags:
• Front airbags: Airbags in front of the driver's and front passenger's seats.
• Driver's knee airbag: Airbag under the steering column.
• Centre airbags: Airbag in the centre side of driver's seat-back.
• Side airbags: Airbags in the driver's, front passenger's and rear outer seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.
Front Airbags (SRS)
The front SRS airbags inflate in a moderate-to-severe frontal collision to help to
protect the head and chest of the driver and/or front passenger.
SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant's primary
restraint system.
The front airbags are housed in the centre of the steering wheel for the driver, and
in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.
■
Housing Locations
1Types of Airbags
The airbags can inflate whenever the power mode is
in ON.
After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the inflator material and is not harmful.
People with respiratory problems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.
21 JAZZ HYBRID SSS-32TZA6000.book 58 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
59
uuAirbagsuFront Airbags (SRS)
Continued
Safe Driving
Front airbags are designed to inflate during moderate-to-severe frontal collisions.
When the vehicle decelerates suddenly, the sensors send information to the control
unit which signals one or both front airbags to inflate.
A frontal collision can be either head-on or angled between two vehicles, or when a
vehicle crashes into a stationary object, such as a concrete wall.
While your seat belt restrains your torso, the
front airbag provides supplemental protection
for your head and chest.
The front airbags deflate immediately so that
they won't interfere with the driver's visibility
or the ability to steer or operate other
controls.
The total time for inflation and deflation is so fast that most occupants are not
aware that the airbags deployed until they see them lying in front of them.
■
Operation
■
How the Front Airbags Work
21 JAZZ HYBRID SSS-32TZA6000.book 59 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
60
uuAirbagsuFront Airbags (SRS)
Safe Driving
■
When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help to save lives, not to prevent minor scrapes, or even broken bones that might
occur during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move towards the front of the vehicle. Side
airbags and side curtain airbags have been specifically designed to help to reduce
the severity of injuries that can occur during a moderate-to-severe side impact which
can cause the driver or passenger to move towards the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: Seat belts and side curtain airbags offer the best protection in a rollover.
Because front airbags could provide little if any protection, they are not designed to
deploy during a rollover.
■
When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■
When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
21 JAZZ HYBRID SSS-32TZA6000.book 60 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
61
uuAirbagsuFront Airbags (SRS)
Safe Driving
If it is unavoidable to install a rear-facing child restraint system in the front passenger
seat, you must manually deactivate the passenger front airbag system, using the
built-in key.
■
Passenger front airbag ON/OFF switch
When the passenger front airbag ON/OFF
switch is in:
OFF: The passenger front airbag is
deactivated. The passenger front airbag does
not inflate during a frontal crash that inflates
driver’s front airbag.
The passenger front airbag off indicator stays
on as a reminder.
ON: The passenger front airbag is activated.
The passenger front airbag on indicator comes
on and remains on for about 60 seconds.
■
Passenger Front Airbag Off System
1Passenger Front Airbag Off System
3
WARNING
The passenger front airbag system must be
turned off, if it is not avoidable to put a
rear-facing child restraint system in the
front passenger seat.
If the front passenger airbag inflates, it can
hit the rear-facing child restraint system
with enough force to kill or cause a very
serious injury to the infant.
3
WARNING
Make sure to turn on the passenger front
airbag system when a rear-facing child
restraint system is not used on the front
passenger seat.
Leaving the passenger front airbag system
deactivated can result in serious injury or
death in a crash.
a Passenger Front Airbag ON/
OFF Indicator
b System Warning Label
c ON/OFF Switch
21 JAZZ HYBRID SSS-32TZA6000.book 61 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuAirbagsuFront Airbags (SRS)
62
Safe Driving
■
To deactivate the passenger front airbag system
1. Set the parking brake, and set the power
mode to VEHICLE OFF.
2. Open the front passenger’s door.
3. Insert the built-in key to the passenger front
airbag ON/OFF switch.
u The switch is located at the side panel of
the front passenger side instrument
panel.
4. Turn the built-in key to OFF, and remove it
from the switch.
■
Passenger front airbag off indicator
When the passenger front airbag system is activated, the indicator goes off after a
few seconds when you set the power mode is in ON.
When the passenger front airbag system is deactivated, the indicator stays on, or
goes off momentarily and comes back on.
1To deactivate the passenger front airbag system
NOTICE
• Use your vehicle’s built-in key to turn the passenger
front airbag ON/OFF switch. If you use a different
key, the switch can be damaged, or the passenger
front airbag system may not work properly.
• Do not close the door or apply an excessive load on
the built-in key while the key is in the passenger
front airbag ON/OFF switch. The switch or the key
can be damaged.
We strongly recommend that you do not install a
rear-facing child restraint system in the front
passenger seat.
2 Protecting Infants P. 79
It is your responsibility to change the setting of the
passenger front airbag system to OFF when you put
a rear-facing child restraint system on the front
passenger seat.
When a rear-facing child restraint system is not in use
in the front passenger seat, turn the system back on.
a Passenger Front Airbag ON/
OFF Switch
21 JAZZ HYBRID SSS-32TZA6000.book 62 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
63
uuAirbagsuFront Airbags (SRS)
Safe Driving
■
Passenger front airbag off system label
The label is located at the side panel of the front passenger side instrument panel.
a Infant in a rear-facing child restraint system: May ride in front if it is unavoidable
b Cannot be seated in front
c Passenger front airbag is: Active
d Inactive
21 JAZZ HYBRID SSS-32TZA6000.book 63 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
64
uuAirbagsuDriver’s Knee Airbag
Safe Driving
Driver’s Knee Airbag
The driver’s knee SRS airbag inflates in a moderate-to-severe frontal collision to help
to keep the driver in the proper position and to help to maximise the benefit
provided by the vehicle’s other safety features.
SRS (Supplemental Restraint System) indicates that the airbag is designed to
supplement seat belts, not replace them. Seat belts are the occupant’s primary
restraint system.
The driver’s knee airbag is housed under the
steering column.
The airbag is marked SRS AIRBAG.
■
Housing Locations
1Driver’s Knee Airbag
Do not attach accessories on or near a knee airbag as
they can interfere with the proper operation of the
airbag, or even hurt someone if the airbag inflates.
The driver should not store any items under the seat
or behind their feet. The items can interfere with
proper airbag deployment in the event of a moderate
to sever frontal collision and may result in inadequate
protection.
a Driver’s Knee Airbag Location
21 JAZZ HYBRID SSS-32TZA6000.book 64 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
65
uuAirbagsuDriver’s Knee Airbag
Safe Driving
When the driver’s front airbag inflates, the
driver’s knee airbag also inflates.
■
When driver’s knee airbag deploys with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■
When driver’s knee airbag may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
■
Operation
a Deployed Driver’s Knee Airbag
21 JAZZ HYBRID SSS-32TZA6000.book 65 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
66
uuAirbagsuCentre Airbag
Safe Driving
Centre Airbag
The centre airbag is designed to help to protect the heads of the driver and front
passenger during a moderate-to-severe side impact.
The centre airbag is housed in the centre side
of the driver's seat-back.
It is marked CENTER AIRBAG.
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
centre airbag to deploy.
■
Housing Location
1Centre Airbag
Make sure you and any front seat passenger always
sit upright. Leaning into the path of the centre airbag
can prevent the airbag from deploying properly and
increases your risk of serious injury.
Do not attach accessories on or near the centre
airbag. They can interfere with the proper operation
of the airbag, or hurt someone if an airbag inflate.
Do not open the lid of the console compartment
while driving.
Do not cover or replace the driver's seat-back cover
without consulting a dealer.
Improperly replacing or covering driver's seat-back
covers can prevent your centre airbag from properly
deploying during a side impact.
a Centre Airbag Location
■
Operation
a Centre Airbag
21 JAZZ HYBRID SSS-32TZA6000.book 66 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
67
uuAirbagsuCentre Airbag
Safe Driving
■
When the centre airbag deploy with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause the centre airbag to deploy. In such cases,
there may be little or no damage, but the side impact sensors detected a severe
enough impact to deploy the airbag.
■
When the centre airbag may not deploy, even though visible damage
appears severe
It is possible for the centre airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was towards
the far front or rear of the vehicle, or when the vehicle’s crushable body parts
absorbed most of the crash energy. In either case, the centre airbag would not have
been needed nor provided protection even if it had deployed.
21 JAZZ HYBRID SSS-32TZA6000.book 67 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
68
uuAirbagsuSide Airbags
Safe Driving
Side Airbags
The side airbags help to protect the torso and pelvis of a front or rear passenger
during a moderate-to-severe side impact.
The side airbags are housed in the outside edge
of the driver's, passenger's and rear outboard
seat-backs.
Each are marked SIDE AIRBAG.
■
Housing Locations
1Side Airbags
Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.
a Side Airbag Location
a Side Airbag Location
21 JAZZ HYBRID SSS-32TZA6000.book 68 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
69
uuAirbagsuSide Airbags
Safe Driving
When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.
■
Operation
1Side Airbags
Do not cover or replace the seat-back covers without
consulting a dealer.
Improperly replacing or covering seat-back covers can
prevent your side airbags from properly deploying
during a side impact.
Do not let the front and rear passengers lean
sideways with their head in the deployment path of
the side airbag. An inflating side airbag can strike
with strong force and seriously injure the passenger.
a Deployed Side Airbag
a Deployed Side Airbag
21 JAZZ HYBRID SSS-32TZA6000.book 69 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
70
uuAirbagsuSide Airbags
Safe Driving
■
When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle's framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■
When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag not to deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was towards
the far front or rear of the vehicle, or when the vehicle's crushable body parts
absorbed most of the crash energy. In either case, the side airbag would not have
been needed nor provided protection even if it had deployed.
21 JAZZ HYBRID SSS-32TZA6000.book 70 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
71
uuAirbagsuSide Curtain Airbags
Continued
Safe Driving
Side Curtain Airbags
The side curtain airbags help to protect the heads of the driver and passengers in
outer seating positions during a moderate-to-severe side impact.
The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.
■
Housing Locations
1Side Curtain Airbags
The side curtain airbags are most effective when an
occupant is wearing their seat belt properly and
sitting upright, well back in their seat.
Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.
Do not put a coat hanger or hard objects on a coat
hook. This could result in injuries if your side curtain
airbag inflates.
a Side Curtain Airbag Location
21 JAZZ HYBRID SSS-32TZA6000.book 71 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
72
uuAirbagsuSide Curtain Airbags
Safe Driving
The side curtain airbag is designed to deploy
in a moderate-to-severe side impact.
■
When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.
■
Operation
a Deployed Side Curtain Airbag
21 JAZZ HYBRID SSS-32TZA6000.book 72 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
73
uuAirbagsuAirbag System Indicators
Continued
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the driver information interface.
■
When the power mode is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as soon as possible. If you
don't, your airbags and seat belt tensioners
may not work properly when they are needed.
■
Supplemental Restraint System (SRS) Indicator
1Supplemental Restraint System (SRS) Indicator
3
WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
21 JAZZ HYBRID SSS-32TZA6000.book 73 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuAirbagsuAirbag System Indicators
74
Safe Driving
■
When the passenger airbag off
indicator comes on
The indicator stays on while the passenger’s
front airbag system is deactivated.
When a rear-facing child restraint system is
not in use in the front passenger seat,
manually turn the system back on. The
indicator should go off.
■
Passenger Front Airbag Off Indicator
1Supplemental Restraint System (SRS) Indicator
3
WARNING
Remove the rear-facing child restraint
system immediately from the front
passenger seat if the SRS indicator comes
on. Even if the passenger front airbag has
been deactivated, do not ignore the SRS
indicator.
The SRS system may have a fault which
could cause the passenger front airbag to
be activated, causing serious injury or
death.
21 JAZZ HYBRID SSS-32TZA6000.book 74 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
75
uuAirbagsuAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:
■
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.
■
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the seat
belt tensioners for the front seats and outer rear seats, and each seat belt that was
worn during the crash.
1Airbag Care
The removal of airbag components from the vehicle is
prohibited.
In case of malfunction, or shutdown, or after the
airbag inflation/seat belt tensioner operation, ask a
qualified personnel for handling.
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.
21 JAZZ HYBRID SSS-32TZA6000.book 75 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
76
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle crashes are the
number one cause of death of children aged 12 and under.
To reduce the number of child deaths and injuries, infants and children should be
properly restrained when they ride in a vehicle.
Children should sit properly restrained in a
rear seat. This is because:
• An inflating front or side airbag can injure
or kill a child sitting in the front seat.
• A child in the front seat is more likely to
interfere with the driver's ability to safely
control the vehicle.
• Statistics show that children of all sizes and
ages are safer when they are properly
restrained in a rear seat.
1Protecting Child Passengers
Front Passenger’s Sun Visor
3
WARNING
NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG
in front of it, DEATH or SERIOUS INJURY to
the CHILD can occur.
3
WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in an approved child
restraint system. A larger child should be
properly restrained with a seat belt, using a
booster seat if necessary.
21 JAZZ HYBRID SSS-32TZA6000.book 76 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
77
uuChild SafetyuProtecting Child Passengers
Safe Driving
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Any child who is too small to wear a seat belt must be properly restrained in an
approved child restraint system that is properly secured to the vehicle using the
seat belt or the child restraint anchorage system.
1Protecting Child Passengers
In many countries, the law requires all children aged
12 and under, and whose height are shorter than
150 cm (60 inches) be properly restrained in a rear
seat.
In many countries, it is required to use an officially
approved and suitable child restraint system for
transporting a child on any passenger seat. Check
your local legal requirement.
Child restraint systems must meet UN Regulation No.
44 or No. 129 or the regulations of the subject
countries.
2 Selecting a Child Restraint System P. 82
21 JAZZ HYBRID SSS-32TZA6000.book 77 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuProtecting Child Passengers
78
Safe Driving
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.
1Protecting Child Passengers
WARNING: Use the power window lock button to
prevent children from opening the windows. Using
this feature will prevent children from playing with
the windows, which could expose them to hazards or
distract the driver.
2 Opening/Closing the Power Windows
P. 184
WARNING: Always take the ignition key with you
whenever you leave the vehicle alone or with other
occupants.
To remind you of the passenger’s front airbag hazard
and child safety, your vehicle has the warning label
on the passenger’s side sun visor.
Please read and follow the instructions on the label.
2 Safety Labels P. 102
21 JAZZ HYBRID SSS-32TZA6000.book 78 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
79
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child restraint system
until the infant reaches the child restraint system manufacturer's weight or height
limit for the seat, and the infant is at least one year old.
■
Positioning a rear-facing child restraint
system
Child restraint system must be placed and
secured in a rear seating position.
u We recommend that you install the child
restraint system directly behind the front
passenger’s seat, move the seat as far
forward as needed, and leave it
unoccupied.
u Make sure that there is no contact
between the child restraint system and
the seat in front of it.
If there is, you may wish to get a smaller
rear-facing child restraint system.
■
Protecting Infants
1Protecting Infants
As required by UN Regulation No. 94:
3
WARNING
Placing a rear-facing child restraint system
in the front seat can result in serious injury
or death if the passenger’s front airbag
inflates.
Always place a rear-facing child restraint
system in the back seat, not the front.
3
WARNING
NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG
in front of it, DEATH or SERIOUS INJURY to
the CHILD can occur.
21 JAZZ HYBRID SSS-32TZA6000.book 79 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuSafety of Infants and Small Children
80
Safe Driving
When properly installed, a rear-facing child restraint system may prevent the driver
or a front passenger from moving their seat all the way back, or from locking their
seat-back in the desired position.
1Protecting Infants
Many experts recommend use of a rear-facing child
restraint system for a child up to two years old if the
child’s height and weight are appropriate for a rear-
facing child restraint system.
Rear-facing child restraint systems should never be
installed in a front-facing position.
Always refer to the child restraint system
manufacturer’s instructions before installation.
If the passenger’s front airbag inflates, it can hit the
rear-facing child restraint system with great force,
which can dislodge or strike the system, and seriously
injure the child.
If it is absolutely unavoidable to install a rear-facing
child restraint system in the front passenger seat,
manually turn off the passenger front airbag system.
2 Passenger Front Airbag Off System P. 61
21 JAZZ HYBRID SSS-32TZA6000.book 80 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
81
uuChild Safety uSafety of Infants and Small Children
Safe Driving
If a child is at least one year old and has exceeded the weight and height limitations
of a rear-facing child restraint system, the child should be properly restrained in a
firmly secured front-facing child restraint system until they exceed the weight and
height limitations for the front-facing child restraint system.
■
Front-facing child restraint system
placement
We strongly recommend placing a front-
facing child restraint system in a rear seating
position.
Placing a front-facing child restraint system in the front seat can be hazardous. A
rear seat is the safest place for a child.
■
Protecting Smaller Children
1Protecting Smaller Children
Educate yourself about the laws and regulations
regarding child restraint system use where you are
driving, and follow the child restraint system
manufacturer's instructions.
3
WARNING
Placing a front-facing child restraint system
in the front seat can result in serious injury
or death if the front airbag inflates.
If you must place a front-facing child
restraint system in front, move the vehicle
seat as far back as possible, and properly
restrain the child.
21 JAZZ HYBRID SSS-32TZA6000.book 81 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuSafety of Infants and Small Children
82
Safe Driving
Some child restraint systems are lower anchorage compatible. Some have a rigid-
type connector while others have a flexible-type connector. Both are equally easy to
use. Some existing and previously owned child restraint systems can only be installed
using the seat belt. Whichever type you choose, follow the child restraint system
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximising
your child’s safety.
The flexible type may not be available in your country.
In seating positions and vehicles not equipped with lower anchorages, install a child
restraint system using the seat belt and a top tether for added security. This is
because all child restraint systems must be secured with the seat belt when the
lower anchorage system is not in use. In addition, the child restraint system
manufacturer may advise that a seat belt be used to attach an ISOFIX restraint
system once a child reaches a specified weight. Please read the child restraint system
owner’s manual for proper installation instructions.
■
Important consideration when selecting a child restraint system
Make sure the child restraint system meets the following three requirements:
• The child restraint system is the correct type and size for the child.
• The child restraint system is the correct type for the seating position.
• The child restraint system is compliant with safety standards. We recommend a
child restraint system compliant with UN Regulation No. 44 or No. 129, or the
regulations of the subject countries. Look for the approval mark on the system
and the manufacturer’s statement of compliance on the box.
■
Selecting a Child Restraint System
1Selecting a Child Restraint System
Installation of a lower anchorage-compatible child
restraint system is simple.
Lower anchorage-compatible child restraint systems
have been developed to simplify the installation
process and reduce the likelihood of injuries caused
by incorrect installation.
21 JAZZ HYBRID SSS-32TZA6000.book 82 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
83
uuChild Safety uSafety of Infants and Small Children
Safe Driving
■
Child Restraint Systems Standards
If a child restraint system (whether an i-Size/ISOFIX type or one that is fitted with a
seat belt) meets the relevant UN Regulation, it will be affixed with an approval label
as shown in the adjacent table. Before purchasing or using any child restraint
system, make sure to check the approval label and ensure that it is compatible with
your vehicle and the child, and that it complies with the relevant UN Regulation.
1Selecting a Child Restraint System
Example of UN Regulation No. 44 approval label
a “Mass group”
b Regulation number
c Category
d Approval number
e Country code
21 JAZZ HYBRID SSS-32TZA6000.book 83 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
85
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
■
Locations for Child Restraint System Installation
Passenger Airbag ON for left-hand
drive type
Passenger Airbag OFF for left-hand
drive type
*1: Adjust the seat slide to the rearmost position and adjust the seat back to
the front lock position.
*2: The head restraint must be removed when attaching a forward-reliable
junior seat approved by UN R129. Store the removed head restraint in the
luggage compartment so that it does not fly during sudden braking or
collision.
*3: The named Child Restraint Systems (CRS) reflect Honda's
recommendations at the date of publication. You should speak to an
authorised dealer for up to date details relating to our recommended
CRSs. Other CRS may also be suitable - please consult CRS manufacturers
for recommended vehicle lists.
*4: If you attach a child restraint system to the rear centre seat, the seat belt
on one side can not be used.
*5: If you attach a child restraint system to the rear left seat, the centre seat
belt can not be used.
*6: Attaching a child restraint system to the rear right seat may make the
centre seat belt unusable.
*7: Attaching an ISOFIX child restraint system to the rear right seat may cause
the centre seat belt to become unusable.
*8: Belt fixed type only.
Child restraint systems with support legs can be installed in seating
positions where i-Size cannot be installed. However, the centre seat is
excluded.
Suitable for universal restraint systems installed with
vehicle safety belts.
Suitable for forward facing universal restraint systems
installed with vehicle safety belts.
Suitable for i-Size and ISOFIX child restraints systems.
Suitable for forward facing restraint systems only.
Never use a rearward facing child restraint system.
Seat position equipped with Top Tether anchorages.
21 JAZZ HYBRID SSS-32TZA6000.book 85 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
86
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
Passenger Airbag ON for right-hand
drive type
Passenger Airbag OFF for right-hand
drive type
*1: Adjust the seat slide to the rearmost position and adjust the seat back to
the front lock position.
*2: The head restraint must be removed when attaching a forward-reliable
junior seat approved by UN R129. Store the removed head restraint in the
luggage compartment so that it does not fly during sudden braking or
collision.
*3: The named Child Restraint Systems (CRS) reflect Honda's
recommendations at the date of publication. You should speak to an
authorised dealer for up to date details relating to our recommended
CRSs. Other CRS may also be suitable - please consult CRS manufacturers
for recommended vehicle lists.
*4: If you attach a child restraint system to the rear centre seat, the seat belt
on one side can not be used.
*5: If you attach a child restraint system to the rear left seat, the centre seat
belt can not be used.
*6: Attaching a child restraint system to the rear right seat may make the
centre seat belt unusable.
*7: Attaching an ISOFIX child restraint system to the rear right seat may cause
the centre seat belt to become unusable.
*8: Belt fixed type only.
Child restraint systems with support legs can be installed in seating
positions where i-Size cannot be installed. However, the centre seat is
excluded.
Suitable for universal restraint systems installed with
vehicle safety belts.
Suitable for forward facing universal restraint systems
installed with vehicle safety belts.
Suitable for i-Size and ISOFIX child restraints systems.
Suitable for forward facing restraint systems only.
Never use a rearward facing child restraint system.
Seat position equipped with Top Tether anchorages.
21 JAZZ HYBRID SSS-32TZA6000.book 86 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
87
uuChild Safety uSafety of Infants and Small Children
Safe Driving
Detail information for CRS installation
Seating position
Seat position number
Size groups
Weight
Stature
a b c d
Front passenger
*1
2nd row
Front passenger
airbag ON/OFF
switch position
Left Centre Right
ON OFF
Seating position suitable for
universal belted (yes/no)
Group 0 Less than 10kg
No
Yes Yes
*4
Yes
*4
Yes
Group 0+ Less than 13kg
Group I 9-18kg
YesGroup II 15-25kg
Group III 22-36kg
i-Size seating position (yes/no) ≤ 150cm No No Yes No Yes
Seating position suitable for
recommended genuine CRS
*3
Refer to genuine CRS list Yes Yes Yes
*5
Yes
*4
Yes
*6
Seating position suitable for
lateral fixture (L1/L2)
— No No No No No
Largest suitable rearward
facing fixture (R1/R2X/R2/R3)
Group 0 Less than 10kg
No No R3
*5
No R3
*7
Group 0+ Less than 13kg
Group I 9-18kg
Largest suitable forward
facing fixture (F2X/F2/F3)
Group I 9-18kg No No F3
*5
No F3
*7
Largest suitable booster
fixture (B2/B3)
≤ 150cm B3
*2 *8
B3
*2 *8
B3
*5
B3
*4
B3
*6
1Locations for Child Restraint System Installation
When purchasing a child restraint systems, make sure
to check the ISOFIX size class or the fixture to ensure
that the seat is compatible with your vehicle.
Fixture
(CRF)
Description
ISO/L1
Left lateral-facing (carrycot)
infant seat
ISO/L2
Right lateral-facing (carrycot)
infant seat
ISO/R1 Rearward-facing infant seat
ISO/R2X
Reduced-size rearward-facing
child restraint systems
ISO/R2
Reduced-size rearward-facing
child restraint systems
ISO/R3
Full-size rearward-facing child
restraint systems
ISO/F2X
Reduced-height forward-facing
child restraint systems
ISO/F2
Reduced-height forward-facing
child restraint systems
ISO/F3
Full-height, forward-facing child
restraint systems
ISO/B2
Reduced width forward-facing
booster seat
ISO/B3
Full width forward-facing
booster seat
All models
21 JAZZ HYBRID SSS-32TZA6000.book 87 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
88
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
*1:Adjust the seat slide to the rearmost position and adjust the seat back to the
front lock position.
*2:The head restraint must be removed when attaching a forward-reliable junior
seat approved by UN R129. Store the removed head restraint in the luggage
compartment so that it does not fly during sudden braking or collision.
*3:The named Child Restraint Systems (CRS) reflect Honda's recommendations at
the date of publication. You should speak to an authorised dealer for up to date
details relating to our recommended CRSs. Other CRS may also be suitable -
please consult CRS manufacturers for recommended vehicle lists.
*4:If you attach a child restraint system to the rear centre seat, the seat belt on one
side can not be used.
*5:If you attach a child restraint system to the rear left seat, the centre seat belt can
not be used.
*6:Attaching a child restraint system to the rear right seat may make the centre seat
belt unusable.
*7:Attaching an ISOFIX child restraint system to the rear right seat may cause the
centre seat belt to become unusable.
*8:Belt fixed type only.
Child restraint systems with support legs can be installed in seating positions where
i-Size cannot be installed. However, the centre seat is excluded.
21 JAZZ HYBRID SSS-32TZA6000.book 88 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
89
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
R44
R129
■
Europe Genuine CRS List
Mass Group Child Restraint System Category
Group 0
up to 10kg
— —
Group 0+
up to 13kg
— —
Group I
9 to 18kg
— —
Group II, III
15 to 36kg
Honda KIDFIX XP
Universal
Semi-universal
Range of application Child Restraint System Category
40 to 83cm
up to 13kg
(Birth - 15 months)
Honda baby safe Infant carrier module
Honda baby safe ISOFIX Base for i-Size
76 to 105cm
8 to 22kg
(15 months - 4 years)
Honda ISOFIX i-Size Universal ISOFIX
21 JAZZ HYBRID SSS-32TZA6000.book 89 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuSafety of Infants and Small Children
90
Safe Driving
A lower anchorage-compatible child restraint system can be installed in either of the
two outer rear seats. A child restraint system is attached to the lower anchorages
with either the rigid or flexible type of connectors (see illustrations).
1. Locate the lower anchorages under the
marks.
2. Lower the head restraint to its lowest
position.
3. Place the child restraint system on the
vehicle seat then attach the child restraint
system to the lower anchorages according
to the instructions that came with the
child restraint system.
u When installing the child restraint
system, make sure that the lower
anchorages are not obstructed by the
seat belt or any other object.
■
Installing a Lower Anchorage-Compatible Child Restraint
System
1Installing a Lower Anchorage-Compatible Child Restraint System
Some child restraint systems come with optional
guide-cups, which avoid possible damage to the seat
surface. Follow the manufacturer’s instructions when
using the guide-cups, and attach them to the lower
anchorages as shown in the image.
3
WARNING
Never attach two child restraint systems to
the same anchor. In a collision, one anchor
may not be strong enough to hold two
child restraint system attachments and may
break, causing serious injury or death.
a Lower Anchorage
b Guide-cup
a Marks
a Rigid Type
b Lower Anchorages
21 JAZZ HYBRID SSS-32TZA6000.book 90 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
91
uuChild Safety uSafety of Infants and Small Children
Safe Driving
4. Open the tether anchorage cover.
5. Route the tether strap over the seat-back.
Make sure the strap is not twisted.
6. Secure the tether strap hook to the
anchorage.
7. Tighten the tether strap as instructed by
the child restraint system manufacturer.
1Installing a Lower Anchorage-Compatible Child Restraint System
For your child's safety, when using a child restraint
system installed using the lower anchorage system,
make sure that the child restraint system is properly
secured to the vehicle. A child restraint system that is
not properly secured will not adequately protect a
child in a crash and may cause injury to the child or
other vehicle occupants.
The flexible type may not be available in your country.
WARNING: Never use a hook that does not come
with a Top Tether anchor symbol when securing an
installed child restraint system.
a Flexible Type
b Lower Anchorages
a Cover
b Top Tether Anchor Symbol
21 JAZZ HYBRID SSS-32TZA6000.book 91 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
92
uuChild SafetyuSafety of Infants and Small Children
Safe Driving
8. Make sure the child restraint system is
firmly secured by rocking it forward and
back, and side to side; little movement
should be felt.
a Ahead of the Vehicle
b Tether Strap Hook
c Anchorage
Straight top tether type
a Ahead of the Vehicle
b Tether Strap Hook
c Anchorage
Other top tether type
21 JAZZ HYBRID SSS-32TZA6000.book 92 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
93
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
4. Extend the support leg until it touches the
floor as instructed by the child restraint
system manufacturer.
u Confirm that the section of the floor on
which the support leg rests is level. If the
section is not level, the support leg will
not provide adequate support.
u Make sure that there is no contact
between the child restraint system and
the seat in front of it.
a Support Leg
Child restraint system with support leg
21 JAZZ HYBRID SSS-32TZA6000.book 93 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuSafety of Infants and Small Children
94
Safe Driving
A child restraint system can be installed with a lap/shoulder belt in any rear seat or,
if absolutely necessary, the front passenger seat.
1. Lower the head restraint to its lowest
position.
2. Place the child restraint system on the
vehicle seat.
3. Route the seat belt through the child
restraint system according to the child
restraint system manufacturer's
instructions, and insert the latch plate into
the buckle.
u Insert the latch plate fully until it clicks.
■
Installing a Child Restraint System with a Lap/Shoulder Seat
Belt
1Installing a Child Restraint System with a Lap/Shoulder Seat Belt
A child restraint system that is not properly secured
will not adequately protect a child in a crash and may
cause injury to the child or other vehicle occupants.
21 JAZZ HYBRID SSS-32TZA6000.book 94 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
95
uuChild Safety uSafety of Infants and Small Children
Continued
Safe Driving
4. Push down the tab. Route the shoulder
part of the belt into the slit at the side of
the restraint.
5. Grab the shoulder part of the belt near the
buckle, and pull up to remove any slack
from the lap part of the belt.
u When doing this, place your weight on
the child restraint system and push it
into the vehicle seat.
6. Position the belt properly and push up the
tab. Make sure the belt is not twisted.
u When pushing up the tab, pull up the
upper shoulder part of the belt to
remove any slack from the belt.
7. Make sure the child restraint system is
firmly secured by rocking it forward and
back, and side to side; little movement
should be felt.
8. Make sure any unused seat belt that a
child can reach is buckled.
a Tab
21 JAZZ HYBRID SSS-32TZA6000.book 95 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuChild SafetyuSafety of Infants and Small Children
96
Safe Driving
A tether anchorage point is provided on the
ceiling for each rear outer seating position. If
you have a child restraint system that comes
with a tether but can be installed with a seat
belt, the tether may be used for additional
security.
1. Locate the appropriate tether anchorage
point.
2. Lower the head restraint to its lowest
position.
3. Open the anchorage cover.
4. Route the tether strap over the seat-back.
Make sure the strap is not twisted.
5. Secure the tether strap hook to the
anchorage.
6. Tighten the tether strap as instructed by the
child restraint system manufacturer.
■
Adding Security with a Tether
1Adding Security with a Tether
WARNING: Child restraint anchorages are designed
to withstand only those loads imposed by correctly
fitted child restraints. Under no circumstances are
they to be used for adult seat belts, harnesses or for
attaching other items or equipment to the vehicle.
Always use a tether for front-facing child restraint
system when using the seat belt or lower anchorages.
a Tether Anchorage Points
b Cover
a Ahead of the Vehicle
b Tether Strap Hook
c Anchorage
Straight top tether type
21 JAZZ HYBRID SSS-32TZA6000.book 96 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
97
uuChild Safety uSafety of Infants and Small Children
Safe Driving
a Ahead of the Vehicle
b Tether Strap Hook
c Anchorage
Other top tether type
21 JAZZ HYBRID SSS-32TZA6000.book 97 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
98
uuChild SafetyuSafety of Larger Children
Safe Driving
Safety of Larger Children
The following pages give instructions on how to check proper seat belt fit, what kind
of booster seat to use if one is needed, and important precautions for a child who
must sit in front.
When a child is too big for a child restraint system, secure the child in a rear seat
using the lap/shoulder seat belt. Have the child sit upright and all the way back, then
answer the following questions.
■
Checklist
• Do the child's knees bend comfortably over
the edge of the seat?
• Does the shoulder belt cross between the
child's neck and arm?
• Is the lap part of the seat belt as low as
possible, touching the child's thighs?
• Will the child be able to stay seated like this
for the whole trip?
If you answer yes to all these questions, the child is ready to wear the lap/shoulder
seat belt correctly. If you answer no to any question, the child needs to ride on a
booster seat until the seat belt fits properly without a booster seat.
■
Protecting Larger Children
■
Checking Seat Belt Fit
1Safety of Larger Children
3
WARNING
Allowing a child aged 12 or under to sit in
front can result in injury or death if the
passenger's front airbag inflates.
If a larger child must ride in front, move the
vehicle seat as far to the rear as possible,
have the child sit up properly and wear the
seat belt properly, using a booster seat if
needed.
21 JAZZ HYBRID SSS-32TZA6000.book 98 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
99
uuChild SafetyuSafety of Larger Children
Safe Driving
If a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child's safety, check that
the child meets the booster seat
manufacturer's recommendations.
A backrest is available for a specific booster
seat. Install the backrest to the booster seat
and adjust it to the vehicle seat according to
the booster seat manufacturer's instructions.
Make sure the seat belt is properly routed
through the guide at the shoulder of the
backrest and the belt does not touch and
cross the child’s neck.
■
Booster Seats
1Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
We recommend a booster seat with a backrest as it is
easier to adjust the shoulder belt.
a Guide
21 JAZZ HYBRID SSS-32TZA6000.book 99 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
100
uuChild SafetyuSafety of Larger Children
Safe Driving
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positioned so that the child is secure in the
seat.
■
Monitoring child passengers
We strongly recommend that you keep an eye on child passengers. Even older, more
mature children sometimes need to be reminded to fasten their seat belts and sit up
properly.
■
Protecting Larger Children - Final Checks
21 JAZZ HYBRID SSS-32TZA6000.book 100 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
101
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colourless,
odourless, and highly toxic gas. As long as you properly maintain your vehicle,
carbon monoxide gas will not get into the interior.
■
Have the exhaust system inspected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailgate open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately after starting the engine.
3
WARNING
Carbon monoxide gas is toxic. Breathing it
can cause unconsciousness and even kill
you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
21 JAZZ HYBRID SSS-32TZA6000.book 101 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
102
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read, contact a dealer for a replacement.
a Protecting Child Passenger (Left-hand drive type) 2 P. 76
b Protecting Child Passenger (Right-hand drive type) 2 P. 76
c Rear Head Restraint 2 P. 219
d Fuel 2 P. 520
e Information for Painting (Right-hand drive type) 2 P. 588
f Passenger Front Airbag Off System (Right-hand drive type) 2 P. 63
g 12-volt battery 2 P. 578
21 JAZZ HYBRID SSS-32TZA6000.book 102 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
104
21 JAZZ HYBRID SSS-32TZA6000.book 104 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
105
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators .......................................... 106
Driver Information Interface Warning and
Information Messages.................... 124
Gauges and Displays
Gauges............................................ 137
Driver Information Interface ............. 140
21 JAZZ HYBRID SSS-32TZA6000.book 105 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
106
Instrument Panel
Indicators
Ready Indicator
P. 110
Low Fuel Indicator
P. 112
Electric Power Steering
(EPS) System Indicator
*1
P. 114
Parking Brake and
Brake System
Indicator (Red)
Parking Brake and
Brake System
Indicator (Amber)
Automatic Brake
Hold System Indicator
Automatic Brake Hold
Indicator
*1: When you set the power mode to ON, these indicators come on to indicate that system checks are being performed. They go off a few seconds later or after the power
system has started. If an indicator does not come on or turn off, there may be a malfunction in the corresponding system. To resolve the issue, follow the instructions in
the owner’s manual.
P. 107
*1
Malfunction Indicator
Lamp
12-Volt Battery
Charging System
Indicator
Anti-lock Brake System
(ABS) Indicator
Seat Belt Reminder
Indicator
Supplemental Restraint
System Indicator
Low Tyre Pressure/
Deflation Warning
System Indicator
P. 109
P. 108
P. 108
P. 110
P. 110
*1
*1
*1
*1
P. 115
*1
Shift Position Indicator
P. 111
Transmission System
I
ndicator
P. 111
P. 112
P. 113
P. 113
*1
*1
*1
Power System Indicator
P. 109
*1
EV Indicator
P. 110
*1
High Beam Indicator
P. 117
Turn Signal and Hazard
Warning Indicators
P. 116
System Message
Indicator
P. 116
Lights On Indicator
P. 117
Front Fog Light
Indicator
*
P. 117
Rear Fog Light Indicator
P. 117
Auto High-Beam
Indicator
P. 116
*1
ECON Mode Indicator
Vehicle Stability Assist
(VSA) System Indicator
P. 118
Immobilizer System
I
ndicator
P. 118
P. 114
Security System Alarm
I
ndicator
*
P. 118
*1
Road Departure
Mitigation Ready to
Assist Indicator
P. 121
Adjustable Speed
Limiter Indicator
(White/Green)
P. 119
Adaptive Cruise Control
(ACC) with Low Speed
Follow Indicator (Amber)
Lane Keeping Assist
System (LKAS) Indicator
(Amber)
P. 120
P. 120
Adaptive Cruise Control
(ACC) wi
th Low Speed
Follow Indicator (White/
Green)
P. 120
Lane Keeping Assist
S
ystem (LKAS) Indicator
(Green)
P. 121
*1
*1
Intelligent Speed
Limiter Indicator
(White/Green)
P. 119
Safety Support Indicator
(Amber)
P. 121
Safety Support Indicator
(Gr
een/Gray)
P. 123
*1
Passenger Front Airbag
On/Off Indicators
P. 113
*1
Vehicle Stability Assist
(VSA) OFF Indicator
P. 114
*1
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 106 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
107
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Parking Brake
and Brake
System Indicator
(Red)
• Comes on when the parking brake
is applied and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
• Comes on while driving - Make
sure the parking brake is released.
Check the brake fluid level.
2 What to do when the indicator
comes on while driving P. 618
• Comes on along with the parking
brake and brake system indicator
(amber) - Immediately stop in a safe
place. Contact a dealer for repair. The
brake pedal becomes harder to
operate. Depress the pedal further
than you normally do.
2 If the Brake System Indicator
(Red) Comes On or Blinks at the
Same Time When the Brake
System Indicator (Amber) Comes
On P. 620
• Comes on along with the ABS
indicator - Have your vehicle checked
by a dealer.
2 If the Brake System Indicator
(Red) Comes On or Blinks P. 618
(Red)
21 JAZZ HYBRID SSS-32TZA6000.book 107 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
108
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Parking Brake
and Brake
System Indicator
(Red)
• Comes on for about 30 seconds
when you apply the electric
parking brake while the power
mode is in ACCESSORY or
VEHICLE OFF, then goes off.
• Stays on for about 30 seconds
when you set the power mode to
VEHICLE OFF while the electric
parking brake is applied, then
goes off.
• Blinks and the parking brake and
brake system indicator (amber)
comes on at the same time - There
is a problem with the electric parking
brake system. The parking brake may
not be set.
Avoid using the parking brake and
have your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator
(Red) Comes On or Blinks at the
Same Time When the Brake
System Indicator (Amber) Comes
On P. 620
—
Automatic Brake
Hold System
Indicator
• Comes on when the automatic
brake hold system is on.
2 Automatic Brake Hold P. 500
Automatic Brake
Hold Indicator
●
Comes on when the automatic
brake hold is activated.
2 Automatic Brake Hold P. 500
—
(Red)
21 JAZZ HYBRID SSS-32TZA6000.book 108 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
109
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Parking Brake
and Brake
System Indicator
(Amber)
• Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
• Comes on if there is a problem
with the cooperative control with
regenerative braking, the electric
servo brake system.
• Comes on while driving - Avoid
high speeds and sudden braking. Take
the vehicle to a dealer immediately.
●
Comes on if there is a problem
with the electric parking brake
system and/or the automatic brake
hold system.
●
Stays on constantly - Avoid using
the parking brake and have your
vehicle checked by a dealer
immediately.
• Comes on if there is a problem
with the sonar sensor.
• Indicator may come on
temporarily when the maximum
load limit is exceeded.
• Make sure the total load is within the
maximum load limit.
2 Load Limit P. 395
• Stays on constantly - Have your
vehicle checked by a dealer.
—
Power System
Indicator
• Comes on if there is a problem
with the electric vehicle system.
• Comes on when the High Voltage
battery temperature becomes
high.
• Have your vehicle checked by a dealer.
2 If the Power System Indicator
Comes On P. 622
(Amber)
21 JAZZ HYBRID SSS-32TZA6000.book 109 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
110
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Ready Indicator
• Comes on when the vehicle is
ready to drive.
2 Turning on the Power P. 397
EV Indicator
• Comes on when the vehicle is
moved by the motor, and the
engine is not operating.
— —
Malfunction
Indicator Lamp
• Comes on if there is a problem
with the emissions control
systems.
• Blinks when a misfire in the
engine’s cylinders is detected.
• Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the power system for 10
minutes or more, and wait for it to
cool down. Then, take your vehicle to
a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 617
12-Volt Battery
Charging
System Indicator
• Comes on when the 12-volt
battery is not charging.
• Stop in a safe place and have your
vehicle checked by a dealer
immediately.
2 If the 12-Volt Battery Charging
System Indicator Comes On P.
616
21 JAZZ HYBRID SSS-32TZA6000.book 110 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
111
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Shift Position
Indicator
• Indicates the current shift position.
2 Shifting P. 403
—
Transmission
System Indicator
• Blinks if the transmission system
has a problem.
• Blinks while driving - Avoid sudden
starts and acceleration, and have your
vehicle checked by a dealer
immediately.
• Immediately park your car in a safe
place.
2 Emergency Towing P. 629
• Have your vehicle checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 111 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
112
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Seat Belt
Reminder
Indicator
• Comes on if you are not wearing a
seat belt when you set the power
mode to ON.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you or
the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.
• The beeper stops and the indicator
goes off when you and the front
passenger fasten their seat belts.
• Stays on after you or the front
passenger has fastened the seat
belt - A detection error may have
occurred in the sensor. Have your
vehicle checked by a dealer.
2 Seat Belt Reminder P. 45
●
Comes on for a while when the
rear seat belt is unfastened while
the power mode to on, and a red
icon is displayed on the driver
information interface.
●
The indicator goes off when you and
the rear seat passengers fasten their
seat belts.
●
The beeper sounds when the indicator
is on while driving.
●
When the seat belt has fastened, the
indicator will turn off and a green icon
is displayed on the driver information
interface.
2 Seat Belt Reminder P. 45
Low Fuel
Indicator
• Comes on when the fuel reserve is
running low (approximately 5.3
litres/1.17 Imp gal left).
• Blinks if there is a problem with
the fuel gauge.
• Comes on - Refuel your vehicle as
soon as possible.
• Blinks - Have your vehicle checked by
a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 112 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
113
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Anti-lock Brake
System (ABS)
Indicator
• Comes on if there is a problem
with the ABS.
• Stays on constantly - Have your
vehicle checked by a dealer. With this
indicator on, your vehicle still has
normal braking ability but no anti-lock
function.
2 Anti-lock Brake System (ABS)
P. 503
Supplemental
Restraint System
Indicator
• Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
• Stays on constantly - Have your
vehicle checked by a dealer.
Passenger Front
Airbag On/Off
Indicators
• When the passenger front airbag
is active: The on indicator comes
back on and remains on for about
60 seconds.
When the passenger front airbag
is inactive: The off indicator comes
back on and stays on. This is a
reminder that the passenger front
airbag is deactivated.
2 Passenger Front Airbag Off
System P. 61
—
21 JAZZ HYBRID SSS-32TZA6000.book 113 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
114
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Vehicle Stability
Assist (VSA)
System Indicator
• Blinks when VSA is active.
• Comes on if there is a problem
with the VSA system or hill start
assist system.
• Stays on constantly - Have your
vehicle checked by a dealer.
2 Vehicle Stability Assist (VSA)
System P. 420
2 Hill start assist system P. 399
• Comes on if the VSA system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.
• Drive a short distance at more than 20
km/h (12 mph). The indicator should
go off. If it does not, have your vehicle
checked by a dealer.
Vehicle Stability
Assist (VSA) OFF
Indicator
• Comes on when you partially
disable VSA.
2 VSA On and Off P. 421
• Comes on if the VSA system is
deactivated temporarily after the
12-volt battery has been
disconnected, then re-connected.
• Drive a short distance at more than 20
km/h (12 mph). The indicator should
go off. If it does not, have your vehicle
checked by a dealer.
Electric Power
Steering (EPS)
System Indicator
• Comes on if there is a problem
with the EPS System.
• Comes on while driving -
Immediately stop in a safe place.
• Stays on constantly - Have your
vehicle checked by a dealer.
2 If the Electric Power Steering
(EPS) System Indicator Comes On
P. 619
21 JAZZ HYBRID SSS-32TZA6000.book 114 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
115
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Low Tyre
Pressure/
Deflation
Warning System
Indicator
• May come on briefly if the power
mode is set to ON and the vehicle
is not moved within 45 seconds, to
indicate the initialisation process is
not yet complete.
• Comes on and stays on when:
- One or more tyres’ pressures are
determined to be significantly
low.
- The system has not been
initialised.
• Comes on while driving - Stop in a
safe place, check tyre pressures, and
inflate the tyre(s) if necessary.
• Stays on after the tyres are
inflated to the recommended
pressures - The system needs to be
initialised.
2 Deflation Warning System
Initialisation P. 423
• Blinks for about one minute, and
then stays on if there is a problem
with the deflation warning system.
• Blinks and remains on - Have your
vehicle checked by a dealer.
• Comes on if the deflation warning
system is deactivated temporarily
after the 12-volt battery has been
disconnected, then reconnected.
• Drive a short distance at more than 20
km/h (12 mph). The indicator should
go off. If it does not, have your vehicle
checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 115 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
116
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
System Message
Indicator
• Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.
• While the indicator is on, press the
(home) button, and select
(information) to see the message
again.
2 Switching the Display P. 140
• Refer to the Indicators information in
this chapter when a system message
appears on the driver information
interface. Respond to the message
accordingly.
• The driver information interface does
not return to the normal screen unless
the warning is cancelled, or the
(home) button is pressed.
—
Auto High-Beam
Indicator
• Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 199
—
Turn Signal and
Hazard Warning
Indicators
• Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard
warning button.
• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 558
—
• Blink along with all turn signals
when you depress the brake pedal
while the high speed driving.
2 Emergency Stop Signal P. 505
21 JAZZ HYBRID SSS-32TZA6000.book 116 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
117
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
High Beam
Indicator
• Comes on when the high beam
headlights are on.
— —
Lights On
Indicator
• Comes on when the position, tail,
and other external lights are on.
2 Lights P. 191
—
Front Fog Light
Indicator
*
• Comes on when the front fog
lights are on.
2 Fog Lights P. 195
—
Rear Fog Light
Indicator
• Comes on when the rear fog light
is on.
2 Fog Lights P. 195
—
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 117 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
118
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Immobilizer
System Indicator
• Blinks if the immobilizer system
cannot recognise the key
information.
• Blinks - You cannot start the power
system. Set the power mode to
VEHICLE OFF, then select the ON
mode again.
Depress and hold the brake pedal
before setting the power mode to ON.
• Repeatedly blinks - The system may
be malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
Security System
Alarm Indicator
*
• Blinks when the security system
alarm has been set.
2 Security System Alarm
*
P. 182
—
ECON Mode
Indicator
• Comes on when ECON mode is
on.
2 ECON Mode P. 405
Indicator
Right-hand drive type
All models
Indicator
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 118 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
119
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Adjustable
Speed Limiter
Indicator (White/
Green)
• Lights up in white when you press
the button.
If a different indicator comes on,
subsequently press the LIM
button.
• Lights up in green when the
adjustable speed limiter is set.
2 Adjustable Speed Limiter P. 407
—
Intelligent Speed
Limiter Indicator
(White/Green)
• Lights up in white when you press
the button.
If a different indicator comes on,
subsequently press the LIM
button.
• Lights up in green when you press
the RES/+ button or SET/−
button.
2 Intelligent Speed Limiter P. 413
—
21 JAZZ HYBRID SSS-32TZA6000.book 119 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
120
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)
• Comes on if there is a problem
with ACC with Low Speed Follow.
• Comes on while driving - Have your
vehicle checked by a dealer.
• Comes on if the ACC with Low
Speed Follow is deactivated
temporarily after the 12-volt
battery has been disconnected,
then re-connected.
• Drive a short distance at more than 20
km/h (12 mph). The indicator should
go off. If it does not, have your vehicle
checked by a dealer.
• Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
• ACC with Low Speed Follow has
been automatically cancelled.
• Make sure the total load is within the
Maximum Load Limit.
2 Load Limit P. 395
• Stays on constantly - Have your
vehicle checked by a dealer.
—
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(White/Green)
• Lights up in white when you press
the button.
If a different indicator comes on,
subsequently press the LIM
button.
• Lights up in green when you press
the RES/+ button or SET/−
button.
2 Adaptive Cruise Control (ACC)
with Low Speed Follow P. 447
—
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
• Comes on if there is a problem
with the LKAS.
• Stays on constantly - Have your
vehicle checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 120 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
121
uuIndicatorsu
Continued
Instrument Panel
Indicator Name On/Blinking Explanation Message
Lane Keeping
Assist System
(LKAS) Indicator
(Green)
• Comes on when you press the
LKAS button.
2 Lane Keeping Assist System
(LKAS) P. 467
—
Road Departure
Mitigation
Ready to Assist
Indicator
●
Comes on when all activation
conditions for the Road Departure
Mitigation system are satisfied and
lane markers are detected.
2 Road Departure Mitigation
System P. 478
—
Safety Support
Indicator
(Amber)
• Comes on if there is a problem
with the Road Departure
Mitigation system, blind spot
information
*
or CMBS.
• Stays on constantly - Have your
vehicle checked by a dealer.
• Indicator may come on
temporarily when the maximum
permissible weight is exceeded.
• Make sure the total load is within the
maximum permissible weight.
2 Load Limit P. 395
—
• Comes on if the Road Departure
Mitigation system and CMBS are
deactivated temporarily after the
12-volt battery has been
disconnected and then re-
connected.
• Drive a short distance at more than 20
km/h (12 mph). The indicator should
go off. If it does not, have your vehicle
checked by a dealer.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 121 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
122
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Amber)
• Comes on when the Road
Departure Mitigation system, blind
spot information
*
and/or CMBS
shuts itself off.
• Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Wide View Camera P. 494
• Stays on - The area around the
camera is blocked by dirt, mud, etc.
Stop your vehicle in a safe place and
wipe the debris off with a soft cloth.
• Have your vehicle checked by a dealer
if the indicator and message are still
displayed even after you have cleaned
the area around the camera.
2 Front Wide View Camera P. 494
• It may come on when the ambient
conditions are dark, such as when
driving in a tunnel, or at night, dawn,
or dusk.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 122 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
123
uuIndicatorsu
Instrument Panel
Indicator Name On/Blinking Explanation Message
Safety Support
Indicator
(Amber)
●
Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.
●
Comes on while driving -
Something may be interfering with the
blind spot information system sensor.
Check the vicinity of the blind spot
information system sensor and remove
any obstacles.
2 Blind spot information System
*
P. 427
Safety Support
Indicator (Green/
Gray)
• Lights up in green when the Road
Departure Mitigation system, blind
spot information
*
and CMBS are
on.
• Lights up in green and gray when
the Road Departure Mitigation
system, blind spot information
*
or
CMBS is off.
• Lights up in gray when the Road
Departure Mitigation system, blind
spot information
*
and CMBS are
off.
2 Road Departure Mitigation
system On and Off P. 482
2 Blind spot information System
*
P. 427
2 CMBS On and Off P. 439
Models with the blind spot
information system
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 123 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
124
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select (information), then press
the left selector wheel to see the message again with the system message indicator on.
Message Condition Explanation
• Appears when the vehicle is no longer able to run
due to a malfunction.
• Immediately stop in a safe place.
(Amber)
• Appears when there is a risk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.
• While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 496
• Have your vehicle checked by a dealer.
• Appears if any door or the tailgate is not completely
closed.
• Appears if any door or the tailgate is opened while
driving. The beeper sounds.
• Disappears when all doors and the tailgate are closed.
• Appears if there is a problem with the parking sensor
system.
• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
• Appears if there is a problem with the acoustic
vehicle alerting system.
• Have your vehicle checked by a dealer immediately.
Models with parking sensor system
21 JAZZ HYBRID SSS-32TZA6000.book 124 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
125
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Appears when there is a problem with the 12-volt
battery charging system.
• Have your vehicle checked by a dealer.
• Appears once if the outside temperature is below
3°C while the power mode is in ON.
• There is a possibility that the road surface is icy and
slippery.
• Appears when the engine oil pressure is low. • Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 616
• Appears when the engine oil level is low while the
engine is running.
• Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Level Symbol Appears P. 622
• Appears when the engine is running, there is a
system problem in the engine oil level sensor.
• Have your vehicle checked by a dealer.
• Appears if there is a problem with the automatic
lighting control system.
• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights. • Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by a dealer as soon as possible.
21 JAZZ HYBRID SSS-32TZA6000.book 125 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
126
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears when the engine coolant temperature is
near its upper limit.
• Drive slowly to prevent overheating.
• Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 614
• Appears if there is a problem with the cooling
system.
• Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
• Appears while you are customizing the settings and
change the shift position from
(P to another
position.
2 Settings
*
P. 154
(White)
(Red)
Models with colour audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 126 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
127
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 500
• Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.
• Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 500
• Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.
• Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 500
• Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.
• Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 496
• Appears when the vehicle speed reaches the set
speed. You can set two different speeds for the
alarm.
2 Speed Alarm P. 149
21 JAZZ HYBRID SSS-32TZA6000.book 127 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
128
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears as soon as a problem is detected in the
keyless access system
*
or keyless starting system.
• Appears constantly - Have your vehicle checked by a
dealer.
• Appears when you close the door with the power
mode in ON without the keyless remote inside the
vehicle.
• Disappears when you bring the keyless remote back
inside the vehicle, and close the door.
2 Keyless Remote Reminder P. 190
• Appears when the keyless remote battery becomes
weak.
2 Replacing the Button Battery P. 579
• Appears when you set the power mode to
ACCESSORY or ON.
• Appears after you unlock and open the driver’s door.
2 Turning on the Power P. 397
• Appears when the power mode is in ACCESSORY. —
• Appears after the driver’s door is opened when the
power mode is in ACCESSORY.
• Change the power mode to VEHICLE OFF.
2 POWER Button P. 188
• Appears if the keyless remote’s battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system. The
beeper sounds six times.
• Bring the back of the keyless remote into contact with
the POWER button.
2 If the Keyless Remote Battery is Weak P. 608
Right-hand drive type
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 128 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
129
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Appears if you press the POWER button while the
vehicle is moving.
2 Emergency Power System Off P. 609
• Appears when the steering wheel is locked. • Move the steering wheel left and right while pressing
the POWER button.
• Appears if you press the POWER button to turn the
power system off without the shift lever in
(P.
• Move the shift lever to (P, then press the POWER
button twice.
• Appears when the power system temperature is
high.
• Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Park in a safe place, and cool the system down.
2 Overheating P. 614
• Appears when the High Voltage battery temperature
is low.
• Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Goes off once you start driving as the High Voltage
battery warms up.
• Appears if the power system is in diagnostic mode. • You may notice a decrease in available power. Have
your vehicle checked by a dealer.
• As a result of diagnostics, the power system indicator
may come on.
2 Power System Indicator P. 109
21 JAZZ HYBRID SSS-32TZA6000.book 129 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
130
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears when the High Voltage battery temperature is
too low to operate (approx. -30°C or below).
• You can start the power system and use the climate
control system to warm up the interior, which will
also warm the High Voltage battery enough for you
to drive the vehicle.
• Appears when the High Voltage battery and other
system control temperatures are too low to operate
(approx. -40°C or below).
• You must wait for an increase in the ambient
temperature or move the vehicle to a warmer
location.
• Contact a dealer if necessary.
• Appears when the High Voltage battery is running
extremely low.
• Contact a dealer immediately.
• Appears if there is a problem with the auto high-beam. • Manually operate the headlight switch.
• If you are driving with the high beam headlights
when this happens, the headlights are changed to
low beams.
• Appears if the temperature inside the front wide view
camera is too high and some driver assist systems
cannot be activated.
• Use the climate control system to cool down the
camera.
• Disappears - The camera has been cooled down
and the systems are activated normally.
2 Front Wide View Camera P. 494
2 Honda Sensing P. 432
21 JAZZ HYBRID SSS-32TZA6000.book 130 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
131
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Appears if the area around the front wide view
camera is blocked by dirt, mud, etc. and be
prevented from detecting a vehicle in front.
• May appear when driving in bad weather (rain,
snow, fog, etc.) or when the ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.
• When the front window gets dirty, stop your vehicle in
a safe place, and wipe it off with a soft cloth.
• Have your vehicle checked by a dealer if the message
does not disappear even after you cleaned the area
around the camera.
2 Front Wide View Camera P. 494
2 Honda Sensing P. 432
• Appears when the distance between your vehicle
and the vehicle ahead of you is too close while ACC
is in operation.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when pressing the RES/+ or SET/− button
while the distance between your vehicle and the
vehicle ahead of you is too close.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when the driver’s seat belt is unfastened
while your vehicle is automatically stopped by ACC.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when pressing the RES/+ or SET/− button
while the driver’s seat belt is unfastened.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when you set the power mode to ON,
without fastening the driver’s seat belt.
• Fasten the seat belt properly before you start to drive.
(White)
21 JAZZ HYBRID SSS-32TZA6000.book 131 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
132
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears if the VSA or traction control function
operates while ACC is in operation.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when the speed of the vehicle is too high
for you to set ACC.
• Reduce the speed, then set ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when ACC is cancelled due to excessive
high vehicle speed.
• Reduce the speed, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
●
Appears if ACC cannot be set due to repeated
deceleration, driving on a long downward slope, or
excess vehicle weight.
●
Wait awhile, then reset ACC.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
●
Appears just before ACC is automatically cancelled
due to repeated deceleration, driving on a long
downward slope, or excess vehicle weight. (Will
automatically open until the distance between your
vehicle and the vehicle ahead is the maximum set in
distance settings.)
●
ACC will be cancelled automatically.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
●
Appears when the SET/−, RES/+, CANCEL, interval
button or LIM button is pressed while ACC,
adjustable speed limiter or intelligent speed limiter is
off.
●
After pressing the button, press the SET/−, RES/+,
CANCEL, interval button or LIM button.
2 Adjustable Speed Limiter P. 407
2 Intelligent Speed Limiter P. 413
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
21 JAZZ HYBRID SSS-32TZA6000.book 132 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
133
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
●
Appears when the interval button is pressed in
adjustable speed limiter/intelligent speed limiter
mode.
●
After switching to ACC, press the interval button.
2 Adjustable Speed Limiter P. 407
2 Intelligent Speed Limiter P. 413
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when the vehicle ahead of you resumes
driving, after your vehicle has been stopped
automatically by ACC.
• Press the RES/+ or SET/− button or depress the
accelerator pedal to resume.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when the shift position is changed to any
position other than
(D while ACC is in operation.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when pressing the RES/+ or SET/− button
while the shift position is in any position other than
(D.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when the vehicle is stopped on a very steep
slope while ACC is in operation.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears when pressing the RES/+ or SET/− button
while the vehicle is stopped on a very steep slope.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
21 JAZZ HYBRID SSS-32TZA6000.book 133 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
134
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears when the parking brake is applied
automatically while ACC is in operation.
• ACC has been automatically cancelled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
2 Parking Brake P. 496
• Appears when pressing the RES/+ or SET/− button
while the parking brake is applied.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
2 Parking Brake P. 496
• Appears when the parking brake is applied
automatically while it is in operation.
2 Automatic Brake Hold P. 500
2 Parking Brake P. 496
• Appears when pressing the RES/+ or SET/− button
while the vehicle is moving and the brake pedal is
depressed.
• ACC cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
• Appears if ACC is cancelled while your vehicle is
automatically stopped by ACC.
• Immediately depress the brake pedal.
• Appears if the automatic brake hold is automatically
cancelled while it is in operation.
• Immediately depress the brake pedal.
21 JAZZ HYBRID SSS-32TZA6000.book 134 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
135
uuIndicatorsuDriver Information Interface Warning and Information Messages
Continued
Instrument Panel
Message Condition Explanation
• Flashes when the system senses a likely collision with
a vehicle in front of you. The beeper sounds.
• Take appropriate action to prevent a collision (apply the
brakes, change lanes, etc.)
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 447
2 Collision Mitigation Braking System (CMBS) P. 435
• Appears if the vehicle is about to veer out of the
detected lane.
• Take direct control of the steering and keep the vehicle
in the centre of the lane. The message will disappear
after a while.
2 Lane Keeping Assist System (LKAS) P. 467
2 Road Departure Mitigation System P. 478
• Appears if the driver is merely resting his or her
hands on the steering wheel or is not holding the
steering wheel at all and the vehicle is about to veer
out of the detected lane. A beeper will also sound.
• Take direct control of the steering and keep the vehicle
in the centre of the lane. The message will disappear
after a while.
2 Lane Keeping Assist System (LKAS) P. 467
• Blinks if the driver is merely resting his or her hands
on the steering wheel or is not holding the steering
wheel at all. A beeper will also sound. If the driver
continues to drive in this manner, the beeper will
turn to a single long beep and LKAS will be
deactivated.
• Take direct control of the steering; the message will
disappear.
2 Lane Keeping Assist System (LKAS) P. 467
• Appears when the vehicle is likely to drive out of a
detected lane.
The Road Departure Mitigation system also steers
the vehicle to help you remain within your driving
lane.
• Take direct control of the steering and keep the vehicle
in the centre of the lane. The message will disappear
after a while.
2 Road Departure Mitigation System P. 478
(Amber)
(Red)
(White)
21 JAZZ HYBRID SSS-32TZA6000.book 135 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
136
uuIndicatorsuDriver Information Interface Warning and Information Messages
Instrument Panel
Message Condition Explanation
• Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a
system related to the LKAS. The LKAS cancels
automatically. The beeper sounds simultaneously.
• If any other system indicators come on, such as the
VSA, ABS and brake system, take appropriate action.
2 Indicators P. 106
Message Condition Explanation
• Appears when any of the service items is required in
less than 30 days.
• The remaining days will be counted down per day.
2 Service Reminder System
*
P. 530
• Appears when any of the service items is required in
less than 10 days.
• Have the indicated service performed as soon as
possible.
2 Service Reminder System
*
P. 530
• Appears when the indicated maintenance service is
still not done after the remaining time reaches 0.
• Your vehicle has passed the service required point.
Immediately have the service performed and make sure
to reset the service reminder.
2 Service Reminder System
*
P. 530
Models with service reminder system
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 136 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
137
Continued
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, high voltage battery charge level gauge, fuel
gauge, and related indicators. They are displayed when the power mode is in ON.
Displays your driving speed in km/h or mph.
Displays the amount of fuel left in the fuel tank.
■
Speedometer
■
Fuel Gauge
1Speedometer
You can set the speedometer and the displayed
measurements to read in either km/h and mph.
2 Change Units P. 152
1Fuel Gauge
NOTICE
You should refuel when the reading approaches (0.
Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.
The actual amount of remaining fuel may differ from
the fuel gauge reading.
21 JAZZ HYBRID SSS-32TZA6000.book 137 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuGauges and DisplaysuGauges
138
Instrument Panel
Shows the remaining High Voltage battery charge level.
Shows the total number of kilometres or miles that your vehicle has accumulated.
Shows the outside temperature in Celsius.
If the outside temperature has been below 3°C at the time you set the power mode
to ON, the outside temperature blinks for 10 seconds.
■
Adjusting the outside temperature display
Adjust the temperature reading by up to ±3°C if the temperature reading seems
incorrect.
■
High Voltage Battery Charge Level Gauge
■
Odometer
■
Outside Temperature
1High Voltage Battery Charge Level Gauge
The High Voltage battery charge level may decrease
under the following conditions:
• When the 12-volt battery has been replaced.
• When the 12-volt battery has been disconnected.
• When the High Voltage battery control system
corrects its reading.
The charge level reading will be corrected
automatically while driving.
Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temperature changes cause the
battery’s capacity to change, the number of
indicators in the battery charge level gauge may also
change, even if the amount of charging remains the
same.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 30 km/h (19 mph).
It may take several minutes for the display to be
updated after the temperature reading has stabilised.
You can adjust the temperature reading.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 138 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
139
uuGauges and DisplaysuGauges
Instrument Panel
Shows traffic signs while driving.
The indicator blinks when the maximum speed of the traffic sign detected by the
Traffic Sign Recognition System is exceeded.
Shows the clock.
You can adjust the time manually or change the clock display to show the 12 hour
clock or 24 hour clock on the driver information interface.
2 Clock P. 166
2 Clock Setup P. 304
Shows the current mode for ACC with Low Speed Follow and the LKAS.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 447
2 Lane Keeping Assist System (LKAS) P. 467
■
Traffic Sign Recognition System
■
Clock
■
Current Mode for ACC with Low Speed Follow and the LKAS
1Traffic Sign Recognition System
You can turn the Traffic Sign Recognition System
Over Speed Warning on and off.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 139 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
140
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
and other helpful information.
Press the (home) button, then roll the left selector wheel to scroll to the content
you want to see. Press the left selector wheel to see detailed information.
■
Switching the Display
1Switching the Display
To go back to the previous screen, press the
(back) button.
You can add or delete the meter contents.
2 Customize Display P. 153
21 JAZZ HYBRID SSS-32TZA6000.book 140 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
141
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
a Models with Display Audio k Phone
*
2 P. 148
b Models with colour audio l Navigation
*
2 P. 148
c (Home) Button m Information 2 P. 153
d Left Selector Wheel n Customize Display 2 P. 153
e Simple 2 P. 142 o Change Units 2 P. 152
f Power Flow 2 P. 143 p Settings
*
2 P. 154
g Range & Fuel 2 P. 144 q Safety Support 2 P. 151
h Fuel Economy 2 P. 145 r Maintenance
*
2 P. 150
i Speed & Time 2 P. 146 s Seat Belts 2 P. 150
j Audio
*
2 P. 148 t Speed Alarm 2 P. 149
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 141 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
142
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
By selecting the simple mode, you can set the meter to display the minimum
information necessary.
■
Simple
21 JAZZ HYBRID SSS-32TZA6000.book 142 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
143
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Displays the power flow of the motor and engine, indicating the vehicle’s power
source and whether the battery is being charged.
■
Power Flow
1Power Flow
While the vehicle is stationary with the engine
running, the following may appear on the driver
information interface.
a Power Flow b Engine c Engine ON d Engine OFF
e Hybrid (HV): Power is supplied by the motor and the engine.
f Electric Vehicle (EV): Power is supplied by the motor.
g Engine (Direct Drive): The engine is running and the motor is charging the High
Voltage battery.
h The engine is running and the motor is charging the High Voltage battery.
i Power is being supplied by only the engine.
j Regeneration: The motor is charging the High Voltage battery.
21 JAZZ HYBRID SSS-32TZA6000.book 143 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
144
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Roll the left selector wheel to switch between trip meter A and trip meter B.
■
Range / Fuel / Trip Meter
a Trip Meter A
b Average Fuel Economy
c Instant Fuel Economy
d Range
e Trip Meter B
21 JAZZ HYBRID SSS-32TZA6000.book 144 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
145
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
■
Trip meter
Shows the total number of kilometres or miles driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel and then select Reset.
The trip meter is reset to 0.0.
■
Average fuel economy
Shows the estimated average fuel economy of each trip meter in l/100km or mpg.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■
Instant fuel economy
Shows the instant fuel economy as a bar graph in l/100 km or mpg.
■
Range
Shows the estimated distance you can travel on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
Shows the average fuel economy for the last three driving cycles (1-3), and the
current driving cycle (0) in l/100 km or mpg.
Each time you set the power mode to ON, the display is updated, and the oldest
record is deleted.
■
Fuel Economy
1Trip meter
Switch between trip meter A and trip meter B by
rolling the left selector wheel.
1Average fuel economy
You can change when to reset the average fuel
economy.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 145 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
146
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Roll the left selector wheel to switch between trip meter A and trip meter B.
■
Speed & Time
a Trip meter A
b Elapsed Time
c Average Speed
d Trip meter B
21 JAZZ HYBRID SSS-32TZA6000.book 146 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
147
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
■
Trip meter
2 Trip meter P. 145
■
Elapsed Time
Shows the time elapsed since Trip A or Trip B was reset.
■
Average Speed
Shows the average speed in km/h or mph since Trip A or Trip B was reset.
1Elapsed Time
You can change when to reset the elapsed time.
2 Settings
*
P. 154
2 Customized Features P. 345
1Average Speed
You can change when to reset the average speed.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 147 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuGauges and DisplaysuDriver Information Interface
148
Instrument Panel
Shows the current audio information.
2 Basic Operation P. 241, 286
Shows the current phone information.
2 Hands-Free Telephone System P. 269, 359
■
Compass
Shows the compass screen.
■
Turn-by-Turn Directions
When driving guidance is provided by the navigation system, Android Auto or Apple
CarPlay, turn-by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Apple CarPlay P. 337
2 Android Auto P. 341
■
Audio
*
■
Phone
*
■
Navigation
*
1Navigation
*
You can select whether to have the turn-by-turn
display come on or not during the route guidance.
2 Customized Features P. 345
When the compass or turn-by-turn directions are
displayed, you can control some navigation system
functions on the driver information interface by
scrolling the left selector wheel.
2 Refer to the Navigation System Manual
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 148 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
149
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
Sets the speed alarm on and changes the speed alarm setting.
Roll the left selector wheel, the speed alarm setting changes as follows:
*1:Default Setting
■
Speed Alarm
a Speed Alarm 1 On/Off
*1
b Speed Alarm 2 On/Off
*1
c Speed Alarm 1 Speed Setting [50 km/h (30mph)
*1
]
d Speed Alarm 2 Speed Setting [80 km/h (50mph)
*1
]
e Back
21 JAZZ HYBRID SSS-32TZA6000.book 149 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
150
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Appears when any of the seat belts are latched or unlatched.
Shows the service reminder system.
2 Service Reminder System
*
P. 530
■
Seat Belts
■
Maintenance
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 150 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
151
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Indicates the state of the Road Departure Mitigation system and blind spot
information system
*
, and CMBS such as On, Off, or Failure, by colour and letters.
The following colours indicate the state of any of the above mentioned systems:
• Green: The system is on.
• Gray: The system is off.
• Amber: There is a problem with the system.
■
Safety Support
1Safety Support
If a system is indicated by the colour amber, have
your vehicle checked by a dealer immediately.
To turn on or off each system, first rotate the left
selector wheel to switch displays. From the next
display you can select which system to turn on or off.
2 Road Departure Mitigation system On and
Off P. 482
2 Blind spot information System
*
P. 427
2 CMBS On and Off P. 439
You can also confirm the state of the each function
by the colour of the safety support indicator.
2 Safety Support Indicator (Amber) P. 121
2 Safety Support Indicator (Green/Gray)
P. 123
a CMBS Icon and State Info
b Road Departure Mitigation System Icon and State Info
c Blind spot information System Icon and State Info
*
d Area Info for CMBS
e Area Info for Road Departure Mitigation System
f Area Info for Blind spot information System
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 151 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
152
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Enables you to show another speed unit on the driver information interface and set
the displayed measurements to read in either km/h and mph.
Press and hold the left selector wheel when you select on the driver information
interface. Each time you do this, the unit will change from km/h to mph or vice
versa. After this, a confirmation screen will appear for a few seconds.
■
Change Units
21 JAZZ HYBRID SSS-32TZA6000.book 152 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
153
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Change the settings to your liking.
■
Arrange content
You can choose which icons to display on the home screen.
1. Roll the left selector wheel to scroll to select
, then press the left selector wheel.
2. Roll the left selector wheel to scroll to select
, then press the left selector wheel.
3. Roll the left selector wheel to scroll
between icons, then press the left selector
wheel to check or uncheck them.
2 Driver Information Interface Warning and Information Messages P. 124
■
Customize Display
1Customize Display
Icons that are gray cannot be removed from the
home screen.
■
Information
21 JAZZ HYBRID SSS-32TZA6000.book 153 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuGauges and DisplaysuDriver Information Interface
154
Instrument Panel
Use the driver information interface to customize certain features.
■
How to customize
Press the (home) button, then select the (settings) screen by rolling the left
selector wheel while the power mode is in ON, the vehicle is at a complete stop, and
the shift position is in
(P. Then press the left selector wheel.
■
Settings
*
1Settings
*
To customize other features, roll the left selector
wheel.
2 List of customizable options P. 155
2 Example of customization settings P. 159
When you customize settings, shift to
(P.
a Driver Information Interface
b Left Selector Wheel
c (Home) Button
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 154 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
155
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
■
List of customizable options
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
Deflation
Warning
System
— Initialises the deflation warning system. Initialise/Cancel
Driver Assist
System Setup
Preceding Vehicle
Proximity Warning
Distance
Changes the distance at which Collision Mitigation
Braking System (CMBS) alerts.
Far/Normal
*1
/Near
ACC Vehicle Ahead
Detected Beep
Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of ACC range.
ON/OFF
*1
Road Departure
Mitigation Setting
Changes the setting for the road departure mitigation
system.
Early/Normal/Delayed
*1
Lane Keep Assist Beep Causes the system to beep when the LKAS is suspended. ON/OFF
*1
Traffic Sign
Recognition System
Turns the traffic sign recognition system on and off. ON
*1
/OFF
Traffic Sign
Recognition System
Over Speed Warning
Turns the traffic sign recognition system over speed
warning on and off.
ON
*1
/OFF
21 JAZZ HYBRID SSS-32TZA6000.book 155 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
156
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
Meter Setup
Language Changes the displayed language.
ENGLISH
*1
/DEUTSCH/
ITALIANO/FRANÇAIS/
ESPAÑOL/Polski/
PORTUGUÊS/
NEDERLANDS/DANSK/
SVENSKA/NORSK/
SUOMI//TÜRK
Warning Message
Turns the driver information interface warning message
on and off.
ON/OFF
*1
Adjust Outside Temp.
Display
Adjusts the temperature reading by a few degrees. -3°C ~ ±0°C
*1
~ +3°C
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A.
When Fully Refueled/
When Ignition Is Turned
OFF/Manual Reset
*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and elapsed
time B.
When Fully Refueled/
When Ignition Is Turned
OFF/Manual Reset
*1
21 JAZZ HYBRID SSS-32TZA6000.book 156 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
157
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
Meter Setup
Alarm Volume Control
Changes the alarm volume, such as buzzers, warnings,
turn signal sound, and so on.
Max/Mid
*1
/Min
Speed/Distance Units Selects the trip meter units.
km/h∙km
*1
/mph∙miles
km/h∙km/mph∙miles
*1
Lighting Setup
Auto High-Beam Turns the auto high-beam on and off. ON
*1
/OFF
Interior Light Dimmer
Duration
Changes the length of time the interior lights stay on
after you close the doors.
60sec/30sec
*1
/15sec
Headlight Auto OFF
Timer
Changes the length of time the exterior lights stay on
after you close the driver’s door.
60sec/30sec/15sec
*1
/0sec
Headlight Integration
With Wipers
Changes the settings for the wiper operation when the
headlights automatically come on while the headlight
switch is in the AUTO position.
ON
*1
/OFF
Left-hand drive type
Right-hand drive type
21 JAZZ HYBRID SSS-32TZA6000.book 157 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
158
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
*1:Default Setting
Setup Group Customizable Features Description Selectable Settings
Door Setup
Keyless Lock
Notification
LOCK/UNLOCK- The exterior lights flash. ON
*1
/OFF
Security Relock Timer
Changes the time it takes for the doors to relock and the
security system to set after you unlock the vehicle
without opening any door.
90sec/60sec/30sec
*1
Maintenance
Reset
*
—
Resets the service reminder display when you have
performed the maintenance service.
Cancel/All Due Items/
Item A Only/Item B Only/
Item 0 Only/Item 1 Only/
Item 2 Only/Item 3 Only/
Item 4 Only/Item 5 Only/
Item 6 Only/Item 7 Only/
Item 8 Only/Item 9 Only
Default All —
Cancels customized changes you have made or restores
them to their default setting.
OK/Cancel
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 158 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
159
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
■
Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Fully Refueled
are shown below. The default setting for “Trip A” Reset Timing is Manual Reset.
1. Press the button, to select , then
press the left selector wheel.
21 JAZZ HYBRID SSS-32TZA6000.book 159 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
160
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
2. Roll the left selector wheel until Meter
Setup appears on the display.
3. Press the left selector wheel.
u Language appears first in the display.
4. Roll the left selector wheel until “Trip A”
Reset Timing appears on the display, then
press the left selector wheel.
u The display switches to the
customization setup screen, where you
can select When Fully Refueled, When
Ignition Is Turned OFF, Manual Reset,
or Back.
5. Roll the left selector wheel and select
When Fully Refueled, then press the left
selector wheel.
u The When Fully Refueled screen
appears, then the display returns to the
customization menu screen.
21 JAZZ HYBRID SSS-32TZA6000.book 160 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
161
uuGauges and DisplaysuDriver Information Interface
Continued
Instrument Panel
6. Roll the left selector wheel until Back
appears on the display, then press the left
selector wheel.
7. Repeat Step 6 until you return to the
normal screen.
21 JAZZ HYBRID SSS-32TZA6000.book 161 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
162
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
Appear for a few seconds when you set the power mode to VEHICLE OFF. Each has
three stages. Depending on your driving style, the leaf icon(s) and the gauge
increase or decrease to indicate that you have reached a different stage of fuel
economy.
■
Drive Cycle Score/Lifetime Points
a Drive Cycle Score
b Advancing to 2nd Stage
c Advancing to 3rd Stage
d Receding to 2nd Stage
e Receding to 1st Stage
f Lifetime Points
21 JAZZ HYBRID SSS-32TZA6000.book 162 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
163
uuGauges and DisplaysuDriver Information Interface
Instrument Panel
■
Resetting the Drive Cycle Score
1. Make sure the shift position is in (P. Turn the power mode to ON.
2. If ECON mode is on, press the ECON button to turn it off.
3. Turn the power mode to VEHICLE OFF.
4. Turn the power mode to ON again.
u Make sure to complete steps from 4 through 6 within 30 seconds.
5. Depress the brake pedal twice.
6. Press the ECON button twice.
7. Turn the power mode to VEHICLE OFF.
21 JAZZ HYBRID SSS-32TZA6000.book 163 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
164
21 JAZZ HYBRID SSS-32TZA6000.book 164 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
165
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock .................................................. 166
Locking and Unlocking the Doors
Key .................................................. 167
Low Keyless Remote Signal Strength .... 169
Locking/Unlocking the Doors from the
Outside .......................................... 170
Locking/Unlocking the Doors from the
Inside ............................................. 176
Childproof Door Locks ..................... 178
Tailgate.............................................. 179
Security System
Immobilizer System .......................... 181
Security System Alarm
*
.................... 182
Super Locking
*
................................ 183
Opening and Closing the Windows .... 184
Operating the Switches Around the
Steering Wheel
POWER Button................................. 188
Lights............................................... 191
Headlight Adjuster........................... 198
Auto High-Beam.............................. 199
Wipers and Washers ........................ 202
Brightness Control ........................... 206
Rear Demister/Heated Door Mirror
Button ........................................205
Adjusting the Steering Wheel .......... 207
Adjusting the Mirrors
Interior Rearview Mirror ................... 208
Power Door Mirrors ......................... 209
Adjusting the Seats .......................... 211
Interior Convenience Items.............. 222
Climate Control System ................... 233
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 165 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
166
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the power mode in ON.
■ Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set, then press .
■
Adjusting the Time
1Adjusting the Clock
You can adjust the clock and customize the clock
display.
2 Clock Setup P. 304
The clock in the instrument panel also changes when
the audio/information screen clock is adjusted.
Models with Display Audio
Models with Display Audio
1Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 How to Customize the Settings P. 265
Models with colour audio
a MENU/CLOCK Button
b Selector Knob
Models with colour audio
21 JAZZ HYBRID SSS-32TZA6000.book 166 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
167
Continued
Controls
Locking and Unlocking the Doors
Key
This vehicle comes with the following key:
Use the keys to turn on and off the power
system, and to lock and unlock all the doors,
tailgate, and fuel fill door.
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless remote until it clicks.
1Key
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.
2 Immobilizer System P. 181
Follow the advice below to prevent damage to the
keys:
• Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
• Do not drop the keys or set heavy objects on them.
• Keep the keys away from liquids, dust and sand.
• Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.
Keyless Remote
■
Built-in Key
a Release Knob
b Built-in Key
21 JAZZ HYBRID SSS-32TZA6000.book 167 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuLocking and Unlocking the DoorsuKey
168
Controls
Contains a number that you will need if you
purchase a replacement key.
■
Key Number Tag
1Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot activate the
power system, contact a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 168 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
169
uuLocking and Unlocking the DoorsuLow Keyless Remote Signal Strength
Controls
Low Keyless Remote Signal Strength
The vehicle transmits radio waves to locate the keyless remote when locking/
unlocking
*
the doors and tailgate, fuel fill door or to activate the power system.
In the following cases, locking/unlocking
*
the doors and tailgate, or activating the
power system may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless remote together with telecommunications
equipment, laptop computers, mobile phones, or wireless devices.
• A metallic object is touching or covering the keyless remote.
1Low Keyless Remote Signal Strength
Communication between the keyless remote and the
vehicle consumes the keyless remote’s battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.
It is possible to reduce battery consumption by
turning off radio wave reception. When you hold
down the lock and unlock buttons at the same time
for approximately three seconds, the LED will blink
twice and radio wave reception will turn off.
If you press any button on the keyless remote once, it
will begin receiving radio waves again.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 169 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
170
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless remote, you can
lock/unlock the doors, fuel fill door, and
tailgate.
You can lock/unlock the doors and tailgate
within a radius of about 80 cm (32 inches) of
the outside door handle or tailgate outer
handle.
■
Using the Keyless Access System
*
1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors and tailgate.
No doors opened: The light fades out after 30
seconds.
Doors and tailgate relocked: The light goes off
immediately.
2 Interior Lights P. 222
1Using the Keyless Access System
*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the keyless
access system, the doors and tailgate will
automatically relock.
You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF
(LOCK).
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 170 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
171
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■ Locking the doors and tailgate
Touch the door lock sensor on the front door
or press the lock button on the tailgate.
u Some exterior lights flash three times; all
the doors and tailgate lock; and the
security system sets.
1Using the Keyless Access System
*
• Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
• Even if you are not carrying the keyless remote, you
can lock/unlock the doors and the tailgate while
someone else with the remote is within range.
• The door may be locked or unlocked if the door
handle is covered with water in heavy rain or in a
car wash if the keyless remote is within range.
• If you grip a front door handle or touch a door lock
sensor wearing gloves, the door sensor may be
slow to respond or may not respond by locking or
unlocking the doors.
• After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds before gripping the handle,
otherwise the door will not unlock.
• The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.
• Even within the 80 cm (32 inches) radius, you may
not be able to lock/unlock the doors and the
tailgate with the keyless remote if it is above or
below the outside handle.
• The keyless remote may not operate if it is too close
to the door and door glass.
a Door Lock Sensor
a Lock Button
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 171 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
172
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■ Unlocking the doors and tailgate
Grab the front door handle:
u All doors, the tailgate, and fuel fill door
unlock.
u Some exterior lights flash once.
Press the outer handle:
u The tailgate unlocks.
u Some exterior lights flash once.
2 Opening/Closing the Tailgate P. 180
a Outer Handle
21 JAZZ HYBRID SSS-32TZA6000.book 172 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
173
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
■ Locking the doors and tailgate
Press the lock button.
u Some exterior lights flash three times, all
the doors, tailgate lock, and fuel fill door
lock, and the security system
*
sets.
■ Unlocking the doors and tailgate
Press the unlock button.
u Some exterior lights flash once, and all
doors, tailgate, and fuel fill door unlock.
■
Using the Remote Transmitter
1Using the Remote Transmitter
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the remote
transmitter, the doors and tailgate will automatically
relock. You can change the relock timer setting.
2 Settings
*
P. 154
2 How to Customize the Vehicle Settings
P. 352
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF (LOCK).
You cannot lock any doors from the outside when
the keyless remote is inside the vehicle, and the
beeper sounds. If you want to lock a door while the
remote is still in the vehicle, do any of the following
four times:
• Press the lock button on the keyless remote.
• Turn the key in the cylinder to lock.
• Touch the door lock sensor on the front door or
press the lock button on the tailgate.
The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock the vehicle when a door or
the tailgate is open.
Models with colour audio
Models with Display Audio
Models with keyless access system with
Right-hand Drive Type
a Lock Button
b Unlock Button
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 173 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
174
Controls
If the lock or unlock button of the keyless remote does not work, use the key
instead.
Fully insert the key and turn it.
1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the battery is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Button Battery P. 579
■
Locking/Unlocking the Doors Using a Key
1Locking/Unlocking the Doors Using a Key
When you lock/unlock the driver's door with the key,
all the other doors lock/unlock at the same time.
If you unlock a door with the built-in key while the
security system is activated, the alarm will go off.
a Lock
b Unlock
21 JAZZ HYBRID SSS-32TZA6000.book 174 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
175
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Outside
Controls
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■ Locking the driver’s door
Push the lock tab forward or push the
master door lock switch in the lock direction
, then pull and hold the outside door
handle . Close the door, then release the
handle.
■ Locking the passenger’s doors
Push the lock tab forward and close the door.
■ Lockout prevention system
The doors and tailgate cannot be locked when the keyless remote is inside the
vehicle.
■
Locking a Door Without Using a Key
1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 175 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
176
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Controls
Locking/Unlocking the Doors from the Inside
■ Locking a door
Push the lock tab forward.
■ Unlocking a door
Pull the lock tab rearward.
■
Using the Lock Tab
1Using the Lock Tab
When you lock/unlock the door using the lock tab on
the driver's door, all the other doors and the tailgate
lock/unlock at the same time.
a To Lock
b To Unlock
21 JAZZ HYBRID SSS-32TZA6000.book 176 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
177
uuLocking and Unlocking the DoorsuLocking/Unlocking the Doors from the Inside
Controls
Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Press the master door lock switch in as shown
to lock or unlock all the doors and the tailgate.
■
Unlocking Using the Front Door Inner Handle
1Unlocking Using the Front Door Inner Handle
The front door inner handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 178
a Inner Handle
■
Using the Master Door Lock Switch
1Using the Master Door Lock Switch
When you lock/unlock the driver's door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
a To Lock
b To Unlock
21 JAZZ HYBRID SSS-32TZA6000.book 177 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
178
uuLocking and Unlocking the DoorsuChildproof Door Locks
Controls
Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■ When opening the door
Open the door using the outside door handle.
■
Setting the Childproof Door Locks
1Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
a Unlock
b Lock
21 JAZZ HYBRID SSS-32TZA6000.book 178 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
179
Controls
Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wind may cause the tailgate to close.
Keep the tailgate closed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 101
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between the tailgate and the luggage
area when closing the tailgate.
When you are storing or picking up luggage from the
luggage area while the engine is idling, do not stand
in front of the exhaust pipe. You may get burned.
Do not allow any passenger in the luggage space.
They may get hurt during hard braking, a sudden
acceleration, or a crash.
3
WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.
21 JAZZ HYBRID SSS-32TZA6000.book 179 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
180
uuTailgateuOpening/Closing the Tailgate
Controls
Opening/Closing the Tailgate
When all the doors are unlocked, the tailgate
is unlocked. Press the tailgate outer handle
and lift open the tailgate.
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
1Opening/Closing the Tailgate
• Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
• Even if you are not carrying the keyless remote, you
can unlock the tailgate while someone else with
the remote is within range.
Models with keyless access system
a Outer Handle
Models with keyless access system
a Inner Handle
21 JAZZ HYBRID SSS-32TZA6000.book 180 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
181
Controls
Security System
Immobilizer System
The immobilizer system prevents a key that has not been pre-registered from
starting the power system. Each key contains electronic transmitters that use
electronic signals to verify the key.
Pay attention to the following when pressing the POWER button:
• Do not allow objects that emit strong radio waves near the POWER button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the POWER
button.
Do not put the key near magnetic items. Electronic device, such as televisions and
audio systems emit strong magnetic fields. Note that even a key chain can become
magnetic.
1Immobilizer System
NOTICE
Leaving the key in the vehicle can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
If the system repeatedly does not recognise the
coding of your key, contact a dealer. If you have lost
your key and cannot start your vehicle, contact a
dealer.
Apply and hold the brake pedal before set the power
mode to ON the first time after the 12-volt battery
has been disconnected.
Right-hand Drive Type
21 JAZZ HYBRID SSS-32TZA6000.book 181 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
182
uuSecurity SystemuSecurity System Alarm
*
Controls
Security System Alarm
*
The security system alarm activates when the tailgate, bonnet, or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the
remote transmitter or keyless access system
*
.
■ When the security system alarm activates
The horn sounds intermittently and all the exterior lights flash.
■ To deactivate the security system alarm
Unlock the vehicle using the remote transmitter or keyless access system
*
, or turn
the power mode to ON. The system, along with the horn and flashing lights, is
deactivated.
■ Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The bonnet is closed.
• All doors and the tailgate are locked from outside with the key, remote
transmitter, or keyless access system
*
.
■ When the security system alarm sets
The security system alarm indicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■ To cancel the security system alarm
The security system alarm is cancelled when the vehicle is unlocked using the remote
transmitter or keyless access system
*
, or when the power mode is set to ON. The
security system alarm indicator goes off at the same time.
1Security System Alarm
*
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security system alarm will continue for
approximately 5 minutes before the security system
deactivates.
The system will go through ten 30-second cycles,
during which the horn will sound and an emergency
indicator will flash.
Depending on circumstances, the security system
may continue operating for more than 5 minutes.
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
• Unlocking the door with the lock tab.
• Opening the bonnet with the bonnet release
handle.
If the 12-volt battery goes dead after you have set the
security system alarm, the security alarm may go off
once the 12-volt battery is recharged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
keyless access system
*
.
If you unlock a door with the built-in key while the
security system is activated, the alarm will go off.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 182 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
183
uuSecurity SystemuSuper Locking
*
Controls
Super Locking
*
The super locking function disables the lock tabs on all doors.
■ To activate the super locking function
• Turn the key in the driver’s door towards the vehicle front twice within five
seconds.
• Press the lock button on the remote transmitter twice within five seconds.
• Touch the door lock sensor on the door handle or press the lock button on the
tailgate twice within five seconds.
■ To cancel the super locking function
Unlock the driver’s door with the remote transmitter or keyless access system
*
.
1Super Locking
*
If you unlock a door with the built-in key while the
security system is activated, the alarm will go off.
3
WARNING
No one must be inside the vehicle with the
super locking set. Persons locked in can get
seriously sick or die from the heat built
inside the vehicle if left in the sun.
Make sure there is no one inside the vehicle
before setting the super locking.
Models with keyless access system
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 183 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
184
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors.
The driver side switches can be used to open and close all the windows. The power
window lock button on the driver side must be switched off (not pushed in,
indicator off) to open and close the windows from anywhere other than the driver’s
seat.
When the power window lock button is pushed in, the indicator comes on and you
can only operate the driver's window. Turn the power window lock button on if a
child is in the vehicle.
1Opening/Closing the Power Windows
WARNING: Always take the ignition key with you
whenever you leave the vehicle alone or with other
occupants.
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF.
Closing driver’s door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it will stop closing and reverse
direction.
The driver’s window auto reverse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to ensure that it fully closes.
3
WARNING
Closing a power window on someone’s
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
Auto-open/close function on all windows
21 JAZZ HYBRID SSS-32TZA6000.book 184 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
185
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Continued
Controls
■ Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■ Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or closes completely. To
stop the window at any time, push or pull the
switch briefly.
■
Opening/Closing the Windows with Auto-Open/Close Function
a Power Window Lock Button
b Driver's Window Switch
c Front Passenger's Window
Switch
*
d Rear Passenger's Window
Switch
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 185 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
186
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To open: Push the switch down.
To close: Pull the switch up.
Release the switch when the window reaches
the desired position.
To open: Press the unlock button, and then
within 10 seconds, press it again and hold it.
To close: Press the lock button, and then
within 10 seconds, press it again and hold it.
If the windows stop midway, repeat the
procedure.
■
Opening/Closing Windows without Auto-Open/Close Function
*
a Close
b Open
■
Opening/Closing the Windows with the Remote
*
a Unlock Button
b Lock Button
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 186 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
187
uuOpening and Closing the WindowsuOpening/Closing the Power Windows
Controls
To close: Lock the driver’s door with the key.
Within 10 seconds of returning the key to the
central position, turn the key in the lock
direction and hold it there.
Release the key to stop the windows at the
desired position. If you want further
adjustment, repeat the same operation.
■
Closing the Windows with the Key
*
a Close
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 187 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
188
Controls
Operating the Switches Around the Steering Wheel
POWER Button
If you carry the keyless remote and press
POWER button without depressing the brake
pedal, the power mode will change in this
order: VEHICLE OFFACCESSORYON
VEHICLE OFF.
VEHICLE OFF:
Vehicle power is turned OFF.
ACCESSORY:
The audio system and some accessories can be
used.
ON:
All accessories can be used.
■
Changing the Power Mode
1POWER Button
If the keyless remote is set in a storage box or another
place where its signal can be interrupted, the power
mode may not change.
When the power mode is set to ON, the power mode
will change to ACCESSORY if the POWER button is
pressed while the transmission is in a position other
than
(P .
21 JAZZ HYBRID SSS-32TZA6000.book 188 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
189
uuOperating the Switches Around the Steering WheeluPOWER Button
Continued
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in (P and the
power mode in ACCESSORY, the vehicle automatically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the 12-volt battery.
When in this mode: The steering wheel does not lock. You cannot lock or unlock
doors with the remote transmitter or the keyless access system
*
. Press the POWER
button twice to switch the mode to VEHICLE OFF (LOCK).
If you open the driver’s door when the power mode is in ACCESSORY, a warning
beep sounds.
■
Automatic Power Off
■
Power Mode Reminder
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 189 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuOperating the Switches Around the Steering WheeluPOWER Button
190
Controls
When the power mode is set to any mode
other than OFF and you remove the keyless
remote from the vehicle and shut the door, an
alarm will sound. If the alarm continues to
sound, place the keyless remote in another
location.
■ When the power mode is in
ACCESSORY
The alarm will sound from outside the vehicle.
■ When the power mode is in ON
An alarm will sound both inside and outside
the vehicle. In addition, a warning indicator
will appear on the instrument panel.
■
Keyless Remote Reminder
1Keyless Remote Reminder
When the keyless remote is within the system’s
operational range, and the driver’s door is closed, the
warning function cancels.
If the keyless remote is taken out of the vehicle after
the power system has been turned on, you can no
longer change the POWER button mode or restart
the power system. Always make sure if the remote is
in your vehicle when you operate the POWER
button.
Removing the keyless remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless remote on the dashboard or in
the glove box. It may cause the warning buzzer to go
off. Under some other conditions that can prevent
the vehicle from locating the remote, the warning
buzzer may also go off even if the remote is within
the system’s operational range.
21 JAZZ HYBRID SSS-32TZA6000.book 190 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
191
uuOperating the Switches Around the Steering WheeluLights
Continued
Controls
Lights
The lights will turn on automatically depending on the ambient brightness. They can
also be switched on and off manually.
The exterior lights will switch on automatically
when the light switch is set to AUTO while
the power mode is in ON.
■ Manual operation
Headlights/position lights:
Turn the light switch to .
Position lights:
Turn the light switch to .
Headlight/position lights off:
Turn the light switch to OFF and release it while the shift position is in
(P and the
parking brake is applied.
u The lights will come back on automatically when:
• The light switch is turned to OFF again and released.
• The shift position is changed out of
(P and the parking brake is released.
■
Headlights/Position Lights
1Lights
When the lights are on, the lights on indicator in the
instrument panel will be on.
2 Lights On Indicator P. 117
1Headlights/Position Lights
When the position lights are on, the tail and rear
license plate lights will also switch on.
When the light switch is turned to or and
the power is turned to OFF, a beeper sounds when
the driver’s door is opened.
When the light switch is turned to AUTO and the
ambient light levels are low, the headlights and
position lights will switch on if you unlock a door.
They will switch off when the door is locked.
The light sensor is in the location shown below. Do
not cover the light sensor.
21 JAZZ HYBRID SSS-32TZA6000.book 191 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
192
uuOperating the Switches Around the Steering WheeluLights
Controls
When the headlights are on, push the lever forward. Pull the lever back to return to
low beams.
■ Flashing the high beams
Pull the lever back to switch on the high
beams.
u Release the lever to return to low beams.
■
High Beams
21 JAZZ HYBRID SSS-32TZA6000.book 192 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
193
uuOperating the Switches Around the Steering WheeluLights
Controls
The turn signals can be used when the power
mode is in ON.
■ : Turn signal
Push the lever up or down based on the
direction you want to turn, and the turn signal
will blink.
■ : One-touch turn signal
When you lightly push the lever up or down
and release it, the turn signal will blink 3
times.
u If you lightly push the lever in the
opposite direction while it is blinking, the
blinking will stop.
■
Turn Signals
1Turn Signals
The turn signal indicator on the instrument panel will
blink when the external turn signal blinks.
2 Indicators P. 106
21 JAZZ HYBRID SSS-32TZA6000.book 193 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuOperating the Switches Around the Steering WheeluLights
194
Controls
The headlights automatically come on when the wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF (LOCK), take the remote with
you, and close the driver’s door.
However, when the switch is in , the position lights remain on.
If you set the power mode to VEHICLE OFF with the headlight switch on, but do not
open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in the
AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a lights on reminder chime.
■
Headlight Integration with Wipers
■
Automatic Lighting Off Feature
1Headlight Integration with Wipers
This feature activates while the headlights are off in
AUTO. The instrument panel brightness does not
change when the headlights come on.
At dark ambient light levels, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
You can turn the headlight integration with wipers
function on and off.
2 Settings
*
P. 154
2 How to Customize the Vehicle Settings
P. 352
Models with colour audio
Models with Display Audio
1Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Settings
*
P. 154
2 How to Customize the Vehicle Settings
P. 352
Models with colour audio
Models with Display Audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 194 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
195
uuOperating the Switches Around the Steering WheeluLights
Continued
Controls
The fog lights can be used when the power mode is in ON.
■ Front fog lights
*
Can be used when the position lights or the headlights are on.
■ Rear fog light
Can be used when the headlights or the front fog lights are on.
■ Front and rear fog light switch
*
To turn the front fog lights on:
Rotate the switch up from the OFF position to
the position. The indicator comes on.
To turn the front and rear fog lights on:
Rotate the switch one position up from the
position. The and indicators come on.
To turn the rear fog lights on:
Rotate the switch one position up from the
position and then rotate the switch one
position down from the position. The
indicator stays on.
To turn the rear fog light off, turn the
headlight switch to the OFF position.
■
Fog Lights
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 195 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
196
uuOperating the Switches Around the Steering WheeluLights
Controls
■ Rear fog light switch
*
To turn the rear fog lights on:
Rotate the switch to . The indicator
comes on.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 196 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
197
uuOperating the Switches Around the Steering WheeluLights
Controls
The daytime running lights come on when the following conditions have been met:
• The power mode is in ON.
• The headlight switch is AUTO.
• The ambient light is bright.
While the vehicle is stopped, if you turn the light switch to OFF and release it, the
daytime running lights will turn off. When the shift position is changed out of
(P
and the parking brake is released, the lights will come on again. Otherwise, if the
light switch is once more turned to OFF, the lights will come on again.
■
Daytime Running Lights
1Daytime Running Lights
Daytime running lights and the position lights share
the same light source.
Daytime running lights are brighter than the position
lights.
The daytime running lights will not switch on if the
position lights have been turned on manually.
21 JAZZ HYBRID SSS-32TZA6000.book 197 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
198
uuOperating the Switches Around the Steering WheeluHeadlight Adjuster
Controls
Headlight Adjuster
You can adjust the vertical angle of the low
beam headlights when the power mode is in
ON.
Turn the adjustment dial to select an
appropriate angle for the headlights.
The larger dial number indicates the lower
angle.
■ To select the adjusting dial position
Refer to the below table for the appropriate dial position for your vehicle's riding
and loading conditions.
1Headlight Adjuster
The headlights are suitable for left hand drive and
right hand drive, without the need to make any
adjustments or masking, as per UN-Regulation No.48
Dover Regulation.
Condition Dial position
A driver
0
A driver and a front passenger
Five persons in the front and rear seats 1
Five persons in the front and rear seats and luggage in
the luggage area, within the limit of maximum
permissible axle weight and maximum permissible
vehicle weight
2
A driver and luggage in the luggage area, within the
limits of maximum permissible axle weight and
maximum permissible vehicle weight
3
21 JAZZ HYBRID SSS-32TZA6000.book 198 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
199
uuOperating the Switches Around the Steering WheeluAuto High-Beam
Continued
Controls
Auto High-Beam
The front wide view camera detects the light sources ahead of the vehicle such as
the lights of a preceding or oncoming vehicle, or street lights. When you are driving
at night, the system automatically switches the headlights between low beam and
high beam depending on the situation.
When all of the following conditions have been met, the auto high-beam indicator
comes on and the auto high-beam is activated.
• The power mode is in ON.
• The light switch is in AUTO.
• The lever is in the low beam position.
• The headlights have been automatically
activated.
• It is dark outside the vehicle.
1Auto High-Beam
The auto high-beam system does not always operate
in every situation. This system is just for assisting the
driver. Always observe your surroundings and switch
the headlights between high beam and low beam
manually if necessary.
The range and the distance at which the camera can
recognise varies depending on conditions
surrounding your vehicle.
Regarding the handling of the camera mounted to
the inside of the windscreen, refer to the following.
2 Front Wide View Camera P. 494
For the auto high-beam to work properly:
• Do not place an object that reflects light on the
dashboard.
• Keep the windscreen around the camera clean.
• When cleaning the windscreen, be careful not to
apply windscreen cleanser to the camera lens.
• Do not attach an object, sticker or film to the area
around the camera.
• Do not touch the camera lens.
If the camera receives a strong impact, or repairing of
the area near the camera is required, consult a dealer.
a Front Wide View Camera
■
How to Use the Auto High-Beam
a Auto High-Beam Indicator
b Light Switch
21 JAZZ HYBRID SSS-32TZA6000.book 199 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuOperating the Switches Around the Steering WheeluAuto High-Beam
200
Controls
If the auto high-beam indicator does not come on even when all the conditions have
been met, carry out either of the procedures below and the indicator will come on.
• Pull the lever towards you and release it.
• Turn the light switch to then turn the light switch to AUTO.
■ Automatic switching between high-beam and low-beam
When auto high-beam is active, the headlights switch between high beam and low
beam based on the following conditions.
Switching to high beam: Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●
Your vehicle speed is 40 km/h
(25 mph) or more.
●
There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●
There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●
Your vehicle speed is 24 km/h
(15 mph) or less.
●
There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●
There are many street lights on
the road ahead.
1Automatic switching between high-beam and low-beam
In the following cases, the auto high-beam system
may not switch the headlights properly or the
switching timing may be changed. In case of the
automatic switching operation does not fit for your
driving habits, please switch the headlights manually.
• The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
• Visibility is poor due to the weather (rain, snow,
fog, windscreen frost, etc.).
• Surrounding light sources, such as street lights,
electric billboards and traffic lights are illuminating
the road ahead.
• The brightness level of the road ahead constantly
changes.
• The road is bumpy or has many curves.
• A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
• Your vehicle is tilted with a heavy load in the rear.
• A traffic sign, mirror, or other reflective object
ahead is reflecting strong light towards the vehicle.
• The oncoming vehicle frequently disappears under
roadside trees or behind median barriers.
• The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
• Windscreen wipers are operating at a high speed.
• The camera has been detected a dense fog.
21 JAZZ HYBRID SSS-32TZA6000.book 200 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
201
uuOperating the Switches Around the Steering WheeluAuto High-Beam
Controls
■ Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the procedures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever towards you for flashing the high beams then release it or push the
lever forward to the high beam position.
u To reactivate the auto high-beam, follow either of the procedures below and
the auto high-beam indicator will come on.
• Pull the lever towards you and release it.
•
Turn the light switch to and then to
AUTO
when the lever is in the low beam position.
Using the light switch:
Turn the light switch to .
u To reactivate the auto high-beam, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
1Auto High-Beam
You can change the auto high-beam system on and
off.
2 Settings
*
P. 154
2 How to Customize the Vehicle Settings
P. 352
Models with colour audio
Models with Display Audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 201 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
202
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
Wipers and Washers
The windscreen wipers and washers can be
used when the power mode is in ON.
■ MIST
The wipers run at high speed until you release
the lever.
■ Wiper switch (OFF, AUTO, LO, HI)
Move the lever up or down to change the
wiper settings.
■ Washer
Sprays while you pull the lever towards you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windscreen,
then stop.
■
Windscreen Wipers/Washers
1Wipers and Washers
NOTICE
Do not use the wipers when the windscreen is dry.
The windscreen will get scratched, or the rubber
blades will get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
NOTICE
In cold weather, the blades may freeze to the
windscreen.
Operating the wipers in this condition may damage
the wipers. Use the demister to warm the
windscreen, then turn the wipers on.
If the wipers stop operating due to an obstacle such
as the build-up of snow, park the vehicle in a safe
place. Rotate the wiper switch to OFF, and set the
power mode to ACCESSORY or VEHICLE OFF, then
remove the obstacle.
a MIST
b OFF
c AUTO
d LO: Low speed wipe
e HI: High speed wipe
f
Washer
21 JAZZ HYBRID SSS-32TZA6000.book 202 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
203
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
When you push the lever down to AUTO, the
windscreen wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the amount of rainfall the
rainfall sensor detects.
■ AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■
Automatic Intermittent Wipers
1Automatic Intermittent Wipers
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
• Cleaning the windscreen
• Driving through a car wash
• No rain present
a Adjustment Ring
Low Sensitivity
High Sensitivity
21 JAZZ HYBRID SSS-32TZA6000.book 203 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
204
uuOperating the Switches Around the Steering WheeluWipers and Washers
Controls
The rear wiper and washer can be used when
the power mode is in ON.
■ Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■ Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate the rear wiper and to spray
the washer. Once released, the washer spray
will stop and the rear wiper will return to its
selected switch setting after a few sweeps.
■ Operating in reverse
When you shift the transmission to
(R with the windscreen wipers activated, the
rear wiper operates automatically as follows even if its switch is off.
■
Rear Wiper/Washer
a
INT: Intermittent
b
ON: Continuous wipe
c OFF
d
Washer
Front Wiper Position Rear Wiper Operation
AUTO (Intermittent) Intermittent
LO (Low speed wipe)
HI (High speed wipe)
Continuous
21 JAZZ HYBRID SSS-32TZA6000.book 204 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
205
uuOperating the Switches Around the Steering WheeluRear Demister/Heated Door Mirror Button
Controls
Rear Demister/Heated Door Mirror Button
Press the rear demister and heated door
mirror button to demist the rear window and
mirrors when the power mode is in ON.
The rear demister and heated door mirror
automatically switches off after 10-30
minutes depending on the outside
temperature. However, if the outside
temperature is 0°C or below, it does not
automatically switch off.
1Rear Demister/Heated Door Mirror Button
This system consumes a lot of power, so turn it off
when the window has been demisted. Also, do not
use the system for a long time while the power
system is stopped. This may weaken the 12-volt
battery, making it difficult to turn the power system
on.
When the power mode is set to ON and the outside
temperature is below 5°C, the heated door mirror
may automatically activate for 10 minutes.
21 JAZZ HYBRID SSS-32TZA6000.book 205 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
206
uuOperating the Switches Around the Steering WheeluBrightness Control
Controls
Brightness Control
The brightness of the gauge is automatically
adjusted depending on the ambient
brightness.
• The brightness becomes darker when the
ambient light is dark.
• The brightness becomes brighter when the
ambient light is bright.
■ Adjusting the brightness manually
You can use the (+ or (- button to adjust
instrument panel brightness.
Brighten: Press the
(+ button.
Dim: Press the (- button.
u You can change the setting even when
the ambient lighting is bright, but the
brightness of the gauge won't change.
■ Brightness level indicator
The brightness level is shown on the display
while you are adjusting it.
1Brightness Control
Several seconds after you have adjusted the
brightness, you will be returned to the previous
screen.
a (+ Button
b (- Button
21 JAZZ HYBRID SSS-32TZA6000.book 206 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
207
uuOperating the Switches Around the Steering WheeluAdjusting the Steering Wheel
Controls
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you
can comfortably grip the steering wheel in an appropriate driving posture.
1. Push the steering wheel adjustment lever
down.
u The steering wheel adjustment lever is
lower left side of the steering column.
2. Move the steering wheel up or down, and
in or out.
u Make sure you can see the instrument
panel gauges and indicators.
3. Pull the steering wheel adjustment lever up
to lock the steering wheel in position.
u After adjusting the position, make sure
you have securely locked the steering
wheel in place by trying to move it up,
down, in, and out.
1Adjusting the Steering Wheel
3
WARNING
Adjusting the steering wheel position while
driving may cause you to lose control of the
vehicle and be seriously injured in a crash.
Adjust the steering wheel only when the
vehicle is stopped.
a Release
b Adjust
c Lock
21 JAZZ HYBRID SSS-32TZA6000.book 207 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
208
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.
■
Rearview Mirror with Day and Night Positions
1Adjusting the Mirrors
Keep the inside and outside mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving.
2 Front Seats P. 211
a Night Position
b Daytime Position
21 JAZZ HYBRID SSS-32TZA6000.book 208 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
209
uuAdjusting the MirrorsuPower Door Mirrors
Continued
Controls
Power Door Mirrors
You can adjust the door mirrors when the
power mode is in ON.
■ Mirror position adjustment
L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return
the switch to the centre position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move
the mirror.
■ Folding door mirrors
*
Press the folding button to fold in and out the
door mirrors.
a Selector Switch
b Adjustment Switch
c Folding Button
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 209 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuAdjusting the MirrorsuPower Door Mirrors
210
Controls
■ Folding in the door mirrors
Press the lock button on the keyless remote, or touch the door lock button
*
on any
door.
u The mirrors start folding in automatically.
■ Folding out the door mirrors
Unlock all doors and the tailgate using the keyless remote or keyless access system
*
.
Open the driver's door.
u The mirrors start folding out automatically.
■
Automatic Folding Door Mirror Function
*
1Automatic Folding Door Mirror Function
*
You cannot turn the automatic folding out
automatically if they have been folded in using the
folding button.
You can turn the automatic folding door mirror
function on and off.
2 How to Customize the Vehicle Settings
P. 352
Door mirrors will not fold automatically when locking
from inside the vehicle using lock tab or master door
lock switch.
Models with Display Audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 210 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
211
Continued
Controls
Adjusting the Seats
Front Seats
Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.
1Adjusting the Seats
In addition to the seat adjustment, you can adjust the
steering wheel up and down, in and out. Allow at
least 25 cm (10 inches) between the centre of the
steering wheel and the chest.
Always make seat adjustments before driving.
3
WARNING
Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.
Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.
Move back to allow sufficient
space.
21 JAZZ HYBRID SSS-32TZA6000.book 211 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuAdjusting the SeatsuFront Seats
212
Controls
■ Adjusting the front manual seat
■
Adjusting the Seat Positions
1Adjusting the front manual seat
Once a seat is adjusted correctly, rock it back and
forth to make sure it is locked in position.
a Horizontal Position Adjustment
Pull up on the bar to move the seat, then release the bar.
b Seat-back Angle Adjustment
Pull up the lever to change the angle.
c Height Adjustment (Driver side only)
Pull up or push down the lever to raise or lower the seat.
21 JAZZ HYBRID SSS-32TZA6000.book 212 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
213
uuAdjusting the SeatsuFront Seats
Controls
Adjust the driver's seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the centre of the steering wheel.
The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant's chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.
■
Adjusting the Seat-Backs
1Adjusting the Seat-Backs
Do not put a cushion, or other object, between the
seat-back and your back.
Doing so may interfere with proper seat belt or airbag
operation.
If you cannot get far enough away from the steering
wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.
3
WARNING
Reclining the seat-back too far can result in
serious injury or death in a crash.
Adjust the seat-back to an upright position,
and sit well back in the seat.
21 JAZZ HYBRID SSS-32TZA6000.book 213 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
214
uuAdjusting the SeatsuRear Seats
Controls
Rear Seats
1. Store the centre seat belt first. Insert the
latch plate into the slot on the side of the
anchor buckle.
2. Retract the seat belt into the holder on the
ceiling.
2 Seat Belt with Detachable Anchor P. 51
3. Lower the rear seat head restraint to its
lowest position.
4. Pull the release lever and fold down the
seat.
■
Folding Down the Rear Seats
1Folding Down the Rear Seats
The rear seat-backs can be folded down to
accommodate bulkier items in the luggage area.
When returning the seat-back to its original position,
push it firmly back. Also, make sure all rear shoulder
belts are positioned in front of the seat-back.
Make sure all items in the luggage area or items
extending through the opening into the rear
seats are properly secured. Loose items can fly
forward if you have to brake hard.
3
WARNING
Make sure the seat-backs are latched
securely before driving.
a Latch Plate
b Anchor Buckle
21 JAZZ HYBRID SSS-32TZA6000.book 214 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
215
uuAdjusting the SeatsuRear Seats
Controls
Separately lift up the left and right rear seat
cushions to make room for luggage area.
■ Lifting up the seat cushion
1. Make sure the seat belt buckles are in their
loops on the seat.
2. Pull up the rear seat cushion.
3. Fold the seat leg down while pushing the
seat cushion firmly against the seat-back to
lock it.
■
Folding Up the Rear Seat
1Folding Up the Rear Seat
After you fold the seat up, or put it back in the
original position, make sure the seat is firmly secured
by rocking it forward and back.
Check if there are any items on the seat before you
pull the seat cushion up. Check if there are any
obstacles around the floor guide before you put the
seat back in the original position.
a Loop
a Seat Leg
21 JAZZ HYBRID SSS-32TZA6000.book 215 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
216
uuAdjusting the SeatsuRear Seats
Controls
■ Putting the seat in the original position
1. Hold the seat cushion in the upright
position, and pull up the seat leg fully.
u The seat cushion can abruptly fall down
once you pull up the seat leg.
2. Slowly put down the seat cushion and set
the seat leg in the floor guide.
u A latch comes out when the leg is set
properly.
a Seat Leg
b Floor Guide
c Latch
21 JAZZ HYBRID SSS-32TZA6000.book 216 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
217
uuAdjusting the SeatsuMaintain a Proper Sitting Position
Controls
Maintain a Proper Sitting Position
After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the power
mode is off.
Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.
In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.
1Maintain a Proper Sitting Position
3
WARNING
Sitting improperly or out of position can
result in serious injury or death in a crash.
Always sit upright, well back in the seat,
with your feet on the floor.
21 JAZZ HYBRID SSS-32TZA6000.book 217 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
218
uuAdjusting the SeatsuHead Restraints
Controls
Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the centre of the
back of the occupant's head rests against the
centre of the restraint. The tops of the
occupant's ears should be level with the
centre height of the restraint.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
■
Adjusting the Front Head Restraints
1Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:
• Do not hang any items on the head restraints, or
from the restraint legs.
• Do not place any objects between an occupant and
the seat-back.
• Install each restraint in its proper location.
3
WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the centre of the
head restraint.
21 JAZZ HYBRID SSS-32TZA6000.book 218 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
219
uuAdjusting the SeatsuHead Restraints
Controls
To tilt the head restraint forward:
Push the back of it forward.
To tilt the head restraint backward:
Push it backward while pressing the release
button on the side of the head restraint.
A passenger sitting in the rear seat seating
position should adjust the height of their head
restraint to an appropriate position before the
vehicle begins moving.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
■
Changing the Rear Seat Head Restraint Position
1Changing the Rear Seat Head Restraint Position
When you use the head restraint in the rear seating
position, pull up the head restraint to its highest
position. Do not use it in any lower position.
21 JAZZ HYBRID SSS-32TZA6000.book 219 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuAdjusting the SeatsuHead Restraints
220
Controls
Head restraints can be removed for cleaning or repair.
To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.
To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.
■
Removing and Reinstalling the Head Restraints
1Removing and Reinstalling the Head Restraints
To remove and install the rear head restraint, recline
the seat-back slightly forward as the space between
the ceiling and the seat-back is limited.
3
WARNING
Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.
Always replace the head restraints before
driving.
21 JAZZ HYBRID SSS-32TZA6000.book 220 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
221
uuAdjusting the SeatsuArmrest
Controls
Armrest
The console lid can be used as an armrest.
■
Using the Front Seat Armrest
21 JAZZ HYBRID SSS-32TZA6000.book 221 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
222
Controls
Interior Convenience Items
Interior Lights
■ ON
The interior lights come on regardless of
whether the doors are open or closed.
■ Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF (LOCK).
■ OFF
The interior lights remain off regardless of
whether the doors are open or closed.
■
Interior Light Switches
1Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
• When you unlock the driver’s door but do not open
it.
• When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.
You can change the interior lights dimming time.
2 Settings
*
P. 154
2 How to Customize the Vehicle Settings
P. 352
The interior lights go off immediately in the following
situations:
• When you lock the driver’s door.
• When you close the driver’s door in ACCESSORY
mode.
• When you set the power mode to ON.
If you leave any of the doors open in VEHICLE OFF
(LOCK) mode, the interior lights go off after about 15
minutes.
To avoid draining the battery, do not leave the
interior light on for an extended length of time when
the power system is off.
Models with colour audio
Models with Display Audio
a Door Activated Position
b On
c Off
Front
Rear
a Door Activated Position
b On
c Off
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 222 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
223
uuInterior Convenience ItemsuInterior Lights
Controls
■ Front seat
The map lights can be turned on and off by
pressing the buttons.
The lights come on when you open the
tailgate.
■
Map Lights
1Map Lights
When the front interior light switch is in the door
activated position and any door is open, the map
light will not go off when you press the buttons.
■
Luggage Area Lights
21 JAZZ HYBRID SSS-32TZA6000.book 223 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
224
uuInterior Convenience ItemsuStorage Items
Controls
Storage Items
Pull the handle to open the glove box.
Pull the handle to open the upper glove box.
■
Glove Box
1Glove Box
3
WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
■
Upper Glove Box
1Upper Glove Box
3
WARNING
An open upper glove box can cause serious
injury to your passenger in a crash, even if
the passenger is wearing the seat belt.
Always keep the upper glove boxes closed
while driving.
21 JAZZ HYBRID SSS-32TZA6000.book 224 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
225
uuInterior Convenience ItemsuStorage Items
Continued
Controls
Pull the handle to open the console box.
■
Console Box
21 JAZZ HYBRID SSS-32TZA6000.book 225 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuInterior Convenience ItemsuStorage Items
226
Controls
■ Front seat beverage holders
Are located on the both of the front panel.
Are located in the console between the front
seats.
■ Front door side beverage holders
Are located on the both of front door side
pockets.
■
Beverage Holders
1Beverage Holders
NOTICE
Spilled liquids can damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are using the beverage holders.
Hot liquid can scald you.
Front Panel
Centre Console
21 JAZZ HYBRID SSS-32TZA6000.book 226 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
227
uuInterior Convenience ItemsuStorage Items
Controls
■ Rear door side beverage holders
Are located on the both of rear door side
pockets.
There are coat hooks on the rear driver's side
grab handle. Pull it down to use it.
■
Coat Hook
1Coat Hook
The coat hooks are not designed for large or heavy
items.
21 JAZZ HYBRID SSS-32TZA6000.book 227 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuInterior Convenience ItemsuStorage Items
228
Controls
The tie-down anchors on the luggage area
floor can be used to install a net for securing
items.
The luggage hook in the luggage area can be
used to hang a light items.
■
Tie-down Anchors
1Tie-down Anchors
Do not let anyone access items in the luggage area
while driving. Loose items can cause injury if you have
to brake hard.
■
Luggage Hook
1Luggage Hook
NOTICE
Do not hang a large object or an object that weighs
more than 3 kg (6 lbs) on the side luggage hook.
Hanging heavy or large objects may damage the
hook.
21 JAZZ HYBRID SSS-32TZA6000.book 228 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
229
uuInterior Convenience ItemsuStorage Items
Continued
Controls
Pull up the luggage area lower floor lid.
■
Luggage Floor Box
a Floor Lid
b Luggage Floor Box
21 JAZZ HYBRID SSS-32TZA6000.book 229 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuInterior Convenience ItemsuStorage Items
230
Controls
The luggage area cover can be removed to give you more luggage room.
■ To remove the luggage area cover
1. Open the tailgate.
2. Remove the strap on each side of the
tailgate.
3. Disengage the support rods, then remove
the luggage area cover.
Reverse this procedure to install the luggage
area cover.
After reinstalling the luggage area cover,
make sure it is latched securely.
■
Luggage Area Cover
1Luggage Area Cover
Do not place items on the luggage area cover, or
stack objects higher than the top of the back seat.
They could block your view and be thrown around
the vehicle during a crush or sudden stop.
Do not apply excessive pressure to the cover, such as
leaning on it to retrieve an item.
a Strap
a Support Rod
21 JAZZ HYBRID SSS-32TZA6000.book 230 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
231
uuInterior Convenience ItemsuOther Interior Convenience Items
Continued
Controls
Other Interior Convenience Items
The accessory power sockets can be used when the power mode must be in
ACCESSORY or ON.
■ Console panel
Open the cover to use it.
The power mode must be in ON to use the
heated steering wheel.
Press the button on the right side of the
steering wheel.
When a comfortable temperature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you turn the power system on, even if
you turned it on the last time you drove the
vehicle.
■
Accessory Power Socket
1Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element. This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
When the power socket is not in use, close the cover
to prevent any small foreign objects from getting into
the power socket.
■
Heated Steering Wheel
*
1Heated Steering Wheel
*
Do not use the heated steering wheel continuously
when the power system is off. Under such conditions,
the 12-volt battery may be weakened, making it
difficult to turn the power system on.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 231 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuInterior Convenience ItemsuOther Interior Convenience Items
232
Controls
The power mode must be in ON to use the
seat heaters.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
When the power mode is in ON after it is
turned off, the previous setting of seat heaters
is maintained.
■
Front Seat Heaters
*
1Front Seat Heaters
*
Do not use the seat heaters even in LO when the
power system is off. Under such conditions, the 12-
volt battery may be weakened, making it difficult to
turn the power system on.
After a certain period of time, the strength setting for
the seat heater will automatically be reduced by one
level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3
WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 232 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
233
Continued
Controls
Climate Control System
Using Automatic Climate Control
The automatic climate control system maintains the interior temperature you select.
The system also selects the proper mix of heated or cooled air that raises or lowers
the interior temperature to your preference as quickly as possible.
Use the system when the power system is on.
1. Press the AUTO button.
2. Adjust the interior temperature using the temperature control dial.
3. Press the (on/off) button to cancel.
*1:Left-hand drive types shown. For the right-hand drive types, these buttons are
located at the symmetrically opposite to the left-hand drive type.
1Using Automatic Climate Control
If any buttons are pressed while using the climate
control system in auto, the function of the button
that was pressed will take priority.
The AUTO indicator will go off, but functions
unrelated to the button that were pressed will be
controlled automatically.
To prevent cold air from blowing in from outside, the
fan may not start immediately when the AUTO
button is pressed.
If the interior is very warm, you can cool it down
more rapidly by partially opening the windows,
turning the system on auto, and setting the
temperature to low. Change the fresh mode to
recirculation mode until the temperature cools down.
When you set the temperature to the lower or upper
limit, Lo or Hi is displayed.
Pressing the button switches the climate control
system between on and off. When turned on, the
system returns to your last selection.
While ECON mode is active, the climate control
system may have reduced cooling performance.
The High Voltage battery level being low may reduce
the climate control system performance.
a AUTO Button
*1
g MODE Control Dial
• Air flows from dashboard vents
• Air flows from dashboard and
floor vents
• Air flows from floor vents
• Air flows from floor and
windscreen demister vents
b Temperature Control Dial
*1
c Fan Control Dial
*1
d ON/OFF Button
*1
e A/C (Air Conditioning) Button
*1
f Recirculation Button
*1
21 JAZZ HYBRID SSS-32TZA6000.book 233 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuClimate Control SystemuUsing Automatic Climate Control
234
Controls
■ Switching between the recirculation and fresh air modes
Press the (recirculation) button and switch the mode depending on
environmental conditions.
Recirculation mode (indicator on): Recirculates air from the vehicle's interior
through the system.
Fresh air mode (indicator off): Maintains outside ventilation. Keep the system in
fresh air mode in normal situations.
Pressing the (windscreen demister) button
turns the air conditioning system on and
automatically switches the system to fresh air
mode.
Press the button again to turn off, the
system returns to the previous settings.
■ To rapidly defrost the windows
1. Press the button (indicator on).
2. Press the button (indicator on).
■
Defrosting the Windscreen and Windows
1Defrosting the Windscreen and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperature near the upper or lower
limit.
When cold air hits the windscreen, the outside of the
windscreen may fog up.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode. If you keep the system in recirculation mode,
the windows may fog up from humidity. This
impedes visibility.
21 JAZZ HYBRID SSS-32TZA6000.book 234 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
235
uuClimate Control SystemuAutomatic Climate Control Sensors
Controls
Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.
21 JAZZ HYBRID SSS-32TZA6000.book 235 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
236
21 JAZZ HYBRID SSS-32TZA6000.book 236 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
237
Features
This chapter describes how to operate technology features.
Audio System.................................... 238
Colour Audio..................................... 241
Display Audio ................................... 285
Audio Error Messages...................... 377
General Information on the Audio
System............................................. 379
Emergency Call (eCall)...................... 386
21 JAZZ HYBRID SSS-32TZA6000.book 237 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
238
Features
Audio System
About Your Audio System
The audio system features FM/AM radio and Digital Audio Broadcasting (DAB)
service. It can also play USB flash drives, iPod, iPhone, Bluetooth® devices, and
smartphone.
You can operate the audio system from the buttons and knobs on the panel, the
remote controls on the steering wheel or the icons on the touchscreen interface
*
.
1About Your Audio System
iPod, iPhone and iTunes are trademarks of Apple Inc.
a Remote Controls
b iPod
c USB Flash Drive
Models with colour audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 238 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
239
uuAudio SystemuAbout Your Audio System
Features
a Remote Controls
b iPod
c USB Flash Drive
Models with Display Audio
21 JAZZ HYBRID SSS-32TZA6000.book 239 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
240
uuAudio SystemuAudio System Theft Protection
Features
Audio System Theft Protection
The audio system is disabled when it is disconnected from the power source, such as
when the 12-volt battery is disconnected or goes dead. In certain conditions, the
system may display a code entry screen. If this occurs, reactivate the audio system.
■
Reactivating the audio system
1. Set the power mode to ON.
2. Turn on the audio system.
3. Press and hold the audio system power button for more than two seconds.
u The audio system is reactivated when the audio control unit establishes a
connection with the vehicle control unit. If the control unit fails to recognise
the audio unit, you must go to a dealer and have the audio unit checked.
21 JAZZ HYBRID SSS-32TZA6000.book 240 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
241
Continued
Features
Colour Audio
Basic Operation
To use the audio system function, the power mode must be in ACCESSORY or ON.
Use the selector knob or MENU/CLOCK
button to access some audio functions.
Press to switch between the normal and
extended display for some functions.
Selector knob: Rotate left or right to scroll
through the available choices. Press to set
your selection.
MENU/CLOCK button: Press to select any
mode.
The available modes include wallpaper,
display, clock, language setup, and play
modes. Play mode choices include scan,
random, repeat, and so on.
(Back) button: Press to go back to the
previous display.
TA button: Press to activate the TA station.
(Day/Night) button: Press to change
the audio/information screen brightness.
Press the button, then adjust the
brightness using .
u Each time you press the button, the
mode switches between the daytime
mode, nighttime mode and off mode.
■
Audio System Function
1Colour Audio
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Menu Items
2 Adjust Clock P. 166
2 Wallpaper Setup P. 246
2 Adjusting the Sound P. 248
2 Display Setup P. 249
2 Customized Features P. 265
Press the button on the steering wheel to change any
audio setting.
2 Audio Remote Controls P. 243
(Back)
Button
Selector Knob
MENU/
CLOCK
Button
(Day/Night)
Button
TA Button
Menu Display
21 JAZZ HYBRID SSS-32TZA6000.book 241 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouBasic Operation
242
Features
The USB port (1.0A) is for playing audio files
on a USB flash drive, connecting a mobile
phone, and charging devices.
■
USB Port
1USB Port
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
• We recommend that you use a USB cable if you are
attaching a USB flash drive to the USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend backing up your data before using
the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
Under certain conditions, a device connected to the
port may generate noise in the radio you are listening
to.
21 JAZZ HYBRID SSS-32TZA6000.book 242 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
243
uuColour AudiouBasic Operation
Features
Allow you to operate the audio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM1FM2DAB1DAB2LW
AM (MW)USB/iPodBluetooth® Audio
VOL
(+/VOL(- (Volume) Buttons
Press VOL(+: To increase the volume.
Press VOL
(-: To decrease the volume.
/ (Seek/Skip) Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive or Bluetooth® Audio
Press and hold : To skip to the next folder/group.
Press and hold : To go back to the previous folder/group.
■
Audio Remote Controls
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
/
(Seek/Skip)
Buttons
SOURCE Button
VOL(+/VOL(- (Volume) Buttons
21 JAZZ HYBRID SSS-32TZA6000.book 243 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
244
uuColour AudiouAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status and wallpaper. From this screen, you can go to various
setup options.
■
Audio
Shows the current audio information.
■
Clock/Wallpaper
Shows a clock screen or an image you import.
■
Switching the Display
Audio/Information Screen
Audio
Clock/Wallpaper
21 JAZZ HYBRID SSS-32TZA6000.book 244 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
245
uuColour AudiouAudio/Information Screen
Continued
Features
■
Change display
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display change, then press .
4. Rotate to select Wallpaper, then press .
u If you want to return to the audio/information screen, select Audio.
21 JAZZ HYBRID SSS-32TZA6000.book 245 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouAudio/Information Screen
246
Features
You can change, store, and delete the
wallpaper on the audio/information screen.
■
Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive.
1. Connect the USB flash drive to the USB port.
2 USB Port P. 242
2. Press the MENU/CLOCK button.
3. Rotate to select Settings, then press .
4. Rotate to select Wallpaper, then press .
5. Rotate to select Import, then press .
u The picture name is displayed on the list.
6. Rotate to select a desired picture, then press .
u The selected picture is displayed.
7. Press to save the picture.
8. Press to select OK.
9. Rotate to select a location to save the picture, then press .
u The display will return to the wallpaper setting screen.
■
Wallpaper Setup
1Wallpaper Setup
• When importing wallpaper files, the image must be
in the USB flash drive’s root directory. Images in a
folder cannot be imported.
• The file name must be fewer than 510 bytes.
• The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
• The individual file size limit is 2 MB.
• The maximum image size is 1,920 x 936 pixels. If
the image size is less than 480 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
• Up to 255 files can be selected.
• If the USB flash drive does not have any pictures, a
message appears.
• The wallpaper setup is limited while driving.
21 JAZZ HYBRID SSS-32TZA6000.book 246 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
247
uuColour AudiouAudio/Information Screen
Features
■
Select wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Select, then press .
u The screen changes to the wallpaper list.
5. Rotate to select a desired wallpaper, then press .
■
To view wallpaper once it is set
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Display change, then press .
4. Rotate to select Wallpaper, then press .
5. Press the (Back) button until the top screen is displayed.
■
Delete wallpaper
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Wallpaper, then press .
4. Rotate to select Delete, then press .
u The screen changes to the wallpaper list.
5. Rotate to select a wallpaper that you want to delete, then press .
6. Rotate to select Yes, then press .
u The display will return to the wallpaper setting screen.
1Wallpaper Setup
To go back to the previous screen, press the
(Back) button.
When the file size is large, it takes a while to be
previewed.
21 JAZZ HYBRID SSS-32TZA6000.book 247 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
248
uuColour AudiouAdjusting the Sound
Features
Adjusting the Sound
Press the MENU/CLOCK button and rotate
to select Sound, then press . Rotate
to scroll through the following choices:
Rotate to adjust the sound setting, then
press .
1Adjusting the Sound
The SVC has four modes: Off, Low, Mid, and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audio volume decreases.
Selector Knob
MID is selectable.
BAS
MID
FAD
BAL
SVC
Bass
Middle
Fader
Balance
Speed-sensitive
V
olume Compensation
TRE
Treble
21 JAZZ HYBRID SSS-32TZA6000.book 248 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
249
uuColour AudiouDisplay Setup
Features
Display Setup
You can change the brightness or colour theme of the audio/information screen.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Display adjustment,
then press .
4. Rotate to select Brightness, then press
.
5. Rotate to adjust the setting, then press
.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press
.
3. Rotate to select Colour theme, then
press .
4. Rotate to select the setting you want,
then press .
■
Changing the Screen Brightness
1Changing the Screen Brightness
You can change the Contrast and Black level
settings in the same manner.
■
Changing the Screen’s Colour Theme
21 JAZZ HYBRID SSS-32TZA6000.book 249 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
250
uuColour AudiouPlaying AM/FM Radio
Features
Playing AM/FM Radio
RADIO Button
Press to select a band.
(Back) Button
Press to go back to the previous
display or cancel a setting.
/ (Seek/Skip) Buttons
Press or to search up and down
the selected band for a station with a strong
signal.
VOL/ (Volume/Power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select a band, then press the preset button.
Selector Knob
Turn to tune the radio frequency.
Press, and then turn to select an
item. After that, press again to
make your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
TA Button
21 JAZZ HYBRID SSS-32TZA6000.book 250 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
251
uuColour AudiouPlaying AM/FM Radio
Features
Provides text data information related to your selected RDS capable FM station.
■
To find an RDS station from Station List
1. Press while listening to an FM station.
2. Rotate to select the station, then press .
■
Update List
Updates your available station list at any time.
1. Press while listening to an FM station.
2. Rotate to select Update list, then press .
■
Radio text
Displays the radio text information of the selected RDS station.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select RDS settings, then press .
4. Rotate to select Radio text, then press .
■
Alternative Frequency (AF)
Automatically changes the frequency of the same programme as you enter different
regions.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select RDS settings, then press .
4. Rotate to select AF, then press .
■
Radio Data System (RDS)
1Playing AM/FM Radio
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
You can store 6 AM stations and 12 FM stations into
the preset memory. FM1 and FM2 let you store 6
stations each.
Switching the Audio Mode
Press the audio source selecting button on the
steering wheel.
2 Audio Remote Controls P. 243
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.
21 JAZZ HYBRID SSS-32TZA6000.book 251 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
252
uuColour AudiouPlaying AM/FM Radio
Features
■
Regional Programme (REG)
Keeps the same frequency of the stations within that region even if the signal gets
weak.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select RDS settings, then press .
4. Rotate to select REG, then press .
■
News
Automatically tunes to the news programme.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select RDS settings, then press .
4. Rotate to select News, then press .
■
Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the MENU/CLOCK button.
2. Rotate to select Scan, then press .
To turn off scan, press .
21 JAZZ HYBRID SSS-32TZA6000.book 252 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
253
uuColour AudiouPlaying AM/FM Radio
Features
■
Traffic announcement (TA) button
TA standby function allows the system to stand by for traffic announcements in any
mode. The last tuned station must be an RDS-capable traffic programme station.
To turn the function on: Press the TA button. When a traffic announcement
begins on your last tuned station, the system automatically switches to the FM
mode. TA-INFO appears on the audio/information screen. The system returns to your
last selected mode after the traffic announcement is finished.
If you want to go back to your last selected mode during the traffic announcement,
press the TA button again.
To cancel the function: Press the TA button.
1Radio Data System (RDS)
TA
When you press the TA button, the TA indicator
appears on the audio/information screen.
If you select Scan while the TA standby function is
on, the system searches TP station only.
Pressing the TA button while the traffic
announcement is on does not cancel the TA standby
function.
21 JAZZ HYBRID SSS-32TZA6000.book 253 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
254
uuColour AudiouPlaying DAB (Digital Audio Broadcasting)
Features
Playing DAB (Digital Audio Broadcasting)
Audio/Information Screen
RADIO Button
Press to select a band.
VOL/ (Volume/Power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
/ (Seek/Skip) Buttons
Press or to tune a
DAB ensemble.
The DAB signal strength
indicator appears on the
display when the DAB band is
selected.
Selector Knob
Turn to tune the service.
Press, and then turn to select
an item. After that, press again
to make your selection.
MENU/CLOCK Button
Press to display the menu items.
(Back) Button
Press to go back to the previous
display or cancel a setting.
Preset Buttons (1-6)
To store a station:
1. Tune to the selected station.
2. Pick a preset button and hold it until you hear a beep.
To listen to a stored station, select a band, then press the preset button.
21 JAZZ HYBRID SSS-32TZA6000.book 254 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
255
uuColour AudiouPlaying DAB (Digital Audio Broadcasting)
Features
■
To find a DAB station from Service List or Ensemble List
To find a DAB station from the service list:
1. Press while selecting the DAB mode.
2. Rotate to select the station, then press .
u If you select Update list, the system update the station list.
To find a DAB station from the ensemble list:
1. Press while selecting the DAB mode.
2. Rotate to select Ensemble list, then press .
3. Rotate to select the ensemble, then press .
u If you select Update list, the system update the ensemble list.
■
Scan
Samples each of the strongest stations on the selected band for 10 seconds.
1. Press the MENU/CLOCK button.
2. Rotate to select Scan, then press .
To turn off scan, press .
■
Radio Text:
Displays the radio text information of the selected DAB station.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select DAB settings, then press .
4. Rotate to select Radio text, then press .
u Select Radio text again to turn it off.
■
Service List and Ensemble List
1Service List and Ensemble List
You can store 12 DAB stations into the preset button
memory. DAB1 and DAB2 let you store 6 stations
each.
Switching the Audio Mode
Press the audio source selecting button on the
steering wheel.
2 Audio Remote Controls P. 243
If the system cannot find a station, a confirmation
message for updating the list appears. Rotate to
select Yes, then press to update the list.
1Radio Text:
The TEXT indicator appears on the display indicating
radio text information.
21 JAZZ HYBRID SSS-32TZA6000.book 255 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
256
uuColour AudiouPlaying DAB (Digital Audio Broadcasting)
Features
■
DAB-Link:
Automatically searches for the same station from Ensembles, and switches to it.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select DAB settings, then press .
4. Rotate to select DAB-Link, then press .
u Select DAB-Link again to turn it off.
■
FM-Link:
If the system finds the same station from an FM band, it automatically switches the
band.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select DAB settings, then press .
4. Rotate to select FM-Link, then press .
u Select FM-Link again to turn it off.
21 JAZZ HYBRID SSS-32TZA6000.book 256 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
257
uuColour AudiouPlaying an iPod
Continued
Features
Playing an iPod
Connect the iPod using your USB connector to the USB port, then press the MEDIA
button.
2 USB Port P. 242
USB Indicator
Appears when an iPod is connected.
MEDIA Button
Press to select iPod
(if connected).
(Back) Button
Press to go back to the previous
display or cancel a setting.
/ (Seek/Skip) Buttons
Press or to change songs.
Press and hold to move rapidly within a song.
VOL/ (Volume/Power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
Selector Knob
Turn to change songs.
Press, and then turn to select an
item. After that, press again to
make your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
Co
ver Art
Play Mode Buttons
Press to sele
ct a play mode.
Play Button
Press to resume a
song.
Pause Button
Press to pause a
song.
21 JAZZ HYBRID SSS-32TZA6000.book 257 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouPlaying an iPod
258
Features
1. Press to display the iPod music list.
2. Rotate to select a category.
3. Press to display a list of items in the category.
4. Rotate to select an item, then press .
u Press and rotate repeatedly until a desired item you want to listen is
displayed.
■
How to Select a Song from the iPod Music List with the
Selector Knob
1Playing an iPod
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 377
21 JAZZ HYBRID SSS-32TZA6000.book 258 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
259
uuColour AudiouPlaying an iPod
Features
You can select repeat and shuffle modes when playing a song.
Available mode icons appear above the play
mode buttons.
Press the button corresponding to the mode
you want to select.
■
Shuffle/Repeat
Shuffle albums: Plays all available albums in a selected category in random
order.
Shuffle all: Plays all available songs in a selected category in random order.
Repeat one track: Repeats the current song.
■
To turn off a play mode
Press the selected button.
■
How to Select a Play Mode
1How to Select a Play Mode
You can also select a play mode by pressing the
MENU/CLOCK button.
Rotate to select Play mode, then press .
Rotate to select a mode, then press .
To turn it off, rotate to select Normal play, then
press .
Play Mode Buttons
21 JAZZ HYBRID SSS-32TZA6000.book 259 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
260
uuColour AudiouPlaying a USB Flash Drive
Features
Playing a USB Flash Drive
Your audio system reads and plays sound files on a USB flash drive in either MP3,
WMA, AAC
*1
or WAV format.
Connect your USB flash drive to the USB port, then press the MEDIA button.
2 USB Port P. 242
*1:Only AAC format files recorded with iTunes are playable on this unit.
USB Indicator
Appears when a USB flash drive is connected.
MEDIA Button
Press to select USB flash drive
(if connected).
(Back) Button
Press to go back to the previous display.
/ (Seek/Skip) Buttons
Press or to change files.
Press and hold to move rapidly within a file.
VOL/ (Volume/Power) Knob
Press to turn the audio system
on and off.
Turn to adjust the volume.
Selector Knob
Turn to change files.
Press, and then turn to select an
item. After that, press again to
make your selection.
MENU/CLOCK Button
Press to display the menu items.
Audio/Information Screen
Play Mode Buttons (1-6)
Pres
s to select a play mode.
Cover Art
21 JAZZ HYBRID SSS-32TZA6000.book 260 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
261
uuColour AudiouPlaying a USB Flash Drive
Features
1. Press to display a folder list.
2. Rotate to select a folder.
3. Press to display a list of files in that folder.
4. Rotate to select a file, then press .
■
How to Select a File from a Folder with the Selector Knob
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 379
Files in WMA and AAC format protected by digital
rights management (DRM) cannot be played.
The audio system displays Unplayable file, and then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 377
21 JAZZ HYBRID SSS-32TZA6000.book 261 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouPlaying a USB Flash Drive
262
Features
You can select repeat, random, and scan modes when playing a file.
Available mode icons appear above the play
mode buttons.
Press the button corresponding to the mode
you want to select.
■
Repeat/Random/Scan
Repeat
Repeat one folder: Repeats all files in the current folder.
Repeat one track: Repeats the current file.
Random
Random in folder: Plays all files in the current folder in random order.
Random all: Plays all files in random order.
Scan
Scan folders: Provides 10-second sampling of the first file in each of the
main folders.
Scan tracks: Provides 10-second sampling of all files in the current folder.
■
To turn off a play mode
Press the selected button.
■
How to Select a Play Mode
1How to Select a Play Mode
You can also select a play mode by pressing the
MENU/CLOCK button.
Rotate to select Play mode, then press .
Rotate to select a mode, then press .
To turn it off, rotate to select Normal play, then
press .
Play Mode Buttons
21 JAZZ HYBRID SSS-32TZA6000.book 262 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
263
uuColour AudiouPlaying Bluetooth® Audio
Continued
Features
Playing Bluetooth® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Hands-Free Telephone (HFT) system.
2 Phone Setup P. 275
1Playing Bluetooth® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible with the system.
To check if your phone is compatible, ask a dealer.
Only one phone can be used with HFT at a time.
When there are more than two paired phones in the
vehicle, the system automatically connects to the
prioritized phone. You can assign priority to a phone
in Priority device setup.
2 Customized Features P. 265
If more than one phone is paired to the HFT system,
there will be a delay before the system begins to play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some
devices.
MEDIA Button
Press to select
Bluetooth Audio mode
(if connected).
VOL/
(Volume/
Power) Knob
Press to turn
the audio
system on and
off.
Turn to adjust
the volume.
MENU/
CLOCK
Button
Press to
display the
menu items.
Audio/Information Screen
Bluetooth Ind
icator
Appears when your phone is connected to HFT.
/ (Seek/Skip)
Buttons
Press or to
change files.
Play Button (Preset 1)
Press to resume a file.
Pause Button (Preset 2)
Press to pause a file.
Selector Knob
Turn to change groups.
Press, and then turn to select an item. After
that, press again to make your selection.
(Back) Button
Press to go back to the previous display.
21 JAZZ HYBRID SSS-32TZA6000.book 263 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouPlaying Bluetooth® Audio
264
Features
1. Make sure that your phone is paired and
connected to HFT.
2. Press the MEDIA button until the
Bluetooth® Audio mode is selected.
If the phone is not recognised, another HFT-
compatible phone, which is not compatible
for Bluetooth® Audio, may already be
connected.
■
To pause or resume a file
Press the Play or Pause button to select a mode.
1. Press to display the music search list.
2. Rotate to select a category.
3. Press to display a list of items in the category.
4. Rotate to select an item, then press .
u Press and rotate repeatedly until a desired item you want to listen is
displayed.
■
To Play Bluetooth® Audio Files
1To Play Bluetooth® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker's operating
instructions.
The pause function may not be available on some
phones.
If any audio device is connected to the USB port, you
may need to press the MEDIA button repeatedly to
select the Bluetooth® Audio system.
Switching to another mode pauses the music playing
from your phone.
Play Button
Pause Button
MEDIA Button
■
How to Select a Song from the Music Search List with the
Selector Knob
1How to Select a Song from the Music Search List with the Selector
Knob
Depending on the Bluetooth® device you connect,
some or all of the categories may not be displayed.
21 JAZZ HYBRID SSS-32TZA6000.book 264 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
265
uuColour AudiouCustomized Features
Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
While the vehicle is at a complete stop with the power mode in ON, press the
MENU/CLOCK button, then select Adjust clock, Sound or Settings. To customize
the phone settings, press the button, then select Phone setup.
■
How to Customize the Settings
1Customized Features
When you customize settings:
• Make sure that the vehicle is at a complete stop.
• Shift to (P.
1How to Customize the Settings
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
Audio/Information Screen
MENU/CLOCK Button
(Phone) Button
Selector
Knob
21 JAZZ HYBRID SSS-32TZA6000.book 265 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
266
uuColour AudiouCustomized Features
Features
■
Adjust clock
■
Sound
■
Settings
*1:Default Setting
Customizable Features Description Selectable Settings
Adjust clock
Adjusts the clock.
2 Clock P. 166
—
Customizable Features Description Selectable Settings
Sound
Adjusts the sound.
2 Adjusting the Sound P. 248
BAS/MID/TRE/FAD/BAL/SVC
Customizable Features Description Selectable Settings
RDS settings
Radio text
Displays the radio text information of the selected RDS
station.
On/Off
*1
AF
Automatically changes the frequency of the same
programme as you enter different region.
On
*1
/Off
REG
Keeps the same frequency of the stations within that
region even if the signal gets weak.
On
*1
/Off
News
Turns on and off to automatically to tune to the news
programme.
On/Off
*1
DAB settings
Radio text
Displays the radio text information of the selected DAB
station.
On/Off
*1
DAB-Link
Selects whether the system automatically searches for
the same station from Ensembles, and switches to it.
On
*1
/Off
FM-Link
Selects whether the system finds the same station from
an FM band, and automatically switches the band.
On
*1
/Off
21 JAZZ HYBRID SSS-32TZA6000.book 266 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
267
uuColour AudiouCustomized Features
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Bluetooth
setup
Add new device
Pairs a new phone to HFT, edits and deletes a paired
phone, and create a code for a paired phone.
2 Phone Setup P. 275
—
Connect an audio device
Connects, disconnects or pairs a Bluetooth® Audio device
to HFT.
—
Display
adjustment
Brightness Changes the brightness of the audio/information screen. —
Contrast Changes the contrast of the audio/information screen. —
Black level Changes the black level of the audio/information screen. —
Display change Changes the display type. Audio
*1
/Wallpaper
Wallpaper
Select Changes the wallpaper type.
Clock
*1
/Image 1/Image 2/
Image 3
Import
Imports an image file for a new wallpaper.
2 Wallpaper Setup P. 246
—
Delete Deletes an image file for a wallpaper.
Image 1/Image 2/
Image 3
Colour theme
Changes the background colour of the audio/information
screen.
Blue
*1
/Red/Amber/Violet/
Blue green
Language Changes the display language.
English
*1
or Turkish
*1
See other selectable languages
on the screen.
Clock format Selects the digital clock display from 12H to 24H. 12h
*1
/24h
License Shows the legal information. —
21 JAZZ HYBRID SSS-32TZA6000.book 267 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
268
uuColour AudiouCustomized Features
Features
■
Phone setup
*1:Default Setting
Customizable Features Description Selectable Settings
Bluetooth
setup
Add new device
Pairs a new phone to HFT.
2 Phone Setup P. 275
—
Priority
device setup
Priority
Enables the system to or disables it from automatically
establishing a connection with a Bluetooth® device which
has been assigned priority.
On
*1
/Off
Phone
priority
Selects the priority device over another paired phone(s).
—
Audio
priority
Selects the priority device over another paired audio
device(s).
—
Connect a phone
Pairs a new phone or connects a paired phone to HFT.
2 Phone Setup P. 275
—
Connect an audio device Connects a Bluetooth® Audio device to HFT. —
Disconnect all devices Disconnects a paired phone from HFT. —
Delete device Deletes a paired phone. —
Speed dial
Edits, adds or deletes a speed dial entry.
2 Speed Dial P. 280
—
Ringtone Selects the ring tone. Mobile phone
*1
/Fixed
Caller ID info
Prioritizes the caller’s name or phone number as the caller
ID.
Name priority
*1
/Number
priority
Auto transfer
Sets calls to automatically transfer from your phone to HFT
when you enter the vehicle.
On
*1
/Off
System clear
Cancels/Resets all customized items in the Phone setup
group as default.
—
21 JAZZ HYBRID SSS-32TZA6000.book 268 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
269
uuColour AudiouHands-Free Telephone System
Continued
Features
Hands-Free Telephone System
Hands-Free Telephone (HFT) System allows you to place and receive phone calls
using your vehicle's audio system, without handling your mobile phone.
Using HFT
(Pick-up) button: Press to go directly to the phone screen or to answer an
incoming call.
(Hang-up/back) button: Press to end a call.
(Phone) button: Press to go directly to the phone screen.
Selector knob: Rotate to select an item on the screen, then press .
■
HFT Buttons
1Hands-Free Telephone System
Place your phone where you can get good reception.
To use HFT, you need a Bluetooth-compatible mobile
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities, ask a
dealer or your local Honda.
Up to 20 speed dial entries can be stored. If there is
no entry in the system, Speed Dial is disabled.
2 Speed Dial P. 280
Up to 20 call histories can be stored. If there is no call
history, Call History is disabled.
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
license. Other trademarks and trade names are those
of their respective owners.
HFT Limitations
An incoming call on HFT will interrupt the audio
system when it is playing. It will resume when the call
is ended.
Volume up
(Pick-up) Button
Volume down
Selector Knob
(Hang-up/Back) Button
(Phone) Button
21 JAZZ HYBRID SSS-32TZA6000.book 269 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouUsing HFT
270
Features
The audio/information screen notifies you
when there is an incoming call.
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■
HFT Status Display
1HFT Status Display
The information that appears on the audio/
information screen varies between phone models.
HFT Mode
Battery Level Status
Signal Strength
Bluetooth Indicator
Appears when your
phone is connected
to HFT.
Roam Status
Call Name
■
Limitations for Manual Operation
21 JAZZ HYBRID SSS-32TZA6000.book 270 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
271
uuColour AudiouHFT Menus
Continued
Features
HFT Menus
To use the system function, the power mode must be in ACCESSORY or ON.
1HFT Menus
To use HFT, you must first pair your Bluetooth-
compatible mobile phone to the system while the
vehicle is parked.
Some functions are limited while driving. A message
appears on the screen when the vehicle is moving
and the operation is cancelled.
or
Display the last 20 outgoing calls.
Display the last 20 incoming calls.
Display the last 20 missed calls.
*1: Appears only when a phone is connected to HFT.
Speed dial
*1
Add new
Select a phone number from the call history to
store as a speed dial number.
Call history
Phonebook
Select a phone number from the phonebook to
store as a speed dial number.
Phone number
Enter a phone number to store as a speed dial
number.
Dialed calls
Received calls
Missed calls
Phonebook
*1
Call history
*1
Display the paired phone's phonebook.
(Existing entry list)
21 JAZZ HYBRID SSS-32TZA6000.book 271 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
272
uuColour AudiouHFT Menus
Features
*1: Appears only when a phone is connected to HFT.
Redial the last number dialed in the phone’s history.
Add new device
Connect a phone
Connect an audio device
Bluetooth setupPhone setup
Redial
*1
Pair a phone to the system.
Connect a phone to the system.
Disconnect all devices
Delete device
Disconnect a paired phone from the
system.
Delete a previously paired phone.
Connect a Bluetooth® Audio device to
the system.
Dial
*1
Enter a phone number to dial.
Priority device setup Set a priority device to the system.
21 JAZZ HYBRID SSS-32TZA6000.book 272 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
273
uuColour AudiouHFT Menus
Continued
Features
*1: Appears only when a phone is connected to HFT.
Call history
Phonebook
Phone number
Speed dial
*1
Select a phone number from the phonebook
to store as a speed dial number.
Select a phone number from the call history
to store as a speed dial number.
Change speed dial
Delete speed dial
Enter a phone number to store as a speed dial
number.
Delete a previously stored speed dial number.
Change a previously stored speed dial
number.
Add New
Existing entry list
21 JAZZ HYBRID SSS-32TZA6000.book 273 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
274
uuColour AudiouHFT Menus
Features
Fixed
Mobile phone
System clear
Ringtone
Select the ring tone stored in the connected
mobile phone.
Name priority
Number priority
Caller ID info Prioritize the caller’s name as the caller ID.
Clear the system of all paired phones, phonebook entries,
and security codes.
Prioritize the caller’s phone number as the
caller ID.
Select the ring tone stored in HFT.
Auto transfer
Set calls to automatically transfer from your phone to HFT when
you enter the vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 274 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
275
uuColour AudiouHFT Menus
Features
■
To pair a mobile phone (No phone has been paired to the system)
1. Press the button or the button.
2. Make sure your phone is in search or
discoverable mode.
3. Rotate to select Yes, then press .
u The audio system will enter a waiting
mode for pairing.
4. Select Honda HFT from your phone.
u If you want to pair a phone from this
audio system, press and follow the
prompts.
When your phone appears on the list,
select it by pressing .
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by phone.
6. A notification appears on the screen if
pairing is successful.
■
Phone Setup
1Phone Setup
Your Bluetooth-compatible phone must be paired to
HFT before you can make and receive hands-free
calls.
Phone Pairing Tips:
• You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone’s battery may drain faster when it is
paired to HFT.
• If your phone is not ready to be paired or is not
paired within three minutes, the system will time
out and return to idle.
Once you have paired a phone, you can see it
displayed on the screen with one or two icons on the
right side.
These icons indicate the following:
: The phone can be used with HFT.
: The phone is compatible with Bluetooth® Audio.
When pairing a phone from this audio system:
If your phone doesn’t appear on the audio/
information screen, select Refresh and search for
Bluetooth® devices using your phone.
From your phone, select Honda HFT.
21 JAZZ HYBRID SSS-32TZA6000.book 275 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
276
uuColour AudiouHFT Menus
Features
■
To pair a mobile phone (when a phone has already been paired to the
system)
1. Press the button or the button.
2. Rotate to select Yes, then press .
3. Rotate to select Add new device,
then press .
4. Press to select OK.
u The screen changes to device list.
5. Make sure your phone is in search or
discoverable mode, then press .
u HFT automatically searches for a
Bluetooth® device.
6. When your phone appears on the list, select
it by pressing .
u If your phone does not appear, select
Refresh and search for Bluetooth®
devices using your phone. From your
phone, select Honda HFT.
7. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by a phone.
21 JAZZ HYBRID SSS-32TZA6000.book 276 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
277
uuColour AudiouHFT Menus
Continued
Features
■
To change the currently paired phone
1. Press the button or the button.
2. Rotate to select Phone setup, then
press .
3. Rotate to select Bluetooth setup, then
press .
4. Rotate to select Connect a phone,
then press .
u The screen changes to a device list.
5. Rotate to select a desired device name,
then press .
u HFT disconnects the connected phone
and starts searching for another paired
phone.
■
To delete a paired phone
1. Press the button or the button.
2. Rotate to select Phone setup, then
press .
3. Rotate to select Bluetooth setup, then
press .
4. Rotate to select Delete device, then
press .
u The screen changes to a device list.
5. Rotate to select a phone you want to
delete, then press .
6. A confirmation message appears on the
screen. Rotate to select Yes, then press
.
21 JAZZ HYBRID SSS-32TZA6000.book 277 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouHFT Menus
278
Features
You can change the ring tone setting.
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select Ringtone, then press .
4. Rotate to select Mobile phone or Fixed, then press .
You can select a caller’s information to be displayed when you have an incoming
call.
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select Caller ID info, then press .
4. Rotate to select a mode you want, then press .
If pairing between your phone and the system is executed while you are on the
phone, the call can be automatically transferred to HFT.
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select Auto transfer.
4. Press to select On or Off.
■
Ring Tone
■
Caller ID Information
■
Automatic Transferring
1Ring Tone
Mobile phone: Depending on the make and model
of the mobile phone, the ring tone stored in the
phone will sound if the phone is connected.
Fixed: The fixed ring tone sounds from the speakers.
1Caller ID Information
Name priority: A caller’s name is displayed if it is
stored in the phonebook.
Number priority: A caller’s phone number is
displayed.
21 JAZZ HYBRID SSS-32TZA6000.book 278 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
279
uuColour AudiouHFT Menus
Features
Pairing codes, paired phones, all speed dial entries, all call history data, and all
imported phonebook data are erased.
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select System clear, then press .
4. Rotate to select Yes, then press .
5. A confirmation message appears on the screen. Rotate to select Yes, then
press .
6. A notification appears on the screen. Press .
When your phone is paired, the contents of its phonebook and call history are
automatically imported to HFT.
■
To Clear the System
■
Automatic Import of Cellular Phonebook and Call History
1Automatic Import of Cellular Phonebook and Call History
When you select a person from the list in the cellular
phonebook, you can see up to three category icons.
The icons indicate what types of numbers are stored
for that name.
If a name has four or more numbers, ... appears
instead of category icons.
On some phones, it may not be possible to import the
category icons to HFT.
The phonebook is updated after every connection.
Call history is updated after every connection or call.
Pref
Home
Mobile
Pager
Work
Fax
Car
Other
21 JAZZ HYBRID SSS-32TZA6000.book 279 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouHFT Menus
280
Features
Up to 20 speed dial numbers can be stored per phone.
■
To store a speed dial number
1. Press the button or the button.
2. Rotate to select Speed dial, then press .
3. Rotate to select Add new, then press .
4. Rotate to select a place to choose a number from, then press .
From Call history:
u Select a number from the call history.
From Phonebook:
u Select a number from the connected mobile phone’s imported phonebook.
From Phone number:
u Input the number manually.
■
To edit a speed dial
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select Speed dial, then press .
4. Select an existing speed dial entry.
5. Rotate to select Change speed dial, then press .
6. Select a new speed dial number, then press .
■
Speed Dial
1Speed Dial
When any preset button is pressed, the Speed dial
screen is displayed.
21 JAZZ HYBRID SSS-32TZA6000.book 280 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
281
uuColour AudiouHFT Menus
Features
■
To delete a speed dial number
1. Press the button or the button.
2. Rotate to select Phone setup, then press .
3. Rotate to select Speed dial, then press .
4. Select an existing speed dial entry.
5. Rotate to select Delete speed dial, then press .
u A confirmation message appears on the screen. Rotate to select Yes, then
press .
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■
Making a Call
1Making a Call
Once a call is connected, you can hear the voice of
the person you are calling through the audio
speakers.
21 JAZZ HYBRID SSS-32TZA6000.book 281 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouHFT Menus
282
Features
■
To make a call using the imported phonebook
When your phone is paired, the contents of its phonebook are automatically
imported to HFT.
1. Press the button or the button.
2. Rotate to select Phonebook, then press .
3. The phonebook is stored alphabetically. Rotate to select the initial, then press
.
4. Rotate to select a name, then press .
5. Rotate to select a number, then press .
u Dialing starts automatically.
■
To make a call using a phone number
1. Press the button or the button.
2. Rotate to select Dial, then press .
3. Rotate to select a number, then press
.
4. Rotate to select , then press .
u Dialing starts automatically.
■
To make a call using redial
1. Press the button or the button.
2. Rotate to select Redial, then press .
u Dialing starts automatically.
1To make a call using the imported phonebook
This function is disabled while the vehicle is moving.
2 Limitations for Manual Operation P. 270
1To make a call using a phone number
This function is disabled while the vehicle is moving.
2 Limitations for Manual Operation P. 270
1To make a call using redial
Press and hold the button to redial the last
number dialed in your phone’s call history.
21 JAZZ HYBRID SSS-32TZA6000.book 282 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
283
uuColour AudiouHFT Menus
Features
■
To make a call using the call history
Call history is stored by Dialed calls, Received calls, and Missed calls.
1. Press the button or the button.
2. Rotate to select Call history, then press .
3. Rotate to select Dialed calls, Received calls, or Missed calls, then press .
4. Rotate to select a number, then press .
u Dialing starts automatically.
■
To make a call using a speed dial entry
1. Press the button or the button.
2. Rotate to select Speed dial, then press .
3. Rotate to select a number, then press .
u Dialing starts automatically.
When there is an incoming call, an audible
notification sounds and the Incoming call
screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
■
Receiving a Call
1To make a call using the call history
The call history appears only when a phone is
connected to HFT, and displays the last 20 dialed,
received, or missed calls.
1To make a call using a speed dial entry
When any preset button is pressed, the Speed dial
screen is displayed.
Select Others to view another paired phone’s speed
dial list.
1Receiving a Call
Call Waiting
Press the button to put the current call on hold
to answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons. Rotate
to select the icon, then press .
HFT Mode
Caller’s Name
21 JAZZ HYBRID SSS-32TZA6000.book 283 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuColour AudiouHFT Menus
284
Features
The following options are available during a call.
Swap call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer call: Transfer a call from HFT to your phone.
Dial tones: Send numbers during a call. This is useful when you call a menu-driven
phone system.
1. To view the available options, press the
button.
2. Rotate to select the option, then press
.
u The check box is checked when Mute is
selected. Select Mute again to turn it off.
■
Options During a Call
1Options During a Call
Dial tones: Available on some phones.
21 JAZZ HYBRID SSS-32TZA6000.book 284 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
285
Features
Display Audio
Start Up
The Display Audio starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following screen about the data upload will be
displayed.
Select Start.
u If you want to change the settings for
data upload, select Settings, then select
the ON/OFF settings on the Location
and vehicle data sharing screen.
u If you do not select Start, the system will
automatically be switched the home
screen after a certain period of time.
u If there is no registered device, select
Start and the Bluetooth® pairing screen
will be displayed.
u If you check the box with Do not show
this again, this screen will not be
displayed.
■
To pair a mobile phone (when there is
no phone paired to the system)
1. Make sure your phone is in search or
discoverable mode.
2. Select Honda HFT from your phone.
u If you want to pair a phone from this
Display Audio, select Search for
Devices, and then select your phone
when it appears on the list.
1Start Up
Location and vehicle data sharing
ON: Available the data communication.
OFF: Not available the data communication.
21 JAZZ HYBRID SSS-32TZA6000.book 285 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
286
uuDisplay AudiouBasic Operation
Features
Basic Operation
To use the audio system function, the power mode must be in ACCESSORY or ON.
■
Audio System Function
1Audio System Function
This screen is shown for the left-hand drive models.
For the right-hand drive models, these are located at
the symmetrically opposite to the left-hand drive
model.
a
All Apps
f Mode Change Switch Icons
b Status Icons g
/ (Seek/Skip) Buttons
c App Shortcut Icons h
VOL/ AUDIO (Volume/Power)
Knob
d Arrow i
(Back) Button
e
Display Mode Icon
j
(Home) Button
21 JAZZ HYBRID SSS-32TZA6000.book 286 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
287
uuDisplay AudiouBasic Operation
Continued
Features
All Apps: Displays the all apps.
Status Icons: Show the indicators of the information for the vehicle, connected
phones, etc. in the header area.
App Shortcut Icons: Display the app shortcut icons.
Arrow: Displays the next pages on the audio/information screen.
Display Mode Icon: Changes the audio/information screen brightness. Select
once and select or to make an adjustment. Each time you select ,
the mode switches among the daytime mode, nighttime mode and off mode.
Mode Change Switch Icons: Display icons to change the mode directly.
/ (Seek/Skip) Buttons: Press to change station, song or file.
VOL/ AUDIO (Volume/Power) Knob: Turns the audio system on and off and
turns to adjust the volume.
(Back) Button: Presses to go to back to the previous screen.
(Home) Button: Presses to go to the home screen.
21 JAZZ HYBRID SSS-32TZA6000.book 287 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouBasic Operation
288
Features
■
On the front panel ( )
The USB port (2.5A) on the front panel is for
charging devices, playing audio files and
connecting compatible phones with Apple
CarPlay or Android Auto.
u To prevent any potential issues, be sure
to use an Apple MFi Certified Lightning
Connector for Apple CarPlay, and for
Android Auto, the USB cables should be
certified by USB-IF to be compliant with
USB 2.0 Standard.
■
On the front panel ( )
The USB port (2.5A) on the front panel is only
for charging devices.
u You cannot play music even if you have
connected music players to it.
■
On the back of the console
compartment
These USB ports (2.5A) are only for charging
devices.
u You cannot play music even if you have
connected music players to them.
■
USB Ports
1USB Ports
• Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
• We recommend that you use a USB cable if you are
attaching a USB flash drive to the USB port.
• Do not connect the iPod or USB flash drive using a
hub.
• Do not use a device such as a card reader or hard
disk drive, as the device or your files may be
damaged.
• We recommend backing up your data before using
the device in your vehicle.
• Displayed messages may vary depending on the
device model and software version.
The USB port can supply up to 2.5A of power. It does
not output 2.5A unless requested by the device.
For amperage details, read the operating manual of
the device that needs to be charged.
Under certain conditions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
On the front panel
a Playing audio files and
connecting compatible phones
b Only for charging devices
On the back of the console
compartment
21 JAZZ HYBRID SSS-32TZA6000.book 288 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
289
uuDisplay AudiouBasic Operation
Features
Allow you to operate the audio system while
driving. The information is shown on the
driver information interface.
VOL (+/VOL (- (Volume) Buttons
Press VOL (+: To increase the volume.
Press VOL
(-: To decrease the volume.
Left Selector Wheel
• When selecting the audio mode
Press the (home) button, then roll up or down to select (audio) on the driver
information interface, and then press the left selector wheel.
■
Audio Remote Controls
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.
Press the (back) button for the driver
information interface to go back to the previous
screen or cancel a command.
Press the (home) button to go back to the home
screen of the driver information interface.
a VOL (+/VOL (- (Volume) Buttons
b Left Selector Wheel
c (Home) Button
d / (Seek/Skip) Buttons
e (Back) Button
21 JAZZ HYBRID SSS-32TZA6000.book 289 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
290
uuDisplay AudiouBasic Operation
Features
Roll up or down:
To cycle through the audio modes, roll up or down and then press the left selector
wheel:
FM/AM/DAB/iPod/USB/Apple CarPlay/Android Auto/Bluetooth® Audio
u Depending on a connected device, the displayed modes may be changed.
/ (Seek/Skip) Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next strong station.
Press and hold : To select the previous strong station.
• When listening to an iPod, USB flash drive, Bluetooth® Audio, or Smartphone
Connection
u Depending on a connected device, operations may be changed.
Press : To skip to the next song.
Press : To go back to the previous song.
• When listening to a USB flash drive
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to an iPod:
Press and hold : To skip to the next song.
Press and hold : To go back to the previous song.
21 JAZZ HYBRID SSS-32TZA6000.book 290 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
291
uuDisplay AudiouOn-Board Owner’s Manual
Features
On-Board Owner’s Manual
You can view the content of the owner's manual on the Display Audio. This function
is linked to Honda Personal Assistant.
2 Honda Personal Assistant P. 292
1. Select All Apps.
2. Select Owner’s manual.
When you can install or update the owner's manual, the notification will be sent
automatically.
To update:
1. Tap the notification.
u The version screen will display.
2. Select items to be updated.
3. Tap Update.
If you unselect an item on the version screen, you will not receive any notifications
for it.
■
Open the Owner’s Manual
■
Install/Update the Owner's Manual
1On-Board Owner’s Manual
This function does not cover all languages available
for the Display Audio.
Changing the language of the Display Audio will also
change the language of the owner's manual. If the
owner's manual is not available or installed in that
language, the owner's manual will default to English.
1Install/Update the Owner's Manual
There may be differences in the displayed content
depending on the version of the owner’s manual.
If the owner's manual is not installed yet, you can
install it via Wi-Fi.
2 Wi-Fi Connection P. 335
If you install the owner's manual in a new language,
the owner's manual you previously downloaded will
be removed.
For languages except English, Germany, French,
Italian and Spanish
21 JAZZ HYBRID SSS-32TZA6000.book 291 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
292
uuDisplay AudiouHonda Personal Assistant
Features
Honda Personal Assistant
This is a voice-controlled personal assistant that can set navigation destinations and
control music playback, as well as share weather information and give guidance on
vehicle use.
Say “OK, Honda” and Honda Personal Assistant will activate. Then make a request
such as “I want to go to the nearest restaurant.” You can also activate it by tapping
the Personal Assistant icon on the audio/information screen.
Changes the Honda Personal Assistant settings.
1. Select Personal Assistant.
2. Select Options.
3. Select an option.
• Honda Personal Assistant: ON
*1
/OFF
The assistant can be deactivated.
• Wake Word (OK Honda): ON
*1
/OFF
Launch the Assistant.
• Language: English/German/Spanish/French/Italian
Change the Honda Personal Assistant language.
• Fuel type: E10, SP95/Unleaded
*1
, SP98/Super
Set the type of petrol to be displayed in the petrol station search results.
• Example Phrases
Display example phrases that Honda Personal Assistant can recognise.
*1: Default Setting
■
Using Honda Personal Assistant
■
Settings
1Honda Personal Assistant
The function may not work in some countries. Ask a
dealer for details.
If the audio system language is changed to a
compatible one, the assistant language will
automatically change as well.
Changing the assistant language will not change the
audio system language.
When you press the (talk) button on the steering
wheel while Honda Personal Assistant is activated on
the screen, it recognises your voice.
21 JAZZ HYBRID SSS-32TZA6000.book 292 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
293
uuDisplay AudiouVoice Control Operation*
1
Continued
Features
Voice Control Operation
*1
Your vehicle has a voice control system that allows hands-free operation.
The voice control system uses the (talk) and (back) buttons on the steering
wheel and a microphone near the map lights on the ceiling.
To achieve optimum voice recognition when using the voice control system:
• Make sure the correct screen is displayed for the voice command that you are
using.
The system recognises only certain commands.
Available voice commands.
2 Voice Portal Screen P. 294
• Close the windows.
• Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
*1: Languages that the voice control system recognises are English, German, French, Spanish,
and Italian.
■
Voice Recognition
1Voice Control Operation*
1
When you press the button, a helpful prompt asks
what you would like to do. Press and release the
button again to bypass this prompt and give a
command.
21 JAZZ HYBRID SSS-32TZA6000.book 293 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
294
uuDisplay AudiouVoice Control Operation*
1
Features
When the (talk) button is pressed,
available voice commands appear on the
screen.
For a complete list of commands, say “Help”
after the beep.
Depending on the selected mode, the
displayed commands are different on the
voice portal screen. The commands
recognised are the same regardless of
which screen is selected.
Normal Mode: A list of example commands
is displayed to quickly complete your
desired function.
Assist Mode: A list of basic commands is
displayed to guide you step by step through
the voice menu.
■
Voice Portal Screen
You can change the mode on the General
Settings screen.
2 Voice Control P. 351
The system only recognises the commands
on the following pages, at certain screens.
Free form voice commands are not
recognised.
When the voice portal screen is displayed, it
will change to the top screen of each
function by using the global commands.
• Music Search
• AM
• FM
• Navigation
• Phone
• OK Honda
This can be only used when the phone is
connected. When the system recognises the
Phone command, the screen will change
the dedicated screen for the voice
recognition of the phone.
■
General Commands
■
Phone Commands
■
Phone Commands
• Call <name>
• Call <number>
The system recognises an only contact
name in the stored phonebook of your
phone. If full name is registered in first
name field, the system will recognise the
first name and last name as one contact
name.
Phone commands are not available if using
Apple CarPlay.
When the system recognises the Audio
command, the screen will change the
dedicated screen for the voice recognition
of the audio.
■
FM Commands
• Tune to <FM frequency>
■
AM Commands
• Tune to <AM frequency>
■
Audio Commands
21 JAZZ HYBRID SSS-32TZA6000.book 294 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
295
uuDisplay AudiouVoice Control Operation*
1
Features
■
iPod Commands
• List Album <name>
• List Artist <name>
• List Genre <name>
• List Playlist <name>
• Play <artist> <album>
• Play
• Play Album <name>
• Play Artist <name>
• Play Genre <name>
• Play Music <text:media_combo>
• Play Playlist <name>
• Play Song <name>
■
USB Commands
• List Album <name>
• List Artist <name>
• List Playlist <name>
• Play <artist> <album>
• Play
• Play Album <name>
• Play Artist <name>
• Play Music <text:media_combo>
• Play Playlist <name>
• Play Song <name>
The screen changes to the navigation
screen.
2 Refer to the Navigation System Manual
The screen changes to the Honda Personal
Assistant screen.
2 Honda Personal Assistant P. 292
■
Honda Personal Assistant Commands
• OK, Honda
• Voice Help
• Cancel
• Back
Voice Help are readout voice guidance for
Help on current screen.
• Previous
• Next
• Yes
• No
■
Navigation Commands
■
Honda Personal Assistant Commands
■
Standard Commands
■
List Commands
21 JAZZ HYBRID SSS-32TZA6000.book 295 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
296
uuDisplay AudiouAudio/Information Screen
Features
Audio/Information Screen
Displays the audio status and clock. From this screen, you can go to various setup
options.
1Audio/Information Screen
Touchscreen Operation
• Use simple gestures - including touching, swiping,
and scrolling - to operate certain audio functions.
• Some items may be grayed out during driving to
reduce the potential for distraction.
• You can use voice commands.
• Wearing gloves may limit or prevent touchscreen
response.
You can change the touchscreen sensitivity setting.
2 Customized Features P. 345
21 JAZZ HYBRID SSS-32TZA6000.book 296 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
297
uuDisplay AudiouAudio/Information Screen
Features
■
To change to a next screen
Selecting or , or swiping the screen left or right changes to the next screen.
■
App Shortcut Function
1App Shortcut Function
The home screen can be added up to 7 pages.
Press the button to go directly back to the first
page of the home screen from any page.
a App Shortcut Icons
b Arrow
c Page Indicator
d Mode Change Switches
<
>
21 JAZZ HYBRID SSS-32TZA6000.book 297 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouAudio/Information Screen
298
Features
■
To add app icons on the home screen
App icons can be added on the home screen.
1. Press the button.
2. Select All Apps.
3. Select the box checked on the desired apps.
1To add app icons on the home screen
Pre-installed apps may not start up normally. If this
occurs, you need to re-start the system. Set the
power mode to VEHICLE OFF, then set the power
mode to ON. After that, start up an app again. If you
are still unable to start up the apps, you need to reset
the system.
2 Defaulting All the Settings P. 358
If you perform Factory Data Reset, it may reset all
the settings to their factory default.
2 Defaulting All the Settings P. 358
In case those apps still do not start up normally even
after Factory Data Reset, contact your dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 298 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
299
uuDisplay AudiouAudio/Information Screen
Features
■
To move icons on the home screen
You can change location on the home screen.
1. Press the button.
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon to where you want
it to be.
4. Select Done.
u The screen will return to the home
screen.
1To move icons on the home screen
Select Tips to show tips. To hide them, select it again.
21 JAZZ HYBRID SSS-32TZA6000.book 299 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouAudio/Information Screen
300
Features
■
To remove icons on the home screen
You can delete the icons on the home screen.
1. Press the button.
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon you want to remove
to the header area.
u The icon is removed from the home
screen.
4. Select Done.
u The screen will return to the home
screen.
1To remove icons on the home screen
Apps will not be deleted by deleting the icon on the
home screen.
Select Tips to show tips. To hide them, select it again.
21 JAZZ HYBRID SSS-32TZA6000.book 300 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
301
uuDisplay AudiouAudio/Information Screen
Features
■
To shortcut icons on the home screen
You can store up to five icons on the bottom of the home screen.
1. Press the button.
2. Select and hold an icon.
u The screen switches to the customization
screen.
3. Drag and drop the icon you want to store to
the bottom of the home screen.
u The icon is stored on the mode change
switch area.
4. Select Done.
u The screen will return to the home
screen.
1To shortcut icons on the home screen
Select Tips to show tips. To hide them, select it again.
a Mode Change Switches
21 JAZZ HYBRID SSS-32TZA6000.book 301 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
302
uuDisplay AudiouAudio/Information Screen
Features
Shows the indicators of the information for the vehicle, connected phones, etc. in
the header area. You can confirm the detail information by selecting these icons.
1. Select the system status icon.
u The status area appears.
2. Select an item to see the details.
3. Press the button or select the system
status icon to close the area.
Select Audio Source on the header area,
then select an icon on the source list to switch
the audio source.
■
Status Area
a System Status Icon
■
Selecting an Audio Source
21 JAZZ HYBRID SSS-32TZA6000.book 302 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
303
uuDisplay AudiouAudio/Information Screen
Features
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
■
Limitations for Manual Operation
21 JAZZ HYBRID SSS-32TZA6000.book 303 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
304
uuDisplay AudiouClock Setup
Features
Clock Setup
You can adjust the time manually and set the wallpaper of the clock in the audio/
information screen.
1. Press the button.
2. Select General Settings.
3. Select System.
4. Select Date & Time.
5. Select Set Date & Time.
6. Select Automatic Date & Time, then
select OFF.
To adjust date:
7. Select Set Date.
8. Select / .
9. Select Save to set the date.
To adjust time:
7. Select Set Time.
8. Select / .
9. Select Save to set the time.
■
Adjusting the Clock
1Adjusting the Clock
The clock is automatically updated through the audio
system.
You can also adjust the clock by touching the clock
displayed on the header area of the audio/
information screen, Clock displayed on the home
screen, or All Apps.
1. Touch the clock on the screen.
The clock screen of the face-type appears.
2. Select Settings.
3. Select Date & Time.
4. Select Set Date & Time.
5. Select Automatic Date & Time, then select OFF.
6. Select Set Date or Set Time.
7. Adjusting the dates, hours and minutes by
selecting / .
8. Select Save to set the time.
You can customise the clock display.
2 System P. 346
3
4
3
4
3
4
21 JAZZ HYBRID SSS-32TZA6000.book 304 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
305
uuDisplay AudiouClock Setup
Features
■
Import clock wallpaper
1. Connect the USB flash drive to the USB port.
2 USB Ports P. 288
2. Press the button.
3. Select Clock.
u If Clock is not displayed on the home screen, select All Apps.
4. Select Settings.
5. Select Clock Faces.
6. Select Add More.
u The image of the pictures stored in the USB flash drive are displayed on the list.
7. Select a desired picture to import.
u Multiple pictures can be selected at the same time.
8. Select OK.
u The selected pictures are displayed.
9. Select Transfer.
u It will return to the clock wallpaper setting screen.
■
Clock Wallpaper Setup
1Clock Wallpaper Setup
• When importing wallpaper files, the image must be
in the USB flash drive's root directory.
Images in a folder cannot be imported.
• The file name must be less than 64 bytes.
• The file format of the image that can be imported
is BMP (bmp) or JPEG (jpg).
• The individual file size limit is less than 10 MB.
• If the USB flash drive does not have any pictures,
the message appears.
• Up to 11 pictures can be imported.
• The maximum image size is 4,096 x 2,304 pixels. If
the image size is less than 1,280 x 720, the image
is displayed in the middle of the screen with the
extra area appearing in black.
21 JAZZ HYBRID SSS-32TZA6000.book 305 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
306
uuDisplay AudiouClock Setup
Features
■
Select clock wallpaper
1. Press the button.
2. Select Clock.
u If Clock is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Clock Faces.
5. Select a desired picture to set.
u The preview is displayed on the screen.
6. Select Save.
u The clock screen which the wallpaper has been set is displayed.
■
Delete clock wallpaper
1. Press the button.
2. Select Clock.
u If Clock is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Clock Faces.
5. Select Delete Photos.
6. Select a desired picture to delete.
u Multiple pictures can be selected at the same time.
7. Select OK.
u The selected pictures are displayed.
8. Select Delete.
u It will return to the clock wallpaper setting screen.
21 JAZZ HYBRID SSS-32TZA6000.book 306 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
307
uuDisplay AudiouAdjusting the Sound
Features
Adjusting the Sound
1. Select an audio source.
2. Select Sound.
3. Select the setting you want.
Select an item from the following choices:
• Bass / Treble: Treble, Midrange, Bass
• Balance / Fader: Balance, Fader
• Speed Volume Compensation: Speed Volume Compensation (SVC)
• Subwoofer Volume
*
: Sub Woofer, Centre Speaker
1Adjusting the Sound
The SVC adjusts the volume level based on the
vehicle speed. As you go faster, audio volume
increases. As you slow down, audio volume
decreases.
You can also adjust the sound the following
procedure.
1. Press the button.
2. Select General Settings.
3. Select Sound.
To reset each setting for Bass / Treble, Balance /
Fader, Speed Volume Compensation, and
Subwoofer Volume
*
, select Default on each
setting screen.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 307 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
308
uuDisplay AudiouDisplay Setup
Features
Display Setup
You can set the screen brightness separately for Day and Night modes. Select
(Display Mode) to cycle through the display modes (Day to Night to Off).
Select (Display Mode).
u The brightness bar is displayed for a few
seconds.
u Select or to adjust the brightness.
■
Switching Display Mode Manually
1Display Setup
You can adjust the screen brightness by swiping or
tapping on the brightness bar.
You can also change the screen brightness on the
following procedures.
1. Press the button.
2. Select General Settings.
3. Select Display.
4. Select the setting you want.
To reset the settings, select Default.
21 JAZZ HYBRID SSS-32TZA6000.book 308 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
309
uuDisplay AudiouSystem Updates
Continued
Features
System Updates
The audio system’s firmware can be updated with the telematics control unit (TCU)
through the subscription-based service.
When the audio system update is available, the notification is shown on the status
area. Use the following procedure to update the system.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
u The system will check for updates.
u If the update icon is appeared on the home screen, select the status icon.
2 Status Area P. 302
3. Select Download.
u A notification appears on the screen if need to user acceptance for download.
4. Select Install Now or Install While Vehicle Off.
u A notification appears on the screen if the update is ready.
■
How to Update
1How to Update
You can update the system via Wi-Fi, but cannot use
the captive portal that require login or agreement the
terms of use on the browser.
Your download will be cancelled if:
• Your Wi-Fi connection is severed.
• You turn off the power system when the 12-volt
battery is low on power.
Your download will recommence the next time a Wi-
Fi connection is established.
For the 12-volt battery protection, Install While
Vehicle Off cannot be selected when the battery is
low on power. If you want to install the updated
data, recharge the battery or select Install Now.
21 JAZZ HYBRID SSS-32TZA6000.book 309 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
310
uuDisplay AudiouSystem Updates
Features
The following settings can be set.
• Auto Download
• Version Status
• Connection Setup
• Automatic Update
• Update History
■
Automatic download settings
Use the following procedure to change to the automatic download setting.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Auto Download.
5. Select the access point, then select Allow.
u If you do not want to system update automatically, select Block.
■
View a version and update status
Use the following procedure to confirm the version and update status.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Version Status.
■
System Updates Settings
21 JAZZ HYBRID SSS-32TZA6000.book 310 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
311
uuDisplay AudiouSystem Updates
Continued
Features
■
Connection setup
Use the following procedure to connect to the Internet via a Wi-Fi network.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Connection Setup.
5. Select OK.
6. Select Change Mode.
7. Select Network.
u If the vehicle's Wi-Fi is turned off, select OFF.
■
Automatic update settings
Use the following procedure to change to the automatic update setting.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Automatic Update.
5. Select Accept.
u If you do not want to system update automatically, select Decline.
■
View the update history
Use the following procedure to confirm the update history.
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Update History.
21 JAZZ HYBRID SSS-32TZA6000.book 311 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
312
uuDisplay AudiouSystem Updates
Features
■
Wireless connection mode setup
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Settings.
4. Select Connection Setup.
5. Select OK.
6. Select Change Mode.
7. Select Network.
u It will return to the network list.
8. Select an access point from the network list.
u If the audio system requires a password, enter a password.
9. Select Connect.
■
How to update
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select via Wireless.
4. Select Download.
u A notification appears on the screen if need to user acceptance for download.
5. Select Install Now or Install While Vehicle Off.
u A notification appears on the screen if the update is ready.
■
How to Update Wirelessly
21 JAZZ HYBRID SSS-32TZA6000.book 312 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
313
uuDisplay AudiouSystem Updates
Features
■
Download the update files from the server
1. Press the button.
2. Select System Updates.
u If System Updates is not displayed on the home screen, select All Apps.
3. Select Other Methods.
4. Select Via USB.
u A notification appears on the screen.
5. Connect a USB device into the USB port.
u The inventory data is copied into the USB device.
2 USB Ports P. 288
6. Remove the USB device from the USB port.
7. Connect the USB device into your computer, and then download the update files.
u Follow the link to download the required software update files. Refer to
https://usb.honda.com for instructions.
■
Update the audio system
1. Press the button.
2. Select System Updates.
3. Select Other Methods.
4. Select Via USB.
u A notification appears on the screen.
5. Connect the USB device with the update files into the USB port.
u A notification appears on the screen.
2 USB Ports P. 288
6. Select Install Now.
u A notification appears on the screen if the update is successful.
■
How to Update with a USB Device
1How to Update with a USB Device
A USB device with a minimum of 8 GB of free space
or more is recommended.
Be sure to delete any previous inventory or update
files from the USB before starting the USB update
process.
21 JAZZ HYBRID SSS-32TZA6000.book 313 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
314
uuDisplay AudiouPlaying FM/AM Radio
Features
Playing FM/AM Radio
a Settings Icon e Scan Icon
b Sound Icon f Tune Icon
c Preset Icons g Seek Icon
d Station List Icon
21 JAZZ HYBRID SSS-32TZA6000.book 314 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
315
uuDisplay AudiouPlaying FM/AM Radio
Features
Tunes the radio frequency for preset memory.
To store a station:
1. Tune to the selected station.
2. Select and hold the preset icon to store that station.
u Selecting Press & Hold can be set a new preset station.
Lists the strongest stations on the selected band.
1. Select Station List to display a list.
2. Select the station.
■
Manual update
Updates your available station list at any time.
1. Select Station List to display a list.
2. Select Refresh.
Samples each of the strongest stations on the selected band for 10 seconds.
To begin scanning, select Scan, and to turn it off, select Cancel or press the
button.
Selects or to search the selected band up or down for a station with a
strong signal.
■
Preset Memory
■
Station List
■
Scan
■
Seek
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Switching the Audio Mode
Roll up or down to select (audio) on the left
selector wheel.
2 Audio Remote Controls P. 289
You can store 12 AM/FM stations into preset
memory.
21 JAZZ HYBRID SSS-32TZA6000.book 315 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouPlaying FM/AM Radio
316
Features
Adjusts the sound settings.
2 Adjusting the Sound P. 307
Selects to use the on-screen keyboard for entering the radio frequency directly.
1. Select Tune.
2. Enter the desired radio frequency using the
on-screen keyboard.
3. Select Enter to tune into the frequency.
■
Sound
■
Radio Frequency Manual Tune Screen
1Radio Frequency Manual Tune Screen
You can tune the range of FM frequency between
87.5 to 108.0MHz.
/ icons:
Select or to tune the radio frequency.
a On-screen Keyboard
21 JAZZ HYBRID SSS-32TZA6000.book 316 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
317
uuDisplay AudiouPlaying FM/AM Radio
Features
Provides text data information related to your selected RDS-capable FM station.
■
To find an RDS station from Station List
1. Select Station List to display a list while listening to an FM station.
2. Select the station.
■
Manual update
Updates your available station list at any time.
1. Select Station List to display a list while listening to an FM station.
2. Select Refresh.
■
Traffic announcement (TA)
The TA standby function allows the system to stand by for traffic announcements in
any mode while the function is on. The last tuned station must be an RDS capable
traffic program station.
To turn the function on: Select TA. When a traffic announcement begins, the
information screen appears on the audio/information screen. The system returns to
your last selected mode after the traffic announcement is finished.
u If you want to go back to your last selected mode during the traffic
announcement, select Stop.
To turn the function off: Select TA again.
■
Radio Data System (RDS)
1Radio Data System (RDS)
When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.
1Traffic announcement (TA)
The TA indicator appears on the header area while
the TA standby function is on.
If you select Scan while the TA standby function is
on, the system searches TP station only.
Selecting TA while the traffic announcement is on
does not cancel the TA standby function.
21 JAZZ HYBRID SSS-32TZA6000.book 317 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
318
uuDisplay AudiouPlaying FM/AM Radio
Features
Changes the RDS settings.
1. Settings.
2. Select an option.
• TA-Information: Turns on and off the traffic information. (ON/OFF
*1
)
• AF: Turns on and off to automatically change the frequency of the same program
you enter different regions. (ON
*1
/OFF)
• REG: Turns on and off to keep the same stations within that region even if the
signal gets weak. (ON
*1
/OFF)
• NEWS: Turns on and off to automatically to tune to the news program. (ON/
OFF
*1
)
*1: Default Setting
■
Settings
21 JAZZ HYBRID SSS-32TZA6000.book 318 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
319
uuDisplay AudiouPlaying DAB (Digital Audio Broadcasting)
Continued
Features
Playing DAB (Digital Audio Broadcasting)
a Settings Icon e Scan Icon
b Sound Icon f Service Icons
c Preset Icons g Ensemble Icons
d Ensemble List Icon
21 JAZZ HYBRID SSS-32TZA6000.book 319 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouPlaying DAB (Digital Audio Broadcasting)
320
Features
Tunes the preset frequency.
To store a service:
1. Tune to the selected service.
2. Select and hold the preset icon to store that station.
u Selecting Press & Hold can be set a new preset station.
Lists the receivable ensembles on the selected service.
1. Select Ensemble List to display a list.
2. Select the ensemble.
■
Manual update
Updates your available ensemble list at any time.
1. Select Ensemble List to display a list.
2. Select Refresh.
Tunes the ensemble.
1. Select to the tune ensemble.
2. Select and hold or to search the selected service up to down for an
ensemble until a receivable ensemble is found.
Tunes the service component.
To tune it, select or .
■
Preset Memory
■
Ensemble List
■
Ensemble
■
Service
1Preset Memory
Switching the Audio Mode
Roll up or down to select (audio) on the left
selector wheel.
2 Audio Remote Controls P. 289
You can store 12 DAB stations into preset memory.
21 JAZZ HYBRID SSS-32TZA6000.book 320 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
321
uuDisplay AudiouPlaying DAB (Digital Audio Broadcasting)
Features
Samples each of the receivable ensemble or service on the selected service for 10
seconds.
To begin scanning, select Scan, and to turn it off, select Cancel or press the
button.
Adjusts the sound settings.
2 Adjusting the Sound P. 307
Changes the DAB settings.
1. Settings.
2. Select an option.
• DAB-DAB Link: Selects whether the system automatically searches for the same
station from Ensembles, and switches to it. (ON
*1
/OFF)
• DAB-FM Link: Selects whether the system finds the same station from an FM
band, and automatically switches the band. (ON
*1
/OFF)
• Scan Mode: Samples each of the receivable ensemble or service on the selected
service for 10 seconds. (All/Ensemble
*1
)
*1: Default Setting
■
Scan
■
Sound
■
Settings
21 JAZZ HYBRID SSS-32TZA6000.book 321 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
322
uuDisplay AudiouPlaying an iPod
Features
Playing an iPod
Using your USB connector, connect the iPod to the USB port, then select the USB
mode.
2 USB Ports P. 288
1Playing an iPod
Available operating functions vary on models or
versions. Some functions may not be available on the
vehicle’s audio system.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 377
If you operate the music app on your iPhone/iPod
while the phone is connected to the audio system,
you may no longer be able to operate the same app
on the audio/information screen.
Reconnect the device if necessary.
If a smartphone is connected via Apple CarPlay or
Android Auto, the iPod/USB source will be
unavailable and audio files on the phone will be
playable only within Apple CarPlay or Android Auto.
a Sound Icon e Track Icons
b Shuffle Icon f Browse Icon
c Repeat Icon g Cover Art
d Play/Pause Icon
21 JAZZ HYBRID SSS-32TZA6000.book 322 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
323
uuDisplay AudiouPlaying an iPod
Continued
Features
You can select to display the music search list screen.
1. Select Browse.
2. Select a search category.
3. Continue making selections until you find the song of your choice.
You can select shuffle and repeat modes when playing a song.
■
Shuffle/Repeat
Select shuffle or repeat icon repeatedly until a desired mode.
Shuffle
(shuffle off): Shuffle mode to off.
(shuffle all songs): Plays all available songs in a selected list in random order.
Repeat
(repeat off): Repeat mode to off.
(repeat song): Repeats the current song.
(repeat all): Repeats the all songs.
■
To pause or resume a song
Select the play/pause icon.
■
How to Select a Song from the Music Search List
■
How to Select a Play Mode
21 JAZZ HYBRID SSS-32TZA6000.book 323 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
325
uuDisplay AudiouPlaying Aha
TM
Features
Playing Aha
TM
Aha
TM
can be displayed and operated on the audio/information screen when your
smartphone is connected to the audio system by Wi-Fi.
2 Wi-Fi Connection P. 335
1Playing Aha
TM
Aha
TM
by Harman is a cloud-based service that
organises your favourite web content into live radio
stations. You can access podcasts, internet radio,
location-based services, and audio updates from
social media sites.
Available operating functions vary on software
versions. Some functions may not be available on the
vehicle’s audio system.
The menu items vary depending on the station you
selected.
You can set up Aha
TM
account prior to using the
service in your vehicle. Visit www.aharadio.com for
more information.
21 JAZZ HYBRID SSS-32TZA6000.book 325 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
326
uuDisplay AudiouPlaying a USB Flash Drive
Features
Playing a USB Flash Drive
Your audio system reads and plays sound and video files on a USB flash drive.
Connect your USB flash drive to the USB port, then select the USB mode.
2 USB Ports P. 288
1Playing a USB Flash Drive
You can use the following formats to play sound or
video files on a USB flash drive.
When playing a sound file: MP3, WMA, AAC
*1
,
FLAC, PCM/WAVE
When playing a video file: MP4, AVI, MKV, ASF/
WMV
*1: Only AAC format files recorded with iTunes are playable
on this unit.
a Settings Icon
*
f Stop Icon
*
b Sound Icon g Track
*
/Video
*
Icons
c Random Icon h Browse Icon
d Repeat Icon i Cover Art
*
(Playing a music)/
Mini Player
*
(Playing a video)
e Play/Pause Icon
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 326 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
327
uuDisplay AudiouPlaying a USB Flash Drive
Features
You can select to display the music search list screen.
1. Select Browse.
2. Select Current Playlist, Music, or Video.
3. Continue making selections until you find the file or video of your choice.
■
How to Select a File from the Music Search List
1Playing a USB Flash Drive
Use the recommended USB flash drives.
2 General Information on the Audio System
P. 379
WMA and AAC files protected by digital rights
management (DRM) cannot be played.
The audio system displays Unplayable File, then
skips to the next file.
If there is a problem, you may see an error message
on the audio/information screen.
2 iPod/USB Flash Drive P. 377
21 JAZZ HYBRID SSS-32TZA6000.book 327 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
328
uuDisplay AudiouPlaying a USB Flash Drive
Features
You can select repeat and random modes when playing a file.
■
Random/Repeat
Select random or repeat icon repeatedly until a desired mode.
Random
(random off): Random mode to off.
(random all files): Plays all files in random order.
(random in folder): Plays all files in the current folder in random order.
Repeat
(repeat off): Repeat mode to off.
(repeat file): Repeats the current file.
(repeat folder): Repeats all files in the current folder.
■
When playing a video file
*
(stop): Select to stop a file.
/ : Select to shrink a video screen. Select to expand a video screen.
■
To pause or resume a file
Select the play/pause icon.
Track
*
/Video
*
Icons
You can select to change files. Select and hold to move rapidly within a file.
■
How to Select a Play Mode
■
How to Change a File
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 328 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
329
uuDisplay AudiouPlaying a USB Flash Drive
Features
You can adjust the sound settings.
2 Adjusting the Sound P. 307
Changes the USB settings when playing a video file.
1. Settings.
2. Select an option.
• Image Settings: Changes the brightness of the audio/information screen. To
reset the settings, select Default. (Brightness/Contrast/Black Level/Colour/
Tint).
• Aspect Ratio: Selects the display mode with a different aspect ratio. (Original/
Normal
*1
/Full/Zoom)
• Overlay Clock Location: Changes the clock display layout. (Upper right
*1
/
Upper left/Lower right/Lower left/OFF)
*1: Default Setting
■
Sound
■
Settings
21 JAZZ HYBRID SSS-32TZA6000.book 329 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
330
uuDisplay AudiouPlaying Bluetooth® Audio
Features
Playing Bluetooth® Audio
Your audio system allows you to listen to music from your Bluetooth-compatible
phone.
This function is available when the phone is paired and connected to the vehicle’s
Hands-Free Telephone (HFT) system.
2 Phone Setup P. 366
1Playing Bluetooth® Audio
Not all Bluetooth-enabled phones with streaming
audio capabilities are compatible.
To check if your phone is compatible, ask a dealer.
It may be illegal to perform some data device
functions while driving.
Only one phone can be used with HFT at a time.
When there are more than two paired phones in the
vehicle, the latest paired phone the system finds is
automatically connected.
If more than one phone is paired to the HFT system,
there may be a delay before the system begins to play.
In some cases, the name of the artist, album, or track
may not appear correctly.
Some functions may not be available on some devices.
If a phone is currently connected via Apple CarPlay or
Android Auto, Bluetooth® Audio from that phone
will be unavailable. However, if the other phone is
connected to the system, it can be used as
Bluetooth® Audio by selecting the audio mode.
2 Phone Setup P. 366
a Sound Icon e Track Icons
b Shuffle Icon f Browse Icon
c Repeat Icon g Cover Art
d Play/Pause Icon
21 JAZZ HYBRID SSS-32TZA6000.book 330 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
331
uuDisplay AudiouPlaying Bluetooth® Audio
Features
1. Make sure that your phone is paired and connected to the system.
2 Phone Setup P. 366
2. Select the Bluetooth® Audio mode.
If the phone is not recognised, another HFT-compatible phone, which is not
compatible for Bluetooth® Audio, may already be connected.
You can select shuffle and repeat modes when playing a song.
Shuffle
(shuffle off): Shuffle mode to off.
(shuffle all songs): Plays all available songs in a selected list in random order.
Repeat
(repeat off): Repeat mode to off.
(repeat song): Repeats the current song.
(repeat all): Repeats the all songs.
■
To pause or resume a file
Select the play/pause icon.
1. Select Browse.
2. Select a search category.
3. Select an item.
u The selection begins playing.
■
To Play Bluetooth® Audio Files
■
How to Select a Play Mode
■
Searching for Music
1To Play Bluetooth® Audio Files
To play the audio files, you may need to operate your
phone. If so, follow the phone maker’s operating
instructions.
Switching to another mode pauses the music playing
from your phone.
You can change the connected phone by selecting
Change Device.
2 Phone Setup P. 366
1Searching for Music
Depending on the Bluetooth® device you connect,
some or all of the lists may not be displayed.
21 JAZZ HYBRID SSS-32TZA6000.book 331 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
333
uuDisplay AudiouOn Board Apps
Continued
Features
On Board Apps
Honda Connect has the capability of On Board Apps which may be created by
Honda or by 3rd parties. Apps may be already installed or can be downloaded
through Honda App Center. Some Apps require internet access which can be
established by Wi-Fi Connection.
2 Wi-Fi Connection P. 335
Please visit the below web address for further information:
https://globalappcenter.com/
a Honda App Center Icon
Honda App Center provides access to a variety of App related services.
21 JAZZ HYBRID SSS-32TZA6000.book 333 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
334
uuDisplay AudiouOn Board Apps
Features
• Using the Display Audio while driving can take your attention away from the road, causing a crash in which you could be seriously
injured or killed. Only operate system controls when the conditions permit you to safely do so. Please always adhere to the laws of
the territory when operating this device.
• Applications on the head unit are subject to change at anytime. This may mean that they are not available or operate differently. Honda
shall not be liable to you in such instances.
• Applications available on the device may be provided by parties other than Honda to which 3rd party software licences and charges may
apply.
• Data usage and roaming charges may result in using applications on the device in conjunction with your mobile phone and Honda is
not liable for any costs you might incur from such use. Honda recommends you consult your mobile phone network provider in advance.
• Downloading applications from the Honda App Center will be subject to Terms and Conditions which can be found at:
https://globalappcenter.com/, and may also incur charges.
21 JAZZ HYBRID SSS-32TZA6000.book 334 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
335
uuDisplay AudiouWi-Fi Connection
Continued
Features
Wi-Fi Connection
You can connect the audio system to the Internet using Wi-Fi on the audio/
information screen. If your phone has wireless hotspot capabilities, the system can
be tethered to the phone. Use the following steps to setup.
1. Press the button.
2. Select General Settings.
3. Select Connections.
4. Select Wi-Fi.
5. Select OK.
6. Select Change Mode.
7. Select Network.
u If the data sharing settings is to OFF, the
message will be displayed on the screen.
You need to change to ON.
2 System P. 346
u If you want to turn off the Wi-Fi mode,
select OFF.
8. Select the access point you want to connect
to the system.
u To add a new network or select the
saved networks, select Options.
u If Options is selected, Add Network
and Saved Networks can be registered.
■
Connecting to a Wi-Fi Hotspot
1Wi-Fi Connection
Wi-Fi and Wi-Fi Direct a registered trademark of Wi-Fi
Alliance®.
1Connecting to a Wi-Fi Hotspot
You cannot go through the setting procedure while a
vehicle is moving. Park in a safe place to set the audio
system in Wi-Fi mode.
Some mobile phone carriers charge for tethering and
smartphone data use. Check your phone’s data
subscription package.
Check your phone manual to find out if the phone
has Wi-Fi connectivity.
You can confirm whether Wi-Fi connection is on or
off with the icon on the system status area.
Transmission speed and others will not be displayed
on this screen.
2 Status Area P. 302
In case of Wi-Fi connection with your phone, make
sure your phone’s Wi-Fi setting is in access point
(tethering) mode.
21 JAZZ HYBRID SSS-32TZA6000.book 335 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouWi-Fi Connection
336
Features
Make sure your phone’s Wi-Fi setting is in access point (tethering) mode.
You can set the network as a Wi-Fi Hotspot of this audio system.
Use the following steps to setup.
1. Press the button.
2. Select Wi-Fi Hotspot.
u If Wi-Fi Hotspot is not displayed on the
home screen, select All Apps.
3. Turn on the hotspot.
4. Select Settings.
u Network SSID and Password are
displayed, and you can change the
settings.
The following settings are available for the setup.
• Network SSID: Set this network name.
• Password: Set password for require entering password when connecting Wi-Fi
device to this network.
u Passwords can be created with half-width alphanumeric characters and spaces,
as well as some special characters.
■
Wi-Fi mode (after the initial setting has been made)
■
Setting the Audio System as a Wi-Fi Hotspot
1Wi-Fi mode (after the initial setting has been made)
You may need to go through an initial setup for Wi-Fi
connection again after you boot your phone.
iPhone users
1Setting the Audio System as a Wi-Fi Hotspot
Special characters that can be used in passwords.
!);]
"*<^
#+=_
$,>`
%- ? {
&.@|
'/[}
(:¥~
21 JAZZ HYBRID SSS-32TZA6000.book 336 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
337
uuDisplay AudiouApple CarPlay
Continued
Features
Apple CarPlay
If you connect an Apple CarPlay-compatible iPhone to the system via the USB port
or wirelessly, you can use the audio/information screen, instead of the iPhone
display, to make a phone call, listen to music, view maps (navigation), and access
messages.
2 USB Ports P. 288
1Apple CarPlay
Only iPhone 5 or newer versions with iOS 8.4 or later
are compatible with Apple CarPlay.
Park in a safe place before connecting your iPhone to
Apple CarPlay and when launching any compatible
apps.
While connected to Apple CarPlay, calls are only
made through Apple CarPlay. If you want to make a
call with the Hands-Free Telephone (HFT) system,
turn Apple CarPlay off.
2 Setting Up Apple CarPlay P. 339
When your iPhone is connected to Apple CarPlay, it is
not possible to use the Bluetooth® Audio or the
Hands-Free Telephone (HFT) system. However, other
previously paired phones can stream audio via
Bluetooth® while Apple CarPlay is connected.
2 Phone Setup P. 366
For details on countries and regions where Apple
CarPlay is available, as well as information pertaining
to function, refer to the Apple homepage.
a Apple CarPlay
21 JAZZ HYBRID SSS-32TZA6000.book 337 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouApple CarPlay
338
Features
• Phone
Access the contact list, make phone calls, or listen to voice mail.
• Music
Play music stored on your iPhone.
• Maps
Display Apple Maps and use the navigation function just as you would on your
iPhone.
• Messages
Check and reply to text messages, or have messages read to you.
• Honda
Select the Honda icon to go back to the home screen.
•
Go back to the Apple CarPlay menu screen.
■
Apple CarPlay Menu
1Apple CarPlay
Apple CarPlay Operating Requirements &
Limitations
Apple CarPlay requires a compatible iPhone with an
active mobile connection and data plan. Your
carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Apple
CarPlay functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Apple CarPlay functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Apple CarPlay performance or
functionality.
It is possible to use 3rd party apps if they are
compatible with Apple CarPlay. Refer to the Apple
homepage for information on compatible apps.
21 JAZZ HYBRID SSS-32TZA6000.book 338 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
339
uuDisplay AudiouApple CarPlay
Features
After you have connected your iPhone to the system via the USB port or wirelessly,
use the following procedure to set up Apple CarPlay. Use of Apple CarPlay will result
in the transmission of certain user and vehicle information (such as vehicle location,
speed, and status) to your iPhone to enhance the Apple CarPlay experience. You will
need to consent to the sharing of this information on the audio/information screen.
■
Connecting Apple CarPlay using the USB cable to the USB port
1. Connect the iPhone to the USB port using the USB cable.
2 USB Ports P. 288
u The confirmation screen will be displayed.
2. Select Yes.
u If you do not want to connect Apple CarPlay, select No.
You may change the consent settings under the Smartphone Connection settings
menu.
■
Connect Apple CarPlay wirelessly
1. Pair and connect the iPhone to the vehicle's Hands-Free Telephone (HFT) system.
2 Phone Setup P. 366
2. Check the box on Apple CarPlay.
u If you select Apple CarPlay, you cannot select Audio and Phone.
3. Select Connect.
u If your iPhone asks to accept for connecting Apple CarPlay, accept for
connection.
■
Setting Up Apple CarPlay
■
Enabling Apple CarPlay
1Setting Up Apple CarPlay
You can also use the method below to set up Apple
CarPlay:
Select General Settings
Smartphone Connection Apple CarPlay
Select device
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your iPhone by Apple CarPlay is
governed by the Apple iOS terms and conditions and
Apple’s Privacy Policy.
21 JAZZ HYBRID SSS-32TZA6000.book 339 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouApple CarPlay
340
Features
Press and hold the (talk) button to activate Siri.
Press and hold to activate Siri.
Press again to deactivate Siri.
Press and release to activate standard voice recognition system.
■
Operating Apple CarPlay with Siri
1Operating Apple CarPlay with Siri
Below are examples of questions and commands for
Siri:
• What movies are playing today?
• Call dad at work.
• What song is this?
• How’s the weather tomorrow?
• Read my latest email.
For more information, please visit
www.apple.com/ios/siri.
a (Talk) Button
21 JAZZ HYBRID SSS-32TZA6000.book 340 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
341
uuDisplay AudiouAndroid Auto
Continued
Features
Android Auto
When you connect an Android phone to the audio system via the USB port, Android
Auto is automatically initiated. When connected via Android Auto, you can use the
audio/information screen to access the Phone, Google Maps (Navigation), Google
Play Music, and Google Now functions. When you first use Android Auto, a tutorial
will appear on the screen.
We recommend that you complete this tutorial while safely parked before using
Android Auto.
2 USB Ports P. 288
2 Auto Pairing Connection P. 343
1Android Auto
Only Android 5.0 (Lollipop) or later versions are
compatible with Android Auto.
Bluetooth A2DP cannot be used with Android Auto
phone.
To use Android Auto on a smartphone with Android
9.0 (Pie) or earlier, you need to download the
Android Auto app from Google Play to your
smartphone.
Park in a safe place before connecting your Android
phone to Android Auto and when launching any
compatible apps.
To use Android Auto, connect the USB cable to the
USB port.
2 USB Ports P. 288
When your Android phone is connected to Android
Auto, it is not possible to use the Bluetooth® Audio.
However, other previously paired phones can stream
audio via Bluetooth® while Android Auto is
connected.
2 Phone Setup P. 366
a Android Auto
21 JAZZ HYBRID SSS-32TZA6000.book 341 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouAndroid Auto
342
Features
• Maps
Display Google Maps and use the navigation function just as you would with your
Android phone. When the vehicle is in motion, it is not possible to make keyboard
entries. Stop the vehicle in a safe location to undertake a search or provide other
inputs.
• Play Music
Play Google Play Music and music apps that are compatible with Android Auto.
To switch between music apps, press this icon.
• Phone
Make and receive phone calls as well as listen to voicemail.
• Exit
•
Operate Android Auto with your voice.
•
You can check Android notifications.
• (Android Auto Home)
Display useful information organised by Android Auto into simple cards that
appear just when they’re needed.
■
Android Auto Menu
1Android Auto
For details on countries and regions where Android
Auto is available, as well as information pertaining to
function, refer to the Android Auto homepage.
Android Auto Operating Requirements &
Limitations
Android Auto requires a compatible Android phone
with an active mobile connection and data plan. Your
carrier’s rate plans will apply.
Changes in operating systems, hardware, software,
and other technology integral to providing Android
Auto functionality, as well as new or revised
governmental regulations, may result in a decrease or
cessation of Android Auto functionality and services.
Honda cannot and does not provide any warranty or
guarantee of future Android Auto performance or
functionality.
It is possible to use 3rd party apps if they are
compatible with Android Auto. Refer to the Android
Auto homepage for information on compatible apps.
21 JAZZ HYBRID SSS-32TZA6000.book 342 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
343
uuDisplay AudiouAndroid Auto
Features
When you connect an Android phone to the unit via the USB port, Android Auto is
automatically initiated.
■
Enabling Android Auto
To enable Android Auto after connecting an Android phone to the system, select
Yes on the screen.
You may change the consent settings under the Smartphone Connection settings
menu.
■
Auto Pairing Connection
1Enabling Android Auto
Only initialize Android Auto when you safely parked.
When Android Auto first detects your phone, you will
need to set up your phone so that auto pairing is
possible. Refer to the instruction manual that came
with your phone.
You can use the method below to change Android
Auto settings after you have completed the initial
setup:
Select General Settings
Smartphone Connection Android Auto
Select device
Use of user and vehicle information
The use and handling of user and vehicle information
transmitted to/from your phone by Android Auto is
governed by the Google’s Privacy Policy.
21 JAZZ HYBRID SSS-32TZA6000.book 343 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouAndroid Auto
344
Features
Press and hold the (talk) button to operate Android Auto with your voice.
Press and hold to operate Android Auto with your voice.
Press and release to activate standard voice recognition system.
■
Operating Android Auto with Voice Recognition
1Operating Android Auto with Voice Recognition
Below are examples of commands you can give with
voice recognition:
• Reply to text.
• Call my wife.
• Navigate to Honda.
• Play my music.
• Send a text message to my wife.
• Call flower shop.
For more information, please refer to the Android
Auto homepage.
You can also activate the voice recognition function
by selecting the icon in the lower-left corner of
the screen.
a (Talk) Button
21 JAZZ HYBRID SSS-32TZA6000.book 344 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
345
uuDisplay AudiouCustomized Features
Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
With the power mode in ON, select General Settings, then select a setting item.
• System 2 P. 346
• Smartphone Connection 2 P. 348
• Connections 2 P. 349
• Display 2 P. 350
• Sound 2 P. 350
• Camera 2 P. 351
• Voice Control 2 P. 351
■
How to Customize the General Settings
1Customized Features
When you customize settings:
• Make sure that the vehicle is at a complete stop.
• Put the transmission into (P.
21 JAZZ HYBRID SSS-32TZA6000.book 345 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
346
uuDisplay AudiouCustomized Features
Features
■
System
*1:Default Setting
Customizable Features Description Selectable Settings
Date & Time
Set
Date &
Time
Automatic
Date & Time
Selects ON to have the GPS automatically adjust the
clock. Select OFF to cancel this function.
ON
*1
/OFF
Set Date
Adjusts date.
2 Adjusting the Clock P. 304
Day/Month/Year
Set Time
Adjusts time.
2 Adjusting the Clock P. 304
Hour/Minute
AM/PM
Time
Zone
Automatic
Time Zone
Sets the audio system to automatically adjust the clock
when driving through different time zones.
ON
*1
/OFF
(Select time
zone)
Changes the time zone manually. —
Auto Daylight Saving
Time
Sets the clock to update based on daylight savings time. ON
*1
/OFF
Date Format Select a date format.
MM/DD/YYYY/
DD/MM/YYYY
*1
/
YYYY/MM/DD
Time Format Select a time format. 12-H
*1
/24-H
21 JAZZ HYBRID SSS-32TZA6000.book 346 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
347
uuDisplay AudiouCustomized Features
Continued
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Language
Changes the driver information interface and audio/
information screen language separately.
English
*1
See other selectable
languages on the screen.
Touch Panel
Sensitivity
Sets the sensitivity of the touch panel screen. High/Normal
*1
System Volumes
System Sounds Sets the system sound volume level. —
Text-to-Speech Sets the text-to-speech volume level. —
Navigation
Guidance
Sets the navigation guidance volume level. —
Phone Calls Sets the phone call volume level. —
Default Resets all System Volumes settings to default values.
Location and
vehicle data sharing
Location and vehicle
data sharing
ON/OFF
*1
21 JAZZ HYBRID SSS-32TZA6000.book 347 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
348
uuDisplay AudiouCustomized Features
Features
■
Smartphone Connection
Customizable Features Description Selectable Settings
About
Status
Displays the Android setting items. —
Legal Information
Model Number
Android Version
Kernel Version
Build Number
Factory Data
Reset
Resets all the settings to their factory default.
2 Defaulting All the Settings P. 358
Continue/Cancel
Detail
Information
App Manager
Displays the Android system memory and apps
information.
—
Customizable Features Description Selectable Settings
Apple CarPlay
+ Connect New Device
Pairs a new phone to Apple CarPlay.
2 Phone Setup P. 366
—
(Saved Devices)
Connects, disconnects, or deletes a paired phone.
2 Phone Setup P. 366
—
Android Auto (Saved Devices)
Connects, disconnects, or deletes a paired phone.
2 Phone Setup P. 366
—
21 JAZZ HYBRID SSS-32TZA6000.book 348 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
349
uuDisplay AudiouCustomized Features
Continued
Features
■
Connections
*1:Default Setting
*2:Appears only when Apple CarPlay is connected.
Customizable Features Description Selectable Settings
Wi-Fi
Change Mode Changes the Wi-Fi mode.
Network/
Smartphone
*2
/OFF
*1
(Available Networks/Connected
Devices)
Displays the available network(s) or current connected
device(s).
—
Options
Add Network Adds a new network to connect Wi-Fi. —
Saved Networks Saves the connected network. —
Bluetooth
Options
Bluetooth Turns the Bluetooth® on and off. ON
*1
/OFF
Priority Device Sets a device as the priority device. —
+ Connect New Device
Pairs a new phone to HFT.
2 Phone Setup P. 366
—
(Saved Devices)
Connects, disconnects, or deletes a paired phone.
2 Phone Setup P. 366
—
21 JAZZ HYBRID SSS-32TZA6000.book 349 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
350
uuDisplay AudiouCustomized Features
Features
■
Display
*1:Default Setting
■
Sound
Customizable Features Description Selectable Settings
Day Mode
*1
Changes between the daytime mode and nighttime
mode.
2 Display Setup P. 308
—
Night Mode
Brightness Changes the brightness of the audio/information screen. —
Contrast Changes the contrast of the audio/information screen. —
Black Level Changes the black level of the audio/information screen. —
Default
Resets all customized settings for the brightness,
contrast, and black level.
—
Customizable Features Description Selectable Settings
Bass / Treble
Treble
Adjusts the settings of the audio speakers’ sound.
2 Adjusting the Sound P. 307
—
Midrange
Bass
Balance / Fader
Speed Volume Compensation
Subwoofer Volume
*
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 350 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
351
uuDisplay AudiouCustomized Features
Continued
Features
■
Camera
*1:Default Setting
■
Voice Control
*1:Default Setting
Customizable Features Description Selectable Settings
Rear Camera
*
Fixed Guideline
Shows the guideline that does not move with the
steering wheel.
2 Multi-View Rear Camera
*
P. 518
ON
*1
/OFF
Dynamic Guideline
Shows the guideline that moves with the steering
wheel.
2 Multi-View Rear Camera
*
P. 518
ON
*1
/OFF
Cross Traffic Monitor
*
Shows arrows on the rear camera image to indicate
vehicles approaching from the sides.
2 Cross Traffic Monitor
*
P. 513
ON
*1
/OFF
Customizable Features Description Selectable Settings
Voice Control Mode
Selects a mode of the voice portal screen.
2 Voice Control Operation P. 293
Assist/Normal
*1
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 351 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouCustomized Features
352
Features
With the power mode in ON, select Vehicle Settings, then select a setting item.
• Deflation Warning System 2 P. 353
• Driver Assist System Setup 2 P. 353
• Meter setup 2 P. 355
• Lighting Setup 2 P. 356
• Door/Window Setup 2 P. 357
• Maintenance Info. 2 P. 357
■
How to Customize the Vehicle Settings
1How to Customize the Vehicle Settings
If Vehicle Settings is not displayed on the home
screen, select All Apps. You can change the
displayed icons on the home screen.
2 App Shortcut Function P. 297
21 JAZZ HYBRID SSS-32TZA6000.book 352 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
353
uuDisplay AudiouCustomized Features
Continued
Features
■
Deflation Warning System
■
Driver Assist System Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Deflation Warning System
Cancels/Calibrates Deflation Warning System.
2 Deflation Warning System P. 423
Calibrate/Cancel
Customizable Features Description Selectable Settings
Preceding vehicle proximity
warning distance
Selects distance for Forward Collision Warning audible and visual
alerts.
2 Collision Mitigation Braking System (CMBS) P. 435
Far/Normal
*1
/Near
ACC vehicle ahead detected
beep
Turns On/Off audible notification when vehicle has moved in/out of
adaptive cruise control range.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 447
ON/OFF
*1
Road departure mitigation
setting
Selects operating mode of the Road Departure Mitigation system.
2 Road Departure Mitigation System P. 478
Early/Normal/Delayed
*1
Lane keep assist beep
Selects On/Off the LKAS alert for not detecting road lines.
2 Lane Keeping Assist System (LKAS) P. 467
ON/OFF
*1
21 JAZZ HYBRID SSS-32TZA6000.book 353 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
354
uuDisplay AudiouCustomized Features
Features
*1:Default Setting
Customizable Features Description Selectable Settings
Blind spot information
*
Selects On/Off the blind spot information system audible alert.
2 Blind spot information System
*
P. 427
Audible and visual alert
*1
/
Visual Alert Only
Traffic Sign Recognition
System
Displays the traffic sign recognition system on the instrument panel.
2 Traffic Sign Recognition System P. 487
Display
*1
/None
Traffic Sign Recognition
System Speed Limit
Warning
Enables over speed limit warning when speed limit is exceeded.
2 Traffic Sign Recognition System P. 487
ON
*1
/OFF
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 354 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
355
uuDisplay AudiouCustomized Features
Continued
Features
■
Meter setup
*1:Default Setting
Customizable Features Description Selectable Settings
Warning message
Selects whether to display the warning message.
2 Driver Information Interface Warning and Information
Messages P. 124
ON/OFF
*1
Adjust outside temp. display
Selects to adjust outside temperature reading by a few degrees.
2 Outside Temperature P. 138
-3°C ~ ±0°C
*1
~ +3°C
Trip A reset timing
Selects the timing to reset Trip A.
2 Range / Fuel / Trip Meter P. 144
2 Speed & Time P. 146
When fully refueled/When
ignition is turned OFF/Manual
reset
*1
Trip B reset timing
Selects the timing to reset Trip B.
2 Range / Fuel / Trip Meter P. 144
2 Speed & Time P. 146
When fully refueled/When
ignition is turned OFF/Manual
reset
*1
Alarm volume control
Changes volume level of all system warnings, door opening
warning and indicator.
Max/Mid
*1
/Min
Turn by turn display
Turns on/off the pop-up warning in the turn-by-turn navigation
in the driver information interface.
2 Turn-by-Turn Directions P. 148
ON
*1
/OFF
Speed/distance units
Selects the trip computer units.
2 Change Units P. 152
km/h · km
*1
/mph · miles
km/h · km/mph · miles
*1
Left-hand drive type
Right-hand drive type
21 JAZZ HYBRID SSS-32TZA6000.book 355 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
356
uuDisplay AudiouCustomized Features
Features
■
Lighting Setup
*1:Default Setting
Customizable Features Description Selectable Settings
Auto High Beam Turns on/off auto high beam function. ON
*1
/OFF
Interior light dimmer
duration
Selects the length of time the interior lights stay on after doors are
closed.
2 Interior Lights P. 222
60sec/30sec
*1
/15sec
Headlight auto OFF timer
Selects the length of time the exterior lights stay on after you close
the driver's door.
2 Automatic Lighting Off Feature P. 194
60sec/30sec/15sec
*1
/0sec
Headlight integration with
wipers
Selects On/Off headlight function and wiper operation when the
headlight is in AUTO setting.
2 Headlight Integration with Wipers P. 194
ON
*1
/OFF
21 JAZZ HYBRID SSS-32TZA6000.book 356 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
357
uuDisplay AudiouCustomized Features
Features
■
Door/Window Setup
*1:Default Setting
■
Maintenance Info.
*
Customizable Features Description Selectable Settings
Keyless lock notification
Turns on/off flash of exterior lights when doors are locked/unlocked
by remote.
2 Using the Remote Transmitter P. 173
ON
*1
/OFF
Security relock timer
Selects relock timing after unlocking vehicle with the key fob
without opening any doors.
2 Using the Remote Transmitter P. 173
90sec/60sec/30sec
*1
Auto Folding Door Mirror Selects door mirror auto folding operation. ON
*1
/OFF
Customizable Features Description Selectable Settings
Maintenance Info.
Resets the maintenance information.
2 Service Reminder System
*
P. 530
Selects Reset Items
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 357 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
358
uuDisplay AudiouDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Press the button.
2. Select General Settings.
3. Select System.
4. Select Factory Data Reset.
u A confirmation message appears on the screen.
5. Select Continue to reset the settings.
6. Select Continue again to reset the settings.
u The system will reboot.
1. Press the button.
2. Select Vehicle Settings.
3. Select Default.
4. Select Yes.
■
Defaulting General Settings
■
Defaulting Vehicle Settings
1Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default and delete all personal data.
If you perform Factory Data Reset, it will reset the
preinstalled apps to their factory default.
21 JAZZ HYBRID SSS-32TZA6000.book 358 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
359
uuDisplay AudiouHands-Free Telephone System
Continued
Features
Hands-Free Telephone System
Hands-Free Telephone (HFT) system allows you to place and receive phone calls
using your vehicle’s audio system, without handling your mobile phone.
■
HFT Buttons
1Hands-Free Telephone System
Place your phone where you can get good reception.
To use HFT, you need a Bluetooth-compatible mobile
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities, ask a
dealer or your local Honda.
To use the system, the Bluetooth setting must be
ON.
2 Phone Setup P. 366
Voice control tips
• Aim the vents away from the ceiling and close the
windows, as noise coming from them may interfere
with the microphones.
• Press the button when you want to call a
number using a phonebook name or a number.
Speak clearly and naturally after a beep.
• If the microphone picks up voices other than yours,
the command may be misinterpreted.
• To change the volume level, select the audio
system’s VOL (Volume) or use the remote audio
controls on the steering wheel.
If there is no Favourite contacts entry in the system,
the pop-up notification appears on the screen.
2 Favourite Contacts P. 371
a VOL (+/VOL (- (Volume) Buttons
b (Talk) Button
c (Home) Button
d Left Selector Wheel
e (Back) Button
21 JAZZ HYBRID SSS-32TZA6000.book 359 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouHands-Free Telephone System
360
Features
(Talk) button: Press to access Voice Portal.
(Home) button: Press to go back to the home screen of the driver information
interface.
Left Selector Wheel: Press the (home) button, then roll up or down to select
(phone) on the driver information interface, and then press the left selector
wheel.
While receiving a call, the incoming call screen is displayed on the driver information
interface. You can pick up the call using the left selector wheel.
2 Receiving a Call P. 375
(Back) button: Press to go back to the previous screen or cancel a command.
1Hands-Free Telephone System
Bluetooth® Wireless Technology
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc., and any
use of such marks by Honda Motor Co., Ltd., is under
licence. Other trademarks and trade names are those
of their respective owners.
HFT Limitations
An incoming call on HFT will interrupt the audio
system when it is playing. It will resume when the call
is ended.
21 JAZZ HYBRID SSS-32TZA6000.book 360 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
361
uuDisplay AudiouHands-Free Telephone System
Features
The audio/information screen notifies you when there is an incoming call.
■
HFT Status Display
1HFT Status Display
The information that appears on the audio/
information screen varies between phone models.
a Bluetooth® Indicator
Appears when your phone is connected to HFT.
b Signal Strength
c Battery Level Status
d HFT Mode
e Caller’s Name (If registered)/Caller’s Number (If not registered)
21 JAZZ HYBRID SSS-32TZA6000.book 361 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
362
uuDisplay AudiouHands-Free Telephone System
Features
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Only previously stored phonebook names or numbers can be called using voice
commands while the vehicle is in motion.
2 Favourite Contacts P. 371
■
Limitations for Manual Operation
21 JAZZ HYBRID SSS-32TZA6000.book 362 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
363
uuDisplay AudiouHands-Free Telephone System
Features
The power mode must be in ACCESSORY or ON to use the system. Select Phone to
display the phone screen.
■
HFT Menus
1HFT Menus
Some functions are limited while driving.
a Recent calls
b Favourite contacts
c Settings
d Contacts
e Keypad
21 JAZZ HYBRID SSS-32TZA6000.book 363 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
364
uuDisplay AudiouHands-Free Telephone System
Features
Recent calls: Displays the last outgoing, incoming, and missed calls.
2 To make a call using the recent calls P. 373
Favourite contacts: Dials the selected number in the Favourite contacts entry.
2 To make a call using a Favourite contacts entry P. 373
Settings: Changes the phone settings.
2 Phone Settings Screen P. 365
Contacts: Displays the phonebook of the paired phone.
2 To make a call using the imported phonebook P. 374
Keypad: Enters a phone number to dial.
2 To make a call using a phone number P. 374
21 JAZZ HYBRID SSS-32TZA6000.book 364 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
365
uuDisplay AudiouHands-Free Telephone System
Continued
Features
To display the phone settings screen, select Settings on the phone screen.
Change Devices: Pairs a new phone to the system and connect, disconnect, or
delete a paired device.
2 Phone Setup P. 366
Auto Sync Phone: Sets phonebook and recent calls data to be automatically
imported when a phone is paired to HFT.
2 Automatic Import of Mobile Phonebook and Recent calls P. 369
Auto Phone Call Transfer: Sets calls to automatically transfer from your phone to
HFT when you enter the vehicle.
2 Automatic Transferring P. 370
Ringtone: Selects the ring tone.
2 Ring Tone P. 370
■
Phone Settings Screen
21 JAZZ HYBRID SSS-32TZA6000.book 365 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
366
uuDisplay AudiouHands-Free Telephone System
Features
■
Bluetooth® setup
You can turn Bluetooth® function on and off.
1. Press the button.
2. Select General Settings.
3. Select Connections.
4. Select Bluetooth.
5. Select Options.
6. Select Bluetooth, then select ON.
■
Phone Setup
21 JAZZ HYBRID SSS-32TZA6000.book 366 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
367
uuDisplay AudiouHands-Free Telephone System
Features
■
To pair a mobile phone (when there is
no phone paired to the system)
1. Select Phone.
2. Select Connect New Device.
3. Make sure your phone is in search or
discoverable mode.
4. Select Honda HFT from your phone.
u If you want to pair a phone from this
audio system, select Search for
Devices, and then select your phone
when it appears on the list.
5. The system gives you a pairing code on the
audio/information screen.
u Confirm if the pairing code on the screen
and your phone match.
This may vary by a phone.
6. Select desired functions and then select
Connect.
7. A notification appears on the screen if
pairing is successful.
8. Select OK.
1Phone Setup
Your Bluetooth-compatible phone must be paired to
the system before you can make and receive hands-
free calls.
Phone Pairing Tips:
• You cannot pair your phone while the vehicle is
moving.
• Up to six phones can be paired.
• Your phone’s battery may drain faster when it is
paired to the system.
Once you have paired a phone, you can see it
displayed on the screen with the following icons.
: The phone is compatible with Bluetooth® Audio.
: The phone can be used with HFT.
: The phone is compatible with Apple CarPlay.
If there is an active connection to Apple CarPlay
pairing of additional Bluetooth® compatible devices is
unavailable.
21 JAZZ HYBRID SSS-32TZA6000.book 367 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouHands-Free Telephone System
368
Features
■
To change the currently paired phone
1. Select Phone.
2. Select Settings.
3. Select Change Devices.
4. Select a phone to connect.
u HFT disconnects the connected phone
and starts searching for another paired
phone.
u You can set the connected phone
priority. Select the box checked on the
phone you want to prioritize.
5. Select (audio), (phone), or (Apple
CarPlay).
u and can be selected
simultaneously, however, when is
selected, and cannot be selected.
6. Select Apply.
■
To delete a paired phone
1. Select Phone.
2. Select Settings.
3. Select Change Devices.
4. Select a phone you want to delete.
5. Select Delete.
6. A confirmation message appears on the
screen. Select Delete.
1To change the currently paired phone
If no other phones are found or paired when trying to
switch to another phone, HFT will inform you that the
original phone is connected again.
To pair other phones, select + Connect New Device
from the Bluetooth screen.
21 JAZZ HYBRID SSS-32TZA6000.book 368 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
369
uuDisplay AudiouHands-Free Telephone System
Features
When your phone is paired, the contents of its phonebook and recent calls are
automatically imported to the system.
1. Select Phone.
2. Select Settings.
3. Select Auto Sync Phone.
4. Select ON or OFF.
u The default setting is ON.
■
Automatic Import of Mobile Phonebook and Recent calls
1Automatic Import of Mobile Phonebook and Recent calls
On some phones, it is necessary to set up it enabled
to be imported the mobile phonebook.
When you select a name from the list in the mobile
phonebook, you can see a category icon. The icons
indicate what types of numbers are stored for that
name.
On some phones, it may not be possible to import the
category icons to the system.
The phonebook is updated after every connection.
Recent calls are updated after every connection or
call.
Pref Fax
Home Car
Mobile Voice
Work Other
Pager
21 JAZZ HYBRID SSS-32TZA6000.book 369 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouHands-Free Telephone System
370
Features
If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFT.
1. Select Phone.
2. Select Settings.
3. Select Auto Phone Call Transfer.
4. Select ON or OFF.
u The default setting is ON.
You can change the ring tone setting.
1. Select Phone.
2. Select Settings.
3. Select Ringtone.
4. Select Vehicle or Phone.
u The default setting is Phone.
■
Automatic Transferring
■
Ring Tone
1Ring Tone
Vehicle: The fixed ring tone sounds from the
speakers.
Phone: Depending on the make and model of the
mobile phone, the ring tone stored in the phone will
sound if the phone is connected.
21 JAZZ HYBRID SSS-32TZA6000.book 370 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
371
uuDisplay AudiouHands-Free Telephone System
Continued
Features
■
To add a Favourite contacts
1. Select Phone.
2. Select Recent calls, Contacts, or Keypad.
3. Select the star icon.
3. Select Add to Favourite Contacts.
u A notification appears on the screen if
the Favourite contacts is successfully
stored.
u To remove the Favourite contacts, select
the star icon again.
■
Favourite Contacts
Recent calls Screen
a Star Icon
On the Recent calls or Contacts screen
On the Keypad screen
Contacts Screen
a Star Icon
21 JAZZ HYBRID SSS-32TZA6000.book 371 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
372
uuDisplay AudiouHands-Free Telephone System
Features
■
To edit a Favourite contacts
1. Select Phone.
2. Select Favourite contacts.
3. Select Edit on the Favourite contacts entry
you want to edit.
4. Select a setting you want.
5. Select Done.
■
To delete a Favourite contacts
1. Select Phone.
2. Select Favourite contacts.
3. Select Edit on the Favourite contacts entry
you want to delete.
4. Select Remove.
5. A confirmation message appears on the
screen. Select Yes.
Keypad Screen
a Add to Favourite Contacts
21 JAZZ HYBRID SSS-32TZA6000.book 372 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
373
uuDisplay AudiouHands-Free Telephone System
Features
You can make calls by inputting any phone
number, or by using the imported Recent
calls, Favourite contacts, and Contacts
entries.
■
To make a call using the recent calls
Recent calls are stored by All, Dialled, Missed, and Received.
1. Select Phone.
2. Select Recent calls.
u You can sort by All, Dialled, Missed, or Received. Select the icon on the
upper right of the screen.
3. Select a number.
u Dialing starts automatically.
■
To make a call using a Favourite contacts entry
1. Select Phone.
2. Select Favourite contacts.
u You can change the order of Favourite contacts entries by selecting Reorder.
3. Select a number.
u Dialing starts automatically.
■
Making a Call
1Making a Call
Once a call is connected, you can hear the voice of
the person you are calling through the audio
speakers.
While there is an active connection with Apple
CarPlay, phone calls cannot be made with Hands-
Free Telephone (HFT) system and are only made from
Apple CarPlay.
1To make a call using the recent calls
The recent calls appear only when a phone is
connected to the system.
All: Displays the last outgoing, incoming, and missed
calls.
Dialled: Displays the last outgoing calls.
Missed: Displays the last missed calls.
Received: Displays the last incoming calls.
21 JAZZ HYBRID SSS-32TZA6000.book 373 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
374
uuDisplay AudiouHands-Free Telephone System
Features
■
To make a call using the imported phonebook
1. Select Phone.
2. Select Contacts.
3. Select a name.
u You can sort by First Name or Surname. Select the icon on the upper right of
the screen.
4. Select a number.
u Dialing starts automatically.
■
To make a call using a phone number
1. Select Phone.
2. Select Keypad.
3. Select a number.
u Use the keyboard on the touch screen for entering numbers.
4. Select Call.
u Dialing starts automatically.
21 JAZZ HYBRID SSS-32TZA6000.book 374 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
375
uuDisplay AudiouHands-Free Telephone System
Features
When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming Call... screen appears.
You can answer the call using the left selector
wheel.
To pick the call, roll up or down to select
(answer) on the driver information interface
and then press the left selector wheel.
u If you want to decline or end the call,
select (ignore) on the driver
information interface using the left
selector wheel.
■
Receiving a Call
1Receiving a Call
Call Waiting
Select (answer) to put the current call on hold to
answer the incoming call.
Select using the left selector wheel to return to
the current call.
Select (ignore) to ignore the incoming call if you
do not want to answer it.
Select if you want to hang up the current call.
You can select the icons on the audio/information
screen instead of and on the driver
information interface.
21 JAZZ HYBRID SSS-32TZA6000.book 375 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuDisplay AudiouHands-Free Telephone System
376
Features
The following options are available during a call.
Keypad: Send numbers during a call. This is useful when you call a menu-driven
phone system.
Mute: Mute your voice.
Use Handheld: Transfer a call from the system to your phone.
The available options are shown on the lower half of the screen.
Select the option.
u The mute icon appears when Mute is selected when the other source screen
other than the phone screen is displayed. Select Mute again to turn it off.
■
Options During a Call
1Options During a Call
You can select the icons on the audio/information
screen.
21 JAZZ HYBRID SSS-32TZA6000.book 376 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
377
Continued
Features
Audio Error Messages
iPod/USB Flash Drive
If an error occurs while playing an iPod or USB flash drive, you may see the following
error messages. If you cannot clear the error message, contact a dealer.
Error Message Solution
USB error
Appears when there is a problem with the audio system. Check if the device is
compatible with the audio system.
Unsupported ver
Appears when an unsupported iPod is connected. If it appears when a supported iPod
is connected, update the iPod software to the newer version.
Connect retry Appears when the system does not acknowledge the iPod. Reconnect the iPod.
Unplayable file
Appears when the files in the USB flash drive are copyright protected or an unsupported
format. This error message appears for about three seconds, then plays the next song.
No song
Appears when the USB flash drive is empty or there are no MP3, WMA, AAC, or WAV
files in the USB flash drive.
Check that compatible files are stored on the device.
Unsupported
Appears when an unsupported device is connected. If it appears when a supported
device is connected, reconnect the device.
Device no response
Appears when the system does not communicate with a connected device. If it appears
when a device is connected, contact your place of device purchase.
HUB unsupported
Appears when only a HUB is connected. If it appears, connect a USB flash drive to the
HUB.
Models with colour audio
USB flash drive
21 JAZZ HYBRID SSS-32TZA6000.book 377 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
378
uuAudio Error MessagesuiPod/USB Flash Drive
Features
Error Message Solution
No response from device
Appears when the system does not acknowledge the iPod. Reconnect the iPod.
Connect Retry
Unplayable File
Appears when the files in the USB flash drive are copyright protected or an unsupported
format. This error message appears for about five seconds, then plays the next song.
Unsupported Device
Appears when the system does not communicate with a connected device. If it appears
when a device is connected, contact your place of device purchase.
A charging error has occurred with the
connected USB device. When safe please
check the compatibility of the device and
USB cable and try again.
Appears when an incompatible device is connected. Disconnect the device. Then turn
the audio system off, and turn it on again. Do not reconnect the device that caused the
error.
Models with Display Audio
21 JAZZ HYBRID SSS-32TZA6000.book 378 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
379
Continued
Features
General Information on the Audio System
Compatible iPod, iPhone, and USB Flash Drives
■
iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4S/iPhone 5/iPhone 5s/iPhone 5c/
iPhone 6/iPhone6 Plus
Model
iPod touch (5th to 6th generation) released between 2012 and 2015
iPhone 5/iPhone 5s/iPhone 5c/iPhone 6/iPhone 6 Plus/iPhone 6S/iPhone 6S Plus/
iPhone SE/iPhone 7/iPhone 7 Plus/iPhone 8/iPhone 8 Plus/iPhone X/iPhone XS/
iPhone XS Max/iPhone XR
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
Models with colour audio
Models with Display Audio
21 JAZZ HYBRID SSS-32TZA6000.book 379 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives
380
Features
• A USB flash drive of 256 MB or higher is recommended.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Each audio system is compatible the following formats. Some versions of the
formats may be unsupported.
MP3, WMA, AAC, WAV
MP3, WMA, AAC, FLAC, WAV, PCM/WAVE, MP4, AVI, MKV, ASF/WMV
■
USB Flash Drives
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
Models with colour audio
Models with Display Audio
21 JAZZ HYBRID SSS-32TZA6000.book 380 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
381
uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives
Continued
Features
■
MP4 File
■
AVI File
■
Recommended Devices
Media USB Flash Drive
Profile (MP4 version)
BaselineProfile/Level 3,
MailProfile/Level 3.1
(MPEG4-AVC)
SimpleProfile/Level 5 (MPEG4)
File extension (MP4 version) .mp4/.m4v
Compatible audio codec AAC, MP3
Compatible video codec MPEG4-AVC (H.264) MPEG4 (ISO/IEC 14496 Part.2)
Bit rate
10 Mbps, 14 Mbps
(MPEG4-AVC)
8 Mbps (MPEG4)
Maximum image 1,280 × 720 pixels (MPEG4-AVC) 720 × 576 pixels (MPEG4)
Media USB Flash Drive
Profile (AVI version)
BaselineProfile/Level 3,
MailProfile/Level 3.1
(MPEG4-AVC)
SimpleProfile/Level 5 (MPEG4)
AdvancedProfile/Level 2,
MainProfile/Level Medium,
SimpleProfile/Level Medium (VC-1)
File extension (AVI version) .avi
Compatible audio codec AAC, MP3, WMA
Compatible video codec MPEG4-AVC (H.264) MPEG4 (ISO/IEC 14496 Part.2) VC-1
Bit rate
10 Mbps, 14 Mbps
(MPEG4-AVC)
8 Mbps (MPEG4)
20 Mbps, 10 Mbps, 384 kbps
(VC-1)
Maximum image
1,280 × 720 pixels
(MPEG4-AVC)
720 × 576 pixels (MPEG4)
1,280 × 720 pixels,
720 x 480 pixels,
352 x 288 pixels (VC-1)
21 JAZZ HYBRID SSS-32TZA6000.book 381 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
382
uuGeneral Information on the Audio SystemuCompatible iPod, iPhone, and USB Flash Drives
Features
■
MKV File
■
ASF/WMV File
Media USB Flash Drive
Profile (MKV version)
BaselineProfile/Level 3,
MailProfile/Level 3.1
(MPEG4-AVC)
SimpleProfile/Level 5 (MPEG4)
AdvancedProfile/Level 2,
MainProfile/Level Medium,
SimpleProfile/Level Medium (VC-1)
File extension (MKV version) .mkv
Compatible audio codec AAC, MP3
Compatible video codec MPEG4-AVC (H.264) MPEG4 (ISO/IEC 14496 Part.2) VC-1
Bit rate
10 Mbps, 14 Mbps
(MPEG4-AVC)
8 Mbps (MPEG4)
20 Mbps, 10 Mbps, 384 kbps
(VC-1)
Maximum image
1,280 × 720 pixels
(MPEG4-AVC)
720 × 576 pixels
(MPEG4)
1,280 × 720 pixels,
720 x 480 pixels,
352 x 288 pixels (VC-1)
Media USB Flash Drive
Profile (ASF/WMV version)
BaselineProfile/Level 3,
MailProfile/Level 3.1
(MPEG4-AVC)
AdvancedProfile/Level 2,
MainProfile/Level Medium,
SimpleProfile/Level Medium (VC-1)
File extension
(ASF/WMV version)
.asf/.wmv
Compatible audio codec WMA
Compatible video codec MPEG4-AVC (H.264) VC-1
Bit rate 10 Mbps, 14 Mbps (MPEG4-AVC) 20 Mbps, 10 Mbps, 384 kbps (VC-1)
Maximum image 1,280 × 720 pixels (MPEG4-AVC)
1,280 × 720 pixels,
720 x 480 pixels,
352 x 288 pixels (VC-1)
21 JAZZ HYBRID SSS-32TZA6000.book 382 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
383
uuGeneral Information on the Audio SystemuAbout Open Source Licences
Features
About Open Source Licences
To see the open source licence information, follow these steps.
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select License, then press .
1. Select General Settings.
2. Select System.
3. Select Detail Information.
Copyright 2014 jQuery Foundation and other contributors
http://jquery.com/
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the
“Software”), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish,
distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the
following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF
CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS
IN THE SOFTWARE.
■
Software for the Display Audio
*
Models with colour audio
Models with Display Audio
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 383 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
384
uuGeneral Information on the Audio SystemuLegal Information on Apple CarPlay/Android Auto
Features
Models with Display Audio
Legal Information on Apple CarPlay/Android Auto
USE OF APPLE CARPLAY IS SUBJECT TO YOUR AGREEMENT TO THE CARPLAY TERMS OF USE, WHICH ARE INCLUDED AS PART OF THE
APPLE iOS TERMS OF USE. IN SUMMARY, THE CARPLAY TERMS OF USE DISCLAIM APPLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE
SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED, STRICTLY LIMIT APPLE AND ITS SERVICE PROVIDERS’ OTHER
LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING, FOR EXAMPLE, VEHICLE LOCATION, VEHICLE SPEED, AND
VEHICLE STATUS) BEING GATHERED AND STORED BY APPLE AND ITS SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS
ASSOCIATED WITH THE USE OF CARPLAY, INCLUDING THE POTENTIAL FOR DRIVER DISTRACTION. SEE APPLE’S PRIVACY POLICY FOR
DETAILS REGARDING APPLE’S USE AND HANDLING OF DATA UPLOADED BY CARPLAY.
USE OF ANDROID AUTO IS SUBJECT TO YOUR AGREEMENT TO THE ANDROID AUTO TERMS OF USE WHICH MUST BE AGREED TO WHEN
THE ANDROID AUTO APPLICATION IS DOWNLOADED TO YOUR ANDROID PHONE. IN SUMMARY, THE ANDROID AUTO TERMS OF USE
DISCLAIM GOOGLE AND ITS SERVICE PROVIDERS’ LIABILITY IF THE SERVICES FAIL TO PERFORM CORRECTLY OR ARE DISCONTINUED,
STRICTLY LIMIT GOOGLE AND ITS SERVICE PROVIDERS’ OTHER LIABILITIES, DESCRIBE THE KINDS OF USER INFORMATION (INCLUDING,
FOR EXAMPLE, VEHICLE LOCATION, VEHICLE SPEED, AND VEHICLE STATUS) BEING GATHERED AND STORED BY GOOGLE AND ITS
SERVICE PROVIDERS, AND DISCLOSE CERTAIN POSSIBLE RISKS ASSOCIATED WITH THE USE OF ANDROID AUTO, INCLUDING THE
POTENTIAL FOR DRIVER DISTRACTION. SEE GOOGLE’S PRIVACY POLICY FOR DETAILS REGARDING GOOGLE’S USE AND HANDLING OF
DATA UPLOADED BY ANDROID AUTO.
■
OWNER’S MANUAL LICENSE/LIABILITY STATEMENTS
21 JAZZ HYBRID SSS-32TZA6000.book 384 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
385
uuGeneral Information on the Audio SystemuLegal Information on Apple CarPlay/Android Auto
Features
YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF APPLE CARPLAY OR ANDROID AUTO (“THE APPLICATIONS”) IS AT YOUR
SOLE RISK AND THAT THE ENTIRE RISK AS TO SATISFACTORY QUALITY, PERFORMANCE, ACCURACY AND EFFORT IS WITH YOU TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT THE APPLICATIONS AND INFORMATION ON THE APPLICATIONS IS
PROVIDED “AS IS” AND “AS AVAILABLE,” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND HONDA HEREBY
DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE APPLICATIONS AND INFORMATION ON THE APPLICATIONS,
EITHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY, QUIET ENJOYMENT, AND NON-
INFRINGEMENT OF THIRD PARTY RIGHTS. NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY HONDA OR AN AUTHORISED
REPRESENTATIVE SHALL CREATE A WARRANTY. AS EXAMPLES, AND WITHOUT LIMITATION, HONDA DISCLAIMS ANY WARRANTY
REGARDING THE ACCURACY OF DATA PROVIDED BY THE APPLICATIONS, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED
TRAVEL TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR OTHER CONTENT PROVIDED BY APPLE, GOOGLE, THEIR
AFFILIATES, OR THIRD PARTY PROVIDERS; HONDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION DATA, WHICH MAY BE LOST
AT ANY TIME; HONDA DOES NOT GUARANTEE THAT THE APPLICATIONS OR ANY SERVICES PROVIDED THROUGH THEM WILL BE
PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE AT ANY PARTICULAR TIME OR LOCATION. FOR EXAMPLE,
SERVICES MAY BE SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR, MAINTENANCE, SECURITY FIXES, UPDATES, ETC.,
SERVICES MAY BE UNAVAILABLE IN YOUR AREA OR LOCATION, ETC. IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY
TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE.
TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL HONDA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY, OR ANY
INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR
LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS INTERRUPTION OR ANY
OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO THE APPLICATIONS OR YOUR USE OF OR INABILITY TO
USE THE APPLICATIONS OR INFORMATION ON THE APPLICATIONS, HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY
(CONTRACT, TORT OR OTHERWISE) AND EVEN IF HONDA WERE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME REGIONS AND
JURISDICTIONS MAY DISALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR DAMAGES, SO THESE LIMITATIONS AND EXCLUSIONS
MAY NOT APPLY TO YOU. THE FOREGOING LIMITATIONS WILL APPLY EVEN IF THE ABOVE STATED REMEDY FAILS OF ITS ESSENTIAL
PURPOSE.
■
DISCLAIMER OF WARRANTIES; LIMITATION ON LIABILITY
21 JAZZ HYBRID SSS-32TZA6000.book 385 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
386
Features
Emergency Call (eCall)
Automatic emergency call
If your vehicle is involved in a collision, the SRS
unit in the vehicle will attempt to connect to a
Public Safety Answering Point (PSAP)
operator. Once a connection is established,
various information about the vehicle will be
sent to a PSAP operator with whom you will
be able to speak. This information includes:
• Vehicle identification number (VIN)
• Type of vehicle (passenger vehicle or light-weight commercial vehicle)
• Type of energy stored for vehicle propulsion (gasoline/diesel/CNG/LPG/electricity/
hydrogen)
• Last three locations of the vehicle
• Direction of travel
• Triggering mode (automatic or manual)
• Timestamp
When an emergency call is initiated, the vehicle speakers are disabled so that you
can hear the operator.
When the power mode is set to ON, the eCall indicator lights up in green for 1
second, then in red for 1 second.
1Emergency Call (eCall)
Your vehicle is equipped with the 112-based eCall
service system.
The 112-based eCall service is a public service of
general interest and is accessible free of charge.
The 112-based eCall in-vehicle system is activated
when the power mode is set to ON. In the event of a
collision, the system will determine the degree of the
impact based on information collected from the on-
board sensors and, depending on the severity of the
collision, will initiate the emergency call.
The 112-based eCall in-vehicle system can also be
triggered manually, if needed.
2 Manual emergency call P. 388
Any processing of personal data through the 112-
based eCall in-vehicle system shall comply with the
personal data protection rules provided for in
Directives 95/46/EC (replaced by 2016/679/EC) and
2002/58/EC, and in particular, shall be based on the
necessity to protect the vital interests of the
individuals in accordance with Article 7(d) of Directive
95/46/EC (replaced by 2016/679/EC).
Processing of such data is strictly limited to the
purpose of for which the single European emergency
number 112 is designated.
a eCall Indicator
21 JAZZ HYBRID SSS-32TZA6000.book 386 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
387
uuEmergency Call (eCall)uAutomatic emergency call
Features
If the eCall system is working properly, the indicator will light up in green.
• Green: eCall system is ready.
• Blinking in green: eCall system is connected and making an eCall to a PSAP
operator.
• Repeating a pattern of short flashes of the red light: The eCall system has failed
to connect to an operator. The eCall indicator will continue this pattern for 5
seconds, then it will light up in green.
If the 112-based eCall system is disabled in the event of a critical system failure, the
following warning will be given to the occupants of the vehicle:
• Red or blacked out: A problem with the eCall system has occurred. If the indicator
stays red or blacked out even after you have restarted the vehicle, have the system
check by a dealer.
• Blinking in red: The level of the backup battery is too low. While the power is in
ON, the battery undergoes recharging. Once the battery has been recharged to a
certain level, the eCall indicator lights up in green.
1Emergency Call (eCall)
Recipients of data processed by the 112-based eCall
in-vehicle system are the relevant public safety
answering points designated by the respective public
authorities of the country in which they are located
and are the first to receive and for which the single
European emergency number 112 is designated.
Your vehicle may NOT be able to connect to a PSAP
operator if:
• both the 12V battery and backup battery are too
low.
• your vehicle is in an area without adequate cellular
coverage.
• There is a problem with the eCall system itself or its
peripheral equipment such as the microphone or
speakers.
The backup battery is designed to operate for at least
3 years, after which it may need to be replaced.
The backup battery is not available for direct
purchase. For replacement, visit a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 387 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
388
uuEmergency Call (eCall)uManual emergency call
Features
Manual emergency call
If you need to make an emergency call, you
can establish a connection manually: Press the
SOS button and hold it for more than 0.5
seconds.
To cancel a call, press the SOS cancel button
for more than 0.5 seconds, before 5 seconds
has elapsed since the SOS button was
pressed.
The SOS button is protected by a cover. Open the cover to gain access.
When an emergency call is initiated, the vehicle speakers are disabled so that you
can hear the operator.
1Manual emergency call
Do NOT press the button while you are driving. If you
need to contact an operator, park the vehicle in a
safe place before you make a call.
If the eCall system at first fails to connect to a PSAP
operator, it will try again until a connection is
established. However, if 2 minutes have elapsed since
the first try was attempted, the system will no longer
attempt to establish a connection.
The SOS cancel button does not cancel a call once
the system is connected to an operator.
a Microphone
b SOS Cancel Button
c Cover
d SOS Button
21 JAZZ HYBRID SSS-32TZA6000.book 388 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
389
uuEmergency Call (eCall)uManual emergency call
Features
Name of Importer: Mayer’s Cars and Trucks Co. Ltd.
Importer’s Address: 17 Yitzhak Sadeh St. Tel Aviv 677775, Israel
1Emergency Call (eCall)
Data privacy
The 112-based eCall in-vehicle system is designed to
ensure that:
• Data contained in the system memory is not
available outside the system before an eCall is
triggered.
• It is not traceable or subject to any constant
tracking during its normal operation status.
• Data in the internal memory of the system is
automatically and continuously removed.
For the system to function normally, the vehicle
location data is constantly overwritten in the internal
memory of the system so that the last three locations
of the vehicle are kept up-to-date.
The log of activity data in the 112-based eCall in-
vehicle system is kept for no longer than necessary
for attaining the purpose of handling the emergency
eCall and in any case not beyond 13 hours from the
moment an emergency eCall was initiated.
Israeli models
21 JAZZ HYBRID SSS-32TZA6000.book 389 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuEmergency Call (eCall)uManual emergency call
390
Features
1Emergency Call (eCall)
Owner’s rights
The data subject (the vehicle’s owner) has a right of
access to data and as appropriate to request the
rectification, erasure or blocking of data, concerning
him or her, the processing of which does not comply
with the provisions of Directive 95/46/EC (replaced by
2016/679/EC).
Any third parties to whom the data have been
disclosed have to be notified of such rectification,
erasure or blocking carried out in compliance with
this Directive, unless it proves impossible or involves a
disproportionate effort.
The data subject has a right to complain to the
competent data protection authority if he or she
considers that his or her rights have been infringed as
a result of the processing of his or her personal data.
Honda eCall Service Information:
If you have any questions about eCall, contact the
office relevant to the country in which you reside. See
the service booklet for list of offices.
21 JAZZ HYBRID SSS-32TZA6000.book 390 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
391
Driving
This chapter discusses driving and refueling.
Before Driving................................... 392
Towing a Trailer................................ 396
When Driving
Turning on the Power ...................... 397
Precautions While Driving................. 400
Transmission .................................... 402
Shifting............................................ 403
ECON Mode .................................... 405
Acoustic Vehicle Alerting System...... 406
Adjustable Speed Limiter.................. 407
Intelligent Speed Limiter................... 413
Vehicle Stability Assist (VSA) System ....420
Agile Handling Assist ....................... 422
Deflation Warning System................ 423
Blind spot information System
*
........ 427
High Voltage Battery........................ 431
Honda Sensing.................................. 432
Collision Mitigation Braking System
(CMBS) .......................................... 435
Adaptive Cruise Control (ACC) with Low
Speed Follow ................................. 447
Lane Keeping Assist System (LKAS) .. 467
Road Departure Mitigation System... 478
Traffic Sign Recognition System ....... 487
Front Wide View Camera................. 494
Braking
Brake System................................... 496
Anti-lock Brake System (ABS) ........... 503
Brake Assist System ......................... 504
Emergency Stop Signal .................... 505
Parking Your Vehicle
When Stopped ................................ 506
Parking Sensor System
*
................... 508
Cross Traffic Monitor
*
..................... 513
Multi-View Rear Camera
*
................ 518
Refueling........................................... 520
Fuel Economy and CO
2
Emissions.... 523
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 391 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
392
Driving
Before Driving
Driving Preparation
Check the following items before you start driving.
• Make sure there are no obstructions on the windows, door mirrors, exterior
lights, or other parts of the vehicle.
u Remove any frost, snow, or ice.
u Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid, remove ice once it has softened.
u When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.
• Make sure the bonnet is securely closed.
u If the bonnet opens while driving, your front view will be blocked.
• Make sure the tyres are in good condition.
u Check air pressures, and check for damage and excessive wear.
2 Checking and Maintaining Tyres P. 568
• Make sure there are no people or objects behind or around the vehicle.
u There are blind spots from the inside.
■
Exterior Checks
1Exterior Checks
NOTICE
When doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.
Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.
Heat from the engine and exhaust can ignite
flammable materials left under the bonnet, causing a
fire. If you’ve parked your vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the bonnet for
leftover flammable materials after you or someone
else has performed maintenance on your vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 392 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
393
uuBefore DrivinguDriving Preparation
Driving
• Store or secure all items on board properly.
u Carrying too much luggage, or improperly storing it, can affect your vehicle’s
handling, stability, stopping distance, and tyres, and make it unsafe.
2 Load Limit P. 395
• Do not pile items higher than the seat height.
u They can block your view and may be thrown forward in the event of sudden
braking.
• Do not place anything in the front seat footwells. Make sure to secure the floor
mat.
u An object or unsecured floor mat can interfere with your brake and accelerator
pedal operation while driving.
• If you have any animals on board, do not let them move around in the vehicle.
u They may interfere with driving and a crash could occur.
• Securely close all doors and the tailgate.
• Adjust your seating position properly.
u Adjust the head restraint, too.
2 Adjusting the Seats P. 211
2 Adjusting the Front Head Restraints P. 218
• Adjust the mirrors and steering wheel properly.
u Adjust them while sitting in the proper driving position.
2 Adjusting the Mirrors P. 208
2 Adjusting the Steering Wheel P. 207
■
Interior Checks
1Interior Checks
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the luggage area, have the aiming
readjusted at a dealer or by a qualified technician.
You can adjust the low beam headlight angle by
yourself.
2 Headlight Adjuster P. 198
21 JAZZ HYBRID SSS-32TZA6000.book 393 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
394
uuBefore DrivinguDriving Preparation
Driving
• Be sure items placed on the floor behind the front seats cannot roll under the
seats.
u They can interfere with the driver’s ability to operate the pedals, or the
operation of the seats.
• Everyone in the vehicle must fasten their seat belt.
2 Fastening a Seat Belt P. 48
• Make sure that the indicators in the instrument panel come on when you start the
vehicle, and go off soon after.
u Always have a dealer check the vehicle if a problem is indicated.
2 Indicators P. 106
21 JAZZ HYBRID SSS-32TZA6000.book 394 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
395
uuBefore DrivinguLoad Limit
Driving
Load Limit
When you load luggage, the total weight of the vehicle, all passengers, and luggage
must not exceed the maximum permissible weight.
2 Specifications P. 634
The load for the front and rear axles also must not exceed the maximum permissible
axle weight.
2 Specifications P. 634
1Load Limit
3
WARNING
Overloading or improper loading can affect
handling and stability and cause a crash in
which you can be hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
21 JAZZ HYBRID SSS-32TZA6000.book 395 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
396
Driving
Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
21 JAZZ HYBRID SSS-32TZA6000.book 396 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
397
Continued
Driving
When Driving
Turning on the Power
1. Make sure the parking brake is applied.
u The parking brake and brake system
indicator comes on for 30 seconds when
you pull up the electric parking brake
switch.
2. Check that the transmission is in (P , then
depress the brake pedal.
u Although it is possible to start the vehicle
in
(N , it is safer to start it in (P .
1Turning on the Power
Keep your foot firmly on the brake pedal when
starting the power system.
The engine is harder to start in cold weather and in
thinner air found at altitudes above 2,400 metres
(8,000 feet).
When turning on the power system in cold weather,
turn off all electrical accessories such as the lights,
climate control system, and rear demister in order to
reduce the 12-volt battery drain.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
The immobilizer system protects your vehicle from
theft.
If an improperly coded key (or other device) is used,
the power system does not activate.
2 Immobilizer System P. 181
When you set the power mode to ON, you may feel
the brake pedal slightly sink down. This is normal.
a Electric Parking Brake Switch
a Brake Pedal
21 JAZZ HYBRID SSS-32TZA6000.book 397 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguTurning on the Power
398
Driving
3. Without depressing the accelerator pedal,
press the POWER button while depressing
the brake pedal.
4. Check the (ready) indicator.
u Keep depressing the brake pedal until
the indicator comes on.
u The indicator comes on when the
power system is on and you can start
driving.
u If the outside temperature is extremely
low, you cannot drive until conditions are
improved. In this case, the indicator
does not come on and a warning
message appears on the driver
information interface.
2 Indicators P. 106
You can turn the power system off when the vehicle is completely stopped.
1. Put the transmission into
(P .
2. Press the POWER button.
1Turning on the Power
Bring the keyless remote close to the POWER button
if the battery in the keyless remote is weak.
2 If the Keyless Remote Battery is Weak
P. 608
The power system may not activate if the keyless
remote is subjected to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 30
seconds before trying again.
The engine may not run when the vehicle is ready for
driving.
You can start driving with the indicator on.
If you press the POWER button while depressing the
brake pedal with the indicator on, the power
mode is set to VEHICLE OFF and you cannot start
driving.
2 Ready Indicator P. 110
■
Stopping the Power System
21 JAZZ HYBRID SSS-32TZA6000.book 398 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
399
uuWhen DrivinguTurning on the Power
Driving
1. Keeping your right foot on the brake pedal, check that the indicator is on,
then put the transmission into (D . Select (R when reversing.
2. With the electric parking brake applied, release the brake pedal and gently
depress the accelerator pedal.
u Make sure the parking brake and brake system indicator goes off.
2 Parking Brake P. 496
■ Hill start assist system
Hill start assist keeps the brake engaged briefly to help to prevent the vehicle from
rolling on inclines as you move your foot from the brake pedal to the accelerator.
Put the transmission into
(D , when facing uphill, or (R when facing downhill,
then release the brake pedal.
■
Starting to Drive
1Starting to Drive
You can also release the parking brake by pressing
the electric parking brake switch while depressing the
brake pedal. When facing downhill, you can start
your vehicle more smoothly by manually releasing it
with the electric parking brake switch than by
releasing it with the accelerator pedal.
As a hybrid vehicle, the sounds and vibrations from
the engine may be absent even though the vehicle is
ready for driving. It also makes you fail to recognise
that you can start.
Make sure to check if the indicator is on before
you start to drive.
1Hill start assist system
Hill start assist may not prevent the vehicle from
rolling downhill on a very steep or slippery slope, and
will not operate on small inclines.
Hill start assist will operate even when VSA is
switched off.
Hill start assist is not a replacement for the parking
brake.
B
21 JAZZ HYBRID SSS-32TZA6000.book 399 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
400
uuWhen DrivinguPrecautions While Driving
Driving
Precautions While Driving
Visibility becomes low when it is foggy. When you drive, turn on the low beam
headlights even during the daytime. Slow down, using the road line in the centre,
guard rails, and the taillights of the vehicle ahead of you as your driving guide.
If a strong side wind drifts your vehicle while driving, hold the steering wheel tight.
Slowly decelerate your vehicle and keep your vehicle in the middle of the road. Be
careful with wind gusts especially when your vehicle is exiting a tunnel, driving on a
bridge or river bank, and driving through an open area like a quarry, and when a
large lorry is passing by.
■
In a Fog
■
In a Strong Wind
1Precautions While Driving
CAUTION: Do not drive on the road where water is
deep. Driving through deep water will cause damage
to the engine and electrical equipment and the
vehicle will break down.
NOTICE
Do not operate the shift lever while pressing the
accelerator pedal. You could damage the
transmission.
NOTICE
If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the electric
power steering (EPS) system heats up. The system
goes into a protective mode, and limits its
performance. The steering wheel becomes harder
and harder to operate. Once the system cools down,
the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.
If the power mode is set to ACCESSORY while
driving, the power system will shut down and all
steering and brake power assist functions will stop,
making it difficult to control the vehicle.
Do not put the shift lever in
(N , as you will lose
regenerative braking (and acceleration) performance.
21 JAZZ HYBRID SSS-32TZA6000.book 400 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
401
uuWhen DrivinguPrecautions While Driving
Driving
The road is slippery when raining. Avoid hard braking, rapid acceleration, and
abrupt steering and be more cautious when driving. It is likely to experience
hydroplaning phenomenon if you are driving on a rutted road with puddles. Do not
drive in deep water and on flooded roads. This can damage the power system or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
■
In Rain
■
Other Precautions
1Precautions While Driving
During the first 1,000 km (625 miles) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the power system or powertrain.
Avoid hard braking for the first 300 km (200 miles).
You should also follow this when the brake pads are
replaced.
1In Rain
Be careful when hydroplaning phenomenon occurs.
When you drive on a road covered with water at
excessive speed, a layer of water builds between the
tyres and the road surface. If this occurs, the vehicle
cannot respond to control inputs such as steering,
and braking.
Slowly decelerate when you shift down. If the road is
slippery, sudden regenerative braking can cause the
tyres to skid.
21 JAZZ HYBRID SSS-32TZA6000.book 401 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
402
uuWhen DrivinguTransmission
Driving
Transmission
As with a conventional petrol-powered vehicle with an automatic transmission, this
vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the vehicle
to react similar to an automatic transmission vehicle, unexpectedly increasing vehicle
speed. Depress the accelerator pedal carefully, especially on slippery roads and
curves.
■
Creeping
■
Kickdown
21 JAZZ HYBRID SSS-32TZA6000.book 402 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
403
uuWhen DrivinguShifting
Continued
Driving
Shifting
Change the shift position in accordance with your driving needs.
■ Shift lever positions
1Shifting
While the High Voltage battery level is full, or the
High Voltage battery temperature is low,
regenerative braking may become less effective.
You cannot change the power mode from ON to
VEHICLE OFF unless the shift lever is in
(P .
You may occasionally find that it takes longer than
usual for the vehicle to start moving when you select
(R , release the brake pedal, and/or depress the
accelerator pedal. This may occur when the High
Voltage battery level is extremely low, and does not
indicate a vehicle malfunction.
3
WARNING
The vehicle can roll away if left unattended
without confirming that Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
(P is shown
on the shift position indicator.
a Release Button
Neutral
Transmission is not locked.
Drive
Used:
For normal driving.
Drive (B)
Used when driving down a long hill
and to increase regenerative braking.
Park
Used when parking or
starting the engine.
Reverse
Used when reversing.
21 JAZZ HYBRID SSS-32TZA6000.book 403 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguShifting
404
Driving
■
Shift Operation
1Shift Operation
NOTICE
When you change (D to ( R and vice versa, come to
a complete stop and keep the brake pedal depressed.
Operating the shift position before the vehicle has
come to a complete standstill can damage the
transmission.
Use the shift position indicator to check the lever
position before pulling away.
If the indicator of the currently selected shift position
is blinking simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.
When shifting positions in extremely low
temperatures −30°C, there may be a short delay before
the shift position is displayed. Always confirm you are
in the correct shift position before driving.
It may not be possible to operate the shift lever if the
brake pedal is applied while the shift lever release
button is held down.
Depress the brake pedal first.
a Shift Position Indicator (Transmission System Indicator)
b Depress the brake pedal and press the shift lever release button to shift.
c Shift without pressing the shift lever release button.
d Press the shift lever release button and shift.
21 JAZZ HYBRID SSS-32TZA6000.book 404 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
405
uuWhen DrivinguECON Mode
Driving
ECON Mode
The ECON button turns the ECON mode on and off.
The ECON mode helps you improve your fuel economy by adjusting the
performance of the climate control system and the accelerator pedal response.
To turn the ECON mode on and off, press the ECON button when the power mode
is ON.
1ECON Mode
While in ECON mode, the climate control system has
greater temperature fluctuations.
Due to emergency brakes operation or driving
conditions, you may not be able to change the mode.
21 JAZZ HYBRID SSS-32TZA6000.book 405 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
406
uuWhen DrivinguAcoustic Vehicle Alerting System
Driving
Acoustic Vehicle Alerting System
Alerts pedestrians when a vehicle is propelled solely by electricity, approaching at
speeds around 25 km/h (16 mph) or less.
21 JAZZ HYBRID SSS-32TZA6000.book 406 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
407
uuWhen DrivinguAdjustable Speed Limiter
Continued
Driving
Adjustable Speed Limiter
This system enables you to set a maximum speed that cannot be exceeded even if
you are depressing the accelerator pedal.
The vehicle speed limit can be set from about 30 km/h (18 mph) to about 250 km/h
(156 mph).
1Adjustable Speed Limiter
The adjustable speed limiter may not hold the set
speed limit when driving downhill. If this occurs, slow
down by depressing the brake pedal.
When not using the adjustable speed limiter:
Turn off the adjustable speed limiter by pressing the
button.
You cannot use the Adjustable Speed Limiter and
below systems at the same time.
-Adaptive cruise control (ACC) with low speed follow
-Intelligent speed limiter
3
WARNING
Adjustable Speed Limiter has limitations.
It is always your responsibility to adjust the
vehicle speed to obey the actual speed
limit, and safely operate the vehicle.
3
WARNING
Do not depress the accelerator pedal more
than necessary.
Maintain an appropriate accelerator pedal
position depending on the vehicle speed.
a Press the button on the steering wheel.
b If a different indicator comes on, press the LIM button to switch to the adjustable
speed limiter.
c The Adjustable Speed Limiter Indicator (White) is on in the gauge.
Adjustable speed limiter is ready to use.
How to use
21 JAZZ HYBRID SSS-32TZA6000.book 407 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguAdjustable Speed Limiter
408
Driving
• Take your foot off the pedal and press the SET/− button when you reach the desired
speed.
The moment you release the SET/− button, the speed limit is fixed, and the adjustable
speed limiter is set. The speed limit is displayed.
• You can set the previously set speed limit by pressing the RES/+ button.
■
To Set the Speed Limit
1To Set the Speed Limit
If you set the speed limit while travelling at less than
30 km/h (18 mph), the speed limit is set to 30 km/h
(18 mph).
The beeper sounds and the displayed speed limit
blinks if the vehicle speed exceeds the limit by 3 km/h
(2 mph) or more on a steep descent.
The adjustable speed limiter is set to the current
speed if it is higher than the previously set speed limit
when you press the RES/+ button.
You can switch the displayed set speed
measurements between km/h and mph on the driver
information interface
*
or audio/information screen
*
.
2 Change Units P. 152
2 Settings
*
P. 154
2 Customized Features P. 345
a RES/+ Button
b SET/− Button
c On when the adjustable speed limiter is set.
d Adjustable Speed Limiter Indicator (Green)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 408 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
409
uuWhen DrivinguAdjustable Speed Limiter
Continued
Driving
Increase or decrease the speed limit by using the RES/+ or SET/− buttons on the
steering wheel.
• Each time you press the button, the speed limit increases or decreases by 1 km/h
or 1 mph accordingly.
• If you keep the button pressed, the speed limit increases or decreases in
increments of 10 km/h or 10 mph every 0.5 second until system limit is reached.
• The vehicle may accelerate or decelerate until the set speed is reached.
■
To Adjust the Speed Limit
a To increase speed
b To decrease speed
21 JAZZ HYBRID SSS-32TZA6000.book 409 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguAdjustable Speed Limiter
410
Driving
The speed limit can be exceeded by depressing the accelerator pedal completely.
u The displayed limit speed blinks.
u The beeper sounds once the speed limit has been exceeded.
■
Exceeding the Speed Limit Temporarily
1Exceeding the Speed Limit Temporarily
The beeper sounds when the vehicle speed goes
higher than the set speed limit with the accelerator
pedal depressed completely.
The adjustable speed limiter resumes working once
the vehicle speed goes lower than the set speed limit.
21 JAZZ HYBRID SSS-32TZA6000.book 410 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
411
uuWhen DrivinguAdjustable Speed Limiter
Driving
To cancel the adjustable speed limiter, do any
of the following:
• Press the CANCEL button.
• Press the button.
• Press the LIM button.
■
To Cancel
1To Cancel
The adjustable speed limiter changes into adaptive
cruise control (ACC) with Low Speed Follow or
intelligent speed limiter if the LIM button is pressed.
Resuming the prior set speed:
CANCEL button, the prior set speed is displayed on
the gauge in gray.
When pressing the RES/+ button, the adjustable
speed limiter is activated with displayed speed.
If the adjustable speed limiter is set to the current
speed if it is higher than the previously set speed limit
when you press the RES/+ button.
a Adjustable Speed Limiter
Indicator (White)
b Prior Set Speed (Gray)
c Setting Status (Gray)
a LIM Button
b CANCEL Button
c Button
21 JAZZ HYBRID SSS-32TZA6000.book 411 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguAdjustable Speed Limiter
412
Driving
1To Cancel
If there is a problem with the system when you are using
the adjustable speed limiter, the beeper sounds and
OFF
comes on. The adjustable speed limiter will be turned off.
a Adjustable Speed Limiter Indicator
(White)
21 JAZZ HYBRID SSS-32TZA6000.book 412 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
413
uuWhen DrivinguIntelligent Speed Limiter
Continued
Driving
Intelligent Speed Limiter
Automatically sets the speed limit that the traffic sign recognition system detects.
And the speed limit cannot be exceeded even if you are depressing the accelerator
pedal. If you fully depress the accelerator the speed limit can be exceeded.
2 Traffic Sign Recognition System P. 487
1Intelligent Speed Limiter
Depending on the amount of depression of the
accelerator pedal, the vehicle will accelerate until it
reaches the speed identified by the traffic sign
recognition system.
3
WARNING
Intelligent Speed Limiter has limitations.
The Intelligent Speed Limiter may set itself
to a speed above or below the actual speed
limit, or may not work, particularly where
the traffic sign recognition system does not
operate correctly or where a road has no
speed limit signs. It is always your
responsibility to adjust the speed to obey
the actual speed limit and to safely operate
the vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 413 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguIntelligent Speed Limiter
414
Driving
1Intelligent Speed Limiter
The system is designed to detect signs that follow the
Vienna Convention standards. Not all signs may be
detected, but any signs posted on roadsides should
not be ignored. The system does not work on the
designated traffic signs of all the countries you travel,
nor in all situations.
2 Traffic Sign Recognition System P. 487
If the intelligent speed limiter is set to the wrong
speed limit, try one of the following:
To cancel
• Press the CANCEL button.
• Press the button.
• Press the LIM button.
To exceed the speed limit temporarily
• Depressing the accelerator pedal fully.
The intelligent speed limiter may not hold the set
speed limit when driving downhill. If this occurs, slow
down by depressing the brake pedal.
When not using the intelligent speed limiter, turn off
the intelligent speed limiter by pressing the
button.
You cannot use the intelligent speed limiter and
adaptive cruise control (ACC) with Low Speed Follow
or adjustable speed limiter at the same time.
a Press the button on the steering wheel.
b If a different indicator comes on, press the LIM button to change it to the
intelligent speed limiter.
c The Intelligent Speed Limiter Indicator (White) is on in the gauge.
Intelligent speed limiter is ready to use.
How to use
21 JAZZ HYBRID SSS-32TZA6000.book 414 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
415
uuWhen DrivinguIntelligent Speed Limiter
Driving
• The moment you release the SET/− button or RES/+ button, the intelligent speed
limiter is set to the speed limit that the traffic sign recognition system detects. The
speed limit is displayed.
■
To Set the Speed Limit
1Intelligent Speed Limiter
Do not use the intelligent speed limiter in areas of
different units from the display unit of the intelligent
speed limiter.
Change the displayed measurement of the set vehicle
speed to the same units as the driving areas.
2 Change Units P. 152
2 Settings
*
P. 154
2 Customized Features P. 345
1To Set the Speed Limit
If you set the intelligent speed limiter when the speed
limit that the traffic sign recognition system detects is
less than 30 km/h (20 mph), the speed limitation
function and warning function may switch to pause.
If your vehicle speed is higher than the speed limit
that the traffic sign recognition system detects, your
vehicle decelerates slowly to the speed limit or less. If
necessary, slow down by depressing the brake pedal.
And the beeper sounds and the displayed speed limit
blinks if the vehicle speed exceeds the limit by 3 km/h
(2 mph) or more.
a RES/+ Button
b SET/− Button
c On when the intelligent speed limiter is set to the speed limit that the traffic sign
recognition system detects.
d Intelligent Speed Limiter Indicator (Green)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 415 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguIntelligent Speed Limiter
416
Driving
■ When the traffic sign recognition system detects the new speed limit sign
The intelligent speed limiter is set to the new speed limit that the traffic sign
recognition system detects.
■ The speed limitation function and warning function may switch to pause
if there is no speed limit sign in the screen of the traffic sign recognition
system when:
• The end of speed limit or other designated limit is detected.
• Your vehicle enters/exits motorway or highway.
• You make a turn with a turn signal to change direction at an intersection.
1To Set the Speed Limit
The intelligent speed limiter may also switch to pause
when the traffic sign recognition system detects only
additional speed limit signs.
21 JAZZ HYBRID SSS-32TZA6000.book 416 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
417
uuWhen DrivinguIntelligent Speed Limiter
Continued
Driving
■ When the traffic sign recognition system detects the speed limit sign
while the intelligent speed limiter is paused
The speed limitation function and warning function will be resumed automatically.
■ When the traffic sign recognition system does not detect the speed limit
sign for a time while the intelligent speed limiter is activated
While driving, in addition to when the traffic sign recognition system detects no
speed limit sign, the traffic sign recognition system may display no speed limit.
But, intelligent speed limiter functions continue.
21 JAZZ HYBRID SSS-32TZA6000.book 417 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguIntelligent Speed Limiter
418
Driving
Increase or decrease the speed limit by using the RES/+ or SET/− button on the steering
wheel.
• Each time you press the button, the speed limit is increased or decreased by about
1 km/h or 1 mph accordingly.
• You can increase the speed limit until +10 km/h or +5 mph on the basis of the
speed limit that the traffic sign recognition system detects.
• You can decrease the speed limit until -10 km/h or -5 mph on the basis of the
speed limit that the traffic sign recognition system detects.
• You can accelerate until the set speed is reached. If your vehicle speed is higher
than the speed limit that the traffic sign recognition system detects, your vehicle
decelerates slowly to the speed limit.
■
To Adjust the Speed Limit
1To Adjust the Speed Limit
A negative or positive offset with respect to the
speed limit will be reset automatically when the
traffic sign recognition system detects the new speed
limit sign.
You cannot decrease the speed limit less than 30 km/
h (18 mph).
a To increase speed
b To decrease speed
21 JAZZ HYBRID SSS-32TZA6000.book 418 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
419
uuWhen DrivinguIntelligent Speed Limiter
Driving
The speed limit can be exceeded by depressing the accelerator pedal fully.
u The displayed speed limit blinks.
The beeper sounds once the speed limit has been exceeded.
To cancel the intelligent speed limiter, do any
of the following:
• Press the CANCEL button.
• Press the button.
• Press the LIM button.
■
Exceeding the Speed Limit Temporarily
■
To Cancel
1Exceeding the Speed Limit Temporarily
The beeper sounds when the vehicle speed goes
higher than the set speed limit with the acceleration
pedal depressed completely.
The intelligent speed limiter resumes working once
the vehicle speed goes lower than the set speed limit.
1To Cancel
The intelligent speed limiter changes into adaptive
cruise control (ACC) with Low Speed Follow or
adjustable speed limiter if the LIM button is pressed.
If there is a problem with the system or traffic sign
recognition system when you are using the intelligent
speed limiter, the beeper sounds and OFF comes on.
The intelligent speed limiter will be turned off.
2 Traffic Sign Recognition System P. 487
a Intelligent Speed Limiter
Indicator (White)
a LIM Button
b CANCEL Button
c Button
21 JAZZ HYBRID SSS-32TZA6000.book 419 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
420
uuWhen DrivinguVehicle Stability Assist (VSA) System
Driving
Vehicle Stability Assist (VSA) System
VSA helps to stabilise the vehicle during cornering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine and motor output and selectively applying the
brakes.
When VSA activates, you may notice that the
engine and motor do not respond to the
accelerator. You may also notice some noise
from the hydraulic system. You will also see
the indicator blink.
■
VSA Operation
1Vehicle Stability Assist (VSA) System
The VSA may not function properly if tyre type and
size are mixed. Make sure to use the same size and
type of tyre, and the air pressures as specified.
When the VSA system indicator comes on and stays
on while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehicle checked by a dealer
immediately.
VSA cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and always leave a sufficient
margin of safety.
The main function of the VSA system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
The indicators for the adaptive cruise control (ACC)
with low speed follow (amber), vehicle stability assist
(VSA) system, vehicle stability assist (VSA) OFF, low
tyre pressure/deflation warning system, and safety
support (amber) may come on after reconnecting the
battery.
Drive a short distance at more than 20 km/h (12
mph). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
a VSA System Indicator
21 JAZZ HYBRID SSS-32TZA6000.book 420 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
421
uuWhen DrivinguVehicle Stability Assist (VSA) System
Driving
This button is on the driver side control panel.
To partially disable VSA functionality/features,
press and hold it until you hear a beep.
Your vehicle will have normal braking and
cornering ability, but traction control function
will be less effective.
To restore VSA functionality/features, press
the button until you hear a beep.
VSA is turned on every time you turn the
power system on, even if you turned it off the
last time you drove the vehicle.
■
VSA On and Off
1Vehicle Stability Assist (VSA) System
In certain unusual conditions when your vehicle gets
stuck in shallow mud or fresh snow, it may be easier
to free it with the VSA temporarily switched off.
When the button is pressed, the traction control
function becomes less effective. This allows for the
wheels to spin more freely at low speed. You should
only attempt to free your vehicle with the VSA off if
you are not able to free it when the VSA is on.
Immediately after freeing your vehicle, be sure to
switch VSA on again. We do not recommend driving
your vehicle with the VSA system switched off.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after turning the power
system on or while driving. This is normal.
a VSA OFF Indicator
21 JAZZ HYBRID SSS-32TZA6000.book 421 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
422
uuWhen DrivinguAgile Handling Assist
Driving
Agile Handling Assist
Lightly brakes the front wheels, as needed, when you turn the steering wheel, and
helps to support the vehicle’s stability and performance during cornering.
1Agile Handling Assist
The agile handling assist cannot enhance stability in
all driving situations. You still need to drive and
corner at speeds appropriate for the conditions and
always leave a sufficient margin of safety.
When the VSA system indicator comes on and stays
on while driving, the agile handling assist does not
activate.
You may hear a sound coming from the engine
compartment while the agile handling assist is
activated. This is normal.
21 JAZZ HYBRID SSS-32TZA6000.book 422 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
423
uuWhen DrivinguDeflation Warning System
Continued
Driving
Deflation Warning System
Instead of directly measuring the pressure in each tyre, the deflation warning system
on this vehicle monitors and compares the rolling radius and rotational
characteristics of each wheel and tyre while you are driving to determine if one or
more tyres are significantly under-inflated.
This will cause the low tyre pressure/deflation
warning system indicator to come on and a
message to appear on the gauge.
You must start deflation warning system initialisation every time you:
• Adjust the pressure in one or more tyres.
• Rotate the tyres.
• Replace one or more tyres.
Before initialising the deflation warning system:
• Set the cold tyre pressure in all four tyres.
2 Checking Tyres P. 568
Make sure:
• The vehicle is at a complete stop.
• The transmission is in
(P .
• The power mode is in ON.
1Deflation Warning System
The system does not monitor the tyres when driving
at low speed.
Conditions such as low ambient temperature and
altitude change directly affect tyre pressure and can
trigger the low tyre pressure/deflation warning
system indicator to come on.
Tyre pressure checked and inflated in:
• Warm weather can become under-inflated in
colder weather.
• Cold weather can become over-inflated in warmer
weather.
The low tyre pressure/deflation warning system
indicator will not come on as a result of over inflation.
The deflation warning system may not function
properly if tyre type and size are mixed.
Make sure to use the same size and type of tyre.
2 Checking and Maintaining Tyres P. 568
The indicators for the adaptive cruise control (ACC)
with low speed follow (amber), vehicle stability assist
(VSA) system, vehicle stability assist (VSA) OFF, low
tyre pressure/deflation warning system, and safety
support (amber) may come on along with a message
in the gauge after reconnecting the battery. Drive a
short distance at more than 20 km/h (12 mph). The
indicator should go off. If it does not, have your
vehicle checked by a dealer.
a Low Tyre Pressure/Deflation Warning System Indicator
■
Deflation Warning System Initialisation
21 JAZZ HYBRID SSS-32TZA6000.book 423 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguDeflation Warning System
424
Driving
You can initialise the system from the settings
on the driver information interface.
1. Press the button to select , then
press the left selector wheel.
2. Roll the left selector wheel to select ,
then press the left selector wheel.
3. Roll the left selector wheel until Deflation
Warning System appears on the display.
4. Press the left selector wheel.
u The display switches to the
customization setup screen, where you
can select Cancel or Initialise.
1Deflation Warning System
The low tyre pressure/deflation warning system
indicator may come on with a delay or may not come
on at all when:
• You rapidly accelerate, decelerate, or turn the
steering wheel.
• You drive on snowy or slippery roads.
• Tyre chains are used.
The low tyre pressure/deflation warning system
indicator may come on under the following
conditions:
• There is a heavier and uneven load on the tyres
than the condition at initialisation.
• Tyre chains are used.
1Deflation Warning System Initialisation
• The initialisation process requires approximately 30
minutes of cumulative driving at speeds between
40-100 km/h (25-62mph).
• During this period, if the power mode is set to on
and the vehicle is not moved within 45 seconds,
you may notice the low tyre pressure indicator
comes on briefly. This is normal and indicates that
the initialisation process is not yet complete.
If the tyre chains are installed, remove them before
initialising the deflation warning system.
If the low tyre pressure/deflation warning system
indicator comes on even when the properly inflated
specified regular tyres are installed, have your vehicle
checked by a dealer.
We recommend that the tyres be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
Models with colour audio
21 JAZZ HYBRID SSS-32TZA6000.book 424 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
425
uuWhen DrivinguDeflation Warning System
Continued
Driving
5. Roll the left selector wheel and select
Initialise, then press the left selector
wheel.
u Completed screen appears, then the
display returns to the customization
menu screen.
• If the Failed message appears, repeat step
5.
• The initialisation process finishes
automatically.
21 JAZZ HYBRID SSS-32TZA6000.book 425 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
426
uuWhen DrivinguDeflation Warning System
Driving
You can initialise the system from the
customized feature on the audio/information
screen.
1. Set the power mode to ON.
2. Press the button.
3. Select Vehicle Settings.
4. Select Deflation Warning System.
5. Select Calibrate or Cancel.
• If the Calibration Failed to Start. message
appears, repeat step 5.
• The initialisation process finishes
automatically.
Models with Display Audio
21 JAZZ HYBRID SSS-32TZA6000.book 426 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
427
uuWhen DrivinguBlind spot information System
*
Continued
Driving
Blind spot information System
*
Is designed to detect vehicles in specified alert zones adjacent to your vehicle,
particularly in harder to see areas commonly known as “blind spots.” When the
system detects vehicles approaching from behind in adjacent lanes, the appropriate
indicator comes on for a few seconds, providing assistance when you change lanes.
1Blind spot information System
*
Important Safety Reminder
Like all assistance systems, blind spot information
system has limitations. Over reliance on blind spot
information system may result in a collision.
The system is for your convenience only.
Even if an object is within the alert zone, the
following situations may occur.
• The blind spot information system alert indicator
may not come on due to obstruction (splashes,
etc.) even without the driver information
interface appearing.
• The blind spot information system alert indicator
may come on even with the message appearing.
3
WARNING
Failure to visually confirm that it is safe to
change lanes before doing so may result in
a crash and serious injury or death.
Do not rely only on the blind spot
information system when changing lanes.
Always look in your mirrors, to either side
of your vehicle, and behind you for other
vehicles before changing lanes.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 427 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguBlind spot information System
*
428
Driving
■ How the system works
• Radar sensors detect a vehicle in the alert
zone when your vehicle is moving forward
at 20 km/h (12 mph) or faster.
• Radar Sensors: underneath the rear bumper
corners
1Blind spot information System
*
You can turn off the audible alert using the audio/
information screen.
2 Customized Features P. 345
The blind spot information system alert indicator may
not come on under the following conditions:
• A vehicle does not stay in the alert zone for more
than two seconds.
• A vehicle is parked in a side lane.
• The speed difference between your vehicle and the
vehicle you are passing is greater than 10 km/h (6
mph).
• An object not detected by the radar sensors
approaches or passes your vehicle.
• A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.
a Alert Zone
b Approx. 0.5 m (1.6 ft.)
c Approx. 3 m (10 ft.)
d Approx. 3 m (10 ft.)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 428 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
429
uuWhen DrivinguBlind spot information System
*
Driving
■ When the system detects a vehicle
Blind spot information System Alert Indicator:
Located on the outside rearview mirror on
both sides.
Comes on when:
• A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 50 km/h (31 mph) from your
vehicle.
• You pass a vehicle with a speed difference
of no more than 20 km/h (12 mph).
Blinks and a beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times.
1Blind spot information System
*
Blind spot information system may be adversely
affected when:
• Making a turn at an intersection.
• Objects (guard rails, poles, trees, etc.) are detected.
• An object that does not reflect radio waves well,
such as a motorcycle, is in the alert zone.
• Driving on a curved road.
• A vehicle is moving from a far lane to the adjacent
lane.
• The system picks up external electrical interference.
• The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed.
• The orientation of the sensors has been changed.
• In bad weather (rain, snow, and fog).
• Driving on a bumpy road.
• Making a short turn that slightly tilts the vehicle.
For a proper blind spot information system operation:
• Always keep the rear bumper corner area clean.
• Do not cover the rear bumper corner area with
labels or stickers of any kind.
• Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be
repaired, or the rear bumper corner area is strongly
impacted.
a Comes On
b Blinks
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 429 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuWhen DrivinguBlind spot information System
*
430
Driving
When you turn the blind spot information
system on and off, do the following.
1. Press the safety support switch.
2. Roll the left selector wheel to the
symbol and push it.
u The message appears on the driver
information interface when the system
becomes on or off.
The blind spot information system is in the
previously selected ON or OFF setting each
time you start the power system.
■
Blind spot information System On and Off
1Blind spot information System
*
You can also select the safety support content from
the driver information interface.
2 Driver Information Interface P. 140
a Safety Support Switch
b Left Selector Wheel
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 430 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
431
uuWhen DrivinguHigh Voltage Battery
Driving
High Voltage Battery
The High Voltage battery gradually discharges even if the vehicle is not in use. As a
result, if your vehicle is parked for an extended period of time, the battery charge
level will become low. Extended periods of time at a low state of charge will shorten
battery life. To maintain the battery state of charge, drive your vehicle for more than
30 minutes at least once every three months.
Extreme high temperatures can affect the battery life. You can minimise the effects
by parking the vehicle in the shade during the summer.
1High Voltage Battery
Be careful not to let the High Voltage battery drain
too much. If the battery level becomes close to zero,
it will make it impossible to start the power system.
21 JAZZ HYBRID SSS-32TZA6000.book 431 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
432
Driving
Honda Sensing
Honda Sensing is a driver support system which employs the use of a front wide
view camera mounted to the interior side of the windscreen, behind the rearview
mirror.
Honda Sensing has following functions.
■ The functions which do not require switch operations to activate
• Collision Mitigation Braking System (CMBS) 2 P. 435
• Road Departure Mitigation System 2 P. 478
• Traffic Sign Recognition System 2 P. 487
■ The functions which require switch operations to activate
• Adaptive Cruise Control (ACC) with Low Speed Follow
2 P. 447
• Lane Keeping Assist System (LKAS) 2 P. 467
21 JAZZ HYBRID SSS-32TZA6000.book 432 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
433
uuHonda Sensingu
Continued
Driving
■ Button
Press to activate standby mode for ACC with
Low Speed Follow. Or press to cancel these
systems.
■ LKAS Button
Press to activate standby mode for LKAS. Or
press to cancel these systems.
■ RES/+ and SET/− Buttons
Press to set or resume the ACC with Low
Speed Follow or to adjust the vehicle speed.
■ Interval Button
Press to change the ACC with Low Speed
Follow following-interval.
■ CANCEL Button
Press to cancel ACC with Low Speed Follow.
■
Operation Switches for the ACC with Low Speed Follow/LKAS
a Button
b CANCEL Button
c LKAS Button
d Interval Button
e RES/+ Button
f SET/− Button
21 JAZZ HYBRID SSS-32TZA6000.book 433 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
434
uuHonda Sensingu
Driving
You can see the current state of ACC with
Low Speed Follow and LKAS.
■
Gauge Content
a Indicates that ACC with Low Speed Follow
is ready to be activated.
• Green: The system is on.
• White: The system is standby.
•
Amber: There is a problem with the system.
b Indicates that LKAS is ready to be activated.
• Green: The system is on or standby.
•
Amber: There is a problem with the system.
c Indicates that LKAS is activated and
whether or not traffic lane lines are
detected.
• Lane Lines: The system is on.
• Double Lane Lines:
The system is standby.
d Indicates whether or not ACC with Low
Speed Follow detected the vehicle ahead.
e Indicates that ACC with Low Speed Follow
shows the set vehicle speed.
• White: Set Vehicle Speed
• Gray: Prior Set Speed
f Indicates that ACC with Low Speed Follow
shows the setting status.
• Green: The system is on.
• Gray: The system is not activated.
g Indicates that ACC with Low Speed Follow
shows the set vehicle interval.
21 JAZZ HYBRID SSS-32TZA6000.book 434 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
435
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Continued
Driving
Collision Mitigation Braking System (CMBS)
Can assist you when there is a possibility of your vehicle colliding with a vehicle
ahead from behind, an oncoming vehicle in front, pedestrians, or riding a bicycle
(moving bicycle). The CMBS is designed to alert you when a potential collision is
determined, as well as assist in reducing speed, avoiding collisions, and reducing
collision severity.
1Collision Mitigation Braking System (CMBS)
Important Safety Reminder
The CMBS is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately according to the driving
conditions.
The CMBS may not activate or may not detect a
vehicle in front of your vehicle under certain
conditions:
2 CMBS Conditions and Limitations P. 440
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 494
When the CMBS is activated, it will continue to
operate even if the accelerator pedal is partially
depressed. However, it will be cancelled if the
accelerator pedal is deeply depressed.
21 JAZZ HYBRID SSS-32TZA6000.book 435 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguCollision Mitigation Braking System (CMBS)
436
Driving
■ How the system works
The system starts monitoring the roadway ahead when your vehicle speed is about
5 km/h (3 mph) and there is a vehicle, pedestrian, or moving bicycle in front of you.
The CMBS activates when:
• The speed difference between your vehicle and a vehicle, pedestrian, or moving
bicycle detected in front of you becomes about 5 km/h (3 mph) and over with a
chance of a collision.
• Your vehicle drives at about 30 km/h (18 mph) or less and there is a chance of in
frontal collision with oncoming vehicle when you turn left
*1
/right
*2
at an
intersection.
• Your vehicle speed is about 100 km/h (62 mph) or less and the system determines
there is a chance of a collision with:
- An oncoming or stationary vehicle detected in front of you.
- A pedestrian or moving bicycle detected in front of you.
*1: Left-hand Drive Type
*2: Right-hand Drive Type
1How the system works
The camera in the CMBS is also designed to detect
pedestrians.
However, this pedestrian detection feature may not
activate or may not detect a pedestrian in front of
your vehicle under certain conditions.
Refer to the ones indicating the pedestrian detection
limitations from the list.
2 CMBS Conditions and Limitations P. 440
a The camera is located behind the rearview mirror.
When to use
21 JAZZ HYBRID SSS-32TZA6000.book 436 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
437
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Continued
Driving
The CMBS will be cancelled when your vehicle stops or a potential collision is not
determined.
The CMBS may also be cancelled when a driver operates the steering wheel and the
brake or accelerator pedal to avoid a collision.
■ When the system activates
The system provides visual and audible alerts
of a possible collision, and stops if the collision
is avoided.
u Take appropriate action to prevent a
collision (apply the brakes, change lanes,
etc.)
At system’s earliest collision alert stage, you can change the distance (Far/Normal/
Near) between vehicles at which alerts will come on through the driver information
interface
*
or audio/information screen
*
setting options.
2 Settings
*
P. 154
2 Customized Features P. 345
a Visual Alerts
b Audible Alert
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 437 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
438
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Driving
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBS may not go through all of the
stages before initiating the last stage.
■
Collision Alert Stages
Distance between vehicles
CMBS
The sensors detect a
vehicle
Audible & Visual WARNINGS Braking
Stage one
There is a risk of a collision
with the vehicle ahead of
you.
When in Far, visual and audible alerts come on
at a longer distance from a vehicle ahead than
in Normal setting, and in Near, at a shorter
distance than in Normal.
—
Stage two
The risk of a collision has
increased, time to
respond is reduced.
Visual and audible alerts.
Lightly applied
Stage three
The CMBS determines
that a collision is
unavoidable.
Forcefully
applied
a Your Vehicle
b Vehicle Ahead
c Far
d Normal
e Near
21 JAZZ HYBRID SSS-32TZA6000.book 438 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
439
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Driving
When you turn the CMBS on and off, do the
following.
1. Press the safety support switch.
2. Roll the left selector wheel to the
symbol and push it.
u The message appears on the driver
information interface when the system
becomes on or off.
The CMBS is turned on every time you turn
the power system on, even if you turned it off
the last time you drove the vehicle.
■
CMBS On and Off
1Collision Mitigation Braking System (CMBS)
The CMBS may automatically shut off, and the safety
support indicator (amber) will come and stay on
under certain conditions.
2 CMBS Conditions and Limitations P. 440
The CMBS is not activated for about 15 seconds after
the power system is turned on.
You can also select the safety support content from
the driver information interface.
2 Driver Information Interface P. 140
The adaptive cruise control (ACC) with low speed
follow (amber), vehicle stability assist (VSA) system,
vehicle stability assist (VSA) OFF, low tyre pressure/
deflation warning system, and safety support (amber)
indicators may come on in amber along with a
message in the gauge when you set the power mode
to ON after reconnecting the 12-volt battery. Drive a
short distance at more than 20 km/h (12 mph). Each
indicator should go off. If any do not, have your
vehicle checked by a dealer.
a Safety Support Switch
b Left Selector Wheel
21 JAZZ HYBRID SSS-32TZA6000.book 439 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguCollision Mitigation Braking System (CMBS)
440
Driving
The system may automatically shut off and the safety support indicator (amber) will
come on under certain conditions. Some examples of these conditions are listed
below. Other conditions may reduce some of the CMBS functions.
2 Front Wide View Camera P. 494
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto vehicles, pedestrians, moving bicycles, or road
surfaces.
• Water is sprayed by or snow blown from a vehicle ahead.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
vehicles, pedestrians, or moving bicycles may not be illuminated).
■ Roadway conditions
• Driving on curvy, winding, undulating, or sloping roads.
• There is a film of water or puddles on the road surface.
• Driving on rutted roads (snowy or unpaved roads, etc.).
• Your vehicle is strongly shaken on uneven road surfaces.
■
CMBS Conditions and Limitations
1CMBS Conditions and Limitations
Have your vehicle checked by a dealer if you find any
unusual behaviour of the system (e.g. the warning
message appears too frequently).
21 JAZZ HYBRID SSS-32TZA6000.book 440 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
441
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Continued
Driving
■ Vehicle conditions
• The vehicle is tilted due to heavy luggage in the luggage area or rear seats.
• Tyre chains are installed.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• There is residue on the windscreen from the windscreen wipers.
• When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• Abnormal tyre or wheel condition (wrong size, varied sizes or construction,
improperly inflated, etc.).
• The suspension has been modified.
21 JAZZ HYBRID SSS-32TZA6000.book 441 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguCollision Mitigation Braking System (CMBS)
442
Driving
■ Examples of limitations on the correct detection of the camera due to the
condition of the vehicle ahead of you, oncoming vehicles, pedestrians, or
moving bicycles
• The distance between your vehicle and the vehicle ahead of you, oncoming
vehicle, pedestrian, or moving bicycle ahead of you is too short.
• The vehicle ahead of you, oncoming vehicle, pedestrian, or moving bicycle
suddenly cuts in front of or jumps out in front of you.
• The bicycle is stopped.
• The oncoming vehicle or vehicle ahead of you is sideways.
• When the vehicle ahead of you, oncoming vehicle, pedestrian, or moving bicycle
blends in with the background, preventing the system from recognising them.
• When several pedestrians or bicycles are moving ahead of you in a group.
• When a pedestrian or moving bicycle crosses the road too quickly.
• A pedestrian or moving bicycle approaches from the opposite direction.
• The headlights of the vehicle ahead of you or oncoming vehicle are lit on one side
or not lit on either side in a dark place.
• When part of a pedestrian (heads, limbs, etc.) is hidden by luggage.
• When a pedestrian is bent over or squatting, when their hands are raised, or they
are running.
• When the pedestrian is shorter than about 1 metre (3.3 feet) or taller than about
2 metres (6.6 feet) in height.
• When the pedestrian is pushing a stroller or bicycle.
1Collision Mitigation Braking System (CMBS)
Make sure that all the tyres are of the same specified
size, type and brand, and that they are evenly worn.
If you use tyres of different sizes, types, brands, or
degree of wear, the system may not work properly.
Do not modify the suspension. Altering the height of
the vehicle may prevent the system from working
properly.
21 JAZZ HYBRID SSS-32TZA6000.book 442 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
443
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Continued
Driving
■ Examples of other limitations on detection or system operation
• When the vehicle ahead of you is a motorcycle, wheelchair, or other specially-
shaped vehicle.
• When a vehicle is higher in the rear than the front such as trucks that are not
carrying a load, or a narrow vehicle.
• When the vehicle ahead of you, oncoming vehicle, pedestrian or moving bicycle
is not in front of the vehicle.
• The speed difference between your vehicle and the vehicle ahead of you,
oncoming vehicle, pedestrian or moving bicycle is significantly large.
• When the vehicle or moving bicycle in front of you slows suddenly.
• When the driver operates the brake pedal and steering wheel to avoid a collision.
• When you approach the vehicle ahead of you, oncoming vehicle, pedestrians or
moving bicycles while accelerating rapidly or operating the steering wheel (except
when turning left
*1
/right
*2
at an intersection etc.)
*3
.
• When the moving bicycle is a child-sized bicycle, folding bicycle, three-wheeler or
other bicycle with small tyres, or a long bicycle like a tandem bicycle.
• When the camera cannot correctly identify the shape of the vehicle ahead of you,
oncoming vehicle, pedestrian, or moving bicycle.
• When the minimum ground clearance of a vehicle ahead of you is extremely high.
*1: Left-hand Drive Type
*2: Right-hand Drive Type
*3: When there is a possibility of a frontal collision with the oncoming vehicle while turning
left
*1
/right
*2
, the CMBS is activated. However, it may not be activated if you suddenly turn the
steering wheel.
21 JAZZ HYBRID SSS-32TZA6000.book 443 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
444
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Driving
■ Automatic shutoff
The CMBS may automatically shut itself off and the safety support indicator (amber)
comes and stays on when:
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• Driving in bad weather (rain, fog, snow, etc.).
• Driving with the parking brake applied.
• The camera temperature gets too high.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• An abnormal tyre condition is detected (wrong tyre size, flat tyre, etc.).
Once the conditions that caused the CMBS to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
21 JAZZ HYBRID SSS-32TZA6000.book 444 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
445
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Continued
Driving
Even if there is little chance of a collision, the CMBS may activate under the
following conditions:
• Your vehicle approaches or passes another vehicle that is making a left or right
turn.
• Your vehicle approaches another vehicle ahead of you and you change lanes to
pass.
• Your vehicle approaches another vehicle at an intersection, etc.
■
With Little Chance of a Collision
21 JAZZ HYBRID SSS-32TZA6000.book 445 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
446
uuHonda SensinguCollision Mitigation Braking System (CMBS)
Driving
• When passing through a low or narrow gate at a speed well over the speed limit.
• When there are traffic signs or structures such as guard rails are beside the road
along a curve.
• When driving through curves, your vehicle comes to a point where the oncoming
vehicle is right in front of you.
• When approaching stationary vehicles or walls, such as when parking.
21 JAZZ HYBRID SSS-32TZA6000.book 446 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
447
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
Adaptive Cruise Control (ACC) with Low Speed Follow
Helps to maintain a constant vehicle speed and a set following-interval behind a
vehicle detected ahead of yours and, if the detected vehicle comes to a stop, can
decelerate and stop your vehicle, without you having to keep your foot on the brake
or the accelerator.
When ACC with Low Speed Follow slows your vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.
• Vehicle speed for ACC with Low Speed Follow: A vehicle is detected ahead
within ACC with Low Speed Follow range – ACC with Low Speed Follow
operates at speeds up to 180 km/h (112 mph).
No vehicle is detected within ACC with Low Speed Follow range – ACC
with Low Speed Follow operates at the speed of 30 km/h (18 mph) or above.
• Shift position for ACC with Low Speed Follow: In
(D .
1Adaptive Cruise Control (ACC) with Low Speed Follow
Important Reminder
As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 494
3
WARNING
Improper use of ACC with Low Speed
Follow can lead to a crash.
Use ACC with Low Speed Follow only when
driving on motorways and in good weather
conditions.
3
WARNING
ACC with Low Speed Follow has limited
braking capability and may not stop your
vehicle in time to avoid a collision with a
vehicle that quickly stops in front of you.
Always be prepared to apply the brake
pedal if the conditions require.
a The camera is located behind the rearview mirror.
When to use
21 JAZZ HYBRID SSS-32TZA6000.book 447 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
448
Driving
■ How to activate the system
1Adaptive Cruise Control (ACC) with Low Speed Follow
ACC with Low Speed Follow may not work properly
under certain conditions.
2 ACC with Low Speed Follow Conditions
and Limitations P. 457
Do not use ACC with Low Speed Follow under the
following conditions:
• On roads with heavy traffic or while driving in
continuous stop and go traffic.
• On roads with sharp turns.
• On roads with steep downhill sections, as the set
vehicle speed can be exceeded by coasting. In such
cases, ACC with Low Speed Follow will not apply
the brakes to maintain the set speed.
• On roads with toll collection facilities or other
objects between lanes of traffic, or in parking
areas, or facilities with drive through access.
• On roads with bad weather (rain, fog, snow, etc.).
It prevents the system from detecting the distance
between your vehicle and vehicle ahead of you
properly.
• On roads with slippery or icy surfaces. The wheels
may spin out and your vehicle may lose the control
on the condition.
a Button
Press the button on the steering wheel.
b LIM Button
If a different indicator comes on, press the LIM button to change it to ACC with
Low Speed Follow.
c
The Indicator (White) is on in the gauge.
ACC with Low Speed Follow is ready to use.
How to use
21 JAZZ HYBRID SSS-32TZA6000.book 448 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
449
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■
To Set the Vehicle Speed
1Adaptive Cruise Control (ACC) with Low Speed Follow
The indicators for the adaptive cruise control (ACC)
with low speed follow (amber), vehicle stability assist
(VSA) system, vehicle stability assist (VSA) OFF, low
tyre pressure/deflation warning system, and safety
support (amber) may come on after reconnecting the
12-volt battery.
Drive a short distance at more than 20 km/h (12
mph). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
1To Set the Vehicle Speed
You can switch the displayed set speed
measurements on the driver information interface
*
or
audio/information screen
*
between km/h and mph.
2 Change Units P. 152
2 Settings
*
P. 154
2 Customized Features P. 345
a RES/+ Button
Press and release
b On when ACC with Low Speed Follow begins
c SET/− Button
Press and release
d Adaptive Cruise Control (ACC) with Low Speed Follow Indicator (Green)
e Set Vehicle Speed (White)
f Setting Status (Green)
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 449 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
450
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
When driving at about 30 km/h (18 mph) or above: Take your foot off the
pedal and press the RES/+ or SET/− buttons when you reach the desired speed. The
moment you release the button, the set speed is fixed, and ACC with Low Speed
Follow begins.
When driving slower than about 30 km/h (18 mph): If the vehicle is moving
and the brake pedal is not depressed, pressing the button fixes the set speed to
about 30 km/h (18 mph) regardless of current vehicle speed.
If your vehicle is stationary, you can set the vehicle speed even with the brake pedal
depressed.
When ACC with Low Speed Follow starts
operating, the vehicle icon, interval bars and
set speed appear on the gauge.
a Set Vehicle Interval
b Set Vehicle Speed
21 JAZZ HYBRID SSS-32TZA6000.book 450 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
451
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■ There is a vehicle ahead
ACC with Low Speed Follow monitors if a vehicle ahead of you enters the ACC with
Low Speed Follow range. If a vehicle is detected doing so, the ACC with Low Speed
Follow system maintains or decelerates your vehicle’s set speed in order to keep the
vehicle’s set following-interval from the vehicle ahead.
2 To Set or Change Following-interval P. 462
When a vehicle whose speed is slower than
your set speed comes in or cuts in front of you
and is detected by the camera, your vehicle
starts to slow down.
■
When in Operation
1When in Operation
If the vehicle ahead of you slows down abruptly, or if
another vehicle cuts in front of you, the beeper
sounds, a message appears on the driver information
interface.
Depress the brake pedal, and keep an appropriate
interval from the vehicle ahead.
a Audible Alert
a ACC with Low Speed Follow Range: 120 m
A vehicle icon appears on the
gauge.
21 JAZZ HYBRID SSS-32TZA6000.book 451 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
452
Driving
■ There is no vehicle ahead
Your vehicle maintains the set speed without
having to keep your foot on the brake or
accelerator pedal.
If there previously was a vehicle detected
ahead that kept your vehicle from travelling at
the set speed, ACC with Low Speed Follow
accelerates your vehicle to the set speed, and
then maintains it.
■ When you depress the accelerator pedal
You can temporarily increase the vehicle speed. In this case, there is no audible or
visual alert even if a vehicle is in the ACC with Low Speed Follow range.
ACC with Low Speed Follow stays on unless you cancel it. Once you release the
accelerator pedal, the system resumes an appropriate speed for keeping the
following-interval while a vehicle ahead is within the ACC with Low Speed Follow
range.
1When in Operation
Even if the interval between your vehicle and the
vehicle detected ahead is short, ACC with Low Speed
Follow may start accelerating your vehicle under the
following circumstances:
• The vehicle ahead of you is going at almost the
same speed as, or faster than, your vehicle.
• A vehicle that cuts in front of you is going faster
than your vehicle, gradually increasing the interval
between the vehicles.
You can also set the system to beep when a vehicle
detected in front of you comes in and goes out of the
ACC with Low Speed Follow detecting range.
Change the ACC Vehicle Ahead Detected Beep
setting.
2 Settings
*
P. 154
You can also set the system to beep when a vehicle
detected in front of you comes in and goes out of the
ACC with Low Speed Follow detecting range.
Change the ACC vehicle ahead detected beep
setting.
2 Customized Features P. 345
Models with colour audio
Models with Display Audio
A vehicle icon with line contour
appears on the gauge.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 452 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
453
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
1When in Operation
Limitations
You may need to use the brake to maintain a safe
interval when using ACC with Low Speed Follow.
Additionally, ACC with Low Speed Follow may not
work properly under certain conditions.
2 ACC with Low Speed Follow Conditions
and Limitations P. 457
21 JAZZ HYBRID SSS-32TZA6000.book 453 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
454
Driving
1When in Operation
• ACC with Low Speed Follow may temporarily
control the interval between your vehicle and the
vehicle in adjacent lane or surroundings of your
vehicle depending on the road conditions (e.g.
curves) or vehicle conditions (e.g. operating the
steering wheel or the vehicle location in the lane).
• ACC with Low Speed Follow may keep the interval
between your vehicle and a vehicle ahead of you
for a few seconds when a vehicle ahead of you
enters/exits motorway or highway and then there is
no vehicle in front of your vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 454 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
455
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■ A vehicle detected ahead is within ACC with Low Speed Follow range and
slows to a stop
Your vehicle also stops, automatically. The
message appears on the gauge.
When the vehicle ahead of you starts again,
the vehicle icon on the gauge blinks. If you
press the RES/+ or SET/− button, or depress the
accelerator pedal, ACC with Low Speed
Follow operates again within the previously
set speed.
1A vehicle detected ahead is within ACC with Low Speed Follow
range and slows to a stop
3
WARNING
Exiting a vehicle that has been stopped
while the ACC with Low Speed Follow
system is operating can result in the vehicle
moving without operator control.
A vehicle that moves without operator
control can cause a crash, resulting in
serious injury or death.
Never exit a vehicle when the vehicle is
stopped by ACC with Low Speed Follow.
a Adaptive Cruise Control (ACC)
with Low Speed Follow
Indicator (Green)
b Setting Status (Green)
21 JAZZ HYBRID SSS-32TZA6000.book 455 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
456
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
If no vehicle is ahead of you before you
resume driving, depress the accelerator pedal
and ACC with Low Speed Follow will operate
again within the prior set speed.
a Adaptive Cruise Control (ACC)
with Low Speed Follow
Indicator (Green)
b Setting Status (Green)
21 JAZZ HYBRID SSS-32TZA6000.book 456 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
457
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
The system may automatically shut off and the indicator (amber) will come on
under certain conditions. Some examples of these conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Wide View Camera P. 494
■ Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Strong light is reflected onto vehicles or road surfaces.
• Water is sprayed by or snow blown from a vehicle ahead.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
the whole vehicle may not be illuminated).
• Driving into low sunlight (e.g., at dawn or dusk).
■
ACC with Low Speed Follow Conditions and Limitations
21 JAZZ HYBRID SSS-32TZA6000.book 457 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
458
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■ Roadway conditions
• Driving on curvy, winding, undulating, or sloping roads.
• Driving on rutted roads (snowy or unpaved roads, etc.).
• Puddles or a film of water is on the road surface.
• Your vehicle is strongly shaken on uneven road surfaces.
■ Vehicle conditions
• The vehicle is tilted due to heavy luggage in the luggage area or rear seats.
• Tyre chains are installed.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film of the windscreen.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• There is residue on the windscreen from the windscreen wipers.
• When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• Abnormal tyre or wheel condition (wrong size, varied sizes or construction,
improperly inflated, etc.).
• The suspension has been modified.
21 JAZZ HYBRID SSS-32TZA6000.book 458 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
459
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
■ Examples of conditions under which the camera may not correctly detect
the vehicle ahead of you
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• When the vehicle ahead of you blends in with the background, preventing the
system from recognising it.
• The headlights of the vehicle ahead of you are lit on one side or not lit on either
side in a dark place.
21 JAZZ HYBRID SSS-32TZA6000.book 459 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
460
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■ Examples of conditions under which the system may not work properly
• A vehicle ahead of you stops and the speed difference between your vehicle and
the vehicle ahead of you is significantly large.
• When the vehicle ahead of you slows suddenly.
• When a vehicle ahead of you is specially-shaped.
• When a vehicle is higher in the rear than the front such as trucks that are not
carrying a load, or a narrow vehicle.
• When your vehicle or the vehicle ahead of you is driving on the edge of the lane.
• When the vehicle ahead of you is a narrow vehicle such as a motorcycle.
• When the minimum ground clearance of a vehicle ahead of you is extremely high.
• When the camera cannot correctly identify the shape of the vehicle ahead of you.
a Camera detects upper section of an empty carrier lorry.
21 JAZZ HYBRID SSS-32TZA6000.book 460 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
461
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
Increase or decrease the vehicle speed using the RES/+ or SET/− button on the steering
wheel.
• Each time you press the RES/+ or SET/− button, the vehicle speed is increased or
decreased by about 1 km/h or 1 mph accordingly.
• If you press and hold the RES/+ or SET/− button, the vehicle speed increases or
decreases by about 10 km/h or 10 mph accordingly.
■
To Adjust the Vehicle Speed
1To Adjust the Vehicle Speed
If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC with Low Speed
Follow may not accelerate your vehicle. This is to
maintain the set interval between your vehicle and
the vehicle ahead.
When you depress the accelerator pedal and then
push and release the RES/+ or SET/− button, the
current speed of the vehicle is set.
a To increase speed
b To decrease speed
21 JAZZ HYBRID SSS-32TZA6000.book 461 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
462
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
Press the interval button to change the ACC
with Low Speed Follow following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.
Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requirements set by local
regulation.
■
To Set or Change Following-interval
a Interval Button
21 JAZZ HYBRID SSS-32TZA6000.book 462 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
463
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
The higher your vehicle’s following-speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.
When your vehicle stops automatically because a vehicle detected ahead of you has
stopped, the interval between the two vehicles will vary based on the ACC with Low
Speed Follow interval setting.
Following-interval
When the Set Speed is:
80 km/h (50 mph) 104 km/h (65 mph)
Short
26.6 metres
87.3 feet
1.2 sec
33.7 metres
110.6 feet
1.2 sec
Middle
34.6 metres
113.5 feet
1.6 sec
44.9 metres
147.3 feet
1.6 sec
Long
44.0 metres
144.2 feet
2.0 sec
57.1 metres
187.3 feet
2.0 sec
Extra
Long
53.6 metres
175.9 feet
2.4 sec
70.0 metres
229.6 feet
2.4 sec
1To Set or Change Following-interval
The driver must in all circumstances preserve a
sufficient braking interval from the vehicle which
precedes it and be aware that minimum intervals or
times of spacing can be provided by the provisions of
the Motorway Code locally applicable and that it is
the driver’s responsibility to respect those laws.
21 JAZZ HYBRID SSS-32TZA6000.book 463 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
464
Driving
To cancel ACC with Low Speed Follow, do any
of the following:
• Press the CANCEL button.
u The indicator (green) on the gauge
changes to the indicator (white).
• Press the button.
u indicator (green) goes off.
• Press the LIM button.
• Depress the brake pedal while the vehicle is
moving forward.
u The indicator (green) on the gauge
changes to the indicator (white).
■
To Cancel
1To Cancel
Resuming the prior set speed: After you have
cancelled ACC with Low Speed Follow, you can
activate the ACC with Low Speed Follow with the
prior set speed displayed on the gauge (in gray) by
pressing the RES/+ button even if the vehicle is
stopped.
When you turn the ACC with Low Speed Follow off
by pressing the CANCEL button or depressing the
brake pedal, the prior set speed is displayed on the
gauge in gray.
When pressing the RES/+ button, the ACC with Low
Speed Follow is activated with displayed speed.
Then, when the indicator (white) is displayed and
you press the RES/+ button during the prior set
speed (in gray) is not displayed, the current vehicle
speed is set as same as the condition of operating the
SET/− button.
a CANCEL Button
b LIM Button
c Button
21 JAZZ HYBRID SSS-32TZA6000.book 464 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
465
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
■ Automatic cancellation
The beeper sounds and a message appears on the gauge when ACC with Low
Speed Follow is automatically cancelled. Any of these conditions may cause the ACC
with Low Speed Follow to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• The vehicle ahead of you cannot be detected.
• An abnormal tyre condition is detected, or the tyres are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA or CMBS is activated.
• When the VSA system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• Water is sprayed by or snow blown from a vehicle ahead.
• Driving into low sunlight (e.g., at dawn or dusk).
• When the detected vehicle within the ACC with Low Speed Follow range is too
close to your vehicle.
• When accelerating rapidly.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• The vehicle is loaded heavy luggage in the luggage area or rear seats.
• When passing through an enclosed space, such as tunnel.
• When the parking brake and brake system indicator (amber) comes on.
1To Cancel
The set speed cannot be set or resumed when ACC
with Low Speed Follow has been turned off using the
button. Press the button to activate the
system, then set the desired speed.
a Adaptive Cruise Control (ACC) with
Low Speed Follow Indicator (White)
b Prior Set Speed (Gray)
c Setting Status (Gray)
21 JAZZ HYBRID SSS-32TZA6000.book 465 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
466
uuHonda SensinguAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
The ACC with Low Speed Follow automatic cancellation can be also triggered by the
following causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfastened when the vehicle is stationary.
• The vehicle stops for more than 10 minutes.
• The power system is turned off.
In the following cases, a buzzer sounds, ACC with Low Speed Follow is deactivated,
and the message appears in the driver information interface.
• The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).
21 JAZZ HYBRID SSS-32TZA6000.book 466 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
467
uuHonda SensinguLane Keeping Assist System (LKAS)
Continued
Driving
Lane Keeping Assist System (LKAS)
Provides steering input to help to keep the vehicle in the middle of a detected lane
and provides tactile, audible and visual alerts if the vehicle is detected drifting out of
its lane.
■ Steering input assist
The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.
■ Tactile, audible and visual alerts
Rapid vibrations on the steering wheel, audible and a warning display alert you that
the vehicle is drifting out of a detected lane.
1Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.
2 Driver Information Interface Warning and
Information Messages P. 124
Do not place objects on the instrument panel.
Objects may reflect on the windscreen and prevent
correct detection of the traffic lanes.
The LKAS only alerts you when lane drift is detected
without a turn signal in use. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition.
It is always your responsibility to safely operate the
vehicle and avoid collisions.
The LKAS is convenient when it is used on motorways
or a dual carriage way.
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 494
The LKAS may not work properly or may work
improperly under the certain conditions:
2 LKAS Conditions and Limitations P. 474
a Front wide view camera: Monitors the lane lines
21 JAZZ HYBRID SSS-32TZA6000.book 467 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguLane Keeping Assist System (LKAS)
468
Driving
When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
If you make a lane change without operating the turn signals, the LKAS alerts
activate, and torque is applied to the steering.
1Lane Keeping Assist System (LKAS)
When it fails to detect lanes, the system will
temporarily be cancelled. When a lane is detected,
the system will recover automatically.
21 JAZZ HYBRID SSS-32TZA6000.book 468 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
469
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
Provides assistance to keep the vehicle in the centre of the lane. When the vehicle
nears a white or yellow line, steering force of the electric power steering will become
stronger.
When the vehicle enters the warning area, the LKAS alerts you with slight steering
wheel vibration, and audible and visual warnings.
■
Lane Keep Support Function
1Lane Keeping Assist System (LKAS)
The LKAS may not function as designed while driving
in frequent stop and go traffic, or on roads with
sharp curves.
■
Lane Departure Warning Function
a Warning Area
21 JAZZ HYBRID SSS-32TZA6000.book 469 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguLane Keeping Assist System (LKAS)
470
Driving
The system can be used when the following conditions are met.
• The lane in which you are driving has detectable lane markers on both sides, and
your vehicle is in the centre of the lane.
• The vehicle is travelling between 72 and 180 km/h (45 and 112 mph).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The wipers are not in high speed operation.
■ How to activate the system
1. Press the LKAS button.
u The double lane lines and lane keeping
assist system (LKAS) indicator (green)
appear on the gauge.
The system is activated.
■
When the System can be Used
1When the System can be Used
If the vehicle drifts towards either left or right lane
line due to the system applying torque, turn off the
LKAS and have your vehicle checked by a dealer.
Be sure to keep the following below to activate the
system properly;
• Always keep the windscreen around the camera
clean.
• When cleaning the windscreen, be careful not to
apply windscreen cleanser to the camera lens.
• Do not touch the camera lens.
• Do not attach a sticker to the area around the
camera.
a LKAS Button
b Double Lane Lines
c Lane Keeping Assist System
(LKAS) Indicator (Green)
21 JAZZ HYBRID SSS-32TZA6000.book 470 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
471
uuHonda SensinguLane Keeping Assist System (LKAS)
Continued
Driving
2. Keep your vehicle near the centre of the
lane while driving.
u The double lane lines change to solid
ones once the system starts operating
after detecting the left and right lane
markings.
To cancel the LKAS:
Press the LKAS button.
The LKAS is turned off every time you turn the
power system off, even if you turned it on the
last time you drove the vehicle.
a Lane Line
■
To Cancel
a LKAS Button
21 JAZZ HYBRID SSS-32TZA6000.book 471 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
472
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
■ The system operation is suspended if
you:
• Set the wipers to high speed.
u Turning the wipers off or setting it to LO
resumes the LKAS.
• Decrease the vehicle speed to about 64 km/
h (40 mph) or less.
u Increasing the vehicle speed to about 72
km/h (45 mph) or more resumes the
LKAS.
• Your vehicle is driving to the right or the left
of the lane.
a Double Lane Lines
b Lane Keeping Assist System
(LKAS) Indicator (Green)
When the LKAS is suspended, the
lane lines on the gauge change to
double lane lines, and the beeper
sounds (if activated).
21 JAZZ HYBRID SSS-32TZA6000.book 472 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
473
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
■ The LKAS may automatically be suspended when:
• The system fails to detect lane lines.
• The steering wheel is turned quickly.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 185 km/h (115 mph).
• When the Road Departure Mitigation System is activated.
Once these conditions no longer exist, the LKAS automatically resumes.
■ The LKAS may automatically be cancelled when:
In the following cases, double lane lines may appear on the screen, the beeper may
sound, and the LKAS may automatically be cancelled:
• The camera temperature gets extremely high.
• The camera behind the rearview mirror, or the area around the camera, including
the windscreen, is dirty.
• The ABS or VSA system engages.
1The LKAS may automatically be suspended when:
You can set the beeper ON/OFF using the driver
information interface
*
or audio/information screen
*
.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 473 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
474
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
The system may not detect lane markings and therefore may not keep the vehicle in
the middle of a lane under certain conditions, including the following:
■ Environmental conditions
• There is little contrast between lane lines and the roadway surface.
• Driving in bad weather (rain, fog, snow, etc.).
• Driving on a snowy or wet roadway.
• Driving into low sunlight (e.g., at dawn or dusk).
• Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white lines (or yellow lines).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines or the road surface may not be illuminated).
• The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.
• Strong light is reflected onto the roadway.
■
LKAS Conditions and Limitations
21 JAZZ HYBRID SSS-32TZA6000.book 474 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
475
uuHonda SensinguLane Keeping Assist System (LKAS)
Continued
Driving
■ Roadway conditions
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.
• The lane markings are extremely narrow, wide, or changing.
• Part of the lane markings are hidden by an object, such as a vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Your vehicle is strongly shaken on uneven road surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).
• Driving on rough or unpaved roads, or over bumpy surfaces.
a Faded lines b Duplicate lines c Tyre tracks
a Very wide or narrow traffic lane
21 JAZZ HYBRID SSS-32TZA6000.book 475 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
476
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
• Driving on roads with double lane line.
• Driving on snowy or slippery roads.
• The pavement is partially visible due to snow or puddles on the road.
• There is a film of water or puddles on the road surface.
• White lines (or yellow lines) are not recognised correctly due to road conditions
such as curves, twists, or hills.
• Driving on unpaved or rutted roads.
• Passing through a junction.
a Lane void of lines at junction
21 JAZZ HYBRID SSS-32TZA6000.book 476 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
477
uuHonda SensinguLane Keeping Assist System (LKAS)
Driving
■ Vehicle conditions
• When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• There is residue on the windscreen from the windscreen wipers.
• Abnormal tyre or wheel condition (wrong size, varied sizes or construction,
improperly inflated, etc.).
• The vehicle is tilted due to heavy luggage in the luggage area or rear seats.
• The suspension has been modified.
• Tyre chains are installed.
21 JAZZ HYBRID SSS-32TZA6000.book 477 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
478
uuHonda SensinguRoad Departure Mitigation System
Driving
Road Departure Mitigation System
Alerts and helps to assist you when the system detects a possibility of your vehicle
crossing over detected lane markings, or approaching the outer edge of the
pavement (into grass or gravel border) or an oncoming vehicle.
The front camera located at the top of the
windscreen monitors left and right lane
markings in white or yellow, the outer edge of
the pavement (bordered by grass or gravel) or
oncoming vehicles.
If your vehicle approaches any detected lane
markings, the outer edge of the pavement
(bordered by grass or gravel) or oncoming
vehicles when the turn signals have not been
engaged, the system activates.
u If the system cannot detect lane
markings (in white or yellow), no
assistance will be provided to avoid
approaching oncoming vehicles.
In addition to a visual alert, the system
assists with steering and alerts you with
rapid steering wheel vibrations to help
you remain within the detected lane.
2 Settings
*
P. 154
2 Customized Features P. 345
As a visual alert, message appears on the
driver information interface.
■
How the System Works
1Road Departure Mitigation System
Important Safety Reminder
Like all assistance systems, the Road Departure
Mitigation system has limitations.
Over-reliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the vehicle within your driving
lane.
The Road Departure Mitigation system alerts you
when the system detects that you are approaching
the outer edge of the pavement (into grass or gravel
border), an oncoming vehicle, or drifting into another
lane without using a turn signal.
The Road Departure Mitigation system may not
detect all lane markings or every instance of lane
drift.
The Road Departure Mitigation system may not
detect that you are approaching the outer edge of
the pavement (bordered by grass or gravel) or an
oncoming vehicle.
The Road Departure Mitigation system may not be
able to assist you depending on weather, speed or
road conditions.
The Road Departure Mitigation system is not
activated for about 15 seconds after the power
system is turned on.
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 494
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 478 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
479
uuHonda SensinguRoad Departure Mitigation System
Driving
The system cancels assisting operations when you turn the steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without
detecting driver response, the system beeps to
alert you. After that, the Road Departure
Mitigation steering assist is temporarily
stopped, and the warning sound is given only.
After a few minutes, the message to the left is
displayed and the Road Departure Mitigation
system is fully restored.
1Road Departure Mitigation System
The Road Departure Mitigation system may not work
properly or may work improperly under the certain
conditions:
2 Road Departure Mitigation system
Conditions and Limitations P. 483
There are times when you may not notice the Road
Departure Mitigation system functions due to your
operation of the vehicle, or road surface conditions.
If LKAS is off and you have selected Early from the
customized options using the driver information
interface
*
or audio/information screen
*
, the message
below will appear if the system has determined that
there is a possibility of your vehicle crossing over
detected lane markings, the outer edge of the
pavement (into grass or gravel border) or oncoming
vehicle. If you have selected Normal or Delayed,
however, the message will only appear if the vehicle
is about to cross over the outer edge of the pavement
or oncoming vehicle.
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 479 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguRoad Departure Mitigation System
480
Driving
1Road Departure Mitigation System
In the following case, a beeper sounds, a message
related to the ACC with Low Speed Follow appears
on the driver information interface, and the braking
function controlled by the Road Departure Mitigation
system is cancelled.
• The vehicle has repeatedly applied the brakes to
maintain the set speed (for example, you are
descending a long slope).
21 JAZZ HYBRID SSS-32TZA6000.book 480 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
481
uuHonda SensinguRoad Departure Mitigation System
Driving
The system becomes ready to start searching for lane markings when all the
following conditions are met:
• The lane markings is white (yellow).
The vehicle is travelling between about 72 and 180 km/h (45 and 112 mph).
u When oncoming vehicles are running
The vehicle is travelling between about 30 and 180 km/h (18 and 112 mph).
• The outer edge of the pavement is grass or gravel border.
The vehicle is travelling between about 30 and 180 km/h (18 and 112 mph).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The wipers are not in high speed operation.
• The vehicle is not accelerating or braking, and the steering wheel is not being
turned.
• The system makes a determination that the driver is not actively accelerating,
braking or steering.
■
How the System Activates
1How the System Activates
The Road Departure Mitigation system may
automatically shut off and the safety support
indicator (amber) comes and stays on.
2 Indicators P. 106
Road Departure Mitigation system function can be
impacted when the vehicle is:
• Driven on the inside edge of a curve, or outside of
a lane.
• Driven in a narrow lane.
21 JAZZ HYBRID SSS-32TZA6000.book 481 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguRoad Departure Mitigation System
482
Driving
When you turn the Road Departure Mitigation
system on and off, do the following.
1. Press the safety support switch.
2. Roll the left selector wheel to the
symbol and push it.
u The message appears on the driver
information interface when the system
becomes on or off.
The Road Departure Mitigation system is
turned on every time you turn the power
system on, even if you turned it off the last
time you drove the vehicle.
■
Road Departure Mitigation system On and Off
1Road Departure Mitigation system On and Off
You can also select the safety support content from
the driver information interface.
2 Driver Information Interface P. 140
The adaptive cruise control (ACC) with low speed
follow (amber), vehicle stability assist (VSA) system,
vehicle stability assist (VSA) OFF, low tyre pressure/
deflation warning system, and safety support (amber)
indicators may come on in amber along with a
message in the gauge when you set the power mode
to ON after reconnecting the 12-volt battery. Drive a
short distance at more than 20 km/h (12 mph). Each
indicator should go off. If any do not, have your
vehicle checked by a dealer.
a Safety Support Switch
b Left Selector Wheel
21 JAZZ HYBRID SSS-32TZA6000.book 482 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
483
uuHonda SensinguRoad Departure Mitigation System
Continued
Driving
The system may not properly detect lane markings and the position of your vehicle
under certain conditions. Some examples of these conditions are listed below.
■ Environmental conditions
• There is little contrast between lane lines and the roadway surface.
• Driving in bad weather (rain, fog, snow, etc.).
• Driving on a snowy or wet roadway.
• Driving into low sunlight (e.g., at dawn or dusk).
• Shadows of adjacent objects (trees, buildings, guard rails, vehicles, etc.) are
parallel to white lines (or yellow lines).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Strong light is reflected onto the roadway.
• Driving at night or in a dark place such as a tunnel (due to low-light conditions,
lane lines, the road surface, or oncoming vehicles may not be illuminated).
• The distance between your vehicle and the vehicle ahead of you is too short, and
lane lines and the road surface are not visible.
• The outer edge of the road is bordered by objects, materials, etc. other than grass
or gravel.
■
Road Departure Mitigation system Conditions and Limitations
21 JAZZ HYBRID SSS-32TZA6000.book 483 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
484
uuHonda SensinguRoad Departure Mitigation System
Driving
■ Roadway conditions
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines, such as at an intersection or
crosswalk.
• The lane markings are extremely narrow, wide, or changing.
• Part of the lane markings are hidden by an object, such as a vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Your vehicle is strongly shaken on uneven road surfaces.
• When objects on the road (curb, guard rail, pylons, etc.) are recognised as white
lines (or yellow lines).
• Driving on rough or unpaved roads, or over bumpy surfaces.
• Driving on roads with double lane lines.
• Driving on snowy or slippery roads.
• Passing through a junction.
• The pavement is only partially visible due to snow or puddles on the road.
• Driving on unpaved or rutted roads.
• White lines (or yellow lines) are not recognised correctly due to road conditions
such as curves, twists, or hills.
21 JAZZ HYBRID SSS-32TZA6000.book 484 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
485
uuHonda SensinguRoad Departure Mitigation System
Continued
Driving
■ Vehicle conditions
• When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
• When the driver operates the brake pedal and steering wheel.
• There is residue on the windscreen from the windscreen wipers.
• Abnormal tyre or wheel condition (wrong size, varied sizes or construction,
improperly inflated, etc.).
• The vehicle is tilted due to heavy luggage in the luggage area or rear seats.
• Tyre chains are installed.
• The suspension has been modified.
■ Examples of limitations on detection due to the condition of oncoming
vehicles
• The oncoming vehicle or vehicle ahead of you is sideways.
• The oncoming vehicle jumps out in front of you.
• When the oncoming vehicle blends in with the background, preventing the
system from recognising it.
• The headlights of a oncoming vehicle are lit on one side or not lit on either side in
a dark place.
• The distance between your vehicle and the oncoming vehicle is too short.
• Part of the oncoming vehicle is not visible due to the vehicle ahead of you.
• There are multiple oncoming lanes or turning lanes.
• The vehicle in the adjacent lane is parked or moving at an extremely slow speed.
21 JAZZ HYBRID SSS-32TZA6000.book 485 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
486
uuHonda SensinguRoad Departure Mitigation System
Driving
■ Examples of other limitations on detection or system operation
• When the oncoming vehicle is specially-shaped.
• When the camera cannot correctly identify the shape of the oncoming vehicle.
■ With Little Chance of a Collision
The Road Departure Mitigation system may activate in the below conditions.
• When driving through curves, your vehicle comes to a point where an oncoming
vehicle is right in front of you.
21 JAZZ HYBRID SSS-32TZA6000.book 486 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
487
uuHonda SensinguTraffic Sign Recognition System
Continued
Driving
Traffic Sign Recognition System
Reminds you of road sign information, such as the current speed limit and that
overtaking is prohibited, your vehicle has just passed through, showing it on the
gauge.
When the camera located behind the rearview mirror captures traffic signs while
driving, the system displays the ones that are recognised as designated for your
vehicle. The sign icon will be displayed until the vehicle reaches a predetermined
time and distance.
The sign icon also may switch to another one, or disappear when:
• The end of speed limit or other designated limit is detected.
• Your vehicle enters/exists motorway or highway.
• You make a turn with a turn signal at an intersection.
■
How the System Works
1Traffic Sign Recognition System
The system is designed to detect signs that follow the
Vienna Convention standards. Not all signs may be
displayed, but any signs posted on roadsides should
not be ignored. The system does not work on the
designated traffic signs of all the countries you travel,
nor in all situations.
Do not rely too much on the system. Always drive at
speeds appropriate for the road conditions.
Never apply a film or attach any objects to the
windscreen that could obstruct the camera’s field of
vision and cause the system to operate abnormally.
Scratches, nicks, and other damage to the
windscreen within the camera’s field of vision can
cause the system to operate abnormally. If this
occurs, we recommend that you replace the
windscreen with a genuine Honda replacement
windscreen. Making even minor repairs within the
camera’s field of vision or installing an aftermarket
replacement windscreen may also cause the system
to operate abnormally. After replacing the
windscreen, have a dealer recalibrate the camera.
Proper calibration of the camera is necessary for the
system to operate properly.
The Traffic Sign Recognition System is not activated
for about 15 seconds after the power system is
turned on.
21 JAZZ HYBRID SSS-32TZA6000.book 487 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguTraffic Sign Recognition System
488
Driving
If the system does not detect any traffic signs while you are driving, the image below
may appear.
1Traffic Sign Recognition System
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing system
to shut off, when parking, find a shady area or face
the front of the vehicle away from the sun. If you use
a reflective sun shade, do not allow it to cover the
camera housing.
Covering the camera can concentrate heat on it.
You can read about handling information for the
camera equipped with this system.
2 Front Wide View Camera P. 494
21 JAZZ HYBRID SSS-32TZA6000.book 488 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
489
uuHonda SensinguTraffic Sign Recognition System
Driving
1Traffic Sign Recognition System
If your vehicle exceeds the detected speed limit, an
icon representing the speed limit sign for the current
area will blink in the display.
2 Settings
*
P. 154
2 Customized Features P. 345
The system’s ability to accurately notify the driver of
the speed limit is dependent on certain conditions
such as the units displayed on the traffic sign as well
as the speed and direction of travel of the vehicle. In
some cases, the system may display false warnings or
other inaccurate information.
2 Traffic Sign Recognition System Conditions
and Limitations P. 490
The unit for speed limits (mph or km/h) varies from
country to country. Just after entering a country
whose unit differs to the one of the country from
which you came, Traffic Sign Recognition System
may not work correctly.
2 Change Units P. 152
2 Settings
*
P. 154
2 Customized Features P. 345
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 489 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuHonda SensinguTraffic Sign Recognition System
490
Driving
The Traffic Sign Recognition system may not be able to recognise the traffic sign in
the following cases.
■ Environmental conditions
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflected onto the roadway.
• Driving at night, in dark areas such as long tunnels.
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as the entrance or exit of a tunnel
or the shadows of trees, buildings, etc.
• Water is sprayed by or snow blown from a vehicle ahead.
■ Roadway conditions
• Your vehicle is strongly shaken on uneven road surfaces.
■ Vehicle conditions
• When lighting is weak due to dirt covering the headlight lenses, or there is poor
visibility in a dark place due to the headlights being improperly adjusted.
• The front of the camera is covered by dirt, fog, rain, mud, wet snow, seals,
accessories, stickers, or film on the windscreen.
• There is residue on the windscreen from the windscreen wipers.
• Abnormal tyre or wheel condition (wrong size, varied sizes or construction,
improperly inflated, etc.).
• The vehicle is tilted due to heavy luggage in the luggage area or rear seats.
• The suspension has been modified.
• Tyre chains are installed.
• Driving at night or in a dark place (e.g., a tunnel) with the headlights off.
■
Traffic Sign Recognition System Conditions and Limitations
1Traffic Sign Recognition System Conditions and Limitations
When the Traffic Sign Recognition System
malfunctions, appears on the gauge. If this
message does not disappear, have your vehicle
checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 490 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
491
uuHonda SensinguTraffic Sign Recognition System
Continued
Driving
■ The position or the condition of the traffic sign
• The sign is in a place that makes it hard to find.
• The sign is located far away from your vehicle.
• The sign is located where it is hard for headlight beams to reach.
• The sign is on a corner or bend in the road.
• The sign is faded or bent.
• The sign is rotated or damaged signs.
• The sign is covered with mud, snow, or frost.
• Part of the sign is hidden by the trees, or is in the shadow of a vehicle or other
object.
• Light (such as a streetlight) is reflected on the surface of the sign, or it is hidden
in shadow.
• The sign is too bright or too dark (electric signs).
• Small signs (auxiliary signs, etc.).
■ Other conditions
• When you are driving at a high speed.
21 JAZZ HYBRID SSS-32TZA6000.book 491 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
492
uuHonda SensinguTraffic Sign Recognition System
Driving
The Traffic Sign Recognition System may not operate correctly, such as displaying
signs that do not adhere to the actual regulations for the roadway or do not exist at
all in the following cases:
u A speed limit sign may display at a higher or lower speed than the actual speed
limit.
• There is a supplementary sign with further information such as weather, time,
vehicle type, etc.
• Figures on the sign are hard to read (electric sign, numbers on the signs are
blurred, etc.).
• The sign is in the vicinity of the lane you are driving even though it is not for the
lane, such as a speed limit sign situated at the junction between the side road and
the main road.
• There are things that look similar in colour or shape to recognised objects (similar
sign, electric sign, signboard, structure, etc.).
21 JAZZ HYBRID SSS-32TZA6000.book 492 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
493
uuHonda SensinguTraffic Sign Recognition System
Driving
Two traffic signs can be simultaneously displayed next to each other when detected.
The speed limit sign icon is displayed on the right half of the screen. The overtaking
prohibition sign icon appears on the left. Any additional sign that indicates speed
limit based on weather (snow, etc.) or specific period of time can appear on either
side.
Depending on situation,
*1
can be replaced with
*2
, or
*2
can appear on the right side.
■
Signs Displayed on the Gauge
a Overtaking Prohibition Sign
*1
b Speed Limit Sign
c Additional Speed Limit Sign Based on Conditions
*2
d Speed Limit Sign
21 JAZZ HYBRID SSS-32TZA6000.book 493 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
494
uuHonda SensinguFront Wide View Camera
Driving
Front Wide View Camera
The camera, used in systems such as Lane Keeping Assist System (LKAS), Road
Departure Mitigation System, Adaptive Cruise Control (ACC) with Low Speed
Follow, Traffic Sign Recognition System, and Collision Mitigation Braking System
(CMBS), is designed to detect an object that triggers any of the systems to operate
its functions.
This camera is located behind the rearview
mirror.
To help to reduce the likelihood that high
interior temperatures will cause the camera’s
sensing system to shut off, when parking, find
a shady area or face the front of the vehicle
away from the sun. If you use a reflective sun
shade, do not allow it to cover the camera
housing. Covering the camera can
concentrate heat on it.
■
Camera Location and Handling Tips
1Front Wide View Camera
Never apply a film or attach any objects to the
windscreen, the bonnet, or the front grille that could
obstruct the camera’s field of vision and cause the
system to operate abnormally.
Scratches, nicks, and other damage to the
windscreen within the camera’s field of vision can
cause the system to operate abnormally. If this
occurs, we recommend that you replace the
windscreen with a genuine Honda replacement
windscreen. Making even minor repairs within the
camera’s field of vision or installing an aftermarket
replacement windscreen may also cause the system
to operate abnormally.
After replacing the windscreen, have a dealer
recalibrate the camera. Proper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windscreen and prevent
the system from detecting lane lines properly.
a Front Wide View Camera
21 JAZZ HYBRID SSS-32TZA6000.book 494 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
495
uuHonda SensinguFront Wide View Camera
Driving
1Front Wide View Camera
If the message appears:
• Use the climate control system to cool down the
interior and, if necessary, also use demister mode
with the air flow directed towards the camera.
• Start driving the vehicle to lower the windscreen
temperature, which cools down the area around
the camera.
If the message appears:
• Park your vehicle in a safe place, and clean the
windscreen. If the message does not disappear
after you have cleaned the windscreen and driven
for a while, have your vehicle checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 495 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
496
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. When the
parking brake is applied, you can manually or automatically release it.
■ To apply
The electric parking brake can be applied any
time the vehicle has 12-volt battery, no matter
which position the power mode is in.
Pull the electric parking brake switch up gently
and securely.
u The indicator in the switch comes on.
u The parking brake and brake system
indicator (red) comes on.
■ To release
The power mode must be in ON in order to
release the electric parking brake.
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The indicator in the switch goes off.
u The parking brake and brake system
indicator (red) goes off.
Manually releasing the parking brake using
the switch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.
■
Parking Brake
1Brake System
When you depress the brake pedal, you may hear a
whirring sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.
1Parking Brake
You may hear the electric parking brake system
motor operating from the rear wheel area when you
apply or release the parking brake. This is normal.
The brake pedal may slightly move due to the electric
parking brake system operation when you apply or
release the parking brake. This is normal.
You cannot apply or release the parking brake if the
12-volt battery goes dead.
2 Jump Starting P. 610
If you pull up and hold the electric parking brake
switch while driving, the brakes on all four
wheels are applied by the electric servo brake
system until the vehicle comes to a stop. The
electric parking brake then applies, and the
switch should be released.
a Electric Parking Brake Switch
a Electric Parking Brake Switch
21 JAZZ HYBRID SSS-32TZA6000.book 496 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
497
uuBrakinguBrake System
Driving
■ Automatic parking brake feature operation
If the automatic parking brake feature has been activated:
• The parking brake is applied automatically when you set the power mode to OFF.
• To confirm that the parking brake is applied, check if the parking brake and brake
system indicator is (red) on.
2 Activating and deactivating the automatic parking brake feature P. 498
■ To release automatically
Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release the parking brake when you are starting the
vehicle facing uphill, or in a traffic jam.
Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.
u The parking brake and brake system
indicator (red) goes off.
You can release the parking brake automatically when:
• You are wearing the driver’s seat belt.
• The power system is on.
• The transmission is not in
(P or (N .
1Parking Brake
In the following situations, the parking brake
automatically operates.
• When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.
• When the driver’s seat belt is unfastened while
your vehicle is stopped automatically by ACC with
Low Speed Follow.
• When the power system is turned off while ACC
with Low Speed Follow is activated.
• When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
• When the driver’s seat belt is unfastened while
your vehicle is stopped and brake hold is applied.
• When the power system is turned off while brake
hold is applied.
• When there is a problem with the Brake Hold
System while brake hold is applied.
If the parking brake cannot be released
automatically, release it manually.
When the vehicle is travelling uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.
a Accelerator Pedal
21 JAZZ HYBRID SSS-32TZA6000.book 497 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuBrakinguBrake System
498
Driving
■ Activating and deactivating the automatic parking brake feature
With the power mode in ON, carry out the following steps to either activate or
deactivate the automatic parking brake feature.
1. Put the transmission into
(P .
2. Without depressing the brake pedal, pull up the electric parking brake switch.
u Check that the parking brake and brake system indicator has come on.
3. Pull up and hold the parking brake switch. When you hear a beeping sound,
release the switch and within 3 seconds pull up and hold the switch again.
4. When you hear a sound indicating that the procedure is completed, release the
switch.
u Two beeps indicates that the feature has been activated.
u One beep indicates that the feature has been deactivated.
u When you have completed activating the feature, the parking brake will
remain applied after you turn off the power system.
u To confirm that the parking brake is applied, check if the parking brake and
brake system indicator (red) is on.
If you need to temporarily deactivate the feature for when having your vehicle
towed. You can follow the procedure explained below.
1. Depress the brake pedal and bring the vehicle to a stop.
2. Set the power mode to OFF and then within 2 seconds push down the electric
parking brake switch.
u Activation and deactivation settings for the feature will not be affected.
u Before temporarily deactivating the feature, make sure to first turn off the
automatic brake hold system.
u To confirm that the parking brake is applied, check if the parking brake and
brake system indicator (red) is on.
1Parking Brake
The parking brake cannot be released automatically
while the following indicators are on:
• Malfunction indicator lamp
• Transmission system indicator
The parking brake may not be released automatically
while the following indicators are on:
• Power system indicator
• Parking brake and brake system indicator (red)
• VSA system indicator
• ABS indicator
• Supplemental restraint system indicator
1Activating and deactivating the automatic parking brake feature
In cold climates, the parking brake may freeze in
place if applied.
When parking the vehicle, chock the wheels and
make sure the automatic parking brake feature is
deactivated.
Also, when putting your vehicle through a conveyor-
type car wash or when having your vehicle towed,
deactivate the automatic parking brake feature and
leave the parking brake released.
21 JAZZ HYBRID SSS-32TZA6000.book 498 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
499
uuBrakinguBrake System
Driving
Your vehicle is equipped with disc brakes at all four wheels. The brake assist system
increases the stopping force when you depress the brake pedal hard in an
emergency situation. The anti-lock brake system (ABS) helps you to retain steering
control when braking very hard.
2 Brake Assist System P. 504
2 Anti-lock Brake System (ABS) P. 503
■
Foot Brake
1Foot Brake
Check the brakes after driving through deep water,
or if there is a buildup of road surface water. If
necessary, dry the brakes by lightly depressing the
pedal several times.
If you hear a continuous metallic friction sound when
applying the brakes, the brake pads need to be
replaced. Have your vehicle checked by a dealer.
Constantly using the brake pedal while going down a
long hill builds up heat, which reduces the brake
effectiveness. Apply regenerative braking by taking
your foot off the accelerator pedal and shifting to
position .
Do not rest your foot on the brake pedal while
driving, as it will lightly apply the brakes and cause
them to lose effectiveness over time and reduce pad
life. It will also confuse drivers behind you.
B
21 JAZZ HYBRID SSS-32TZA6000.book 499 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuBrakinguBrake System
500
Driving
Keeps the brake applied after releasing the brake pedal until the accelerator pedal is
pressed. You can use this system while the vehicle is temporarily stopped, like at
traffic lights and in heavy traffic.
■ Turning on the system
Fasten your seat belt properly, then start the
power system. Press the automatic brake hold
button.
• The automatic brake hold system indicator
comes on. The system is turned on.
■
Automatic Brake Hold
1Automatic Brake Hold
3
WARNING
Activating the automatic brake hold system
on steep hills or slippery roads may still
allow the vehicle to move if you remove
your foot from the brake pedal.
If a vehicle unexpectedly moves, it may
cause a crash resulting in serious injury or
death.
Never activate the automatic brake hold
system or rely on it to keep a vehicle from
moving when stopped on a steep hill or
slippery roads.
3
WARNING
Using the automatic brake hold system to
park the vehicle may result in the vehicle
unexpectedly moving.
If a vehicle moves unexpectedly, it may
cause a crash, resulting in serious injury or
death.
Never leave the vehicle when braking is
temporarily kept by automatic brake hold
and always park the vehicle by putting the
transmission in
(P and applying the parking
brake.
a Automatic Brake Hold
Button
b Comes On
21 JAZZ HYBRID SSS-32TZA6000.book 500 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
501
uuBrakinguBrake System
Continued
Driving
■ Activating the system
Depress the brake pedal to come to a
complete stop. The shift lever must not be in
(P or (R .
• The automatic brake hold indicator comes
on. Braking is kept for up to 10 minutes.
• Release the brake pedal after the automatic
brake hold indicator comes on.
■ Cancelling the system
Depress the accelerator pedal while the shift
lever is in a position other than
(P or (N . The
system is cancelled and the vehicle starts to
move.
• The automatic brake hold indicator goes
off. The system continues to be on.
a Brake Pedal
b On
c Comes On
a Accelerator Pedal
b On
c Goes Off
21 JAZZ HYBRID SSS-32TZA6000.book 501 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuBrakinguBrake System
502
Driving
■ The system automatically cancels when:
• You engage the parking brake.
• You depress the brake pedal and put the transmission into
(P or (R .
■ The system automatically cancels and the parking brake is applied when:
• Braking is kept for more than 10 minutes.
• The driver’s seat belt is unfastened.
• The power system is turned off.
• There is a problem with automatic brake hold system.
■ Turning off the automatic brake hold system
While the system is on, press the automatic
brake hold button again.
u The automatic brake hold system
indicator goes off.
If you want to turn off automatic brake hold
while the system is in operation, press the
automatic brake hold button with the brake
pedal depressed.
1Automatic Brake Hold
While the system is activated, you can turn off the
power system or park the vehicle through the same
procedure as you normally do.
2 When Stopped P. 506
Whether the system is on, or the system is activated,
the automatic brake hold turns off once the power
system is off.
1Turning off the automatic brake hold system
Make sure to turn off the automatic brake hold
system before using an automated car wash.
You may hear an operating noise if the vehicle moves
while the automatic brake hold system is in
operation.
a Automatic Brake Hold
Button
b Goes Off
21 JAZZ HYBRID SSS-32TZA6000.book 502 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
503
uuBrakinguAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps to prevent the wheels from locking up, and helps you to retain steering
control by pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.”
■ ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly down. On dry pavement, you will need to
press on the brake pedal very hard before the ABS activates. However, you may feel
the ABS activate immediately if you are trying to stop on snow or ice.
ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes under 10 km/h (6 mph), the ABS stops.
■
ABS
1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correctly if you use a tyre
of the wrong size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS will not be operating. Have
your vehicle checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lockup which can lead to
skidding and loss of steering control.
In the following cases, your vehicle may need more
distance to stop than a vehicle without the ABS:
• You are driving on rough or uneven road surfaces,
such as gravel or snow.
• The tyres are equipped with tyre chains.
The following may be observed with the ABS system:
• Motor sounds coming from the engine
compartment when the brakes are applied, or
when system checks are being performed after the
power system has been started and while the
vehicle accelerates.
• Brake pedal and/or the vehicle body vibration when
ABS activates.
These vibrations and sounds are normal to ABS
systems and are no cause for concern.
21 JAZZ HYBRID SSS-32TZA6000.book 503 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
504
uuBrakinguBrake Assist System
Driving
Brake Assist System
Is designed to assist the driver by generating greater braking force when you depress
the brake pedal hard during emergency braking.
■ Brake assist system operation
Press the brake pedal firmly for more powerful braking.
When brake assist operates, the pedal may wiggle slightly and an operating noise
may be heard. This is normal. Keep holding the brake pedal firmly down.
21 JAZZ HYBRID SSS-32TZA6000.book 504 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
505
uuBrakinguEmergency Stop Signal
Driving
Emergency Stop Signal
Activates when you brake hard while driving at 60 km/h (37 mph) or above to alert
drivers behind you about sudden braking by rapidly flashing hazard warning lights.
This may help to alert drivers behind you to take appropriate means to avoid a
possible collision with your vehicle.
■ When the system activates:
The hazard warning lights stop flashing when:
• You release the brake pedal.
• The ABS is deactivated.
• Your vehicle’s decelerating speed becomes moderate.
• You press the hazard warning button.
1Emergency Stop Signal
The emergency stop signal is not a system that can
prevent a possible rear-end collision caused by your
hard braking. It flashes the hazard warning lights at
the time you are braking hard. It is always
recommended to avoid hard braking unless it is
absolutely necessary.
The emergency stop signal does not activate with the
hazard warning button pressed in.
If the ABS stops working for a certain period during
braking, the emergency stop signal may not activate
at all.
a Hard Braking
b Brake Lights Come On
c Hazard Warning Lights Flash
d Hazard Warning Indicators Blink
21 JAZZ HYBRID SSS-32TZA6000.book 505 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
506
Driving
Parking Your Vehicle
When Stopped
1. Depress the brake pedal firmly.
2. With the brake pedal depressed, pull up the electric parking brake switch slowly,
but fully.
3. Change the transmission to
(P .
4. Turn off the power system.
u The parking brake and brake system indicator goes off in about 30 seconds.
Always confirm the electric parking brake is set, in particular if you are parked on an
incline.
1Parking Your Vehicle
Do not park your vehicle near flammable objects,
such as dry grass, oil, or timber.
Heat from the exhaust can cause a fire.
3
WARNING
The vehicle can roll away if left unattended
without confirming that Park is engaged.
A vehicle that rolls away could cause a crash
resulting in serious injury or death.
Always keep your foot on the brake pedal
until you have confirmed that
(P is shown
on the shift position indicator.
21 JAZZ HYBRID SSS-32TZA6000.book 506 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
507
uuParking Your VehicleuWhen Stopped
Driving
1When Stopped
NOTICE
The following can damage the driveline:
• Depressing the accelerator and brake pedals
simultaneously.
• Changing to (P before the vehicle stops
completely.
When facing uphill, do not hold the vehicle by
depressing the accelerator pedal.
Doing so may cause the power system to overheat
and fail.
In extremely cold temperatures, the parking brake
may freeze up if applied. If such temperatures are
expected, do not apply the parking brake but, if
parking on a slope, either turn the front wheels so
they will contact the curb if the vehicle rolls down the
slope or block the wheels to keep the vehicle from
moving. If you do not take either precaution, the
vehicle may roll unexpectedly, leading to a crash.
21 JAZZ HYBRID SSS-32TZA6000.book 507 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
508
uuParking Your VehicleuParking Sensor System
*
Driving
Parking Sensor System
*
The corner and centre sensors monitor obstacles around your vehicle, and the
beeper, driver information interface and audio/information screen let you know the
approximate distance between your vehicle and the obstacle.
■ The sensor location and range
1Parking Sensor System
*
Even when the system is on, always confirm if there is
no obstacle near your vehicle before parking.
The system may not work properly when:
• The sensors are covered with snow, ice, mud or
dirt.
• The vehicle is on uneven surface, such as grass,
bumps, or a hill.
• The vehicle has been out in hot or cold weather.
• The system is affected by devices that emit
ultrasonic waves.
• Driving in bad weather.
The system may not sense:
• Thin or low objects.
• Sonic-absorptive materials, such as snow, cotton,
or sponge.
• Objects directly under the bumper.
Do not put any accessories on or around the sensors.
When you set the power mode to ON, the system will
be in the previously selected condition.
a Front Corner Sensors
b Rear Corner Sensors
c Front Centre Sensors
d Rear Centre Sensors
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 508 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
509
uuParking Your VehicleuParking Sensor System
*
Continued
Driving
■ Parking sensor system on and off
With the power mode in ON, press the
parking sensor system button to turn on or off
the system. The indicator in the button comes
on when the system is on.
The front corner, rear centre and corner
sensors start to detect an obstacle when the
transmission is in
(R , and the vehicle speed is
less than 8 km/h (5 mph).
The front corner and front centre sensors start
to detect an obstacle when the transmission is
in any position other than
(P or (R , and the
vehicle speed is less than 8 km/h (5 mph).
21 JAZZ HYBRID SSS-32TZA6000.book 509 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
510
uuParking Your VehicleuParking Sensor System
*
Driving
■ Screen Operation
The split screen tab disappears, and the split
view returns to the last camera view mode
under the following conditions:
• If the parking sensor system is turned off.
• If there is a malfunction in the system.
Models with multi-view rear camera
a Split View Off
b Split Screen Tab
c Split View On
21 JAZZ HYBRID SSS-32TZA6000.book 510 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
511
uuParking Your VehicleuParking Sensor System
*
Continued
Driving
■ When the distance between your vehicle and obstacles becomes shorter
*1:At this stage, only the centre sensors detect obstacles.
Length of the
intermittent beep
Distance between the Bumper and Obstacle
Indicator
Driver information interface/
Audio/information screen
Corner Sensors Centre Sensors
Moderate — About 110-60 cm Yellow
*1
Comes on
Short About 60-45 cm About 60-45 cm
Amber Comes on
Very short About 45-35 cm About 45-35 cm
Continuous About 35 cm or less About 35 cm or less Red Comes on
a Indicators light where the sensor detects an obstacle.
Models with multi-view rear camera
Models without multi-view
rear camera
All models
21 JAZZ HYBRID SSS-32TZA6000.book 511 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
512
uuParking Your VehicleuParking Sensor System
*
Driving
21 JAZZ HYBRID SSS-32TZA6000.book 512 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
513
uuParking Your VehicleuCross Traffic Monitor
*
Continued
Driving
Cross Traffic Monitor
*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.
The system is convenient especially when you are getting out of a parking space
backwards.
1Cross Traffic Monitor
*
The parking sensor system’s alerting buzzer overrides
the cross traffic monitor buzzer when the sensors are
detecting obstacles at the closest range.
3
WARNING
Cross traffic monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 513 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuParking Your VehicleuCross Traffic Monitor
*
514
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 517
2 Customized Features P. 345
• The transmission is in (R .
• Your vehicle is moving at 5 km/h (3 mph) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
■
How the System Works
1Cross Traffic Monitor
*
Cross traffic monitor may not detect or may delay
detecting an approaching vehicle, or may alert
detection without an approaching vehicle under the
following conditions:
• An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
• Your vehicle is moving at the speed of about 5
km/h (3 mph) or higher.
• A vehicle is approaching at the speed other than
between about 10 km/h (6 mph) and 25 km/h (16
mph).
• The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.
• Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
• When there is bad weather.
• Your vehicle is on an incline.
• Your vehicle is tilted due to a heavy load in the rear.
• Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
• The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed.
uHave your vehicle checked by a dealer.
a Radar sensors:
Underneath the rear bumper
corners.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 514 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
515
uuParking Your VehicleuCross Traffic Monitor
*
Driving
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.
1Cross Traffic Monitor
*
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 515 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuParking Your VehicleuCross Traffic Monitor
*
516
Driving
An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.
■
When the System Detects a Vehicle
1When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in
(R , mud, snow, ice and
other debris may have accumulated in the vicinity of
the sensor. The system is temporarily cancelled.
Check the bumper corners for any obstructions, and
thoroughly clean the area if necessary.
If the comes on when the transmission is in
(R ,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
(R , there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
a Arrow Icon
b Normal View
c Wide View
d Top Down View
21 JAZZ HYBRID SSS-32TZA6000.book 516 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
517
uuParking Your VehicleuCross Traffic Monitor
*
Driving
Tap to turn the system on and off. The
indicator comes on with the system on.
You can also switch the system on and off
from the customized feature on the audio/
information screen.
2 Customized Features P. 345
■
Cross Traffic Monitor On and Off
a Icon
21 JAZZ HYBRID SSS-32TZA6000.book 517 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
518
Driving
Multi-View Rear Camera
*
About Your Multi-View Rear Camera
The audio/information screen can display your vehicle’s rear view. The display
automatically changes to the rear view when the transmission is put into (R .
■
Multi-View Rear Camera Display Area
1About Your Multi-View Rear Camera
The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.
Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.
If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.
a Camera
b Approx. 1 m (39 inches)
c Tailgate open range
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 518 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
519
uuMulti-View Rear Camera
*
uAbout Your Multi-View Rear Camera
Driving
You can view three different camera modes on the audio/information screen.
Touch the appropriate icon to switch the mode.
• If you were last using Wide view mode or Normal view mode, the same view
mode will be activated the next time you put the transmission into (R .
• If you were using Top down view mode before you turned off the power system,
Wide view mode will be activated the next time you set the power mode to ON
and put the transmission into
(R .
• If you were using Top down view mode and 10 seconds elapsed after you took
the transmission out of
(R , Wide view mode will be activated the next time you
put the transmission into (R .
1About Your Multi-View Rear Camera
You can change the Fixed Guideline and Dynamic
Guideline settings.
2 Customized Features P. 345
Fixed Guideline
ON: Guidelines appear when you put the
transmission into
(R .
OFF: Guidelines do not appear.
Dynamic Guideline
ON: Guidelines move according to the steering
wheel direction.
OFF: Guidelines do not move.
a
Wide View Mode
b Normal View Mode
c
Top Down View Mode
d Bumper
21 JAZZ HYBRID SSS-32TZA6000.book 519 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
520
Driving
Refueling
Fuel Information
■ Fuel recommendation
Your vehicle is designed to operate on premium unleaded petrol with a research
octane of 95 or higher.
If this octane grade is unavailable, regular unleaded petrol with a research octane of
91 or higher may be used temporarily.
The use of regular unleaded petrol can cause metallic knocking noises in the engine
and will result in decreased engine performance. The long-term use of regular-grade
petrol can lead to engine damage.
■ Fuel tank capacity: 40 L (8.8 Imp gal)
EN 228 standards petrol/gasohol fuel
Unleaded premium petrol/gasohol up to E10 (90% petrol and 10%
ethanol), research octane number 95 or higher
Unleaded premium petrol, research octane number 95 or higher
1Fuel Information
NOTICE
Use of petrol that contains lead presents the
following risks:
• Damage to the exhaust system including the
catalytic converter
• Damage to the engine and fuel system
• Detrimental effects on the engine and other
systems
Oxygenated Fuels
Oxygenated fuels are blended with petrol and
ethanol or other compounds. Your vehicle is also
designed to operate on oxygenated fuels containing
up to 10% ethanol by volume and up to 22% ETBE
by volume, based on the EN 228 standards. For more
information, ask your dealer.
Except Jordanian, Lebanese, Moroccan and Tunisian models
Jordanian, Lebanese, Moroccan and Tunisian models
21 JAZZ HYBRID SSS-32TZA6000.book 520 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
521
uuRefuelinguHow to Refuel
Continued
Driving
How to Refuel
1. Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the power system.
3. Unlock the driver’s door using the master
door lock switch or lock tab.
u The fuel fill door on the outer side of the
vehicle will unlock.
4. Press on the edge of the fuel fill door to
make it pop up slightly.
5. Remove the fuel fill cap slowly. If you hear a
release of air, wait until this stops, then turn
the knob slowly to open the fuel fill cap.
1How to Refuel
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.
The fuel fill door and its latching mechanism can be
permanently damaged if the fuel fill door is forced
closed when the driver’s door is locked.
Use the lock tab or the master door lock switch to
unlock the fuel fill door. The vehicle doors and fuel fill
door automatically relock if the remote unlock
function is used. This can be deactivated by briefly
opening then closing the driver’s door.
3
WARNING
Petrol is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
a Press
b Fuel Fill Door
a Cap
21 JAZZ HYBRID SSS-32TZA6000.book 521 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
522
uuRefuelinguHow to Refuel
Driving
6. Place the fuel fill cap in the holder.
7. Insert the fuel filler nozzle fully.
u When the tank is full, the filler nozzle will
click off automatically. This leaves space
in the fuel tank in case the fuel expands
with a change in the temperature.
8. After filling, replace the fuel fill cap,
tightening it until you hear it click at least
once.
u Shut the fuel fill door by hand.
a Cap
b Holder
21 JAZZ HYBRID SSS-32TZA6000.book 522 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
523
Driving
Fuel Economy and CO
2
Emissions
Improving Fuel Economy and Reducing CO
2
Emissions
Achieving fuel economy and reducing CO
2
emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Follow the maintenance schedule and, if necessary, consult your warranty booklet.
On vehicles without service reminder system, follow the Maintenance schedule.
2 Maintenance Schedule
*
P. 535
• Use engine oil with the viscosity recommended.
2 Recommended Engine Oil P. 546
• Maintain the specified tyre pressure.
• Do not load the vehicle with excess luggage.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■
Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO
2
Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
100 ×
Litres
of fuel
÷
Kilometres
driven
=
L per
100 km
Miles
driven
÷
Gallons
of fuel
=
Miles per
Gallon
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 523 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
524
21 JAZZ HYBRID SSS-32TZA6000.book 524 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
525
Maintenance
This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 526
Safety When Performing Maintenance.... 527
Parts and Fluids Used in Maintenance
Service ........................................... 528
About Your Maintenance Service ..... 529
Service Reminder System
*
............... 530
Maintenance Schedule
*
.................... 535
Maintenance Under the Bonnet
Maintenance Items Under the Bonnet..543
Opening the Bonnet ........................ 544
Recommended Engine Oil ................ 546
Oil Check......................................... 549
Adding Engine Oil............................ 550
Cooling System................................ 551
Transmission Fluid............................ 554
Brake Fluid....................................... 555
Refilling Window Washer Fluid......... 556
Fuel Filter......................................... 557
Replacing Light Bulbs....................... 558
Checking and Maintaining Wiper Blades
....563
Checking and Maintaining Tyres
Checking Tyres ................................ 568
Wear Indicators................................ 569
Tyre Service Life ............................... 569
Tyre and Wheel Replacement........... 570
Tyre Rotation ................................... 571
Snow Traction Devices ..................... 572
12-Volt Battery ................................. 573
Remote Transmitter Care
Replacing the Button Battery ........... 579
Climate Control System Maintenance
....580
Cleaning
Interior Care .................................... 584
Exterior Care.................................... 586
Accessories and Modifications ........ 589
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 525 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
526
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
Refer to the Service Book
*
that came with your vehicle/maintenance schedule in this
owner’s manual for detailed maintenance and inspection information.
2 Maintenance Schedule
*
P. 535
■
Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■
Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 555
• Check the tyre pressure monthly. Examine the tread for wear and foreign objects.
2 Checking and Maintaining Tyres P. 568
• Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 558
• Check the condition of the wiper blades at least every six months.
2 Checking and Maintaining Wiper Blades P. 563
■
Types of Inspection and Maintenance
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 526 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
527
uuBefore Performing MaintenanceuSafety When Performing Maintenance
Continued
Maintenance
Safety When Performing Maintenance
Some of the most important safety precautions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames
away from the 12-volt battery, all High Voltage system, and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the bonnet.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a commercially available degreaser or parts cleaner, not petrol.
• Wear eye protection and protective clothing when working with the 12-volt
battery or compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if there is sufficient ventilation.
■
Maintenance Safety
1Safety When Performing Maintenance
3
WARNING
Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual/Service
Book
*
.
3
WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 527 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
528
uuBefore Performing MaintenanceuParts and Fluids Used in Maintenance Service
Maintenance
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on level ground, the parking brake is set, and
the power system is turned off.
• Be aware that hot parts can burn you.
u Make sure to let the power system including the engine and exhaust system
cool thoroughly before touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not activate the power system unless instructed, and keep your hands and
limbs away from moving parts. When the power mode is on, the engine can
automatically start, or the radiator fan may start operating without the engine
running.
• Do not touch the high-voltage battery and wiring (orange).
Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.
■
Vehicle Safety
21 JAZZ HYBRID SSS-32TZA6000.book 528 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
529
uuBefore Performing MaintenanceuAbout Your Maintenance Service
Maintenance
About Your Maintenance Service
If the service reminder system is available in your vehicle, you are informed by the
driver information interface when your vehicle’s maintenance services are due. Refer
to the service book
*
that came with your vehicle for an explanation of the service
item codes that appear on the display.
2 Service Reminder System
*
P. 530
If the service reminder system is not available, follow the maintenance schedules in
the service book
*
that came with your vehicle.
If your vehicle is without the service book, follow the maintenance schedule in this
owner’s manual.
2 Maintenance Schedule
*
P. 535
1About Your Maintenance Service
If you are planning to take your vehicle outside the
service reminder system applied countries, consult a
dealer for how to record your service reminder
information and schedule your maintenance service
under the conditions of that country.
Models with service reminder system
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 529 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
530
Maintenance
Service Reminder System
*
Provides information of which service items are to be performed. Service items are
represented by a code and icon. The system tells you when to take your vehicle to a
dealer by days remaining.
When the next maintenance service timing is near, coming or passed, a warning
icon will also appear on the driver information interface every time you set the
power mode to ON.
1Service Reminder System
*
You can choose to have a corresponding warning
message displayed with the warning icon on the
driver information interface.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 530 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
531
uuService Reminder System
*
u
Maintenance
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the service reminder information screen. The
maintenance item(s) appears on the driver information interface along with
maintenance items due soon.
The system message indicator ( ) comes on along with the service reminder
information.
■
Displaying the Service Reminder Information
1Displaying the Service Reminder Information
Based on engine operating conditions and engine oil
conditions, the system calculates the remaining days
before the next service is to be performed.
a (home) Button
b Remaining Days
c Day Icon
d Maintenance Item Code(s)
e Left Selector Wheel
21 JAZZ HYBRID SSS-32TZA6000.book 531 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
532
uuService Reminder System
*
u
Maintenance
■
Warning Icons and Service Reminder Information on the
Driver Information Interface
Warning Icon
Service Reminder
Information
Explanation Information
Service Due Soon One or more of the service items are
required in less than 30 days. The
remaining days are estimated based
on your driving conditions.
The remaining days will be counted
down per day.
Service Due Now One or more of the service items are
required in less than 10 days. The
remaining days are estimated based
on your driving conditions.
Have the indicated service performed
as soon as possible.
Service Over Due The indicated maintenance service is
still not done after the remaining time
reaches 0.
Your vehicle has passed the service
required point. Immediately have the
service performed and make sure to
reset the service reminder system.
21 JAZZ HYBRID SSS-32TZA6000.book 532 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
533
uuService Reminder System
*
u
Maintenance
Service items displayed on the driver information interface are in code and icon.
For an explanation of the service reminder codes and icons, refer to the service
book
*
that came with your vehicle.
■
Availability of the Service Reminder System
Even if the service reminder information appears on the driver information interface
while pressing the (home) button, this system is not available in some countries.
Refer to the service book
*
that came with your vehicle, or ask a dealer if you can use
the service reminder system.
■
Service Reminder Items
1Availability of the Service Reminder System
If you are planning to take your vehicle outside the
service reminder system applied countries, consult a
dealer on how to record your service reminder
information and schedule your maintenance service
under the conditions of that country.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 533 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuService Reminder System
*
u
534
Maintenance
Reset the service reminder information display if you have performed the
maintenance service.
1. Set the power mode to ON.
2. Press the (home) button.
3. Roll the left selector wheel until is displayed.
4. Press the left selector wheel to go to the service reminder information screen.
5. Press and hold the left selector wheel until the reset mode is displayed.
6. Roll the left selector wheel select Reset (You can also select Cancel to end the
process).
7. Press the left selector wheel to reset the selected item.
8. Repeat from step 5 for other items you wish to reset.
■
Resetting the Display
1Resetting the Display
NOTICE
Failure to reset the service reminder information after
a maintenance service results in the system showing
incorrect maintenance intervals, which can lead to
serious mechanical problems.
You can reset also the service reminder system
information display using the driver information
interface.
2 Settings
*
P. 154
You can reset also the service reminder system
information display using the audio/information
screen.
2 Customized Features P. 345
The dealer will reset the service reminder information
display after completing the required maintenance
service. If someone other than a dealer performs
maintenance service, reset the service reminder
information display yourself.
Models with colour audio
Models with Display Audio
a (home) Button
b Left Selector Wheel
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 534 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
535
Continued
Maintenance
Maintenance Schedule
*
If your vehicle comes with the service book, the maintenance schedule for your
vehicle is available in the book. For vehicles without the service book, refer to the
following maintenance schedules.
The maintenance schedule outlines the minimum required maintenance that you
should perform to ensure the troublefree operation of your vehicle. Due to regional
and climatic differences, some additional servicing may be required. Please consult
your warranty booklet for a more detailed description.
Maintenance work should be performed by properly trained and equipped
technicians. Your authorised dealer meets all of these requirements.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 535 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
536
uuMaintenance Schedule
*
u
Maintenance
*1:Sensory Method
Adjust the valves during service 120,000 km if they are noisy.
Service at the indicated distance or
time - whichever comes first.
km x 1,000 20 40 60 80 100 120 140 160 180 200
miles x 1,000 12.5 25.0 37.5 50.0 62.5 75.0 87.5 100.0 112.5 125.0
months 12 24 36 48 60 72 84 96 108 120
Replace engine oil Normal Every 10,000 km (6,000 miles) or 1 year
Severe Every 5,000 km (3,000 miles) or 6 months
Replace engine oil filter Normal Every 20,000 km (12,500 miles) or 2 years
Severe Every 10,000 km (6,000 miles) or 1 year
Replace air cleaner element Every 30,000 km (18,500 miles)
Inspect valve clearance
*1
Every 120,000 km (75,000 miles)
Replace spark plugs Every 100,000 km (62,500 miles)
Except Ukrainian models without Service Book
21 JAZZ HYBRID SSS-32TZA6000.book 536 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
537
uuMaintenance Schedule
*
u
Continued
Maintenance
*1:It is recommended that you replace the fuel filter if the fuel you are using is suspected to be contaminated with dust, etc. because the
filter may be clogged sooner.
Service at the indicated distance or
time - whichever comes first.
km x 1,000 20 40 60 80 100 120 140 160 180 200
miles x 1,000 12.5 25.0 37.5 50.0 62.5 75.0 87.5 100.0 112.5 125.0
months 12 24 36 48 60 72 84 96 108 120
Replace engine coolant At 200,000 km (125,000 miles) or 10 years,
thereafter every 100,000 km (62,500 miles) or 5 years
Replace transmission fluid Normal 150,000 km (93,500 miles) or 6 years
Severe
75,000 km (47,000 miles) or 3 years
Replace dust and pollen filter • • • • • • • • • •
Inspect front and rear brakes Every 10,000 km (6,000 miles) or 1 year
Replace fuel filter
Normal Every 180,000km (112,500miles)
Severe Every 110,000km (68,500miles)
*1
Replace brake fluid Every 3 years
Check expiry date for TRK bottle Every year
Rotate tyres (Check tyre inflation and condition at least once
per month)
Every 10,000 km (6,000 miles)
Visually inspect the following items:
Driveshaft boots
Every 10,000 km (6,000 miles) or 1 year
Tie rod ends, steering gear box, and boots
Suspension components
Brake hoses and lines (including ABS/VSA)
• • • • • • • • • •
Exhaust system
Fuel lines and connections
All fluid levels and condition of fluid
21 JAZZ HYBRID SSS-32TZA6000.book 537 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
538
uuMaintenance Schedule
*
u
Maintenance
*1:Sensory Method
Adjust the valves during service 120,000 km if they are noisy.
*2:It is recommended that you replace the fuel filter if the fuel you are using is suspected to be contaminated with dust, etc. because the
filter may be clogged sooner.
Service at the indicated distance or
time - whichever comes first.
km X 1,000 15 30 45 60 75 90 105 120 135 150 165 180 195
months 12 24 36 48 60 72 84 96 108 120 132 144 156
Replace engine oil Normal • • • • • • • • • • • • •
Severe Every 7,500 km or 6 months
Replace engine oil filter Normal • • • • • • • • • • • • •
Severe Every 7,500 km or 1 year
Replace air cleaner element Every 30,000 km
Inspect valve clearance
*1
Every 120,000 km
Replace spark plugs Every 120,000 km (Inspect: 15,000 km)
Replace engine coolant At 200,000 km or 10 years, thereafter every 100,000 km or 5 years
Replace transmission fluid Every 80,000km or 4years
Replace dust and pollen filter • • • • • • • • • • • • •
Inspect front and rear brakes • • • • • • • • • • • • •
Replace fuel filter
Normal Every 180,000 km
Severe Every 105,000 km
*2
Replace brake fluid Every 3 years
Check expiry date for tyre repair kit bottle Every year
Rotate tyres (Check tyre inflation and condition at least
once per month)
Every 15,000km
Check light alignment • • • • • • • • • • • • •
Ukrainian models
21 JAZZ HYBRID SSS-32TZA6000.book 538 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
539
uuMaintenance Schedule
*
u
Continued
Maintenance
Service at the indicated distance or time
- whichever comes first.
km X 1,000 15 30 45 60 75 90 105 120 135 150 165 180 195
months 12 24 36 48 60 72 84 96 108 120 132 144 156
Test drive (noise, stability, dashboard operation) • • • • • • • • • • • • •
Visually inspect the following items:
Driveshaft boots
• • • • • • • • • • • • •
Tie rod ends, steering gearbox, and boots
Suspension components
Brake hoses and lines (including ABS/VSA)
Exhaust system
Fuel lines and connections
All fluid levels and condition of fluid
21 JAZZ HYBRID SSS-32TZA6000.book 539 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuMaintenance Schedule
*
u
540
Maintenance
If you drive your vehicle under severe conditions, you must have the following items
served to the maintenance schedule indicated as Severe.
Items Condition
Engine oil and filter A, B, C, D and E
Transmission fluid B, D
1Maintenance Schedule
*
The condition is considered as severe when you drive:
A. Less than 8 km (5 miles), or less than 16 km (10
miles) in freezing temperatures per trip.
B. In extremely hot temperature above 35°C.
C. With extensive idling or long periods of stop-and-
go.
D. With a loaded roof rack, or in mountains.
E. On muddy, dusty or de-iced roads.
Models without Service Book
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 540 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
541
uuMaintenance Schedule
*
uMaintenance Record (On Vehicles without Service Book)
Continued
Maintenance
Maintenance Record (On Vehicles without Service Book)
Have your servicing dealer record all required maintenance below. Keep receipts for all work done on your vehicle.
Km or Month Date Sign or Stamp
20,000 km
12,500 Mi. (or 12 Mo.)
40,000 km
25,000 Mi. (or 24 Mo.)
60,000 km
37,500 Mi. (or 36 Mo.)
80,000 km
50,000 Mi. (or 48 Mo.)
100,000 km
62,500 Mi. (or 60 Mo.)
120,000 km
75,000 Mi. (or 72 Mo.)
140,000 km
87,500 Mi. (or 84 Mo.)
160,000 km
100,000 Mi. (or 96 Mo.)
180,000 km
112,500 Mi. (or 108 Mo.)
200,000 km
125,000 Mi. (or 120 Mo.)
Except Ukrainian models
21 JAZZ HYBRID SSS-32TZA6000.book 541 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
542
uuMaintenance Schedule
*
uMaintenance Record (On Vehicles without Service Book)
Maintenance
Km or Month Date Sign or Stamp
15,000 km (or 12 Mo.)
30,000 km (or 24 Mo.)
45,000 km (or 36 Mo.)
60,000 km (or 48 Mo.)
75,000 km (or 60 Mo.)
90,000 km (or 72 Mo.)
105,000 km (or 84 Mo.)
120,000 km (or 96 Mo.)
135,000 km (or 108 Mo.)
150,000 km (or 120 Mo.)
165,000 km (or 132 Mo.)
180,000 km (or 144 Mo.)
195,000 km (or 156 Mo.)
Ukrainian models
21 JAZZ HYBRID SSS-32TZA6000.book 542 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
543
Maintenance
Maintenance Under the Bonnet
Maintenance Items Under the Bonnet
a Brake Fluid (Black Cap) (Right-hand
Drive Type)
e Radiator Cap
b Brake Fluid (Black Cap) (Left-hand
Drive Type)
f Engine Oil Dipstick (Orange)
c 12-volt Battery g Washer Fluid (Blue Cap)
d Engine Coolant Reserve Tank h Engine Oil Fill Cap
21 JAZZ HYBRID SSS-32TZA6000.book 543 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
544
uuMaintenance Under the BonnetuOpening the Bonnet
Maintenance
Opening the Bonnet
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the bonnet release handle under the
driver’s side lower outside corner of the
dashboard.
u The bonnet will pop up slightly.
3. Push the bonnet latch lever (located under
the front edge of the bonnet to the centre)
to the side and raise the bonnet. Once you
have raised the bonnet slightly, you can
release the lever.
1Opening the Bonnet
NOTICE
Do not open the bonnet when the wiper arms are
raised. The bonnet will strike the wipers, resulting in
possible damage to the bonnet and/or the wipers.
When closing the bonnet, check that the bonnet is
securely latched.
If the bonnet latch lever moves stiffly, or if you can
open the bonnet without lifting the lever, the latch
mechanism should be cleaned and lubricated.
a Bonnet Release Handle
b Pull
a Lever
21 JAZZ HYBRID SSS-32TZA6000.book 544 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
545
uuMaintenance Under the BonnetuOpening the Bonnet
Maintenance
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the bonnet.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
bonnet. Remove your hand at a height of
approximately 30 cm (12 inches) and let the
bonnet close.
a Grip
b Support Rod
c Clamp
21 JAZZ HYBRID SSS-32TZA6000.book 545 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
546
uuMaintenance Under the BonnetuRecommended Engine Oil
Maintenance
Recommended Engine Oil
Use a genuine engine oil or another commercial engine oil of suitable type and
viscosity (for the ambient temperature) as shown in the image that follows.
Oil is a major contributor to your engine's performance and longevity. If you drive
the vehicle with insufficient or deteriorated oil, the engine may fail or be damaged.
See the engine oil fill cap markings in the image that follows and on the actual cap
to check if the vehicle is equipped with a gasoline particulate filter
*
.
2 Adding Engine Oil P. 550
1Recommended Engine Oil
Engine Oil Additives
You cannot use Engine Oil Additives.
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.
Models with gasoline particulate filter
Models without gasoline particulate filter
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 546 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
547
uuMaintenance Under the BonnetuRecommended Engine Oil
Continued
Maintenance
*1:Formulated to improve fuel economy.
Model Engine Oil Fill Cap Markings Genuine Engine Oil Commercial Engine Oil
With Gasoline
Particulate Filter
●
Honda Engine Oil Type 2.0
*1
●
ACEA C5
European and Ukrainian models
Ambient Temperature
Ambient Temperature
21 JAZZ HYBRID SSS-32TZA6000.book 547 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
548
uuMaintenance Under the BonnetuRecommended Engine Oil
Maintenance
*1:Formulated to improve fuel economy.
Model Engine Oil Fill Cap Markings Genuine Engine Oil Commercial Engine Oil
With Gasoline
Particulate Filter
●
Honda Genuine Motor Oil
*1
●
ACEA C5
Without Gasoline
Particulate Filter
●
Honda Genuine Motor Oil
*1
●
API service SM or higher grade
fuel-efficient oil
●
ACEA A5/B5
Except European and Ukrainian models
Ambient Temperature
Ambient Temperature
Ambient Temperature
Ambient Temperature
21 JAZZ HYBRID SSS-32TZA6000.book 548 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
549
uuMaintenance Under the BonnetuOil Check
Maintenance
Oil Check
We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Turn off the power system. You can check the oil level without the engine having
run beforehand. If the engine has been running, wait approximately three minutes
before you check the oil.
1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or
paper towel.
3. Insert the dipstick back all the way into its
hole.
4. Remove the dipstick again, and check the
level. It should be between the upper and
lower marks. Add oil if necessary.
1Oil Check
If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.
The amount of oil consumed depends on how the
vehicle is driven and the climatic and road conditions
encountered. The rate of oil consumption can be up
to 1 litre per 1,000 km/625 miles.
Consumption is likely to be higher when the engine is
new.
a Upper Mark
b Lower Mark
21 JAZZ HYBRID SSS-32TZA6000.book 549 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
550
uuMaintenance Under the BonnetuAdding Engine Oil
Maintenance
Adding Engine Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten
it securely.
4. Wait for three minutes and recheck the
engine oil dipstick.
1Adding Engine Oil
NOTICE
Do not fill the engine oil above the upper mark.
Overfilling the engine oil may result in leaks and
engine damage.
If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.
a Engine Oil Fill Cap
21 JAZZ HYBRID SSS-32TZA6000.book 550 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
551
uuMaintenance Under the BonnetuCooling System
Continued
Maintenance
Cooling System
This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.
We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.
1. Make sure the engine and radiator are
cool.
2. Check the amount of coolant in the reserve
tank.
u If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.
Specified coolant: Honda All Season Antifreeze/Coolant Type 2
■
Reserve Tank
1Cooling System
NOTICE
If temperatures consistently below -30°C are
expected, the coolant mixture should be changed to
a higher concentration. Consult your Honda dealer
for details about a suitable coolant mixture.
If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminium engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.
Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.
3
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
a MAX
b MIN
c Reserve Tank
21 JAZZ HYBRID SSS-32TZA6000.book 551 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
552
uuMaintenance Under the BonnetuCooling System
Maintenance
3. Inspect the cooling system for leaks.
21 JAZZ HYBRID SSS-32TZA6000.book 552 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
553
uuMaintenance Under the BonnetuCooling System
Maintenance
1. Make sure the engine and radiator are
cool.
2. Turn the radiator cap 1/8 turn anti-
clockwise and relieve any pressure in the
cooling system.
3. Push down and turn the radiator cap anti-
clockwise to remove it.
4. The coolant level should be up to the base
of the filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it
fully.
• Never open when hot.
• Hot coolant will scald you.
• Relief pressure valve begins to open at 108
kPa.
■
Radiator
1Radiator
NOTICE
Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.
a Radiator Cap
■
Radiator Cap
21 JAZZ HYBRID SSS-32TZA6000.book 553 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
554
uuMaintenance Under the BonnetuTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Follow your vehicle’s maintenance service timing of when to change transmission
fluid.
2 Maintenance Schedule
*
P. 535
Do not attempt to check or change the transmission fluid yourself.
Specified fluid: Honda ATF DW-1
1Transmission Fluid
NOTICE
Do not mix Honda ATF DW-1 with other
transmission fluids.
Using a transmission fluid other than Honda ATF DW-
1 may adversely affect the operation and durability of
your vehicle’s transmission, and damage the
transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF DW-1 is not covered
by Honda’s new vehicle limited warranty.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 554 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
555
uuMaintenance Under the BonnetuBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Specified fluid: Brake Fluid with DOT 3 or DOT 4
■
Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
We recommend using a genuine product.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Left-hand Drive Type
a Reserve Tank
b MAX
c MIN
Right-hand Drive Type
a Reserve Tank
b MAX
c MIN
21 JAZZ HYBRID SSS-32TZA6000.book 555 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
556
uuMaintenance Under the BonnetuRefilling Window Washer Fluid
Maintenance
Refilling Window Washer Fluid
Check the amount of window washer fluid by
looking at the reservoir.
If the level is low, fill the washer reservoir.
Pour the washer fluid carefully. Do not overflow the reservoir.
1Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windscreen washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windscreen
washer pump.
Use only commercially available windscreen washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.
21 JAZZ HYBRID SSS-32TZA6000.book 556 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
557
uuMaintenance Under the BonnetuFuel Filter
Maintenance
Fuel Filter
Replace fuel filter according to the time and distance recommendations in the
maintenance schedule.
Have a qualified technician change the fuel filter. Fuel in the system can spray out
and create a hazard if all fuel line connections are not handled correctly.
1Fuel Filter
The fuel filter should be replaced according to the
service reminder indication.
Models with service reminder system
21 JAZZ HYBRID SSS-32TZA6000.book 557 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
558
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorised Honda dealer inspect and replace the
light assembly.
Front Fog Lights
*
Front fog lights are LED type. Have an authorised Honda dealer inspect and replace
the light assembly.
Position/Daytime Running Lights
Position/daytime running lights are LED type. Have an authorised Honda dealer
inspect and replace the light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorised Honda dealer inspect and
replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorised Honda dealer inspect
and replace the light assembly.
1Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the luggage area, have the aiming
readjusted at a dealer or by a qualified technician.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 558 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
559
uuReplacing Light BulbsuBrake/Taillight and Rear Turn Signal Light Bulbs
Maintenance
Brake/Taillight and Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1. Remove the cover.
2. Use a Phillips-head screwdriver to remove
the bolts.
3. Pull the light assembly out of the rear pillar.
4. Turn the socket anticlockwise and remove
it. Remove the old bulb.
5. Insert a new bulb.
Brake Light: LED
Taillight: LED
Rear Turn Signal Light: 21 W (Amber)
1Brake/Taillight and Rear Turn Signal Light Bulbs
Brake/taillights are LED type. Have an authorised
Honda dealer inspect and replace the light assembly.
a Cover
b Bolt
a Bulb
b Socket
21 JAZZ HYBRID SSS-32TZA6000.book 559 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
560
uuReplacing Light BulbsuTaillight and Back-Up Light Bulbs
Maintenance
Taillight and Back-Up Light Bulbs
When replacing, use the following bulbs.
1. Remove the cover by prying on the edge
using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Turn the socket anticlockwise and remove
it.
Remove the old bulb.
3. Insert a new bulb.
Taillight: LED
Back-Up Light: 16 W
1Taillight and Back-Up Light Bulbs
Taillights are LED type. Have an authorised Honda
dealer inspect and replace the light assembly.
a Cover
a Bulb
b Socket
21 JAZZ HYBRID SSS-32TZA6000.book 560 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
561
uuReplacing Light BulbsuRear Licence Plate Light
Maintenance
Rear Licence Plate Light
Rear licence plate light is LED type. Have an authorised Honda dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorised Honda dealer inspect and
replace the light assembly.
Rear Fog Light
Rear fog light is LED type. Have an authorised Honda dealer inspect and replace the
light assembly.
21 JAZZ HYBRID SSS-32TZA6000.book 561 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
562
uuReplacing Light BulbsuOther Light Bulbs
Maintenance
Other Light Bulbs
When replacing, use the following bulbs.
1. Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth to prevent scratches.
2. Remove the old bulb and insert a new bulb.
■
Luggage Area Light Bulbs
Luggage Area Light: 5 W
a Bulb
21 JAZZ HYBRID SSS-32TZA6000.book 562 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
563
Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press up on and hold the tab, then slide
the holder off the wiper arm.
1Changing the Front Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm onto the windscreen,
it may damage the wiper arm and/or the windscreen.
a Tab
b Holder
21 JAZZ HYBRID SSS-32TZA6000.book 563 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
564
uuChecking and Maintaining Wiper BladesuChanging the Front Wiper Blade Rubber
Maintenance
3. Pull the end of the wiper blade in the
direction of the arrow in the image until it
is out of the holder’s end cap.
4. Pull the wiper blade in the opposite
direction to slide it out of the holder.
a Blade
b End Cap at the bottom
a Blade
b Holder
21 JAZZ HYBRID SSS-32TZA6000.book 564 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
565
uuChecking and Maintaining Wiper BladesuChanging the Front Wiper Blade Rubber
Maintenance
5. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
6. Install the end of the wiper blade into the
cap.
7. Slide the holder onto the wiper arm until it
locks.
8. Lower the passenger side wiper arm first,
then the driver side.
a Blade
b Cap
c Holder
21 JAZZ HYBRID SSS-32TZA6000.book 565 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
566
uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber
Maintenance
Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Pivot the bottom end of the wiper blade up
until it comes off from the wiper arm.
3. Slide the blade out of the wiper.
1Changing the Rear Wiper Blade Rubber
NOTICE
Avoid dropping the wiper arm; it may damage the
rear window.
a Wiper Arm
a Blade
21 JAZZ HYBRID SSS-32TZA6000.book 566 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
567
uuChecking and Maintaining Wiper BladesuChanging the Rear Wiper Blade Rubber
Maintenance
4. Remove the retainers from wiper blade and
mount to a new rubber blade.
5. Slide the new wiper blade onto the holder.
u Make sure it is engaged correctly, then
install the wiper blade assembly onto the
wiper arm.
a Retainer
a Holder
21 JAZZ HYBRID SSS-32TZA6000.book 567 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
568
Maintenance
Checking and Maintaining Tyres
Checking Tyres
To safely operate your vehicle, your tyres must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■
Inflation guidelines
Properly inflated tyres provide the best combination of handling, tread life, and
comfort. Refer to the driver’s doorjamb label for the specified pressure.
Underinflated tyres wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tyres make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tyres. If one looks lower than the
others, check the pressure with a tyre gauge.
At least once a month or before long trips, use a gauge to measure the pressure in
all tyres. Even tyres in good condition can lose 10–20 kPa (0.1–0.2 bar, 1–2 psi) per
month.
■
Inspection guidelines
Every time you check inflation, also examine the tyres and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tyre if you find any cuts,
splits, or cracks in the side of the tyre. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a dealer check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 569
• Cracks or other damage around valve stem.
1Checking Tyres
Measure the air pressure when tyres are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1.6 km (1 mile). If
necessary, add or release air until the specified
pressure is reached.
If checked when hot, tyre pressure can be as much as
30–40 kPa (0.3–0.4 bar, 4–6 psi) higher than if
checked when cold.
Whenever tyre pressure is adjusted, you must
initialise the deflation warning system.
2 Deflation Warning System P. 423
3
WARNING
Using tyres that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding tyre inflation and
maintenance.
21 JAZZ HYBRID SSS-32TZA6000.book 568 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
569
uuChecking and Maintaining Tyres uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1.6 mm (1/16 inch) shallower than
elsewhere on the tyre. If the tread has worn so
that the indicator is exposed, replace the tyre.
Worn out tyres have poor traction on wet
roads.
Tyre Service Life
The life of your tyres is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tyres are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tyres reach five
years old. All tyres should be removed from service after 10 years from the date of
manufacture, regardless of their condition or state of wear.
1Checking Tyres
Have a dealer check the tyres if you feel a consistent
vibration while driving. New tyres and any that have
been removed and reinstalled should be properly
balanced.
High speed driving
We recommend that you do not drive faster than the
posted speed limits and conditions allow. If you drive
at sustained high speeds (over 160 km/h/100 mph),
adjust the cold tyre pressures as shown below to
avoid excessive heat build up and sudden tyre failure.
Tyre Size 185/60R15 88H
Pressure Front: 260 kPa (2.6 bar) 38 psi
Rear: 250 kPa (2.5 bar) 36 psi
Tyre Size 185/55R16 87H
Pressure Front: 270 kPa (2.7 bar) 39 psi
Rear: 260 kPa (2.6 bar) 38 psi
Models without 185/60R16 tyres
a Example of a Wear Indicator
mark
21 JAZZ HYBRID SSS-32TZA6000.book 569 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
570
uuChecking and Maintaining Tyres uTyre and Wheel Replacement
Maintenance
Tyre and Wheel Replacement
Replace your tyres with radials of the same size, load range, speed rating, and
maximum cold tyre pressure rating (as shown on the tyre’s sidewall). Using tyres of
a different size or construction can cause certain vehicle systems such as the ABS
and Vehicle Stability Assist (VSA) system to work incorrectly.
It is best to replace all four tyres at the same time. If that isn’t possible, replace the
front or rear tyres in pairs.
Make sure that the wheel’s specifications match those of the original wheels.
1Tyre and Wheel Replacement
3
WARNING
Installing improper tyres on your vehicle
can affect handling and stability. This can
cause a crash in which you can be seriously
hurt or killed.
Always use the size and type of tyres
recommended in the tyre information label
on your vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 570 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
571
uuChecking and Maintaining TyresuTyre Rotation
Maintenance
Tyre Rotation
Rotating tyres according to the maintenance schedule helps to distribute wear more
evenly and increase tyre life.
■
Tyres without rotation marks
Rotate the tyres as shown here.
■
Tyres with rotation marks
Rotate the tyres as shown here.
1Tyre Rotation
Tyres with directional tread patterns should only be
rotated front to back (not from one side to the other).
Directional tyres should be mounted with the
rotation indication mark facing forward, as shown
below.
When the tyres are rotated, make sure the air
pressures are checked.
Whenever tyres are rotated, you must initialise the
deflation warning system.
2 Deflation Warning System P. 423
a Front
b Rotation Mark
a Front
a Front
21 JAZZ HYBRID SSS-32TZA6000.book 571 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
572
uuChecking and Maintaining Tyres uSnow Traction Devices
Maintenance
Snow Traction Devices
If driving on snowy or frozen roads, mount winter tyres, or tyre chains; reduce
speed; and maintain sufficient distance between vehicles when driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tyre chains, winter tyres, or all season tyres when necessary or according to the law.
When mounting, refer to the following points.
For winter tyres:
• Select the size and load ranges that are the same as the original tyres.
• Mount the tyres to all four wheels.
For tyre chains:
• Consult a dealer before purchasing any type of chains for your vehicle.
• Install them on the front tyres only.
• Because your vehicle has limited tyre clearance, we strongly recommend using the
chains listed below:
*1:Original tyre size is mentioned on the tyre information label on the driver’s
doorjamb.
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not touch the brake lines or suspension.
• Drive slowly.
Original Tyre Size
*1
Chain Type
185/60R15 88H RUD-matic classic 48478
185/55R16 87H RUD-matic classic 48479
185/60R16 86H RUD-matic classic 48482
1Snow Traction Devices
NOTICE
Traction devices that are the wrong size or improperly installed
can damage your vehicle’s brake lines, suspension, body, and
wheels. Stop driving if they are hitting any part of the vehicle.
According to the EU Directive for tyres, when winter tyres are
used, it is necessary to affix a sticker with the allowable max.
speed of the winter tyres clearly in the field of view of the
driver, if the designed max. speed of vehicle is higher than the
allowed max. speed of winter tyre. A sticker is obtainable from
your tyre dealer. If you have any question, consult a dealer.
When tyre chains are mounted, follow the chain manufacturer’s
instructions regarding vehicle operational limits.
Use tyre chains only in an emergency or when they
are legally required for driving through a certain area.
Use greater caution when driving with tyre chains on snow or ice. They
may have less-predictable handling than good winter tyres without chains.
If your vehicle is equipped with summer tyres, be aware
that these tyres are not designed for winter driving
conditions. For more information, contact a dealer.
3
WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instructions in this owner’s
manual regarding the selection and use of
tyre chains.
21 JAZZ HYBRID SSS-32TZA6000.book 572 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
573
Continued
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 240
• The clock resets.
2 Clock P. 166
2 Clock Setup P. 304
• The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 118
112-Volt Battery
3
WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or open flame can cause the
battery to explode with enough force to
kill or seriously hurt you.
Keep all sparks, open flames, and smoking
materials away from the battery.
Wear protective clothing and a face shield,
or have a skilled technician do any battery
maintenance.
3
WARNING
The battery contains sulfuric acid
(electrolyte) which is highly corrosive and
poisonous.
Getting electrolyte in your eyes or on your
skin can cause serious burns. Wear
protective clothing and eye protection
when working on or near the battery.
Swallowing electrolyte can cause fatal
poisoning if immediate action is not taken.
KEEP OUT OF THE REACH OF CHILDREN
Right-hand Drive Type
21 JAZZ HYBRID SSS-32TZA6000.book 573 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uu12-Volt BatteryuChecking the 12-Volt Battery
574
Maintenance
112-Volt Battery
Emergency Procedures
Eyes: Flush with water from a cup or other container
for at least 15 minutes. (Water under pressure can
damage the eye.) Call a physician immediately.
Skin: Remove contaminated clothing. Flush the skin
with large quantities of water. Call a physician
immediately.
Swallowing: Drink water or milk. Call a physician
immediately.
When you find corrosion, clean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
21 JAZZ HYBRID SSS-32TZA6000.book 574 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
575
uu12-Volt BatteryuCharging the 12-Volt Battery
Maintenance
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (−) cable first, and reconnect it last.
112-Volt Battery
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Vehicle Stability Assist (VSA)
system, Vehicle Stability Assist (VSA) OFF, Safety
Support (Amber), and Low Tyre Pressure/Deflation
Warning System may come on along with a message
in the meter when you set the power mode to ON
after reconnecting the 12-volt battery.
Drive a short distance at more than 20 km/h (12
mph). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 575 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
576
uu12-Volt BatteryuReplacing the 12-Volt Battery
Maintenance
Replacing the 12-Volt Battery
When you remove and replace the 12-volt battery, always follow the maintenance
safety and the warnings for when checking the battery to prevent potential hazards.
2 Maintenance Safety P. 527
2 Checking the 12-Volt Battery P. 573
1. Set the power mode to VEHICLE OFF. Open
the bonnet.
2. Loosen the nut on the negative battery
cable, then disconnect the cable from the
negative (−) terminal.
3. Open the positive battery terminal cover.
Loosen the nut on the positive battery
cable, then disconnect the cable from the
positive (+) terminal.
4. Loosen the nut on each side of the battery
bracket with a wrench.
5. Pull the bottom end of each battery stay out
of the hole on the battery base, and remove
the combination of the battery bracket and
the stays.
1Replacing the 12-Volt Battery
NOTICE
An improperly disposed of battery can be harmful to
the environment and human health. Always confirm
local regulations for battery disposal.
This symbol on the battery means that this product
must not be treated as household waste.
To install a new battery, reverse this procedure.
Always disconnect the negative (−) cable first, and
reconnect it last.
a Nut
b Cover
a Stay
b Nut
21 JAZZ HYBRID SSS-32TZA6000.book 576 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
577
uu12-Volt BatteryuReplacing the 12-Volt Battery
Maintenance
6. Take out the battery carefully.
21 JAZZ HYBRID SSS-32TZA6000.book 577 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
578
uu12-Volt BatteryuBattery Label
Maintenance
Battery Label
1Battery Label
DANGER
• Keep flames and sparks away from the battery. The
battery produces explosive gas that can cause an
explosion.
• Wear eye protection and rubber gloves when
handling the battery to avoid risk of burns or loss of
eyesight if exposed to battery electrolyte.
• Do not allow children to handle the battery, under
any circumstance. Ensure that anyone handling the
battery has a proper understanding of the hazards
and correct handling procedures involved.
• Handle battery electrolyte with extreme care, as it
contains dilute sulfuric acid. Exposure to eyes or
skin can cause burns or loss of eyesight.
• Read this manual carefully, and understand it
before handling the battery. Failure to do so can
cause personal injury and damage to the vehicle.
• Do not use the battery if the level of electrolyte is at
or below the recommended level. Using the battery
with low electrolyte can cause it to explode,
causing serious injury.
Example
21 JAZZ HYBRID SSS-32TZA6000.book 578 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
579
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half by carefully prying
on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the keyless remote.
u Remove carefully to avoid losing the
buttons.
3. Make sure to replace the battery with the
correct polarity.
1Replacing the Button Battery
A warning mark is located adjacent to the button
battery
*
.
NOTICE
An improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
This symbol on the battery means that this product
must not be treated as household waste.
Replacement batteries are commercially available or
at a dealer.
4
3
WARNING
CHEMICAL BURN HAZARD
The battery that powers the remote
transmitter can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Battery type: CR2032
a Battery
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 579 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
580
Maintenance
Climate Control System Maintenance
Air Conditioning
For proper and safe operation of the climate control system, the refrigerant system
should only be served by a qualified technician.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
1Climate Control System Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.
The air conditioner label is found under the bonnet:
2 Safety Labels P. 102
2 Specifications P. 634
: Caution
: Flammable Refrigerant
: Requires a qualified
technician to service
: Air Conditioning
System
21 JAZZ HYBRID SSS-32TZA6000.book 580 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
581
uuClimate Control System MaintenanceuDust and Pollen Filter
Continued
Maintenance
Dust and Pollen Filter
Replace the dust and pollen filter according to your vehicle’s recommended
maintenance schedule. It is recommended to replace the filter even sooner if the
vehicle has been driven in a dusty environment.
2 Maintenance Schedule
*
P. 535
1. Open the glove box.
■
When to Replace the Dust and Pollen Filter
■
How to Replace the Dust and Pollen Filter
1Dust and Pollen Filter
If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced.
The dust and pollen filter collects pollen, dust, and
other debris in the air.
If you are not sure how to replace the dust and pollen
filter, have it replaced by a dealer.
a Pull
b Handle
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 581 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
582
uuClimate Control System MaintenanceuDust and Pollen Filter
Maintenance
2. Disengage the two tabs by pushing on each
side panel.
3. Pivot the glove box out of the way.
4. Push in the tabs on the corners of the filter
case cover, and remove it.
a Tabs
a Push
b Tabs
c Cover
21 JAZZ HYBRID SSS-32TZA6000.book 582 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
583
uuClimate Control System MaintenanceuDust and Pollen Filter
Maintenance
5. Remove the filter from the case.
6. Install a new filter in the case.
u Put the AIR FLOW arrow directed side
down.
a Dust and Pollen Filter
21 JAZZ HYBRID SSS-32TZA6000.book 583 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
584
Maintenance
Cleaning
Interior Care
Use a vacuum cleaner to remove dust before using a cloth.
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
■
Cleaning Seat Belts
1Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may malfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their composition, chemicals and
liquid aromatics may cause discolouration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or petrol.
After using chemicals, make sure to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Be careful not to spill a liquid type air freshener.
a Loop
21 JAZZ HYBRID SSS-32TZA6000.book 584 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
585
uuCleaninguInterior Care
Maintenance
Wipe using a glass cleaner.
The driver’s floor mat hooks over the floor anchors, which keep the mat from sliding
forward. When reinstalling the mat after cleaning, position it properly.
Do not put additional floor mats on top of the anchored mat.
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampened with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residue with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.
Remove dirt with a damp cloth. Wipe away any residual water with a clean, dry
cloth.
The use of detergent reduces the effectiveness of the water repellent.
■
Cleaning the Window
■
Floor Mats
*
■
Maintaining Genuine Leather
*
■
Maintaining Water-repellent Seat
*
1Cleaning the Window
Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the cover of both the front
sensor camera and the rainfall/light sensor.
1Floor Mats
*
If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position the rear seat floor mats properly. If they are
not properly positioned, the floor mats can interfere
with the front seat functions.
1Maintaining Genuine Leather
*
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust can cause abrasions in the
leather. In addition, please note that some dark
coloured clothing can rub onto the leather seats
resulting in discolouration or stains.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 585 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
586
uuCleaninguExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic intermittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■
Washing the Vehicle
■
Using an Automated Car Wash
■
Using High Pressure Cleaners
1Washing the Vehicle
Do not spray water into the air intake vents. It can
cause a malfunction.
Do not spray water onto the fuel fill door directly. A
high-pressure spray may cause it to open.
a Air Intake Vents
21 JAZZ HYBRID SSS-32TZA6000.book 586 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
587
uuCleaninguExterior Care
Maintenance
A good coat of automotive body wax helps to protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get petrol, oil, engine coolant, or battery fluid on resin coated parts, they may
be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminium is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminium alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their lustre or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■
Applying Wax
■
Maintaining the Bumpers and Other Resin Coated Parts
■
Cleaning the Window
■
Maintaining Aluminium Wheels
*
1Applying Wax
NOTICE
Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
away spills immediately.
1Maintaining the Bumpers and Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 587 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
588
uuCleaninguExterior Care
Maintenance
The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
High temperature may damage the high-
voltage battery used to power the electric
motor.
When painting the vehicle in a heated paint
booth, make sure the temperature does not
exceed 65°C.
■
Fogged Exterior Light Lenses
■
Painting the Vehicle
C
21 JAZZ HYBRID SSS-32TZA6000.book 588 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
589
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windscreen. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 623
• Before installing any electronic accessory, have the installer contact a dealer for
assistance. If possible, have a dealer inspect the final installation.
1Accessories and Modifications
3
WARNING
Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding accessories and
modifications.
3
WARNING
Use of improperly designed, engineered or
manufactured high-voltage battery
assemblies could cause a fire in your
vehicle.
A vehicle fire could result in a crash or
injury.
Only use a genuine Honda high-voltage
battery assembly, or its equivalent, in your
vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 589 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
590
uuAccessories and ModificationsuModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet your country’s and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.
Do not modify or attempt to repair your vehicle’s high-voltage hybrid power system
or otherwise modify vehicle electrical systems. Disassembling or modifying electrical
equipment can result in a crash or a fire.
If you ever need to replace your vehicle’s high-voltage battery assembly outside of
warranty coverage, we highly recommend that you only use a genuine Honda high-
voltage battery assembly. Genuine Honda high-voltage battery assemblies are
designed to work with your vehicle’s hybrid power system and have been designed,
engineered and manufactured to avoid overcharging situations. Non-genuine high-
voltage battery assemblies may not have been similarly designed, engineered and
manufactured, and installation of such assemblies could result in overcharging, fires,
loss of power, or other conditions that may increase the likelihood of a crash or
injury.
1Accessories and Modifications
When properly installed, mobile phones, alarms, two-
way radios, radio antennas, and low-powered audio
systems should not interfere with your vehicle’s
computer controlled systems, such as your airbags
and anti-lock brakes.
Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.
21 JAZZ HYBRID SSS-32TZA6000.book 590 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
591
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
Tools
Types of Tools.................................. 592
If a Tyre Goes Flat
Temporarily Repairing a Flat Tyre...... 593
Power System Won’t Start
Checking the Procedure................... 607
If the Keyless Remote Battery is Weak .. 608
Emergency Power System Off........... 609
Jump Starting.................................... 610
Shift Lever Does Not Move.............. 613
Overheating
How to Handle Overheating............. 614
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears......616
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 616
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 617
If the Brake System Indicator (Red) Comes
On or Blinks ................................... 618
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 619
If the Brake System Indicator (Red) Comes On
or Blinks at the Same Time When the Brake
System Indicator (Amber) Comes On.. 620
If the Low Tyre Pressure/Deflation Warning
System Indicator Comes On or Blinks..621
If the Low Oil Level Symbol Appears .....622
If the Power System Indicator Comes On..622
Fuses
Fuse Locations ................................. 623
Inspecting and Changing Fuses........ 628
Emergency Towing........................... 629
When You Cannot Unlock the Fuel Fill
Door................................................. 630
When You Cannot Open the Tailgate..632
21 JAZZ HYBRID SSS-32TZA6000.book 591 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
593
Continued
Handling the Unexpected
If a Tyre Goes Flat
Temporarily Repairing a Flat Tyre
If the tyre has a large cut or is otherwise severely damaged, you will need to have
the vehicle towed. If the tyre only has a small puncture, from a nail for instance, you
can use the temporary tyre repair kit so that you can drive to the nearest service
station for a more permanent repair.
If a tyre goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, non-slippery ground and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights and set the power mode to VEHICLE OFF
(LOCK).
1Temporarily Repairing a Flat Tyre
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
• The tyre sealant has expired.
• More than one tyre is punctured.
• The puncture or cut is larger than 4 mm (3/16 inch).
• The tyre side wall is damaged or the puncture is
outside the contact area.
• Damage has been caused by driving with the tyres
extremely under inflated.
• The tyre bead is no longer seated.
• The rim is damaged.
Do not remove a nail or screw that punctured the
tyre. If you remove it from the tyre, you may not be
able to repair the puncture using the kit.
When the puncture is: Kit Use
Smaller than 4 mm (3/16 inch) Yes
Larger than 4 mm (3/16 inch) No
a Contact Area
21 JAZZ HYBRID SSS-32TZA6000.book 593 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
594
Handling the Unexpected
■
Getting Ready to Temporarily Repair the Flat Tyre
1Getting Ready to Temporarily Repair the Flat Tyre
Speed restriction label are applied to the side of
temporary tyre repair kit.
When making a temporary repair, carefully read the
instruction manual provided with the kit.
a Air Compressor
b Wheel Label
c Sealant Bottle
d Speed Restriction Label
e Expiration Date
f Handling Manual
21 JAZZ HYBRID SSS-32TZA6000.book 594 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
595
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Continued
Handling the Unexpected
1. Remove the lid on right side of the luggage
area by pulling the handle lightly, then take
the kit out from inside.
2. Place the kit, face up, on flat ground near
the flat tyre, away from traffic. Do not place
the kit on its side.
a Lid
b Handle
c Tyre Repair Kit
21 JAZZ HYBRID SSS-32TZA6000.book 595 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
596
Handling the Unexpected
1. Take the air compressor hose and plug
cord out of the back of the air compressor.
2. Remove the cap from the air compressor.
■
Injecting Sealant and Air
1Injecting Sealant and Air
Keep the sealant bottle out of the reach of children.
In cold temperatures, the sealant may not flow easily.
In this situation, warm it by keeping the bottle in the
passenger compartment before using.
The sealant can permanently stain clothing and other
materials. Be careful during handling and wipe away
any spills immediately.
3
WARNING
Tyre sealant contains substances that are
harmful and can be fatal if swallowed.
If accidentally swallowed, do not induce
vomiting. Drink plenty of water and get
medical attention immediately.
For skin or eye contact, flush with cool
water and get medical attention if
necessary.
a Plug Cord
b Air Compressor Hose
21 JAZZ HYBRID SSS-32TZA6000.book 596 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
597
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Handling the Unexpected
3. Shake the bottle well.
4. Remove the bottle cap.
u Do not remove the sealed cover.
1Injecting Sealant and Air
Do not remove the empty bottle after injecting the
sealant.
See a Honda dealer for a replacement of sealant
bottle and proper disposal of the empty bottle.
a Bottle Cap
b Not Removed
21 JAZZ HYBRID SSS-32TZA6000.book 597 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
598
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Handling the Unexpected
5. Screw the sealed bottle onto the air
compressor.
u Screw the bottle tightly so that it does
not become loose.
6. Unscrew the valve cap.
a Valve Cap
b Valve
21 JAZZ HYBRID SSS-32TZA6000.book 598 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
599
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Handling the Unexpected
7. Screw the air compressor hose onto the
tyre valve.
u Make sure the air valve is closed and the
air compressor is turned off.
8. Plug in the compressor to the accessory
power socket.
2 Accessory Power Socket P. 231
9. Turn on the vehicle's power system.
2 Carbon Monoxide Gas P. 101
1Injecting Sealant and Air
Turn the air compressor off when connecting the air
compressor hose.
You hear a motor sound coming from the activated
air compressor. This is normal.
If the specified air pressure is not reached within 10
minutes, the tyre may be too severely damaged for
the kit to provide the necessary seal and your vehicle
will need to be towed.
If you want to measure the air pressure using a
gauge, turn the air compressor off first.
3
WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colourless, odourless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.
a Air Valve
b Air Compressor Hose
c Valve
a Plug
b Accessory Power Socket
21 JAZZ HYBRID SSS-32TZA6000.book 599 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
600
Handling the Unexpected
10. Turn on the air compressor and inflate the
tyre to the specified air pressure.
u The compressor starts injecting sealant
and air into the tyre.
u Refer to the driver’s doorjamb label for
the specified pressure.
11. After the air pressure reaches to specified
pressure, turn off the compressor.
u Check the air pressure gauge on the air
compressor.
u If overinflated, release the air by turning
the air valve. Be careful not to spill any
sealant.
12. Unplug the plug from the accessory power
socket.
13. Unscrew the air compressor hose from the
tyre valve. Install the hose cap.
u Be careful not to spill any sealant when
the hose is disconnected. Wipe away
any spills.
1Injecting Sealant and Air
Inform the use of tyre sealant when you ask a Honda
dealer or the road assistant service for replacing or
repairing the flat tyre.
This air compressor is designed for the automotive
tyre. Check the following:
• The power supply of the air compressor is limited to
your vehicle’s 12-volt DC accessory power socket.
• Do not operate the temporary tyre repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Make it cool down when using the compressor
continuously.
a Air Valve
b Switch
c OFF
d ON
21 JAZZ HYBRID SSS-32TZA6000.book 600 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
601
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Continued
Handling the Unexpected
14. Apply the wheel label to the flat surface of
the wheel.
u The wheel surface must be clean to
ensure the label adheres properly.
15. Store the tyre repair kit in the luggage
area.
u Do not remove the sealant bottle from
the air compressor.
a Wheel Label
21 JAZZ HYBRID SSS-32TZA6000.book 601 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
602
Handling the Unexpected
1. Apply the speed restriction label to the
location as shown.
2. Drive the vehicle for about 10 minutes or
three to ten kilometres (two to six miles).
u Do not exceed 80 km/h (50 mph).
3. Stop the vehicle in a safe place.
■
Distributing the Sealant in the Tyre
1Distributing the Sealant in the Tyre
Refer to the driver’s doorjamb label for the specified
pressure.
3
WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colourless, odourless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.
a Speed Restriction Label
21 JAZZ HYBRID SSS-32TZA6000.book 602 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
603
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Continued
Handling the Unexpected
4. Recheck the air pressure using the gauge
on the air compressor.
u Do not turn the air compressor on to
check the pressure.
5. If the air pressure is
• Less than 130 kPa (1.3 bar, 19 psi): Do
not add air and continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 629
• Specified air pressure (See the label on
driver’s doorjamb.) or more: Continue
driving until you reach the nearest
service station. Do not exceed 80 km/h
(50 mph).
• Greater than 130 kPa (1.3 bar, 19 psi),
but less than specified air pressure (See
the label on driver’s doorjamb.): Inflate
the tyre to the specified air pressure.
2 Inflating an Under-inflated Tyre
P. 604
And repeat steps 2 to 4 until you reach the
nearest service station. Do not exceed 80
km/h (50 mph).
u The distance to the nearest service
station has to be within about 200
kilometres (120 miles).
6. Repackage and properly stow the kit.
a Air Compressor
b OFF
c ON
21 JAZZ HYBRID SSS-32TZA6000.book 603 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
604
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tyre.
1. Take the air compressor out of the
luggage area.
2. Place the kit, face up, on flat ground near
the flat tyre, away from traffic. Do not
place the kit on its side.
3. Remove the valve cap.
4. Attach the hose onto the tyre valve stem.
Screw it until it is tight.
5. Plug in the compressor to the accessory
power socket.
u Be careful not to pinch the cord in a
door or window.
2 Accessory Power Socket P. 231
6. Turn on the vehicle's power system.
2 Carbon Monoxide Gas P. 101
■
Inflating an Under-inflated Tyre
1Inflating an Under-inflated Tyre
3
WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colourless, odourless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.
a Air Valve
b Hose
a Plug
b Accessory Power Socket
21 JAZZ HYBRID SSS-32TZA6000.book 604 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
605
uuIf a Tyre Goes FlatuTemporarily Repairing a Flat Tyre
Handling the Unexpected
7. Turn the air compressor switch on to
inflate the tyre.
u The compressor starts to inject air into
the tyre.
u If you have started the power system,
leave it running while injecting air.
8. Inflate the tyre to the specified air
pressure.
9. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, turn the air valve to
deflate.
10. Turn on the vehicle's power system off,
then unplug the air compressor from the
accessory power socket.
11. Unscrew the air compressor hose from the
tyre valve stem. Reinstall the valve cap.
12. Store the air compressor in the luggage
area.
1Inflating an Under-inflated Tyre
NOTICE
Do not operate the temporary tyre repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
a Air Valve
b Switch
c OFF
d ON
21 JAZZ HYBRID SSS-32TZA6000.book 605 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
606
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tyres, consult a dealer.
a Jacking Points
21 JAZZ HYBRID SSS-32TZA6000.book 606 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
607
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the (Ready) indicator does not come on and does not appear on
the driver information interface, check the following items and take appropriate
action.
If you cannot turn on the power system after checking all the items in the list above,
have your vehicle checked by a dealer.
Checklist Condition What to Do
Check if the related
indicator or driver
information interface
messages come on.
appears.
2 Driver Information Interface Warning and
Information Messages P. 124
appears.
uMake sure the keyless remote is in its operating range.
2 If the Keyless Remote Battery is Weak
P. 608
The (Power System) indicator comes on.
Have your vehicle checked by a dealer.
Check the brightness
of the interior lights.
The interior lights are dim or do not come on at all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 628
Check the shift
position.
The transmission is not in (P. Put the transmission into (P.
Check the power system starting procedure.
Follow the instructions, and try to start the power system again.
2 Turning on the Power P. 397
Check the
immobilizer system
indicator.
When the immobilizer system indicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 118
1Checking the Procedure
If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 610
Do not hold the POWER button for more than 15
seconds.
21 JAZZ HYBRID SSS-32TZA6000.book 607 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
608
uuPower System Won’t StartuIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remote Battery is Weak
If the beeper sounds, the appears on the driver information interface, the
POWER button flashes, and the (Ready) indicator does not come on. Turn on
the power system as follows:
1. Touch the centre of the POWER button
with the H logo on the keyless remote while
the POWER button is flashing. The buttons
on the keyless remote should be facing you.
u The POWER button flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds and the POWER button
changes from flashing to on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
21 JAZZ HYBRID SSS-32TZA6000.book 608 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
609
uuPower System Won’t StartuEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must turn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock.
The power mode is in ACCESSORY when the power system is stopped.
To change the mode to VEHICLE OFF, put the transmission into
(P after the vehicle
comes to a complete stop. Then press the POWER button twice without depressing
the brake pedal.
1Emergency Power System Off
Do not press the POWER button while driving unless
it is absolutely necessary for the power system to be
turned off.
If you press the POWER button while driving, the
beeper sounds.
21 JAZZ HYBRID SSS-32TZA6000.book 609 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
610
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the bonnet.
1. Open the terminal cover on your vehicle's
12-volt battery positive + terminal.
2. Connect the first jumper cable to your
vehicle's 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■
Jump Starting Procedure
1Jump Starting
NOTICE
If a 12-volt battery sits in extreme cold, the electrolyte
inside can freeze. Attempting to jump start with a
frozen 12-volt battery can cause it to rupture.
Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
3
WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
a Booster Battery
21 JAZZ HYBRID SSS-32TZA6000.book 610 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Continued
611
uuJump Startingu
Handling the Unexpected
5. Connect the other end of the second
jumper cable to the stud bolt as shown. Do
not connect this jumper cable to any other
part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.
7. Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
1Jump Starting
12-volt battery performance degrades in cold
conditions and may prevent the engine from starting.
21 JAZZ HYBRID SSS-32TZA6000.book 611 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
uuJump Startingu
612
Handling the Unexpected
Once your vehicle's engine has started, remove the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle's stud bolt.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle's 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a nearby service station or a dealer.
■
What to Do After the Engine Starts
1What to Do After the Engine Starts
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Vehicle Stability Assist (VSA)
System, VSA OFF, Low Tyre Pressure/Deflation
Warning System and Safety Support Indicator
(Amber) may come on along with a message in the
gauge when you turn the power system on after
reconnecting the 12-volt battery.
Drive a short distance at more than 20 km/h (12
mph). The indicator should go off. If it does not, have
your vehicle checked by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 612 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
613
Handling the Unexpected
Shift Lever Does Not Move
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1. Set the parking brake.
2. Remove the built-in key from the keyless
remote.
3. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the cover as
shown in the image, and remove the cover.
4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift
lever release button, and place the shift
lever into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■
Releasing the Lock
a Cover
a Shift Lock Release Slot
b Release Button
21 JAZZ HYBRID SSS-32TZA6000.book 613 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
614
Handling the Unexpected
Overheating
How to Handle Overheating
Overheating symptoms are as follows:
• appears on the driver information interface.
• appears on the driver information interface.
• Steam or spray comes out of the engine compartment.
appears on the driver information interface when the power system
temperature is high.
2 Driver Information Interface Warning and Information Messages P. 124
1. Park the vehicle in a safe place.
u Put the transmission into (P, and set the parking brake. Turn off all accessories
and turn on the hazard warning lights.
2. Keep the power mode in ON, and wait until the message disappears.
u If the message does not disappear, have your vehicle inspected at a dealer.
■
First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the bonnet.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the bonnet.
■
Appears on the Driver Information Interface
■
Appears on the Driver Information Interface
1How to Handle Overheating
NOTICE
Continuing to drive with the on the driver
information interface may damage the engine.
3
WARNING
Steam and spray from an overheated
engine can seriously scald you.
Do not open the bonnet if steam is coming
out.
21 JAZZ HYBRID SSS-32TZA6000.book 614 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
615
uuOverheatinguHow to Handle Overheating
Handling the Unexpected
■
Next thing to do
1. Check that the cooling fan is operating and
turn the power system off once on the
driver information interface disappears.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■
Last thing to do
Once the engine has cooled sufficiently, turn the power system on.
If does not appear, resume driving. If it appears again, contact a dealer for
repairs.
1How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3
WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
a MAX
b MIN
c Reserve Tank
21 JAZZ HYBRID SSS-32TZA6000.book 615 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
616
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■
Reasons for the warning to appear
Appears when the engine oil pressure is low.
■
What to do as soon as the warning appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■
What to do after parking the vehicle
1. Stop the power system and let it sit for approximately three minutes.
2. Open the bonnet and check the oil level.
u Add oil as necessary.
2 Oil Check P. 549
3. Start the engine and check the low oil pressure warning.
u The warning disappears: Start driving again.
u The warning does not disappear within 10 seconds: Immediately
stop the power system and contact a dealer for repairs.
If the 12-Volt Battery Charging System Indicator
Comes On
■
Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■
What to do when the indicator comes on
Stop in a safe place and have your vehicle checked by a dealer
immediately.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-Volt Battery Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. The power system uses the 12-volt
battery to activate. You may not be able to turn the
power system on again if you have turned it off with
this indicator on.
21 JAZZ HYBRID SSS-32TZA6000.book 616 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
617
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or Blinks
■
Reasons for the indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■
What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■
What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1If the Malfunction Indicator Lamp Comes On or Blinks
NOTICE
If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
50 km/h (30 mph) or less. Have your vehicle
inspected.
21 JAZZ HYBRID SSS-32TZA6000.book 617 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
618
uu
Indicator, Coming On/Blinking
u
If the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or Blinks
■
Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■
What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using regenerative braking.
■
Reasons for the indicator to blink
• There is a problem with the electric parking brake system.
■
What to do when the indicator lamp blinks
• Avoid using the parking brake and have your vehicle checked by a
dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the Brake System Indicator (Red) and ABS indicator
come on simultaneously, the electronic brake
distribution system is not working. This can result in
vehicle instability under sudden braking.
Have your vehicle inspected by a dealer immediately.
If the Brake System Indicator (Red) blinks at the same
time when the Brake System Indicator (Amber) comes
on, the parking brake may not work.
Avoid using the parking brake and have your vehicle
checked by a dealer immediately.
2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 620
If you repeatedly operate the electric parking brake in
a short period of time, the brake stops operating to
prevent heating of the system and the indicator
blinks.
It returns to its original state in approximately 1
minute.
21 JAZZ HYBRID SSS-32TZA6000.book 618 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
619
uuIndicator, Coming On/BlinkinguIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steering (EPS) System Indicator Comes On
■
Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■
What to do when the indicator comes on
Stop the vehicle in a safe place and turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
21 JAZZ HYBRID SSS-32TZA6000.book 619 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
620
uu
Indicator, Coming On/Blinking
u
If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
■If the Brake System Indicator (Red) comes on or blinks at the
same time when the Brake System Indicator (Amber) comes on,
release the parking brake manually or automatically
2 Parking Brake P. 496
• If the Brake System Indicator (Red) continuously comes on or blinks at
the same time when the Brake System Indicator (Amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.
u Preventing the vehicle from moving
Put the transmission into
(P.
• If only the Brake System Indicator (Red) is turned off, avoid using the
parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the
Same Time When the Brake System Indicator (Amber) Comes On
If you apply the parking brake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
(Red)
(Amber)
21 JAZZ HYBRID SSS-32TZA6000.book 620 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
621
uuIndicator, Coming On/BlinkinguIf the Low Tyre Pressure/Deflation Warning System Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tyre Pressure/Deflation Warning System
Indicator Comes On or Blinks
■
Reasons for the indicator to come on or blink
A tyre pressure is significantly low, or the deflation warning system has
not been calibrated. If there is a problem with the deflation warning
system, the indicator blinks for about one minute, and then stays on.
■
What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tyre pressure and adjust the
pressure to the specified level. The specified tyre pressure is on a label on
the driver side doorjamb.
u Calibrate the deflation warning system after the tyre pressure is
adjusted.
2 Deflation Warning System P. 423
■
What to do when the indicator blinks, then remains on
Have the tyre inspected by a dealer as soon as possible.
1If the Low Tyre Pressure/Deflation Warning System Indicator
Comes On or Blinks
NOTICE
Driving on an extremely underinflated tyre can cause
it to overheat. An overheated tyre can fail. Always
inflate your tyres to the prescribed level.
21 JAZZ HYBRID SSS-32TZA6000.book 621 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
622
uu
Indicator, Coming On/Blinking
u
If the Low Oil Level Symbol Appears
Handling the Unexpected
If the Low Oil Level Symbol Appears
■
Reasons for the symbol to appear
Appears when the engine oil level is low.
■
What to do as soon as the symbol appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■
What to do after parking the vehicle
1. Stop the power system and let it sit for about three minutes.
2. Open the bonnet and check the oil level.
u Add oil as necessary.
2 Oil Check P. 549
If the Power System Indicator Comes On
■
Reasons for the indicator to come on
Comes on when there is a problem with the hybrid system.
■
What to do when the indicator comes on
Avoid high speeds and immediately get your vehicle inspected by a
dealer.
1If the Low Oil Level Symbol Appears
NOTICE
Running the engine with low oil level can cause
serious mechanical damage almost immediately.
This system activates after the engine warms up. If
the outside temperature is extremely low, you may
have to drive for a long time until the system senses
the engine oil level.
If the symbol appears again, stop the engine and
contact a dealer for repairs immediately.
21 JAZZ HYBRID SSS-32TZA6000.book 622 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
623
Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
■
Fuse Box A
Located near the 12-volt battery. Push the
tabs to open the box.
Locate the fuse in question by the fuse
number and box cover number.
■
Engine Compartment Fuse Box
1
a Tabs
■
Circuit protected and fuse rating
Circuit Protected Amps
1 Wiper 30 A
2– –
–
3 Hazard 10 A
4Stop10 A
5 PCU EWP
15 A
6EVTC(20 A)
7 IMG 10 A
8 IGP 15 A
9 IG Coil
(15 A)
10 DBW
15 A
11 ABS/VSA MTR
40 A
12 Main Fan 30 A
13 – – –
14 Water Pump 30 A
15 Battery Sensor 7.5 A
16 – – –
17 Back Up FI-ECU 10 A
18 Horn 10 A
19 Sub Audio
*
(7.5 A)
20 Front Fog Lights
*
(10 A)
Circuit Protected Amps
21 Back Up Main
(15 A)
22 Back Up 10 A
23 Sub Fan
(30 A)
24 ABS/VSA FSR
40 A
25 IGP2 Sub
7.5 A
26 LAF
10 A
27 – – –
28 – – –
29 – – –
30 – – –
31 – – –
32 – – –
33 – – –
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 623 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
624
uuFusesuFuse Locations
Handling the Unexpected
■
Fuse Box B
Located near the + terminal of the 12-volt
battery.
Have a dealer inspect and replace the fuse.
■
Circuit protected and fuse rating
1
a Fuse Box
Circuit Protected Amps
a Battery Main 170 A
b Battery Main (Fan) 60 A
c Battery Main (ENG) 80 A
d Battery Main (HEV) 60 A
e EPS 70 A
f ESB 40 A
21 JAZZ HYBRID SSS-32TZA6000.book 624 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
625
uuFusesuFuse Locations
Continued
Handling the Unexpected
■
Type A
Located under the dashboard.
■
Driver Side Interior Fuse Box
Left-hand drive type
a Fuse Box
b Fuse Label
1
2
Right-hand drive type
a Fuse Box
b Fuse Label
Fuse locations are shown on the label under
the steering column.
Locate the fuse in question by the fuse
number and label number.
■
Circuit protected and fuse rating
Circuit Protected Amps
1 Accessory 7.5 A
2 ACC Key Lock 7.5 A
3 − − −
4− − −
5 Option 10 A
6 Option 2 10 A
7 Meter 10 A
8 Fuel Pump 15 A
9 AIRCON 10 A
10 − − −
11 MON 5 A
12 Right Side Door Lock 10 A
13 Left Side Door Unlock 10 A
14
Rear Left Side Power
Window
20 A
15
Front Passenger’s Side
Power Window
20 A
16 Door Lock 20 A
17 Transmission (10 A)
18 − − −
19 − (20 A)
20 Starter Cut Relay 7.5 A
21 ACG 10 A
22 Daytime Running Lights (7.5 A)
23 Rear Fog Light (10 A)
24 Option 7.5 A
25 − (10 A)
26 Right Side Door Unlock 10 A
27
Rear Right Side Power
Window
20 A
28 Driver’s Power Window 20 A
29
Front Accessory Power
Socket
(20 A)
30 Keyless access (10 A)
31 USB Charger
*
(10 A)
32 Front Seat Heater
*
(20 A)
33 − − −
34 VSA/ABS 10 A
35 SRS 10 A
36 − − −
37 − (10 A)
38 Left Side Door Lock 10 A
39 − (10 A)
Circuit Protected Amps
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 625 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
626
uuFusesuFuse Locations
Handling the Unexpected
■
Type B
Located under the dashboard.
Only the fuse No. 1 is outside of the fuse
box.
Replacement of this fuse should be done by
a dealer.
Left-hand drive type
a Fuse No. 1
b Fuse No. 2-25
Fuse locations are shown on the label under
the glove box.
Locate the fuse in question by the fuse
number and label number.
a Fuse Label
Circuit Protected Amps
1 Fuse Box Main 60A
2IG Main30A
3 IG Main 2 30A
4 Relay Module 1 30A
5 Relay Module 2 30A
6 Fuse Box Main 2 (40A)
7 Fuse Box Main 3 (40A)
8 A/C PTC1 (40A)
9 − − −
10 − − −
11 A/C PTC2 (40A)
12 Heater Motor 30A
13 Rear Demister (30A)
14 SRS 10A
15 IGB (10A)
16 IGA (10A)
17 Keyless Access (10A)
18 − (20A)
19 − (10A)
20 Audio Amp
*
(20A)
21 Washer 15A
22 Heated Steering
*
(15A)
23 IGA2 (15A)
24 Heated Door Mirror (10A)
25 − − −
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 626 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
627
uuFusesuFuse Locations
Handling the Unexpected
Located under the dashboard.
Only the fuse No. 1 is outside of the fuse
box. Replacement of this fuse should be
done by a dealer.
The fuses other than No.1 are under the
dashboard.
■
Passenger Side Interior Fuse
Box
Right-hand drive type
1
a Fuse No. 1
Fuse locations are shown on the label.
Locate the fuse in question by the fuse
number and label number.
2
1
a Fuse Label
b Fuse No. 2-25
Circuit Protected Amps
1 Fuse Box Main 60 A
2 IG Main 30 A
3 IG Main 2 30 A
4 Relay Module 1 30 A
5 Relay Module 2 30 A
6 Fuse Box Main 2 (40 A)
7 Fuse Box Main 3 (40 A)
8 A/C PTC1 (40 A)
9 − − −
10 − − −
11 A/C PTC2 (40 A)
12 Heater Motor 30 A
13 Rear Demister (30 A)
14 SRS 10 A
15 IGB (10A)
16 IGA (10A)
17 Keyless Access (10A)
18 Super Lock
*
(20A)
19 − (10A)
20 Audio Amp
*
(20A)
21 Washer 15A
22 Heated Steering
*
(15A)
23 IGA2 (15A)
24 Heated Door Mirror (10A)
25 − − −
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 627 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
628
uu
Fuses
u
Inspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn the headlights and all
accessories off.
2. Remove the cover on the + terminal.
3. Check the fuses on the battery in the
engine compartment.
u If the fuse is blown, have it replaced by a
dealer.
4. Remove the fuse box cover.
5. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with the same specified amperage.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse label.
2 Fuse Locations P. 623
a Blown
b Fuse Box on the Battery
a Fuse Puller
21 JAZZ HYBRID SSS-32TZA6000.book 628 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
629
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■
Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■
Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tyres and lift them off
the ground. The rear tyres remain on the ground. This is an acceptable way to
tow your vehicle.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 496
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
21 JAZZ HYBRID SSS-32TZA6000.book 629 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
630
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1. Open the tailgate.
2. Use a flat-tip screwdriver and remove the
cover on the left side of the luggage area.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
■
What to Do When Unable to Unlock the Fuel Fill Door
1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Models with subwoofer
a Cover
Models without subwoofer
a Cover
21 JAZZ HYBRID SSS-32TZA6000.book 630 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
631
uuWhen You Cannot Unlock the Fuel Fill Dooru
Handling the Unexpected
3. Pull the release cord to the arrow direction
as shown in the image.
u The release cord unlocks the fuel fill door
when it is pulled.
4. Open the fuel fill door.
2 How to Refuel P. 521
Models with subwoofer
a Release Cord
Models without subwoofer
a Release Cord
21 JAZZ HYBRID SSS-32TZA6000.book 631 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
632
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.
1. Use a flat-tip screwdriver and open the lid
on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the right with the
flat-tip screwdriver.
■
What to Do When Unable to Open the Tailgate
1What to Do When Unable to Open the Tailgate
Following up:
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
a Lid
a Lever
21 JAZZ HYBRID SSS-32TZA6000.book 632 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
633
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 634
Identification Numbers
Vehicle Identification Number (VIN),
Engine Number, Motor Number and
Transmission Number..................... 637
Devices that Emit Radio Waves
*
..... 638
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 633 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
634
Information
Specifications
■
Vehicle Specifications
*1: Left-hand drive type
*2: Right-hand drive type
Model Jazz
Curb Weight 1,225 - 1,252 kg (2,701 - 2,760 lbs)
Maximum Permissible
Weight
See the certification label on the driver's
doorjamb
*1
See the certification label on the
passenger's doorjamb
*2
Maximum Permissible
Axle Weight
See the certification label on the driver's
doorjamb
*1
See the certification label on the
passenger's doorjamb
*2
■
Engine Specifications
Type Water-cooled in-line 4-cylinder DOHC
Bore x Stroke 73.0 x 89.5 mm (2.87 x 3.52 in)
Displacement 1,498 cm
3
(91.4 cu-in)
Compression Ratio 13.5 : 1
Spark Plugs
NGK DILZKAR7C11H
DENSO DXE22HCR11H
■
Fuel
*1: Jordanian, Lebanese, Moroccan, and Tunisian models
*2: Except Jordanian, Lebanese, Moroccan, and Tunisian models
■
12-volt Battery
■
Washer Fluid
Type
•
Unleaded premium petrol, research
octane number 95 or higher
*
1
•
EN 228 standards petrol/gasohol fuel
*
2
•
Unleaded premium petrol/gasohol up to
E10 (90% petrol and 10% ethanol),
research octane number 95 or higher
*
2
Fuel Tank Capacity 40 L (8.8 Imp gal)
Capacity 32AH(5)/40AH(20)
Tank Capacity 2.5 L (2.2 Imp qt)
21 JAZZ HYBRID SSS-32TZA6000.book 634 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
635
uuSpecificationsu
Continued
Information
■
Light Bulbs
Headlights (High/Low Beam) LED
Position/Daytime Running Lights LED
Front Turn Signal Lights LED
Front Fog Lights
*
LED
Side Turn Signal Lights
(on Door Mirrors)
LED
Brake/Taillights LED
Taillights LED
Rear Turn Signal Lights 21 W (Amber)
Back-Up Lights 16 W
Rear Fog Light LED
Rear Licence Plate Light LED
High-Mount Brake Light LED
Interior Lights
Map lights LED
Ceiling Light LED
Luggage Area Light 5 W
■
Brake Fluid
■
Air Conditioning
■
Transmission Fluid
Specified Brake Fluid with DOT 3 or DOT 4
Refrigerant Type HFO-1234yf (R-1234yf)
Charge Quantity 395 - 445 g (13.9 - 15.7 oz)
Specified Honda ATF DW-1
Capacity Change 1.8 L (1.6 Imp qt)
■
Engine Oil
Refer to the following page to determine whether your
vehicle is equipped with a gasoline particulate filter.
2 Recommended Engine Oil P. 546
Recommended
Honda Engine Oil Type 2.0
ACEA C5 0W-20
Honda Genuine Motor Oil 0W-20
ACEA C5 0W-20
Honda Genuine Motor Oil 0W-20
API service SM or higher grade or
ACEA A5/B5 0W-20
Capacity
Change 3.4 L (3.0 Imp qt)
Change
including filter
3.6 L (3.2 Imp qt)
European and Ukrainian
models
Except European and Ukrainian
models, and models with gasoline
particulate filter
Except European and Ukrainian
models, and models without
gasoline particulate filter
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 635 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
636
uuSpecificationsu
Information
■
Engine Coolant
Specified Honda All Season Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
3.85 L (0.85 Imp gal)
(change including the remaining 0.45 L
(0.10 Imp gal) in the reserve tank)
■
Tyre
For the tyre size and pressure information, see the label on
driver’s doorjamb.
*1: Models with 15 inch wheel
*2: Models with 16 inch wheel
■
Honda TRK Air Compressor
Regular
Size
185/60R15 88H
185/55R16 87H
185/60R16 86H
Pressure
See the label on driver’s
doorjamb
Wheel Size Regular
15X6J
*1
16X6J
*2
A weighted emission sound pressure level 81 dB (A)
A weighted sound power level 90 dB (A)
■
Brake
■
Vehicle Dimensions
*1: Models without roof rails
*2: Models with roof rails
Type Power assisted
Front Ventilated disc
Rear Solid disc
Parking Electric Parking Brake
Length
4,044 mm (159.2 in)
*1
4,090 mm (161.0 in)
*2
Width
1,694 mm (66.7 in)
*1
1,725 mm (67.9 in)
*2
Height
1,526 mm (60.1 in)
*1
1,556 mm (61.3 in)
*2
Wheelbase
2,517 mm (99.1 in)
*1
2,520 mm (99.2 in)
*2
Track
Front
1,487 mm (58.5 in)
1
1,498 mm (59.0 in)
*2
Rear
1,474 mm (58.0 in)
*1
1,485 mm (58.5 in)
*2
21 JAZZ HYBRID SSS-32TZA6000.book 636 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
637
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
Motor Number and Transmission Number
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. The
locations of your vehicle's VIN, engine number, motor number and transmission
number are shown as follows.
1Vehicle Identification Number (VIN), Engine Number, Motor
Number and Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
a Cover
a Vehicle Identification Number
b Certification Label/Vehicle Identification Number/Engine Number
c Transmission Number
Motor Number
d Engine Number
21 JAZZ HYBRID SSS-32TZA6000.book 637 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
638
Information
Devices that Emit Radio Waves
*
The following products and systems on your vehicle emit radio waves when in operation.
BCM
Keyless Access System
Serbian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 638 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
639
uuDevices that Emit Radio Waves
*
u
Continued
Information
FOB
Keyless Access System
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 639 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
640
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 640 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
641
uuDevices that Emit Radio Waves
*
u
Continued
Information
FOB
Keyless Access System
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 641 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
642
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 642 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
643
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with colour audio)
Serbian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 643 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
644
uuDevices that Emit Radio Waves
*
u
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Ovim, Panasonic, deklariše da je AH2001 u skladu sa osnovnim
zahtevima i ostalim relevantnim odredbama Direktive 2014/53/EU.
Serbian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 644 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
645
uuDevices that Emit Radio Waves
*
u
Continued
Information
Blind spot information system
*
/Cross Traffic Monitor
*
This product in accordance with Serbia technical regulation
Serbian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 645 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
646
uuDevices that Emit Radio Waves
*
u
Information
Emergency Call (eCall)
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 646 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
647
uuDevices that Emit Radio Waves
*
u
Continued
Information
Emergency Call (eCall)
Serbian models
21 JAZZ HYBRID SSS-32TZA6000.book 647 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
648
uuDevices that Emit Radio Waves
*
u
Information
BCM
Keyless Access System
European REC 70-03
This device is designed to be used in Republic of Moldova
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 648 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
649
uuDevices that Emit Radio Waves
*
u
Continued
Information
BCM
Keyless Access System
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 649 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
650
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
European REC 70-03
This device is designed to be used in Republic of Moldova
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 650 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
651
uuDevices that Emit Radio Waves
*
u
Continued
Information
FOB
Keyless Access System
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 651 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
652
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 652 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
653
uuDevices that Emit Radio Waves
*
u
Continued
Information
FOB
Keyless Access System
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 653 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
654
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
Moldova models
21 JAZZ HYBRID SSS-32TZA6000.book 654 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
655
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with colour audio)
HG nr.1274 din 23.11.2007
This device is designed to be used in Republic of Moldova
Moldova models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 655 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
656
uuDevices that Emit Radio Waves
*
u
Information
Hands-Free Telephone System
*
(Models with Display Audio)
This device is designed to be used in Republic of Moldova
Moldova models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 656 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
657
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Moldova models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 657 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
658
uuDevices that Emit Radio Waves
*
u
Information
Blind spot information system
*
/Cross Traffic Monitor
*
Moldova models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 658 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
659
uuDevices that Emit Radio Waves
*
u
Continued
Information
BCM
Keyless Access System
https://www.sws.co.jp/en/product/document/certificate/HAR0001
Postal address:
1820, Nakanoike, Mikkaichi-cho, Suzuka, Mie 513-8631 JAPAN
Manufacturer name:
Sumitomo Wiring Systems, Ltd.
Operational frequency band:
Frequency band(s) in which the radio equipment operates;
125kHz, 433.92MHz.
Maximum Output Power:
Maximum radio-frequency power transmitted in the frequency
band(s) in which the radio equipment operates;
107.2dBuV/m@10m.
Importer Name:
Pride Motor LLC
Postal address:
12, Sagaydachnogo Str., Kyiv,04070, Ukraine
Ukrainian models
21 JAZZ HYBRID SSS-32TZA6000.book 659 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
660
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
http://www.alps.com/products/common/pdf/HandUnit/TWB1G0090.pdf
Postal address:
6-3-36, Nakazato, Furukawa, Osaki-city, Miyagi-pref., JAPAN 989-6181
Manufacturer name:
ALPSALPINE CO., LTD.
Operational frequency band:
Frequency band(s) in which the radio equipment operates; 433.92MHz.
Maximum Output Power:
Maximum radio-frequency power transmitted in the frequency band(s) in
which the radio equipment operates;
80.8dBuV/m@3m.
Importer Name:
Pride Motor LLC
Postal address:
12, Sagaydachnogo Str., Kyiv,04070, Ukraine
Ukrainian models
21 JAZZ HYBRID SSS-32TZA6000.book 660 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
661
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with colour audio)
http://www.pioneer-car.eu/compliance
Postal address:
28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021,
Japan
Manufacturer name:
Pioneer Corporation
Operational frequency band:
2400 - 2483.5 MHz
Maximum Output Power:
+4 dBm
Importer Name:
Pride Motor LLC
Postal address:
12, Sagaydachnogo Str., Kyiv,04070, Ukraine
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 661 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
662
uuDevices that Emit Radio Waves
*
u
Information
Hands-Free Telephone System
*
(Models with Display Audio)
https://service.panasonic.ua/
Postal address:
4261 Ikonobe-cho, Tsuzuki-ku, Yokohama City, 224-8520, Japan
Manufacturer name:
Panasonic Corporation
Operational frequency band:
Specfications of Bluetooth
Frequency band: 2402-2480MHz
Specfications of 2.4GHz WLAN
Frequency band: 2412-2472MHz
Maximum Output Power:
Specfications of Bluetooth
Maximum output power: 0.1dBm
Specfications of 2.4GHz WLAN
Maximum output power: 11.9dBm
Importer Name:
Pride Motor LLC
Postal address:
12, Sagaydachnogo Str., Kyiv,04070, Ukraine
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 662 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
663
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 663 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
664
uuDevices that Emit Radio Waves
*
u
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 664 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
665
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 665 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
666
uuDevices that Emit Radio Waves
*
u
Information
Blind spot information System
*
/Cross Traffic Monitor
*
https://www.veoneer.com/en/regulatory
Veoneer confirms that part 6234734 (24 GHz Narrowband) is
covered under the Certificate of Comformity (CoC attached) issued
in accordance with Technical Regulation (TR) Ukraine No 355. This
certificate was issued June 21st, 2018 and is valid for one calendar
year, until June 20th 2019. The Declaration of Conformance is
required by April 1st, 2019, our application for this Declaration of
Conformance under this regulation has been submitted to the
relevant certification body. Part 6234734 can be marketed under
the above CoC until the Declaration of Conformance is issued prior
to April 1st, 2019.
Postal address:
26545 American Drive Southfield, Michigan, 48034 United States
of America
Manufacturer name:
Veoneer US, Inc.
Operational frequency band:
24.125 GHz
Maximum Output Power:
Importer Name:
Pride Motor LLC
Postal address:
12, Sagaydachnogo Str., Kyiv,04070, Ukraine
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 666 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
667
uuDevices that Emit Radio Waves
*
u
Continued
Information
Blind spot information System
*
/Cross Traffic Monitor
*
Ukrainian models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 667 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
668
uuDevices that Emit Radio Waves
*
u
Information
Keyless Access System Blind spot information System
*
/Cross Traffic Monitor
*
Israeli models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 668 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
669
uuDevices that Emit Radio Waves
*
u
Continued
Information
Hands-Free Telephone System
*
(Models with Display Audio)
Israeli models
* Not available on all models
21 JAZZ HYBRID SSS-32TZA6000.book 669 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
670
uuDevices that Emit Radio Waves
*
u
Information
FOB
Keyless Access System
Hands-Free Telephone System
(Models with Display Audio)
AGRÉÉ PAR L'ANRT MAROC
Numéro d'agrément:
MR 19082 ANRT 2019
Date d'agrément:
26 MARS 2019
AGRÉÉ PAR L'ANRT MAROC
Numéro d'agrément:
MR 19569 ANRT 2019
Date d'agrément:
25/04/2019
Moroccan models
21 JAZZ HYBRID SSS-32TZA6000.book 670 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
Index
671
Index
Index
Numbers
12-Volt Battery......................................... 573
Charging System Indicator ...................... 110
Maintenance
(Checking the 12-Volt Battery) .............. 573
Maintenance (Replacing)......................... 576
A
ABS (Anti-lock Brake System).................. 503
Accessories and Modifications ................ 589
Accessory Power Sockets ......................... 231
Acoustic Vehicle Alerting System............ 406
Adaptive Cruise Control (ACC) with Low
Speed Follow .......................................... 447
Indicator (Amber).................................... 120
Indicator (White/Green)........................... 120
Adding
Coolant .................................................. 551
Engine Oil ............................................... 550
Washer ................................................... 556
Additives, Engine Oil ............................... 546
Adjustable Speed Limiter ........................ 407
Indicator ................................................. 119
Adjusting
Armrest .................................................. 221
Front Seats.............................................. 212
Head Restraints....................................... 218
Headlights .............................................. 198
Mirrors.................................................... 208
Steering Wheel ....................................... 207
Adjusting the Sound ........................ 248, 307
Agile Handling Assist ............................... 422
Aha
TM
......................................................... 325
Air Conditioning System
(Climate Control System)........................ 233
Changing the Mode ................................ 234
Defrosting the Windscreen and
Windows ............................................... 234
Dust and Pollen Filter............................... 581
Recirculation/Fresh Air Mode ................... 234
Sensor ..................................................... 235
Using Automatic Climate Control ............ 233
Air Pressure ............................................... 636
Airbags ........................................................ 56
After a Collision......................................... 58
Airbag Care............................................... 75
Centre Airbag............................................ 66
Driver’s Knee Airbag.................................. 64
Event Data Recorder .................................... 1
Front Airbags (SRS) .................................... 58
Indicator............................................ 73, 113
Passenger Airbag Off Indicator ................ 113
Sensors...................................................... 56
Side Airbags .............................................. 68
Side Curtain Airbags .................................. 71
AM/FM Radio .................................... 250, 314
Android Auto............................................ 341
Anti-lock Brake System (ABS) .................. 503
Indicator.................................................. 113
Apple CarPlay ........................................... 337
Armrest ..................................................... 221
Arrange Contents..................................... 153
Audio ........................................................ 148
Audio Remote Controls ................... 243, 289
Audio System............................................ 238
Adjusting the Sound........................ 248, 307
Aha
TM
...................................................... 325
AM/FM Radio.................................. 250, 314
Android Auto.......................................... 341
App Shortcut Function ............................ 297
Apple CarPlay.......................................... 337
Audio Remote Controls................... 243, 289
Audio System Function.................... 241, 286
Audio/Information Screen................ 244, 296
Basic Operation............................... 241, 286
Bluetooth® Audio............................ 263, 330
Clock Setup............................................. 304
DAB ................................................ 254, 319
Display Setup .................................. 249, 308
Error Messages........................................ 377
FLAC/PCM/WAVE/MP4/AVI/MKV/ASF/
WMV .................................................... 326
General Information ................................ 379
Honda Personal Assistant ........................ 292
How to Update ....................................... 309
How to Update Wirelessly ....................... 312
How to Update with a USB Device........... 313
iPod ................................................ 257, 322
Limitations for Manual Operation ............ 303
MP3/WMA/AAC.............................. 260, 326
On Board Apps........................................ 333
On-Board Owner’s Manual...................... 291
21 JAZZ HYBRID SSS-32TZA6000.book 671 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
672
Index
Radio Data System (RDS).................. 251, 317
Reactivating............................................. 240
Security Code .......................................... 240
Selecting an Audio Source ....................... 302
Start Up................................................... 285
Status Area.............................................. 302
Switching the Display............................... 244
System Updates....................................... 309
System Updates Settings.......................... 310
Theft Protection....................................... 240
USB Flash Drives ...................... 260, 326, 380
USB Port(s)....................................... 242, 288
Voice Control Operation.......................... 293
Wallpaper Setup.............................. 246, 305
Wi-Fi Connection..................................... 335
Audio System Theft Protection................ 240
Audio/Information Screen................ 244, 296
Auto High-Beam ....................................... 199
Indicator.................................................. 116
Automatic Brake Hold.............................. 500
Indicator.......................................... 108, 500
Automatic Folding Door Mirror
Function................................................... 210
Automatic Intermittent Wipers ............... 203
Average Fuel Economy............................. 145
Average Speed.......................................... 147
B
Battery ........................................................ 14
12-Volt Battery Charging System
Indicator................................................ 110
Charging System Indicator....................... 616
High Voltage..................................... 14, 431
Jump Starting.......................................... 610
Belts (Seat) .................................................. 42
Beverage Holders ..................................... 226
Blind spot information System ................ 427
Bluetooth® Audio ............................. 263, 330
Booster Seats (For Children) ...................... 99
Brake System ............................................ 496
Anti-lock Brake System (ABS)................... 503
Automatic Brake Hold ............................. 500
Brake Assist System ................................. 504
Fluid........................................................ 555
Foot Brake............................................... 499
Indicator.......................... 107, 109, 618, 620
Parking Brake.......................................... 496
Brightness Control (Instrument Panel).... 206
Bulb Replacement .................................... 558
Back-Up Lights ........................................ 560
Brake Lights ............................................ 559
Daytime Running Lights........................... 558
Front Fog Lights ...................................... 558
Front Turn Signal Lights........................... 558
Headlights............................................... 558
High-Mount Brake Light .......................... 561
Luggage Area Lights................................ 562
Position Lights ......................................... 558
Rear Fog Light......................................... 561
Rear Licence Plate Light........................... 561
Rear Turn Signal Lights............................ 559
Side Turn Signal/Emergency Indicator
Lights.................................................... 558
Taillights ................................................. 559
Bulb Specifications................................... 635
C
Carbon Monoxide Gas ............................. 101
Carrying Luggage ............................ 393, 395
Certification Label ................................... 637
Change Units............................................ 152
Changing Bulbs ........................................ 558
Charging System Indicator ...................... 616
Child Restraint System ............................... 76
Booster Seats ............................................ 99
Child Restraint System for Infants.............. 79
Child Restraint System for Small
Children.................................................. 81
Installing a Child Restraint System
with a Lap/Shoulder Seat Belt.................. 94
Larger Children ......................................... 98
Rear-facing Child Restraint System ............ 79
Selecting a Child Restraint System............. 82
Using a Tether .......................................... 96
Child Safety ................................................ 76
Childproof Door Locks ............................ 178
Childproof Door Locks............................. 178
Cleaning the Exterior............................... 586
21 JAZZ HYBRID SSS-32TZA6000.book 672 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
673
Index
Cleaning the Interior ............................... 584
Climate Control System ........................... 233
Changing the Mode................................ 233
Defrosting the Windscreen and
Windows .............................................. 234
Dust and Pollen Filter .............................. 581
Recirculation/Fresh Air Mode................... 234
Sensors ................................................... 235
Using Automatic Climate Control............ 233
Clock ................................................. 139, 166
CMBS
(Collision Mitigation Braking System) .. 435
Coat Hook ................................................ 227
Collision Mitigation Braking System
(CMBS) .................................................... 435
Colour Audio............................................ 241
Console Box.............................................. 225
Controls .................................................... 165
Coolant (Engine)
Overheating............................................ 614
Cooling System......................................... 551
Adding to the Reserve Tank .................... 551
Creeping ................................................... 402
Cross Traffic Monitor ............................... 513
Current Mode for ACC with Low Speed
Follow and the LKAS.............................. 139
Customize Display.................................... 153
Customized Features ....... 154, 265, 345, 352
D
DAB ................................................... 254, 319
Daytime Running Lights........................... 197
Dead Battery............................................. 610
Defaulting All the Settings ...................... 358
Deflation Warning System....................... 423
Indicator.......................................... 115, 621
Initialisation ............................................. 423
Defrosting the Windscreen and
Windows ................................................. 234
Demister.................................................... 205
Devices that Emit Radio Waves ............... 638
Dimming
Headlights ............................................... 191
Rearview Mirror....................................... 208
Dipstick (Engine Oil)................................. 549
Display Audio System ............................... 285
Display Setup .................................... 249, 308
Door Mirrors ............................................. 209
Doors ......................................................... 167
Door and Tailgate Open Indicator .............. 41
Door Open Message................................ 124
Keys ........................................................ 167
Locking/Unlocking the Doors from the
Inside..................................................... 176
Locking/Unlocking the Doors from the
Outside.................................................. 170
Lockout Prevention System ...................... 175
Drive Cycle Score/Lifetime Points ............ 162
Driver Information Interface ................... 140
Switching the Display .............................. 140
Driver’s Knee Airbag .................................. 64
Driving ...................................................... 391
Braking ................................................... 496
Shifting Gear........................................... 403
Transmission ........................................... 402
Dust and Pollen Filter............................... 581
E
e:HEV........................................................... 13
eCall Indicator .......................................... 386
ECON Mode .............................................. 405
Indicator.................................................. 118
Elapsed Time............................................. 147
Electric Power Steering (EPS) System
Indicator.......................................... 114, 619
Emergency Call (eCall) ............................. 386
Automatic Emergency Call ...................... 386
Manual Emergency Call........................... 388
Emergency Stop Signal ............................ 505
Emergency Towing................................... 629
Engine
Jump Starting.......................................... 610
Number................................................... 637
Oil........................................................... 546
Switch Buzzer.................................. 189, 190
Engine Coolant
Overheating ............................................ 614
Engine Oil ................................................. 546
Adding.................................................... 550
Checking................................................. 549
21 JAZZ HYBRID SSS-32TZA6000.book 673 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
674
Index
Low Oil Pressure Warning................ 125, 616
Recommended Engine Oil........................ 546
EPS (Electric Power Steering) System....... 619
Indicator.................................................. 114
EV Indicator............................................... 110
Exhaust Gas Hazard
(Carbon Monoxide)................................. 101
Exterior Care (Cleaning) ........................... 586
Exterior Mirrors......................................... 209
F
Features..................................................... 237
Filter
Dust and Pollen ....................................... 581
Flat Tyre..................................................... 593
Fluids
Brake....................................................... 555
Cooling System........................................ 551
Windscreen Washer................................. 556
FM/AM Radio .................................... 250, 314
Folding Down the Rear Seats................... 214
Foot Brake................................................. 499
Front Airbags (SRS)..................................... 58
Front Fog Light Indicator ......................... 117
Front Seat Heaters.................................... 232
Front Seats ................................................ 211
Adjusting................................................. 212
Front Wide View Camera......................... 494
Fuel...................................................... 29, 520
Economy and CO
2
Emissions.................... 523
Gauge..................................................... 137
Instant Fuel Economy .............................. 145
Low Fuel Indicator ................................... 112
Range ..................................................... 145
Recommendation .................................... 520
Refueling................................................. 520
Fuel Economy ........................................... 145
Fuel Economy and CO
2
Emissions ............ 523
Fuel Fill Cap ........................................ 29, 521
Fuel Fill Door ...................................... 29, 521
Fuses.......................................................... 623
Inspecting and Changing......................... 628
Locations................................. 623, 624, 625
G
Gauges ...................................................... 137
Glass (care)........................................ 585, 587
Glove Box.................................................. 224
H
Hands-Free Telephone System ........ 269, 359
Automatic Import of Cellular Phonebook
and Call History ..................................... 279
Automatic Import of Mobile Phonebook
and Recent calls..................................... 369
Automatic Transferring.................... 278, 370
Caller ID Information ............................... 278
Favorite Contacts .................................... 371
HFT Buttons .................................... 269, 359
HFT Menus ..................................... 271, 363
HFT Status Display........................... 270, 361
Limitations for Manual Operation.... 270, 362
Making a Call ................................. 281, 373
Options During a Call...................... 284, 376
Phone Settings Screen............................. 365
Phone Setup ................................... 275, 366
Receiving a Call............................... 283, 375
Ring Tone ....................................... 278, 370
Speed Dial .............................................. 280
To Clear the System ................................ 279
Hazard Warning Button .......................... 6, 7
Head Restraints ........................................ 218
Headlights ................................................ 191
Adjuster.................................................. 198
Aiming.................................................... 558
Auto High-Beam ..................................... 199
Dimming................................................. 191
Operating ............................................... 191
Heated Door Mirror Button .................... 205
Heated Steering Wheel ........................... 231
Heaters (Front Seat)................................. 232
HFT (Hands-Free Telephone) ........... 269, 359
High Beam Indicator................................ 117
High Voltage Battery............................... 431
High Voltage Battery Charge Level
Gauge ..................................................... 138
Hill Start Assist System............................. 399
Honda Personal Assistant ........................ 292
Honda Sensing ................................... 30, 432
21 JAZZ HYBRID SSS-32TZA6000.book 674 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
675
Index
Hybrid Vehicle
e:HEV ....................................................... 13
I
Identification Numbers............................ 637
Engine, Motor and Transmission ............. 637
Vehicle Identification............................... 637
Illumination Control ................................ 206
Immobilizer System.................................. 181
Indicator ................................................. 118
Indicators.................................................. 106
12-Volt Battery Charging System ............ 110
Adaptive Cruise Control (ACC) with Low
Speed Follow ................................ 120, 447
Adjustable Speed Limiter......................... 119
Anti-lock Brake System (ABS) .................. 113
Auto High-Beam ..................................... 116
Automatic Brake Hold..................... 108, 500
Automatic Brake Hold System ................. 108
Door and Tailgate Open............................ 41
ECON Mode ........................................... 118
Electric Power Steering (EPS) System ....... 114
EV........................................................... 110
Front Fog Light ....................................... 117
High Beam.............................................. 117
Immobilizer System ................................. 118
Intelligent Speed Limiter.......................... 119
Lane Keeping Assist System
(LKAS)........................................... 120, 121
Lights On ................................................ 117
Low Fuel.................................................. 112
Low Tyre Pressure/Deflation Warning
System................................................... 115
Malfunction Indicator Lamp..................... 110
Parking Brake and Brake System
(Amber) ......................................... 109, 620
Parking Brake and Brake System
(Red).............................................. 107, 620
Passenger Front Airbag On/Off ................ 113
Power System.................................. 109, 622
Ready ...................................................... 110
Rear Fog Light ......................................... 117
Road Departure Mitigation Ready to
Assist..................................................... 121
Safety Support (Amber) ........................... 121
Safety Support (Green/Gray) .................... 123
Seat Belt Reminder .................................. 112
Security System Alarm ............................. 118
Shift Position ........................................... 111
Supplemental Restraint System ................ 113
System Message ...................................... 116
Transmission System................................ 111
Turn Signal and Hazard Warning ............. 116
Vehicle Stability Assist (VSA) OFF...... 114, 421
Vehicle Stability Assist (VSA) System......... 114
Information............................................... 153
Instant Fuel Economy ............................... 145
Instrument Panel ...................................... 105
Brightness Control................................... 206
Intelligent Speed Limiter ......................... 413
Indicator.................................................. 119
Interior Convenience Items...................... 222
Interior Lights........................................... 222
Interior Rearview Mirror.......................... 208
iPad ........................................................... 379
iPhone ....................................................... 379
iPod ........................................... 257, 322, 379
J
Jacking Points........................................... 606
Jump Starting ........................................... 610
K
Key Number Tag....................................... 168
Keyless Lockout Prevention ..................... 175
Keys........................................................... 167
Lockout Prevention.................................. 175
Number Tag............................................ 168
Rear Door Won’t Open............................ 178
Remote Transmitter................................. 173
Types and Functions................................ 167
Kickdown.................................................. 402
L
Lane Keeping Assist System (LKAS)......... 467
Indicator (Amber) .................................... 120
Indicator (Green) ..................................... 121
Legal Information on Apple CarPlay/
Android Auto.......................................... 384
21 JAZZ HYBRID SSS-32TZA6000.book 675 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
676
Index
Lights ................................................. 191, 558
Bulb Replacement.................................... 558
Daytime Running Lights........................... 197
Fog Light ................................................. 195
Front Fog Lights....................................... 195
High Beam Indicator ................................ 117
Interior .................................................... 222
Light Switches ......................................... 191
Lights On Indicator .................................. 117
Luggage Area Lights................................ 223
Load Limits................................................ 395
Locking/Unlocking .................................... 167
Childproof Door Locks............................. 178
From Inside.............................................. 176
From Outside........................................... 170
Keys ........................................................ 167
Using a Key ............................................. 174
Locking/Unlocking the Doors from the
Outside .................................................... 170
Lockout Prevention System...................... 175
Low Battery Charge.................................. 616
Low Fuel Indicator.................................... 112
Low Keyless Remote Signal Strength ...... 169
Low Oil Level Symbol ............................... 622
Low Oil Pressure Indicator ....................... 616
Low Tyre Pressure/Deflation Warning
System Indicator.............................. 115, 621
Lower Anchorages...................................... 90
Lubricant Specifications Chart ................. 635
Luggage (Load Limit) ............................... 395
Luggage Area Cover................................. 230
Luggage Hook .......................................... 228
M
Maintenance..................................... 150, 525
12-Volt Battery........................................ 573
Brake Fluid .............................................. 555
Cleaning ................................................. 584
Climate Control....................................... 580
Cooling System ....................................... 551
Oil........................................................... 549
Precautions ............................................. 526
Radiator .................................................. 553
Remote Transmitter................................. 579
Replacing Light Bulbs .............................. 558
Safety...................................................... 527
Service Reminder System ......................... 530
Transmission Fluid ................................... 554
Tyres ....................................................... 568
Under the Bonnet.................................... 543
Malfunction Indicator Lamp............ 110, 617
Map Lights................................................ 223
Maximum Permissible Weight................. 395
Meters, Gauges......................................... 137
Mirrors ...................................................... 208
Adjusting ................................................ 208
Door ....................................................... 209
Interior Rearview ..................................... 208
Modifications (and Accessories) .............. 589
MP3/WMA/AAC ................................ 260, 326
Multi-View Rear Camera.......................... 518
N
Navigation................................................ 148
Numbers (Identification) ......................... 637
O
Odometer ................................................. 138
Oil (Engine) .............................................. 546
Adding ................................................... 550
Checking ................................................ 549
Low Oil Pressure Indicator ....................... 616
Recommended Engine Oil ....................... 546
Viscosity.................................................. 546
On Board Apps......................................... 333
On-Board Owner’s Manual ..................... 291
Open the Owner’s Manual...................... 291
Open Source Licences .............................. 383
Opening/Closing
Bonnet.................................................... 544
Power Windows...................................... 184
Tailgate................................................... 179
Other Interior Convenience Items .......... 231
Outside Temperature Display ................. 138
Overheating ............................................. 614
P
Parking Brake........................................... 496
Parking Brake and Brake System
Indicator ................................................. 618
21 JAZZ HYBRID SSS-32TZA6000.book 676 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
677
Index
Parking Brake and Brake System
Indicator (Amber)........................... 109, 620
Parking Brake and Brake System
Indicator (Red)................................ 107, 620
Parking Sensor System............................. 508
Passenger Airbag Off Indicator............... 113
Passenger Front Airbag Off System .......... 61
Indicator ................................................. 113
Passing Indicators..................................... 191
Petrol .................................................. 29, 520
Economy and CO
2
Emissions ................... 523
Gauge .................................................... 137
Information............................................. 520
Instant Fuel Economy .............................. 145
Low Fuel Indicator................................... 112
Refueling ................................................ 520
Phone........................................................ 148
Playing Bluetooth® Audio ............... 263, 330
POWER Button ......................................... 188
Power Flow............................................... 143
Power System
Won’t Start............................................. 607
Power System Indicator ................... 109, 622
Power Windows ....................................... 184
Precautions While Driving....................... 400
Rain ........................................................ 401
Pregnant Women....................................... 53
Puncture (Tyre)......................................... 593
R
Radiator .................................................... 553
Radio (AM/FM).................................. 250, 314
Radio Data System (RDS).................. 251, 317
Range ........................................................ 145
Range / Fuel / Trip Meter ......................... 144
RDS (Radio Data System).................. 251, 317
Ready Indicator......................................... 110
Rear Demister ........................................... 205
Rear Fog Light Indicator .......................... 117
Rear Seats.................................................. 214
Rearview Mirror........................................ 208
Refueling................................................... 520
Fuel Gauge.............................................. 137
Low Fuel Indicator ................................... 112
Petrol .............................................. 520, 634
Regulations ............................................... 638
Remote Transmitter ................................. 173
Replacement
12-Volt Battery ........................................ 576
Bulbs ....................................................... 558
Fuses ............................................... 623, 625
Rear Wiper Blade Rubber......................... 566
Wiper Blade Rubber................................. 563
Resetting a Trip Meter ............................. 145
Road Departure Mitigation ..................... 478
On and Off.............................................. 482
Road Departure Mitigation Ready to
Assist Indicator ...................................... 121
S
Safe Driving ................................................ 37
Safety Labels............................................. 102
Safety Message............................................. 0
Safety Support.......................................... 151
Indicator (Amber) .................... 121, 122, 123
Indicator (Green/Gray)............................. 123
Seat Belts ............................................ 42, 150
Adjusting the Shoulder Anchor.................. 50
Automatic Seat Belt Tensioners ................. 47
Checking................................................... 54
Fastening .................................................. 48
Installing a Child Restraint System
with a Lap/Shoulder Seat Belt .................. 94
Pregnant Women...................................... 53
Reminder .................................................. 45
Warning Indicator ............................. 45, 112
Seat Heaters.............................................. 232
Seats .......................................................... 211
Adjusting ................................................ 211
Front Seat Heaters................................... 232
Front Seats.............................................. 211
Rear Seats ............................................... 214
Seat Heaters............................................ 232
Security System......................................... 181
Immobilizer System Indicator ................... 118
Security System Alarm Indicator............... 118
Super Locking ......................................... 183
Select Lever................................................. 27
Selecting a Child Restraint System ............ 82
Selector Knob (Audio).............................. 241
21 JAZZ HYBRID SSS-32TZA6000.book 677 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
678
Index
Service Reminder System.......................... 530
Setting the Clock ...................................... 166
Settings...................................................... 154
Shift Lever ................................................... 27
Operation.................................................. 27
Releasing................................................. 613
Won’t Move ............................................ 613
Shift Position Indicator............................. 111
Shifting (Transmission)............................. 403
Shoulder Anchor......................................... 50
Side Airbags ................................................ 68
Side Curtain Airbags................................... 71
Simple........................................................ 142
SOS Button................................................ 388
SOS Cancel Button.................................... 388
Spark Plugs................................................ 634
Specifications ............................................ 634
Specified Fuel.................................... 520, 634
Speed & Time ............................................ 146
Speed Alarm.............................................. 149
Speed Limiter, Adjustable ........................ 407
Speed Limiter, Intelligent......................... 413
Speedometer............................................. 137
SRS Airbags (Airbags) ................................. 58
Starting the Engine
Jump Starting .......................................... 610
Steering Wheel ......................................... 207
Adjusting................................................. 207
Stopping.................................................... 506
Storage Items............................................ 224
Super Locking ........................................... 183
Supplemental Restraint System (SRS)........ 58
Switches
(Around the Steering Wheel) ............ 6, 7, 8
Switches (Around the Steering Wheel)... 188
Switching the Display............................... 140
System Indicator....................................... 116
System Updates ........................................ 309
T
Tailgate ..................................................... 179
Temperature
Outside Temperature Display................... 138
Temperature Sensor................................. 138
Temporarily Repairing a Flat Tyre........... 593
Temporary Repair Kit (TRK)..................... 593
Tie-down Anchors .................................... 228
Time (Setting) ........................................... 166
Tools.......................................................... 592
Towing a Trailer ....................................... 396
Towing Your Vehicle
Emergency .............................................. 629
Traffic Sign Recognition System...... 139, 487
Transmission ..................................... 402, 403
Creeping................................................. 402
Fluid........................................................ 554
Indicator.................................................. 111
Kickdown................................................ 402
Number................................................... 637
Operating the Shift Button ...................... 403
Operation.................................................. 27
Shift Lever Does Not Move...................... 613
Shift Position Indicator ............................ 111
Trip Meter ........................................ 145, 147
TRK (Temporary Repair Kit) .................... 593
Troubleshooting ...................................... 591
Blown Fuse ..................................... 623, 625
Brake Pedal Vibrates ................................. 33
Buzzer Sounds When Opening Door ......... 34
Emergency Towing ................................. 629
Noise When Braking ................................. 35
Overheating............................................ 614
Power System Won’t Start ...................... 607
Rear Door Won’t Open ..................... 34, 178
Shift Lever Won’t Move .......................... 613
Warning Indicators.................................. 106
Turn Signals
Indicators (Instrument Panel) ................... 116
Turning on the Power ............................. 397
Does Not Activate ................................... 607
Tyres.......................................................... 568
Air Pressure............................................. 636
Checking and Maintaining ...................... 568
Inspection ............................................... 568
Rotation.................................................. 571
Tyre Chains............................................. 572
Wear Indicators....................................... 569
Winter .................................................... 572
21 JAZZ HYBRID SSS-32TZA6000.book 678 ページ ２０２０年１月２９日 水曜日 午前１０時３２分
679
Index
U
Unlocking the Doors................................ 170
Unlocking the Front Doors from the
Inside......................................................... 21
USB Flash Drives ....................... 260, 326, 380
USB Port(s)........................................ 242, 288
V
Vanity Mirrors ............................................ 11
Vehicle Identification Numbers .............. 637
Vehicle Stability Assist (VSA) ................... 420
OFF Button ............................................. 421
OFF Indicator .......................................... 114
System Indicator ..................................... 114
Viscosity (Oil).................................... 546, 635
Voice Control Operation ......................... 293
Audio Commands................................... 294
General Commands ................................ 294
Honda Personal Assistant Commands ..... 295
List Commands ....................................... 295
Navigation Commands............................ 295
Phone Commands .................................. 294
Standard Commands .............................. 295
Voice Portal Screen ................................. 294
Voice Recognition ................................... 293
VSA (Vehicle Stability Assist) ................... 420
W
Wallpaper ......................................... 246, 305
Warning and Information Message ........ 124
Warning Indicator On/Blinking ............... 616
Warning Labels......................................... 102
Watts ......................................................... 635
Wear Indicators (Tyre).............................. 569
When You Cannot Open the Tailgate .... 632
Wi-Fi Connection ...................................... 335
Window Washers...................................... 202
Adding/Refilling Fluid............................... 556
Switch ..................................................... 202
Windows (Opening and Closing)............. 184
Windscreen ............................................... 202
Cleaning.......................................... 585, 587
Defrosting/Defogging ...................... 205, 234
Washer Fluid ........................................... 556
Wiper Blades ........................................... 563
Wipers and Washers................................ 202
Winter Tyres.............................................. 572
Tyre Chains ............................................. 572
Wipers and Washers................................. 202
Automatic Intermittent Wipers................. 203
Checking and Replacing Wiper Blades ..... 563
Front ....................................................... 202
Rear ........................................................ 204
WMA ................................................. 260, 326
Worn Tyres................................................ 568
