SPLIT TYPE
ROOM AIR CONDITIONER
OPERATION MANUAL
ENGLISH
INDOOR UNIT
(SMD models)
AH-AP9SMD
AH-AP12SMD
AH-AP18SMD
AH-AP24SMD
(SED models)
AH-A9SED
AH-A12SED
AH-A18SED
AH-A24SED
OUTDOOR UNIT
AU-A9SMD
AU-A12SMD
AU-A18SMD
AU-A24SMD
AU-A9SED
AU-A12SED
AU-A18SED
AU-A24SED
Plasmacluster" and "Device of a
cluster of grapes" are registered
trademarks or trademarks of
Sharp Corporation.
AH-AP9SMD&ED_OM_A908_En.indd 12015/3/24 16:54:12
AH-AP9SMD&ED_OM_A908_En.indd 22015/3/24 16:54:12
EN-1
ENGLISH
WARNING
Do not pull or deform the power supply cord.
Pulling and misuse of the power supply cord
can result in damage to the unit and cause
electrical shock.
Be careful not to expose your body directly to
the outlet air for a long time. It may affect your
physical conditions.
When using the air conditioner for infants,
children, elderly, bedridden, or disabled people
make sure the room temperature is suitable for
those in the room.
Never insert objects into the unit. Inserting
objects can result in injury due to the high
speed rotation of internal fans.
Ground the air conditioner without fail. Do not
connect the grounding wire to gas pipe, water
pipe, lightning rod or telephone grounding
wire. Incomplete grounding may cause electric
shock.
If anything is abnormal with the air conditioner
(ex. a burning smell), stop the operation
immediately and turn the circuit breaker OFF.
The appliance shall be installed in accordance
with national wiring regulations. Improper
cable connection can cause the power supply
cord, plug and the electrical outlet to overheat
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
to avoid a hazard. Use only the manufacture-
Do not splash or pour water directly on the
unit. Water can cause electrical shock or
equipment damage.
Do not attempt to install/remove/repair the unit
by yourself. Incorrect work will cause electric
installation/removal/repair of the unit.
CAUTION
Open a window or door periodically to
ventilate the room, especially when using gas
oxygen shortage.
Do not operate the buttons with wet hand. It
may cause electric shock.
For safety, turn the circuit breaker off when not
using the unit for an extended period of time.
Check the outdoor unit mounting rack
periodically for wear and to make sure it is
Do not put anything on the outdoor unit nor
step on it. The object or the person may fall
down or drop, causing injury.
This unit is designed for residential use. Do not
use for other applications such as in a kennel
or greenhouse to raise animals or grow plants.
Do not place a vessel with water on the unit.
If water penetrates into the unit, electrical
insulations may deteriorate and cause electric
shock.
Do not block the air inlets nor outlets of the
troubles.
Be sure to stop the operation and turn the
circuit breaker off before performing any
maintenance or cleaning. A fan is rotating
inside the unit and you may get injured.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a persion
responsible for their safety. Childern should be
supervised to ensure that they do not play with
the appliance.
Make sure to connect the air conditioner
to power supply of the rated voltage and
frequency. Use of a power supply with
improper voltage and frequency can result in
-
Install the unit in a place with minimal dust,
fumes and moisture in the air.
Arrange the drain hose to ensure smooth
-
ting of the room, furniture etc.
Make sure a leak breaker or a circuit breaker
is installed, depending on the installation
location, to avoid electrical shock.
IMPORTANT SAFETY INSTRUCTIONS .............EN-1
PART NAMES .....................................................EN-2
USING THE REMOTE CONTROL ......................EN-4
AUXILIARY MODE ..............................................EN-4
TIPS ON SAVING ENERGY ................................EN-4
BASIC OPERATION ............................................EN-5
OPERATION CONDITION ..................................EN-5
ADJUSTING THE AIR FLOW DIRECTION .........EN-6
POWERFUL JET / SUPER JET OPERATION ....EN-6
GENTLE COOL AIR ............................................EN-7
PLASMACLUSTER OPERATION .......................EN-7
COMFORT OPERATION ....................................EN-8
BABY MODE OPERATION .................................EN-8
TIMER OPERATION ...........................................EN-9
SELF CLEAN OPERATION...............................EN-10
DISPLAY BUTTON ............................................EN-10
MAINTENANCE ................................................EN-11
BEFORE CALLING FOR SERVICE ..................EN-12
ENGLISH
Please read this manual carefully before using the product.
This manual should be kept in a safe place for handy reference.
CONTENTS
IMPORTANT SAFETY
INSTRUCTIONS
AH-AP9SMD&ED_OM_A908_En.indd 12015/3/24 16:54:13

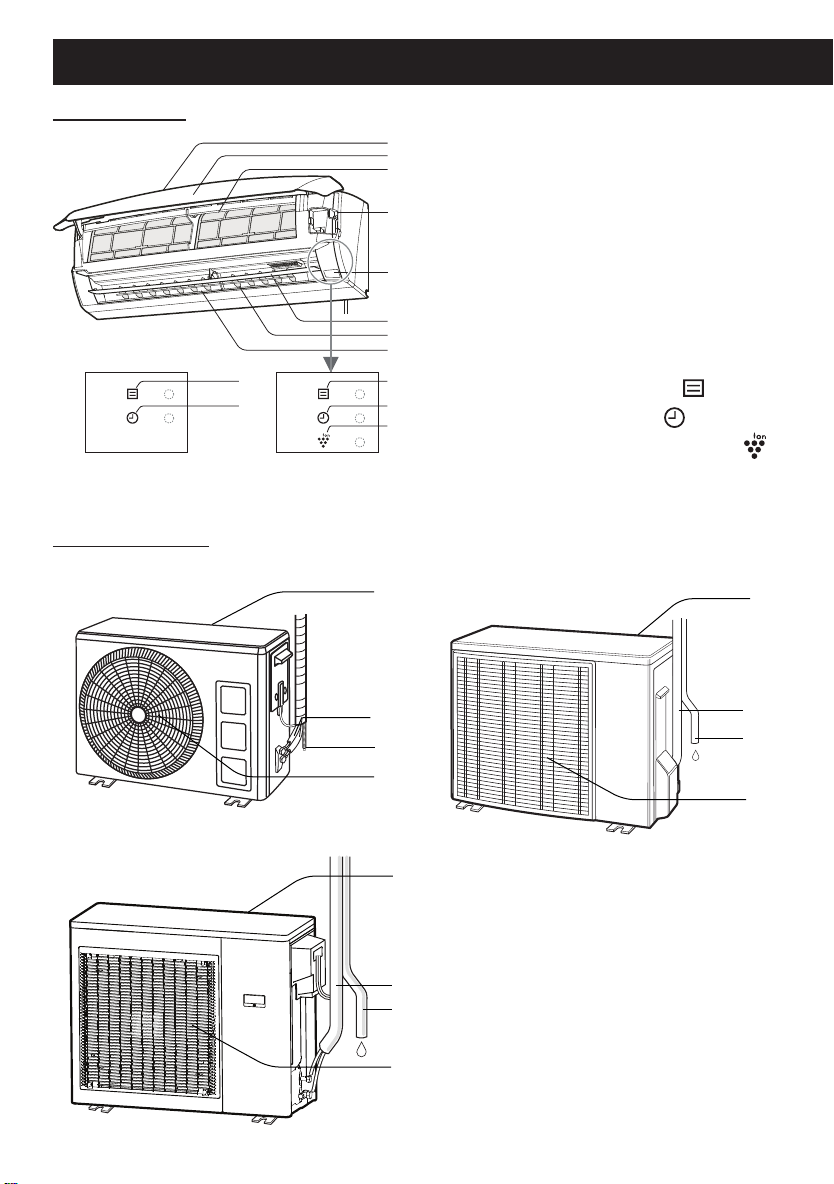

EN-2

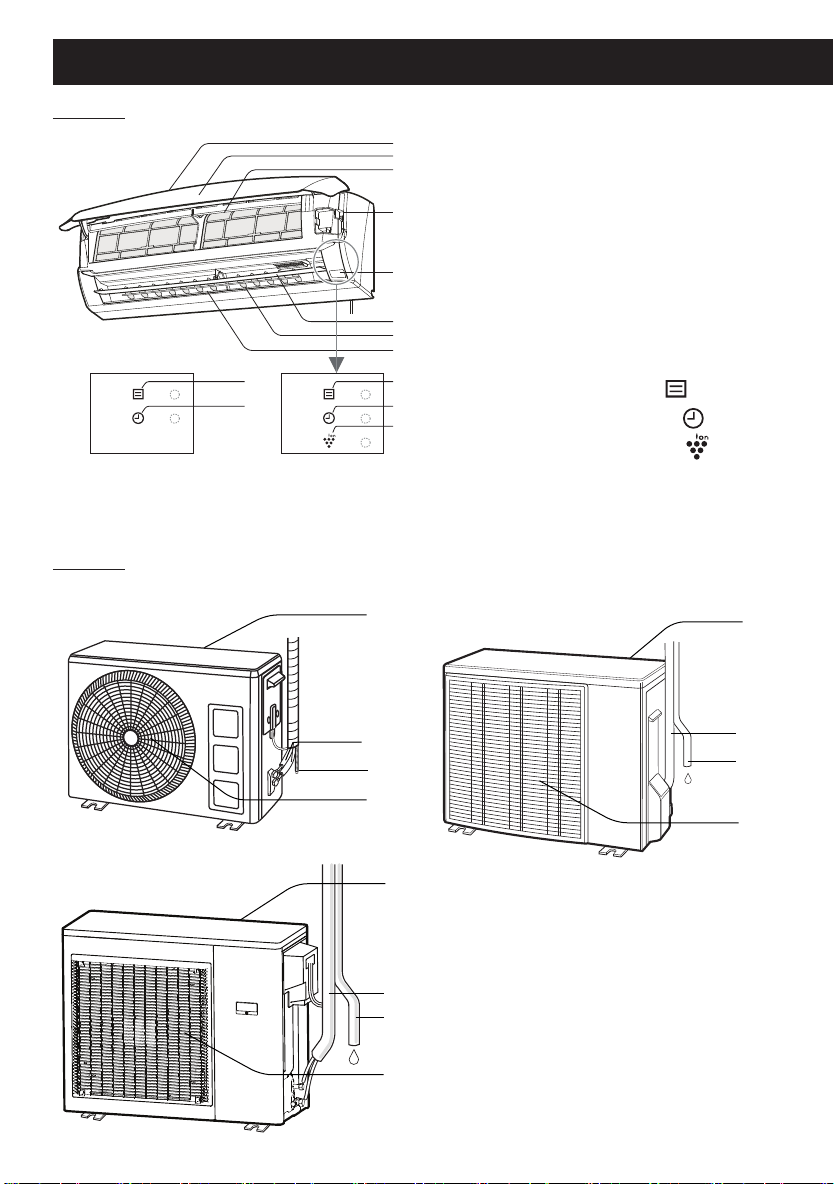

INDOOR UNIT
PART NAMES
1
Inlet (Air)
2
Open Panel
3
Air Filter
4
AUX Button
5
Receiver Window
6
7
8
Outlet (Air)
9
OPERATION Lamp (red )
10
TIMER Lamp (orange )
11
PLASMACLUSTER Lamp (blue )
(For SMD models only)
9
1
2
3
4
5
6
7
8
11
10
9
1
0
OUTDOOR UNIT
12
13
14
15
12
13
14
15
12
Inlet (Air)
13
Refrigerant Pipe and Cable
14
Drainage Hose
15
Outlet (Air)
AU-A9SMD, AU-A9SED
AU-A12SMD, AU-A12SED, AU-A18SMD,AU-A18SED
SED models SMD models
12
13
14
15
AU-A24SMD, AU-A24SED
AH-AP9SMD&ED_OM_A908_En.indd 22015/3/24 16:54:15

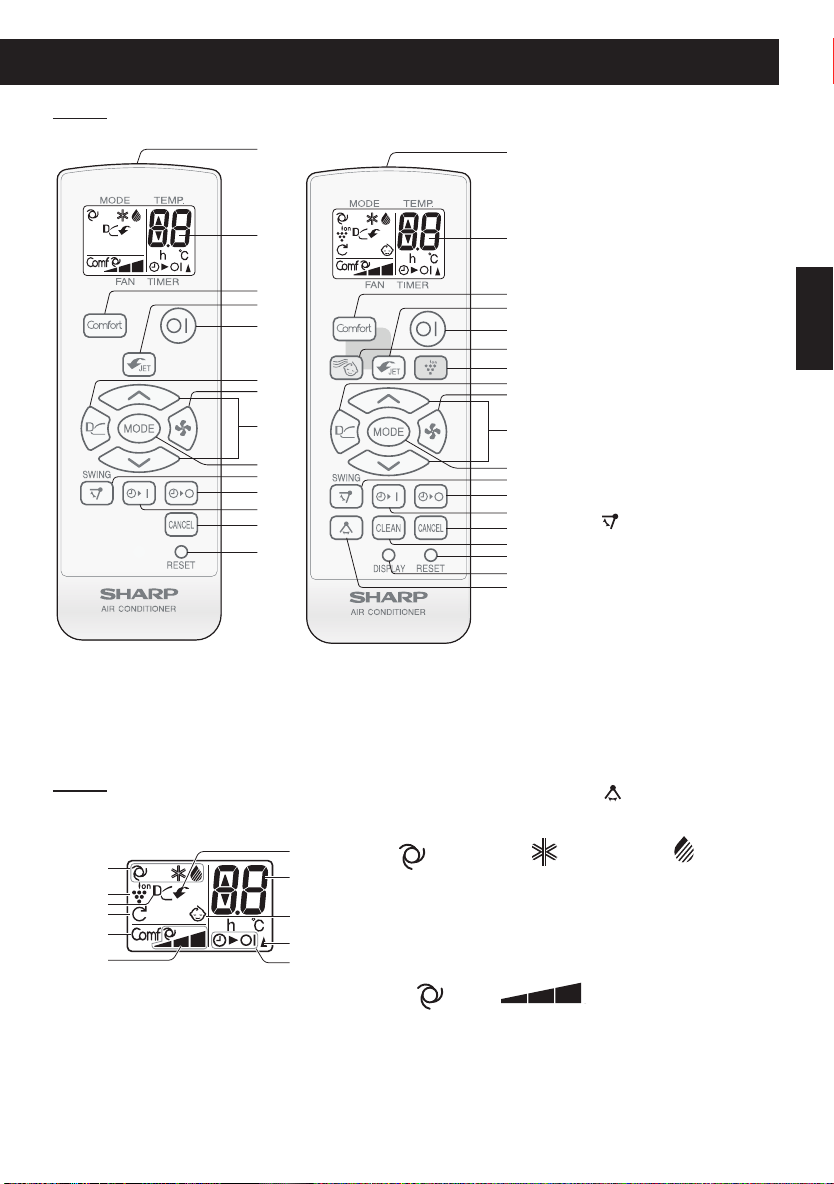

EN-3
ENGLISH
1
TRANSMITTER
2
DISPLAY
3
COMFORT Button
4
POWERFUL JET / SUPER
JET Button
5
ON / OFF Button
6
BABY MODE Button
(For SMD models only)
7
PLASMACLUSTER Button
(For SMD models only)
8
GENTLE COOL AIR Button
9
FAN Button
10
THERMOSTAT Button
11
MODE Button
12
SWING Button
( : Vertical direction)
13
TIMER OFF Button
14
TIMER ON Button
15
TIMER CANCEL Button
16
SELF CLEAN Button
(For SMD models only)
17
RESET Button
18
DISPLAY Button
(For SMD models only)
19
SWING Button*
(
: horizontal direction)

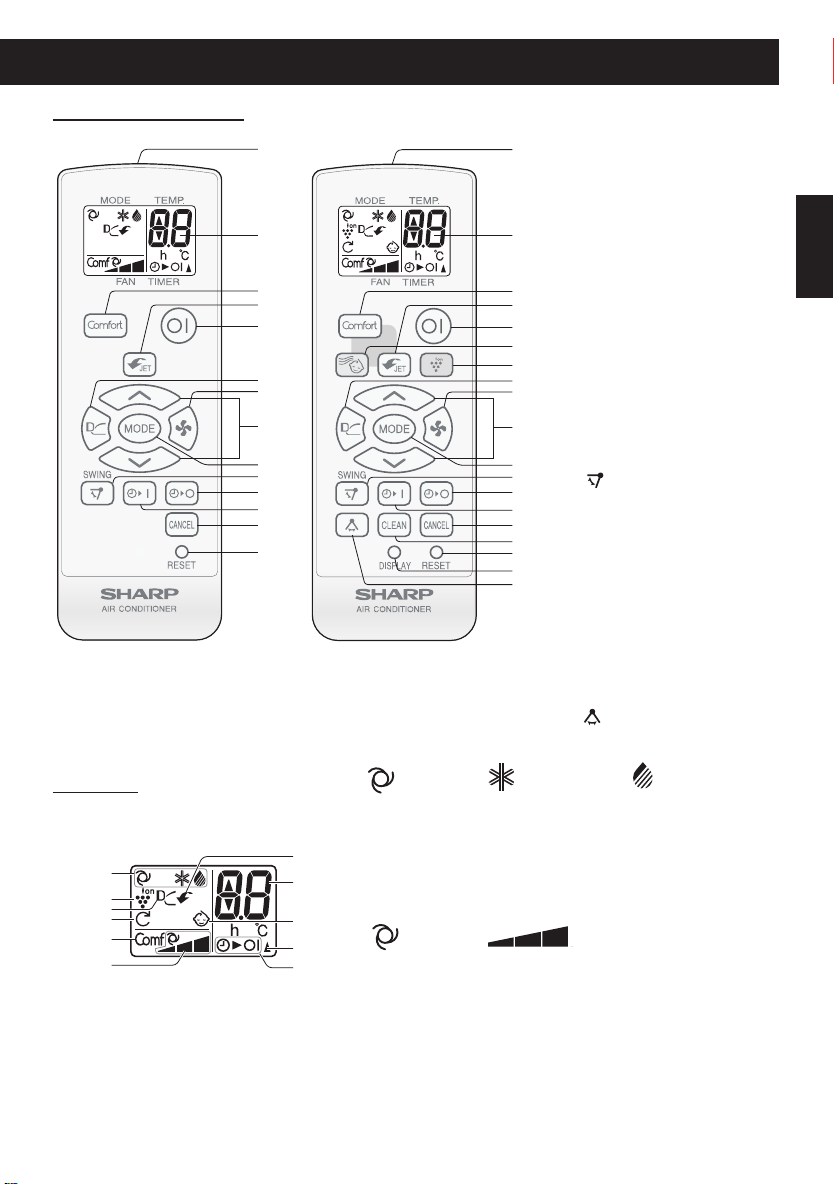

REMOTE CONTROL
9
1
2
3
4
5
6
7
8
13
12
11
10
14
16
19
18
15
17
20
MODE Symbols
: AUTO : COOL : DRY
21
PLASMACLUSTER Symbol
(For SMD models only)
22
GENTLE COOL AIR Symbol
23
SELF CLEAN Symbol
(For SMD models only)
24
COMFORT Symbols
25
FAN SPEED Symbols
: AUTO : Manual setting
26
POWERFUL JET / SUPER JET Symbol
27
TEMPERATURE Indicator
28
BABY MODE Symbol
(For SMD models only)
29
TRANSMITTING Symbol
30
TIMER ON / TIMER OFF Indicator
28
27
26
20
30
29
23
25
24
21
22
9
1
2
3
4
5
8
13
12
11
10
14
15
17
SED models SMD models
DISPLAY
* SMD models dont have the horizontal swing function.
AH-AP9SMD&ED_OM_A908_En.indd 32015/3/24 16:54:16
EN-4

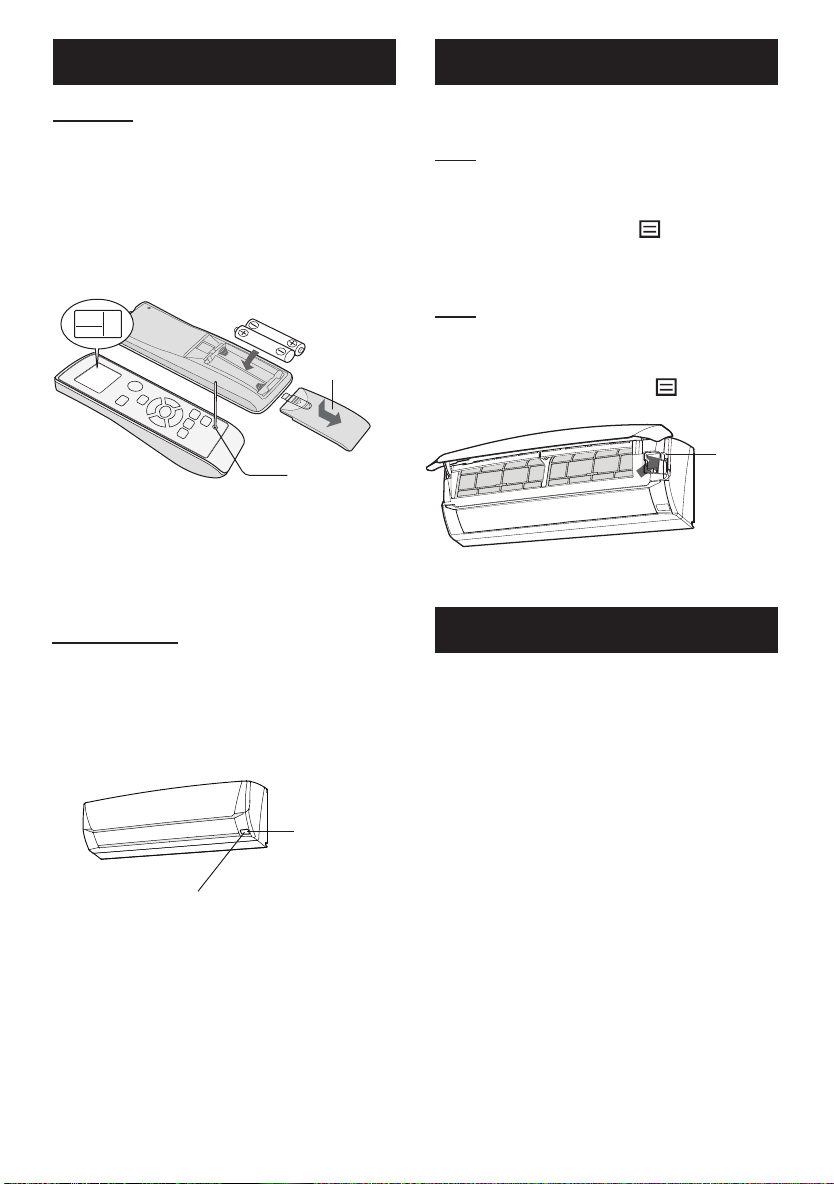

LOADING BATTERIES
1
Remove the battery cover.
2
Insert two batteries.
(AAA(R03))
Make sure the (+) and (-) polarities are
correctly aligned.
3
Reinstall the battery cover.
4
Press the RESET button using a
thin stick.
NOTE:
The battery life is approximately 1 year in
normal use.
When replacing the batteries, always change
both and use the same type.
If you will not be using the unit for a long time,
remove the batteries from the remote control.
USING THE REMOTE CONTROL
Battery cover
RESET button
HOW TO USE THE REMOTE CONTROL
Point the remote control towards the
receiver window and press the desired
button. The unit generates a beep when
it receives the signal.
Make sure nothing, such as curtains, block the
signal receiver window.
The signal effective distance is 7 m.
CAUTION:
Do not expose the receiver window to direct
sunlight. This may adversely affect its operation.
room may interfere with transmission of the
signal.
Do not leave the remote control in direct
sunlight or near a heater. Protect the remote
control from moisture and shock.
7 m
Receiver
window
Use this mode when the remote control
is not available.
TO TURN ON
Press the AUX button.
The red OPERATION lamp ( ) will light up
and the unit will start operating in the AUTO
mode.
The fan speed and temperature setting are
set to AUTO.
TO TURN OFF
Press the AUX button again.
The red OPERATION lamp ( ) will turn off.
AUXILIARY MODE
TIPS ON SAVING ENERGY
Below are some simple ways to save
energy when you use your air conditioner.
Set the proper temperature
Setting the temperature lower than necessary
during cooling operation will result in
increased power consumption.
Block direct sunlight and prevent drafts
Blocking direct sunlight during cooling operation
will reduce power consumption.
Close the windows and doors during cooling
and heating operations.
Disconnect the power cord from
the wall outlet or turn off the circuit
breaker when the unit is not used for
an extended period time
The indoor unit still consumes a small amount
of power when it is not operating.
AUX
AH-AP9SMD&ED_OM_A908_En.indd 42015/3/24 16:54:16
EN-5
ENGLISH

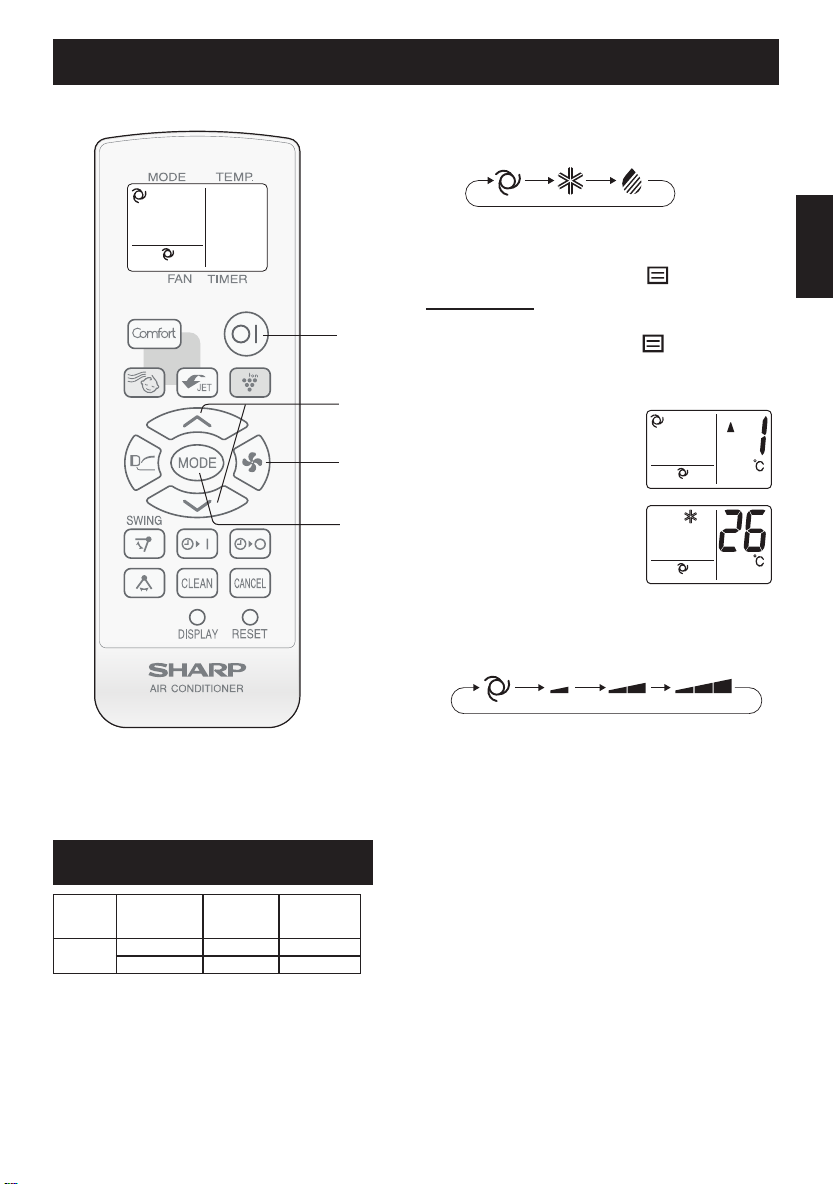

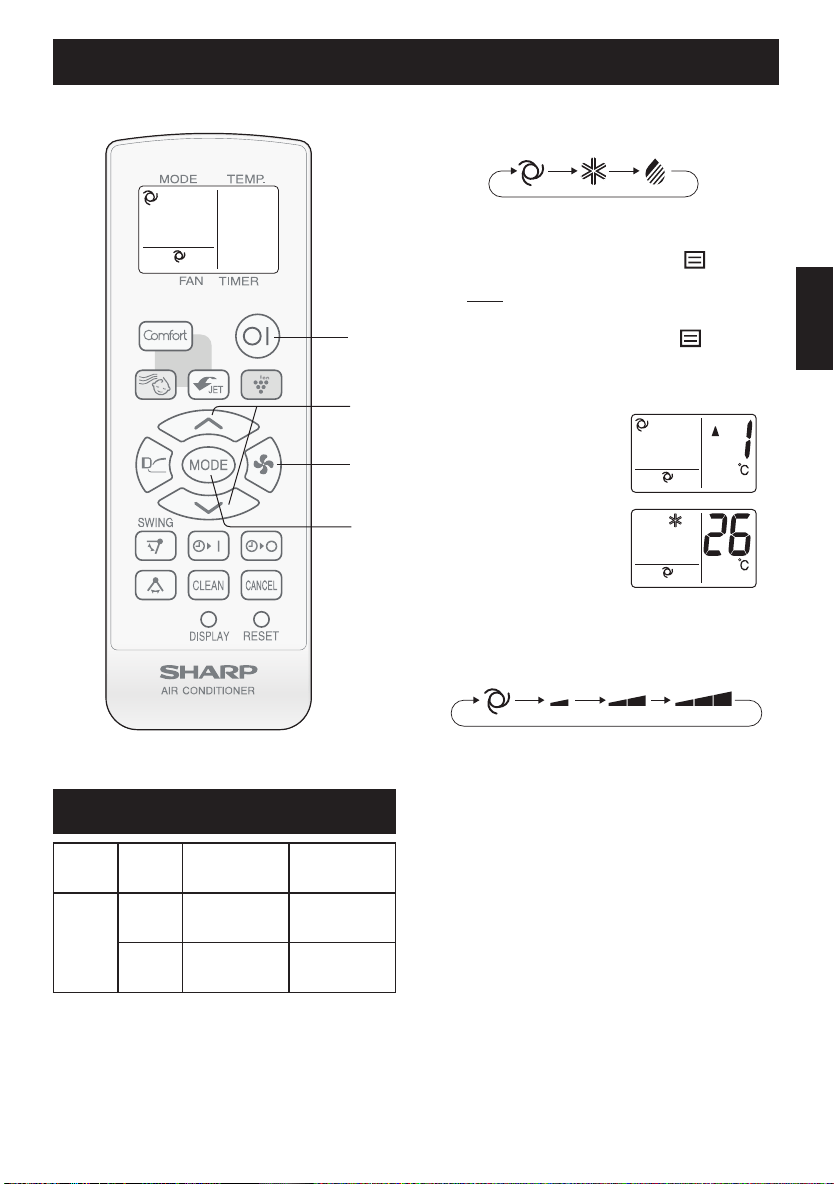

1
Press the MODE button to select the
operation mode.
AUTO COOL DRY
2
Press the ON / OFF button to start opera-
tion.
The red OPERATION lamp ( ) will light up.
TO TURN OFF
Press the ON / OFF button again.
The red OPERATION lamp ( ) will turn off.
3
Press the THERMOSTAT button to set
the desired temperature.
(AUTO / DRY mode)
The temperature can
be changed up to ±2°C
from the automatic
setting.
(COOL mode)
The temperature setting
range: 16-30°C.
4
Press the FAN button to set the desired
fan speed.
BASIC OPERATION
AUTO SOFT LOW HIGH
NOTE:
AUTO MODE
In the AUTO mode, the temperature setting and
mode are automatically selected according to the
room temperature when the unit is turned on.
DRY MODE
The fan speed is preset to AUTO and cannot be
changed.
WHEN POWER FAILURE OCCURES
This air conditioner has a memory function to store
setting when a power failure occurs.
After power recovery, the unit will automatically re-
start in the same settings which were active before
the power failure, except for TIMER, POWERFUL
JET / SUPER JET, COMFORT, BABY MODE, SELF
CLEAN settings.
OPERATION CONDITION
Mode
Indoor
Temp.
Outdoor
Temp.
Cooling
Upper limit 32°C 43°C
Lower limit 21°C 21°C
The build-in safety device may prevent
the unit from operating when used out of
this range.
Condensation may form on the air outlet
if the unit operates continuously in the
COOL or DRY mode when humidity is
over 80%.
1
4
3
2
AH-AP9SMD&ED_OM_A908_En.indd 52015/3/24 16:54:17
EN-6
ADJUSTING THE AIR FLOW
DIRECTION
1
2
The air conditioner works at the maximum
power and optimum louver direction to
make the room cool rapidly.
1
During operation, press the
POWERFUL JET / SUPER JET
button.
The remote control will display .
The temperature display will go off.
obliquely downward.
TO CANCEL
Press the POWERFUL JET / SUPER JET
button again.
original direction.
NOTE:
The air conditioner will operate at Extra
HIGH fan speed for 30 minutes, and the shift
to HIGH fan speed.
You can not set the temperature or fan speed
during the POWERFUL JET / SUPER JET
operation.
1

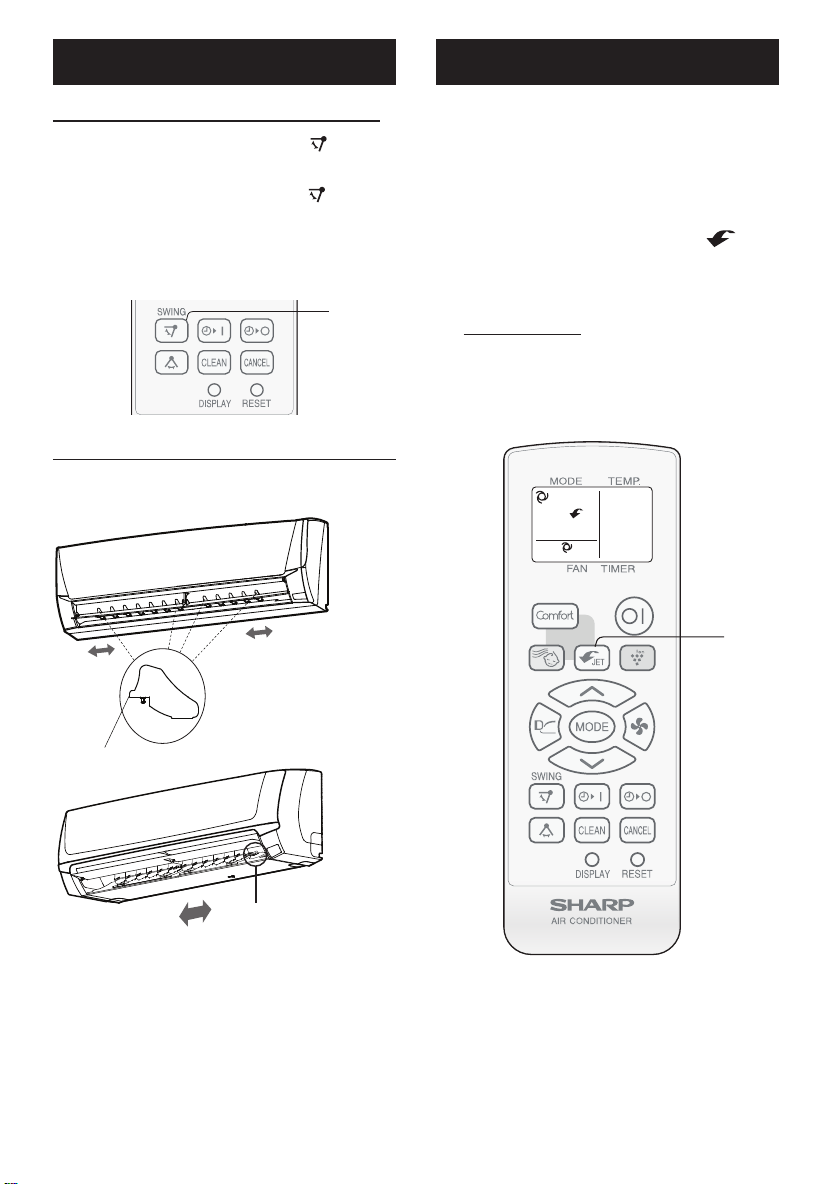

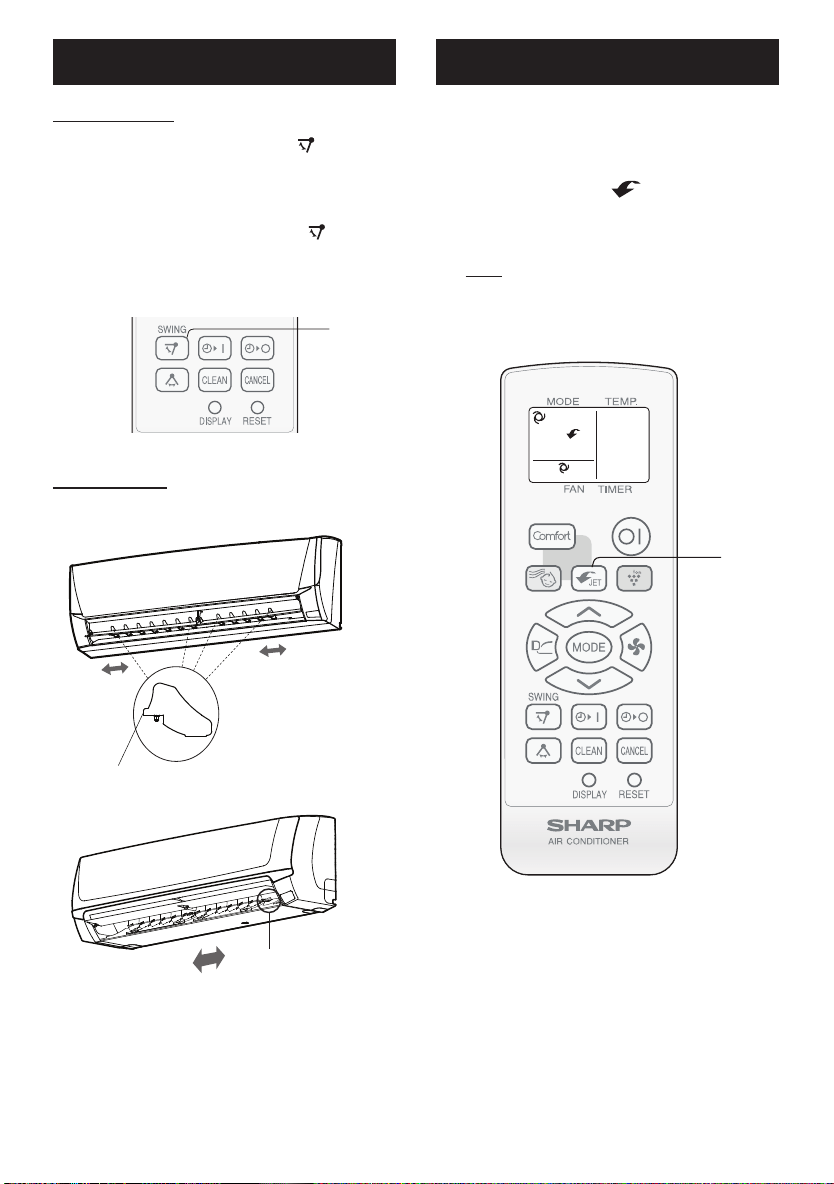

VERTICAL AIR FLOW DIRECTION
1
Press the SWING button ( ).
2
Press the SWING button ( ) again
to stop at the desired position.
The adjustment range is narrower than
the swiing range in order to prevent
condesation from dripping.
HORIZONTAL AIR FLOW DIRECTION
-
CAUTION:
louvres manually.
louvre can cause the unit to malfunction.
at the lowest position in the COOL or DRY
mode for an extended period of time,
condensation may result.
Louver lever
Louver lever
AH-AP9SMD
AH-AP12SMD
AH-A9SED
AH-A12SED
AH-AP18SMD
AH-AP24SMD
AH-A18SED
AH-A24SED
POWERFUL JET / SUPER JET
OPERATION
AH-AP9SMD&ED_OM_A908_En.indd 62015/3/24 16:54:18
EN-7
ENGLISH
obliquely upward to deliver cool air
to the ceiling in order to avoid direct
1

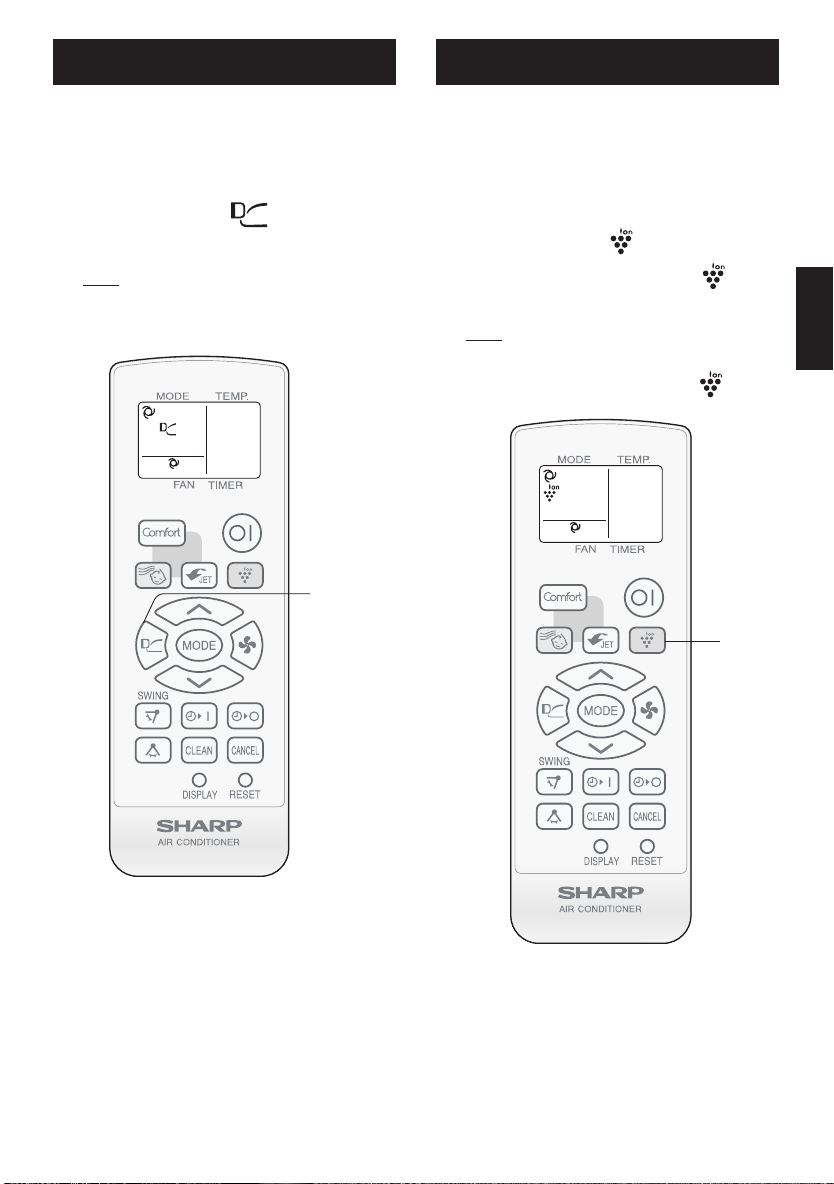

During operation, press the GENTLE
COOL AIR button.
The remote control will display .
TO CANCEL
Press the GENTLE COOL AIR button
again.
NOTE:
If you want GENTLE COOL AIR operation
in POWERFUL JET / SUPER JET mode,
press GENTLE COOL AIR button during
POWERFUL JET / SUPER JET operation.
GENTLE COOL AIR
1
NOTE:
Use of the PLASMACLUSTER operation will
be memorized, and it will be activated the next
time you turn on the unit.
To perform PLASMACLUSTER operation in
FAN only mode, press the PLASMACLUSTER
button when the unit is not operating.
The mode symbol of the remote control will
go off and the fan speed cannot be set to
AUTO.
(For SMD models only)
Plasmacluster ions released into the room
will reduce some airborne mold.
1
During operation, press the PLAS-
MACLUSTER button.
The remote control will display .
The blue PLASMACLUSTER lamp ( )
will light up.
TO CANCEL
Press the PLASMACLUSTER button again.
The blue PLASMACLUSTER lamp ( )
will turn off.
PLASMACLUSTER OPERATION
1
AH-AP9SMD&ED_OM_A908_En.indd 72015/3/24 16:54:18
EN-8
of temperature and humidity by controlling
fan speed.
1

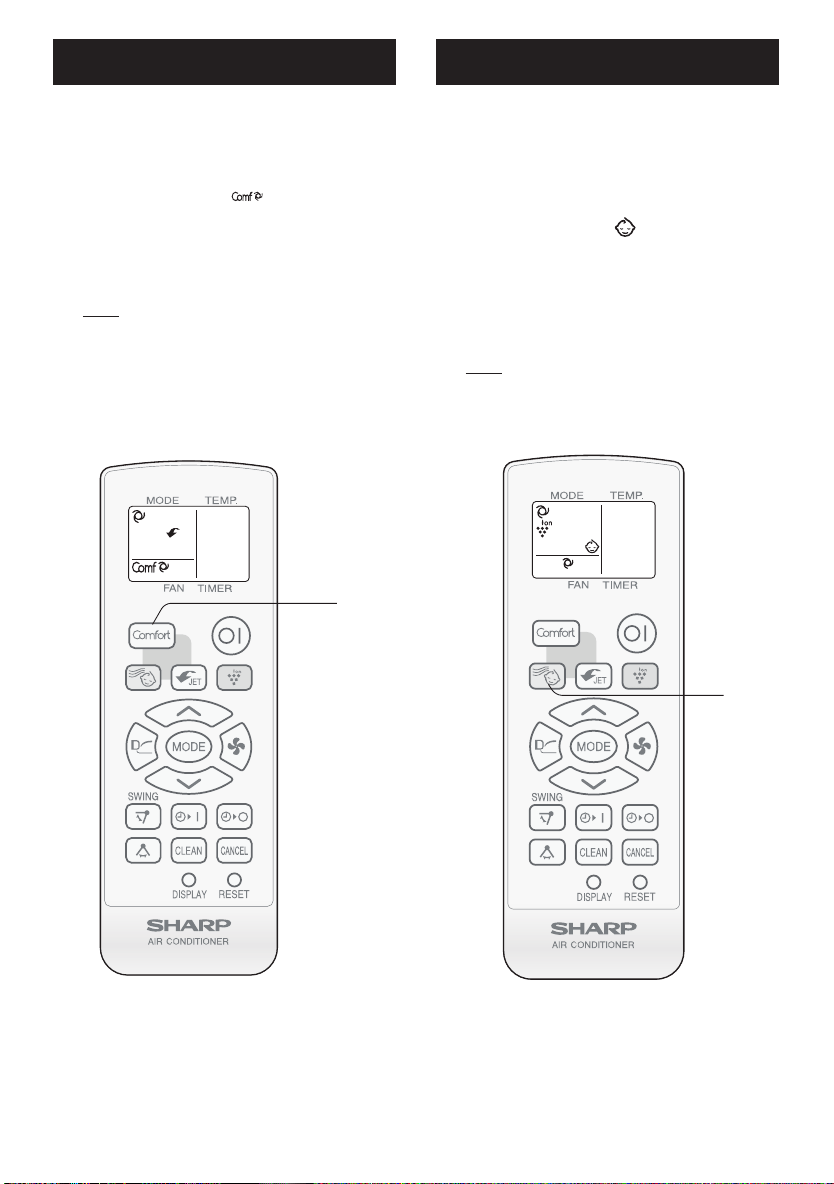

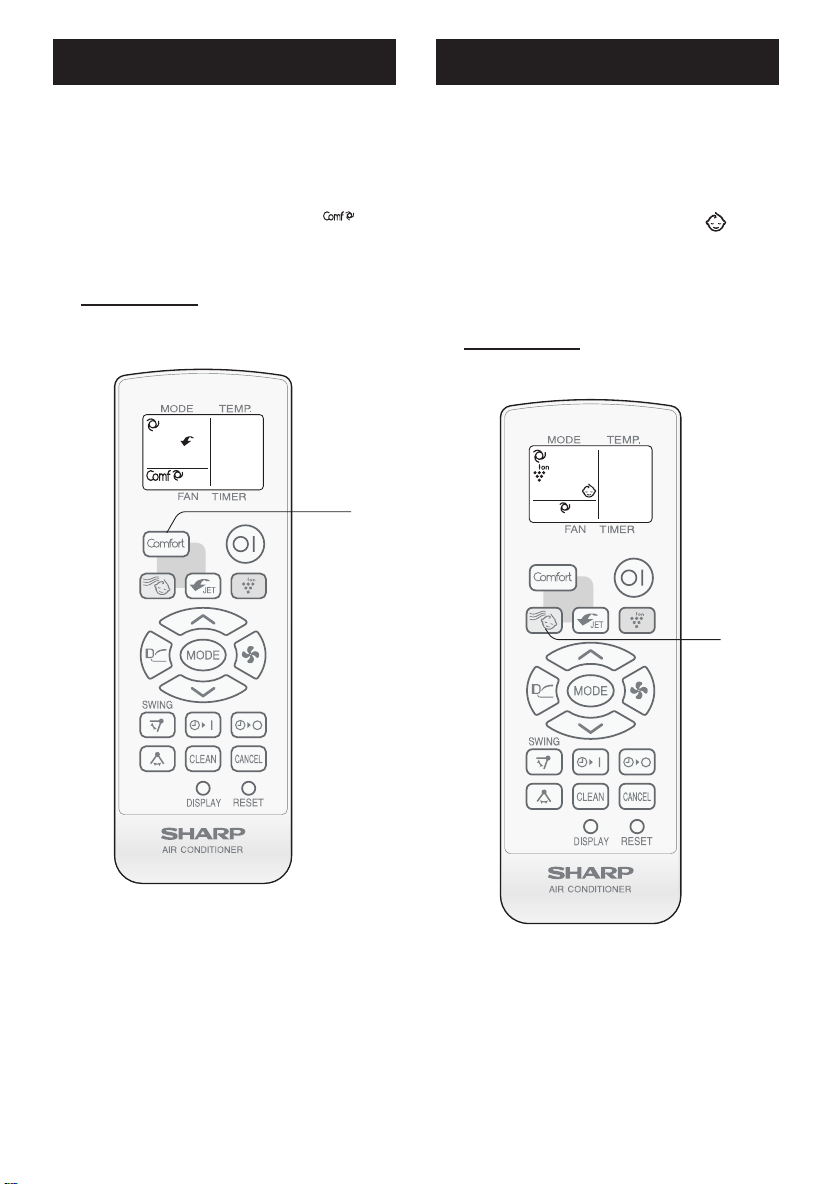

During operation, press the COMFORT
button.
The remote control will display .
Fan speed will be automatically controlled.
Louvre position will be automatically con-
trolled.
TO CANCEL
Press COMFORT button again.
COMFORT OPERATION
1
(For SMD models only)
Soft , quiet and clean operation cools a
room with well optimized for intants.
1
During operation, press BABY
MODE button.
The remote control will display .
Fan speed will be automatically set to
LOW or SOFT.
Louvre will be set to GENTLE COOL AIR
operation.
PLASMACLUSTER will be turned on.
TO CANCEL
Press BABY MODE button again.
NOTE:
BABY MODE operation is not availablle in
DRY mode.
BABY MODE OPERATION
1
AH-AP9SMD&ED_OM_A908_En.indd 82015/3/24 16:54:19
EN-9
ENGLISH

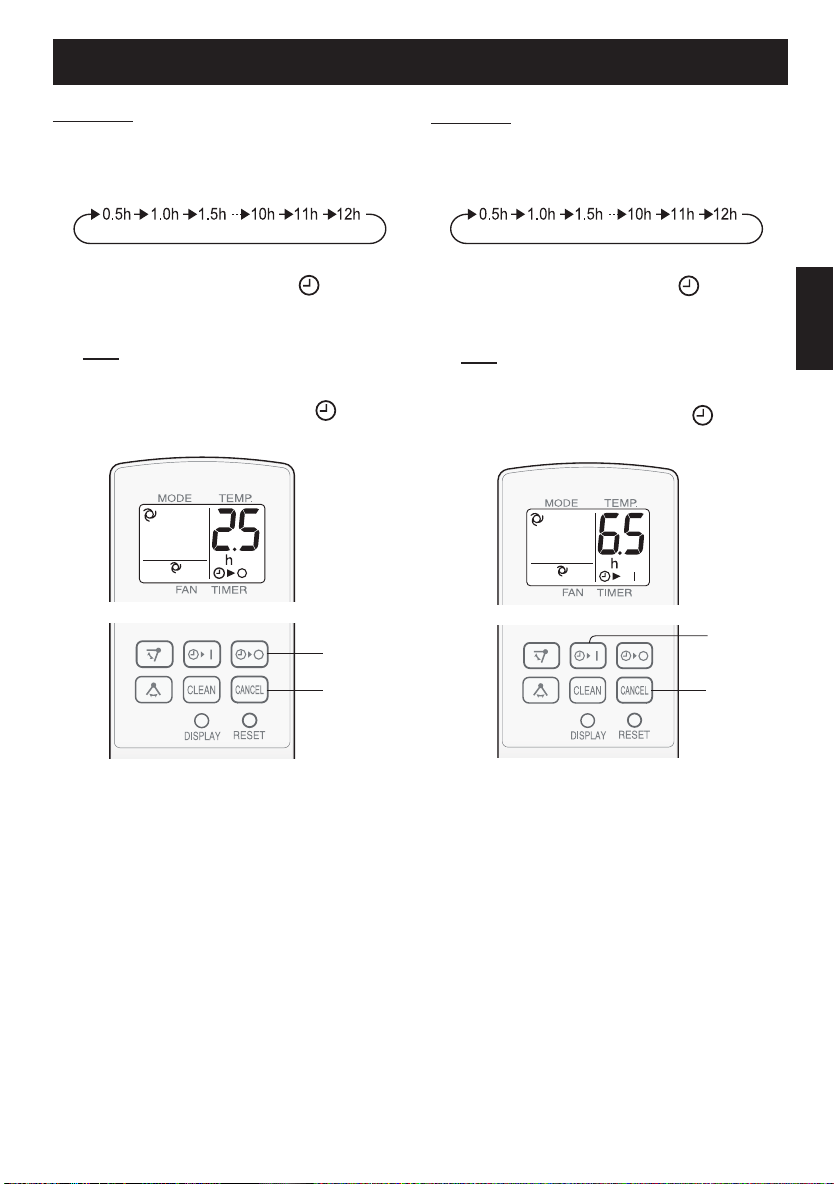

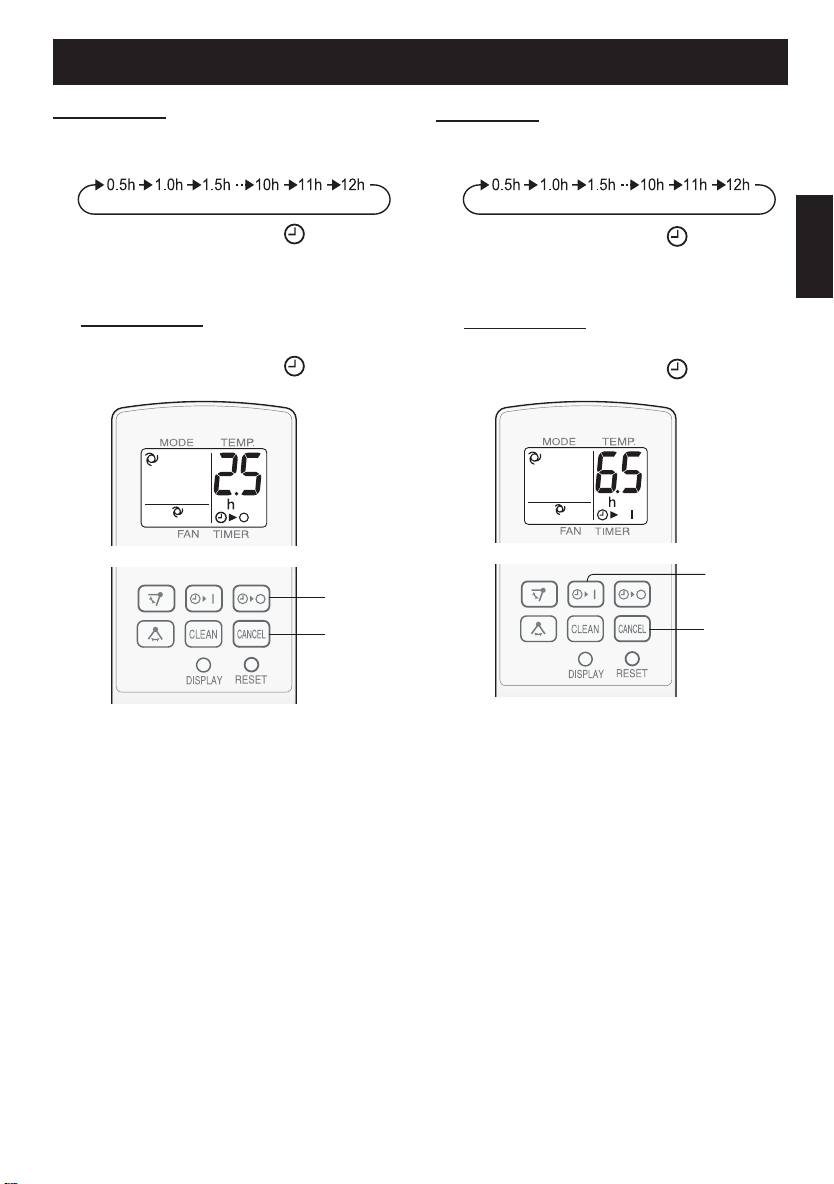

TIMER ON
1
Press the TIMER ON button and set
the time as desired.
The orange TIMER lamp (
) will light
up.
The timer setting will count down to show
the remaining time.
TO CANCEL
Press the CANCEL button.
The orange TIMER lamp (
) will turn
off.
TIMER OFF
1
Press the TIMER OFF button and set
the time as desired.
The orange TIMER lamp ( ) will light
up.
The timer setting will count down to show
the remaining time.
TO CANCEL
Press the CANCEL button.
The orange TIMER lamp ( ) will turn
off.
NOTE:
Timer duration can be set from a minimum half an hour to a maximum of 12 hours. Up to 9.5 hours,
you can set in half-hour increments, and from 10 to 12 hours, in 1-hour increments.
The TIMER OFF and TIMER ON can not be set together.
When the temperature is set during timer setting, the temperature will show in the display for 5 sec-
onds and then return to the timer diaplay.
If a power failure occurs while the TIMER is set, the TIMER setting will be cancelled and will not be
retrieved even after the power is restored.
TIMER OFF
When the TIMER OFF is set, the unit automatically adjusts the temperature setting to prevent
excessive cooling while you are in sleep. One hour after the TIMER OFF is set, the unit gradually
raises the temperature setting by 1°C by repeated ON / OFF operation for your comfortable sleep.
TIMER ON
The unit will turn on prior to the set time to allow the room to reach the desired temperature by the
programmed time. (Awaking function)
TIMER OPERATION
CANCEL
1
1
CANCEL
AH-AP9SMD&ED_OM_A908_En.indd 92015/3/24 16:54:19
EN-10

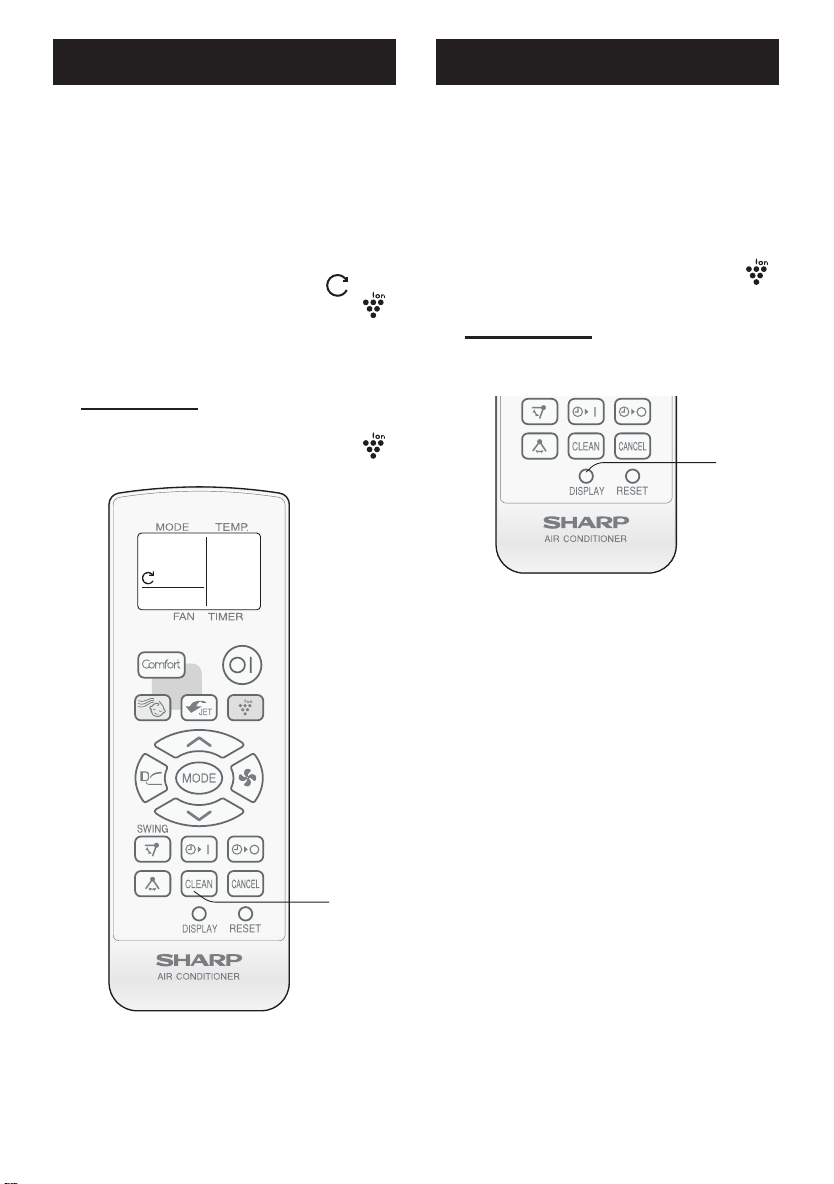

(For SMD models only)
Use when the blue PLASMACLUSTER
lamp on the unit is too bright. (The
red OPERATION lamp and the orange
TIMER lamp cannot be turned off.)
1
During operation, press the DIS-
PLAY button.
The blue PLASMACLUSTER lamp (
)
will turn off.
TO LIGHT UP
Press the DISPLAY button again.
DISPLAY BUTTON
1

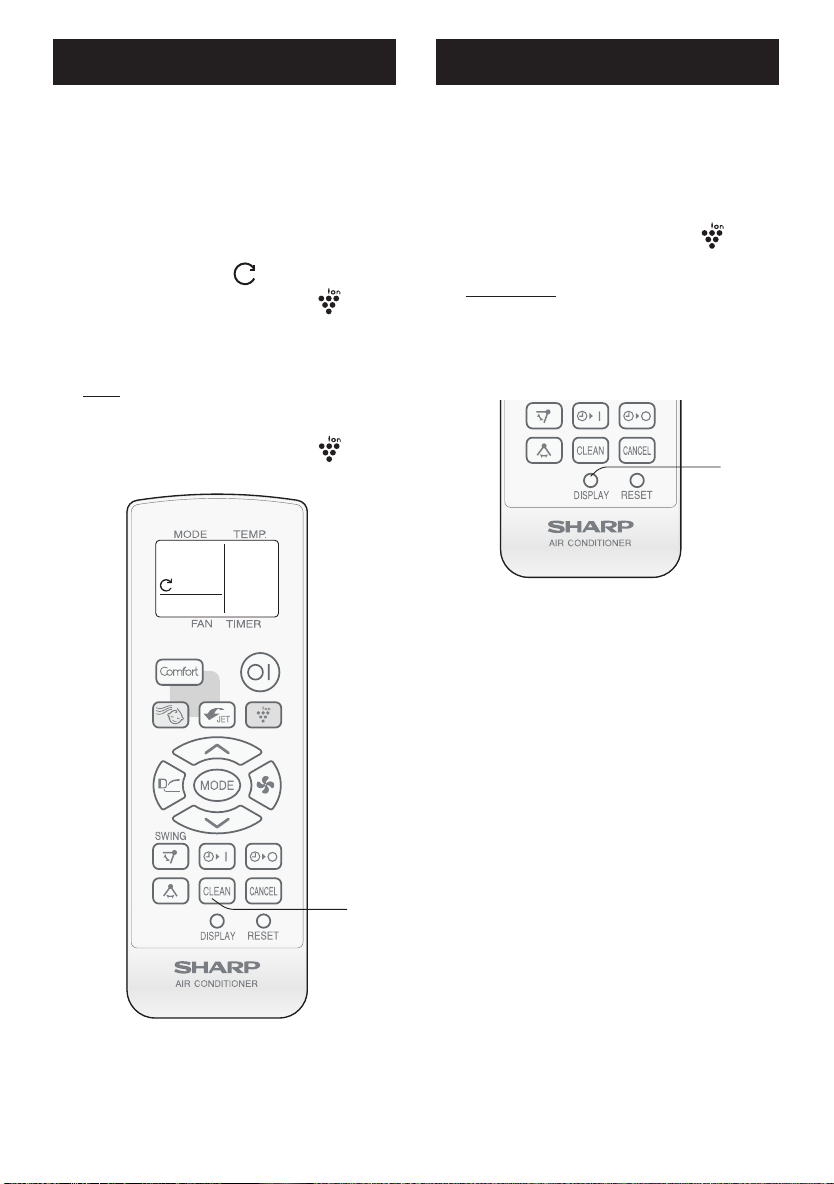

SELF CLEAN operation will reduce
the growth of mold fungus with
Plasmacluster ions and dry inside of the
unit. Utilize the operation at seasonal
change over terms or every 4 months
.
1
Press the SELF CLEAN button when
the unit is not operating.
The remote control will display .
The blue PLASMACLUSTER lamp ( )
will light up.
The unit will stop operation after 40
minutes.
TO CANCEL
Press the SELF CLEAN button.
The blue PLASMACLUSTER lamp ( )
will turn off.
NOTE:
You cannot set the temperature, fan speed, air
CLEAN operation.
Mold fungus already grown can not be eliminated
by this operation.
SELF CLEAN OPERATION
1
(For SMD models only)
AH-AP9SMD&ED_OM_A908_En.indd 102015/3/24 16:54:19
EN-11
ENGLISH
Be sure to disconnect the power cord
from the wall outlet or turn off the circuit
breaker before performing any mainte-
nance.

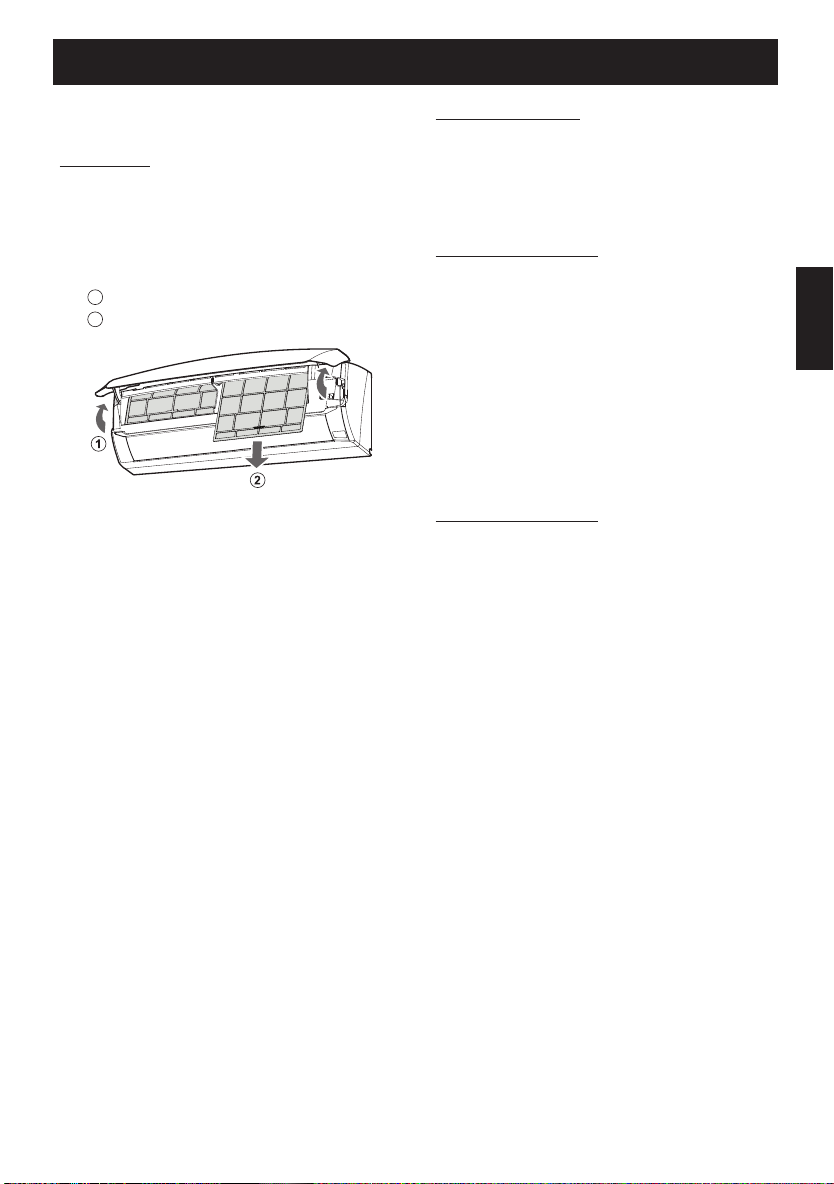

CLEANING THE FILTERS
1
Turn off the unit.
2
Lift the open panel.
3
Use a vacuum cleaner to remove dust. If
the shade before reinstalling.
4
open panel.
MAINTENANCE
MAINTENANCE AFTER AIR CONDI-
TIONER SEASON
1
Dry the inside of the indoor unit thor-
oughly by taking the following steps.
(SMD models)
Run the unit in the SELF CLEAN operation mode.
(SED models)
Run the unit in the cool mode with temperature
setting of 30°C.
2
Stop the operation and unplug the
unit.
Turn of the circuit breaker, if you have one
exclusively for the air conditioner.
3
MAINTENANCE BEFORE AIR CON-
DITIONER SEASON
1
dirty.
2
Make sure that nothing obstructs
the air inlet or outlet.
CLEANING THE UNIT AND THE RE-
MOTE CONTROL
Wipe them with a soft cloth.
Do not directly splash or pour water on them.
It can cause electrical shock or equipment
damage.
Do not use hot water, thinner, abrasive pow-
ders or strong solvents.
1
2
AH-AP9SMD&ED_OM_A908_En.indd 112015/3/24 16:54:20
EN-12
C
heck the following points before call-
ing for service.
The unit does not operate
Check if the circuit breaker has tripped or the
fuse has blown.
The unit does not cool effectively
Check the outdoor unit to make sure nothing
is blocking the air inlet or outlet.
Check the thermostat is proper setting.
Make sure windows and doors are closed
tightly.
The unit does not receive the remote
control signal
Check whether the remote control batteries
have become old and weak.
Try to send the signal again with the remote
control pointed properly towards the units
signal receiver window.
Check whether the remote control batteries
are installed properly.
Please call for service when OPERA-
TION lamp and TIMER lamp on the unit
blink.
BEFORE CALLING FOR SERVICE
The following conditions do not denote
equipment malfunctions.
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on im-
mediately after it is turned off. The unit will not
operate immediately after the mode is changed.
This is to protect the unit. Wait 3 minutes before
operating the unit.
ODORS
Carpet and furniture odors that entered into the
unit may be sent out from the unit.
CRACKING NOISE
This sound is generated by the friction of the
unit expanding or contracting due to a tempera-
ture change.
MIST SEEN AT INDOOR AIR OUTLET
In cooling operation, this is caused by the differ-
ence between the room air temperature and the
air discharged.
THE OUTDOOR UNIT DOES NOT STOP
After stopping the operation, the outdoor unit
will rotate its fan for about a minute to cool
down the unit.
SWISHING NOISE
The soft, swishing noise is the sound of the
(For SMD models only)
ODOR EMITTED FROM THE
PLASMACLUSTER AIR OUTLET
This is the smell of ozone generated from
the Plasmacluster Ion generator. The ozone
concentration is very small, posing no adverse
effect on your health. The ozone discharged
into the air rapidly decomposes, and its density
in the room will not increase.
A LOW BUZZING NOISE
This is a sound of the unit generating Plasma-
cluster ions.
AH-AP9SMD&ED_OM_A908_En.indd 122015/3/24 16:54:20
CN-1
•
•
•
•
•
•
•
•
•
• / /
//
•
•
•
•
•
•
•
•
•
•
•
•
•
•
• ....................................................... CN-1
• ........................................................... CN-2
• ................................................... CN-4
• ....................................................... CN-4
• ................................................... CN-4
• ................................................................ CN-5
• ................................................................ CN-5
• ................................................... CN-6
• ..............................................CN-6
• ................................................................ CN-7
• ................................................... CN-7
• ....................................................... CN-8
• ....................................................... CN-8
• ................................................... CN-9
• ....................................................... CN-10
• ................................................................ CN-10
• ........................................................................ CN-11
• ......................................CN-12
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 12015/3/24 16:54:59
CN-2
1
2
3
4
(AUX)
5
6
7
8
9
10
11
SMD
12
13
14
15
SMD SED
9
1
2
3
4
5
6
7
8
11
10
9
10
12
13
14
15
12
13
14
15
AU-A9SMD, AU-A9SED
AU-A12SMD, AU-A12SED, AU-A18SMD,AU-A18SED
12
13
14
15
AU-A24SMD, AU-A24SED
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 22015/3/24 16:55:01
CN-3
9
1
2
3
4
5
8
13
12
11
10
14
15
17
SED SMD
1
2
3
COMFORT
4
POWERFULJET/SUPERJET
5
ON/OFF
/
6
BABYMODE
SMD
7
PLASMACLUSTER
SMD
8
GENTLECOOLAIR
9
FAN
10
THERMOSTAT
11
MODE
12
SWING
13
TIMEROFF
14
TIMERON
15
CANCEL
16
SELFCLEAN
SMD
17
RESET
18
DISPLAY
SMD
19
SWING *
20
AUTO/COOL/DRY
21
SMD
22
23
SMD
24
25
26
27
28
SMD
29
30
/
*SMD
9
1
2
3
4
5
6
7
8
13
12
11
10
14
16
19
18
15
17
28
27
26
20
30
29
23
25
24
21
22
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 32015/3/24 16:55:02
CN-4
1
2
(AAA(R03))
(
+
)(
-
)
3
4
RESET
•
•
•
•
•
•
•
•
•
•
AUX
•
AUX
•
(RESET)
7
AUX
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 42015/3/24 16:55:03
CN-5
1
4
3
2
•
•80%
1
MODE
2
/
•
/
•
3
( /
2
°
C
1630
°
C
4
FAN
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 52015/3/24 16:55:03
CN-6
1
2
1
1
SWING
•
2
SWING
•
1
•
•
•
•
•30
•
•
•
AH-AP9SMD
AH-AP12SMD
AH-A9SED
AH-A12SED
AH-AP18SMD
AH-AP24SMD
AH-A18SED
AH-A24SED
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 62015/3/24 16:55:04
CN-7
1
1
SMD
1
•
•
•
•
•
1
•
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 72015/3/24 16:55:04
CN-8
1
1
SMD
1
•
•
•
•
1
•
•
•
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 82015/3/24 16:55:04
CN-9
1
1
1
•
CANCEL
1
•
CANCEL
•129.5
10121
•
•5
•
•
1
•
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 92015/3/24 16:55:05
CN-10
1
1
SMD
4
1
•
•
40
SMD
(
)
1
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 102015/3/24 16:55:05
CN-11
1
2
3
•
4
•
•
•
1
SMD
SED
30° C
2
•
3
1
2
1
2
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 112015/3/24 16:55:05
CN-12
•
•
•
•
•
•
•
•
1
SMD
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 122015/3/24 16:55:05
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 132015/3/24 16:55:05
SHARP CORPORATION
Printed in Thailand
TINSEA908JBRZ 15C-
TH
1
AH-AP9SMD&ED_OM_A908_Ct_20150323.indd 142015/3/24 16:55:05
