Installation Guide
Contents
Installation
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE
MAY OCCUR!

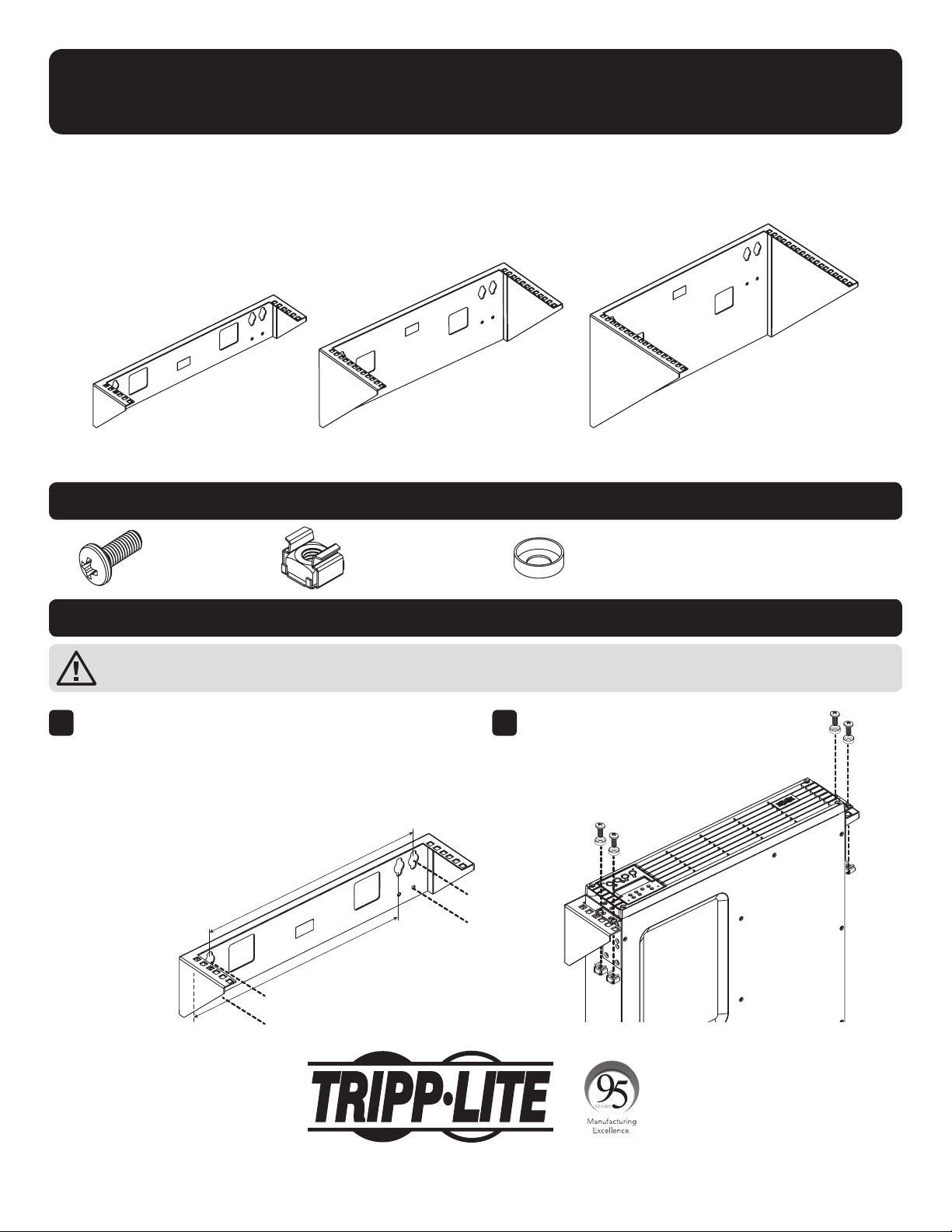

SRWALLBRKT Vertical Wall Bracket
Español 2 • Français 3
SRWALLBRKT2U
175 lb. (80 kg) Max
SRWALLBRKT4U
175 lb. (80 kg) Max
SRWALLBRKT6U
200 lb. (90 kg) Max
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2017 Tripp Lite. All rights reserved.
PROTECT YOUR INVESTMENT!
Register your product for quicker service
and ultimate peace of mind.
You could also win an ISOBAR6ULTRA
surge protector—a $100 value!
www.tripplite.com/warranty
M6 Screw x12 M6 Cage Nut x12 M6 Cup Washer x12
1
Mount the bracket to a wall. Choose appropriate hardware
according to the weight load and mounting surface.
• Installers are responsible to provide hardware.
• Installers must verify the supporting surface will safely support
the combined load of the equipment and all attached hardware
and components.
• If mounting to wood studs, make sure
mounting screws are anchored
into the center of the studs.
Use of a stud finder is
highly recommended.
2
Attach and secure equipment to the top
horizontal rails using four M6 Screws, Cup
Washers and Cage Nuts. Repeat for each
additional unit.
2U bracket panel shown.
All brackets install the same,
regardless of size.
16”
[406 mm]
16”
[406 mm]
