Yardworks LST22012-1 12-Inch 20V Lithium-ion String User Manual

OWNER’S MANUAL

12-Inch 20V Lithium-ion String Trimmer

With (1) 20V 2.0Ah Lithium-ion Battery

Model LST22012-1

Your string trimmer has been engineered and manufactured to our high standard for dependability, ease of operation,

and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the owner’s manual before

using this product.

Thank you for your purchase.

DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PART,

SERVICE QUESTIONS? GO TO WWW.AMERICANLAWNMOWER.COM OR CALL

1-800-633-1501. BETWEEN 8 AM – 5 PM EST, MONDAY-FRIDAY FOR ASSISTANCE.

SAVE THIS MANUAL FOR FUTURE REFERENCE

BATTERY MUST BE CHARGED

BEFORE FIRST USE. TWO TO THREE

INITIAL CHARGING/DISCHARGING

CYCLES MAY BE REQUIRED TO

ACHIEVE MAXIMUM RUN TIME/

CAPACITY.

CA Compliant Charger Included (Model No. CHL82000-1)

TO REDUCE RISK OF INJURY:

Before any use, be sure everyone using this tool reads and understands

all safety instructions and other information contained in this manual.

CAUTION: Wear appropriate personal hearing protection during use.

Under some conditions and duration of use, noise from this product may

contribute to hearing loss.

Save these instructions and review frequently prior to use and in

instructing others.

WARNING: When using electric gardening appliances, basic safety

precautions should always be followed to reduce risk of fire, electric

shock, and personal injury, including the following:

READ ALL INSTRUCTIONS

KEEP CHILDREN AWAY - All visitors, children and pets should stay at a

safe distance from the work area.

DRESS PROPERLY – Don’t wear loose clothing or jewelry.

Wear protective hair covering to contain long hair. They can be caught in

moving parts. Use of rubber gloves and substantial footwear is

recommended when working outdoors. Always wear long pants while

operating this string trimmer.

USE SAFETY GLASSES –Wear safety glasses with side shields or

goggles that are marked to comply with ANSI Z87.1 standard when

operating this product. Use face or dust mask if operation is dusty.

USE RIGHT APPLIANCE – Do not use appliance for any job except that

for which it is intended.

REMOVE THE BATTERY FROM THE STRING TRIMMER when not in

use or when servicing or cleaning. Do not leave unattended.

CHECK DAMAGED PARTS – Before further use of the string

trimmer, a guard or other part that is damaged should be carefully checked

to determine that it will operate properly and perform its intended function.

Check for alignment of moving parts, binding of moving parts, breakage of

parts, mounting and any other condition that may affect its operation. A

guard or other part that is damaged should be properly repaired or replaced.

Call our customer service help line at 1-800-633-1501 for assistance.

LIGHTING - Only operate trimmer in daylight or good artificial light.

DON’T OVERREACH – Keep proper footing and balance at all times.

WARNING: Do Not use the string trimmer with any type of

accessory or attachment. Such usage might be hazardous.

AVOID DANGEROUS ENVIRONMENTS – Don’t use trimmer in rain,

damp or wet locations. Do not operate trimmer in gaseous or explosive

atmospheres. Motors in these tools normally spark, and the sparks might

ignite fumes.

AVOID UNINTENTIONAL STARTING – Be sure switch trigger is in the

locked or off position before inserting battery pack. Carrying tools with

your finger on the switch trigger or inserting the battery pack into a tool

with the switch on invites accidents.

DANGER: Risk of cut. Keep hands away from lines. Keep both hands on

handles when power is on.

DANGER: Don’t use tool if switch trigger does not turn it on or off. Call

Customer Service for assistance.

DANGER: Do not dispose of the batteries in a fire. The cell may explode.

Check with local codes for possible special disposal instructions.

DANGER: Do not open or mutilate the batteries. Released

electrolyte is corrosive and may cause damage to the eyes or skin. It may

be toxic if swallowed.

WARNING: Keep guards in place and in working order.

WARNING: Keep hands and feet away from cutting area.

DO NOT ATTEMPT to remove cut material or hold material to be cut

when lines are moving. Make sure trimmer switch is off when clearing

jammed material from guard. Do not grasp the guard or lines when picking

up or holding the trimmer.

CAUTION: Lines coast after turned off.

DON’T FORCE STRING TRIMMER – It will do the job better and with less

likelihood of a risk of injury at the rate for which it was designed.

STAY ALERT – Watch what you are doing. Use common sense. Do not

operate string trimmer when you are tired or under the influence of

medications, drugs or alcohol.

STORE IDLE STRING TRIMMER INDOORS – When not in use, your

string trimmer should be stored indoors in a dry and high or locked-up

place, out of reach of children.

WARNING: Do not operate the equipment while barefoot or when wearing

sandals or similar lightweight footwear. Wear protective

footwear that will protect your feet and improve your footing on

slippery surfaces.

WARNING: Use only identical manufacturer’s recommended

replacement parts. Use of any other parts may create a hazard or

cause product damage.

WARNING: Use only the manufacturer’s recommended

replacement string in the cutting head when using a string trimmer

attachment. Do not use any other cutting attachment, for example,

metal wire, rope, or the like. To install any other brand of cutting

head to the string trimmer attachment can result in serious personal

injury.

MAINTAIN TRIMMER WITH CARE – Keep guard and handles

clean for best performance and to reduce the risk of injury. Keep

handles dry and free from oil and grease.

WARNING: California Proposition 65: This product contains

chemicals known to the State of California to cause cancer, birth

defects or other reproductive harm.

WARNING: Some dust created by this product could contain

chemicals known to the State of California to cause cancer and birth

defects or other reproductive harm. Some examples of these

chemicals are:

-chemicals in fertilizers

-compounds in insecticides, herbicides and pesticides

-arsenic and chromium from chemically treated lumber

Your risk from exposure to these chemicals varies, depending on

how often you do this type of work. To reduce your exposure to

these chemicals, wear approved safety equipment such as dust

masks that are specially designed to filter out microscopic particles.

WARNING: Cancer and Reproductive Harm -

www.P65Warnings.ca.gov.

CAUTION: Use only the following type and size battery(ies):

BL82120-1.

CAUTION: Exercise care in handling batteries in order not to short

the battery with conducting materials such as rings, bracelets, and

keys. The battery or conductor may overheat and cause burns.

When battery pack is not in use, keep it away from other metal

objects, like paper clips, coins, keys, nails, screws or other small

metal objects, that can make a connection from one terminal to

another. Shorting the battery terminals together may cause burns or

a ﬁre.

CAUTION: Disconnect the battery pack from the appliance before

making any adjustments, changing accessories, or storing

appliance. Such preventive safety measures reduce the risk of

starting the appliance accidentally.

CAUTION: Do not use a battery pack or appliance that is damaged

or modiﬁed. Damaged or modiﬁed batteries may exhibit

unpredictable behavior resulting in ﬁre, explosion or risk of injury.

CAUTION: Do not expose a battery pack or appliance to ﬁre or

excessive temperature. Exposure to ﬁre or temperature above 130°

C(265℉)may cause explosion.

CAUTION: Follow all charging instructions and do not charge the

battery pack or appliance outside of the temperature range speciﬁed

in the instructions. Charging improperly or at temperatures outside

of the speciﬁed range may damage the battery and increase the risk

of ﬁre.

CAUTION: Have servicing performed by a qualiﬁed repair person

using only identical replacement parts. This will ensure that the

safety of the product is maintained.

CAUTION: Do not modify or attempt to repair the appliance or the

battery pack (as applicable) except as indicated in the instructions

for use and care.

LST22012-1

IMPORTANT SAFETY WARNINGS

PRODUCT SPECIFICATIONS

LST22012-1

Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 V / 2.0 Ah, DC only

Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .… 8000 RPM

Cutting Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . .12 in.

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..5 Ib.

String Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.065” single line

Automatic Feed - Edging Function

LST22012-1

FEATURES

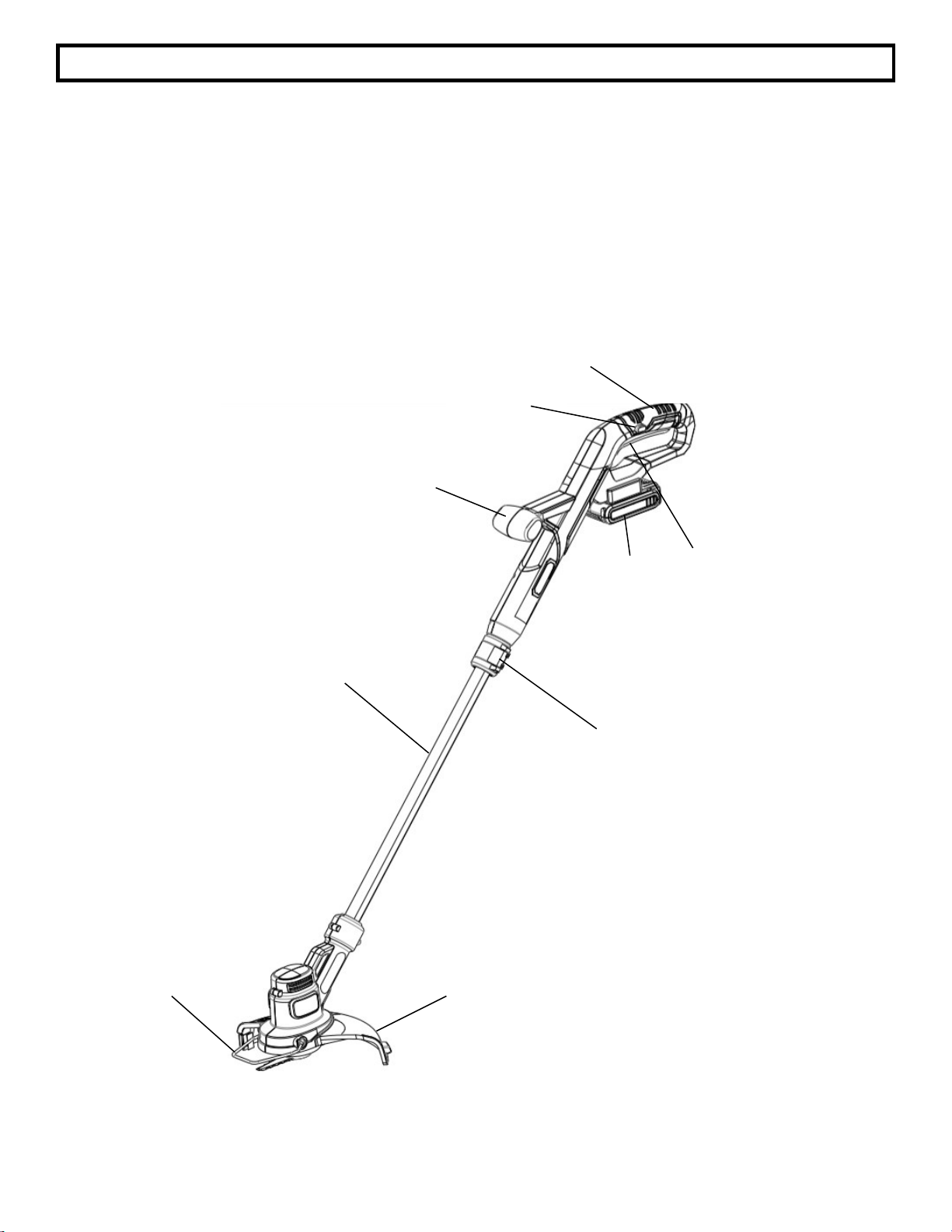

Fig. 1

REAR HANDLE

SAFETY LOCK-OFF

BUTTON

TRIGGER

SWITCH

BATTERY

PACK

TELESCOPING TUBE

FRONT HANDLE

(AUXILIARY HANDLE)

LOCKING CLAMP

WIRE GUIDE GUARD

HEIGHT ADJUSTMENT

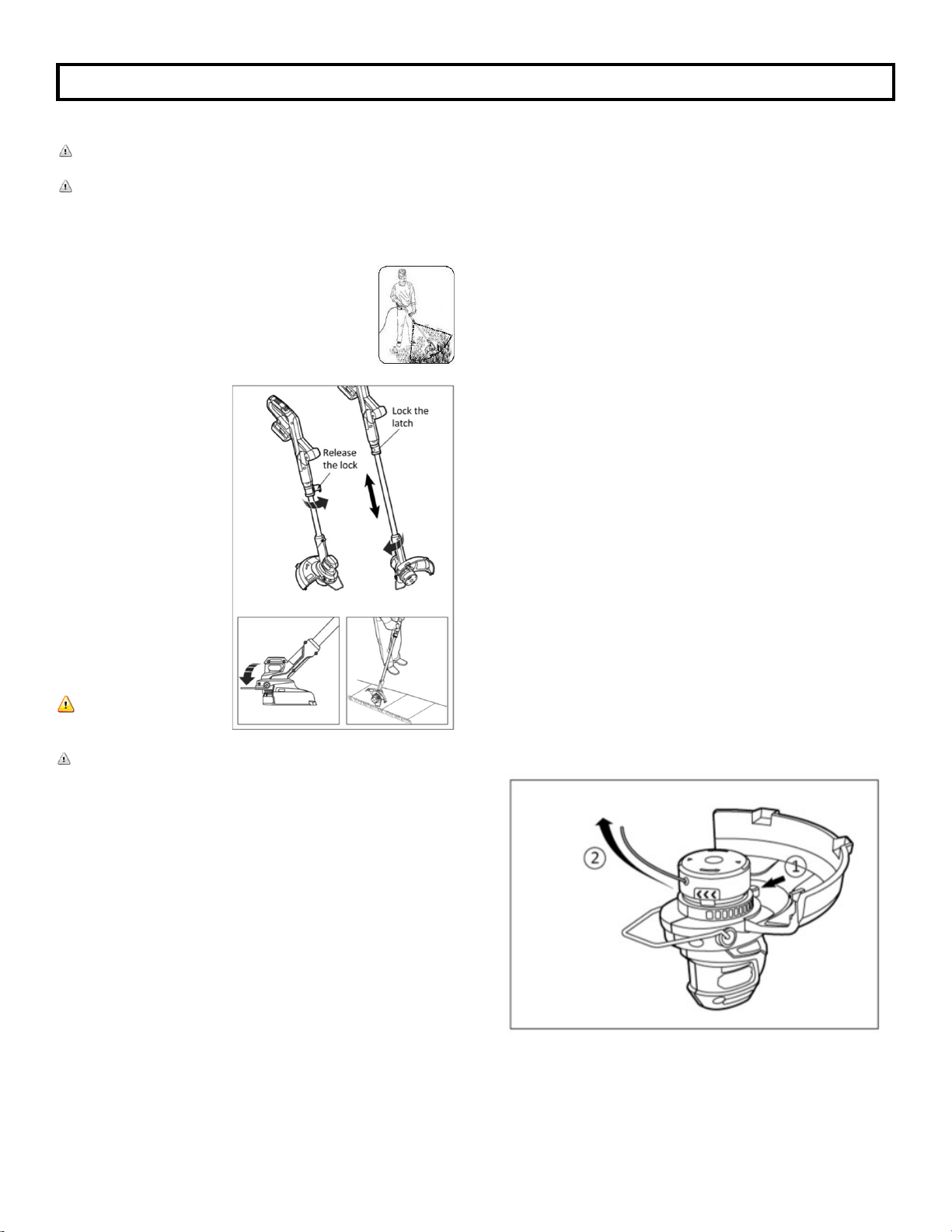

The overall height of the trimmer can be adjusted. Release the

clamp on the tube. The tubes can then be adjusted shorter or

longer. When the desired height is achieved, lock in place with the

clamp. (Fig.3)

UNPACKING

This product requires some assembly.

PACKING LIST

- String Trimmer

- Safety Guard

- Charger and Battery Pack

- Owner’s Manual

- Hardware Bag

WARNING: Do not install battery until assembly is complete.

Failure to comply could result in accidental starting and possible

serious personal injury.

WARNING: If any parts are damaged or missing do not operate

this product until the parts are replaced. Failure to heed this

warning could result in serious personal injury.

Carefully remove the product and any accessories from the box.

Make sure that all items listed in the packing list are included.

Inspect the product carefully to make sure no breakage or damage

occurred during shipping.

Do not discard the packing material until you have carefully

inspected and satisfactorily operated the product.

If any parts are damaged or missing, please call 1-800-633-1501

for assistance.

ATTACHING THE GUARD

WARNING: Do not operate the trimmer without the guard attached.

Always wear gloves when mounting or replacing the guard.

Be careful of the blade on the guard and protect your hands

from being injured by the blade.

• Turn the trimmer upside down so that you are looking down at

the spool cap.

• Turn the guard upside down and slide it fully into the housing.

Make sure that the tabs on the guard slip into holes in the

housing.

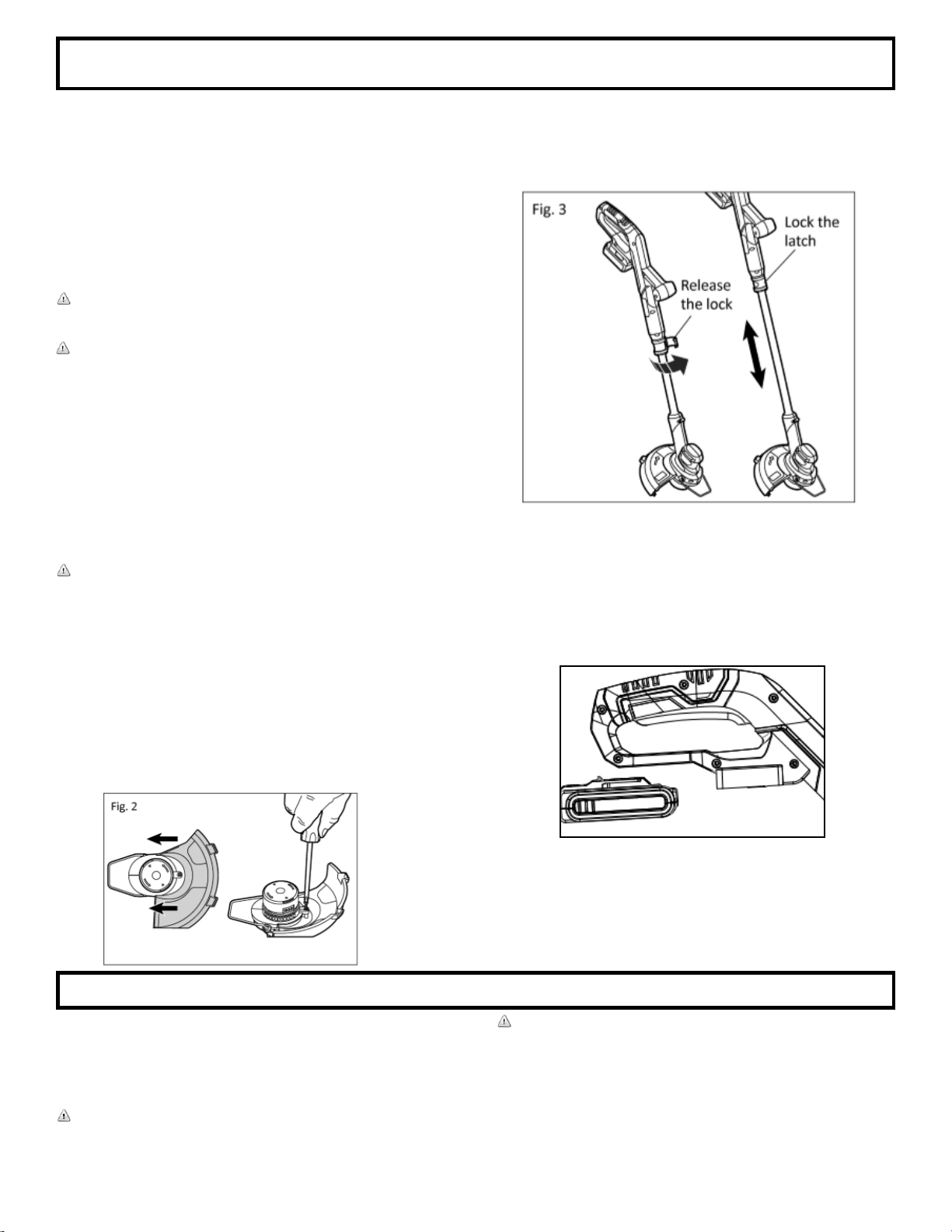

• Insert the guard screw and tighten it securely.(Fig.2)

TO TURN THE TOOL ON

Push the lock button in with your thumb and then squeeze the

trigger with your fingers. (Once the tool is running, you can release

the lock button). To turn the tool OFF, release the trigger.

Before you start the unit, make sure the trimmer is not contacting

any object.

WARNING: Stones, pieces of metal and other objects can be thrown

out at high speed by the line. The unit and guard are designed to

reduce the danger.

WARNING: To guard against injury, observe the following:

Read owner’s manual before using, save owner’s

manual.

Keep hands away from lines.

Keep hands on handles. Don’t overreach.

If you strike or become entangled with a foreign object, stop tool

immediately, check for damage and have any damage repaired

before further operation is attempted. Do not

operate with a broken hub or spool.

LST22012-1

ASSEMBLY

OPERATING

INSTALLING AND REMOVING BATTERY PACK FROM THE

UNIT

Slide the battery pack into the string trimmer (see illustration).

Ensure the battery is securely connected. To remove the battery,

depress the release button and slide battery pack out of tool.(Fig.4)

Fig.4

CAUTION: Lines coasts after turn off.

Do not use under wet conditions.

CAUTION: Inspect area to be trimmed and remove any wire, cord,

or string-like objects which could become entangled in the rotating

line or spool. Be particularly careful to avoid any wire which might be

bent outwardly into the path of the tool, such as barbs at the base of

a chain link fence.

CUTTING INSTRUCTIONS

Proper Cutting Stance

Weight should be balanced with both feet on solid

ground.

Basic Cutting Procedure

Slowly swing trimmer side-to-side as shown.

EDGING CUTTING

FUCTION

• Remove the battery

from the trimmer.

• To operate as a

maintenance edger,

release the height

adjustment shaft lock.

• Hold the metal shaft

and rotate the lower

housing 180°.

• Lock the height

adjustment shaft lock.

• Lift the plant

protection bow into

the edging position.

(Fig.5)

WARNING: Do not trim

near electrical wires or

buildings.

LST22012-1

OPERATING

WARNING: Do not allow familiarity with this type of product to make

you careless. Remember that a careless fraction of a second is

sufficient to inflict serious injury.

Do not operate a string trimmer in a tree, on a ladder, or on a

scaffold; this is extremely dangerous.

Wear non-slip gloves for maximum grip and protection.

LINE FEEDING

Your trimmer uses .065” (1.65mm) diameter nylon line to cut grass

and weeds quickly and easily. In time, the tip of the nylon line will

become worn and the auto feed mechanism will automatically feed

and trim a fresh length of line. The cutting line will wear faster if the

cutting is done along sidewalks or other abrasive surfaces or heavier

weeds are being cut. The line will extend approximately ¼ in. with

each stop and start of the switch trigger until the line reaches the

length of the grass deflector blade. Do not bump unit on ground in

attempt to feed line or for any other purpose.

Automatic feed

With each switching off and on, the line is adjusted out of the spool

hub.

NOTE: Frequently switching on and off without reason results in

increased line wear.

NOTE: If the cutting line becomes too short during operation due to

wear, switch the device off and then back on again to extend the

working length of the cutting line automatically.

Manual feed

If your trimmer line hits sharp or abrasive objects, such as stones,

metal pieces or concrete the trimmer line can be cut too short to

continue trimming. In this case, you can manually extend the line

( Fig.6):

1. REMOVE THE BATTERY PACK.

2. Press the line-feeding button with one hand while pulling the line

out with the other.

3. Press the button repeatedly to release line to the proper length.

Each press of the button will release approximately 1/4 inch of

line. (Note: Release only enough line to extend just beyond the

blade. If too much line is released, the blade will be unable to cut

it to the correct working length and it may become tangled on the

rotating shaft.)

4. Install the battery pack.

5. Restart the trimmer and return to normal operation.

Fig.6

Pull

Line-Feeding

Button

Fig.5

LST22012-1

OPERATING

REWINDING SPOOL FROM BULK LINE

(USE ONLY .065” DIAMETER LINE)

Bulk line for your trimmer/edger is available at extra cost

from your local dealer. To install bulk line, follow these steps:

• Turn off the trimmer and remove the battery.

• Press the release tabs on the line spool cover as shown

in Fig. 7, and remove the cover by pulling it straight off.

Remove the spool from the tool and remove and discard

all line on the spool.

• Insert one end of the bulk line into the hole in the spool.

• Hold the line in the hole and pull the rest of the line

through the slot in the spool.

• Snugly and evenly wind the bulk line onto the spool in

the direction of the arrow until it is nearly full.

• Insert the line end through the eyelet in the spool hub.

Pull the line through the hole to maintain tension while

placing the spool down into the hub with the notched

side exposed.

• Press the spool down GENTLY and rotate it until you

feel it drop into place. (When in place, the spool will turn

a few degrees left and right freely.)

• Snap the spool cover back on, insert the battery and

turn the tool on. In a few seconds you’ll hear the nylon

line being cut automatically to the proper length.

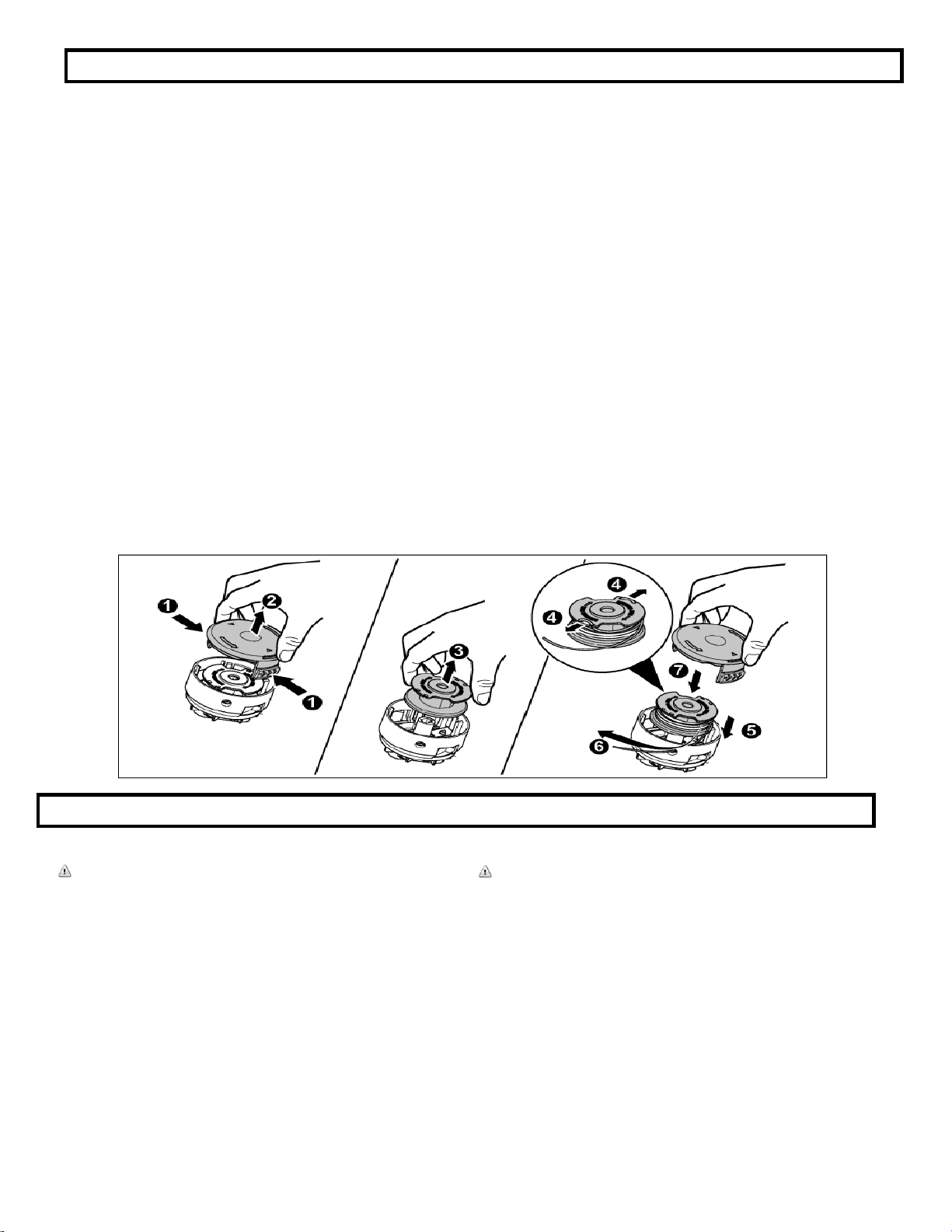

REPLACING SPOOL / CLEARING JAMS AND TANGLED

LINES

From time to time, especially when cutting thick or stocky

weeds, the line feeding hub may become clogged with sap

or other material and the line will become jammed as a

result. To clear the jam, follow these steps.

• Turn off the trimmer and remove the battery.

• Press the release tabs on the line spool retainer① and

remove the cover② by pulling it straight off.

• Remove the line spool③. If necessary, remove any

dirt.

• Extend the line jammed or tangled out of the spool

fitting④.

• Insert the spool in the line receptacle⑤.

• Thread the end of the line through the eyelet of the

spool retainer⑥.

• Firmly press both tabs of the spool cover together at

the same time, and push the cap onto the spool until it

engages⑦.

CAUTION: Do not at any time let brake fluids, gasoline,

petroleum based products, penetrating oils, etc., come in

contact with plastic parts. They contain chemicals that can

damage, weaken or destroy plastic.

Make sure the battery is detached from the unit, then use

only mild soap and a damp cloth to clean the tool. Never let

any liquid get inside the tool; never immerse any part of the

tool into a liquid.

Fertilizers and other garden chemicals contain agents which

greatly accelerate the corrosion of metals Do not store the

tool on or adjacent to fertilizers or chemicals.

IMPORTANT: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment should be performed by

a qualified individual using only identical replacement parts.

If you drop the trimmer, carefully inspect it for damage. If the

guard is bent or cracked, handles broken or if you see any

other condition that may affect the trimmer’s operation, it must

be repaired before putting it back into use. Call our customer

service help line at 1-800-633-1501 for assistance.

MAINTENANCE

Fig.7

Charge the battery pack only with Yardworks 20V Chargers.

Allow at least 80 minutes of charge time before initial use of

the string trimmer.

Make sure the power supply is normal household voltage,

120volts, 60Hz, AC only.

The battery charger should be operated in temperatures

between 39 and 104 degrees F.

The battery should be charged in a cool, dry place.

Two to three initial charging/discharging cycles may be re-

quired to achieve maximum run time/capacity.

Do not attempt to open the charger or the unit. There are no

customer serviceable parts inside. Call the customer service

help line at 1-800-633-1501 for assistance.

DO NOT incinerate battery packs even if they are severely

damaged or completely worn out. They can explode in a fire

causing injury.

Use the battery charger indoors only.

Disconnect charger from the power supply when not in use to

prevent damage to the charger during a power surge.

When fully charged, the battery can be safety stored in

temperatures down to –4° F for a period of up to

four weeks, before requiring charging.

Fully charge battery pack every 90 days.

If over a period of time the battery pack quickly runs down

after a full 80 minutes charging period, a replacement battery

pack is needed.

To prevent permanent damage to the battery, never store in a

fully discharged condition.

WINTER STORAGE—Fully recharge before storage and then

again every 90 days.

Since the battery will not develop a memory, it does not have

to be fully discharged before recharging.

A small leakage of liquid from the battery cells may occur

under extreme usage, charging or temperature conditions.

This does not indicate a failure. However, if the outer seal is

broken and this leakage gets on your skin.

a. Wash quickly with soap and water.

b. Neutralize with a mild acid such as lemon juice or

vinegar.

c. If the battery liquid gets in your eyes, flush them with

clean water for a minimum of 10 minutes and seek

immediate medical attention.

BATTERY DISPOSAL

Remove the battery pack from the string trimmer. Cover the terminals with heavy duty adhesive tape. Do not attempt to destroy or disassemble

battery pack or remove any components. This product contains lithium-ion batteries which must be recycled or disposed of properly. Local, state

or federal laws may prohibit disposal of these batteries in ordinary trash.

The RBRC seal on the li-ion battery pack indicates that the costs to recycle the battery pack at the end of its useful life has already

been paid by The Great States Corporation / American Lawn Mower Company. It is illegal to place spent li-ion batteries in the local

municipal solid waste or in the trash. RBRC in cooperation with The Great States Corporation American Lawn Mower Company

has provided an environmentally friendly and easy way to recycle spent li-ion batteries. Just contact your local recycling center or call

1-800-8BATTERY for information on where to drop off the spent battery.

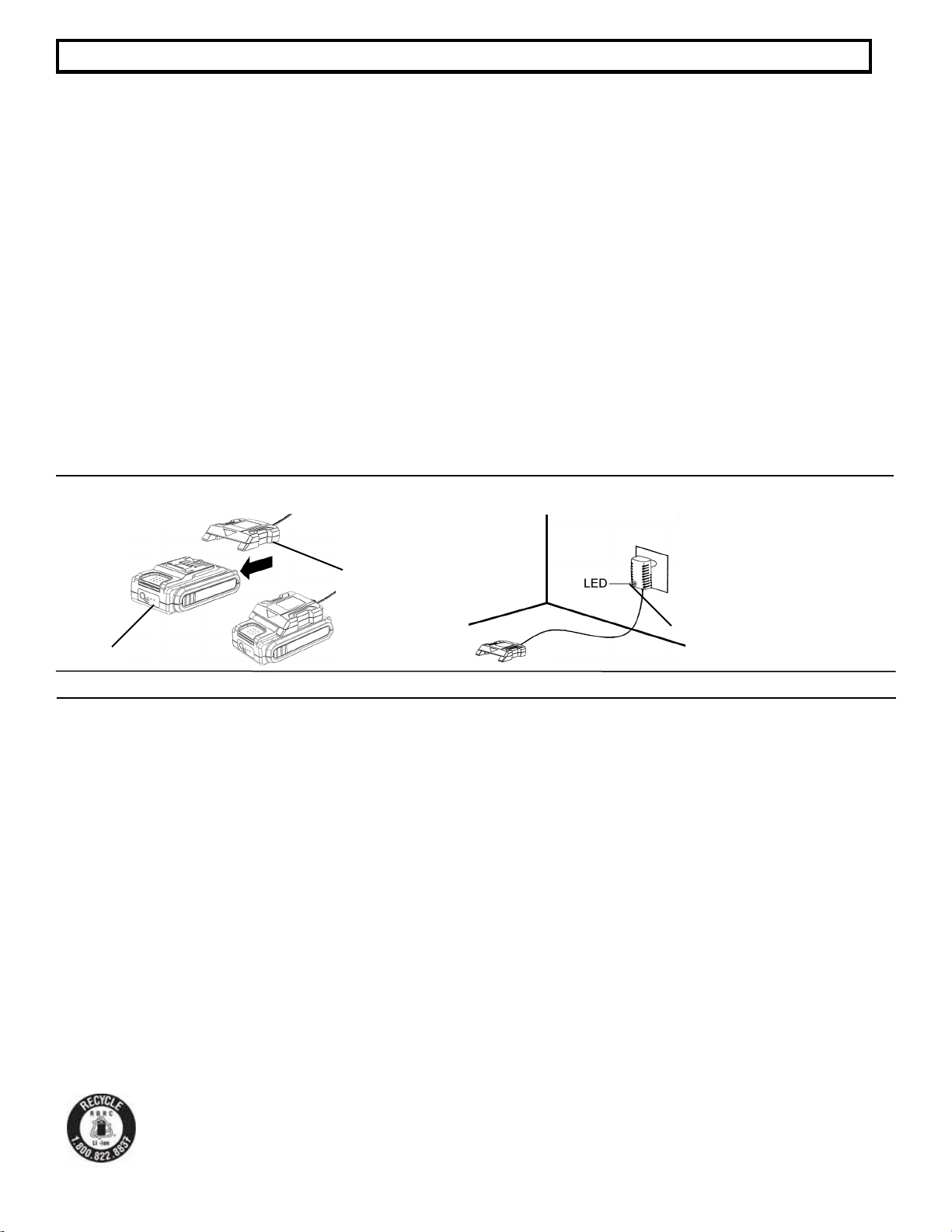

CHARGING THE BATTERY PACK

LST22012-1

Battery Pack

Charger

Constant Red = Battery is charging

Constant Green = Battery is fully charged

TROUBLESHOOTING

Problem Possible Couse Possible Solution

-Unit does not Run -Battery not making contact -Check battery is fully inserted

-Trigger switch not operational -Check that lock off button is fully forward prior to moving trigger

-Battery not installed properly -Check battery installation

-Battery not charged -Check battery charging requirements

-Line won't feed -Line tangled in spool -Unwrap 24" of line and re-wind

-Line fails to cut off -Line cutter in guard is damaged or missing -Replace guard

-Battery will not charge -Battery not inserted into charger -Insert battery into charger until red LED appears

-Charger not plugged in -Plug charger into a working outlet

-Check current at receptacle by plugging in a lamp or other appliance

-Check to see if receptacle is connected to a light switch which turns

power off when you turn out the lights

-Surrounding air temperature too hot or too cold -Move charger and tool to a surrounding air temperature of about 39

degree F (4 degree C) or below 104 degree F (40 degree C)

TO CHARGE - SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS

CALL US FIRST !!

Call us first with questions about operating or maintaining your string trimmer

at 1.800.633.1501 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time,

or get assistance on www.americanlawnmower.com.

LST22012-1

PARTS AND SERVICE

Always mention the model number when ordering kits/items for this tool.

No. Kit/Item Number Description QTY

1 LST22-PGK-2 Protective Guard kit 1

2 RS91120-1 Spool kit 1

3 LST22-SRK-1

Spool & Cover

4 BL82120-1 20V battery 1

5 CHL82000-1 20V charger 1

For parts or service, please call 1-800-633-1501 or visit us online at

WWW.AMERICANLAWNMOWER.COM. Be sure to provide all relevant information when you call or visit.

REPAIR PARTS (KITS/ ITEMS)

The model/serial number of this tool is found on a plate or label attached to the housing. Please record the

serial number in the space provided below.

MODEL NUMBER LST22012-1 __

SERIAL NUMBER_______________

NOTES

____________________________________________________________________

LST22012-1

In a continued commitment to improve quality, the Manufacturer reserves the right

to make component changes or design changes when necessary.

Rev. 10/23/2020

American Lawn Mower Company

The Great States Corporation

7444 Shadeland Station Way

Indianapolis, IN 46256 USA

Phone 1-800-633-1501

www.americanlawnmower.com

OWNER’S MANUAL

12-Inch 20V Lithium-ion String Trimmer

With (1) 20V 2.0Ah Lithium-ion Battery

LST22012-1

YARDWORKS WARRANTY POLICY

• 2 Year limited warranty on all Yardworks 20V lithium ion power tools from date of purchase when used for

personal, household, or family use.

• 2 Year limited warranty on all Yardworks 20V lithium ion batteries and chargers from date of purchase when used

for personal, household, or family use.

The Great States Corp. (GSC) warrants to the original owner that this Yardworks product and service part is free from

defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty

period as stated above.

• Warranty voided if used for commercial or industrial purposes or any other improper use as determined by GSC.

• Warranty does not include repairs necessary due to operator’s abuse or negligence (including overloading the product

beyond capacity or immersion in water), or the failure to assemble, operate, maintain or store the product according to

the instructions in the owner’s manual.

• This warranty does not cover

 Wear items, including but not limited to - drive belts & gears, tines, cutting blades, mower blades, saw chains,

mulching blades, blower fans, spool covers, trimmer line, blower and vacuum tubes, guide bars, high pressure

hoses, wheels, handles, augers, worn bags, power cables, and other items subject to wear over time.

 Wear on batteries, including but not limited to – drops, wear and breakage on charger, exposure to extreme

temperature swings (hot or cold), battery left on charger too long, battery left uncharged for too long, and misuse

or abuse of the battery.

• This warranty does not cover damage caused by cold, heat, rain, excessive humidity or other environmental extremes.

• This warranty does not cover normal deterioration of the exterior finish or normal wear and tear on the products

including, but not limited to scratches, cracks, dents, or damage caused by outside chemicals.

• This warranty is not transferable and only applies to new products sold directly from an authorized retailer. This

warranty does not apply to any product, new or used, purchased through unauthorized third-party channels. For

information on authorized dealers, contact our customer support hotline at 1-800-633-1501 (Mon-Fri 8am-5pm Est)

• Any incidental, indirect or consequential loss, damage, or expense that may result from any defect or malfunction of

the products is not covered by the warranty.

• The warranty does not include installation, assembly or normal adjustments explained in the owner’s manual. The

expense of delivering the product to the vendor and the expense of returning the product or replacement parts to the

owner is not covered by the warranty.

Additional Warranty Limitations

Some states do not allow the exclusion or limitation on how long an implied warranty lasts, so the above limitation may

not apply to you. Products sold damaged or incomplete, sold ―as is, or sold as reconditioned are not covered under the

warranty.

Damage or liability caused by shipping, improper handling, improper assembly, incorrect voltage, improper wiring,

improper maintenance, improper modification or the use of accessories and/or attachments not specifically recommended

is not covered by this warranty.

Proof of purchase, original dated sales receipt, must accompany all warranty claims.

For claims go to americanlawnmower.com or call our customer support hotline from 8am-5pm EST,

Mon-Fri at 1-800-633-1501

Yardworks LST22012-1 12-Inch 20V Lithium-ion String Trimmer

Product's Documents

OWNER’S MANUAL

Specifications

Yardworks LST22012-1 Questions and Answers
