Craftsman 917279941 Lawn Tractor User Manual

IMPORTANT MANUAL Do Not Throw Away

OWNER'S MANUAL

MODEL:

PR20H42STC

LAWN TRACTOR

WARNING:

Read this Owner's Manual and follow

all Warnings and Safety Instructions.

Failure to do so can result in serious

injury.

AL WAYS WEAR EYE PROTECTION DURING OPERA TION

178112 1.12.01 TR

Printed in U.S.A.

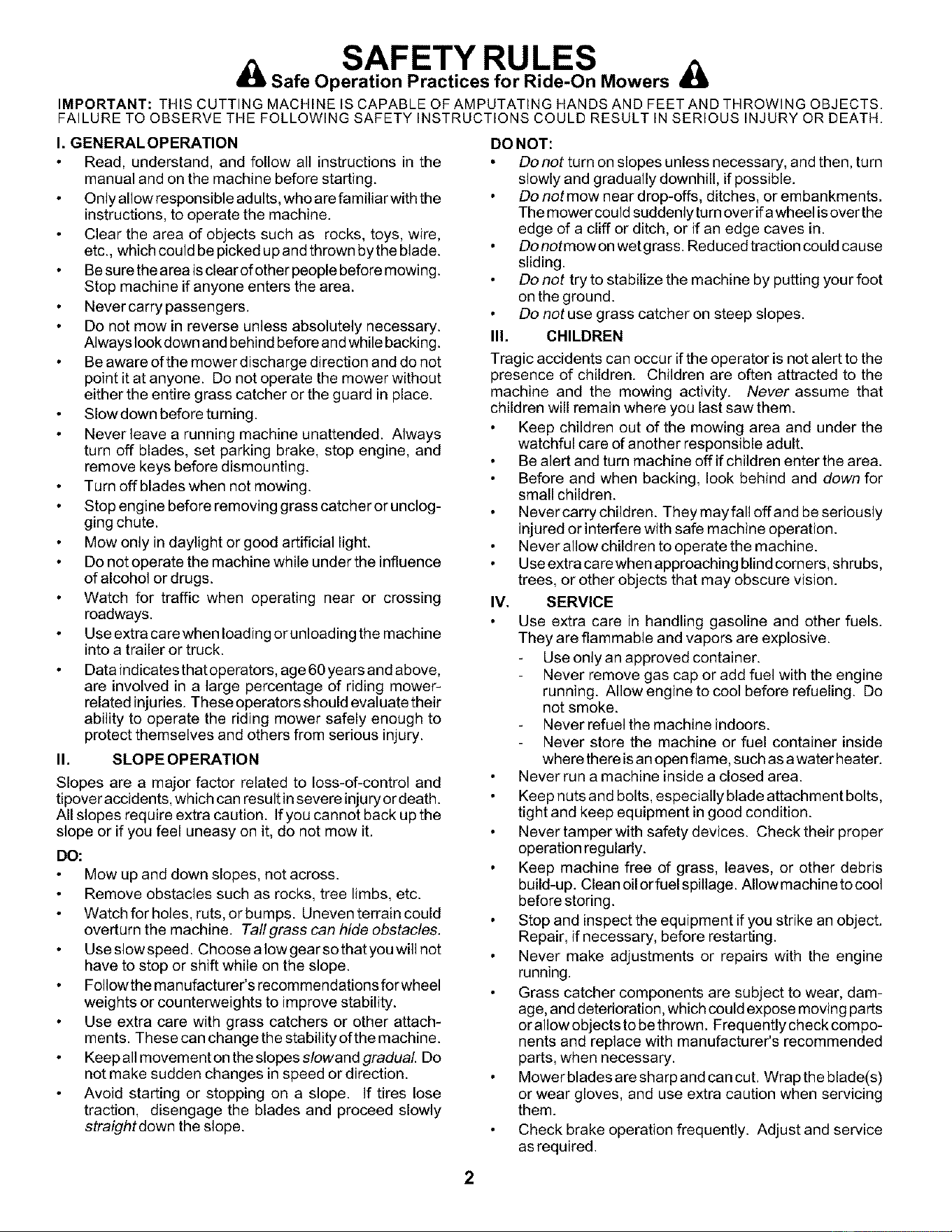

SAFETY RULES

& Safe Operation Practices for Ride-On Mowers &

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

Read, understand, and follow all instructions in the

manual and on the machine before starting.

Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

Clear the area of objects such as rocks, toys, wire,

etc., which could be picked up and thrown bythe blade.

Be sure the area is clear ofother people before mowing.

Stop machine ifanyone enters the area.

Never carry passengers.

Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while backing.

Be aware of the mower discharge direction and do not

point it at anyone. Do not operate the mower without

either the entire grass catcher or the guard in place.

Slow down before tu ruing.

Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

Turn offblades when not mowing.

Stop engine before removing grass catcher or unclog-

ging chute.

Mow only indaylight or good artificial light.

Do not operate the machine while under the influence

of alcohol or drugs.

Watch for traffic when operating near or crossing

roadways.

Use extra care when loading or unloading the machine

into a trailer or truck.

Data indicatesthat operators, age 60 years and above,

are involved in a large percentage of riding mower-

related injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

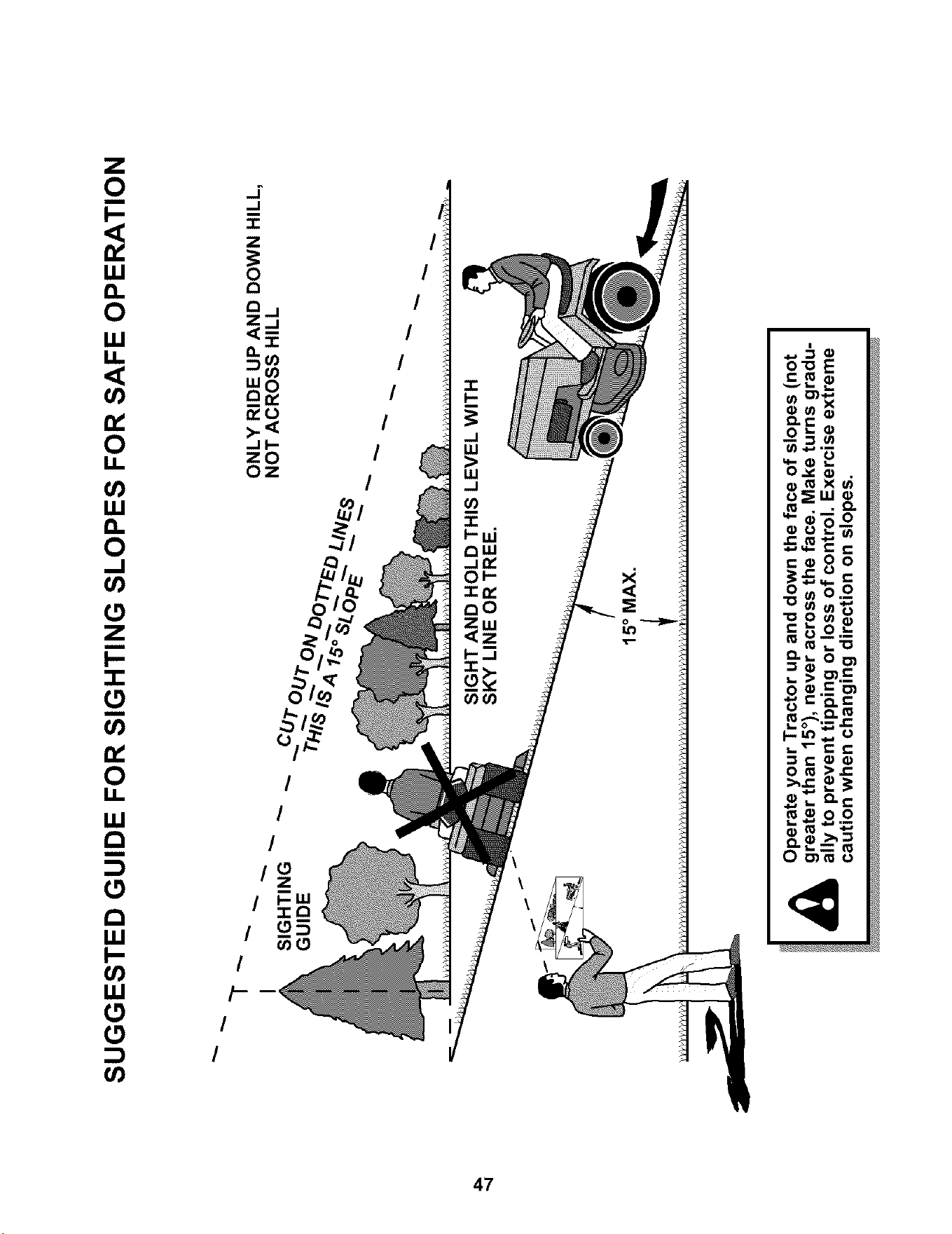

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injuryor death.

All slopes require extra caution. If you cannot back up the

slope or if you feel uneasy on it, do not mow it.

DO:

Mow up and down slopes, not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose alow gear so that you will not

have to stop or shift while on the slope.

Followthe manufacturer's recommendations for wheel

weights or counterweights to improve stability.

Use extra care with grass catchers or other attach-

ments. These can change the stability of the machine.

Keepall movement on the slopes slowand gradual Do

not make sudden changes inspeed or direction.

Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly

straightdown the slope.

DO NOT:

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Do notmow near drop-offs, ditches, or embankments.

The mower could suddenlyturn overifawheel isover the

edge of a cliff or ditch, or if an edge caves in.

Do notmowon wet grass. Reduced traction could cause

sliding.

Do not try to stabilize the machine by putting your foot

on the ground.

Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

Keep children out of the mowing area and under the

watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for

small children.

Never carry children. They may fall offand be seriously

injured or interfere with safe machine operation.

Never allow children to operate the machine.

Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV. SERVICE

Use extra care in handling gasoline and other fuels.

They are flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel container inside

where there is an open flame, such as awater heater.

Never run a machine inside a closed area.

Keep nuts and bolts, especially blade attachment bolts,

tight and keep equipment in good condition.

Never tamper with safety devices. Check their proper

operation regularly.

Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage. Allow machine to cool

before storing.

Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

Never make adjustments or repairs with the engine

running.

Grass catcher components are subject to wear, dam-

age, and deterioration, which could expose moving parts

or allow objects to be thrown. Frequently check compo-

nents and replace with manufacturer's recommended

parts, when necessary.

Mower blades are sharp and can cut. Wrap the blade(s)

or wear gloves, and use extra caution when servicing

them.

Check brake operation frequently. Adjust and service

as required.

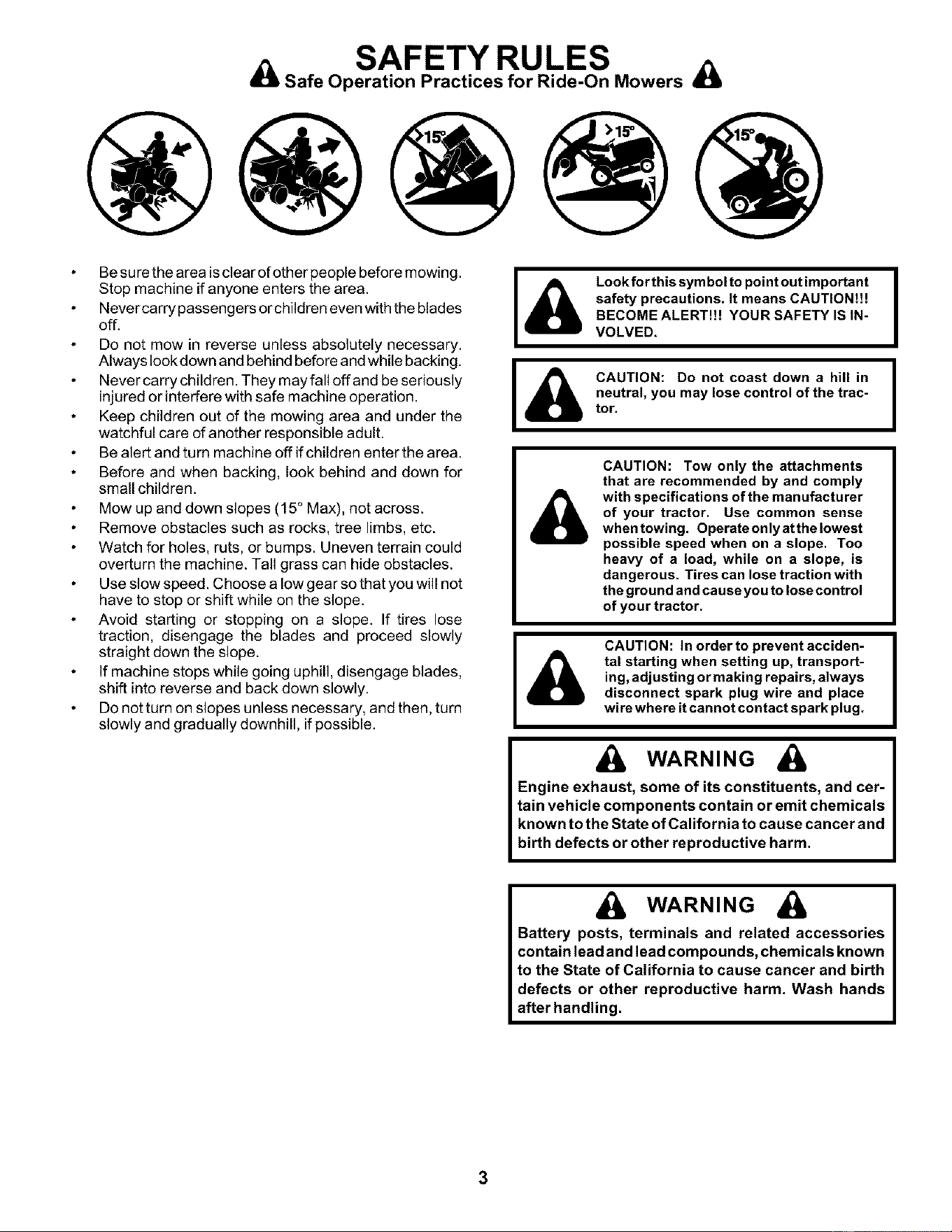

SAFETY RULES

A :Safe Operation Practices for Ride-On Mowers A

Be sure the area is clear of other people before mowing.

Stop machine if anyone enters the area.

Nevercarry passengers or children even with the blades

off.

Do not mow in reverse unless absolutely necessary.

Always Iookdown and behind before and while backing.

Nevercarry children. They may fall off and be seriously

injured or interfere with safe machine operation.

Keep children out of the mowing area and under the

watchful care of another responsible adult.

Be alert and turn machine off if children enter the area.

Before and when backing, look behind and down for

small children.

Mow up and down slopes (15 ° Max), not across.

Remove obstacles such as rocks, tree limbs, etc.

Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Tall grass can hide obstacles.

Use slow speed. Choose a low gear so that you will not

have to stop or shift while on the slope.

Avoid starting or stopping on a slope. If tires lose

traction, disengage the blades and proceed slowly

straight down the slope.

If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

Look for this symbol to point out important

safety precautions. It means CAUTION!I!

BECOME ALERTH! YOUR SAFETY IS IN-

VOLVED.

CAUTION: Do not coast down a hill in

neutral, you may lose control of the trac-

tor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer

of your tractor. Use common sense

when towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

CAUTION: In order to prevent acciden-

tal starting when setting up, transport-

ing, adjusting ormaking repairs, always

disconnect spark plug wire and place

wire where it cannot contact spark plug.

A WARNING A

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

A WARNING A

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

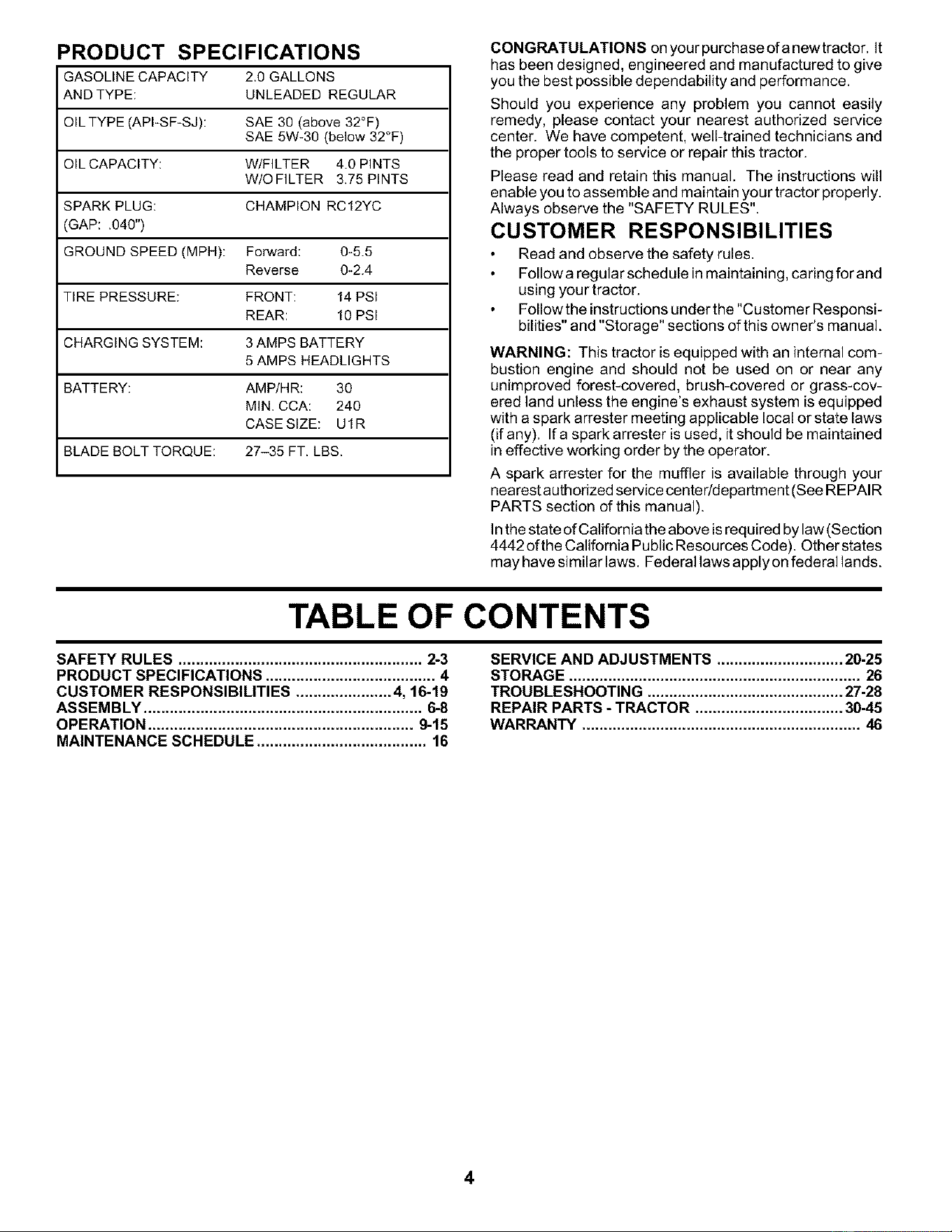

PRODUCT SPECIFICATIONS

GASOLINECAPACITY 2.0 GALLONS

AND TYPE: UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: W/FILTER 4.0 PINTS

W/OFILTER 3.75 PINTS

SPARK PLUG: CHAMPION RC12YC

GAP: .040")

GROUND SPEED (MPH): Forward: 0-5.5

Reverse 0-2.4

TIRE PRESSURE: FRONT: 14PSI

REAR: 10PSI

CHARGING SYSTEM: 3AMPS BATTERY

5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN. CCA: 240

CASESIZE: U1R

BLADE BOLT TORQUE: 27-35 FT. LBS.

CONGRATULATIONS on your purchase of a new tractor. It

has been designed, engineered and manufactured to give

you the best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center. We have competent, well-trained technicians and

the proper tools to service or repair this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and

using your tractor.

Follow the instructions under the "Customer Responsi-

bilities" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

with a spark arrester meeting applicable local or state laws

(if any). Ifa spark arrester is used, it should be maintained

in effective working order by the operator.

A spark arrester for the muffler is available through your

nearest authorized service center/department (See REPAIR

PARTS section of this manual).

In the state of California the above is required by law (Section

4442 of the California Public Resources Code). Other states

may have similar laws. Federal laws apply on federal lands.

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ...................... 4, 16-19

ASSEMBLY ................................................................ 6-8

OPERATION ............................................................. 9-15

MAINTENANCE SCHEDULE ....................................... 16

SERVICE AND ADJUSTMENTS ............................. 20-25

STORAGE ................................................................... 26

TROUBLESHOOTING ............................................. 27-28

REPAIR PARTS - TRACTOR .................................. 3045

WARRANTY ................................................................ 46

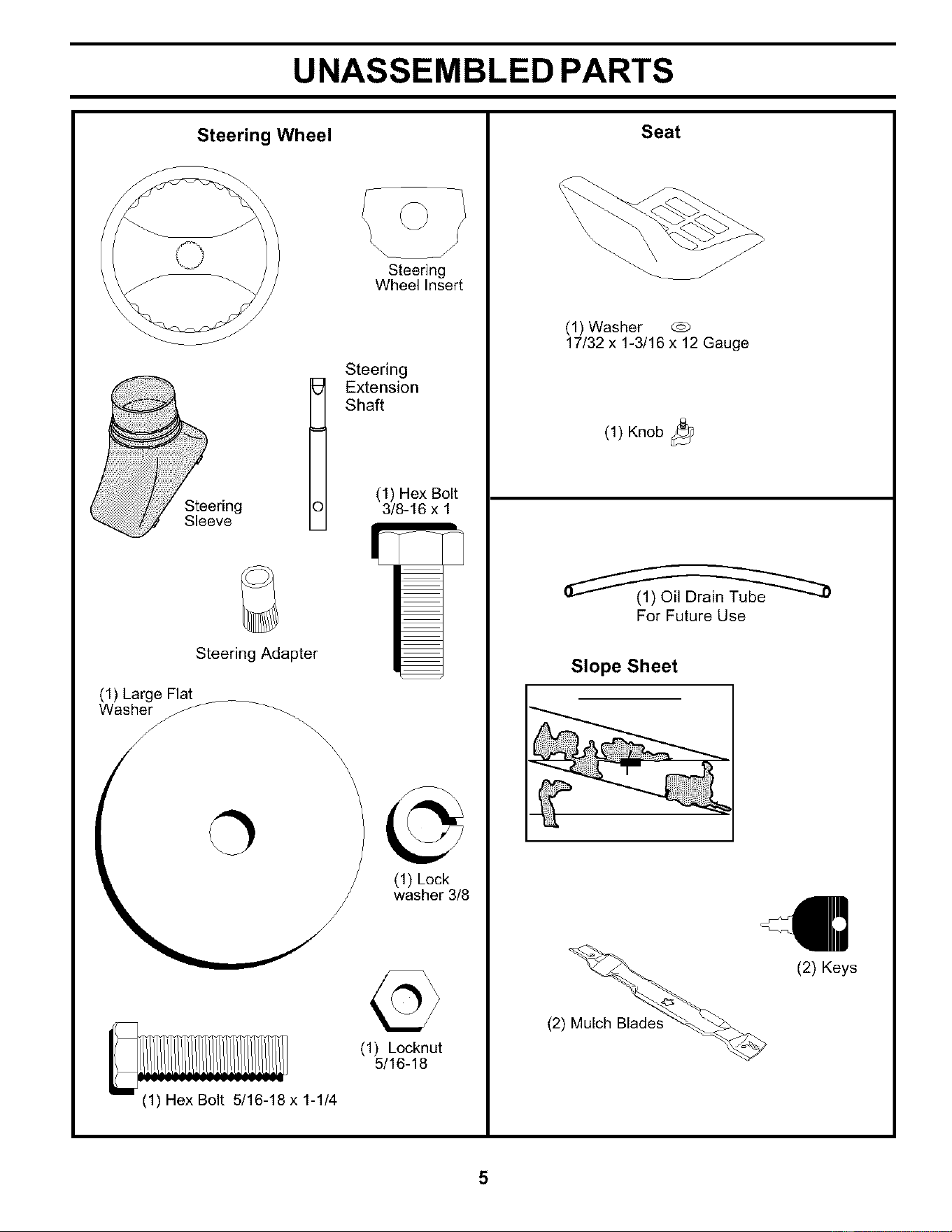

UNASSEMBLED PARTS

Steering Wheel

Steering

Wheel Insert

Sleeve

Steering

Extension

Shaft

(1) Hex Bolt

3/8-16 x 1

Steering Adapter

(1) Large Flat

Washer f__-.

(1) Lock

washer 3/8

(1) Locknat

5/16-18

(1) Hex Bolt 5/16-18 x 1-1/4

Seat

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob

For Future Use

Slope Sheet

(2) Keys

ASSEMBLY

You rnew tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To

ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

Utility knife Pliers

(1) 9/16" wrenches Tire pressure gauge

(2) 1/2" wrenches

When right or left hand is mentioned inthis manual, it means

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM CAR-

TON

UNPACK CARTON

Remove all accessible loose parts and parts cartons

from carton.

Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

Check for any additional loose parts or cartons and

remove.

BEFORE REMOVING TRACTOR FROM

SKID

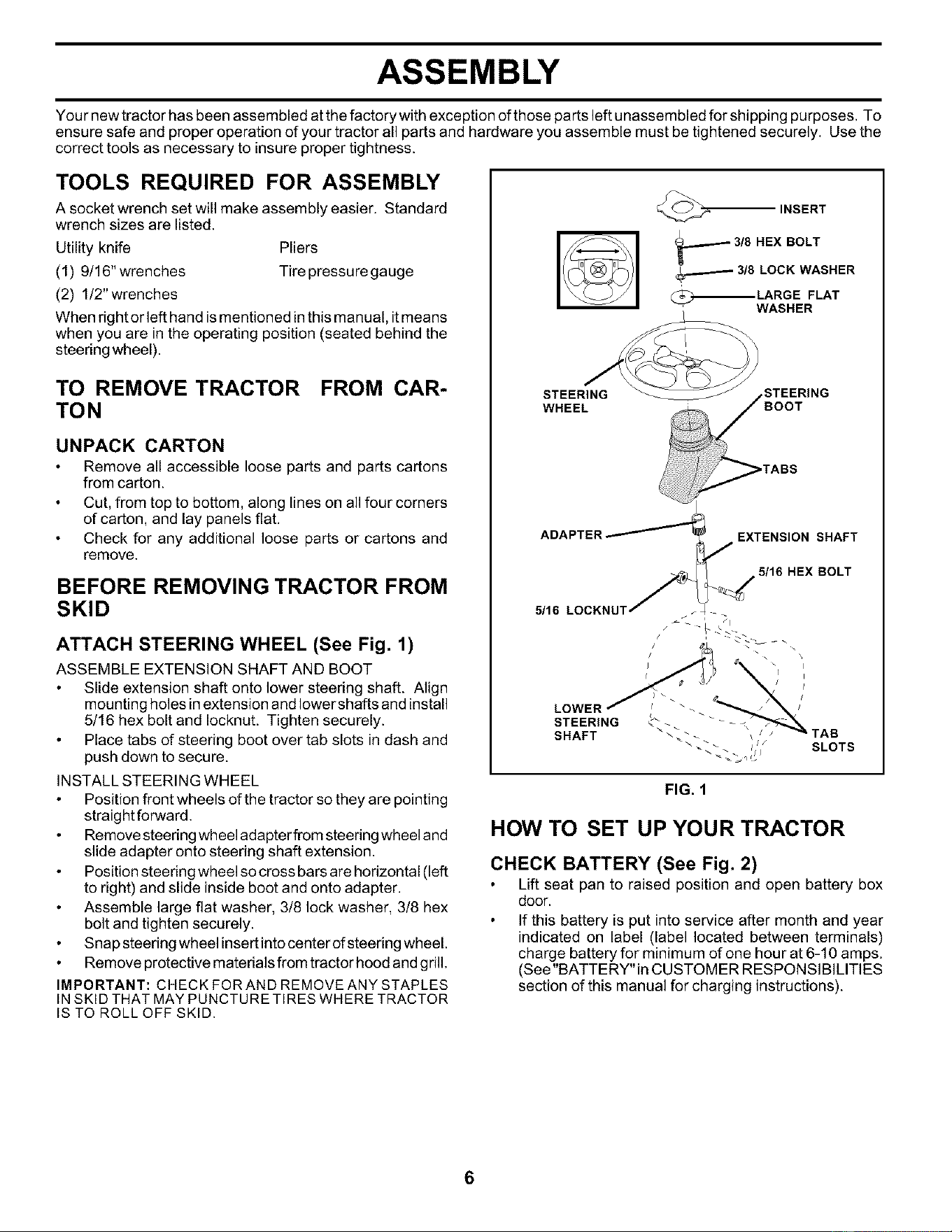

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and Iowershafts and install

5/16 hex bolt and Iocknut. Tighten securely.

Place tabs of steering boot over tab slots in dash and

push down to secure.

INSTALL STEERING WHEEL

Position front wheels of the tractor so they are pointing

straightforward.

Remove steering wheel adapter from steering wheel and

slide adapter onto steering shaft extension.

Position steering wheel so cross bars are horizontal (left

to right) and slide inside boot and onto adapter.

Assemble large flat washer, 3/8 lock washer, 3/8 hex

bolt and tighten securely.

Snap steering wheel insert into center of steering wheel.

Remove protective materials from tractor hood and gd]l.

IMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKID THAT MAY PUNCTURE TIRES WHERE TRACTOR

IS TO ROLL OFF SKID.

INSERT

...--.--3/8 HEX BOLT

_......._3/8 LOCK WASHER

LARGE FLAT

WASHER

STEERING

WHEEL

5/16

EXTENSION SHAFT

,5/16 HEX BOLT

SLOTS

FIG. 1

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY (See Fig. 2)

Lift seat pan to raised position and open battery box

door.

If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in CUSTOMER RESPONSIBILITIES

section of this manual for charging instructions).

ASSEMBLY

SEAT

BOX

LABEL

FIG. 2

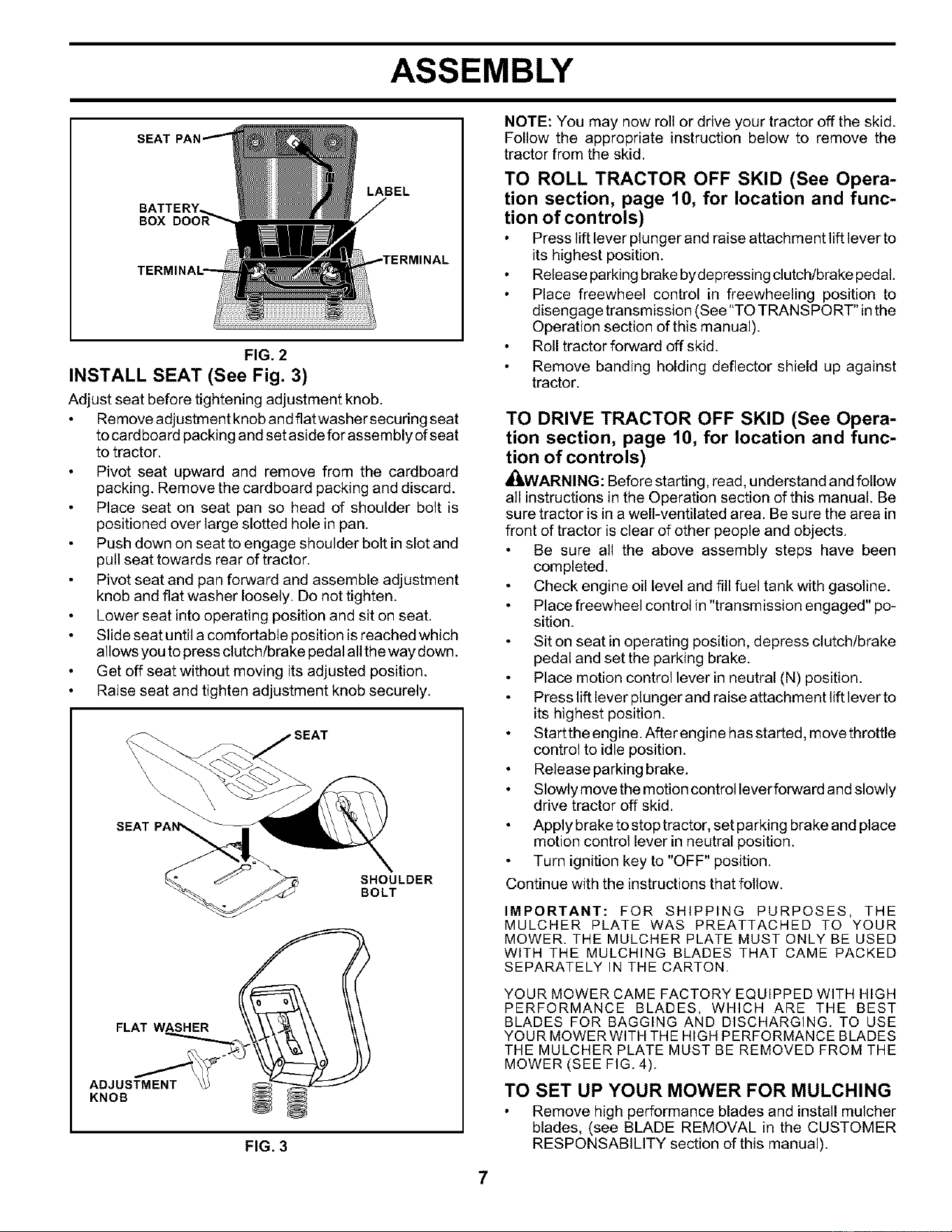

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment knob.

Remove adjustment knob andflat washersecuring seat

to card board packing and set aside for assembly of seat

to tractor.

Pivot seat upward and remove from the cardboard

packing. Remove the cardboard packing and discard.

Place seat on seat pan so head of shoulder bolt is

positioned over large slotted hole in pan.

Push down on seat to engage shoulder bolt inslot and

pull seat towards rear of tractor.

Pivot seat and pan forward and assemble adjustment

knob and flat washer loosely. Do not tighten.

Lower seat into operating position and sit on seat.

Slide seat until a comfortable position isreached which

allows you to press clutch/brake pedal all the way down.

Get off seat without moving itsadjusted position.

Raise seat and tighten adjustment knob securely.

SHOULDER

BOLT

FLAT WASHER

ADJUSTMENT

KNOB

FIG. 3

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

TO ROLL TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and func-

tion of controls)

Press lift lever plunger and raise attachment lift lever to

its highest position.

Release parking brake by depressing clutch/brake pedal.

Place freewheel control in freewheeling position to

disengage transmission (See "TO TRANSPORT" in the

Operation section of this manual).

Roll tractor forward off skid.

Remove banding holding deflector shield up against

tractor.

TO DRIVE TRACTOR OFF SKID (See Opera-

tion section, page 10, for location and func-

tion of controls)

_kWARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

Be sure all the above assembly steps have been

completed.

Check engine oil level and fill fuel tank with gasoline.

Place freewheel control in "transmission engaged" po-

sition.

Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

Place motion control lever in neutral (N) position.

Press lift lever plunger and raise attachment lift lever to

its highest position.

Startthe engine. Afterengine has started, move throttle

control to idle position.

Release parking brake.

Slowly move the motion control leverforward and slowly

drive tractor off skid.

Apply brake to stop tractor, set parking brake and place

motion control lever in neutral position.

Turn ignition key to "OFF" position.

Continue with the instructions that follow.

IMPORTANT: FOR SHIPPING PURPOSES, THE

MULCHER PLATE WAS PREATTACHED TO YOUR

MOWER. THE MULCHER PLATE MUST ONLY BE USED

WITH THE MULCHING BLADES THAT CAME PACKED

SEPARATELY IN THE CARTON.

YOUR MOWER CAME FACTORY EQUIPPED WITH HIGH

PERFORMANCE BLADES, WHICH ARE THE BEST

BLADES FOR BAGGING AND DISCHARGING. TO USE

YOUR MOWER WITH THE HIGH PERFORMANCE BLADES

THE MULCHER PLATE MUST BE REMOVED FROM THE

MOWER (SEE FIG. 4).

TO SET UP YOUR MOWER FOR MULCHING

Remove high performance blades and install mulcher

blades, (see BLADE REMOVAL in the CUSTOMER

RESPONSABILITY section of this manual).

ASSEMBLY

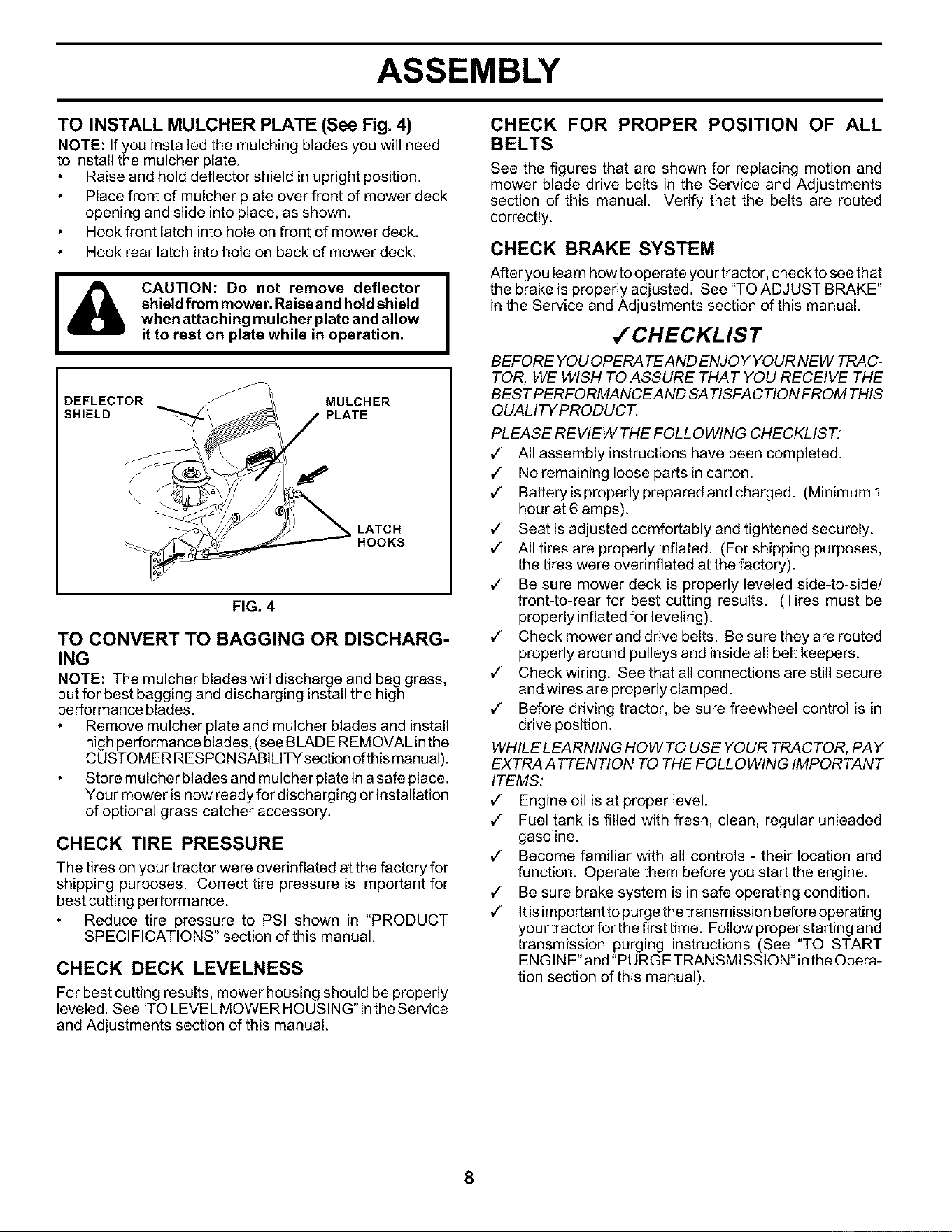

TO INSTALL MULCHER PLATE (See Fig. 4)

NOTE: If you installed the mulching blades you will need

to install the mulcher plate.

Raise and hold deflector shield in upright position.

Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

Hook front latch into hole on front of mower deck.

Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove deflector I

shield from mower. Raise and hold shield

when attaching mulcher plate and allow

it to rest on plate while in operation.

DEFLECTOR

SHIELD

MULCHER

LATCH

HOOKS

FIG. 4

TO CONVERT TO BAGGING OR DISCHARG-

ING

NOTE: The mulcher blades will discharge and bag grass,

but for best bagging and discharging installthe high

performance blades.

Remove mulcher plate and mulcher blades and install

high performance blades, (see BLADE REMOVAL inthe

CUSTOMERRESPONSABILITYsectionofthismanual).

Store mulcher blades and mulcher plate inasafe place.

Your mower isnow ready for discharging or installation

of optional grass catcher accessory.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See"TO LEVEL MOWER HOUSING"in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see that

the brake is properly adjusted. See "TO ADJUST BRAKE"

in the Service and Adjustments section of this manual.

,,/CHECKLIST

BEFORE YOU OPERA TEAND ENJO Y YOUR NEW TRAC-

TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCEAND SA TISFACTION FROM THIS

QUALITYPRODUCT.

PLEASE REVIEW THE FOLL OWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Batteryis properly prepared and charged. (Minimum 1

hour at 6 amps).

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflatedfor leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

drive position.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLL OWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ It isimportantto purge the transmission before operating

your tractor for the first time. Follow proper starting and

transmission purging instructions (See "TO START

ENGINE" and"PURGETRANSMISSION"in the Opera-

tion section of this manual).

OPERATION

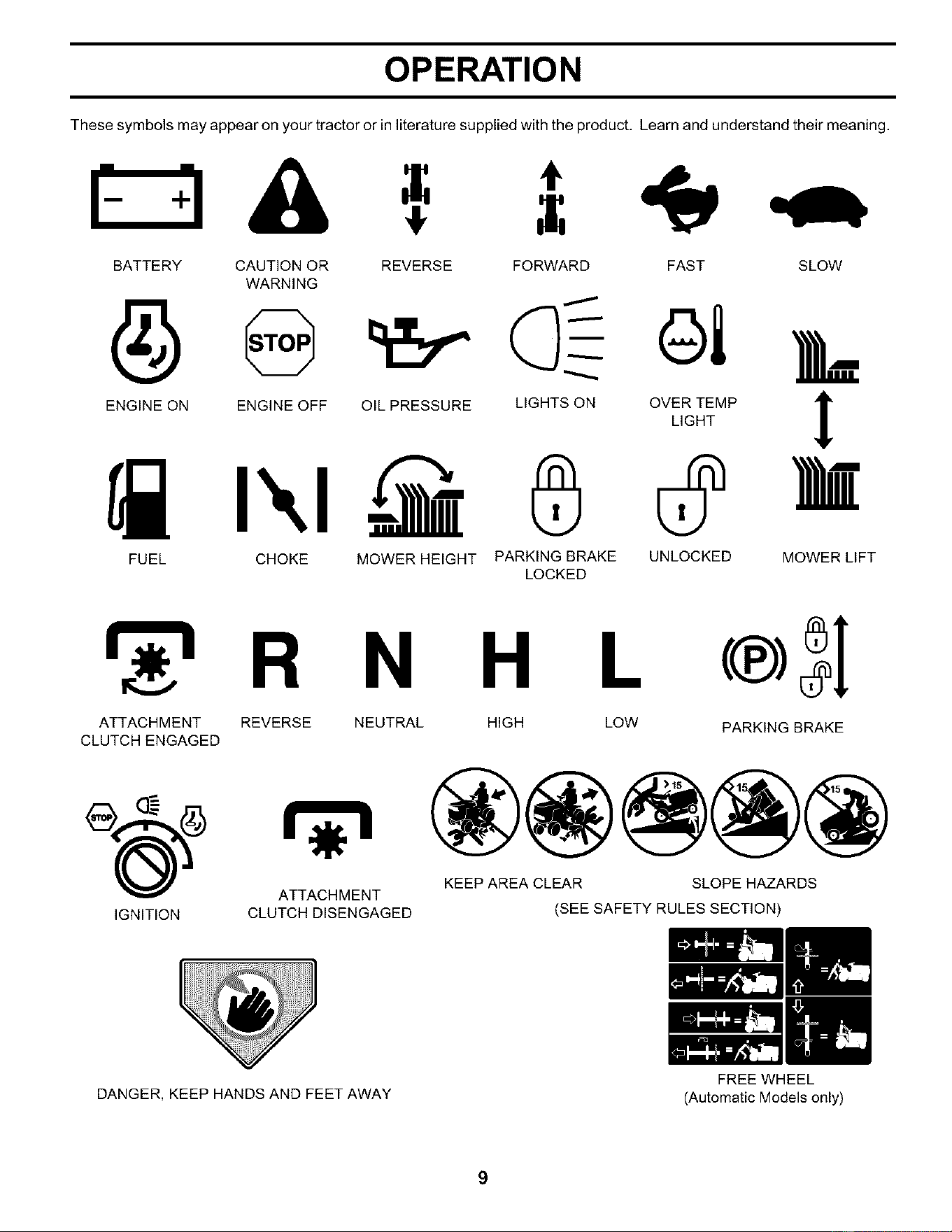

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE

LIGHTS ON OVER TEMP 1_

LIGHT

0 m

FUEL CHOKE MOWER HEIGHT

PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

r 'l R N

ATTACHMENT REVERSE

CLUTCH ENGAGED

H L

IGNITION

ATTACHMENT

CLUTCH DISENGAGED

NEUTRAL HIGH LOW

PARKING BRAKE

@@@@@

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

OPERATION

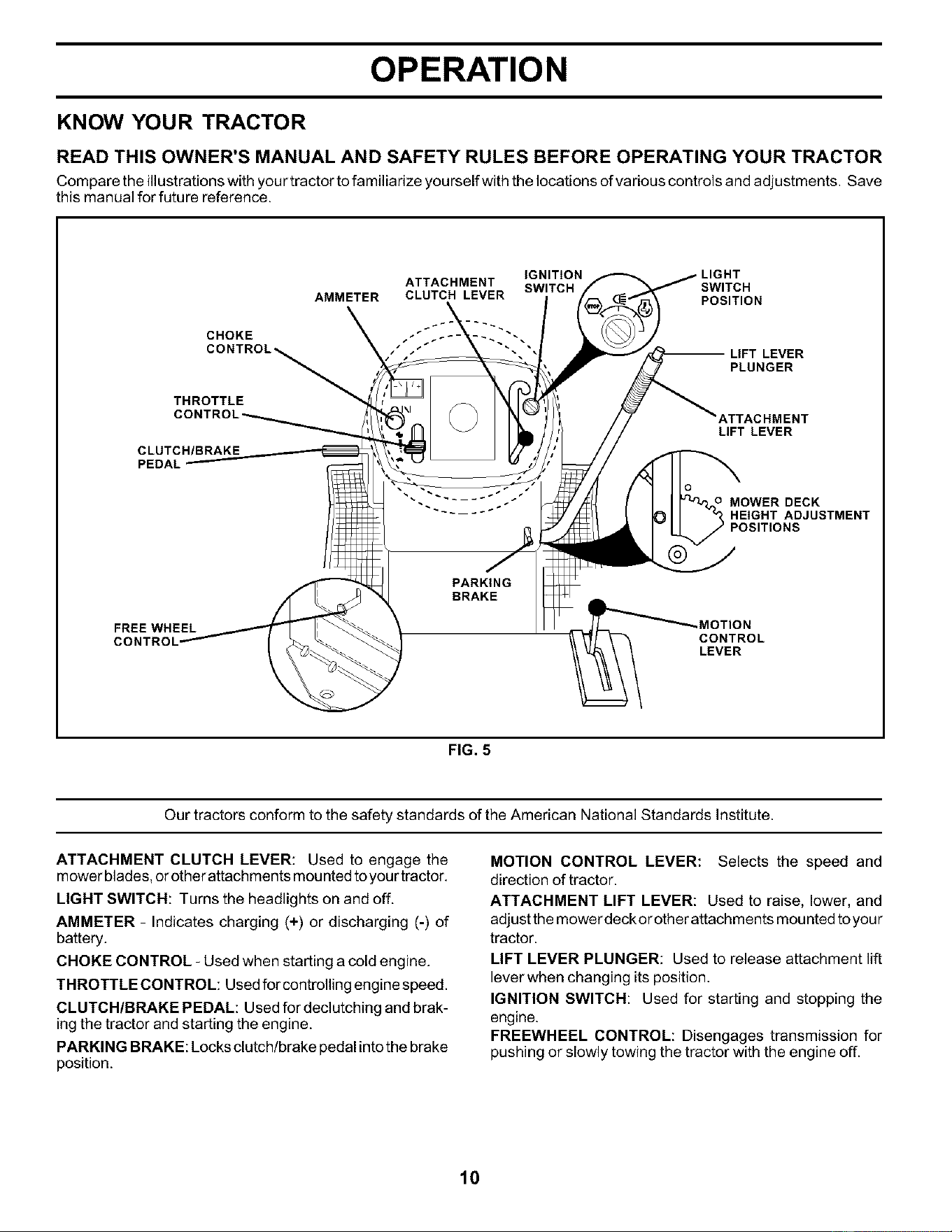

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations withyour tractor to familiarize yourself with the locations of various controls and adjustments. Save

this manual for future reference.

IGNITION

ATTACHMENT SWITCH SWITCH

AMMETER CLUTCH LEVER POSITION

THROTTLE

CLUTCH/BRAKE

PEDAL

LIFT LEVER

PLUNGER

ATTACHMENT

LIFT LEVER

MOWER DECK

HEIGHT ADJUSTMENT

POSITIONS

FREE WHEEL

CONTROL

PARKING

BRAKE

-MOTION

CONTROL

LEVER

FIG. 5

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or otherattachments mounted toyour tractor.

LIGHT SWITCH: Turns the headlights on and off.

AMMETER - Indicates charging (+) or discharging (-) of

battery.

CHOKE CONTROL - Used when starting a cold engine.

THROTTLE CONTROL: Used for controlling engine speed.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine.

PARKING BRAKE: Locks clutch/brake pedal into the brake

position.

MOTION CONTROL LEVER: Selects the speed and

direction of tractor.

ATTACHMENT LIFT LEVER: Used to raise, lower, and

adjustthe mower deck or other attachments mounted toyour

tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position.

IGNITION SWITCH: Used for starting and stopping the

engine.

FREEWHEEL CONTROL: Disengages transmission for

pushing or slowly towing the tractor with the engine off.

OPERATION

SAFETYGLASSES

The operation of any tractor can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Always wear safety glasses or eye shields while operating

your tractor or performing any adjustments or repairs. We recommend a wide vision safety

mask over spectacles or standard safety glasses.

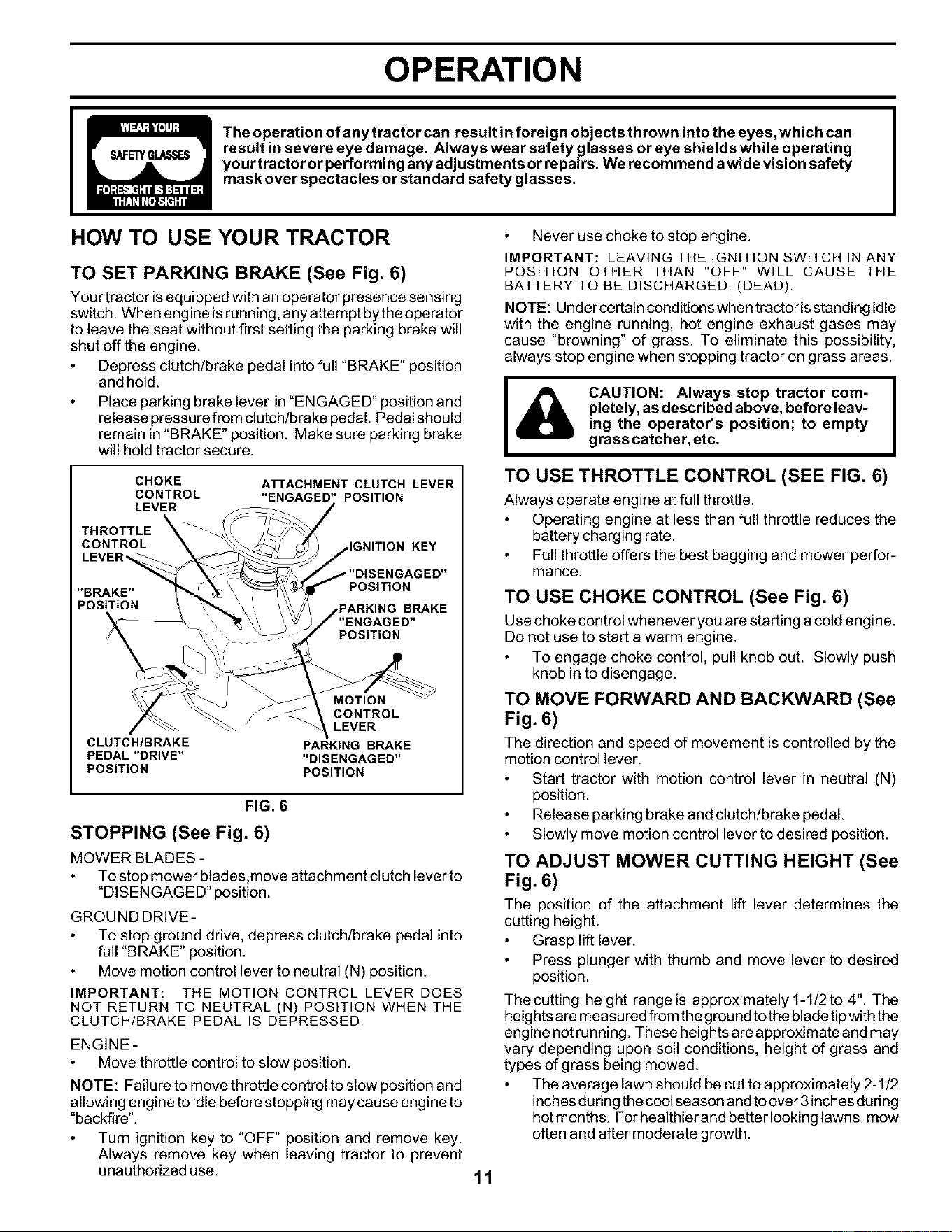

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 6)

Your tractor is equipped with an operator presence sensing

switch. When engine is running, any attempt by the operator

to leave the seat without first setting the parking brake will

shut off the engine.

Depress clutch/brake pedal into full "BRAKE" position

and hold.

Place parking brake lever in "ENGAGED" position and

release pressure from clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

CHOKE

CONTROL

LEVER

THROTTLE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED" POSITION

KEY

"BRAKE" POSITION

POSITION BRAKE

POSITION

CONTROL

LEVER

CLUTCH/BRAKE PARKING BRAKE

PEDAL "DRIVE" "DISENGAGED"

POSITION POSITION

FIG. 6

STOPPING (See Fig. 6)

MOWER BLADES -

To stop mower blades,move attachment clutch lever to

"DISENGAGED" position.

GROUND DRIVE-

To stop ground drive, depress clutch/brake pedal into

full "BRAKE" position.

Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

ENGINE-

Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine to

"backfire".

Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

Never use choke to stop engine.

IMPORTANT: LEAVING THE IGNITION SWITCH IN ANY

POSITION OTHER THAN "OFF" WILL CAUSE THE

BATTERY TO BE DISCHARGED, (DEAD).

NOTE: Under certain conditions when tractor is standing idle

with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before leav-

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (SEE FIG. 6)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the

battery charging rate.

Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig. 6)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD (See

Fig. 6)

The direction and speed of movement is controlled by the

motion control lever.

Start tractor with motion control lever in neutral (N)

position.

Release parking brake and clutch/brake pedal.

Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT (See

Fig. 6)

The position of the attachment lift lever determines the

catting height.

Grasp lift lever.

Press plunger with thumb and move lever to desired

position.

The cutting height range is approximately 1-1/2 to 4". The

heights are measu redfrom the grou ndto the blade tip with the

engine not running. These heights are approximate and may

vary depending upon soil conditions, height of grass and

types of grass being mowed.

The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3inches during

hot months. For healthierand betterlooking lawns, mow

often and after moderate growth.

OPERATION

For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

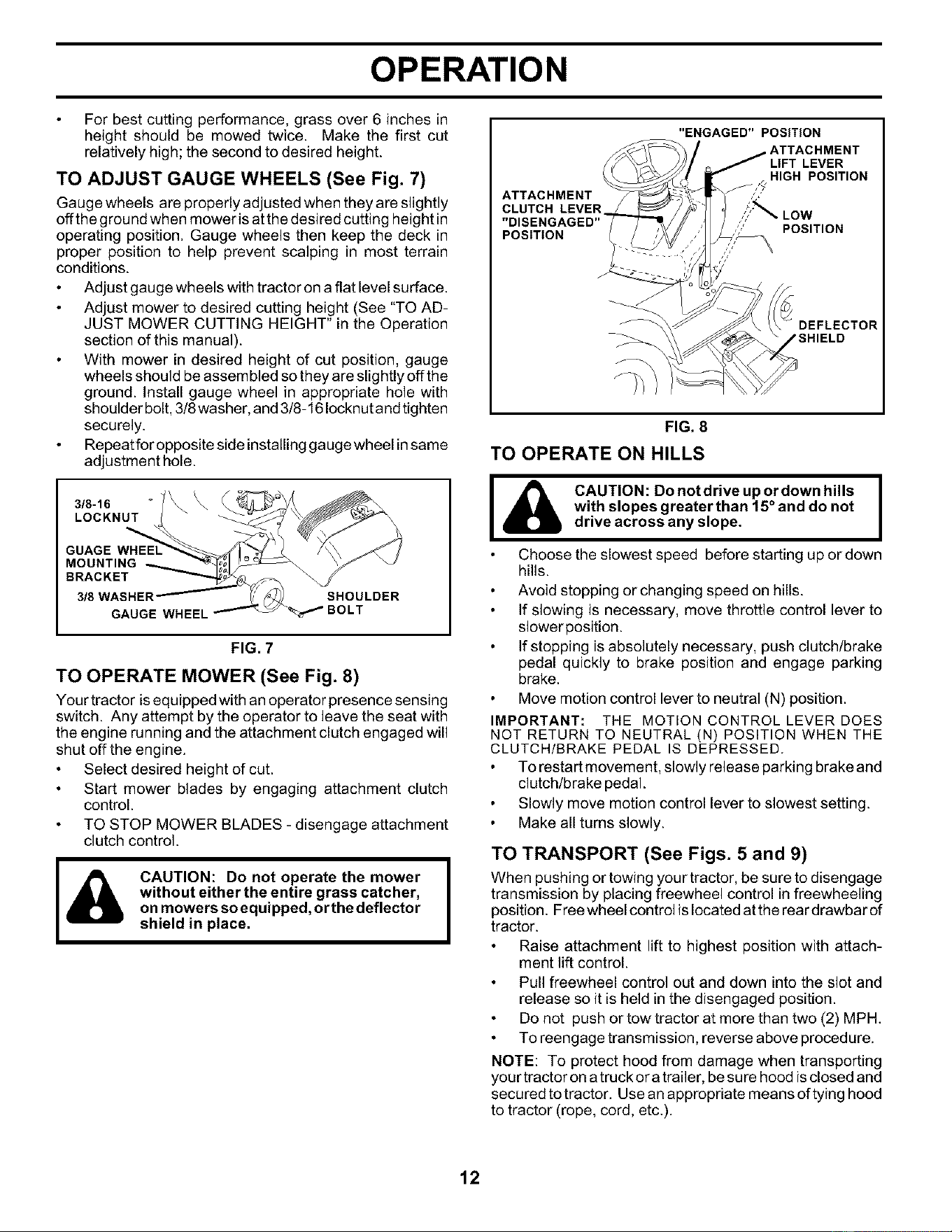

TO ADJUST GAUGE WHEELS (See Fig. 7)

Gauge wheels are properly adjusted when they are slightly

offthe ground when mower is at the desired cutting height in

operating position. Gauge wheels then keep the deck in

proper position to help prevent scalping in most terrain

conditions.

Adjust gauge wheels with tractor on a flat level surface.

Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in the Operation

section of this manual).

With mower in desired height of cut position, gauge

wheels should be assem bled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknutand tighten

securely.

Repeatfor opposite side installing ga uge wheel insame

adjustment hole.

3,..,0 °1\\

LOCKNUT

GUAGE

MOUNTING

BRACKET

_8 WASHER'

GAUGE WHEEL

SHOULDER

FIG. 7

TO OPERATE MOWER (See Fig. 8)

Your tractor isequipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

Select desired height of cut.

Start mower blades by engaging attachment clutch

control.

TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, orthe deflector

shield in place.

ATTACHMENT

2LUTCHLEVE

DISENGAGED -

POSITION

"ENGAGED" POSITION

ATTACHMENT

LIFT LEVER

HIGH POSITION

LOW

POSITION

FIG, 8

TO OPERATE ON HILLS

I_1= CAUTION: Donotdriveupordownhills

with slopes greater than 15° and do not

drive across any slope.

Choose the slowest speed before starting up or down

hills.

Avoid stopping or changing speed on hills.

If slowing is necessary, move throttle control lever to

slower position.

If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTION CONTROL LEVER DOES

NOT RETURN TO NEUTRAL (N) POSITION WHEN THE

CLUTCH/BRAKE PEDAL IS DEPRESSED.

TOrestart movement, slowly release parking brake and

clutch/brake pedal.

Slowly move motion control lever to slowest setting.

Make all turns slowly.

TO TRANSPORT (See Figs. 5 and 9)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar of

tractor.

Raise attachment lift to highest position with attach-

ment lift control.

Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

Do not push or tow tractor at more than two (2) MPH.

To reengage transmission, reverse above procedure.

NOTE: To protect hood from damage when transporting

your tractor on a truck or atrailer, be su re hood is closed and

secured to tractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

OPERATION

FIG. 9

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your

tractor. Use common sense when towing. Too heavy of a

load, while on a slope, is dangerous. Tires can lose traction

with the ground and cause you to lose control of you rtractor.

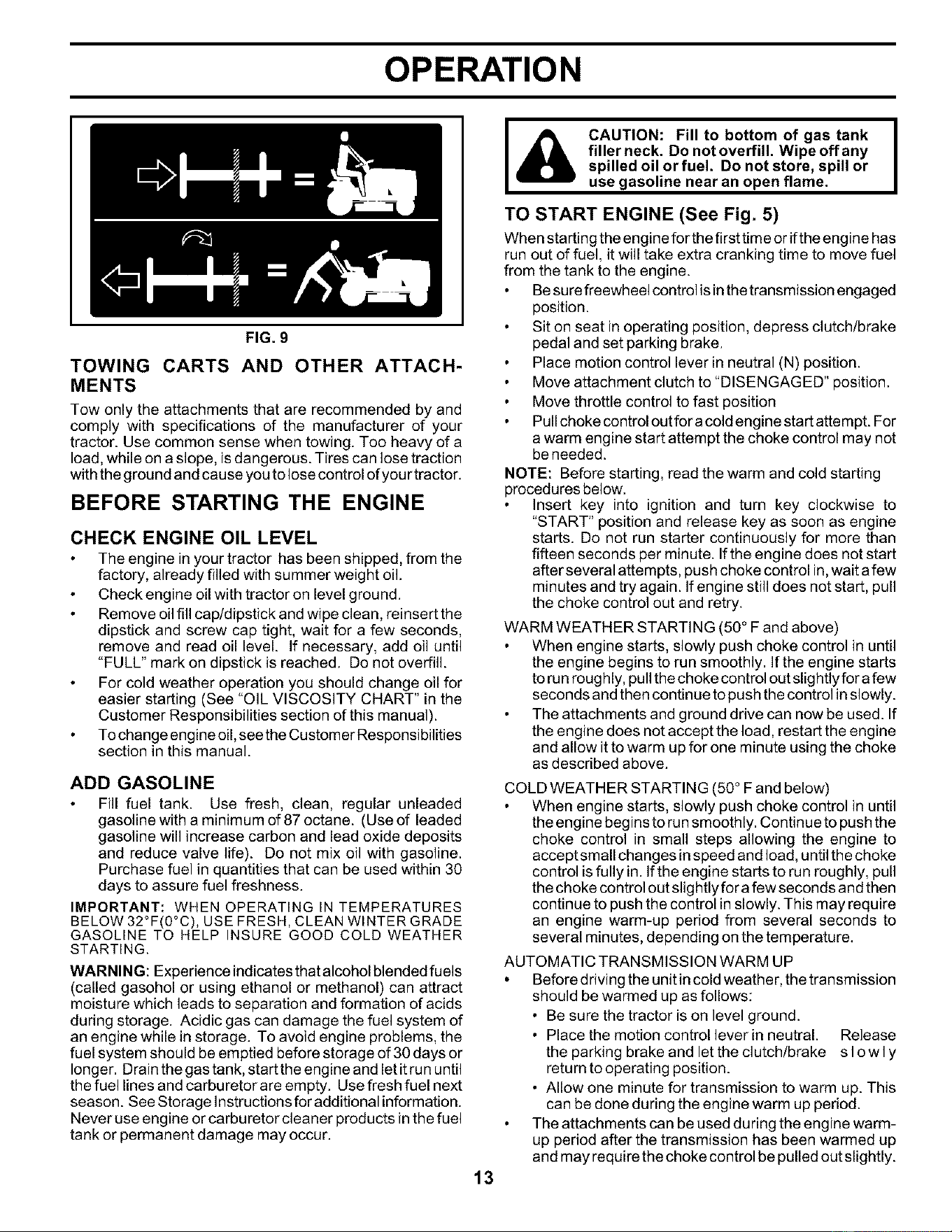

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine inyour tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Customer Responsibilities section of this manual).

To change engine oil, see the Customer Responsibilities

section in this manual.

ADD GASOLINE

Fill fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine problems, the

fuel system should be emptied before storage of 30 days or

longer. Drain the gas tank, start the engine and let it run until

the fuel lines and carburetor are empty. Use fresh fuel next

season. See Storage Instructions for additional information.

Never use engine or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 5)

When starting the engine forthe first time or if the engine has

run out of fuel, it will take extra cranking time to move fuel

from the tank to the engine.

Be sure freewheel control is inthe transmission engaged

position.

Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

Place motion control lever in neutral (N) position.

Move attachment clutch to "DISENGAGED" position.

Move throttle control to fast position

Pull choke control out for a cold engine start attempt. For

a warm engine start attempt the choke control may not

be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait a few

minutes and try again. If engine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50 ° F and above)

When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to runroughly, pull the choke control out slightly for afew

seconds and then continue to push the control in slowly.

The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and below)

When engine starts, slowly push choke control in until

the engine begins to ran smoothly. Continue to push the

choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and then

continue to push the control in slowly. This may require

an engine warm-up period from several seconds to

several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before d riving the unit in cold weather, the transmission

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral. Release

the parking brake and let the clutch/brake s I owl y

return to operating position.

• Allow one minute for transmission to warm up. This

can be done during the engine warm up period.

The attachments can be used during the engine warm-

up period after the transmission has been warmed up

and may require the choke control be pulled out slightly.

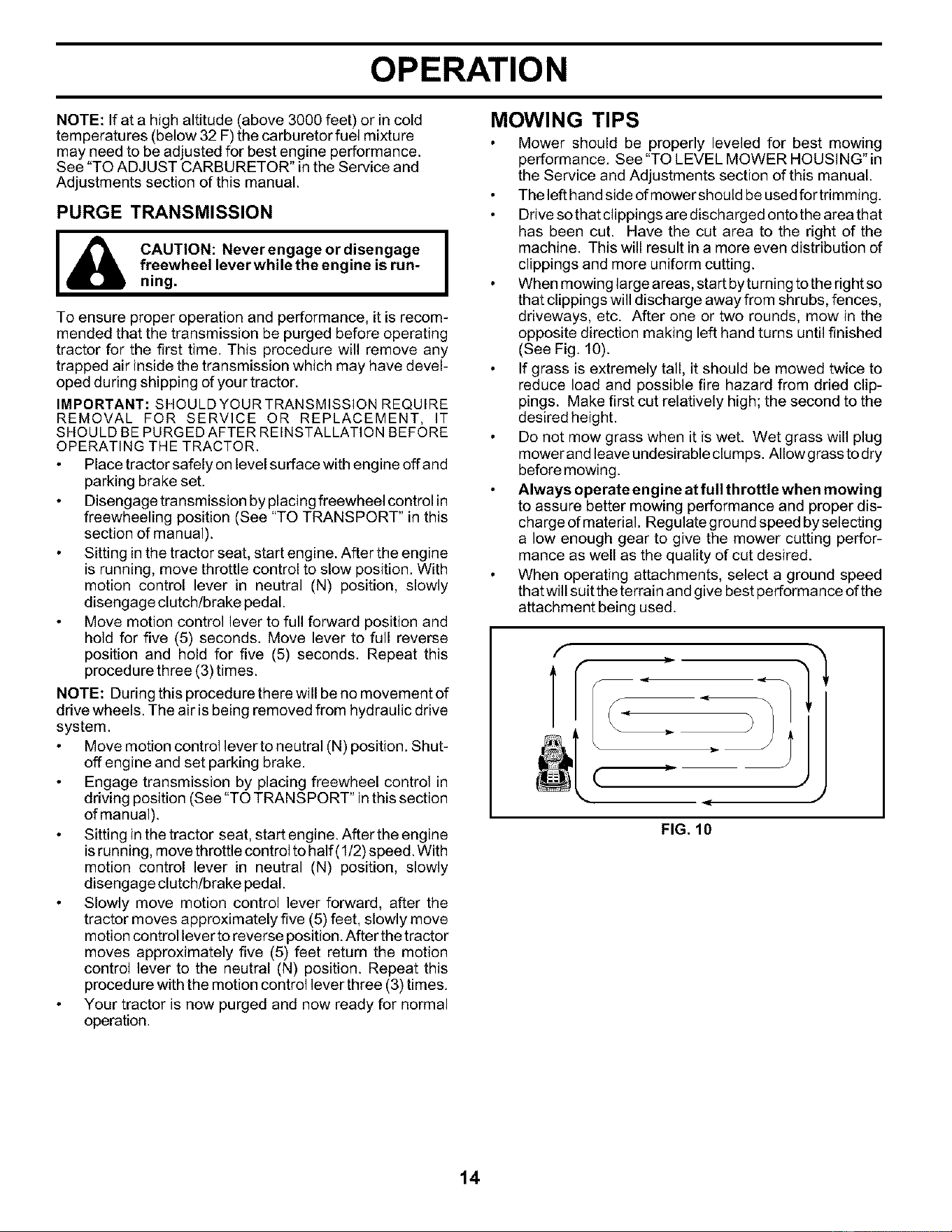

OPERATION

MOWING TIPS

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture

may need to be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the Service and

Adjustments section of this manual.

PURGE TRANSMISSION

I _lk CAUTION: Neverengageordisengage

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have devel-

oped during shipping of your tractor.

IMPORTANT: SHOULDYOURTRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT

SHOULD BE PURGED AFTER REINSTALLATION BEFORE

OPERATING THE TRACTOR.

Place tractor safely on level surface with engine off and

parking brake set.

Disengage transmission by placing freewheel control in

freewheeling position (See "TO TRANSPORT" in this

section of manual).

Sitting inthe tractor seat, start engine. After the engine

is running, move throttle control to slow position. With

motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

Move motion control lever to full forward position and

hold for five (5) seconds. Move lever to full reverse

position and hold for five (5) seconds. Repeat this

procedure three (3) times.

NOTE: During this procedure there will be no movement of

drive wheels. The air is being removed from hydraulic drive

system.

Move motion control lever to neutral (N) position. Shut-

off engine and set parking brake.

Engage transmission by placing freewheel control in

driving position (See "TO TRANSPORT" in this section

of manual).

Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to half (1!2) speed. With

motion control lever in neutral (N) position, slowly

disengage clutch/brake pedal.

Slowly move motion control lever forward, after the

tractor moves approximately five (5) feet, slowly move

motion control lever to reverse position. After the tractor

moves approximately five (5) feet return the motion

control lever to the neutral (N) position. Repeat this

procedure with the motion control lever three (3) times.

Your tractor is now purged and now ready for normal

operation.

Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

The left hand side of mower should be used for trimming.

Drive so that clippings are discharged onto the area that

has been cut. Have the cut area to the right of the

machine. This will result ina more even distribution of

clippings and more uniform cutting.

When mowing large areas, start by tu ruing to the right so

that clippings will discharge away from shrubs, fences,

driveways, etc. After one or two rounds, mow in the

opposite direction making left hand turns until finished

(See Fig. 10).

If grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

Do not mow grass when it is wet. Wet grass will plug

mowerand leave undesirable clumps. Allow grass to dry

before mowing.

Always operate engine at full th rottle when mowing

to assure better mowing performance and proper dis-

charge of material. Regulate ground speed by selecting

a low enough gear to give the mower cutting perfor-

mance as well as the quality of cut desired.

When operating attachments, select a ground speed

that will suit the terrain and give best performance of the

attachment being used.

, )

FIG. 10

OPERATION

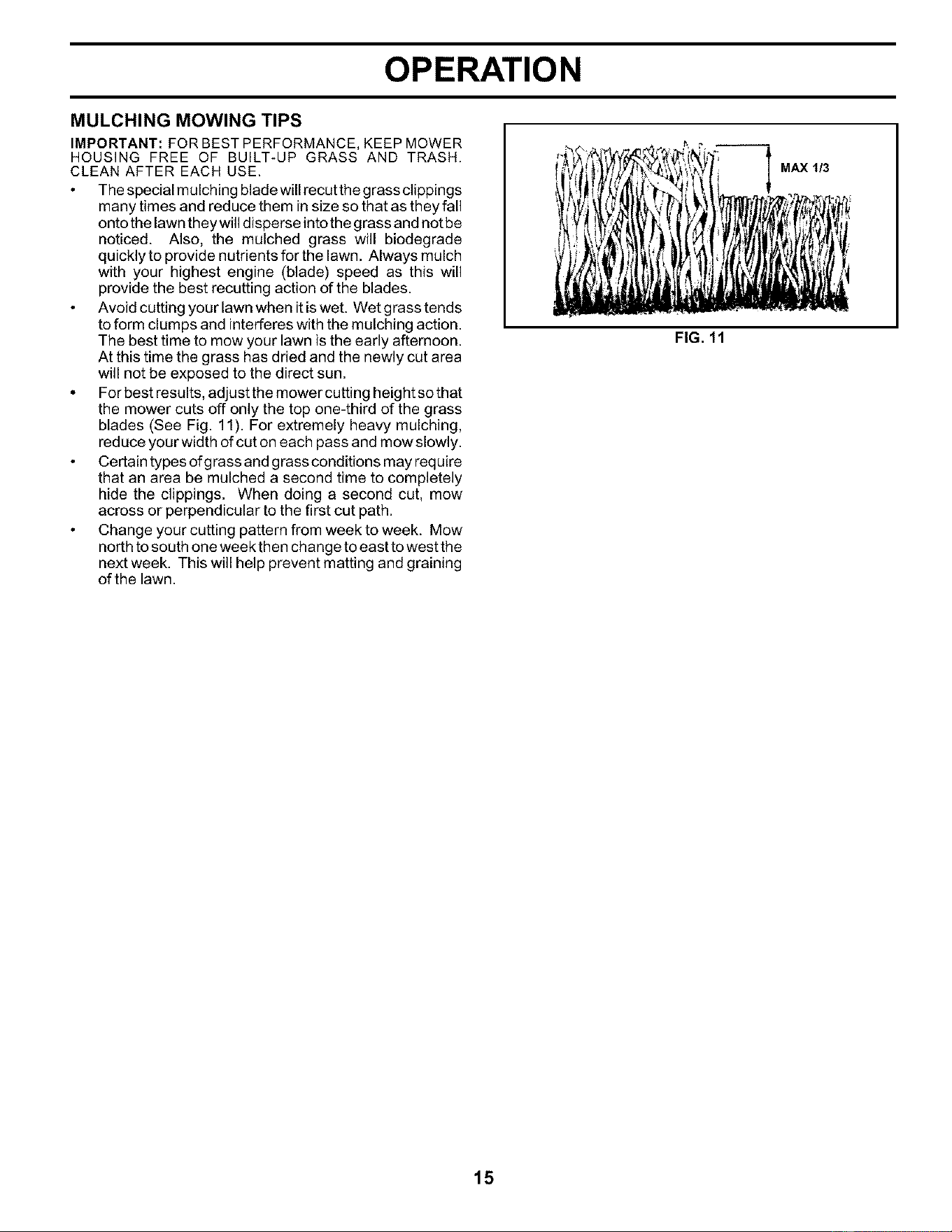

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER

HOUSING FREE OF BUILT-UP GRASS AND TRASH.

CLEAN AFTER EACH USE.

The special mulching blade will recut the grass clippings

many times and reduce them in size so that as they fall

onto the lawn they will disperse into the grass and not be

noticed. Also, the mulched grass will biodegrade

quickly to provide nutrients for the lawn. Always mulch

with your highest engine (blade) speed as this will

provide the best recutting action of the blades.

Avoid catting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 11). For extremely heavy mulching,

red ace your width of cat on each pass and mow slowly.

Certain types ofg rass and grass conditions may require

that an area be mulched a second time to completely

hide the clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

FIG. 11

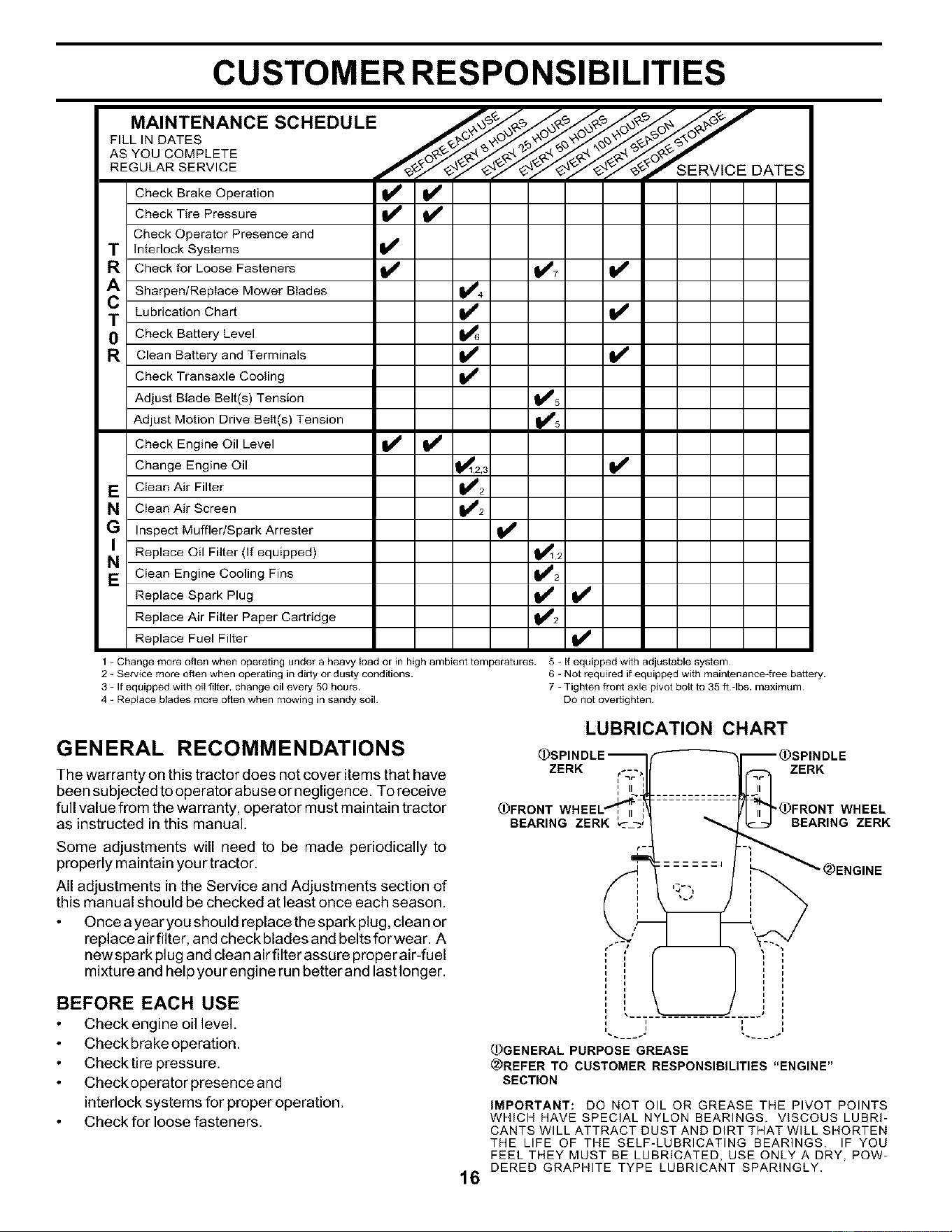

CUSTOMER RESPONSIBILITIES

MAINTENANCE SCHEDULE __e _e_,o_o_

oo.

AS YOU COMPLETE

,_:/'_q'_'..,;/'_.-_i_r S ERV iC E DATES

Check Operator Presence and

t Interlock Systems

Check for Loose Fasteners 1_#'7

Sharpen/Replace Mower Blades !4

Lubrication Chart

T Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Adjust Blade Belt(s) Tension _5

Adjust Motion Drive Belt(s) Tension Ks

Check Engine Oil Level _

Change Engine Oil _1_2,3

NE Clean Air Filter _1_ 2

Clean Air Screen 1_2

G Inspect MufflerlSpark Arrester

Replace Oil Filter (If equipped) 11_12

N Clean Engine Cooling Fins 1_2

Replace Spark Plug I_'

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or in high ambient temperatures 5 - if equipped with adjustable system

2 - Service more often when operating in dirty or dusty conditions. 6 - Not required if equipped with maintenance-free baftery.

3 - It equipped with oil filter, change oil every 50 hours. 7 - Tighten front axle pivot bolt to 35 ff -Ibs. maximum

4 - Replace blades more often when mowing in sandy soil Do net overtighten

GENERAL RECOMMENDATIONS

LUBRICATION CHART

The warranty on this tractor does not cover items that have ZERK tq-- _

been subjected to operator abuse or negligence. To receive ',

full value from the warranty, operator mast maintain tractor

as instructed in this manual. BEARING ZERK

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

Once a year you should replace the spark plug, clean or

replace airfilter, and check blades and belts forwear. A

newspark plug and clean airfilterassare properair-fuel

mixtare and help your engine run better and last longer.

BEFORE EACH USE

Check engine oil level.

Check brake operation.

Check tire pressure.

Check operator presence and

interlock systems for proper operation.

Check for loose fasteners.

ZERK

'_FRONT WHEEL

BEARING ZERK

(])GENERAL PURPOSE GREASE

@)REFER TO CUSTOMER RESPONSIBILITIES "ENGINE"

SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WILL ATTRACT DUST AND DIRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

MANDREL

ASSEMBLY

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6)feet stopping distance at

high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjustments

section of this manual).

TIRES

Maintain proper air pressure in all tires (See "PRODUCT

SPECIFICATIONS" section of this manual).

Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock systems are work-

ing properly. If your tractor does not function as described,

repair the problem immediately.

The engine should not start unless the clutch/brake

pedal is fully depressed and attachement clutch control

is in the disengaged position.

When the engine is running, any attempt by the operator

to leave the seat without first setting the parking brake

should shut off the engine.

When the engine is running and the attachment clutch is

engaged, any attempt by the operator to leave the seat

should shut off the engine.

The attachment clutch should never operate unless the

operator is in the seat.

BLADE CARE

For best results mower blades must be kept sharp. Replace

bent or damaged blades.

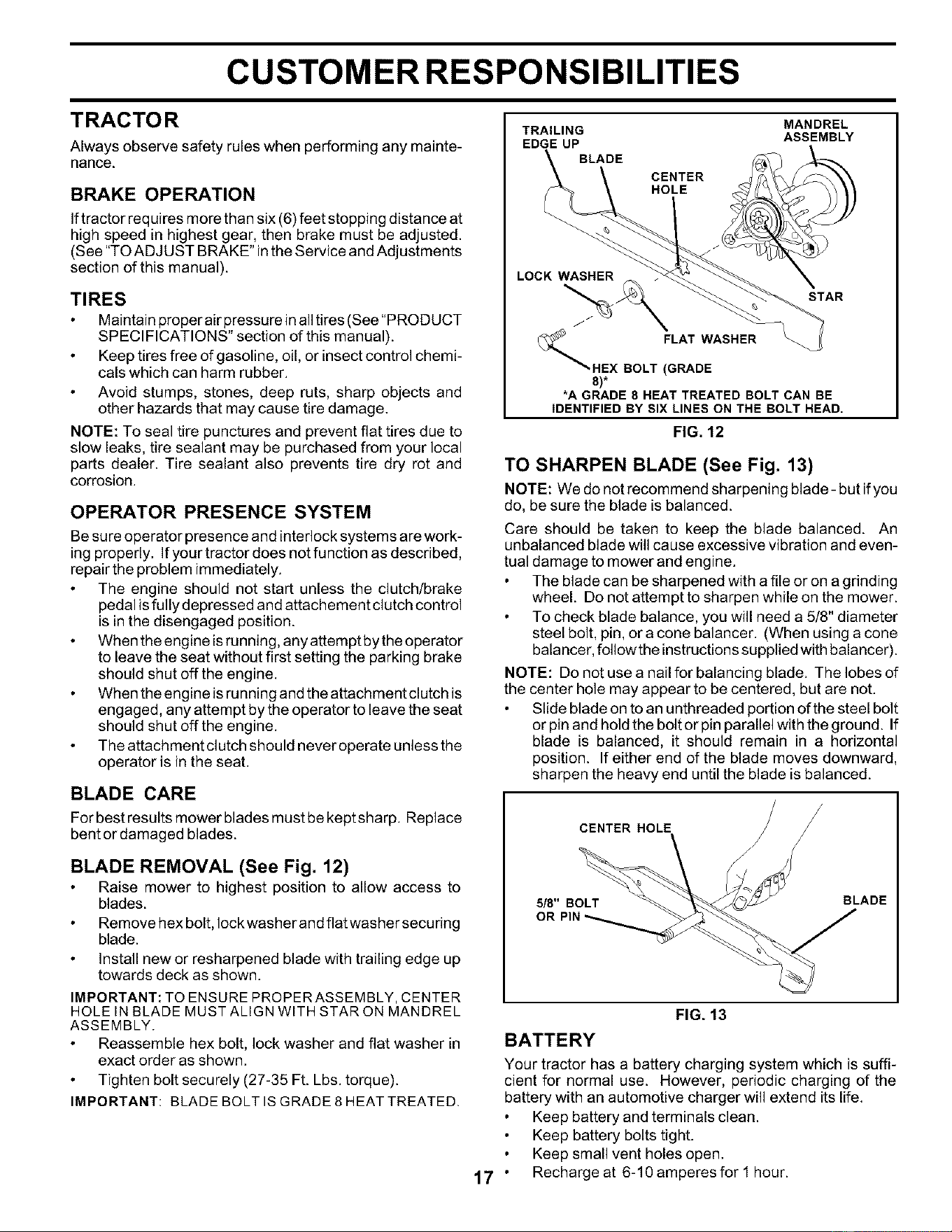

BLADE REMOVAL (See Fig. 12)

Raise mower to highest position to allow access to

blades.

Remove hex bolt, Iockwasherand flat washer securing

blade.

Install new or resharpened blade with trailing edge up

towards deck as shown.

IMPORTANT: TO ENSURE PROPERASSEMBLY, CENTER

HOLE IN BLADE MUST ALIGN WITH STAR ON MANDREL

ASSEMBLY.

Reassemble hex bolt, lock washer and fiat washer in

exact order as shown.

Tighten bolt securely (27-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

TRAILING

EDGE UP

BLADE

CENTER

HOLE

LOCK WASHER

STAR

FLAT WASHER

BOLT (GRADE

8)*

*A GRADE 8 HEAT TREATED BOLT CAN BE

IDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

NOTE: We do not recommend sharpening blade- but if you

do, be sure the blade is balanced.

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

balancer, follow the instructions supplied with balancer).

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground. If

blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

CENTER HOLE

5/8" BOLT BLADE

FIG. 13

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

17 ° Recharge at 6-10 amperesfor 1 hour.

CUSTOMER RESPONSIBILITIES

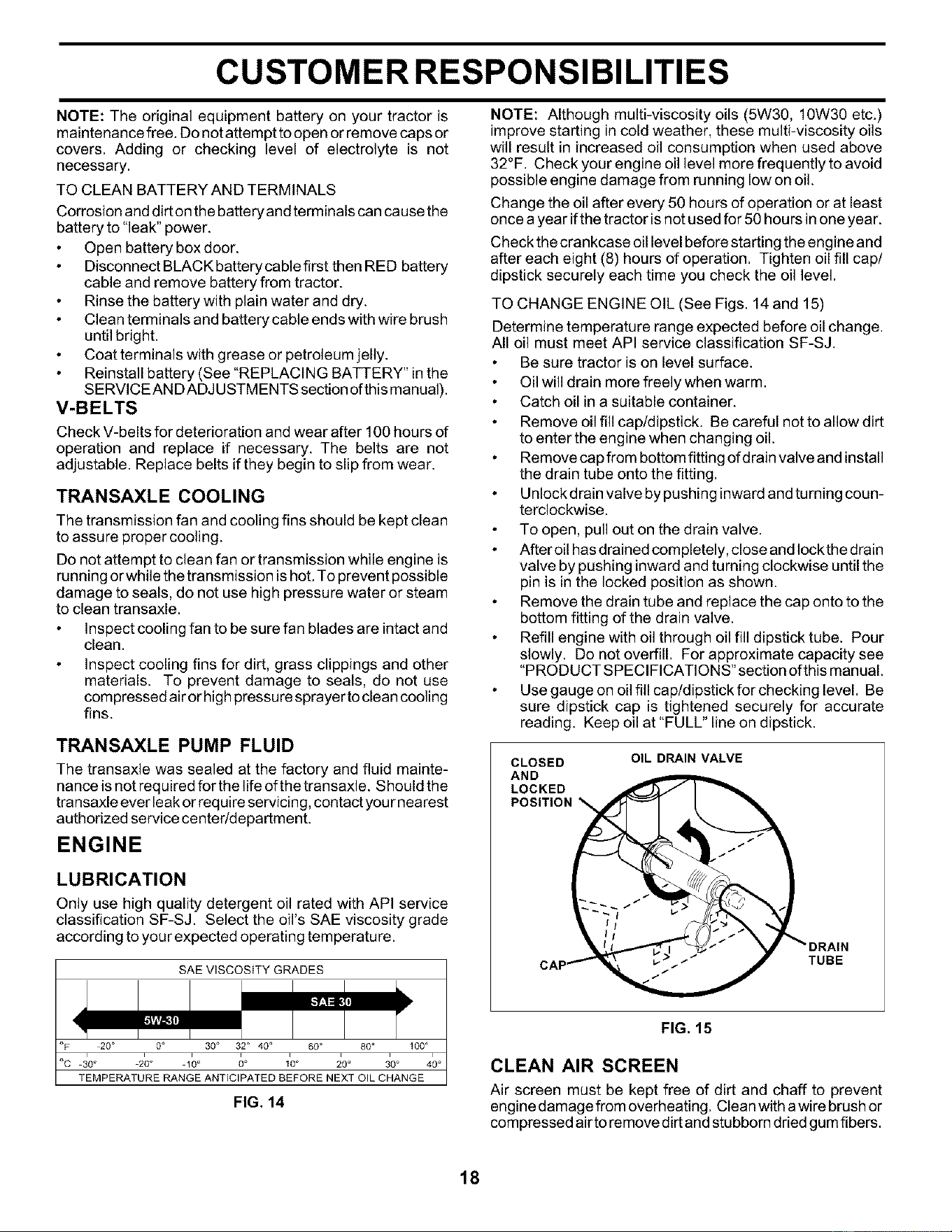

NOTE: The original equipment battery on your tractor is

maintenance free. Do not attempt to open or remove caps or

covers. Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause the

battery to "leak" power.

Open battery box door.

Disconnect BLACK battery cable first then RED battery

cable and remove battery from tractor.

Rinse the battery with plain water and dry.

Clean terminals and battery cable ends with wire brush

until bright.

Coat terminals with grease or petroleum jelly.

Reinstall battery (See "REPLACING BATTERY" in the

SERVlCEANDADJUSTMENTS section of this manual).

V-BELTS

Check V-belts for deterioration and wear after 1O0hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine is

running or while the transmission is hot. To prevent possible

damage to seals, do not use high pressure water or steam

to clean transaxle.

Inspect cooling fan to be sure fan blades are intact and

clean.

Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayerto clean cooling

fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not req uired for the life of the transaxle. Should the

transaxle ever leak or require servicing, contact you rnearest

authorized service center/department.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF-SJ. Select the oil's SAE viscosity grade

according to your expected operating temperatu re.

SAE VISCOSITY GRADES

20 _ 0_ 30_ 32 ° 40 _ 60 ° 80 _

30 _ 20 ° 10_ 0_ 10 _ 20 _ 30 °

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 14

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one year.

Check the crankcase oil level before starting the engine and

after each eight (8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 14 and 15)

Determine temperature range expected before oil change.

All oil must meet API service classification SF-SJ.

Be sure tractor is on level surface.

Oil will drain more freely when warm.

Catch oil in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove cap from bottom fitting of drain valve and install

the drain tube onto the fitting.

Unlock drain valve by pushing inward and turning coun-

terclockwise.

To open, pull out on the drain valve.

After oil has drained completely, close and Iockthe drain

valve by pushing inward and turning clockwise until the

pin is in the locked position as shown.

Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this manual.

Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL" line on dipstick.

CLOSED OIL DRAIN VALVE

AND

FIG. 15

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush or

compressed airto remove dirt and stubborn dried gum fibers.

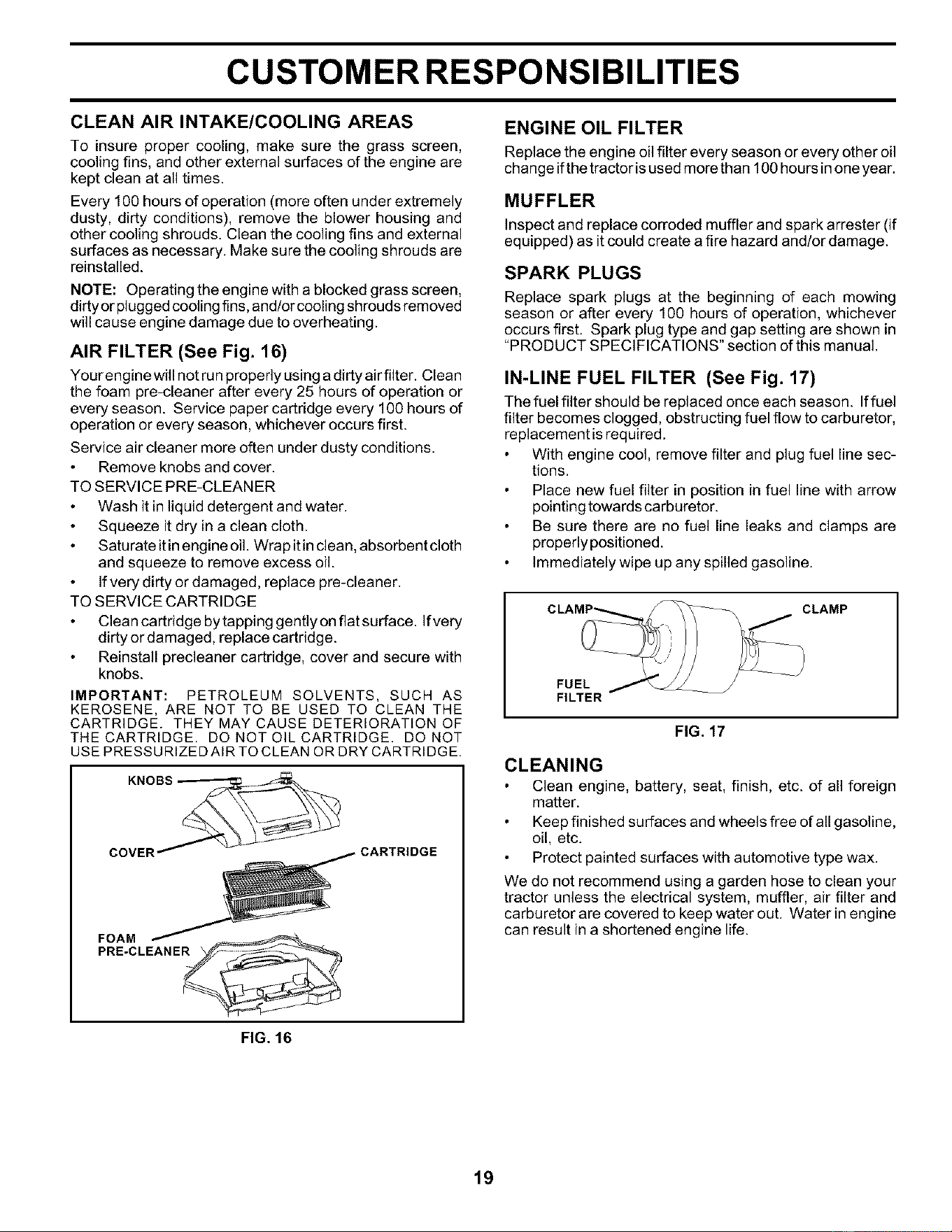

CUSTOMER RESPONSIBILITIES

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the grass screen,

cooling fins, and other external surfaces of the engine are

kept clean at all times.

Every 100 hours of operation (more often under extremely

dusty, dirty conditions), remove the blower housing and

other cooling shrouds. Clean the cooling fins and external

surfaces as necessary. Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a blocked grass screen,

dirty or plugged cooling fins, and/or cooling shrouds removed

will cause engine damage due to overheating.

AIR FILTER (See Fig. 16)

Your engine will not run properly using a dirty air filter. Clean

the foam pre-cleaner after every 25 hours of operation or

every season. Service paper cartridge every 100 hours of

operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

Remove knobs and cover.

TO SERVICE PRE-CLEANER

Wash it in liquid detergent and water.

Squeeze it dry in a clean cloth.

Saturate it in engine oil. Wrap it in clean, absorbent cloth

and squeeze to remove excess oil.

If very dirty or damaged, replace pre-cleaner.

TO SERVICE CARTRIDGE

Clean cartridge by tapping gently on flat surface. If very

dirty or damaged, replace cartridge.

Reinstall precleaner cartridge, cover and secure with

knobs.

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

USE PRESSURIZED AIR TO CLEAN OR DRY CARTRIDGE.

COVER

ENGINE OIL FILTER

Replace the engine oil filter every season or every other oil

change ifthe tractor is used more than 100 hours in one year.

MUFFLER

Inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and!or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 17)

The fuel filter should be replaced once each season. Iffuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

With engine cool, remove filter and plug fuel line sec-

tions.

Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

Be sure there are no fuel line leaks and clamps are

properly positioned.

Immediately wipe up any spilled gasoline.

CLAMP

FUEL

FILTER

FIG. 17

CLEANING

Clean engine, battery, seat, finish, etc. of all foreign

matter.

Keep finished surfaces and wheels free of all gasoline,

oil, etc.

Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

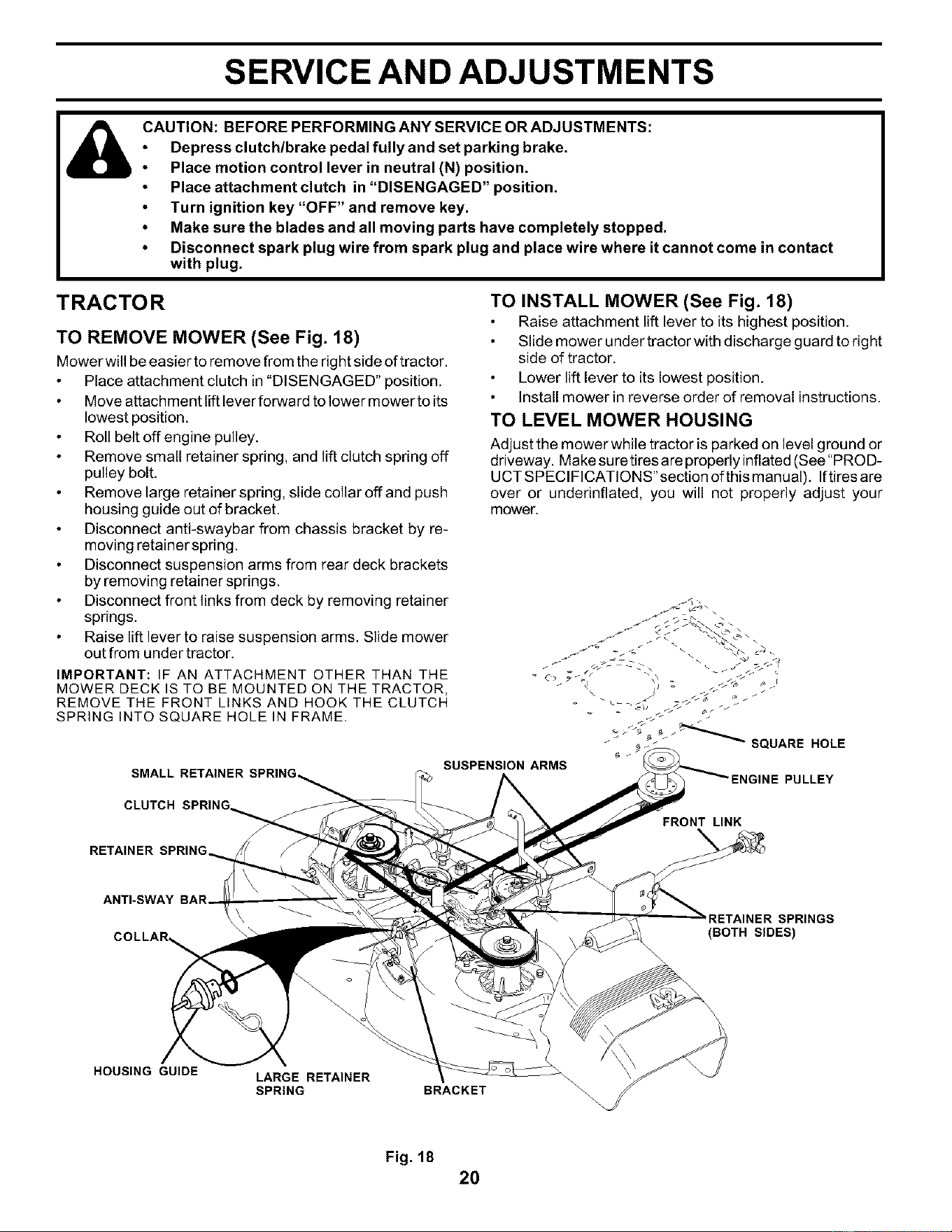

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress clutch/brake pedal fully and set parking brake.

Place motion control lever in neutral (N) position.

Place attachment clutch in "DISENGAGED" position.

Turn ignition key '=OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 18)

Mower willbe easier to remove from the right side of tractor.

Place attachment clutch in "DISENGAGED" position.

Move attachment lift lever forward to lower mower to its

lowest position.

Roll belt off engine pulley.

Remove small retainer spring, and lift clutch spring off

pulley bolt.

Remove large retainer spring, slide collar off and push

housing guide out of bracket.

Disconnect anti-swaybar from chassis bracket by re-

moving retainerspring.

Disconnect suspension arms from rear deck brackets

by removing retainer springs.

Disconnect front links from deck by removing retainer

springs.

Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER DECK IS TO BE MOUNTED ON THE TRACTOR,

REMOVE THE FRONT LINKS AND HOOK THE CLUTCH

SPRING INTO SQUARE HOLE IN FRAME.

SMALL

CLUTCH SPRING

TO INSTALL MOWER (See Fig. 18)

Raise attachment lift lever to its highest position,

Slide mower under tractor with discharge guard to right

side of tractor.

Lower lift lever to its lowest position.

Install mower in reverse order of removal instructions.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked on level ground or

driveway. Make su re tires are properly inflated (See "PROD-

UCT SPECIFICATIONS"section ofthis manual). Iftires are

over or underinflated, you will not properly adjust your

mower.

_ _ _ _ SQUARE HOLE

SUSPENSION ARMS

PULLEY

FRONT LINK

RETAINER SPRING

ANTI-SWAY

(BOTH SIDES)

HOUSING GUIDE

LARGE RETAINER

SPRING

BRACKET \

Fig. 18

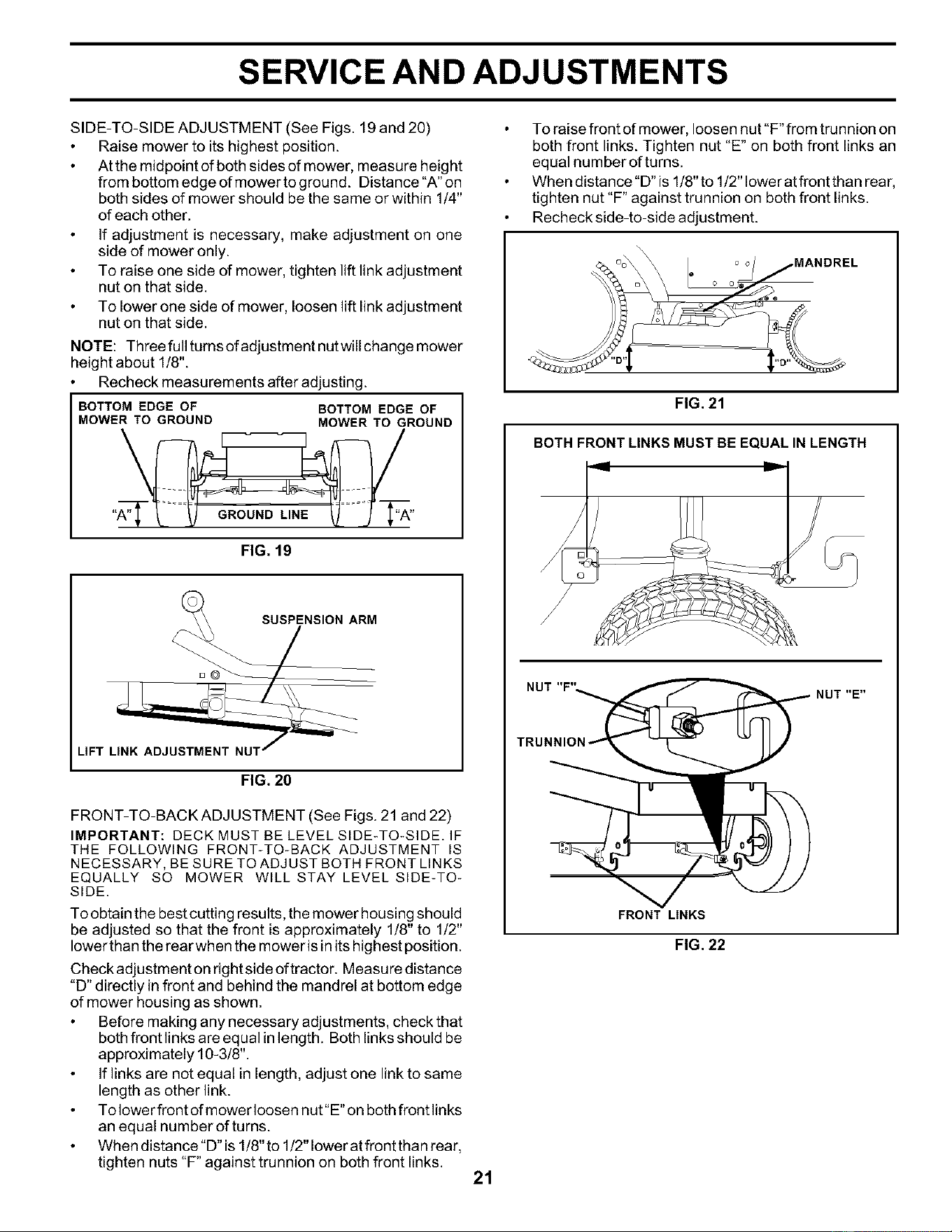

SERVICE AND ADJUSTMENTS

SIDE-TO-SIDE ADJUSTMENT (See Figs. 19 and 20)

Raise mower to its highest position.

At the midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance "A" on

both sides of mower should be the same or within 1/4"

of each other.

If adjustment is necessary, make adjustment on one

side of mower only.

To raise one side of mower, tighten lift link adjustment

nut on that side.

To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Three full tams ofadjustment nut will change mower

height about 1/8".

Recheck measurements after adjusting.

BOTTOM EDGE OF BOTTOM EDGE OF

MOWER TO GROUND MOWER TO GROUND

FIG. 19

SUSPENSION ARM

LIFT LINK ADJUSTMENT NUT"

FIG. 20

FRONT-TO-BACK ADJUSTMENT (See Figs. 21 and 22)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BE SURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WILL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing should

be adjusted so that the front is approximately 1/8" to 1/2"

Iowerthan the rear when the mower is in its highest position.

Check adjustment on fight side oftractor. Measure distance

"D" directly in front and behind the mandrel at bottom edge

of mower housing as shown.

Before making any necessary adjustments, check that

both front links are equal in length. Both links should be

approximately 10-3/8".

If links are not equal in length, adjust one link to same

length as other link.

To lower front of mower loosen nut "E" on both front links

an equal number of turns.

When distance "D" is 1/8" to 1/2" lower atfront than rear,

tighten nuts "F" against trunnion on both front links.

To raise front of mower, loosen nut "F" from trunnion on

both front links. Tighten nat "E" on both front links an

equal number of turns.

When distance "D" is 1/8"to 1/2" Iowerat front than rear,

tighten nut "F" against trunnion on both front links.

Recheck side-to-side adjustment.

FIG. 21

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "F'_ NUT "E"

FRONT LINKS

FIG. 22

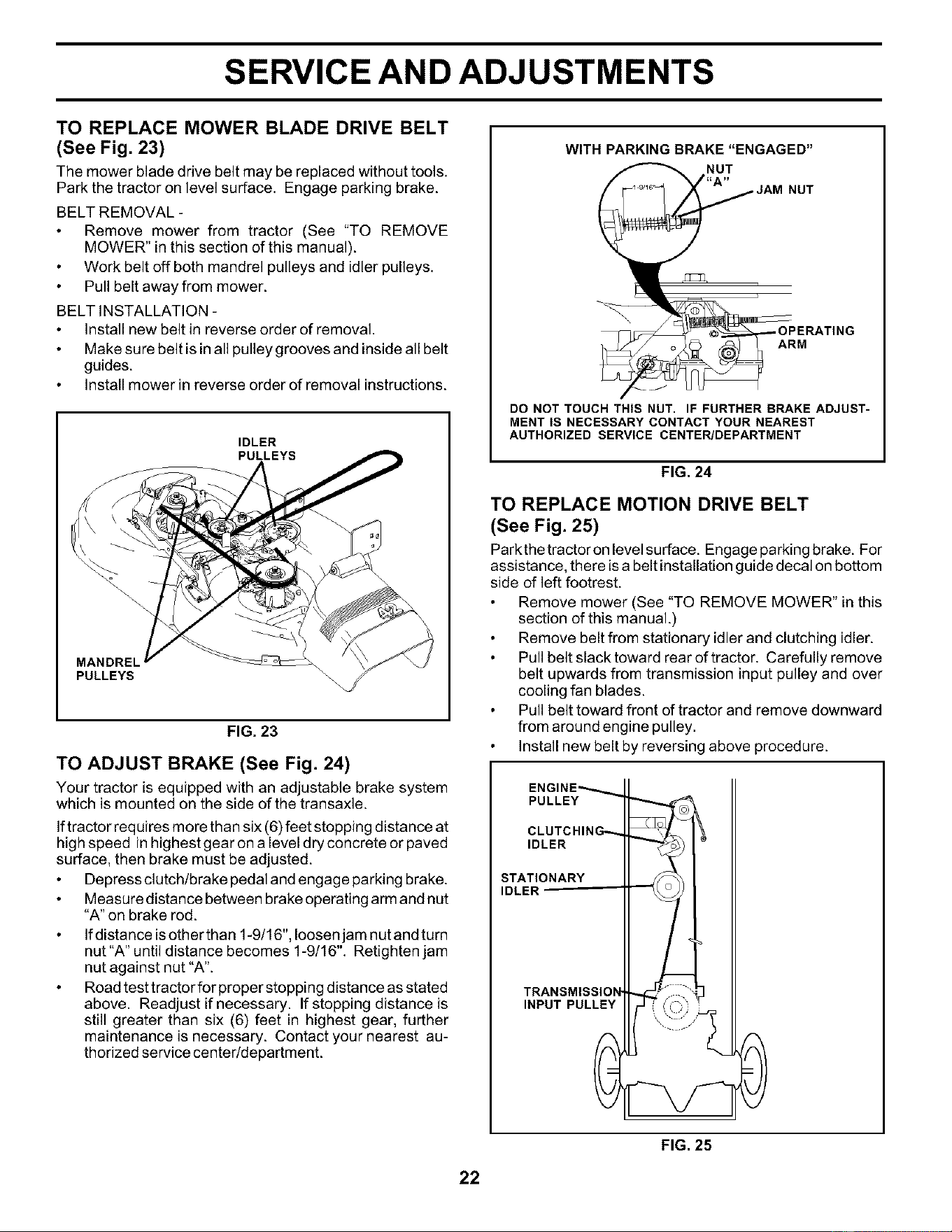

SERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 23)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL -

Remove mower from tractor (See "TO REMOVE

MOWER" in this section of this manual).

Work belt off both mandrel pulleys and idler pulleys.

Pull belt away from mower.

BELT INSTALLATION -

Install new belt in reverse order of removal.

Make sure belt is in all pulley grooves and inside all belt

guides.

Install mower in reverse order of removal instructions.

IDLER

PULLEYS

MANDREL

PULLEYS

FIG. 23

TO ADJUST BRAKE (See Fig. 24)

Your tractor is equipped with an adjustable brake system

which is mounted on the side of the transaxle.

If tractor req uires more than six (6) feet stopping distance at

high speed in highest gear on a level dry concrete or paved

surface, then brake must be adjusted.

Depress clutch/brake pedal and engage parking brake.

Measure distance between brake operating arm and nut

"A" on brake rod.

If distance is other than 1-9/16", loosen jam nutandturn

nut"A" until distance becomes 1-9/16". Retighten jam

nut against nut "A".

Road test tractor for proper stopping distance as stated

above. Readjust if necessary. If stopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

WITH PARKING BRAKE "ENGAGED"

NUT

ARM

DO NOT TOUCH THIS NUT. IF FURTHER BRAKE ADJUST-

MENT IS NECESSARY CONTACT YOUR NEAREST

AUTHORIZED SERVICE CENTER/DEPARTMENT

FIG. 24

TO REPLACE MOTION DRIVE BELT

(See Fig. 25)

Parkthe tractor on level surface. Engage parking brake. For

assistance, there is a belt installation guide decal on bottom

side of left footrest.

Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

Remove belt from stationary idler and clutching idler.

Pull belt slacktoward rear oftractor. Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades.

Pull belt toward front of tractor and remove downward

from around engine pulley.

Install new belt by reversing above procedure.

ENGINE_

PULLEY

CLUTCHING---.

IDLER __

STATIONARY

IDLER --

TRANSMISSION"

INPUT PULLEY

FIG. 25

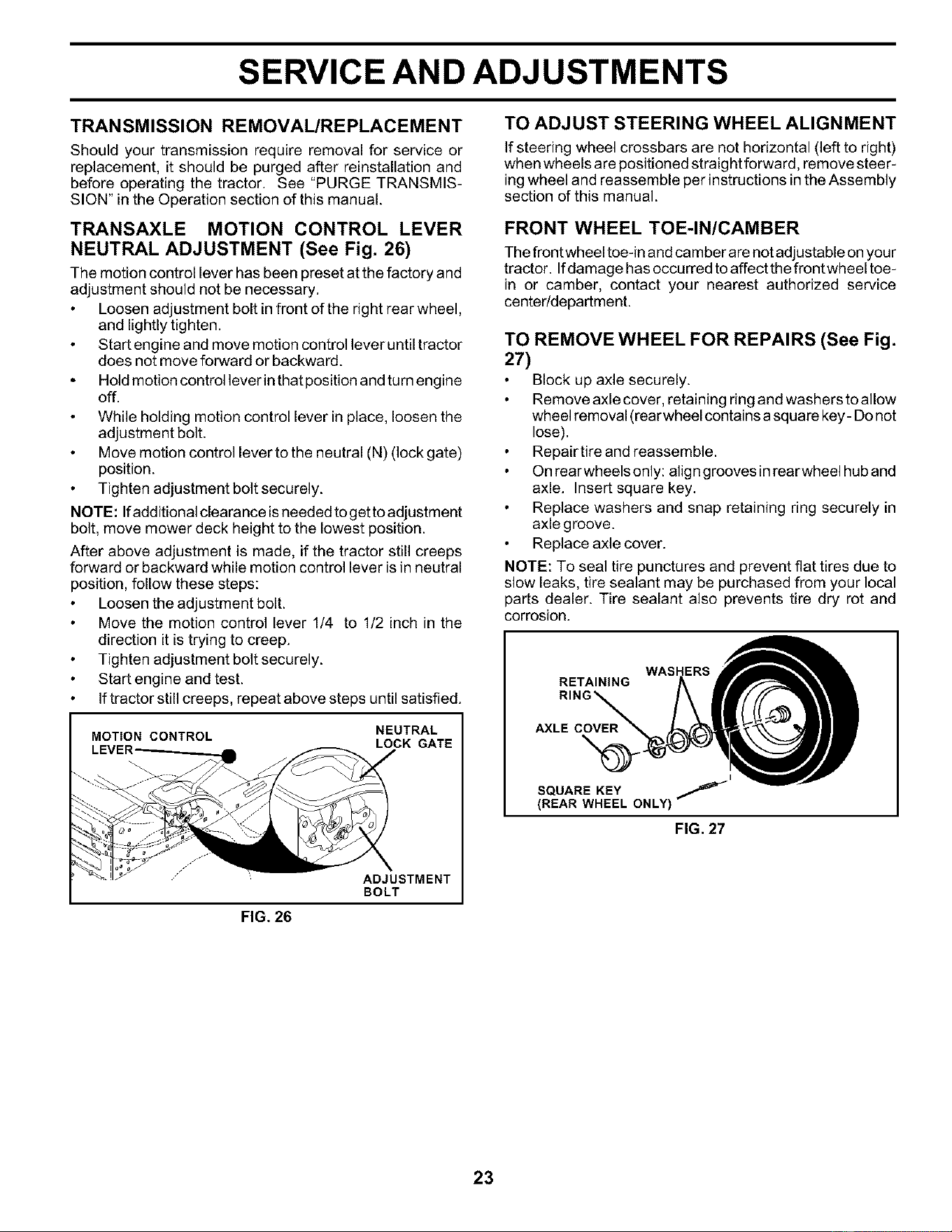

SERVICE AND ADJUSTMENTS

TRANSMISSION REMOVAL/REPLACEMENT TO ADJUST STEERING WHEEL ALIGNMENT

Should your transmission require removal for service or

replacement, it should be purged after reinstallation and

before operating the tractor. See "PURGE TRANSMIS-

SION" in the Operation section of this manual.

TRANSAXLE MOTION CONTROL LEVER

NEUTRAL ADJUSTMENT (See Fig. 26)

The motion control lever has been preset at the factory and

adjustment should not be necessary.

Loosen adjustment bolt in front of the right rear wheel,

and lightly tighten.

Start engine and move motion control lever until tractor

does not move forward or backward.

Hold motion control lever in that position and turn engine

off.

While holding motion control lever in place, loosen the

adjustment bolt.

Move motion control lever to the neutral (N) (lock gate)

position.

Tighten adjustment bolt securely.

NOTE: Ifadditional clearance is needed to get to adjustment

bolt, move mower deck height to the lowest position.

After above adjustment is made, if the tractor still creeps

forward or backward while motion control lever is in neutral

position, follow these steps:

Loosen the adjustment bolt.

Move the motion control lever 1/4 to 1/2 inch in the

direction it is trying to creep.

Tighten adjustment bolt securely.

Start engine and test.

If tractor still creeps, repeat above steps until satisfied.

MOTION CONTROL

NEUTRAL

LOCK GATE

! ADJUSTMENT

BOLT

FIG. 26

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The frontwheel toe-in and camber are not adjustable on your

tractor. If damage has occurred to affect the frontwheel toe-

in or camber, contact your nearest authorized service

center/department.

TO REMOVE WHEEL FOR REPAIRS (See Fig.

27)

Block up axle securely.

Remove axle cover, retaining ring and washers to allow

wheel removal (rearwheel contains a square key - Do not

lose).

Repair tire and reassemble.

On rearwheels only: align grooves inrearwheel hub and

axle. Insert square key.

Replace washers and snap retaining ring securely in

axle groave.

Replace axle cover.

NOTE: To seal tire punctures and prevent fiat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING

AXLE COVER

SQUARE KEY ,,,,,,,,i

(REAR WHEEL ONLY)

FIG. 27

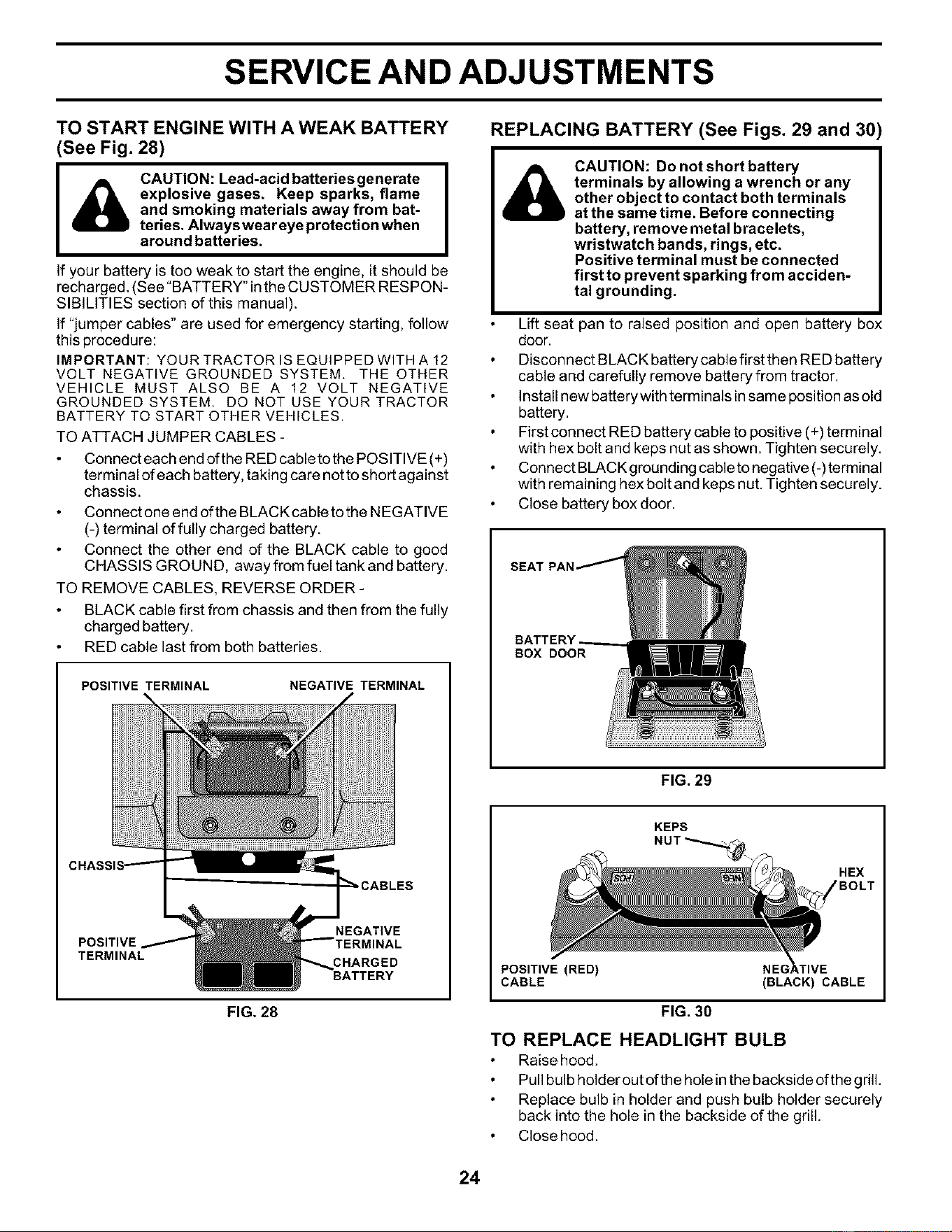

SERVICE AND ADJUSTMENTS

TO START ENGINE WITH A WEAK BATTERY REPLACING BATTERY (See Figs. 29 and 30

(See Fig. 28)

CAUTION: Lead-acid batteriesgenerate

explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery istoo weak to start the engine, it should be

recharged. (See "BATTERY" inthe CUSTOMER RESPON-

SIBILITIES section of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATTACH JUMPER CABLES -

Connect each end of the RED cable to the POSITIVE (+)

terminal of each battery, taking care notto shortagainst

chassis.

Connect one end of the BLACK cable to the NEGATIVE

(-) terminal of fully charged battery.

Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

POSITIVE TERMINAL

NEGATIVE TERMINAL

NEGATIVE

POSITIVE

TERMINAL

CHARGED

BATTERY

FIG. 28

CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals

at the same time. Before connecting

battery, remove metal bracelets,

wristwatch bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

Lift seat pan to raised position and open battery box

door.

Disconnect BLACK battery cable first then RED battery

cable and carefully remove battery from tractor.

Install new battery with terminals insame position as old

battery.

First connect RED battery cable to positive (+) terminal

with hex bolt and keps nut as shown. Tighten securely.

Connect BLACK grounding cable to negative (-)terminal

with remaining hex bolt and keps nut. Tighten securely.

Close battery box door.

BOX DOOR

FIG. 29

KEPS

HEX

POSITIVE(RED)

CABLE (BLACK) CABLE

FIG. 30

TO REPLACE HEADLIGHT BULB

Raise hood.

Pull bulb holder out of the hole inthe backside of the gdll.

Replace bulb in holder and push bulb holder securely

back intothe hole inthe backside of the grill.

Close hood.

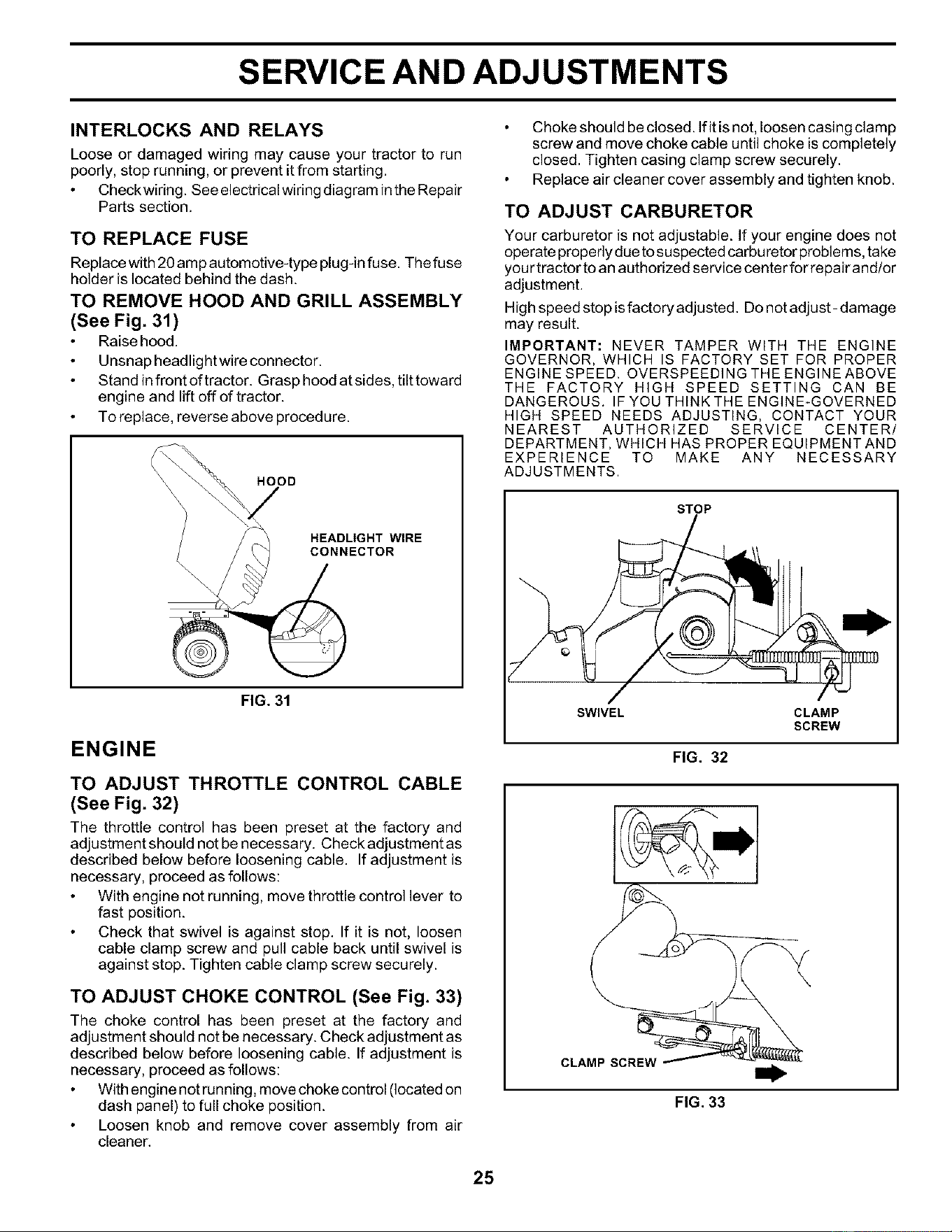

SERVICE AND ADJUSTMENTS

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

Check wiring. See electrical wiring diagram in the Repair

Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse

holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 31)

Raise hood.

Unsnap headlight wire connector.

Stand infront of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

To replace, reverse above procedure.

HOOD

HEADLIGHT WIRE

CONNECTOR

FIG. 31

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

(See Fig. 32)

The throttle control has been preset at the factory and

adjustment should not be necessary. Checkadjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

With engine not running, move throttle control lever to

fast position.

Check that swivel is against stop. If it is not, loosen

cable clamp screw and pull cable back until swivel is

against stop. Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 33)

The choke control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

With engine not running, move choke control (located on

dash panel) to full choke position.

Loosen knob and remove cover assembly from air

cleaner.

Choke should be closed. Ifit isnot, loosen casing clamp

screw and move choke cable until choke iscompletely

closed. Tighten casing clamp screw securely.

Replace air cleaner cover assembly and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due tosuspected carburetor problems, take

yourtractor to an authorized service center for repair and/or

adjustment.

High speed stop is factory adjusted. Do not adjust-damage

may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IF YOU THINK THE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

STOP

SWIVEL CLAMP

SCREW

FIG. 32

CLAMP SCREW

FIG. 33

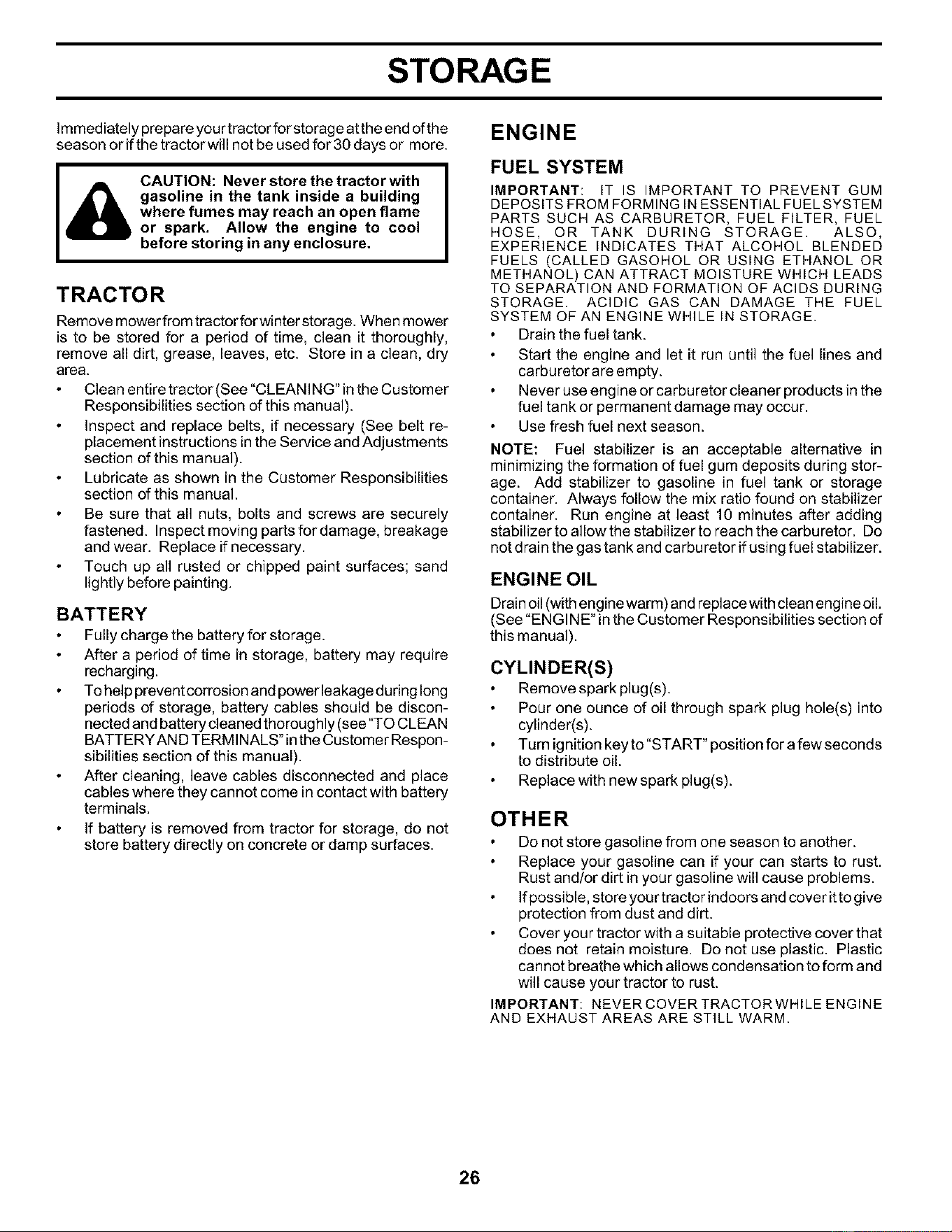

STORAGE

Immediately prepare your tractor for storage atthe end of the

season or if the tractor will not be used for 30 days or more.

CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool

before storing in any enclosure.

TRACTOR

Remove mower from tractor forwinter storage. When mower

is to be stored for a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store in a clean, dry

area.

Clean entire tractor (See "CLEAN ING" in the Customer

Responsibilities section of this manual).

Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

Lubricate as shown in the Customer Responsibilities

section of this manual.

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving partsfordamage, breakage

and wear. Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery may require

recharging.

To help prevent corrosion and power leakage during long

periods of storage, battery cables should be discon-

nected and battery cleaned thoroughly (see "TO CLEAN

BATTERYAND TERMINALS"in the Customer Respon-

sibilities section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL SYSTEM

PARTS SUCH AS CARBURETOR, FUEL FILTER, FUEL

HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

Drain the fuel tank.

Start the engine and let it ran until the fuel lines and

carburetorare empty.

Never use engine or carburetor cleaner prod acts in the

fuel tank or permanent damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizertoallowthestabilizertoreachthecarburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil.

(See "ENGIN E" in the Customer Responsibilities section of

this manual).

CYLINDER(S)

Remove spark plug(s).

Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

Turn ignition key to "START" position for a few seconds

to distribute oil.

Replace with new spark plug(s).

OTHER

Do not store gasoline from one season to another.

Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

If possible, store your tractor indoors and cover itto give

protection from dust and dirt.

Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILEENGINE

AND EXHAUST AREAS ARE STILL WARM.

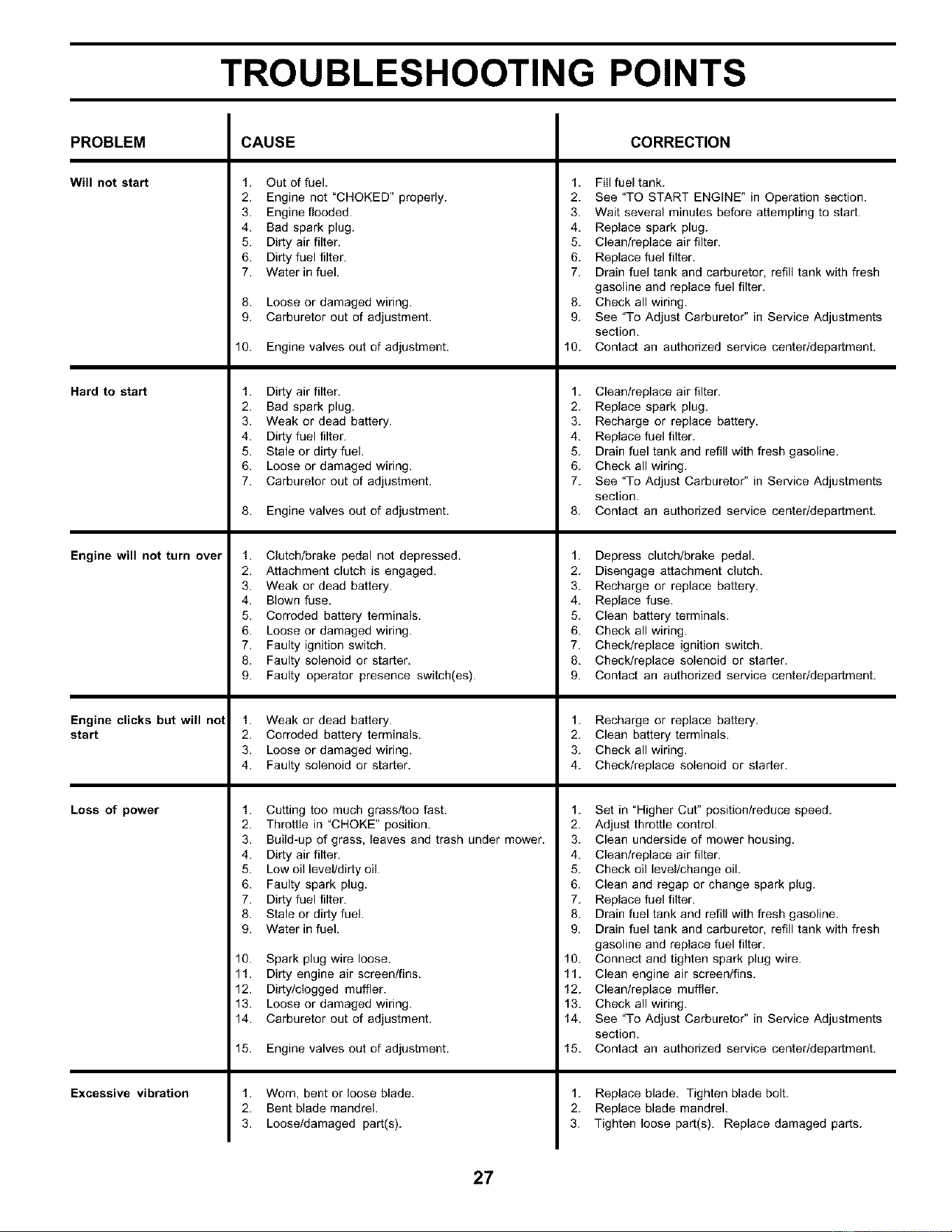

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

CORRECTION

1. Fill fueltank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor" in Service Adjustments

section.

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

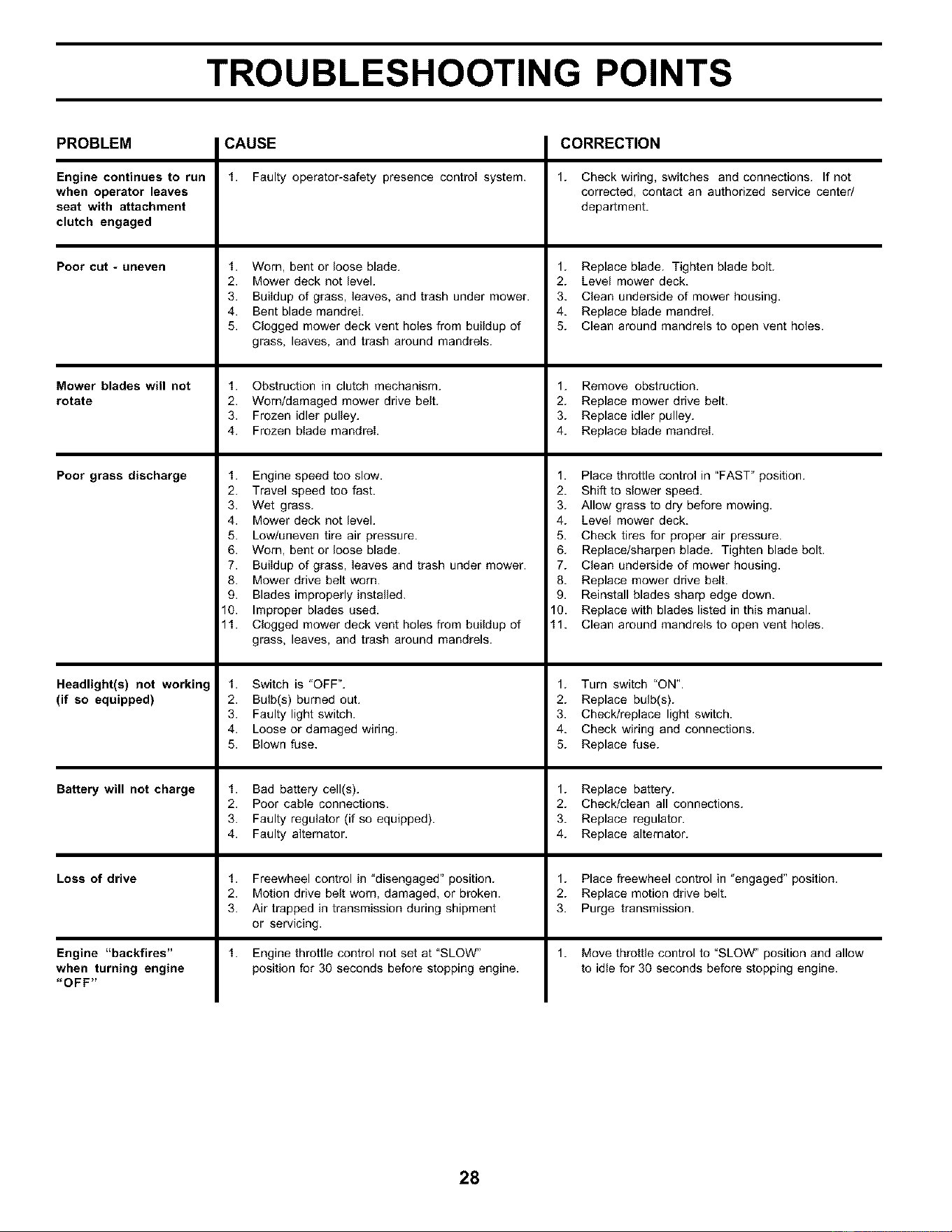

TROUBLESHOOTING POINTS

PROBLEM

Engine continues to run

when operator leaves

seat with attachment

clutch engaged

Poor cut - uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires"

when turning engine

"OFF"

CAUSE

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Switch is "OFF".

2. Bulb(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine.

CORRECTION

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Turn switch "ON".

2. Replace bulb(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

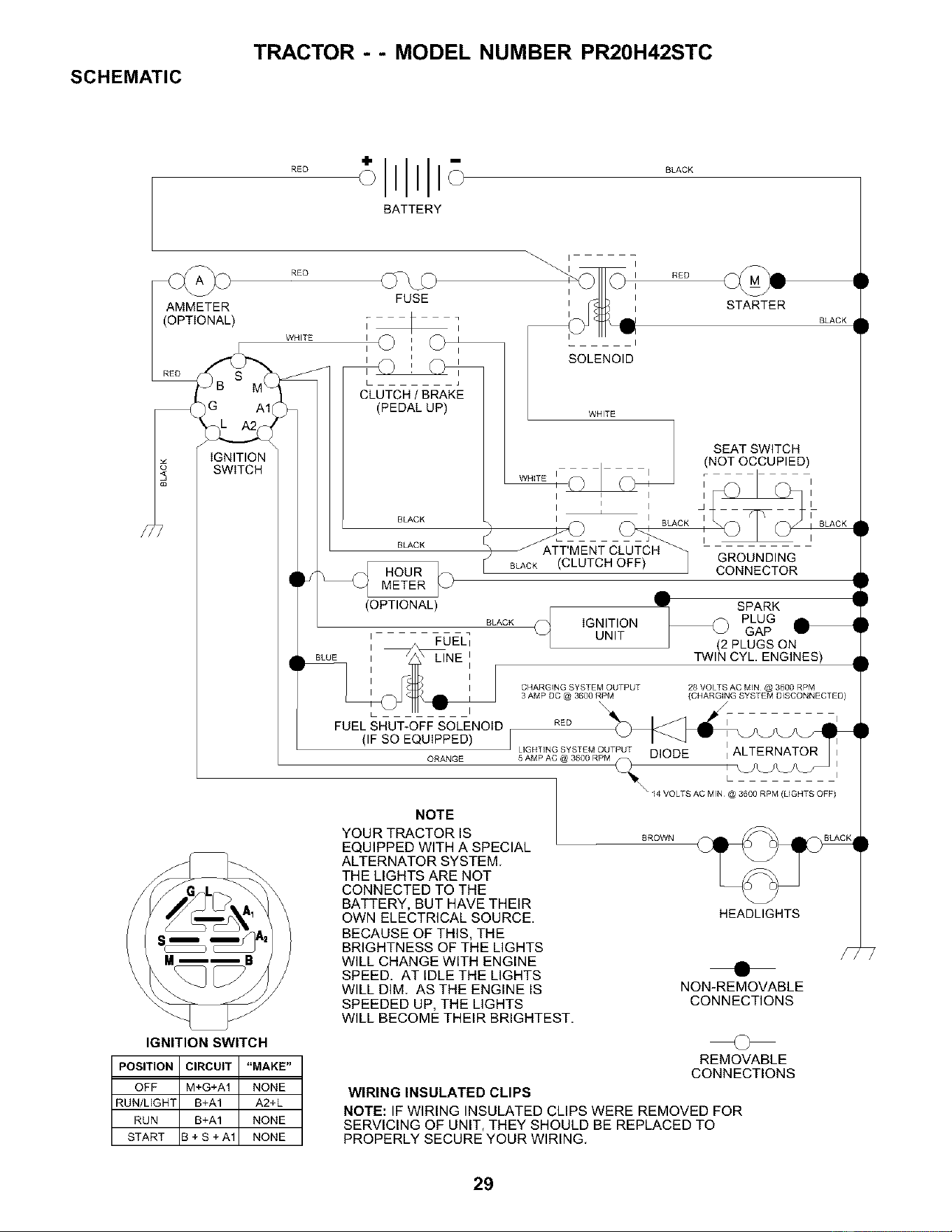

SCHEMATIC

TRACTOR - - MODEL NUMBER PR20H42STC

REDOII1 BLACK

BATTERY

__S M_ RED

AMMETER

(OPTIONAL)

WHITE

G All

IGNITION

SWITCH

gram0

FUSE

' © ,

I I

[ J

CLUTCH / BRAKE

(PEDAL UP)

BLACK

HOUR _METER

SOLENOID

WHITE

R£D

STARTER

I I

i i i

'© © I

_ATAT_'M ENT CLUT_

BLACK CLUTCH OFF) J

(OPTIONAL)

BLACK IGNITION

I UNIT

SEAT SWITCH

(NOT OCCUPIED)

GROUNDING

CONNECTOR

BLACK •

A •

v SPARK •

_, PLUG U

GAP v •

] (2 PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC MIN @ 3600 RPM

{CHARGING SYSTEM DISCONNECTED)

I I

DIODE I ALTERNATOR

\ 14 VOLTS AC MIN @ 3600 RPM (LIGHTS OFF)

HEADLIGHTS

BROWN

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

FUEL SHUT-OFF SOLENOID RED

(IF SO EQUIPPED) I LIGHTINGSYSTEMOUTPUT

ORANGE 5 AMP AC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3 + S + A1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

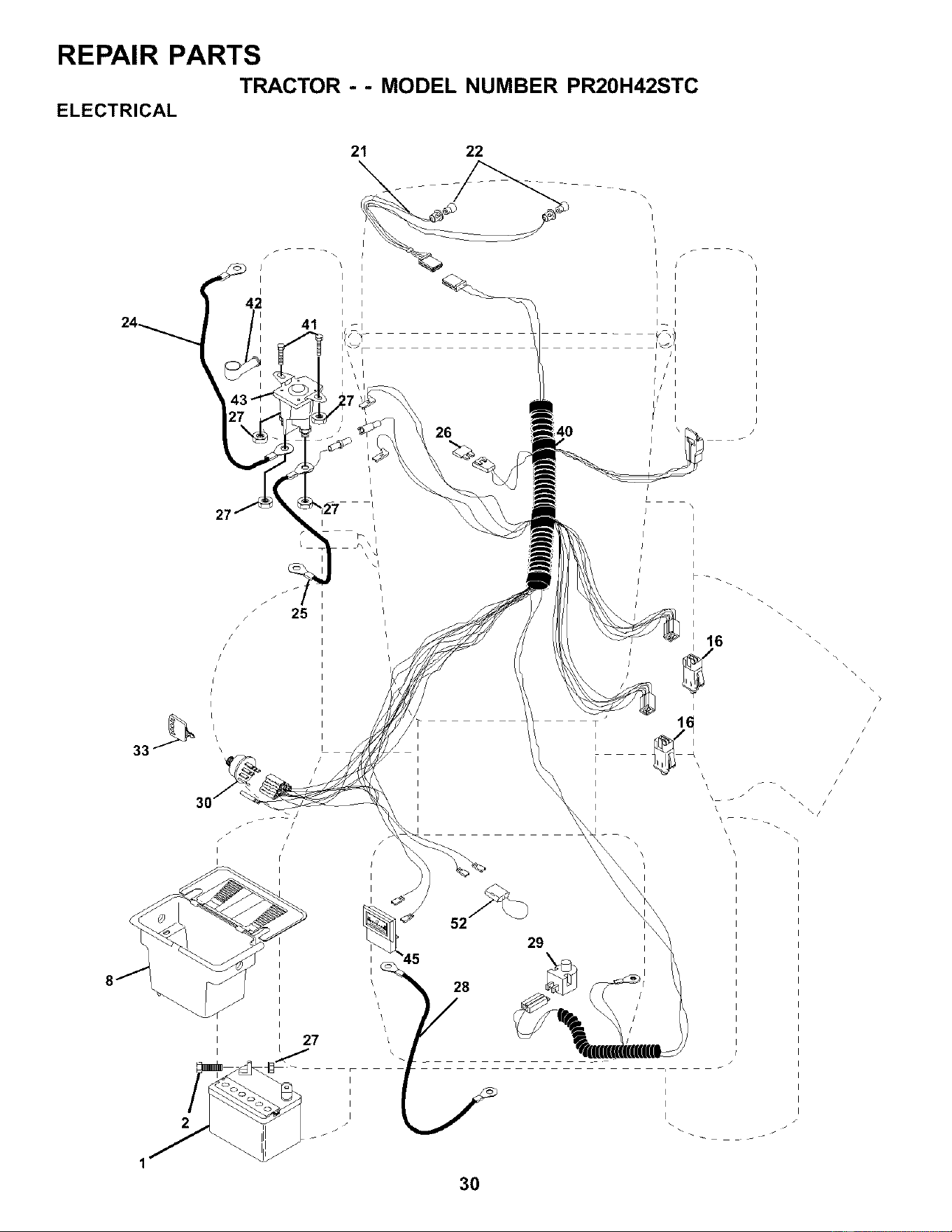

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ELECTRICAL

21 22

I I

42 i

I I

24_ i 41

I - I

I I I

Ill I

/ \

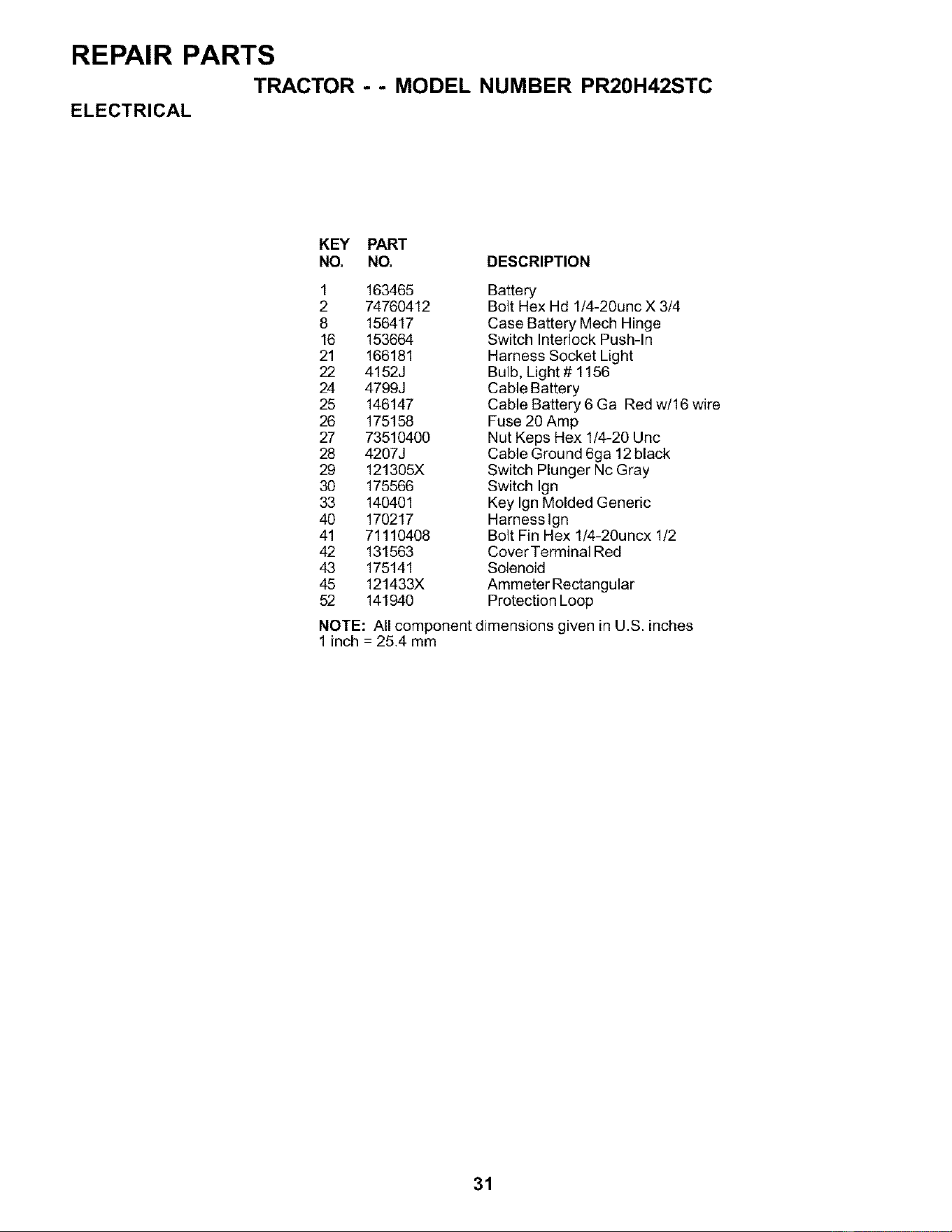

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 156417

16 153664

21 166181

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140401

40 170217

41 71110408

42 131563

43 175141

45 121433X

52 141940

Battery

Bolt Hex Hd 1/4-20unc X 3/4

Case Battery Mech Hinge

Switch Interlock Push-In

Harness Socket Light

Bulb, Light # 1156

Cable Battery

Cable Battery 6 Ga Red w/16 wire

Fuse 20 Amp

Nut Keps Hex 1/4-20 Unc

Cable Ground 6ga 12black

Switch Plunger Nc Gray

Switch Ign

Key Ign Molded Generic

Harness Ign

Bolt Fin Hex 1/4-20uncx 1/2

Cover Terminal Red

Solenoid

Ammeter Rectangular

Protection Loop

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

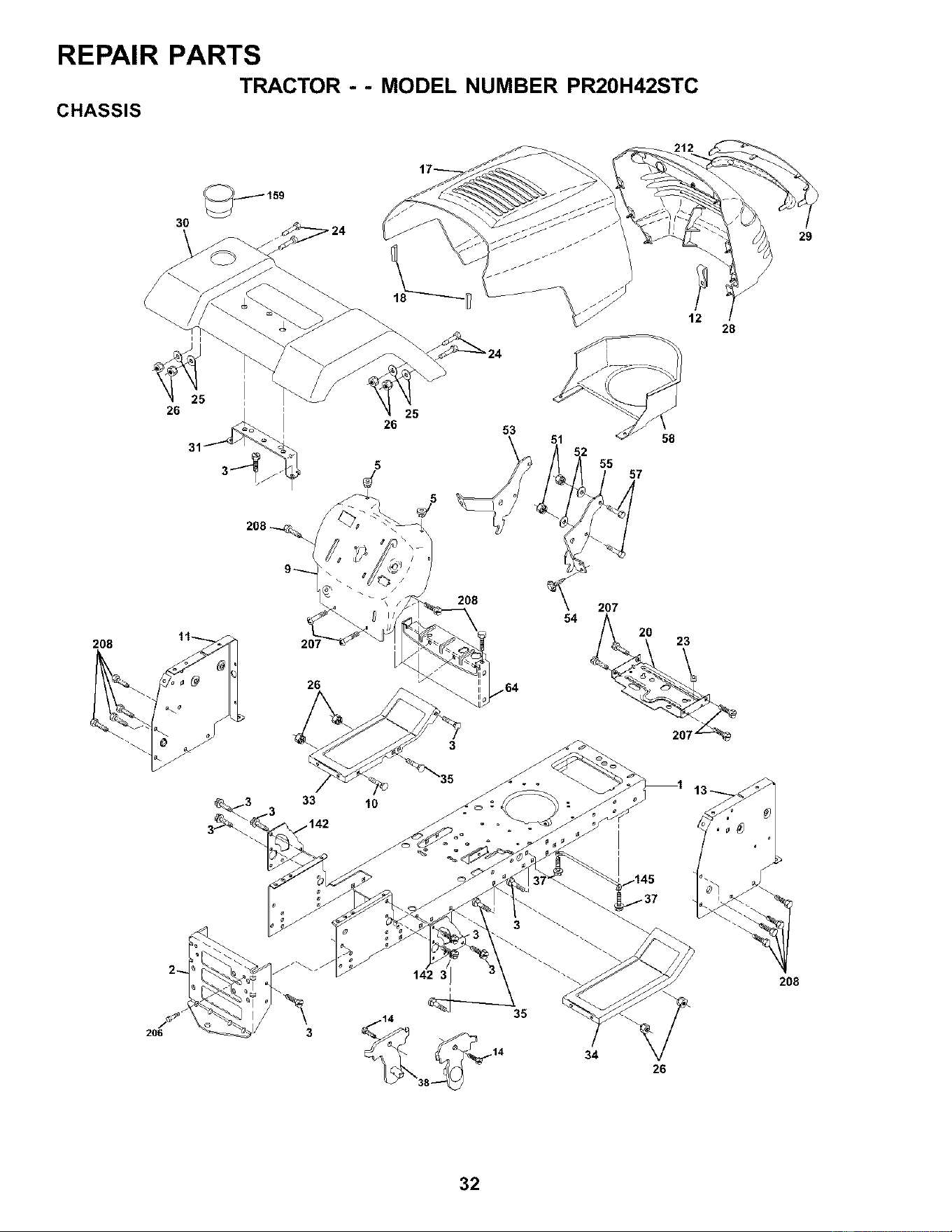

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

CHASSIS

208

207

208

_ 207

20 23

208

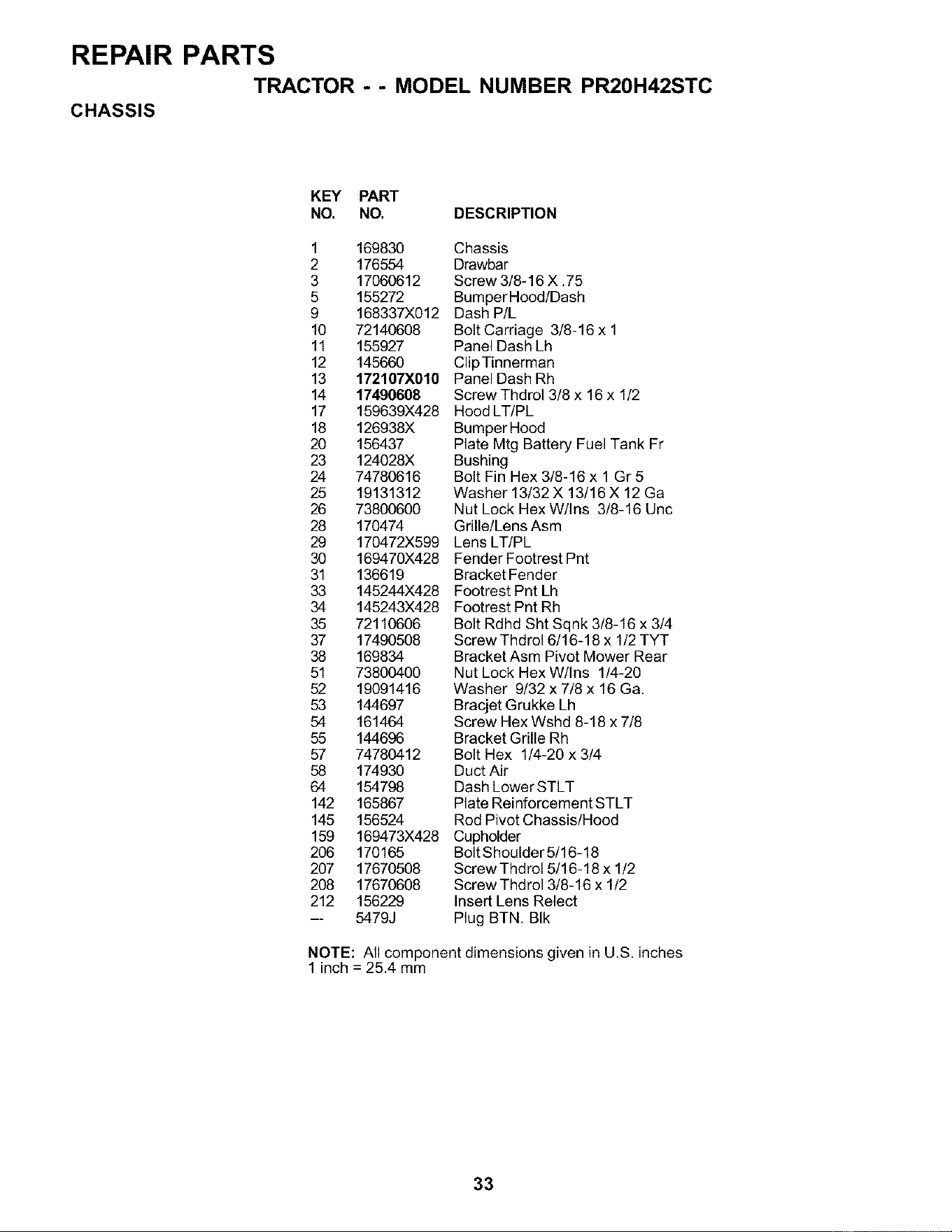

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR2OH42STC

CHASSIS

KEY PART

NO. NO. DESCRIPTION

1 169830

2 176554

3 17060612

5 155272

9 168337X012

10 72140608

11 155927

12 145660

13 172107X010

14 17490608

17 159639X428

18 126938X

20 156437

23 124028X

24 74780616

25 19131312

26 73800600

28 170474

29 170472X599

30 169470X428

31 136619

33 145244X428

34 145243X428

35 72110606

37 17490508

38 169834

51 73800400

52 19091416

53 144697

54 161464

55 144696

57 74780412

58 174930

64 154798

142 165867

145 156524

159 169473X428

206 170165

207 17670508

208 17670608

212 156229

-- 5479J

Chassis

Drawbar

Screw 3/8-16 X.75

BumperHood/Dash

Dash P/L

Bolt Carriage 3!8-16 x 1

Panel Dash Lh

ClipTinnerman

Panel Dash Rh

Screw Thdrol 3/8 x 16 x 1/2

Hood LT/PL

Bumper Hood

Plate Mtg Battery Fuel Tank Fr

Bushing

Bolt Fin Hex 3!8-16 x 1 Gr 5

Washer 13!32 X 13/16 X 12 Ga

Nut Lock Hex W/Ins 3/8-16 Unc

Grille/Lens Asm

Lens LT/PL

Fender Footrest Pnt

Bracket Fender

Footrest Pnt Lh

Footrest Pnt Rh

Bolt Rdhd Sht Sqnk 3/8-16 x 3/4

Screw Thdrol 6!16-18 x 1/2 TYT

Bracket Asm Pivot Mower Rear

Nut Lock Hex W/Ins 1/4-20

Washer 9/32 x 7!8 x 16 Ga.

Bracjet Grukke Lh

Screw Hex Wshd 8-18 x 7/8

Bracket Grille Rh

Bolt Hex 1/4-20 x 3/4

Duct Air

Dash Lower STLT

Plate Reinforcement STLT

Rod Pivot Chassis/Hood

Cupholder

Bolt Shoulder 5/16-18

Screw Thd rol 5/16-18 x 1!2

Screw Thd rol 3!8-16 x 1/2

Insert Lens Relect

Plug BTN. BIk

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

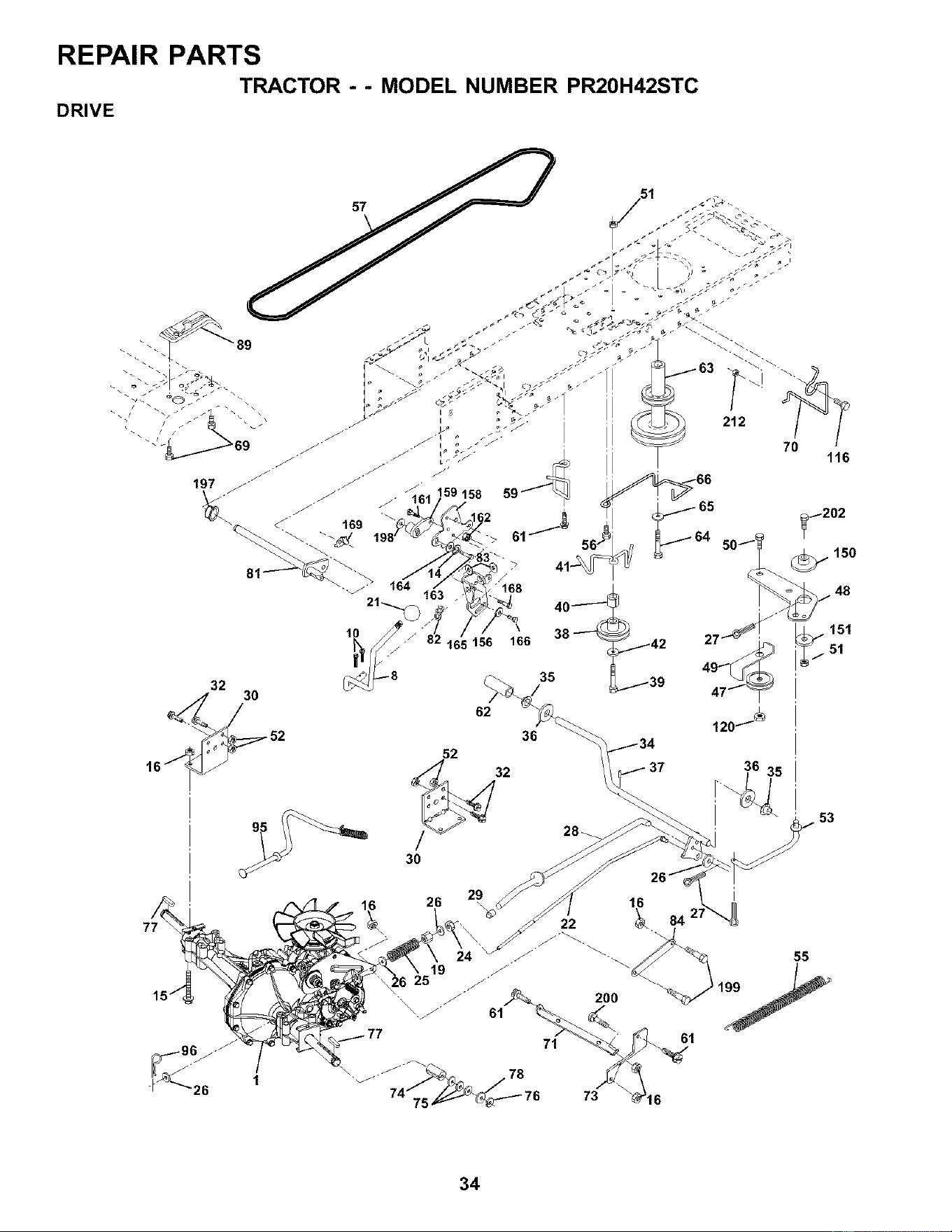

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

DRIVE

37 36

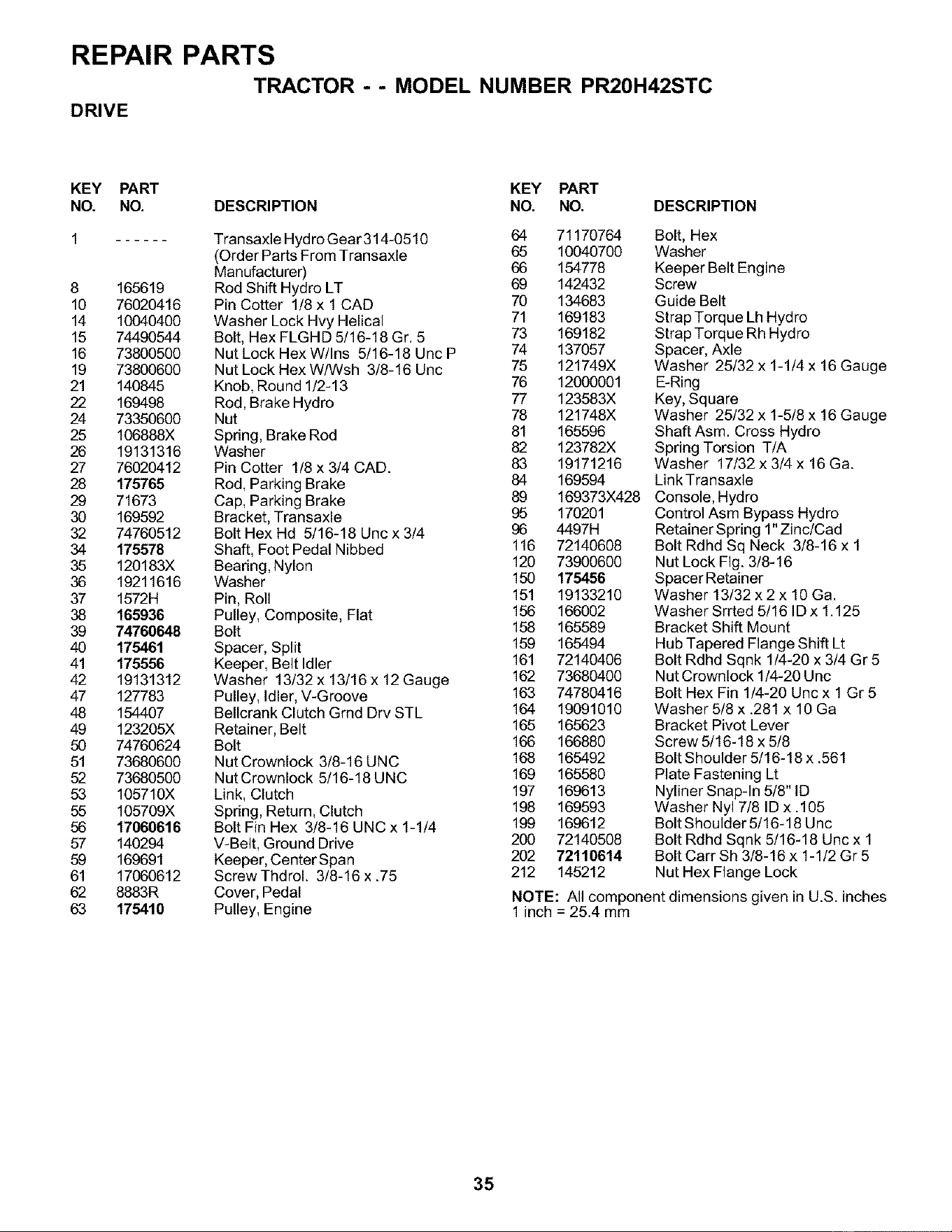

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR2OH42STC

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

8 165619

10 76020416

14 10040400

15 74490544

16 73800500

19 73800600

21 140845

22 169498

24 73350600

25 106888X

26 19131316

27 76020412

28 175765

29 71673

30 169592

32 74760512

34 175578

35 120183X

36 19211616

37 1572H

38 165936

39 74760648

40 175461

41 175556

42 19131312

47 127783

48 154407

49 123205X

50 74760624

51 73680600

52 73680500

53 105710X

55 105709X

56 17060616

57 140294

59 169691

61 17060612

62 8883R

63 175410

Transaxle Hydro Gear 314-0510 64 71170764

(Order Parts From Transaxle 65 10040700

Manufacturer) 66 154778

Rod Shift Hydro LT 69 142432

Pin Cotter 1/8 x 1 CAD 70 134683

Washer Lock Hvy Helical 71 169183

Bolt, Hex FLGHD 5/16-18 Gr. 5 73 169182

Nut Lock Hex W/Ins 5/16-18 Unc P 74 137057

Nut Lock Hex W/Wsh 3/8-16 Unc 75 121749X

Knob, Round 1/2-13 76 12000001

Rod, Brake Hydro 77 123583X

Nut 78 121748X

Spring, Brake Rod 81 165596

Washer 82 123782X

Pin Cotter 1/8 x 3/4 CAD. 83 19171216

Rod, Parking Brake 84 169594

Cap, Parking Brake 89 169373X428

Bracket, Transaxle 95 170201

Bolt Hex Hd 5/16-18 Unc x 3/4 96 4497H

Shaft, Foot PedaINibbed 116 72140608

Bearing, Nylon 120 73900600

Washer 150 175456

Pin, Roll 151 19133210

Pulley, Composite, Flat 156 166002

Bolt 158 165589

Spacer, Split 159 165494

Keeper, Belt Idler 161 72140406

Washer 13/32 x 13/16 x 12 Gauge 162 73680400

Pulley, Idler, V-Groove 163 74780416

Bellcrank Clutch Grad Drv STL 164 19091010

Retainer, Belt 165 165623

Bolt 166 166880

Nut Crownlock 3/8-16 UNC 168 165492

Nut Crownlock 5/16-18 UNC 169 165580

Link, Clutch 197 169613

Spring, Return, Clutch 198 169593

Bolt Fin Hex 3!8-16 UNC x 1-1/4 199 169612

V-Belt, Ground Drive 200 72140508

Keeper, Center Span 202 72110614

Screw Thdrol. 3/8-16 x .75 212 145212

Cover, Pedal

Pulley, Engine

Bolt, Hex

Washer

Keeper Belt Engine

Screw

Guide Belt

Strap Torque Lh Hydro

Strap Torque Rh Hydro

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square

Washer 25/32 x 1-5/8 x 16 Gauge

Shaft Asm. Cross Hydro

Spring Torsion T/A

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Console, Hydro

Control Asm Bypass Hydro

Retainer Spring 1" Zinc/Cad

Bolt Rdhd Sq Neck 3/8-16 x 1

Nut Lock Fig. 3!8-16

Spacer Retainer

Washer 13!32 x 2 x 10 Ga.

Washer Srrted 5/16 IDx 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20 Unc x 1 Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5!8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Nyliner Snap-In 5/8" ID

Washer Nyl 7/8 ID x .105

Bolt Shoulder 5/16-18 Unc

Bolt Rdhd Sqnk 5/16-18 Unc x 1

Bolt Carr Sh 3/8-16 x 1-1/2 Gr 5

Nut Hex Flange Lock

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

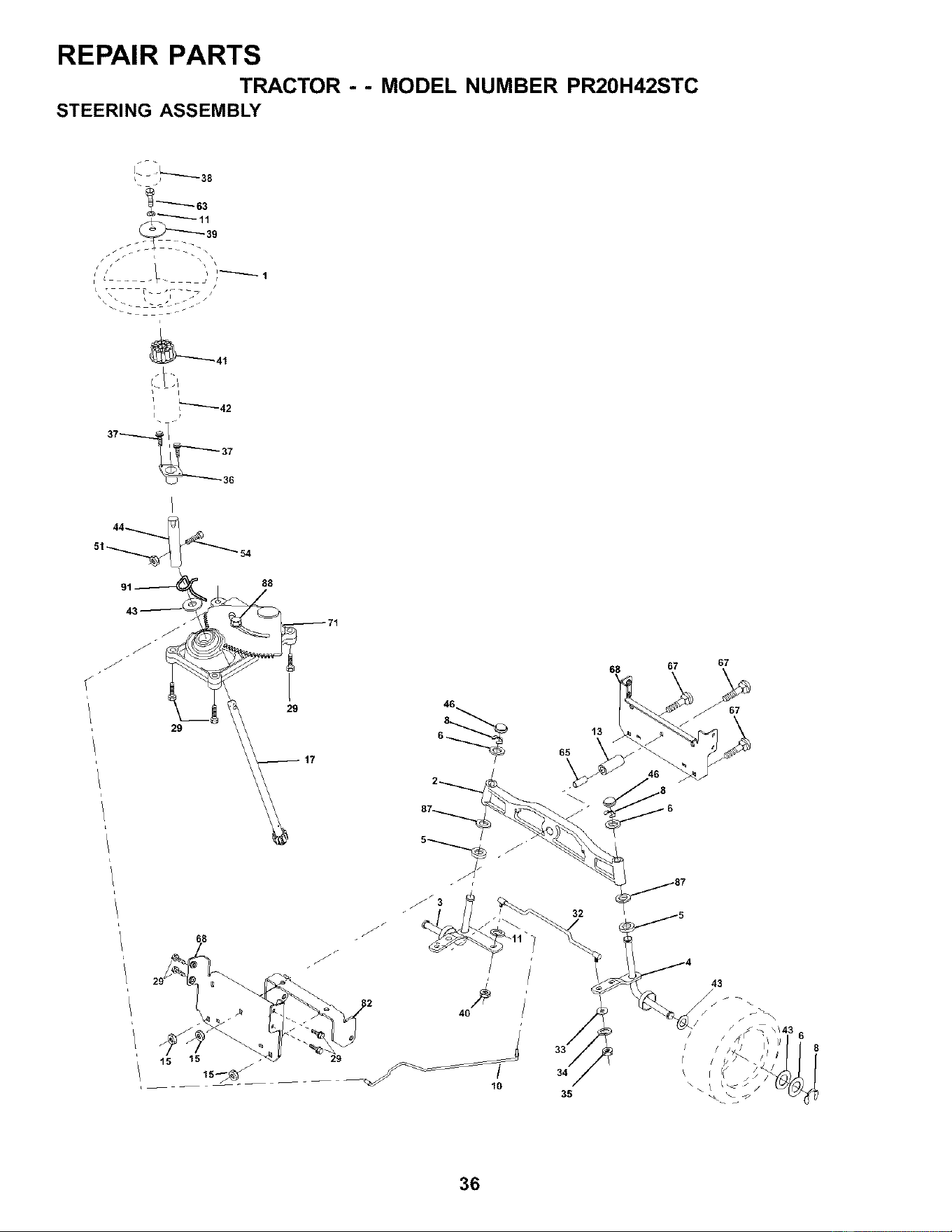

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

STEERING ASSEMBLY

I_--_-_-39

19 15

67 67

J f

J \

[

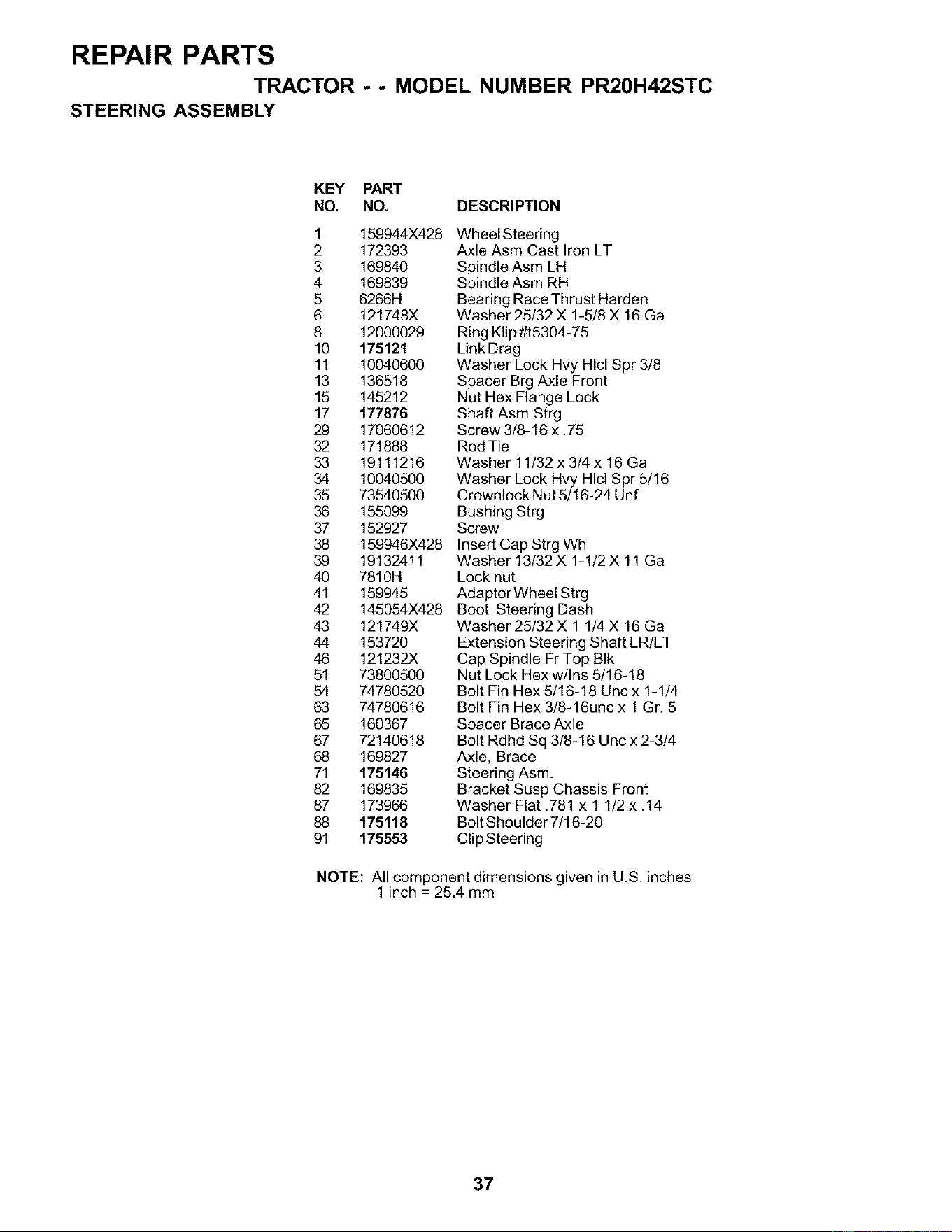

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR2OH42STC

STEERING ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2 172393

3 169840

4 169839

5 6266H

6 121748X

8 12000029

10 175121

11 10040600

13 136518

15 145212

17 177876

29 17060612

32 171888

33 19111216

34 10040500

35 73540500

36 155099

37 152927

38 159946X428

39 19132411

40 7810H

41 159945

42 145054X428

43 121749X

44 153720

46 121232X

51 73800500

54 74780520

63 74780616

65 160367

67 72140618

68 169827

71 175146

82 169835

87 173966

88 175118

91 175553

Wheel Steering

Axle Asm Cast Iron LT

Spindle Asm LH

Spindle Asm RH

Bearing Race Thrust Harden

Washer 25/32 X 1-5!8 X 16 Ga

Ring Klip #t5304-75

Link Drag

Washer Lock Hvy Hlcl Spr 3!8

Spacer Brg Axle Front

Nut Hex Flange Lock

Shaft Asm Strg

Screw 3/8-16 x .75

Rod Tie

Washer 11!32 x 3/4 x 16 Ga

Washer Lock Hvy Hlcl Spr 5/16

Crownlock Nut 5/16-24 Unf

Bushing Strg

Screw

Insert Cap Strg Wh

Washer 13/32 X 1-1/2 X 11 Ga

Lock nut

AdaptorWheel Strg

Boot Steering Dash

Washer 25/32 X 1 1/4X 16 Ga

Extension Steering Shaft LR/LT

Cap Spindle Fr Top BIk

Nut Lock Hex w/Ins 5/16-18

Bolt Fin Hex 5/16-18 Unc x 1-1/4

Bolt Fin Hex 3/8-16unc x 1 Gr. 5

Spacer Brace Axle

Bolt Rdhd Sq 3/8-16 Unc x 2-3/4

Axle, Brace

Steering Asm.

Bracket Susp Chassis Front

Washer Flat .781 x 1 1/2 x .14

Bolt Shoulder 7/16-20

Clip Steering

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

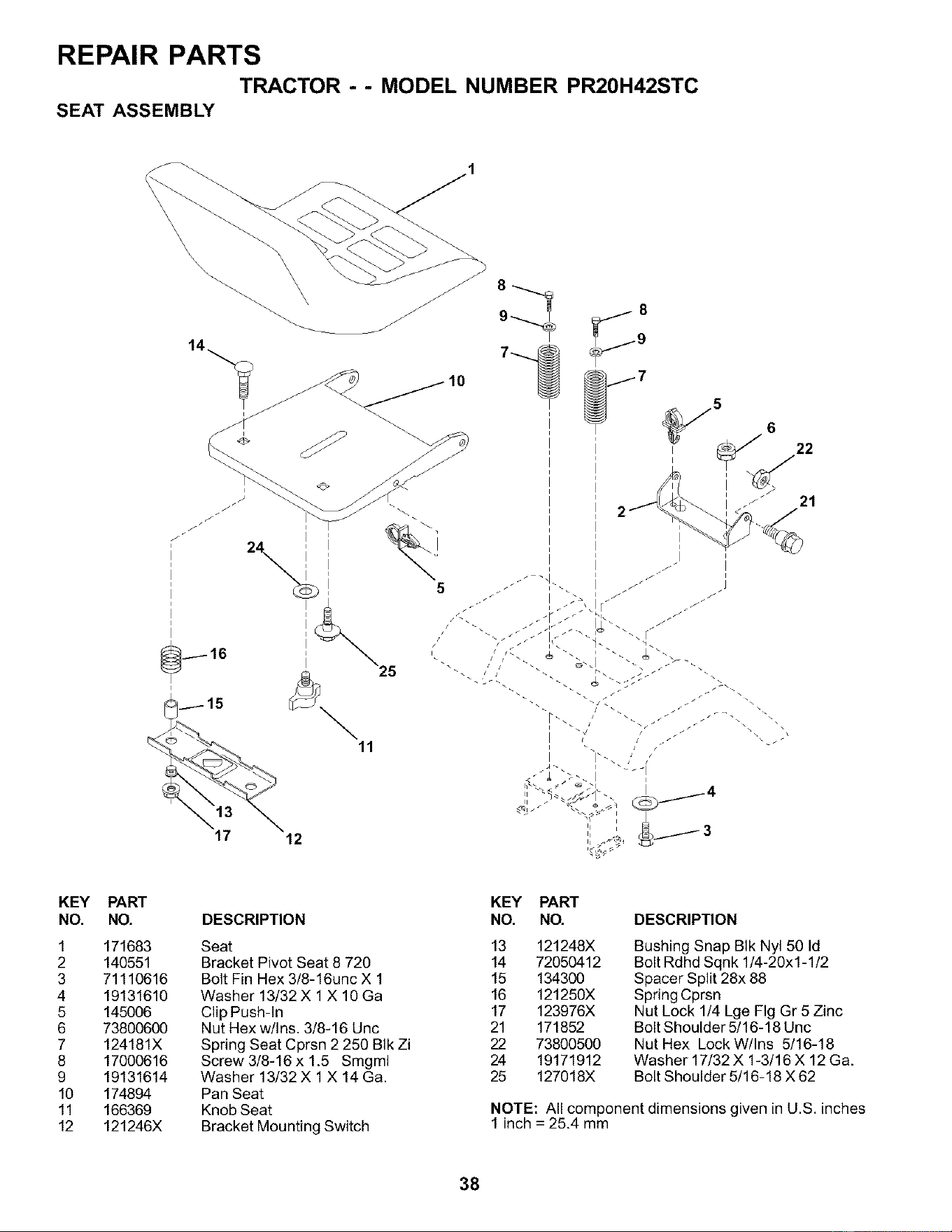

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

SEAT ASSEMBLY

17 12

KEY

NO.

PART

NO.

171683

140551

71110616

19131610

145006

73800600

124181X

17000616

19131614

174894

166369

121246X

DESCRIPTION

Seat

Bracket Pivot Seat 8 720

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 1 X 10 Ga

Clip Push-In

Nut Hex w/Ins. 3/8-16 Unc

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16 x 1.5 Smgml

Washer 13/32 X 1 X 14 Ga.

Pan Seat

Knob Seat

Bracket Mounting Switch

KEY PART

NO. NO.

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 171852

22 73800500

24 19171912

25 127018X

DESCRIPTION

Bushing Snap BIk Nyl 50 Id

Bolt Rdhd Sqnk 1/4-20x1-1/2

Spacer Split 28x 88

Spring Cprsn

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc

Nut Hex Lock W/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12 Ga.

Bolt Shoulder 5/16-18 X 62

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

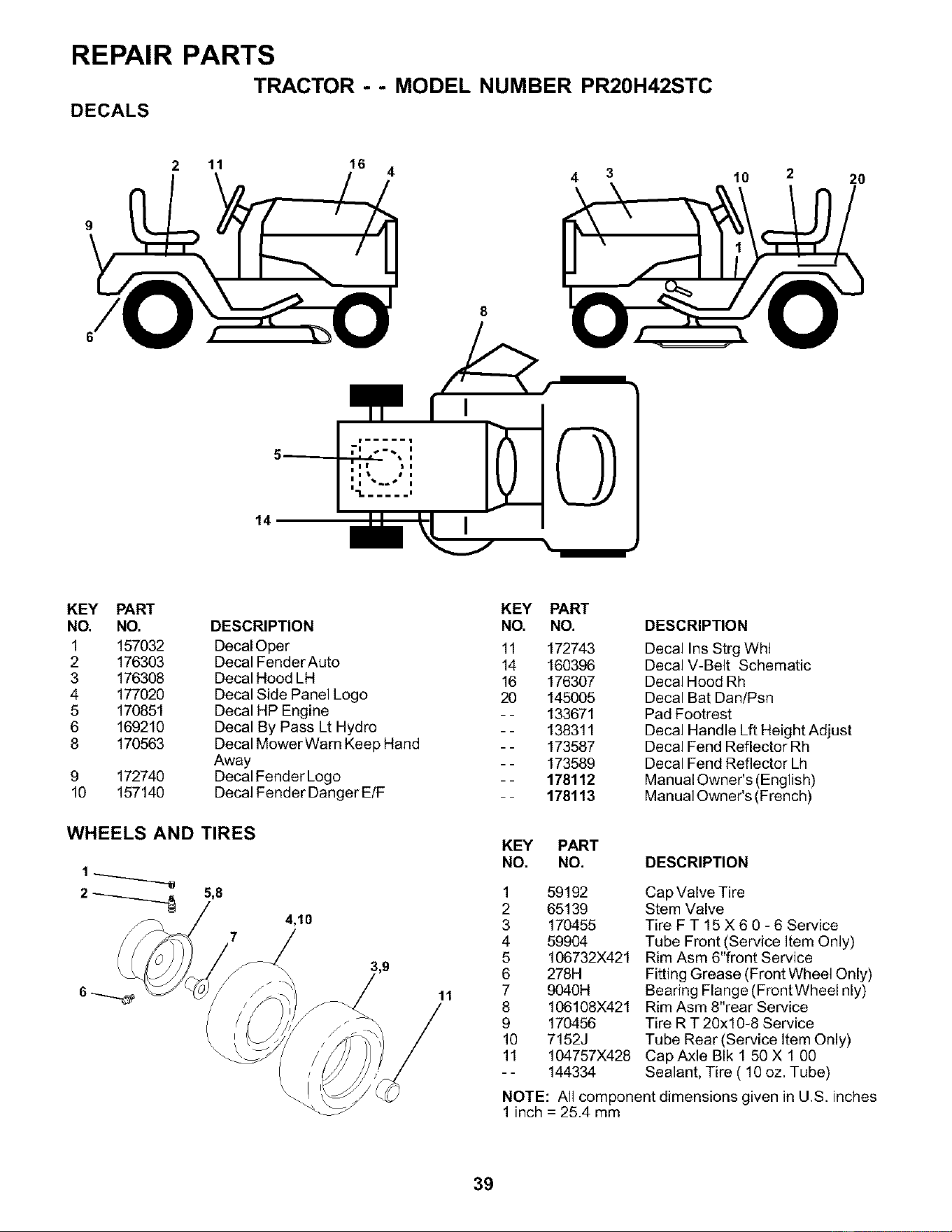

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

DECALS

11 16

4 3

10 2 20

KEY PART KEY PART

NO. NO, DESCRIPTION NO. NO,

1 157032 Decal Oper 11 172743

2 176303 Decal FenderAuto 14 160396

3 176308 Decal Hood LH 16 176307

4 177020 Decal Side Panel Logo 20 145005

5 170851 Decal HP Engine - - 133671

6 169210 Decal By Pass Lt Hydro - - 138311

8 170563 Decal Mower Warn Keep Hand -- 173587

Away - - 173589

9 172740 Decal Fender Logo -- 178112

10 157140 Decal Fender Danger E/F -- 178113

WHEELS AND TIRES

5,8

4,10

DESCRIPTION

Decal Ins Strg Whl

Decal V-Belt Schematic

Decal Hood Rh

Decal Bat Dan/Psn

Pad Footrest

Decal Handle Lft Height Adjust

Decal Fend Reflector Rh

Decal Fend Reflector Lh

Manual Owner's (English)

Manual OwneCs (French)

KEY PART

NO. NO. DESCRIPTION

1 59192

2 65139

3 170455

4 59904

5 106732X421

6 278H

7 9040H

8 106108X421

9 170456

10 7152J

11 104757X428

- - 144334

Cap Valve Tire

Stem Valve

Tire F T 15 X 6 0 - 6 Service

Tube Front (Service Item Only)

Rim Asm 6"front Service

Fitting Grease (Front Wheel Only)

Bearing Flange (FrontWheel nly)

Rim Asm 8"rear Service

Tire R T 20x10-8 Service

Tube Rear (Service Item Only)

Cap Axle BIk 1 50 X 1 00

Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

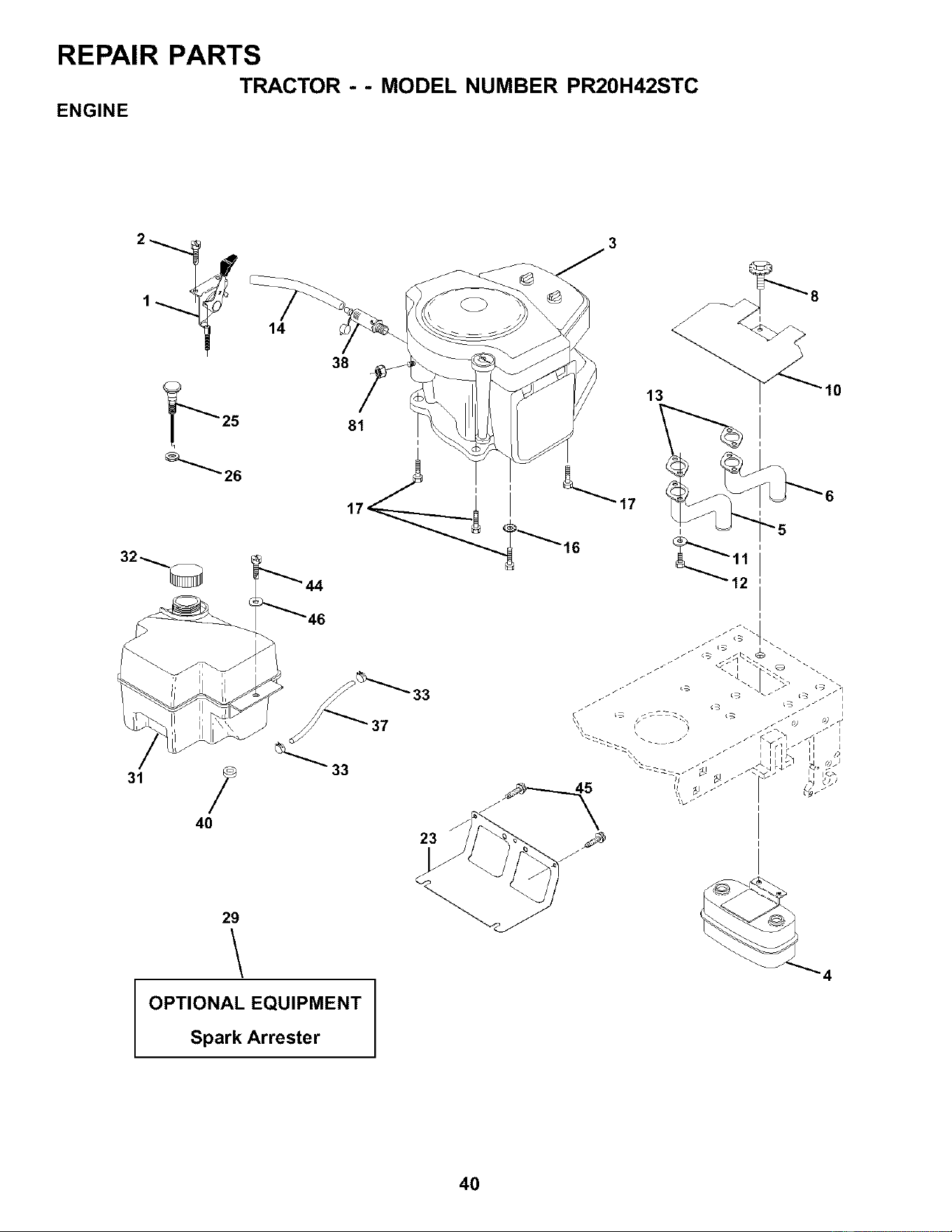

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

ENGINE

OPTIONAL EQUIPMENT

Spark Arrester

"33

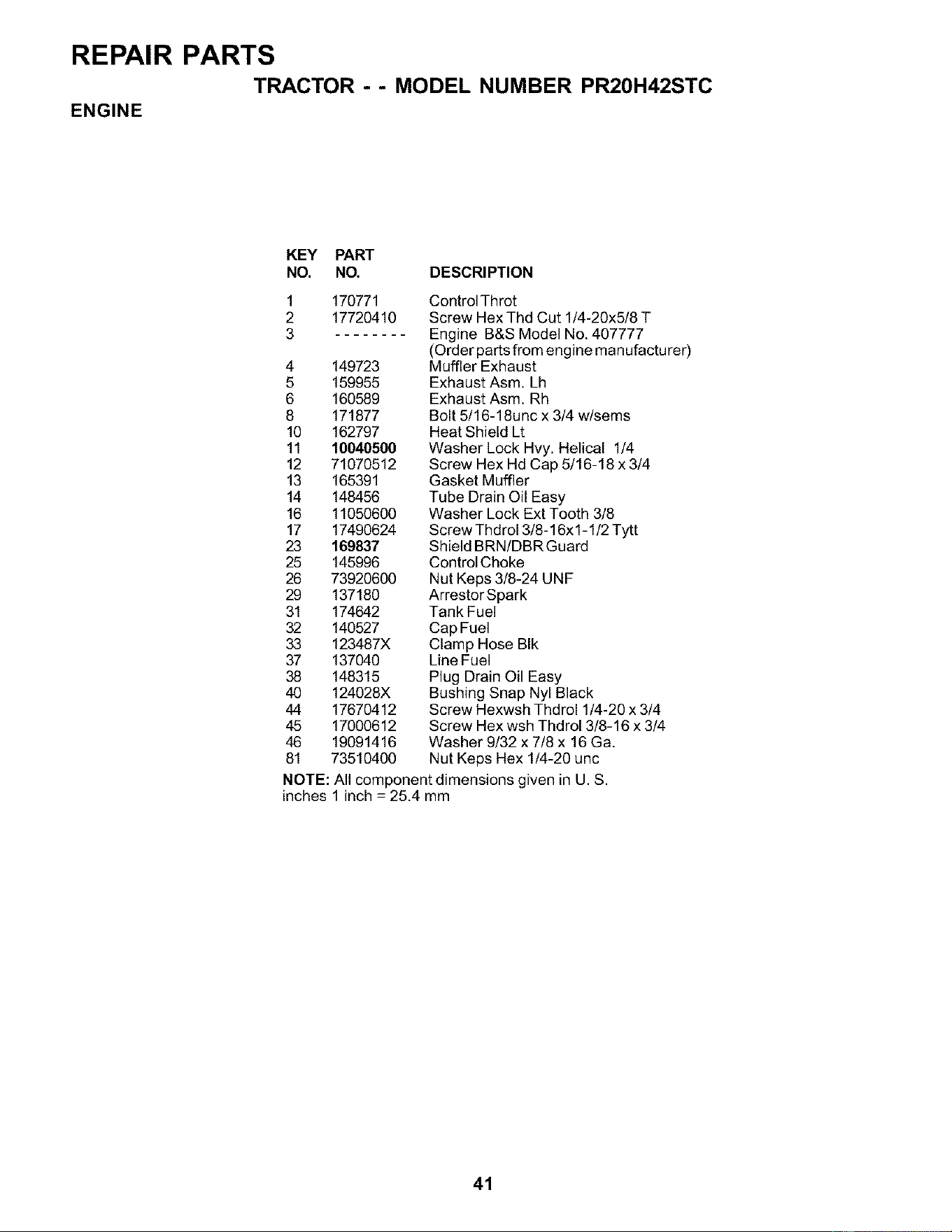

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR2OH42STC

ENGINE

KEY PART

NO. NO. DESCRIPTION

170771

17720410

4 149723

5 159955

6 160589

8 171877

10 162797

11 10040500

12 71070512

13 165391

14 148456

16 11050600

17 17490624

23 169837

25 145996

26 73920600

29 137180

31 174642

32 140527

33 123487X

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19091416

81 73510400

Control Throt

Screw Hex Thd Cut 1/4-20x5/8 T

Engine B&S Model No. 407777

(Order parts from engine manufacturer)

Muffler Exhaust

Exhaust Asm. Lh

Exhaust Asm. Rh

Bolt 5/16-18unc x 3/4 w/sems

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Screw Hex Hd Cap 5/16-18 x 3/4

Gasket Muffler

Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw Thdrol 3/8-16x 1-1/2 Tytt

Shield BRN/DBRGuard

Control Choke

Nut Keps 3/8-24 UNF

Arrestor Spark

Tank Fuel

Cap Fuel

Clamp Hose BIk

Line Fuel

Plug Drain Oil Easy

Bushing Snap Nyl Black

Screw Hexwsh Thdrol 1/4-20 x 3/4

Screw Hex wsh Thdrol 3/8-16 x 3/4

Washer 9/32 x 7/8 x 16 Ga.

Nut Keps Hex 1/4-20 unc

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

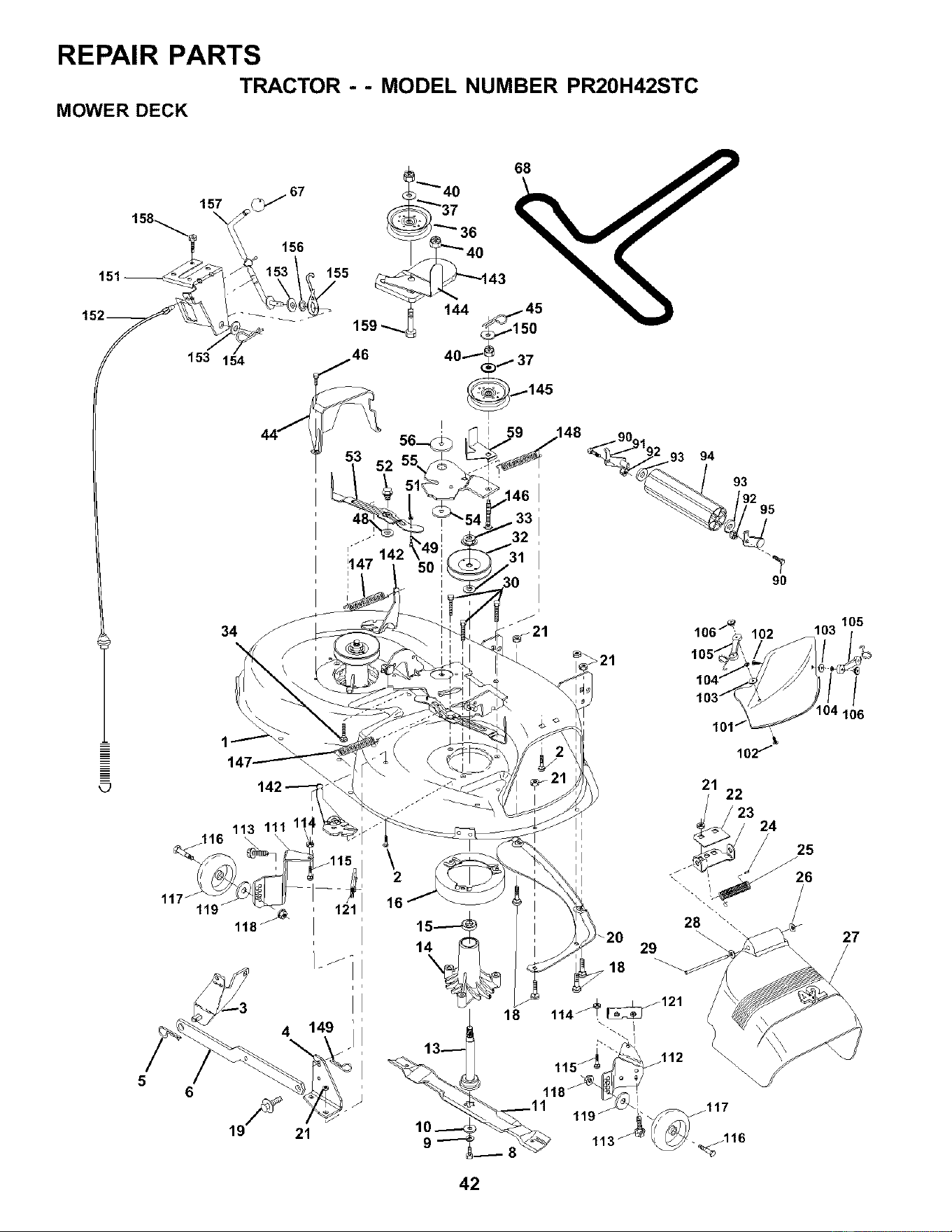

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER DECK

157 _ 67

156

155

!147 142

90 1

_116 113

119 118_

lOl

lO2f

.117

-116

103 105

106

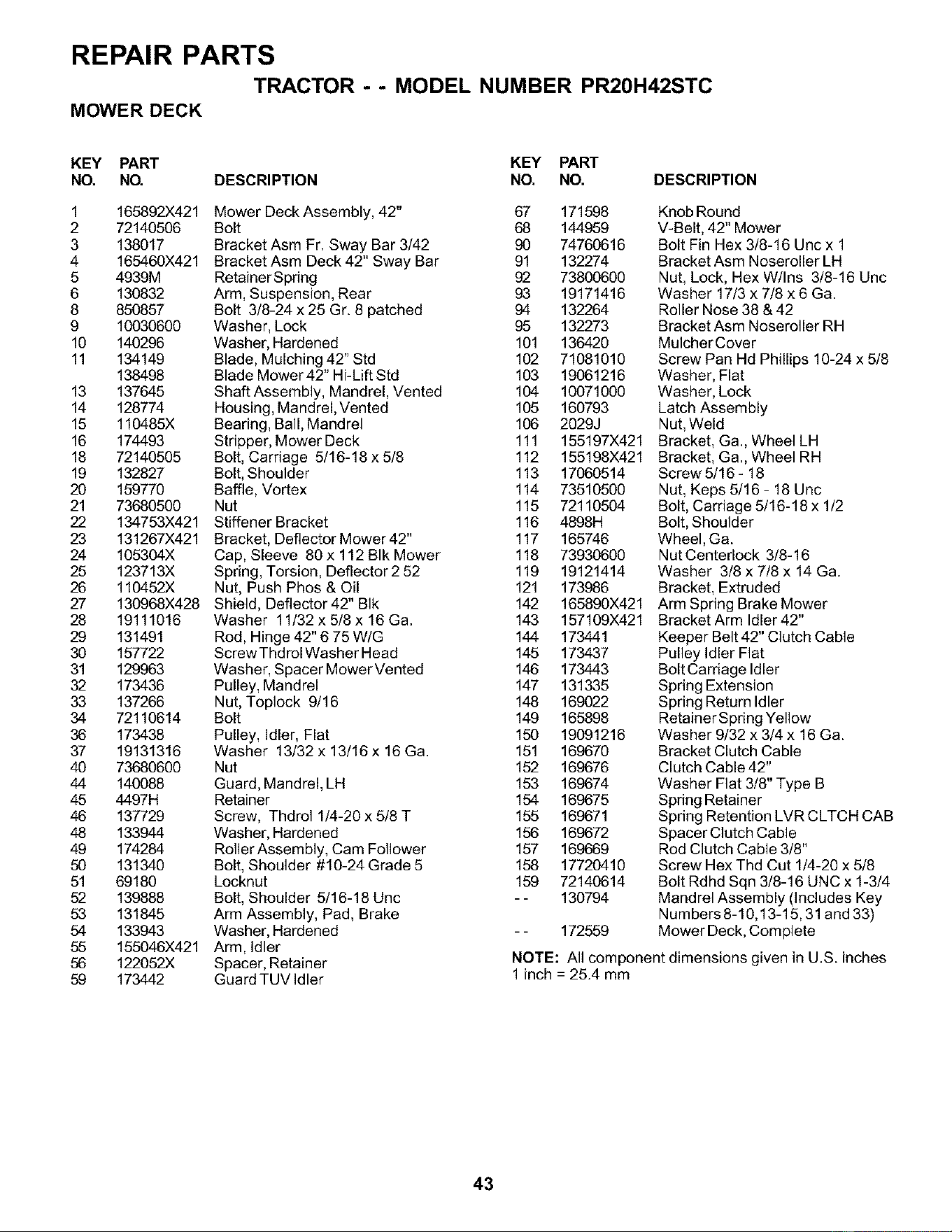

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR2OH42STC

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 165892X421

2 72140506

3 138017

4 165460X421

5 4939M

6 130832

8 850857

9 10030600

10 140296

11 134149

138498

13 137645

14 128774

15 110485X

16 174493

18 72140505

19 132827

20 159770

21 73680500

22 134753X421

23 131267X421

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 157722

31 129963

32 173436

33 137266

34 72110614

36 173438

37 19131316

40 73680600

44 140088

45 4497H

46 137729

48 133944

49 174284

50 131340

51 69180

52 139888

53 131845

54 133943

55 155046X421

56 122052X

59 173442

Mower Deck Assembly, 42" 67 171598

Bolt 68 144959

Bracket Asm Fr. Sway Bar 3/42 90 74760616

Bracket Asm Deck 42" Sway Bar 91 132274

Retainer Spdng 92 73800600

Arm, Suspension, Rear 93 19171416

Bolt 3/8-24 x 25 Gr. 8 patched 94 132264

Washer, Lock 95 132273

Washer, Hardened 101 136420

Blade, Mulching42" Std 102 71081010

Blade Mower 42" Hi-Lift Std 103 19061216

Shaft Assembly, Mandrel, Vented 104 10071000

Housing, Mandrel,Vented 105 160793

Bearing, Bali, Mandrel 106 2029J

Stripper, Mower Deck 111 155197X421

Bolt, Carriage 5/16-18 x 5/8 112 155198X421

Bolt, Shoulder 113 17060514

Baffle, Vortex 114 73510500

Nut 115 72110504

Stiffener Bracket 116 4898H

Bracket, Deflector Mower 42" 117 165746

Cap, Sleeve 80 x 112 BIk Mower 118 73930600

Spring, Torsion, Deflector 2 52 119 19121414

Nut, Push Phos & Oil 121 173986

Shield, Deflector 42" BIk 142

Washer 11!32 x 5/8 x 16 Ga. 143 157109X421

Rod, Hinge 42" 6 75 WIG 144 173441

ScrewThdrolWasher Head 145 173437

Washer, Spacer Mower Vented 146 173443

Pulley, Mandrel 147 131335

Nut, Toplock 9/16 148 169022

Bolt 149 165898

Pulley, Idler, Flat 150 19091216

Washer 13/32 x 13/16 x 16 Ga. 151 169670

Nut 152 169676

Guard, Mandrel, LH 153 169674

Retainer 154 169675

Screw, Thdrol 1/4-20 x 5/8 T 155 169671

Washer, Hardened 156 169672

Roller Assembly, Cam Follower 157 169669

Bolt, Shoulder #10-24 Grade 5 158 17720410

Locknut 159 72140614

Bolt, Shoulder 5!16-18 Unc - - 130794

Arm Assembly, Pad, Brake

Washer, Hardened - - 172559

Arm, Idler

Spacer, Retainer

Guard TUV Idler

Knob Round

V-Belt, 42" Mower

Bolt Fin Hex 3/8-16 Unc x 1

Bracket Asm Noseroller LH

Nut, Lock, Hex W/Ins 3/8-16 Unc

Washer 17/3 x 7/8 x 6 Ga.

Roller Nose 38 & 42

Bracket Asm Noseroller RH

MulcherCover

Screw Pan Hd Phillips 10-24 x 5/8

Washer, Flat

Washer, Lock

Latch Assembly

Nut, Weld

Bracket, Ga., Wheel LH

Bracket, Ga., Wheel RH

Screw 5/16 - 18

Nut, Keps 5/16 - 18 Unc

Bolt, Carriage 5/16-18 x 1/2

Bolt, Shoulder

Wheel, Ga.

Nut Centedock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

Bracket, Extruded

165890X421 Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow

Washer 9!32 x 3/4 x 16 Ga.

Bracket Clutch Cable

Clutch Cable 42"

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention LVR CLTCH CAB

Spacer Clutch Cable

Rod Clutch Cable 3/8"

Screw Hex Thd Cut 1/4-20 x 5/8

Bolt Rdhd Sqn 3!8-16 UNC x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10,13-15, 31 and 33)

Mower Deck, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

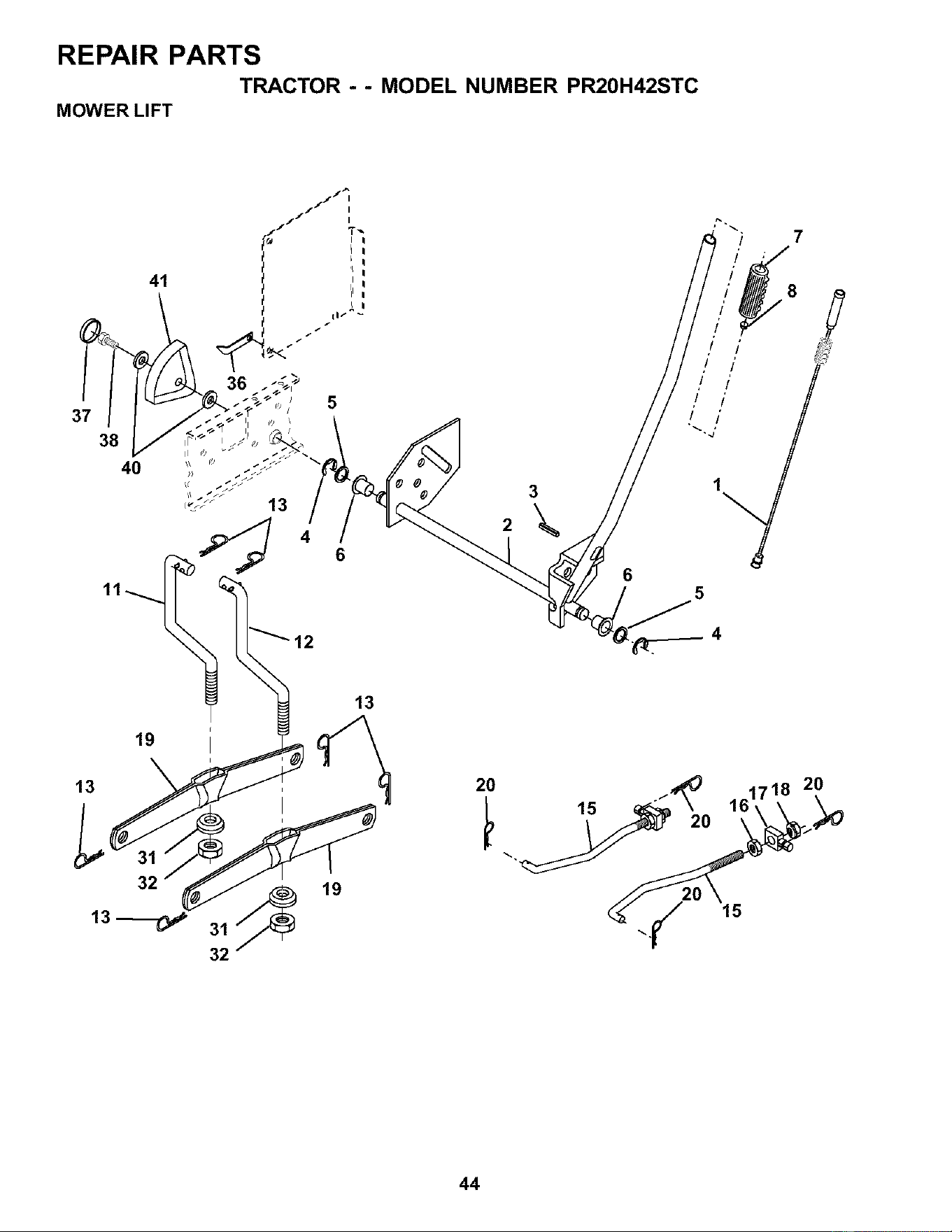

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER LIFT

i 7

161718 20

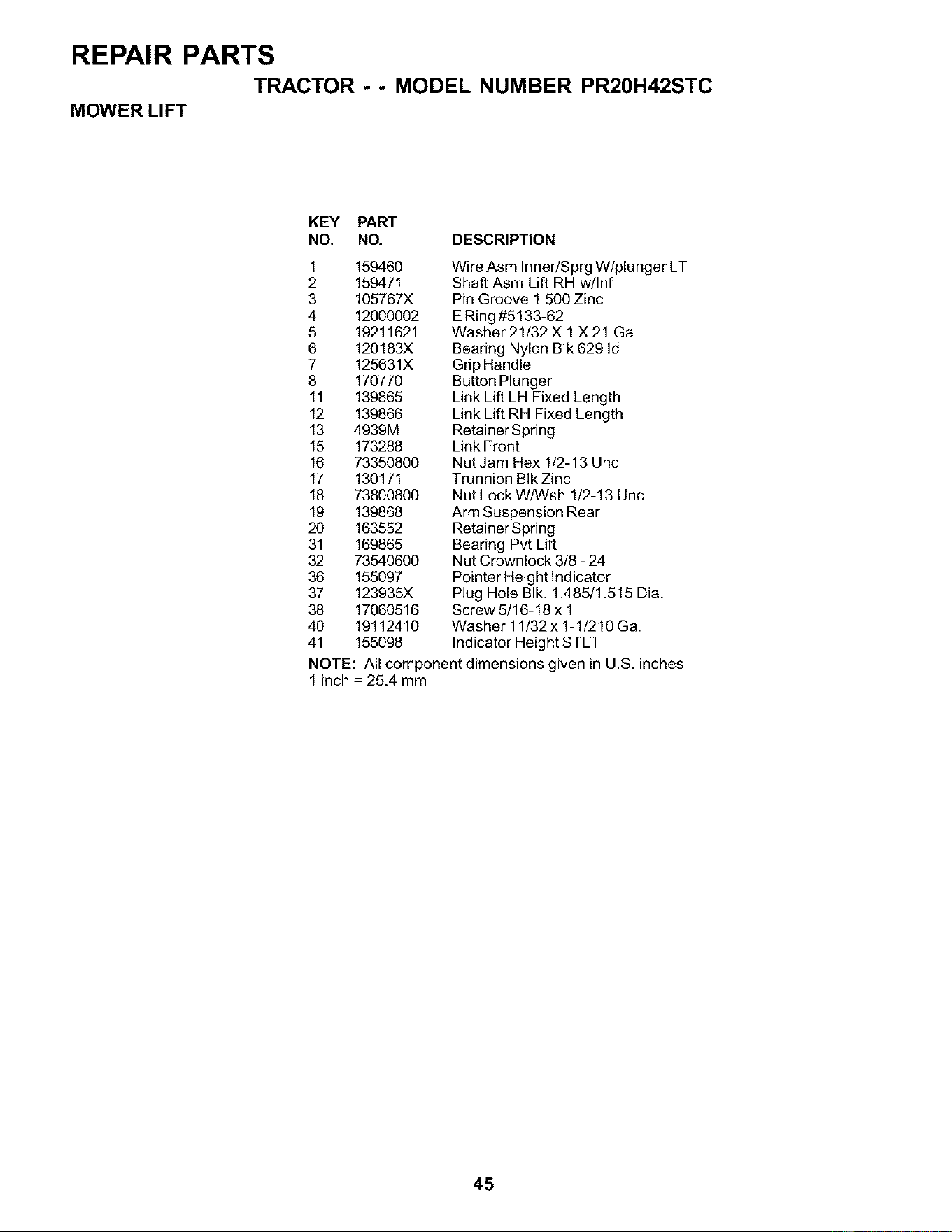

REPAIR PARTS

TRACTOR - - MODEL NUMBER PR20H42STC

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183)(

7 125631X

8 170770

11 139865

12 139866

13 4939M

15 173288

16 73350800

17 130171

18 73800800

19 139868

20 163552

31 169865

32 73540600

36 155097

37 123935X

38 17060516

40 19112410

41 155098

Wire Asm Inner/Sprg W/plunger LT

Shaft Asm Lift RH w/Inf

Pin Groove 1 500 Zinc

ERing #5133-62

Washer 21/32 X 1 X21 Ga

Bearing Nylon BIk 629 Id

Grip Handle

Button Plunger

Link Lift LH Fixed Length

Link Lift RH Fixed Length

Retainer Spring

Link Front

Nut Jam Hex 1/2-13 Unc

Trunnion BIk Zinc

Nut Lock W/Wsh 1/2-13 Unc

Arm Suspension Rear

Retainer Spring

Bearing Pvt Lift

Nut Crownlock 3/8 - 24

Pointer Height Indicator

Plug Hole BIk. 1.485/1.515 Dia.

Screw 5/16-18 x 1

Washer 11/32 x 1-1/210 Ga.

Indicator Height STLT

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in

materials and workmanship, For a period of two (2) years from date of purchase by the original consumer purchaser, we will

repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be

defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions,

1. This warranty does not apply to the engine, other than EHP manufactured transaxle/transmission components,

battery (except as noted below) or components parts thereof. Please refer to the applicable manufacturer's

warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of

the purchaser. Transportation charges for any parts submitted for replacement under this warranty must be

paid by the purchaser unless such return is requested by Electrolux Home Products.

3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery

which we find to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (99)

days, we will exchange the Battery, charging you 1!12 of the price of a new Battery for each full month from the

date of the original sale. Battery must be maintained in accordance with the instructions furnished.

4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date

of original purchase.

5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and main-

tained in accordance with the instructions furnished. This Warranty does not apply to any product which has

been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal

wear of the product.

6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments,

standard hardware and normal maintenance.

7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products

a division of WCl Outdoor Products, Inc,

Outdoor Products Customer Service Dept.

250 Bobby Jones Expressway

Augusta, GA 30909 USA

In Canada contact:

Electrolux Home Products

a division of WCl Outdoor Products, Inc.

7075 Ordan Drive

Mississauga, Ontario

L5T 1K6

giving the model number, serial number and date of purchase of your product and the name and address of the authorized

dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-

TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas

do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above

limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights

which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defined in the MagnusomMoss Act of 1975.

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

I ""

SIGHTING

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

Operate your Tractor up and down the face of slopes (not

greater than 15°), never across the face. Make turns gradu-

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

PARTS AND SERVICE

Your POULAN PRO product has been expertly engineered and carefully manufactured to rigid

quality standards. As with all mechanical products, some adjustments or part replacement may be

necessary during the life of your unit.

FOR SERVICE OR REPLACEMENT PARTS:

1. Consult your dealer/place of purchase.

2. Consult the yellow pages of your phone directory for the name of the nearest service dealer

(under "saws" for Chain Saws or under "lawn mowers" for Trimmers, Brushcutters, and

Blowers).

3. For replacement parts, have available the following information:

a. Model Number/Manufacturer's I.D. Number.

b. Description of part.

NOTE:

Electrolux Home Products provides parts and service through its authorized distribu_

tots and dealers; therefore, all requests for parts and service should be directed to your

local dealer(s). The philosophy of Electrolux Home Products is to continually improve

all of its products. If the operating characteristics or the appearance of your product

differs from those described in this Manual, please contact your local local dealer for

updated information and assistance.

Craftsman 917279941 Lawn Tractor

Product's Documents

Owner's Manual

Specifications

Craftsman 917279941 Questions and Answers
