AMERICAN ACOUSTASONIC
®
SERIES STRATOCASTER
®
QUICK START
GUIDE
The American Acoustasonic Series Stratocaster represents the next era in
Fender craftsmanship and innovation. From acoustic shape-shifting to an
increased selection of rhythm and lead tones, the newest member of the
Acoustasonic family offers a unique set of Strat-inspired voicings plus the
undeniable look and feel of our iconic Stratocaster body shape. Powered
by a Fender and Fishman
®
-designed Acoustic Engine, your Acoustasonic
Stratocaster delivers new sonic expression from the studio to the stage.
01
The American Acoustasonic Series Stratocaster represents the next era in
Fender craftsmanship and innovation. From acoustic shape-shifting to an
increased selection of rhythm and lead tones, the newest member of the
Acoustasonic family offers a unique set of Strat-inspired voicings plus the
undeniable look and feel of our iconic Stratocaster body shape. Powered
by a Fender and Fishman
®
-designed Acoustic Engine, your Acoustasonic
Stratocaster delivers new sonic expression from the studio to the stage.
01

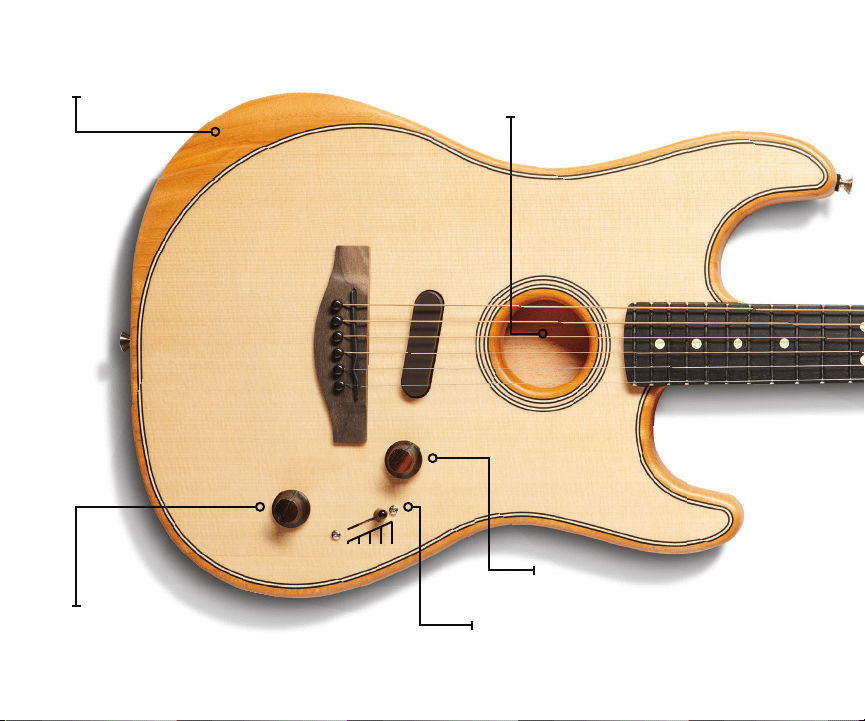

Forearm Contour Stringed Instrument
Resonance System (SIRS)
Volume Knob
Controls the overall output of the guitar.
Voice Selector
Selects one of five discrete “voice pairs.”
123
Position
45
Mod Knob
Selects and/or blends between ‘A’ & ‘B’ voices.
02

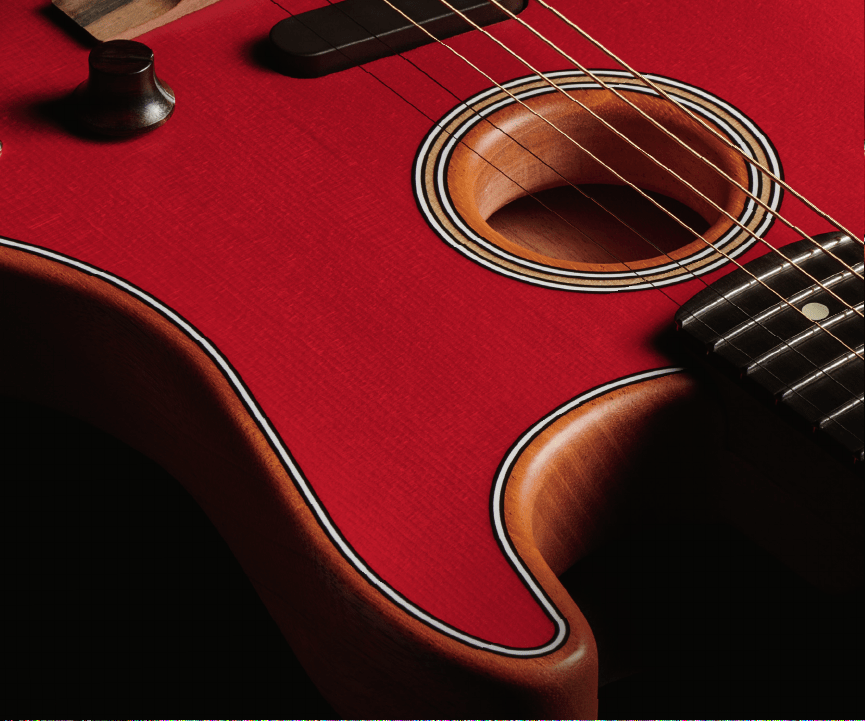

The Acoustasonic body features an inset top with an integrated
forearm contour, a signature Strat body cut and our patented
Stringed Instrument Resonance System (SIRS) — designed to produce
a great tone when unplugged. Inside the guitar, three pickup systems
work together to create the Fender and Fishman-designed Acoustic
Engine – a mix of classic analog and future technologies that delivers
an unparalleled collection of voices.
03
Forearm Contour Stringed Instrument
Resonance System (SIRS)
Volume Knob
Controls the overall output of the guitar.
Voice Selector
Selects one of five discrete “voice pairs.”
123
Position
45
Mod Knob
Selects and/or blends between ‘A’ & ‘B’ voices.
02
The Acoustasonic body features an inset top with an integrated
forearm contour, a signature Strat body cut and our patented
Stringed Instrument Resonance System (SIRS) — designed to produce
a great tone when unplugged. Inside the guitar, three pickup systems
work together to create the Fender and Fishman-designed Acoustic
Engine – a mix of classic analog and future technologies that delivers
an unparalleled collection of voices.
03
A: Sitka Spruce/Walnut Small Body Short Scale
Intimate, vintage-inspired voice that’s articulate and bright, best for fingerstyle.
B: Sitka Spruce/Mahogany Americana Dreadnought
Dry, earthy and organic tone, great for Americana-style flatpicking.
POSITION 4:
POSITION 5:
A: Sitka Spruce/Mahogany Dreadnought
Full midrange with a deep bass voice, works well for rootsy strumming or fingerstyle.
B: Sitka Spruce/Rosewood Concert with Slotted Headstock
Articulate, dynamic and focused, perfect for any full band setting.
04
The Acoustasonic Stratocaster offers five distinct voice pairs – a curated
collection of acoustic and electric voices that can be played solo or blended
via the Mod Knob to create infinite combinations. Position 5 is with the Voice
Selector closest to the neck; Position 1 is furthest away. The ‘A’ voice is with the
Mod Knob fully counter-clockwise; the ‘B’ voice is fully clockwise.
A: Fender Electric Fat/Semi-Clean
You really won’t believe your acoustic guitar can do this.
B: Fender Electric Dirty
What just happened – call all your friends.
POSITION 1:
A: Engelman Spruce/Rosewood Dreadnought
Deep bass meets strident trebles for a traditional acoustic voice, great for big bold strumming.
B: Fender Electric Clean
You won’t believe your acoustic guitar can do this.
POSITION 2:
POSITION 3:
A: Sitka Spruce/Rosewood Auditorium
Tighter and brighter for a more modern/pop sound and detailed midrange, perfect for
strumming or fingerstyle.
B: Adds body pickup to the above voice
All of the above plus a percussive top and enhanced harmonics that pop.
05
A: Sitka Spruce/Walnut Small Body Short Scale
Intimate, vintage-inspired voice that’s articulate and bright, best for fingerstyle.
B: Sitka Spruce/Mahogany Americana Dreadnought
Dry, earthy and organic tone, great for Americana-style flatpicking.
POSITION 4:
POSITION 5:
A: Sitka Spruce/Mahogany Dreadnought
Full midrange with a deep bass voice, works well for rootsy strumming or fingerstyle.
B: Sitka Spruce/Rosewood Concert with Slotted Headstock
Articulate, dynamic and focused, perfect for any full band setting.
04
The Acoustasonic Stratocaster offers five distinct voice pairs – a curated
collection of acoustic and electric voices that can be played solo or blended
via the Mod Knob to create infinite combinations. Position 5 is with the Voice
Selector closest to the neck; Position 1 is furthest away. The ‘A’ voice is with the
Mod Knob fully counter-clockwise; the ‘B’ voice is fully clockwise.
A: Fender Electric Fat/Semi-Clean
You really won’t believe your acoustic guitar can do this.
B: Fender Electric Dirty
What just happened – call all your friends.
POSITION 1:
A: Engelman Spruce/Rosewood Dreadnought
Deep bass meets strident trebles for a traditional acoustic voice, great for big bold strumming.
B: Fender Electric Clean
You won’t believe your acoustic guitar can do this.
POSITION 2:
POSITION 3:
A: Sitka Spruce/Rosewood Auditorium
Tighter and brighter for a more modern/pop sound and detailed midrange, perfect for
strumming or fingerstyle.
B: Adds body pickup to the above voice
All of the above plus a percussive top and enhanced harmonics that pop.
05
08
Battery Information
•A fully charged battery will power the system for approximately 20 hours.
•You can play and charge at the same time.
•The jack-mounted LED will flash once when a 1/4” cable is inserted, indicating the system is active.
•The LED indicator remains dark during normal usage.

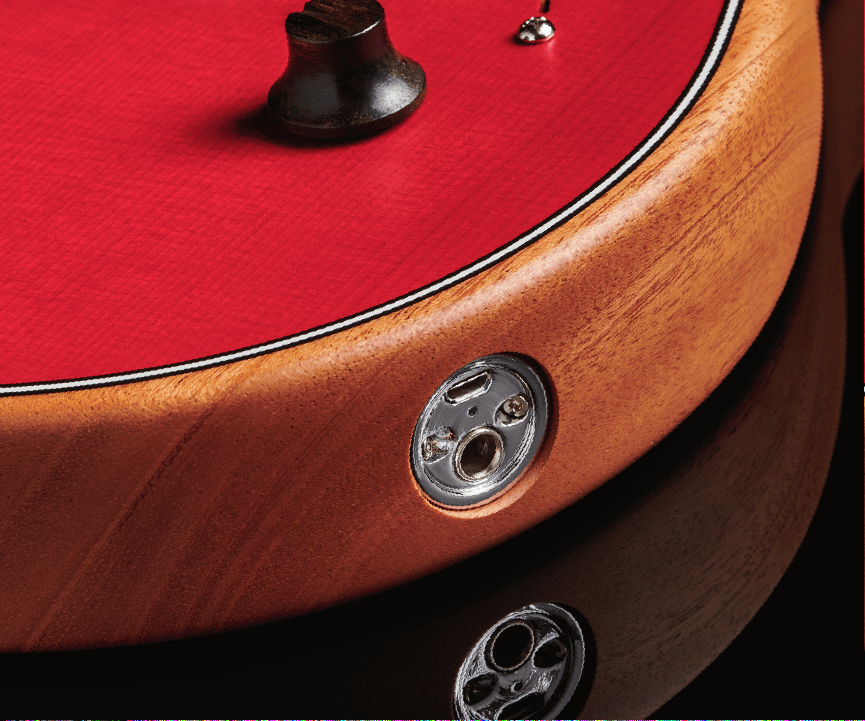

Charging
We recommend fully charging the battery before playing the instrument for the first time. Connect the USB charging
cable to a 5-volt USB-compliant charger and plug into a wall socket. The LED on the output jack will glow solid red
while charging and change to solid green when charge is complete. Allow 4 - 5 hours for the battery to reach full
charge. Note: Non-USB-compliant chargers may take longer than 4 - 5 hours.
THE BATTERY CHARGE LED INDICATES THE FOLLOWING BATTERY CONDITIONS:
Normal Operation
No Light: Normal, may also indicate zero charge.
Blinking Red: Low battery, approximately 1 hour left. Connect your charger.
USB Charger Connected
Steady Red: Charging
Steady Green: Fully charged
Recommended Charger Specification
USB Connector Type: Micro
Input Power: 100 - 240V, ~50/60Hz, 0.3A
Output Power: 5V DC, 1000mA
Note: Using chargers with output current less than 1A is not recommended.
Cautions:
•When adjusting the truss rod, be careful not to over-tighten the rod, or you may risk damaging the neck.
•To avoid risking damage to the top, DO NOT make adjustments inside the body cavity, including altering pickup height.
•Any service work should be performed by a Fender Authorized Service Center.
09
08
Battery Information
•A fully charged battery will power the system for approximately 20 hours.
•You can play and charge at the same time.
•The jack-mounted LED will flash once when a 1/4” cable is inserted, indicating the system is active.
•The LED indicator remains dark during normal usage.
Charging
We recommend fully charging the battery before playing the instrument for the first time. Connect the USB charging
cable to a 5-volt USB-compliant charger and plug into a wall socket. The LED on the output jack will glow solid red
while charging and change to solid green when charge is complete. Allow 4 - 5 hours for the battery to reach full
charge. Note: Non-USB-compliant chargers may take longer than 4 - 5 hours.
THE BATTERY CHARGE LED INDICATES THE FOLLOWING BATTERY CONDITIONS:
Normal Operation
No Light: Normal, may also indicate zero charge.
Blinking Red: Low battery, approximately 1 hour left. Connect your charger.
USB Charger Connected
Steady Red: Charging
Steady Green: Fully charged
Recommended Charger Specification
USB Connector Type: Micro
Input Power: 100 - 240V, ~50/60Hz, 0.3A
Output Power: 5V DC, 1000mA
Note: Using chargers with output current less than 1A is not recommended.
Cautions:
•When adjusting the truss rod, be careful not to over-tighten the rod, or you may risk damaging the neck.
•To avoid risking damage to the top, DO NOT make adjustments inside the body cavity, including altering pickup height.
•Any service work should be performed by a Fender Authorized Service Center.
09
