Contents

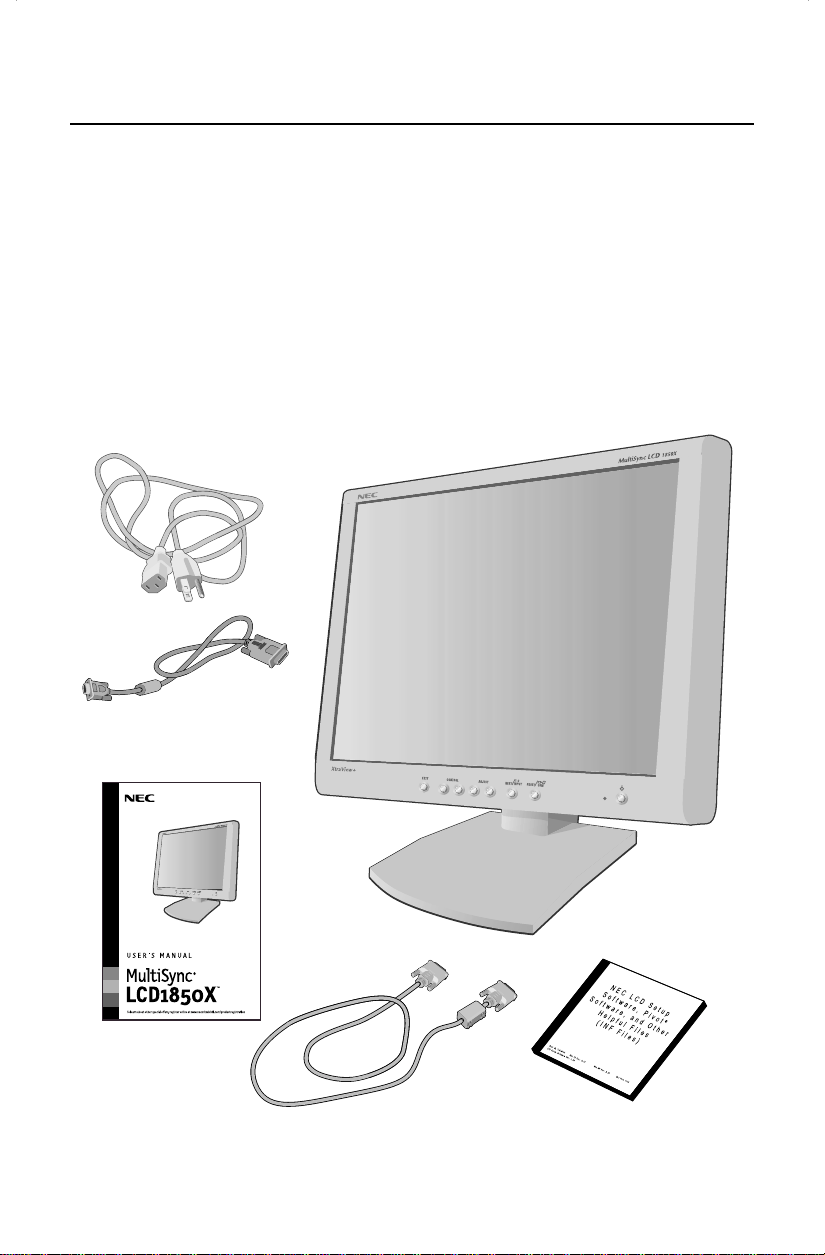

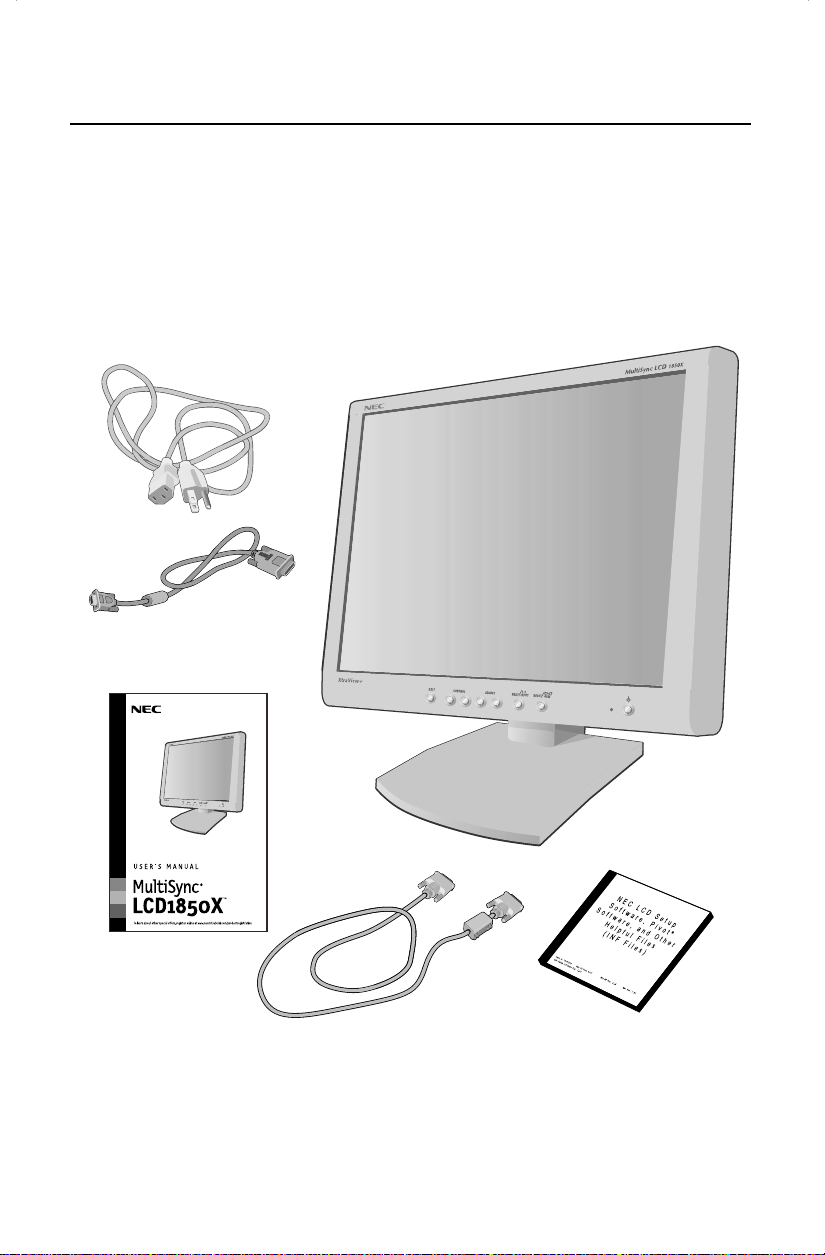

Your new NEC MultiSync

LCD monitor box* should contain the

following:

• MultiSync LCD1850X

™

monitor with tilt/swivel/pivot stand

• Power Cord

• Video Signal Cable (15-pin mini D-SUB male to DVI-A)

• Video Signal Cable (DVI-D to DVI-D)

• User’s Manual

• NEC LCD Setup Software, Pivot Software and other Helpful files

* Remember to save your original box and packing material to transport or ship the monitor.

Power Cord

Video Signal Cable

(15-pin mini D-SUB

male to DVI-A)

User’s Manual

Video Signal Cable

(DVI-D to DVI-D)

CD Software

multisync(1850X) 01.4.2, 5:03 PM4

Quick Start

To attach the MultiSync

LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the

connector of the display card in your system (Figure A.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI-A signal cable to

the connector of the display card in your system (Figure A.2).

For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the

15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

NOTE: To obtain the MultiSync Macintosh cable adapter call NEC-Mitsubishi Electronics Display of

America, Inc. at (800) 820-1230.

3. Remove connector cover. Connect the DVI signal cable to the connector on the back of

the monitor. Place the video signal cable (Figure C.1). Replace the connector cover.

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/

components of LCD module and/or shorten the module’s life.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the

other end to the power outlet (Figure C.1).

NOTE: If you use this monitor at AC220-240V, please refer to Recommended Use

section of this manual for proper selection of AC power cord.

5. The Vacation Switch on the right side of the monitor must be turned on. Turn on the

monitor with the front power button (Figure D.1) and the computer.

NOTE:

The Vacation Switch is a true on/off switch. If this switch is on the OFF position, the

monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

6. To complete the setup of your MultiSync LCD monitor, use the following OSM

™

controls:

• Auto Adjust Contrast (Analog input only)

• Auto Adjust (Analog input only)

Auto Adjust is activated when the monitor is turned on. Refer to the Controls section of

this User ’s Manual for a full description of these OSM controls.

NOTE: For download information on the Windows

95/98/2000 INF file for your MultiSync

LCD1850X monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

NOTE: Refer to User ’s Manual in the NEC LCD Setup Software CD case for installation and operation

of this software.

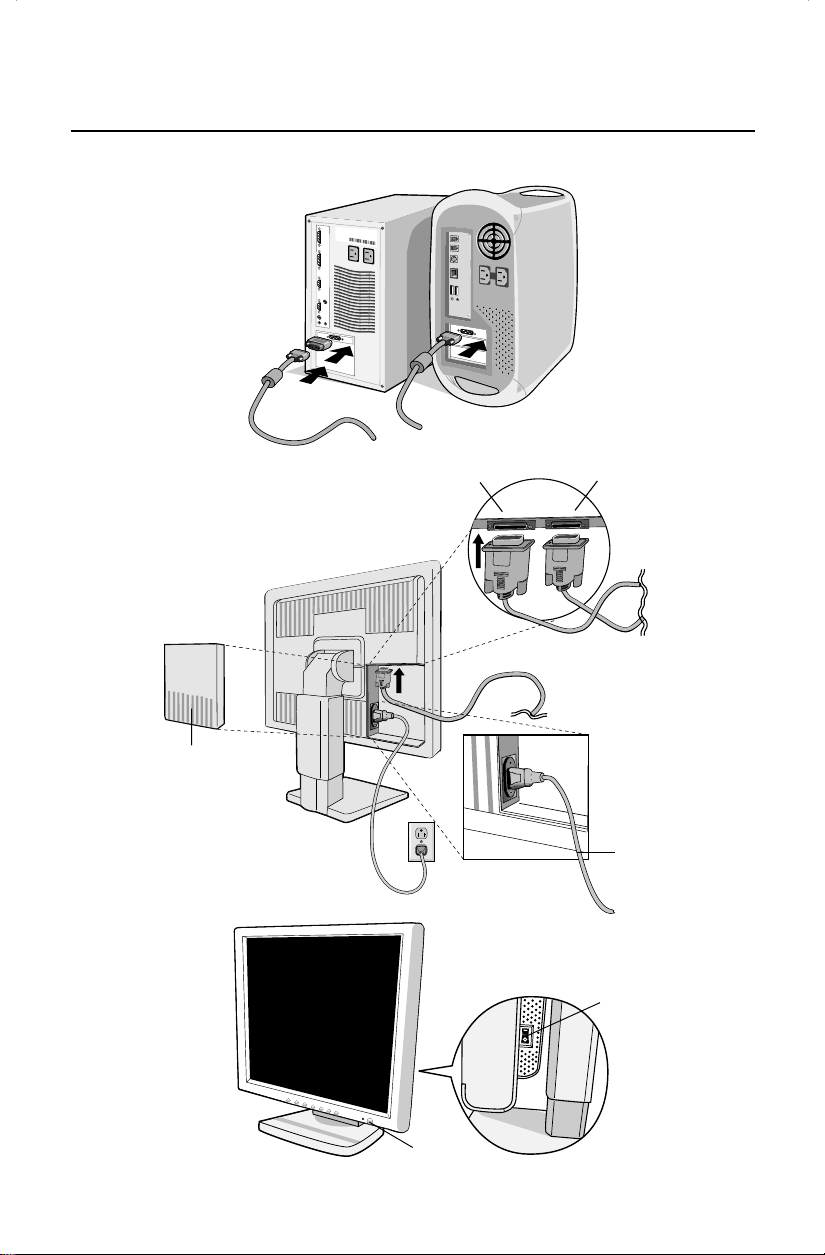

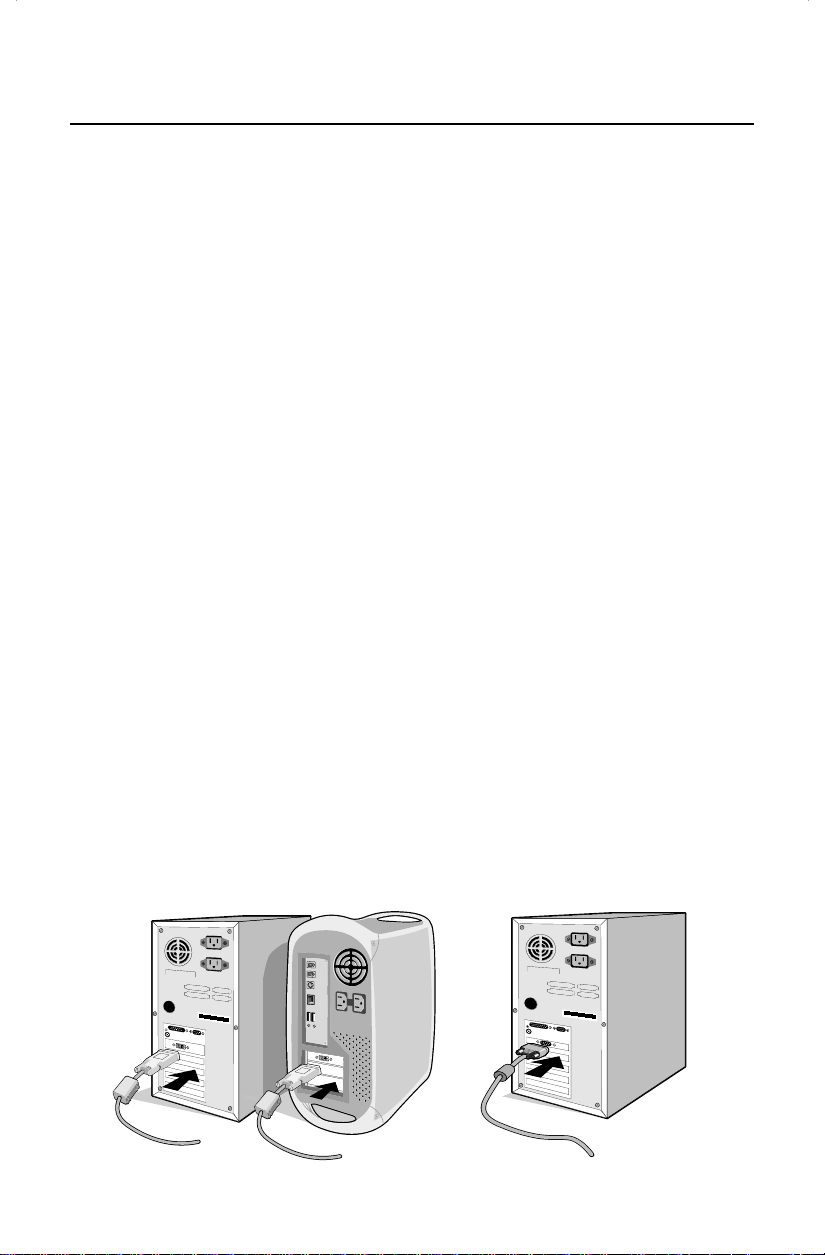

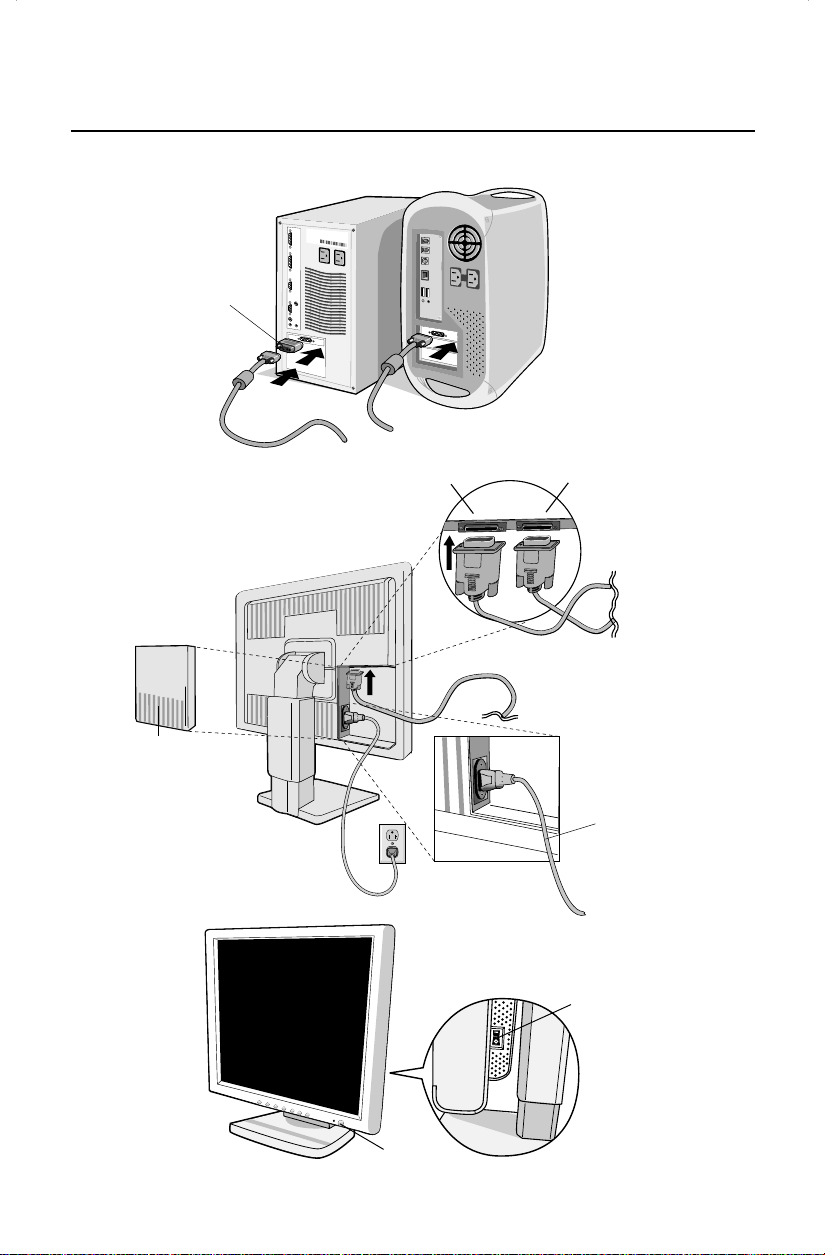

Figure A.1

Figure A.2

multisync(1850X) 01.4.2, 5:03 PM5

Quick Start –continued

INPUT1

INPUT2

Figure B.1

Macintosh Cable

Adapter

(not included)

Note: Some Macintosh

systems do not require a

Macintosh Cable Adapter

Figure D.1

Power

Button

Figure C.1

Vacation

Switch

Connecter

Cover

Power

Cord

multisync(1850X) 01.4.2, 5:03 PM6

Quick Start –continued

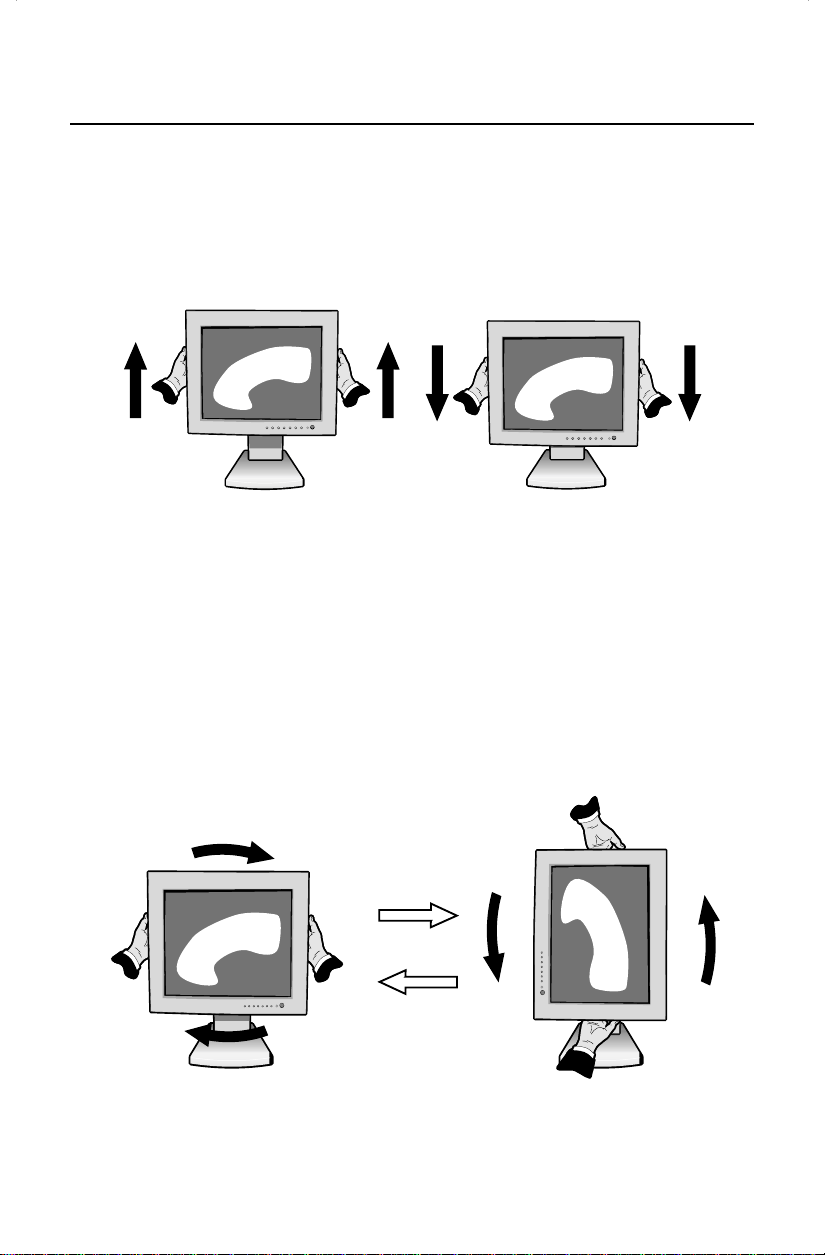

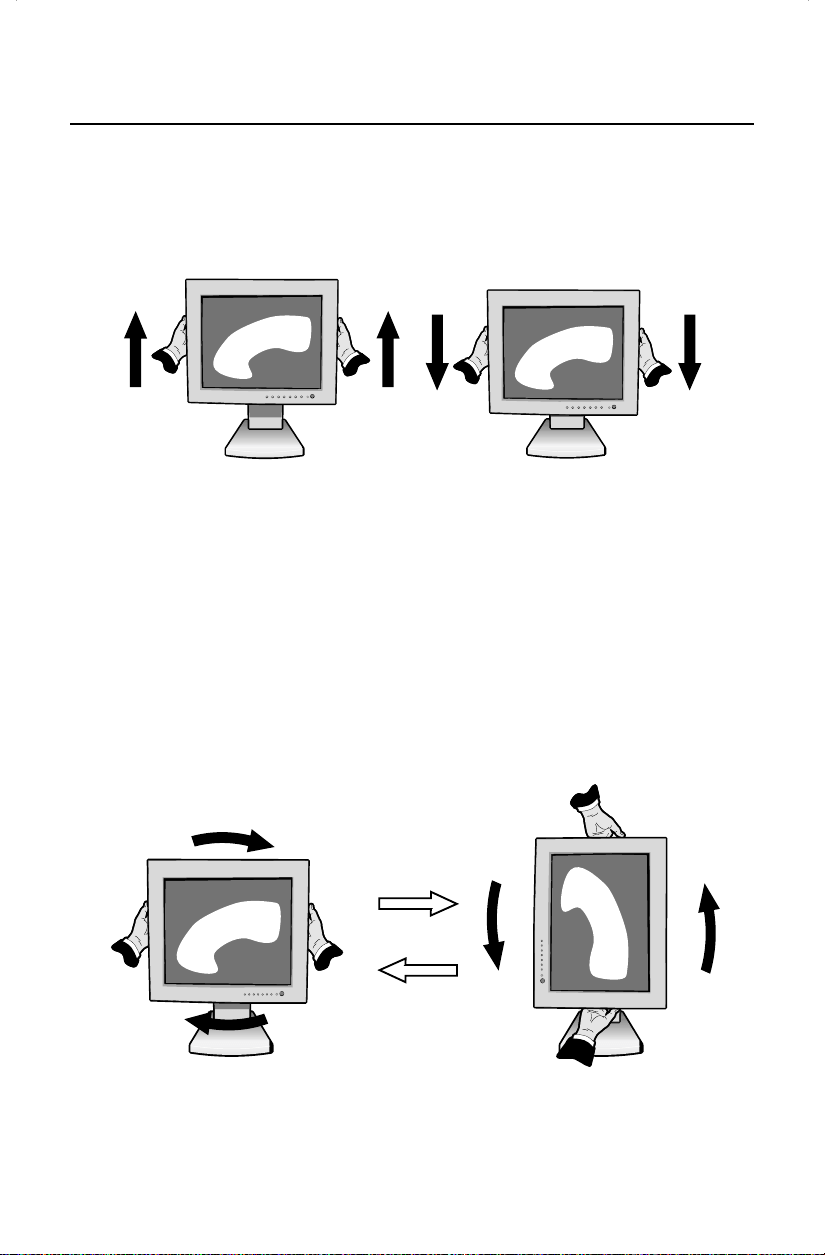

Raise and Lower

Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode.

To raise or lower screen, place hands on each side of the monitor and lift or

lower to the desired height (Figure RL.1).

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking

the screen on the desk or pinching your fingers. To raise the screen, place hands

on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn

clockwise from Landscape to Portrait or counter-clockwise from Portrait to

Landscape (Figure R.1).

To toggle the orientation of the OSM

™

menu between Landscape and Portrait

modes, press the RESET button while OSM menu is off.

Figure R.1

multisync(1850X) 01.4.2, 5:03 PM7

Quick Start –continued

2-in

Tilt and Swivel

Grasp both sides of the monitor screen

with your hands and adjust the tilt and

swivel as desired (Figure TS.1).

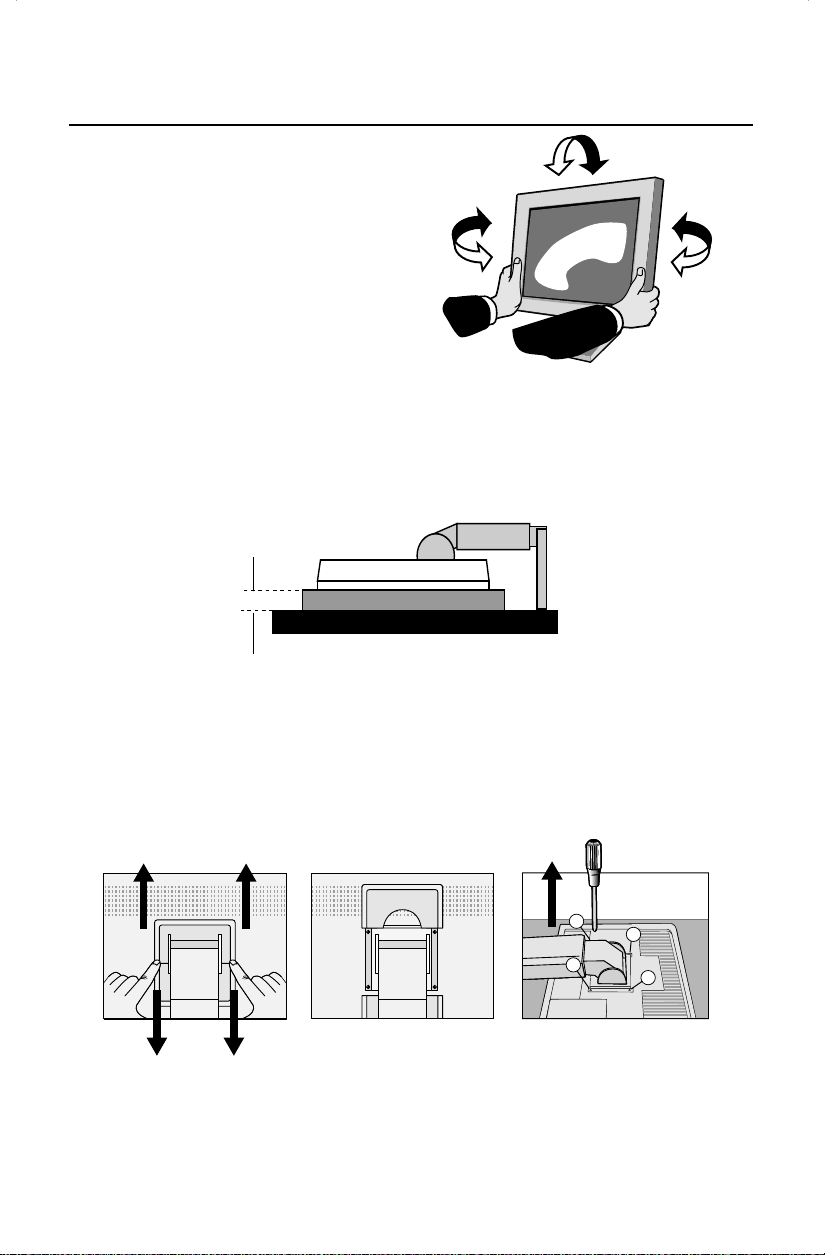

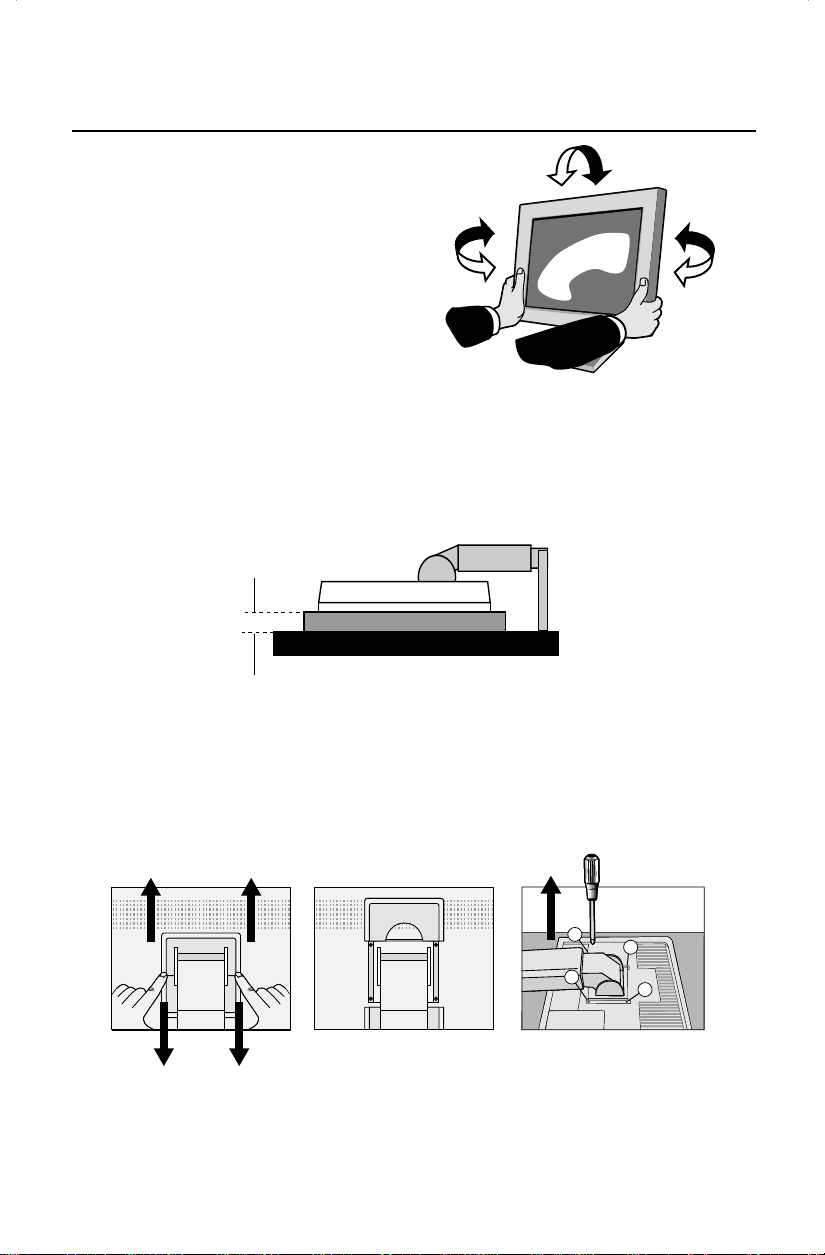

Remove Monitor Stand for

Mounting

To prepare the monitor for alternate mount-

ing purposes:

1. Disconnect all cables.

2. Place hands on each side of

the monitor and lift up to the highest position (Figure RL.1).

3. Place monitor face down on a non-abrasive surface. (Place the screen on

a 2-inch platform so that the stand is parallel with the surface.)

(Figure S.1)

4. Remove the stand cover by sliding the top/bottom pieces off the stand

(Figure S.2). Remove the 4 screws connecting the monitor to the stand

and lift off the stand assembly (Figure S.3). The monitor is now ready for

mounting in an alternate manner.

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Figure S.2 and Figure S.3

Figure S.1

Figure TS.1

Caution: Please use the attached screws (4 pcs) when mounting. To fulfil the safety requirements

the monitor must be mounted to an arm which guaranties the necessary stability under

consideration of the weight of the monitor. The LCD monitor shall only be used with an

approved arm

(e.g. GS mark).

multisync(1850X) 01.4.2, 5:03 PM8

OSM™ (On-Screen Manager) control buttons on the front of the

monitor function as follows:

To access OSM menu, press any of the control buttons ( , , –, +).

To change DVI/D-SUB signal input, press the NEXT button.

To rotate OSM between Landscape and Portrait modes, press the RESET button.

NOTE:

OSM must be closed in order to change signal input and rotate.

EXIT Exits the OSM controls.

Exits to the OSM main menu.

CONTROL / Moves the highlighted area left/right to select control menus.

Moves the highlighted area up/down to select one of the controls.

ADJUST

–/+

Moves the bar left/right to increase or decrease the adjustment.

Active Auto Adjust function.

Enter the Sub Menu.

Moves the highlighted area of main menu right to select one of the controls.

RESET Resets the highlighted control menu to the factory setting.

Resets the highlighted control to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window

will appear

allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO ADJUST

(Analog input only)

Adjusts the image displayed for non-standard video inputs.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Position Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

Controls

AUTO

multisync(1850X) 01.4.2, 5:03 PM9

AccuColor

Control Systems

AccuColor

Control Systems: Six color presets select the desired color setting

(sRGB and NATIVE color presets are standard and cannot be changed). Color

temperature increases or decreases, in each preset. R,Y,G,C,B,M,S: Increases

or decreases Red, Yellow, Green, Cyan, Blue, Magenta and Saturation

depending upon which is selected. The change in color will appear on screen

and the direction (increase or decrease) will be shown by the color bars.

NATIVE:

Original color presented by the LCD panel that is unadjustable.

sRGB: sRGB mode dramatically improves the color fidelity in the desktop

environment by a single standard RGB color space. With this color supported

environment, the operator could easily and confidently communicate color

without further color management overhead in the most common situations.

Tools 1

SMOOTHING: Select one of three image sharpness settings. This function is

only valid when the expanded display function (expansion function)is on.

TEXT MODE: Use this to display text clearly.

NORMAL MODE: This sharpness is between TEXT and GRAPHIC MODE.

GRAPHIC MODE: This mode is suited for images and photographs.

EXPANSION MODE: Sets the zoom method.

FULL : The image is expanded to 1280 x 1024, regardless of the resolution.

ASPECT: The image is expanded without changing the aspect ratio.

OFF: The image is not expanded.

CUSTOM (DIGITAL INPUT & RESOLUTION OF 1280x1024 ONLY): Select

one of seven expansion rates. In this mode the resolution may be low and

there may be blank areas. This mode is for use with special video cards.

VIDEO DETECT: Selects the method of video detection when more than one

computer is connected.

FIRST DETECT: The video input has to be switched to “FIRST DETECT”

mode. When current video input signal is not present, then the monitor

searches for a video signal from the other video input port. If the video

signal is present in the other port, then the monitor switches the video

source input port to the new found video source automatically. The

monitor will not look for other video signals while the current video

source is present.

LAST DETECT:

The video input has to be switched to the “LAST DETECT”

mode.

When the monitor is displaying a signal from the current source

and a new secondary source is supplied to the monitor, then the monitor

will automatically switch to the new video source. When current video

input signal is not present, then the monitor searches for a video signal

from the other video input port. If the video signal is present in the other

port, then the monitor switches the video source input port to the new

found video source automatically.

NONE: The Monitor will not search the other video input port unless the

monitor is turned on.

DVI SELECTION: This function selects the DVI input mode. When the DVI

selection has been changed, you must restart your computer.

DIGITAL: DVI digital input is available.

ANALOG: DVI analog input is available.

Controls –continued

multisync(1850X) 01.4.2, 5:03 PM10

Tools 2

LANGUAGE: OSM

™

control menus are available in seven languages.

OSM POSITION: You can choose where you would like the OSM control

image to appear on your screen. Selecting OSM Location allows you to

manually adjust the position of the OSM control menu left, right, down or up.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the

OSM Turn Off submenu, you can select how long the monitor waits after the

last touch of a button to shut off the OSM control menu. The preset choices are

10, 20, 30, 45, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control

functions. When attempting to activate OSM controls while in the Lock Out

mode, a screen will appear indicating the OSM controls are locked out. To

activate the OSM Lock Out function, press , then

and hold down

simultaneously. To de-activate the OSM Lock Out, press , then and hold

down simultaneously.

RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is

selected, a message will appear on the screen after 30 seconds, notifying you

that the resolution is not at 1280 x 1024.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control

settings back to the factory settings. The RESET button will need to be held

down for several seconds to take effect. Individual settings can be reset by

highlighting the control to be reset and pressing the RESET button.

Controls –continued

Information

DISPLAY MODE: Provides information about the current resolution display and

technical data including the preset timing being used and the horizontal and

vertical frequencies.

Increases or decreases the current resolution. (Analog input only)

MONITOR INFO: Indicates the model and serial numbers of your monitor.

OSM

™

Warning: OSM Warning menus disappear with Exit button.

NO SIGNAL: This function gives a warning when there is no signal present.

After power is turned on or when there is a change of input signal or video

is inactive, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with opti-

mized resolution. After power is turned on or when there is a change of

input signal or the video signal doesn’t have proper resolution, the

Resolution Notifier window will open. This function can be disabled in

the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized

resolution and refresh rate. After the power is turned on or there is a

change of input signal or the video signal doesn’t have proper timing, the

Out Of Range menu will appear.

CHECK CABLE: This function will advise you to check all Video Inputs on the

monitor and computer to make sure they are properly connected.

NOTE: If “ CHANGE DVI SELECTION” is displayed switch to DVI SELECTION.

multisync(1850X) 01.4.2, 5:03 PM11

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC

LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and

opening or removing covers may expose you to dangerous shock hazards or other

risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous

voltage points, which can be harmful or fatal or may cause electric shock, fire or

equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause

shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor

may fall, causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 220-240V power supply, use a

power supply cord that matches the power supply voltage of the AC power outlet being

used. The power supply cord you use must have been approved by and comply with

the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed

for use with this monitor. If a power cord is not supplied with this monitor, please contact

your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the flourescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service

personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle

with care.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a

radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

from the power supply. The monitor should be installed close to a power

outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

Recommended Use

CAUTION

multisync(1850X) 01.4.2, 5:03 PM12

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for

warm-up.

• Adjust the monitor height so that the top of the

screen is at or slightly below eye level. Your eyes

should look slightly downward when viewing the

middle of the screen.

•

Position your monitor no closer than 16 inches

and no further away than 28 inches from your

eyes. The optimal distance is 23 inches.

• Rest your eyes periodically by focusing on an

object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to

minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do

not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using

any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head

while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid

image persistence (after-image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•

Adjust the Brightness until the background raster disappears

•

Do not position the Contrast control to its maximum setting

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

•

Do not use primary color blue on a dark background, as it is difficult to see and

may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC

at (800) 820-1230, NEC FastFacts

™

information at (800) 366-0476 and request

document #900108 or write the American National Standard for Human Factors

Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard

No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica,

California 90406.

Recommended Use –continued

multisync(1850X) 01.4.2, 5:03 PM13

Specifications

Monitor MultiSync

LCD1850X

™

Notes

Specifications Monitor

LCD Module Diagonal: 18.1 inch Active matrix; thin film transistor (TFT)

Viewable Image Size: 18.1 inch liquid crystal display (LCD); 0.28 mm dot

Native Resolution (Pixel Count): Landscape: 1280x1024 pitch; 240cd/m

white luminence;

Portrait: 1024 x 1280 300:1 contrast ratio, typical

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: TMDS

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative

Vertical sync. Positive/Negative

Composite sync. Positive/Negative

Sync on Green (Video 0.7p-p and Sync Negative 0.3V p-p)

Display Colors Analog input: 16,777,216 Depends on display card used.

Synchronization Horizontal: 31.0 kHz to 82 kHz Automatically

Range Vertical: 50.0 Hz to 85 Hz Automatically

Resolutions Supported Landscape: 720 x 400*

:VGA text

Some systems may not support

640 x 480*

at 60 Hz to 85 Hz

all modes listed.

800 x 600*

at 56 Hz to 85 Hz

832 x 624*

at 75 Hz

1024 x 768*

at 60 Hz to 85 Hz

NEC-Mitsubishi Electronics Display cites

1152 x 870*

at 75Hz

recommended resolution at 60 Hz for

1280 x 1024

at 60 Hz to 75 Hz .................

optimal display performance.

Portrait: 480 x 640*

at 60 Hz to 85 Hz

Some systems may not support

600 x 800*

at 56 Hz to 85 Hz

all modes listed.

624 x 832*

at 75 Hz

768 x 1024*

at 60 Hz to 85 Hz

NEC-Mitsubishi Electronics Display cites

870 x 1152*

at 75Hz

recommended resolution at 60 Hz for

1024 x 1280

at 60 Hz to 75 Hz .................

optimal display performance.

Active Display Area Landscape : Horiz. :

359 mm/14.1 inches

Vert. :

287 mm/11.3 inches

Portrait : Horiz. :

287 mm/11.3 inches

Vert. :

359 mm/14.1 inches

Power Supply

AC 100 -

120 V/ 220-240 V

@ 50/60 Hz

Current Rating 0.8 A @ 100

–

120 V, 0.35 A @ 220-240 V

Dimensions Landscape:

398 mm (W) x 445 mm (H) x 218 mm (D)

15.7 inches (W) x 17.5 inches (H) x 8.6 inches (D)

Portrait:

349mm (W) x 469.5 mm (H) x 218 mm (D)

13.7 inches (W) x 18.5inches (H) x 8.6 inches (D)

Height Adjustment:

70mm

Weight 8.5 kg

18.7 lbs

Environmental Considerations

Operating Temperature: 5°C to 35°C/41°F to 95°F

Humidity: 30% to 80%

Feet: 0 to 10,000 Feet

Storage Temperature: -10°C to 60°C/14°F to 140°F

Humidity: 10% to 85%

Feet: 0 to 45,000 Feet

Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each

dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical specifications are subject to change without notice.

multisync(1850X) 01.4.2, 5:03 PM14

Features

ambix™ Technology: Dual input technology allowing both analog and digital inputs off of

one connector (DVI-I) as well as additional legacy analog support off of a traditional 15-pin

mini D-SUB connector. Provides traditional MultiSync

technology compatibility for analog

as well as TMDS™-based (Transition Minimized Differential Signaling) digital compatibility

for digital inputs. TMDS-based digital interfaces include DVI-D,DFP and P&D.

DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG)

that allows both digital and analog connectors off of one port. The “I” stands for integra-

tion for both digital and analog, The digital portion is TMDS-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group

(DDWG) for digital connections between computers and displays. As a digital-only

connector, analog support is not provided off a DVI-D connector. As a TMDS-based digital

only connection, only a simple adapter is necessary for compatibility between DVI-D and

other TMDS-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal

compatible with DVI. As a TMDS-based digital only connection, only a simple adapter is

necessary for compatibility between DFP and other TMDS-based digital connectors such

as DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is

more robust than DFP since it allows for other options off a signal connector (options like

USB, analog video and IEEE-1394-995). The VESA committe has recognized that DFP is a

subset of P&D. As a TMDS-based connector (for the digital input pins), only a simple

adapter is necessary for compatibility between P&D and other TMDS-based digital

connector such as DVI and DFP.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their

application, either Landscape orientation for wide documents, or portrait orientation for

the ability to preview a full page on one screen at one time. The Portrait orientation is also

perfect for full screen video conferencing.

Reduced Footprint: Provides the ideal solution for environments requiring superior image

quality but with size and weight limitations. The monitor’s small footprint and low weight

allow it to be moved or transported easily from one location to another.

AccuColor

Control Systems: Six color presets select the desired color setting (sRGB an

NATIVE color presets are standard and cannot be changed). Color temperature increases

or decreases, in each preset. R,Y,G,C,B,M,S: Increases or decreases Red, Yellow, Green,

Cyan, Blue, Magenta and Saturation depending upon which is selected. The change in

color will appear on screen and the direction (increase or decrease) will be shown by the

color bars. NATIVE:

Original color presented by the LCD panel that is unadjustable.

sRGB Color Control: A new optimized color management standard which allows for

color matching on computer displays and other peripherals. The sRGB, which is based on

the calibrated color space, allows for optimal color representation and backward

compatibility with other common color standards.

OSM

™

(On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements

of your screen image via simple to use on-screen menus.

ErgoDesign

Features: Enhance human ergonomics to improve the working environment,

protect the health of the user and save money. Examples include

OSM controls for quick

multisync(1850X) 01.4.2, 5:03 PM15

Features –continued

and easy image adjustments, tilt base for preferred angle of vision, small footprint and

compliance with MPRII and TCO guidelines for lower emissions

Plug and Play: The Microsoft

solution with the Windows

95/98/2000 operating system

facilitates setup and installation by allowing

the monitor to send its

capabilities (such as screen size and resolutions supported)

directly to your

computer, automatically optimizing display performance.

IPM

™

(Intelligent Power Manager) System: Provides innovative power-saving methods

that allow the monitor to shift to a lower power consumption level when on but not in use,

saving two-thirds of your monitor energy costs, reducing emissions and lowering the air

conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s

scanning frequency, thus displaying the resolution required.

FullScan

™

Capability: Allows you to use the entire screen area in most resolutions,

significantly expanding image size.

XtraView+

Wide Viewing Angle Technology: Allows the user to be able to see the

monitor from any angle (170 degrees) from any orientation — Portrait or Landscape.

Provides full 170° viewing angles either up, down, left or right.

From any orientation - Portrait or Landscape, XtraView+ provides accurate brightness and

color from any angle 170°.

VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to

any VESA standard third party mounting arm or bracket. Allows for the monitor to be

mounted on a wall or an arm using any third party compliant device.

NEC-Mitsubishi Electronics Display of America, Inc.

multisync(1850X) 01.4.2, 5:03 PM16

Troubleshooting

No picture

•

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Check the Vacation Switch should be in the ON position.

• Front Power Switch and computer power switch should be in the ON position.

•

Check to make sure that a supported mode has been selected on the display card or system

being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recom-

mended settings.

• Check the signal cable connector for bent or pushed-in pins.

• Check the signal input, “INPUT 1” or “INPUT 2”.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the

monitor, or simultaneously press the RESET and Power buttons.

• Check the Vacation Switch on the right side of the monitor.

Image persistence

• Image persistence is when a “ghost” of an image remains on the screen even after the

monitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is

not permanent. To alleviate image persistence, turn the monitor off for as long as an

image was displayed. If an image was on the monitor for one hour and a ”ghost” of

that image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display of America

recommends using a screen saver at regular intervals whenever the screen is idle.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by

increasing or decreasing the fine total. When the display mode is changed, the OSM

Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to compatibility

and recommended signal timings.

•

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit

(no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the Coarse total.

•

Check to make sure that a supported mode has been selected on the display card or system

being used. (Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the

keyboard or mouse).

multisync(1850X) 01.4.2, 5:03 PM17

References

• BBS (978) 742-8706

NEC-Mitsubishi Electronics Display of America Remote Bulletin Board System is

an electronic service accessible with your system and a modem. Communica-

tion parameters are: 300/1200/2400/9600/14.4k/28.8k/33.6k bps, no

parity, 8-data bits, 1 stop bit

• Customer Service/

Technical Support (800) 632-4662

Fax (978) 742-7049

• Electronic Channels:

Internet e-mail: [email protected]

Internet ftp site: ftp.necmitsubishi.com

World Wide Web: http://www.necmitsubishi.com

Product Registration:

http://www.necmitsubishi.com/productregistration

European Operations: http://www.nec-monitors.com

Windows

95/98/2000 INF File:

http://support.necmitsubishi.com/software.htm

then download the file NECMSINF.ZIP

• FastFacts™ Information (800) 366-0476

INFORMATION DESCRIPTION DOCUMENT #

Glossary Definition of terms related 900203

to functions, features and

installation of the

MultiSync

monitor

More Information Names and addresses of 900204

other groups involved in

standards and features of

the MultiSync monitor

Macintosh Connection Detailed information on 153006

connecting the MultiSync

monitor to a Macintosh

Healthy Work Environment Detailed information on 900108

setting up a healthy work

environment

• Literature & Sales Info (800) NEC-INFO [(800) 632-4636]

• MultiSync Fulfillment (800) 820-1230

[For software & accessories]

• TeleSales (800) 284-4484

multisync(1850X) 01.4.2, 5:03 PM18

Limited Warranty

NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this

Product to be free from defects in material and workmanship and, subject to the conditions set

forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit

which proves defective for a period of three (3) years from the date of first consumer purchase.

Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or

refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary

from state to state. This warranty is limited to the original purchaser of the Product and is not

transferable. This warranty covers only NMD-A-supplied components. Service required as a

result of third party components is not covered under this warranty. In order to be covered

under this warranty, the Product must have been purchased in the U.S.A. or Canada by the

original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by

NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase

will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be

an original bill of sale or receipt containing name and address of seller, purchaser, and the

serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or

delivered to the authorized reseller from whom it was purchased or other facility authorized

by NMD-A to render the services provided hereunder in either the original package or a

similar package affording an equal degree of protection. All Products returned to NMD-A for

service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The

Product shall not have been previously altered, repaired, or serviced by anyone other than a

service facility authorized by NMD-A to render such service, the serial number of the product

shall not have been altered or removed. In order to be covered by this warranty the Product

shall not have been subjected to displaying of fixed images for long periods of time resulting

in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to

the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL,

OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT

OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL

OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE

LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAM-

AGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers

are cautioned that Product performance is affected by system configuration, software, the

application, customer data, and operator control of the system, among other factors. While

NMD-A Products are considered to be compatible with many systems, specific functional

implementation by the customers of the Product may vary. Therefore, suitability of a Product

for a specific purpose or application must be determined by consumer and is not warranted

by NMD-A.

For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility,

contact NEC-Mitsubishi Electronics Display of America at 1-800-632-4662.

multisync(1850X) 01.4.2, 5:03 PM19

TCO’95

MultiSync LCD1850X Black Model (LH-18S02-BK1)

Congratulations! You have just purchased a TCO’95 approved and

labeled product! Your choice has provided you with a product developed

for professional use. Your purchase has also contributed to reducing the

burden on the environment and also, to the further development of

environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encourag-

ing the adaptation of goods and services to the environment. The main problem, as far as

computers and other electronics equipment are concerned, is that environmentally harmful

substances are used both in the products and during the manufacturing. Since it has not been

possible for the majority of electronics equipment to be recycled in a satisfactory way, most

of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are

important from the viewpoints of both the work (Internal) and natural (external) environments.

Since all methods of conventional electricity generation have a negative effect on the

environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to

conserve energy. Electronics equipment in offices consume an enormous amount of energy

since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international

and environmental labelling of personal computers. The labelling scheme was developed as

a joint effort by the TCO (The Swedish Confederation of Professional Employees),

Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The

National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission

of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals,

brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among

other things. The product must be prepared for recycling and the manufacturer is obliged to

have an environmental plan which must be adhered to in each country where the company

implements its operational policy. The energy requirements include a demand that the

computer and/or display, after a certain period of inactivity, shall reduce its power

consumption to a lower level in one or more stages. The length of time to reactivate the

computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the

reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional

Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and

NUTEK (The National Board for Industrial and Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants

Brominated flame retardants are present in printed circuit boards, cables, wires, casings and

housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer

casing can consist of flame retardant substances. These are related to another group of

environmental toxins, PCBs, which are suspected to give rise to similar harm, including

multisync(1850X) 01.4.2, 5:03 PM20

reproductive damage in fisheating birds and mammals, due to the bio-accumulative*

processes. Flame retardants have been found in human blood and researchers fear that

disturbances in foetus development may occur.

TCO’95 demand requires that plastic components weighing more than 25 grams must not

contain organically bound chlorine and bromine.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages

the nervous system and in higher doses, causes lead poisoning.

TCO’95 requirement permits the inclusion of lead since no replacement has yet been

developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain

computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)

of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury

damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million)

of mercury. It also demands that no mercury is present in any of the electrical or electronics

components concerned with the display unit, except the back-light system.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing

of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone

layer in the stratosphere, causing increased reception on Earth of ultraviolet light with

consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the

manufacturing of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.

**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit

SE-114 94 Stockholm

SWEDEN

FAX Number: +46 8 782 92 07

E-mail (Internet): [email protected]

You may also obtain current information on TCO’95 approved and labelled products

by visiting their website at: http://www.tco-info.com/

TCO’95 –continued

multisync(1850X) 01.4.2, 5:03 PM21

TCO’99

MultiSync LCD1850X White Model (LH-18S02-1)

Congratulations! You have just purchased a TCO’99 approved and

labeled product! Your choice has provided you with a product devel-

oped for professional use. Your purchase has also contributed to

reducing the burden on the environment and also to the further

development of environmentally adapted electronics products.
