114 08 93-27 Rev. 3
Parts Manual
Z 254F / 967954001-00
Please read the operator manual carefully
and make sure you understand the instructions
before using the machine.
Gasoline containing a maximum of 10% ethanol (E10)
is permitted for use in this machine.
The use of gasoline with more than 10% ethanol
(E10) will void the product warranty.
When you need spare parts or support in service questions,
warranty issues, etc., please consult the following
professional:
This manual belongs to the machine with
the manufacturing number:
Engine Transmission
Manufacturing Number
The machine’s manufacturing number can be found on the printed plate axed to the
engine compartment.
Stated on the plate, from the top are:
• The machine’s type designation (I.D.).
• The manufacturer’s type number (Model).
• The machine’s serial number (Serial no.)
Please have the type designation and serial number available when ordering spare parts.
©2018 All rights reserved.
Orangeburg SC. Printed in U.S.A.
CONTENTS
Illustrations may or may not represent the actual assemblies
and it is not recommended to use this manual as a guide to
assemble or disassemble the mower.
NOTE: All fasteners are Grade 5 unless otherwise specied.
FRAME .................................................................................4
ENGINE MOUNTING, GUARDS & MUFFLER ....................6
STEERING ...........................................................................8
IGNITION SYSTEM ............................................................ 10
BRAKE / LIFT .....................................................................12
HYDRAULIC PUMP-MOTOR ............................................. 14
WHEELS & TIRES .............................................................16
MOWER DECK / CUTTING DECK ....................................18
SEAT ..................................................................................20
DECALS .............................................................................22
4

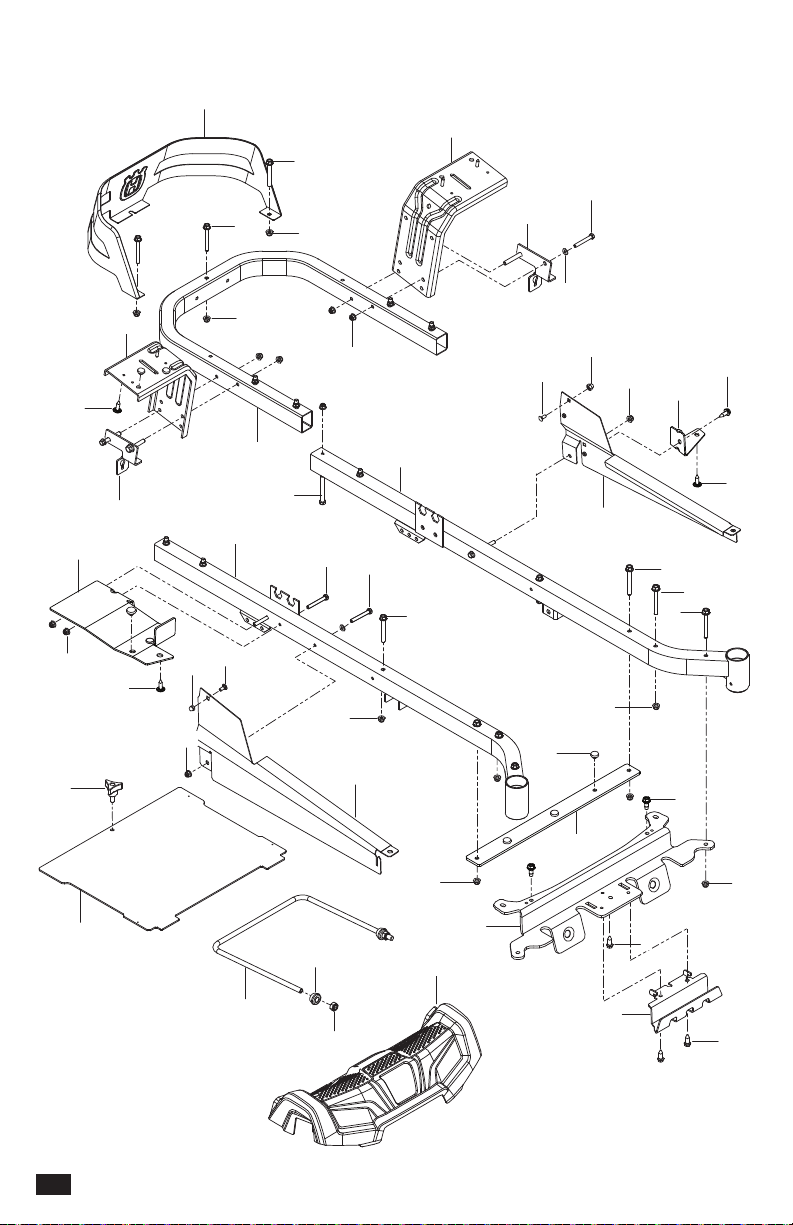

FRAME
7
3
2
4
11
6
5
21
19
14
15
1
16
23
22
18
28
26
25
23
17
27
29
35
31
38
24
24
20
36
34
33
23
35
31
37
27
31
19
34
12
32
24
26
34
37
23
34
34
34
22
8
9
9
5

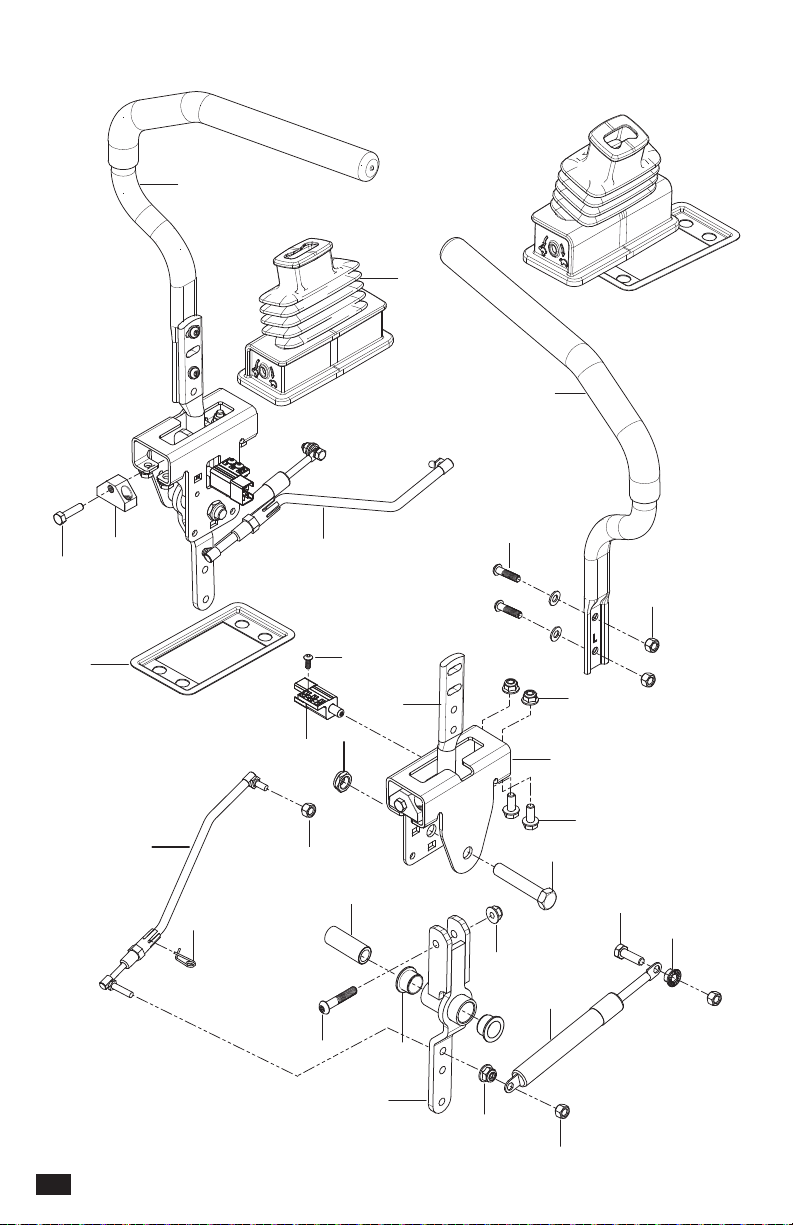

Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1 585 03 98-02 1 Guard, Rear Blk
2 589 28 34-02 1 Frame, Front Right Org
3 589 28 33-02 1 Frame, Front Left Org
4 584 99 10-02 1 Frame, Rear Tube Org
5 581 44 86-02 1 Foot Plate
6 586 70 38-01 1 Cover, Footrest w/Decal
7 585 52 30-04 1 Support, Footrest
8 585 52 32-04 1 Skid Plate
9 817 00 05-10 1 Bolt 5/16-18 Hex WHSHD LCKSERR
11 585 98 93-01 7 Grommet, Bumper
12 585 52 31-04 1 Cross Member
14 585 33 16-02 1 Cover, Rail Right
15 585 33 15-02 1 Cover, Rail Left
16 539 10 44-11 1 Knob w/ Stud
17 532 19 52-63 2 Bushing, Pivot
18 521 93 81-01 1 Link, Front Suspension
19 580 50 13-02 2 Support, Fender Blk
20 585 52 34-04 1 Support, Console Right
21 585 52 36-04 1 Support, Console Left
22 585 47 43-02 2 Bracket, Bypass Rod
23 874 78 05-36 7 Bolt 5/16-18 x 2-1/4
24 874 78 05-44 5 Bolt 5/16-18 x 2-3/4
25 874 78 06-48 8 Bolt 3/8-16 x 3
26 585 94 00-01 2 Bolt 5/16-18 x 1 Carriage
27 577 11 77-01 4 Bolt 3/8-16 x 3
28 586 65 43-01 2 Bolt 3/8-16 x 3 Shoulder
29 586 88 11-01 2 Bolt 5/16-18 Shoulder
31 532 41 63-58 6 Screw #10-24 x 3/4 Hex Head
32 532 42 17-56 2 Screw #10 x 1/2
33 873 90 05-00 2 Nut 5/16-18 Hex Flange Lock
34 539 11 28-99 9 Nut 5/16-18 Hex Flange Nyloc
35 521 99 65-01 8 Nut 3/8-16 Hex Flange Nyloc
36 539 11 91-24 2 Nut 7/16-14 Hex Nyloc
37 585 93 81-01 2 Nut 5/16-18 Acorn
38 819 11 11-16 6 Washer 11/32 16 Gauge
1
11
29
32
33
28
14
25
13
3
20
12
9
7
10
4
6
15
16
8
21
5
2
23
26
24
22
31
27
30
31
30
18
19
2
0
17
34
6

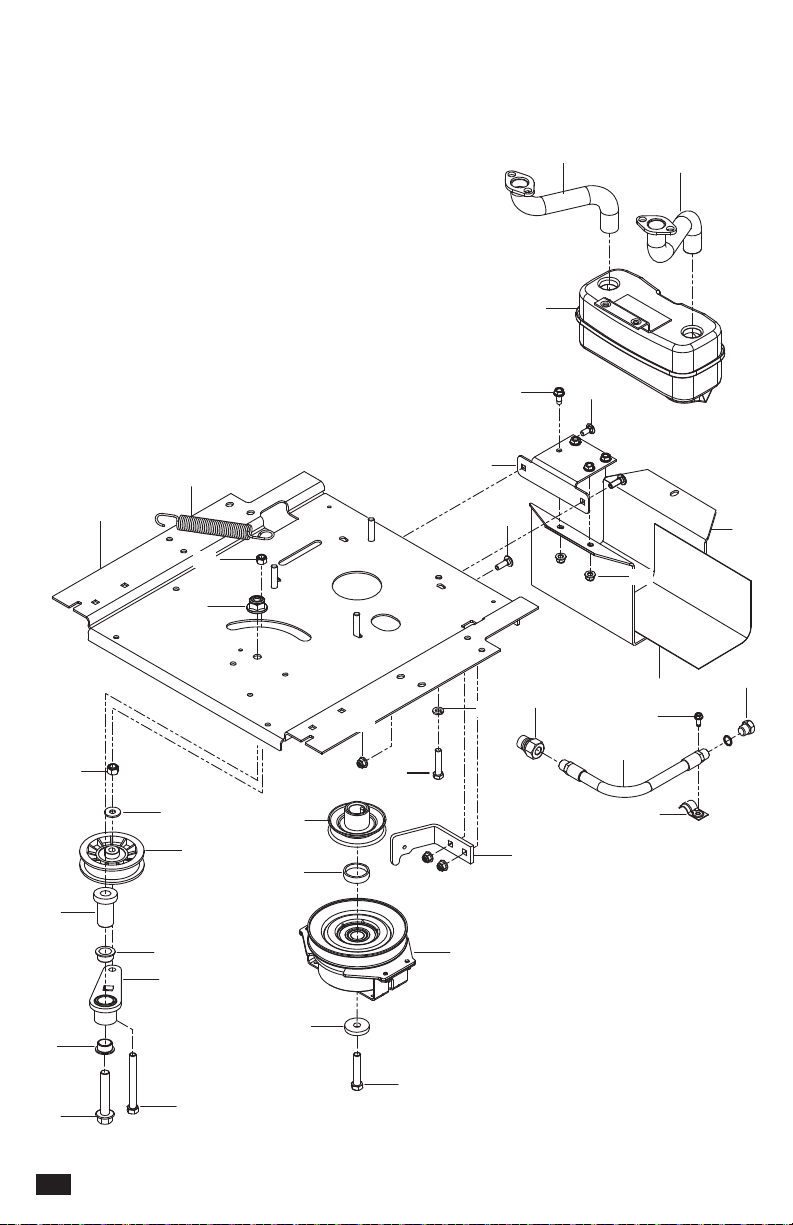

ENGINE MOUNTING, GUARDS & MUFFLER
7
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1 593 89 86-02 1 Plate, Engine Blk
2 587 24 16-01 1 Clutch
3 583 95 57-01 1 Tube, Exhaust Right
4 583 95 56-01 1 Tube, Exhaust Left
5 581 88 67-02 1 Bracket, Muer Blk
6 532 44 81-45 1 Arm, Idler
7 582 53 89-01 1 Spindle, Idler
8 539 11 03-11 1 Pulley, Idler
9 587 53 74-01 1 Pulley, Engine
10 587 66 01-01 1 Spacer
11 539 13 28-59 1 Shield, Muer
12 587 63 33-02 1 Stop, Clutch Blk
13 587 45 12-02 1 Guard, Muer Blk
14 539 13 16-04 1 Muer Assembly
15 532 19 61-05 1 Spring, Deck Drive
16 584 82 55-01 2 Assy, Drain Hose
17 539 10 13-63 1 Clamp
18 522 59 90-01 1 Adapter, Oil Drain
19 585 80 71-01 1 Plug, Oil
20 501 60 37-01 2 Bearing, Flanged
21 582 53 95-01 1 Bolt 1/2-13 x 2-3/4 Hex Flange Hd
22 874 52 06-56 1 Bolt 3/8-16 x 3-1/2 Hex Hd
23 539 99 03-16 2 Bolt 5/16-18 x 3/4 Gr. 5 ZD
24 539 99 02-08 2 Bolt 5/16-18 x 1 Gr. 5 ZD
25 581 33 28-03 1 Bolt 7/16-20 x 2-1/2 Hex Hd
26 817 49 04-10 1 Screw 1/4-20 X 5/8 Thread Form
27 874 78 06-20 4 Bolt 3/8-16 x 1-3/4 Fin Hex
28 817 49 05-12 4 Screw 5/16-18 x 3/4 Thread Form
29 521 99 11-01 1 Nut 1/2-13 Hex Flange Nyloc
30 539 11 28-99 5 Nut 5/16-18 Hex Flange Nyloc
31 539 97 69-79 2 Nut 3/8-16 Hex Nyloc
32 819 12 14-14 2 Washer 5/16 Std Flat
33 532 12 61-97 1 Washer, Clutch
34 539 99 01-18 4 Washer 3/8 Slotted Lock ZD
NOT SHOWN
532 17 81-51 2 Gasket Exhaust
532 18 43-62 4 Nut Hex Flange Toplock M8-1.25
239 10 81-20 4 Nut 1/4-20 Hx Thin Nyloc ZD
------------------ 1 Engine, Kawasaki FR691V 23 HP
For Engine Replacement Parts,
See a Kawasaki Dealer
17
6
7
8
5
10
24
14
13
11
2
1
3
20
4
18
21
22
24
25
26
12
19
27
9
23
15
16
26
27
8
STEERING
9
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1 590 09 08-03 1 Lever w/ Grip Right Blk
2 590 09 08-04 1 Lever w/ Grip Left Blk
3 585 12 47-05 2 Bracket, Control
4 539 13 15-18 4 Bearing, Flanged
5 576 14 03-01 2 Control, Lever
6 587 60 17-02 2 Lever, Handle
7 584 92 72-01 2 Spacer, Pivot Control
8 539 10 27-20 2 Dampener
9 581 43 75-01 2 Block, Tracking
10 585 83 16-01 2 Boot, Steering
11 585 48 82-02 2 Flange, Boot
12 588 60 49-01 2 Assy, Right Control Linkage 14
13 588 60 50-01 2 Assy, Left Control Linkage 14
14 532 19 98-49 2 Clip, Spring
15
587 60 15-01 2 Switch, Interlock
16 874 78 08-44 2 Bolt 1/2-13 x 2-3/4 Hex Head
17 585 98 61-01 2 Bolt 5/16-18 x 1-1/4 Hex Head
18 874 49 05-12 8 Bolt Hex Flange 5/16-18 x 3/4
19 539 99 02-09 2 Bolt 5/16-18 x 1 Hex Head
20 587 88 53-01 2 Screw 5/16-18 x 1-3/4 Button Head
21 585 98 59-01 4 Screw 5/16-18 x 1-1/4 Button Head Blk
22
586 93 60-01 2 Screw #10-24 x 1/2 Socket Hd
23 539 10 80-10 2 Nut 1/2-13 Hex Jam Nyloc Grade 2
24 539 11 28-99 10 Nut 5/16-18 Hex Flange Nyloc
25 585 98 60-01 4 Nut 5/16-18 Hex Nyloc Blk
26 539 99 05-85 4 Nut 5/16-18 Hex Whiz Lock
27 873 80 05-00 4 Nut 5/16-18 Hex Nyloc
28 819 11 11-16 4 Washer 11/32 16 Gauge
29 587 61 42-01 2 Washer 11/32
6
7
8
5
17
14
13
1
1
2
1
3
4
21
18
20
15
12
22
9
23
26
33
34
27
24
25
28
35
32
39
36
38
16
37
29
30
31
19
40
40
10
IGNITION SYSTEM
11
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1
585 52 28-01 1 Assembly, Fender, Right Gry
2
586 62 12 01 1 Assembly, Fender, Left Gry
3
589 92 47-02 1 Assembly, Fuel Tank
23, 24, 25
4 585 12 48-01 1 Cap, Fuel w/ Tether
5
539 11 24-38 1 Cable, Throttle
6
586 88 15-01 1 Control, Choke
7
539 10 75-41 1 Switch, Ignition
8
582 10 76-02 1 Switch, Blade
9
586 10 82-01 1 Cable, Battery Positive
11
585 52 27-01 1 Panel, Control
12
539 10 24-63 1 Battery
13
510 03 00-03 1 Bracket, Battery
14
582 60 96-02 1 Box, Battery Black
15
532 13 15-63 3 Terminal Cover
16
539 10 27-59 1 Terminal Cover
17
576 61 81-01 1 Valve, Fuel Check
18
539 91 63-25 1 Valve, Fuel
19
586 12 39-06 1 Assembly, Fuel Line w/ Valve
18, 28, 29, 30
20
582 04 28-01 1 Solenoid
21
587 19 86-01 1 Harness, Battery Cable
22
587 04 45-50 1 Hose 3/16 x 50" Vapor
23
532 00 36-45 1 Grommet, Rubber
24
532 43 74-92 1 Grommet, Check Valve
25
532 13 92-77 1 Elbow
26
586 16 18-01 1 Meter, Service
27
532 41 19-33 1 Key, Ignition
28
532 12 34-87 4 Clamp, Hose
29
587 04 48-10 1 Hose 1/4 x 10" Fuel
30
587 04 48-18 1 Hose 1/4 x 18" Fuel
31
588 83 94-01 2 J Hook
32
532 14 18-41 2 Screw 10-16 x .65
33 545 22 71-01 2 Screw 6-19 x 7/16 Pan Hd
34
539 11 12-29 1 Screw 1/4-20 x 5/8 Button Socket
35
539 99 03-16 2 Bolt 5/16-18 x 3/4 Gr. 5 ZD
36
539 99 06-45 2 Bolt 3/8-16 x 1 Round Hd Square Neck
37
817 49 04-08 2 Bolt 1/4-20 x 1/2
38
521 99 65-01 2 Nut 3/8-16 Hex Flange Nyloc
39
539 11 28-99 2 Nut 5/16-18 Flange Nyloc
40
539 97 69-78 5 Nut 1/4-20 Hex Nyloc
NOT SHOWN
586 33 73-01 1 Harness, Wiring
586 54 81-01 1 Harness., LED Light
532 10 97-48 1 Relay 40A
505 28 00-01 1 Tie Wrap 8-3/8" w/ Clip
1
21
7
15
5
2
16
13
9
19
20
17
22
18
11
3
6
4
13
8
10
12
14
12
BRAKE / LIFT
13
Z 254F, 967954001-00

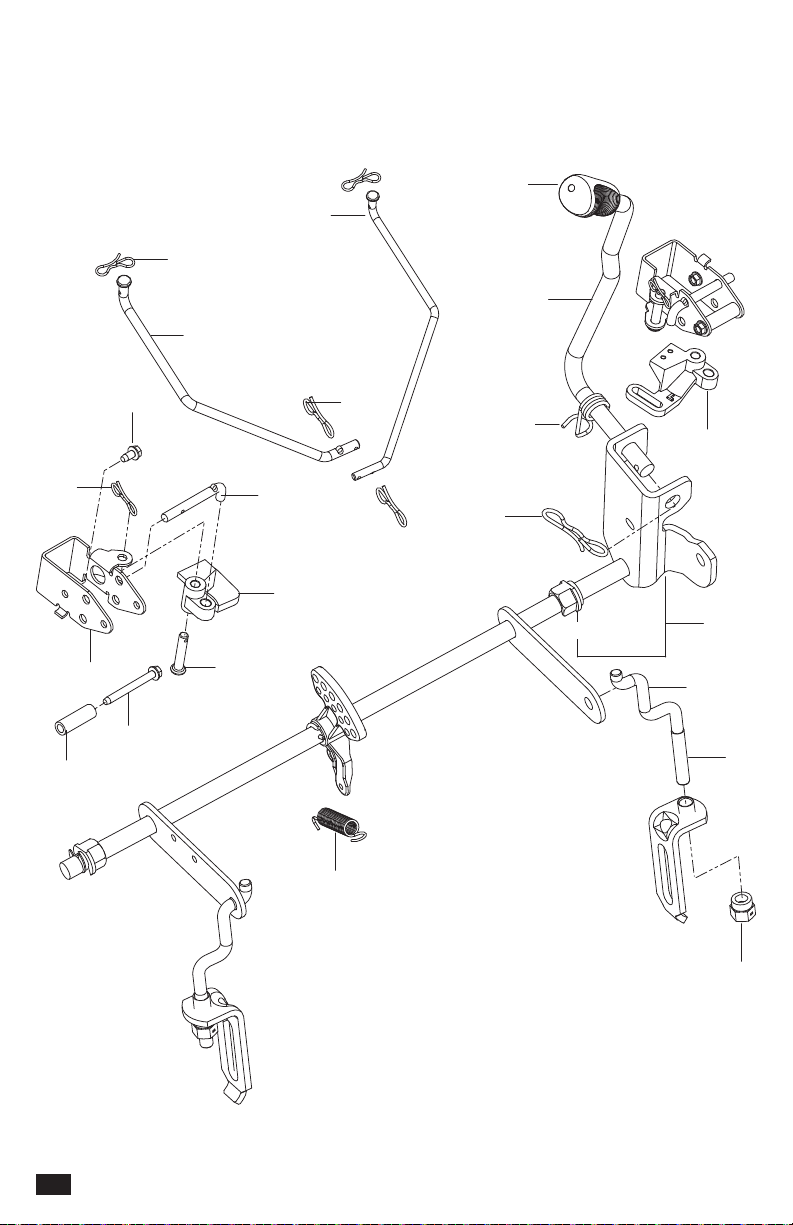

Ref. Part No. Qty Description Kit / Assy Includes
1 586 42 97-02 1 Assembly, Shaft w/ Nuts, E-Rings 15
2 586 45 71-01 1 Link, Brake Left
3 586 45 72-01 1 Link, Brake Right
4 586 42 87-01 1 Lift Handle
5 580 48 61-01 2 Spacer
6 585 68 21-02 2 Bracket, Bellcrank
7 522 85 86-01 2 Assembly, Centering Link
8 532 44 50-60 1 Grip, Handle Black
9 586 86 76-01 1 Spring
10 532 19 63-14 1 Spring
11 585 68 20-01 2 Pushrod
12 587 22 53-01 4 Clip
13 532 19 42-09 1 Clip
14 532 19 42-08 2 Clip
15 510 18 49-01 2 Nut, Plastic
16 585 70 14-01 2 Pin 1/2 Clevis
17 586 45 75-01 1 Bellcrank Right
18 586 45 74-01 1 Bellcrank Left
19 532 13 77-29 2 Screw 1/4-20 x 5/8 Thread Roll
20 586 56 13-01 2 Screw 1/4-20 x 2-1/4 Thread Roll
21 525 84 72-01 1 Link, Rear Suspension
22 532 17 59-94 2 Nut, Lift, Link 7/16-20
14
HYDRAULIC PUMP-MOTOR
18
7
10
24
26
26
3
14
5
2
6
20
1
4
27
21
17
22
11
16
28
25
23
13
8
9
24
19
26
15
12
28
29
28
23
27
28
15
Z 254F, 967954001-00

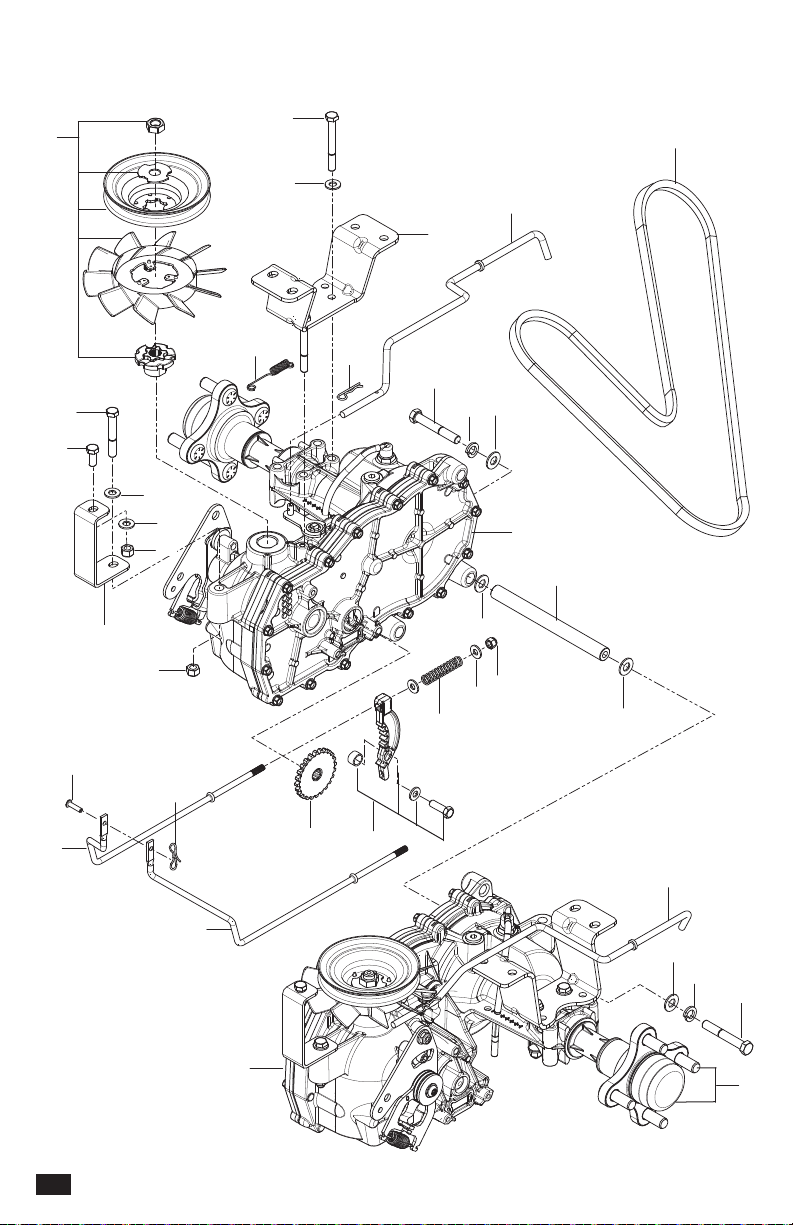

Ref. Part No. Qty Description Kit / Assy Includes
1 510 37 56-01 1 EZT, Left
2 510 37 56-02 1 EZT, Right
3 574 03 05-01 1 Rod, EZT Brake Left
4 574 03 05-02 1 Rod, EZT Brake Right
5 539 11 04-11 1 Belt, EZT
6 585 47 44-01 1 Rod, Bypass Left
7 585 47 45-01 1 Rod, Bypass Right
8 586 66 51-01 2 Spring, Bypass
9 539 11 03-42 2 Spring, Brake Rod
10 539 12 00-80 2 Cog, Brake Disc
11 539 12 00-79 2 Assembly Kit, Brake Arm
12 575 50 70-01 1 Assembly Kit, Hub w/ Nuts
13 501 40 36-02 2 Assembly Kit, Blade, Pulley
14 510 18 41-04 2 Spacer Tube
15 580 80 65-02 2 Support, EZT Front
16 580 80 66-02 2 Mount, EZT Rear Blk
17 587 22 53-01 1 Clip
18 539 97 69-88 4 Clip
19 587 11 53-01 1 Pin, Clevis
20 874 78 05-44 4 Bolt 5/16-18 x 2-3/4 Hex Hd
21 539 97 69-34 2 Bolt 5/16-18 x 3/4 Gr. 5 ZD
22 874 78 05-36 2 Bolt 5/16-18 x 2-1/4 Hex Hd
23 539 99 06-37 4 Bolt 3/8-16 x 2-1/2 Gr. 5 ZD
24 873 80 05-00 4 Nut 5/16-18 Hex Nyloc
25 539 97 69-78 2 Nut 1/4-20 Hex Nyloc ZD
26 819 11 11-16 16 Washer 11/32 16 Gauge
27 539 99 01-18 4 Washer 3/8 Splt Lock ZD
28 819 13 13-16 8 Washer 3/8 SAE Flat
29 819 09 10-16 4 Washer 1/4 SAE Flat
16

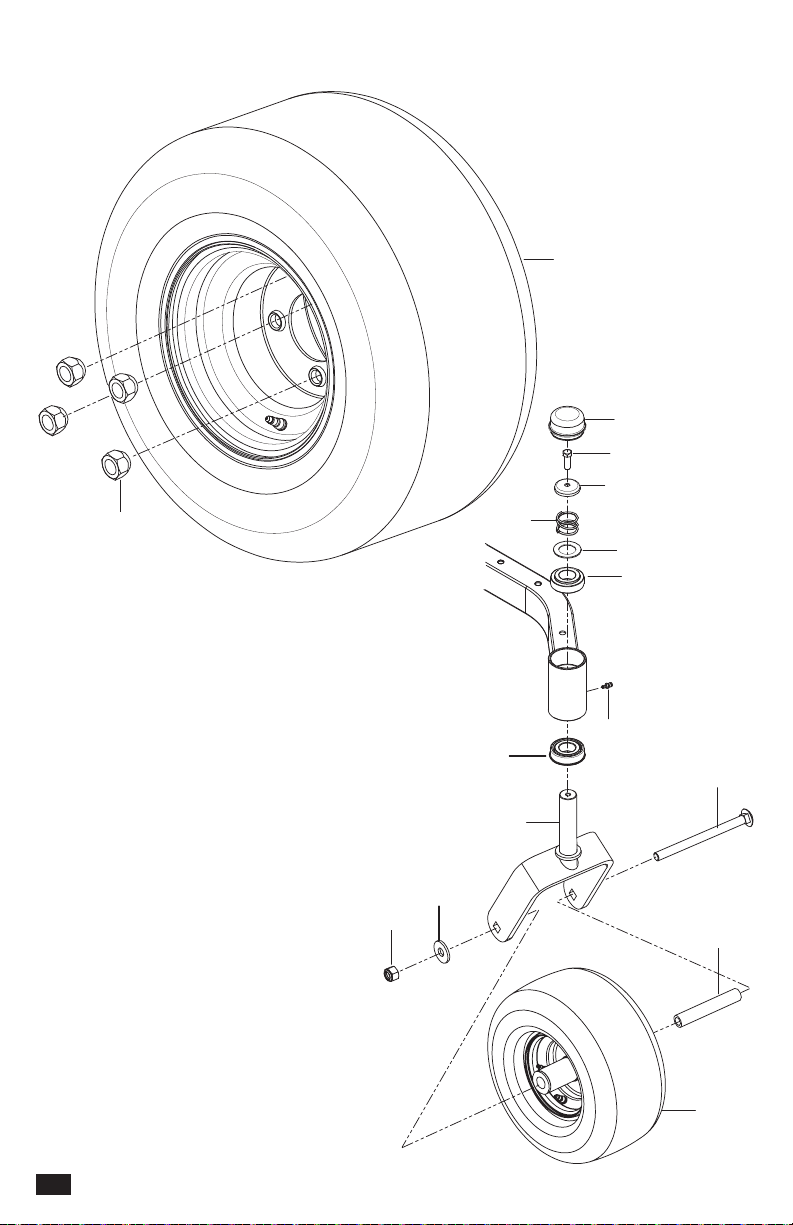

WHEELS & TIRES
4
9
13
15
16
17
14
1
2
3
12
8
7
6
10
11
17
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1 590 48 66-01 2 Assy, Wheel Rear 18 x 9.5
2 576 58 86-02 2 Wheel Assembly Caster 11 x 6-5
3 586 65 03-02 2 Yoke Orange
4 539 11 56-38 2 Zerk 3/16 Drive
6 539 11 26-60 2 Bearing, Flanged
7 539 11 79-01 2 Bushing, Caster
8 539 10 25-35 2 Grease Cap
9 539 11 57-49 2 Plug, Caster
10 585 99 54-01 2 Spacer, Pivot
11 539 11 57-47 2 Spring, Caster
12 874 95 05-16 2 Bolt, Hex 5/16-18 x 1 Nylon Patch
13 576 60 15-01 2 Bolt 1/2-13 x 7-1/2 Round Hd Square Neck
14 873 93 08-00 2 Nut 1/2-13 Hex Center Lock
15 539 10 11-73 8 Nut 1/2 Lug
16 539 11 56-75 2 Washer
17 819 18 22-12 2 Washer 9/16
2
3
4
1
6
5
20
19
22
15
17
24
27
10
8
11
9
13
23
25
36
28
37
31
40
35
41
36
7
40
46
12
14
44
26
42
18
21
33
10
16
29
30
45
32
34
38
39
43
47
18

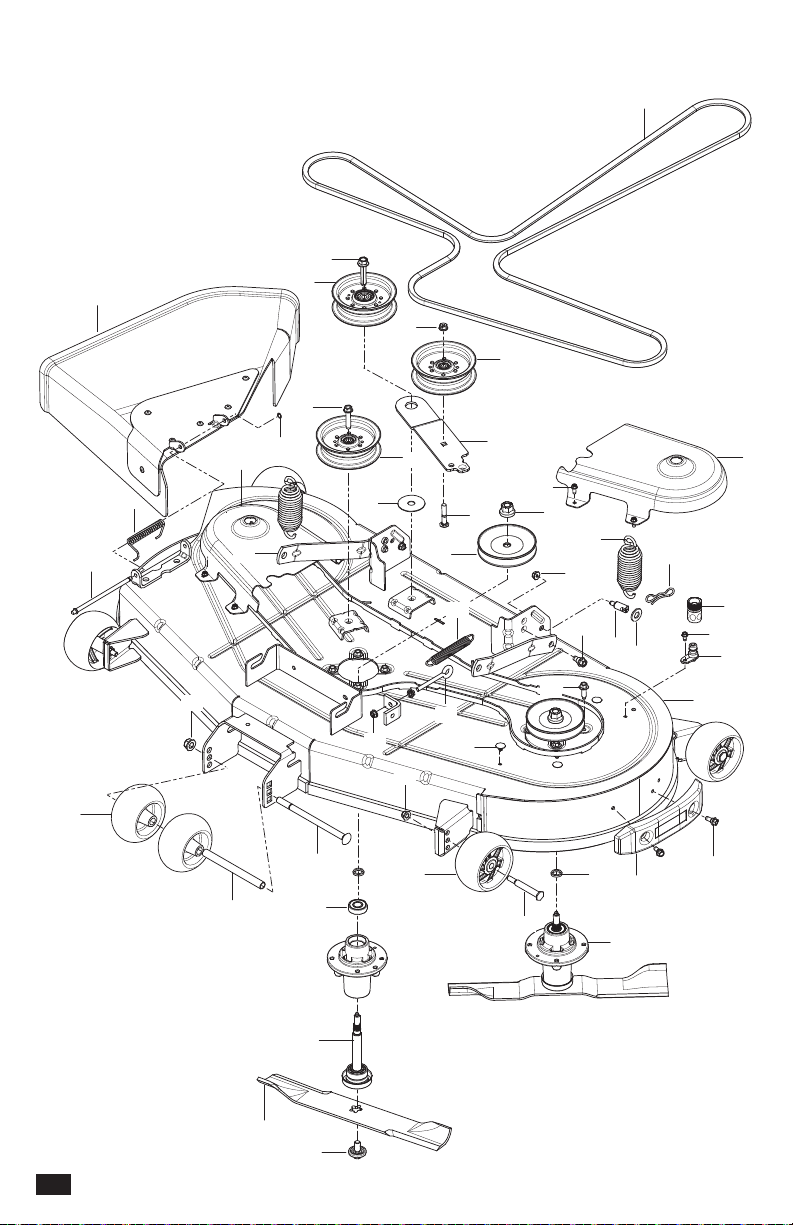

MOWER DECK / CUTTING DECK
19
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1 582 35 91-02 1 Deck Org
2 592 95 18-01 1 Belt 54" Deck
3 582 76 05-01 3 Blade, Hi-lift
4 590 30 44-03 1 Belt Shield, Left Gry
5 590 30 42-03 1 Belt Shield, Right Gry
6 539 13 18-98 3 Mandrel, Cast Iron 14, 23
7 589 52 73-01 4 Wheel, Gauge
8 574 16 96-01 2 Roller, Gauge
9 532 17 57-08 3 Pulley, Mandrel
10 532 19 73-79 2 Pulley Idler
11 532 19 73-80 1 Pulley Idler
12 590 63 22-01 1 Deector 54" Org
13 532 13 14-91 1 Rod, Hinge
14 532 11 04-85 1 Bearing
15 582 21 96-02 1 Arm, Idler
16 587 14 05-02 2 Arm, Suspension
17 532 41 55-98 1 Port, Washout
18 532 41 64-05 1 Coupling, Quick Connect
19 539 11 87-62 2 Spring
20 587 35 47-01 1 Spring, Deector
21 587 35 84-01 1 Spring, Extension
22 574 19 65-01 1 Tube, Roller Axle
23 532 18 72-91 1 Shaft
24 589 81 33-01 3 Plug, Hole Blk
25 590 73 25-01 1 Bumper
26 532 19 42-09 2 Pin, Cotter 7/16 Bow Tie
27 532 19 51-61 2 Stud, w/ Anti-Rotate
28 532 17 01-65 2 Bolt 5/16-18 Shoulder
29 532 19 34-06 4 Bolt 3/8-16 x 3-5/8 Shoulder
30 532 19 30-03 3 Bolt/Washer 7/16-20
31 539 11 55-74 1 Bolt Eye 5/16 x 3-1/2
32 584 95 39-01 12 Bolt 5/16-18 x 1-1/4 Hex Washer Hd
33 872 11 06-16 1 Bolt 3/8-16 x 2 Round Hd Square Neck
34 872 14 08-64 1 Bolt 1/2-13 x 8 Round Hd Square Neck
35 532 19 65-39 2 Bolt, Shoulder
36 532 13 77-29 9 Screw 1/4-20 x 5/8 Thread Roll
37 817 49 06-28 1 Screw 3/8-16 x 1-3/4 Hex Thread Form
38 588 43 83-01 1 Screw 7/16-14 x 2-1/8 Washer Hd
39 532 40 02-34 3 Nut 9/16 Top Center Lock
40 873 90 06-00 5 Nut 3/8-16 Hex Flange Lock
41 521 99 11-01 1 Nut 1/2-13 Hex Flange Nyloc
42 539 99 05-85 2 Nut 5/16-18 Hex Whizlock
43 873 90 05-00 2 Nut 5/16-18 Hex Flange
44 532 11 04-52 1 Pushnut
45 532 17 85-15 1 Washer, Flat Hardened
46 532 18 76-90 3 Washer Spacer
47 819 19 19-12 2 Washer, Clear
1
9
5
4
12
27
28
29
18
3
11
6
14
20
26
25
10
20
2
23
17
7
13
21
19
21
20
20

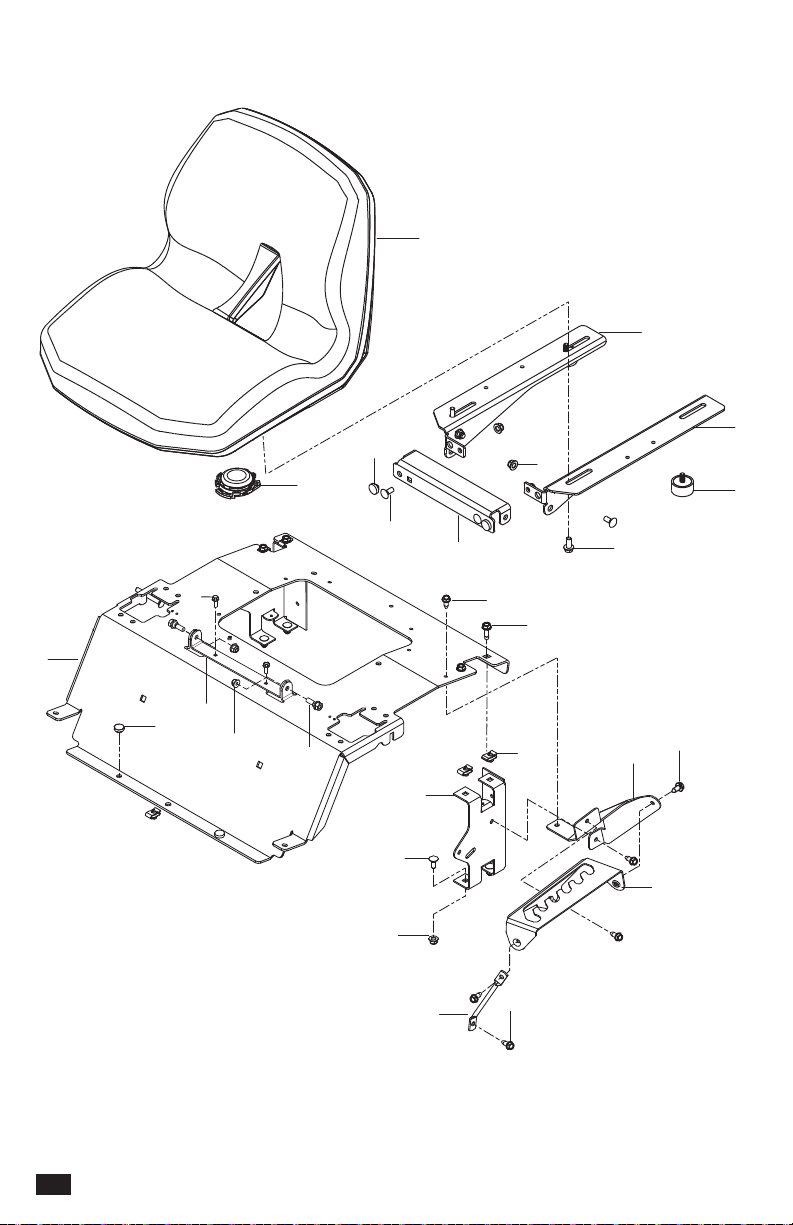

SEAT
21
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1
596 75 15-01 1 Seat
2
596 67 94-02 1 Bracket Seat Pan RH
3
586 22 08-02 1 Plate, Lift Support
4 586 22 12-02 1 Plate, Deck Lift
5 589 76 12-06 1 Support, Seat Org
6
580 30 82-02 2 Support, Seat Rear Blk
7
596 67 29-02 1 Bracket Seat Pan LH
9
581 42 93-02 1 Switch, Seat
10
596 67 30-02 1 Bracket Seat Pan Front
11
586 42 86-01 1 Leg, Support
12
585 98 93-01 2 Grommet, Bumper
13
539 10 47-63 5 Retainer, U Type
14
872 14 05-06 4 Bolt 5/16-18 x 3/4 Round Head Square Neck
17
874 49 05-12 2 HHFS 5/16-18 x 3/4
18
539 11 03-03 2 Bolt 5/16-18 Shoulder
19
874 49 05-12 2 HHFS 5/16-18 x 3/4
20
817 00 05-10 6 Screw 5/16-18 x 5/8 Washer Head
21
539 11 28-99 4 Nut 5/16-18 Hex Flange Nyloc
23
582 47 87-02 2 Bumper 5/16-18
25
539 99 03-16 4 RHSNB 5/16-18 x 3/4 Gr. 5
26
539 10 25-87 2 Grommet Bumper
27
590 89 99-03 1 Bracket Set
28
589 02 85-01 2 Screw Flg Locking 1/4-20 x .75
29
873 90 04-00 2 Nut Hex Flange 1/4-20
NOT SHOWN - OPTIONAL
532 42 14-99 1 Kit, Arm Rest
1
7
6
4
2
8
3
9
12
15
13
18
5
17
14
10
11
16
22

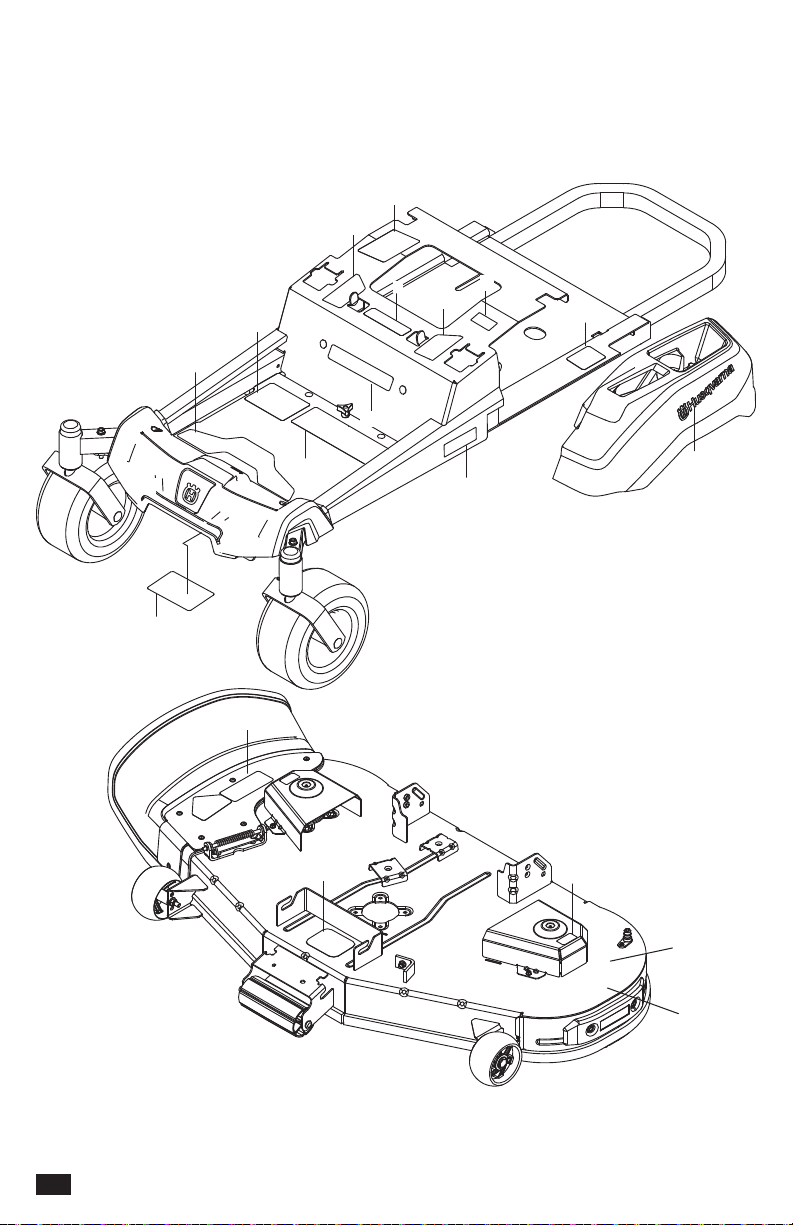

DECALS
23
Z 254F, 967954001-00
Ref. Part No. Qty Description Kit / Assy Includes
1
587 59 56-01 1 Decal, Steer / Brake Left
2
587 59 55-01 1 Decal, Steer / Brake Right
3
592 86 99-01 2 Decal, Z 254F
4 539 10 57-45 1 Decal, Battery Warning
5 593 80 88-01 1 Decal, 54 Deck Cleacut
6
539 10 83-85 1 Decal, Do Not Tow
7
539 10 83-86 1 Decal, Exit Mower
8
539 10 98-97 1 Decal, Service
9
590 48 55-01 1 Decal, Safety Warnings
10
532 42 38-29 1 Decal, Responsibility
11
591 35 73-01 1 Decal, Start
12
586 97 88-01 1 Decal, Deector
13
589 35 79-01 1 Decal, No Step
14
591 16 39-01 1 Decal, Belt Routing
15
577 46 90-01 2 Decal, Husqvarna
16
591 35 73-01 1 Decal, Logo
17
587 00 07-01 1 Pad, Abrasive
18
592 89 83-01 1 Decal, Deck Clearcut
2018-10-25 JSE/SR
