DEWALT Industrial Tool Co., 701 Joppa Road, Baltimore, MD 21286
(DEC10) Part No. N096898 DW089 Copyright © 2010 DEWALT
The following are trademarks for one or more DEWALT power tools: the yellow and black color scheme, the “D” shaped
air intake grill, the array of pyramids on the handgrip, the kit box configuration, and the array of lozenge-shaped humps on
the surface of the tool.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result
in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY DEWALT TOOL,
CALL US TOLL FREE AT: 1-800-4-DEWALT (1-800-433-9258).
Safety Instructions for Lasers
WARNING! Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS
WARNING! Laser radiation exposure. Do not disassemble or modify the laser level.
There are no user serviceable parts inside. Serious eye injury could result.
WARNING: Hazardous radiation. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
• Do not operate the laser in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust
or fumes.
• Use the laser only with the specifically designated batteries. Use of any other batteries
may create a risk of fire.
• Store idle laser out of reach of children and other untrained persons. Lasers are
dangerous in the hands of untrained users.
• Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one laser, may create a risk of injury when used on
another laser.
• Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in injury. To locate your nearest
D
EWALT service center call 1-800-4-DEWALT (1-800-433-9258) or go to www.dewalt.com
on the Internet.
• Do not use optical tools such as a telescope or transit to view the laser beam.
Serious eye injury could result.
• Do not place the laser in a position which may cause anyone to intentionally or
unintentionally stare into the laser beam. Serious eye injury could result.
• Do not position the laser near a reflective surface which may reflect the laser beam
toward anyone’s eyes. Serious eye injury could result.
• Turn the laser off when it is not in use. Leaving the laser on increases the risk of staring
into the laser beam.
• Do not modify the laser in any way. Modifying the tool may result in hazardous laser
radiation exposure.
• Do not operate the laser around children or allow children to operate the laser.
Serious eye injury may result.
• Do not remove or deface warning labels. If labels are removed user or others may
inadvertently expose themselves to radiation.
• Position the laser securely on a level surface. Damage to the laser or serious injury could
result if the laser falls.
CAUTION: Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
WARNING! DO NOT DISASSEMBLE THE LASER. There are no user serviceable parts
inside. Disassembling the laser will void all warranties on the product. Do not modify the product
in any way. Modifying the tool may result in hazardous laser radiation exposure.
WARNING: Avoid prolonged contact with dust from power sanding, sawing,
grinding, drilling, and other construction activities. Wear protective clothing and wash
exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on
the skin may promote absorption of harmful chemicals.
• The label on your tool may include the following symbols.
V .............................volts
mW .........................milliwatts
................laser warning symbol
nm .......................... wavelength in nanometers
II .............................Class 2 Laser
IIIa ........................... Class 3a Laser

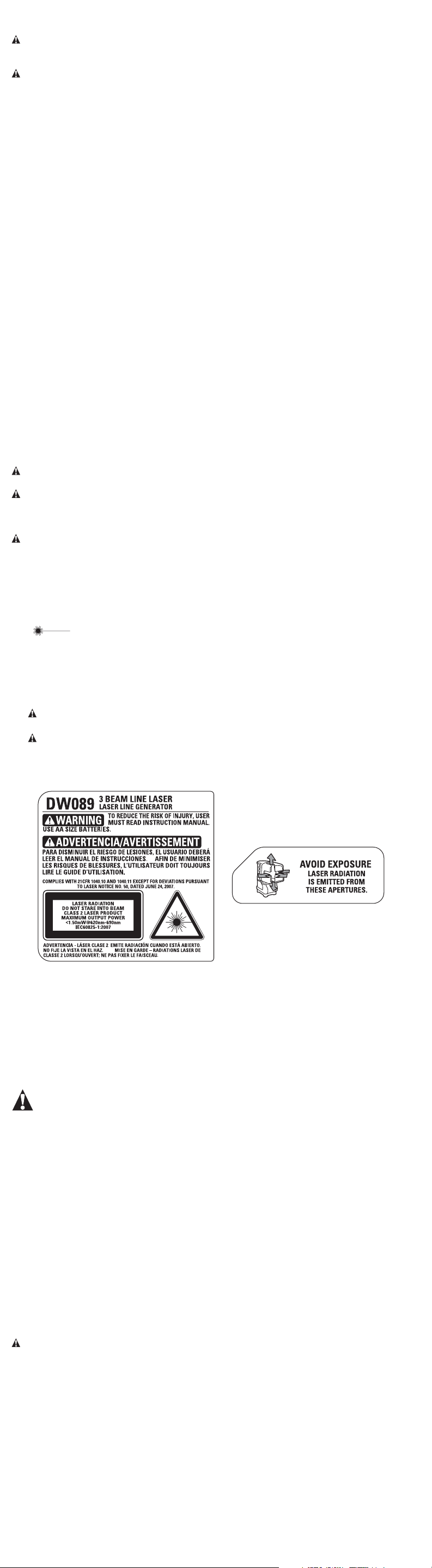

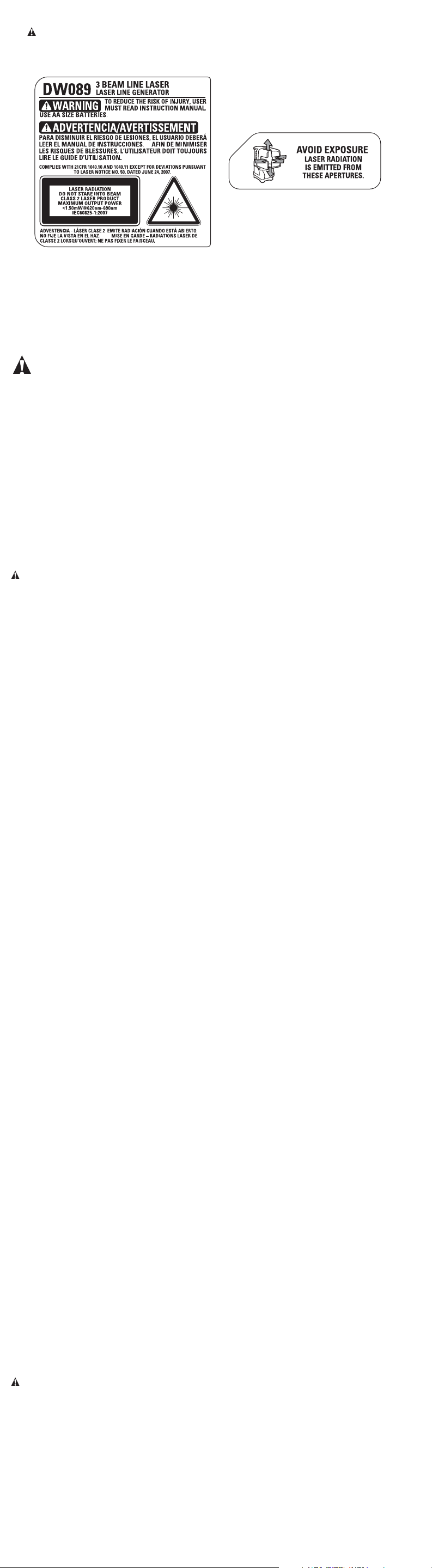

WARNING LABELS
For your convenience and safety, the following labels are on your laser.
WARNING: TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION
MANUAL. USE AA SIZE BATTERIES.
WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. CLASS 2 LASER
PRODUCT.
AVOID EXPOSURE. LASER RADIATION IS EMITTED FROM THESE APERTURES.
FIG. 1
Laser Information
The DW089 3 Beam Line Laser is a Class 2 laser product and complies with 21 CFR 1040.10
and 1040.11 except for deviations pursuant to laser notice No. 50, dated June 24, 2007.
INTRODUCTION
The DW089 laser is a self-leveling laser tool that can be used for horizontal (level) and vertical
(plumb) alignment projects.
General Safety Rules For Battery Operated Tools
WARNING! Read and understand all instructions. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious personal injury.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
• Keep children and bystanders away while operating a power tool. Distractions can
cause you to lose control.
ELECTRICAL SAFETY
• Use battery operated tool only with the specifically designed batteries. Use of any
other batteries may create a risk of fire.
Battery
This tool is powered by four 1.5V AA size batteries.
To install batteries:
1. Lift up the battery compartment cover (A) as shown in Figure 2.
2. Insert four fresh AA batteries in the compartment, placing the batteries according to (+) and
(–) on the inside of the battery door.
WARNING: Batteries can explode, or leak, and can cause injury or fire. To reduce
this risk:
• Carefully follow all instructions and warnings on the battery label and package.
• Always insert batteries correctly with regard to polarity (+ and –), marked on the battery and
the equipment.
• Do not short battery terminals.
• Do not charge batteries.
• Do not mix old and new batteries. Replace all of them at the same time with new batteries of
the same brand and type.
• Remove dead batteries immediately and dispose of per local codes.
• Do not dispose of batteries in fire.
• Keep batteries out of reach of children.
• Remove batteries if the device will not be used for several months.
PERSONAL SAFETY
• Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power tools may
result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used
for appropriate conditions will reduce personal injuries.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in
moving parts.
POWER TOOL USE AND CARE
• Do not use the power tool if the switch does not turn it on and off. Any power tool
that cannot be controlled with the switch is dangerous and must be repaired.
• Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the power tool’s operation. If
damaged, have the power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Use the power tool, accessories and tool bits, etc. in accordance with these
instructions, taking into account the working conditions and the work to be
performed. Use of the power tool for operations different from those intended could result
in a hazardous situation.
SERVICE
• Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
To locate your nearest D
EWALT service center call 1-800-4-DEWALT (1-800-433-9258) or go
to www.dewalt.com on the Internet.
Operating Tips
• Use only new, high-quality, name brand batteries for best results.
• Ensure batteries are in good working condition. If the low battery red indicator light is
flashing, the batteries need replacement.
• To extend battery life, turn laser off when not working with or marking the beam.

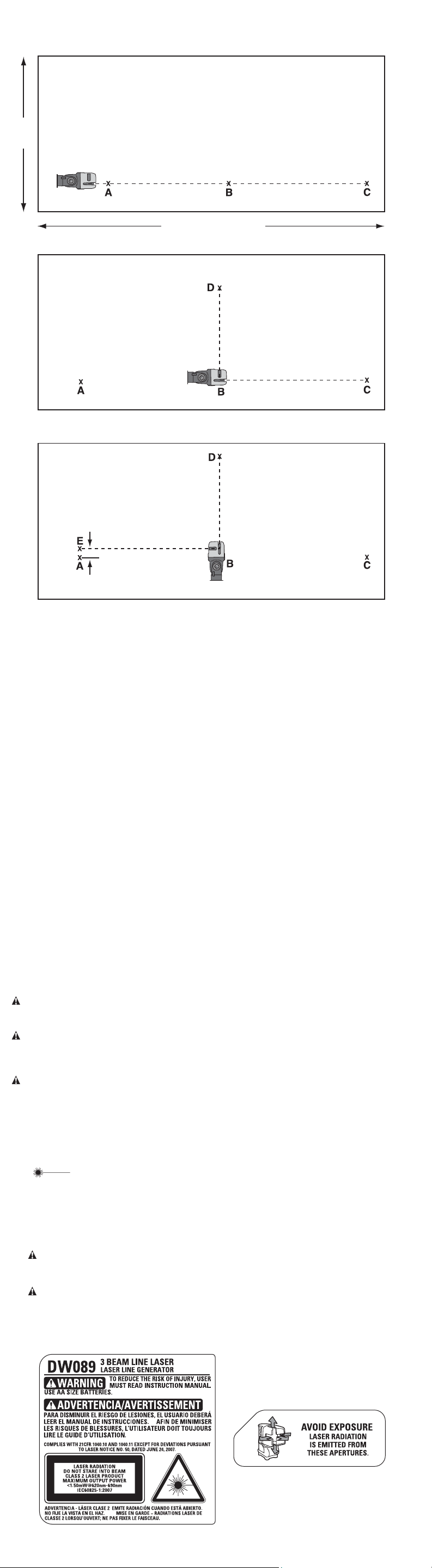

• To ensure the accuracy of your work, check often to make sure your laser is calibrated. See
Field Calibration Check.
• Before attempting to use the laser, make sure it is positioned securely, on a smooth, flat
surface.
• Always mark the center of the beam created by the laser.
• Extreme temperature changes may cause movement of internal parts that can affect
accuracy. Check your accuracy often while working. See Field Calibration Check.
• If the laser has been dropped, check to make sure your laser is still calibrated. See Field
Calibration Check.
LOW BATTERY INDICATION
The DW089 laser is equipped with a red indicator light (B), as shown in Figure 2. The red
indicator light is located to the left of the on/off buttons (C, D, E).
A flashing red indicator light indicates that the batteries are low and need to be replaced. The
laser may continue to operate for a short time while the batteries continue to drain, but the
beam(s) will quickly dim. After fresh batteries are installed and the laser is turned on again, the
laser beam(s) will return to full brightness and the red indicator light will stay off. (A flashing laser
beam is not caused by low batteries; see Out of Tilt Range Indicator.)

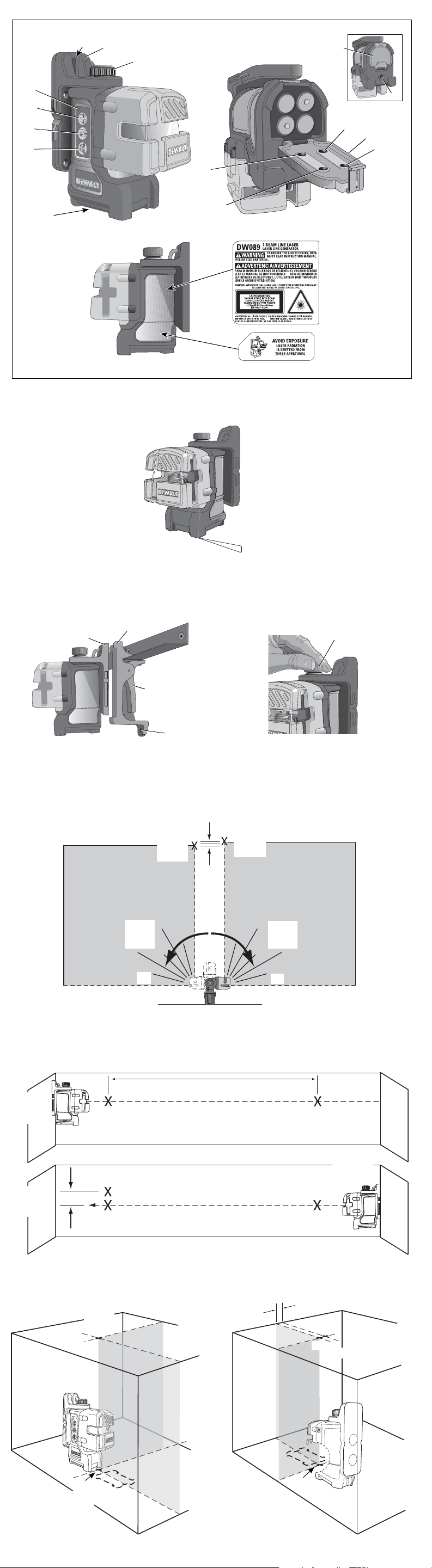

COMPONENTS (Fig. 2)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could
result.
A. Battery compartment cover F. Magnetic pivot bracket
B. Red indicator light G. Keyhole slot
C. ON/OFF button: horizontal laser line H. Fine adjustment knob
D. ON/OFF button: vertical laser line I. 1/4" x 20 female thread
E. ON/OFF button: side vertical laser line
OPERATION
To Turn the Laser On and Off (Fig. 2)
With the laser off, place it on a flat surface. This model has three ON/OFF buttons, one for a
horizontal laser line (C), one for a vertical laser line (D) and one for a side vertical laser line (E).
Each laser line is powered on by pressing its ON/OFF button. The laser lines can be powered
one at a time or at the same time. Pressing the ON/OFF buttons again turns the laser lines off.
INSTRUCTION MANUAL
GUIDE D’UTILISATION
MANUAL DE INSTRUCCIONES
DW089
3 Beam Line Laser
Laser à triple rayon
Láser de 3 rayos lineales
INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y
PÓLIZA DE GARANTÍA.
ADVERTENCIA: LÉASE ESTE
INSTRUCTIVO ANTES DE USAR EL PRODUCTO.
If you have questions or comments, contact us.
Pour toute question ou tout commentaire, nous contacter.
Si tiene dudas o comentarios, contáctenos.
1-800-4-DEWALT • www.dewalt.com
