Model No: RHDW2, RHDW2B & RHDW2S
Dishwasher
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
IMPORTANT: RETAIN FOR FUTURE
REFERENCE
USER’S GUIDE
Contents
2
Page
Safety instructions
…………….……………….…
3
Product overview
…………….……………….…
8
Unpacking the dishwasher
…………….……………….…
9
Water Hardness & setting the salt
…………….……………….…
10
Loading the salt into the container
…………….……………….…
11
Rinse aid dispenser
…………….……………….…
12
Detergent
…………….……………….…
14
Loading the dishwasher
…………….……………….…
16
Washing programs
…………….……………….…
22
Washing cycles
…………….……………….…
23
Maintenance & Cleaning
…………….……………….…
25
Positioning the appliance
…………….……………….…
29
Water connection
…………….……………….…
30
Connection to the mains
supply
…………….……………….…
32
Troubleshooting
…………….……………….…
34

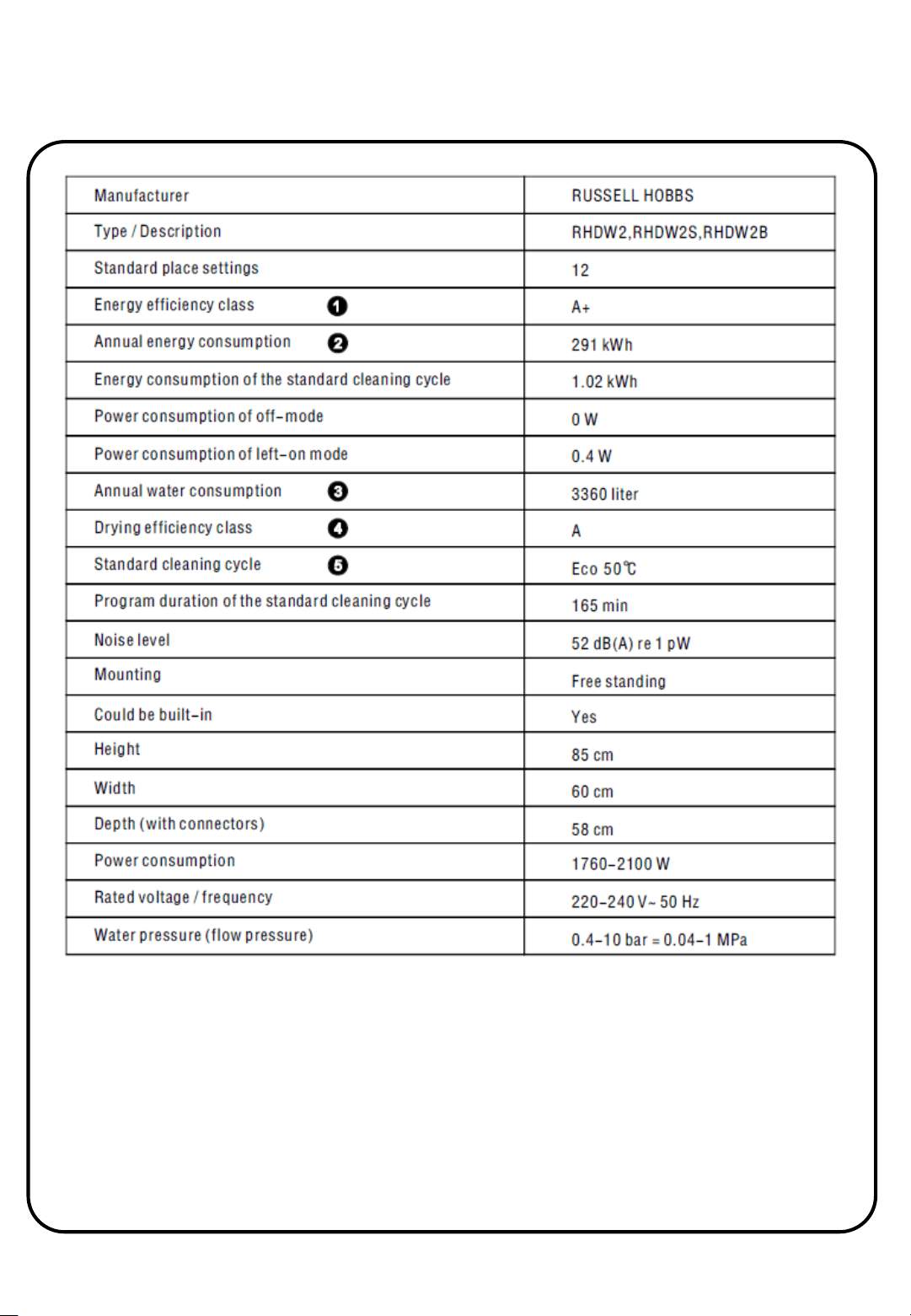

Technical specification
…………….……………….…
36
Guarantee
…………….……………….…
39
Safety instructions
3
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING: This appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of the cover.
WARNING: If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING: Knives and other utensils with sharp points
must be loaded in the basket with their points down or
placed in a horizontal position.
Safety instructions
4
Do not allow the control panel to become wet. Clean
with a soft, damp cloth. Do not use detergents, abrasives
or spray-on cleaners on the control panel.
Keep children away from detergent and rinse aid, keep
children away from the open door of the dishwasher, there
could still be some detergent left inside.
Dishwasher detergents are strongly alkaline, they can be
extremely dangerous if swallowed. Avoid contact with skin
and eyes and keep children away from the dishwasher
when the door is open.
Children should be supervised t o ensure that they do not
play with the appliance. The door should not be left open,
since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
Do not use detergents not designed for an automatic
dishwasher. Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep these products
out of the reach of children.
You should clean the outside of the dishwasher with a
damp cloth. Don’t allow water to seep into any openings.
Use the dishwasher only for its intended function. During
installation, the power supply cable must not be
excessively or dangerously bent or flattened. Do not
tamper with the controls.
The appliance is to be connected to the water mains using
new hose sets and old hose-sets should not be reused.
The maximum number of place settings to be washed is
12.
The maximum permissible inlet water pressure is 1Mpa.
The minimum permissible inlet water pressure is 0.04Mpa.
Ensure you do not use any corrosive chemicals or
vapours in the appliance. It is not designed for industrial
or laboratory use.
Never put any objects into the openings on the outer
case.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not obstruct any ventilation openings.
Do not operate your dishwasher unless all enclosure panels
are properly in place. Open the door very carefully if the
dishwasher is operating, there is a risk of water squirting
out.
Safety instructions
5
Safety instructions
6
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed, position sharp items so
that they are not likely to damage the door seal.
Warning : Knives and other utensils with sharp points must
be loaded in the basket with their points down or place
them in a horizontal position.
Check that the detergent compartment is empty after
completion of the wash cycle.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items not
marked, check the manufacturer's recommendations.
This appliance is intended to be used in the household
and similar applications. It is not intended to be used in
the following:
• staff kitchen areas in shops, offices and other working
environments;
• farm houses;
• by clients in hotels, motels and other residential
environments;
• bed and breakfast type environments.
Safety instructions
7
Dispose of the packing materials properly.
Packaging material could be dangerous for children!
To dispose of the package and the appliance, please go to a
recycling centre.
Cardboard packaging is manufactured from recycled paper
and should be disposed in the waste paper collection for
recycling.
By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
For more detailed information about recycling of this
product, please contact your local city council office and
your household waste disposal service.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Product overview
8
1 1
12
7
1
2
3
4
5
6
8
9
10
1
7
2
8
3
9
4
10
5
11
6
12
1 Pre-washlight: Blink during pre-wash.
2 Wash Light: Blink during wash.
3 Rinse light: Blink duringrinse.
4 Drying light: Blink duringdrying.
5 Power Light: To come on when the
ON/OFF Button is pressed down
6 ON/OFF BUTTON: To turn on/off the power
supply
7 Rinse Aid Warning Light:To come on when the
dispenser needs to be refilled.
8 Salt Aid Warning Light:To come on when the
softener requires refilling.
9 Half load Light : To come on when half load
function is selected.
10 Half loadkey-press : To select the half load
function.
11 WashingProgram Selector: Turn the knob
clockwise to select wash cycles.
12 Start / Reset Button: Press this buttonto start
or pause thedishwasher, the one of four process
lights will blink when starting.
1
2 3
4
8
7
5
6
9
10
11
12
Unpacking the dishwasher
9
Before you use your dishwasher
1. Remove all the packaging.
2. Check the dishwasher after unpacking for any visual damage such as:
● A misaligned door
● Damage to the door
● Dents or holes in side panels and the top panel.
● Dents in the inside
● If you can see any damage do not use the dishwasher
Do not put anything on the top of the dishwasher
Before using your dishwasher for the first time:
A. Set the water softener
B. Add 1.5Kg dishwasher salt and then fully fill the salt container with water
C. Fill the rinse aid dispenser
D. Fill in the detergent dispenser
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
10

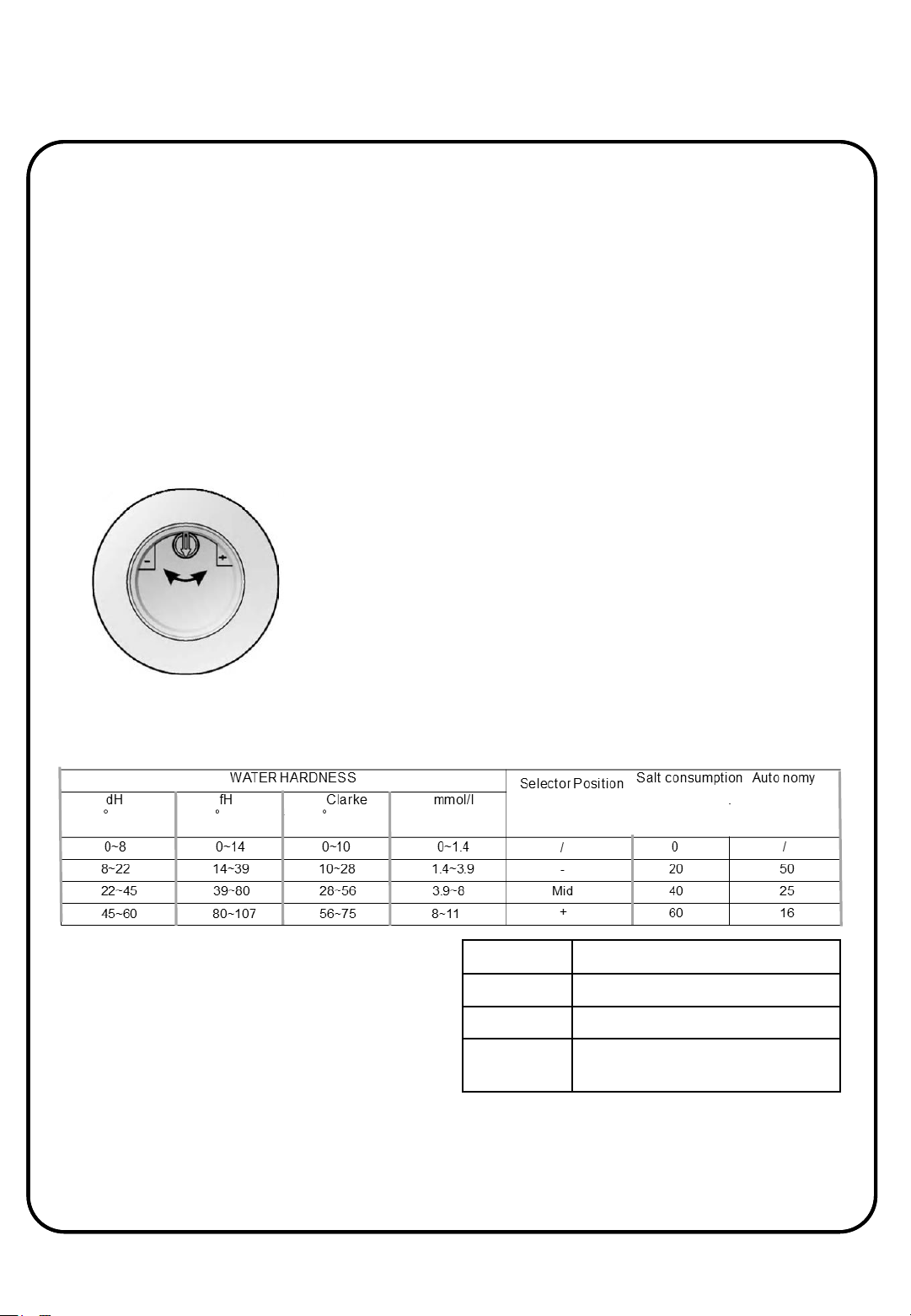

Water Hardness & setting the salt
The water softener must be set manually, using the water hardness dial. The water softener
is designed to remove minerals and salts from the water, which would have a detrimental or
adverse effect on the operation of the appliance. The higher the content of these minerals
and salts, the harder your water is. The softener should be adjusted according to the
hardness of the water in your area. Your local Water Authority can advise you on the hardness
of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based on
the hardness of the water used. This is intended to optimise and customise the level o f salt
consumption.
“/” No salt needed
“-” Setting toward the “-” sign
“+” Setting toward the “+” sign
“-” or “+” Setting toward between the “-”
sign and the “+” sign
British measurement = Clarke
Please follow the steps below for adjustment in salt
consumption.
1. Unscrew the cap fr0m the salt container, inside the unit. Anti
clockwise and remove to reveal the picture on the left.
2. There is a ring on the container with an arrow on it (see
figure on the side), if necessary, rotate the ring in the
anticlockwise direction from the "-" Setting toward the "+" sign,
based on the hardness of the water being used. This controls
the amount of salt that will be used
It is recommended that adjustments should be made in
accordance with the following scheme:
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
11
Loading the salt into the container
Always use the salt intended for use with dishwasher.
The salt container is located beneath the lower basket and should be filled as explained in the
following:
Attention!
Only use salt specifically designed for use in dishwashers! Every other type of salt not specifically
designed for use in a dishwasher, especially table salt, will damage the water softener. In case of
damage caused by the use of unsuitable salt the manufacturer do not give any warranty and we are
not liable for any damage caused.
Only fill with salt just before starting one of the complete washing programs.
This will prevent any grains of salt or salty water, which may have been spilled, remaining on the
bottom of the machine for any period of time, which may cause corrosion.
A) Remove the lower basket and then unscrew and remove the cap from the salt container. See
diagram 1.
B) Place a funnel into the hole and introduce about 1.5kg of dishwasher salt.
C) Fully fill the salt container with water. It is normal for a small amount of water to come out of
the salt container. See diagram 2.
D) After filling the container, screw the cap tightly back clockwise.
E) Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container
has been filled.
F) Immediately after filling the salt into the salt container, a washing program should be started (
We suggest to use the soak or rapid program) Otherwise the filter system, pump or other
important parts of the machine may be damaged by salty water. This may affect the warranty.
Note:
1. The salt container must only be refilled when the salt warning light in the control panel comes on.
Depending on how well the salt dissolves, the salt warning light may still be on even though the
salt container is filled.
2. If there are spills of salt, a soak or a rapid program should be run to remove the excessive salt.
12
Rinse aid dispenser
Rinse Aid dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the
dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside
the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator
turns completely black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and
streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. Dishwasher cleaning agent, liquid detergent). This may damage the appliance.
When to Refill the Rinse Aid Dispenser
If there is no rinse-aid warning light in the control panel, you can estimate the amount from the
colour of the optical level indicator located next to the cap. When the rinse-aid container is full, the
whole indicator will be darker. As the rinse-aid diminishes, the size of the dark dot decreases. You
should never let the rinse aid level fall 1 / 4 full.
As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as
illustrated below.
13
:
Rinse aid dispenser
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
14
Detergent
Detergent with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out
of the dishwasher.
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powder detergent into the dispenser until you're ready to wash dishes.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard
water often white spots appear on dishes and glasses. In this case please add more detergent to
reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots
will not be removed completely. In this case please choose a program with a higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split in two basic types:
• conventional, alkaline detergents with caustic components
• low alkaline concentrated detergents with natural enzymes
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short programs.
Therefore please use long programs when using detergent tablets, to ensure the complete removal
of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasher uses less detergent and rinse aid than a
conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash
load. More heavily soiled items need more detergent. Always add the detergent just before starting
the dishwasher, otherwise it could get damp and will not dissolve properly.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
15
The Amount of detergent to use
A B
Detergent

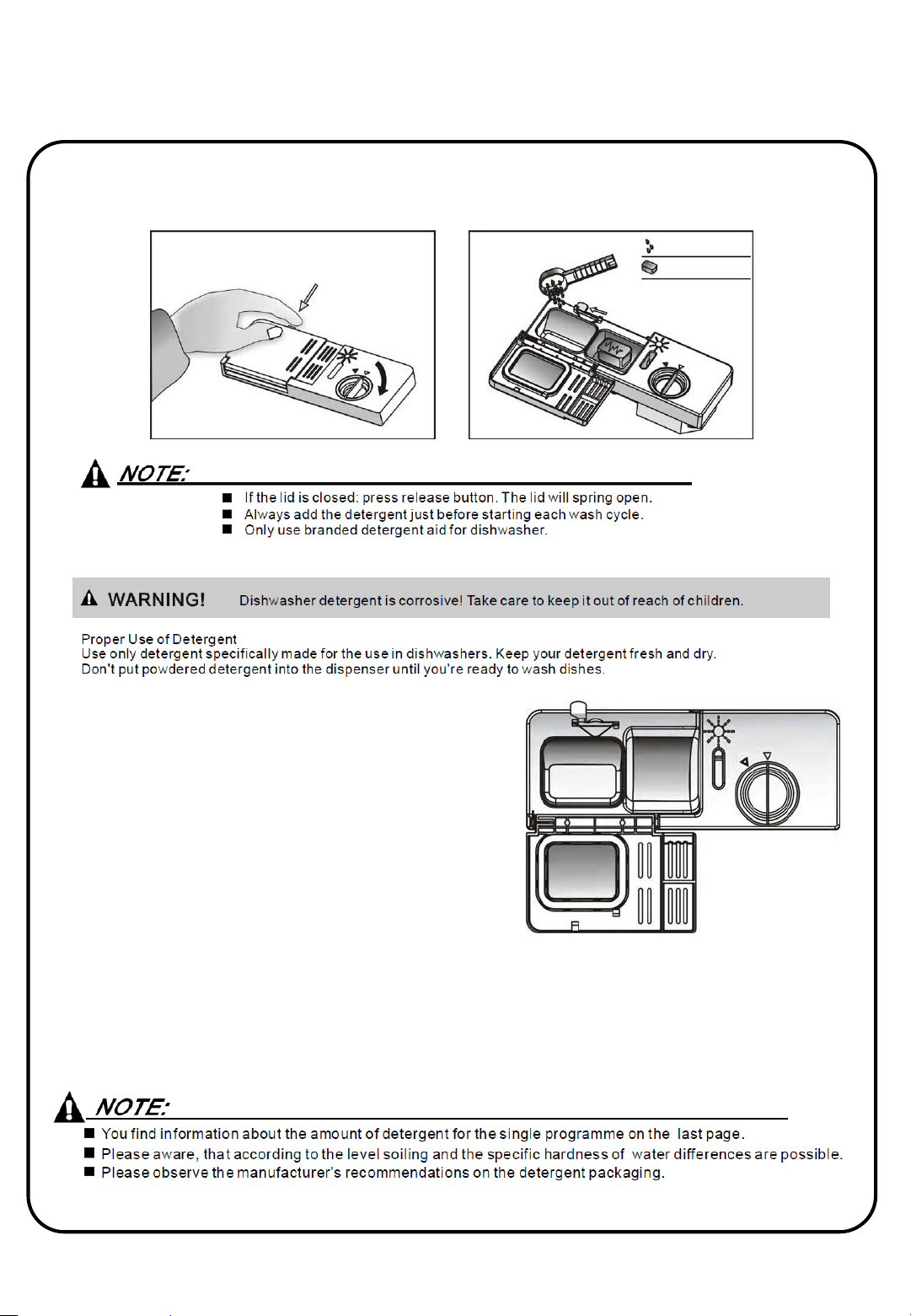

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
A)The place to put the main wash cycle detergent
placed.
B) The place to put the pre-wash cycle detergent
placed.
Please observe the manufacturers dosing and storage
recommendations as stated on the detergent
packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber.
This detergent will take effect during the pre-wash
phase.
16
Loading the dishwasher
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information
from the detergent manufacturers.
For particular items, select a program with as low a temperature as possible.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the
program has ended.
Items not suitable for the dishwasher
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not high temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items are subject to rusting, specifically knife steel.
Wooden platters
Items made from synthetic fibres
Items possibly not suitable for the dishwasher
Some types of glasses can become dull after a large number of washes
Silver and aluminium parts have a tendency to discolour during washing
Glazed patterns may fade if machine washed frequently
Attention before or after loading the Dishwasher Baskets
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large amounts of left over food. Soften remnants of burnt food in pans.
It is not necessary to rinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded at an angle so that water can run off.
3.All utensils are stacked securely and can not tip over.
4.All utensils are placed in the way that the spray arms can rotate freely during washing.
17
Loading the dishwasher
Load hollow items such as cups, glasses, pans etc. with the opening facing downwards so that
water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the
upper basket.
Please do not overload your dishwasher. This is important for good results.
Removing the dishes
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and then the upper basket.
Loading the Upper Basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are
not too dirty). Position the dishes and cookware so that they will not get moved by the spray of
water.
1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers/side plates
6 Dish
7 Dessert dishes
Front
18
Loading the dishwasher
Loading the Lower Basket

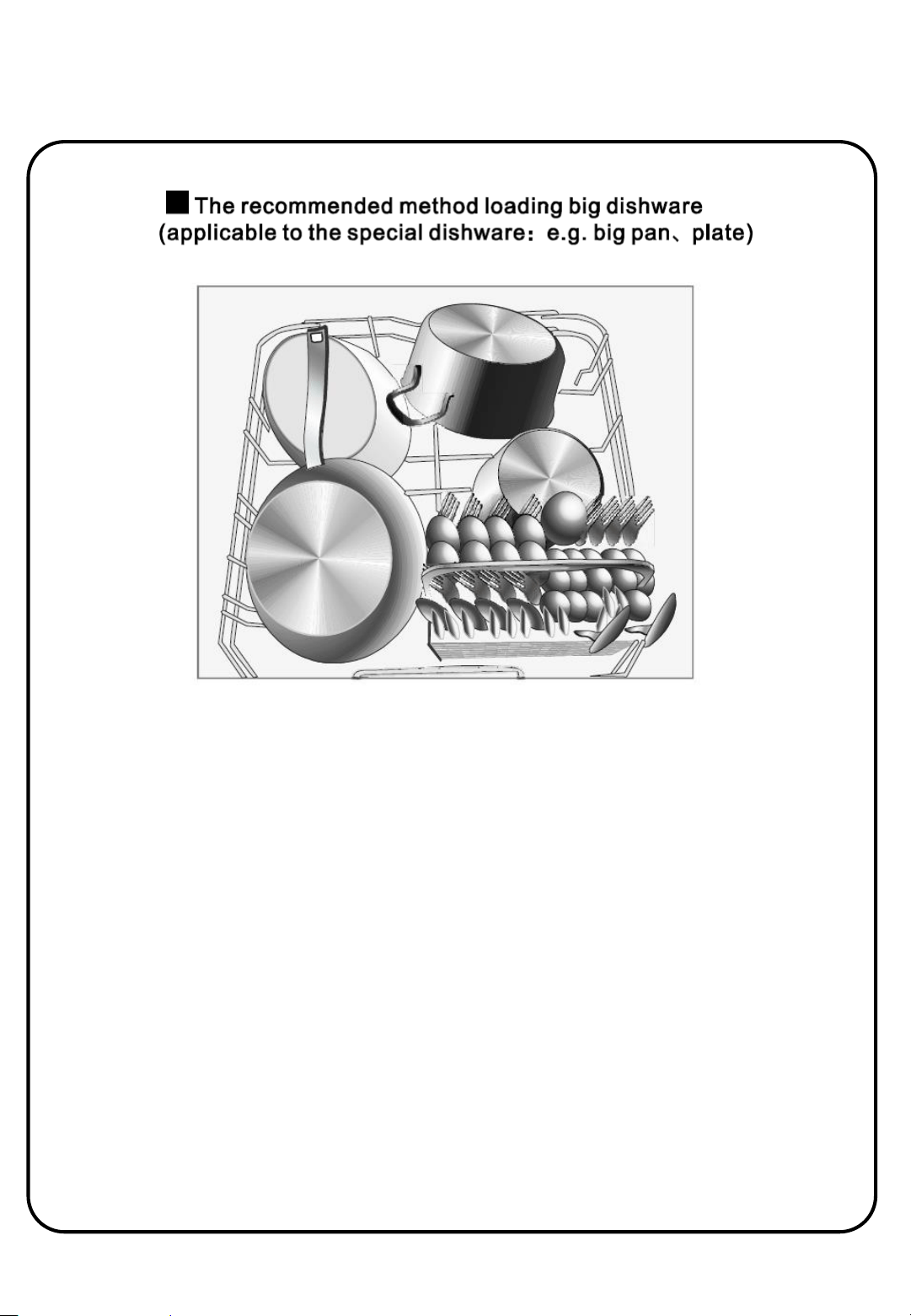

We suggest that you place large items and the most difficult to clean items into the lower basket:
such as pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded
7 Dessert dishes
8 Oval platter
9 Dinner plates
10 Soup plates
11 Cutlery basket
Front
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
19
Loading the dishwasher
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
20

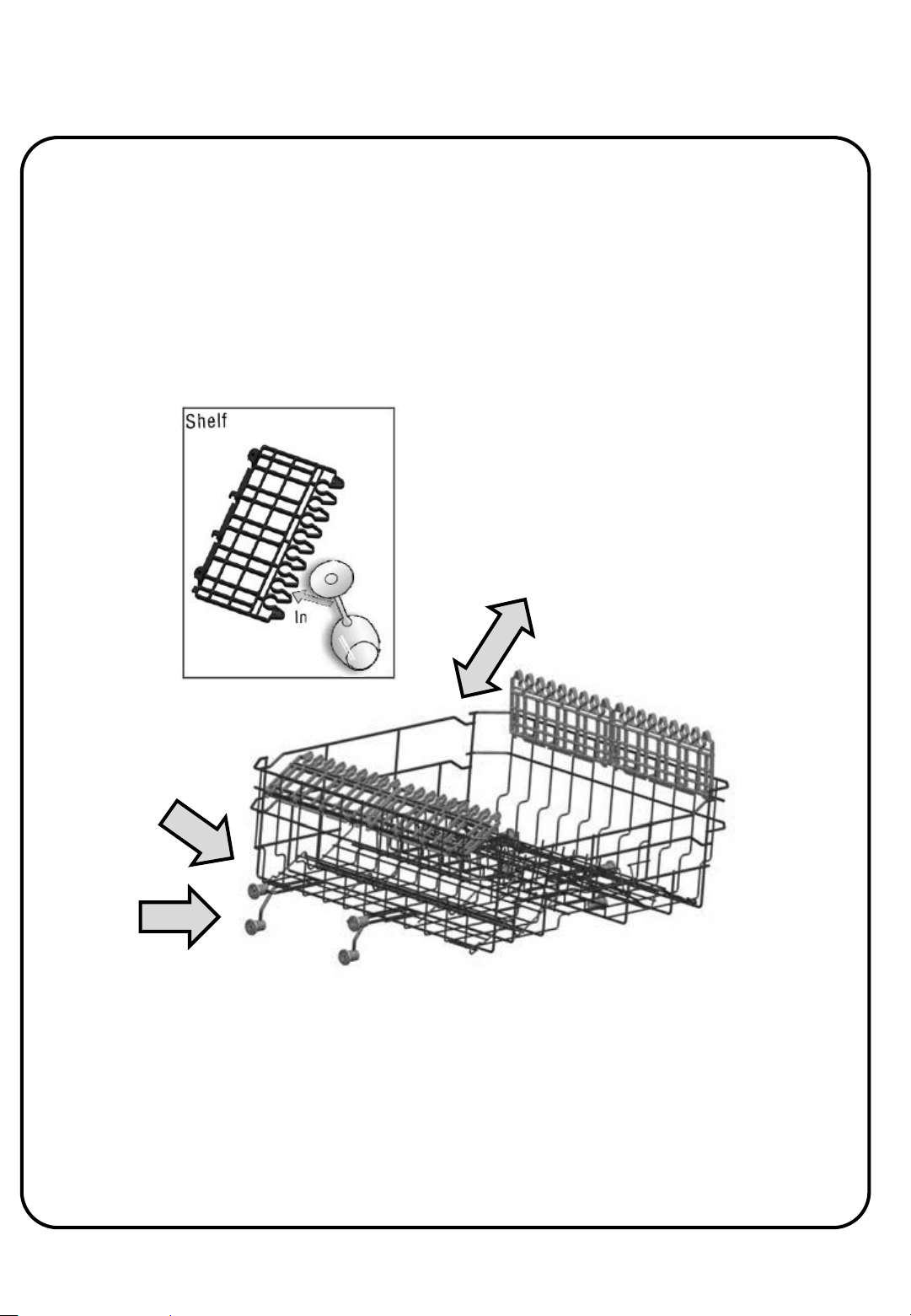

The height of the upper basket can be adjusted in order to create more space for large utensils
both for the upper/lower basket.
The height of the upper basket can be adjusted by placing the wheels on different height of the
rails.
Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do
not obstruct the rotation of the spray arms.
The shelf can be folded back or be removed when not required for use.
Shelf
Upper
wheels
Lower
wheels
Folding Spikes of Lower Basket
For better stacking of pots and pans, the spikes can be folded down.
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Loading the dishwasher
21
Loading the dishwasher

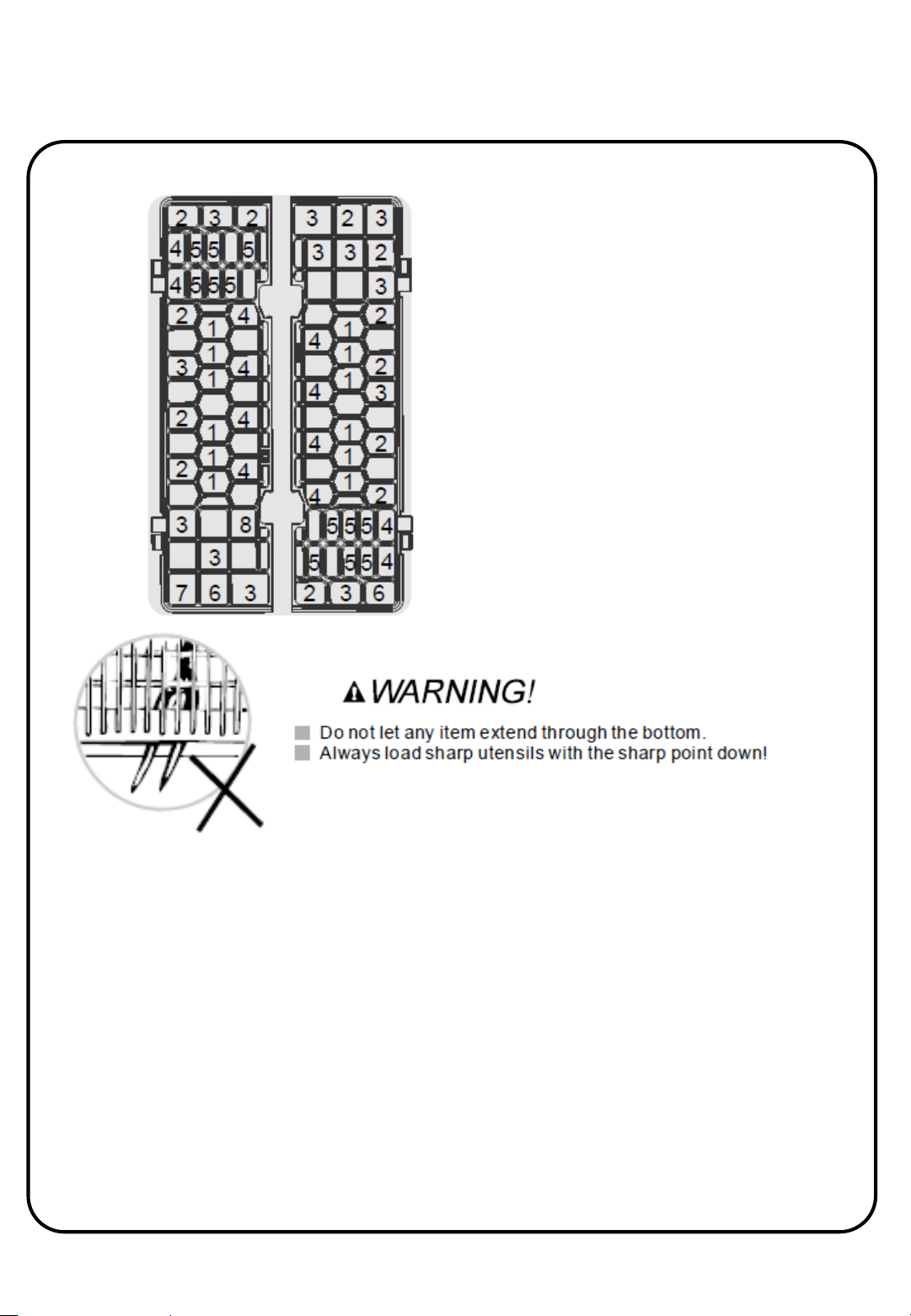

1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knives
6 Serving spoons
7 Gravy ladels
8 Serving cutlery
For personal safety and a top quality cleaning, place the silverware in
the basket making sure that:
They do not nest together.
Silverware is placed with the handles-down.
WARNING: Knives and other utensils with sharp points must be
loaded in the basket with their points down or placed in a horizontal
position.
22
Washing programs
23
Turning on the appliance
Starting the wash cycle
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see earlier sections for detail ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the
socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
Close the door, press the power button. Then turn the program knob to select a desired wash
cycle. Then press the START/Reset button to start the machine.
Press the START/Reset button to start the machine.
Change the program
A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the
section entitled " Detergent " ).
When you press the start/reset button more than 3 seconds, you can cancel the running the
programme and select other programmes (see the section entitled " Starting a wash cycle. . ." ).
The process lights shows the state of the dishwasher:
a) All of the process lights cut off --> stand by
b) One of the process lights on --> pause
c) One of the process lights blinking slowly --> run
d)some of the process lights fast blinking -->error

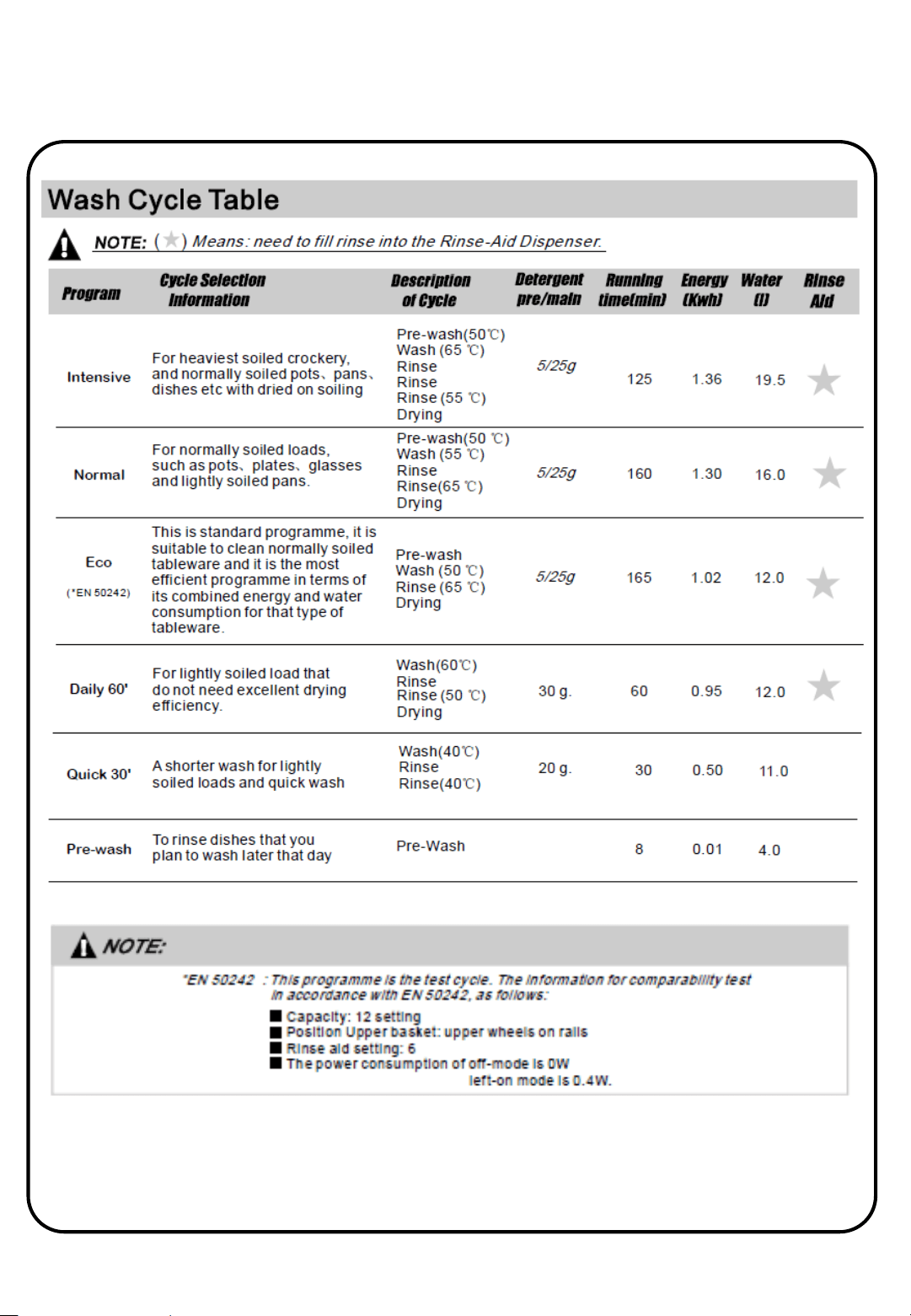

Washing cycles
24
Adding a dish during a cycle
A forgotten dish can be added at any time before the detergent cup opens.
1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Load the forgotten dishes.
4. Close the door, the dishwasher will start running again after 10 seconds.
At the end of the wash cycle
When the working cycle has finished, the buzzer of the dishwasher will sound for 8
seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the
water supply and open the door of the dishwasher.
Wait for a few minutes before unloading the dishwasher to avoid handling the dishes
and utensils while they are still hot and more susceptible to breakage. They will also
dry better.
Switch off the dishwasher
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap
Open the door carefully
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15
minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a
few minutes before removing the dishes. In this way they will be cooler and the drying will be
improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the upper
Basket onto the dishes in the lower one.
Washing cycles
25
Maintenance & Cleaning
The filter prevents larger remnants of food or other objects from getting inside
the pump. The residue may block the filter, in this case they must be removed.

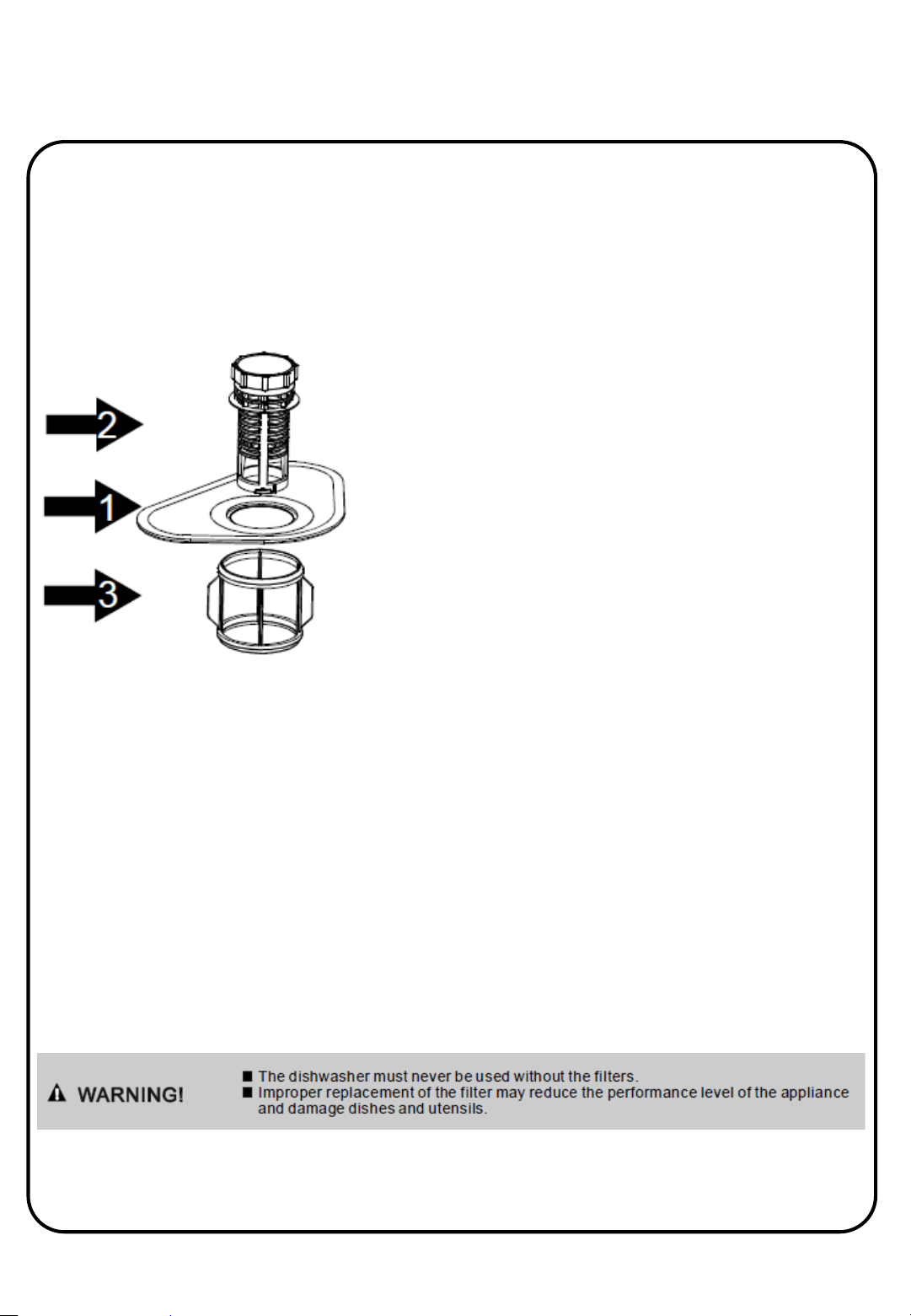

The filter system consists of a coarse filter, a flat
(Main filter) and a microfilter (Fine filter).
1) Main Filter
Food and soil particles trapped in this filter are
pulverized by a special jet on the lower spray arm
and washed down to drain.
2) Coarse Filter
Larger items, such as pieces of bones or glass, that
could block the drain are trapped in the coarse filter.
To remove the items caught by the filter, gently
squeeze the tap on the top of this filter and lift out.
3) Fine filter
This filter holds soil and food residues in the sump
area and prevents it from being redeposit on the
dishes during wash cycle.
Filter Assembly
The filter efficiently removes particles of food from the wash water, allowing it to be recycled
during the wash cycle. For best performance and results, the filter must be cleaned regularly. For
this reason, it is a good idea to remove the larger food particles trapped in the filter after each
wash cycle by rinsing the semi circular filter and cup under running water. To remove the filter
device, pull the cup handle in the upward direction.
26
Maintenance & Cleaning
Step 1 Turn the filter in anti-clockwise
direction, then lift it up.
Step 2 Lift the main filter up
Step 3： lift the Fine filter up
- Inspect the filters for blocking after every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants
and clean the filters under running water.
27
Maintenance & Cleaning
Cleaning
The control panel and exterior can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.

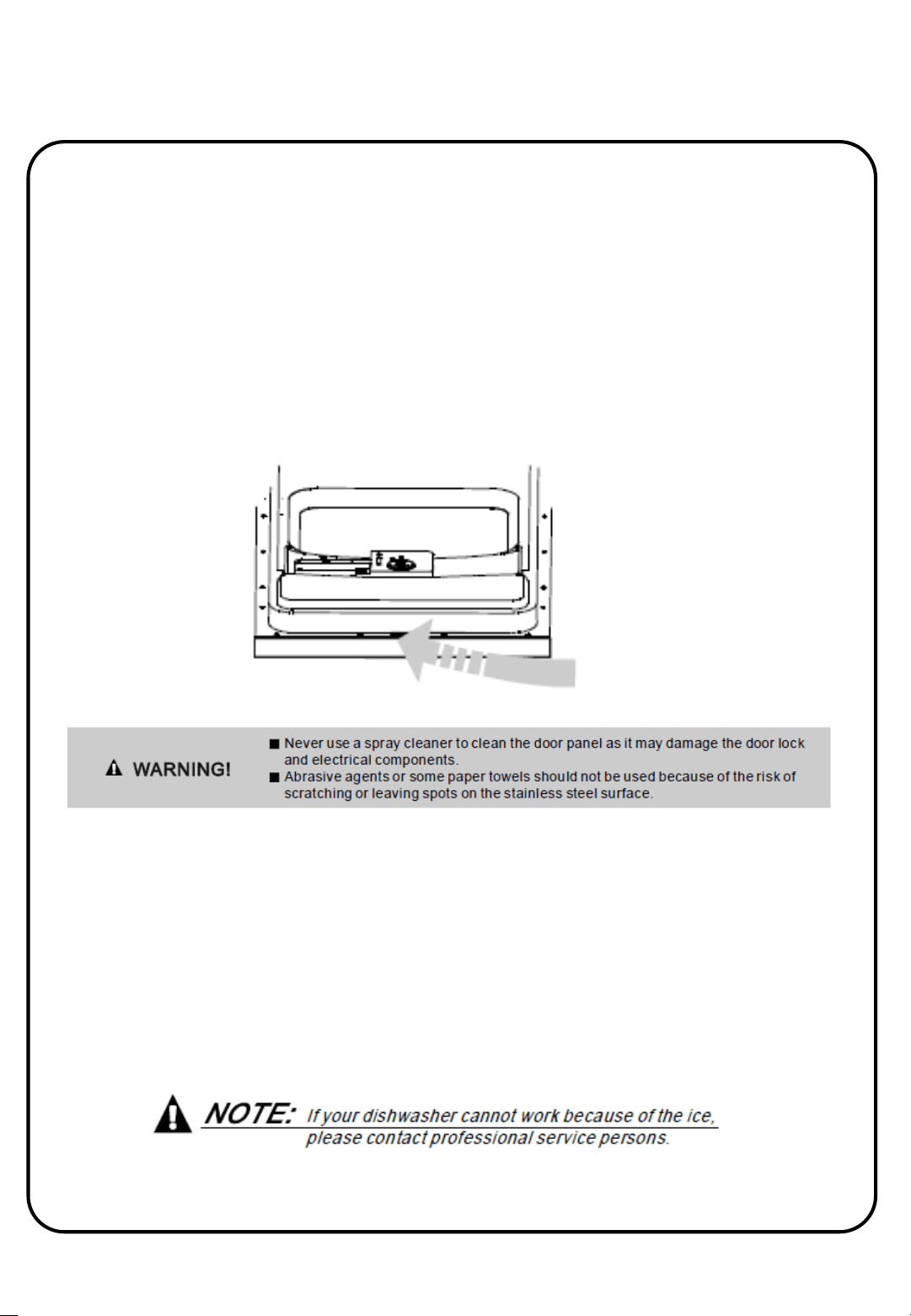

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
To clean the edge around the door, you should use only a soft warm, damp cloth.
To avoid penetration of water into the door lock and electrical components, do not use a spray
cleaner of any kind.
please take frost protection measures on the dishwasher in winter if it is used in a cold
environment. Every time after washing cycles, please operate as follows, ：
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
28
Maintenance & Cleaning
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly
for hard water chemicals will clog the spray arm
jets and bearings.
To remove the upper spray arm, screw off the nut
clockwise then remove the arm.
To remove the lower spray arm, pull out the
spray arm upward.
Wash the arms in soapy and warm water and use
a soft brush to clean the jets. Replace them after
rinsing them thoroughly.
After Every Wash
After every wash, turn off the water supply to the appliance and leave the door slightly open so
that moisture and odours are not trapped inside.
Remove the Plug
Before cleaning or performing maintenance, always remove the plug from the socket.
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive
cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water
and a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a long time
It is recommend that you run a wash cycle with the dishwasher empty and then remove the
plug from the socket, turn off the water supply and leave the door of the appliance slightly
open. This will help the door seals to last longer and prevent odours from forming
within the appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it
can be positioned on its back.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains trapped in
the seals. Periodic cleaning with a damp sponge will prevent this from occurring.
29
Positioning the appliance
Position the appliance in the desired location. The back should rest against the wall behind it,
and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water
supply and drain hoses that can be positioned either to the right or the left sides to facilitate
proper installation.
Once the appliance is positioned for
levelling, the height of the dishwasher may
be altered via adjustment of the screwing
level of the feet. In any case, the appliance
should not be inclined more than 2 .
30
Water connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is
fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the water
run to make sure that the water is clear. This precaution is needed to avoid the risk of the
water inlet getting blocked and damaging the appliance.

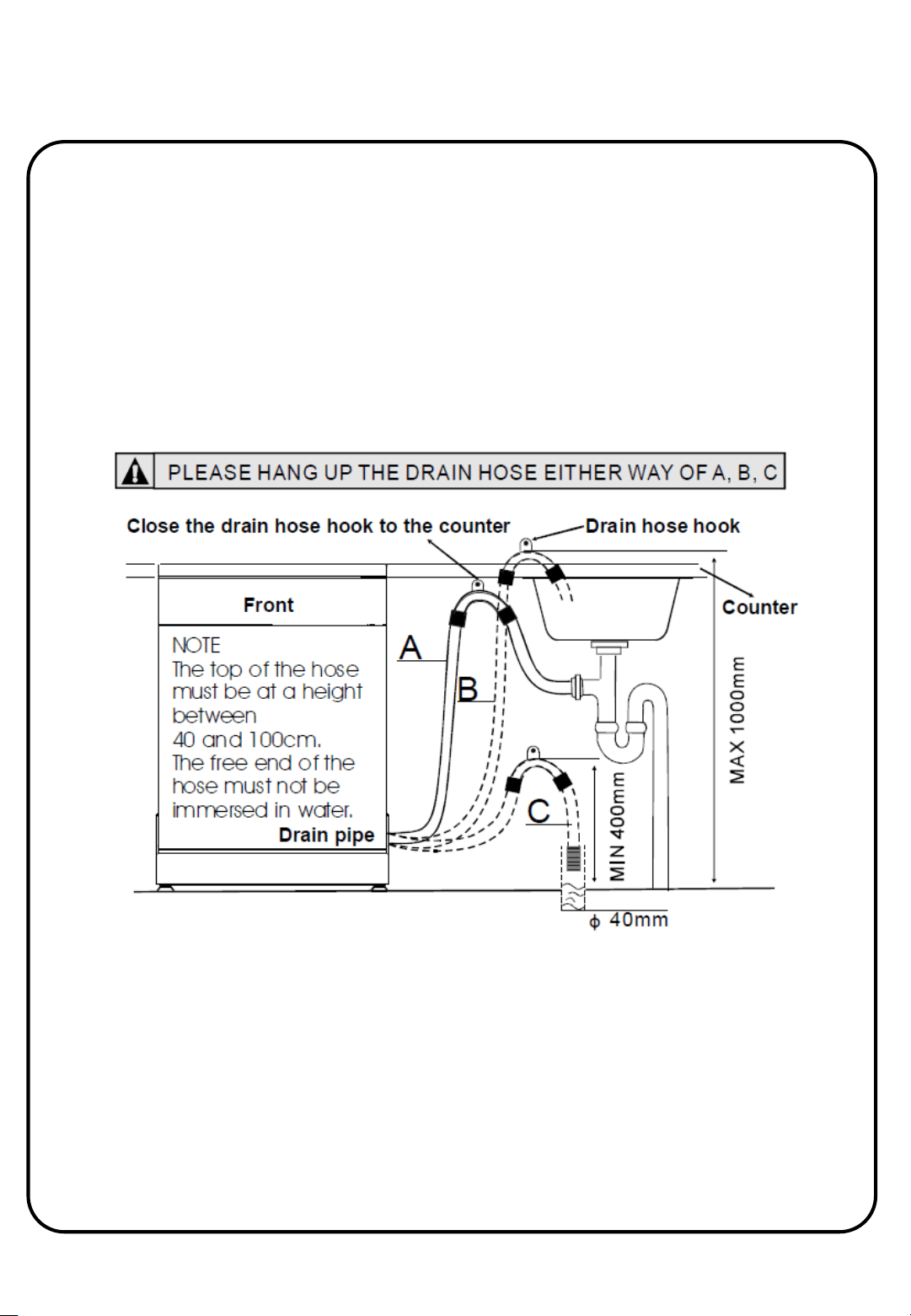

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the
sink, making sure to avoid bending or crimping it. Use the special plastic support that comes
with the appliance . The top of the hose must be at a height between 40 and 100cm. The free
end of the hose must not be immersed in water to avoid the back flow of it.
31
Water connection
How to Drain Excess Water From Hoses
If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly
into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable
container that is held outside and lower than the sink.
Water Outlet
Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks.
Ensure that the water drain hose is not kinked or squashed.
Extension Hose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be
reduced.
Syphon Connection
The waste connection must be at a height of between 40 cm (minimum) and 100 cm
(maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip.
The free end of the hose must not be immersed in water.
The following things should be checked before starting the dishwasher.
1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher
30
Connection to the mains supply
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of AC230V ~
50HZ.
Check that the voltage marked on the product corresponds with your
supply voltage.
This product is fitted with a 13A plug complying with BS1363.
If this plug is unsuitable or needs to be replaced, please note the following:
Important: The wires in the mains lead are coloured in accordance with
the following code:
GREEN/YELLOW-EARTH
BLUE-NEUTRAL
BROWN-LIVE
33
Connection to the mains supply
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the
terminal which
is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected to
the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTA approved.
34
Trouble shooting
35
Trouble shooting
31
Technical specification
Plug
If your appliance is supplied with a non-rewireable plug fitted to the mains lead you will find that
it incorporates a fuse, the value of which is indicated either on the base of the plug or on the
fuse carrier.
Should the fuse need replacing, you must use an ASTA approved fuse (conforming to BS1362) of
the same rating.
If the fuse cover is lost the plug must not be used until a replacement is obtained from an
electrical supplier.
If you need to remove the plug, cut it from the mains lead and dispose of it. Never attempt to re-
use this plug or insert it into a socket outlet, as there is a very great risk of an electric shock.

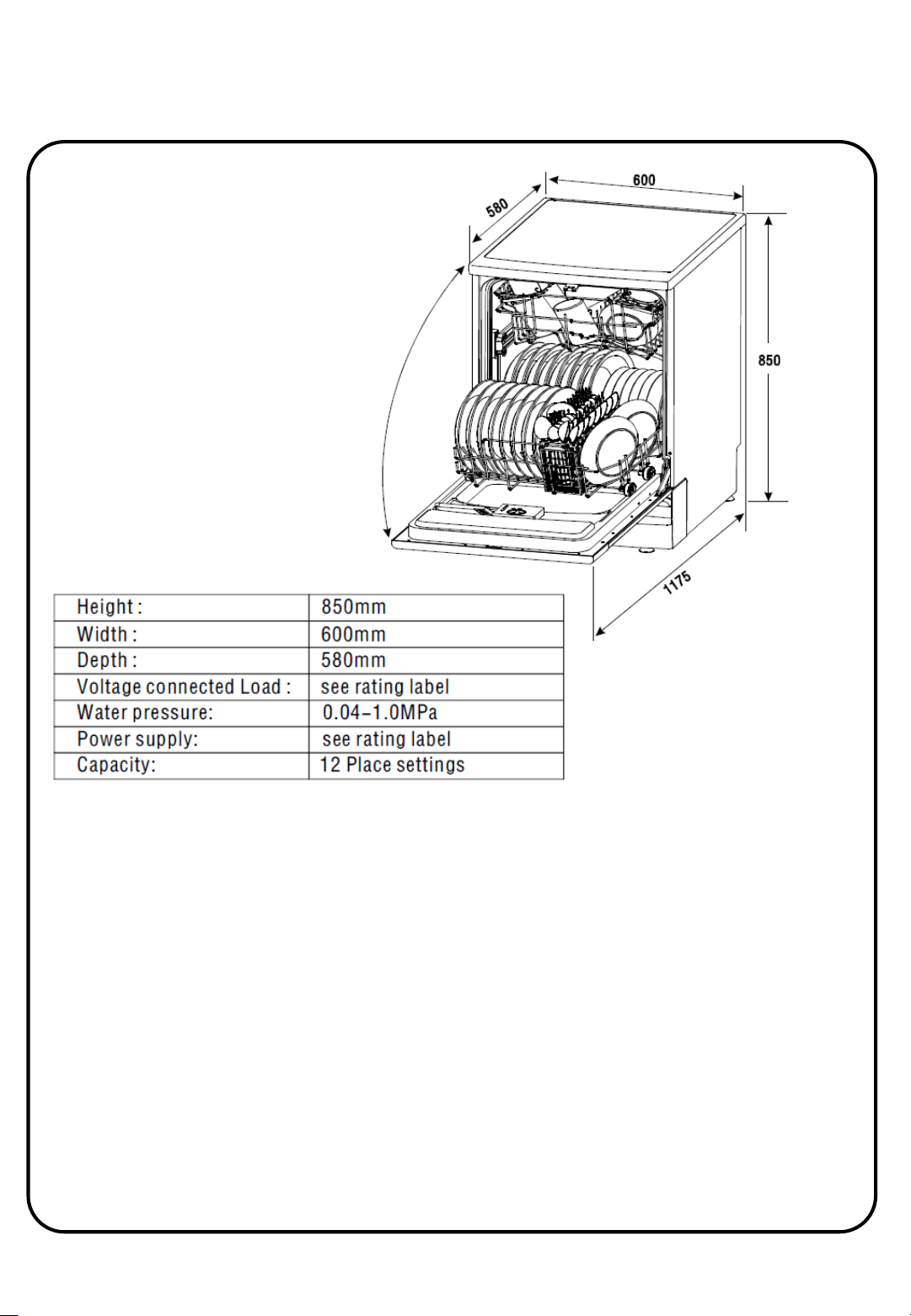

Dimensions
31
Technical specification
31
Technical specification

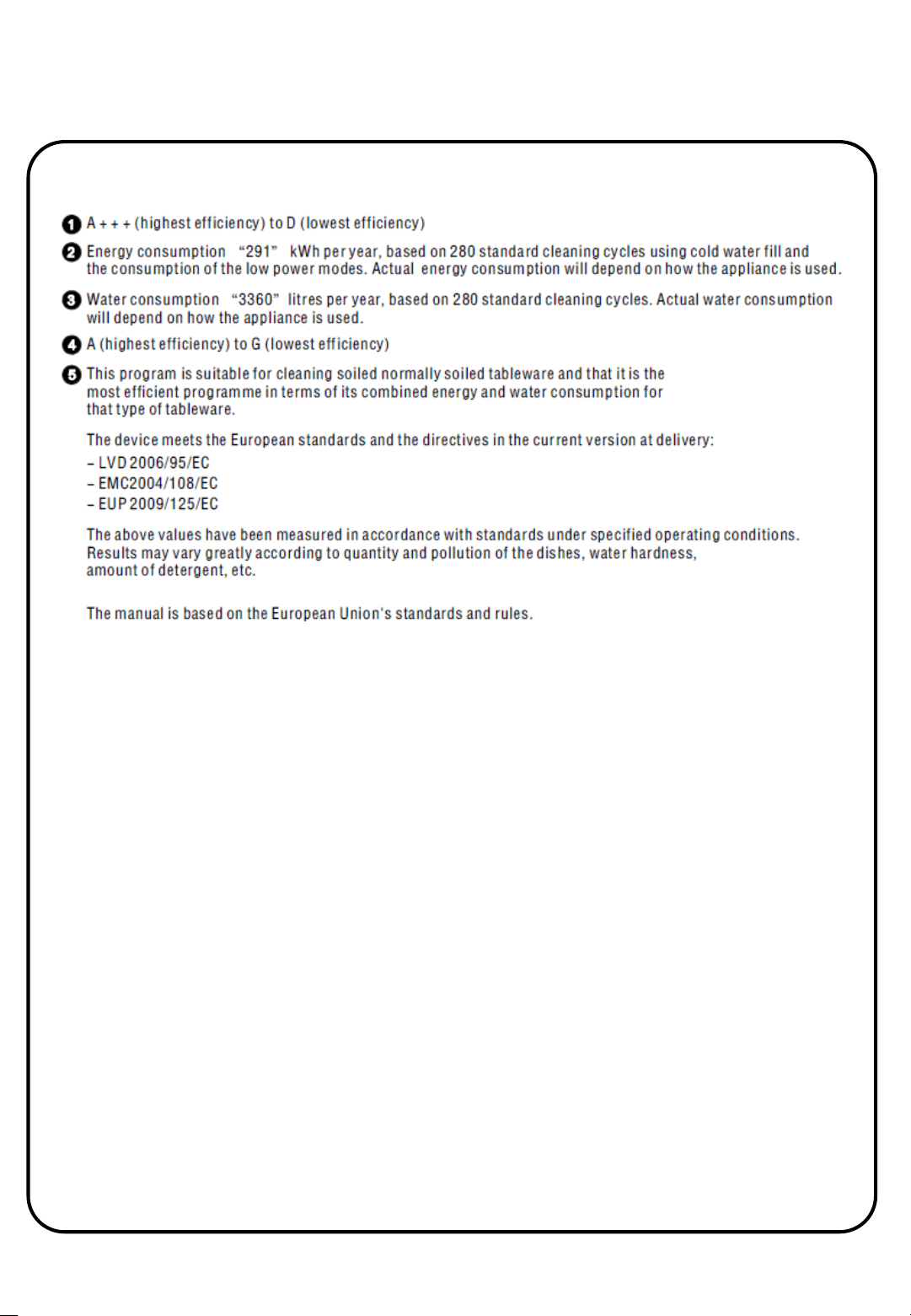

Notes on the previous energy table
32
Guarantee
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship
the faulty product must be returned to the place of purchase.
Refund or replacement is at the discretion of the store.
The following conditions apply:
• The product must be returned to the retailer with the original
proof of purchase.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
• It must be used for domestic purposes only and for its intended
use.
• This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
This symbol is known as the 'Crossed-out wheelie bin Symbol'.
When this symbol is marked on a product/batteries, it means that
the product/batteries should not be disposed of with your general
household waste. Only discard electrical/electronic/battery items
in separate collection schemes, which cater for the recovery and
recycling of materials contained within. Your co-operation is vital to
make sure the success of these schemes and for the protection of
the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the
instruction manual without prior notice.
Disposal information
For Customer Services & Spare Parts
please call 0345 209 7461
Opening times: Monday - Friday
8am – 6pm & Saturday 9am – 1pm or
visit us at www.productcareuk.com
Customer support
Produced for;
G2S Limited
Wigan
WN2 4EZ
40
34
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
34
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
34
For Customer Services & Spare Parts please call 0345 209 7461
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Revision 2
For Customer Services & Spare
Parts please call
0345 209 7461
Opening times: Monday - Friday
8am – 6pm & Saturday 9am –1pm
or visit us at
www.productcareuk.com
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater for the
recovery and recycling of materials contained within. Your co-operation is vital to make
sure the success of these schemes and for the protection of the environment. For your
nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the instruction manual
without prior notice.
