3
Safety Instructions
The appliance was designed and manufactured in compliance with current international safety
standards. The following information has been provided for safety reasons and should therefore
be read carefully. Keep this instruction manual in a safe place for future reference. If the
appliance is sold, given away or moved, please ensure the manual is kept with the machine, so
that the new owner may benefit from the advice contained within it.
Please read this instruction manual carefully: it contains important information regarding the
safe installation, use and maintenance of the appliance.
• The appliance was designed for domestic use inside the home and is not intended for
commercial or industrial use.
• Use the dishwasher onlyfor its intended function.
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• DO NOT allow children to play with the appliance or tamper with its controls.
• The appliance must be used by adults only, to wash domestic crockery according to the
instructions in this manual.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an
attempt to carry out the repair work yourself.
• It is hazardous for anyone other than a competent person to carry out any service or repair
operation that involves the removal of the cover.
• Do not tamper with the controls.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• During installation, the power supply cable must not be excessively or dangerously bent or
flattened.
• The appliance must not be installed outdoors, even in covered areas. It is extremely
dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the
cable.
• The water supply tap must be shut off and the plug should be removed from the electrical
socket before cleaning the appliance or carrying out any maintenance work.
• The door should not be left open as it may create a dangerous obstacle.
4
Safety Instructions
• If your family includes children:
• Keep detergents and rinse aids away from children.
• Keep children away from the open door of a dishwasher, there could still be some
detergent left inside.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door
verycarefully if the dishwasher is operating, there is a risk of water squirtingout.
• Do not allow the control panel to become wet. Clean with a soft, damp cloth.
• Do not use detergents, abrasives or spray-on cleaners on the control panel.
• Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid
contact with skin andeyes andkeep children away from the dishwasher when the door is open.
• Do not use detergents not designed for an automatic dishwasher. Never use soap, laundry
detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of
children.
• Ensure you do not use any corrosive chemicals or vapours in the appliance. It is not designed
for industrial or laboratory use.
• You should clean your dishwasher with a damp cloth. Don’t allow water to seep into any
openings.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to
overturn.
• Never put any objects into the openings on the outer case.
• Knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position.
• Do not place any heavy objects on or stand on the door when it is open. The appliance could tip
forward.
• When loading items to be washed, position sharp items so that they are not likely to damage the
door seal.
• Check that the detergent compartmentis emptyafter completion of thewash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic
items not marked, check the manufacturer's recommendations.
• The packaging material should not be used as a toy: it can become a choking or suffocation
• Packaging material could be dangerous for children!
Important notes:
• Any technical checks should be conducted exclusively by a trained and authorised
technician: Repairs carried out by unauthorised persons will invalidate the guarantee, as
well as posing a potential hazard to the user.
• The manufacturer declines all responsibility for damage to persons or property resulting
from failure to observe the above precautions, from tampering with even a single
component or from the use of non-original spare parts.
5
Water and Electrical Connection
Important note: Connection to the water and electricity supplies should only be performed by
a qualified technician.
Electrical Connection
Before inserting the plug into the electrical socket, make sure that:
• The socket is earthed and complies with current regulations;
• The socket can withstand the maximum load of the appliance, which is indicated on the
appliance’s rating
• The power supply voltage falls within appliance’s rating
• The socket is compatible with the plug of the appliance. If this is not the case, ask an
authorised technician to replace the plug
• Do not use extension cables or multiple sockets.
• Once the appliance has been installed, the power supply cable and the electrical socket
should be easily accessible.
• The cable should not be bent or compressed.
Important notes:
• If the power supply cable is damaged, it must be replaced by the manufacturer or its
Technical Assistance Service in order to prevent all potential hazards.
• This appliance must be earthed.

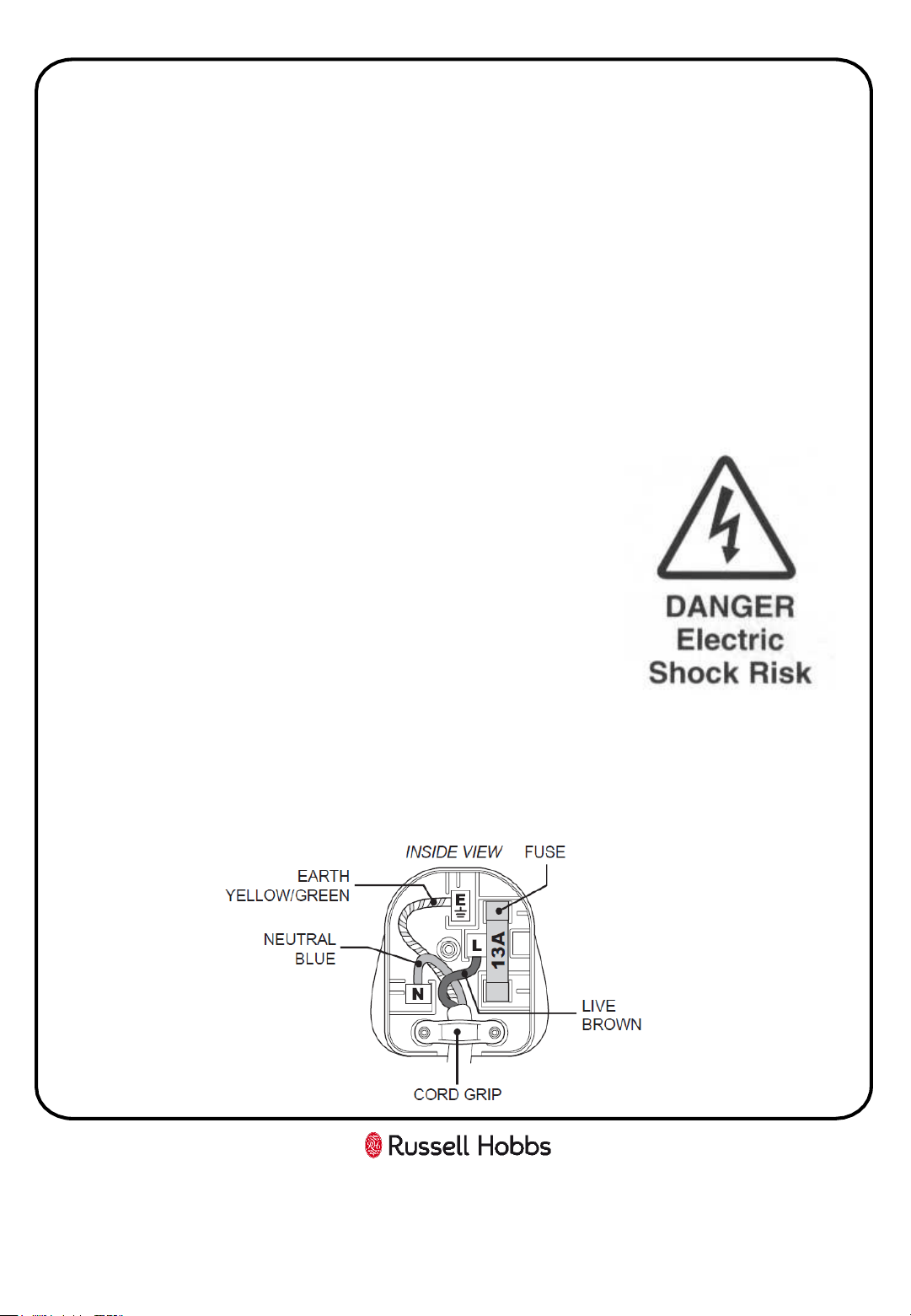

• Your appliance comes fitted with a plug and a 13A fuse. If you need to replace the fuse,
only those rated at 13A and ASTA approved to BS1362 should be used. Correct
replacement is identified by colour coding or the marking on base of plug.
• DO NOT use the plug unless the fuse cover is fitted.
Water connection
• The dishwasher should not stand on top of the water hoses or the electricity supply cable.
• If the inlet hose is not long enough, contact a specialist store or an authorised technician
• The hose should not be bent or compressed.
• The appliance must be connected to the water supply network using new hoses. Do not use
old hoses.
• Ensure that the new hose supplied is connected and the old hose is disposed of safely.
• DO NOT overtighten the hose connector, hand tight is sufficient.
• Ensure the fill hose is not kinked.
6
Water and Electrical Connection
• Tap connections*: A range of adaptors are available to suit your tap.
• DO NOT connect the dishwasher to a single outlet instantaneous water heater or an electric
heater.
• It MUST NOT be connected to a surface water drain.
• The maximum permissible inlet water pressure is 1Mpa.
• The minimum permissibleinlet water pressureis 0.04Mpa.
• Do not abuse, sit on, or stand onthe door or dishrack of the dishwasher.
• Do not obstruct any ventilation openings.
If the appliance must be moved at any time, keep it in an upright position; if absolutely
necessary, it may be tilted onto its back.
Disposal of old electrical appliances
• The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be collected separately in order to
optimise the recovery and recycling of the materials they contain and reduce the impact on
human health and the environment. The crossed out “wheeled bin” symbol on the product
reminds you of your obligation, that when you dispose of the appliance it must be separately
collected. Consumers should contact their local authority or retailer for information
concerning the correct disposal of their old appliance. Saving energy and respecting the
environment.
• Please dispose of packaging and old appliances carefully.
• To minimise risk of injury to children, remove the door, plug and cut mains cable off flush
with the appliance.
• Dispose of these parts separately to ensure that the appliance can no longer be plugged into
a mains socket and the door cannot be locked shut.
7
Saving water and energy
• Only start a wash cycle when the dishwasher is full.
• While waiting for the dishwasher to be filled, prevent unpleasant odours with the Rapid
Wash.
• Select a wash cycle that is suited to the type of dishes/crockery and to the soil level of the
dishes/crockery using (see the washing program section): - for dishes with a normal soil level,
use the Eco wash cycle, which guarantees low energy and water consumption levels.
• if the load is smaller than usual activate the Half load function.
• If your electricity supply contract gives details of electricity saving time bands, run wash
cycles during the periods when a lower tariff is applied.
• use the Time Delay start function to help you organise the wash cycles accordingly.
• We strongly recommend that you use detergents that do not contain phosphates or chlorine,
as these products are harmful to the environment. We recommend Phosphate-free and
chlorine-free detergents containing enzymes.
• Enzymes provide a particularly effective action at temperatures around 50°C, and as a result
detergents containing enzymes can be used in conjunction with low-temperature wash cycles
in order to achieve the same results as a normal 65°C wash cycle.
• To avoid wasting detergent, use the product in appropriate quantities based on the
manufacturer’s recommendations, the hardness of the water and the soil level and quantity
of the crockery. Even if they are biodegradable, detergents contain substances that may alter
the balance of nature.
• Recycling & Disposal Information: As part of our continued commitment to helping the
environment, we reserve the right to use quality recycled components to keep down
customer costs and minimise material wastage.
• Please dispose of packaging and old appliances carefully.
8
Unpacking the appliance
1. Remove the appliance from all packaging and check that the product has not been damaged
during transportation. If it has been damaged, contact the manufacturer or the retailer and
do not proceed any further with the installation process. Below are key areas to check:
• A misaligned door
• Damage to the door
• Dents or holes in side panels and the top panel.
• Dents in the inside
• If you can see any damage do not use the dishwasher
Before using your dishwasher for the first time:
Before using the dishwasher for the first time you must complete the following, as failure to do
so will invalidate the guarantee:
1. Connection to the water and electricity supplies should only be performed by a qualified
technician.
2. Set the water softener
3. Add 1.5Kg dishwasher salt and then fully fill the salt container with water
4. Fill the rinse aid dispenser
5. Fill in the detergent dispenser
9
Product Overview
1
2
3
4
5
6
7
8
9
Front view
Rear view
Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are present. If any parts
are missing, please contact the Customer Service team on 0345 208 8750 or visit us at
https://mda.russellhobbs.com
1. Upper basket
2. Inner pipe
3. Lower basket
4. Salt aid container
5. Detergent dispenser
6. Control panel (on the front of the
door)
7. Mug shelf
8. Spray arms
9. Filter
10. Drain pipe
11. Power cord
12. Inlet pipe connector
13. Cutlery basket
14. Salt funnel
15. Installation accessories (please see
installation section)
13
14
15
10
11
12

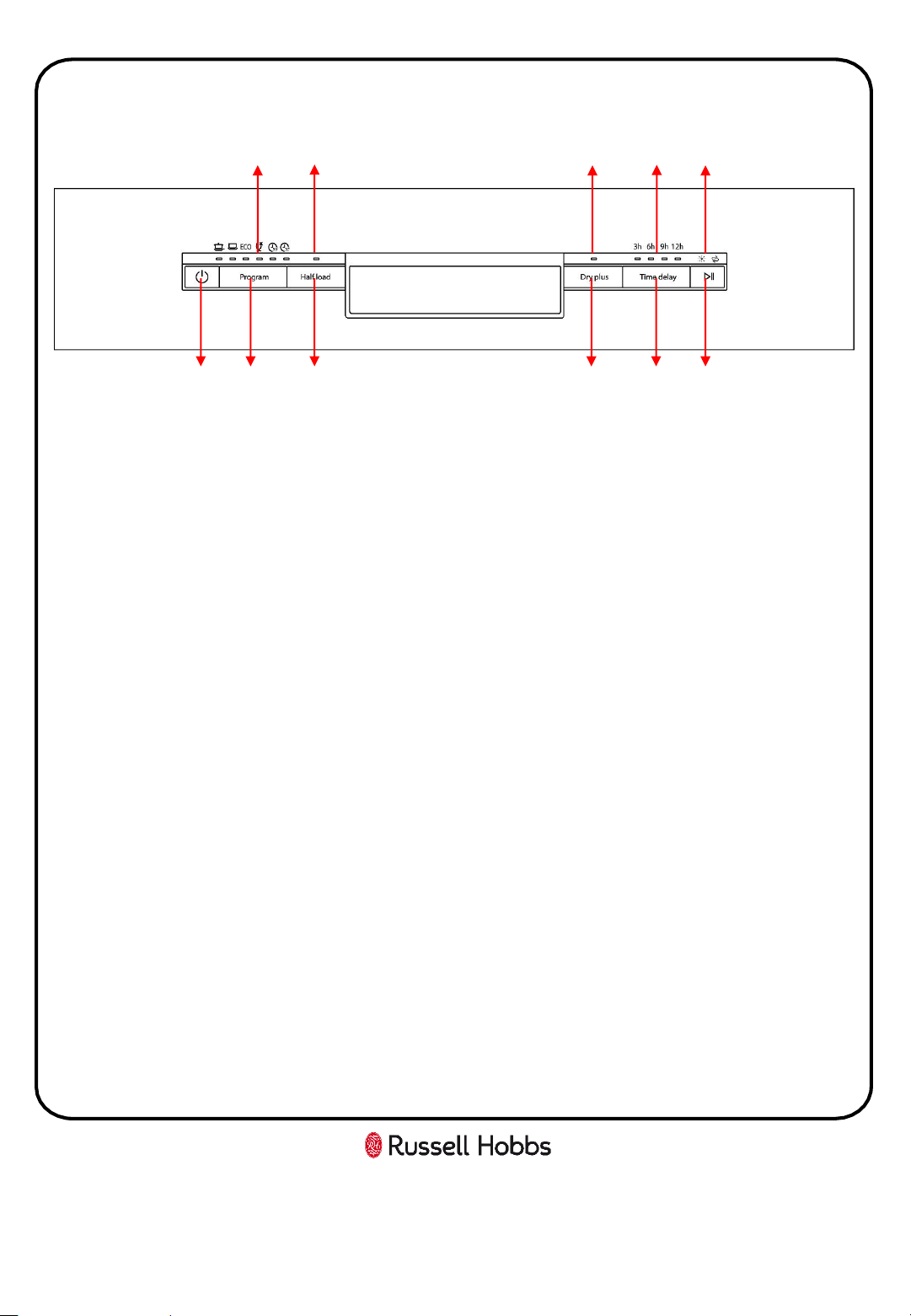

1. On/off button
2. Program button
3. Half load button
4. Dry plus button
5. Time delay button
6. Start/pause button
7. Program indicator lights
8. Half load indicator light
9. Dry plus indicator light
10.Time delay indicator lights (3
hours, 6 hours, 9 hours & 12
hours)
11.Salt aid warning & rinse aid warning
indicator lights (when these are
shown they need refilling)
10
Control Panel
Control Panel Functions and Indicators
On/off button
Press to turn appliance on and off
Program button
Press to select the program you wish to select, these are:
• Intensive
• Normal
• Eco
• Glass
• Quick 90’
• Rapid 30’
Please see washing programs section for the full details of the washing programs.
7
10
8
11
9
1 2
3
4
5
6
11
Control Panel
Half load button
Press to select half load function (press after selecting the required program but prior to closing the
door of the appliance). This function should only be used when 6 or less place settings have been
loaded in to the appliance and require washing. Please note the half load function and Dry
plus functions can not be selected at the same time.
This function can only be used with following programs:
• Intensive
• Normal
• Eco
• Glass
• Quick 90’
Dry plus
Press to select extra drying function (press after selecting the required program but prior to
pressing the start button). This will mean the temperature of rinse circle of the compatible programs
to increase to 69º. Please note the half load function and Dry plus functions can not be
selected at the same time.
This function can only be used with following programs:
• Intensive
• Normal
• Eco
• Glass
• Quick 90’
Time delay button
Press to select time you wish to delay the start of the wash program by (press after selecting the
required program but prior to pressing the start button)
Start/pause button
Press to start the selected program or pause the washing program that is running.
Program indicator lights
Light to show which program has been selected
Half load indicator light
Lights up when the half load function has been selected
12
Control Panel
Dry plus indicator light
Light to show the dry plus function has been selected
Time delay indicator lights (3 hours, 6 hours, 9 hours & 12 hours)
Light to show which delay time has been selected
Salt aid warning & rinse aid warning indicator lights
Light up when the salt container and/or rinse aid dispenser need to be refilled
13
Pre-Installation
Important Note: Prior to installation and first use the following 4 steps must be followed,
failure to do so will void your guarantee:
1. Set the water softener level
2. Add 1.5kg dishwasher salt and fill the salt container with water
3. Add rinse aid to the rinse aid dispenser
4. Fill the detergent dispenser with detergent powder or a detergent tablet
Water Hardness & Setting the Salt
The water softener must be set digitally, using the water hardness setting function. The
water softener is designed to remove minerals and salts from the water, which would have
a detrimental or adverse effect on the operation of the appliance. The higher the content
of these minerals and salts, the harder your water is. The softener should be adjusted
according to the hardness of the water in your area. Your local Water Authority can advise
you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjustment in the amount of salt consumed based
on the hardness of the water used. This is intended to optimise and customise the level of
salt consumption.
Please follow the steps below for adjustment in salt level/consumption:
1. Within 60 seconds after the appliance was switched on press and hold the ‘Start/pause’
button for more than 5 seconds to start the water softener setting function. The salt warning
light will flash periodically during the water setting function. The unit will exit the water
softener setting function if no button is pressed within 5 seconds.
2. Press the ‘Start/pause’ button to select the required softener level in accordance with your
local water hardness level. The program indicator lights will light up to indicator the different
softener levels (please see the table on the following page). The softener levels will change
in the following sequence: H1->H2->H3->H4->H5->H6 (H1 is the lowest setting and H6 is the
highest setting).
3. Press the Start/Pause button to set the softener level.
Note: The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a
special softener that uses a salt container specifically designed to eliminate lime and minerals
from the water.
Water Hardness & Setting the Salt
It is recommended that adjustments should be made in accordance with the following scheme:
Note: Contact your local water board for information on the hardness of your water supply.
Loading the salt into the container
Important Note:
• Only use salt specifically designed for use in dishwashers. Every other type of salt not
specifically designed for use in a dishwasher, especially table salt, will damage the water
softener. In case of damage caused by the use of unsuitable salt the manufacturer do not give
any warranty and we are not liable for any damage caused.
• Only fill with salt just before starting one of the complete washing programs.
• This will prevent any grains of salt or salty water, which may have been spilled, remaining on
the bottom of the machine for any period of time, which may cause corrosion.
The salt container is located beneath the lower basket and should be filled as explained in the
following section:

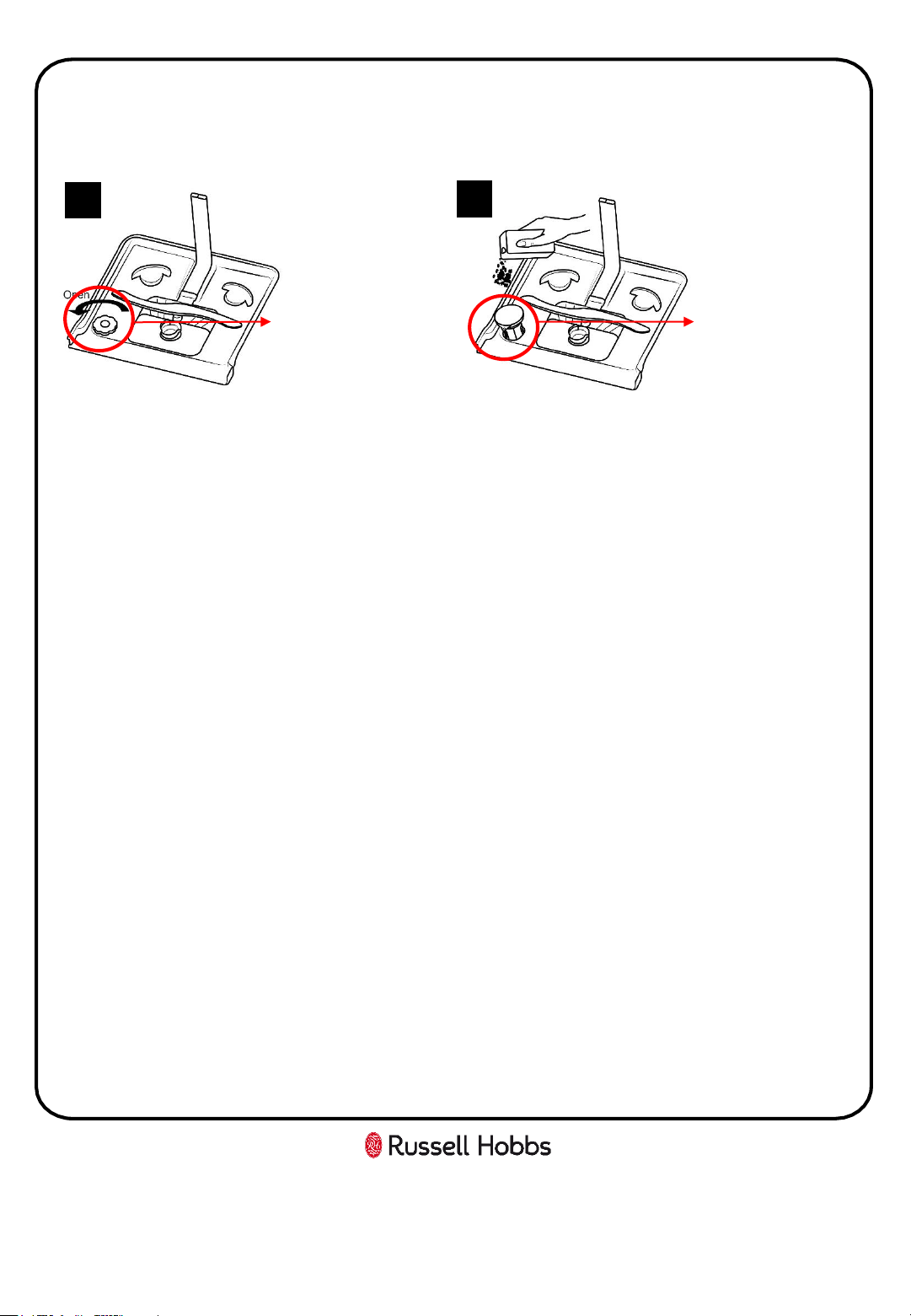

1. Remove the lower basket and then unscrew and remove the cap from the salt container. See
diagram 1 on the following page.
2. Place the salt funnel that is provided into the hole and pour approximately 1.5kg of
dishwasher salt into the salt container
3. Fully fill the salt container with water. It is normal for a small amount of water to come out of
the salt container. See diagram 2 on the following page.
4. After filling the container, screw the cap tightly back clockwise.
5. Usually, the salt warning indicator light will stop being illuminated within 2-6 days after the
salt container has been filled.
14
Softener level
Program indicator
light sequence
Salt consumption
(gram/cycle)
Water Hardness
(Clarke)
H1
Rapid 30'
0 0-6
H2
Quick 90'
9 7-14
H3
Quick 90' & Rapid 30'
12 15-21
H4
Glass
20 22-28
H5
Glass & Rapid 30'
30 29-42
H6
Glass & Quick 90'
60 43-69
15
6. Immediately after filling the salt into the salt container, a washing program should be
started (We suggest to use the Quick or rapid programs) Otherwise the filter system,
pump or other important parts of the machine may be damaged by salty water. This may
affect the guarantee.
Note:
• The salt container must only be refilled when the salt warning light in the control panel
comes on. Depending on how well the salt dissolves, the salt warning light may still be on
even though the salt container is filled.
• If there are spills of salt, a soak or a rapid program should be run to remove the excessive
salt.
Rinse Aid Dispenser
Rinse Aid dispenser
The rinse aid is released during the final rinse to prevent water from forming droplets on your
dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off
the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is
located inside the door next to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level
indicator turns completely black. The volume of the rinse aid container is about 110ml.
Function of Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and
streak free drying.
Important note:
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other
substances (e.g. Dishwasher cleaning agent, liquid detergent). This may damage the
appliance.
1
A small amount
of water may
come out of the
container after
filling with salt
2
Salt container
cover
16
When to Refill the Rinse Aid Dispenser
There is a rinse aid warning indicator light in the control panel which will light when there is no
or little rinse aid in the rinse aid dispenser.
1. To open the dispenser, lift the cover with cover handle.
2. Pour the rinse aid into the dispenser, being careful not to overfill.
3. Close the cover and ensure it is fully closed
NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid
excessive foaming during the next wash. Don't forget to replace the cap before you close
dishwasher door.
When to refill the rinse aid
The regularity of the dispenser needing to be refilled depends on how often dishes are washed
and the rinse aid setting used. The Low Rinse Aid indicator will appear in the display when
more rinse aid is needed. Do not overfill the rinse aid dispenser.
2 3
1
17
Rinse Aid Dispenser
The rinse aid dispenser has 5 settings.
Please follow the steps below for adjustment in rinse aid level:
1. Within 60 seconds after the appliance was switched on press and hold the ‘Start/Pause’
button for more than 5 seconds, and then press the ‘Delay’ button to start the rinse aid
setting function. The rinse aid warning light will flash periodically during the setting function.
The unit will exit the salt setting function if no button is pressed within 5 seconds.
2. Press the ‘Start/Pause’ button to select the required rinse aid level in accordance with usage
habit. The program indicator lights will light up to indicator the different rinse aid levels
(please see the table on the following page). The rinse aid levels will change in the following
sequence: D1->D2->D3->D4->D5 (D1 is the lowest setting and D5 is the highest setting). The
default setting is D3 but increase if performance is not as required
3. Press the ‘On/off’ button to set the rinse aid level.
Note: Increase the rinse aid level if there are drops of water or lime spots on the dishes after
washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on
glassware or knife blades.
Detergent
Detergent with its chemical ingredients are necessary to remove dirt, crush dirt and transport it
out of the dishwasher.
Important notes:
• Only use detergent specifically made for use in dishwashers.
• Keep your detergent fresh and dry.
• Don't put powder detergent into the dispenser until you're ready to wash dishes.
• Dishwasher detergent is corrosive! Keep it out of reach of children.
Rinse aid level
Program indicator
light sequence
D1
Rapid 30'
D2
Quick 90'
D3
Quick 90' & Rapid 30'
D4
Glass
D5
Glass & Rapid 30'
18
Detergent
Detergents
There are 3 sorts of detergents:
1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 7*clarke. If detergents without phosphate are used in the case of
hard water often white spots appear on dishes and glasses. In this case please add more
detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and
coloured spots will not be removed completely. In this case please choose a program with a
higher temperature.
Concentrated Detergent
Based on their chemical composition, detergents can be split in two basic types:
• conventional, alkaline detergents with caustic components
• low alkaline concentrated detergents with natural enzymes
Detergent Tablets
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short programs.
Therefore please use long programs when using detergent tablets, to ensure the complete
removal of detergent residuals.
Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table. Generally, only one tablespoon of detergent is needed for a
normal wash load. More heavily soiled items will need more detergent. Always add the
detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve
properly if added mid cycle.
Detergent
Detergent Dispenser

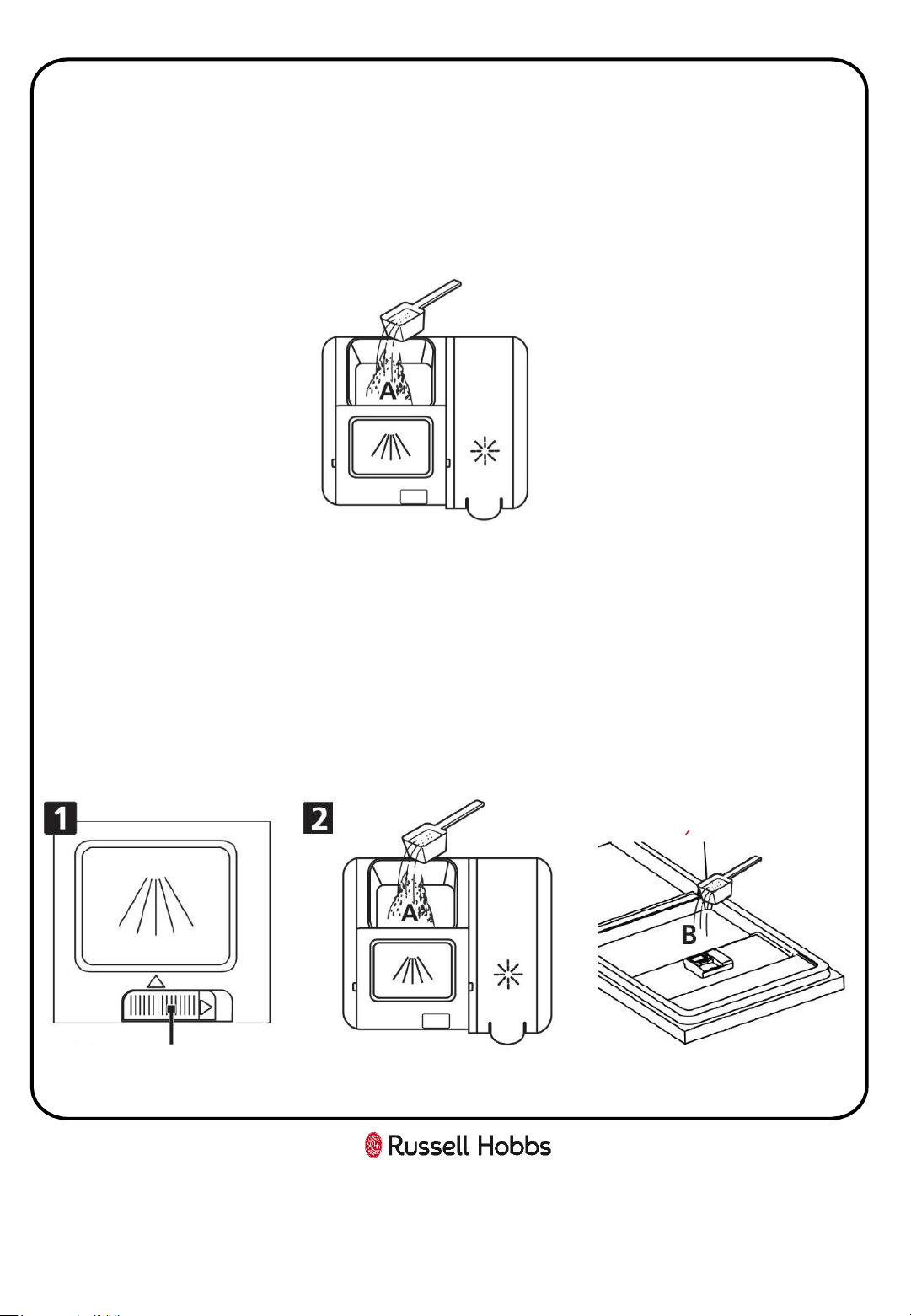

The detergent dispenser is located on the inside of the dishwasher door and is approximately
halfway up the door. The dispenser can be filled with either detergent powder or a detergent
tablet in compartment A,
Filling the Detergent Dispenser
Note: observe the dosing and storage recommendations that are stated on the detergent
packaging.

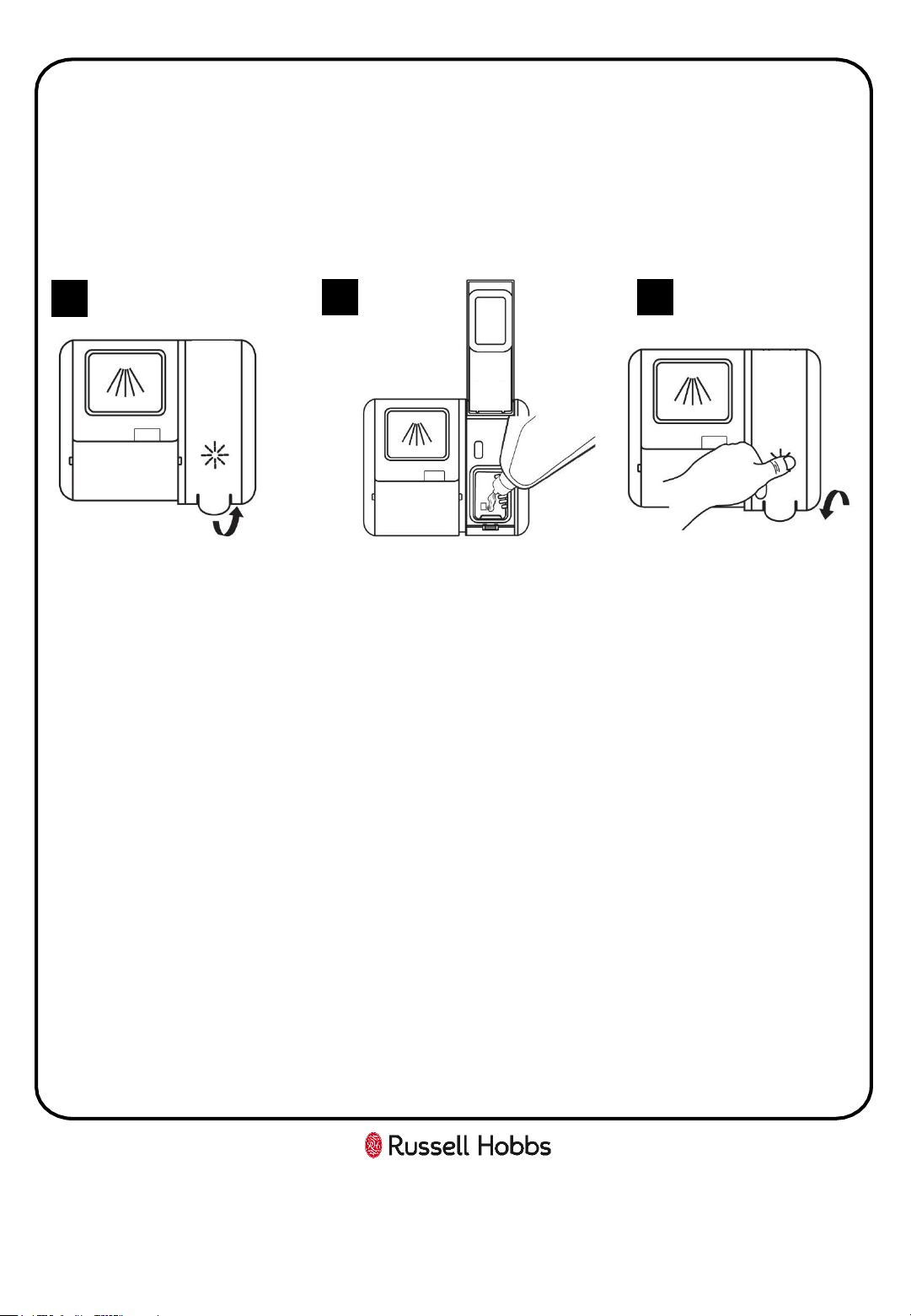

1. The detergent dispenser will automatically open during a washing cycle to release the

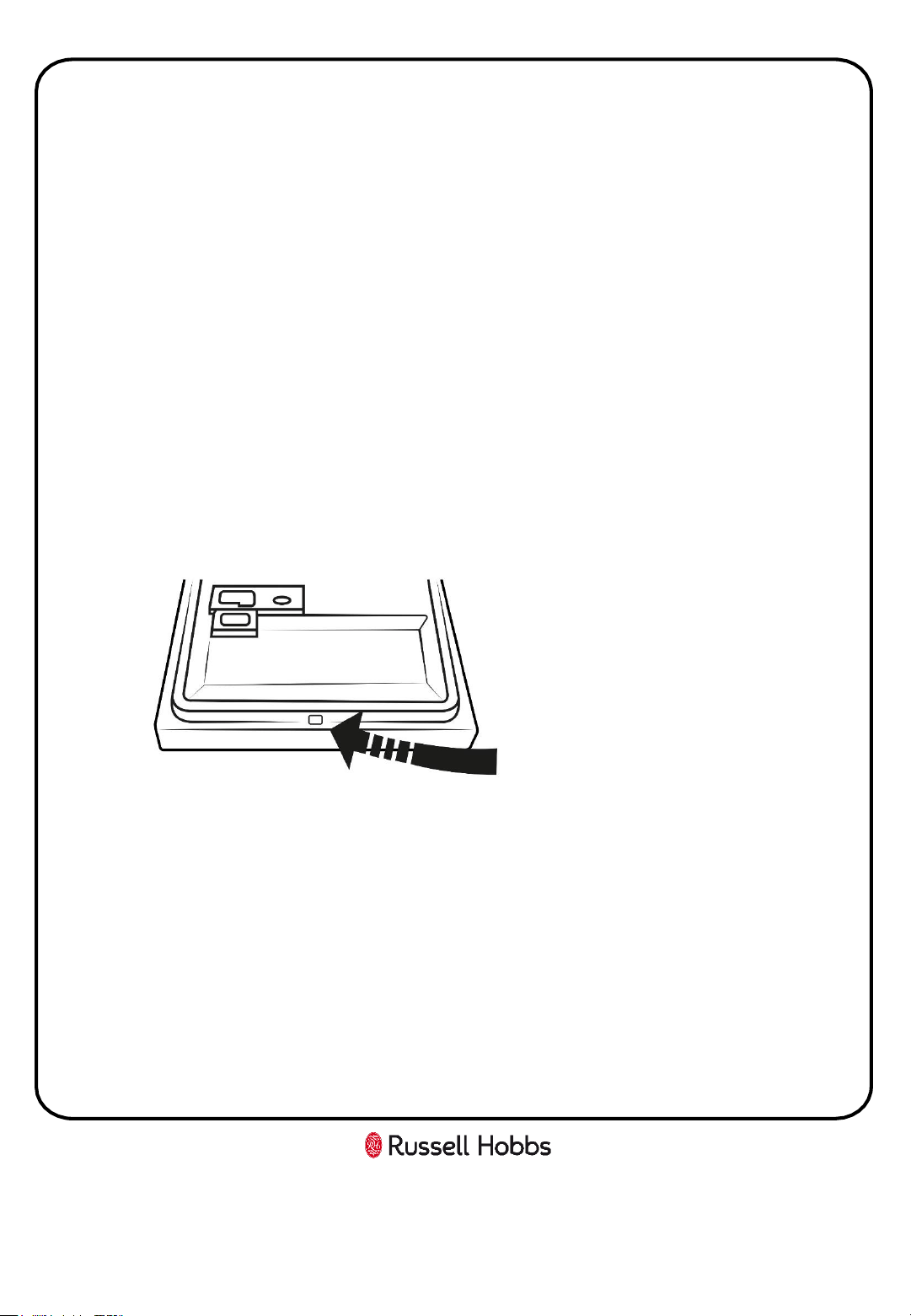

detergent powder or detergent tablet into the appliance. However should you need to
manually open the dispenser you can do this by sliding the latch on the dispenser, the
dispenser door will spring open
19
Detergent powder
or detergent tablet
Pre-wash
cycle detergent
Slide to open
Detergent
2. Fill the detergent dispenser with the correct amount of detergent powder or 1 detergent
tablet in compartment A. If the dishes are heavily soiled, place an additional detergent dose on
the inside of the door near the detergent dispenser compartment B, this will take effect during
the pre-wash phase (this is not required if using a detergent tablet).
3. Close the dispenser cover
Information about the amount of detergent for each program can be located in the program
information section. Please be aware that the amount of detergent that is to be used can be
affected by the level soiling of your dishes and the water hardness of the area you live in. Please
observe the manufacturer's recommendations on the detergent packaging.
Note:
• Only use detergent specifically made for use in dishwashers.
• Observe the dosing and storage recommendations that are stated on the detergent
packaging.
• Don't put powder detergent into the dispenser until you're ready to wash dishes.
• Dishwasher detergent is corrosive! Keep it out of reach of children
3. Close the lid and press until it locks in place.
20
21
Loading the Dishwasher
Notes:
• Only purchase and wash utensils which are identified as dishwasher safe.
• Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
• For particular items, select a program with as low a temperature as possible.
• To prevent damage, do not take glass and cutlery out of the dishwasher immediately after
the program has ended.
Items not suitable for the dishwasher
• Cutlery with wooden, horn china or mother-of-pearl handles
• Plastic items that are not heat resistant
• Older cutlery with glued parts that are not high temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items are subject to rusting, specifically knife steel.
• Wooden platters
• Items made from synthetic fibres
Items that may not be suitable for the dishwasher
• Some types of glasses can become dull after a large number of washes
• Silver and aluminium parts have a tendency to discolour during washing
• Glazed patterns may fade if machine washed frequently
Before Loading the Dishwasher
For best performance of the dishwasher, follow these loading guidelines (Features and
appearance of baskets and cutlery baskets may vary from your model):
1. Scrape off any large amounts of left over food from dishes/crockery
2. Soften remnants of burnt food in pans and other crockery.
3. Place objects in the dishwasher in the following way:
a. Items such as cups, glasses, pots/pans, etc. are faced downwards.
b. Curved items, or ones with recesses, should be loaded at an angle so that water can
run off.
c. All utensils are stacked securely and can not tip over.
Loading the Dishwasher
d. All utensils are placed in the way that the spray arms can rotate freely during
washing.
e. Load hollow items such as cups, glasses, pans etc. with the opening facing
downwards so that water cannot collect in the container or a deep base.
f. Dishes and items of cutlery must not lie inside one another, or cover each other.
g. To avoid damage to glasses, they must not touch.
h. Load large items which are most difficult to clean into the lower basket.
i. The upper basket is designed to hold more delicate and lighter dishware such as
glasses, coffee and tea cups.
j. Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket. Long bladed knives stored in an upright position are
a potential hazard!
4. Do not overload your dishwasher. This is important for good results
5. Very small items should not be washed in the dishwasher as they could easily fall of the
basket
6. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that
they do not obstruct the rotation of the spray arms.
7. Pots, serving bowls, etc. must always be placed top down.
8. Deep pots should be slanted to allow water to flow out.
9. The Bottom Basket features folding spikes so that larger or more pots and pans can be
loaded.
10. The height of the upper basket is adjustable
22
Loading the Dishwasher
Loading the Upper Basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are
not too dirty).
Position the dishes and cookware so that they will not get moved by the spray of water. The

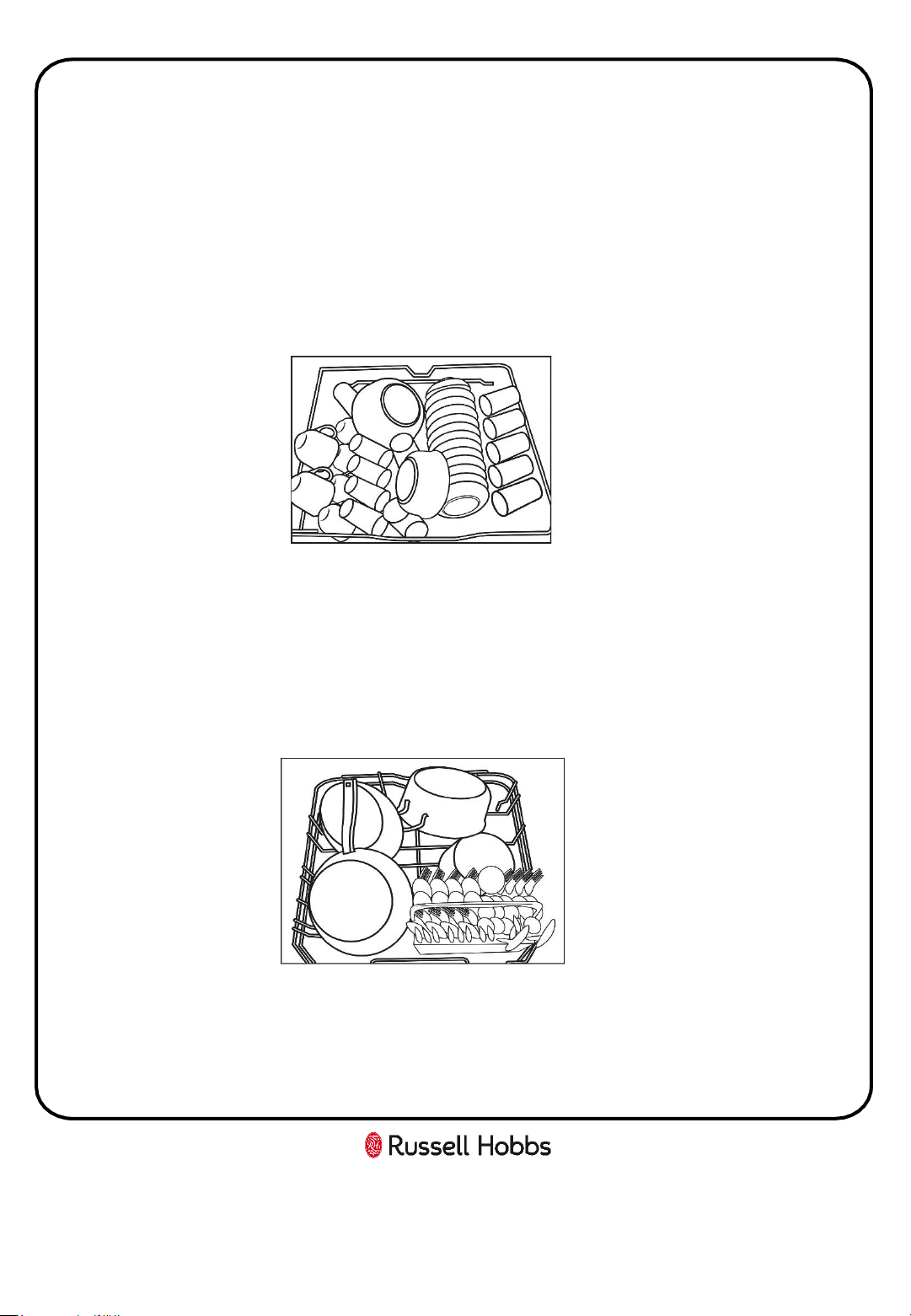

below diagram is an example of how to load the upper basket:
Loading the Lower Basket
We suggest that you place large items and the most difficult to clean items into the lower
basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid
blocking the rotation of the top spray arm.
Notes:
• Pots, serving bowls, etc., must always be placed top down
• Deep pots should be slanted to allow water to flow out
• The lower basket features folding spikes so that larger/more pots and pans can be loaded.
Front of upper basket
23
Front of lower basket
24
Loading the Dishwasher
Adjustable Upper Basket Height
The height of the upper basket can be adjusted in order to create more space for large
dishes/crockery/utensils for both the upper/lower basket. The factory setting for the upper
basket is set at the highest setting so there is more space for larger dishes/crockery/utensils for
both lower basket height. The height of the upper basket can be adjusted by placing the wheels
on different height of the rails.
Folding back the cup shelves
For better stacking of pots and pans, the cup shelves can be folded down as shown in the below.
If required the cup shelves can even be removed.
Folding spikes on the lower basket
For better stacking of pots and pans, the spikes can be folded down as show in the below:
Side of the upper basket
Upper position
Lower position
Loading the Dishwasher
Cutlery Basket
Cutlery should be placed in the cutlery basket with the handles at the bottom, except for
knives and other utensils with sharp points must be loaded in the basket with their points
down or placed in a horizontal position. If the rack has side baskets, the spoons should be
loaded separately into the appropriate slots. Long utensils should be placed in the
horizontal position at the front of the upper basket as shown in the picture.
For the best cleaning performance place the cutlery in the basket separately, you must make
sure that they do not nest/group together.

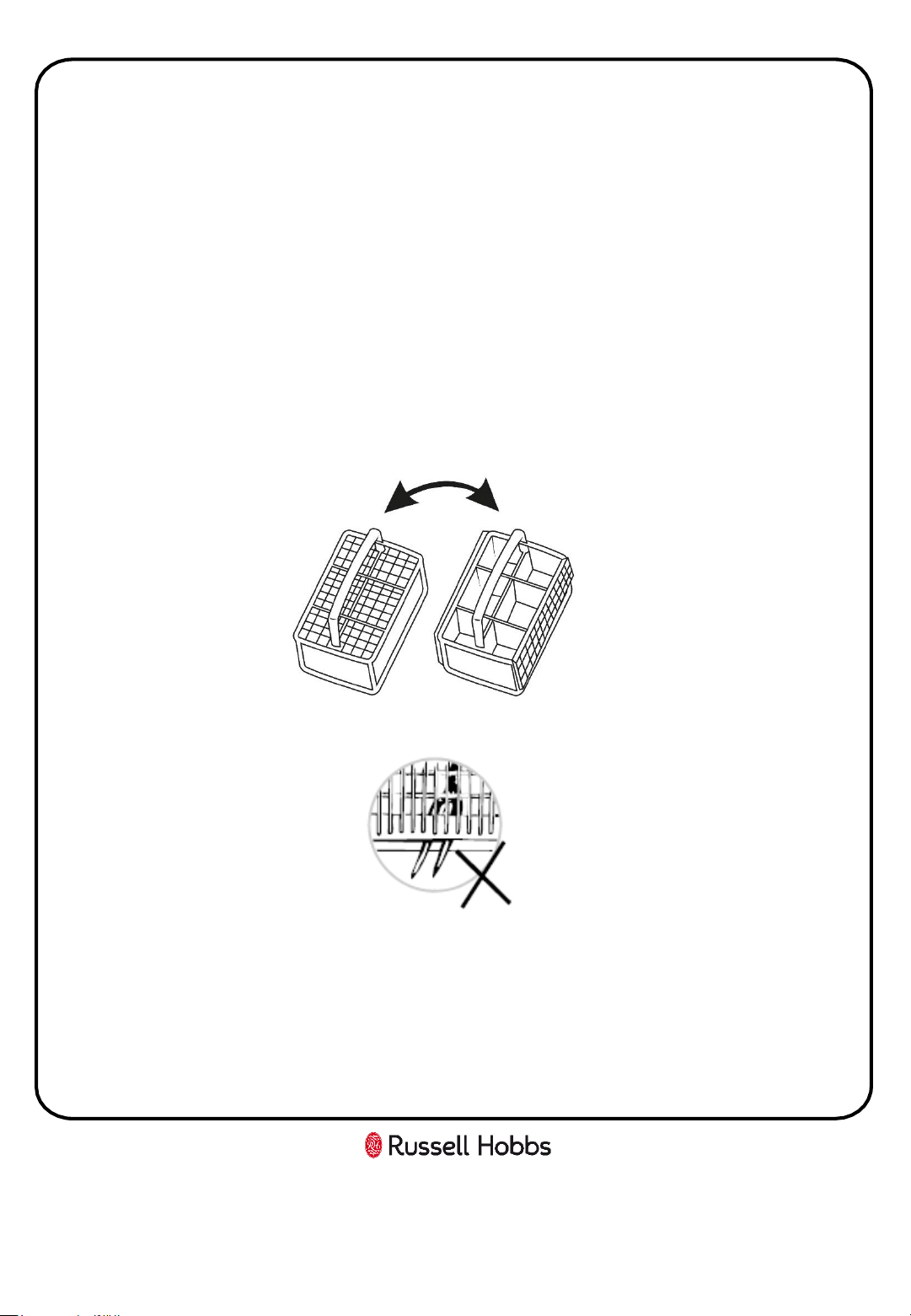

The compartments of the cutlery basket can be adjusted by folding over the 2 separating
covers:
Do not let any item extend through the bottom.
Removing the dishes
• It is normal that the dishwasher is wet inside.
• It is recommend to wait for the drying cycle (if the program that has been selected has this)
to finish and for the dishes/crockery to cool before removing them
• To prevent water dripping from the upper basket into the lower basket, we recommend that
you empty the lower basket first and then the upper basket.
25
26
Washing Programs
Rapid 30'
Quick 90'
Glass
Eco
Normal
Intensive
Program
A quick wash for lightly solid
loads (this program doesn’t
have a drying stage so the load
will be wet when cycle
has
finished)
for lightly soiled loads (the load
will not be fully dried when
program has finished)
for lightly soiled glass and
crockery
for normally soiled loads such as
pots, dishes, glasses and lightly
soiled pans. This is the most
efficient program for water
consumption and energy
consumption
for normally soiled loads such as
pots, dishes, glasses and lightly
soiled pans
for heavily soiled crockery and
normally soiled pots, pans,
glasses and dishes (can be used
for dishes with dried on soiling)
Cycle information
Wash (45
°)
Rinse
Rinse (55
°)
Wash (65
°)
Rinse
Rinse (65
°)
Drying
Pre-wash
Wash (40
°)
Rinse
Rinse (60
°)
Drying
Pre-wash
Wash (45
°)
Rinse (62
°)
Drying
Pre-wash (45
°)
Wash (55
°)
Rinse
Rinse (65
°)
Drying
Pre-wash (50
°)
Wash (60
°)
Rinse
Rinse
(70°)
Drying
Cycle stages
Powder: 20g
Powder: 27g
or
Tablet:
3 in 1
Powder:
5g/22g
Powder:
5g/22g
or
Tablet: 3 in 1
Powder:
5g/22g
or
Tablet: 3 in 1
Powder:
5g/22g
or
Tablet: 3 in 1
Detergent
dosage
30
90
125
205
175
165
Running
time
(mins)
0.7
1.15
0.75
0.69
1.1
1.4
Energy
cons.
(Kwh)
10
11.5
13.5
9
13
16.5
Water
cons.
(litres)
No
Yes
Yes
Yes
Yes
Yes
Rinse
aid
required
No
Yes
Yes
Yes
Yes
Yes
Half
load
function
Yes
Yes
Yes
Yes
Yes
Yes
Delay
timer
function
*EN 5 0242: This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:
Capacity: 9 setting / Position Upper basket: upper wheels on rails Rinse aid setting: 6 Pl:0.49w; Po:0.45w.
27
Washing Cycles
Turning on the appliance
Starting the wash cycle
1. Pull out the lower and upper basket, load the dishes and push them back. It is recommended
to load the lower basket first, then the upper one (see the loading the dishwasher section).
2. Pour in the detergent powder or put in the detergent tablet into the detergent dispenser
(see the detergent section) and close the detergent dispenser cover.
3. Insert the plug into the socket. The power supply must be 220-240 AC / 50 HZ,
4. Make sure that the water supply is turned on to full pressure.
5. Close the door and press the ON/OFF button (the ON indicator will light up)
6. Select your required program by pressing the PROGRAM button (the indicator light of the
program you have selected will light up) .
7. If required and if the program is compatible with the function you should select half load or
dry plus and/or delay timer functioned.
8. Press the start button, the machine will beep and the washing cycle will begin.
Change the program
A cycle that is underway can only be modified if it has only been running for a short time.
Otherwise, the detergent may have already been released, and the appliance may have already
drained the wash water. If this is the case, the detergent dispenser must be refilled (see the
Detergent section).
If you wish to change the program and it is possible, then press the start/pause button, then
press and hold the PROGRAM button for more than 3 seconds. The machine will enter the
standby state, at this point you can now select the program you require by pressing the
PROGRAM button. Once this has been done the start/pause button and the wash cycle will
begin.
Note: If you open the door during a wash cycle, the machine will pause. The program light will
stop blinking and the buzzer will beep every minute unless you close the door. After you close
the door, the machine will continue to work after 10 seconds.
Time delay
The starting time of a washing programme can be delayed, please follow the steps below:
1. Open the dishwasher door, load your soiled dishes/crockery and add detergent and then
close the door.
2. Press the on/off button to turn on the dishwasher and select your preferred program.
28
Washing Cycles
1. Press the Time Delay button and set the required delay start time (this will be shown by time
delay the indicator lights).
2. Press the start button, the unit will start the programme at the assigned time automatically.
Half load
In case you do not have enough dishes for a full load, the half load option can be selected with
certain programs (please see the Wash Program section). Please follow the steps below:
1. Open the dishwasher door, load your soiled dishes/crockery and add detergent and then
close the door.
2. Press the on/off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the “Half Load” button.
5. Close the door and press the start button, the unit will start the program.
Please note the half load function and Dry plus functions can not be selected at the same
time.
Dry plus
In case you do not have enough dishes for a full load, the half load option can be selected with
certain programs (please see the Wash Program section). Please follow the steps below:
1. Open the dishwasher door, load your soiled dishes/crockery and add detergent.
2. Press the on/off button to turn on the dishwasher.
3. Select your preferred programme.
4. Press the “Half Load” button.
5. Press the start button, the unit will start the program.
Please note the half load function and Dry plus functions can not be selected at the same
time.
Adding a dish during a cycle
If you have forgotten to load a dish then it can be added at any time before the detergent is
dispensed. Please follow the below steps when adding a forgotten dish:
1. Open the door slightly to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Load the forgotten dish or dishes.
4. Close the door, the dishwasher will start running again after 10 seconds.
29
Washing Cycles
Note: It is dangerous to open the door when washing, because the hot water may scald you.
At the end of the wash cycle
When a program has finished, the buzzer of the dishwasher will sound for 8 seconds, after this
duration it will stop. Turn off the appliance using the ON/OFF button and open the door of the
dishwasher. Turn off the water tap if necessary
Note: The appliance will switch off automatically 30 minutes after the program has finished.
Open the door carefully
Hot dishes are sensitive to knocks. The dishes therefore must be allowed to cool down for
approximately 15 minutes before removing from the appliance. Open the dishwasher's door,
leave it ajar and wait approximately 15 minutes before removing the dishes. In this way they will
be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside. It is recommend to wait for the drying cycle (if the
program that has been selected has this) to finish and for the dishes/crockery to cool before
removing them. To prevent water dripping from the upper basket into the lower basket, we
recommend that you empty the lower basket first and then the upper basket.
Installation
• This appliance can be installed as a freestanding unit only.
• We recommend that 2 people handle the dishwasher during installation.
• Avoid damaging the product during installation, positioning of the appliance requires two
people in order to avoid injuries or damage to the appliance.
• Be sure to wear gloves when installing the appliance to avoid personal injury, edges of the door
and other parts of the appliance are sharp.
• Your appliance should not be located in direct sunlight or exposed to continuous heat or
extremes of temperature (e.g. next to a radiator, boiler or cooker). If this is not feasible, then
you should install an insulation plate between the appliance and the adjacent heat source.
• You should check whether there is an electrical socket available, which will be accessible after
your appliance is installed.
• Place the appliance flatly and firmly on a solid base.
• All parts removed must be saved to do the reinstallation in the future. Ensure the dishwasher is
unplugged and empty.
• Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or
personal injury.
• The installation position of dishwasher should be near the existing inlet and drain hoses and
power point.
• The side of the cabinet that is adjacent to the water supply and drainage should be chosen to
facilitate the connection of water inlet hose and drain hose of the dishwasher.
• For personal safety: Do not use an extension cord or an adapter plug with this appliance.
• Do not, under any circumstances, cut or remove the earthing connection from the power cord
• Ensure the power cord is not underneath any of the appliances feet or trapped by any part of
the appliance.

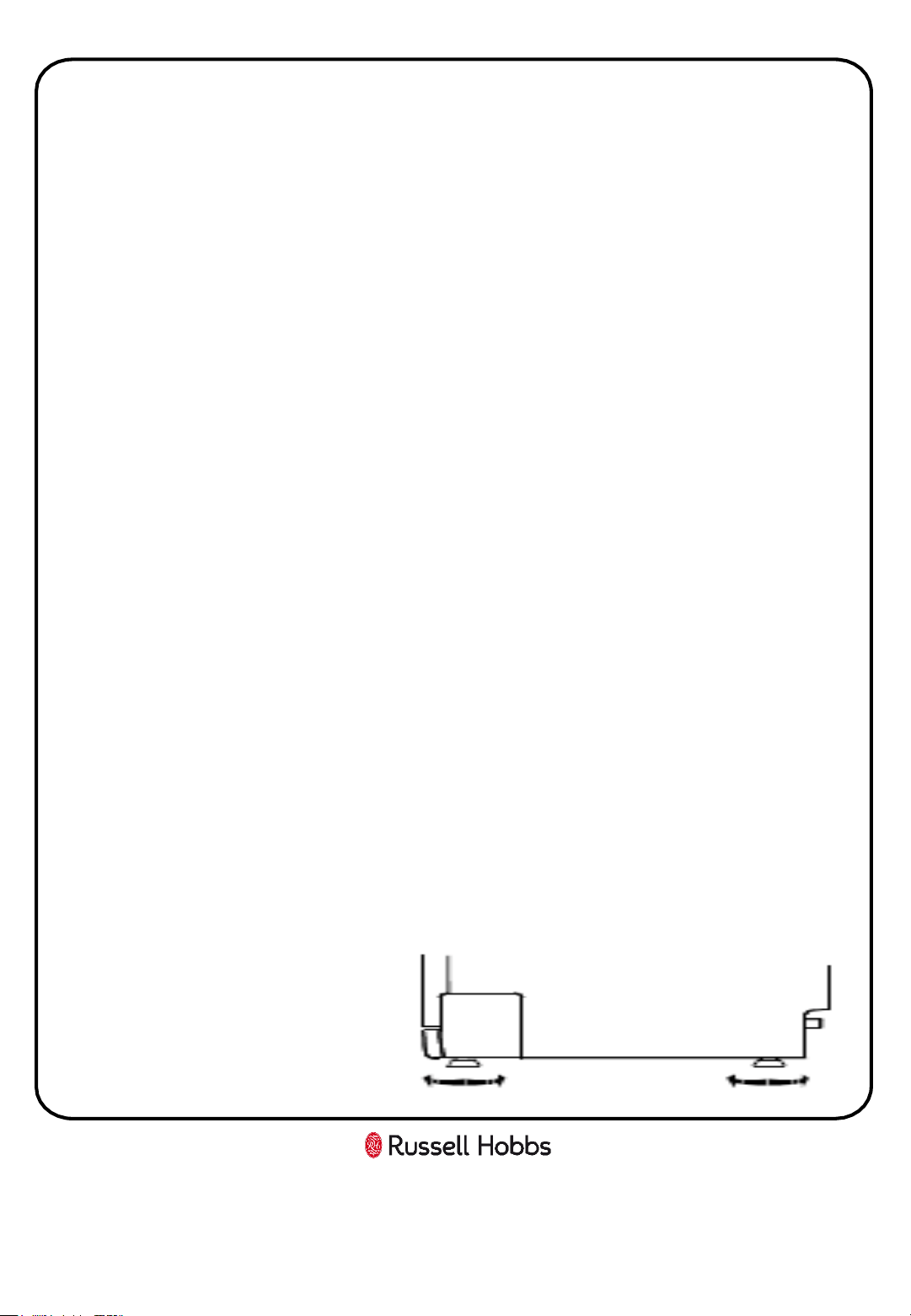

Positioning the appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and
the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and
drain hoses that can be positioned either to the right or the left sides to facilitate proper
installation.
Once the appliance is positioned for
levelling, the height of the dishwasher
may be altered by adjusting the height
of the feet; the appliance should not
be inclined more than 2º .
30
31
Connection of the Water Supply & Drain Hose
Important notes:
• Connection to the water and electricity supplies should only be performed by a qualified
technician.
• The dishwasher should not stand on top of the water hoses or the electricity supply
cable. The water inlet and outlet hoses and the electricity supply cable may be
positioned towards the right or the left in order to achieve the best possible installation.
Connection of the Drain hose
Important notes:
• Before connecting the drain hose, remove any internal restrictions; this will prevent a
build up of debris which could cause a blockage remove any restrictions from the waste
spigot and ensure that the sealing bung is removed.
• It MUST NOT be connected to a surface water drain.
• Do Not connect the dishwasher to the drain with an extended drainage hose (use the
ones supplied with the appliance), if an extension hose is needed then a pump must be
installed to pump the drainage through and out.

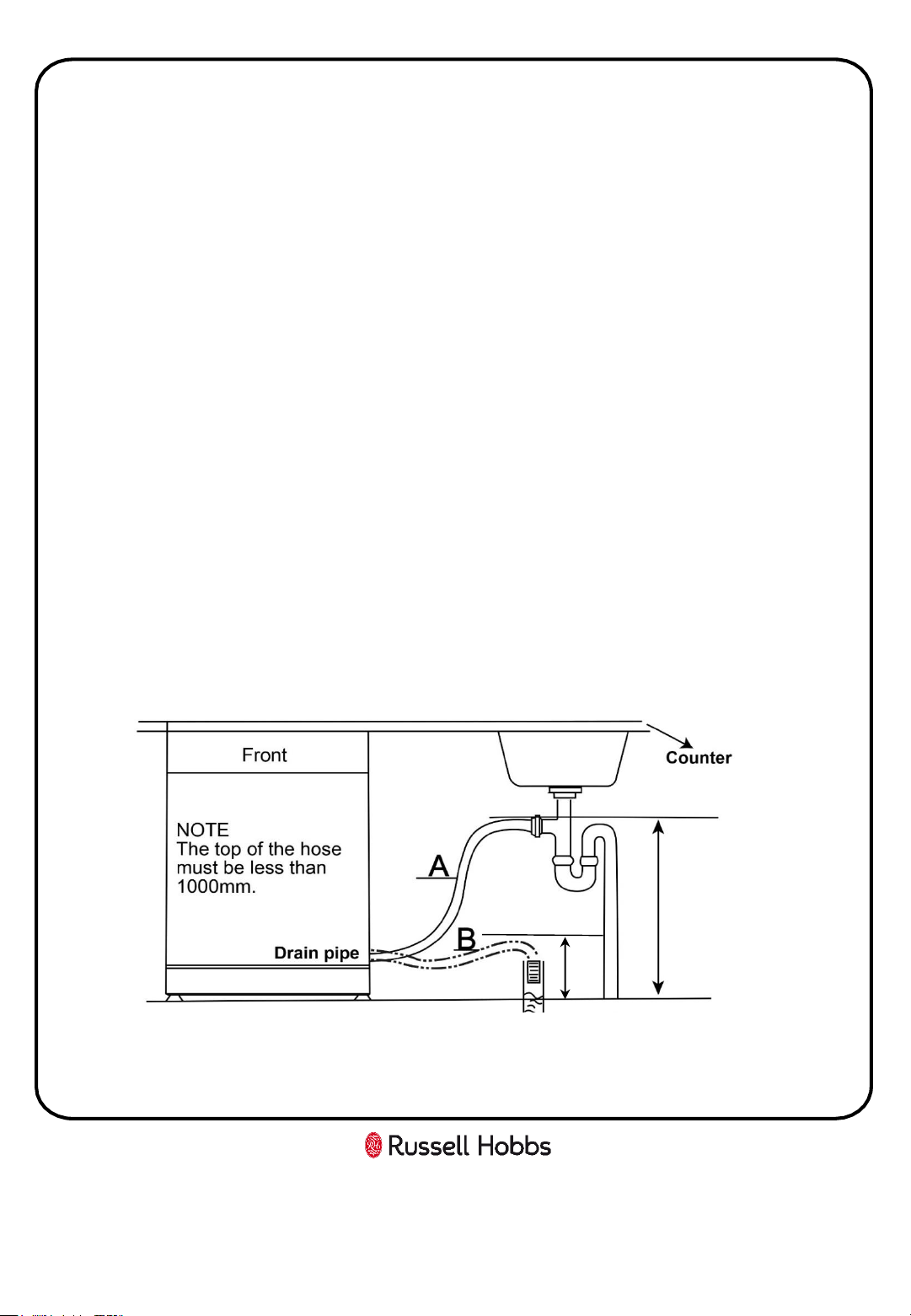

Insert the drain hose into a drain pipe that has a minimum diameter of 4cm (40mm) making
sure to avoid bending or crimping it. Use the drain hose hook (accessory 13) that is supplied
with the appliance. The top of the hose must be at a height between 40cm/400mm (B on the
diagram) and 80cm/800mm (A on the diagram). The free end of the hose must not be
immersed in water to avoid the back flow of it.
• Ensure the drain hose is securely attached, to prevent it coming away while the machine is
in use and causing a flood.
• Fit the end drain hose that is connected to the waste pipe securely by using a “Jubilee”
type clip.
MIN 400mm
MAX
800mm
32
Connection of the Water Supply & Drain Hose
Connection of the Water Supply
Important note: Before attaching the water inlet hose, run the water until it is perfectly
clear so that any impurities that may be present in the water do not clog the appliance. This
precaution is needed to avoid the risk of the water inlet getting blocked and damaging the
appliance.
Connect the water inlet hose to a threaded 3/4(inch) connector and make sure that it is
fastened tightly in place. The water inlet hose must be connected to a cold water supply.
Notes:
• If the inlet hose is not long enough, contact a specialist store or an authorised technician.
• The maximum permissible inlet water pressure is 1Mpa.
• The minimum permissibleinlet water pressureis 0.04Mpa.
• The hose should not be bent or compressed.
• The appliance must be connected to the water supply network using new hoses.
• Do not use old hoses.
• Ensure that the new hose supplied is connected and the old hose is disposed of safely.
• DO NOT overtighten the hose connector, hand tight is sufficient.
• Ensure the fill hose is not kinked.
• DO NOT connect the dishwasher to a single outlet instantaneous water heater or an
electric heater.
Before First Use
Before the first use of the dishwasher after installation you must check for the following
points:
1. All packing materials and printings have been removed from the dishwasher
2. The dishwasher is level and fixed properly
3. The water inlet valve is open
4. There is no leakage at the connections water inlet hose and the water inlet valve or the
drain hose and the drain.
5. The inlet and drain hoses are knotted
6. The wires are tightly connected and not trapped
7. The power is switched on

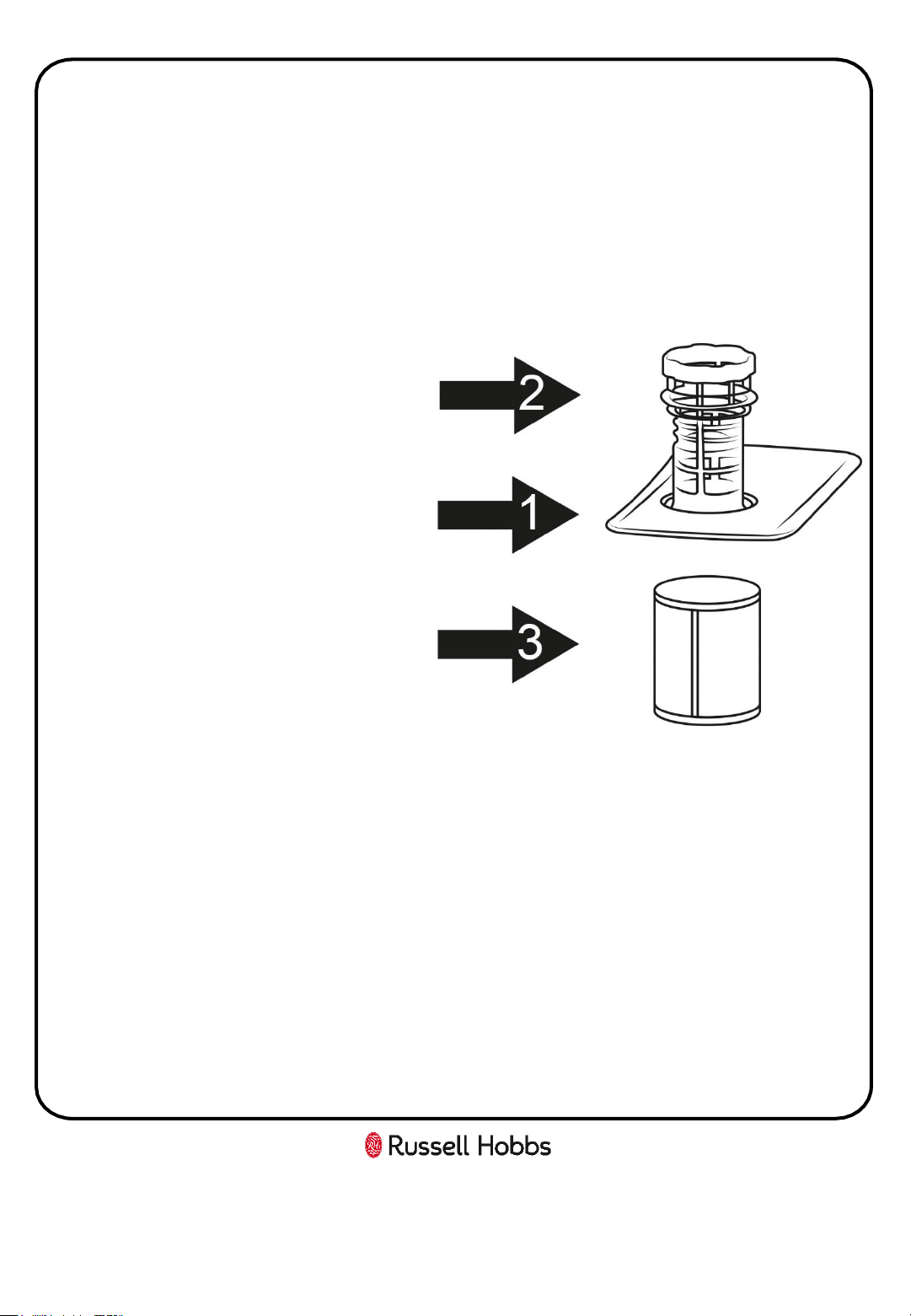

2) Coarse Filter
Larger items, such as pieces of bones or
glass, that could block the drain are trapped
in the coarse filter. To remove the items
caught by the filter, gently squeeze the tap
on the top of this filter and lift out.
33
Maintenance & Cleaning
Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. The
residue may block the filter, in this case they must be removed.
The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (Fine filter).
Filter Assembly
Important notes:
• The dishwasher must never be used without the filters.
• Improper replacement of the filter may reduce the performance level of the
appliance and damage dishes and utensils.
The filter efficiently removes particles of food from the wash water, allowing it to be recycled
during the wash cycle. For best performance and cleaning results, the filter must be cleaned
regularly. For this reason, it is recommended to remove the larger food particles trapped in the
filter after each use by removing all debris from all parts of the filter (you may need to use a
cleaning brush to remove all debris from the coarse and fine filters) and rinse all parts of the
filter under running water.
1) Main Filter
Food and soil particles trapped in this filter
are pulverized by a special jet on the lower
spray arm and washed down to drain.
3) Fine filter
This filter holds soil and food residues in the
sump area and prevents it from being
redeposit on the dishes during wash cycle.
1. Turn the coarse filter (part 2) in anti-clockwise
direction, then pull it in a upwards direction
34
Maintenance & Cleaning
To remove the filter device, twist the coarse filer (part 2) and pull it in a upwards direction. All
parts of the filter will lift away from the bottom of the appliance
To replace the filter reverse steps 1, 2 and 3.
Important notes:
• Inspect the filters for blocking after every use
• The filter system must be cleaned at lease once a week
• When cleaning the filters, don't knock/tap them. Otherwise, the filters could be contorted
and the performance of the dishwasher could be affected.
1
2
2. The filter system can be removed
3
3. To separate all parts of the filter, hold the fine filter
(part 3) tightly, twist the coarse filter (part 1) in an
anti-clockwise direction and pull it upwards
Maintenance & Cleaning
Cleaning the door
Important note:
Never use a spray cleaner to clean the door panel as it may damage the door lock and
electrical components.
Abrasive agents or some paper towels should not be used because of the risk of scratching or
leaving spots on the stainless steel surface.
The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure
to dry it thoroughly.
Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.
To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind.
Protect Against Freezing
Important note:
If your dishwasher cannot work because of the ice, please contact professional service
persons.
You must take frost protection measures for the dishwasher in winter, if it is used in a cold
environment. Every time after washing cycles, please operate as follows
35
door lock and electrical components
Maintenance & Cleaning
1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a bowl to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump
Cleaning the Spray Arms
It is necessary to clean the spray arms regularly for hard water chemicals, as these will clog the
spray arm jets and bearings.
Wash the arms in warm soapy water and use a soft cleaning brush to clean the jets. Replace
them after rinsing them thoroughly in clean water
How to Keep your Dishwasher in the Correct Condition
After Every Wash
After every wash, turn off the water supply to the appliance and leave the door slightly open so
that moisture and odours are not trapped inside.
Remove the Plug from the socket
Before cleaning or performing maintenance, always remove the plug from the socket.
.
36

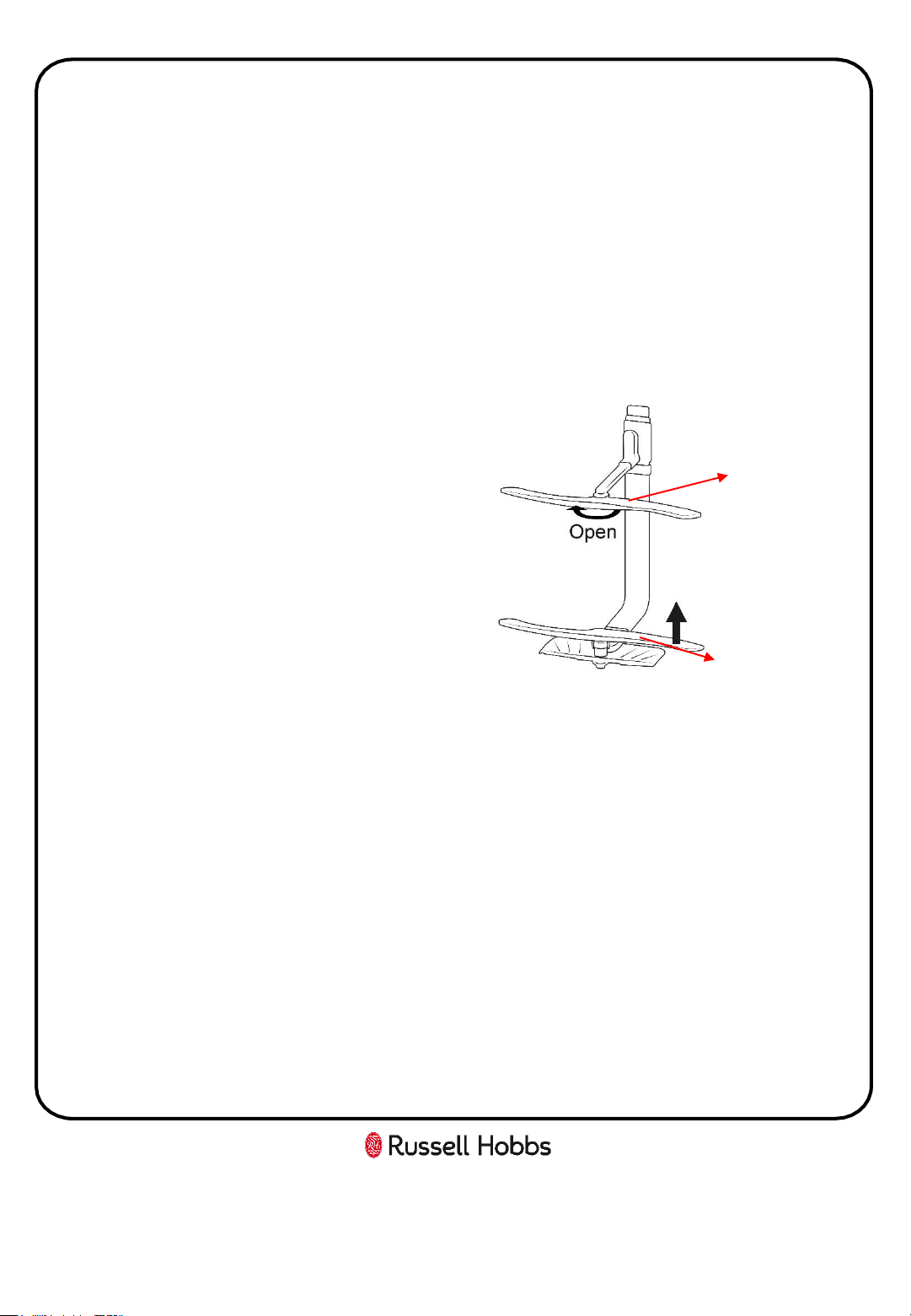

To remove the upper spray arm, hold the nut and at
the same time rotate the arm clockwise to remove
it.
To remove the lower spray arm, pull the spray arm
upward.
Upper spray
arm
Lower spray
arm
Pull
37
Maintenance & Cleaning
No Solvents or Abrasive Cleaning
To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive
cleaning products. Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the interior, use a cloth dampened with water
and a little vinegar, or a cleaning product made specifically for dishwashers.
When not in use for a long time
It is recommend that you run a wash cycle with the dishwasher empty and then remove the
plug from the socket, turn off the water supply and leave the door of the appliance slightly
open. This will help the door seals to last longer and prevent odours from forming within the
appliance.
Moving the Appliance
If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary,
it can be positioned on its back but cannot be left in this position.
Seals
One of the factors that cause odours to form in the dishwasher is food that remains food
debris and moisture in the seals. Periodic cleaning these with a damp sponge will prevent this
from occurring.
38
Trouble Shooting
Problem Causes Solution
Dishwasher
doesn't start
Power supply is not turned
on
Make sure the power cord is properly plugged
into the wall socket.
Make sure the dishwasher is turned on and the
door is closed securely.
Fuse blown, or the circuit
breaker acted
Replace fuse or reset circuit breaker. Remove
any other appliances sharing the same circuit
with the dishwasher
Water supply is not turned
on
Check that the water supply is connected
properly and
the water is turned on.
Water pressure is low
Check that the water pressure is within the
required level, please see water connection
section.
Door of dishwasher not
properly closed.
Make sure to close the door properly/full.
A fault has occurred
Switch of the appliance by pressing the ON/OFF
button , switch it back on after approximately
one minute and reset the program.
If this does not work unplug the appliance and
leave for 5 minutes, then put the plug back in
and turn on the appliance.
Water has not
drained for the
dishwasher
Wash program has not
finished
The wash program may not have finished, close
the door and wait for the wash program to
complete in full
Drain hose is bent
Check drain hose.
Filter clogged/blocked
Check all parts of the filter and clean if
necessary, please see filter section.
Drains clogged/blocked
Check the drains to make sure they are draining
well. If they aren't you will need to get them
unblocked and may need a plumber to do this. If
the dishwasher still won't drain then a service
engineer may be needed.
The dishwasher
does not take any
water
There is no water in the
mains supply
Check the water supply has not been cut off or
if there is a fault in your area.
Water inlet pipe is bent
Water inlet pipe.
Turn on the water tap and/or
vale
Turn on the water tap/valve and the appliance
will start after a few minutes.
39
Trouble Shooting
Problem Causes Solution
Suds in the tub
Improper detergent
Use only the dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let
suds evaporate. Pour 1 gallon of cold water to
the tub, then close the dishwasher and select
any cycle.
The first part of the cycle will see the
dishwasher drain out the water (you will be able
to hear this taking place). When the draining has
finished open the door and check if the suds is
disappeared. Repeat if necessary.
Spilled rinse
-aid
Always wipe up rinse
-aid spills immediately,
because if left in the tub then suds will be
produced.
Stained tub interior
Detergent with colourant was
used
Make sure that the detergent is the one without
colourant.
White film on
inside surface
Hard water minerals
To clean the interior, use a damp sponge with
dishwasher detergent and wear rubber gloves.
Never use any other cleaner than dishwasher
detergent for the risk of foaming or suds.
There are rust
stains on cutlery
The affected items are not
corrosion resistant
Purchase dishwasher safe cutlery or hand wash
the cutlery that isn't dishwasher safe
A program was not run after
dishwasher salt was added. If
this is done then traces of
salt will get into the wash
cycle and cause corrosion
Always run the quick wash program after adding
dishwasher salt without any crockery in the
dishwasher.
The lid of the water softener
is loose
Check the lid and ensure it is fitted correctly and
tight.
Knocking noise
in the wash cabinet
A spray arm is knocking
against an item in a basket
Interrupt the program, and rearrange the items
which are obstructing the spray arm.
Rattling noise in
the wash cabinet
Items of crockery are loose in
the wash cabinet
Interrupt the program, and rearrange the items
of crockery.
Knocking noise in
the water pipes
This may be caused by on
-
site installation or the cross-
section of the piping
This has no influence on the dishwasher
function, if in doubt, contact a suitably qualified
plumber.
40
Trouble Shooting
Problem Causes Solution
The dishes are not
clean
Dishwasher has been
overloaded
Arrange the dishes correctly or wash in 2
separately loads, please see the Loading the
Dishwasher section.
The dishes were not loaded
correctly
Arrange the dishes correct, please see the
Loading the Dishwasher section.
The program was not
powerful enough
Select a more intensive program, please see the
Wash Program section.
Not enough detergent was
dispensed.
Use more detergent, or change your detergent.
Too much detergent was
dispensed or the incorrect
detergent has been used
The detergent has not been measured out
correctly or it is not suitable for use in
dishwashers
Items are blocking the path
of spray arms
Re
-arrange the items so that the spray can
rotate freely.
The filter in the base of wash
cabinet is not clean or is not
correctly fitted. This may
cause the spray arm jets to
get blocked
Clean and/or fit the filter correctly.
Clean the spray arm jets, please see the
Cleaning the Spray Arms section
Insufficient dishwasher salt
and Rinse aid need to be
refilled
Dishwasher salt and Rinse
-aid need to be
refilled, please see the Dishwasher Salt and
Rinse Aid sections.
The lid on the rinse
-aid
dispenser was not shut
correctly
Shut correctly and re
-wash
The dishes and
glasses are
streaked or have a
bluish tinge
The rinse
-aid dosage is too
high.
Reduce the rinse
-aid dosage
Cloudiness on
glassware
Combination of soft water
and too much detergent
Use less detergent if you have soft water and/or
select a shortest cycle to wash the glassware
and to get them clean.
The Glass Wash program could be used.
Black or grey
marks on dishes
Aluminium utensils have
rubbed against dishes
Use a mild abrasive cleaner to eliminate those
marks.
Detergent left in
dispenser cups
Dishes block cups or cups
incorrectly loaded
Re
-loading the dishes properly.
41
Trouble Shooting
Error codes
Note: If overflow occurs, turn off the main water supply before calling a service engineer. If
there is water in the base of the tub because of an overfill or small leak, the water should
be removed before restarting the dishwasher.
Problem Causes Solution
The dishes are not
drying
Improper loading
Load the dishwasher as suggested in the
directions.
Too little Rinse
-aid
Increase the amount of rinse
-aid and/or refill
the rinse
-aid dispenser.
Dishes are removed too soon
Do not empty your dishwasher immediately
after washing cycle has ended. Open the door
slightly so that the steam can escape.
Only begin unloading the dishwasher when the
dishes are cool to the touch. Empty the low
basket first. This prevents water form dropping
off dishes in the upper basket.
Wrong program has been
selected or a program
without a drying cycle
In short programs the drying time is shorter or
the program won't have a drying cycle at all.
Choose a program with a long washing time.
The crockery is made from
non
-stick material or plastic
Remove from dishwasher and leave to dry or
dry with a dish cloth.
Use of cutlery with a low
-
quality coating
Water drainage is more difficult with these
items. Cutlery or dishes of this type are not
suitable for washing in the dishwasher.
Error codes Meanings Possible causes
The Rapid Wash indicator
light flickers
Water inlet problem/fault
Water intake is restricted or water
pressure is too low.
The Glass Wash indicator
light flickers
Overflow.
The dishwasher is leaking
The Rapid Wash & 90min.
indicator light flickers
Not reaching required
temperature
Heating element fault
42
WARNING- THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ.
Check that the voltage marked on the product corresponds with your supply voltage.
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which
is marked with the letter E or by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE wire and must be connected
to the terminal marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a 13amp fuse conforming to
BS1362 and be BSI or ASTA approved.
Connection to the Mains Supply
43
Guarantee
This product is guaranteed for 12 months from the date of the original
purchase. If any defect arises due to faulty materials or workmanship you
must contact Product Care with the original proof of purchase so a
replacement or refund can be arranged.
Refund or replacement is at the discretion of Product Care.
The following conditions apply:
• Product Care will require a valid proof of purchase at the point of
replacement or refund.
• The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
• It must be used for domestic purposes only and for its intended use.
• This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Imported by
G2S LIMITED
WIGAN
WN2 4AY
44
Technical Specification
Model number RHSLDW4-M (B-M) (SS-M)
Rated Voltage 220V – 240V ~ 50Hz
Capacity 9 place settings
External Dimensions(HxWxD) 845mm x 448mm x 600mm
45
Notes
46
Notes
47
Notes
This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this
symbol is marked on a product/batteries, it means that the product/batteries
should not be disposed of with your general household waste. Only discard
electrical/electronic/battery items in separate collection schemes, which cater
for the recovery and recycling of materials contained within. Your co-operation
is vital to make sure the success of these schemes and for the protection of the
environment. For your nearest disposal facility, visit www.recycle-more.co.uk
or ask in store for details.
We reserve the right due to possible changes to design to alter the
instruction manual without prior notice.
For Customer Services & Spare Parts
please call 0345 208 8750
or visit us at
https://mda.russellhobbs.com
Revision 1
