WASHINGTON FIREPLACE SUITE
WL45036
YOUR SAFETY &
INSTRUCTION MANUAL
PLEASE READ CAREFULLY
2 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
TECHNICAL DATA
Description: Washington Fire Suite
Model: WL45036
Rated Voltage: 220-240V
Frequency: 50/60Hz
Power Consumption: 2000W
DOCUMENTATION
We declare that this product conforms to the following product legislation in accordance with the
following directive(s):
2014/30/EU Electromagnetic Compatibility Directive.
2014/35/EU Low Voltage Directive.
2011/65/EU Restriction of Hazardous Substances Directive.
2009/125/EC Eco-Design of Energy Related Products.
RK Wholesale LTD Quality Assurance, United Kingdom
WARRANTY
This product is guaranteed for 12 months from the date of original purchase. If any defect arises due
to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
• The product must be returned to the retailer with proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this
instruction guide.
• It must be used only for domestic purposes.
• It does not cover wear and tear, damage, misuse or consumable parts.
• RK Wholesale LTD has limited liability for incidental or consequential loss or damage.
• This guarantee is only Valid in the UK and Eire Only.
An extended warranty is available for this appliance.
See back page for details.
3www.warmlite.co
WARNING:
This Appliance MUST be Earthed
WIRING SAFETY FOR UK USE ONLY
IMPORTANT
As the colours in the mains lead of this appliance
may not correspond with the coloured markings
identifying the terminals in your plug, please
proceed as follows:
The wires in the mains lead are labelled in
accordance with the following code:
Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]
Plug Fitting Details (Where Applicable). The
wire labelled blue is the neutral and must be
connected to the terminal marked [N].
The wire labelled brown is the live wire and must
be connected to the terminal marked [L].
The wire labelled green/yellow must be
connected to the terminal marked with the letter
[E].
On no account must either the brown or the blue
wire be connected to the [EARTH] terminal.
Always ensure that the cord grip is fastened
correctly.
The plug must be tted with a fuse of the same
rating already tted and conforming to BS 1362
and be ASTA approved.
If in doubt consult a qualied electrician who will
be pleased to do this for you.
Non-Rewireable Mains Plug
If your appliance is supplied with a non-
rewireable plug tted to the mains lead and
should the fuse need replacing, you must use an
ASTA approved one (conforming to BS 1362 of
the same rating).
If in doubt, consult a qualied electrician who will
be pleased to do this for you.
If you need to remove the plug - disconnect it
from the mains - then cut it o of the mains lead
and immediately dispose of it in a safe manner.
Never attempt to reuse the plug or insert it into a
socket outlet as there is a danger of an electric
shock.
FUSE
Earth
(Green/Yellow)
Fuse
Neautral
(Blue)
Live
(Brown)
4 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
PRODUCT SAFETY
When using any electrical appliance, basic safety precautions should
always be followed including the following:
• Check that the voltage of the
main circuit corresponds with
the rating of the appliance
before operating.
• Please ensure that the
appliance is used on a
stable, level, and heat
resistant surface.
• DO NOT immerse cords,
plugs or any part of the
appliance in water or any
other liquid.
• DO NOT leave the appliance
unattended while it is
operating.
• Close supervision is
necessary when any
appliance is used by or near
children.
• Take care when any
appliance is used near pets.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
• Children should not play with
the appliance.
• Cleaning and user
maintenance should not
be undertaken by children
without supervision.
• Switch o at the wall socket
then remove the plug from
the socket when not in use
or before cleaning.
• If the supply cord or
appliance is damaged,
stop using the appliance
immediately and seek advice
from the manufacturer, its
service agent or a similarly
qualied person.
• DO NOT let the cord hang
over the edge of a table
or counter or let it come
into contact with any hot
surfaces.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those supplied
with this product. DO NOT
use extension cords with the
appliance.
5www.warmlite.co
• DO NOT pull the plug out by
the cord as this may damage
the plug and/or the cable.
• DO NOT use this product
for anything other than its
intended use.
• This appliance is for
household use only.
• DO NOT carry the appliance
by the power cord.
• DO NOT use any extension
cord with this appliance.
• DO NOT use the appliance
outdoors.
• This heater is not equipped
with a device to control
the room temperature.
DO NOT use this heater in
small rooms when they are
occupied by persons not
capable of leaving the room
on their own, unless constant
supervision is provided.
• Always ensure that the
heater is placed on a rm
level surface. Ensure that the
heater is not positioned close
to curtains, furniture or any
combustible materials as this
could create a re hazard.
• Never sit or stand on the re.
• Never use this surround with
a gas re
• Never stand or sit on the
surround.
• Never cut o the plug and
hard wire into a xed fused
spur.
• The heater must not be
located immediately below a
mains socket outlet.
• DO NOT cover the heater as
this may lead to a re risk.
• DO NOT obstruct any of the
openings of the heater.
• DO NOT insert any object
through any openings on the
heater.
• Check the heater from time
to time for accumulated dust.
• DO NOT use the heater
in areas where ammable
liquids are stored or where
ammable fumes may be
present.
• DO NOT operate the heater
on a timer, or leave on
overnight.
6 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
• When not being used, please
unplug the heater from the
mains socket.
• Keep the mains lead away
from the hot body of the
heater and ensure that it is
not pulled tight between the
socket and the heater.
• Always unplug the heater
and allow it to cool before
moving it from one location
to another.
• WARNING! This product
must be installed correctly,
failure to do so may cause
damage to your product and/
or your surroundings.
• DO NOT attempt to
dismantle or repair any part
of the heater. This should
only be done by a qualied
service agent.
• In the unlikely event the
appliance develops a fault,
stop using it immediately
and seek advice from the
Customer Support Team.
HIGH VOLTAGE HOT SURFACE DO NOT COVER
7www.warmlite.co

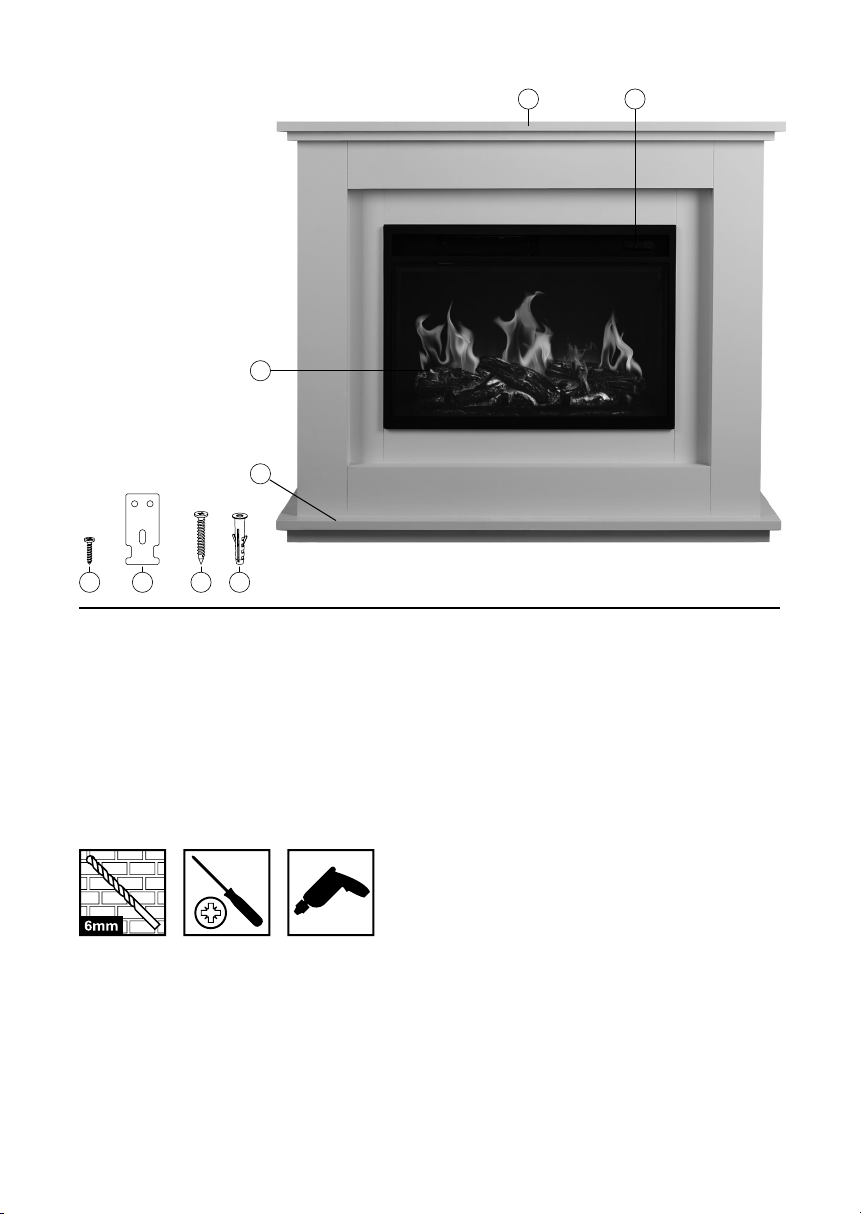

WHAT’S IN THE BOX
Instruction Manual
Remote Control
1. Mantel
2. Controls
3. Log Eect
4. Hearth
5. 16mm screw x4
6. Mirror clip x2
7. 30mm screw x2
8. Wall plug x2
BEFORE YOUR FIRST USE:
1. Remove your appliance from the packaging.
2. Install your appliance in accordance with the installation & safety instructions.
3. Your appliance is now ready for normal use.
Dispose of the packaging in a responsible manner.
WARNING: This product must be installed correctly, failure to do so may result in injury, electric
shock to the user or damage to your product and your Property.
TOOLS NEEDED (not supplied)
1. 2mm & 6mm drill bit (the 6mm drill bit may need to be a masonry bit)
2. Philips screw driver
3. Power drill
The images are for illustration purposes only and might not be a true indication of the actual product.
1 2
3
4
5 6 7 8
8 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
HANDLING
Before continuing any further with the
installation of this re please read the following:
• One person should be sucient to lift the
re.
• When lifting always keep your back
straight. Bend your legs and not your
back.
• Avoid twisting at the waist. It is better to
reposition your feet.
• Avoid upper body / top heavy bending.
Always bend from the knees rather
than the waist. Do not lean forward or
sideways whilst handling the re.
• Always grip with the palm of your hand.
Do not use the tips of ngers for support.
• Always keep the product as close to the
body as possible to prevent unnecessary
and undue strain on the body.
• Use gloves to provide additional grip.
• Always use assistance if required.
UNPACKING THE PRODUCT
The unit is supplied in a single package
carton. Carefully unpack the product using the
following procedure:
• Ensure that the product is in the correct
position with the carton wording legible.
• Remove the straps and sleeve.
• Carefully lift the replace out of the box.
• Remove the protective packaging and
bag from the suite.
• Locate the xing pack put aside.
• Carefully remove the protective lm
covering the re.
IMPORTANT:
This surround is oor-standing
and must be xed to a wall. Please ensure both
the wall and oor are at before installation, and
there is adequate space for installation. Always
ensure there is enough room to place it.
Please ensure that there is an accessible
electrical socket within the space for
installation. The electrical socket must not be
behind or above the suite.
WARNING!
Ensure supply cord is located
correctly within the notches and cannot be
trapped when the surround is tted to the wall.
1. Route the supply cord through the notch
at the back of the suite.
2. Route the supply cord through the side of
the suite as shown. There will be a notch
located at each side of the suite. Use the
notch nearest to the electrical socket.

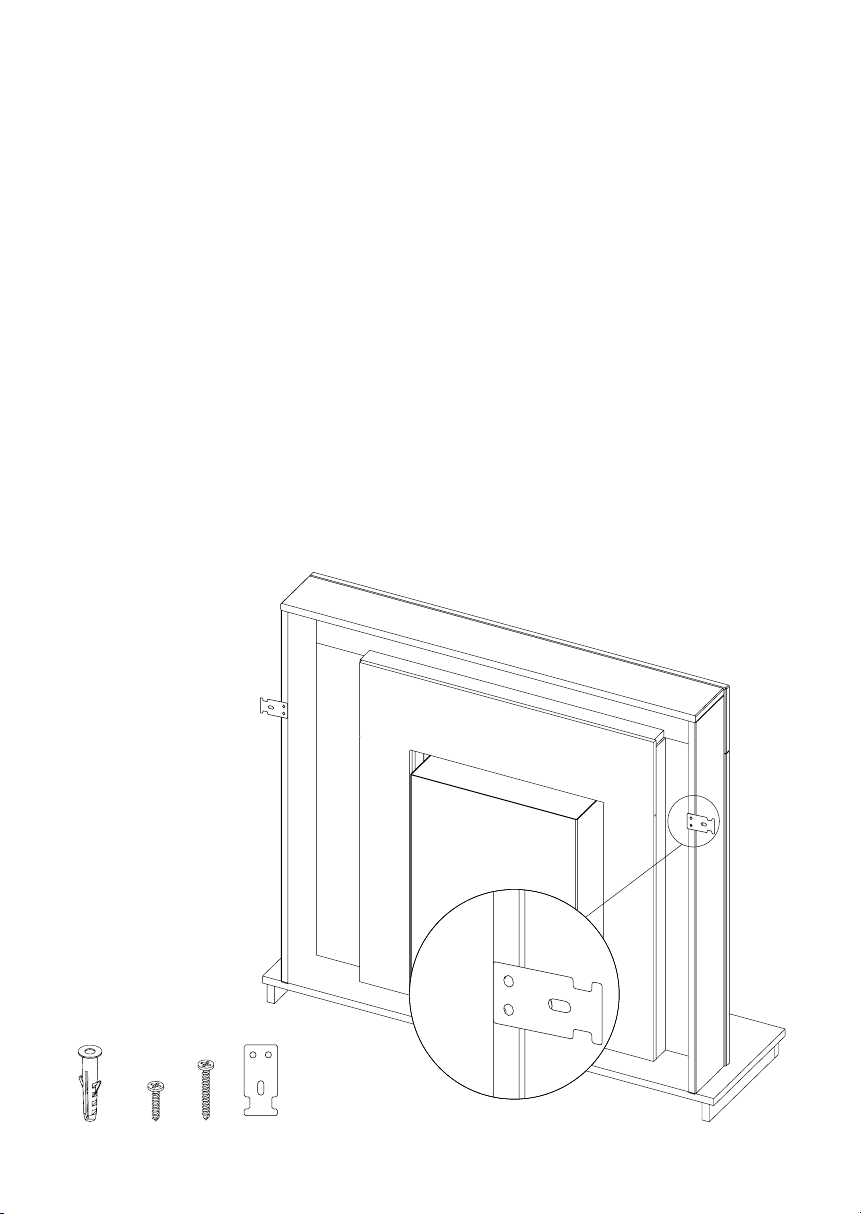

SECURING THE SUITE TO THE WALL
(SEE DIAGRAM ON PAGE 11)
1. Attach a mirror clip to the back of each
edge as shown using the 4 x short
screws. Pre-drill the holes to stop the
MDF splitting, (using a 2mm diameter drill
bit).
2. Place the suite to the wall, and mark the
positions of the remaining holes on both
mirror clips.
3. For solid walls, drill the 2 holes
approximately 35mm deep using a 6mm
diameter drill bit. Note: if tting the re to
plaster board with a cavity behind then
propriety wall xings (not supplied) will be
required.
4. Insert the wall plugs, then secure the suite
with 2 x long screws (supplied).
IMPORTANT: Do not connect the appliance
until it is properly xed to the wall and the
instructions have been read fully.
Ensure the minimum distances below are
observed.
Select a location that is not prone to moisture
and is located at least 36” away from any
combustible materials, such as curtain drapes,
furniture, bedding, paper, etc
9www.warmlite.co
USING YOUR APPLIANCE:
MANUAL OPERATION:
Make sure the ON/OFF switch, located on the
right side panel, is in the OFF position. Plug the
power cord into a 220~240 grounded outlet
(see IMPORTANT SAFETY INFORMATION
section). Make sure the outlet is in good
condition and that the plug is not loose. NEVER
exceed the maximum amperage for the circuit.
DO NOT plug other appliances into the same
circuit.
Power ON/OFF
Heater - Power 1
Heater - Power 2
BUTTON FUNCTION ACTION & INDICATION
ON: Enables control panel
functions and remote
control.
OFF: Disables control
panel functions and remote
control.
ON: Turns the ame on
at its brightest setting. All
functions are on standby,
and the ame on
OFF. Flame eect turns o.
Power and all functions
turn o.
HEATER button: Turns
heater on and o.
NOTE: The heater only
works when the ame eect
is on. If the ame eect is
o, the heater will not turn
on.
NOTE: Heating at 2kw
only works when the 1kw
heat setting is active
NOTE: To prevent overheat-
ing, the heater blows cool
air for 10 seconds before
the heater turns on, and
after it turns o.
Press once. The
Blue indicator will light
up. Heating at 1kw will
commence.
Press once. The
Blue indicator will light
up. Heating at 2kw will
commence.
Press twice. Heating at
2kw turns o.
Press twice. All heating
turns o. The Heater blows
cool air for 10 seconds then
turns o.
NOTE: When the heater is rst turned on, a slight odour may be
present.
This is normal and should not occur again unless the
heater is not used for a long period of time.
10 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
Flame Eect and Heating Mode:
STANDBY-MODE:
At the top right of the screen displays current
time and battery icon.
A. Press the Power Button to Turn on.
The remote will be set to its previous
status when activated
B. Press the Light Button once.
The decorative LED light will come on
Press twice: The Decorative LED light will cycle
through the colour change settings. Pressing
the LED button during the changing cycle will
allow you to select a single colour.
Press the “MODE” button, the ame & heating
function can now be adjusted; the Bar symbol
will show at the top left.
The Flame is its brightest when you rst press;
Press the </> button, to adjust the ame to its
middle and low brightness and to turn o
Pressing the +/- buttons allows you to adjust
the heating in 1000W/2000W
REMOTE OPERATION:
FLAME EFFECT AND HEATING MODE:
Press the “MODE” button to choose the
ame & heating function can now be adjusted;
the symbol will show top left.
Flame is its brightest when you rst press
; Press the </> buttons, to adjust the
ame to its middle and lowest brightness and
to turn o
Pressing the +/- buttons allows you to adjust
the heating between 1000W/2000W
Heating at 1000W
Heating at 2000W
TEMPERATURE SETTING MODE:
1. Press “MODE” to choose
2. Keep pressing “MODE” and the
temperature can be chosen in Fahrenheit
or centigrade
3. Press the +/- button to adjust the
temperature.
TEMPERATURE RANGE:
Fahrenheit 65-95℉
Centigrade18-35℃
4. When the heater is next turned on the
temperature setting will be the same as
the last time the heater was used.
5. (a) If temperature set is lower than the
indoor temperature only the ame eect
will run.
(b) If the temperature set is higher than the
indoor temperature both the ame and
heating will run at the same time.
TEMPERATURE RANGE:
A. Press “MODE” to choose “MON” will
blink on the display.
B. Press the +/- buttons to choose a date
from “MON” to “SUN”.
C. After choosing the day, press </> buttons
to select the hour setting. The hour setting
will now blink and you can press the +/-
buttons to choose what hour you would
like to set.
D. After the hours are set, press the </>
buttons to select the minutes setting. The
minutes setting will now blink, and you
can press the +/- buttons to choose your
minute setting.
11www.warmlite.co
PRESET TIME MODE:
Press “MODE” to choose . “OFF” will blink
under the icon.
Press +/- buttons to switch-over to the Timer
Function
“OFF” turns o all timer functions. “ON ASC ”
will display and switch to smart mode;
Press > button to move to the next step
TIMED HEATING PROGRAMMING:
A. Press “MODE” to choose, ”MON” will blink
on the display;
B. Press +/- button to choose the day from
“MON” to “SUN”
C. After you choose the day, press the </>
buttons to adjust the clock setting
SETTING TIMED PROGRAM START:
1. After step one is complete “START” and
the CLOCK Icon will blink.
2. Press +/- buttons to adjust the hour.
3. Press /> button to go to the next step.
4. The “START” & Minutes display will blink.
5. Press +/- button to adjust the minutes.
6. Press /> switch to next step.
SETTING TIMED PROGRAM END:
1. Once the Start Time has been entered the
“END” & Clock Icon will blink
2. Press +/- buttons to adjust the hour
3. Press /> button to move to next step
4. After the Timer Stop setting is set, “END”
& Minutes will blink on the display.
5. Press +/- buttons to adjust the minute;
6. Press /> button to move to the next step
7. The temperature display will blink.
8. Press +/- switch to adjust the
temperature.
9. Press /> switch to the next step.
Note: A sound will be heard when you
complete the preset time mode.
When the Preset time mode is on, the icon
will show on top of the display
If the preset time mode is wrong, for example
the time to ‘stop running’ is earlier than the
‘begin running’ setting), will show on the
top of the display.
Note: Repeat the above steps to preset each
day of the week.
Note: During the time setting, when the DAY
option is blinking, keep the button
pressed for 3 seconds. The time will reset to
zero [00:00]
When the battery power is low the battery logo
with blink. You should insert a new battery.
The original settings can keep for up to half an
hour if the battery is taken out.
CHECK THAT YOU HAVE NOTED ALL THE
FOLLOWING INSTRUCTIONS:
Do:
• Always install the re in accordance with
this guide. If in doubt obtain expert advice.
• Always make sure the electrical socket is
accessible and located adjacent to, but
not above or behind the re.
• Always disconnect the re from the
electrical supply before carrying out
cleaning or maintenance.
• Always make sure the re is rmly
secured.
• Always assemble the re in accordance
with this guide. If in doubt, obtain expert
advice.
• Always ensure the product is assembled
in an area that is free from dust, grease or
liquids.
• Always ensure that the correct tools are
used to assemble/install this product.
• Always make sure the re is rmly secured
in place when complete.
12 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
Don’t:
• Never leave children unsupervised in a
room where the re is ON and unguarded.
• Never obstruct or cover the fan outlet or
force items into re openings.
• Never install or use the re anywhere
where water is in use, i.e. bathrooms,
kitchens, shower rooms, and swimming
pool etc.
• Never use aerosols or steam cleaners on
or around the re.
• Never route the mains supply cable under
carpet etc.
• Never install the re close to curtains or
combustible materials.
• Never use the re to dry clothes etc.
• Never sit or stand on the re.
• Never cut the o the plug and hard wire
into a xed fused spur.
Note: Any new wiring
required, must be in
accordance with local
and national codes
and other applicable
regulations in order to
reduce the risk of re,
electric shock, or other
injuries.
Note: When the re is turned on for the rst
time or when it has not been used for some
time, it may release a slight, harmless odour.
This odour is a normal occurrence caused
by the initial heating of the internal heating
elements or dust, and will disappear with use.
SAFETY CUT-OUT SYSTEM
WARNING!
Please do not obstruct the air vents of the
electric re.
This appliance has a ‘self resetting’ safety cut
out system. This will activate if the air inlets
or outlets are obstructed. If the Electric Fire is
obstructed, it will overheat. If the temperature
exceeds 85
o
C, the heater element will cut out,
until a safe temperature is regained.
x 2 x 2x 4 x 2
13www.warmlite.co
TROUBLE SHOOTING
Safety Cut-Out device:
To ensure against the potential hazard
caused by blockage of the air outlet, this
unit is equipped with an automatic over-
temperature safety cut-out device. When the
device is activated the heater will not operate.
If this occurs, the unit can be reset using the
following procedure.
1. Turn the re o by depressing the on/o
switch on the unit.
2. Unplug the power cord form the electrical
mains supply socket and leave it
disconnected for at least 15 minutes.
3. Ensure that the air vents are free from
obstruction.
4. Plug the power cord back in to the mains
socket.
5. Turn the re back on.
6. If the re fails to operate, check the fuse
in the plug.
7. If the fuse in the plug is OK and the re
is still not functioning, contact a qualied
service person.
Problem Potential cause Corrective action
The re won’t turn
on.
Mains plug is not plugged in.
The On/O switch hasn’t been
switched on.
The fuse in the plug has blown.
Check the mains socket to ensure the
plug has been inserted correctly.
Switch on using the operation switches.
Check and change the fuse in the plug.
No heat. One or both of the heat
selector switches haven’t been
switched on.
Ensure that the heat selection switches
have been correctly switched on.
Heater operates
and then the heat
cuts out.
The safety cut-out may have
operated.
Follow the procedures as
outlined in the “safety cut -out device”
section.
No light LED not tted correctly or
broken
Check the LED, if broken a replace.
14 CUSTOMER SUPPORT TEAM: +44 (0) 333 220 6056
CLEANING AND CARE
WARNING! Always disconnect from the mains
supply before cleaning the wall re.
For general cleaning use a soft clean duster -
never use harsh abrasive or cleaners.
The glass viewing screen should be cleaned
carefully with a soft cloth.
CAUTION! Allow the product to completely
cool before handling or cleaning it.
Do not allow water or other liquids to run into
the interior of the product, as this could cause
a re and/or electrical hazard.
We also recommend the periodic cleaning
of this appliance by lightly running a vacuum
cleaner nozzle over the guards to remove any
dust or dirt that may have accumulated inside
or on the unit.
CAUTION! Do not use harsh detergents,
chemical cleaners or solvents as they may
damage the surface nish of the plastic
components.
WARNING:
DO NOT IMMERSE ANY ELECTRICAL PART
OF THE APPLIANCE IN WATER SUCH AS
MOTOR UNITS OR PLUGS.
PLEASE SEE CLEANING SECTION FOR
FURTHER INSTRUCTIONS.
DISPOSAL OF THE UNIT
Appliances bearing the symbol shown here
may not be disposed of in domestic rubbish.
You are required to dispose of old electrical
and electronic appliances like this separately.
Please visit www.recycle-more.co.uk or
www.recyclenow.co.uk
for access to information about the recycling
of electrical items.
Please visit www.weeeireland.ie for access to
information about the recycling of electrical
items purchased in Ireland.
The WEEE directive, introduced in August
2006, states that all electrical items must be
recycled, rather than taken to landll.
Please arrange to take this appliance to your
local Civic Amenity site for recycling, once it
has reached the end of its life.
15www.warmlite.co
Model Identier(s): WL45036
Item Symbol Valve Unit Item Unit
Heat Output
Type of heat input for electric storage, local
space heaters only (select one)
Nominal heat
output
Pnom 1,2 kW
Manual heat charge with integrated
thermostat
NA
Minimum heat
output (indicative)
Pmin 0 kW
Manual heat charge control with room
and/or outdoor temperature feedback
NA
Maximum
continuous heat
output
Pmax, c 1,2 kW
Electronic heat charge control with
room
and/or outdoor temperature feedback
NA
Auxiliary electricity
consumption
Fan assisted heat output NA
At nominal heat
output
elmax NA kW
Type of heat output/room temperature control
(select one)
At minimum heat
output
elmin NA kW
Single stage heat output and no room
temperature control
No
In standby mode eISB NA kW
Two or more manual stages, no room
temperature control
No
Heat Output
With mechanic thermostat room tem-
perature control
Yes
Nominal heat
output
Pnom 2.0 kW
With electronic room temperature
control
No
Minimum heat
output (indicative)
Pmin 1,0 kW
Electronic room temperature control
plus day timer
No
Maximum
continuous heat
output
Pmax, c 2.0 kW
Electronic room temperature control
plus week timer
No
Auxiliary electricity
consumption
Other control options (multiple selections
possible)
At nominal heat
output
elmax 2.0 kW
Room temperature control with pres-
ence detection
No
At minimum heat
output
elmin 1,0 kW
Room temperature control with open
window detection
No
In standby mode eISB 0.00029 kW With distance control option No
With adaptive start control No
With working time limitation No
With black bulb sensor No
Contact Details: Imported by RK Wholesale LTD., Berryhill Road, Stoke-on-Trent ST4 2NL
We hope you enjoy your appliance for many years.
As a thank you for purchasing one of our fantastic products,
we are oering you an extra 1 year peace of mind.
*To receive your extra guarantee period, register your appliance online
within 28 days of purchase by visiting:
www.warmlite.co
Make sure to retain your original receipt.
Should you have a problem
with your appliance or need any spare parts please call our
Customer Support Team on:
+44 (0) 333 220 6056
Distributed throughout the UK by RK Wholesale LTD
0319.V2
