S
AFETY INFORMATION
W
ARNING
If t
he information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
Do not s
tore or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
INST
ALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND OPERATION INSTRUCTIONS FOR
102745-XS
102755-XS
102765-XS
102735-XS
2
TABLE OF CONTENTS
Please read and carefully follow all of the instruction found in this manual. Please pay special
attention to the safety instructions provided in this manual. The instructions included here will assure
that you have many years of dependable and enjoyable service from your Remii product.
IMPORTANT INSTRUCTIONS....................................................................................................................................3
UNPACKING AND TESTING APPLIANCE ...............................................................................................................4
GROUNDING APPLIANCE.........................................................................................................................................4
LOCATING THE FIREPLACE.....................................................................................................................................4
102745-XS .....................................................................................................................................................................6
102755-XS .....................................................................................................................................................................7
102765-XS .....................................................................................................................................................................8
SAFETY DRILL SCREW AREA ..................................................................................................................................
OUTDOOR INSTALLATIONS .................................................................................................................................
9
11
MEDIA OPTIONS........................................................................................................................................................19
OPERATION................................................................................................................................................................20
INSTALLING WALL THERMOSTAT........................................................................................................................ 22
REPLACEMENT PARTS ............................................................................................................................................ 23
WIRING DIAGRAM................................................................................................................................................... 25
TROUBLE SHOOTING .............................................................................................................................................. 26
SERVICE HISTORY....................................................................................................................................................27
WARRANTY...............................................................................................................................................................28
INSTALLATION..........................................................................................................................................................12
INSTALLATION BUILT-IN.......................................................................................................................................12
INSTALLATION WALL-MOUNT.............................................................................................................................16
EXPLODED VIEW...................................................................................................................................................... 24
HARDWIRE INSTALLATION.....................................................................................................................................9
FOR BATHROOM USE..............................................................................................................................................10
102735-XS .....................................................................................................................................................................5
3
IMPORTANT INSTRUCTIONS
Read all instructions before installing or using this heater.
2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at
least 3 feet from the front of the heater; keep them away from sides and rear as well.
3. Always unplug heater when its not in use.
4. Do not operate the fireplace if it has a damaged cord or plug, after it has malfunctioned, or if the
unit has been dropped or damaged in any way.
5. Never place the heater where it may fall into a bathtub or other water containers.
6. Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners or anything
else. Arrange the cord away from traffic areas where it could not be tripped over.
7. To disconnect the heater, turn the controls to "OFF" before removing the plug from the outlet.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may
cause an electric shock, fire or damage to the heater.
9. To prevent a possible fire, do not block air intakes in any manner.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint
or flammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury to persons.
12. Avoid the use of an extension cord because the extension cord may overheat and cause a fire.
13. Always use properly grounded fused and polarized outlets.
14. Always use ground fault protection where it is required by electrical codes.
15. Always disconnect the power before performing any cleaning, maintenance or relocation of the
heater.
16. To prevent a possible fire, do not burn wood or other materials in this heater.
17. To prevent electric shock or fire, always use a certified electrician, should new circuits or
outlets be required.
When transporting or storing the heater, keep it in a dry place, free from excessive vibration.
1.
18.
4
UNPACKING AND TESTING APPLIANCE
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the
appliance operates properly by plugging the power supply cord into a conveniently located 120 Volt
grounded outlet.
GROUNDING APPLIANCE
This appliance is for use on 120 Volts. The cord has a plug as shown in (A). An adapter as shown in (C)
is available for connecting three-blade grounding type plugs to two-slot receptacles. The green
grounding lug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is
available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
LOCATING THE FIREPLACE
Plan where to locate and frame the fireplace. This will save time and money later when you install
the fireplace. Before installation consider the following:
1. Where the fireplace is located must allow for wall and ceiling clearances (see INSTALLATION)
2. Consider a location where the fireplace screen will not be exposed to direct sunlight from
windows or doors.
3.
A 15 ampere, 120 Volt, 60 Hz branch circuit with proper ground must be available at the location.
Preferably a dedicated branch circuit should be provided to avoid circuit breakers to trip of fuses
to blow.
Description 102735-XS
Voltage 120V AC 60Hz
Watts
1465W Max
NO H
EATER 25W
MO
TOR HEATER 19W
Applia
nce Width 34 1/8 or 99.5cm
Applia
nce Height 19 7/8 or 50.4cm
Appliance Depth 4 or 10.25cm
Gross Weight 46.3 lbs or 21kgs
Plug Loc
ation Left side
Cord Length 70 7/8 or 180 cm
Rough Wall Opening Size 34" X 20 3/8" or
86.4 cm X 52 cm
BTU
5000
This appl
iance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, use the
current CSA C22.1 Canadian Electrical
Code in Canada or the ANSI/NFPA 70
National Electrical Code in the United
States
102735-XS
5
6
D
escription
102745-XS
Voltage 120V AC 60Hz
Watts
1465W Max
NO H
EATER 25W
MO
TOR HEATER 19W
Applia
nce Width 44 1/8 or 99.5cm
Applia
nce Height 19 7/8 or 50.4cm
Appliance Depth 4 or 10.25cm
Gross Weight 62 lbs or 28kgs
Plug Loc
ation Left side
Cord Length 70 7/8 or 180 cm
Rough Wall Opening Size 44" X 20 3/8" or
111.8 cm X 52 cm
BTU
5000
This appl
iance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated
electric room appliances in the United
States and Canada. If you need
assistance during installation, please
contact your local dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, use the
current CSA C22.1 Canadian Electrical
Code in Canada or the ANSI/NFPA 70
National Electrical Code in the United
States
102745-XS
7
M
odel Number 102755-XS
V
oltag
e 120
V AC 60Hz
Watts
1465W Max
NO HEATER 25W
MO
TOR HEATER 19W
Applia
nce Width 54 1/8 or 137.6 cm
Applia
nce Height 19 7/8 or 50.4 cm
Applia
nce Depth 4 or 10.25 cm
Gross Weight 86 lbs or 39kgs
Plug Location Left side
Co
rd Length 70 7/8 or 180 cm
R
ough Wall Opening Size 54" X 20 3/8" or
137.2cm X 52 cm
BTU
5000
This ap
pliance has been tested in
accordance with the UL Standard 2021
for fixed and location dedicated electric
room appliances in the United States and
Canada. If you need assistance during
installation, please contact your local
dealer.
NOTE: This appliance must be
electrically wired and grounded in
accordance with local codes. In the
absence of local codes, use the current
CSA C22.1 Canadian Electrical Code in
Canada or the ANSI/NFPA 70 National
Electrical Code in the United States.
102755-XS
8
D
escription
102765-XS
Voltage 120V AC 60Hz
Watts
1465W Max
NO H
EATER 25W
MO
TOR HEATER 19W
Applia
nce Width 64 1/8 or 163 cm
Applia
nce Height 19 7/8 or 50.4 cm
Applia
nce Depth 4 or 10.25 cm
Gross Weight 108 lbs or 49 kgs
Plug Loc
ation Left side
Co
rd Length 70 7/8 or 180 cm
Rough Wall Opening Size 64" X 20 3/8" or
162.6cm X 52 cm
BTU
5000
This
appliance has been tested in accordance
with the UL Standard 2021 for fixed and
location dedicated electric room appliances
in the United States and Canada. If you need
assistance during installation, please contact
your local dealer.
NOTE: This appliance must be electrically
wired and grounded in accordance with
local codes. In the absence of local codes,
use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA
70 National Electrical Code in the United
States.
102765-XS
S
AFETY DRILL SCREW AREA
T
here is a safety drill screw area as show below.
Please make sure that the fix screws are in this area.
T
he manual control pad position
Safety drill screw area
(Dark area)
HARDWIRE INSTALLATION
Turn
off the appliance completely and let cool before servicing. Only a qualified service person
should service and repair this electric appliance.
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection,
and wire the appliance directly to the household wiring.
This appliance must be electrically connected and grounded in accordance with local codes, if hard
wired. In the absence of local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in
Canada or the current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the United States.

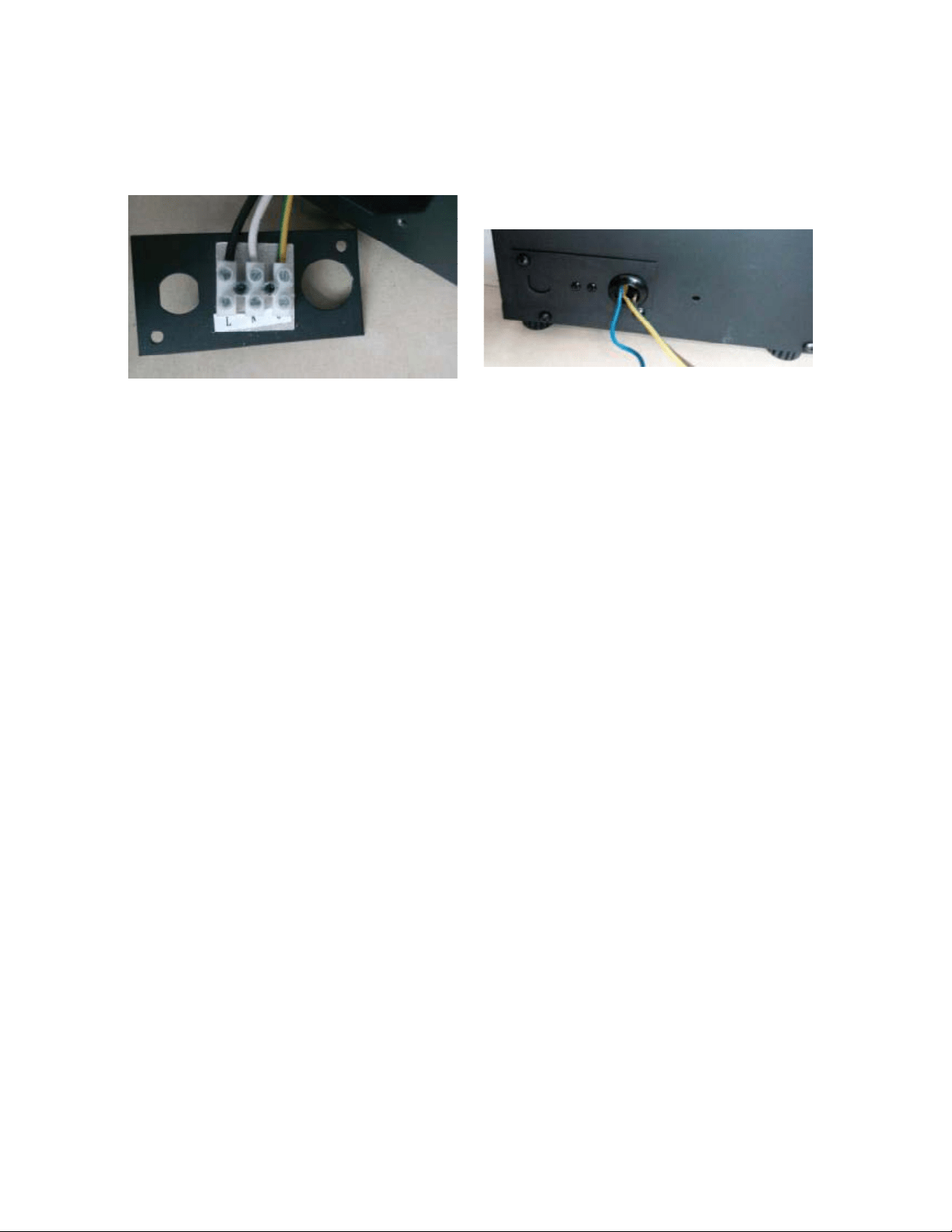

1. Remove the cover plate from the left side of the appliance by removing the two screws,
as
show
n below. Unscrew and remove power cord.
9
2. A
ttach the wiring to the junction block. Please make sure the live wire goes into the L, th
e
neu
tral wire into N and the ground wire into G
.
3. P
ut the plate back and screw ba
ck.
FOR BATHROOM USE
If the unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is
used it must be readily accessible.
To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight
and must be installed as to prevent water from entering unit. This must be installed away from showers,
tubs, etc. Never locate fireplace where it may fall into a bathtub or other water container.
All wiring connections to line power shall be in accordance with local building code requirements. Inquires
about local codes and regulations must be done prior to installation.
10
!"#$% &&'(
)&&$*$+, -(
, .&$$% &'&/0**$+, -1
* 0(
11
OUTDOOR INSTALLATIONS
The 102735-XS, 102745-XS, 102755-XS and 102765-XS electric fireplace are suitable for installation in
outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel
and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front
and to each side of the installed appliance. See illustration below. All wiring connections to line power
shall be in accordance with local building code requirements. Inquires about local codes and regulations
must be done prior to installation.
INSTALLATION
9:
6
The rough wall opening size of the fireplace:
W() D() H()
102745-XS 44 4 1/2 20 3/8
102755-XS 54 4 1/2 20 3/8
102765-XS 64 4 1/2 20 3/8
7
Built-in Installation Instructions
12
102735-XS 34 4 1/2 20 3/8
The 102735-XS, 102745-XS, 102755-XS and 102765-XS models are designed to be either built-in or
wall-mounted depending on preference. These units allow for the finishing material (drywall, stone, tile,
etc) to be built right down to the glass edge. However, that application is not always desirable or
available so the surround could be used as an alternate finish option.
!
13
$ -
& 8
9:;
14
15
' .
) < , =
(5
16
"
!,-%"
.
/ 0 1 0
2',34
!
17
!
! 5
18
$
19
MEDIA OPTIONS
The 102735-XS, 102745-XS, 102755-XS and 102765-XS are shipped with two mixture media shows
below: the Canyon brown and Ocean blue. Consumers may purchase optional decorative media if they
choose. See dealer for more details.
Canyon brown
Ocean blue
Unplug the unit from the power and make sure it is switched off. Unscrew the adjustable screws to take
off the front glass.
Pour the fire glass media into the try. Feel free to use any combination of fire glass media that you find
most appealing. Put back the front glass after you finish the fire glass decoration.
20
OPERATION
The fireplace can be operated either by the switches located on the left bottom of the fireplace unit
or by supplied remote control.
Plug the fireplace into a 15 Amp wall socket.
MANUAL OPERATION
1. The main power ON/OFF switch in position O, the fireplace is OFF.
2. When main power ON/OFF switch is at position I, the fireplace is ready to use.
3. Press the Heat button repeatedly to set the heater to desired heat setting. The heater indicator
LED will glow which shows the current heater settings.
a) RED 1465W HEAT OUTPUT
b) BLUE 750W HEAT OUTPUT
c) PURPLE AUTO MODE
AUTO MODE
Under this mode the heater will automatically turn ON at high heat setting 1465W heat output when
the room temperature drops below 22(72 ). When the room temperature is between
22-25(72-77
) the heater output will switch to low heat setting 750W. When the room
temperature goes above 25(77) the heater will be turned off and the cycle will continue. The
LED indicator will be PURPLE in colour under this mode.
4. Flame effect: Press the button marked Flame to adjust the flame brightness. The flame
brightness will cycle through Low-Medium-High -OFF.
NOTE:
If operated at the Low heat setting, the fireplace will not provide as much heat output as in
the High heat setting, however the low setting will not require as much electrical power to operate.
To avoid overloading a circuit, do not plug the fireplace into a circuit that already has other
appliances working. When the fireplace is not in use switch off and unplug.
SAFETY CUT-OFF
This appliance is fitted with a safety cut-off which will operate if the fireplace overheats (eg. Due
to blocked air vents). For safety reasons, the fireplace will NOT automatically reset.
To reset the appliance, disconnect the appliance from the main supply for at least 10 minutes.
Reconnect the supply to the main and switch on the appliance.
21
REMOTE CONTROL OPERATION
For remote to function make sure the heater is plugged in and main power switch located on the
bottom left hand side is at position I.
When operating the remote make sure you point the remote to the centre of the fireplace and make
sure each time you press the button the buzzer inside the unit will bee p once. It takes some time for
the receiver to respond to the transmitter. Do not PRESS the buttons more than once within two
seconds for correct operation.
Power on
button: The power-on button at top left corner of the remote is the main ON/OFF
power button. This will turn off all the functions and the fireplace will be in standby mode.
DISPLAY ON/OFF button: Switching the fireplace flame and tray light ON/OFF. It has functions of
setting memory.
DISPLAY BLUE button: Adjust the blue color brightness of flame and tray.
DISPLAY YELLOW button: Adjust the yellow color brightness of flame and tray.
DISPLAY ORANGE button: Adjust the orange color brightness of flame and tray.
HEATER ON/OFF button: Switching the heater ON/OFF. It has functions of setting memory.
HIGHT button: Press the high button to switch the heater to high heat setting 1465W.
LOW button: Press the low button to switch the heater to low heat setting 750W.
TEMP. button: Press the TEMP. button to switch the heater to AUTO mode. Under this mode the
heater will operate in similar way as explained above for the manual operation.
22
INSTALLING WALL THERMOSTAT
WALL THERMOSTAT WIRING DIAGRAMS
Wire the wall thermostat prior to installing the fireplace.
WALL THERMOSTAT WIRING(24 VAC)
Install Wall Thermostat per instructions provided with kit and per the following information:
1. Turn off circuit breaker.
2. Remove cover plate located on the left side of appliance.
3.
Pull the wire out and cut the inside thermostat. Connect the wires to the wall thermostat as
shown below. Follow instructions provided with wall switch kit.
23
REPLACEMENT PARTS
This list contains replacement parts
NO PART NUMBER DESCRIPTION QTY.
102745-XS 102755-XS 102765-XS
1 TRIM 1
2 10201505 ADJUSTABLE SCREW 2
3 3133009 FRONT GLASS BRACKET 2
4 10701249 10701251 10701253 FRONT GLASS 1
5 10702183 10702185 10702187 FLAME EFFECT GLASS 1
6 601139B
LED LIGHT(LED3-23-2)
0 / 1 / 2 / 0
6 601140B
LED LIGHT(LED3-33-2)
2 / 2 / 2 / 4
7 3134504 3136504 3138504 FLICKER ASSEMBLY 1
8 10101225 FLICKER MOTOR 1
10 10702177 10702179 10702181 BOTTON GLASS 1
11 10114001B TEMPERATURE SENSOR 1
12 10104002 SWITCH 1
13 301506 REMOTE RECEIVER 1
14 601097B CIRCUIT BOARD(LRC16-03) 1
15
602082B
1
16 601032B CONTROL PANEL 1
10105064 REMOTE Not shown
BLOWER AND HEATER
ASSEMBLY(FRT45-240)
102735-XS
3148501
10701274
10702198
3148504
10702202
3134501 3136501 3138501
FOR TRAY
FOR TRAY
6 601139B
LED LIGHT(LED3-23-2)
0 / 1 / 2 / 0
6 601140B
LED LIGHT(LED3-33-2)
2 / 2 / 2 / 4
FOR FLAME
FOR FLAME
24
EXPLODED VIEW
Wiring diagram
25
26
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Dim or no flame Flame LEDs are burnt out Inspect the LEDs and replace them if
necessary.
Ember bed is not
glowing or dimming
Ember LEDs are burnt out Inspect the ember bed LEDs and
replace them if necessary.
Appliance has overheated and
safety device has caused the
thermal switch to disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes, then
turn it on.
House circuit breaker has
tripped
Reset house circuit breaker.
Appliance turns off and
will not turn on
Appliances fuse has blown Replace the fuse.
Appliance is not plugged into an
electrical outlet
Check plug and plug in.
Appliance has overheated and
safety device has caused the
thermal switch to disconnect
Turn off the main switch, allow
appliance to cool for 10 minutes, then
turn it on.
Appliance will not come
on when switch is
flipped to ON
Circuit board is burnt out Inspect the circuit board and replace
it if necessary.
No warm air coming out
of appliance
Heater is burnt out Inspect the burner and heater
assembly and replace it if necessary.
Flame sputters
Flame motor is defective. Call a qualified service technician and
replace flame motor.
Remote Control does
not work.
Low batteries.
Unit switch in O position.
Replace AAA batteries in remote
control.
Turn the switch in I position.
Flame is fixed. Wiring may be loose or the
flame motor may be defective.
27
SERVICE HISTORY
This heater must be serviced annually depending on usage.
Date Dealer
Name
Service technician
Name
Service Performed Special Concerns
NOTES:
28
