1. Product Summary
1.1 Product Profile
RD510 Battery Tester adopts the state-of-the-art conductance testing
technology to easily, quickly, and accurately measure the actual cold
cranking amps capability of the vehicle starting battery, healthy state of
the battery itself, and common fault of the vehicle starting system and
charging system. With a wide testing range from 100 -2000CCA
compatible with regular flooded, AGM flat plate, AGM spiral, or gel
batteries. Cove
rs most of the battery rating stand ards like CCA, BCI, CA,
MCA, JIS, DIN, IEC, EN, SAE, etc. It can help maintenance personnel to
find the problem quickly and accurately, thus to achieve qui ck vehi cle
repair. The charger is designed to charge 12V lead-acid batteries from
4AH-100AH, please check the battery specifications before using this
charger.
1.Test all automotive cranking lead-acid batteries, i ncluding ordinary
lead-acid batteries, AGM flat plate battery, AGM s
piral battery, and Gel
battery, etc.
2.Directly detect bad cell battery.
3.Feature reverse polarity protection: the reverse connection may not
damage the tester or affect the vehicle and battery.
4.Directly test the battery with loss of electricity. Full charge is not
required before testing.
5.Testing standards cover most of the world's battery standards, such
as CCA, BCI, CA, MCA, JIS, DIN, SAE.
6.Support multi-languages, customer can select different language
pa
ckage, which includes English, German, French, Dutch, Russian,
Spanish, Italian, Portuguese.
7.If you have any good idea or problems, please contact us by
email: [email protected]
1.2 Product Function
RD510 battery tester features the following functions: battery load test,
cranking test, charging test, battery maintainer(pulse repair), trickle
charger, battery desulfator and other additional functions.
The battery test mainly aims to analyze the batt
ery's health status to
calculate the actual cold cranking capability of the battery and the aging
extent, which provide reliable analysis evidence for the test and
-
2
-
maintenance of the battery. It may notify the user to replace the battery in
advance when the battery gets aged.
The cranking test is used to test and analyze the starting motor. Testing
the actual required cranking current and cranking voltage of the starting
motor is helpful to determine whether the starting motor works properly or
not. If the starting malfunction may cause an increased starting loaded
torque; or rotor friction of the starting motor generates increasing
friction of
the starting motor itself.
Charging test is to check and analyze the charging system, including
generator, rectifier, rectifier diode, etc., thus to find out whether the output
voltage of the generator is normal, the rectifier diode works properly and the
abnormal, it wi ll lead to overcharge or incomplete charge of the battery, thus
cause quick damage to the battery and greatly shorten the life of other
loaded appliance.
1.3 Technical Parameters
Measurement Standard
Measurement Range
CCA
100-2000
BCI
100-2000
CA
100-2000
MCA
100-2000
JIS
26A17-245H2
DIN
100-1400
IEC
100-1400
EN
100-2000
SAE
100-2000
AC input
100-240V/50-60Hz
Output Voltage
12V
Output Current
5A
Output Volt No Load
13.8V
Minimum Start Volt
>2.0V
Input Power with Load
Max 80W
Input Power No Load
3W
Cooling
Fan
Voltage Measurement Range 8-16V DC
-
3
-
1.4 Working Environment Requirement
Working Environment Temp: 0°C- 50°C/ -32°F - 122°F
It is applicable for automotive manufacturers, automotive
maintenance and repair workshops, automotive battery factories,
automotive battery factori es, automotive battery distributors, and
educational organizations, etc.
Compatible with all types of vehicles - charge and maintain cars,
motorcycles, lawn mowers, ATVs, lawn tractors, trucks, SUVs,
boats, PWCs, classic ca
rs, and more.
1
.5 Package Including
1 x RD510 Smart Battery Charger
1 x Charging Cable
1 x User Manual
2. Battery Repair & Charge & Test
2.1 Battery Repair
Automatic sulfating and acid stratification detection. The advanced
repair mode can repair and reverse the damaging effects when
batteries are l eft uncharged for extended periods to improve
battery performance and longevity. (Note: The pulse repair function
can only be used when the car battery is disconnected from the
c
ar.)
From the startup screen, or press ENTER button to enter Main
Menu.
Main Menu
1
/5
1.Check
2.
B
attery Repair
3.Battery Charge
4.Review
5. Setup
-
4
-
Press UP/DOWN key to select Battery Repair, then press ENTER key to
confirm.(You can also press Repair shortcut key to enter)
2.2 Battery Charge
Max output 12-volt 5-amp, input 100-230-volt, charge dead
batteries as low as 2-volt.
Automatic monitoring of the entire charging process through a
microprocessor-controlled program. Auto change into low current
mode after fully charged.
From the startup screen, or press ENTER button to enter Main Menu.
Main Menu
1
/5
1.Check
2.Battery Repair
3 .Battery Charge
4.Re view
5
. Setup
Press UP/DOWN key to select Battery Charge, then press ENTER
button to confirm.(You can also press Repair shortcut key to enter)
-
5
-
2.3 Battery Test
From the startup screen, or press ENTER button to enter Main Menu.
Main Menu
1
/5
1. Check
2.Battery Repair
3.Battery Charge
4.Review
5. Setup
Press UP/DOWN key to select Check, then press ENTER key to confirm.
Entering Check, please select Battery In-vehicle or Out-of-Vehicle.
Press UP/DOWN key to select the battery location, in vehicle or out of
vehicle, then press ENTER key to confi rm.
Battery Location
1
/2
1.
Out-of-Vehicle
2. In-Vehicle
2.4 Battery Test in Veh icle
-
6
-
When surface charge detected by the tester, it prompts "Surface
charge, turn lights on". Please turn lights on as prompted to eliminate
battery surface charge, and the tester will display the following
messages in a sequence.
In-Vehicle
1/2
1.Battery Test
2.Cranking Test
3.Charging Test
Now the tester detects the surface charge has been eliminated, turn lights
off as prompted, then press ENTER key, the tester will recover automatic
test.
Select Battery Type
After the battery charge status selected, tester will propmt to select battery
type, i.e. Regular Flooded, AGM Flat plate or AGM Spiral, Gel and EFB
battery. Press UP/DOWN key to select battery type, then press ENTER
button to confirm.
Battery System Standard and Rating
RD510 battery tester test each battery according to the selected system
and rating.
Use UP/DOWN key to select according to the actual system standard and

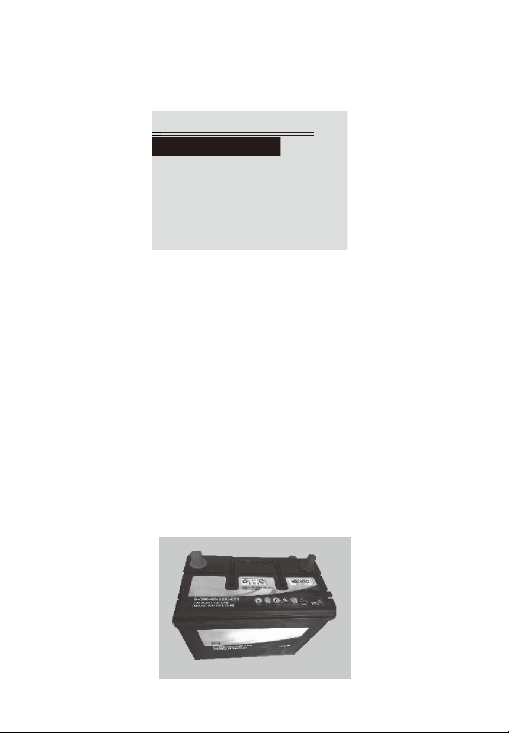

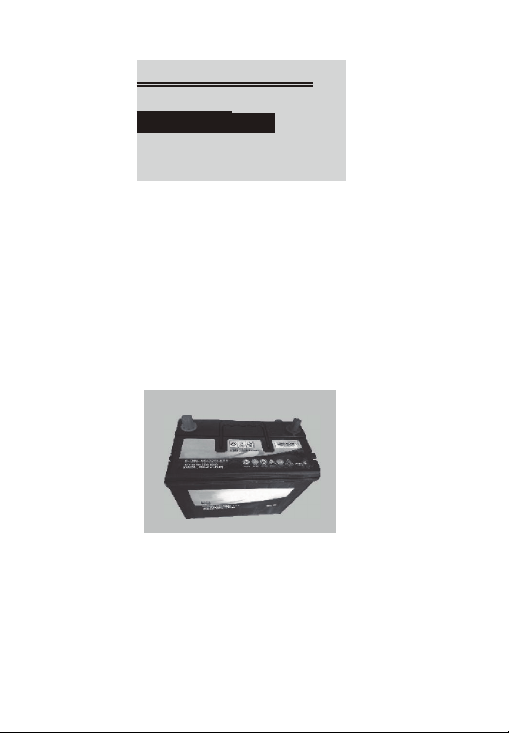

rating marked on the battery. Please check the picture below, the arrow
indicates location.
-
7
-
CCA: Cold Cranking Amps, specified by SAE&BCI, is
most frequently used value for starting battery at
0°F(18°C).
SCI: Battery Council international standard.
CA: Cranking Amps standard. Effective starting current value at 0°C.
MCA: Marine Cranking Amps standard, effective starting current value
at 0°C.
JIS: Japan Industrial Standard, displayed on the battery as combination
of the numbers and letters, e.g. 55D23, 80D26.
DIN: German Auto Industry Committee
Standard.
IEC: Internal Electron Technical Commission
Standard.
EN: European Automobile Industry Association
Standard.
SAE: Society of Automotive Engineers Standard.
From the [Select Type] screen, press UP/DOWN key to select the
standard, then press ENTER key to confirm.
Select Standard
1/9
1.CCA
2.IEC
3.EN
4.DIN
5.CA
6.BCI
Rating range as following:
Measurement Standard
Measurement Range
CCA
100-2000
BCI
100-2000
CA
100-2000
MCA
100-2000
-
8
-
JIS
26A17-245H2
DIN
100-1400
IEC
100-1400
EN
100-2000
SAE
100-2000
Input correct test standard and rating, press ENTER key, the tester starts to
test, and the dynamic interface "Under measureme nt..." will prompt.
400A
CCA
Set Battery Rat1ns
It takes around 1 seconds to display the battery test result.
NOTICE:
The battery cca tester never discharges or drain the battery. If there are
abnormal test results, maybe your battery is overcharged or incompletely
charged. Therefore the battery will be damaged or its life will be greatly
shortened, you will need to take actions to deal with this issue.
1. Good Battery
S
TD: 500 A CCA
S
O H:100 % 654A
S
OC: 38% 12.53 V
R
:4.59 mΩ
GOOD BATTERY
Battery Test
The battery is good with no problem.
-
9
-
GOOD RECHARGE
CCA
8
1A
11.93V
STD: 100 A
S
OH:65%
S
OC: 0%
R:37.10mΩ
Battery Test
2.
Good, Recharge
The ba ttery is
g
ood but with low current. Please recharge before
using.
3.
Replace
Battery Test
STD: 700A CCA
SOH:19 % 311A
SOC: 38% 12.23V
R:9.67 mΩ
REPLACE
The battery is near to or already reached the endof the using life. Please
replace the battery.
-
10
-
CHARGE-RETEST
CCA
59A
10.93V
STD: 100A
S
OH: 34%
S
OC: 0%
R
:50.50mΩ
Battery Test
4.
Bad cell, Replace
Battery Test
STD:500A CCA
SOH: 0% 9A
SOC: 0% 12.53V
R:43.29mΩ
BAD CEL
B
a
tt
ery interior da
m
age
d, b
a
d
ce
ll
or short circuit, please r
epl
ace
ba
tt
e
ry.
5.
Charge, Retest
Unstable battery shall be recharged and retested to avoid error. If
same test result appears after recharge and retest, the battery is
regarded as damaged, replace the battery.
Attention: If "Replace" result from IN-VEHICLE mode, it might be the
reason that vehicle cable is not well connected with the battery. Ensure
to cut off the cable and retest the battery under OUT-OF-VEHI
CLE
before making a decision to replace battery.
NOTE: After testing, if need to Exit, press ESC key to directly Exit to the
startup interface.
2.5 Battery out of vehicle test
OUT-OF-VEHICLE means battery is not connected with any of
the vehicle loaded, i.e. battery connection is cut off.
From the startup screen, or press EXIT button to enter Main Menu.
Press UP/DOWN key to select the battery location, in vehicle or out of
-
11
-
vehicle, then press ENTER key to confirm.
Battery Location
1
/2
1. In-Vehicle
2. Out-of-Vehicle
Select Battery Type
After the battery charge status selected, tester will promt to select
battery type, i.e. Regular Flooded, AGM Flat plate or AGM Spiral, Gel
and EFB battery, press UP/DOWN key to select battery type, then
press OK key to confirm.
Battery System Standard and Rating
RD510 battery tester test each battery according to the selected system
and rating.
Use UP/DOWN key to select according to the actual system standard
and rating marked on the battery. Use UP/DOW
N key to select
according to the actual system standard and rating marked on the
battery. See in the below picture, the arrow indicated location.
CCA: Cold Cranking Amps, specified by SAE&BCI, most frequently
used value for starting battery at 0 °F(-18 °C).
BCI: Battery Council international standard.
CA: Cranking Amps standard, effective starting current value at 0
°
C.
MCA: Marine Cranking Amps standard, effective starting current
value at 0°C.
JIS: Japan Industrial S
tandard, displayed on the battery as
combination of the numbers and letters, e.g. 55D23, 80D26
DIN: German Auto Industry Committee Standard.
-
12
-
IEC: Internal Electron technical Commission Standard.
EN: European Automobile Industry Association Standard.
SAE: Society of Automotive Engineers Standard.
From the [Sel ect Type] screen, Press UP/DOWN key to select the
Standard, then press ENTER key to confirm.
Select Standard
1
/9
1 CCA
2.
.
IEC
3. EN
4. DIN
5. CA
6. BCI
Rating range as following :
Measurement Standard
Measurement Range
CCA
100-2000
BCI
100-2000
CA
100-2000
MCA
100-2000
JIS
26A17-245H2
DIN
100-1400
IEC
100-1400
EN
100-2000
SAE
100-2000
- 1 -
40 0A
CCA
Set Battery Ratins
STD: 500A CCA
SOH:100% 654A
SOC: 3
3
8% 12.53V
R:4.59
mΩ
GOOD BATTERY
Battery Test
Input correct test standard and rating. Press ENTER key, and the tester
starts to test, and dynamic interface "Under measurement ..." prompts.
It takes around 1 seconds to display the battery test result.
NOTICE:
The battery cca tester never discharges or drain the battery. If there are
abnormal test results, maybe your battery is overcharged or incompletely
charged. Therefore the battery will be damaged or its life will be greatly
shortened, you will need to take actions
to deal with this issue.
1. Good Battery
The battery is good with no problems.
- 1 -
GOOD RECHARGE
CCA
8
1A
11.93V
STD: 100 A
S
OH: 65%
S
OC: 0%
R:37.10mΩ
Battery Test
2. Good, Recharge
Good battery but low current, recharge before using.
3. Replace
Battery Test
STD: 700 A CCA
SOH:19% 311A
SOC: 38% 12.23V
R:9.67mΩ
REPLACE
The battery is near to or already reachedthe end of the usinglife, please
replace battery otherwise, bigger danger will be followed.
4.Bad cell, Replace
Battery Test
STD: 500A CCA
SOH: 0% 9A
SOC: 0% 12.53V
R:4
4
3.29mΩ
BAD CEL
Battery interior damaged, bad cell or short circuit, please replace the battery.
- 1 -
CHARGE-RETEST
CCA
59
A
10.93V
STD:100A
SOH: 34%
SOC: 0%
R:50.5
5
mΩ
Battery Test
4.
Charge, Retest
Unstable bat tery shall be recharged and retested to avoid error.If
same test r esult appears after recharge and retest, the battery is
regarded as damaged, replace the ba ttery.
2.6 Review
Review waveform
From
the
s
ta
rtup
scr
een,
or press ENTER button to enter Main Menu.
Press UP/DOWN button to select the [Revi ew] function in the Main
Menu and press ENTER button. The screen will display the interface as
shown below:
Review
1
/2
1.Review the last result
2.Delete result
Review the last result
From
the
startup
scr
een,
or pr
ess
EXIT
button
to
enter Main
Menu.
Press UP/DOWN button to select the [Review] function in the Main
Menu and press ENTER button. The screen will display the interface
as below:
Battery Test
STD: 500A CCA
SOH:100%
6
54A
SOC: 38% 12.53V
R:4.59 mΩ
GOOD BATTERY
Review
1
/2
1.Review the last result
2.Delete result
Press UP/DOWN button to select Review the last result function and
press ENTER button, the screen will display the interface as shown below:
Press UP/DOWN button to select Review SOH or SOC.
3. Service Procedures
If
you have
any
questions or good advice, please contact:
- 1 -
