Vevor HK4200A-3 User Manual
User Manual Vevor HK4200A-3 150HP Hydraulic Outboard Steering Kit Boat Marine System
Documents for Vevor HK4200A-3
The following documents are available:
Installation Instruction
INSTRUCTION MANUAL - (English)
Read Online
|
Download pdf
Photos
Photos:
View Photos
INSTRUCTION MANUAL
For HK4200A-3.
Page 1/25
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Page 24
Page 25

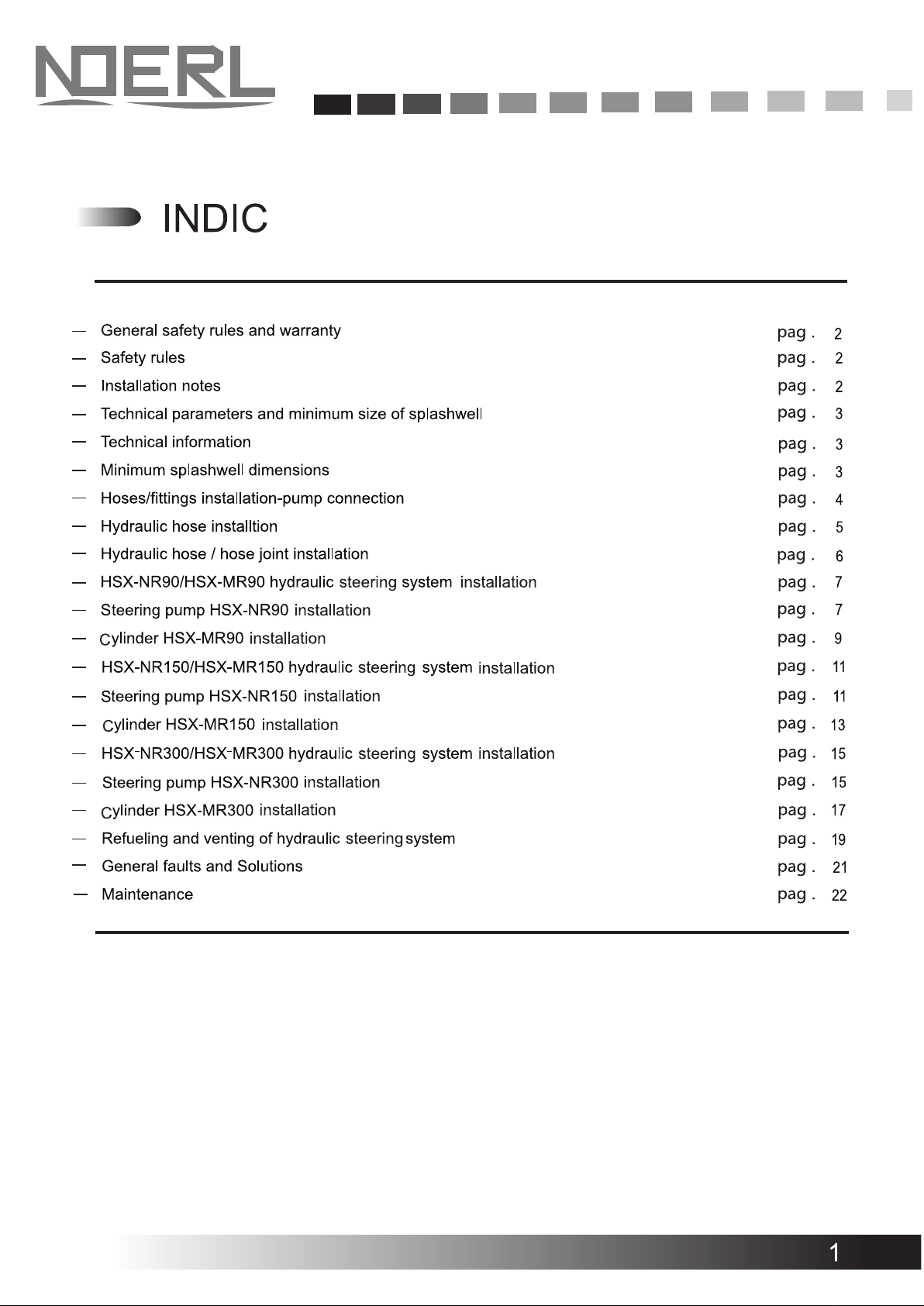

Contents
Table of Contents
Search
Previous
Next
Bookmarks
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Vevor HK4200A-3:

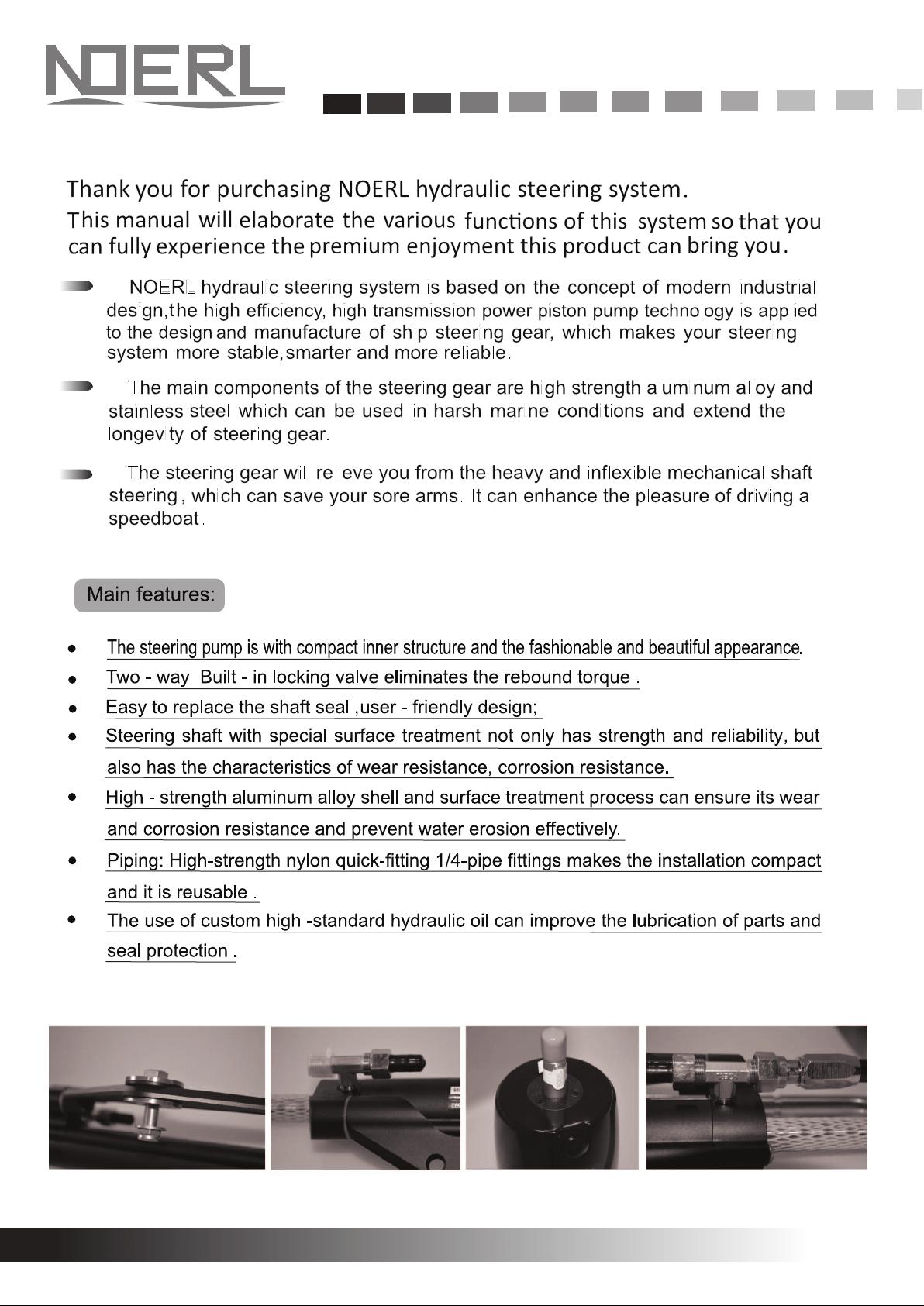

General Safety Rules And Warranty
2
Safety Rules
2
Installation Notes
2

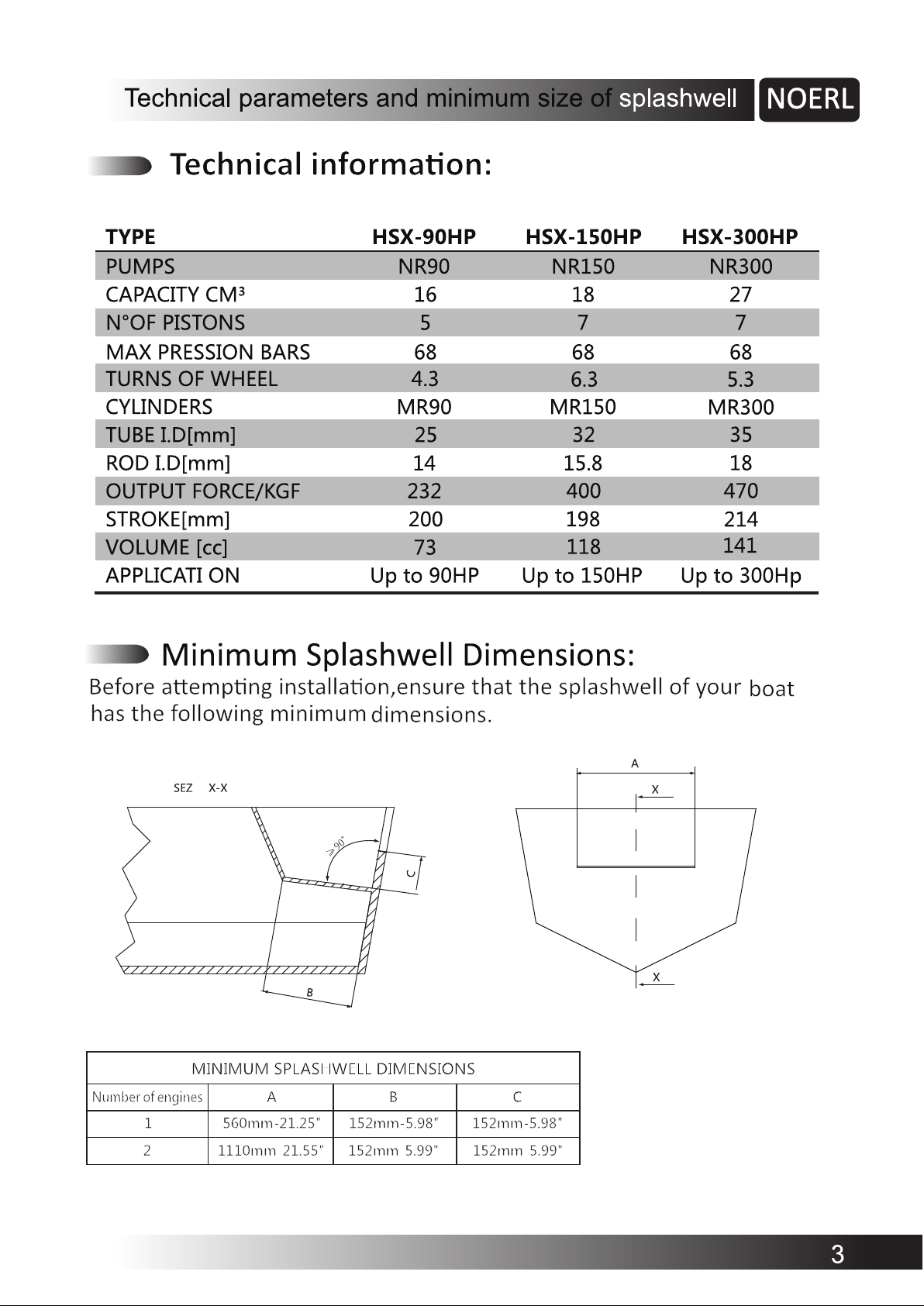

Technical Parameters And Minimum Size Of Splashwell
3
Technical Information
3
Minimum Splashwell Dimensions
3

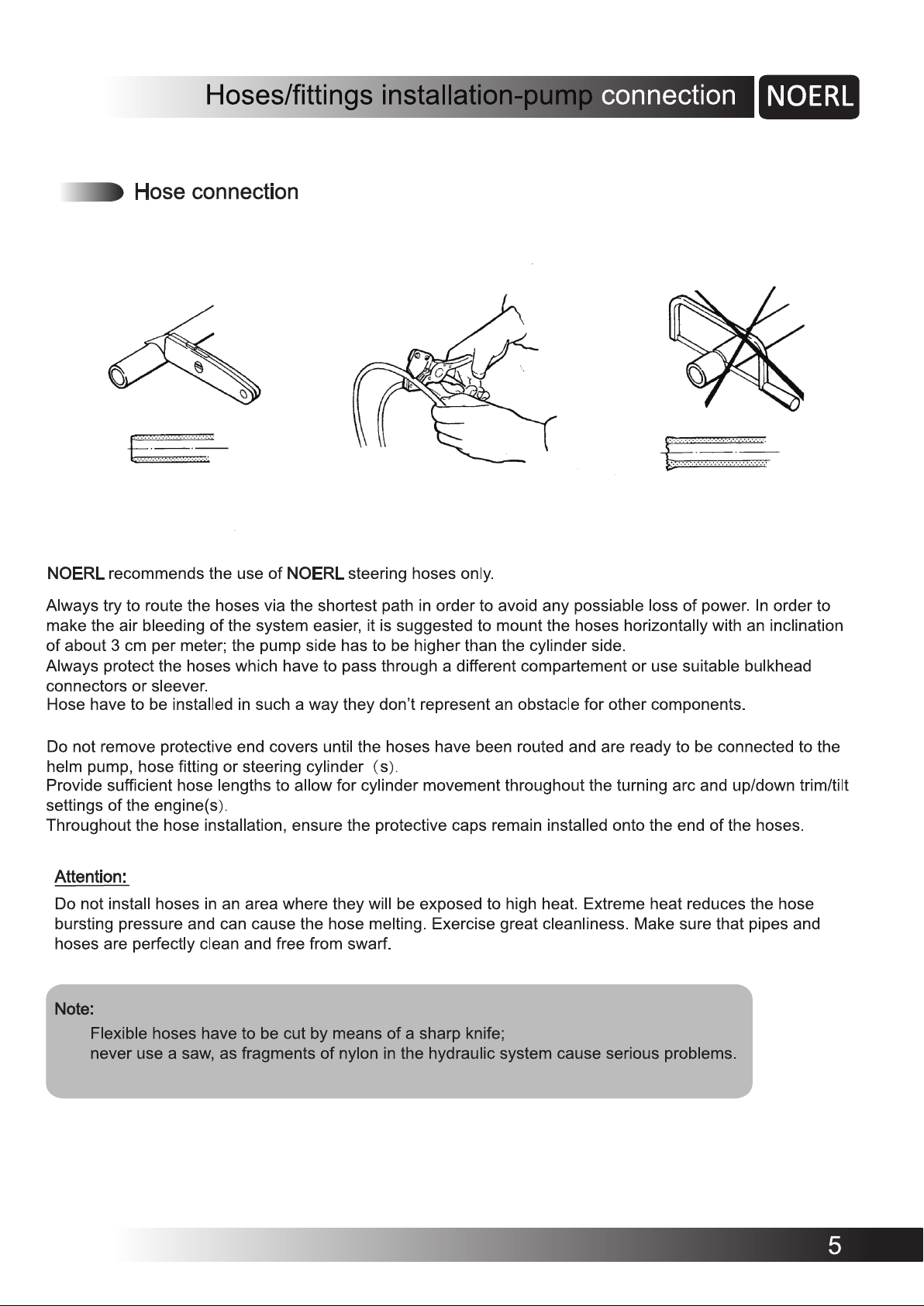

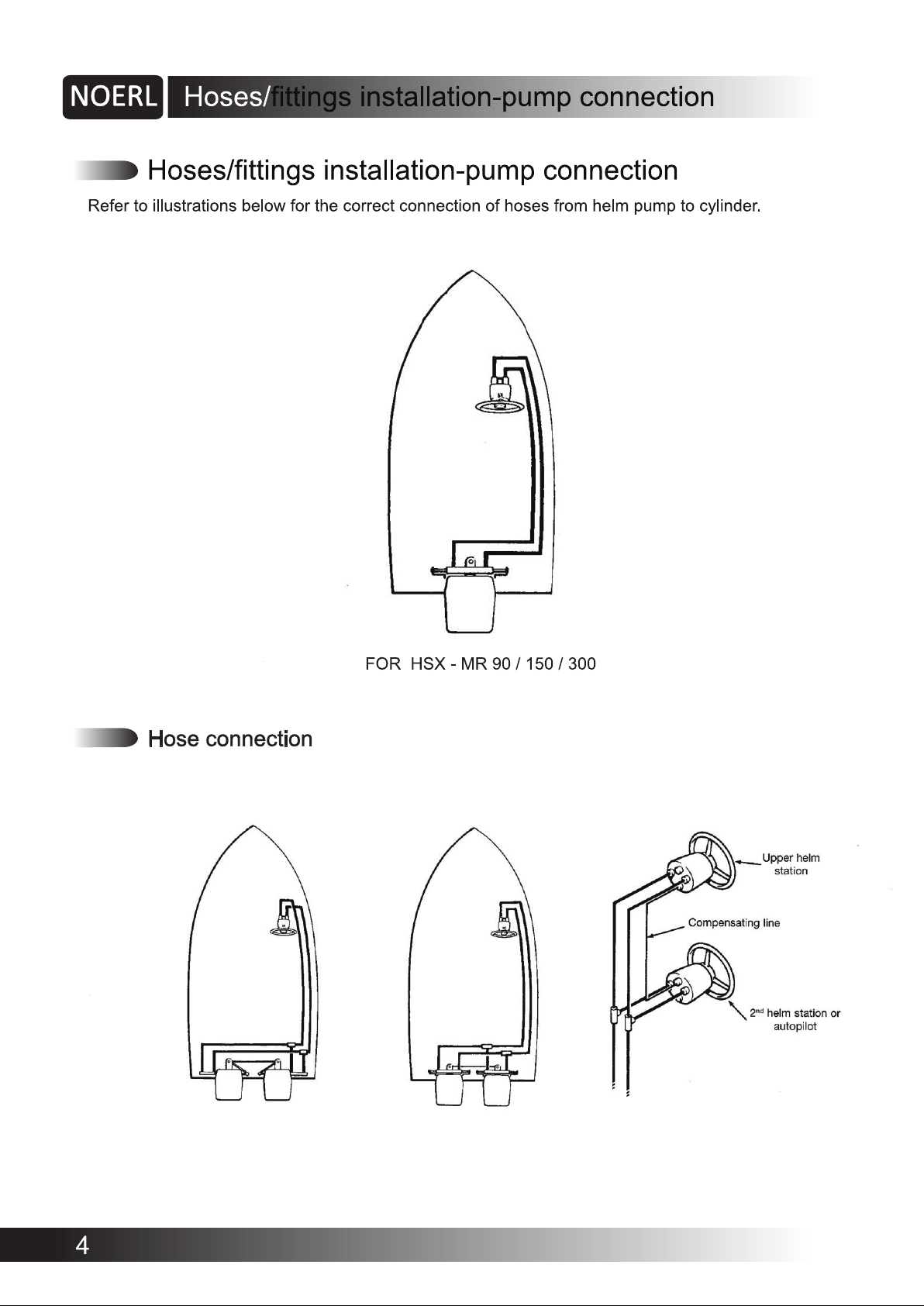

Hoses/fittings Installationpump Connection
4

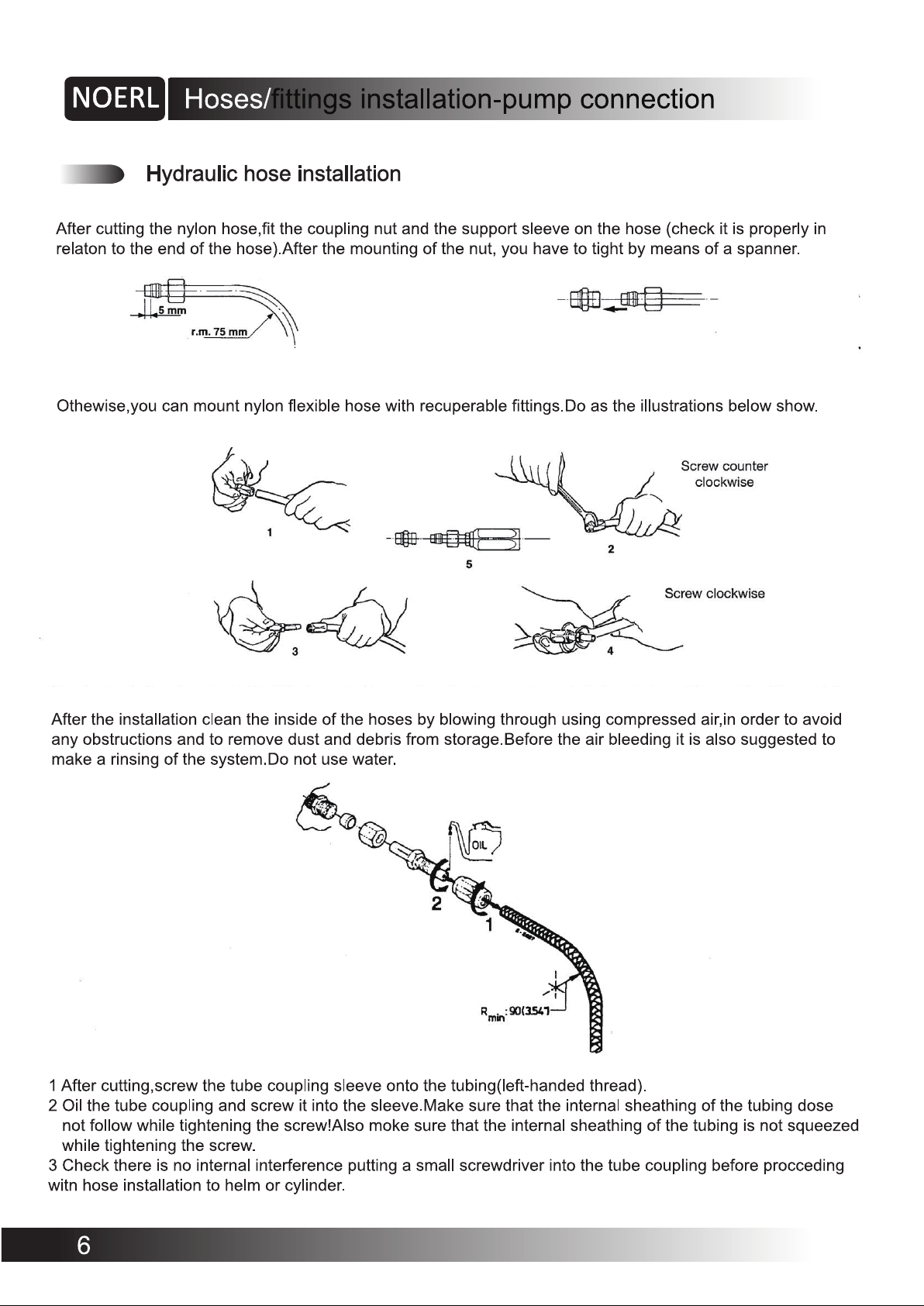

Hydraulic Hose Installtion
5
Hydraulic Hose / Hose Joint Installation
6
HSXNR90/HSXMR90 Hydraulic Steering System Installation
7

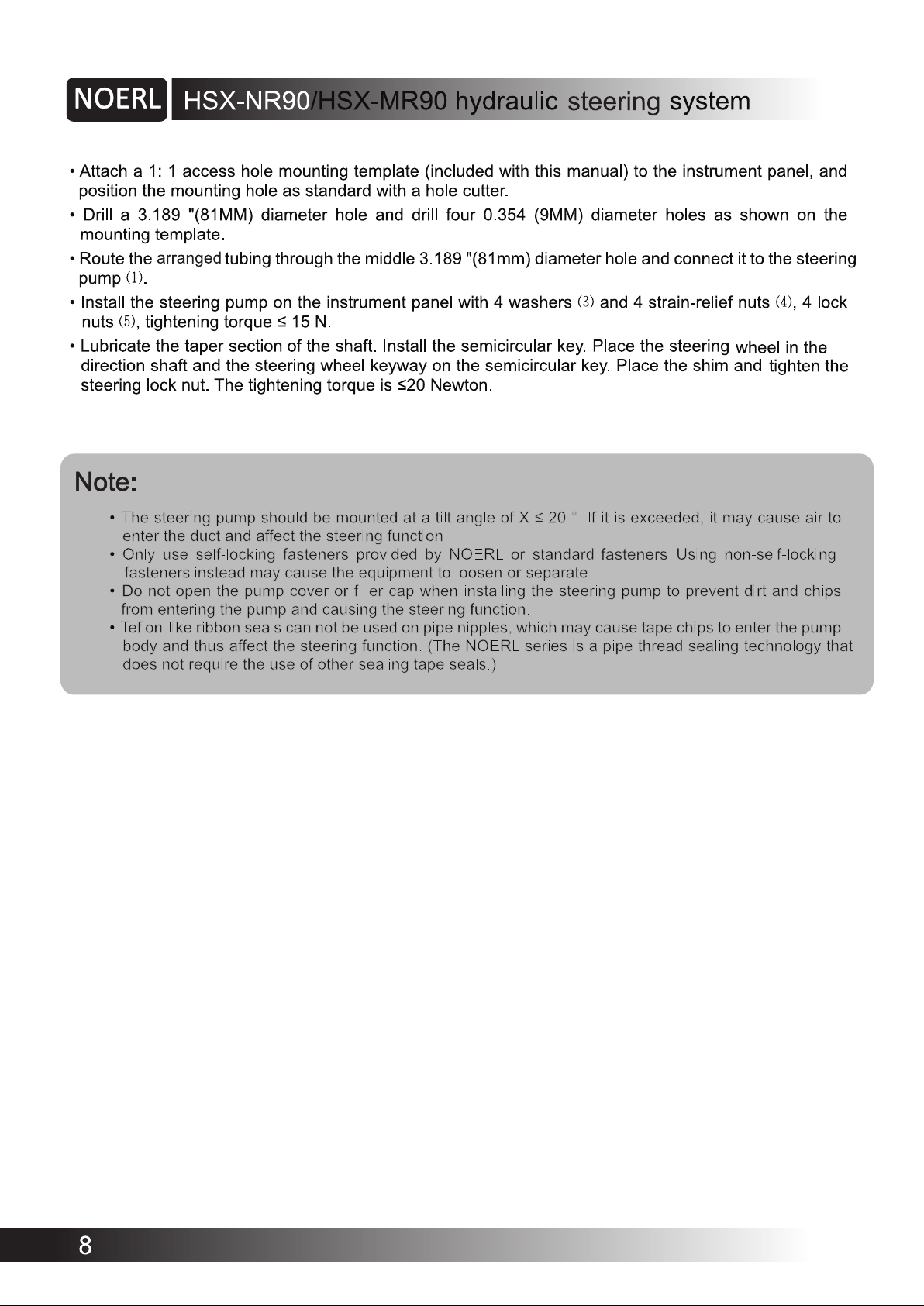

Steering Pump HSXNR90 Installation
7

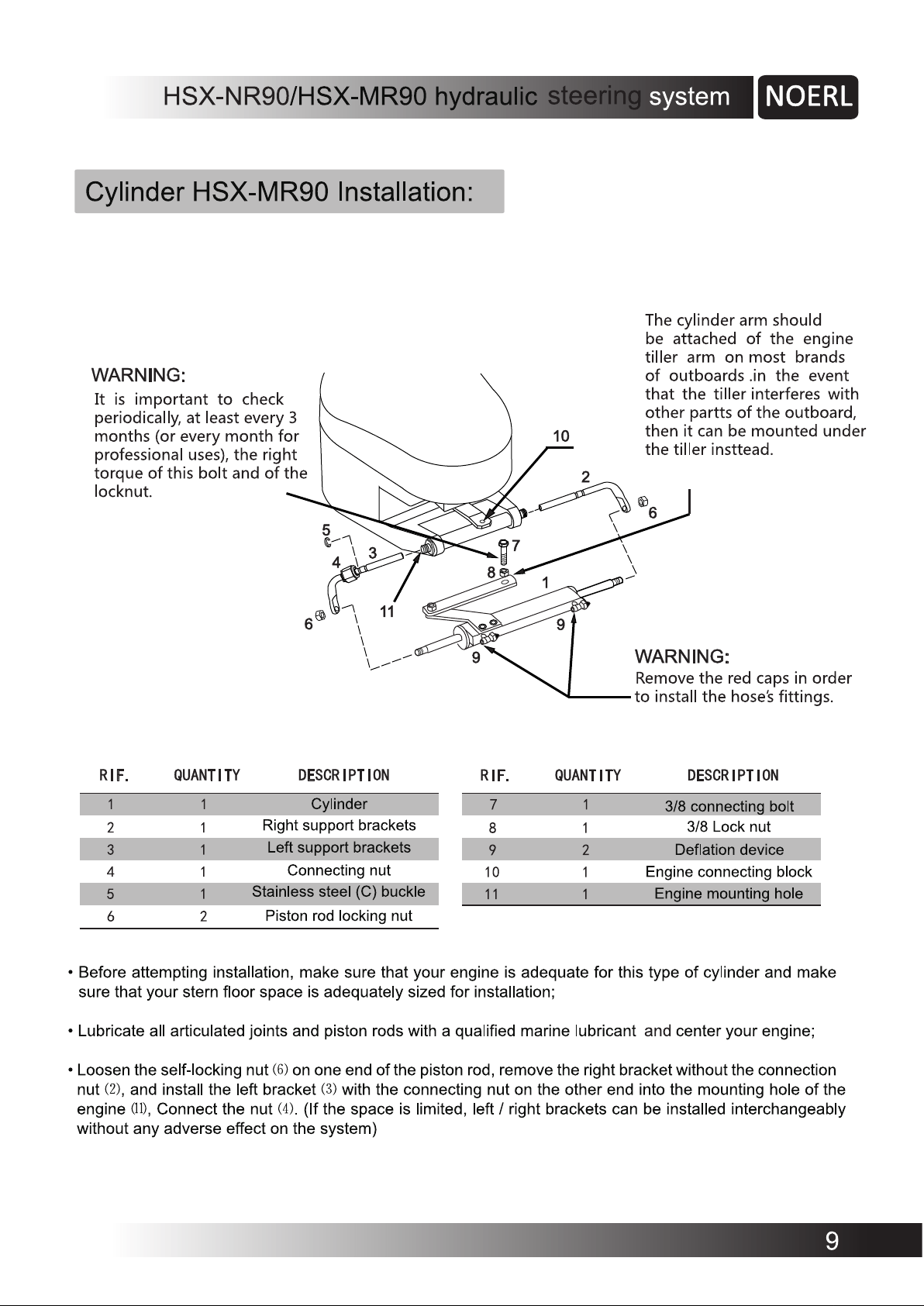

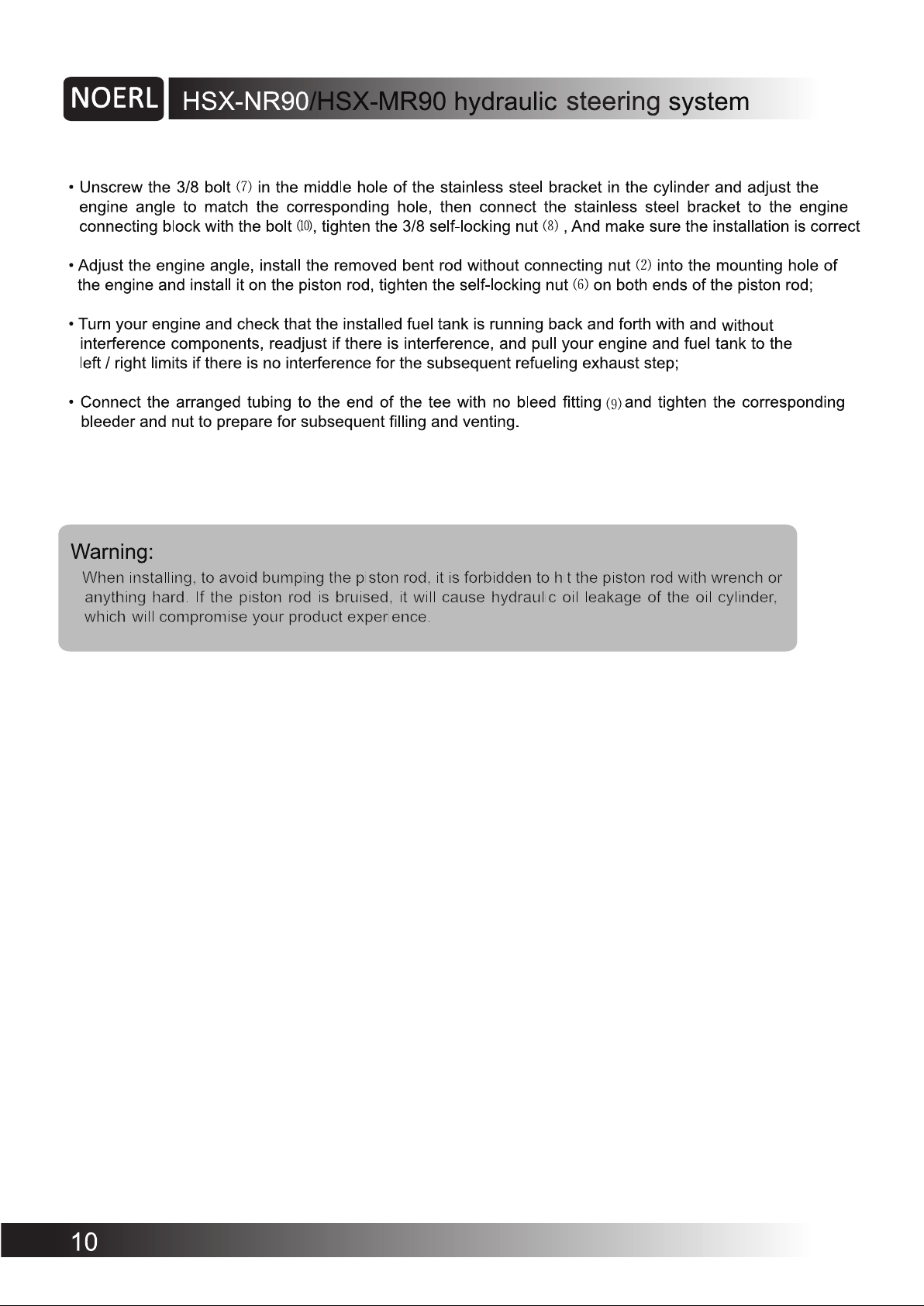

Cylinder HSX0 MR90 Installation
9
HSXNR150/HSXMR150 Hydraulic Steering System Installation
11

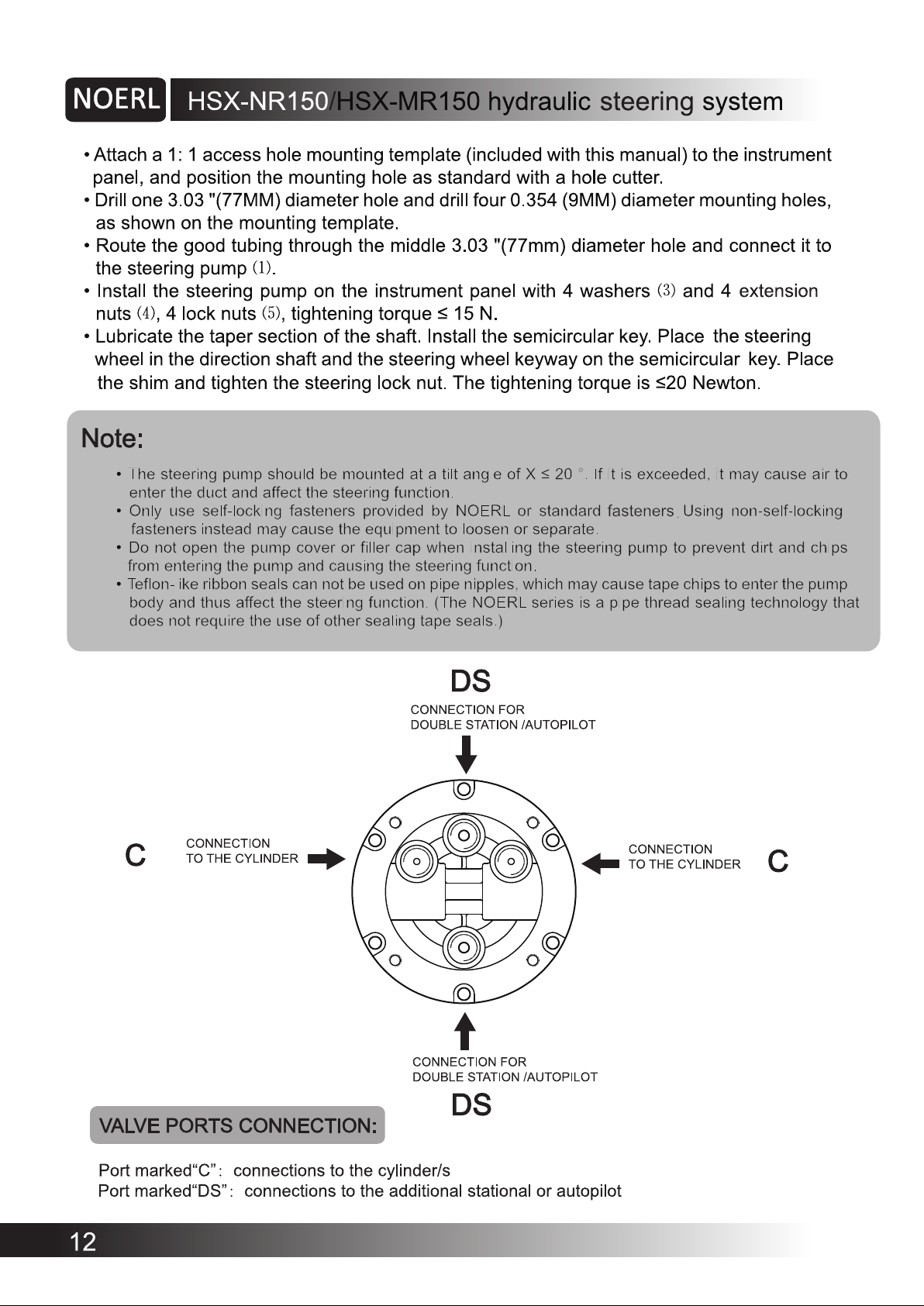

Steering Pump HSXNR150 Installation
11

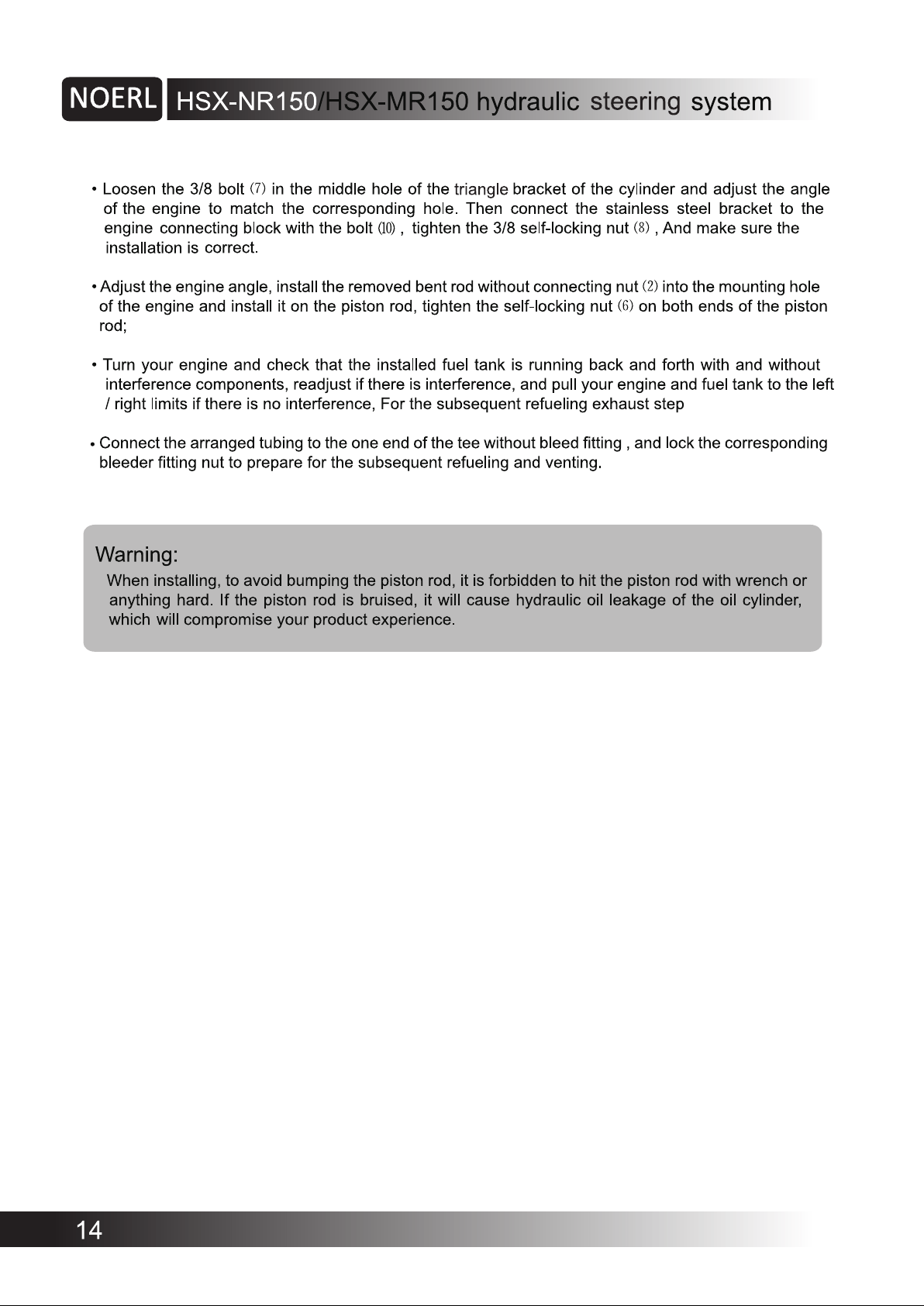

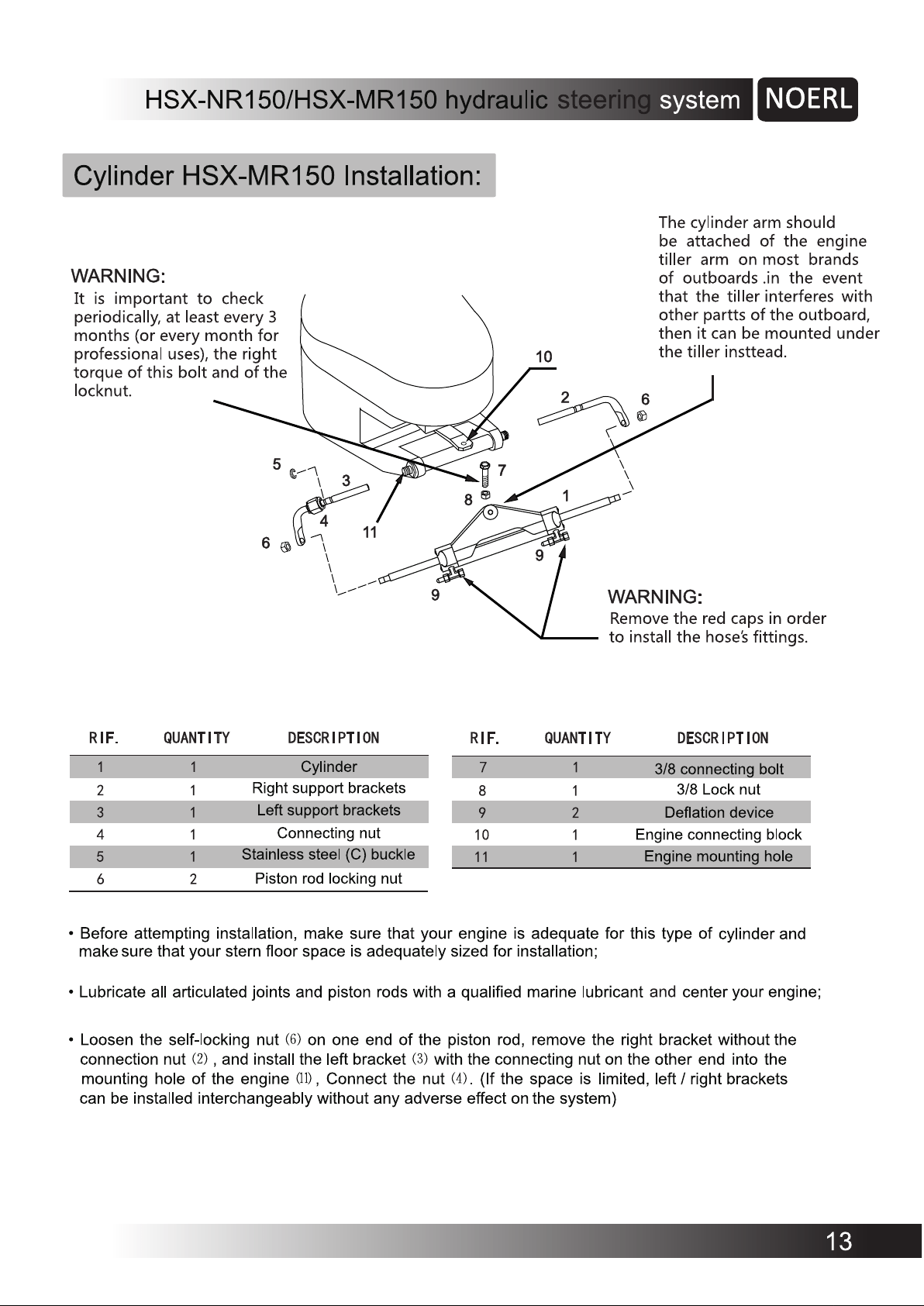

Cylinder HSXMR150 Installation
13
HSXNR300/HSXNR300 Hydraulic Steering System Installation
15

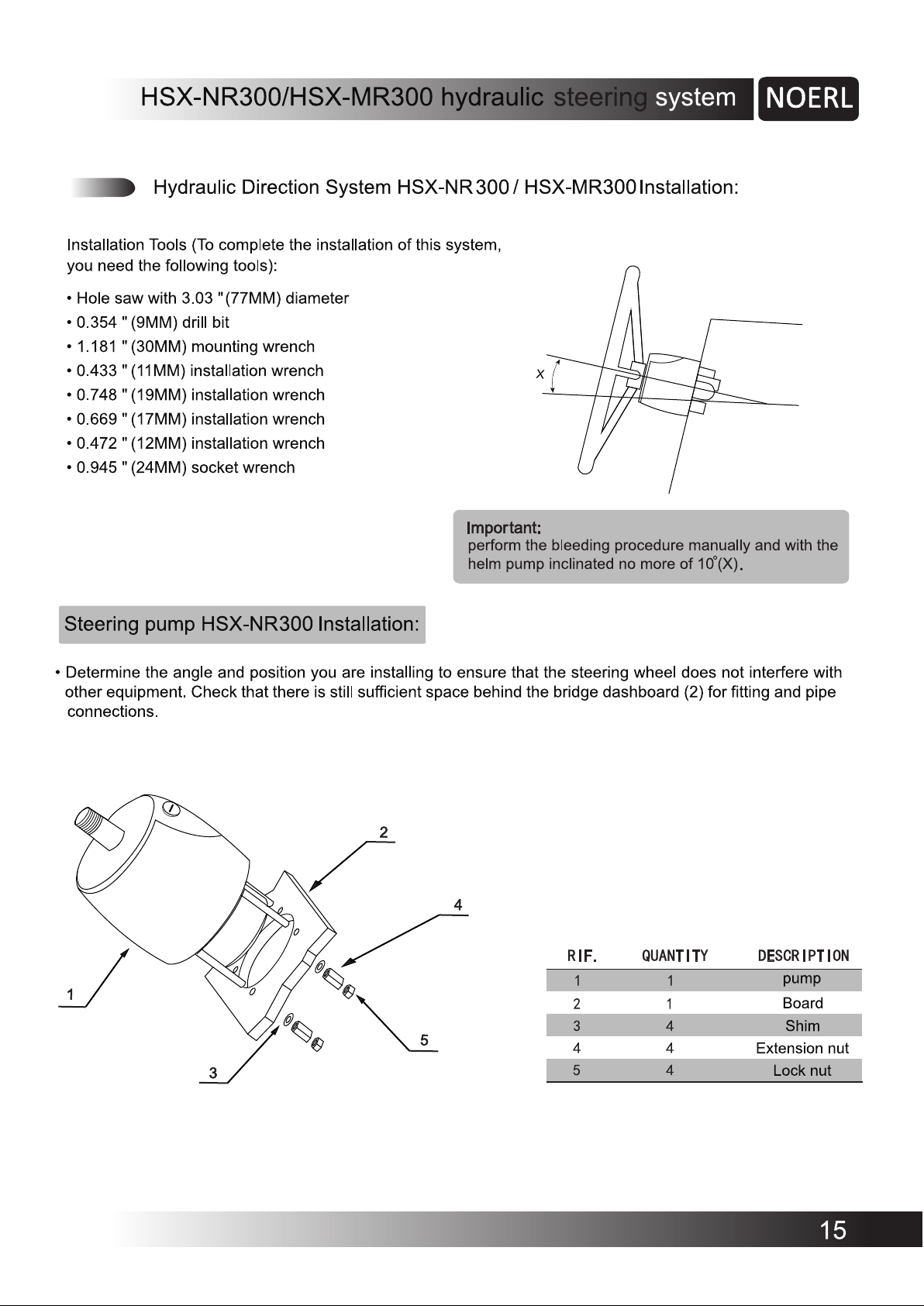

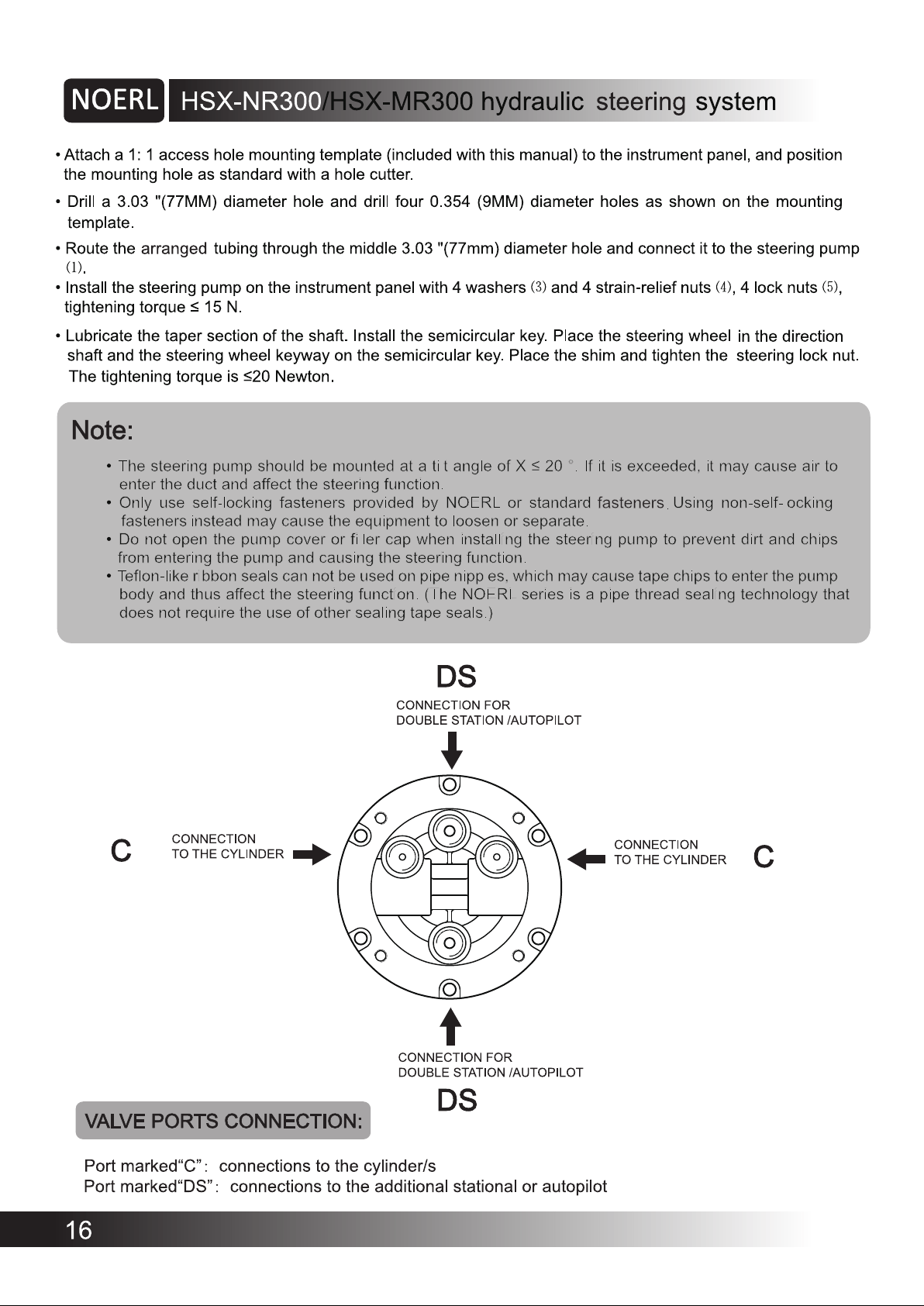

Steering Pump HSXNR 300 Installation
15

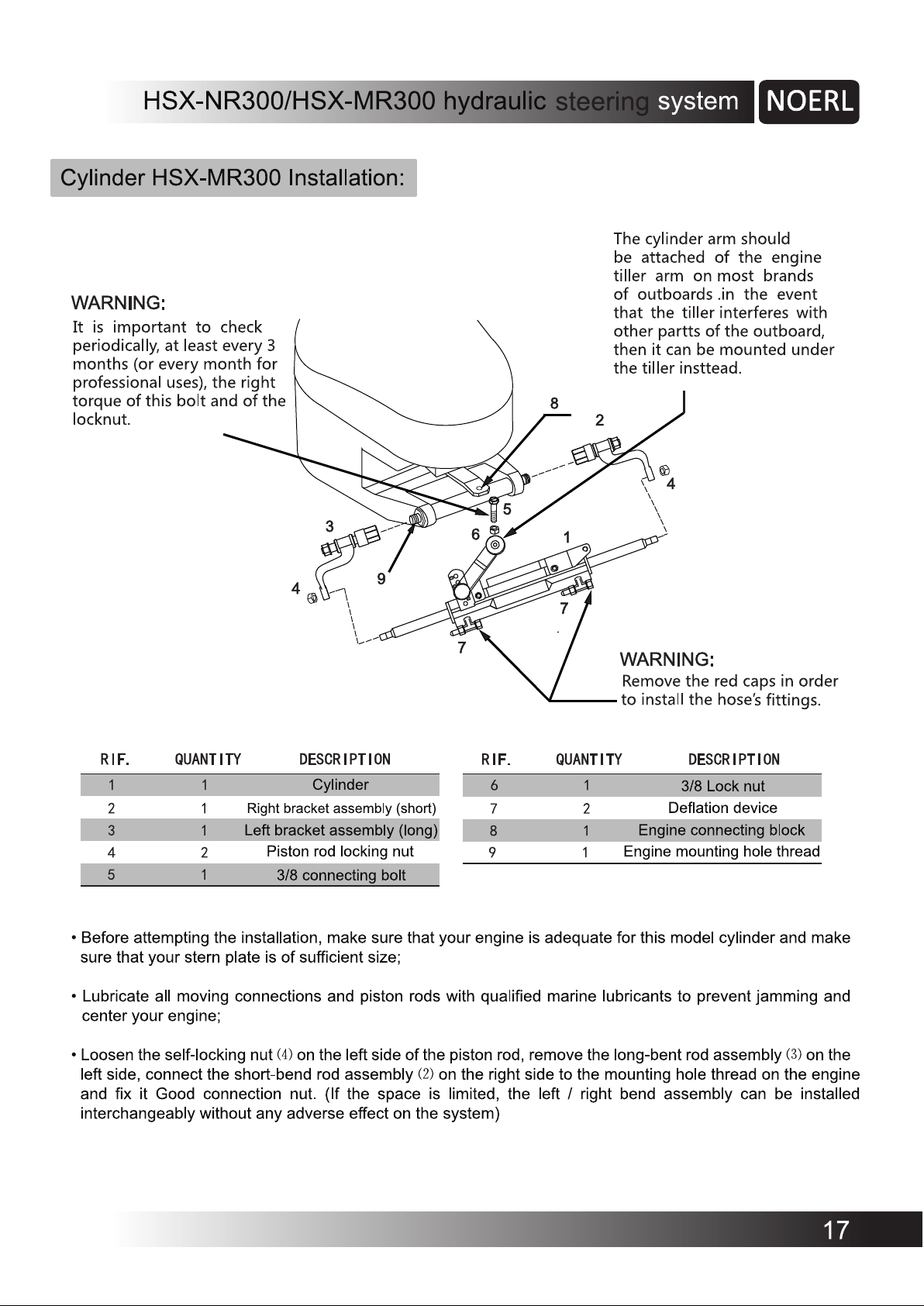

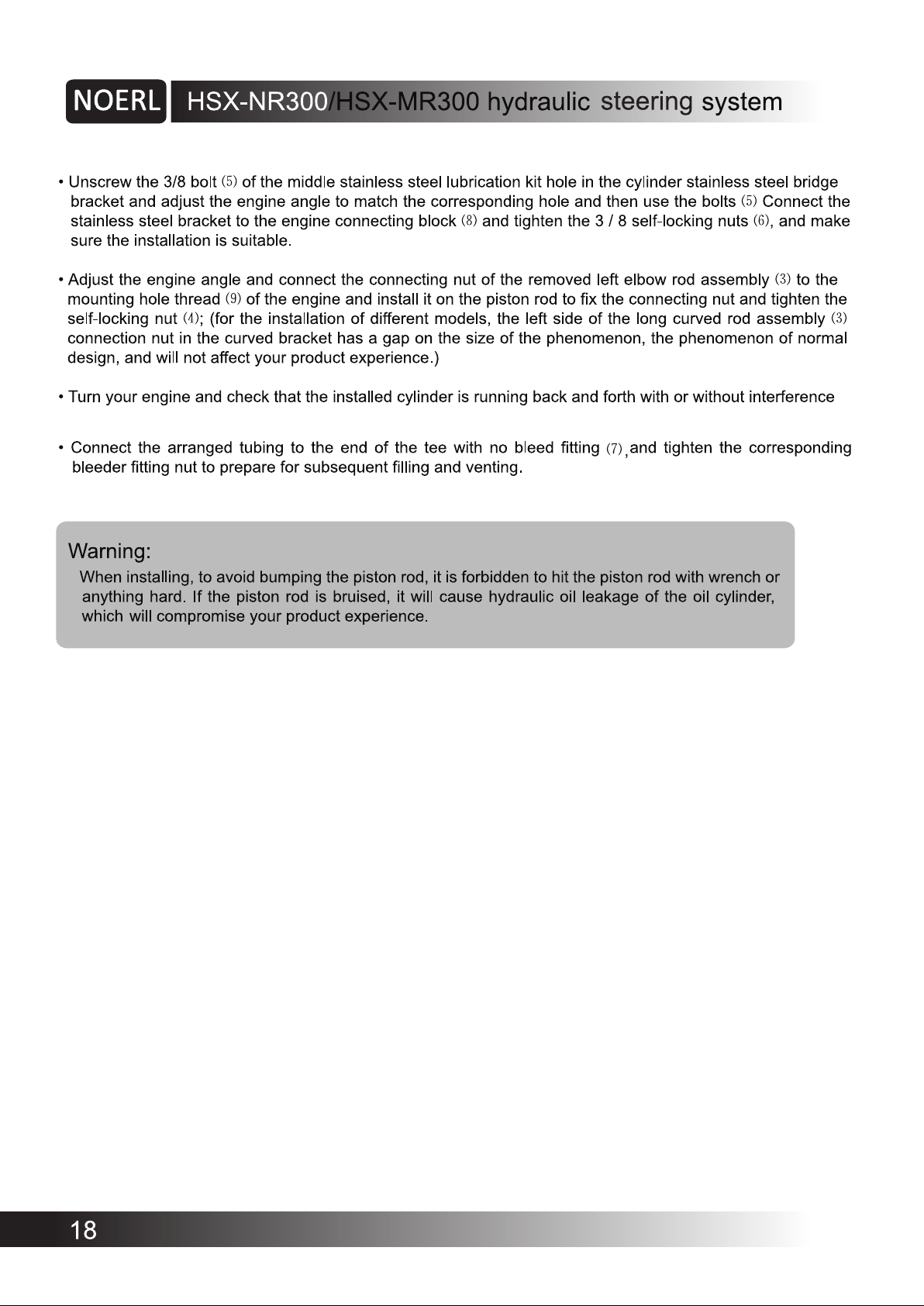

Cylinder HSXMR300 Installation
17

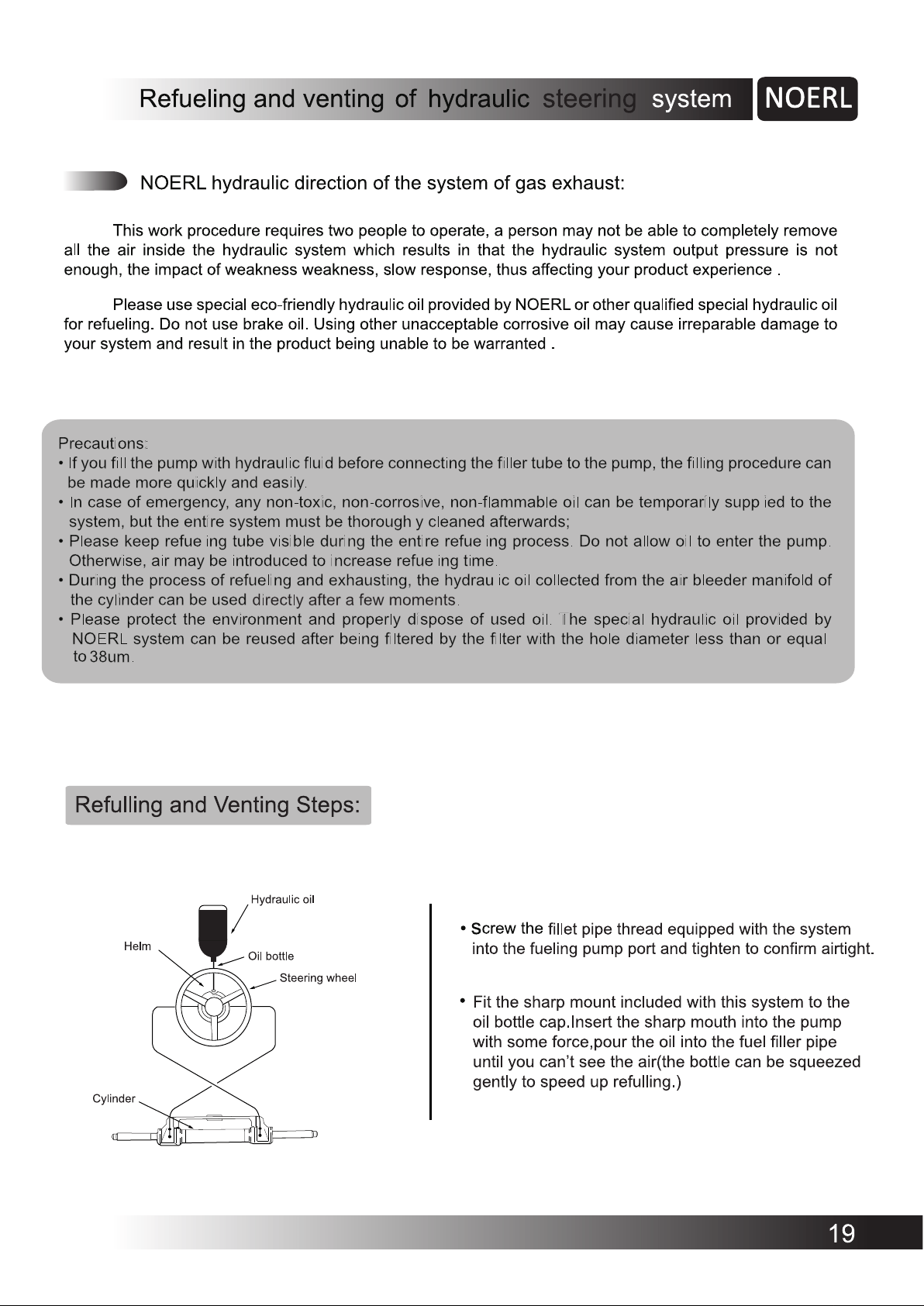

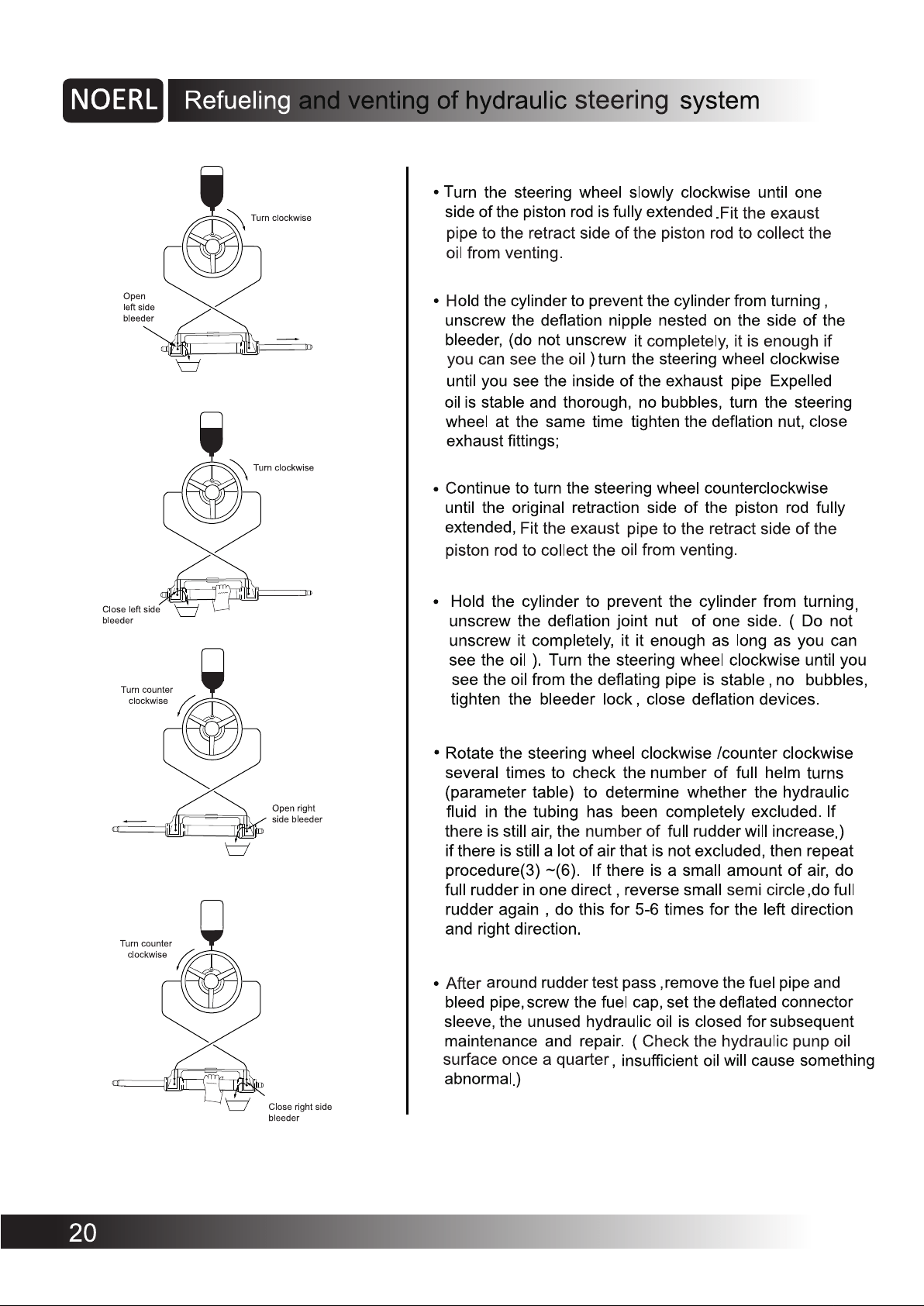

Refueling And Venting Of Hydraulic Steering System
19

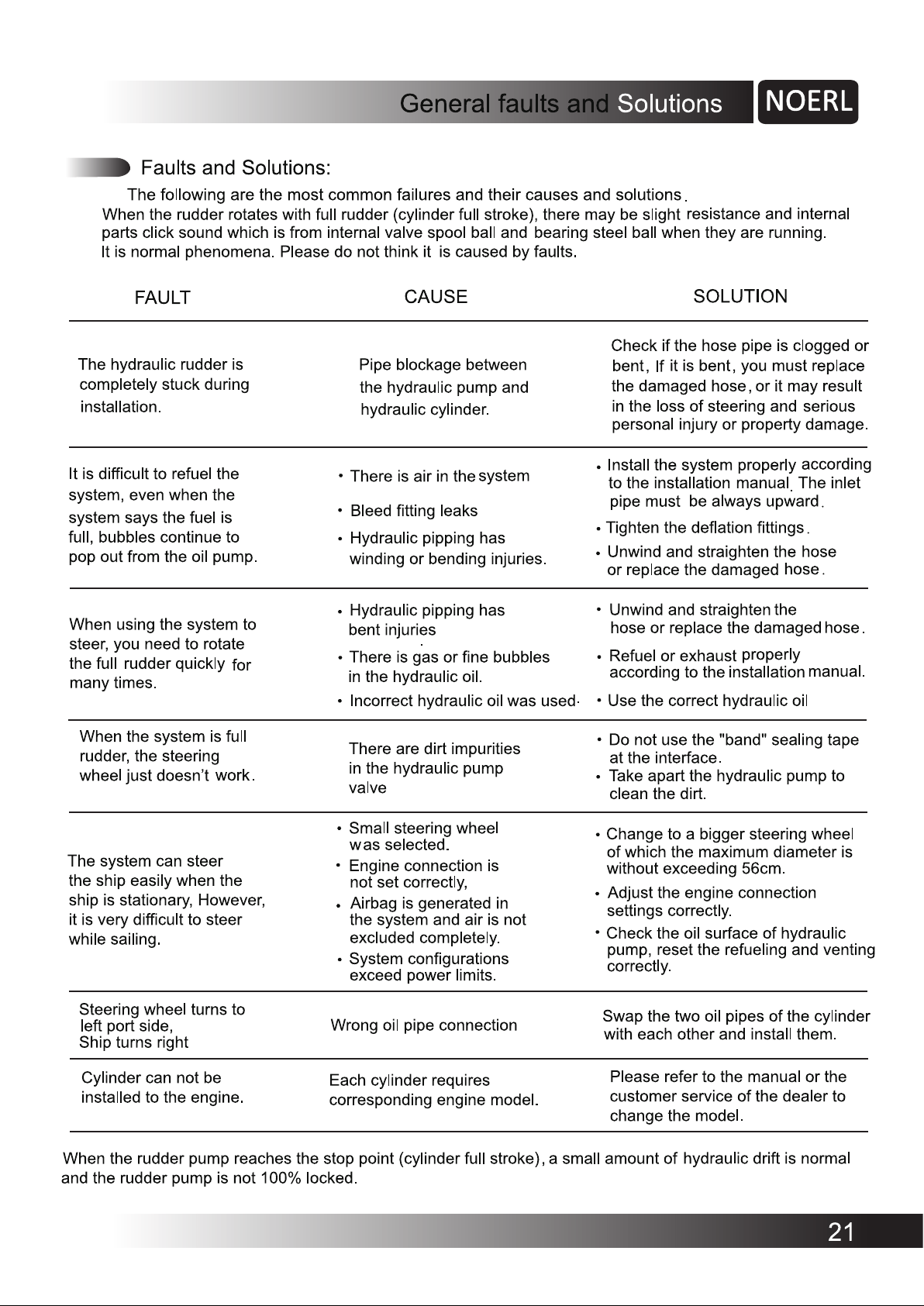

General Faults And Solutions
