Electric
Visit the Frigidaire Web Site at:
http://www.frigidaire.com
CONTENTS Page
Versi6n en esoar_o ........................................................ 2
Product Registration ....................................................... 2
mportant Safety Instructions ............................. 3-5

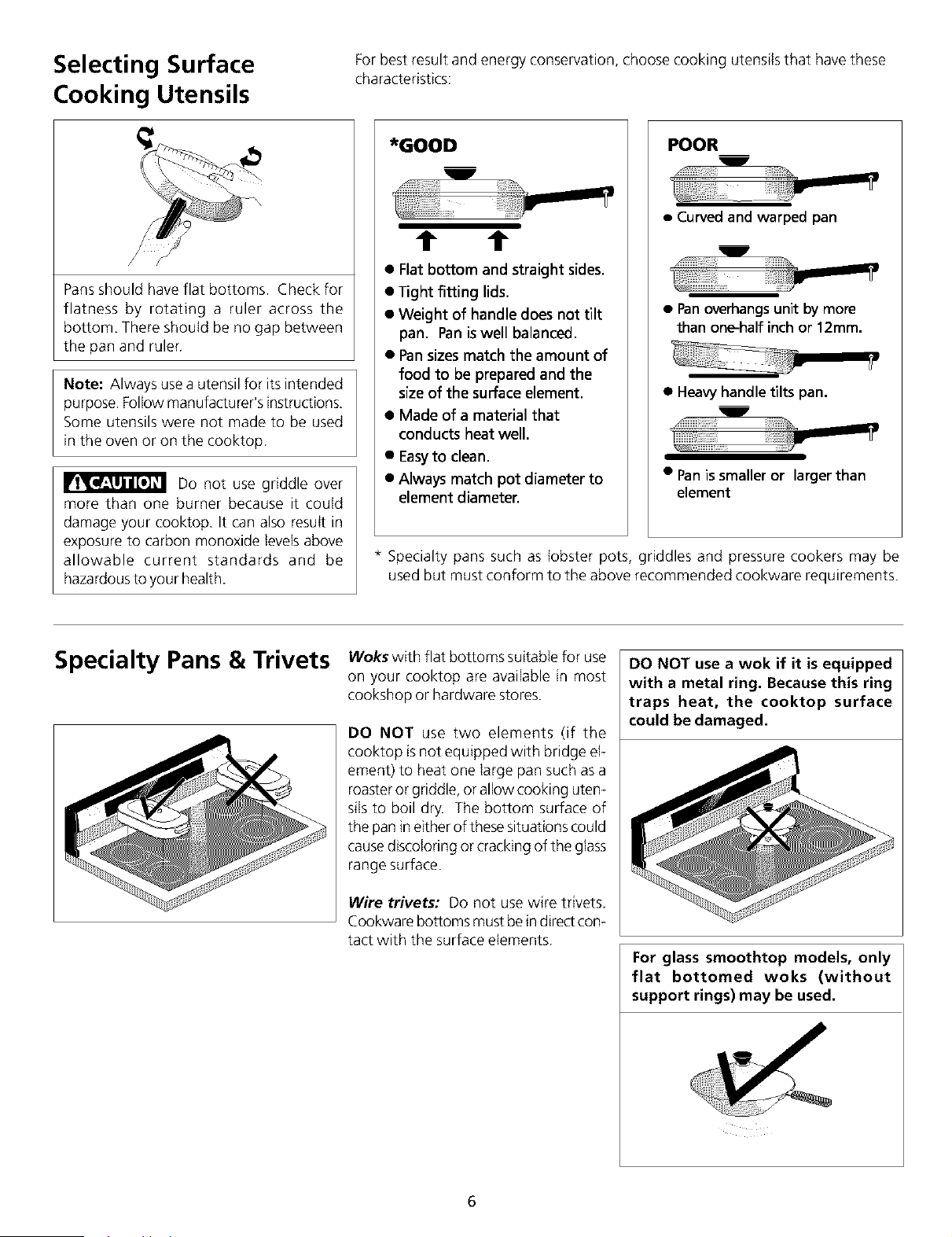

Selecting SurfaceCooking Utensils..................................6
Specialty Pans& Trivets...................................................6

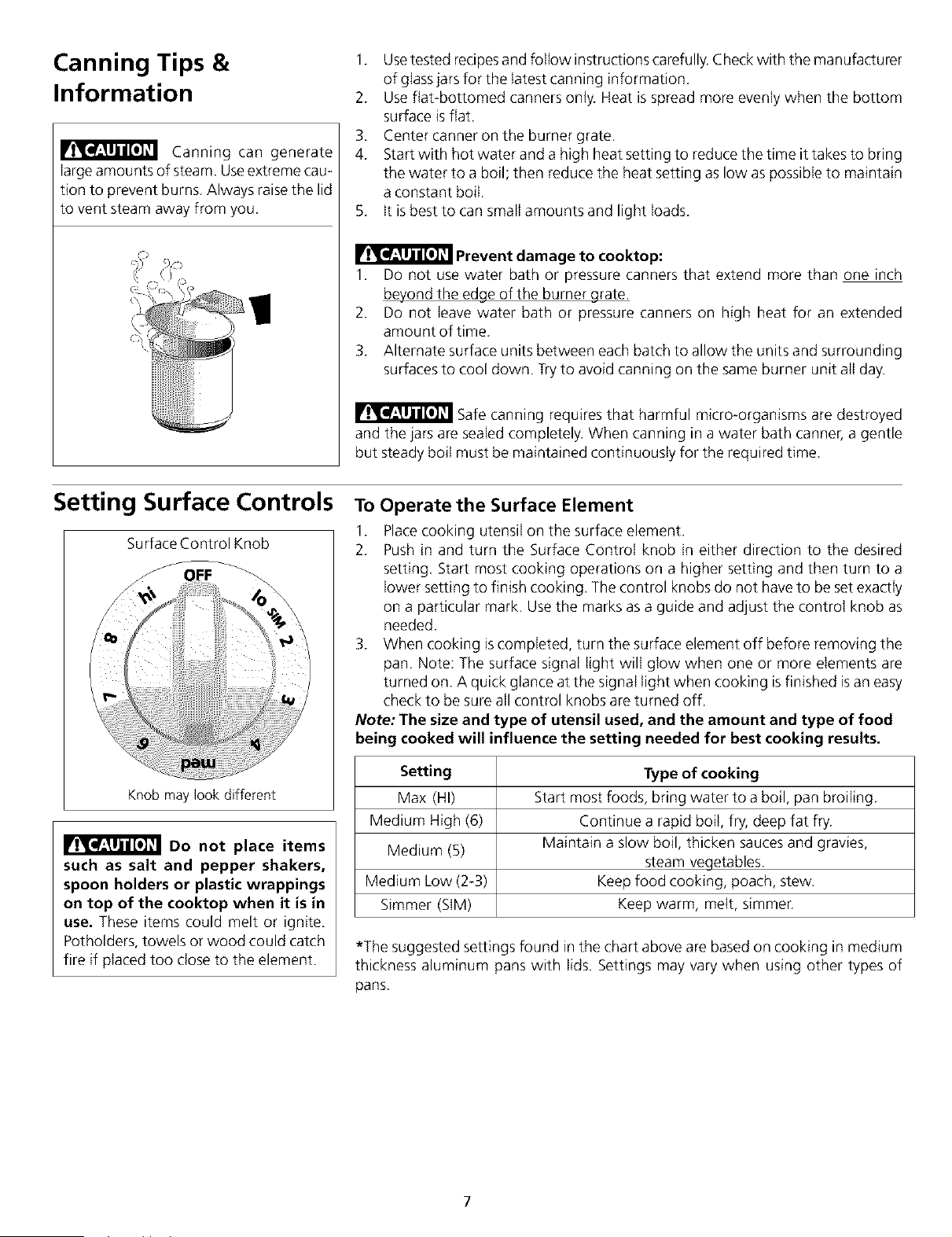

CanningTips & Information .............................................7

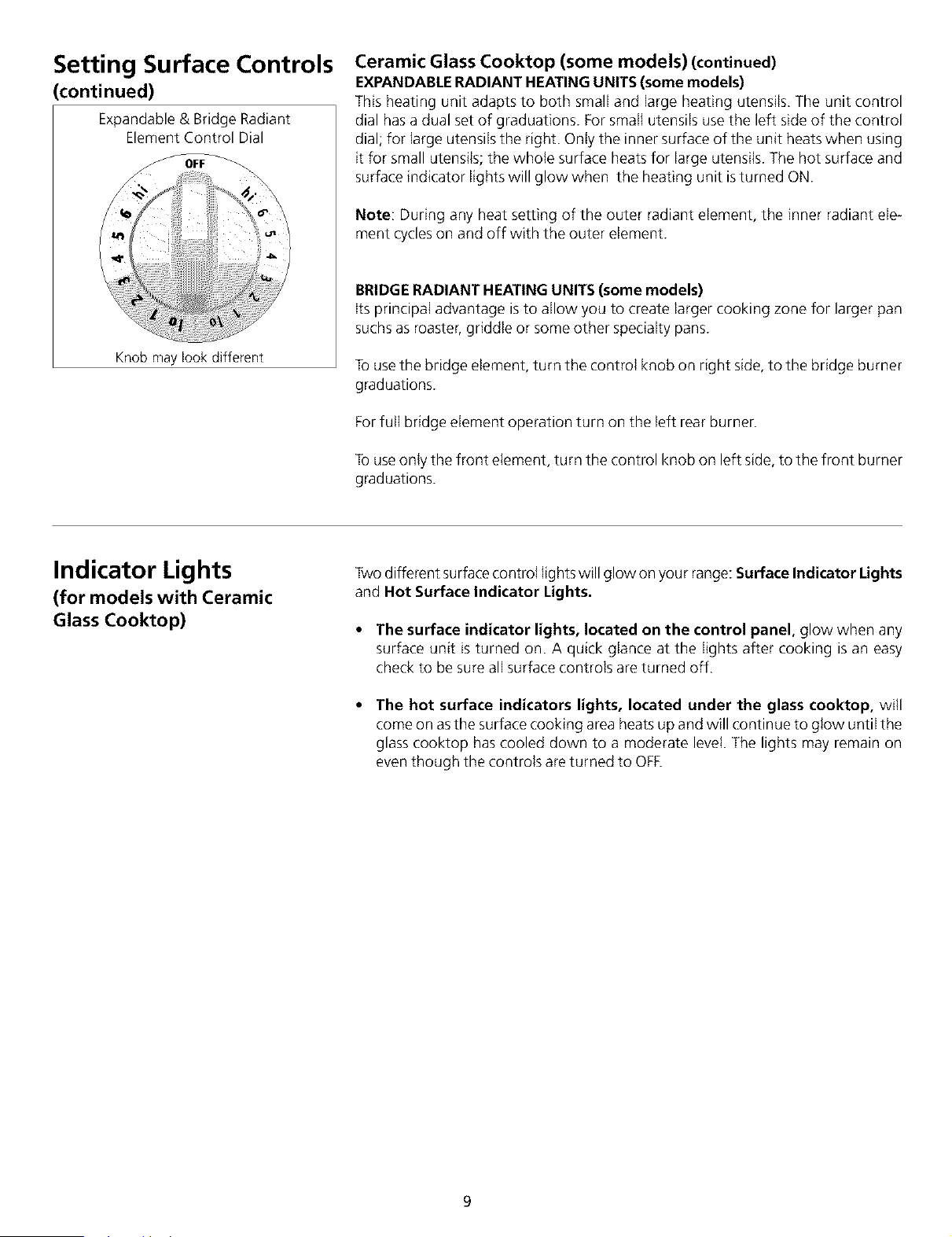

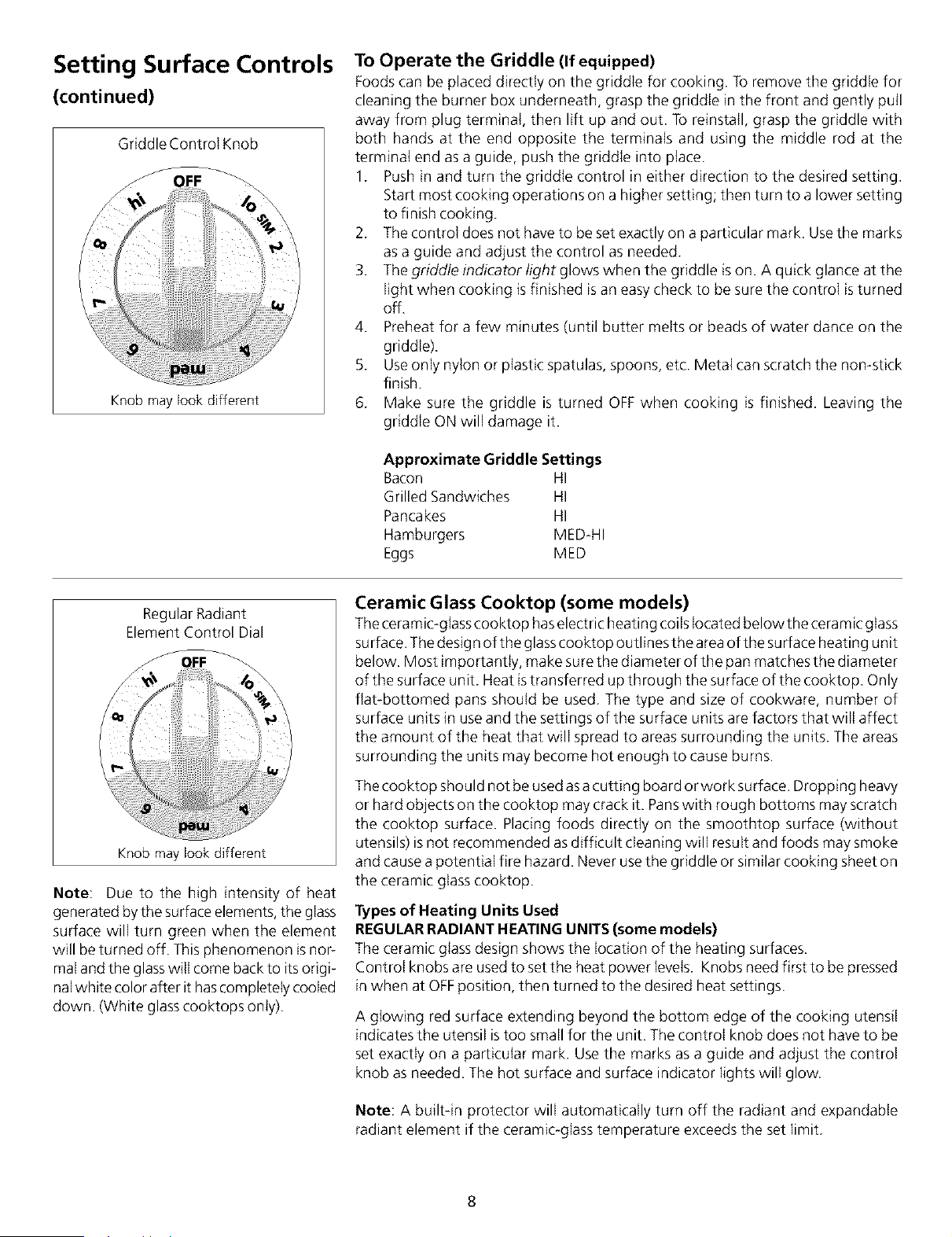

Setting Surface Controls .............................................. 7-9

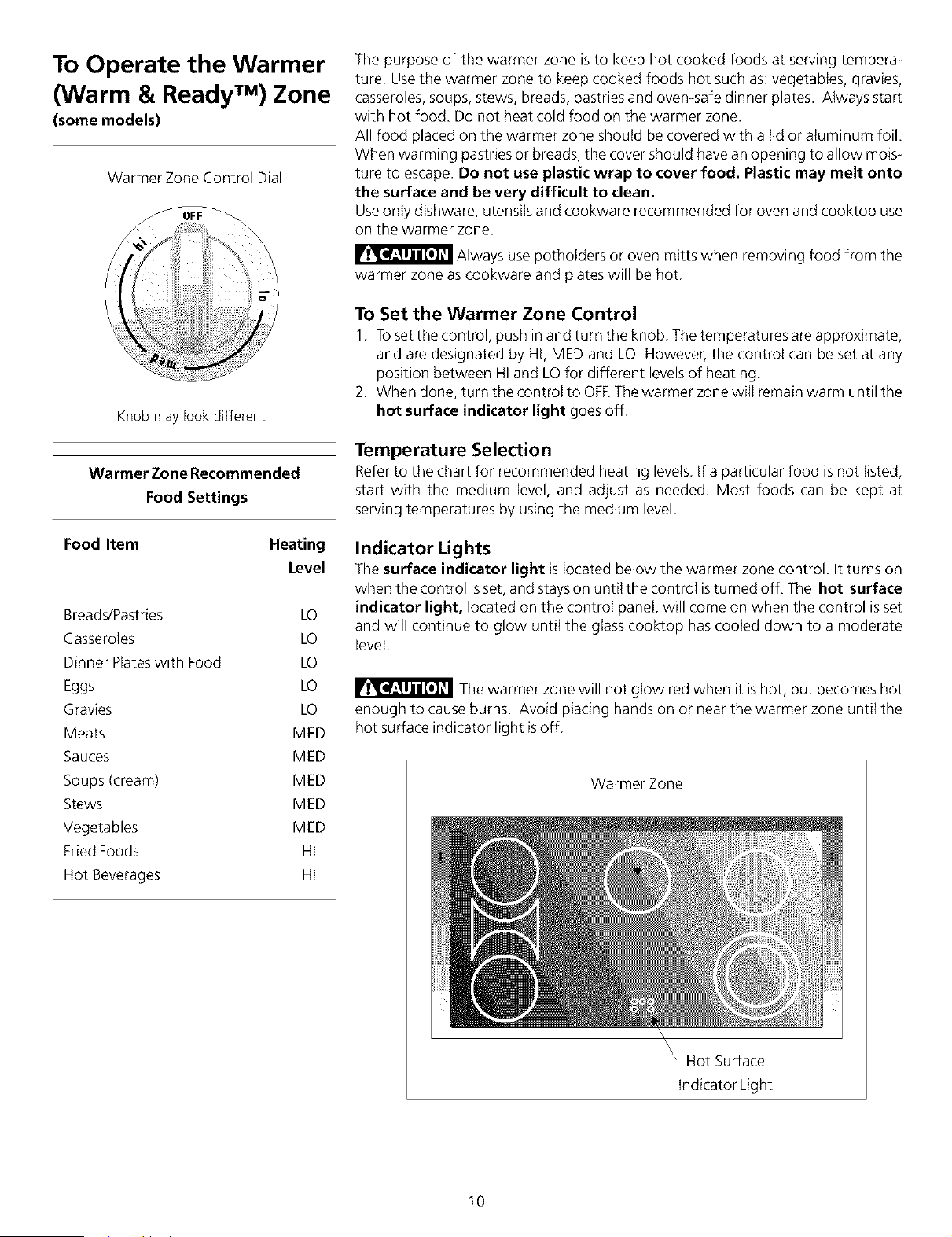

To Operatethe Warmer Zone .........................................10

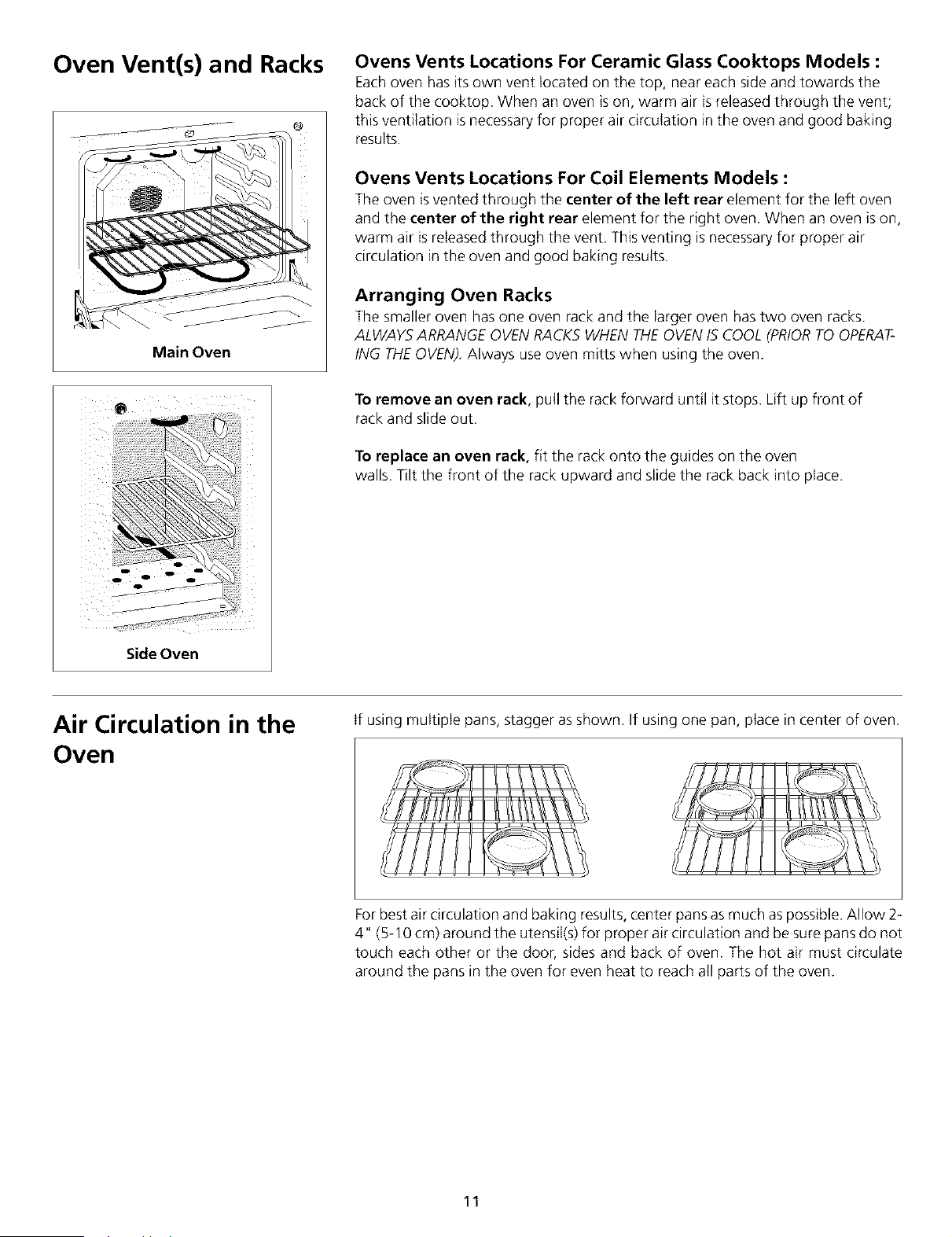

OvenVent(s) and Racks .................................................11
Air Circulation in the Oven..............................................11

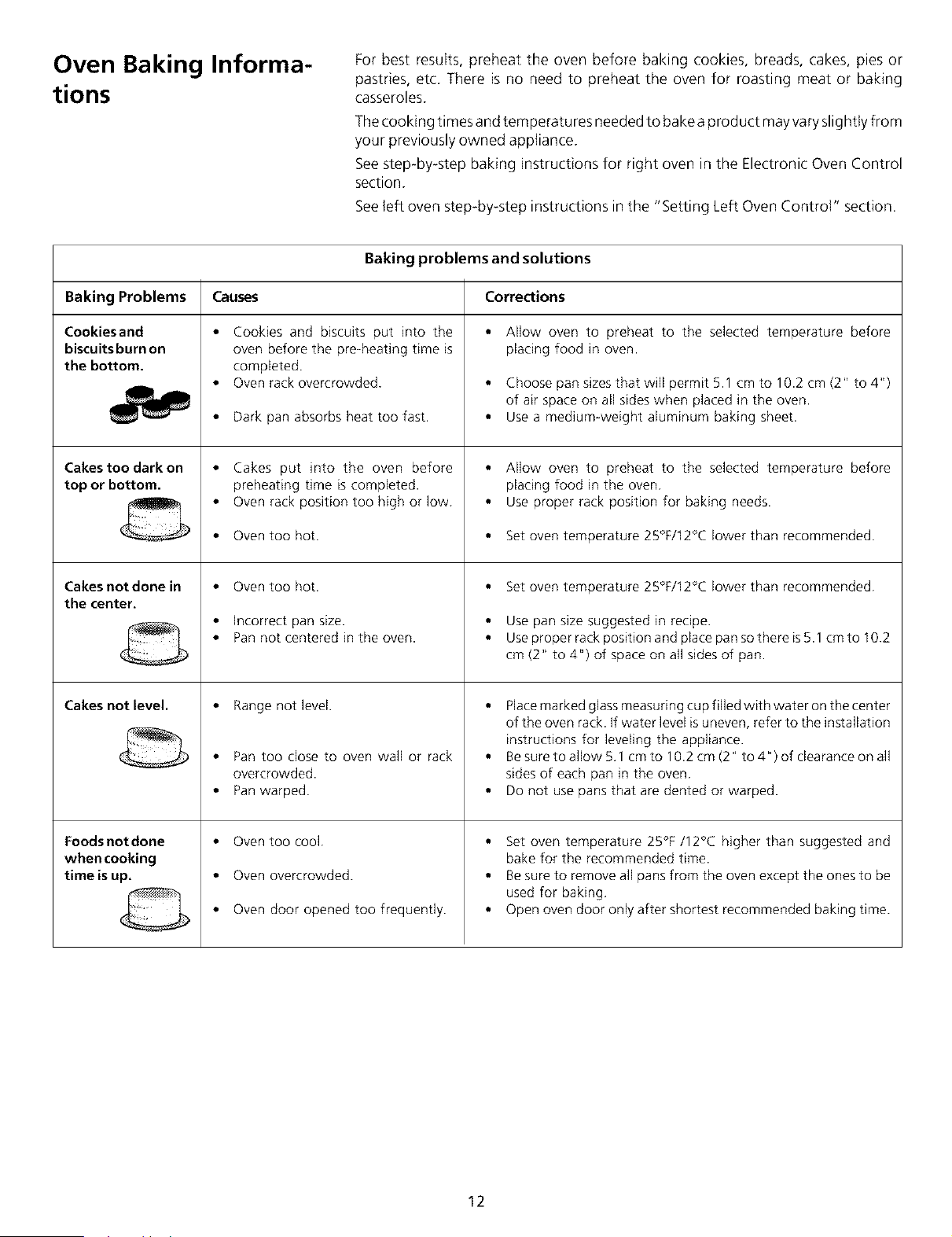

Oven Baking Informations ..............................................12

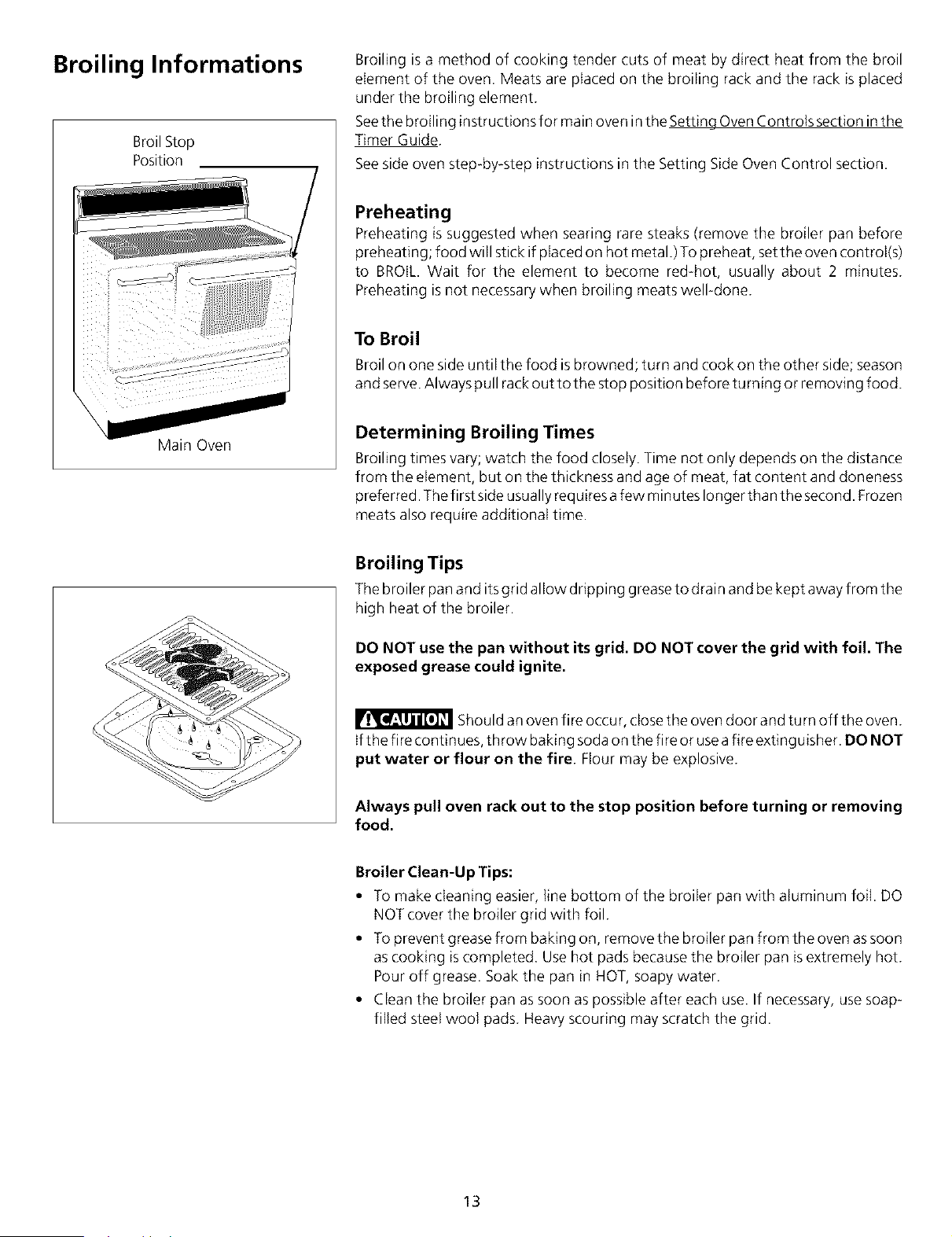

Broiling Informations .....................................................13

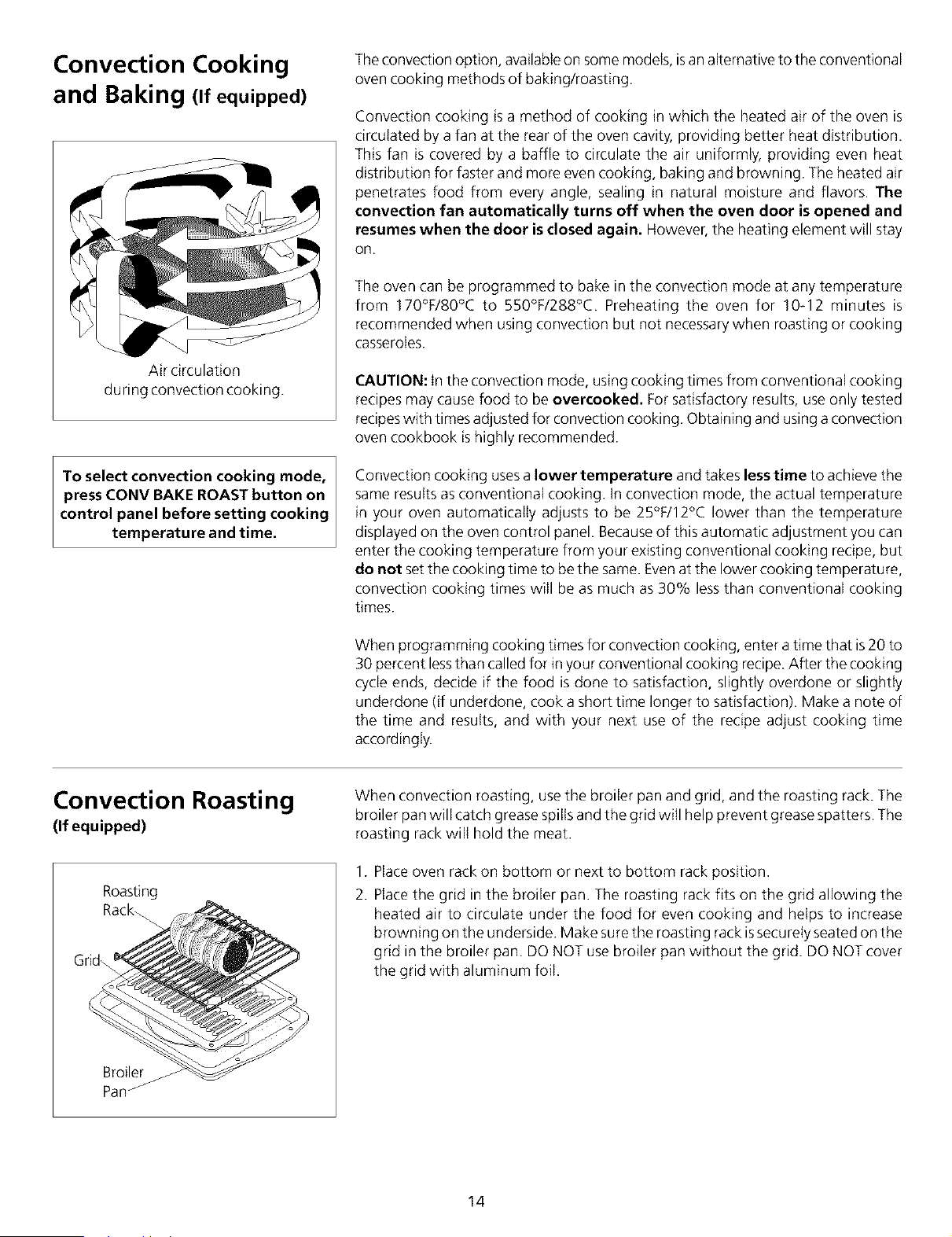

Convection Cooking and Baking ....................................14
Convection Roasting......................................................14

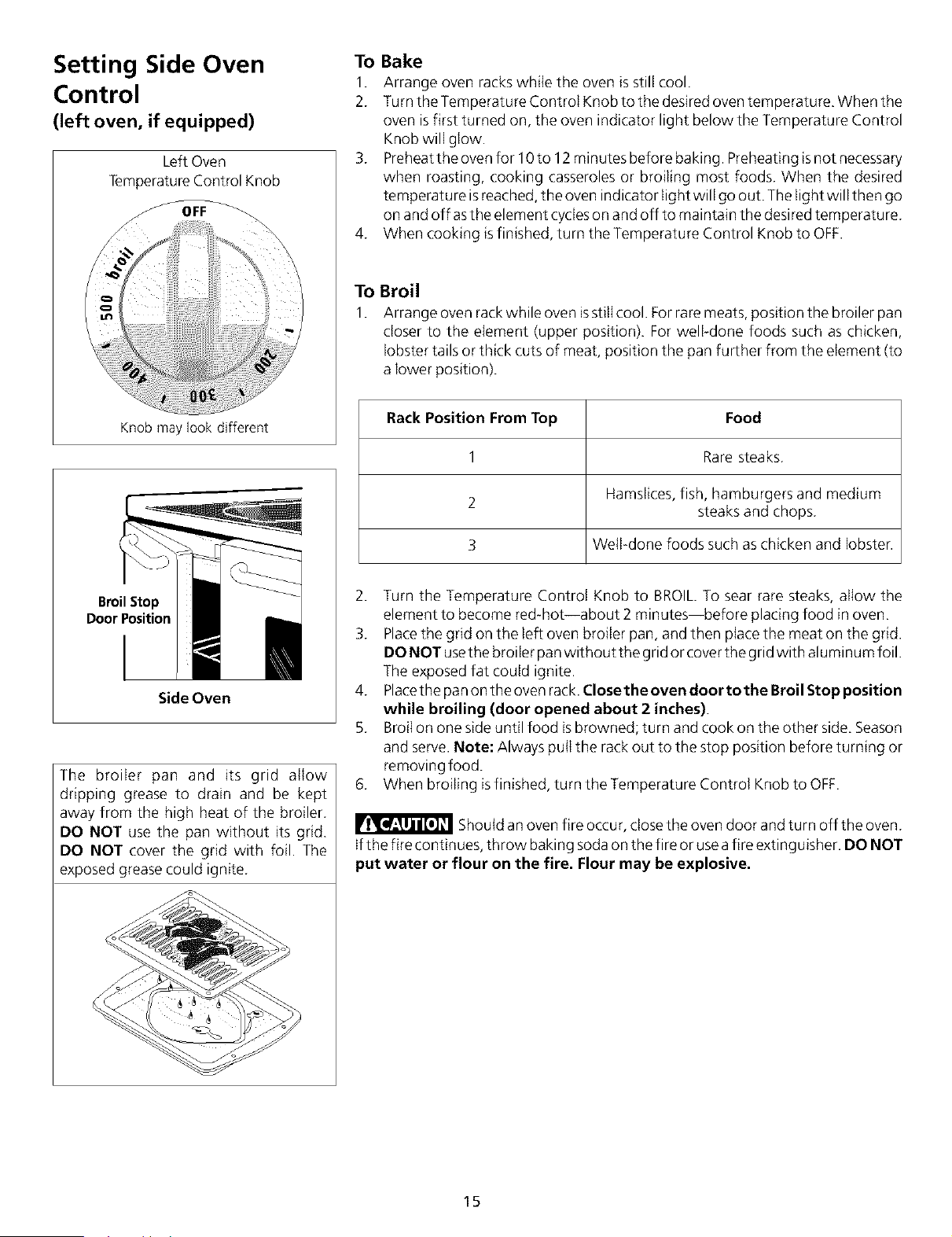

Setting Side OvenControl ..............................................15

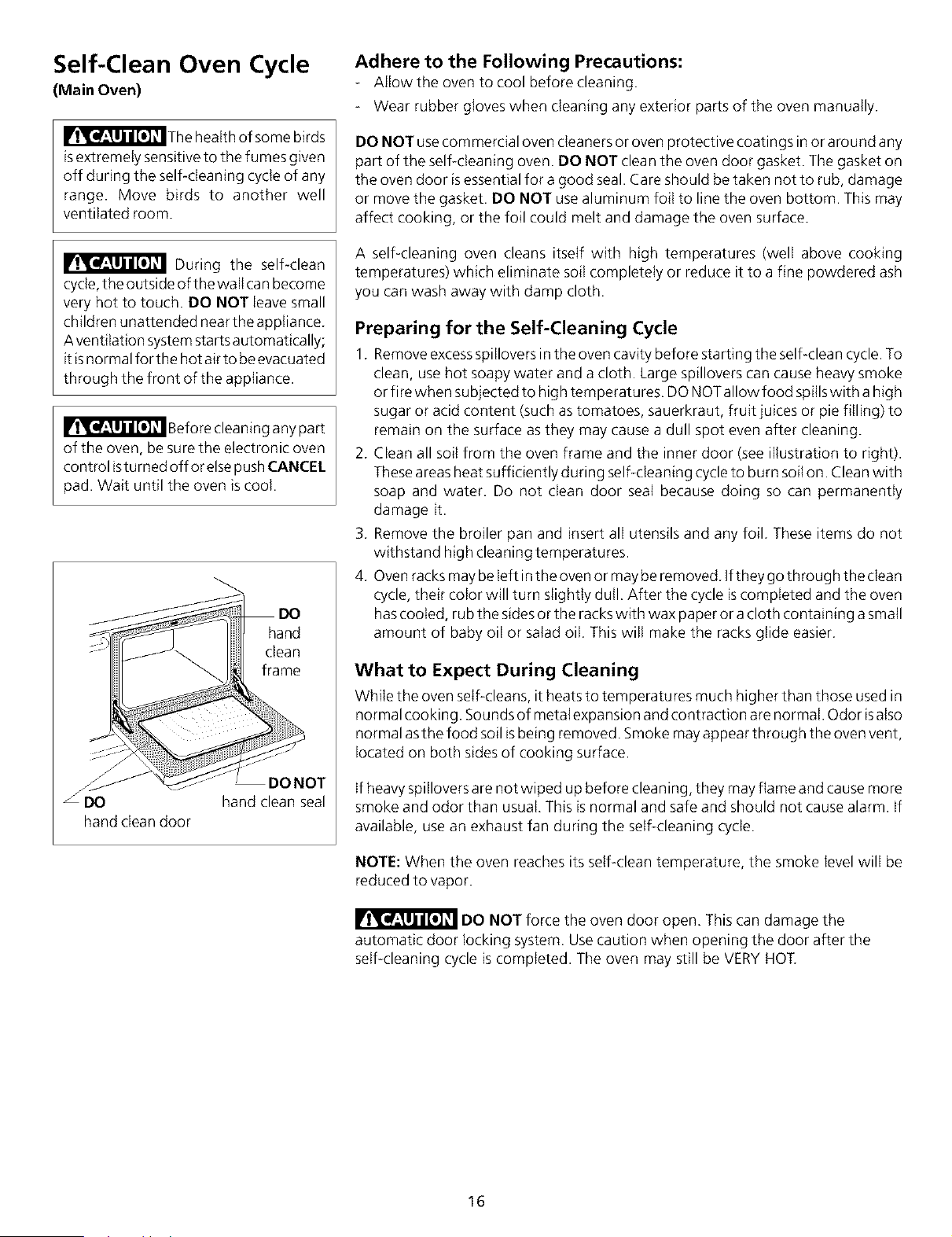

Self-CleanOvenCycle.....................................................16

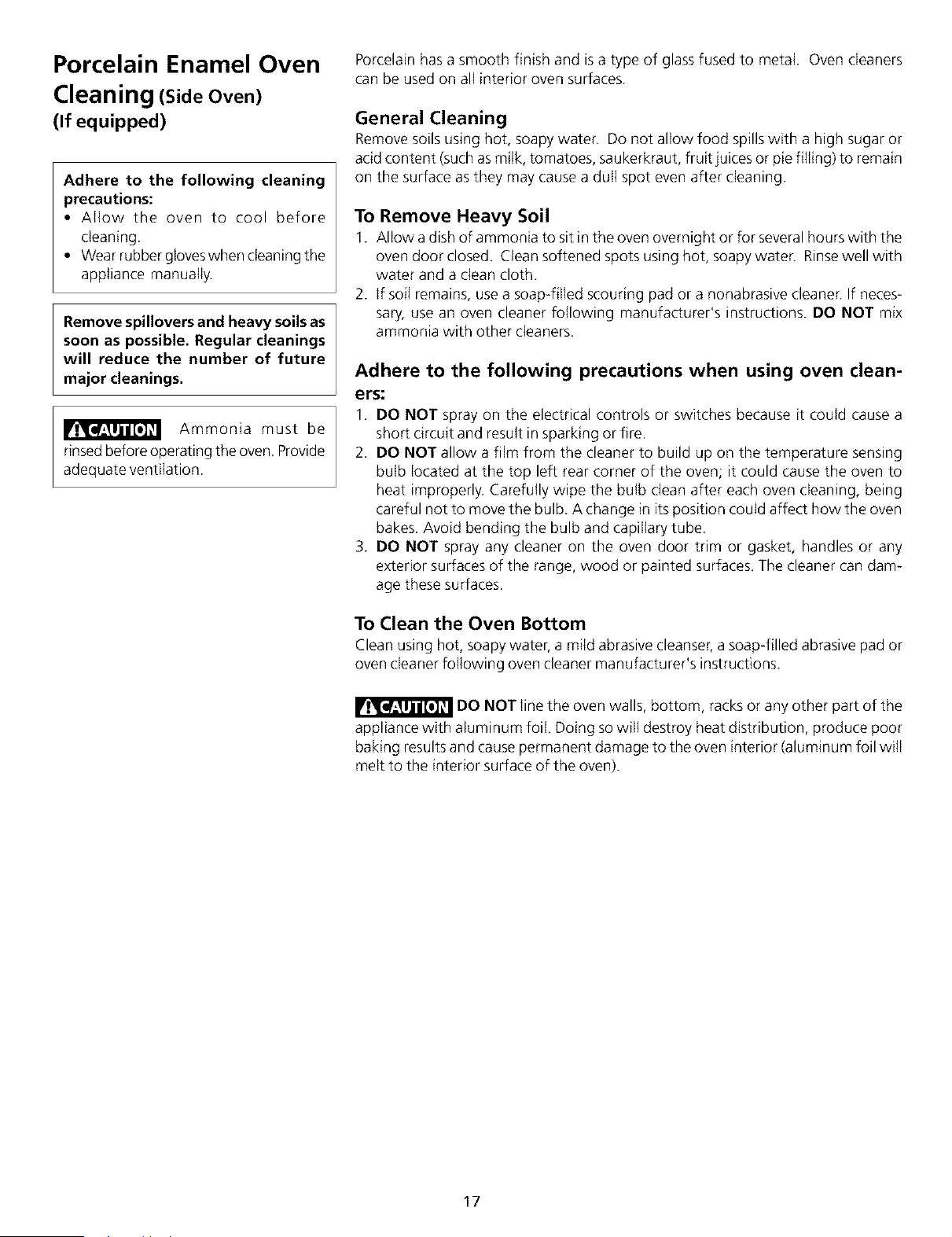

PorcelainEnamelOven
Cleaning (SideOven, If equipped) ..................................17
To Cleanthe OvenBottom ..............................................17

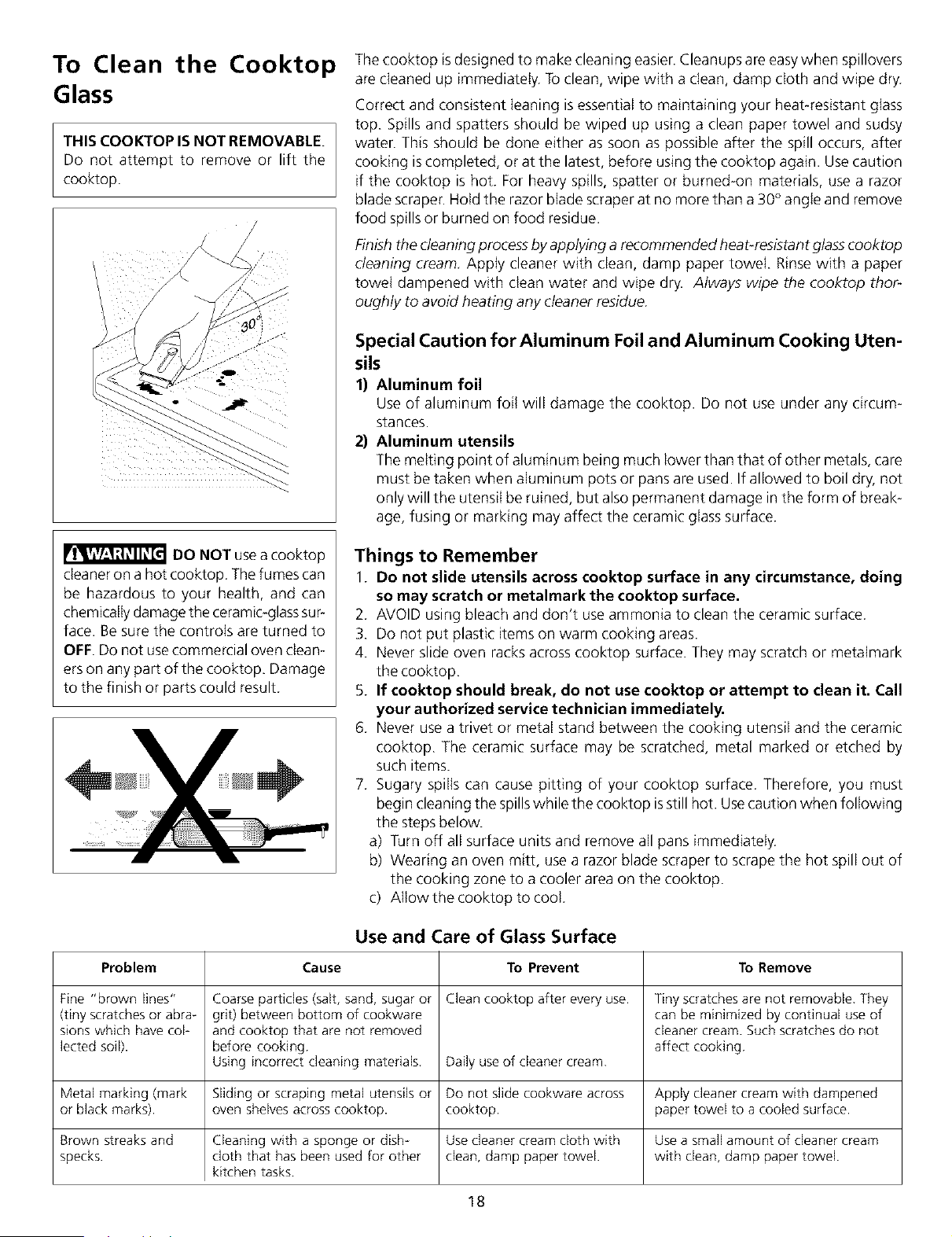

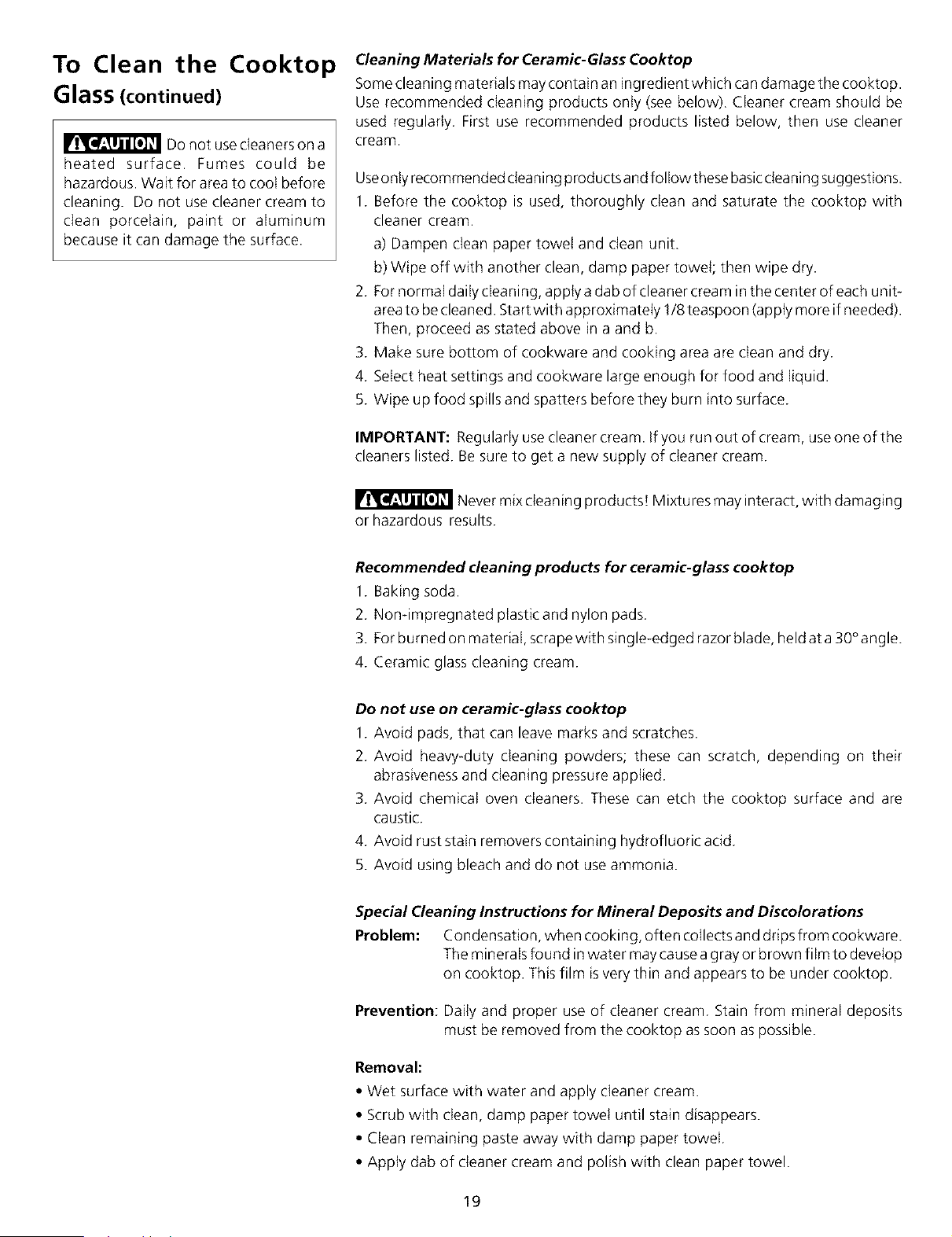

To Cleanthe CooktopGlass ..................................... 18-19

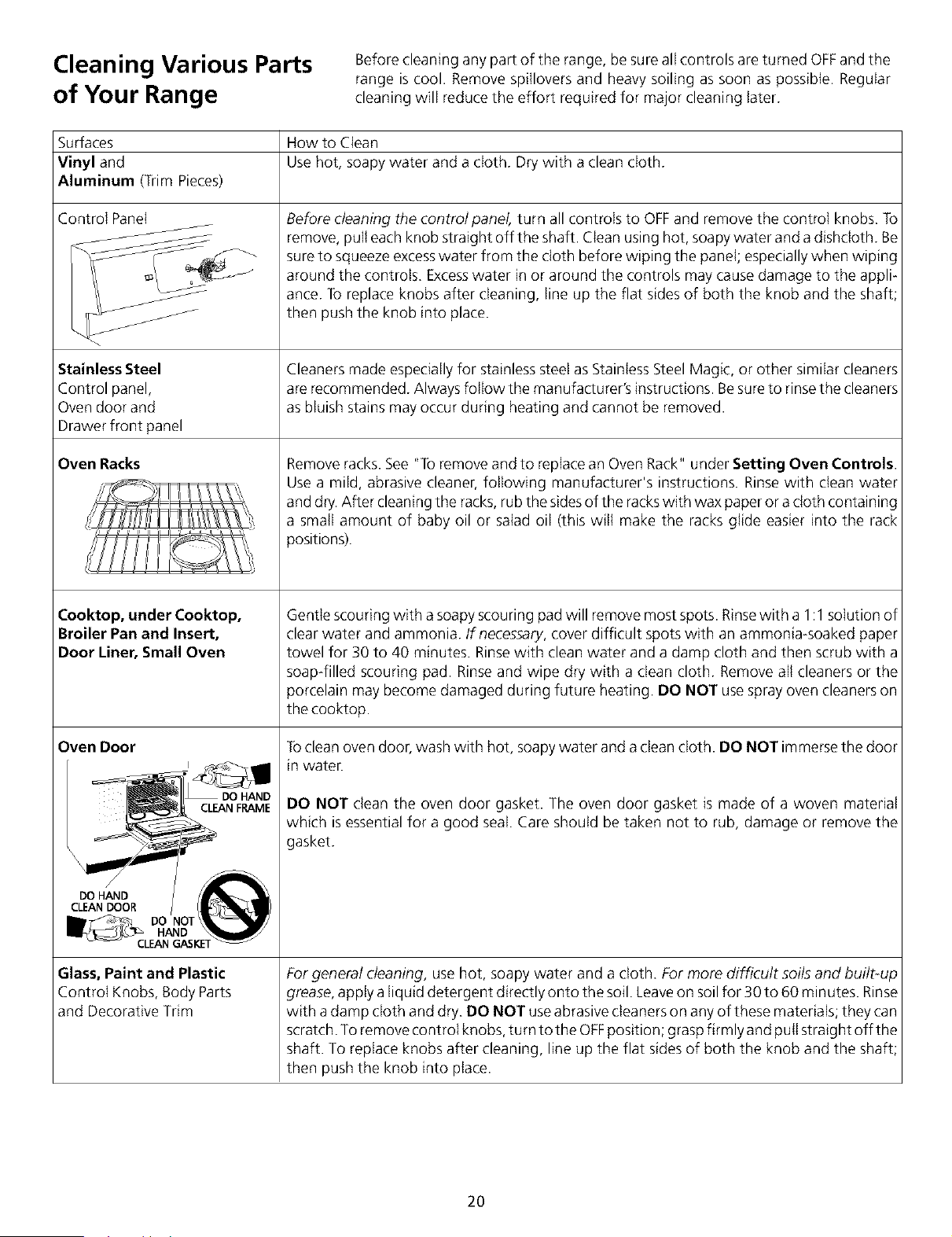

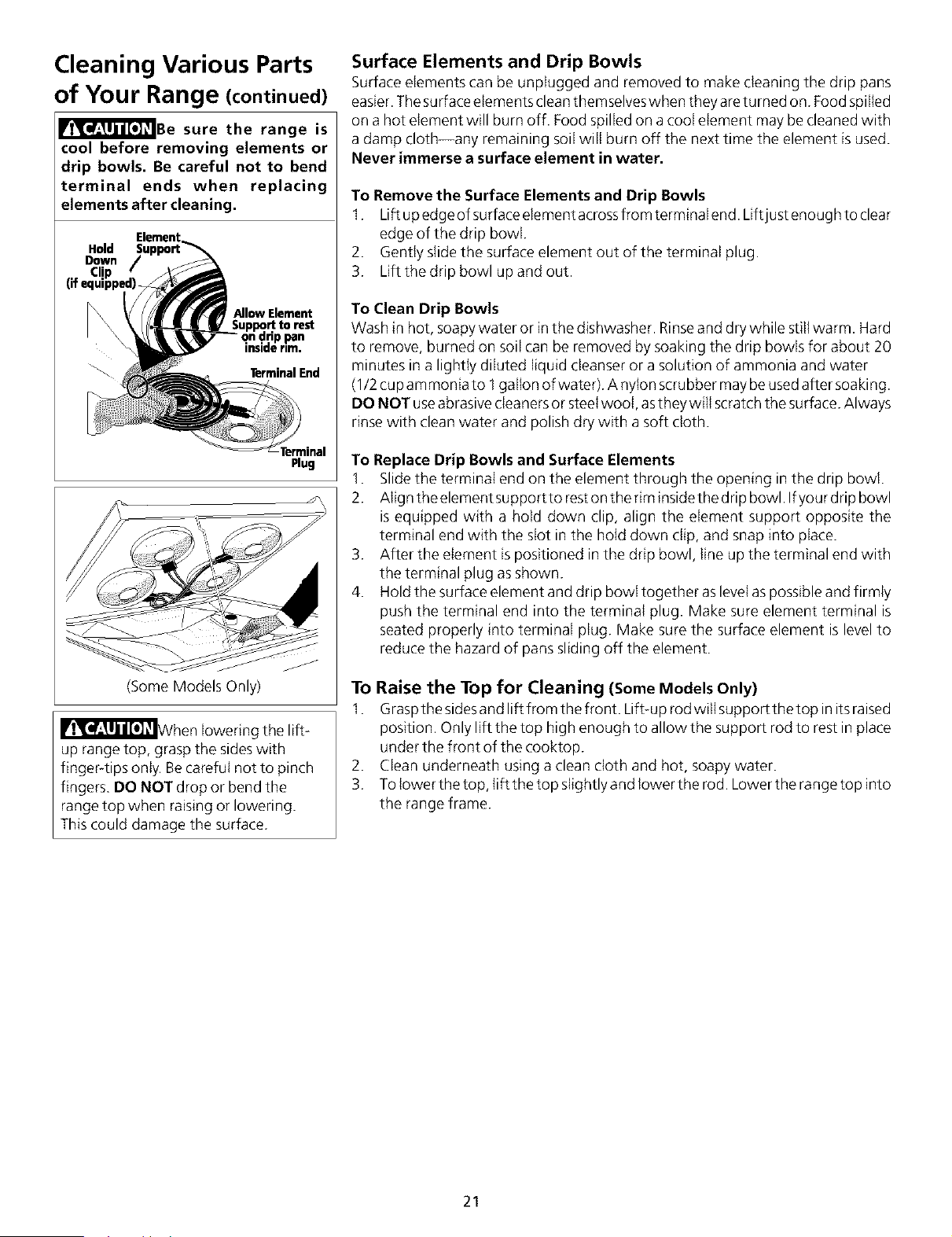

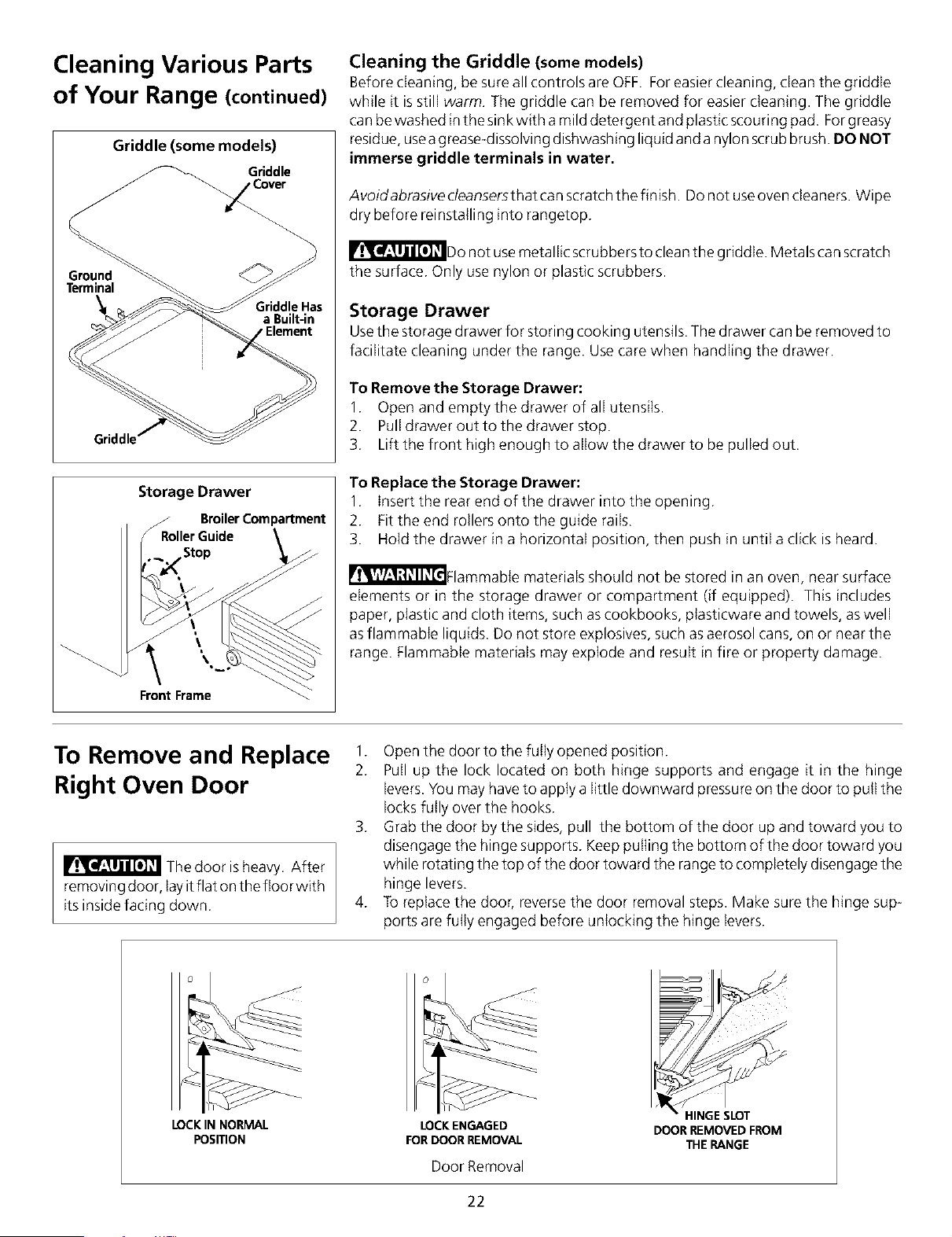

CleaningVarious Parts of your Range.................... 120-22
To Removeand ReplaceRight OvenDoor .....................22

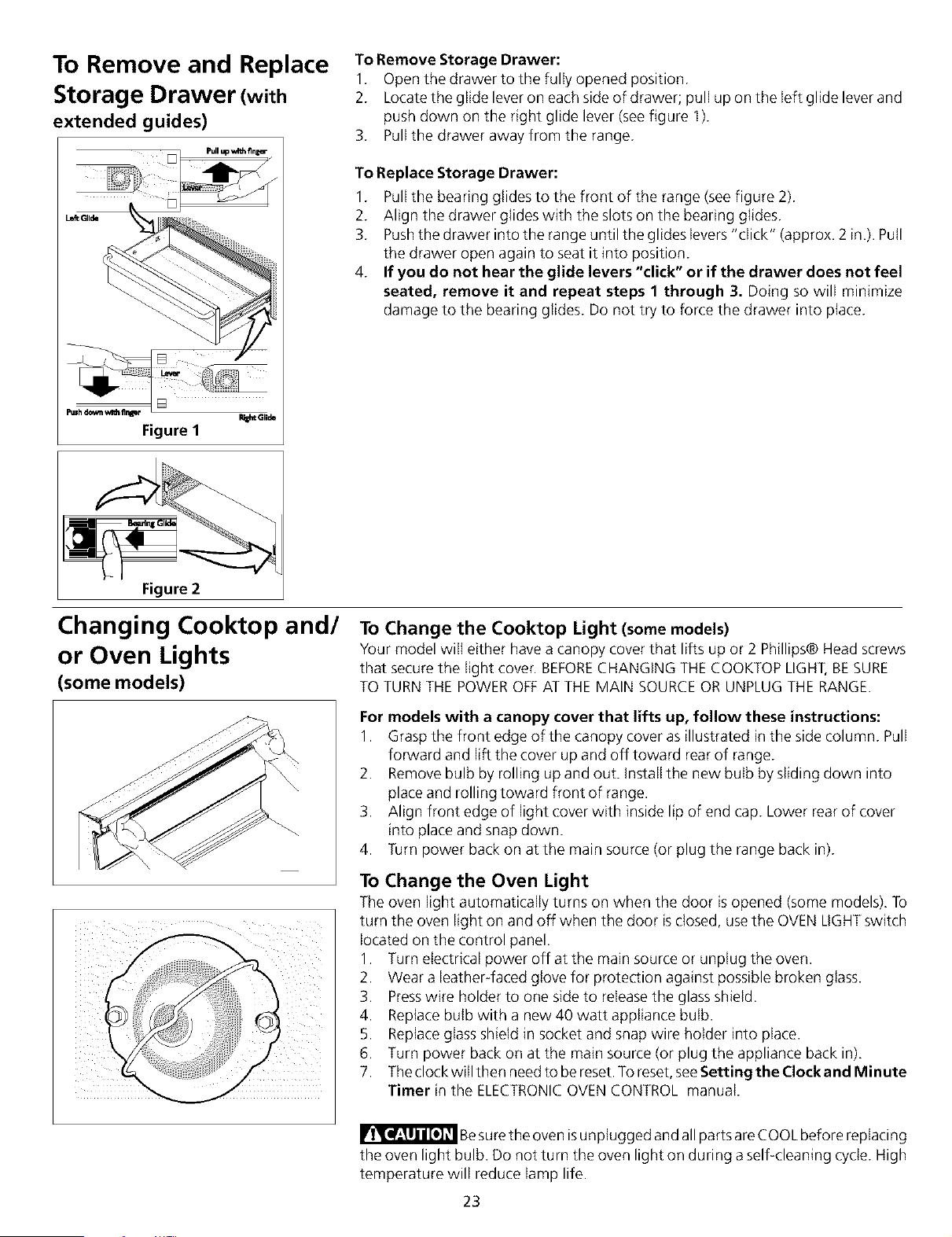

To Removeand ReplaceStorageDrawer .......................22
Changing Cooktopand / or OvenLight ..........................23

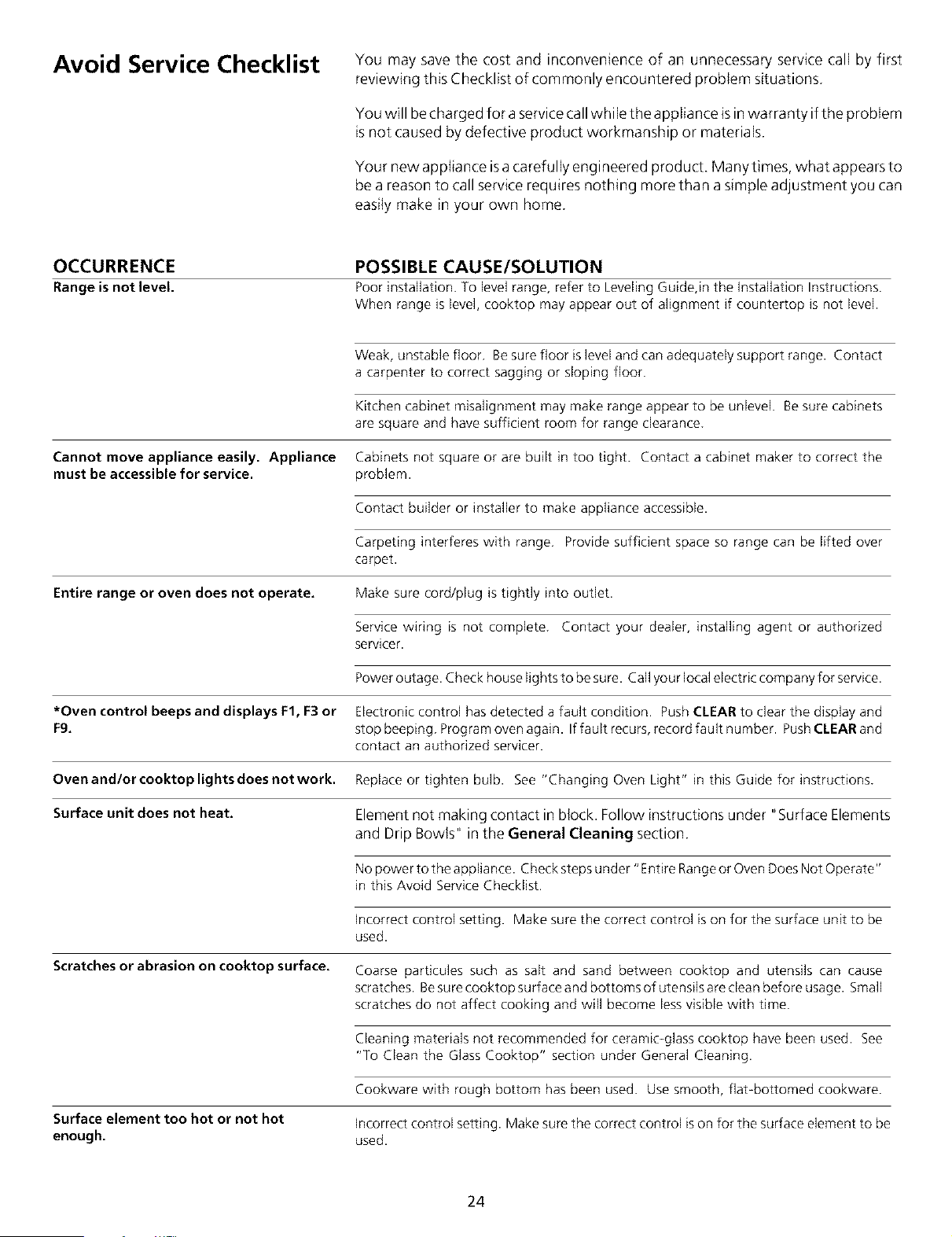

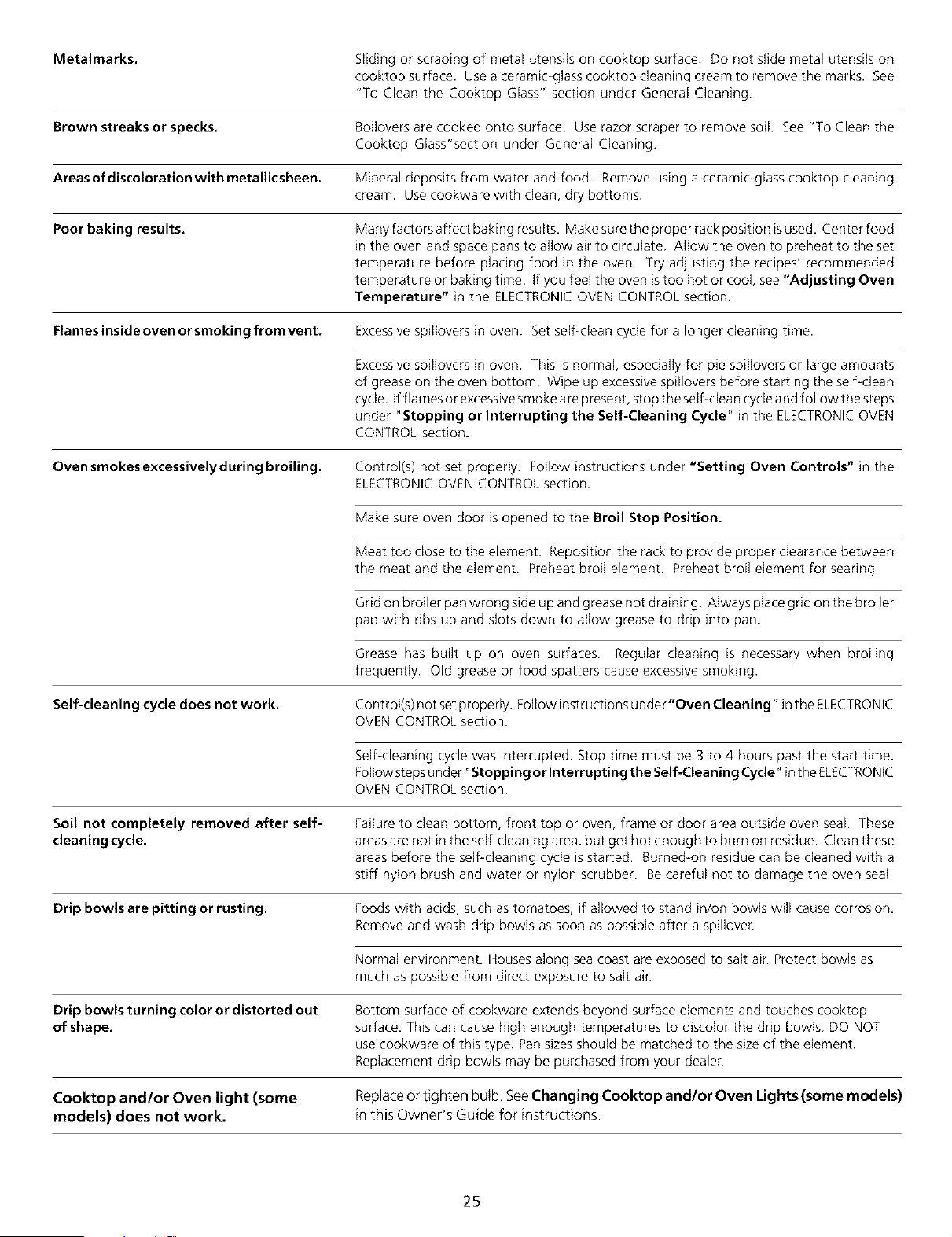

Avoid Service Checklist ............................................24-25
Notes........................................................................26-27

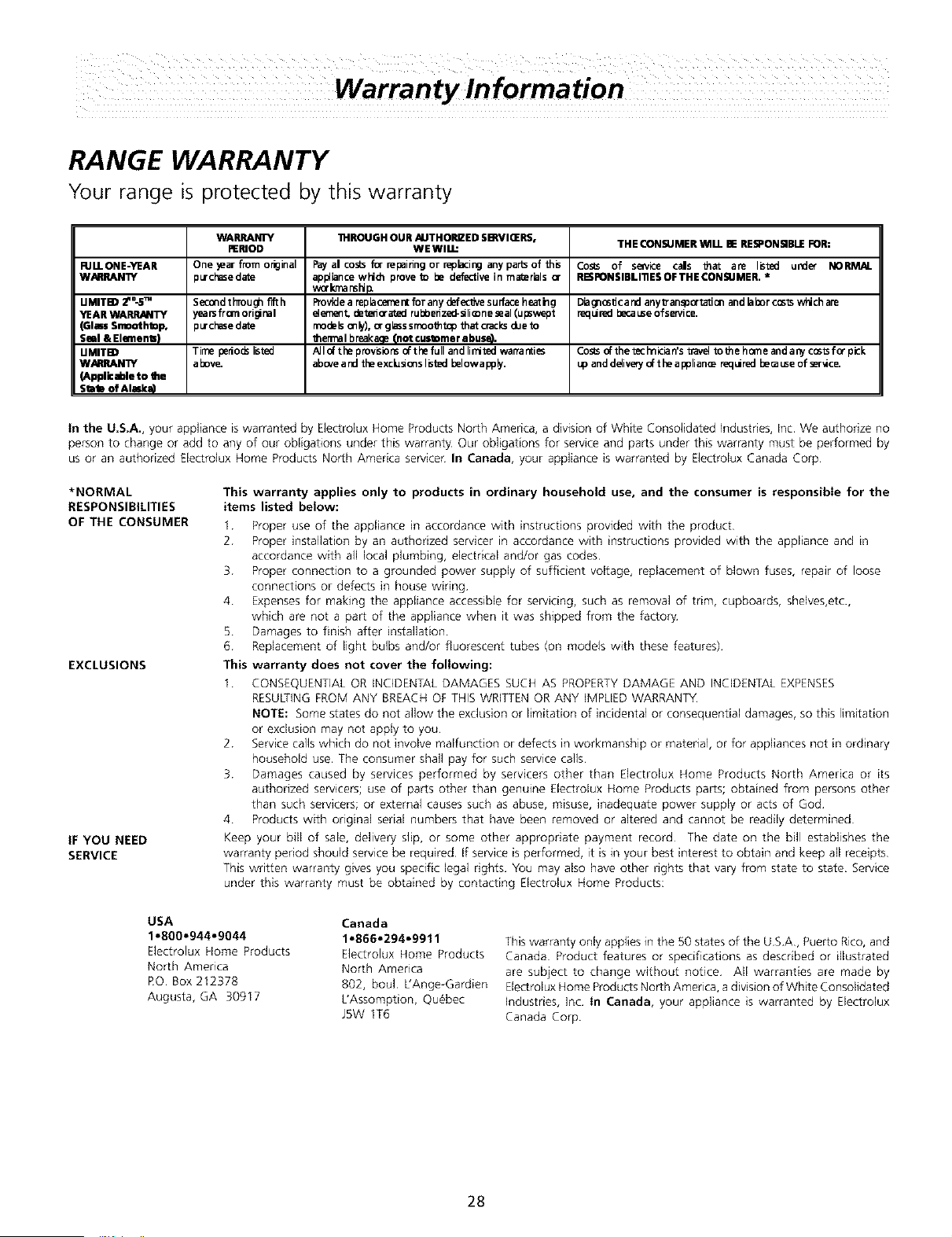

Warranty .........................................................................28
READ AND SAVE THESE INSTRUCTIONS 318200706(0203)Rev.A

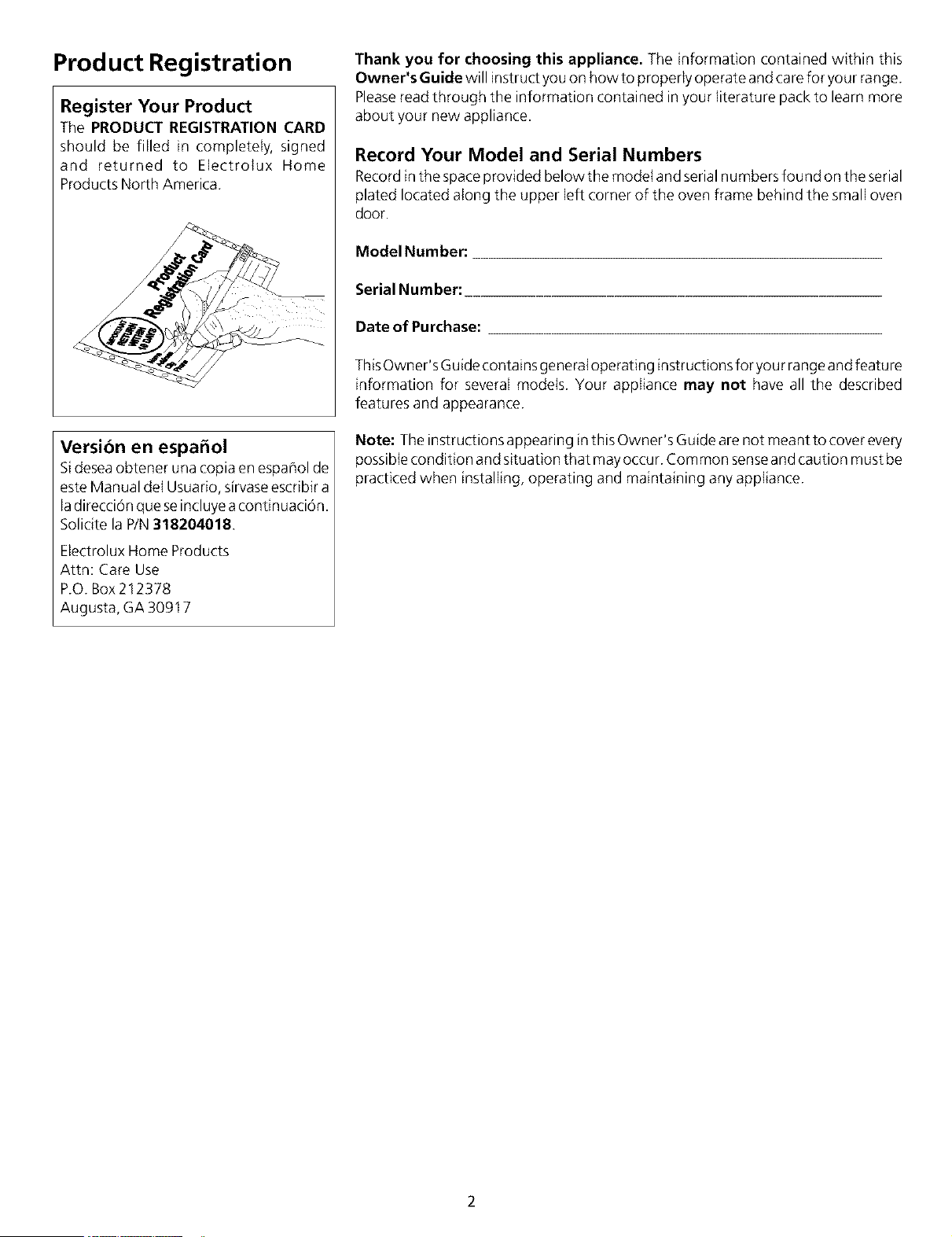

Product Registration
Register Your Product
The PRODUCT REGISTRATION CARD
should be filled in completely, signed
and returned to Electrolux Home
Products North America.
Version en espa_ol
Sideseaobtener una copia en espa_ol de
este Manual det Usuario, sirvaseescribir a
la direcci6n que seincluye acontinuaci6n.
Solicite la P/N318204018.
Electrolux Home Products
Attn: Care Use
P.O. Box212378
Augusta, GA 30917
Thank you for choosing this appliance. The information contained within this
Owner's Guide will instruct you on howto properly operate and carefor your range.
Pleaseread through the information contained in your literature pack to learn more
about your new appliance.
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers found on the serial
plated located along the upper left corner of the oven frame behind the small oven
door.
Model Number:
Serial Number:
Date of Purchase:
ThisOwner's Guide contains general operating instructions for your rangeandfeature
information for several models. Your appliance may not have all the described
features and appearance.
Note: The instructions appearing inthis Owner's Guide are not meant to cover every
possible condition and situation that may occur. Common senseand caution must be
practiced when installing, operating and maintaining any appliance.

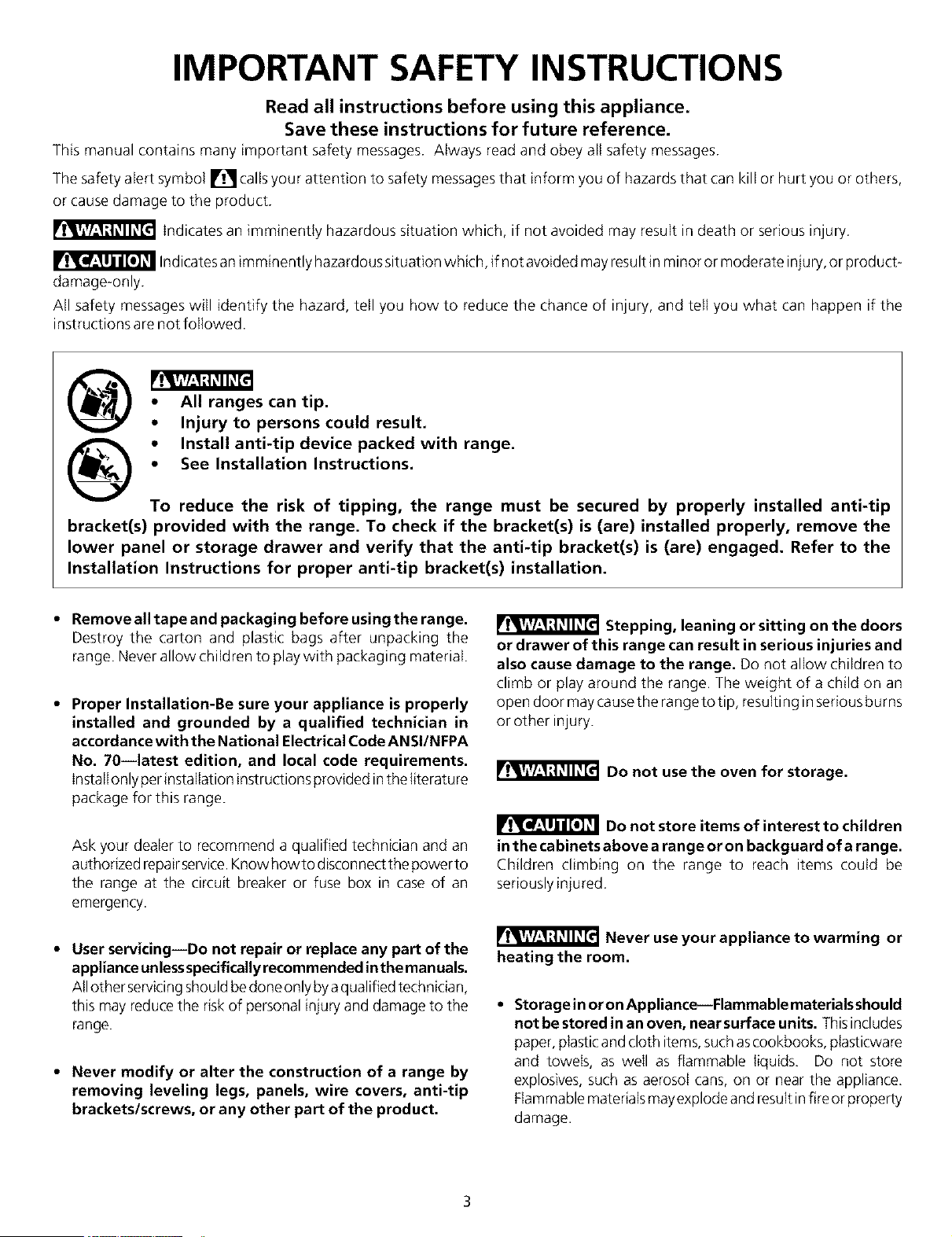

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance.
Save these instructions for future reference.
This manual contains many important safety messages. Always read and obey all safety messages.
The safety alert symbol _1_ calls you r attention to safety messages that inform you of hazards that can kill or hurt you or others,
or cause damage to the product.
Indicates an imminently hazardous situation which, if not avoided may result in death or serious injury.
ri_lT-"_'l_L'_ Indicates an imminently hazardous situation which, ifnot avoided may result in minor or moderate injury, or product -
damage-only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
All ranges can tip.
Injury to persons could result.
(_ * Install anti-tip device packed with range.
See Installation Instructions.
To reduce the risk of tipping, the range must be secured by properly installed anti-tip
bracket(s) provided with the range. To check if the bracket(s) is (are) installed properly, remove the
lower panel or storage drawer and verify that the anti-tip bracket(s) is (are) engaged. Refer to the
Installation Instructions for proper anti-tip bracket(s) installation.
• Remove all tape and packaging before using the range.
Destroy the carton and plastic bags after unpacking the
range. Never allow children to play with packaging material.
• Proper Installation-Be sure your appliance is properly
installed and grounded by a qualified technician in
accordance with the National Electrical Code AN SI/NFPA
No. 70ilatest edition, and local code requirements.
Insta[Ionly per installation instructions provided inthe literature
package for this range.
Ask your dealer to recommend a qualified technician and an
authorized repairservice.Know howto disconnect the power to
the range at the circuit breaker or fuse box in case of an
emergency.
• User servicing--Do not repair or replace any part of the
appliance unlessspecificallyrecommended inthe manuals.
All other servicingshouldbe done only byaqualified technician,
this may reducethe risk of personal injury and damage to the
range.
• Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti-tip
brackets/screws, or any other part of the product.
Stepping, leaning or sitting on the doors
or drawer of this range can result in serious injuries and
also cause damage to the range. Do not allow children to
climb or play around the range. The weight of a child on an
open door may causethe range to tip, resulting in serious burns
or other injury.
Do not use the oven for storage.
Do not store items of interest to children
inthe cabinets above a range or on backguard of a range.
Children climbing on the range to reach items coutd be
seriously injured.
Never use your appliance to warming or
heating the room.
• Storage in oron Appliance--Flammable materialsshould
not be stored in an oven, near surface units. Thisincludes
paper, plasticand cloth items, such ascookbooks, plasticware
and towels, as well as flammable liquids. Do not store
explosives, such as aerosol cans, on or near the appliance.
Flammablematerialsmayexplode and result infire or property
damage.

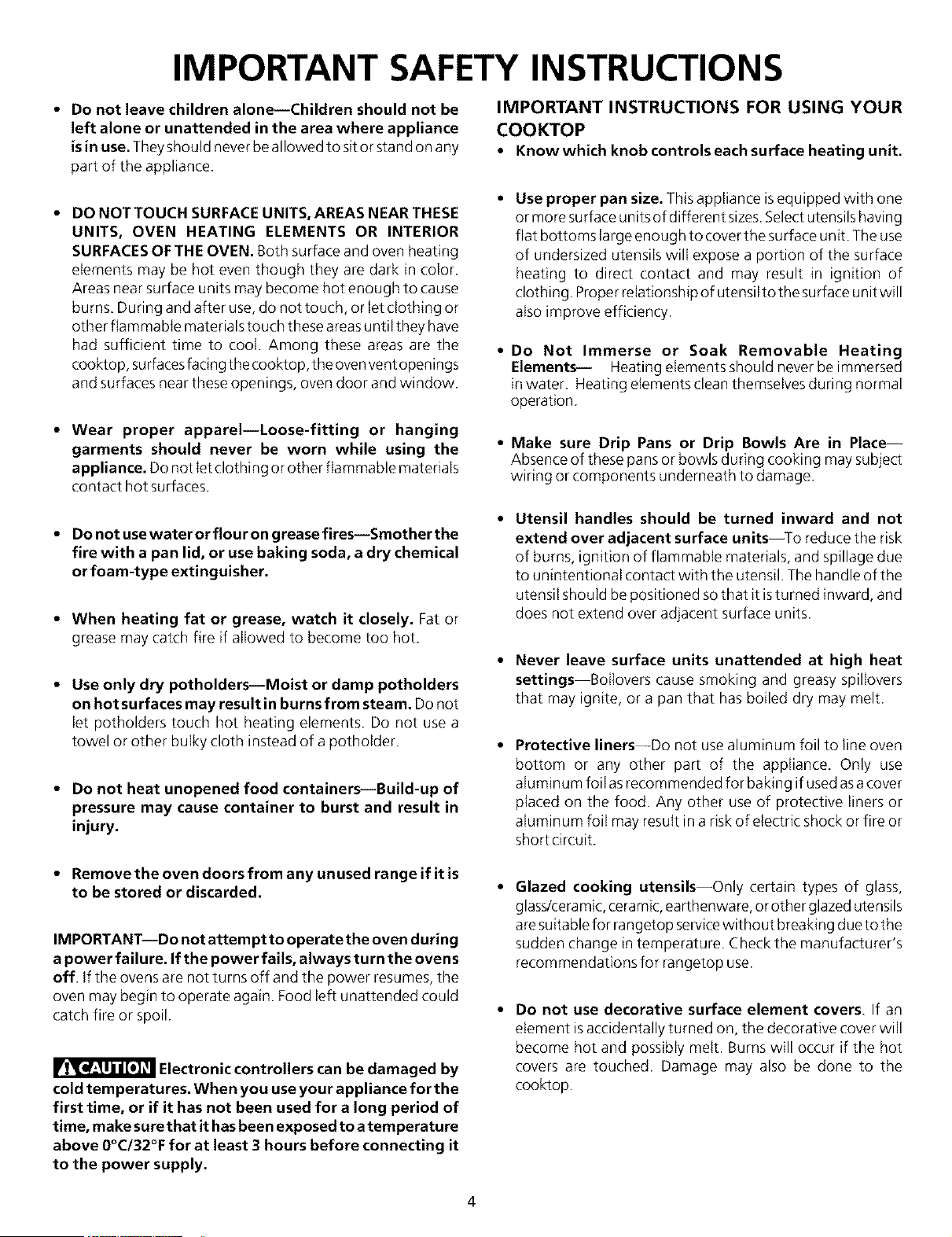

IMPORTANT SAFETY INSTRUCTIONS
• Do not leave children aloneiChildren should not be
left alone or unattended in the area where appliance
is in use. They should neverbe allowed to sitor stand on any
part of the appliance.
• DO NOT TOUCH SURFACEUNITS, AREAS NEAR THESE
UNITS, OVEN HEATING ELEMENTS OR INTERIOR
SURFACESOFTHE OVEN. Both surface and oven heating
elements may be hot even though they are dark in color.
Areas near surface units may become hot enough to cause
burns. During and after use, do not touch, or let clothing or
other flammable materials touch these areasuntilthey have
had sufficient time to coot. Among these areas are the
cooktop, surfacesfacing the cooktop,the ovenvent openings
and surfaces near these openings, oven door and window.
• Wear proper apparel--Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable materials
contact hot surfaces.
IMPORTANT INSTRUCTIONS FOR USING YOUR
COOKTOP
• Know which knob controls each surface heating unit.
Use proper pan size. This appliance isequipped with one
or more surface units of different sizes.Select utensilshaving
flat bottoms large enough to cover the surface unit. The use
of undersized utensils will expose a portion of the surface
heating to direct contact and may result in ignition of
clothing. Proper relationship of utensilto the surface unit will
also improve efficiency.
Do Not Immerse or Soak Removable Heating
Elements-- Heating elements should never be immersed
in water. Heating elements clean themselves during normal
operation.
• Make sure Drip Pans or Drip Bowls Are in Place--
Absence of these pans or bowls during cooking may subject
wiring or components underneath to damage.
• DonotusewaterorflourongreasefiresiSmotherthe
fire with a pan lid, or use baking soda, a dry chemical
or foam-type extinguisher.
• When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
• Use only dry potholdersiMoist or damp potholders
on hot surfaces may result in burns from steam. Do not
let potholders touch hot heating elements. Do not use a
towel or other bulky cloth instead of a potholder.
• Do not heat unopened food containers--Build-up of
pressure may cause container to burst and result in
injury.
Utensil handles should be turned inward and not
extend over adjacent surface units--To reduce the risk
of burns, ignition of flammable materials, and spillage due
to unintentional contact with the utensil. The handle of the
utensil should be positioned sothat it isturned inward, and
does not extend over adjacent surface units.
Never leave surface units unattended at high heat
settings Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
Protective liners--Do not usealuminum foil to line oven
bottom or any other part of the appliance. Only use
aluminum foilas recommended for baking if usedasacover
placed on the food. Any other use of protective liners or
aluminum foil may resutt in a risk of electric shock or fire or
short circuit.
• Remove the oven doors from any unused range if it is
to be stored or discarded.
IMPORTANTiDo not attem ptto operate the oven during
a power failure. If the power fails, always turn the ovens
off. If the ovens are not turns off and the power resumes, the
oven may begin to operate again. Food left unattended could
catch fire or spoil.
Electronic controllers can be damaged by
cold temperatures. When you use your appliance forthe
first time, or if it has not been used for a long period of
time, make sure that it has been exposed to a temperature
above 0°C/32°F for at least 3 hours before connecting it
to the power supply.
Glazed cooking utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed utensils
are suitable for rangetop servicewithout breaking due to the
sudden change in temperature. Check the manufacturer's
recommendations for rangetop use.
Do not use decorative surface element covers. If an
element isaccidentally turned on, the decorative cover will
become hot and possibly melt. Burns will occur if the hot
covers are touched. Damage may also be done to the
cooktop.

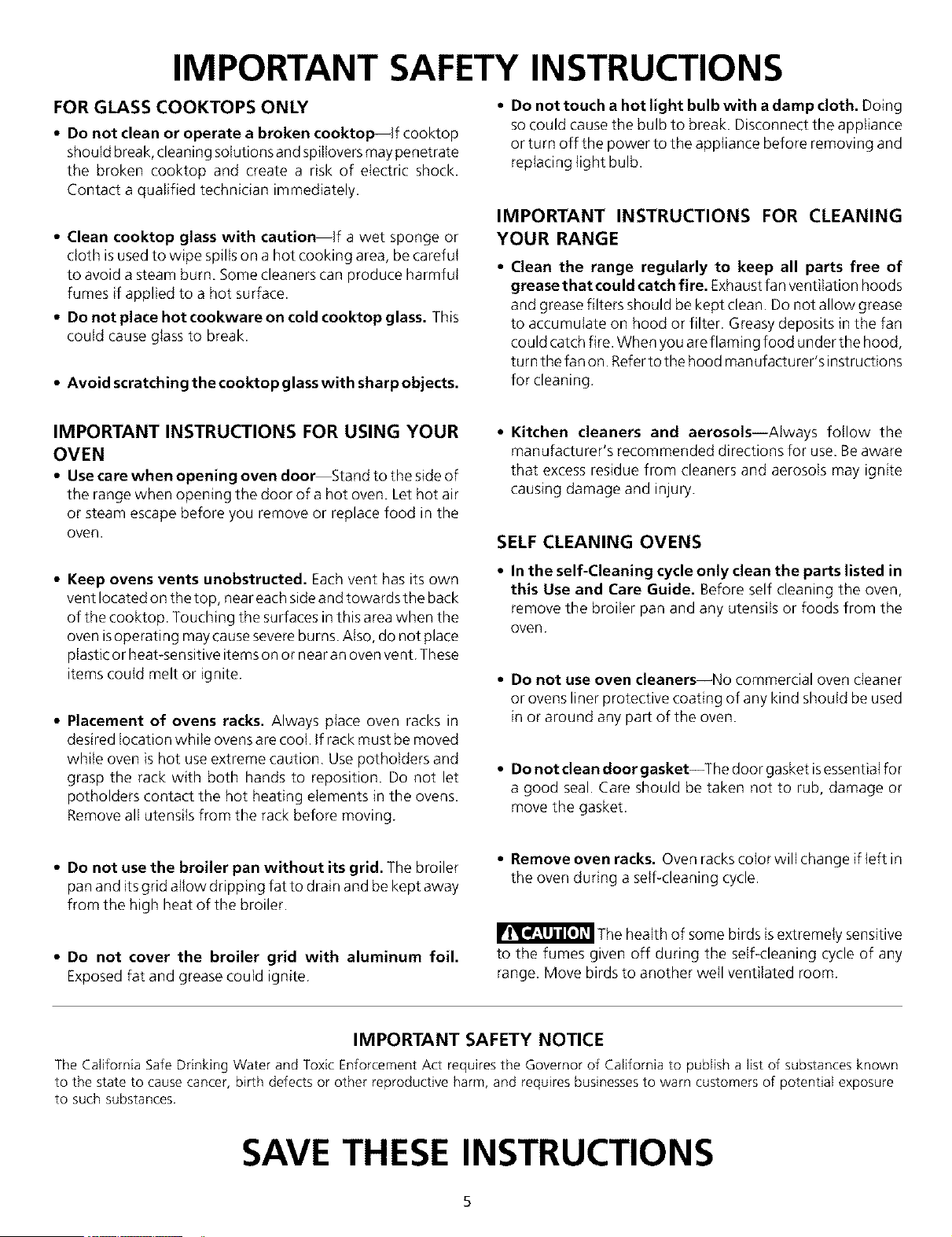

IMPORTANT SAFETY INSTRUCTIONS
FOR GLASS COOKTOPS ONLY
• Do not clean or operate a broken cooktop_lf cooktop
should break, cleaning solutions and spillovers may penetrate
the broken cooktop and create a risk of etectric shock.
Contact a qualified technidan immediately.
• Clean cooktop glass with caution--If a wet sponge or
cloth isused to wipe spills on a hot cooking area, be careful
to avoid a steam burn. Somecleaners can produce harmful
fumes if applied to a hot surface.
• Do not place hot cookware on cold cooktop glass. This
coutd cause glass to break.
• Avoid scratching the cooktop glass with sharp objects.
• Do not touch a hot light bulb with a damp cloth. Doing
socould cause the bulb to break. Disconnect the appliance
or turn off the power to the appliance before removing and
replacing light bulb.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
• Clean the range regularly to keep all parts free of
grease that could catch fire. Exhaustfan ventilation hoods
and greasefilters should be kept clean. Do not allow grease
to accumulate on hood or filter. Greasy deposits in the fan
could catch fire. When you are flaming food under the hood,
turn the fan on. Referto the hood manufacturer's instructions
for cleaning.
IMPORTANT INSTRUCTIONS FOR USING YOUR
OVEN
• Usecare when opening oven doo_Stand to the side of
the range when opening the door of a hot oven. Let hot air
or steam escape before you remove or replace food in the
oven.
• Keep ovens vents unobstructed. Each vent has its own
vent located on the top, near each sideand towards the back
of the cooktop. Touching the surfaces in this area when the
oven isoperating may causesevere burns. Also, do not place
plastic or heat-sensitive items on or near an oven vent. These
items coutd melt or ignite.
• Placement of ovens racks. Always place oven racks in
desired location while ovens are cool. If rack must be moved
while oven is hot use extreme caution. Usepotholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the ovens.
Remove all utensils from the rack before moving.
• Kitchen cleaners and aerosolsiAlways follow the
manufacturer's recommended directions for use. Be aware
that excess residue from cleaners and aerosols may ignite
causing damage and injury.
SELF CLEANING OVENS
• In the self-Cleaning cycle only clean the parts listed in
this Use and Care Guide. Before self cleaning the oven,
remove the broiler pan and any utensils or foods from the
oven.
• Do not use oven cleaners--No commercial oven cleaner
or ovens liner protective coating of any kind shoutd be used
in or around any part of the oven.
• Do not clean door gasket--The door gasket isessential for
a good seal. Care should be taken not to rub, damage or
move the gasket.
• Do not use the broiler pan without its grid. The broiler
pan and its grid allow dripping fat to drain and be kept away
from the high heat of the broiler.
• Do not cover the broiler grid with aluminum foil.
Exposed fat and grease could ignite.
• Remove oven racks. Oven racks color will change if left in
the oven during a self-cleaning cycle.
The health of some birds isextremely sensitive
to the fumes given off during the setf-cleaning cycle of any
range. Move birds to another well ventilated room.
IMPORTANT SAFETY NOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known
to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure
to such substances.
SAVE THESE INSTRUCTIONS
Selecting Surface
Cooking Utensils
Forbest result and energy conservation, choose cooking utensils that have these
characteristics:
Pansshould have flat bottoms. Check for
flatness by rotating a ruler across the
bottom. There shoutd be no gap between
the pan and ruler.
Note: Always usea utensil for its intended
purpose. Follow manufacturer's instructions.
Some utensils were not made to be used
in the oven or on the cooktop.
Do not use griddle over
more than one burner because it could
damage your cooktop. It can also result in
exposure to carbon monoxide levels above
allowable current standards and be
hazardousto your health.
*GOOD
w
t t
• Flat bottom and straight sides.
• Tight fitting lids.
• Weight of handle does not tilt
pan. Pan iswell balanced.
• Pansizes match the amount of
food to be prepared and the
size of the surface element.
• Made of a material that
conducts heat well.
• Easyto clean.
• Always match pot diameter to
element diameter.
POOR
U
• Curved and warped pan
ii!i!!iiiiii_.
• Panoverhangs unit by more
than one-half inch or 12mm.
• Heavy handle tilts pan.
I I
u
• Pan is smalleror larger than
element
* Specialty pans such as lobster pots, griddles and pressure cookers may be
used but must conform to the above recommended cookware requirements.
Specialty Pans & Trivets
Woks with flat bottoms suitable for use
on your cooktop are available in most
cookshop or hardware stores.
DO NOT use two elements (if the
cooktop isnot equipped with bridge el-
ement) to heat one large pan such asa
roaster or griddle, or allow cooking uten-
sils to boil dry. The bottom surface of
the pan in either of these situations could
causediscoloring or cracking of the glass
range surface.
Wire trivets: Do not use wire trivets.
Cookware bottoms must be in direct con-
tact with the surface elements.
DO NOT use a wok if it is equipped
with a metal ring. Because this ring
traps heat, the cooktop surface
could be damaged.
For glass smoothtop models, only
flat bottomed woks (without
support rings) may be used.
Canning Tips &
Information
Vl_l!'_llii_ll7
Canning can generate
large amounts of steam. Useextreme cau-
tion to prevent burns. Always raisethe lid
to vent steam away from you.
CD
1. Usetested recipesand follow instructions carefully. Checkwith the manufacturer
of glass jars for the latest canning information.
2. Use fiat-bottomed canners onty. Heat is spread more evenly when the bottom
surface isflat.
3. Center canner on the burner grate.
4. Start with hot water and a high heat setting to reduce the time it takes to bring
the water to a boil; then reduce the heat setting as low as possible to maintain
a constant boil.
5. It isbest to can smaNamounts and light loads.
Prevent damage to cooktop:
1. Do not use water bath or pressure canners that extend more than one inch
beyond the edge of the burner grate.
2. Do not leave water bath or pressure canners on high heat for an extended
amount of time.
3. Alternate surface units between each batch to allow the units and surrounding
surfaces to cool down. Tryto avoid canning on the same burner unit all day.
Safe canning requires that harmful micro-organisms are destroyed
and the jars are sealed completely. When canning in a water bath canner, a gentle
but steady boil must be maintained continuously for the required time.
Setting Surface Controls
Surface Control Knob
Knob may look different
Do not place items
such as salt and pepper shakers,
spoon holders or plastic wrappings
on top of the cooktop when it is in
use. These items could melt or ignite.
Potholders, towels or wood could catch
fire if placed too close to the element.
To Operate the Surface Element
1. Placecooking utensil on the surface element.
2. Push in and turn the Surface Control knob in either direction to the desired
setting. Start most cooking operations on a higher setting and then turn to a
lower setting to finish cooking. The control knobs do not have to be set exactly
on a particular mark. Use the marks asa guide and adjust the control knob as
needed.
3. When cooking iscompleted, turn the surface element off before removing the
pan. Note: The surface signal light win glow when one or more elements are
turned on. A quick glance at the signal light when cooking isfinished isan easy
check to be sure all control knobs are turned off.
Note: The size and type of utensil used, and the amount and type of food
being cooked will influence the setting needed for best cooking results.
Setting
Max (HI)
Medium High (6)
Medium (5)
Medium Low (2-3)
Simmer (SIM)
Type of cooking
Start most foods, bring water to a boil, pan broiling.
Continue a rapid boil, fry, deep fat fry.
Maintain a slow boil, thicken saucesand gravies,
steam veqetables.
Keep food cooking, poach, stew.
Keep warm, melt, simmer.
*The suggested settings found inthe chart above are based on cooking in medium
thickness aluminum pans with lids. Settings may vary when using other types of
pans.
Setting Surface Controls
(continued)
Griddle Control Knob
Knob may book different
To Operate the Griddle (If equipped)
Foods can be placed directly on the griddle for cooking. To remove the griddle for
cleaning the burner box underneath, grasp the griddle in the front and gently putl
away from plug terminal, then lift up and out. To reinstall, grasp the griddle with
both hands at the end opposite the terminals and using the middle rod at the
terminal end as a guide, push the griddle into place.
1. Push in and turn the griddle control in either direction to the desired setting.
Start most cooking operations on a higher setting; then turn to a lower setting
to finish cooking.
2. The control does not haveto be set exactly on a particular mark. Usethe marks
as a guide and adjust the control as needed.
3. The griddle indicator light glows when the griddle ison. A quick glance at the
light when cooking isfinished isan easy check to be sure the control isturned
off.
4. Preheat for a few minutes (until butter melts or beads of water dance on the
griddle).
5. Useonly nylon or plastic spatulas, spoons, etc. Metal can scratch the nomstick
finish.
6. Make sure the griddle is turned OFF when cooking is finished. Leaving the
griddle ON will damage it.
Approximate Griddle Settings
Bacon HI
Grilled Sandwiches HI
Pancakes HI
Hamburgers MED-HI
Eggs MED
Regular Radiant
Element Control Dial
Knob may book different
Note: Due to the high intensity of heat
generated bythe surfaceelements, the glass
surface will turn green when the element
will be turned off. This phenomenon isnor-
md and the glasswill come back to itsorigi-
nalwhite color after it hascompletely cooled
down. (White glass cooktops only).
Ceramic Glass Cooktop (some models)
The ceramic-glass cooktop haselectric heating coils located below the ceramicglass
surface. Thedesign of the glasscooktop outlinesthe area of the surface heating unit
below. Most importantly, make sure the diameter of the pan matches the diameter
of the surface unit. Heat istransferred up th rough the surface of the cooktop. Only
flat-bottomed pans should be used. The type and size of cookware, number of
surface units in useand the settings of the surface units are factors that will affect
the amount of the heat that will spread to areas surrounding the units. The areas
surrounding the units may become hot enough to cause burns.
The cooktop should not be usedasa cutting board orwork surface. Dropping heavy
or hard objects on the cooktop may crack it. Panswith rough bottoms may scratch
the cooktop surface. Placing foods directly on the smoothtop surface (without
utensils) isnot recommended asdifficult cleaning will result and foods may smoke
and cause a potential fire hazard. Never usethe griddle or similar cooking sheet on
the ceramic glass cooktop.
Types of Heating Units Used
REGULARRADIANT HEATING UNITS (some models)
The ceramic glass design shows the location of the heating surfaces.
Control knobs are usedto set the heat power levels. Knobs need first to be pressed
in when at OFFposition, then turned to the desired heat settings.
A glowing red surface extending beyond the bottom edge of the cooking utensil
indicates the utensil istoo small for the unit. The control knob does not haveto be
set exactly on a particular mark. Use the marks as a guide and adjust the control
knob as needed. The hot surface and surface indicator lights will glow.
Note: A builtqn protector will automatically turn off the radiant and expandable
radiant element if the ceramic-glass temperature exceeds the set limit.
Setting Surface Controls
continued)
Expandable & Bridge Radiant
Element Control Dial
Knob may book different
Ceramic Glass Cooktop (some models) (continued)
EXPANDABLERADIANT HEATING UNITS (some models)
This heating unit adapts to both small and large heating utensils. The unit control
dial hasa dual set of graduations. For small utensils usethe left side of the control
dial; for large utensils the right. Only the inner surface of the unit heats when using
it for small utensils; the whole surface heats for large utensils. The hot surface and
surface indicator lights will glow when the heating unit isturned ON.
Note: During any heat setting of the outer radiant element, the inner radiant ele-
ment cycles on and off with the outer element.
BRIDGERADIANT HEATING UNITS (some models)
Its principal advantage isto allow you to create larger cooking zone for larger pan
suchsas roaster, griddle or some other specialty pans.
Tousethe bridge element, turn the control knob on right side, to the bridge burner
graduations.
Forfutl bridge element operation turn on the left rear burner.
Touseonly the front element, turn the control knob on left side, to the front burner
graduations.
Indicator Lights
(for models with Ceramic
Glass Cooktop)
Two different surface control lights will glow on your range: Surface Indicator Lights
and Hot Surface Indicator Lights.
• The surface indicator lights, located on the control panel, glow when any
surface unit is turned on. A quick glance at the lights after cooking is an easy
check to be sure all surface controls are turned off.
The hot surface indicators lights, located under the glass cooktop, will
come on asthe surface cooking area heats up and will continue to glow until the
glass cooktop has cooled down to a moderate level. The lights may remain on
even though the controls are turned to OFR
To Operate the Warmer
(Warm & Ready TM) Zone
(some models)
Warmer Zone Control Dial
Knob may book different
Warmer Zone Recommended
Food Settings
Food Item Heating
Level
Breads/Pastries LO
Casseroles LO
Dinner Plateswith Food LO
Eggs LO
Gravies LO
Meats MED
Sauces MED
Soups (cream) MED
Stews MED
Vegetables MED
Fried Foods HI
Hot Beverages HI
The purpose of the warmer zone isto keep hot cooked foods at serving tempera-
ture. Use the warmer zone to keep cooked foods hot such as: vegetables, gravies,
casseroles, soups, stews, breads, pastries and oven-safe dinner plates. Always start
with hot food. Do not heat cold food on the warmer zone.
All food placed on the warmer zone should be covered with a lid or aluminum foil.
When warming pastries or breads, the cover should havean opening to allow mois-
ture to escape. Do not use plastic wrap to cover food. Plastic may melt onto
the surface and be very difficult to clean.
Useonty dishware, utensils and cookware recommended for oven and cooktop use
on the warmer zone.
_'_ Always usepotholders or oven mitts when removing food from the
warmer zone ascookware and plates will be hot.
To Set the Warmer Zone Control
1. Toset the control, push in and turn the knob. Thetemperatures are approximate,
and are designated by HI, MED and LO. However, the control can be set at any
position between HI and LOfor different levels of heating.
2. When done, turn the control to OFRThewarmer zone will remain warm until the
hot surface indicator light goes off.
Temperature Selection
Refer to the chart for recommended heating levels. If a particular food is not listed,
start with the medium level, and adjust as needed. Most foods can be kept at
serving temperatures by using the medium level.
Indicator Lights
The surface indicator light islocated below the warmer zone control. It turns on
when the control isset, and stayson until the control isturned off. The hot surface
indicator light, located on the control panel, will come on when the control isset
and will continue to glow until the glass cooktop has cooled down to a moderate
level.
The warmer zone will not glow red when it ishot, but becomes hot
enough to cause burns. Avoid placing hands on or near the warmer zone until the
hot surface indicator light isoff.
Warmer Zone
\
\
\ Hot Surface
Indicator Light
10
Oven Vent(s) and Racks
@
Main Oven
Ovens Vents Locations For Ceramic Glass Cooktops Models :
Eachoven hasits own vent located on the top, near each side and towards the
back of the cooktop. When an oven ison, warm air is released through the vent;
this ventilation isnecessary for proper air circulation in the oven and good baking
results.
Ovens Vents Locations For Coil Elements Models :
The oven isvented through the center of the left rear element for the left oven
and the center of the right rear element for the right oven. When an oven is on,
warm air isreleased through the vent. This venting is necessaryfor proper air
circulation in the oven and good baking resutts.
Arranging Oven Racks
The smaller oven has one oven rack and the larger oven has two oven racks.
ALWAYSARRANGE OVEN RACKS WHEN THEOVEN ISCOOL (PRIORTO OPERAT-
ING THEOVEN). Always use oven mitts when using the oven.
Side Oven
To remove an oven rack, putl the rack forward until it stops. Lift up front of
rack and slide out.
To replace an oven rack, fit the rack onto the guides on the oven
walls. Tilt the front of the rack upward and slide the rack back into place.
Air Circulation in the
Oven
If using multiple pans, stagger as shown. If using one pan, place in center of oven.
Forbest air circulation and baking results, center pans asmuch as possible. Allow 2-
4" (5q 0 cm) around the utensil(s) for proper air circulation and be sure pans do not
touch each other or the door, sides and back of oven. The hot air must circulate
around the pans in the oven for even heat to reach all parts of the oven.
11
Oven Baking Informa-
tions
For best results, preheat the oven before baking cookies, breads, cakes, pies or
pastries, etc. There is no need to preheat the oven for roasting meat or baking
casseroles.
Thecooking times and temperatures needed to bake a product may vary slightly from
your previously owned appliance.
Seestep-by-step baking instructions for right oven in the Electronic Oven Control
section.
Seeleft oven step-by-step instructions in the "Setting Left Oven Control" section.
Baking problems and solutions
Baking Problems Corrections
Cookies and
biscuits burn on
the bottom.
Cakes too dark on
top or bottom.
Cakes not done in
the center.
Cakes not level.
Foods not done
when cooking
time is up.
Causes
• Cookies and biscuits put into the
oven before the pre-heating time is
completed.
• Oven rack overcrowded.
• Dark pan absorbs heat too fast.
• Cakes put into the oven before •
preheating time is completed.
• Oven rack position too high or low. •
• Oven too hot. •
• Oven too hot. •
• Incorrect pan size. •
• Pannot centered in the oven. •
• Range not level. •
• Pan too close to oven wall or rack •
overcrowded.
• Panwarped.
• Oven too cool.
• Oven overcrowded.
• Oven door opened too frequently.
• Allow oven to preheat to the selected temperature before
placing food in oven.
• Choose pan sizes that will permit 5.1 cm to 10.2 cm (2" to 4")
of air space on all sides when placed in the oven.
• Use a medium-weight aluminum baking sheet.
Allow oven to preheat to the selected temperature before
placing food in the oven.
Use proper rack position for baking needs.
Set oven temperature 25°F/12°C lower than recommended.
Set oven temperature 25°F/12°C lower than recommended.
Use pan size suggested in recipe.
Use proper rack position and place pan so there is5.1 cm to 10.2
cm (2" to 4") of space on all sides of pan.
Placemarked glassmeasuring cup filled with water on the center
of the oven rack. Ifwater level is uneven, refer to the installation
instructions for leveling the appliance.
Besure to allow 5.1 cm to 10.2 cm (2" to 4") of clearance on all
sides of each pan in the oven.
Do not use pans that are dented or warped.
Set oven temperature 25°F/12°C higher than suggested and
bake for the recommended time.
Besure to remove all pans from the oven except the ones to be
used for baking.
Open oven door only after shortest recommended baking time.
12
Broiling Informations
Broil Stop
Position
Main Oven
Broiling is a method of cooking tender cuts of meat by direct heat from the broil
element of the oven. Meats are placed on the broiling rack and the rack is placed
under the broiling element.
Seethe broiling instructions for main oven in the Setting Oven Controls section inthe
Timer Guide.
Seeside oven step-by-step instructions in the Setting Side Oven Control section.
Preheating
Preheating is suggested when searing rare steaks (remove the broiler pan before
preheating; food will stick if placed on hot metal.) Topreheat, setthe oven control(s)
to BROIL. Wait for the element to become red_hot, usually about 2 minutes.
Preheating is not necessary when broiling meats well-done.
To Broil
Broil on one side until the food is browned; turn and cook on the other side; season
and serve.Always pull rack out to the stop position before turning or removing food.
Determining Broiling Times
Broiling times vary; watch the food closely. Time not only depends on the distance
from the element, but on the thickness and age of meat, fat content and aloneness
preferred. Thefirst side usually requiresa few minutes longer than the second. Frozen
meats also require additional time.
Broiling Tips
The broiler pan and itsgrid allow dripping greaseto drain and be kept away from the
high heat of the broiler.
DO NOT use the pan without its grid. DO NOT cover the grid with foil. The
exposed grease could ignite.
Should an oven fire occu r,close the oven door and turn off the oven.
Ifthe firecontin ues, throw baking sodaon the fi reor usea fire exting uisher. DO NOT
put water or flour on the fire. Flour may be explosive.
Always pull oven rack out to the stop position before turning or removing
food.
Broiler Clean-Up Tips:
• To make cleaning easier, line bottom of the broiler pan with aluminum foil. DO
NOT cover the broiler grid with foil.
° To prevent grease from baking on, remove the broiler pan from the oven assoon
as cooking iscompleted. Use hot pads because the broiler pan isextremely hot.
Pour off grease. Soak the pan in HOT, soapy water.
• Clean the broiler pan as soon aspossible after each use. If necessary, use soap_
filled steel wool pads. Heavy scouring may scratch the grid.
13
Convection Cooking
and Baking (ifequipped)
Air circulation
during convection cooking.
To select convection cooking mode,
press CONV BAKE ROAST button on
control panel before setting cooking
temperature and time.
The convection option, availableon some models, isan alternative to the conventional
oven cooking methods of baking/roasting.
Convection cooking is a method of cooking in which the heated air of the oven is
circulated by a fan at the rear of the oven cavity, providing better heat distribution.
This fan is covered by a baffle to circulate the air uniformly, providing even heat
distribution for faster and more even cooking, baking and browning. The heated air
penetrates food from every angle, sealing in natural moisture and flavors. The
convection fan automatically turns off when the oven door is opened and
resumes when the door is closed again. However, the heating element will stay
on.
The oven can be programmed to bake in the convection mode at any temperature
from 170°F/80°C to 550°F/288°C. Preheating the oven for 10-12 minutes is
recommended when using convection but not necessarywhen roasting or cooking
casseroles.
CAUTION: Inthe convection mode, using cooking times from conventional cooking
recipes may cause food to be overcooked. For satisfactory results, use only tested
recipeswith times adjusted for convection cooking. Obtaining and usinga convection
oven cookbook ishighly recommended.
Convection cooking usesa lower temperature and takes lesstime to achieve the
same results asconventional cooking. In convection mode, the actual temperature
in your oven automatically adjusts to be 25°F112°C lower than the temperature
displayed on the oven control panel. Because of this automatic adjustment you can
enter the cooking temperature from your existing conventional cooking recipe, but
do not setthe cooking time to be the same. Evenat the lower cooking temperature,
convection cooking times will be as much as 30% less than conventional cooking
times.
When programming cooking times for convection cooking, enter a time that is20 to
30 percent lessthan called for in your conventional cooking recipe. After the cooking
cycle ends, decide if the food is done to satisfaction, slightly overdone or slightly
underdone (if underdone, cook a short time longer to satisfaction). Make a note of
the time and results, and with your next use of the recipe adjust cooking time
accordingly.
Convection Roasting
(If equipped)
Roasting
Rack_
Broiler
Pan-
When convection roasting, usethe broiler pan and grid, and the roasting rack. The
broiler pan will catch grease spills and the grid will help prevent grease spatters. The
roasting rack will hold the meat.
1. Placeoven rack on bottom or next to bottom rack position.
2. Placethe grid in the broiler pan. The roasting rack fits on the grid allowing the
heated air to circulate under the food for even cooking and helps to increase
browning on the underside. Make sure the roasting rack issecurely seated on the
grid in the broiler pan. DO NOT use broiler pan without the grid. DO NOT cover
the grid with aluminum foil.
14
Setting Side Oven
Control
(left oven, if equipped)
Left Oven
Temperature Control Knob
Knob may look different
Broil Stop
Door Position
Side Oven
The broiler pan and its grid allow
dripping grease to drain and be kept
away from the high heat of the broiler.
DO NOT use the pan without its grid.
DO NOT cover the grid with foil. The
exposed grease could ignite.
To Bake
1. Arrange oven racks while the oven is still cool.
2. Turn the Temperature Control Knob to the desired oven temperature. When the
oven isfirst turned on, the oven indicator light below the Temperature Control
Knob will glow.
3. Preheatthe oven for 10 to 12 minutes before baking. Preheating isnot necessary
when roasting, cooking casseroles or broiling most foods. When the desired
temperature isreached, the oven indicator light will go out. The light willthen go
on and off asthe element cycleson and off to maintain the desired temperature.
4. When cooking isfinished, turn the Temperature Control Knob to OFF.
To Broil
1. Arrange oven rack while oven isstill cool. Forrare meats, position the broiler pan
closer to the element (upper position). For well-done foods such as chicken,
lobster tails or thick cuts of meat, position the pan further from the element (to
a lower position).
Rack Position From Top Food
1 Rare steaks.
2 Hamslices, fish, hamburgers and medium
steaks and chops.
3 Welt*done foods such as chicken and lobster.
2. Turn the Temperature Control Knob to BROIL.To sear rare steaks, allow the
element to become red*hot--about 2 minutes--before placing food in oven.
3. Placethe grid on the left oven broiler pan, and then placethe meat on the grid.
DO NOT usethe broiler pan without the grid or cover the grid with aluminum foil.
The exposed fat could ignite.
4. Placethe pan on the oven rack.Closethe oven door to the Broil Stop position
while broiling (door opened about 2 inches).
5. Broiton one side until food isbrowned; turn and cook on the other side. Season
and serve.Note: Always pull the rack out to the stop position before turning or
removing food.
6. When broiling isfinished, turn the Temperature Control Knob to OFF.
Should an oven fire occur, close the oven door and turn off the oven.
ifthe fire continues, throw baking sodaon the fire or usea fire extinguisher. DO NOT
put water or flour on the fire. Flour may be explosive.
15
Self-Clean Oven Cycle
(Main Oven)
I_ra!l_The health of some birds
isextremely sensitive to the fumes given
off during the self-cleaning cycle of any
range. Move birds to another well
ventilated room.
During the self-clean
cycle,the outside of the wall can become
very hot to touch. DO NOT leave small
children unattended near the appliance.
A ventilation system startsautomatically;
itisnormal for the hot air to beevacuated
through the front of the appliance.
Before cleaning any part
of the oven, be sure the electronic oven
control isturned offorelse pushCANCEL
pad. Wait until the oven is cool.
_DO
hand clean door
hand clean seal
Adhere to the Following Precautions:
- Allow the oven to cool before cleaning.
- Wear rubber gloves when cleaning any exterior parts of the oven manually.
DO NOT usecom mercial oven cleaners or oven protective coatings in or around any
part of the self-cleaning oven. DO NOT clean the oven door gasket. The gasket on
the oven door isessential for a good seal. Care should be taken not to rub, damage
or move the gasket. DO NOT use aluminum foil to line the oven bottom. This may
affect cooking, or the foil could melt and damage the oven surface.
A self-cleaning oven cleans itself with high temperatures (well above cooking
temperatures) which eliminate soil completely or reduce it to a fine powdered ash
you can wash away with damp cloth.
Preparing for the Self-Cleaning Cycle
1. Removeexcessspillovers in the oven cavity before starting the self-clean cycle. To
clean, usehot soapy water and a cloth. Large spillovers can cause heavy smoke
or fire when subjected to high temperatures. DONOT allow food spillswith a high
sugar or acid content (such astomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may cause a dull spot even after cleaning.
2. Clean all soil from the oven frame and the inner door (seeillustration to right).
These areasheat sufficiently during self-cleaning cycleto burn soilon. Clean with
soap and water. Do not clean door seal because doing so can permanently
damage it.
3. Remove the broiler pan and insert all utensils and any foil. These items do not
withstand high cleaning temperatures.
4.
Oven racks may be teftin the oven or may be removed. Ifthey go through the clean
cycle, their color will turn slightly dull. After the cycle iscompleted and the oven
hascooled, rub the sidesor the rackswith wax paper or acloth containing asmall
amount of baby oil or salad oil. This will make the racks glide easier.
What to Expect During Cleaning
While the oven self-cleans, it heats to temperatures much higher than those used in
normal cooking. Sounds of metal expansion and contraction are normal. Odor isalso
normal asthe food soil isbeing removed. Smoke mayappear through the oven vent,
located on both sides of cooking surface.
If heavy spillovers are not wiped up before cleaning, they may flame and cause more
smoke and odor than usual. This is normal and safe and should not cause alarm. If
available, use an exhaust fan during the self-cleaning cycle.
NOTE: When the oven reaches its self-clean temperature, the smoke level will be
reduced to vapor.
DO NOT force the oven door open. This can damage the
automatic door locking system. Use caution when opening the door after the
self-cleaning cycle iscompleted. The oven may still be VERYHOT.
16
Porcelain Enamel Oven
Cleaning (Side Oven)
(If equipped)
Adhere to the following cleaning
precautions:
* Allow the oven to cool before
cleaning.
, Wear rubber gloveswhen cleaning the
appliance manually.
Remove spillovers and heavy soilsas
soon as possible. Regular cleanings
will reduce the number of future
major (:leanings.
Ammonia must be
rinsedbefore operating the oven. Provide
adequate ventilation.
Porcelain has a smooth finish and is a type of glass fused to metal. Oven cleaners
can be used on all interior oven surfaces.
General Cleaning
Remove soils using hot, soapy water. Do not allow food spillswith a high sugar or
acid content (such asmilk, tomatoes, saukerkraut, fruit juices or pie filling) to remain
on the surface asthey may cause a dutl spot even after cleaning.
To Remove Heavy Soil
1. Allow a dish of ammonia to sit in the oven overnight or for several hours with the
oven door closed. Clean softened spots using hot, soapy water. Rinsewell with
water and a clean cloth.
2. If soil remains, use a soap-filled scouring pad or a nonabrasive cleaner. If neces-
sary, use an oven cleaner following manufacturer's instructions. DO NOT mix
ammonia with other cleaners.
Adhere to the following precautions when using oven clean-
ers:
1. DO NOT spray on the electrical controls or switches because it coutd cause a
short circuit and result in sparking or fire.
2. DO NOT allow afilm from the cleaner to build up on the temperature sensing
butb located at the top left rear corner of the oven; it could cause the oven to
heat improperly. Carefully wipe the bulb clean after each oven cleaning, being
careful not to move the bulb. A change in its position coutd affect how the oven
bakes. Avoid bending the bulb and capillary tube.
3. DO NOT spray any cleaner on the oven door trim or gasket, handles or any
exterior surfaces of the range, wood or painted surfaces. The cleaner can dam-
age these surfaces.
To Clean the Oven Bottom
Clean using hot, soapy water, a mild abrasive cleanser, a soap-filled abrasive pad or
oven cleaner following oven cleaner manufacturer's instructions.
DO NOT line the oven walls, bottom, racksor any other part of the
appliance with aluminum foil. Doing so will destroy heat distribution, produce poor
baking resultsand cause permanent damage to the oven interior (aluminum foil will
melt to the interior surface of the oven).
17
To Clean the Cooktop
Glass
THIS COOKTOP ISNOT REMOVABLE.
Do not attempt to remove or lift the
cooktop.
The cooktop isdesigned to make cleaning easier. Cleanups are easy when spillovers
are cleaned up immediately. Toclean, wipe with a clean, damp cloth and wipe dry.
Correct and consistent leaning is essential to maintaining your heat-resistant glass
top. Spills and spatters should be wiped up using a clean paper towel and sudsy
water. This should be done either as soon as possible after the spill occurs, after
cooking iscompleted, or at the latest, before using the cooktop again. Use caution
if the cooktop is hot. For heavy spills, spatter or burned-on materials, use a razor
blade scraper. Hold the razor blade scraper at no more than a 30° angle and remove
food spillsor burned on food residue.
Finish the cleaning process by applying a recommended heat-resistant glasscooktop
cleaning cream. Apply cleaner with clean, damp paper towel. Rinse with a paper
towel dampened with clean water and wipe dry. Always wipe the cooktop thor-
oughly to avoid heating any cleaner residue.
Special Caution for Aluminum Foil and Aluminum Cooking Uten-
sils
1) Aluminum foil
Use of aluminum foil will damage the cooktop. Do not use under any circum-
stances.
2) Aluminum utensils
The melting point of aluminum being much lower than that of other metals, care
must be taken when aluminum pots or pans are used. If allowed to boil dry, not
only will the utensil be ruined, but also permanent damage in the form of break-
age, fusing or marking may affect the ceramic glass surface.
DO NOT usea cooktop
cleaner on a hot cooktop. Thefumes can
be hazardous to your health, and can
chemically damage the ceramic-glasssur-
face. Be sure the controls are turned to
OFF. Do not usecommercial oven clean-
erson any part of the cooktop. Damage
to the finish or parts could result.
Things to Remember
1. Do not slide utensils across cooktop surface in any circumstance, doing
so may scratch or metalmark the cooktop surface.
2. AVOID using bleach and don't use ammonia to clean the ceramic surface.
3. Do not put plastic items on warm cooking areas.
4. Never slide oven racks across cooktop surface. They may scratch or metalmark
the cooktop.
5. If cooktop should break, do not use cooktop or attempt to clean it. Call
your authorized service technician immediately.
6. Never use a trivet or metal stand between the cooking utensil and the ceramic
cooktop. The ceramic surface may be scratched, metal marked or etched by
such items.
7. Sugary spills can cause pitting of your cooktop surface. Therefore, you must
begin cleaning the spillswhile the cooktop isstill hot. Usecaution when following
the steps below.
a) Turn off all surface units and remove all pans immediately.
b) Wearing an oven mitt, use a razor blade scraper to scrape the hot spill out of
the cooking zone to a cooler area on the cooktop.
c) Allow the cooktop to cool.
Use and Care of Glass Surface
Problem Cause To Prevent To Remove
Fine"brown lines" Coarseparticles(salt,sand,sugaror Cleancooktop after everyuse. Tinyscratchesare not removable.They
(tiny scratchesor abra- grit) between bottom of cookware canbe minimizedbycontinual useof
sionswhich havecol- andcooktop that are not removed cleanercream.Suchscratchesdo not
lected soil), before cooking, affect cooking.
Using incorrectcleaningmaterials. Dailyuseof cleanercream.
Metal marking (mark Slidingor scraping metal utensilsor Do not slidecookwareacross Apply cleanercreamwith dampened
or black marks), ovenshelvesacrosscooktop, cooktop, paper towel to a cooledsurface.
Brown streaksand Cleaningwith a spongeor dish- Usecleanercreamcloth with Usea smallamount of cleanercream
specks, cloth that hasbeen usedfor other clean,damp papertowel, with clean, damp papertowel.
kitchentasks.
18
To Clean the Cooktop
Glass (continued)
Do not usecleaners on a
heated surface. Fumes could be
hazardous. Wait for area to cool before
cleaning. Do not use cleaner cream to
clean porcelain, paint or aluminum
because it can damage the surface.
Cleaning Materials for Ceramic-Glass Cooktop
Somecleaning materials may contain an ingredient which can damage the cooktop.
Use recommended cleaning products onty (see below). Cleaner cream should be
used regularly. First use recommended products listed below, then use cleaner
cream.
Useonly recommended cleaning products and followthese basiccleaning suggestions.
1. Before the cooktop is used, thoroughly clean and saturate the cooktop with
cleaner cream.
a) Dampen clean paper towel and clean unit.
b) Wipe off with another clean, damp paper towel; then wipe dry.
2. For normal daily cteaning, apply a dab of cleaner cream in the center of each unit-
area to be cleaned. Start with approximately 1/8teaspoon (apply more if needed).
Then, proceed as stated above in a and b.
3. Make sure bottom of cookware and cooling area are clean and dry.
4. Select heat settings and cookware large enough for food and liquid.
5. Wipe up food spills and spatters before they burn into surface.
IMPORTANT: Regularly usecleaner cream Ifyou run out of cream, useoneofthe
cleaners listed. Be sure to get a new supply of cleaner cream.
Never mix cleaning products! Mixtures may interact, with damaging
or hazardous results.
Recommended cleaning products for ceramic-glass cooktop
1. Baking soda.
2. Non-impregnated plastic and nylon pads.
3. For burned on material, scrape with single-edged razor blade, held at a 30° angle.
4. Ceramic glass cleaning cream.
Do not use on ceramic-glass cooktop
1. Avoid pads, that can leave marks and scratches.
2. Avoid heavy-duty cleaning powders; these can scratch, depending on their
abrasiveness and cleaning pressure applied.
3. Avoid chemical oven cleaners. These can etch the cooktop surface and are
caustic.
4. Avoid rust stain removers containing hydrofluoric acid.
5. Avoid using bleach and do not use ammonia.
Special Cleaning Instructions for Mineral Deposits and Discolorations
Problem: Condensation, when cooking, often collects and drips from cookware.
The minera Isfound in water may causea gray or brown film to develop
on cooktop. This film isvery thin and appears to be under cooktop.
Prevention: Daily and proper use of cleaner cream. Stain from mineral deposits
must be removed from the cooktop as soon as possible.
Removal:
• Wet surface with water and apply cleaner cream.
• Scrub with clean, damp paper towel until stain disappears.
• Clean remaining paste away with damp paper towel.
• Apply dab of cleaner cream and polish with clean paper towel.
19
Cleaning Various Parts
of Your Range
Before cleaning any part of the range, be sureall controls are turned OFFand the
range is cool. Remove spillovers and heavy soiling as soon as possible. Regutar
cleaning will reduce the effort required for major cleaning later.
Surfaces How to Clean
Vinyl and Use hot, soapy water and a cloth. Dry with a clean cloth.
Aluminum (Trim Pieces)
Control Panel
Stainless Steel
Control panel,
Oven doorand
Drawerfront panel
Oven Racks
Cooktop, under Cooktop,
Broiler Pan and Insert,
Door Liner, Small Oven
Oven Door
Glass, Paint and Plastic
Control Knobs, Body Parts
and Decorative Trim
Before cleaning the controlpanel, turn all controls to OFFand remove the control knobs. To
remove, pull each knob straight off the shaft. Clean using hot, soapy water and a dishcloth. Be
sureto squeeze excesswater from the cloth before wiping the panel; especially when wiping
around the controls. Excesswater in or around the controls may cause damage to the appli-
ance. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft;
then push the knob into place.
Cleaners made especially for stainless steel asStainless Steel Magic, or other similar cleaners
are recommended. Always follow the manufacturer's instructions. Be sureto rinsethe cleaners
as bluish stains may occur during heating and cannot be removed.
Remove racks. See "To remove and to replace an Oven Rack" under Setting Oven Controls.
Use a mild, abrasive cleaner, following manufacturer's instructions. Rinse with clean water
and dry. After cleaning the racks, rub the sidesof the rackswith wax paper or a cloth containing
a small amount of baby oil or salad oil (this will make the racks glide easier into the rack
positions).
Gentle scouring with a soapy scouring pad will remove most spots. Rinsewith a 1:1 solution of
clear water and ammonia. If necessary, cover difficult spots with an ammonia-soaked paper
towel for 30 to 40 minutes. Rinsewith clean water and a damp cloth and then scrub with a
soap-filled scouring pad. Rinse and wipe dry with a clean cloth. Remove all cleaners or the
porcelain may become damaged during future heating. DO NOT usespray oven cleaners on
the cooktop.
Toclean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse the door
in waten
DO NOT clean the oven door gasket. The oven door gasket is made of a woven material
which isessential for a good seal. Care shoutd be taken not to rub, damage or remove the
gasket.
For general cleaning, use hot, soapy water and a cloth. For more difficult soils and built-up
grease, apply a liquid detergent directly onto the soil. Leaveon soil for 30 to 60 minutes. Rinse
with a damp cloth and dry. DO NOT useabrasive cleaners on any of these materials; they can
scratch. Toremove control knobs, turn to the OFFposition; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the flat sides of both the knob and the shaft;
then push the knob into place.
2O
Cleaning Various Parts
of Your Range (continued)
_J_lBe sure the range is
cool before removing elements or
drip bowls. Be careful not to bend
terminal ends when replacing
elements after cleaning.
Element
Hold
Down
I
Allow Element
Terminal End
Plug
(Some Models Only)
F_'_When lowering the lift-
up range top, grasp the sideswith
finger-tips only. Be carefut not to pinch
fingers. DO NOT drop or bend the
range top when raising or lowering.
This could damage the surface.
Surface Elements and Drip Bowls
Surface elements can be unplugged and removed to make cleaning the drip pans
easier. Thesurfaceelements clean themselveswhen they areturned on. Food spilled
on a hot element will burn off. Food spilled on a cool element may be cleaned with
a damp cloth--any remaining soil will burn off the next time the element isused.
Never immerse a surface element in water.
To Remove the Surface Elements and Drip Bowls
1. Lift up edge of surface element acrossfrom terminal end. Lift just enough to clear
edge of the drip bowl.
2. Gently slide the surface element out of the terminal plug.
3. Lift the drip bowl up and out.
To Clean Drip Bowls
Wash in hot, soapy water or inthe dishwasher. Rinseand dry while still warm. Hard
to remove, burned on soil can be removed by soaking the drip bowls for about 20
minutes in a lightly diluted liquid cleanser or a solution of ammonia and water
(1/2 cup ammonia to 1gallon of water). A nylon scrubber may be usedafter soaking.
DO NOT useabrasive cleaners or steelwool, asthey will scratch the surface. Always
rinse with clean water and polish dry with a soft cloth.
To Replace Drip Bowls and Surface Elements
1. Slide the terminal end on the element through the opening in the drip bowl.
2. Align theelement supportto reston the tim insidethe drip bowl. Ifyour drip bowl
is equipped with a hold down clip, align the element support opposite the
terminal end with the slot in the hold clown clip, and snap into place.
3. After the element is positioned in the drip bowl, line up the terminal end with
the terminal plug asshown.
4. Hold the surface element and drip bowl together aslevel aspossible and firmly
push the terminal end into the terminal plug. Make sure element terminal is
seated properly into terminal plug. Make sure the surface element is level to
reduce the hazard of pans sliding off the element.
To Raise the Top for Cleaning (Some Models Only)
1. Graspthe sidesand lift from the front. Lift-up rod will support the top in its raised
position. Only lift the top high enough to allow the support rod to rest in place
under the front of the cooktop.
2. Clean underneath using a clean cloth and hot, soapy water.
3. Tolower the top, tift the top slightlyand lower the rod. Lower the range top into
the range frame.
21
Cleaning Various Parts
of Your Range (continued)
Griddle (some models)
Griddle
,Cover
Ground
Terminal
\
a Built-in
Griddle
Storage Drawer
4o Broiler Compartment
Iler Guide
Stop
FrontFrame
Cleaning the Griddle (somemodels)
Before cleaning, be sureall controls areOFF. Foreasier cleaning, clean the griddte
while it is still warm. The griddle can be removed for easier cleaning. The griddle
can bewashed in the sinkwith a mild detergent and plastic scouring pad. Forgreasy
residue, useagrease-dissolving dishwashing liquid and anylon scrub brush. DO NOT
immerse griddle terminals in water.
Avoidabrasive cleansersthat can scratch the fin ish. Do not useoven cleaners. Wipe
dry before reinstalling into rangetop.
_r_!l_'J'_D o not usemetallic scrubbers to clean the griddle. Metals can scratch
the surface. Only usenylon or plastic scrubbers.
Storage Drawer
Usethe storage drawer for storing cooking utensils. The drawer can be removed to
facilitate cleaning under the range. Use care when handling the drawer.
To Remove the Storage Drawer:
1. Open and empty the drawer of all utensils.
2. Pull drawer out to the drawer stop.
3. Lift the front high enough to allow the drawer to be pulled out.
To Replace the Storage Drawer:
1. Insert the rear end of the drawer into the opening.
2. Fit the end rollers onto the guide rails.
3. Hold the drawer in a horizontal position, then push in until a click is heard.
_Flammabte materials should not be stored in an oven, near surface
elements or in the storage drawer or compartment (if equipped). This includes
paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well
asflammable liquids. Do not store explosives, such asaerosol cans, on or near the
range. Flammable materials may explode and result in fire or property damage.
To Remove and Replace 1.
Right Oven Door 2.
3.
The door isheavy. After
removing door, layitflat on the floor with
its inside facing down.
4.
Open the door to the fully opened position.
Putl up the lock located on both hinge supports and engage it in the hinge
levers.You may have to apply a little downward pressure on the door to pull the
locks fully over the hooks.
Grab the door by the sides, pull the bottom of the door up and toward you to
disengage the hinge supports. Keep pulling the bottom of the door toward you
while rotating the top of the door toward the range to completely disengage the
hinge levers.
To replace the door, reverse the door removal steps. Make surethe hinge sup-
ports are fully engaged before unlocking the hinge levers.
LOCKIN NORMAL
POSITION
LOCKENGAGED
FORDOORREMOVAL
Door Removal
HINGE SLOT
DOOR REMOVED FROM
THE RANGE
22
To Remove and Replace
Storage Drawer (with
extended guides)
[]
push d°wn with flnP r i_kt Gild e
Figure 1
To Remove Storage Drawer:
1. Open the drawer to the fully opened position.
2. Locate the glide lever on each side of drawer; pull up on the left glide lever and
push down on the right glide lever (seefigure 1).
3. Pull the drawer away from the range.
To Replace Storage Drawer:
1. Pull the bearing glides to the front of the range (see figure 2).
2. Align the drawer glides with the slots on the bearing glides.
3. Pushthe drawer into the range until the glides levers "click" (approx. 2 in.). Pull
the drawer open again to seat it into position.
4. If you do not hear the glide levers "click" or if the drawer does not feel
seated, remove it and repeat steps 1 through 3. Doing so will minimize
damage to the bearing glides. Do not try to force the drawer into place.
Figure 2
Changing Cooktop and/
or Oven Lights
some models)
TO Change the Cooktop Light (some models)
Your model will either have a canopy cover that lifts up or 2 Phillips® Head screws
that secure the light cover. BEFORECHANGING THE COOKTOP LIGHT,BESURE
TO TURN THE POWEROFFATTHE MAIN SOURCEOR UNPLUGTHE RANGE.
For models with a canopy cover that lifts up, follow these instructions:
1. Grasp the front edge of the canopy cover as illustrated in the side column. Pull
forward and lift the cover up and off toward rear of range.
2. Remove bulb by rolling up and out. Install the new butb by sliding down into
place and rolling toward front of range.
3. Align front edge of light cover with inside lip of end cap. Lower rear of cover
into place and snap down.
4. Turn power back on at the main source (or plug the range back in).
To Change the Oven Light
The oven light automatically turns on when the door is opened (some models). To
turn the oven light on and off when the door isclosed, usethe OVEN LIGHTswitch
located on the control panel.
1. Turn electrical power off at the main source or unplug the oven.
2. Wear a leather-faced glove for protection against possible broken glass.
3. Presswire holder to one side to releasethe glass shield.
4. Replace bulb with a new 40 watt appliance bulb.
5. Replace glass shield in socket and snap wire holder into place.
6. Turn power back on at the main source (or plug the appliance back in).
7. Theclock will then needto be reset.To reset,seeSetting the Clockand Minute
Timer in the ELECTRONICOVEN CONTROL manual.
Besurethe oven isunplugged and all parts are COOL before replacing
the oven light bulb. Do not turn the oven light on during a self-cleaning cycle. High
temperature will reduce lamp life.
23
Avoid Service Checklist
You may save the cost and inconvenience of an unnecessary service call by first
reviewing this Checklist of commonly encountered problem situations.
You will becharged for a servicecallwhile the appliance isin warranty if the problem
isnot caused by defective product workmanship or materials.
Your new appliance isa carefully engineered product. Manytimes, what appears to
be a reason to call service requires nothing more than a simple adjustment you can
easily make in your own home.
OCCURRENCE
Range is not level.
POSSIBLE CAUSE/SOLUTION
Poor installation. To level range, refer to Leveling Guide, in the Insta%tion Instructions.
When range is level, cooktop may appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor islevel and can adequately support range. Contact
a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure cabinets
are square and have sufficient room for range clearance.
Cannot move appliance easily. Appliance Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
must be accessible for service, problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over
carpet.
Entire range or oven does not operate, Make sure cord/plug is tightly into outlet.
Service wiring is not complete. Contact your dealer, installing agent or authorized
servicer.
Power outage. Check house lights to be sure. Call your local electric company for service.
*Oven control beeps and displays F1, F3 or Electronic control has detected a fault condition. Push CLEAR to clear the display and
F9, stop beeping. Program oven again. Iffault recurs, record fault number. PushCLEARand
contact an authorized servicer.
Ovenand/orcooktoplightsdoesnotwork. Replace or tighten bulb. See "Changing Oven Light" in this Guide for instructions.
Surface unit does not heat. Element not making contact in block. Follow instructions under "Surface Elements
and Drip Bowls" in the General Cleaning section.
No power to the applia nce. Check steps under "Entire Rangeor Oven Does Not Operate"
in this Avoid Service Checklist.
Incorrect control setting. Make sure the correct control is on for the surface unit to be
used.
Scratches or abrasion on cooktop surface, Coarse particules such as salt and sand between cooktop and utensils can cause
scratches. Besurecooktopsurfaceand bottomsofutensilsarecleanbeforeusage. Small
scratches do not affect cooking and will become lessvisible with time.
Cleaning materials not recommended for ceramic-glass cooktop have been used. See
"To Clean the Glass Cooktop" section under General Cleaning.
Surface element too hot or not hot
enough.
Cookware with rough bottom has been used. Use smooth, flat-bottomed cookware.
Incorrect control setting. Make sure the correct control ison for the surface element to be
used.
24
Metalmarks.
Sliding or scraping of metal utensils on cooktop surface. Do not slide metal utensils on
cooktop surface. Use a ceramic-glass cooktop cleaning cream to remove the marks. See
"To Clean the Cooktop Glass" section under General Cleaning.
Brown streaks or specks. BoiJoversare cooked onto surface. Use razor scraper to remove soil. See "To Clean the
Cooktop Glass"section under General Cleaning.
AreasofdiscolorationwithmetaUicsheen. Mineral deposits from water and food. Remove using a ceramic=glass cooktop cleaning
cream. Use cookware with clean, dry bottoms.
Poor baking results, Many factors affect baking results. Make surethe proper rack position isused. Center food
in the oven and space pans to allow air to circulate. Allow the oven to preheat to the set
temperature before placing food in the oven. Try adjusting the recipes' recommended
temperature or baking time. If you feel the oven istoo hot or cool, see"Adjusting Oven
Temperature" in the ELECTRONICOVEN CONTROL section.
Flamesinsideovenorsmokingfromvent. Excessivespillovers in oven. Set self-clean cycle for a longer cleaning time.
Excessivespiliovers in oven. This is normal, especially for pie spiliovers or large amounts
of grease on the oven bottom, Wipe up excessive spillovers before starting the self-clean
cycle, Ifflamesorexcessivesmokearepresent, stoptheself-cleancycleandfollowthesteps
under "Stopping or Interrupting the Self-Cleaning Cycle" in the ELECTRONICOVEN
CONTROL section.
Oven smokes excessively during broiling. Control(s) not set properly. Follow instructions under "Setting Oven Controls" in the
ELECTRONICOVEN CONTROL section.
Make sure oven door is opened to the Broil Stop Position.
Meat too close to the element. Reposition the rack to provide proper clearance between
the meat and the element. Preheat broil element. Preheat broil element for searing.
Grid on broiler pan wrong side up and grease not draining. Always place grid on the broiler
pan with ribs up and slots down to allow grease to drip into pan.
Grease has built up on oven surfaces. Regular cleaning is necessary when broiling
frequently. Old grease or food spatters cause excessive smoking.
Self-cleaning cycle does not work. Control(s) not setproperly. Follow instructions under "Oven Cleaning" in the ELECTRONIC
OVEN CONTROL section.
Self-cleaning cycle was interrupted. Stop time must be 3 to 4 hours past the start time.
Follow steps under "Stopping or Interrupting the Self-Cleaning Cycle" inthe ELECTRONIC
OVEN CONTROL section.
Soil not completely removed after self-
cleaning cycle.
Failure to clean bottom, front top or oven, frame or door area outside oven seal. These
areas are not in the self-cleaning area, but get hot enough to burn on residue. Clean these
areas before the self-cleaning cycle is started. Burned-on residue can be cleaned with a
stiff nylon brush and water or nylon scrubber. Be careful not to damage the oven seal.
Drip bowls are pitting or rusting.
Foods with acids, such as tomatoes, if allowed to stand in/on bowls will cause corrosion.
Remove and wash drip bowls as soon as possible after a spillover.
Normal environment. Houses along sea coast are exposed to salt air. Protect bowls as
much as possible from direct exposure to salt air.
Drip bowls turning color or distorted out Bottom surface of cookware extends beyond surface elements and touches cooktop
of shape, surface. This can cause high enough temperatures to discolor the drip bowls. DO NOT
use cookware of this type. Pan sizes should be matched to the size of the element.
Replacement drip bowls may be purchased from your dealer.
Cooktop and/or Oven lig ht (some Replace or tighten butb. See Changing Cooktop and/or Oven Lights (some models)
models) does not work. in this Owner's Guide for instructions.
25
NOTES
26
NOTES
27
Warranty lnformation
RANGE WARRANTY
Your range is protected by this warranty
FULLONE-YEAR
W_RAN'iY
UMITED 2_°-5TM
YEAR WARR_ITY
(Glass Smot htop,
Seal & Element)
UMITBD
W,6RRAN'iY
(Applic able to the
State of Alaska)
WARRANTY
FERIOD
One _ear from original
3urchasedato
sec0nd through f'_th
years frcrn oriplral
:Lr chesedate
Timeperiodslisted
abore.
_IROUGH OUR AUTHORIEED SB_VIOERS,
WE wig.:
Payal costs for repairing or replacing any parts of this
appliance which prove to be defa=ctivein materials cr
w_ krnanshil_
Providea replacementfor any defeclJvesurfaceheatil g
element, deteiic¢ated rubberize_ili©ne seal(upswept
modelsonly), cr glasssmoothtop that cracksdueto
lherrnal breakaqe _not cus_mer abuse).
All of t he provisionsof t hefull and limitedwarta nties
above a rd theexcb_ians listedhelow apply.
THE CONSUMER WILL EERE_IPONSIBUEFOR:
Costs of sepace cals 1hat are listed under NORMAl.
RESFONSIBLrnEs OF THE CONSUMER. *
DlagncslJca ndany1_an_0c_taticn and laborcostswhich are
reqLired betauseofservice.
Costsof the tec hnician's travel to lh e home and any coslsfct pick
up and delivery of t hea pplianoarequ red heoauseofser_ice.
In the U.S.A., your appliance is warranted by E]ectrolux Home Products North America, a division of White Consolidated Industries, Inc We authorize no
person to change or add to any of our obligations under this warranty Our obligations for service and parts under this warranty must be performed by
us or an authorized Electrolux Home Products North Amedca servicer In Canada, your appliance is warranted by Electrolux Canada Corp
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1 Proper use of the appliance in accordance with instructions provided with the product
2 Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electdcal and/or gas codes
3 Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring
4 Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,etc,
which are not a part of the appliance when it was shipped from the factory
5 Damages to finish after installation
6 Replacement of light bulbs and/or fluorescent tubes (on models with these features)
This warranty does not cover the following:
1 CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTYDAMAGE AND INCIDENTAL EXPENSES
RESULTINGFROM ANY BREACH OFTHIS WRITTEN OR ANY IMPLIED WARRANTY
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you
2 Service calls which do not involve malfunction or defects in workmanship or material, ol for appliances not in ordinary
household use. The consumer shall pay for such service calls
3 Damages caused by services performed by servicers other than Electrolux Home Products North America or its
authorized serwcers; use of parts othe_ than genuine Electrolux Home Products parts; obtained from persons other
than such servicers; or extelnal causes such as abuse, misuse, inadequate power supply or acts of God
4 Products with original serial numbers that have been removed or altered and cannot be readily determined
Keep youl bill of sale, delivery slip, or some other appropriate payment record The date on the bill establishes the
warranty period should service be required if service is performed, it is in your best interest to obtain and keep all receipts
This written warranty gives you specific legal rights You may also have other rights that vary from state to state Service
under this warranty must be obtained by contacting Electrolux Home Roducts:
USA
1,800,944.9044
Electrolux Home Products
North America
RO Box 212378
Augusta, GA 30917
Canada
1,866,294,9911
Electrolux Home Products
North America
802, boul L'Ange-Gardien
L'Assomption, Quebec
J5W 1T6
This warranty only applies in the B0states of the USA, Puerto Rico, and
Canada Product features or specifications as described or illustrated
are subject to change without notice All warranties are made by
Electrolux Home Products North America, adivision of White Consolidated
Industries, Inc In Canada, your appliance is warranted by Electrolux
Canada Corp
28
