1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
SAFETY INFORMATION
Precautions to avoid possible exposure to excessive microwave energy
1 Do not attempt to operate this microwave with the door open because this can result in harmful exposure to
microwave energy. It is important not to defeat or tamper with the safety interlocks.
2 Do not place any object between the microwave front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
3 Do not operate the microwave if it is damaged. It is particularly important that the microwave door closes
properly and that there is no damage to the:
(a) DOOR (bent)
(b) HINGES and LATCHES (broken or loosened)
(c) DOOR SEALS and SEALING SURFACES
4 Your microwave should not be adjusted or repaired by anyone except properly qualified service personnel.
IMPORTANT SAFETY INSTRUCTIONS
•
1 Read all instructions before using the microwave.
2 Read and follow:
Precautions to avoid possible exposure to excessive microwave energy on page 3.
3 This appliance must be grounded. Connect only to a properly grounded outlet. See Grounding instructions on
page 4.
4 Install or locate this appliance only in accordance with the provided installation instructions.
5 Some products such as whole eggs and sealed containers (closed glass jars, for example) are able to explode and
should not be heated in this microwave.
6 Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors
in this appliance. This type of microwave is specifically designed to heat, cook, or dry food. It is not designed for
industrial or laboratory use.
7 HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution
when removing hot items.
8 To reduce the risk of fire in the microwave cavity:
a) Do not overcook food. Carefully monitor the appliance when paper, plastic, or other combustible materials
are p
laced inside the microwave to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags before placing the bag in the micro
wave.
c) If materials inside the micro
wave should ignite, keep the microwave door closed, turn the microwave off, and
disconnect the power cord or shut off power at the fuse or circuit breaker panel.
d) Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the
cavit
y when not in use.
9 Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be
boiling. Visible bubbling or boiling when the container is removed from your microwave is not always present.
THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A
SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through heating it.
c) Do not use straight-sided containers with narrow necks.
d) After heating, allow the container to stand in your microwave for a short time before removing the container.
e) Use extreme care when inserting a spoon or other utensil into the container.
10 Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in your microwave.
11 Pierce foods with heavy skins such as potatoes, whole squash, apples, and chestnuts before cooking.
12 The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be
checked before serving in order to avoid burns.
13 Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed
to handle the utensil.
14 Do not cover or block any openings on the appliance.
15 Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar locations.
WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy when using
your microwave, follow these basic safety precautions.
4
www.insigniaproducts.com
16 Do not operate this appliance if it has a damaged cord or a plug, if it is not working properly, or if it has been
damaged or dropped.
17 Do not immerse the cord or plug in water. Keep the cord away from heated surfaces. Do not let the cord hang
over the edge of a table or counter.
18 Use only thermometers which are specifically designed for use in microwave.
19 Be certain the glass tray and roller rings are in place when you operate the microwave.
20 This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service
facility for examination, repair, or adjustment.
21 When cleaning surfaces of the door and microwave that come together on closing the door, use only mild,
nonabrasive soaps, or detergents applied with a sponge or soft cloth.
22 VENTILATING HOODS:
a) Clean Ventilating Hoods Frequently-Grease should not be allowed to accumulate on hood or filter.
b) When flaming foods under the hood, turn the fan on.
23 Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may
damage the filter.
24 To reduce the risk of fire and electric shock, install only above electric cooking equipment. If the
over-the-cooktop microwave is intended to be used with either a gas or electric range, the following words or
the equivalent shall be included: Suitable for use above both gas and electric cooking equipment.
Unpacking instructions
Carefully remove your microwave from the box. Save the box as it may make installation easier.
1 Remove all packing materials from inside the microwave cavity. However, DO NOT REMOVE THE WAVEGUIDE
COVER, which is located on the right side in the microwave cavity. Make sure that you have all items from the
Package contents on page 7. Read and save the instructions.
2 Remove the feature sticker from the outside of the door, if there is one.
3 Check the microwave for any damage, such as misaligned or bent door, damaged door seals and sealing
surfaces, broken or loose door hinges and latches, and dents inside the cavity or on the door. If there is any
damage, do not operate the microwave and contact your dealer.
See the Installation Guide for more information.
Grounding instructions
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
•
Electrical requirements
The electrical requirements are a 120VAC, 60Hz, AC only, 20 amp outlet. It is recommended that a separate circuit
serving only the microwave be provided. The microwave is equipped with a 3-prong grounding plug. It must be
plugged into a wall receptacle that is properly installed and grounded.
Power Supply Cord
1 A short power supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over
a longer cord.
2 Longer cord sets or extension cords are available and may be used if care is exercised in their use.
3 If a long cord or extension cord is used:
a) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
ratin
g of the appliance.
b) The extension cord must be a grounding-type 3-wire cord, and the longer cord should be arranged so that it
will
not drape over the counter top or table top where it can be pulled on by children or tripped over
unintentionally.
c) If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug,
and a
3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord
shall be equal to or greater than the electrical rating of the appliance.
•
WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.
Notes:
• If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
• Insignia does not accept any liability for damage to the microwave or personal injury resulting from failure to observe the electrical
connection procedures.
5
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
Radio or TV interference
Should there be any interference caused by your microwave to your radio or TV, make sure that your microwave is
on a different circuit. Relocate the radio or TV as far away from the microwave as feasible or check the position and
signal of the receiving antenna.
SAVE THESE INSTRUCTIONS
6
www.insigniaproducts.com
Cookware and cooking materials
•
Cookware and other materials must fit on the turntable. Always use oven mitts or pot holders because cookware
may become hot.
Refer to the Materials you can use and Materials to be avoided tables as a guide, then test before using.
Cookware and Materials Test:
1 Fill a microwave-safe container with 1 cup (236 ml) of cold water. Place the water-filled container, along with the
cookware or materials in question, in the microwave.
2 Cook on maximum power for one minute. Do not exceed one minute cooking time.
3 Carefully feel the cookware or material. If the empty cookware or material is warm, do not use it for microwave
cooking.
Materials you can use
Materials to be avoided
WARNING: Personal Injury Hazard
Tightly-closed containers could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.
MATERIAL REMARKS
Aluminum foil
Use as shielding only. Small, smooth pieces can be used to cover thin parts of meat or poultry to
preve
nt overcooking. Arcing can occur if the foil is wrinkled or too close to microwave walls. The
foil should be at least 1 in. (2.5 cm) away from microwave walls.
Browning dish
Follow the manufacturer’s instructions. The bottom of the browning dish must be at least 3/16
in. (5 mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware
Use microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or chipped
dishe
s.
Glass jars
Always remove the lid. Use only to heat food until just warm. Most glass jars are not heat resistant
and m
ay break.
Glassware
Use heat-resistant micro
wave glassware only. Make sure there is no metallic trim. Do not use
cracked or chipped dishes.
Oven cooking bags
Follow the manufacturer’s instructions. Do not close with a metal tie. Make slits to allow steam to
escap
e.
Paper plates and
cups
Us
e for short–term cooking/warming only. Do not leave the microwave unattended while
cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for short-term cooking
only.
P
archment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Use only if labeled “Microwave Safe.” Follow the manufacturer’s instructions.
Some
plastic
containers soften as the food inside gets hot. “Boiling bags” and tightly closed plastic bags
should be slit, pierced, or vented, as indicated on the package.
Plastic wrap
Use microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow
plast
ic wrap to touch food.
Thermometers Use microwave-safe only (such as meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
MATERIAL REMARKS
Aluminum tray May cause arcing. Use a microwave-safe dish instead.
Food carton with
metal
handle
May cause arcing. Use a microwave-safe dish instead.
Metal or metal
trimm
ed utensils
Metal shields the food from microwave energy. The metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the microwave.
Paper bags May cause a fire in the m
icro
wave.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in your microwave and may split or crack.
7
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
Features
• 9 auto-cook settings
• 10 variable power levels
• 1,000 watts of power
• 30-second express cooking
• 2-stage cooking available
• Exhaust fan with two speeds
• Hidden vent
• Task lighting
• Child lock
• 13.6-in. (34.54 cm) glass turntable
Package contents
• 1.7 cu. ft. over-the-range microwave
• Turntable (with ring)
• Installation hardware
• Grease filter
• Exhaust damper
• Installation Guide
• User Guide
Microwave
# ITEM DESCRIPTION
1
Safety interlock system Prevents your microwave from operating when the door is open.
2
Top vent outlet Vents hot air from inside your microwave. Do not block.
3
Glass turntable Allows food to cook more evenly.
4
Turntable ring assembly Allows the turntable to rotate to cook food more evenly.
5
Waveguide cover Covers the waveguide. DO NOT REMOVE.
6
Control panel Use to set cooking times and enter other information as needed.
7
Turntable shaft Rotates the turntable assembly.
8
www.insigniaproducts.com
Control panel
# ITEM DESCRIPTION
1 Display
In standby mode, displays the time. In cooking mode, displays cooking time, weight, and
other
information.
2 Auto menu
Press one of these buttons to automatically cook the item indicated. See
Cooking with
the auto menu on page 11.
3 *Clock Press and hold for three seconds, then enter time. See
Setting the clock on page 10.
4
Number pad and
EXPRE
SS cook
buttons
Press to enter cook time, defrost time, clock time, and other information.
EXPRESS - press 1, 2, or 3 to quickly cook for that many minutes, at 100% power.
5 *Turntable On/Off
Press and hold this button for three seconds to turn the turntable on or off. See
Using the
turntable on page 12.
6 Start In standby mode, or after you enter the cooking time, press this button to begin cooking.
7 (vent)
Press to turn on your vent fan. Press repeatedly to select the fan speed. You can select
High,
Low, or Off. See
Using the vent fan on page 12.
8 Defrost
Press once, then enter the time you want to defrost, then press Start. See
Defrosting food
with your microwave on page 11.
9 Power Level
To set the power level of your microwave, press Power Level. then enter the power level
that
you want (0-10). See
Cooking in your microwave on page 10.
10 Timer On/Off Press once, then enter the time you want to count down. See Using the timer on page 10.
11 Cook time Press once, then enter the time you want your food to cook.
12
* (lock)
Press and hold for three seconds to lock or unlock the control panel.
13 Stop/Cancel Press to stop the cooking process. Press again to cancel the cooking operation.
14 +30 Sec.
Press once to start the a 30 second cooking cycle or to add 30 seconds to the current
c
ooki
ng time. Press repeatedly to add 30 second increments.
9
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
Setting up your microwave
See the Installation Guide (included in your box) to install and set up your microwave.
You can also find the Installation Guide online at
www.insigniaproducts.com by searching for NS-OTR17SS3. On
your microwave’s product page, select Support & Downloads, then next to Installation Guide, select the language
you w
ant.
Installing the turntable
•
1 Place the turntable ring in the round depression in the bottom of your microwave so that it turns freely.
2 Place the glass turntable (flat side up) on the turntable ring so that the hub engages the turntable shaft in the
bottom of the microwave. The glass turntable should not turn freely when it is correctly installed.
15 (light)
Press to turn the light under your microwave on or off. See Using the light on
page
12.
16 Sound
All sounds are turned on by default. The display shows “on” when you press the Sound
butto
n the first time.
Press the Sound button again to turn off the keypad beep sound. The display shows
“oFF1
”.
Press the Sound button a third time to turn off all sounds. The display shows “oFF2”.
Press the Sound button a fourth time to turn all sounds back on. The display shows “on”.
Notes:
• Never place the glass tray upside down. The glass tray should never be restricted.
• Both the glass tray and turntable ring must always be used during cooking.
• Always place all food and containers of food on the glass tray for cooking.
• If the glass tray or turntable ring cracks or breaks, contact your nearest authorized service center.

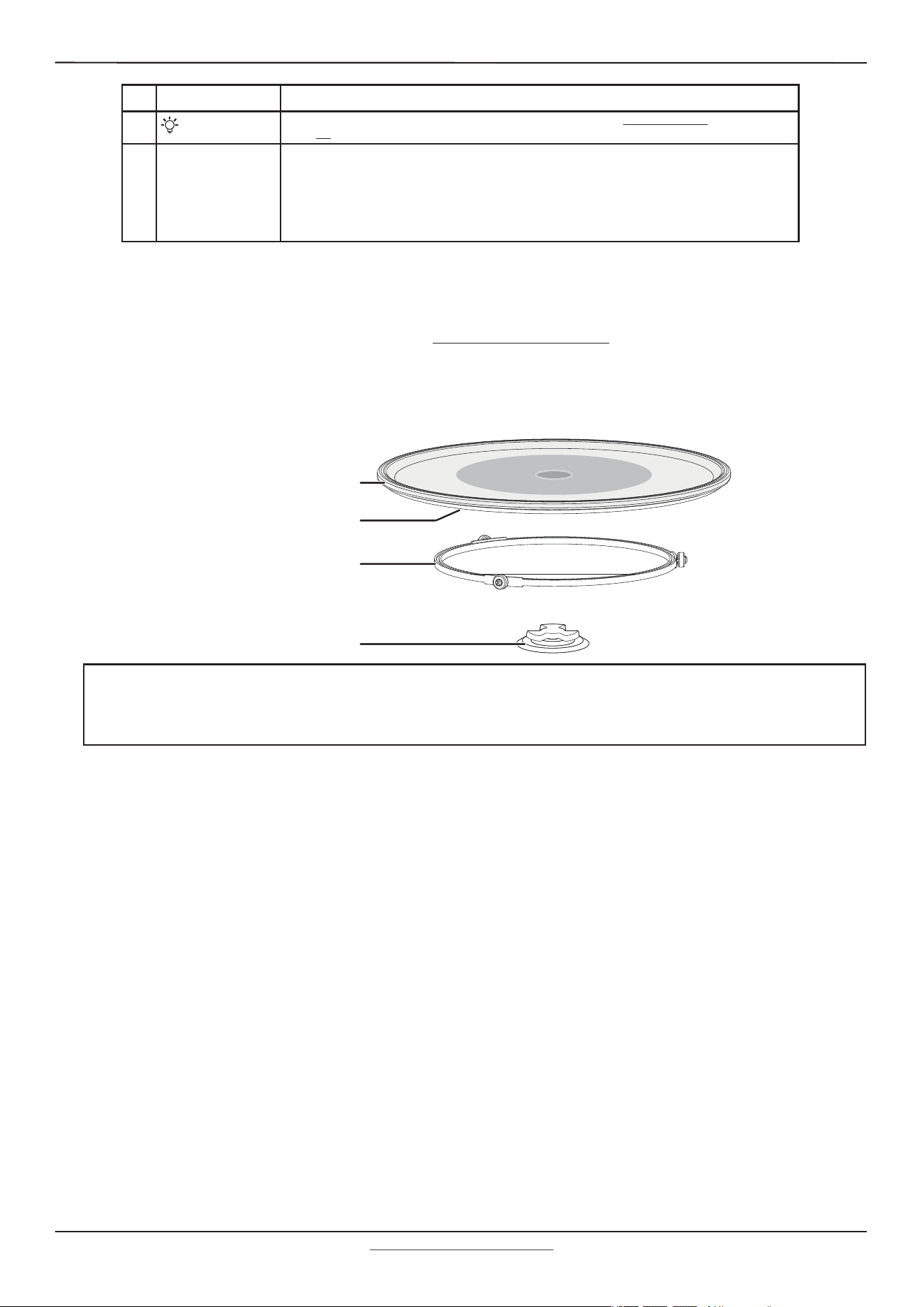

# ITEM DESCRIPTION
Hub (underside)
Glass turntable
Turntable ring
Turntable shaft
10
www.insigniaproducts.com
Using your microwave
Cooking in your microwave
1 Press Cook Time, then use the number pad to enter the cooking time that you want.
•
2 Press Power Level, then enter the power level that you want (0-10).
•
•
•
3 Press Start to begin heating.
OR
For two-stage cooking, repeat steps 1-2 to program the second stage.
•
Setting the clock
1 In standby mode, press and hold *Clock for three seconds. The display will flash.
2 Use the number pad to enter the current time (1:00–12:59), then press Start to confirm the setting.
If your microwave beeps three times, the numbers entered are valid.
Using the timer
1 In standby mode, press *Timer On/Off. The display shows “: 0” and “TIMER”.
2 Use the number pad to enter the time (the maximum time is 99 minutes and 99 seconds), then press Start to
start the timer.
When the timer reaches 0, your microwave beeps three times. If you do not stop the timer, your microwave will
beep
three times every five seconds to remind you. Your microwave will repeat this reminder a maximum of six
times.
Turning sound on and off
1 Press Sound to turn off the beep sounds when panel buttons are touched. “OFF 1” appears on the display
momentarily.
2 Press Sound again to turn off all beep sounds including end of cycle and timer alerts. “OFF 2” appears on the
display momentarily.
3 Press Sound again to turn on all sounds. “on” appears on the display.
Cooking quickly
• Press +30 Sec. to instantly cook something at 100% power for 30 seconds.
OR
• To increase the time in 30 second increments (except auto menu selections, such as Popcorn or Potato), press
+30 Sec. repeatedly.
OR
• Press the express number key 1, 2, or 3 to immediately begin 100% power, fast cooking for that number of
minutes.
Note: For example, to enter 3 minutes and 15 seconds, press 3, 1, and then 5.
LEVEL 10 9 8 7 6 5 4 3 2 1 0
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Display P-HI P-90 P-80 P-70 P-60 P-50 P-40 P-30 P-20 P-10 P-0
Notes:
• You can check the power level during cooking by pressing Power Level. To change it, enter a new power level (0–10).
• If “P-0” is selected, the fan turns on but microwave cooking power will be at 0%. You can use this level to remove an odor in your
microwave.
Notes on two-stage cooking:
• Two-stage cooking lets you program two cook times and power levels at the same time.
• The first time/power level entered is the first stage and the second time/power level entered is the second stage.
• Two-stage cooking does not show up on the display, but the total cook time is displayed.
• Two-stage cooking is useful to defrost and then cook, or cook at full power and then partial power.
11
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
Cooking complete reminders
At the end of the cooking cycle, your microwave stops running and beeps. The display will show “End” until you
remove the food or press Stop. If you do not remove the food, your microwave will beep twice to remind you. Your
micro
wave will repeat this reminder three times, once every three minutes.
Defrosting food with your microwave
1 Press Defrost. The display shows “00:00” and “Def.”
2 Use the number pad to enter the defrosting time you want. The time entered must be between 00:01 and 99:99.
3 Press Start to start defrosting. The remaining cooking time is displayed.
•
Tips on defrosting
Defrosting steak, pork, chicken, or fish:
1 Remove the meat from your freezer. Defrost times depend on the approximate weight of your food, so check the
label or weigh your item.
2 Place the meat in a microwave safe container (see
Cookware and cooking materials on page 6).
3 Press Defrost on your microwave, then set the cooking timer to defrost for 8 – 10 minutes per pound. The
thawing time for fish or other seafood can vary, so check the packaging for more information.
4 To ensure even thawing, stop the timer every few minutes to turn or flip the meat.
5 When finished, remove the meat and cook immediately.
Defrosting fruits and vegetables:
1 Remove the fruit or vegetables from your freezer.
2 Determine the weight of the produce.
3 Place the produce in a microwave safe container (see
Cookware and cooking materials on page 6).
4 Press Defrost on your microwave, then set the cooking timer to defrost for two minutes.
5 After two minutes, separate the pieces. For leafy vegetables like cooked spinach, pull the block apart into smaller
pieces.
6 Continue to defrost for one minute for every four ounces of produce. Check and stir occasionally, until
completely thawed.
7 When finished, move to your stove top and cook immediately.
Cooking with the auto menu
Potato
1 Press Potato. The display shows “1”.
2 Use the number pad to enter the number of potatoes, 1 through 4, as necessary.
3 Press Start.
Veggies
1 Press Veggies once for fresh vegetables and twice for frozen vegetables. The display shows “FrSh” or “FroZ.”
2 Press the number pad to enter the amount of vegetables (cups) to cook.
•
3 Press Start.
Note: Three quick beeps will sound at the halfway point to prompt you to turn the food over.
FOOD DISPLAY AMOUNT NUMBER PAD TOTAL TIME
Fresh vegetables FrSh
1 cup 1 3:30
2 cups 2 5:30
3 cups 3 7:20
4 cups 4 9:00
Frozen vegetables FroZ
1 cup 1 4:30
2 cups 2 7:30
3 cups 3 10:30
4 cups 4 13:30
12
www.insigniaproducts.com
Popcorn
1 Press Popcorn. The display shows “3.0” and “OZ.”
2 Use the number pad to enter the amount of popcorn:
• Press 1 for 3.0 oz.
• Press 2 for 3.3 oz.
• Press 3 for 1.5 oz.
• Press 4 for 2.7 oz.
• Press 5 for 2.8 oz.
3 Press Start.
Beverage
1 Press Beverage.
2 Use the number pad (1-3) to enter the amount from 1-3 cups (8.0 oz./cup).
3 Press Start.
Checking the time and power level while cooking
• To check the power level while cooking a meal, press Power Level. The display shows the power level being used
for three seconds, then returns to the cooking time remaining.
Using the light
• Press (light) to turn on or off the light underneath your microwave.
•
Using the vent fan
Your microwave’s vent fan works as a range hood to filter out smoke and other odors from cooking.
• Press (vent) repeatedly to cycle between high speed, low speed, or off.
•
Using the child lock
• To lock the control panel buttons, press and hold (lock) for three seconds. Your microwave beeps and a lock
indicator appears on the display.
• To unlock the control panel buttons, press and hold (lock) until the lock indicator disappears (about three
seconds).
Using the turntable
• To turn off the turntable, press and hold *Turntable On/Off for about three seconds while cooking your food.
The display shows “off” for two seconds.
• To turn the turntable back on after turning it off, press and hold *Turntable On/Off for about three seconds
while cooking your food. The display shows “on” for two seconds.
•
Cleaning and maintaining your microwave
Cleaning the outside of your microwave
Exterior
The outside surface is precoated steel and plastic. Clean the outside with mild soap and water, then rinse and dry
with a soft cloth. Do not use any type of household or abrasive cleaner.
Door
Wipe the window on both sides with a damp cloth to remove any spills or spatters. Metal parts will be easier to
maintain if wiped frequently with a damp cloth. Avoid the use of spray and other harsh cleaners as they may stain,
streak, or dull the door surface.
Note: To change a light bulb, see Changing the LED bulbs on page 15.
Note: You can choose the vent speed while cooking in your microwave.
Note: Your microwave defaults to having the turntable on.
13
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
Control panel
If the control panel is dirty, open the door of your microwave before cleaning. Wipe the panel with a cloth
dampened slightly with water only. Dry with a soft cloth. Do not scrub or use any sort of chemical cleaners. Close the
door and press Stop to clear any buttons you may have pressed.
Cleaning the inside of your microwave
Interior
Wipe with a soft cloth and warm water. Do not use abrasive or harsh cleaners or scouring pads. For baked-on food,
use baking soda or a mild soap, then rinse thoroughly with hot water.
Waveguide cover
The waveguide cover is located on the right side the microwave cavity. It is made from mica so it requires special
care. Keep the waveguide cover clean to assure good microwave performance. Carefully wipe the surface of the
cover immediately with a damp cloth if any food spatters on it. Built-up splashes may overheat and cause smoke or
possibly catch fire. DO NOT REMOVE THE WAVEGUIDE COVER.
Removing odors
Occasionally, a cooking odor may remain in your microwave. To remove, combine one cup water, the grated peel
and juice of one lemon, and several whole cloves in a two-cup glass measuring cup. Boil for several minutes using
100% power, then let it cool in your microwave. Wipe the interior with a soft cloth.
Turntable and turntable support
Remove the turntable and turntable support and wash them in mild, sudsy water. For stubborn stains, use a mild
cleanser and non-abrasive scouring sponge. You can also wash them in the top rack of a dishwasher.
The turntable motor shaft is not sealed, so excess water or spills should be wiped up immediately.
Cleaning and replacing the filters
Cleaning the grease filters
Clean the filters at least once a month. Never use the fan or microwave without the filters in place.
1 Pull down slightly on the tab toward the front of your microwave to remove the filter. Repeat for the other filter.
2 Soak the filter in a sink or dish pan filled with hot water and detergent.
•
3 Agitate and scrub the filter with a brush to remove embedded dirt.
4 Rinse thoroughly and shake dry.
5 Replace by fitting the filter back into the opening.
Replacing the charcoal filter
A charcoal filter is used for a nonvented, recirculated installation. The filter should be changed every 6 to 12 months
depending on use.
1 Disconnect power to your microwave at the circuit breaker or by unplugging it.
CAUTION: DO NOT use ammonia or other alkali cleaning products. They will react with the filter material and darken it.
Grease filters
BOTTOM
14
www.insigniaproducts.com

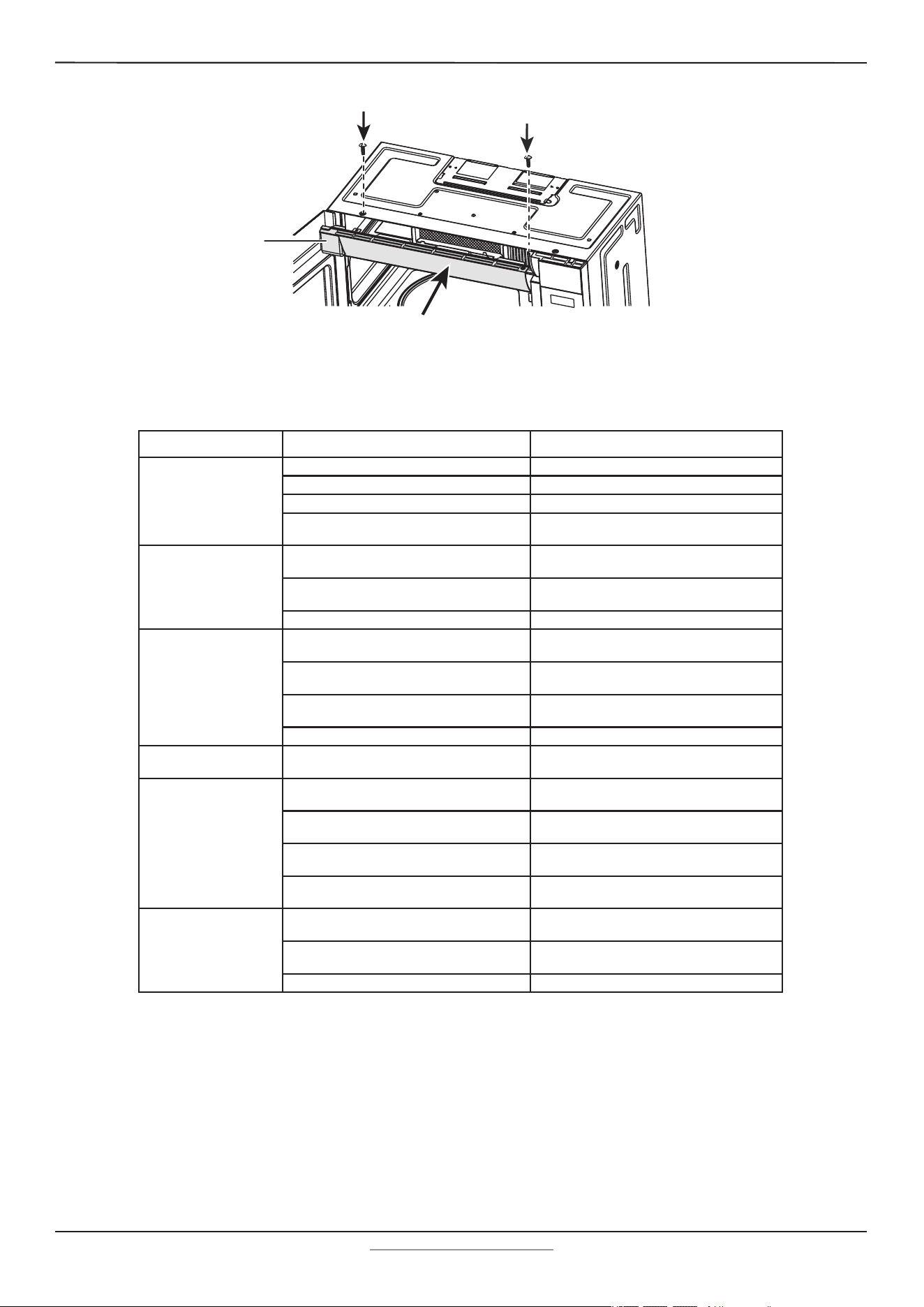

2 Remove the vent grille mounting screws from the top of the vent grille, then push down on the tabs at each end
of the vent grille to disengage it.
3 Pull the vent grille away from the unit.
4 Replace the charcoal filter. Make sure that the wire mesh is visible from the front.
5 Carefully push the vent grille back into place and replace the vent grille mounting screws.
Vent grille mounting screws
Vent grille
Charcoal
filter
Vent grille
15
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com

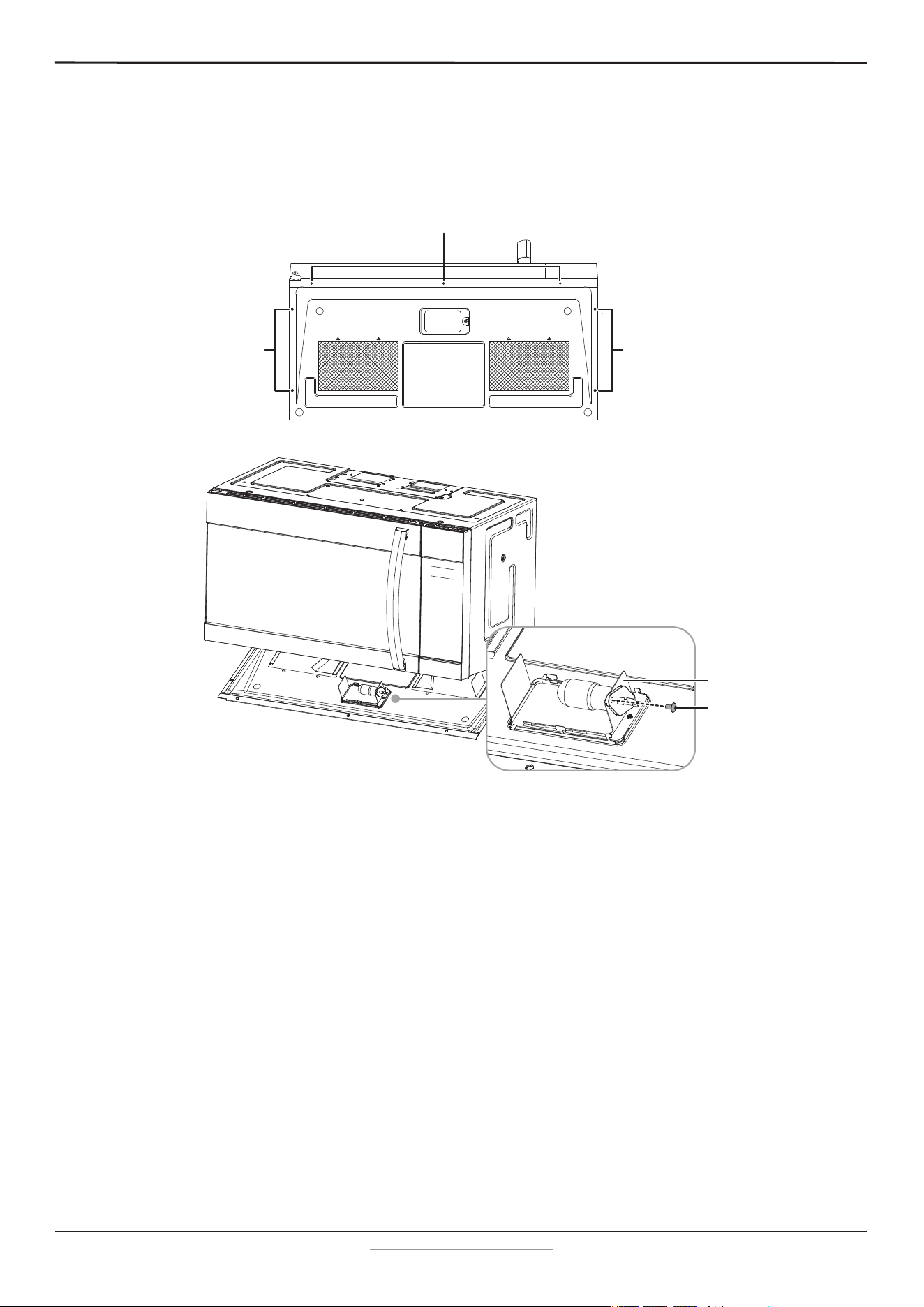

Changing the LED bulbs
Countertop light (exterior)
1 Disconnect power to your microwave at the circuit breaker or by unplugging it.
2 Remove the screw holding the light cover in place, then remove the light cover.
3 Remove the old LED bulb, then replace with a new LED bulb.
4 Replace the base plate and secure it with the screws.
Screws
Screws
Screws
BOTTOM
LED bulb
Screw
16
www.insigniaproducts.com

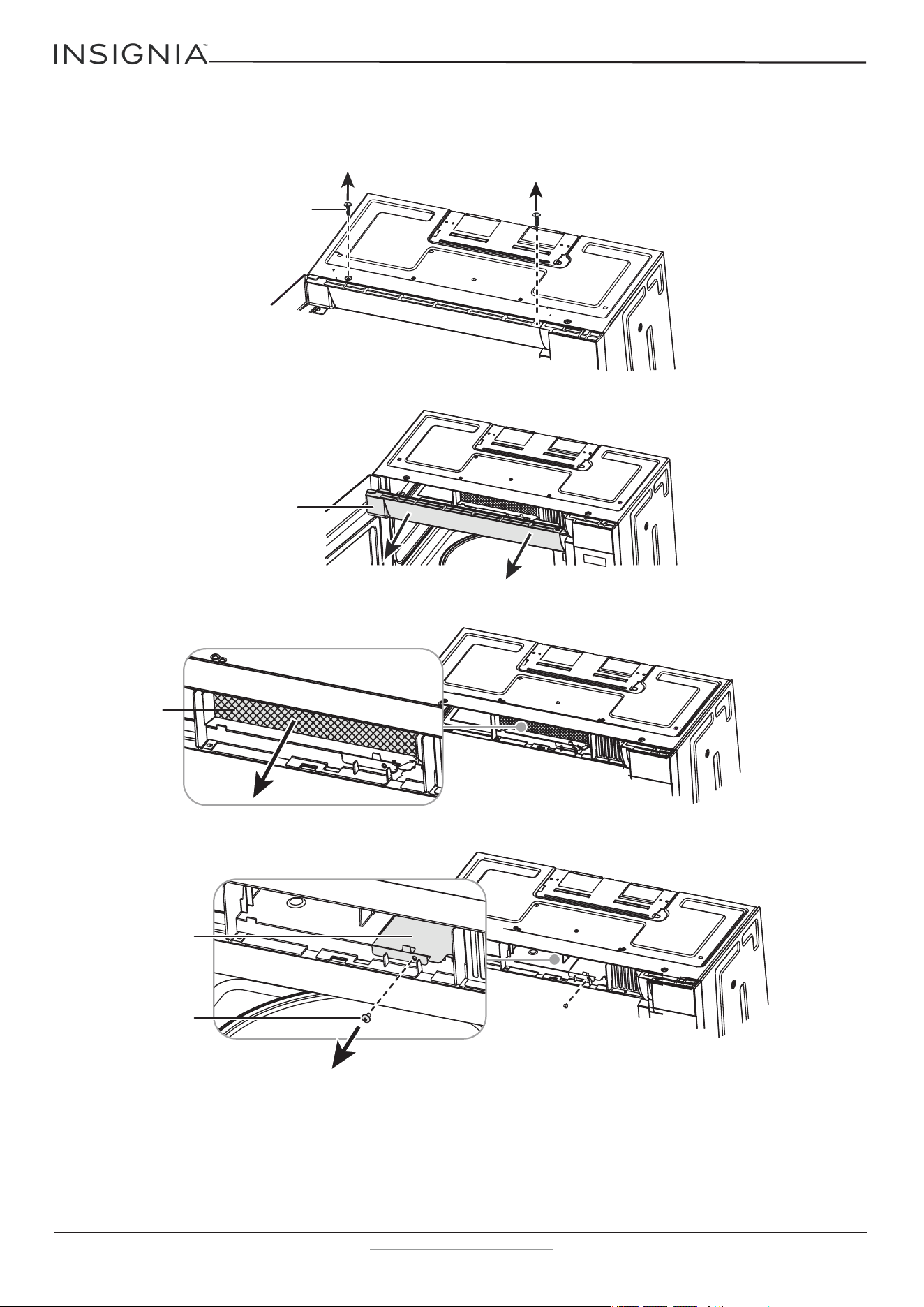

Microwave light (interior)
1 Disconnect power to your microwave at the circuit breaker or by unplugging it.
2 Remove the vent grille mounting screws from the top center of the vent grille, then push down on the tabs at
each end of the vent grille to disengage it.
3 Pull the vent grille away from the unit.
4 Remove the charcoal filter.
5 Open the light cover by removing the light cover screw, then carefully pull up on the front edge.
6 Remove the old light bulb, then replace with a new bulb.
7 Replace the microwave light cover by carefully pushing it into place, then replace the mounting screws.
Vent grille mounting screws
Vent grille
Charcoal filter
Light cover screw
Light cover
17
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
8 Push the vent grille back into place and replace the vent grille mounting screws.
Troubleshooting
If you have a problem with your microwave, review the following chart for a possible solution. If your microwave still
does not work properly, contact the nearest authorized service center.
Obtaining replacement parts
Call Insignia Customer Service at 1-877-467-4289.
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
My microwave will not
start.
The electrical cord is not plugged in. Plug in the electrical cord.
The door is open. Close the door and try again.
The wrong operation is set. Check the instructions and try again.
The home circuit breaker may have
t
ripp
ed.
Check the circuit breaker and reset if
needed.
There is arcing or
spark
ing in my
microwave.
You are attempting to use incorrect
mater
ials in your microwave.
Use only microwave-safe materials.
You are attempting to use your
micro
wave when it’s empty.
Do not operate your microwave when it’s
empty.
Spilled food remains in your microwave. Clean your microwave with a wet towel.
My microwave cooks
f
ood
unevenly.
You are attempting to use incorrect
mater
ials in your microwave.
Use only microwave-safe materials.
The food is not defrosted completely.
Defrost the food completely before
attem
pting to cook it.
The cooking time or power level is not
adequ
ate to cook the food.
Use the correct cooking time and power
level.
The food is not turned or stirred. Turn or stir the food.
My microwave
o
verc
ooks foods.
The cooking time is too long or power
level is too high.
Use the correct cooking time and power
level.
My microwave
under
cooks foods.
You are attempting to use incorrect
mater
ials in your microwave.
Use only microwave-safe materials.
The food is not defrosted completely.
Defrost the food completely before
attem
pting to cook it.
The cooking time or power level is not
adequ
ate to cook the food.
Use the correct cooking time and power
level.
The microwave ventilation ports are
block
ed or restricted.
Make sure that the ventilation ports are
not blocked or restricted.
My microwave doesn’t
defro
st foods correctly.
You are attempting to use incorrect
mater
ials in your microwave.
Use only microwave-safe materials.
The cooking time or power level is not
adequ
ate to cook the food.
Use the correct cooking time and power
level.
The food is not turned or stirred. Turn or stir the food.
Vent grille
18
www.insigniaproducts.com
Specifications
Legal notices
FCC statement
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Model NS-OTR17SS3
Rated voltage 120VAC, 60Hz
Rated input power 1,500W
Rated output power 1,000W
Noise level 60 dB
Microwave capacity 1.7 cu. ft.
Turntable diameter 13.6 in. (34.5 cm)
External dimensions (HxWxD) 16.5 x 29.9 x 15.6 in. (42 x 75.9 x 39.5 cm)
Internal dimensions (HxWxD) 10.1 x 20.9 x 13.8 in. (25.7 x 53.1 x 35 cm)
Charcoal filter dimensions (L × W) 10.2 × 2.4 in. (26 × 6 cm)
Power cord length 38.6 in. (98 cm)
Net weight 52.5 lbs. (23.8 kg)
19
1.7 Cu. Ft. Over-the-Range Microwave
www.insigniaproducts.com
ONE-YEAR LIMITED WARRANTY
Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the
Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase
of the Product (“Warranty Period”).
For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at
www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.
How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received
with the Product.
What does this warranty cover?
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized
Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at
no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and
are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This
warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the
Product.
How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take
your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides
the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.
Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the
country where the original purchase was made.
What does the warranty not cover?
This warranty does not cover:
• Food, beverage, and/or medicine loss/spoilage.
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or
apartment complex, or otherwise used in a place of other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth
(1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that
may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.
REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE
LIABL
E FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT,
INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO
OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY
PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
Contact Insignia:
1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A
©2024 Best Buy. All rights reserved.
www.insigniaproducts.com
1-877-467-4289 (U.S. and Canada)
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2024 Best Buy. All rights reserved.
V2 ENGLISH
24-0276
