CHICKEN PLUCKER MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
1
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
CHICKEN PLUCKER
MACHINE
2
·SAFETY INSTRUCTIONS
For your safety and the safety of others, the following
precautions must be observed when operating the chicken plucker machine:
1. Ensure the safety of the power supply: install the leakage switch on the grounding
wire of the chicken, duck, and goose plucker. Before use, plug in the power supply and turn
on the switch to check whether the rotary table operates normally.
2. Picking safety: To ensure user’s safety, do not retrieve the bird unless the chicken
plucker machine has come to a complete stop.
WARNING:
1.Turn off the power when not in use.
2.Do not disassemble or change this machine.
3.In the operation process, if the machine sounds abnormal, it must be stopped
immediately for inspection and continue to work only after the fault is eliminated.
·MODEL AND PARAMETERS
Model
TM-50
Voltage/Frequency
120V / 60Hz
Applicable poultry
Chicken and Duck and Goose
Capacity
2-4 Chickens
Temperature control switch (overload
protection function)
110° temperature control off
Waterproof Rating
IP54
N.Weight
25.7Kg
G.Weight
29.65Kg
3
·STRUCTURE DIAGRAM
No
Parts name
1
Handle
2
Finger
3
Barrel body
4
Stabilizer blade
5
Drain connection
6
Wheel
7
Leakage protection plug
8
Switch
9
Electric motor
10
High pressure nozzle
2
3
4
6
1
8
10
9
5
7
4
·ASSEMBLY AND USE

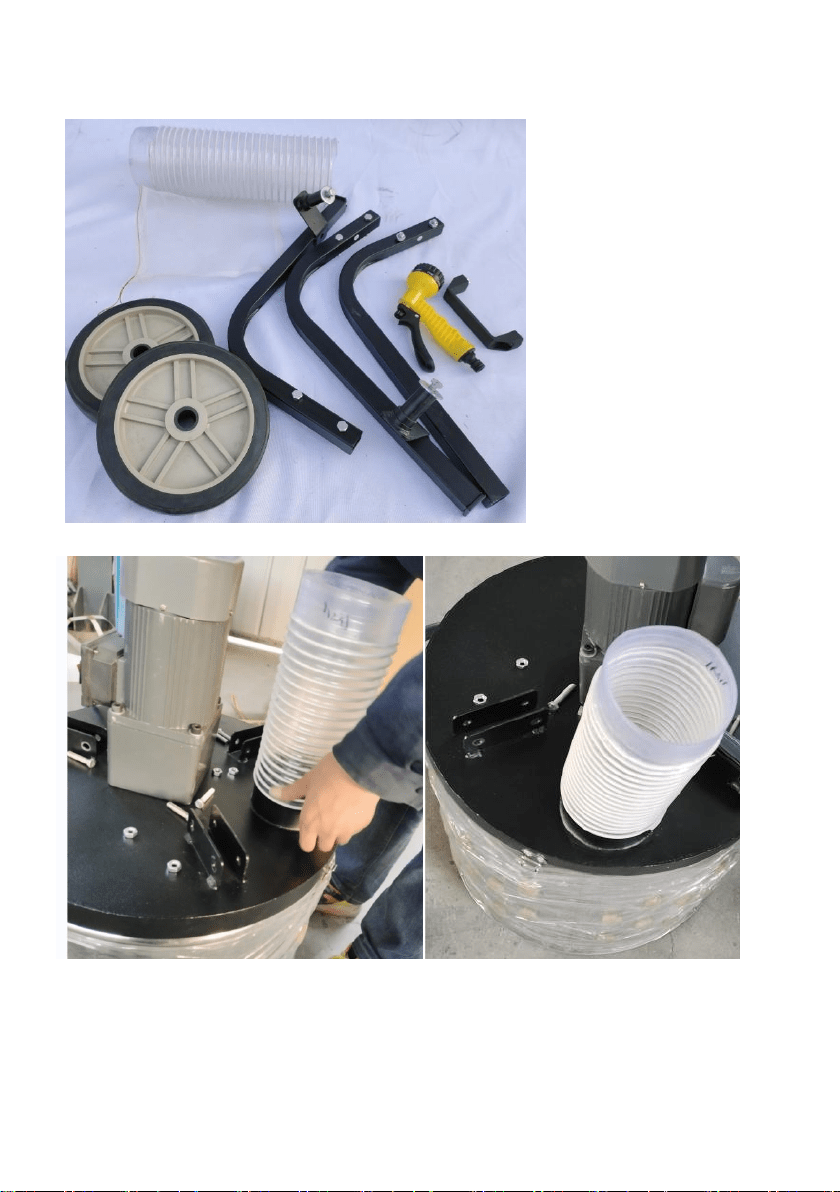

Step 1: Check all accessories.
Step 2 : Installation of the drain pipe.
First, hold both sides of the drain pipe mouth with two hands. Then, aim at the base drain
mouth and insert it directly.
5

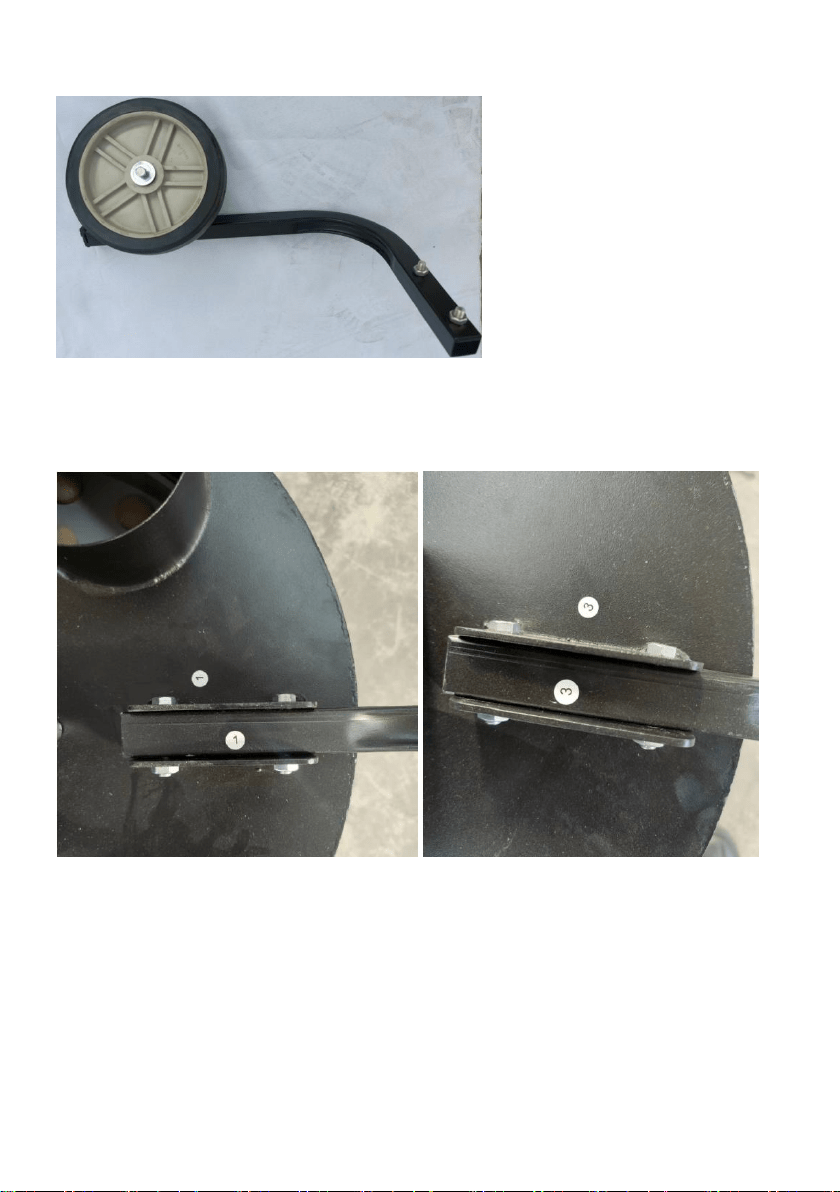

Step 3 : Installation of wheels.
Install the wheel on the leg and tighten the screws.
Step 4:Installation of leg with wheels.
6

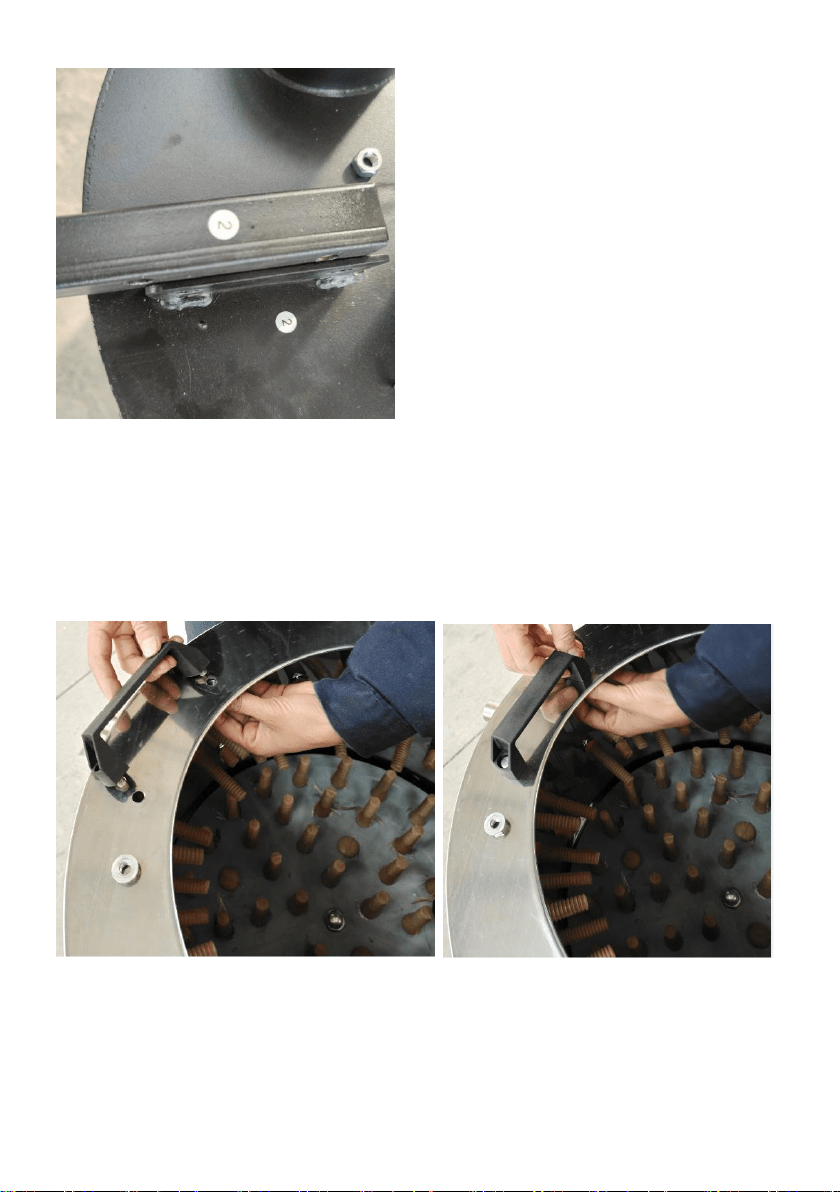

First, directly correspond the serial number of the support leg with wheels to the serial
number on the baseplate one by one. Then, insert the support leg with wheels into the
corresponding baseplate slot, insert the screws, and tighten the nuts onto the screws with a
wrench.
Step 5: Installation of handle.
First, put the screws into the holes at both ends of the handle. Then, insert the screws on
the handle into the two screw holes at the barrel mouth. Finally, lock the screws with nuts
inside the barrel and tighten them with a screwdriver.
7

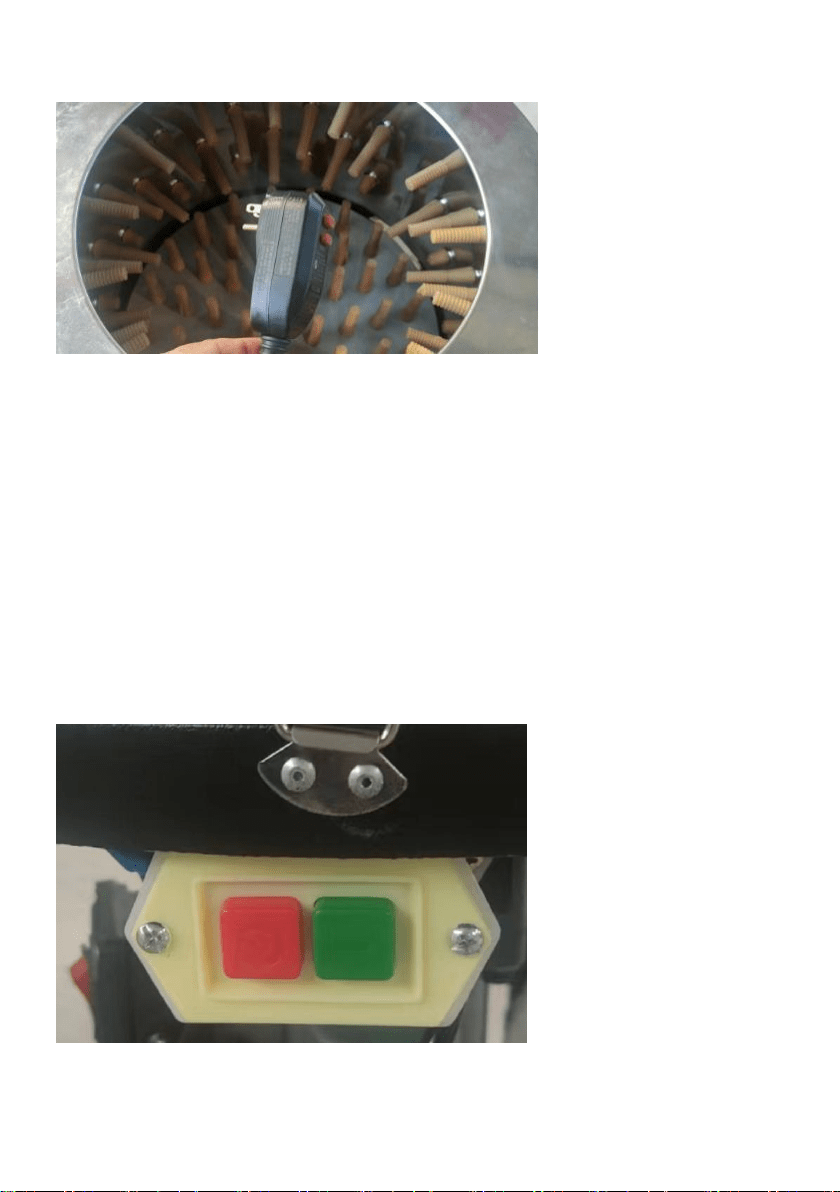

Step 6: Connect the plug to the power supply and turn on the machine.
Step 7: The knife edge should be as small as possible when the chicken is slaughtered.
After slaughter, the chicken should be soaked in warm water (about 30 ℃) to make
feathers wet. It is better to put some salt in warm water to avoid skin damage due to
depilation.
Step 8: Heat the soaked chicken in hot water of about 70 ℃ and stir with a wooden stick to
make it heated evenly.
Step 9: Put 1 to 4 hot chickens in the machine at a time.
Step 10: Press the "1" switch key to start the machine. Water is added to the poultry while it
is running. The feathers and dirt that fall off flow out with the water. The water can be
recycled.
8
Step 11: After 2-3 minutes, remove the feathers and take out the chicken. Connect the
high-pressure nozzle with a water pipe. Spray and rinse off the poultry feathers.
·TROUBLESHOOTING INSTRUCTION
Problem
Reason
Solution
Incomplete de-feather
Rubber fingers loss
Replace rubber fingers
Uneven scalding
temperature
Uniform scalding temperature
chicken plucker
machine does not
rotate
The power cord is not
plugged in properly
Plug the power cord
Switch 1 is not pressed
Press switch 1
Locked rotor protection in
progress
Remove the obstruction, Wait
for 30s.
9
·CLEAN, CARE AND STORAGE RULES
Care and cleaning:
The chicken plucker machine needs to be used with a faucet and a water pipe, making it
convenient for feathers cleaning and keeping the neatness and beauty of the machine.
The chicken plucker machine is made of stainless steel, which is not easy to rust. After use,
please clean it with tap water and wipe it.
Timely cleaning: After use, the bucket should be washed with water, but not directly with a
water spray pipe. The feathers and dirt that have been removed should be collected with
the water flow and treated in time to avoid environmental pollution or harm to human health.
Water can be recycled, but it should be removed in time when not in use.
Storage :
Please store it out of the reach of children.
When the chicken plucker machines are not used for a long time, they should be stored in a
dry, non-corrosive environment. Do not contact corrosive substances to avoid product
damage.
Manufacturer：Zibo Shengyan Agricultural and Animal Husbandry Equipment Factory
Add：East Side of Qiancao Village, Yucheng Town, Boshan District, Zibo City, Shandong
Province
Made in China
