Craftsman 917271651 lawn tractor User Manual

Owner's Manual

JCRAFTSMAWJ

LAWN TRACTOR

17 HP,42" Mower

Electric Start

6 Speed Transaxle

Model No.

917.271651

This product has a low emission engine which operates

differently from previously built engines, Before you start the en-

gine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pro, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, II60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

Warranty ................................................ 2

Safety Rules .......................................... 3

Product Specifications ........................... 6

Assembly/Pre-Operation ....................... 8

Operation ............................................. 11

Maintenance Schedule ....................... 17

Maintenance ........................................ 17

Service and Adjustments ..................... 21

Storage ................................................ 27

Troubleshooting .................................. 28

Repair Parts ......................................... 32

Sears Service ....................... Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will also provide free labor for these applicable warranted parts for the

two fullyears. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first 30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructions contained in

the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date ot purchase, it any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state 1o state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing, objects. Failure to observe the following safety instructions could result in

senous injury or death.

Look for this symbol to point out

important safety precautions. It means

CAUTION!It BECOMEALERT!!t YOUR

SAFETY IS INVOLVED.

& CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust/engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

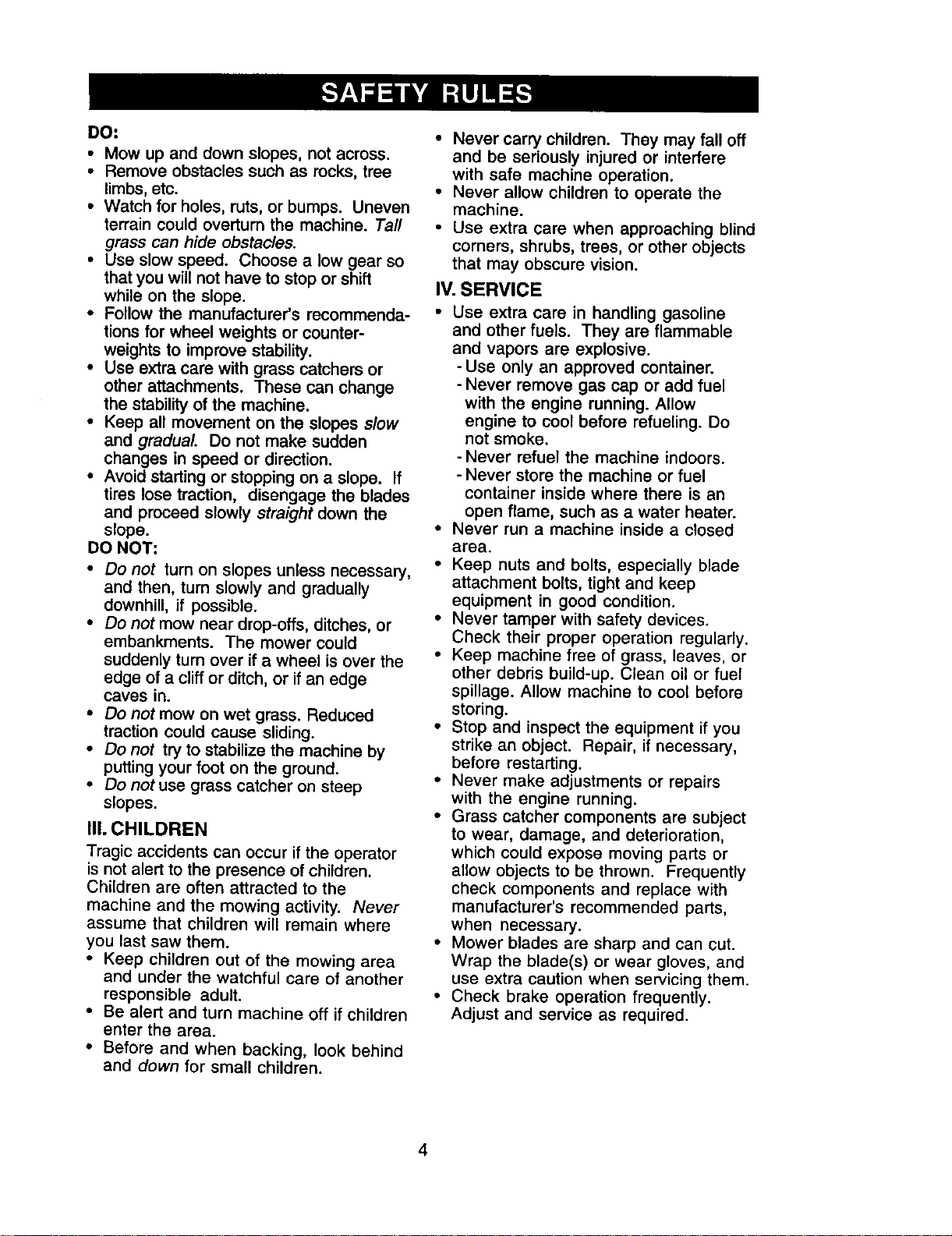

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Taft

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently.

Adjust and service as required.

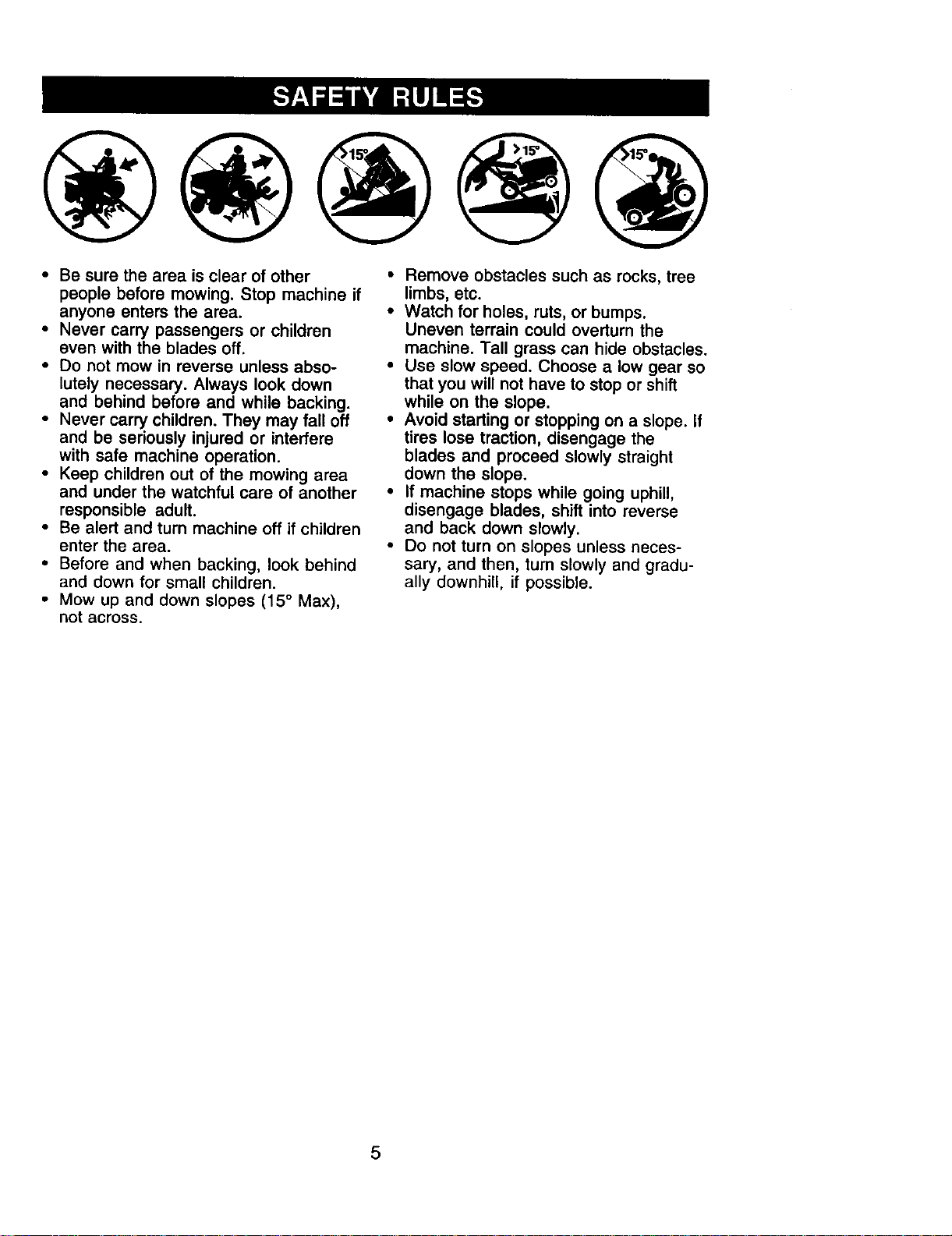

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• if machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline 1.25

Capacity and Unleaded and

Type: Regular

Oil Type SAE 30 (above 32°F)

API-SF-SJ): SAE 5W-30

(below 32°F)

Oil Capacity: 3.0 Pints

Spark Plug: Champion RC12YC

(Gap: .030")

Ground Speed (MPH):

Forward: 1st 1.1

2nd 1.4

3rd 2.2

4th 3.4

5th 4.3

6th 5.5

Reverse: 1.7

Tire Pressure: Front: 14 PSI

Rear: 12 PSi

Charging 3 Amps Battery

System: 5 Amps Headlights

Battery: Amp/Hr: 28

Min. CCA: 230

Case Size: UIR

Blade Bolt Torque: 27-35 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructionswill enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

Steering

Wheel Insert

Steering Wheel

(1) Hex Bolt 5/16-18 x 1-1/4

J_ Steering Wheel

Adapter

(1) Large Flat Washer

(1) Locknut 5/16-1_ (1)Lockwasher 318

Steedng

Extension

Steering Shaft O

Boot

Seat

\ \\

(1) Washer

17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Keys

(2) Keys

For Future Use

Slope Sheet

Video Cassette

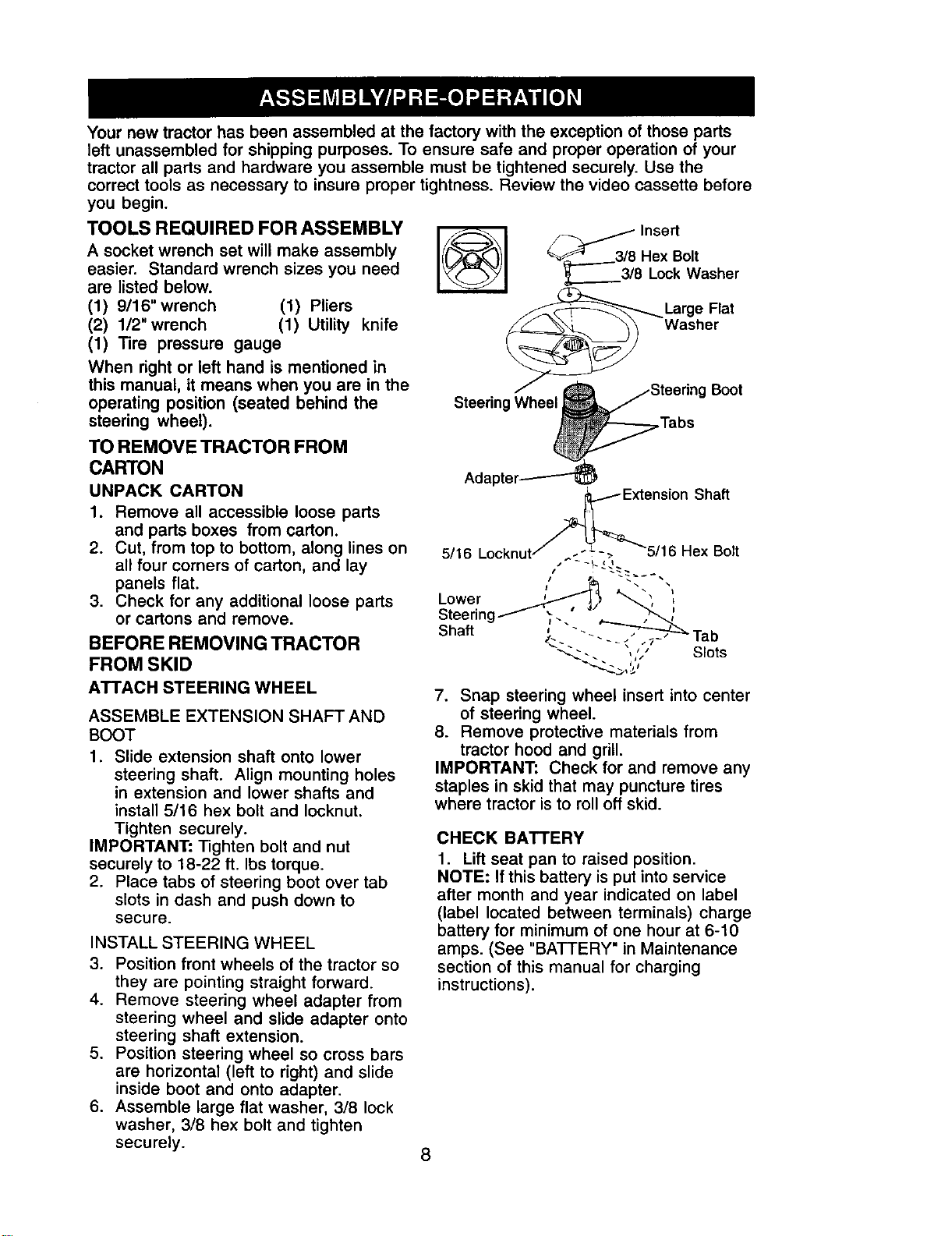

Your new tractor has been assembled at the factory with the exception of those parts

left unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(2) 1/2" wrench (1) Utility knife

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means when you are in the

operating position (seated behind the

steering wheel).

_881_:B°_/as her

-- _Large Flat

Washer

-/ Boot

Steering Wheel

.Tabs

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5116 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

Ada

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift seat pan to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

prminal

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolt is positioned over large

slotted hole in pan.

4. Push down on seat to engage

shoulder bolt in slot and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

Seat

Bolt

Flat Washer

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read,

unoerstand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is clear

of other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

AdjustJent Knob i

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Deflector

Mulcher

Plate

Latch

Hooks

_CAUTION: Do not remove deflector

shield from mower. Raise and hold

shield when attaching mulcher plate and

allow it to rest on plate while in opera-

tion.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store

in a safe place. Your mower is now ready

for discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are de-

signed for discharging and bagging also.

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flated at the factory for shipping pur-

poses. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verifythat the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

,/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction from

this Qualify Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

/ All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

•/ Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

d Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

•/ Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

#" Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BA'I-rERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON

O%T_MP

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L

ATFACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Clutch

Ignition Switch

Light Switch

Lift

Ammeter ..... -.

Plunger

Throttle/Choke Attachment

Control _ Lift Lever

Clutch/Brake

Pedal - - ......

Adjustment

Indicator

Parking Brake Lever

Gearshift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

CLUTCH/BRAKE PEDAL - Used for

declutehing and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting and

stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

PARKING BRAKE LEVER - Locks clutch/

brake pedal into the brake position.

THROTTLE/CHOKE CONTROL - Used

for starting and controlling engine speed.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the

way down and hold.

2. Pull parking brake lever up and

release pressure from clutch/brake

pedal. Pedal should remain in brake

position. Make sure parking brake will

hold tractor secure.

Attachment Clutch Lever

"Engaged_ Position

_ _lgnition Key

, _- _'_ tke._L%ev_rshift

Disengaged"

Position Position

STOPPING

MOWER BLADES -

• To stop mower blades, move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N)

position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_ILCAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CU'i-rlNG HEIGHT

The position of the attachment lift lever

determines the cutting height.

• Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment

Clutch Lever Attachemnt

"Engaged" - High

Position Position

Y>"""_ Low

Position

Deflector

Shield

TO OPERATE ON HILLS

,_,,CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to lstgear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATrACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

_ILCAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in

temperatures below32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

,_CAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time or if

the engine has run out of fuel, itwilltake extra

cranking time to move fuel from the tank to

the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to choke position.

NOTE: Before starting, read the warm and

cold starting procedures below.

5. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, move throttle control to fast

position, wait a few minutes and try

again. If engine still does not start,

move the throttle control back to the

choke position and retry.

WARM WEATHER STARTING (50 ° F and

above)

6. When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 500 F and

below)

6. When engine starts, leave throttle

control in choke position until engine

warms up and begins to run roughly.

Once rough running begins, immedi-

ately move the throttle control to the

fast position. Engine warm-up may

take from several seconds to several

minutes (the colder the temperature,

the longer the warm-up).

• The attachments can also be used

during the engine warm-up period.

NOTE: If at a high altitude (above 3000 feet)

or in cold temperatures (below 32 F) the

carburetor fuel mixture may need to be

adjusted for best engine performance (see

'frO ADJUST CARBURETOR" in the Service

and Adjustments section of this manual).

MOWING TIPS

• Mower should be properly leveled for

best mowing performance. See =TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of the

tractor. This will result in a more even

distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings. Make first cut relatively high;

the second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give

the mower cutting performance as well

as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early afternoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy grass,

reduce your width of cut on each pass

and mow slowly.

MAX 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

MAINTENANCE SCHEDULE ____._"FiLL IN DATES

,sYOUCOMFL E

DATES

Check Brake Operation

Check Tire Pressure _

Check Operator Presence and

T Interlock Systems V w

R Check for Loose Fasteners I_ V's

A Sharpen/Replace Mower Blades _3

T Lubdcation Chart If

O Check Battery Level V_4

R Clean Battery and Terminals I_ If

Check Transaxle Cooling

Check V-Be fis

Check Engine Oil Level I_ ll_

Change Engine Oil (with oil filter) I_1,2 (l_ I

E Change Engine Oil (without oil filter) I_t.,t

N C_ean Air Filter 1_2

G Clean Air Screen ibm/2

NI Mu ffler/Spark I_

Inspect Atrester

E Replace Oil Filter (if equipped) 1_1.2

Clean Engine Cooling Fins I_ 2

Replace Spark Plug ik_

Replace Air Filter Paper Cartridge _2

Replace Fuel Filter

I - Change more Often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditJons.

3 - Replace blades more often when mowing in Sandy so;I,

4 - Not required if equipped with maJnlenanoe4ree battery,

5 - Tighten front axle pivot bolt to 35 ft.4bs, maximum.

DO not overggthen.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

• Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

_) Spindle - _ Spindle

Zerk Zerk

(_Front Wheel Wheel

Bearing ,_Bearing Zerk

Zerk _,

, /

@Engine

'--J shift

- -" "- - Pivots

(DSAE 30 or 10w30 MOTOR OiL

_)GENERAL PURPOSE GREASE

@REFER TO Maintenance "ENGINE"

SECTION

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

17sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

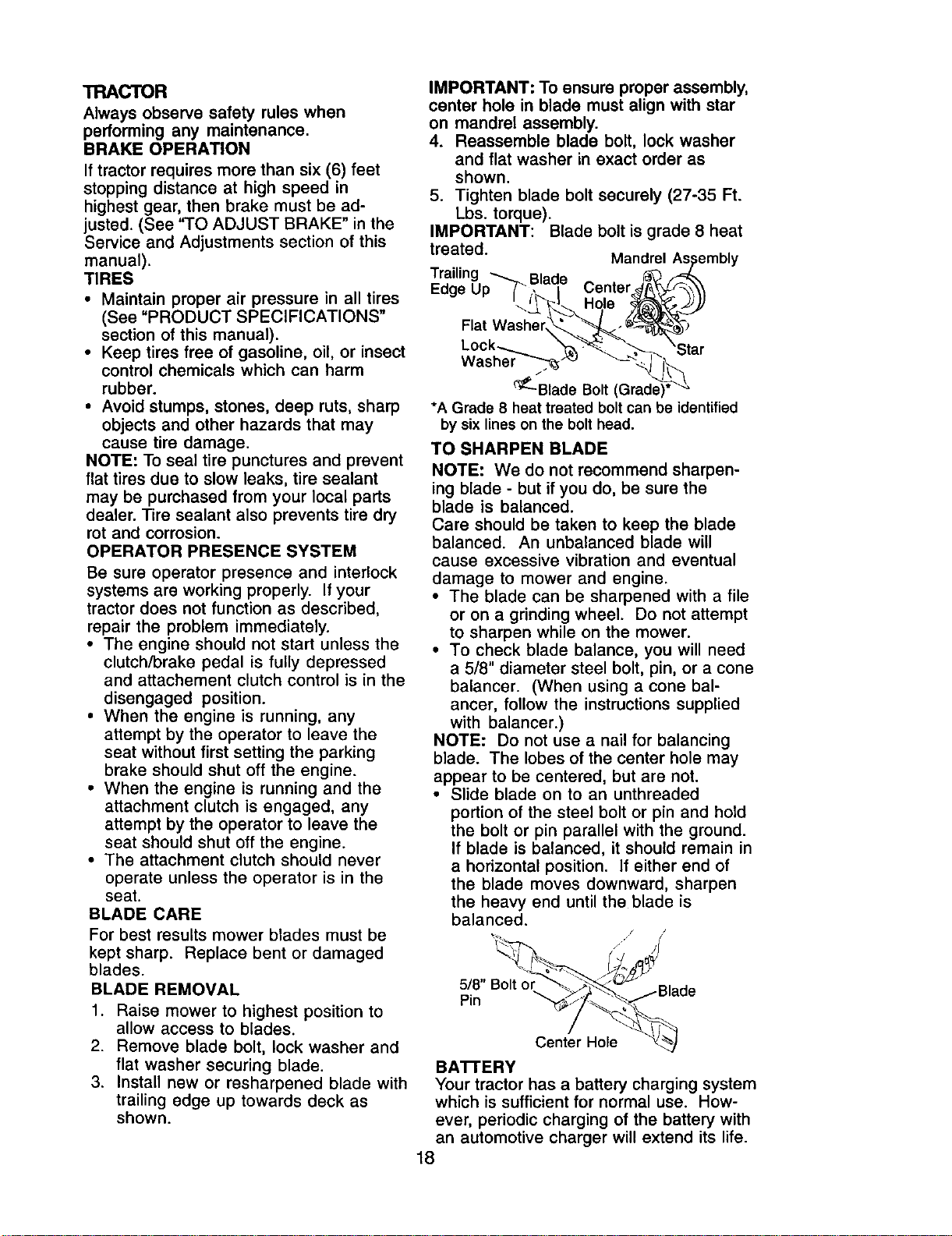

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Mandrel Assembly

Trailing _ Blade _

Edge Up 7_ , L Center d/_.',_>_,\

Lock • ,.

Was_er'_._'__, Star

_-'-Blade Bolt (Grade)*

•A Grade 8 heat treated bolt can be identified

by six lineson the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

518" Bolt or _.._'_ D,_._

Pin _,JJf_'_'_"_ .....

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

2. Rinse the battery with plain water and

dry.

3. Clean terminals and battery cable

ends with wire brush until bright.

4. Coat terminals with grease or petro-

leum jelly.

5. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF- SJ. Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE vISCOSITy GRADES

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°1=. Check your en-

gine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of op-

eration or at least once a year if the trac-

tor is not used for 25 hours in one year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Closed Oil Drain Valve

_ndcked_ _ Drain Tube

Position

Yellow __,'_X' Jf

Cap -- _

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto to the end of the drain

valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove cartridge nut.

2. Carefully remove cartridge to prevent

debris from entering carburetor.

Clean base carefully to prevent debris

from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge, nut, precleaner,

cover and secure with knob(s).

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressurized air to clean or dry

cartridge.

Cover Knob

Nut

Foam Cartridge

Pre-Cleaner

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating.

1. Remove oil fill cap/dipstick.

2. Remove hex bolts from blower

housing and lift housing off engine.

3. Cover oil fill opening to prevent entry

of dirt.

4. Use compressed air or stiff bristle

brush to thoroughly clean engine

cooling fins.

5. To reassemble, reverse above

procedure.

Hex _Housing

Oil Fill/

Tube

Dipstick _

I/ I l'. h-Spark

I l__._._ Plug

EngineCoolingFins,

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season, if fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp _ Clamp

Fuel Filter

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-sway bar from chassis

bracket by removing retainer spring.

7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs,

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: Ifan attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Connect front links to mower deck and

secure with retainer springs.

5. Connect suspension arms to rear

deck brackets and secure with

retainer springs.

6. Connect anti-sway bar to chassis

bracket and secure with retainer

spring.

7. Push clutch cable housing guide into

bracket, slide collar onto guide and

secure with large retainer spring.

8. Install belt onto engine pulley.

Small Retainer Spring

Clutch

Retainer

Anti-Sway

Retainer Springs

(Both Sides)

Housing Guide

Large

TOLEVELMOWERHOUSING

Adjustthemowerwhiletractoris parked

onlevel ground or driveway. Make sure

tires are properly inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower 1o ground. Distance "A" on

both sides of mower should be the

same or within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

• Recheck measurements after adjust-

ing.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

• To raise front of mower, loosen nut "P'

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

'D" "D"

Both Front Links Should be Equal in Length

Bottom edge of Bottom edge of

mower to mower to

ground _ ground

A_-'_ VGround Line V )'_--A

_.._u s_n Arm

LidftjuLstnkentN_

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the 1ront is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

Nut "_

Trunnion_

Front

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See "To Install Mower"

in this section of this manual).

Mandrel

Idler

Pulley

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxte.

if tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-1/2", loosen

jam nut and tum nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake "Engaged"

1-1/2"

i_'_(_t_ "_-"_ Operating

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Remove belt from stationary idler and

clutching idler.

3. Remove belt downward from around

engine pulley.

4. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

5. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down be-

tween transaxle belt keepers and onto

the input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front of tractor and roll

around the top groove of engine

pulley.

4. Install belt through stationary idler and

clutching idler.

5. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

6. Install mower (See "TO INSTALL

MOWER" in this section of manual).

Engine

Clutchin

Stationary Idler

Transaxle

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels

move freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

if steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks,

purchase and use tire sealant from

Sears. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Rin

Axle

Cover

Square Key f

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

RNING: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

if your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt system. The other vehicle

must also be a 12 volt system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift seat pan to raised position.

2. Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

3. Install new battery with terminals in

same position as old battery.

4. First connect RED battery cable to

positive (+) terminal with hex bolt and

keps nut as shown. Tighten securely.

Slide terminal cover over terminal

5. Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and keps nut. Tighten

securely.

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood

at sides, tilt toward engine and lift off

of tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

Headlight Wire

Connector

Terminal

Keps

Cover, /Nut

"_ Hex

Bolt

(Red)

Cable

(Black) Cable

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The thmtfie control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as described

below before loosening cable. If adjustment

is necessary, proceed as follows:

1. With engine not running, move throttle

control lever from slow to choke position.

Slowly move lever from choke to fast

position.

2. Check that holes "A" in govemor control

lever and hole in governor plate line-up.

If holes "A" are not aligned, loosen clamp

screw and move throttle cable until holes

are aligned. Tighten clamp screw

securely.

Governor Governor

Lever Plate

Holes "A"

Screw

Cable

TO ADJUST CARBURETOR

NOTE: The carburetor on this engine is low

emission. It is equipped with an idle fuel

adjusting needle with a limiter cap, which

allows some adjustment within the limits

allowed by the cap. Do not attempt to remove

the limiter cap. The limiter cap cannot be

removed without breaking the adjusting

needle.

The carburetor has been preset at the factory

and adjustment should not be necessary.

However, minor adjustment may be required

to compensate for differences in fuel,

temperature, altitude or load. If the carburetor

does need adjustment, proceed as follows:

In general, turning idle mixture valve in

(clockwise) decreases the supply of fuel to

the engine giving a leaner fueVair mixture.

Tuming the idle mixture valve out (counter-

clockwise) increases the supply of fuel to the

engine giving a richer fuel/air mixture.

IMPORTANT:. Damage to the needle valve

and the seat in carburetor may result ifscrew

is fumed in too _ght.

PRELIMINARY SEFRNG -

1. Air cleaner assembly must be assembled

to the carburetor when making carburetor

adjustments.

2. Be sure the thro_e control cable is

adjusted properly(see above).

FINAL SEI-FING -

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion control

lever in neutral (N) position.

2. Move throttle control lever to slow

position. With finger, rotate and hold

throttle lever against idle speed screw.

Tum idle speed screw to attain 1750

RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture valve

full travel clockwise then counterclock-

wise until engine runs rough. Tum valve

to a point midway between those two

positions. Release throttle lever.

ACCELERATION TEST-

4. Move throttle control lever from slow to

fast position. If engine hesitates or dies,

turn idle mixture valve out (counterclock-

wise) 1/8 tum. Repeat test and continue

to adjust, if necessary, until engine

accelerates smoothly.

High speed stop is factory adjusted. Do not

adjust or damage may result.

IMPORTANT: Never tamper with the engine

governor, which is factory set for proper

engine speed. Overspeeding the engine

above the factory high speed se_ng can be

dangerous. If you think the engine-governed

high speed needs adjusting, contact a

Sears or other qualified service center,

which has proper equipment and experience

to make any necessary adjustments.

Idle Speed Throttle

Sc;rew_Lever

Idle Mixture Valve _

With Limiter

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

_CAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATrERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also,

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Will not start

Hard to start

Enginewill not

turn over

Engine clicks but

will not start

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10.Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

'1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

18. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART

See appropriate section in manual unless directed to Sears service center

PROBLEM CORRECTION

Loss of power

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil leveVdirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

10.Spark plug wire loose.

11 .Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

10.Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12.Clean/replace muffler.

13.Check all wiring.

14. See 'qo Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mowerbladeswill 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

2. Worn/damaged mower 2. Replace mower drive belt.

drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Replace blade mandrel.

Poor grass 1. Engine speed too slow.

discharge

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11 .Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Switch is "OFF".

Bulb(s) or lamp(s) bumed oul

Faulty light switch.

Loose or damaged wiring.

Headlight(s) not 1.

working 2.

(if so equipped) 3,

Battery will not 1.

charge 2.

1. Place throttle control in

=FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec

tions.

Replace fuse.

Blown fuse. 5.

Bad battery cell(s). 1. Replace battery.

Poor cable connections. 2. Check/clean all connec

tions.

Faulty regulator 3. Replace regulator.

(if so equipped).

Faulty alternator. 4. Replace alternator.

Engine "backfires" Engine throttle control not 1. Move throttle control to

whenturning set at "SLOW" position "SLOW" position and allow

engine"OFF" for 30 seconds before to idle for 30 seconds befon

stopping engine, stopping engine.

TRACTOR - - MODEL NUMBER 917.271651

SCHEMATIC

- Itlrl

BATTERY

°E°

AMMETER FUSE

(OPTIONAL) t ,

CLUTCH / BRAKE

)G AI(

IGNITION

SWITCH

IGNITION SWITCH

POSITION CIRCUIT _MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+At A2+L

RUN B+At NONE

START B + S+ A1 NONE

[ i

SOLENOID

STARTER

NOTE L

YOUR TRACTOR IS m_WN (___i

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

SATrERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

(PEDAL UP)

.... ] (N%%C%%,%

r l (OPTIONAL) -- , SPARK qlP

mACK IGNITION PLUG

"_ LINE : TWiN CYL ENGINEL! D

_ ,

I (IF SO EQUIPPED) [_=A_ T

_ J sAMPACe 3_OAPML_h_l_GSVS_UourPur DFOOE JiALTERNATOR i

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

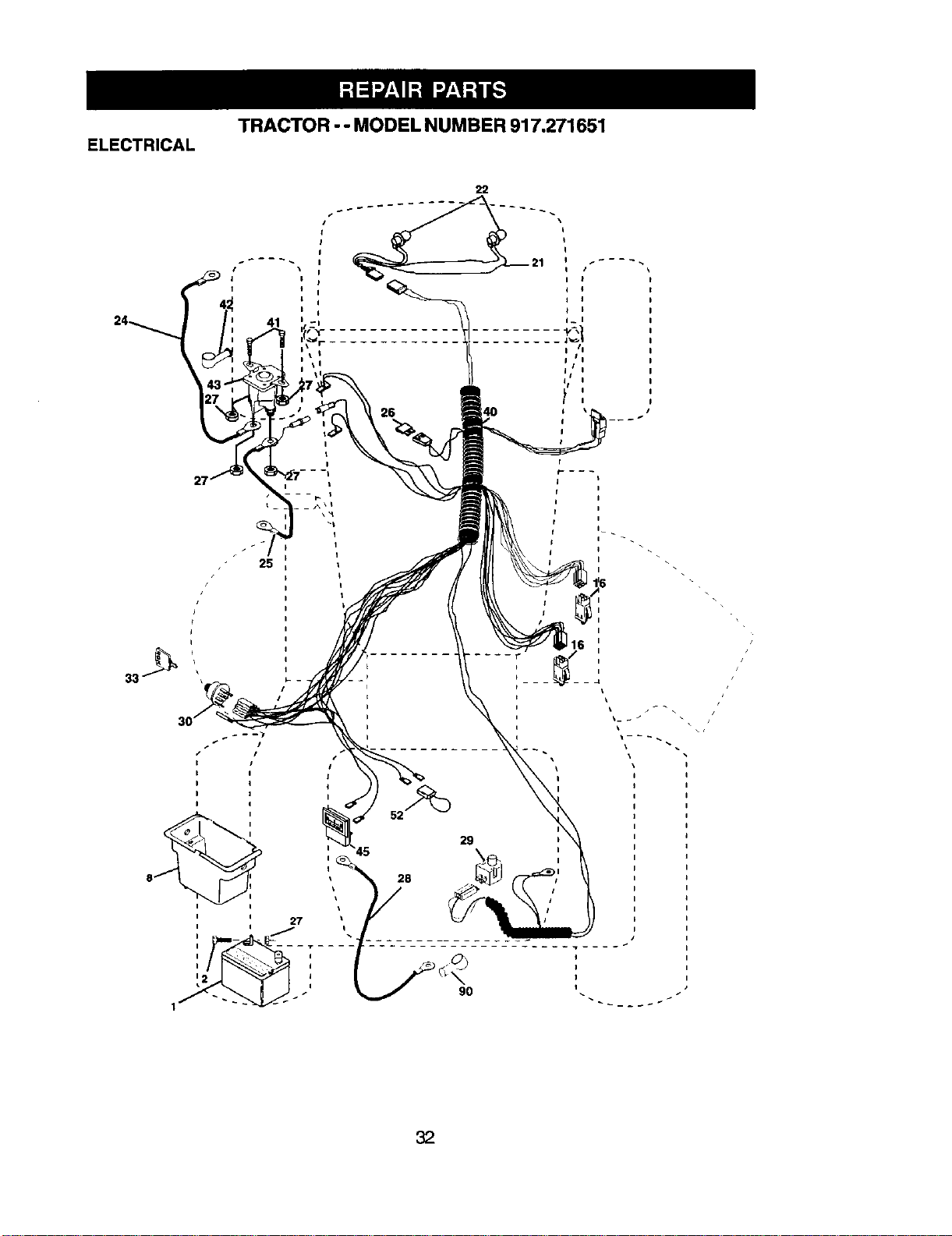

TRACTOR - - MODEL NUMBER 917.271651

ELECTRICAL

1 i

TRACTOR - - MODEL NUMBER 917.271651

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465

2 74760412

8 176689

16 176138

21 175688

22 4152J

24 4799J

25 146147

26 175158

27 73510400

28 4207J

29 121305X

30 175566

33 140403

40 179720

41 71110408

42 131563

43 178861

45 121433X

52 141940

89 180499

NOTE:

Battery

BoltHax Hd 1/4-20unc x 3/4

Box Battery Fender

Switch, Interlock

Hamess Asm LightW/4152j

BulbLight#1156

Cable Battery 6 Ga 11"red

Cable Battery 6 Ga w/16 wire rod

Fusa20AMP

Nut, Keps Hex 1/4-20 UNC

Cable Ground6 Ga 12"black

SwitchPlunger Nc Gray

Switch Ign

Key Ign MoldedCraftsman

Harness Ign

Bolt BIk. Fin Hex 1/4-20 Unc x 1/2

CoverTerminal Red

Solenoid

AmmeterRectangular 6 Amp

ProtectionWire Loop

Cover Battery Terminal

All componentdimensions give in U.S. inches

1inch= 25.4 mm

TRACTOR - - MODEL NUM BER 917.271651

CHASSIS AND ENCLOSURES

31 _(

3_j

2O6 _ 3

208

TRACTOR-- MODEL NUMBER917.271651

CHASSISANDENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554 Drawbat

3 17060612 Screw 3/8-16 x 3/4

5 155272 BumperHood/Dash

9 168337X013 Dash.

10 STD533710 Bolt, Carriage 3/8-16 x 1

11 174996 Panel, Dash, LH.

12 145660 ClipTinnermanGrillsP/L

13 172105)(010 Panel, Asm.SLKSCR Dash R.H.

14 17490608 Screw Thdrol3/8-16 x 1/2

17 144983X558 HoodAssembly

18 126938X BumperHood

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Nut, LockHex W/Ins. 3/8-16 UNC

28 178987)(558 Grille w/Lens Asm.

29 155217)(599 Lens, Grille

30 175692X558 Fender

31 139976 Bracket,Fender Support

37 17490508 ScrewThdro15116-18x 1/2 TYT

38 175710 Bracket Asm Pivot

51 73800400 Nut Lock w/Insert 1/4-20 UNC

52 19091416 Washer 9/32 x7/8 x 16 Ga.

53 145201 Bracket Grille Pickoff LH

54 161464 Screw Hex WSHD 8-18 x 7/8

55 145202 Bracket Grille Pickoff RH

57 STD522507 Bolt, Fin Hex 1/4-20 UNC x .75

60 STD533707 Bolt Rdhd Sqnk 3/6-16 UNC x 3/4

64 154798 Dash Lower STLT

74 STD541437 Nut, Crownlock 3/8-16 UNC

142 175702 PlateReinforcement STLT

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 t56524 RodPivotChassis/Hood

159 155123X428 Cupholder

206 170165 BoltShoulder5/16-18 TT

207 17670508 ScrewThdrol 5/8-18 x 1/2

208 17670608 ScrewThdro13/8-16x1/2

212 165919 Insert Lens Reflective

- - 5479J Plug, Button

NOTE: All componentdimensions give in U.S. inches

I inch =25.4 mm

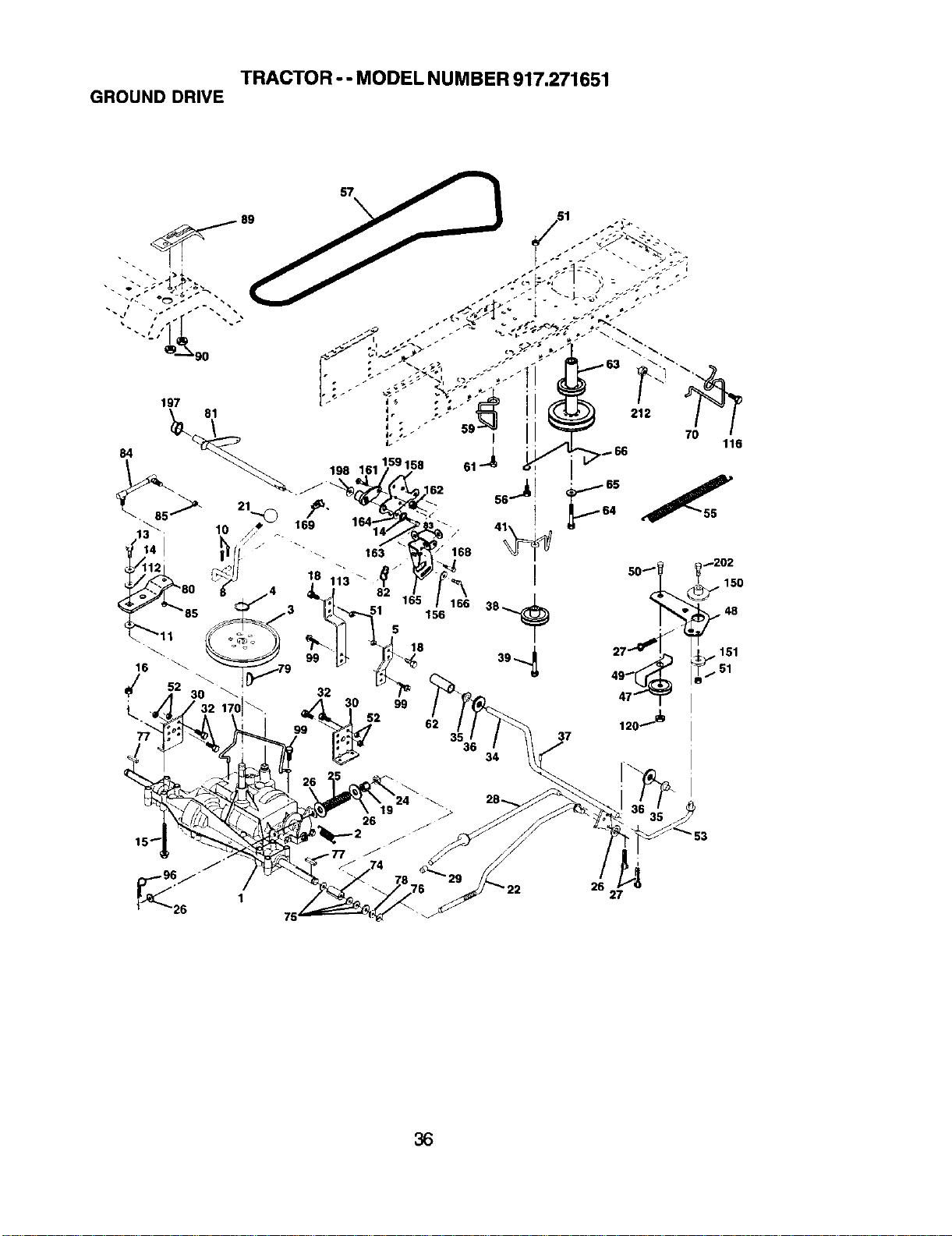

"TRACTOR""MODEL HUMBER 917.271651

GRouND DRWE

TRACTOR - - MODEL NUMBER 917.271651

GROUND DRIVE

KEY PART KEY PART

NO, NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle (See Breakdown) 64 71170764 BoltHex 7/16-20 x 4 Gr 5

Dana 4360-140 65 STD551143 Washer LockHvy HlclSpr 7/16

Spring Retum Brake T/a Zinc 66 154778 Keeper Belt Engine

PulleyTransaxle 18/20"tires 70 134683 GuideBeltMower Ddve RH

Ring Retainer#5100-62 74 109502X Spacer Split

StrapTorque 30 Degrees 75 121749X Washer 25/32 x 1 1/4 x 16 Ga

Scrow 5/16-18 x 3/4 76 STD581075 E-dng#5133o75

RodShifter FenderSTLT 77 123583X KeySquare

Pin Cotter 1/8 x 1 Cad 78 121748X Washer 25/32 x 1-5/8 x 16ga

Washer Plate Shf 388 Sq Hole 79 2228M Key Woodruff

Bolt 1/4-28unf Gr8 W/Petch 80 131488 Arm, Shift

Washer Lock I--IvyHelical 1/4 81 165594 Shaft Assembly

BoltHex FLGHD 5/16-18 Gr. 5 82 165711 Spdng,Torsion

Nut Lock Has w/Ins. 5/16-18 Unc 83 19171216 Washer 17132x 3/4 x 16 Gauge

Bolt Fin Hex 3/6-16unc x 1 Gr.5 84 166229 LinkTransaxle

Nut Lock Hex W/Ins. 3/6-16 Unc 85 150360 Nut, Nylock

KnobRd 1/2-13 PlstcThds BIk 89 158391)(428 Console, Shift,STLT

RodBrake BIkZinc 26 840 90 124346X NUt,Self-Threading,Washer

Nut Hex Jam 3/8-16 Unc Hd 1/4

Spring Rod Brake 2 00 Zinc STD624003 RetainerSpring

Washer 13/32 x 13/16 x 16 Ga 17000512 Screw 5/16-18 x 3/4

Pin Cotter 1/8 x 3/4 Cad 19091210 Washer 9/32 x 3/4 x 10 Ga

Rod Brake Parking Lt/Yt 127285X StrapTorque

Cap Brake Parking STD533710 BoltRdHd Sqnk 3/8-16 x 1 Unc

2 146682

3 123666X

4 12000028

5 12152OX

6 17060512

8 165866

10 STD561210

11 105701X

13 74550412

14 10040400

15 74490544

16 STD541431

18 STD523710

19 STD541437

21 106933X

22 130804

24 STD541237

25 106888X

26 STD5510_/

27 STD561210

28 175765

29 71673

30 174973

32 STD523107

34 175578

35 120183X

36 STD551062

37 STD571810

38 179114

39 74760648

41 175556

47 127783

48 154407

49 123205)(

50 STD523715

51 STD541437

52 STD541431

53 105710X

55 105709X

56 1706o0620

57 160855

59 169691

61 17120614

62 8883R

63 175410

Bracket Mtg Transaxle

Bolt Hex Hd 5/16-18unc x 3/4

Shaft Asm Pedal Foot

Bearing Nylon BIk 629 Id

Washer 21/32 x 1 x 16 Ga

PinRoll 3/16 x 1"

PulleyComposite Flat

BoltFin Hex 3/8-16unc x 3

Keeper Belt Idler

PulleyIdler

BellcrankClutch Gmd Dry STL

Retainer BeltStyle Spring

BoltHex Hd 3/8-16unc x 1-1/2

NutCrownlock 3/8-16 UNC

Nut Crown Lock5116-18

LinkClutch7 66

Spdng ReturnClutch6 75

Screw3/8-16 x 1-1/4

V-Belt Gd Drive

Keeper BeltCenterspan

Screw 3/8-16 x .875

Cover Pedal BIk Round

PulleyEng

112

113

116

120 739006o00

150 175456

151 19133210

156 166002

158 165589

159 165494

161 72140406

162 73680400

163 74780416

164 19091010

165 165623

166 166880

168 165492

169 165580

170 178394

197 169613

198 169593

202 72110614

212 145212

Nut Lock Fig. 3/6-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Washer Srrted5/161Dx 1 .125

Bracket Shift Mount

HubTapered FlangeShiftLt

BoltRdhd Sqnk 1/4-20 x 3/4 Gr.5

NutCrownlock1/4-20 UNC

BoltHex Fin 1/4-20 UNC x I Gr.5

Washer 5/8 x .281 x 10 Ga.

Bracket PivotLever

Screw 5/16-18 x 5/8

Bolt shoulder5/16-18 x .561

Plate Fastening LI

Keeper BeltT/A

Nyliner Snap-in5/8" ID

Washer Nyl 7/81D x .105"

BoltCarr Sh 3/8-16 x 1-3/4 Gr.5

Nut Hex Flange Lock

NOTE: Allcomponentdimensions give in U.S. inches

1inch= 25.4 mm

TRACTOR - - MODEL NUMBER 917.271651

STEERING ASSEMBLY

i_- i_',,,--,_ 311

.......,, _...... , _----.___,

i I

°J

°/"

TRACTOR - - MODEL NUMBER 917.271651

STEERINGASSEMBLY

KEY PART

NO. NO.

1 139768

2 175131

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 STD551137

13 136518

15 145212

17 177876

26 126847X

28 19131416

29 17060612

30 STD561210

32 13O465

36 155O99

37 152927

38 139769

39 19133812

40 S_1537

41 100711L

42 145054X428

43 121749)(

44 153720

46 121232X

47 6855M

51 STD54143t

54 74780520

63 STD523710

65 160367

67 72140618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

DESCRIPTION

SteeringWheel

FrontAxleAssembly

SpindleAssembly, L.H.

SpindleAssembly, R.H.

Baadng, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing,SteeringColumn

Link,Drag

Washer, Lock

Spacer, Bearing, FrontAxle

Nut LockHex Flange

Shaft Asm. Steedng

Bushing, Link,Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x3/4

Red,Tie

Bushing,Steering

Screw TT #10-32x 5 x 3/8 Flange

Cap Wheel Steer OPP BIk

Washer 13/32 x 2-3/8 x 12 Gauge

Nut LockCenter 3/8-24 UNF

Adaptor, SteenngWheel

Boot,Steedng Dash P/L Mtl BIk

Washer 25/32 x 1-1/4 x 16 Gauge

ExtensionSteering Non-Adjust

Cap, Spindle

Fitting,Grease

Nut LockHx W/Ins 5/16-18 UNC

BoltFin Hex 5/16-18 UNC x 1-1/4

BoltFin Hex 3/8-16 unc. x 1 Gr. 5

Spacer Brace Axle

BoltRdhd Sq 3/8-16 x 2-1/4

Brace Axle

Steering Asm.

BracketSusp Chassis Front

FastenerChristmas Tree

BoltShoulder7/16-20 Unc

Clip Steering

NOTE: All component dimensions givenin U.S, inches

1inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271651

ENGINE

v) j_J

OPTIONAL EQUIPMENT

Spark Arrester

KEY PART

NO.

NO. DESCRIPTION

170545 Control Throttle/Choke

17720408 Screw Hex Thd Cut 1/4-20xl/2 T

........ Engine (See Breakdown) Briggs

Mode1310707-0137-E1

137352 Muffler Exhaust B&S Lt

165291 Gasket 1 313 Id Tin Plated

148456 Tube Drain Oil

STD551237 Washer Lock Ext Tooth 3/8

169837 Shield BRN/DBR Guard

137180 Arrestor Spark

109202X Tank Fuel 1 25 Fr

158990 Cap Asm Fuel W/sym Vented

123487X Clamp Hose BIk

KEY PART

NO. NO, DESCRIPTION

37 137040

38 148315

40 124028X

44 17670412

45 17000612

46 19091416

62 STD551131

72 71070512

78 17060620

81 73510400

LineFuel 20"

PlugOil Drain

Bushing Snap Nyl BIk Fuel Line

Screw Hexwsh Thdrol 1/4-20x3/4

Screw Hexwsh Thdr 3/8-16 x 3/4

Washer 9/32 X 7/8 X 16ga

Washer Lock Hvy Hlcl Spr 5/16

Screw Hexhd Cap 5/16-18x3/4

Screw 3/8-16x1-1/4

Nut Keps Hex 1/4-20unc

NOTE: All componentdimensions given in U.S, inches

1 inch =25.4 mm

TRACTOR - -MODEL NUMBER917.271651

LIFTASSEMBLY

/ /'

/ .!

/ !

13_

KEY PART

NO. NO.

1 159460

2 159471

3 105767X

4 12000002

5 19211621

6 120183X

7 125631X

8 122365X

11 139865

12 139866

DESCRIPTION

Washer Asm InnerSpring W/

Plunger

Shaft Asm. Lift RH

Pin Groove

ERing #5133-62

Washer 21/32 x 1 x 21 Ga,

Bearing Nylong

Grip Handle Fluted

Button Plunger Read

Link Asm Lift L.H.

Link Asm Lift R,H.

KEY PART

NO, NO. DESCRIPTION

13 STD624008 Retainer Spring

15 173288 Link Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion Front Susp.

18 73800800 Nat Lockw/wsh 1/2-13 Unc

19 139868 Arm Suspension Mower

20 163552 Retainer Spdng

31 169865 Bearing, Pvt. Lifl.

32 73540600 Nut Crownlock 3/8-24

NOTE: All componentdimensions given inU,S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.271651

SEAT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 140122

2 140551

3 71110616

4 19131610

5 145OO6

6 STD541437

7 124181X

8 17000616

9 19131614

10 174894

11 166369

12 121246X

KEY PART

NO. NO.

Seat 13 121248X

Bracket Pnt Pivot Seat (blk) 14 72050412

BoltFin Hex 3/8-16unc X 1 15 134300

Washer 13/32 X 3/4 X 10 Ga 16 121250X

Clip Push In Hinged 17 123976X

Nut Hex Lock w/Ins 3/8-16 Unc 21 171852

Spring Seat Cprsn 2 250 BIkZi 22 STD5414.31

Screw 3/8-16 X 1 -1/2 24 19171912

Washer 13/32 X 1X 14 Ga 25 127018X

Pan Pnt Seat (blk)

Knob Seat

Bracket Pnt Mounting Switch

DESCRIPTION

BushingSnap BIk Nyl 5g Id

BoltRdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Lock1/4 Lge Fig Gr 5 Zinc

BoltShoulder5/16-18 Unc-2A

Nut Hex Lockw/Ins 5/16-18

Washer 17/32 X 1-3/16 X 12Ga

BoltShoulder5/16-18 X 62

NOTE: All componentdimensions given in U,S. inches

1inch= 25.4 mm

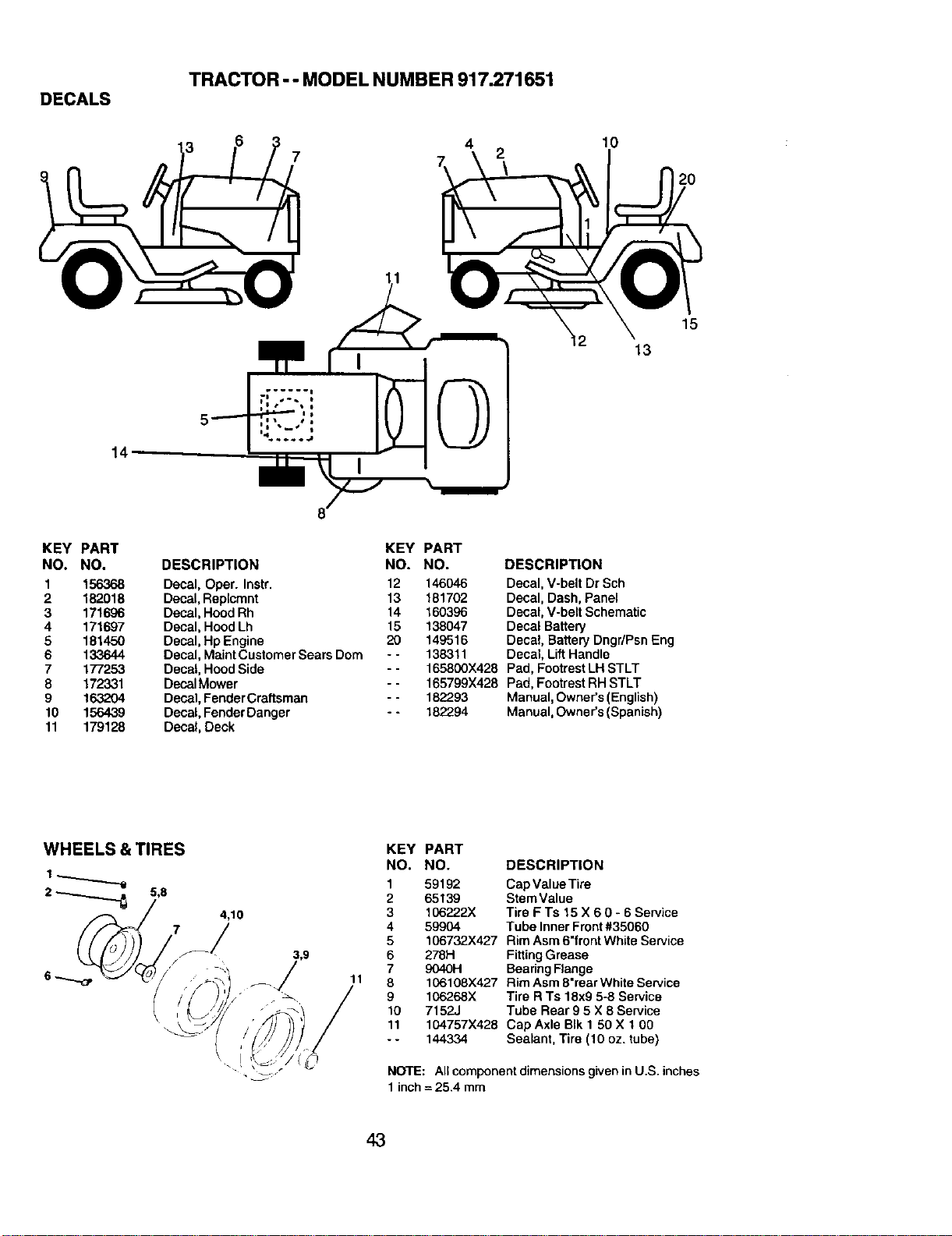

TRACTOR - - MODEL NUMBER 917.271651

DECALS

KEY PART

NO. NO.

1 156368

2 182018

3 171696

4 171697

5 181450

6 133644

7 177253

8 172331

9 163204

10 156439

11 179128

DESCRIPTION

Decal, Oper. Instr.

Decal,Replcmnt

Decal,Hood Rh

Decal, Hood Lh

Decal,Hp Engine

Decal, MaintCustomerSears Dora

Decal, HoodSide

DecalMower

Decal, FenderCraftsman

Decal, Fender Danger

Decal, Deck

KEY PART

NO. NO.

12 146046

13 181702

14 160396

15 138047

20 149516

- - 1383tl

- - 165800X428

- - 165799X428

- - 182293

- - 182294

DESCRIPTION

Decal, V-belt Dr Sch

Decal, Dash, Panel

Decal, V-belt Schematic

Decal Battery

Decal, Battery Dngr/Psn Eng

Decal, Lift Handle

Pad, Footrest LH STLT

Pad, Footrest RHSTLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS & TIRES

KEY PART

NO. NO.

1 59192

2 65139

3 106222X

4 59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 106268X

10 7152J

11 104757X428

- - 144334

DESCRIPTION

Cap ValueTire

StemValue

Tire F Ts 15 X 6 0 - 6 Service

Tube InnerFront#35060

RimAsm6"frontWhite Service

FittingGrease

BeadngFlange

RimAsm8"rearWhite Service

Tire RTs 18x9 5-8 Service

Tube Rear 9 5 X 8 Service

Cap Axle BIk1 59 X 1 00

Sealant, Tire (10 oz. tube)

NO'rE: All component dimensions given in U.S. inches

1 inch = 25,4 mm

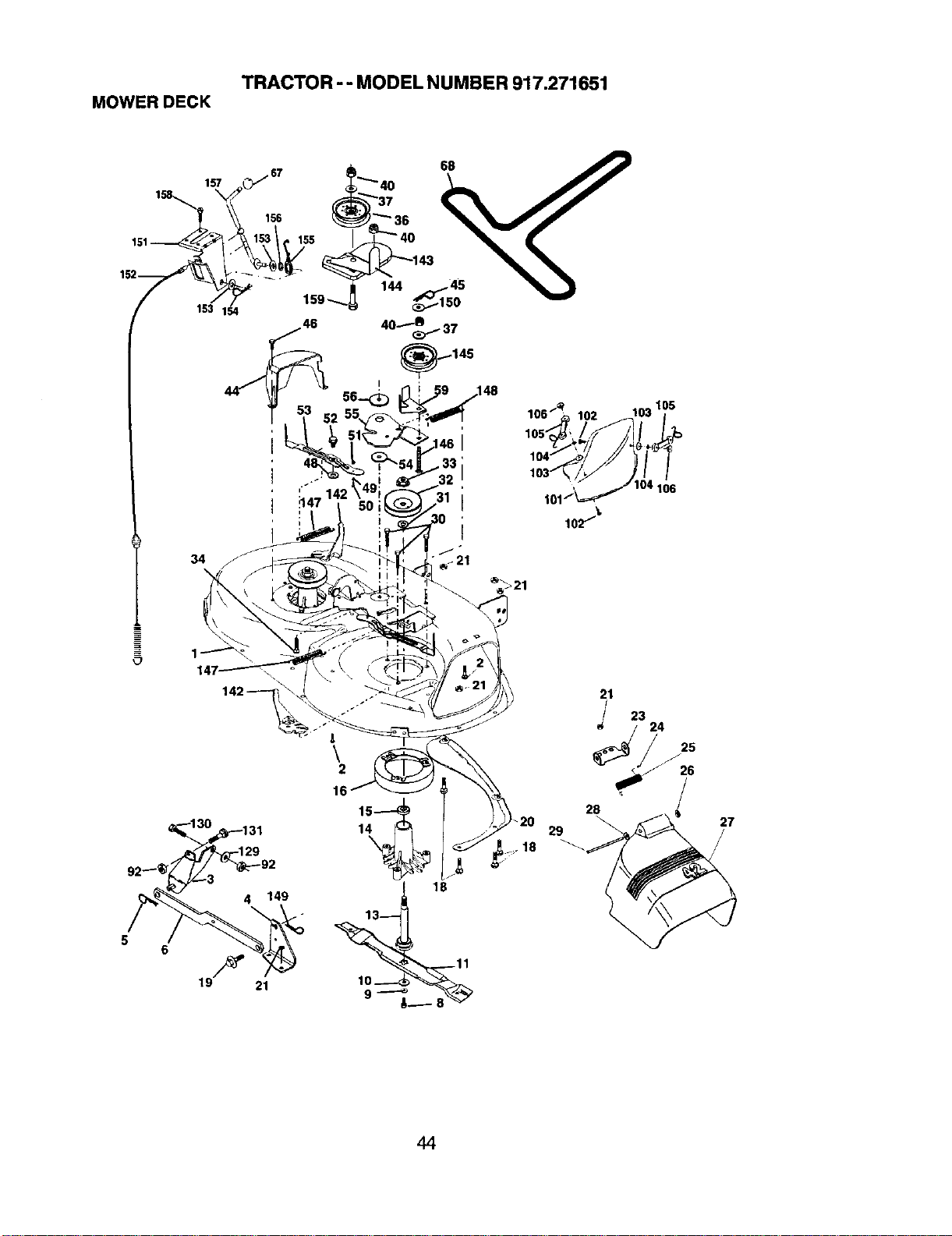

TRACTOR - - MODEL NUMBER 917.271651

MOWER DECK

149

19F 21

TRACTOR -- MODEL NUMBER 917.271651

MOWERDECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 165892 MowerDeck Assembly,42" 53 131845

2 STD533107 Bolt 54 133943

3 138017 BracketAssembly,SwayBar, 55 155046

Front 56 165723

4 165460 BracketSway Bar 38/42" Deck 59 141043

5 STD624008 RetainerSpring 67 149846

6 178024 BarSway Deck 68 144959

8 850857 Bolt, Hex 3/8-24 x 1.25 Gr. 8 92 STD541437

9 STD551137 Washer, Lock 101 136420

10 140296 Washer, Hardenod 102 71081010

11 134149 Blade,Mulching 103 19061216

13 t37645 ShaftAssembly, Mandrel, Vented 104 STD551110

14 128774 Housing,Mandrel,Vented 105 160793

15 110485X Beadng, Ball,Mandrel 106 2029J

16 174493 Stltpper,Vented Mower Deck 129 19131312

18 72140505 Bolt,Carriage 5/16-18 x 5/8 130 STD523710

19 132827 Bolt,Shoulder 131 STD533710

20 159770 Baffle, Vortex 142 165890

21 STD541431 NutCrownlockS/16-18UNC 143 157109

23 177563 Bracket, Deflector 144 158634

24 105304X Cap, Sleeve 145 165888

25 123713X Spring,Torsion,Deflector 146 171977

26 110452X Nut, Push 147 131335

27 130968X428 Shield, Deflector 148 169022

28 19111016 Washer 11/32x5/8x16Ga. 149 165898

29 131491 Rod,Hinge 150 19091216

30 173984 ScrewThd RollDOdPt. Hex 151 169670

31 129963 Washer, Spacer 152 169676

32 153535 Pulley,Mandrel 153 169674

33 178342 Nut,Toplock,Flanged 154 169675

34 STD533717 Bolt 155 169671

36 131494 Pulley, Idler, Flat 156 169672

37 STD551037 Washer 13/32 x 13/16 x 16 Ga. 157 169669

40 STD541437 NutCrownlock3/8-16UNC 158 17720408

44 140088 Guard, Mandrel,LH. 159 72140614

45 STD624003 Retainer - - 130794

46 137729 Screw, Thd. Roll 1/4-20 x 5/'8

48 133944 Washer, Hardened

49 174284 Roller Assembly, Cam Follower

50 131340 Bolt, Shoulder #10-24 Grade 5 - - 169583

51 STD541410 Locknut

52 139888 Bolt,Shoulder 5/16-18 UNC

DESCRIPTION

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

Spacer, Retainer

Guard,TUV Idler

KnobCustomOval

V-Belt

Nut

MulcherCover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut,Weld

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1 Gr.5

Bolt, RdhdSqnk3/8-16UNC x 1

ArmSpringBrake Mower

Bracket Arm Idler42"

Keeper Belt42"ClutchCable

Pulley Idler Flat

BoltCarriage Idler

Spring Extension

Spring Retum Idler

Retainer SpringYellowZinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clutch42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring RetentionLever

Spacer

RodClutch

Screw Hex Thd Cut 1/4-20 x 1/2

BoltTdhd Sgn 3/8-16UNC x 1-3/4

Mandrel Assembly(Includes

Housing, Shaft and Shaft

Hardware Only - PulleyNot

Included)

ReplacementMower,Complete

NOTE; Allcomponentdimensionsgivenin U.S.inches

1inch= 25.4 mm

TRACTOR - - MODEL NUM BER 917.271651

DANA TRANSAXLE - - MODEL NUMBER D4360-140

27 32

43.

TRACTOR - - MODEL NUMBER 917.271651

DANA TRANSAXLE - - MODEL NUMBER D4360-140

KL=Y PART KEY PART

NO, NO. DESCRIP'nON NO. NO, DESCRIPTION

1 170981 Housing,Upper 40 120472X

2 2274J Screw,Tapping, 1/4-20 X .734 41 105928X

3 134400 Ball,Detent 42 170988

4 105904X Spring,Detent 43 134394

5 160940 Screw,Tapping, No. 10-24 X .482 44 120473X

6 138235 Assy, Kit, Shifter 45 142678

7 108727X V-Ring 46 143697

8 148266 Bearing,Flange 47 124641X

9 148269 Seal, Oil 48 106589X

10 2225J Ring,Retaining 49 120408X

11 134793 *Assy, Kit, Shim, .625 Shaft 50 105937X

12 148268 Bearing,Flange 51 2226J

13 120415X Washer, Plain, .632 X 1.38 X .046 52 134401

14 142674 Key, Woodruff, No. 9 53 2264J

15 170983 Assy, Kit, Input Shaft 54 160946

16 170986 Pinion,Bevel, 12T 55 170990

17 105909X Ring,Retaining 56 160948

18 105910X Chain, 24 Pitches 57 110071X

19 160942 Cover, Detent 58 120952

20 160943 Gear, Spur, 1 2T 59 170991

21 148267 Collar,Clutch 60 160950

22 138236 Assy, Kit, Clutch Keys 61 170992

23 73810500 Nut, Lock, 5/16-24 62 7294J

24 142876 Shaft, Intermediate 63 108989X

25 2244J Key, Woodruff, No. 61 64 160952

26 105916X Ring,Retaining 65 120954X

27 12047OX Sprocket, 1 8T 66 160953

28 110070X Spacer, 1. 131 X 1.45 X .494 67 138244

29 142677 Gear, Spur, 373" 68 108996X

30 142681 Gear, Spur,35T 69 160954

31 124644X Gear, Spur,30T 70 120951X

32 108980X Gear, Spur, 25T 71 174256

33 120406X Gear, Spur, 22T 72 120416X

34 134796 Gear, Spur, 19T

35 105925X Washer, Plain, .640 X t.37 X .061

36 2228J Washer, Plain, .632 X 1.00 X .046

37 170987 Washer, Plain, .632 X 1.00 X .031

38 174255 Assy, Gear, Comb., 12T & 3OT

39 124639X Shaft, Idler

Spacer, .633 X .87 X .755

Sprocket, 9T

Gear, Bevel, 36T

* Assy, Kit, Shim, .750 Shaft

Shaft, Drive

Gear, Spur, 12T

Gear, Spur, 15T

Gear, Spur, 20T

Gear, Spur, 25T

Gear, Spur, 28T

Gear, Spur, 31T

Washer, Plain, .632 X 1.00 X .080

Washer, Neoprene

Washer, Plain, .758 X 1.25 X .631

Axle, LH

Gear, Miter, 1 2T, Splined

Ring,Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 1 2T, Idler

Axle, RH

Housing,Lower

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin,Dowel

Screw, Tapping, 5/16-18 X 2.35

Lever, Actuating

Washer, Plain, .321 X 1.00 X .055

Bracket, Anti-Rotation

Puck, Fdctien

Washer, AntiRotation

Grease

NOTE: All componentdimensionsgivenin U.S. inches

1 inch= 25.4 mm

* Use invarious combinationsto maintainproper

clearances.

** Order Key No. 15.

*** SiliconeSealant tobe appliedbetween Upper and

Lower Housings (use Loctite Ultra Gray Silicone 5699

or equivalent).

TRACTOR - - MODEL NUM BER 917.271651

BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

REQUIRES SPECIAL TOOLS s3_

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

413

TRACTOR - - MODEL NUMBER 917.271651

BRIGGS & STRA'FTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

467_ 971

968 /

I 1019 LABEL KIT [

I 1058 OWNER'S MANUAL

8751 711_

108A_A _ "U

232 /

I 231 _

I .4 e

83_ / _ -_'f-I

127 g --- 13

186__ 106 _ 1-_,,::_ I

1421 O-117

176 344_I_

404@_

616_. 614 _

404@'

22"/

562

267

,49

TRACTOR -- MODEL NUMBER 917.271651

BRIGGS &STRAI-rON ENGINE-MODEL NUMBER310707, TYPE NUMBER0137-E1

783_jj

5_ 803

523 1

287111

5241_ i

TRACTOR - - MODEL NUMBER 917.271651

BRIGGS & STRATFON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

977 CARBURETOR GASKET SET

51_ 137 0 2760

1095 VALVE GASKET SET

NIKKI

125AI 141B I

9SA_ _II__

21zl

127A01 _ _ _AO

5__1L05A_ 369

,4,A6

121 CARBURETOR OVERHAUL KIT

104_1270 =76_ 987@ _s_

634A_.._ 634__._ 1170 231_142A

_105_ _,"_

358 ENGINE GASKET SET

3 _ 524_ 842

691_ 176_

868 0

121A CARBURETOR OVERHAUL KIT

51_ 95A_ 276A_)

104A_ 127A

10SA_987A®

137A O 231A _P

,,',ACARBURETORGASKETSETt

01_'_A_ _0A'_

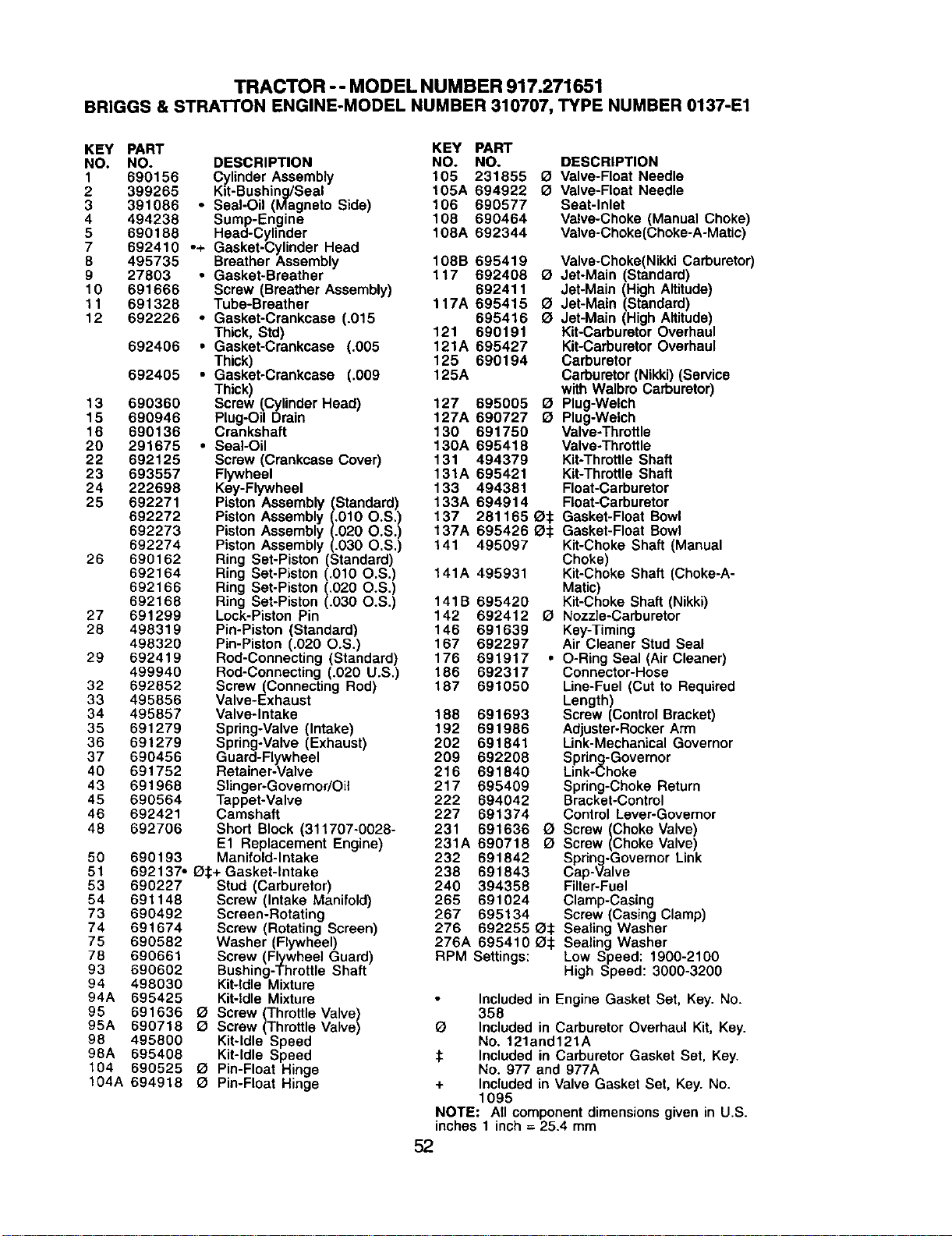

TRACTOR -- MODEL NUMBER917.271651

BRIGGS& STRATrONENGINE-MODELNUMBER310707,TYPENUMBER0137-E1

KEY PART

NO. NO. DESCRIPTION

1 690156 Cylinder Assembly

2 399265 Kit-Bushing/Seal

3 391086 • Seal-Oil (Magneto Side)

4 494238 Sump-Engine

5 690188 Head-Cylinder

7 892410 -+ Gasket-Cylinder Head

8 495735 Breather Assembly

9 27803 • Gasket-Breather

10 691666 Screw (Breather Assembly)

11 691328 Tube-Breather

12 692226 ° Gasket-Crankcase (.015

Thick, Std)

692406 • Gasket-Crankcase (.005

Thick)

692405 • Gasket-Crankcase (.009

Thick)

13 690360 Screw (Cylinder Head)

15 690946 Plug-Oil Drain

16 690136 Crankshaft

20 291675 • Seal-Oil

22 692125 Screw (Crankcase Cover)

23 693557 Flywheel

24 222698 Key-Flywheel

25 692271 Piston Assembly (Standard)

692272 Piston Assembly (.010 O.S.)

692273 Piston Assembly (.020 O.S.)

692274 Piston Assembly (.030 O.S.)

26 690162 Ring Set-Piston (Standard)

692164 Ring Set-Piston (.010 O.S.)

692166 Ring Set-Piston (.020 O.S.)

692166 Ring Set-Piston (.030 O.S.)

27 691299 Lock-Piston Pin

28 498319 Pin-Piston (Standard)

498320 Pin-Piston (.020 O.S.)

29 692419 Rod-Connecting (Standard)

499940 Rod-Connecting (.020 U.S.)

32 692852 Screw (Connecting Rod)

33 495856 Valve-Exhaust

34 495857 Valve-Intake

35 691279 Spring-Valve (Intake)

36 691279 Spring-Valve (Exhaust)

37 690456 Guard-Flywheel

40 691752 Retainer-Valve

43 691968 Slinger-Governor/Oil

45 690564 Tappet-Valve

46 692421 Camshaft

48 692706 Short Block (311707-0028-

E1 Replacement Engine)

50 690193 Manifold-Intake

51 692137- 1_:1:+Gasket-Intake

53 690227 Stud (Carburetor)

54 691148 Screw (Intake Manifold)

73 690492 Screen-Rotating

74 691674 Screw (Rotating Screen)

75 690582 Washer (Flywheel)

78 690661 Screw (Flywheel Guard)

93 690602 Bushing-Throttle Shaft

94 498030 Kit-Idle Mixture

94A 695425 Kit-ldle Mixture

95 691636 I_ Screw (Throttle Valve)

95A 690718 O Screw (Throttle Valve)

98 495800 Kit-Idle Speed

98A 695408 Kit-Idle Speed

104 690525 O Pin-Float Hinge

104A 694918 _ Pin-Float Hinge

KEY PART

NO. NO.

105 231855

105A 694922

106 690577

108 690464

108A 692344

DESCRIPTION

I_ Valve-Float Needle

Valve-Float Needle

Seat-Inlet

Valve-Choke (Manual Choke)

Valve-Choke (Choke-A-Matic)

108B 695419

117 692408

692411

117A 695415

695416

121 690191

121A 695427

125 690194

125A

127

127A

130

130A

131

131A

133

133A

137

137A

141

141A 495931

141B 695420

142 692412

146 691639

167 692297

176 691917

186 692317

187 691050

188 691693

192 691986

202 691841

209 692208

216 691840

217 695409

222 694042

227 691374

231 691636

231A 690718

232 691842

238 691843

240 394358

265 691024

267 695134

276 692255

276A 695410

RPM Settings:

Valve-Choke(Nikki Carburetor)

O Jet-Main (Standard)

Jet-Main (High Altitude)

O Jet-Main (Standard)

O Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Carburetor

Carburetor (Nikki) (Service

with Walbro Carburetor)

695005 121Plug-Welch

690727 I_ Plug-Welch

691750 Valve-Throttle

695418 Valve-Throttle

494379 Kit-Throttle Shaft

695421 Kit-Throttle Shaft

494381 Float-Carburetor

694914 Float-Carburetor

281165 f_:l: Gasket-Float Bowl

695426 O5 Gasket-Float Bowl

495097 Kit-Choke Shaft (Manual

Choke)

Kit-Choke Shaft (Choke-A-

Matic)

Kit-Choke Shaft (Nikki)

Q Nozzle-Carburetor

Key-Timing

Air Cleaner Stud Seal

• O-Ring Seal (Air Cleaner)

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Adjuster-Rocker Arm

Link-Mechanical Governor

Spring-Govemor

Link-Choke

Spring-Choke Return

Bracket-Control

Control Lever-Governor

13 Screw (Choke Valve)

Screw (Choke Valve)

Spring-Governor Link

Cap-Valve

Filter-Fuel

Clamp-Casing

Screw (Casing Clamp)

_:1: Sealing Washer

O_: Sealing Washer

Low Speed: 1900-2100

High Speed: 3000-3200

Included in Engine Gasket Set, Key. No.

358

O Included in Carburetor Overhaul Kit, Key.

No. 121and121A

:1: Included in Carburetor Gasket Set, Key.

No. 977 and 977A

+ Included in Valve Gasket Set, Key. No.

1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

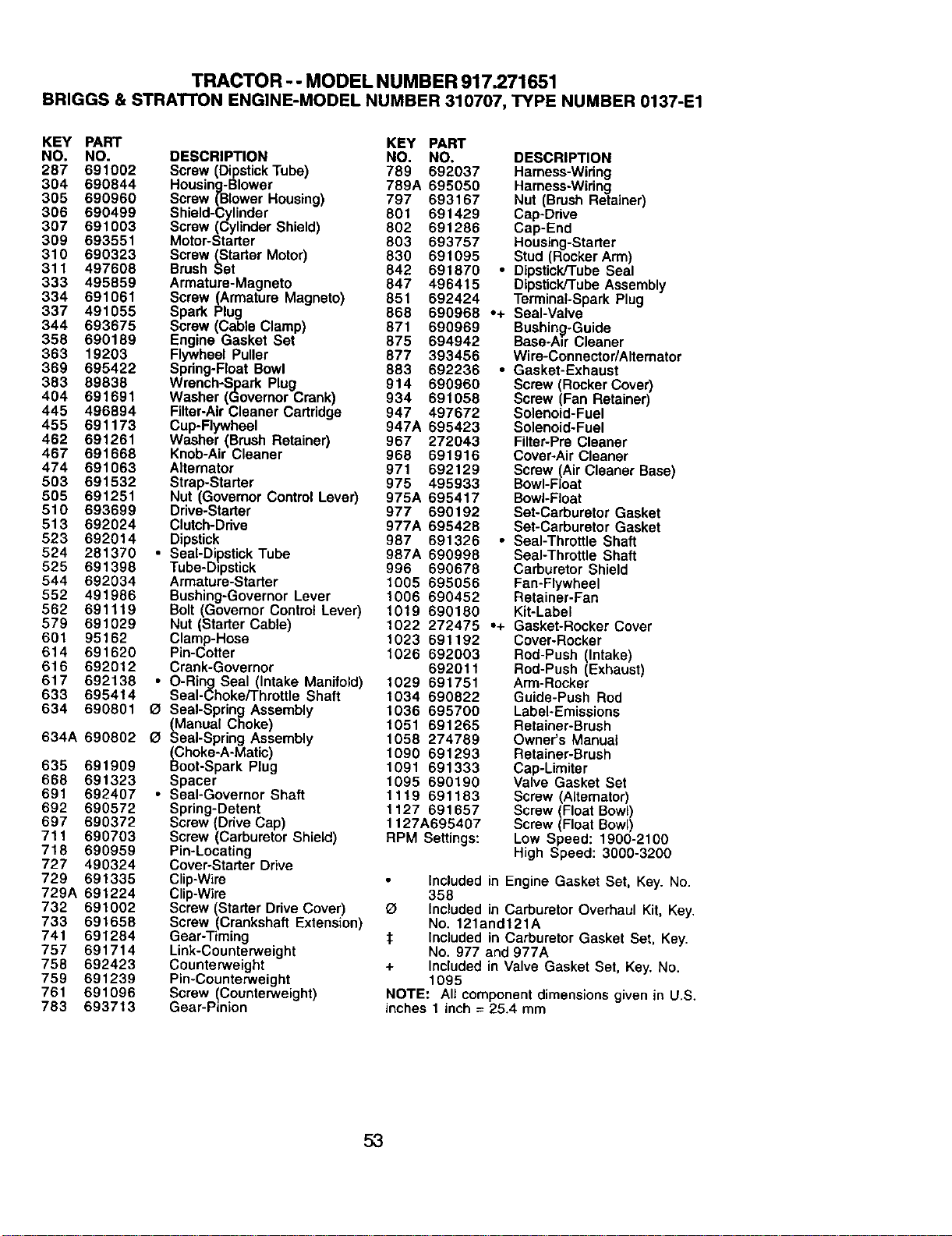

TRACTOR - - MODEL NUMBER 917.271651

BRIGGS & STRATTON ENGINE-MODEL NUMBER 310707, TYPE NUMBER 0137-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

287 691002 Screw (Dipstick Tube) 789 692037 Harness-Wiring

304 690844 Housing-Blower 789A 695050 Harness-Wiring

305 690960 Screw (Blower Housing) 797 693167 Nut (Brush Retainer)

306 690499 Shield-Cylinder 801 691429 Cap-Drive

307 691003 Screw (Cylinder Shield) 802 691286 Cap-End

309 693551 Motor-Starter 803 693757 Housing-Starter

310 690323 Screw (Starter Motor) 830 691095 Stud (Rocker Arm)

311 497608 Brush Set 842 691870 • Dipstick/Tube Seal

333 495859 Armature-Magneto 847 496415 Dipstick/Tube Assembly

334 691061 Screw (Armature Magneto) 851 692424 Terminal-Spark Plug

337 491055 Spark Plug 868 690968 .+ Seal-Valve

344 693675 Screw (Cable Clamp) 871 690969 Bushing-Guide

358 690189 Engine Gasket Set 875 694942 Base-Air Cleaner

363 19203 Flywheel Puller 877 393456 Wire-Connector/Alternator

369 695422 Spring-Float Bowl 883 692236 • Gasket-Exhaust

383 89838 Wrench-Spark Plug 914 690960 Screw (Rocker Cover)

404 691691 Washer (Governor Crank) 934 691058 Screw (Fan Retainer)

445 496894 Filter-Air Cleaner Cartridge 947 497672 Solenoid-Fuel

455 691173 Cup-Flywheel 947A 695423 Solenoid-Fuel

462 691261 Washer (Brush Retainer) 967 272043 Filter-Pre Cleaner

467 691668 Knob-Air Cleaner 968 691916 Cover-Air Cleaner

474 691063 Alternator 971 692129 Screw (Air Cleaner Base)

503 691532 Strap-Starter 975 495933 Bowl-Float

505 691251 Nut (Governor Control Lever) 975A 695417 Bowl-Float

510 693699 Drive-Starter 977 690192 Set-Carburetor Gasket

513 692024 Clutch-Drive 977A 695428 Set-Carburetor Gasket

523 692014 Dipstick 987 691326 • SeaI-Throftle Shaft

524 281370 • Seal-Dipstick Tube 987A 690998 Seal-Throttle Shaft

525 691398 Tube-Dipstick 996 690678 Carburetor Shield

544 692034 Armature-Starter 1005 695056 Fan-Flywheel

552 491986 Bushing-Governor Lever 1006 690452 Retainer-Fan

562 691119 Bolt (Governor Control Lever) 1019 690180 Kit-Label

579 691029 Nut (Starter Cable) 1022 272475 o+ Gasket-Rocker Cover

601 95162 Clamp-Hose 1023 691192 Cover-Rocker

614 691620 Pin-Cotter 1026 692003 Rod-Push (Intake)

616 692012 Crank-Governor 692011 Rod-Push (Exhaust)

617 692138 • O-Ring Seal (Intake Manifold) 1029 691751 Arm-Rocker

633 695414 Seal-Choke/Throttle Shaft 1034 690822 Guide-Push Rod

634 690801 O Seal-Spring Assembly 1036 695700 Label-Emissions

(Manual Choke) 1051 691265 Retainer-Brush

634A 690802 _ Seal-Spring Assembly 1058 274789 Owner's Manual

(Choke-A-Matic) 1090 691293 Retainer-Brush

635 691909 Boot-Spark Plug 1091 691333 Cap-Limiter

668 691323 Spacer 1095 690190 Valve Gasket Set

691 692407 • Seal-Governor Shaft 1119 691183 Screw (Alternator)

692 690572 Spring-Detent 1127 691657 Screw (Float Bowl)

697 690372 Screw (Drive Cap) 1t27A695407 Screw (Float Bowl)

711 690703 Screw (Carburetor Shield) RPM Settings: Low Speed: 1900-2100

718 690959 Pin-Locating High Speed: 3000-3200

727 490324 Cover-Starter Drive

729 691335 Clip-Wire Included in Engine Gasket Set, Key. No.

729A 691224 Clip-Wire 358

732 691002 Screw (Starter Drive Cover) IZI Included in Carburetor Overhaul Kit, Key.

733 691658 Screw (Crankshaft Extension) No. 121and121A

741 691284 Gear-Timing :1: Included in Carburetor Gasket Set, Key.

757 691714 Link-Counterweight No. 977 and 977A

758 692423 Counterweight + Included in Valve Gasket Set, Key. No.

759 691239 Pin-Counterweight 1095

761 691096 Screw (Counterweight) NOTE: All component dimensions given in U.S.

783 693713 Gear-Pinion inches 1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line Indicated above.

2. Hold page before you so that Its left edge Is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill

Forrepairof major brandappliances in your own home...

no matter whomade it,no matterwho soldit!

1-800-4-MY-HOME ®

(1-8004694663)

Www.sear_.cOllrl

Any_me,dayornight

(U.S._andCanada)

For repairofcarry-inproducts likevacuums,lawnequipment,and

electronics, callforthe nearestSears Parts and Repair Center.

1-800-488-1222 AnyOne,dayornight(U.SAonly)

www.se_lT_o0m

Forthereplacement parts, accessories and owner'smanuals

thatyouneed todo-it-yourself,cell Sears PartsDirectS"!

1-800-366-PART 6a.m.-11 p.m., 7days aweek

(_-80o-366-7278) (u.s._one)

www.sears.con_irect

To purchase or inquire about a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (u.s._) 1-800-361-6665 (Canada)

7 a.m.- 5 p.m.,CST,Mort.- Sat 9 a.m.- 8 p.m.EST,M- F,4 p.m.Sat.

Para pedirserviciode repa_ a

domiclio,y paraordenarpiezas:

1-888-SU-HOGARs_

(1-888784-6427)

AuCanadapourse_iceenf_ar_ais:

1-800-LE-FOYER Mc

(1-800533-6937)

WWW.Se_J's.ca

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / _MMama de F&bdca / s_ Marca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MOMarque deposde de Sears, Roebuck and Co.

182293 2.4.02 JH Printedin U.S.A.

Craftsman 917271651 lawn tractor

Product's Documents

User Manual

Specifications

Craftsman 917271651 Questions and Answers
