User Manual Tripp Lite SUINT3000LCD2U 136 pages

SUINT1000LCD2U

(Series Number: AGPS8294)

SUINT1500LCD2U

(Series Number: AGPS8295)

SUINT2200LCD2U

(Series Number: AGPS7958)

SUINT3000LCD2U

(Series Number: AGPS7959)

SU3000LCD2UHV

(Series Number: AGPS8296)

Quick

Start Guide—

Page 7

Owner’s Manual

SmartOnline

Single-Phase Rackmount Online UPS Systems

with Built-in LCD Monitoring & Control Screen

Not suitable for mobile applications.

1. Overview 2

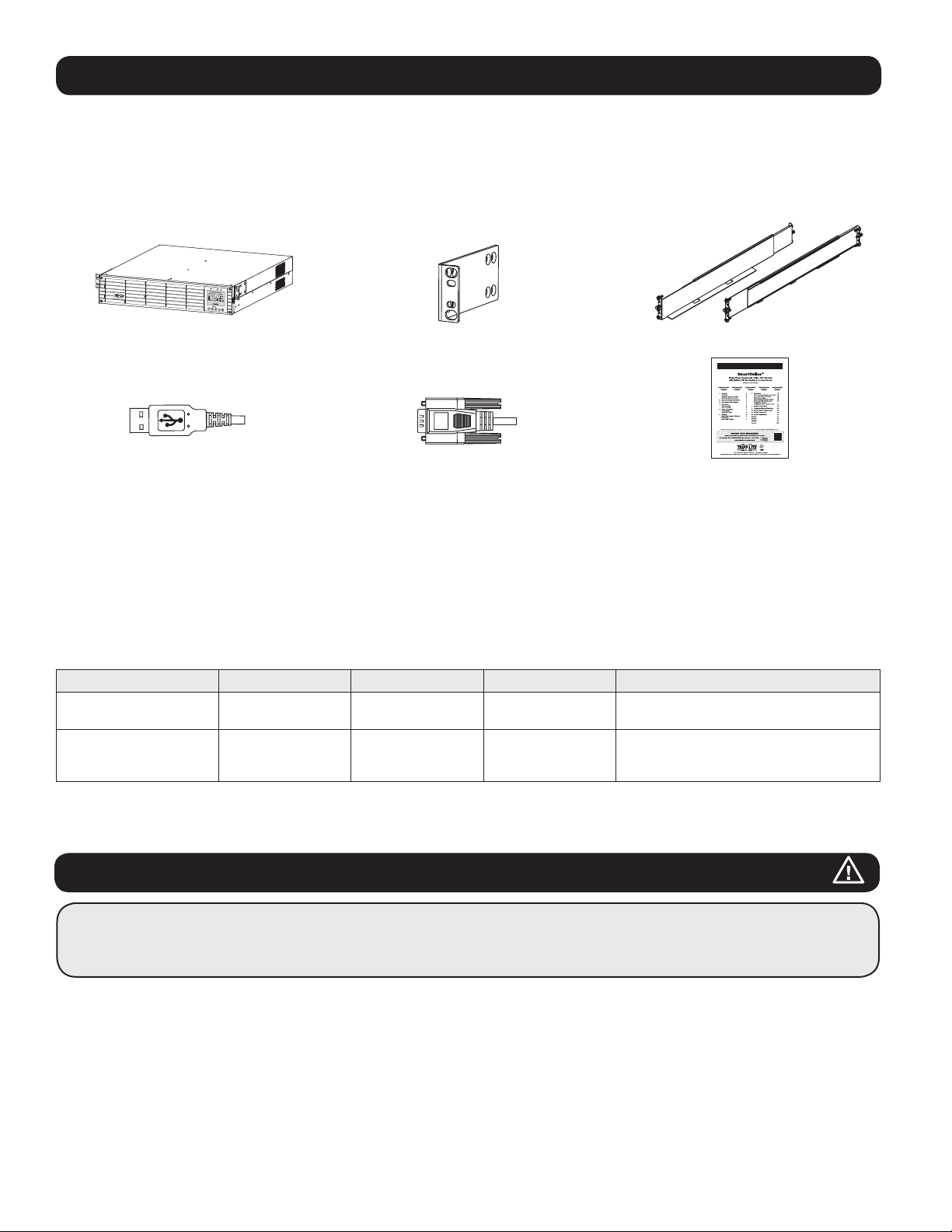

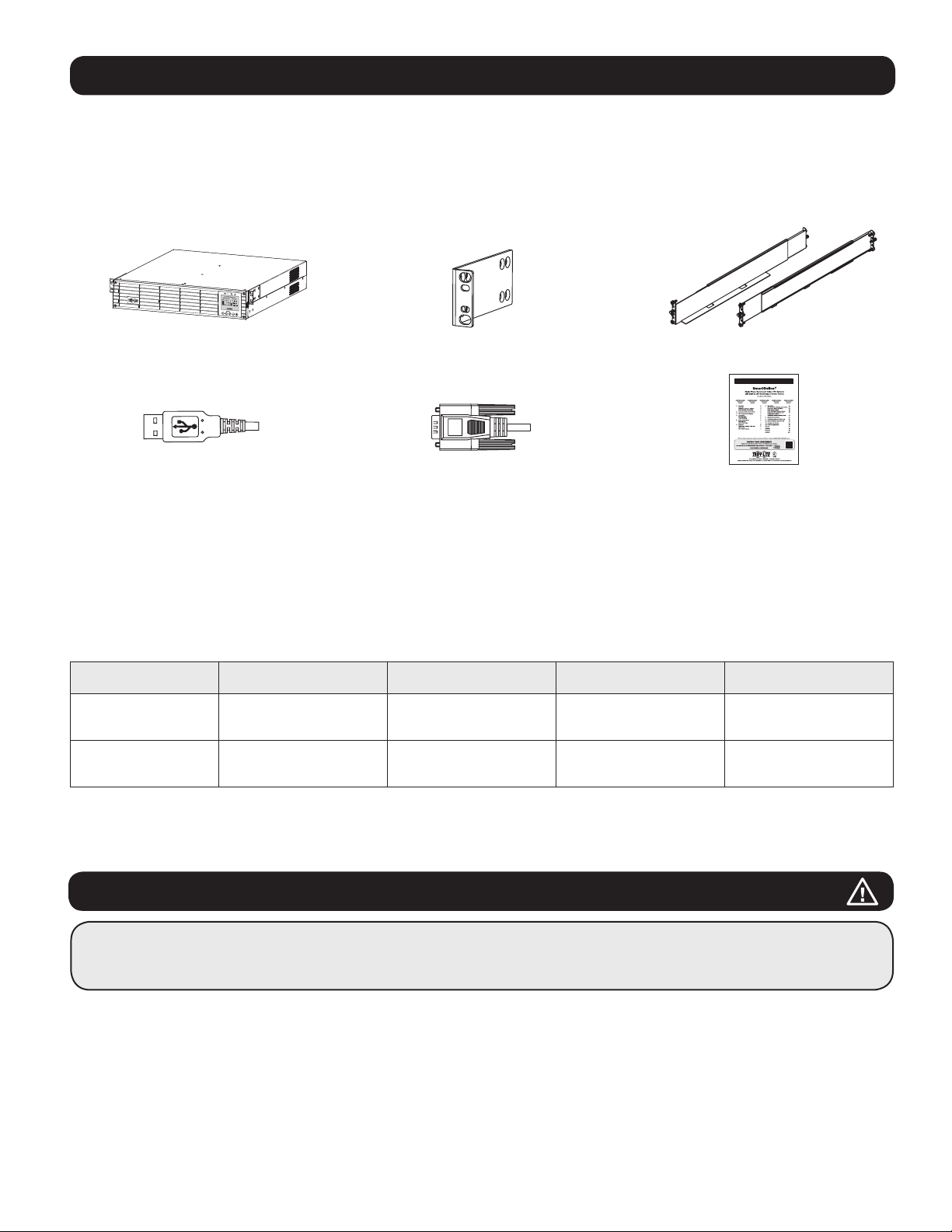

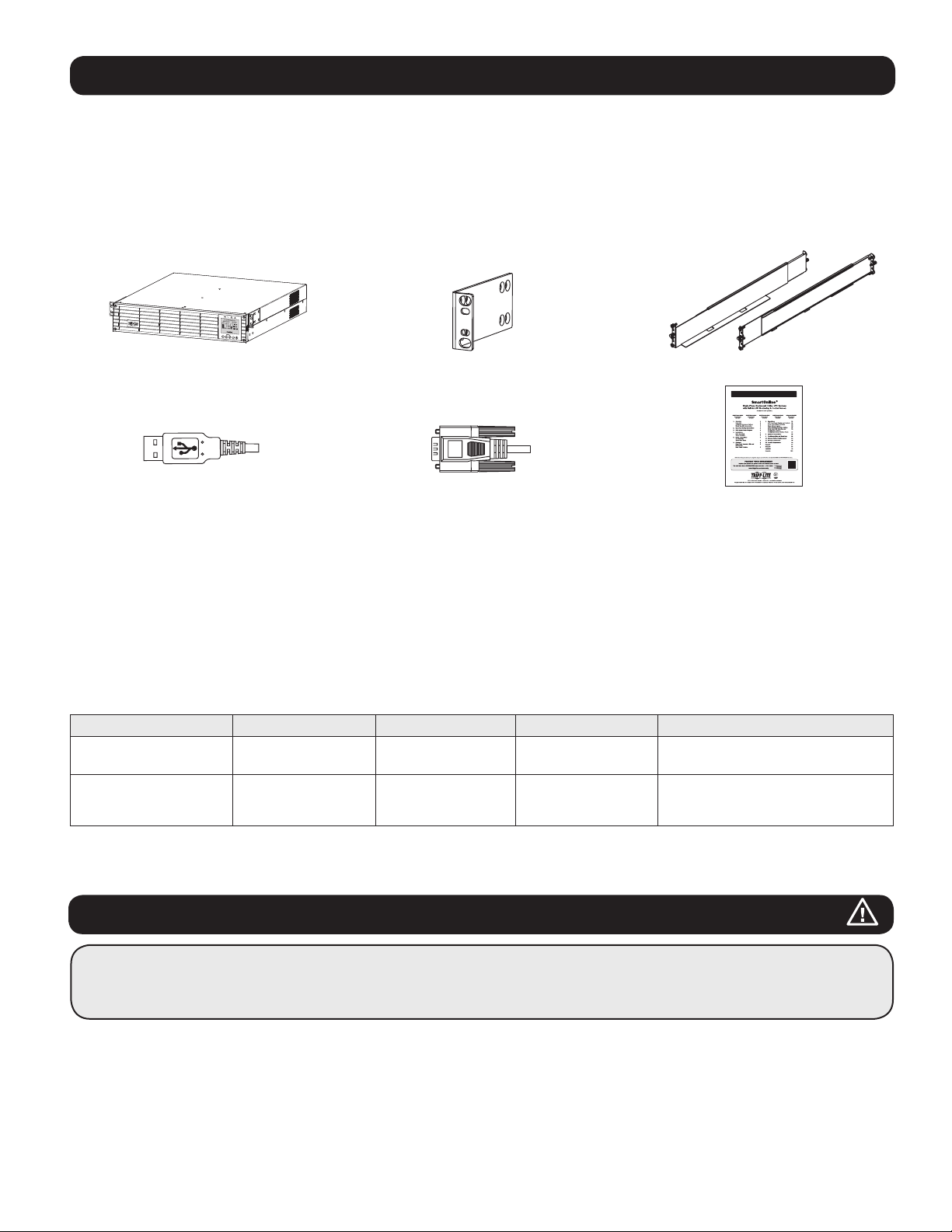

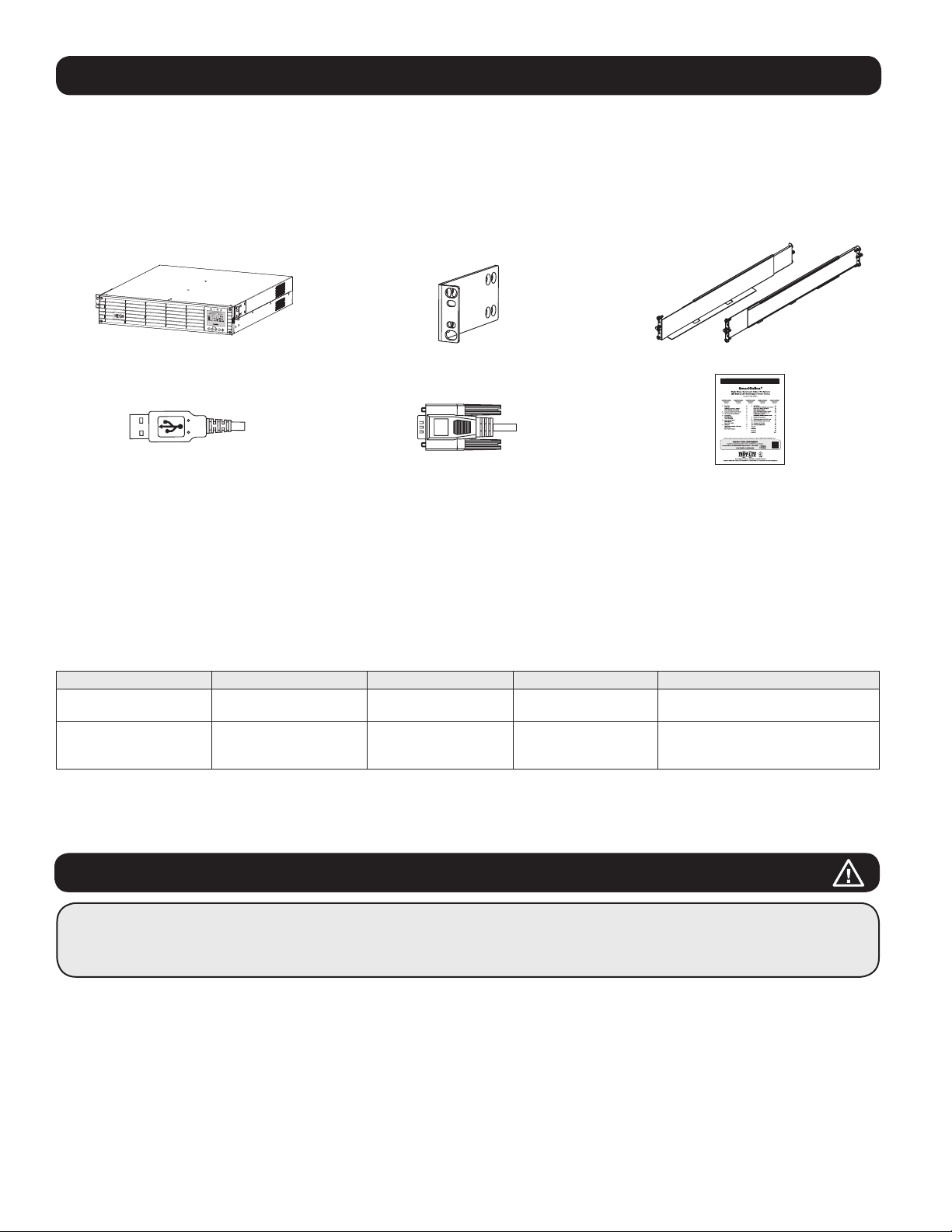

Parts List 2

Additional Accessory Options 2

Model Specific Accessories 2

2. Important Safety Instructions 2

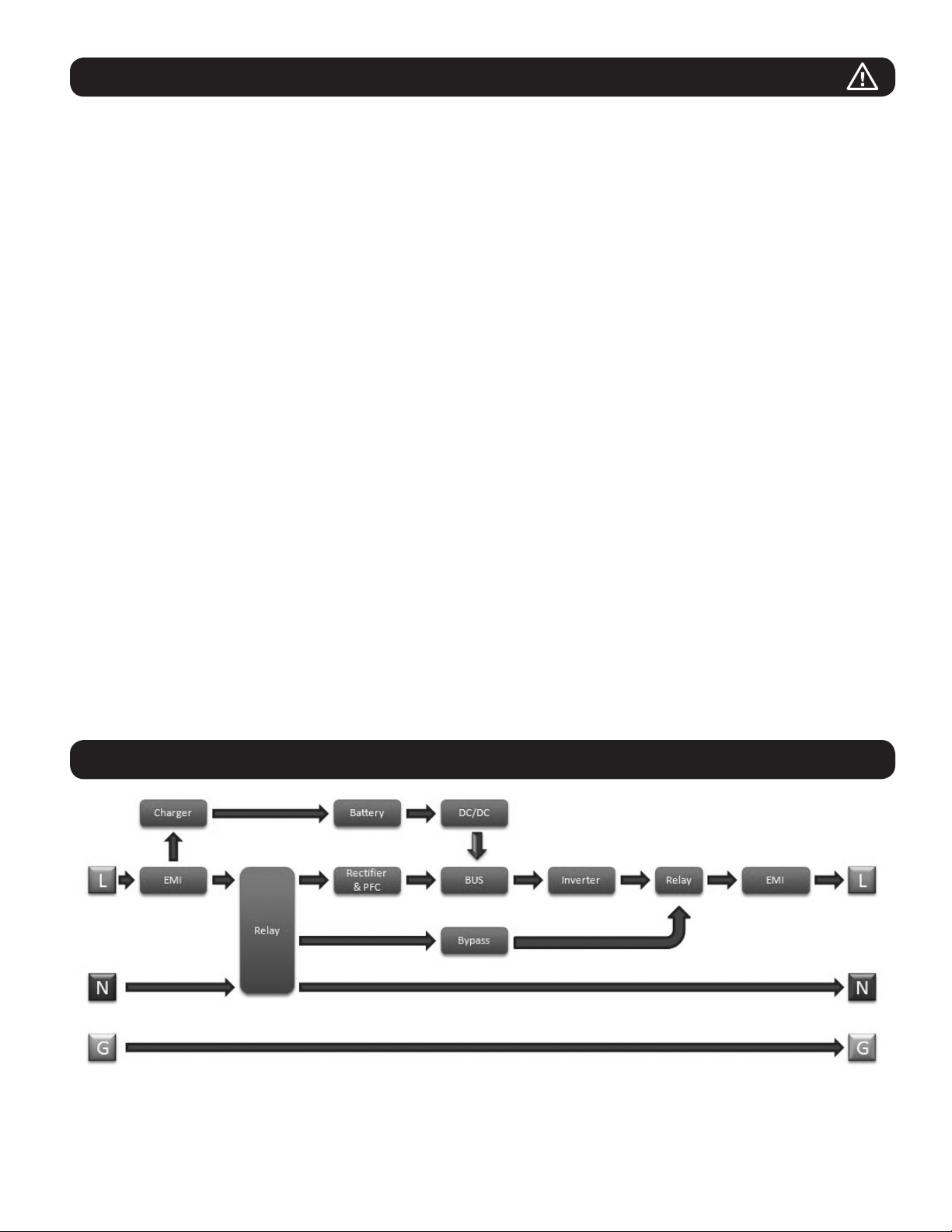

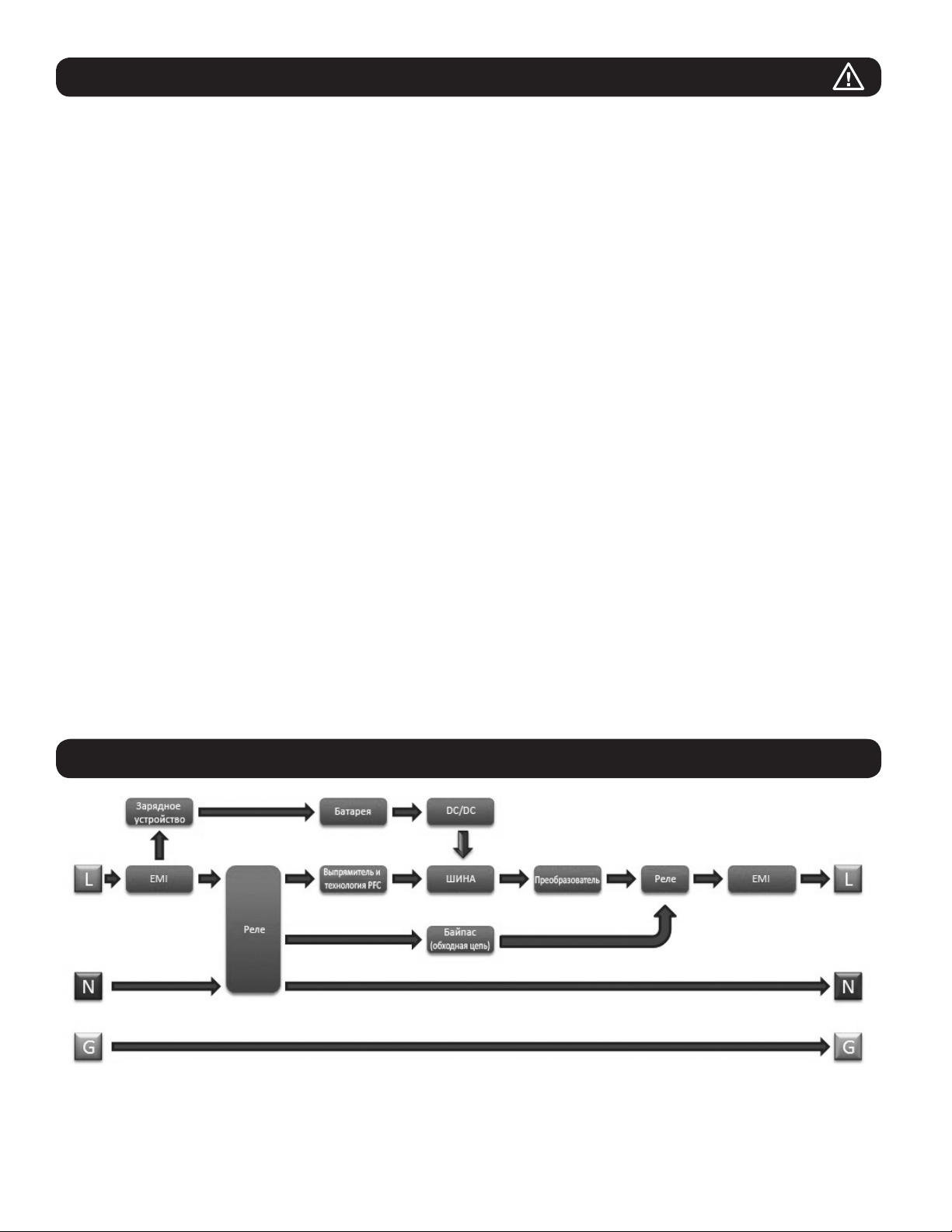

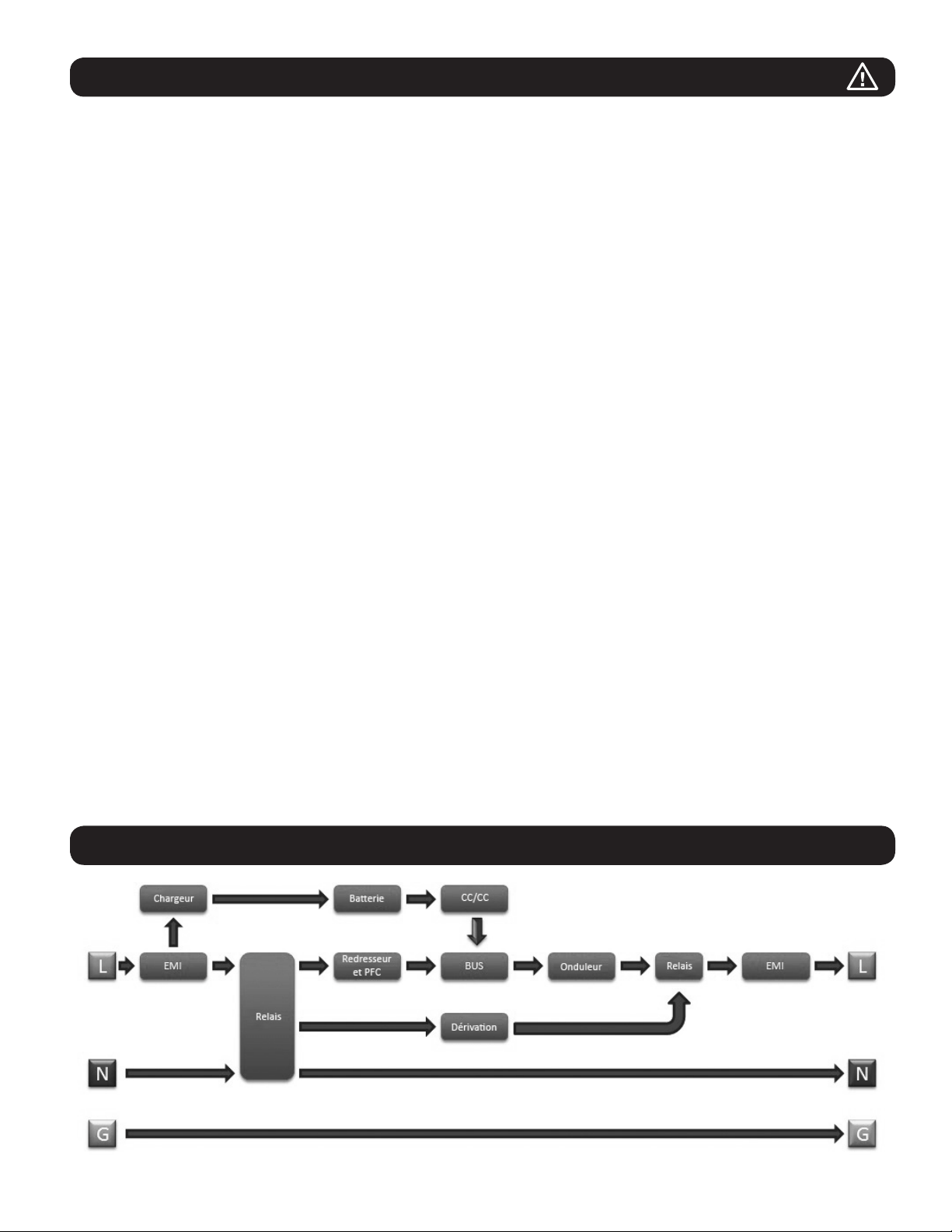

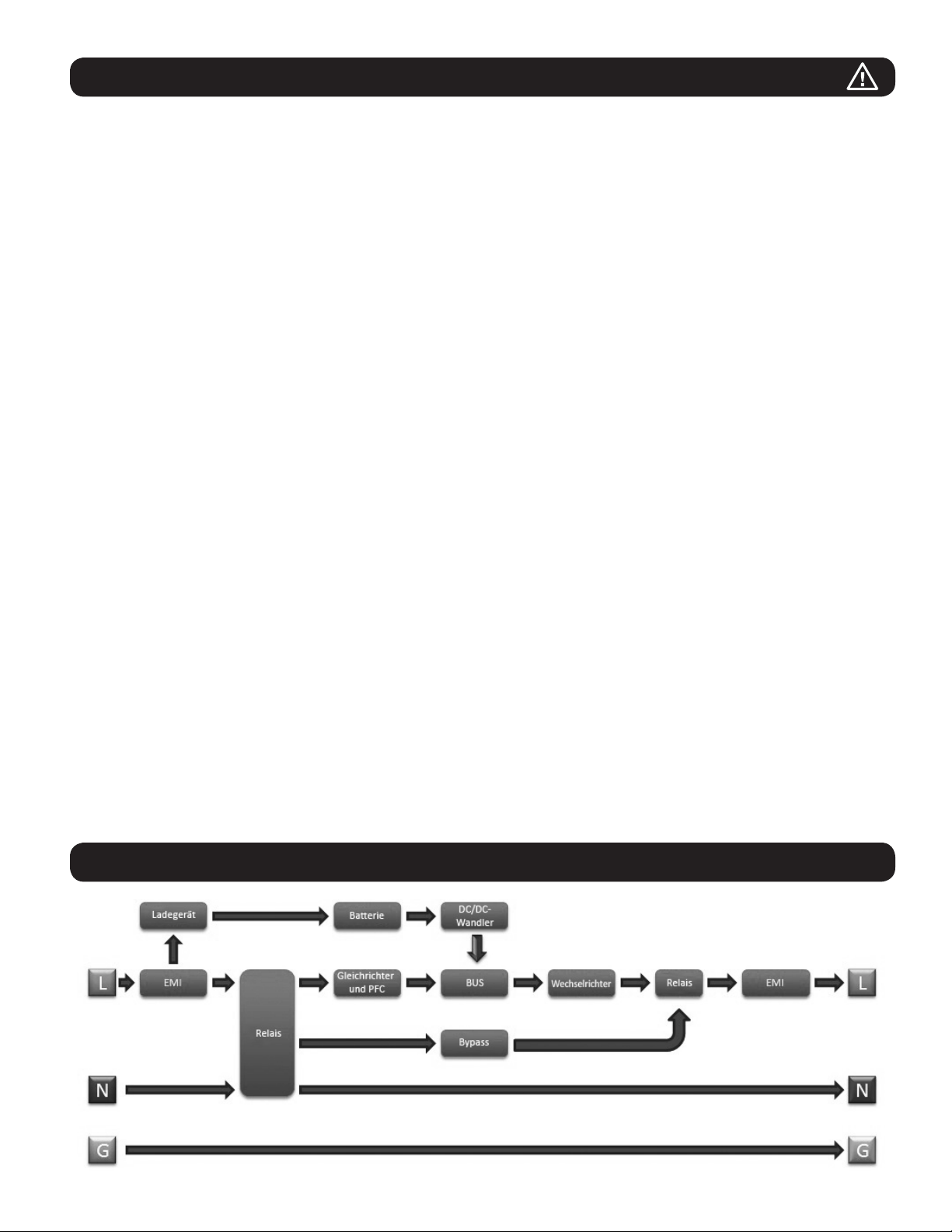

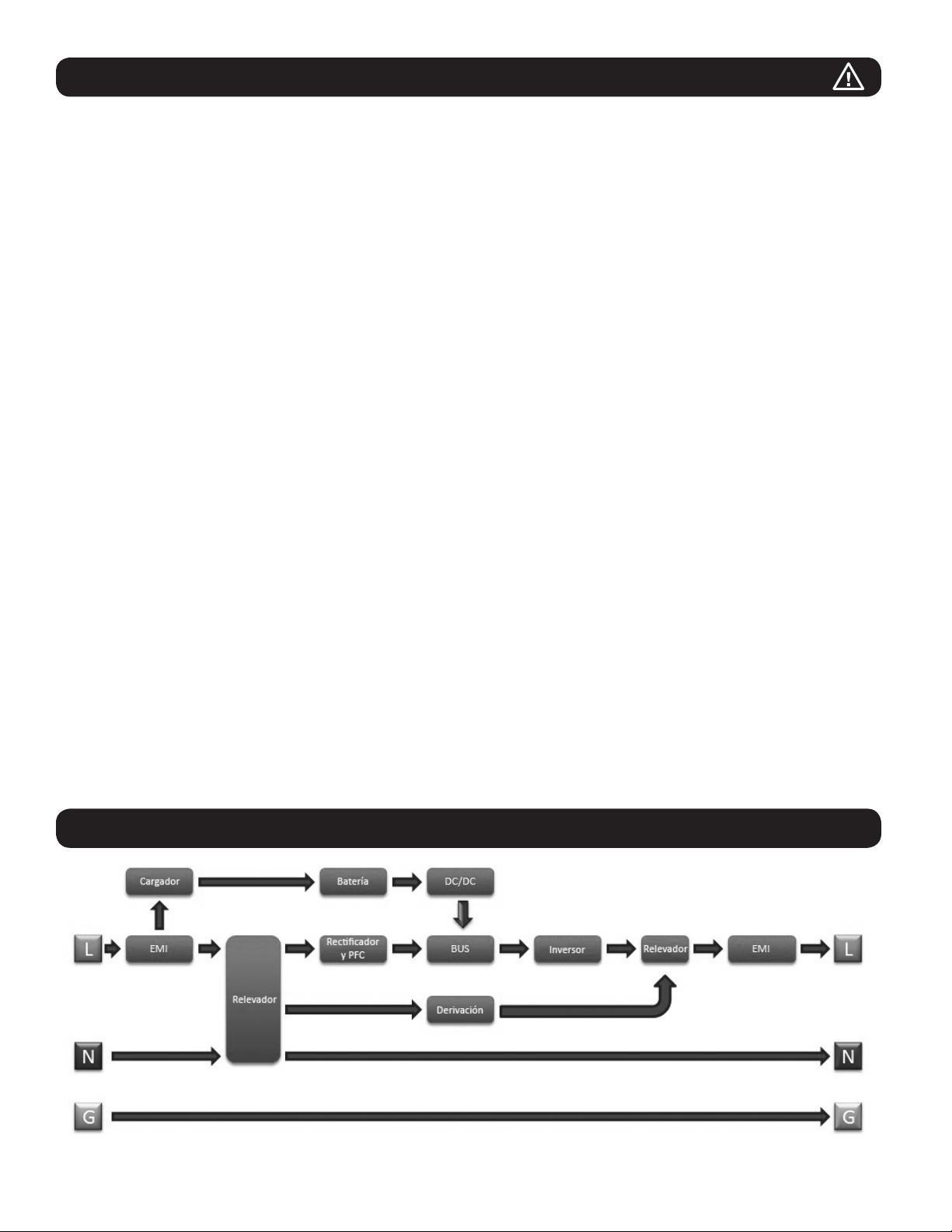

3. UPS Circuit Block Diagram 3

4. Installation 4

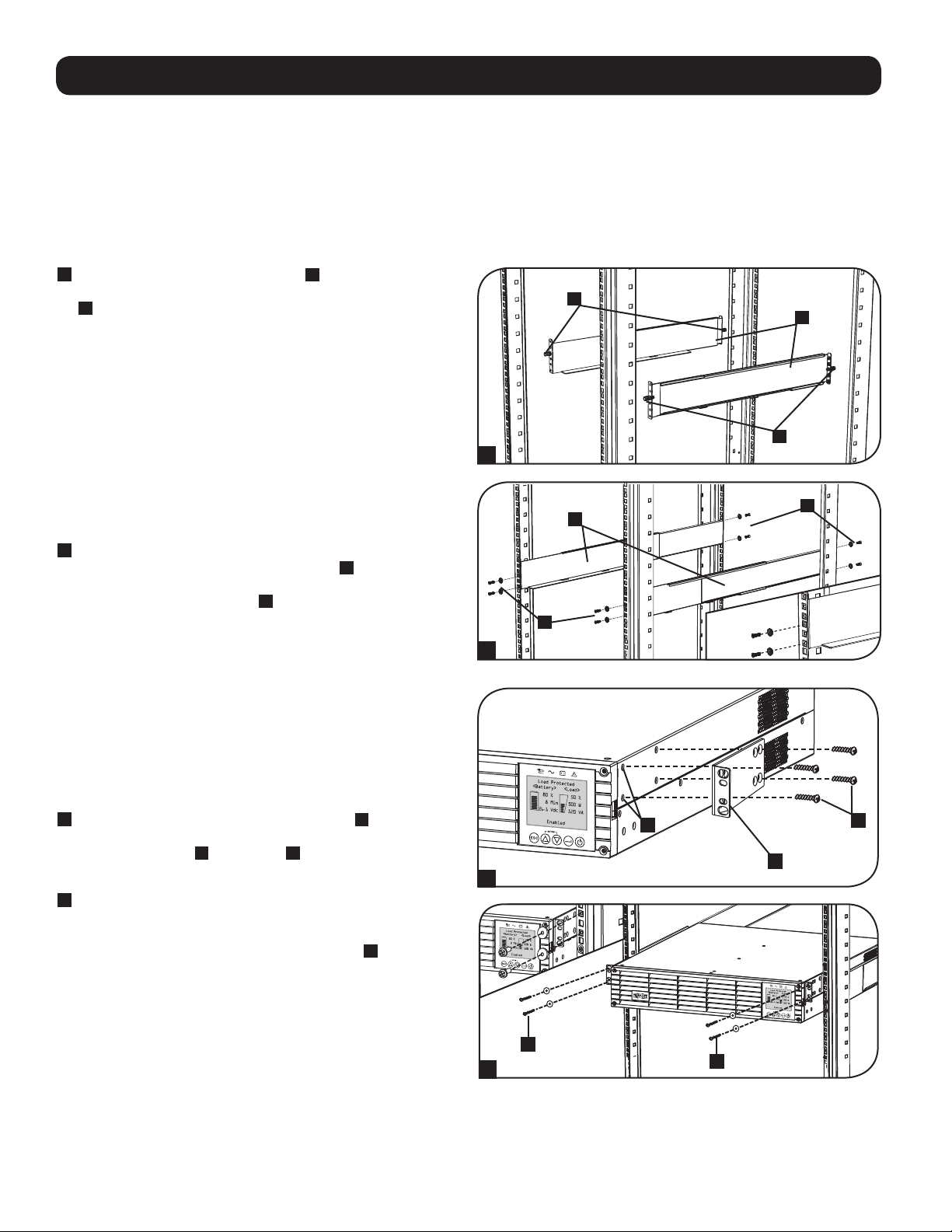

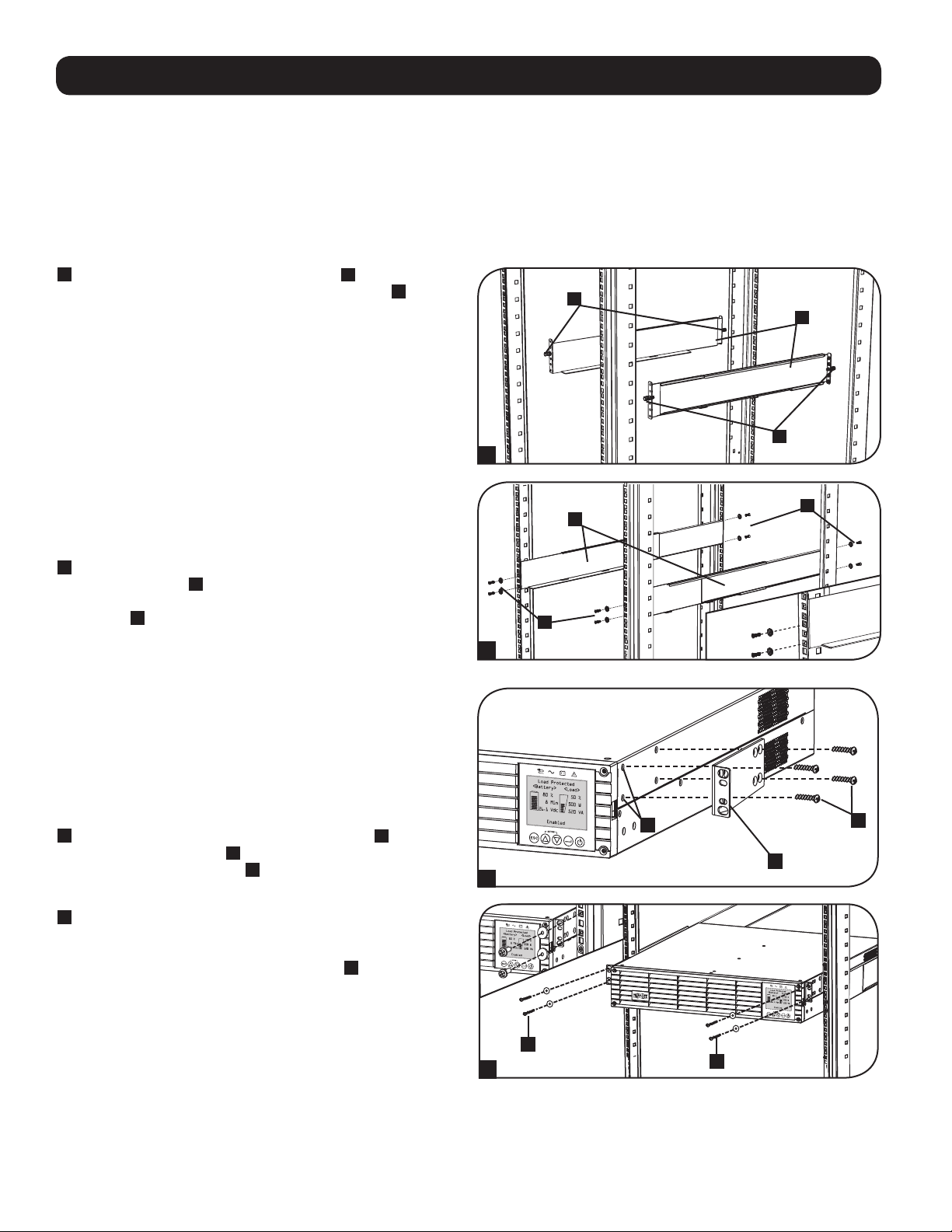

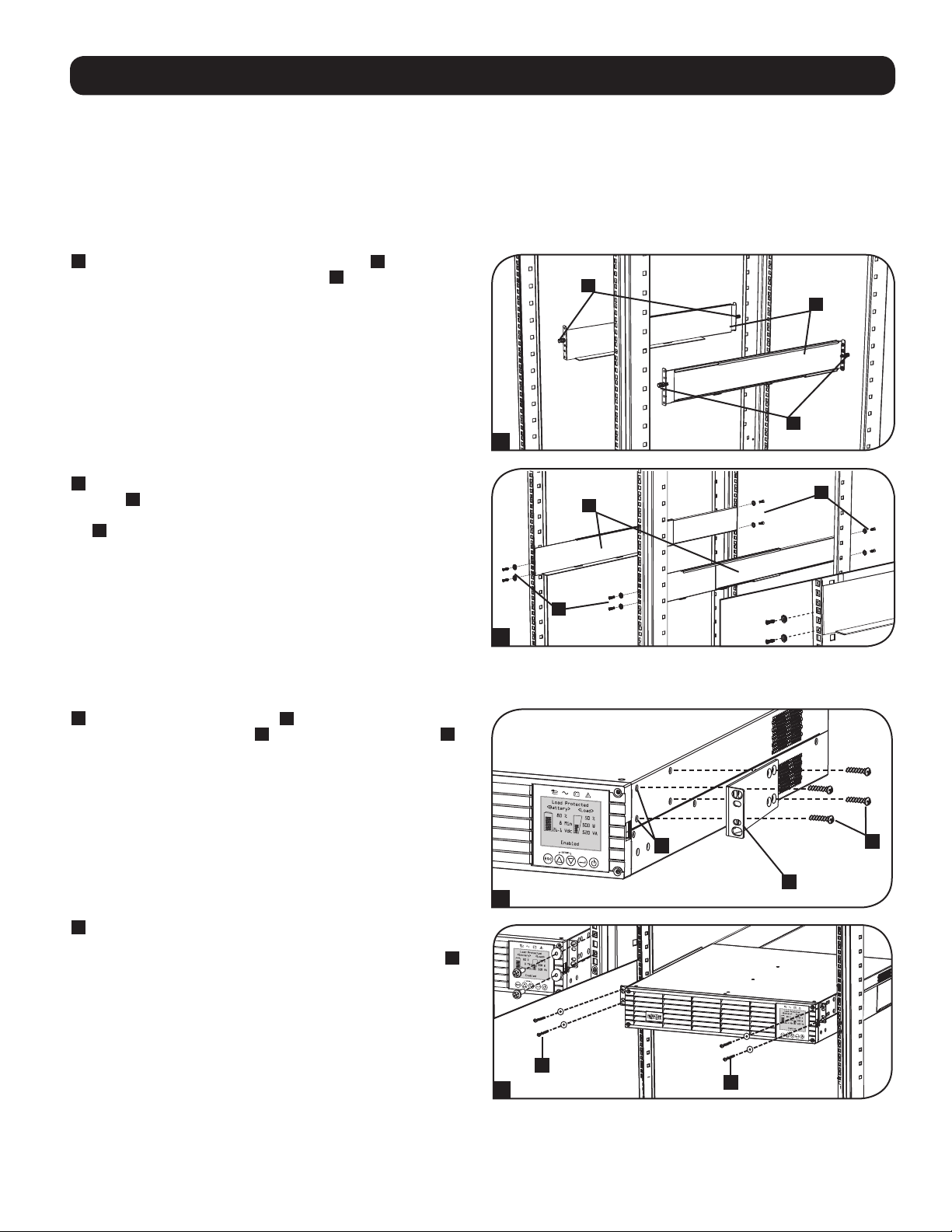

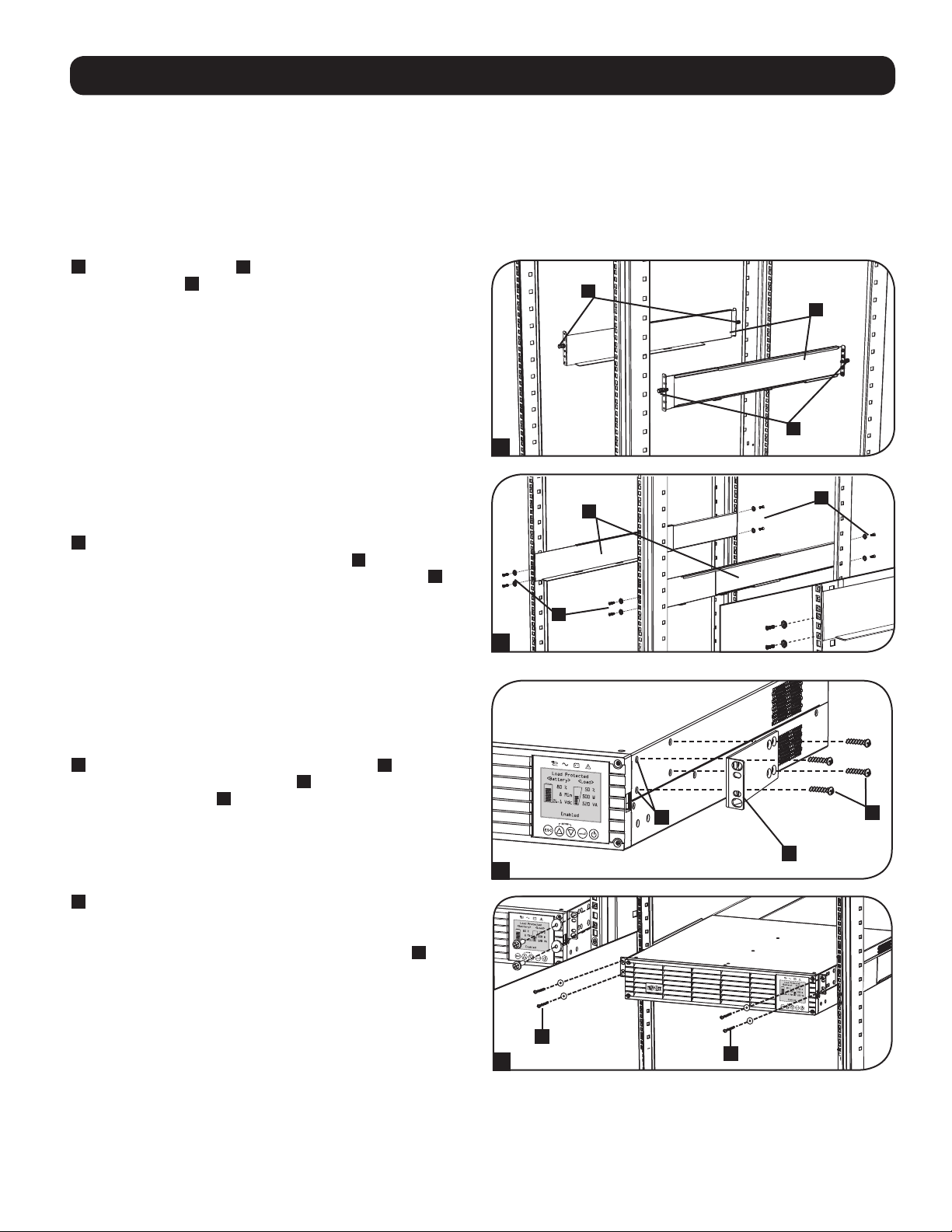

Rack Mounting 4

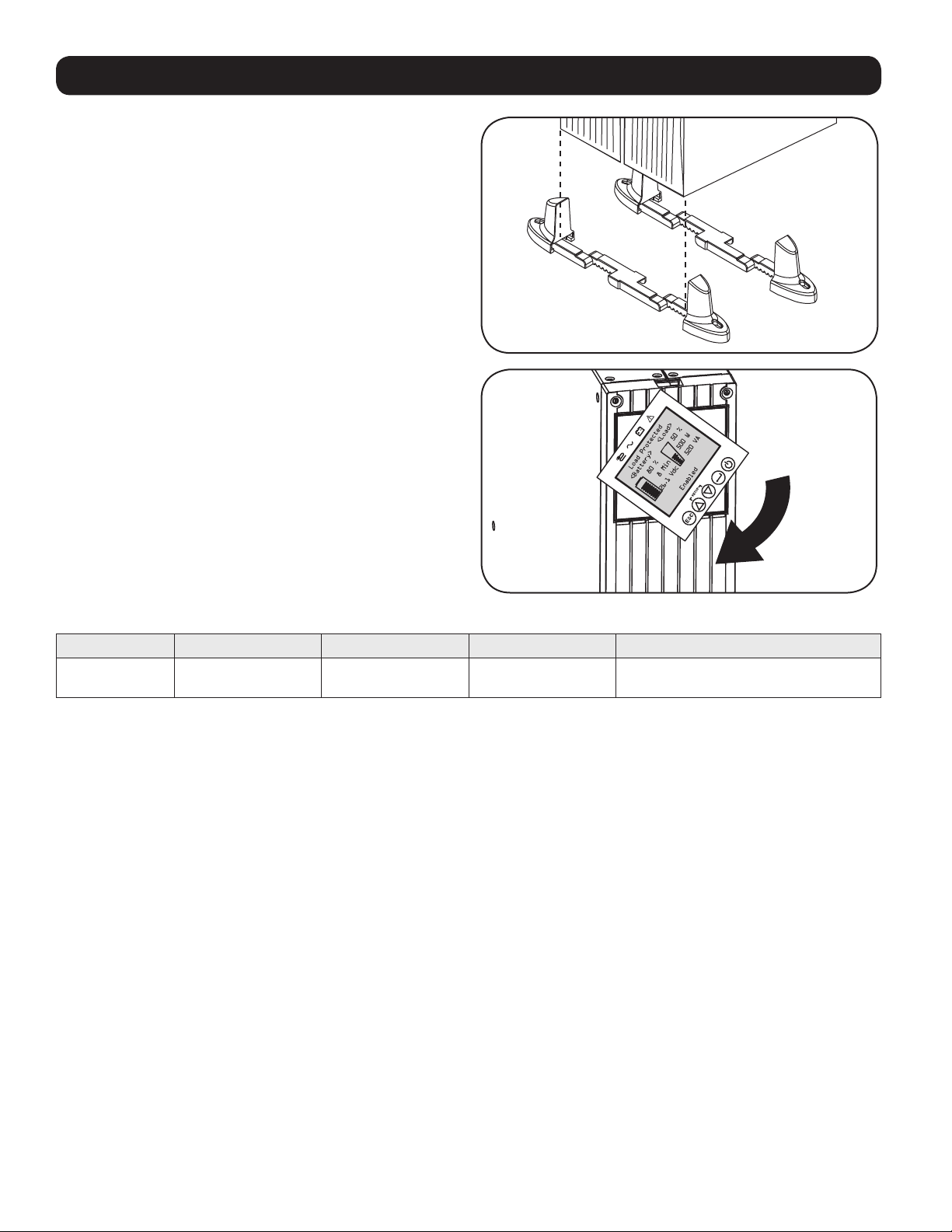

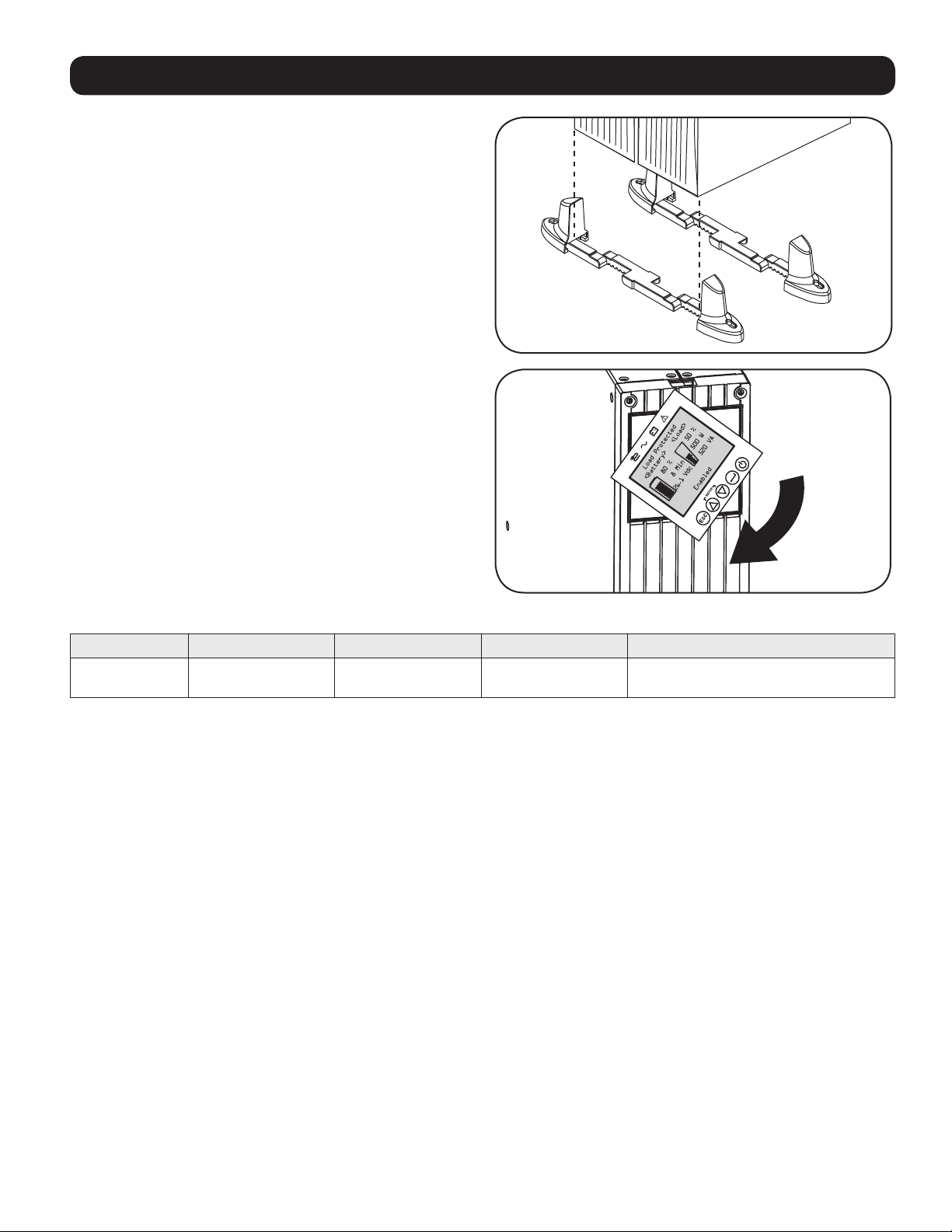

Tower Mounting 5

Smart Battery Communications 6

Connection

5. Basic Connections 7

and Start-Up

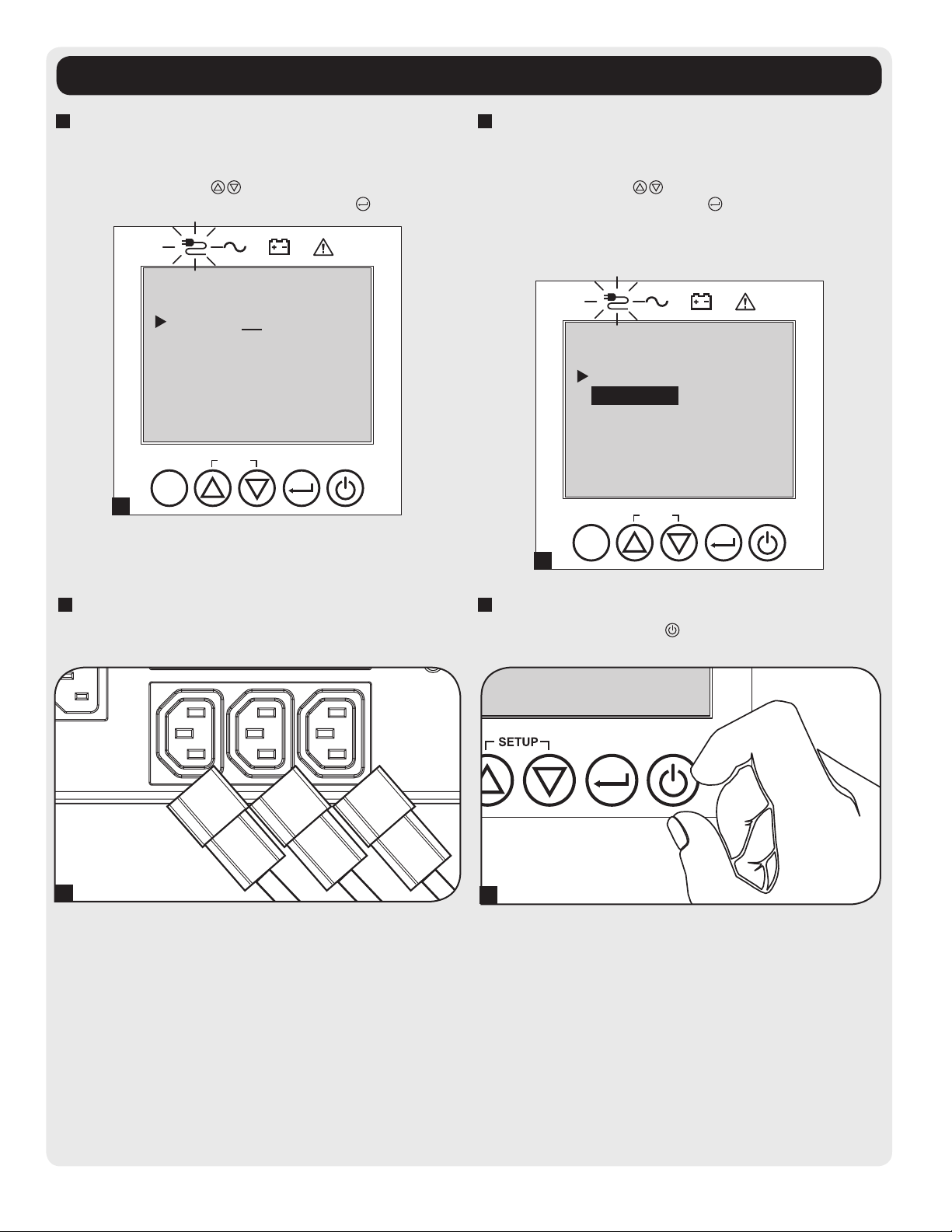

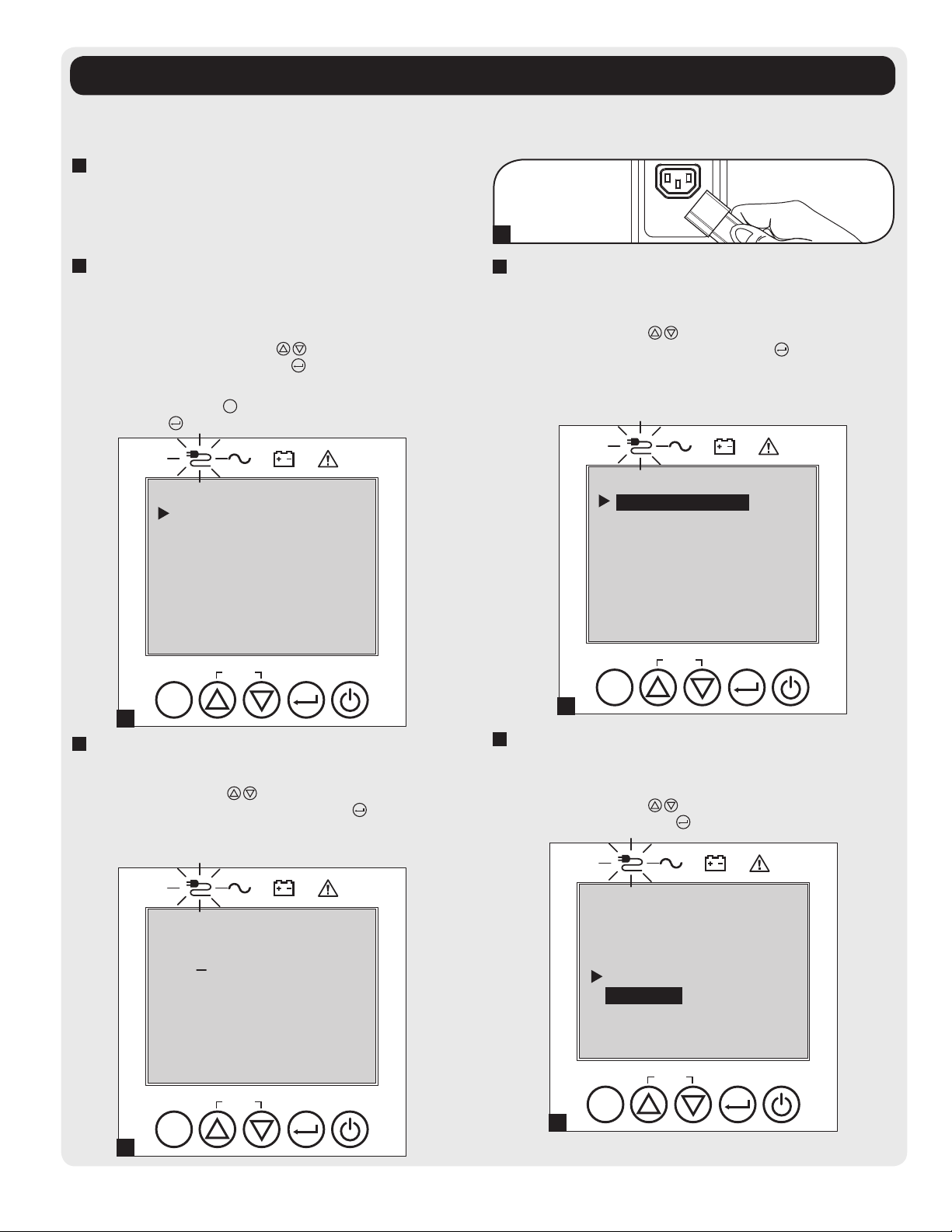

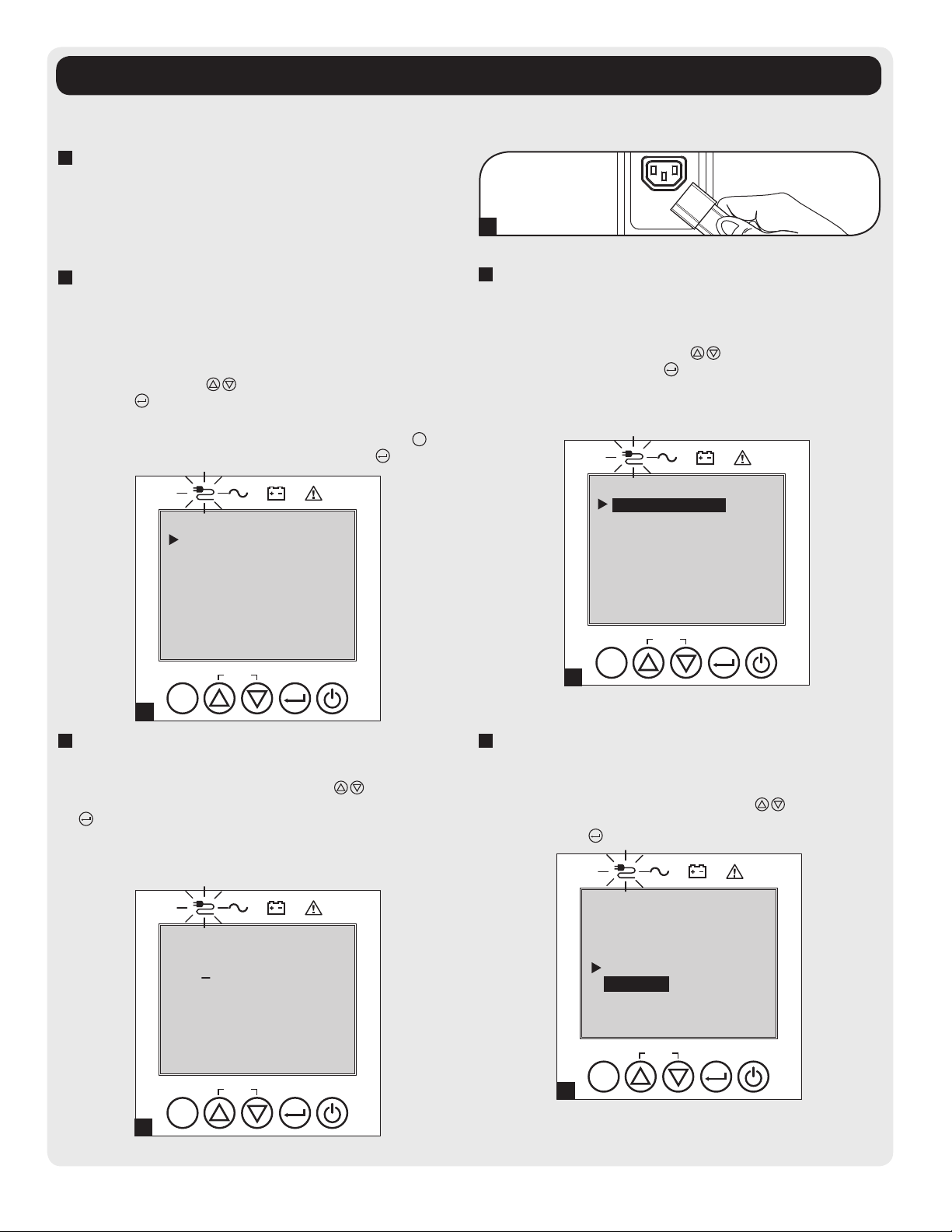

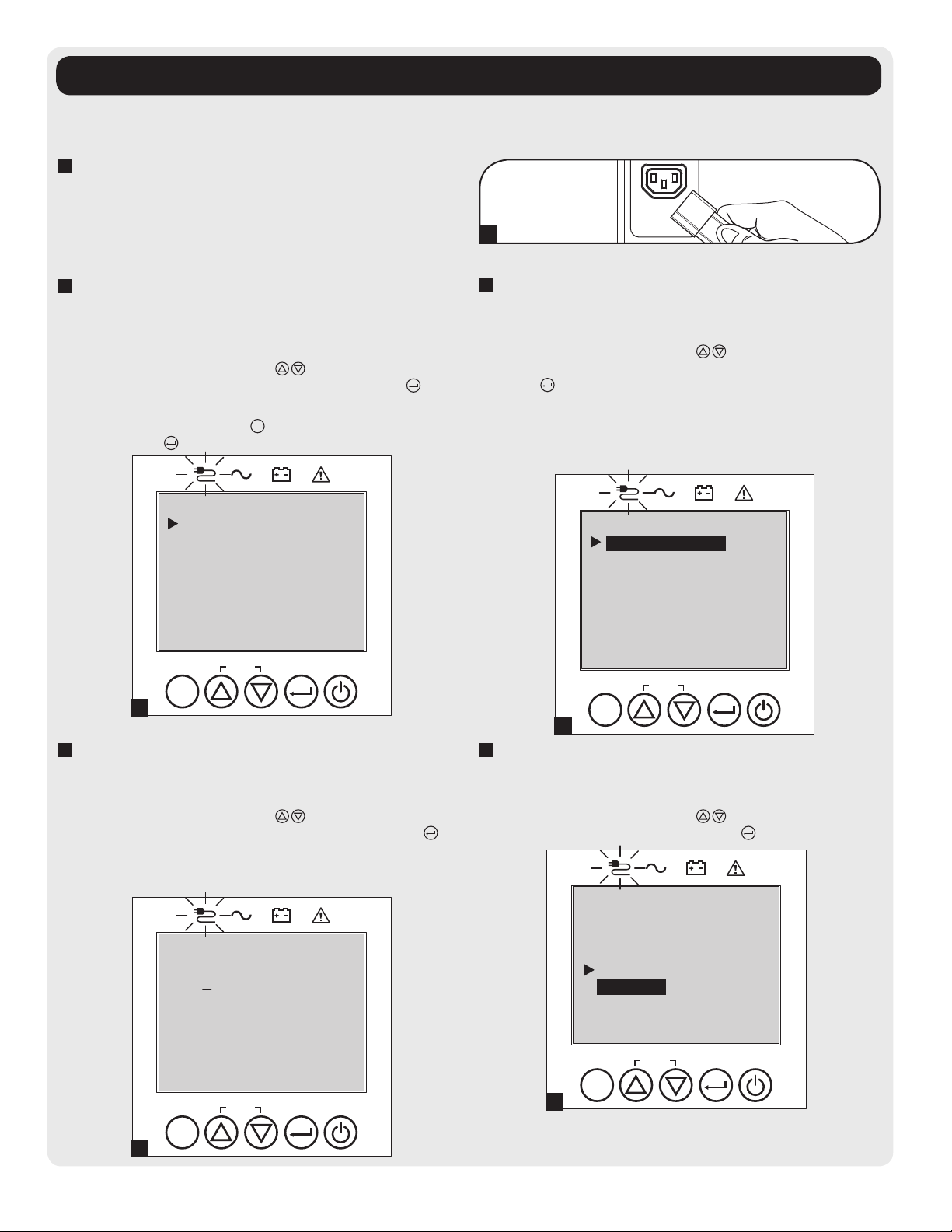

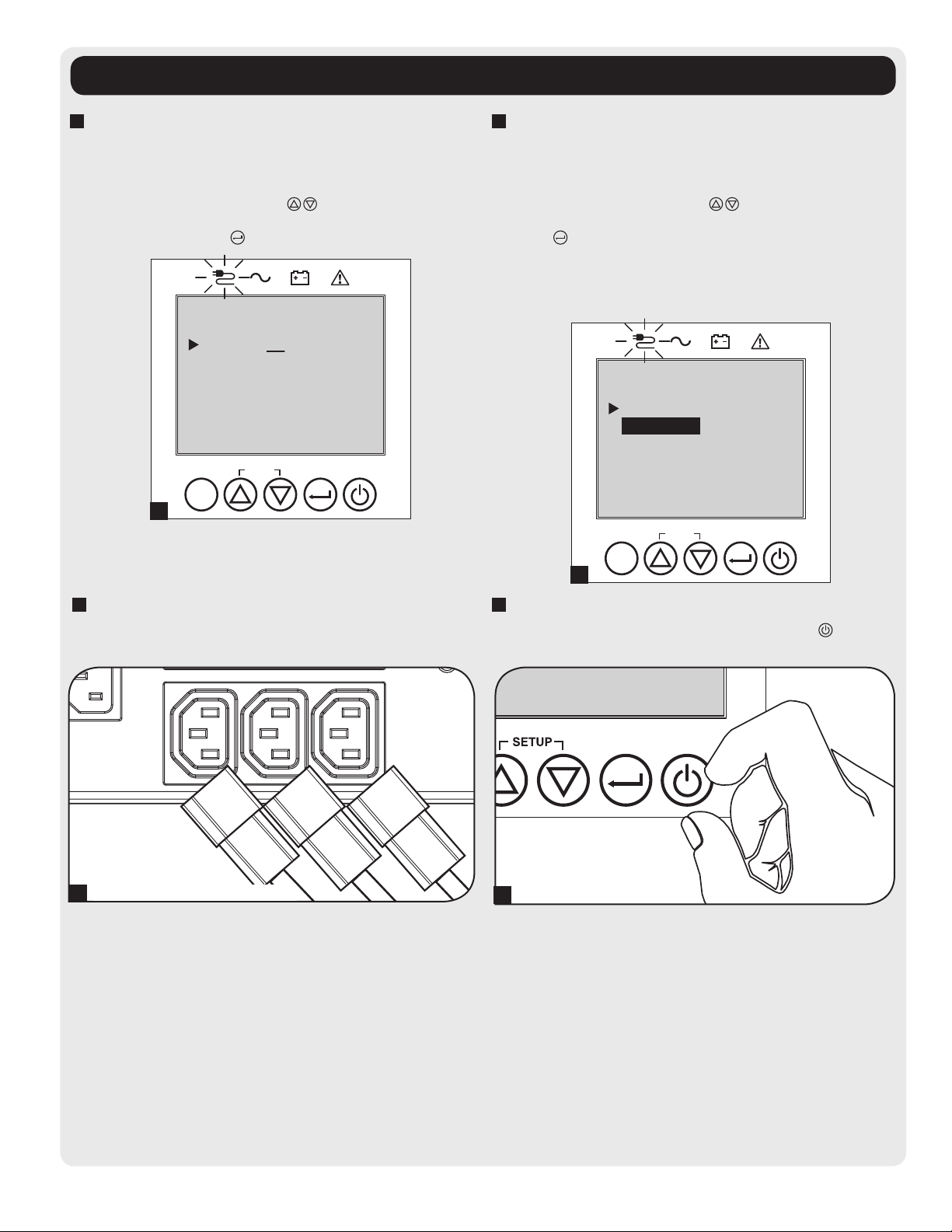

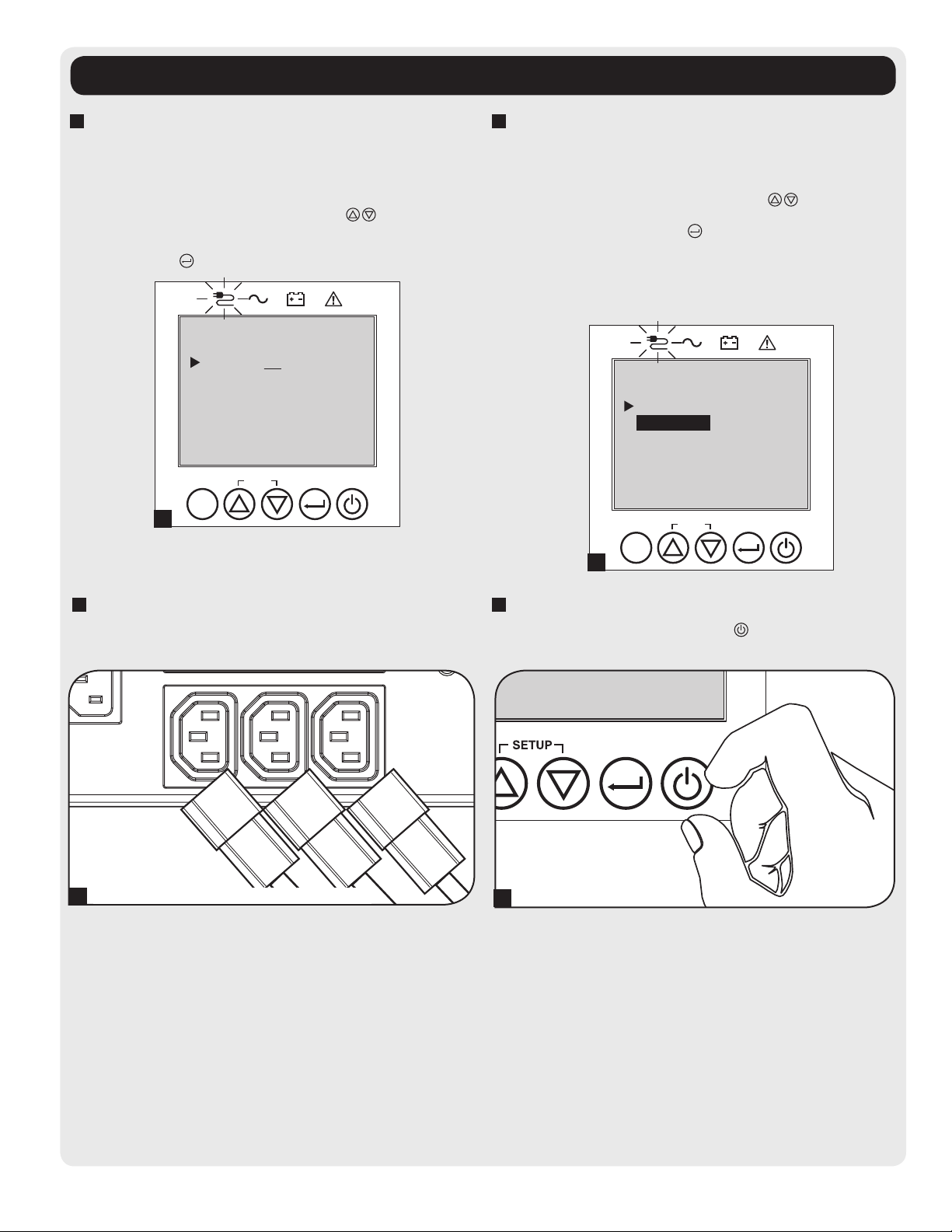

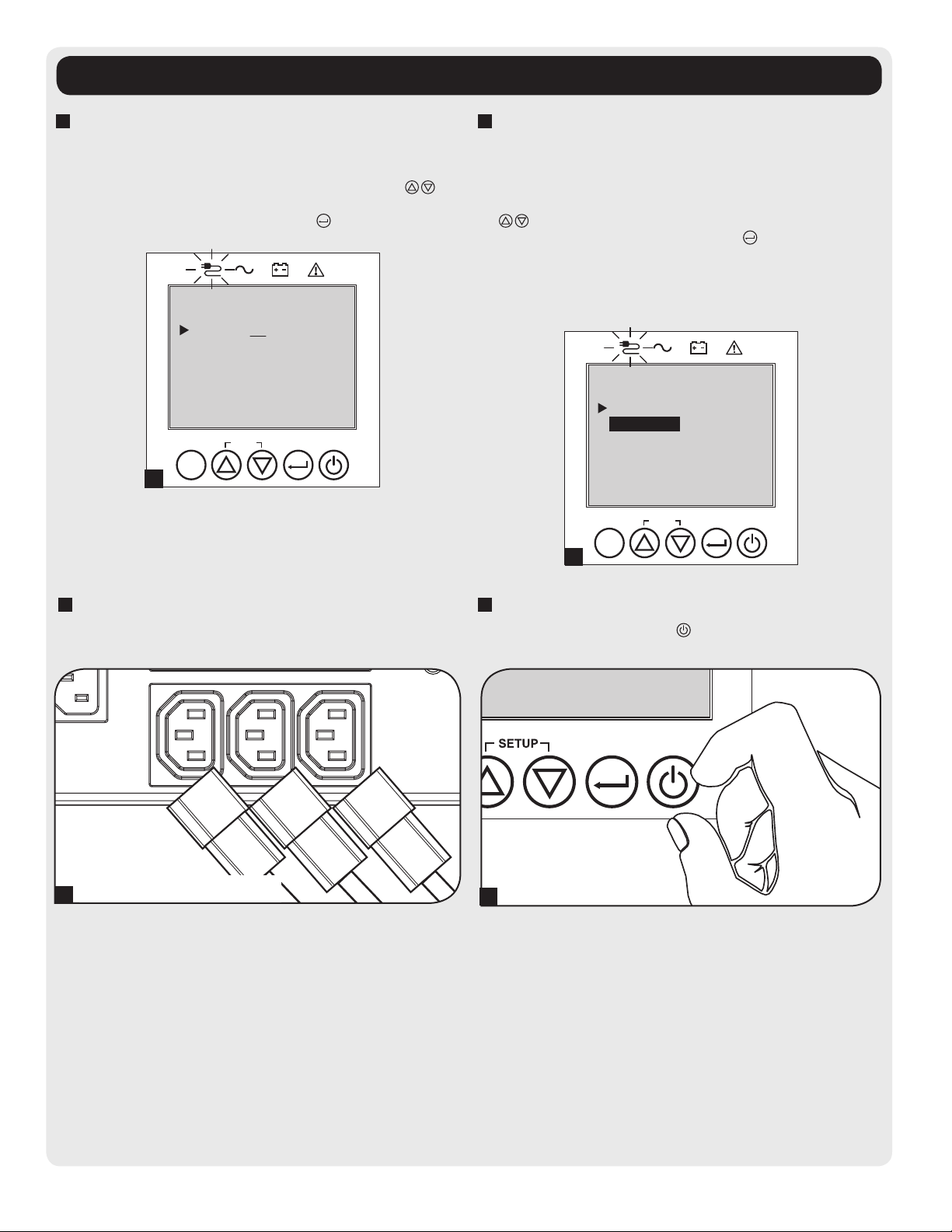

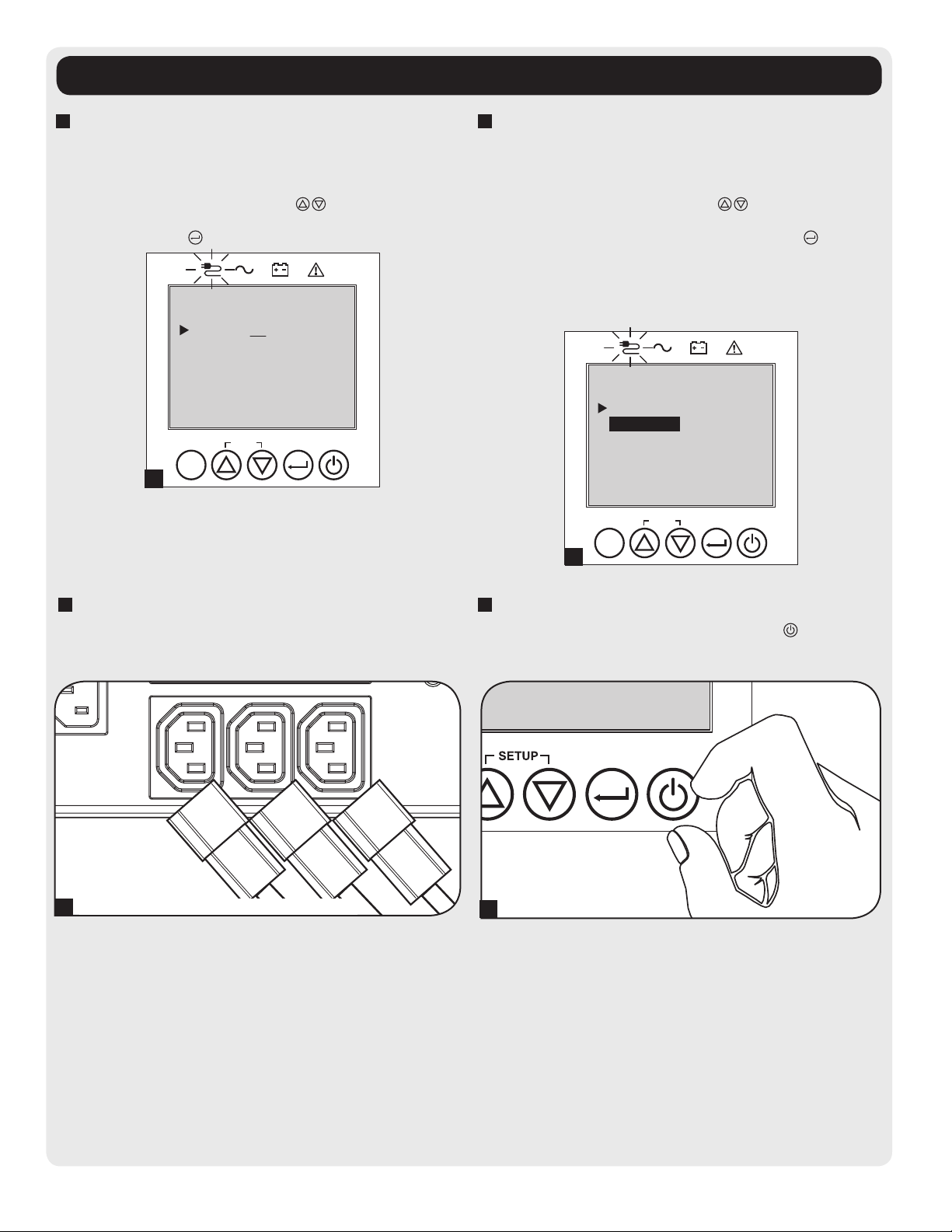

Quick Start Guide 7

6. Features 9

Front Panel Controls, LEDs and 9

LCD Screen

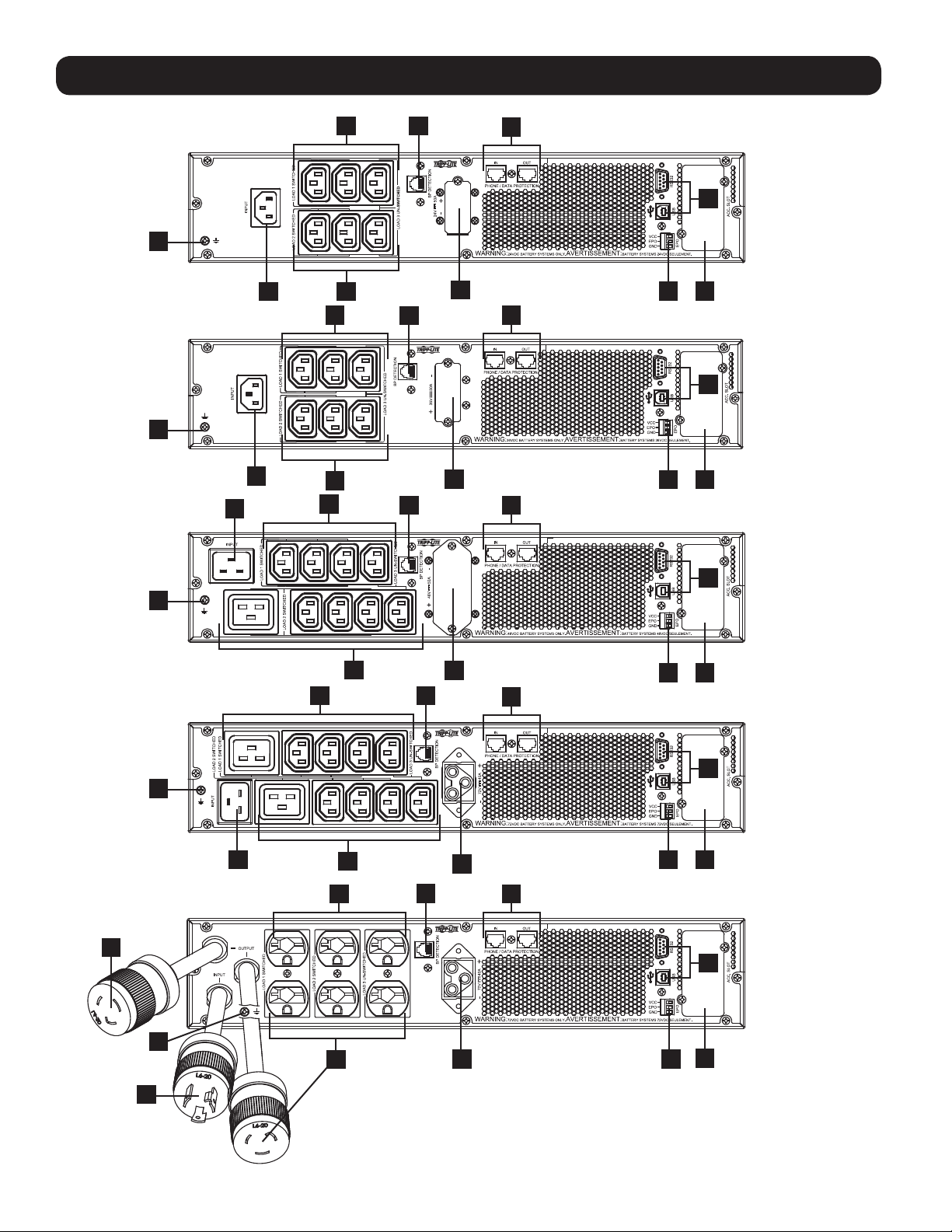

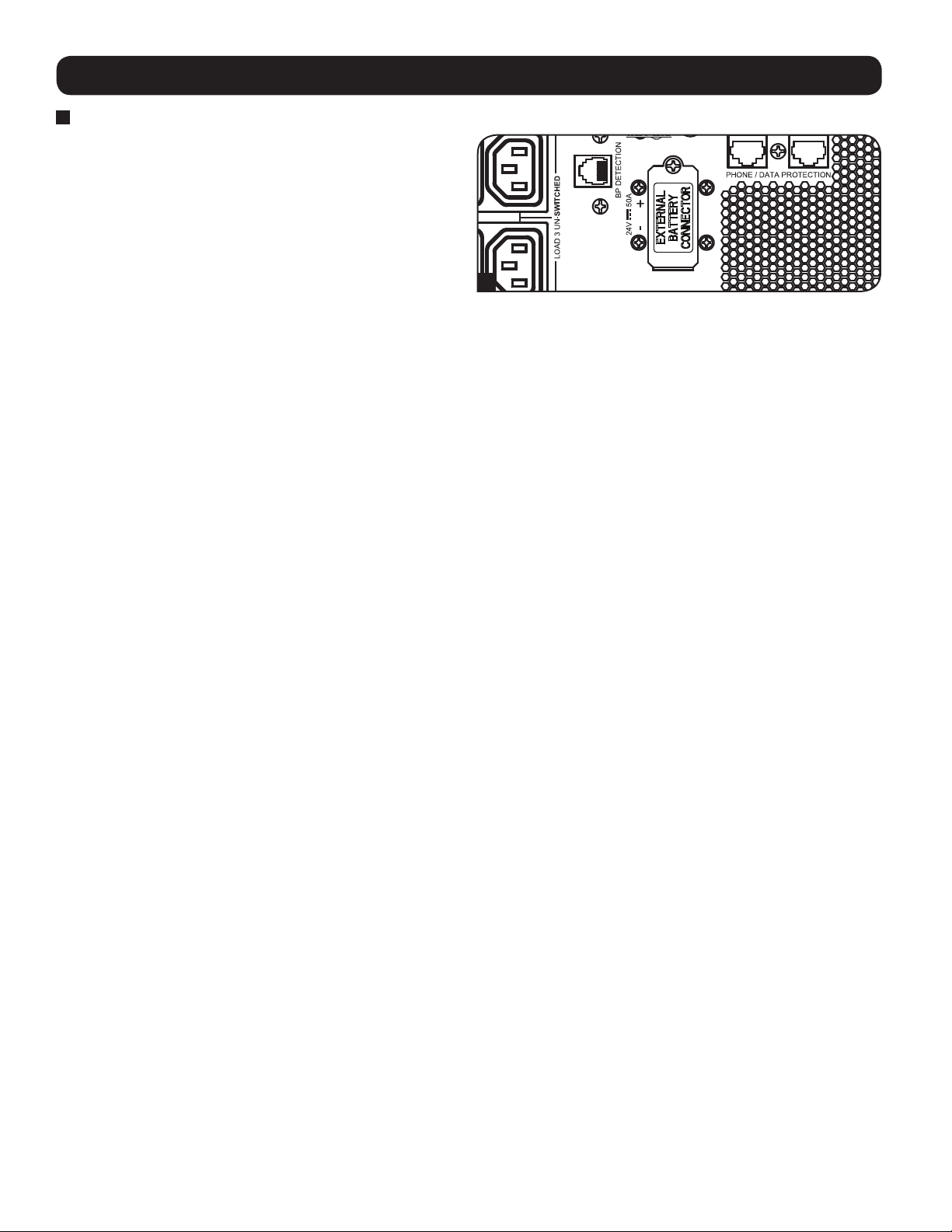

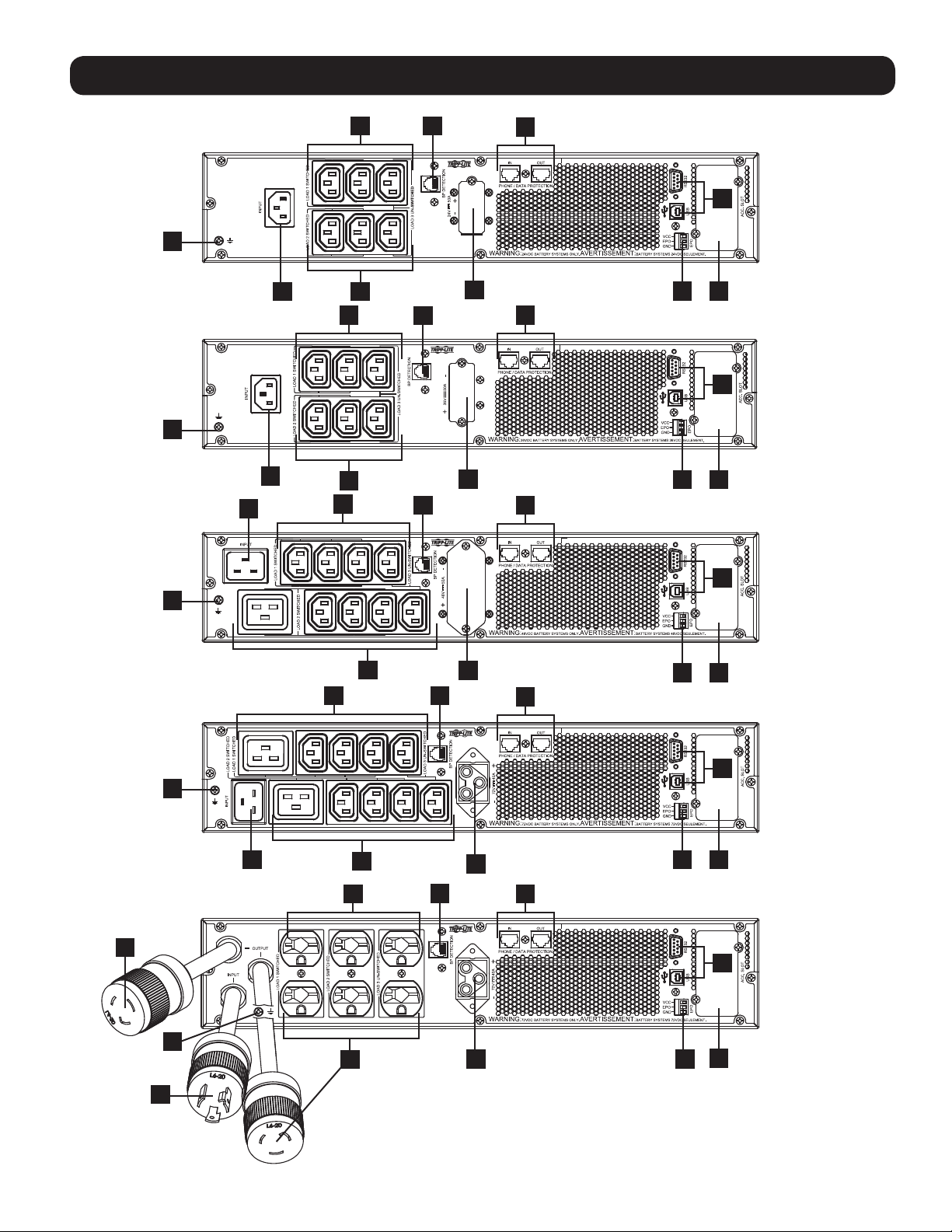

Rear Panel Features 9

7. Operations 11

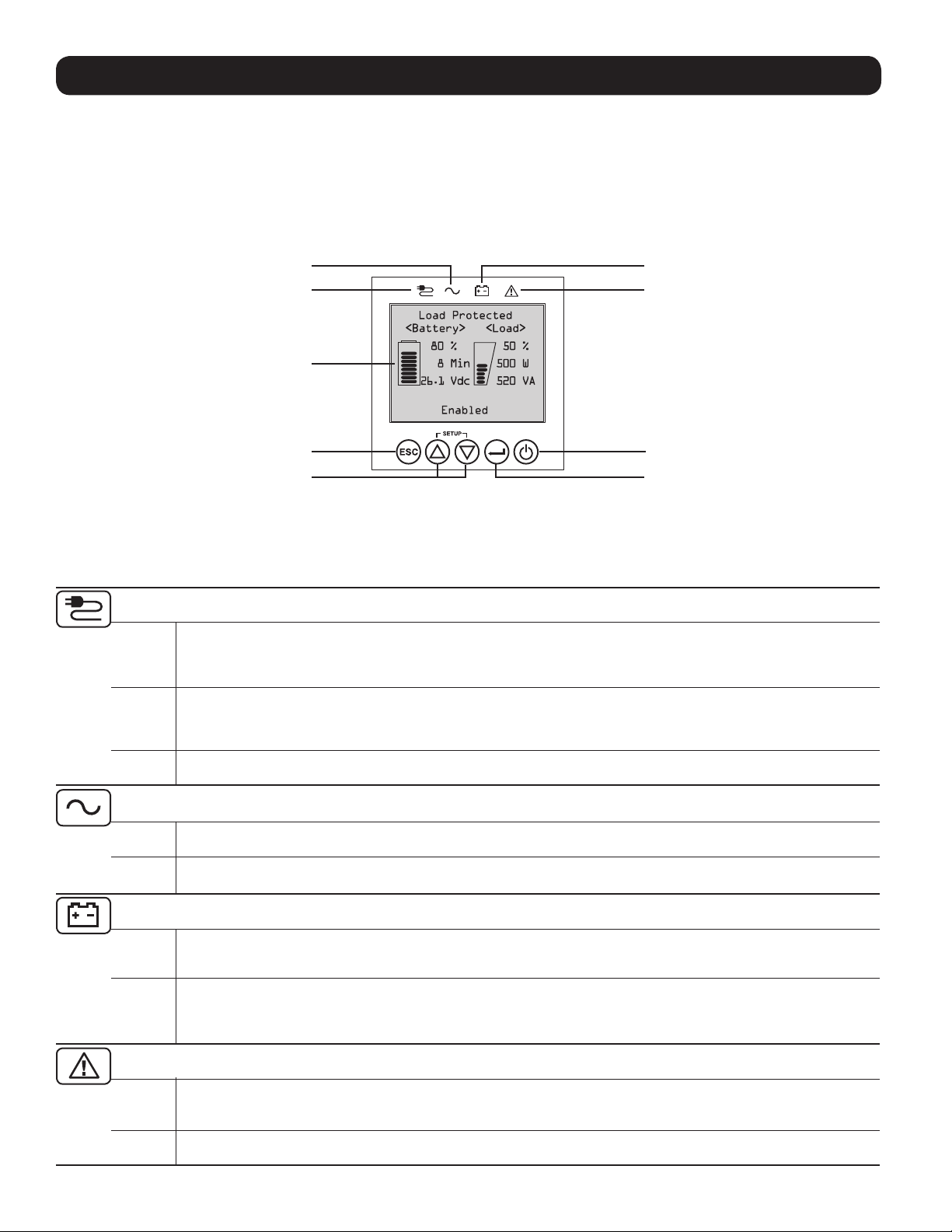

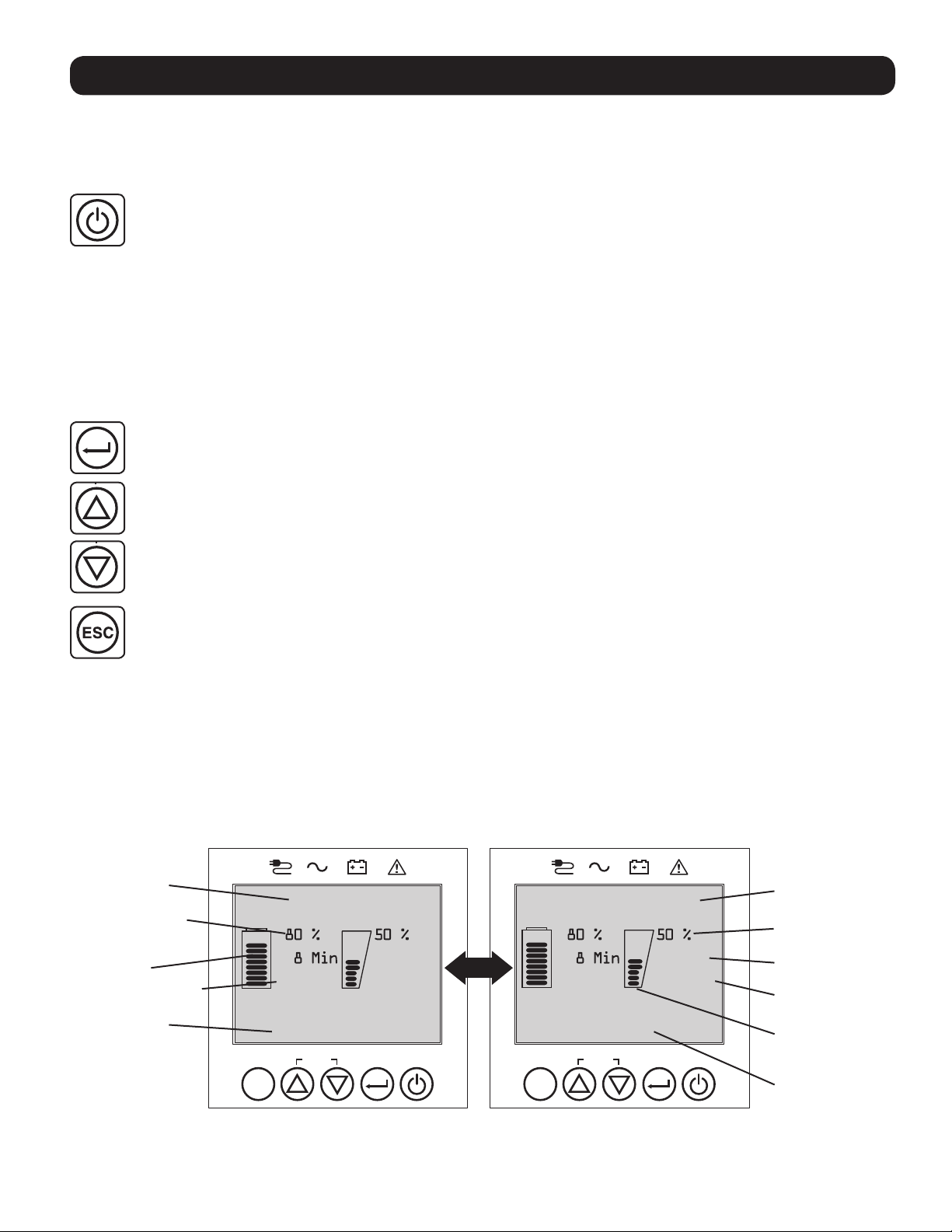

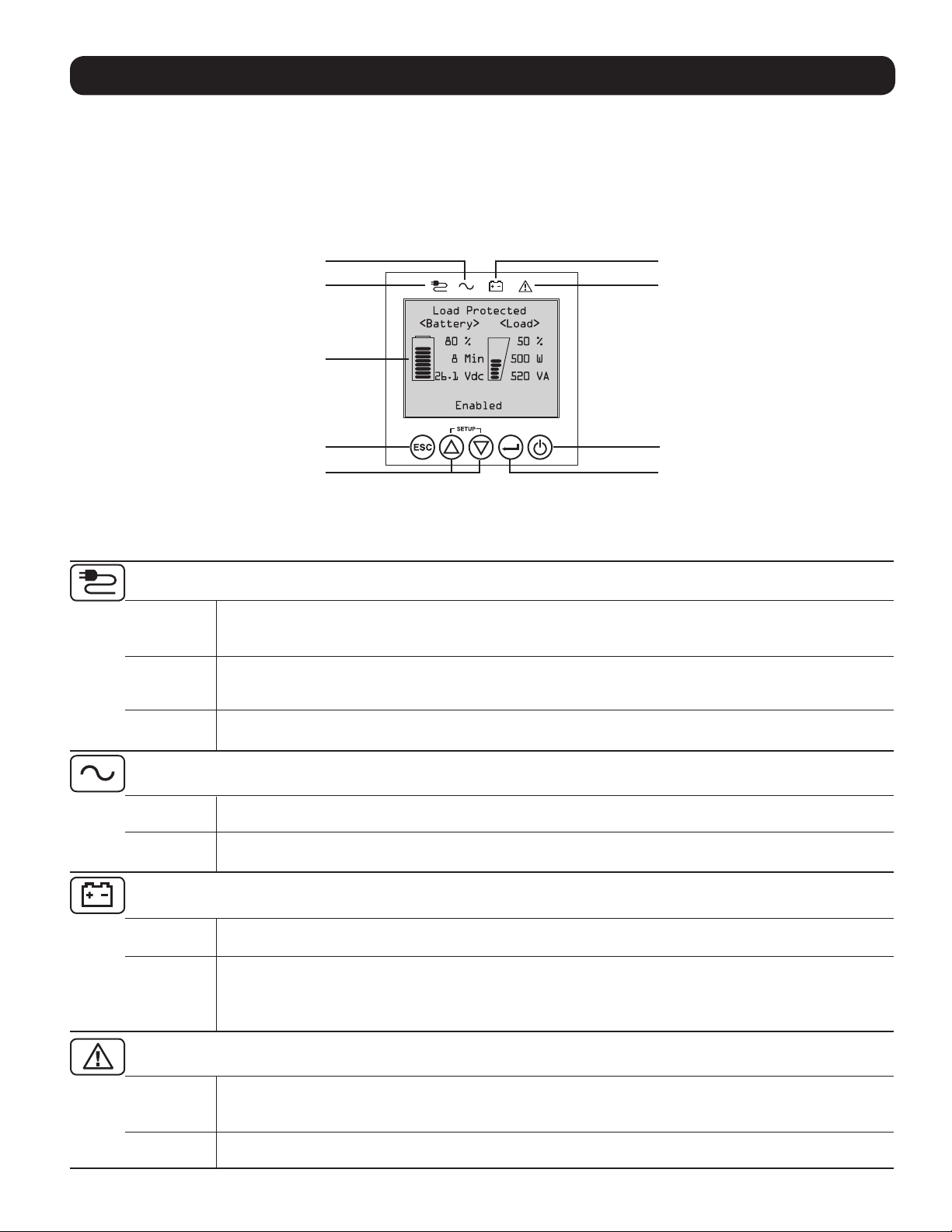

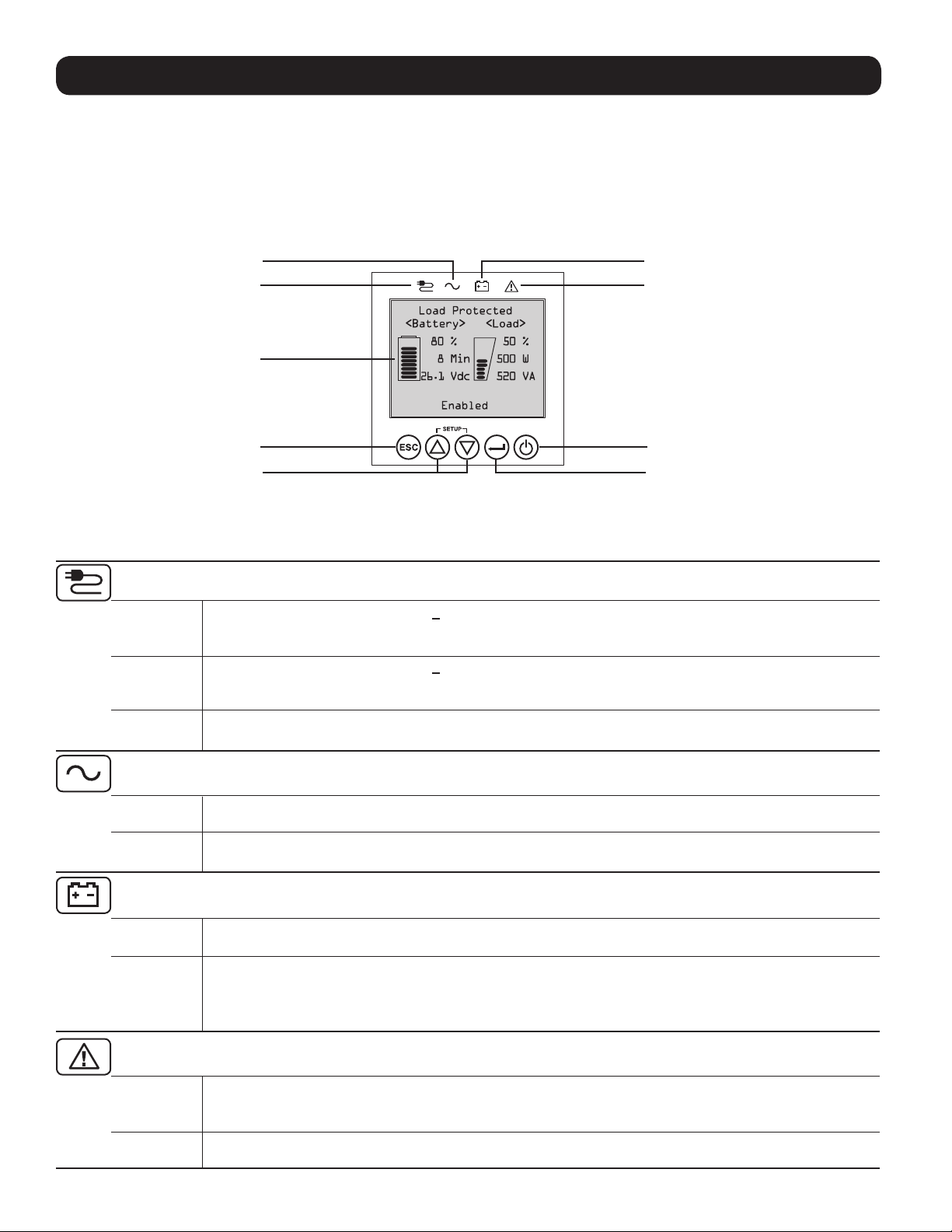

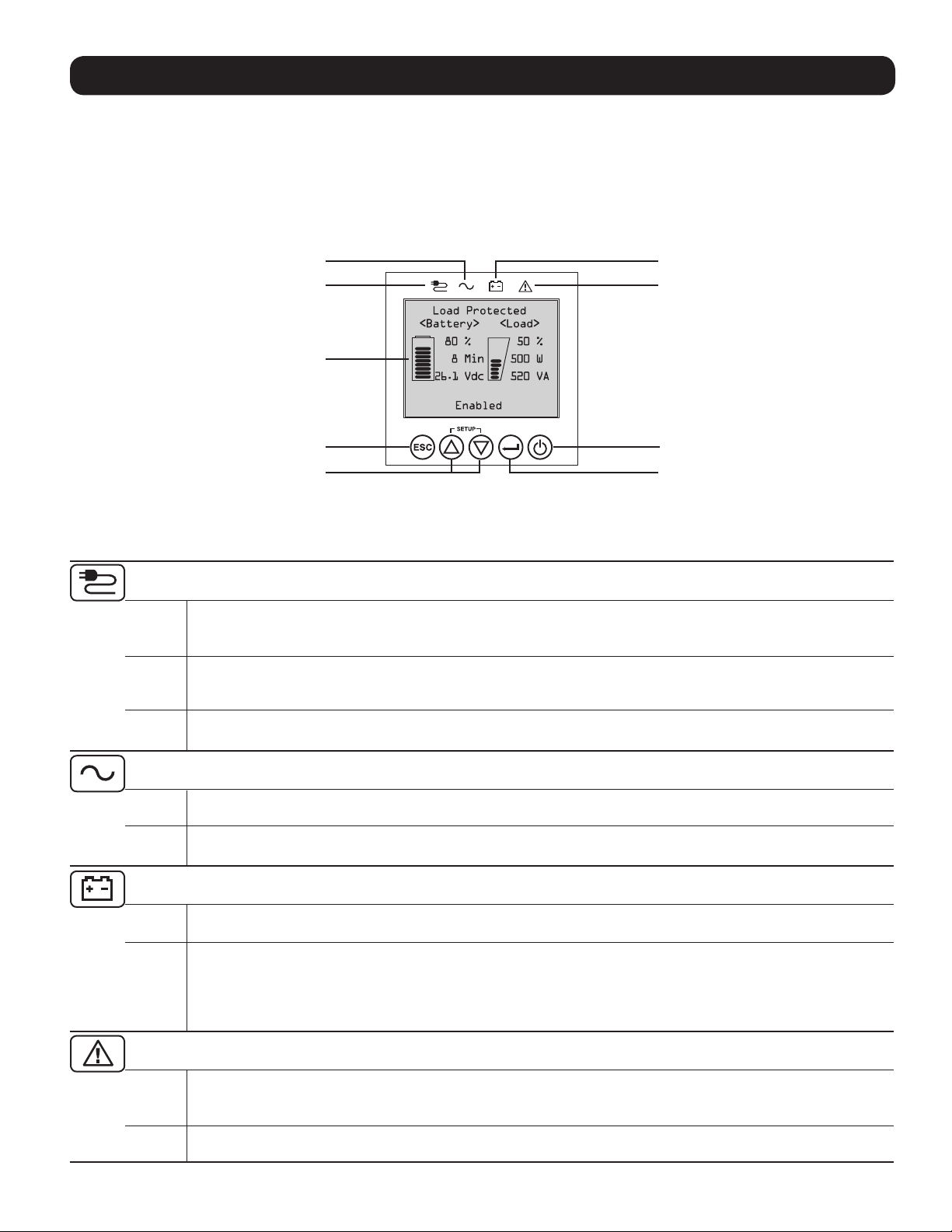

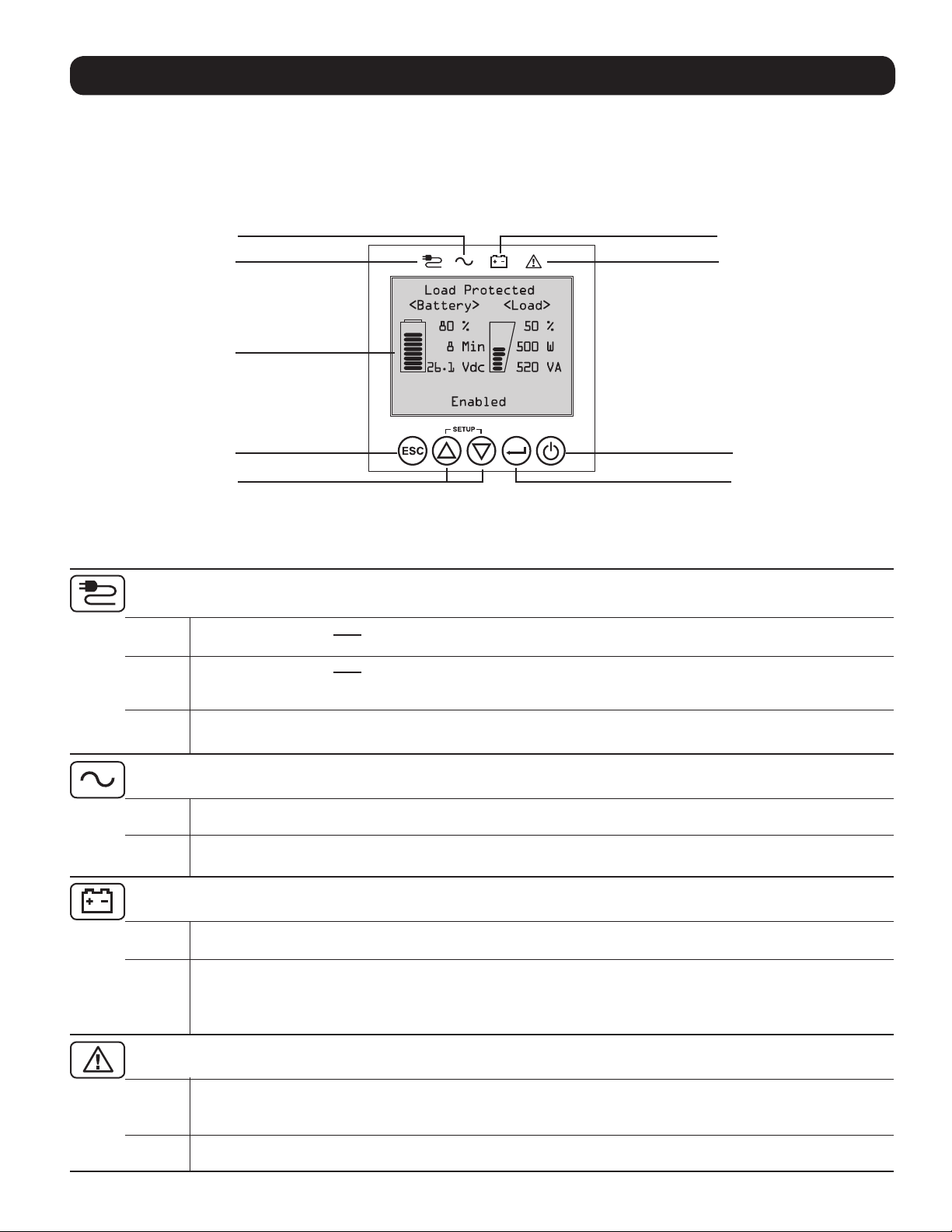

LCD Front-Panel Display and Controls 11

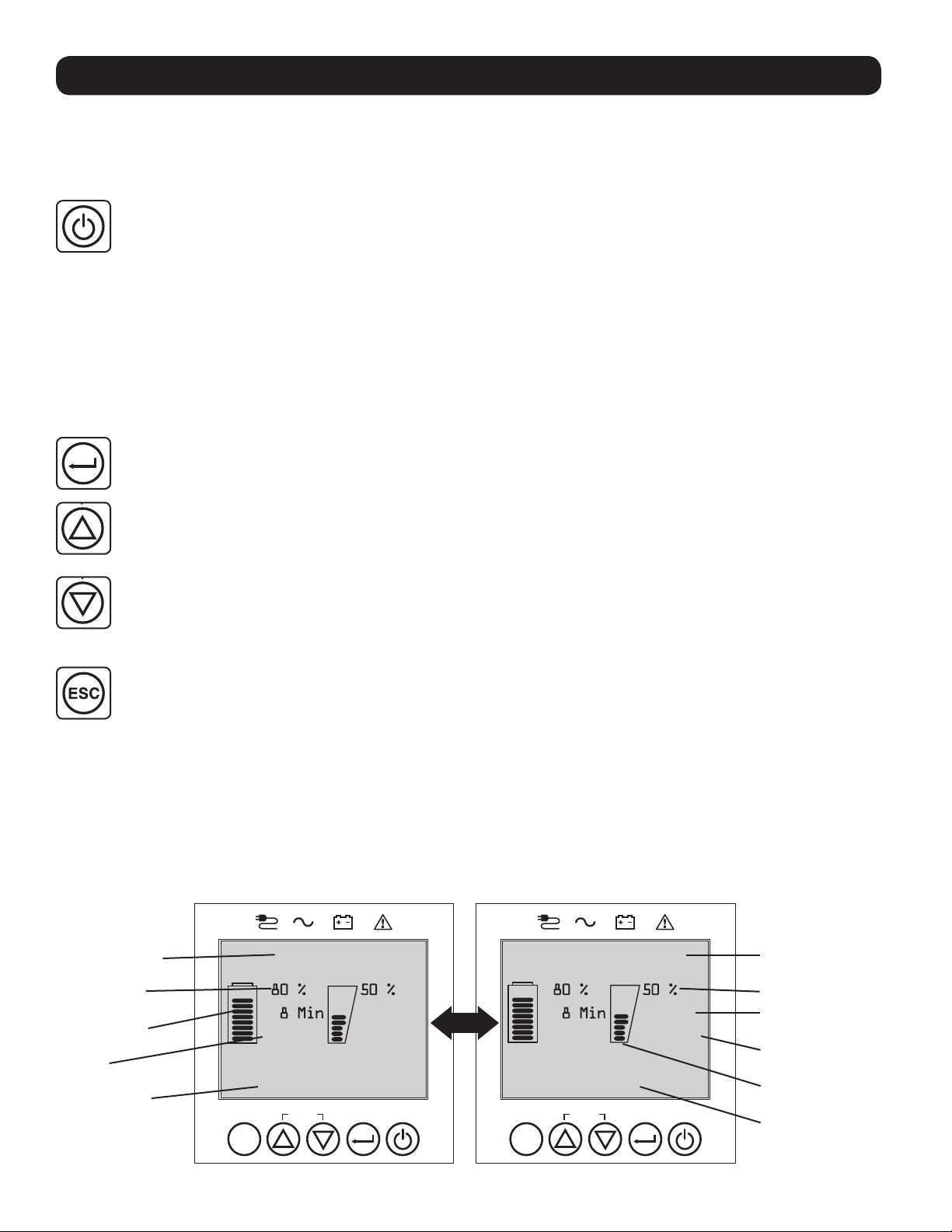

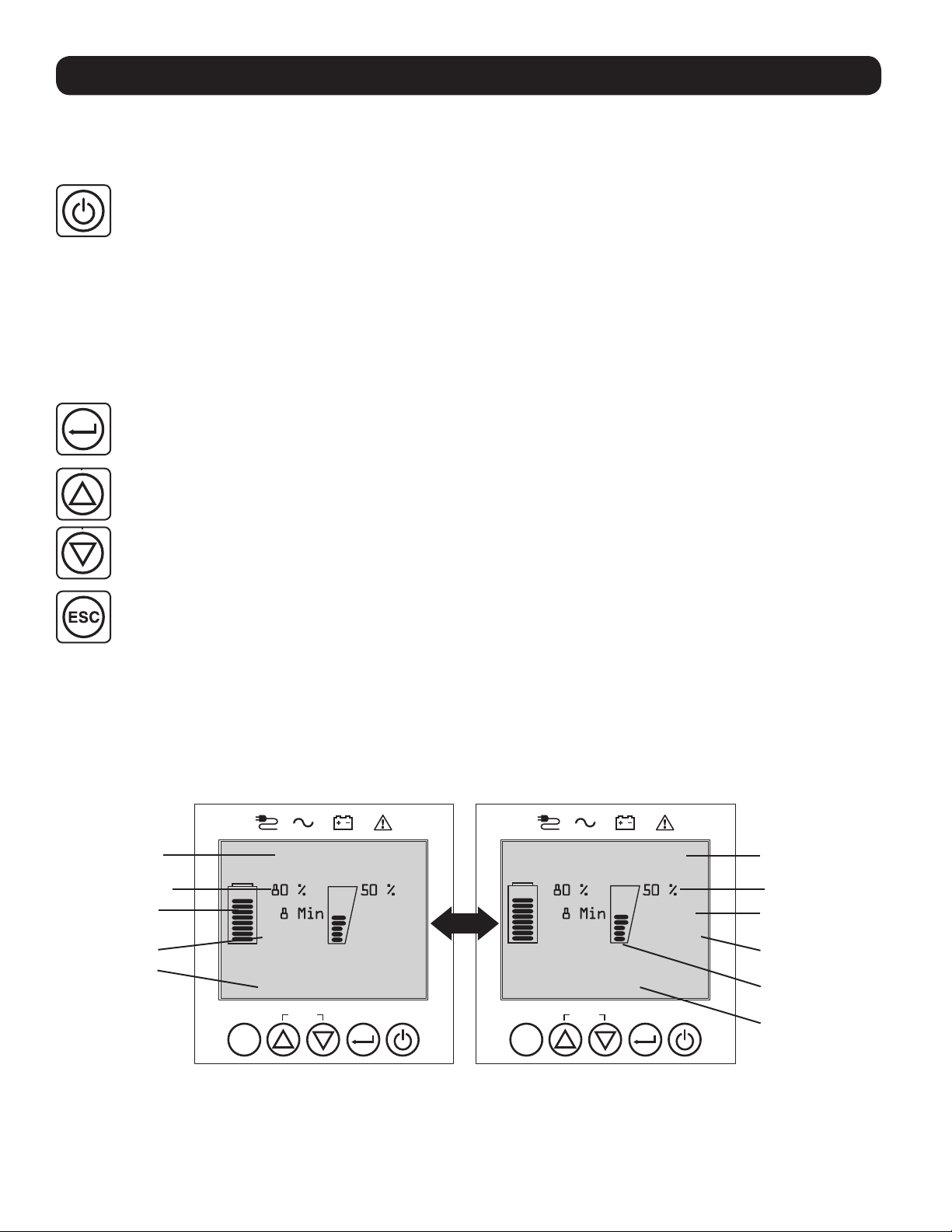

Front Panel Button Functions 12

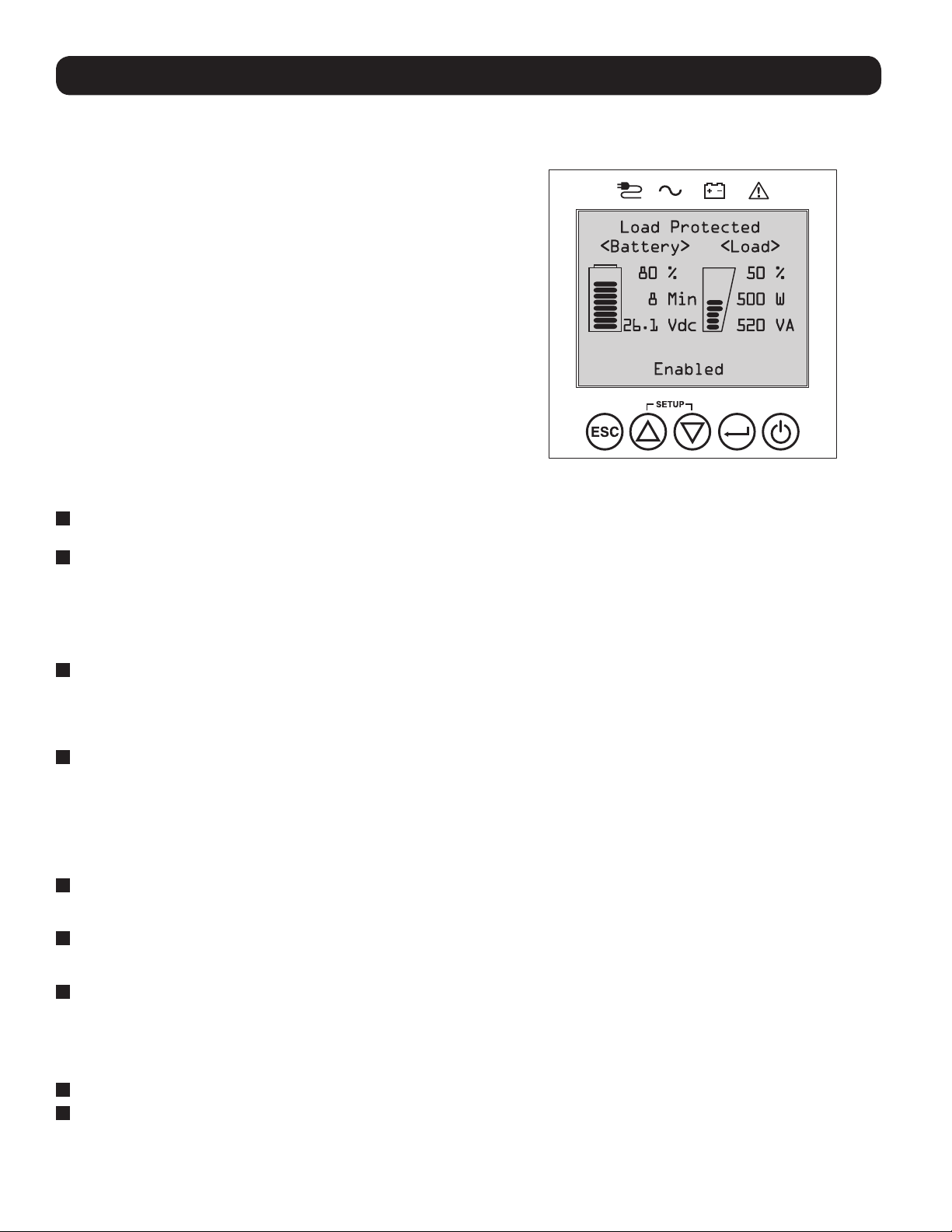

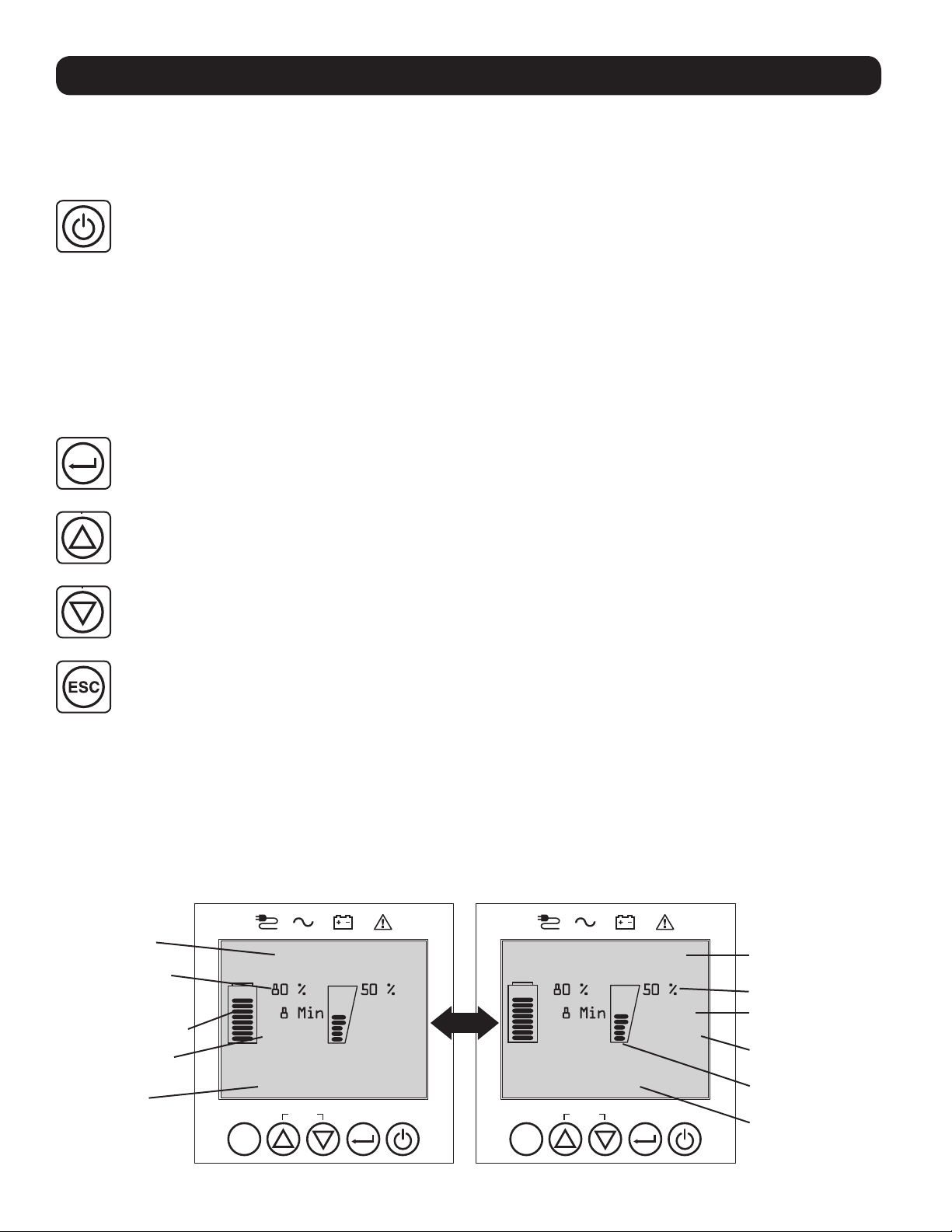

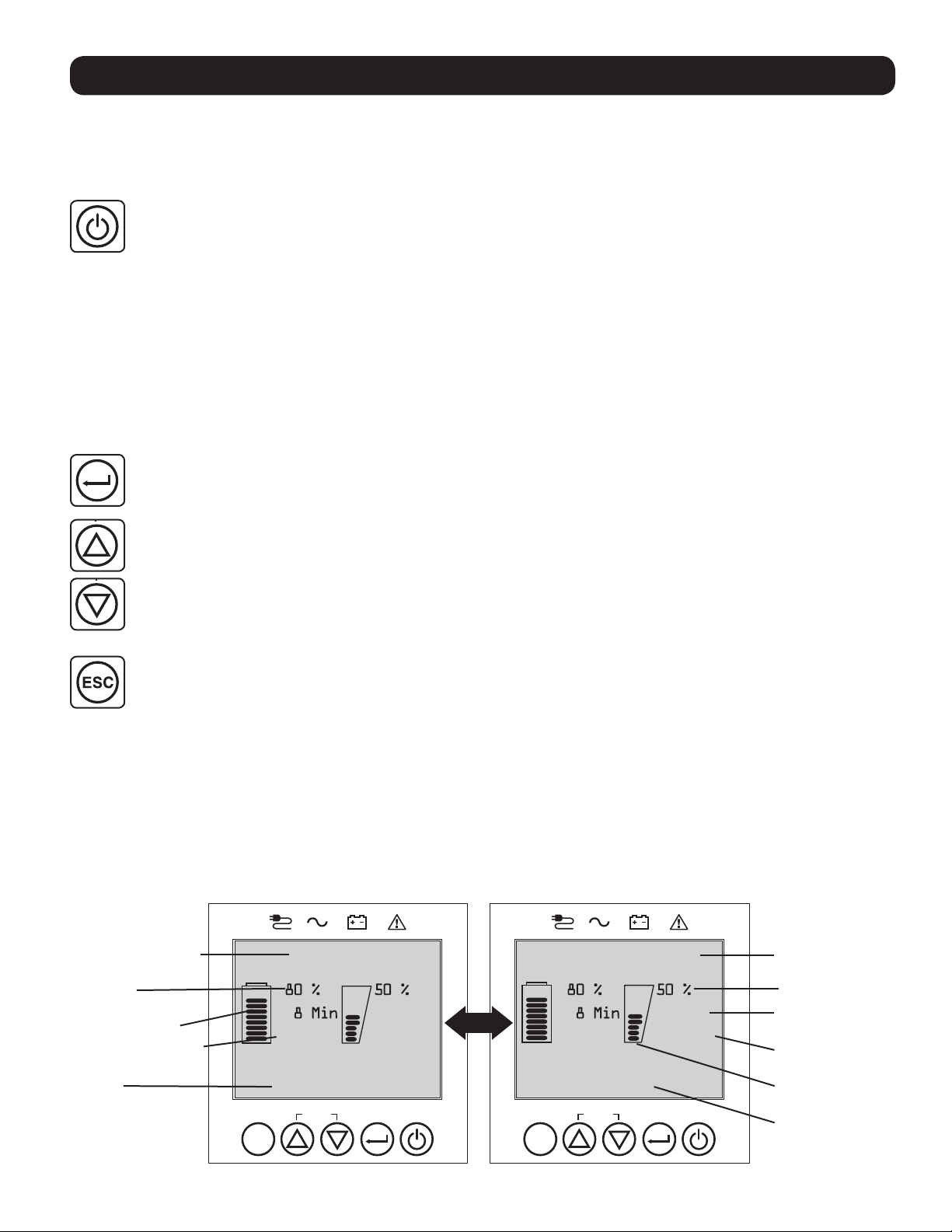

Home Screen Layout 12

Power Strategy Selection Options 13

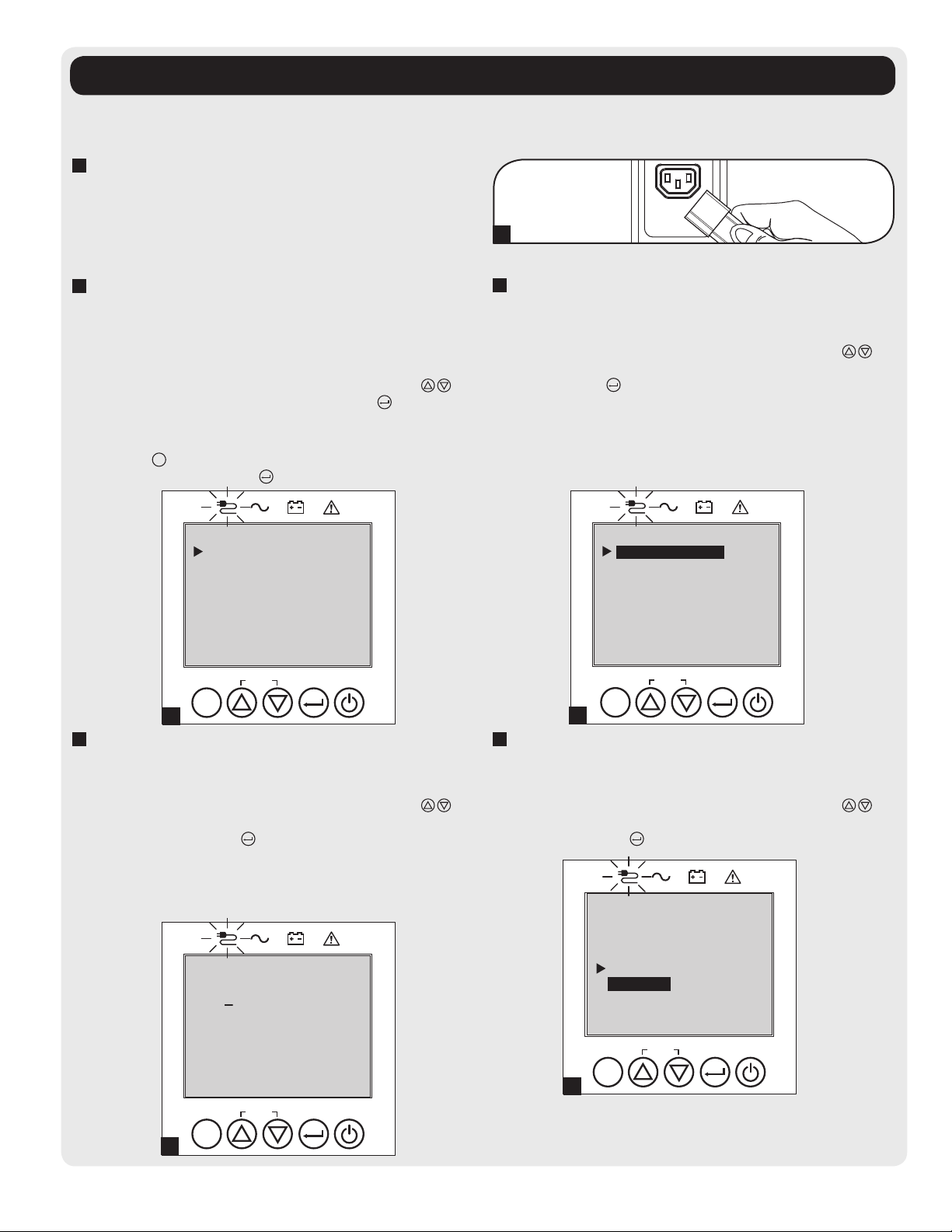

Front Panel LCD Selection and 14

Configuration Options

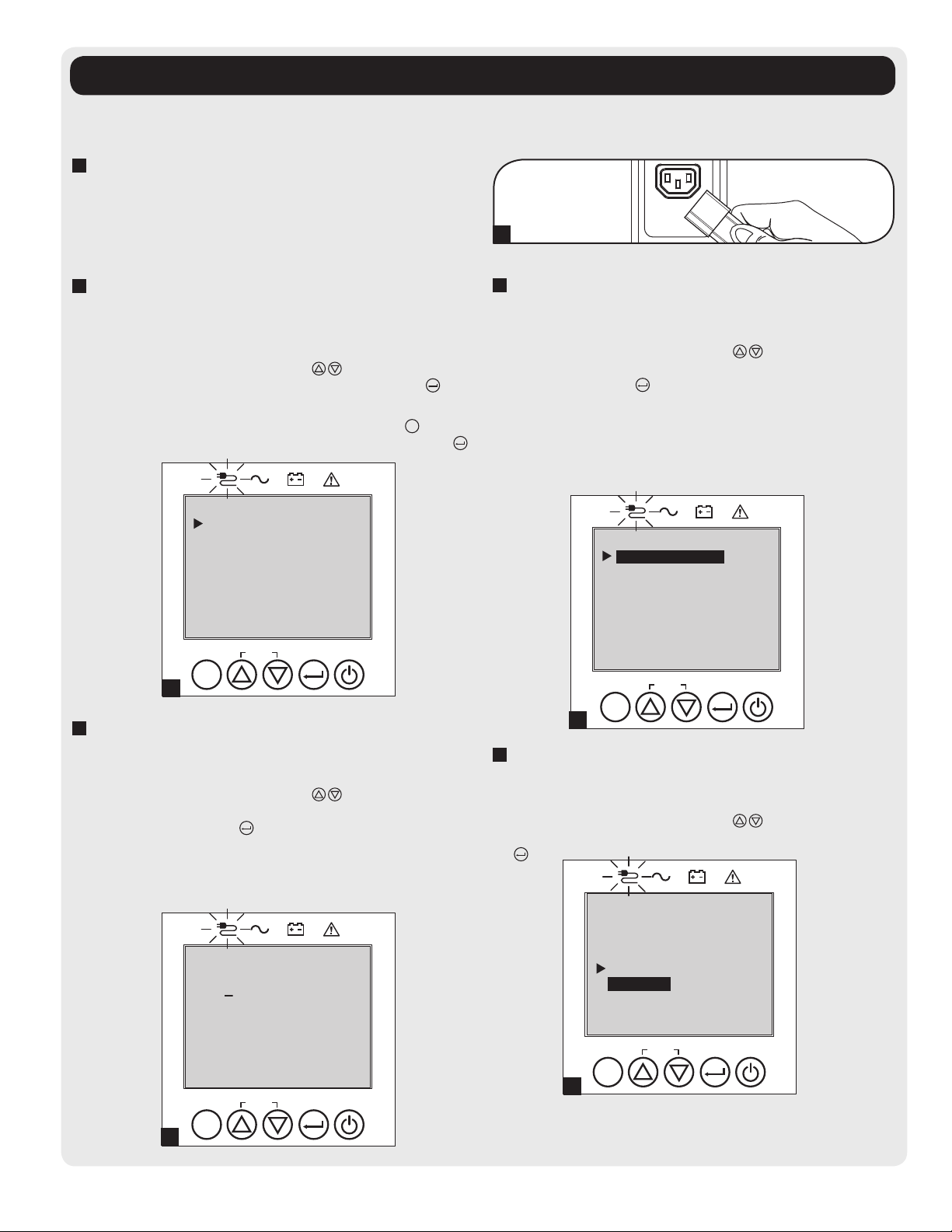

Configuring External Battery Packs 18

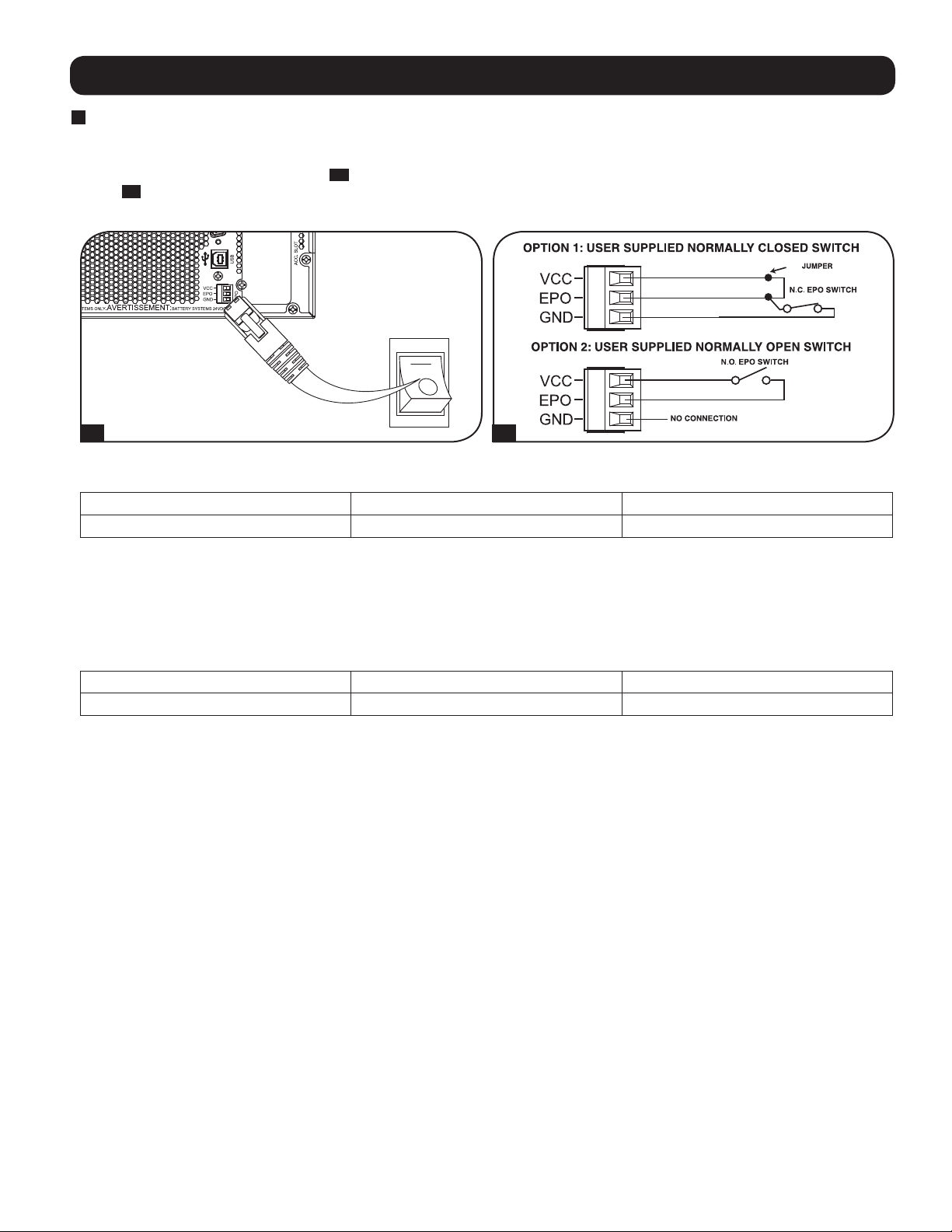

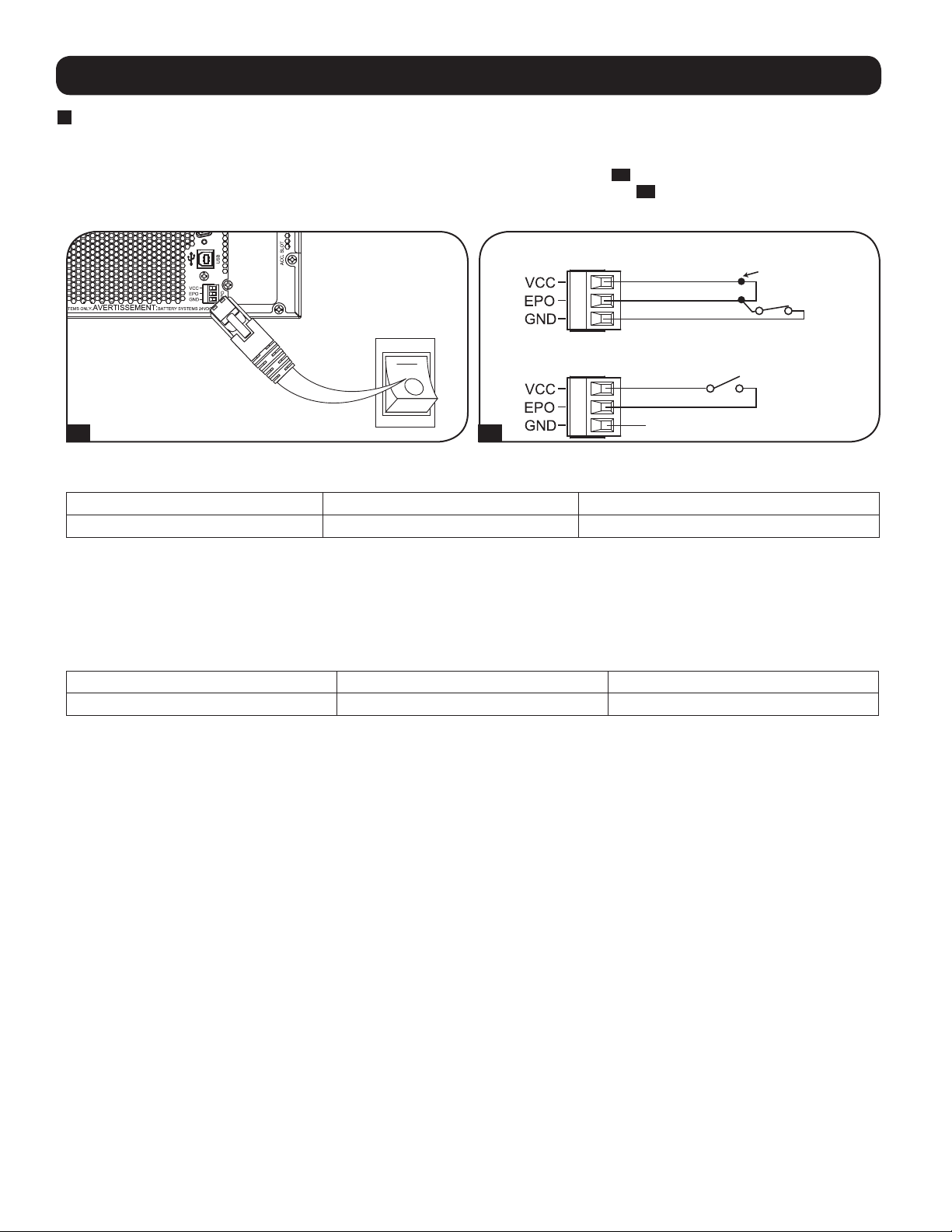

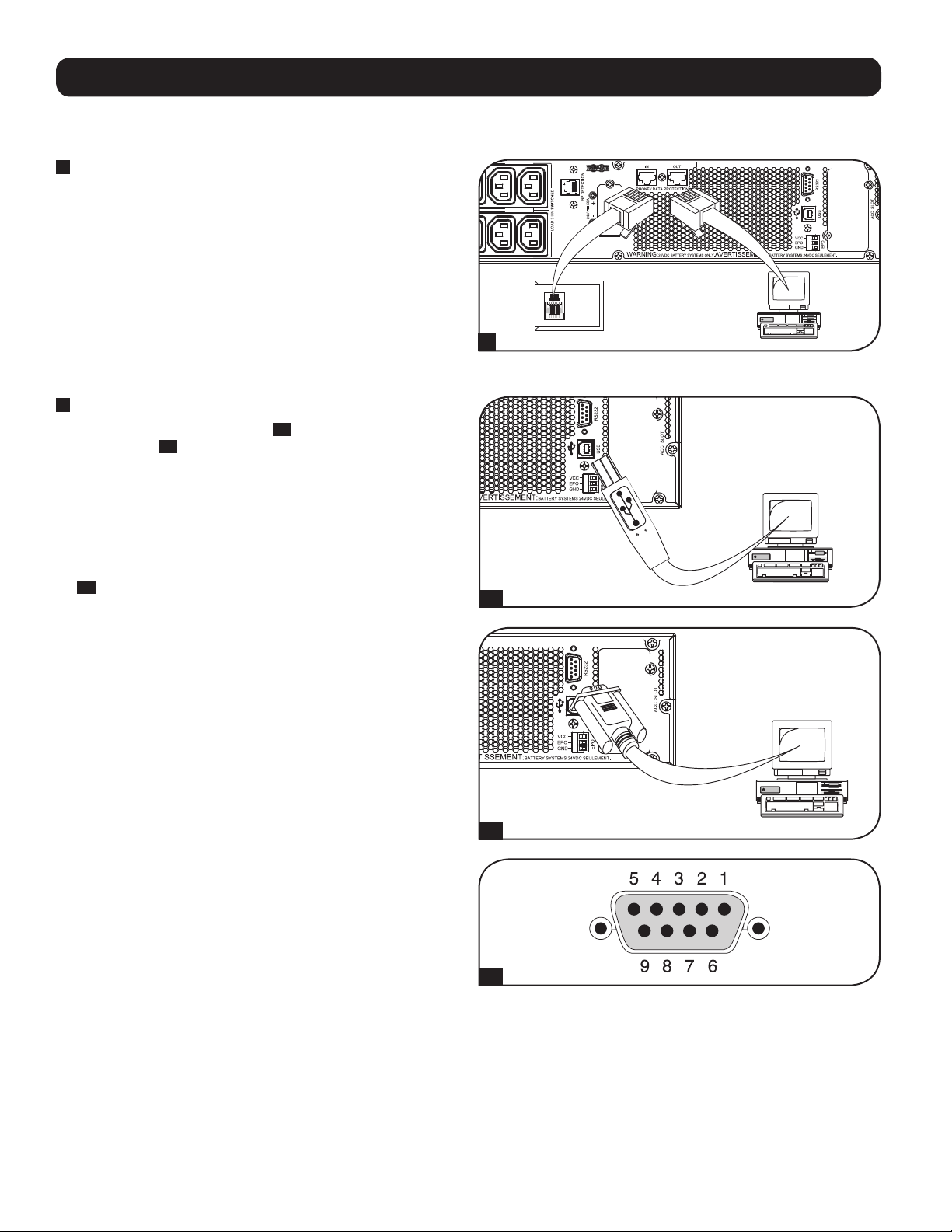

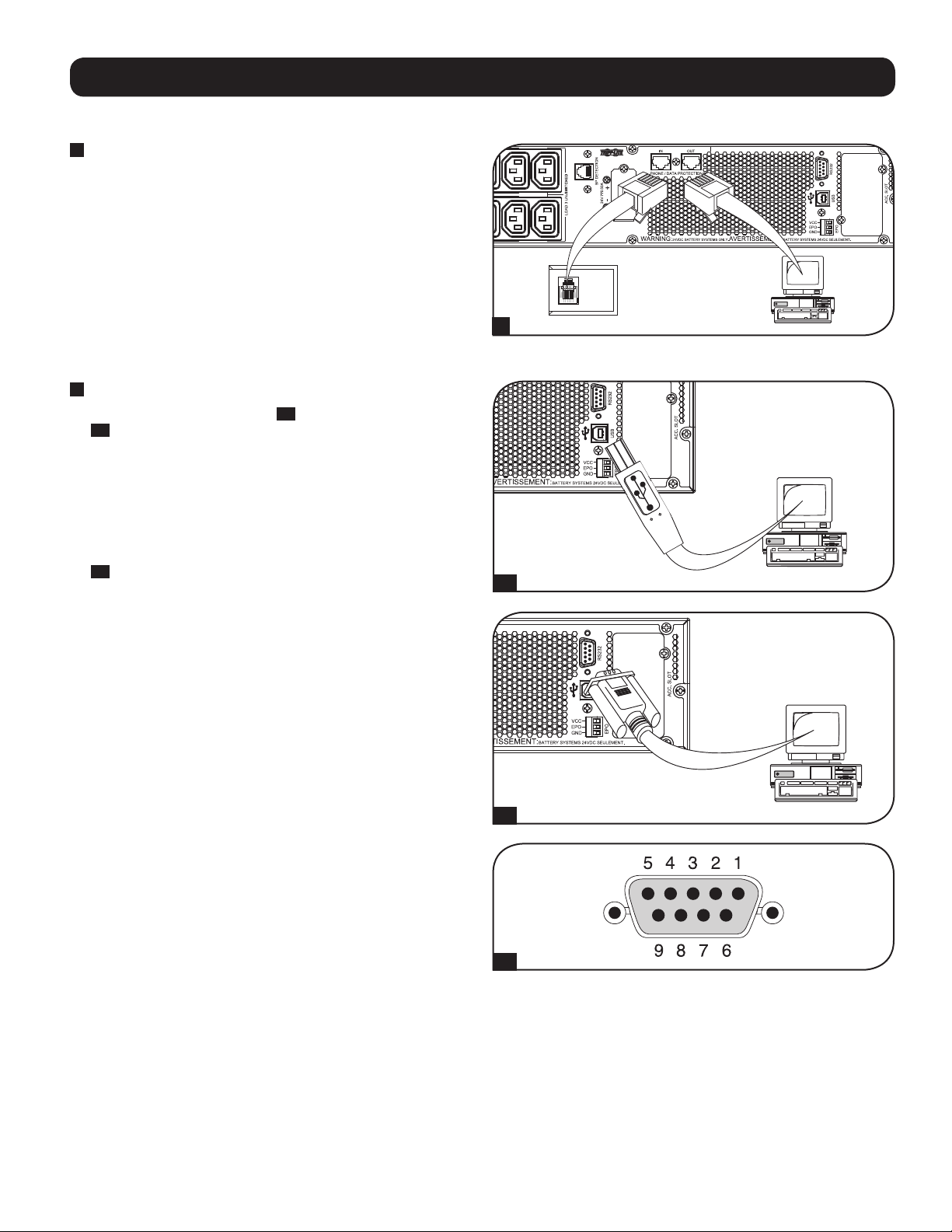

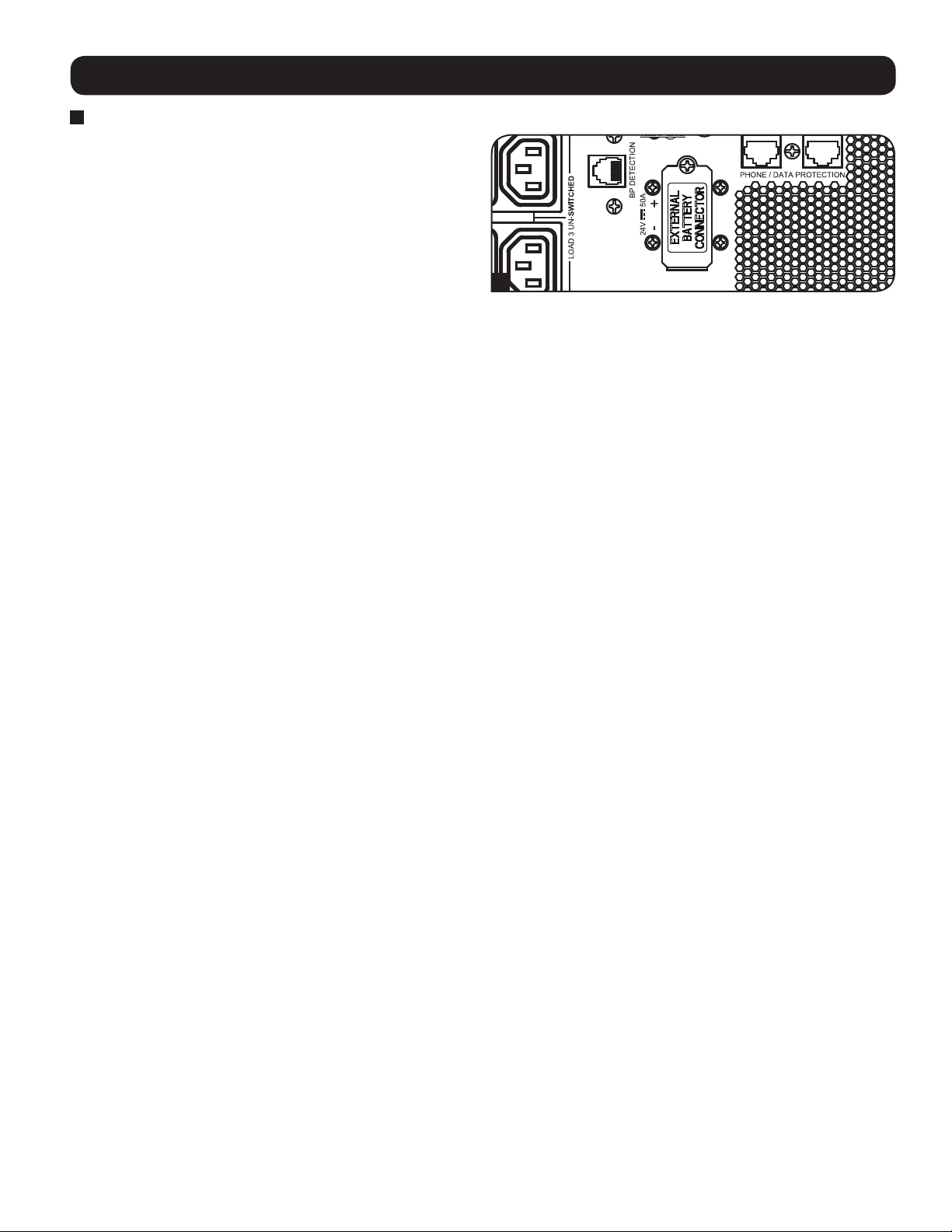

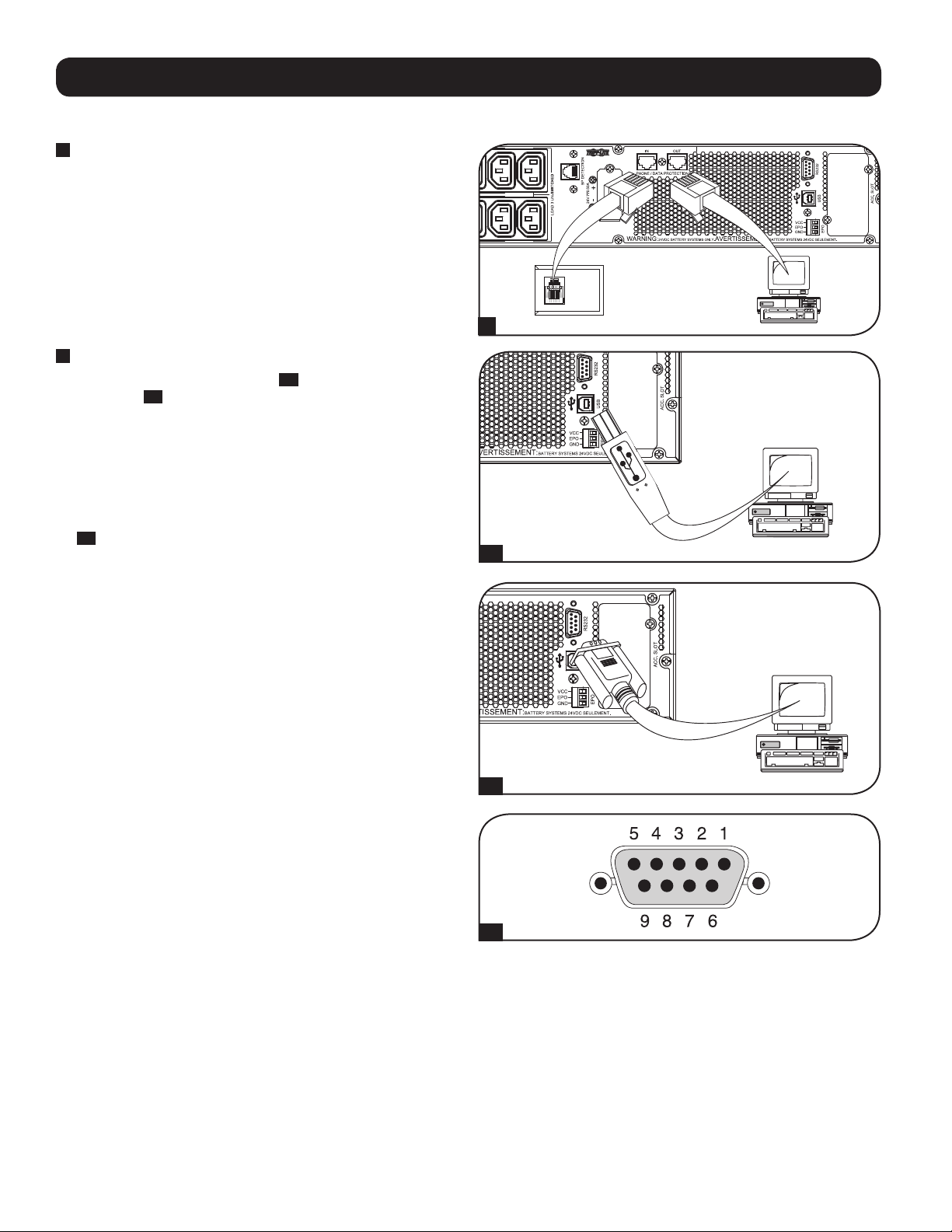

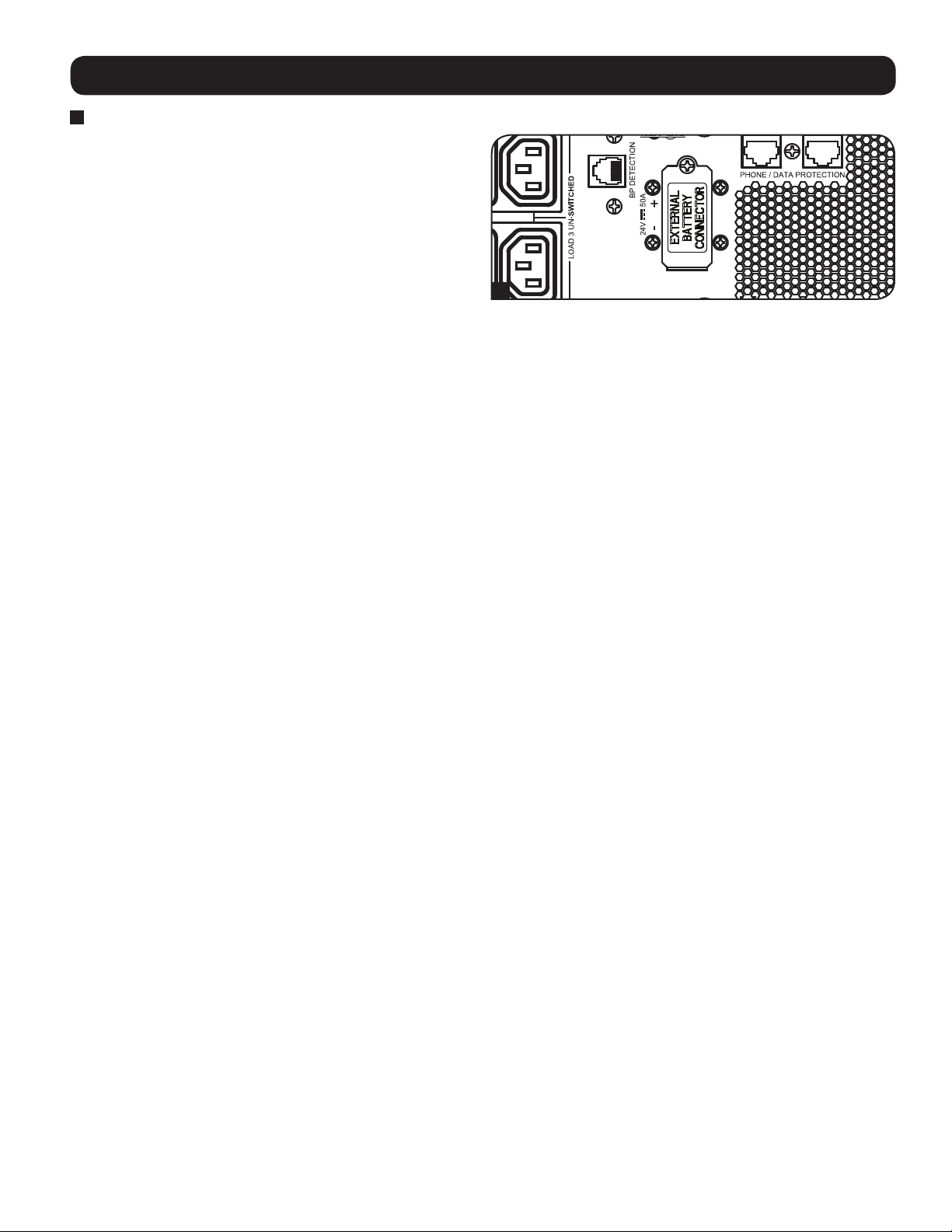

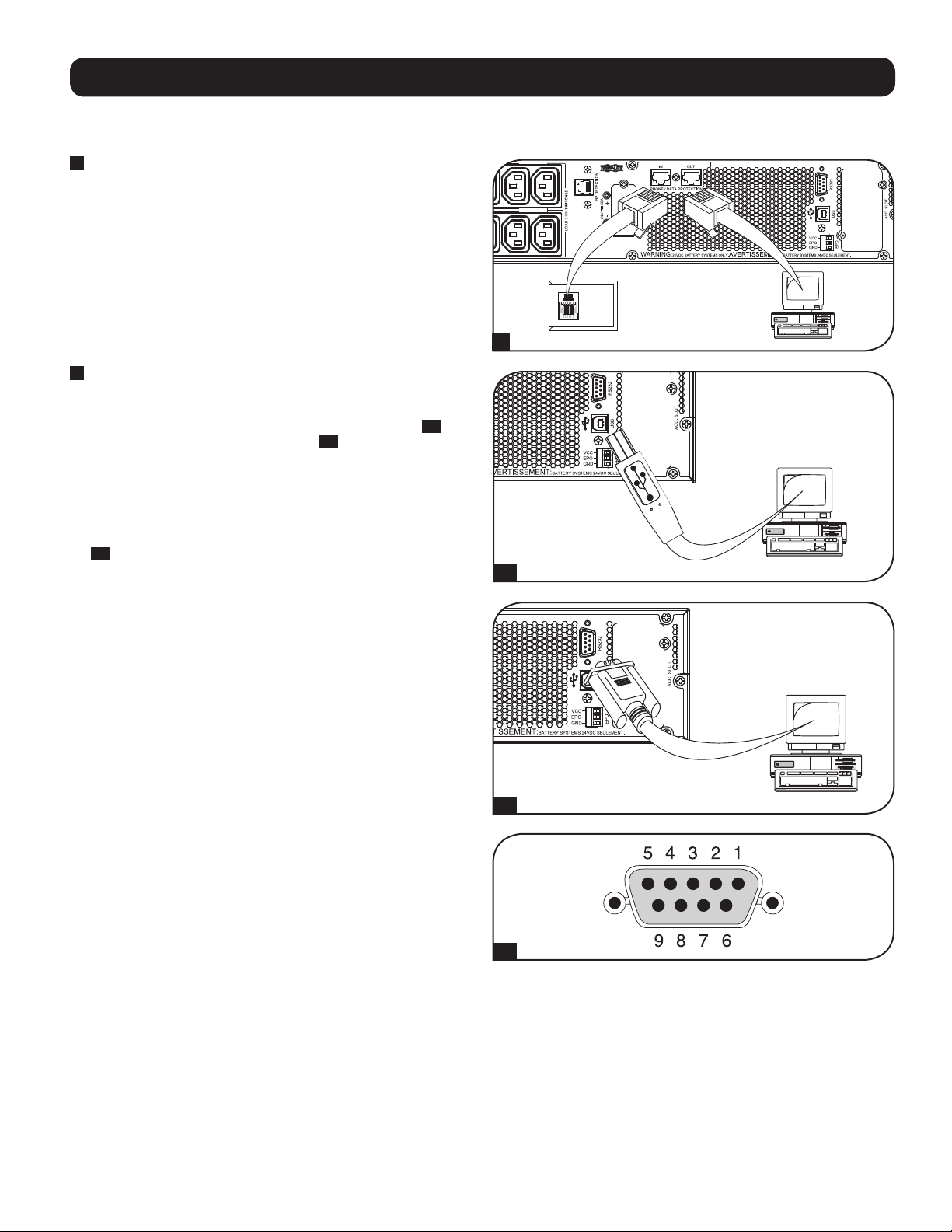

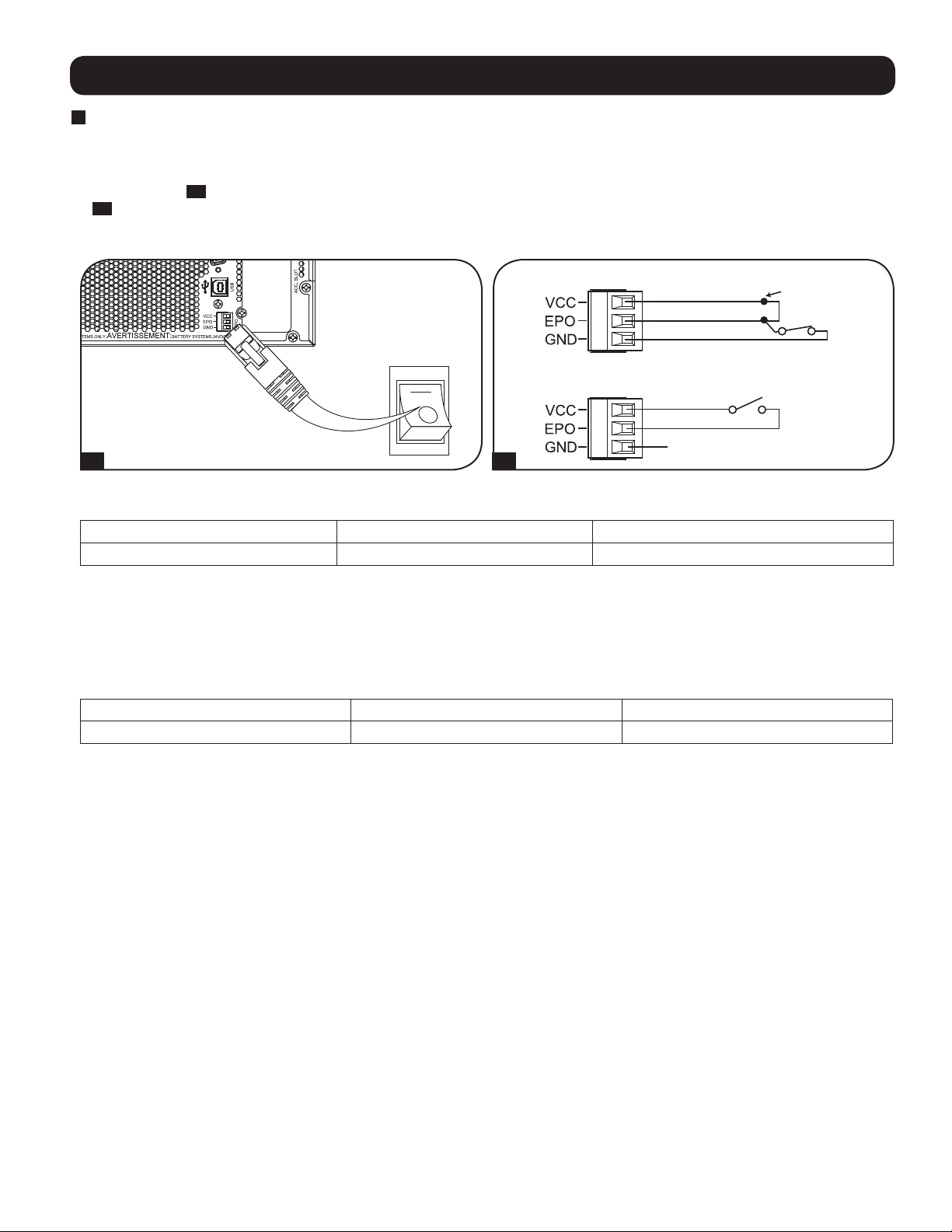

8. Optional Connections 20

9. Troubleshooting and Event Log 23

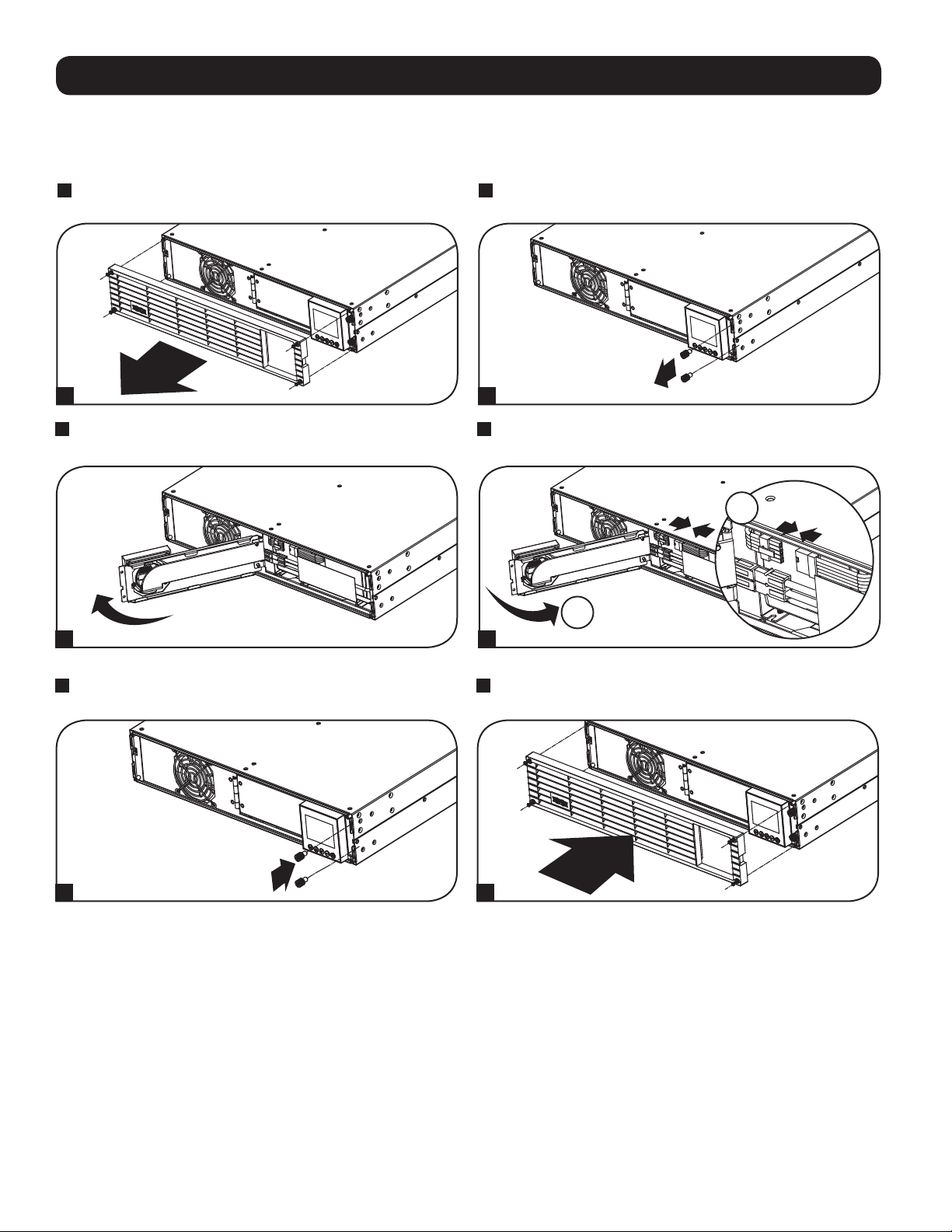

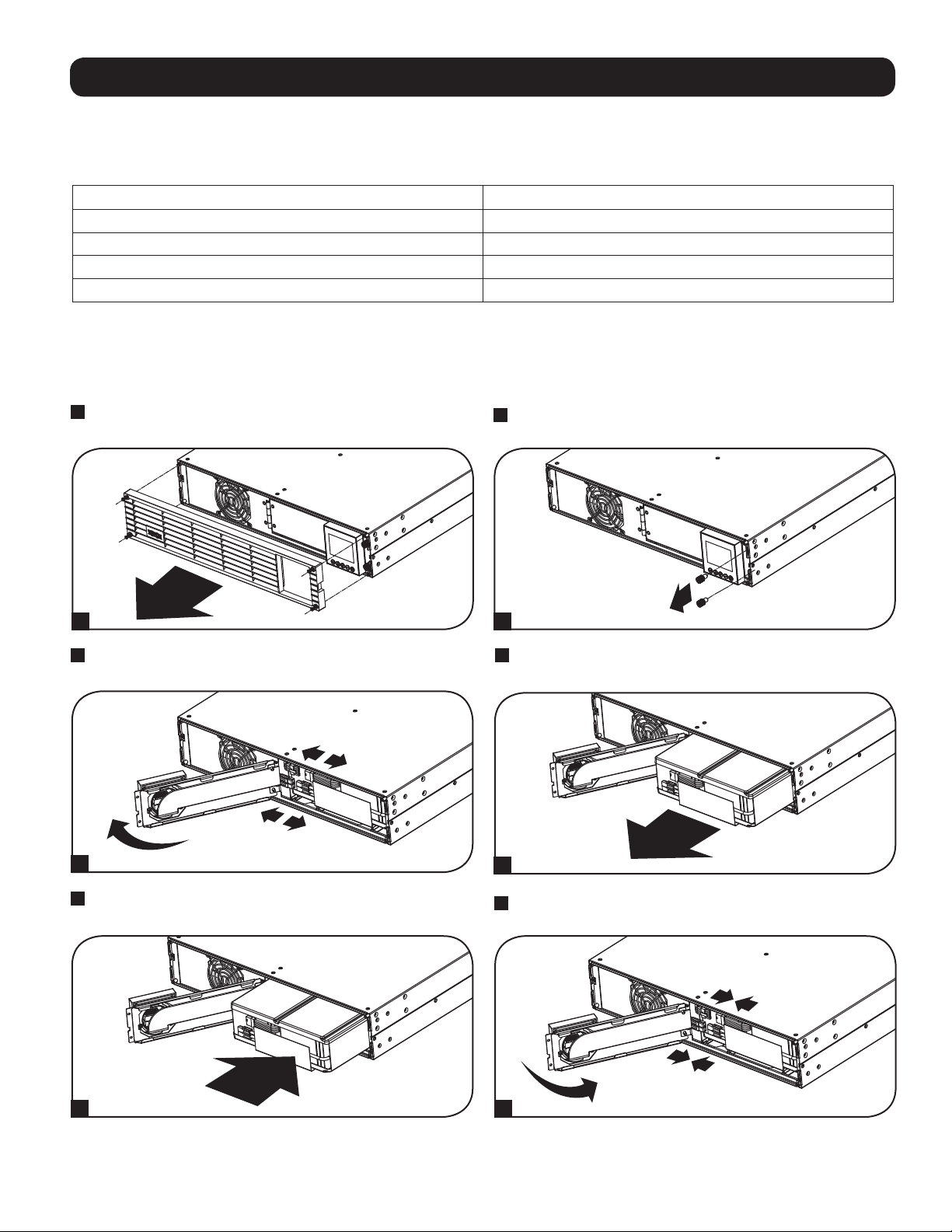

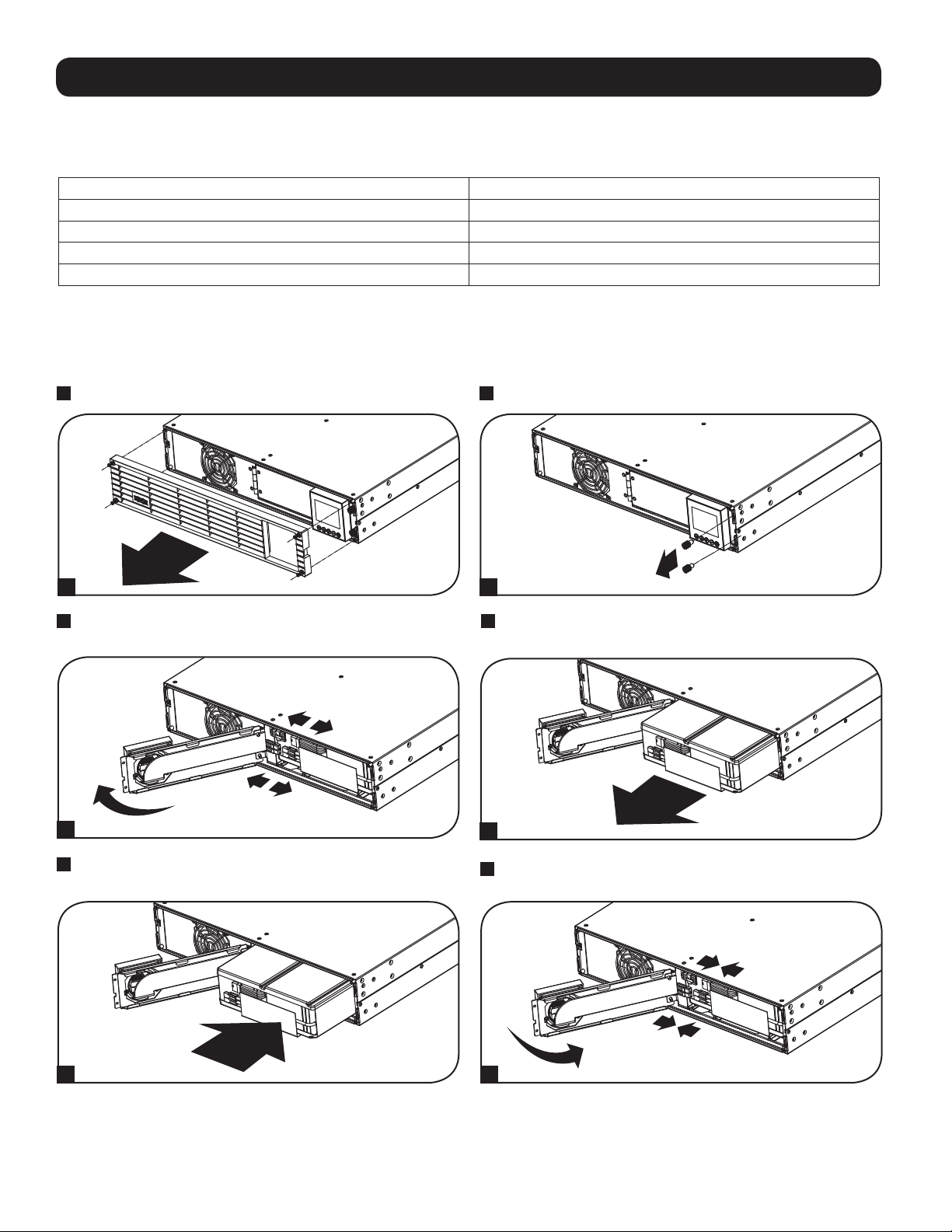

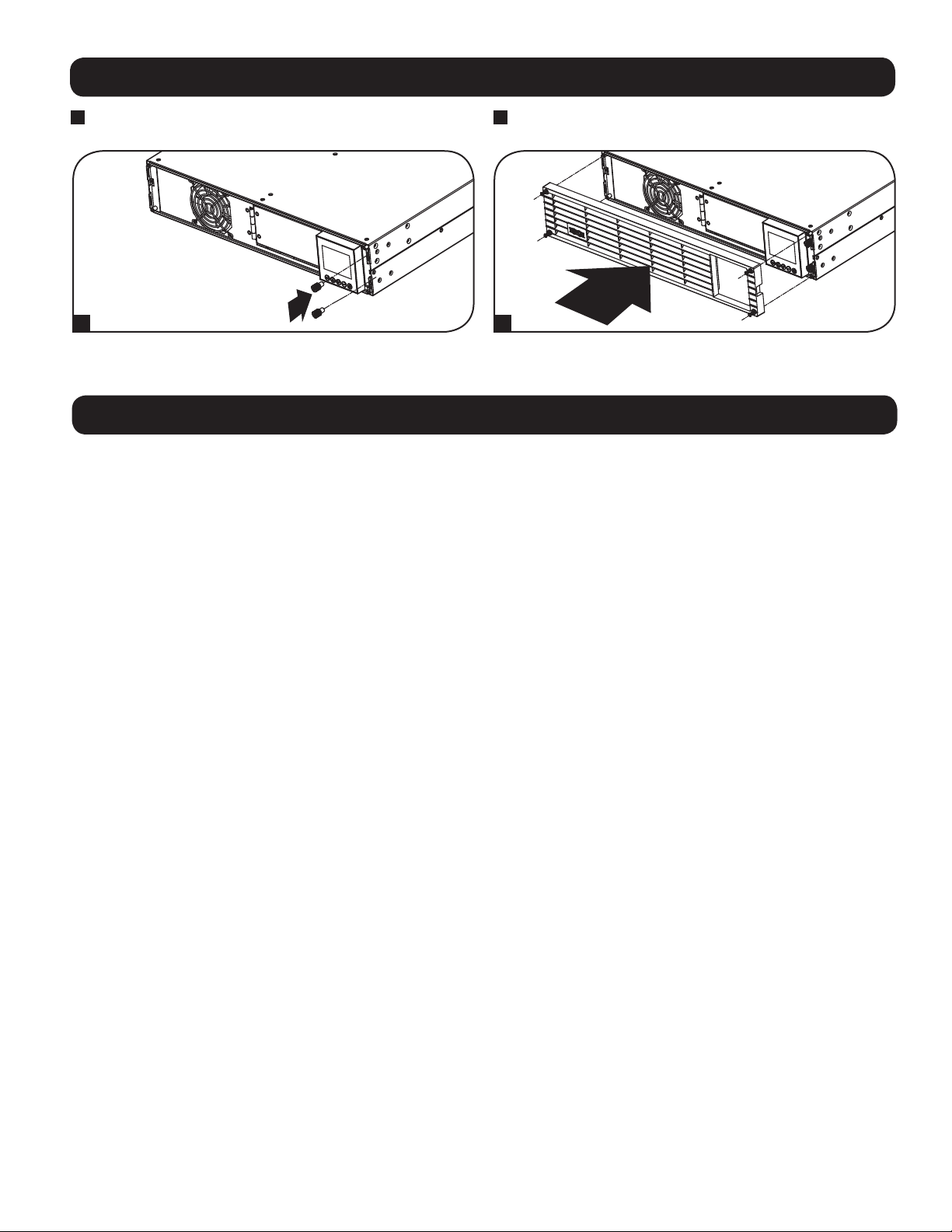

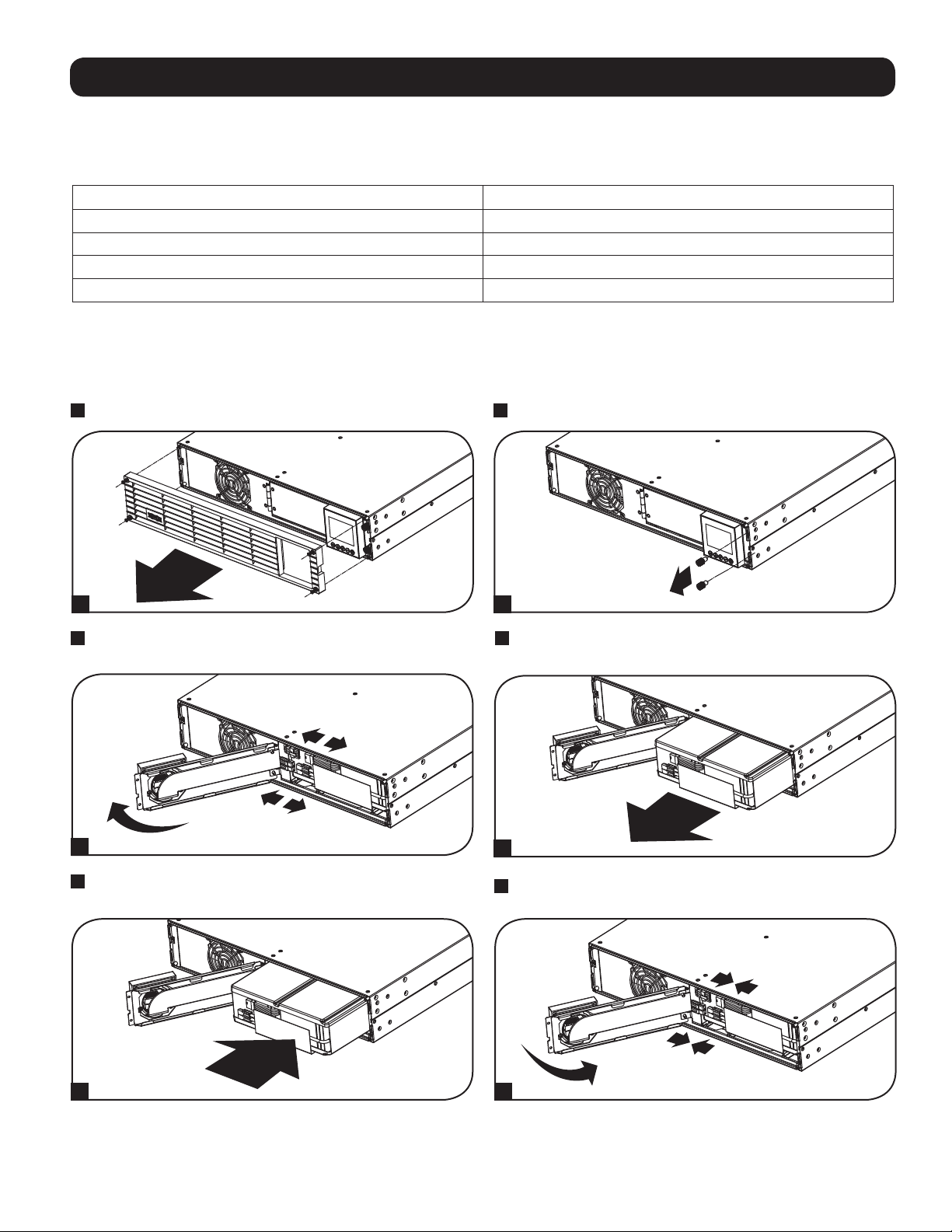

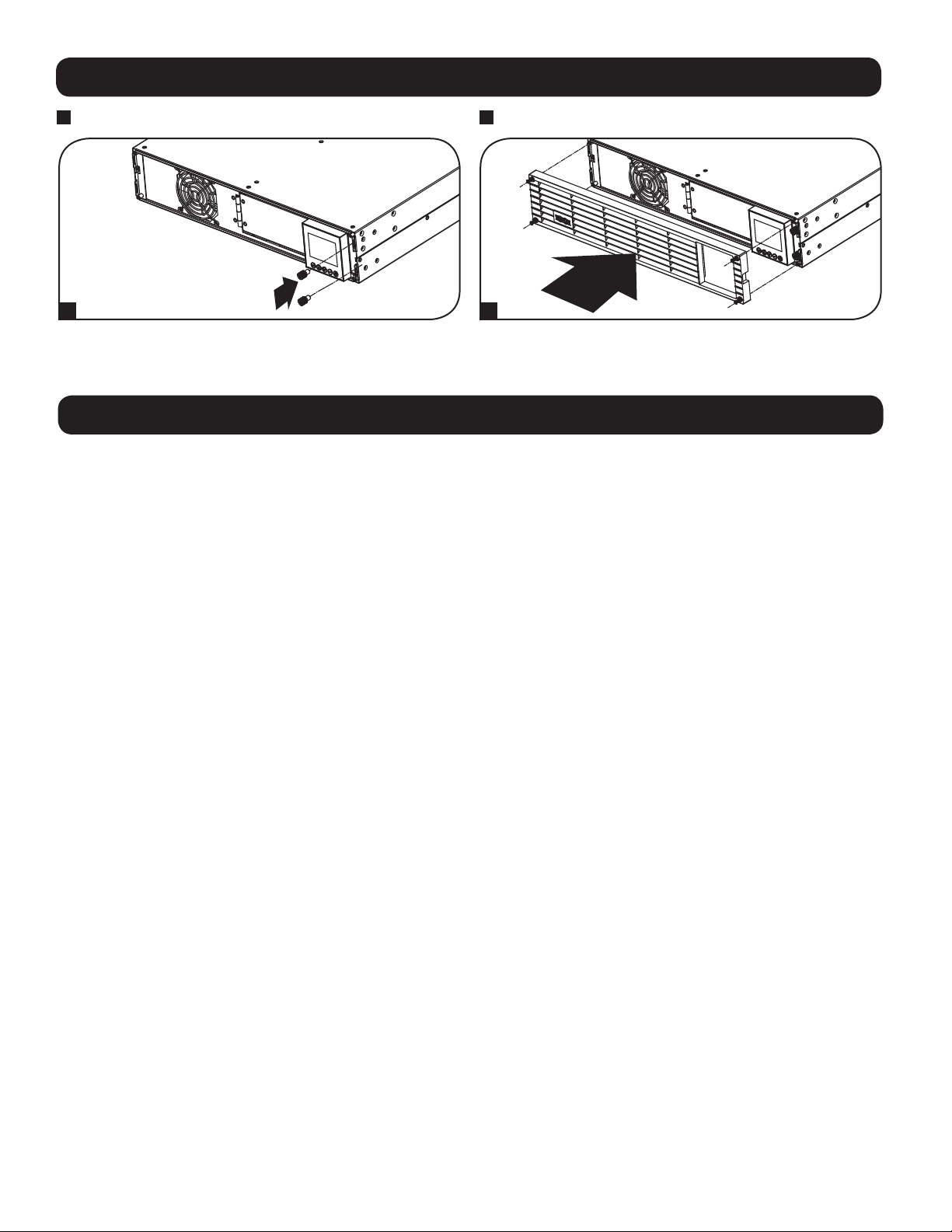

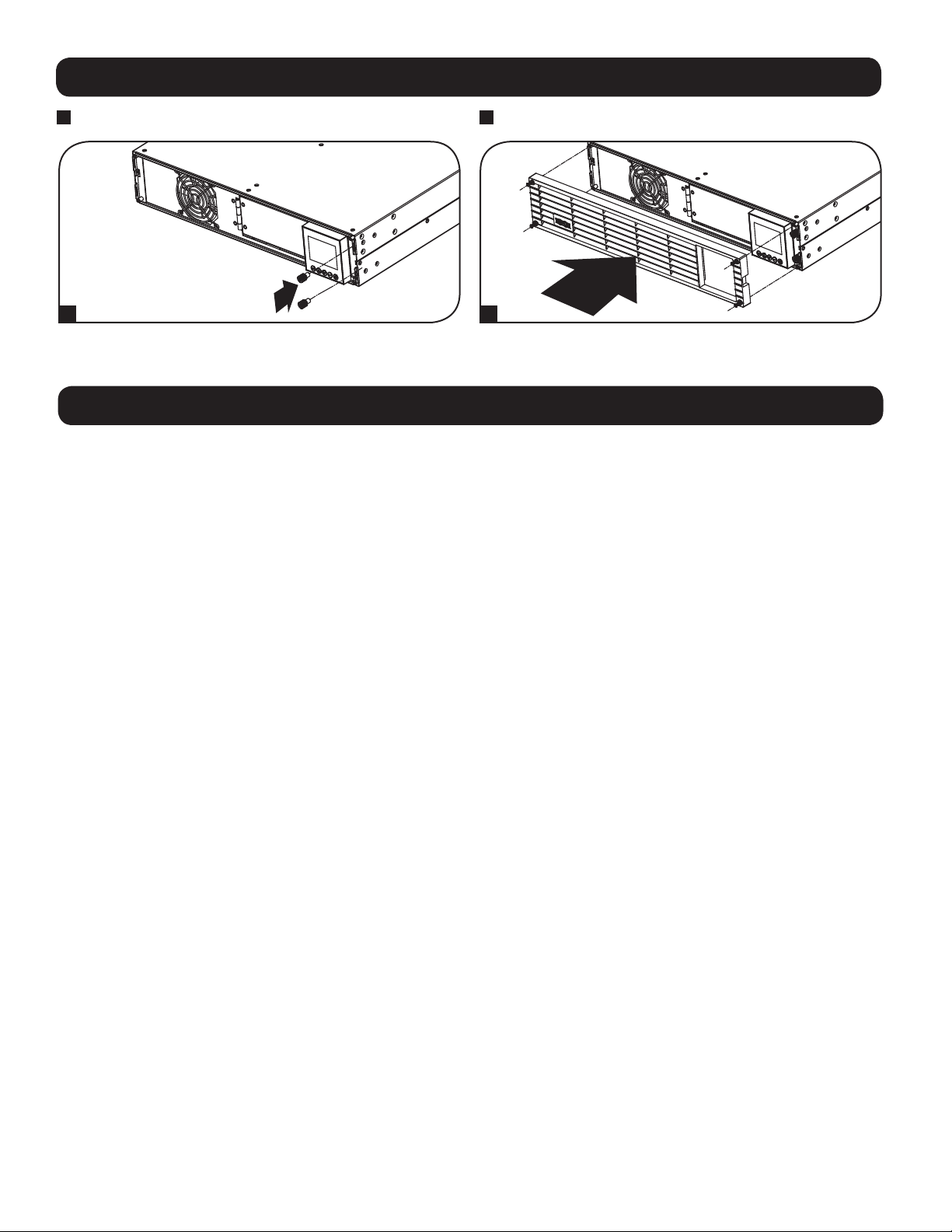

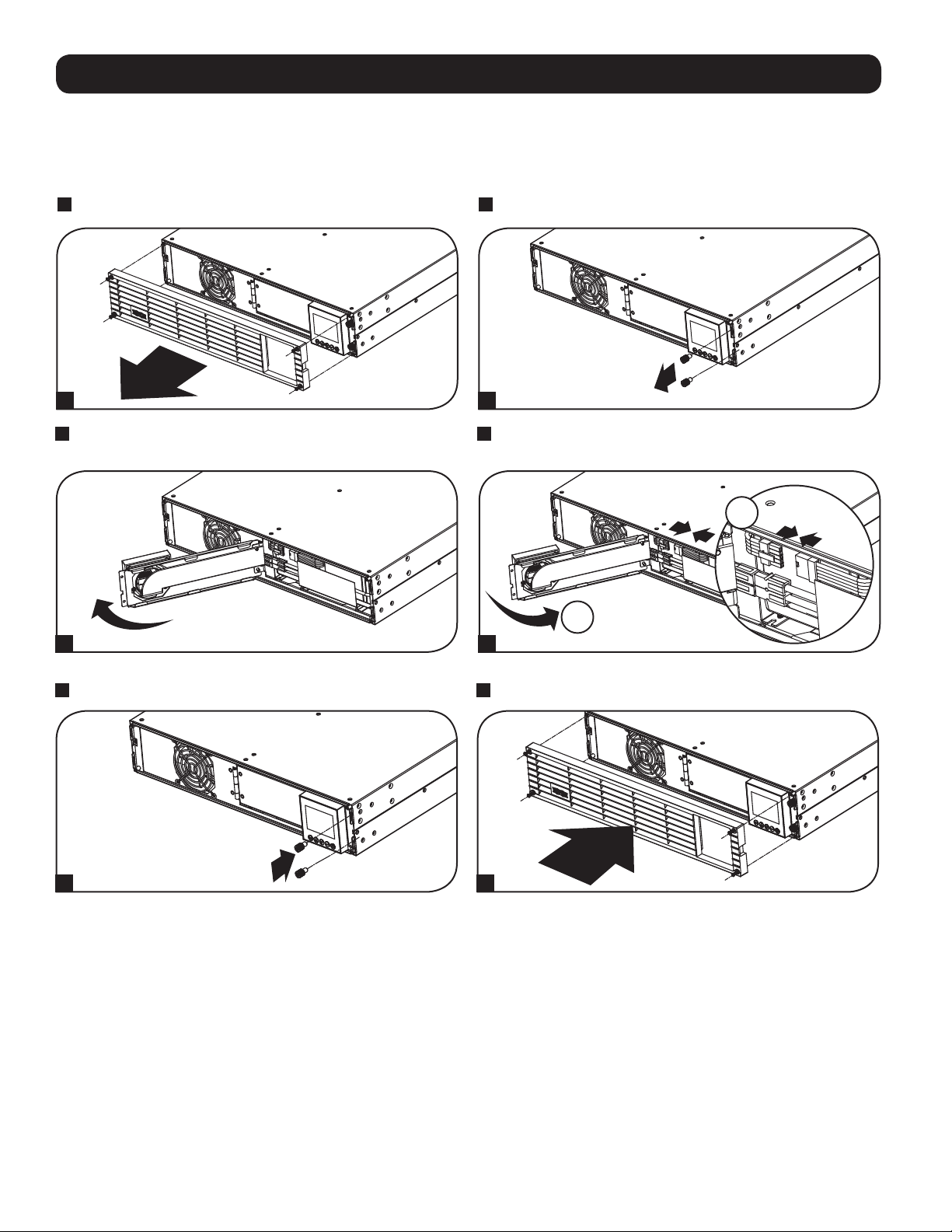

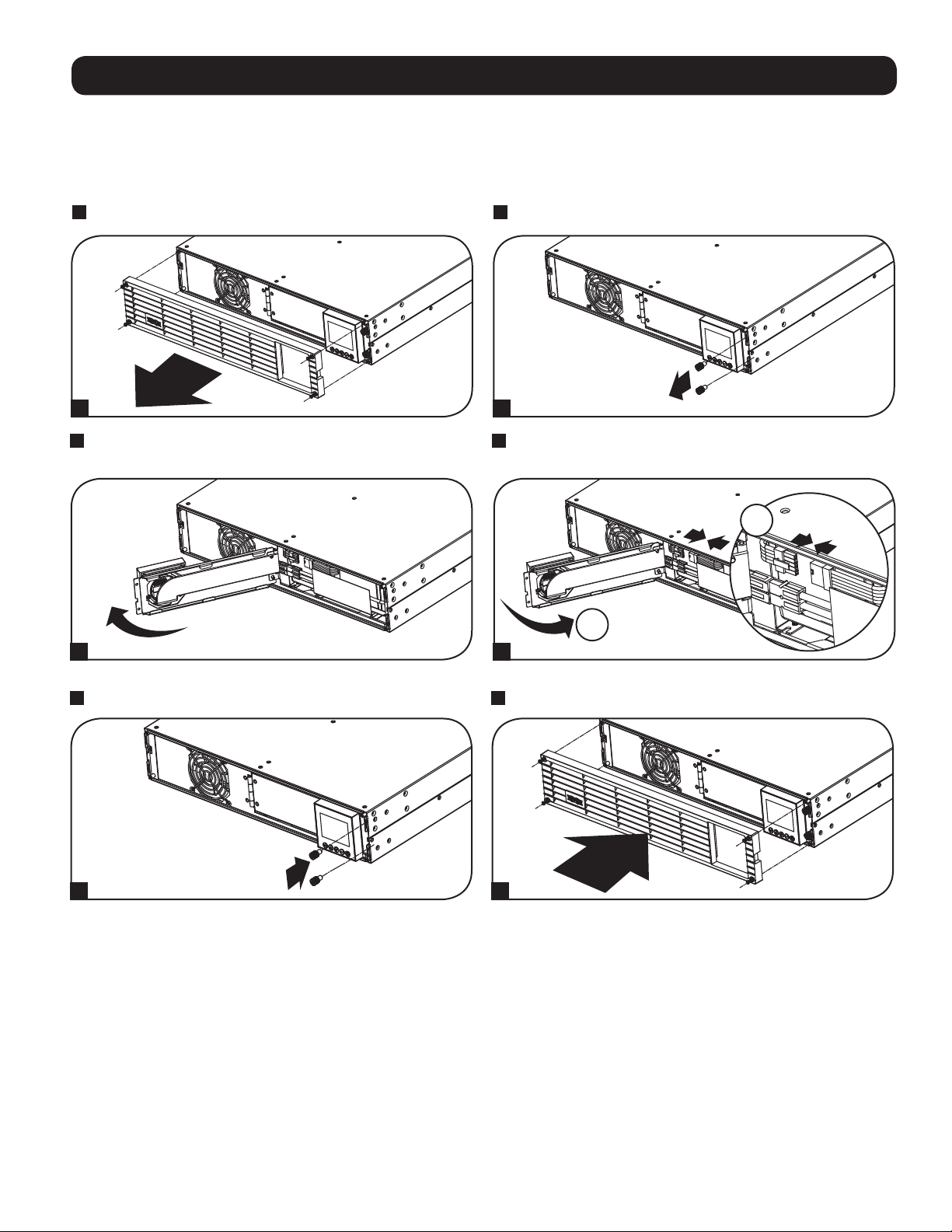

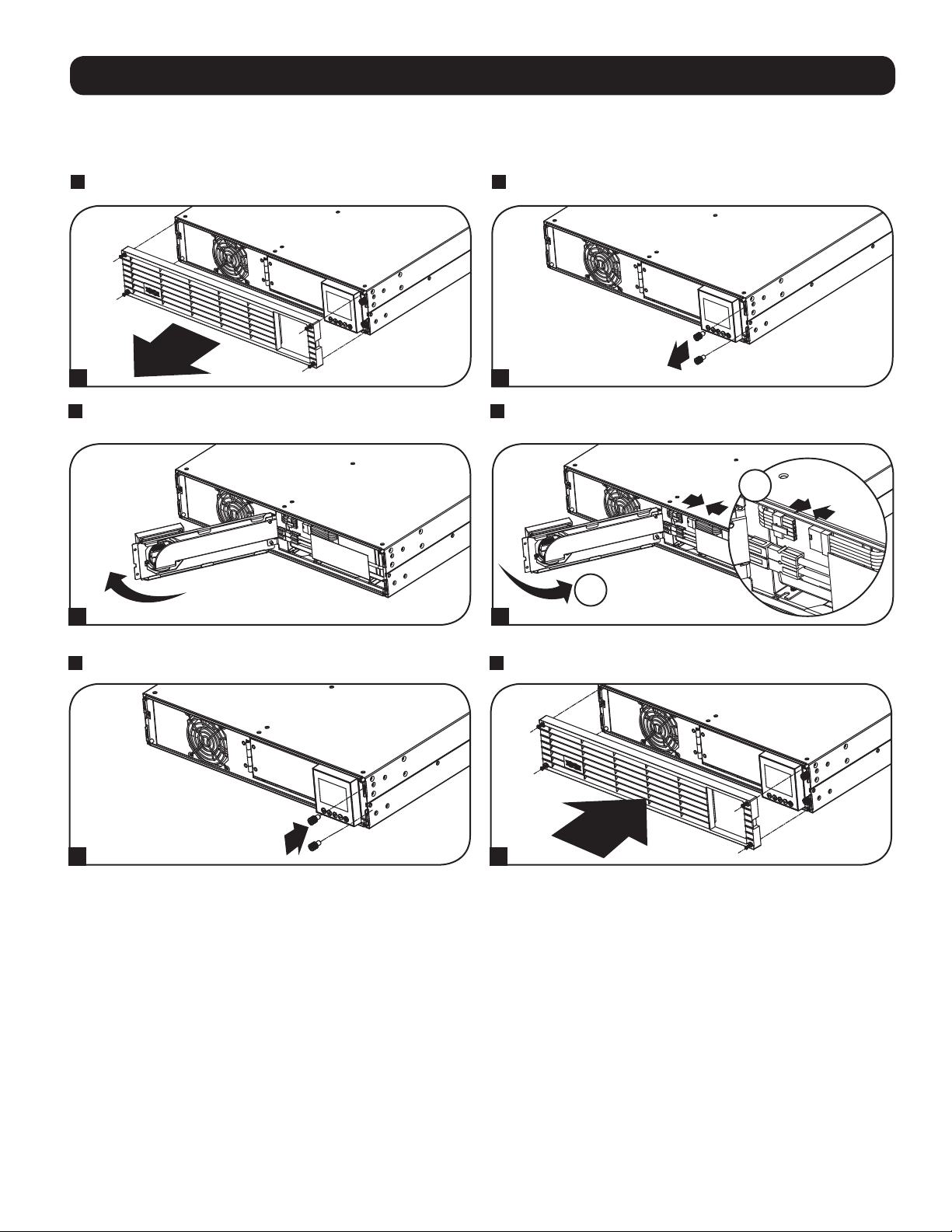

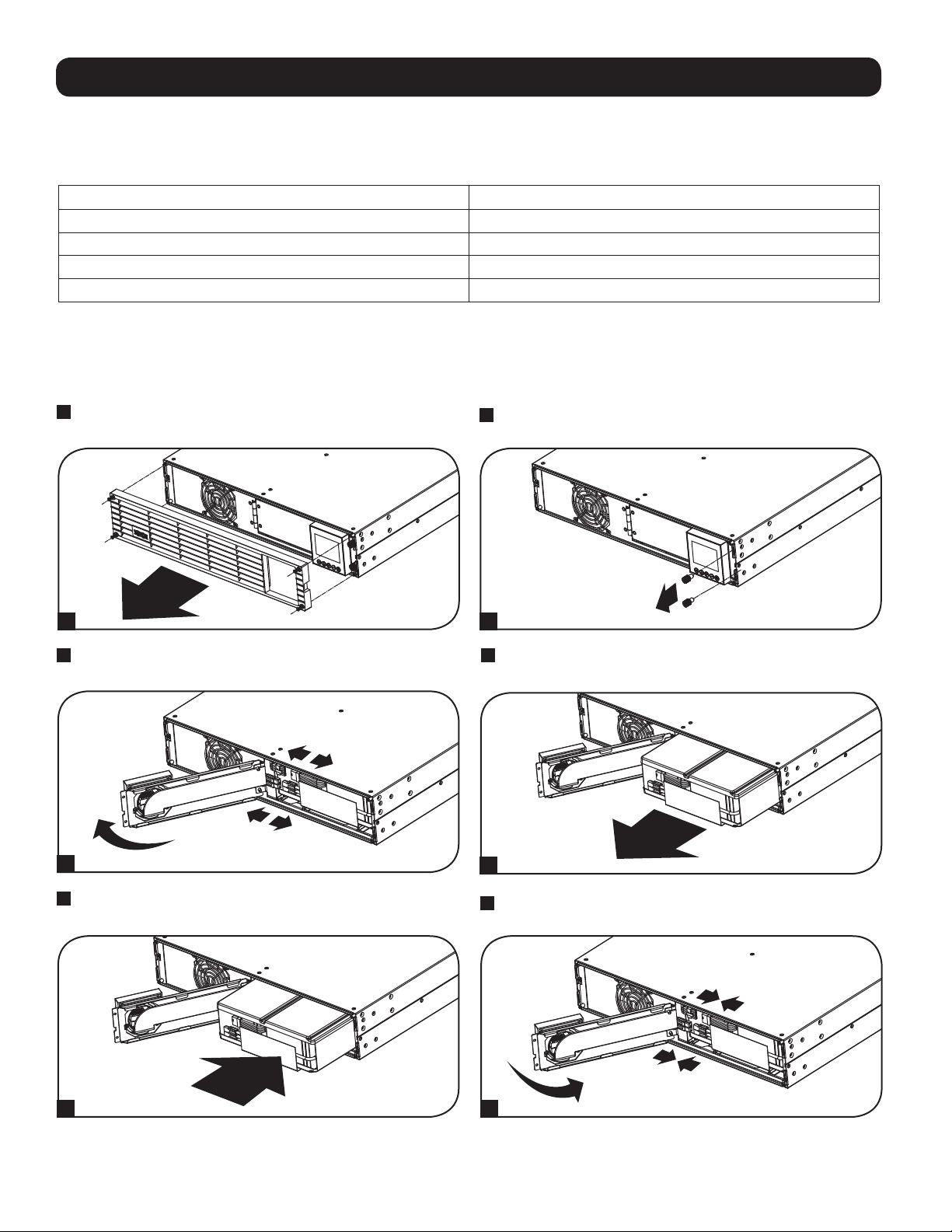

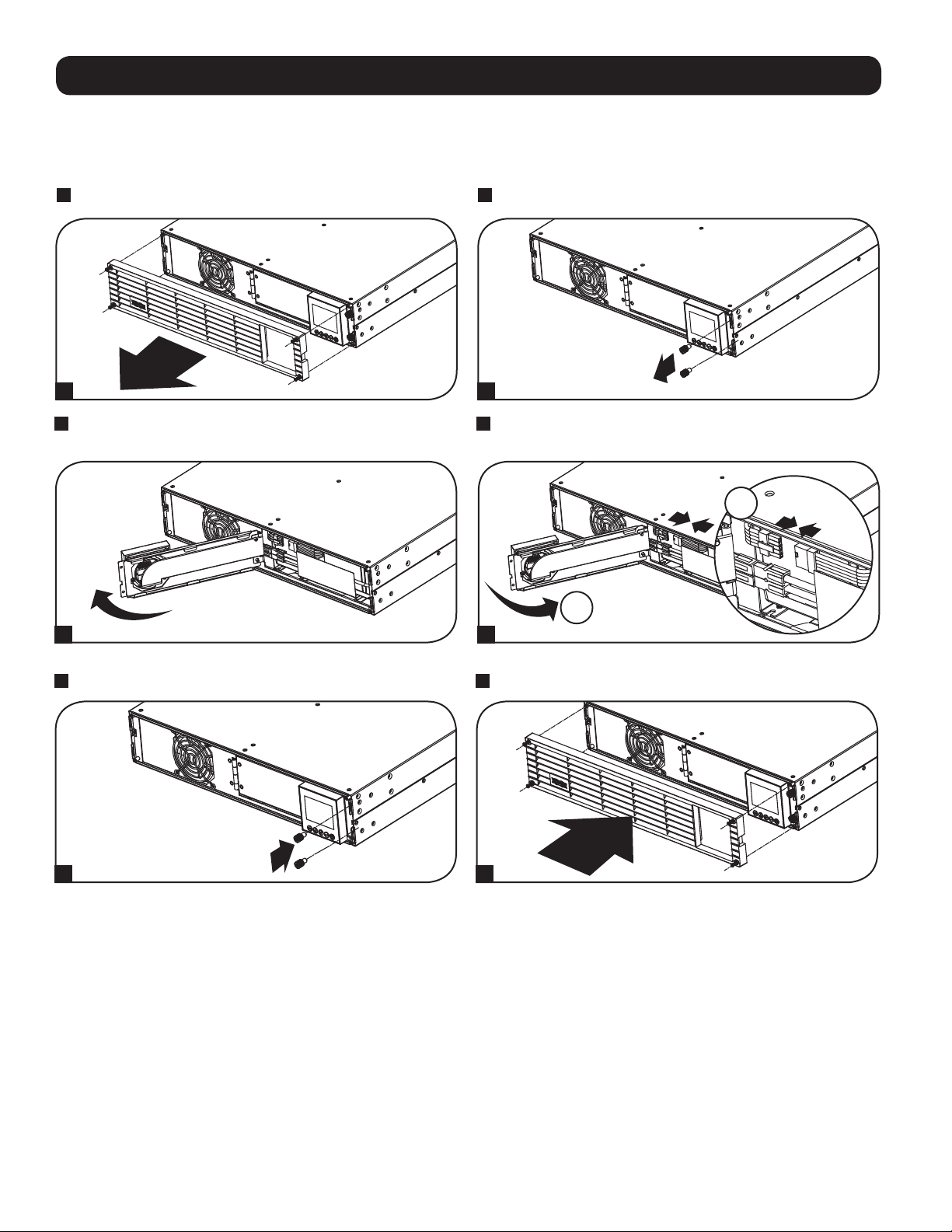

10. Internal Battery Replacement 25

11. Storage and Service 26

12. Product Registration and 27

Regulatory Compliance

Español 28

Français 55

Русский 82

Deutsch 109

NOTE: External battery pack options require conﬁguration using front panel LCD interface or via Tripp Lite’s EXTERNAL BATTERY CONFIGURATION software.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

is a trademark of Tripp Lite. For latest updates, please visit tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Loading ...

Specifications

Brand: Tripp Lite

Model: SUINT3000LCD2U

Category: Computing

Nominal Input Voltage(s) Supported: 200V AC; 208V AC; 220V AC; 230V AC; 240V AC

Power Factor: 0.9

Output Voltage Regulation (Line Mode): +/- 2%

Output Voltage Regulation (Economy Line Mode): +/- 10%

Output Voltage Regulation (Battery Mode): +/- 2%

Output AC Waveform (Battery Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 200V; 208V; 220V; 230V; 240V

Battery Type: Valve Regulated Lead Acid (VRLA)

DC System Voltage (VDC): 72

Battery Access: Front panel battery access door

Internal UPS Replacement Battery Cartridge: RBC72S

Battery Replacement Description: Hot-swappable, replaceable batteries

Voltage Regulation Description: Online, double-conversion power conditioning

UPS Power Module Dimensions (hwd, in.): 3.46 x 17.24 x 24.25

UPS Power Module Weight (kg): 31.17

UPS Power Module Weight (lbs.): 68.72

Battery Mode Heat Dissipation (BTU/Hr) @ Full Load: 1399

Low Voltage Transfer to Battery Power (Setpoint): 160V (100% load), 140V (66% load), 120V (33% load)

High Voltage Transfer to Battery Power (Setpoint): 288V

UPS Input Connection Type: C20 inlet

Output Capacity (VA): 3000

Output Capacity (kVA): 3

Output Capacity (Watts): 2700

Output Capacity (kW): 2.7

Rack Height: 2U

Minimum Required Rack Depth (inches): 28

Primary UPS Depth (mm): 616

Primary UPS Height (mm): 88

Primary UPS Width (mm): 438

Shipping Dimensions (hwd / in.): 9.45 x 23.62 x 29.92

Shipping Weight (lbs.): 86.00

Unit Weight (lbs.): 68.7200

Runtime Full Load (min.): 5 min. (2700W)

Runtime Half Load (min.): 13.5 min. (1350W)

Expandable Runtime: Yes

EMI / RFI AC Noise Suppression: Yes

AC Suppression Response Time: Instantaneous

Operating Temperature Range: 32° to 104°F (0° to 40°C)

Storage Temperature Range: 5° to 122°F (-15° to 50°C)

Relative Humidity: 5 to 95%, non-condensing

AC Mode Efficiency Rating (100% Load): >90%

AC Economy Mode Efficiency Rating (100% Load): >95%

Audible Noise: <50dB at front side 1M

Operating Elevation (m): Up to 3000m

UPS Housing Material: Metal

Tripp Lite SUINT3000LCD2U SmartOnline 208/230V 3000VA 2.7kW Double-Conversion UPS - 10 Outlets, Extended Run, Card Slot, LCD, USB, DB9, 2U
