Version 1.5 AUS
TUNGSTEN SMART-HEAT™
PORTABLE HEATER
BY BROMIC
INSTALLATION, INSTRUCTION AND
SERVICE MANUAL
SUITABLE FOR GAS RADIANT HEATER MODELS:
TUNGSTEN SMART-HEAT™ PORTABLE
!
!
DANGER
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odour continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
WARNING: For Outdoor Use Only.
This appliance shall not be installed or
used indoors.
!
Do not store or use petrol or other flamable vapor
and liquids in the vicinity of this or any other
appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
WARNING: Improper installation,
adjustment, alteration, service or maintenance
can cause property damage, injury or death.
Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
!
Aust Pat 2018201431
2
bromic.com/heating-au
Head Office:10 Phiney Place, Ingleburn NSW 2565 Australia
Telephone: 1300 276 642 (within Australia) or +61 2 9748 3900 (from overseas)
!
Note: Bromic Heating Pty Ltd reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This Installation, operation and service manual may not be reproduced in any form without prior written consent from Bromic Heating Pty Ltd.
This manual contains important information about the assembly, operation, and maintenance of
TUNGSTEN Smart-Heat™ Heaters. Please pay close attention to the important safety information
shown throughout this instruction manual. Any safety information will be accompanied by the
following safety alert symbols:
DANGER, WARNING, IMPORTANT
READ THIS MANUAL CAREFULLY before installing or servicing
this product
• Service and repair must only be done by a qualified service
person.
• The heater should be inspected before use and at least
annually by a qualified service person.
• Improper installation, operation, or maintenance can result
indeath, severe injury, or property damage.
• This manual must be kept following installation for future
reference.
!
!
!
3
bromic.com/heating-au
CONTENTS
IMPORTANT NOTES & WARNINGS 4
PRODUCT OVERVIEW 5
PRODUCT DESCRIPTION 5
SPECIFICATIONS 5
GENERAL INFORMATION 6
PRODUCT FEATURES 6
INSTALLATION REQUIREMENTS 7-8
GAS REQUIREMENTS 7
INSTALLATION CLEARANCES 8
INSTALLATION INSTRUCTIONS 9-20

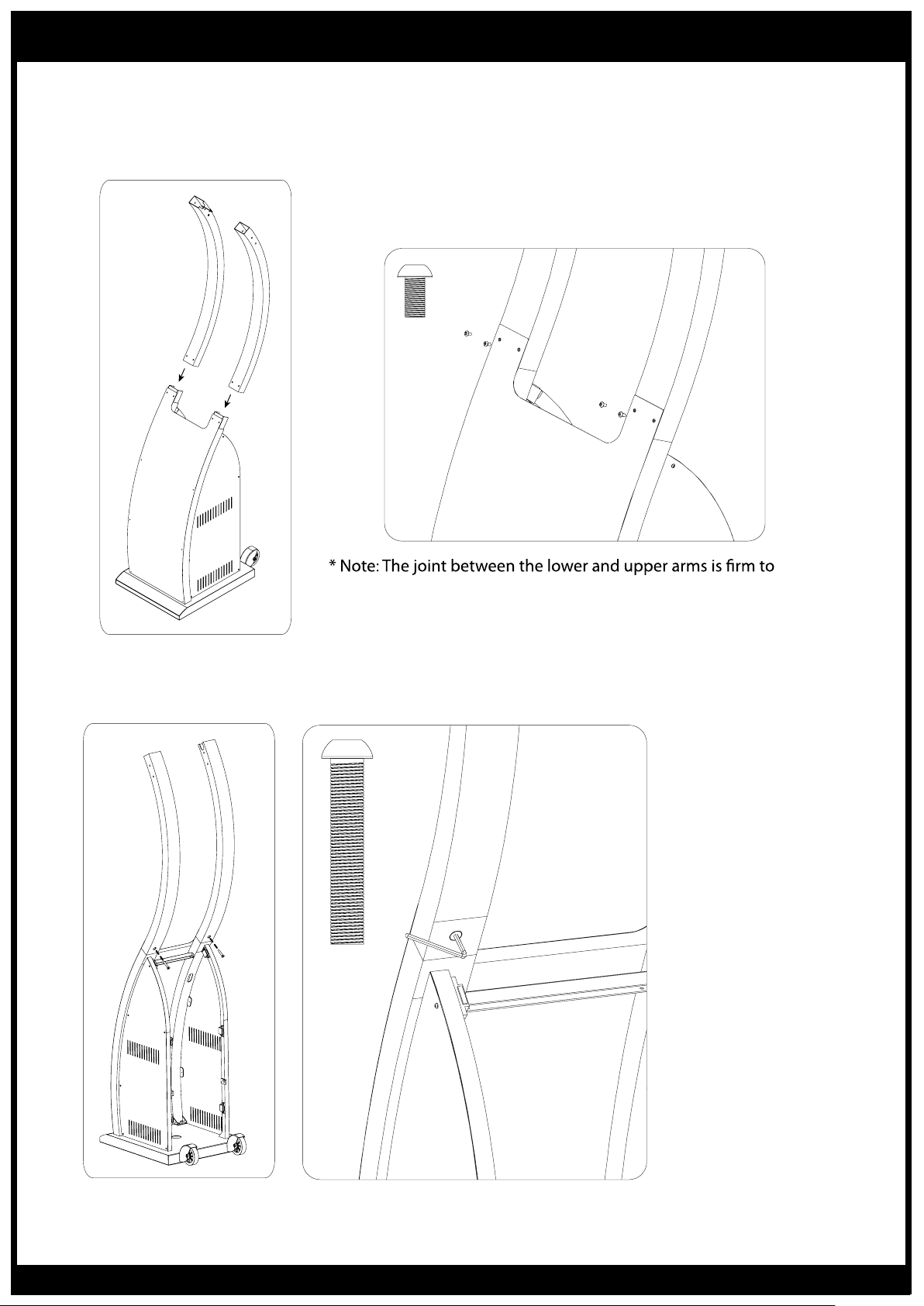

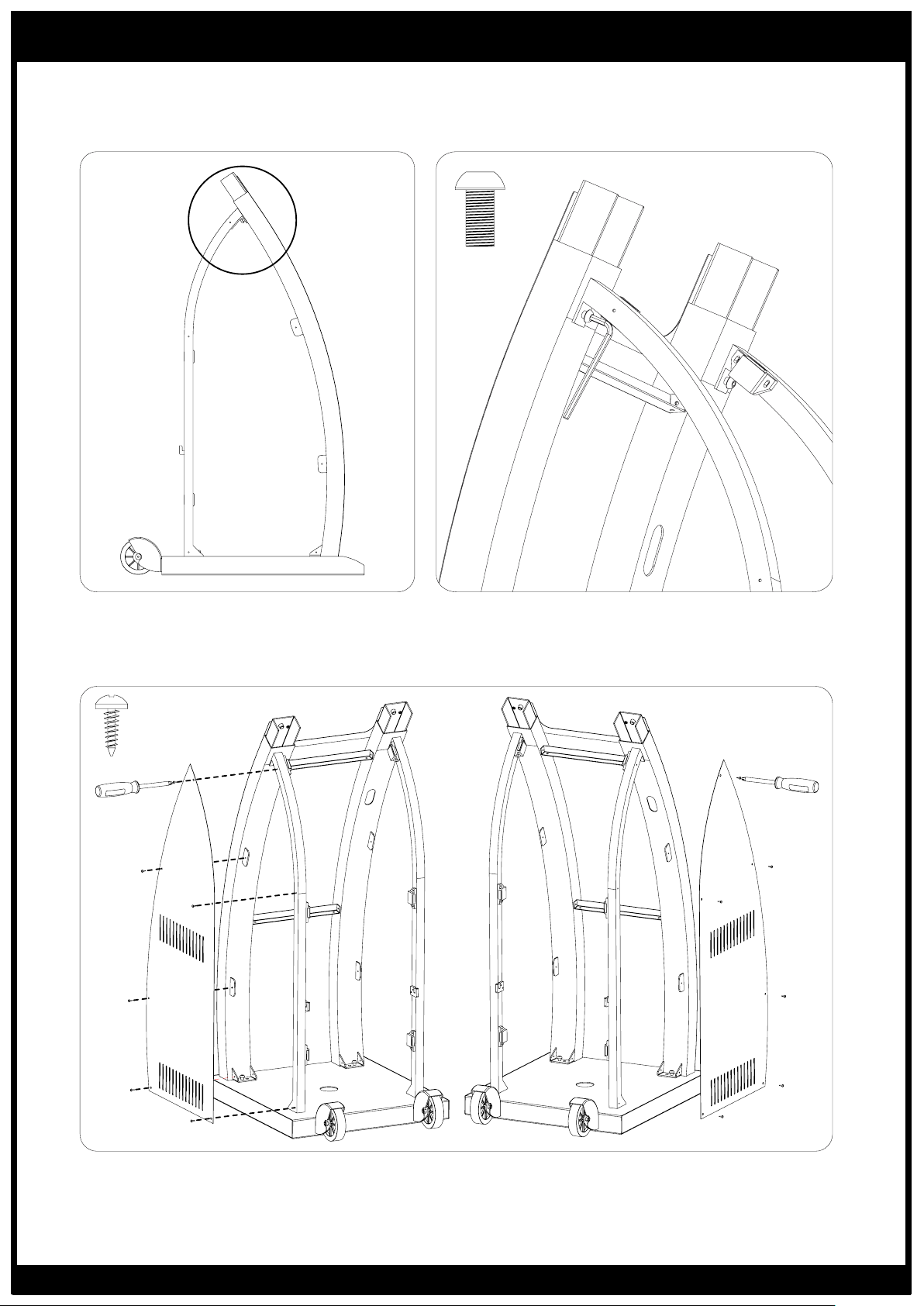

HEATER INSTALLATION INSTRUCTIONS 9-19
LEAKAGE TEST 20
OPERATING INSTRUCTIONS 21
TURNING THE APPLIANCE ON 21
TURNING THE APPLIANCE OFF 21
MAINTENANCE AND SERVICING 22
REPLACEMENT PARTS 23
TROUBLE SHOOTING 24
APPENDIX A 25 - 27
WARRANTY 28
4
bromic.com/heating-au
IMPORTANT NOTES AND WARNINGS
WARNING
Failure to follow the warnings and instructions in this manual
could result in severe personal injury, death or property damage.
• This appliance must be used only in an outdoor area and
shall not be used in a building, garage or any other enclosed
area. This appliance must not be installed or used indoors.
• Do not place articles on or against this appliance.
• Any guard or other protective device removed for servicing
(conducted by an authorised person) must be replaced
before operating the heater.
• The base of the appliance must be filled with sand as shown
later in these instructions. Do not operate this appliance
unless the base is filled with sand.
• The hose assembly is not to be located in areas where the
hose may be subject to accidental damage.
• Remove transit protection before use.
• Turn off the gas cylinder valve immediately if smell of gas is
detected.
• Do not transport or move the heater while it is operating.
• The heater should be inspected before use and at least
annually by a qualified service person.
• Do not use or store flammable materials near this appliance
• Do not spray aerosols or flammable materials in the vacinity
of this appliance while it is in operation
• Any guard or other protective device removed for
servicing (conducted by an authorised person) must be
replaced before operating the heater.
• Children and adults should be alerted to the hazards of
high surface temperatures and should stay away to avoid
burns or clothing ignition.
• Children should be carefully supervised when they are in
the area of the heater.
• Clothing or other flammable materials should not be
hung from the heater or placed on or near the heater.
• Do not perform maintenance until heater has been turned off,
and heater temperature has cooled to room temperature.
• Do not expose the burner to water or moisture. The appliance
must be protected from rain.
• Do not use the heater if any of these parts are exposed to
water until the appliance is inspected or repaired by an
authorised service person.
• The installer is to ensure that the requirements of the local
authority, local gas fitting regulations, municipal building
codes, and any other relevant statutory regulations are
carried out.
• Certain materials or items, when stored under or near the
appliance, will be subjected to radiant heat and could be
seriously damaged.
• The whole gas system, hose assembly, regulator, pipes,
and burner should be inspected for damage and leaks
before each use and at least annually by an authorized
person for the life of the heater.
• The hose assembly must be replaced prior to the appliance
being put into operation if there is evidence of excessive
abrasion or wear, or if the hose is damaged. The replacement
hose must be purchased from Bromic Heating Pty Ltd.
• All leak tests should be done with a soap solution. Never use
an open flame to check for leaks.
• Do not use the heater until all connections have been leak
tested.
• This radiant heater is NOT intended to be installed on
recreational vehicles and/or boats.
• Improper installation, adjustment, or alteration can cause
personal injury, property damage, or even death.
• Do not attempt to alter the unit in any manner.
• Do not paint any surface of the heater or top canopy reflector.
• Burner and circulation air passageways of the heater
must be kept clean. Frequent cleaning may be required as
necessary.
• Turn Gas Supply off when not in use.
• Check the heater immediately if any of the following occurs:
» The heater does not reach temperature.
» The burner makes popping noise during use (a
slight noise is normal when the burner is ignited or
extinguished).
• This appliance is not intended for use by young or infirm
persons unless they have been adequately supervised by a
responsible person to ensure that they can use the appliance
safely.
• Check for damage to the appliance regularly. If damage to
the appliance is suspected, discontinue use immediately and
contact the supplier or qualified person for repair.
• Avoid inhaling fumes emitted from the heater’s first
use. Smoke and odour from the burning of oils used in
manufacturing will appear. Both the smoke and odour will
dissipate after approximately 30 minutes.
• The pressure regulator and hose assembly supplied with the
appliance must be used. Replacement regulator and hose
assemblies must be purchased from Bromic Heating Pty Ltd.
• Storage of an appliance indoors is permissible only if the
cylinder is disconnected and removed from the appliance.
• A cylinder must be stored outdoors in a well-ventilated area
out of the reach of children. A disconnected cylinder must
have dust caps tightly installed and must not be stored in a
building, garage or any other enclosed area.
• Do not store a spare LP-gas cylinder under or near this
appliance;
• Never fill the cylinder beyond 80% full
• The heater head angle slip pin must be inserted if
transporting the heater to ensure no damage during transit.
!
5
bromic.com/heating-au
PRODUCT OVERVIEW
PRODUCT DESCRIPTION
The TUNGSTEN Gas Radiant Heater is designed to provide effective outdoor heating to both commercial and residential
premises whilst offering an appealing design.
The heater incorporates a pivoting head and adjustable heat output for precise heat control. The heater has been designed
to withstand the rigors of the outdoors.
SPECIFICATIONS
TUNGSTEN SMART-HEAT™ HEATER DIMENSIONAL DETAILS
IMPORTANT
This appliance is to be protected from rain. Install under a protective cover.
This appliance shall only be used in an above ground, open-air situation with sufficient natural ventilation. The
heater must not be operated in any stagnant areas and should be positioned where any potential gas leakage and
products of combustion are rapidly dispersed by wind and natural convection.
!
TUNGSTEN SMART-HEAT™ PORTABLE
Ignition 1.5V repetitive spark ignitor
Manufactured by BROMIC PTY. LTD
AGA approval number AGA 8064 G
Gas consumption 23.5 Mj/h - 40 Mj/h
Gas Type Universal LP Gas / Propane Only
Gas Supply Universal LP Gas Cylinder / Propane Cylinder (9kg or 13.5kg
Injector size 0.80mm
Weight 56Kg
Safety features Flame failure device, anti-tilt switch
Gas supply pressure 2.75kPa
2160mm
700mm
700mm
6
bromic.com/heating-au
PRODUCT OVERVIEW CONTINUED...
PRODUCT FEATURES
TUNGSTEN Gas Patio Heaters are revolutionizing the outdoor heating industry by introducing ground breaking benefits
never seen before in traditional gas or electric heaters. TUNGSTEN heaters have set the industry benchmark with stylish
good looks and world-first innovation.
TUNGSTEN heaters excel in the areas of:
• Aesthetic appeal
• Innovation
• Performance
• Flexibility
• Cost effectiveness
For more detailed product information, visit www.bromicheating.com
GENERAL INFORMATION
The TUNGSTEN Gas Patio Heaters are suitable for outdoor spaces. In addition to the installation Instructions provided, the
installer is to ensure that the requirements of the local authority, local gas fitting regulations, municipal building codes, and
any other relevant statutory regulations are carried out.
7
bromic.com/heating-au
INSTALLATION REQUIREMENTS
IMPORTANT
This appliance is for outdoor use only.
The appliance must be placed on level firm ground.
This appliance shall only be used in above ground open-air
situations with:
• natural ventilation
• without stagnant areas
• where gas leakage and products of combustion are
rapidly dispersed by wind and natural convection
Any enclosure in which the appliance is used shall comply
with one of the following:
1. An enclosure with walls on all sides, but at least one
permanent opening at ground level (ref. Appendix A,
Example 1)
2. Within a partial enclosure that includes an overhead
cover and no more than two walls (ref. Appendix A,
Example 2)
3. Within a partial enclosure that includes an overhead
cover and more than two walls, the following shall apply:
• At least 25% of the total wall area is completely
open (ref. Appendix A, Example 4), and
• At least 30% of the remaining wall area is open and
unrestricted (ref. Appendix A, Example 4)
• In the case of balconies, at least 20% of the total wall
area shall be and remain open and unrestricted.
Note: The definition of outdoors is an above ground open-
air situation with natural ventilation, without stagnant areas,
where gas leakage and products of combustion are rapidly
dispersed by wind and natural convection.
!
GAS REQUIREMENTS
• This appliance is for use with a Universal LP Gas cylinder
/ Propane cylinder (9kg or 13.5kg) and MUST NOT be
connected to a fixed gas supply.
• Regulator outlet pressure to be 2.75kPa.
• The pressure regulator and hose assembly supplied with
the appliance must be used. Replacement regulator
and hose assemblies must be purchased from Bromic
Heating Pty Ltd.
• A dented, rusted or damaged cylinder may be
hazardous and should be checked by your gas supplier.
Never use an LPG cylinder with a damaged valve
connection.
• The LPG cylinder must be arranged to provide for
vapour withdrawal from the operating cylinder.
• Never connect an unregulated cylinder to the heater.
• Disconnect the LPG cylinder when the heater is not in
use.
8
bromic.com/heating-au
LOCATION CLEARANCES
When selecting the location for the TUNGSTEN Gas Patio Heater, the following clearances should be followed.
Care should be taken to ensure that the heater is not installed:
• Where heat/ignition can cause damage to gas cylinders/lines
• Near other combustible materials
• In open locations subject to rain
Note: Heater should be installed in such a way so as to allow adequate;
• Clearance around air openings to combustion chamber
• Clearance from combustible material
• Provisions for accessibility and clearance for combustion and ventilating air supply.
INSTALLATION REQUIREMENTS CONTINUED...
!
IMPORTANT
This appliance must only be used in a well ventilated area.
When selecting the installation location for the Tungsten
Smart-Heat Portable, the following clearances should be
followed.
300mm
1000mm
1000mm
1000mm
9
bromic.com/heating-au

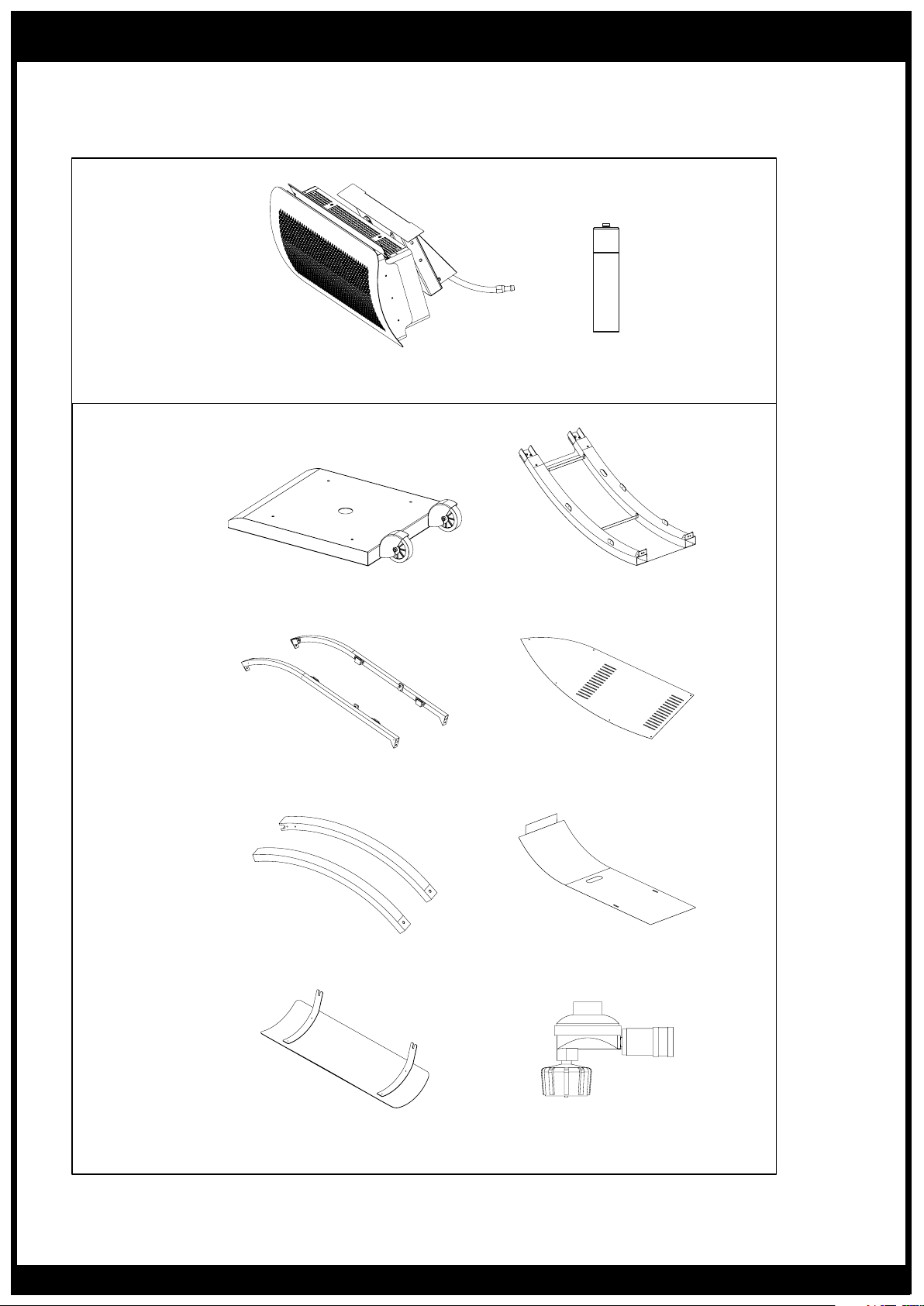

INSTALLATION INSTRUCTIONS
CONTENTS PACKED IN (2) BOXES
Box 1 Contents
Box 2 Contents
Base Assembly
Rear Arm Assembly x 2
Top Arms x 2
Top Flame Deflector
Regulator
Front Assembly
Head Assembly
AAA Battery
Side Panels x 2
Rear Cover
AAA
10
bromic.com/heating-au
INSTALLATION INSTRUCTIONS CONTINUED...
10
M8 x 40mm M8 x 16mm
QTY: 2 QTY: 2
M5 x 8mm G8 x 8mm
QTY: 4 QTY: 16
Supplied Fasteners
Supplied Tools
Tools Not Included
M8 Hex Key
Phillips head screw driver and Spray Bottle
M8 x 95mm
QTY: 4
M8 x 20mm
QTY: 4
11
bromic.com/heating-au
INSTALLATION INSTRUCTIONS CONTINUED...
10
STEP 1:
Unpack boxes and place all items on a non abrasive surface.
STEP 2:
Fasten rear arms to base using 2 x M8 20mm screws and the supplied M8 Hex Key.
STEP 3:
Position front assembly and fasten using 2 x M8 20mm screws using supplied M8 Hex Key.
12
bromic.com/heating-au
INSTALLATION INSTRUCTIONS CONTINUED...
STEP 4:
Secure the rear arms to front assembly using 2 x M8 x 16mm screws and supplied M8 Hex Key.
STEP 5:
Secure the side panels to frame using 12 x G8 screws - A Phillips screw driver is required for this step.
Repeat for opposite side.
13
bromic.com/heating-au
INSTALLATION INSTRUCTIONS CONTINUED...
STEP 6:
Slide top arms over front assembly slip joints - Ensure top screw holes are faced inwards.
Secure the front panel to top arms using 4 x M5 screws.
STEP 7:
Secure the top arms to lower arm slip joint using 2 x M8 x40 screws and supplied M8 Hex Key.
ensure` rigidily and stability of the product. To engage slowly lever
the two sections together using some force and push down fully
14
bromic.com/heating-au
STEP 8:
Lay both heater head and stand on a non abrasive surface as shown. Two people are required for this
step.
NON ABRASIVE SURFACE
STEP 9:
Feed gas hose through arm slot and push through until it reaches slot in bottom arm. Keep feeding hose
until all slack is taken up.
INSTALLATION INSTRUCTIONS CONTINUED...
15
bromic.com/heating-au
CONTINUED...
STEP 10:
Secure the heater head to arms using
4 x M8 screws and supplied washers
CONTINUED...
STEP 11:
Return heater to upright position.
Two people are required for this step.
STEP 12:
Fill base with fine grain sand (this sand
can be purchased from most hardware
stores). Entry point for the sand is the hole
at the centre of the base.
NON ABRASIVE SURFACE
INSTALLATION INSTRUCTIONS CONTINUED...
16
bromic.com/heating-au
STEP 14:
Screw regulator assembly
to gas bottle.
STEP 15:
Place gas bottle into lower enclosure and fasten
strap tightly.
STEP 17:
Lower gas bottle bracket into position.
STEP 16:
Pull sleeve back on regulator
connector, insert hose fitting &
release sleeve on regulator
connector.
INSTALLATION INSTRUCTIONS CONTINUED...
17
bromic.com/heating-au
10
INSTALLATION INSTRUCTIONS CONTINUED...
STEP 19:
Unscrew igniter cap. Insert supplied AAA battery into cap and re-scew to original position
STEP 20:
Perform Gas leakage test as shown on page 20
STEP 18:
Secure deflector to heater by loosening the two screws and secure brackets underneath washers.
Re-tighten screws to original position using screw driver.
INSTALLATION INSTRUCTIONS CONTINUED...
18
bromic.com/heating-au
CONTINUED...
STEP 21:
Secure the top piece of rear cover to frame using
4 x G8 screws - A Phillips screw driver is required for this
step.
The bottom piece of rear cover is secured by magnets.
Firstly position slots in back cover over the two hooks
then lower cover to allow magnets to catch
INSTALLATION INSTRUCTIONS CONTINUED...
19
bromic.com/heating-au
CONTINUED...
To set heater head angle at high position,
manually push heater head up to align hole then
insert slip pin.
To set heater head angle at low position, remove
slip pin & allow heater head to rest in low posi-
tion. Slip pin does not need to be inserted.
CAUTION: ONLY ADJUST THE HEATER HEAD ANGLE PRIOR TO OPERATION. ADJUSTING WHILST UNIT IS IN
OPERATION OR POST OPERATION CAN CAUSE SERIOUS BURNS
Adjusting the heater head angle
High Head Tilt Position
INSTALLATION INSTRUCTIONS CONTINUED...
Note:
The slip pin must be inserted if transporting
the heater to enure no damage during transit.
20
bromic.com/heating-au
LEAK TEST
Gas connections on heater are leak tested at the factory
prior to shipment. A complete gas leak test must also be
performed after assembly before operating the heater due
to possible damage occurring during transportation.
• Never leak test while smoking.
• The heater must be checked with a full gas cylinder.
• Ensure connection all 3 connections illustrated below are
connected correctly & tight.
• Make sure the control knob is in the OFF position.
• Make a mild soapy water solution. The soapy solution can be
applied with a spray bottle, or soft cloth.
• Turn on the gas supply at the gas cylinder.
• Apply the soapy water solution to the 3 connections illustrated
below.
• To check connection #3 the gas control knob must be pressed
in to open the gas valve.
• If bubbles appear at any of the connections, there is a gas leak.
• If a gas leak is detected, turn off the gas supply. Tighten any
leaking fittings, and repeat process described above.
• If soap bubbles still appear (gas is still leaking), turn
off the gas supply at the cylinder, disconnect the regulator
from the gas cylinder, and contact the store of purchase for
assistance and advice.
• If gas connections are gas tight, the heater is ready to
be used.
INSTALLATION INSTRUCTIONS CONTINUED...
3
1
2
21
bromic.com/heating-au
OPERATING INSTRUCTIONS
MAX
OFF
TURNING THE APPLIANCE ON
1. Ensure that installation has been carried out in accordance
with the manufacturers instructions outlined in this document.
2. Test the spark ignite button is working correctly by pressing the
button and observing sparks at the ignition rods at the front of the
heater. If sparks are not observed do not proceed with turning appli-
ance on. Contact the store of purchase for assistance and advice.
TURNING THE APPLIANCE OFF
1. Press and turn the control knob to “OFF” position to stop the supply
of gas to the burner. The tiles should change colour from red to black.
2. Turn OFF the gas supply at the LPG storage bottle.
3. WARNING - After turning heater off, you must wait a minimum 5 minutes
to let excess gas dissipate before lighting again.
3. Turn ON the gas supply at the LPG storage bottle.
4. Turn on gas control knob to maximum setting
6. When appliance is correctly turned on the tiles
will start to glow red.
5. Push in and hold control knob whilst simultaneously press-
ing the spark ignite button. Continue to hold in the controls for
10 seconds for ignition to complete.
Release the controls. If the heater has not ignited wait
5 minutes and then repeat Step 5.
WARNING
Do not turn the heater on with people standing in front of heater.
Heater must be turned on while standing behind the heater.
WARNING
Improper lighting procedures can cause personal injury, property
damage, or even death.
MAX
OFF
!
!
22
bromic.com/heating-au
9. Over the life of the heater internal non-painted
parts may slightly discolour from high temperatures
emitted by the heater. This is a normal occurrence and
does not affect the operation of the appliance.
10. Replacement parts can be purchased to restore the
heater to its original appearance from Bromic Heating
Pty Ltd.
IMPORTANT
Service and repair should be done by a qualified service
person.
The heater should be inspected before use and at least
annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that control compartment, burners and
circulating air passageways of the heater be kept clean.
!
MAINTENANCE AND SERVICING
It is important that regular maintenance is carried out on
the heater to maintain efficient operation. All maintenance
should be carried out ONLY by authorized service
personnel. Inspect and clean at least every six months or
more frequently in adverse conditions.
Never obstruct the flow of combustion and ventilation
air. Always keep the appliance area clear and free from
combustible materials, gasoline and other flammable
vapors and liquids. Do not clean heater with cleaners that
are combustible or corrosive.
REGULAR SERVICE REQUIREMENTS
1. The whole gas system, hose assembly, regulator, pipes,
and burner should be inspected for damage and leaks
before each use and at least annually by an authorized
person for the life of the heater. To check the gas
hose within the mounting arm, disassemble heater by
reversing the installation instructions as outlined in
installation section of this manual. The hose assembly
must be replaced prior to the appliance being put into
operation if there is evidence of excessive abrasion or
wear, or if the hose is damaged.The replacement hose
must be purchased from Bromic Heating Pty Ltd.

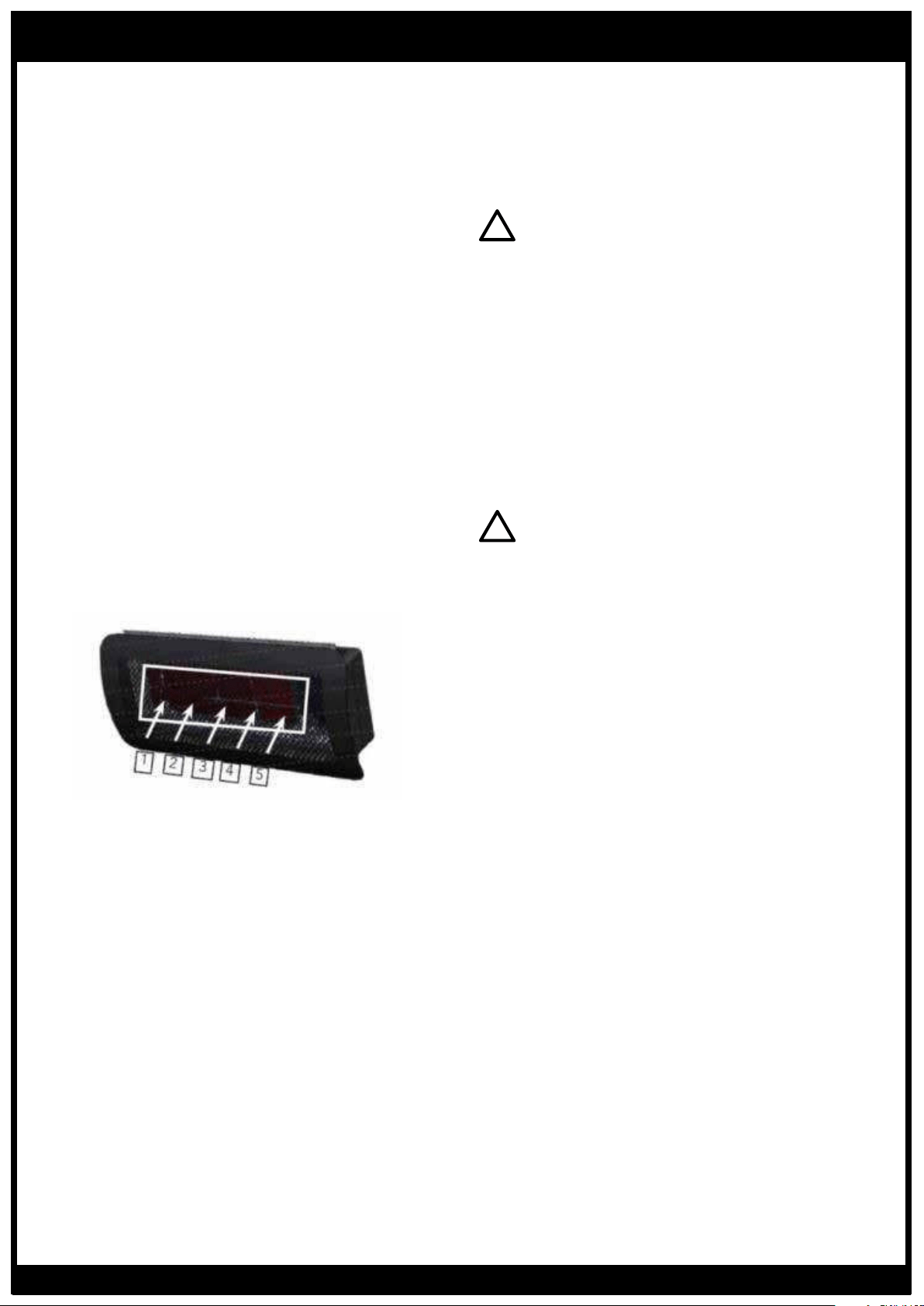

2. VISUALLY CHECK BURNER FLAMES.
During heaters function visually check that all burners
are alight and glowing hot. This can be done by
observing the red glow through the translucent face, or
by peering down the product combustion passageway.
Note: A slight variation in colour is to be expected.
3. Clean burners: Burners can be cleaned by directing
compressed air (max20PSI) at outlet ports. Avoid
directing air at gasket material between ceramic tile
and burner cup.
4. Clean manifold and injectors: Undo gas hose from gas
valve outlet (heater should be switched off) and inject
compressed air (max20PSI) down the inlet fittings.
5. Clean dust and foreign matter from inside of heater
housing: Open up rear housing and clear dust using
compressed air (max20PSI) and a damp cloth.
6. Remove debris, spider and insect nests from, control
compartment, burner and circulation air passageways
of the heater with heavy-duty pipe cleaner or
compressed air to keep appliance clean and safe
for use. Never clear ports or other openings with
toothpicks or other articles that will break and block the
ports.
7. In a salt-air environment, such as near an ocean,
corrosion occurs more quickly than normal. Remove
salt spray from the heater immediately to prolong
heater life. Check frequently for corroded areas and
repair them promptly.
8. The exterior components of the heater are constructed
from stainless steel, and high temperature black paint.
IMPORTANT
Do not apply any additional surface coating to the heater
under any circumstances. Use of additional coating other
than those applied during manufacture could result in
hazardous reactions such as toxic fumes or fires. Additional
coatings will void the warranty.
STORAGE
• There is no limitation on the storage of appliances indoors
provided that the cylinder is removed from the appliance.
• Storage of an appliance indoors with the cylinder attached
is only permitted if the size of the cylinder complies with AS/
NZS 1596; otherwise cylinders must be stored outdoors in a
well-ventilated area.
• Always close the gas valve on the gas cylinder after use.
• Remove the pressure regulator and hose assembly.
• Cylinder must be stored outdoors in a well-ventilated area
out of the reach of children.
• Disconnected cylinders must have threaded valve plugs
tightly installed and must not be stored in a garage or any
other enclosed area.
• Check the tightness of the gas valve and for damage. If
you suspect you have a damaged gas cylinder valve, contact
your place of purchase.
• Only store gas cylinders in places with adequate air
ventilation.
!
23
bromic.com/heating-au
An authorised service technician MUST replace any faulty items with the
correct approved component from the list below. Contact your place of
purchase to organise any of the replacements parts below.
No: Description Part No:
1 Control Knob 2620352
2 Gas Valve 2620353
3 Ignition Pack 2620354
4 Cylinder Housing - Rear Cover 2620355
5 Cylinder Housing - Side Panel 2620356
6 Inner Mesh 2620357
7 Cylinder Housing - Front Panel Assembly 2620358
8 Burner Box 2620359
9 Thermocouple Assembly 2620360
10 Front Cover 2620361
11 Ignition & Earth Rod Assembly (Inc. Wir-
ing Harness)
2620362
12 Heat Deector Assembly 2620363
13 Wheel Kit (Left & Right Set) 2620364
14 Screw Set 2620365
15 Cylinder Housing – Rear Arms With Mag-
nets
2620366
16 Rubber Ring (From Rear Cylinder Cover) 2620367
REPLACEMENT PARTS
24
bromic.com/heating-au
TROUBLESHOOTING
Problem Possible cause
What you can do
(if these do not work, contact an
authorised technician)
What ONLY an
authorised service
technician can do
Burner will not
light
• Gas valve may be OFF
• Tank fuel empty
• Opening blocked
• Loose connections
• Low gas pressure
• Thermocouple bad
• Not in correct location
• Turn the gas valve ON
• Check all fittings
• Replace cylinder with a new
cylinder
• Refill LPG tank
• Remove and clean
• Replace thermocouple
Burner will not
stay on
• Loose connections
• Thermocouple bad
• Gas leak in line
• Lack of fuel pressure
• Tank near empty
• Tighten connections
• Check connections
• Clean dirty area
• Replace thermocouple
• Refill LPG tank.
Burner flame is
low
• Supply hose is bent or
twisted
• Straighten hose and perform
leak test on hose
Emitter glows
uneven
• Low gas pressure
• Base is not on a level
surface
• Replace cylinder with a new
cylinder
• Place heater on a level
surface
Thick black smoke • Blockage in burner • Turn off the heater and let it
cool.
• Remove blockage and
clear burner inside and
outside
Carbon build-up • Dirt or film on reflector
and flame screen
• Clean reflector and flame
screen
25
bromic.com/heating-au
APPENDIX A
26
bromic.com/heating-au
APPENDIX A CONTINUED...
27
bromic.com/heating-au
APPENDIX A CONTINUED...
