VERSION 1.3 AU
ECLIPSE SMART-HEAT™
ELECTRIC PORTABLE
BY BROMIC
INSTRUCTION MANUAL
WARNING
PLEASE READ AND SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE
!
2
bromic.com/heat
!
IMPORTANT INSTRUCTIONS
This manual contains important information about the installation, operation, and maintenance of Eclipse
Smart-Heat
TM
Electric Heaters. Please pay close attention to the important safety information shown throughout
this instruction manual. Any safety information will be accompanied by the following safety alert symbols
DANGER, WARNING, IMPORTANT
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire,
electrical shock, and injury to persons, including the following:
!
!
Head Oce: 10 Phiney Place, Ingleburn, NSW 2565 Australia
Telephone: 1300 276 642 (within Australia) or +61 2 9748 3900 (from overseas) Fax: +61 2 9748 4289
Email: enquiries@bromic.com Web: www.bromic.com/heat
Note: Bromic Pty Ltd reserves the right to make changes to specifications, parts, components and equipment without prior notification.
This installation, operation and service manual may not be reproduced in any form without prior written consent from Bromic Pty Ltd.
Correct disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return
and collection systems or contact the retailer from whom
the product was purchased so that they may organise
environmentally safe recycling.
• READ THIS MANUAL CAREFULLY - Read all instructions before installing, servicing
or using this heater.
• Installation must comply with local building code.
• This heater is hot when in use. To avoid burns, do not let bare skin touch the hot
surfaces.
• Keep combustible materials such as furniture, pillows, bedding, papers, clothes and
curtains at least 1 metre from the heater head in all directions.
• Improper installation, operation, or maintenance can result in death, severe injury, or
property damage.
• Extreme caution is necessary when any heater is used by or near children or people
who are infirmed and whenever the heater is left operating and unattended.
• Do not operate any heater after it malfunctions. Disconnect power at service panel
and have heater inspected by a licensed electrical contractor before reusing.
• To disconnect heater, turn controls to o, and turn o power to heater circuit at main
disconnection panel.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner.
• A heater has hot parts inside. Do not use it in the areas where gasoline, paint or
flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by
the manufacturer may cause fire, electric shock or injury to persons.
• This appliance is intended for installation with 220-240 Volt Power supply
• Installation MUST be carried out by a licensed and authorised technician in
accordance with local electrical codes.
• This product is intended for domestic and commercial use.
• International
Registered Designs pending
• SAVE THESE INSTRUCTIONS
3
bromic.com/heat
CONTENT
IMPORTANT NOTES & WARNINGS 4-5
PRODUCT OVERVIEW 6
PRODUCT DESCRIPTION 6
PRODUCT SPECIFICATIONS 6
PRODUCT FEATURES 6
HEATER INSTALLATION INSTRUCTIONS 7-20
KEY DIMENSIONS & CLEARANCES 7
BOX CONTENTS 8-9
WARNING 9
INSTRUCTIONS 10-20
ELECTRICAL INSTALLATION 21
PORTABLE HEATER CONTROL WIRING DIAGRAM 22
OPERATION INSTRUCTIONS 23-26
REMOTE CONTROL FUNCTIONS 23
TURNING THE APPLIANCE ON 23
TURNING THE APPLIANCE OFF 23
PREPARING TO MOVE THE APPLIANCE 24
MOVING THE APPLIANCE 24
REMOTE CONTROL BATTERY 24
OPENING CONTROL BOX TO PAIR A NEW REMOTE 25
PAIRING REMOTE CONTROL TO HEATER PCB 25
PAIRING REMOTE CONTROL TO LED PCB 26
MAINTENANCE & SERVICING 27
TROUBLESHOOTING 28
REPLACEMENT PARTS 28
4
bromic.com/heat
IMPORTANT NOTES & WARNINGS
WARNING
• IMPORTANT - Installation MUST be carried out by a licensed
electrical contractor.
•
Heater must be installed on level ground & by 2 persons
• Improper installation, adjustment, or alteration and failure
to follow the warnings and instructions in this manual could
result in severe personal injury, death or property damage.
• The manufacturer is not responsible for any damage
resulting from improper use. The manufacturer emphasises
that this appliance should be used in a responsible manner
and that all procedures, warnings, and safety instructions
contained in this booklet should be followed strictly.
• The installer is to ensure that the requirements of the local
authority, local electrical installation code, municipal building
codes, and any other relevant statutory regulations are
carried out.
• Do not use or store flammable materials near this appliance.
• This installation, operation and service manual should not be
removed from the site of installation. Installer should leave
manual with the customer for future reference.
• A minimum safety distance of 1 metre should always be left
in front of the Heater Head.
• The Heater head must be installed at least 1.8 metres above
the floor.
• The Heater must not be located immediately below or
in front of an electrical socket outlet. Heat radiated from
the appliance may damage the electricity outlet or plug if
placed incorrectly.
• Any guard or other protective device removed for servicing
(conducted by a licensed electrical contractor) must be
fitted in place before operating the heater.
• This appliance can be used by children aged from 12 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are supervised.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
• Children of less than 12 years should be kept away unless
continuously supervised.
• Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people are present.
• Keep packaging materials out of reach of children.
• Do not spray aerosols or flammable materials in the
vicinity of this appliance while it is in operation or whilst
heater surface is hot.
• Installation and
repair
must be carried out by a qualified
and
licensed electrical contractor
only. The heater should
be inspected before use and at least annually serviced
and inspected by a qualified and licenced service
technician
.
• The Heater Head has no serviceable parts. For the Base
and Arm, please refer to the Maintenance and Servicing
section for more details regarding troubleshooting and
replacement parts.
• The LED contained in this luminaire is non-replaceable
and must not be removed.
• Do not perform maintenance until heater has been
turned o, power disconnected, and heater temperature
has cooled to room temperature.
• Certain materials or items, when stored under or near the
appliance, will be subjected to radiant heat and could be
discoloured or
seriously damaged. Combustible materials
e.g. floors, furniture, fixtures and plants must be kept a
minimum of 1 meter from the front of the heater head.
• Be sure the heater is not facing the ceiling or flammable
or combustible substances/ materials.
• This radiant heater is NOT intended to be installed on or
in vehicles and/or boats.
• Do not attempt to alter the unit in any manner.
• Remove all transit protection & packaging before use.
• Do not paint any surface of the heater.
• Care must be taken during installation. After removing
packaging, glass must be inspected for damage before
use. If damage to the appliance is suspected, discontinue
use immediately and contact the supplier.
• Check for damage to the appliance before each use. The
heater must not be used if the glass panel or any other
part of the heater is damaged. If damage to the appliance
is suspected, discontinue use immediately and contact
the supplier.
• Care must be taken around the appliance to ensure it is
not damaged. Ball games that could accidentally hit the
heater must not be played around the appliance.
• After unpacking, make sure the appliance shows no signs
of visible damage or tampering. If the appliance appears
damaged, contact the place of purchase for assistance.
• This appliance must only be used on a 220-240V AC
single-phase power supply.
• Do not touch the heating surface at any time, even when
the heater is turned o and has cooled down.
• Do not touch the heater with wet hands at any time.
• If the appliance has not been used, or will not be used,
for an extended period of time, disconnect power supply.
• At the end of this product’s useful life, it must not be
disposed of as domestic waste, but must be taken to
a collection centre for waste electrical and electronic
equipment. It is the user’s responsibility to dispose of this
appliance through the appropriate channels at the end
of its useful life. Failure to do so may incur the penalties
established by local laws governing waste disposal.
Proper dierential collection, and the subsequent
recycling, processing and environmentally compatible
disposal of waste equipment avoids unnecessary damage
to the environment and possible related health risks,
and also promotes recycling of the materials used in the
appliance. For further information on waste collection
and disposal; contact your local waste disposal service or
!
5
bromic.com/heat
the place of purchase.
• In case of direct connection to a supply line, a bipolar
circuit breaker with contact opening distance of at
least 3 mm must be fitted upstream from the supply
line. Contact an authorised service technician if you
are unsure if you have a circuit breaker installed on the
premises.
• Do not install the heater directly near a bathtub, shower,
swimming pool or other body of water. Any switches
or controls must not be within reach of a person in the
bathtub, shower, swimming pool or other body of water.
• To maintain Ingress Protection Rating (IP54), only
suitable IP54 (or better) rated outdoor plug & sockets
should be used for electrical installation.
• This product does not have a switch for electrical
disconnection. A means for disconnection of the heater
must be incorporated in the wall socket & fixed wiring
according to the local electrical codes.
• Do not roll heater over the supply cable when moving
heater, to prevent damage to cable.
• If the supply cable is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a safety hazard.
• This heater is not equipped with a device to control
the room temperature. Do not use this heater in small
rooms when they are occupied by persons not capable
of leaving the room on their own, unless constant
supervision is provided.
• Do not excessively bend the electrical connection to the
power supply.
• Keep the supply cable & plug away from sharp edges
during handling and installation.
• Do not pull on the supply cable or subject it to traction
force.
•
Caution should be taken when dismantling goods from
shipping container to prevent from injury when lifting heavy
parts. Maximum safe lifting 16kg per person.
•
Caution should be taken when lifting weights. Each weight is
10 kg. Maximum safe lifting 16kg per person.
•
All 10 weights must be assembled to base during assembly,
to prevent tipping and any unintended movement of heater.
•
Caution should be taken when moving the base. Use two
people to guide heater when moving position to prevent
collisions with surrounding objects. Weights must be
assembled to heater when moving full assembled heater,

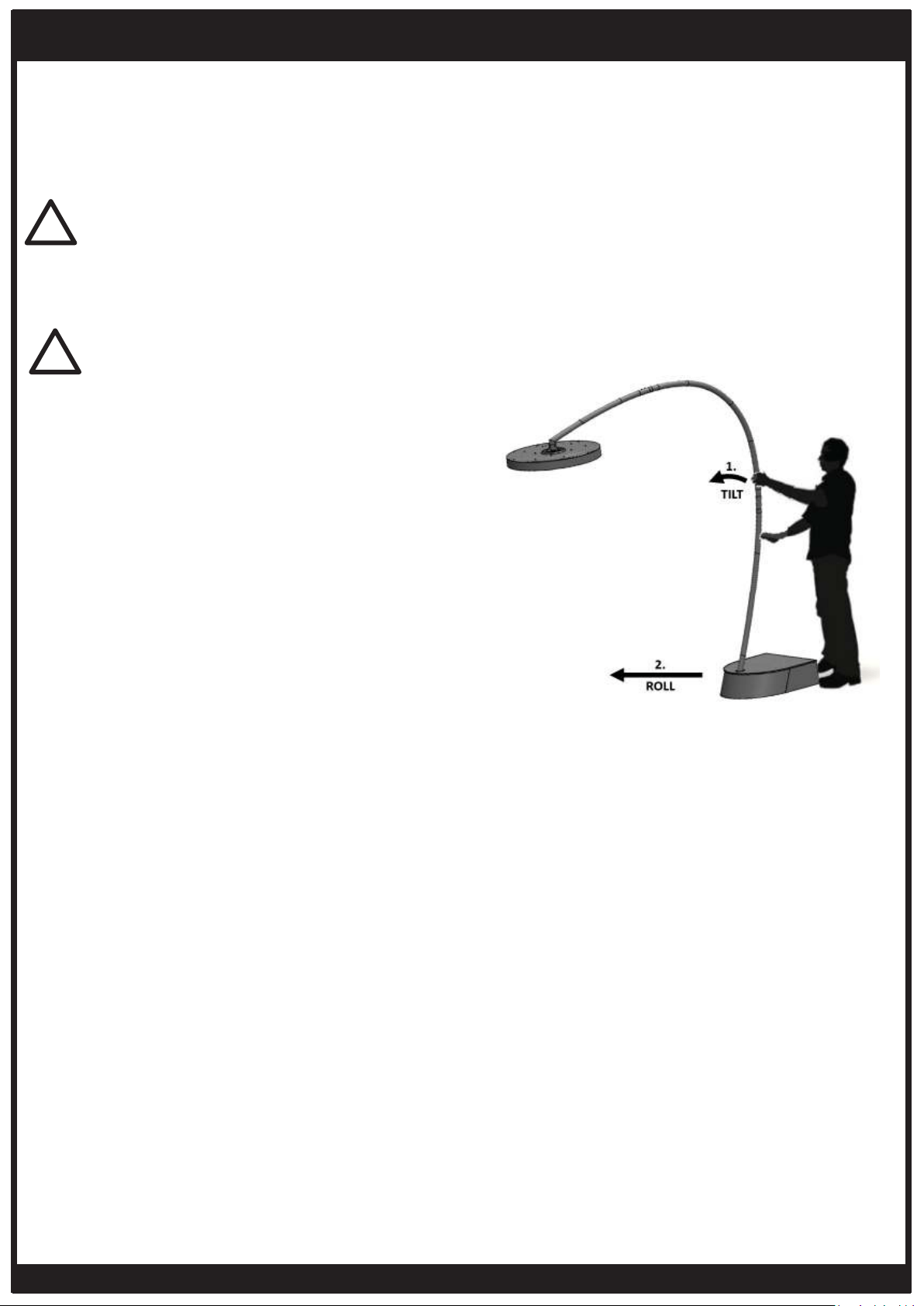

to prevent tipping. Heater can be moved forwards and
backwards, and pivoted on the two assembled wheels.
•
When moving base, ensure floor is adequately protected.
•
Heater must be installed on flat surface capable of
withstanding at least 160kg. Heater must not be installed
on soft surfaces which cannot support the weight of heater
(e.g. grass, mud, dirt).
•
Do not lean on heater or rest any objects leaning up against
heater, including the arm.
•
Do not hang any foreign items o any part of this appliance
e.g. do not hang towels, clothing, lines, lights, cables.
•
Do not swing from arm or heater head.
•
Do not stand or sit on any part of heater, including the base.
•
When not in use, disconnect, cover & store product away
from sun & rain exposure.
•
The Heater is designed to withstands winds of up to
30km/h. When located in areas prone to high wind
conditions greater than 30km/h, the Base must be fixed
to ground or stored away protected from wind. Fixings
must be removed prior to moving heater. Weights must be
assembled to heater when moving full assembled heater, to
prevent tipping.
•
Base Cover & Mounting screw must be fitted to ensure
protection of base components.
•
Rubber seal must be fitted to Base Cover to protect painted
pole surfaces from scratching.
•
O-rings must be fitted to arms to prevent water ingress and
reduce corrosion.
•
Caution: Base can be a trip hazard.
•
Do not use heater if Heater Head is not level with the
ground. Angle must be checked during assembly using spirit
level (not included).
•
Do not use heater if heater head or arm is loose.
• Check product label for correct voltage and wattage to
ensure power source conforms to the heater’s requirements.
• The exterior housing of the heater should be cleaned
regularly. To clean the appliance; ensure heater is o and has
been o for at least 2 hours after operation, before wiping
o any dirt/dust with a soft damp cloth & glass cleaner. Salt
in the air can cause rusting of metal, especially at locations
near the coast. Additional cleaning of the heater with a soft
damp cloth fortnightly will aid in maintaining the product’s
appearance.
• Do not clean heater with cleaners that are combustible or
corrosive.
IMPORTANT NOTES AND WARNINGS CONTINUED ...
SAVE THESE INSTRUCTIONS
6
bromic.com/heat
PRODUCT DESCRIPTION
▪ Stylish, slimline and contemporary design to suit
any decor.
▪ Ecient portable space heating with 3 built in
heat levels.
▪ Heaters can also be integrated into smart control
systems.
▪ Wind resistant & IP54 water protection rating.
▪ Suitable for outdoor and indoor heating applications
such as restaurants, cafes, bars and clubs, factories,
oce spaces, designated smoking areas, public
areas, hotels, homes and more.
The Eclipse Smart-Heat
TM
Electric is designed to provide ecient space heating for commercial and
residential applications.
The Eclipse Smart-Heat
TM
Electric heaters have electrical approval in Australia, New Zealand, USA, Canada,
Europe, UK, and are rated to IP54 for Ingress Protection, making the Eclipse Smart-Heat
TM
Electric Portable the
perfect solution for a variety of indoor and outdoor heating applications.
PRODUCT FEATURES
PRODUCT SPECIFICATIONS
SPECIFICATIONS
Model Eclipse Smart-Heat
TM
Electric Portable
Part No (Portable Heater Head AU) 2620611-1
Part No (Portable Arms AU) 2620651
Part No (Portable Base AU) 2620652-1
Appliance Output (watts) 2700 - 3000 W
Light Output (watts) 13 W @ 24 V DC
Power Connection Required (Volts) 220-240 V - a.c. - 50-60 Hz
Ingress Protection IP54
Heater Head Dimensions (W x H x D) 700 x 700 X 111 mm
Heater Head Weight 13.5 kg
Arm Weight 15.0 kg
Base Weight (with weights included) 145 kg
Finish Matt Black
Approval Certificate of Approval SGS/210281
7
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
KEY DIMENSIONS & CLEARANCES
The stated clearance to combustible materials represents surface temperature of 65°C above room
temperature. Building & other structural material with a low heat tolerance (such as plastic, vinyl siding, canvas,
tri-ply etc.) may subject to degradation at lower temperature. It is the installer’s responsibility to assure that
adjacent materials are protected.
Heaters must be installed according to the minimum installation clearances shown in these diagrams.
Appliance must not be moved after installation causing the clearance distances to be reduced.
Dimensions shown in: mm
PORTABLE
2500
625
2000
2294 450
2388
192
CEILING & WALL CLEARANCE
FRONT VIEW
700
611
43
64
8
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...

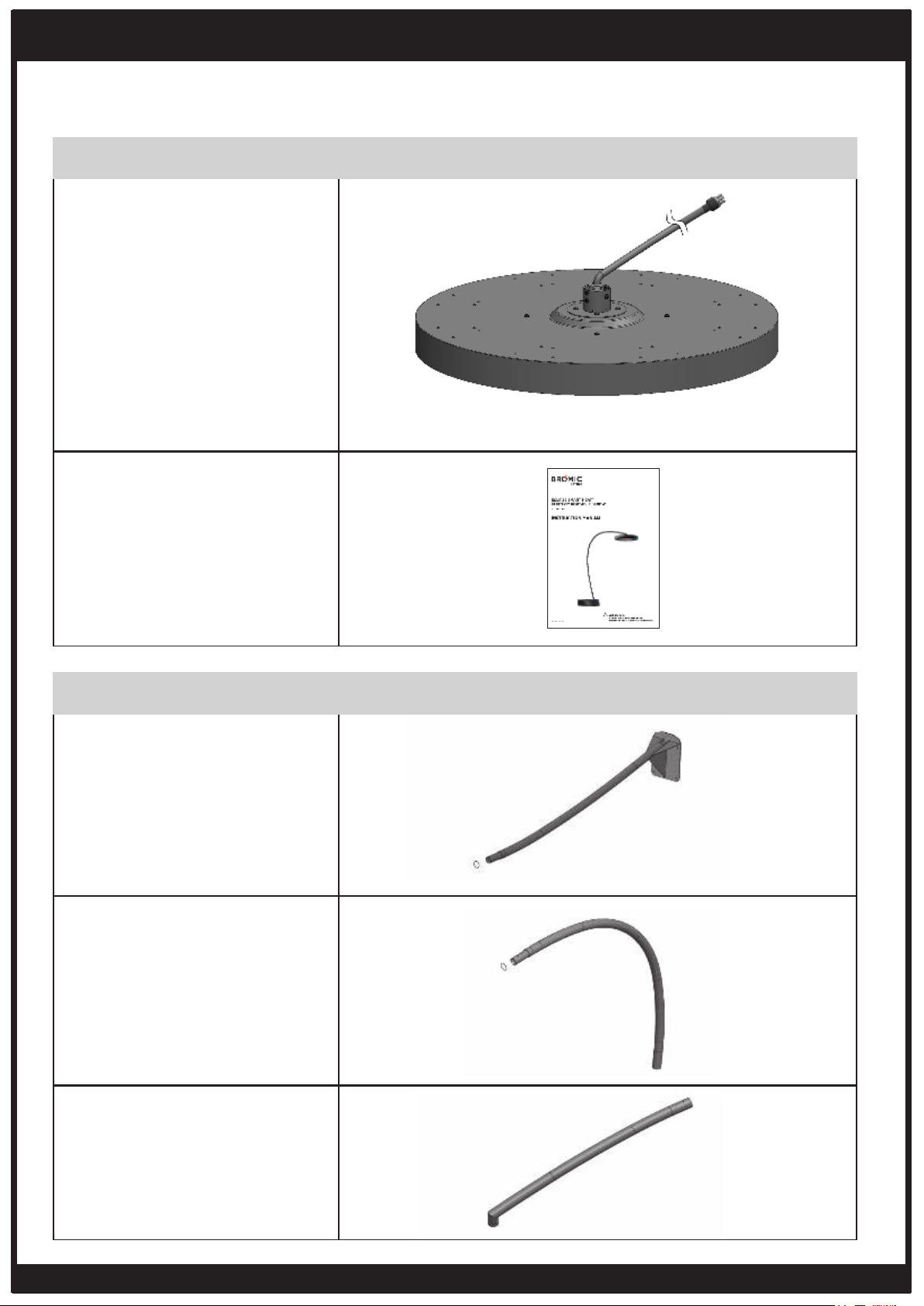

Upper Arm
Middle Arm with Large
O-Ring fitted
Instruction Manual
(This Document)
Box 2 Contents
Lower Arm with Large
O-Ring fitted
Contents Packed in (3) Boxes
Box 1 Contents
Eclipse Head Assembly
with 4.5m cable & plug.
Including pre-assembled
4 x Dome Head Screws
(M4 - Length: 6mm) &
2 x Dome Head Screws
(M5 - Length: 14mm)
9
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
Tools/Parts Required (not Included)
• Bolts for fastening to Ground surface
• Phillips Head Screw Driver
• Flat Head Screw Driver
• Small Step Ladder
• 2 strong people to help with lifting & assembly
• Spirit Level

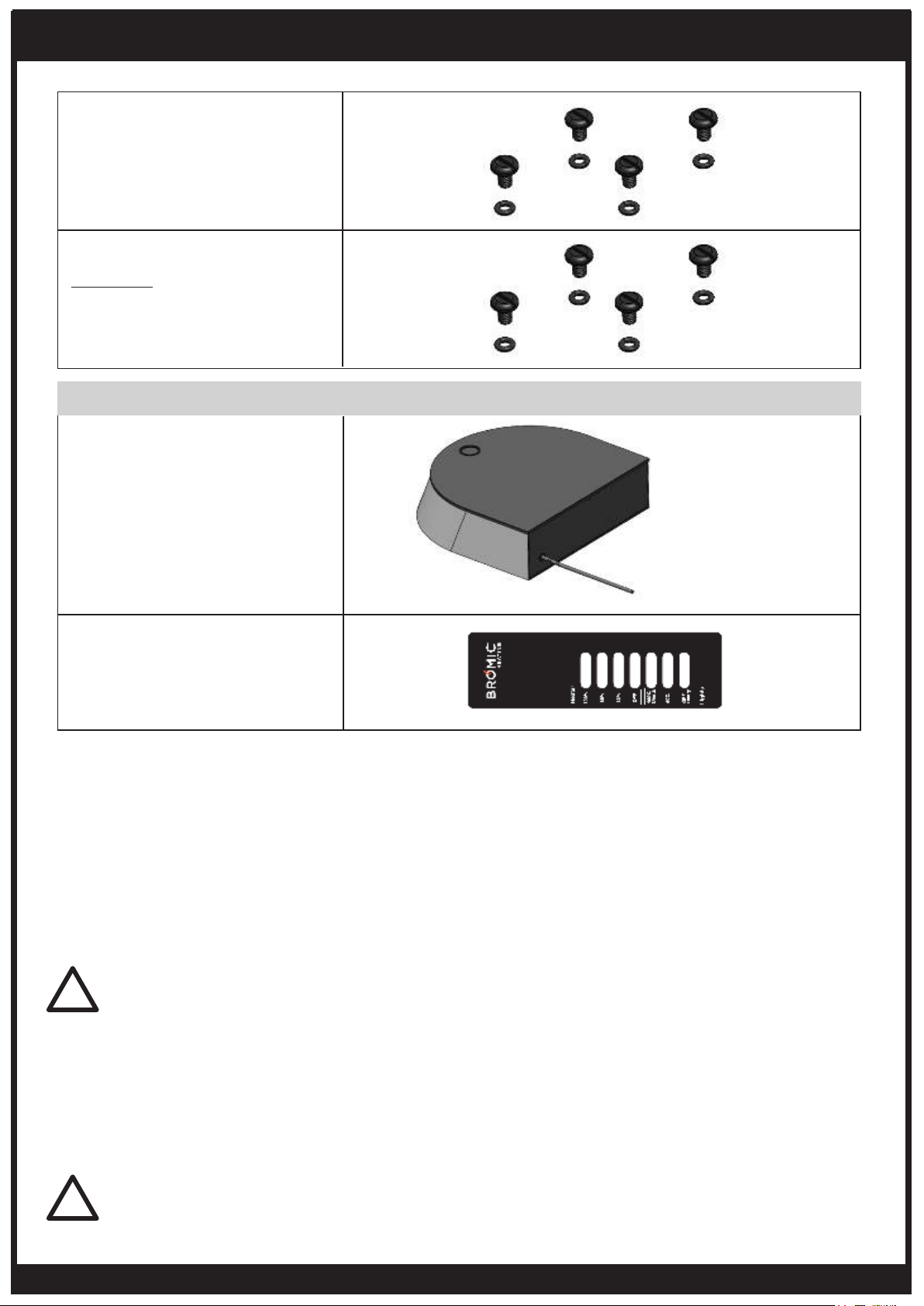

Box 3 Contents
Base Assembly
including
10 X Base Weights
4 x Slotted Head Screws
(M4 - Length: 6mm) with
O-Rings fitted
SPARES: 4 x Slotted Head
Screws (M4 - Length:
6mm) with O-Rings fitted
WARNING
IMPORTANT
This heater MUST be installed by an licensed electrical contractor. Do not perform maintenance,
or carry out installation or assembly procedure while electrical power is switched on. Wait 2
hours after switching o the heater before handling to prevent touching hot surfaces.
For longest product life and to maintain product appearance, position heater under cover and
protect from rain and weather. When not in use, disconnect & store product under cover away
from sun and rain exposure.
The appliance must be placed on level firm ground, such that the heater head is level.
!
!
Note: Plug not shown.
Remote Control
(with wall holder and
screws)
10
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
Instructions

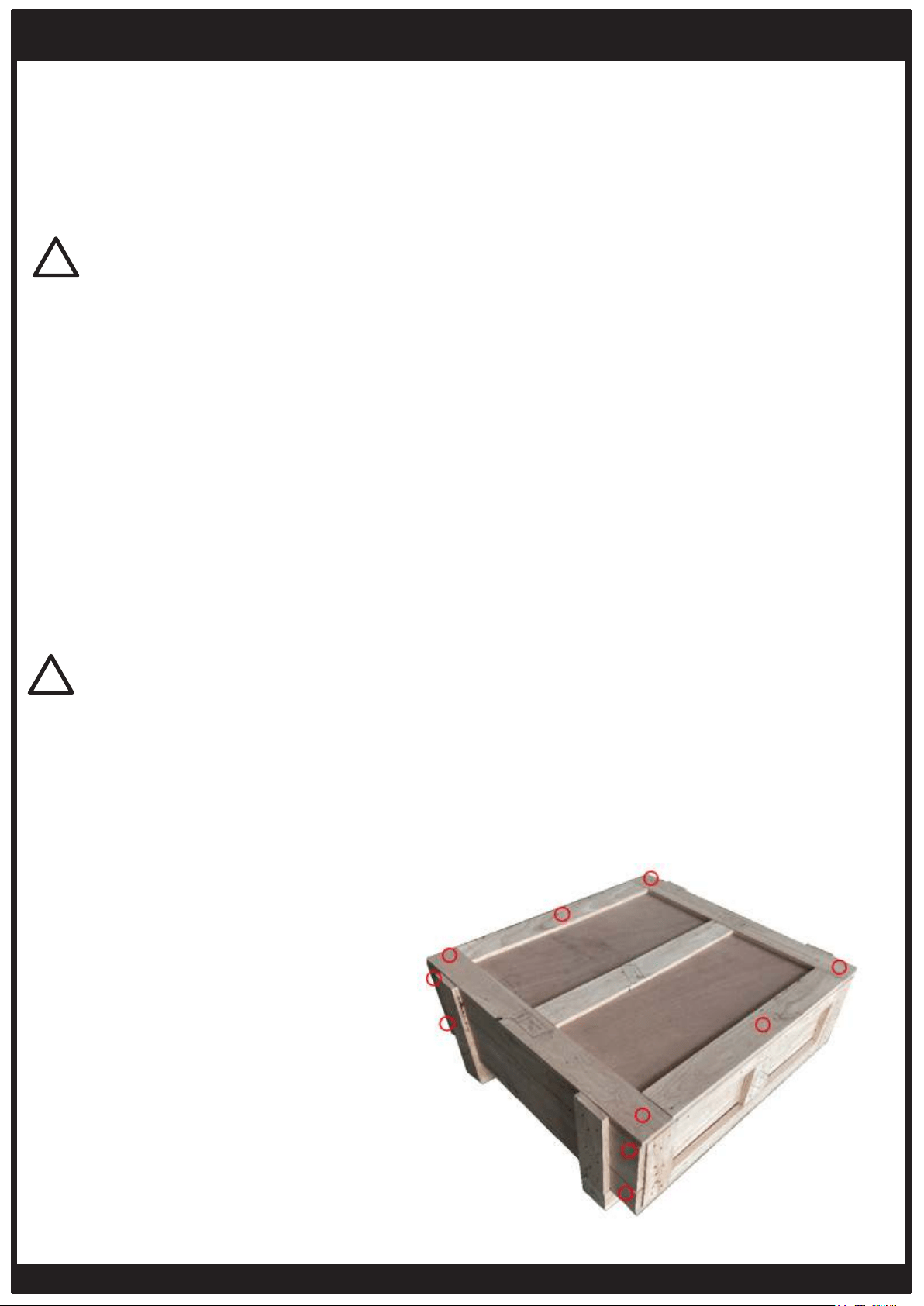

1. Using Phillips Head screwdriver, remove 10 X
screws to dismantle the Base crate, allowing
the Base Cover to be uncovered.
Heavy Items (>150 kg). Maximum safe lifting
16kg per person. Forklift must be used to
move prior to breaking down crate.
WARNING
!
For more information, including video instructions, please visit Bromic.com/heat
Caution – Glass – Handle with care
!
• Care must be taken during installation. After removing packaging, glass must
be inspected for damage before use. If damage to the appliance is suspected,
discontinue use immediately and contact the supplier.
• Check for damage to the appliance before each use. The heater must not be used if
the glass panel or any other part of the heater is damaged. If damage to the
appliance is suspected, discontinue use immediately and contact the supplier.
• Care must be taken around the appliance to ensure it is not damaged. Ball games
that could accidentally hit the heater must not be played around the appliance.
• To protect appliance do not remove cardboard packaging from head assembly
until it is mounted to arm and base.
11
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
2. Remove the Base Cover and place to
the side on a non-abrasive surface, to
avoid scratching.

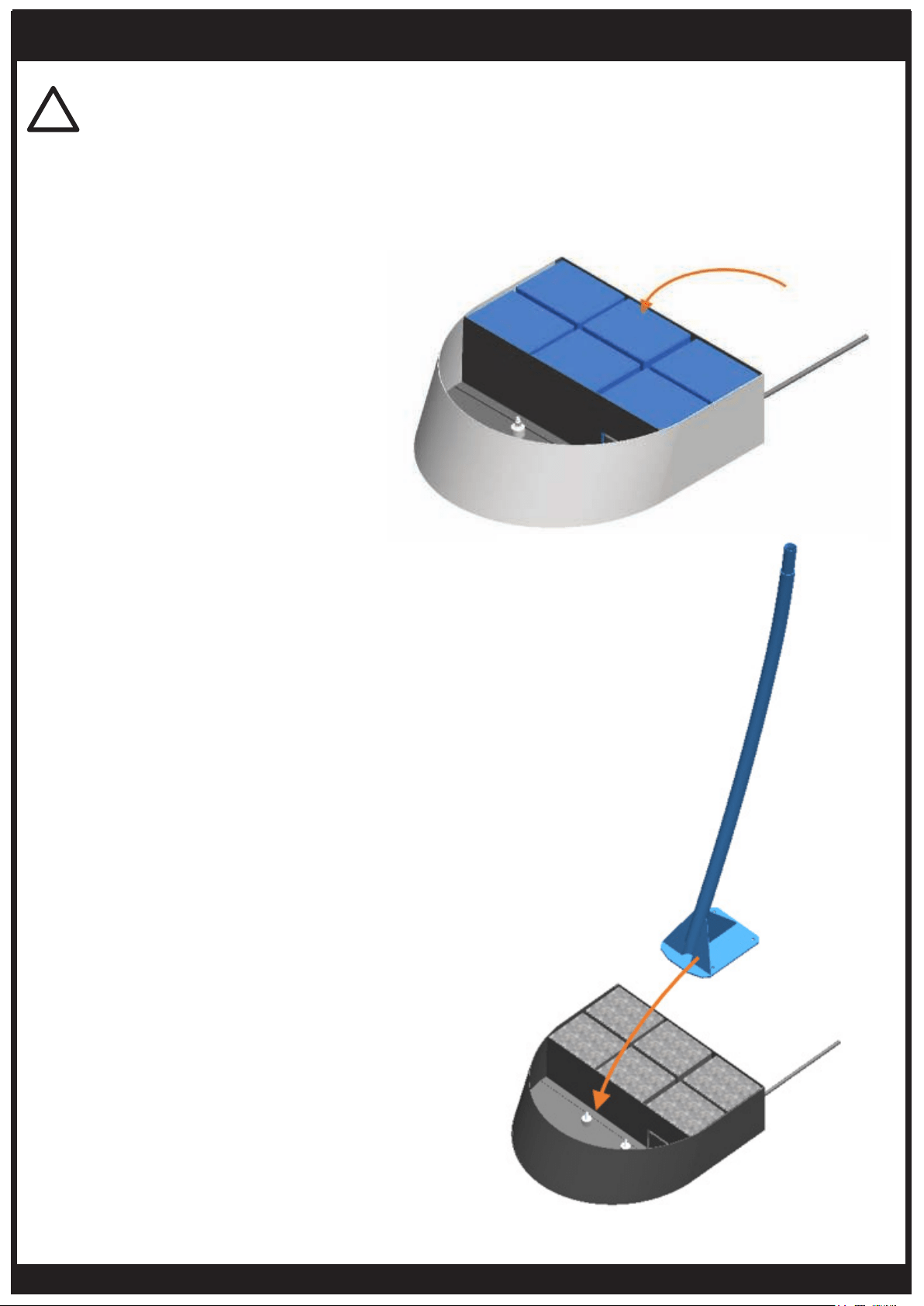

3. Remove 10 X 10 kg Base weights from the
rear compartment of the Heater Base and
place them nearby the desired heater
location.
Heavy items (10 kg each). Take caution when
moving weights.
WARNING
!
12
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
4. Remove the 4 x Crate Fixing Screws from
the within the Base.
5. Remove the Base from the pallet and place it
on a flat surface in desired heater location.
6. NOTE: If installing in areas subject to high
winds, gusts or hurricanes, heater base
must be bolted down to ground using
appropriately sized and type bolts (not
included) suited for the ground surface
through the 5 X Holes in the Heater Base.
Heavy Item. Min Two Person Lift. Maximum
safe lifting 16 kg per person.
WARNING
!
(Fixing bolts not included)
13
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
7. Replace 10 X 10 kg Base Weights into the rear
compartment of the Base.
8. Unwrap Lower Arm section from its packaging.
9. Fit the Lower Arm section into base, slotting
the front two mounting holes on the bottom
plate slot into the two M8 threads on the
base dampeners.
WARNING
Care should be taken when replacing weights into
the base. Gloves should be worn to protect hands
and fingers from pinch hazards.
!
14
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
13. Unwrap the Base Cover from its packaging
and confirm that seal is fitted to the arm
slot.

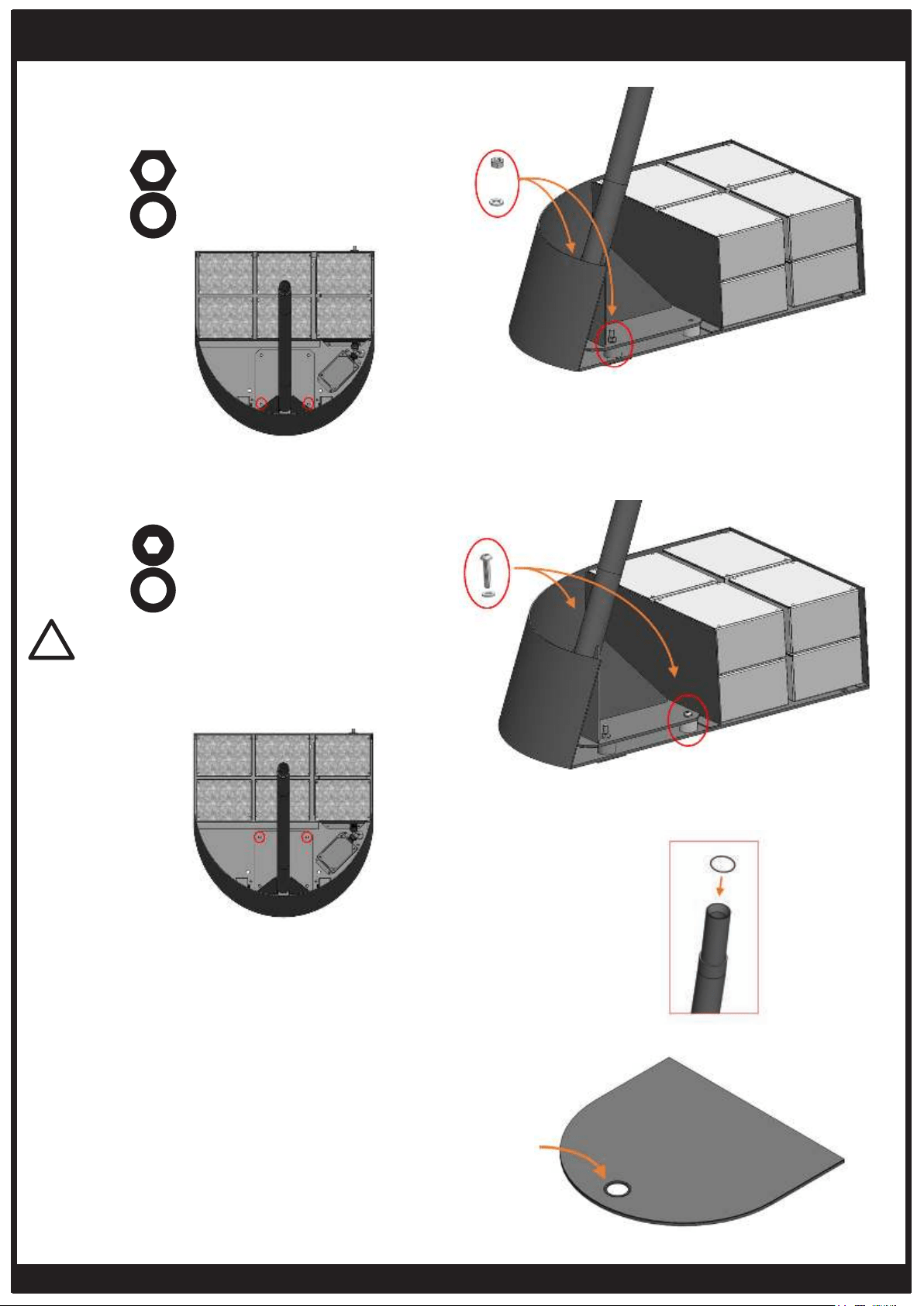

10. Fasten the front two slots of the Lower Arm
section to the dampeners using 2 X M8
Washers, and 2X M8 Nuts.
11. Fasten the rear two slots of the Lower Arm
section to the Base using 2 X M8 Washers,
and 2X M8 - Length: 35mm bolts.
12. Check that 1 X Large O-ring (35mm ID) is
fitted on the connector section of the Lower
Arm.
2x
2x
M8 - Nut
M8 - Washer
2x
2x
M8 - Bolt Length: 35mm
M8 - Washer
Ensure all Nuts, Washers and Bolts are fully
assembled and tightened to ensure arm
remains assembled.
IMPORTANT
!
15
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...

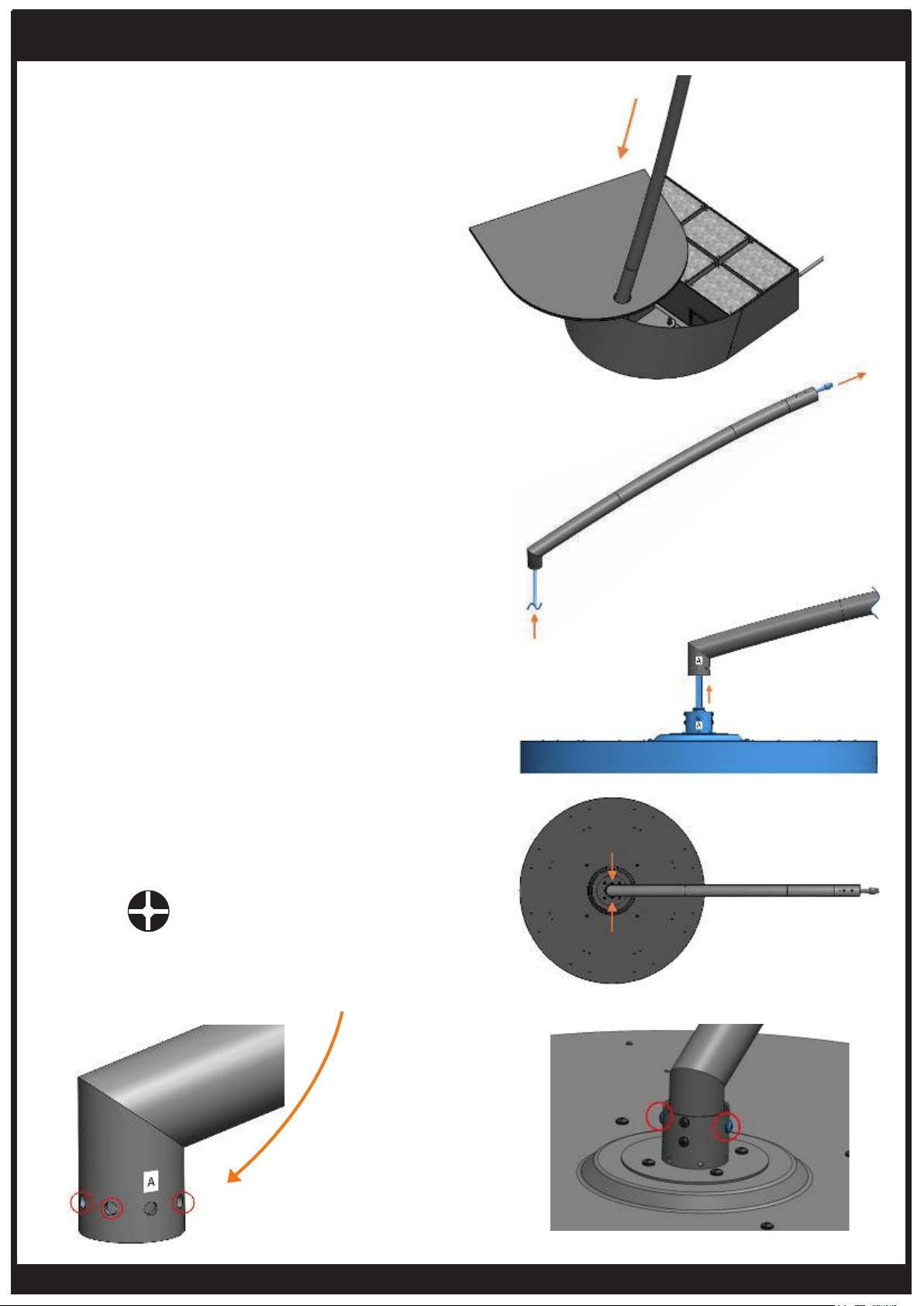

15. Unwrap the Top Arm section and the
Heater Head from their packaging.
14. Slide the base cover down over the Lower
Arm section, allowing it to rest on top of the
Base.
16. Feed the cable through the Top Arm section,
and feed through the slack.
17. Attach the top arm section to the Heater
Head using the 2 X Dome Head Screws
(M5 - Length: 14mm) (preassembled to head).
Line up the screw marked A on the heater
head with the screw hole marked A on the top
arm section, and respectively B with B.
Both screws should be fully inserted into the
two screw holes perpendicular to the arm, so
that the bromic logo on the glass is at the front
of the heater.
Note: Extra screw holes are provided in case
heater head can not be made level to ground
in later step. These can be ignored for now.
2x
M5 - Length: 14mm
(Preassembled to head)
16
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...

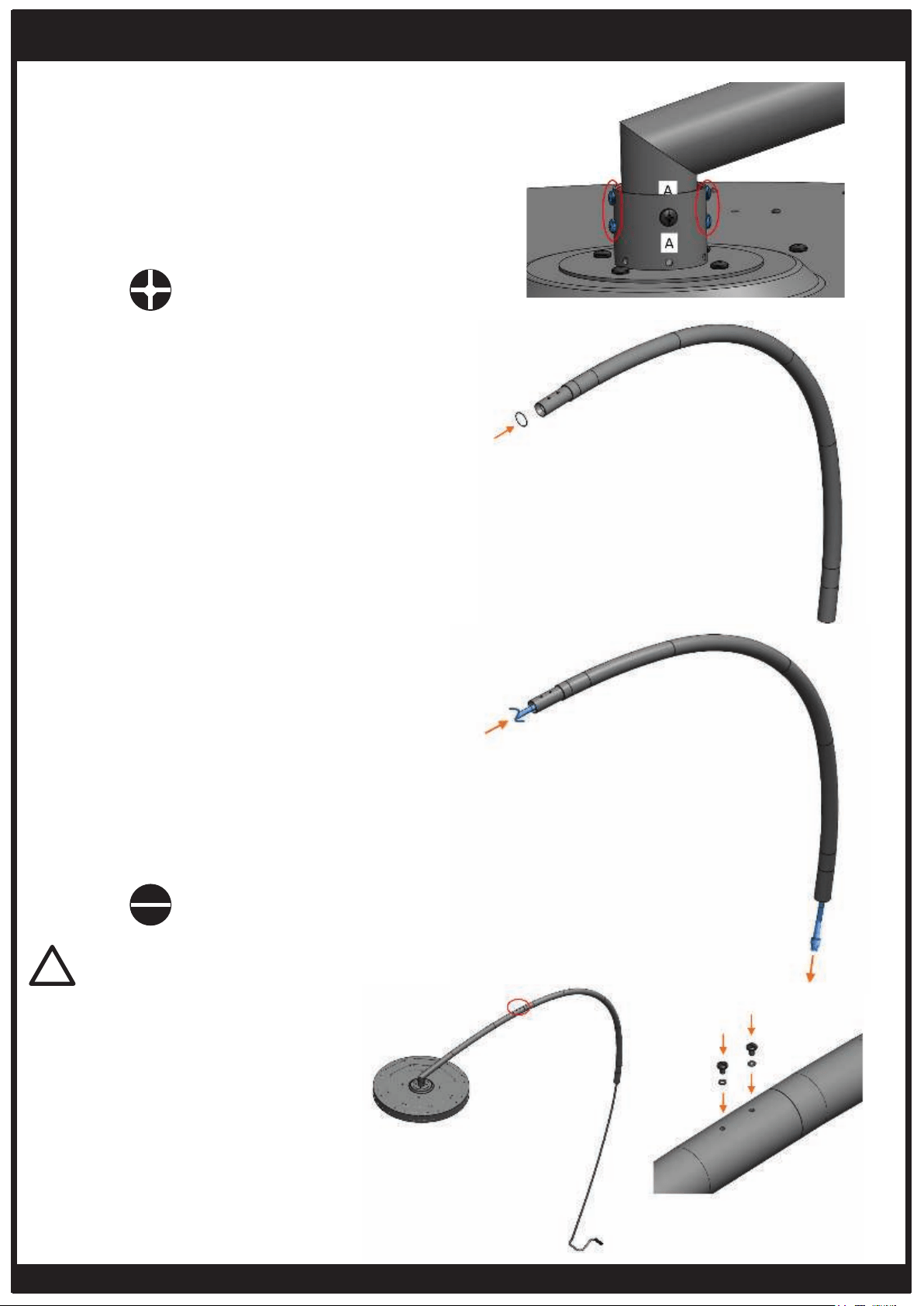

22. Fasten the Middle Arm section to the Top
Arm section using 2 x Slotted Head Screws
(M4 - Length: 6mm) with O-rings fitted.
21. Feed the Heater Head cable through the
Middle Arm.
19. Unwrap the Middle Arm section from
packaging.
20. Check that 1 X Large O-ring (35mm ID) is
fitted to the connector section of the Middle
Arm.
2x
M4 - Length: 6mm
Both (2x) screws must be assembled to
ensure arm remains assembled.
IMPORTANT
!
18. Fasten the 4 X Dome Head Screws (M4 -
Length: 6mm) to the head to lock the angle of
the Heater Head relative to the Top Arm
section.
NOTE: These screws will be used later to
adjust the head angle once the heater is fully
assembled.
4x
M4 - Length: 6mm
(Preassembled to head)
17
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...

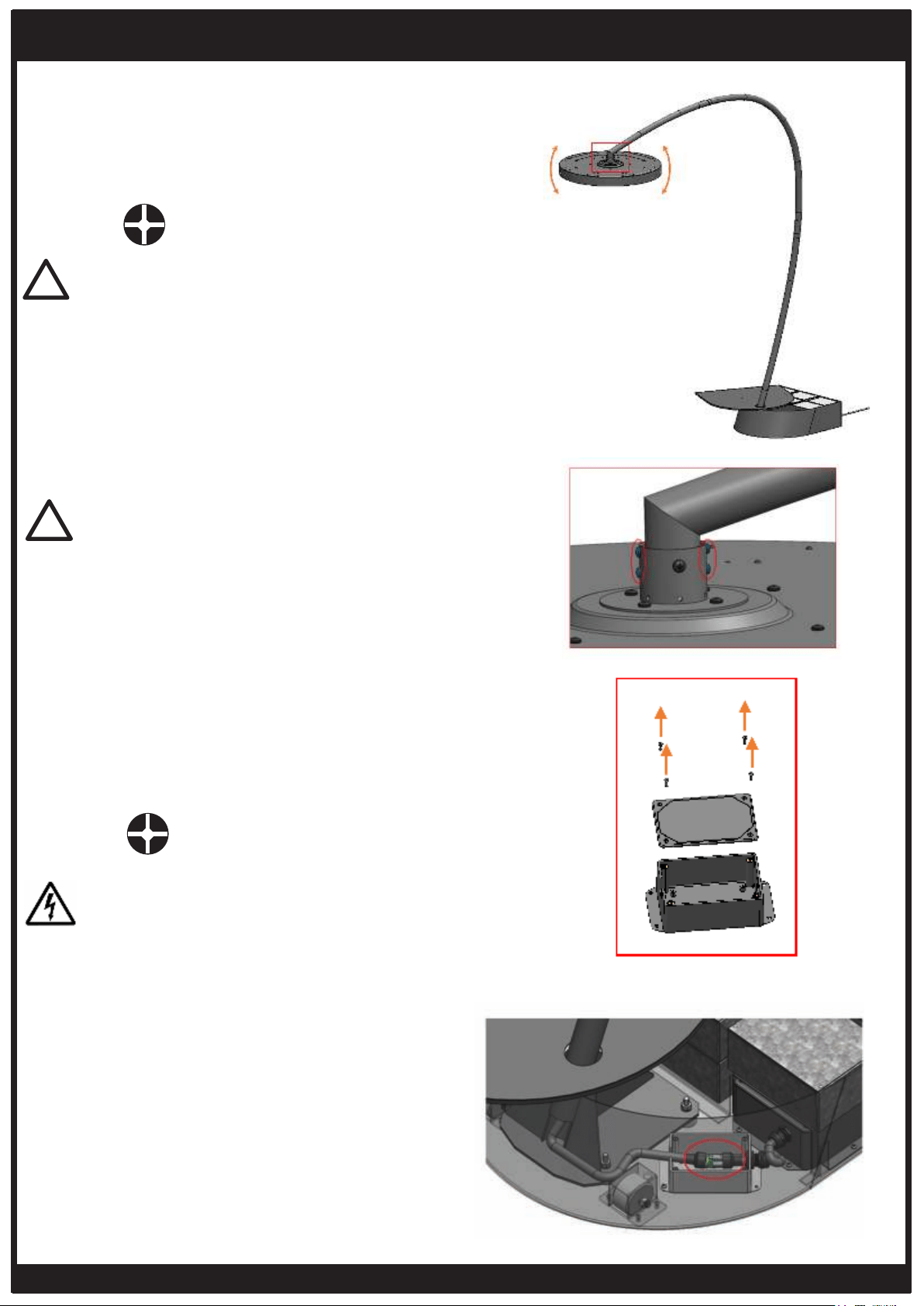

24. With the aid of another person, two if
possible, feed the Heater Head cable through
the Lower Arm, and pull through the cable
slack into the base.
Two person lift. Maximum safe lifting 16 kg
per person
25. Fasten the Middle Arm to the Lower Arm
using 2 x Slotted Head Screws (M4 - Length:
6mm) with O-Rings fitted.
WARNING
!
2x
M4 - Length: 6mm
Both (2x) screws must be assembled to
ensure arm remains assembled.
IMPORTANT
!
18
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
26. Within the Base, remove 4 X Oval Head
screws (#4-40 - Length: 3/8”) from the Small
Connector Box, and remove lid.
27. Attach the male connector on the Heater
Head cable to the female connector inside the
small connector box.
25. Using a spirit level and phillips head
screwdriver, adjust the angle of the heater
head to be level by adjusting the 4 x Dome
Head screws (M4 - Length: 6mm) on the heater
head.
NOTE: If heater head can not be made level by
adjusting 4 screws, check mounting floor
provides a level surface to support the heater
on.
All 4 x Dome Head screws must be
tightened completely once heater head is
level to the ground, to prevent head from
moving.
The base MUST NOT be plugged into
power source when attaching the connector.
DANGER
4x
#4-40 - Length: 3/8”
(Preassembled)
4x
M4 - Length: 6mm
(Preassembled)
IMPORTANT
!
Heater must be level when in use to prevent
damage to heater head components. Heater
must be operated on a level surface.
WARNING
!
19
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
28. Attach the rubber cable grommet around the
cable, and place it in the square slot in the
connector box, ensuring the flat face is
facing upwards.
FLAT FACE - TOP
29. Fasten the Small Connector Box lid using the
4 X Oval Head Screws (#4-40 - Length: 3/8”)
4x
#4-40 - Length: 3/8”
20
bromic.com/heat
HEATER INSTALLATION INSTRUCTIONS - PORTABLE CONTINUED...
30. Rotate the Base Cover until it is in place
covering the Base.
31. Fasten the Base Cover to the Base using the
Dome Head Screw (M4 - Length: 6mm).
1x
M4 - Length: 6mm
32.
All packaging materials must be removed before
turning on the appliance.
DANGER
21
bromic.com/heat
21
ELECTRICAL INSTALLATION – PORTABLE HEATERS
IMPORTANT NOTES & WARNINGS
bromic.com/heat
WARNING
DANGER
IMPORTANT
This heater MUST be installed by an authorised/licenced person. Do not perform maintenance,
or carry out installation or assembly procedure while electrical power is switched on.
ELECTRICAL SHOCK HAZARD! Serious injury or death may occur. Disconnect from electrical
supply before installing or servicing this heater. Read and follow installation clearance
requirements outlined in this manual. The appliance MUST be connected to a properly grounded
electrical source. Isolate mains before installing. Use only with a properly secured heater.
Check product label for correct voltage and wattage to ensure power source conforms to
the heater’s requirements.
Make all connections in accordance with local electrical code regulations. For outdoor
installation, all connections must be made in accordance with local electrical code
regulations for outdoor wiring.
OVERCURRENT DEVICE: The outputs are NOT protected against short circuits or extra-
currents which can damage the electronic board. Evaluate the characteristics of the
connected loads and apply the appropriate safety devices to the power line.
Check surrounding area of heater for hazards before turning on.
!
!
22
bromic.com/heat
PORTABLE HEATER CONTROL WIRING DIAGRAM
NOTES:
- Supply connection must be protected
with appropriate safety device, that
includes isolation switch.
- Electrical installation must ensure
earth continuity is checked.
WIRING DIAGRAM
ONLY TO BE INSTALLED & SERVICED BY LICENSED & AUTHORIZED TECHNICIAN.
APPLIANCE MANUAL MUST BE READ BEFORE INSTALLING OR SERVICING THIS
PRODUCT.
Power cable from
controller (supplied with
heater base)
‘MEM’ button for re-
pairing remote to Heater
control PCB
Button for re-pairing
remote to LED PCB
Power supply 220-240V - a.c.
Minimum Circuit Ampacity 17A
(Supplied with heater base).
Small connector box
(supplied with heater
base)
6 core
connector
Power cable from heater
(supplied with heater
head)
TRANSFORMER
MEANWELL (LPF-25-24)
HEATER CONTROL PCB
EMI FILTER
(YB22D1-3A-W)
LED PCB DIMMER
DC OUT 24V
WHITE 24V DC
RED 24V DC
GREEN/YELLOW
GREEN/YELLOW
GROUND
GREY 240V
N/A
N/A
L
SET
DEL
MEM
L(N)
BLUE
L(N)
BLUE
BLUE
BLUE
BLUE
LINE
LOAD
NEUTRAL
LIVE
BROWN
BROWN
BROWN
BROWN
BROWN
BLACK 240V
L
G
G
G
L(N)
L
2
3
4
5
6
7
8
9
1
BLACK 24V DC
BROWN 24V DC
AC IN 240V
N
L
TILT
SWITCH
23
bromic.com/heat
OPERATING INSTRUCTIONS
TURNING THE APPLIANCE ON
REMOTE CONTROL FUNCTIONS
1. Plug the supply lead of the appliance into a 220-240V, 16A
Outlet.
2.
Switch the power outlet on.
Note: You should hear a soft *beep* from within the Base, and the
light will flash for 1 second. Heater will remain o until setting is
chosen on remote
3. Using the Remote Control, select the desired Heater setting:
• Heater 100% - Heater output at full (100%).
• Heater 66% - Heater output at 66% of total.
• Heater 33% - Heater output at 33% of total.
4. Using the Remote Control, select the desired Light setting:
• Lights 100% - Lights output at full (100%).
• Lights 50% - Light output at 50% of total.
5. To Lower lights, Press & Hold OFF DIM^ until the lights have
lowered to the desired level.
6. To Brighten lights, Press & Hold 100% DIM^ until the
lights have increased to the desired level.
NOTE: It is normal to observe a small dim spot on the LED at the
location where the LED joins together.
TURNING THE APPLIANCE OFF
1. Using the Remote Control, press on the desired Heater setting:
• Heater OFF - Heater o.
2. Using the Remote Control, select the desired Light setting:
• Lights OFF (DIM^) - Light o.
3. Unplug the supply lead of the appliance from the Outlet.
Heater 100% - Heater output at full (100%)
Heater 66% - Heater output at 66% of total
Heater 33% - Heater output at 33% of total
Heater OFF - Heater off
Lights 100% (DIM˄) - Lights output at full (100%) or HOLD to DIM Up
Lights 50% - Light output at 50% of total
Lights OFF (DIM˅) - Light off or HOLD to DIM Down
24
bromic.com/heat
OPERATING INSTRUCTIONS
REMOTE CONTROL BATTERY
• CAUTION: Do not ingest battery—Chemical burn hazard.
• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell
battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• If the battery compartment does not close securely, stop using the product and keep it away from
children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention and call a doctor.
• Explosion hazard if the battery is substituted incorrectly.
• Replace the battery with a CR2430 type battery only.
• Battery is not rechargable and must not be recharged.
• Always wrap the battery up, both when it is being stored and when it is being disposed of. The battery
should not come into contact with other metal objects as it could cause the battery to run down, catch fire
or be damaged.
• Dispose of damaged or finished batteries immediately in compliance with the law. To this end, contact the
authorities for safeguarding the environment or the centre for disposing of waste materials in your area.
• Do not throw the battery away with household rubbish.
• The supply terminals are not to be short-circuited.
• Battery must be inserted with correct polarity (+/-)!
To replace the battery:
1. Remove screw and open the back cover of the remote.
2. Take the old battery out and put the new one in the same way.
PREPARING TO MOVE THE APPLIANCE
1. Unplug the supply lead of the appliance from the wall outlet.
2. Remove 1x M4x6mm Screw from Base Top Cover, and rotate the Base Top Cover to expose the Base
weights and any floor fastening bolts.
3. Remove any floor fastening bolts from inside the base.
4. Ensure a clear path is available from where the appliance is located and where it is to be moved to.
MOVING THE APPLIANCE
1. Positioned behind the appliance, and using two
hands on the arm, tilt the appliance forwards
slightly until it is resting on the two front wheels on
the underside of the base.
2. Roll the appliance forwards to the desired location.
3. If required, pivot the appliance on the two wheels,
whilst monitoring the position of the head to prevent
accidental collisions.
4. Replace any floor fastening bolts back into the base
and floor if applicable.
IMPORTANT
If any weights need to be removed to access floor fastening bolts, DO NOT remove more than 3
weights at any one time, and replace all weights prior to moving the appliance.
WARNING
Heater is heavy and can cause crushing injury.
DO NOT place feet under base whilst moving the
heater. Ensure adequate protective clothing is
worn to protect user from injury (i.e. appropriate
protective footware).
!
!
25
bromic.com/heat
OPENING CONTROL BOX TO PAIR A NEW REMOTE
1. Switch the power supply to the Eclipse Portable Control
ON.
2. With the Eclipse Portable Control powered ON, PRESS &
HOLD the middle ‘MEM’ button on the large heater control
PCB. (A long “Beep” sound should be heard whilst the
button is held down).
Whilst the ‘MEM’ button is held down, SHORT PRESS the
Heater 100% button on the remote control. (Three short
“Beep” sounds should be heard to indicate the remote has
been paired successfully.
3. Refit the lid to the Portable Control Box, using the 6x
Oval head screws (#4-40 - Length: 1/2”).
4. Refit the Portable Control Box Cover using 4x M4x8mm
Dome Head Phillips screws.
5. Replace the two weights onto the Portable Control
Box Cover, and rotate the Base Top Cover to the correct
position on the Base.
6. Replace the 1x M4x6mm Dome Head Screw into the rear
of the Base Top Cover.
Lights 100% (DIM˄)
Lights OFF (DIM˅)
DANGER
ELECTRICAL SHOCK HAZARD! Serious injury or
death may occur. Do not touch any components
other than specified below. Protective equiment
including insulated gloves must be worn.
!
PAIRING REMOTE CONTROL TO HEATER PCB (TOP 4 BUTTONS OF REMOTE)
WARNING: MUST ONLY BE SERVICED BY LICENSED &
AUTHORIZED TECHNICIAN.
1. Remove 1x M4x6 Screw from Base Top Cover, and rotate
the Base Top Cover to expose the Base weights.
2. Move the two left most weights onto the other weights
to expose the Portable Control Box Cover.
3. Remove 4x M4x8mm Dome Head Phillips screws and the
Portable Control Box Cover, to expose the Portable Control
Box.
4. Open lid to the Portable Control Box, by removing 6x
Oval head screws (#4-40 - Length: 1/2”) from the cover.
1s (short)
(hold)
‘MEM’ button
OPERATING INSTRUCTIONS
26
bromic.com/heat
WARNING: MUST ONLY BE SERVICED BY LICENSED &
AUTHORIZED TECHNICIAN.
1. Locate the small black button on the small LED PCB
(shown in image on right), and the small button wid way
down the back face of the remote (for later steps).
2. Switch the power supply to the Eclipse Portable
Control ON.
3. Using a thin item (e.g. paper clip/needle),
SHORT PRESS the small button on the rear of the remote.
Within 5 seconds of pressing the small button on the rear
of the remote, press the small black button on the LED
PCB 3 times, holding the button down on the third press.
(2X SHORT PRESS followed by 1X PRESS & HOLD)
While the LED PCB button is held down, SHORT PRESS
the Lights 100% button on the remote control.
4. The LED on the Heater head will flash 3 times to
indicate the remote is paired.
5. Refit the lid to the Portable Control Box, using the 6x
Oval head screws (#4-40 - Length: 1/2”).
6. Refit the Portable Control Box Cover using 4x M4x8mm
Dome Head Phillips screws.
7. Replace the two weights onto the Portable Control
Box Cover, and rotate the Base Top Cover to the correct
position on the Base.
8. Replace the 1x M4x6mm Dome Head Screw into the
rear of the Base Top Cover.
Lights 100% (DIM˄)
Lights OFF (DIM˅)
DANGER
ELECTRICAL SHOCK HAZARD! Serious injury or
death may occur. Do not touch any components
other than specified below. Protective equiment
including insulated gloves must be worn.
!
PAIRING REMOTE CONTROL TO LED PCB (BOTTOM 3 BUTTONS OF REMOTE)
1s (short)
Remote Reset button
1 2 3(hold)
1s (short)
OPERATING INSTRUCTIONS
27
bromic.com/heat
MAINTENANCE
IMPORTANT NOTES & WARNINGS
WARNING
Servicing and maintenance MUST be carried out by an authorised and licenced service
person only.
!
WARNING
If the supply cord is damaged, it must be replaced by Bromic, a service agent of Bromic or
similarly qualified persons in order to avoid a hazard. Contact Bromic for further information on
replacement of the supply cord.
!
DANGER
ELECTRICAL SHOCK HAZARD! Serious injury or death may occur. Disconnect from electrical
supply before servicing this heater.
WARNING
• For longest product life, and to maintain product appearance, mount heater under cover
and protect from rain and weather whenever possible.
• Before cleaning ensure the appliance is o and has been o for at least 2 hours after
operation. The heater must be cool to touch before cleaning can begin.
• The exterior housing of the heater should be cleaned regularly. Use a clean, soft, damp
cloth. Salt in the air can cause rusting of metal, especially at locations near the coast.
Additional cleaning of the heater with a soft damp cloth fortnightly will aid in maintaining
the product’s appearance. Do not clean heater with cleaners that are combustible or
corrosive.
• Improper cleaning of the front of the appliance can cause scratching and reduce the
appearance of the appliance. Below guidelines must be read before cleaning the front of the
appliance and must be followed to maintain the quality of the surface finish.
!
Lifting & Moving Hazard. Maximum safe lifting 35 lbs per person.
DO NOT DO
Do not use harsh cleaning pads or sharp tools.
Do not use harsh cleaning chemicals.
Do not spray the appliance with water for
cleaning.
Use a clean, soft, damp microfibre cloth.
Use lukewarm water and a mild dish washing
detergent.
Do not use a dry cloth or your hand to wipe
clean the surface.
Using a dry cloth or your hand to clean the
surface will rub dirt and dust into the surface and
may cause scratching or damage.
Use a microfibre cloth in the lukewarm water
solution. Rinse out the cloth frequently to remove
any dirt and dust from the cloth to avoid
scratching the surface.
Do not apply pressure and rub the surface.
Do not apply continuous, erratic scrubbing.
Gently wipe the microfibre cloth across the
surface. Apply minimum pressure to avoid
scratching.
Minimise contact with the surface.
Use the same directional stroke, lift hand and
repeat.
Do not bu dry with a cloth that could cause
scratching.
Allow surface to air dry.
28
bromic.com/heat
TROUBLESHOOTING
REPLACEMENT PARTS
SYMPTOM POSSIBLE CAUSE (S) CORRECTIVE ACTION
No heat 1. Incorrect heater setting chosen
2. Incorrect Voltage.
3. No power.
4. No/low batteries in remote.
5. Remote too far.
6. Radio interference.
7. Remote not paired or faulty
control.
1. Choose heat setting using
remote (33%, 66% or 100%).
2. Connect to 220-240V power supply.
3. Check connection to power supply.
4. Change remote batteries.
5. Move remote closer to heater.
6. Move remote closer to heater,
disable other radio emitting devices.
7. Pair remote to heater PCB.
Not enough heat 1. Incorrect heater setting chosen.
2. Heater too small for application.
1. Choose higher heat setting
using remote (66% or 100%).
2. Add additional heater(s).
Too much heat 1. Incorrect heater setting chosen. 1. Choose lower heat setting
using remote (66% or 33%).
No Light 1. Incorrect lighting setting chosen.
2. Incorrect Voltage.
3. No power.
4. No/low batteries in remote.
5. Remote too far.
6. Radio interference.
7. Remote not paired or faulty
control.
1. Choose lighting setting using
remote (50% or 100% (DIM^)).
2. Connect to 220-240V power supply.
3. Check connection to power supply.
4. Change remote batteries.
5. Move remote closer to heater.
6. Move remote closer to heater,
disable other radio emitting devices.
7. Pair remote to LED PCB.
Not enough Light 1. Incorrect lighting setting chosen.
2. Light too small for application.
1. Choose higher lighting setting
using remote (50% or 100% (DIM^)).
2. Add additional light(s).
Too much Light 1. Incorrect lighting setting chosen. 1. Choose lower heat setting
using remote (50% or OFF (DIM^)).
Part Number Description Part Number Description
2620611-1
Eclipse Electric Portable
Heater Head (AU)
2620655
Mains Cable (AU)(15A) for
Eclipse Electric Portable
2620651
Eclipse Electric Portable
Arms Assembly
2620656
Screw & O-Ring Set
Portable Eclipse
2620652-1
Eclipse Electric Portable
Base Assembly (AU)
2620657-1
Portable Control Box (AU)
for Eclipse Electric Portable
2620653
Base Top Cover for Eclipse
Electric Portable
2620658
Base Weight (10 kg) for
Eclipse Electric Portable
2620654
Base Wheels Set (2) for
Eclipse Electric Portable
2620661
Remote Control for Eclipse
Electric Control (AU)
