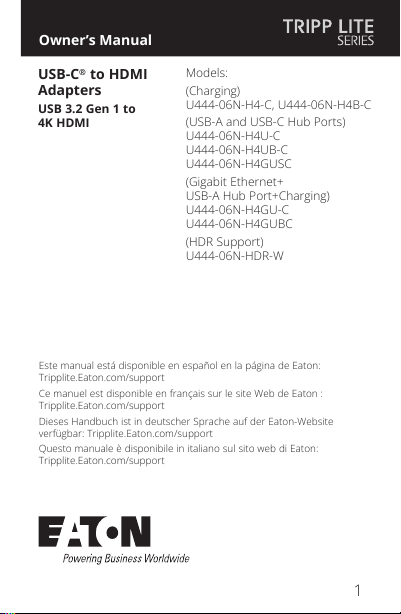

Owner’s Manual
Este manual está disponible en español en la página de Eaton:
Tripplite.Eaton.com/support
Ce manuel est disponible en français sur le site Web de Eaton :
Tripplite.Eaton.com/support
Dieses Handbuch ist in deutscher Sprache auf der Eaton-Website
verfügbar: Tripplite.Eaton.com/support
Questo manuale è disponibile in italiano sul sito web di Eaton:
Tripplite.Eaton.com/support
Models:
(Charging)
U444-06N-H4-C, U444-06N-H4B-C
(USB-A and USB-C Hub Ports)
U444-06N-H4U-C
U444-06N-H4UB-C
U444-06N-H4GUSC
(Gigabit Ethernet+
USB-A Hub Port+Charging)
U444-06N-H4GU-C
U444-06N-H4GUBC
(HDR Support)
U444-06N-HDR-W
USB-C
®
to HDMI
Adapters
USB 3.2 Gen 1 to
4K HDMI
2
Package Includes
• U444-06N-H4-C, U444-06N-H4B-C,
U444-06N-H4U-C, U444-06N-H4UB-C,
U444-06N-H4GU-C, U444-06N-H4GUBC,
U444-06N-H4GUBC, U444-06N-H4GUSC or
U444-06N-HDR-W
• Owner’s Manual
Optional Accessories
• P568-Series High-Speed HDMI Cables
• U322-Series USB A/B Device Cables
• U326-Series USB Micro-B Device Cables
• N201-Series Cat6 Gigabit Snagless Patch Cables
• U420-003 USB 3.2 Gen 1 USB-C Male/Male
Cable – 3 ft.
3
Product Features
Note: This section lists features for all USB Type-C models
referenced in this manual. See the USB Type-C Features
chart to determine which features your model supports.
• Supports USB DisplayPort Alternate Mode for
connecting a 4K HDMI monitor via a USB-C port
• Supports4Kx2KUltraHighDenition(UHD)
resolutions up to 3840 x 2160 (30/60 Hz) and
HDR
Note: Video capabilities may vary by model. See the USB-C
Features table for the features your product supports.
• Ethernet port supports true 10/100/1000 Mbps
network speeds
• USB-A and USB-C hub ports support data
transfer rates up to 5 Gbps; backward
compatible with previous USB generations
• USB-C port supports both data transfer and USB
Power Delivery (PD) charging with power input up
to 20V 3A (60W).*
• Plug and play; no software or drivers required
*U444-06N-H4GUSC supports PD charging up to 20V 5A
(100W)
4
Product Features
USB Type-C Features
HDR Video Support
N
N
N
N
N
N
N
Y
USB-C Port Data Support
N
N
Y
Y
N
N
Y
N
USB-C Port Charging Support
Y
Y
Y
Y
Y
Y
Y
N
Gigabit Ethernet Port
N
N
N
N
Y
Y
Y
N
USB-A Hub Port
N
N
Y
Y
Y
Y
Y
N
4K HDMI Port
Y
Y
Y
Y
Y
Y
Y
Y
Models
U444-06N-H4-C
U444-06N-H4B-C
U444-06N-H4U-C
U444-06N-H4UB-C
U444-06N-H4GU-C
U444-06N-H4GUBC
U444-06N-H4GUSC
U444-06N-HDR-W
5
Installation
Note: When the unit is connected to the USB-C port on your
computer and to a network via Cat5e/6 cabling, a network
connection will be automatically established. If no connection
is made, you can manually establish one by going to your
computer’s network settings page. For example, on a Mac
you would navigate to the Network section found in System
Preferences, click the ‘Assist Me’ button to get to the Network
Setup Assistant, then follow the prompts to establish a
connection.
1. Connect the adapter’s USB Type-C connector to
the USB-C port on your laptop, tablet or other
compatible device.
2. Connect the adapter’s HDMI port to the
monitor’s HDMI port using an HDMI cable (such
as P568-Series HDMI cables).
3. Charge your device by connecting its USB-C
charger to the adapter’s USB-C port.*
4. Connect a USB device to the adapter’s USB-A
hub port.**
5. Connect the adapter’s RJ45 port to a network
using a UTP cable (such as N201-Series Cat6
cables).**
*USB-C port for models U444-06N-H4U-C,
U444-06N-H4GUBC or U444-06N-H4GUSC supports both
data transfer and charging.
**See the USB Type-C Features table for the features your
product supports.
6
Models
U444-06N-H4-C
U444-06N-H4B-C
U444-06N-H4U-C
U444-06N-H4UB-C
Input Connectors
USB USB-C (Male)
USB-C Port
Charging Support
Y
USB-C Port Data
Support
N Y
Output Connectors
4K HDMI HDMI (Female)
USB N/A USB-A (Female)
Ethernet N/A N/A
Environmental
Operating
Temperature
32°F to 113°F (0°C to 45°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage
Temperature
14°F to 158°F (-10°C to 70°C)
Storage Humidity 5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging
Port
Supports up to 20V 3A (60W) Input
USB-A Port N/A
Provides up to
5V 1A (5W) Output
Specications
7
Models
U444-06N-H4GU-C
U444-06N-H4GUBC
U444-06N-H4GUSC
U444-06N-HDR-W
Input Connectors
USB USB-C (Male)
USB-C Port
Charging Support
Y N
USB-C Port Data
Support
N Y N
Output Connectors
4K HDMI HDMI (Female)
USB USB-A (Female) N/A
Ethernet RJ45 (Female) N/A
Environmental
Operating
Temperature
32°F to 113°F (0°C to 45°C)
Operating Humidity 10% to 85% RH, Non-Condensing
Storage
Temperature
14°F to 158°F (-10°C to 70°C)
Storage Humidity 5% to 90% RH, Non-Condensing
Power Requirements
USB-C Charging
Port
Supports up
to 20V 3A
(60W) Input
Supports
up to 20V 5A
(100W)
N/A
USB-A Port
Provides up
to 5V 1A
(5W) Output
Provides up
to 5V 1.5A
(7.5W)
N/A
Specications
8
Warranty
3-YEAR LIMITED WARRANTY
We warrant our products to be free from defects in materials
and workmanship for a period of three (3) years from the date
of initial purchase. Our obligation under this warranty is limited
to repairing or replacing (at its sole option) any such defective
products. Visit Tripplite.Eaton.com/support/product-returns
before sending any equipment back for repair. This warranty
does not apply to equipment which has been damaged by
accident, negligence or misapplication or has been altered or
modiedinanyway.
EXCEPT AS PROVIDED HEREIN, WE MAKE NO WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not permit limitation or exclusion of implied
warranties; therefore, the aforesaid limitation(s) or exclusion(s)
may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL WE BE
LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS
PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.Specically,wearenotliableforanycosts,suchaslost
protsorrevenue,lossofequipment,lossofuseofequipment,
loss of software, loss of data, costs of substitutes, claims by third
parties, or otherwise.
9
Regulatory Compliance
FCC Notice, Class B
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception,whichcanbedeterminedbyturningtheequipmento
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connecttheequipmentintoanoutletonacircuitdierentfrom
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Anychangesormodicationstothisequipmentnotexpressly
approved by Eaton could void the user’s authority to operate this
equipment.
10
WEEE Compliance Information for Customers and
Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment
(WEEE) Directive and implementing regulations, when
customers buy new electrical and electronic equipment
from Eaton they are entitled to:
• Send old equipment for recycling on a one-for-one,
like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this
ultimately becomes waste
Eatonhasapolicyofcontinuousimprovement.Specicationsare
subject to change without notice.
