Owner's Manual

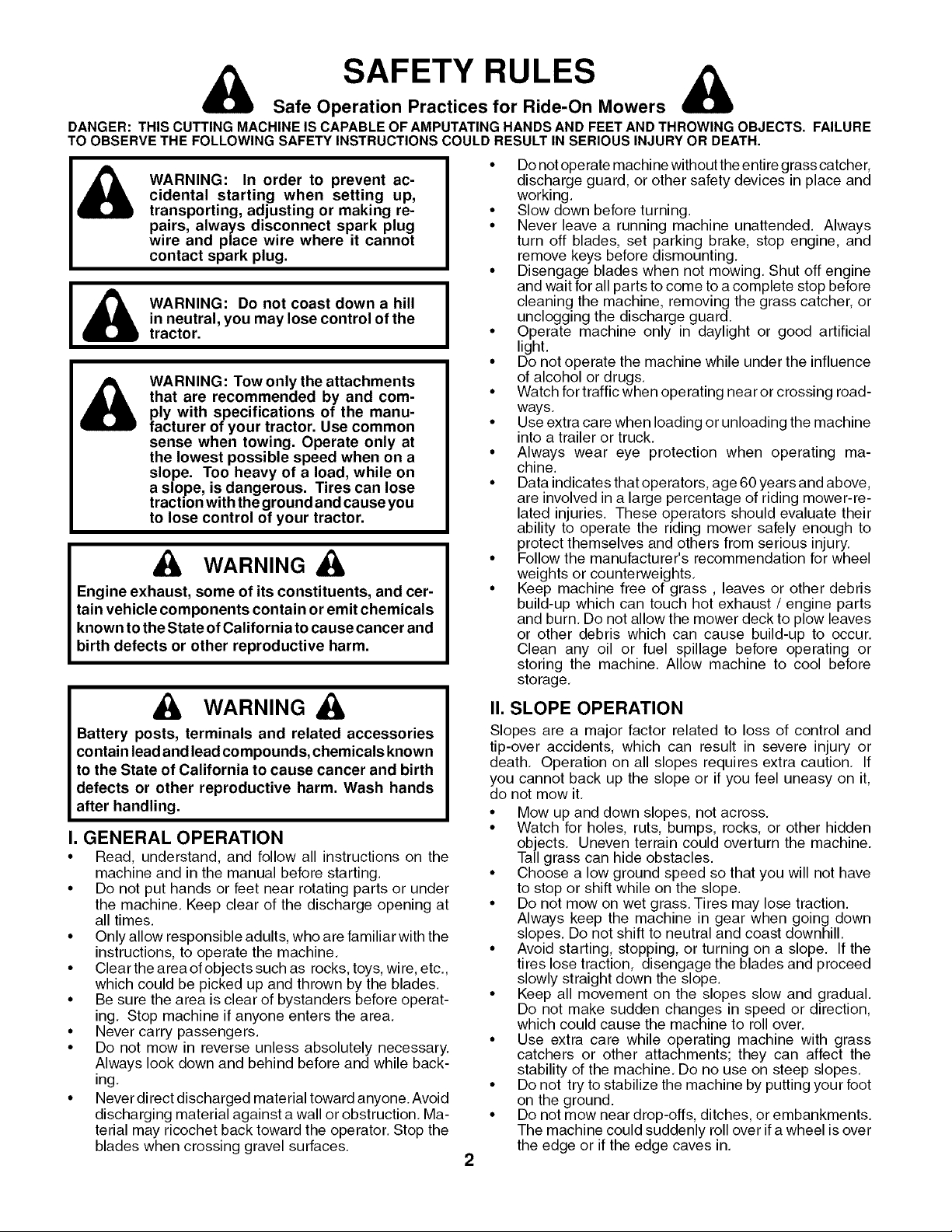

SAFETY RULES &

Safe Operation Practices for Ride-On Mowers

DANGER: THIS CUTTINGMACHINEIS CAPABLEOF AMPUTATINGHANDSAND FEETAND THROWINGOBJECTS. FAILURE

TO OBSERVETHE FOLLOWINGSAFETY INSTRUCTIONSCOULDRESULTIN SERIOUS INJURYOR DEATH.

WARNING: In order to prevent ac-

cidental starting when setting up,

transporting, adjusting or making re-

pairs, always disconnect spark plug

wire and place wire where it cannot

contact spark plug.

I_ WARNING: Do not coast down a hill I

in neutral, you may lose control of the

tractor.

WARNING: Tow only the attachments

that are recommended by and com-

fply with specifications of the manu-

acturer of your tractor. Use common

sense when towing. Operate only at

the lowest possible speed when on a

slope. Too heavy of a load, while on

a slope, is dangerous. Tires can lose

traction with the ground and cause you

to lose control of your tractor.

WARNING

Engine exhaust, some of its constituents, and cer-

tain vehicle components contain or emit chemicals

known to the State of California to cause cancer and

birth defects or other reproductive harm.

WARNING

Battery posts, terminals and related accessories

contain lead and lead compounds, chemicals known

to the State of California to cause cancer and birth

defects or other reproductive harm. Wash hands

after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instructions on the

machine and in the manual before starting.

• Do not put hands or feet near rotating parts or under

the machine, Keep clear of the discharge opening at

all times.

• Only allow responsible adults, who are familiar with the

instructions, to operate the machine,

• Clear the area of objects such as rocks, toys, wire, etc,,

which could be picked up and thrown by the blades.

• Be sure the area is clear of bystanders before operat-

ing. Stop machine if anyone enters the area,

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary.

Always look down and behind before and while back-

ing,

• Never direct discharged material toward anyone. Avoid

discharging material against a wall or obstruction, Ma-

terial may ricochet back toward the operator, Stop the

blades when crossing gravel surfaces,

• Do not operate machine without the entire grass catcher,

discharge guard, or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine unattended. Always

turn off blades, set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing, Shut off engine

and wait for all parts to come to a complete stop before

cleaning the machine, removing the grass catcher, or

unclogging the discharge guard.

• Operate machine only in daylight or good artificial

light.

• Do not operate the machine while under the influence

of alcohol or drugs.

• Watch for traffic when operating near or crossing road-

ways.

• Use extra care when loading or unloading the machine

into a trailer or truck,

• Always wear eye protection when operating ma-

chine.

• Data indicates that operators, age 60 years and above,

are involved in a large percentage of riding mower-re-

lated injuries. These operators should evaluate their

ability to operate the riding mower safely enough to

protect themselves and others from serious injury.

• Follow the manufacturer's recommendation for wheel

weights or counterweights,

• Keep machine free of grass, leaves or other debris

build-up which can touch hot exhaust / engine parts

and burn, Do not allow the mower deck to plow leaves

or other debris which can cause build-up to occur,

Clean any oil or fuel spillage before operating or

storing the machine. Allow machine to cool before

storage,

II. SLOPE OPERATION

Slopes are a major factor related to loss of control and

tip-over accidents, which can result in severe injury or

death, Operation on all slopes requires extra caution. If

you cannot back up the slope or if you feel uneasy on it,

do not mow it,

• Mow up and down slopes, not across,

• Watch for holes, ruts, bumps, rocks, or other hidden

objects. Uneven terrain could overturn the machine.

Tall grass can hide obstacles.

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Do not mow on wet grass. Tires may lose traction.

Always keep the machine in gear when going down

slopes, Do not shift to neutral and coast downhill,

• Avoid starting, stopping, or turning on a slope, If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope.

• Keep all movement on the slopes slow and gradual.

Do not make sudden changes in speed or direction,

which could cause the machine to roll over,

• Use extra care while operating machine with grass

catchers or other attachments; they can affect the

stability of the machine, Do no use on steep slopes,

• Do not try to stabilize the machine by putting your foot

on the ground.

• Do not mow near drop-offs, ditches, or embankments.

The machine could suddenly roll over if a wheel is over

the edge or if the edge caves in.

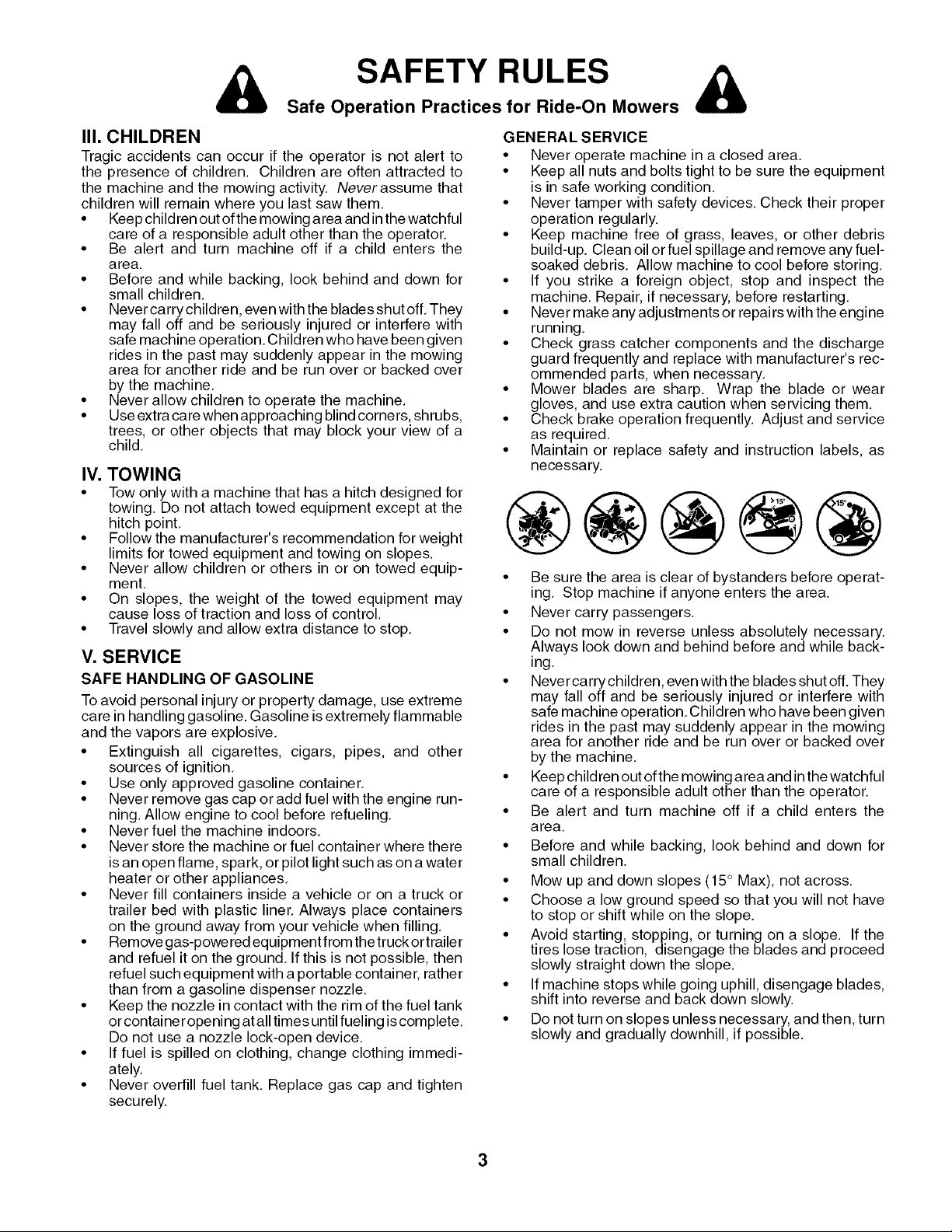

SAFETY RULES &

Safe Operation Practices for Ride-On Mowers

II1. CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the machine and the mowing activity. Never assume that

children will remain where you last saw them,

• Keep children out of the mowing area and inthe watchful

care of a responsible adult other than the operator.

• Be alert and turn machine off if a child enters the

area.

• Before and while backing, look behind and down for

small children.

• Never carry children, even with the blades shut off, They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine.

• Never allow children to operate the machine.

• Use extra care when approaching blind corners, shrubs,

trees, or other objects that may block your view of a

child,

IV. TOWING

• Tow only with a machine that has a hitch designed for

towing. Do not attach towed equipment except at the

hitch point,

• Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

• Never allow children or others in or on towed equip-

ment.

• On slopes, the weight of the towed equipment may

cause loss of traction and loss of control.

• Travel slowly and allow extra distance to stop,

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property damage, use extreme

care in handling gasoline, Gasoline is extremely flammable

and the vapors are explosive,

• Extinguish all cigarettes, cigars, pipes, and other

sources of ignition,

• Use only approved gasoline container,

• Never remove gas cap or add fuel with the engine run-

ning. Allow engine to cool before refueling,

• Never fuel the machine indoors.

• Never store the machine or fuel container where there

is an open flame, spark, or pilot light such as on a water

heater or other appliances,

• Never fill containers inside a vehicle or on a truck or

trailer bed with plastic liner, Always place containers

on the ground away from your vehicle when filling,

• Remove gas-powered equipment from the truck ortrailer

and refuel it on the ground, If this is not possible, then

refuel such equipment with a portable container, rather

than from a gasoline dispenser nozzle.

• Keep the nozzle in contact with the rim of the fuel tank

or container opening atall times until fueling is complete,

Do not use a nozzle lock-open device,

• If fuel is spilled on clothing, change clothing immedi-

ately.

• Never overfill fuel tank. Replace gas cap and tighten

securely.

GENERAL SERVICE

• Never operate machine in a closed area,

• Keep all nuts and bolts tight to be sure the equipment

is in safe working condition.

• Never tamper with safety devices, Check their proper

operation regularly,

• Keep machine free of grass, leaves, or other debris

build-up. Clean oil or fuel spillage and remove any fuel-

soaked debris, Allow machine to cool before storing.

• If you strike a foreign object, stop and inspect the

machine. Repair, if necessary, before restarting.

• Never make any adjustments or repairs with the engine

running.

• Check grass catcher components and the discharge

guard frequently and replace with manufacturer's rec-

ommended parts, when necessary,

• Mower blades are sharp, Wrap the blade or wear

gloves, and use extra caution when servicing them.

• Check brake operation frequently. Adjust and service

as required.

• Maintain or replace safety and instruction labels, as

necessary,

• Be sure the area is clear of bystanders before operat-

ing, Stop machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary,

Always look down and behind before and while back-

ing,

• Never carry children, even with the blades shut off, They

may fall off and be seriously injured or interfere with

safe machine operation. Children who have been given

rides in the past may suddenly appear in the mowing

area for another ride and be run over or backed over

by the machine,

• Keep children out of the mowing area and inthe watchful

care of a responsible adult other than the operator,

• Be alert and turn machine off if a child enters the

area,

• Before and while backing, look behind and down for

small children.

• Mow up and down slopes (15 ° Max), not across,

• Choose a low ground speed so that you will not have

to stop or shift while on the slope.

• Avoid starting, stopping, or turning on a slope. If the

tires lose traction, disengage the blades and proceed

slowly straight down the slope,

• If machine stops while going uphill, disengage blades,

shift into reverse and back down slowly.

• Do not turn on slopes unless necessary, and then, turn

slowly and gradually downhill, if possible.

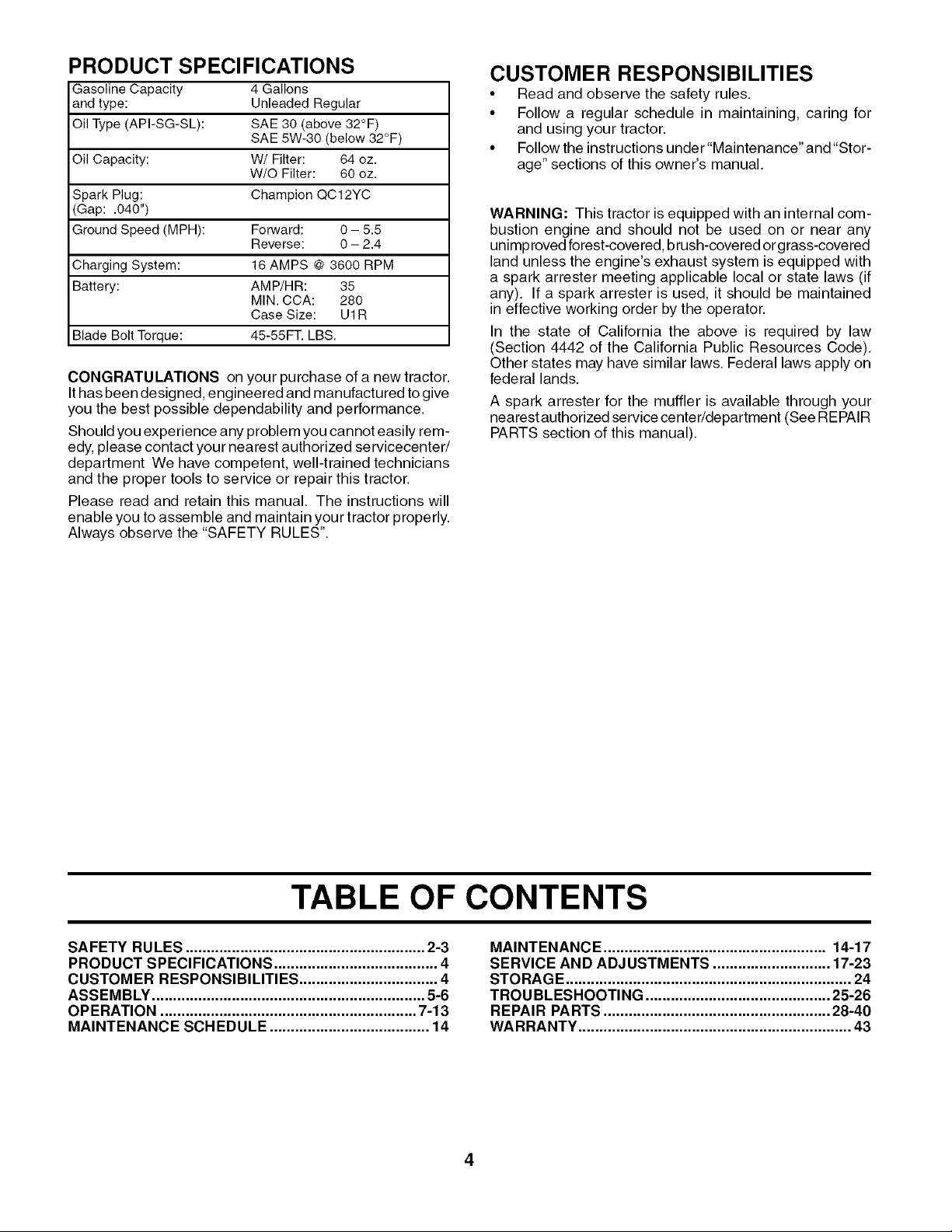

PRODUCT SPECIFICATIONS

Gasoline Capacity 4 Gallons

and type: Unleaded Regular

Oil Type (API-SG-SL): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

Oil Capacity: W/Filter: 64 oz.

W/O Filter: 60 oz.

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed (MPH): Forward: 0 - 5.5

Reverse: 0 - 2.4

Charging System: 16 AMPS @ 3600 RPM

Battery: AMP/HR: 35

MIN. CCA: 280

Case Size: U1R

Blade Bolt Torque: 45-55FT. LBS.

CONGRATULATIONS on your purchase of a new tractor.

Ithas been designed, engineered and manufactured to give

you the best possible dependability and performance,

Should you experience any problem you cannot easily rem-

edy, please contact your nearest authorized servicecenter/

department We have competent, well-trained technicians

and the proper tools to service or repair this tractor,

Please read and retain this manual, The instructions will

enable you to assemble and maintain your tractor properly,

Always observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules,

• Follow a regular schedule in maintaining, caring for

and using your tractor.

• Follow the instructions under "Maintenance" and "Stor-

age" sections of this owner's manual,

WARNING: This tractor is equipped with an internal com-

bustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-covered

land unless the engine's exhaust system is equipped with

a spark arrester meeting applicable local or state laws (if

any), If a spark arrester is used, it should be maintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the California Public Resources Code),

Other states may have similar laws, Federal laws apply on

federal lands,

A spark arrester for the muffler is available through your

nearest authorized service center/department (See REPAIR

PARTS section of this manual),

TABLE OF CONTENTS

SAFETY RULES ......................................................... 2-3

PRODUCT SPECIFICATIONS ....................................... 4

CUSTOMER RESPONSIBILITIES ................................. 4

ASSEMBLY ................................................................. 5-6

OPERATION ............................................................. 7-13

MAINTENANCE SCHEDULE ...................................... 14

MAINTENANCE ..................................................... 14-17

SERVICE AND ADJUSTMENTS ............................ 17-23

STORAGE .................................................................... 24

TROUBLESHOOTING ............................................ 25-26

REPAIR PARTS ...................................................... 28-40

WARRANTY ................................................................. 43

UNASSEMBLED PARTS

Key

(2) Keys

(1) Oil Drain Tube

Slope Sheet

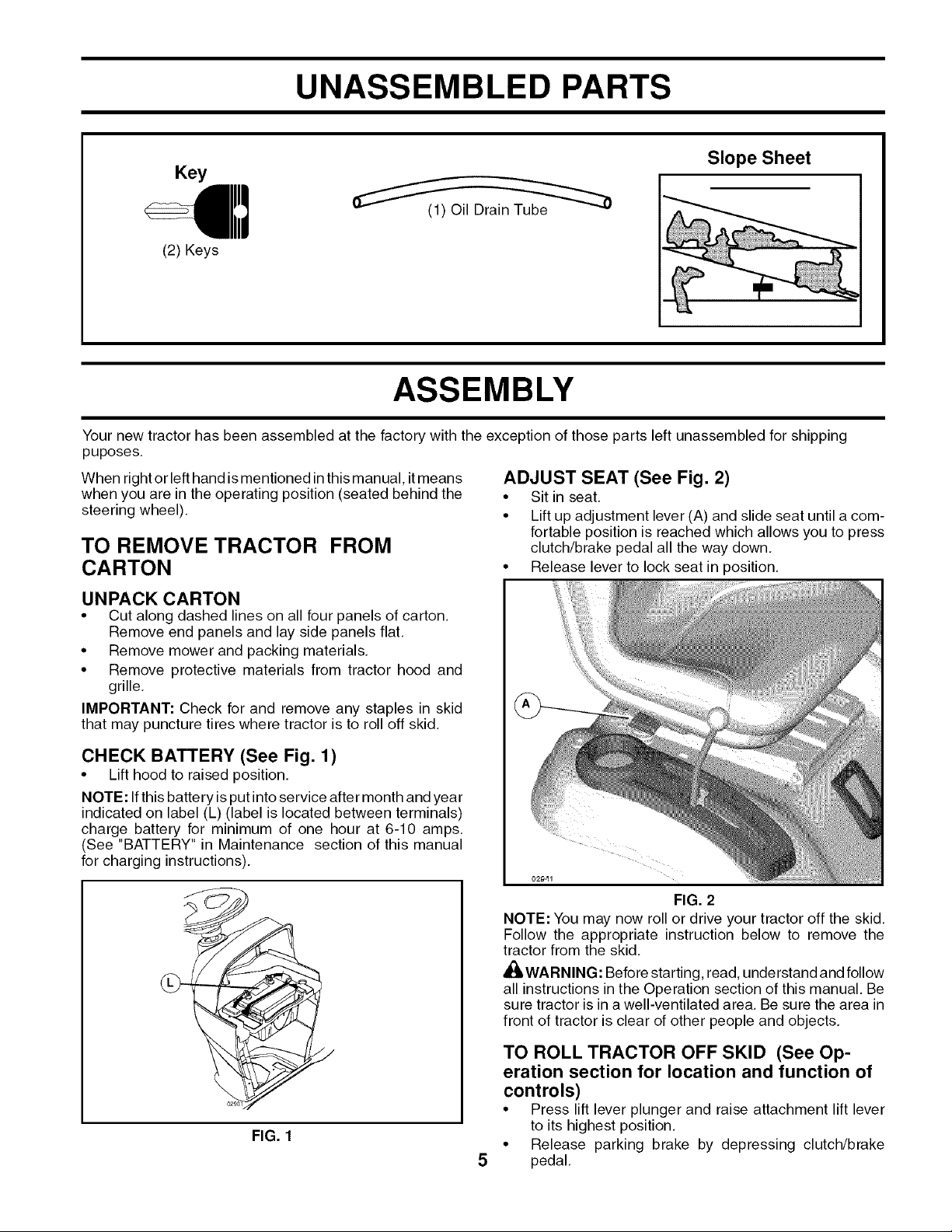

ASSEMBLY

Your new tractor has been assembled at the factory with the exception of those parts left unassembled for shipping

puposes.

When right or left hand is mentioned in this manual, it means

when you are in the operating position (seated behind the

steering wheel).

TO REMOVE TRACTOR FROM

CARTON

ADJUST SEAT (See Fig. 2)

• Sit in seat.

• Lift up adjustment lever (A) and slide seat until a com-

fortable position is reached which allows you to press

clutch/brake pedal all the way down.

• Release lever to lock seat in position.

UNPACK CARTON

• Cut along dashed lines on all four panels of carton.

Remove end panels and lay side panels flat.

• Remove mower and packing materials.

• Remove protective materials from tractor hood and

grille.

IMPORTANT: Check for and remove any staples in skid

that may puncture tires where tractor is to roll off skid.

CHECK BATTERY (See Fig. 1)

• Lift hood to raised position.

NOTE: If this batte ryis put into service afte rmonth and year

indicated on label (L) (label is located between terminals)

charge battery for minimum of one hour at 6-10 amps.

(See "BATTERY" in Maintenance section of this manual

for charging instructions).

FIG. 1

FIG. 2

NOTE: You may now roll or drive your tractor off the skid.

Follow the appropriate instruction below to remove the

tractor from the skid.

_IbWARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

TO ROLL TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

• Press lift lever plunger and raise attachment lift lever

to its highest position.

• Release parking brake by depressing clutch/brake

pedal.

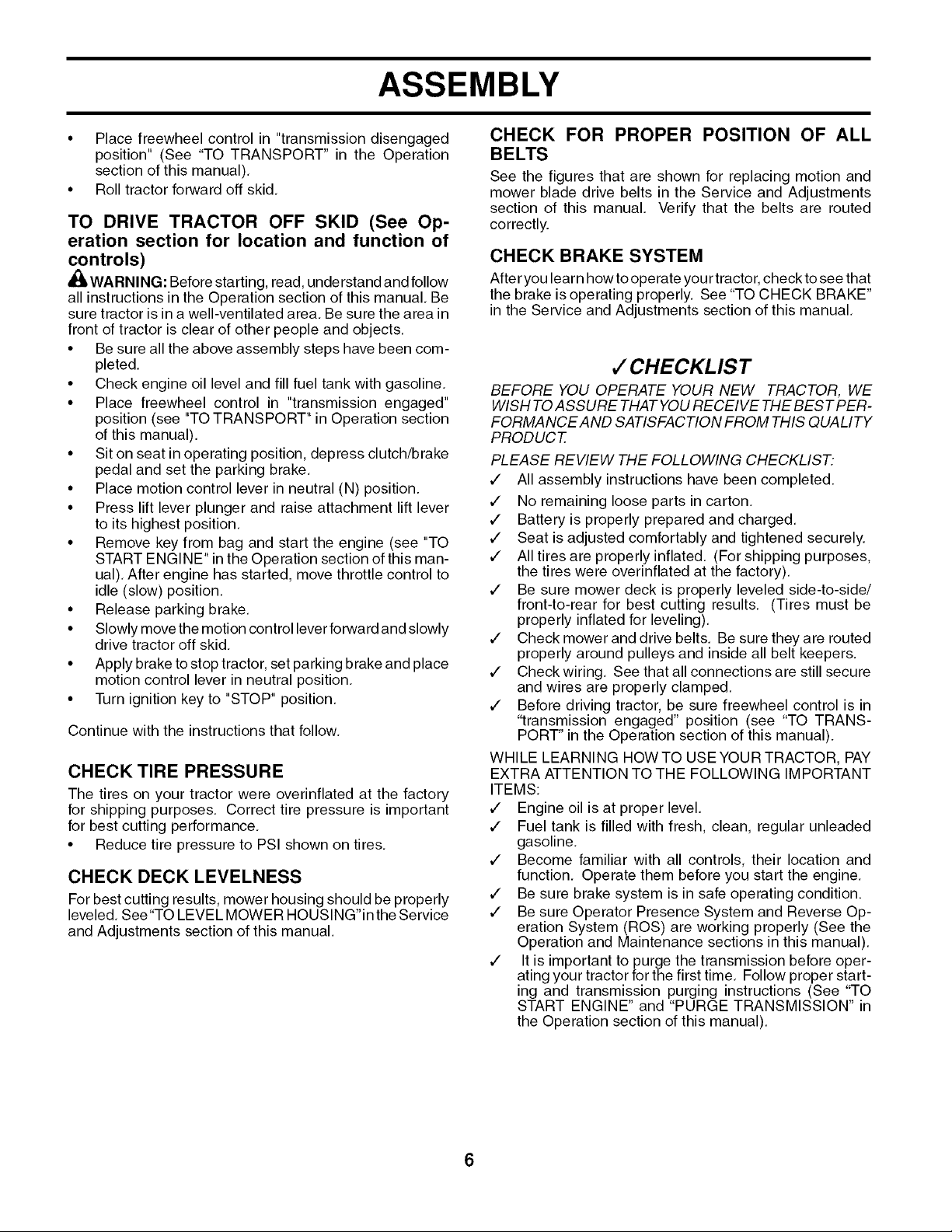

ASSEMBLY

• Place freewheel control in "transmission disengaged

position" (See "TO TRANSPORT" in the Operation

section of this manual).

Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See Op-

eration section for location and function of

controls)

WARNING: Before starting, read, understand and follow

all instructions in the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be sure the area in

front of tractor is clear of other people and objects.

• Be sure all the above assembly steps have been com-

pleted.

• Check engine oil level and fill fuel tank with gasoline.

• Place freewheel control in "transmission engaged"

position (see "TO TRANSPORT" in Operation section

of this manual).

• Sit on seat in operating position, depress clutch/brake

pedal and set the parking brake.

• Place motion control lever in neutral (N) position.

• Press lift lever plunger and raise attachment lift lever

to its highest position.

• Remove key from bag and start the engine (see "TO

START ENGINE" in the Operation section of this man-

ual). After engine has started, move throttle control to

idle (slow) position.

• Release parking brake.

• Slowly move the motion control lever forward and slowly

drive tractor off skid.

• Apply brake to stop tractor, set parking brake and place

motion control lever in neutral position.

• Turn ignition key to "STOP" position.

Continue with the instructions that follow.

CHECK TIRE PRESSURE

The tires on your tractor were overinflated at the factory

for shipping purposes. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown on tires.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

Afteryou learn how to operate your tractor, check to see that

the brake is operating properly. See "TO CHECK BRAKE"

in the Service and Adjustments section of this manual.

,/CHECKL IS T

BEFORE YOU OPERATE YOUR NEW TRACTOR, WE

WISH TO ASSURE THAT YOU RECEIVE THE BES T PER-

FORMANCEAND SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ All assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged.

,/ Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,/ Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

,/ Before driving tractor, be sure freewheel control is in

"transmission engaged" position (see "TO TRANS-

PORT" in the Operation section of this manual).

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls, their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

,/ Be sure Operator Presence System and Reverse Op-

eration System (ROS) are working properly (See the

Operation and Maintenance sections in this manual).

,/ It is important to purge the transmission before oper-

ating your tractor for the first time. Follow proper start-

ing and transmission purging instructions (See "TO

START ENGINE" and "PURGE TRANSMISSION" in

the Operation section of this manual).

OPERATION

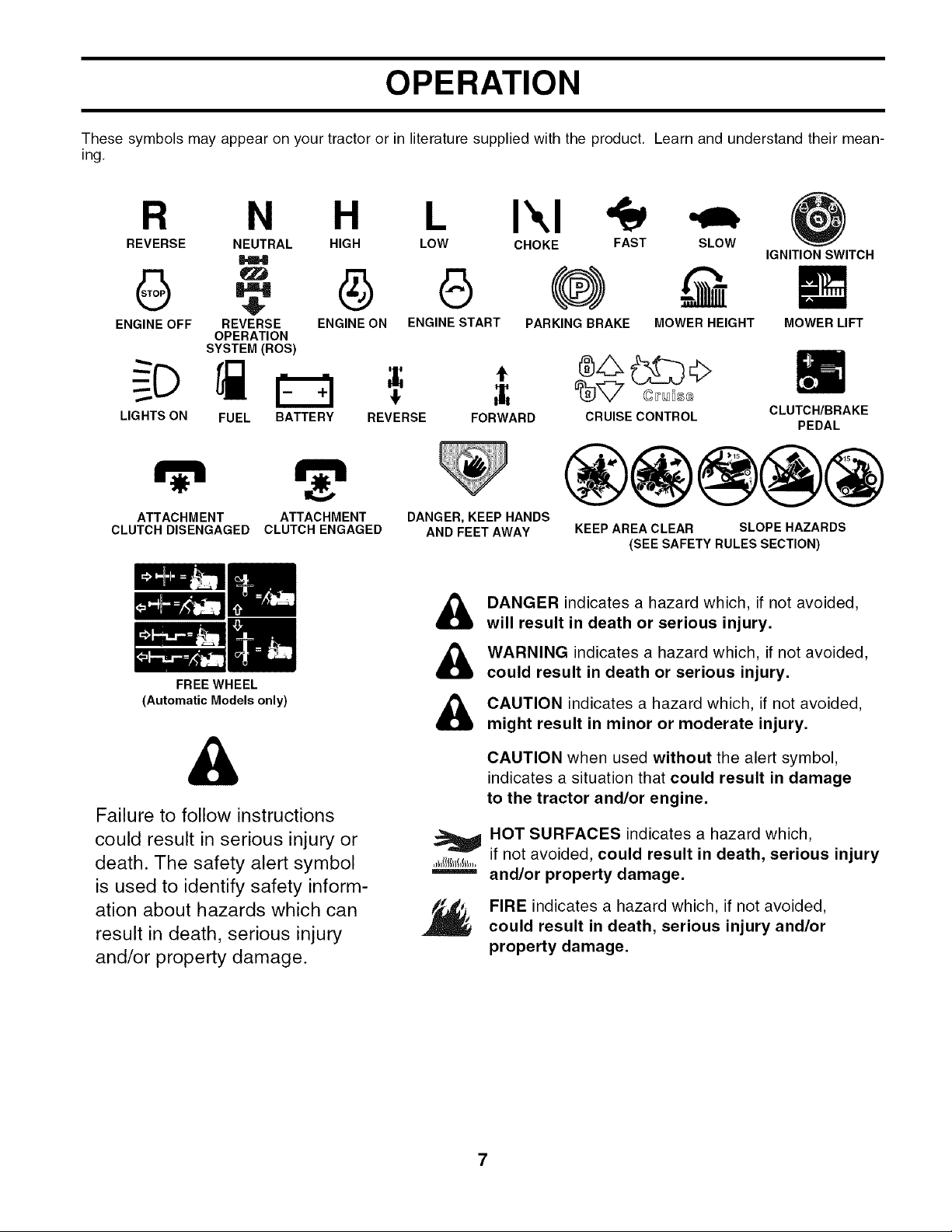

These symbols may appear on your tractor or in literature supplied with the product, Learn and understand their mean-

ing,

L I\l

LOW CHOKE FAST

ENGINE START

REVERSE NEUTRAL HIGH SLOW

ENGINE OFF REVERSE ENGINE ON PARKING BRAKE MOWER HEIGHT

OPERATION

SYSTEM (ROS)

LIGHTS ON FUEL BATTERY REVERSE FORWARD CRUISE CONTROL

IGNITION SWITCH

MOWER LIFT

CLUTCH/BRAKE

PEDAL

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

FREE WHEEL

(Automatic Models only)

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

OPERATION

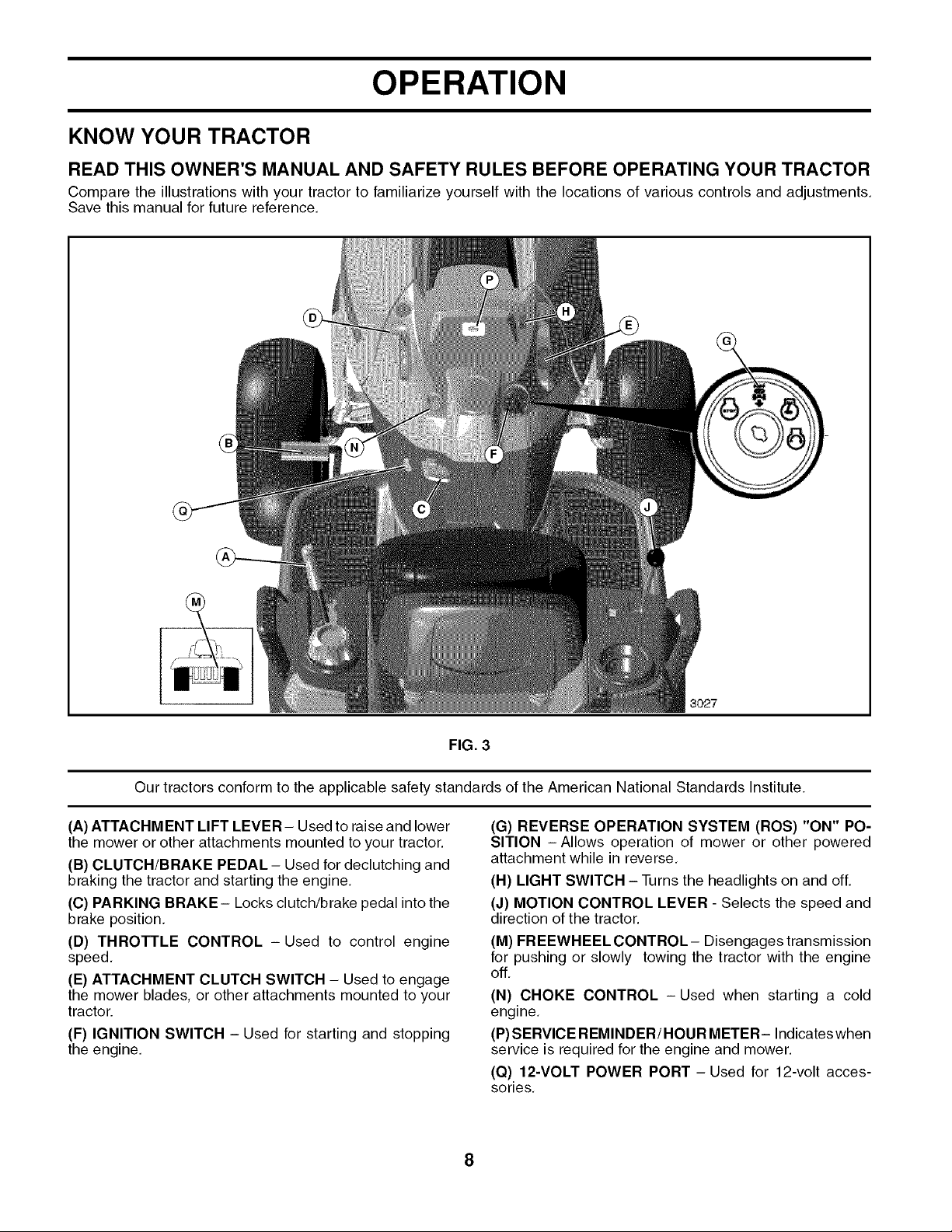

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments,

Save this manual for future reference,

_027

FIG. 3

Our tractors conform to the applicable safety standards of the American National Standards Institute.

(A) ATTACHMENT LIFT LEVER- Used to raise and lower

the mower or other attachments mounted to your tractor.

(B) CLUTCH/BRAKE PEDAL - Used for declutching and

braking the tractor and starting the engine,

brake position.

(D) THROTTLE CONTROL -Used to control engine

speed,

(E) ATTACHMENT CLUTCH SWITCH - Used to engage

the mower blades, or other attachments mounted to your

tractor.

(F) IGNITION SWITCH - Used for starting and stopping

the engine,

(G) REVERSE OPERATION SYSTEM (ROS) "ON" PO-

SITION -Allows operation of mower or other powered

attachment while in reverse,

(H) LIGHT SWITCH - Turns the headlights on and off,

(J) MOTION CONTROL LEVER - Selects the speed and

direction of the tractor.

(M) FREEWHEEL CONTROL- Disengages transmission

for pushing or slowly towing the tractor with the engine

off.

(N) CHOKE CONTROL -Used when starting a cold

engine,

(P) SERVICE REMINDER/HOU RMETER- Indicates when

service is required for the engine and mower.

(Q) 12-VOLT POWER PORT -Used for 12-volt acces-

sories,

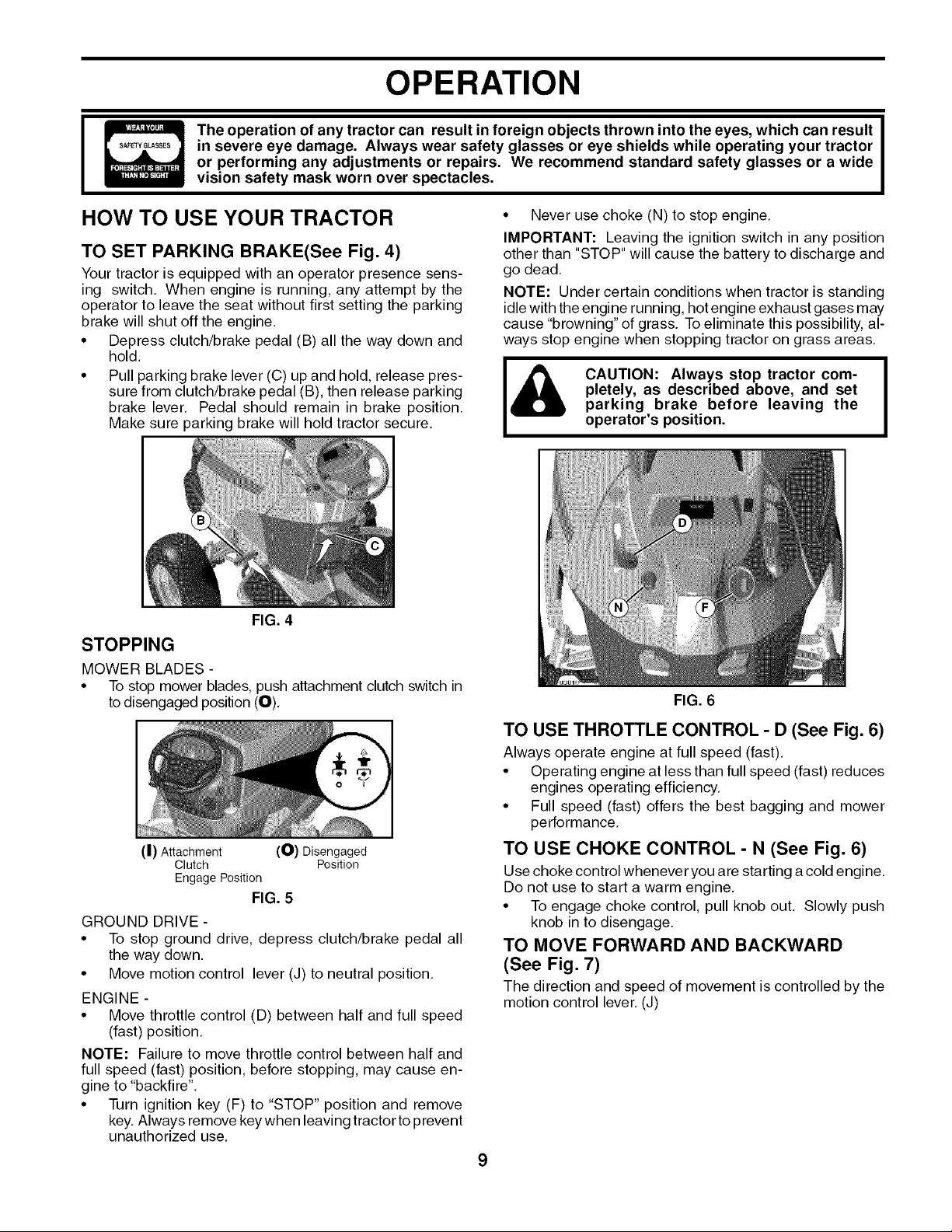

OPERATION

The operation of any tractor can result in foreign objects thrown into the eyes, which can result

in severe eye damage. Always wear safety glasses or eye shields while operating your tractor

or performing any adjustments or repairs. We recommend standard safety glasses or a wide

vision safety mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE(See Fig. 4)

Your tractor is equipped with an operator presence sens-

ing switch, When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal (B) all the way down and

hold.

• Pull parking brake lever (C) up and hold, release pres-

sure from clutch/brake pedal (B), then release parking

brake lever. Pedal should remain in brake position,

Make sure parking brake will hold tractor secure,

FIG. 4

• Never use choke (N) to stop engine,

IMPORTANT: Leaving the ignition switch in any position

other than "STOP" will cause the battery to discharge and

go dead.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility, al-

ways stop engine when stopping tractor on grass areas,

CAUTION: Always stop tractor com-

pletely, as described above, and set

parking brake before leaving the

operator's position.

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment clutch switch in

to disengaged position (O),

(|) Attachment (O) Disengaged

Clutch Position

Engage Position

FIG. 5

GROUND DRIVE -

• To stop ground drive, depress clutch/brake pedal all

the way down,

• Move motion control lever (J) to neutral position,

ENGINE -

• Move throttle control (D) between half and full speed

(fast) position,

NOTE: Failure to move throttle control between half and

full speed (fast) position, before stopping, may cause en-

gine to "backfire",

• Turn ignition key (F) to "STOP" position and remove

key, Always remove key when leaving tractor to prevent

unauthorized use.

FIG. 6

TO USE THROTTLE CONTROL - D (See Fig. 6)

Always operate engine at full speed (fast),

• Operating engine at less than full speed (fast) reduces

engines operating efficiency,

• Full speed (fast) offers the best bagging and mower

performance.

TO USE CHOKE CONTROL - N (See Fig. 6)

Use choke control whenever you are starting a cold engine,

Do not use to start a warm engine,

• To engage choke control, pull knob out. Slowly push

knob in to disengage,

TO MOVE FORWARD AND BACKWARD

(See Fig. 7)

The direction and speed of movement is controlled by the

motion control lever. (J)

FIG.7

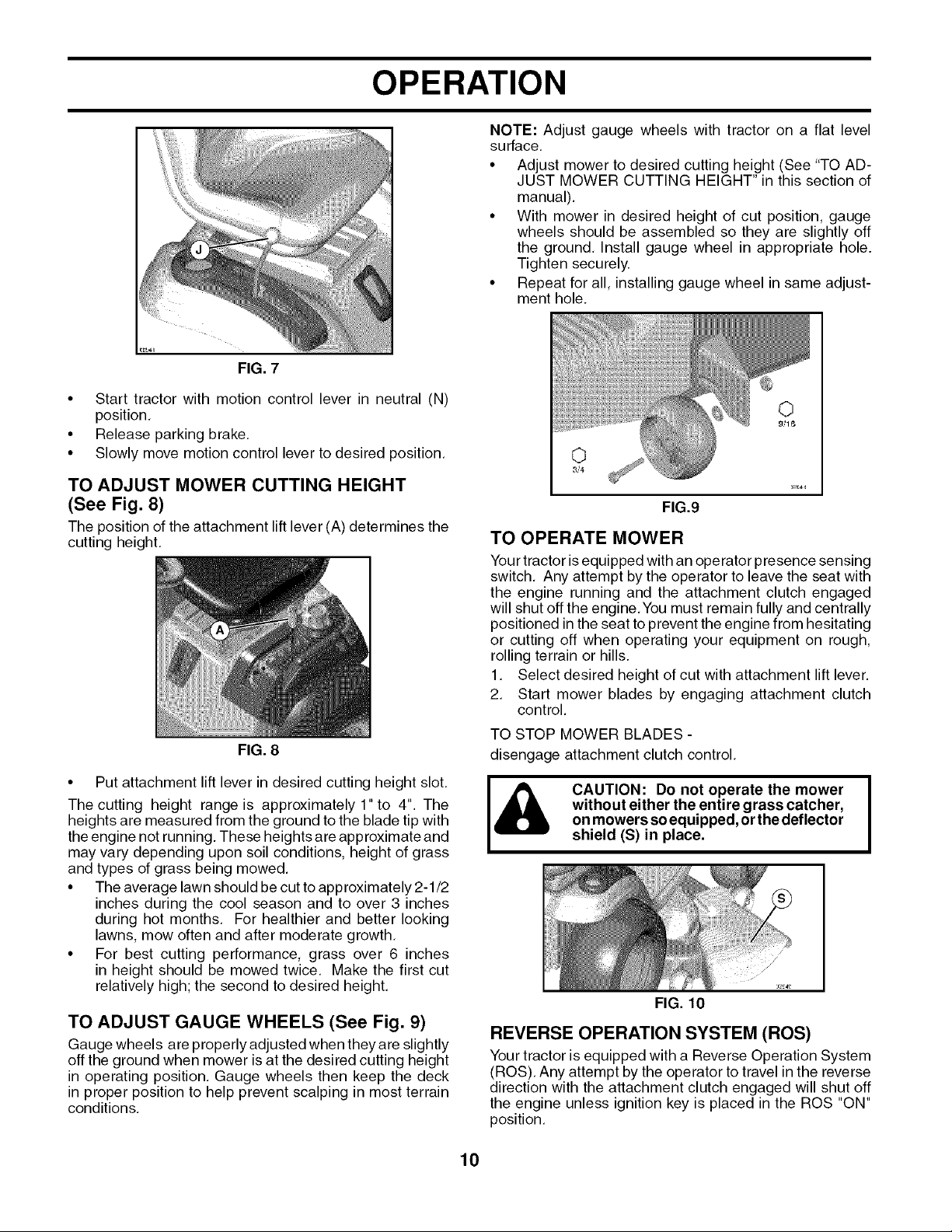

OPERATION

NOTE: Adjust gauge wheels with tractor on a flat level

surface.

• Adjust mower to desired cutting height (See "TO AD-

JUST MOWER CUTTING HEIGHT" in this section of

manual).

• With mower in desired height of cut position, gauge

wheels should be assembled so they are slightly off

the ground, Install gauge wheel in appropriate hole.

Tighten securely.

• Repeat for all, installing gauge wheel in same adjust-

ment hole.

• Start tractor with motion control lever in neutral (N)

position,

• Release parking brake.

• Slowly move motion control lever to desired position.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The position of the attachment lift lever (A) determines the

cutting height,

FIG. 8

• Put attachment lift lever in desired cutting height slot.

The cutting height range is approximately 1" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These heights are approximate and

may vary depending upon soil conditions, height of grass

and types of grass being mowed.

• The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months, For healthier and better looking

lawns, mow often and after moderate growth,

• For best cutting performance, grass over 6 inches

in height should be mowed twice, Make the first cut

relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS (See Fig. 9)

Gauge wheels are properly adjusted when they are slightly

off the ground when mower is at the desired cutting height

in operating position, Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain

conditions,

FIG.9

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing

switch, Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged

will shut off the engine,You must remain fully and centrally

positioned in the seat to prevent the engine from hesitating

or cutting off when operating your equipment on rough,

rolling terrain or hills.

1, Select desired height of cut with attachment lift lever.

2, Start mower blades by engaging attachment clutch

control.

TO STOP MOWER BLADES -

disengage attachment clutch control,

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield (S) in place.

FIG. 10

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse Operation System

(ROS). Any attempt by the operator to travel in the reverse

direction with the attachment clutch engaged will shut off

the engine unless ignition key is placed in the ROS "ON"

position.

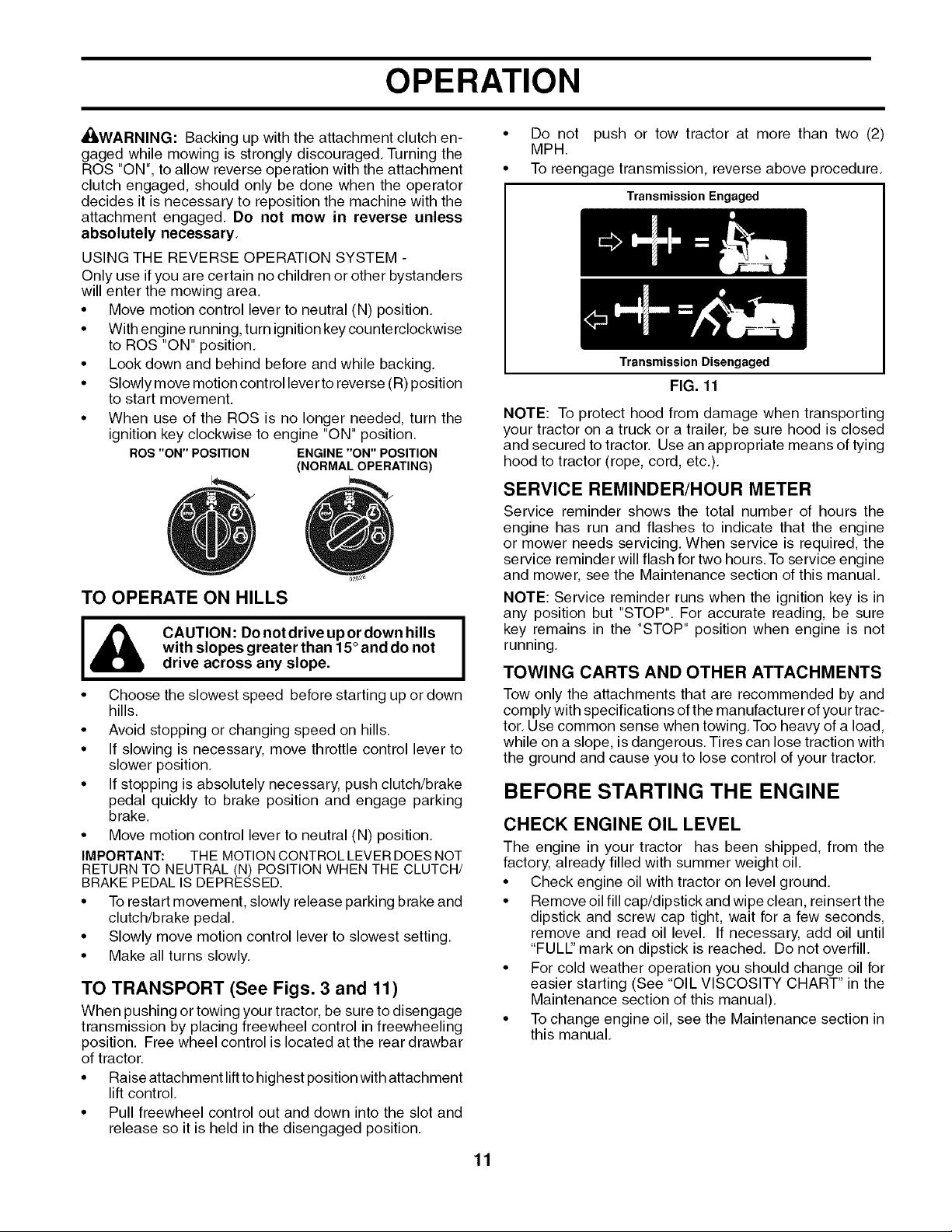

OPERATION

_WARNING: Backing up with the attachment clutch en-

gaged while mowing is strongly discouraged, Turning the

ROS "ON", to allow reverse operation with the attachment

clutch engaged, should only be done when the operator

decides it is necessary to reposition the machine with the

attachment engaged, Do not mow in reverse unless

absolutely necessary,

USING THE REVERSE OPERATION SYSTEM -

Only use if you are certain no children or other bystanders

will enter the mowing area.

• Move motion control lever to neutral (N) position,

• With engine running, turn ignition key counterclockwise

to ROS "ON" position,

• Look down and behind before and while backing,

• Slowly move motion control lever to reverse (R) position

to start movement,

• When use of the ROS is no longer needed, turn the

ignition key clockwise to engine "ON" position.

ROS "ON" POSITION ENGINE "ON" POSITION

(NORMAL OPERATING)

TO OPERATE ON HILLS

I_IL CAUTION: Donotdriveupordownhills I

with slopes greater than 15° and do not

drive across any slope,

• Choose the slowest speed before starting up or down

hills.

• Avoid stopping or changing speed on hills.

• If slowing is necessary, move throttle control lever to

slower position.

• If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

• Move motion control lever to neutral (N) position.

IMPORTANT: THE MOTIONCONTROLLEVERDOESNOT

RETURN TO NEUTRAL (N) POSITIONWHEN THE CLUTCH/

BRAKE PEDAL IS DEPRESSED.

• To restart movement, slowly release parking brake and

clutch/brake pedal.

• Slowly move motion control lever to slowest setting.

• Make all turns slowly.

TO TRANSPORT (See Figs. 3 and 11)

When pushing or towing your tractor, be sure to disengage

transmission by placing freewheel control in freewheeling

position. Free wheel control is located at the rear drawbar

of tractor.

• Raise attachment lift to highest position with attachment

lift control.

• Pull freewheel control out and down into the slot and

release so it is held in the disengaged position.

• Do not push or tow tractor at more than two (2)

MPH.

• To reengage transmission, reverse above procedure.

Transmission Engaged

Transmission Disengaged

FIG, 11

NOTE: To protect hood from damage when transporting

your tractor on a truck or a trailer, be sure hood is closed

and secured to tractor. Use an appropriate means of tying

hood to tractor (rope, cord, etc.).

SERVICE REMINDER/HOUR METER

Service reminder shows the total number of hours the

engine has run and flashes to indicate that the engine

or mower needs servicing. When service is required, the

service reminder will flash for two hours.To service engine

and mower, see the Maintenance section of this manual.

NOTE: Service reminder runs when the ignition key is in

any position but "STOP". For accurate reading, be sure

key remains in the "STOP" position when engine is not

running.

TOWING CARTS AND OTHER ATTACHMENTS

Tow only the attachments that are recommended by and

comply with specifications of the manufacturer of your trac-

tor. Use common sense when towing. Too heavy of a load,

while on a slope, is dangerous. Tires can lose traction with

the ground and cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil,

• Check engine oil with tractor on level ground,

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULl" mark on dipstick is reached, Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART" in the

Maintenance section of this manual),

• To change engine oil, see the Maintenance section in

this manual,

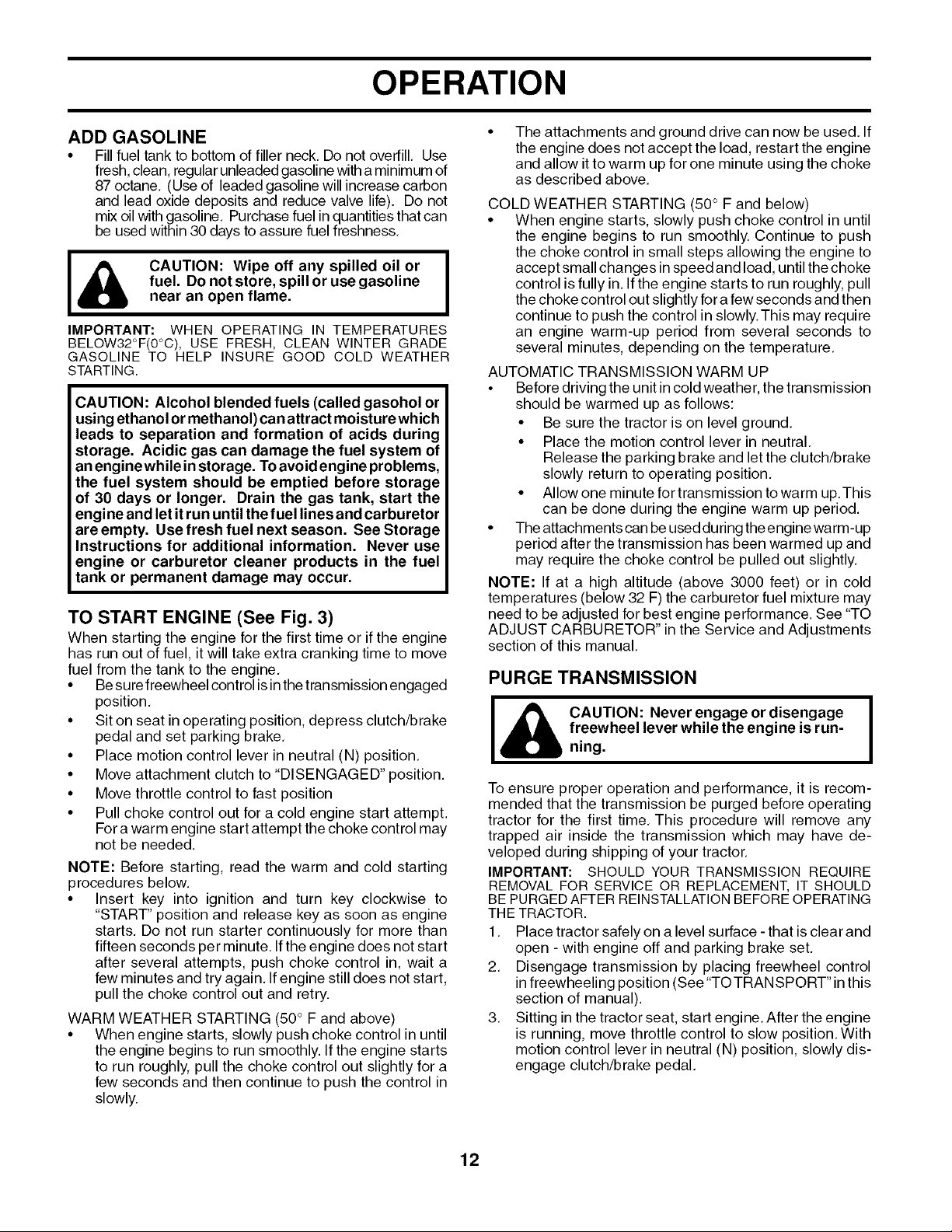

OPERATION

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do not overfill. Use

fresh, clean, regularunleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will increase carbon

and lead oxide deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel inquantities that can

be used within 30 days to assure fuel freshness.

I& CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

CAUTION: Alcohol blended fuels (called gasohol or

using ethanol ormethanol) can attract moisture which

leads to separation and formation of acids during

storage. Acidic gas can damage the fuel system of

an enginewhile in storage. To avoid engine problems,

the fuel system should be emptied before storage

of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor

are empty. Use fresh fuel next season. See Storage

Instructions for additional information. Never use

engine or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE (See Fig. 3)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

• Be surefreewheel control is in the transmission engaged

position.

• Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

• Place motion control lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

NOTE: Before starting, read the warm and cold starting

procedures below.

• Insert key into ignition and turn key clockwise to

"START" position and release key as soon as engine

starts. Do not run starter continuously for more than

fifteen seconds per minute. If the engine does not start

after several attempts, push choke control in, wait a

few minutes and try again. If engine still does not start,

pull the choke control out and retry.

WARM WEATHER STARTING (50 ° F and above)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. If the engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow it to warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50 ° F and below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the choke

control is fully in. If the engine starts to run roughly, pull

the choke control out slightly for a few seconds and then

continue to push the control in slowly.This may require

an engine warm-up period from several seconds to

several minutes, depending on the temperature.

AUTOMATIC TRANSMISSION WARM UP

Before driving the unit in cold weather, the transmission

should be warmed up as follows:

• Be sure the tractor is on level ground.

• Place the motion control lever in neutral.

Release the parking brake and let the clutch/brake

slowly return to operating position.

• Allow one minute fortransmission to warm up.This

can be done during the engine warm up period.

• The attachments can be used during the engine warm-up

period after the transmission has been warmed up and

may require the choke control be pulled out slightly.

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

PURGE TRANSMISSION

_b AUTION: Never engage or disengage I

freewheel lever while the engine is run-

ning.

To ensure proper operation and performance, it is recom-

mended that the transmission be purged before operating

tractor for the first time. This procedure will remove any

trapped air inside the transmission which may have de-

veloped during shipping of your tractor.

IMPORTANT: SHOULD YOUR TRANSMISSION REQUIRE

REMOVAL FOR SERVICE OR REPLACEMENT, IT SHOULD

BE PURGEDAFTER REINSTALLATIONBEFOREOPERATING

THE TRACTOR.

1. Place tractor safely on a level surface - that is clear and

open - with engine off and parking brake set.

2. Disengage transmission by placing freewheel control

in freewheeling position (See"TOTRANSPORT"in this

section of manual).

3. Sitting in the tractor seat, start engine. After the engine

is running, move throttle control to slow position. With

motion control lever in neutral (N) position, slowly dis-

engage clutch/brake pedal.

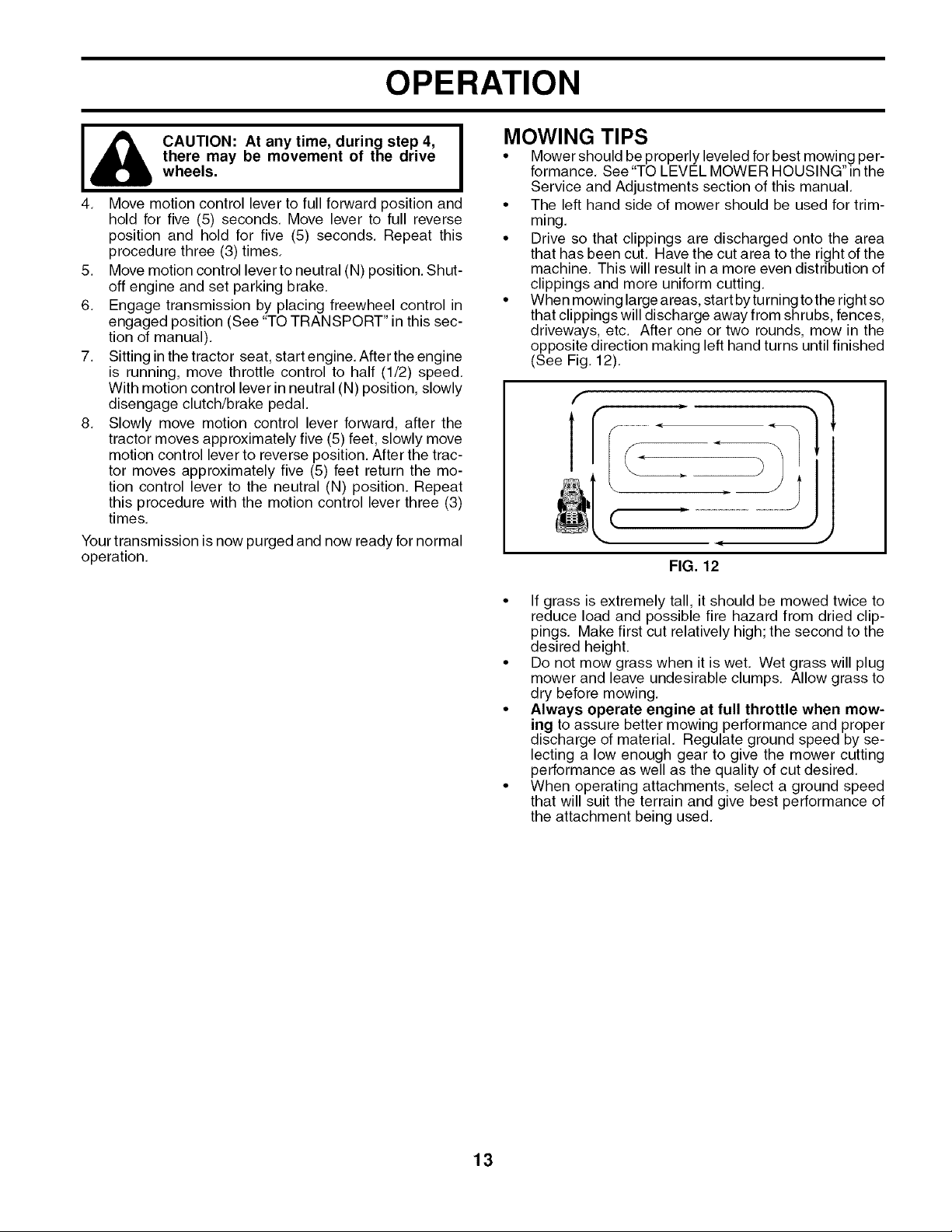

OPERATION

CAUTION: At any time, during step 4, I

there may be movement of the drive

wheels,

4 Move motion control lever to full forward position and

hold for five (5) seconds Move lever to full reverse

position and hold for five (5) seconds Repeat this

procedure three (3) times

5 Move motion control leverto neutral (N) position Shut

off engine and set parking brake

6 Engage transmission by placing freewheel control in

engaged position (See TO TRANSPORT in this sec

tion of manual)

7 Sitting inthe tractor seat startengineAftertheengine

is running move throttle control to half (1/2) speed

With motion control lever in neutral (N) position slowly

disengage clutch/brake pedal

8 Slowly move motion control lever forward after the

tractor moves approximately five (5) feet slowly move

motion control lever to reverse position After the trac

tor moves approximately five (5) feet return the mo

tion control lever to the neutral (N) position Repeat

this procedure with the motion control lever three (3)

times

Your transmission is now purged and now ready for normal

operation

MOWING TIPS

• Mower should be properly leveled for best mowing per

formance See TO LEVEL MOWER HOUSING in the

Service and Adjustments section of this manual

• The left hand side of mower should be used for trim

ming

• Drive so that clippings are discharged onto the area

that has been cut Have the cut area to the right of the

machine This will result in a more even distribution of

clippings and more uniform cutting

• When mowing large areas start by turning tothe right so

that clippings will discharge away from shrubs fences

driveways etc After one or two rounds mow in the

opposite direction making left hand turns until finished

(See Fig 12)

FIG. 12

• If grass is extremely tall it should be mowed twice to

reduce load and possible fire hazard from dried clip

pings Make first cut relatively high; the second to the

desired height

• Do not mow grass when it is wet Wet grass will plug

mower and leave undesirable clumps Allow grass to

dry before mowing

• Always operate engine at full throttle when mow-

ing to assure better mowing performance and proper

discharge of material Regulate ground speed by se

lecting a low enough gear to give the mower cutting

performance as well as the quality of cut desired

• When operating attachments select a ground speed

that will suit the terrain and give best performance of

the attachment being used

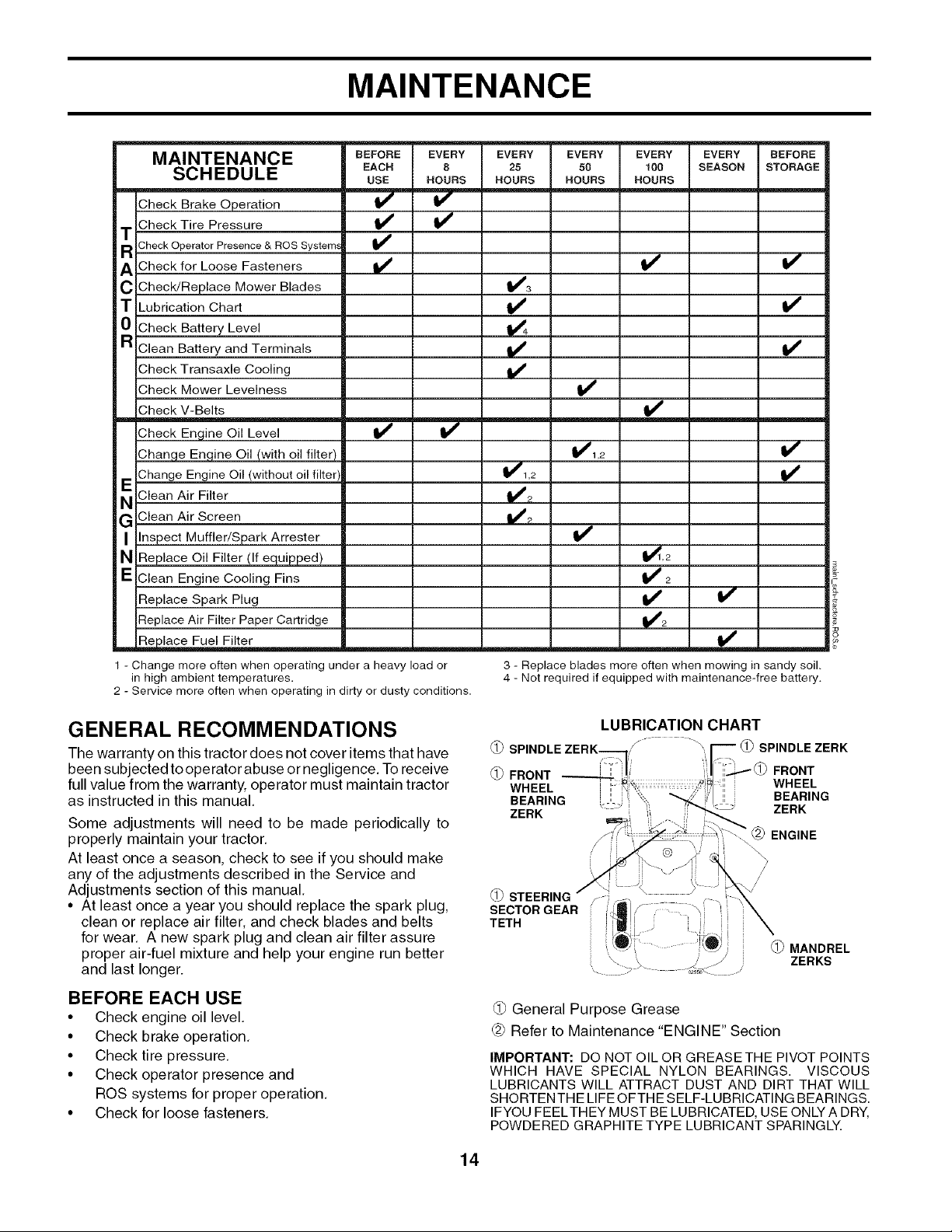

MAINTENANCE

SCHEDULE

Sheck Brake Operation

Sheck Tire Pressure

Check Operator Presence & ROS Systems

Sheck for Loose Fasteners

ShecWReplace Mower Blades

Lubrication Chart

Sheck Battery Level

Slean Battery and Terminals

Sheck Transaxle Cooling

Sheck Mower Levelness

Sheck V-Belts

Check Engine Oil Level

Dhan,qe Enqine Oil (with oil filter)

Shan ge Engine Oil (without oil filter

Clean Air Filter

Clean Air Screen

Inspect Muffler/Spark Arrester

Replace Oil Filter (If equipped)

Clean Engine Cooling Fins

Replace Spark Plug

qeplace Air Filter Paper Cartridge

R_=place Fuel Filter

BEFORE

EACH

USE

EVERY

HOURS

EVERY

HOURS

V_1,2

V',

EVERY

HOURS

V#1,2

EVERY

100

HOURS

V_,2

V'.

EVERY

SEASON

BEFORE

STORAGE

- Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To receive

full value from the warranty, operator must maintain tractor

as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

At least once a season, check to see if you should make

any of the adjustments described in the Service and

Adjustments section of this manual.

• At least once a year you should replace the spark plug,

clean or replace air filter, and check blades and belts

for wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

ROS systems for proper operation.

• Check for loose fasteners.

LUBRICATION CHART

(_) _ SPINDLE ZERK

(_) FRONT FRONT

WHEEL WHEEL

BEARING BEARING

ZERK ZERK

'(_ ENGINE

STEERING

SECTOR GEAR

TETH

_ MANDREL

ZERKS

_) General Purpose Grease

@ Refer to Maintenance "ENGINE" Section

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS

LUBRICANTS WILL ATTRACT DUST AND DIRT THAT WILL

SHORTEN THE LIFE OFTHE SELF-LUBRICATING BEARINGS.

IFYOU FEELTHEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPHITE TYPE LUBRICANT SPARINGLY.

MAINTENANCE

TRACTOR

Always observe safety rules when performing any main-

tenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be serviced, (See "TO CHECK

BRAKE" in the Service and Adjustments section of this

manual),

TIRES

• Maintain proper air pressure in all tires (See PSI on

tires).

• Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber,

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage,

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion,

OPERATOR PRESENCE SYSTEM AND REVERSE OP-

ERATION SYSTEM (ROS)

Be sure operator presence and reverse operation systems

are working properly, If your tractor does not function as

described, repair the problem immediately.

• The engine should not start unless the brake pedal is

fully depressed, and the attachment clutch control is

in the disengaged position,

CHECK OPERATOR PRESENCE SYSTEM

• When the engine is running, any attempt by the operator

to leave the seat without first setting the parking brake

should shut off the engine.

• When the engine is running and the attachment clutch

is engaged, any attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never operate unless

the operator is in the seat.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

CHECK REVERSE OPERATION (ROS) SYSTEM

• When the engine is running with the ignition switch in

the engine "ON" position and the attachment clutch

engaged, any attempt by the operator to shift into

reverse should shut off the engine.

• When the engine is running with the ignition switch in

the ROS "ON" position and the attachment clutch en-

gaged, any attempt by the operator to shift into reverse

should NOT shut off the engine.

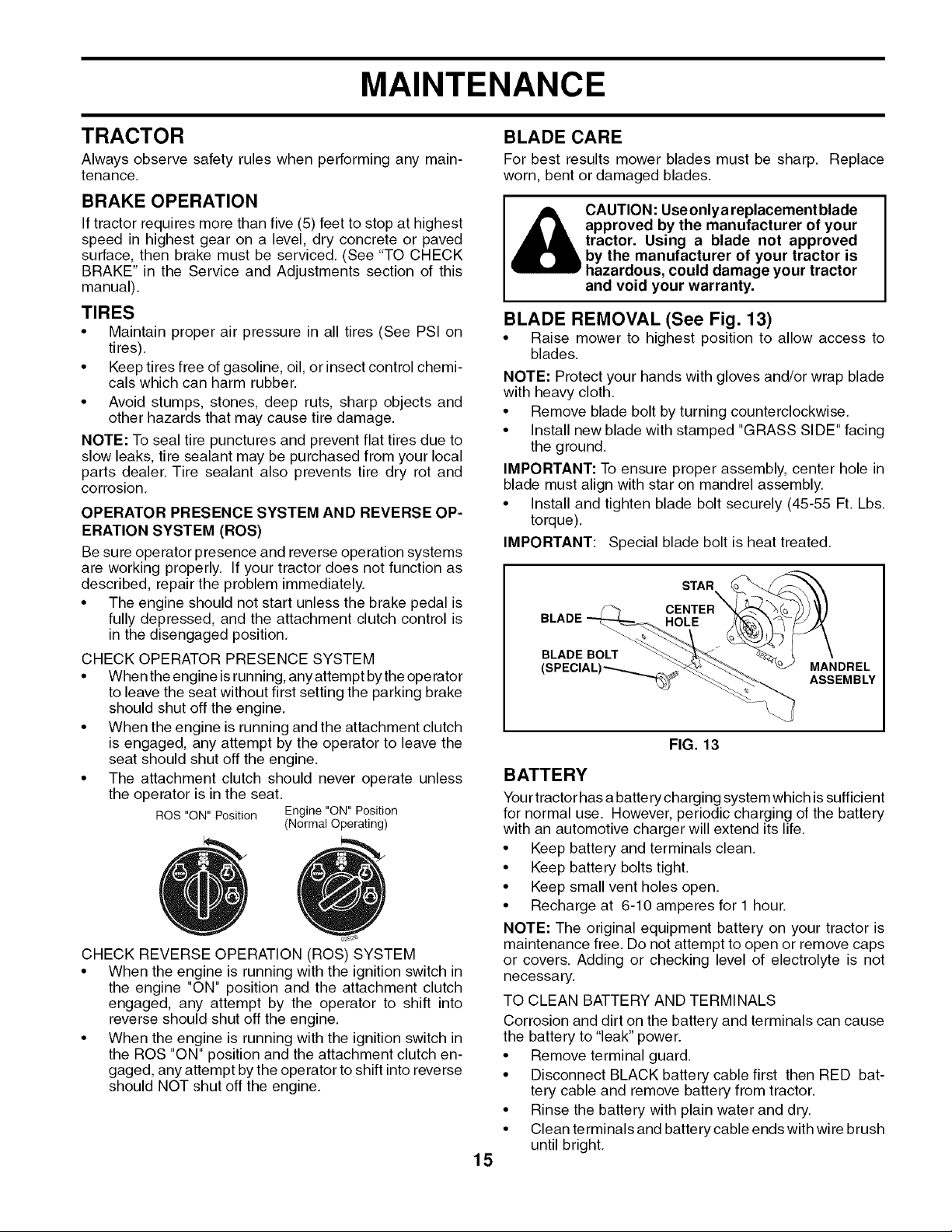

BLADE CARE

For best results mower blades must be sharp, Replace

worn, bent or damaged blades,

CAUTION: Use onlya replacement blade

approved by the manufacturer of your

tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor

and void your warranty.

BLADE REMOVAL (See Fig. 13)

• Raise mower to highest position to allow access to

blades,

NOTE: Protect your hands with gloves and/or wrap blade

with heavy cloth,

• Remove blade bolt by turning counterclockwise,

• Install new blade with stamped "GRASS SIDE" facing

the ground,

IMPORTANT: To ensure proper assembly, center hole in

blade must align with star on mandrel assembly.

• Install and tighten blade bolt securely (45-55 Ft, Lbs,

torque).

IMPORTANT: Special blade bolt is heat treated,

BLADE BOLT

STAR

CENTER

HOLE

MANDREL

ASSEMBLY

FIG. 13

BATTERY

Yourtractor has a battery charging system which is sufficient

for normal use. However, periodic charging of the battery

with an automotive charger will extend its life,

• Keep battery and terminals clean,

• Keep battery bolts tight.

• Keep small vent holes open,

• Recharge at 6-10 amperes for 1 hour,

NOTE: The original equipment battery on your tractor is

maintenance free, Do not attempt to open or remove caps

or covers, Adding or checking level of electrolyte is not

necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

• Remove terminal guard,

• Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry,

• Clean terminals and battery cable ends with wire brush

until bright,

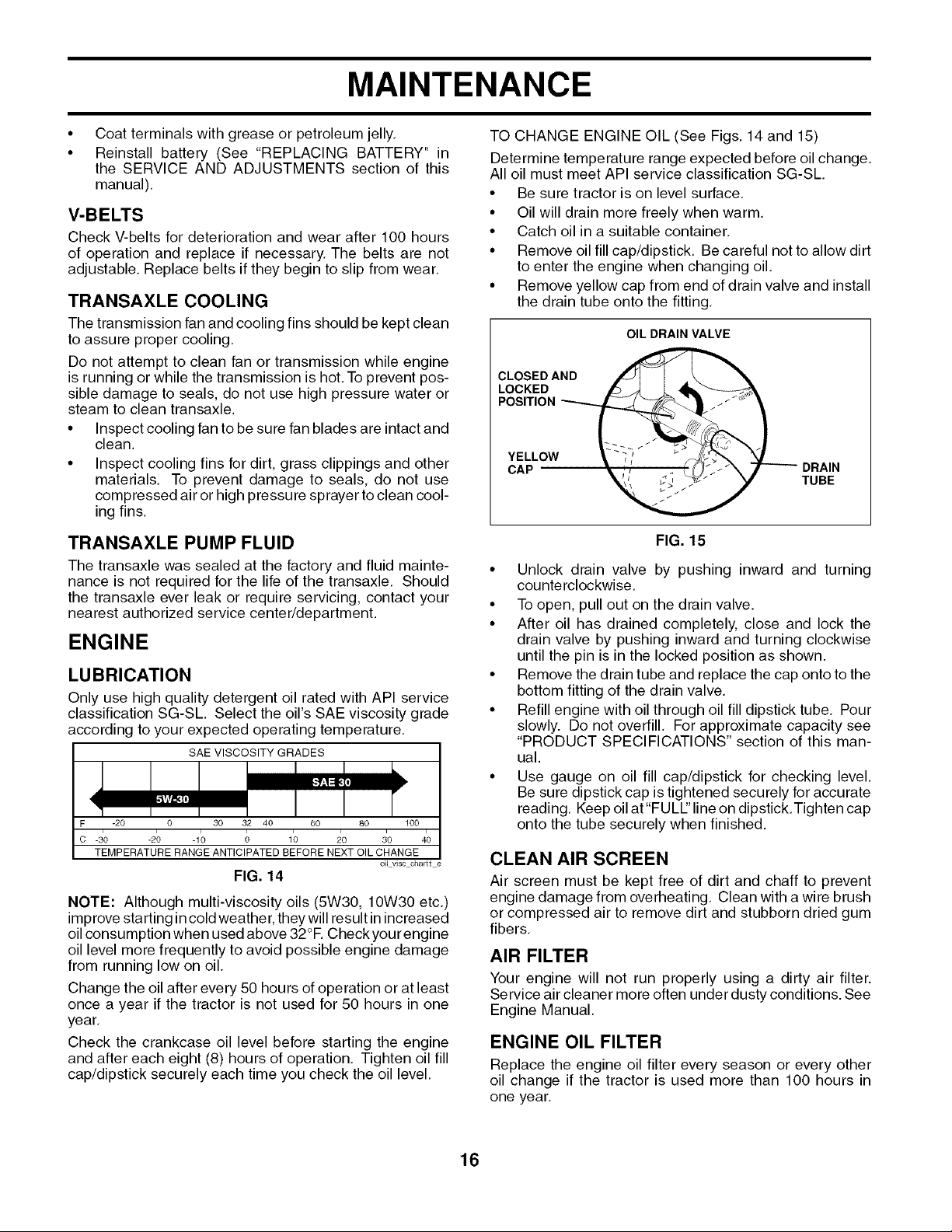

MAINTENANCE

Coat terminals with grease or petroleum jelly,

Reinstall battery (See "REPLACING BATTERY" in

the SERVICE AND ADJUSTMENTS section of this

manual),

V-BELTS

Check V-belts for deterioration and wear after 100 hours

of operation and replace if necessary. The belts are not

adjustable, Replace belts if they begin to slip from wear,

TRANSAXLE COOLING

The transmission fan and cooling fins should be kept clean

to assure proper cooling.

Do not attempt to clean fan or transmission while engine

is running or while the transmission is hot.To prevent pos-

sible damage to seals, do not use high pressure water or

steam to clean transaxle.

• Inspect cooling fan to be sure fan blades are intact and

clean.

• Inspect cooling fins for dirt, grass clippings and other

materials. To prevent damage to seals, do not use

compressed air or high pressure sprayer to clean cool-

ing fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory and fluid mainte-

nance is not required for the life of the transaxle. Should

the transaxle ever leak or require servicing, contact your

nearest authorized service center/department.

ENGINE

LU BRICATION

Only use high quality detergent oil rated with API service

classification SG-SL. Select the oil's SAE viscosity grade

according to your expected operating temperature,

SAE VISCOSITY GRADES

F -20 0 30 32 40 60 80 100

c -_0 -2; -1; ; 1; _0 10 40

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

oilviscchar tle

FIG. 14

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, they will result in increased

oil consumption when used above 32°E Check yourengine

oil level more frequently to avoid possible engine damage

from running low on oil.

Change the oil after every 50 hours of operation or at least

once a year if the tractor is not used for 50 hours in one

year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 14 and 15)

Determine temperature range expected before oil change,

All oil must meet API service classification SG-SL,

• Be sure tractor is on level surface.

• Oil will drain more freely when warm,

• Catch oil in a suitable container,

• Remove oil fill cap/dipstick, Be careful not to allow dirt

to enter the engine when changing oil.

• Remove yellow cap from end of drain valve and install

the drain tube onto the fitting,

OIL DRAIN VALVE

_ DRAIN

TUBE

FIG. 15

• Unlock drain valve by pushing inward and turning

counterclockwise.

• To open, pull out on the drain valve.

• After oil has drained completely, close and lock the

drain valve by pushing inward and turning clockwise

until the pin is in the locked position as shown.

• Remove the drain tube and replace the cap onto to the

bottom fitting of the drain valve.

• Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" section of this man-

ual.

• Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULl" line on dipstick.Tighten cap

onto the tube securely when finished.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating, Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers,

AIR FILTER

Your engine will not run properly using a dirty air filter.

Service air cleaner more often under dusty conditions. See

Engine Manual.

ENGINE OIL FILTER

Replace the engine oil filter every season or every other

oil change if the tractor is used more than 100 hours in

one year.

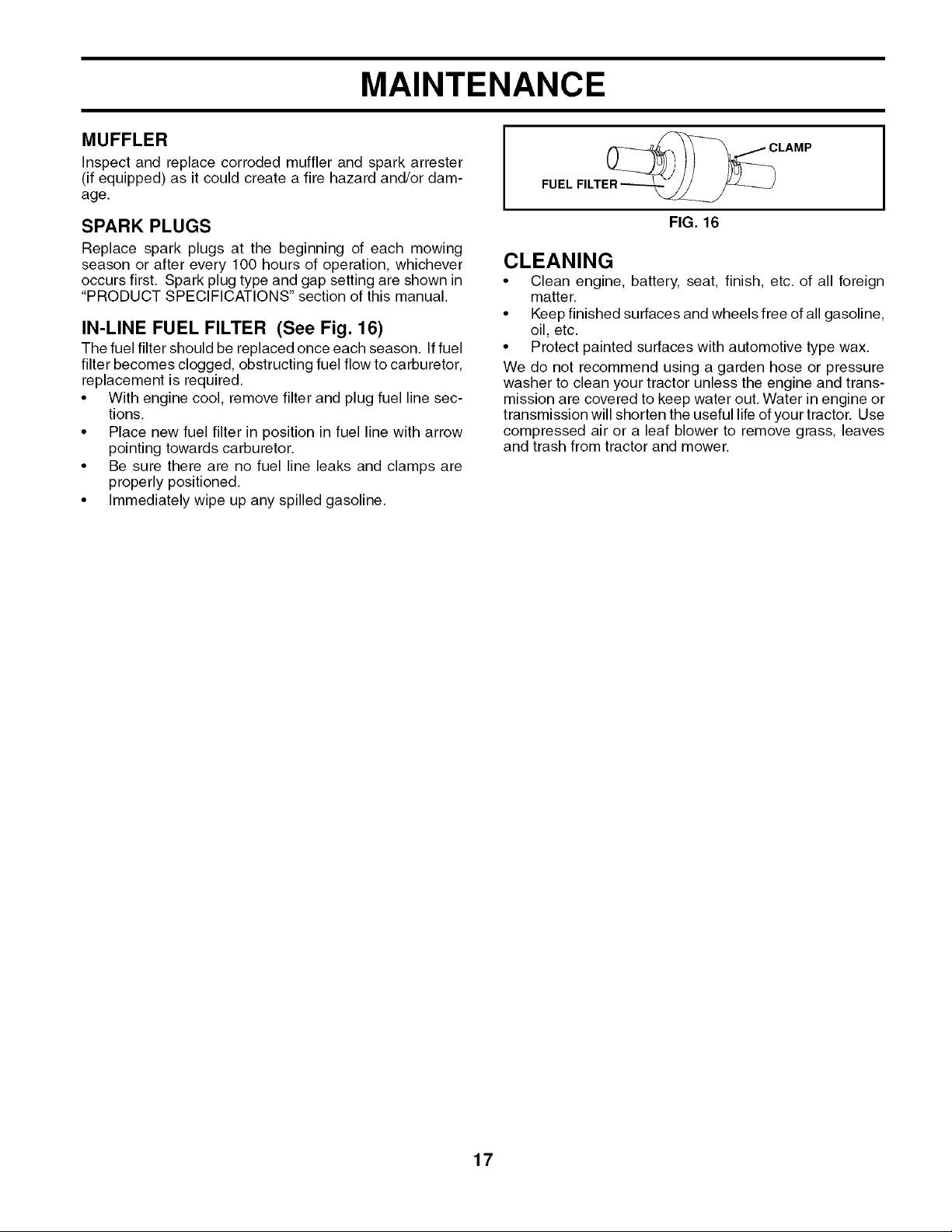

MAINTENANCE

MUFFLER

Inspect and replace corroded muffler and spark arrester

(if equipped) as it could create a fire hazard and/or dam-

age,

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" section of this manual.

IN-LINE FUEL FILTER (See Fig. 16)

The fuel filter should be replaced once each season, If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required,

• With engine cool, remove filter and plug fuel line sec-

tions.

• Place new fuel filter in position in fuel line with arrow

pointing towards carburetor,

• Be sure there are no fuel line leaks and clamps are

properly positioned,

• Immediately wipe up any spilled gasoline,

FUEL FILTER

FIG. 16

CLEANING

• Clean engine, battery, seat, finish, etc, of all foreign

matter,

• Keep finished surfaces and wheels free of all gasoline,

oil, etc,

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose or pressure

washer to clean your tractor unless the engine and trans-

mission are covered to keep water out, Water in engine or

transmission will shorten the useful life of your tractor, Use

compressed air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

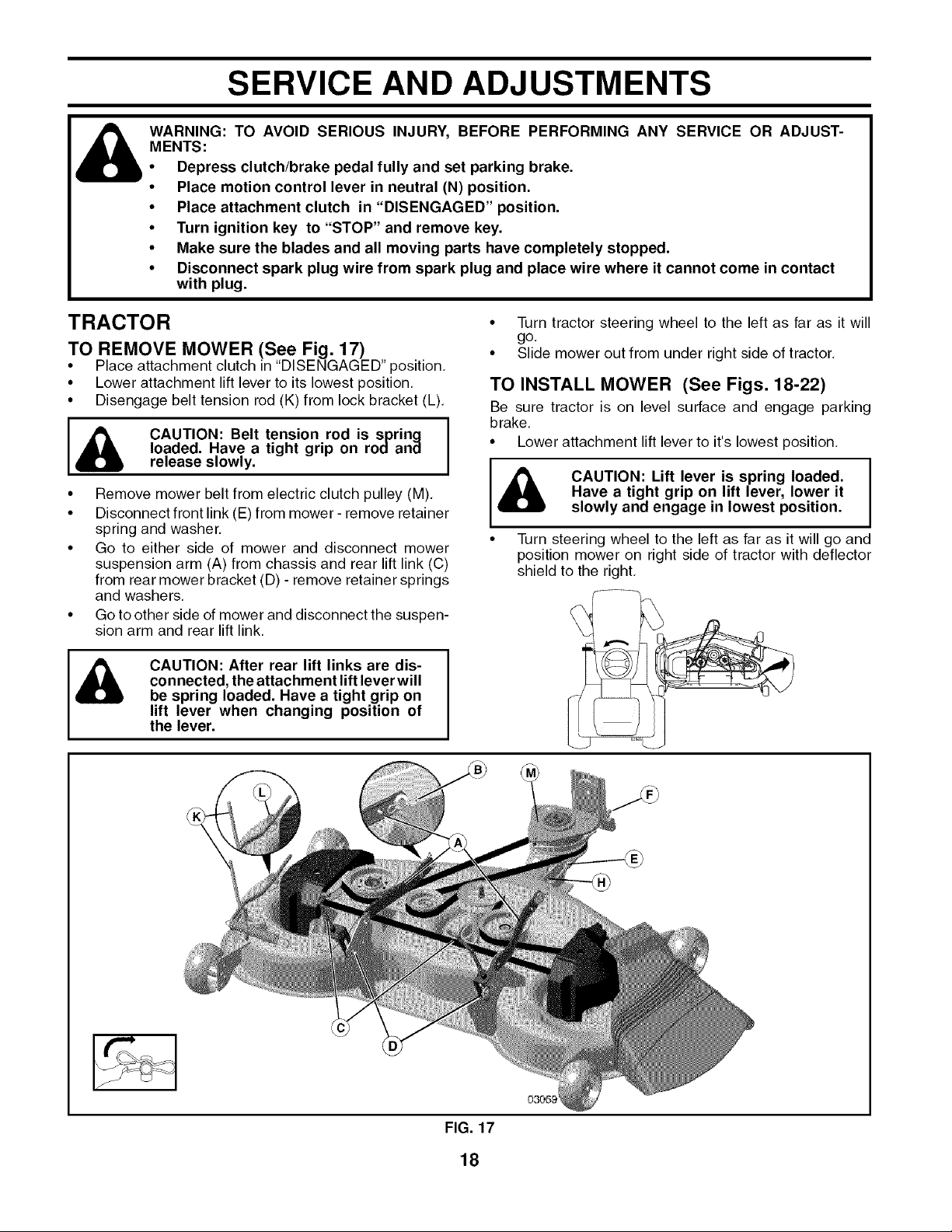

SERVICE AND ADJUSTMENTS

_ ARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST-

MENTS:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key to "STOP" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot come in contact

with plug.

TRACTOR

TO REMOVE MOWER (See Fig. 17)

• Place attachment clutch in "DISENGAGED" position,

• Lower attachment lift lever to its lowest position,

• Disengage belt tension rod (K) from lock bracket (L).

I& CAUTION: Belt tension rod is spring I

loaded. Have a tight grip on rodand

Irelease slowly.

• Remove mower belt from electric clutch pulley (M),

• Disconnect front link (E) from mower - remove retainer

spring and washer,

• Go to either side of mower and disconnect mower

suspension arm (A) from chassis and rear lift link (C)

from rear mower bracket (D) - remove retainer springs

and washers.

• Go to other side of mower and disconnect the suspen-

sion arm and rear lift link,

CAUTION: After rear lift links are dis-

connected, the attachment lift lever will

be spring loaded. Have a tight grip on

lift lever when changing position of

the lever.

• Turn tractor steering wheel to the left as far as it will

go,

• Slide mower out from under right side of tractor,

TO INSTALL MOWER (See Figs. 18-22)

Be sure tractor is on level surface and engage parking

brake,

• Lower attachment lift lever to it's lowest position.

& CAUTION: Lift lever is spring loaded.

Have a tight grip on lift lever, lower it

slowly and engage in lowest position.

• Turn steering wheel to the left as far as it will go and

position mower on right side of tractor with deflector

shield to the right,

FIG. 17

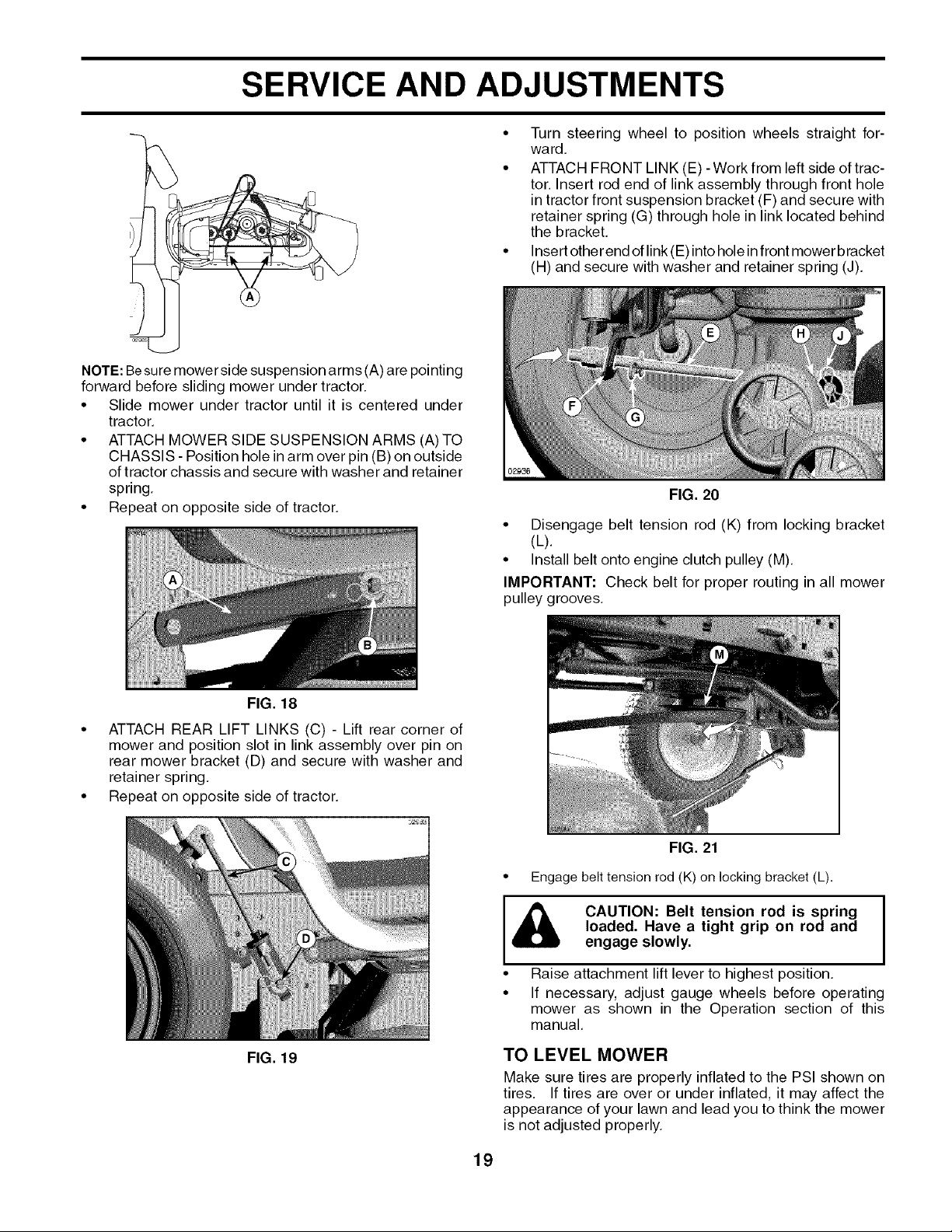

SERVICE AND ADJUSTMENTS

• Turn steering wheel to position wheels straight for-

ward,

• ATTACH FRONT LINK (E) - Work from left side of trac-

tor. Insert rod end of link assembly through front hole

in tractor front suspension bracket (F) and secure with

retainer spring (G) through hole in link located behind

the bracket.

• Insert other end of link (E)into hole infront mower bracket

(H) and secure with washer and retainer spring (J),

NOTE: Besure mower side suspension arms (A) are pointing

forward before sliding mower under tractor.

• Slide mower under tractor until it is centered under

tractor,

• ATTACH MOWER SIDE SUSPENSION ARMS (A) TO

CHASSIS - Position hole in arm over pin (B) on outside

of tractor chassis and secure with washer and retainer

spring,

• Repeat on opposite side of tractor,

FIG. 18

FIG. 20

• Disengage belt tension rod (K) from locking bracket

(L).

• Install belt onto engine clutch pulley (M),

IMPORTANT: Check belt for proper routing in all mower

pulley grooves,

• ATTACH REAR LIFT LINKS (C) - Lift rear corner of

mower and position slot in link assembly over pin on

rear mower bracket (D) and secure with washer and

retainer spring,

• Repeat on opposite side of tractor,

FIG. 19

FIG. 21

• Engage belt tension rod (K) on locking bracket (L).

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rodand

engage slowly.

Raise attachment lift lever to highest position.

If necessary, adjust gauge wheels before operating

mower as shown in the Operation section of this

manual,

TO LEVEL MOWER

Make sure tires are properly inflated to the PSI shown on

tires. If tires are over or under inflated, it may affect the

appearance of your lawn and lead you to think the mower

is not adjusted properly,

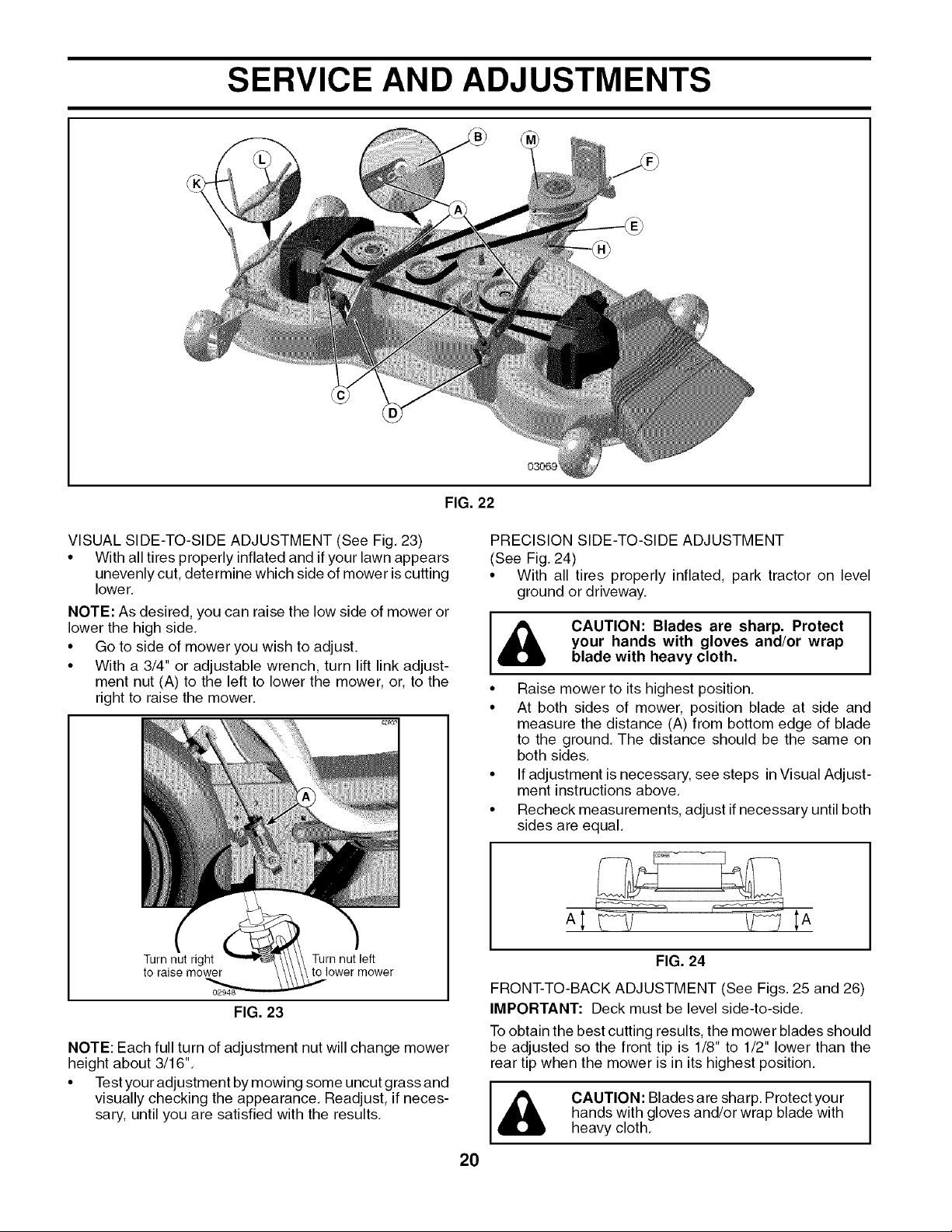

SERVICE AND ADJUSTMENTS

FIG. 22

VISUAL SIDE-TO-SIDE ADJUSTMENT (See Fig, 23)

• With all tires properly inflated and if your lawn appears

unevenly cut, determine which side of mower is cutting

lower,

NOTE: As desired, you can raise the low side of mower or

lower the high side,

• Go to side of mower you wish to adjust.

• With a 3/4" or adjustable wrench, turn lift link adjust-

ment nut (A) to the left to lower the mower, or, to the

right to raise the mower,

Turn nut right Turn nut left

to raise mower to lower mower

02948

FIG. 23

NOTE: Each full turn of adjustment nut will change mower

height about 3/16",

• Test your adjustment by mowing some uncut grass and

visually checking the appearance, Readjust, if neces-

sary, until you are satisfied with the results,

PRECISION SIDE-TO-SIDE ADJUSTMENT

(See Fig. 24)

• With all tires properly inflated, park tractor on level

ground or driveway,

& CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap

blade with heavy cloth.

• Raise mower to its highest position.

• At both sides of mower, position blade at side and

measure the distance (A) from bottom edge of blade

to the ground, The distance should be the same on

both sides.

• If adjustment is necessary, see steps in Visual Adjust-

ment instructions above.

• Recheck measurements, adjust if necessary until both

sides are equal,

FIG. 24

FRONT-TO-BACK ADJUSTMENT (See Figs. 25 and 26)

IMPORTANT: Deck must be level side-to-side.

To obtain the best cutting results, the mower blades should

be adjusted so the front tip is 1/8" to 1/2" lower than the

rear tip when the mower is in its highest position,

& CAUTION: Blades are sharp, Protect your

hands with gloves and/or wrap blade with

heavy cloth,

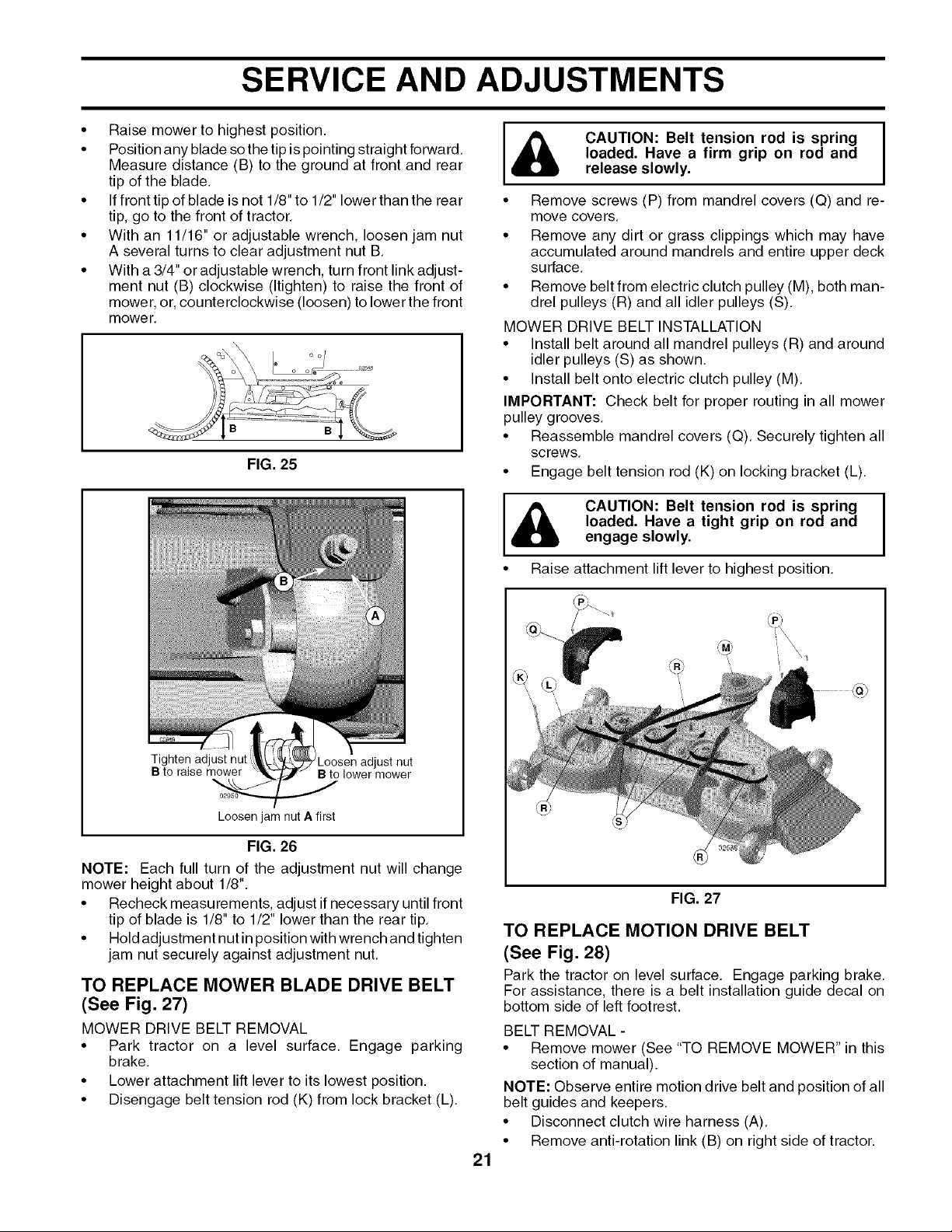

SERVICE AND ADJUSTMENTS

• Raise mower to highest position,

• Position any blade sothe tip is pointing straight forward.

Measure distance (B) to the ground at front and rear

tip of the blade,

• If front tip of blade is not 1/8" to 1/2" lower than the rear

tip, go to the front of tractor,

• With an 11/16" or adjustable wrench, loosen jam nut

A several turns to clear adjustment nut B,

• With a 3/4" or adjustable wrench, turn front link adjust-

ment nut (B) clockwise (Itighten) to raise the front of

mower, or, counterclockwise (loosen) to lower the front

mowe r,

FIG. 25

Tighten adjust nut

B to raise mower

_oosen adjust nut

B to lower mower

Loosen jam nut A first

FIG. 26

NOTE: Each full turn of the adjustment nut will change

mower height about 1/8",

• Recheck measurements, adjust if necessary until front

tip of blade is 1/8" to 1/2" lower than the rear tip,

• Hold adjustment nut in position with wrench and tighten

jam nut securely against adjustment nut.

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 27)

MOWER DRIVE BELT REMOVAL

• Park tractor on a level surface. Engage parking

brake.

• Lower attachment lift lever to its lowest position,

• Disengage belt tension rod (K) from lock bracket (L),

I I_ CAUTION: Belt tension rod is spring

loaded. Have a firm grip on rod and

release slowly.

• Remove screws (P) from mandrel covers (Q) and re-

move covers,

• Remove any dirt or grass clippings which may have

accumulated around mandrels and entire upper deck

surface,

• Remove belt from electric clutch pulley (M), both man-

drel pulleys (R) and all idler pulleys (S),

MOWER DRIVE BELT INSTALLATION

• Install belt around all mandrel pulleys (R) and around

idler pulleys (S) as shown,

• Install belt onto electric clutch pulley (M).

IMPORTANT: Check belt for proper routing in all mower

pulley grooves,

• Reassemble mandrel covers (Q), Securely tighten all

screws,

• Engage belt tension rod (K) on locking bracket (L),

i_ CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and

engage slowly.

Raise attachment lift lever to highest position.

FIG. 27

TO REPLACE MOTION DRIVE BELT

(See Fig. 28)

Park the tractor on level surface, Engage parking brake,

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

BELT REMOVAL -

• Remove mower (See "TO REMOVE MOWER" in this

section of manual).

NOTE: Observe entire motion drive belt and position of all

belt guides and keepers.

• Disconnect clutch wire harness (A),

• Remove anti-rotation link (B) on right side of tractor.

SERVICE AND ADJUSTMENTS

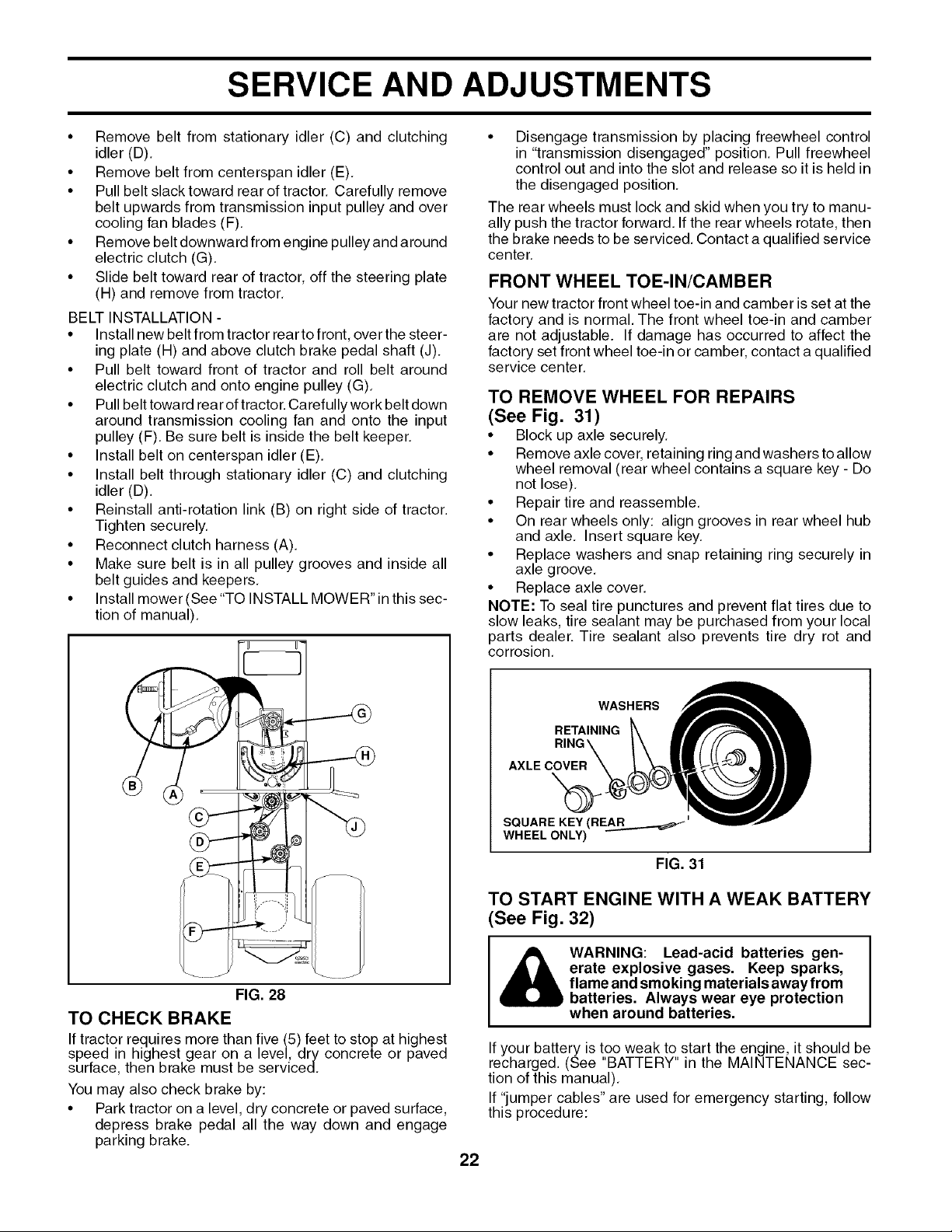

• Remove belt from stationary idler (C) and clutching

idler (D),

• Remove belt from centerspan idler (E),

• Pull belt slack toward rear of tractor. Carefully remove

belt upwards from transmission input pulley and over

cooling fan blades (F).

• Remove belt downward from engine pulley and around

electric clutch (G).

• Slide belt toward rear of tractor, off the steering plate

(H) and remove from tractor,

BELT INSTALLATION -

• Install new belt from tractor rear to front, over the steer-

ing plate (H) and above clutch brake pedal shaft (J).

• Pull belt toward front of tractor and roll belt around

electric clutch and onto engine pulley (G),

• Pull belt toward rear of tractor. Carefully work belt down

around transmission cooling fan and onto the input

pulley (F), Be sure belt is inside the belt keeper,

• Install belt on centerspan idler (E).

• Install belt through stationary idler (C) and clutching

idler (D).

• Reinstall anti-rotation link (B) on right side of tractor.

Tighten securely.

• Reconnect clutch harness (A),

• Make sure belt is in all pulley grooves and inside all

belt guides and keepers,

• Install mower (See "TO INSTALL MOWER" in this sec-

tion of manual),

FIG. 28

TO CHECK BRAKE

If tractor requires more than five (5) feet to stop at highest

speed in highest gear on a level, dry concrete or paved

surface, then brake must be serviced.

You may also check brake by:

• Park tractor on a level, dry concrete or paved surface,

depress brake pedal all the way down and engage

parking brake.

• Disengage transmission by placing freewheel control

in "transmission disengaged" position, Pull freewheel

control out and into the slot and release so it is held in

the disengaged position,

The rear wheels must lock and skid when you try to manu-

ally push the tractor forward. If the rear wheels rotate, then

the brake needs to be serviced, Contact a qualified service

center.

FRONT WHEEL TOE-IN/CAMBER

Your new tractor front wheel toe-in and camber is set at the

factory and is normal. The front wheel toe-in and camber

are not adjustable. If damage has occurred to affect the

factory set front wheel toe-in or camber, contact a qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 31)

• Block up axle securely,

• Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains a square key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

• Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING

AXLE COVER

SQUARE KEY (RE_'

WHEEL ONLY)

FIG. 31

TO START ENGINE WITH A WEAK BATTERY

(See Fig. 32)

WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the MAINTENANCE sec-

tion of this manual).

If "jumper cables" are used for emergency starting, follow

this procedure:

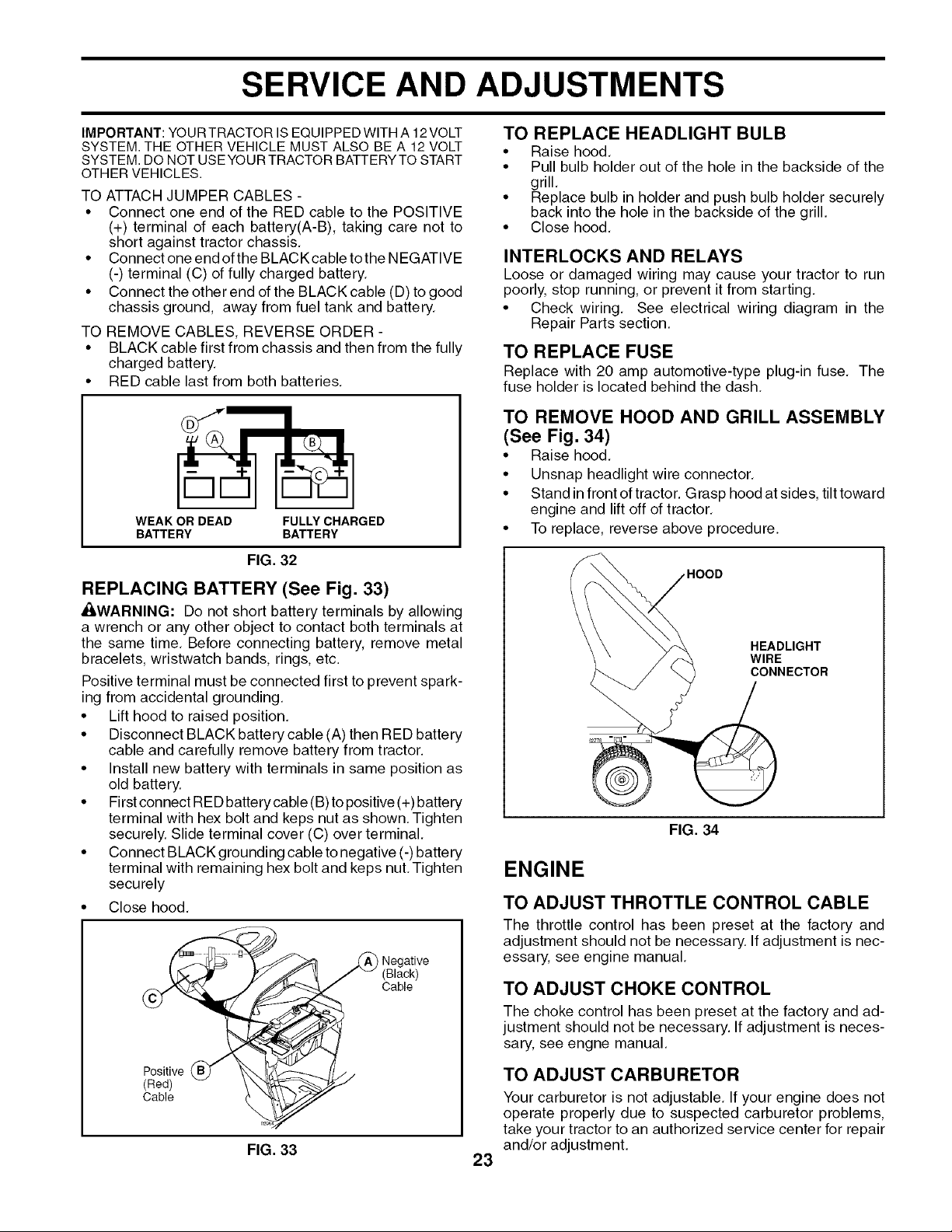

SERVICE AND ADJUSTMENTS

IMPORTANT:YOURTRACTORIS EQUIPPEDWITHA 12VOLT

SYSTEM.THE OTHER VEHICLE MUST ALSO BE A 12VOLT

SYSTEM.DO NOTUSEYOURTRACTORBATTERYTO START

OTHERVEHICLES.

TO ATTACH JUMPER CABLES -

• Connect one end of the RED cable to the POSITIVE

(+) terminal of each battery(A-B), taking care not to

short against tractor chassis.

• Connect one end of the BLACKcable tothe NEGATIVE

(-) terminal (C) of fully charged battery.

• Connect the other end of the BLACK cable (D) to good

chassis ground, away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

• BLACK cable first from chassis and then from the fully

charged battery.

• RED cable last from both batteries.

WEAK OR DEAD FULLY CHARGED

BATTERY BATTERY

FIG. 32

REPLACING BATTERY (See Fig. 33)

_,WARNING: Do not short battery terminals by allowing

a wrench or any other object to contact both terminals at

the same time. Before connecting battery, remove metal

bracelets, wristwatch bands, rings, etc.

Positive terminal must be connected first to prevent spark-

ing from accidental grounding.

• Lift hood to raised position.

• Disconnect BLACK battery cable (A) then RED battery

cable and carefully remove battery from tractor.

• Install new battery with terminals in same position as

old battery.

• First connect RED battery cable (B) to positive (+) battery

terminal with hex bolt and keps nut as shown. Tighten

securely. Slide terminal cover (C) over terminal,

• Connect BLACK grounding cable to negative (-) battery

terminal with remaining hex bolt and keps nut,Tighten

securely

Close hood,

) Negative

(Black)

Cable

Positive

(Red)

Cable

TO REPLACE HEADLIGHT BULB

• Raise hood,

• Pull bulb holder out of the hole in the backside of the

grill,

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

• Close hood,

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent it from starting.

• Check wiring. See electrical wiring diagram in the

Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig. 34)

• Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. G rasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedure.

HEADLIGHT

WIRE

CONNECTOR

FIG. 34

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

The throttle control has been preset at the factory and

adjustment should not be necessary. If adjustment is nec-

essary, see engine manual.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the factory and ad-

justment should not be necessary. If adjustment is neces-

sary, see engne manual.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your engine does not

operate properly due to suspected carburetor problems,

take your tractor to an authorized service center for repair

and/or adjustment.

FIG. 33

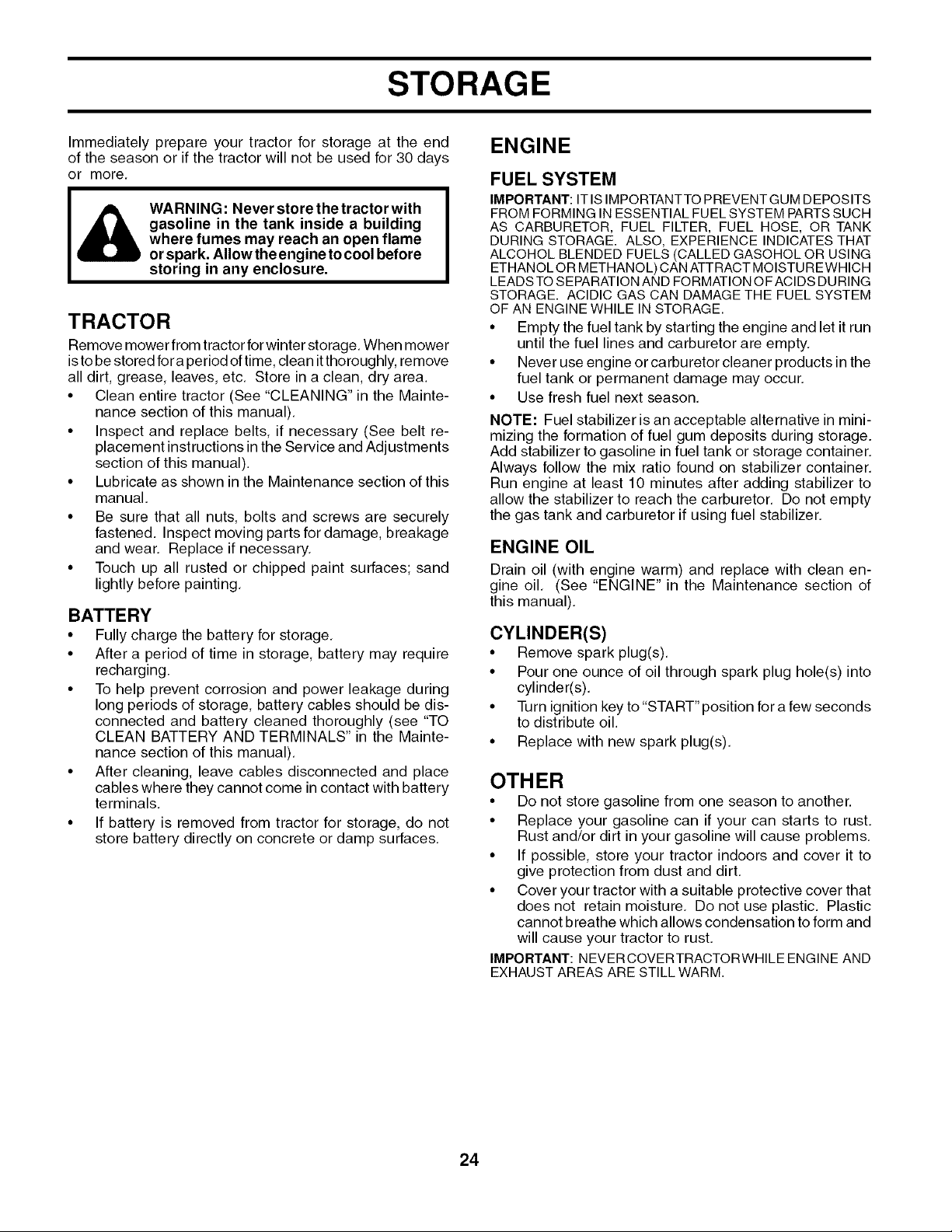

STORAGE

Immediately prepare your tractor for storage at the end

of the season or if the tractor will not be used for 30 days

or more,

i_ WARNING: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame

orspark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter storage, When mower

isto be stored fora period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a clean, dry area.

• Clean entire tractor (See "CLEANING" in the Mainte-

nance section of this manual),

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

• Lubricate as shown in the Maintenance section of this

manual.

• Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary,

• Touch up all rusted or chipped paint surfaces; sand

lightly before painting,

BATTERY

• Fully charge the battery for storage,

• After a period of time in storage, battery may require

recharging.

• To help prevent corrosion and power leakage during

long periods of storage, battery cables should be dis-

connected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Mainte-

nance section of this manual),

• After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

• If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces,

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS

FROMFORMINGINESSENTIALFUELSYSTEMPARTSSUCH

AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATESTHAT

ALCOHOLBLENDEDFUELS(CALLED GASOHOL OR USING

ETHANOLOR METHANOL)CANATTRACTMOISTUREWHICH

LEADSTOSEPARATIONANDFORMATIONOFACIDSDURING

STORAGE. ACIDIC GAS CAN DAMAGETHE FUEL SYSTEM

OF AN ENGINEWHILE IN STORAGE.

• Empty the fuel tank by starting the engine and let it run

until the fuel lines and carburetor are empty,

• Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur,

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in mini-

mizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container,

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor, Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean en-

gine oil, (See "ENGINE" in the Maintenance section of

this manual),

CYLINDER(S)

• Remove spark plug(s),

• Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

• Turn ignition key to "START" position for a few seconds

to distribute oil.

• Replace with new spark plug(s),

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust,

Rust and/or dirt in your gasoline will cause problems,

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt,

• Cover your tractor with a suitable protective cover that

does not retain moisture, Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVERCOVERTRACTORWHILEENGINEAND

EXHAUSTAREAS ARE STILL WARM.

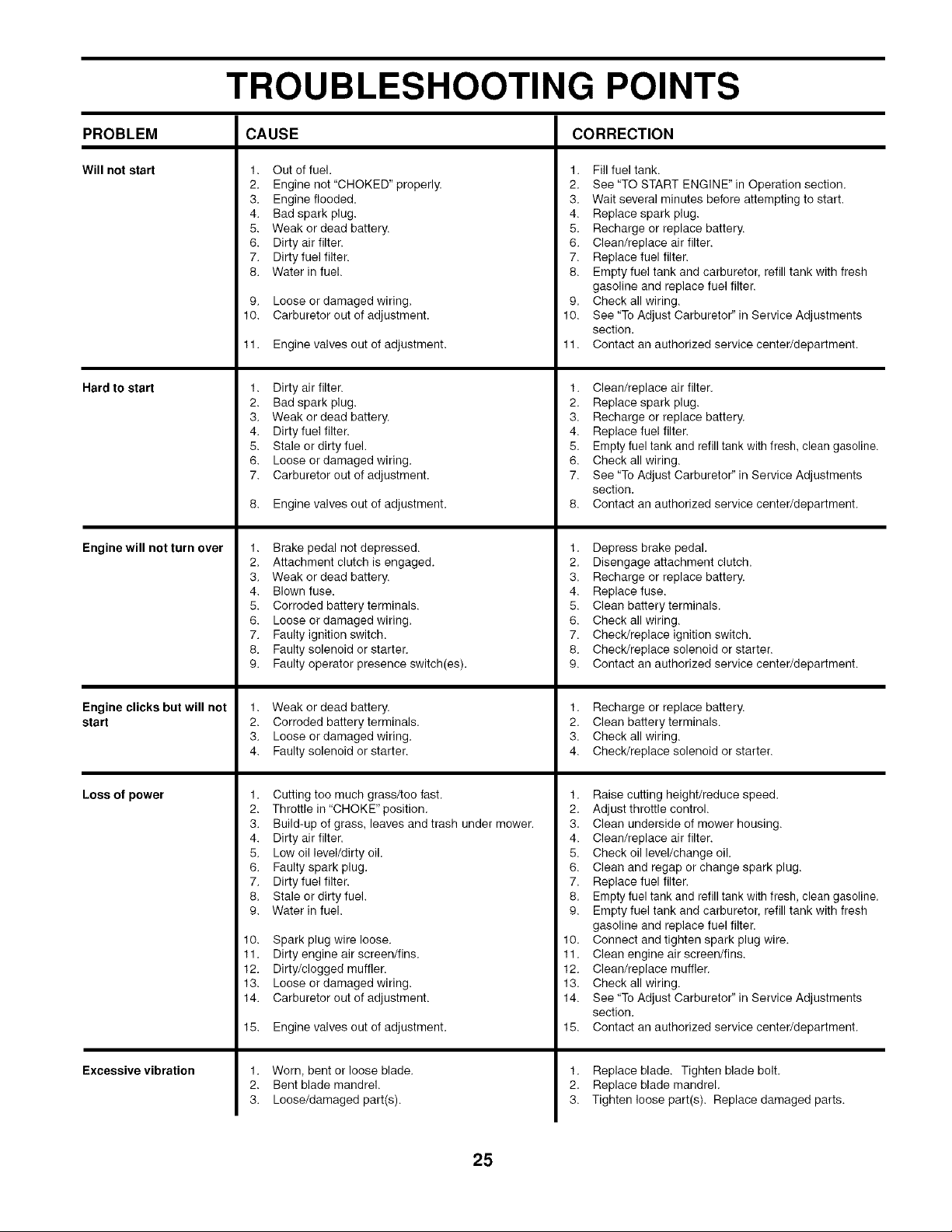

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

Engine clicks but will not

start

Loss of power

Excessive vibration

CAUSE

1. Out of fuel.

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug.

5. Weak or dead battery.

6. Dirty air filter.

7. Dirty fuel filter.

8. Water in fuel.

9. Loose or damaged wiring.

10. Carburetor out of adjustment.

11. Engine valves out of adjustment.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5. Recharge or replace battery.

6. Clean/replace air filter.

7. Replace fuel filter.

8. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

9. Check all wiring.

10. See "To Adjust Carburetor" in Service Adjustments

section.

11. Contact an authorized service center/department.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of adjustment.

1. Brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

1. Cutting too much grass/too fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of adjustment.

15. Engine valves out of adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress brake pedal.

2. Disengage attachment clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition switch.

8. Check/replace solenoid or starter.

9. Contact an authorized service center/department.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Raise cutting height/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank with fresh, clean gasoline.

9. Empty fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11. Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor" in Service Adjustments

section.

15. Contact an authorized service center/department.

1. Replace blade. Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s). Replace damaged parts.

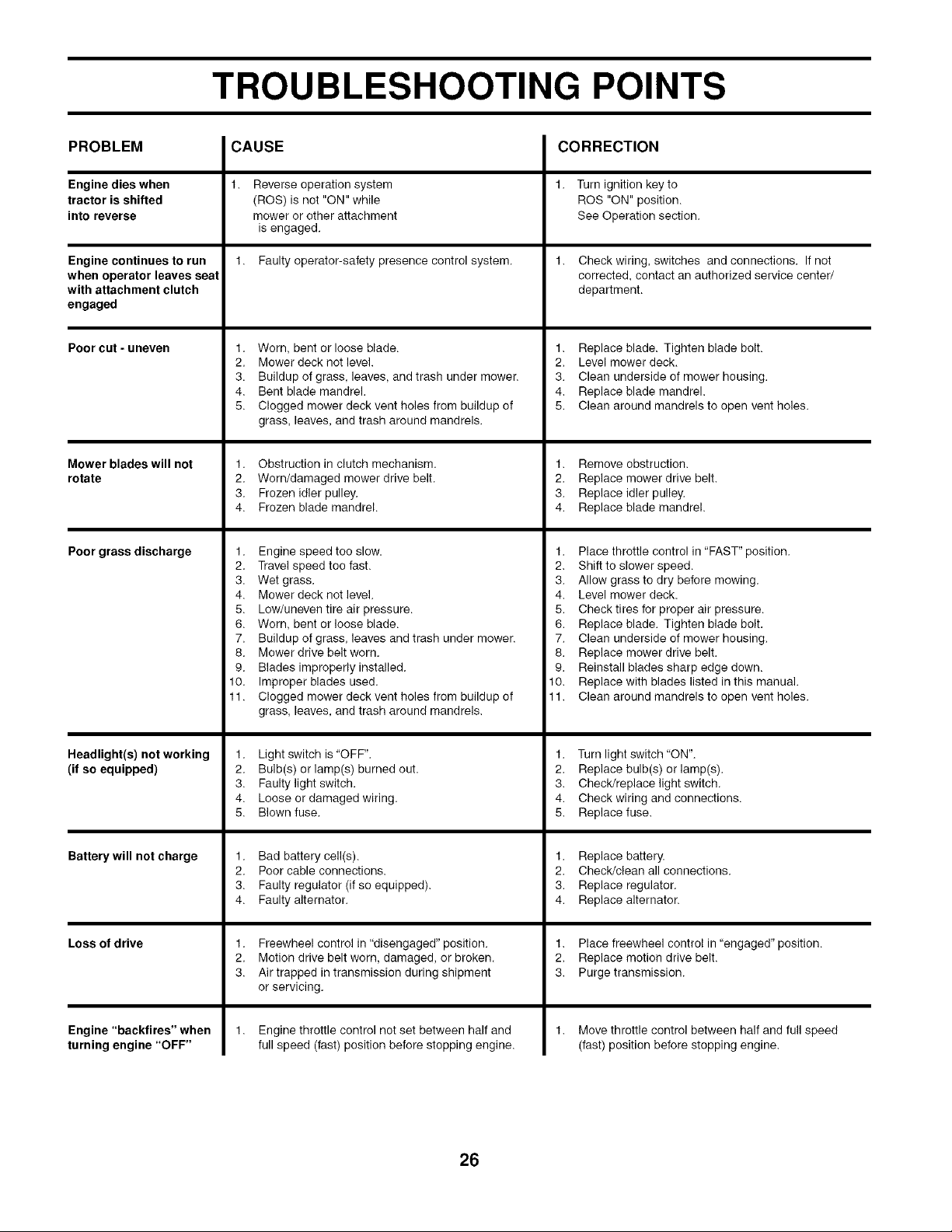

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Engine dies when

tractor is shifted

into reverse

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poorcut-uneven

Mower blades will not

rotate

Poor grass discharge

Headlight(s) not working

(if so equipped)

Battery will not charge

Loss of drive

Engine "backfires" when

turning engine "OFF"

1. Reverse operation system

(ROS) is not "ON" while

mower or other attachment

is engaged.

1. Faulty operator-safety presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

1. Turn ignition key to

ROB "ON" position.

See Operation section.

1. Check wiring, switches and connections. If not

corrected, contact an authorized service center/

department.

1. Replace blade. Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes.

1. Remove obstruction.

2. Replace mower drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

10.

11.

Engine speed too slow.

Travel speed too fast.

Wet grass.

Mower deck not level.

Low/uneven tire air pressure.

Worn, bent or loose blade.

3. Replace idler pulley.

4. Replace blade mandrel.

Buildup of grass, leaves and trash under mower.

Mower drive belt worn.

Blades improperly installed.

Improper blades used.

Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1. Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace blade. Tighten blade bolt.

7. Clean underside of mower housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to open vent holes.

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1. Turn light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Freewheel control in "disengaged" position.

2. Motion drive belt worn, damaged, or broken.

3. Air trapped in transmission during shipment

or servicing.

Engine throttle control not set between half and

full speed (fast) position before stopping engine.

1. Place freewheel control in "engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

1. Move throttle control between half and full speed

(fast) position before stopping engine.

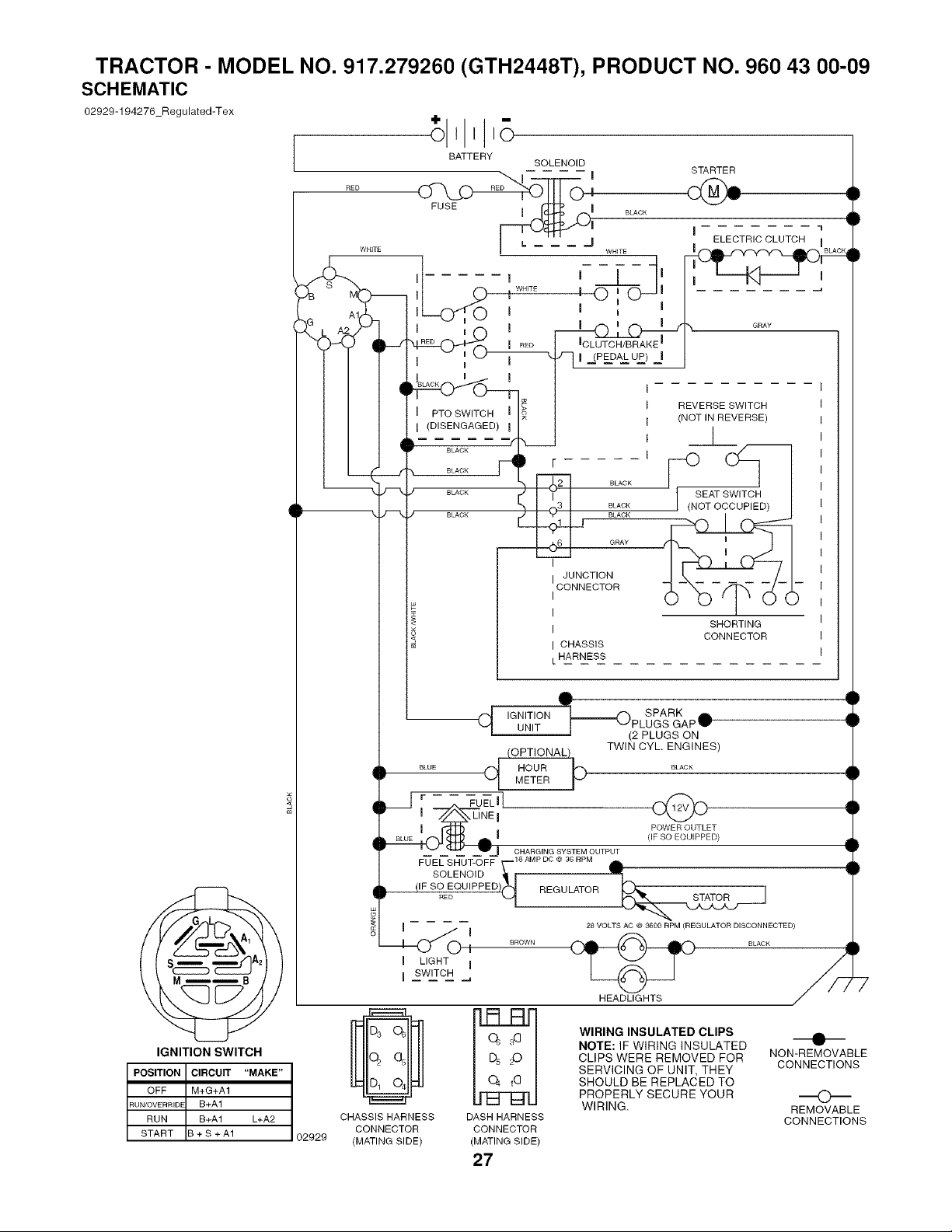

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

SCHEMATIC

02929-194276 Regulated-Tex

BATTERY SOLENOID

WHITE

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1

RUN/OVERRIDE B+A1

RUN B+A1 L+A2

START B + S + A1

ELECTRIC CLUTCH I

'-4-,

G AI I I _ I

I _1 I ._PE__DA_LUP) .J

PTO SWITCH I

I REVERSE SWITCH

(DISENGAGED) I I (NOT IN REVERSE)

BLACK /" _" I

BLACK

BLACK r _

BLACK

BLACK BLACK

GRAY

JUNCTION

IiCONNECTOR

I SHORTING

CONNECTOR

I CHASSIS

L HARNESS

OL.=.=.=.=.==(% SPARK dlt i I

q IGNITION I _JPLUGS GAP_ D

UNIT (2 PLUGS ON

TWIN CYL ENGINES)

(OPTIONAL)

wIh .... q HOUR _)METER ..... I

_ r ^ FUELI[

CHARGINGSYSTEMOUTPUT

(IF SO EQUIPPED) REGULATOR

REO _1 J

I 28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)

I LIGHT I

I SWITCH ..d -7

HEADLIGHTS

_ WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED •

CLIPS WERE REMOVED FOR NON-REMOVABLE

SERVICING OF UNIT, THEY CONNECTIONS

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR O

WIRING. REMOVABLE

CHASSIS HARNESS DASH HARNESS CONNECTIONS

CONNECTOR CONNECTOR

02929 (MATING SIDE) (MATING SIDE)

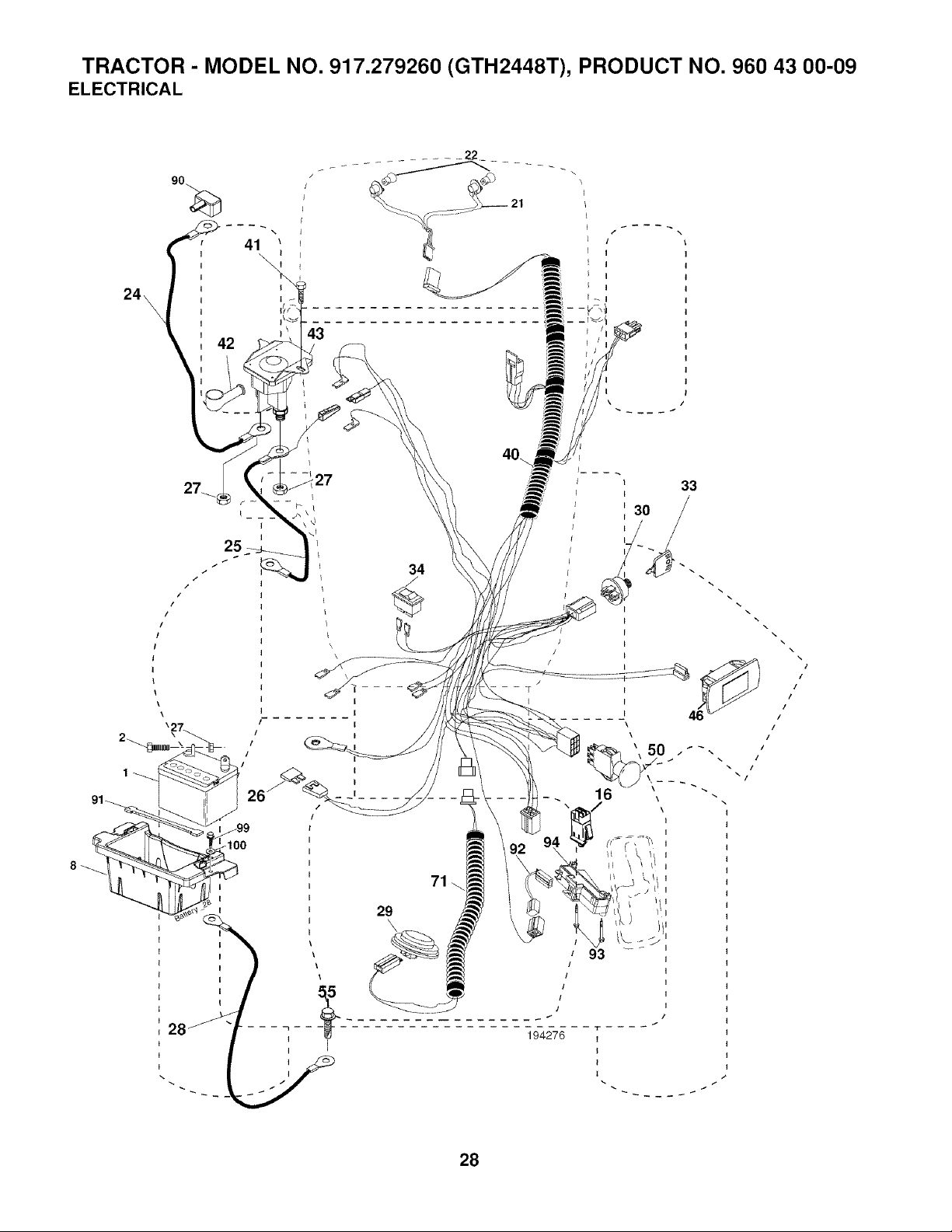

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

ELECTRICAL

i_ 21 I

I / /

I I I I

I I

4_ I IIIII

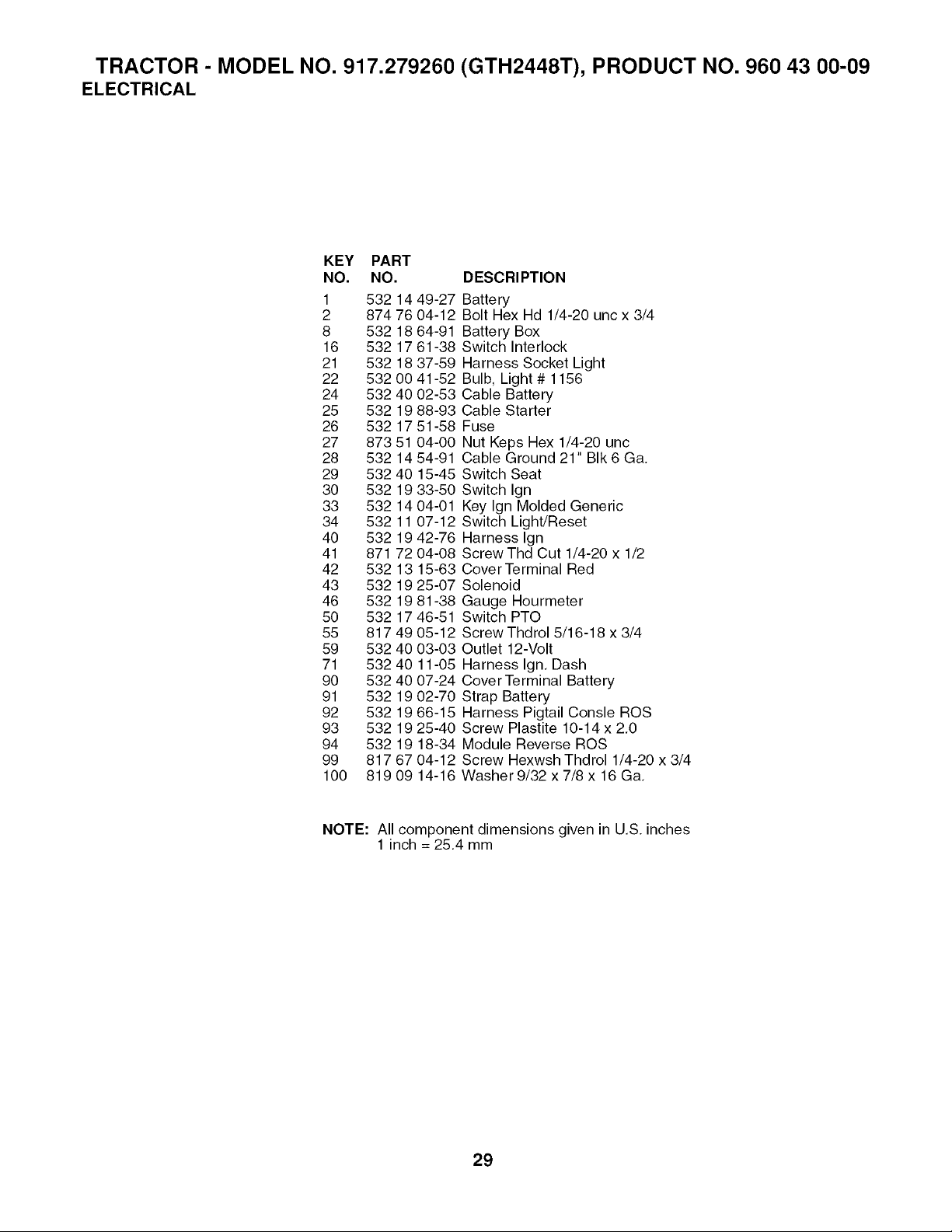

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 14 49-27 Battery

2 87476 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 18 64-91 Battery Box

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Socket Light

22 532 00 41-52 Bulb, Light # 1156

24 532 40 02-53 Cable Battery

25 532 19 88-93 Cable Starter

26 532 1751-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 5321454-91 Cable Ground 21" BIk 6 Ga.

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 14 04-01 Key Ign Molded Generic

34 532 11 07-12 Switch Light/Reset

40 532 19 42-76 Harness Ign

41 871 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

46 532 19 81-38 Gauge Hourmeter

50 532 17 46-51 Switch PTO

55 817 49 05-12 Screw Thd rol 5/16-18 x 3/4

59 532 40 03-03 Outlet 12-Volt

71 532 40 11-05 Harness Ign, Dash

90 532 40 07-24 Cover Terminal Battery

91 532 19 02-70 Strap Battery

92 532 19 66-15 Harness Pigtail Consle ROS

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4

100 819 0914-16 Washer 9/32 x 7/8 x16 Ga,

NOTE: All component dimensions given in U,S. inches

1 inch = 25,4 mm

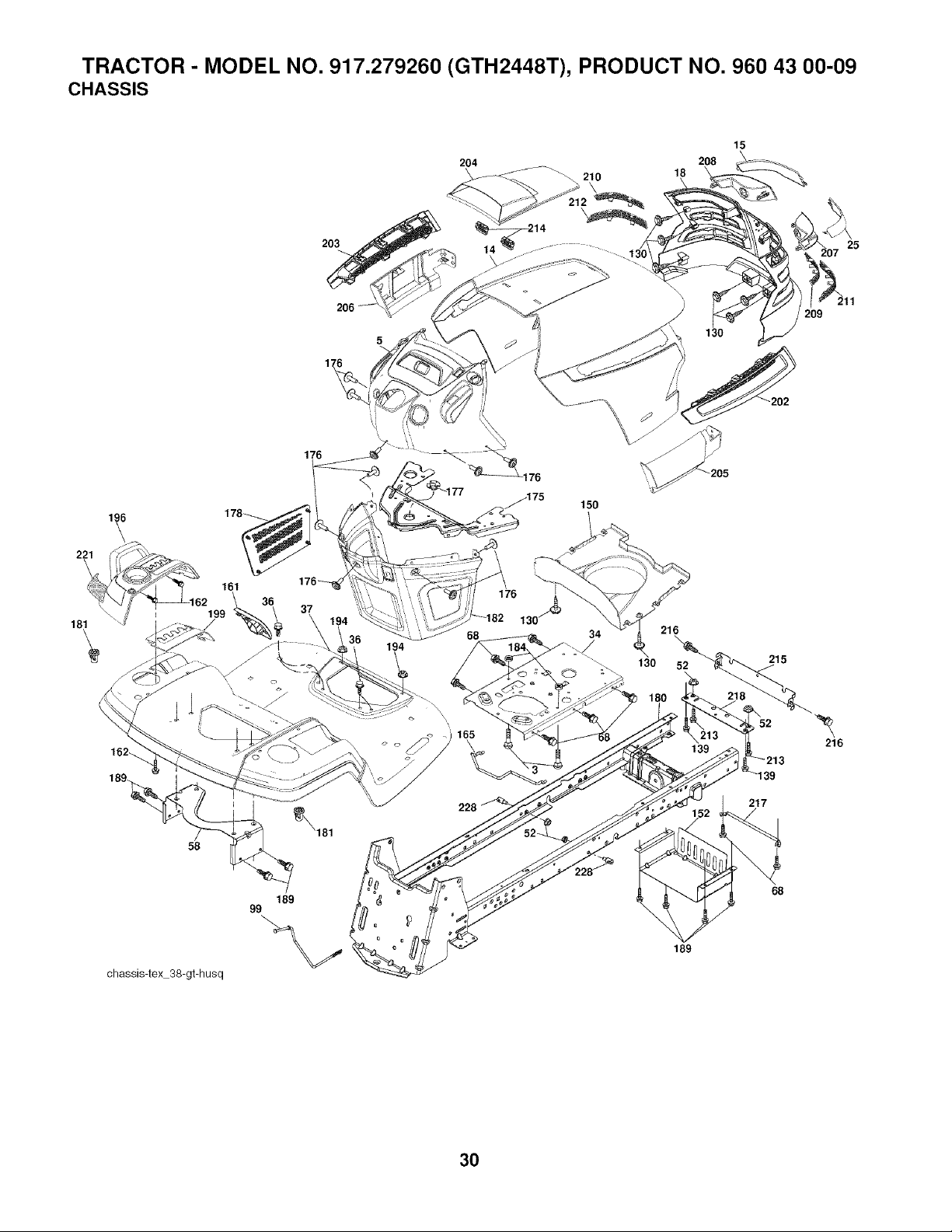

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

CHASSIS

204

_ 210 18 208

203 25

209

221

150

161 176

"\ _ 199

181

68 34 216

130 52

139

218

216

228

217

chassis-tex 38-gt-husq

189

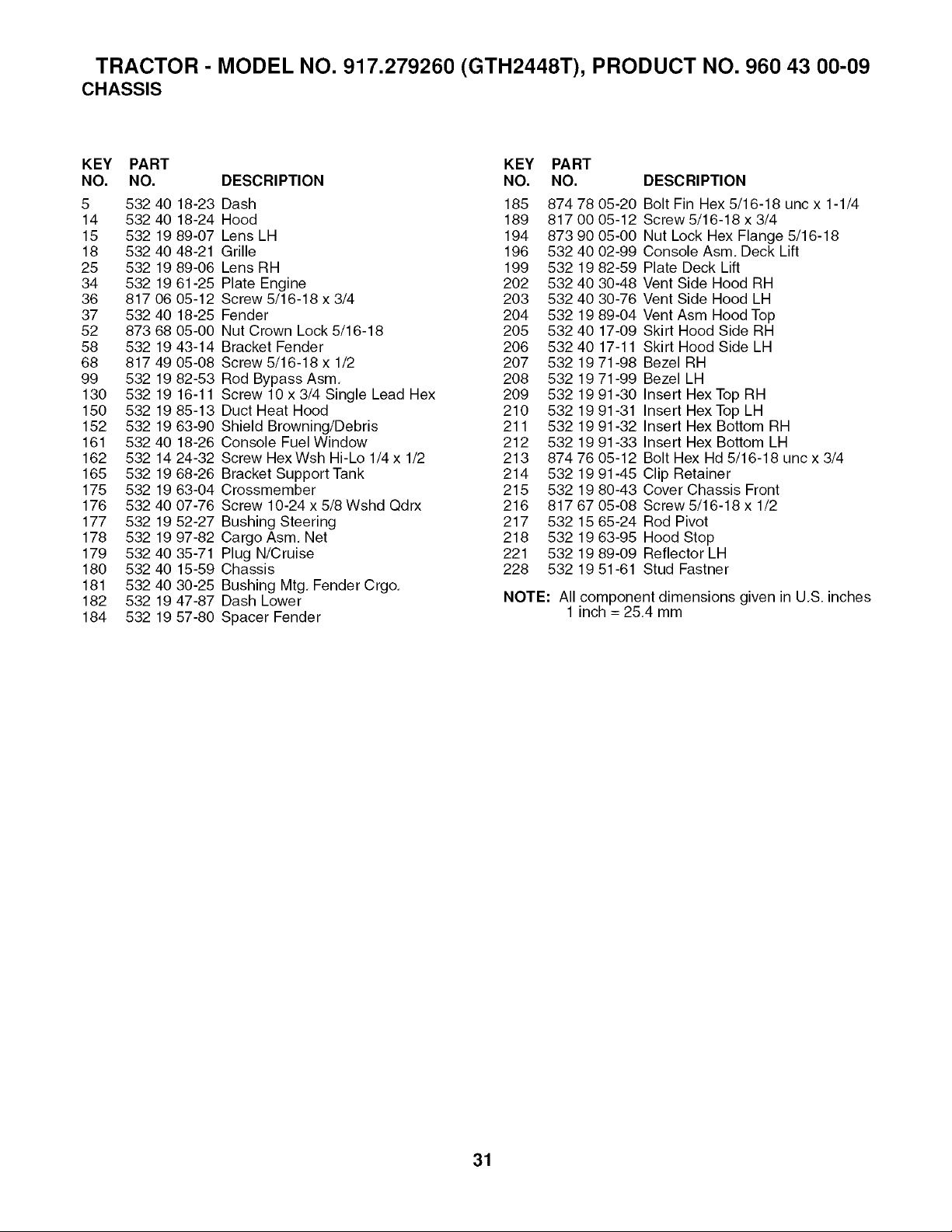

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

CHASSIS

KEY PART

NO. NO. DESCRIPTION

5 532 40 18-23 Dash

14 532 40 18-24 Hood

15 532 19 89-07 Lens LH

18 532 40 48-21 Grille

25 532 19 89-06 Lens RH

34 532 19 61-25 Plate Engine

36 8170605-12 Screw 5/16-18 x 3/4

37 532 40 18-25 Fender

52 873 68 05-00 Nut Crown Lock 5/16-18

58 532 19 43-14 Bracket Fender

68 817 49 05-08 Screw 5/16-18 x 1/2

99 532 19 82-53 Rod Bypass Asm,

130 532 19 16-11 Screw 10 x 3/4 Single Lead Hex

150 532 19 85-13 Duct Heat Hood

152 532 19 63-90 Shield Browning/Debris

161 532 40 18-26 Console Fuel Window

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

165 532 19 68-26 Bracket Support Tank

175 532 19 63-04 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-27 Bushing Steering

178 532 19 97-82 Cargo Asm, Net

179 532 40 35-71 Plug N/Cruise

180 532 40 15-59 Chassis

181 532 40 30-25 Bushing Mtg, Fender Crgo,

182 532 19 47-87 Dash Lower

184 532 19 57-80 Spacer Fender

KEY PART

NO. NO. DESCRIPTION

185 8747805-20 Bolt Fin Hex 5/16-18 unc x1-1/4

189 8170005-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 40 02-99 Console Asm, Deck Lift

199 532 19 82-59 Plate Deck Lift

202 532 40 30-48 Vent Side Hood RH

203 532 40 30-76 Vent Side Hood LH

204 532 19 89-04 Vent Asm Hood Top

205 532 40 17-09 Skirt Hood Side RH

206 532 40 17-11 Skirt Hood Side LH

207 532 19 71-98 Bezel RH

208 532 19 71-99 Bezel LH

209 532 19 91-30 Insert Hex Top RH

210 532 19 91-31 Insert HexTop LH

211 532 19 91-32 Insert Hex Bottom RH

212 532 19 91-33 Insert Hex Bottom LH

213 8747605-12 BoltHexHd5/16-18uncx3/4

214 532 19 91-45 Clip Retainer

215 532 19 80-43 Cover Chassis Front

216 8176705-08 Screw 5/16-18 x1/2

217 532 15 65-24 Rod Pivot

218 532 19 63-95 Hood Stop

221 532 19 89-09 Reflector LH

228 532 19 51-61 Stud Fastner

NOTE: All component dimensions given in U,S. inches

1 inch = 25.4 mm

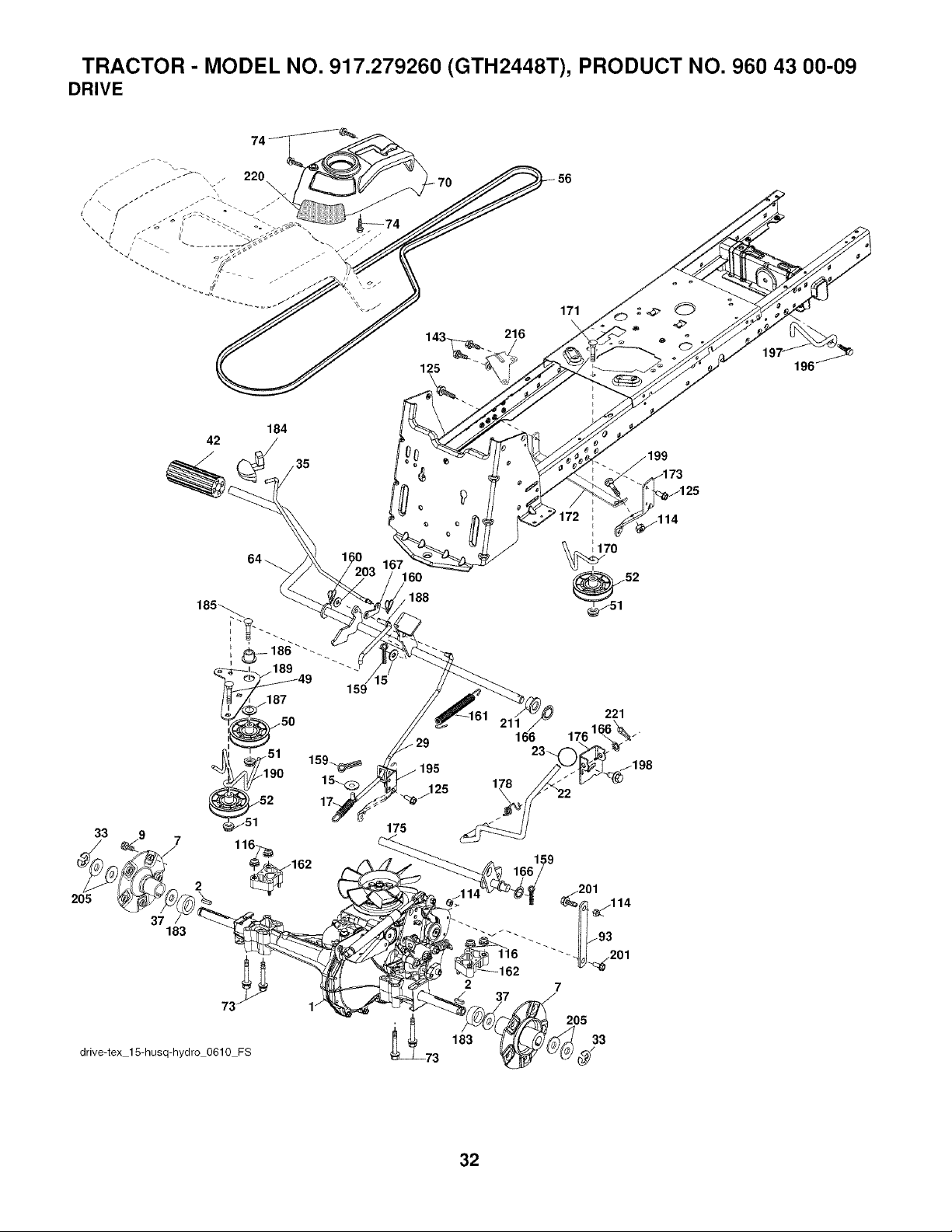

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

DRIVE

216

171

196

184

-125

205

183

2 _162

drive-tex 15-husq-hydro 0610 FS

16'

160

188

195

._F125

175

221

166 17616_"

23_ j198

159

.201

2 7

205

183 33

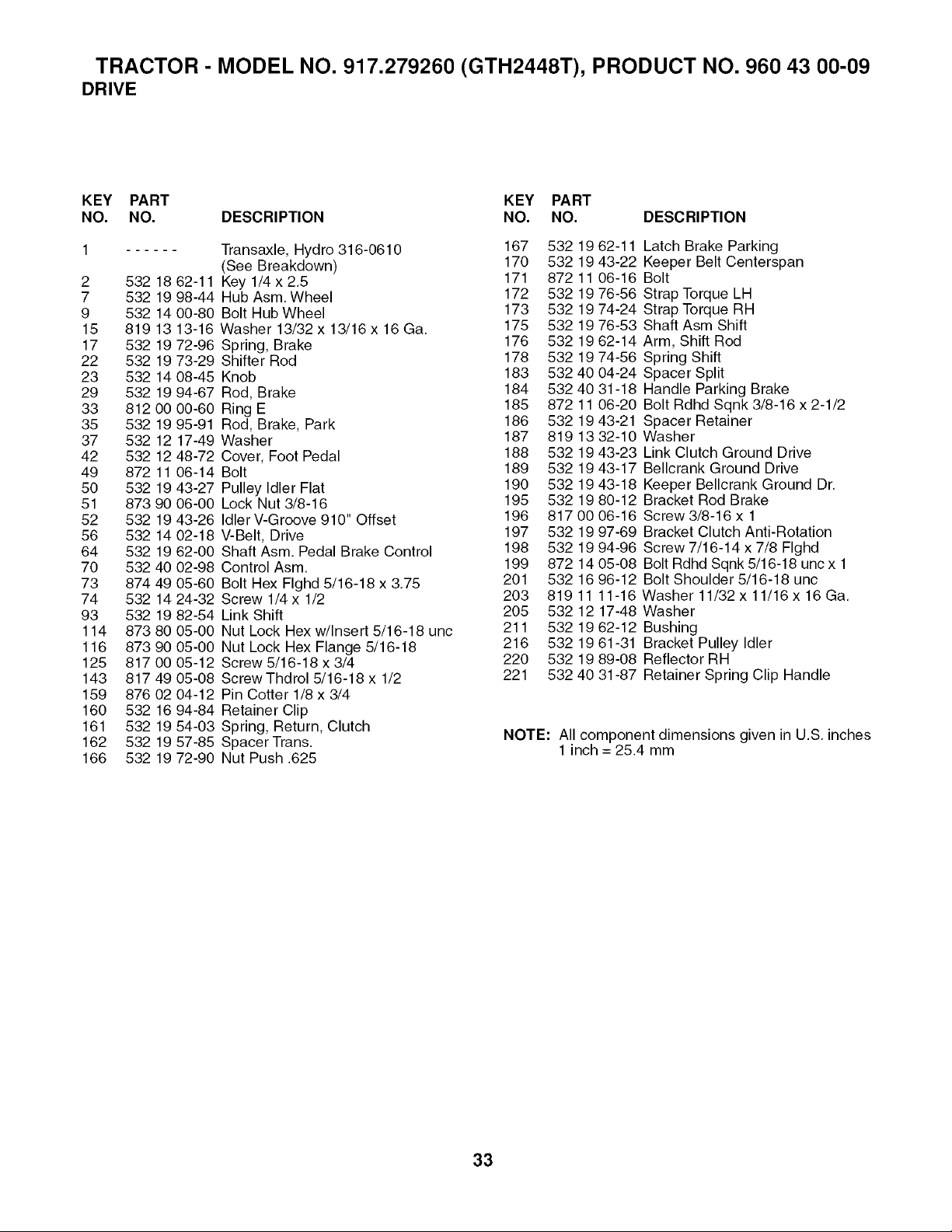

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 Transaxle, Hydro 316-0610 167 532 19

(See Breakdown) 170 532 19

2 5321862-11 Keyl/4x2,5 171 87211

7 532 19 98-44 Hub Asm, Wheel 172 532 19

9 532 14 00-80 Bolt HubWheel 173 532 19

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga. 175 532 19

17 532 19 72-96 Spring, Brake 176 532 19

22 532 19 73-29 Shifter Rod 178 532 19

23 532 14 08-45 Knob 183 532 40

29 532 19 94-67 Rod, Brake 184 532 40

33 8120000-60 RingE 185 87211

35 532 19 95-91 Rod, Brake, Park 186 532 19

37 532 12 17-49 Washer 187 819 13

42 532 12 48-72 Cover, Foot Pedal 188 532 19

49 872 11 06-14 Bolt 189 532 19

50 532 19 43-27 Pulley Idler Flat 190 532 19

51 873 90 06-00 Lock Nut 3/8-16 195 532 19

52 532 19 43-26 IdlerV-Groove 910" Offset 196 817 00

56 532 14 02-18 V-Belt, Drive 197 532 19

64 532 19 62-00 Shaft Asm. Pedal Brake Control 198 532 19

70 532 40 02-98 Control Asm, 199 872 14

73 874 49 05-60 Bolt Hex Flghd 5/16-18 x 3.75 201 532 16

74 532 14 24-32 Screw 1/4 x 1/2 203 819 11

93 532 19 82-54 Link Shift 205 532 12

114 873 80 05-00 Nut Lock Hex w/Insert 5/16-18 unc 211 532 19

116 873 90 05-00 Nut Lock Hex Flange 5/16-18 216 532 19

125 8170005-12 Screw 5/16-18 x 3/4 220 532 19

143 817 49 05-08 ScrewThdrol 5/16-18 x 1/2 221 532 40

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 19 54-03 Spring, Return, Clutch

162 532 19 57-85 Spacer Trans.

166 532 19 72-90 Nut Push .625

62-11 Latch Brake Parking

43-22 Keeper Belt Centerspan

06-16 Bolt

76-56 Strap Torque LH

74-24 Strap Torque RH

76-53 Shaft Asm Shift

62-14 Arm, Shift Rod

74-56 Spring Shift

04-24 Spacer Split

31-18 Handle Parking Brake

06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2

43-21 Spacer Retainer

32-10 Washer

43-23 Link Clutch Ground Drive

43-17 Bellcrank Ground Drive

43-18 Keeper Bellcrank Ground Dr,

80-12 Bracket Rod Brake

06-16 Screw3/8-16 x 1

97-69 Bracket Clutch Anti-Rotation

94-96 Screw 7/16-14 x 7/8 Flghd

05-08 Bolt Rdhd Sqnk 5/16-18 unc x 1

96-12 Bolt Shoulder 5/16-18 unc

11-16 Washer 11/32 x 11/16 x 16 Ga,

17-48 Washer

62-12 Bushing

61-31 Bracket Pulley Idler

89-08 Reflector RH

31-87 Retainer Spring Clip Handle

NOTE: All component dimensions given in U.S, inches

1 inch = 25.4 mm

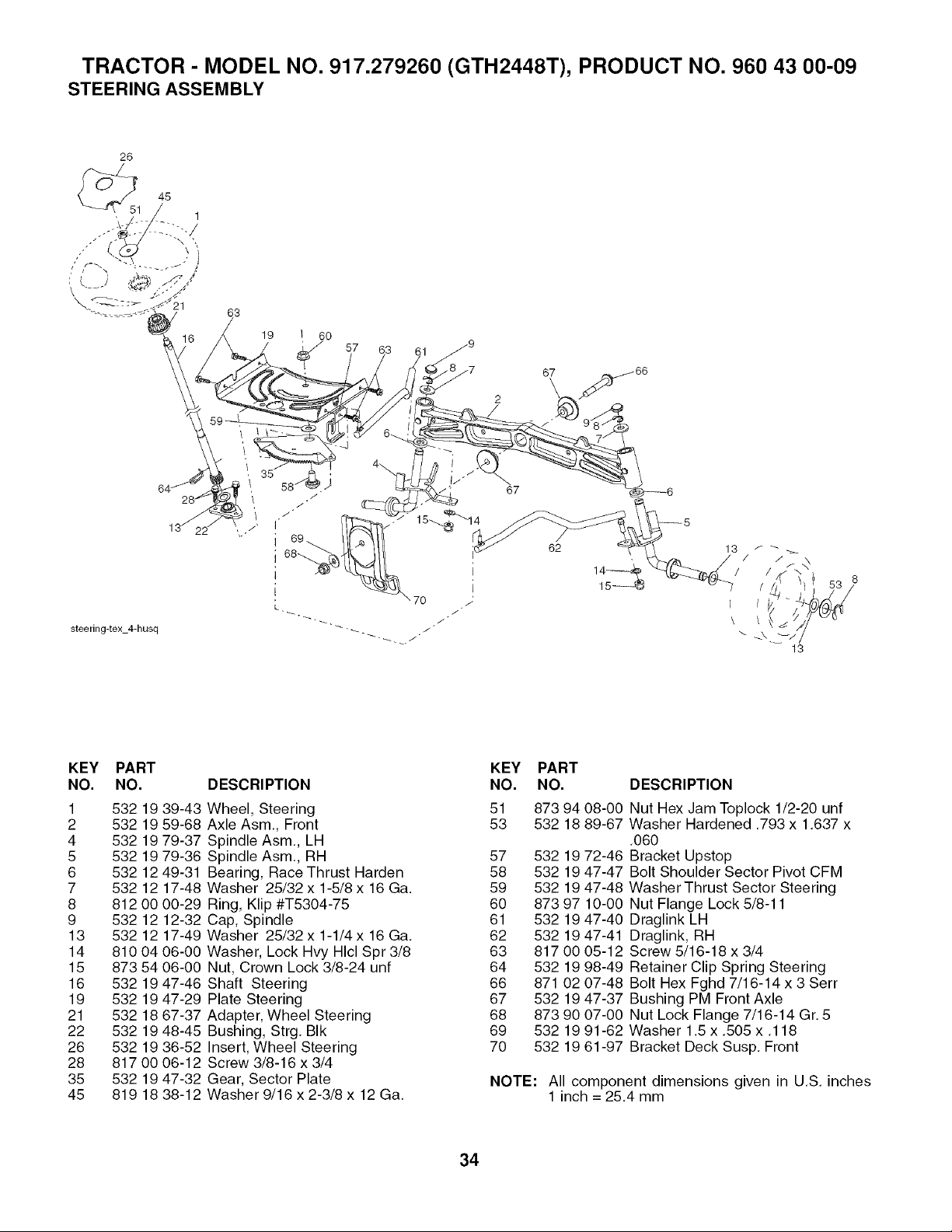

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

STEERING ASSEMBLY

steering-tex4-husq

KEY PART

NO. NO.

1 532 19 39-43

2 532 19 59-68

4 532 19 79-37

5 532 19 79-36

6 532 12 49-31

7 532 12 17-48

8 812 00 00-29

9 532 12 12-32

13 532 12 17-49

14 8100406-00

15 873 54 06-00

16 532 19 47-46

19 532 19 47-29

21 532 18 67-37

22 532 19 48-45

26 532 19 36-52

28 817 00 06-12

35 532 19 47-32

45 819 18 38-12

DESCRIPTION

Wheel, Steering

Axle Asm., Front

Spindle Asm., LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut, Crown Lock 3/8-24 unf

Shaft Steering

Plate Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Insert, Wheel Steering

Screw 3/8-16 x 3/4

Gear, Sector Plate

Washer 9/16 x 2-3/8 x 12 Ga.

KEY PART

NO. NO.

51 873 94

53 532 18

57 532 19

58 532 19

59 532 19

60 873 97

61 532 19

62 532 19

63 817 00

64 532 19

66 871 02

67 532 19

68 873 90

69 532 19

70 532 19

DESCRIPTION

08-00 Nut Hex Jam Toplock 1/2-20 unf

89-67 Washer Hardened .793 x 1.637 x

.060

72-46 Bracket Upstop

47-47 Bolt Shoulder Sector Pivot CFM

47-48 Washer Thrust Sector Steering

10-00 Nut Flange Lock 5/8-11

47-40 Draglink LH

47-41 Draglink, RH

05-12 Screw 5/16-18 x 3/4

98-49 Retainer Clip Spring Steering

07-48 Bolt Hex Fghd 7/16-14 x 3 Serf

47-37 Bushing PM Front Axle

07-00 Nut Lock Flange 7/16-14 Gr. 5

91-62 Washer 1.5 x .505 x .118

61-97 Bracket Deck Susp. Front

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

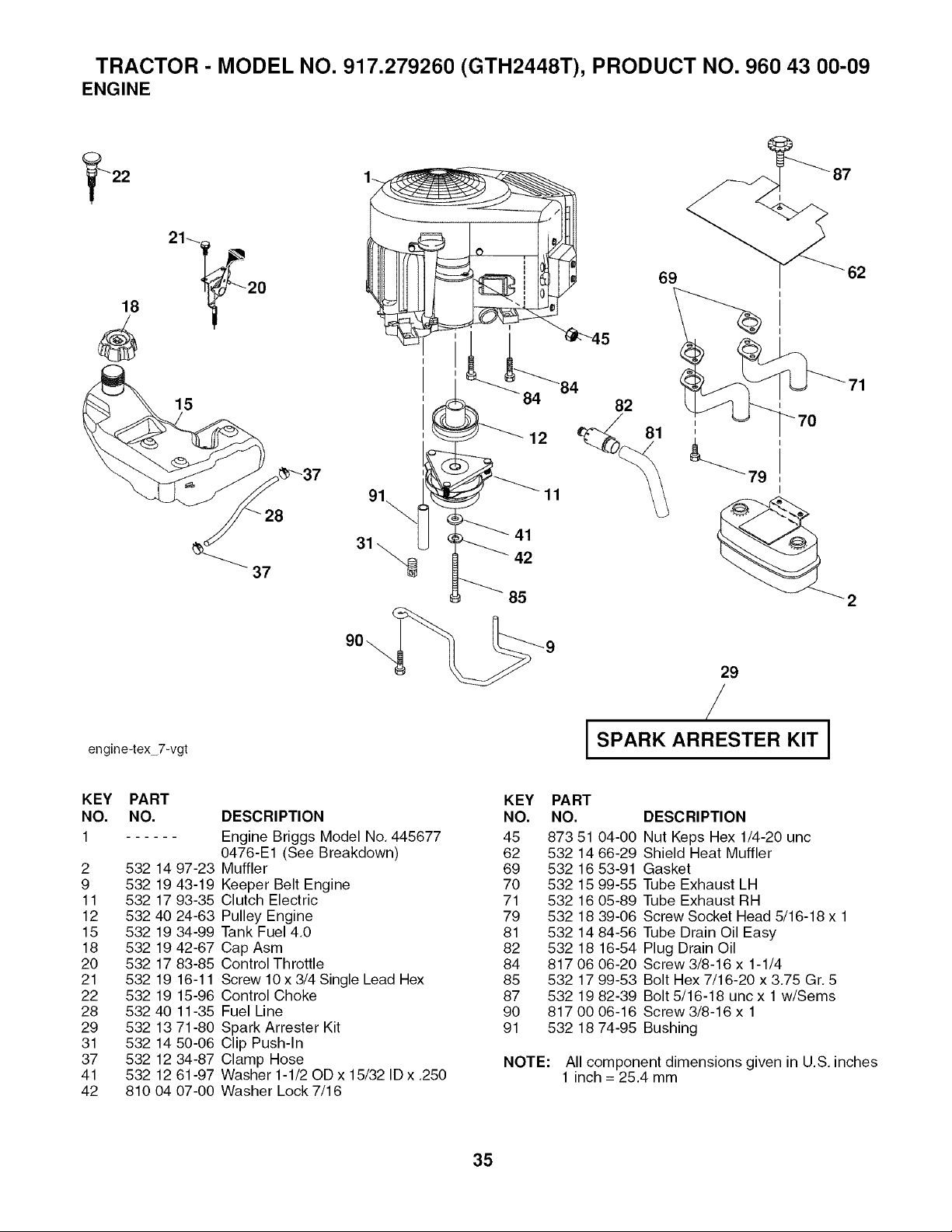

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

ENGINE

18 _20

engine-tex 7-vgt

69 I -_ 62

I SPARK ARRESTER KIT I

KEY PART

NO. NO.

2 532 14 97-23

9 532 19 43-19

11 532 17 93-35

12 532 40 24-63

15 532 19 34-99

18 532 19 42-67

20 532 17 83-85

21 532 19 16-11

22 532 19 15-96

28 532 40 11-35

29 532 13 71-80

31 532 14 50-06

37 532 12 34-87

41 532 12 61-97

42 810 04 07-00

DESCRIPTION

Engine Briggs Model No, 445677

0476-E1 (See Breakdown)

Muffler

Keeper Belt Engine

Clutch Electric

Pulley Engine

Tank Fuel 4,0

Cap Asm

Control Throttle

Screw 10x 3/4 Single Lead Hex

Control Choke

Fuel Line

Spark Arrester Kit

Clip Push-In

Clamp Hose

Washer 1-1/20D x 15/32 ID x 250

Washer Lock 7/16

KEY PART

NO. NO.

45 873 51

62 532 14

69 532 16

70 532 15

71 532 16

79 532 18

81 532 14

82 532 18

84 817 06

85 532 17

87 532 19

90 817 00

91 532 18

DESCRIPTION

04-00 Nut Keps Hex 1/4-20 unc

66-29 Shield Heat Muffler

53-91 Gasket

99-55 Tube Exhaust LH

05-89 Tube Exhaust RH

39-06 Screw Socket Head 5/16-18 x 1

84-56 Tube Drain Oil Easy

16-54 Plug Drain Oil

06-20 Screw 3/8-16 x 1-1/4

99-53 Bolt Hex 7/16-20 x 3,75 Gr, 5

82-39 Bolt 5/16-18 unc x 1 w/Seres

06-16 Screw 3/8-16 x 1

74-95 Bushing

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

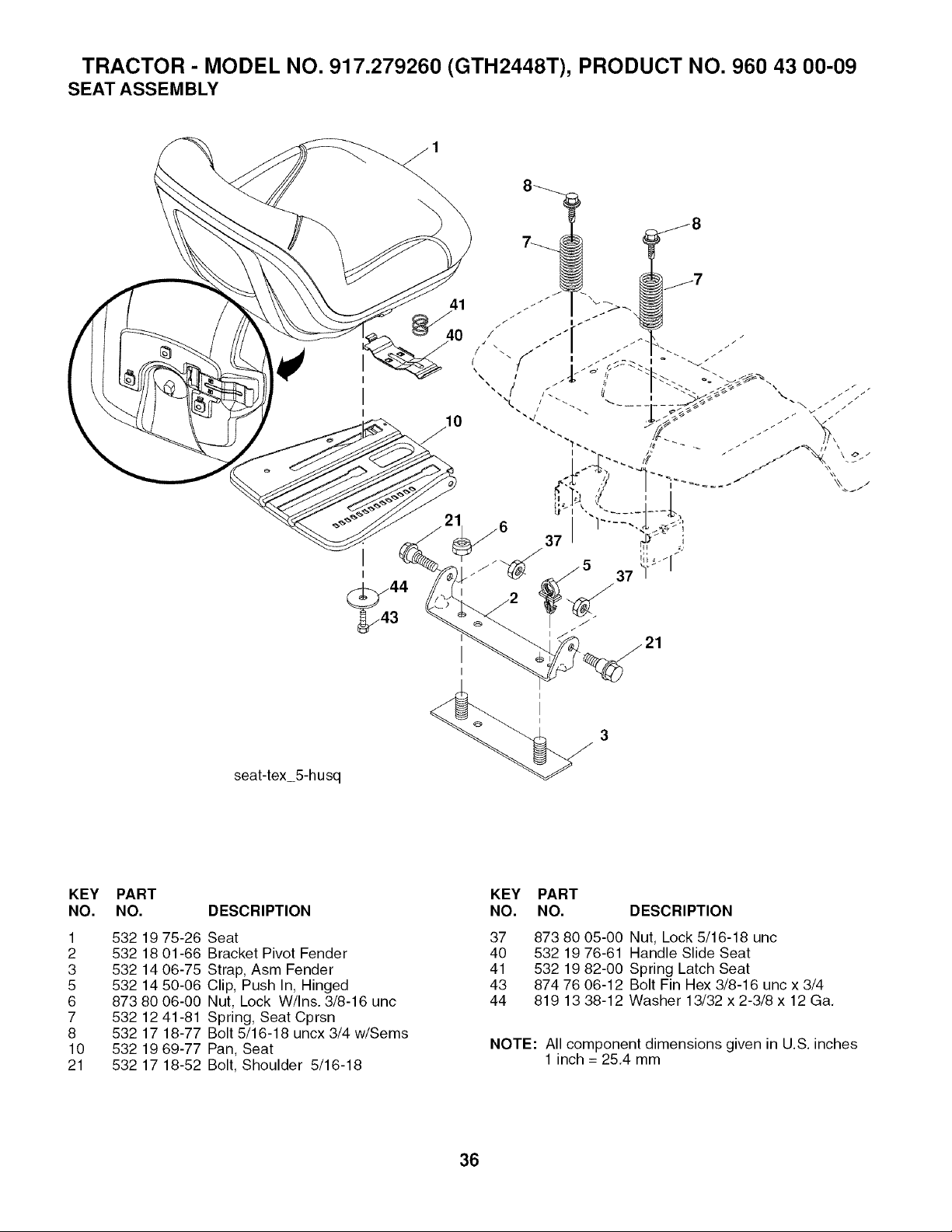

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

SEAT ASSEMBLY

seat-tex_5-husq

KEY

NO.

PART

NO.

532 19 75-26

532 18 01-66

532 14 06-75

532 14 50-06

873 80 06-00

532 12 41-81

532 17 18-77

532 19 69-77

532 17 18-52

DESCRIPTION

Seat

Bracket Pivot Fender

Strap, Asm Fender

Clip, Push In, Hinged

Nut, Lock W/Ins. 3/8-16 unc

Spring, Seat Cprsn

Bolt 5/16-18 uncx 3/4 w/Seres

Pan, Seat

Bolt, Shoulder 5/16-18

KEY PART

NO. NO. DESCRIPTION

37 873 80 05-00 Nut, Lock 5/16-18 unc

40 532 19 76-61 Handle Slide Seat

41 532 19 82-00 Spring Latch Seat

43 8747606-12 Bolt Fin Hex 3/8-16 unc x 3/4

44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga,

NOTE: All component dimensions given in U.S. inches

1 inch = 25,4 mm

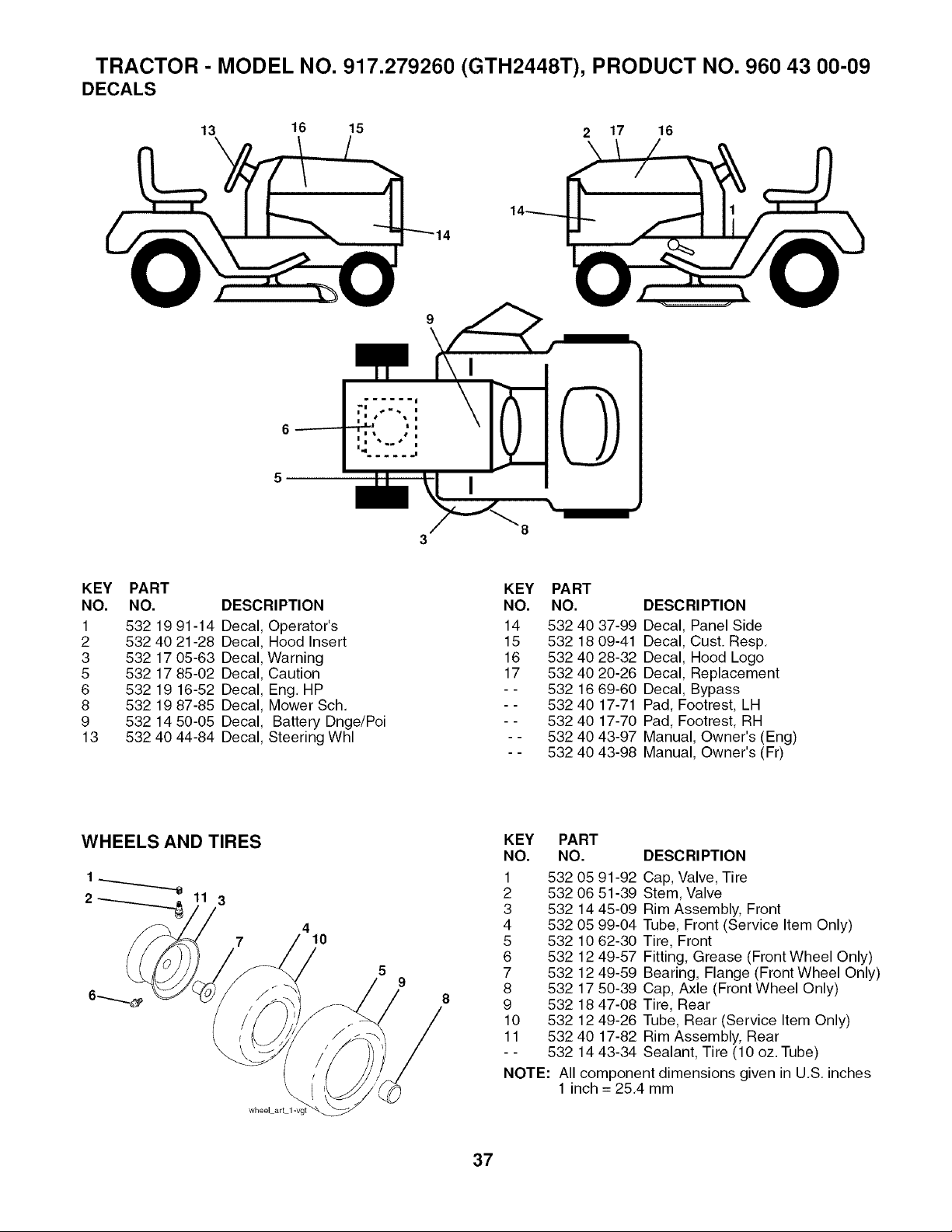

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

DECALS

13 16 15 2 17 16

KEY PART

NO. NO. DESCRIPTION

1 532 19 91-14 Decal, Operator's

2 532 40 21-28 Decal, Hood Insert

3 532 17 05-63 Decal, Warning

5 532 17 85-02 Decal, Caution

6 532 19 16-52 Decal, Eng. HP

8 532 19 87-85 Decal, Mower Sch.

9 532 14 50-05 Decal, Battery Dnge/Poi

13 532 40 44-84 Decal, Steering Whl

KEY PART

NO. NO.

14 532 40 37-99

15 532 18 09-41

16 532 40 28-32

17 532 40 20-26

- - 532 16 69-60

- - 532 40 17-71

- - 532 40 17-70

- - 532 40 43-97

- - 532 40 43-98

DESCRIPTION

Decal, Panel Side

Decal, Cust. Resp.

Decal, Hood Logo

Decal, Replacement

Decal, Bypass

Pad, Footrest, LH

Pad, Footrest, RH

Manual, Owner's (Eng)

Manual, Owner's (Fr)

WHEELS AND TIRES

2 3

KEY PART

NO. NO.

1 532 05 91-92

2 532 06 51-39

3 532 14 45-09

4 532 05 99-04

5 532 10 62-30

6 532 12 49-57

7 532 12 49-59

8 532 17 50-39

9 532 18 47-08

10 532 12 49-26

11 532 40 17-82

DESCRIPTION

Cap, Valve, Tire

Stem, Valve

Rim Assembly, Front

Tube, Front (Service Item Only)

Tire, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange (Front Wheel Only)

Cap, Axle (Front Wheel Only)

Tire, Rear

Tube, Rear (Service Item Only)

Rim Assembly, Rear

- - 532 14 43-34 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

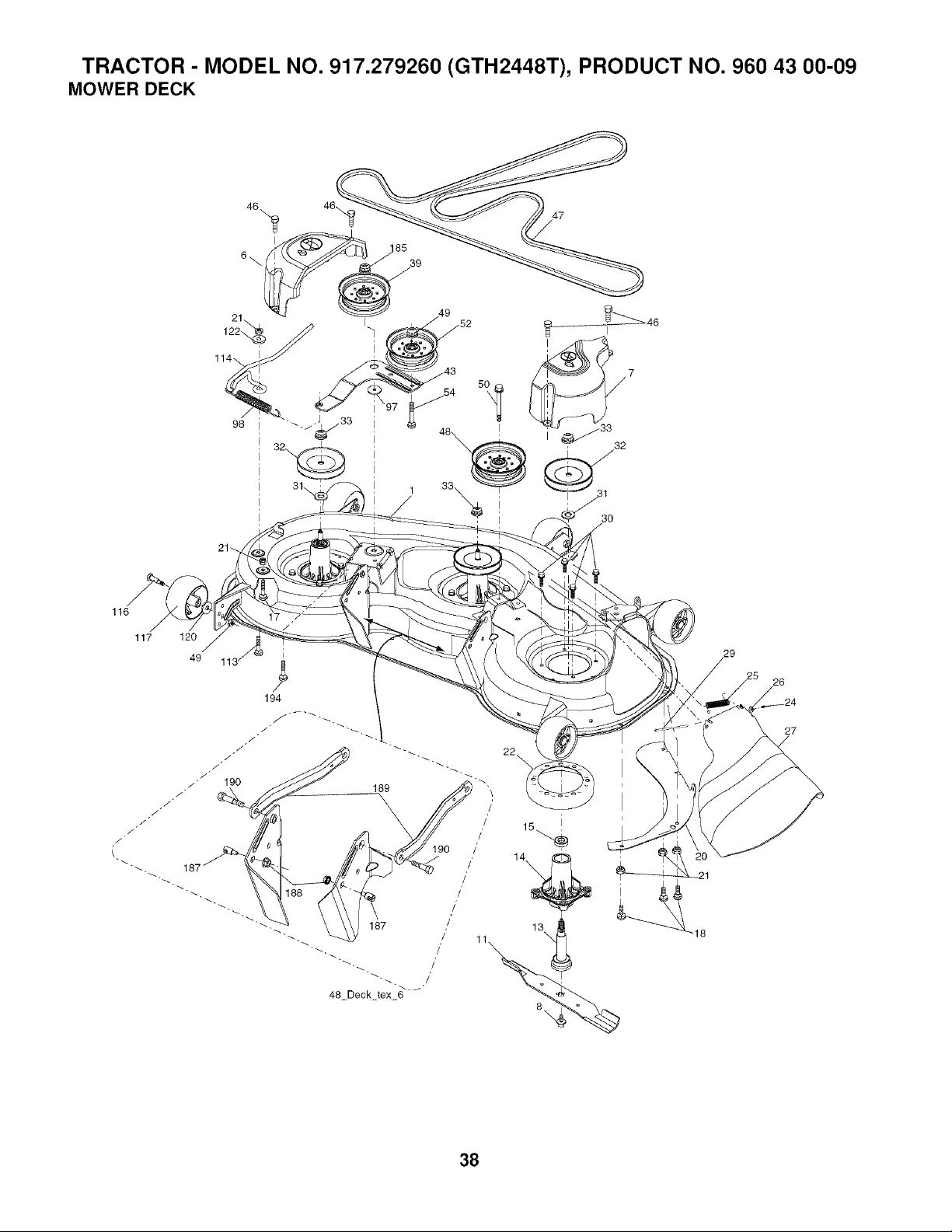

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

MOWER DECK

46_

_'J 33

! 32_

I 31\

116

117

120

113/

194

19o

_- . 187

48 Deck tex 6

190

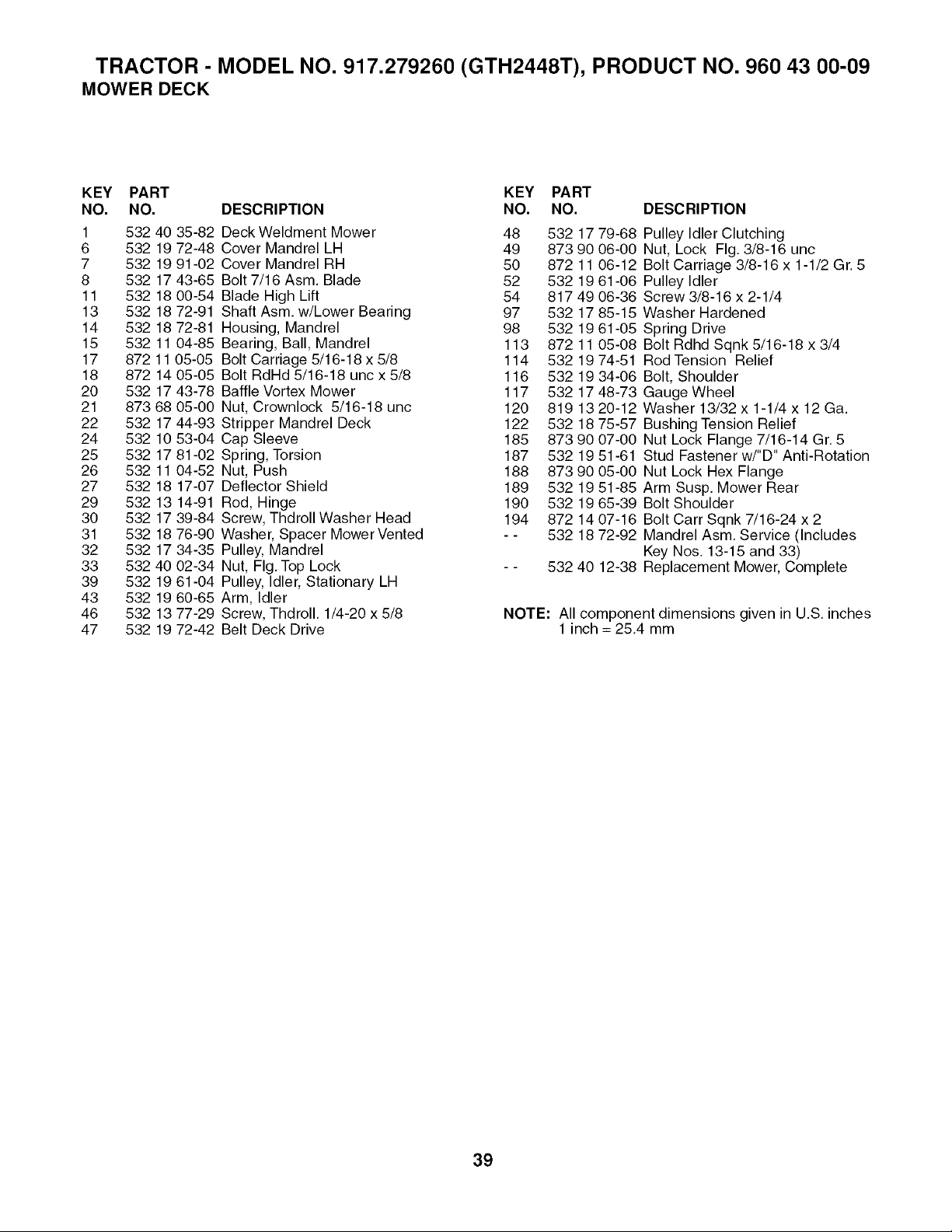

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 532 40 35-82 Deck Weldment Mower 48 532 17

6 532 19 72-48 Cover Mandrel LH 49 873 90

7 532 19 91-02 Cover Mandrel RH 50 872 11

8 532 17 43-65 Bolt 7/16 Asm. Blade 52 532 19

11 532 18 00-54 Blade High Lift 54 817 49

13 532 18 72-91 Shaft Asm, w/Lower Bearing 97 532 17

14 532 18 72-81 Housing, Mandrel 98 532 19

15 532 11 04-85 Bearing, Ball, Mandrel 113 872 11

17 872 11 05-05 Bolt Carriage 5/16-18 x 5/8 114 532 19

18 8721405-05 BoltRdHd5/16-18uncx5/8 116 53219

20 532 17 43-78 Baffle Vortex Mower 117 532 17

21 873 68 05-00 Nut, Crownlock 5/16-18 unc 120 819 13

22 532 17 44-93 Stripper Mandrel Deck 122 532 18

24 532 10 53-04 Cap Sleeve 185 873 90

25 532 17 81-02 Spring, Torsion 187 532 19

26 532 11 04-52 Nut, Push 188 873 90

27 532 18 17-07 Deflector Shield 189 532 19

29 532 13 14-91 Rod, Hinge 190 532 19

30 532 17 39-84 Screw, Thdroll Washer Head 194 872 14

31 532 18 76-90 Washer, Spacer Mower Vented - - 532 18

32 532 17 34-35 Pulley, Mandrel

33 532 40 02-34 Nut, Fig, Top Lock - - 532 40

39 532 19 61-04 Pulley, Idler, Stationary LH

43 532 19 60-65 Arm, Idler

46 532 13 77-29 Screw, Thdroll, 1/4-20 x 5/8

47 532 19 72-42 Belt Deck Drive

DESCRIPTION

79-68 Pulley Idler Clutching

06-00 Nut, Lock Fig. 3/8-16 unc

06-12 Bolt Carriage 3/8-16 x 1-1/2 Gr. 5

61-06 Pulley Idler

06-36 Screw 3/8-16 x 2-1/4

85-15 Washer Hardened

61-05 Spring Drive

05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4

74-51 Rod Tension Relief

34-06 Bolt, Shoulder

48-73 Gauge Wheel

20-12 Washer 13/32 x 1-1/4 x 12 Ga.

75-57 Bushing Tension Relief

07-00 Nut Lock Flange 7/16-14 Gr, 5

51-61 Stud Fastener w/"D" Anti-Rotation

05-00 Nut Lock Hex Flange

51-85 Arm Susp, Mower Rear

65-39 Bolt Shoulder

07-16 Bolt Carr Sqnk 7/16-24 x 2

72-92 Mandrel Asm, Service (Includes

Key Nos, 13-15 and 33)

12-38 Replacement Mower, Complete

NOTE: All component dimensions given in U,S, inches

1 inch = 25.4 mm

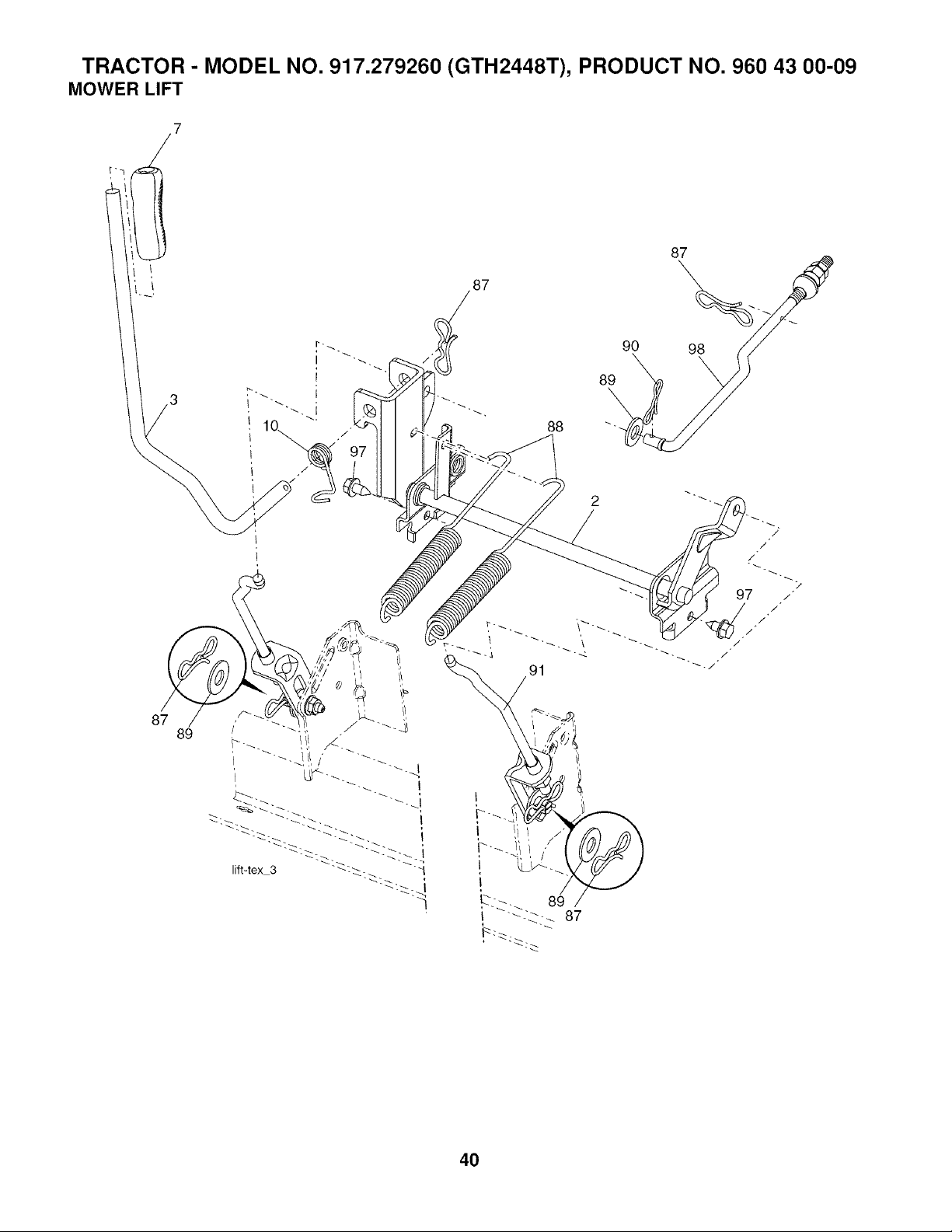

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

MOWER LIFT

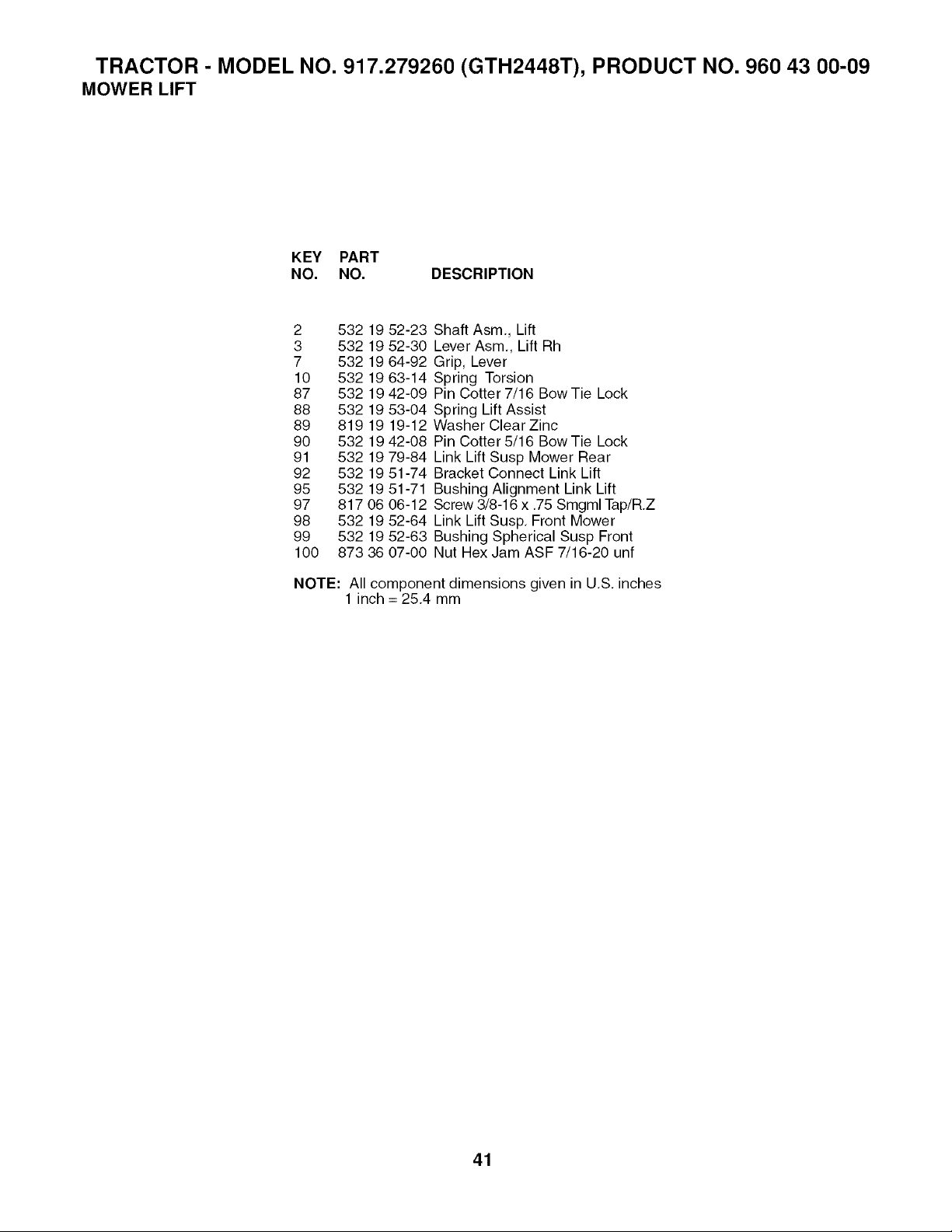

TRACTOR - MODEL NO. 917.279260 (GTH2448T), PRODUCT NO. 960 43 00-09

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

2 532 19 52-23

3 532 19 52-30

7 532 19 64-92

10 532 19 63-14

87 532 19 42-09

88 532 19 53-04

89 819 19 19-12

90 532 19 42-08

91 532 19 79-84

92 532 19 51-74

95 532 19 51-71

97 817 06 06-12

98 532 19 52-64

99 532 19 52-63

100 873 36 07-00

Shaft Asm., Lift

Lever Asm., Lift Rh

Grip, Lever

Spring Torsion

Pin Cotter 7/16 Bow Tie Lock

Spring Lift Assist

Washer Clear Zinc

Pin Cotter 5/16 Bow Tie Lock

Link Lift Susp Mower Rear

Bracket Connect Link Lift

Bushing Alignment Link Lift

Screw 3/8-16 x .75 Smgml Tap/R.Z

Link Lift Susp. Front Mower

Bushing Spherical Susp Front

Nut Hex Jam ASF 7/16-20 unf

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

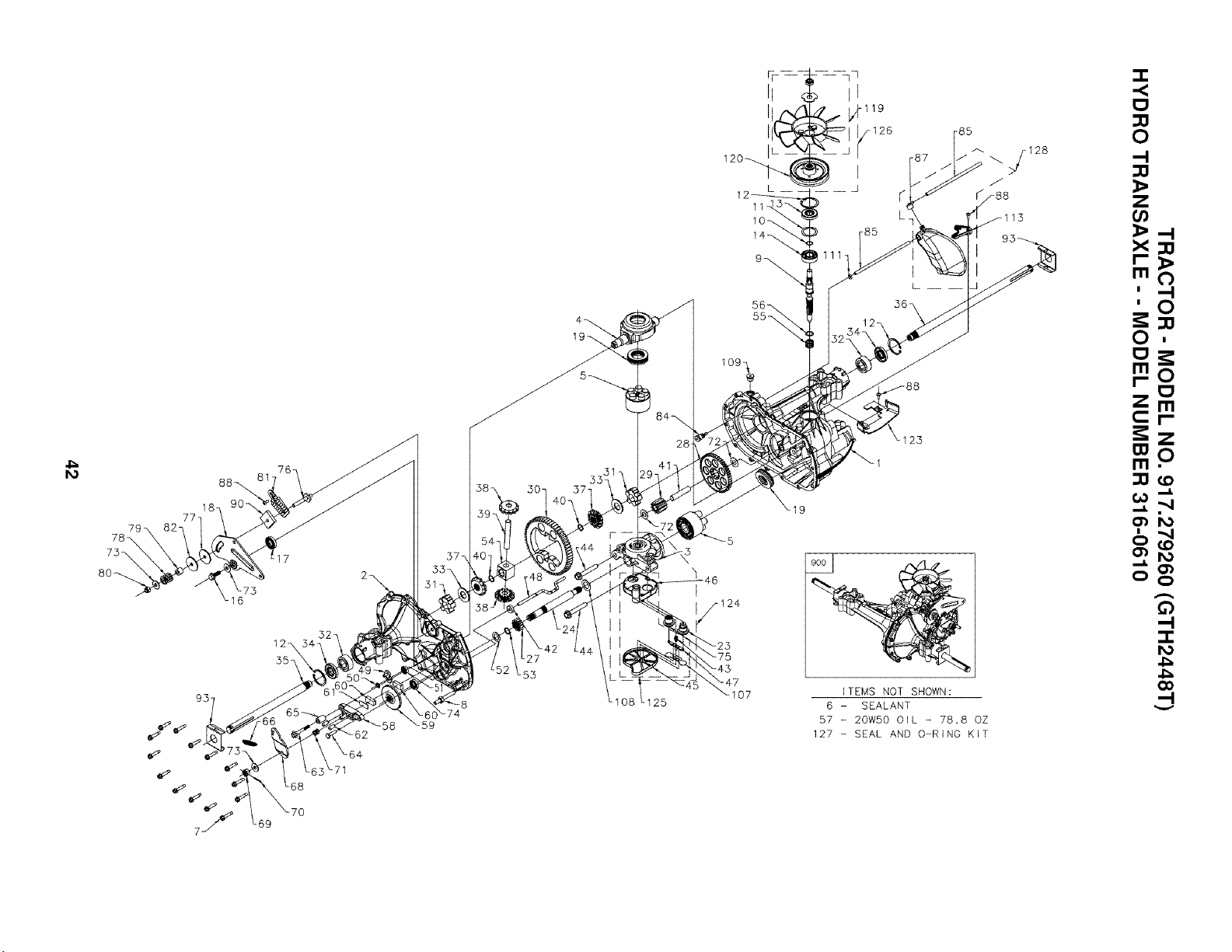

55=

-68

_-70

_69

-46

_25

/-126

10_

55_

"_. j128

_88

107

ITEMS NOT SHOWN:

6 - SEALANT

57 - 20W50 OIL - 78.80Z

127 - SEAL AND O-RING KIT

F.o

O II

el,-

rrl,

...L

6""

(.0

0'_ I_

"-" 0'_

-I

I'O

-I

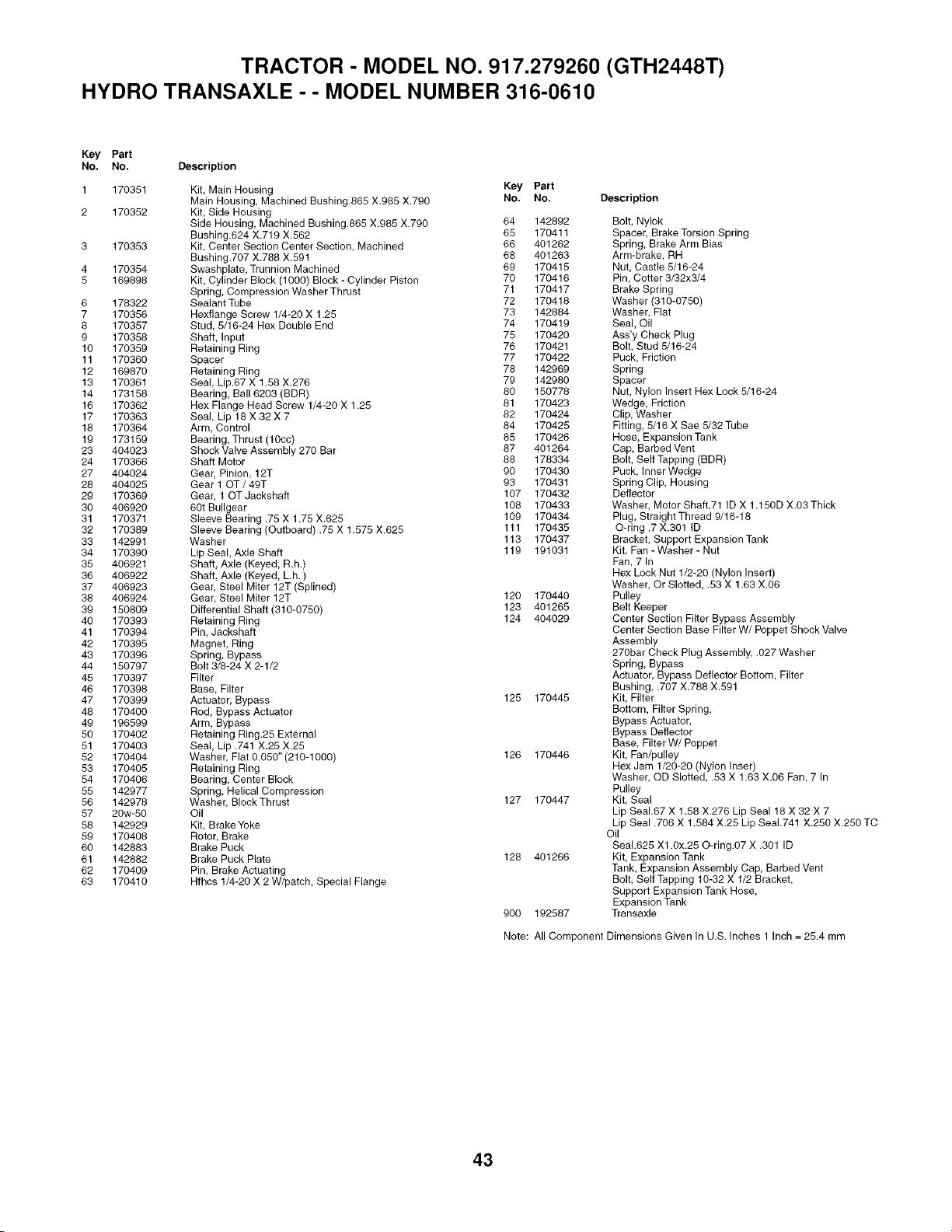

TRACTOR - MODEL NO. 917.279260 (GTH2448T)

HYDRO TRANSAXLE - - MODEL NUMBER 316-0610

Key Part

No. No.

1 170351

2 170352

170353

170354

169898

178322

170356

170357

170358

170359

170360

169870

170361

173158

170362

170363

170364

173159

404023

170366

404024

404025

170369

406920

170371

170389

142991

170390

406921

406922

406923

406924

150809

170393

170394

170395

170396

150797

170397

170398

170399

170400

196599

170402

170403

170404

170405

170406

142977

142978

2Ow-5O

142929

170408

142883

142882

170409

170410

Description

Kit, Main Housing Key Part

Main Housing, Machined Bushing.865 X.985 X.790 No. No.

Kit, Side Housing

Side Housing, Machined Bushing.865 X.985 X.790 64 142892

Bushing.624 X.719 X.562 65 170411

Kit, Center Section Center Section, Machined 66 401262

Bushing.707 X.788 X.591 68 401263

Swaehplate, Trunnion Machined 69 170415

Kit, Cylinder Block (1000) Block - Cylinder Piston 70 170416

Spring, Compression Washer Thrust 71 170417

Sealant Tube 72 170418

Hexflange Screw 1/4-20 X 1.25 73 142884

Stud, 5/16-24 Hex Double End 74 170419

Shaft, Input 75 170420

Retaining Ring 76 170421

Spacer 77 170422

Retaining Ring 78 142969

Seal, Lip.67 X 1.58 X.276 79 142980

Bearing, Ball 6203 (BDR) 80 150778

Hex Flange Head Screw 1/4-20 X 1.25 81 170423

Seal, Lip 18 X 32 X 7 82 170424

Arm, Control 84 170425

Bearing, Thrust (10cc) 85 170426

Shock Valve Assembly 270 Bar 87 401264

Shaft Motor 88 178334

Gear, Pinion, 12T 90 170430

Gear 10T/49T 93 170431

Gear, 1 OTJackshaft 107 170432

60t Bullgear 108 170433

Sleeve Bearing .75 X 1.75 X.625 109 170434

Sleeve Bearing (Outboard) .75 X 1.575 X.625 111 170435

Washer 113 t70437

Lip Seal, Axle Shaft 119 191031

Shaft, Axle (Keyed, R.h.)

Shaft, Axle (Keyed, L.h. )

Gear, Steel Miter 12T (Splined)

Gear, Steel Miter 12T 120 170440

Differential Shaft (310-0750) 123 401265

Retaining Ring 124 404029

Pin, Jackshaft

Magnet, Ring

Spring, Bypass

Bolt 3/8-24 X 2-1/2

Filter

Base, Filter

Actuator, Bypass 125 170445

Rod, Bypass Actuator

Arm, Bypass

Retaining Ring.25 External

Seal, Lip .741 X.25 X.25

Washer, Flat 0.050"(210-1000) 126 170446

Retaining Ring

Bearing, Center Block

Spring, Helical Compression

Washer, BlockThrust 127 170447

Oil

Kit, Brake Yoke

Rotor, Brake

Brake Puck

Brake Puck Plate 128 401266

Pin, Brake Actuating

Hfhcs 1/4-20 X 2 W/patch, Special Flange

900 192587

Description

Bolt, Nylok

Spacer, Brake Torsion Spring

Spring, Brake Arm Bias

Arm-brake, RH

Nut, Castle 5/16-24

Pin, Cotter 3/32x3/4

Brake Spring

Washer (310-0750)

Washer, Flat

Seal, Oil

Ass'y Check Plug

Bolt, Stud 5/16-24

Puck, Friction

Spring

Spacer

Nut, Nylon Insert Hex Lock 5/16-24

Wedge, Friction

Clip, Washer

Fitting, 5/16 X Sae 5/32 Tube

Hose, Expansion Tank

Cap, Barbed Vent

Bolt, Self Tapping (BDR)

Puck, Inner Wedge

Spring Clip, Housing

Deflector

Washer, Motor Shafb7t ID X t.t50D X.03 Thick

Plug, Straight Thread 9/16-18

O-ring .7 X.301 ID

Bracket, Support Expansion Tank

Kit, Fan - Washer - Nut

Fan, 7 In

Hex Lock Nut 1/2-20 (Nylon Insert)

Washer, Or Slotted, .53 X 1.63 X.06

Pulley

Belt Keeper

Center Section Filter Bypass Assembly

Center Section Base Filter W/Poppet Shock Valve

Assembly

270bar Check Plug Assembly, .027 Washer

Spring, Bypass

Actuator, Bypass Deflector Bottom, Filter

Bushing, .707 X.788 X.591

Kit, Filter

Bottom, Filter Spring,

Bypass Actuator,

Bypass Deflector

Base, Filter W/Poppet

Kit, Fan/pulley

Hex Jam 1/20-20 (Nylon Inser)

Washer, OD Slotted, .53 X 1.63 X.06 Fan, 7 In

Pulley

Kit, Seal

Lip Seal.67 X 1.58 X.276 Lip Seal 18 X 32 X 7

Lip Seal .706 X 1.584 X.25 Lip SeaL741 X.250 X.250 TC

Oil

Seal.625 Xt.0x.25 O-ring.07 X .301 ID

Kit, Expansion Tank

Tank, Expansion Assembly Cap, Barbed Vent

Bolt, Self Tapping 10-32 X 1/2 Bracket,

Support Expansion Tank Hose,

Expansion Tank

Transaxle

Note: All Component Dimensions Given In U.S. Inches 1 Inch = 25.4 mm

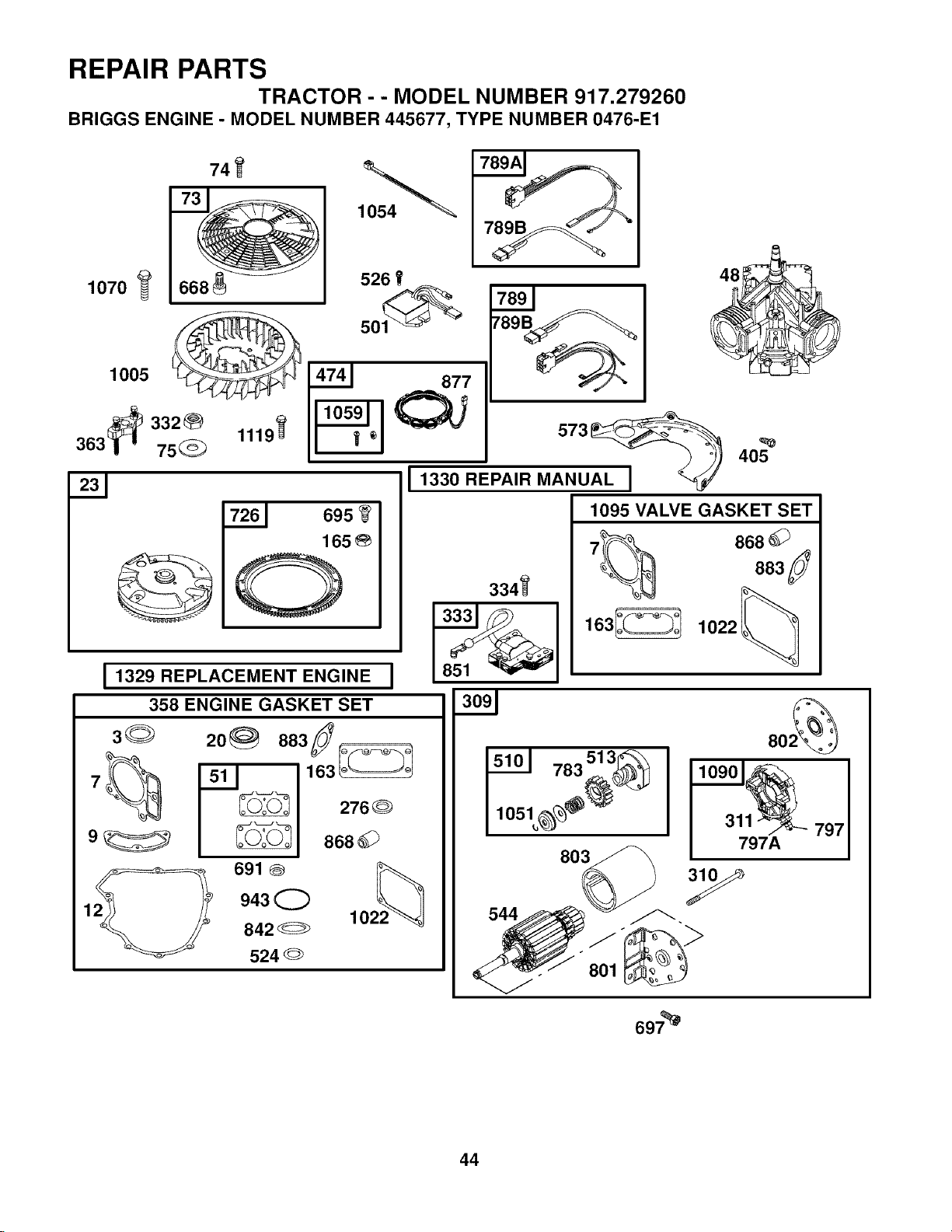

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.279260

BRIGGS ENGINE - MODEL NUMBER 445677, TYPE NUMBER 0476-E1

5261_'_

1070 _ 50 _ 7891

1005 _ 877 -_/_;_

75_ 40_

23 I [ 1330 REPAIR MANUAL J

7261 695

165_

11329 REPLACEMENT ENGINE I

358 ENGINE GASKET SET

3©

20@ 663__

51 I 163_

276@

o _ o

o _-----_ o

868_

691 ® 2_

943 Q

842 _ 10

524

334_

3091

1095 VALVE GASKET SET

783 513_

803

544

801

311 797 I

797A

697_

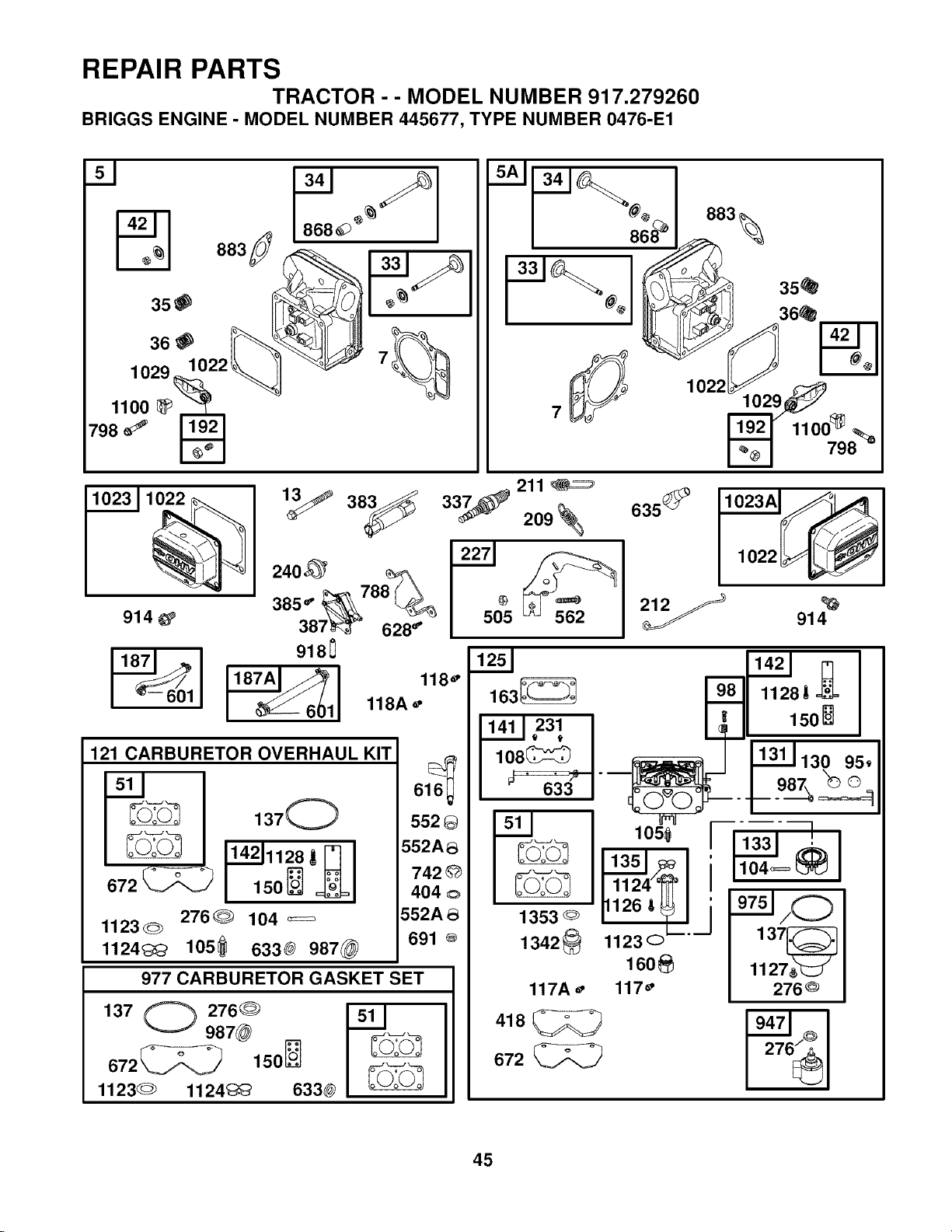

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.279260

BRIGGS ENGINE - MODEL NUMBER 445677, TYPE NUMBER 0476-E1

883g

35_

1029 1022

11oo_

798 J

35,

_ 1022 °_/11029_

7_ _oo_6.

211

209 _

562

635 _

1022

121 CARBURETOR OVERHAUL KIT

137 0

276 _ 104 _=_

1123_

1124_ 105_ 633® 967@

552 O

552A8

742_

404

552A 8

691 ÷

977 CARBURETOR GASKET SET

137 O 276Q L_

987@

o__ ,_o_I_

163_

1_ 231

108_

1353

1342

117A _"

418

672

11421

198111128_&

105_

160_

117e

104_ I

137_

1127_'_

276@

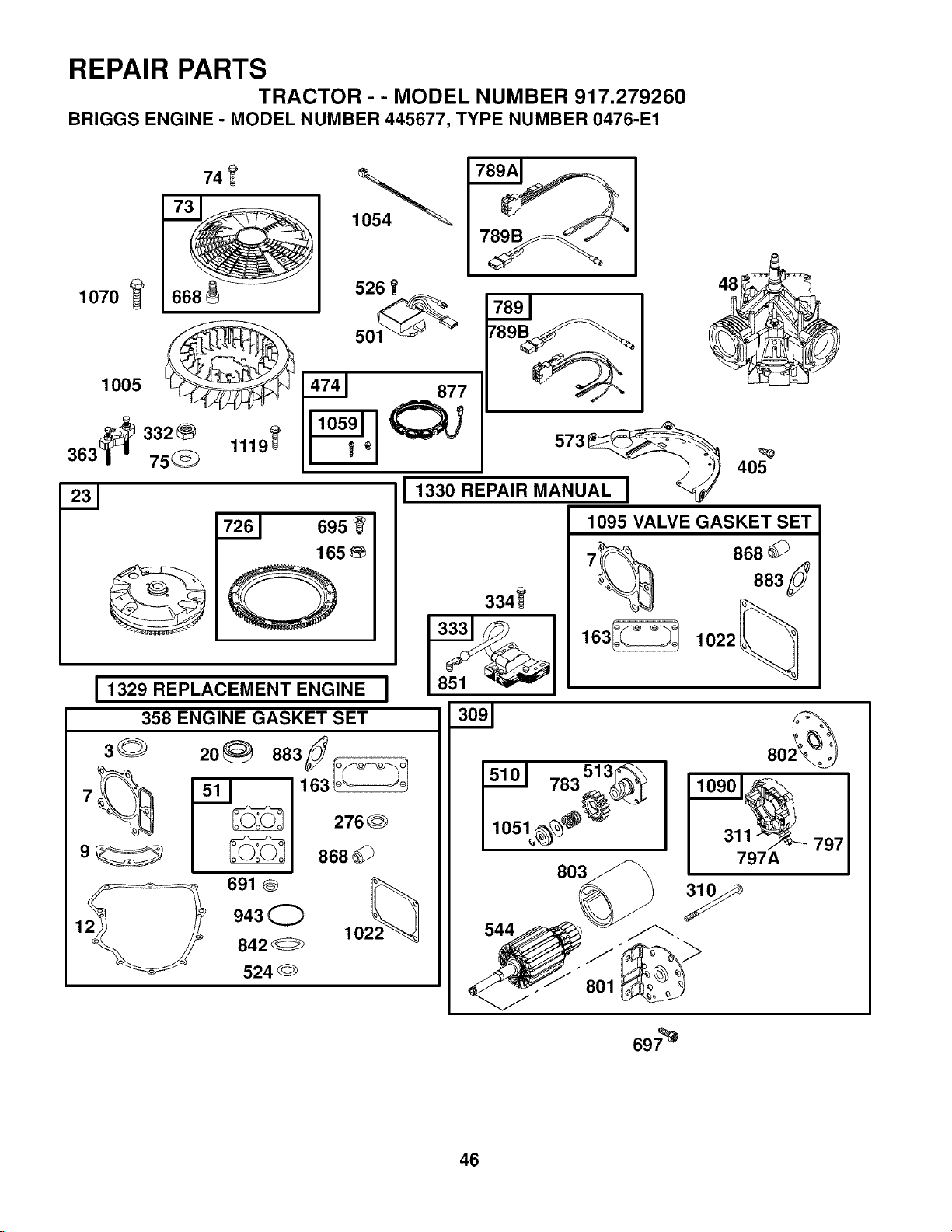

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.279260

BRIGGS ENGINE - MODEL NUMBER 445677, TYPE NUMBER 0476-E1

526 _ _

lo_o_ _o_

75_ 111 40?

L1330 REPAIR MANUAL ]

7261 695

165_

I 1329 REPLACEMENT ENGINE I

358 ENGINE GASKET SET

3©

2o_ 883_

691 ®

943 O

842

524

276 O

868_

1095 VALVE GASKET SET

334_

3091

7_ 868

883

163I_[ 1022 h

311

797A

310_

697 _

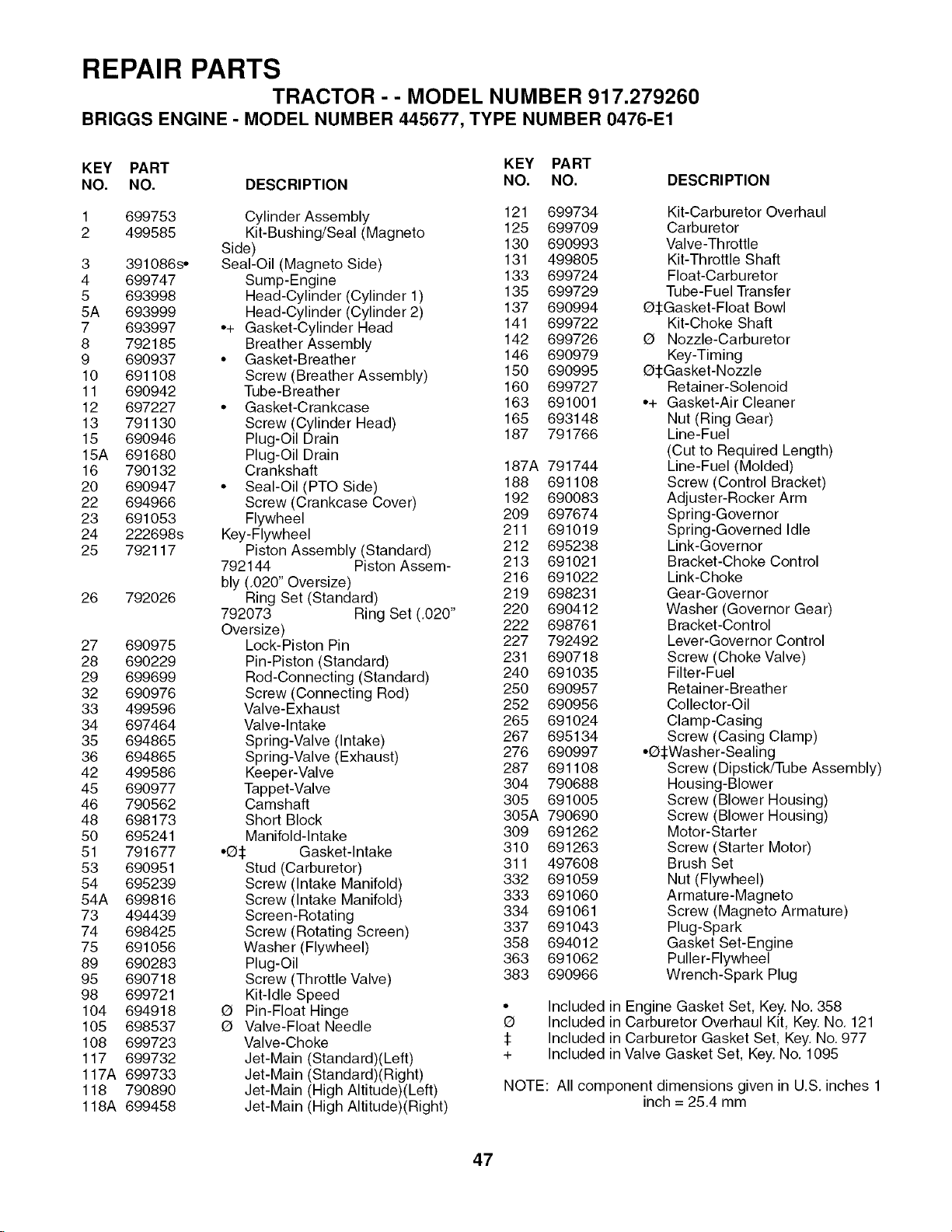

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.279260

BRIGGS ENGINE - MODEL NUMBER 445677, TYPE NUMBER 0476-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 699753 Cylinder Assembly 121 699734

2 499585 Kit-Bushing/Seal (Magneto 125 699709

Side) 130 690993

3 391086so Seal-Oil (Magneto Side) 131 499805

4 699747 Sump-Engine 133 699724

5 693998 Head-Cylinder (Cylinder 1) 135 699729

5A 693999 Head-Cylinder (Cylinder 2) 137 690994

7 693997 ,+ Gasket-Cylinder Head 141 699722

8 792185 Breather Assembly 142 699726

9 690937 • Gasket-Breather 146 690979

10 691108 Screw (Breather Assembly) 150 690995

11 690942 Tube-Breather 160 699727

12 697227 • Gasket-Crankcase 163 691001

13 791130 Screw (Cylinder Head) 165 693148

15 690946 Plug-Oil Drain 187 791766

15A 691680 Plug-Oil Drain

16 790132 Crankshaft 187A 791744

20 690947 • Seal-Oil (PTO Side) 188 691108

22 694966 Screw(Crankcase Cover) 192 690083

23 691053 Flywheel 209 697674

24 222698s Key-Flywheel 211 691019

25 792117 Piston Assembly (Standard) 212 695238

792144 Piston Assem- 213 691021

bly (,020" Oversize) 216 691022

26 792026 Ring Set (Standard) 219 698231

792073 Ring Set (.020" 220 690412

Oversize) 222 698761

27 690975 Lock-Piston Pin 227 792492

28 690229 Pin-Piston (Standard) 231 690718

29 699699 Rod-Connecting (Standard) 240 691035

32 690976 Screw (Connecting Rod) 250 690957

33 499596 Valve-Exhaust 252 690956

34 697464 Valve-Intake 265 691024

35 694865 Spring-Valve (Intake) 267 695134

36 694865 Spring-Valve (Exhaust) 276 690997

42 499586 Keeper-Valve 287 691108

45 690977 Tappet-Valve 304 790688

46 790562 Camshaft 305 691005

48 698173 Short Block 305A 790690

50 695241 Manifold-Intake 309 691262

51 791677 "Q:I: Gasket-Intake 310 691263

53 690951 Stud (Carburetor) 311 497608

54 695239 Screw (Intake Manifold) 332 691059

54A 699816 Screw(Intake Manifold) 333 691060

73 494439 Screen-Rotating 334 691061

74 698425 Screw (Rotating Screen) 337 691043

75 691056 Washer (Flywheel) 358 694012

89 690283 Plug-Oil 363 691062

95 690718 Screw(Throttle Valve) 383 690966

98 699721 Kit-Idle Speed

104 694918 Q Pin-Float Hinge °

105 698537 _ Valve-Float Needle

108 699723 Valve-Choke :1:

117 699732 Jet-Main (Standard)(Left) +

117A 699733 Jet-Main (Standard)(Right)

118 790890 Jet-Main (High Altitude)(Left)

118A 699458 Jet-Main (High Altitude)(Right)

DESCRIPTION

Kit-Carburetor Overhaul

Carburetor

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Tube-Fuel Transfer

(_:l:Gasket-Float Bowl

Kit-Choke Shaft

Nozzle-Carburetor

Key-Timing

Gl:l:Gasket-Nozzle

Retainer-Solenoid

•+ Gasket-Air Cleaner

Nut (Ring Gear)

Line-Fuel

(Cut to Required Length)

Line-Fuel (Molded)

Screw (Control Bracket)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Link-Governor

Bracket-Choke Control

Link-Choke

Gear-Governor

Washer (Governor Gear)

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw (Casing Clamp)

°_:l:Washer-Sealing

Screw (Dipstick/Tube Assembly)

Housing-Blower

Screw (Blower Housing)

Motor-Starter

Screw (Starter Motor)

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Gasket Set-Engine

Puller-Flywheel

Wrench-Spark Plug

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No. 121

Included in Carburetor Gasket Set, Key. No. 977

Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S. inches 1

inch = 25.4 mm

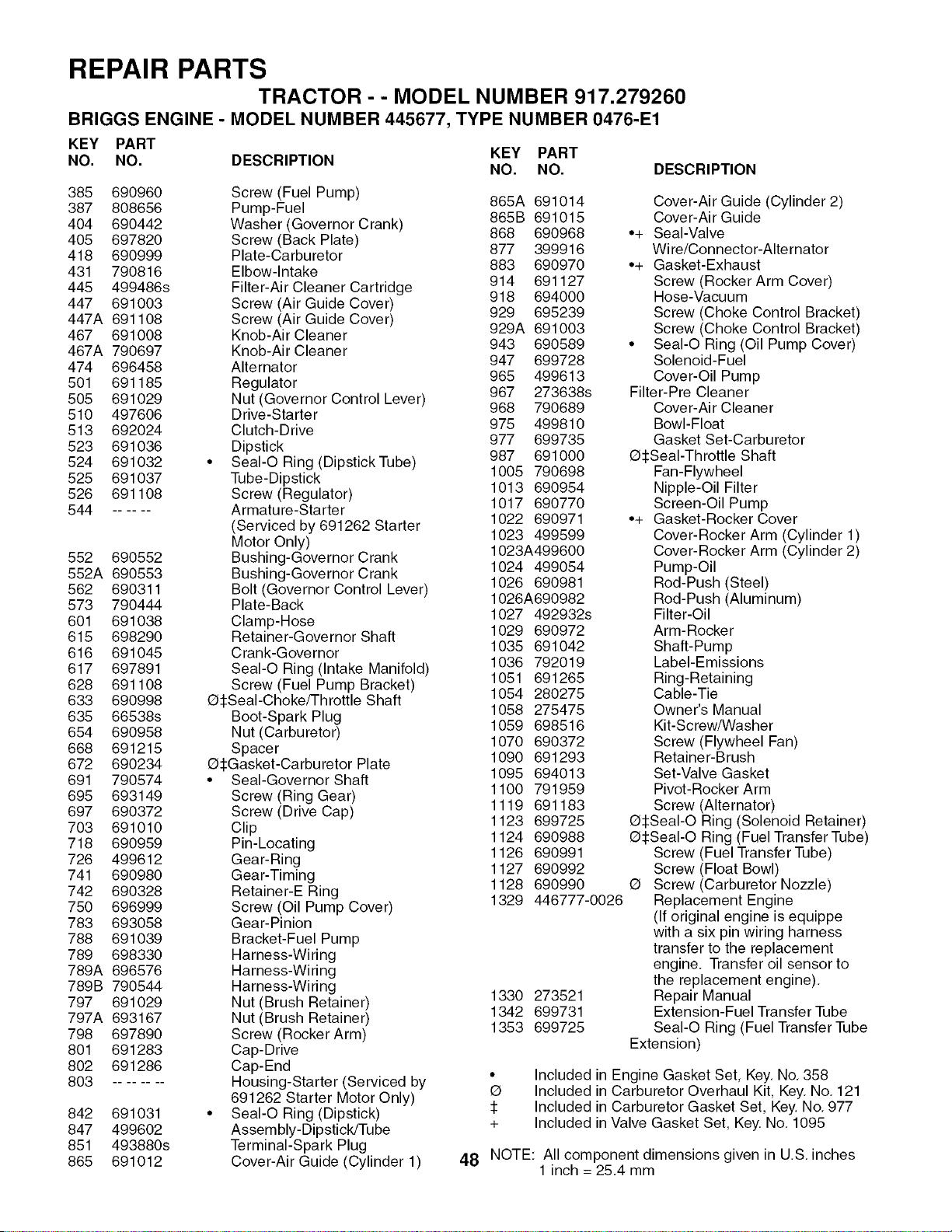

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.279260

BRIGGS ENGINE - MODEL NUMBER 445677, TYPE NUMBER 0476-E1

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

385 690960 Screw (Fuel Pump) 865A 691014

387 808656 Pump-Fuel 865B 691015

404 690442 Washer (Governor Crank) 868 690968

405 697820 Screw (Back Plate)

418 690999 Plate-Carburetor 877 399916

431 790816 Elbow-Intake 883 690970

445 499486s Filter-Air Cleaner Cartridge 914 691127

918 694000

447 691003 Screw (Air Guide Cover) 929 695239

447A 691108 Screw (Air Guide Cover)

467 691008 Knob-Air Cleaner 929A 691003

467A 790697 Knob-Air Cleaner 943 690589

474 696458 Alternator 947 699728

501 691185 Regulator 965 499613

967 273638s

505 691029 Nut (Governor Control Lever)

510 497606 Drive-Starter 968 790689

513 692024 Clutch-Drive 975 499810

523 691036 Dipstick 977 699735

524 691032 • SeaI-O Ring (Dipstick Tube) 987 691000

1005 790698

525 691037 Tube-Dipstick 1013 690954

526 691108 Screw (Regulator)

544 Armature-Starter 1017 690770

(Serviced by 691262 Starter 1022 690971

1023 499599

Motor Only) 1023A499600

552 690552 Bushing-Governor Crank 1024 499054

552A 690553 Bushing-Governor Crank 1026 690981

562 690311 Bolt (Governor Control Lever)

573 790444 Plate-Back 1026A690982

601 691038 Clamp-Hose 1027 492932s

615 698290 Retainer-Governor Shaft 1029 690972

616 691045 Crank-Governor 1035 691042

617 697891 SeaI-O Ring (Intake Manifold) 1036 792019

1051 691265

628 691108 Screw (Fuel Pump Bracket)

633 690998 O:l:SeaI-Choke/Throttle Shaft 1054 280275

1058 275475

635 66538s Boot-Spark Plug 1059 698516

654 690958 Nut (Carburetor) 1070 690372

668 691215 Spacer

672 690234 O:l:Gasket-Carburetor Plate 1090 691293

691 790574 • Seal-Governor Shaft 1095 694013

695 693149 Screw (Ring Gear) 1100 791959

1119 691183

697 690372 Screw (Drive Cap) 1123 699725

703 691010 Clip 1124 690988

718 690959 Pin-Locating 1126 690991

726 499612 Gear-Ring 1127 690992

741 690980 Gear-Timing 1128 690990

742 690328 Retainer-E Ring 1329 446777-0026

750 696999 Screw (Oil Pump Cover)

783 693058 Gear-Pinion

788 691039 Bracket-Fuel Pump

789 698330 Harness-Wiring

789A 696576 Harness-Wiring

789B 790544 Harness-Wiring 1330 273521

797 691029 Nut (Brush Retainer) 1342 699731

797A 693167 Nut (Brush Retainer) 1353 699725

798 697890 Screw (Rocker Arm)

801 691283 Cap-Drive

802 691286 Cap-End •

803 Housing-Starter (Serviced by O

691262 Starter Motor Only)

842 691031 • SeaI-O Ring (Dipstick) :1:

847 499602 Assembly-Dipstick/Tube +

851 493880s Terminal-Spark Plug

865 691012 Cover-Air Guide (Cylinder 1)

Cover-Air Guide (Cylinder 2)

Cover-Air Guide

•+ Seal-Valve

Wire/Connector-Alternator

•+ Gasket-Exhaust

Screw (Rocker Arm Cover)

Hose-Vacuum

Screw (Choke Control Bracket)

• SeaI-O Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

O:l:SeaI-Throttle Shaft

Fan-Flywheel

Nipple-Oil Filter

Screen-Oil Pump

•+ Gasket-Rocker Cover

Cover-Rocker Arm (Cylinder 1)

Cover-Rocker Arm (Cylinder 2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-Oil

Arm-Rocker

Shaft-Pump

Label-Emissions

Ring-Retaining

Cable-Tie

Owner's Manual

Kit-Screw/Washer

Screw (Flywheel Fan)

Retainer-Brush

Set-Valve Gasket

Pivot-Rocker Arm

Screw (Alternator)

O:l:SeaI-O Ring (Solenoid Retainer)

O:l:SeaI-O Ring (Fuel Transfer Tube)

Screw (Fuel Transfer Tube)

Screw (Float Bowl)

O Screw (Carburetor Nozzle)

Replacement Engine

(If original engine is equippe

with a six pin wiring harness

transfer to the replacement

engine. Transfer oil sensor to

the replacement engine).

Repair Manual

Extension-Fuel Transfer Tube

SeaI-O Ring (Fuel Transfer Tube

Extension)

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No. 121

Included in Carburetor Gasket Set, Key. No. 977

Included in Valve Gasket Set, Key. No. 1095

48 NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SERVICE NOTES

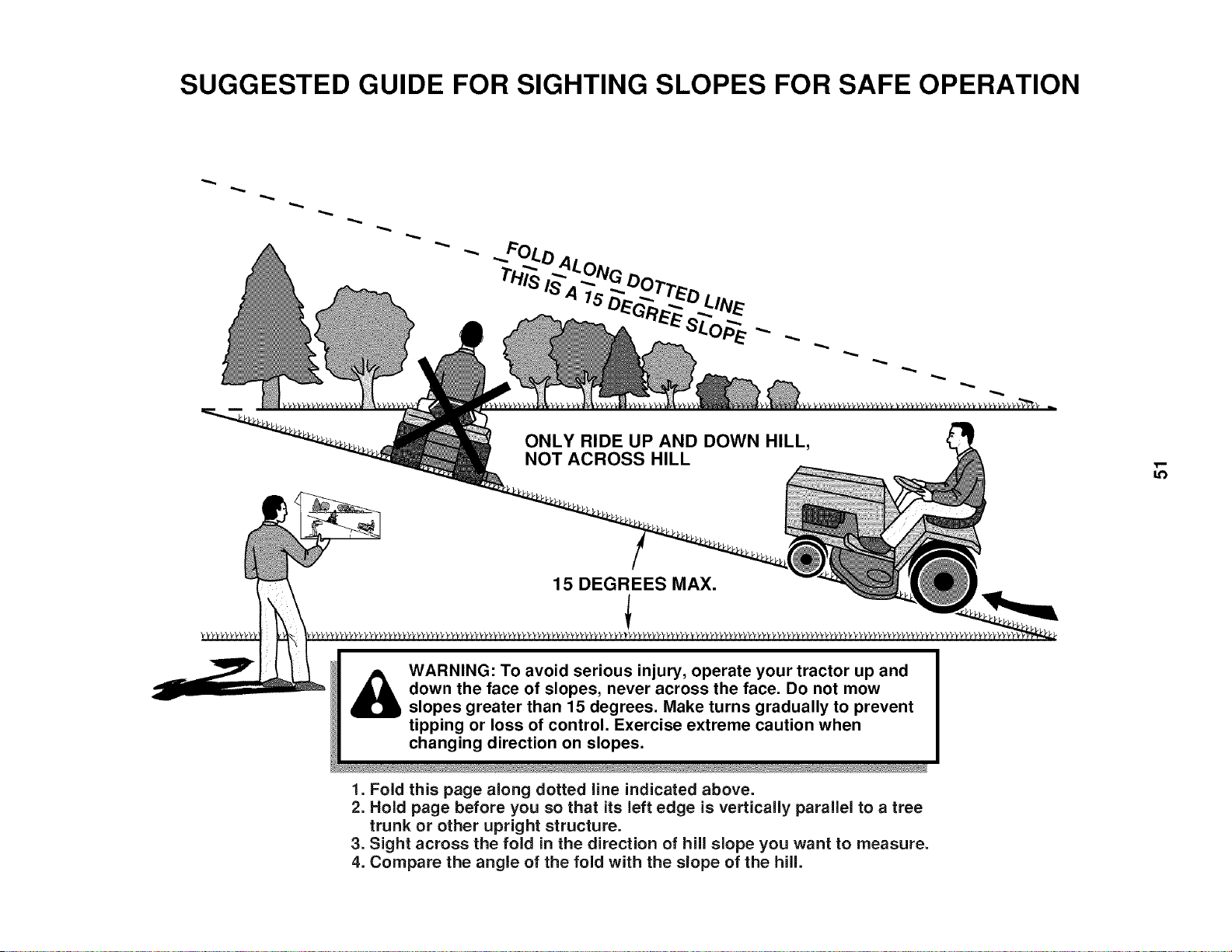

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

IP"

15 DEGREES MAX.

i_b WARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

(1)

€-

..Q

"[3

(1)

O..

H sqvarna

SECTION 1: LIMITED WARRANTY

Husqvarna Forest & Garden Company ("Husqvarna") warrants Husqvarna product to the original purchaser

to be free from defects in material and workmanship from the date of purchase for the "Warranty Period" of the

_roduct as set forth below:

.ifetime Warranty: All tiller tines against breakage, trimmer shafts, ignition coils and modules on hand held

)roclucr,

3 Year Warranty: Spindles (on Zero Turn Riders and Commercial Walk-Behinds)

2 Year COMMERCIAL-Warranty: Husqvarna Commercial Turf Equipment--zero turn riders, wide area walks,

and ground engaging commercial equipment.

2 Year NON-COMMERCIAL Warranty: Automatic Mower, Riding lawn mowers, yard and garden tractors, walk

behind mowers, tillers, chain saws, trimmers, brushcutters, clearing saws, snow blowers, handheld blowers,

backpack blowers, hedge trimmers, electrical products and power-assist collection systems for noncommercial

nonprofessional neninstitutienal or nenincome producing use, except as herein stated.

Emission control system components necessary to comply with CARB-TIER-II and EPA regulations, except

for those components which are part of engine systems manufactured by third party engine manufacturers for

which the purchaser has received a separate warranty with product information supplied at time of purchase.

Year Warranty: Power cutters, stump grinder, pole pruners and pole saws for non-commercial, non-pro-

fessional, non-institutional or non-income producinq use. All trimmers, brushcuttera, clearing saws, hovering

trimmers, stick edgers, backpack blowers, hand held blowers, hedge trimmers, power-assist collection systems

used for commercial, institutional, professional or income producing purposes or use.

Batteries have a one-year prorated limited warranty with 100% replacement during the first 6 months.

90 Day Warranty: Automatic Mower, Chain saws, power cutters, stump grinders, pole saws, pole prunera,

snow throwers, model series 580 & 600 walk-behind mowers and commercial turf equipment or any Husqvarna

_roduct used for commercial, institutional, professional, or income producing purposes or use except as oth-

erwise provided herein.

Husqvarna Safety Apparel carries a 90-day warranty from the date of the customer's original purchase for

defects in material and workmanship. Normal wear, tear or abuse is net covered under warranty. Product must

be returned to Charlotte with a warranty claim form. All care and maintenance instructions must be followed

as stated by the manufacturer on the care label. The fit of the protective apparel/boot is not covered under

warranty.

30 Day Warranty: Replacement parts, accessories including bars and chains, tools and display items.

SECTION 2: HUSQVARNA'S OBLIGATIONS UNDER THE WARRANTY

Husqvama will repair or replace defective components without charge for parts or labor if a component fails

because of a defect in material or workmanship during the warranty period.

SECTION 3: ITEMS NOT COVERED BY THIS WARRANTY

The following items are not covered by this warranty:

(1)Normal customer maintenance items which become worn through normal regular use, including, but not

limited to, belts, blades, blade adapters, bulbs, filters, guide bars, lubricants, rewind springs, saw chain,

spark plugs, starter ropes and tines;

(2)Natural discoloration of material due to ultraviolet light;

(3)Engine and drive systems not manufactured by Husqvarna; these items are covered by the respective

manufacturer's warranty as provided in writing with the product information supplied at the time of pur-

chase; all claims must be sent to the appropriate manufacturer;

(4)Lawn and garden attachments are covered by a third party which gives a warranty, all claims for war-

ranty should be sent to the manufacturer; and

(5)Emission Control System components necessary to comply with CARB-TIERdl and EPA regulations

which are manufactured by third party engine manufacturer.

WARRANTY STATEMENT

SECTION 4: EXCEPTIONS AND LIMITATIONS

This warranty shall be inapplicable to defects resulting from the following:

(1)Accident, abuse, misuse, negligence and neglect, including stale fuel, dirt, abrasives, moisture, rust,

corrosion, or any adverse reaction due to incorrect storage or use habits;

(2)Failure to operate or maintain the unit in accordance with the Owner's/Operator's manual or instruc-

tion sheet furnished by Husqvarna;

(3)Alterations or modifications that change the intended use of the product or affects the product's per-

formance, operation, safety, or durability, or causes the product to fail to comply with any applicable

laws; or:

(4)Additional damage to parts or components due to continued use occurring after any of the above.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY ISTHE EXCLUSIVE REMEDY OF

THE PURCHASER. HUSQVARNA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THESE PRODUCTS EXCEPT

TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABIL-

ITY OR FITNESS FOR A PARTICULAR PURPOSE ON THESE PRODUCTS IS LIMITED IN DURATION TO

THE WARRANTY PERIOD AS DEFINED IN THE LIMITED WARRANTY STATEMENT. HUSQVARNA RE-

SERVES THE RIGHT TO CHANGE OR IMPROVE THE DESIGN OF THE PRODUCT WITHOUT NOTICE,

AND DOES NOT ASSUME OBLIGATION TO UPDATE PREVIOUSLY MANUFACTURED PROD-

UCTS.

Some states do not allow the exclusion of incidental or consequential damages, or limitations on how long

an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights which vary from state to state.

SECTION 5: CUSTOMER RESPONSIBILITIES

The product must exhibit reasonable care, maintenance, operation, storage and general upkeep as written

in the maintenance section of the Owner's/OperatoCs manual. Should an operational problem or failure occur,

the product should not be used, but delivered as is to an authorized Husqvarna dealer for evaluation. Proof

of purchase, as explained in section 6, rests solely with the customer.

SECTION 6: PROCEDURE TO OBTAIN WARRANTY CONSIDERATION

It is the Owner's and Dealer's responsibility to make certain that the Warranty Registration Card is properly

filled out and mailed to Husqvarna Forest & Garden Company. This card should be mailed within ten (10) days

from the date of purchase in order to confirm the warranty and to facilitate post-sale service.

Proof of purchase must be presented to the authorized Husqvarna dealer in order to obtain warranty ser-

vice. This proof must include date purchased, model number, serial number, and complete name and address

of the selling dealer.

To obtain the benefit of this warranty, the product believed to be defective must be delivered to an au-

thorized Husqvarna dealer in a timely manner, no later than thirty (30) days from date of the operational

problem or failure. The product must be delivered at the owner's expense. Pick-up and delivery charges are

net covered by this warranty. An authorized Husqvarna dealer can be normally located through the "Yellow

Pages" of the local telephone directory or by calling 1-800-HUSKY62 for a dealer in your area.

HUSQVARNA

7349 Statesville Road

Charlotte, NC 28269

531 83 81-23 2002

Husqvarna GTH2448T Law Mowers Tractor

Product's Documents

Owner's Manual

Specifications

Husqvarna GTH2448T Questions and Answers
