ASSEMBLY AND INSTRUCTIONS
GRAIN MILL
Once the mill is installed, adjust the grinding adjusting screw(14) to obtain the desired texture - the
tighter, the finer the grind, and the more open, the coarser the grind. Finally, secure the adjusting
screw(14) by tightening the lock nut(13).
FOR USA: Questions?
Contact us at [email protected]
Loosen the adjusting screw (14) before
disassembling the Victoria grain mill.
USAGE INSTRUCTIONS
IMPORTANT
For instructions on
assembly visit our channel
VictoriaCookware
WATCH IT ON
YouTube
VictoriaCookware @VictoriaCookware
STEP
STEP
STEP
STEP
STEP

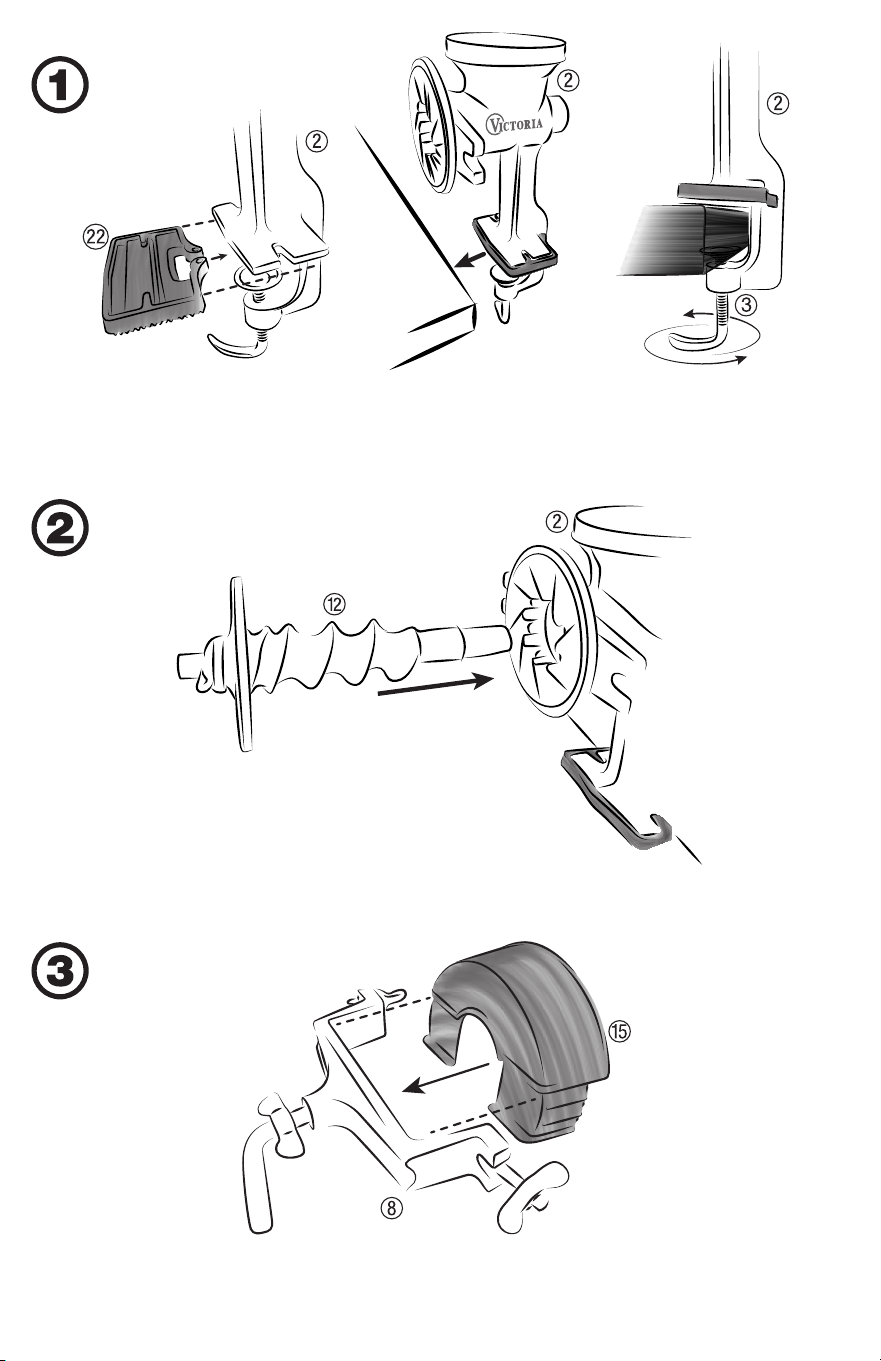

Insert the protective rubber (22) into the Victoria mill body (2) with the serrated surface facing
down, then place the body (2) on the edge of a stable and firm surface; secure the Victoria mill
body (2) by tightening the clamp screw (3) until it is fixed and firm.

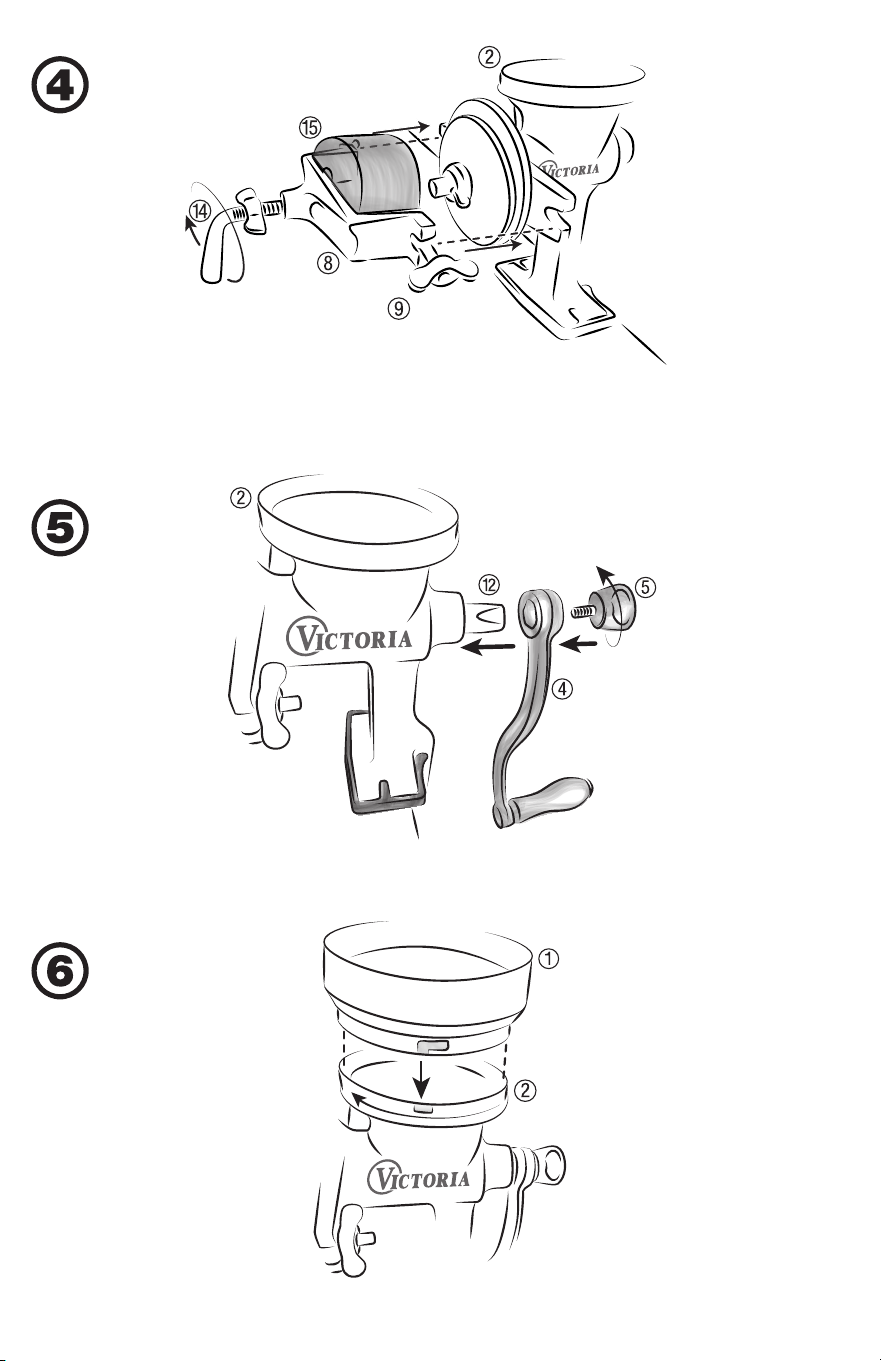

Make sure to have the adjusting screw (14) as open as possible. Then fasten the bearing support
(8) with the grinding disk cover (15) to the mill body (2), adjusting the wing nuts (9) to the brackets
on each side and tightening until direct contact is ensured.
Place the crank handle (4) on the protrusion of the feed screw (12) and fix it with its
respective screw (5)
Place the hopper (1) on top of the mill body (2), matching its pins and turning the hopper
slightly clockwise to secure.
Fully insert the feed screw (12) into the mill body(2)
Place and tighten the grinding disk cover(15) to the bearing support(8),
matching the external tracks.
STEP
STEP
STEP
STEP
STEP
STEP
Insert the protective rubber (22) into the Victoria mill body (2) with the serrated surface facing
down, then place the body (2) on the edge of a stable and firm surface; secure the Victoria mill
body (2) by tightening the clamp screw (3) until it is fixed and firm.
Make sure to have the adjusting screw (14) as open as possible. Then fasten the bearing support
(8) with the grinding disk cover (15) to the mill body (2), adjusting the wing nuts (9) to the brackets
on each side and tightening until direct contact is ensured.
Place the crank handle (4) on the protrusion of the feed screw (12) and fix it with its
respective screw (5)
Place the hopper (1) on top of the mill body (2), matching its pins and turning the hopper
slightly clockwise to secure.
Fully insert the feed screw (12) into the mill body(2)
Place and tighten the grinding disk cover(15) to the bearing support(8),
matching the external tracks.
STEP
ASSEMBLY AND INSTRUCTIONS
GRAIN MILL
Once the mill is installed, adjust the grinding adjusting screw(14) to obtain the desired texture - the
tighter, the finer the grind, and the more open, the coarser the grind. Finally, secure the adjusting
screw(14) by tightening the lock nut(13).
FOR USA: Questions?
Contact us at [email protected]
Loosen the adjusting screw (14) before
disassembling the Victoria grain mill.
